Overview

The Remote Jack Pack (RJP) contains circuitry to determine the pres­ence of a signal at each input jack.
(Note: Audio In, Audio In L-R and Video In inputs detect the pres­ence of the inserted plug, regardless if a signal is present or not.)

When a source is detected, its priority is compared to the priority of
other sources which may be present. If the newly-connected active
source is of higher priority than the existing source(s), the RJP
directs the TV display panel to that source.

Video and audio are monitored and switched independently.
Power is supplied to the RJP by the TV display panel via the control

signal cable.

O

T

R

S

E

S

S

E

E

R

T

P

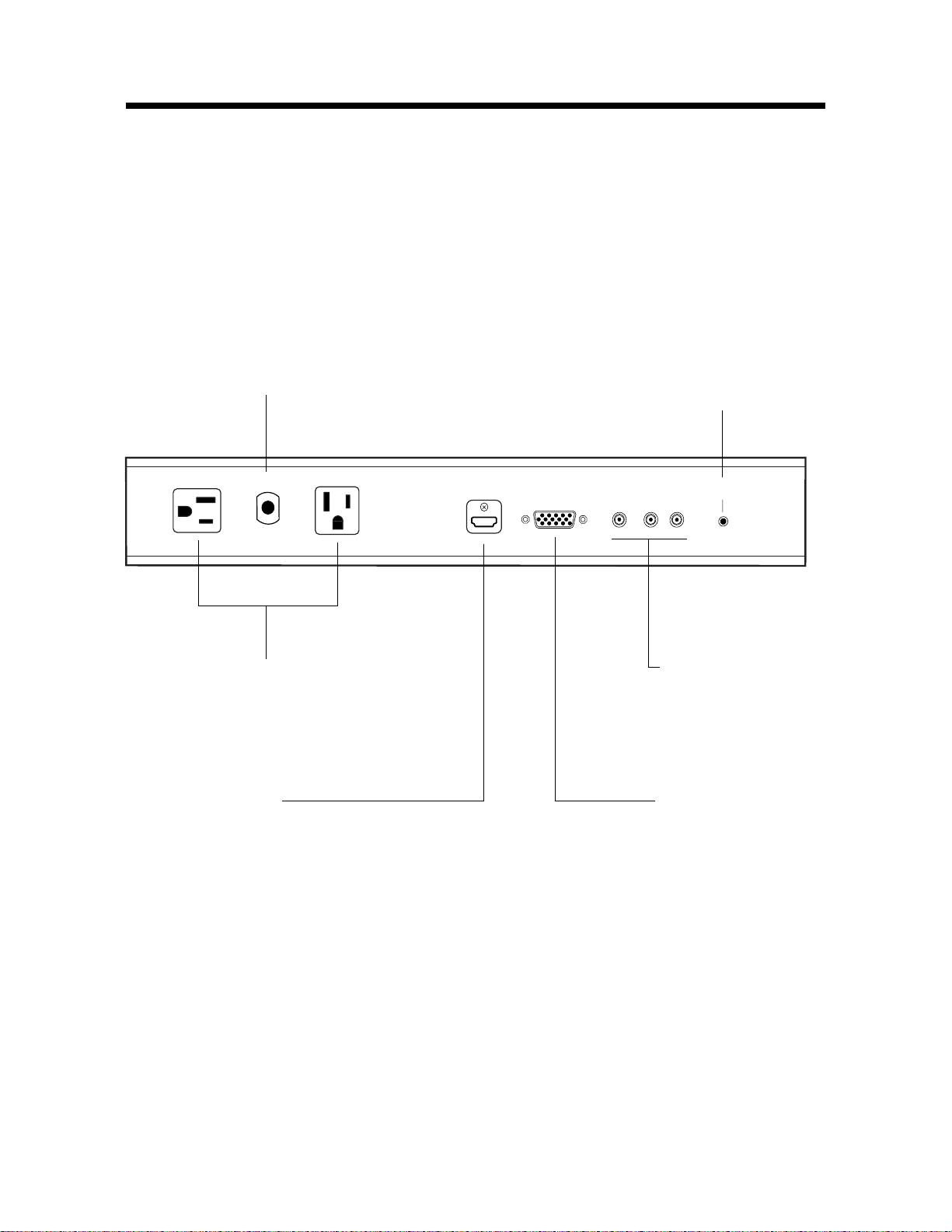

7 AMP MAXIMUM CURRENT

DIGITAL VIDEO IN

PC VIDEO IN

VIDEO IN

AUDIO IN

L

AUDIO IN

R

Introduction

Conveniently installed right in the room where guests will stay, the LG Remote
Jack Pack, (RJP) multi-media interface is available to end-users to connect audio,
video and computer devices to hear and view on the in-room TV display panel.
The RJP can be set up to interface with the TV display panel to show the image
and/or sound from a portable DVD/CD Player, Camcorder, MP-3 Player, Notebook
computer, or portable Video Game Player. Or, devices with digital video output
such as DVD players. If the end-user does not connect any devices, then the in­room TV display panel will remain on the source selected. When the end-user con­nects a device, the interface switches the TV display panel to the new source.
Users can recharge laptop or cell phone batteries while watching TV.

The RJP interface is designed to be able to process audio from one source, and
video separately from a different source, if required. (The end-user can work on a
laptop computer while listening to music from an MP-3 player.) However, only
one audio and one video source can be heard/seen at the same time.

The end-user can simply plug the device’s power cord into one of the two conven­ience AC power outlets provided on the RJP. Then plug in its Audio/Video
cable(s) to the RJP input jack(s) and turn the device on. The RJP completes the
connection between the newly-connected audio and/or video source and the TV
display panel. No end-user menus are involved, all connections are made directly
to the interface.

The RJP continually monitors its source inputs. When a signal is detected, (a
device is plugged into one of the RJP inputs) the interface sends a message to
the TV display panel to switch to the newly-connected source (if the new source
is of higher priority). The interface allows only the higher priority audio and
video to be heard and seen on the TV display panel. The control cable supplies
12 Volt DC power from the TV display panel to operate the interface.

Overview

CLEANING CAUTION:

Since the end-user jack panel is exposed, use extreme caution when
cleaning. Do not use liquid cleaners on the connections panel. Do
not allow liquids to be spilled, sprayed onto or otherwise come into
contact with the connections panel on both the end-user side and
the installer side. Clean with a slightly damp cloth.

7 AMPS MAXIMUM CURRENT TO AC OUTLETS:

The maximum combined total current that is allowable to the AC
power outlets is 7 Amps. These are protected by a circuit breaker
type re-settable fuse.

5

206-4061-A

6

206-4061-A

The RJP-110W can only be installed in a vertical position into the

cutout provided in the cabinet front panel. Vertical mount­ing in the cutout is required so that if liquid is spilled on
the desk top, it will not be able to flow into the RJP. The
RJP must only

be installed in the cutout opening. It will
then need to be secured with the four retainer clips, serrated washers
and machine screws provided. The cable wiring assembly and individ­ual cables will need to be connected to the RJP. Route cable bundle
to avoid damage from chaffing, binding etc.
Note: The connector set that is closest to the mesh sleeving is for
hook up to the TV display panel.

Installation Instructions

1. Remove the cabinet front panel and insert the RJP into the cutout.

2. Install the four L-shaped mounting retainer clips, screws and

serrated washers provided to hold the RJP securely in place. Check
to assure that the RJP is securely mounted.

3. Make all connections to the RJP, see the following page for details.

4. Use self-stick cable supports to relieve strain on connectors at RJP.

5. After attaching cable hardware etc., reinstall front panel on the

cabinet.

Installation in Cabinet Front Panel

CAUTION: The cable wiring assembly should be handled carefully to

avoid damage, as it is routed between display panel and
the RJP. The AC power cord should be plugged into a dedi­cated and appropriate AC wall power outlet.

Note: The actual appearance of the cable assembly, cabinet, front panel, mounting hardware and cable clamps etc., may
be different than shown in these drawings.

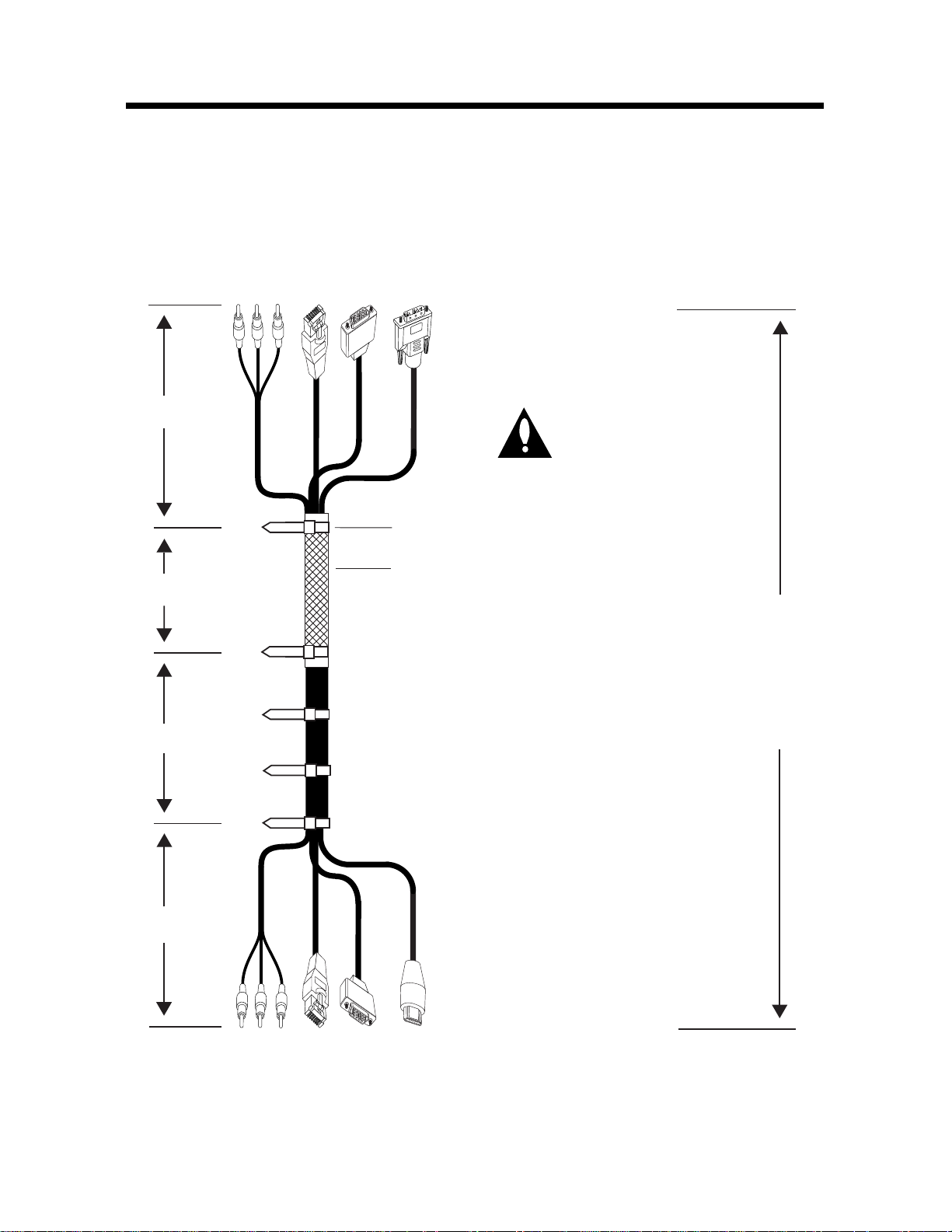

Adhesive-Backed Cable
Bundle Supports

Use adhesive-backed cable
supports. Attach them to
the back and underside of
the cabinet where the
weight of the cable bun­dle is likely to put strain
on the connectors.

DIGITAL VIDEO OUT

RGB OUT

VIDEO OUT

AUDIO OUT
R L

CONTROL

DIGITAL VIDEO OUT

RGB OUT

VIDEO OUT

AUDIO OUT
R L

CONTROL

DIGITAL VIDEO OUT

RGB OUT

VIDEO OUT

AUDIO OUT
R L

CONTROL

DIGITAL VIDEO OUT

RGB OUT

VIDEO OUT

AUDIO OUT
R L

CONTROL

CONTROL

AUDIO OUT
R L

VIDEO OUT

RGB OUT

DIGITAL VIDEO OUT

CAUTION: Be sure power is turned off before
attempting to connect the RJP-110W to the TV
display panel and in-room resources.

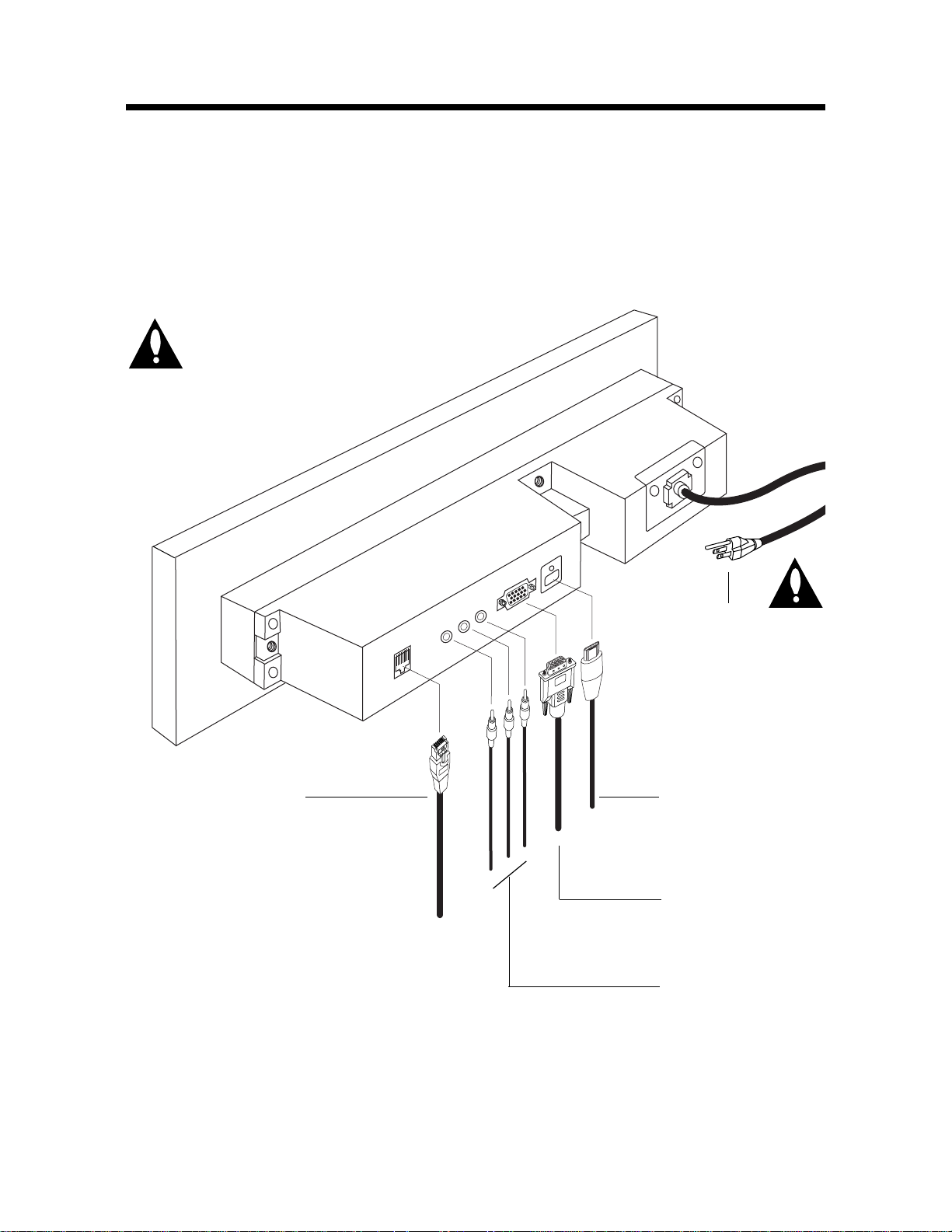

Installer Connections

AC Power Cord

Connect to 120V 60 Hz AC
power outlet. Supplies
power to the two conven­ience AC power outlets for
the end-user. (Maximum
combined total current to
both outlets is 7 Amps.)

Control Cable (8-Pin RJ-45)
w/Yellow Protective Sleeve

Connect to RJP port on TV
display panel.

Audio/Video Cables

Connect to Left-Right
Audio/Composite Video
input jacks on TV display
panel.

RGB PC Video Cable

Connect to RGB input on
TV display panel.

Digital Video Cable

Connect to digital video
input on TV display panel.

7

206-4061-A

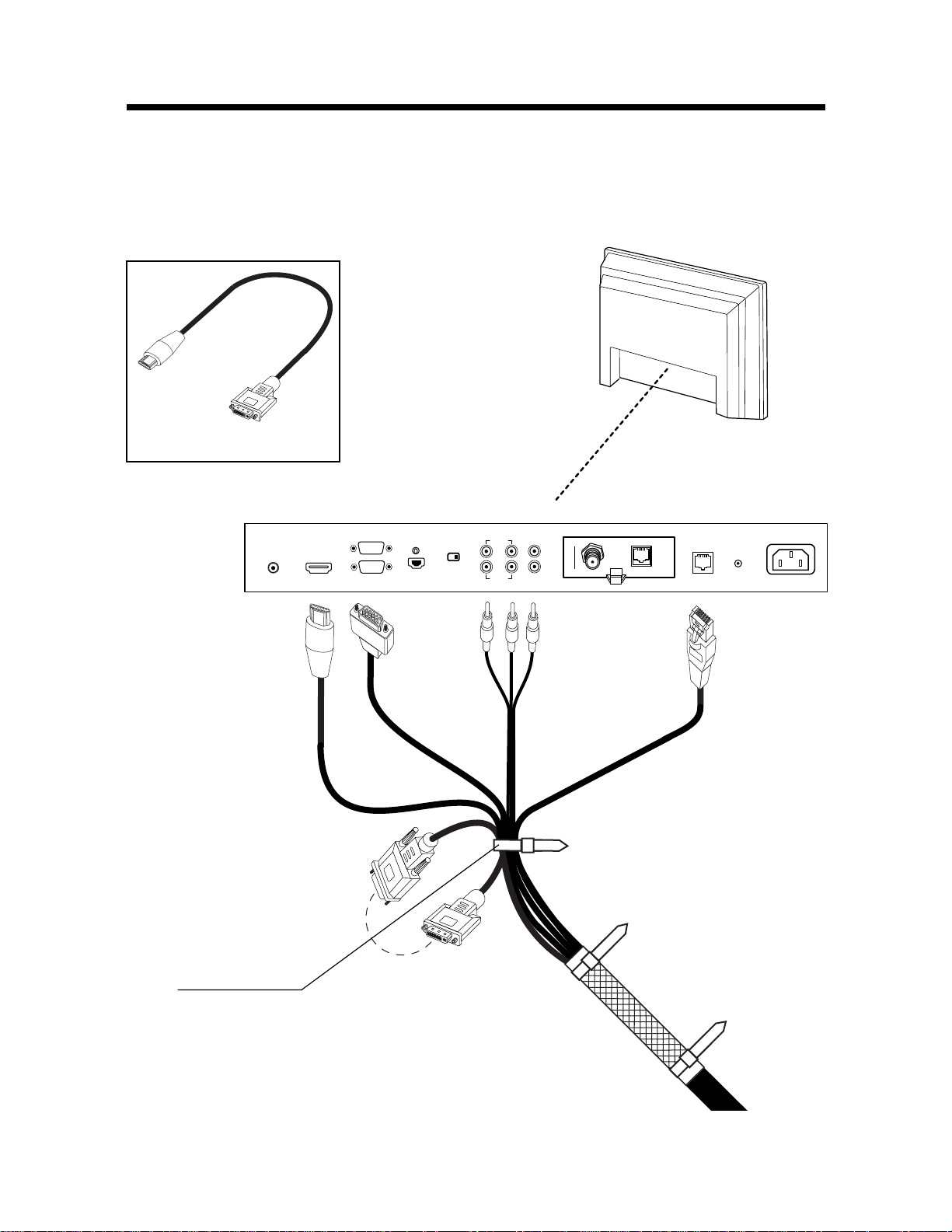

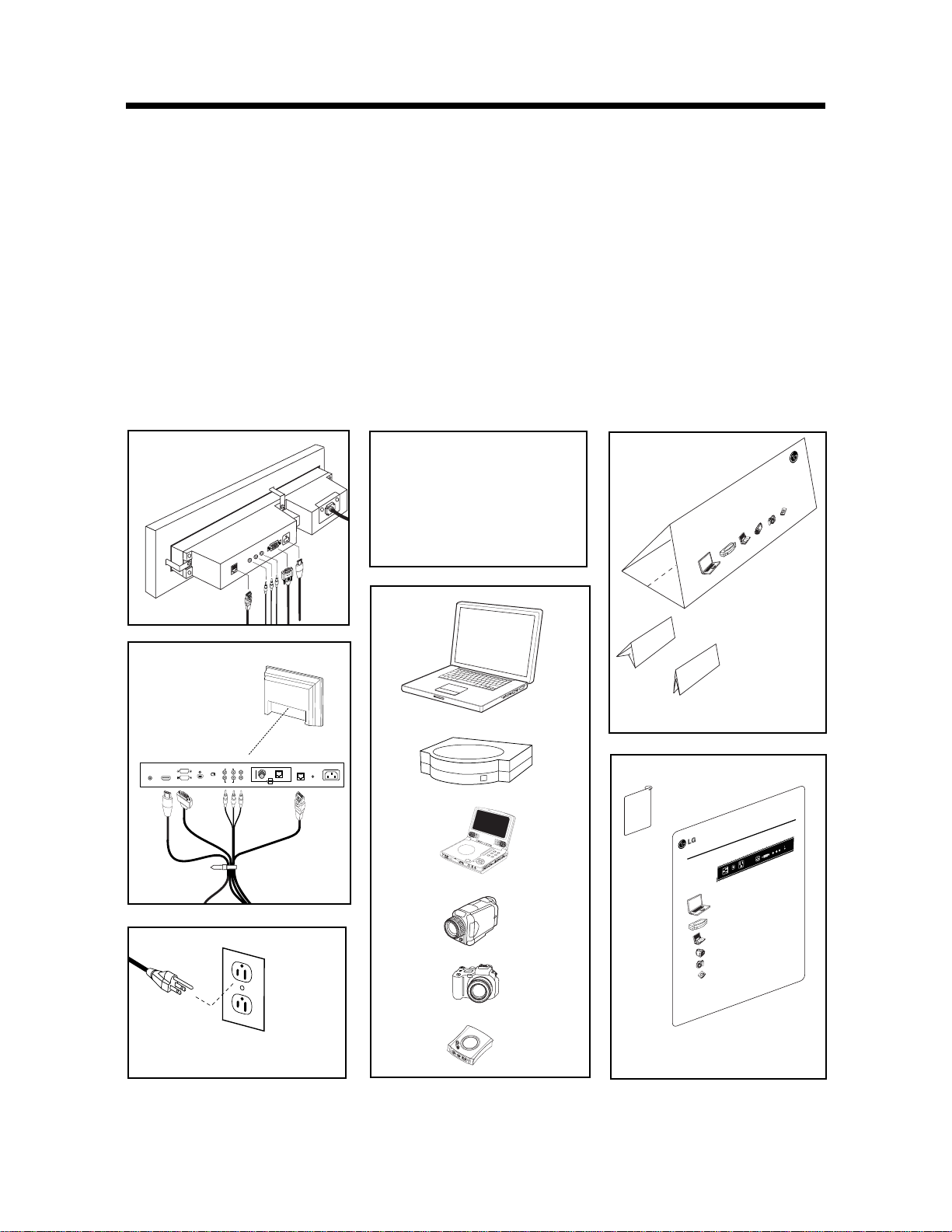

The RJP-110W and the cables listed below are to be connected to both the TV display
panel and any other entertainment resources available in room.

206-4061-A

8

Installer Connections Contd.

After completing connections between the RJP, the TV display panel and other
resources, be sure the installer menu items have been updated to enable the RJP.
Installer Menu item 040 Auto Camport needs to be set to 000 and 093 RJP
Available needs to be set to 001. (See TV installation guide for complete instruc­tions on new TV installations.) A brief description of each of the available RJP
connections is provided below.

Digital Video Output

Connect to digital video input on TV display panel to allow the end-user to show
DVD’s high-resolution digital video on the in-room TV.

PC RGB Output

Connect to RGB input on TV display panel to allow the end-user to show a com­puter/Laptop image on the in-room TV.

Control 8-Pin RJ-45 Output Port

Connect to RJP port on TV display panel for control and power supply for the RJP
multi-media interface.

Left-Right Audio/Video Output Jacks

Connect to Left-Right Audio/composite Video inputs on TV display panel.

AC Power Cord (Installed on RJP)

Connect to standard 120V 60Hz AC power outlet.
(Four 120 Volt 60 Hz AC power outlets are provided for the end user.
However, 7 Amps. is the maximum combined current allowed for the AC
outlets.

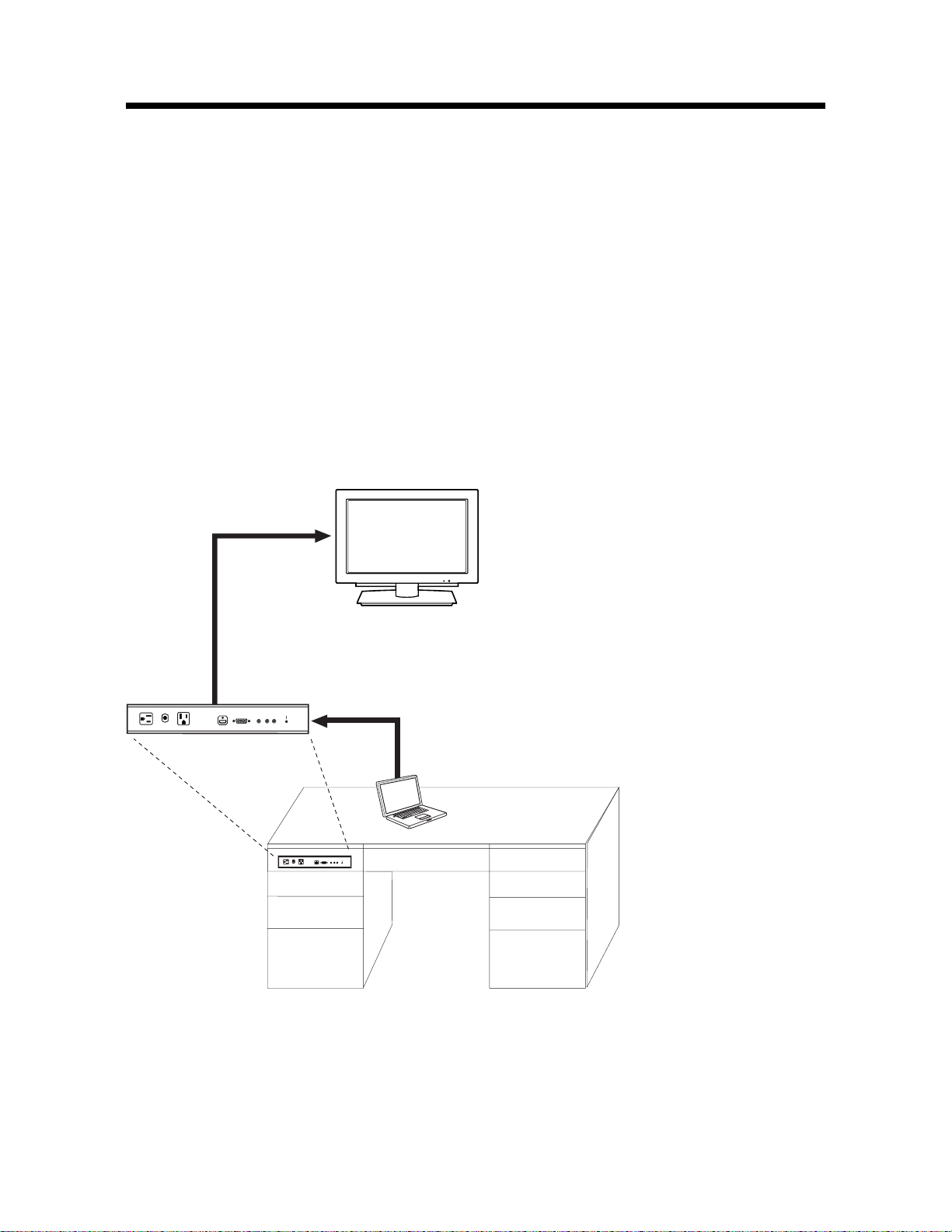

The end-user simply plugs a device such as a laptop computer with the appropriate
cables, as shown in the example, into the RJP connection panel. The Remote Jack
Pack senses the new source connection and switches the TV to the newly-connected
source. The device’s sound and image are then presented on the in-room TV display
panel. The TV display panel adjusts automatically to the computer output format.
When the laptop is disconnected, the interface directs the TV to revert back to the
previous source for video and audio.

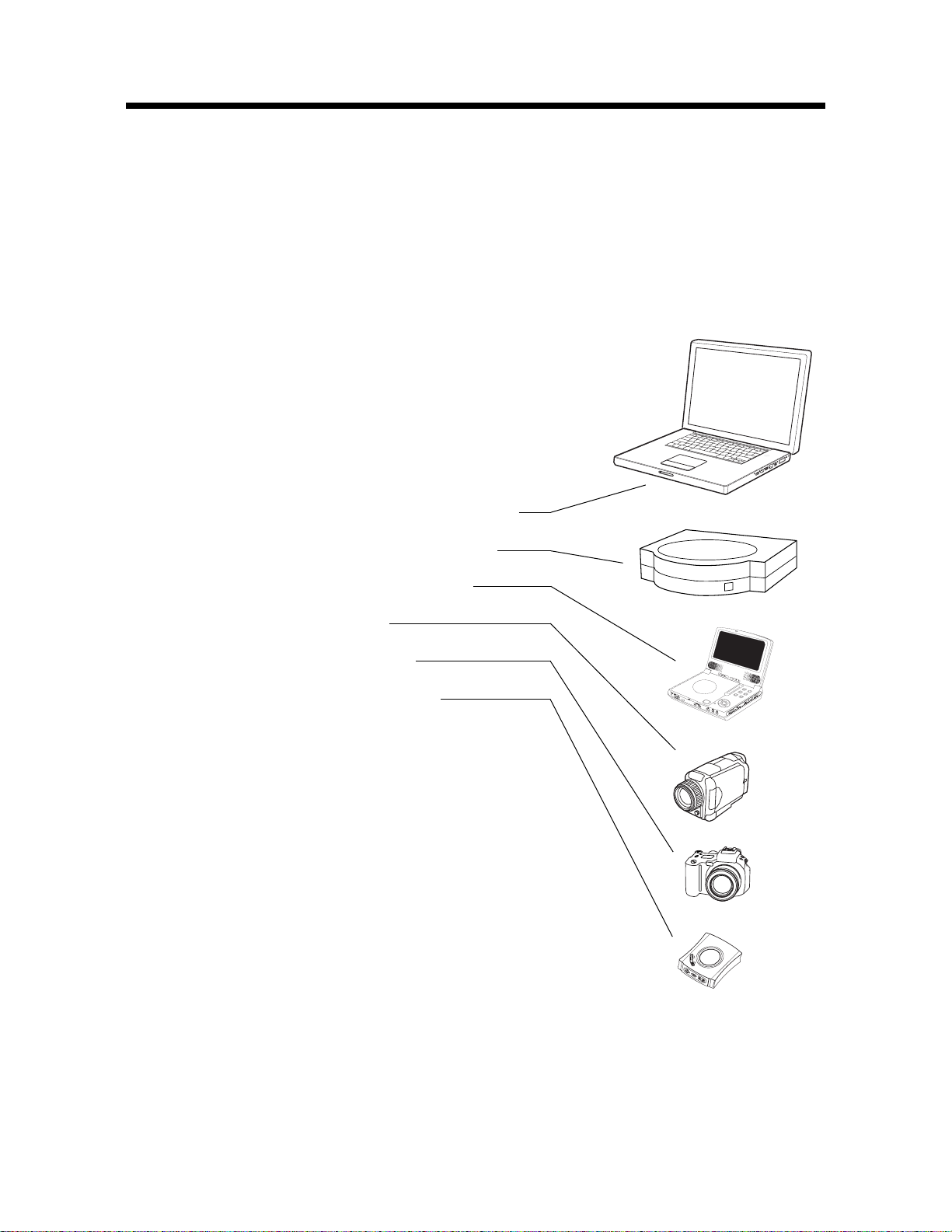

The end-user has several
audio/video connection
options available for con­necting external devices. The
guest/user can connect a
portable DVD Player, CD
Player, Camcorder, MP-3
Player, Notebook Computer,
Portable Video Game Player,
etc. For added convenience,
two AC power outlets are
also available on the front of
the interface to provide
power for these external
devices and/or recharge lap­top or cell phone batteries.
(The maximum combined cur­rent allowed for the AC
power outlets is 7 Amps.)

An end-user could connect
and hear audio from one
device and connect and view
video from a different device.
The RJP offers two different
stereo audio input jacks to
accommodate various end­user devices. However, only
the higher priority audio
source will be selected and
heard. Similarly, multiple
video inputs are available,
but only the higher priority
video source will be selected
and displayed. (See page 12
input priorities.)

9

206-4061

S

End-User Connections Overview

S

E

R

P

7 AMP MAXIMUM CURRENT

O

T

R

E

S

E

T

DIGITAL VIDEO IN

PC VIDEO IN

End-User

Connection Panel

Today's

Report

Typical

In-Room TV

Display Panel

VIDEO IN

AUDIO IN

AUDIO IN

R

L

Today's

Report

®

O

T

R

S

E

S

S

E

E

R

T

DIGITAL VIDEO IN

PC VIDEO IN

VIDEO IN

AUDIO IN

P

7 AMP MAXIMUM CURRENT

AUDIO IN

R

L

10

206-4061

End-User Multi-Media Interface Connections

Reset Switch

Circuit breaker for

AC power outlets.

AC Power Outlets

Two (2) convenience AC

outlets for end-user. (Total

combined current is

7 Amps maximum.)

Audio/Video Input Jacks

Connection for Left-Right
Audio/Composite Video
sources.

PC Video (RGB) Input port

Connection for PC Video.

3.5 mm Stereo Audio
Input Jack

Connection for MP-3 player
or PC audio.

Digital Video Input Port

Connection for digital

video sources. (portable

DVD)

(Note: Audio In, Audio In
L-R and Video In inputs
detect the presence of an
inserted plug, regardless if
a signal is present or not.)

O

T

R

S

E

S

S

E

E

R

T

P

7 AMP MAXIMUM CURRENT

DIGITAL VIDEO IN

PC VIDEO IN

VIDEO IN

AUDIO IN

L

AUDIO IN

R

206-4061

11

Examples of devices a guest/end-user
can connect are shown to the right.
There are two AC power outlets avail­able on the jack pack for added con­venience.

The End-User Can Connect:

• PC Laptop/Notebook Computers

• Portable Video Game Players

• Portable DVD/CD Players

• Camcorders

• Digital Cameras

• MP-3 Audio Players

End-User Connectable External Source Devices

206-4061-A

12

End-User Audio/Video Input Priorities

End-User Audio/Video Input Priorities

Note: The highest priority is listed first.

Audio Inputs/Sources

1st. 3.5 mm Stereo Audio Jack
2nd. Left - Right Audio Jacks
3rd. Digital Video Audio

4th. TV Display Panel Tuner Audio (Audio Default)

Video Inputs

1st. Digital Video
2nd. PC Vide o
3rd. Video Composite jack

4th. TV Display Panel Tuner Video (Video Default)

12-Foot Output Cable Assembly

Reference

Note: Connector set
near mesh sleeving
hooks up to TV
display panel.

206-4061

13

VIDEO

AUDIO

L-R

CONTROL

w/Yellow

Sleeve

14"

36"

85"

RGB

DIGITAL

VIDEO

. . . . . . . .

. . . . . . . .

. . . . . . . .

6. Cable Tie

Mesh Sleeving

Output Cable Assembly Parts List

Item Description
No.

1. Left/Right Audio Cable.

2. Composite Video Cable.

3. RJ-45 Control Cable
w/Yellow Protective Sleeves.

4. RGB Cable.

5. Digital Video Cable.

6. Cable Ties.

Output

Cable

Assembly

is

12.0
Feet

in

Length

9"

1.

AUDIO

L-R

2.

VIDEO

3.

CONTROL

w/Yellow

Sleeve

RGB

4.

5.

DIGITAL

VIDEO

206-4061

Accessory Cable: DVI to HDMI Adapter Cable
Strain Relief

Strain Relief for
Accessory HDMI Cable

The weight of the DVI
adapter connection /
cable bundle may put a
strain on the HDMI con­nection, causing it to
become disconnected
from the TV. Relieve the
weight by attaching a
cable tie in the position
shown.

Note: The actual appear­ance of the TV etc., may be
different than shown in the
drawing.

Special Connections
Note: DVI to HDMI
Adapter Cable

For TVs equipped with
HDMI, this adapter cable
will be required to connect
the RJP for digital
video/audio.

14

Male
Connector

Female
Connector

DVI/PC

AUDIO

IN

HDMI/DVI

IN

RS-232C

.....

....

.....

.....

.....

PC IN

UPDATE

AL

DIGT

AUDIO

OUT (OPTICAL)

CONTROL

RS-232C

NORMAL

(DTV)

AUDIO IN VIDEO 1

VIDEO 2 IN

AUDIO IN

IN

CABLE

ANTENNA

M.P.I.

RJP

INTERFACE

FUTURE

USE

AC IN

Specifications

Application

Makes available to the hotel’s guests, a multi-media interface to the in-room TV display panel and media
resources. Input jacks are provided for external portable devices such as DVD/CD Players, Laptop Computers,
Camcorders, etc.

15

206-4061-A

Installer Connections

Digital Video Out Digital Video Connector

RGB OUT 15-pin RGB PC Monitor Connector

Control Out Control Jack (8-Pin RJ-45)

Video Out 1 Vpp into 75 ohms, Composite or Y+C Combined

Video Jack +/- 1 db @ 4.2 MHz

Audio Out L-R Left - Right Audio Jacks

Max: 1.6 V RMS (1 KHz) @ 600 ohms,
Typ: 250mV RMS @ 600 ohms

Supplied Accessories List

(Cable Assembly) Note: All cables within cable bundle are 12 feet in length.

• Digital Video Cable

• PC Video RGB Cable

• Control Cable (8-Pin RJ-45)

• 1-Set Left-Right Audio/Video Cables

(Attached Cord) • AC Power Cord, 120V 60Hz

(Misc. Hardware) • 5-Retainer Clips, L-Shaped (4-Required)

• 5-Machine Screws w/Serrated Washers (4-Required)

• 4-Self-stick, Nylon-tie Cable Mounting Platforms

• 4-Cable Ties

• 1 Black Cable Tie (DVI to HDMI Adapter Cable see page 14.)

(Separate Cable) • DVI (F) to HDMI (M) Adapter Cable (Optional connection)

Note: Design and specifications are subject to change without prior notice.

206-4061

16

Specifications Contd.

Dimensions

Height 2.25 Inches (5.7 cm)

Width 13.75 Inches (34.9 cm)

Depth 3.5 Inches (8.9 cm)

Weight (Approx.) 2.15 Pounds (.975223 kgrms)

End-User Device Inputs

AC Outlets x 2 AC 120V 60Hz (Maximum 7 Amps.

total combined current allowed for AC outlets)

Audio In 3.5mm Stereo Audio Jack

Audio In L-R Left - Right Audio Jacks

(Nom In: 250mV RMS @ 22K ohms)
Overload In: 1.6V RMS Max

Video In Composite Video Jack

1 Vpp, 75 ohms

PC Video In 15-pin RGB PC Monitor Connector

Digital Video In Digital Video Connector

Regulatory

UL, FCC Class B, Digital Video Device

Environmental Parameters

Operating Temperature 0° to 40° Degrees Celsius

(32° to 104° Degrees Fahrenheit)

Storage Temperature -20° to 85° Degrees Celsius

(-4° to 185° Degrees Fahrenheit)

Cooling Free Air Convection

Humidity 10% to 90% Non-condensing

Troubleshooting

206-4061

17

Equipment Setup Analysis Notes

• Make sure all connectors and connections are tight and secure on user device, RJP-110W and TV.

• Check to assure user device, RJP-110W and TV are all powered up and working properly and that the TV Installer menu
items are set correctly.

• Audio and Video can be from different sources. Default is TV tuner Audio and Video, if no other audio/video source is
connected.

• Audio source must be viable. The audio output from the customer’s device must be present when connected to be
heard at the TV.

• RJP AC circuit breaker maximum is 7 Amps. If 7 Amp current limit is exceeded, breaker will trip; unplug all accessory
devices from RJP AC outlets and press RESET.

Test Procedures

• Test and connect only one user device to determine if RJP is providing audio/video to TV.

• Test user device on another RJP (perhaps located in a different room) to determine if user device is compatible with
RJP.

• On LCD or Plasma TV, Installer menu items:
040 Auto Camport needs to be disabled by setting it to 000.
093 RJP Available needs to be set to 001 to enable RJP mode..

Following are some possible solutions to problems:

Problem Possible Cause(s) Check RJP, User Device and In-Room TV

No Power • Power not connected?

• Circuit breaker on RJP tripped?
(Unplug all accessory devices from RJP AC outlets, press RESET.)

No Audio • Have all audio connections been made?

• Audio output available?

• Volume level turned up?

• Sound muted?

• TV setup correct for RJP? (Installer menu item 040 is set to 000 and 093 set to 001.)

• Try another RJP.

• Priority level? (Disconnect other devices.)

• Connections made after 040 and 093 menu items set.
(Make connections before adjusting menu items 040 and 093.)

No Video • Video output available?

• All video cables connected?

• TV setup correct for RJP? (Installer menu item 040 is set to 000 and 093 set to 001.)

• Priority level? (Disconnect other devices.)

Poor Video • Check connections. (Video pass-through no user action possible.)

18

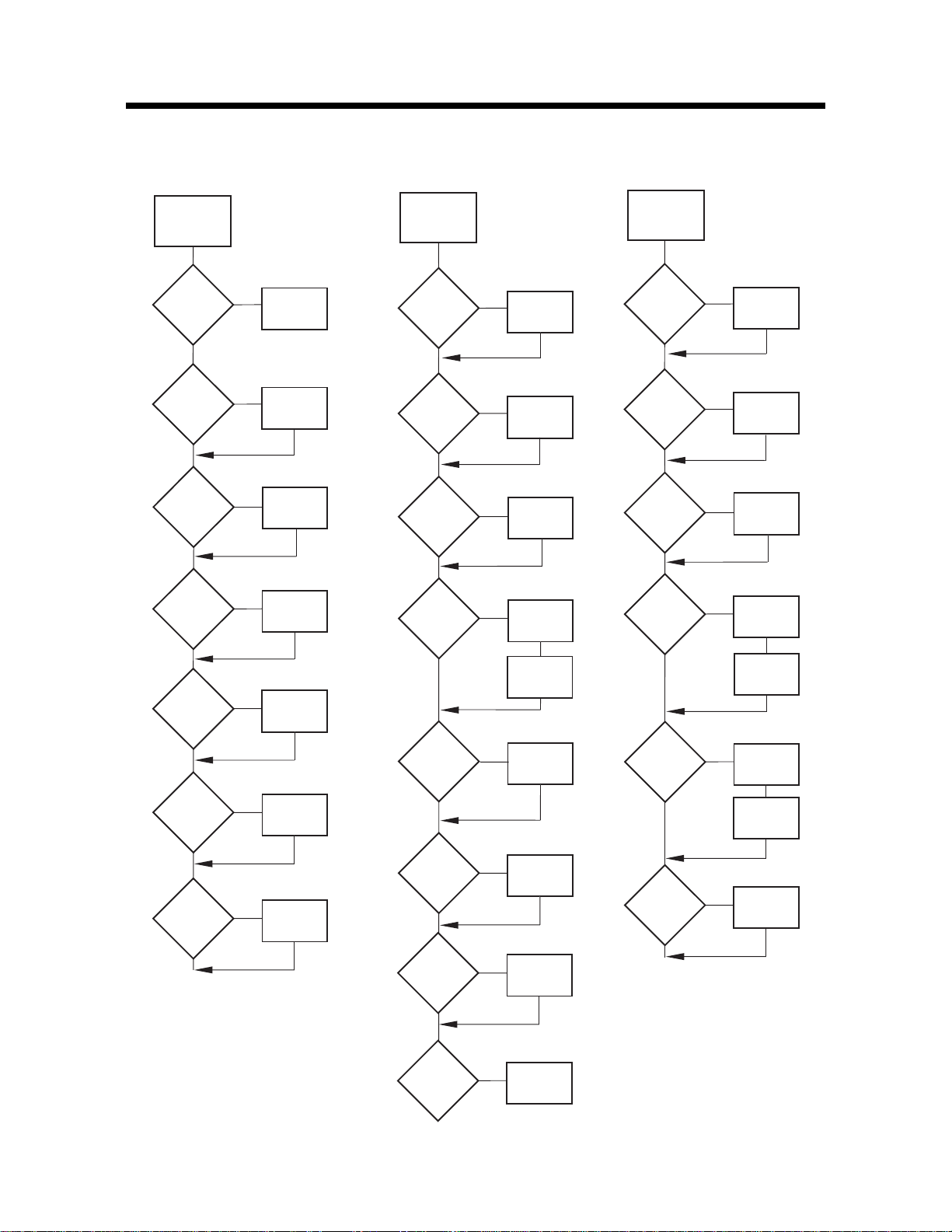

Troubleshooting Flow Charts

206-4061

No

Power

No Audio (or

not desired

Audio)

No Video (or

not desired

Video)

Power

Failure?

RJP

Is power cord

connected

?

Yes

RJP

Has Circuit

Breaker
Tripped

?

No

TV

Is power cord

connected

?

Yes

TV

Is TV power

turned on

?

User

Device

Is power cord

connected

?

User

Device

Is device

turned On

?

No

Yes

Yes

Yes

Yes

Yes

No

No

No

No

No

Restore

Power

Connect

Power

Cord

Remove AC

load, press

RESET

Connect

Power

Cord

Turn

Power

On

Connect

Power

Cord

Turn

Power

On

RJP

Has Circuit

Breaker
Tripped

?

RJP

Is Audio

connected

?

Yes

RJP

Are other

audio devices

connected

?

TV

Is TV

turned

On

?

Yes

TV

Are

Speakers

turned Off

?

No

TV

Is sound

Muted

or set too

low

?

No

User

Device

Is Audio

connected

?

Yes

RJP

Remove AC

load, press

Yes

RESET

No

Connect

Audio

No

Cables

Disconnect

other

Yes

Audio devices

No

Turn

No

TV On

Are

Installer menu

items set up?

Turn

Speakers

Yes

Yes

No

On

Press

Volume

Up

Connect

Has Circuit

Breaker

Tripped

?

RJP

Is Video

connected

?

Yes

RJP

Are other

Video devices

connected

?

TV

Is TV

turned

On

?

Yes

User

Device

Is correct

Video output

selected

?

Yes

User

Device

Is Video

connected

?

Yes

No

No

Yes

No

Yes

No

No

No

Remove AC

load, press

RESET

Connect

Video

Cables

Disconnect

other

Video devices

Turn

TV On

Are

Installer menu

items set up?

Select

correct Video

output

PC

External

Port

Connect

User

Device

Audio

available &

turned up

?

Turn

Volume

No

Up

206-4061-A

19

Quick Setup Guide

CONTROL

AUDIO OUT
R L

VIDEO OUT

RGB OUT

DIGITAL VIDEO OUT

.....

.....

.....

.....

....

DVI/PC
AUDIO

IN

HDMI/DVI

IN

RS-232C

PC IN

UPDATE

DIGT

AL

AUDIO

OUT (OPTICAL)

RS-232C

NORMAL
(DTV)

CONTROL

AUDIO IN VIDEO 1

IN

VIDEO 2 IN

AUDIO IN

M.P.I.

ANTENNA

CABLE

RJP

INTERFACE

FUTURE

USE

AC IN

RJP-110W

Remote Jack Pack (See other side)

• An example of usage would be to have your cell phone and PCcomputer plugged into
the AC outlets recharging while you listen to a CD player and watch the stock report on TV.
Or, listen to the hotel entertainment network and use your personal PC computer.

• You can connect your portable DVD/CD Player, Camcorder, MP-3 Player, Laptop PC, Video
Game Player or other personal entertainment devices like your cell phone.

®

PC

Game
Machine

DVD
Player

Camcorder

MP3

Player

Digital
Camera

1.

2.

3.

Typical TV Display Panel
Installer Menu

Item Description Set

040 Auto Camport 000
093 RJP Available 001

RJP-110W Remote Jack Pack
Hotel Guest Multi-Media Interface

• The LG Remote Jack Pack is provided to connect personal audio, video
and PC devices to hear and view on the in-room TV/display panel.

• As shown on the left, you can connect a portable DVD/CD Player,
Camcorder, MP-3 Player, Laptop PC, Video Game Player and other enter­tainment devices -- charge your cell phone, laptop etc. and watch TV.

CAUTION:Do not connect hair dryers, clothing irons, coffee makers or
other similar high-current electric devices to the four AC power outlets
provided. The maximum load for all four outlets is 10 Amps.

How to Use the Multi-Media Interface

• Plug your device’s power cord into one of the four AC outlets.

• Connect the device’s audio/video output to the multi-media interface.

• Listen to audio from one device and view video from a different
device. For example you can listen to your MP-3 player while you work
on your laptop PC. The in-room TV plays sound from your MP-3 player
and displays your laptop PC’s image on the TV’s screen. Or, more typically
audio/video from the same device. (See other side for available connec­tions.)

PC

Game
Machine

DVD
Player

Camcorder

MP3
Player

Digital

Camera

Multi-Media Interface
Quick Reference Guide

Note: All the multi-media connection options shown above may not be available at this hotel.
Please check with the hotel to confirm what resources are available.

7 AMP MAXIMUM CURRENT

P

R

E

S

T

O

S

R

E

S

E

T

AUDIO IN

VIDEO IN

AUDIO IN

L

R

PC VIDEO IN

DIGITAL VIDEO IN

Standard
120 Volt
60Hz AC
Power
Outlet

Installer RJP-110W/RJP-110WBR
Quick Setup Reference Guide

Following are the tasks associated
with installing and setting up an
RJP-110W System.

1. Install RJP-110W in cabinet.

2. Make all hard wire connections to
RJP-110W, TV and any other in-room
resources.

3. Plug all system components into
power sources.

4. Adjust TV installer menu items 040
and 093 to enable RJP capability.
(See TV installation guide for com­plete instructions on new TV
installations. The master TV setup
can be modified to include RJP
settings for multiple system instal­lations.)

5. Test the system with user-type
devices to assure TV sound/picture
are as desired.

6. Provide user information in
room. (As applicable to your enter­tainment system.)

• RJP-110W Tent Card. (Or compa­rable equivalent from Lodge)

• RJP-110W Quick Reference Guide.
(Or comparable equivalent from
Lodge)

LG Electronics U.S.A., Inc.
2000 Millbrook Drive, Lincolnshire, IL 60069

206-4061

Issue-A

Remote Jack Pack Welcome to the LG family! We believe that you will be pleased with your new LG product.

Please read this warranty carefully, it is a “LIMITED WARRANTY” as defined under Federal Law.
This warranty gives you specific legal rights, and you may also have other rights that vary
from state-to-state within the U.S.A.

LG’S RESPONSIBILITY

Service Labor During a period of one year from effective warranty date, LG will replace a defective unit, as

determined by the LG service center, as a result of manufacturing defects.

Replacement New or remanufactured replacements for factory-defective units will be supplied by an LG

authorized service center for one year from effective warranty date. Such replacement unit is
warranted for the remaining portion of the original warranty period.

Warranty Service Warranty service is provided call 1-888-865-3026 for further information.

Not Covered This warranty covers manufacturing defects and does not cover installation, adjustment of

customer controls, installation or repair of antenna systems, cable converters or cable compa­ny-supplied equipment; it also does not cover damage due to misuse, abuse, negligence, acts
of God or other causes beyond the control of LG. Any alteration of the product after manufac­ture voids this warranty in its entirety.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICU­LAR PURPOSE, AND LG SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, OR
INCIDENTAL DAMAGES OF ANY KIND, INCLUDING LOST REVENUES OR PROFITS IN CONNEC­TION WITH THIS PRODUCT. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSE­QUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU.

OWNER’S RESPONSIBILITY

Effective Warranty begins on the date of installation of the RJP-110W Multi-Media Interface.

Warranty Date For your convenience, keep the dealer’s dated bill of sale or delivery ticket as evidence

of the purchase date.

Installation Read the Installation and Setup Guide carefully so that you will understand the functions of

Guide the RJP-110W and how to make adjustments.

Antenna Reception problems caused by inadequate antenna or faulty antenna connections are the

owner’s responsibility.

Audio Output Audio problems caused by inadequate audio devices or audio material with sound level lapses

are not within the control of LG and therefore are the owner’s responsibility.

Warranty Service For warranty service information, call 1-888-865-3026.

- A replacement unit that is LG’s responsibility (see above) will be provided without charge.
Other service is at the owner’s expense.

- If you have any problem in obtaining satisfactory warranty service, call 1-888-865-3026.

- You must provide the model number, serial number and date of purchase or date of original
installation.

- Before you ask for warranty service, reread this guide. You might avoid a service call.

For Customer Support/Service please call: 1-888-865-3026

www.lgcommercial.com

RJP-110W Warranty
