RJP-101M Remote Jack Pack
Installation & Setup Guide Warranty
© Copyright 2007, LGElectronics U.S.A., Inc.
2
www.lgcommercial.com
206-4050-A
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK - - USE ONLY INDOORS
ATTENTION:
RISQUE DE CHOCS ÉLECTRIQUE - - POUR INSTALLATION À L¡¯INTÉRIEUR SEULEMENT
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
AVERTISSEMENT:
L’appareil ne doit pas être exposé à des égouttements d’eau ou des éclaboussures et de plus qu’aucun objet rempli de liquide tel que des vases ne doit être placé sur l’appareil.
REGULATORY INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pur­suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment gen­erates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equip­ment off and on, the user is encouraged to try to correct the interference by one or more of the follow­ing measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Do not attempt to modify this product in any way (except as noted herein) without written authoriza­tion from LG Electronics U.S.A., Inc. Unauthorized modification could void the user’s authority to oper­ate this product.
COMPLIANCE:
The responsible party for this product’s compliance is: LG Electronics U.S.A., Inc., 2000 Millbrook Drive Lincolnshire, IL 60069, USA • Phone: 1-847-941-8000.
© Copyright 2007, LG Electronics U.S.A., Inc.
Marketed and Distributed in the United States by LG Electronics U.S.A., Inc.
2000 Millbrook Drive, Lincolnshire, IL 60069
Table of Contents
3
206-4050
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5
Installation
Installation in Cabinet Backsplash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installer Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 8
End-User Operation
End-User Connections Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
End-User Multi-Media Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
End-User Connectable Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
End-User Audio/Video Input Priorities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Reference: 12-Foot Output Cable Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Accessory Cable: DVI-HDMI Adapter Cable/Strain Relief . . . . . . . . . . . . . . . . . . . . . 14
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 - 16
Troubleshooting
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Troubleshooting Flow Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

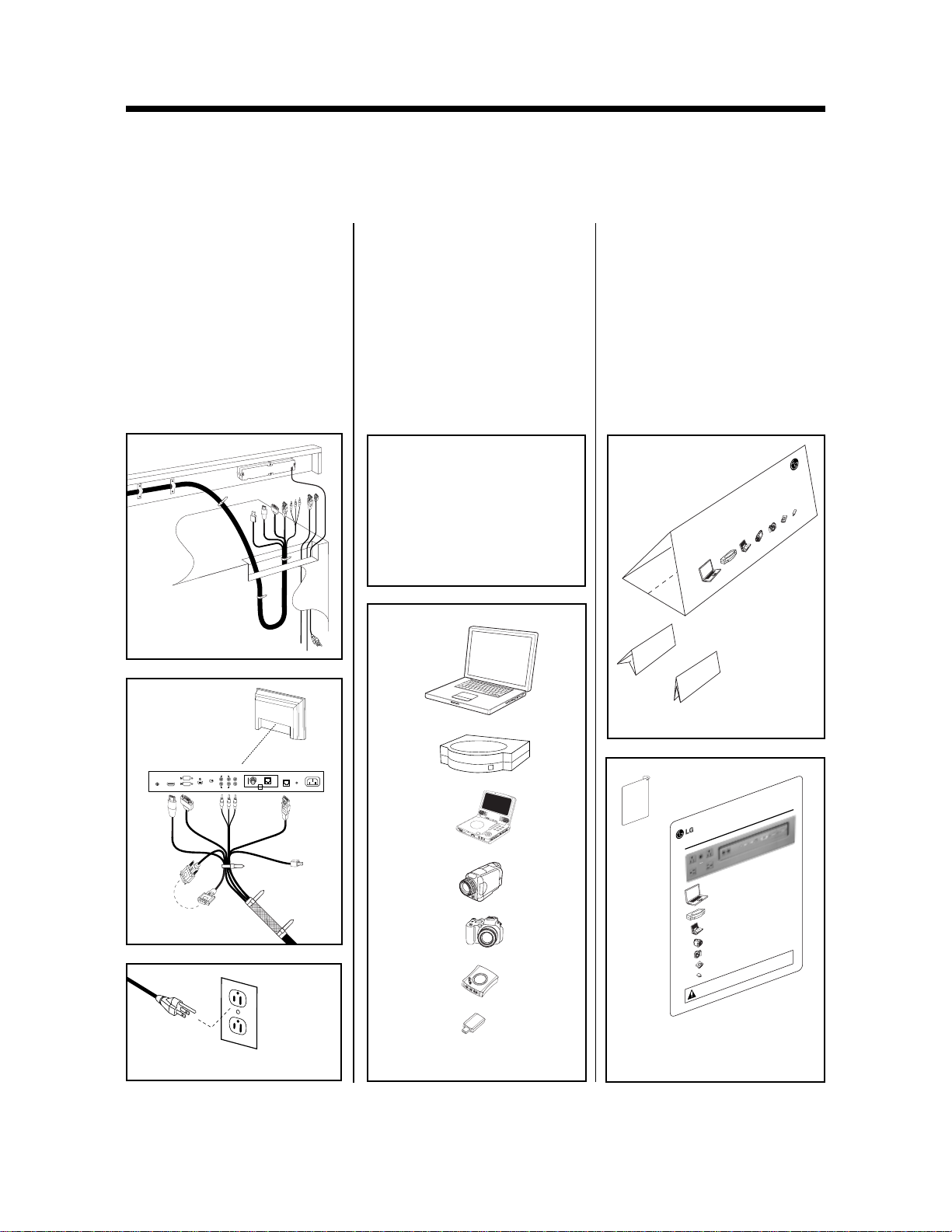

Quick Setup Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
206-4050
4
Overview
The Remote Jack Pack (RJP) contains circuitry to determine the pres­ence of a signal at each input jack. (Note: Audio In, Audio In L-R and Video In inputs detect the pres­ence of the inserted plug, regardless if a signal is present or not.)
When a source is detected, its priority is compared to the priority of other sources which may be present. If the newly-connected active source is of higher priority than the existing source(s), the RJP directs the TV display panel to that source.
Video and audio are monitored and switched independently. Power is supplied to the RJP by the TV display panel via the control
signal cable.
O
T
R
S
E
S
S
E
E
R
T
P
PHONE IN
7 AMP MAXIMUM CURRENT
NETWORK IN
AUDIO IN
AUDIO IN L
VIDEO IN S-VIDEO IN
R
PC VIDEO IN DIGITAL VIDEO IN USB IN
Introduction
Conveniently installed right in the room where guests will stay, the LG Remote Jack Pack, (RJP) multi-media interface is available to end-users to connect audio, video and computer devices to hear and view on the in-room TV display panel. The RJP can be set up to interface with the TV display panel to show the image and/or sound from a portable DVD/CD Player, Camcorder, MP-3 Player, Notebook computer, or portable Video Game Player. Or, devices with digital video output such as DVD players. A USB connection is available for future applications. If the end-user does not connect any devices, then the in-room TV display panel will remain on the source selected. When the end-user connects a device, the inter­face switches the TV display panel to the new source. Users can recharge laptop or cell phone batteries while watching TV.
The RJP interface is designed to be able to process audio from one source, and video separately from a different source, if required. (The end-user can work on a laptop computer while listening to music from an MP-3 player.) However, only one audio and one video source can be heard/seen at the same time.
The end-user can simply plug the device’s power cord into one of the four con­venience AC power outlets provided on the RJP. Then plug in its Audio/Video cable(s) to the RJP input jack(s) and turn the device on. The RJP completes the connection between the newly-connected audio and/or video source and the TV display panel. No end-user menus are involved, all connections are made directly to the interface.
The RJP continually monitors its source inputs. When a signal is detected, (a device is plugged into one of the RJP inputs) the interface sends a message to the TV display panel to switch to the newly-connected source (if the new source is of higher priority). The interface allows only the higher priority audio and video to be heard and seen on the TV display panel. The control cable supplies 12 Volt DC power from the TV display panel to operate the interface.
Overview
CLEANING CAUTION:
Since the end-user jack panel is exposed, use extreme caution when cleaning. Do not use liquid cleaners on the connection panel. Do not allow liquids to be spilled, sprayed onto or otherwise come into contact with the connection panel on either the end-user side or the installer side. Clean with a slightly damp cloth.
7 AMPS MAXIMUM CURRENT FOR THE AC OUTLETS:
The maximum combined total current that is allowable to the four AC power outlets is 7 Amps. These are protected by a circuit breaker type re-settable fuse.
5
206-4050-A
6
206-4050-A
The RJP-101M can only be installed in a vertical position into the
backsplash of the cabinet. Vertical mounting in the back­splash is required so that if liquid is spilled on the desk top, it will not be able to flow into the RJP. The RJP must only
be installed in the backsplash panel cutout opening. It will then need to be secured with the four retainer clips, serrated washers and machine screws provided. The cable wiring assembly and individual cables will need to be connected to the RJP. All cables will need to be threaded along the backside of the backsplash panel through the TV wiring cutout to the TV and other in-room resources. Note: The connector set that is closest to the mesh sleeving is for hook up to the TV display panel.
Installation Instructions
1. Remove the cabinet backsplash and insert the RJP into the cutout
opening.
2. Install the four L-shaped mounting retainer clips, screws and
serrated washers provided to hold the RJP securely in place. Check to assure that the RJP is securely mounted.
3. Make all connections to the RJP, please see the following page for
details.
4. After attaching cable hardware etc., reinstall backsplash on the
cabinet.
Installation in Cabinet Backsplash
CAUTION: The cable wiring assembly should be handled carefully to
avoid damage, as it is fed through the opening and attached to the RJP. The cable assembly needs to be looped down into the area provided and then threaded
along the channel in the backside of the backsplash to the TV wiring cutout in the cabinet. The AC power cord should be plugged into a dedicated and appropriate AC wall power outlet.
Note: The actual appearance of the cable assembly, cabinet, backsplash, mounting hardware and cable clamps etc., may be different than shown in these drawings.
(4-Screws)
.....
.....
.....
.....
CAUTION: Be sure power is turned off before attempting to connect the RJP-101M to the TV display panel and in-room resources.
Network Cable (8-Pin RJ-45) w/Black Protective Sleeve
Connect to LAN wall jack panel.
6-Pin RJ-11 Phone Cable
Connect to telephone line wall jack panel.
Installer Connections
AC Power Cord
Connect to 120V 60 Hz AC power outlet. Supplies power to the four conven­ience AC power outlets for end-user. (Maximum com­bined total current allowed is 7 Amps.)
Control Cable (8-Pin RJ-45) w/Yellow Protective Sleeve
Connect to RJP port on TV display panel.
Audio/Video Cables
Connect to Left-Right Audio/composite Video input jacks on TV display panel.
RGB PC Video Cable
Connect to RGB input on TV display panel.
Digital Video Cable
Connect to digital video input on TV display panel.
Cable Assembly
7
206-4050-A
USB Cable
For future applications.
The RJP-101M and the cables listed below are to be connected to both the TV display panel and any entertainment resources available in the room.
USB OUT
....
DIGITAL VIDEO OUT
RGB OUT
CONTROL
OUT
VIDEO
OUT
AUDIO OUT
R
USB OUT
L
DIGITAL VIDEO OUT
RGB
OUT
CONTROL
VIDEO
OUT
OUT
NETWORK
OUT
R
PHONE
OUT
OUT
OUT
PHONE
NETWORK
AUDIO OUT
L
206-4050-A
8
Installer Connections Contd.
After completing connections between the RJP, the TV display panel and other resources, be sure the installer menu items have been updated to enable the RJP. Installer Menu item 040 Auto Camport needs to be set to 000 and 093 RJP Available needs to be set to 001. (See TV installation guide for complete instruc­tions on new TV installations.) A brief description of each of the available RJP connections is provided below.
USB Output Port
For future applications--e.g., digital cameras and flash drives.
Digital Video Output
Connect to digital video input on TV display panel to allow the end-user to show DVD’s high-resolution digital video on the in-room TV.
PC RGB Output
Connect to RGB input on TV display panel to allow the end-user to show a com­puter/Laptop image on the in-room TV.
Control 8-Pin RJ-45 Output Port
Connect to RJP port on TV display panel for control and power supply for the RJP multi-media interface.
Left-Right Audio/Video Output Jacks
Connect to Left-Right Audio/composite Video inputs on TV display panel.
Network Port (8-Pin RJ-45)
Connect to LAN wall jack, if available. Allows the end-user to access the LAN (local area network) server of the institution.
Phone Port (6-Pin RJ-11)
Connect to telephone line wall jack. Allows the end-user, using a computer modem, to connect to their ISP (Internet Service Provider) to access the Internet through a local phone line.
AC Power Cord (Installed on RJP)
Connect to standard 120V 60Hz AC power outlet. (Four 120 Volt 60 Hz AC power outlets are provided for the end user. However, 7 Amps. is the maximum combined current allowed for the AC outlets.
9
206-4050
The end-user simply plugs a device such as a laptop computer with the appropriate cables, as shown in the example, into the RJP connection panel. The Remote Jack Pack senses the new source connection and switches the TV to the newly-connected source. The device’s sound and image are then presented on the in-room TV display panel. The TV display panel adjusts automatically to the computer output format. When the laptop is disconnected, the interface directs the TV to revert back to the previous source for video and audio.
The end-user has several audio/video connection options available for connecting external devices. The guest/user can connect a portable DVD Player, CD Player, Camcorder, MP-3 Player, Notebook Computer, Portable Video Game Player, etc. For added convenience, four AC power outlets are also available on the front of the interface to provide power for these external devices and/or recharge laptop or cell phone batteries. (The maximum combined current allowed for the AC power outlets is 7 Amps.)
An end-user could connect and hear audio from one device and connect and view video from a different device. The RJP offers two different stereo audio input jacks to accommodate various end-user devices. However, only the higher priority audio source will be selected and heard. Similarly, multiple video inputs are available, but only the higher priority video source will be selected and displayed. (See page 12 input priorities.)
End-User Connections Overview
R
P
7 AMP MAXIMUM CURRENT
O
T
R
S
E
S
S
E
E
T
NETWORK IN
PHONE IN
VIDEO IN
AUDIO IN
S-VIDEO IN
AUDIO IN
PC VIDEO IN
R
L
End-User
Connection Panel
Today's
Report
Typical
Today's
Report
®
In-Room TV
Display Panel
USB IN
DIGITAL VIDEO IN
IN B S
U IN O E ID
V L A IT IG
D IN O E
ID V C
P IN O
E ID
-V S
VIDEO
IN LEFT
AUDIO IN
RIGHT
AUDIO IN
NETWORK
PHONE
E
S
R
E
O
T
T
S
S
E
R
P
CAUTION
10 AMP MAXIMUM CURRENT
DO NOT USE WITH HAIR DRYERS, IRONS OR COFFEE POTS
10
206-4050
End-User Multi-Media Interface Connections
Reset Switch
Circuit breaker for AC power outlets.
AC Power Outlets
Four (4) convenience AC outlets for end-user. (Total combined current is 7 Amps maximum.)
Phone In (RJ-11) Jack
Access to room’s phone line (PC Modem).
Network In (RJ-45) Jack
Port for access to institution’s local area network server, if available.
Audio/Video Input Jacks
Connection for Left-Right Audio/composite Video sources.
S-Video Input Port
Connection for S-Video (Y-C) sources.
PC Video (RGB) Input Port
Connection for PC Video.
3.5 mm Stereo Audio Input Jack
Connection for MP-3 player or PC audio.
Digital Video Input Port
Connection for digital video sources. (portable DVD)
USB Input Port
For future applications.
Note: Audio In, Audio In L-R and Video In inputs detect the presence of the inserted plug, regardless if a signal is present or not.
E
R
P
7 AMP MAXIMUM CURRENT
O
T
R
S
E
S
S
E
T
NETWORK IN
PHONE IN
AUDIO IN
AUDIO IN
L
R
VIDEO IN
S-VIDEO IN
PC VIDEO IN
DIGITAL VIDEO IN
USB IN
206-4050
11
Examples of devices a guest/end-user can connect are shown to the right. There are four AC power outlets avail­able on the jack pack for added con­venience.
The End-User Can Connect:
• PC Laptop/Notebook Computers
• Portable Video Game Players
• Portable DVD/CD Players
• Camcorders
• Digital Cameras
• MP-3 Audio Players
• USB Flash Drives and other USB devices (if available)
End-User Connectable External Source Devices
206-4050-A
12
End-User Audio/Video Input Priorities
End-User Audio/Video Input Priorities
Note: The highest priority is listed first.
Audio Inputs/Sources
1st. 3.5 mm Stereo Audio Jack 2nd. Left - Right Audio Jacks 3rd. Digital Video Audio
4th. TV Display Panel Tuner Audio (Audio Default)
Video Inputs
1st. Digital Video 2nd. PC V ide o 3rd. S-V ide o 4th. Video Composite Jack
5th. TV Display Panel Tuner Video (Video Default)
Direct Connections to In-Room Resources
A. USB (if available) B. LAN RJ-45 C. Phone RJ-11
12-Foot Output Cable Assembly
Reference
Note: Connector set near mesh sleeving hooks up to TV display panel.
206-4050
13
Connect to Inputs on TV Display Panel
AUDIO
L-R
VIDEO
CONTROL
w/Yellow
RGB
Sleeve
14"
36"
82"
DIGITAL
VIDEO
. . . . . . . .
. . . . . . . .
. . . . . . . .
7. Cable Tie
Mesh Sleeving
USB (For Future Applications)
.....
.....
USB "Mini-B" Male 5-Pin
Output Cable Assembly Parts List
Item Description No.
1. Left-Right Audio Cable
2. Composite Video Cable
3. Control Cable (RJ-45) w/Yellow Protective Sleeves
4. RGB Cable
5. Digital Video Cable
6. USB Cable
7. Cable Ties
Output
Cable
Assembly
is
12.0 Feet
in
Length
12"
1.
AUDIO
L-R
2.
VIDEO
3.
CONTROL
w/Yellow
Sleeve
RGB
USB "A-Type" Male 4-Pin
....
4.
5.
DIGITAL
VIDEO
USB
6.
206-4050

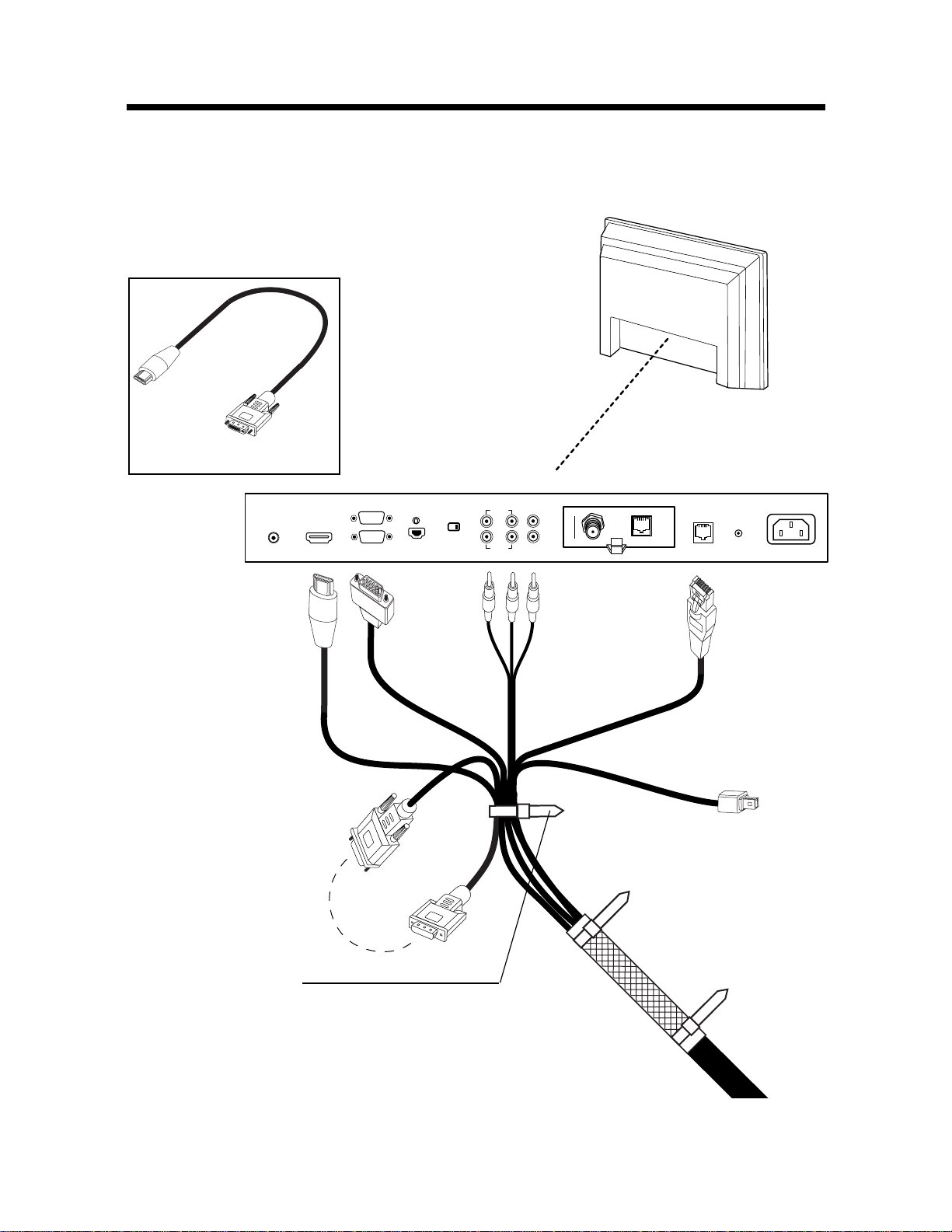

Strain Relief for Accessory HDMI Cable
The weight of the DVI adapter connection/cable bundle may put a strain on the HDMI connection, caus­ing it to become disconnect­ed from the TV. Relieve the weight by attaching a cable tie in the position shown.
Note: The actual appearance of the TV etc., may be different than shown in the drawing.
Special Connections Note: Optional DVI to HDMI Adapter Cable
For TVs equipped with HDMI, this adapter cable will be required to connect the RJP for digital video/audio.
Accessory Cable: DVI to HDMI Adapter Cable Strain Relief
14
Male Connector
Female Connector
DVI/PC AUDIO
IN
HDMI/DVI
IN
RS-232C
.....
....
.....
.....
.....
PC IN
UPDATE
AL
DIGT
AUDIO
OUT (OPTICAL)
. . . . . . . .
. . . . . . . .
. . . . . . . .
CONTROL
RS-232C
NORMAL
(DTV)
AUDIO IN VIDEO 1
VIDEO 2 IN
AUDIO IN
IN
CABLE
ANTENNA
M.P.I.
RJP
INTERFACE
FUTURE
USE
For future
applications
AC IN
.....
.....
Specifications
Application
Makes available to the hotel’s guests, a multi-media interface to the in-room TV display panel and media resources. Input jacks are provided for external portable devices such as DVD/CD Players, Laptop Computers, Camcorders, etc.
15
206-4050-A
Installer Connections
USB Out USB Connector (“A”-type female)
Digital Video Out Digital Video Connector
RGB OUT 15-pin RGB PC Monitor Connector
Control Out Control Jack (8-Pin RJ-45)
Video Out 1 Vpp into 75 ohms, Composite or Y+C Combined
Video Jack +/- 1 db @ 4.2 MHz
Audio Out L-R Left/Right Audio Jacks
Max: 1.6 V RMS (1 KHz) @ 600 ohms, Typ: 250mV RMS @ 600 ohms
Network Out LAN Jack (8-Pin RJ-45)
Phone Out Phone Jack (6-Pin RJ-11)
Supplied A
ccessories List
(Cable Assembly) Note: All cables within cable bundle are 12 feet in length.
• USB Cable
• Digital Video Cable
• PC Video RGB Cable
• Control Cable (8-Pin RJ-45)
• 1-Set Audio/Video Cables
(Separate Cables) • Phone Cable (6-Pin RJ-11)
• Network Cable (8-Pin RJ-45)
• DVI (F) to HDMI (M) Adapter Cable (Optional)
(Attached Cable) • AC Power Cord, 120V 60Hz
(Misc. Hardware) • 5-Retainer Clips, L-Shaped (4-Required)
• 5-Machine Screws w/Serrated Washers (4-Required)
• 1 Black Cable Tie (DVI to HDMI Adapter Cable see page 14.)
Note: Design and specifications are subject to change without prior notice.
206-4050
16
Specifications Contd.
Dimensions
Height 4.1 Inches (10.4 cm)
Width 16.5 Inches (41.9 cm) Depth 2.2 Inches (5.6 cm)
Weight (Approx.) 2.78 Pounds (1.260986 kgrms)
End-User Device Inputs
AC Outlets x 4 AC 120V 60Hz (Maximum 7 Amps.
total combined current allowed for AC outlets)
Phone In Phone Jack (6-Pin RJ-11)
Network In LAN Jack (8-Pin RJ-45)
Audio In 3.5 mm Stereo Audio Jack
Audio In L-R Left - Right Audio Jacks
(Nom In: 250mV RMS @ 22K ohms) Overload In: 1.6V RMS Max
Video In Composite Video Jack
1 Vpp, 75 ohms
S-Video In Y-C Connector
Y=1 Vpp, 75 ohms. C=0.3 Vpp Color Burst, 75 ohms
PC Video In 15-pin RGB PC Monitor Connector
Digital Video In Digital Video Connector
USB In USB Connector (“A”-type female)
Regulatory
UL, FCC Class B, Digital Video Device
Environmental Parameters
Operating Temperature 0° to 40° Degrees Celsius
(32° to 104° Degrees Fahrenheit)
Storage Temperature -20° to 85° Degrees Celsius
(-4° to 185° Degrees Fahrenheit)
Cooling Free Air Convection
Humidity 10% to 90% Non-condensing
Troubleshooting
206-4050
Equipment Setup Analysis Notes
• RJP USB port is a pass-through connection, reserved for future applications.
• Make sure all connectors and connections are tight and secure on user device, RJP-101M and TV.
• Check to assure user device, RJP-101M and TV are all powered up and working properly and that the TV Installer menu items are set correctly.
• Check to assure network interface to host is viable and working.
• Audio and Video can be from different sources. Default is TV tuner Audio and Video, if no other audio/video source is connected.
• Audio source must be viable. The audio output from the customer’s device must be present when connect­ed to be heard at the TV.
• RJP AC circuit breaker maximum is 7 Amps. If 7 Amp current limit is exceeded, breaker will trip; unplug all accessory devices from RJP AC outlets and press RESET.
Test Procedures
• Test and connect only one user device to determine if RJP is providing audio/video to TV.
• Test user device on another RJP (perhaps located in a different room) to determine if user device is com­patible with RJP.
• On LCD or Plasma TVs, be sure Installer menu item 040 is set to 000 and 093 is set to 001 to enable RJP mode.
17
Following are some possible solutions to problems:
Problem Possible Cause(s) Check RJP, User Device and In-Room TV
No Power • Power not connected?
• Circuit breaker on RJP tripped? (Unplug all accessory devices from RJP AC outlets, press RESET.)
No Audio • Have all audio connections been made?
• Audio output available?
• Volume level turned up?
• Sound muted?
• TV setup correct for RJP? (Installer menu item 040 is set to 000 and 093 set to 001.)
• Try another RJP.
• Priority level? (Disconnect other devices.)
No Video • Video output available?
• All video cables connected?
• TV setup correct for RJP? (Installer menu item 040 is set to 000 and 093 set to 001.)
• Priority level? (Disconnect other devices.)
Poor Video • Check connections. (Video pass-through no user action possible.)
USB
No USB • USB connected? function • RJP USB port is a pass-through, no action possible.
18
Troubleshooting Flow Charts
206-4050
No
Power
No Audio (or
not desired
Audio)
No Video (or
not desired
Video)
Power
Failure?
RJP
Is power cord
connected
?
Yes
RJP
Has Circuit
Breaker
Tripped
?
No
TV
Is power cord
connected
?
Yes
TV
Is TV power
turned on
?
User
Device
Is power cord
connected
?
User
Device
Is device
turned On
?
No
Yes
Yes
Yes
Yes
No
Yes
No
No
No
No
Restore
Power
Connect
Power
Cord
Remove AC
load, press
RESET
Connect
Power
Cord
Turn
Power
On
Connect
Power
Cord
Turn
Power
On
RJP
Has Circuit
Breaker
Tripped
?
RJP
Is Audio
connected
?
Yes
RJP
Are other
audio devices
connected
?
TV
Is TV
turned
On
?
Yes
TV
Are Speakers turned Off
?
No
TV
Is sound
Muted
or set too
low
?
No
User
Device
Is Audio
connected
?
Yes
RJP
Remove AC
load, press
Yes
RESET
No
Connect
Audio
No
Cables
Disconnect
other
Yes
Audio devices
No
Turn
No
TV On
Are
Installer menu
items set up?
Turn
Speakers
Yes
Yes
No
On
Press
Volume
Up
Connect
Has Circuit
Breaker Tripped
?
RJP
Is Video
connected
?
Yes
RJP
Are other
Video devices
connected
?
TV
Is TV
turned
On
?
Yes
User
Device
Is correct
Video output
selected
?
Yes
User
Device
Is Video
connected
?
Yes
No
No
Yes
No
Yes
No
No
No
Remove AC
load, press
RESET
Connect
Video
Cables
Disconnect
other
Video devices
Turn
TV On
Are
Installer menu
items set up?
Select
correct Video
output
PC
External
Port
Connect
User
Device
Audio
available &
turned up
?
Turn
Volume
No
Up
206-4050-A
19
Quick Setup Guide
.....
.....
.....
.....
.....
.....
....
DVI/PC AUDIO
IN
HDMI/DVI
IN
RS-232C
PC IN
UPDATE
DIGT
AL
AUDIO
OUT (OPTICAL)
RS-232C
NORMAL (DTV)
CONTROL
AUDIO IN VIDEO 1
IN
VIDEO 2 IN
AUDIO IN
M.P.I.
ANTENNA
CABLE
RJP
INTERFACE
FUTURE
USE
AC IN
. . . . . . . .
. . . . . . . .
. . . . . . . .
For future
applications
.....
.....
RJP-100M Remote Jack Pack (See other side)
• An example of usage would be to have your cell phone and PCcomputer plugged into the AC outlets recharging while you listen to a CD player and watch the stock report on TV.
Or, listen to the hotel entertainment network and use your personal PC computer.
• You can connect your portable DVD/CD Player, Camcorder, MP-3 Player, Laptop PC, Video Game Player or other personal entertainment devices like your cell phone.
®
PC
Game Machine
DVD Player
Camcorder
MP3 Player
Digital Camera
Flash Drive
1.
2.
3.
Typical TV Display Panel Installer Menu
Item Desc. Set
040 Auto Camport 000 093 RJP Available 001
RJP-100M Remote Jack Pack Hotel Guest Multi-Media Interface
• The LG Remote Jack Pack is provided to connect personal audio, video and PC devices to hear and view on the in-room TV/display panel.
• As shown on the left, you can connect a portable DVD/CD Player, Camcorder, MP-3 Player, Laptop PC, Video Game Player and other enter­tainment devices -- charge your cell phone, laptop etc. and watch TV.
CAUTION:Do not connect hair dryers, clothing irons, coffee makers or other similar high-current electric devices to the four AC power outlets provided. The maximum load for all four outlets is 10 Amps.
How to Use the Multi-Media Interface
• Plug your device’s power cord into one of the four AC outlets.
• Connect the device’s audio/video output to the multi-media interface.
• Listen to audio from one device and view video from a different device. For example you can listen to your MP-3 player while you work on your laptop PC. The in-room TV plays sound from your MP-3 player and displays your laptop PC’s image on the TV’s screen. Or, more typically audio/video from the same device. (See other side for available connec­tions.)
• USB In is provided to connect your digital camera and/or Flash Drive.
RESET SWITCH: The switchable circuit breaker is rated at 10 Amps. If this limit is exceeded, the RESET button pops up and AC power is turned off. If this occurs, sim­ply push in the red RESET button to reinstate AC power and reset the unit.
PC
Game
Machine
DVD
Player
Camcorder
MP3
Player
Digital Camera
Flash Drive
Multi-Media Interface Quick Reference Guide
PHONE
NETWORK
AUDIO IN AUDIO IN VIDEO INS-VIDEO IN
PC VIDEO IN DIGITAL VIDEO IN USB IN
L
R
10 AMP MAXIMUM CURRENT
CAUTION
DO NOT USE WITH HAIR DRYERS, IRONS OR COFFEE POTS
P
R
E
S
T
O
S
R
E
S
E
T
Note: All the multi-media connection options shown above may not be available at this hotel. Please check with the hotel to confirm what resources are available.
Standard 120 Volt 60Hz AC Power Outlet
Following are the tasks associated with installing and setting up an RJP-101M System.
1. Install RJP-101M in cabinet.
2. Make all hard wire connections to RJP-101M, TV and any other in­room resources.
3. Plug all system components into power sources.
4. Adjust TV installer menu items 040 and 093 to enable RJP capability. (See TV installation guide for com­plete instructions on new TV installations. The master TV setup can be modified to include RJP settings for multiple system instal­lations.)
5. Test the system with user-type devices to assure TV sound/picture are as desired.
6. Provide user information in room. (As applicable to your enter­tainment system.)
• RJP-101M Tent Card. (Or comparable equivalent from Lodge)
• RJP-101M Quick Reference Guide. (Or comparable equivalent from Lodge)
Installer RJP-101M Quick Setup Reference Guide
LG Electronics U.S.A., Inc. 2000 Millbrook Drive, Lincolnshire, IL 60069
206-4050
Issue-A
Remote Jack Pack Welcome to the LG family! We believe that you will be pleased with your new LG product.
Please read this warranty carefully, it is a “LIMITED WARRANTY” as defined under Federal Law. This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state within the U.S.A.
LG’S RESPONSIBILITY
Service Labor During a period of one year from effective warranty date, LG will replace a defective unit, as
determined by the LG service center, as a result of manufacturing defects.
Replacement New or remanufactured replacements for factory-defective units will be supplied by an LG
authorized service center for one year from effective warranty date. Such replacement unit is warranted for the remaining portion of the original warranty period.
Warranty Service Warranty service is provided in the institution in most cases.
Call 1-888-865-3026 for further information.
Not Covered This warranty covers manufacturing defects and does not cover installation, adjustment of
customer controls, installation or repair of antenna systems, cable converters or cable compa­ny-supplied equipment; it also does not cover damage due to misuse, abuse, negligence, acts of God or other causes beyond the control of LG. Any alteration of the product after manufac­ture voids this warranty in its entirety.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICU­LAR PURPOSE, AND LG SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING LOST REVENUES OR PROFITS IN CONNEC­TION WITH THIS PRODUCT. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSE­QUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
OWNER’S RESPONSIBILITY
Effective Warranty begins on the date of installation of the RJP-101M Multi-Media Interface.
Warranty Date For your convenience, keep the dealer’s dated bill of sale or delivery ticket as evidence
of the purchase date.
Installation Read the Installation and Setup Guide carefully so that you will understand the functions of
Guide the RJP-101M and how to make adjustments.
Antenna Reception problems caused by inadequate antenna or faulty antenna connections are the
owner’s responsibility.
Audio Output Audio problems caused by inadequate audio devices or audio material with sound level lapses
are not within the control of LG and therefore are the owner’s responsibility.
Warranty Service For warranty service information, call 1-888-865-3026.
- A replacement unit that is LG’s responsibility (see above) will be provided without charge. Other service is at the owner’s expense.
- If you have any problem in obtaining satisfactory warranty service, call 1-888-865-3026.
- You must provide the model number, serial number and date of purchase or date of original installation.
- Before you ask for warranty service, reread this guide. You might avoid a service call.
For Customer Support/Service please call: 1-888-865-3026
www.lgcommercial.com
LG RJP-101M Warranty
Loading...
