Page 1
CUSTOMER : LGE
DATE : 2017.09.06.
the module is to be installed in vehicle only
We only use Bluetooth.
5G WLAN function is disabled by software.
SPECIFICATIONS FOR APPROVAL
PRODUCT NAME : BT(v4.2) + WLAN(802.11a/b/g/n/ac) 2.4G SISO/5G MIMO
MODEL NAME : RBHP-B213A
CUSTOMER P/N : EAT63433501
APPROVAL REMARK
APPENDIX
Designed Checked Approved
LG Innotek Co., Ltd.
DOCUMENT No.
PAGE 68
RBHP-B213A
(00)-0070
Page 2
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (2 / 68)
(CUSTOMER P/NO : EAT63433501 )
Change History of Revision
Revision Date Contents of Revision Change Remark
0.1 2015.4.23. Establishment
0.2 2015.9.15. Digital I/O Pins IN/OUT Range Spec. changed P.29
Pin configuration was modified P.52
Recommended Land Pattern updated P.59
0.3 2016.2.13. 2.4G WiFi power spec. updated P18
5G WiFi power spec. updated P22
a
b
c
d
e
0.4 2016.4.20. Model number is changed to RBHP-B213A(PCIe)
PCIe power-on timing inserted P34
Pin configuration is modified(PCIe inserted) P51
0.5 2016.6.10 Application updated P4
Blockdiagram updated P58
f
g
h
i
Customer P/N inserted P1
0.6 2016.9.4 Block diagram updated P58
0.7 2016.10.14 Bluetooth, WiFi Radiation performance spec. inserted P12,13,
j
k
14, 17,18,
22
0.8 2016.10.26 Customer P/N modified
0.9 2017.01.06 ESD spec. modified
Antenna Tube color modified P6
1.0 2017.02.28 Module Radiation sensitivity spec. modified
BT/WiFi core0 5G Antenna tube color changed P6
1.1 2017.05.17 Label information updated P5
1.2 2017.05.23 Out box label information updated P63
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
P1
l
P49
m
n
P9
o
p
q
6-3
(30) - 4021
Page 3
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (3 / 68)
(CUSTOMER P/NO : EAT63433501 )
Change History of Revision
Revision Date Contents of Revision Change Remark
1.3 2017.6.27. PCIE power-on timing updated P35
PCIE I/O characteristics updated P50
RF performance guarantee min. VBAT voltage updated P53
Application schematic updated P63
1.4 2017.7.17. Bluetooth version updated P1
1.5 2017.8.10. Low temp. operating comment added in Clause 5.
(Customer Request)
1.6 2017.9.06. Reliability spec. updated
r
s
t
u
v
w
P5
P58
x
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 4
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
Table of Contents
1. Application
2. Quality
3. Appearance and Characteristics
4. Application of Bluetooth Module
5. Maximum Rating
6. Test
7. Labeling Information
REV 1.6 (4 / 68)
8. Mechanical Dimension
9. General Features
10. Electrical Specification

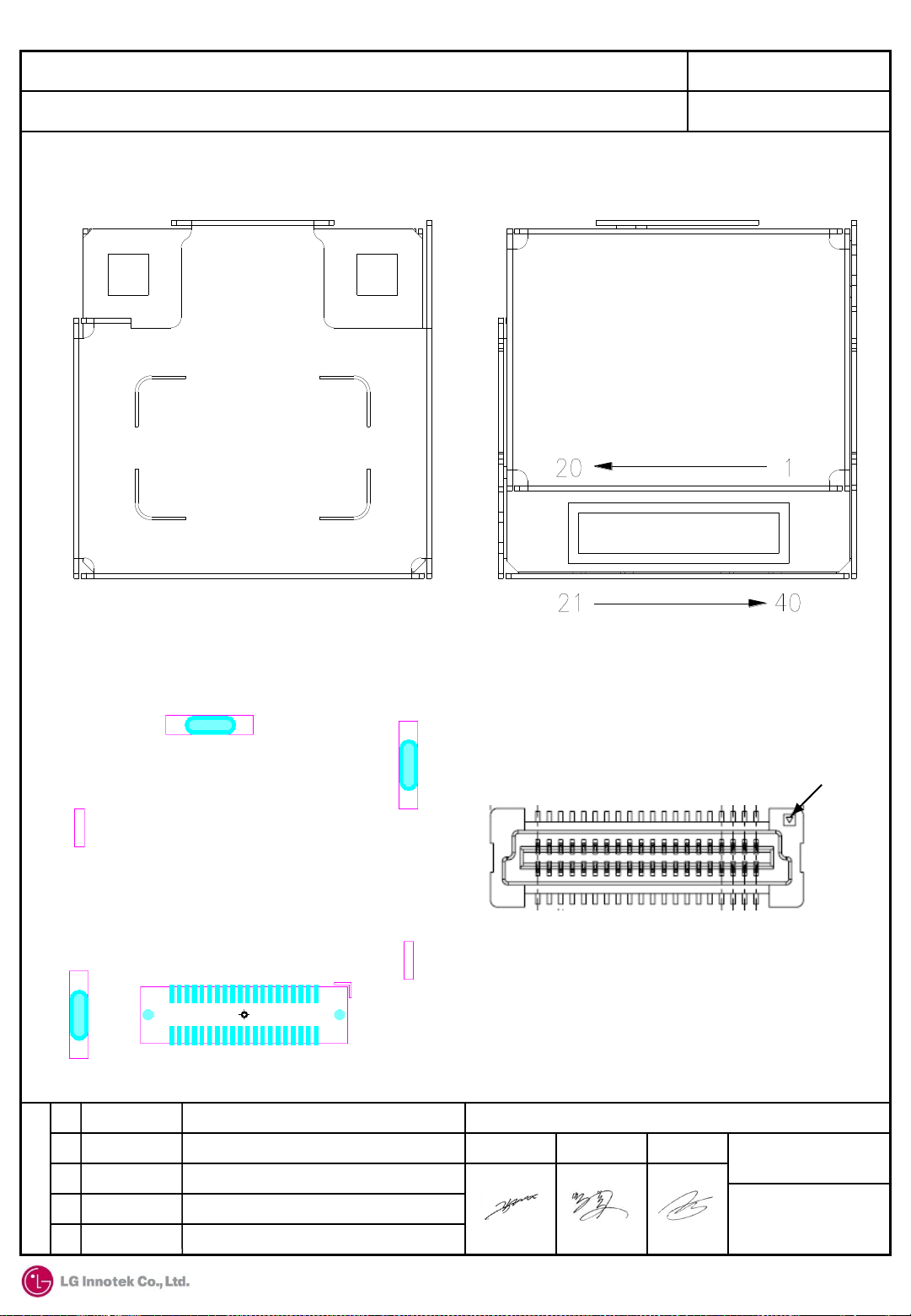

11. Pin Configuration
12. Reliability Test
13. Block Diagram
14. Reference Circuit
15. Reflow Profile
16. Recommended Land Pattern

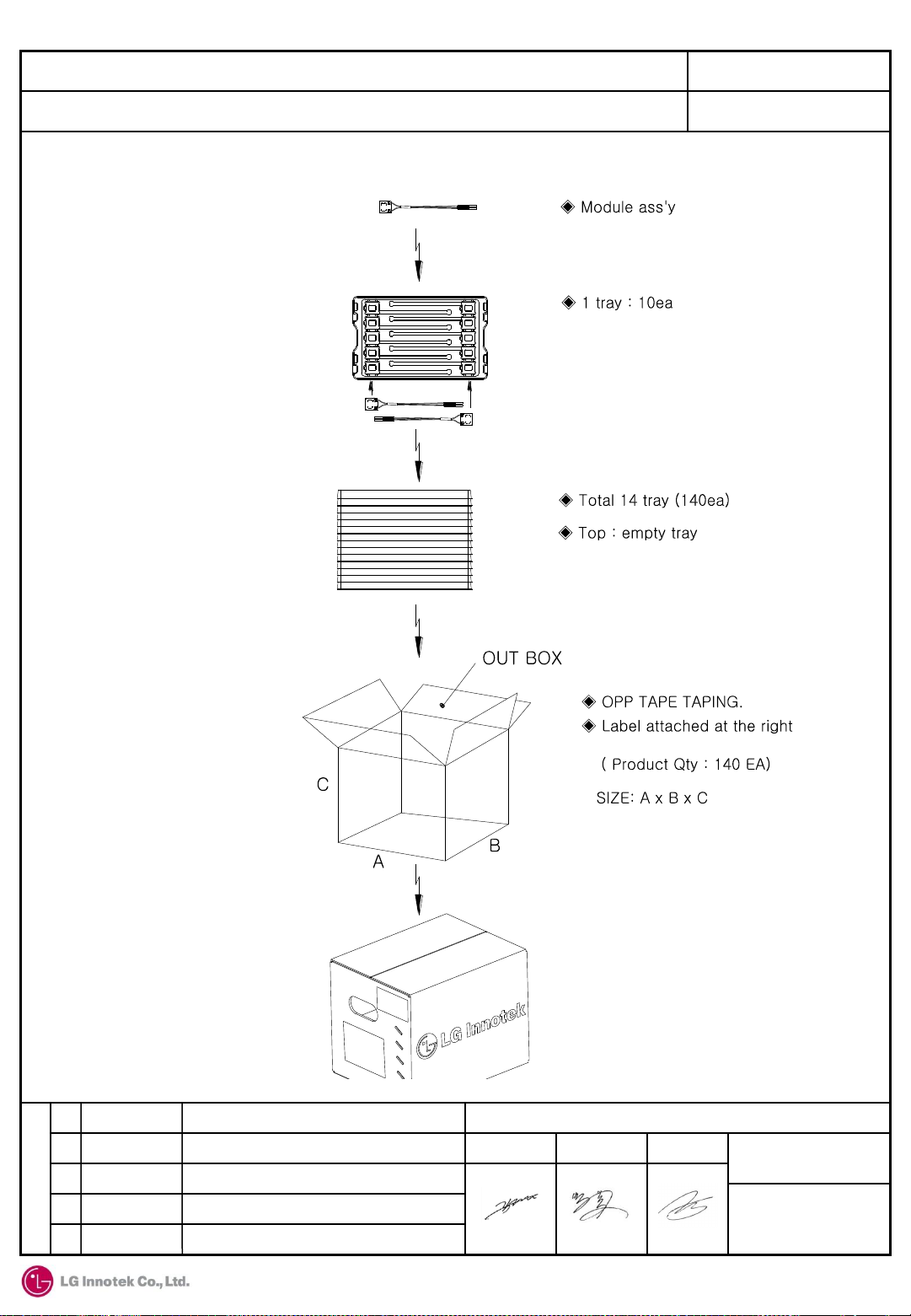

17. Packing Information
18. Ordering Information
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 5
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (5 / 68)
(CUSTOMER P/NO : EAT63433501 )
1. Application
v
This specification is applied to LGInnotek Bluetooth (v4.2)and 2.4GHz SISO/5GHz MIMO
WLAN(802.11a/b/g/n/ac) Module RBHP-B213A which includes BCM88359
2. Quality
Quality should meet each condition which mentioned on this specification. However, the
items which are not mentioned on this specification follow the inspection agreements and
standards which are agreed with both companies.
3. Appearance and Characteristics
1) Appearance
Appearance should not be contaminated by harmful materials and should not have cracks
etc. Mechanical dimensions should meet the contents of clause 8.
2) Characteristics
Electrical characteristics should meet the contents of clause 10.
4. Application of Bluetooth v4.2 and 2.4GHz/5GHz WLAN(IEEE 802.11.a/b/g/n/ac)
1) Automotive
5. Maximum Rating
NO ITEM Rating UNIT
1 Operating Temperature Range -40 ~ +85 ℃
2 Storage Temperature Range -40 ~ +105 ℃
3 VBAT Voltage Range -0.5 ~ 6.0 V
4 VIO Voltage Range -0.5 ~ 3.9 V
5 VBAT Max. Current 700(@3.3V) mA
6 VIO Max. Current 50(@1.8V) mA
w
■ RBHP-B213A Module assures operating normally at -40 ~ +85℃.
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 6
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
6. Test
Electrical characteristics are tested for every products. However, if there are any
objection in judgments, it should be treated with agreements of companies.
7. Labeling Information
p
REV 1.6 (6 / 68)
GWANGGAETOH
①
RBHP-B213A
②
7 04 GJ 27 0059
③
④ ⑤
⑥
EAT63433501
⑧
⑨
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
⑦
No. Index
① PRODUCT
② MODEL PART NO.
MANUFACTURED YEAR (0~9)
③
MANUFACTURED MONTH(1,2, …9, A,B,C)
④
⑤ GwangJu
⑥ MANUFACTURED DATE (1~31)
⑦ MANUFACTURED SERIAL NUMBER(0001~9999)
⑧ Customer P/N
QR CODE INFORMATION
⑨
: EAT63433501_704GJ270059
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 7
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
8. Mechanical Dimension
1) Dimension without Antenna Ass’y
REV 1.6 (7 / 68)
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
[Unit: mm]
6-3
(30) - 4021
Page 8
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
8. Mechanical Dimension
2) Dimension with Antenna Ass’y
REV 1.6 (8 / 68)
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
[Unit: mm]
6-3
(30) - 4021
Page 9
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (9 / 68)
(CUSTOMER P/NO : EAT63433501 )
9. General Features
9.1 BT(v4.2) + 2.4GHz/5GHz WLAN(IEEE 802.11a/b/g/n/ac) 2.4G SISO/5G MIMO
1) Features
• Operation Voltage is 3.3V/1.8V Dual Power Rail
• WiFi Single-stream up to 866 Mbps data rate
• Automotive Module
: All components are AEC-Q 100/200 qualified
• Support 2 Antenna port
: ANT0 : Bluetooth/5G WLAN, ANT1 : 2.4G/5G WLAN
• Integrated WLAN PA, RF Switch and LNA
• RoHS Compliant
• Size : 35.3 x 35.3 x 7.8 mm3
• Support bandwidth : HT20 / HT40 / VHT80
• HOST Interface : PCIE/SDIO(WLAN), UART(BT), PCM(I2S)
• Package type : Connector type(B to B)
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 10
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (10 / 68)
(CUSTOMER P/NO : EAT63433501 )
9. General Features
9.2 Bluetooth(BT v4.2+EDR compliant)
1) Bluetooth Key Features
• Supports key features of upcoming Bluetooth standards
• Fully supports Bluetooth Core Specification version 4.2 + (Enhanced Data Rate)
EDR features:
-. Adaptive Frequency Hopping (AFH)
-. Quality of Service (QoS)
-. Extended Synchronous Connections (eSCO) – Voice Connections
-. Fast Connect (interlaced page and inquiry scans)
-. Secure simple Pairing (SSP)
-. Sniff Sub rating (SSR)
-. Encryption Pause Resume (EPR)
-. Extended Inquiry Response (EIR)
-. Link Supervision Timeout (LST)
• UART baud rates up to 4 Mbps
• Supports all Bluetooth 4.2 packet types
• Supports maximum Bluetooth data rates over HCI UART
• Multipoint operation with up to seven active slaves
-. Maximum of seven simultaneous active ACL links
-. Maximum of three simultaneous active SCO and eSCO connections with
scatternet support
• Narrowband and wideband packet loss concealment
• Scatternet operation with up to four active piconets with background scan and
support for scatter mode
• High-speed HCI UART transport support
• Channel quality driven data rate and packet type selection
• Standard Bluetooth test modes
• Extended radio and production test mode features
• Full support for power savings modes
-. Bluetooth clock request
-. Bluetooth standard sniff
-. Deep-sleep modes and software regulator shutdown
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 11
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (11 / 68)
(CUSTOMER P/NO : EAT63433501 )
9. General Features
9.3 WLAN
1) WLAN RF band & modulation Features
• Dual-band 2.4GHz and 5GHz 802.11 a/b/g/n/ac(802.11ac compliant)
• Up to 866Mbps data rate
• Supports 20, 40 and 80MHz channels with optional SGI(256 QAM modulation)
• Tx and Rx low-density parity check(LDPC)
• Supports IEEE 802.11ac/n beamforming
• Supports PCIe v3.0-compliant interface running at GEN1 speeds
• Supports two antennas with Bluetooth/5G WLAN and 2.4G/5G WLAN antenna
• Supports standard SDIO V3.0 (up to SDR104 mode at 208MHz, 4-bit and 1-bit)
• Backward compatibility with SDIO v2.0 host interface
• WPA and WPA2(Personal) support for powerful encryption and authentication
• AES and TKIP in hardware for faster data encryption and IEEE 802.11i
compatibility
• Reference WLAN subsystem provides Wi-Fi protected Setup(WPS)
2) WLAN MAC features
• Enhanced MAC for supporting IEEE 802.11ac features
• Transmission and reception of aggregated MPDUs(A-MPDU) for high
throughput(HT)
• Support for power management schemes, including WMM power-save multi-
poll(PSMP) and multiphase PSMP operation
• Support for immediate ACK and block-ACK policies
• Inter-frame space timing support, including RIFS
• Back-off counters in hardware for supporting multiple priorities as specified in the
WMM specification
• Timing synchronization function(TSF), network allocation vector(NAV)
maintenance, and target beacon transmission time(TBTT) generation in hardware
• Hardware offload for AES-CCMP, legacy WPA TKIP, legacy WEP ciphers, WAPI,
and support for key management
• Programmable independent basic service set(IBSS) or infrastructure basic service
set functionality
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 12
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (12 / 68)
(CUSTOMER P/NO : EAT63433501 )
9. General Features
9.3 WLAN
3) WLAN PHY features
• Programmable data rates from MCS0-9 in 20MHz, 40MHz, and 80MHz channels,
as specified in IEEE 802.11ac
• Improved performance with channel smoothing and spur canceller support
• Supports Optional short GI and Green field modes in Tx and Rx
• Tx and Rx LDPC for improved range and power efficiency
• Beamforming support
• Supports IEEE 802.11h/k for worldwide operation
• Advanced algorithms for low power, enhanced sensitivity, range, and reliability
• IEEE 802.11a, 11b, 11g, 11n, 11ac single stream PHY standards
• Designed to meet FCC and other worldwide regulatory requirements
9.4 JEDEC MSL (Moisture Sensitivity Level) Test
• MSL 3 Level (Floor Life Time : 168Hrs. / Condition : ≤30℃, 60% RH)
• Standard : IPC / JEDEC J-STD-020C
Bake
Soak
Reflow
24Hrs. / 125℃
40Hrs. / 60℃, 60% RH
3 times / 240℃
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 13
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (13 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.1 Bluetooth
1) Basic Data Rate - Rx Performance
General Performance
Parameter Condition Min Typ Max Unit
Frequency Range 2402 2480 MHz
Impedance BT_ANT Pin - 50 - Ohm
Receiver Performance
Parameter Condition Min Typ Max Unit
Sensitivity level (BER≤0.1%)
k
(Radiation performance)
Sensitivity level (BER≤0.1%)
(Radiation performance)
C/I performance1)
(BER≤0.1%)
Out-of-band Blocking
(BER≤0.1%)
Single slot - -
Multi slot - -
C/I
co-channel ,
C/I
1MHz ,
C/I
2MHz ,
C/I
≥3MHz
Image radio , Input=-67dBm - - -9 dB
Image±1 , Input=-67dBm - - -20 dB
2)
30MHz ~ 2000MHz -10 - - dBm
2000MHz ~ 2400MHz -27 - - dBm
2500MHz ~ 3000MHz -27 - - dBm
3000MHz ~ 12.75GHz -10 - - dBm
Input=-60dBm - - 11 dB
Input=-60dBm - - 0 dB
Input=-60dBm - - -20 dB
, Input=-67dBm - - -40 dB
-84
(-75)
-84
(-75)
dBm
dBm
Intermodulation (BER≤0.1%) Input=-64dBm, n=5 -39 - - dBm
Maximum Input Level
(BER≤0.1%)
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
-20 - - dBm
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 14
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (14 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.1 Bluetooth
2) Basic Data Rate - Tx Performance
Transmitter Performance
Parameter Condition Min Typ Max Unit
Transmit Power
k
(Radiation performance)
Power density All temperature - - 20 dBm
Frequency Range All temperature 2402 - 2480 MHz
20dB bandwidth All temperature - - 1000 KHz
Adjacent channel power
Out-band Spurious Emission 30MHz ~ 1GHz - - -36 dBm
3)
All temperature
±2MHz - - -20 dBm
±3MHz - - -40 dBm
±4MHz - - -40 dBm
1GHz ~ 12.75GHz - - -30 dBm
1.8GHz ~ 1.9GHz - - -47 dBm
5.1GHz ~ 5.3GHz - - -47 dBm
-6
(-8)
2
4
(6)
dBm
Modulation Characteristics ΔF1
Initial Carrier Frequency
Tolerance
Carrier Frequency Drift Five slot packet(DH5) -40 - 40 KHz
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
avg
ΔF2
max
ΔF2
/ΔF1
avg
DH1 packet -75 - 75 KHz
avg
140 - 175 KHz
115 - - KHz
80 - - %
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 15
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (15 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.1 Bluetooth
3) Enhanced Data Rate - Rx Performance
Enhanced Data Rate Receiver Performance
Parameter Condition Min Typ Max Unit
Sensitivity at 0.01% BER
k
(Radiation performance)
Maximum received signal at 0.1%
BER
C/I co-channel at 0.1% BER
Adjacent channel selectivity C/I
F=F0+1MHz
Adjacent channel selectivity C/I
F=F0-1MHz
Adjacent channel selectivity C/I
F=F0+2MHz
Adjacent channel selectivity C/I
F=F0-2MHz
π/4 DQPSK/8DPSK - -
π/4 DQPSK -20 - - dBm
8DPSK -20 - - dBm
π/4 DQPSK - - 13 dB
8DPSK - - 21 dB
π/4 DQPSK - - 0 dB
8DPSK - - 5 dB
π/4 DQPSK - - 0 dB
8DPSK - - 5 dB
π/4 DQPSK - - -30 dB
8DPSK - - -25 dB
π/4 DQPSK - - -20 dB
8DPSK - - -13 dB
-80
(-75)
dBm
Adjacent channel selectivity C/I
F≥F
+3MHz
0
Adjacent channel selectivity C/I
F≤F
-5MHz
0
Adjacent channel selectivity C/I
F=F
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
π/4 DQPSK - - -40 dB
8DPSK - - -33 dB
π/4 DQPSK - - -40 dB
8DPSK - - -33 dB
π/4 DQPSK - - -7 dB
8DPSK - - 0 dB
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 16
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (16 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.1 Bluetooth
4) Enhanced Data Rate - Tx Performance
Enhanced Data Rate Transmitter Performance
Parameter Condition Min Typ Max Unit
Relative transmit power. -4 -1 1 dB
π/4 DQPSK max carrier frequency stability |ω
π/4 DQPSK max carrier frequency stability |ω
| -10 - 10 kHz
o
| -75 - 75 kHz
i
π/4 DQPSK max carrier frequency stability |ωo+ω
8 DPSK max carrier frequency stability |ω
8 DPSK max carrier frequency stability |ω
8 DPSK max carrier frequency stability |ωo+ω
π/4 DQPSK Modulation Accuracy
8 DPSK Modulation Accuracy
| -10 - 10 kHz
o
| -75 - 75 kHz
i
| -75 - 75 kHz
i
RMS DEVM
99% DEVM
Peak DEVM
RMS DEVM
99% DEVM
Peak DEVM
F＞F0+3MHz
F＜F0-3MHz
F=F0-3MHz
| -75 - 75 kHz
i
- - 20 %
- - 30 %
- - 35 %
- - 13 %
- - 20 %
- - 25 %
- - -40 dBm
- - -40 dBm
- - -40 dBm
F=F0-2MHz
- - -20 dBm
In-Band spurious emissions
F=F0-1MHz
F=F0+1MHz
F=F0+2MHz
F=F0+3MHz
- - -26 dBm
- - -26 dBm
- - -20 dBm
- - -40 dBm
EDR Differential Phase Encoding (No error) 99 - - %
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
LG Innotek Co., Ltd
APPD CHKD DSGD
DOCUMENT NO.
1.6 2017. 09.06. Rev1.6 Released
RBHP-B213A
6-3
(30) - 4021
Page 17
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (17 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.1 Bluetooth
5) BLE Performance
General Performance
J
Parameter Condition Min Typ Max Unit
Frequency Range 2402 2480 MHz
Impedance BT_ANT Pin - 50 - Ohm
Sensitivity level (BER≤0.1%)
(Radiation performance)
Transmit Power -
Modulation Characteristics ΔF1
GFSK(1Mbps) - -
avg
ΔF2
avg
ΔF2
/ΔF1
avg
avg
-87
(-75)
-6
(-8)
225 - 275 KHz
230 - - KHz
80 - - %
2
4
(6)
dBm
dBm
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 18
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (18 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.2 WLAN
General Performance
Parameter Condition Min Typ Max Unit
Frequency Range
Impedance WLAN_ANT Pin - 50 - Ohm
2.4G WiFi 2400 2500 MHz
5G WiFi 4900 5845 MHz
1) 2.4GHz DSSS and HR/DSSS (CCK) Transmitter
-. IEEE 802.11b DSSS and HR/DSSS modulation
Transmitter Performance
Parameter Condition Min Typ Max Unit
k
RMS Transmit power
(Radiation performance)
RMS EVM 11Mbps CCK - - 35 %
Spectral mask, 1st Sidelobe 11Mbps CCK (fc±11MHz) - - -30 dBr
Spectral mask, 2nd Sidelobe 11Mbps CCK (fc±22MHz) - - -50 dBr
RF Carrier suppression Normal/Extreme 15 - - dBc
Spurious emissions 30MHz ~ 1GHz ( RBW=100kHZ) - - -62
11Mbps CCK
13
(8)
16
19
(24)
dBm
dBm
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
1GHz ~ 12.75GHz
(RBW=1MHz)
1.8GHz ~ 1.9GHz
(RBW=1MHz)
5.15GMHz ~ 5.3GHz
(RBW=1MHz)
- - -47
- - -53
- - -53
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
dBm
dBm
dBm
6-3
(30) - 4021
Page 19
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (19 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.2 WLAN
2) 2.4GHz OFDM Transmitter
-. IEEE 802.11g and IEEE 802.11n(HT 20/40 modes MCS0 to MCS7) OFDM modulation
Transmitter Performance
Parameter Condition Min Typ. Max Unit
d
RMS Transmit
k
power
(Radiation
performance)
RMS EVM OFDM, 64-QAM(3/4) - - -25 dB
OFDM, 64-QAM(3/4)
OFDM, 64-QAM(5/6)
OFDM, 64-QAM(5/6) - - -27 dB
9
(4)
9
(4)
12
12
15
(20)
15
(20)
dBm
dBm
Spectral mask OFDM, 64-QAM(3/4) (fc±11MHz) - - -20 dBr
OFDM, 64-QAM(3/4) (fc±20MHz) - - -28 dBr
OFDM, 64-QAM(3/4) (fc±30MHz) - - -40 dBr
OFDM, 64-QAM(5/6) (fc±11MHz) HT20 - - -20 dBr
OFDM, 64-QAM(5/6) (fc±20MHz) HT20 - - -28 dBr
OFDM, 64-QAM(5/6) (fc±30MHz) HT20 - - -45 dBr
Center frequency
leakage
Spurious
emissions
Normal/Extreme - - -15 dB
30MHz ~ 1GHz ( RBW=100kHZ) - - -62
1GHz ~ 12.75GHz
(RBW=1MHz)
1.8GHz ~ 1.9GHz
(RBW=1MHz)
5.15GMHz ~ 5.3GHz
(RBW=1MHz)
- - -47
- - -53
- - -53
dBm
dBm
dBm
dBm
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 20
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.2 WLAN
3) 2.4GHz DSSS and HR/DSSS (CCK) Receiver
-. IEEE 802.11b DSSS and HR/DSSS modulation
n
Receiver Performance
Parameter Condition Min Typ Max Unit
1)
1)
1)
Rx sensitivity
(Radiation performance)
1Mbps DSSS
2Mbps DSSS
5.5Mbps CCK
REV 1.6 (20 / 68)
- - -89(-81) dBm
- - -84(-76) dBm
- - -80(-72) dBm
1)
Maximum input level
11Mbps CCK
1)
DSSS
CCK1) -10 - - dBm
Adjacent channel rejection DSSS
2)
CCK2) - - 35 dBr
1)
1024-byte packets, 8% PER
2)
1024-byte packets, 8% PER, 25MHz channel separation.
- - -76(-68) dBm
-10 - - dBm
- - 35 dBr
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 21
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (21 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.2 WLAN
4) 2.4GHz OFDM Receiver
-. IEEE 802.11g and IEEE 802.11n (HT 20/40 modes MCS0 to MCS7 800ns Guard Interval
non-STBC) OFDM modulation
Receiver Performance
Parameter Condition Min Typ Max Unit
Maximum input level
(Radiation performance)
Rx sensitivity
(Radiation performance)
(IEEE 802.11g)
3)
Normal/Extreme -20 - - dBm
1)
6Mbps
- - -82(-74) dBm
9Mbps1) - - -81(-73) dBm
12Mbps
18Mbps
24Mbps
36Mbps
48Mbps
1)
1)
1)
1)
1)
- - -79(-71) dBm
- - -77(-69) dBm
- - -74(-68) dBm
- - -70(-62) dBm
- - -66(-58) dBm
54Mbps
Rx sensitivity
(Radiation performance)
MCS02) (HT 20)
MCS12) (HT 20)
(IEEE 802.11n)
MCS22) (HT 20)
MCS32) (HT 20)
MCS42) (HT 20)
MCS52) (HT 20)
MCS62) (HT 20)
MCS72) (HT 20)
1)
1024-byte packets, 10% PER.
2)
4096-byte packets, 10% PER. Applies to both HT-mixed(HT_MF) and HT-greenfield(HT-GF) format packet preamble types.
3)
1024-byte packets OFDM or 4096-byte HT packets, 10% PER.
4)
1024-byte packets, 10% PER, 25MHz channel separation.
5)
4096-byte packets, 10% PER, 25MHz channel separation.
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
1)
- - -65(-57) dBm
- - -82(-74) dBm
- - -79(-71) dBm
- - -77(-69) dBm
- - -74(-68) dBm
- - -70(-62) dBm
- - -66(-58) dBm
- - -65(-57) dBm
- - -64(-56) dBm
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 22
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (22 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.2 WLAN
Receiver Performance
Parameter Condition Min Typ Max Unit
Adjacent channel rejection
(IEEE 802.11g)
Adjacent channel rejection
(IEEE 802.11n)
4)
6Mbps
16 - - dB
9Mbps4) 15 - - dB
12Mbps
18Mbps
24Mbps
36Mbps
48Mbps
54Mbps
MCS0
4)
4)
4)
4)
4)
4)
5)
13 - - dB
11 - - dB
8 - - dB
4 - - dB
0 - - dB
-1 - - dB
16 - - dB
MCS15) 13 - - dB
5)
MCS2
MCS3
MCS4
MCS5
MCS6
MCS7
5)
5)
5)
5)
5)
11 - - dB
8 - - dB
4 - - dB
0 - - dB
-1 - - dB
-2 - - dB
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 23
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (23 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.2 WLAN
5) 5GHz OFDM Transmitter
-. IEEE 802.11a, IEEE 802.11n (HT 20/40 modes MCS0 to MCS7) and IEEE 802.11ac OFDM
modulation((VHT 20/40, VHT80 modes MCS0 to MCS9)
Transmitter Performance
Parameter Condition Min Typ Max Unit
e
RMS Transmit
k
power
(Radiation
performance)
RMS EVM OFDM, 64-QAM(3/4) - - -25 dB
OFDM, 64-QAM(3/4)/(5/6)
OFDM, 256-QAM(3/4)/(5/6)
OFDM, 64-QAM(5/6) - - -27 dB
9
(4)
5
(0)
12
8
15
(20)
11
(16)
dBm
dBm
OFDM, 256-QAM(3/4) - - -30 dB
OFDM, 256-QAM(5/6) - - -32 dB
Spectral mask OFDM, 64-QAM(3/4) (fc±11MHz) - - -20 dBr
OFDM, 64-QAM(3/4) (fc±20MHz) - - -28 dBr
OFDM, 64-QAM(3/4) (fc±30MHz) - - -40 dBr
OFDM, 64-QAM(5/6) (fc±11MHz) HT20 - - -20 dBr
OFDM, 64-QAM(5/6) (fc±20MHz) HT20 - - -28 dBr
OFDM, 64-QAM(5/6) (fc±30MHz) HT20 - - -45 dBr
OFDM, 64-QAM(5/6) (fc±21MHz) HT40 - - -20 dBr
OFDM, 64-QAM(5/6) (fc±40MHz) HT40 - - -28 dBr
OFDM, 64-QAM(5/6) (fc±60MHz) HT40 - - -45 dBr
OFDM, 256-QAM(5/6) (fc±11MHz) VHT20 - - -20 dBr
OFDM, 256-QAM(5/6) (fc±20MHz) VHT20 - - -28 dBr
OFDM, 256-QAM(5/6) (fc±30MHz) VHT20 - - -40 dBr
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 24
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (24 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.2 WLAN
Transmitter Performance
Parameter Condition Min Typ Max Unit
Spectral mask OFDM, 256-QAM(5/6) (fc±21MHz) VHT40 - - -20 dBr
OFDM, 256-QAM(5/6) (fc±40MHz) VHT40 - - -28 dBr
OFDM, 256-QAM(5/6) (fc±60MHz) VHT40 - - -40 dBr
OFDM, 256-QAM(5/6) (fc±41MHz) VHT80 - - -20 dBr
OFDM, 256-QAM(5/6) (fc±80MHz) VHT80 - - -28 dBr
OFDM, 256-QAM(5/6) (fc±120MHz) VHT80 - - -40 dBr
Center frequency
leakage
Spurious
emissions
Normal/Extreme - - -15 dB
30MHz ~ 1GHz ( RBW=100kHZ) - - -62
1GHz ~ 12.75GHz
(RBW=1MHz)
1.8GHz ~ 1.9GHz
(RBW=1MHz)
5.15GMHz ~ 5.3GHz
(RBW=1MHz)
- - -47
- - -53
- - -53
dBm
dBm
dBm
dBm
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 25
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (25 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.2 WLAN
5) 5GHz OFDM Receiver
-. IEEE 802.11a, IEEE 802.11n (HT 20/40 modes MCS0 to MCS7) and IEEE 802.11ac OFDM
modulation((HT 20/40, VHT80 modes MCS0 to MCS9)
Receiver Performance
Parameter Condition Min Typ Max Unit
Maximum input level
(Radiation performance)
3)
Normal/Extreme -30 - - dBm
Rx sensitivity
(Radiation performance)
(IEEE 802.11a)
Rx sensitivity
(Radiation performance)
(IEEE 802.11n)
1)
1024-byte packets, 10% PER.
2)
4096-byte packets, 10% PER. Applies to both HT-mixed(HT_MF) and HT-greenfield(HT-GF) format packet
preamble types.
3)
1024-byte packets OFDM or 4096-byte HT packets, 10% PER.
4)
1024-byte packets, 10% PER, 25MHz channel separation.
5)
4096-byte packets, 10% PER, 25MHz channel separation.
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1)
6Mbps
- - -82(-74) dBm
9Mbps1) - - -81(-73) dBm
12Mbps
18Mbps
24Mbps
36Mbps
48Mbps
54Mbps
MCS02) (HT 20)
MCS12) (HT 20)
MCS22) (HT 20)
MCS32) (HT 20)
MCS42) (HT 20)
MCS52) (HT 20)
MCS62) (HT 20)
MCS72) (HT 20)
1)
1)
1)
1)
1)
1)
- - -79(-71) dBm
- - -77(-69) dBm
- - -74(-68) dBm
- - -70(-62) dBm
- - -66(-58) dBm
- - -65(-57) dBm
- - -82(-74) dBm
- - -79(-71) dBm
- - -77(-69) dBm
- - -74(-68) dBm
- - -70(-62) dBm
- - -66(-58) dBm
- - -65(-57) dBm
- - -64(-56) dBm
LG Innotek Co., Ltd
APPD CHKD DSGD
1.6 2017. 09.06. Rev1.6 Released
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 26
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (26 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.2 WLAN
Receiver Performance
Parameter Condition Min Typ Max Unit
Rx sensitivity
(IEEE 802.11n)
Rx sensitivity
(IEEE 802.11ac)
MCS02) (HT 40)
MCS12) (HT 40)
MCS22) (HT 40)
MCS32) (HT 40)
MCS42) (HT 40)
MCS52) (HT 40)
MCS62) (HT 40)
MCS72) (HT 40)
MCS02) (VHT 20)
MCS12) (VHT 20)
MCS22) (VHT 20)
MCS32) (VHT 20)
MCS42) (VHT 20)
MCS52) (VHT 20)
MCS62) (VHT 20)
MCS72) (VHT 20)
MCS82) (VHT 20)
MCS92) (VHT 20)
- - -79(-71) dBm
- - -76(-68) dBm
- - -74(-66) dBm
- - -71(-63) dBm
- - -69(-61) dBm
- - -63(-55) dBm
- - -62(-54) dBm
- - -61(-53) dBm
- - -82(-74) dBm
- - -79(-71) dBm
- - -77(-69) dBm
- - -74(-66) dBm
- - -70(-62) dBm
- - -66(-58) dBm
- - -65(-57) dBm
- - -64(-56) dBm
- - -59(-51) dBm
- - -57(-49) dBm
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 27
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (27 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.2 WLAN
Receiver Performance
Parameter Condition Min Typ Max Unit
Rx sensitivity
(IEEE 802.11ac)
Rx sensitivity
(IEEE 802.11ac)
MCS02) (VHT 40)
MCS12) (VHT 40)
MCS22) (VHT 40)
MCS32) (VHT 40)
MCS42) (VHT 40)
MCS52) (VHT 40)
MCS62) (VHT 40)
MCS72) (VHT 40)
MCS82) (VHT 40)
MCS92) (VHT 40)
MCS02) (VHT 80)
MCS12) (VHT 80)
MCS22) (VHT 80)
MCS32) (VHT 80)
MCS42) (VHT 80)
MCS52) (VHT 80)
MCS62) (VHT 80)
MCS72) (VHT 80)
MCS82) (VHT 80)
MCS92) (VHT 80)
- - -79(-71) dBm
- - -76(-68) dBm
- - -74(-66) dBm
- - -71(-63) dBm
- - -67(-59) dBm
- - -63(-55) dBm
- - -62(-54) dBm
- - -61(-53) dBm
- - -56(-48) dBm
- - -53(-45) dBm
- - -76(-68) dBm
- - -73(-65) dBm
- - -71(-63) dBm
- - -68(-60) dBm
- - -64(-56) dBm
- - -60(-52) dBm
- - -59(-51) dBm
- - -58(-50) dBm
- - -53(-45) dBm
- - -51(-43) dBm
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 28
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (28 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.2 WLAN
Receiver Performance
Parameter Condition Min Typ Max Unit
Adjacent channel rejection
(IEEE 802.11a)
Adjacent channel rejection
(IEEE 802.11n)
4)
6Mbps
16 - - dB
9Mbps4) 15 - - dB
12Mbps
18Mbps
24Mbps
36Mbps
48Mbps
54Mbps
MCS0
4)
4)
4)
4)
4)
4)
5)
13 - - dB
11 - - dB
8 - - dB
4 - - dB
0 - - dB
-1 - - dB
16 - - dB
MCS15) 13 - - dB
5)
MCS2
MCS3
MCS4
MCS5
MCS6
MCS7
5)
5)
5)
5)
5)
11 - - dB
8 - - dB
4 - - dB
0 - - dB
-1 - - dB
-2 - - dB
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 29
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (29 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.2 WLAN
Receiver Performance
Parameter Condition Min Typ Max Unit
Adjacent channel rejection
(IEEE 802.11ac)
5)
MCS0
16 - - dB
MCS15) 13 - - dB
5)
MCS2
MCS3
MCS4
MCS5
MCS6
MCS7
MCS8
MCS9
5)
5)
5)
5)
5)
5)
5)
11 - - dB
8 - - dB
4 - - dB
0 - - dB
-1 - - dB
-2 - - dB
-7 - - dB
-9 - - dB
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 30
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (30 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
1) SDIO Interface I/O pins and PCIe out of band signals(PERST_N/PME_L/CLKREQ_N)
*VIO_SD= 1.8V
Item Symbol Min Typ Max Unit
Input high voltage VIH 1.27 - - V
Input low voltage VIL - - 0.58 V
Output high voltage@2mA
Output low voltage@2mA
*VIO_SD = 3.3V
Item Symbol Min Typ Max Unit
Input high voltage VIH 0.625xVIO - - V
Input low voltage VIL - - 0.25xVIO V
Output high voltage@2mA
Output low voltage@2mA
VOH
VOL
VOH
VOL
1.40 - - V
- - 0.45 V
0.75xVIO - - V
- - 1.25xVIO V
2) Other Digital I/O Pins(UART/PCM/WAKE/REG_ON/STRAP and GPIOs)
*VIO = 1.8V
Item Symbol Min Typ Max Unit
Input high voltage VIH 0.625xVIO - VIO+0.1 V
Input low voltage VIL - - 0.35xVIO V
Output high voltage@2mA
VOH
0.45xVIO - - V
Output low voltage@2mA
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
VOL
- - 0.45 V
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 31
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (31 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
*VIO = 3.3V
Item Symbol Min Typ Max Unit
Input high voltage VIH 2.00 - VIO+0.1 V
Input low voltage VIL - - 0.8 V
Output high voltage@2mA
Output low voltage@2mA
VOH
VOL
VIO-0.4 - - V
- - 0.4 V
3) WLAN host interface strap selection
- PCIE_EN, SDIO_DIS, SDIO_PAD
PCIE_EN Mode
High PCIe
Low 1.8V SDIO Low
Low
SDIO_DIS
High
Low
SDIO_PAD
High
High
low
3.3V SDIO
4) Sequencing of reset and regulator control signals
- Description of control signals
*WL_REG_ON
: Used by the PMU to power up the WLAN section. It is also OR-gated with the BT_REG_ON input to
control the internal BCM88359 regulators. When this pin is high, the regulators are enabled and the
WLAN section is out of reset. When this pin is low, the WLAN section is in reset. If both the
BT_REG_ON and WL_REG_ON pins are low, the regulators are disabled
*BT_REG_ON
: Used by the PMU(OR-gated with the WL_REG_ON)to power up the internal BCM88359 regulators. If
both the BT_REG_ON and WL_REG_ON pins are low, the regulators are disabled. When this pin is low
and WL_REG_ON is high, the BT section is in reset
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 32
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
- Control signal timing diagrams
*WLAN =ON, Bluetooth = ON
REV 1.6 (32 / 68)
*WLAN =OFF, Bluetooth = OFF
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 33
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
- Control signal timing diagrams
*WLAN =ON, Bluetooth = OFF
REV 1.6 (33 / 68)
*WLAN =OFF, Bluetooth = ON
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 34
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
- Boot-Up Sequence and Reset timing
REV 1.6 (34 / 68)
VBAT
VIO
WL_REG_ON
/BT_REG_ON
VDDC
(on-chip PMU)
Internal POR
(Power on Reset)
Internal
Reference
Clock
<0ms
<70us
<200ms
<200ms
< 950us
< 104ms
< 4ms
3.3V
After a fixed delay following internal POR
and REG_ON going high, Module
responds to host(address0x14) reads
27ns
8ms
Boot ROM execution starts and
firmware download begins
(UART and SDIO command start)
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 35
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
r
- PCIe Power-on Timing
*Timing Parameter WL_REG_ON)Perst# Deassertion – First Config Access)
REV 1.6 (35 / 68)
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 36
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (36 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
5) UART characteristics
-. UART physical interface is a standard, 4-wire interface(Rx, Tx, RTS, CTS) with
adjustable baud rates from 9600 bps to 4Mbps. Normally the UART baud rate is set
by a configuration record downloaded after reset or by automatic baud rate detection.
LGIT Module supports HCI 3-wire transport(UART H5)
-. UART bus timing specifications
Item Min Typ Max Unit
Delay time, UART_CTS_N low to UART_TXD valid - - 1.5 Bit periods
Setup time, UART_CTS_N high before midpoint of stop bit - - 0.5 Bit periods
Delay time, midpoint of stop bit to UART RTS_N high - - 0.5 Bit periods
Baud rates range(default rate : 115200bps) 9600 - 4M bps
-. UART bus timing
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 37
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (37 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
6) PCM characteristics
-. LGIT Module PCM interface can connect to linear PCM codec devices in master or slave
mode. In master mode, the device generates the PCM_CLK and PCM_SYNC signals. In slave
mode, these signals are provided by another master on the PCM interfaces as inputs to the
devices
-. Short frame sync, master mode timing diagram
-. Short frame sync, master mode interface timing specifications
Item Min Typ Max Unit
PCM bit clock frequency - - 12 MHz
PCM bit clock LOW 41 - - ns
PCM bit clock HIGH 41 - - ns
PCM_SYNC delay 0 - 25 ns
PCM_OUT delay - - 25 ns
PCM_IN setup 8 - - ns
PCM_IN hold 8 - - ns
Delay from rising edge of PCM_BCLK during last bit period to
PCM_OUT becoming high impedance
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
- - 25 ns
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 38
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
6) PCM characteristics
-. Short frame sync, slave mode timing diagram
REV 1.6 (38 / 68)
-. Short frame sync, slave mode interface timing specifications
Item Min Typ Max Unit
PCM bit clock frequency - - 12 MHz
PCM bit clock LOW 41 - - ns
PCM bit clock HIGH 41 - - ns
PCM_SYNC setup 8 - - ns
PCM_SYNC hold 8 - - ns
PCM_OUT delay - - 25 ns
PCM_IN setup 8 - - ns
PCM_IN hold 8 - - ns
Delay from rising edge of PCM_CLK during last bit period to
PCM_OUT becoming high impedance
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
0 - 25 ns
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 39
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
6) PCM characteristics
-. Long frame sync, master mode timing diagram
REV 1.6 (39 / 68)
-. Long frame sync, master mode interface timing specifications
Item Min Typ Max Unit
PCM bit clock frequency - - 12 MHz
PCM bit clock LOW 41 - - ns
PCM bit clock HIGH 41 - - ns
PCM_SYNC delay 0 - 25 ns
PCM_OUT delay 0 - 25 ns
PCM_IN setup 8 - - ns
PCM_IN hold 8 - - ns
Delay from rising edge of PCM_BCLK during last bit period to
PCM_OUT becoming high impedance
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
0 - 25 ns
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 40
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
6) PCM characteristics
-. Long frame sync, slave mode timing diagram
REV 1.6 (40 / 68)
-. Long frame sync, slave mode interface timing specifications
Item Min Typ Max Unit
PCM bit clock frequency - - 12 MHz
PCM bit clock LOW 41 - - ns
PCM bit clock HIGH 41 - - ns
PCM_SYNC setup 8 - - ns
PCM_SYNC hold 8 - - ns
PCM_OUT Delay 0 - 25 ns
PCM_IN setup 8 - - ns
PCM_IN hold 8 - - ns
Delay from falling edge of PCM_BCLK or PCM_SYNC
during last bit period to PCM_OUT becoming high impedance
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
0 - 25 ns
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 41
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
7) SDIO characteristics
-. RBHP-B213A support up to SDIO 3.0 specification
· DS : Default speed(DS) up to 25MHz(3.3V signaling)
· SDR12 : SDR up to 25MHz(1.8V signaling)
· SDR25 : SDR up to 50MHz(1.8V signaling)
· SDR50 : SDR up to 100MHz(1.8V signaling)
· SDR104 : SDR up to 208MHz(1.8V signaling)
· DDR50 : DDR up to 50MHz(1.8V signaling)
REV 1.6 (41 / 68)
-. SDIO default mode timing(min.Vih = 0.7 X VIO, max.Vil = 0.2 x VIO)
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 42
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (42 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
-. SDIO default mode bus timing parameters
Item Symbol Min Typ Max Unit
SDIO CLK
Freq.(data transfer mode) fPP 0 - 25 MHz
Freq.(identification mode) fOD 0 400 KHz
Clock low time
Clock high time
Clock rise time
Clock low time
Input : CMD, DAT(referenced to CLK)
Input setup time
Input hold time
Output : CMD, DAT(referenced to CLK)
Output delay time-data transfer mode
Output delay time-data identification
mode
tWL
tWH
tTLH
tTHL
tISU
tIH
tODLY
tODLY
10 - - ns
10 - - ns
- - 10 ns
- - 10 ns
5 - - ns
5 - - ns
0 - 14 ns
0 - 50 ns
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 43
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (43 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
-. SDIO high speed mode bus timing(min.Vih = 0.7 X VIO, max.Vil = 0.2 x VIO)
-. SDIO high speed mode bus timing parameters
Item Symbol Min Typ Max Unit
SDIO CLK
Freq.(data transfer mode) fPP 0 - 50 MHz
Freq.(identification mode) fOD 0 - 400 KHz
Clock low time
Clock high time
Clock rise time
Clock low time
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
tWL
tWH
tTLH
tTHL
7 - - ns
7 - - ns
- - 3 ns
- - 3 ns
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 44
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
Item Symbol Min Typ Max Unit
Input : CMD, DAT(referenced to CLK)
REV 1.6 (44 / 68)
Input setup time
Input hold time
Output : CMD, DAT(referenced to CLK)
Output delay time-data transfer mode
Output delay time-data identification
mode
Total system capacitance(each line)
-. SDIO SDR mode clock timing
tISU
tIH
tODLY
tODLY
CL
6 - - ns
2 - - ns
- - 14 ns
2.5 - - ns
- - 40 pF
Item Symbol Min Max Unit Comments
- t
-
Clock duty
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
CLK
tCR, t
CF
-
40 50 ns SDR12 mode
20 400 ns SDR25 mode
10 - ns SDR50 mode
4.8 - ns SDR104 mode
tCR, tCF < 2.0ns(max)@100MHz
-
30 70 % -
X t
0.2
CLK
ns
tCR, tCF < 0.96ns(max)@208MHz
C
C
CARD
CARD
= 10pF
= 10pF
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 45
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
-. SDIO SDR mode Device input timing
REV 1.6 (45 / 68)
Item Symbol Min Max Unit Comments
SDR104
Mode
SDR50
Mode
t
IS
t
IH
t
IS
t
IH
1.4 - ns C
0.8 - ns C
3 - ns C
0.8 - ns C
= 10pF, VCT=0.975V
CARD
= 5pF, VCT=0.975V
CARD
= 10pF, VCT=0.975V
CARD
= 10pF, VCT=0.975V
CARD
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 46
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
-. SDIO SDR mode Device output timing(SDR modes up to 100MHz)
REV 1.6 (46 / 68)
Symbol Min Max Unit Comments
t
ODLY
t
ODLY
t
OH
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
- 7.5 ns t
- 14.0 ns t
> 10ns, CL = 30pF using driver type B for SDR50
CLK
> 20ns, CL = 40pF using for SDR12, SDR25
CLK
1.5 - ns Hold time at the t
LG Innotek Co., Ltd
1.6 2017. 09.06. Rev1.6 Released
(min) CL = 15pF
ODLY
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 47
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
-. SDIO SDR mode Device output timing(SDR modes 100MHz to 208MHz)
REV 1.6 (47 / 68)
Symbol Min Max Unit Comments
t
OP
Δt
OP
Δt
ODW
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
0 2 UI Card output phase
-350 +1550 Ps Delay variation due to temp. change after tuning
0.60 - UI Δt
= 2.88ns @208MHz
ODW
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 48
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
-. SDIO DDR50 mode Clock timing
REV 1.6 (48 / 68)
Item Symbol Min Max Unit Comments
-
-
Clock duty
t
CLK
t
CR, tCK
-
20 - ns DDR50 mode
-
0.2x
t
CLK
ns
tCR, tCF < 4.0ns(max)@50MHz
C
CARD
45 55 % -
= 10pF
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 49
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
-. SDIO DDR50 mode Data timing
REV 1.6 (49 / 68)
Item Symbol Min Max Unit Comments
Input
CMD
Output
CMD
Input
DAT
Output
DAT
Input Setup time
Input Hold time
Output delay time
Output hold time
Input Setup time
Input Hold time
Output delay time
Output holdtime
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
t
ISU
t
IH
t
ODLY
t
OH
t
ISU2X
t
IH2X
t
ODLY2X
t
ODLY2X
6 - ns C
0.8 - ns C
- 13.7 ns C
1.5 - Ns C
3 - ns C
0.8 - ns C
7.5 ns C
1.5 - Ns C
LG Innotek Co., Ltd
< 10pF(1CARD)
CARD
< 10pF(1CARD)
CARD
< 30pF(1CARD)
CARD
< 15pF(1CARD)
CARD
< 10pF(1CARD)
CARD
< 10pF(1CARD)
CARD
< 25pF(1CARD)
CARD
< 15pF(1CARD)
CARD
APPD CHKD DSGD
DOCUMENT NO.
RBHP-B213A
6-3
(30) - 4021
Page 50
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (50 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
8) PCI Express characteristics
-. PCI Express Reference CLK
s
Parameters Symbol Comments Min. Typ. Max Unit
Baud rate BPS - - 2.5 -
Reference clock
amplitude
Vref
LVPECL, AC coupled
1.0 - - V
Gbaud
-. PCI Express Receiver
Parameters Symbol Comments Min. Typ. Max Unit
Differential
termination
DC impedance ZRX-DC
Powered down
termination(POS)
Powered down
termination(NEG)
Input voltage VRX-DIFFp-p
Jitter tolerance TRX-EYE
Differential
return loss
ZRX-DIFF-DC Differential termination 80 100 120 Ω
DC common-mode
impedance
ZRX-HIGH-IMP-DC-
POS
ZRX-HIGH-IMP-DC-
NEG
RLRX-DIFF Differential return loss 10.0 - - dB
Power-down or RESET
high Impedance
Power-down or RESET
high Impedance
AC coupled, differential(p-p)
Minimum receiver eye
width
40 50 60 Ω
100k - - Ω
1k - - Ω
175 - - mV
0.4 - - UI
Common-mode
return loss
Unexpected
electrical idle
enter detect
threshold
integration time
Signal detect
threshold
RLRX-CM Common-mode return loss 6 - - dB
RX-IDEL-DET-
DIFFENTERTIME
VRX-IDLE-DET-
DIFFpp
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
An unexpected electrical
idle must be recognized no
longer than this time to
signal an unexpected idle
condition.
Electrical idle detect
threshold
- - 10.0 ms
65.0 - 175 mV
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 51
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (51 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
8) PCI Express characteristics
-. PCI Express Transmitter
Parameters Symbol Comments Min. Typ. Max Unit
Output voltage
Output voltage
rise time
Output voltage
fall time
RX detection voltage
swing
TX AC peak
common-mode
voltage(5 GT/s)
TX AC peak
commonmode
voltage(2.5 GT/s)
Absolute delta of DC
common-model
voltage
during L0 and
electrical idle
VTX-
DIFFp-p
VTX-RISE
VTX-FALL
VTX-RCV-
DETECT
VTX-CM-
AC-PP
VTX-CM-
AC-P
VTX-CM-
DC-
ACTIVE-
IDLE-
DELTA
Differential p-p, programmable
in 16 steps
20% to 80%
80% to 20%
The amount of voltage
change allowed during
receiver detection.
TX AC common mode
voltage (5 GT/s)
TX AC common mode
voltage (2.5 GT/s)
Absolute delta of DC
common-model voltage
during L0 and electrical idle.
0.8 - 1200 mV
0.125
(2.5 GT/s)
0.15
(5 GT/s)
0.125
(2.5 GT/s)
0.15
(5 GT/s)
- - 600 mV
- - UI
- - UI
- - 100 mV
- - 20.0 mV
0 - 100 mV
Absolute delta of DC
common-model
voltage
between D+ and D-
Electrical idle
differential
peak output voltage
CM-DC-
DELTA
DIFF-AC-
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
VTX-
LINE-
VTX-
IDLE-
p
DC offset between
D+ and D-
Peak-to-peak voltage 0 - 20.0 mV
0 - 25.0 mV
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 52
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (52 / 68)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.3 I/O characteristics
8) PCI Express characteristics
Parameters Symbol Comments Min. Typ. Max Unit
TX short circuit
current
DC differential TX
termination
Differential
return loss
Common-mode
return loss
ITX-
SHORT
ZTX-
DIFF-DC
RLTX-
DIFF
RLTX-CM Common-mode return loss 6.0 - - dB
TX eye width TTX-EYE
Current limit when TX output
is shorted to ground.
Low impedance defined
during signaling (parameter
is captured for 5.0 GHz by
RLTX-DIFF)
Differential
return loss
Minimum TX
eye width
- - 90.0 mA
80.0 - 120 Ω
10 (min)
for 0.05:
1.25 GHz
- - dB
0.75 - - UI
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 53
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
10. Electrical Specification
10.4 Operating Conditions
1) Recommended operation conditions
REV 1.6 (53 / 68)
t
Operating Temperature Range ℃
Supply Voltage : VBATT (3.3V)
Supply Voltage : VIO (1.8V) 1.62 1.98 V
2) Current consumption
Stand-by (BT & WLAN) mA
WLAN Continuous Rx mA 180
WLAN Continuous Tx2) mA 420
Bluetooth Connection mA 20
3) ESD Precautions
l
RBHP-B213A is classified as a JESD22-A114(HBM) class 1C(1kV) product. Apply ESD static handling
precautions during manufacturing.
Parameter Unit
Parameter Unit
Min Max
-40 +85
1)
3.0
Average
10
3.6
V
4) External 32.768KHz low-power oscillator(LPO)
External 32.768KHz precision oscillator is required.
Parameter Unit
Nominal input frequency KHz
Frequency accuracy ppm ±200
Single input amplitude mV, p-p 200 ~ 1800
Signal type Square-wave or sine-wave
1)
The BCM88359 is functional across this range of voltages.
Optimal RF performance specified in the RBHP-B213A approval sheet, however , is guaranteed only for min. 3.2V
including VBAT ripple
2)
MIMO condition
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LPO clock
32.768
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 54
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
11. Pin Configuration
REV 1.6 (54 / 68)
< Opposite (Host) Pin Map (Top View) >
*
*
21
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
40
*
Position#1
Indicator
<FCI 61082-041 >
1 20
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 55
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
11. Pin Configuration
g
No. Pin Name I/O Description
REV 1.6 (55 / 68)
1 GND
2 BT_UART_RTS
3 BT_UART_CTS I/O Bluetooth UART clear to send
4 BT_UART_TXD I/O Bluetooth UART signal output
5 BT_UART_RXD I/O Bluetooth UART signal input
6 VIO
7 GND
8 SDIO_CLK
9 SDIO_CMD
10 SDIO_DATA3
11 SDIO_DATA2
12 SDIO_DATA1
I/O
I/O
I/O SDIO data line 3
I/O SDIO data line 2
I/O SDIO data line 1
Ground
-
Bluetooth UART request to send
BT, WLAN VDDIO supply voltage.(3.3V or 1.8V)
I
- BT and WLAN should be same power rail
Ground
-
SDIO clock
I
SDIO command line
13 SDIO_DATA0
14 GND
15 GND
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
I/O SDIO data line 0
Ground
-
Ground
-
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 56
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
11. Pin Configuration
No. Pin Name I/O Description
16 LPO I Low power clock input (32.768KHz, 200~1800mV P-P)
REV 1.6 (56 / 68)
17 GND
18 VBAT
19 VBAT
20 VBAT
21 GND
22 SDIO_DIS I
23 PCIE_EN I
24 GND
25 BT_PCM_IN
26 BT_PCM_OUT O PCM data output
27 BT_PCM_CLK I/O PCM clock, can be master (output) or slave (input)
Ground
-
Positive supply
I
- Supply voltage : Typical 3.3V.
Positive supply
I
- Supply voltage : Typical 3.3V.
Positive supply
I
- Supply voltage : Typical 3.3V.
Ground
-
SDIO_DIABLE
: Low : SDIO Enabled, High : SDIO Disabled
PCIE_ENABLE
: Low : PCIE Disabled, High : PCIE Enabled
Ground
-
PCM data input
I
28 BT_PCM_SYNC I/O PCM sync signal, can be master (output) or slave (input)
29 PCIE_TD_P O PCIE Transmitter differential positive
30 PCIE_TD_N O PCIE Transmitter differential negative
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 57
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
11. Pin Configuration
No. Pin Name I/O Description
31 PCIE_CLK_N I PCIE differential clock input negative
32 PCIE_CLK_P I PCIE differential clock input positive
33 PCIE_RD_N I PCIE Receiver differential negative
34 PCIE_RD_P I PCIE Receiver differential positive
35 PCIE_CLKREQ O PCIE clock request signal
36 PCIE_PERST_N I PCIE system reset.
37 PCIE_PME_L O PCIE power management event output
REV 1.6 (57 / 68)
38 SDIO_PADVIO I
39 BT_REG_ON
40 WL_REG_ON
SDIO_PADVDDIO
:If VIO_SD=1.8Vhigh, If VIO_SD=3.3Vlow
BT Power on Reset
I
WLAN Power on reset
I
- Internal 200KΩ pull-down
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 58
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (58 / 68)
(CUSTOMER P/NO : EAT63433501 )
12. Reliability Test Conditions
12.1 Items related with Non-Solderability(ES96100-02)
x
NO ITEM Condition Characteristics
Initial value measured at standard test condition.
1
2
3
4
5
High Temp.
Load Test
Low Temp.
Load Test
High Temp.
Storage Test
Low Temp.
Storage Test
Sweep Sine
Vibration Test
Test Conditions: 25℃ → 85℃, 100hr(Over for 1hr)
Supply Voltage Condition: standard ± 5%
In standard test condition, take measurements within 3hr.
Initial value measured at standard test condition.
Test Conditions: 25℃ → -40℃, 100hr(Drop for 1 hr)
Supply Voltage Condition: standard ± 5%
In standard test condition, take measurements within 3hr.
Initial value measured at standard test condition.
Test Conditions: 105℃, 168hr
In standard test condition, take measurements within 3hr.
Initial value measured at standard test condition.
Test Conditions: -40±3℃, 168hr
In standard test condition, take measurements within 3hr.
IInitial value measured at standard test condition.
Test Conditions: 10~50Hz, 1mm p-p 2hr
In standard test condition, take measurements within 3hr.
- No electrical problem
- No electrical problem
- No electrical problem
- No electrical problem
- No electrical problem
Initial value measured at standard test condition.
Test Conditions:
- Test height: 100 cm
6 Drop Test
7 Shock Test
8
High
Temperature
Durability
- Test times: 10 times
Drop the module onto a 10mm thickness plywood.
In standard test condition, take measurements within 3hr.
Initial value measured at standard test condition.
Test Conditions:
- Impact acceleration: 50G(m/sec2)
- Impact time: 11 msec
- Impact times and direction: 10 times each in 6 directions
In standard test condition, take measurements within 3hr.
Initial value measured at standard test condition.
Test Conditions:
- Test Temp.: 85℃
- Test times : 500Hr
Supply Voltage Condition:
- V min: until 10% of operational cycles
- V normal: until 80% of operational cycles
- V max: until 10% of operational cycles
In standard test condition, take measurements within 3Hr
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
- No mechanical damage
- No mechanical damage
- No electrical problem
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 59
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (59 / 68)
(CUSTOMER P/NO : EAT63433501 )
12. Reliability Test Conditions
12.1 Items related with Non-Solderability(ES96100-02)
NO ITEM Condition Characteristics
Initial value measured at standard test condition.
9 Against flux
Temperature
10
and Humidity
Cycling
Dew
11
Condensation
test
Test Conditions
-Soak 5 seconds in a I.P.A and let waiting condition for 35 seconds.
After then test.
Initial value measured at standard test condition.
Test Conditions: 3 cycle condition.
70±2
55±2
23±5
Temperature (℃)
-40±2
4 4.5
80
Humidity (%)
60±15
4 4.5
In standard test condition, take measurements 2hr after.
14.5
17 19
Time (hour)
14.5 17 19
Time (hour)
20.5 22.5 24
20.5
22.5
24
Initial value measured at standard test condition.
Test Conditions: 3 cycle condition.
-30℃ (1 Hr)
-30℃ → 25℃, 90%RH (within 1 min)
25℃, 90%RH (1 Hr) - On : 15 min / Off : 15 min
In standard test condition, take measurements 2hr after.
- No electrical problem
- No electrical problem
- No electrical problem
12
High humidity
and Temp.
load test
IInitial value measured at standard test condition.
Test Conditions: 60℃, 80%, 48hr
In standard test condition, take measurements within 3hr.
IInitial value measured at standard test condition.
13 Dust
Test Conditions: JIS Z 8901, 5kg
In standard test condition, take measurements within 3hr.
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
- No electrical problem
- No electrical problem
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 60
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (60 / 68)
(CUSTOMER P/NO : EAT63433501 )

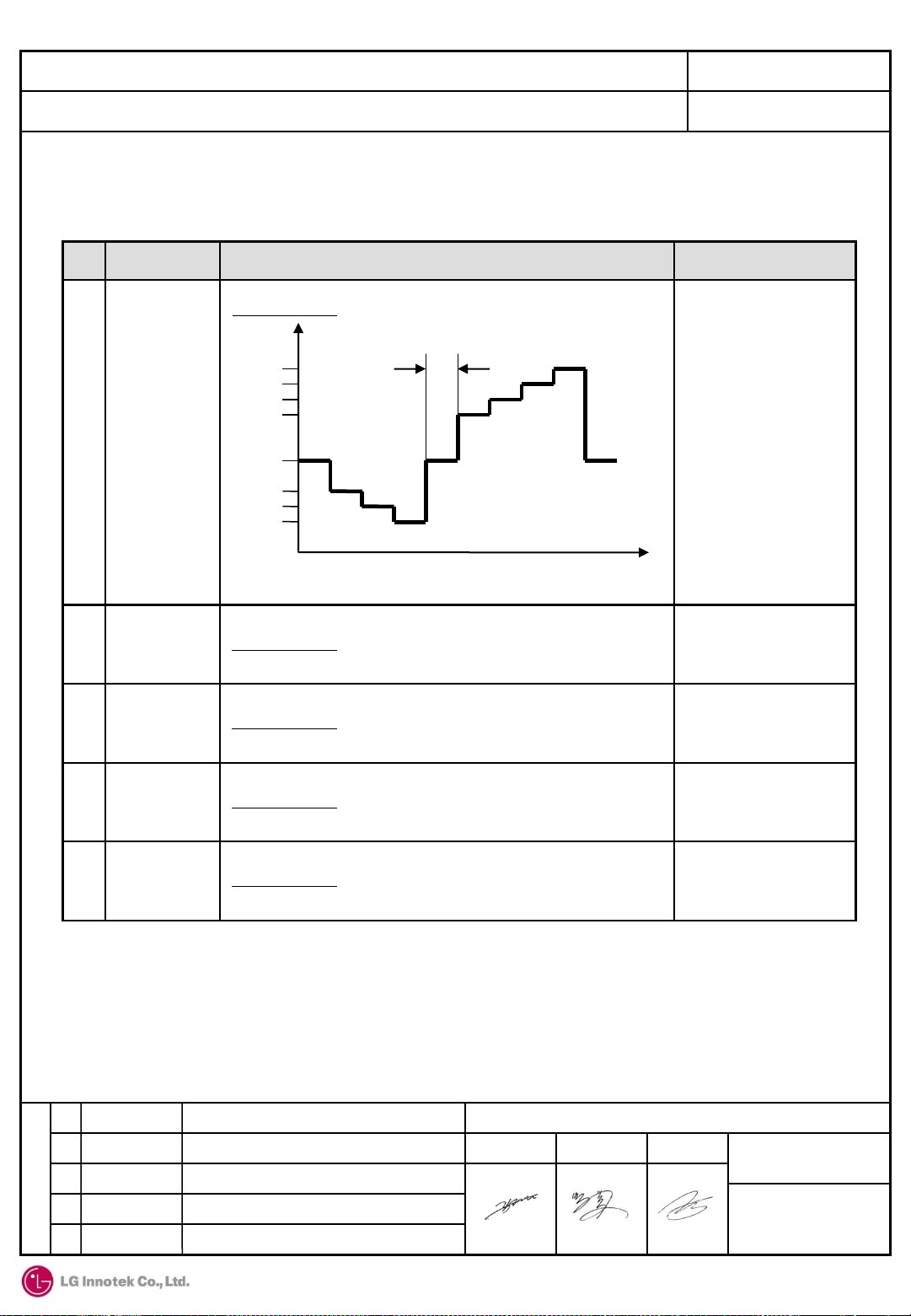

12. Reliability Test Conditions
12.1 Items related with Non-Solderability(ES96100-02)
NO ITEM Condition Characteristics
Initial value measured at standard test condition.
Test Conditions:
14
Temperature
Drift Test
70
65
55
45
25
0
Temperature (℃)
-10
-20
Take measurements sustaining each temperature.
1 hour
- No electrical problem
15 Dust
16
17
18 ESD
Complex
Environment
Operation
Durability
IInitial value measured at standard test condition.
Test Conditions: JIS Z 8901, 5kg
In standard test condition, take measurements within 3hr.
IInitial value measured at standard test condition.
Test Conditions: -20℃~60℃, 10~50Hz, 1G
In standard test condition, take measurements within 3hr.
IInitial value measured at standard test condition.
Test Conditions: 25±5℃ 60±20%, 1500Hrs
In standard test condition, take measurements within 3hr.
IInitial value measured at standard test condition.
Test Conditions: ±1KV 5time 150pF/330Ω
In standard test condition, take measurements within 3hr.
- No electrical problem
- No electrical problem
- No electrical problem
- No electrical problem
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 61
TITLE : Specifications for approval (RBHP-B213A)
REV 1.6 (61 / 68)
(CUSTOMER P/NO : EAT63433501 )
12. Reliability Test Conditions
12.2 Items related with Solderability(ES90000-04)
NO ITEM Condition Characteristics
1
2
3
High
Temperature
and Humidity
Load Test
Thermal
Shock
Power and
Temperature
Cycling
Initial value measured at standard test condition.
Test Conditions: 85±3℃, 85±5%RH, 1000hr
In standard test condition, take measurements within 3hr.
Initial value measured at standard test condition.
Test Conditions:
-40℃ ( 10 min)
-40℃ → 85℃, (within 10 min)
85℃ ( 10 min)
85℃ → -40℃, (within 10 min)
- Test cycle : 1000 cycles
- Test Times : 667 Hr
In standard test condition, take measurements within 3Hr.
Initial value measured at standard test condition.
Test Conditions: 100 cycle condition
- Test Times : 100 Hr
Supply Voltage Condition: standard ± 5%
Power Condition:
-35℃ ( 10 min)
-35℃ → 75℃, (Temp. variation velocity : over 6℃/min)
75℃ ( 10 min)
75℃ → -35℃, (Temp. variation velocity : over 6℃/min)
- On: 300 sec , Off: 300 sec
In standard test condition, take measurements within 3Hr
- Whisker, No electrical
problem
- No Whisker, Bond
strength, section
inspection, electrical
problem
Initial value measured at standard test condition.
Test Conditions:
- Frequency : 10 ~ 1000Hz
- Power spectrum density : 0.0296 ~ 9.63 (m/s3)2/Hz
- Direction : X/Y/Z, 8hr/Axis
In standard test condition, take measurements 2hr after.
4
Random
Vibration test
With operation
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 62
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
13. Block Diagram
j
VBAT(3.3V)
BT_PCM ≠4
WL_REG_ON
BT_REG_ON
BT_UART ≠4
PCIE ≠9
SDIO_DIS
SDIO ≠6
WiFi Core1
BCM88359
W_Tx
W_Rx
W_Tx
W_Rx
W_Tx
W_Rx
5GHz FEM
SW
2.4GHz FEM
SW
5GHz FEM
SW
REV 1.6 (62 / 68)
2.4G/5G
WLAN
ANT 1
ESD
protection
Diplexer
Bluetooth
/5G WLAN
ANT 0
PCIE_EN
SDIO_PAD
VIO
LPO_CLK
(32.768kH z Clock)
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
WiFi Core0
Bluetooth
37.4MHz
(crystal)
W_Tx
W_Rx
B_Tx/Rx
ESD
protection
Diplexer
RBHP-B213A BT/WiFi
Combo Module
LG Innotek Co., Ltd
APPD CHKD DSGD
DOCUMENT NO.
RBHP-B213A
6-3
(30) - 4021
Page 63
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
14. Reference Circuit
u
REV 1.6 (63 / 68)
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 64
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
15. Reflow Profile
Temperature
250℃
217℃
3℃ per second
REV 1.6 (64 / 68)
6℃ per second maximum
200℃
150℃
Tsmax
60~150 sec
Tsmin
3℃ per second maximum
60~120 sec
Ramp up
Initial ramp-up rate 3℃ per second maximum
Preheat
Temperature minimum(Tsmin)
Temperature maximum(Tsmax)
Time(minimum to maximum)
Ramp-up rate Tsmax to TL 3℃ per second maximum
Liquidus Temperature(TL) 217℃
Time above TL 60-150s
Soak(flux activation)
Reflow
Profile Feature Pb-free Assembly
150℃
200℃
60-120s
Cool down
t [sec]
Peak temperature 250℃ maximum
Time within 5℃ of actual peak 10s
Ramp-down rate 6℃ per second maximum
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 65
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )

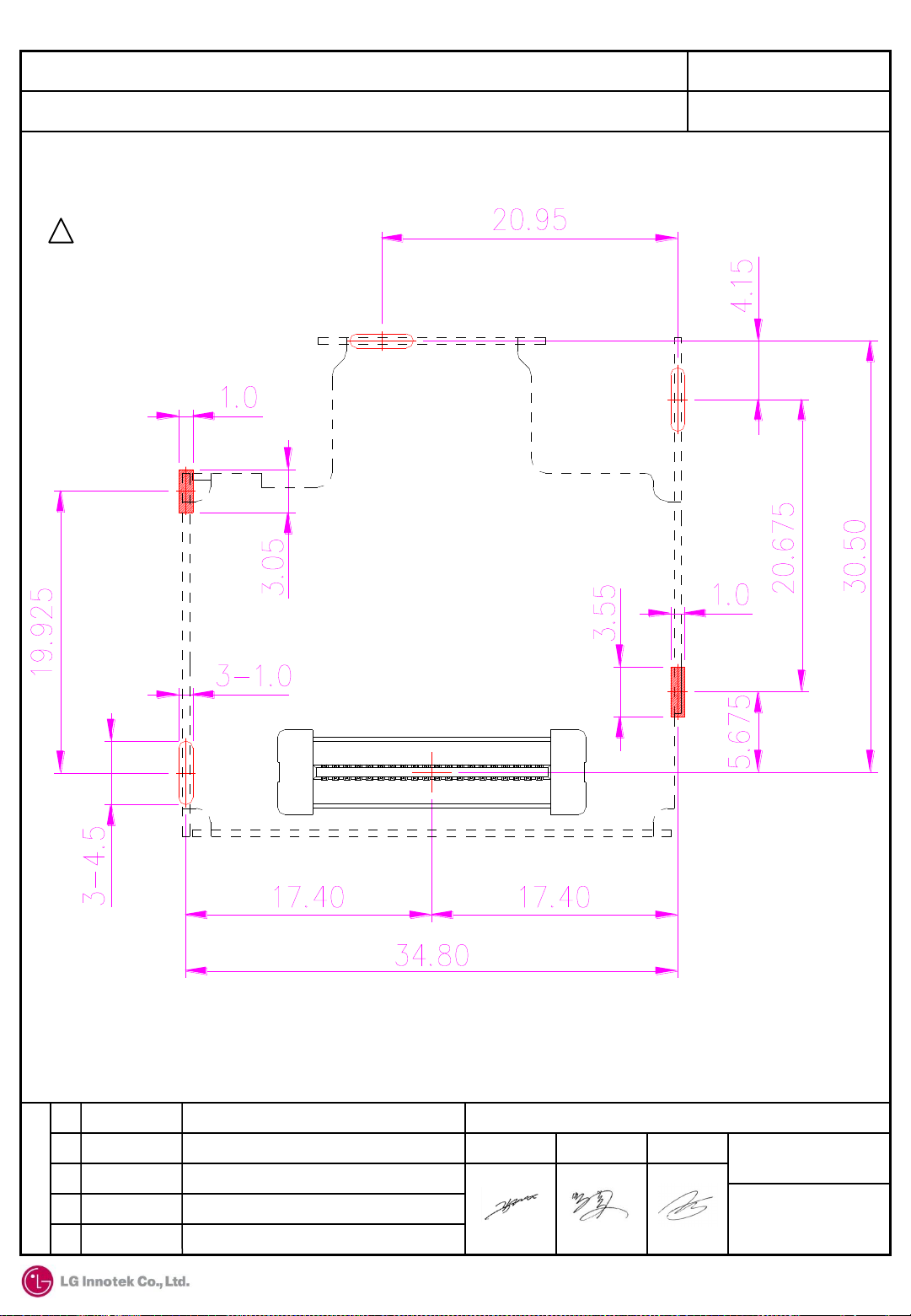

16. Recommended Land Pattern
1)Top view
c
REV 1.6 (65 / 68)
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
<FCI 61082-041 >
<Unit : mm>
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 66
TITLE : Specifications for approval (RBHP-B213A)
of top on BOX.
(400X250X285)
(CUSTOMER P/NO : EAT63433501 )
17. Packing Information
REV 1.6 (66 / 68)
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 67
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
17. Packing Information
q
① ② ③ ④
Item
LGE v1.0
REV 1.6 (67 / 68)
2016.05.30
⑤
EAT63433501 130
Spec
No. Index
RBHP-B213A
① POSITION (ITEM / OUTBOX)
② CUSTOMER
③ FIRMWARE VERSION (vX.X)
④ SHIPPING DATE (YYYY.MM.DD)
BARCODE (Customer P/N, Quantity)
⑤
Ex) EAT63433501 130
⑥ CUSTOMER P/N
⑦ QUANTITY
⑧ MODEL P/N
⑨ LOT NUMBER
BARCODE (Lot No.)
⑩
Ex) 6530-001
BARCODE (Model P/N, Lot No.1)
⑪
Ex) RBHP-B213A.6530-001.1
⑥ ⑦
⑧
LotNo
6530 - 001
⑩
⑨
⑪
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 68
TITLE : Specifications for approval (RBHP-B213A)
(CUSTOMER P/NO : EAT63433501 )
18. Ordering Information
Product
REV 1.6 (68 / 68)
R B H P - B 2 1 3 A
RB
H
P
B
213
A
Bluetooth
Module Type
BT(Class2)+WLAN
Host Interface
PCIe
Chipset Maker
Broadcom
Serial Number
Revision
A Version
213
1.2 2017. 05.23. Rev1.2 Released
R
1.3 2017. 06.27. Rev1.3 Released
1.4 2017. 07.14. Rev1.4 Released
E
1.5 2017. 08.10. Rev1.5 Released
V
1.6 2017. 09.06. Rev1.6 Released
LG Innotek Co., Ltd
APPD CHKD DSGD
RBHP-B213A
DOCUMENT NO.
6-3
(30) - 4021
Page 69
FCC WARNING STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation
Any changes or modifications (including the antennas) to this device that are not
expressly approved by the manufacturer may void the user's authority to operate the
equipment.
Note : This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications, However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void your authority to
operate the equipment under FCC rules.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF Radiation exposure limits set forth for an
uncontrolled environment. This device and its antenna must not be co-located or
operating in conjunction with any other antenna or transmitter.
This equipment should be installed and operated with a minimum distance of 20cm
between the radiator and your body.
Information for OEM integrator
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user manual of the end product.
The user manual which is provided by OEM integrators for end users must include the
following information in a prominent location.
“To comply with FCC RF exposure compliance requirements, the antenna used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other antenna
or transmitter.” Label for end product must include “Contains FCC ID: BEJRBHP-B213A,
IC: 2703H-RBHP-B213A" or "A RF transmitter inside, FCC ID: BEJRBHP-B213A, IC:
2703H-RBHP-B213A".
Page 70
IC WARNING STATEMENT
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions : (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1)
l’appareil ne doit pas produire de brouillage, et (2) l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
This equipment complies with IC RF Radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction
with any other antenna or transmitter.
This equipment should be installed and operated with a minimum distance of 20cm between
the radiator and your body.
Cet équipement est conforme aux limites établies par Industrie Canada en matière
d'exposition aux radiofréquences dans un environnement non contrôlé. Cet appareil et son
antenne ne doivent pas être colocalisés ou fonctionner en conjonction avec tout autre
antenne ou émetteur.
Cet équipement doit être installé et utilisé avec une distance minimale de 20cm entre le
radiateur et votre corps.
Loading...
