LG PS-S200WC Owner’s Manual

Download

Owner’s Manual

•Read before using product (safty instruction), use properly.

•About ensuring users’ safety and property.

•Product warranty card is enclosed with the user manual.

•After careful read through the user manual, do keep it in a handy place.

P/No.: MFL31040019

PS-S200 Series

Air Purifier

The advantages are

It’s grateful to use our LG air purifier. After reading through this manual, using this product for a long-term would be safe and convenient.

- Don't worry when the filter gets dirty. You can wash the filter with water and reuse it.

- High class reinforced glass design is applied.

Water cleaning filter system without worrying about maintenance cost

High class interior design

- The product maintains the minimum noise to help you get a better sleep.

With the convenient filter attach/detachment system, you can directly check the condition of the filter at a glance.

Reduced noise and wider coverage

One touch filter part that is easy to clean

During Use After Use

Before Use

Table of Contents

❏ The advantages are .............................................................2

❏ Cautions for Safety.........................................................4~13

❏ Installation ..........................................................................14

❏ Air purifier Start Guide........................................................15

❏ Name of each part........................................................16~18

– Mainframe

– Operation display panel and control panel

– Filter system

Owner’s Manual

Before Use

❏ Filter cleaning...............................................................22~23

❏ Exterior clean and storage method ....................................24

❏ Confirming Items Before Reporting Defect.....................25~26

❏ Product Specification............................................................27

After Use

❏ Operation......................................................................19~21

– Air Purifying Mode – Auto Mode – Turbo Mode – Sleep Mode

During Use

Air Purifier

Cautions for Safety

The following precautions related to safety marked as follows are to prevent unexpected danger or damage by safely and accurately using the product.

Warning / Caution

WARNING

If not followed, it can cause death or major injury to the user.

If not followed, it can cause injury to the user or property damage.

This is the symbol to get attention focused for the details and operations that can cause any type of danger. To prevent any danger, observe carefully and follow the directions appropriately.

CAUTIONS

Cautions for Safety

Owner’s Manual

Before Use

Warning

Installation

Do not change or extend power cords at random.

Otherwise, it may cause fire or electrical shock.

Do not use the product a place where there are much moistures or oils such as toilet, bathroom or washing room.

Otherwise, it may cause fire or electrical shock.

Do not disassemble or repair the product at random.

It will cause fire and electrical shock.

Never use an octopus feet-type of socket.

Unreasonable use of power may cause fire or electrical shock.

Never use the damaged or loose power cords.

Otherwise, it may cause fire or electrical shock.

Open the window for air ventilation before operating the air purifier when gas leaks.

Otherwise, it may cause explosion, fire and physical injury.

Air Purifier

Cautions for Safety

If abnormal noise comes or smell or smoke emits from the product, pull the power plugs out and call our service center.

Otherwise, it may cause fire or electrical shock.

Don’t put heavy things on power cords or take care so that they should not be pressed under the product.

Otherwise, it may cause fire or electrical shock.

Don’t keep and use combustible gas, flammable substance around the product.

Otherwise, it may cause fire and failure of product.

Do not lay fire appliances around the product.

Otherwise, it may cause fire.

Keep this product out of the direct rays of the sun, heating source and moisture.

Otherwise, it may cause electric shock, fire or failure of product.

Cautions for Safety

Owner’s Manual

Before Use

Operation

Securely insert power plugs to the end so that they should not shake.

Incomplete connection may cause fire.

Pull power plugs by grasping the head and never touch with power plugs with the wet hands.

Otherwise, it may cause electrical shock or physical injury.

Take care that water could not run into the product.

Otherwise, it may cause electrical shock or fire.

Never damage, process, forcedly bend, twist, pull, lay between gaps or heat power cords.

Damaged cords may cause fire and electrical shock.

Do not hold the power cable to pull out the power plug.

May cause fire or electric shock.

Do not install a place where there are much industrial Oil dust or metallic dust.

If may cause fire and failure of product.

When the power code is damaged, it should be repaired by the qualified person to prevent any risk.

Otherwise, it may cause electric shock, fire or failure of product.

Air Purifier

Cautions for Safety

Do not use this product when is in moving.

May cause fire or electric shock or damage to some parts of the product.

Do not use thermal appliances near power cords.

Otherwise, it may cause fire or electrical shock.

Do not lay obstacles around the product.

Otherwise, it may cause failure.

Do not cover with a rug, cushion etc over power cords.

Power cords may be damaged and result in fire and electrical shock in case of putting heavy things on in the manner power cords cannot be seen.

Do not sprinkle in insecticide or hair spray.

It may cause damage or accident.

Do not allow children to climb up this product.

May cause the breakdown, injury.

Cautions for Safety

Owner’s Manual

Before Use

Do not move the product by hold the front-panel.

May cause electric shock or damage to some parts of the product.

Do not put coffee or all types of beverage on the air discharge outlet.

Otherwise, it may cause fire or electrical shock.

Contact with the service center for repairing the product.

Any arbitrary disconnection or repairing may cause electric shock or fire.

Do not put pressure on the front glass.

It can cause injury and product damage or cause electric shock.

Do not insert the hands or bars into the suction inlet or the outlet.

Otherwise, it may cause failure of product or physical injury.

If the product is submersed in the water, you must contact the service center.

It can cause electric shock or fire.

Air Purifier

Cautions for Safety

Cautions

Installation

Maintain distance of more than 1m when installing the product near TV or audio.

Do not use the product for removing toxic gas as CO.

Otherwise, it may cause failure.

Do not use the product as ventilation fan or range hood at the kitchen.

It may cause shorten the lifetime of the product.

Install the product at a flat place and do not fall the product down or give shock.

Otherwise, it may cause damage or accident.

Maintain distance over 1.5m for illumination devices and maintain distance 10cm or so.

Avoid a place near fire arms or heating devices or subject to direct sunlight.

It will cause fire.

Cautions for Safety

Owner’s Manual

Before Use

Do not use except AC 230V.

Otherwise, it may cause fire or electrical shock.

When using the product with a burner within the airtight room, sometimes let fresh air into the room.

Some toxic substances such as carbon dioxide may not be removed.

Do not install the air purifier on the transportation vehicle (car, ship etc.).

It may cause failure.

Air Purifier

Cautions for Safety

Do not use the product for special purpose such as animals or vegetables, precision machine or conservation of art articles.

Otherwise, it may cause damage of property.

Don’t use strong detergent like solvent, etc but use a soft cloth.

Otherwise, fire or distortion of the product may occur.

Secure all filters and regularly clean them.

Otherwise, it may cause failure of product.

Never operate or stop the product while inserting or removing power plugs.

Otherwise, it may cause electrical shock or fire.

Pull power plugs out when not using the product for a long time.

Otherwise, it may cause failure of product or fire.

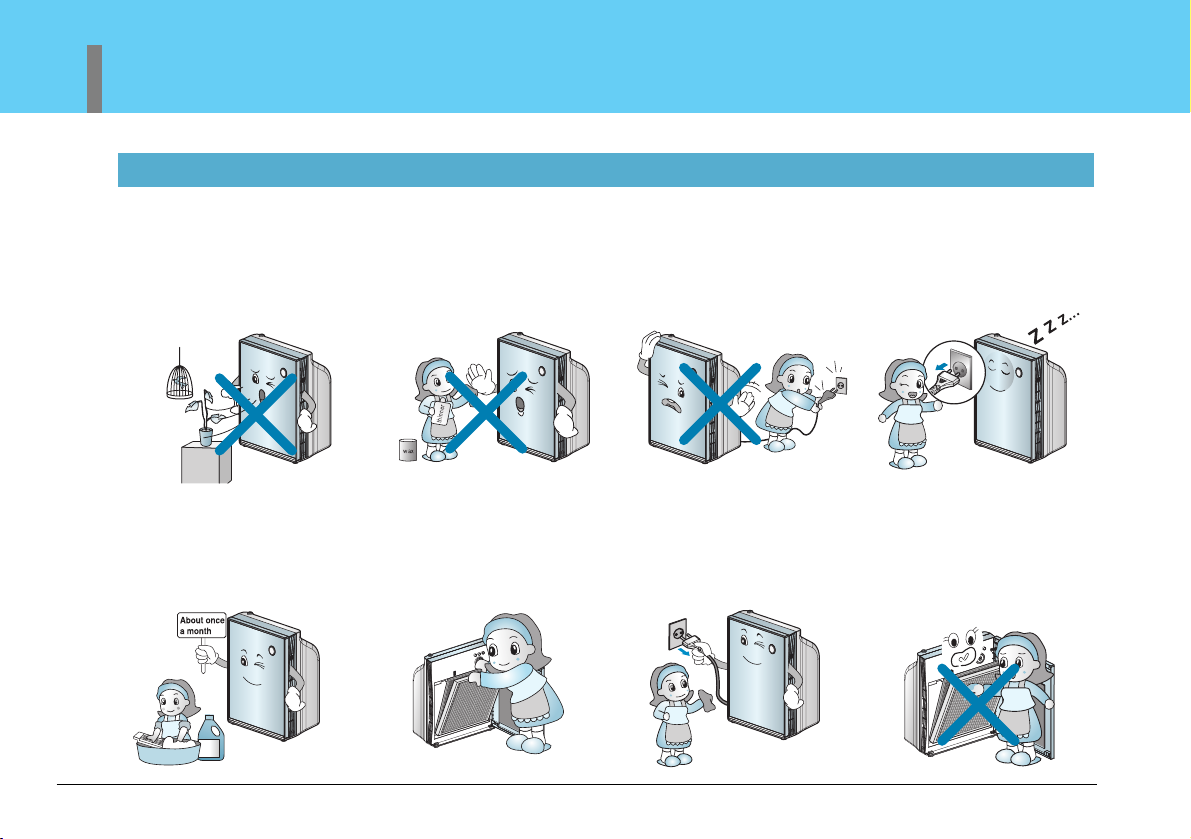

Use the filter securely inserted, and clean the filter about once a month.

Otherwise, it may cause failure.

Start cleaning after turning off the power and when the fan stops.

It can cause electric shock or injury.

Do not touch the filter part with wet hands.

The cleaning filter part, especially, is dangerous to cause electric shock from high voltage.

Operation

Cautions for Safety

Owner’s Manual

Before Use

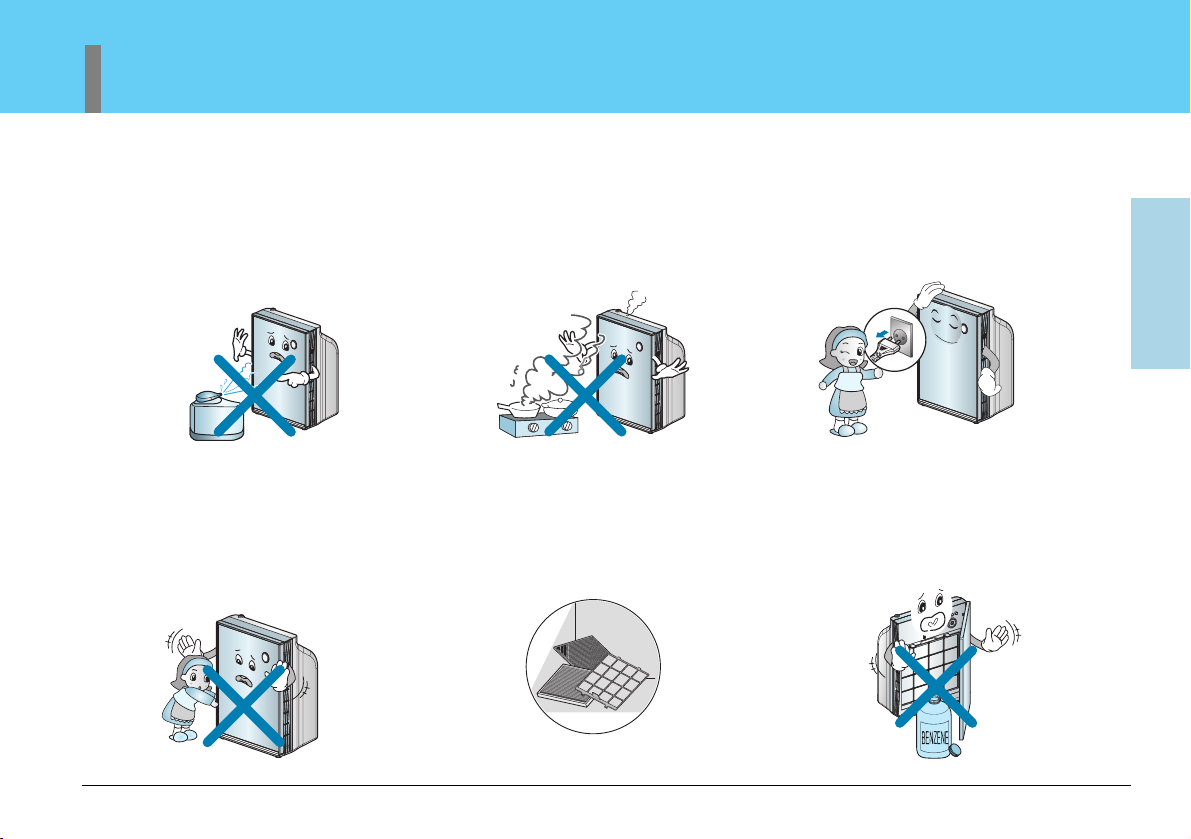

Pull power plugs out for cleaning.

Otherwise, it may cause fire and electrical shock.

Do not open the front panel during the operation of the product.

Opening the front panel stops the operation.

Do not let the moisture from the humidifier directly touch the product.

Otherwise, it may cause electric shock, fire or failure of product.

Do not use this product as ventilating fan or so.

It may cause shorten the lifetime of the product.

Wash the washing filter and dry it completely in the shade.

Otherwise, it may cause failure.

Do not insert any inflammable into the product.

Otherwise, it may cause fire or failure of product.

Air Purifier

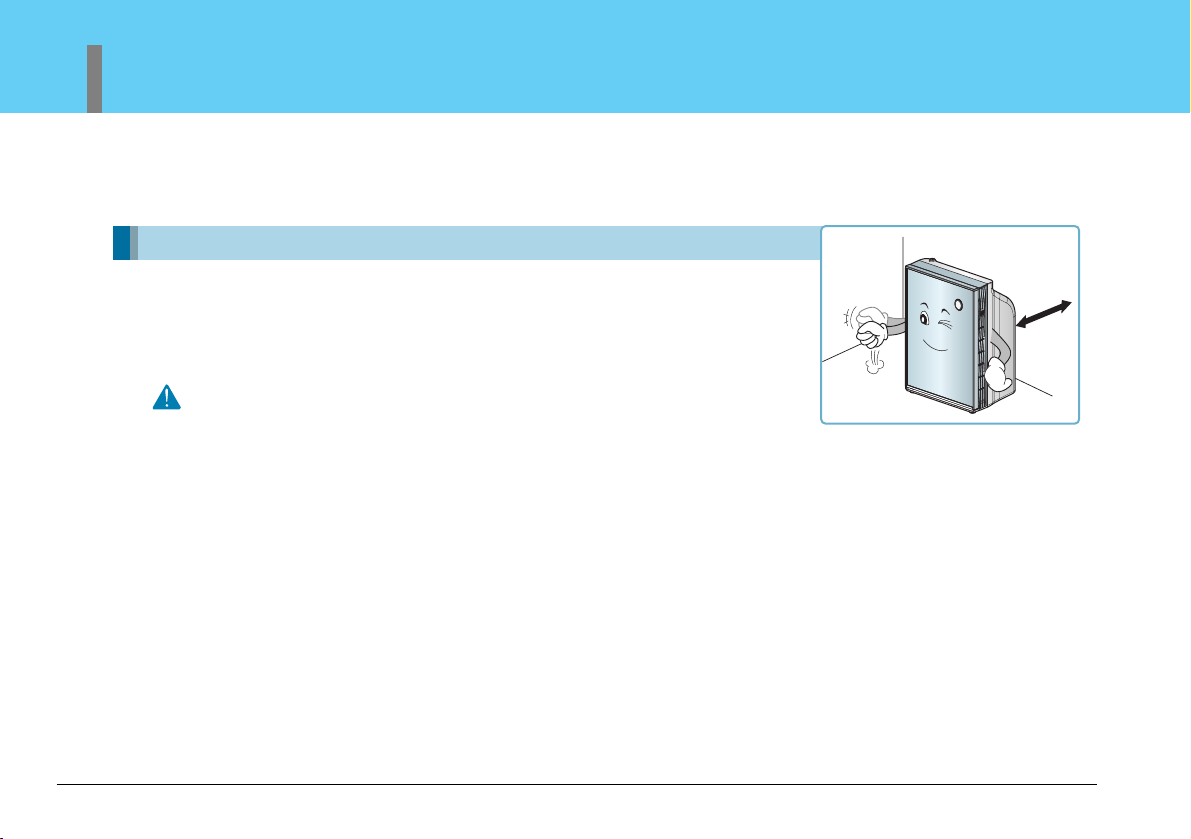

Installation

Main unit

• Where it is easy to connect the power (Close location to the power outlet).

• Where there is no obstacle that interferes with the suction of the indoor air near the air inlet.

• Where the floor is flat and air circulates well.

Warning

Do not install the air cleaner on the transportation vehicle (car/ship etc.), because it can cause problems to the product.

Installation location selection

tuob

mc01

Air Purifier Start Guide

Turn off air purifier when cleaning.

•Cleaning the air purifier with opened windows would disturb the natural air circulation to cause intake too much particles, it may shorten the filter life. After complete cleaning process with enough air circulation, close the windows, turn on the air purifier is the appropriate way to purify air.

Use after enough air circulation when cooking

•When roast meat or fishs, remove the smell by air purifier is not appropriate. The oil particle will block cells on filter, it may cause filter life shorten or filter polluting etc. negative effects. Under this circumstance enough air circulation is necessary. Remove leftover odors by air purifier after no oil particle is the correct and effective way to use product in long-term scale.

Do not stay too closed when sleeping.

•Air purifier fan speed is not strong, before fallen asleep feel cool, after fallen asleep would feel cold. The appropriate way is to keep at least 1 meter distance with air purifier.

Do not place in the corner edge.

•Avoid to install at places surrounded by furniture, appliances etc. or in the edge corner. Install in the edge corner may cause difficulty to purify indoor air from the rest space.

Ensure air circulate 30 minutes at least everyday.

•For those families use the air purifier, air circulation is the prerequisite to ensure enough oxygen supply. Ensure air circulation 30 minutes at least everyday could brings fresh air inflow. Keep opposite windows open may gain a better result for air circulation. In case of being lazy may weaken air refreshing function, therefore it is necessary to ensure clean and maintanance.

Owner’s Manual

Before Use

Air Purifier

Name of Each Part

Mainframe

Power button

This is the button to connect the power to the product, and when the power button is not pressed, the product will not operate.

Pre-filter

Power plug

Front panel

Operation button

Deodorizer sensor part

Name of Each Part

Owner’s Manual

Before Use

Operation display panel and control panel

Operation mode

lamp

Operation button

This is the button to change the operating mode.

Cleanness lamp

This is the lamp that shows the cleanness by judging the surrounding odor. When it is clean, it will be white and the fan will run at low level. But when the contamination is severe, it will display the red color and the fan will run at high level.

AUTO TURBO SLEEP

Clean frequency of about 1 month

Clean frequency of about 6 months

This filter enables 2 roles of antibacterial process and removal of large dust particles with only one filter to extent the washing frequency of the washable filter.

The washable HEPA filter removes the minute dust particles including dead ticks, flower powder, cigarette smoke (particle), minute dust, minute particle, floating fungus, animal fur etc.

This removes the smell of animal fur, NO4, bathroom smell, alkali & acid smell, volatile oil compound (VOCs).

Nano silver antibacterial

Big dust removal filter

Nano silver antibacterial

Washable HEPA filter

Antibacterial mesh

Washable deodorizer filter

Nano silver antibacterial Pre-filter

HEPA filter

Deodorizer filter

Air Purifier

Name of Each Part

󱎴󱎵HEPA filter 󱎶󱎷Deodorizer filter

󱎲

󱎳

󱎴

󱎵

󱎶

󱎷

Filter system(This is the introduction of only the filter part.)

Filter name Function

Cleaning and replacement frequency

󱎲󱎳Pre-filter

Owner’s Manual

During Use

Press the Power button.

• With a “DI-RI-LIN” sound, the operation mode lamp and cleanness lamp will both be on to run the operation. (Refer to the “preparatory operation” item below.)

• Fresh air will flow from the top air outlet.

• During the first operation, it is set for auto operation.

When the Power button is pressed but the product is turned off, use the Operation button to turn on the unit.

What is ‘preparatory operation’?

The pre operation is to stabilize the sensors initially during the initial 2 minutes of operation. During this time, the sensor will not operate and the color of the cleanness lamp will not change.

Air Purifying Operation This cleans the indoor with clean and fresh air.

󱎲

󱎳

Operation

Power button

Operation button

Air Purifier

Operation

Press the Power button.

Auto Mode The air cleaner automatically operates at optimal fan level.

󱎲

󱎳

Select Auto Mode.

• When you press the Operation button, it will switch in the order of AUTO→TURBO →SLEEP →STOP repeatedly.

• The fan level is automatically adjusted according to the contamination level of indoor air.

• When the air is clean, the cleanness lamp will be displayed white and the fan level will be low. When the air is severely contaminated, the cleanness lamp will be displayed in white and the fan level will be high.

AUTO TURBO SLEEP

How to clean the odor sensor air inlet part

Clean the odor sensor of the air inlet part of dust with a soft brush or a vacuum cleaner once every 6 months. When cleaning the sensor, make sure the dust does not fall into the unit.

Power button

Operation button

Owner’s Manual

During Use

Operation

Press the Power button.

󱎲

Select Turbo Mode.

• When you press the Operation button, it will switch in the order of AUTO→TURBO→SLEEP→STOP

repeatedly.

󱎳

Turbo Mode

The air cleaner automatically operates at maximum fan level.

Press the power button.

󱎲

Select Sleep Mode.

• When you press the Operation button, it will switch in the order of AUTO→TURBO→SLEEP→STOP repeatedly.

• The cleanness lamp will be turned off after 3 seconds of sleep operation.

󱎳

Sleep Mode

This provides a quiet indoor atmosphere during sleep.

AUTO TURBO SLEEP

Power button

Operation button

Air Purifier

Filter Cleaning

• Clean the Pre-filter about once a month.

During operation, always turn off the power. Pull the front panel to the front to open it.

󱎲

Pull the handle at the center of the Pre-filter to disassemble from the main body. (Push the left latch and the right latch to assemble.)

󱎳

Pull the HEPA filter and deodorizer filter to the front to separate from the main unit.

󱎴

When disassembling

Front panel

When assembling

Filter type

Pre-filter

Washable HEPA filter

Washable deodorizer filter

Cleaning frequency

Clean frequency of about 1 month Clean frequency of about 6 months Clean frequency of about 6 months

Owner’s Manual

After Use

Filter Cleaning

Clean the Pre-filter with a vacuum cleaner or a soft brush. (Clean the filter every a month.)

󱎵

Soak the washable HEPA and Deodorizer filter in clean water for 1 hour and use the shower to clean it off.

After cleaning the washable HEPA and deodorizer filter in water, completely dry them outdoors for a full day. Do not use hot water of 40°C or higher or volatile liquid.

Clean the Pre-filter with a vacuum cleaner or a soft brush, and when the contamination is severe, use a neutral detergent and water to clean it off.

•For safety reasons, unplug the power before cleaning the unit.

•After washing the parts in water, completely dry it off until there is no moisture. (Moisture on the parts can cause problems.)

•If the contamination is too severe and cannot be cleaned, replace the filter.

•If the filter is not completely dried after cleaning the filter, it can cause an odor. Therefore completely dry the filter before using it again.

•Do not rub the filter with your hand.

󱎶

Caution

Air Purifier

Exterior clean and storage method

Power plug

Storage method

Operate the air cleaner for more than 1 hour on a clear day and then press the Power button to stop the operation.

󱎲

Unplug the power cord.

󱎳

Clean the main unit of the air cleaner and then store it in a safe location. Cover the product with a plastic cover so that dust or any other particles don't get inside the product when stored for a long period of time.

󱎴

Exterior Cleaning Method

Soak a soft cloth in warm water and fully squeeze the water out to wipe the air cleaner. Especially, dust can be accumulated near the air inlet. Periodically clean the unit.

• Do not use alkali detergent for the control and display panel of the main unit.

• Do not use sulphuric acid, hydrochloric or solvent (thinner, kerosene etc.) on the surface of the air cleaner or put stickers on the surface. It can damage the surface.

• When cleaning the main unit, wipe with a soft cloth. It can scratch or damage the surface of the exterior.

Caution

The operation does not work at all.

The fan level is low and generates a lot of noise.

The air is not cleaned well.

Confirming Items Before Reporting Defect

Owner’s Manual

After Use

When there is a problem with the product, check the following details before requesting to the service center.

Symptom Confirmation Procedures

●

Is the power plug unplugged?

●

Is the fuse disconnected?

●

Is the power shut down?

●

Is the front panel open?

●●

Is the Power button pressed?

●

Is the Pre-filter clogged?

●

Is there dust accumulated on the HEPA filter?

●

Is the indoor contamination severe?

●

Are there many particles on the Pre-filter?

●

Are there many particles on the washable HEPA filter?

●

Is the using location too spacey?

●

Are there any obstacles near the product?

●

Is the unit installed at a location where air flows freely?

●

Plug the power properly.

●

Request service to the LG Electronics Service Center.

●

Re-operate the product after the power is reconnected.

●

When the front panel is open, the product will not operate.

Close the front panel properly.

●●

Press the Power button.

●

Clean the Pre-filter well.

●

Clean the HEPA filter.

●

Ventilate the area to use the product.

●

Clean the Pre-filter.

●

Wash with clean water. (Do not use hot water of 40°C or higher or volatile liquid.) When drying the filter, avoid fire or direct sunlight and sufficiently dry it in the shades.

●

Use the product that fits the room size. (Avoid using it where it is ventilated well such as entrance, window etc.)

●

Remove any obstacles.

●

Move and install at a different location.

Air Purifier

Confirming Items Before Reporting Defect

Symptom Confirmation Procedures

There is a weird smell from the air outlet.

The sensor display panel is not working properly.

●

Are you using the product where there is smoke or odor?

●

Are you using the product where there is a food smell?

●

Did you completely dry the washable HEPA filter?

●

Is the sensor working properly?

●

The air cleaning function can deteriorate in locations where there is a lot of smoke or odor. Ventilate the space and then use the air cleaner.

●

For the food smell, it can be penetrated to the filter. Ventilate the space and then use the air cleaner.

●

If you use the washable filter without completely drying it, it can generate a weird smell. Therefore dry the filter completely before using it again.

●

LG Air Cleaner odor sensor is the sensor to detect the contaminated gas and sometimes may not react to the food smell (Korean food such as Kimchi, soybean paste, Chunggukjang etc.). But the smell will be deodorized by the deodorizer filter.
