PRHR042/PRHR032/PRHR022 (Heat Recovery Unit)
Original instruction
ENGLISH
ITALIANO ESPAÑOL
FRANÇAIS
DEUTSCH
ΕΛΛΗΝΙΚΆ
ČEŠTINA
NEDERLANDS
POLSKI
LIMBA ROMÂNĂ
TIPS FOR SAVING ENERGY
2
ENGLISH
TIPS FOR SAVING ENERGY
Here are some tips that will help you minimize the power consumption when you use the air
conditioner. You can use your air conditioner more efficiently by referring to the instructions
below:
• Do not cool excessively indoors. This may be harmful for your health and may consume more
electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, in a short period of time.
• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air conditioner is used for many hours.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block the
air flow or weaken the cooling / dehumidifying functions.
For your records
Staple your receipt to this page in case you need it to prove the date of purchase or for warranty
purposes. Write the model number and the serial number here:
Model number :
Serial number :
You can find them on a label on the side of each unit.
Dealer’s name :
Date of purchase :
3
ENGLISH
IMPORTANT!
Please read this instruction sheet completely before installing the product.
This air conditioning system meets strict safety and operating standards. As the installer or service person, it is an important part of
your job to install or service the system so it operates safely and efficiently.
WARNING
• Installation or repairs made by unqualified persons can result in hazards to you and others.
Installation of all field wiring and components MUST conform with local building codes or, in the absence of local codes, with the
National Electrical Code 70 and the National Building Construction and Safety Code or Canadian Electrical code and National
Building Code of Canada.
• The information contained in the manual is intended for use by a qualified service technician familiar with safety procedures and
equipped with the proper tools and test instruments.
• Failure to carefully read and follow all instructions in this manual can result in equipment malfunction, property damage, personal
injury and/or death.
CAUTION :
Safety Precautions
NOTE TO INSTALLING DEALER :
Improper installation, adjustment, alteration, service or maintenance can void the warranty.
The weight of the condensing unit requires caution and proper handling procedures when lifting or moving to avoid
personal injury. Use care to avoid contact with sharp or pointed edges.
• Always wear safety eye wear and work gloves when installing equipment.
• Never assume electrical power is disconnected. Check with meter and equipment.
• Keep hands out of fan areas when power is connected to equipment.
• R-410A causes frostbite burns.
• R-410A is toxic when burned.
The Owners Instructions and Warranty are to be given to the owner or prominently displayed near the
indoor Furnace/Air Handler Unit.
When wiring:
Electrical shock can cause severe personal injury or death. Only a qualified, experienced electrician should attempt to
wire this system.
• Do not supply power to the unit until all wiring and tubing are completed or reconnected and checked.
• Highly dangerous electrical voltages are used in this system. Carefully refer to the wiring diagram and these instructions when
wiring. Improper connections and inadequate grounding can cause accidental injury or death.
• Ground the unit following local electrical codes.
• Connect all wiring tightly. Loose wiring may cause overheating at connection points and a possible fire hazard.
• The choice of materials and installations must comply with the applicable local/national or international standards.
WARNING
When transporting:
Be careful when picking up and moving the indoor and outdoor units. Get a partner to help, and bend your knees when
lifting to reduce strain on your back. Sharp edges or thin aluminum fins on the air conditioner can cut your finger.
When installing...
... in a wall: Make sure the wall is strong enough to hold the unit's weight.
It may be necessary to construct a strong wood or metal frame to provide added support.
... in a room: Properly insulate any tubing run inside a room to prevent "sweating" that can cause dripping and water
damage to wall and floors.
... in moist or uneven locatinons: Use a raised concrete pad or concrete blocks provide a solid, level foundation for the
outdoor unit. This prevents water damage and abnormal vibration.
... in an area with high winds: Securely anchor the outdoor unit down with bolts and a metal frame. Provide a suitable air
baffle.
... in a snowy area(for Heat Pump Model): Install the outdoor unit on a raised platform that is higher than drifting snow.
Provide snow vents.
When connecting refrigerant tubing
• Keep all tubing runs as short as possible.
• Use the flare method for connecting tubing.
• Check carefully for leaks before starting the test run.
When servicing
• Turn the power OFF at the main power box(mains) before opening the unit to check or repair electrical parts and
wiring.
• Keep your fingers and clothing away from any moving parts.
• Clean up the site after you finish, remembering to check that no metal scraps or bits of wiring have been left inside
the unit being serviced.
IMPORTANT SAFETY INSTRUCTIONS
4
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product
WARNING
!
It can result in serious injury or death when the directions are ignored
CAUTION
!
It can result in minor injury or product damage when the directions are ignored
WARNING
!
• Installation or repairs made by unqualified persons can result
in hazards to you and others.
• The information contained in the manual is intended for use
by a qualified service technician familiar with safety procedures and equipped with the proper tools and test instruments.
• Failure to carefully read and follow all instructions in this manual can result in equipment malfunction, property damage,
personal injury and/or death.
WARNING
!
• Have all electric work done by a licensed electrician according
to "Electric Facility Engineering Standard" and "Interior Wire
Regulations" and the instructions given in this manual and always use a special circuit.
- If the power source capacity is inadequate or electric work is
performed improperly, electric shock or fire may result.
• Ask the dealer or an authorized technician to install the HR
unit.
- Improper installation by the user may result in water leak-
age, electric shock, or fire.
IMPORTANT SAFETY INSTRUCTIONS
• Always ground the product.
- There is risk of fire or electric shock.
• Make the connections securely so that the outside force of
the cable may not be applied to the terminals.
- Inadequate connection and fastening may generate heat and
cause a fire.
• For re-installation of the installed product, always contact a
dealer or an Authorized Service Center.
- There is risk of fire, electric shock, explosion, or injury.
• Do not install, remove, or re-install the unit by yourself (customer).
- There is risk of fire, electric shock, explosion, or injury.
• Do not store or use flammable gas or combustibles near the
HR Unit.
- There is risk of fire or failure of product.
• Use the correctly rated breaker or fuse.
- There is risk of fire or electric shock.
• Do not damage or use an unspecified power cord.
- There is risk of fire, electric shock, explosion, or injury.
• Do not touch the power switch with wet hands.
- There is risk of fire, electric shock, explosion, or injury.
• Securely install the cover of control box and the panel.
- If the cover and panel are not installed securely, dust or
water may enter the HR unit and fire or electric shock may
result.
• Be cautious when unpacking and installing the product.
- Sharp edges could cause injury. Be especially careful of the
case edges.
• Safely dispose of the packing materials.
- Packing materials, such as nails and other metal or wooden
parts, may cause stabs or other injuries.
- Tear apart and throw away plastic packaging bags so that
children may not play with them. If children play with a plastic bag which was not torn apart, they face the risk of suffocation.
5
ENGLISH
6
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
!
• Avoid a place where rain may enter since the HR unit is for indoor.
- There is risk of property damage, failure of product, or elec-
tric shock.
• Install the HR unit at a place in which it is not affected by operation mode changing noise.
- Installation within cell such as meeting room etc. may dis-
turb business due to noise.
• Always check for gas (refrigerant) leakage after installation or
repair of product.
- Low refrigerant levels may cause failure of product.
• Keep level even when installing the product.
- To avoid vibration or water leakage.
TABLE OF CONTENTS
2 TIPS FOR SAVING EN-
ERGY
4 IMPORTANT SAFETY IN-
STRUCTIONS
8 FEATURES
9 INSTALLATION PART
10 INSTALLATION
10 Selection of the best location
10 Dimensional drawings
12 HR Unit Installation
14 Insulation
15 Wiring Connection
TABLE OF CONTENTS
7
ENGLISH
16 Setup the switch of HR Unit
21 COIL EXCHANGING
METHOD
22 JOINT METHOD OF HR
UNIT
FEATURES
8
ENGLISH
FEATURES

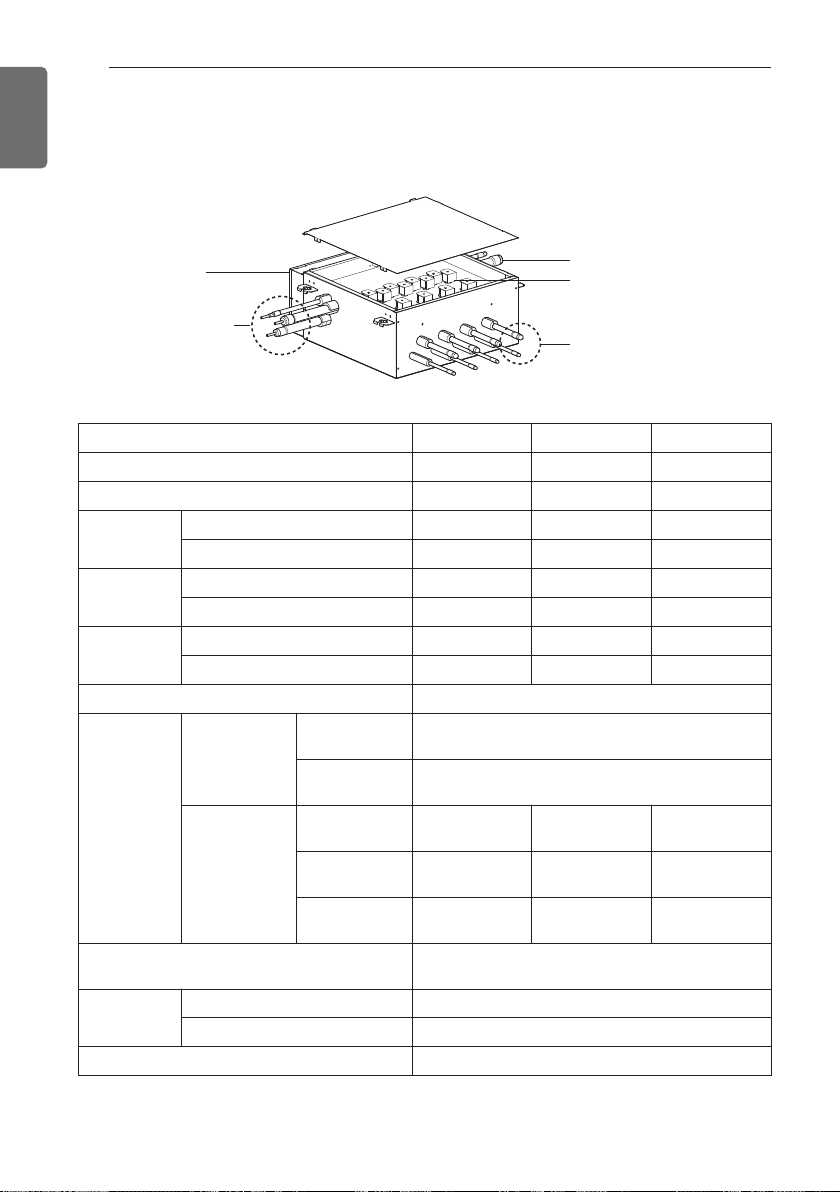

Connection Pipe
Control Box
Connection Pipe
(to outdoor unit)
Model PRHR022 PRHR032 PRHR042
Max. Connectable No. of Indoor Units 16 24 32
Max. Connectable No. of Indoor Units of a branch 8 8 8
Nominal Input
Net. Weight
Dimensions
(WxHxD)
Casing Galvanized steel plate
Cooling 26 40 40
Heating 26 40 40
kg 15.2 17.2 19.2
lbs 33.5 37.9 42.3
mm 801x218x632 801x218x632 801x218x632
Inch 31.5x8.6x24.9 31.5x8.6x24.9 31.5x8.6x24.9
(to outdoor unit)
Coil assembly, Solenoid
Connection Pipe
(to indoor unit)
Liquid Pipe [mm] Ø9.52 – Ø6.35
Indoor side
Gas Pipe [mm] Ø15.88 – Ø12.7
Connecting
Pipes
Outdoor side
Sound Absorbing Insulation Material Polyethylene Foam
Current
Power Supply 220V-240V~ 50/60 Hz
Minimum circuit Amps(MCA) 0.2
Maximum fuse Amps(MFA) 15
Liquid [mm] Ø9.52 Ø12.7 Ø15.88
Low Pressure
[mm]
High Pressure
[mm]
Ø22.2 Ø28.58 Ø28.58
Ø19.05 Ø22.2 Ø22.2
INSTALLATION PART
INSTALLATION PART
- Installation Manual
- Hanging bolts (4 x M10 or M8), Nut(8 x M10 or M8), Flat washers(8 x M10)

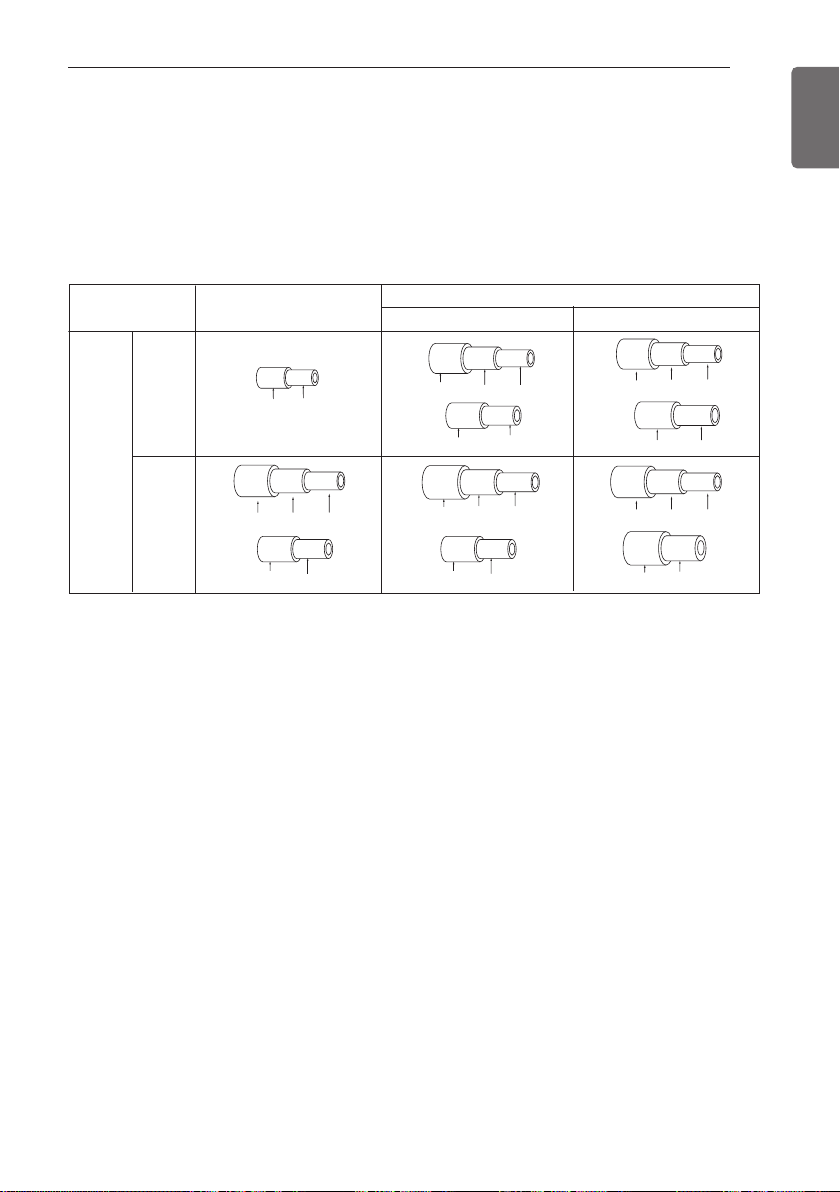

- Reducers
[Unit : mm]
9
ENGLISH
Models
HR unit
reducer
PRHR022
PRHR032/
PRHR042
Liquid pipe
OD15.88(5/8)
Ø12.7(1/2)
OD12.7(1/2) Ø9.52(3/8)
Ø6.35(1/4)OD9.52(3/8)
Ø9.52(3/8)
Gas pipe
High pressure
OD19.05(3/4) Ø15.88(5/8)
OD12.7(1/2)
OD22.2(7/8) Ø19.05(3/4) Ø15.88(5/8)
OD15.88(5/8) Ø12.7(1/2)
Ø12.7(1/2)
Ø9.52(3/8)
Low pressure
OD22.2(7/8) Ø19.05(3/4) Ø15.88(5/8)
OD15.88(5/8) Ø12.7(1/2)
OD28.58(1-1/8) Ø22.2(7/8) Ø19.05(3/4)
OD19.05(3/4) Ø15.88(5/8)
INSTALLATION
10
ENGLISH
INSTALLATION
Selection of the best location
Select installation location of the HR unit suitable for following conditions
- Avoid a place where rain may enter since the HR unit is for indoor.
- Sufficient service space must be obtained.
- Refrigerant pipe must not exceed limited length.
- Avoid a place subject to a strong radiation heat from other heat source.
- Avoid a place where oil spattering, vapor spray or high frequency electric noise is expected.
- Install the unit at a place in which it is not affected by operation noise. (Installation within cell
such as meeting room etc. may disturb business due to noise.)
- Place where refrigerant piping, drain piping and electrical wiring works are easy.

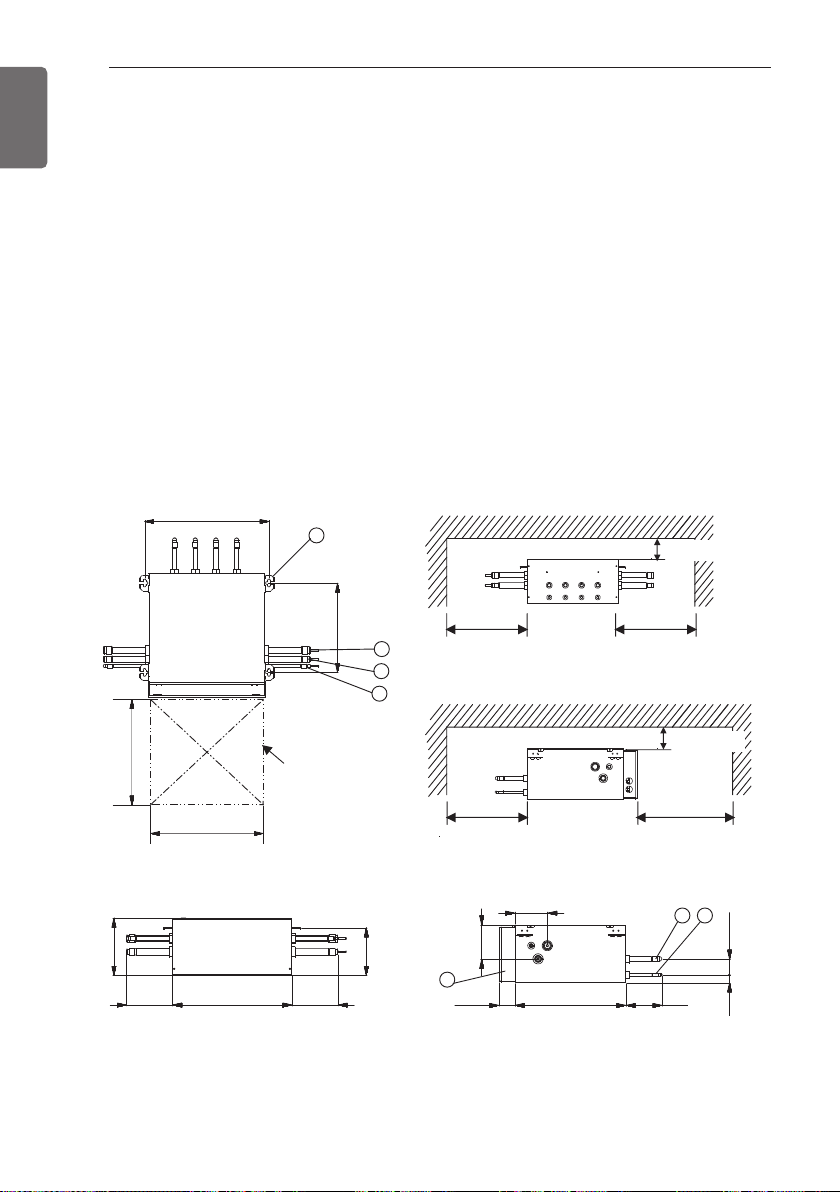

Dimensional drawings
481
7
[Unit : mm]
100 more
(Serviceing space)
218
450
174
450
453
345
Inspection door
(servicing space)
174
182
300 more
1
2
3
(Servicing space) (Servicing space)
300 more
(Servicing space)
124
128
6
61
419
300 more
100 more
(Serviceing space)
450
more
(Servicing space)
152
54
60
30
INSTALLATION
[Unit : mm]
11
ENGLISH
No. Part Name
Low pressure Gas pipe con-
1
nection port
High pressure Gas pipe con-
2
nection port
3 Liquid pipe connection port
Indoor unit Gas pipe connec-
4
tion port
Indoor unit Liquid pipe con-
5
nection port
6 Control box - -
7 Hanger metal Suspension bolt M10 or M8 Suspension bolt M10 or M8
NOTE
!
* Be sure to install the inspection door at the electric control side.
** If reducers are used, servicing space must be increased equal to reducer's dimension.
PRHR032/PRHR042 PRHR022
Ø28.58 Brazing connection Ø22.2 Brazing connection
Ø22.2 Brazing connection Ø19.05 Brazing connection
Ø15.88 Brazing connection(PRHR042)
Ø12.7 Brazing
connection(PRHR032)
Ø15.88– Ø12.7
Brazing connection
Ø9.52 – Ø6.35
Brazing connection
Description
Ø9.52 Brazing connection
Ø15.88– Ø12.7
Brazing connection
Ø9.52 – Ø6.35
Brazing connection
12
1 Set anchor
2 Plate washer
3 Spring washer
4 Nut
5 Suspension
bolts
Old building New building
Hanger metal
Flat washer
ENGLISH
INSTALLATION
HR Unit Installation

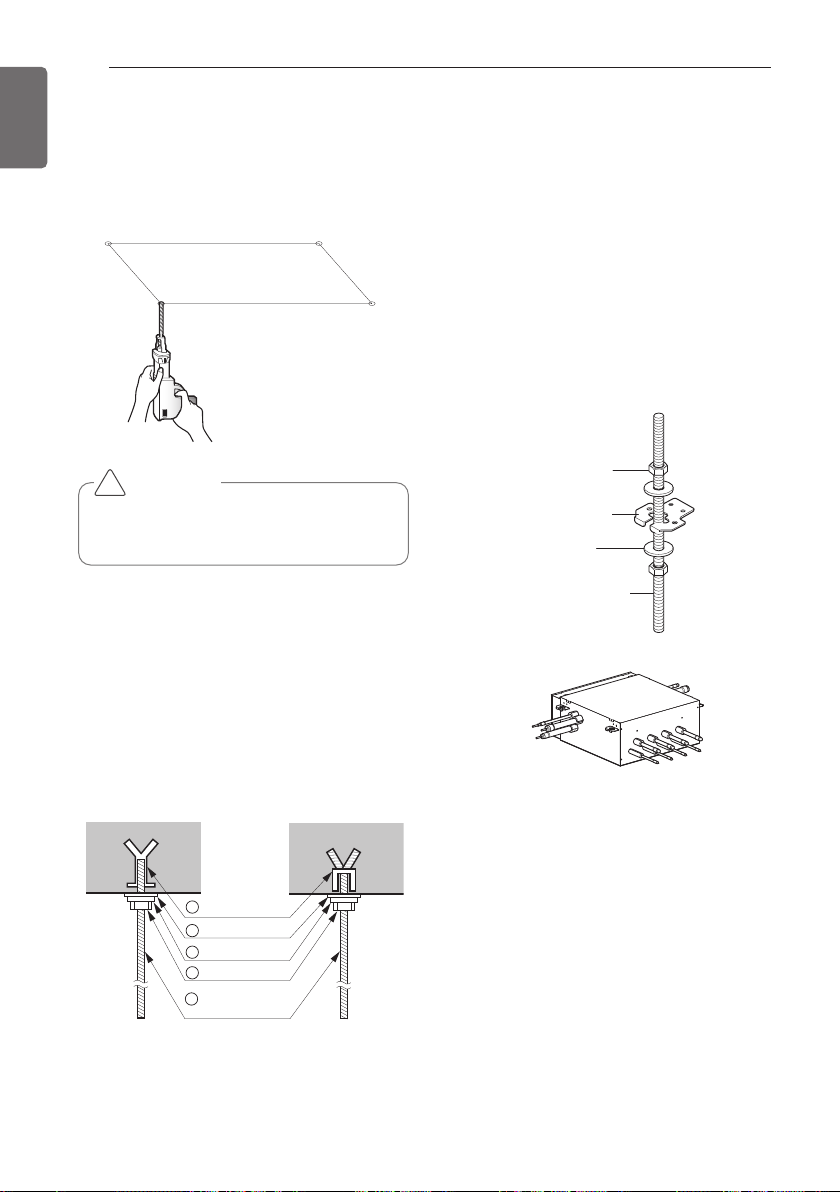

- Select and mark the position for fixing bolts.
- Drill the hole for set anchor on the face of
ceiling.
CAUTION
!
Tighten the nut and bolt to prevent unit
falling.
- Insert the set anchor and washer onto the
suspension bolts for locking the suspension
bolts on the ceiling.
- Mount the suspension bolts to the set anchor firmly.
- Secure the installation plates onto the suspension bolts (adjust level roughly) using
nuts, washers and spring washers.
1 Using an insert-hole-in- anchor, hang the
suspension bolt.
2 Install a hexagon nut and a flat washer (lo-
cally-procured)to the suspension bolt as
shown in the figure in the bottom, and fit
the main unit to hang on the hanger metal.
3 After checking with a level that the unit is
level, tighten the hexagon nut.
* The tilt of the unit should be within ±5°
in front/back and left/right.
4 This unit should be installed suspended
from ceiling and side A should always be
facing up.
Six-sided Nut
(M10 or M8)
Hanger metal
Hanger metal
Flat washer
Flat washer
(M10)
Suspension bolt
(M10 or M8)
A
INSTALLATION
Ceiling
Top side
Top side
Top side
Gas pipe Ø15.88– Ø12.7
Liquid pipeØ9.52– Ø6.35
Brazing Type
Liquid pipeLiquid pipe
Low pressure gas pipeLow pressure gas pipe
High pressure gas pipeHigh pressure gas pipe
Liquid pipe
Low pressure gas pipe
High pressure gas pipe
(Brazing Type)
CAUTION
!

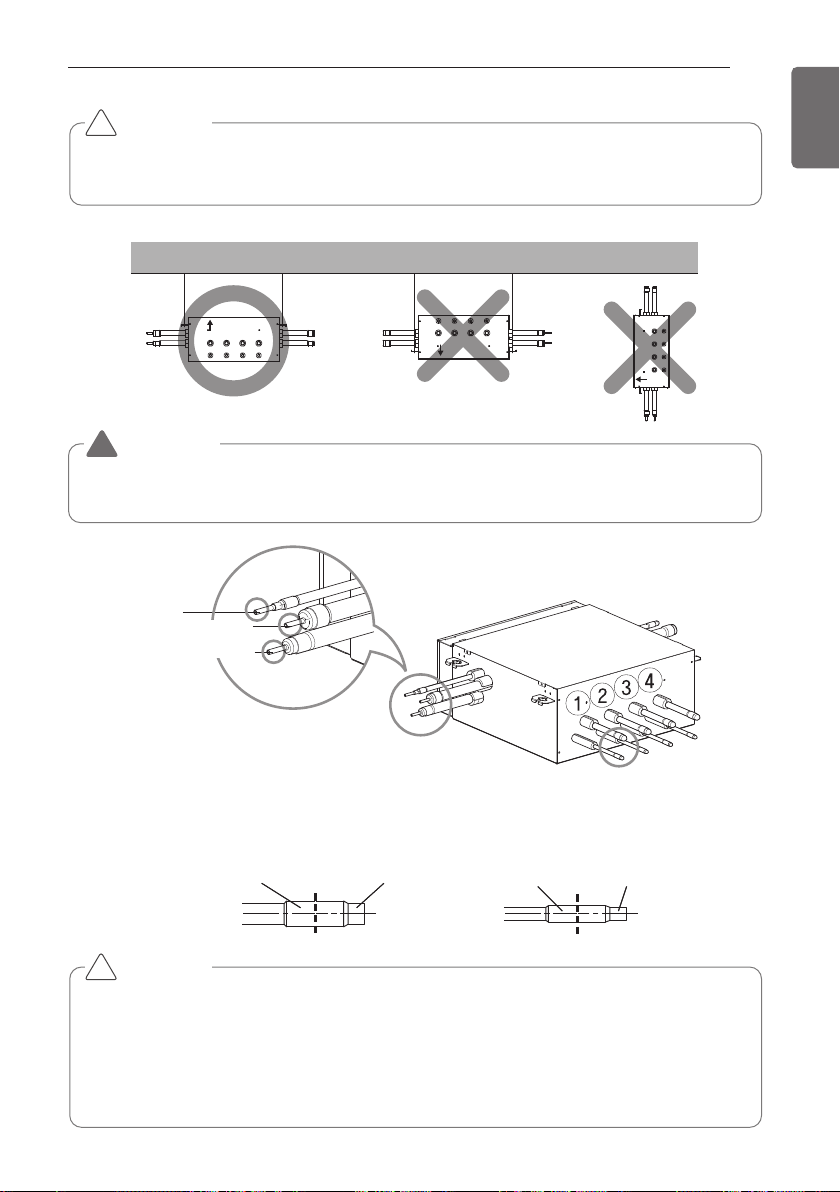

HR Unit should be installed that top side is facing up. If not, it may cause failure of the product.
WARNING
!
Before brazing work, remove gas in the HR Unit by cutting the three pipes in the small circles on the figure. If not, it may cause injuries. Remove the caps before connecting pipes.
13
ENGLISH
After considering the indoor unit capacity,
determine the pipe sizes and cut the pipes connected to the indoor unit.
CAUTION
!
• Whenever connecting the indoor units with the HR unit, install the indoor units in numeri-
cal order from No.1.
Ex) In case of installing 3 indoor units : No. 1, 2, 3 (O), No. 1, 2, 4 (X), No.1, 3, 4 (X), No.2,
3, 4 (X).
• Take care of no thermal damage on the valves of the HR uint.
(Especially packing part of valve) Wrap the valve with a wet towel when brazing it.
Ø15.88 Ø12.7
Gas pipe
Cutting
Ø9.52 Ø6.35
Liquid Pipe
INSTALLATION
14
ENGLISH

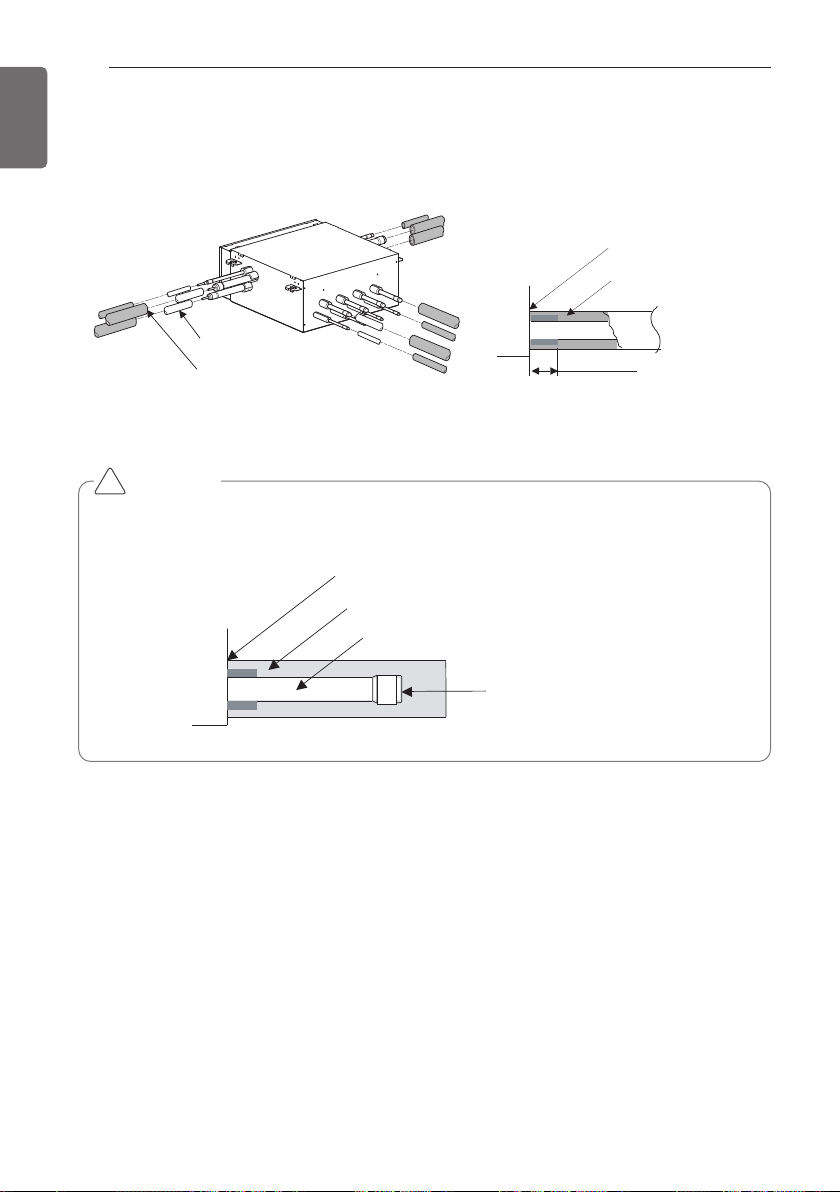

Insulation
Insulate the connected pipes completely(all thermal insulation must comply with local requirement)
Make sure that there is no
clearance here
Thermal insulator for
refrigerant pipe(Local supply)
Refrigerant pipe
(Local supply)
Thermal insulator for refrigerant pipe
(Local supply)
CAUTION
!
Insulate completely unconnected pipes as shown in the Figure.
Make sure that there is no clearance here
Thermal insulator for refrigerant pipe(Local supply)
Not connected pipe
Overlap with thermal
insulator for piping
Always seal up the
tip of unused pipe by brazing
INSTALLATION
Wiring Connection

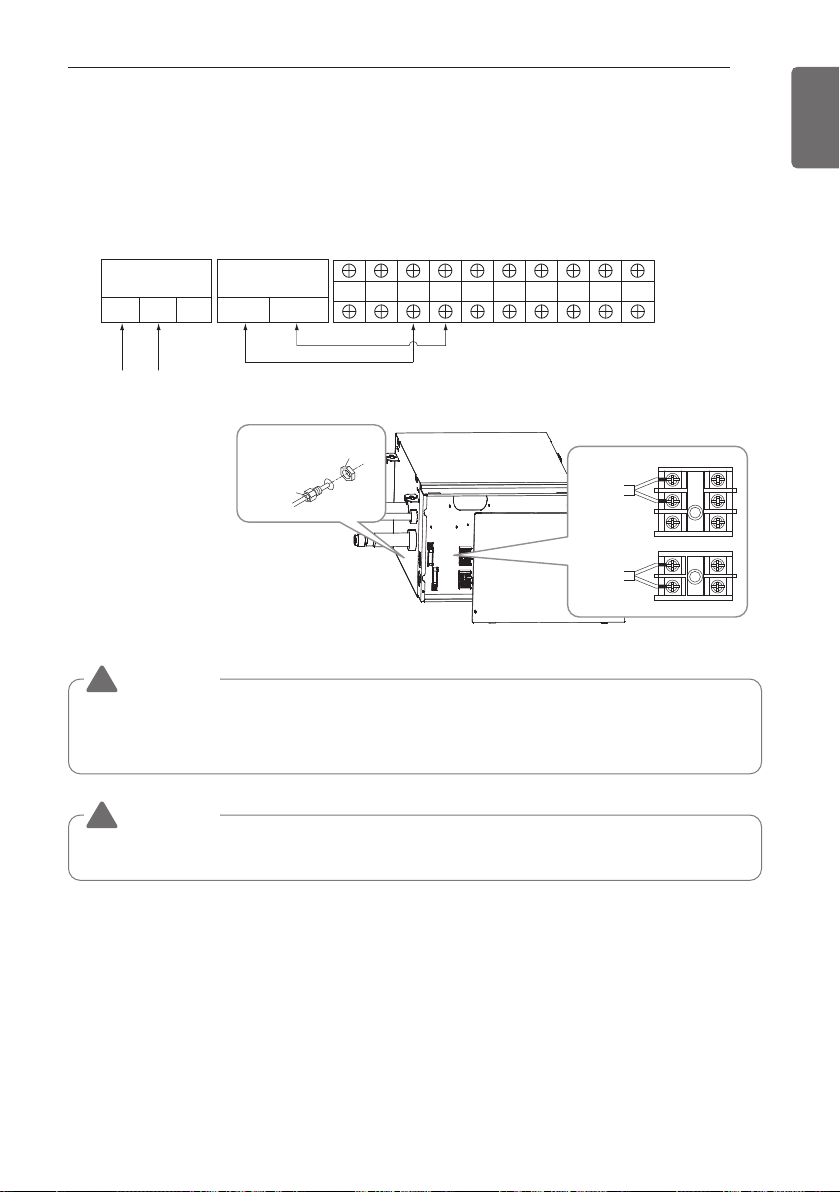

Connect the wires to the terminals on the control board individually according to the outdoor unit
connection.
- Ensure that the color of the wires of outdoor unit and the terminal No. are the same as those of
HR Unit respectively.
15
ENGLISH
Terminal Block
HR Unit
L(L1) N(L2)
HR UNIT POWER INPUT
WARNING
!
Terminal Block
HR Unit
AB
Conduit
SODU. B SODU. A IDU. B IDU. A CEN. B CEN. A DRY1 DRY2 GND 12V
Lock nut
High Voltage
(220-240V)
-cation
Power Supply
Communi
Loose wiring may cause the terminal to overheat or result in unit malfunction.
A fire hazzard may also exist.
Therefore, be sure all wiring is tightly connected.
WARNING
!
Make sure that the screws of the terminal are free from looseness.
Master
Outdoor Unit
L(L1) N(L2)
AB
INSTALLATION
SW02M
SW01M
SW01M
16
ENGLISH

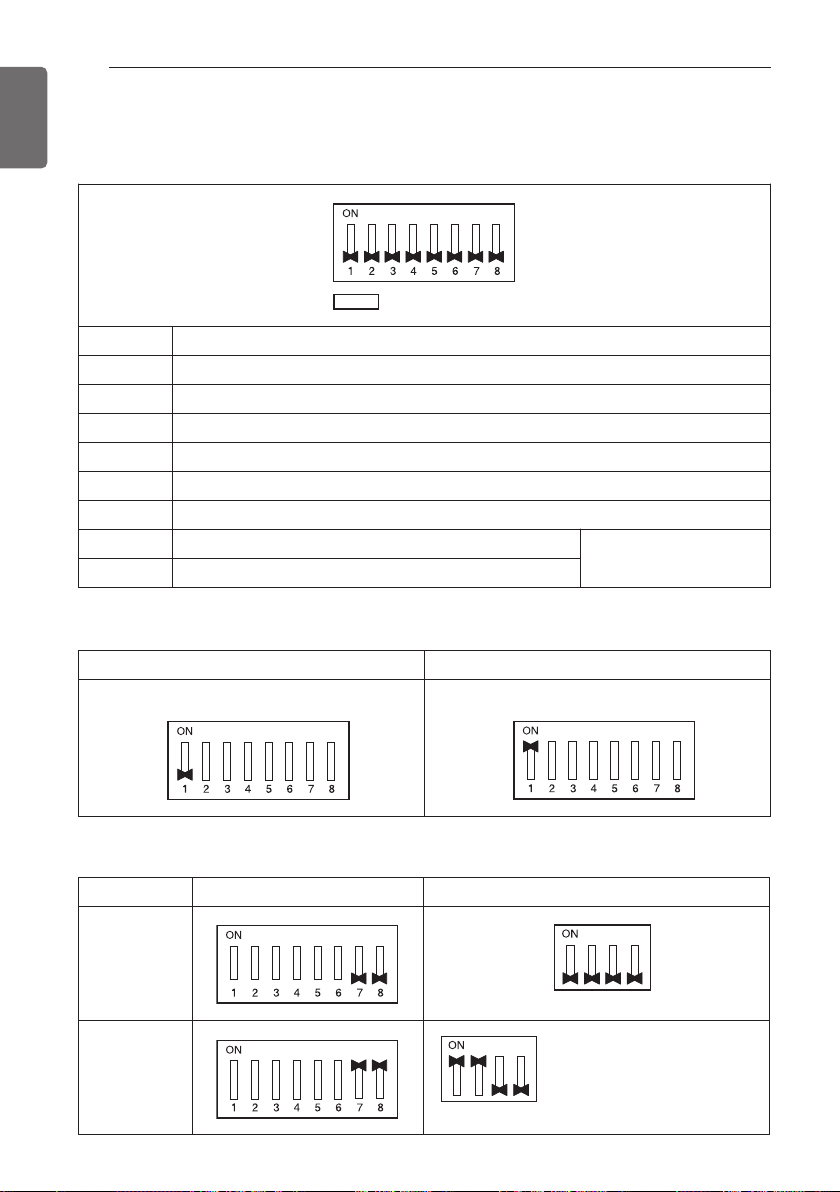

Setup the switch of HR Unit
Main function of SW02M
ON S/W Selection
No.1 Method for pipe detection of an HR unit (Auto/Manual)
No.2 Model of HR unit
No.3 Model of HR unit
No.4 Model of HR unit
No.5 Valve group setting
No.6 Valve group setting
No.7 Use only in factory production (preset to “OFF”)
No.8 Use only in factory production (preset to “OFF”)
1) Selection of the method for pipe detection of an HR unit (Auto/Manual)
Zoning setting (“ON”)
2) Setting the zoning control
Normal
control
Zoning
control
Auto Manual
Switch No.1 Off Switch No.1 On
DIP S/W setting
Turn the dip switch of the
zoning branch on.
EX) Branch 1,2 are zoning
control.

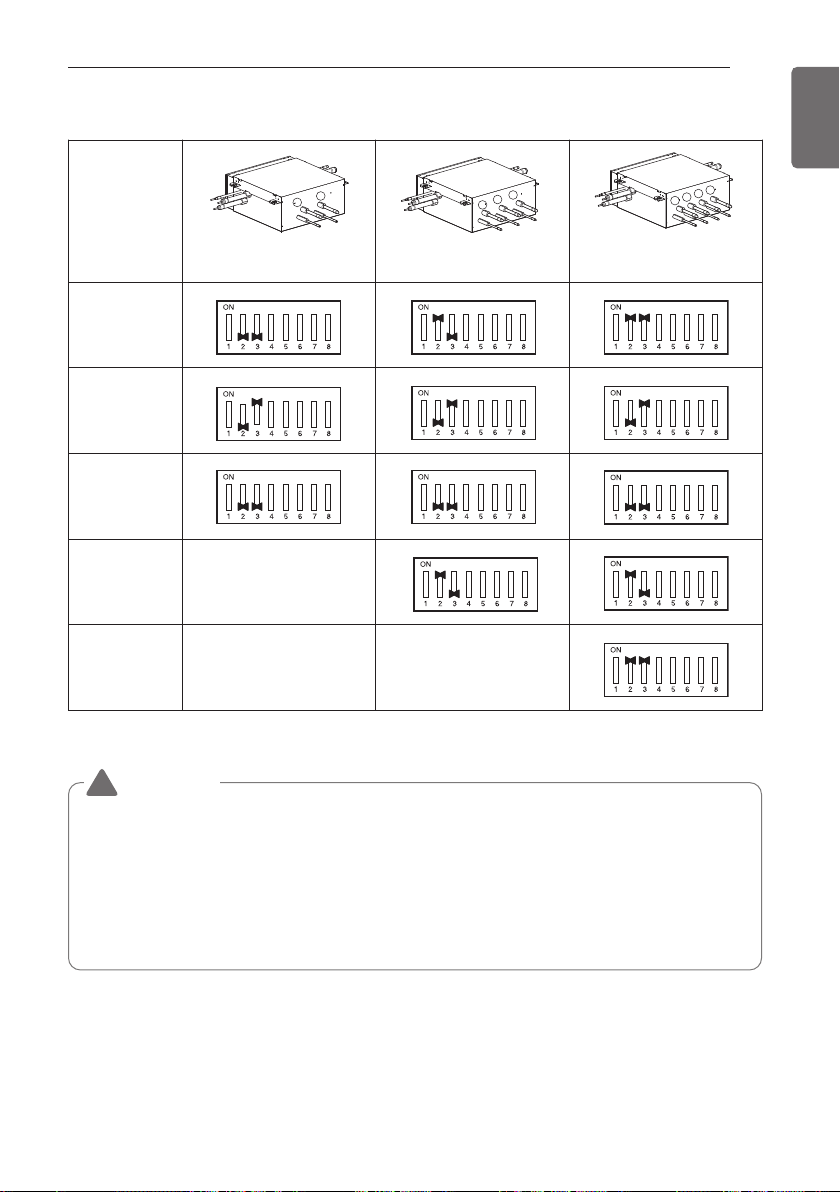

3) Selection of the model of the HR unit
1
2
1
3
2
1
2
3
4
INSTALLATION
17
ENGLISH
(For 2 branches)
PRHR022
(For 3 branches)
PRHR032
(For 4 branches)
PRHR042
Initial
Setting
1 branch
Connected
2 branches
Connected
3 branches
Connected
4 branches
Connected
h Each model is shipped with the switches No.2 and No.3 pre-adjusted as above in the factory.
WARNING
!
• If you want to use a PRHR032 for 2 branches HR unit after closing the 3rd pipes, set the
dip switch for 2 branches HR unit.
• If you want to use a PRHR042 for 3 branches HR unit after closing the 4th pipes, set the
dip switch for 3 branches HR unit.
• If you want to use a PRHR042 for 2 branches HR unit after closing the 3rd and 4th pipes,
set the dip switch for 2 branches HR unit.
• The unused port must be closed with a copper cap, not with a plastic cap.
INSTALLATION
Indoor Unit
Indoor Unit
Indoor Unit
Indoor Unit
1
2
3
4
Indoor Unit
Indoor Unit
Large capacity indoor unit
1
2
3
4
Indoor Unit
Indoor Unit
Large capacity indoor unit
1
2
3
4
Indoor Unit
Indoor Unit
Large capacity indoor unit
1
2
3
4
Large capacity indoor unit
Large capacity indoor unit
1
2
3
4
413
390
I.D19.05
I.D19.05
I.D19.05
I.D12.7
I.D12.7
70
I.D15.88
I.D15.88
I.D25.4
I.D25.4
O.D25.4
80
110
83
1
2
3
3
O.D19.05
O.D19.05
1
2
I.D22.2
I.D22.2
I.D22.2
I.D28.58
I.D12.7
I.D12.7
I.D12.7
74
332
321
I.D6.35
I.D6.35
I.D9.52(3/8)
I.D9.52
I.D9.52
I.D15.88
I.D12.7
I.D12.7
70
I.D25.4
110
I.D19.05
I.D19.05
2
3 2
3
O.D15.88
444
421
96
I.D15.88
I.D22.2
I.D22.2
I.D22.2
O.D15.88
I.D19.05
I.D9.52
18
ENGLISH

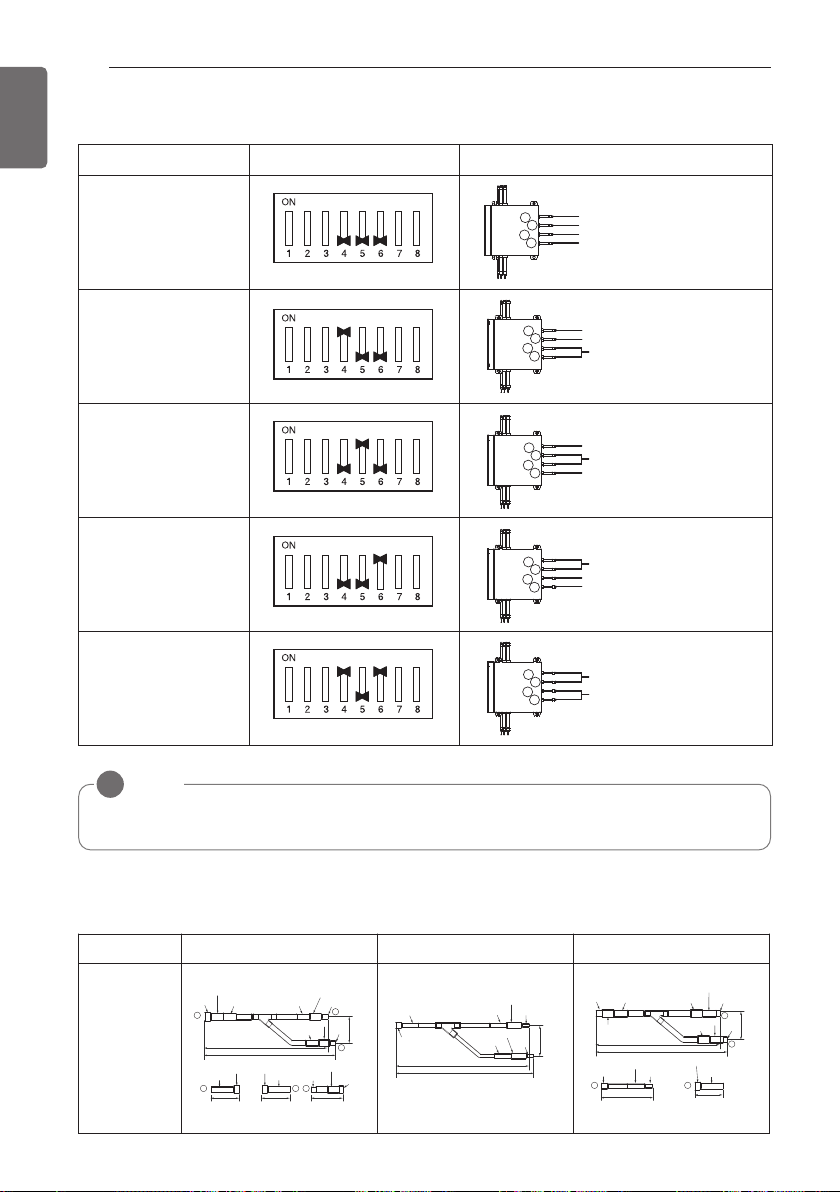

4) Setting the Valve Group
Not control
No.1, 2 Valve
Control
No.2, 3 Valve
Control
No.3, 4 Valve
Control
DIP S/W setting Example
No.1, 2 Valve
/
No.3, 4 Valve
Control
NOTE
!
If the large capacity indoor units are installed, below Y branch pipe should be used.
h Y branch pipe
Models Low Pressure Gas Pipe Liquid pipe High Pressure Gas Pipe
ARBLB03321
[Unit : mm]
INSTALLATION
SW01M
SW03M
SW04M
SW05M (Rotary S/W for addressing HR unit)
Must be set to '0' when installing only one HR unit.
When installing multiple HR units, address the HR units with sequentially increasing numbers
starting from '0'.
Maximum 16 HR Units can be installed.
Ex) Installation of 3 HR units
AB AB AB
19
ENGLISH
4
3
2
1
4
3
2
1
4
3
2
1

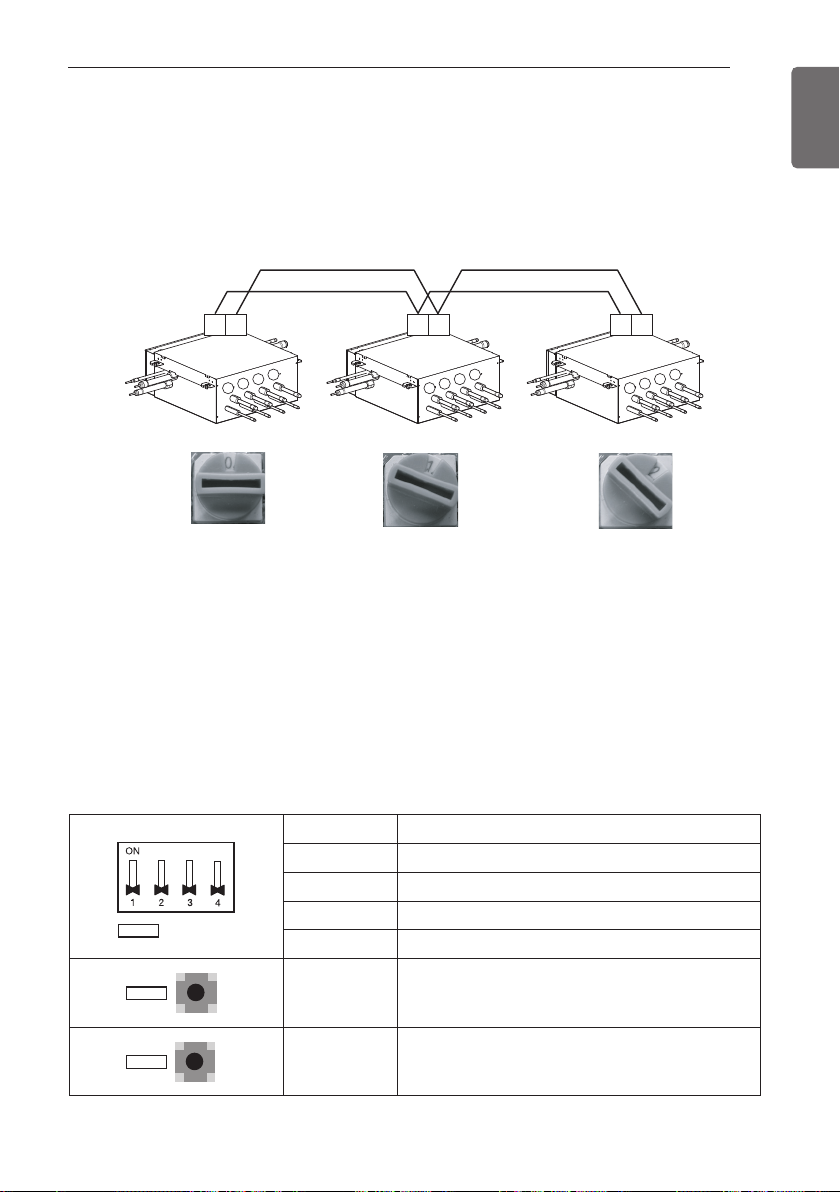

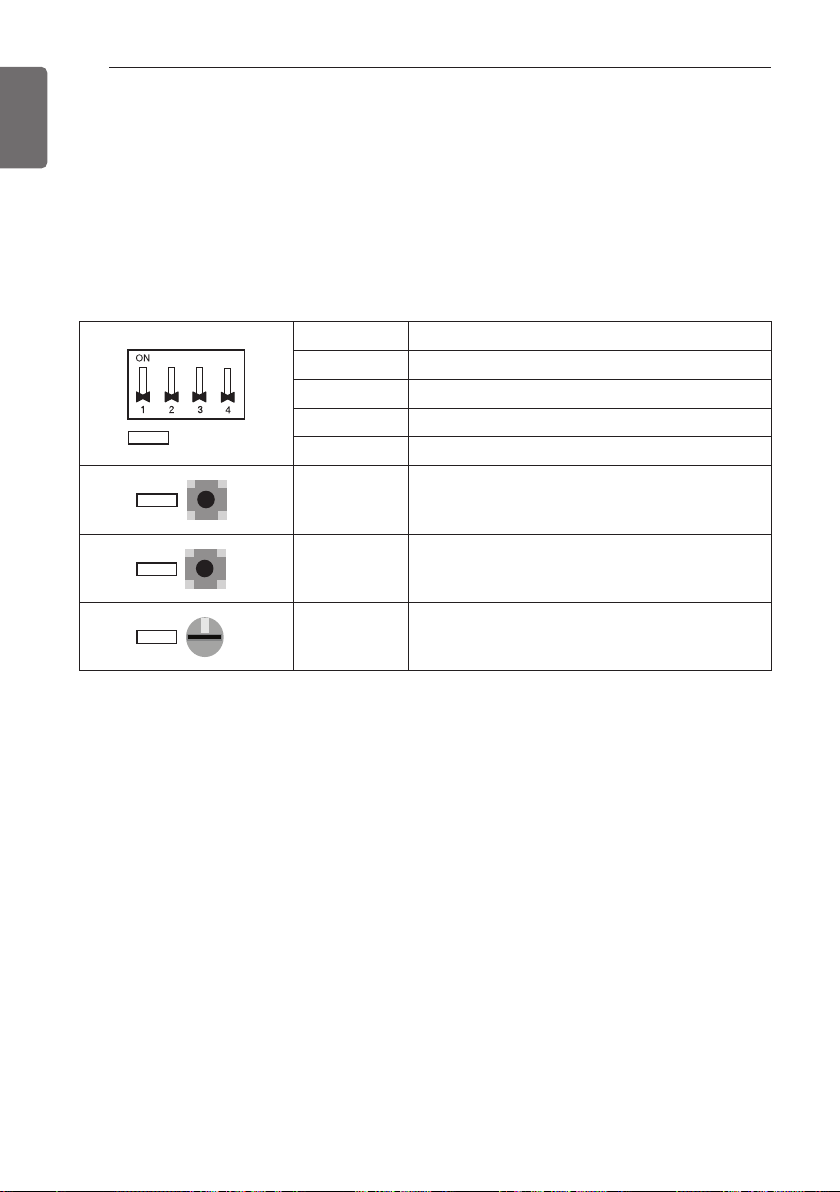

SW01M/SW03M/SW04M
(Dip S/W and tact S/W for manual valve addressing)
1) Normal setting (Non-Zoning setting)
- Set the address of the valve of the HR unit to the central control address of the connected indoor unit.
- SW01M: selection of the valve to address
SW03M: increase in the digit of 10 of valve address
SW04M: increase in the last digit of valve address
- Prerequisite for manual valve addressing : central control address of each indoor unit must be
preset differently at its wired remote control.
S/W No. Setup
No.1 Manual addressing of valve #1
No.2 Manual addressing of valve #2
No.3 Manual addressing of valve #3
No.4 Manual addressing of valve #4
SW03M Increase in the digit of 10 of valve address
SW04M Increase in the last digit of valve address
20
SW01M
SW03M
SW04M
SW05M
0
ENGLISH
2) Zoning setting
INSTALLATION
- Set the address of the valve of the HR unit to the central control address of the connected indoor unit.
- SW01M : selection of the valve to address
SW03M : increase in the digit of 10 of valve address
SW04M : increase in the last digit of valve address
SW05M :Rotary S/W
- Prerequisite for manual valve addressing : central control address of each indoor unit must be
preset differently at its wired remote control.
S/W No. Setup
No.1 Manual addressing of valve #1
No.2 Manual addressing of valve #2
No.3 Manual addressing of valve #3
No.4 Manual addressing of valve #4
SW03M Increase in the digit of 10 of valve address
SW04M Increase in the last digit of valve address
SW05M Manual addressing of zoning indoor units
COIL EXCHANGING METHOD
COIL EXCHANGING METHOD
21
ENGLISH

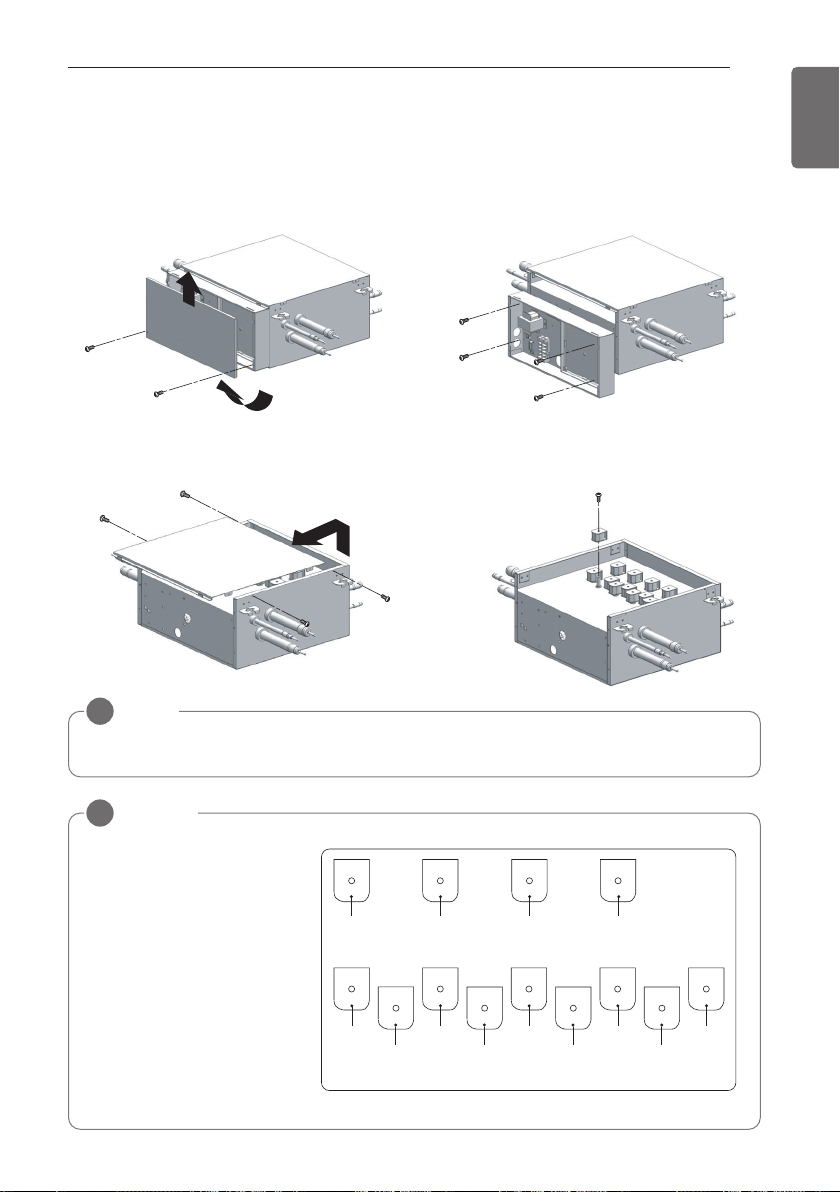

1 Remove the 2 securing screws.
Remove the cover by pulling on the bottom
of the cover and lifting up.
3 Remove the 4 securing screws.
Lift up and pull on the cover.
NOTE
!
2 Take out the connectors on the pcb.
Remove the 4 securing screws.
Lay down the control box.
4 Remove the securing nut with a spanner.
Exchange the coil.
Refer to the label concerned the solenoid coil's position attached on the cover inside.
NOTICE
!
Be sure that system power off
before exchanging the coil.
Check the position of the solenoid coil with the label attached on the cover inside
when abnormal noise is heard
loudly during operation.
Branch 4
Bypass
(CN11)
Branch 4
Low
(CN07)
Branch 4
High
(CN07)
Branch 3
Bypass
(CN10)
Branch 3
Low
(CN06)
Branch 3
High
(CN06)
Branch 2
Bypass
(CN09)
Branch 2
Low
(CN05)
Branch 2
High
(CN05)
Position label of the solenoid coil (PRHR042)
Branch 1
Bypass
(CN08)
Branch 1
Low
(CN04)
Branch 1
High
(CN04)
Bypass
(CN12)
JOINT METHOD OF HR UNIT
22
ENGLISH
JOINT METHOD OF HR UNIT

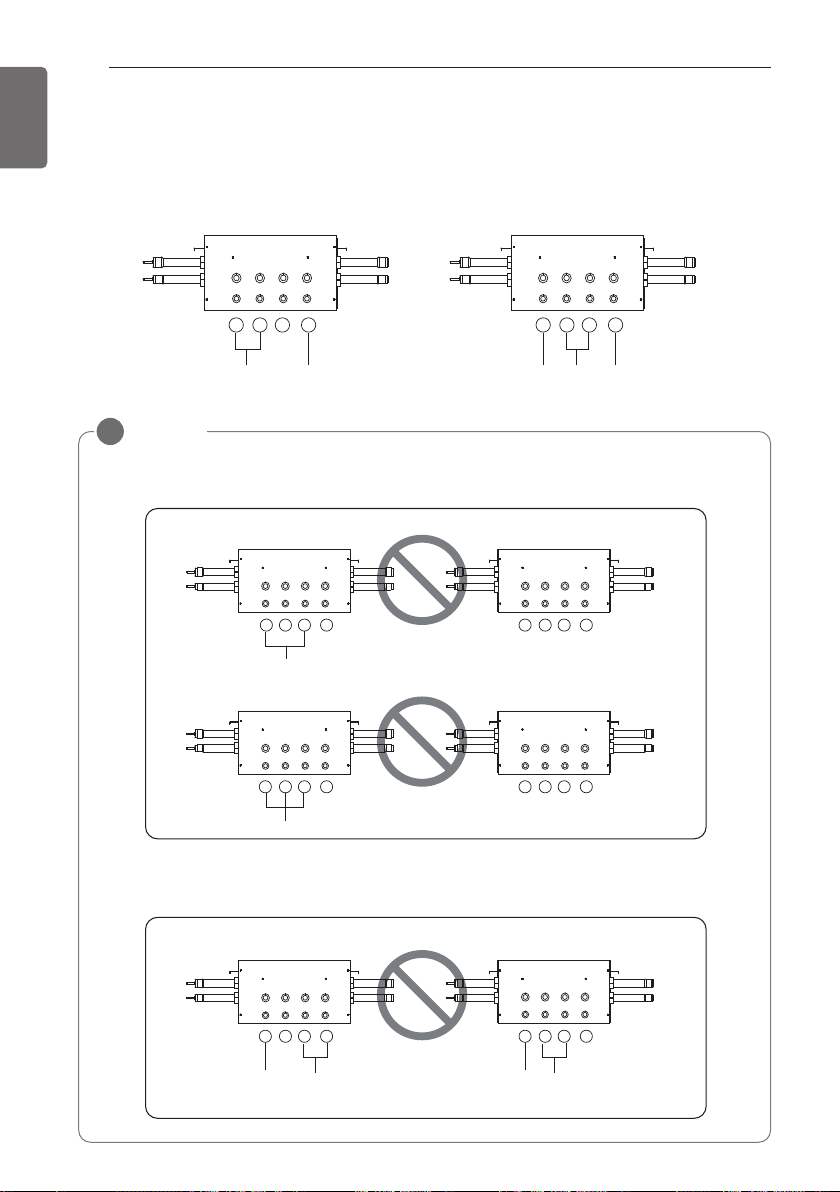

Joint Method is required when use indoor unit that exceed 54k is installed. In Joint Method, two
neighboring outlets of one HR unit are linked by Y branch pipe and connected to one indoor unit.
NOTICE
!
st
1
1 2 3 4
B8
(96k) (28k)
BG
nd
2 HR Unit
HR Unit
1 2 3 4
B8
BH
(76k)(21k)
1. A connection to un-neighboring pipes is forbidden. Do not link more than 2 outlets.
st
HR Unit
1
1 2 3 4
B8
st
HR Unit
1
1 2 3 4
nd
2
HR Unit
1 2 3 4
nd
HR Unit
2
1 2 3 4
B8
2. The B8 unit, which has the largest capacity, must be connected to the 1st and 2nd outlets
of the 1st HR unit. Other B8 units can be connected to any two neighboring outlets within
one HR unit.
st
HR Unit
1
1 2 3 4
BG
(28k) (96k)
B8
nd
2
HR Unit
1 2 3 4
(18k)BH(76k)
B8
Loading...
