Install Manual
Wall Mounting Bracket
Please read this manual carefully before operating your set
and retain it for future reference.
OSW100
P/NO : MFL63640559 (1406-REV00)
www.lg.com
COMPONENT
Install manual Wall mount anchor 6 units Wall mount screw 6 units
* Component of top wall mount
Top wall mount (assembled with a
mounting bracket for wooden walls)
Hanger 2 screws for attaching the hanger
* Component of bottom wall mount
1 bottom-right wall
mount
8 washers
2
1 bottom-left wall
2 spacers (front) 2 spacers (back) 1 pin for fixing top wall
(M6 x L33 mm)
mount
2 bottom wall attaching
brackets
2 bottom wall attaching
mount
washers
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions. Keep these instructions.
Heed all warnings. Follow all instructions.
This wall mount should be installed by a trained
and experienced installer designated by the
retailer.
Having the product installed by a nonspecialized installer is very dangerous and can
cause damage or injury.
Use a trained and experienced installer to
move or replace the wall mount, if needed.
Installation requires special techniques. Moving
or installing the product on your own can cause
serious safety issues.
When installing the wall mount, never hang the
power or signal cable on the rear side the TV.
The cord can be damaged and cause a fire, an
electric shock, or damage to the product.
Install the product according to the
directions in the user manual.
If the product is not installed based on the
directions in the user manual, it can cause a
serious injury or damage to the product.
During the installation, check the type of wall
material and use the sealed anchor and
screw if the conditions comply.
If you do not use the designated anchor or
screw, the mount may not be able to withstand
the weight of the product and cause a safety
issue.
Do not wipe the product with a wet towel and
do not use any heater or humidifier below
where the product is installed.
If water flows into the product or if moisture and
heat are applied to the product, it can cause a
fire, an electric shock, or problem to the product.
Unplug the power cord from the power outlet
before installing the product.
If you install the product with the power cord
plugged, it can cause an electric shock or a fire.
Do not allow the video connectors connected
to the display to press against the wall. Use
the included right-angle adapters if needed.
Only use attachments/accessories specified by
the manufacturer.
ENGLISH
Warning
Do not install the product where the weight
cannot be supported.
If the strength of the location where the wall
mount is installed is not strong enough, it can
fall off and cause an injury.
After installing the wall mount, do not hang
on the product or apply severe impact to the
product.
The product can fall off and cause injury.
Caution
When installing the product or adjusting the
height of the product after installing, always
do so with 2 people.
Working alone can cause the product to fall off
and result in injury or damage to the product.
When drilling holes in the wall, always use a
drill bit and drill of designated diameter. Also
follow the designated directions for the
depth of the hole.
If the product is installed without following the
designated method, the product may be
unstable and cause a safety issue.
Do not install the product near any object
that may cause vibration.
Do not install the product near any high
voltage power cable or power source.
Do not install the product with bare hands.
Always wear proper work gloves.
It can cause an injury.
3
BEFORE INSTALLATION
* Do not use the product for purposes other than mounting a display on the wall.
* When installing/using the wall mount, be cautious of product damage and avoid accidents.
* If you have not fully read and understood the installation manual, do not install the product and contact
the dealer to have a specialized installer install the product for you.
* This product is designed to be mounted to walls that use standard intervals between the studs.
* Install the screw to attach the wall mount so that it can be assembled at the center from both ends of
the studs. Use of a stud finder, a separate device, is recommended.
* When installing the wall mount on a concrete wall or on any other wall capable of holding the strength
specified in the manual, you can detach the standard gap bracket for stud wall mounting and then
follow the instructions for attaching the wall mount to make the installation easier.
* Install the product only on a vertical wall.
The manufacturer is not responsible for issue from installing the product on an angled wall or on the
ceiling.
* Check that the accessories provided with the product are all included before installing. LG Electronics
is not liable for any damage or loss of accessories after the package has been opened.
* Keep the included accessories out of reach of babies or children as it can cause safety issues
including suffocation from swallowing the parts.
* Make sure screws are tight against the wall, but do not overtighten.
Applying excessive force to screws may damage to the wall, affect the product performance, or cause
the product to become damaged.
* Be careful not to install a TV that exceeds the weight restrictions of the wall mount.
* Be careful with the tools used during installation to prevent accidents or damage.
- Tools you will need - Phillips head "+" driver (manual or motorized) Ø4 mm drill bit for wood or steel /
Level / Stud finder / Drill. You may also need an 8 mm socket wrench or an Ø 8 mm drill bit for
concrete.
INSTALLATION METHOD
- The actual product may differ from the picture.
How to Attach the Spacers to the Hanger
1
Spacer
4
Hanger
→ Attach the spacers
to the hanger in the
direction of the
dotted lines as
shown in the
illustration.
Spacer
How to Attach the Brackets for the Product to the TV
2
- If the screws are not fully tightened when you fix the top and the bottom wall mount, check the length
of the screws and tighten them again.
- Always install the display with 2 or more people.
- Work procedure
VESA Screw
1. Remove the two VESA screws from
upper back of TV when in an upright
position.
2. Use the screws for attaching the
hanger to tighten the hanger as
Hanger
shown.
- Tighten the screws for attaching the
hanger until they are securely
attached to the TV set.
- Use the + driver (manual or
Screw for attaching the
hanger
motorized) when tightening the
screw.
3. Remove the four stand screws
tightened at the bottom of the TV set
to detach the stand.
- Place the TV on a table with the
screen facing up. Make sure that you
place it on a flat surface covered with
a soft cloth or cushion to protect TV
Stand
Screw of
Stand
set from scratches.
* CAUTION
- When detaching the stand, make
sure to hold it firmly while removing
the screws. Otherwise, it may fall.
- The four stand screws removed will be
used to attach the bottom wall mounts.
ENGLISH
bottom wall mount
Screw of Stand
4. Use the 4 stand screws to tighten the
bottom wall mount as shown.
- Tighten the stand screws and bottom
wall mount until they are securely
attached to the TV set.
- Use the + driver (manual or
motorized) when tightening the
screw.
5
How to attach to masonry walls
3
Please follow the below direction.
- Check the material of the wall and the thickness of the finishing.
- Use the anchors for wall material of concrete, light concrete, strong natural stone, soft natural stone
masonry brick and hallow block that do not crack.
- Do not mount the device on the walls made from plasterboard or medium density fiberboard (MDF).
In this case, the anchor and screws must be inserted into the concrete behind the finish surface. If
there is no concrete on the other side, then you must first install a separate hanger to securely install
the anchors and screws.
- When installing the product on wall material not designated, install the product so that each location
can withstand the pull out load of 70 kgf (686 N) and shear load of 100 kgf (980 N) or above.
a
b
Wall mount screw
c
Anchor
d e
- Use the Ø8 mm drill bit for concrete and hammer (impact) drill.
a. Use a drill bit Ø8 mm to drill a hole for the anchor location within a depth of 80 mm - 100 mm
b. Clean the drilled hole.
c. Insert the sealed anchor to the hole. (When inserting the anchor, use a hammer.)
d. Set the wall mount on the wall by aligning to the location of the hole. and, set the angle adjusting part
to face upward.
e. Align the wall mount bolt to the hole and tighten it. Then, fasten the bolts at torque
of 45 kgf/cm - 60 kgf/cm.
How to Install the Top Wall Mount
4
When installing on a masonry wall
→ For easier installation, it is recommended that you remove the two wall mount attaching screws
attached to the mounting bracket for wooden walls.
Mounting Bracket for Wooden Walls
Top wall mount
→ To detach the mounting bracket for wooden walls, first lift the top of the top wall mount at 90 degrees.
6
A A
Remove the wall mount fixing screws.
A
A
Wall mount screw
When mounting to wooden studs
→ Rotate the two screws next to A
counterclockwise to remove the screws
and the mounting bracket for wooden
walls from the top wall mount.
→ Place the top wall mount onto the area
of the wall where you want to install it,
and then mark the fixing point for the
fixing screws and remove the top wall
mount.
→ Attach the top wall mount to the wall by
referring to the illustration below.
→ Check if the wall mount is level by
using a leveler.
→ Fix one wall mount fixing screw into the
top left hole next to A and another
screw into the top right hole next to A
as shown in the illustration.
→ At this time, use a + driver (Manual or
motorized) or 8 mm wrench to tighten
the screw so that the wall, wall bracket
and screw are completely pressed
against one another.
→ After attaching the screws, put down
the top of the top wall mount.
ENGLISH
76 mm
406 mm
drywall
a. Locate and mark the centers of the wall studs using a stud finder.
b. After aligning the wall bracket on the wall where the center of the wood stud is marked, mark the
location of the screws and then remove the wall bracket.
c. Use a level to make sure your screw marks are level.
d. Use the 4 mm drill bit for wood to drill holes with the depth of 76 mm or above where the wall mount
screw location is marked on the wall.
e. Clean the drilled hole.
f. Tighten the wall mount screws for the wall bracket on the drilled hole.
→ At this time, tighten the screw so that the wall, wall bracket and the wall mount screw are pressed
against one another.
(Drywall can be damaged when tightened with excessive force, please be careful.)
→ When tightening the screw use the + driver (manual or motorized) or 8 mm wrench.
wood stud
drywall
7
How to Install the Bottom Wall Mount
5
How to Select the Installation Location of the Bottom Wall Mount
[unit : mm]
➊
541
350
Washer
90˚
350
➌ and ➍.
bottom wall attaching
brackets
➍
➌
➋
➊ Place the box on the bottom center of the attached top wall mount and place the box at a right
angle (90 degrees) to the top wall mount as shown in the figure.
➋ Find the V on the bottom of your box, and mark the point facing it on the wall [(a) in the figure].
➌ Rotate the box 90 degrees counterclockwise, making sure that (a) point in the figure is always at
the center.
Find the H on the left side of your box and mark the point facing it on the wall.
➍ Move the box to the right. Check if the box is level, using a level.
Find the V on the right side of your box, and mark the point facing it on the wall.
→ Bottom wall mounts should be placed on the points marked in step
Please follow the below direction.
Wall mount screw
→ Fix the two bottom wall mounting brackets onto the wall using the wall mount screw as shown in
the figure.
→ Depending on the condition of the wall, use additional washers when tightening the bottom wall
attaching brackets.
8

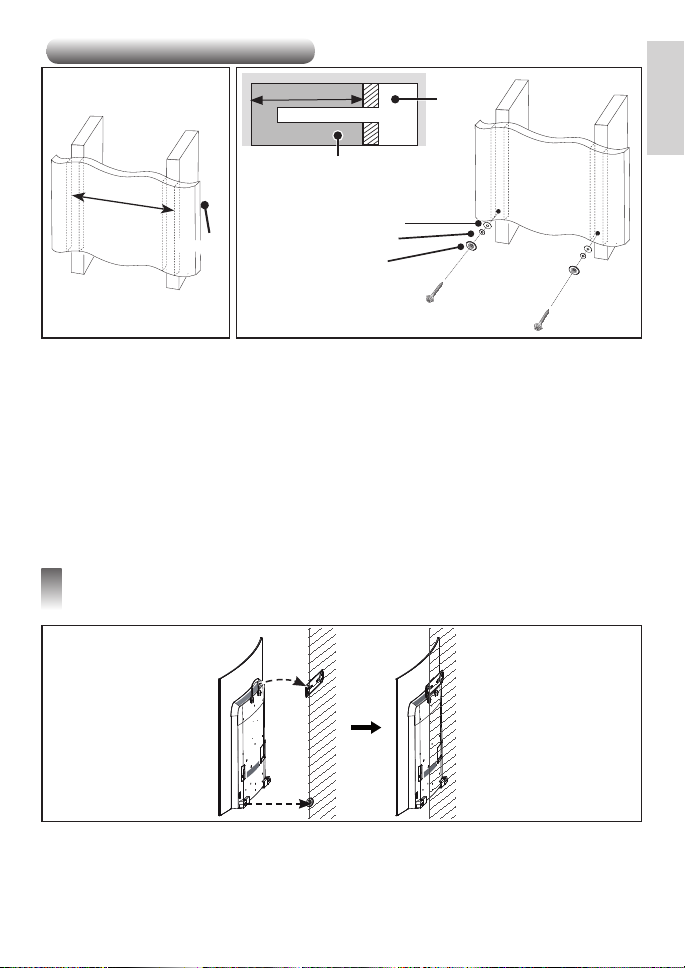

When mounting to wooden studs
ENGLISH
76 mm
wood stud
drywall
406 mm
Washer
drywall
bottom wall fixing washer
bottom wall fixing bracket
a. Locate and mark the centers of the wall studs using a stud finder.
b. After aligning the wall bracket on the wall where the center of the wood stud is marked, mark the
location of the screws and then remove the wall bracket.
c. Use a level to make sure your screw marks are level.
d. Use the 4 mm drill bit for wood to drill holes with the depth of 76 mm or above where the wall mount
screw location is marked on the wall.
e. Clean the drilled hole.
f. Tighten the wall mount screws for the wall bracket on the drilled hole.
→ Depending on the condition of the wall, use additional washers when tightening the bottom wall
attaching brackets.
→ At this time, tighten the screw so that the wall, wall bracket and the wall mount screw are pressed
against one another.
(Drywall can be damaged when tightened with excessive force, please be careful.)
→ When tightening the screw use the + driver (manual or motorized) or 8 mm wrench.
How to Attach the Top Wall Mount to the Product
6
- Two or more people are needed to lift and install the product.
Hang the hanger on the top wall mount as shown in the figure.
→ Two people must lift the TV set attached to the hanger and carefully check from both sides whether it
is properly installed.
→ Make sure that the product is fixed securely by lightly pulling on the bottom of the TV.
→ The product should be about 10 mm apart from the wall. When connecting cables and accessories, make
sure that the product is installed at a sufficient distance from the wall to avoid putting stress on them.
→ Pushing the product with excessive force may cause damage to the product.
9
Please follow the below direction.
This product is easily damaged by external shock, so please handle it with care. For more
information, please refer to the owner's manual of the TV.
How to Install the Top Wall Mount Fixing Pin
7
pin for fixing top wall
mount
→ After installing the top wall mount, attach the wall mount to the TV using the top wall mount attaching
pin as shown in the illustration.
* CAUTION - If the wall mount is not attached to the TV using the top wall mount fixing pin, the TV may
8
be removed resulting in damage or injury.
How to Adjust the Level of the Product
If the product is not level after installation, lift the product slightly so that it moves to a position
where it is level.
Adjust the horizontal levels
of the TV set by rotating it
centered in the top wall
mount.
Lifting Point
How to Tidy Up Cables
9
- Tidy up cables as shown in the illustration. Purchase a band for tidying up cables or use the band that
comes with the TV.
10
Lifting Point
PRODUCT SPECIFICATION
Hanger
Top wall mount
Bottom wall mount
238
210
160
406
483
ENGLISH
[ unit : mm ]
3
99
7
8.5
18.5
23.5
5
40
63
Top Assembly Hanger Assembly Lower Assembly
Width (mm) 483 238 169.9
Height (mm) 63 99 34.9
Depth (mm) 23.5 18.5 49.6
Weight with packing (kg) 1.3
Max.UL Load Capacity (kg) 30
11
Loading...
