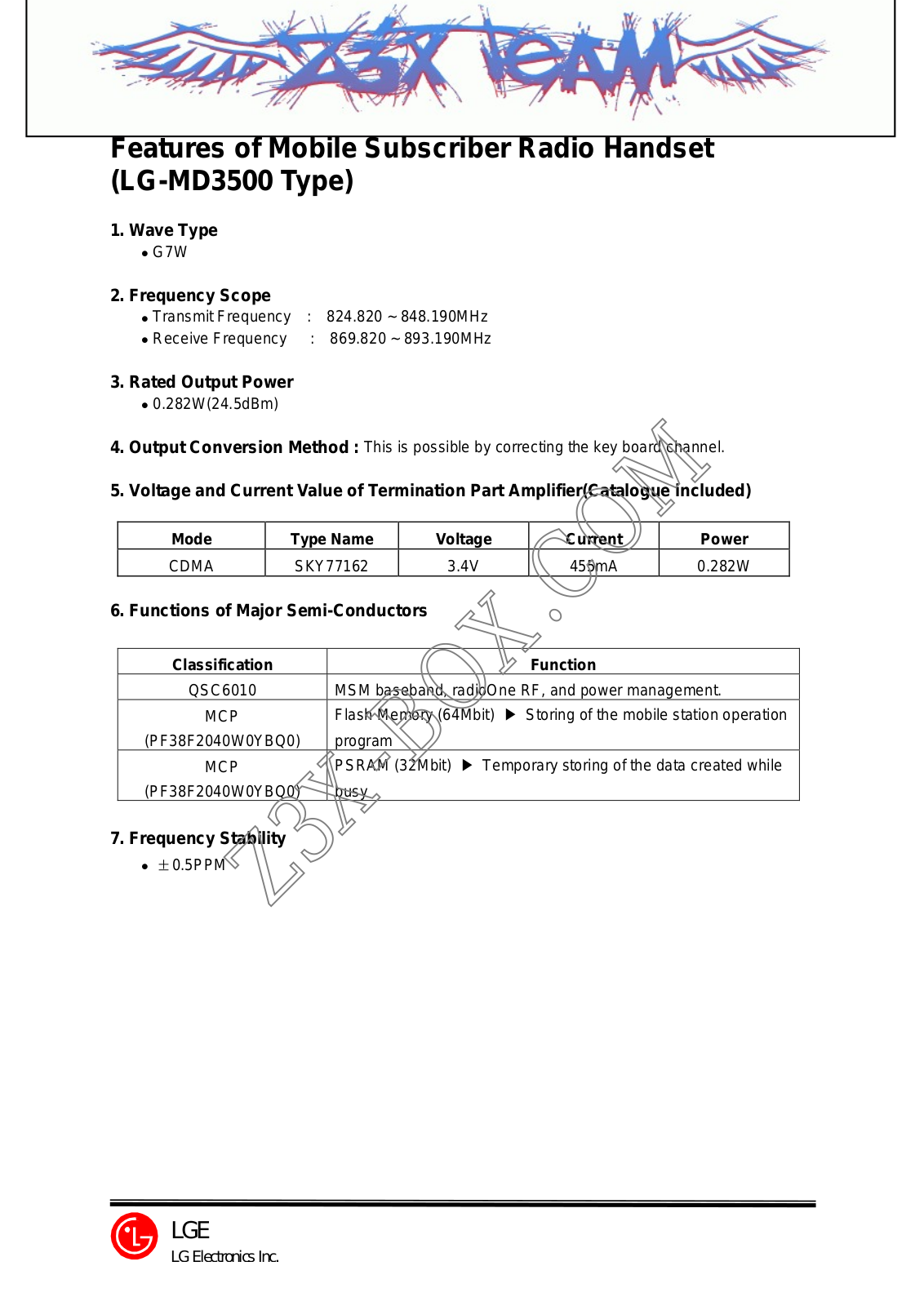

Features of Mobile Subscriber Radio Handset
(LG-MD3500 Type)
1. Wave Type
• G7W
2. Frequency Scope
• Transmit Frequency : 824.820 ~ 848.190MHz
• Receive Frequency : 869.820 ~ 893.190MHz
3. Rated Output Power
• 0.282W(24.5dBm)
4. Output Conversion Method :
5. Voltage and Current Value of Termination Part Amplifier(Catalogue included)
This is possible by correcting the key board channel.
Mode Type Name Voltage Current Power
CDMA SKY77162 3.4V 455mA 0.282W
6. Functions of Major Semi-Conductors
Classification Function
QSC6010 MSM baseband, radioOne RF, and power management.
MCP
(PF38F2040W0YBQ0)
MCP
(PF38F2040W0YBQ0)
7. Frequency Stability
• ±0.5PPM
Z3X-BOX.COM
Flash Memory (64Mbit) ▶ Storing of the mobile station operation
program
PSRAM (32Mbit) ▶ Temporary storing of the data created while
busy
LGE
LGE CONFIDENTIAL

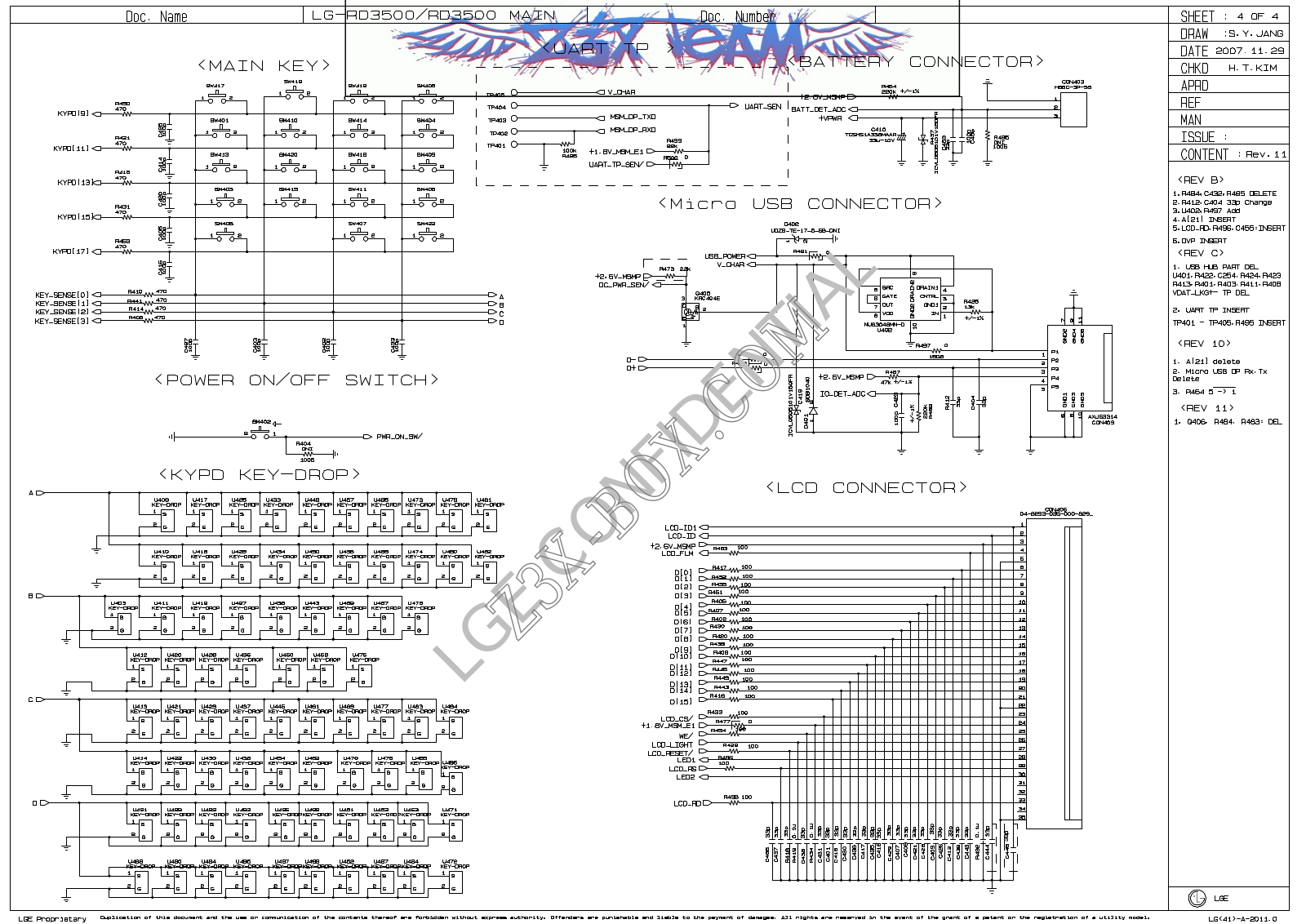

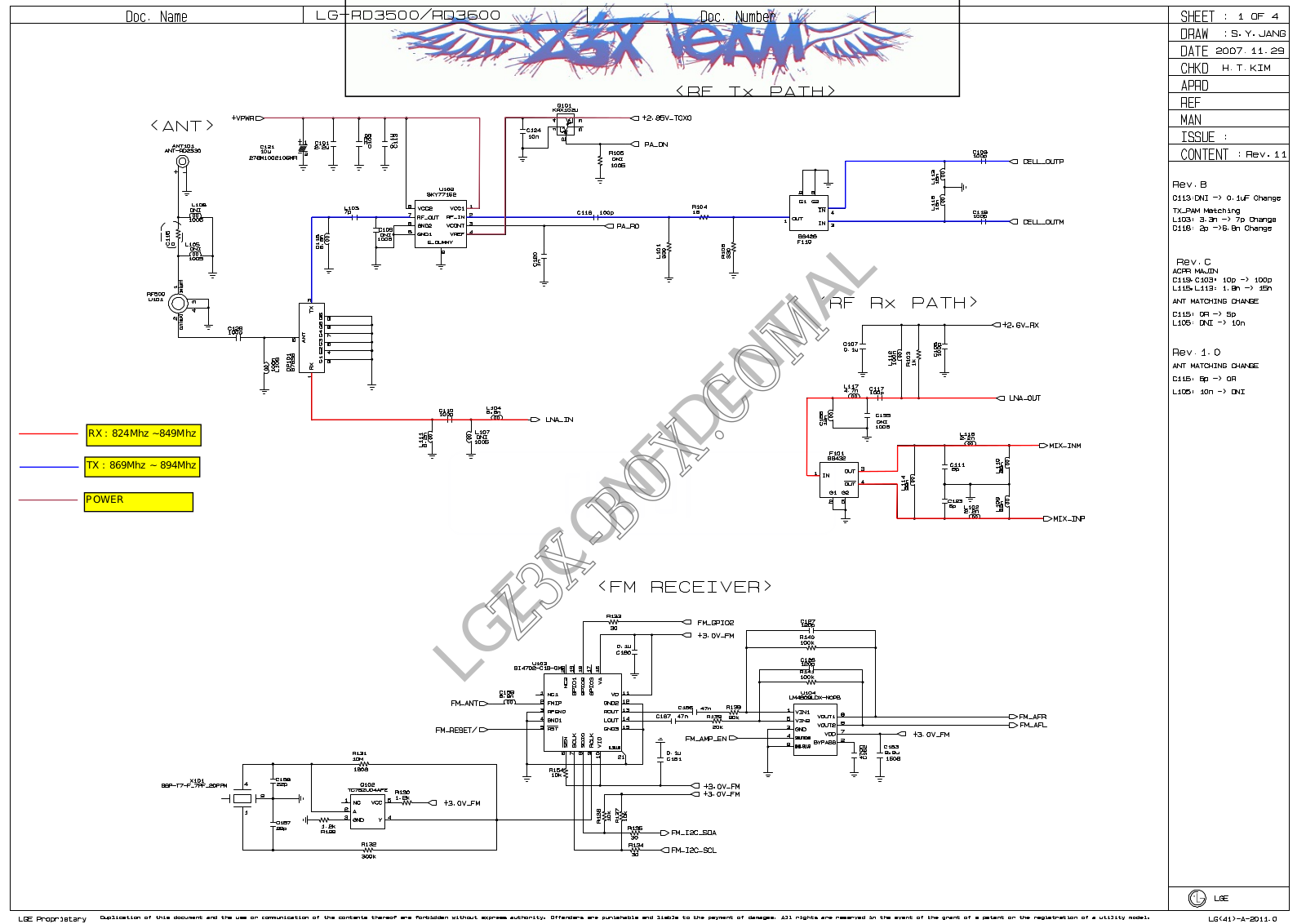

RX : 824Mhz ~849Mhz
TX : 869Mhz ~ 894Mhz
POWER
Z3X-BOX.COM
LGE CONFIDENTIAL

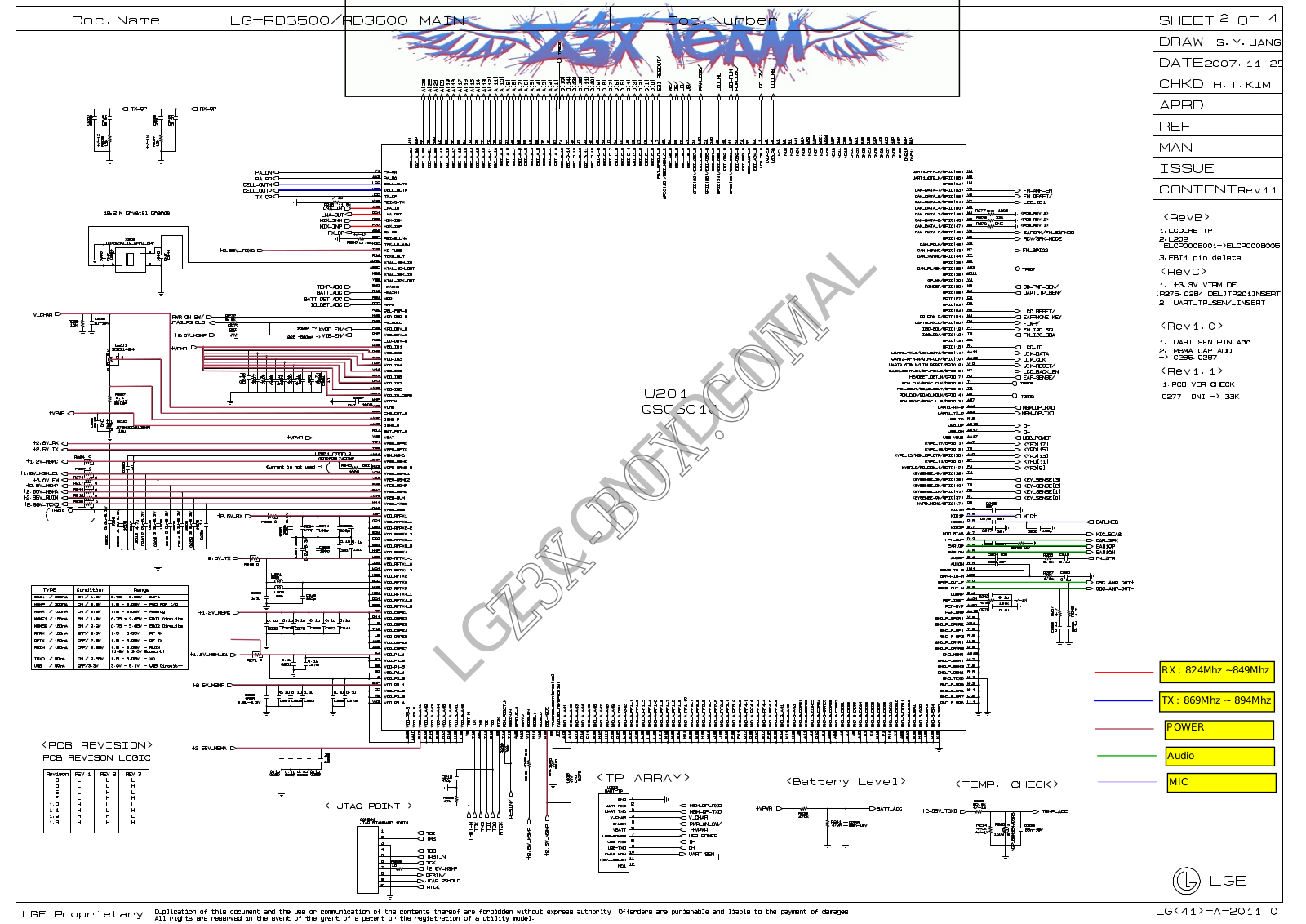

MIC
POWER
Audio
TX : 869Mhz ~ 894Mhz
RX : 824Mhz ~849Mhz
Z3X-BOX.COM
LGE CONFIDENTIAL

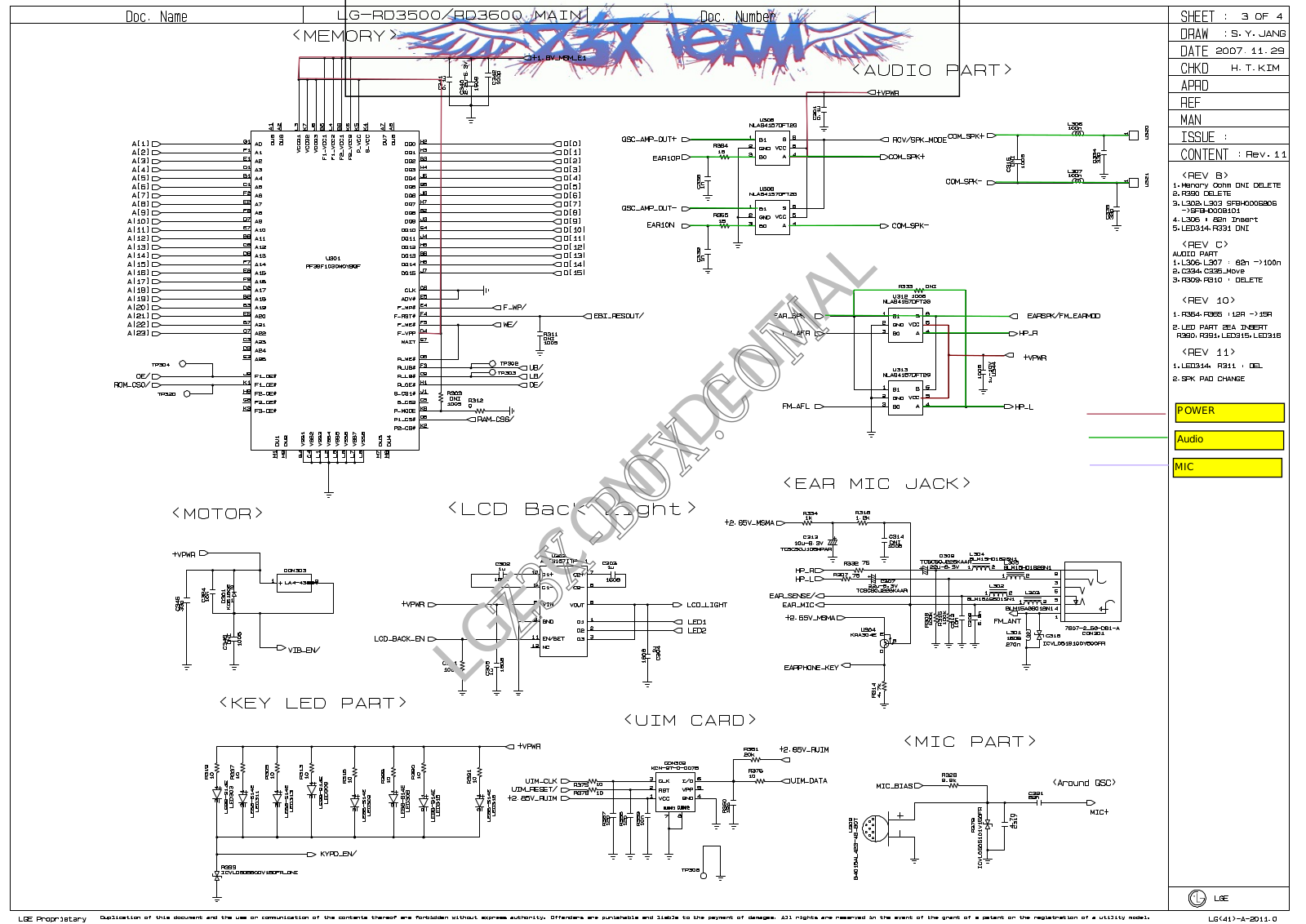

POWER
Audio
MIC
Z3X-BOX.COM
LGE CONFIDENTIAL
Z3X-BOX.COM

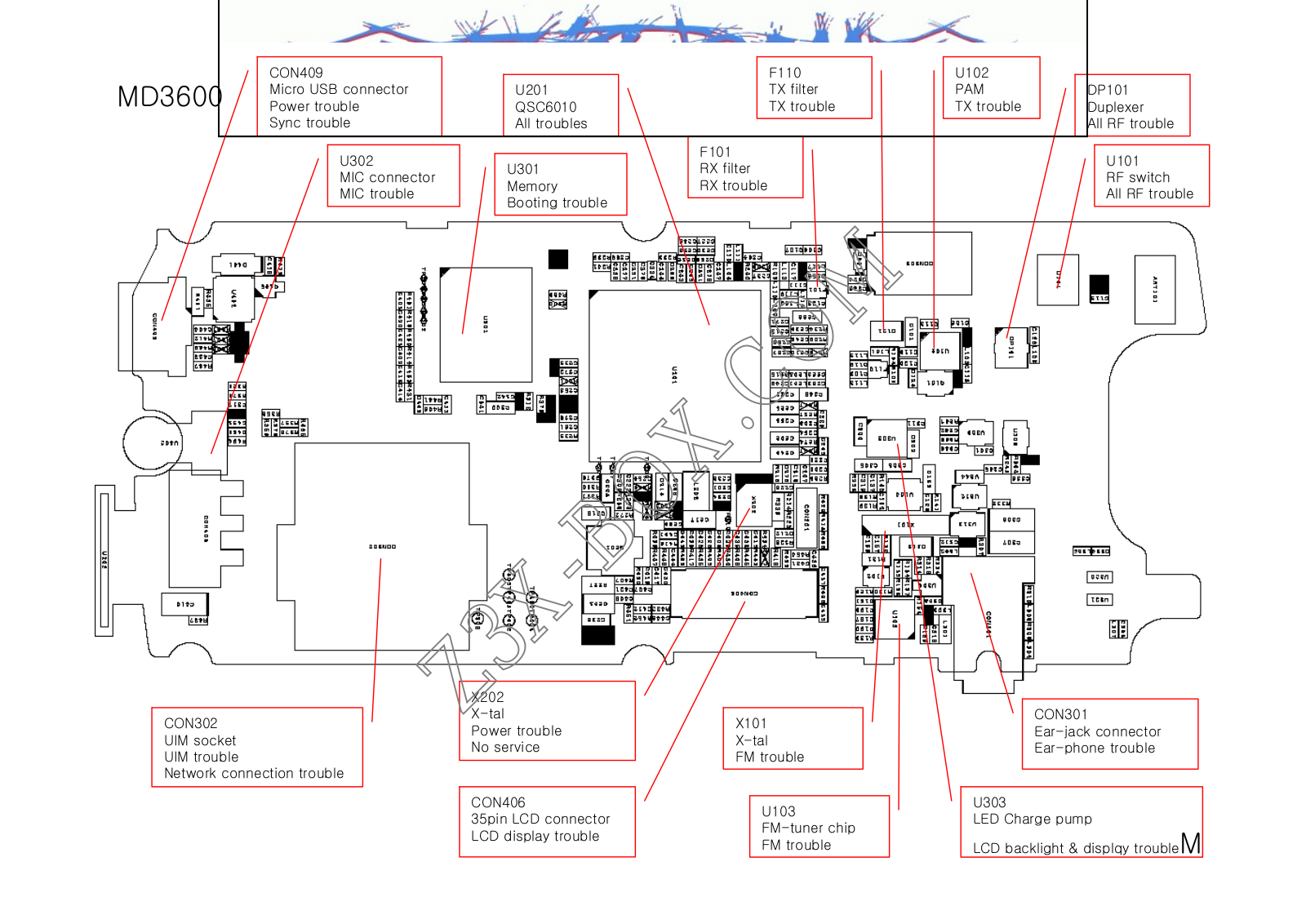

MD3600
CON409
Micro USB connector
Power trouble
Sync trouble
U201
QSC6010
All troubles
F110
TX filter
TX trouble
U102
PAM
TX trouble
DP101
Duplexer
All RF trouble
U302
MIC connector
MIC trouble
U301
Memory
Booting trouble
F101
RX filter
RX trouble
U101
RF switch
All RF trouble
CON302
UIM socket
UIM trouble
Network connection trouble
X202
Z3X-BOX.COM
X-tal
Power trouble
No service
CON406
35pin LCD connector
LCD display trouble
X101
X-tal
FM trouble
U103
FM-tuner chip
FM trouble
U303
LED Charge pump
LCD backlight & displqy trouble
CON301
Ear-jack connector
Ear-phone trouble
M

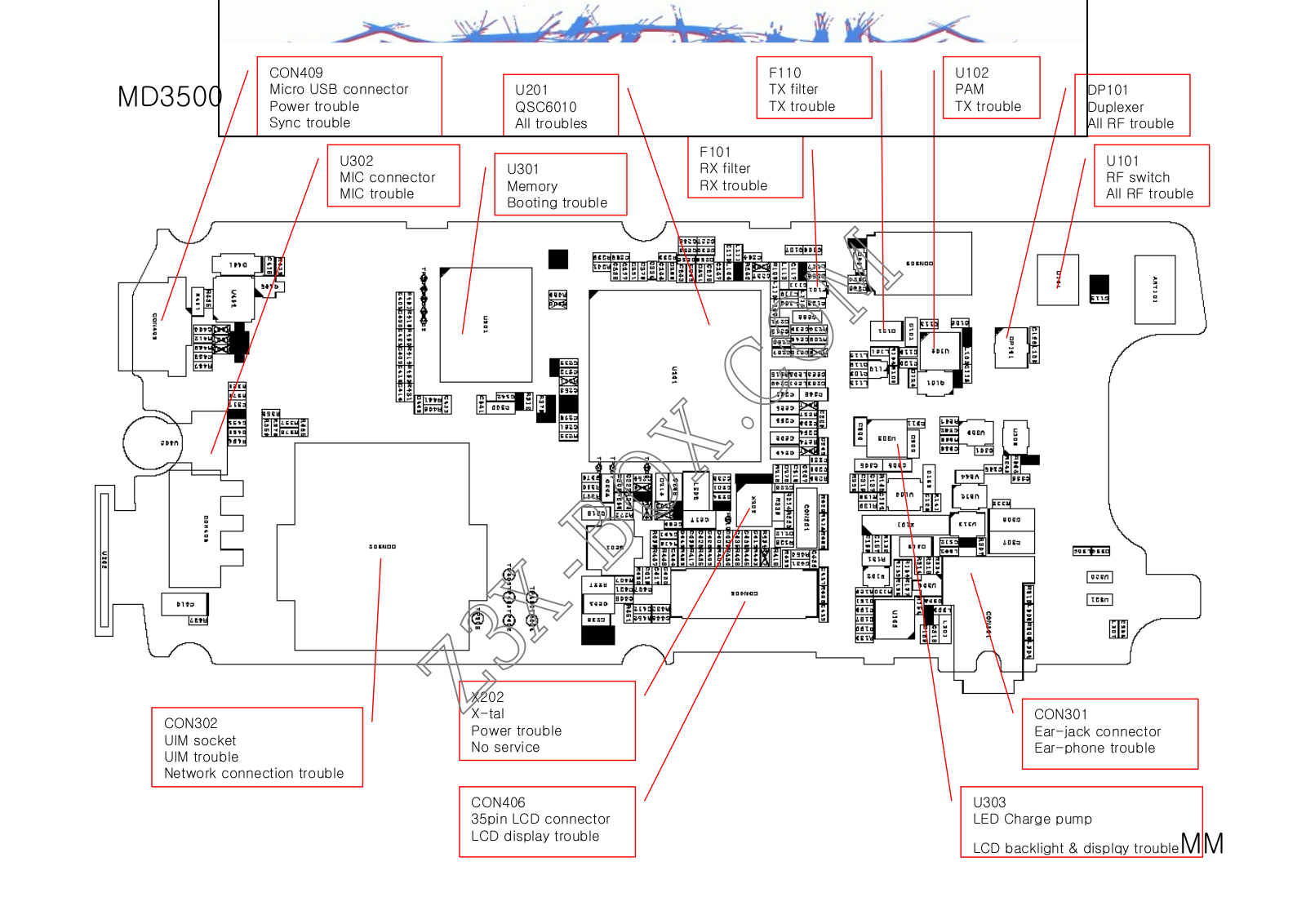

MD3500
CON409
Micro USB connector
Power trouble
Sync trouble
U201
QSC6010
All troubles
F110
TX filter
TX trouble
U102
PAM
TX trouble
DP101
Duplexer
All RF trouble
U302
MIC connector
MIC trouble
U301
Memory
Booting trouble
F101
RX filter
RX trouble
U101
RF switch
All RF trouble
CON302
UIM socket
UIM trouble
Network connection trouble
X202
Z3X-BOX.COM
X-tal
Power trouble
No service
CON406
35pin LCD connector
LCD display trouble
U303
LED Charge pump
LCD backlight & displqy trouble
CON301
Ear-jack connector
Ear-phone trouble
MM
