OWNER’S MANUAL

LED LCD TV

Please read this manual carefully before operating your set and retain it
for future reference.

LT64**

www.lg.com

TABLE OF CONTENTS

2

ENGLISH

ENG

TABLE OF CONTENTS

3 LICENSES

3 OPEN SOURCE SOFTWARE

NOTICE

4 INSTALLATION PROCEDURE

4 ASSEMBLING AND

PREPARING

4 Unpacking
6 Optional Extras (Only

26/32/37/42/47LT640E)
7 Parts and buttons
8 Lifting and moving the TV
9 Setting up the TV

9 - Attaching the stand
11 - Mounting on a table

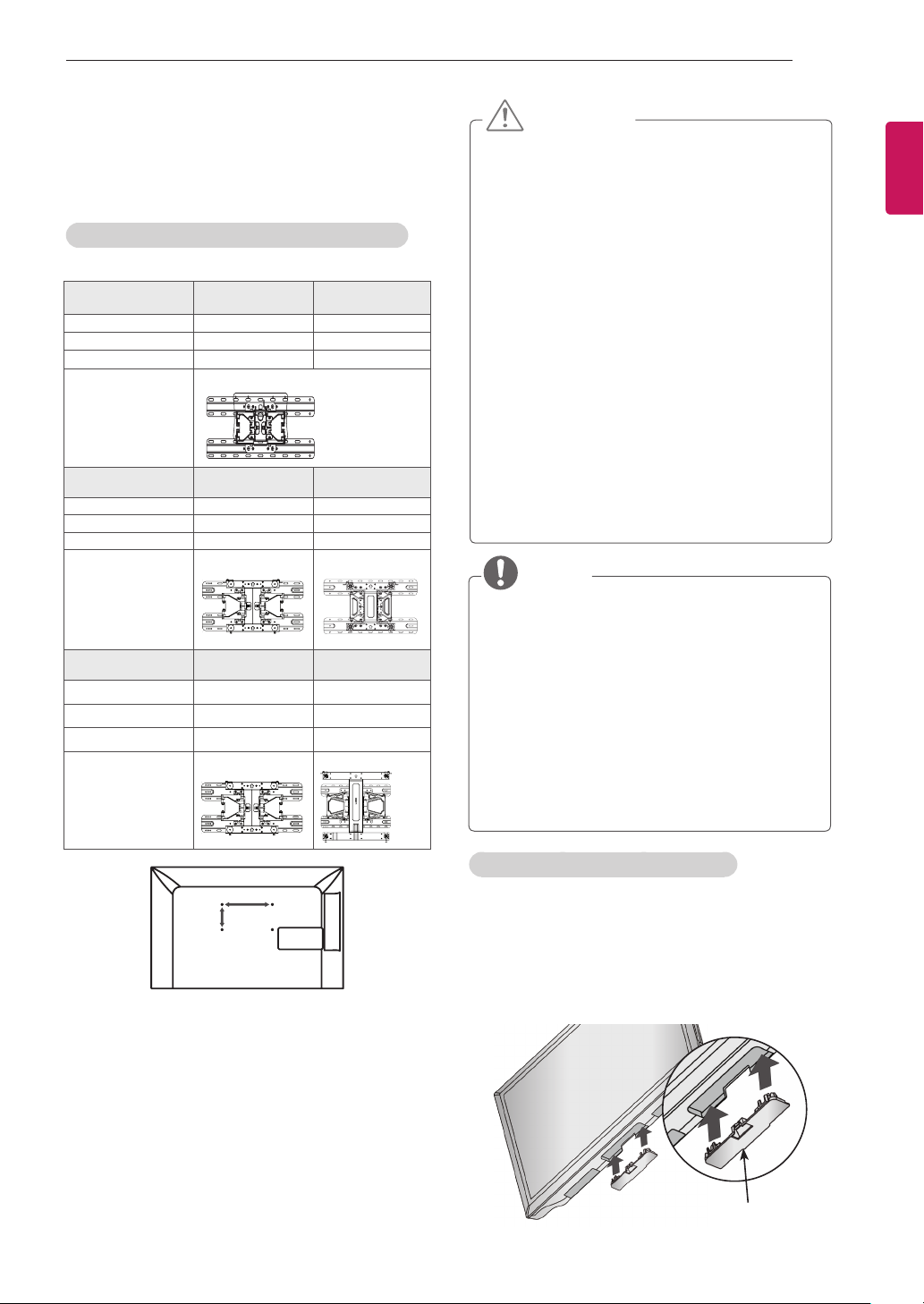

12 - Mounting on a wall

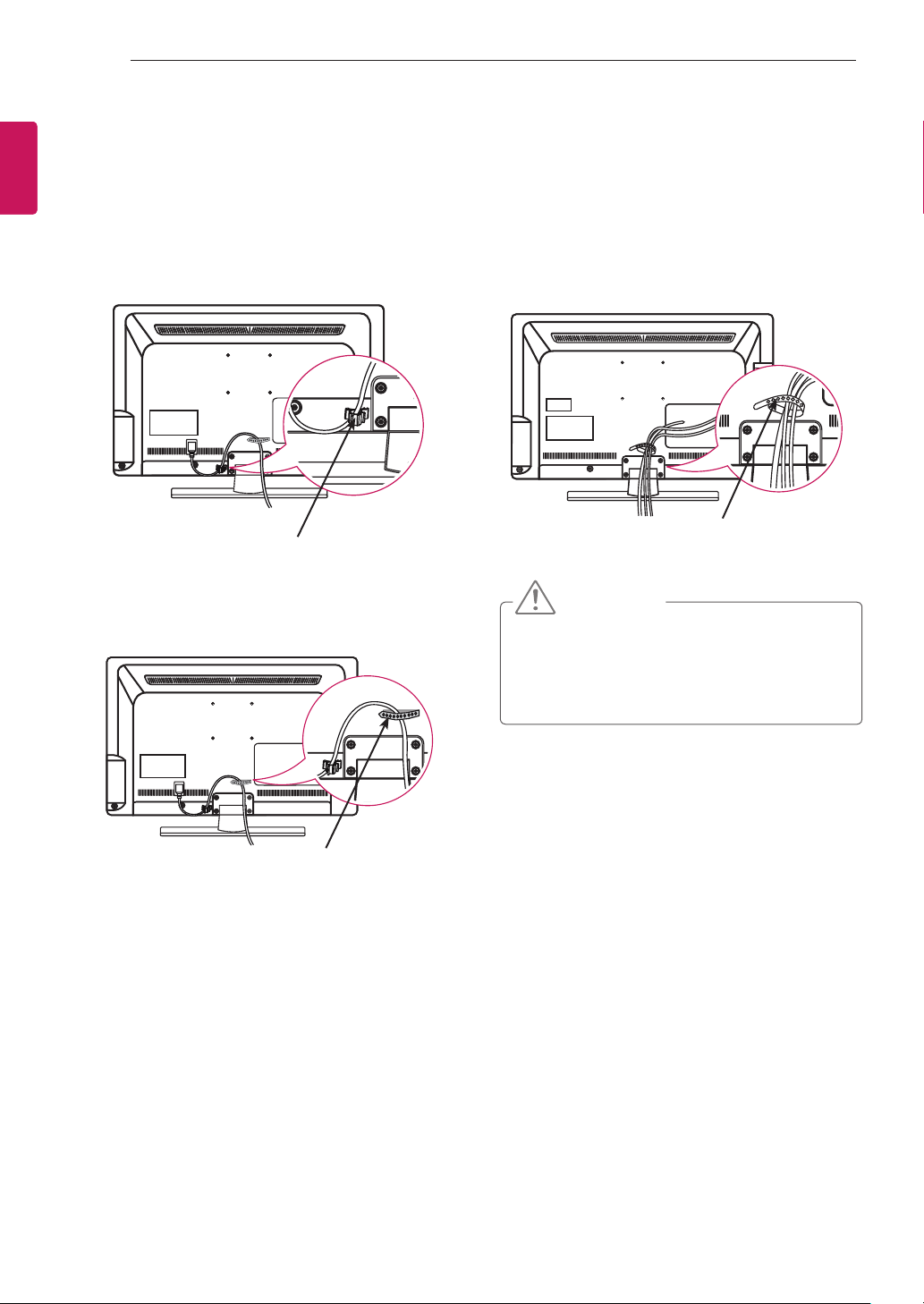

14 - Tidying cables

15 MAKING CONNECTIONS

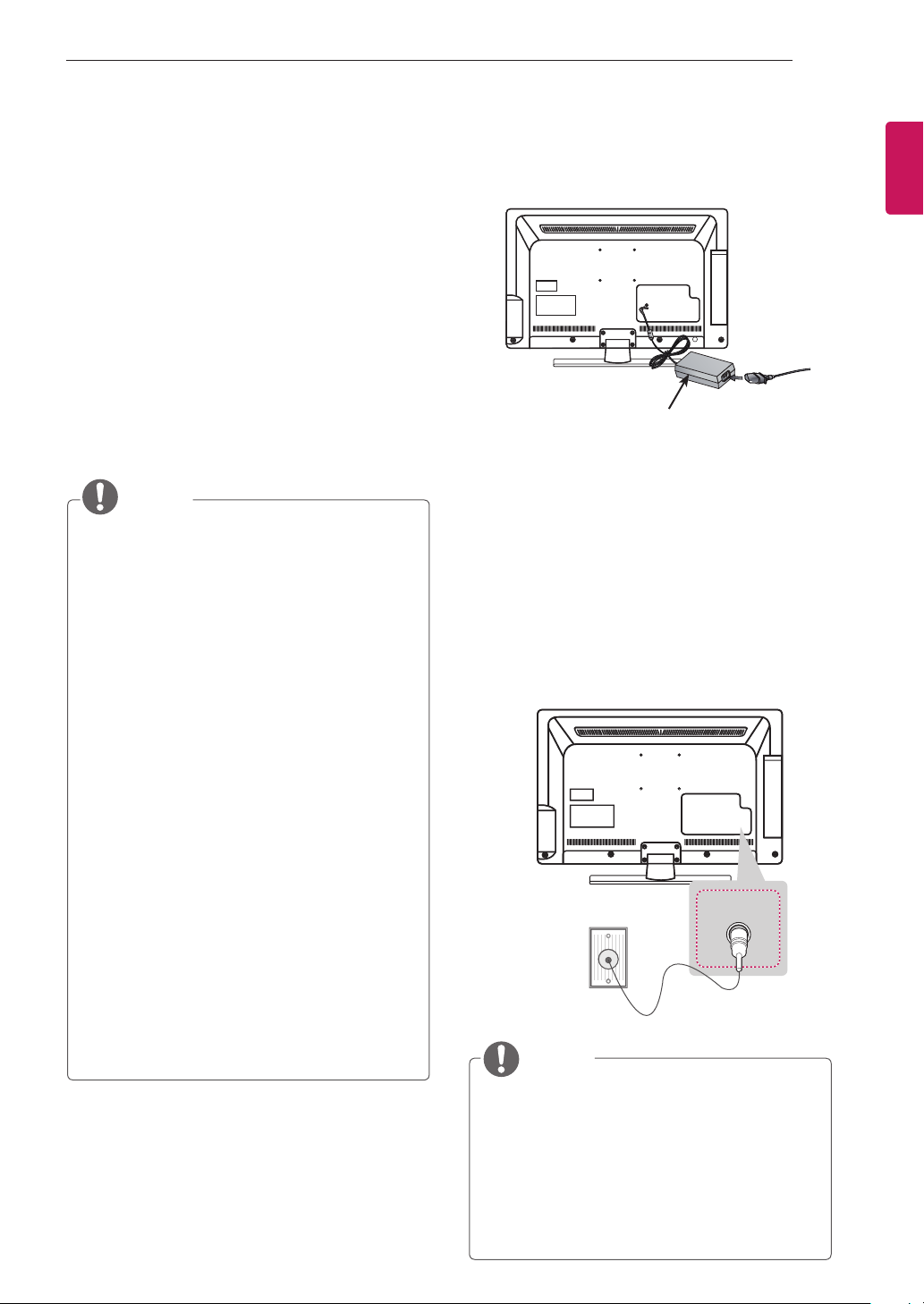

15 Adapter connection
15 Antenna connection

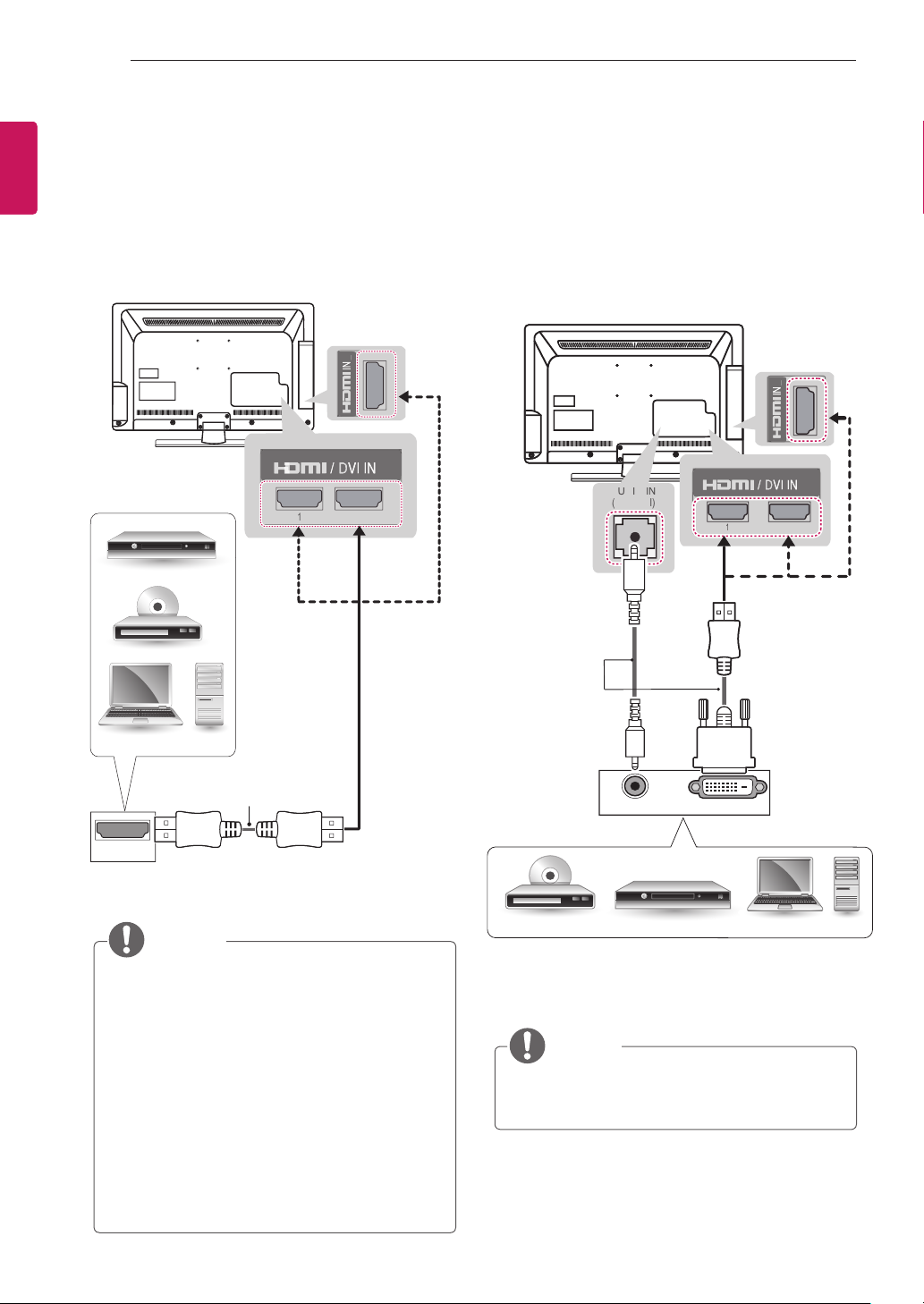

16 HDMI connection
16 DVI to HDMI connection

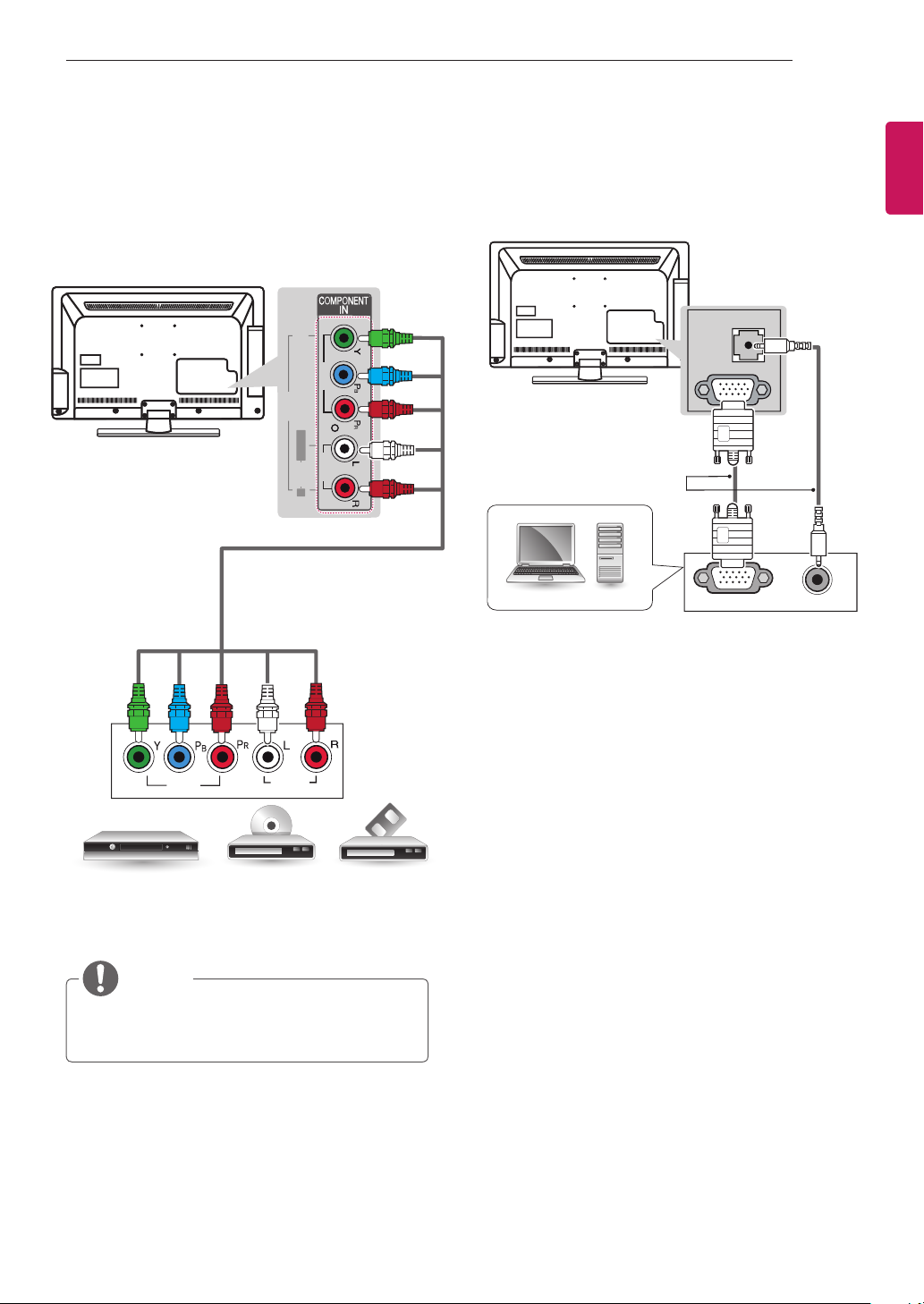

17 Component connection
17 RGB-PC connection

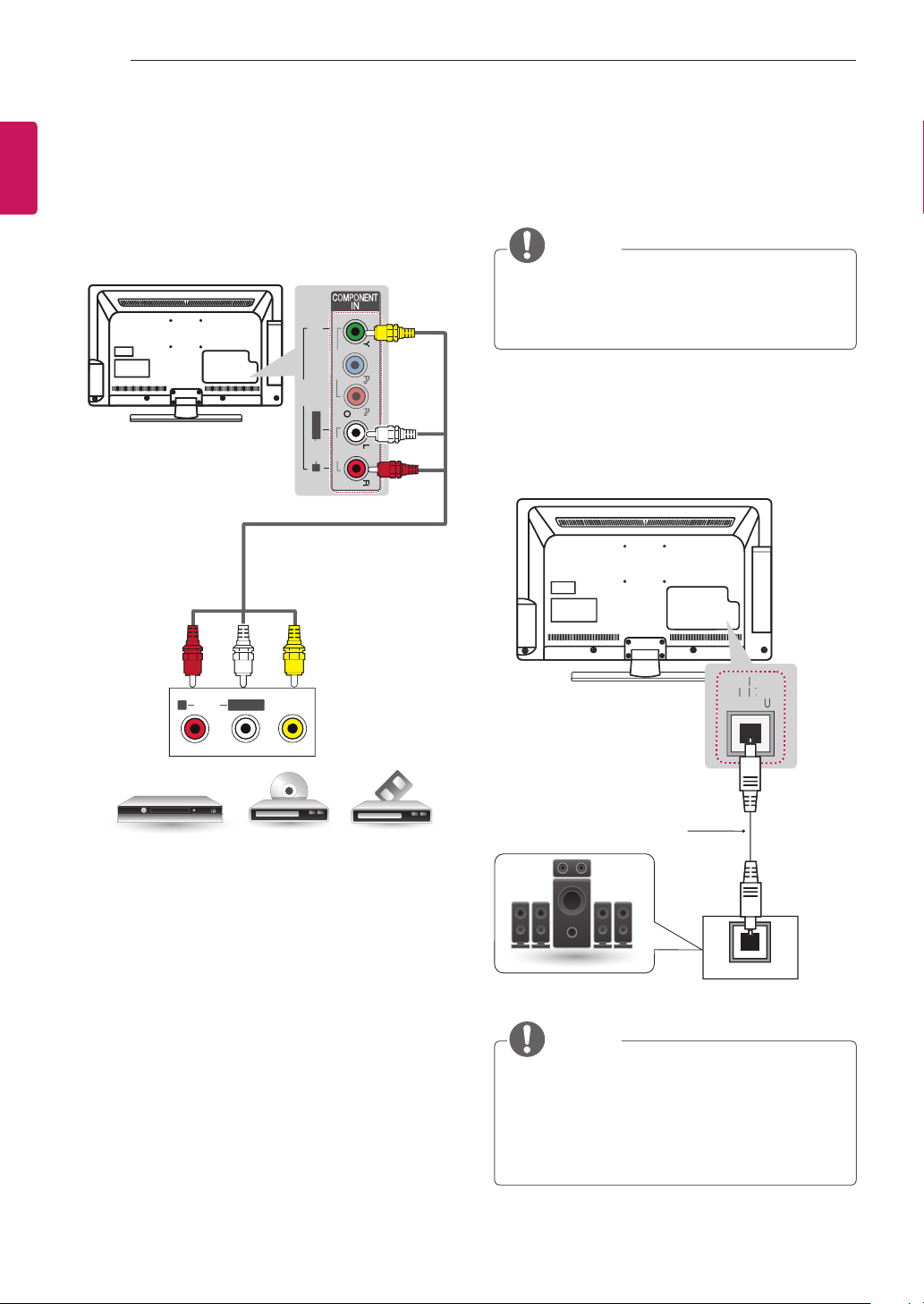

18 Composit connection
18 Audio connection

18 - Digital optical audio connection

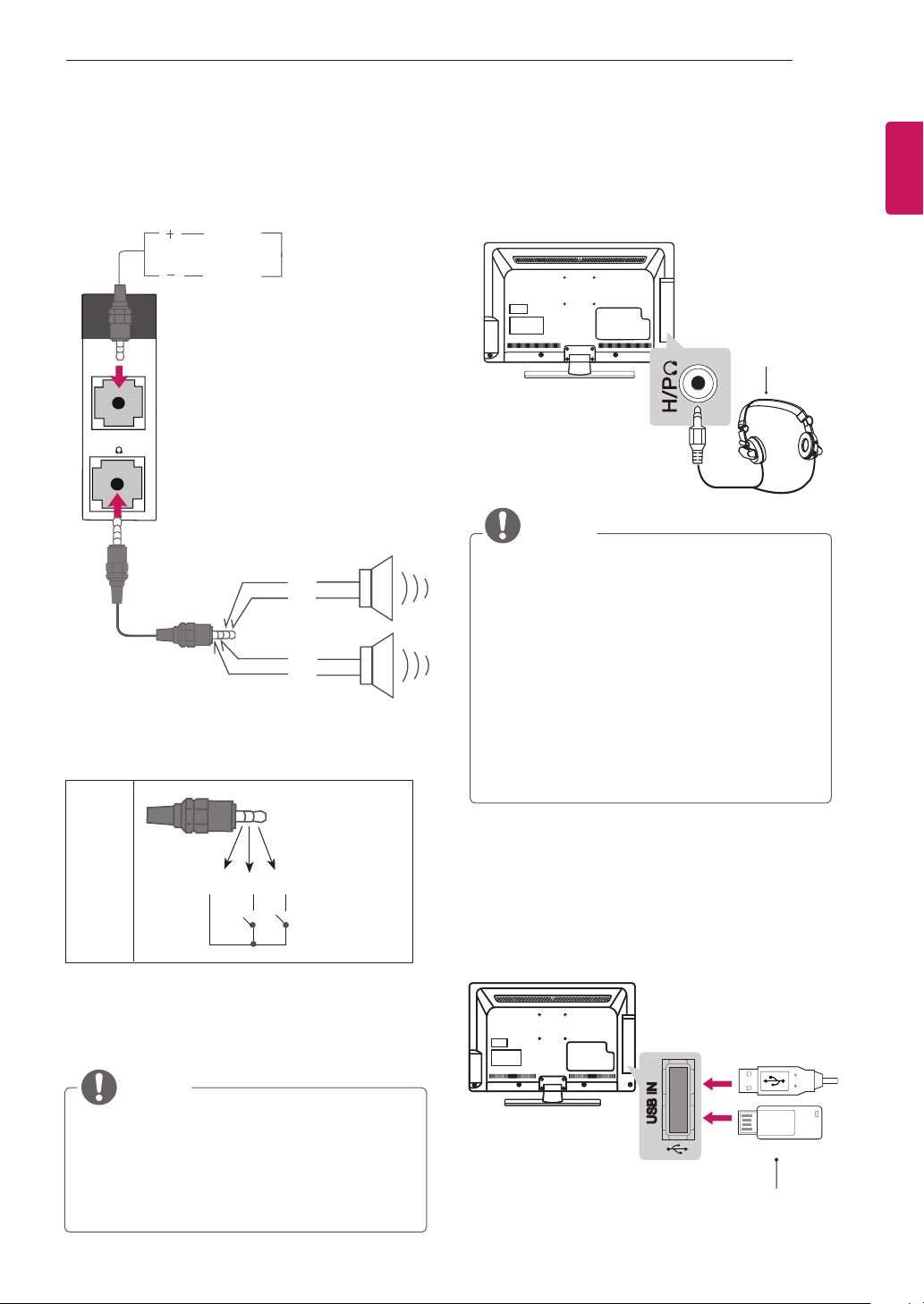

19 Speaker output SETUP
19 Volume control port
19 Headphone connection
19 USB connection

21 MAINTENANCE

21 Cleaning your TV

21 - Screen, frame, cabinet and stand
21 - Power cord

21 TROUBLESHOOTING

22 CAUTION FOR USING

EZSIGN 2.0

23 SPECIFICATIONS

26 IR CODES

27 EXTERNAL CONTROL

DEVICE SETUP

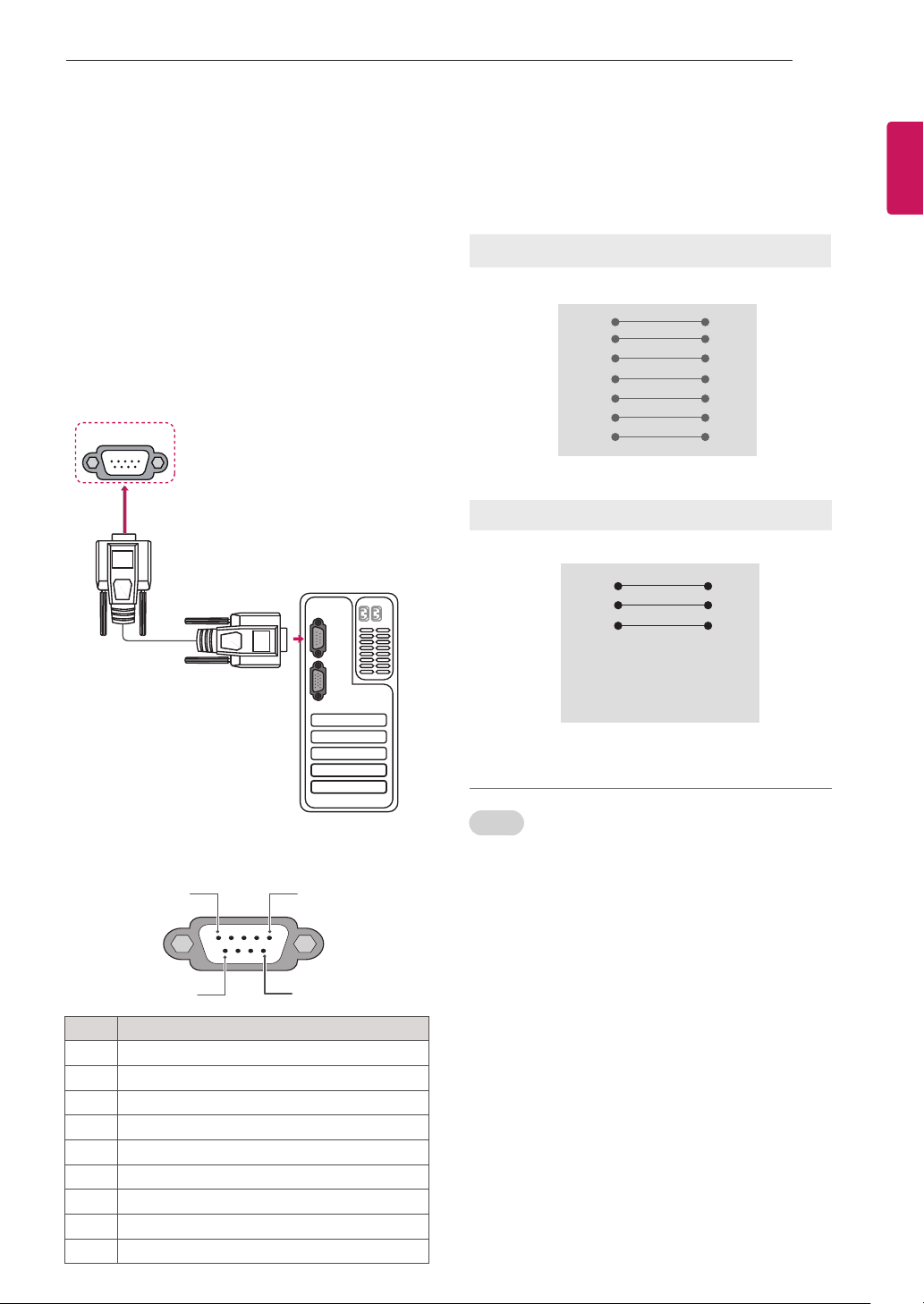

27 RS-232C Setup
27 Type of connector;

D-Sub 9-Pin Male
27 RS-232C Configurations
28 Communication Parameters
28 Command reference list
29 Transmission / Receiving Protocol

WARNING

If you ignore the warning message, you may

y

be seriously injured or there is a possibility
of accident or death.

CAUTION

If you ignore the caution message, you may

y

be slightly injured or the product may be
damaged.

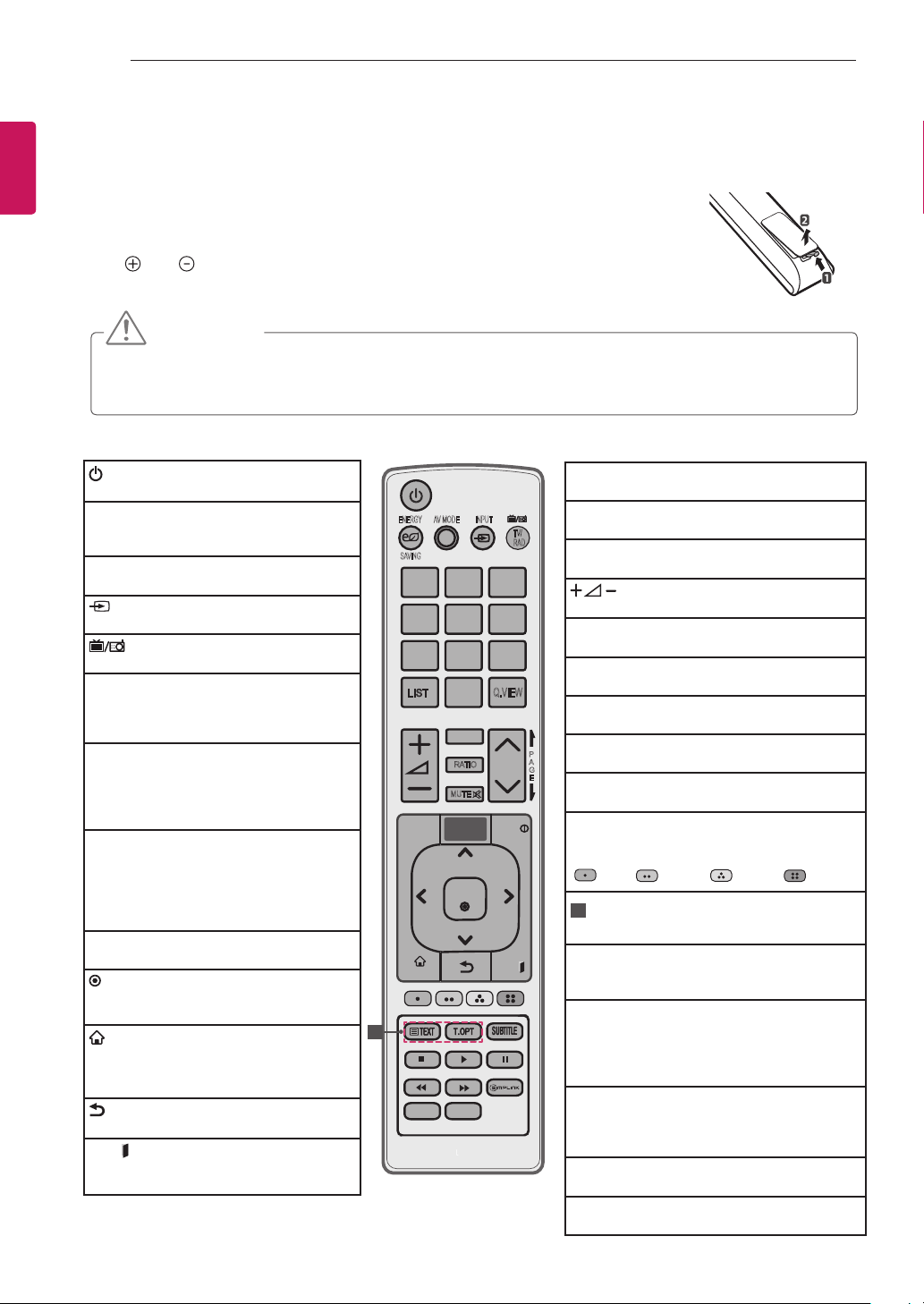

20 REMOTE CONTROL

NOTE

The note helps you understand and use

y

the product safely. Please read the note
carefully before using the product.

LICENSES / OPEN SOURCE SOFTWARE NOTICE

3

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol
are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary
of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit
divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered
in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section in your device setup menu. Go to vod.
divx.com for more information on how to complete your registration.

“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”

“DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its
subsidiaries and are used under license.”

.

ENGENGLISH

Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this
product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are
available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of media, shipping and handling) upon email request to
[email protected]. This offer is valid for three (3) years from the date on which you purchased the product.

ENGLISH

ENG

4

INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING

NOTE

Image shown may differ from your TV.

y

Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

y

The available menus and options may differ from the input source or product model that you are

y

using.
New features may be added to this TV in the future.

y

The TV can be placed in standby mode in order to reduce the power consumption. And the TV should

y

be turned off if it will not be watched for some time, as this will reduce energy consumption.
The energy consumed during use can be significantly reduced if the level of brightness of the picture

y

is reduced, and this will reduce the overall running cost.

INSTALLATION PROCEDURE

Open the package and make sure all the accessories are included.

1

Attach the stand to the TV set.

2

Connect an external device to the TV set.

3

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and item.

CAUTION

Do not use any unapproved items to ensure the safety and product life span.

y

Any damages or injuries by using unapproved items are not covered by the manufacturer’s warranty.

y

Some models have a thin film attached on to the screen and this must not be removed.

y

NOTE

The items supplied with your product may vary depending on the model.

y

Product specifications or contents of this manual may be changed without prior notice due to upgrade

y

of product functions.
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick

y

and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory
stick does not fit into your TV’s USB port.

B

A

B

A

*A 10 mm

*B 18 mm

ENERGY

SAVING

1 2 3

4 5 6

7 809

LIST

MENU

BACK

ASSEMBLING AND PREPARING

AV MODE

INPUT

TV

FLASHBK

MARK

FAV

P
A
G

3D

CHVOL

E

MUTE

INFO

Q.MENU

ENTER

EXIT

L/R SELECT

FREEZE

RATIO

Remote control,
Batteries (AAA)

Owner’s manual

5

ENGENGLISH

(See p.20)

Cable holder

(Depending on model)

Power cord

(See p.14)

Stand Screws

8 EA, M4 x 12

(Only 26LT64

**

)

(See p.9)

Desk-mount Screw

1 EA, M4 x 20
(Only 32/37/42/47LT64**)

(See p.11)

Power Cord holder

(Only 32/37/42/47LT64**)

(See p.14)

Stand body / Stand base

(Only 26LT64**)
(See p.9)

Stand Screws

8 EA, M4 x 14
(Only 32/37/42/47LT64

**

(See p.10)

DC Adapter

(Only 26LT64**)

(See p.15)

Protection cover

(Only 32/37/42/47LT64**)
(See p.13)

Stand body / Stand base

(Only 32/37/42/47LT64**)
(See p.10)

)

or

Isolator

(Depending on model)
(See p. 6)

EzSign 2.0 Editor CD

(Depending on model)

ASSEMBLING AND PREPARING

6

ENGLISH

ENG

Optional Extras (Only 26/32/37/42/47LT640E)

Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items.
These devices only work with certain models.

AN-WF100

Wireless LAN for Broadband/
DLNA Adaptor

NOTE

Antenna Isolator Installation Guide

y

- Use this to install TV in a place where there is a voltage difference between TV Set and GND of
antenna signal.

»If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact

might be heated and excessive heat might cause an accident.

- You can improve the safety when watching TV by efficiently removing power voltage from TV
antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall,
mount it on the TV. Avoid disconnecting the antenna Isolator after installation.

- Before starting, be sure that the TV antenna is connected.

1. Connect to TV.

Wall

ANTENNA/
CABLE IN

Cable / Antenna

Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.

“Equipment connected to the protective earthing of the building installation through the mains
connection or through other equipment with a connection to protective earthing - and to a cable

distribution system using coaxial cable, may in some circumstances create a re hazard. Connection

to a cable distribution system has therefore to be provided through a device providing electrical
isolation below a certain frequency range (galvanic isolator, see EN 60728-11)”

When applying the RF Isolator, a slight loss of signal sensitivity can occur.

or

Isolator

2. Connect to Set-Top box.

ASSEMBLING AND PREPARING

7

Parts and buttons

Remote control sensor

Power Indicator

(Can be adjusted using

the Power Indicator in the

OPTION -menu.)

Clock LED

ENGENGLISH

Screen

Speakers

∨∧

- +

Button Description

Scrolls through the saved programmes.

Adjusts the volume level.

Turns the power on or off.

ASSEMBLING AND PREPARING

8

ENGLISH

ENG

Lifting and moving the TV

When moving or lifting the TV, read the following to
prevent the TV from being scratched or damaged
and for safe transportation regardless of its type
and size.

CAUTION

Avoid touching the screen at all times, as this

y

may result in damage to the screen.

It is recommended to move the TV in the box

y

or packing material that the TV originally came
in.
Before moving or lifting the TV, disconnect the

y

power cord and all cables.
When holding the TV, the screen should face

y

away from you to avoid damage.

When transporting a large TV, there should be

y

at least 2 people.
When transporting the TV by hand, hold the TV

y

as shown in the following illustration.

When transporting the TV, do not expose the

y

TV to jolts or excessive vibration.
When transporting the TV, keep the TV upright,

y

never turn the TV on its side or tilt towards the
left or right.

Hold the top and bottom of the TV frame rmly.

y

Make sure not to hold the transparent part,
speaker, or speaker grill area.

ASSEMBLING AND PREPARING

M4X20

9

Setting up the TV

Put your TV on a pedestal stand and mount the TV on a table or wall.

Attaching the stand

(Only 26LT64**)

1

M4 x 12

4 EA

Stand Body

Front

Stand Base

3

ENGENGLISH

Top View

M4 x 12

4 EA

2

ASSEMBLING AND PREPARING

M4X20

10

ENGLISH

ENG

(Only 32/37/42/47LT64**)

1

Stand Body

Stand Base

2

3

M4 x 14

4 EA

Front

Top View

M4 x 14

4 EA

CAUTION

When attaching the stand to the TV

y

set, place the screen facing down on a

cushioned table or at surface to protect the

screen from scratches.
Make sure that the screws are inserted

y

correctly and fastened securely. If they are
not fastened securely enough, the TV may
tilt forward after being installed.
Do not use too much force and over tighten
the screws; otherwise screw may be
damaged and not tighten correctly.

NOTE

Remove the stand before installing the TV

y

on a wall mount by performing the stand
attachment in reverse.

ASSEMBLING AND PREPARING

11

Mounting on a table

Lift and tilt the TV into its upright position on a

1

table.

- Leave a 10 cm (minimum) space from the
wall for proper ventilation.

10 cm

10 cm

Connect the power cord to a wall outlet.

2

CAUTION

Do not place the TV near or on sources

y

of heat, as this may result in re or other

damage.

Attaching the TV to a table

Image shown may differ from your TV.
The TV must be attached to desk so it cannot be
pulled in a forward/backward direction, potentially
causing injury or damaging the product.

(Only 32/37/42/47LT64**)

10 cm

10 cm

Securing the TV to a table

(Only 32/37/42/47LT64**)
Fix the TV to a table to prevent from tilting forward,
damage, and potential injury.
Mount the TV on a table, and then insert and
tighten the supplied screw on the rear of the stand.

WARNING

To prevent TV from falling over, the TV

y

should be securely attached to the floor/
wall per installation instructions. Tipping,
shaking, or rocking the TV may cause injury.

Adjusting the angle of the TV to suit view

Swivel 90 degrees to the left or right and adjust the
angle of the TV to suit your view.

ENGENGLISH

4-Screws

(not provided as parts of the product)

Stand

Table

Screws: M4 x L (*L: Table depth + 8-10 mm)
ex) Table depth: 15mm, Screw: M4 x 20

9090

CAUTION

When adjusting the angle of the product,

y

watch out for your ngers.

»Personal injury may occur if hands or

fingers are pinched. If the product is tilted
too much, it may fall, causing damage or
injury.

ASSEMBLING AND PREPARING

12

ENGLISH

ENG

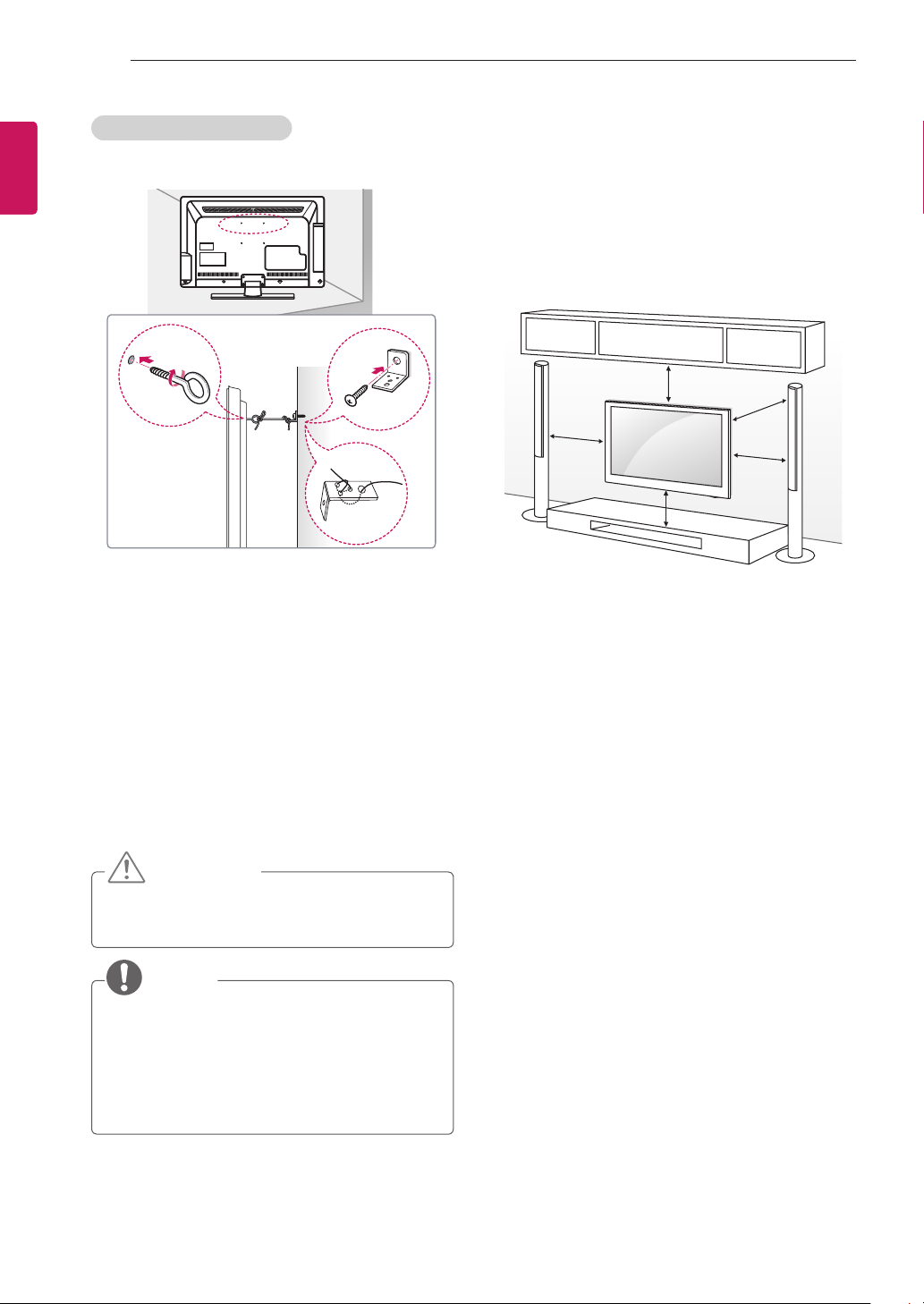

Securing the TV to a wall

(This feature is not available for all models.)

Insert and tighten the eye-bolts, or TV brackets

1

and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts
position, remove the bolts first.

Mount the wall brackets with the bolts to the

2

wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the TV.
Connect the eye-bolts and wall brackets tightly

3

with a sturdy rope.
Make sure to keep the rope horizontal with the

at surface.

Mounting on a wall

Attach an optional wall mount bracket at the rear of
the TV carefully and install the wall mount bracket

on a solid wall perpendicular to the oor. When you

attach the TV to other building materials, please

contact qualied personnel.

LG recommends that wall mounting be performed

by a qualied professional installer.

10 cm

10 cm

10 cm

10 cm

10 cm

CAUTION

Make sure that children do not climb on or

y

hang on the TV.

NOTE

Use a platform or cabinet that is strong and

y

large enough to support the TV securely.
Brackets, bolts and ropes are not provided.

y

You can obtain additional accessories from
your local dealer.

ASSEMBLING AND PREPARING

13

Make sure to use screws and wall mount
bracket that meet the VESA standard. Standard
dimensions for the wall mount kits are described in
the following table.

Separate purchase (Wall Mounting Bracket)

Model

VESA 100 x 100 200 x 100
Standard screw M4 M4
Number of screws 4 4

Wall mount
bracket

Model

VESA 200 x 200 200 x 200
Standard screw M6 M6
Number of screws 4 4
Wall mount
bracket

Model

VESA 400 x 400 400 x 400

Standard screw M6 M6

Number of screws 4 4

Wall mount
bracket

26LT64

**

LSW100B(G)

37/42LT64

LSW200BX(G)

47LT64

LSW400BX(G)

**

**

32LT64

**

37/42LT64

LSW220BX(G)

47LT64

LSW420BX(G)

**

**

CAUTION

Disconnect the power first, and then move

y

or install the TV. Otherwise electric shock
may occur.
If you install the TV on a ceiling or slanted

y

wall, it may fall and result in severe injury.
Use an authorized LG wall mount bracket
and contact the local dealer or qualified
personnel.
Do not over tighten the screws as this may

y

cause damage to the TV and void your
warranty.
Use the screws and wall mount bracket

y

that meet the VESA standard. Any
damages or injuries by misuse or using an
improper accessory are not covered by the
manufacturer's warranty.
On the 47 inch models, use M6 x L45

y

screws.

NOTE

Use the screws that are listed on the VESA

y

standard screw specifications.
The wall mount kit includes an installation

y

manual and necessary parts.
The wall mount bracket is not provided. You

y

can obtain additional accessories from your
local dealer.
The length of screws may differ depending

y

on the wall mount. Make sure to use the
proper length.
For more information, refer to the manual

y

supplied with the wall mount.

ENGENGLISH

Not using the DESK-TYPE STAND

A

B

(Only 32/37/42/47LT64

**)

Image shown may differ from your TV.
When installing the wall-mounted unit, use the
protection cover.
Insert the Protection cover into the TV until
clicking sound.

Protection Cover

ENGLISH

ENG

ASSEMBLING AND PREPARING

14

Tidying cables

(Only 32/37/42/47LT64

Install the Power Cord Holder and Power Cord.

1

It will help prevent the power cable from being
removed by accident.

Gather and bind the cables with the cable

2

holder.

**)

Power Cord Holder

(Only 26LT64

Gather and bind the cables with the cable

1

holder.

**)

Cable Holder

CAUTION

Do not move the TV by holding the Cable

y

Holder and Power Cord Holder, as the Cable
holders may break, and injuries and damage
to the TV may occur.

Cable Holder

MAKING CONNECTIONS

15

MAKING
CONNECTIONS

This section on MAKING CONNECTIONS mainly
uses diagrams for the 32LT64** models.
Co nne ct var iou s exter nal d evi ces to the TV
and s witch input modes to select an e xternal
device. For more information on external device’s
connection, refer to the manual provided with each
device.
Available externa l devices are: HD receiv ers,
DVD players, VCRs, audio systems, USB storage
devices, PC, gaming devices, and other external
devices.

NOTE

The external device connection may differ

y

from the model.
Connect external devices to the TV

y

regardless of the order of the TV port.
If you record a TV program on a DVD

y

recorder or VCR, make sure to connect the
TV signal input cable to the TV through a
DVD recorder or VCR. For more information
on recording, refer to the manual provided
with the connected device.
Refer to the external equipment’s manual for

y

operating instructions.
If you connect a gaming device to the TV,

y

use the cable supplied with the gaming
device.
In PC mode, there may be noise associated

y

with the resolution, vertical pattern, contrast
or brightness. If noise is present, change
the PC output to another resolution, change
the refresh rate to another rate or adjust the
brightness and contrast on the PICTURE
menu until the picture is clear.
In PC mode, some resolution settings may

y

not work properly depending on the graphics
card.

Adapter connection

(Only 26LT64

Connect the antenna cable to the antenna

1

input port on the TV.

Connect the DC adapter plug to the power

2

input jack on the TV.

Connect the power cord to the DC adapter rst,

3

then plug the power cord into the wall power
outlet.

**)

DC IN

DC Adapter

Antenna connection

Connect the TV to a wall antenna socket with an

RF cable (75 Ω).

ANTENNA /
CABLE

IN

NOTE

ENGENGLISH

Use a signal splitter to use more than 2 TVs.

y

If the image quality is poor, install a signal

y

amplifier properly to improve the image
quality.
If the image quality is poor with an antenna

y

connected, try to realign the antenna in the
correct direction.
An antenna cable and converter are not

y

supplied.

MAKING CONNECTIONS

3

(

GB/

)

AUD

IOI

N

1

3

16

ENGLISH

ENG

HDMI connection

Transmits the digital video and audio signals from
your PC to the TV. Connect the PC and the TV
with the HDMI cable as shown. Choose any HDMI
input port to connect. It does not matter which port
you use.

DVD/ Blu-Ray /
HD Cable Box / HD STB
/ PC

DVI to HDMI connection

Transmits the digital video signal from an external
device to the TV. Connect the external device and
the TV with the DVI-HDMI cable as shown. To
transmit an audio signal, connect an audio cable.
Choose any HDMI input port to connect. It does
not matter which port you use.

(*Not Provided)

HDMI

NOTE

It is recommended to use the TV with the

y

HDMI connection for the best image quality.
Use the latest High Speed HDMI™ Cable

y

with CEC (Customer Electronics Control)
function.
High Speed HDMI™ Cables are tested to

y

carry an HD signal up to 1080p and higher.
Supported DTV Audio: MPEG, Dolby Digital,

y

Dolby Digital Plus, HE-AAC
Supported HDMI Audio format : Dolby

y

Digital, PCM (Up to 192 KHz, 32k/44.1k/48k
/88k/96k/176k/192k, DTS Not supported.)

(*Not Provided)

AUDIO OUT

DVI OUT

DVD/ Blu-Ray / HD Cable Box / PC

NOTE

Depending on the graphics card, DOS mode

y

may not work if a HDMI to DVI Cable is in use.

MAKING CONNECTIONS

V

IDE

O

R

A

V IN

A

N

V

O

/
O

O

AU

O

17

Component connection

Transmits analog video and audio signals from an
external device to the TV. Connect the external
device and the TV with the component cable as
shown.

IDE

GREEN

BLUE

RED

WHITE

RED

GREEN

BLUE

RED

V I

L
M

N

DI

R

WHITE

VIDEO

AUDIO

RED

RGB-PC connection

Transmits the video signal from PC to the TV. To
transmit an audio signal, connect an audio cable.

AUDIO IN

(RGB/DVI)

RGB IN (PC)

(*Not Provided)

RGB OUT (PC)

PC

AUDIO OUT

ENGENGLISH

VIDEO

AUDIO

DVD / Blu-Ray / HD Cable Box

NOTE

If cables are not installed correctly, it could

y

cause this image to display in black and white
or with distorted colours.

MAKING CONNECTIONS

P

T

ICA

L

D

IGITA

L

AUDIOO

U

T

R

V

O

AU

O

R

AUDIO

L/MONO

VIDEO

R

18

ENGLISH

ENG

Composit connection

Transmits the analogue video and audio signals
from an external device to the TV. Connect the
external device and the TV with the composite
cable as shown.

VIDEO

RED

WHITE

AV IN

L/MONO

AUDIO

R

YELLOW

IDE

DI

YELLOW

WHITE

RED

Audio connection

You may use an optional external audio system
instead of the built-in speaker.

NOTE

If you use an optional external audio device

y

instead of the built-in speaker, set the TV
speaker feature to off.

Digital optical audio connection

Transmits the digital audio signal from the TV to an
external device. Connect the external device and
the TV with the optical audio cable as shown.

AUDIO

R

L/MONO

VIDEO

VCR / DVD / Blu-Ray / HD Cable Box

O

(*Not Provided)

OPTICAL

Digital Audio System

AUDIO IN

NOTE

Do not look into the optical output port.

y

Looking at the laser beam may damage your
vision.
Audio with ACP (Audio Copy Protection)

y

function may block digital audio output.

MAKING CONNECTIONS

19

Speaker output SETUP

Connect the external speake r to th e Speake r
output(STEREO) jack on the TV.

UP

DOWN

SPEAKER

OUT

VOLUME

CONTROL

STEREO

(8 )

Volume control port

Cable
Spec.

Control port for
Speaker out

R

-

R+

-

L

L+

Headphone connection

Transmits the headphone signal from the TV to
an external device. Connect the external device
and the TV with the headphone.

(*Not Provided)

NOTE

AUDIO menu items are disabled when

y

connecting a headphone.
When changing AV MODE with a headphone

y

connected, the change is applied to video
but not to audio.
Optical Digital Audio Out is not available

y

when connecting a headphone.
Headphone impedance: 16 Ω

y

Max audio output of headphone: 9 mW to 15

y

mW
Headphone jack size: 0.35 cm

y

ENGENGLISH

GND / Up / Down

Each Up/ Down pin is pulled to 3.3V with CPU

y

GPIO.
CPU detects sort - to - gnd for volume control.

y

NOTE

External speaker must be used four

y

plug(BTL: Bridge Tied Load, Stereo) as
shown in the drawings and external speaker
fully inserted with external Speaker Jack.
Otherwise it will cause defact.

y

USB connection

Connect a USB storage device such as s USB

ash memory, external hard drive or a USB

memory card reader to the TV and access the My

media menu to use various multimedia les.

USB IN

USB

(*Not Provided)

20

REMOTE CONTROL

ENGLISH

ENG

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching
the

and ends to the label inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

CAUTION

Do not mix old and new batteries, as this may damage the remote control.

y

In Analogue TV and some countries, some remote control buttons may not work.

y

Make sure to point the remote control toward the remote control sensor on the TV.

POWER

Turns the TV on or off.

ꕊ

ENERGY SAVING

Adjusts the brightness of the screen to
reduce energy consumption.

AV MODE

Selects an AV mode.

INPUT

Changes the input source.

TV/RAD

Selects Radio, TV and DTV programme.

GUIDE

Shows programme guide. (Only LT640H)
Shows Contents List in EzSign mode.
(Only LT640E)

PORTAL

Displays and removes hotel interactive
menu. (Only LT640H)
Displays the EzSign content on a TV
Screen. (Only LT640E)

INFO

Views the information of the current
programme and screen. (Only LT640H)
Shows or hides the information on TV
remote control buttons in EzSign mode.
(Only LT640E)

Navigation buttons

(up/down/left/right)

Scrolls through menus or options.

OK

Selects menus or options and confirms
your input.

Home

Selects a menu.
Clears all on-screen displays and returns
to TV viewing from any menu.

BACK

Returns to the previous level.

EXIT

Clears on-screen displays and return to
TV viewing.

ENERGY

SAVING

LIST

GUIDE

Home

1

Q.MENU

AV MODE INPUT

1 2 3

4 506

7 8 9

Q.VIEW

FAV

RATIO

MUTE

INFO

PORTAL

OK

EXIT

ALARM

TV/
RAD

P

Number buttons

Enters numbers.

LIST
Accesses the saved programme list.

Q.VIEW
Returns to the previously viewed programme.

Adjusts the volume level.

FAV

Accesses your favourite programme list.

RATIO

Resizes an image.

MUTE

Mutes all sounds.

ꕍPꕌ

P
A
G
E

Scrolls through the saved programmes.

PAGE
Moves to the previous or next screen.

Colour buttons

These access special functions in some
menus.
( : Red, : Green, : Yellow, : Blue)

TELETEXT BUTTONS

1

These buttons are used for teletext.

SUBTITLE

Recalls your preferred subtitle in digital mode

Control buttons (

ꕗ, ꕖ, ꕘ, ꕚ, ꕙ

Controls the MY MEDIA menus, or
the SIMPLINK compatible devices
(USB,SIMPLINK).
Not functional when EzSign contents is on.

SIMPLINK

Accesses the AV devices connected with the
HDMI cable through HDMI-CEC.
Opens the SIMPLINK menu.

Q. MENU

Accesses the quick menus.

ALARM

Sets the alarm function.

.

)

MAINTENANCE / TROUBLESHOOTING

21

MAINTENANCE

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION

Make sure to turn the power off and disconnect the power cord and all other cables first.

y

When the TV is left unattended and unused for a long time, disconnect the power cord from the wall

y

outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

y

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild

y

detergent. Then wipe immediately with a dry cloth.

CAUTION

Avoid touching the screen at all times, as this may result in damage to the screen.

y

Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in

y

scratches and image distortions.
Do not use any chemicals as this may damage the product.

y

Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or

y

malfunction.

ENGENGLISH

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

Problem Solution

Cannot control the

TV with the remote

control.

No image display

and no sound is

produced.

The TV turns off

suddenly.

When connecting to
the PC (RGB/HDMI
DVI), ‘No signal’ or
‘Invalid Format’ is
displayed.

Check the remote control sensor on the product and try again.

y

Check if there is any obstacle between the product and the remote control.

y

Check if the batteries are still working and properly installed (

y

Check if the product is turned on.

y

Check if the power cord is connected to a wall outlet.

y

Check if there is a problem in the wall outlet by connecting other products.

y

Check the power control settings. The power supply may be interrupted.

y

Check if the Auto sleep feature is activated in the Time settings.

y

If there is no signal while the TV is on, the TV will turn off automatically after

y

15 minutes of inactivity.

Turn the TV off/on using the remote control.

y

Reconnect the RGB/HDMI cable.

y

Restart the PC with the TV on.

y

to , to ).

22

CAUTION FOR USING EZSIGN 2.0

ENGLISH

ENG

CAUTION FOR USING EZSIGN 2.0

Only 26/32/37/42/47LT640E

Do not remove a USB drive while data is being copied. It can corrupt the data and EzSign may not work properly.

y

While loading a USB device or dongle, your TV may function slower than normal.

y

While EzSign contents is running, the movie with internal subtitles is not supported in USB mode. EzSign TV supports

y

only external subtitles.

(External Subtitle format: *.smi/*.srt/*.sub(MicroDVD, Subviewer 1.0/2.0)/*.ass/*.ssa/*.txt(TMPlayer)/*.psb(PowerDivx)

Some user-created subtitles may not work properly.

y

Some special characters are not supported in subtitles.

y

HTML tags are not supported in subtitles.

y

Subtitles in languages other than the supported languages are not available.

y

EzSign 2.0 TV function does not work before completing the initial setup Wizard. Make sure to complete the initial

y

setup Wizard by turning on the TV after installation.
If the time is set according to the TV signal, it may not appeared exactly for some region. In that case, set the time

y

manually.
It is recommended that you copy files to the TV memory before playing them, as playing directly from the USB memory

y

for an extended period of time may cause the device to overheat.
In EzSign 2.0 TV mode, some remote control keys may not work.

y

EzSign 2.0 TV dose not support the USB HUB. It is recommended that you connect a USB device directly to the TV

y

without using a USB extension cable as it may not work properly.
It is recommended that you use EzSign 2.0 TV within 8 hours per day as it is standard.

y

Refer to the EzSign 2.0 Editor user guide for details.

y

SPECIFICATIONS

23

SPECIFICATIONS

Product specifications may be changed without prior notice due to upgrade of product functions.
For the power supply and power consumption, refer to the label attached to the product.

26LT64**

MODELS

Dimensions
(W x H x D)

Weight With stand(kg) 4.7

Power requirement

Dimensions
(W x H x D)

Weight With stand(kg) 9.2 11.2

Power requirement AC 100-240 V~ 50 / 60 Hz

Dimensions
(W x H x D)

Weight With stand(kg) 15.5 17.3

Power requirement AC 100-240 V~ 50 / 60 Hz

With stand(mm) 626.0 x 454.0 x 192.0

Without stand(mm) 626.0 x 393.0 x 46.6

Without stand(kg) 4.1

AC-DC adaptor : 24 V , 2.5 A / AC 100-240 V~ 50 / 60 Hz

32LT64** 37LT64**

MODELS

With stand(mm) 766.0 x 536.0 x 232.0 867.0 x 593.0 x 232.0

Without stand(mm) 766.0 x 476.0 x 68.5 867.0 x 533.0 x 68.6

Without stand(kg) 8.0 10.0

MODELS

With stand(mm) 992.0 x 667.0 x 273.0 1101.0 x 729.0 x 273.0

Without stand(mm) 992.0 x 604.0 x 55.0 1101.0 x 665.0 x 54.5

Without stand(kg) 13.5 15.3

32LT640H-TA
32LT640E-TA

42LT64** 47LT64**

42LT640H-TA
42LT640E-TA

26LT640H-TA

26LT640E-TA

DC 24 V, 1.8 A

37LT640H-TA
37LT640E-TA

47LT640H-TA
47LT640E-TA

ENGENGLISH

Environment condition Operating temperature 0 °C to 40 °C

Operating humidity Less than 80 %

Storage temperature -20 °C to 60 °C

Storage humidity Less than 85 %

SPECIFICATIONS

24

ENGLISH

ENG

Digital TV Analogue TV

New Zealand,
Singapore

Australia Television System DVB-T PAL B/B

Indonesia,
Israel, Myanmar,
Sri Lanka

Vietnam,
Malaysia

Iran, Algeria,
Tunisia, Digital
model

Television System DVB-T PAL/SECAM-B/G/D/K

Programme
Coverage

Programme
Coverage

Television System DVB-T PAL/SECAM-B/G/D/K

Programme
Coverage

Television System DVB-T PAL/SECAM-B/G/D/K

Programme
Coverage

Television System DVB-T PAL/SECAM-B/G/D/K

Programme
Coverage

UHF 21 to 69

VHF 06 to 12,

UHF 27 to 69

UHF 21 to 69

VHF 6 to 12,

UHF 21 to 69

VHF 5 to 12,

UHF 21 to 69

BG : VHF/UHF 1 to 69, CATV 01 to 47

I : VHF/UHF 1 to 69, CATV 01 to 47

DK : VHF/UHF 1 to 69, CATV 01 to 47

B/B : VHF/UHF 0 to 75, CATV : 2 to

44

BG : VHF/UHF 1 to 69, CATV 01 to 47

I : VHF/UHF 1 to 69, CATV 01 to 47

DK : VHF/UHF 1 to 69, CATV 01 to 47

M : VHF/UHF 2 to 78, CATV 01 to 71

BG : VHF/UHF 1 to 69, CATV 01 to 47

I : VHF/UHF 1 to 69, CATV 01 to 47

DK : VHF/UHF 1 to 69, CATV 01 to 47

M : VHF/UHF 2 to 78, CATV 01 to 71

BG : VHF/UHF 1 to 69, CATV 01 to 47

I : VHF/UHF 1 to 69, CATV 01 to 47

DK : VHF/UHF 1 to 69, CATV 01 to 47

M : VHF/UHF 2 to 78, CATV 01 to 71

, PAL-I

, PAL-I, NTSC-M

, PAL-I, NTSC-M

, PAL-I, NTSC-M

Analogue model,
India, Thailand,
South Africa, --

Television System - PAL/SECAM-B/G/D/K

BG : VHF/UHF 1 to 69, CATV 01 to 47

Programme
Coverage

External Antenna
Impedance

-

75 Ω 75 Ω

I : VHF/UHF 1 to 69, CATV 01 to 47

DK : VHF/UHF 1 to 69, CATV 01 to 47

M : VHF/UHF 2 to 78, CATV 01 to 71

, PAL-I, NTSC-M

SPECIFICATIONS

25

HDMI/DVI-DTV supported mode

Vertical

Frequency

Resolution

Horizontal

Frequency

(kHz)

720x480

720x576 31.25 50

1280x720

1920x1080

31.469

31.5

37.5

44.96
45

33.72

33.75

28.125

26.97
27

33.716

33.75

56.25

67.43

67.5

29.976

RGB-PC, HDMI/DVI-PC supported mode

(Hz)

59.94
60

50

59.94
60

59.94
60
50

23.97
24

30.00
50

59.94
60

Component port connecting information

Component ports on the

TV

Video output ports

on DVD player

Y P

Y P

Y B-Y R-Y

Y Cb Cr

Y Pb Pr

Signal Component

480i/576i O

480p/576p O

720p/1080i O

1080p

(50 Hz / 60 Hz only)

O

ENGENGLISH

P

B

B

R

P

R

Resolution

720x400 31.468 70.08

640x480 31.469 59.94

800x600 37.879 60.31

1024x768 48.363 60.00

1280x720 45 60

1280x768 47.78 59.87

1360x768 47.72 59.80

1280x1024 63.981 60.02

1920x1080

(RGB-PC)

1920x1080
(HDMI-PC)

(Except for 26/32LT64**)

Horizontal

Frequency (kHz)

66.587 59.93

67.5 60.00

Vertical

Frequency

(Hz)

26

IR CODES

ENGLISH

ENG

IR CODES

This feature is not available for all models.

y

Code

(Hexa)

08

95 ENERGY SAVING Remote control Button

30 AV MODE Remote control Button
0B INPUT Remote control Button
F0 TV/RAD Remote control Button
10-19 Number Key 0-9 Remote control Button
53 LIST Remote control Button
1A Q.VIEW Remote control Button

02

03

79 RATIO Remote control Button
1E FAV Remote control Button
09 MUTE Remote control Button
00 P

01 P
AB GUIDE Remote control Button
0C PORTAL Remote control Button
AA INFO Remote control Button
43 Home Remote control Button
28 BACK Remote control Button
5B EXIT Remote control Button
44 OK Remote control Button
40

41
07

06

72 RED Remote control Button
71 GREEN Remote control Button
63 YELLOW Remote control Button
61 BLUE Remote control Button

20 TEXT

21 T.OPT(T.Option)

39 SUBTITLE

B1
B0

BA
8E

8F

7E SIMPLINK Remote control Button
45 Q.MENU Remote control Button
E8 ALARM Remote control Button

(POWER)

ꕌ

Remote control Button

ꕍ

ꕌ

Remote control Button

ꕍ

<

>

ꕗ



ꕘ





Function Note

Remote control Button (Power On/Off)

Remote control Button

Remote control Button

Remote control Button

Remote control Button
Remote control Button

Remote control Button

Remote control Button

Remote control Button

Remote control Button

Remote control Button
Remote control Button

Remote control Button
Remote control Button

Remote control Button

EXTERNAL CONTROL DEVICE SETUP

27

EXTERNAL CONTROL DEVICE SETUP

RS-232C Setup

Connect the RS-232C (serial port) input jack to an
external control device (such as a computer or an
A/V control system) to control the product’s func­tions externally.
Connect the serial port of the control device to the
RS-232C jack on the product back panel.

Note: RS-232C connection cables are not supplied
with the product.

RS-232C IN

(CONTROL & SERVICE)

RS-232C Congurations

7-Wire Configurations (Standard RS-232C cable

PC TV

RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS

D-Sub 9 D-Sub 9

3-Wire Configurations(Not standard)

PC TV

RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS

D-Sub 9 D-Sub 9

ENGENGLISH

)

Type of connector; D-Sub 9-Pin Male

1

6 9

No. Pin name

1 3.5V

2 RXD (Receive data)

3 TXD (Transmit data)

4 IR OUT from TV

5 GND

6 No Connection

7 +5V Power out

8 No Connection

9 +12V Power out

5

Set ID

Set ID number. "Real Data Mapping".

Press Home to access the main menus.

1

2 Press the Navigation buttons to scroll to

OPTION and press OK.

3 Press the Navigation buttons to scroll to SET

ID and press OK.

4 Scroll left or right to select a set ID number and

select CLOSE. The adjustment range is 1-99.

5 When you are finished, press EXIT.

ENGLISH

ENG

28

EXTERNAL CONTROL DEVICE SETUP

Communication Parameters

y Baud rate: 9600 bps (UART)
y Data length: 8 bits
y Parity : None

y Stop bit: 1 bit
y Communication code: ASCII code
y Use a crossed (reverse) cable.

Command reference list

(Depending on model)

COMMAND1 COMMAND2

01. Power k a 00 to 01 13. Treble k r 00 to 64

02. Aspect Ratio k c (See p.30) 14. Bass k s 00 to 64

03. Screen Mute k d (See p.30) 15. Balance k t 00 to 64

04. Volume Mute k e 00 to 01

05. Volume
Control

06. Contrast k g 00 to 64

07. Brightness k h 00 to 64

08. Colour k i 00 to 64

09. Tint k j 00 to 64 21. Key m c Key Code

10. Sharpness k k 00 to 64

11. OSD Select k l 00 to 01

12. Remote
Control
Lock Mode

k f 00 to 64

k m 00 to 01

DATA

(Hexadeci-

mal)

16. Colour
Temperature

17. Energy
Saving

18. Auto Configu­ration

19. Tune
Command

20. Programme
Add/Skip

22. Control Back
Light

23. Input select
(Main Picture
Input)

COMMAND1 COMMAND2

x u 00 to 64

j q 00 to 05

j u 01

m a

m b 00 to 01

m g 00 to 64

x b (See p.33)

DATA

(Hexadeci-

mal)

(See p.32)

y * Note : During USB operations such as DivX or EMF, all commands except Power(ka) and Key(mc) are

not executed and treated as NG.

EXTERNAL CONTROL DEVICE SETUP

29

Transmission / Receiving Protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

[Command 1] : First command to control the TV.(j, k, m or x)
[Command 2] : Second command to control the TV.
[Set ID] : You can adjust the set ID to choose desired monitor ID number in option menu.

range is 1 to 99. When selecting Set ID ‘0’, every connected set is controlled.

Set ID is indicated as decimal (1 to 99) on menu and as Hexa decimal (0x0 to 0x63) on

transmission/receiving protocol.
[DATA] : To transmit command data. Transmit ‘FF’ data to read status of command.
[Cr] : Carriage Return
ASCII code ‘0x0D’

[ ] : ASCII code ‘space (0x20)’

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,

if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the

data of the PC computer.

Adjustment

ENGENGLISH

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from
non-viable functions or communication errors.

Data 00: Illegal Code

30

EXTERNAL CONTROL DEVICE SETUP

ENGLISH

ENG

01. Power (Command: k a)

► To control Power On/Off of the set.

Transmission[k][a][ ][Set ID][ ][Data][Cr]

Data 00 : Power Off 01 : Power On

Ack [a][ ][Set ID][ ][OK/NG][Data][x]

► To show Power On/Off.

Transmission [k][a][ ][Set ID][ ][FF][Cr]

Ack [a][ ][Set ID][ ][OK/NG][Data][x]

* Similarly, if other functions transmit ‘0xFF’ data based on this

format, Acknowledgement data feed back presents status
about each function.

* OK Ack., Error Ack. and other message may display on the

screen when TV is power On.

02. Aspect Ratio (Command: k c) (Main Picture
Size)

► To adjust the screen format. (Main picture format)

You can also adjust the screen format using the Aspect

Ratio in the Q.MENU. or PICTURE menu.

Transmission [k][c][ ][Set ID][ ][Data][Cr]

Data 01 : Normal screen
(4:3)
02 : Wide screen
(16:9)
04 : Zoom
06 : Original

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

* Using the PC input, you select either 16:9 or 4:3 screen aspect

ratio.

* In DTV/HDMI (1080i 50 Hz / 60 Hz, 720p 50Hz / 60 Hz, 1080p

24 Hz / 30 Hz / 50 Hz / 60 Hz), Component( 720p, 1080i,
1080p 50 Hz / 60 Hz) mode, Just Scan is available.

* Full Wide is supported only for DTV.

07 : 14:9
09 : Just Scan
0B : Full Wide
10 to 1F : Cinema Zoom 1 to 16

03. Screen Mute (Command: k d)

► To select screen mute on/off.

04. Volume Mute (Command: k e)

► To control volume mute on/off.

You can also adjust mute using the MUTE button on remote

control.

Transmission [k][e][ ][Set ID][ ][Data][Cr]

Data 00 : Volume mute on (Volume off)
01 : Volume mute off (Volume on)

Ack [e][ ][Set ID][ ][OK/NG][Data][x]

05. Volume Control (Command: k f)

► To adjust volume.

You can also adjust volume with the volume buttons on

remote control.

Transmission [k][f][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64
* Refer to ‘Real data mapping’. See p.33.

Ack [f][ ][Set ID][ ][OK/NG][Data][x]

06. Contrast (Command: k g)

► To adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission [k][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64
* Refer to ‘Real data mapping’. See p.33.

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

07. Brightness (Command: k h)

► To adjust screen brightness.

You can also adjust brightness in the PICTURE menu.

Transmission [k][h][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64
* Refer to ‘Real data mapping’. See p.33.

Ack [h][ ][Set ID][ ][OK/NG][Data][x]

Transmission [k][d][ ][Set ID][ ][Data][Cr]

Data 00 : Screen mute off (Picture on)
Video mute off
01 : Screen mute on (Picture off)
10 : Video mute on

Ack [d][ ][Set ID][ ][OK/NG][Data][x]

* In case of video mute on only, TV will display On Screen

Display(OSD). But, in case of Screen mute on, TV will not
display OSD.

08. Colour (Command: k i)

► To adjust the screen colour.

You can also adjust colour in the PICTURE menu.

Transmission [k][i][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64
* Refer to ‘Real data mapping’. See p.33.

Ack [i][ ][Set ID][ ][OK/NG][Data][x]

EXTERNAL CONTROL DEVICE SETUP

31

09. Tint (Command: k j)

► To adjust the screen tint.

You can also adjust tint in the PICTURE menu.

Transmission [k][j][ ][Set ID][ ][Data][Cr]

Data Red : 00 to Green : 64
* Refer to ‘Real data mapping’. See p.33.

Ack [j][ ][Set ID][ ][OK/NG][Data][x]

10. Sharpness (Command: k k)

► To adjust the screen sharpness.

You can also adjust sharpness in the PICTURE menu.

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64
* Refer to ‘Real data mapping’. See p.33.

Ack [k][ ][Set ID][ ][OK/NG][Data][x]

11. OSD Select (Command: k l)

► To select OSD (On Screen Display) on/off when controlling

remotely.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 00 : OSD off 01 : OSD on

Ack [l][ ][Set ID][ ][OK/NG][Data][x]

13. Treble (Command: k r)

► To adjust treble.

You can also adjust treble in the AUDIO menu.

Transmission [k][r][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64
* Refer to ‘Real data mapping’. See p.33.

Ack [r][ ][Set ID][ ][OK/NG][Data][x]

14. Bass (Command: k s)

► To adjust bass.

You can also adjust bass in the AUDIO menu.

Transmission [k][s][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64
* Refer to ‘Real data mapping’. See p.33.

Ack [s][ ][Set ID][ ][OK/NG][Data][x]

15. Balance (Command: k t)

► To adjust balance.

You can also adjust balance in the AUDIO menu.

Transmission [k][t][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64
* Refer to ‘Real data mapping’. See p.33.

Ack [t][ ][Set ID][ ][OK/NG][Data][x]

ENGENGLISH

12. Remote control lock mode (Command: k m)

► To lock the front panel controls on the monitor and remote

control.

Transmission [k][m][ ][Set ID][ ][Data][Cr]

Data 00 : Lock off 01 : Lock on

Ack [m][ ][Set ID][ ][OK/NG][Data][x]

* If you are not using the remote control, use this mode.
When main power is on/off, external control lock is released.
* In the standby mode, if key lock is on, TV will not turn on by

power on key of IR & Local Key.

16. Colour Temperature (Command: x u)

► To adjust colour temperature. You can also adjust Colour

Temperature in the PICTURE menu.

Transmission [x][u][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64
* Refer to ‘Real data mapping’. See p.33.

Ack [u][ ][Set ID][ ][OK/NG][Data][x]

32

EXTERNAL CONTROL DEVICE SETUP

ENGLISH

ENG

17. Energy Saving (Command: j q)

► To reduce the power consumption of the TV. You can also

adjust Energy Saving in PICTURE menu.

Transmission [j][q][ ][Set ID][ ][Data][Cr]

Power Saving

Function

7 6 5 4 3 2 1 0

0 0 0 0

0 0 0 0

0 0 0 0

0 0 0 0

0 0 0 0

0 0 0 0

Ack [q][ ][Set ID][ ][OK/NG][Data][x]

Low

Power

Low

Power

Low

Power

Low

Power

Low

Power

Low

Power

Level

0 0 0 0 Off

0 0 0 1 Minimum

0 0 1 0 Medium

0 0 1 1 Maximum

0 1 0 1 Screen Off

0 1 0 0 Auto

Description

18. Auto Configure(Command: j u)

19. Tune Command (Command: m a)

► Select channel to following physical number.

Transmission [m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][Cr]

Data00 : High channel data
Data01 : Low channel data
ex. No. 47 -> 00 2F (2FH)
No. 394 -> 01 8A (18AH),
DTV No. 0 -> Don’t care
Data02 : [Anttena]
0x00 : Analog Main
0x10 : DTV Main
0x20 : Radio

[Cable]
0x80 : Analog Main
0x90 : DTV Main
0xA0 : Radio
Channel data range
Analog - Min: 00 to Max: 63 (0 to 99)
Digital - Min: 00 to Max: 3E7 (0 to 999)

Ack [a][ ][Set ID][ ][OK/NG][Data][x]

Data Min: 00 to Max: 7DH

20. Programme Add/Skip(Command: m b)

► To set skip status for the current Programme.

► To adjust picture position and minimize image shaking auto-

matically. It works only in RGB (PC) mode.

Transmission [j][u][ ][Set ID][ ][Data][Cr]

Data 01: To set

Ack [u][ ][Set ID][ ][OK/NG][Data][x]

Transmission [m][b][ ][Set ID][ ][Data][Cr]

Data 00 : Skip 01 : Add

Ack [b][ ][Set ID][ ][OK/NG][Data][x]

21. Key(Command: m c)

► To send IR remote key code.

Transmission [m][c][ ][Set ID][ ][Data][Cr]

Data Key code - See p.26

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

22. Control Back Light(Command: m g)

► To control the back light.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

23. Input select (Command: x b)

(Main Picture Input)

► To select input source for main picture.

Transmission [x][b][ ][Set ID][ ][Data][Cr]

Data Structure

MSB LSB

0 0 0 0 0 0 0 0

External Input Input Number

External Input Data

0 0 0 0 DTV

0 0 0 1 Analogue

0 0 1 0 AV

0 1 0 0 Component

0 1 1 0 RGB

0 1 1 1

1 0 0 0

1 0 0 1

1 0 1 0

HDMI

EXTERNAL CONTROL DEVICE SETUP

33

ENGENGLISH

Input Number Data

0 0 0 0 Input1

0 0 0 1 Input2

0 0 1 0 Input3

0 0 1 1 Input4

Ack [b][ ][Set ID][ ][OK/NG][Data][x]

* Real data mapping

Step 0

00 :

A : Step 10 (Set ID 10)

F : Step 15 (Set ID 15)

10 : Step 16 (Set ID 16)

64 : Step 100

6E : Step 110

73 : Step 115
74 : Step 116

CF : Step 199

FE : Step 254
FF : Step 255

25. 3D(Command: x t) (only 3D models)
(Depending on model)

► To change 3D mode for TV.

Data Structure
Data01 00 : 3D On
01 : 3D Off
02 : 3D to 2D
03 : 2D to 3D
Data02 00 : Top and Bottom
01 : Side by Side
02 : Check Board
03 : Frame Sequential
Data03 00 : Right to Left
01 : Left to Right
Data04 3D Effect(3D Depth): Min : 00 ~ Max : 14
(*transmit by Hexadecimal code)
*If data1 is 00(3D On), data4 has no meaning.
*If data1 is 01(3D off) or 02(3D to 2D), data2, data3 and data4
have no meaning.
*If data1 is 03(2D to 3D), data2 and data3 have no meaning.

Record the model number and serial number
of the TV.
Refer to the label on the back cover and
quote this information to your dealer when
requiring any service.

Model :

Serial No. :

(Only DTV)

X : don’t care

26 . Extended 3D(Command: x v) (only 3D
models) (Depending on model)

► To change 3D option for TV.

Data01 : 3D option
00 : 3D Picture Correction
01 : 3D Depth (2D to 3D only)
02 : 3D Viewpoint
03 : 3D Picture Size (Plasma TV only)
04 : 3D Picture Balance (Plasma TV only)
05 : 3D Optimization (Active type (LCD TV) only)
Data02 It has own range for each 3D option determined

1) When Data01 is 00
00 : Right to Left
01 : Left to Right

2) When Data01 is 01, 02
Data Min: 0 ~ Max: 14(*transmit by Hexadecimal code)
Data value range(0~20) converts Viewpoint range(-10~10)
automatically(Depending on model)

3) When Data01 is 03
00 : Just Scan
01 : 16:9

4) When Data01 is 04
00 : Off
01 : On

5) When Data01 is 05
Data Min: 0 ~ Max: 02(*transmit by Hexadecimal code)
* Refer to ‘Real data mapping’.
