OWNER’S MANUAL

SMART CAR AUDIO

Please read this manual carefully before operating your set and retain it for future reference.

LCS726BO1 / LCS726BO2 / LCS726BO3 / LCS726BO4

ENGLISH

FRANÇAIS

Getting Started2

Safety Information

CAUTION

Getting Started

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning  ash with arrowhead symbol within an equilateral triangle is intended to alert the user to

dangerous voltage within the product’s enclosure that may be of su cient magnitude to constitute a risk of electric shock to persons.

(servicing) instructions in the literature accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a con ned space such as a book case or similar unit.

driving, and always be fully aware of all driving condition. Do not change settings,

the presence of uninsulated

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance

Always operate the vehicle in a safe manner. Do not become distracted by the vehicle while

or any functions. Pull over in a safe and legal manner before attempting such operations.

Do not use for many hours at extremely low or high temperature. (-10 °C to 60 °C)

To reduce the risk of electric shock, do not remove the cover

or back of this product. There are no user-serviceable parts inside. Refer servicing to quali ed service personnel.

To reduce the risk of  re or

electric shock, do not expose this

product to dripping or splashing water, rain, or moisture.

The temperature of unit’s outside

can be extremely high, please use

the unit after proper installation in your vehicle.

This unit cannot play 8 cm disc

(use 12 cm disc only).

While driving, keep the sound

volume at a proper level.

Do not drop it and avoid heavy

impacts at anytime.

This unit is for vehicles with a

12-volt battery and negative

grounding. Before installing it in a recreational vehicle, lorry or bus, check the battery voltage. To avoid shorts in the electrical system, be sure to disconnect the E battery cable before beginning the installation.

CAUTION: This product employs a Laser System.To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service centre.

Use of controls, adjustments or the performance of procedures other than those speci ed herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure.

This device is equipped with a por table battery or accumulator.

Safe way to remove the battery or the battery from the equipment:

Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine,  re or the like.

Disposal of waste batteries/ accumulators

1. When this crossed-out wheeled bin symbol is attached

to batteries/accumulators of Your product it means they are covered by European Directive 2006/66/EC.

2. This symbol may be combined with chemical symbols for mercury(Hg), cadmium(Cd) or lead(Pb) if the battery Contains more that 0.0005% of mercury,0.002% of cadmium or 0.004% of lead.

3. All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

4. The correct disposal of Your old batteries/accumulators will help to prevent potential negative consequences for the environment, animal and human health.

5. For more detailed information about disposal of Your old batteries/ accumulators, please contact Your city o ce, waste disposal service or the shop where You purchased the product.

Disposal of your old appliance

1.When this crossed-out wheeled

bin symbol is attached to a

product it means the product

is covered by the European Directive 2002/96/EC.

Table of Contents 3

2. All electrical and electronic products shall be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city o ce, waste disposal service or the shop where you purchased the product.

LG Electronics hereby declares that this/ these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/ EC, 2006/95/EC and ECE Regulation 10.03 (3.2.9).

Contact o ce for compliance of this product:

LG Electronics Inc. EU Representative, Krijgsman 1, 1186 DM Amstelveen, The Netherlands

Please note that this is NOT a Customer

Service contact point. For Customer Service Information, see Warranty Card or contact the dealer that you purchased this product.

Indoor use only.

RF Radiation Exposure Statement

This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.

Table of Contents

1 Getting Started

2 Safety Information

4 Front panel

5 Remote control 5 – Battery Installation

2 Connecting

6 About detachable control

panel

3 Operating

7 Operation 7 – Basic operations 7 – Turning off the sound

temporarily 7 – Using EQ (Equalizer) 7 – Using 3D SOUND/ MP3

OPTM 7 – Checking the clock 7 – Turning off the display light 7 – Resetting the unit 7 – Adjusting the general

settings

8 Listening to a CD 8 – Pausing or restarting CD

playback 8 – Searching for a section

within a track / file

9 – Skipping to another track/

9 – Checking information

9 – Playing back tracks / files

10 Listening to music from an

10 – Preventing radical changes

10 Listening to the radio 10 – Storing desired

10 – Listening to a preset

10 – Adjusting TUNER settings

11 Using an USB device/ SD card 11 – Moving to another drive 11 – Playable USB device/ SD

11 Listening to music by

11 – Pausing or restarting

11 – Searching for a section

11 – Skipping to another file 11 – Checking information

11 – Playing back files in a way

12 – Playing back files by music

12 – iPod / iPhone CONTROL

file

about your music

in a way you want

external device

in volume as switching sources

frequencies manually

station

card Requirement

connecting iPod/iPhone

playback

within a file

about your music

you want

menus

MODE

12 – Compatible iPod / iPhone

models

12 Connecting a Bluetooth

wireless technology

13 – Using the buttons for

Bluetooth wireless technology

13 – Using a Bluetooth wireless

technology 14 – Adjusting the setting 15 – Using "LG CAR Remote"

application 16 – Phone compatibility list

4 Troubleshooting

18 Troubleshooting

5 Appendix

19 Specifications

Getting Started4

Getting Started

Front panel

SRC

When pressed, selects function sources.

• OFF

When pressed and held, powers unit o .

b R

Ejects a disc.

c T

Plays and pauses playback.

LIST / ENTER

(Volume knob)

- Adjusts volume level.

- Confirms the settings.

- Checks tracks,  les or preset stations.

EQ / • 3D

Improves sound quality.

- When pressed, selects the EQ function.

- When pressed and held, selects the 3D SOUND/ MP3 OPTM function.

BAND

- Selects a band in Tuner mode.

- Moves to a next USB drive.

iPOD

Activates iPod/ iPhone CONTROL MODE.

• TA (Optional)

Searches stations that have TA / TP information, when it is pressed and held.

DISP

- Press it, you can check the clock time.

- Press and hold it, you can turn on/ o the display window and the light of LED buttons.

Display window

USB port

i j

Returns to the previous step.

- Activates BT function.

- Answers a call.

l Y/U

Skip / Search / Seek / Tune

FUNC

In each mode, sets playback items.

• MENU

Activates setting menu.

MUTE

Temporarily stops the sound.

Remote Sensor

INT

Intro scan.

RPT

Repeats playback.

SHF

Shu es playback.

s W/S

- Moves 10 MP3 / WMA  les backward or forward if there is no folder or one folder on a CD/ USB.

- Moves to the previous or next folder if there are more than 2 folders on a CD/ USB.

Numeric buttons (1 to 6)

Selects a numbered preset station in TUNER.

u 6

Opens the front panel.

AUX

If connected to other portable player, you can enjoy music from it on the unit.

Getting Started 5

Remote control

SRC

When pressed, selects function sources.

• OFF

When pressed and held, powers unit o .

FUNC

When pressed, sets playback items in each mode.

• MENU

When pressed and held, activates setting menu.

BAND

Selects a band in Tuner mode.

DRV

Moves to a next USB drive.

Plays or pauses playback.

d d/M

SHF Shu es playback.

MUTE Temporarily stops the sound.

VOLUME W /

Adjusts volume level.

h c

j k l

Skip / Search / Seek / Tune

Returns to the previous step.

- List up / down

- Adjusts settings.

- Moves 10 MP3 / WMA tracks backward or forward if there is no folder or one folder on a CD/ USB.

- Moves to the previous or next folder if there are more than 2 folders on a CD/ USB.

ENTER / LIST

- Con rms the settings.

Checks tracks,  les or preset stations.

DISP

- Press it, you can check the clock time.

- Press and hold it, you can turn on/ o the display window and the light of LED buttons.

RPT Repeats playback.

INT Intro scan.

Numeric buttons (1 to 6)

Selects a numbered preset station in TUNER.

Battery Installation

Type 1

Type 2

Note

Use only one CR2025 (3 V) lithium

battery.

Remove the battery if the remote

control is not used for a long period of time.

Do not leave the product in a hot

or humid place.

Do not handle the battery with

metallic tools.

Do not store the battery with

metallic materials.

Getting Started

Connecting6

About detachable control panel

Attaching the control panel

1. Align the left side of the panel with the

Connecting

stopper.

2. Push the right side of panel into the unit until it clicks.

Caution

The control buttons may not work

properly if the control panel is not attached properly. If this occurs, gently press the display.

Do not leave the control panel

in any area exposed to high temperatures or direct sunlight.

Do not drop the control panel

or otherwise subject it to strong impact.

Do not allow such volatile agents

as benzine, thinner, or insecticides to come into contact with the surface of the control panel.

Detaching the control panel

1. Press the 6 to open the control panel.

2. Lift the control panel slightly.

3. Push the control panel to right.

4. Pull the control panel out of the unit.

5. Put the detached control panel into the protective case.

Control panel

Protective Case

Note

Periodically wipe the contacts on the back of the control panel with a cotton swap moistened with alcohol. For safety, turn o the ignition before cleaning, and remove the key from the ignition switch.

Operating 7

Operation

Basic operations

1. Turn the unit on by pressing any key on the unit.

2. Select a source by pressing SRC.

3. Rotate the volume knob to adjust the volume on the unit. Or press VOLUME W / S on the remote control.

Turning off the sound temporarily

1. Press MUTE to mute your unit. (When MP3/ WMA file is played, it will be paused.) Or press MUTE on the remote control.

2. Press it again to cancel.

Using EQ (Equalizer)

EQ is to increase or decrease the signal strength of audio frequencies. The function helps you to enjoy sound more plentifully. Press EQ on the unit. And rotate the volume knob to select the item and press it. The indicator lights up in the following order.

FLAT /B-BOOST (BASS BOOSTER) / POP

CLASSIC / ROCK / JAZZ / VOCAL

SALSA / SAMBA / REGGAE /

RUSSY / USER EQ1 / USER EQ2

Using 3D SOUND/ MP3 OPTM

3D SOUND: This mode delivers outstanding surround sound.

MP3 OPTM (MP3 OPTIMIZER): This mode enhances the quality of compressed music  le.

Press and hold EQ/ • 3D. And rotate the volume knob to select the item and press it. The indicator lights up in the following order.

OFF /3D SOUND / MP3 OPTM

Note

3D SOUND/ MP3 OPTM is only available when you use the CD/ USB/ SD card. (Except iPod/iPhone)

Checking the clock

1. Press DISP.

2. Press it again to cancel.

Turning off the display light

1. Press and hold DISP.

2. Press and hold it again to turn it on.

Note

Under the light-o condition, press any key, the light is turned on and then o automatically if you don't press it within a few seconds.

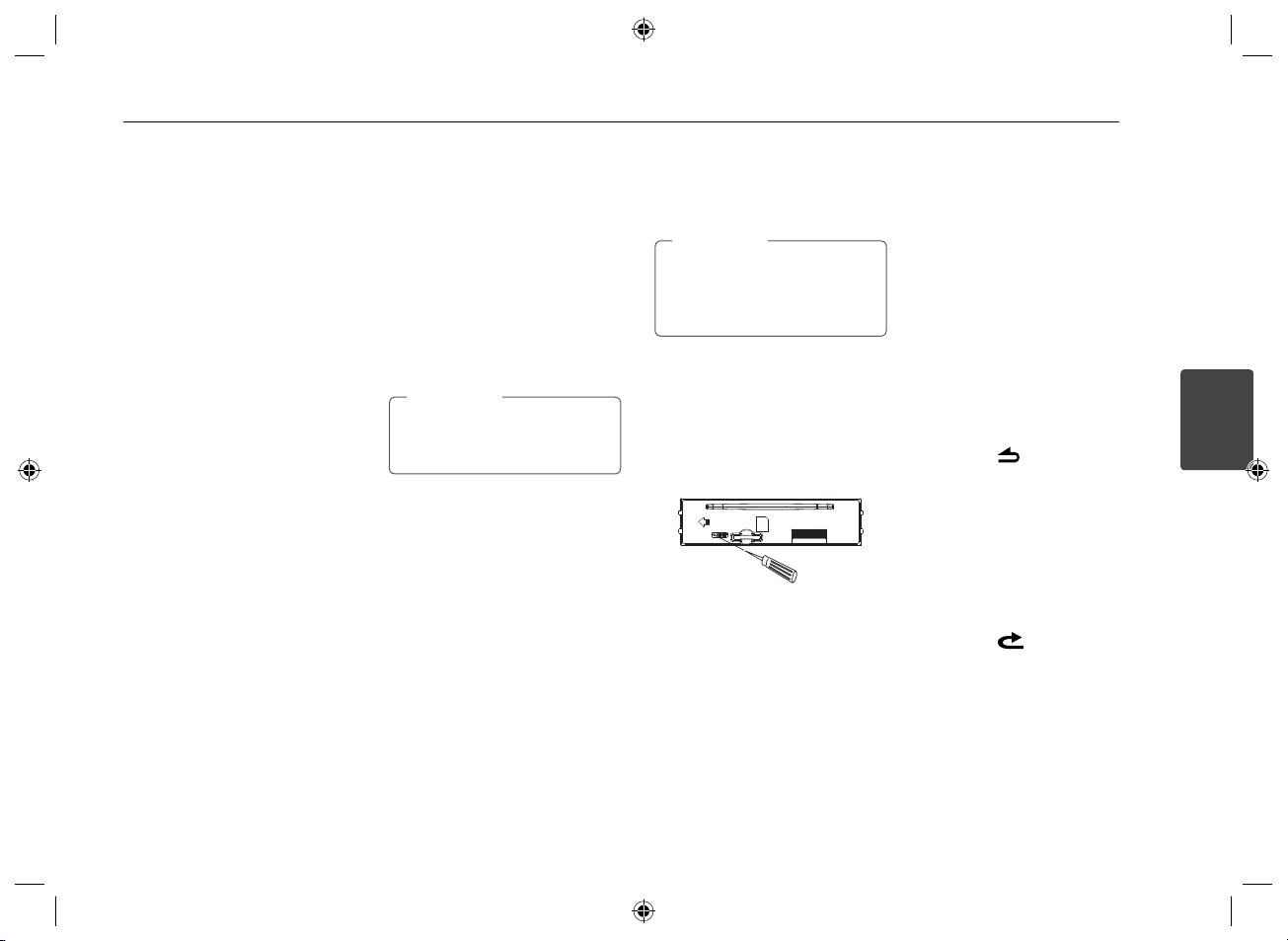

Resetting the unit

You can reset the unit when it does not operate properly.

1. Detach the control panel. Refer to page 6 for detaching the control panel.

2. Press the RESET hole with a sharp object.

Adjusting the general settings

You can adjust [SOUND], [LIGHT] and [OTHER] settings.

On the unit

1. Press and hold • MENU.

2. Rotate the volume knob to select [SOUND], [LIGHT], or [OTHER] and press it.

3. Rotate the volume knob to select the item and press it.

4. Rotate the volume knob clockwise or counterclockwise to adjust the level.

5. Press the volume knob to confirm the setting.

If you want to return to the previous

step, press

On the Remote Control

1. Press and hold FUNC / • MENU.

2. Press w / s to select [SOUND], [LIGHT], or [OTHER] and press ENTER.

3. Press w / s to select the mode and press ENTER.

4. Press w / s to adjust the level.

5. Press ENTER to confirm the setting.

If you want to return to the previous

step, press

Operating

Operating8

For [SOUND] setting

You can adjust sound quality by adjusting the level BALANCE (left/right speaker), FADER (front/rear speaker), SW (Subwoofer), SW-F (Subwoofer frequency), A-EQ (Auto EQ).

- When you set the EQ to USER EQ1/2 mode. : You can adjust the level of BAS (bass), MID (middle), TRB(treble).

SW (Subwoofer)

You can adjust the volume of subwoofer.

SW-F (Subwoofer frequency)

OFF/ SW 55 Hz/ SW 85 Hz/ SW 120 Hz You can enable the subwoofer.

A-EQ (Auto EQ) OFF/ ON

Operating

AUTO EQ operates only in the music  le suppor ted with genre in the device. When you set AUTO EQ to ON, POP, CLASSIC, ROCK, or JAZZ is automatically selected according to the music genre.

For [LIGHT] setting

You can adjust the light e ects by adjusting LED, DIM, or DIM LV.

LED COL1 / COL2 / AUTO : You can

change the LED window color.

DIM (Dimmer) OFF / ON : You can

change the brightness of the display window during the power-on status.

Settings Description

DIM ON The display window

becomes dark.

DIM OFF The display window

becomes bright.

DIM LV (Dimmer Level) : When you set

DIM to ON, you can adjust the dimmer level. (-2, -1, 0, +1, +2)

For [OTHER] setting

AUX (Auxiliary) ON / OFF

It is possible to use auxiliary equipment with this unit. Activate the auxiliary setting when using auxiliary equipment connected to this unit.

DEMO OFF / ON

You can change the initial indication on the display to information name (function name, EQ name, etc...) while listening to a source.

BEEP 2ND / ALL

BEEP 2ND : The beep is generated when a key is pressed for longer than 2 seconds. BEEP ALL : The beep is generated when any key is pressed.

CLK (Clock)

1. Press and hold • MENU on the unit to select [OTHER] and then select CLK by rotating the volume knob.

2. Set the hour by rotating the volume knob.

3. Press the volume knob to confirm the hour.

4. Set the minute by rotating the volume knob.

5. Press the volume knob to confirm the minute.

Listening to a CD

1. Insert a CD.

2. Rotate the volume knob on the unit to adjust the volume. Or press VOLUME W / S on the remote control.

Pausing or restarting CD playback

1. Press T on the unit to pause playback. Or press

2. Press it to resume playback.

Searching for a section within a track / file

1. Press and hold for about 1 second during playback. Or press and hold c / v on remote control.

2. Press T on the unit at the point you want. Or press

on the remote control.

d/M

Y/U

on the remote control.

d/M

on the unit

Operating 9

Skipping to another track/ file

Press

Y/U

Or press c / v on the remote control.

1. Press the volume knob on the unit. Or press ENTER on the remote control.

2. Rotate the volume knob on the unit to select a desired ROOT or folder and press it. Or press w / s and press ENTER on the remote control.

3. Rotate the volume knob on the unit to select a desired track / file and press it. Or press w / s and press ENTER on the remote control.

To skip to previous track, press brie y

time.

on the unit.

Note

within 3 seconds of playing

Checking information about your music

MP3 / WMA  les often come with tags. The tag gives the Title, Artist or Album.

Press DISP repeatedly during MP3 / WMA / CD TEXT  le playback. If there is no information, "NO TEXT" will be shown in the display window.

Playing back tracks / files in a way you want

For using applicable buttons

1. Press INT / RPT / SHF.

2. Press it again to cancel.

Using the FUNC button

On the unit

1. Press FUNC.

2. Rotate the volume knob to select an item and press it.

3. Rotate the volume knob to select the option.

4. Press the volume knob to set the option. If you want to return to the previous step, press

On the Remote Control

1. Press FUNC / • MENU.

2. Press w / s to select an item and press it.

3. Press w / s to select the option.

4. Press ENTER to set the option.

If you want to return to the previous

step, press

RPT (Repeat)

The current selected tracks /  les (1 RPT ) or folder ( RPT ) on the disc is played repeatedly.

SHF (Shu e)

Each  les in the current selected folder

SHF) or all of the tracks /  les (SHF)

( on the disc is played randomly. During random playback, even if you press

, you won't go back to the previous

track/  le.

INT (Intro Scan)

The  rst 10 seconds of all tracks /  les (INT) or each  les in the current selected

INT) on the disc are played.

folder (

Note

MP3 / WMA Disc compatibility with this unit is limited as follows:

1. Sampling Frequency / 8 kHz to 48 kHz (MP3) 22.05 kHz to 48 kHz (WMA).

2. Bit rate / within 8 kbps to 320 kbps (include VBR) (MP3) 32 kbps to 320 kbps (WMA).

3. CD-R / CD-RW file system should be "ISO 9660".

4. If you record MP3 / WMA files using software which cannot create a FILE SYSTEM, for example "Direct-CD" etc., it will not be possible to playback MP3 / WMA files. We recommend that you use "Easy-CD Creator" which creates an ISO 9660 file system.

You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players.

(Mastered / Live File System : Disc format system for Windows Vista)

Customers should also note that permission is required in order to download MP3 / WMA  les and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

Operating

Operating10

Listening to music from an external device

1. Connect an external device to the AUX jack with line input cable.

2. Select a source to AUX.

3. Play the connected Auxiliary Equipment.

Preventing radical changes in volume as switching sources

Only when you set AUX to ON as switching sources, you can adjust the volume level of each source to prevent radical changes in volume by selecting GAIN 0/ +3/ +6.

1. Press FUNC on the unit.

Operating

Or press FUNC / • MENU on the remote control.

2. Rotate the volume knob on the unit. Or press w / s on the remote control to set the option. (GAIN 0/ +3/ +6)

3. Press the volume knob on the unit. Or press ENTER on the remote control to confirm the setting.

4. If you want to return to the previous step, press

Or press

on the remote control.

Listening to the radio

1. Press SRC repeatedly to select a source to TUNER.

2. Press BAND repeatedly to select a desired band.

3. For manual search, press and hold

Y/U

is displayed. Then press it repeatedly to select a desired frequency. Or press and hold c / v on the remote control.

For auto search, press

the unit. Then “SEARCH” is displayed. (Except MW) Or press c / v on the remote control.

Storing desired frequencies manually

1. Press BAND to select a desired band you want to store.

2. Select the desired frequency by using

Y/U

Or use c / v on the remote control.

3. Press the volume knob and rotate the volume knob to select a preset station among 1 to 6 and then press and hold the volume knob until the beep sound is heard. Or press and hold one of preset buttons among 1 to 6 on the remote control until the beep sound is heard.

4. Repeat steps 1 to 3 to preset other stations.

on the unit until “MANUAL“

Y/U

on the unit.

Note

When a station is stored on the preset numbers on which another station of the same band has already been preset, the previously preset station is automatically erased.

Listening to a preset station

1. Press BAND repeatedly to select a desired band.

2. Press the volume knob on the unit. Or press ENTER on the remote control.

3. Rotate the volume knob to select a preset station. Or press w / s on the remote control.

4. Press the volume knob. Or press ENTER on the remote control.

Press BAND and then press the desired preset button among 1 to 6 on the remote control.

Adjusting TUNER settings

On the unit

1. Press FUNC.

2. Rotate the volume knob to select an item and press it.

3. Rotate the volume knob to set the option and press it.

4. If you want to return to the previous step, press

On the Remote Control

1. Press FUNC / • MENU.

2. Press w / s to select an item and press ENTER.

3. Press w / s to set the option and press ENTER.

4. If you want to return to the previous

step, press

A / S (Auto Store)

The six strongest broadcasting frequencies will be stored under preset button 1 to 6 in the order of their signal strength. To cancel, press the volume knob.

P / S (Preset scan)

Each preset station appears. To cancel, press the volume knob.

SENS (Tuner sensitivity) MID / HI / LOW

In an area in which signal reception is weak, it helps the tuner to search more stations. The weaker the reception is, the lower option you should set to.

Operating 11

Using an USB device/ SD card

[USB]

1. Open the USB cover.

2. Connect the USB device.

3. Press SRC repeatedly to select a source to USB.

[SD]

1. Detach the control panel. (Refer to "About detachable control panel" on page 6.)

2. Insert the SD card.

3. Attach the control panel.

4. Press SRC repeatedly to select a source to SD.

Moving to another drive

When connecting this unit to multi reader, press BAND on the unit (or DRV on remote control) to go the next drive. Each time you press the button, the driver modes change.

Note

Other functions are same with "Listening to a CD". Refer to page 8 to 9.

Playable USB device/ SD card Requirement

Do not extract the USB device/ SD card

during operation (play, etc.).

An USB device/ SD card which requires

additional programme installation when you have connected it to a computer, is not supported.

Regular back up is recommended to

prevent data loss.

If you use a USB extension cable, USB

HUB, USB Multi-reader, or external HDD, the USB device may not be recognized.

When you connect a partitioned USB

device into the unit, only the  rst partition is recognized on it.

Some USB device/ SD card may not

work with this unit.

Digital camera and mobile phone are

not supported.

USB Port of the unit cannot be

connected to PC. The unit cannot be used as a storage device.

Using FAT (16 / 32)  le system is

supported. Using NTFS  le system is supported to read only.

MTP (Media Transfer Protocol) device is

not supported.

Listening to music by connecting iPod/iPhone

You can enjoy iPod / iPhone-stored music on the unit by connecting it to the USB connector using the appropriate cable.

1. Open the USB cover.

2. Connect the iPod / iPhone.

3. Press SRC to select a source to USB.

Pausing or restarting playback

1. Press T on the unit to pause playback. Or press

2. Press it to resume playback.

Searching for a section within a file

During playback, press and hold

and then release at a point you want.

Skipping to another file

Press

Y/U

Or press c / v on the remote control.

Checking information about your music

MP3 / WMA  les often come with tags. The tag gives the Title, Artist or Album.

Press DISP repeatedly during MP3 / WMA  le playback. If there is no information, "NO TEXT" will be shown in the display window.

on the remote control.

d/M

on the unit.

Playing back files in a way you want

On the Unit

1. Press FUNC.

2. Rotate the volume knob to select an item and press it.

3. Rotate the volume knob to select the option.

4. Press the volume knob to set the option. If you want to return to the previous step, press

On the Remote Control

1. Press FUNC / • MENU.

2. Press w / s to select an item and press ENTER.

3. Press w / s to select the option.

4. Press ENTER to set the option.

If you want to return to the previous

step, press

RPT (Repeat)

The current selected  le (1 RPT ) or  les on the iPod repeatedly.

SHF (Shu e)

All of the  les (SHF) on the iPod / iPhone are played randomly.

SPD (BOOK SPEED)

You can adjust the audiobook speed of iPod / iPhone to NOR (Normal), SLOW or FAST.

/ iPhone is played

Operating

Operating12

Playing back files by music menus

You can check  les by music menus and play it back.

The music menus are as follows.

PLAYLISTS / ARTISTS / ALBUMS / GENRES / SONGS / COMPOSER / AUDIO BOOK / PODCAST / ...

Press the volume knob on the unit. Or press ENTER on the remote control.

2. Rotate the volume knob on the unit to select a music menu and press it. Or press w / s on the remote control.

3. Rotate the volume knob on the unit to select a file. Or press w / s on the remote control.

4. Press the volume knob on the unit to

Operating

confirm the setting. Or press ENTER on the remote control.

5. If you want to return to the previous step, press

Or press on the remote control.

iPod / iPhone CONTROL MODE

You can control this unit with your iPod/ iPhone.

Press iPOD on the unit. Then playback

is paused. And you can control on the unit and iPod / iPhone.

While using the iPod/iPhone CONTROL

MODE, some buttons on the unit are not available.

Press iPOD again to cancel the iPod /

iPhone CONTROL MODE.

Compatible iPod / iPhone models

iPod classic

iPod nano 6th generation

iPod touch 4th generation

iPhone 3G / 3GS / 4

We recommend that you use the OS Version 4.2.1 or more.

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect speci cally to iPod or iPhone respectively, and has been certi ed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone may a ect wireless performance.

Connecting a Bluetooth wireless technology

Before you start the pairing procedure, make sure the Bluetooth wireless technology is turned on in to your phone. Refer to your phone’s user guide. Pairing links your unit and phone with Bluetooth wireless technology, and is required only once for the initial setup. If the connection is successful, the phone is registered (Device 1 to 10). The process of pairing may be di erent depend on the phones. The PIN CODE is 1234.

ON PLAYER

1. Enter the menu. BT

2. Find the "CONNECT" menu.

3. Enter the "CONNECT" menu.

4. Select the "SEARCH" menu.

5. Search the phones supported Bluetooth wireless technology.

6. Select a phone you want to connect.

7. Connect the phone.

Rotate the

volume knob

Press the

volume knob

Rotate the

volume knob

Press the

volume knob

Rotate the

volume knob

Press the

volume knob

Operating 13

LIST / ENTER

Microphone

The microphone needs to be close to and pointed toward the person speaking. Install the microphone as shown below.

Microphone unit

Note

If you power o the unit while talking on the phone through the unit by using the BT function, the function is deactivated and you can talk on the phone directly.

Using the buttons for Bluetooth wireless technology

(Volume knob)

- Press the volume knob : Go to the next contents of the setting.

- Rotate the volume knob : Move the contents vertically on the setting or choose a spell when you write the words on the unit.

- Returns to the previous step.

- Ends a call.

- Press it to enter BT function.

- Answers a call.

d Y/U

Adjusts the mic volume while talking on the phone by BT function.

Deletes a spell or go back previous contents while writing some words on the unit.

Moves next space on display while writing some words on the unit.

Using a Bluetooth wireless technology

Disconnecting a phone

Press BT -> CONNECT -> LIST -> Connected device name -> DISCONN

Answering and Ending a call

To answer a call, press BT.

To end a call, press

Rejecting a call

To reject a call, press .

Making a call saved as a preset number

Press BT and a preset number (1 to 6).

Checking missed calls

When the “ ? ” appears, go to the menu (Press BT-> CALL -> LASTCALL). You can check the list of missed call.

Audio transfer

It is possible to switch the audio connection between your phone equipped with Bluetooth wireless technology and this unit.

1. Press BT to answer the call.

2. Press BT again. The “PRIVATE” is displayed.

If the private mode is selected on the unit, press BT to return to the call to handsfree mode.

Operating

Operating14

Operating

Note

The lists of LASTCALL are sorted

from newest to oldest entries.

When you want to make an

international call, press U to add “+” and to delete it press again.

“+” can only be added when the

detail list of LASTCALL is selected.

The call waiting function is not

supported. We do not guarantee any errors due to use of the call waiting function.

Listening to music of the Bluetooth device

When your unit and the Bluetooth device are pairing, Press SRC repeatedly to select "BT". And play the music stored on your Bluetooth device. Refer to the your Bluetooth device’s user guide.

Bluetooth wireless technology profiles information

In order to use Bluetooth wireless technology, devices must be able to interpret certain pro les. This unit is compatible with following pro les.

GAP (Generic Access Pro le)

HFP (Hands Free Pro le)

GAVDP (Generic Audio / Video Distribution Pro le)

A2DP (Advanced Audio Distribution Pro le)

AVRCP (Audio / Video Distribution Remote Control Pro le)

PBA / PBAP (Phone Book Access Pro le)

Adjusting the setting

1. Press BT.

2. Rotate the volume knob to select an item and press it.

3. Rotate the volume knob to set the option and press it.

4. If you want to return to the previous step, press .

CALL

LASTCALL

Phone number list (Received, Dialed, Missed). CALL -> LASTCALL -> Select the phone number -> Press the volume knob -> Display the information -> Press the volume knob -> DIAL, SAVE, DELETE menu will be displayed.

- To call the phone number, DIAL -> Press the volume knob.

- To save the phone number, SAVE -> Press the volume knob -> select the preset number (1 to 6) -> Press the volume knob.

To delete the selected phone number,

DELETE ->

Press the volume knob ->

NAME -> Press the volume knob.

To delete all phone number, DELETE -> Press the volume knob -> ALL -> Press the volume knob.

DIAL

Enters the number directly on the unit. To select the 0 to 9 rotate the volume. Press U to make the phone number. To call it, Press the volume knob.

PRESET

Checks and deletes/dials the phone number saved preset number. CALL -> PRESET -> Select the preset number and press the volume knob

-> Display the information -> Press the volume knob -> DIAL, DELETE menu will be displayed.

- To call the phone number, select DIAL and Press the volume knob.

- To delete the selected phone number, DELETE -> NAME -> Press the volume knob.

- To delete all phone number, DELETE -> ALL -> Press the volume knob.

Operating 15

P-BOOK

LIST

Checks the list of the phone numbers saved by phonebook.

SEARCH

Searches the phone number in the list.

GET

Getting the phonebook from the phone automatically. This menu is only available on phones with PBA / PBAP (Phone Book Access Pro le).

CONNECT

LIST

Checks the list of the Connected Device Name.

SEARCH

When unit is not connected with Bluetooth wireless technology, you can search the phones available to connect. When unit is connected with Bluetooth wireless technology, you can disconnect the phone.

SETUP

VISIBLE

Makes it is impossible to search this unit. (SHOWN <-> HIDDEN)

AUTO CON

Adjusts connection with automatically or not. (ON <-> OFF)

AUTO ANS

Adjusts answering automatically or not. (MANUAL <-> AUTO)

MIC VOL

Adjusts microphone volume on the phone from 1 to 5. While you are on the phone with Bluetooth wireless technology, use MIC volume.

REDIAL

Adjusts the counts of redial. (1 TIME <-> 2 TIMES)

Y/U

to adjust the

INFO

NAME

Changes the name of this unit.

ADDRESS

Checks the address.

PIN-CODE

Changes the PIN code. Default is 1234.

Using "LG CAR Remote" application

You can control the unit by using the "LG CAR Remote" application.

1. Search the “LG CAR Remote” application and install it.

[Displays installed "LG CAR Remote"

application]

2. Pairing links your unit and iPhone with Bluetooth wireless technology. (Refer to the page 12.)

3. When you run the “LG CAR Remote” application, activating source is displayed after initial screen. Then you can control the unit on iPhone.

[Initial screen] [Tuner screen]

You can select a source by pressing "SOURCE".

[Source Mode screen]

Operating

Operating16

Phone compatibility list

Bluetooth list and manufacturing company applicable.

H : Handsfree A : Audio Streming P : Phonebook Sync

Company List H A P Company List H A P Company List H A P Company List H A P

Operating

KM380

KM900 (Arena)

KP500 (Cookie)

KS500

KT520

KT610

KU990

GD900

BL40

(New Chocolate)

KM335

GD510 (POP)

GD880

GM730

GS500 (Cookie Plus)

GT505

GT540

GW305

GX500

SAMSUNG S8003 JET (8GB)

S8300 Ultra Touch

B5722

B7330 (Omnia Pro)

C3303K (Champ)

M5650U (Lindy)

M8910 (Pixon12)

S7350

S8500 (Wave)

i5503 (Galaxy 5)

i5700 (Galaxy Spica)

i7500 (Galaxy)

i9000 (Galaxy S(16G))

T959

Galaxy Tab

Nokia E71

E75

N86

N97

E52

N97-1

N900

6710 (Navigator)

SONY

ERICSSON

W595

W705

W980i

Xperia-X1

Vivaz

Xperia-X2

Xperia-X10

Bluetooth list and manufacturing company applicable.

H : Handsfree A : Audio Streming P : Phonebook Sync

Company List H A P Company List H A P

APPLE

ASUS

HTC

Rim

iPhone 3GS (16GB)

iPhone 4 (16GB)

i-Pad

P750

Hero G3

Touch2

Legend

Desire

Storm2 9550

Note

When the phone features <Bluetooth Power Save> function, you should make the

function turned on to maintain connection.

When you switch the call mode from handsfree to phone, the connection may be

disconnected.

Some phones don’t support Reject function.

Low battery in phone may cause the problems.

Motorola XT701

XT720 (MOTOROI)

Milestone Droid

Operating 17

“The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners.”

Bluetooth® wireless technology is a system which allows radio contact between electronic devices within a max range of 10 meters.

Connecting individual devices under Bluetooth® wireless technology does not incur any charges. A mobile phone with Bluetooth® wireless technology can be operated via the Cascade if the connection was made via Bluetooth® wireless technology.

Operating condition for using a Bluetooth wireless technology function

Close windscreen.

Turn o the air conditioner / heater.

Stop the vehicle or drive at low speed.

Make the call in a quiet location.

- There may be differences in call quality depending on phone type, road conditions weather, etc.

- Using the phone while driving may cause unexpected accidents.

- The Bluetooth wireless technology function may not operate properly with certain types of phones equipped with Bluetooth wireless technology.

Operating

Troubleshooting

Symptoms Cause Solution

Power doesn't turned on.

The unit doesn't operate.

No sound is heard. Cables are not connected correctly. Connect the cables correctly.

There's audio skipping. This unit is not  rmly secured. Secure this unit  rmly.

The playback is not possible. The disc is dirty. Clean the disc.

Radio stations cannot be tuned in. The signal strength of the stations is too weak. (When tuning

Troubleshooting

iPod/ iPhone does not work. Check whether iPod / iPhone is connected to the unit

The unit does not operate correctly even when the appropriate remote control buttons are pressed.

Troubleshooting18

Leads and connectors are not properly. Con rm once more that all connections are correct.

The fuse is blown.

Noise and other factors are causing the built in microprocessor to operate incorrectly.

The disc of unplayable type is loaded. Check what type the disc.

in with automatic tuning.)

No station has been preset or preset stations have been cleared. (When tuning by scanning preset stations.)

correctly.

Battery power is low. Load a new battery.

Rectify the problem that caused the fuse to blow, and then replace it. Be very sure to install the correct fuse with the same rate.

Turn the unit o and then on again.

Tuned in the stations manually.

Preset the stations.

Connect it to the unit correctly.

Appendix 19

Specifications

General

Output Power : 53 W x 4 CH (Max.)

Power Source : DC 12 V

Speaker impedance : 4 Ω

Ground System : Negative

Dimensions (W x H x D) : mm (without Control Panel)

Net Weight : 1.32 kg

TUNER

FM Tuning Range :

87.5 MHz to 108.0 MHz S / N Ratio : 55 dB Distortion : 0.7 % Usable Sensitivity : 12 dBμV

AM (MW) Tuning Range :

(520 to 1720) kHz or (522 to 1620) kHz S / N Ratio : 50 dB Distortion : 1.0 % Usable Sensitivity : 28 dBμV

Frequency Response : 20 Hz to 20 kHz

S / N Ratio : 80 dB

Distortion : 0.12 %

Channel Separation (1 kHz) : 55 dB

(178 x 50 x168)

AUX

Frequency Response : 20 Hz to 20 kHz

S / N Ratio : 80 dB

Distortion : 0.1 %

Channel Separation (1 kHz) : 45 dB

Max Input Level (1 kHz) : 1.1 V

USB

Version : USB 1.1 or USB 2.0 Full Speed

Bus Power Supply (USB) : DC 5 V

1.5 A

Distortion : 0.1 %

Bluetooth

TX POWER 4 dBm

Version Bluetooth Speci cation 2.1 + EDR

Line OUT

Frequency Response : 20 Hz to 20 kHz

Output Voltage : 2 V (Max.)

Subwoofer

Frequency Response : 20 Hz to 120 Hz

Output Voltage : 2 V (Max.)

Design and speci cations are subject to

change without notice.

Appendix

LG LCS726BO2, LCS726BO1, LCS726BO4 User manual

Specifications and Main Features

Frequently Asked Questions

User Manual
