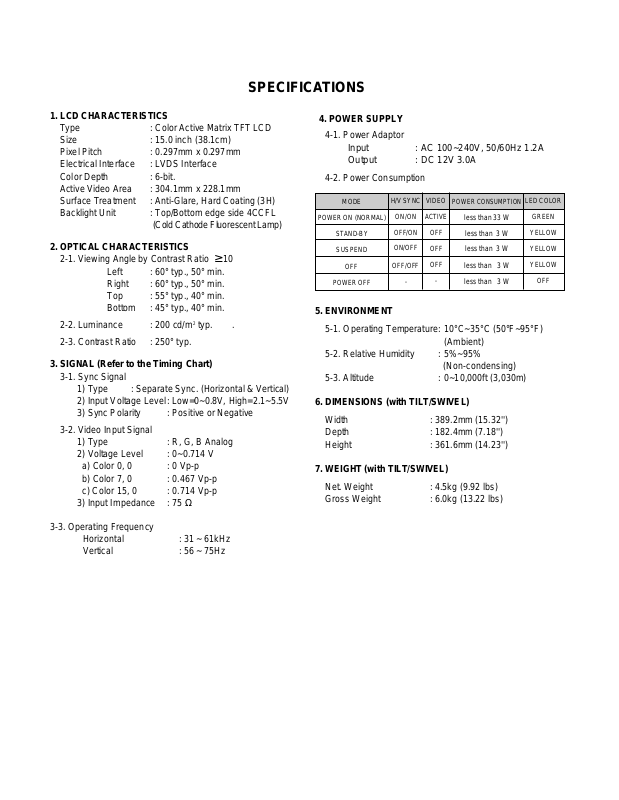

SPECIFICATIONS
1. LCD CHARACTERISTICS |
|
|
Type |
: Color Active Matrix TFT LCD |
|
Size |
: 15.0 inch (38.1cm) |
|
Pixel Pitch |
: 0.297mm x 0.297mm |
|
Electrical Interface |
: LVDS Interface |
|
Color Depth |
: 6-bit. |
|
Active Video Area |
: 304.1mm x 228.1mm |
|
Surface Treatment |
: Anti-Glare, Hard Coating (3H) |
|
Backlight Unit |
: Top/Bottom edge side 4CCFL |
|
|
(Cold Cathode Fluorescent Lamp) |
|
2. OPTICAL CHARACTERISTICS |
|
|
2-1. Viewing Angle by Contrast Ratio ≥ |
10 |
|
Left |
: 60° typ., 50° min. |
|
Right |
: 60° typ., 50° min. |
|
Top |
: 55° typ., 40° min. |
|
Bottom |
: 45° typ., 40° min. |
|
2-2. Luminance |
: 200 cd/m2 typ. |
. |
2-3. Contrast Ratio |
: 250° typ. |
|
3.SIGNAL (Refer to the Timing Chart)
3-1. Sync Signal
1) |
Type |
: Separate Sync. (Horizontal & Vertical) |
|
2) |
Input Voltage Level : Low=0~0.8V, High=2.1~5.5V |
||
3) |
Sync Polarity |
: Positive or Negative |
|
3-2. Video Input Signal |
|
||
1) |
Type |
|
: R, G, B Analog |
2) |
Voltage Level |
: 0~0.714 V |
|
a) Color 0, 0 |
: 0 Vp-p |
||
b) Color 7, 0 |
: 0.467 Vp-p |
||
c) Color 15, 0 |
: 0.714 Vp-p |
||
3) |
Input Impedance |
: 75 Ω |
|
3-3. Operating Frequency |
|
||
Horizontal |
|
: 31 ~ 61kHz |
|
Vertical |
|
: 56 ~ 75Hz |
4. POWER SUPPLY |
|
|
|
|
|
4-1. Power Adaptor |
|
|
|
|
|
Input |
: AC 100~240V, 50/60Hz 1.2A |
||||
Output |
: DC 12V 3.0A |
|
|
||
4-2. Power Consumption |
|
|
|
||
|
|
|
|
|
|
MODE |
H/V SYNC |
VIDEO |
POWER CONSUMPTION |
LED COLOR |
|
|
|
|
|
|
|
POWER ON (NORMAL) |
ON/ON |
ACTIVE |
less than 33 W |
GREEN |
|
|
|
|
|
|
|
STAND-BY |
OFF/ON |
OFF |
less than 3 W |
YELLOW |
|
|
|
|
|
|
|
SUSPEND |
ON/OFF |
OFF |
less than 3 W |
YELLOW |
|
|
|
|
|
|
|
OFF |
OFF/OFF |
OFF |
less than |
3 W |
YELLOW |
|
|
|
|
|
|
POWER OFF |
- |
- |
less than |
3 W |
OFF |
|
|
|
|
|
|
5.ENVIRONMENT
5-1. Operating Temperature: 10°C~35°C (50°F~95°F)
|
(Ambient) |
5-2. Relative Humidity |
: 5%~95% |
|
(Non-condensing) |
5-3. Altitude |
: 0~10,000ft (3,030m) |
6. DIMENSIONS (with TILT/SWIVEL) |
|
Width |
: 389.2mm (15.32'') |
Depth |
: 182.4mm (7.18'') |
Height |
: 361.6mm (14.23'') |
7. WEIGHT (with TILT/SWIVEL) |
|
Net. Weight |
: 4.5kg (9.92 lbs) |
Gross Weight |
: 6.0kg (13.22 lbs) |
