KT520 User Guide

www.lgmobile.com

KT520MMBB0282002(1.0) G

ENGLISH

Bluetooth QD ID B013855

Some of the features described in this manual may differ from those available on your phone depending on its software and on your service provider.

KT520 User Guide

Congratulations on your purchase of the advanced and compact KT520 phone by LG, designed to operate with the latest digital mobile communication technology.

Disposal of your old appliance

1 When this crossed-out wheeled bin symbol is attached to a product it

means the product is covered by the European Directive 2002/96/EC.

2 All electrical and electronic products should be disposed of separately

from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3 The correct disposal of your old appliance will help prevent potential

negative consequences for the environment and human health.

4 For more detailed information about disposal of your old appliance,

please contact your city ofﬁ ce, waste disposal service or the shop where you purchased the product.

01SETUP

02YOUR STANDBY SCREEN

03THE BASICS

04GET CREATIVE

05GET ORGANISED

06THE WEB

07SETTINGS

08ACCESSORIES

09GUIDELINES

Contents

SETUP

Getting to know your phone ..................... 8

Installing the SIM and battery ................ 10

Memory card .........................................12

Menu map ............................................. 13

YOUR STANDBY SCREEN

Optical sensor .....................................14

The main menu ................................... 15

The status bar ..................................... 16

THE BASICS

Calls ...................................................... 17

Making a call ...................................... 17

Making a call from your contacts .......... 17

Answering or rejecting a call ................ 17

Speed dialling...................................... 18

LG KT520 | User Guide

Viewing your call logs .......................... 18

Using call divert ................................... 19

Using call barring ................................. 19

Changing the common settings ............20

Searching for a contact ........................ 20

Adding a new contact ..........................21

Contact options ...................................21

Adding a contact to a group .................22

Adding a picture to a contact ................ 22

Copying your contacts to your SIM ........ 23

Deleting all of your contacts .................23

Viewing information .............................23

Messaging ............................................. 24

Messaging .......................................... 24

Sending a message .............................24

Entering text ........................................ 24

Setting up your email ........................... 25

Retrieving your email ...........................26

Changing your email settings ............... 27

Message folders .................................. 27

Managing your messages ....................28

Using templates ................................... 28

Changing your text message settings .... 29

Changing your multimedia message

settings ............................................... 30

Changing your other settings ................ 30

GET CREATIVE

Camera .................................................. 31

Taking a quick photo ............................ 31

After you’ve taken your photo ............... 31

Using the toolbar ................................32

Changing the image size ...................... 33

Viewing your saved photos ................... 33

Choosing a shot mode .........................33

Using burst shot mode ......................... 34

Using a frame shot mode ..................... 34

Video camera ......................................... 35

Shooting a quick video ......................... 35

After you’ve shot your video ................. 35

Using the toolbar .................................35

Watching your saved videos ................. 36

Adjusting the volume when viewing

a video ................................................ 36

My stuff ................................................. 37

My images ......................................... 37

Option menus ...................................... 37

Sending a photo ..................................38

Organising your images ....................... 38

Deleting an image ............................... 38

Creating a slide show........................... 38

My sounds ..........................................39

Using a sound .....................................39

My videos ........................................... 39

Watching a video ................................. 40

Contents

Using options while video is paused ...... 40

Sending a video clip ............................. 40

Using a video clip as a ringtone ............40

Using the video options menu ............... 41

Games and applications ....................... 41

Playing a game .................................... 41

SVG contents ...................................... 41

Viewing an SWF/SVG ﬁ le ...................... 41

Using options viewing the SWF/SVG

ﬁ le ...................................................... 42

Others ................................................ 42

My memory card .................................42

Using your phone as a mass storage

device ................................................. 42

Multimedia ............................................ 44

Music ................................................. 44

Transferring music onto your phone ...... 44

Playing a song ..................................... 44

Creating a playlist ................................ 45

Playing a playlist .................................. 45

Editing a playlist ..................................45

Deleting a playlist ................................45

Voice recorder ..................................... 46

Sending the voice recording ................46

Transferring a ﬁ le to your phone ........... 46

LG KT520 | User Guide

GET ORGANISED

Organiser ............................................... 47

Adding an event to your calendar .......... 47

Editing a calendar event ....................... 47

Sharing a calendar event ...................... 48

Adding a memo ................................... 48

Tools ......................................................49

Setting an alarm .................................. 49

Using the calculator ............................. 49

World time ..........................................49

Converter ............................................ 50

Using the stopwatch ............................50

THE WEB

O2 Active ...............................................51

Accessing the web............................... 51

Adding and accessing bookmarks ......... 51

Accessing a saved page ....................... 51

Viewing your browser history ................ 51

Changing the web browser settings ......51

SETTINGS

Settings ................................................. 52

Changing your screen settings.............. 52

Activating your proﬁ les ......................... 52

Personalising your proﬁ les .................... 52

Other phone settings ........................... 53

Changing your security settings ............ 53

Using Memory manager ...................... 54

Bluetooth ............................................ 54

Changing your Bluetooth settings.......... 55

Pairing with another Bluetooth device ... 56

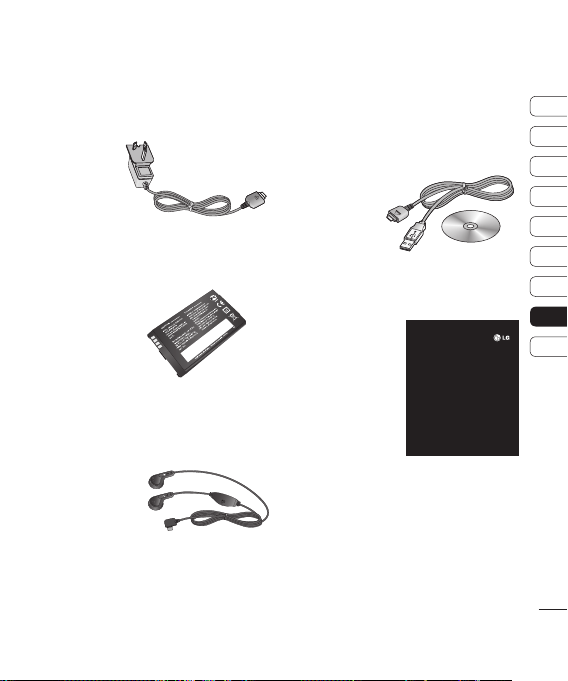

ACCESSORIES

Accessories ........................................... 57

Network service ..................................... 58

Technical data ....................................... 58

GUIDELINES

Guidelines for safe and efﬁ cient use ......60

Getting to know your phone

Charger, USB Cable, Handsfree connector

MicroSD card

Main screen

Clear key

Deletes a character with each press. Also use this key to go back to the previous screen.

Call key

Dials a number or answers an incoming call.

End/Power key

Ends or rejects a call. Turns the phone on/off. Press once to return to the standby screen.

Setup

LG KT520 | User Guide

Front

Volume

Front

Capture button

Battery cover

SIM card

Battery

Camera lens

Setup

Installing the SIM and battery

1 Remove the battery cover

Slide the battery cover towards the bottom of the phone and away from it.

WARNING: Do not use your

ﬁ ngernail when removing the battery.

WARNING: Do not remove the

battery when the phone is switched on, as this may damage the phone.

Setup

LG KT520 | User Guide

2 Remove the battery

Lever the bottom edge of the battery and remove it carefully from the battery compartment.

3 Install the SIM card

Slide the SIM card into the SIM card holder. Make sure that the gold contact area on the card is facing downwards. To remove the SIM card, pull it gently in the reverse direction.

4 Install the battery

Insert the top of the battery into the top edge of the battery compartment. Ensure the battery contacts align with the terminals on the phone. Press down the bottom of the battery until it clips into place.

5 Replace the battery cover

Slide the battery cover towards the top of the phone until it clicks into place.

6 Charging your phone

Pull open the cover of the charger socket on the side of your KT520. Insert the connector on your charger, and plug into a mains electricity socket. Your KT520 will need to be charged until the message "Battery full" appears on the screen.

Setup

Memory card

Installing a memory card

Expand the memory space available on your phone by using a memory card.

TIP! A memory card is an optional accessory.

To insert the memory card, slide it into the slot at the top until it clicks into place, making sure that the gold contact area is facing upwards.

Setup

LG KT520 | User Guide

Menu map

GAMES & APPS

1 My games & apps 2 Settings

MESSAGING

Create new message 2 Inbox 3 Mailbox 4 Drafts 5 Outbox 6 Sent items 7 My folders 8 Templates 9 Emoticons 0 Settings

TOOLS

1 Quick menu 2 Alarms 3 Calculator 4 Stopwatch 5 Converter 6 World time

CALLING

1 Make video call 2 Call logs 3 Call durations 4 Data volume 5 Call costs 6 Call divert 7 Call barring

Fixed dial numbers

8 9 Call waiting 0 Common settings * Video call settings

MY STUFF

1 My images 2 My sounds 3 My videos 4 My games & apps 5 SVG contents 6 Others 7 My memory card

O2 ACTIVE

1 Home 2 Enter address 3 Bookmarks 4 RSS reader 5 Saved pages 6 History 7 Settings

ORGANISER

1 Calendar 2 To do 3 Memo 4 Secret memo 5 Date ﬁ nder 6 Settings

YAHOO!

1 Yahoo! oneSearch

CONNECTIVITY

1 Bluetooth 2 Server sync 3 USB connection

MULTIMEDIA

1 Camera 2 Video camera 3 Music 4 Voice recorder

CONTACTS

1 Add new 2 Search 3 Speed dials 4 Groups 5

Service dial numbers 6 Own number 7 My business card 8 Settings

SETTINGS

1 Proﬁ les 2 Phone 3 Screen 4 Date & Time 5 Network 6 Internet proﬁ les 7 Access points 8 Packet data conn. 9 Security 0 Memory manager *

Streaming settings # Reset settings

Setup

Your standby screen

Whenever your KT520 isn’t in use, it will return to your standby screen. From here you can access menu options, make a quick call or change your proﬁ le - as well as many other things.

Optical sensor

Your KT520 has a special feature; an optical sensor. You can use this to navigate menus as well as your web browser. Use the optical sensor by rubbing the panel with your thumb to drag the cursor around the screen. There's no need to press too hard as the optical sensor is sensitive enough to pick up on a light touch.

From the main menu, select Settings, Phone, then Optical sensor settings. From here you can choose All to enable its use in the browser and the menus, Browser only, or you can turn it Off.

Your standby screen

WARNING: When the optical

sensor is directly exposed to the sun, its function can be malfunctioned.

LG KT520 | User Guide

▲ Standby screen

▲ Optical sensor panel

The main menu

The main menu provides twelve menu options.

1 Select Menu.

2 Use the arrow keys to select the required

menu option.

3 When the option you require is selected,

press OK to open.

Your standby screen

The status bar

The status bar displays various icons to indicate, amongst other things, signal strength, remaining battery life and new messages.

Icon Description

Your standby screen

LG KT520 | User Guide

Multitasking

Calendar

Network signal strength (number of bars will vary)

No network signal

Activate security menu

Remaining battery life

Battery empty

New text message

New voice message

New email

New multimedia message

An alarm is set

Icon Description

Normal proﬁ le in use

Outdoor proﬁ le in use

Silent proﬁ le in use

External memory

Calls are diverted

GPRS available

EDGE in use

Roaming

Bluetooth is active

Calls are rejected

HSDPA available

3G available

Flight mode is selected

Calls

Making a call

1 Enter the number using the keypad.

To delete a digit press

2 Press the green key to dial the

entered number.

3 To end the call, press the red key.

TIP! To enter + for making an international call, press and hold 0.

Making a call from your contacts

1 From the main menu, press the down-

arrow to open your contacts.

2 Using the keypad, enter the ﬁ rst letter

of the contact you want to call. So, for 'Ofﬁ ce', press 6 (MNO) three times.

3 Use the arrow keys to scroll through your

contacts.

4 Press the green key to call the

selected contact.

Answering or rejecting a call

When your phone rings, press the green

key to answer the call.

Press the red incoming call.

TIP! You can change the settings on your phone to change how you answer a call. From the main menu, select Calling, then Common settings, and select Answer mode. You can choose from Press send key, Slide up and Press any key.

key to reject the

Calls

Speed dialling

You can assign a frequently-called contact to a speed dial number.

1 From the main menu, select , then

Speed dials.

2 Your voicemail is set to speed dial 1.

Choose any other number to assign to a contact.

3 Your address book will open. Select the

contact you’d like to assign that number to and press OK.

To call a speed dial number, press and hold the assigned number until the contact appears on screen. The call will initiate automatically.

Viewing your call logs

From the main menu, select and choose

Call logs.

All calls - View the complete list of all of your

dialled, received and missed calls.

Dialled calls - View the list of all the numbers you have called.

Calls

LG KT520 | User Guide

Received calls - View the list of all the numbers that have called you.

Missed calls - View the list of any calls you have missed.

To view other information on your calls, select the following in the

Call duration - View details of how long you have spent on your calls.

Call costs - View the charges applied to your dialled numbers (this service is networkdependent, some operators are unable to support it) and the duration of all your calls; received and dialled.

Data volume - View the amount in kilobytes of all your received and sent data.

TIP! From any call log, select Options to delete selected or all logged items.

menu:

Using call divert

1 From the main menu, select .

2 Select Call divert.

3 Choose whether you would like to divert all

calls when the line is busy, when there is no answer or when you are not reachable.

4 Choose whether to divert to your voicemail

or to another number.

5 Enter your divert number or select Search

to browse for your divert number.

Note: Charges may be incurred for diverting calls. Please contact your network provider for details.

TIP! To turn off all call diverts, choose Deactivate all from the Call divert menu.

Using call barring

1 From the main menu, select .

2 Select Call barring.

3 Choose any or all of the following options

for Voice calls or Video calls:

All outgoing

Outgoing international

O/G international calls except home

country

All incoming

Incoming when abroad

4 Select Activate and enter the call barring

password. Please check with your network operator for this service.

TIP! If you only want to allow calls to speciﬁ c numbers from your phone, you can turn on the

Fixed dial numbers feature. To do so, select Fixed dial numbers from the Calling menu

and then choose Turn on. Please note, you'll need your PIN2 code from your operator.

Calls

Changing the common settings

1 From the main menu, select and then

choose Common settings.

2 From here you can amend the settings for:

Call reject - You can set which incoming

calls to reject.

Send my number - Choose whether your

number will be displayed when you call someone.

Auto redial - Choose On or Off.

Answer mode - Choose whether to

answer the phone using the accept key, any key or by sliding your handset open.

Minute minder - Select On to hear a tone

every minute during a call.

BT answer mode - You can choose

whether calls should be answered by the handset or by a Bluetooth headset, if one is connected.

Calls

LG KT520 | User Guide

Save new number -Choose whether to

save the phone number when ending a call, if the phone number is not already saved in your phonebook.

Slide close setting - Choose whether or

not to end the active call when the slide is closed.

Searching for a contact

1 From the main menu, select and

choose Search.

2 Using the keypad enter the ﬁ rst letter

of the contact you want to call. So, for 'Ofﬁ ce', press 6 (MNO) three times.

3 Scroll through the contacts and their

different numbers using the arrow keys.

Adding a new contact

1 From the main menu, select and

choose Add new.

2 Choose whether to store your new contact

on your Handset or USIM.

3 Enter the information you would like to

store about the contact and select Done.

Or, use the following shortcut:

1 Enter the number you wish to store and

select Options.

2 Choose Save number and then select

whether you would like to create a new contact or update an existing one by choosing New contact or Update

contact.

3 Enter the relevant information as above

and select Done.

Note: When it comes to storing a contact’s

email address, press the key on the keypad to get access to symbols such as '@'.

Contact options

There are many things you can do when viewing a contact. Here's how to access and use those features:

1 Open the contact you’d like to use.

See Searching for a contact above.

2 Select Options to open the list of options.

From here you can:

Send message - Send a message to

the contact. If the contact has an email address, you can send them an email from here, too.

Send business card - Send the contact's

details as a business card.

Make voice call - Make a voice call to

the contact.

Make video call - Make a video call to

the contact.

Add new contact - Add a new contact.

Edit - Change the contact’s details.

Mark/unmark - Mark/unmark the

selected contact.

Calls

Search by - Search a contact by number

or group.

Save to USIM - Choose to move or copy

to the SIM card or phone (depending on where you originally saved the contact).

Delete - Delete the contact. Select Yes to

conﬁ rm.

Text input - Options for Insert symbol,

Input method, Writing language and Add to dictionary.

Adding a contact to a group

You can collect your contacts into groups, keeping your work colleagues and family members separate, for example. There are a number of groups including Family; Friends and Colleagues; School; and VIP already set up on the phone.

1 From the main menu, select and

choose Groups.

2 Scroll to the group you wish to add a

contact to, select it and choose Add.

Calls

LG KT520 | User Guide

3 Your contact list will open. Scroll to the

contacts you would like to add to the group and select Mark, then Done.

TIP! You can assign a ringtone to a group. Select the group you wish to assign the ringtone to and select Options.

Adding a picture to a contact

You can change the appearance of your contacts in your address book to include a picture.

1 From the main menu, select and

choose Settings.

2 Select Contact list settings and select

Off or On from the Show picture tab.

3 Return to the address book and select the

contact to which you want to add a picture.

4 Choose Options and select Edit.

5 Scroll down to the Image section.

Choose Edit and select an option. If you select Take a picture, your camera viewﬁ nder will open, so you can take a picture of your contact.

Copying your contacts to your SIM

You can copy your contacts from your SIM to your handset or from your handset to your SIM.

1 From the main menu, select and

choose Settings and then Copy.

2 Choose between Handset to USIM or

USIM to handset.

3 Choose whether to copy all the contacts

together or one at a time.

Deleting all of your contacts

1 From the main menu, select and

choose Settings and then Clear contacts.

2 Select to delete contacts from USIM or

Handset.

3 Select Yes to conﬁ rm your selection.

Viewing information

1 From the main menu, select and

choose one of the options to view your

Service dial numbers, your Own number or your own business card.

TIP! If you haven’t yet created a business card,

the My business card screen will give you the option to create one. Select Add and enter your details as you would for any other contact. Select Done when you are ﬁ nished.

Calls

Messaging

Your KT520 combines SMS, MMS and email into one intuitive and easy-to-use feature.

Sending a message

1 From the main menu, select and then

Create new message.

2 Choose to send a Message or Email.

3 A new, blank message will open.

4 Enter your message using T9 predictive or

Abc manual. See Entering text below to see how to switch between the different text entry modes.

5 From the Options menu, select Insert to

add an image, video, sound or symbol.

6 Select Send.

7 Enter the phone number or select

Contacts to open your contacts list.

You can add multiple contacts.

8 Select Send.

Messaging

LG KT520 | User Guide

Entering text

There are two ways to enter text: T9 predictive and Abc manual.

To turn on T9 predictive text, begin a new message, choose Options, select Input method and choose T9 mode. With T9 on, you can switch between T9 predictive, Abc manual and numbers by pressing

T9 predictive

T9 mode uses a built-in dictionary to recognise the words you are writing based on the key sequences you enter. Simply touch the number key associated with the letter you want to enter, and the dictionary will recognise the word once all the letters are entered. For example, press 8, 3, 5, 3, 7, 4, 6, 6, 3 to write ‘telephone’.

If the word you want doesn’t appear, choose Options and select Add to dictionary. Enter the word using Abc manual mode and your word or name will be added to the dictionary.

Abc manual

In Abc mode you must press the key repeatedly to enter a letter. For example, to write ‘hello’, press 4 twice, 3 twice, 5 three times, 5 three times again, then 6 three times.

Setting up your email

You can stay in touch on the move by using the email facility on your KT520. It’s quick and simple to set up a POP3 or IMAP4 email account.

1 From the main menu, select and then

Settings.

2 Select Email then Email accounts.

3 Select Add.

4 You can now choose how your account

works:

Title - Enter a name for this account.

My name - Enter your name.

Username - Enter the account username.

Password - Enter the account password.

Email address - Enter the account email

address.

Reply email address - Enter the ‘reply

to’ email address.

Outgoing mail server - Enter the

account's mail sever address.

Incoming mail server - Enter the

account details.

Maximum receive size - Choose the size

limit of your emails, the maximum is 1MB.

Mailbox type - Enter the mailbox type,

POP3 or IMAP4.

Save to server - Choose whether to

save your emails to the server. For IMAP4 accounts copies are always saved.

Save sent mail into - Choose where

to save your IMAP4 emails. For POP3 accounts copies are always saved on the phone.

Access point - Choose your Internet

access point.

Auto retrieve - Choose whether to

retrieve your mail.

Advanced settings - Choose whether to

use the advanced settings.

Messaging

SMTP port number - Normally, this will

be 25.

Incoming server port - Normally, this is

110 for POP3 accounts and 143 for IMAP4 accounts.

SMTP authentication - Choose the

security settings for the outgoing mail server.

SMTP username - Enter the SMTP

username.

SMTP password - Enter the SMTP

password.

APOP secure login - Choose to activate

APOP secure login for a POP3 account. IMAP4 accounts are always set to off.

Messaging

LG KT520 | User Guide

Retrieving your email

You can check for new email automatically or manually. See Changing your email settings for details on how to check for new email automatically.

To check manually:

1 From the main menu, select Messaging

and then Mailbox.

2 Select the account for which you would

like to check your email and then select

Retrieve.

3 Your KT520 will connect to your email

account and retrieve your new messages.

Changing your email settings

You can use the following settings to conﬁ gure your email preferences.

1 From the main menu, select Messaging

and then Settings.

2 Select Email - from there you change the

following settings:

Allow reply email - Choose to allow the

sending of ‘read conﬁ rmation’ messages.

Request reply email - Choose whether

to request ‘read conﬁ rmation’ messages.

Retrieve interval - Choose how often

your KT520 checks for new email messages.

Include message in Fwd & Reply -

Choose whether or not to include the original message in your replies.

Include attachment - Choose whether or

not to include the original attachment.

Auto retrieval in roaming - Choose to

auto retrieve your messages when abroad, or stop auto retrieval.

New email notiﬁ cation - Choose

whether to be alerted to new emails.

Signature - Create an email signature and

switch this feature on.

Priority - Choose the priority level of your

email messages.

Message folders

From the main menu, select .

Inbox - All received messages are placed in your inbox. From here you can send replies, forward and perform other actions, see page 28 for details.

Mailbox - The mailbox folder contains folders for each email account conﬁ gured on the phone.

Drafts - If you don’t have time to ﬁ nish writing a message, you can save what you’ve done so far.

Outbox - This is a temporary storage folder and contains messages that are being sent.

Sent items - All sent messages are placed into your Sent items folder.

Messaging

My folders - Allows you to group messages

as you prefer.

Templates - A list of useful messages, to be used for quick replies.

Emoticons - A list of useful emoticons.

You can also access your messaging settings by selecting Settings.

Managing your messages

You can use your Inbox to manage your messages.

1 From the main menu, select Messaging

and then Inbox.

2 Select Options and then choose to:

Reply - Send a reply to the selected

message.

Forward - Send the selected message on

to another person.

Call - Call the person who sent you the

message.

Delete - Delete selected messages.

Messaging

LG KT520 | User Guide

Create new message - Create a new

message or Email.

Mark/unmark - Mark/unmark the

selected messages.

Copy & Move - Move the selected

message to one of the folders you have created.

Filter - Sort messages depending on

whether they are SMS or MMS.

TIP! If you see the message No space for messages you can delete either messages or

saved ﬁ les to create space.

Using templates

You can create templates for the SMS and MMS messages you send most frequently. You’ll ﬁ nd some templates already on your phone, and you can edit these if you wish.

1 From the main menu, select Messaging

and then Templates.

2 Choose Text templates or Multimedia

templates. Once you've selected a

message, choose Options and then Edit to change an existing template. You can also choose Add new to create a new template or Delete to delete and existing template.

3 You can use a template when you create

a new message by selecting Options, followed by Insert and then Templates.

Changing your text message settings

Your KT520 message settings are pre-deﬁ ned so that you can send messages immediately.

If you’d like to change the settings, see below for more information.

From the main menu, select Messaging, then choose Settings and then Text

message. You can make changes to:

Text message centre - Enter the details for

your message centre.

Delivery report - Choose to receive conﬁ rmation that your message was delivered.

Validity period - Choose how long your message is stored at the message centre.

Message types - Convert your text into Voice, Fax, Paging, X.400 Email or ERMES.

Character encoding - Choose how your characters are encoded; note that this impacts the size of your message and may therefore affect data charges.

Send long text as - Choose how to send long messages (by multiple SMS or by single MMS).

Messaging

Changing your multimedia message settings

From the main menu, select Messaging, then choose Settings, followed by Multimedia message.

You can make changes to:

Retrieval mode - Choose whether to automatically or manually download multimedia messages depending on whether you are at home or roaming.

Delivery report - Choose to allow and/or request a delivery report.

Read reply - Choose to allow and/or send a read report.

Priority - Choose the priority level of your MMS.

Validity period - Choose how long your message is stored at the message centre.

Slide duration - Choose how long your slides appear on screen.

Messaging

LG KT520 | User Guide

Creation mode - Choose from Restricted, Warning and Free.

Delivery time - Choose from Immediately, After 1 hour, After 1 day and After 1 week.

Multi msg centre - Select an operator-

speciﬁ c network proﬁ le for the sending of multimedia messages.

Changing your other settings

From the main menu, select Messaging, choose Settings and then choose from the following:

Videomail or Voicemail - Your Videomail and/or Voicemail numbers are stored here. Contact your network operator for more information on the service they provide.

Service message - Here you can switch off 'push' messaging; your messages will no longer be pushed directly to your device as they are received, only when you check for new messages.

Info. service - Choose the reception status, alerts and language of your info messages.

Camera

Taking a quick photo

1 Press the key on the right-hand side

of the handset and the camera’s viewﬁ nder will appear on screen.

2 Holding the phone horizontally, point the

lens towards the desired subject of the photo.

3 Press the centre key or the key to

take a photo.

The ﬁ le name of captured picture indicates the current date and time.

e.g. PDD-MM-YY_hh.mm

( P : Preﬁ x / D : Day / M : Month /

Y : Year / h : Hour / m : Minute)

After you’ve taken your photo

Your captured photo will appear on screen. The name of the image runs along the bottom of the screen and you’ll see options displayed at the right of the screen. Select Options to rename or edit the image.

Go back to previous menu.

View the pictures you have taken in

your Album.

Send the photo as an MMS, Email, via

Bluetooth. See page 24 for Sending a message, and page 54 about sending and receiving your ﬁ les using Bluetooth.

Take another photo straight away.

Your current photo will be saved.

Use the image as wallpaper, as a Contact image, or in your Start-up or Shut down screen.

Delete the photo you have just taken and

conﬁ rm by touching Yes . The viewﬁ nder will reappear.

TIP! In camera mode select Play icon to open the photo album. See page 33, Viewing your

saved photos, for details.

Camera

Using the toolbar

Before taking a photo, select Settings to conﬁ gure various options.

Colour effect - Choose from four colour tone options: None, Black & White, Negative and Sepia.

White balance - The white balance ensures that any white in your photos appears realistic. In order for your camera to correctly adjust the white balance you may need to determine the light conditions. Choose from

Auto, Sunny, Incandescent, Cloudy or Fluorescent.

Night mode - On or Off

Timer - The self-timer allows you to set a

delay after the capture button is pressed. Choose from off, 3 secs., 5 secs. or 10 secs.. Great for that group photo you want to be a part of.

Camera

LG KT520 | User Guide

Shot mode - Normal, Burst shot and Frame shot

Image quality - Choose between Normal, Fine and Super ﬁ ne. The ﬁ ner the quality,

the sharper the photo will be but the ﬁ le size will increase as a result, which means you’ll be able to store fewer photos in your phone's memory.

Memory in use - Choose whether to save your photos to the Handset memory or to the

External memory.

Hide icons - Set whether to automatically

hide the icons on the side of the viewﬁ nder.

Sound - Select one of the three different shutter sounds.

Changing the image size

The larger the image size, the larger the ﬁ le. Storing larger sized images will take up more of your phone's memory. If you want to ﬁ t more pictures on to your phone you can alter the image size to make the ﬁ le size smaller.

1 Select Size from the right toolbar.

2 Select an option from those presented

(3M, 2M, 1M, 640X480, 320X240, Wallpaper, Contact).

Viewing your saved photos

1 You can access your saved photos from

within the camera mode and from the standby screen. From the viewﬁ nder, simply select Album from the right toolbar. From the main menu, select

My images.

2 Your gallery will appear on screen.

3 Use the arrows to select the photo you

want to view and choose View to enlarge it.

and then

Choosing a shot mode

1 Select Settings to open the available shot

modes.

2 Choose from the four options:

Normal shot -This is the default shot

type, the photo will be taken in the normal way, as outlined in Taking a quick photo on page 31.

Burst shot - This enables you to take

nine shots automatically in very quick succession. See Using burst shot mode on page 34 for details.

Frame shot - Choose from one of the

fun frames to transform your friend into a pirate or just decorate their surroundings.

Camera

Using burst shot mode

Burst shot mode is great for taking photos of moving objects or at sporting events.

1 Select Burst shot.

2 Position the subject in the viewﬁ nder and

press the capture button as you would to take a normal photo.

3 The camera will take nine shots in quick

succession and display the ﬁ rst with eight thumbnails on the left side of the screen.

4 Select the shot you want to keep by

selecting the thumbnail once to view and select Save to save.

5 A tick will appear next to the image

thumbnail. Select Save to exit.

Camera

LG KT520 | User Guide

Using a frame shot mode

Frame shot can be used to transform your friend into a pirate, or just to decorate their surroundings with a frame.

1 Select Frame shot menu.

2 Position the subject in the fun frame and

press the capture button.

3 Save the image by selecting Save.

Video camera

Shooting a quick video

1 Press the key on the right hand side

of the handset and the camera’s viewﬁ nder will appear on screen.

2 Select Video from the right toolbar and the

video camera's viewﬁ nder will appear on screen.

3 Point the camera lens towards the desired

subject of the video.

4 Press the centre key or the key to

start recording.

5 REC will appear in the bottom of the

viewﬁ nder and a timer will show the length of your video.

6 To pause the video select Pause and

resume by selecting Resume.

7 Select Stop to stop recording.

Note: You can also access the video camera

from the main menu by selecting scrolling down and selecting Video camera to open the viewﬁ nder.

After you’ve shot your video

A still image representing your captured video will appear on screen. The name of the video runs along the bottom of the screen. You can access the Use as and Rename options by pressing Settings.

Using the toolbar

Before shooting a video, select Settings to conﬁ gure various options.

Colour effect - Choose a colour tone to apply to the video you’re taking. Choose from four colour tone options: None, Black &

White, Negative or Sepia.

White balance - The white balance ensures

that any white in your videos appears realistic. In order for your camera to correctly adjust the white balance you may need to determine the light conditions. Choose from

Auto, Sunny, Incandescent, Cloudy or Fluorescent.

Video camera

Night mode - On or Off

Video quality - Choose between Super ﬁ ne, Fine and Normal. The ﬁ ner the quality

the sharper a video will be, but the ﬁ le size will increase as a result, which means you’ll be able to store fewer videos in the phone’s memory.

Duration - Message or Normal.

TIP! The settings menu is superimposed over

the viewﬁ nder, so when you change elements of the image colour or quality you’ll be able to see the image change in preview behind the settings menu.

Use the arrow keys to navigate the options in Others.

Memory in use - Choose whether to save your videos to the Handset memory or to the External memory.

Hide icons - Set the camera to automatically hide the icons to the side of the viewﬁ nder.

Voice - Choose Mute to record a video without sound.

Video camera

LG KT520 | User Guide

Watching your saved videos

1 Select the album icon. Your album will

appear on screen.

2 Highlight the video you want to view to

bring it to the front of the album.

3 Select the video to open it fully.

Adjusting the volume when viewing a video

To adjust the volume of the audio on a video whilst it is playing, use the keys on the side of the handset.

My stuff

You can store multimedia ﬁ les in your phone’s memory in My stuff so that you have easy access to all of your pictures, sounds, videos and games. You can also save your ﬁ les to a memory card. The advantage of using a memory card is that you can free up space on your phone’s memory.

My images

My images contains a folder of default

images pre-loaded onto your phone, images downloaded by you and images taken with your phone’s camera.

Option menus

The options available to you depend on what type of image you have selected. All of the options listed below will be available for pictures you have taken on the phone’s camera, but only the Create new folder,

Sort by, Grid view, File info. and Memory manager options are available for default

images.

In the images folder, select Options to display your list of options.

Send - Send the selected image to a friend via message, email or Bluetooth.

Note: The image may need to be resized

before it can be sent by MMS.

Use as - Select as Wallpaper, Contacts image, Start up image or Shut down image.

Move - Move an image from the phone memory to a memory card or vice versa.

Copy - Copy an image from the phone memory to a memory card or vice versa.

Delete - Delete the selected image.

Mark/Unmark - Select multiple ﬁ les.

Print via - Print an image ﬁ le via Bluetooth

File - Rotate, rename or view the information

(name, size, date, resolution, type and copyright) of the selected image.

Create new folder - Create a new folder within the Pictures folder.

Slide show - See Creating a slide show on page 38.

My stuff

Sort by - Arrange your images by date, type

or name.

List view/Grid view - Change the way you view your photos.

Memory manger - View the memory status.

Sending a photo

1 From the main menu, select .

2 Select My images.

3 Select a photo and choose Options.

4 Select Send and choose from Message,

Email or Bluetooth.

5 If you choose Message or Email, your

photo will be attached to the message and you can write and send the message as normal. If you choose Bluetooth, you will be prompted to turn Bluetooth on and if you choose Yes , your phone will search for a device to send the picture to.

My stuff

LG KT520 | User Guide

Organising your images

1 From the main menu, select .

2 Select My images.

3 Select Options and then Sort by.

4 Choose from Date, Type or Name.

Deleting an image

1 From the main menu, select .

2 Select My images.

3 Select an image and choose Options.

4 Select Delete.

Creating a slide show

If you want to look at the images on your phone, you can create a slide show to save you from having to open and close each individual image.

1 From the main menu, select .

2 Select My images.

3 Select the photo with which you would

like to begin the slideshow and choose

Options.

4 Select Slide show and it will begin.

5 Select Stop to pause the slide show or

Back to end the slide show and return to

the My images folder.

Selecting Options during the slide show allows you to change to full or landscape view.

My sounds

The My sounds folder contains Default sounds as well as your Voice recordings.

From here you can set sounds as ringtones or send them to other people.

Using a sound

1 From the main menu, select .

2 Select My sounds.

3 Select Default sounds or Voice

recordings.

4 Find a sound and choose Play to listen to

it.

5 Select Options and choose Use as to set

the sounds as your Voice ringtone, Video ringtone, Message tone, Start-up sound or Shut down sound.

My videos

The My videos folder contains downloaded videos and videos that you have recorded with your phone.

My stuff

Watching a video

1 From the main menu, select .

2 Select My videos.

3 Select a video and choose Play.

Using options while video is paused

Select Options while in pause mode and choose from:

Landscape view - View the video ﬁ le in full shot.

Mute/Unmute - Switch the sound on/off.

Capture - Capture the frozen frame as a

picture.

Repeat - Repeat the video ﬁ le.

File info. - View the name, size, date, time,

type, duration, dimension, protection and copyright details.

Send - Send the video in a message, Email, via Bluetooth or as a Media Album.

Delete - Delete the video.

Use as - Use as a video ringtone.

My stuff

LG KT520 | User Guide

Sending a video clip

1 Select a video and select Options.

2 Select Send and choose from Message,

Email or Bluetooth.

3 If you choose Message or Email, your

video clip will be attached to the message and you can write and send the message as normal. If you choose Bluetooth, you will be prompted to turn Bluetooth on and your phone will search for a device to send the video to.

Using a video clip as a ringtone

1 Select a video and choose Options.

2 Select Use as and choose Video

ringtone.

Using the video options menu

From the Videos folder, you can choose from the following options:

Send - Send a video to a friend.

Use as - Select a video clip for Voice ringtone

or Video ringtone.

Move - Move a video clip from the phone memory to a memory card or vice versa.

Copy - Copy a video clip from the phone memory to a memory card or vice versa.

Delete - Delete a video.

Mark/Unmark - Select multiple ﬁ les.

File - Edit the ﬁ le name and view its

information.

Create new folder - Create a new folder within the My videos folder.

Sort by - Sort videos into a speciﬁ c order.

Grid view/List view - View the options

menu by Grid or List type.

Memory manager - View the memory status.

Games and applications

Your KT520 comes with pre-loaded games to keep you amused when you have time to spare. If you choose to download any additional games or applications they should be saved in this folder.

Playing a game

1 From the main menu, select .

2 Select My games & apps.

3 Select the game of your choice and choose

Launch.

SVG contents

The SVG contents folder contains all of your default and downloaded ﬂ ash contents.

Viewing an SWF/SVG ﬁ le

1 Select My stuff then SVG contents.

2 Select the ﬁ le and press Play.

My stuff

Using options viewing the SWF/SVG ﬁ le

Select Options while in pause mode and choose from:

Play/Pause - Pause or resume playback.

Full screen/Landscape view - View

your SWF/SVG in full screen or landscape view mode. (this only appears if you select

Options without pausing).

Send - Send the selected ﬁ le to a friend via

message, email or Bluetooth.

Delete - Delete the selected ﬁ le.

Mute/Unmute - Switch the sound on/off.

Use as wallpaper - Set the SWF/SVG ﬁ le as

a wallpaper.

File info. - View the details about the ﬁ le.

Others

The Others folder is used to store ﬁ les which are not pictures, sounds, videos, games or applications.

My stuff

LG KT520 | User Guide

My memory card

If you’ve inserted a memory card it will be displayed as a folder within My stuff. That folder will be divided into four further folders:

Images, Sounds, Videos and Others.

Using your phone as a mass storage device

Your KT520 can be used as a mass storage device, just like a USB stick. This is a great way of moving ﬁ les from your computer to your phone. If you’ve inserted a memory card and are connecting as mass storage, two drives will appear on your computer.

1 From the main menu, select Connectivity.

2 Select USB Connection.

3 Scroll to Mass storage and choose

Select.

4 Insert the smaller end of the USB cable

into the USB cable connector on the edge of the KT520. Plug the larger end into the USB port of your computer.

5 A removable disk folder will open

automatically (two if you have a memory card inserted) showing all the folders on your phone.

6 Drag and drop your images, videos, music

or documents into the desired folders.

7 Safely remove your phone by clicking on

the Safely remove hardware icon in your desktop toolbar.

My stuff

Multimedia

Music

Your LG KT520 has a built-in MP3 player so you can play all your favourite music. To access the MP3 player, choose the main menu and then select Music. From here you have access to:

Recently played - This menu shows the last 20 tracks that were played.

All tracks - Contains all of the songs you have on your phone.

Artists - You can view and play music sorted by artist.

Albums - You can view and play music sorted by album.

Genres - You can view and play music sorted by genre.

Playlists - Contains any playlists you have created.

Shufﬂ e tracks - If you want to play a continuous random selection, choose this option.

Multimedia

LG KT520 | User Guide

Transferring music onto your phone

The easiest way to transfer music onto your phone is via Bluetooth or your sync cable. To transfer using Bluetooth:

from

1 Make sure both devices have Bluetooth

switched on and are visible to one another.

2 Select the music ﬁ le on the device and

choose to send it via Bluetooth.

3 Choose Yes on your phone to accept the

ﬁ l e .

4 The ﬁ le should appear in Music > All

tracks.

Playing a song

1 From the main menu, select .

2 Choose Music.

3 Select All tracks and then the song you

want to play. Select Play to begin.

4 From the Options menu, choose

Minimize to hide the music player screen

so that you can continue using your phone as normal while music is playing.

5 Select Back to stop the music and return

to the music menu.

TIP! To change the volume while listening to music, use the volume keys on the side of your phone.

Creating a playlist

You can create your own playlists by choosing a selection of songs from the All tracks folder.

1 From the main menu, select .

2 Choose Music, then Playlist.

3 Select Add, enter the playlist name and

choose Save.

4 The All tracks folder will be shown. Select

the songs that you would like to include by moving to them and pressing Mark

;

a tick will show next to their name.

5 Select Done to store the playlist.

Playing a playlist

1 From the main menu, select .

2 Choose Music, then Playlists.

3 Move to the playlist you would like to play

and choose Select and then Play.

Editing a playlist

From time to time, you may want to add new songs or delete songs from a playlist. You may also want to organise your playlists.

1 From the main menu, select .

2 Choose Music, then Playlists.

3 Scroll to the playlist you want to edit and

choose Select, then Options. Choose from:

Add new songs - You can add or delete

songs from the playlist using this option.

Remove from list - Remove a song from

the playlist. Touch Ye s to conﬁ rm.

Move up/Move down - Move the song

up or down the list to change the playing order.

Deleting a playlist

1 From the main menu, select .

2 Choose Music, then Playlists.

3 Scroll to the playlist you want to delete and

select Options.

4 Select Delete and choose Yes to conﬁ rm.

Multimedia

Voice recorder

Use your Voice recorder to record voice memos or other sounds.

1 From the main menu, select .

2 Choose Voice recorder.

3 Select Rec. to begin recording.

4 Select Pause to pause the recording.

5 Select Stop to end the recording.

6 From the Options menu, select Play to

listen to the recording or select Delete to delete it.

Note: You can listen to all of the voice recordings you have saved by selecting

Options, then Go to Voice Recordings.

Sending the voice recording

1 Once you have ﬁ nished recording, select

Options.

2 Select Send and choose from Message,

Bluetooth or Email. If you choose Message or Email, the recording will be

added to the message and you can write

Multimedia

and send it as normal.

LG KT520 | User Guide

Transferring a ﬁ le to your phone

You can also transfer ﬁ les from your computer to your phone using Bluetooth.

1 Make sure your phone and computer have

Bluetooth switched on and that they are visible to one another.

2 Use your computer to send the ﬁ le via

Bluetooth.

3 Accept the ﬁ le by choosing Yes .

4 The ﬁ le will be saved within the

appropriate folder depending on its type. So, for example, a photo will be saved in the My images folder and music in the My sounds folder. If your phone cannot identify the ﬁ le type, it will be saved in the

Others folder.

Note: FIles sent using Bluetooth can only be

saved to the phone's memory.

Organiser

Adding an event to your calendar

1 From the main menu, select , then

Calendar.

2 Select the date you would like to add an

event to. You can choose a date either by scrolling to it using the arrow keys or by selecting Options, then Add new event and manually entering the date.

3 Select Add new event and enter the time

you would like your event to begin. Scroll down using the arrow keys and enter the end time of your event.

4 Scroll down and enter a Subject for the

event.

5 Choose whether or not you would like to

set an Alarm for the event. Scroll left or right to see the available options. You can select for the alarm to go off at the starting time of the event or at a set period of time before the event starts.

6 Choose whether or not the event is a

one-off or if it is to be repeated. You can choose from Daily, Weekly, Monthly, Annually or User setting options. If the event is repeated, you can also enter an Expiration date for when the events will stop repeating.

7 Select Done and your event will be saved

in the calendar. An icon will mark the days that contain events.

Editing a calendar event

1 From the main menu, select , then

Calendar.

2 Choose Options and select Weekly to see

a list of all your events. Scroll to the event you would like to edit and select View. Alternatively select the day of the event in the calendar and select View.

3 Select Options, then Edit and scroll to

the event detail you want to change. Make your modiﬁ cations and choose Done to store the edited event.

Note: You can delete an event from your calendar by viewing the event and choosing

Delete.

Organiser

Sharing a calendar event

1 From the main menu, select , then

Calendar.

2 Choose View to select the event you would

like to share and choose Options.

3 Choose Send and select from Text

message, Multimedia message, Email or Bluetooth.

Adding a memo

1 From the main menu select , then

Memo.

2 Select Add and type your memo.

3 Select Save.

4 Your memo will appear on screen the next

time you open the Memo application.

TIP! You can edit an existing memo.

Select the one you want to edit, choose Options and select Edit.

Organiser

LG KT520 | User Guide

Tools

Setting an alarm

1 From the main menu, select , then

Alarms.

2 Select Add new, from the Options menu.

3 Enter the time you would like the alarm to

sound at.

4 Choose whether you would like your

alarm to sound Once, Daily, Mon - Fri, Mon - Sat, Sat - Sun or Except holiday.

5 Scroll down to choose the alarm sound.

Select Edit to select a new sound.

6 Scroll down and enter a name for the

alarm or keep the suggested name.

7 Select Done.

Note: You can set up to 5 alarms.

Using the calculator

1 From the main menu, select , then

Calculator.

2 Press the numeric keys to input numbers.

3 Use the arrow keys to add, subtract,

multiply and divide.

4 More complex calculations can be

accessed in the Options menu.

5 Press to clear the screen a start a new

calculation.

World time

1 From the main menu, select , then

World time.

2 To add a new city to the list, choose

Options, Add city, then select a city from

the list.

3 To set your current time-zone, select

Options, then Change current city.

Tools

Converter

1 From the main menu, select , then

Converter.

2 You can choose to convert Currency,

Surface, Length, Weight, Temperature, Volume or Speed.

3 Select the units of measurement you would

like to convert from and to.

4 The result of the conversion will appear

below.

Using the stopwatch

1 From the main menu, select , then

Stopwatch.

2 Press Start to begin the timer.

3 Press Lap if you'd like to record a lap time.

4 Press Stop to end the timer.

5 Press Resume to continue timing, or

choose Reset to start again.

Tools

LG KT520 | User Guide

O2 Active

O2 Active brings you up-to date news, sport, weather and trafﬁ c reports, and much more. You can also use it to download the latest ringtones, music, wallpapers and games.

Accessing the web

1 From the main menu, select .

2 To access the browser homepage directly,

select Home to access the O2 Active homepage, or Enter address to type in the URL of the web-page you'd like to visit.

Note: An additional cost is incurred when connecting to this service and downloading content. Check data charges with your network provider.

Adding and accessing bookmarks

For quick and easy access to your favourite websites, you can add bookmarks and save web-pages.

1 When viewing a page that you'd like

to bookmark, select Options, then Bookmarks.

2 Select Add to bookmarks.

3 Conﬁ rm title and press Done.

4 Select a folder to store the bookmark in.

TIP! After opening the page in browser, you can save the current page by selecting Save page.

Accessing a saved page

1 From the main menu, select .

2 Select Saved pages.

3 Choose a page and select Open.

Viewing your browser history

1 From the main menu, select .

2 Select History.

3 A list of web-pages you have accessed

recently will be displayed. If you'd like to open one of them, you can.

Changing the web browser settings

1 From the main menu, select .

Then choose Settings.

2 You can choose the way your mobile

handles, displays and uses information when browsing the internet. You can modify a variety of settings by selecting

Options, then Settings.

O2 Active

Settings

Within this folder you can change the phone's settings to personalise your KT520.

Changing your screen settings

1 From the main menu, select .

2 Select Screen and choose from:

Screen theme - Modify your phone's

display, including wallpaper.

Menu style - Choose the style used to

display menus.

Dialling - Adjust the font style used when

entering a phone number.

Font - Adjust the font type.

Backlight - Choose how long the

backlight remains on for.

Handset theme - Change the look of your

screen.

Greeting message - Choose to add a

message to your standby screen.

Note: The longer the backlight is on for,

the more battery power is used and you may need to charge your phone more often.

Settings

LG KT520 | User Guide

Activating your proﬁ les

From the main menu, choose Settings, then Proﬁ les. Select the proﬁ le you would like

to activate. Choose from:

Normal

Silent

Outdoor

Flight mode

Customised 1

Customised 2

Customised 3

Personalising your proﬁ les

1 Choose the proﬁ le setting you want to edit

and select Options, then Edit.

2 For the Silent proﬁ le, you can switch

vibration on or off. For the other proﬁ les, you can change sounds and alerts.

Other phone settings

From the main menu, choose Settings. You can then adjust the settings for the following areas.

Phone - Change the phone settings for

the key lock, mouse pointer, languages and power saving. You can also view handset information.

Screen - Change your screen settings.

Date & Time - Adjust the date and time

settings or choose to automatically update the time when you travel.

Network - Your KT520 automatically

connects to your preferred network. To change these settings use this menu. You can also add new access points using this menu.

Internet proﬁ les - Add and view the O2

network proﬁ les.

Access points - Your network operator

has already saved this information.

Packet data conn. - Set the packet data

connection.

Streaming setting - Set the provider's

streaming setting and the default setting value of KT520 for O2 is "O2 Pay Monthly".

Reset settings - Reset all the settings to

their factory deﬁ nitions.

Changing your security settings

Change your security settings to keep your KT520 and the important information it holds protected.

From the main menu, choose Settings, then

Security.

PIN code request - A PIN code can be

requested when you turn your phone on.

Handset lock - Choose when your security code will be requested.

Change codes - Change your Security code, PIN code or PIN2 code.

Settings

Using Memory manager

Your KT520 has three memories available: the phone; the SIM card; and an external memory card (you may need to purchase the memory card separately).

You can use Memory manager to determine how each memory is used and see how much space is available.

From the main menu, choose Settings, then

Memory manager. Your options are:

Handset common memory - View the

memory available on your KT520 for images, sounds, videos, multimedia messages, email, java and others.

Handset reserved memory - View the memory available on your handset for a variety of items.

USIM memory - View the memory available on your SIM Card.

Settings

LG KT520 | User Guide

External memory - View the memory available on your external memory card (you may need to purchase the memory card separately).

Primary storage setting - Choose between Handset memory and External memory

as the primary storage.

Bluetooth

Bluetooth is a great way to send and receive ﬁ les as no wires are needed and connection is quick and easy. You can also connect a Bluetooth headset to make and receive calls.

Before you can start sharing ﬁ les with Bluetooth, you will need to pair your device with another Bluetooth device. For information on pairing devices, see Pairing with

another Bluetooth device on the next page.

To switch Bluetooth on:

1 From the main menu, choose

Connectivity, then Bluetooth.

2 Select Turn on.

To send a ﬁ le:

1 Open the ﬁ le you want to send.

2 Select Options and choose Send, then

Bluetooth.

3 Your KT520 will automatically search for

other Bluetooth enabled devices within range.

4 Choose the device you want to send the

ﬁ le to and select Send.

TIP! Keep an eye on the progress bar to

make sure your ﬁ le is sent.

To receive a ﬁ le:

1 To receive ﬁ les, your Bluetooth must be

both on and visible. See Changing your Bluetooth settings on the next page for

more information.

2 A message will prompt you to accept the

ﬁ le from the sender. Select Yes to receive the ﬁ le.

Changing your Bluetooth settings

1 From the main menu, choose

Connectivity, then Bluetooth.

2 Choose Settings.

You can make changes to the following:

My device visibility - Choose from

Visible, Hidden or Visible for 1 min..

My device name - Enter a personalised

name to identify your KT520.

Supported services - Search for the

proﬁ le supported by KT520.

My address - View your Bluetooth

address.

Settings

Pairing with another Bluetooth device

By pairing your KT520 and another device, you can set up a passcode protected connection. This means your communications are more secure.

1 Check your Bluetooth is on and visible.

2 Select Search for new device from the

Bluetooth menu.

3 Your KT520 will search for devices.

When the search is completed Add and Refresh will appear on screen.

4 Choose the device you want to pair with,

select Add, enter the passcode and choose Select.

5 Your phone will then connect to the other

device, on which you should enter the same passcode.

6 Your passcode-protected Bluetooth

connection is now ready.

Settings

LG KT520 | User Guide

Accessories

These accessories are supplied with your KT520.

Charger

Battery

Data cable and CD

Connect and synchronise your KT520 with your PC.

User guide

Learn more about your KT520.

Stereo headset and handsfree connector

KT520

Note:

• Always use genuine LG accessories.

• Failure to do this may invalidate your

warranty.

• Accessories may be different in different

regions; please check with our regional service company or agent for further inquires.

Accessories

Network service Technical data

The wireless phone described in this guide is approved for use on the GSM 900, DCS 1800, PCS 1900 and W-CDMA networks.

A number of features included in this guide are called Network Services. These are special services that you arrange through your wireless service provider. Before you can take advantage of any of these Network Services, you must subscribe to them through your service provider and obtain instructions for their use from your service provider.

Network service

LG KT520 | User Guide

General

Product name : KT520

System : GSM 900 / DCS 1800 / PCS 1900

/ W-CDMA

Ambient Temperatures

Max : +55°C (discharging), +45°C (charging)

Min : -10°C

Declaration of Comformity

Suppliers Details

Name

LG Electronics Inc

Address

LG Electronics Inc. LG Twin Towers 20, Yeouido-dong, Yeongdeungpo-gu, Seoul, Korea 150-721

Product Details

Product Name

GSM 900 / DCS 1800 / PCS 1900 / W-CDMA Terminal Equipment

Model Name

KT520/KT525

Trade Name

Applicable Standards Details

R&TTE Directive 1999/5/EC

EN 301 489-01 V1.6.1, EN 301 489-07 V1.3.1 EN 301 489-17 V1.2.1, EN 301 489-24 V1.3.1 EN 301 511 V9.0.2 EN 301 908-1 V2.2.1 EN 301 908-2 V3.2.1, EN 300 328 V1.6.1 EN 50360/EN 50361:2001 EN 60950-1 : 2001

Supplementary Information

I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complies with the above mentioned standards and Directives

LG Electronics Inc. Amsterdam Ofﬁ ce Veluwezoom 15, 1327 AE Almere, The Netherlands Tel : +31 - 36- 547 - 8940, e-mail : seokim@lge.com

Name Issued Date

Seung Hyoun, Ji / Director

Signature of representative

31.Mar. 2008

Guidelines for safe and efﬁ cient use

Please read these simple guidelines. Not following these guidelines may be dangerous or illegal.

Exposure to radio frequency energy

Radio wave exposure and Speciﬁ c Absorption Rate (SAR) information

This mobile phone model KT520 has been designed to comply with applicable safety requirements for exposure to radio waves. These requirements are based on scientiﬁ c guidelines that include safety margins designed to assure the safety of all persons, regardless of age and health.

• The radio wave exposure guidelines

employ a unit of measurement known as the Speciﬁ c Absorption Rate, or SAR. Tests

Guidelines for safe and efﬁ cient use

for SAR are conducted using standardised methods with the phone transmitting at its highest certiﬁ ed power level in all used frequency bands.

• While there may be differences between

the SAR levels of various LG phone models, they are all designed to meet the relevant guidelines for exposure to radio waves.

LG KT520 | User Guide

• The SAR limit recommended by the

International Commission on Non-Ionizing Radiation Protection (ICNIRP) is 2 W/kg averaged over 10g of tissue.

• The highest SAR values for this model

phone tested by DASY4 for use at the head and body are 0.284 W/kg and 0.402 W/kg (10g) each.

• SAR data information for residents in

countries/regions that have adopted the SAR limit recommended by the Institute of Electrical and Electronics Engineers (IEEE), which is 0.631 W/kg averaged over 1g of tissue.

Product care and maintenance

WARNING: Only use batteries,

chargers and accessories approved for use with this particular phone model. The use of any other types may invalidate any approval or warranty applying to the phone, and may be dangerous.

• Do not disassemble this unit. Take it to a

qualiﬁ ed service technician when repair work is required.

• Keep away from electrical appliances such

as TVs, radios, and personal computers.

• The unit should be kept away from heat

sources such as radiators or cookers.

• Do not drop.

• Do not subject this unit to mechanical

vibration or shock.

• Switch off the phone in any area where

you are required by special regulations. For example, do not use your phone in hospitals as it may affect sensitive medical equipment.

• Do not handle the phone with wet hands

while it is being charged. It may cause an electric shock and can seriously damage your phone.

• Do not to charge a handset near

ﬂ ammable material as the handset can become hot and create a ﬁ re hazard.

• Use a dry cloth to clean the exterior of the

unit (do not use solvents such as benzene, thinner or alcohol).

• Do not charge the phone when it is on soft

furnishings.

• The phone should be charged in a well

ventilated area.

• Do not subject this unit to excessive smoke

or dust.

• Do not keep the phone next to credit

cards or transport tickets; it can affect the information on the magnetic strips.

• Do not tap the screen with a sharp object

as it may damage the phone.

• Do not expose the phone to liquid or

moisture.

• Use the accessories like earphones

cautiously. Do not touch the antenna unnecessarily.

Efﬁ cient phone operation

Electronics devices

All mobile phones may get interference, which could affect performance.

• Do not use your mobile phone near

medical equipment without requesting permission. Avoid placing the phone over pacemakers, for example, in your breast pocket.

• Some hearing aids might be disturbed by

mobile phones.

• Minor interference may affect TVs, radios,

PCs, etc.

Guidelines for safe and efﬁ cient use

Road safety

Check the laws and regulations on the use of mobile phones in the area when you drive.

• Do not use a hand-held phone while

driving.

• Give full attention to driving.

• Use a hands-free kit, if available.

• Pull off the road and park before making

or answering a call if driving conditions so require.

• RF energy may affect some electronic

systems in your vehicle such as car stereos and safety equipment.

• When your vehicle is equipped with an

air bag, do not obstruct with installed or portable wireless equipment. It can cause

Guidelines for safe and efﬁ cient use

the air bag to fail or cause serious injury due to improper performance.

• If you are listening to music whilst out and

about, please ensure that the volume is at a reasonable level so that you are aware of your surroundings. This is particularly imperative when near roads.

LG KT520 | User Guide

Avoid damage to your hearing

Damage to your hearing can occur if you are exposed to loud sound for long periods of time. We therefore recommend that you do not turn on or off the handset close to your ear. We also recommend that music and call volumes are set to a reasonable level.

Blasting area

Do not use the phone where blasting is in progress. Observe restrictions, and follow any regulations or rules.

Potentially explosive atmospheres

• Do not use the phone at a refueling point.

• Do not use near fuel or chemicals.

• Do not transport or store ﬂ ammable

gas, liquid, or explosives in the same compartment of your vehicle as your mobile phone and accessories.

In aircraft

Wireless devices can cause interference in aircraft.

• Turn your mobile phone off before boarding

any aircraft.

• Do not use it on the ground without

permission from the crew.

Children

Keep the phone in a safe place out of the reach of small children. It includes small parts which may cause a choking hazard if detached.

Emergency calls

Emergency calls may not be available under all mobile networks. Therefore, you should never depend solely on the phone for emergency calls. Check with your local service provider.

Battery information and care

• You do not need to completely discharge

the battery before recharging. Unlike other battery systems, there is no memory effect that could compromise the battery’s performance.

• Use only LG batteries and chargers. LG

chargers are designed to maximize the battery life.

• Do not disassemble or short-circuit the

battery pack.

• Keep the metal contacts of the battery

pack clean.

• Replace the battery when it no longer

provides acceptable performance. The battery pack maybe recharged hundreds of times until it needs replacing.

• Recharge the battery if it has not been

used for a long time to maximize usability.

• Do not expose the battery charger to direct

sunlight or use it in high humidity, such as in the bathroom.

Guidelines for safe and efﬁ cient use

• Do not leave the battery in hot or cold

places, this may deteriorate the battery performance.

• There is risk of explosion if the battery is

replaced by an incorrect type.

• Dispose of used batteries according to

the manufacturer’s instructions. Please recycle when possible. Do not dispose as household waste.

• If you need to replace the battery, take it

to the nearest authorized LG Electronics service point or dealer for assistance.

• Always unplug the charger from the wall

socket after the phone is fully charged to save unnecessary power consumption of the charger.

Guidelines for safe and efﬁ cient use

LG KT520 | User Guide

Guidelines for safe and efﬁ cient use

LIMITED WARRANTY STATEMENT

1. WHAT THIS WARRANTY COVERS :

LG offers you a limited warranty that the enclosed phone and its enclosed accessories will be free from defects in material and workmanship according to the following terms and conditions:

(1) The limited warranty for the product extends the warranty period beginning on the

date of purchase of the product.

(2) The limited warranty applies for 1 year from the original date of purchase and extends

only to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user. It shall neither exclude nor limit any mandatory statutory rights of the customer or any of the customer rights against the seller/dealer of the product.

(3) This warranty is good only to the original purchaser during the warranty period, but

limited to certain country if speciﬁ ed.

(4) The external housing and cosmetics parts shall be free of defects at the time of

shipment and, therefore, shall not be covered under these limited warranty terms.

(5) Upon request from LG. or their designated ser vice agent the consumer must provide

information to reasonably prove the date of purchase.

(6) Unless other service arrangements have been speciﬁ ed the customer shall bear the

cost of shipping a defective product back to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty.

(7) During the warranty period LG or its authorised service agent will repair or replace

at LG’s sole discretion a defective product. A repaired or replaced product will not be given a prolonged or renewed warranty period.

2. WHAT THIS WARRANTY DOES NOT COVER :

(1) Defects OR Damages resulting from use of the product in other than its normal and

customary manner.

(2) Defects or damages from abnormal use, abnormal conditions, improper storage.

exposure to moisture or dampness, unauthorised modiﬁ cations, unauthorised connections, unauthorised repair, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping, blown fuses, spills of food or liquid.

(3) Breakage or damage to antennas unless caused directly by defects in material or

workmanship.

(4) A warranty repair if the Customer Service Department at LG or other agreed service

agent was not notiﬁ ed by the consumer of the alleged defect or malfunction of the product during the applicable limited warranty period.

(5) Products which have had the serial number or IMEI number removed or made

illegible.

(6) This limited warranty is in lieu of all other warranties, express or implied either in

fact or by operations of law, statutory or otherwise, including, but not limited to any

implied warranty of marketability or ﬁ tness for a particular use. (7) Damage resulting from use of non-LG approved accessories. (8) All plastic surfaces and all other externally exposed parts that are scratched or

damaged due to normal customer use. (9) Products operated outside published maximum ratings. (10) Products used or obtained n a rental program. (11) Consumables (such as fuses). (12) Suspected defects caused by a failure of the cellular network.

3. CONDITIONS :

No other express warranty is applicable to this product.

The DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY, IL LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HERIN. LG ELECTRONCS INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCOVINIENCE, LOO OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED MARKETABLITY APPLICABLE TO THIS PRODUCT.

Some do not allow the exclusive of limitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you speciﬁ c legal rights and you may also have other rights which vary from country to country.

LG Electronics KT520MMBB0282002 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
