P/NO.:MFL63730269
Table of Contents
Introduction
Installation
Operation
Registration
Important Safety Instruction
Indentification of Parts
Installation
Starting
Temperature Control
Display Panel
How to adjust the temperature in the
refrigerator and freezer compartment
Fresh 0 Zone (Option)
Function
Super Freezer
Vacation
Lock
On/Off
Memory Feature
Door Alarm
Self Test
Ice Making
Defrosting
Water Dispenser
4
4
17
18
18
19
19
20
20
21
21
21
21
22
22
22
22
22
22
23
Suggestion On
Food storage
Care and
Maintenance
Trouble Shooting
To Reverse the Doors
Storing Food
General Information
Lamp Replaceme n t
Cleaning
Trouble Shooting
Precaution
How to Reverse the Door
3
25
26
26
27
29
31
31
Introduction

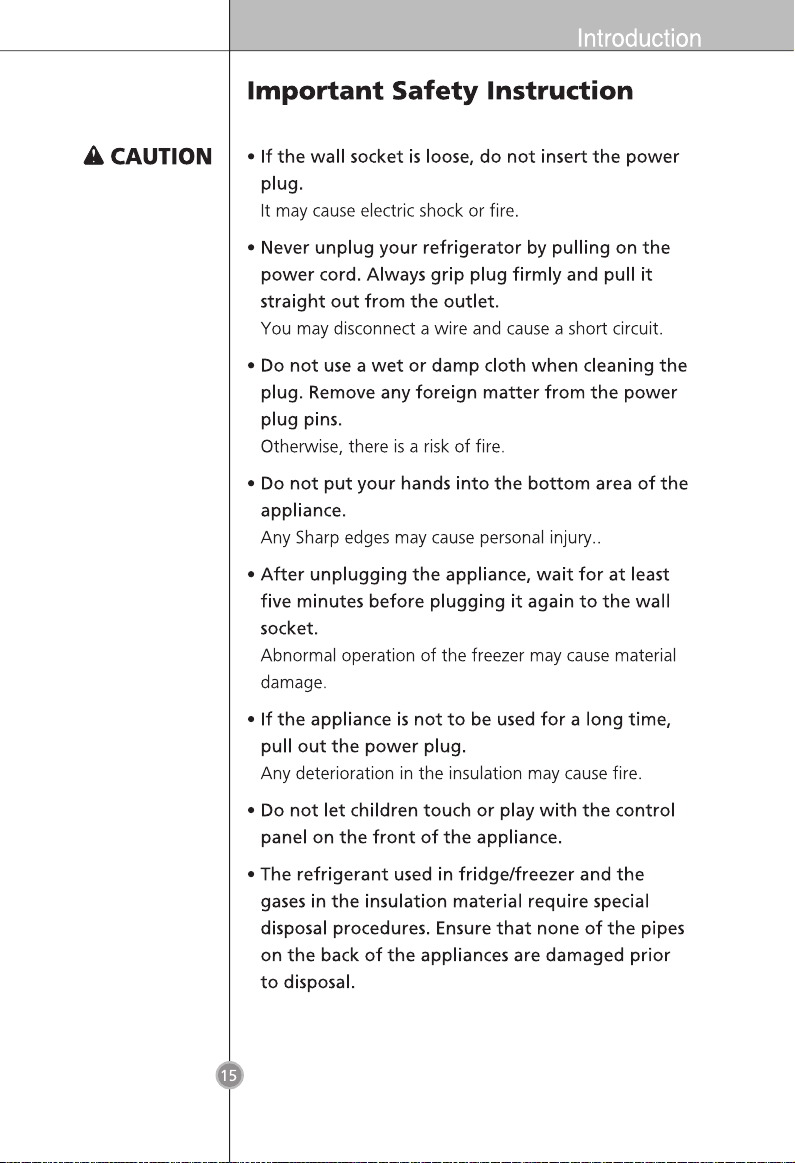

Important Safety Instruction
Water tank can fill with potable
water only.
Do not install the fridge-freezer in the wet place or
the place which water or rain splashes.
Deterioration of insulation of electric
parts may cause electric leakage.
Do not use or store inflammable materials ether,
benzene, alcohol, medicine, LP gas, spray or
cosmetics near or in the fridge-freezer.
It may cause explosion or fire.
Do not place the lit candle within the fridge-freezer
to deodorize.
It may cause explosion or fire.
Do not store the medicine or the academic materials
at the fridge-freezer.
When the material with the strict
temperature control is stored, it may be
deteriorated or it may make an
unexpected reaction to cause any risk.
Do not use the combustible spray near the fridgefreezer.
It may cause fire.
7
Multi-air Flow Duct
Lamp
Removable
Glass Shelf
Fresh 0 Zone
(Option)
Vegetable Drawer
Used to keep fruits
and vegetables, etc.
fresh and crisp.
Ice Cube Tray
Freezer
Compartment
Removable
Plinth
Utility Corner
(movable)
Door Basket
Egg Tray
Water Tank
Handle
(Oval/Bar)
2 Bottle Door
Basket
Leveling Screw
Note
Parts,features,and options vary by model.
Your model may not include every option.
Operation
Temperature Control
Your fridge-freezer has two controls that let you regulate
the temperature in the fridge and freezer compartments.
Display Panel
Temperature
Adjustment
Button for
Freezer
Compartment
Super
Freezer
Button
Display Panel For Temperature Control
REF. TEMP.
FRZ. TEMP.
REF. TEMP.
FRZ. TEMP.
Vacation
Button
ON/OFF
Button
Temperature
Adjustment
Button for
Refrigerator
Compartment
Lock
Button
19
Operation
How to adjust
the temperature
in the refrigerator
and freezer
compartment
Fresh 0 Zone
(Option)
• You can now adjust the temperature of the refrigerator
and freezer compartment as you want.
FRZ. TEMP.
REF. TEMP.
FRZ. TEMP.
REF. TEMP.
• When you press the temperature control buttons, the
temperature of Refrigerator and Freezer compartment is
repeated in the following order.
Refrigerator Compartment :
C °0 →1 → C °2 → C °3 → 4 → → → 0°C
C ° C °
5 C °
6 C °
Freezer Compartment :
-19°C → -20°C → -21°C → -22°C → -23°C → -15°C
→ -16°C → -17°C → -18°C → -19°C
• This drawer is designed to set up 2°C lower than the
temperature of the refrigerator compartment to keep the
contents fresh for longer period.
When setting up the refrigerator temperature (REF. TEMP.)
to 2°C, the temperature in the fresh drawer is about 0°C.
Note
The actual inner temperature varies depending on the
food status, as the indicated setting temperature is a
target temperature, not actual temperature within
refrigerator.
Refrigeration function is weak in the initial time.
Please adjust temperature as above after using
refrigerator for minimum 2~3 days.
20
9 1
Function
Operation
Super Freezer
Vacation
• This function is used when you want to freeze the
foods quickly. Press the ‘SUPER FRZ.’ (Super Freezer)
button once, and then the quick freeze operation starts
with the display light on.
• The Super Freeze operation takes about 3 hours. When
its operation ends, it automatically returns to the
previous temperature setting. If you want to stop the
quick freeze operation, press the ‘SUPER FRZ.’ button
once more, the display light goes out, and the Super
Freeze operation stops and the refrigerator returns to
the previous temperature setting.
• This function makes the fridge-freezer work in a power
saving mode which is useful for when you are away on
holiday, by reducing energy consumption as much as
possible.
Pressing ‘VACATION’ starts operation with display light
on and pressing it again stops the operation.
Lock
• Pressing this button stops operation of other buttons.
• ”Locking” or “Un-Locking” is repeated whenever
pressing the ‘CHILD LOCK’ button. (For “Locking” or
“Un-Locking” press the ‘CHILD LOCK’ button for 3 secs.)
• When ‘CHILD LOCK’ is activated, pressing the other
buttons would not work.
21
Operation
On/Off
•
Pressing this button refrigerator power is ON or OFF.
•
ON or OFF is repeated whenever pressing the ON/OFF
button. (For ON or OFF press the “On/Off” button for
3 secs.)
Memory feature
Door Alarm
Self Test
Ice Making
Tip
Function to save the set temperature and vacation status
and On/Off status. When the power is turned on after
the power failure, it will be restored with the set
temperature and vacation status and On/Off status.
•
3 times of warning of 30 seconds if a minute passes with
the door of refrigerator opened or not completely closed.
• Please contact with the local service center if warning
continue to sound even after closing the door.
• This function automatically detects failure when failure
is found in product during the use of refrigerator.
• If the failure occurs at product and it does not operate
by pressing any button and normal indication is not
done, do not turn the power off and immediately
contact with the local service center.
• A lot of time is needed for service engineer to detect
the failed part by turning it off.
• To make ice cubes, fill the ice
tray to the water level and place
it in the freezer.
• If ice cubes are required fast,
press the ‘SUPER FRZ.’button.
• To remove ice cubes, hold the
tray at its ends and twist gently.
To remove ice cubes easily, run water on the tray
before twisting.
Defrosting
Defrosting takes place automatically.
The defrosting water flows down to the evaporating tray
and is evaporated automatically.
22
Features
Operation
Water Dispenser
Install
• Please assemble the VALVE ASSEMBLY after correctly
adjusting it with a DOOR HOLE.
23
Operation
Filling of
WATER TANK
Drinking
CAUTION
1. After turning the HANDLE Tank backward with the
WATER TANK installed at the DOOR, Open the CAP
TANK (SMALL) and then fill water using a kettle etc.
* Fill water while watching a sight glass on the front
of the WATER TANK.
* Water up to 4.5L can be filled.
2. Press and fix the CAP TANK(SMALL).
3. After filling spring water, fix the HANDLE TANK at a
proper position.
1. Press the Dispenser Pad with a cup.
2. If pressing the Pad, water inside of the Dispenser is
supplied.
3. If slowly removing a cup from the Pad, water will not
fall down.
Do not use other beverage (milk, juice, carbonated
beverage etc) than spring water. Especially beverage
including grain must not be used (may result in failure).
24
Storing Food
Suggestions on food storage
Storing Food
•
Do not store food which goes bad easily at low
temperature, such as banana, and melon.
•
Allow hot food to cool prior to storing. Placing hot
food in the fridge-freezer could spoil other food, and
lead to higher electric bills.
•
When storing the food, use a container with a lid. This
prevents moisture from evaporating, and helps food to
keep its taste and nutrients.
•
Do not block air vents with food. Smooth circulation of
cold air keeps fridge-freezer temperature even.
•
Do not open the door frequently. Opening the door
lets warm air enter the fridge-freezer, and cause
temperature to rise.
To adjust the temperature control easily, do not store
•
food near the temperature control dial.
•
Never keep too many foods in door rack, as this may
stop the door from fully closing.
•
Do not store bottles in the freezer compartment - they
may break when frozen.
Note
•
Do not refreeze food that has been thawed. This
causes loss of taste and nutrition.
If you keep the fridge-freezer in a hot, and humid
place, frequently open its door or put a lot of
vegetables in it, dew may form in it, which has no
effect on its performance.
Remove the dew with dust cloth free from care.
25
Care and Maintenance
General Information
Power Failure
If You Move
Anti
Condensation
Pipe
•
•
•
•
•
1~2 hour power failure does no harm to the foods
stores. Try to avoid opening and closing the door too
frequently.
Take out foods from the fridge-freezer and firmly fix
the loose items with tape.
Turn the leveling screws until they stop before moving
the fridge-freezer. Otherwise the screw may scratch
the floor or the fridge-freezer cannot move.
The Anti-Condensation
pipe is installed around the
front side of fridge-freezer
as well as on the partition
between fridge
compartment and freezer
compartment to prevent
dewing.
Especially after installation
or when ambient
temperature is high, the fridge-freezer may feel hot,
which is quite normal.
Anti-Condensation
Pipe
Lamp Replacement
Use a DC12V 0.75W LED lamp broad.
If LED lamp is damaged,it should be replaced
by the service center in stead of on your own.
26
•
Lamp
Cleaning
Care and Maintenance
Before Cleaning
Exterior
Interior
After Cleaning
Disposal of the old
appliance
Be sure to unplug the power.
Clean the outside of the fridge-freezer with a soft cloth
soaked with hot water or liquid detergent. If you use a
detergent, be sure to wipe it with a clean wet cloth.
As above.
Check that the power cord is not damaged, power plug
has not overheated, and that the power plug is tightly
inserted into the outlet.
Be sure to dry the appliance with a cloth after washing
it with water.
Do not use abrasive, petroleum, benzene, thinner,
hydrochloride acid, boiling water, rough brush, etc, as
they may damage parts of the fridge-freezer.
This appliance contains fluid (refrigerant, lubricant) and
ismade of parts and materials which are reusable and/
orrecyclable.All the important materials should be sent
to thecollection center of waste material and can be
reusedafter rework (recycling). For take back, please
contactwith the local agency.
27
Care and Maintenance
DRIP TRAY
Exterior Dispenser
WATER TANK
CAP TANK
(Big & Small)
1. Slowly pull the DRIP TRAY out.
2. Afte discharging drip water inside the DRIP TRAY,
clean and fully rinse the DRIP TRAY.
3. Wipe moisture out around the DOOR part and the
DRIP TRAY using a clean cloth.
Wipe moisture etc out outside of Dispenser and on the
DISPENSER PAD using a cloth.
1. Lift the WATER TANK up by pressing the fixing LEVER
on the bottom of WATER TANK and then remove it.
2. After removing the CAP TANK (BIG), clean and fully
rinse the inside/outside part of the WATER TANK by
using neutral cleansing agent.
Clean and fully rinse the CAP TANK (Big & Small) by using
neutral cleansing agent.
Especially for the groove part of the CAP TANK, it is
convenient to cleanse it by using a small brush.
VALVE ASSEMBLY
Clean and fully rinse the VALVE ASSEMBLY by using a
small brush. Rinse it while operating the bottom part of
the valve assembly. Always fix the Sealing Rubber
separated for cleansing at the existing position
(may result in water leakage).
28
Trouble Shooting
Trouble Shooting
Before calling for service, check this list.
It may save you both time and expense.
This list includes common occurrences that are not
the result of defective workmanship or materials in
this appliance.
Problem
Fridge-Freezer
does not operate
Fridge or Freezer
Compartment
Temperature too
warm
Vibration or
Rattling or
Abnormal Noise
Frost or Ice
Crystals on frozen
Food
Possible Causes
• Power plug may be unplugged from the electric
outlet.
Plug it in securely.
• House fuse has blown or circuit breaker has
tripped.
Check and/or replace fuse and reset circuit breaker.
• Power cut.
Check house lights.
• Temperature control not set on proper position.
Refer to Temperature Control section.
• Appliance is placed close to heat source.
• Warm weather-frequent door openings.
• Door left open for a long time.
• Package holding door open or blocking air duct in
freezer compartment.
• The floor on which the fridge-freezer is installed
may be uneven or the fridge-freezer may be
unstable.
Make it even by rotating the leveling screw.
• Unnecessary objects placed in the back side of the
fridge-freezer.
• Door may have been left ajar or package holding
door open.
• Too frequent or too long door openings.
• Frost within package is normal.
Moisture forms on
Cabinet Surface
• This phenomenon is likely to occur in a wet space.
Wipe it with a dry towel.
29
Trouble Shooting
Problem Possible Causes
Moisture collects
inside
Fridge has odor
Door not closing
properly
Interior light does
not work
• Too frequent or too long door openings.
• In humid weather, air carries moisture into fridge
when doors are opened.
• Foods with strong odors should be tightly
covered or wrapped.
• Check for spoiled food.
• Interior needs cleaning.
Refer to CLEANING section
• Food package is keeping door open.
Move packages that keep door from closing.
• Fridge-freezer is not level.
Adjust the leveling screws.
• The floor on which the fridge-freezer is
installed may be uneven or the fridge-freezer
may be unstable.
Slightly raise the front side with the leveling screw.
• No power at outlet.
• Light lamp needs replacing.
Refer to the Lamp Replacement section
30
To Reverse the Doors
Your fridge-freezer is designed with reversible doors,so that they may open from either
the left or right hand side to suit your kitchen design.
Precaution
Before reversing the door, first of all,you should take out food and accessories like
1.
shelves or trays which are not fixed in the fridge-freezer.
Use Torque Wrench or Spanner to fix or remove the bolt.
2.
Do not lay the fridge-freezer down.This will cause problems.
3.
Be careful not to drop the doors in disassembling or
4.
assembling.
How to Reverse the Door
To separate the door handle of the left side, separate
1.
the door cap and unscrew the screw in counterclockwise
2
direction.Separate the door handle of the freezer in the
same order.
2.After unscrewing the screw of the right hinge cover
on the top, separate the right hinge cover to separate
the connecting cable .Separate the bolt fixating the
upper right hinge , and carefully separate the refrigerator
10
door . Remove the left cover .
8
3.After separating the upper left cap of the separated
refrigerator door , carefully take off the top cap and
pull the cable to connect to the hole on the leftside.
Set the separated top cap at the regular position and
set the cap on the cable hole on the right side. Loosen
the screw under the cold room door , move it
to the left of the stopper , and then connect it.
10
13
11
32
44
4.Use a sharp gimlet or knife to disconnect the cap from
the cover front , loosen the screw , and then move
the cable to the left to be mounted. Disconnect the cable
40
and the door switch from the disconnected cover front
14
, swap the position of the disconnected cable and door
38
switch with the cap , mount them, fix them with the
16
screw , and then install the cap .
14
18
1
3
4
6
9
19
12
31
43
38
39
15
5
7
11
12
10
15
16
40
5
3
2
2
2
19
11
1
3
4
6
5
7
8
10
12
10
13
31
43
32
44
18
40
38
14
39
15
16
9
31
5.
Loosen the bolt of the Hinge Middle , remove the Hinge
Middle , and lift up the freezer door to separate it.
20
21
21
30
(When separating the refrigerator door, separate the bush
together.)Separate the hinge cover and set it on the separated
part of middle hinge . After unscrewing the screw connected
to the bottom cover connect the cover cap on the right side.
Loosen the bolt connected to the lower hinge . Unscrew
32
the screw fixating the door stopper at the
44
bottom of the freezer door ,and fixate it on the hole on
21
25
27
30
the left side with the door stopper .and then ,move
the upper cap to the right and cover it.
6.
Set the separate lower hinge and put it in the bag,take
out the lower left hinge of the bag and set the lower
left hinge on the bottom hole of the left side of the
33
45
45
freezer then tighten the bolt .After fixating the bottom
25
cover at the regular position,align the freezer door
on the pin of lower hinge to attach it properly. Turn over
45
the separated middle hinge and sheet hinge to
assemble them. And set the bush and washer together
to tighten the bolt . (When tightening the bolt, be
20
24
26
28
31
43
31
43
28
27
21
35
30
22
23
careful not to cause an scratch on the cap decor on top of
the freezer door).
35
22
23
21
35
24
33
26
25
21
20
45
27
20
28
30
31
43
32
44
30
25
27
After assembling the door by aligning the hinge hole on the
7.
bottom of the refrigerator door and the pin of the
middle hinge , take out the upper left hinge cover
and the left hinge of the bag, After connecting the cable ,
tighten the bolt to screw the screws to the left hinge
cover Take the right cap out of the bag and clean up the
21
37
7
10
36
6
4236
wire, then install it on the right side of the refrigerator top.
Move the separated door handle to the right and fixate the
8.
3
screw on the right position to attach the door cap .Move
the door cap on the right side to the left and attach it. Attach
the freezer door handle in the same method as the refrigerator
41
2
1
2
door handle .1
Note
Reversing the doors is not covered by the warranty.
32
6
36
7
9
37
3
2
3
2
42
9
10
41
41
Loading...
