Page 1
OWNER’S MANUAL
DVD Receiver System
MODEL
HT965TZ (HT965TZ, SH95TZ-S/ C/ W)
P/NO : MFL64940386
Please read this manual carefully before operating your set and retain it for future reference.
Page 2
2
Safety Information
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER­SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sucient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
WARNING: Do not install this equipment in a conned space such as a book case or similar unit.
CAUTION: This product employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center.
Use of controls, adjustments or the performance of procedures other than those specied herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.
CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects lled with liquids, such as vases, shall be placed on the apparatus.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit;
That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specication page of this owner’s manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or re. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.
1 Safety Information
Page 3
3
Safety Information
Safety Information
1
Disposal of your old a ppliance
1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city oce, waste disposal service or the shop where you purchased the product.
LG Electronics hereby declares that this/ these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC, 2006/95/EC, and 2009/125/EC.
European representative :
LG Electronics Service Europe B.V. Veluwezoom 15, 1327 AE Almere, The Netherlands (Tel : +31–(0)36–547–8888)
WARNING: Do not install this equipment in a conned space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. The openings should be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built­in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction have been adhered to.
This device is equipped with a portable battery or accumulator.
Safe way to remove the battery or the battery from the equipment:
Remove the old battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement system batteries and accumulators.
The battery shall not be exposed to excessive heat such as sunshine, re or the like.
Copyrights
It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION ’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p UNIT, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.
You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players.
(Mastered/ Live File System : Disc format system for Windows Vista)
Page 4
4 Contents
Contents
Safety Information
2 CAUTION
Preparation
6 Unique Features
6 Accessorie
s
7 Introductio
n
7 Playable Disc
s
7 About the
Symbol Display
7 Symbol Used in this Manua
l
7 Regional Code
s
8 Playable file Requiremen
t
9 Remote contro
l
11 Front pane
l
12 Rear pane
l
Installation
13 Assembling the speaker stand to
the speaker
15 Mounting the speakers to a wal
l
16 Attaching the speakers to the uni
t

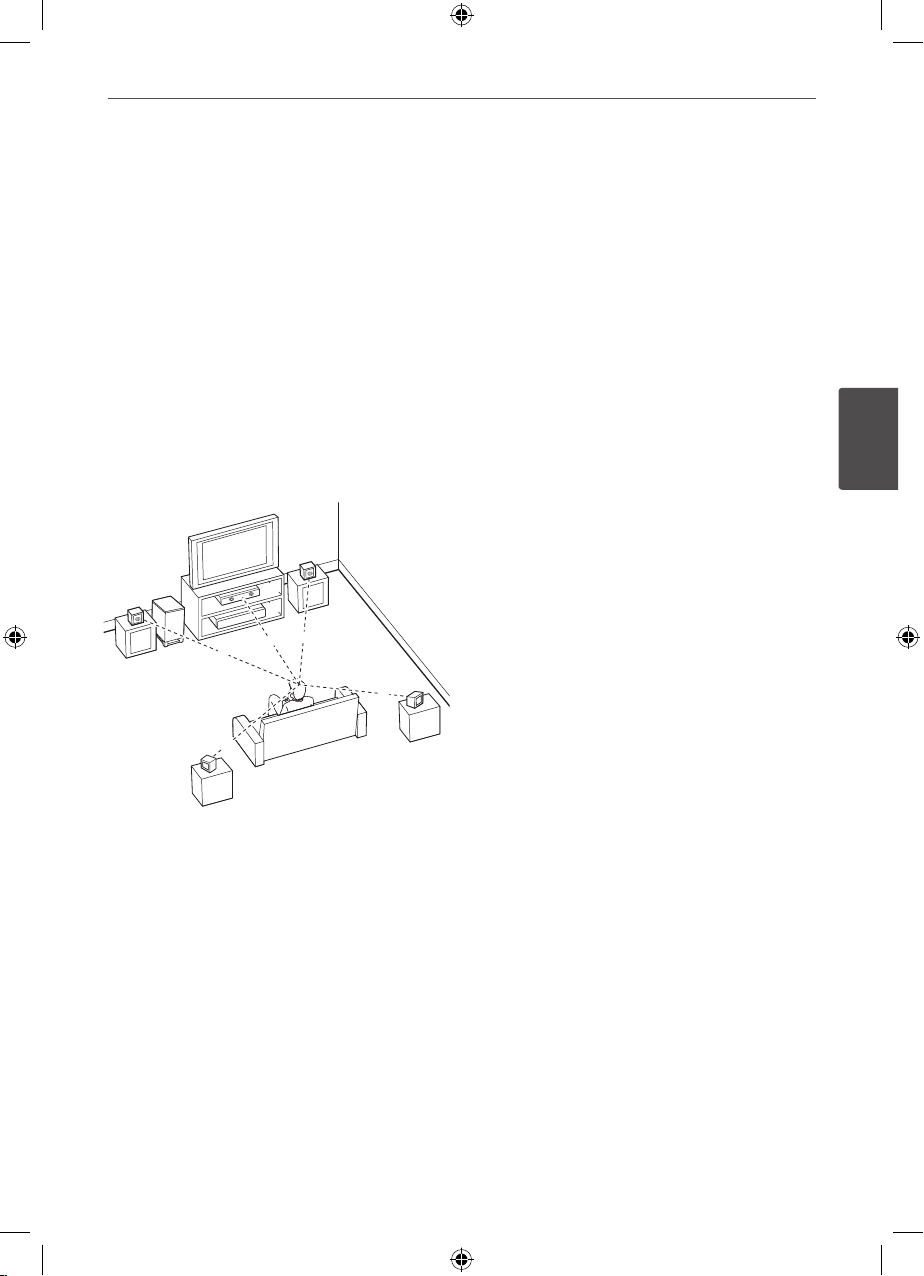

17 Positioning the syste
m
18 Connections to Your T
V

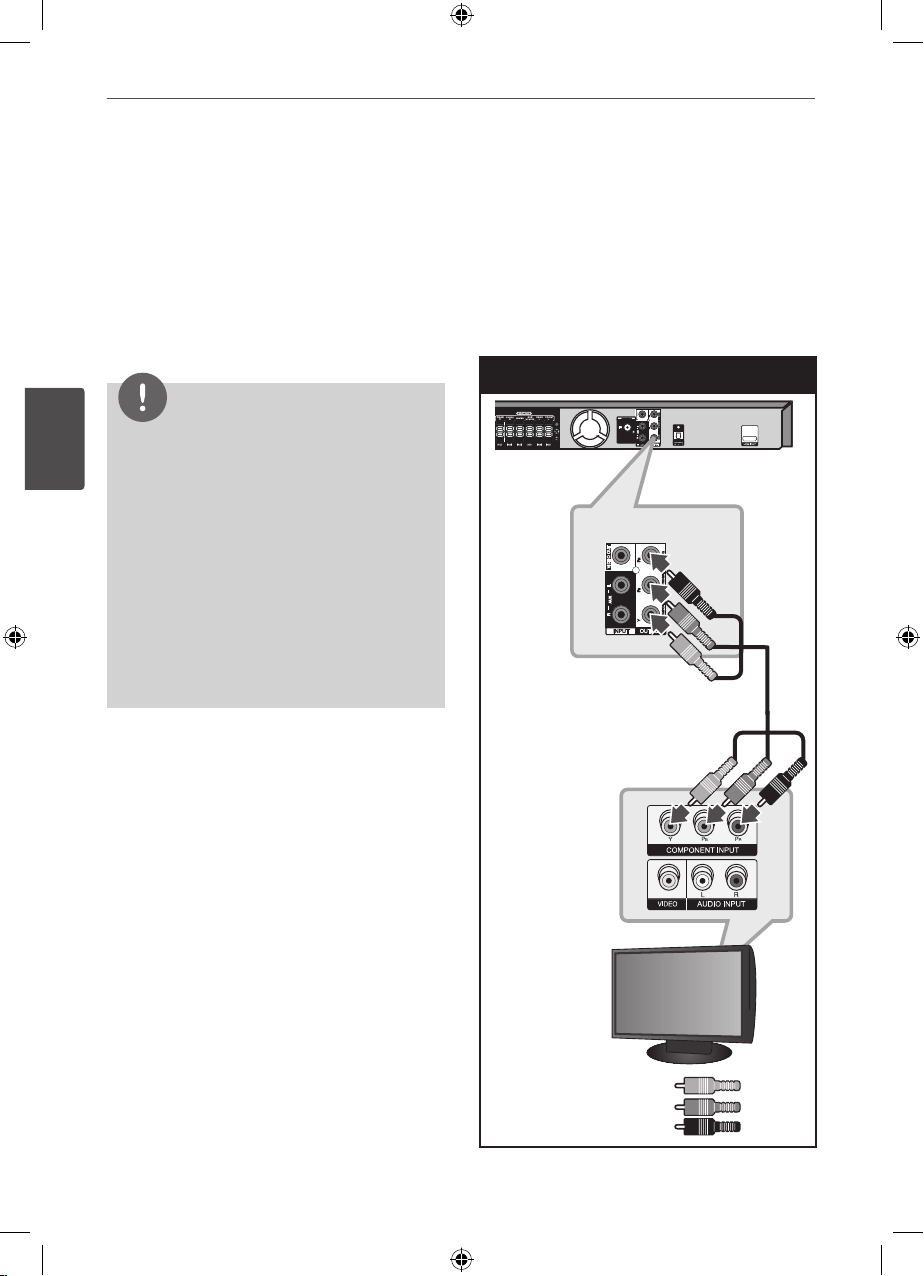

18 Component Video Connectio
n

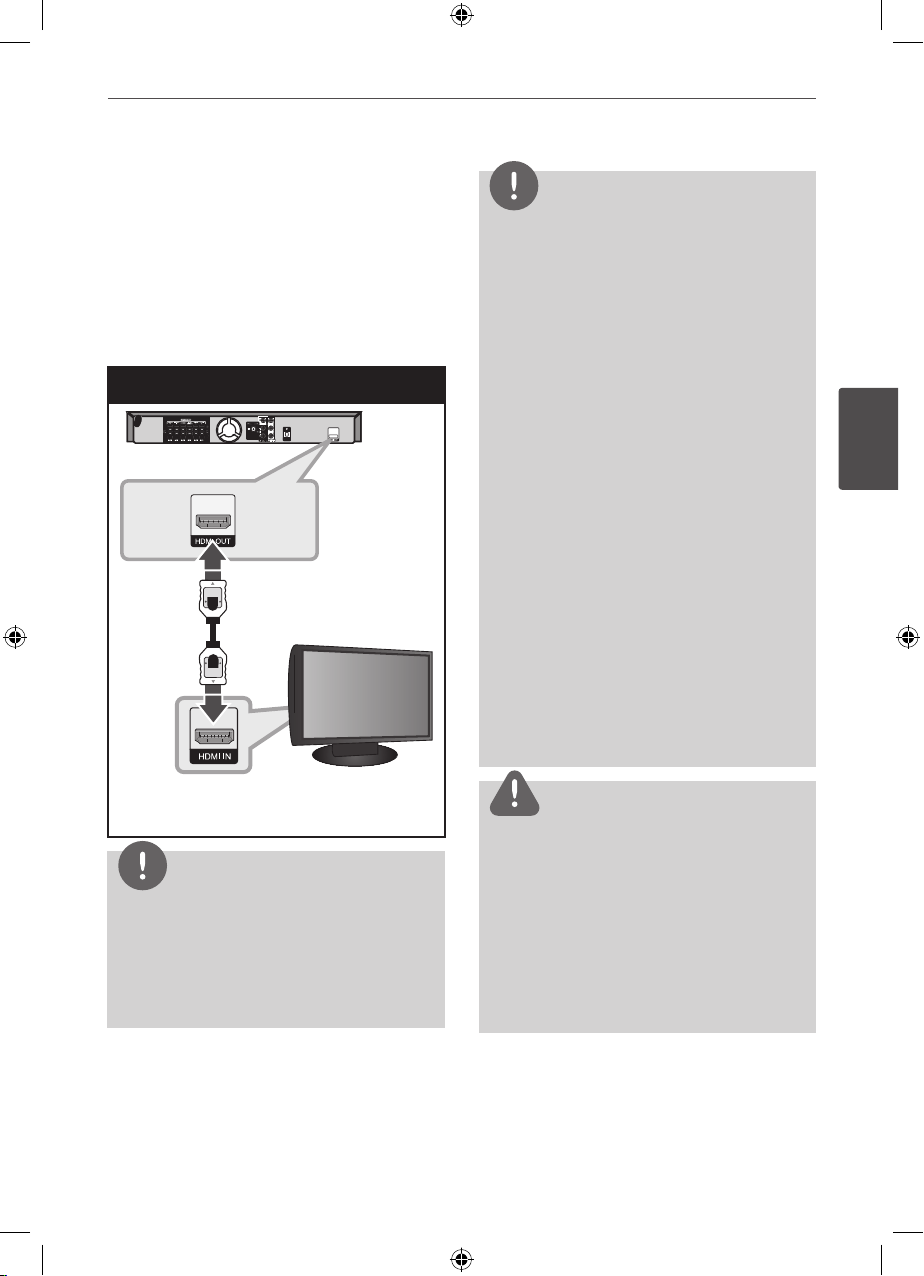

19 HDMI Out Connectio
n

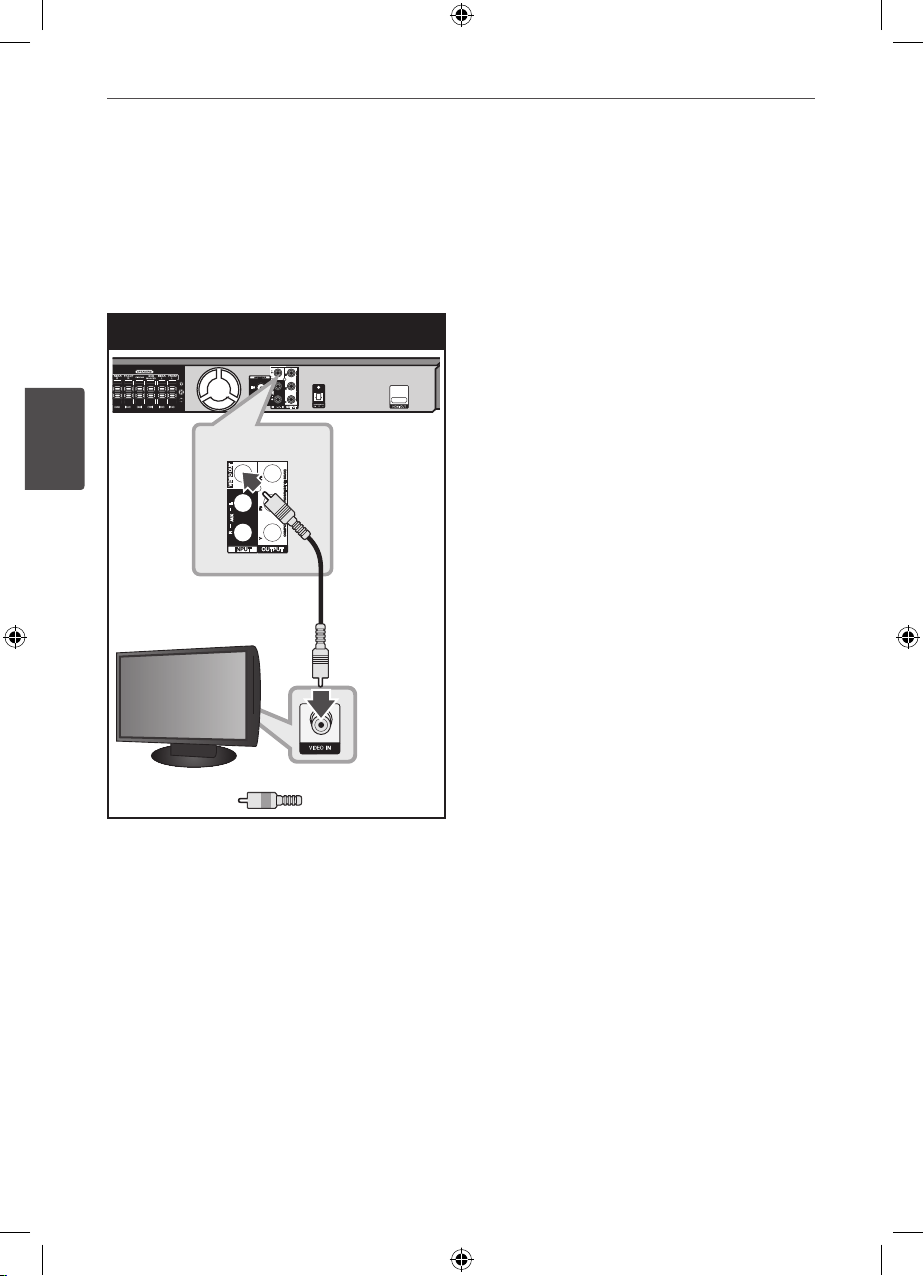

20 Video Connectio
n
21 Resolution Setting
21 Video Output Resolutio
n
22 Optional Equipment Connectio
n

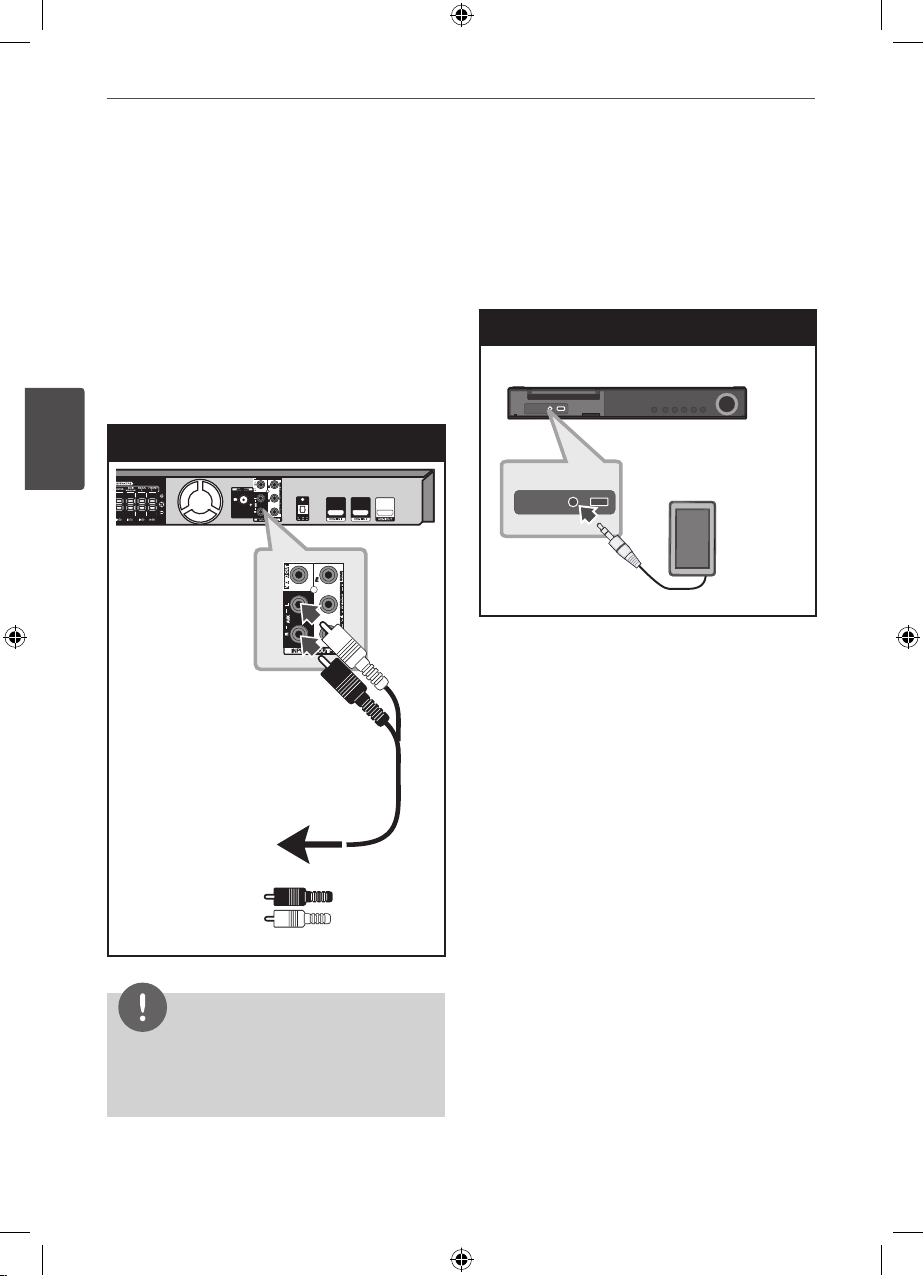

22 AUX IN Connectio
n
22 AUDIO (PORT. IN) In
Connection
22 Listening to music from your
portable player or external
device
23 USB Connectio
n

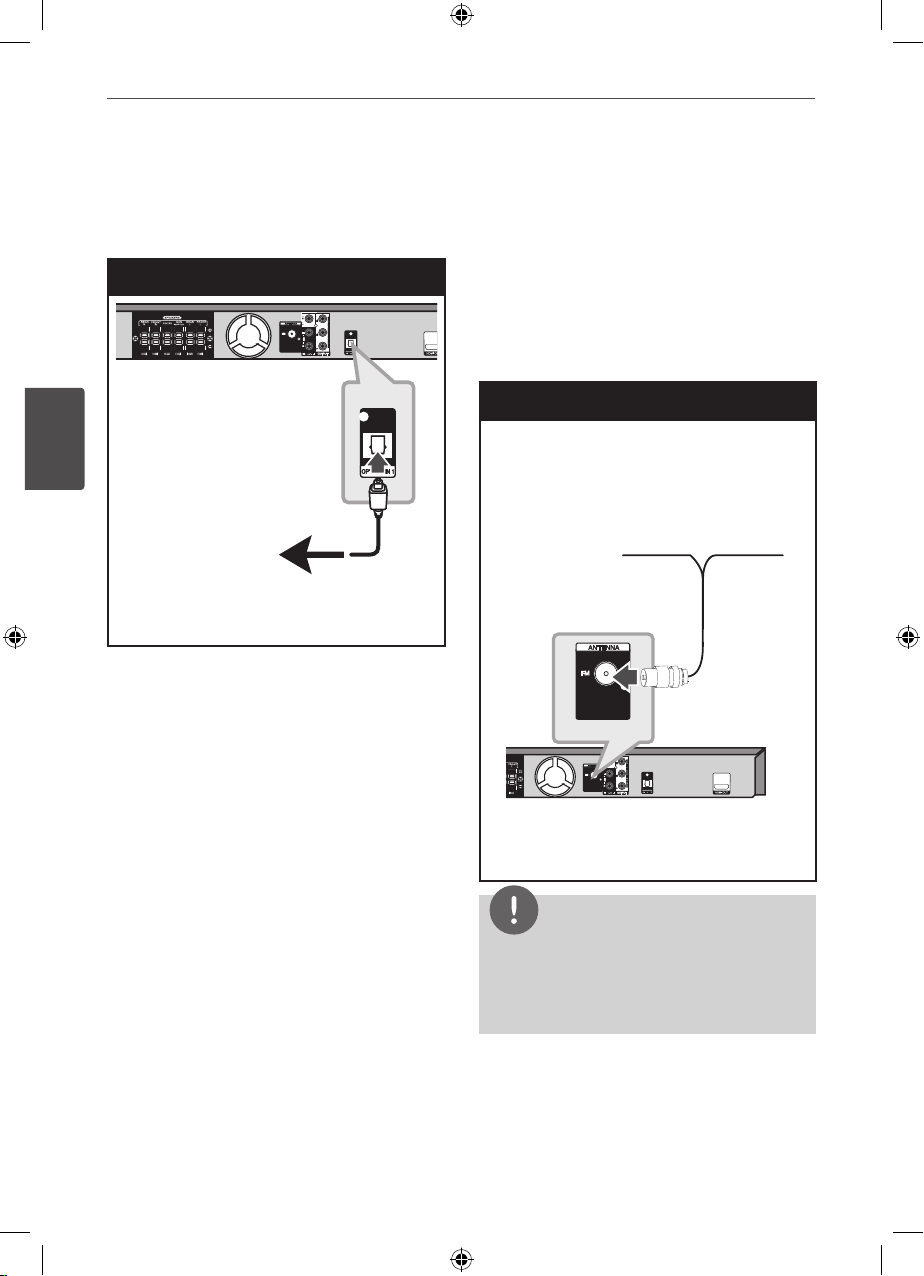

24 OPTICAL IN connectio
n
24 Antenna Connectio
n
25 Adjust the setup setting
s
25 OSD Initial language setting
s

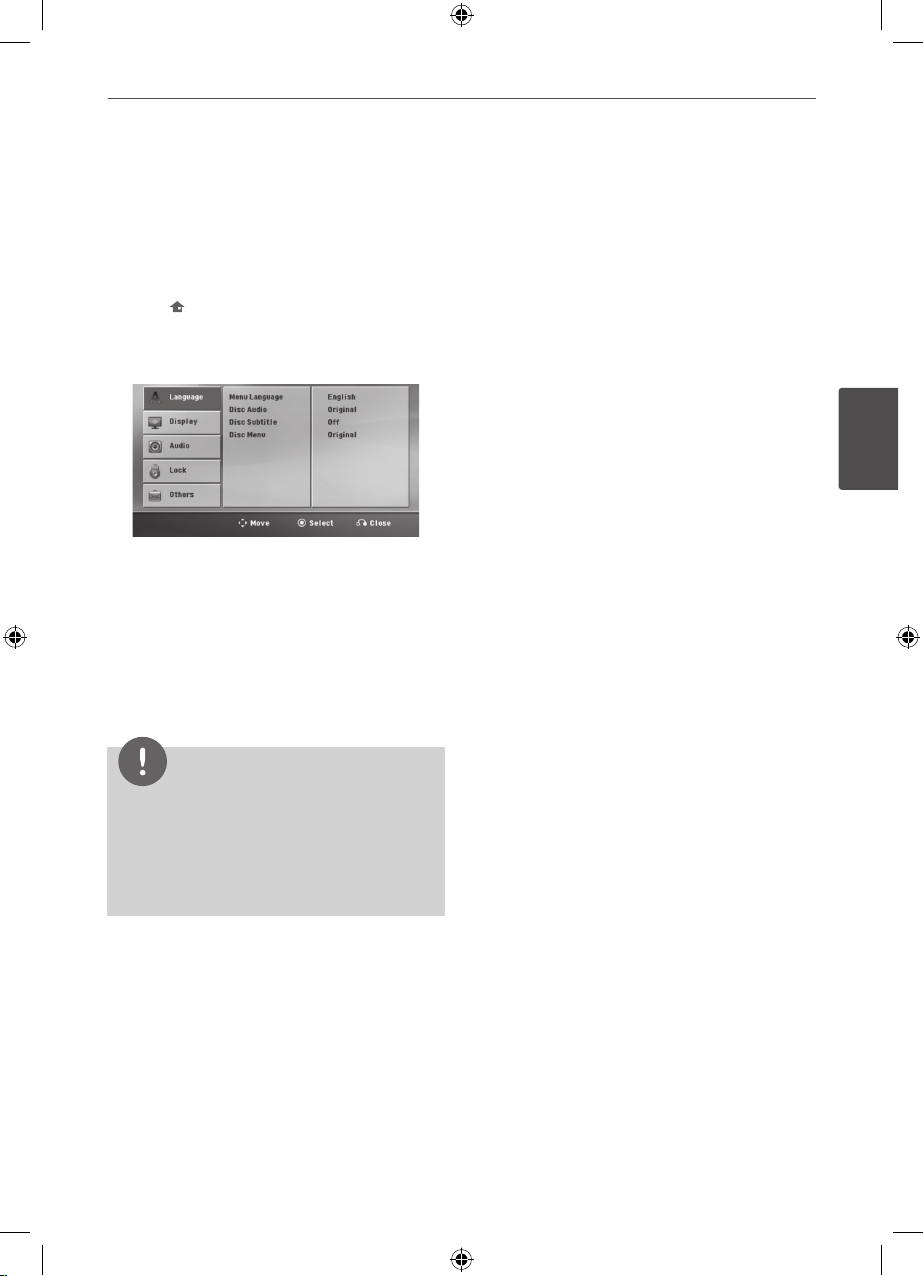

25 To display and exit the Setup
menu
26 Languag
e
26 Displa
y
27 Audi
o
28 Lock (Parental Control
)
29 Other
s
Operation
30 Using the Home Menu
30 Basic Operation
s
31 Other Operation
s
31 Displaying Disc Information on-
screen
32 To display the DVD Menu
32 To display the DVD title
32 1.5 times speed playback
32 Screen Save
r
Page 5
5Contents
1
2
3
4
5
6
7
32 Starting play from selected
time
32 Resume playback
33 Marked Playback
33 Changing subtitle code page
34 Viewing a PHOTO file
34 Options while viewing a phot
o
35 Sleep Timer Settin
g
35 Dimme
r
35 Turn off the sound temporaril
y
35 Last Scene Memory
35 System Select - Optiona
l

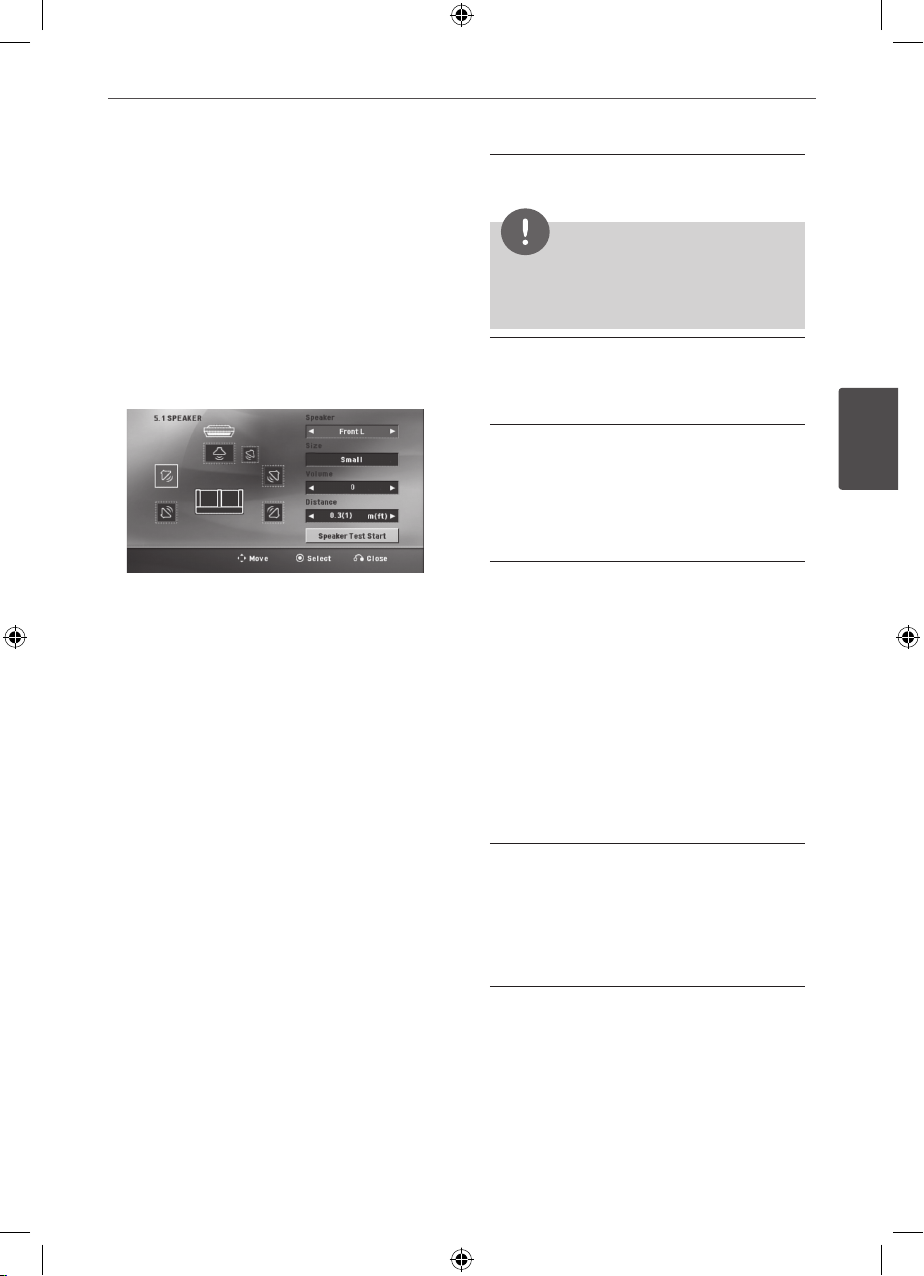

35 Adjust the speaker level
settings
36 Radio Operation
s
36 Presetting the Radio Station
s
36 Deleting all the saved station
s
36 Deleting a saved statio
n
36 Improving poor FM receptio
n
37 Seeing information about a
radio station
38 Sound adjustmen
t
38 Setting the surround mod
e
39 Advanced Operation
s

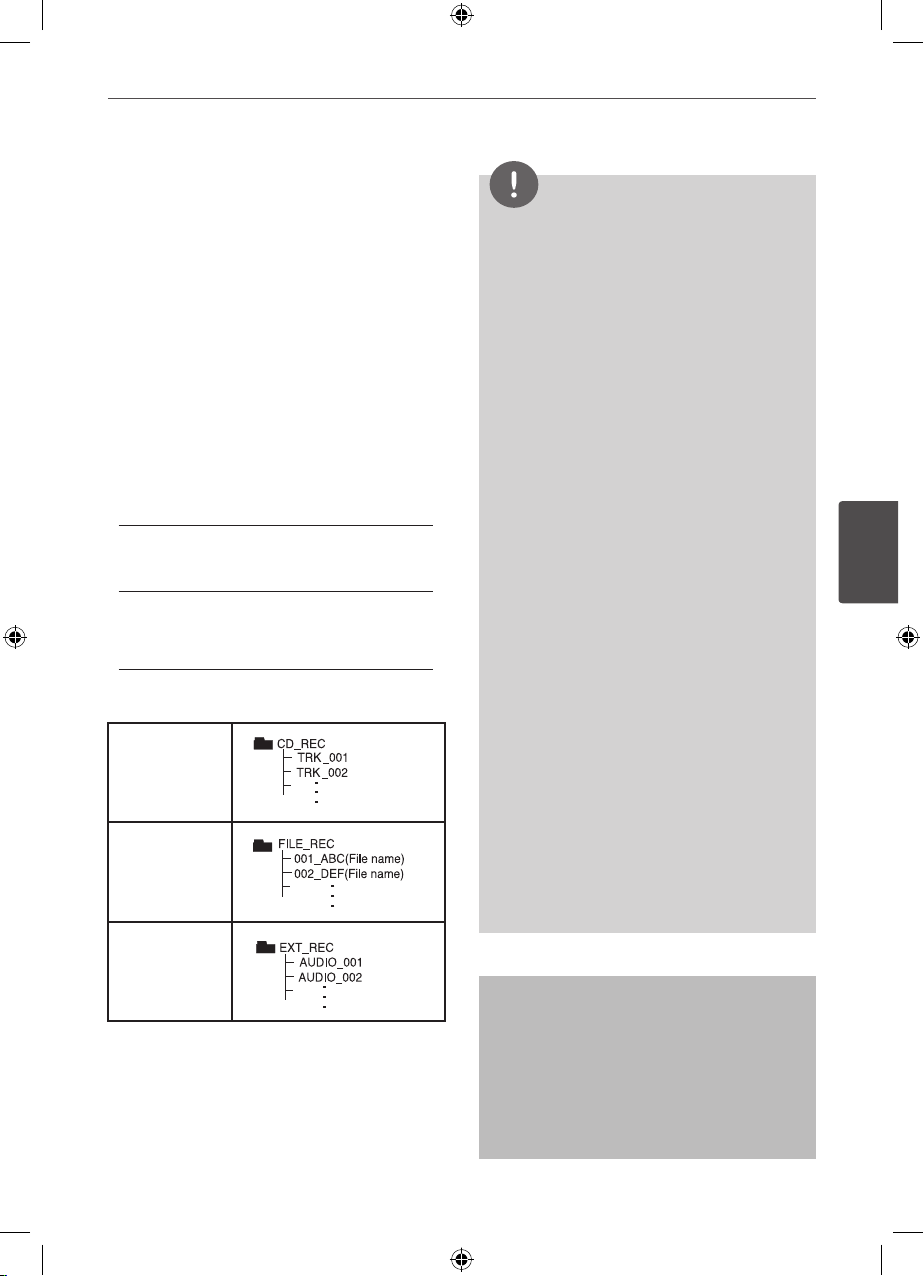

39 Recording to US
B

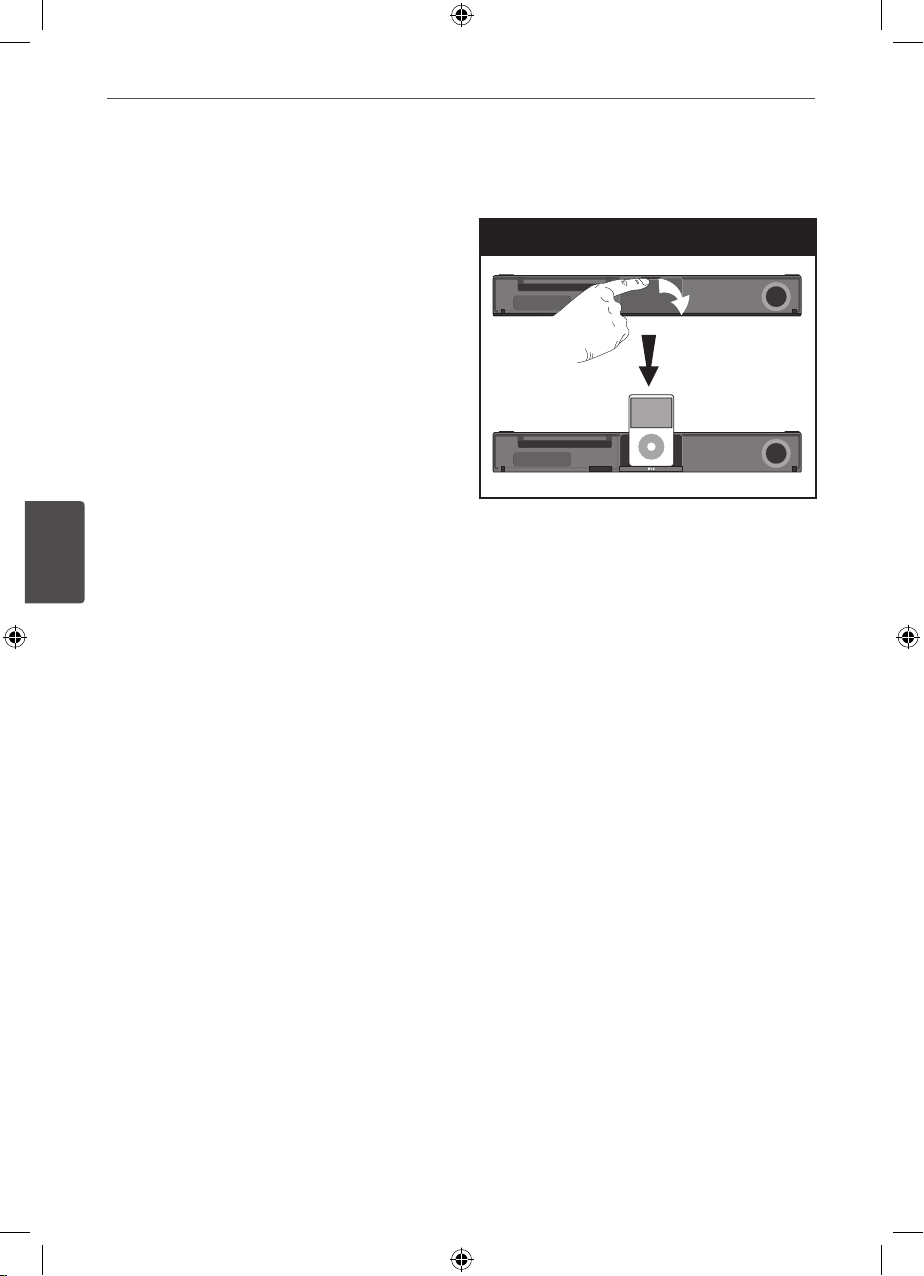

40 Playing the iPo
d

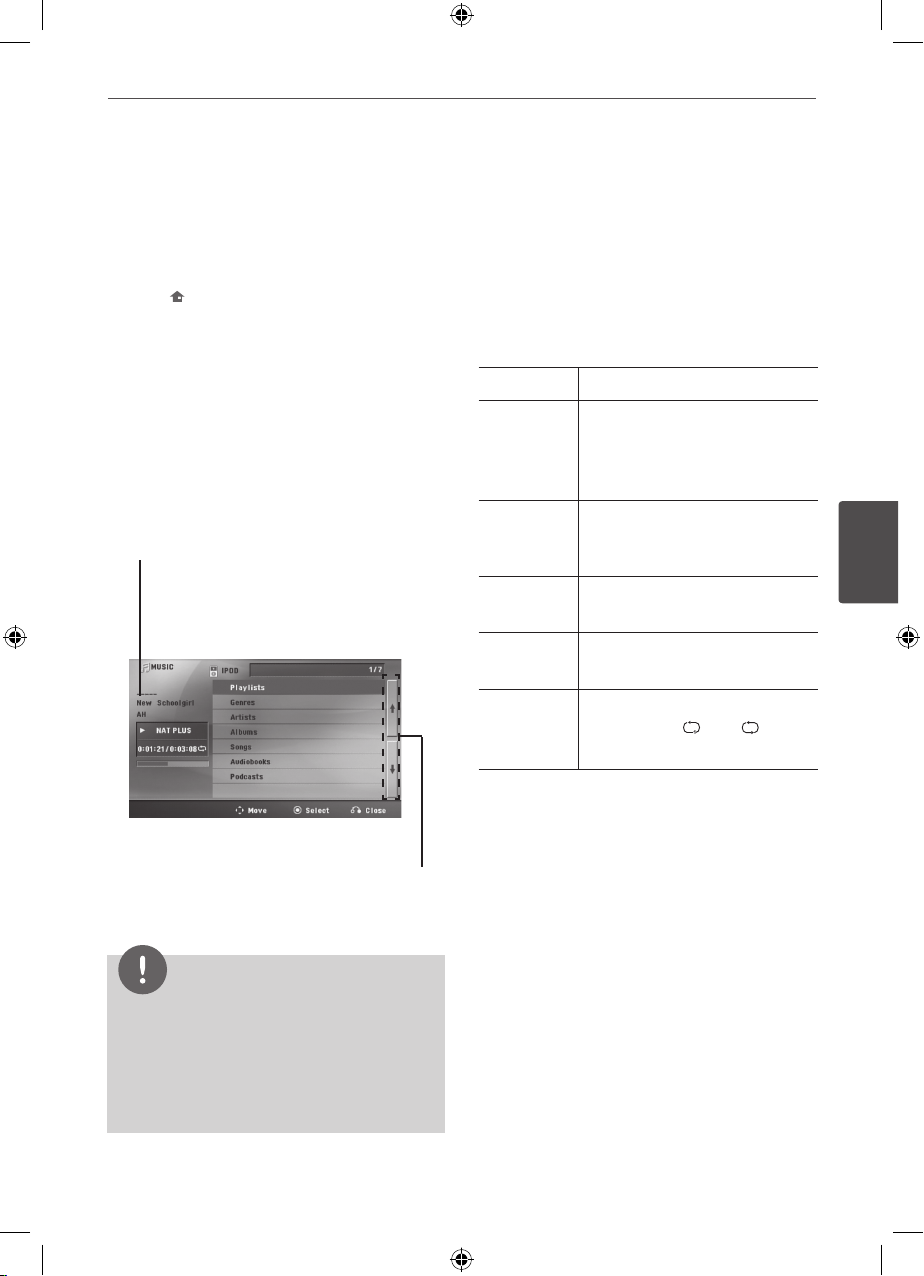

41 Enjoying iPod on the scree
n
41 Enjoying the iPod IN mod
e
43 Using a Bluetooth wireless
technology
43 Listening to music of a
Bluetooth device
44 Listening to music on this unit
using Bluetooth device
45 Checking the information of
connected Bluetooth device
Maintenance

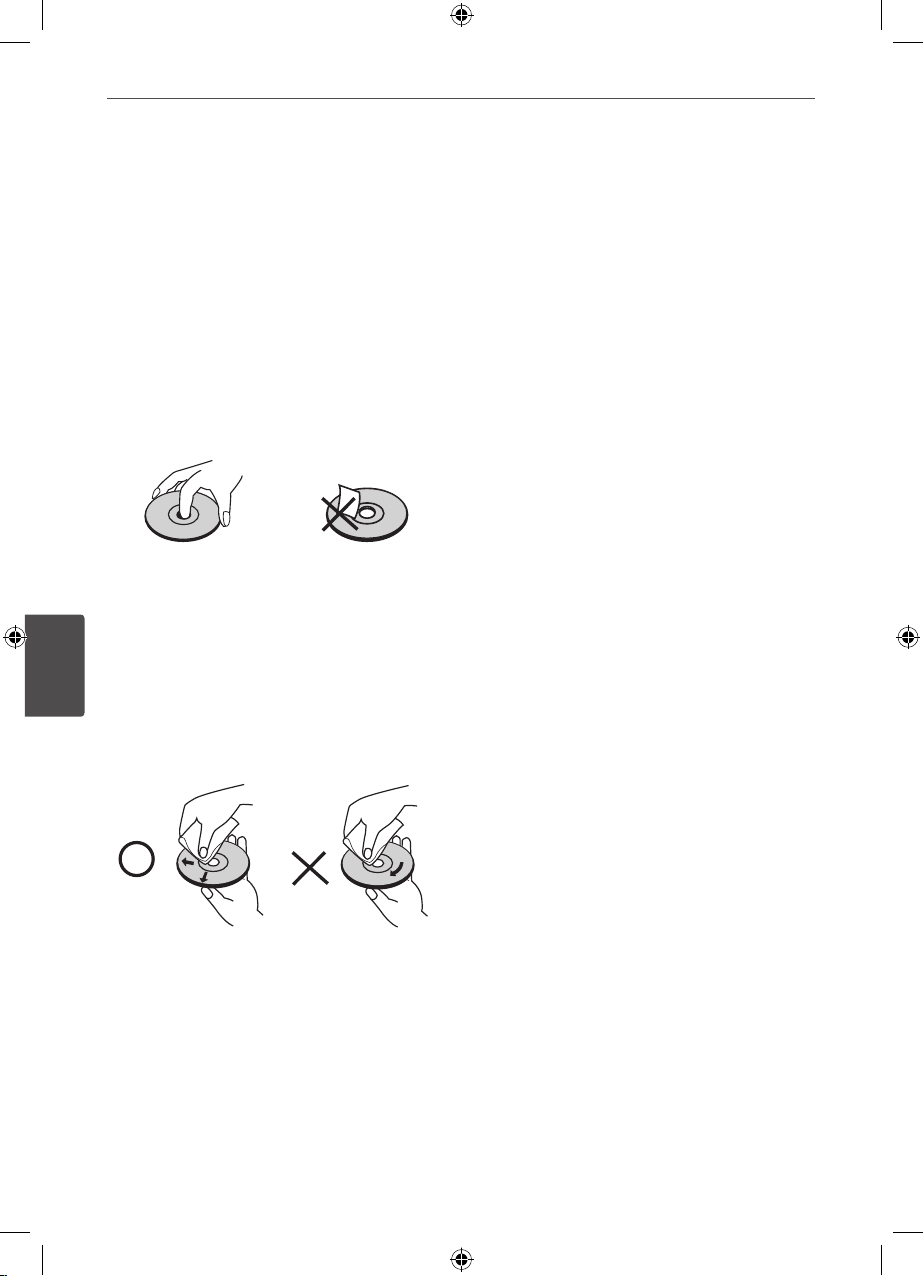

46 Notes on Discs
46 Handling the Uni
t
Troubleshooting
47 Troubleshooting
Appendix
48 Language Codes
49 Area Code
s
50 Trademarks and License
s
51 Specification
s
Page 6
6 Preparation
Preparation
2 Preparation
Unique Features
Portable In
Listens to music from your portable device. (MP3, Notebook, etc)
USB Direct Recording
Records music from CD to your USB device.
Full HD up-scaling
Views Full HD picture quality with simple setup.
Home Theater Speaker ez Setup
listens sound form TV, DVD and Digital device with vivid 5.1 (2.1 or 2.0) ch mode.
Made for iPod
Enjoys music form IPod with simple connection.
Accessories
Please check and identify the supplied accessories.
Video cable (1) HDMI cable (1)
Remote control (1) Batteries (2)
FM antenna (1) Speaker cables (6)
Page 7
7Preparation
Preparation
2
Introduction
Playable Discs
This unit plays DVD±R/RW and CD-R/RW that contains audio titles, DivX, MP3, WMA and/or JPEG les. Some DVD±RW/DVD±R or CD­RW/CD-R cannot be played on this unit due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software.
DVD-VIDEO (8 cm / 12 cm disc) Discs such as movies that can be purchased or rented.
DVD±R (8 cm / 12 cm disc) Video mode and nalized only.
DVD-RW (8 cm / 12 cm disc) Video mode and nalized only.
DVD+R: Video mode only Supports the double layer disc also.
DVD+RW (8 cm / 12 cm disc) Video mode and nalized only.
Audio CD: Music CDs or CD-R/CD­RW in music CD format that can be purchased.
About the  Symbol Display
“  ” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that disc.
Symbol Used in this Manual
All discs and le listed below
ALL
MP3 les
MP3
DVD and nalized DVD±R/RW
DVD
WMA les
WMA
DivX les
DivX
Audio CDs
ACD
JPG les
JPG
NOTE
Indicates special notes and operating features.
TIP
Indicates tip and hints for making the task easier.
CAUTION
Indicates cautions for preventing possible damages from abuse.
Regional Codes
This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labeled same as the rear of the unit or “ALL”.
• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unit’s regional code or the disc cannot play.
• If you try to play a DVD with a dierent regional code from your unit, the message “Check Regional Code” appears on the TV screen.
Page 8
8 Preparation
Preparation
Playable file Requirement
MP3/ WMA music file requirement
MP3/ WMA le compatibility with this unit is limited as follows :
• Sampling frequency : within 32 to 48 kHz (MP3), within 32 to 48 kHz (WMA)
• Bit rate : within 32 to 320 kbps (MP3), 40 to 192 kbps (WMA)
• Support Version : v2, v7, v8, v9
• Maximum les : Under 999
• File extensions : “.mp3”/ “.wma”
• CD-ROM le format : ISO9660/ JOLIET
• We recommend that you use Easy-CD Creator, which creates an ISO 9660 le system.
Photo file requirement
Photo le compatibility with this unit is limited as follows :
• Max pixel in width : 2 760 x 2 048 pixel
• Maximum les : Under 999
• Some discs may not operate due to a dierent recording format or the condition of disc.
• File extensions: “.jpg”
• CD-ROM le format : ISO9660/ JOLIET
DivX file requirement
DivX le compatibility with this unit is limited as follows :
• Available resolution: within 720 x 576 (W x H) pixels.
• The le name of the DivX subtitle should be entered within 45 characters.
• If there is impossible code to express in the DivX le, it may be displayed as " _ " mark on the display.
• Frame rate : less than 30 fps.
• If the video and audio structure of recorded les is not interleaved, either video or audio is outputted.
• Playable DivX le : ".avi", ".mpg", ".mpeg", ".divx"
• Playable Subtitle format : SubRip (*.srt/ *.txt), SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt), MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/ *.txt), Vobsub (*.sub)
• Playable Codec format : "DIVX3.xx", "DIVX4. xx", "DIVX5.xx", "MP4V3", "3IVX".
• Playable Audio format : "AC3", "DTS", "PCM", "MP3", "WMA".
• Sampling frequency : within 32 to 48 kHz (MP3), within 32 to 48 kHz (WMA)
• Bit rate : within 32 to 320 kbps (MP3), 40 to 192 kbps (WMA)
• For Discs formatted in Live le system, you can not it on this unit.
• If the name of movie le is dierent from that of the subtitle le, during playback of a DivX le, subtitle may not be display.
• If you play a DivX le dier from DivXspec, it may not operate normally.
Page 9
9Preparation
Preparation
2
Remote control
Remote control
a
b
c
d
e
f
g
OPEN / RADIO & CLOSE INPUT
SOUND EFFECT
SPEAKER LEVEL
REPEAT
CLEAR
OPTICAL
VOL
MUTE
VOL
VOL
AV / INPUT
ENTER
TITLE
RETURN
DISC MENU
PRESET
PRESET
PR/CH
PR/CH
REC
MARKER
MONO/STEREO
SCAN SKIPSKIP
HOME HOME
TUNING
TUNING
SLEEP
• • • • • • • • • • a • • • • • • • • •
1
(POWER) : Switches the unit ON or OFF.
Z
OPEN/CLOSE : Opens and closes the disc
Drawer.
t
RADIO&INPUT: Changes input sources.
• • • • • • • • • •
b
• • • • • • • • •
0 to 9 numerical buttons : Selects numbered options in a menu.
CLEAR : Removes a number when setting the password.
s
REPEAT : Selects a play mode. (Repeat/
Random)
• • • • • • • • • •
c
• • • • • • • • •
./>
SKIP : Goes to next or previous
chapter/ track/ le.
m/M
SCAN : Searchs backward or forward.
x
(STOP) : Stops playback or recording.
B
(PLAY), MONO/STEREO : Starts playback.
Selects Mono/ Stereo.
X
(PAUSE/STEP) : Pauses playback.
• • • • • • • • • •
d
• • • • • • • • •
SPEAKER LEVEL: Sets the sound level of desired speaker.
SOUND EFFECT: Selects a sound eect mode.
VOL -/+ (Volume) : Adjusts speaker volume.
OPTICAL: Changes input source to optical
directly.
MUTE : Mutes the sound.
Put the batteries into the remote control
Make sure for the + (plus) and – (minus) on the batterise to be matched on the remote control.
Page 10
10 Preparation
Preparation
Remote control
a
b
c
d
e
f
g
OPEN / RADIO & CLOSE INPUT
SOUND EFFECT
SPEAKER LEVEL
REPEAT
CLEAR
OPTICAL
VOL
MUTE
VOL
VOL
AV / INPUT
ENTER
TITLE
RETURN
DISC MENU
PRESET
PRESET
PR/CH
PR/CH
REC
MARKER
MONO/STEREO
SCAN SKIPSKIP
HOME HOME
TUNING
TUNING
SLEEP
• • • • • • • • • • e • • • • • • • • •
HOME: Displays the [Home] menu.
INFO/DISPLAY : Accesses On-Screen
Display.
U/u/I/i
(up/ down/ left/ right): Used to
navigate on-screen displays.
PRESET (
+/-
) : Selects programme of Radio.
TUNING -/+ : Tunes in the desired radio station.
ENTER : Acknowledges menu selection.
Presetting the radio stations.
O
RETURN : Moves backwards in the menu
or exits the setup menu.
TITLE : If the current DVD title has a menu, the title menu appears on the screen. Otherwise, the disc menu may not appear.
DISC MENU : Accesses the menu on a DVD disc.
• • • • • • • • • •
f
• • • • • • • • •
MARKER : Marks play list.
SLEEP : Sets the System to turn o
automatically at a specied time. (Dimmer : The display window will be darken by half.)
z
REC : USB Direct Recording.
RDS : Radio Data System.
PTY : Views the various displays of the RDS.
BLUETOOTH : Pairing, Connecting and
disconnecting your unit and Bluetooth device in function other than the Bluetooth.
• • • • • • • • • • g • • • • • • • • •
TV Control buttons : Controls the TV. (LG TV only)
Controlling the TV
You can control the sound level, input source, and power switching of LG TVs as well. Hold POWER (TV) and press PR/CH (U/u) button repeatedly until the TV turns on or o.
Page 11
11Preparation
Preparation
2
Front panel
a
1/\
(POWER)
Switches the unit ON or OFF.
b
Disc Tray
c
iPod Dock
d
Display window Shows the current status of the unit.
e
Z (
OPEN/CLOSE)
Opens or closes the disc tray.
f
VOLUME
Adjusts speaker volume.
g
F (FUNCTION)
Changes the input source or function.
h
./> (SKIP)
Go to next or previous le/track/chapter. Searches backward or forward (Press and hold) Tunes in the desired radio station.
i
x (STOP)
Stops playback.
j
N/X
(PLAY / PAUSE) Starts playback. Pause playback temporarily, press again to exit pause mode.
k
USB Port
Connect a USB device.
l
PORT. IN Connect to a portable player with audio outputs.
 lk ji h g f
 a b c d e
Page 12
12 Preparation
Preparation
Rear panel
a
Power cord
b
Speakers connectors Connect the speaker cables.
c
Cooling Fan
d
Antenna Connector FM- Connects the FM wired antenna
e
VIDEO OUT Connect to a TV with video inputs.
f
HDMI OUT (Version 1.2A) Connect to TV with HDMI inputs. (Interface for digital audio and video)
g
OPTICAL IN Connect to optical audio equipment.
h
COMPONENT VIDEO (Y PB PR)OUTPUT (PROGRESSIVE SCAN) Connect to a TV with Y PB PR inputs.
i
AUX (L/R) INPUT Connect to an external source with 2 channel audio outputs.
a b c de
ih g  f
Page 13
13Installation
Installation
3
3 Installation
Assembling the speaker stand to the speaker
Preparation
Pole
Cable
Base
Screw
Speaker
1. Attach the pole to the base, then secure the connection with a supplied screw.
Step 1
Speaker
Pole
Base
Screw
Cable
2. Insert a speaker wire from the bottom of the base.
Step 2
Pole
Base
Screw
Cable
Page 14
14 Installation
Installation
3. Draw the speaker wire through the inside of the pole and also through the hole on the bottom of the speaker.
Step 3
4. Attach the speaker to the pole, the secure the connection with a supplied screw.
Step 4
5. Connect the speaker wire to the terminal on the speaker.
Make sure the wire marked black goes in
to the terminal marked “–” (minus) and the other wire goes in to the terminal marked “+” (plus).
Step 5
CAUTION
Be careful that the speaker should not fall down. Otherwise it may result in the speaker malfunctioning and causing personal injury and/ or property damage.
Page 15
15Installation
Installation
3
Mounting the speakers to a wall
You can mount the speakers to a wall. Prepare screws and brackets supplied.
1.
Attach the wall bracket to the wall with screws as shown in the illustration below. When you mount to a wall (concrete) use the wall plugs. (supplied)
Screw length
3.5 mm (0.14 inch)
25 mm (0.98 inch)
Step 1
Wall plug
Screw
2. Attach the speaker bracket to the speaker and fasten the screws.
Step 2
3. Hang the speaker bracket onto the wall bracket.
Step 3
4. Press the speaker to secure the brackets.
Step 4
Page 16
16 Installation
Installation
Attaching the speakers to the unit
1. Connect the wires to the unit. Match each wire’s colored band to the same colored connection terminal on the rear of the unit. To connect the cable to the unit, press each plastic nger pad to open the connection terminal. Insert the wire and release the nger pad.
Connect the black end of each wire to the
terminals marked -(minus) and the other end to the terminals marked + (plus).
2. Connect the wires to the speakers. Connect the other end of each wire to the correct speaker according to the color coding:
Color Speaker Position
Grey Rear Rear right
Blue Rear Rear left
Green Center Center
Orange Sub woofer Any front position
Red Front Front right
White Front Front left
To connect the cable to the speakers, press each plastic nger pad to open the connection terminals on the base of each speaker. Insert the wire and release the nger pad.
CAUTION
Be careful to make sure children not to put their hands or any objects into the *speaker duct. *Speaker duct: A hall for plentiful bass sound on speaker cabinet (enclosure).
Page 17
17Installation
Installation
3
Positioning the system
The following illustration shows an example of positioning the system. Note that the illustrations in these instructions dier from the actual unit for explanation purposes. For the best possible surround sound, all the speakers other than the subwoofer should be placed at the same distance from the listening position (A).
A
B
D
E
F
A
A
A
A
A
G
C
A
Front left speaker (L)/
B
Front right speaker (R):
Place the front speakers to the sides of the monitor or screen and as ush with the screen surface as possible.
C
Center speaker:
Place the center speaker above or below the monitor or screen.
D
Surround left speaker (L)/
E
Surround right speaker (R):
Place these speakers behind your listening position, facing slightly inwards.
F
Subwoofer:
The position of the subwoofer is not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the front speakers. Turn it slightly toward the center of the room to reduce the wall reections.
G
Unit
Page 18
18 Installation
Installation
Connections to Your TV
Make one of the following connections, depending on the capabilities of your existing equipment.
NOTE
• Depending on your TV and other equipment you wish to connect, there are various ways you could connect the unit. Use only one of the connections described in this manual.
• Please refer to the manuals of your TV, Stereo System or other devices as necessary to make the best connections.
• Make sure the unit is connected directly to the TV. Tune the TV to the correct video input channel.
• Do not connect your unit via your VCR. The image could be distorted by the copy protection system.
Component Video Connection
Connect the COMPONENT VIDEO OUTPUT (PROGRESSIVE SCAN) jacks on the unit to the corresponding input jacks on the TV using component cables.
You can hear the sound through the system’s speakers.
Component Connection
Unit
TV
Green Blue Red
Page 19
19Installation
Installation
3
HDMI Out Connection
If you have a HDMI TV or monitor, you can connect it to this unit using a HDMI cable. Connect the HDMI OUT jack on the unit to the HDMI IN jack on a HDMI compatible TV or monitor. Set the TV’s source to HDMI (refer to TV’s Owner’s manual).
HDMI Connection
Unit
TV
TIP
• You can fully enjoy digital audio and video signals together with this HDMI connection.
• When you use HDMI connection, you can change the resolution for the HDMI output. (Refer to “Resolution Setting” on page 21.)
NOTE
• If a connected HDMI device does not accept the audio output of the unit, the HDMI device ’s audio sound may be distorted or may not output.
• When you connect a HDMI or DVI compatible device make sure of the following:
- Try switching o the HDMI/DVI device and this
unit. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this unit.
- The connected device’s video input is set
correctly for this unit.
- The connected device is compatible with
720 x 480i (or 576i), 720 x 480p (or 576p), 1 280 x 720p, 1 920 x 1 080i or 1 920 x 1 080p video input.
• Not all HDCP-compatible HDMI or DVI devices will work with this unit.
- The picture will not be displayed properly with
non-HDCP device.
- This unit does not playback and TV screen is
changed to black or green screen or the snow noise may occur on the screen.
• If there is noise or lines on the screen, please check the HDMI cable and usea higher version cable than 1.2A HDMI cable.
CAUTION
• Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn o the unit and then turn it on again.
• When the HDMI connection with HDCP is not veried, TV screen is changed to black or green screen or the snow noise may occur on the screen. In this case, check the the HDMI connection, or disconnect the HDMI cable.
Page 20
20 Installation
Installation
Video Connection
Connect the VIDEO OUT jack on the unit to the video in jack on the TV using a video cable.
You can hear the sound through the system’s speakers.
Video Connection
Unit
TV
Yellow
Page 21
21Installation
Installation
3
Resolution Setting
The unit provides several output resolutions for HDMI OUT and COMPONENT VIDEO OUT jacks. You can change the resolution using [Setup] menu.
1.
Press HOME.
2.
Use I/i to select the [Setup] and press  ENTER. The [Setup] menu appears.
3. Use U/u to select [Display] option then press i to move to the second level.
4.
Use U/u to select the [Resolution] option then press i to move to the third level.
5.
Use U/u to select the desired resolution then press  ENTER to conrm your selection.
NOTE
If your TV does not accept the resolution you have set on the player, you can set resolution to 480p (or 576p) as follows:
Press x (STOP) for more than 5 seconds.
Video Output Resolution
Displayed resolution in display window and outputted resolution may dierent according to connection type.
[HDMI OUT]: 1 080p, 1 080i, 720p and 480p (or 576p) and 480i (or 576i)
[COMPONENT VIDEO OUT]: 480p (or 576p) and 480i (or 576i)
[VIDEO OUT ]: 480i (or 576i)
Page 22
22 Installation
Installation
Optional Equipment Connection
AUX IN Connection
Connect an Output of auxiliary device to the AUX (L/R) INPUT Connector.
AUX IN Connection
Unit
Red White
To the audio output jacks of your component (TV, VCR, etc.)
NOTE
If your TV has only one output for audio (mono), connect it to the left (white) audio jack on the unit.
AUDIO (PORT. IN) In Connection
Connect an output of portable device (MP3 or PMP etc) to the AUDIO (PORT. IN) input connector.
PORT.IN Connection
MP3 player, etc...
Listening to music from your portable player or external device
The unit can be used to play the music from many types of portable player or external devices.
1. Connect the portable player to the PORT.IN(PORTABLE IN) connector of the unit.
Or
Connect the external device to the AUX
connector of the unit.
2. Turn the power on by pressing 1 (POWER).
3. Select the PORTABLE or AUX (L/R) INPUT
function by pressing t RADIO&INPUT.
4. Turn on the portable player or external device and start it playing.
Page 23
23Installation
Installation
3

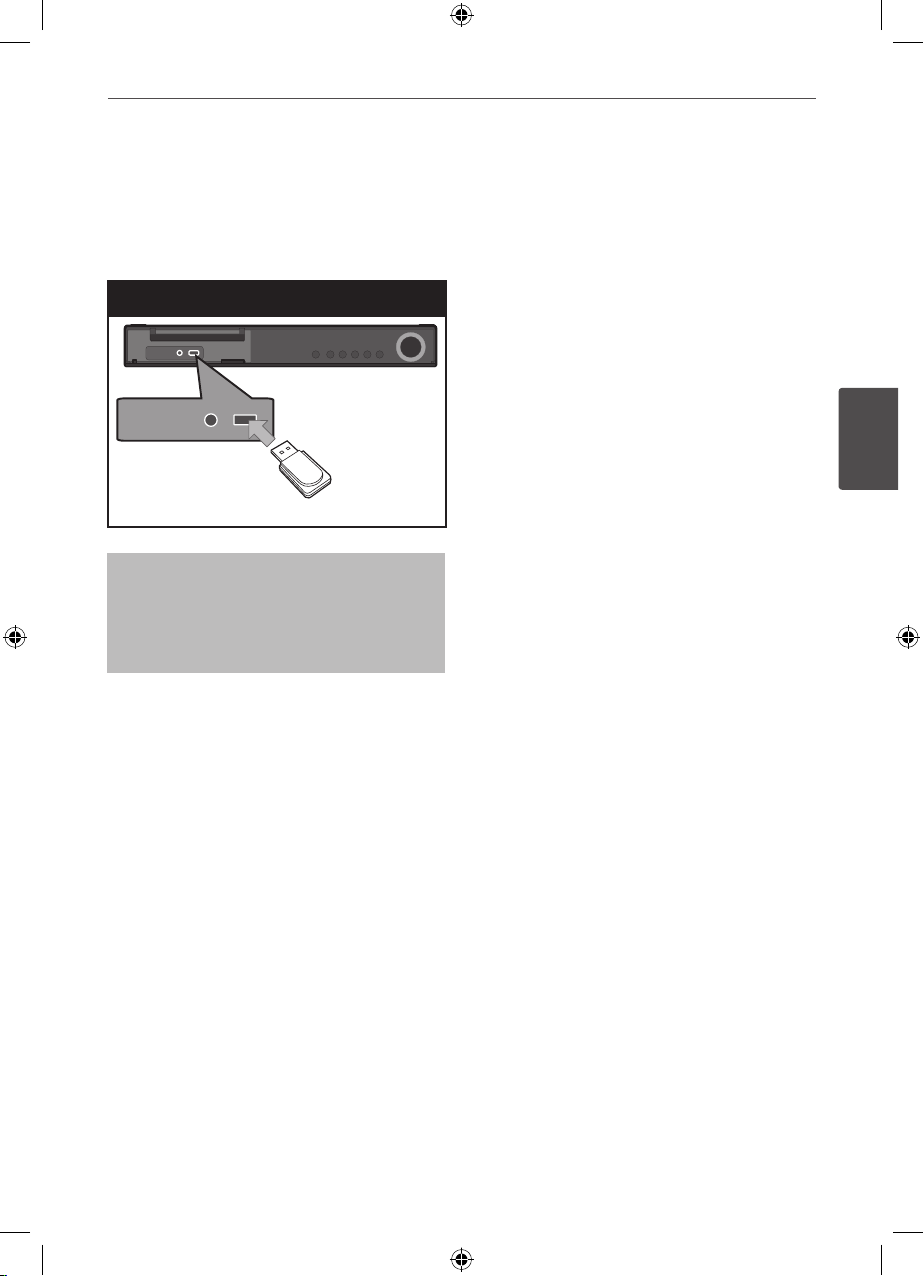

USB Connection
Connect the USB port of USB Memory (or MP3 player, etc.) to the USB port on the front of the unit.
USB Connection
Removing the USB Device from the unit
1. Choose a dierent function mode or press STOP (
x
) twice in a row.
2. Remove the USB device from the unit.
Compatible USB Devices
• MP3 Player : Flash type MP3 player.
• USB Flash Drive : Devices that support USB2.0 or USB1.1.
• The USB function of this unit does not
support some USB devices.
USB device requirement
• Devices which require additional program
installation connected to a computer, are not supported.
• Do not extract the USB device while in
operation.
• For a large capacity USB, it may take longer
than a few minute to be searched.
• To prevent data loss, back up all data.
• If you use a USB extension cable or USB
hub, the USB device is not recognized.
• Using NTFS le system is not supported.
(Only FAT(16/32) le system is supported.)
• This unit is not supported when the total
number of les is 1 000 or more.
• External HDD, Card readers, Locked devices,
or hard type usb devices are not supported.
• USB port of the unit cannot be connected
to PC. The unit can not be used as a storage device.
Page 24
24 Installation
Installation
OPTICAL IN connection
Connect an optical output of Unit (or Digital Device etc) to the OPTICAL IN connector.
OPTICAL IN Connection
To the digital optical output jack of your component
Home theater speaker ez setup
Listen to sound from TV, DVD and Digital Device with 5.1(2.1 or 2)ch mode. Even in power o mode, if you press OPTICAL, then power is on and automatically changed to AUX OPT mode.
1. Connect the unit’s OPTICAL IN jack to jack on optical out of your TV (or Digital Device etc.).
2. Select the AUX OPT by using the OPTICAL. To select the AUX OPT directly.
3. Listen sound with 5.1(2.1 or 2)ch speaker.
4. To escape from AUX OPT by using the OPTICAL.
Function is retuned to previous one.
Antenna Connection
Connect the supplied FM antenna for listening to the radio.
Connect the FM Wire antenna to the FM antenna connector.
Antenna Connection
NOTE
Be sure to fully extend the FM wire antenna. After connecting the FM wire antenna, keep it as horizontal as possible.
Page 25
25Installation
Installation
3
Adjust the setup settings
By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 25 to 29.

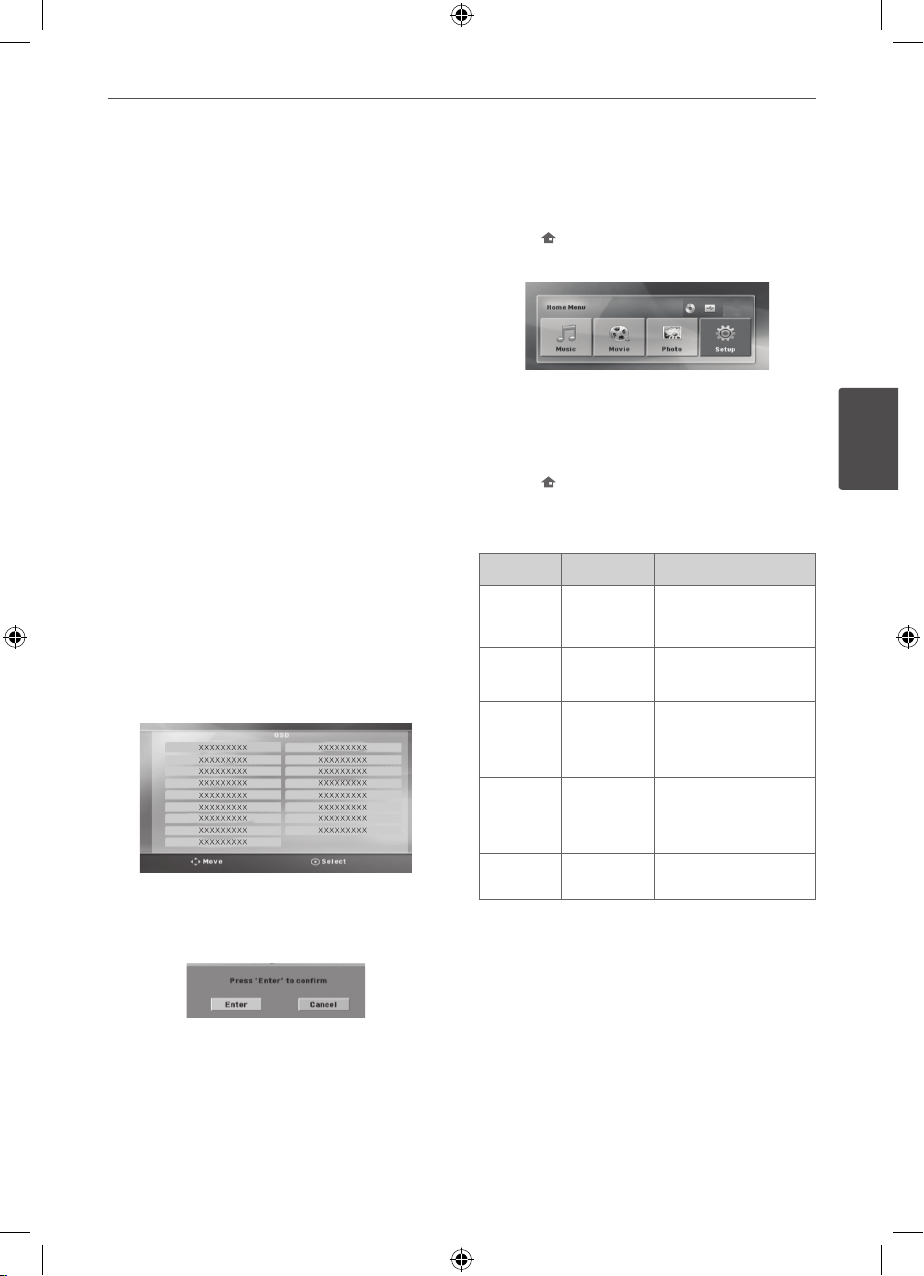

OSD Initial language settings
During the rst use of this unit, the initial language setup menu appears on your TV screen. You must complete initial language selection before using the unit. English will be selected as the initial language.
1. Press 1 (POWER) to turn the unit on. The language setup menu will appear on the screen.
2. Use
U u I i
to select a language then press  ENTER. The conrm menu will appear.
3. Use
I i
to select the [Enter] then press 
ENTER to nish the language setup.

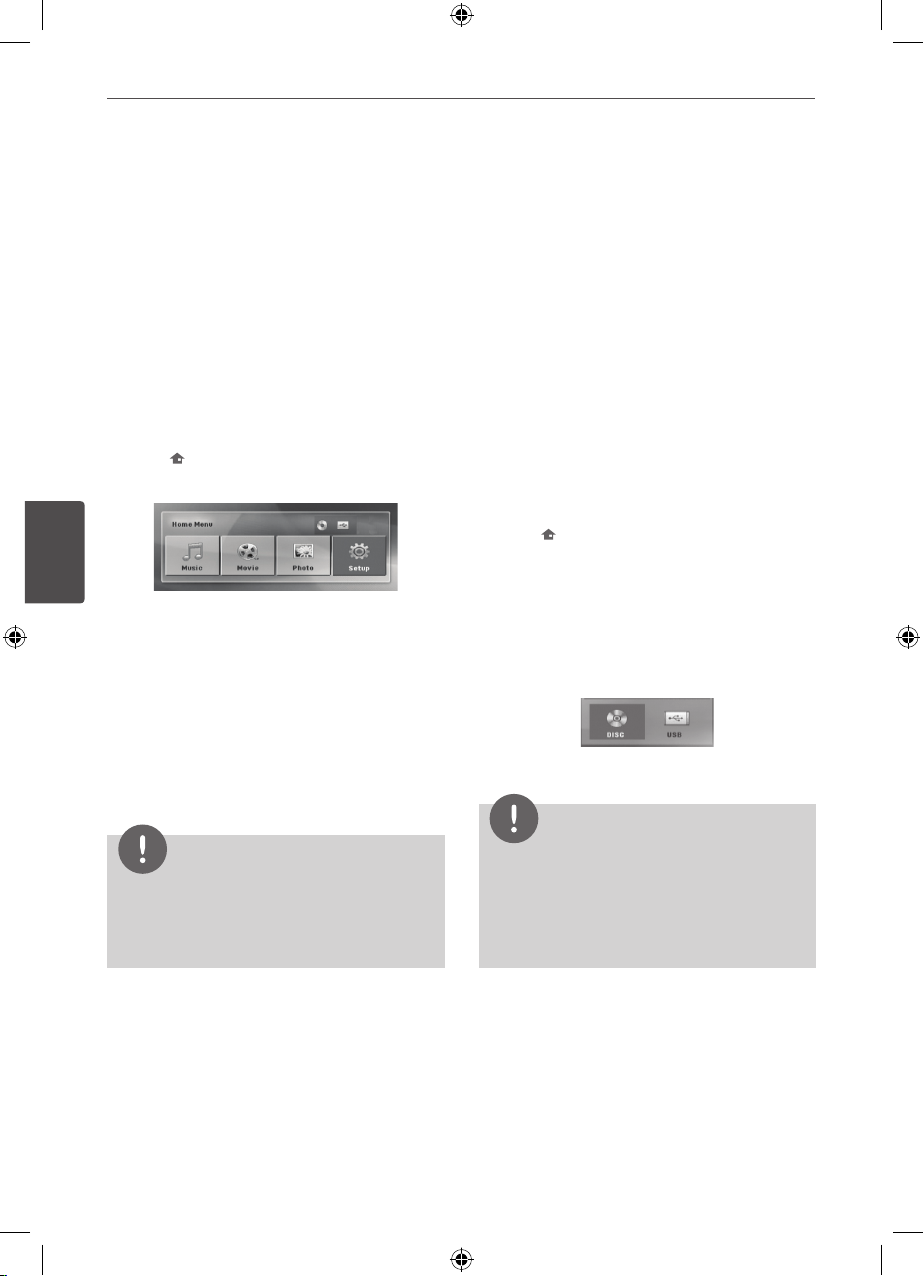

To display and exit the Setup menu
1. Press HOME. Displays the [Home] Menu.
2. Select an [Setup] by using
I i
.
3. Press ENTER. Displays the [Setup].
4. Press HOME or O RETURN to exit in the [Setup] Menu.
About help menu for Setup
Menu Buttons Operation
v V
Move
U u
Moving to another menu.
b
Move
I
Moving to previous level.
B
Move
i
Moving to next level or selecting menu.
O
Close
O
RETURN
To exit the [Setup] menu or [ 5.1 Speaker Setup].
Select
ENTER To conrm menu.
Page 26
26 Installation
Installation
Language
Menu Language
Select a language for the Setup menu and then on screen display.
Disc Audio / Disc Subtitle / Disc Menu
Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.
[Original]
Refers to the original language in which the disc was recorded.
[Other]
To select another language, press numeric buttons and then  ENTER to enter the corresponding 4-digit number according to the language code list on the page 48. If you enter the wrong language code, press
CLEAR.
[O (for Disc Subtitle)]
Turn o Subtitle.
Display
TV Aspect
Select which screen aspect to use based on the shape of your TV screen.
[4:3]
Select when a standard 4:3 TV is connected.
[16:9]
Select when a 16:9 wide TV is connected.
Display Mode
The Display Mode setting works only when the TV Aspect mode is set to 4:3.
[Letterbox]
Displays a wide picture with bands on the upper and lower portions of the screen.
[Panscan]
Automatically displays the wide picture on the entire screen and cuts o the portions that do not t. (If the disc/le is not compatible with Pan Scan, the picture is displayed at Letterbox ratio.)
Resolution
Sets the output resolution of the Component and HDMI video signal. Refer to “Resolution Setting” for details about the resolution (page
21).
[Auto]
If the HDMI OUT jack is connected to TVs providing display information (EDID), automatically selects the resolution best suited to the connected TV. If the COMPONENT VIDEO OUT is only connected, this changes the resolution to 480i (or 576i) as default resolution.
[1080p]
Outputs 1 080 lines of progressive video.
[1080i]
Outputs 1 080 lines of interlaced video.
[720p]
Outputs 720 lines of progressive video.
[480p (or 576p)]
Outputs 480 (or 576) lines of progressive video.
[480i (or 576i)]
Outputs 480 (or (576) lines of interlaced video.
Page 27
27Installation
Installation
3
Audio
5.1 Speaker Setup
Make the following settings for the built-in 5.1 channel surround decoder.
1. Select [5.1 Speaker Setup] on the [Audio] menu.
2. Press ENTER. The [5.1 SPEAKER] appears.
3. Use
I i
to select the desired speaker.
4. Adjust options using
U u I i
buttons.
5. Returns to the previous menu by pressing
O
RETURN.
[Speaker selection]
Select a speaker that you want to adjust.
NOTE
Certain speaker settings are prohibited by the Dolby Digital licensing agreement.
[Size]
Since the speaker settings are xed, you cannot change the settings.
[Volume]
Press
I i
to adjust the output level of the
selected speaker.
Front L/R : 0 ~ -5 SubWoofer, Rear L/R, Center : 5 ~ -5
[Distance]
After you connected speakers to your unit, set the Distance between the speakers and your listening point if the distance of Center or Rear speakers is bigger than the distance of Front speakers. This allows the sound from each speaker to reach the listener at the same time. Press
I i
to adjust the Distance of the selected speaker. This distance is equivalent to a dierence of the distance between Center or Rear speaker and Front speakers.
[Test]
Select [Speaker Test Start] by using the
U u
and press  ENTER. Press  ENTER again to stop. Adjust the volume to match the volume of test signals memorized in the system.
Page 28
28 Installation
Installation
DRC (Dynamic Range Control)
Make the sound clear when the volume is turned down (Dolby Digital only). Set to [On] for this eect.
Vocal
Select [On] to mix karaoke channels into normal stereo.
This function is eective for multi-channel karaoke DVDs only.
HD AV Sync
Sometimes Digital TV encounters a delay between picture and sound. If this happens you can compensate by setting a delay on the sound so that it eectively ‘waits’ for the picture to arrive: this is called HD AV Sync. Use
U u
(on the remote control) to scroll up and down through the delay amount, which you can set at anything between 0 and 300m sec.
Lock (Parental Control)
Initial Setting of the Area Code:
When you use this unit for the rst time, you have to set the Area Code.
1. Select the [Lock] menu and then press i.
2. Press i.
To access the [Lock] options, you must input the password you have created. Input a password and press  ENTER. Enter it again and press  ENTER to verify. If you make a mistake before pressing
ENTER,
press CLEAR.
3. Select the rst character using
U u
buttons.
4. Press ENTER and select the second character using
U u
buttons.
5. Press ENTER to conrm your Area code selection.
Rating
Blocks playback of rated DVDs based on their contents. Not all discs are rated.
1. Select [Rating] on the [Lock] menu then press i.
2. Input a password and press  ENTER.
3. Select a rating from 1 to 8 using the
U u
buttons.
[Rating 1-8]
Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.
[Unlock]
If you select unlock, parental control is not active and the disc plays in full.
4. Press ENTER to conrm your rating selection.
Page 29
29Installation
Installation
3
Password
You can enter or change password.
1. Select [Password] on the [Lock] menu and then press i.
2. Press  ENTER
3. Input a password and press  ENTER.
To change the password, press
ENTER when the [Change] option is highlighted. Input a password and press  ENTER. Enter it again and press  ENTER to verify.
4. Press HOME to exit the menu.
NOTE
If you forget your password, you can clear it using the following steps:
1. Select the [Setup] menu on the [Home] menu.
2. Input the 6-digit number “210499” and press
ENTER. The password is cleared.
Area Code
Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 49.
1. Select [Area Code] on the [Lock] menu then press i.
2. Input a password and press  ENTER.
3. Select the rst character using
U u
buttons.
4. Press ENTER and select the second character using
U u
buttons.
5. Press ENTER to conrm your Area code selection.
Others
DivX VOD
We provide you with the DivX® VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX® VOD service.
For more information, visit www.divx.com/vod.
Press  ENTER when [DivX(R) VOD] is highlighted and you can view the registration code of the unit.
NOTE
All the downloaded videos from DivX VOD can only be played back on this unit.
Page 30
30 Operation
Operation
4 Operation
Using the Home Menu
1. Press HOME. Displays the [Home] menu.
2. Select an option by using
I i
.
3. Press ENTER then selected option menu.
[Music] – Displays [MUSIC] menu.
[Movie] – Start video media’s playback or displays the [MOVIE] menu.
[Photo] – Displays [PHOTO] menu.
[Setup] – Displays the [Setup] menu.
NOTE
You can not select the [Music], [Movie] or [Photo] option when the USB device is not connected or a disc is not inserted.
Basic Operations
1. Insert the disc by using the
Z
OPEN/
CLOSE or Connect the USB device to the
USB port.
2. Press HOME. Displays the [Home] Menu.
3. Select an option by using
I i
. If you select the [Movie], [Photo] or [Music] option when you connect up to two devices, it appears as belows. Select a media then press
ENTER.
4. Press  ENTER then selected option menu.
NOTE
• For the most Audio CD and DVD-ROM discs, playback starts automatically.
• The unit plays only music le contained in the USB storage device or disc automatically.
Page 31
31Operation
Operation
4
To Do this
Stop
Press x (STOP).
Playback
Press
B
(PLAY), MONO/
STEREO.
Pause
Press X (PAUSE/STEP).
Frame-
by-Frame
playback
Press X (PAUSE/STEP) repeatedly to play title Frame-by-Frame. (DVD, DivX only)
Skipping to
the next/ previous
chapter/ track/
le
During playback, press
./>
SKIP to go to the next chapter/ track/ le or to return to the beginning of the current chapter/ track/ le. Press
.
SKIP twice briey to step back to the previous chapter/ track/ le.
Locating a
point quickly
by playing
a le in fast
forward or fast
reverse
During playback, press
m/M
SCAN repeatedly to select the required scan speed. To return to normal speed, press B (PLAY), MONO/ STEREO.
Playing
repeatedly or
randomly
Press s REPEAT repeatedly, and the current title, chapter or track will be played back repeatedly or randomly.
- DVD : Chapter/ Title/ O
- DivX : Title/ All/ O
- Audio CD/ MP3/ WMA :
Track/ All/ Random/ O
Slowing down
the playing
speed
In the pause mode, press SLOW (bb or BB) to select the required speed. (DVD, DivX only) The DivX le cannot be slow down reverse playback.
Other Operations
Displaying Disc Information on-screen
You can display various information about the disc loaded on-screen.
1. Press INFO/DISPLAY to show various playback information. The displayed items dier depending on the disc type or playing status.
2. You can select an item by pressing
U u
and
change or select the setting by pressing
I i
.
Title – Current title number/ total number of
titles.
Chapter – Current chapter number/ total
number of chapters.
Time – Elapsed playing time.
Audio – Selected audio language or channel.
Subtitle – Selected subtitle.
Angle – Selected angle/ total number of
angles.
NOTE
If any button is not pressed for a few seconds, the on-screen display disappears
.
Page 32
32 Operation
Operation
To display the DVD Menu
DVD
When you play a DVD which contains several menu, you can select the menu you want using the Menu.
1. Press DISC MENU. The disc’s menu appears.
2. Select the menu by using
U u I i
.
3. Press B (PLAY), MONO/STEREO to conrm.
To display the DVD title
DVD
When you play a DVD which contains several title, you can select the title you want using the Menu.
1. Press TITLE. The disc’s title appears.
2. Select the menu by pressing
U u I i
.
3. Press
B
(PLAY), MONO/STEREO to conrm.
1.5 times speed playback
DVD
The 1.5 speed allows you to watch the pictures and listen to the sound quicker than playing at a normal speed.
1. During playback, press B (PLAY), MONO/ STEREO to play at 1.5 times speed. “BX1.5”
appears on the screen.
2. Press B (PLAY), MONO/STEREO again to exit.
Screen Saver
The screen saver appears when you leave the unit in Stop mode for about ve minutes.
Starting play from selected time
DVD DivX
To start playing at any chosen time on the le or title.
1. Press INFO/DISPLAY during playback.
2. Press
U u
to select the time clock icon and
“--:--:--” appears.
3. Input the required start time in hours, minutes, and seconds from left to right. If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then input the correct numbers. For example, to nd a scene at 1 hour, 10 minutes, and 20 seconds, enter “11020” by using numerical buttons.
4. Press ENTER to conrm. Playback starts from the selected time.
Resume playback
DVD DivX ACD MP3 WMA
The unit records the point where you pressed the x (STOP) depending on the disc. If “
Xx
(Resume Stop)” appears on the screen briey, press B (PLAY), MONO/STEREO to resume playback (from the scene point).
If you press x (STOP) twice or unload the disc, “x”(Complete Stop) appears on the screen. The unit will clear the stopped point.
NOTE
The resume point may be cleared when a button is pressed (for example; 1 (POWER), Z OPEN/ CLOSE, etc).
Page 33
33Operation
Operation
4

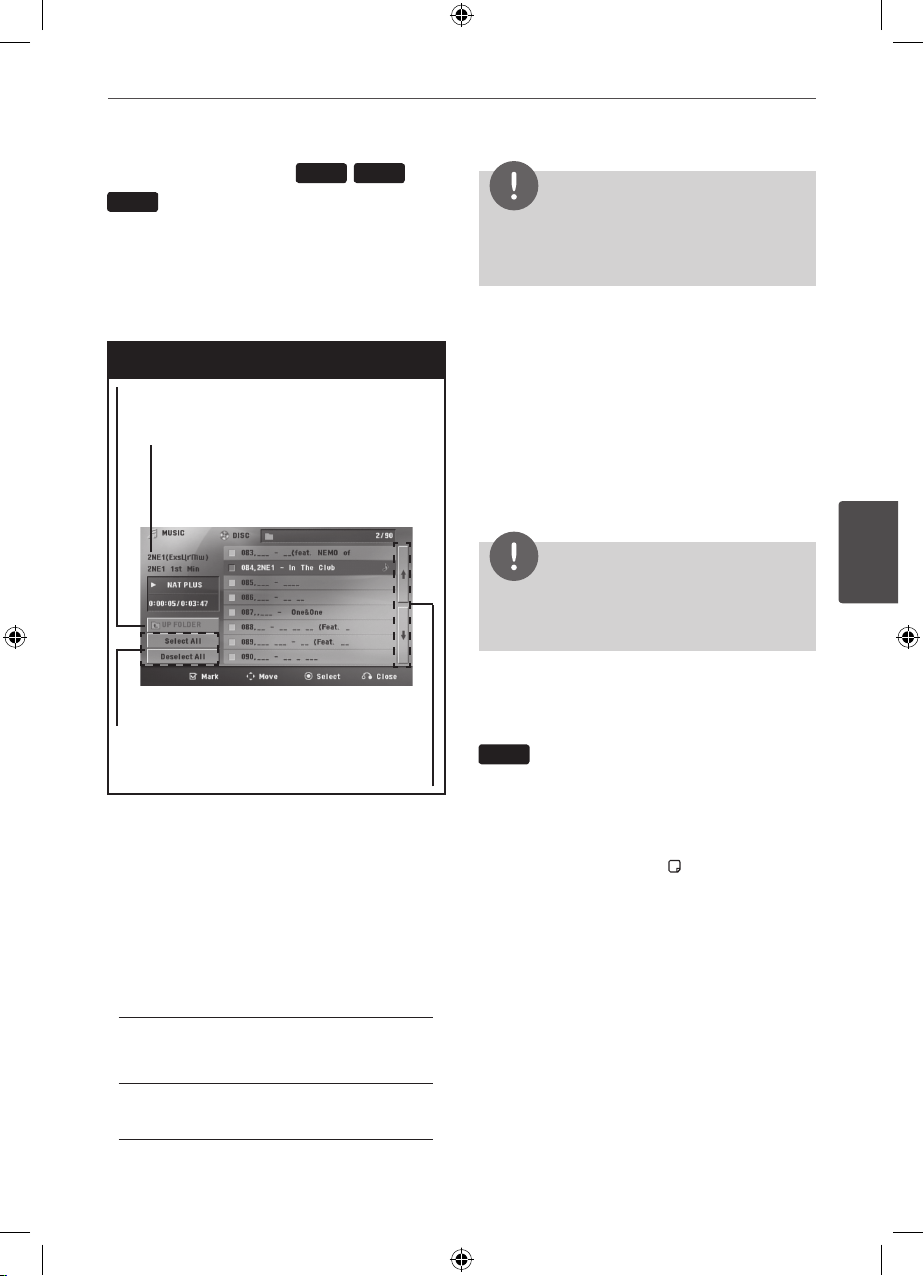

Marked Playback
ACD MP3
WMA
The mark function enables you to store your favourite les from any disc or USB device in the unit memory.
1. Select [Music] on the [Home] menu.
Music menu
Returning to the upper folder. (MP3/ WMA only)
Moving to the previous or
next le list.
Selecting all tracks/ les. Deselecting all tracks/les.
File information will be displayed according to the ID3TAG information on the appropriate music le. (MP3 only)
2. Select a desired music on the [List] by using the
U u
then press MARKER to appears the
mark on the list.
3. Press  ENTER or B (PLAY), MONO/ STEREO.
Displays the play mode.
4. Select the play mode by using the
U u
and
press  ENTER.
[Mark Play]
Marked playback
[Current Play]
Normal playback
NOTE
If you want to select all les on the list, select [Select All] and press  ENTER.
To delete a Marker
1. Use
U u
to select the track that you wish to
erase from the marked le.
2. Press MARKER.
To delete all Markers
Use
U u I i
to select [Deselect All] then press
ENTER in program edit mode.
NOTE
The markers are also cleared when the disc or USB device is removed, the unit is switched to power o or the function is switched to others.
Changing subtitle code page
DivX
If the subtitle is not displayed properly, you can change the subtitle code page to view the subtitle le properly.
1. During playback, press INFO/DISPLAY to display the On-Screen display.
2. Use U u to select the [Code Page] option.
3. Use I
i
to select desired code option.
4. Press O RETURN to exit the On-Screen display.
Page 34
34 Operation
Operation

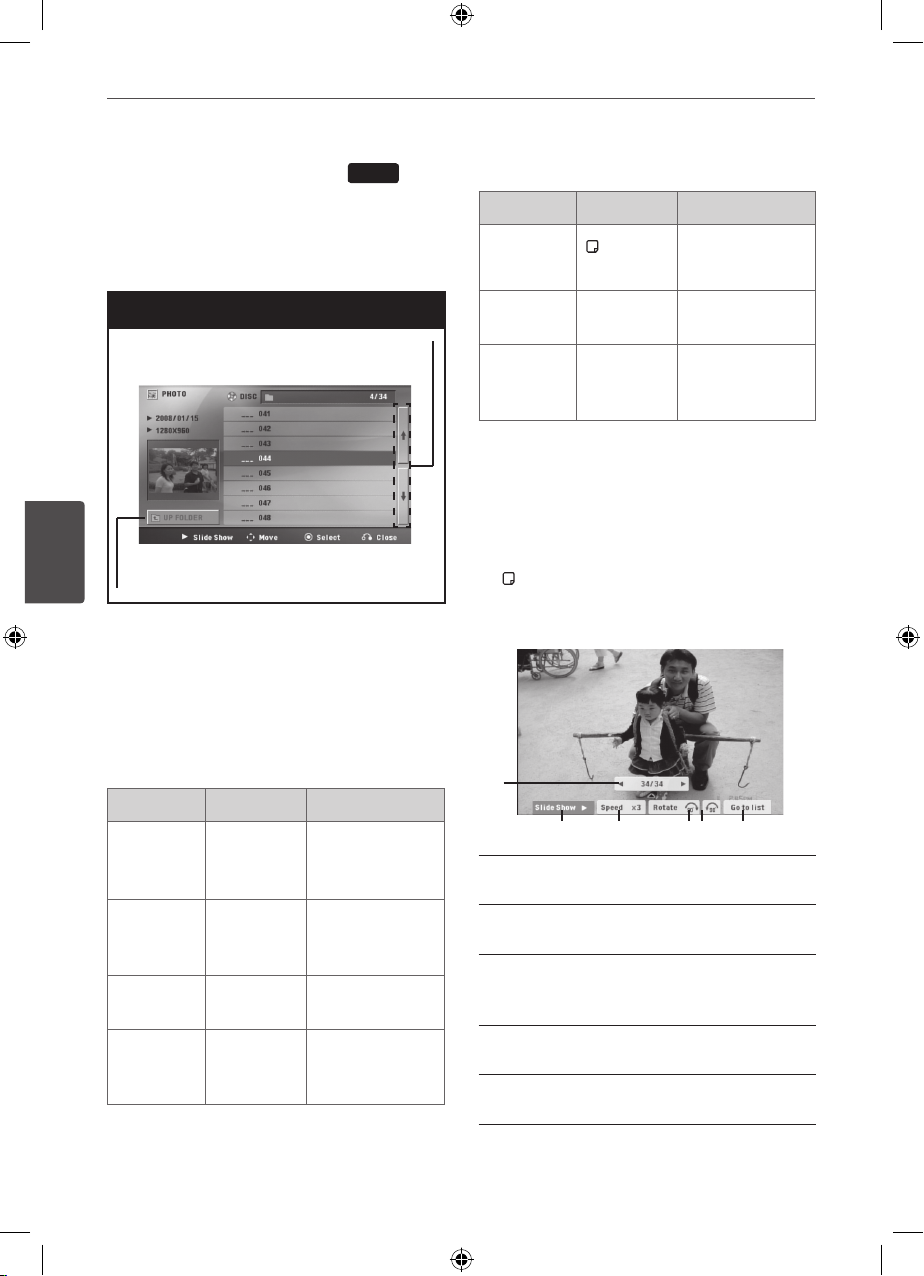

Viewing a PHOTO file
JPG
This unit can play discs with photo les.
1. Select [Photo] on the [Home] menu and press  ENTER.
Photo menu
Moving to the previous or
next le list.
Returning to the upper folder.
2. Press
U u
to select a folder, and then press
ENTER.
3. If you want to view a slide show, press
U
u
to highlight a le and press B (PLAY),
MONO/STEREO.
About help menu in the [Photo] menu.
Menu Buttons Operation
BSlide
Show
B
(PLAY), MONO/ STEREO
Viewing a slide show.
vVbB
Move
U u I i
Moving to another le or content.
Select
ENTER
Viewing a particular le.
O Close
O
RETURN
Returning to the [Home] menu.
About help menu in the full screen.
Menu Buttons Operation
Menu
INFO/
DISPLAY
Displaying the Option menu.
b/B
Prev./ Next
I/i
Moving to another le.
O Close
O
RETURN
Returning to the [Photo] menu.
Options while viewing a photo
You can use various options during viewing a photo in full screen.
1.
While viewing a photo in full screen, press
INFO/DISPLAY to display the option
menu.
2. Select an option using
U u I i
.
a
b c d e
a
Current photo/ Total number of photos – Use
I i
to view previous/next photo.
b
Slide Show N/ X– Press  ENTER to start or pause slide show.
c
Speed x3/ x2/ x1 – Use ENTER to select a delaying speed between photos in a slide show.
d
Rotate – Press ENTER to rotate the photo.
e
Go to list – Press ENTER to return [Photo] menu.
Page 35
35Operation
Operation
4
Sleep Timer Setting
Press SLEEP one or more times to select delay time between 10 and 180 minutes, after the unit will turn o.
To check the remaining time, press SLEEP.
To cancel the sleep function, press SLEEP repeatedly until “SLEEP 10” appears, and then press SLEEP once again while “SLEEP 10” is displayed.
NOTE
You can check the remaining time before the Unit turns o. Press SLEEP The remaining time appears in the display window.
Dimmer
Press SLEEP once. The display window will be darken by half. To cancel it, press SLEEP repeatedly until dim o.
Turn off the sound temporarily
Press MUTE to mute your unit.
You can mute your unit in order, for example, to answer the telephone, appears the MUTE in the display window.
Last Scene Memory
DVD
This unit memorizes last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch o the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.
System Select - Optional
You must select the appropriate system mode for your TV system. Press and hold X (PAUSE/ STEP) for more than ve seconds to be able to select a system in the [Home] menu. (PAL/ NTSC)
NOTE
If the USB device is connected or a disc is inserted, this function is not operated.
Adjust the speaker level settings
You can adjust the sound level of each speaker.
1. Press SPEAKER LEVEL repeatedly to select a desired speaker to set.
2. Press VOL -/+ to adjust the sound level of the selected speaker while the level setting memu is displayed on the display window.
3. Repeat and adjust the sound level of the other speakers.
Page 36
36 Operation
Operation
Radio Operations
Be sure that both FM aerials are connected. (Refer to the page 24)
Listening to the radio
1. Press t RADIO&INPUT until FM appears in the display window. The last received station is tuned in.
2. Press and hold TUNING (-/+) for about two seconds until the frequency indication starts to change, then release. Scanning stops when the unit tunes in a station.
or
Press
TUNING (-/+) repeatedly.
3. Adjust the volume by rotating VOLUME on
the front panel or by pressing VOL (+/- )on the remote control repeatedly.
Presetting the Radio Stations
You can preset 50 stations for FM.
Before tuning, make sure that you have turned down the volume.
1. Press t RADIO&INPUT until FM appears in the display window.
2. Select the desired frequency by using TUNING (-/+).
3. Press
ENTER a preset number will ash
in the display window.
4. Press PRESET (-/+) to select the preset number you want.
5. Press ENTER. The station is stored.
6. Repeat the steps 2 to 5 to store other stations.
Deleting all the saved stations
1. Press and hold CLEAR for two seconds. "ERASE ALL" will ash up on the unit display.
2. Press CLEAR to erase all saved of the radio stations.
Deleting a saved station
1. Press PRESET - / + to Select a preset number you want to delete.
2. Press CLEAR, the preset number will blink in the display window.
3. Press CLEAR again, to delete the selectd preset number.
Improving poor FM reception
Press B (PLAY), MONO/STEREO on the remote control. This will change the tuner from stereo to mono and usually improve the reception.
Page 37
37Operation
Operation
4
Seeing information about a radio station
The FM tuner is supplied with the RDS (Radio Data System) facility. This shows information about the radio station being listened to. Press RDS repeatedly to cycle through the various data types. :
PS (Programme Service Name)
The name of the channel will appear in the display
PTY (Programme Type Recognition)
The programme type (e.g. Jazz or News) will appear in the display.
RT (Radio Text)
A text message contains special information from the broadcast station. This text may scroll across the display.
CT (Time controlled by the channel)
This shows the time and date as broadcast by the station.
You can search the radio stations by programme type by pressing RDS. The display will show the last PTY in use. Press PTY one or more times to select your preferred programme type. Press
I i
. The tuner will search automatically, when a station is found the search will stop.
Page 38
38 Operation
Operation
Sound adjustment
Setting the surround mode
This system has a number of pre-set surround sound elds. You can select a desired sound mode by using SOUND EFFECT.
You can change the SOUND EFFECT using
I i
arrow key while the sound eect
information is displayed on.
The displayed items for the equalizer maybe dierent depending on sound sources and eects.
On Display Description
NAT PLUS
You can enjoy the natural sound eect same as a
5.1-channel.
NATURAL
You can enjoy comfortable and natural sound
Local
specialization
equalizer
Regionally optimized sound eect. (DANGDUT/ ARABIC/ PERSIAN/ INDIA/ REGUETON/ MERENGUE/ SAMBA/ SALSA/ CUMBIA/ AFRO)
AUTO EQ
Realizes the sound equalizer that is the most similar to the genre of which is included in the MP3 ID3 tag of song les.
POP
CLASSIC
JAZZ
ROCK
This program lends an enthusiastic atmosphere to the sound, giving you the feeling you are at an actual rock pop, jazz or classic concert.
BASS
During playback, reinforce the treble, bass and surround sound eect.
On Display Description
CLRVOICE
This program make voice sound clear, improving the quality of voice sound. (We encourage to use this EQ when you watch the movie of 5.1 channel.)
GAME
You can enjoy more virtual sound while playing video games.
NIGHT
This may be useful when you want to watch movies at low volume late at night.
RETOUCH
When listening to MP3 les or other compressed music, you can enhance the sound. This mode is available only to 2 channel sources.
LOUDNESS
Improves the bass and treble sound.
VIRTUAL
You can enjoy more virtual surround sound.
PLII MOVIE PLII MUSIC
Dolby Pro Logic II enables you to play stereo source on
5.1-channel.
BYPASS
You can enjoy the sound without equalizer eect.
NOTE
• In some of surround modes, some speakers, there's no sound or low sound. It depends on the mode of surround and the source of audio, it is not defective.
• You may need to reset the surround mode, after switching the input, sometimes even after the sound track changed.
Page 39
39Operation
Operation
4
Advanced Operations
Recording to USB
You can record music or sound souce to USB device by connecting in to the port on the unit.
1. Connect the USB device to the unit.
2. Select a mode in which you want to record.
Play back a sound source rst.
3. Start the recording by pressing z REC.
4. To stop recording, press x (STOP).
[All tracks/ les recording]
Record to USB in stop or play mode.
[Program list recording]
After marking desired le(s) and you can record it to USB (Refer to the page 33).
It'll be stored as follows.
Audio CD
MP3/ WMA
The other sources (Tuner, AUX, Portable)
NOTE
• You can check the recording percentage rate for the USB record on the screen during the recording. (Audio CD or MP3/ WMA CD only)
• During recording MP3/WMA, there is no sound.
• When you stop recording during playback, the le that has been recorded at that time will be stored. (Audio CD only)
• Do not remove the USB device or turn o the unit during USB recording. If not, an incomplete le may be made and not deleted on PC.
• If USB recording does not work, the message like “NO USB”, “ERROR”, “USB FULL” or “NO REC” is displayed on the display window.
• Multi card reader divice or external HDD can not be used for USB recording.
• A le is recorded by 128 Mbyte (about 2 hours) when you record for a long term. There are recorded less than 4 les.
• When you stop recording during playback, the le will not be stored.
• In the state CD-G, DTS disc USB record is not operated.
• The les in the sub-folders are not recorded during all track recording.
• You may not record more than 999 les.
• The nunbering of the recording le is entered from the lowest number. So if you delete some of the recording les, the next recording le could be the lowest number among them.
The making of unauthorized copies of copy-
protected material, including computer
programs, les, broadcasts and sound recordings,
may be an infringement of copyrights and
constitute a criminal oense. This equipment
should not be used for such purposes.
Be responsible
Respect copyrights.
Page 40
40 Operation
Operation
Playing the iPod
You can enjoy the media les with your iPod. For details about iPod, refer to the iPod’s User Guide.
Preparation
• To view iPod’s Videos and Photos on the TV screen.
- Be sure to use the video connection
through the VIDEO OUT jack on the rear panel of this unit. Select the appropriate video input mode on the TV.
- Depending on the iPod, make sure that
select Videos > Video settings, and then set TV Out to Ask or On from your iPod. For details about Video Settings, refer to the iPod User Guide.
- The viewing photos is available only if this
unit is in iPod IN mode and you can view photos only as a slide show. You have to start a slide show on your iPod to view a photo on a TV. For details about a slide show, refer to the iPod User Guide.
• Before connecting the iPod, turn this unit o and reduce the volume of this unit to its minimum.
• Connect the iPod rmly. To open the iPod Dock, pull iPod dock.
Connect the iPod
• If you turn this unit on, your iPod is automatically turned on and recharging starts.
• If your iPod is completely discharged, charge the battery rst.
Page 41
41Operation
Operation
4
Enjoying iPod on the screen
You can operate your iPod by controlling menu on the screen.
1.
Connect the iPod rmly.
2.
Press HOME.
3.
Select [Music] or [Movie] using I/i, and press
ENTER. If you connected the other device (CD or USB), select the iPod on the menu and ENTER. If you select the [Music] option when you connect iPod, the unit plays a music automatically.
4.
Select a content using U/u/I/i, and press
ENTER to play.
Moving to the previous or
next le list.
File information will be displayed according to the ID3TAG information on the appropriate music le. (MP3 only)
5. Operate iPod. Refer to basic operation section.
NOTE
•
If the iPod’s OSD language is selected to simple chinese, the power scroll function is not operated correctly.
•
The controls on your iPod are not operational in this mode.
Enjoying the iPod IN mode
You can operate your iPod by using the supplied remote control and controls on your iPod.
1.
Connect the iPod rmly.
2.
Press t RADIO&INPUT to select iPod IN mode.
U/u/I/i
Selects an option in the menu.
B
(PLAY), MONO/ STEREO
/  ENTER
Starts playback the music or video.
X
To pause while it is playing. To resume playing, press B (PLAY), MONO/STEREO again.
m / M
SCAN
Fast-forward or rewind a song or video.
./>
SKIP
Skip the playback forward or backward .
s
REPEAT
To select a desired repeat mode: Track
( )
, All
( )
, O
(No display).
Page 42
42 Operation
Operation
NOTE
•
An error message “CHECK IPOD” or “Connected iPod model is not supported.” appears when:
- your iPod is not available for the function to be operated.
•
An error message “CHECK IPOD” or “Please update iPod’s software.” appears when:
- your iPod has an old software version.
t
Update your iPod software to latest version.
•
If this unit displays an error message, follow the message. An error message “CHECK IPOD” or “Please check your iPod.” appears when:
- the communication between this unit and your iPod is failed.
t
Undock & re-dock your iPod in this unit.
- your iPod is not connected rmly.
- this unit recognizes your iPod as unknown device.
- your iPod is exceptionally low on power.
t
The battery needs to be charged.
t
If you charge the battery while iPod is
extremely low in power, it maytake longer to charge.
•
You may use the dock adapter which should be supplied with your iPod to the dock for the stable use of the iPod. If you need an adapter, consult your iPod dealer.
•
Compatibility with your iPod may vary depending on the type of your iPod.
•
iPod touch and iPhone have any dierence in operation other than iPod. You may need any additional control to use them with this unit. (e.g. “slide to unlock”)
•
If you use an application, make a call, or send and receive SMS text message, etc. on iPod touch or iPhone, disconnect it from iPod dock of this unit and then use it.
•
Depending on your iPod’s software version, it may not be possible to control your iPod from this unit. We recommend installing the latest software version.
•
The video quality depends on the video sources on your iPod.
•
If you have a problem with your iPod, please visit www.apple.com/support/ipod.
Page 43
43Operation
Operation
4
Using a Bluetooth wireless technology
About Bluetooth
Bluetooth® is wireless communication technology for short range connection.
The available range is within 10 meters.
(The sound may be interrupted when the connection interfered by the other electronic wave or you connect the bluetooth in the other rooms.) Connecting individual devices under Bluetooth® wireless technology does not incur any charges. A mobile phone with Bluetooth® wireless technology can be operated via the Cascade if the connection was made via Bluetooth® wireless technology. Available Devices : Mobile phone, MP3, Laptop, PDA (This units be supported the Stereo Headset.)
Bluetooth Profiles
In order to use Bluetooth wireless technology, devices must be able to interpret certain proles.This unit is compatible with following prole.
A2DP (Advanced Audio Distribution Prole)
AVRCP (Audio/ Video Distribution Remote Control Prole)
Listening to music of a Bluetooth device
Pairing your unit and Bluetooth device
Before you start the pairing procedure, make sure the Bluetooth feature is turned on in to your Bluetooth device. Refer to your Bluetooth device’s user guide. Once a pairing operation is performed, it does not need to be performed again.
1. Select the Bluetooth function by using the
t
RADIO&INPUT. Appears "BT" and then "BT READY" in display window.
2. Operate the Bluetooth device and perform the pairing operation. When searching for this unit with the Bluetooth device, a list of the devices found may appear in the Bluetooth device display depending on the type of Bluetooth device.Your unit appears as “LG Audio”.
3. Enter the PIN code. PIN cord : 0000
4. When this unit successfully paired with your Bluetooth device, Bluetooth LED of this unit lights up and appears "BT SINK".
NOTE
Depending on the Bluetooth device type, some device have a dierent pairing way.
Page 44
44 Operation
Operation
5. Listening to music.
To play a music stored on your Bluetooth device, refer to your Bluetooth device’s user guide.
NOTE
• If you change the function of the unit, the Bluetooth function is disconnected, operate pairing again. (Bluetooth y Function other than the Bluetooth)
• AVRCP cannot be available in this mode.
Listening to music on this unit using Bluetooth device
Pairing your unit and Bluetooth device
Before you start the pairing procedure, make sure the Bluetooth feature is turned on in to your Bluetooth device. Refer to your Bluetooth device’s user guide. Once a pairing operation is performed, it does not need to be performed again.
1. Select a function other than the Bluetooth function by using the t RADIO&INPUT.
2. Place the Bluetooth device to be connected to this unit within 1 meter of the unit.
3. Put the Bluetooth device in pairing mode. Refer to your Bluetooth device's user guide.
4. Press and hold BLUETOOTH. Appears "INQUIRY". If searched Bluetooth is only one, pairing the unit. Refer the step 7.
5. Appears depending on type of Bluetooth devices in display window .
6. Select a Bluetooth device you want to connect by using
U u
and press  ENTER.
7. Enter the PIN code by using numberical
buttons. PIN cord : 0000
8. Press ENTER to conrm. When this unit successfully paired with your Bluetooth device, Bluetooth icon of this unit lights up and appears "BT SRC". You can listen to music played on this unit using your Bluetooth device. Sound output from the speakers is stopped.
NOTE
You cannot use VOL (volume), SOUND EFFECT, SPEAKER LEVEL in this mode.
Page 45
45Operation
Operation
4
Operating with Bluetooth device
You can operate a unit by connecting a Bluetooth device using AVRCP. For details about operation, refer to the Bluetooth device's User Guide.
NOTE
These operations may not be vailable for certain Bluetooth device. In addition, the actual operations may dier depending on the connected Bluetooth device.
Connecting and disconnecting with a Bluetooth device
This function is operated after pairing.
Press BLUETOOTH to connect or disconnect with a Bluetooth device.
Appears belows in display window.
Connection : BT CONN Disconnection : DISCONN
NOTE
If you change the function of the unit, the Bluetooth function is disconnected, press BLUETOOTH pairing again. (Bluetooth y Function other than the Bluetooth)
Checking the information of connected Bluetooth device
This function is operated after pairing. You can check the Bluetooth information.
Press and hold INFO/DISPLAY repeatedly. Bluetooth information is changed as follows.
Local Bluetooth Device Address t Device Name t None t ...
NOTE
• This units dose not be supported the Mono Headset Prole (Hands Free Prole)
• The sound may be interrupted when the connection interfered by the other electronic wave.
• You cannot control the Bluetooth device with this unit.
• Pairing is limited one Bluetooth device per one unit and multi-pairing is not supported.
• Although the distance between your Bluetooth and the set is less than 10m, there are obstacles between both, your Bluetooth device cannot be connected.
• Depending on the type of the device, you may not be able to use the Bluetooth function.
• You can enjoy wireless system using phone, MP3, Notebook, headset, etc...
• When not connected the Bluetooth, “BT READY ” appears on the display window.
• The Electrical malfunction due to devices using same frequency such as Medical equipment, Microwaves or wireless LAN devices, the connection will be disconnected.
• When someone stands and interrupts communication between Bluetooth device and the player, the connection will be disconnected.
• If the gotten away of the distance between Bluetooth and the unit, the sound quality is lower and lower the connection will disconnect when the space between the Bluetooth and the unit gets out of the operating range of Bluetooth.
• The device with Bluetooth wireless technology is disconnected, if you turn o the main unit or put the device away from the main unit more than 10m.
Page 46
46 Maintenance
Maintenance
Notes on Discs
Handling Discs
Never stick paper or tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.
Cleaning Discs
Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.
Handling the Unit
When shipping the unit
Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.
Keeping the exterior surfaces clean
• Do not use volatile liquids such as insecticide spray near the unit.
• Wiping with strong pressure may damage the surface.
• Do not leave rubber or plastic products in contact with the unit for a long period of time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.
Maintaining the Unit
The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. For details, please contact your nearest authorized service center.
5 Maintenance
Page 47
47Troubleshooting
Troubleshooting
6
PROBLEM CAUSE CORRECTION
No power The power cord is disconnected.
Plug the power cord into the wall outlet securely.
No picture
The TV is not set to receive the DVD signal.
Select the appropriate video input mode on the TV so the picture from the unit
appears on the TV screen. The video cables are not connected securely.
Connect the video cables securely to both
the TV and unit.
There is little or
no sound
Equipment connected via the audio cable is not set to receive DVD signal output.
Select the correct input mode of the unit
so you can hear the sound from the unit. The audio cables are not connected to the speakers or unit securely.
Connect the audio cables into the
connection terminals correctly. The audio cables are damaged. Replace with a new audio cable.
The DVD picture
quality is poor
The disc is dirty.
Clean the disc using a soft cloth with
outward strokes.
A DVD/CD will
not play
No disc is inserted. Insert a disc.
An unplayable disc is inserted.
Insert a playable disc (check the disc type,
colour system and regional code).
The disc is inserted upside down.
Place the disc with the label or printed
side facing upwards. There is a parental lock which prevents the
playback of DVDs with a certain rating.
Enter your password or change the rating
level.
Humming noise
heard while a
DVD or CD is
playing
The disc is dirty.
Clean the disc using a soft cloth with
outward strokes. The unit is located too close to the TV,
causing feedback.
Move unit and audio components further
away from your TV.
Radio stations
can’t be tuned in
properly
The antenna is positioned or connected poorly.
Check the antenna connection and adjust
its position.
Attach an external aerial if necessary. The signal strength of the radio station is too weak.
Tune to the station manually.
No stations have been preset or preset stations have been cleared (when tuning by scanning preset channels).
Preset some radio stations, see page 36 for
details.
The remote
control doesn’t
work well / at all
The remote is not pointed directly at the unit.
Point the remote directly at the unit.
The remote is too far from the unit.
Use the remote within 23 feet (7m) of the
unit. There is an obstacle in the path between the remote control and the unit.
Remove the obstacle.
The battery in the remote control are at. Replace the batteries with new ones.
6 Troubleshooting
Page 48
48 Appendix
Appendix
7 Appendix
Language Codes
Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.
Language Code Language Code Language Code Language Code
Afar 6565 Afrikaans 6570 Albanian 8381 Ameharic 6577 Arabic 6582 Armenian 7289 Assamese 6583 Aymara 6588 Azerbaijani 6590 Bashkir 6665 Basque 6985 Bengali; Bangla 6678 Bhutani 6890 Bihari 6672 Breton 6682 Bulgarian 6671 Burmese 7789 Byelorussian 6669 Chinese 9072 Croatian 7282 Czech 6783 Danish 6865 Dutch 7876 English 6978 Esperanto 6979 Estonian 6984 Faroese 7079 Fiji 7074 Finnish 7073
French 7082 Frisian 7089 Galician 7176 Georgian 7565 German 6869 Greek 6976 Greenlandic 7576 Guarani 7178 Gujarati 7185 Hausa 7265 Hebrew 7387 Hindi 7273 Hungarian 7285 Icelandic 7383 Indonesian 7378 Interlingua 7365 Irish 7165 Italian 7384 Javanese 7487 Kannada 7578 Kashmiri 7583 Kazakh 7575 Kirghiz 7589 Korean 7579 Kurdish 7585 Laothian 7679 Latin 7665 Latvian, Lettish 7686 Lingala 7678
Lithuanian 7684 Macedonian 7775 Malagasy 7771 Malay 7783 Malayalam 7776 Maori 7773 Marathi 7782 Moldavian 7779 Mongolian 7778 Nauru 7865 Nepali 7869 Norwegian 7879 Oriya 7982 Panjabi 8065 Pashto, Pushto 8083 Persian 7065 Polish 8076 Portuguese 8084 Quechua 8185 Rhaeto-Romance 8277 Rumanian 8279 Russian 8285 Samoan 8377 Sanskrit 8365 Scots Gaelic 7168 Serbian 8382 Serbo-Croatian 8372 Shona 8378 Sindhi 8368
Singhalese 8373 Slovak 8375 Slovenian 8376 Spanish 6983 Sudanese 8385 Swahili 8387 Swedish 8386 Tagalog 8476 Tajik 8471 Tamil 8465 Telugu 8469 Thai 8472 Tonga 8479 Turkish 8482 Turkmen 8475 Twi 8487 Ukrainian 8575 Urdu 8582 Uzbek 8590 Vietnamese 8673 Volapük 8679 Welsh 6789 Wolof 8779 Xhosa 8872 Yiddish 7473 Yoruba 8979 Zulu 9085
Page 49
49Appendix
Appendix
7
Area Codes
Choose a area code from this list.
Afghanistan AF Argentina AR Australia AU Austria AT Belgium BE Bhutan BT Bolivia BO Brazil BR Cambodia KH Canada CA Chile CL China CN Colombia CO Congo CG Costa Rica CR Croatia HR Czech Republic CZ Denmark DK Ecuador EC Egypt EG El Salvador SV Ethiopia ET Fiji FJ Finland FI France FR Germany DE Great Britain GB Greece GR
Greenland GL Hong Kong HK Hungary HU India IN Indonesia ID Israel IL Italy IT Jamaica JM Japan JP Kenya KE Kuwait KW Libya LY Luxembourg LU Malaysia MY Maldives MV Mexico MX Monaco MC Mongolia MN Morocco MA Nepal NP Netherlands NL Netherlands Antilles AN New Zealand NZ Nigeria NG Norway NO Oman OM Pakistan PK Panama PA
Paraguay PY Philippines PH Poland PL Portugal PT Romania RO Russian Federation RU Saudi Arabia SA Senegal SN Singapore SG Slovak Republic SK Slovenia SI South Africa ZA South Korea KR Spain ES Sri Lanka LK Sweden SE Switzerland CH Taiwan TW Thailand TH Turkey TR Uganda UG Ukraine UA United States US Uruguay UY Uzbekistan UZ Vietnam VN Zimbabwe ZW
Area Code Area Code Area Code
Page 50
50 Appendix
Appendix
Trademarks and Licenses
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved.
HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.
“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation.
DivX is a registered trademark of DivX, Inc., and is used under license.
Energy Saving ( Extremely Low Power
Consumption)
On the LG products, an innovative power consumption system in stand-by mode is built.
It consumes less than 0.09 watts in that mode. Therefore, the small amounts of electricity are consumed even though the power plug is inserted.
iPod is trademark of Apple Inc., registered in the U.S. and other countries.
iPhone is a trademark of Apple Inc.
“Made for iPod” means that an electronic accessory has been designed to connect specically to iPod and has been certied by the developer to meet Apple performance standards.
“Works with iPhone” means that an electronic accessory has been designed to connect specically to iPhone and has been certied by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards
Page 51
51Appendix
Appendix
7
Bluetooth® wireless technology is a system which allows radio contact between electronic devices within a max. range of 10 meters.
Connecting individual devices under Bluetooth® wireless technology does not incur any charges. A mobile phone with Bluetooth® wireless technology can be operated via the Cascade if the connection was made via Bluetooth® wireless technology.
The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners.
What is SIMPLINK?
Some functions of this unit are controlled by TV’s remote control when this unit and LG TV with SIMPLINK are connected through HDMI connection. Controllable functions by LG TV’s remote control; Play, Pause, Scan, Skip, Stop, Power O, etc.
• Refer to the TV owner’s manual for the details of SIMPLINK function.
• LG TV with SIMPLINK function has the logo as shown above.
• Use a higher version cable than 1.2 A HDMI cable.
Specifications
General
Power requirements: Refer to main label.
Power consumption: Refer to main label.
Dimensions (W x H x D): 439 x 66.5 x 283.6 mm without foot
Net Weight (Approx.):
3.8 kg
Operating temperature: 41 °F to 95 °F (5 °C to 35 °C)
Operating humidity: 5 % to 90 %
Bus Power supply (USB): DC 5 V 500 mA
Inputs/ Outputs
VIDEO OUT:
1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1
COMPONENT VIDEO OUT: (Y ) 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1, (Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2
HDMI OUT (video/audio): 19 pin (HDMI standard, Type A) HDMI version : 1.2A
ANALOG AUDIO IN:
2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1
DIGITAL IN (OPTICAL): 3 V (p-p), Optical jack x 1
PORT. IN:
0.5 Vrms (3.5 mm stereo jack)
Tuner
FM Tuning Range:
87.5 to 108.0 MHz or 87.50 to 108.00 MHz
•
•
•
•
•
•
•
•
•
•
•
•
•
Page 52
52 Appendix
Appendix
Amplifier
Stereo mode: 180 W + 180 W (4 Ω at 1 kHz)
Surround mode: Front 180 W + 180 W (4 Ω at 1 kHz) Center 180 W (4 Ω at 1 kHz) Surround 180 W + 180 W (4 Ω at 1 kHz) Subwoofer 200 W (3 Ω at 60 Hz)
•
•
Speakers
Front speaker Type: 2 Way 3 speaker Impedance : 4 Ω Rated Input Power: 180 W Max. Input power: 360 W Net Dimensions (W x H x D): 280 x 1 212 x 195 mm Net Weight: 2.5 kg
Rear speaker Type:
4 Ω Rated Input Power: 180 W Max. Input power: 360 W Net Dimensions (W x H x D): 280 x 1 212 x 195 mm Net Weight: 2.5 kg
Center speaker Type: 2 Way 3 speaker Impedance: 4 Ω Rated Input Power: 180 W Max. Input power: 360 W Net Dimensions (W x H x D): 400 x 75 x 52 mm Net Weight: 0.55 kg
Passive Subwoofer Type: 1 Way 1 speaker Impedance: 3 Ω Rated Input Power: 200 W Max. Input power: 400 W Net Dimensions (W x H x D): 196 x 394 x 320 mm Net Weight: 5.8 kg
Designs and specications are subject to change without prior notice.
•
•
•
•
2 Way 3 speaker
Impedance :
Page 53
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
