HT502TH-X2.DUZBLLP_ENG_6961
DVD RECEIVER
OWNER’S MANUAL
MODEL: XH-T5025X
Main Unit - XH-T5025X
Speakers - SH52TH-F
SH52TH-S
SH52TH-C
SH52TH-W
R
USB
Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
WARNING: Do not install this equipment in a confined space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating.
The openings should be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction have been adhered to.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
CLASSE 1 PRODUIT LASER
CAUTION:
This product employs a Laser System.
To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Should the unit require maintenance, contact an authorized service center.
Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.
CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit;
That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord
exits the appliance.
To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.
Disposal of your old appliance
1.When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2.All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3.The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4.For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.
2
Introduction
Maintenance and Service . . . . . . . . . . . . . . . . .3 Before use . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Front Panel/Rear Panel . . . . . . . . . . . . . . . . . . .5 Remote Control . . . . . . . . . . . . . . . . . . . . . . . . .6
Installation and Setup
TV Connection . . . . . . . . . . . . . . . . . . . . . . . . . .7 Optional Equipment Connection . . . . . . . . . . . .8 Antenna Connection . . . . . . . . . . . . . . . . . . . . .8 Assembling and Connecting to the Speakers .9 Speaker System Connection . . . . . . . . . . . . . . .9 Displaying Disc Information on-screen . . . . . .10 Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . .10 General Operation . . . . . . . . . . . . . . . . . . . .10-13
LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . .10 DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 5.1 Speaker Setup . . . . . . . . . . . . . . . . . . . . .12 LOCK (Parental Control) . . . . . . . . . . . . . . . .13 OTHERS . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Operation |
|
General features . . . . . . . . . . . . . . . . . . . . . . . |
14 |
Additional features . . . . . . . . . . . . . . . . . . . . . |
15 |
Controlling the TV . . . . . . . . . . . . . . . . . . . . . . |
15 |
Playing an Audio CD or MP3/WMA file . . . . . . |
16 |
Programmed Playback . . . . . . . . . . . . . . . . . . |
16 |
Viewing a JPEG file . . . . . . . . . . . . . . . . . . . . |
17 |
Playing a DivX Movie file . . . . . . . . . . . . . . . . |
18 |
Presetting the Radio Stations . . . . . . . . . . . . . |
19 |
Listening to the Radio . . . . . . . . . . . . . . . . . . . |
19 |
Sleep Timer Setting . . . . . . . . . . . . . . . . . . . . . |
20 |
Dimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
20 |
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
20 |
Selecting input source . . . . . . . . . . . . . . . . . . . |
20 |
XTS/XTS pro . . . . . . . . . . . . . . . . . . . . . . . . . . . |
20 |
VIRTUAL sound . . . . . . . . . . . . . . . . . . . . . . . . |
20 |
Sound Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . |
20 |
REFERENCE
Language Codes . . . . . . . . . . . . . . . . . . . . . . .21
Area Codes . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Troubleshooting . . . . . . . . . . . . . . . . . . . . .22-23
Specifications . . . . . . . . . . . . . . . . . . . . . . . . .24
Maintenance and Service
Refer to the information in this chapter before contacting a service technician.
Handling the unit
When shipping the unit
Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.
Keeping the exterior surfaces clean
Do not use volatile liquids such as insecticide spray near the unit.
Do not leave rubber or plastic products in contact with the unit for a long period of time. since they leave marks on the surface.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution.
Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.
Maintaining the Unit
The DVD/CD Receiver is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished.
Depending on the operating environment, regular inspection and maintenance are recommended after every 1,000 hours of use.
For details, please contact your nearest authorized service center.
3
Introduction
Before use
To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference.
This manual provides information on the operation and maintenance of your DVD/CD Receiver. Should the unit require service, contact an authorized service location.
About the Symbol Display
“ ” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that specific DVD video disc.
Symbol Used in this Manual
Note:
Indicates special notes and operating features.
Tip:
Indicates tips and hints for making the task easier.
A section whose title has one of the following symbols is applicable only to the disc represented by the symbol.
DVD DVD
Video CDs
Audio CDs
MP3 files
WMA files
JPEG files
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. Copyright 1992-1997 Dolby Laboratories. All rights reserved.
Manufactured under license from Digital Theater Systems, Inc. U.S. Pat. No’s. 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 and other U.S. and worldwide patents issued and pending. "DTS" and "DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc. Copyright 1996, 2003 Digital Theater Systems, Inc. All Rights Reserved.
Types of Playable Discs
DVD
(8 cm / 12 cm disc)
Video CD (VCD) (8 cm / 12 cm disc)
Audio CD
(8 cm / 12 cm disc)
In addition, this unit can play a DVD±R, DVD±RW, SVCD and CD-R or CD-RW that contains audio titles, MP3, WMA, JPEG or DivX files.
Notes:
Depending on the conditions of the recording equipment or the CD-R/RW (or DVD-RW, DVD+RW) disc itself, some CD-R/RW (or DVD-RW, DVD+RW) discs may not be played on the unit.
Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.
Do not use irregularly shaped CDs (e.g., heartshaped or octagonal). It may result in malfunctions.
Regional Code
This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labelled as the same as the rear of the unit or “ALL”.
Notes on Regional Codes
Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your DVD player’s regional code or the disc cannot play.
If you try to play a DVD with a different regional code from your player, the message “Check Regional Code” appears on the TV screen.
4

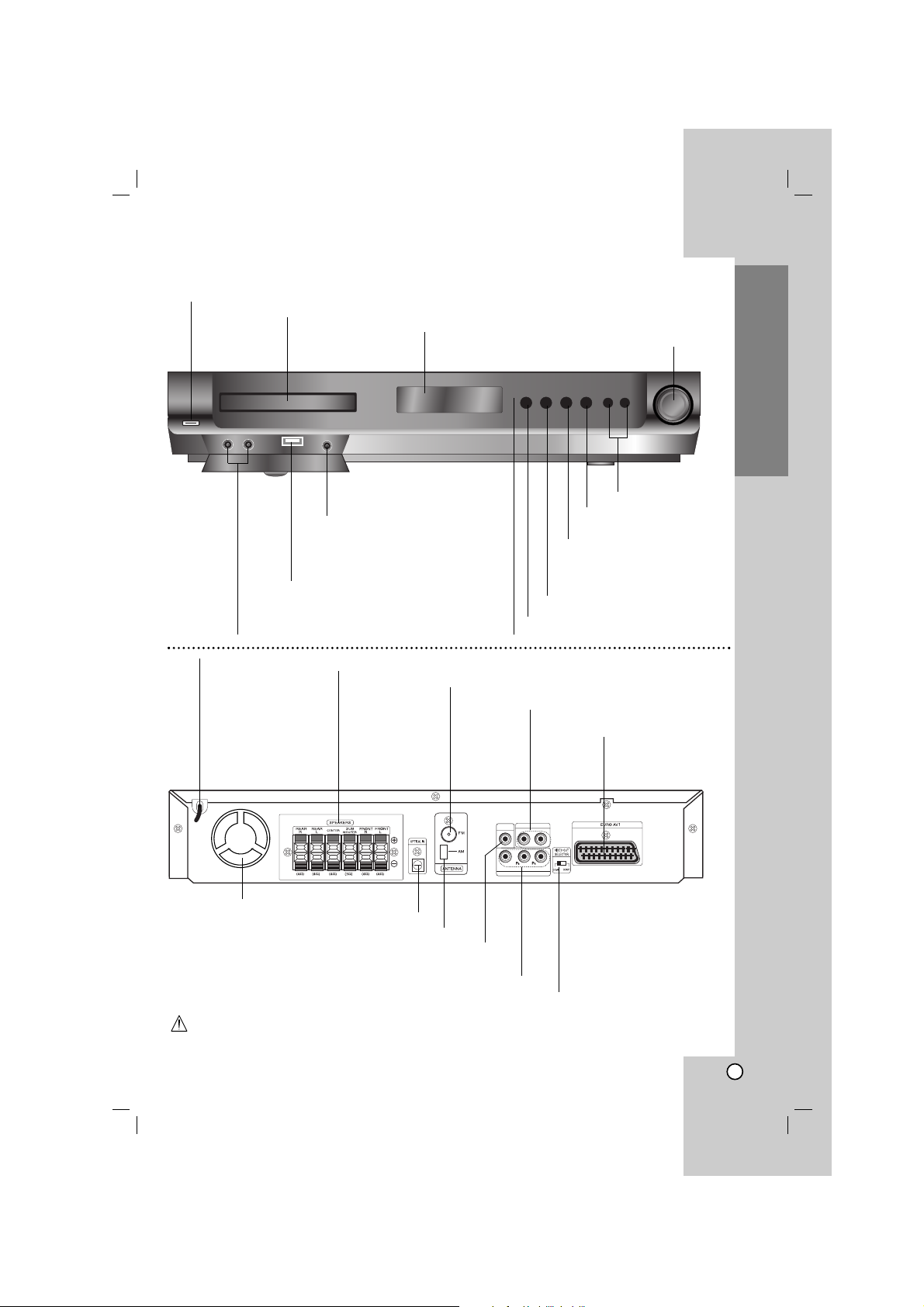

Front Panel/Rear Panel
POWER
DISC Tray
DISPLAY Window
VOLUME controller
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TUNING(-/+)/ SKIP |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SEARCH(./>) |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
AUDIO IN connector |
|
|
|
|
|
STOP (x) |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PAUSE (X)/ |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MONO/STEREO (ST.) |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
USB port |
|
|
|
FUNC.(-)/PLAY(B) |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
Connect to a USB port of a memory |
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Press and hold down this button |
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
device (USB memory etc.) |
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
about 3 seconds, then press |
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
repeatedly to select other function. |
||||||||||
|
|
|
|
|
|
MIC 1/MIC 2 |
|
|
|
OPEN/CLOSE button |
||||||||||||||||||
|
|
|
|
|
|
Connect a microphone to MIC 1 or |
|
|
|
|||||||||||||||||||
|
|
|
|
|
|
|
|
|||||||||||||||||||||
|
|
|
|
|
|
MIC 2 or to both sockets. |
|
|
Remote sensor |
|||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power Cord
SPEAKER connectors
FM Antenna connector
AUX AUDIO Input (L/R) connector
OUTPUT (TO TV) EURO AV socket
Connect to a TV with SCART jack.
MONITOR |
INPUT |
|
L - AUX - R |
Y |
|
COMPONENT VIDEO (PROGRESSIVE SCAN) |
|
OUT PUT |
|
Cooling fan |
|
OPTICAL IN connector |
|
AM Loop Antenna connectors |
|
MONITOR OUT connector |
|
COMPONENT VIDEO OUT terminals |
|
Connect to a TV with Y PB PR inputs. |
|
VIDEO OUT SELECTOR switch |
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
<![endif]>Introduction
5

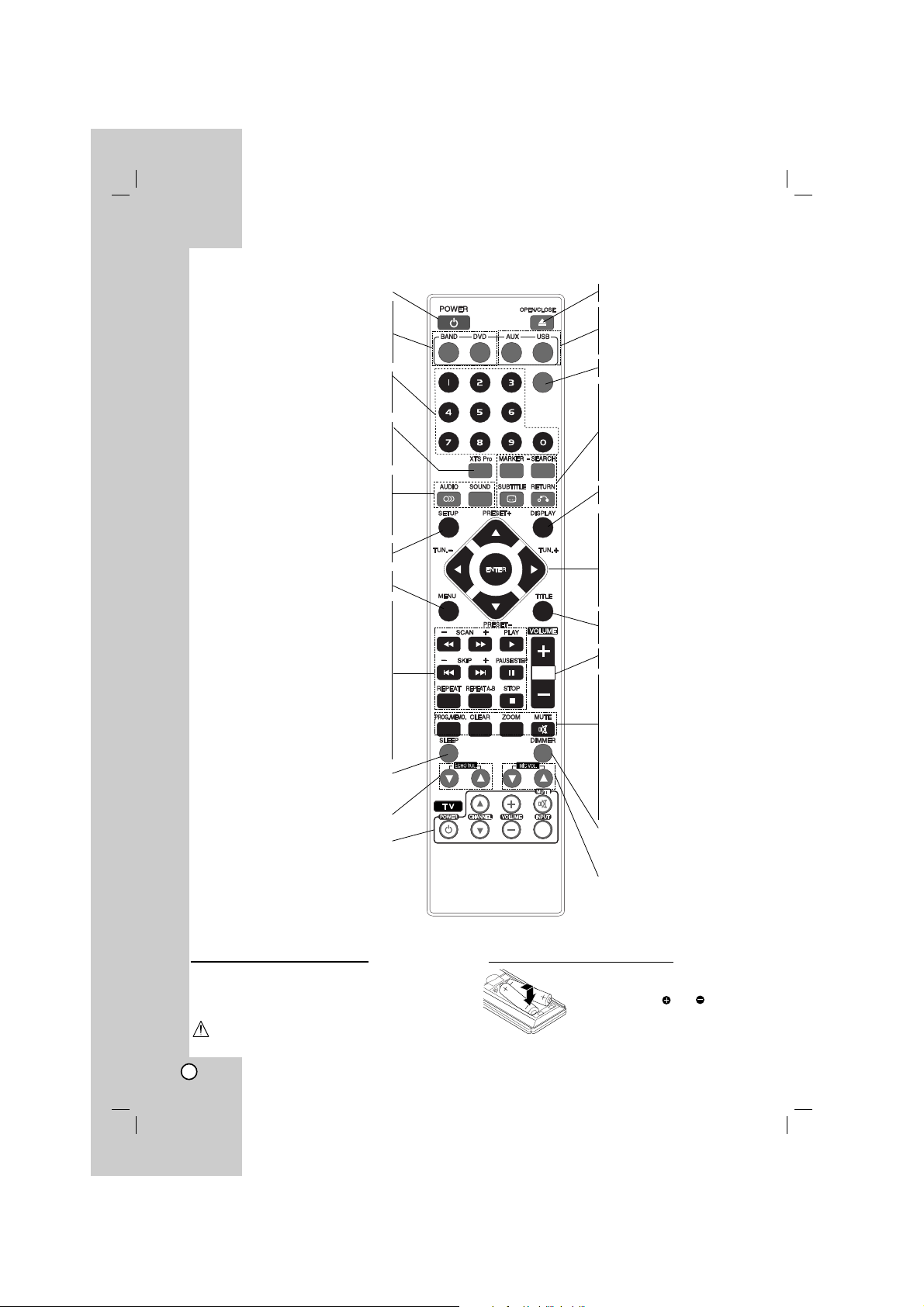

Remote Control
POWER
DVD
Selects the output source (CD/DVD).
BAND
Selects the System’s tuner (FM and
AM bands)
0-9 numerical buttons
Selects a service, programme number directly or selects numbered options in a menu.
XTS pro
Supplies more natural and realistic sound.
Supplies great sound effect.
AUDIO
Selects an audio language (DVD) or an audio channel (CD).
SOUND
Selects the sound mode.
SETUP
Accesses or removes setup menu.
MENU
Accesses the menu on a DVD disc.
SCAN/SLOW(bb/BB)
Searches backward or forward.
Reverse/ Forward slow playback.
REVERSE/FORWARD SKIP (./>) STOP (x)
PAUSE/STEP (X) PLAY (B) REPEAT
Repeats chapter, track, title, all
REPEAT A-B
Repeats sequence.
SLEEP
Sets the System to turn off automatically at a specified time.
ECHO VOL.(V/v)
Adjusts echo volume.
TV
Controls the TV. (LG TV only) (See page15)
Remote Control Operation Range
Point the remote control at the remote sensor and press the buttons.
Distance: About 23 ft (7 m) from the front of the remote sensor
Angle: About 30° in each direction in front of the remote sensor
Caution
OPEN/CLOSE (Z)
Opens and closes the disc tray.
AUX
Selects input source.
USB
Plays the multimedia files.
VSM
VSM
Selects the VIRTUAL sound
MARKER
Marks a point during playback.
SEARCH
Displays MARKER SEARCH menu.
SUBTITLE
Selects a subtitle language (DVD).
RETURN
Removes the setup menu.
DISPLAY
Accesses On-Screen display.
b/B/v/V (left/right/up/down)
Selects an option in the menu.
ENTER
Acknowledges the menu selection.
PRESET(v/V)
Selects programme of Radio.
TUN.(-/+) (b/B)
Tunes in the desired radio station.
TITLE
Displays the disc’s Title menu, if available.
VOLUME (+/-)
Adjusts speaker volume.
PROG.
Accesses or removes Program
menu.
MEMO.
Enter a radio station’s frequency into
the tuner.
CLEAR
Removes a track number on the
program menu or a mark on the
MARKER SEARCH menu.
ZOOM
MUTE
DIMMER
Changes brightness of the display window on the front panel during in power-on status.
MIC VOL.(V/v)
Adjusts microphone volume.
Remote control battery installation
Remove the battery cover on the rear of the remote control, and insert two R03 (size AAA) batteries with and aligned correctly.
Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).
6
Installation and Setup
TV Connection
Make one of the following connections, depending on the capabilities of your existing equipment.
Tips:
Depending on your TV and other equipment you wish to connect, there are various ways you could connect the DVD/CD Receiver. Use one of the connections described below.
Please refer to the manuals of your TV, VCR, Stereo System or other devices as necessary to make the best connections.
Caution:
Make sure the DVD/CD Receiver is connected directly to the TV. Select the correct AV input on your TV.
Do not connect your DVD/CD Receiver to TV via your VCR. The DVD image could be distorted by the copy protection system.
Rear of DVD/CD Receiver
MONITOR |
INPUT |
|
|
L - AUX - R |
|
Y |
|
|
COMPONENT VIDEO (PROGRESSIVE SCAN) |
|
|
|
OUT PUT |
|
V |
C |
T |
SCART INPUT
VIDEO |
COMPONENT VIDEO / |
INPUT |
PROGRESSIVE SCAN INPUT |

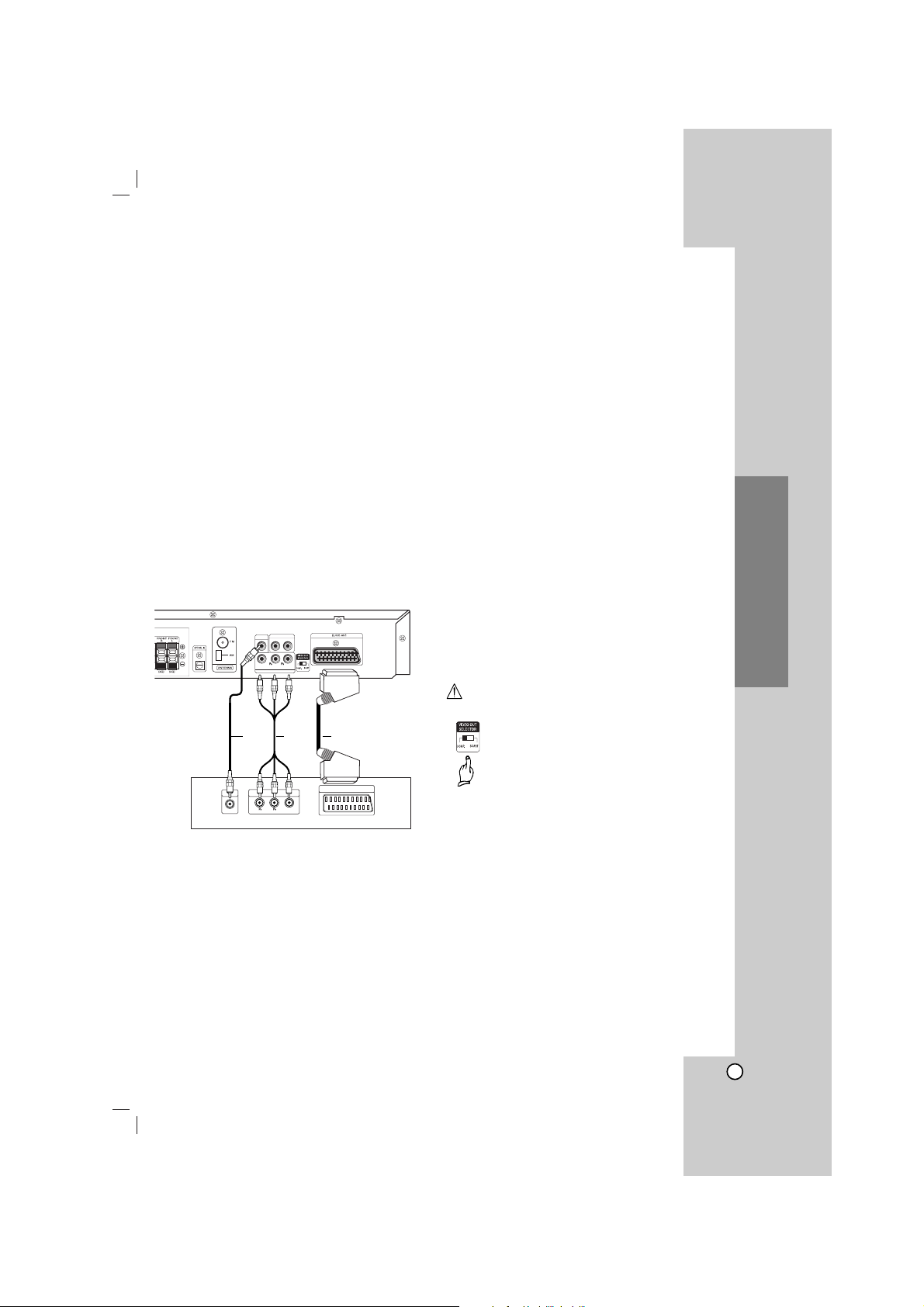

Video connection
Connect the MONITOR OUT jack from the DVD/CD Receiver to the VIDEO IN jack on the TV using the video cable (V).
Component Video connection
Connect the COMPONENT VIDEO OUT jacks from the DVD/CD Receiver to the corresponding jacks on the TV using an Y PB PR cable (C).
SCART connection
Connect the EURO AV OUTPUT (TO TV) socket on the DVD/CD Receiver to the corresponding jacks on the TV using the scart cable (T).
If your television is a high-definition or “digital ready” television, you may take advantage of the DVD/CD Receiver’s progressive scan output for the highest video resolution.
If your TV does not accept your resolution setting, abnormal picture appears on the screen. Please read owner’s manual for TV then set the resolution that your TV can accept.
Notes:
A picture via scart input is not supported.
Caution
VIDEO OUT SELECTOR switch
In power-off state, select either COMPONENT VIDEO OUT (PROGRESSIVE SCAN) or SCART signal of EURO AV TO TV terminal depending on how to connect the unit to the TV.
Y
L
Rear of TV
<![endif]>Installation and Setup
7

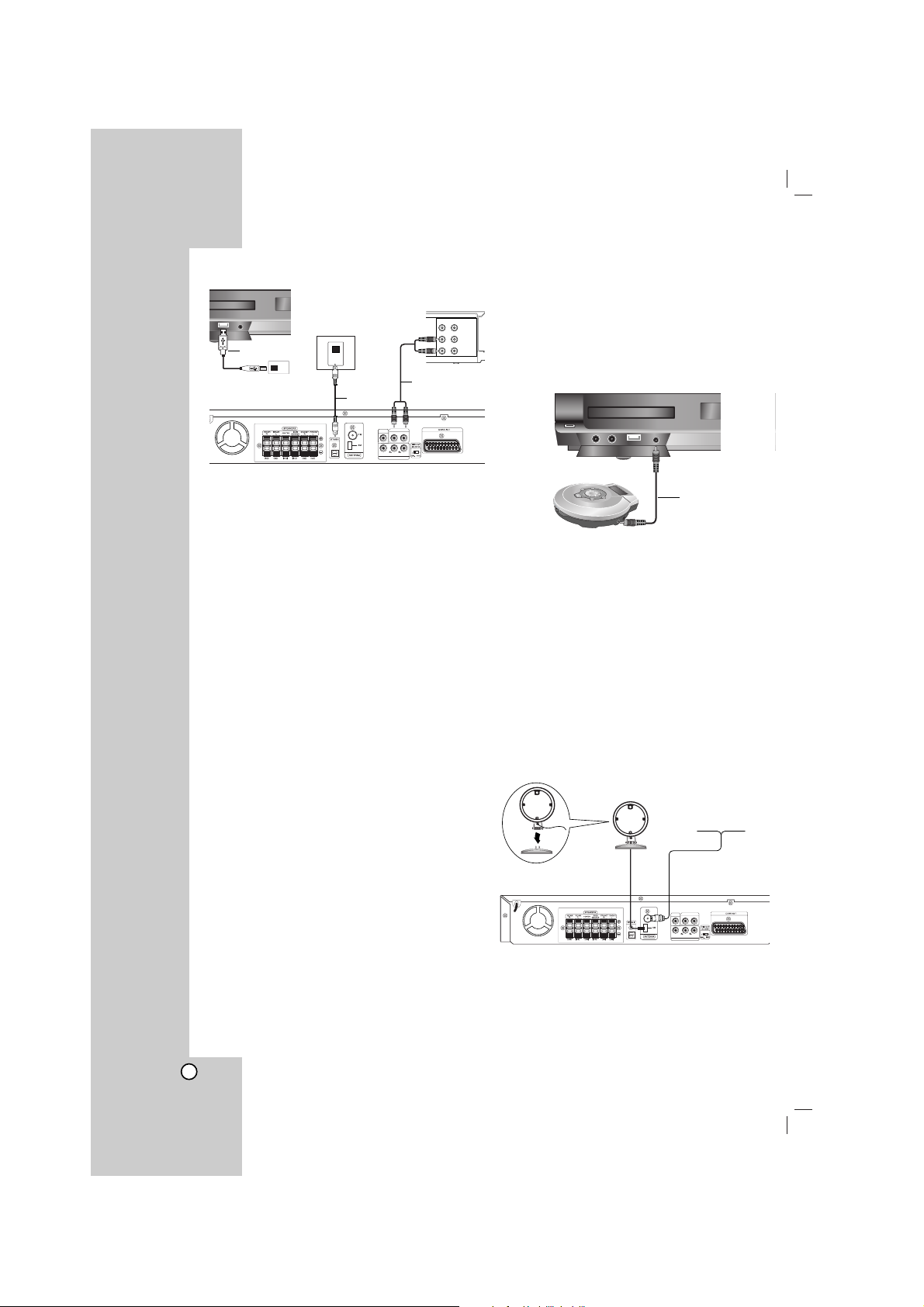

Optional Equipment Connection
|
DVD Player |
Auxiliary device |
|
|
|
|
|
|
(or Digital |
|
|
|
Device, etc) |
OUT |
IN |
|
|
VIDEO |
|
|
|
|
|
|
|
|
AUDIO (L) |
U |
|
|
AUDIO (R) |
OPTICAL |
|
|
|
|
OUT |
|
|
|
|
To AUDIO OUT (L/R) |
|
USB Memory, MP3 Player (or |
|
A |
|
Memory Card Reader, etc.) |
|
|
|
|
O |
To AV IN AUDIO (L/R) |
|
|
|
|
|
|
MONITOR |
INPUT |
|
|
|
L - AUX - R |
|
|
Y |
|
|
|
COMPONENT VIDEO (PROGRESSIVE SCAN) |
|
|
|
|
OUT PUT |
|
Rear of DVD/CD Receiver |
|
|
USB connection (U)
Connect the USB port of USB Memory (or MP3 player, etc.) to the USB port on the front of the unit.
Removing the USB Device from the unit
1.Choose a different function mode or press STOP (x) twice in a row.
2.Remove the USB device from the unit.
Notes:
Don’t extract the USB device while operating.
Music files (MP3/WMA), image files (JPEG) and video files can be played.
This unit can not use a USB HUB.
Recommended Memory Cards.
Compact Flash Card (CFC), Micro Drive (MD), Smart Media Card (SMC), Memory Stick (MS), Secure Digital Card (SD), Multi Media Card (MMC), Memory Stick Pro (MS-Pro)
-Compatible with : FAT16, FAT32
-Only use the memory cards recommended.
Devices which require additional program installation when you have connected the unit to a computer are not supported.
In case of a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation. Up to four primary partitions of a drive are supported. If there is an extension partition, it will not be supported.
If the drive of USB device is two or more, a drive folder is displayed on the screen. If you want to move to the initial menu after you select a folder, press RETURN.
Digital cameras and mobile phones are not supported.
AUX IN connection (A)
Connect a Output of auxiliary device to the AUX AUDIO Input (L/R) Connector.
OPTICAL IN connection (O)
Connect an optical output of DVD Player (or Digital Device etc) to the OPTICAL IN connector.
AUDIO IN connection (D)
Connect a output of portable device (MP3 or PMP etc) to the AUDIO input connector.
|
To AUDIO IN |
|
D |
Portable device |
To AUDIO OUT |
Antenna Connection
Connect the supplied FM/AM antenna for listening to the radio.
Connect the AM Loop antenna to the AM antenna connector.
Connect the FM Wire antenna to the FM antenna connector.
Notes:
To prevent noise pickup, keep the AM Loop antenna away from the DVD/CD Receiver and other components.
Be sure to fully extend the FM wire antenna.
After connecting the FM Wire antenna, keep it as horizontal as possible.
AM Loop Antenna (supplied)
FM Wire Antenna (supplied)
MONITOR INPUT
L - AUX - R
Y
COMPONENT VIDEO (PROGRESSIVE SCAN)
OUT PUT
8
