HT303SU-D0_ENG_LV_MFL56762621
HT313SU
(HT313SU-D0, SH33SU-S/W)
ENGLISH DVD/CD RECEIVER
Read the manual carefully before using the unit
RUSSIAN DVD/CD-кЦлаЗЦк
Lees deze handleiding aandacht door voordat u dit toestel gebruikt.
LATVIAN DVD/CD UZTVîRîJS
Pirms uzsākt iekārtas izmantošanu rūpīgi iepazīstieties ar šīs rokasgrāmatas saturu
LITHUANIAN DVD CD Grotuvas
Prieš naudodami įrenginį, atidžiai perskaitykite instrukciją
ESTONIAN DVD/CD-VASTUVÕTJA
Lugege enne seadme kasutamist hoolikalt kasutusjuhendit
R
P/N: MFL56762621
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
WARNING: Do not install this equipment in a confined space such as a book case or similar unit.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
CLASSE 1 PRODUIT LASER
CAUTION:
This product employs a Laser System.
To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Should the unit require maintenance, contact an authorized service center.
Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.
Note:
The marking of product shall be on the exterior of the apparatus
CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit;
That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord
exits the appliance.
To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.
Disposal of your old appliance
1.When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2.All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3.The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4.For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.
This product is manufactured to comply with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.
European representative :
LG Electronics Service Europe B.V.
Veluwezoom 15, 1327 AE Almere, The
Netherlands (Tel : +31-036-547-8940)
2
QUICK SETUP GUIDE
Speaker System Connection

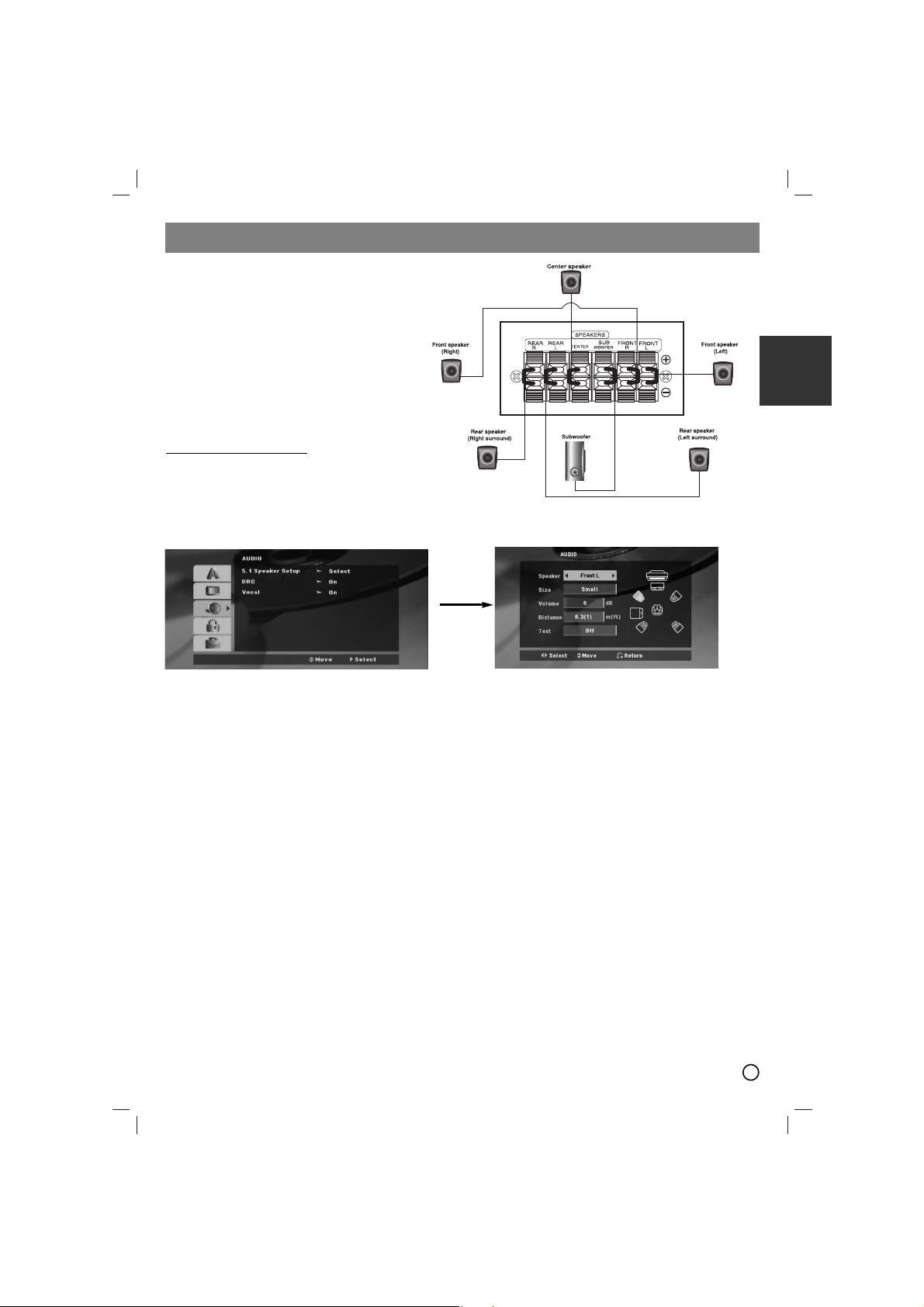

Connect the speaker wires the speaker terminals. To obtain the best possible surround sound, adjust the speaker parameters (volume, distance, etc.).
Notes:
Be sure to match the speaker wires to the appropriate terminal on the components, + to + and – to –. If the cables are reversed, the sound will be distorted and will lack bass.
If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output on the speakers.
Be careful of the following
Be careful to make sure children not to put their hands or any objects into the speaker duct. *Speaker duct: A hall for plentiful bass sound on speaker cabinet(enclosure).
5.1 Speaker Setup
Make the following settings for the built-in 5.1 channel surround decoder.
1.Press ENTER and 5.1 Speaker Setup menu appears.
2.Use b / B to select the desired speaker.
3.Adjust options using v / V / b / B buttons.
4.After setting, returns to the previous menu by pressing RETURN button.
Speaker selection
Select a speaker that you want to adjust. [Front speaker (Front L), Front speaker (Front R), Center Speaker (Center), Subwoofer (SubWoofer), Rear speaker (Rear L), Rear speaker (Rear R)]
Note:
Certain speaker settings are prohibited by the Dolby Digital licensing agreement.
Size
Since the speaker settings are fixed, you cannot change the settings.
Volume
Press b / B to adjust the output level of the selected speaker. (-6dB ~ 6dB)
Distance
If you connected speakers to your DVD/CD Receiver, setting the Distance lets the speakers know how far the sound has to travel to reach your set listening point. This allows the sound from each speaker to reach the listener at the same time.
Press b / B to adjust the Distance of the selected speaker.
Test
Press b / B to test the signals of each speaker. Adjust the volume to match the volume of test signals memorized in the system.
Front Left (L) → Center → Front Right (R) → Rear Right (R) → Rear Left (L) → SubWoofer
<![endif]>ENGLISH
3
Introduction
Installation
Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
TV Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Antenna Connection . . . . . . . . . . . . . . . . . . . . . . . .5
Speaker System Connection . . . . . . . . . . . . . . . . .5
Optional Equipment Connection . . . . . . . . . . . . . .5
Operation
Operate using the Front Panel . . . . . . . . . . . . . . . .6 Operate using the Remote Control . . . . . . . . . . .6-8
Setup
Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
General Operation . . . . . . . . . . . . . . . . . . . . . . . . . .8
Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Lock (Parental Control) . . . . . . . . . . . . . . . . . . . . .9
Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Presetting the Radio Stations . . . |
. . . . .10 |
Playing an Audio CD or |
|
MP3/WMA/JPEG/DivX file |
|
Playing an Audio CD or MP3/WMA file . . . |
. . . . . .10 |
Programmed playback . . . . . . . . . . . . . . . . |
. . . . .10 |
Viewing a JPEG file . . . . . . . . . . . . . . . . . . |
. . .10-11 |
Playing a DivX Movie file . . . . . . . . |
. . . . . .11 |
Additional features . . . . . . . . . . . . |
. . . . . .11 |
Types of Playable Discs
In addition, this unit can play a DVD-RW, DVD+RW, CD-G and CD-R or CD-RW that contains audio titles, MP3, WMA, JPEG or DivX files.
Notes:
Depending on the conditions of the recording equipment or the CD-R/RW (or DVD-RW, DVD+RW) disc itself, some CD-R/RW (or DVD-RW, DVD+RW) discs may not be played on the unit.
For DVD-R/RW Discs, only ones rewritten in video mode and finalized are supported on this player.
When there are a lot of data in a disc, it may take longer to be read on this player than on other model.
Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.
Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). It may result in malfunctions.
Regional Code
This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labelled as the same as the rear of the unit or “ALL”.
Notes on Regional Codes
If you try to play a DVD with a different regional code from your player, the message “Check Regional Code” appears on the TV screen.
RDS Operation . . . . . . . . . . . |
. . . .11 |
Reference |
|
Language Codes . . . . . . . . . . . . . . |
. . . . . .12 |
Area Codes . . . . . . . . . . . . . . . . . . |
. . . . . .12 |
Troubleshooting . . . . . . . . . . . . . . |
. . . . . .13 |
Specifications . . . . . . . . . . . . . . . . |
. . . . . .14 |
Before Use
About the Symbol Display
“ ” may appear on your TV display |
|
and indicates that the function explained |
owner’s |
manual is not available on that specific |
disc. |
Symbol Used in this Manual |
|
A section whose title has one of the |
is |
applicable only to the disc represented |
. |
DVD-V DVD and finalized DVD±R/RW |
|
MP3 files |
|
WMA |
|
“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license from Dolby Laboratories. Please ensure that the proper above notice is included in the owner’s manual.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved.
The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.
Be responsible respect copyrights
4
Installation
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
Be careful of the following
Be careful to make sure children not to put their hands or any objects into the speaker duct.
*Speaker duct: A hall for plentiful bass sound on speaker cabinet(enclosure).
TV Connection
Make one of the following connections, depending on the capabilities of your existing equipment.
Tips:
Depending on your TV and other equipment you wish to connect, there are various ways you could connect the DVD/CD Receiver. Use one of the connections described below.
Please refer to the manuals of your TV, VCR, Stereo System or other devices as necessary to make the best connections.
Caution:
Make sure the DVD/CD Receiver is connected directly to the TV. Select the correct AV input on your TV.
Do not connect your DVD/CD Receiver to the TV via your VCR. The DVD image could be distorted by the copy protection system.

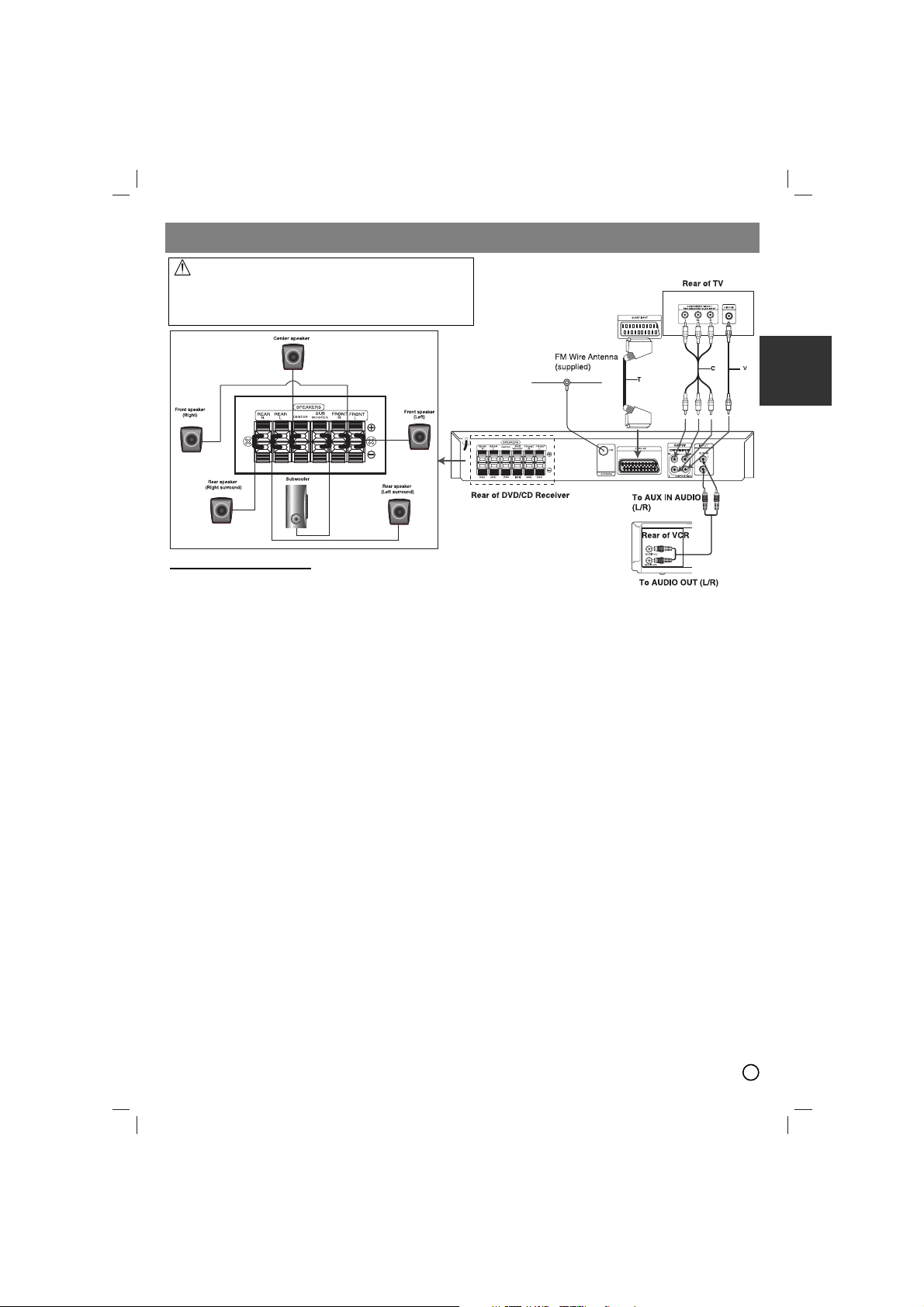

SCART connection
Connect the EURO AV OUTPUT (TO TV) socket on the DVD/CD Receiver to the corresponding jacks on the TV using the scart cable (T).
Component Video connection
Connect the COMPONENT VIDEO OUT jacks from the DVD/CD Receiver to the corresponding jacks on the TV using a Y PB PR cable (C).
If your television is a high-definition or “digital ready” television, you may take advantage of the DVD/CD Receiver’s progressive scan output for higher video resolution.
If your TV does not accept your resolution setting, abnormal picture appears on the screen. Please read owner’s manual for TV then set the resolution that your TV can accept.
<![endif]>ENGLISH
Composit Video connection
Connect the MONITOR jack from the DVD/CD Receiver to the Video IN jack on the TV using the video cable supplied (V).
Antenna Connection
Connect the supplied FM antenna for listening to the radio.
Connect the FM Wire aerial to the FM aerial connector.
Notes:
Be sure to fully extend the FM wire aerial.
After connecting the FM Wire aerial, keep it as horizontal as possible.
Speaker System Connection
Connect the speaker wires the speaker terminals.
To obtain the best possible surround sound, adjust the speaker parameters (volume, distance, etc.).
Notes:
Be sure to match the speaker wires to the appropriate terminal on the components, + to + and – to –. If the cables are reversed, the sound will be distorted and will lack bass.
If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output on the speakers.
Optional Equipment Connection
Connect a VCR to the AUX IN connectors.
