OWNER’S MANUAL

Network 3D Blu-ray™ Home Theater

Please read this manual carefully before operating your set and retain it for future reference.

HB966TZ (HB966TZ, SH96TZ-S/C/W)

P/NO : SAC352135

Safety Information

Getting Started 3

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLE PARTS INSIDE REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous

enclosure that may be of sucient magnitude to constitute a risk of electric shock to persons.

instructions in the literature accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a conned space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to.

voltage within the product’s

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing)

CAUTION: This product employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center. Use of controls, adjustments or the performance of procedures other than those specied herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specication page of this owner’s manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or re. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

Getting Started

Getting Started4

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery or the battery from the equipment: Remove the

old battery or battery pack, follow the steps

Getting Started

in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, re or the like.

CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects lled with liquids, such as vases, shall be placed on the apparatus.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products shall be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city oce, waste disposal service or the shop where you purchased the product.

For Wireless product European Union Notice

LG Electronics hereby declares that this/

these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC, 2004/108/EC, 2006/95/EC and 2009/125/EC.

Please contact to the following address for obtaining a copy of the DoC (Declaration of Conformity).

European representative : LG Electronics Service Europe B.V. Veluwezoom 15, 1327 AE Almere, The Netherlands (Tel : +31-(0)36-547-8888)

Indoor use only.

RF Radiation Exposure Statement

This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Getting Started 5

Notes on Copyrights

yBecause AACS (Advanced Access Content

System) is approved as content protection system for BD format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analog signal output, etc., of AACS protected contents. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by AACS after the production of this product.

yFurthermore, BD-ROM Mark and BD+ are

additionally used as content protection systems for BD format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD+ protected contents. To obtain additional information on AACS, BD-ROM Mark, BD+, or this product, please contact an authorized Customer Service Centre.

yMany BD-ROM/DVD discs are encoded with

copy protection. Because of this, you should only connect your player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected discs.

yThis product incorporates copyright protection

technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi. Reverse engineering or disassembly is prohibited.

yUnder the U.S. Copyright laws and Copyright

laws of other countries, unauthorized recording, use, display, distribution, or revision of television programs, videotapes, BD-ROM discs, DVDs, CDs and other materials may subject you to civil and/ or criminal liability.

Important Notice for TV colour system

The colour system of this player diers according to currently playing discs.

For example, when the player plays the disc recorded in the NTSC colour system, the image is output as an NTSC signal.

Only the multi system colour TV can receive all signals output from the player.

yIf you have a PAL colour system TV, you will see

just distorted images when using discs or video contents recorded in NTSC.

yThe multi system colour TV changes the colour

system automatically according to input signals. In case that the colour system is not changed automatically, turn it o and then on to see normal images on screen.

yEven if the disc recorded in NTSC colour system

are well displayed on your TV, these may not be recorded correctly on your recorder.

Getting Started

Table of Contents6

Table of Contents

1 Getting Started

3 Safety Information 8 Introduction 8 – Playable Discs and symbols used in

this manual

9 – About the “7” Symbol Display 10 – File compatibility 11 – AVCHD (Advanced Video Codec High

Deﬁnition) 11 – About DLNA 12 – Certain System Requirements 12 – LG Remote 12 – WOL (Wake On LAN) 12 – Regional Code 12 – Compatibility Notes 13 Remote control 14 Front panel 15 Rear panel

2 Connecting

16 Assembling the speaker (Front/Rear) 18 Positioning the system 19 Speaker Connection 19 – Attaching the speakers to the player 20 Connecting to Your TV 20 – HDMI Connection 21 – What is SIMPLINK? 21 – ARC (Audio Return Channel) function 22 – Component Video Connection 22 – Video Connection 23 – Resolution Setting 23 Antenna connection 24 Connections with external device 24 – AUX Connection 24 – PORT. IN connection 25 – OPTICAL IN connection 25 – HDMI IN 1/2 connection 26 Connecting to your Home Network 26 – Wired network connection 27 – Wired Network Setup 28 – Wireless Network Connection

28 – Wireless Network Setup 31 USB device connection 31 – Playback content in the USB device

3 System Setting

32 Settings 32 – Adjust the Setup Settings 32 – [DISPLAY] Menu 34 – [LANGUAGE] Menu 34 – [AUDIO] Menu 35 – [LOCK] Menu 36 – [NETWORK] Menu 37 – [OTHERS] Menu 39 Sound Effect

4 Operating

40 General Playback 40 – Using [HOME] menu 40 – Playing a Disc 40 – Playing a ﬁle on a disc/USB device 41 – Playing Blu-ray 3D disc 41 – Enjoying BD-Live™ 42 – Playing a ﬁle on a network server 43 – Connecting to a Wi-Fi Direct™

certiﬁed server

43 – Basic operations for video and audio

content 44 – Basic operations for photo content 44 – Using the disc menu 44 – Resume playback 45 Advanced Playback 45 – Repeat Playback 45 – Repeating a speciﬁc portion 46 – Marker Search 46 – Using the search menu 47 – Changing content list view 47 – Viewing content information 47 – Selecting a subtitle ﬁle 48 – Last Scene Memory 48 – Applying your photo to the Wallpaper 48 – Options while viewing a photo 49 – Listening to music while slide show 49 On-Screen display 49 – Displaying content information on-

screen

Table of Contents 7

50 – Playing from selected time 50 – Hearing a different audio 51 – Selecting a subtitle language 51 – Watching from a different angle 51 – Changing the TV Aspect Ratio 51 – Changing subtitle code page 52 – Changing the Picture Mode 52 Audio CD Recording 54 Viewing information from Gracenote

Media Database 55 Playing the iPod 55 – Enjoying iPod on the screen 56 – Enjoying the iPod IN mode 57 Radio Operations 57 – Listening to the radio 57 – Presetting the Radio Stations 57 – Deleting a saved station 57 – Deleting all the saved stations 57 – Improving poor FM reception 57 – See information about a radio station 58 Using the Premium

5 Troubleshooting

59 Troubleshooting 59 – General 60 – Network 61 – Picture 61 – Sound 61 – Customer Support 61 – Open source software notice

6 Appendix

62 Controlling a TV with the Supplied

Remote Control

62 – Setting up the remote to control your

TV 63 Network Software Update 63 – Network update notiﬁcation 63 – Software Update 65 About Nero MediaHome 4 Essentials 65 – Installing Nero MediaHome 4

Essentials 66 – Sharing ﬁles and folders 67 Area Code List 68 Language code List 69 Trademarks and Licenses 71 Video Output Resolution 72 Speciﬁcations 74 Maintenance 74 – Handling the Unit 74 – Notes on Discs 75 Important Information Relating to

Network Services

Getting Started8

Introduction

Playable Discs and symbols used in this manual

Getting Started

Media/Term Logo Symbol Description

yDiscs such as movies that can be purchased or

rented.

y“Blu-ray 3D” discs and “Blu-ray 3D ONLY” discs.

yBD-R/RE discs that are recorded in BDAV format.

yBD-R/RE discs that contain Movie, Music or

Photo les.

yISO 9660+JOLIET, UDF and UDF Bridge format

yDiscs such as movies that can be purchased or

rented.

yMovie mode and nalized only

ySupports the dual layer disc also

Finalized AVCHD format

yDVD±R/RW discs that contain Movie, Music or

Photo les.

yISO 9660+JOLIET, UDF and UDF Bridge format

Blu-Ray

DVD-ROM

DVD-R

DVD-RW

DVD+R

DVD+RW

(8 cm / 12 cm)

y u i

DVD-RW

(VR) (8 cm / 12 cm)

Audio CD

(8 cm / 12 cm)

CD-R/RW

(8 cm / 12 cm)

Note –

Caution –

y u i

VR mode and nalized only

Audio CD

yCD-R/RW discs that contain Movie, Music or

Photo les.

yISO 9660+JOLIET, UDF and UDF Bridge format

Indicates special notes and operating features.

Indicates cautions for preventing possible damages from abuse.

Note

yDepending on the conditions of the

recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.

yDepending on the recording software & the

nalization, some recorded discs (CD-R/RW, DVD±R/RW, BD-R/RE) may not be playable.

yBD-R/RE, DVD±R/RW and CD-R/RW discs

recorded using a personal computer or a DVD or CD Recorder may not play if the disc is damaged or dirty, or if there is dirt or condensation on the player’s lens.

yIf you record a disc using a personal

computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)

yThis player requires discs and recordings to

meet certain technical standards in order to achieve optimal playback quality.

yPre-recorded DVDs are automatically set to

these standards. There are many dierent types of recordable disc formats (including CD-R containing MP3 or WMA les) and these require certain pre-existing conditions to ensure compatible playback.

yCustomers should note that permission

is required in order to download MP3 / WMA les and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

yYou have to set the disc format option

to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live System, you cannot use it on LG player. (Mastered/Live File System : Disc format system for windows Vista)

Getting Started 9

About the “7” Symbol Display

“7” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that specic media.

Getting Started

Getting Started10

File compatibility

Movie ﬁles

Getting Started

File

Location

Disc,

USB

DLNA, PC

Music ﬁles

File

Extension

“.avi”, “.divx”, “.mpg”, “.mpeg”, “.mkv”, “.mp4”, “.asf”, “.wmv”, “.m4v” (DRM free)

“.avi”, “.divx”, “.mpg”, “.mpeg”, “.mkv”, “.mp4”, “.asf”, “.wmv”,

Codec Format Audio Format Subtitle

DIVX3.xx, DIVX4.xx, DIVX5.xx, DIVX6.xx (Standard playback only), XVID, MPEG1 SS, H.264/MPEG-4 AVC, MPEG2 PS, MPEG2 TS, VC-1 SM (WMV3)

DIVX3.xx, DIVX4.xx, DIVX5.xx, DIVX6.xx, XVID, MPEG1 SS, H.264/MPEG-4 AVC, MPEG2 PS, MPEG2 TS, VC-1 SM (WMV3)

Dolby Digital, DTS, MP3, WMA, AAC, AC3

SubRip (.srt / .txt), SAMI (.smi), SubStation Alpha (.ssa/.txt), MicroDVD (.sub/.txt), VobSub (.sub), SubViewer 1.0 (.sub), SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD Subtitle System (.txt)

SubRip (.srt / .txt), SAMI (.smi), SubStation Alpha (.ssa/.txt), MicroDVD (.sub/.txt), SubViewer

1.0 (.sub), SubViewer 2.0 (.sub/. txt), TMPlayer (.txt), DVD Subtitle System (.txt)

File

Location

Disc, USB,

DLNA, PC

Photo ﬁles

File

Location

Disc, USB,

DLNA, PC

File

Extension

“mp3”, “.wma”, “.wav”, “.m4a” (DRM free)

File

Extension

“.jpg”, “.jpeg”, “.png”,

Sampling Frequency Bitrate Note

within 32 - 48 kHz (WMA), within 16 - 48 kHz (MP3)

Recommanded

Size

Less than 4,000 x 3,000 x 24 bit/pixel Less than 3,000 x 3,000 x 32 bit/pixel

within 20 - 320 kbps (WMA), within 32 - 320 kbps (MP3)

Progressive and lossless compression photo image les are not supported.

Some wav les are not supported on this player.

Note

yThe le name is limited to 180 characters.

yMaximum les/folder: Less than 2 000

(total number of les and folders)

yDepending on the size and number of the

les, it may take several minutes to read the contents on the media.

yFile compatibility may dier depending on

the server.

yBecause the compatibility on DLNA server

are tested on the bundle DLNA server (Nero MediaHome 4 Essentials) environment, le requirements and playback functions may dier depending on media servers.

yThe le requirements on page 10 are not

always compatible. There may have some restrictions by le features and media server’s ability.

yPlaying a movie subtitle les are only

available on share folder of a PC or DLNA media server created by supplied Nero MediaHome 4 Essentials software on this player package.

yThe les from removable media such as USB

drive, DVD-drive etc. on your media server may not be shared properly.

yThis unit cannot support the ID3 Tag

embedded MP3 le.

yThe total playback time of audio le

indicated on the screen may not correct for VBR les.

yHD movie les contained on the CD or USB

1.0/1.1 may not played properly. BD, DVD or USB 2.0 are recommended to play back HD movie les.

yThis player supports H.264/MPEG-4 AVC

prole Main, High at Level 4.1. For a le with higher level, the warning message will appear on the screen.

yThis player does not support les that are

recorded with GMC

*1 GMC – Global Motion Compensation

*2 Qpel – Quarter pixel

or Qpel

Getting Started 11

AVCHD (Advanced Video Codec High Deﬁnition)

yThis player can playback AVCHD format discs.

These discs are normally recorded and used in camcorders.

yThe AVCHD format is a high denition digital

video camera format.

yThe MPEG-4 AVC/H.264 format is capable of

compressing images at higher eciency than that of the conventional image compressing format.

yThis player can playback AVCHD discs using

“x.v.Color” format.

ySome AVCHD format discs may not play

depending on the recording condition.

yAVCHD format discs need to be nalized.

y“x.v.Color” oers a wider color range than normal

DVD camcorder discs.

About DLNA

This Player is a DLNA Certied digital media player that can display and play movie, photo and music content from your DLNA-compatible digital media server (PC and Consumer Electronics).

The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through your home network.

The DLNA certication logo makes it easy to nd products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5.

When a PC running DLNA server software or other DLNA compatible device is connected to this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information.

Getting Started

Getting Started12

Certain System Requirements

For high denition video playback:

yHigh denition display that has COMPONENT or

Getting Started

HDMI input jacks.

yBD-ROM disc with high denition content.

yHDMI or HDCP capable DVI input on your display

device is required for some content (as specied by disc authors).

For playing les on your PC’s share folder via your home network, the PC requires below.

yWindows® XP (Service Pack 2 or higher),

Windows Vista® (no Service Pack required) Windows 7® (no Service Pack required)

y1.2 GHz Intel® Pentium® III or AMD

Sempron™ 2200+ processors

yNetwork environment: 100 Mb Ethernet, WLAN

(IEEE 802.11a/b/g/n)

yMore than 1 folder on your PC has to be shared.

Visit suppot link of your operating system for more information on le share settings.

LG Remote

You can control this player with your iPhone or Android phone via your home network. This player and your phone must be connected to your wireless network device such as access point. Visit “Apple iTunes” or “Google Apps Marketplace” for detailed information of “LG Remote”.

Compatibility Notes

yBecause BD-ROM is a new format, certain disc,

digital connection and other compatibility issues are possible. If you experience compatibility problems, please contact an authorized Customer Service Center.

yThis unit allows you to enjoy functions such

as picture-in-picture, secondary audio and Virtual packages, etc., with BD-Video supporting BONUSVIEW (BD-ROM version 2 Prole 1 version

1.1/ Final Standard Prole). Secondary video and audio can be played from a disc compatible with the picture-in-picture function. For the playback method, refer to the instructions in the disc.

yViewing high-denition content and up-

converting standard DVD content may require a HDMI-capable input or HDCP-capable DVI input on your display device.

ySome BD-ROM and DVD discs may restrict the

use of some operation commands or features.

yDolby TrueHD, Dolby Digital Plus and DTS-HD are

supported with maximum 5.1 channels if you use HDMI connection for the audio output of the unit.

yYou can use a USB device to store some disc

related information, including downloaded online content. The disc you are using will control how long this information is retained.

WOL (Wake On LAN)

Users can turn on this player using WOL embeded utility on your personal computer or smartphone via your home network. To use this feature, this player must be connected to the WOL available access point or router with wired network connection. Refer to the relevant manual of the utility or network devices for more detailed information.

Regional Code

This unit has a regional code printed on the rear of the unit. This unit can play only BD-ROM or DVD discs labeled same as the rear of the unit or “ALL”.

Remote control

Getting Started 13

Battery Installation

Remove the battery cover on the rear of the Remote Control, and insert two R03 (size AAA) batteries with 4 and 5 matched correctly.

• • • • • • a • • • • • •

(POWER): Switches the player

ON or OFF.

(OPEN/CLOSE): Opens and

closes the disc tray.

RADIO&INPUT: Changes input mode.

0-9 numerical buttons: Selects numbered options in a menu or inputs letters in the keypad menu.

CLEAR: Removes a mark on the search menu or a number when setting the password.

REPEAT (h): Repeats a desired section or sequence.

• • • • • • b • • • • •

c/v

backward or forward.

C/V

next or previous chapter / track / le.

Z z M

SPEAKER LEVEL: Sets the sound level of desired speaker.

SOUND EFFECT: Selects a sound eect mode.

VOL +/-: Adjusts speaker volume.

OPTICAL: Changes input mode to

optical directly.

MUTE: Mute the unit.

• • • • • • c • • • • •

HOME (n): Displays or exits the [Home Menu].

MUSIC ID: When connected to the network, can provide information about the current song while movie playback.

INFO/DISPLAY (m): Displays or exits On-Screen Display.

(SCAN): Searches

(SKIP): Goes to the

(STOP): Stops playback.

(PLAY): Starts playback.

(PAUSE): Pauses playback.

Direction buttons: Selects an

option in the menu.

PRESET +/-: Selects programme of Radio.

TUNING +/-: Tunes in the desired radio station.

ENTER (b): Acknowledges menu selection.

BACK (x): Exits the menu or resumes playback. The resume play function may not work depending on the BD-ROM disc.

TITLE/POP-UP: Displays the DVD title menu or BD-ROM’s pop-up menu, if available.

DISC MENU: Accesses menu on a disc.

• • • • • • d • • • • •

Colored (R, G, Y, B) buttons:

- Use to navigate BD-ROM menus. They are also used for [MOVIE], [PHOTO], [MUSIC] and [Premium] menu.

- B button: Selects mono/ stereo in FM mode.

RDS: Radio Data System.

PTY: Views the programme type

of the RDS.

PTY SEARCH:

Searches programme type.

MARKER: Marks any point during playback.

SEARCH: Displays or exits the search menu.

SLEEP: Sets a certain period of time after which the unit will switch to o.

(REC): Records an audio CD.

TV Control Buttons: See page 62.

Getting Started

Getting Started14

Front panel

Getting Started

(POWER) Button

a 1/!

Disc Tray

Operation buttons

d e f g

(PLAY / PAUSE)

D/!!

(STOP)

I Y/U

F (Function)

Changes the input source or function.

VOL -/+

PORT. IN

USB Port

Remote Sensor

Display Window

(SKIP)

(OPEN/CLOSE)

Caution

Precautions in using the touch buttons

yUse the touch buttons with clean and dry

hands.

- In a humid environment, wipe out any moisture on the touch buttons before using.

yDo not press the touch buttons hard to

make it work.

- If you apply too much strength, it can damage the sensor of the touch buttons.

yTouch the button that you want to work in

order to operate the function correctly.

yBe careful not to have any conductive

material such as metallic object on the touch buttons. It can cause malfunctions.

Rear panel

Getting Started 15

Getting Started

AC power cord

Speakers connectors

Cooling Fan

LAN port

OPTICAL IN

HDMI IN 1/2

HDMI OUT

VIDEO OUT

COMPONENT VIDEO (Y PB PR)

OUTPUT (PROGRESSIVE SCAN)

Antenna Connector

iPod (24 pin)

Connect to the furnished iPod cradle.

AUX (L/R) INPUT

Connecting16

Assembling the speaker (Front/Rear)

Preparation

Pole

Connecting

Speaker

Cable

1. Attach the pole to the base, then secure the connection with a supplied screw.

Step 1

Base

Screw

2. Insert a speaker wire from the bottom of the base.

Step 2

Bottom of base

3. Attach the speaker to the pole, then secure the connection with a supplied screw.

Step 3

(Big screw)

(Small screw)

Bottom of base

Connecting 17

4. Connect the speaker wire to the terminal on the speaker.

Make sure the wire marked black goes in to the

terminal marked “–” (minus) and the other wire goes in to the terminal marked “+” (plus).

Step 4

Caution

Be careful that the speaker does not fall down. Otherwise it may result in the speaker malfunctioning and causing personal injury and/ or property damage.

Connecting

Connecting18

DEE

ABA

DEE

EFG

Positioning the system

The following illustration shows an example of positioning the system. Note that the illustrations in these instructions dier from the actual unit for explanation purposes. For the best possible surround sound, all the speakers other than the subwoofer should be placed at the same distance from the listening

position (

Connecting

Caution

yBe careful to make sure children not to put

their hands or any objects into the *speaker duct. *Speaker duct: A hole for plentiful bass sound on speaker cabinet (enclosure).

yPlace the center speaker at a safe distance

from the child’s reach. Otherwise it may result in the speaker falling down and causing personal injury and/or property damage.

yThe speakers contain magnetic parts, so

colour irregularity may occur on the CRT TV screen or PC monitor screen. Please use the speakers away from the TV screen or PC monitor screen.

Front left speaker (L)/ Front right speaker (R):

Place the front speakers to the sides of the monitor or screen and as ush with the screen surface as possible.

Center speaker:

Place the center speaker above or below the monitor or screen.

Surround left speaker (L)/ Surround right speaker (R):

Place these speakers behind your listening position, facing slightly inwards.

Subwoofer:

The position of the subwoofer is not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the front speakers. Turn it slightly toward the center of the room to reduce the wall reections.

Unit

Speaker Connection

Attaching the speakers to the player

1. Connect speaker wires to the player. Each speaker wire is color-coded. Use matching color wires for corresponding speakers.

Color Speaker Position

Grey Rear Rear right

Blue Rear Rear left

Green Center Center

Orange

Red Front Front right

White Front Front left

2. Connect the speaker wire to the terminal on the speaker.

Make sure the wire marked black goes in to the

terminal marked “–” (minus) and the other wire goes in to the terminal marked “+” (plus).

Sub woofer

Any front position

Connecting 19

Connecting

Connecting20

Connecting to Your TV

Make one of the following connections, depending on the capabilities of your existing equipment.

yHDMI connection (page 20)

yComponent Video connection (page 22)

yVideo connection (page 22)

Note

Connecting

yDepending on your TV and other

equipment you wish to connect, there are various ways you could connect the player. Use only one of the connections described in this manual.

yPlease refer to the manuals of your TV,

stereo system or other devices as necessary to make the best connections.

yMake sure the player is connected directly

to the TV. Tune the TV to the correct video input channel.

yDo not connect your player via your VCR.

The image could be distorted by the copy protection system.

HDMI Connection

If you have a HDMI TV or monitor, you can connect it to this player using a HDMI cable (Type A, High speed HDMI™ cable with Ethernet). Connect the HDMI jack on the player to the HDMI jack on a HDMI compatible TV or monitor.

Rear of the unit

HDMI cable

Set the TV’s source to HDMI (refer to TV’s Owner’s manual).

Additional Information for HDMI

yWhen you connect a HDMI or DVI compatible

device make sure of the following:

-Try switching o the HDMI/DVI device and this player. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this player.

-The connected device’s video input is set correctly for this unit.

-The connected device is compatible with 720x576p, 1280x720p, 1920x1080i or 1920x1080p video input.

yNot all HDCP-compatible HDMI or DVI devices

will work with this player.

-The picture will not be displayed properly with non-HDCP device.

Note

yIf a connected HDMI device does not accept

the audio output of the player, the HDMI device’s audio sound may be distorted or may not output.

yWhen you use HDMI connection, you can

change the resolution for the HDMI output. (Refer to “Resolution Setting” on page 23.)

ySelect the type of video output from the

HDMI OUT jack using [HDMI Color Setting] option on the [Setup] menu (see page 33).

yChanging the resolution when the

connection has already been established may result in malfunctions. To solve the problem, turn o the player and then turn it on again.

yWhen the HDMI connection with HDCP

is not veried, TV screen is changed to black screen. In this case, check the HDMI connection, or disconnect the HDMI cable.

yIf there are noises or lines on the screen,

please check the HDMI cable (length is generally limited to 4.5 m(15 ft.)).

What is SIMPLINK?

Connecting 21

ARC (Audio Return Channel) function

The ARC function enables an HDMI capable TV to send the audio stream to HDMI OUT of this player.

To use this function:

-Your TV must support the HDMI-CEC and ARC function and the HDMI-CEC and ARC must be set to On.

-The setting method of HDMI-CEC and ARC may dier depending on the TV. For details about ARC function, refer to your TV manual.

-You must use the HDMI cable (Type A, High Speed HDMI™ cable with Ethernet).

-You must connect with the HDMI IN that supports the ARC function using the HDMI OUT on this player.

-You can connect only one Home Theater to TV compatible with ARC.

Connecting

Some functions of this unit are controlled by the TV’s remote control when this unit and LG TV’s with SIMPLINK are connected through HDMI connection.

Controllable functions by LG TV’s remote control; Play, Pause, Scan, Skip, Stop, Power O, etc.

Refer to the TV owner’s manual for the details of SIMPLINK function.

LG TV’s with SIMPLINK function has the logo as shown above.

Note

Depending on the disc type or playing status, some SIMPLINK operation may dier from your purpose or not work.

Connecting

Component Video Connection

Connect the COMPONENT VIDEO OUT jacks on the player to the corresponding input jacks on the TV using component video cable. You can hear the sound the through the system’s speaker.

Connecting

Rear of the unit

Component

video cable

Video Connection

Connect the VIDEO OUT jack on the player to the video in jack on the TV using a video cable. You can hear the sound through the system’s speakers.

Rear of the unit

Video cable

Note

When you use COMPONENT VIDEO OUT connection, you can change the resolution for the output. (Refer to “Resolution setting” on page 23.)

Connecting 23

Resolution Setting

The player provides several output resolutions for HDMI OUT and COMPONENT VIDEO OUTPUT jacks. You can change the resolution using [Setup] menu.

1. Press HOME (n).

2. Use (b). The [Setup] menu appears.

3. Use press D to move to the second level.

4. Use then press ENTER (b) to move to the third level.

5. Use press ENTER (b) to conrm your selection.

yIf your TV does not accept the resolution

ySince several factors aect the resolution of

to select the [Setup] and press ENTER

A/D

to select [DISPLAY] option then

W/S

to select the [Resolution] option

W/S

to select the desired resolution then

W/S

Note

you have set on the player, you can set resolution to 576p as follows:

1. Press B to open the disc tray.

2 Press Z (STOP) for more than 5 seconds.

video output, see “Video Output Resolution” on page 71.

Antenna connection

Connect the supplied antenna for listening to the radio.

Rear of the unit

Note

After connecting the FM wire antenna, keep it as horizontal as possible. Be sure to fully extend the FM wire antenna.

Connecting

Connecting24

Connections with external device

AUX Connection

You can enjoy the sound from an external component through the speakers of this system.

Connect the analog audio output jacks of your

Connecting

component into the AUX L/R (INPUT) on this unit. And then select the [AUX] option by pressing RADIO&INPUT and ENTER (b).

You can also use the F (Function) button on the front panel to select the input mode.

Rear of the unit

White

Red

PORT. IN connection

You can enjoy the sound from your portable audio player through the speakers of this system.

Connect the headphones (or line out ) jack of the portable audio player into the PORT. IN socket of this unit. And then select the [PORTABLE] option by pressing RADIO&INPUT and ENTER (b).

You can also use the F (Function) button on the front panel to select the input mode.

MP3 player, etc...

twZGSGUUU

To the audio output jacks

of your component

(TV, VCR, etc.)

Connecting 25

OPTICAL IN connection

You can enjoy the sound from your component with a digital optical connection through the speakers of this system.

Connect the optical output jack of your component into the OPTICAL IN jack on the unit. And then select the [OPTICAL] option by pressing RADIO&INPUT and ENTER (b). Or press OPTICAL to select directly.

You can also use the F (Function) button on the front panel to select the input mode.

Rear of the unit

To the digital optical output jack of your component

HDMI IN 1/2 connection

You can enjoy the pictures and sound from your component through this connection.

Connect the HDMI OUT jack of your component into the HDMI IN 1 or 2 jack on this unit. And then select the [HDMI IN 1/2] option by pressing RADIO&INPUT and ENTER (b).

You can also use the F (Function) button on the front panel to select the input mode.

Rear of the unit

To the HDMI OUT jack of your component (set-top box, digital satellite receiver, video game machine, etc.)

Note

yYou cannot change the video resolution in

the HDMI IN 1/2 mode. Change the video resolution of the connected component.

yIf the video output signal is abnormal when

your personal computer is connected to HDMI IN 1/2 jack, change the resolution of your personal computer to 576p, 720p, 1080i or 1080p.

yThe video signal from the HDMI input

cannot be output from the component or composite video outputs.

yThe player sends audio from the HDMI

inputs to both the HDMI output and to the unit’s speakers.

Connecting

Connecting26

Connecting to your Home Network

This player can be connected to a local area network (LAN) via the LAN port on the rear panel or the internal wireless module. By connecting the unit to a broadband home network, you have access to services such as

software updates, BD-LIVE interactivity and on-line

Connecting

content services.

Wired network connection

Using a wired network provides the best performance, because the attached devices connect directly to the network and are not subject to radio frequency interference.

Please refer to the documentation for your network device for further instructions.

Connect the player’s LAN port to the corresponding port on your Modem or Router using a commercially available LAN or Ethernet cable.

Note

yWhen plugging or unplugging the LAN

cable, hold the plug portion of the cable. When unplugging, do not pull on the LAN cable but unplug while pressing down on the lock.

yDo not connect a modular phone cable to

the LAN port.

ySince there are various connection

congurations, please follow the specications of your telecommunication carrier or internet service provider.

yIf you want to access content from PCs

or DLNA servers, this player must be connected to the same local area network with them via a router.

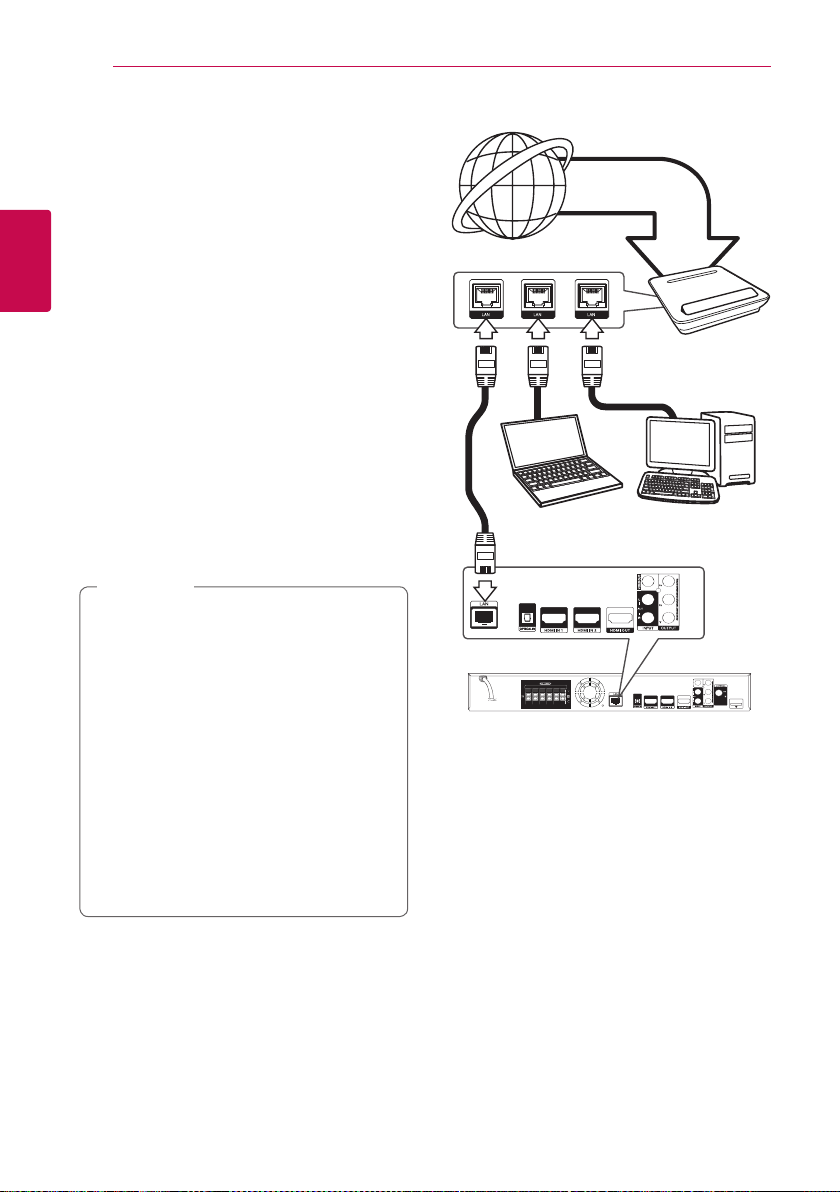

Broadband service

Router

PC and/or DLNA certied server

Rear of the unit

Wired Network Setup

If there is a DHCP server on the local area network (LAN) via wired connection, this player will automatically be allocated an IP address. After making the physical connection, a small number of home networks may require the player’s network setting to be adjusted. Adjust the [NETWORK] setting as follow.

Preparation

Before setting the wired network, you need to connect the broadband internet to your home network.

1. Select [Connection Setting] option in the [Setup] menu then press ENTER (b).

2. The [Connection Setting] menu appear on the screen. Use press ENTER (b).

to select the [Wired] and

W/S

Connecting 27

Note

If there is no DHCP server on the network and you want to set the IP address manually, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using

and numerical buttons. If you make a

A/D

mistake while entering a number, press CLEAR to clear the highlighted part.

4. Select [OK] and press ENTER (b) to apply network settings.

5. The player will ask you to test the network connection. Select [OK] and press ENTER (b) to complete the network connection.

6. If you select [Test] and press ENTER (b) at step 5 above, the network connection status is displayed on the screen. You can also test it on the [Connection Status] in the [Setup] menu.

W/S/

Connecting

3. Use

W/S/A/D

between [Dynamic] and [Static].

Normally, select [Dynamic] to allocate an IP address automatically.

to select the IP mode

Connecting28

Wireless Network Connection

Another connection option is to use an Access Point or a wireless router. The network conguration and connection method may vary depending on the equipment in use and the network environment.

This player is equipped with an IEEE 802.11n (Dualband, 5 GHz and 2.4 GHz band) wireless module, which also supports the 802.11a/b/g standards. For the best wireless performance, we recommend

using a IEEE 802.11n certied Wi-Fi network (access

Connecting

point or wireless router).

Wireless

Communication

DLNA certied server

Access Point or Wireless Router

PC and/or

Note

Available frequency range and channels for 5 GHz band are listed as below. But, there may have the dierences and restrictions depending on the country. Try setting your access point with other channel if you have diculties in wireless network connection.

Area Frequency Range

North

America

Europe 5.15-5.25 GHz (ch. 36-48) Others 5.15-5.25 GHz (ch. 36-48),

5.15-5.25 GHz (ch. 36-48),

5.725-5.825 GHz (ch. 149-161),

5.825- 5.850 (ch.165)

5.725-5.825 GHz (ch. 149-161),

5.825- 5.850 (ch.165)

Wireless Network Setup

For the wireless network connection, the player needs to be set up for network communication. This adjustment can be done from the [Setup] menu. Adjust the [NETWORK] setting as follow. Setting up the access point or the wireless router is required before connecting the player to the network.

Broadband service

Refer to the setup instructions supplied with your access point or wireless router for detailed connection steps and network settings.

For best performance, a direct wired connection from this player to your home network’s router or cable/DSL modem is always the best option. If you do chose to use the wireless option, note that performance can sometimes be aected by other electronic devices in the home.

Preparation

Before setting the wireless network, you need to:

-connect the broadband internet to the wireless home network.

-set the access point or wireless router.

-note the SSID and security code of the network.

1. Select [Connection Setting] option in the [Setup] menu then press ENTER (b).

Connecting 29

2. The [Connection Setting] menu appear on the screen. Use ENTER (b).

3. Select [Yes] and press ENTER (b) to continue. The new connection settings reset the current network settings.

4. The player scans the all available access points or wireless routers within range and display them as a list. Use point or wireless router on the list, and then press ENTER (b).

If you have security on your access point or wireless router, verify that the WEP or WPA key that was entered into the player matches the router’s information exactly. You need to input the security code as necessary.

Note

yWEP security mode generally have 4 keys

available on an access point or wireless router’s setting. If your access point or wireless router use WEP security, enter the security code of the key “No.1” to connect on your home network.

yAn Access Point is a device that allows you

to connect to your home network wirelessly.

yIf your access point or wireless router

supports the PIN Code conguration method based on WPS(Wi-Fi Protected Setup), press yellow (Y) colored button and note the code number on the screen. And then, enter the PIN number on a setting menu of your access point or wireless router to connect. Refer to the documentation for your network device.

to select [Wireless] and press

W/S

to select an access

W/S

[Manual] – Your access point may not be broadcasting its access point name (SSID). Check your router settings through your computer and either set your router to broadcast SSID, or manually enter the access point name (SSID) in [Manual].

[Push Button] – If your access point or wireless router that supports the Push Button Conguration method, select this option and press the Push Button on your access point or wireless router within 120 counts. You do not need to know the access point name (SSID) and security code of your access point or wireless router.

5. Use

W/S/A/D

between [Dynamic] and [Static]. Normally, select [Dynamic] to allocate an IP address automatically.

Note

If there is no DHCP server on the network and you want to set the IP address manually, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using

and numerical buttons. If you make a

A/D

mistake while entering a number, press CLEAR to clear the highlighted part.

6. Select [OK] and press ENTER (b) to apply network settings.

7. The player will ask you to test the network connection. Select [OK] and press ENTER (b) to complete the network connection.

8. If you select [Test] and press ENTER (b) at step 7 above, the network connection status is displayed on the screen. You can also test it on the [Connection Status] in the [Setup] menu.

to select the IP mode

W/S/

Connecting

Connecting30

Notes on Network Connection:

yMany network connection problems during

set up can often be xed by re-setting the router or modem. After connecting the player to the home network, quickly power o and/ or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again.

yDepending on the internet service provider (ISP),

Connecting

the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP.

yOur company is not responsible for any

malfunction of the player and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.

yThe features of BD-ROM discs made available

through the Internet Connection feature are not created or provided by our company, and our company is not responsible for their functionality or continued availability. Some disc related material available by the Internet Connection may not be compatible with this player. If you have questions about such content, please contact the producer of the disc.

ySome internet contents may require a higher

bandwidth connection.

yEven if the player is properly connected and

congured, some internet contents may not operate properly because of internet congestion, the quality or bandwidth of your internet service, or problems at the provider of the content.

ySome internet connection operations may not

be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection.

yAny fees charged by an ISP including, without

limitation, connection charges are your responsibility.

yA 10 Base-T or 100 Base-TX LAN port is required

for wired connection to this player. If your internet service does not allow for such a connection, you will not be able to connect the player.

yYou must use a Router to use xDSL service.

yA DSL modem is required to use DSL service and

a cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP, you may not be able to use the internet connection feature contained in this player or you may be limited to the number of devices you can connect at the same time. (If your ISP limits subscription to one device, this player may not be allowed to connect when a PC is already connected.)

yThe use of a “Router” may not be allowed or its

usage may be limited depending on the policies and restrictions of your ISP. For details, contact your ISP directly.

yThe wireless network operate at 2.4GHz

radio frequencies that are also used by other household devices such as cordless telephone, Bluetooth® devices, microwave oven, and can be aected by interference from them.

yTurn o all unused network equipment in

your local home network. Some devices may generate network trac.

yFor the purpose of the better transmission,

placing the player from the access point as close as possible.

yIn some instances, placing the access point or

wireless router at least 0.45 m (1.5 ft.) above the oor may improve the reception.

yMove closer to the access point if possible or re-

orient the player so there is nothing between it and the access point.

yThe reception quality over wireless depends on

many factors such as type of the access point, distance between the player and access point, and the location of the player.

ySet your access point or wireless router to

Infrastructure mode. Ad-hoc mode is not supported.

USB device connection

This player can play movie, music and photo les contained in the USB device.

Playback content in the USB device

1. Insert a USB device to the USB port until it ts into place.

When you connect the USB device on the HOME menu, the player plays a music le contained in the USB storage device automatically. If the USB storage device is containing various types of les, a menu for the le type selection will appear.

File loading may takes few minutes depending on the number of content stored in the USB storage device. Press ENTER (b) while [Cancel] is selected to stop loading.

2. Press HOME (n).

3. Select [Movie], [Photo] or [Music] using and press ENTER (b).

4. Select the [USB] option using ENTER (b).

W/S

, and press

A/D

Connecting 31

Note

yThis player supports USB ash drive/

external HDD formatted in FAT16, FAT32 and NTFS when accessing les (music, photo, movie). However, for BD-LIVE and Audio CD recording, only FAT16 and FAT32 formats are supported. Use the USB ash drive/ external HDD formatted in either FAT16 or FAT32 when using BD-LIVE and Audio CD recording.

yThe USB device can be used for the local

storage for enjoying BD-LIVE discs with Internet.

yThis unit can support up to 8 partitions of

the USB device.

yDo not extract the USB device during

operation (play, etc.).

yA USB device which requires additional

program installation when you have connected it to a computer, is not supported.

yUSB device: USB device that supports

USB1.1 and USB2.0.

yMovie, music and photo les can be played.

For details of operations on each le, refer to relevant pages.

yRegular back up is recommended to

prevent data loss.

yIf you use a USB extension cable, USB HUB

or USB Multi-reader, the USB device may not be recognized.

ySome USB device may not work with this

unit.

yDigital camera and mobile phone are not

supported.

yUSB Port of the unit cannot be connected

to PC. The unit cannot be used as a storage device.

Connecting

5. Select a le using PLAY or ENTER (b) to play the le.

6. Withdraw the USB device carefully.

W/S/A/D

, and press

System Setting32

Settings

Adjust the Setup Settings

You can change the settings of the player in the [Setup] menu.

1. Press HOME (n).

System Setting

2. Use ENTER (b). The [Setup] menu appears.

3. Use press D to move to the second level.

to select the [Setup] and press

A/D

to select the rst setup option, and

W/S

[DISPLAY] Menu

TV Aspect Ratio

Select a TV aspect ratio option according to your TV type.

[4:3 Letter Box]

Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture.

[4:3 Pan Scan]

Select when a standard 4:3 TV is connected. Displays pictures cropped to ll your TV screen. Both sides of the picture are cut o.

[16:9 Original]

Select when a 16:9 wide TV is connected. The 4:3 picture is displayed with an original 4:3 aspect ratio, with black bars appearing at the left and right sides.

[16:9 Full]

Select when a 16:9 wide TV is connected. The 4:3 picture is adjusted horizontally (in a linear proportion) to ll the entire screen.

Note

You cannot select [4:3 Letter Box] and [4:3 Pan Scan] option when the resolution is set to higher than 720p.

4. Use press ENTER (b) to move to the third level.

5. Use ENTER (b) to conrm your selection.

to select a second setup option, and

W/S

to select a desired setting, and press

W/S

System Setting 33

Resolution

Sets the output resolution of the Component and HDMI video signal. Refer to page 23 and 71 for details about the resolution setting.

[Auto]

If the HDMI OUT jack is connected to TVs providing display information (EDID), automatically selects the resolution best suited to the connected TV.

[1080p]

Outputs 1080 lines of progressive video.

[1080i]

Outputs 1080 lines of interlaced video.

[720p]

Outputs 720 lines of progressive video.

[576p]

Outputs 576 lines of progressive video.

[576i]

Outputs 576 lines of interlaced video.

1080p Display Mode

When the resolution is set to 1080p, select [24 Hz] for smooth presentation of lm material (1080p/24 Hz) with a HDMI-equipped display compatible with 1080p/24 Hz input.

Note

yWhen you select [24 Hz], you may

experience some picture disturbance when the video switches video and lm material. In this case, select [50 Hz].

yEven when [1080p Display Mode] is set to

[24 Hz], if your TV is not compatible with 1080p/24 Hz, the actual frame frequency of the video output will be 50 Hz to match the video source format.

HDMI Color Setting

Select the type of output from the HDMI OUT jack. For this setting, please refer to the manuals of your display device.

[YCbCr]

Select when connecting to a HDMI display device.

[RGB]

Select when connecting to a DVI display device.

Wallpaper

Changes the background of the initial screen.

3D Mode

Select the type of output mode for Blu-ray 3D disc playback.

[O]

Blu-ray 3D disc playback will output as 2D mode like a normal BD-ROM disc playback.

[On]

Blu-ray 3D disc playback will output as 3D mode.

Home Menu Guide

This function allows you to display or delete the guide bubble on the Home Menu. Set this option to [On] for displaying guide.

System Setting

System Setting34

[LANGUAGE] Menu

Display Menu

Select a language for the [Setup] menu and onscreen display.

Disc Menu/Disc Audio/ Disc Subtitle

Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.

[Original]

Refers to the original language in which the

System Setting

disc was recorded.

[Other]

Press ENTER (b) to select another language. Use number buttons then press ENTER (b) to enter the corresponding 4-digit number according to the language code list on page

68.

[O] (Disc Subtitle only)

Turn o Subtitle.

Note

Depending on the disc, your language setting may not work.

[AUDIO] Menu

Speaker Setup

To obtain the best possible sound, use the speaker setup display to specify the volume of the speakers you have connected and their distance from your listening position. Use the test to adjust the volume of the speakers to the same level.

[Speaker]

Select a speaker that you want to adjust.

[Volume]

Adjust the output level of each speaker.

[Distance]

Adjust the distance between each speaker and the listening position.

[Test/ Stop test tone]

The speakers will emit a test tone.

[OK]

Conrms the setting.

[Cancel]

Cancels the setting.

System Setting

HD AV Sync

Sometimes Digital TV encounters a delay between picture and sound. If this happens you can compensate by setting a delay on the sound so that it eectively ‘waits’ for the picture to arrive: this is called HD AV Sync. Use W S to scroll up and down through the delay amount, which you can set at anything between 0 and 300 ms.

DRC (Dynamic Range Control)

This function allows you to listen to a movie at a lower volume without losing clarity of sound.

[O]

Turns o this function.

[On]

Compress the dynamic range of the Dolby Digital, Dolby Digital Plus or Dolby TrueHD audio output.

[Auto]

The dynamic range of the Dolby TrueHD audio output is specied by itself. And the dynamic range of the Dolby Digital and Dolby Digital Plus are operated as same as the [On] mode.

Note

The DRC setting can be changed only when a disc is not inserted or the unit is in complete stop mode.

[LOCK] Menu

The [LOCK] settings aect only CinemaNow movie, BD and DVD playback.

To access the any features in [LOCK] settings, you must enter the 4-digit security code you have created. If you have not entered a password yet, you are prompted to do so. Enter a 4-digit password twice, and press ENTER (b) to create a new password.

Password

You can create or change the password.

[None]

Enter a 4-digit password twice, and press ENTER (b) to create a new password.

[Change]

Enter the current password and press ENTER (b). Enter a 4-digit password twice, and press ENTER (b) to create a new password.

If you forget your password

If you forget your password, you can clear it using the following steps:

1. Remove any disc that might be in the player.

2. Select [Password] option in the [Setup] menu.

3. Use Number buttons to enter “210499”. The password is cleared.

Note

If you make a mistake before pressing ENTER (b), press CLEAR. Then input the correct password.

System Setting

System Setting36

DVD Rating

Blocks playback of rated DVD based on their content. (Not all discs are rated.)

[Rating 1-8]

Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.

[Unlock]

If you select [Unlock], parental control is not active and the disc plays in full.

BD Rating

Set an age limit of BD-ROM play. Use number buttons to input an age limit for BD-ROM viewing.

System Setting

[255]

All BD-ROM can be played.

[0-254]

Prohibits play of BD-ROM with corresponding ratings recorded on them.

Note

yThe [BD Rating] will be applied only for

the BD disc that containing the Advanced Rating Control.

yFor the region using MPAA rating level, refer

to the table below as an example.

[NETWORK] Menu

The [NETWORK] settings are needed to use the software update, BD Live and on-line content services.

Connection Setting

If your home network environment is ready to connect the player, the player needs to be set the wired or wireless network connection for network communication. (See “Connecting to your Home Network” on pages 26-30.)

Connection Status

If you want to check the network status on this player, select the [Connection Status] options and press ENTER (b) to check whether a connection to the network and the internet have been established.

Wi-Fi Direct

This player is a Wi-Fi Direct™ certied device. Wi-Fi Direct™ is the technology that devices to connect each other without connecting to an Access point or a router. Set this option to [On] for activating the Wi-Fi Direct™ mode. Refer to page 43 for the device connection.

BD Rating MPAA Rating

0 G

8 PG 13 PG-13 17 R 18 NC-17

255 Not restricted

Area Code

Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 67.

System Setting 37

BD-LIVE connection

You can restrict Internet access when BD-LIVE functions are used.

[Permitted]

Internet access is permitted for all BD-LIVE contents.

[Partially permitted]

Internet access is permitted only for BDLIVE contents which have content owner certicates. Internet access and AACS Online functions are prohibited for all BD-LIVE contents without a certicate.

[Prohibited]

Internet access is prohibited for all BD-LIVE contents.

Premium

[Country Setting]

Select your area for displaying proper services and contents on the [Premium] feature.

[OTHERS] Menu

DivX VOD

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an ocial DivX Certied® device that plays DivX video. Visit divx.com for more information and software tools to convert your les into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod. divx.com for more information on how to complete your registration.

[Register]

Displays the registration code of your player.

[Deregister]

Deactivate your player and display the deactivation code.

Note

All the downloaded videos from DivX VOD with this player’s registration code can only be played back on this unit.

Auto Power Off

The screen saver appears when you leave the player in Stop mode for about ve minutes. If you set this option to [On], the unit automatically turns o within 25 minutes since the Screen Saver is displayed. Set this option to [O] to leave the screen saver until the unit is operated by the user.

System Setting

System Setting38

Initialize

[Factory Set]

You can reset the player to its original factory settings.

[BD Storage Clear]

Initializes the BD contents from the connected USB storage.

Note

If you reset the player to its original factory settings using [Factory Set] option, you have to set all the activation for the on-line services and network settings again.

Software

[Information]

Displays the current software version.

[Update]

You can update the software by connecting the unit directly to the software update server (see page 63-64).

Disclaimer Notice

Press ENTER (b) to view the notice of Network Service Disclaimer.

System Setting 39

Sound Effect

You can select a suitable sound mode. Press SOUND EFFECT repeatedly until the desired mode appears on the front panel display or the TV screen. The displayed items for the equalizer maybe dierent depending on sound sources and eects.

[Natural]: You can enjoy comfortable and natural sound.

[Bypass]: Software with multichannel surround audio signals is played according to the way it was recorded.

[Bass Blast]: Reinforce the bass sound eect from front left and right speaker and subwoofer.

[Clear Voice]: This mode makes voice sound clear, improving the quality of voice sound.

[Virtual]: You can enjoy more dynamic sound with improved center channel.

[Game]: You can enjoy more virtual sound while playing video games.

[Night]: This may be useful when you want to watch movies at low volumes late at night.

[Up Scaler]: When listening to MP3 les or other compressed music, you can enhance the sound. This mode is available only to 2 channel sources.

[Loudness]: Improves bass and treble sound.

[User EQ]: You can adjust the sound by raising or

lowering the level of specic frequency.

Setting the [User EQ]

1. Use

2. Use

Select [Cancel] option then press ENTER (b) to cancel the setting. Select [Reset] option then press ENTER (b) to reset the all adjustments.

[Natural Plus]: You can enjoy the natural sound eect same as 5.1 channel.

to select the desired frequency.

W/S

to select the desired level.

A/D

System Setting

Operating40

General Playback

Using [HOME] menu

The home menu appears when you press HOME

Operating

(n). Use press ENTER (b).

a b c

e f

W/S/A/D

[Movie] - Plays video contents.

[Photo] - Plays photo contents.

[Music] - Plays audio contents.

[Premium] - Displays the Premium Home

screen.

[Input] - Changes input mode.

[Setup] - Adjusts the system settings.

to select a category and

Playing a Disc

ert

1. Press B (OPEN/CLOSE), and place a disc on the disc tray.

2. Press B (OPEN/CLOSE) to close the disc tray.

For the most Audio CD, BD-ROM and DVD-ROM discs, playback starts automatically.

3. Press HOME (n).

4. Select [Movie] or [Music] using ENTER (b).

5. Select [BD], [DVD], [VR] or [Audio] option using

, and press ENTER (b).

W/S

Note

yPlayback functions described in this manual

are not always available in every les and media. Some functions can be restricted depending on many factors.

yDepending on the BD-ROM titles, a USB

device connection may be needed for the proper playback.

yUnnalized DVD VR format discs may not be

played in this player.

ySome DVD-VR discs are made with CPRM

data by DVD RECORDER. This unit cannot support these kinds of discs.

A/D

, and press

Playing a ﬁle on a disc/USB device

yui

This player can play movie, music and photo les contained in the disc or USB device.

1. Insert a data disc on the tray or connect a USB device.

2. Press HOME (n).

3. Select [Movie], [Photo] or [Music] using and press ENTER (b).

4. Select [Data] or [USB] option using press ENTER (b).

5. Select a le using

(PLAY) or ENTER (b) to play the le.

W/S/A/D

A/D

W/S

, and press

, and

Operating 41

Playing Blu-ray 3D disc

This player can play the Blu-ray 3D discs which contains separate views for the left and right eyes.

Preparation

In order to playback Blu-ray 3D title in stereoscopic 3D mode, you need to:

Check your TV is 3D capable and has HDMI

1.4 input(s).

y Wear 3D glasses to enjoy the 3D experience

if it is necessary.

Check whether the BD-ROM title is the Blu-

ray 3D disc or not.

Connect an HDMI cable (High Speed HDMI™

Cable with Ethernet) between the player’s HDMI output and TV’s HDMI input.

1. Press HOME (n), and set the [3D Mode] option on the [Setup] menu to [On] (page 33).

2. Press B (OPEN/CLOSE), and place a disc on the disc tray.

3. Press B (OPEN/CLOSE) to close the disc tray.

The playback starts automatically.

4. Refer to the owner’s manual of your 3D-ready TV for the further instruction.

You may need to adjust the display settings and focus on your TV’s setting for the improved 3D eect.

Caution

yWatching a 3D content for a long period

time may cause dizziness or tiredness.

yIt is not recommended to watch a movie

in 3D mode for inrm, child and pregnant woman.

yIf you are experiencing headache, tiredness

or dizziness while viewing contents in 3D, it is strongly recommended to stop the playback and rest until you feel normal.

Enjoying BD-Live™

BD-Video supporting BD-Live (BD-ROM version 2 Prole 2) that has a network extension function allows you to enjoy more functions such as downloading new movie trailers by connecting this unit to the internet.

1. Check the network connection and settings (pages 26-30).

2. Insert a USB storage device to the USB port on the front panel.

A USB storage device is needed to download bonus content.

3. Press HOME (n), and set the [BD-LIVE connection] option on the [Setup] menu (page

37).

Depending on a disc, the BD-Live function may not be operated if [BD-LIVE connection] option is set to [Partially Permitted].

4. Insert a BD-ROM with BD-Live.

The operations are dier depending on the disc. Refer to the manual supplied with the disc.

Caution

Do not extract the connected USB device while content is being downloaded or a Bluray disc is still in the disc tray. Doing so may damage the connected USB device and BDLive features may not operate properly with the damaged USB device anymore. If the connected USB device seems damaged from such an action, you can format the connected USB device from the PC and reuse it with this player.

Note

ySome BD-Live contents may be restrictively

accessed in some territories by contents provider’s own decision.

yIt may take up to several minutes to load

and start enjoying BD-Live contents.

Operating

Operating42

Playing a ﬁle on a network server

yui

This player can play movie, music and photo les located in a PC or a DLNA server through your home network.

1. Check the network connection and settings (pages 26-30).

2. Press HOME (n).

3. Select [Movie], [Photo] or [Music] using and press ENTER (b).

4. Select a DLNA media server or a share folder on your PC on the list using ENTER (b).

Operating

If you want to rescan available media server, press the green (G) colored button.

5. Select a le using ENTER (b) to play the le.

Note

yThe le requirements are described on page

10.

yThe thumbnail of the unplayable les can

be displayed, but those cannot be played on this player.

yThe subtitle le name and movie le name

have to be the same and located at the same folder.

yThe playback and operating quality may be

aected by your home network condition.

yYou may experience connection problems

depending on your server’s environment.

W/S/A/D

W/S

A/D

, and press

Entering a network user ID and the password

Depending on your PC’s environment, you may need to enter a network user ID and the password for accessing a shared folder.

1. The keyboard menu appears automatically if the network user ID and the password are required.

2. Use

W/S/A/D

press ENTER (b) to conrm your selection on the virtual keyboard.

To enter a letter with an accent mark, press INFO/DISPLAY (m) to display the extended character set.

[Cancel] – Returns to the previous screen.

[Space] – Inserts a space at the cursor position.

[<–] – Deletes the previous character at the

cursor position.

[ABC / abc / #+-=&] – Change the keyboard menu settings to capital letters, small letters or symbols.

3. When you nish entering the network user ID and password, select [OK] using and press ENTER (b) to access the folder.

The network user ID and password will be remembered after accssing the folder for your convenience. If you do not want the network user ID and password to be remembered, press red (R) colored button to un-tick the [Remember] check box before accessing the folder.

to select a character then

W/S/A/D

Operating 43

Connecting to a Wi-Fi Direct™ certiﬁed server

yui

This player can play movie, music and photo les located in a Wi-Fi Direct™ certied server. The Wi-Fi Direct™ technology make the player to be directely connected to a Wi-Fi Direct™ certied server without connecting to a network device such as access point.

1. Set the [Wi-Fi Direct] option on the [Setup] menu to [On] (page 36).

2. Press HOME (n).

3. Select [Movie], [Photo] or [Music] using and press ENTER (b).

4. Select a Wi-Fi Direct™ certied server on the list using

Wi-Fi Direct™ connection will be automatically proceeded.

If you want to rescan available media server, press the green (G) colored button.

5. Select a server using (b) to navigate the server.

6. Select a le using ENTER (b) to play the le.

yFor the purpose of the better transmission,

placing the player from the Wi-Fi Direct™ certied server as close as possible.

yIf you return to the Home screen after

connecting to a Wi-Fi Direct™ device, the connection will be disconnected.

, and press ENTER (b).

W/S

Note

, and press ENTER

W/S

W/S/A/D

, and press

A/D

Basic operations for video and audio content

To stop playback

Press Z (STOP) while playback.

To pause playback

Press M (PAUSE) while playback. Press d (PLAY) to resume playback.

To play frame-by-frame (Video)

Press M (PAUSE) while movie playback. Press M (PAUSE) repeatedly to play Frame-by-Frame playback.

To scan forward or backward

Press c or v to play fast forward or fast reverse during playback.

You can change the various playback speeds by pressing c or v repeatedly.

To slow down the playing speed

While the playback is paused, press v repeatedly to play various speeds of slow motion.

To skip to the next/previous chapter/track/ﬁle

During playback, press C or V to go to the next chapter/track/le or to return to the beginning of the current chapter/track/le.

Press C twice briey to step back to the previous chapter/track/le.

In the le list menu of a server, there may have many types of contents in a folder together. In this case, press C or V to go to the previous or next content with same type.

Operating

Basic operations for photo content

To play a slide show

Press d (PLAY) to start slide show.

To stop a slide show

Press Z (STOP) while slide show.

To pause a slide show

Press M (PAUSE) while slide show. Press d (PLAY) to re-start the slide show.

To skip to the next/previous photo

While viewing a photo in full screen, press A or D to go to the previous or next photo.

Using the disc menu

ero

Operating

To display the disc menu

The menu screen may be displayed rst after loading a disc which contains a menu. If you want to display the disc menu while playback, press DISC MENU.

Use

W/S/A/D

menu items.

buttons to navigate through

Resume playback

eroyt u

The unit records the point where you pressed the

(STOP) depending on the disc.

If “MZ (Resume Stop)” appears on the screen briey, press d (PLAY) to resume playback (from the scene point). If you press Z (STOP) twice or unload the disc, “Z(Complete Stop)” appears on the screen. The unit will clear the stopped point.

Note

yThe resume point may be cleared when a

button is pressed (for example; 1 (POWER),

(OPEN/CLOSE), etc).

yOn BD-Video discs with BD-J, the resume

playback function does not work.

yIf you press Z (STOP) once during BD-ROM

interactive title playback, the unit will be in Complete Stop mode .

To display the Pop-up menu

Some BD-ROM discs contain Pop-up menu that appears while playback.

Press TITLE/POPUP while playback, and use

buttons to navigate through menu items.

A/D

W/S/

Operating 45

Advanced Playback

Repeat Playback

erotu

During playback, press REPEAT (h) repeatedly to select a desired repeat mode.

BDs/DVDs

A- – Selected portion will be repeated continually.

Chapter – The current chapter will be played

back repeatedly.

Title – The current title will be played back

repeatedly.

To return to normal playback, press REPEAT (h) repeatedly to select [O ].

Audio CDs/Music les

Track– The current track or le will be played

;

back repeatedly.

All – All the tracks or les will be played back

repeatedly.

– The tracks or les will be played back in

random order.

All – All the tracks or les will be played

back repeatedly in random order.

A-B – Selected portion will be repeated

continually. (Audio CD only)

Repeating a speciﬁc portion

erot

This player can repeat a portion you have selected.

1. While playback, press REPEAT (h) to select [A-] at the beginning of the portion you wish to repeat.

2. Press ENTER (b) at the end of the portion. Your selected portion will be repeated continually.

3. To return to normal playback, press REPEAT (h) repeatedly to select [O].

Note

yYou cannot select a portion less than 3

seconds.

yThis function may not work on some disc or

title.

Operating

To return to normal playback, press CLEAR.

Note

yIf you press V once during Repeat

Chapter/Track playback, the repeat playback cancels.

yThis function may not work on some disc or

title.

Operating46

Marker Search

eroy

You can start playback from up to nine memorized points.

To enter a marker

1. While playback, press MARKER at the desired point. The Marker icon appears on the TV screen briey.

2. Repeat step 1 to add up to nine markers.

To recall a marked scene

1. Press SEARCH and the search menu appears on the screen.

2. Press a number button to select a marker number that you want to recall. Playback starts from the marked scene.

To delete a Marker

Operating

1. Press SEARCH and the search menu appears on the screen.

2. Press S to highlight a marker number. Use want to delete.

3. Press CLEAR and the marked scene is erased from the search menu.

yThis function may not work depending on

yAll marked points are cleared if the title

yIf the total length of the title is less than 10

to select a marked scene that you

A/D

Note

discs, titles, server ability.

is in complete stop (Z) mode, the title is changed or if you unload the disc.

seconds, this function is not available.

Using the search menu

eroy

Using search menu, you can easily to nd the point where you want to start playback.

To search a point

1. During playback, press SEARCH to display the search menu.

2. Press forward or backward. You can select a point that you want to skip by pressing and holding

A/D

To start playback from a marked scene

1. Press SEARCH and the search menu appears on the screen.

2. Press S to highlight a marker number. Use

A/D

to start playback.

3. Press ENTER (b) to start playback from the marked scene.

yThis function may not work depending on

discs, titles, server ability.

yThis function may not work depending on

the le type and ability of the media server.

to skip the playback 15 seconds

A/D

button.

to select a marked scene that you want

Note

Operating 47

Changing content list view

yui

On the [Movie], [Music] or [Photo] menu, you can change the content list view.

Method 1

Press red (R) colored button repeatedly.

Viewing content information

The player can display the content information.

1. Select a le using

2. Press INFO/DISPLAY (m) to display the option menu.

3. Select the [Information] option using and press ENTER (b).

The le information appears on the screen.

While movie playback, you can display the le information by pressing TITLE/POPUP.

Note

The information displayed on the screen may not correct comparing actual content information.

W/S/A/D

W/S

Selecting a subtitle ﬁle

If the subtitle le name is dierent from the movie le name, you need to select the subtitle le on the [Movie] menu before playing the movie.

1. Use

W/S/A/D

wish to play in the [Movie] menu.

2. Press ENTER (b).

to select the subtitle le you

Operating

Method 2

1. On the content list, press INFO/DISPLAY (m) to display the option menu.

2. Use

3. Press ENTER (b) to change the content list view.

to select the [View Change] option.

W/S

Press ENTER (b) again to deselect the subtitle le. Selected subtitle le will be displayed when you play the movie le.

Note

yIf you press Z (STOP) while playback, the

subtitle selection is cancelled.

yThis function is not available for playing le

on a server via home network.

Operating48

Last Scene Memory

This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch o the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.

Note

yLast Scene Memory function for a previous

disc is erased once a dierent disc is played.

yThis function may not work depending on

the disc.

yOn BD-Video discs with BD-J, the last scene

memory function does not work.

yThis unit does not memorize settings of

a disc if you switch o the unit before commencing to play it.

Operating

Applying your photo to the Wallpaper

You can apply your photo to the wallpaper.

1. Press HOME (n).

2. Select [Photo] using (b).

3. Select [Data] or [USB] option using press ENTER (b).

4. Select a photo le, and press INFO/DISPLAY (m) to display the option menu.

5. Use ENTER (b) to apply.

The photo will be set as [Wallpaper 5] on the [Setup] menu.

to select [Wallpaper], and press

W/S

, and press ENTER

A/D

W/S

, and

Options while viewing a photo

You can use various options during viewing a photo in full screen.

1. While viewing a photo in full screen, press INFO/ DISPLAY (m) to display the option menu.

2. Select an option using

a Current photo/Total number of photos

– Use

b Slide Show – Press ENTER (b) to start or

pause slide show.

c Music Select – Select the background

music for the slide show (page 49).

d Music –Press ENTER (b) to start or pause

background music.

e Rotate – Press ENTER (b) to rotate the

photo clockwise.

f Zoom – Press ENTER (b) to display the

[Zoom] menu.

g Eect – Use

eect between photos in a slide show.

h Speed – Use

speed between photos in a slide show.

3. Press BACK (x) to exit the option menu.

to view previous/next photo.

A/D

W/S

to select a transition

to select a delaying

Operating 49

Listening to music while slide show

You can display photo les while listening to music les.

1. While viewing a photo in full screen, press INFO/ DISPLAY (m) to display the option menu.

2. Use press ENTER (b) to display the [Music Select] menu.

3. Use (b).

Device that you can select are dier depending on the location of the photo le you are displaying in full screen.

4. Use play.

Select g and press ENTER (b) to display the upper directory.

When selecting music le from a server, folder selection is not available. Only le selection is available.

5. Use D to select [OK], and press ENTER (b) to complete music selection.

to select [Music Select] option, and

W/S

to select a device, and press ENTER

W/S

Photo location Available Device

Disc, USB Disc, USB

Share Folder (PC) Share Folder (PC)

DLNA server DLNA server

to select a le or a folder you wish to

W/S

Note

On-Screen display

You can display and adjust various information and settings about the content.

Displaying content information on-screen

eroy

1. While playback, press INFO/DISPLAY (m) to show various playback information.

Operating

a Title – current title number/total number of

titles

b Chapter – current chapter number/total

number of chapters

c Time – elapsed playing time/total playback

time

d Audio – selected audio language or channel e Subtitle – selected subtitle. f Angle – selected angle/total number of

angles

g TV Aspect Ratio – selected TV aspect Ratio h Picture Mode – selected picture mode i Movie Information – Select this option and

press ENTER (b) to display movie information from Gracenote Media Database (BD/DVD only).

Operating50

2. Select an option using

3. Use

4. Press BACK (x) to exit the On-Screen display.

yIf no button is pressed for a few seconds,

yA title number cannot be selected on some

yAvailable items may dier depending on

y If BD interactive title is playing back, some

yTo use the [Movie Information] option, the

yLG is a licensee of Gracenote technology

Operating

to adjust the selected option value.

A/D

Note

the on-screen display disappears.

discs.

discs or titles.

setting information is displayed on the screen but prohibited to be changed.

player must be connected to the broadband internet for accessing the Gracenote Media Database.

and is not responsible or liable for information from the Gracenote Media Database.

W/S

Playing from selected time

eroy

1. Press INFO/DISPLAY (m) during playback. The time search box shows the elapsed playing time.

2. Select the [Time] option and then input the required start time in hours, minutes, and seconds from left to right.

For example, to nd a scene at 2 hours, 10 minutes, and 20 seconds, enter “21020”.

Press forward or backward.

3. Press ENTER (b) to start playback from selected time.

yThis function may not work on some disc or

titles.

yThis function may not work depending on

the le type and ability of the DLNA server.

to skip the playback 60 seconds

A/D

Note

Hearing a different audio

eroy

1. During playback, press INFO/DISPLAY (m) to display the On-Screen display.

2. Use

3. Use audio track or audio channel.

ySome discs allow you to change audio

selections only via the disc menu. In this case, press TITLE/POP-UP or DISC MENU button and choose the appropriate audio from the selections on the disc menu.

yImmediately after you have switched sound,

there may be a temporary discrepancy between the display and actual sound.

yOn BD-ROM disc, the multi audio format

(5.1CH or 7.1CH) is displayed with [MultiCH] in the on-screen display.

to select the [Audio] option.

W/S

to select desired audio language,

A/D

Note

Operating 51

Selecting a subtitle language

eroy

1. During playback, press INFO/DISPLAY (m) to display the On-Screen display.

2. Use

3. Use

4. Press BACK (x) to exit the On-Screen display.

Some discs allow you to change subtitle selections only via the disc menu. If this is the case, press TITLE/POPUP or DISC MENU button and choose the appropriate subtitle from the selections on the disc menu.

to select the [Subtitle] option.

W/S

to select desired subtitle language.

A/D

Note

Watching from a different angle

If the disc contains scenes recorded at dierent camera angles, you can change to a dierent camera angle during playback.

1. During playback, press INFO/DISPLAY (m) to display the On-Screen display.

2. Use

3. Use

4. Press BACK (x) to exit the On-Screen display.

to select the [Angle] option.

W/S

to select desired angle.

A/D

Changing the TV Aspect Ratio

eroy

You can change the TV aspect ratio setting while playback.

1. During playback, press INFO/DISPLAY (m) to display the On-Screen display.

2. Use option.

3. Use

4. Press BACK (x) to exit the On-Screen display.

Even if you change the value of the [TV Aspect Ratio] option in On-Screen display, the [TV Aspect Ratio] option in the [Setup] menu is not changed.

to select the [TV Aspect Ratio]

W/S

to select desired option.

A/D

Note

Changing subtitle code page

If the subtitle is displayed in broken letter, you can change the subtitle code page to view the subtitle le properly.

1. During playback, press INFO/DISPLAY (m) to display the playback menu.

2. Use

3. Use

to select the [Code Page] option.

W/S

to select desired code option.

A/D

Operating

4. Press BACK (x) to exit the On-Screen display.

Operating52

Changing the Picture Mode

eroy

You can change the [Picture mode] option while playback.

1. During playback, press INFO/DISPLAY (m) to display the On-Screen display.

2. Use

3. Use

4. Press BACK (x) to exit the On-Screen display.

Setting the [User] option

1. During playback, press INFO/DISPLAY (m) to display the On-Screen display.

2. Use

3. Use and press ENTER (b).

Operating

4. Use options.

Select [Default] option then press ENTER (b) to reset the all video adjustments.

5. Use and press ENTER (b) to nish setting.

to select the [Picture Mode] option.

W/S

to select desired option.

A/D

to select the [Picture Mode] option.

W/S

to select the [User setting] option,

A/D

W/S/A/D

to adjust the [Picture Mode]

to select the [Close] option,

Audio CD Recording

You can record one desired track or all of the tracks in Audio CD to a USB storage device.

1. Insert a USB storage device to the USB port on the front panel.

2. Press B (OPEN/CLOSE), and place an Audio CD on the disc tray.

Press B (OPEN/CLOSE) to close the disc tray. The playback starts automatically.

3. Press INFO/DISPLAY (m) to display the option menu.

Press X REC button on the remote control. You can record all musics in the audio CD.

4. Use press ENTER (b).

5. Use the menu, and press ENTER (b).

Repeat this step to select tracks as many as you can.

6. Use ENTER (b).

7. Use to be copied.

to select [CD Recording] option, and

W/S

to select a track you wish to copy on

W/S

W/S/A/D

Selects all the tracks on an Audio CD.

Selects an encoding option from the pop-up menu (128kbps, 192kbps, 320kbps or Lossless).

Cancels the recording and returns to the previous screen.

to select [Start], and press

to select a destination folder

If you want to create a new folder, use

W/S/A/D

ENTER (b).

to select [New Folder] and press

Enter a folder name using virtual keyboard, and press ENTER (b) while [OK] is selected.

8. Use

W/S/A/D

ENTER (b) to start Audio CD recording.

If you want to stop in progressing Audio CD recording, press ENTER (b) while [Cancel] is highlighted.

9. A message appears when Audio CD recording is completed. Press ENTER (b) to check the audio le created in the destination folder.

Note

yThe table below shows the average

recording time from an music track with 4 minutes of playback time to a audio le with 192 kbps as an example.

stop mode while playback

1.4 min. 2 min.

yRecording times in the table above are

approximate.

yActual recording time for USB storage

device varies depending on the USB storage device’s ability.

yMake sure that there is minimum of 50 MB

free space is needed when recording into the USB storage device.

yThe length of the audio should be longer

than 20 seconds for the proper recording.

yDo not turn o this player or extract the

connected USB storage device during Audio CD recording.

to select [OK], and press

Operating 53

Operating

Caution

The recording or copying features on this player are provided for your personel and noncommercial use. The making of unauthorized copies of copy-protected material, including computer programs, les, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal oense. This equipment should not be used for such purposes. LG expressly disclaims any responsibility for illegal distribution or use of unauthorized content in commercial purpose.

Be Responsible

Respect Copyrights

Operating54

Viewing information from Gracenote Media Database

The player can access the Gracenote Media Database and loads the music information so that Track name, Artist Name, Genre and other text information can be displayed on the list.

Audio CD

When you insert an Audio CD, the player starts playback automatically and load the music title from the Gracenote Media Database.

If there is no music information from the database, music titles will not appear on the screen.

Music ﬁle

1. Select a music le or audio track using

Operating

2. Press INFO/DISPLAY (m) to display the option

3. Select the [Information] option using

A/D

menu.

and press ENTER (b).

The player accesses to Gracenote Media Database for the music information.

W/S/

W/S

Note

yThe player must be connected to the

broadband internet for accessing the Gracenote Media Database.

yIf the music information is not in the

Gracenote Media Database, message appears on the screen.

yDepending on the cases, it will takes a few

minutes to load music information from the Gracenote Media Database.

yInformation may be displayed in broken

letters, if the language you selected is not available on the Gracenote Media Database.

yThis function is not available for on-line

content and content in DLNA servers.

yLG is a licensee of Gracenote technology

and is not responsible or liable for information from the Gracenote Media Database.

yAudio CDs that users made for their only

private purposes cannot be supported in this feature because they are not in the Gracenote Media Database.

Blu-ray Disc/DVD/Movie ﬁle

While listening to a music from the movie being played, press MUSIC ID to start loading the music information from the Gracenote Media Database.

Operating 55

Playing the iPod

You can enjoy the sound with your iPod. For details about iPod, refer to the iPod’s User Guide.

Preparation

yTo view iPod’s Videos and Photos on the TV

screen.

-Be sure to use the video connection through the VIDEO OUT jack on the rear panel of this unit. Select the appropriate video input mode on the TV.

-Depending on the iPod, make sure that select Videos > Video settings, and then set TV Out to Ask or On from your iPod. For details about Video Settings, refer to the iPod User Guide.

-The viewing photos is available only if this unit is in iPod IN mode and you can view photos only as a slide show. You have to start a slide show on your iPod to view a photo on a TV. For details about a slide show, refer to the iPod User Guide.

yBefore connecting the iPod, turn this unit o and

reduce the volume of this unit to its minimum.

1. Connect the cradle so that the mark s is downwards. Put your iPod on it. Connect the iPod rmly. If you turn this unit on, your iPod is automatically turned on and recharging starts.

When you connect the iPod on the HOME menu, the player plays a music automatically. Or a menu for the le type selection will appear.

2. Select a le using ENTER (b) to play the le.

W/S/A/D

, and press

Enjoying iPod on the screen

1. Connect the iPod rmly.

2. Press HOME (n).

3. Select [Music] or [Movie] using ENTER (b). If you connected the other device (CD or USB), select the iPod on the menu.

4. Select a content using press ENTER (b) to play.

You can search easily a content by power scroll on the screen.

W/S/A/D

A/D

, and press

, and

Operating

Power scroll

Note

If the iPod’s OSD language is selected to simple chinese, the power scroll function is not operated correctly.

Operating56

Enjoying the iPod IN mode

You can operate your iPod by using the supplied remote control and controls on your iPod.

1. Connect the cradle so that the mark s is downwards. Put your iPod on it. Connect the iPod rmly. If you turn this unit on, your iPod is automatically turned on and recharging starts.

2. Press RADIO&INPUT to select iPod IN mode.

Selects an option in the menu.

Starts playback the music or video.

To pause while it is playing. To resume playing, press d (PLAY) again.

Fast-forward or rewind a song or video

Skip the playback forward or backward .

To select a desired repeat mode: Track (;), All (k), O (No display).

Operating

W/S/A/D

/ENTER

c/v

C/V

REPEAT

Note

yAn error message “CHECK IPOD” or

“Connected iPod model is not supported.” appears when:

-your iPod is not available for the function to be operated.

yAn error message “CHECK IPOD” or “Please

update iPod’s software.” appears when:

-your iPod has an old software version.

Update your iPod software to latest

version.

yIf this unit displays an error message, follow

the message. An error message “CHECK IPOD” or “Please check your iPod.” appears when:

-the communication between this unit and your iPod is failed.

Undock & re-dock your iPod in this unit.

-your iPod is not connected rmly.

-this unit recognises your iPod as unknown device.

-your iPod is exceptionally low on power.

The battery needs to be charged.

If you charge the battery while iPod

is extremely low in power, it may take longer to charge.

yCompatibility with your iPod may vary

depending on the type of your iPod.

yiPod touch and iPhone have any dierence

in operation other than iPod. You may need any additional control to use them with this unit. (e.g. “slide to unlock”)

yIf you use an application, make a call, or

send and receive SMS text message, etc. on iPod touch or iPhone, disconnect it from iPod dock of this unit and then use it.

yDepending on your iPod’s software version,

it may not be possible to control your iPod from this unit. We recommend installing the latest software version.

yThe video quality depends on the video

sources on your iPod.

yIf you have a problem with your iPod, please

visit www.apple.com/support/ipod.

Operating 57

Radio Operations

Be sure that the antennas are connected. (Refer to the page 23)

Listening to the radio

1. Press RADIO&INPUT until TUNER (FM) appears in the display window. The last received station is tuned in.

2. Press and hold TUNING (-/+) for about two seconds until the frequency indication starts to change. Scanning stops when the unit tunes in a station. Or Press TUNING (-/+) repeatedly.

Presetting the Radio Stations

You can preset 50 stations for FM. Before tuning, make sure that you have turned down the volume.

1. Press RADIO&INPUT until the TUNER (FM) appears in the display window.

2. Select the desired frequency by using TUNING (-/+).

3. Press ENTER (b) a preset number will ash in the display window.

4. Press PRESET (-/+) to select the preset number you want.

5. Press ENTER (b). The station is stored.

6. Repeat the steps 2 to 5 to store other stations.

Deleting a saved station

1. Press PRESET (- / +) to select a preset number you want to delete.

2. Press CLEAR, the preset number will blink in the display window.

3. Press CLEAR again, to delete the selected preset number.

Deleting all the saved stations

Press and hold CLEAR for two seconds. “ERASE ALL” will ash up. Press CLEAR again. Then all the saved stations are deleted.

Improving poor FM reception

Press B (blue) (MONO/STEREO) colored button on the remote control. This will change the tuner from stereo to mono and usually improve the reception.

See information about a radio station

The FM tuner is supplied with the RDS (Radio Data System) facility. This shows information about the radio station being listened to. Press RDS repeatedly to cycle through the various data types:

(Programme Service Name)

The name of the channel will appear in the display

(Programme Type Recognition)

PTY

The programme type (e.g. Jazz or News) will appear in the display.

(Radio Text) A text message contains special

information from the broadcast station. This text may scroll across the display.

(Time controlled by the channel)

This shows the time and date as broadcast by the station.

Operating

Operating58

Using the Premium

You can use various content services via Internet with the Premium feature.

1. Check the network connection and settings (pages 26-30).

2. Press HOME (n).

3. Select the [Premium] using ENTER (b).

A/D

, and press

4. Select an on-line service using and press ENTER (b).

Note

Operating

yDetailed information of each service,

contact to the content provider or visit suppot link of the service.

yThe content of Premium services and

service related information, including user interface, is subject to changes. Please refer to the web site of each service for most upto-date information.

yUsing Premium features with wireless

network connection may result in improper streaming speed by interference from household devices that are using radio frequencies.

yWhen you are rst time to access [Premium]

feature, current country setting appears. If you want to change the country setting, select [EDIT] and press ENTER (b).

W/S/A/D

Troubleshooting 59

Troubleshooting

General

Symptom Cause & Solution

The Power does not turned on. yPlug the power cord into the wall outlet securely.

The unit does not start playback.

The angle cannot be changed. yMulti-angles are not recorded on the DVD Video being played.

Cannot play movie, photo or music les.

The remote control does not work properly.

The unit is plugged in, but the power will not turn on or o.

The unit is not operating normally.

yInsert a playable disc. (Check the disc type, color system, and regional

code.)

yPlace the disc with the playback side down.

yPlace the disc on the disc tray correctly inside the guide.

yClean the disc.

yCancel the Rating function or change the rating level.

yThe les are not recorded in a format that the unit can play.

yThe unit does not support the codec of the movie le.

yThe remote control is not pointed at the remote sensor of the unit.

yThe remote control is too far from the unit.

yThere is an obstacle in the path of the remote control and the unit.

yThe batteries in the remote control are exhausted.

You can reset the unit as follows.

1. Press and hold the POWER button for at least ve seconds. This will force the unit to power o then turn the unit back on.

2. Unplug the power cord, wait at least ve seconds, and then plug it in again.

Troubleshooting

Troubleshooting60

Network

Symptom Cause & Solution

BD-LIVE feature does not work. yThe connected USB storage may not have enough space. Connect

Streaming video services (such as YouTube™, etc.) are often stopped or “buer” during playback.

Shared folder or les from your PC or a media server are not displayed on the device list.

Cannot connect the player to the access point or wireless LAN router.

Access point is not displayed on the “Access point name” list.

the USB storage with at least 1GB free space.

yEnsure that the unit is correctly connected to the local area network

and can access the internet (see page 26-30).

yYour broadband speed may not fast enough to use the BD-LIVE

features. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended.

yThe [BD-LIVE connection] option in the [Setup] menu is set to

[Prohibited]. Set the option to [Permitted].

yYour broadband service speed may not be fast enough to stream

video services. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended.

yThe rewall or anti-virus software on your media server is running.

Turn o the rewall or anti-virus software running on your PC or media server.

yThe player is not connected to the local area network that your PC or

the media server are connected.

yThe wireless communication may be interrupted from household

devices that are using radio frequencies. Move the player away from them.

yThe access point or wireless LAN router may not broadcast its SSID.

Set your access point to broadcast its SSID through your computer.

yYour network device such as access point may not set with available

frequency range and channel that this player can support. Try setting the frequency range and channel on the network device setting.

Troubleshooting 61


Symptom Cause & Solution

There is no picture. ySelect the appropriate video input mode on the TV so the picture

Picture noise appears yYou are playing a disc recorded in a colour system that is dierent

from the unit appears on the TV screen.

yConnect the video connection securely.

yCheck the [HDMI Color Setting] in the [Setup] menu is set to the

appropriate item that conforms to your video connection.

yYour TV may not suppot the resolution you have set on the player.

Change the resolution that your TV accepts.

yThe player’s HDMI OUT jack is connected to a DVI device that does

not support copyright protection.

from your TV.

ySet the resolution which your TV accepts.

Blu-ray 3D disc playback does not output 3D views.

yConnect the player to your TV with HDMI cable (Type A, High Speed

HDMI™ Cable with Ethernet).

yYour TV may not support “HDMI 1.4 3D mandatory format”.

yThe [3D Mode] option in the [Setup] menu is set to [O ].

Set the option to [On].

Sound

Symptom Cause & Solution

There is no sound or the sound is distorted.

yThe unit is in scan, slow motion, or pause mode.

yThe sound volume is low.

yCheck the speaker cable connection. (page 19)

Customer Support

You can update the Player using the latest software to enhance the products operation and/or add new features. To obtain the latest software for this player (if updates have been made), please visit http://lgservice.com or contact LG Electronics customer care centre.

Open source software notice

To obtain the corresponding source code under GPL, LGPL, MPL and other open source licenses, please visit http://opensource.lge.com. All referred license terms, warranty disclaimers and copyright notices are available to download with the source code.

Troubleshooting

Appendix62

Controlling a TV with the Supplied Remote Control

You can control your TV using the buttons below.

By pressing You can

(TV POWER) Turn the TV on or o.

Switch the TV’s input source between the TV and other input sources.

Scan up or down through memorized channels.

Appendix

AV/INPUT

PR/CH

W/S

VOL +/– Adjust the volume of the TV

Note

Depending on the unit being connected, you may not be able to control your TV using some of the buttons.

Setting up the remote to control your TV

You can operate your TV with the supplied remote control. If your TV is listed in the table below, set the appropriate manufacturer code.

1. While holding down 1 (TV POWER) button, and press the manufacturer code for your TV with the numerical buttons (see the table below).

Manufacturer Code Number

LG 1(Default), 2

Zenith 1, 3, 4

GoldStar 1, 2

Samsung 6, 7

Sony 8, 9

Hitachi 4

2. Release the 1 (TV POWER) button to complete setting.

Depending on your TV, some or all buttons may not function on the TV, even after entering the correct manufacturer code. When you replace the batteries of the remote, the code number you have set may be reset to the default setting. Set the appropriate code number again.

Appendix 63

Network Software Update

Network update notiﬁcation

From time to time, performance improvements and/or additional features or services may be made available to units that are connected to a broadband home network. If there is new software available and the unit is connected to a broadband home network, the player will inform you about the update as follows.

Option 1:

1. The update menu will appear on the screen when you turn on the player.

2. Use press ENTER (b).

to select a desired option and then

A/D

Software Update

You can update the player using the latest software to enhance the products operation and/or add new features. You can update the software by connecting the unit directly to the software update server.

Note

yBefore updating the software in your player,

remove any disc and USB Device from the player.

yBefore updating the software in your player,

turn the player o and then turn it back on.

yDuring the software update procedure,

do not turn o the player or disconnect AC power, or do not press any button.

yIf you cancel the update, turn o the power

and turn it on for stable performance.

yThis unit cannot be updated to previous

software version.

1. Check the network connection and settings (page 26-30).

2. Select [Software] option in the [Setup] menu then press ENTER (b).

3. Select [Update] option, and press ENTER (b).

[OK] Starts the software update.

[Cancel] Exits the update menu and

displays it next booting.

[Hide] Exits the update menu and

it does not appear until next software is uploaded in the update server.

Option 2:

If the software update is available from the update server, the “Update” icon appears in the Home menu. Press blue (B) colored button to start the update procedure.

The player will check for the newest update.

Note

yPressing ENTER (b) while checking for the

update will end the process.

yIf there is no update available, the Message,

“No update is found.” appears. Press ENTER (b) to return to the [Home Menu].

Appendix

Appendix64

4. If newer version exists, the message “Do you want to update?” appears.

5. Select [OK] to start update. (Selecting [Cancel] will end the update.)

Caution

Do not turn o the power during the software update.

Note

If the software includes the driver update, disc tray may open during the process.

6. When update is completed, the message, “Update is complete.” will appear, and then power will turn o automatically after 5 seconds.

7. Turn the power back on. The system now operates with the new version.

Note

The Software Update function may not work properly depending on your internet environment. In this case, you can obtain the latest software from the authorized LG Electronics Service Center then update your player. Refer to “Customer Support” on page

61.

Appendix

Appendix 65

About Nero MediaHome 4 Essentials

Nero MediaHome 4 Essentials is a software for sharing movie, music and photo les stored on your computer to this player as a DLNA-compatiable digital media server.

Note

yThe Nero MediaHome 4 Essentials CD-

ROM is designed for PCs and should not be inserted in this player or in any product other than a PC.

yThe supplied Nero MediaHome 4 Essentials

CD-ROM is a customized software edition only for sharing les and folders to this player.

yThe supplied Nero MediaHome 4 Essentials

software does not support following functions: Transcoding, Remote UI, TV control, Internet services and Apple iTunes

yThis manual explains operations with

the English version of Nero MediaHome 4 Essentials as examples. Follow the explanation referring to the actual operations of your language version.

Installing Nero MediaHome 4 Essentials

Before you install Nero MediaHome 4 Essentials, check the system requirement shown below.

yWindows® XP (Service Pack 2 or higher), Windows

Vista® (no Service Pack required), Windows® XP Media Center Edition 2005 (Service Pack 2 or higher), Windows Server® 2003

yWindows Vista® 64-bit edition (application runs

in 32-bit mode)

yHard drive space: 200 MB hard drive space for a

typical installation of Nero MediaHome standalone

y1.2 GHz Intel® Pentium® III or AMD

Sempron™ 2200+ processors

yMemory: 256 MB RAM

yGraphics card with at least 32 MB video memory,

minimum resolution of 800 x 600 pixels, and 16bit color settings

yWindows® Internet Explorer® 6.0 or higher

yDirectX® 9.0c revision 30 (August 2006) or higher

yNetwork environment: 100 Mb Ethernet, WLAN

(IEEE 802.11a/b/g/n)

Start up your computer, and insert the supplied CDROM disc into your computer’s CD-ROM drive. An installation wizard will walk you through the quick and uncomplicated installation process. To install Nero MediaHome 4 Essentials, proceed as follows:

1. Close all Microsoft Windows programs and exit any anti-virus software that may be running.

2. Insert the supplied CD-ROM disc into your computer’s CD-ROM drive.

3. Click [Nero MediaHome 4 Essentials].

4. Click [Run] to start installation.

5. Click [Nero MediaHome 4 Essentials]. The installation is prepared and the installation wizard appears.

6. Click the [Next] button to display the serial number input screen. Click [Next] to go to the next step.

Appendix

Appendix66

7. If you accept all conditions, click [I accept the License Conditions] check box and click [Next]. Installation is not possible without this agreement.

8. Click [Typical] and click [Next]. The installation process is started.

9. If you want to take part in the anonymous collection of data, select the check box and click the [Next] button.

10. Click the [Exit] button to complete the installation.

Sharing ﬁles and folders

On your computer, you must share the folder contained movie, music and/or photo content to play them on this player.

This parts explains the procedure for selecting the shared folders on your computer.

1. Double-click the “Nero MediaHome 4 Essentials” icon on the desktop.

2. Click [Network] icon on the left and dene your network name in the [Network name] eld. The Network name you enter will be recognized by your player.

3. Click [Shares] icon on the left.

4. Click [Local Folders] tab on the [Shares] screen.

5. Click [Add] icon to open the [Browse Folder] window.

6. Select the folder containing the les you want to share. The selected folder is added to the list of shared folders.

7. Click [Start Server] icon to start the server.

Note

yIf the shared folders or les are not displayed

on the player, click the folder on the [Local Folders] tab and click [Rescan Folder] at the [More] button.

yVisit www.nero.com for more information

and software tools

Appendix

Appendix 67

Area Code List

Choose an area code from this list.

Area Code Area Code Area Code Area Code

Afghanistan AF

Argentina AR

Australia AU

Austria AT

Belgium BE

Bhutan BT

Bolivia BO

Brazil BR

Cambodia KH

Canada CA

Chile CL

China CN

Colombia CO

Congo CG

Costa Rica CR

Croatia HR

Czech Republic CZ

Denmark DK

Ecuador EC

Egypt EG

El Salvador SV

Ethiopia ET

Fiji FJ

Finland FI

France FR

Germany DE

Great Britain GB

Greece GR

Greenland GL

Hong Kong HK

Hungary HU

India IN

Indonesia ID

Israel IL

Italy IT

Jamaica JM

Japan JP

Kenya KE

Kuwait KW

Libya LY

Luxembourg LU

Malaysia MY

Maldives MV

Mexico MX

Monaco MC

Mongolia MN

Morocco MA

Nepal NP

Netherlands NL

Antilles AN

New Zealand NZ

Nigeria NG

Norway NO

Oman OM

Pakistan PK

Panama PA

Paraguay PY

Philippines PH

Poland PL

Portugal PT

Romania RO

Russian Federation RU

Saudi Arabia SA

Senegal SN

Singapore SG

Slovak Republic SK

Slovenia SI

South Africa ZA

South Korea KR

Spain ES

Sri Lanka LK

Sweden SE

Switzerland CH

Taiwan T W

Thailand TH

Turkey TR

Uganda UG

Ukraine UA

United States US

Uruguay UY

Uzbekistan UZ

Vietnam VN

Zimbabwe ZW

Appendix

Appendix68

Language code List

Use this list to input your desired language for the following initial settings: [Disc Audio], [Disc Subtitle] and [Disc Menu].

Language Code Language Code Language Code Language Code

Appendix

Afar 6565

Afrikaans 6570

Albanian 8381

Ameharic 6577

Arabic 6582

Armenian 7289

Assamese 6583

Aymara 6588

Azerbaijani 6590

Bashkir 6665

Basque 6985

Bengali; Bangla 6678

Bhutani 6890

Bihari 6672

Breton 6682

Bulgarian 6671

Burmese 7789

Byelorussian 6669

Chinese 9072

Croatian 7282

Czech 6783

Danish 6865

Dutch 7876

English 6978

Esperanto 6979

Estonian 6984

Faroese 7079

Fiji 7074

Finnish 7073

French 7082

Frisian 7089

Galician 7176

Georgian 7565

German 6869

Greek 6976

Greenlandic 7576

Guarani 7178

Gujarati 7185

Hausa 7265

Hebrew 7387

Hindi 7273

Hungarian 7285

Icelandic 7383

Indonesian 7378

Interlingua 7365

Irish 7165

Italian 7384

Japanese 7465

Kannada 7578

Kashmiri 7583

Kazakh 7575

Kirghiz 7589

Korean 7579

Kurdish 7585

Laothian 7679

Latin 7665

Latvian, Lettish 7686

Lingala 7678

Lithuanian 7684

Macedonian 7775

Malagasy 7771

Malay 7783

Malayalam 7776

Maori 7773

Marathi 7782

Moldavian 7779

Mongolian 7778

Nauru 7865

Nepali 7869

Norwegian 7879

Oriya 7982

Panjabi 8065

Pashto, Pushto 8083

Persian 7065

Polish 8076

Portuguese 8084

Quechua 8185

Rhaeto-Romance 8277

Rumanian 8279

Russian 8285

Samoan 8377

Sanskrit 8365

Scots Gaelic 7168

Serbian 8382

Serbo-Croatian 8372

Shona 8378

Sindhi 8368

Singhalese 8373

Slovak 8375

Slovenian 8376

Spanish 6983

Sudanese 8385

Swahili 8387

Swedish 8386

Tagalog 8476

Language Code

Tajik 8471

Tamil 8465

Telugu 8469

Thai 8472

Tonga 8479

Turkish 8482

Turkmen 8475

Twi 8487

Ukrainian 8575

Urdu 8582

Uzbek 8590

Vietnamese 8673

Volapük 8679

Welsh 6789

Wolof 8779

Xhosa 8872

Yiddish 7473

Yoruba 8979

Zulu 9085

Trademarks and Licenses

Blu-ray Disc™, Blu-ray™, Blu-ray 3D™, BD-Live™, BONUSVIEW™ and the logos are trademarks of the Blu-ray Disc Association.

“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation.

Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries.

Appendix 69

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks,& DTS-HD, DTS-HD Master Audio | Essential and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certication marks of the Digital Living Network Alliance.

The Wi-Fi CERTIFIED Logo is a certication mark of the Wi-Fi Alliance.

HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

The Wi-Fi Protected Setup Mark is a trademark of the Wi-Fi Alliance.

“x.v.Color” is a trademark of Sony Corporation.

“AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation.

Appendix

Appendix70

DivX®, DivX Certied® and associated logos are trademark of DivX, Inc., and are used under license.

Gracenote®, Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

Music recognition technology and related data are provided by Gracenote®.

Gracenote® End User License Agreement

This application or device contains software from Gracenote, Inc. of Emeryville, California (“Gracenote”). The software from Gracenote (the “Gracenote Software”) enables this application to perform disc and/or le identication and obtain music-related information, including name, artist, track, and title information (“Gracenote Data”) from online servers or embedded databases (collectively,

“Gracenote Servers”) and to perform other

Appendix

functions. You may use Gracenote Data only by means of the intended End-User functions of this application or device.

You agree that you will use Gracenote Data, the Gracenote Software, and Gracenote Servers for your own personal non-commercial use only. You agree not to assign, copy, transfer or transmit the Gracenote Software or any Gracenote Data to any third party. YOU AGREE NOT TO USE OR EXPLOIT GRACENOTE DATA, THE GRACENOTE SOFTWARE, OR GRACENOTE SERVERS, EXCEPT AS EXPRESSLY PERMITTED HEREIN.

You agree that your non-exclusive license to use the Gracenote Data, the Gracenote Software, and Gracenote Servers will terminate if you violate these restrictions. If your license terminates, you agree to cease any and all use of the Gracenote Data, the Gracenote Software, and Gracenote Servers. Gracenote reserves all rights in Gracenote Data, the Gracenote Software, and the Gracenote Servers, including all ownership rights. Under no circumstances will Gracenote become liable for any payment to you for any information that you provide. You agree that Gracenote, Inc. may enforce its rights under this Agreement against you directly in its own name.

The Gracenote service uses a unique identier to track queries for statistical purposes. The purpose of a randomly assigned numeric identier is to allow the Gracenote service to count queries without knowing anything about who you are. For more information, see the web page for the Gracenote Privacy Policy for the Gracenote service.

The Gracenote Software and each item of Gracenote Data are licensed to you “AS IS.” Gracenote makes no representations or warranties, express or implied, regarding the accuracy of any Gracenote Data from in the Gracenote Servers. Gracenote reserves the right to delete data from the Gracenote Servers or to change data categories for any cause that Gracenote deems sucient. No warranty is made that the Gracenote Software or Gracenote Servers are error-free or that functioning of Gracenote Software or Gracenote Servers will be uninterrupted. Gracenote is not obligated to provide you with new enhanced or additional data types or categories that Gracenote may provide in the future and is free to discontinue its services at any time.

GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NON-INFRINGEMENT. GRACENOTE DOES NOT WARRANT THE RESULTS THAT WILL BE OBTAINED BY YOUR USE OF THE GRACENOTE SOFTWARE OR ANY GRACENOTE SERVER. IN NO CASE WILL GRACENOTE BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES OR FOR ANY LOST PROFITS OR LOST REVENUES.

Video Output Resolution

When the non-copy protected media is playing back

Video Out

Resolution

576i 576p 576i

576p 576p 576p

720p 720p 720p

1080i 1080i 1080i

1080p/24 Hz 1080p / 24 Hz 576i 1080i

1080p / 50 Hz 1080p / 50 Hz 576i 1080i

When the copy protected media is playing back

Video Out

Resolution

576i 576p 576i

576p 576p 576i

720p 720p 576i

1080i 1080i 576i

1080p/24 Hz 1080p / 24 Hz 576i

1080p / 50 Hz 1080p / 50 Hz 576i

HDMI OUT

HDMI OUT COMPONENT VIDEO OUT

HDMI connected HDMI disconnected

COMPONENT VIDEO OUT

Appendix 71

HDMI OUT connection

yIf you select a resolution manually and then

connect the HDMI jack to TV and your TV does not accept it, the resolution setting is set to [Auto].

yIf you select a resolution that your TV does not

accept, the warning message will appear. After resolution change, if you cannot see the screen, please wait 20 seconds and the resolution will automatically revert back to the previous resolution.

yThe 1080p video output frame rate may

be automatically set to either 24 Hz or 50 Hz depending both on the capability and preference of the connected TV and based on the native video frame rate of the content on the BD-ROM disc.

COMPONENT VIDEO OUT Connection

Blu-ray Disc, DVD video stream could prevent upscaling on analog output.

VIDEO OUT connection

The resolution of the VIDEO OUT jack is always outputted at 576i resolution.

Appendix

Appendix72

Speciﬁcations

General

Power requirements Refer to main label on the rear panel.

Power consumption Refer to main label on the rear panel.

Dimensions (W x H x D) Approx. 439 X 61 X 284 mm (17.3 X 2.4 X 11.2 inches)

Net Weight (Approx.) 3.04 kg (6.7 lbs)

Operating temperature 5 °C to 35 °C (41 °F to 95 °F)

Operating humidity 5 % to 90 %

Inputs/Outputs

VIDEO OUT 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1

COMPONENT VIDEO OUT

HDMI IN/OUT (video/audio) 19 pin (Type A, HDMI™ Connector)

ANALOG AUDIO IN 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1

DIGITAL IN (OPTICAL) 3 V (p-p), Optical jack x 1

PORT. IN 0.5 Vrms (3.5 mm stereo jack)

Tuner

FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz

(Y) 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1

(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2

Appendix

Amplier

Power output (4 Ω/ 3 Ω), (RMS), THD 10 %

Total 1100 W

Front 180 W x 2

Center 180 W

Rear 180 W x 2

Sub-Woofer 200 W (Passive)

System

Laser Semiconductor laser

Wavelength 405 nm / 650 nm

Signal system Standard PAL/NTSC color TV system

Frequency response 20 Hz to 18 kHz (48 kHz, 96 kHz, 192 kHz sampling)

Harmonic distortion Less than 0.05 %

Dynamic range More than 80 dB

LAN port Ethernet jack x 1, 10BASE-T / 100BASE-TX

Wireless LAN (internal antenna)

Bus Power Supply (USB) DC 5 V 0 500 mA

Speakers

Front speaker (Left/ Right)

Type 2 Way 3 speaker Max. Input power 360 W

Impedance Rated 4 Ω

Input Power 180 W Net Weight 3.5 kg (7.7 lbs)

Rear speaker (Left/ Right)

Type 2 Way 3 speaker Max. Input power 360 W

Impedance Rated 4 Ω

Input Power 180 W Net Weight 3.5 kg (7.7 lbs)

Center speaker

Type 1 Way 1 speaker Max. Input power 360 W

Impedance Rated 4 Ω

Input Power 180 W Net Weight 0.8 kg (1.8 lbs)

Subwoofer

Type 1 Way 1 speaker Max. Input power 400 W

Impedance Rated 3 Ω

Input Power 200 W Net Weight 6.5 kg (14.3 lbs)

Integrated IEEE 802.11n (5 GHz and 2.4 GHz bands) wireless networking access, compatible with 802.11a/b/g Wi-Fi networks.

Net Dimensions (W x H x D)

256 x 1250 x 256 mm (10.1 x 49.2 x 10.1 inches)

410 x 80 x 53 mm (16.1 x 3.1 x 2.1 inches)

215 x 397 x 373 mm (8.5 x 15.6 x 14.7 inches)

Appendix 73

Appendix

yDesign and specications are subject to change without notice.

Appendix74

Maintenance

Handling the Unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

yDo not use volatile liquids such as insecticide

spray near the unit.

yWiping with strong pressure may damage the

surface.

yDo not leave rubber or plastic products in

contact with the unit for a long period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty

or worn, the picture quality could be diminished.

Appendix

For details, please contact your nearest authorized service center.

Notes on Discs

Handling Discs

Do not touch the playback side of the disc. Hold the disc by the edges so that ngerprints do not get on the surface. Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning Discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center to out.

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Important Information Relating to Network Services

All information, data, documents, communications, downloads, les, text, images, photographs, graphics, videos, webcasts, publications, tools, resources, software, code, programs, applets, widgets, applications, products and other content (“Content”) and all services and oerings (“Services”) provided or made available by or through any third party (each a “Service Provider”) is the sole responsibility of the Service Provider from whom it originated.

The availability of and access to Content and Services furnished by the Service Provider through the LGE Device are subject to change at any time, without prior notice, including, but not limited to the suspension, removal or cessation of all or any part of the Content or Services.

Should you have any inquiry or problem related to the Content or Services, you may refer to the Service Provider’s website for the most up-todate information. LGE is neither responsible nor liable for customer service related to the Content and Services. Any question or request for service relating to the Content or Services should be made directly to the respective Content and Service Providers.

Please note that LGE is not responsible for any Content or Services provided by the Service Provider or any changes to, removal of, or cessation of such Content or Services and does not warrant or guaranty the availability of or access to such Content or Services.

Appendix 75

Appendix

LG HB966TZ User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Information

Getting Started

Introduction

Playable Discs and symbols used in this manual

About the “7” Symbol Display

File compatibility

About DLNA

Certain System Requirements

LG Remote

Compatibility Notes

WOL (Wake On LAN)

Regional Code

Remote control

Front panel

Rear panel

Assembling the speaker (Front/Rear)

Connecting

Positioning the system

Speaker Connection

Attaching the speakers to the player

Connecting to Your TV

HDMI Connection

What is SIMPLINK?

ARC (Audio Return Channel) function

Component Video Connection

Video Connection

Resolution Setting

Antenna connection

Connections with external device

AUX Connection

PORT. IN connection

OPTICAL IN connection

HDMI IN 1/2 connection

Connecting to your Home Network

Wired network connection

Wired Network Setup

Wireless Network Connection

Wireless Network Setup

USB device connection

Playback content in the USB device

Settings

Adjust the Setup Settings

System Setting

[DISPLAY] Menu

[LANGUAGE] Menu

[AUDIO] Menu

[LOCK] Menu

[NETWORK] Menu

[OTHERS] Menu

Sound Effect

General Playback

Using [HOME] menu

Operating

Playing a Disc

Playing Blu-ray 3D disc

Enjoying BD-Live™

Basic operations for video and audio content

Basic operations for photo content

Using the disc menu

Resume playback

Advanced Playback

Repeat Playback

Marker Search

Using the search menu

Changing content list view

Viewing content information

Last Scene Memory

Applying your photo to the Wallpaper

Options while viewing a photo

Listening to music while slide show

On-Screen display

Displaying content information on-screen

Playing from selected time

Hearing a different audio

Selecting a subtitle language

Watching from a different angle
