ENGLISH

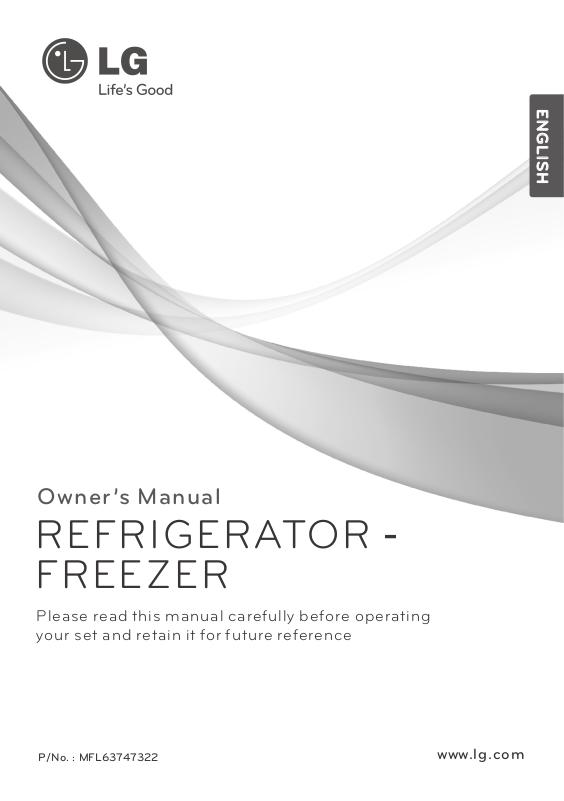

Owner’s Manual
REFRIGERATOR -
FREEZER
Please read this manual carefully before operating your set and retain it for future reference
P/No. : MFL63747322
www.lg.com
IMPORTANT SAFETY INFORMATION
Prevent the power cord from being squeezed or imprinted if the refrigerator is pushed in after the power plug is extracted during the installation.
It becomes the cause of fire or electric shock. When moving your appliance away from the wall, be careful not to roll over or damage the power cord.
BASIC SAFETY PRECAUTIONS
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you of hazard
that can kill or hurt you or others or cause damage to the product. All safety messages will be
preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, or
CAUTION. These words mean:
DANGER
WARNING
CAUTION
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
You will be killed or seriously injured if you don't follow instructions.
You will be killed or seriously injured if you don't follow instructions.
indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety
precautions should be followed, including the following.
Read all instructions before using this appliance.
1. When connecting the power
The dedicated outlet should be used.
• Using several devices at
one outlet may cause fire.
• The electric leakage
breaker may damage food
and the dispenser may be leaked.
Do not allow the power plug to face upward or to be squeezed at the back of the refrigerator.
Water may be flown into or the plug may be damaged, which causes fire or electric shock.
Do not allow the power cord bent or pressed by the heavy object to be damaged.
It may damage the power cord to cause fire or electric shock.
3
IMPORTANT SAFETY INFORMATION
Wait for 5 minutes or longer when reconnecting the plug.
It may cause the operation of the freezer to fail.
After
5minutes
Be sure to use grounded exclusive proper voltage consent for the power plug.
It becomes the cause of fire.
1. When connecting the power
Do not extend or modify the length of the power plug.
It causes electric shock or fire by the electric damage of the power cord or others.
Pull out the power plug not by grasping the cord but the plug of its end.
It may cause electric shock or short circuit to fire.
D
o not pull out the cord or touch the power
plug with wet hands.
• It may cause electric
shock or injury.
Unplug the power plug when cleaning, handling or replacing the interior lamp of the refrigerator.
• It may cause electric shock or injury.
• When replacing the interior lamp
of the refrigerator, make sure that the rubber ring for preventing the electric spark within the socket is not taken off.
Remove water or dust from the power plug and insert it with the ends of the pins securely connected.
Dust, water or unsta
ble connection may fire or electric shock.
Make sure of grounding.
The incorrect grounding may cause breakdown and electric shock.
Ground
Copper
Flat
Wire
More than
30 inches
When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them.
It may cause electric shock or short circuit to make fire.
4
IMPORTANT SAFETY INFORMATION
Prevent children from entering the product.
It may endanger the life of a child if the child enters the refrigerator.
Opening and closing the door of the refrigerator vigorously may cause the stored food in the refrigerator basket to fall by shock and hurt the foot, so take precautions.
2. When using the refrigerator
Do not place the heavy object or the dangerous object (container with liquid) on the refrigerator.
It may be dropped to cause injury, fire or electric shock when opening or closing the door.
Do not cling to the door or the shelves of the door or the home bar of the freezer or the cool chamber.
It may make the refrigerator fallen down or damage the hands. Especially, do not allow the children to do the above.
Do not place flower vase, cup, cosmetics, medicine or any container with water on the refrigerator.
It may cause fire, electric shock
or injury by dropping down.
Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas, spray or cosmetics near or in the refrigerator.
It may cause explosion or fire.
Benzene
Ether
Thinner
Do not install the refrigerator in the wet place or the place which water or rain splashes.
Deterioration of insulation of electric parts may cause electric leakage.
Do not store the medicine or the academic materials at the refrigerator.
When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.
The Academic
Medicine
The Medicine
5
IMPORTANT SAFETY INFORMATION
When gas is leaked, do not touch the fridge­freezer or the outlet and ventilate the room immediately.
• The explosion by spark may
cause fire or burn.
• Because this fridge-freezer
uses natural gas (isobutane, R600a) as the environment­friendly refrigerant, even a small amount (80~90 g) is combustible. When the gas is leaked by the severe damage during delivering, installing or using the fridge-freezer, any spark may cause fire or burn.
In case of thunder and lightning, or not in use for a long period of time, detach the power plug.
There is a danger of electric shock or fire.
2. When using the refrigerator
Do not place the lit candle within the fridge-freezer to deodorize. Do not use drier to dry the inside, nor light a candle to remove odor.
It may cause explosion or fire.
Avoid the heating devices.
It may cause fire.
Do not use the combustible spray near the refrigerator.
It may cause fire.
Use the submerged refrigerator after checking it.
It may cause electric shock or fire.
Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner.
Deterioration of insulation of electric parts may cause electric shock or fire.
ThinnerThinner
6
IMPORTANT SAFETY INFORMATION
2. When using the refrigerator
Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.
It may cause injury, electric shock or fire.
When disposing the refrigerator, remove the packing materials from the door.
It may cause to lock
child.
out the
Install the refrigerator on the solid and level floor.
Installing it on the unstable place may cause death by falling down the refrigerator when opening or closing the door.
When any strange smell or smoke is detected from the refrigerator, disconnect the power plug immediately and
Service
center
contact to the service center.
It may cause fire.
Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).
It may cause an unexpected risk such as fire,
shock, deterioration of stored material or chemical reaction.
electric
When you want to dispose the refrigerator, contact to the down-block office.
When you want to dispose the large living waste such as electric home appliance and furniture, you'd better contact the local down­block office.
Down-block
office
Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the refrigerator, the heatproof grill (exhaust hole) at the backside.
It may cause electric shock or injury.
7
IMPORTANT SAFETY INFORMATION
Do not touch food or containers at the freezer with wet hands.
It may cause frostbite.
Do not place the food in disorder inside the refrigerator.
The food may fall during opening and closing the door of the refrigerator and hurt people.
CAUTION
Violating this direction may cause injury or damage house or furniture. Always be careful, please.
Do not put bottle in the freezer.
It may freeze the contents to break the bottle to cause injury.
Carry the refrigerator with the handle bar at the bottom of the front and the top of the rear.
Otherwise, your hands may be slipped to cause injury.
Do not put any living animal in the refrigerator.
Do not insert the hands into the bottom of the refrigerator.
The iron plate of the bottom may cause injury.
Because opening or closing the door of the refrigerator may cause injury to the person around it, be careful, please.
Opening or closing the door may cause feet or hands to be caught in the chink
child to be get hurt by the corner.
in door or the
8
9
IMPORTANT SAFETY INFORMATION
WARNING
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartment of the appliance, unless they are of the type recommended by the manufacturer.
The refrigerant and insulation blowing gas used in the appliance require
special disposal procedures. When disposal, please consult with services agent or a similarly qualified person.
This appliance contains a small amount of isobutane refrigerant (R600a),
natural gas with high environmental compatibility, but it is also combustible.
When transporting and installing the appliance, care should be taken to ensure
that no parts of the refrigerating circuit are damaged. Refrigerant squirting out
of the pipes could ignite or cause an eye injury. if a leak is detected, avoid any
naked flames or potential sources of ignition and air the room in which the
appliance is standing for several minutes.
In order to avoid the creation of a flammable gas air mixture if a leak in the
refrigerating circuit occurs, the size of the room in which the appliance
may be sited depends on the amount of refrigerant used. The room must be
2
1 m in size for every 8g of R600a refrigerant inside the appliance. The amount
of refrigerant in your particular appliance is shown on the identification plate
inside the appliance. Never start up an appliance showing any signs of damage.
if in doubt, consult your dealer.
THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE, AND UTILIZES THE LATEST IN TECHNOLOGY.
WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH IT'S PERFORMANCE AND RELIABILITY.
BEFORE YOU START YOUR REFRIGERATOR, PLEASE READ THIS BOOKLET CAREFULLY
IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION, OPERATION AND MAINTENANCE, AND ALSO SUPPLIES SOME USEFUL HINTS.
INSTALLATION
.
1. Select a good location.
Place your refrigerator where it is easy to use.
2.Avoid placing the unit near heat sources,
direct sunlight or moisture.
3.To ensure proper air circulation around the fridge - freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.
4.To avoid vibrations, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws clockwise( ) to raise the unit, counterclockwise( ) to lower it.
5. Don't install this appliance below 5°C. It may cause the debasement of the refrigerator.
NEXT
1. Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping.
2. Install accessories such as ice cube box, etc.,
in their proper places. They are packed together to prevent possible damage during shipment.
Connect the power supply cord (or plug) to
3.
the outlet. Don't double up with other appliances on the same outlet.
Prior to storing food, leave your refrigerator
4.
on for 2 or 3 hours. Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.
10
OPERATIONS
FRESH ZONE
●
When the door is opened, the warmer air doesn't influence in the fresh zone. So you can keep food fresher in it.
DEFROSTING
●
Defrosting takes place automatically.
●
The defrosted water flows down to the evaporating tray which located in
the lower back side of the refrigerator and is evaporated automatically.
DEODORIZER (OPTIONAL)
●
Unpleasant odor of food in fresh food compartment is deodorized with no harm to you and the food.
How to use
• As Deodorizer is located in cooling air inlet for circulating air in fresh food compartment, there is
no need for any handling.
• Do not prick the cooling air inlet with a sharp tip because Deodorizer may be damaged.
• When storing food with a strong odor, wrap it or store it in a container with a lid because odor may be
passed on to other foods.
●
To remove the deodorizer, take down while pulling it
forward after inserting type driver into the inside hole as shown in the figure at right.
16
SUGGESTIONS ON FOOD STORAGE
STORING FOOD
●
Store fresh food in the refrigerator compartment. How food is frozen and thawed is an
important factor in maintaining its freshness and flavor.
●
Do not store food which goes bad easily at low temperatures, such as bananas, pineapples,
and melons.
●
Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other
food, and lead to higher electric bills!
●
When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents
moisture from evaporating, and helps food to keep its taste and nutrients.
●
Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures
even.
●
Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and
cause temperatures to rise.
FREEZER COMPARTMENT
●
Do not store bottles in the freezer compartment - they may break when frozen.
●
Do not refreeze food that has been thawed. This causes loss of taste and nutrition.
●
When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.
●
It is recomended to load food at least 15mm against freezer wall, it will keep good air
circulation in the freezer compartment.
● Loading for Freezing - It is recommended to load newly introduced foods on the following
position for freezing:
●
Freezer Door Basket, marked ( storage of frozen food (optional).
) is -12°C compartment, that is suitable for short term
REFRIGERATOR COMPARTMENT
●
Avoid placing moist food on deep interior refrigerator shelves, it could freeze upon direct contact with chilled air. To avoid this it is better to store food in the covered container.
●
It is desirable to store moist food (especially vegetable and fruit) in the vegetable storage compartment. If it is necessary to store on a shelf of the refrigerator, put it close to the door away from the back wall of the refrigerator to avoid being frozen by the cool circulating in the refrigerator.
●
Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean, to prevent adjacent food from spoiling.
●
When storing eggs in their storage rack, ensure that they are fresh, and always store them in a up-right position, which keeps them fresh longer.
18
CLEANING
It is important that your refrigerator be kept
clean to prevent undesirable odors. Spilled food should be wipe up immediately, since it may acidify and stain plastic surfaces if allowed to settle.
Never use metallic scouring pads, brushes, coarse abrasive cleaners or strong alkaline solutions on any surface.
Before you clean, however, remember that
damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands.
EXTERIOR - Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.
INTERIOR - Regular cleaning of the interior and interior parts is recommended. Use a lukewarm solution of mild soap or dish washable solution
to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.
GENERAL INFORMATION
VACATION TIME
During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.
POWER FAILURE
Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.
IF YOU MOVE
Remove or securely fasten down all loose items inside the refrigerator. To avoid damaging the leveling screw(s), turn them all the way into the base.
19
INTERIOR PARTS - Wash compartment shelves, door racks, storage trays and magnetic door seals etc. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.
WARNING
Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts(lamps, switches, controls, etc.). Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing electric shock. Do not use flammable or toxic cleaning liquids.
• Caution for Cleaning Not in use : Surface
active agent, Car wax, Anticorrosive, All sorts of oil, Gasoline, Acids, Wax.
• Usable Detergent Vegetable dish washable
solution, Soapy water.
• When careless using, it can occur a color
change.
ANTI-CONDENSATION PIPE
The outside wall of the refrigerator cabinet may sometimes get warm, especially just after installation. Don't be alarmed. This is due to the anti­condensation pipe, which pumps hot refrigerant to prevent "sweating" on the outer cabinet wall.
Electrical Shock Hazard Before replacing a burned-out light bulb,
either unplug the refrigerator or turn off power at the circuit breaker or fuse box.
NOTE :Moving the control to the OFF position does not remove power to the light circuit.
Anti - Condensation
Caution
Pipe
BEFORE CALLING FOR SERVICE
SERVICE CALLS CAN OFTEN BE AVOIDED! IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE
POSSIBLE CAUSES FIRST :
PROBLEM POSSIBLE CAUSES
REFRIGERATOR DOES NOT OPERATE
REFRIGERATOR OR FREEZER COMPARTMENT TEMPERATURE TOO WARM
●
Has a house fuse blown or circuit breaker tripped?
●
Has the power cord plug been removed or loosened from the electrical wall outlet?
●
Temperature control not set on proper position.
●
Appliance is placed close to wall or heat source.
●
Warm weather-frequent door openings.
●
Door left open for a long time.
●
Large amount of foods are kept in the refrigerator.
ABNORMAL NOISE(S)
●
Refrigerator is installed in a weak or uneven place, or leveling screw needs adjusting.
●
Unnecessary objects placed in the back side of the refrigerator.
REFRIGERATOR HAS ODOR
DEW FORMS ON THE CABINET SURFACE
●
Foods with strong odors should be tightly covered or wrapped.
●
Interior needs cleaning.
●
Not unusual during periods of high humidity.
●
Door may have been left ajar.
DISPOSAL OF YOUR OLD APPLIANCE
1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.
• Information of fluorinated greenhouse gases
used as refrigerant of this refrigerator.
Chemical Name
Composition of Gases
Total GWP (kg CO2-eq)
21
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
