האפקה את

הלעפה תוארוה

GM-749, GM-829

םע

ררקמ

ןותחת

גד

ימ

גד

MFL33815203

TABLE OF CONTENTS

English Version 4

Safety Instructions 5 -6

Grounding Requirements

Parts and Features

Refrigerator Installation

Unpacking Your Refrigerator

Installation

Base Grille

Removing, Reversing and Replacing

Your Refrigerator Doors

For Drawer Models

For Swing Models

Door Closing and Alignment

Using Your Refrigerator 18 -25

Ensuring Proper Air Circulation 18

Multi Flow

Door Alarm

Setting the Controls 18 -19

Adjusting Control Settings 19

Food Storage Guide 20

Storing Frozen Food 20

Refrigerator Shelves 21

Chef Fresh / Snack Pan 22

Crisper Humidity Control 22

7 - 9

-17

11 -17

Optibin Crisper 22

Crisper cover with lattice on inner surface 23

Door Racks 23

Design-A-Door 23

Dairy Bin 24

Ice Bin 24

DuraBase 24

DuraBase Divider 24 Guide-Out Drawer Basket 25

Tilting Door 25

Wire Durabase 25

Frezzer Shelf 25

Care and Cleaning 26 -27

General Cleaning Tips 26

Outside 26

Inside Walls 26

Door Liner and Gaskets 26

Plastic Parts 26

Condenser Coils 26

Light Bulb Replacement

Power Interruptions 27

When you go on vacation 27

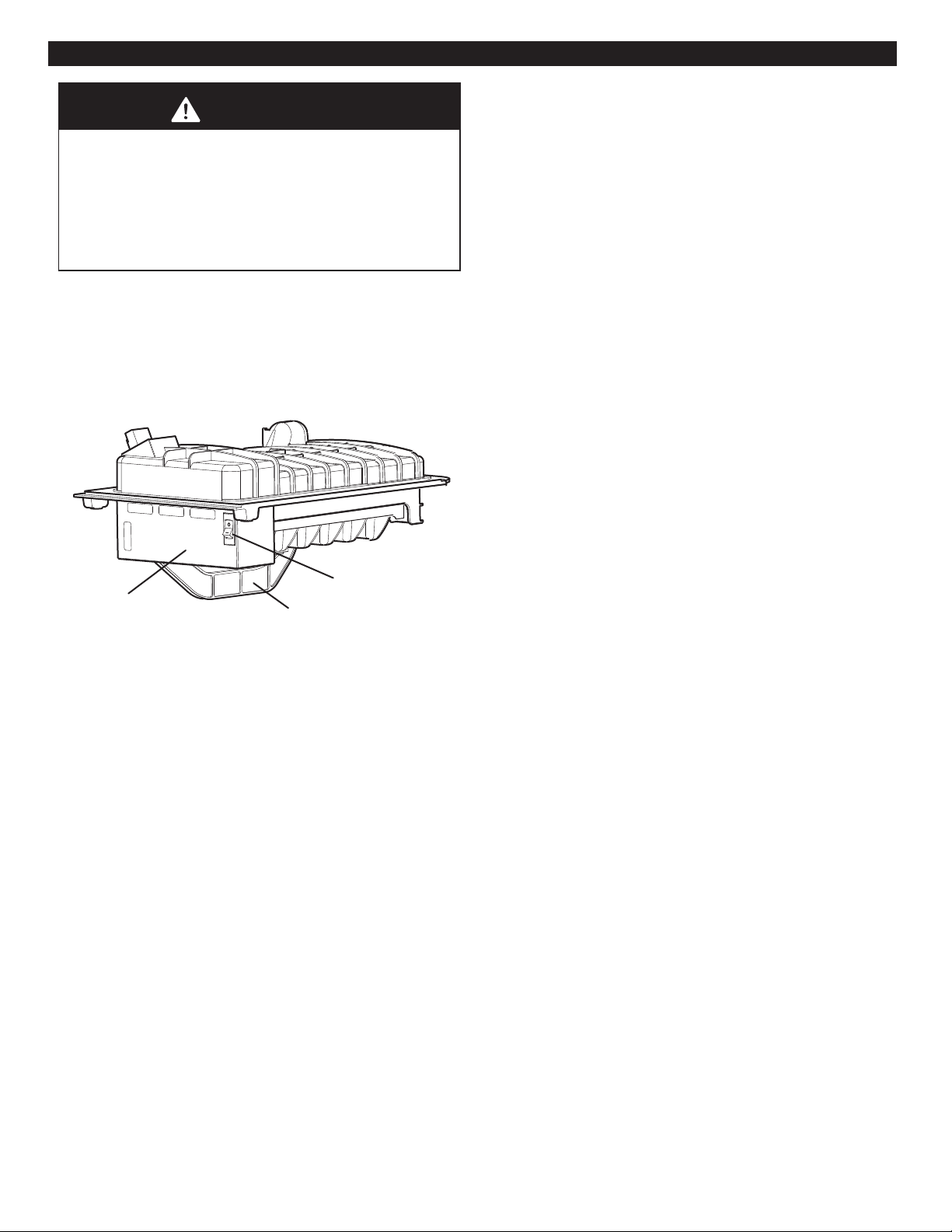

About the Custom Cube Icemaker

Connecting the Water Line 29 -

Troubleshooting Guide 32 -35

26 -27

- 40 -

IMPORTANT SAFETY INSTRUCTIONS

SAFETY MESSAGES

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, CAUTION. These words mean:

You will be killed or seriously injured if you don’t follow instructions.

DANGER

WARNING

You can be killed or seriously injured if you don’t follow instructions.

CAUTION

All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if the instructions are not followed.

Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following:

NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull it straight out from the outlet.

Repair or replace immediately all electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

When moving your refrigerator away from the wall, be careful not to roll over or damage the power cord.

DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

DO NOT allow children to climb, stand or hang on the refrigerator doors or shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.

Keep fingers out of “pinch point” areas; clearances between the doors and cabinet are necessarily small. Be careful

when you open the doors when children are in the area. Unplug your refrigerator before cleaning or making any repairs.

NOTE: We strongly recommend that any servicing be

performed by a qualified individual.

Before replacing a burned-out light bulb, unplug the refrigerator or turn off power at the circuit breaker or fuse box in order to avoid contact with a live wire filament. (Aburnedout light bulb may break when being replaced.) NOTE: Setting either or both controls to the OFF position does not remove power to the light circuit.

Do not store bottles in the freezer compartment - they may break when frozen, causing damage.

For personal safety, this appliance must be properly grounded. Have the wall outlet and the circuit checked by a qualified electrician to make sure the outlet is properly grounded.

Read all instructions before using this appliance. Use this appliance only for its intended purpose as described

in this use and care guide. After your refrigerator is in operation, do not touch the cold

surfaces in the freezer compartment when hands are damp or wet. Skin may adhere to the extremely cold surfaces.

In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. DO NOT place fingers or hands on the automatic icemaking mechanism while the refrigerator is plugged in.

DO NOT refreeze frozen foods which have thawed completely. The United States Department of Agriculture in Home and Garden Bulletin No. 69 says:

“...You may safely refreeze frozen foods that have thawed if they still contain ice crystals or if they are still cold below 40 °F (4 °C).”

“...Thawed ground meats, poultry, or fish that have any off-odor or off-color should not be refrozen and should not be eaten. Thawed ice cream should be discarded. If the odor or color of any food is poor or questionable, get rid of it. The food may be dangerous to eat.”

“Even partial thawing and refreezing reduces the eating quality of foods, particularly fruits, vegetables and prepared foods. The eating quality of red meats is affected less than that of many other foods. Use refrozen foods as soon as possible to save as much of their quality as you can.”

SAVE THESE INSTRUCTIONS

- 41 -

CAUTION

This appliance is not intended for use by persons (including children) with reduce physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by person responsible for their safety.

appliance.

Children should be supervised to ensure that they do not play with the

DANGER: RISK OF CHILD ENTRAPMENT

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous... even if they will sit for “just a few days”. If you are getting rid of your old refrigerator, please follow the instructions at right to help prevent accidents.

BEFORE YOU THROW AWAY YOUR OLD REFRIGERATOR OR FREEZER

Take off the doors. Leave the shelves in place so that

children may not easily climb inside.

CFC DISPOSAL

Your old refrigerator may have a cooling system that used If you are throwing away your old refrigerator, make sure CFC’s (chlorofluorocarbons). CFC’s are believed to harm the CFC refrigerant is removed for proper disposal by a stratospheric ozone. qualified servicer. If you intentionally release this CFC

refrigerant, you can be subject to fines and imprisonment under provisions of environmental legislation.

GROUNDING REQUIREMENTS

IMPORTANT:

Please read carefully.

TO CONNECT ELECTRICITY

WARNING

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded. Have the wall outlet and the circuit checked by a qualified electrician to make sure the outlet is properly grounded.

Ensure proper ground exists before use

3 pins grounding plug

Where a standard two-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded three-prong wall outlet.

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

NOTE: Before performing any type of installation,

cleaning, or removing a light bulb, turn the control (Thermostat, Refrigerator Control or Freezer Control, depending on the model) to OFF and then disconnect the refrigerator from the electrical source. When you are finished, reconnect the refrigerator to the electrical source and reset the control (Thermostat, Refrigerator Control or Freezer Control, depending on the model) to the desired setting.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain Conditions, we strongly recommend against the use of an extension cord.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own individual properly grounded electrical outlet rated for 230 V, 50 Hz, AC only, and fused at 16 amperes. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided. Use a receptacle which cannot be turned off with a switch or pull chain. Do not use an extension cord.

WARNING

POWER CORD REPLACEMENT

If the power cord is damaged, it must be replaced by the manufacturer, by our service center or by qualified personal by LG Electronics, to avoid some risk.

- 42 -

PARTS AND FEATURES

Use this section to become more familiar with the parts and features.

NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the items listed below. The locations of the features shown below may not match your model.

Digital Sensor Control

Refrigerator Light

Shelves

Temperature Control*

Chef Fresh / Snack Pan

Can Dispenser*

Optibin Crisper

Keeps fruits and vegetable fresh and crisper

Ice Bin

Ice Tray (Inside of H)*

Durabase

Divider

Dairy Bin

Design-A-Door

Egg Box

Refrigerator Door Rack

Freezer Light

Pull out Drawer

Custom cube Icemaker*

*on some models

- 43 -

PARTS AND FEATURES

Use this section to become more familiar with the parts and features.

Digital Sensor Control

Refrigerator Light

Shelves

Chef Fresh / Snack Pan

Optibin Crisper Keeps fruits and vegetable fresh and crisper

Ice Bin

Ice Tray (Inside of F)*

Durabase

Divider

Dairy Bin

Design-A-Door

Pull out Drawer

Refrigerator Door Rack

Freezer Light

Custom cube Icemaker*

*on some models

- 44 -

PARTS AND FEATURES

Use this section to become more familiar with the parts and features.

Digital Sensor Control

Refrigerator Light

Shelves

Snack Pan

Optibin Crisper Keeps fruits and vegetable fresh and crisp

Ice Trays*

Ice Bin

Wire Durabase

Dairy Bin

Design-A-Door

Wire Freezer Shelf

Refrigerator Door Rack

Freezer Light

Freezer Door Rack

*on some models

- 45 -

REFRIGERATOR INSTALLATION

WARNING

Excessive Weight Hazard

Use two or more people to move and install refrigerator. Failure to do so can result in back or other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your refrigerator before using. Do not remove any warningtype labels, the model and serial number label, or the Tech Sheet that is attached to back wall of the refrigerator.

To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

3. Install this appliance in an area where the temperature is between 46 °F (8 °C) and 110°F (43 °C.) If the temperature around the appliance is too low or high, cooling ability may be adversely affected.

CAUTION: Avoid placing the unit near heat sources, direct sunlight or moisture.

1. Clean your refrigerator thoroughly and wipe off all dust

accumulated during shipping.

2. Install accessories such as ice cube bin, drawers, shelves, etc., in their proper places. They are packed together to prevent possible damage during shipment.

3. Let your refrigerator run for 2 or 3 hours before putting food in it. Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

Do not use sharp instruments, rubbing alcohol, flammable fluids or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see the Important Safety Instructions section.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual storage needs.

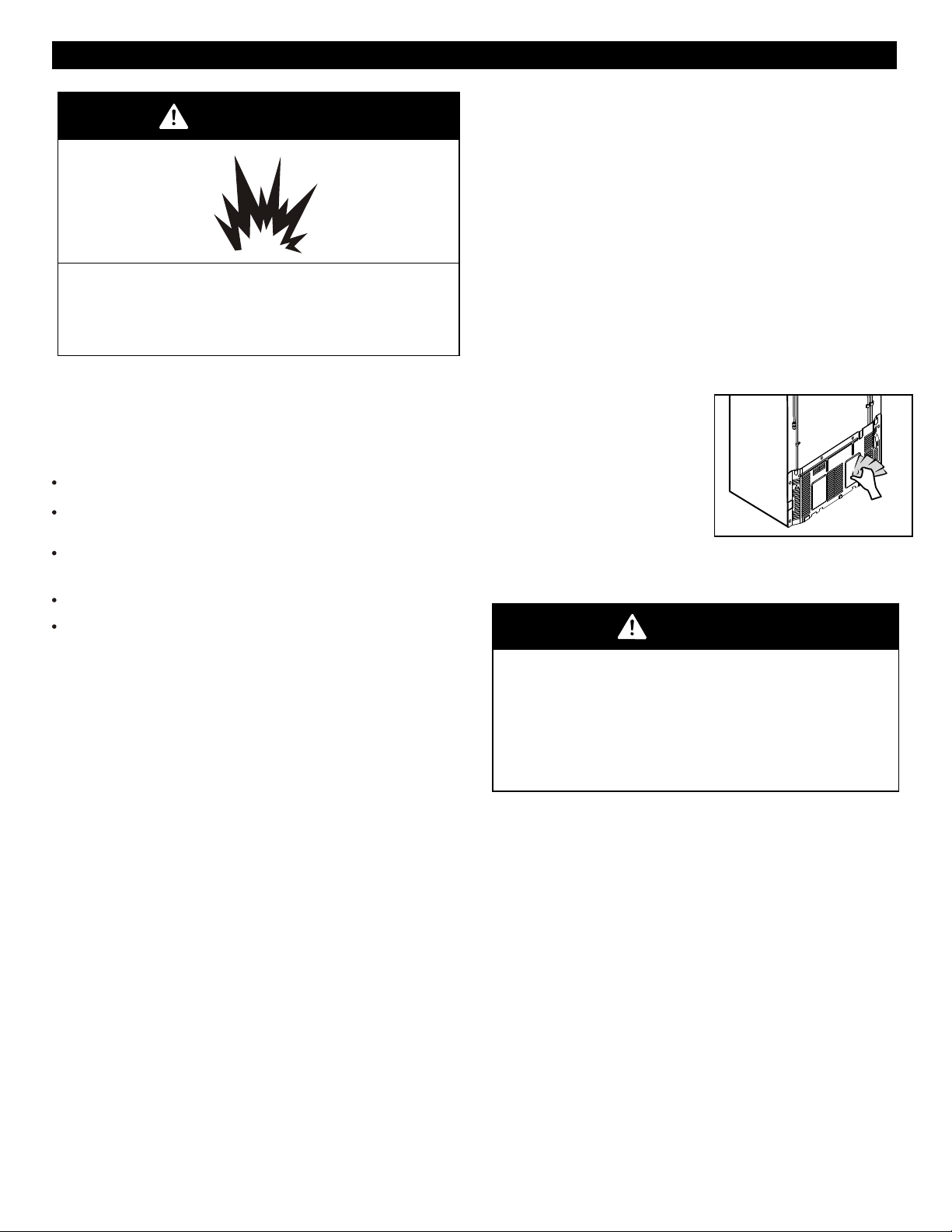

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to protect the floor. Always pull the refrigerator straight out when moving it. Do not wiggle or walk the refrigerator when trying to move it, as floor damage could occur.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from refrigerator.

WARNING:

Be careful when you work with hinge, base grille, stopper etc. You may be injured.

Do not put hands or metal sticks into air vents, base grille or bottom of refrigerator. You may be injured or receive an electrical shock.

BASE GRILLE INSTALLATION

To install or replace Base Grille:

1. Remove the 2 screws from the bottom front part of

refrigerator

2. Place Base Grille into position and insert and tighten screws.

To remove the base grille

1. Remove screws from Base Grille

and remove.

2. Reattach screws to the base of refrigerator.

Failure to do so can result in death, explosion or fire.

INSTALLATION

1. Avoid placing the unit near heat sources, direct sunlight,

or moisture.

2. To avoid vibration, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws clockwise ( ) to raise the unit, counterclockwise ( ) to lower it.

A proper distance from adjacent items

Please keep the refrigerator at a proper distance from other things. Too small a distance from adjacent items may result in lowered freezing capability and increased electricity charge consumption.

- 46 -

(7 cm) 2.75”

REFRIGERATOR INSTALLATION

REMOVING,REVERSING AND REPLACING

T O O L S Y O U M A Y N E E D

10 mm 1/4 in 3/8 in

Hex head socket wrench

No. 2 Phillips screwdriver

REFRIGERATOR DOORS (For Drawer Type Models)

Flat head screwdriver

Allen wrench

Other Important and necessary tools are: 1/4 inch socket wrench 10mm open-end wrench

•

Adjustable wrench Flat 2-inch putty knife

•

IMPORTANT: Before you begin, turn the refrigerator OFF and unplug it. Remove food and any

adjustable door or utility bins from doors.

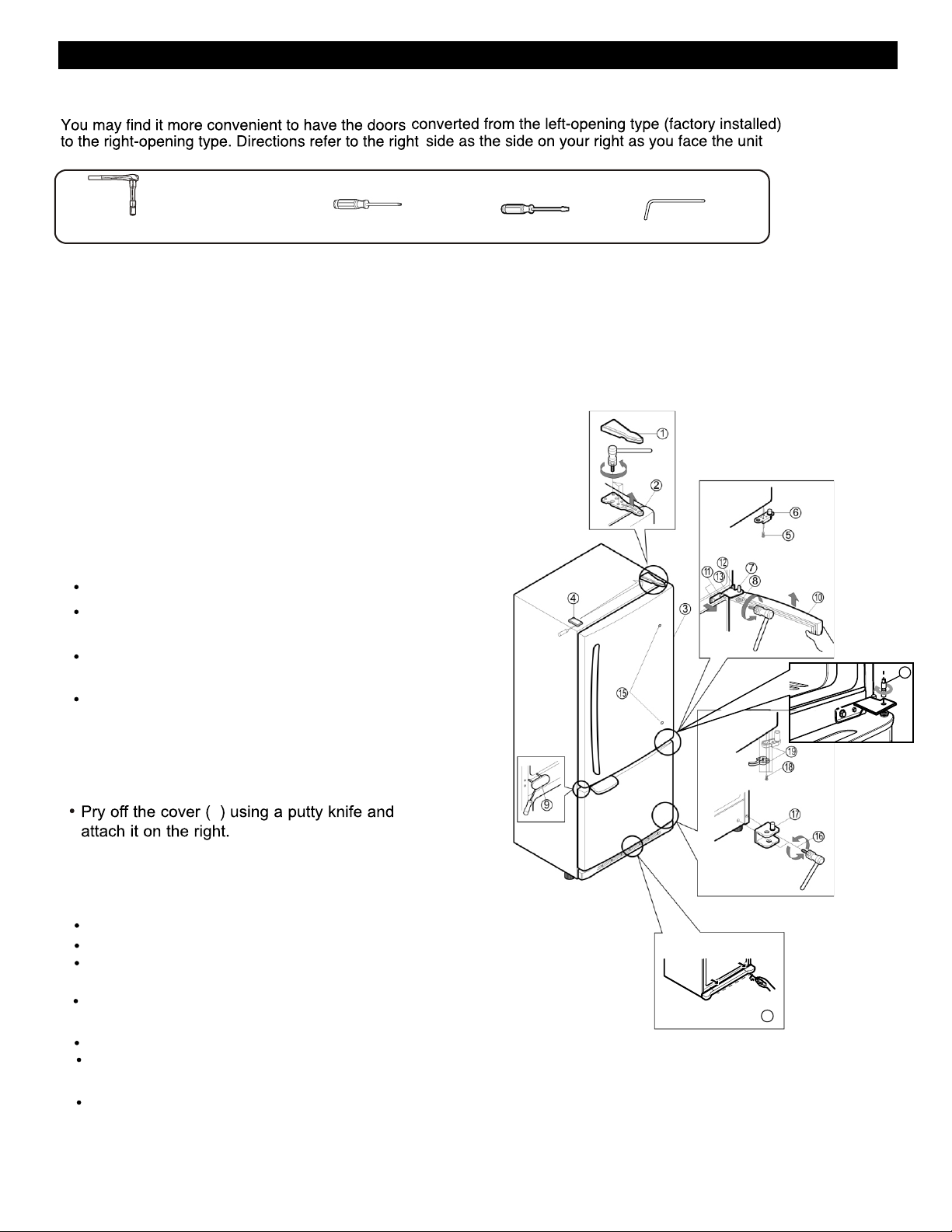

HOW TO REVERSE DOOR OPENING DIRECTION (when converting from the left-opening type to rightopening type)

1. Removing Refrigerator Door

Gently pry off the Top Hinge Cover with a flat head screwdriver

•

and remove (1). Using 10 mm socket wrench, remove the 3 bolts and lift off the

•

Top Hinge. Set parts aside (2).

Lift the Refrigerator door (3) slightly and remove it.

•

Pry off the cover (4) using a slotted screwdriver to find the hole screw and attach it on the right.

Loosen the screws (5), remove the stopper (6) and attach them on the left (on the opposite side).

Using a ¼-inch socket wrench, loosen and remove

Hinge Pin (8) from the Middle Hinge Pin Bracket.

NOTE: At this point the door will be loose, lift up

door slightly and remove it.

Loosen the 2 screws (9) and the 2 screws (10), and

•

lift off the middle hinge (11).

Use a flat tip screwdriver to pry off bottom hole cover

•

(7) and attach it on the right.

1/4 in 3/32 in

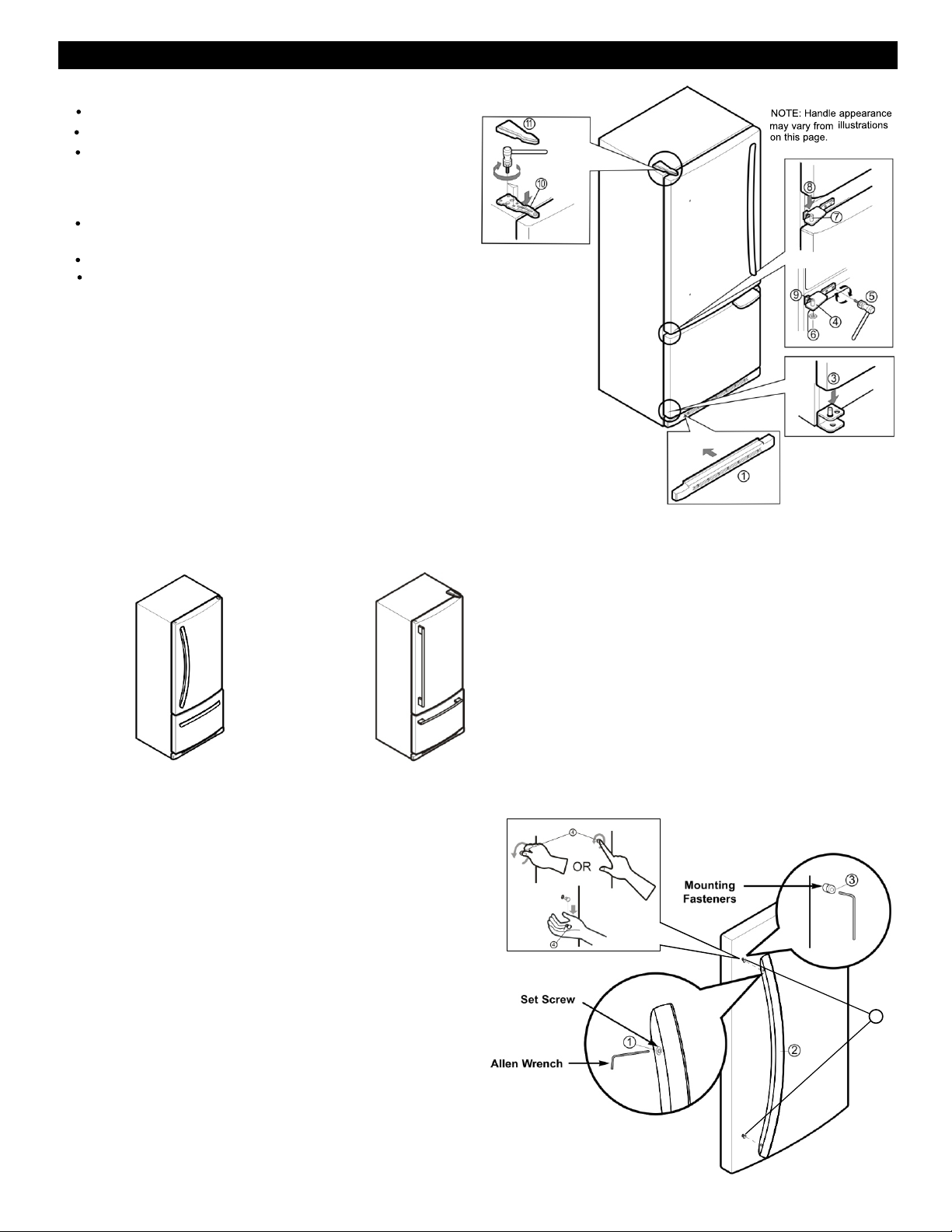

HOW TO REMOVE DOOR HANDLES

NOTE: Handle appearance may vary from illustrations

on this page

2.Removing Refrigerator Handle

•

Loosen the set screws (1) with the 3/32” Allen wrench and remove the handle (2).

•

Loosen the handle mounting fasteners (3) with the 1/4” Allen wrench.

•

Carefully loosen the plug buttons with your fingers (4).

The buttons can be unscrewed with your fingers, rotating the pieces counter clockwise, and then the piece will be loose and fall. The buttons were installed without some pressure, for this reason the action can be done with your forefinger or thumb finger or with both.

•

Install the plug buttons (4) on the left side.

Install the handle mounting fasteners (3)

•

on the right side.

REFRIGERATOR INSTALLATION

3. Replacing Refrigerator Handle

Turn handle upside down (5)

••Place the handle (2) on the door by adjusting handle

footprints to fit mounting fastners and tighten the set screws (1) with the 3/32 ” Allen wrench.

4.Installing Refrigerator Door

•

Install the middle hinge (1) on the opposite side with the screws (2), and the screw (3).

Install the door (4) so that it fits onto the middle hinge

•

pin (5).

Install the top hinge (6) with screws.

•

Reinstall top hinge cover (7).

•

- 48 -

REFRIGERATOR INSTALLATION

HOW TO REMOVE AND INSTALL THE PULL OUT DRAWER

IMPORTANT: To avoid possible injury, product or property

damage, you will need two people to perform the following instructions.

1.Removing Pull out Drawer

• Pull the drawer open to full lower extension. Remove the

lower basket (1) by lifting basket from rail system.

• Press both hangers with yours thumbs to lift it up.

• Separate the left and right rail cover

• With both hands, hold both sides of the door and pull it

up to separate it from the rails.

• With both hands, hold the center of the bar and push it in to let both rails fitted simultaneously.

• Remove the screws(2) of the rail on both sides.

CAUTION: When you remove the drawer, do not hold handle. If it comes off, it could cause personal injury.

CAUTION: When laying down the drawer, be careful not to damage the floor or hurt your feet by the sharp edges on hinge side.

- 49 -

REFRIGERATOR INSTALLATION

HOW TO REMOVE AND INSTALL THE PULL OUT DRAWER

IMPORTANT: To avoid possible injur or product or property

damage, you will need two people to perform the following instructions.

2.Installing Pull out Drawer

• With both hands, hold the center of the bar and pull it

out to let both rails out to full extension simultaneously.

• Make sure you have a right rail cover for each side.

Right

Rail cover

Left

Rail cover

• Align the top holes of the rail cover with the top holes of the door supports to assemble the rail cover.

• Hook door supports (1) into rail tabes (2) .

• Lower door into final position and tighten the screws (3)

Verify the hole’s assembly

• With the drawer pulled out to full extension, insert the lower basket (4) in the rail assembly.

WARNING: To prevent accidental child and pet

entrapment or suffocation risk. DO NOT allow them to play inside of drawer.

WARNING: DO NOT step or sit down on Freezer Door.

- 50 -

REFRIGERATOR INSTALLATION

REMOVING,REVERSING AND REPLACING

(Please identify the handle type of your refrigerator)

T O O L S Y O U M A Y N E E D

10 mm 1/4 in 3/8 in

Hex head socket wrench

Other Important and necessary tools are: 1/4 inch socket wrench 10mm open-end wrench

•

Adjustable wrench Flat 2-inch putty knife

•

IMPORTANT: Before you begin, turn the refrigerator OFF

and unplug it. Remove food and any adjustable door or utility bins from doors.

HOW TO REVERSE DOOR OPENING DIRECTION

REFRIGERATOR DOORS SECTION (When converting from the left-opening type to right-

opening type)

1. Removing Refrigerator Door

•

Gently pry off the Top Hinge Cover with a flat head screwdriver

and remove (1).

•

Using 10 mm socket wrench, remove the 3 bolts and lift off the

Top Hinge. Set parts aside (2).

Lift the Refrigerator door (3) slightly and remove it.

Pry off the cover (4) using a slotted screwdriver to find the hole screw and attach it on the right.

Loosen the screws (5), remove the stopper (6) and attach them on the left (on the opposite side).

Using a ¼-inch socket wrench, loosen and remove

Hinge Pin (7) from the Middle Hinge Pin Bracket.

NOTE: At this point the door will be loose, lift up

door slightly and remove it.

Loosen the 2 screws (11) and the 2 screws (12), and

•

lift off the middle hinge (13).

No. 2 Phillips screwdriver

•

REFRIGERATOR DOORS (For Swing Type Models)

1/4 in 3/32 in

Flat head screwdriver

Allen wrench

NOTE: To remove refrigerator handle, please refer to refrigerator handles section.

2. Removing Freezer Door

Before, remove totally the refrigerator door.

Lift the door (10) slightly and remove it. Loosen the 2 screws (11), the 2 screws (12), and lift

off the middle hinge (13). Pry off the cover (9) using a slotted screwdriver and attach it on the right.

Take off the base grille (14).

Loosen the 2 screws (16), remove the bottom hinge (17), and attach on the left.

Loosen the 2 screws (18) and attach the stopper (19) on the left side of the base.

NOTE: To remove freezer handle, please refer to refrigerator handles section.

NOTE: Handle and refrigerator appearance

may vary from illustrations on

this page

REFRIGERATOR INSTALLATION

5. Installing Freezer Door

Install the base grille (1).

Install the door (3) onto the bottom hinge pin.

Install the middle hinge (4) on the opposite side with the screw (5) and the screws (9).

6. Installing Refrigerator Door

Install the door (8) so that it fits onto the middle hinge pin (7). Install the top hinge (10) with screws.

Reinstall top hinge cover (11).

REFRIGERATOR HANDLES SECTION

For Swing Type models the handle type may vary, actually there are different handles for refrigerator and freezer doors.

Refrigerator Handles types:

Refrigerator with

Handle Type 1

1. Removing Refrigerator Handle 1

•

Loosen the set screws (1) with the 3/32” Allen wrench and remove the handle (2).

•

Loosen the handle mounting fasteners (3) with the 1/4” Allen wrench.

•

Carefully loosen the plug buttons with your fingers (4).

•

Install the plug buttons (4) on the left side.

Install the handle mounting fasteners (3)

•

on the right side.

Refrigerator with

Handle Type 2

REFRIGERATOR INSTALLATION

2. Replacing Refrigerator Handle 1

Turn handle upside down (5)

••Place the handle (2) on the door by adjusting

Handle footprints to fit mounting fastners and tighten the set screws (1) with the 3/32

Allen wrench.

”

REFRIGERATOR INSTALLATION

Removing Freezer Handle

NOTE: Before start, check handle type in your model.

Handle Type 1

Remove the cap (1) and the 2 caps (2) using a slotted screwdriver.

Loosen the 2 screws (3), take of f the handle (4), and install it on the right.

Attach the caps you removed earlier [figures (1) and (2)].

Handle Type 2 and Handle Type 3

For these handle types are not necessary remove it.

Please remove the door with the handle assembled

Freezer Handles Types:

Handle type 3

REFRIGERATOR INSTALLATION

AFTER COMPLETING THE JOB

Make sure that the four corners of the door gasket are not folded over. To ensure a good seal, apply a small amount of silicon grease on the gasket.

1. Plug the refrigerator power cord into a 3-prong grounded outlet. Move the refrigerator into its final position.

2. Use a screwdriver to adjust the leveling screws. Turn the leveling screw clockwise to raise that side of the refrigerator or counterclockwise to lower it. It may take several turns of the leveling screw to adjust the tilt of the refrigerator.

NOTE: Having someone push against the top of the refrigerator takes some weight off the leveling screws. This makes it easier to adjust the screws.

DOOR CLOSING AND ALIGNMENT

Door Closing

Your refrigerator has two front leveling screws one on the right and one on the left. If your refrigerator seems unsteady or you want the doors to close easier, adjust the refrigerator tilt using the instructions below:

Open both doors again and check to make sure that

they close easily. If not, tilt the refrigerator slightly more to the rear by turning both leveling screws clockwise. It may take several more turns, and you should turn both leveling screws the same amount.

4. Check, using a level.

5. Replace the base grille.

Door Alignment

If the space between your doors is uneven, follow the instructions below to align the doors:

1. Pry off the top hinge cover.

2. Loosen the top hinge screws using a 10 mm socket

or wrench.

3. Have someone hold the door in place or put a spacer between the doors while you tighten the top hinge screws.

4. Replace the top hinge cover.

- 55 -

USING YOUR REFRIGERATOR

ENSURING PROPER AIR CIRCULATION

In order to ensure proper temperatures, air must flow between the refrigerator and freezer sections. As shown in the illustration below, cool air enters through the bottom of the freezer section and moves up. Most of the air then flows through the freezer section vents and recirculates under the freezer floor. The rest of the air enters the refrigerator section through the top vent.

MULTI FLOW

The cooling fan operates more powerful and effective than in normal operation. This is specially noticeable when new food is placed in the refrigerator compartment.

If water or foreign substances enter the cool air vent while cleaning, efficiency will be lowered. In addition, if gasket is damaged, efficiency may be lowered because of escaping cool air.

SETTING THE CONTROLS

Your refrigerator has two controls that let you regulate the temperature in the freezer and refrigerator compartments.

Initially set the REFRIGERATOR CONTROL at 37 °F

C) and the FREEZER CONTROL at 0 °F ( -18 °

(3 ° Leave it at this setting for 24 hours (one day) to stabilize. Then adjust the compartment temperature as desired.

C).

Identify your control type

Refrigerator control:32 °F to 47 °F (0°C to 8 °C)

The lower the number setting, the colder the refrigerator compartment will become.

Freezer control: -6 °F to 9 °F (- 21 °C to - 13 °C)

When the setting is at a lower number, the freezer compartment becomes colder.

Do not block any of these vents with food packages. If the vents are blocked, airflow will be interrupted and temperature and moisture problems may occur.

IMPORTANT:

sections, any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To prevent odor transfer and drying out of food, wrap or cover foods tightly. (See the Guide section for details.)

Because air circulates between both

Food Storage

Ice Plus:

Press the Ice Plus key and the LED will turn on. This function will remain activated for 24 hours and intensify the cooling speed of freezer and increase the amount of ice.

NOTE: To change °F/°C press and HOLD COLDER key co f freezer and COLDER key of refrigerator over 1 sec. at the same time.

DOOR ALARM

With this feature you´ll listen a alarm when the freezer or

refrigerator door is not closed within 1 minute after it is opened. These tones repeat every 30 seconds.

The alarm is cancelled when the freezer or the refrigerator

is closed correctly.

- 56 -

USING YOUR REFRIGERATOR

Identify your control type

Refrigerator control: position 1 to 7

F to 47 °F or 0 °C to 8 °C)

(32 °

The higher the number setting, the colder the refrigerator compartment will become.

REFRIGERATOR TEMP

ADJUST

WARMER

Freezer control: position 1 to 7

(-6 °F to 8 °F or -21 °C to -13 °C)

When the setting is at a higher number, the freezer compartment becomes colder.

Ice Plus

Press the Ice Plus key and the LED will turn on. This function will remain activated for 24 hours and intensify the cooling speed of freezer and increase the amount of ice.

WARMER

4 IS RECOMMENDED

FREEZER TEMP

4 IS RECOMMENDED

COLDER

ADJUST

RECOMMENDED

CONDITION/REASON: ADJUSTMENT: REFRIGERATOR section Turn

too warm REFRIGERATOR

Door opened often control to next Large amount of food added higher number, Room temperature very warm wait 24 hours,

then re-check

FREEZER section too warm/ Turn FREEZER ice not made fast enough control to next

Door opened often higher number, Large amount of food added wait 24 hours, Very cold room temperature Then re-check (can’t cycle often enough) Heavy ice usage Air vents blocked by items Move items out of

airstream

REFRIGERATOR section too Turn cold REFRIGERATOR

Controls not set correctly for control to next your conditions lower number,

wait 24 hours, then re-check

FREEZER section too cold Turn FREEZER

Controls not set correctly for control to next your conditions lower number,

wait 24 hours, then re-check

ADJUSTING CONTROL SETTINGS

Give the refrigerator time to cool down completely before adding food. It is best to wait 24 hours before you put food into the refrigerator. The mid-settings indicated in the previous section should be correct for normal household refrigerator usage. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.

The refrigerator control functions as the thermostat for the entire appliance (refrigerator and freezer sections.) The higher the number setting, the longer the compressor will run to keep the temperature colder. The freezer control adjusts the cold air flow from the freezer to the refrigerator. Setting the freezer control to a lower temperature keeps more cold air in the Freezer compartment to make it colder.

If you need to adjust temperatures in the refrigerator or freezer, start by adjusting the refrigerator first. Wait 24 hours after the refrigerator adjustment to check the freezer temperature. If it is too warm or too cold, then adjust the freezer control as well.

Use the settings listed in the chart below as a guide.

Always remember to wait at least 24 hours between adjustments.

- 57 -

USING YOUR REFRIGERATOR

FOOD STORAGE GUIDE

Storing Fresh Food

Wrap or store food in the refrigerator in airtight and moisture-proof material unless otherwise noted. This prevents food odor and taste transfer throughout the refrigerator. For dated products, check date code to ensure freshness.

Butter or margarine

Keep opened butter in a covered dish or closed compartment. When storing an extra supply, wrap in freezer packaging and freeze.

Cheese

Store in the original wrapping until you are ready to use it. Once opened, rewrap tightly in plastic wrap or aluminum foil.

Milk

Wipe milk cartons. For best storage, place milk on interior shelf, not on door shelf.

Eggs

Store in original carton on interior shelf, not on door shelf.

Fruit

Wash, let dry, and store in refrigerator in plastic bags or in the crisper. Do not wash or hull berries until you are ready to use them. Sort and keep berries in their original container in a crisper, or store in a loosely closed paper bag on a refrigerator shelf.

Leafy vegetables

Remove store wrapping and trim or tear off bruised and discolored areas. Wash in cold water and drain. Place in a plastic bag or plastic container and store in the crisper.

Vegetables with skins (carrots,peppers)

Place in plastic bags or plastic container and store in crisper.

Fish

Use fresh fish and shellfish the same day purchased.

Chef fresh

Store most chef fresh in original wrapping as long as it is airtight and moisture-proof. Rewrap if necessary.

Packaging

Successful freezing depends on correct packaging. When you close and seal the package, it must not allow air or moisture in or out. If you do, you could have food odor and taste transfer throughout the refrigerator and also dry out frozen food.

Packaging recommendations:

Rigid plastic containers with tight-fitting lids Straight-sided canning/freezing jars Heavy-duty aluminum foil Plastic-coated paper Non-permeable plastic wraps Specified freezer-grade self-sealing plastic bags

Follow package or container instructions for proper freezing methods.

Do not use:

Bread wrappers Non-polyethylene plastic containers Containers without tight lids Wax paper or wax-coated freezer wrap Thin, semi-permeable wrap

Freezing

IMPORTANT: Do not store bottles in the freezer

compartment - they may break when frozen, causing damage.

Your freezer will not quick-freeze any large quantity of food. Do not put more unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 lbs or 0.91

kg to 1.36 kg of food per cubic foot of freezer space). Leave enough space in the freezer for air to circulate around Packages. Be careful to leave enough room at the front so The door can close tightly.

Storage times will vary according to the quality and type of food, the type of packaging or wrap used (airtight and moisture-proof) and the storage temperature. Ice crystals inside a sealed package are normal. This simply means that moisture in the food and air inside the package have condensed, creating ice crystals.

NOTE: Allow hot foods to cool at room temperature for 30 minutes, then package and freeze. Cooling hot foods before freezing saves energy.

NOTE: Do not store food near the sensor; it may cause the sensor to malfunction.

Leftovers

Cover leftovers with plastic wrap or aluminum foil. Plastic containers with tight lids can also be used.

STORING FROZEN FOOD

NOTE: For further information about preparing food for

freezing or food storage times, check a freezer guide or a reliable cookbook.

WARNING

Suffocation Hazard

When using dry ice, provide adequate ventilation. Dry ice is frozen carbon dioxide (CO )2. When it vaporizes, it can displace oxygen, causing dizziness, light-headedness, unconsciousness and death by suffocation. Open a window and do not breathe the vapors.

- 58 -

USING YOUR REFRIGERATOR

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet your individual storage needs. These units are all glass shelves.

Storing similar food items together in your refrigerator and adjusting the shelves to fit different heights of items will make finding the exact item you want easier; it will also reduce the amount of time the refrigerator door is open, saving energy.

IMPORTANT: Do not clean glass shelves with warm water when they are cold. Shelves may break if exposed to sudden temperature changes or impact, such as bumping. For your protection, glass shelves are made with tempered glass, which will shatter into small pebblesized pieces.

NOTE: Glass shelves are heavy. Use special care when removing them to avoid dropping them.

Adjusting Shelves

Remove shelves from the shipping position and replace shelves in the position you want.

To remove a shelf:Tilt up the front of the shelf in the

direction of (1) and lift it in the direction of (2). Pull the shelf out.

Sliding Out Shelves (optional on some models)

You can slide some glass shelves in and out of your refrigerator as follows.

To slide the shelf out, carefully pull front of shelf toward you.

To slide shelf in, push shelf in until it stops.

To remove a sliding shelf from its metal frame:

1. Pull the shelf out to the stop position.

2. Tilt the front of the shelf up and pull it past the stop position.

3. Lift up the shelf to remove.

Replace the shelf by reversing the above steps.

Convenience Shelves (optional on some models)

Folding Shelf: You can store taller items such as gallon

containers or bottles by simply sliding the shelf back.

To replace a shelf : Tilt the front of the shelf up and guide the shelf hooks into the slots at a desired height. Then lower the front of the shelf so that the hooks drop into the slots.

NOTE: Make sure that shelves are level from one side to the other. Failure to do so may result in the shelf falling or spilling food.

- 59 -

USING YOUR REFRIGERATOR

CHEF FRESH / SNACK PAN (on some models)

While holding the chef fresh with one hand, pull it forward slightly. Lift slightly and pull it out.

CRISPER HUMIDITY CONTROL

(on some models)

You can control the amount of humidity in the moisturesealed crispers. Adjust the control to any setting between

“ ”

and

:Lets moist air out of the crisper for best storage of

fruits.

“ ”

Keeps moist air in the crisper for best storage of

fresh, leafy vegetables.

CRISPER HUMIDITY CONTROL

(on some models)

You can control the amount of humidity in the moisturesealed crispers. Adjust the control to any setting between

and .

lets moist air out of the crisper for best storage of

fruits.

keeps moist air in the crisper for best storage of

fresh, leafy vegetables.

To remove the glass:

1. Lift up the glass after inserting a screwdriver under the

crisper cover.

2. Pull up and out.

OPTIBIN CRISPERS

The OptiBin Crispers provide fresher-tasting fruit and vegetables by letting you easily control humidity inside the crisper. The OptiBin Crispers include: 1) a humidity control knob at the front of the crisper cover and 2) a large lattice on the inner surface of the cover to hold

or release moisture.

To remove the crisper:

1. Slide crisper straight out to the stop.

2. Lift the front of the crisper, then pull it out to remove.

3.Replace the crisper by sliding it back in fully past the

drawer stop.

- 60 -

USING YOUR REFRIGERATOR

USINGYOURREFRIGERATOR

CRISPER COVER WITH LATTICE ON INNER SURFACE (on some models)

To remove the crisper cover:

1. Remove both crisper drawers.

2. While holding the crisper cover support (2), pull the

cover up and out (1).

WARNING: Be careful when handing glass cover since glass is not attached to cover.

To remove the lattice on inner surface:

DOOR RACKS

The door racks may be removed for easier cleaning.

Snap-on Door Racks

To remove the racks:

1. Remove all items in the door racks.

2. Push the rack against the inside wall of the door (A)

and lift up the door rack (B).

To replace the racks:

Hold either end of the door rack against the inside wall of

the door.

2. Push down the rack until it locks in place.

DESIGN-A-DOOR

1. Bins can be moved to either side of the door.

1. Remove crisper cover(as illustrated above).

2. Hold the glass cover and overtum crisper cover.

3. For each lattice hold lattice and pull sides of the cover

outward to remove lattice.

To replace lattice on inner surface:

1. For each lattice insert middle tab in 1 (closed to glass

cover)and pull sides of the cover to insert lattice.

To remove the bin, simply lift the bin and pull straight out.

3.To replace the bin, slide it in above the desired

support and push down until it locks completely so that

4.To move to lowest position, make sure if all bins are correctly assembled so that they don’ t fall out of door.

“click” sounds can be heard.

WARNING: Somebody can be hurt if door bins are not firmely assembled.

NOTE: Do not adjust a bin that is loaded with food.

- 61 -

USING YOUR REFRIGERATOR

DAIRY BIN

1.To remove the dairy bin , simply lift it and pull straight

out.

2.To replace the dairy bin, slide it in above the desired location and push down until it stops.

EGG BOX (on some models)

Store Egg Box on interior shelf, not on door shelf.

CAUTION: Do not use the egg box as an ice storage bin in the freezer compartment. The egg box can easily easily break if it freezes.

DURABASE (on some models)

To remove the Durabase, push it back to the end as

much as possible. Tilt up the front of the Durabase and pull straight out.

2. To install, insert the Durabase in rail assembly.

DURABASE DIVIDER (on some models)

The Durabase divider allows you to organize the

Durabase area into sections.

FREEZER SECTION

ICE BIN (on some models)

1.To separate the ice bin, pull out the drawer as much as possible.

2. Gently lift and pull out the ice bin.

To reinstall, pull out the drawer as much as possible and set the ice bin in its correct position, and then push in the drawer.

WARNING: There is enough open space in it for children to climb inside.

WARNING: To prevent accidental child and pet entrapment or suffocation risk. DO NOT allow them to

play inside of drawer.

- 62 -

USING YOUR REFRIGERATOR

GLIDE OUT DRAWER BASKET -

(on some models)

To remove, lift basket up and pull out straight out.

2. To Install, pull both rails out to full extension. Hook the basket supports into the rail tabs and push to the back of compartment.

WARNING:

To avoid hand injury, keep your hands away

from tilting device when drawer is open.

WIRE DURABASE (on some models)

1. To remove wire Durabase, pull wire durabase out to full

extension. Tilt up the front of the wire Durabase and pull it straight out.

TILTING DOOR (on some models)

The tilting door provides easy access to stored foods.

How to use:

Tilt the door down and pull it out. E

2. To install, insert the wire Durabase into frame rails and push back into place.

FREEZER SHELF (on some models)

To remove the shelf, take it from the front part, and pull it towards you.

To place the shelf, reverse the removal procedure.

adjust

WARNING: Be careful when you open tilting door so

that you do not injure your foot!

- 63 -

WARNING

Explosion Hazard

CARE AND CLEANING

PLASTIC PARTS (covers and panels)

Do not use paper towels, window sprays, abrasive cleansers, or flammable fluids. These can scratch or damage the material.

CONDENSER COILS

Remove grille base.

Use a vacuum cleaner with an extended attachment to clean condenser coils.

Use non-flammable cleaner.

Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to prevent odors. Wipe up spills immediately.

GENERAL CLEANING TIPS

Unplug refrigerator or disconnect power.

Remove all removable parts, such as shelves, crispers, etc.

Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners.

Hand wash, rinse and dry all surfaces thoroughly.

Plug in refrigerator or reconnect power.

OUTSIDE

Waxing external painted metal surfaces helps provide rust protection. Do not wax plastic parts. Wax painted metal surfaces at least twice a year using appliance wax (or auto paste wax). Apply wax with a clean, soft cloth.

For products with a stainless steel exterior, use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a soft cloth.

Note: Avoid door surface contact with chemical products that contain Phosphate or Chlorine.

INSIDE WALLS (allow freezer to warm up so cloth will not stick)

Vacuum coils when dusty or dirty. Coils may need to be cleaned as often as every other month.

Replace grille base.

COVER BACK

Clean the cover back at least twice a year to keep your refrigerator working efficiently.

COVER BACK

LIGHT BULB REPLACEMENT

WARNING

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug the refrigerator or turn off power at the circuit breaker or fuse box.

NOTE: Moving the control to the OFF position does not remove power to the light circuit.

NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to replace the bulb with one of 40 watts and the same size and shape.

NOTE: The light bulbs wil turn off if door is left open for seven continuous minutes. Shutting door for one second will make light bulbs to come back on.

To help remove odors, you can wash the inside of the refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons baking soda to 1 quart of water (26 g soda to 1 liter water). Be sure the baking soda is completely dissolved so does it not scratch the surfaces of the refrigerator.

DOOR LINERS AND GASKETS

Do not use cleaning waxes, concentrated detergents, bleaches, or cleaners containing petroleum plastic parts.

To change the refrigerator light:

1. Unplug the power cord from the outlet.

2. Remove refrigerator shelves.

Release the hooks on the front of the light shield

with the help of a flat screwdriver and pull the

shield down to remove it.

- 64 -

CARE AND CLEANING

4. Turn the bulb counter clockwise.

5. To assemble, first insert the hooks at the back and

then push up the light shield.

To change the freezer light:

1. Unplug refrigerator or disconnect power.

2. Reach behind light shield to remove bulb.

3. Replace bulb with a wattage indicated in

the refrigerator section, as shown in picture .

111111

OR c) If neither a food locker nor dry ice is available,

consume or can perishable food at once.

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while you are away, follow these steps to prepare your refrigerator

before you leave.

1. Use up any perishables and freeze other items.

2. Empty the ice bin.

If you choose to turn the refrigerator off before you leave, follow these steps.

1. Remove all food from the refrigerator.

2. Depending on your model, set the thermostat control (refrigerator control) to OFF. See the Setting the Controls section.

3. Clean refrigerator, wipe it and dry well.

4. Tape rubber or wood blocks to the tops of both doors to

prop them open far enough for air to get in. This stops odor and mold from building up.

111111

4. Plug in refrigerator or reconnect power.

POWER INTERRUPTIONS

If the electricity goes off, call the power company and ask how long it will be off.

1. If the power will be out for 24 hours or less, keep both refrigerator doors closed to help foods stay cold and frozen.

2. If the power will be out for more than 24 hours:

a) Remove all frozen food and store it in a frozen

food locker.

b) Place 2 lbs (0.91 kg) of dry ice in the freezer for every

cubic foot of freezer space. This will keep the food frozen for two to four days. While handling dry ice, wear gloves to protect your hands from frostbite.

WHEN YOU MOVE

When you are moving your refrigerator to a new home, follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all frozen food in dry ice.

2. Depending on your model, turn the thermostat control

(refrigerator control) to OFF. See the Setting the

Controls section.

3. Unplug the refrigerator.

4. Empty water from the defrost pan.

5. Clean, wipe and dry thoroughly.

6. Take out all removable parts, wrap them well and tape

them together so they do not shift and rattle during the move.

7. Depending on the model, raise the front of the

refrigerator so it rolls more easily OR screw in the leveling legs all the way so they do not

See the

8. Tape the doors shut and tape the power cord to the

refrigerator cabinet.

When you get to your new home, put everything back and refer to the Installing Your Refrigerator section for preparation instructions.

Door Closing section.

scrape the floor.

- 65 -

ABOUT THE AUTOMATIC ICEMAKER

WARNING

WHEN YOU SHOULD SET THE ICEMAKER POWER SWITCH TO O (OFF)

Personal Injury Hazard

Avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. DO NOT place fingers or hands on the automatic icemaking mechanism while the refrigerator is plugged in.

NOTE: Automatic Ice Maker feature is included only in

certain models. Please check your product specification.

OPERATION INSTRUCTIONS

A newly-installed refrigerator may take 12 to 24 hours to begin making ice.

Switch

Ice Maker

Sensor

• When the water supply will be shut off for several hours.

• When the ice storage bin is removed for more than a

minute or two.

• When the refrigerator will not be used for several days.

NORMAL SOUNDS YOU MAY HEAR

• The icemaker water valve will buzz as the icemaker fills

with water. If the power switch is in the I (ON) position, it will buzz even if it has not yet been hooked up to water. To stop the buzzing, move the power switch to O (OFF).

NOTE: Keeping the power switch in the before the water line is connected can damage the icemaker.

• You will hear the sound of cubes dropping into the bin

and water running in the pipes as the icemaker refills.

I (ON) position

PREPARING FOR VACATION

Set the icemaker power switch to O (OFF) and shut off the water supply to the refrigerator.

If the ambient temperature will drop below freezing, have a qualified servicer drain the water supply system to prevent serious property damage due to flooding from ruptured water lines or connections.

The ice maker produces 12 cubes per cycle (in between

80 and 100 cubes in a 24 hour period), depending on

the temperature of the freezer, the times in which the door opens, and other using conditions (amount of food

in the freezer, etc)

If the refrigerator is used before the connection of water to the ice maker was performed, you must turn its dial

to O (OFF).

When the water connections are performed, turn its dial to I (ON).

The ice maker will fill up (and start making ice) between

12 and 24 hours after the refrigerator is turned on.

Throw away the first batch of ice. Make sure that nothing interferes with the sensor.

When the ice reaches the sensor, the ice maker will stop to make ice immediately.

It’s normal that some ice gets stuck. If the ice is not used frequently, the older cubes of ice will be opaque in color,

smaller, and with a strange flavour.

- 66 -

CONNECTING THE WATERLINE

NOTE: Water line installation is needed when the

Automatic Ice Maker and/or Water Dispenser features are available on your product.

BEFORE YOU BEGIN

This water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow these instructions carefully to minimize the risk of expensive water damage.

Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator.

To prevent burns and product damage, do not hook up the water line to the hot water line.

If you use your refrigerator before connecting the water line, make sure the icemaker power switch is in the O (off) position.

Do not install the icemaker tubing in areas where temperatures fall below freezing.

When using any electrical device (such as a power drill) during installation, be sure the device is doubleinsulated or grounded in a manner to prevent the hazard of electric shock, or is battery-powered.

All installations must be in accordance with local plumbing code requirements.

NOTE: Wear eye protection.

Ÿ If a reverse osmosis water filtration system is connected to your cold water supply, This water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow next instructions carefully to minimize the risk of expensive water damage. Ÿ If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 PSI or

0.27 MPa to 0.41MPa (2.8 kg·f/cm² ~ 4.2 kg·f/cm², less than 2 ~ 3 seconds to fill a cup of 7 oz capacity [0.2 liters]). If the water pressure from the reverse osmosis system is less

than 21 PSI or 0.14 MPa (1.5 kg·f/cm², more than 4 seconds to fill a cup of 7 oz capacity [0.2 liters]). Ÿ Check to see whether the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary. Ÿ Allow the storage tank on the reverse osmosis system to refill after heavy usage. Ÿ If the issue about water pressure from reverse osmosis remains, call a licensed, qualified plumber.

To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Then add 8 feet (2.4 m). Be sure there is sufficient extra tubing (about 8 feet [2.4 m] coiled into 3 turns of about 10” [25 cm] diameter) to allow the refrigerator to move out from the wall after installation.

Be sure that the kit you select allows at least 8 feet (2.4 m) as described above.

A cold water supply

between 20 and 120 PSI or 0.137 and 0.82 MPa on models without a water filter and between 40 and 120 PSI or 0.275 and 0.82 MPa on models with a

water filter.

Power drill

1/2”

wrench

Straight- and Phillipsblade screwdriver

Two 1/4” outer diameter compression nuts and 2 ferrules (sleeves)

connect the copper tubing to the shut off valve and the refrigerator water valve.

If your existing copper water line has a flared fitting at the end, you will need an

adapter

plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting.

Shut off valve to connect to the cold water line

Shut off valve should have a water inlet with a minimum inside diameter of 5/32” at the point of connection to the COLD WATER LINE. Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes.

or adjustable

(available at

.The water pressure must be

. The

WHAT YOU WILL NEED

Copper Tubing

diameter to connect the refrigerator to the water supply. Be sure both ends of the tubing are cut square.

, 1/4” outer

- 67 -

CONNECTING THE WATERLINE

INSTALLATION INSTRUCTIONS

Install the shut off valve on the nearest frequently used drinking water line.

water.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on the line.

CHOOSE THE VALVE LOCATION

Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.

DRILL THE HOLE FOR THE VALVE

Drill a 1/4” hole in the water pipe (even if using a selfpiercing valve) using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe. Take care not to allow water to drain into the drill. Failure to drill a 1/4 hole may result in reduced ice production or smaller cubes.

4. FASTEN THE SHUT OFF VALVE

Connect only to the supply of drinking

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer begins to swell.

NOTE: Do not over tighten or you may crush the tubing.

Pipe Clamp

Clamp Screw

Washer

Inlet End

6. ROUTE THE TUBING

Route the tubing between the cold water line and the refrigerator.

Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing (about 8 feet or 2.44 m coiled into 3 turns of about 10” or

25.4 cm of diameter) to allow the refrigerator to move out from the wall after installation.

7. CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve. Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely.

Fasten the shutoff valve to the cold water pipe with the pipe clamp.

Pipe Clamp

Saddle-Type Shutoff Valve

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

Vertical Cold Water Pipe

Saddle-Type Shutoff Valve

Packing Nut

Outlet Valve

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

Compression Nut

Ferrule (sleeve)

8. FLUSH OUT THE TUBING

Turn the main water supply on and flush out the tubing until the water is clear.

Shut the water off at the water valve after about one quart of water has been flushed through the tubing.

- 68 -

CONNECTING THE WATERLINE

9. CONNECT THE TUBING TO THE REFRIGERATOR

NOTES:

Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.

If your refrigerator does not have a water filter, we recommend installing one. If your water supply has sand or particles that could clog the screen of the refrigerator’s water valve. Install the filter in the water line near the refrigerator.

IMPORTANT: Do not use old, worn or used waterlines, only use new for a better use and service. Connect only to the supply of drinking water for your safety and health.

Remove the plastic flexible cap from the refrigerator connection.

10.TURN THE WATER ON AT THE SHUT OFF VALVE

Tighten any connections that leak.

Reattach the compressor compartment access cover.

11.PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so against the back of the refrigerator or against the wall.

Push the refrigerator back to the wall.

that it does not vibrate

12.START THE ICEMAKER

Set the icemaker power switch to the ON position. The icemaker will not begin to operate until it reaches its operating temperature of 15 °F (-9 °C) or below. It will then begin operation automatically if the icemaker power switch is in the I (on) position.

Place the compression nut and ferrule (sleeve) onto

the end of the tubing.

Insert the end of the tubing into the connection as far as possible. While holding the tubing, tighten the fitting.

Refrigerator Connection

Ferule (sleeve)

Tubing Clamp

1/4” Compression Nut

1/4” Tubing

Fasten the tubing into the tubing Clamp attached to

the back of the refrigerator. First, loosen the screw fastening the clamp. Next, insert the tubing in the groove. Finally, re-fasten the screw.

- 69 -

TROUBLESHOOTING GUIDE

UNDERSTANDING SOUNDS YOU MAY HEAR

Your new refrigerator may make sounds that your old one didn’t make. Because the sounds are new to you, you

might be concerned about them. Most of the new sounds are normal. Hard surfaces, like the floor, walls and cabinets, can make the sounds seem louder than they actually are. The following describes the kinds of sounds and what may be making them.

The defrost timer will click when the automatic defrost cycle begins and ends. The thermostat control (or refrigerator control, depending on the model) will also click when cycling on and off.

Rattling noises may come from the flow of refrigerant, the water line, or items stored on top of the refrigerator.

Your refrigerator is designed to run more efficiently to keep your food items at the desired temperature. The high efficiency compressor may cause your new refrigerator to run longer than your old one, and you may hear a pulsating or high-pitched sound.

You may hear the evaporator fan motor circulating the air through the refrigerator and freezer compartments.

As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your refrigerator.

Contraction and expansion of the inside walls may cause a popping noise.

Water dripping on the defrost heater during a defrost cycle may cause a sizzling sound.

You may hear air being forced over the condenser by the condenser fan.

You may hear water running into the drain pan during the defrost cycle.

Due to refrigerator's low energy consumption design, the fans will remain off by the door switch activates the inner compartment light.

REFRIGERATOR DOES NOT OPERATE

Check if... Then...

The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.

A household fuse has blown or circuit Replace the fuse or reset the circuit breaker. breaker tripped.

The refrigerator control is set to the OFF position. Refer to the Setting the Controls .

Refrigerator is in the defrost cycle. Wait about 30 minutes for defrost cycle to end.

VIBRATION OR RATTLING NOISE

Check if... Then...

The refrigerator is not resting solidly on Floor is weak or uneven or leveling legs need adjusting. the floor. See Installation Section.

LIGHTS DO NOT WORK

Check if... Then...

The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.

Light bulb is loose in the socket. Turn the refrigerator control to the OFF position and unplug

the refrigerator. Gently remove the bulb and reinsert. Then plug in refrigerator and reset the refrigerator control.

Light bulb has burned out.

Unplug the refrigerator prior to the replacement. Replace the old bulb with a new 40 watts appliance bulb with same size and shape on your local hardware store. (See Changing the Light Bulb (s) section).

- 70 -

TROUBLESHOOTING GUIDE

COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH

Check if... Then...

The refrigerator that was replaced was an Modern refrigerators with more storage space require older model. more operating time.

The room temperature is hotter than normal. The motor will run longer under warm conditions. At normal

room temperatures, expect your motor to run about 40% to 80% of the time. Under warmer conditions, expect it to run even more often.

The door is opened often or a large amount Adding food and opening the door warms the refrigerator. of food has just been added. It is normal for the refrigerator to run longer in order to cool

the refrigerator back down. Adding a large amount of food warms the refrigerator. See the Food Storage Guide Section. In order to conserve energy, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find and close the door as soon as the food is removed.

The refrigerator was recently plugged in and The refrigerator will take up to 24 hours to cool

the refrigerator control was set correctly completely.

The refrigerator control was not set correctly for the

surrounding conditions.

The doors are not closed completely. Push the doors firmly shut. If they will not shut all the way, see

The condenser coils are dirty. This prevents air transfer and makes the motor work harder.

See the Adjusting control settings Section.

Doors will not close completely below.

Clean the condenser coils. Refer to the Care and Cleaning section.

DOORS WILL NOT CLOSE COMPLETELY

Check if... Then...

The refrigerator is not level. See the Installation Section to level refrigerator.

Food packages are blocking the door open. Rearrange food containers to clear door and door shelves.

The ice bin, crisper cover, pans, shelves, door bins Push bins all the way in and put crisper cover, pans, shelves or baskets are out of position. and baskets into their correct positions. See the Using Your

Refrigerator Section.

The gaskets are sticking. Clean gaskets and the surface that they touch. Rub a thin

coat of paraffin wax on the gaskets after cleaning.

The refrigerator wobbles or seems unstable. Level the refrigerator. Refer to the Door Closing and

Alignment Section.

The doors were removed during product installation Remove and replace the doors according to the Removing, and not properly replaced. Reversing and Replacing Refrigerator Doors section

or call a qualified service technician.

FROST OR ICE CRYSTALS ON FROZEN FOOD

Check if... Then...

The door is not closing properly. See Doors will not close completely above.

The door is opened often. When the door is opened, warm, humid air is allowed in

the freezer resulting in frost.

- 71 -

TROUBLESHOOTING GUIDE

ICE HAS OFF-TASTE OR ODOR

Check if... Then...

The icemaker was recently installed. Discard first few batches of ice to avoid discolored or

off-flavored ice.

The ice has been stored for too long. Throw away old ice and make new supply.

The food has not been wrapped tightly in Rewrap foods since odors may migrate to the ice if food either compartment. is not wrapped properly.

The water supply contains minerals such as sulfur. A filter may need to be installed to eliminate taste and

odor problems.

The interior of refrigerator needs cleaning. See Care and Cleaning section.

Ice storage bin needs cleaning. Empty and wash bin. Discard old cubes.

THERE IS WATER IN THE DEFROST DRAIN PAN

Check if... Then...

The refrigerator is defrosting. The water will evaporate. It is normal for water to drip into the

defrost pan.

It is more humid than normal. Expect that the water in the defrost pan will take longer to

evaporate. This is normal when it is hot or humid.

THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE

Check if... Then...

The sounds may be normal for your refrigerator. Refer to the Understanding Sounds You May Hear section.

THE ICEMAKER IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY

Check if... Then...

The freezer temperature is cold enough to produce ice. Wait 24 hours after hook-up for ice production. See the Setting

the Controls Section.

Door left open. Check to see if something is holding the door open.

CUBES PRODUCED BY ICEMAKER ARE TOO SMALL

Check if... Then...

Smaller cube size level is selected. Select larger cube size using cube size selector.

Water shutoff valve connecting refrigerator to water Call a plumber to clear the valve. line may be clogged.

THE DOORS ARE DIFFICULT TO OPEN

Check if... Then...

The gaskets are dirty or sticky. Clean gaskets and the surfaces that they touch. Rub a thin

coat of appliance polish or kitchen wax on the gaskets after cleaning

The door is reopened within a short time after having When you open the door, warmer air enters the refrigerator. been opened. As the warm air cools, it can create a vacuum. If the door is

hard to open, wait 5 minutes to allow the air pressure to equalize, then see if it opens more easily.

- 72 -

TROUBLESHOOTING GUIDE

AUTOMATIC ICEMAKER DOES NOT WORK

Check if... Then...

Icemaker power switch in the O (off) position. Move the switch to the I (on) position.

Water supply turned off or not connected. See the Connecting the Water Line section.

Freezer compartment too warm. Wait 24 hours for the freezer to reach its ideal temperature.

Piled up cubes in the storage bin cause the icemaker Level cubes by hand. to shut off.

TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILD UP

Check if... Then...

The air vents are blocked. Cold air circulates Locate air vents by using your hand to sense airflow and from the freezer to the fresh food section and move all packages that block vents and restrict airflow. Refer back again through air vents in the wall dividing to multi flow Section for the location of the two sections. air vents.

The doors are opened often. When the door is opened, warm humid air is allowed into

the refrigerator. The more the door is opened, the faster the humidity builds up, and the more warm air the refrigerator must cool. In order to keep the refrigerator cool, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find and close the door as soon as the food is removed.

The control is not set correctly for the surrounding Refer to the Setting the Controls Section. conditions. Wait 24 hours for temperatures to stabilize or even out. If the

temperature is too cold or too warm, move the dial one number at a time.

Alarge amount of food has just been added Adding food warms the refrigerator. It can take a few hours to the refrigerator or freezer. for the refrigerator to return to normal temperature.

The food is not packaged correctly. Wrap food tightly and wipe off damp containers prior to

storing in the refrigerator to avoid moisture accumulation. If necessary, repackage food according to the guidelines in the Food Storage Guide Section.

The doors are not closing completely.

The weather is humid. In humid weather, air carries moisture into refrigerator

A self-defrost cycle was completed. It is normal for droplets to form on the back wall after the

See Doors will not close completely.

when doors are opened.

refrigerator self-defrosts.

- 73 -



תורש

םתשכרש רצומב איהש תוברעתה לכ ,מ תויהל תבייחע תעצוב" תרבח ידי לע ךמסוהש יאנכט י.

לע-רתויב ריהמהו יתוכיאה תורשה תא םכל תתל ונל רשפאל תנמ , תא ןייצל ושקבתת ורשקתתש תעב

סמ ' םכתושרבש רצומה יטרפו םכלש חוקלה)םגדו גוס .(

םכביל תמושתל

תוינוציח תוערפהו תולקתמ האצותכ רצומל םרגיי רשא לוקלק וא קזנ לכל תיארחא הרבחה ןיא , וא

ולא הלעפה תוארוה תא דגונה שומישמ האצותכ.

ולא םיטרפ ,רצומה תיזחב וא בגב תיוותה לעו תוירחאה תדועתב םיעיפומ

נתרבחםינוכנ הקזחאו הדובע יאנתב רצומה לש הניקתה ותלועפל תיארחא ו.

וגייח אנ

תורשה תודבעמ לכ םע רשק תריציל

EEmmaaiil

700--

11--700

mmaaiin

700--

700

ddiiggiittaal

909

sseerrvviicce

cco

iill.

תרבח לש תורשה תקלחמ ,הקידבב םכתורישל דומעל חמשת ,הכרדה , תורשו ץועייתע לכב ,

םימיה ןיבא' – ה' תועשה ןיב 08:00 דע 17:00גח יברעו ישיש ימיבו , תועשה ןיב08:00 דע 12:00.

זכרמ "סיוורס לטיגיד" ןדסה3 ,א.ןולוח ת סקפ :03-5586196

ןופצ "סיוורס לטיגיד" דש ' תורדתסהה90 ,הפיח סקפ :04-8424411

םורד "סיוורס לטיגיד" ןורבח ךרד4 ,ב"ש סקפ :08-6232838

םילשורי "םר לא" הנדסה7 ,תויפלת ,םילשורי סקפ :02-6780022

תליא "סרפסקא תורש" היישעתה רוזא ,תליא סקפ :08-6339307

ישלםכתור תע לכב !

- 40 -

LG GM-749VQCA User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
