2. PERFORMANCE

- 7 -

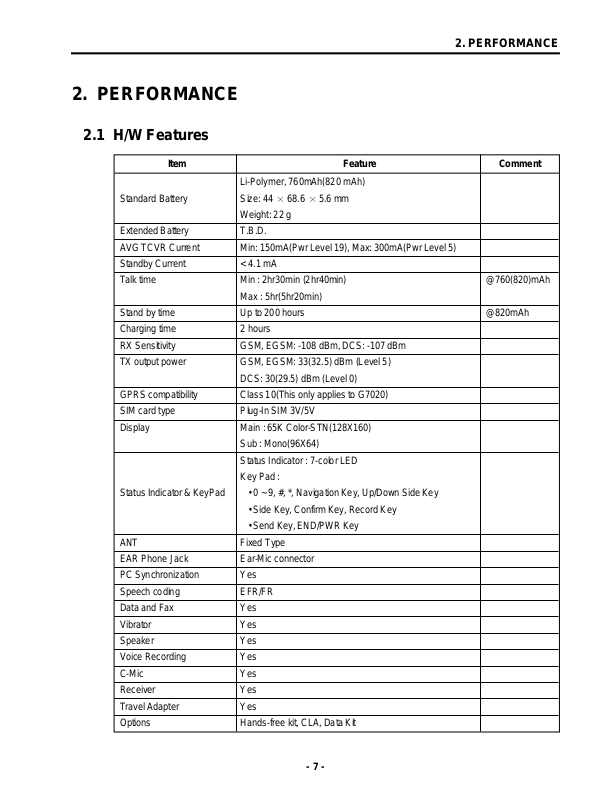

2. PERFORMANCE

2.1 H/W Features

Item Feature Comment

Li-Polymer, 760mAh(820 mAh)

Standard Battery Size: 44 68.6 5.6 mm

Weight: 22 g
Extended Battery T.B.D.
AVG TCVR Current Min: 150mA(Pwr Level 19), Max: 300mA(Pwr Level 5)
Standby Current < 4.1 mA
Talk time Min : 2hr30min (2hr40min) @760(820)mAh

Max : 5hr(5hr20min)
Stand by time Up to 200 hours @820mAh
Charging time 2 hours
RX Sensitivity GSM, EGSM: -108 dBm, DCS: -107 dBm
TX output power GSM, EGSM: 33(32.5) dBm (Level 5)

DCS: 30(29.5) dBm (Level 0)
GPRS compatibility Class 10(This only applies to G7020)
SIM card type Plug-In SIM 3V/5V
Display Main : 65K Color-STN(128X160)

Sub : Mono(96X64)

Status Indicator : 7-color LED

Key Pad :
Status Indicator & KeyPad • 0 ~ 9, #, *, Navigation Key, Up/Down Side Key

• Side Key, Confirm Key, Record Key

• Send Key, END/PWR Key
ANT Fixed Type
EAR Phone Jack Ear-Mic connector
PC Synchronization Yes
Speech coding EFR/FR
Data and Fax Yes
Vibrator Yes
Speaker Yes
Voice Recording Yes
C-Mic Yes
Receiver Yes
Travel Adapter Yes
Options Hands-free kit, CLA, Data Kit
