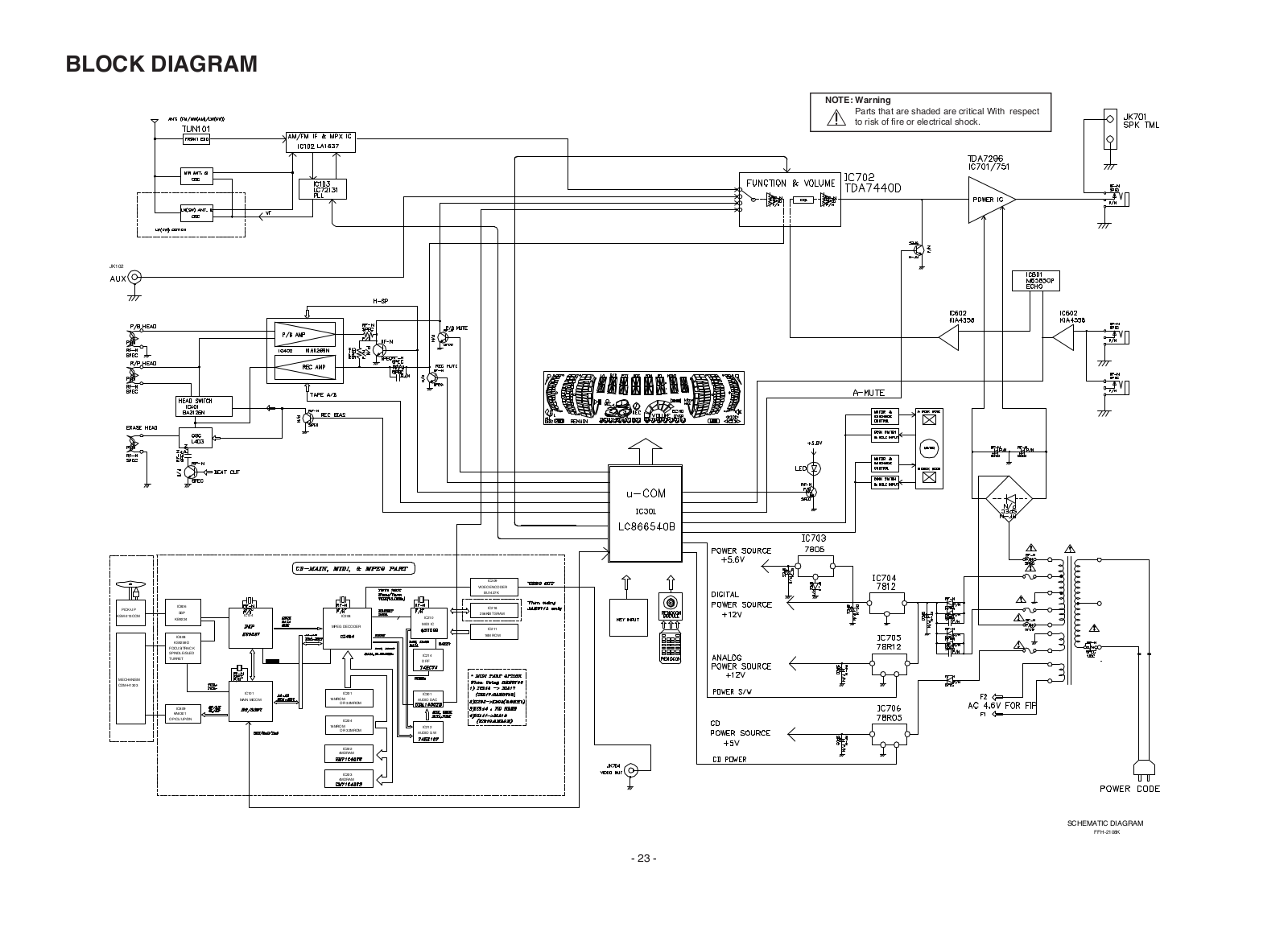

BLOCK DIAGRAM
NOTE: Warning
Parts that are shaded are critical With respect to risk of fire or electrical shock.
JK102
PICK-UP |
IC806 |
|
SSP |
||
|
||
KSM-213CCM |
IC104 |
|
|
KB9224 |
|
|
IC808 |
|
|
KS9259D |
|
|
FOCUS/TRACK |
|
|
SPINDLE/SLED |
|
|
TURRET |
|
MECHANISM |
|
|
CDM-H1303 |
|
|
|
IC101 |
|
|
MAIN MiCOM |
|
|
IC809 |
|
|
KA8301 |
|
|
OP/CL/UP/DN |
|
IC209 |
|
|
VIDEO ENCODER |
|
|
BU1427K |
|
|
IC218 |
|
IC208 |
256KBIT SRAM |
|
IC210 |
||
|
||
MPEG DECODER |
MIDI IC |
|
IC211 |
||
|
||
|
16M ROM |
|
|
IC214 |
|
|
DF/F |
|
IC201 |
IC301 |
|
16MROM |
AUDIO DAC |
|
OR 32MROM |
|
|
IC204 |
|
|
16MROM |
IC212 |
|
OR 32MROM |
AUDIO S.W |
|
|
||
IC202 |
|
|
4MDRAM |
|
|
IC203 |
|
|
4MDRAM |
|
SCHEMATIC DIAGRAM
FFH-2108K
- 23 -

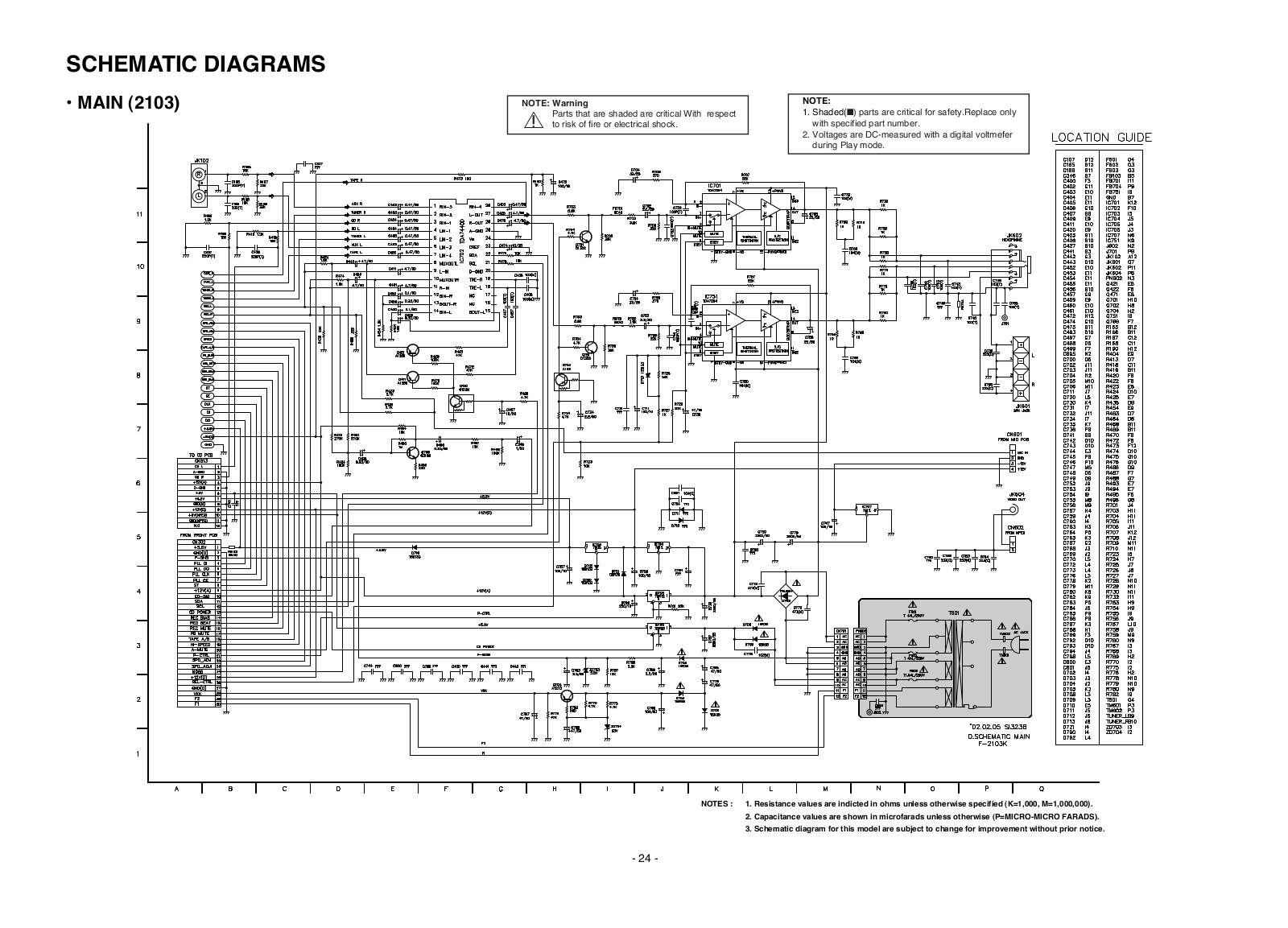

SCHEMATIC DIAGRAMS

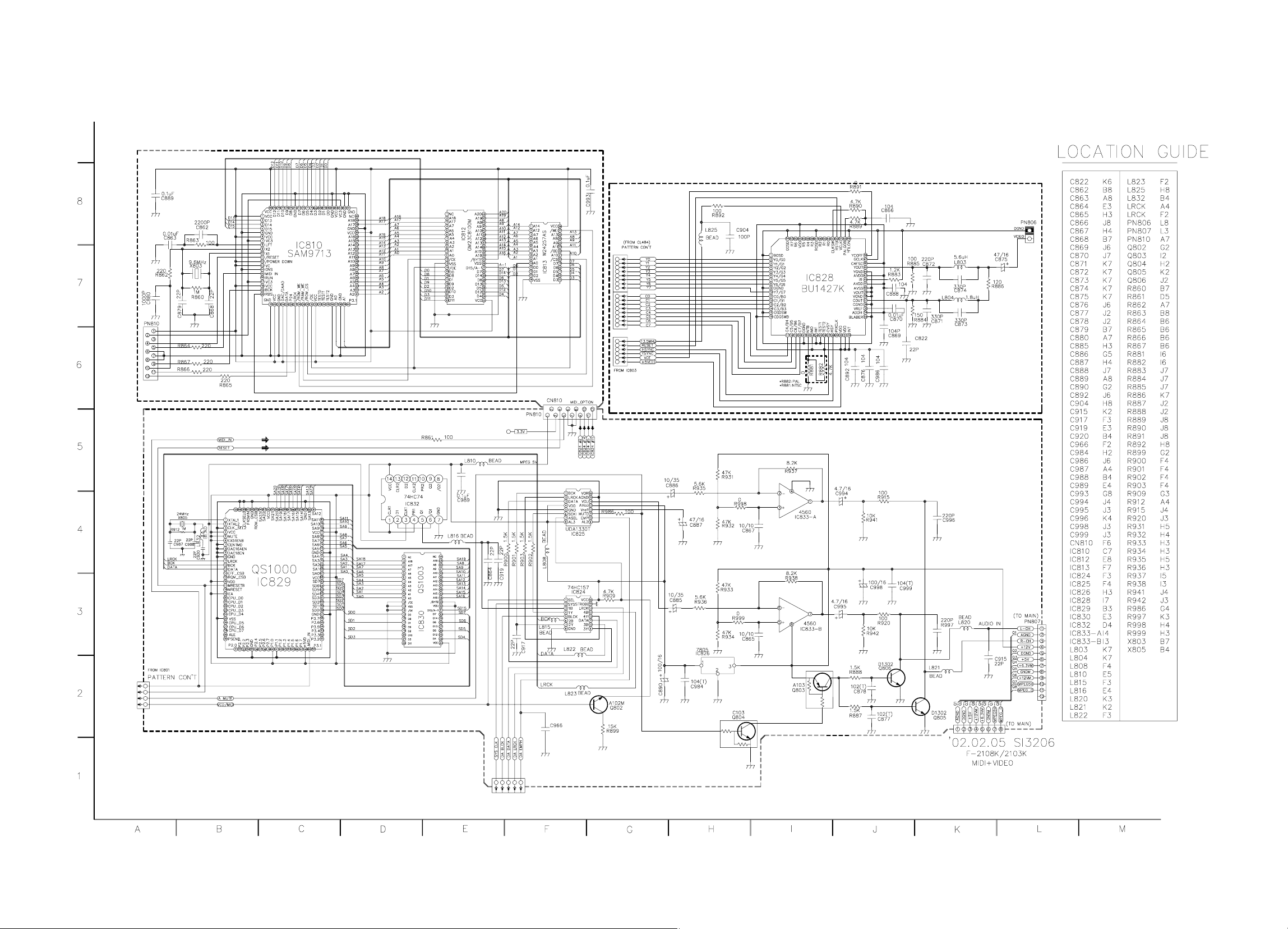

• MAIN (2103)
NOTE: Warning
Parts that are shaded are critical With respect to risk of fire or electrical shock.
NOTE:
1.Shaded(■) parts are critical for safety.Replace only with specified part number.
2.Voltages are DC-measured with a digital voltmefer during Play mode.
NOTES : 1. Resistance values are indicted in ohms unless otherwise specified (K=1,000, M=1,000,000).
2.Capacitance values are shown in microfarads unless otherwise (P=MICRO-MICRO FARADS).
3.Schematic diagram for this model are subject to change for improvement without prior notice.
- 24 -

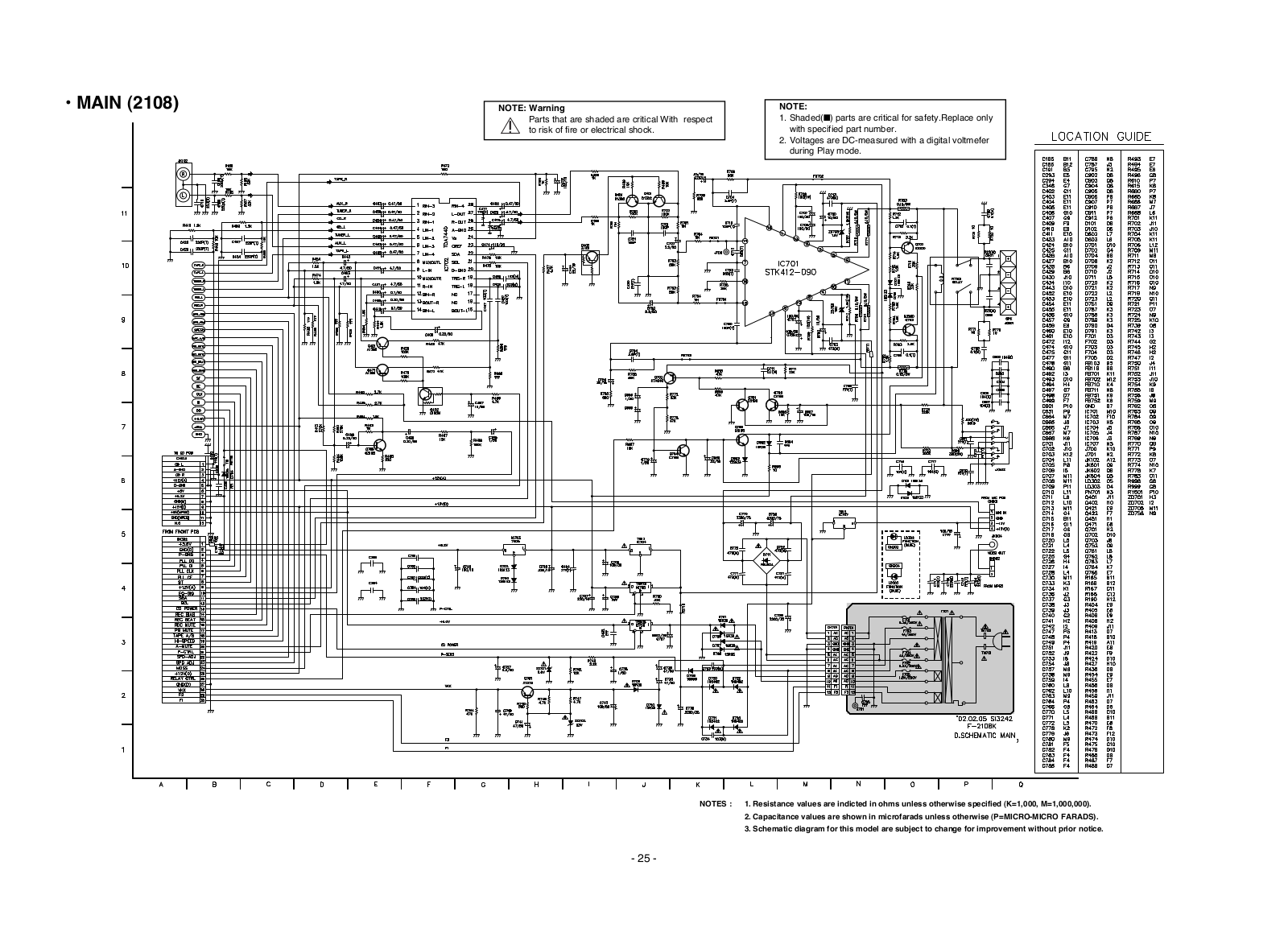

• MAIN (2108)
NOTE: Warning
Parts that are shaded are critical With respect to risk of fire or electrical shock.
NOTE:
1.Shaded(■) parts are critical for safety.Replace only with specified part number.
2.Voltages are DC-measured with a digital voltmefer during Play mode.
NOTES : 1. Resistance values are indicted in ohms unless otherwise specified (K=1,000, M=1,000,000).
2.Capacitance values are shown in microfarads unless otherwise (P=MICRO-MICRO FARADS).
3.Schematic diagram for this model are subject to change for improvement without prior notice.
- 25 -
