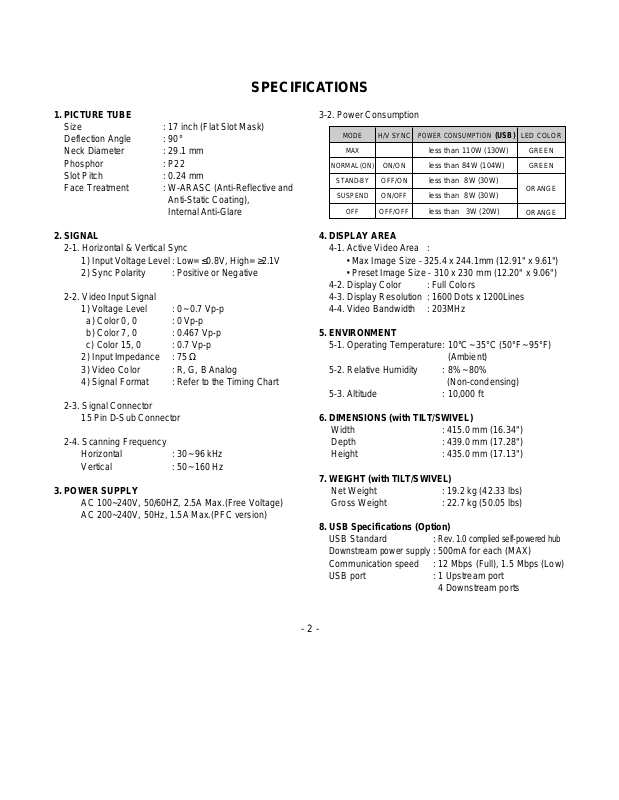

LG 795FT, FB795E-EP SPECIFICATIONS

1. PICTURE TUBE

Size : 17 inch (Flat Slot Mask) DefIection Angle : 90° Neck Diameter : 29.1 mm Phosphor : P22 Slot Pitch : 0.24 mm Face Treatment : W-ARASC (Anti-Reflective and

Anti-Static Coating), Internal Anti-Glare

2. SIGNAL

2-1. Horizontal & Vertical Sync

1) Input Voltage Level: Low= ≤0.8V, High= ≥2.1V

2) Sync Polarity : Positive or Negative

2-2. Video Input Signal

1) Voltage Level : 0~0.7 Vp-p a) Color 0, 0 : 0 Vp-p b) Color 7, 0 : 0.467 Vp-p c) Color 15, 0 : 0.7 Vp-p

2) Input Impedance : 75 Ω

3) Video Color : R, G, B Analog

4) Signal Format : Refer to the Timing Chart

2-3. Signal Connector

15 Pin D-Sub Connector

2-4. Scanning Frequency

Horizontal : 30~96 kHz Vertical : 50~160 Hz

3. POWER SUPPLY

AC 100~240V, 50/60HZ, 2.5A Max.(Free Voltage) AC 200~240V, 50Hz, 1.5A Max.(PFC version)

3-2. Power Consumption

4. DISPLAY AREA

4-1. Active Video Area :

• Max Image Size - 325.4 x 244.1mm (12.91" x 9.61")

• Preset Image Size - 310 x 230 mm (12.20" x 9.06") 4-2. Display Color : Full Colors 4-3. Display Resolution : 1600 Dots x 1200Lines 4-4. Video Bandwidth : 203MHz

5. ENVIRONMENT

5-1. Operating Temperature: 10°C~35°C (50°F~95°F)

(Ambient)

5-2. Relative Humidity : 8%~80%

(Non-condensing)

5-3. Altitude : 10,000 ft

6. DIMENSIONS (with TILT/SWIVEL)

Width : 415.0 mm (16.34") Depth : 439.0 mm (17.28") Height : 435.0 mm (17.13")

7. WEIGHT (with TILT/SWIVEL)

Net Weight : 19.2 kg (42.33 lbs) Gross Weight : 22.7 kg (50.05 lbs)

8. USB Specifications (Option)

USB Standard :

Rev. 1.0 complied self-powered hub

Downstream power supply

: 500mA for each (MAX) Communication speed : 12 Mbps (Full), 1.5 Mbps (Low) USB port : 1 Upstream port

4 Downstream ports

SPECIFICATIONS

- 2 -

MODE

MAX

NORMAL (ON)

STAND-BY SUSPEND

OFF

H/V SYNC

ON/ON OFF/ON ON/OFF

OFF/OFF

POWER CONSUMPTION (USB)

less than 110W (130W) less than 84W (104W) less than 8W (30W) less than 8W (30W) less than 3W (20W)

LED COLOR

GREEN GREEN

ORANGE
