LG F2V7SLIM8 User Guide

www.lg.com

OWNER'S MANUAL

WASHING

MACHINE

Before beginning installation, read these instructions carefully. This will simplify

installation and ensure that the product is installed correctly and safely. Leave

these instructions near the product after installation for future reference.

EN ENGLISH

F2WV7S8P1 F2V7SLIM8

MFL71445949

Rev.00_062619

TABLE OF CONTENTS

This manual may contain images or content

different from the model you purchased.

This manual is subject to revision by the

manufacturer.

IMPORTANT SAFETY INSTRUCTIONS ........................................3

READ ALL INSTRUCTIONS BEFORE USE .....................................................3

WARNING .........................................................................................................3

CARING FOR THE ENVIRONMENT ................................................................8

INSTALLATION ............................................................................... 9

Parts and Specifications....................................................................................9

Installation Place Requirements...................................................................... 11

Unpacking the Appliance.................................................................................12

Leveling the Appliance .................................................................................... 13

Connecting the Water Inlet Hose ....................................................................14

Installing the Drain Hose .................................................................................16

OPERATION .................................................................................17

Operation Overview ........................................................................................17

Preparing the Wash Load ...............................................................................17

Adding Detergents and Softeners ...................................................................19

Control Panel ..................................................................................................21

Programme Table ............................................................................................23

Consumption Data ..........................................................................................27

Extra Options and Functions ...........................................................................28

SMART FUNCTIONS .................................................................... 31

Using LG SmartThinQ Application ..................................................................31

Using Smart Diagnosis....................................................................................33

MAINTENANCE ............................................................................ 34

Cleaning After Every Wash .............................................................................34

Cleaning the Appliance Periodically ................................................................34

TROUBLESHOOTING .................................................................. 37

Before Calling for Service ...............................................................................37

OPERATING DATA ....................................................................... 44

Product Fiche ..................................................................................................44

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

The following safety guidelines are intended to prevent unforeseen risks

or damage from unsafe or incorrect operation of the appliance.

The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as

described below.

Safety Messages

This symbol is displayed to indicate matters and operations

that can cause risk. Read the part with this symbol carefully

and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause

serious injury or death.

CAUTION

This indicates that the failure to follow the instructions can cause the

minor injury or damage to the product.

WARNING

To reduce the risk of explosion, fire, death, electric shock,

injury or scalding to persons when using this product, follow

basic precautions, including the following:

Technical Safety

• This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities

or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe

way and understand the hazards involved. Children shall not play

with the appliance. Cleaning and user maintenance shall not be made

by children without supervision.

• Children of less than 3 years should be kept away unless

continuously supervised.

• If the power cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order

to avoid a hazard.

• Ventilation openings must not be obstructed by a carpet.

• This appliance is intended to be used in household only and not in

applications such as;

− Staff kitchen areas in shops, offices and other working

environments;

− Farm houses;

− By clients in hotels, motels and other residential type environments;

− Bed and breakfast type environments;

− Areas for communal use in blocks of flats or in launderettes

• Use a new hose or hose-set supplied with the appliance. Reusing old

hoses can cause a water leak and subsequent property damage.

• The water pressure must be between 100 and 1000 kPa.

• The maximum capacity in some cycles for dry clothes to be washed

is:

F2WV7S8P1

F2V7SLIM8

8.5 kg

Installation

• Never attempt to operate the appliance if it is damaged,

malfunctioning, partially disassembled, or has missing or broken

parts, including a damaged cord or plug.

• This appliance should only be transported by two or more people

holding the appliance securely.

• Do not install the appliance in a damp and dusty place. Do not install

or store the appliance in any outdoor area, or any area that is subject

to weathering conditions such as direct sunlight, wind, or rain or

temperatures below freezing.

• Tighten the drain hose to avoid separation.

• Do not plug multiple socket outlets, an extension power cable or

adapter with this appliance.

• This appliance must not be installed behind a lockable door, a

sliding door or a door with a hinge on the opposite side to that of the

appliance, in such a way that a full opening of the appliance door is

restricted.

• This appliance must be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electric shock by

providing a path of least resistance for electric current.

• This appliance is equipped with a power cord having an equipment

grounding conductor and a grounding power plug. The power plug

must be plugged into an appropriate socket outlet that is installed and

grounded in accordance with all local codes and ordinances.

• Improper connection of the equipment-grounding conductor can

result in risk of electric shock. Check with a qualified electrician or

service personnel if you are in doubt as to whether the appliance is

properly grounded.

• Do not modify the power plug provided with the appliance. If it

does not fit the outlet, have a proper outlet installed by a qualified

electrician.

Operation

• Do not attempt to separate any panels or disassemble the appliance.

• Do not apply any sharp objects to the control panel in order to

operate the appliance.

• Do not repair or replace any part of the appliance. All repairs

and servicing must be performed by qualified service personnel

unless specifically recommended in this Owner’s Manual. Use only

authorized factory parts.

• Do not put animals, such as pets into the appliance.

• Keep the area underneath and around the appliance free of

combustible materials such as lint, paper, rags, chemicals, etc.

• Do not leave the appliance door open. Children may hang on the

door or crawl inside the appliance, causing damage or injury.

• Use new hose or hose-set supplied with the appliance. Reusing old

hoses can cause a water leak and subsequent property damage.

• Do not put in, wash or dry articles that have been cleaned in, washed

in, soaked in, or spotted with combustible or explosive substances

(such as waxes, wax removers, oil, paint, gasoline, degreasers,

drycleaning solvents, kerosene, petrol, spot removers, turpentine,

vegetable oil, cooking oil, acetone, alcohol, etc.). Improper use can

cause fire or explosion.

• Never reach into the appliance while it is operating. Wait until the

drum has completely stopped.

• In case of flood, disconnect the power plug and contact the LG

Electronics customer information centre.

• Do not push down the door excessively, when the appliance door is

open.

• Do not touch the door during a high temperature programme.

• Do not use flammable gas and combustible substances (benzene,

gasoline, thinner, petroleum, alcohol, etc.) near the appliance.

• If the drain hose or inlet hose is frozen during winter, use it only after

thawing.

• Keep all washing detergents, softener and bleach away from children.

• Do not touch the power plug or the appliance controls with wet hands.

• Do not bend the power cable excessively or place a heavy object on

it.

• Do not wash rugs, mats, shoes or pet blankets, or any other items

other than clothes or sheets, in this machine.

• This appliance must only be used for domestic household purposes

and should not be used in mobile applications.

• If there is a gas leakage (isobutane, propane, natural gas, etc.),

do not touch the appliance or power plug and ventilate the area

immediately.

Maintenance

• Securely plug the power plug in the socket outlet after completely

removing any moisture and dust.

• Disconnect the appliance from the power supply before cleaning the

appliance. Setting the controls to the OFF or stand by position does

not disconnect this appliance from the power supply.

• Do not spray water inside or outside the appliance to clean it.

• Never unplug the appliance by pulling on the power cable. Always

grip the power plug firmly and pull straight out from the socket outlet.

Disposal

• Before discarding an old appliance, unplug it. Cut off the cable

directly behind the appliance to prevent misuse.

• Dispose of all packaging materials (such as plastic bags and

styrofoam) away from children. The packaging materials can cause

suffocation.

• Remove the door before disposing of or discarding this appliance to

avoid the danger of children or small animals getting trapped inside.

CARING FOR THE ENVIRONMENT

Disposal of Your Old Appliance

• This crossed-out wheeled bin symbol indicates that waste electrical and electronic

products (WEEE) should be disposed of separately from the municipal waste

stream.

• Old electrical products can contain hazardous substances so correct disposal

of your old appliance will help prevent potential negative consequences for the

environment and human health. Your old appliance may contain reusable parts

that could be used to repair other products, and other valuable materials that can

be recycled to conserve limited resources.

• You can take your appliance either to the shop where you purchased the

product, or contact your local government waste office for details of your nearest

authorised WEEE collection point. For the most up to date information for your

country, please see www.lg.com/global/recycling.

INSTALLATION

Front View

a Control Panel

b Detergent dispenser drawer

c Drum

d Door

e Cover cap

f Drain pump filter

g Drain plug

h Adjustable feet

Rear View

a Power plug

b Transit bolts

c Drain hose

Parts and Specifications

NOTE

• Appearance and specifications may change without notice to improve the quality of the appliance.

Accessories

* This feature may vary depending on the model purchased.

a Cold water inlet hose*

b Spanner

c Caps for covering transit bolt holes*

d Anti-slip sheets*

e Elbow bracket for securing drain hose*

f Tie strap*

Specifications

Model F2WV7S8P1

F2V7SLIM8

Power Supply 220 - 240 V~, 50 Hz

Dimension (Width x Depth x Height) 600 mm X 470 mm X 850 mm

Product Weight 60 kg

• No further backflow protection required for connection to the water inlet.

Installation Place

Requirements

Before installing the appliance, check the following

information to make sure that the appliance should

be installed in a correct place.

Installation Location

• Install the appliance on a flat hard floor.

(Allowable slope under the appliance: 1°)

• Never try to correct any unevenness in the

floor with pieces of wood, cardboard or similar

materials under the appliance.

• If it is impossible to avoid positioning the

appliance next to a gas cooker or coal burning

stove, an insulation (850 X 600 mm) covered

with aluminum foil on the side facing the cooker

or stove must be inserted between the two

appliances.

• Ensure that when the appliance is installed, it is

easily accessible for an engineer in the event of

a breakdown.

• With the appliance installed, adjust all four feet

using the transit bolt spanner provided to ensure

the appliance is stable, and a clearance of

approximately 5 mm is left between the top of

the appliance and the underside of any worktop.

• Additional clearance should have 100 mm for

the wall and 20 mm for rear, right and left side.

100 mm

20 mm

5 mm

20 mm

WARNING

• This appliance must only be used for domestic

household purposes and should not be used in

mobile applications.

NOTE

• If the appliance is installed on a raised platform,

it must be securely fastened in order to eliminate

the risk of falling off.

Wooden Floors (Suspended

Floors)

When installing the appliance on wooden floors,

use rubber cups to prevent the appliance from

excessive vibration and unbalance.

• To prevent vibration, we recommend you to

place rubber cups a at least 15 mm thick of the

each foot of the appliance, secured to at least

two floor beams with screws.

• If possible, install the appliance in one of the

corners of the room, where the floor is more

stable.

• Fit the rubber cups to reduce vibration.

NOTE

• You can purchase rubber cups (Par t

No.4620ER4002B) from the LG Electronics

service centre.

Ventilation

• Make sure that air circulation around the

appliance should not be impeded by carpets,

rugs, etc.

Ambient Temperature

• Do not install the appliance in rooms where

freezing temperatures may occur. Frozen hoses

may burst under pressure. The reliability of

the electronic control unit may be impaired at

temperatures below freezing point.

• If the appliance is delivered in winter and

temperatures are below freezing, place the

appliance at room temperature for a few hours

before putting it into operation.

Electrical Connection

• Do not use an extension cord or double adapter.

• Always unplug the appliance and turn off the

water inlet after use.

• Connect the appliance to an earthed socket in

accordance with current wiring regulations.

• The appliance must be positioned so that the

plug is easily accessible.

• Repairs to the appliance must only be carried

out by the qualified personnel. Repairs carried

out by inexperienced persons may cause injury

or serious malfunctioning. Contact your LG

Electronics service centre.

• Power outlet must be at least 1 meter of either

side of the location of the appliance.

WARNING

• The power plug must be plugged into an

appropriate socket outlet that is installed and

grounded in accordance with all local codes and

ordinances.

Unpacking the Appliance

Lifting the Appliance Off the Foam

Base

* This feature may vary depending on the model

purchased.

After removing the carton and shipping

material, lift the appliance off the foam base.

Make sure the tub support a* comes off with

the base and is not stuck to the bottom of the

appliance.

If you must lay the appliance down to remove

the carton base b, always protect the side of

the appliance and lay it carefully on its side. Do

not lay the appliance on its front or back.

Removing the Bolt Assemblies

Starting with the bottom two transit bolts a, use

the spanner (included) to fully loosen all transit

bolts by turning them counterclockwise.

Remove the bolt assemblies by wiggling them

slightly while pulling them out.

Install the hole caps.

• Locate the hole caps b included in the

accessory pack or attached on the back.

Leveling the Appliance

Checking the Leveling

When pushing down the edges of the top plate

diagonally, the appliance should not move up and

down at all (check both directions). If the appliance

rocks when pushing the top plate of the appliance

diagonally, adjust the feet again.

Adjusting and Leveling the Feet

When installing the appliance, the appliance should

be aligned and perfectly level. If the appliance is not

aligned and level properly, the appliance may be

damaged or may not operate properly.

Turn the adjustable feet as required if the floor

is uneven.

• Do not insert pieces of wood etc. under the

feet.

• Make sure that all four feet should be stable

and resting on the floor.

Check if the appliance is perfectly level using a

spirit level a.

Secure the adjusting feet with the lock nuts b

by turning counterclockwise against the bottom

of the appliance.

Check if all lock nuts at the bottom of the

appliance are secured properly.

NOTE

• Proper placement and leveling of the appliance

will ensure long, regular, and reliable operation.

• The appliance must be 100% horizontal and

stand firmly in position.

• It must not ‘Seesaw’ across corners under the

load.

• Do not let the feet of the appliance get wet.

Failure to do so may cause vibration or noise.

Using Anti-Slip Sheets

This feature may vary depending on the models

purchased.

If you install the appliance on a slippery surface, it

may move because of excessive vibration. Incorrect

leveling may cause malfunction through noise and

vibration. If this occurs, install the anti-slip sheets

under the leveling feet and adjust the level.

Clean the floor to attach the anti-slip sheets.

• Use a dry rag to remove and clean foreign

objects and moisture. If moisture remains,

the anti-slip sheets may slip.

Adjust the level after placing the appliance in

the installation area.

Place the adhesive side a of the anti-slip

sheets on the floor.

• The most effective way is to install the anti-

slip sheets under the front feet. If it is difficult

to place the sheets under the front feet of the

appliance, attach them under the rear feet.

Put the appliance on the anti-slip sheets.

• Do not attach the adhesive side a of anti-slip

sheets to the feet of the appliance.

NOTE

• Additional anti-slip sheets are available at LG

Electronics service centre.

Connecting the Water Inlet

Hose

Note for Connection

• Water pressure must be between 100 kPa

and 1000 kPa (1.0‒10.0 kgf/cm²). If the

water pressure is more than 1000 kPa, a

decompression device should be installed.

• Do not overtighten the water inlet hose to all

valves.

• Periodically check the condition of the hose and

replace the hose if necessary.

Checking the Rubber Seal on the

Water Inlet Hose

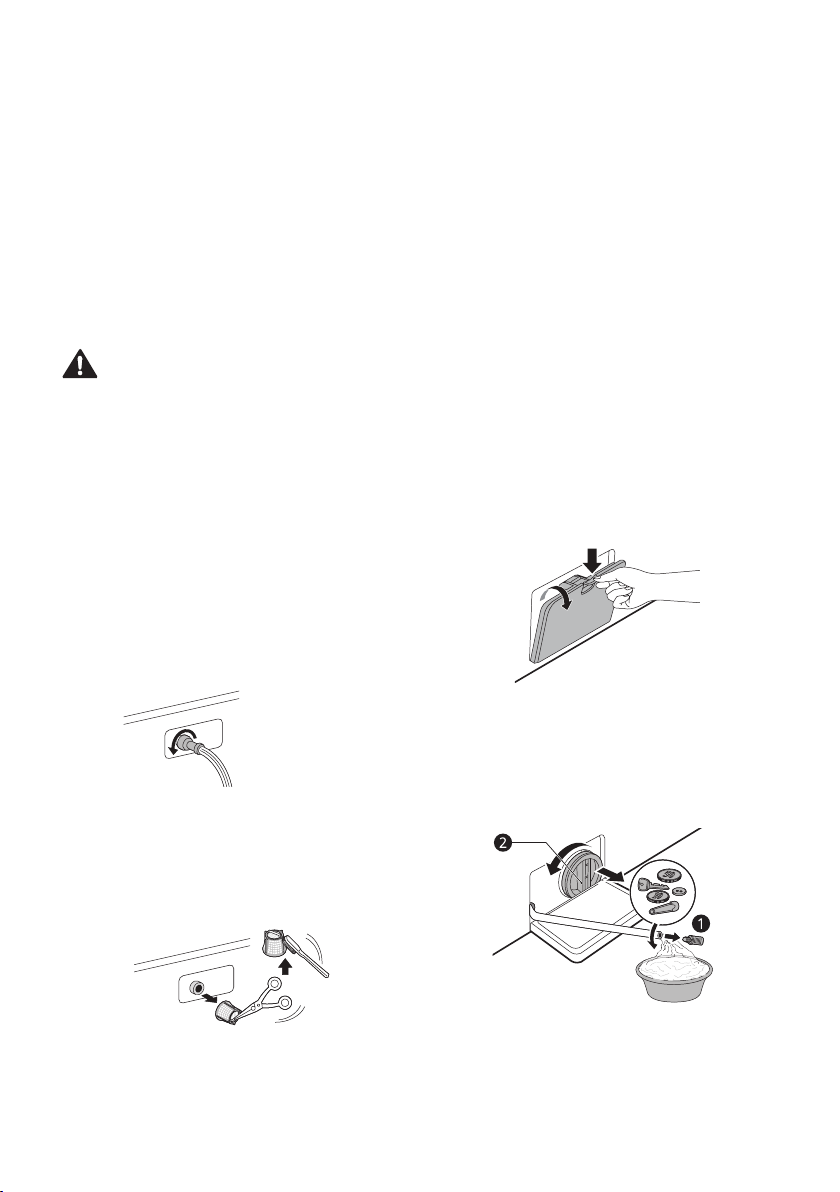

Two rubber seals a are supplied with the water

inlet hoses. They are used to prevent water leaks.

Make sure that the connection to taps should be

sufficiently tight.

Connecting Hose to Water Tap

Screw - Type Hose to Tap with Thread

Screw the hose connection to the water supply,

which has ¾” threaded union.

NOTE

• Before connecting the inlet hose to the water

tap, turn on the water tap to flush out foreign

substances (dirt, sand, sawdust, and etc.) in the

water lines. Let the water drain into a bucket,

and check the water temperature.

Connecting Hose to the Appliance

Screw the water line to the water supply on the

back of the appliance.

NOTE

• After completing connection, if water leaks from

the hose, repeat the same steps. Use the most

conventional type of tap for the water supply. If

the tap is square or too big, remove the guide

plate before inserting the tap into the adaptor.

• Make sure that the hose should not be kinked

or trapped.

+ 33 hidden pages
