Washing Machine
OWNER'S MANUAL
F1236RDSA
F1236RDSE
Thank you for buying a
LG Fully Automatic Washing machine.
Please read your owner's manual carefully, it provides instructions on safe installation, use and maintenance. Retain it for future reference.
Record the model and serial numbers of your washing machine.
P/No.: MFL31245187
P roduct Feature
Direct Drive System
The advanced Brushless DC motor directly drives the drum without belt and pulley.
Water Circulation
Sprays detergent solution and water onto the load over and over.
Clothes are soaked more quickly and thoroughly during wash cycle.
The detergent suds can be removed more easily by the water shower during rinse cycle. The water circulation system uses both water and detergent more efficiently.
Tilted Drum and Extra Large Door Opening
Tilted drum and extra large opening make it possible to load and unload clothing more easily.
Steam Washing and Refresh
Steam Washing features upgraded washing performance with low energy and water consumption. Refresh Cycle removes wrinkles from dry clothes.
Eco Dry
When this option is selected, Eco dry function allows less water to be used during the drying cycle in comparison to the conventional drying cycle.
RollerJets
Washing ball enhances the wash performance and reduces damage to the clothing. The jets spray and help tumble clothes to enhance washing performance while maintaining fabric care.
Automatic Wash Load Detection
Automatically detects the load and optimizes the washing time.
Built-in Heater
Internal heater helps to maintain water temperature at its optimum level for selected cycles.
Child Lock
The Child lock prevents children from pressing any button to change the settings during operation.
C ontents |
|
Warnings ...................................................................................................................... |
3 |
Specification................................................................................................................... |
5 |
Installation...................................................................................................................... |
6 |
Care before washing.................................................................................................... |
12 |
Adding detergent.......................................................................................................... |
13 |

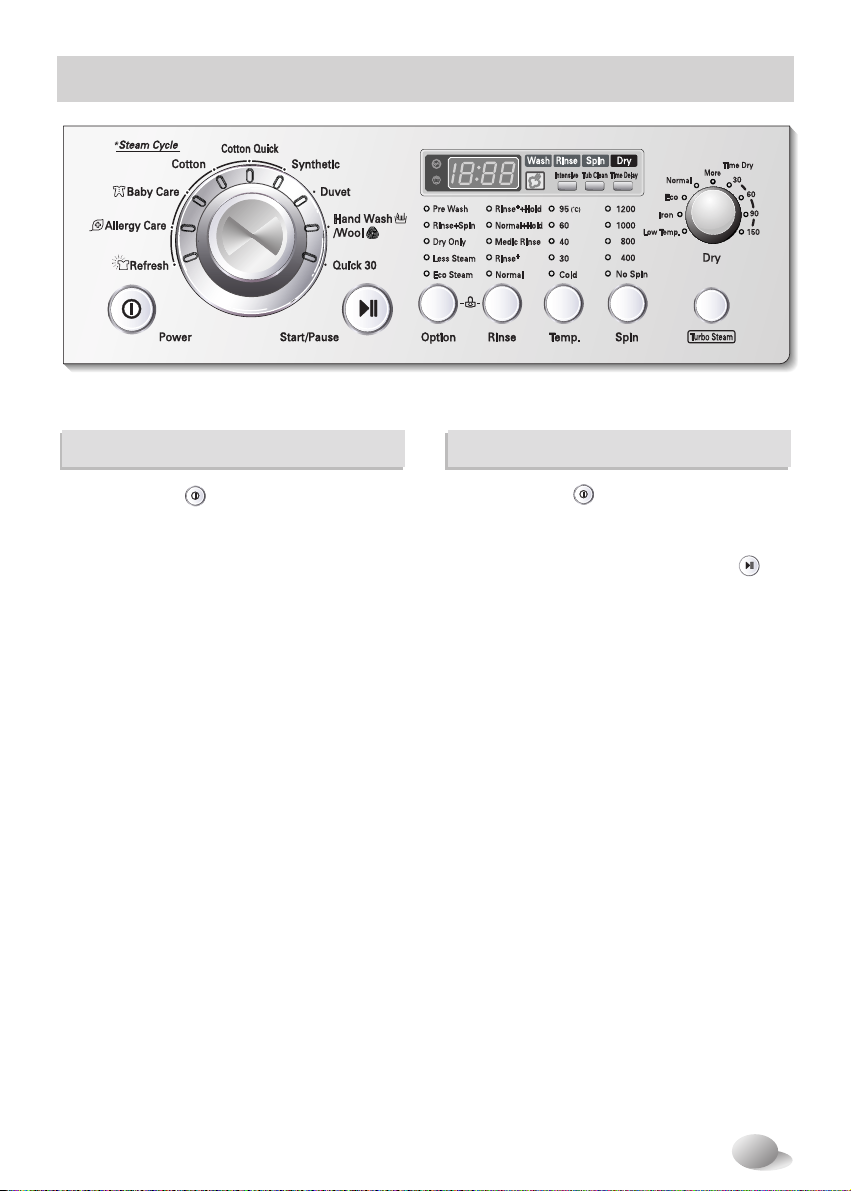

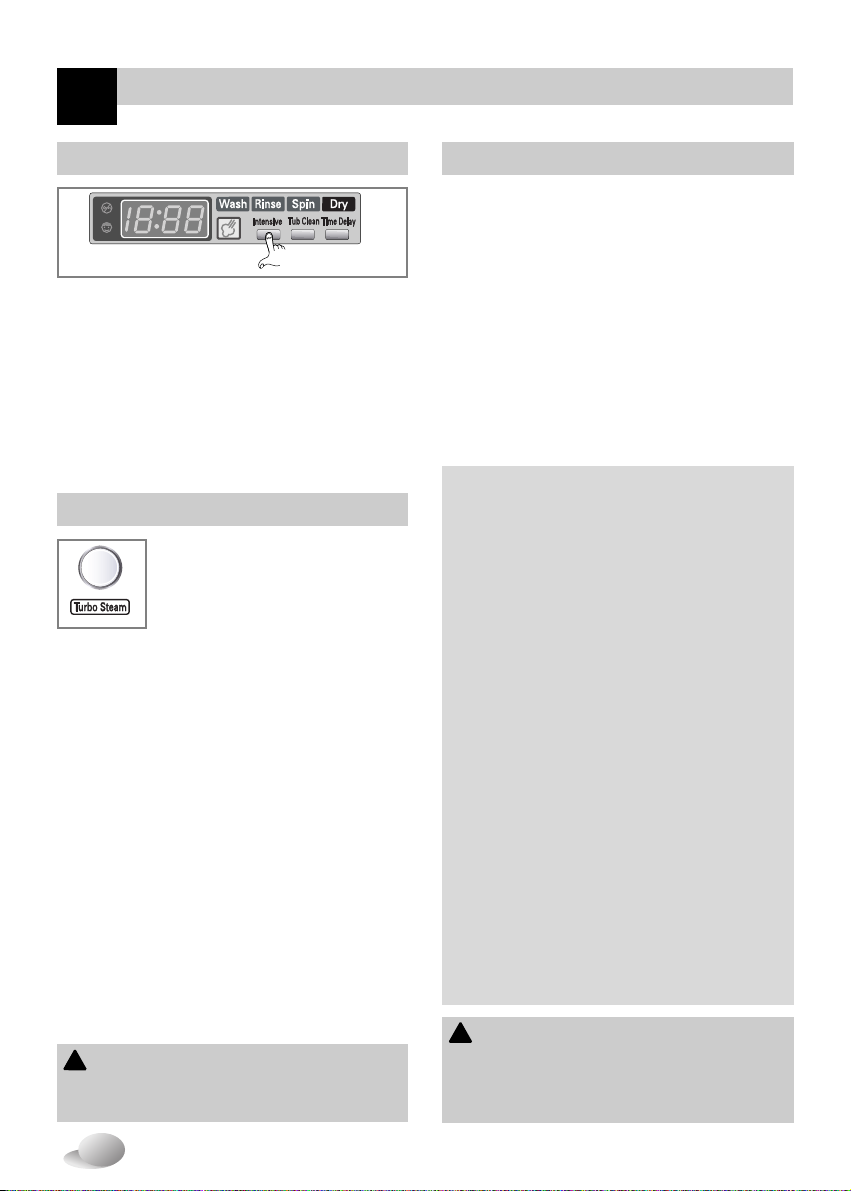

Function .................................................................................................................... |
15 |
How to use washer ...................................................................................................... |
16 |

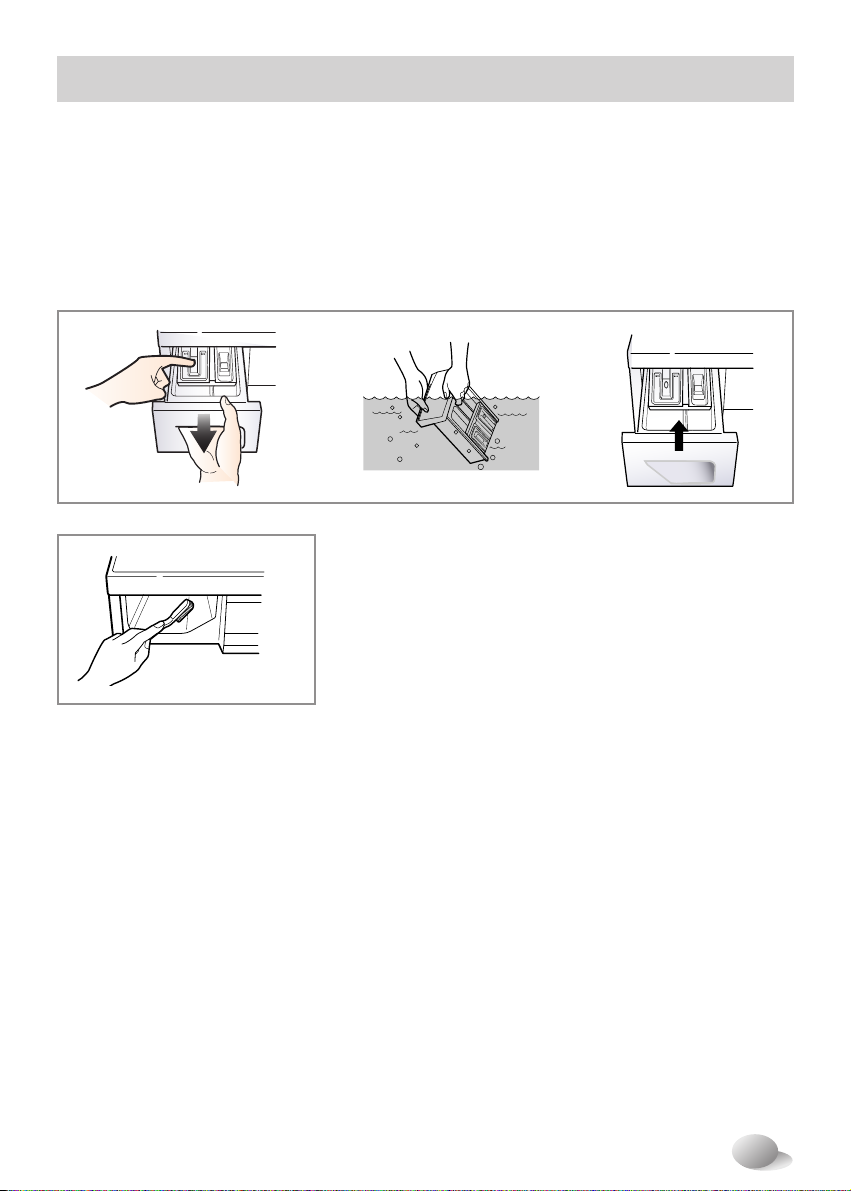

Maintenance ................................................................................................................ |
26 |

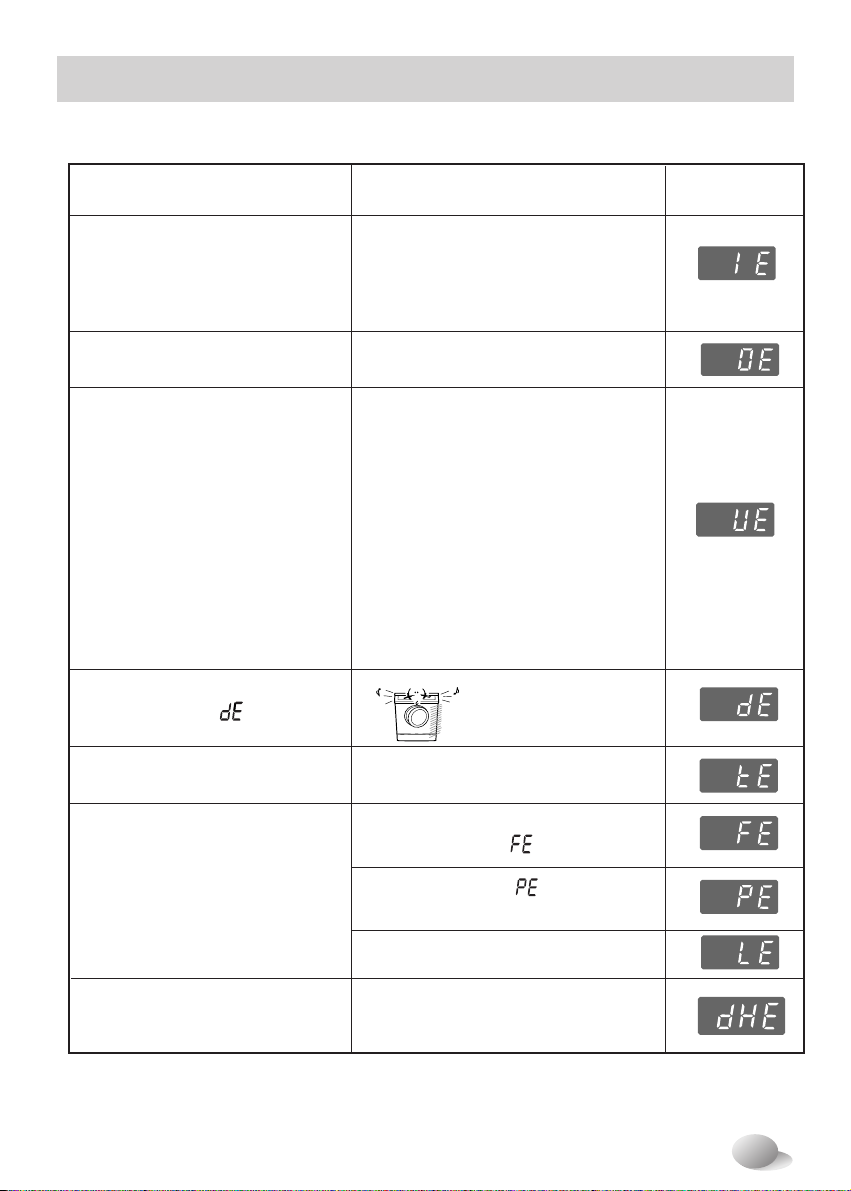

Troubleshooting guide ................................................................................................. |
30 |
Terms of Warranty ....................................................................................................... |
34 |
2

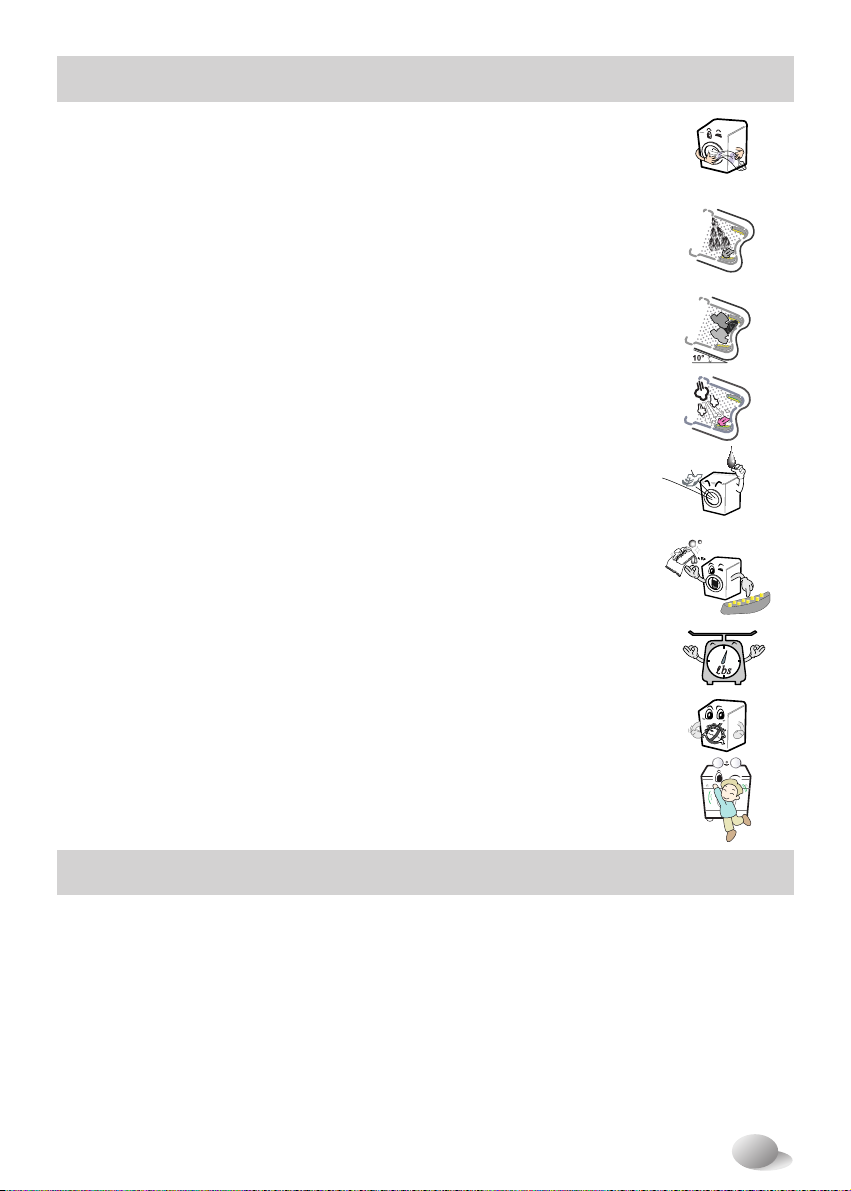

W arnings
READ ALL INSTRUCTIONS BEFORE USE
For your safety, the information in this manual must be followed to minimize WARNING! the risk of fire or explosion, electric shock, or to prevent property damage,
personal injury, or loss of life.
IMPORTANT SAFETY INSTRUCTIONS
WARNING : To reduce the risk of fire, electric shock, or injury to persons when using
the washer, follow basic precautions, including the following:
•Do not install or store the washer where it will be exposed to the weather.
•Do not tamper with controls.
•Do not repair or replace any part of the washer or attempt any servicing unless specifically recommended in the user-maintenance instructions or published user-repair instructions that you understand and have the skills to carry out.
•Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemicals, etc.
•Close supervision is necessary if this appliance is used by or near children or infirm persons. Do not allow them to play on, with, or inside this or any other appliance.
•Keep washer away from fire.
•Do not leave the washer door open.
An open door could entice children to hang on the door or crawl inside the washer.
•Never reach into washer while it is moving. Wait until the drum has completely stopped.
•The laundry process can reduce the flame retardant of fabrics.
•Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with
combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry cleaning solvents, kerosene, etc.) which may ignite or explode. Oil may remain in the tub after a whole cycle resulting in fire during drying. So, do not load oiled clothes.
•Always follow the fabric care instructions supplied by the garment manufacturer.
•Do not slam the washer door closed or try to force the door open when locked. This could result in damage to the washer.
•To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning.
•Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
•Dryer is intended for only drying textile material.
•If the washer has been exposed to water, call an authorized service provider to avoid any risk of fire or electric shock.
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinance.
•Do not use an adapter or otherwise defeat the grounding plug.
•If you don’t have the proper outlet, consult an electrician.
WARNING : Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance - if it does not fit the outlet, have a proper outlet installed by a qualified electrician.
3
W arnings
To minimize the risk of fire in a tumble dryer, the following should be observed:
•Items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in a tumble dryer.
Oil-affected items can ignite spontaneously, especially when exposed to heat sources Such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.
If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent-this will reduce, but not eliminate, the hazard. Washed in hot water with extra detergent-this will reduce, but not eliminate, the hazard. The ‘cool down’ cycle of tumble dryers should be used to reduce the temperature of the items. They should not be removed from the tumble dryer or piled or stacked while hot.
•Items that have been previously cleaned in, washed in, soaked in or spotted with petrol/gasoline, dry-cleaning solvents or other flammable or explosive substances should not be placed in a tumble dryer.
Highly flammable substances commonly used in domestic environments include acetone, denatured alcohol, petrol/gasoline, kerosene, spot removers (some brands), turpentine, waxes and was removers.
•Items containing foam rubber (also known as latex foam) or similarly testured rubber. like materials should not be dried in a tumble dryer on a heat setting.
Foam rubber materials can, when heated, produce fire by spontaneous combustion.
•Fabric softeners or similar products should not be used in a tumble dryer to eliminate the effects of static electricity unless this practice is specifically recommended by the manufacturer of the fabric softener or product.
•Undergarments that contain metal reinforcements should not be placed in a tumble dryer.
Damage to the tumble dryer can result if metal reinforcements come loose during drying. When available a drying rack could be used for such items.
•Plastic articles such as shower caps or babies waterproof napkin covers should not be placed in a tumble dryer.
•Rubber-backed articles, clothes fitted with foam rubber pads, pillows, galoshes and rubber-coated tennis shoes should not be placed in a tumble dryer.
4
S pecification
|

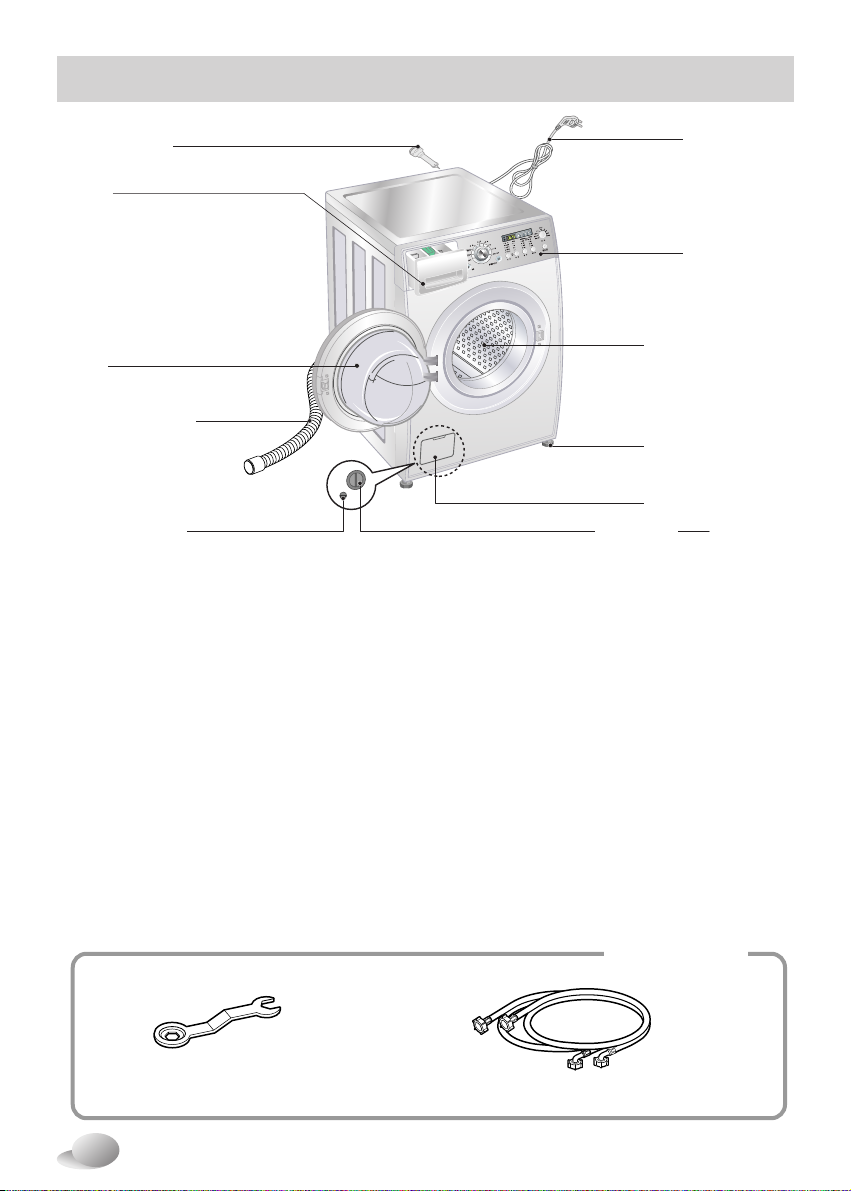

Power Plug |
Shipping Bolts |
• If the supply cord is damaged, |
it must be replaced by the |
|
|
manufacturer or its authorized |
|
service technician in order to |
|
avoid a hazard. |
Control Panel |
Dispenser |
|
Door |
Drum |
|
|
Drain Hose |
|
|
Adjustable Feet |
|
Lower Cover Cap |
Drain Plug |
Drain Pump Filter |
Name |
: Front loading washing machine |
Power supply |
: 220-240V~, 50Hz |
Size |
: 686mm(W) x 767mm(D) x 982(H) |
Weight |
: 94kg |
Wash capacity |
: 14kg(2200W) |
Dry capacity |
: 7kg(2150W) |
Max. Watt |
: 2200W |
Spin speed |
: No Spin/400/800/1000/1200 |
Water consumption |
: 93 (6.6 / kg ) |
Permissible water pressure |
: 7.3 ~ 116 PSI (50 ~ 800 kPa) |
The appearance and specifications may be varied without notice to improve the units quality.
Accessories
Inlet hose(2EA) |
Spanner |
5
I nstallation
Install or store where it will not be exposed to temperatures below freezing or exposed to the weather.
Properly ground washer to conform with all governing codes and ordinances.
The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.
In countries where there are areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the appliance and its surroundings in clean condition at all times.
Any damage which may be cause by cockroaches or other vermin will not be covered by the appliance guarantee.

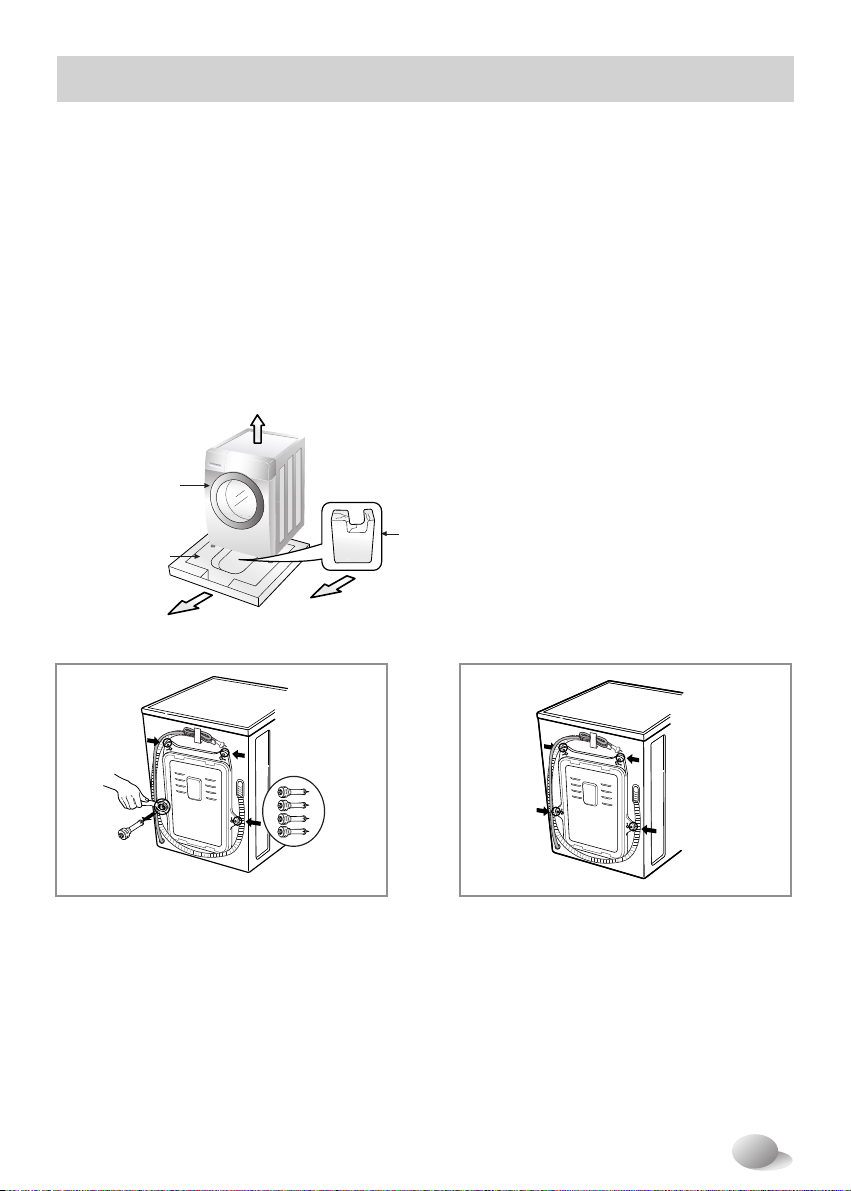

Transit bolts
The appliance is fitted with transit bolts to prevent internal damage during transport.
•Packing and all transit bolts must be removed before using the washer.
When unpacking the base, be sure to remove the additional packing support in the middle of the base packing.
Washer
Packing Support
Base Packing

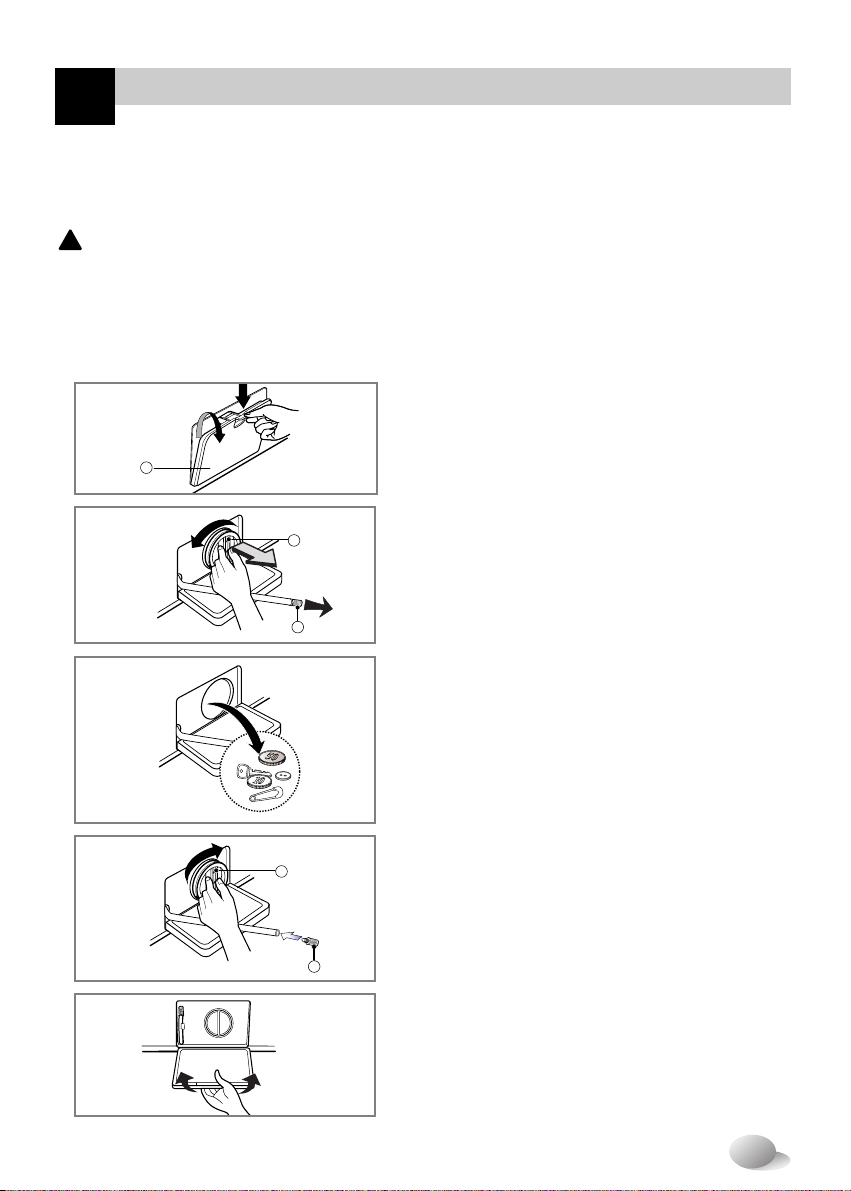

Removing transit bolts
1. To prevent internal damage during transport, the special 4 bolts are locked. Before operating the washer, remove the bolts along with the rubber bungs.
•If they are not removed, it may cause heavy vibration, noise and malfunction.
2. Unscrew the 4 bolts with the spanner supplied.
3. Take out the 4 bolts along with the rubber bungs by slightly twisting the bung. Keep the 4 bolts and the spanner for future use.
•Whenever the appliance is transported, the transit bolts must be refitted.
4. Close the holes with the caps supplied.
6
I nstallation
Installation place requirement
Drain Hose |
Washer |
Laundry |
Tub |
approx |
2cm |
Level floor :
Allowable slope under entire washer is 1°
Power outlet :
Must be within 1.5 meters of either side of location of washer. Do not overload the outlet with more than one appliance.
Additional Clearance :
The following clearances should be adhered to. (10cm : rear / 2cm : right & left side)
Do not place or store laundry products on top of washer at any time.
They can damage the finish or controls.
Positioning
Install the washer on a flat hard floor.
Make sure that air circulation around the washer is not impeded by carpets,rug etc.
•Before placing the washer on tiles, apply a rubber mat under the feet.
•Never try to correct any unevenness in the floor with pieces of wood, cardboard or similar materials under the washer.
•If it is impossible to avoid positioning the washer next to a gas cooker or coal burning stove,an insulating(85x60cm) covered with aluminum foil on the side facing the cooker or stove,must be inserted between the two appliance.
•The washer must not be installed in rooms where the temperature can drop below 0°C.
•Please ensure that when the washer is installed, it is easily accessible for the engineer in the event of a breakdown.

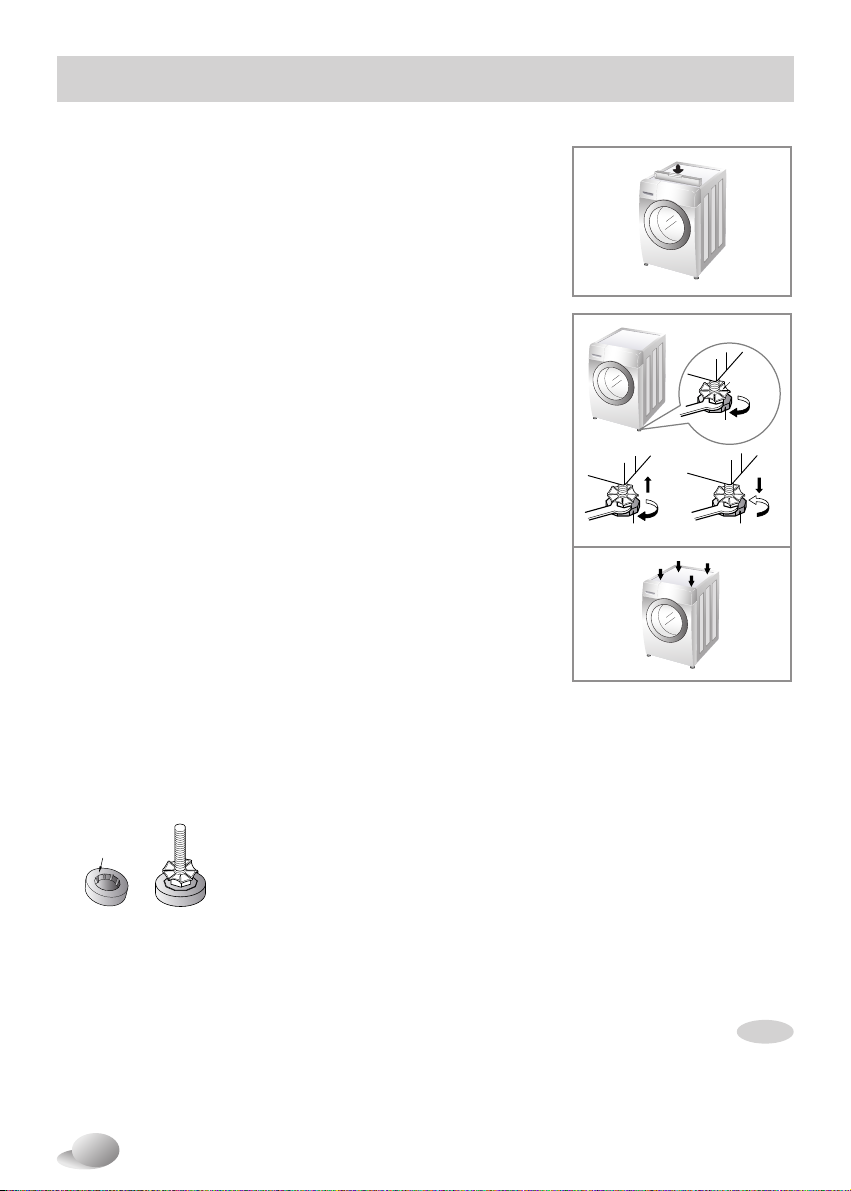

•With the washer installed adjust all four feet using the transit bolt spanner provided ensuring the appliance is stable, and a clearance of approximately 20mm is left between the top of the washer and the underside of the work-top.
7
I nstallation
Electrical connection
1. Do not use an extension cord or double adapter.
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a hazard.
3. Always unplug the machine and turn off the water supply after use.
4. Connect the machine to an earthed socket in accordance with current wiring regulations. 5. The appliance must be positioned so that the plug is easily accessible.
•Repairs to the washing machine must only be carried out by qualified personnel. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local service center
•Do not install your washing machine in rooms where temperatures below freezing may occur. Frozen hoses may burst under pressure. The reliability of the electronic control unit may be impaired at temperatures below freezing point.
•If the appliance is delivered in the winter months and temperatures are below freezing : Store the washing machine at room temperature for a few hours before putting it into operation.
CAUTION
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
Washing Machine is to be connected to the water mains using new hose-sets and that old hose-sets should not be used.

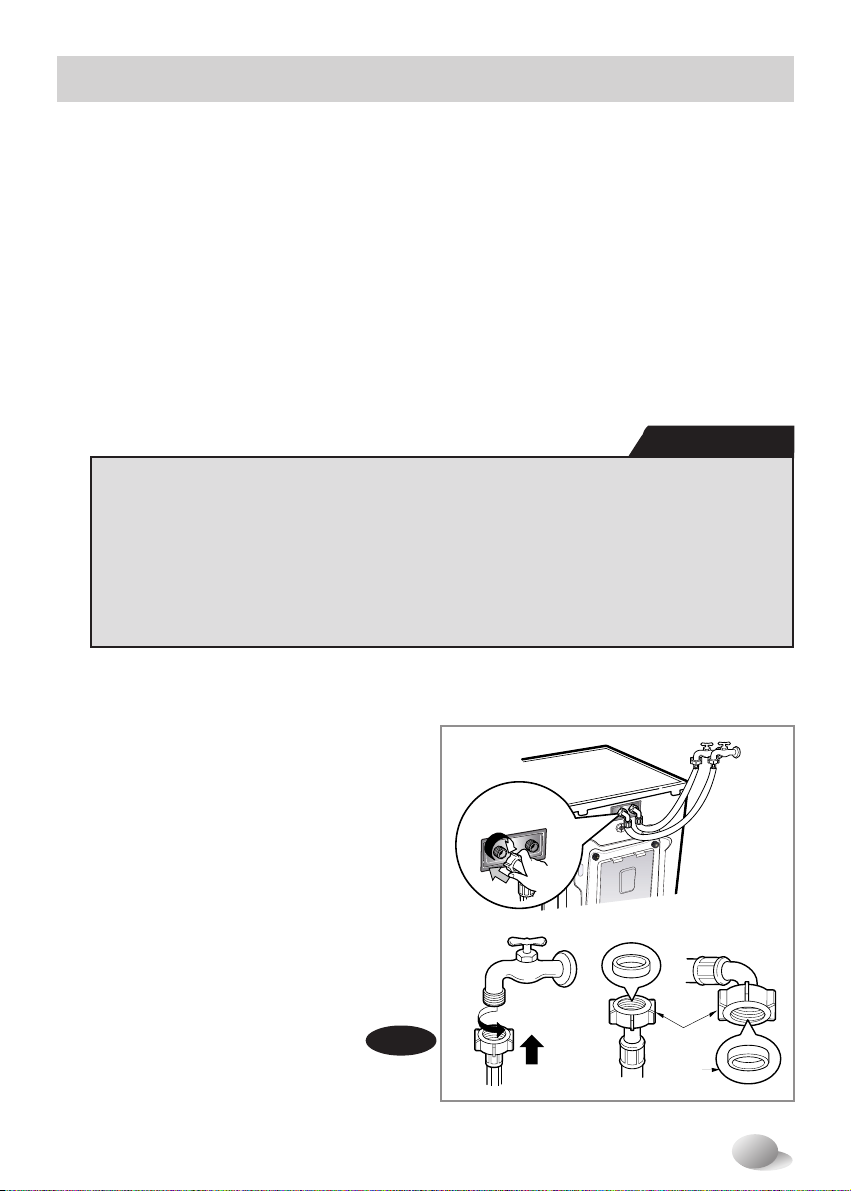

Connecting water supply hose
8 |
Water supply pressure must be between 50kPa and 800kPa (0.5~8kgf/cm2)
Don’t strip or crossthread when connecting Inlet hose to the valve. If the water supply pressure is more than 800kPa, a decompression device should be installed.
•Two rubber seals are supplied with the water inlet hoses these are in order to prevent water leaks.
•Check water tightness of washing machine connections by turning the tap completely on.
•Periodically check the condition of the hose and replace the hose if necessary.
•Make sure that there is no kink on the hose and that it is not crushed.
When your washer has two valves,
•The Inlet hose which has red connector is for the hot water tap.
•If the washer then two valves, the energy is saved by using hot valve.
I nstallation

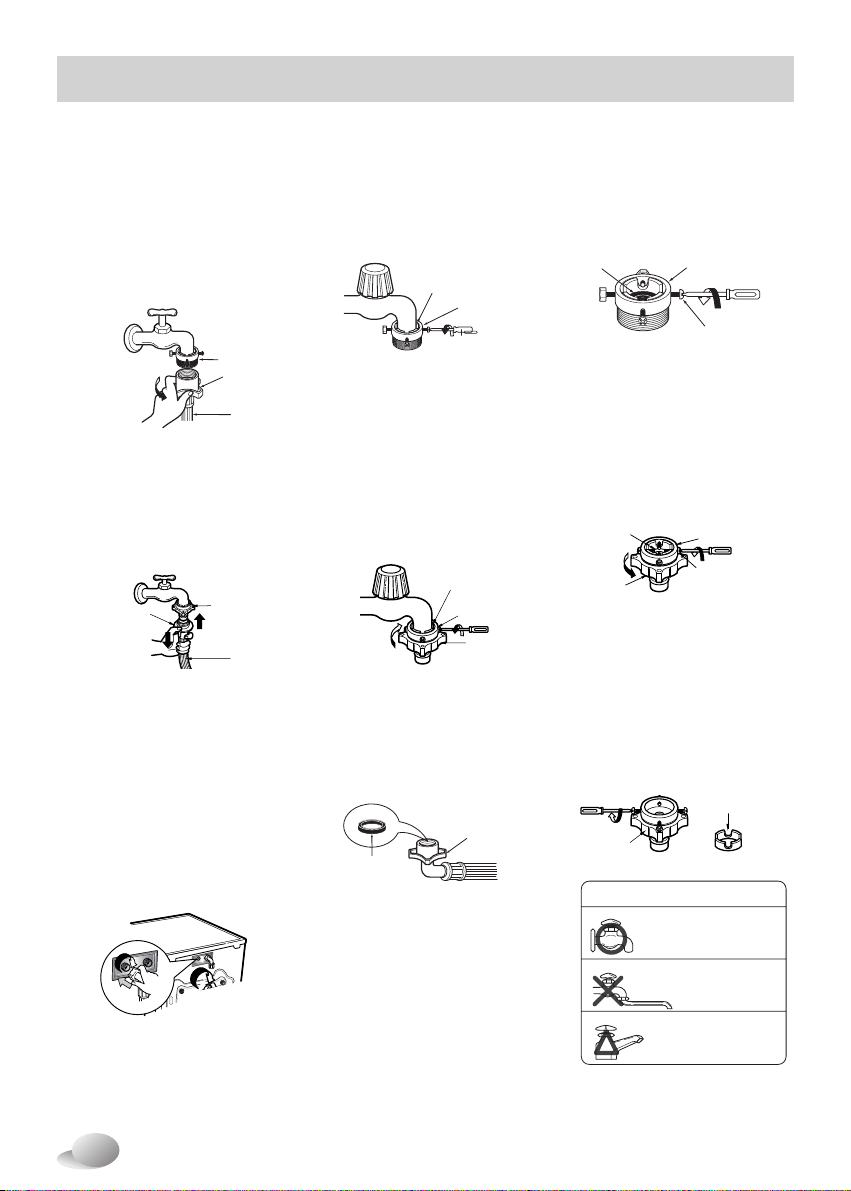

Normal Tap without thread & screw type inlet hose
1. Unscrew the fixing screw to attach the tap.
2. Push the connector up till the rubber packing is in tight contact with the tap. Then tighten the 4 screws.
3. Push the water supply hose vertically upwards so that the rubber packing within the hose can adhere completely to the tap and then tighten it by screwing it to the right.
Normal Tap without thread & one touch type inlet hose
1. Loosen the upper connector screw.
Upper |
Rubber |
Connector |
packing |
Fixing screw
Middle connector
•In case the diameter of the tap is large remove the guide plate.
2. Push the upper connector up till the rubber packing is in tight contact with the tap. Then tighten the 4 screws.
Rubber packing
Upper Connector
Middle connector
3.Connect the water supply hose to the middle connector, pushing the plate down.
Upper
Connector
Plate
Water supply hose
Guide plate
Connector
Used the horizontal tap
Horizontal tap
Extension tap
• Turn the middle connector to |
• To separate the water supply |
|
eliminate water leaked. |
hose from the middle connector |
|
• Make sure that the rubber seal |
shut off the tap. Then pull the |
|
inlet hose down, pushing the |
||
is inside the hose connector. |
||
plate down. |
||
|
Hose connector
Rubber seal
• Make sure that |
no |
kinks in the hose and that it is |
|
not crushed. |
|
Square tap
9
I nstallation
This equipment is not designed for maritime use or for use in mobile installations such as caravans, aircraft etc.
Turn off the tap if the machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain(gully) in the immediate vicinity.
When disposing of the appliance, cut off the mains cable, and destroy the Plug. Disable the door lock to prevent young children being trapped inside.
Packaging material (e.g. Films, Styrofoam) can be dangerous for children. There is a risk of suffocation ! Keep all packaging well away from children
Installation of drain hose
|
|
about 100 cm |
|
|
about 145 cm |
cm |
|
|
max. 100 |
min. 60 cm |
about 105 cm |
|
about 100 cm |
|
|
about 145 cm |
|
|
about 105 cm |
cm |
100 cm |
|
min. 60 |
max. |
•When installing the drain hose to a sink, secure it tightly with a string.
•Proper securing of the drain hose will protect the floor from damage due to water leakage should the drain hose become loose.
Laundry tub |
|
|
|
Hose |
|
|
Retainer |
|
|
Tie |
max. 100cm |
|
strap |
min. 60cm |
max. 100cm |
|
|
|
|
|
min. 60cm |
|
|
•The drain hose should not be placed higher than 100 cm above the floor. Water in the washer does not drain or drains slowly.
•Proper securing of the drain hose will protect the floor from damage due to water leakage.
•When the drain hose is too long, do not force back into the washer. This will cause abnormal noise.
10
I nstallation
Level adjustment
1. Adjusting the washing machine level properly prevents excessive noise and vibration.
Install the appliance on a solid and level floor surface, preferably in a corner of the room.
NOTE Timber or suspended type flooring may contribute to excessive vibration and unblance errors.
2. If the floor is uneven, adjust the adjustable feet as required. (do not insert pieces of wood etc. under the feet)
Make sure that all four feet are stable and resting on the floor and then check that the appliance is perfectly level. (use a spirit level)
After the washer is level, tighten the lock nuts up towards of the base of the washer. All lock nuts must be tightened.
NOTE In the case that the washing machine is installed on a raised platform, it must be securely fastened in order
to eliminate the risk that it might fall off.
Diagonal Check
When pushing down the edges of the washing machine top plate diagonally, the machine should not move up and down at all. (Please, check both of two directions)
If machine rocks when pushing the machine top plate diagonally, adjust the feet again.
Concrete floors
•The installation surface must be clean, dry and level.
•Install washer on a flat hard floor.
Tile floors (Slippery floors)
•Position each foot on the Tread Mate and level the machine to suit. (Cut Tread Mate into 70x70 mm sections and stick the pieces on to the dry tile where machine is to be placed.)
Tread Mate is a self adhesive material used on ladders & steps that prevents slipping.
Wooden floors (Suspended floors)
Rubber Cup
• Wooden floors are particularly susceptible to vibration. |
|
• To reduce, vibration we recommend you place rubber cups under each foot, |
It can be purchased from |
at least 15mm thick under the washer, secured to at least 2 floor beams with screws. |
hardware suppliers. |
•If possible install the washer in one of the corners of the room, where the floor is more stable.
Insert the rubber cups to reduce vibration.
Rubber cups ( p/no. 4620ER4002B ) can be purchased from the LG spare parts department.
Important!
•Proper placement and levelling of the washer ensures long, regular and reliable operation.
•The washer must be absolutely horizontal and stand firmly in position.
•It must not “Seesaw” across corners under load.
•The installation surface must be clean, free from floor wax and other lubricant coatings.
•Do not let the feet of the washer get wet. If feet of the washer get wet, slipping may occur.
11
C are before washing
Before the first washing
Select a cycle (COTTON 60°C, add a half load of detergent) allow the unit to wash without clothing.
This will remove residues from the drum that may have been left during manufacturing.

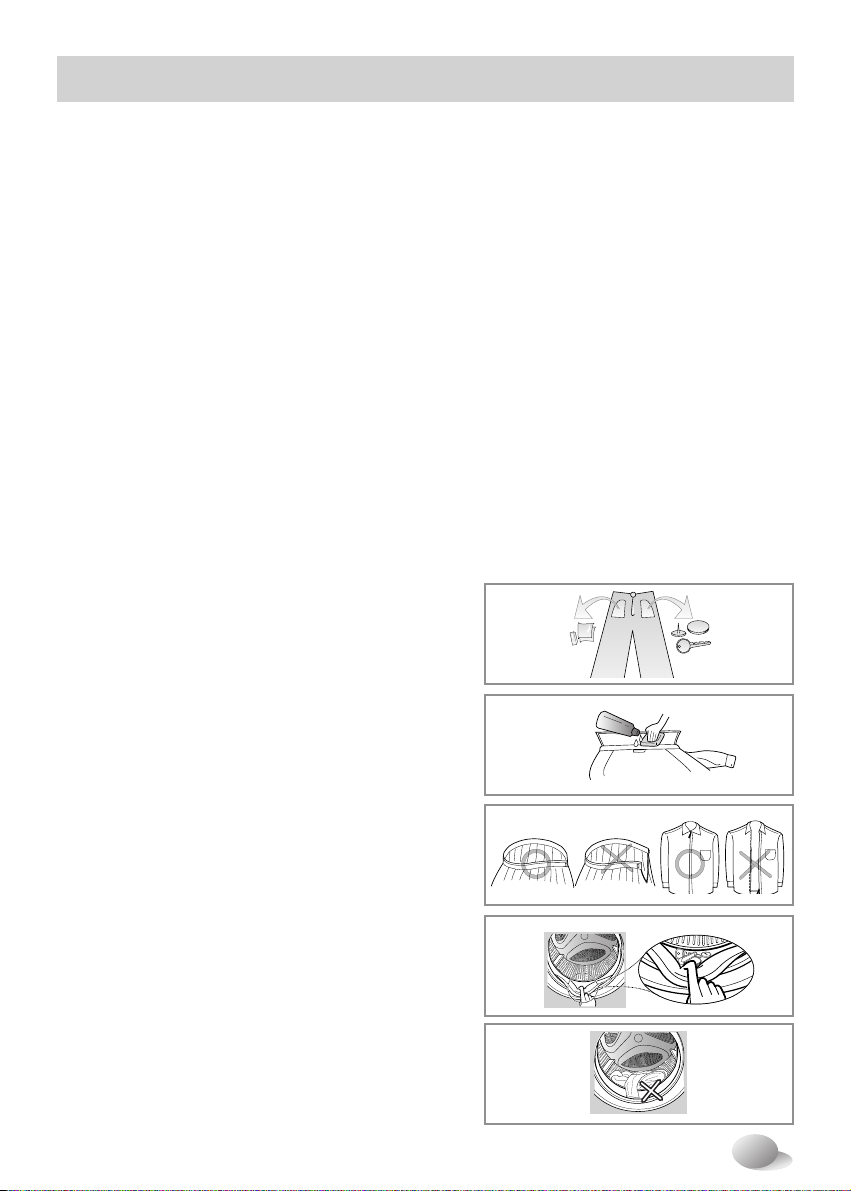

Caring before washing
1.Care Labels
Look for a care label on your clothes. This will tell you about the fabric content of your garment and how it should be washed.
2.Sorting
To get the best results, Sort clothes into loads that can be washed with the same wash cycle. Water temperature and spin speed and different fabrics need to be washed in different ways. Always sort dark colors from pale colors and whites. Wash separately as dye and lint transfer can occur causing discoloration of white etc. If possible, do not wash heavily soiled items with lightly soiled one.
Soil (Heavy, Normal, Light) |
Separate clothes according to amount of soil. |
Color (White, Lights, Darks) |
Separate white fabrics from colored fabrics. |
Lint (Lint producers, Collectors) |
Wash lint producers and lint collectors separately. |
3. Caring before loading |
|
Combine large and small items in a load. Load large items first. Large items should not be more than half the total wash load.
Do not wash single items. This may cause an out-of-balance load. Add one or two similar items.
• Check all pockets to make sure that they are empty. Items such as nails, hair clip, matches, pens, coins and keys can damage both your washer and your clothes.
• Close zippers, hooks and strings to make sure that these items don’t snag on other clothes.
• Pre treat dirt and stains by brushing a little detergent dissolved in water onto stains like collars and cuffs to help shift dirt.
• Check the folds of the flexible gasket (gray) and remove any small articles,if any.
• Check inside of the drum and remove any left items in it for next wash cycle.
• Remove any clothing or items on the flexible gasket to prevent clothing and the gasket damages.
12
A dding detergent
Adding detergent and fabric softener

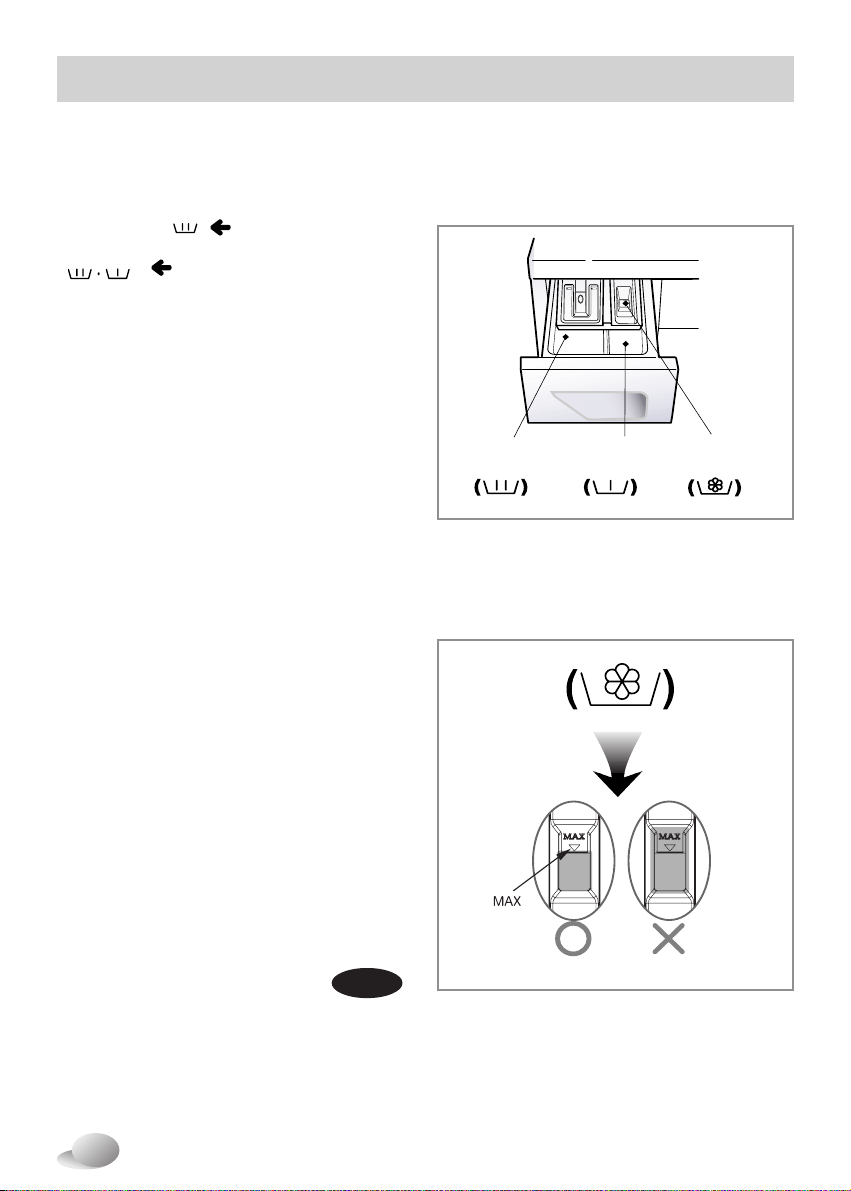

1. The Dispenser Drawer
2. Adding Fabric Softener
()
• Main wash only
• Pre Wash + Main Wash
•Do not exceed the maximum fill line. Close the dispenser drawer slowly. Overfilling can cause early dispensing of the fabric softener which could stain clothes.
•Do not leave the fabric softener in the detergent drawer for more than 2 days. (Fabric softener could harden)
•Softener will automatically be added during the last rinse cycle.
•Do not open the drawer when water is supplied.
•Solvents(benzene, etc) are not allowable.
NOTE Do not pour fabric softener directly on the cloths
13
A dding detergent
3. Detergent dosage
•The detergent should be used according to the instruction of the detergent manufacture.
•If too much detergent is used, too many suds can occur and this will decrease the washing result or cause heavy load to the motor.
•Use powder detergent only for the front loading washer.
If suds occur too much, pleas reduce the detergent amount.
•Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. For best results, avoid oversudsing.
4. Water softener
•A water softener, such as Anti limescale (Clagon) can be used to cut down on the use of detergent in extremely hard water areas. Dispense according to the amount specified on the packaging.
First add detergent and then the water softener.
•Use the quantity of detergent as for soft water.
Tips
Full load : according to manufacturer’s recommendation. Part load : 3/4 of the normal amount.
Minimum load : 1/2 of full load.
•Detergent is flushed from the dispenser at the beginning of the cycle.

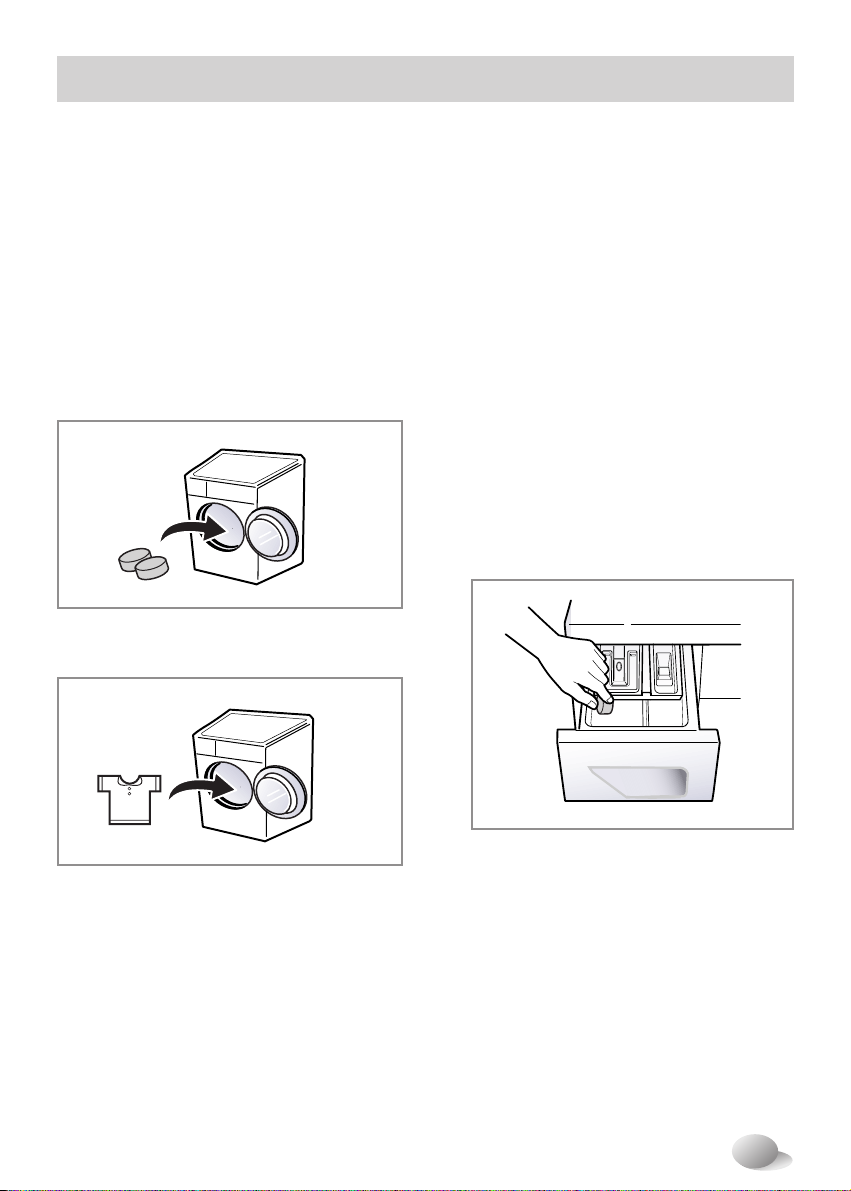

5. Using the Tablets
1)Open the door and Tablets into the drum.
2) Load the laundry into the drum.
3) Close the door.
14
F unction
Recommended courses according to the laundry type
Program |
Fabric Type |
Proper Temp. |
Additional |
Maximum |
|
(Option) |
Option |
Load |
|||
|
|
||||
|
Color fast garments |
60˚C |
|
|
|
Cotton |
(shirts, night dresses, |
(Cold, |
Pre Wash |
Rating |
|
pajamas...)and lightly soiled |
30˚C, 40˚C, |
||||
|
Rinse+Spin |
|
|||
|
white cotton (underwear...) |
95˚C) |
|
||
|
|
|
Dry Only |
|
|
|
|
40˚C |
|
||
Cotton |
Cotton Which is lightly |
Less Steam |
|
||
(Cold, 30˚C, |
Eco Steam |
Rating |
|||
Quick |
soiled. |
||||
60˚C) |
Turbo Steam |
|
|||
|
|
|
|||
Baby Care |
Lightly soiled baby wear |
95°C |
Intensive |
6.0kg |
|
|
|||||
( 40°C, 60°C) |
|
||||
|
|
|
|
||
|
|
|
|
|
|
Allergy Care |
For clean wash through |
60°C |
Turbo Steam |
5.0kg |
|
eliminate allergy source. |
Intensive |
||||
|
|
|
|
|
|
|
Cotton mixed, Polyeter |
|
|
|
|
Refresh |
mixed Dress shirts, blouses |
_ |
Turbo Steam |
5 items |
|
(It just makes wrinkled |
|
||||
|
|
|
|
||
|
clothes easy to iron) |
|
|
|
|
|
|
|
|
|
|
Hand Wash |
“Hand Wash” marked |
40˚C |
Rinse+Spin |
|
|
laundry or machine |
3.0kg |
||||
/Wool |
washable woolens. |
(Cold, 30˚C) |
Intensive |
|
|
|
|
|
|
||
|
|
|
|
|
|
Quick 30 |
Colored Landry which is |
30°C |
Rinse+Spin |
5.0kg |
|
Dry Only |
|||||
lightely soiled fast. |
(Cold, 40˚C) |
||||
|
Intensive |
|
|||
|
|
|
|
||
|
|
|
|
|
|
|
Cotton bedding with filling, |
30˚C |
Rinse+Spin |
1 king size |
|
Duvet |
duvet, pillow, blanket, sofa |
||||
(Cold) |
Intensive |
(9 Tog) |
|||
|
cover with light filling. |
||||
|
|
|
|
||
|
|
|
|
|
|
|
|
|
Pre Wash |
|
|
|
|
|
Rinse+Spin |
|
|
Synthetic |
Polyamide, Acrylic, |
40˚C (Cold, |
Less Steam |
5.0kg |
|
Polyester. |
30˚C, 60˚C) |
Eco Steam |
|||
|
|
||||
|
|
|
Turbo Steam |
|
|
|
|
|
Intensive |
|
Water Temperature : Select the water temperature to the wash cycles.
Always follow garment manufacture’s care label or instructions when laundering.
Intensive : When washing full load or heavily soiled laundry, you can increase effectiveness by choosing intensive option.
Pre Wash : If the laundry is heavily soiled, “Pre Wash” option is recommended.
Pre Wash is available in Cotton, Synthetic and Baby Care Program.
The wool wash cycle of this machine has beenapproved by Woolmark for the washing of machine washable Woolmark products provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine, M0807.
15
H ow to use washer
1.Cotton automatically selected upon power on.
•Press the Power( ) button to start.
•Press the Start/Pause( ) button.
•Initial condition
-Rinse : Normal
-Water temperature : 60°C
-Spin : 1200 rpm
-Program : Cotton
2. Manual Selecting
•Press the Power( ) button to turn the washer on.
•Select the desired cycle with the program dial and if required, make any changes to the washing conditions by pressing the buttons accordingly.
For selecting the each conditions, please refer to the page17~page25
•Press the Start/Pause button to commence the cycle.
16

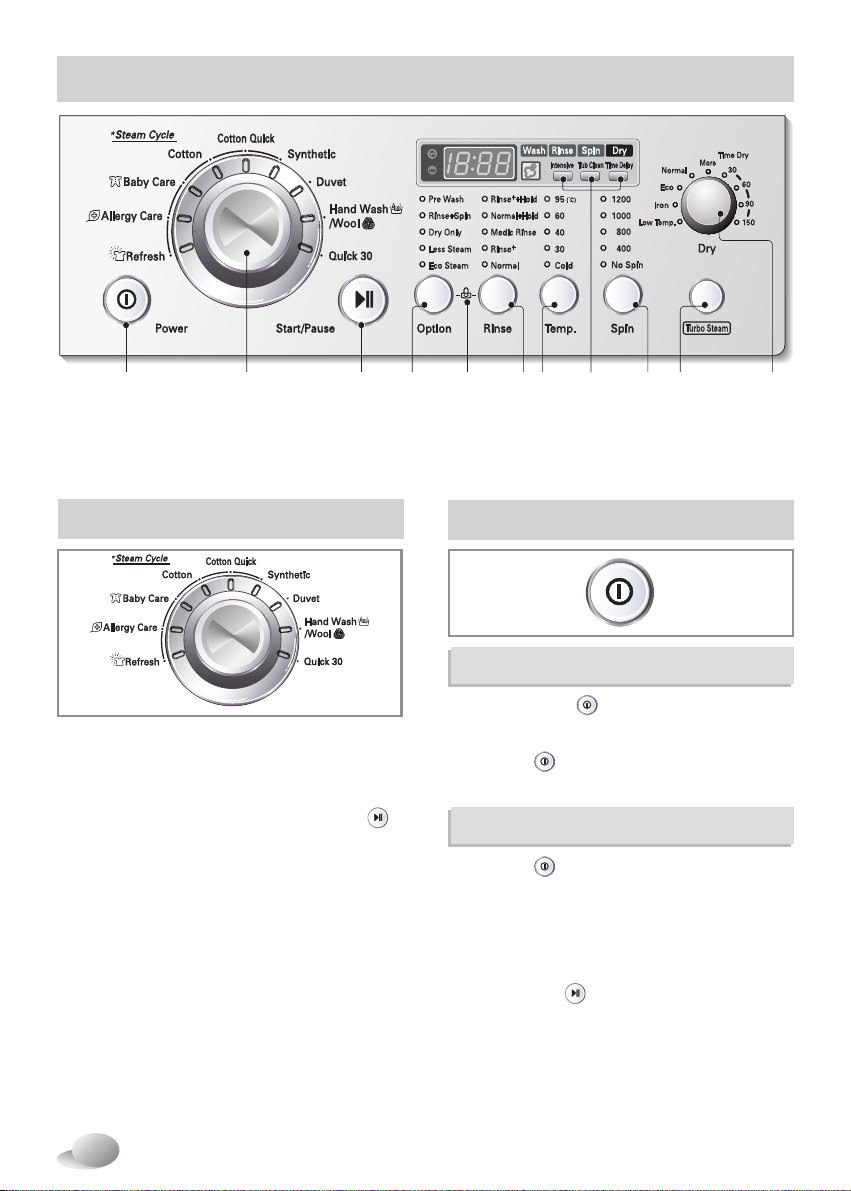

H ow to use washer
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(1) |
(2) |
(3) |
(4) |
||
(1)Button: Power |
(5)Child lock |
|
|
|
|
(2)Dial: Program |
(6)Button: Rinse |
|
|||
(3)Button: Start/Pause |
(7)Button: Temperature |
||||
(4)Button: Option |
(8)Button: Intensive |
|
Power
1. Power
•Press the Power( ) button to turn power on and off.
•To cancel the Time Delay function, the Power( ) button should be pressed.
2. Initial Program
•When the Power() button is pressed, the washer is ready for Cotton program. And the other initial conditions as follows.
•So, if you want to advance into the washing cycle without changing the program, just press Start/Pause() button and then the washer will proceed.
(5) |
(6) (7) |
(8, 9, 10) |
(11) |
(12) |
(13) |
(9)Button: Tub Clean |
|
(13)Dial: Dry |
|
(10)Button: Time Delay
(11)Button: Spin
(12)Button: Turbo Steam
Program |
•9 programs are available according to the laundry type.
•Lamp will light up to indicate selected program.
•When Start/Pause( ) button is pressed, the Cotton program is automatically selected.
-By turning the Program dial, the program is Selected in order of “Cotton – Cotton Quick – Synthetic – Duvet – Hand Wash/Wool – Quick 30 – Refresh – Allergy Care –
Baby Care
■ Initial program |
For information regarding laundry type for |
|
- Cotton Program / Rinse:Normal / 60°C/ |
||
each program, please refer to page 15. |
||
1200rpm |
|
17
H ow to use washer
Start/Pause
1. Start
•This Start/Pause button is used to start wash cycle or pause the wash cycle.
2. Pause
•If temporary stop of wash cycle is needed, press “Start/Pause” button.
•When in Pause, the power is turned off automatically after 4 minutes.

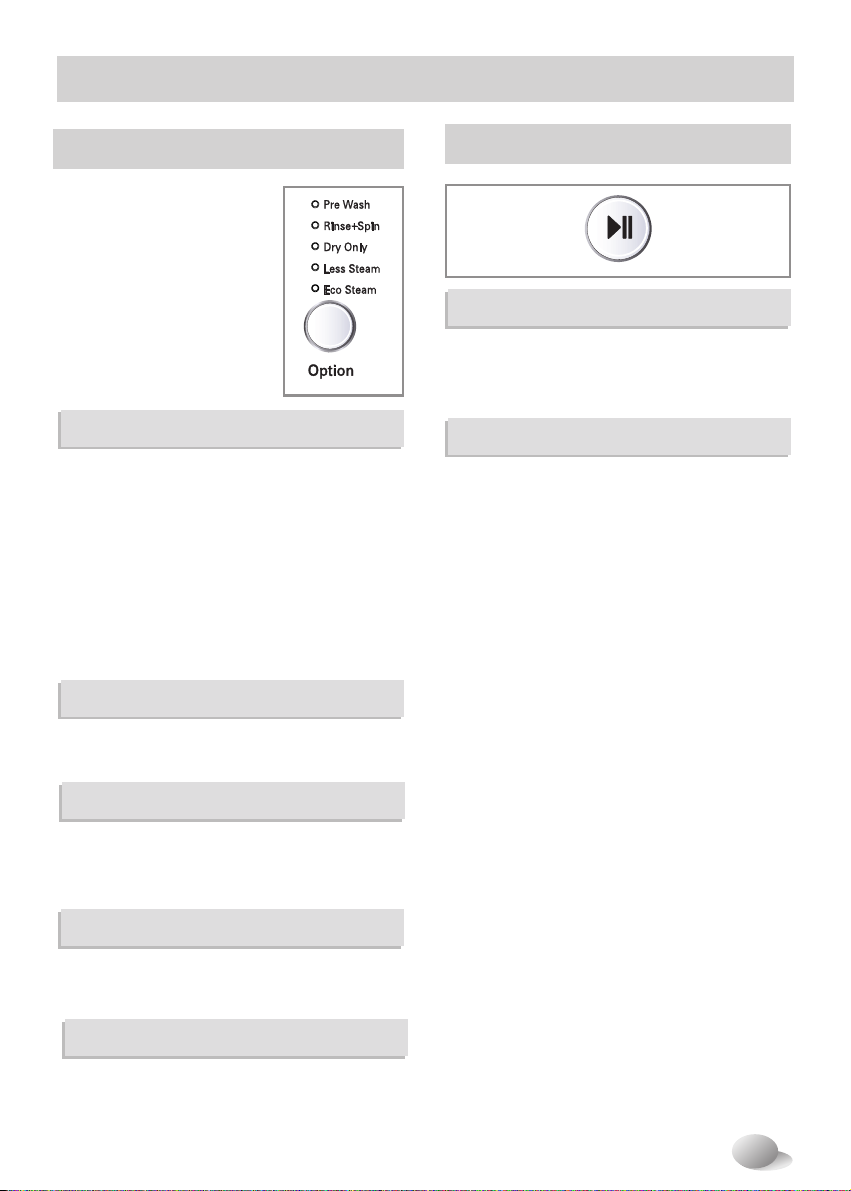

Option
• By pressing the option button, only one option functions may be selected.
NOTE:
Depending on the selected program cycle, not all Options may be selectable.
1. Pre Wash
•Use this option for loads that need pretreatment. This adds 17 minutes of pre washing before draining.
-When using Pre Wash option, do not use a liquid detergent for the main wash.
Use powder for the main wash.
•Available in Cotton, Cotton Quick, Synthetic and Baby Care.
2. Rinse + Spin
• Use this option to rinse and then spin
3. Dry Only
•When you want dry only, select the this option. Available in Baby Care, Cotton, Cotton Quick and Quick30.
4. Less Steam
•When you want to do a steam wash for only a small amount of laundry, select the this opton.
5. Eco Steam
•When you want to do a steam wash for reducing the electricity consumption, select the this opton.
18
H ow to use washer

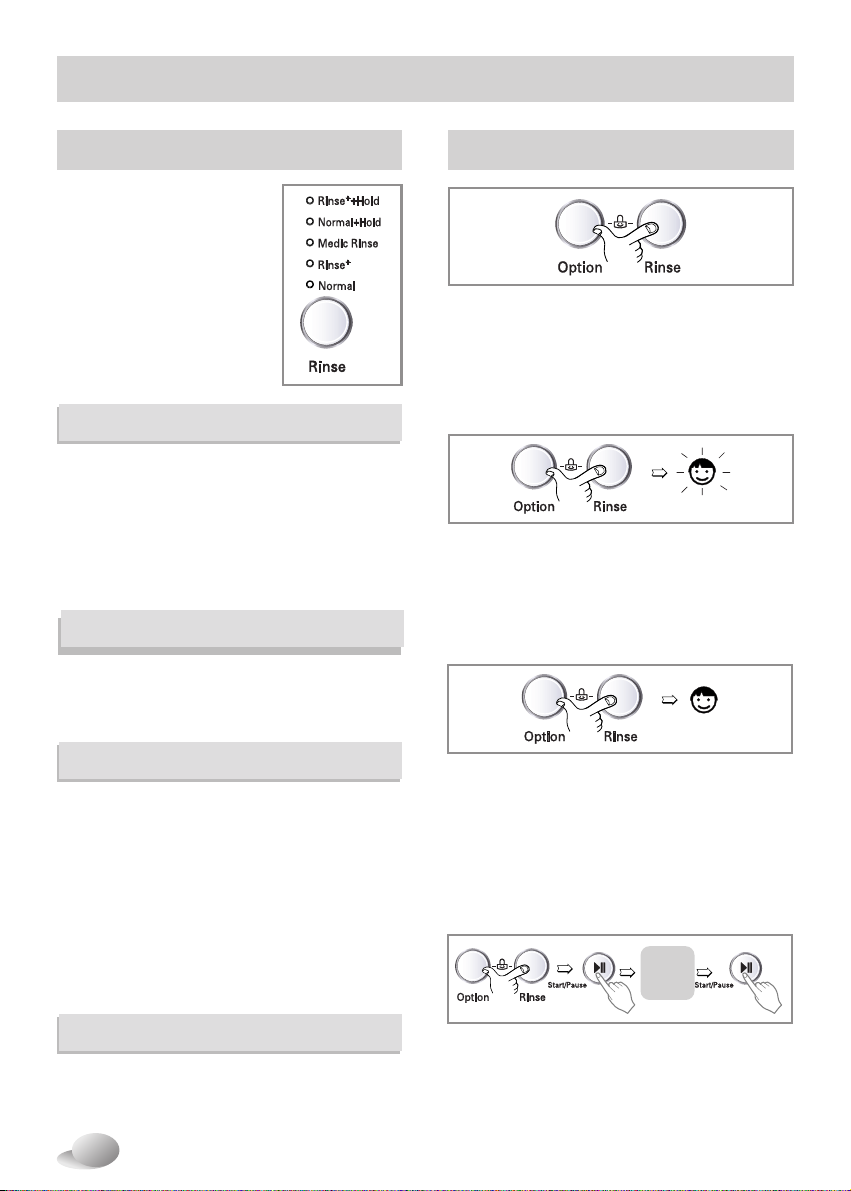

Child lock
If you choose to lock the buttons on the control assembly to prevent tampering, this function may be selected.
•Child lock can be set by pressing and holding the Option and Rinse button simultaneously. (About three seconds)
•When child lock is set, all buttons are inoperable except for power button.
•To deactivate Child lock system, press and hold the Option and Rinse button simultaneously again. (About three seconds)
•To change to the desired program, whilst in child lock mode.
1. Press and hold both Option and Rinse button together once again.
(About three seconds)
2. Press the Start/Pause button.
3. Select the desired program and press the Start/Pause button again.
Change |
the desired |
program |
•The child lock can be set at any time and it is automatically canceled when operational errors occur.
Rinse
• By pressing the Rinse button, the Rinse type can be selected.
- Normal
-Rinse+
-Medic Rinse
-Normal+Hold
- Rinse++Hold
1. Normal
•Allergy Care, Baby care performs 4 Rinses.
•Cotton, Synthetic, Duvet, Hand Wash/Wool performs 3 Rinses
•Cotton Quick, Quick 30 performs 2 Rinses.
2. Rinse+ & Medic Rinse
•Used to additional rinse, which may assist in removing traces of detergent residue.
•By selecting Rinse+ or Medic Rinse function, the Rinse Time and the Rinse water are increased.
•Medic Rinse includes water heating in the last rinse.
3. Rinse Hold
•Is selected by pressing the Rinse button repeatedly this function leaves clothes in the washer; suspended in the water after a rinse without entering into spin.
•To proceed to a Drain or Spin function after a Rinse hold, select Drain on the program dial or press the Spin selector button to the desired speed, then press the Start/Pause button.
The required lamp will light up for identification.
19
H ow to use washer

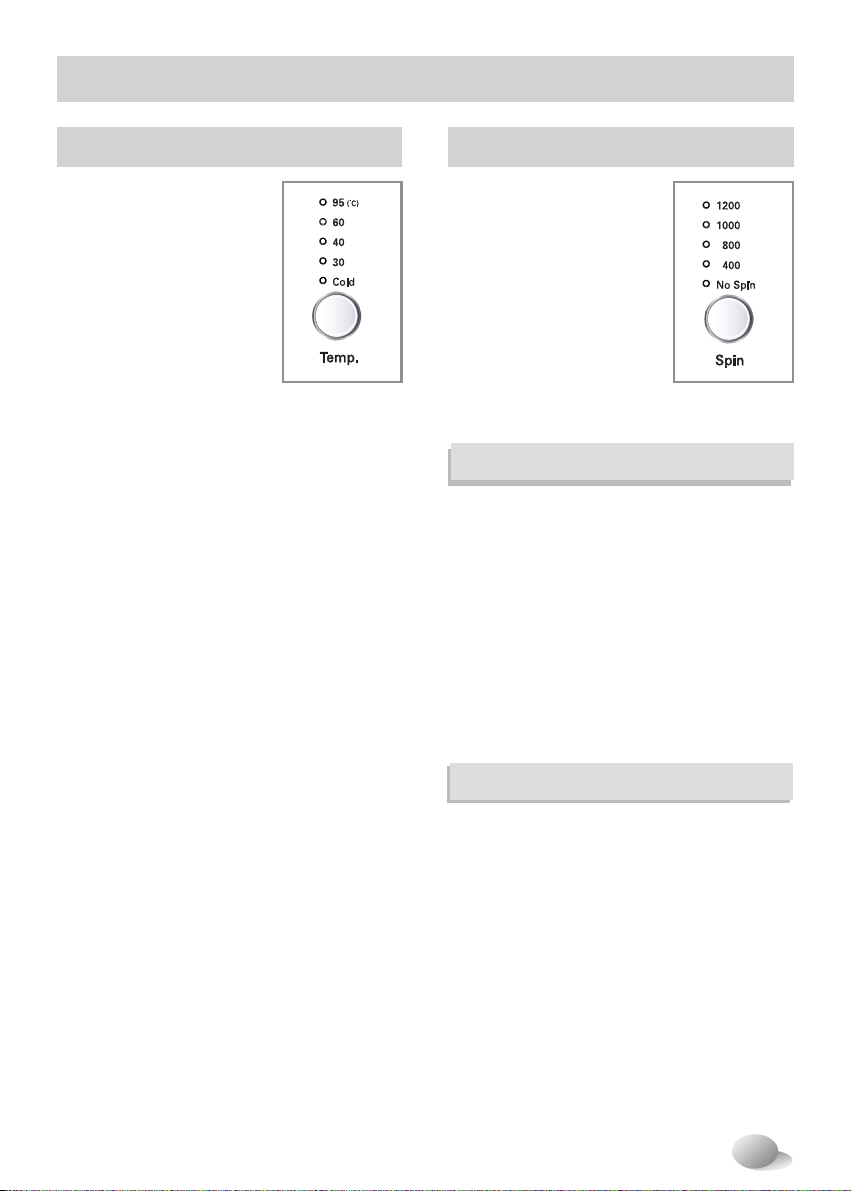

Spin |
Water Temperature |
• By pressing the Spin button, |
• By pressing the Temp. |
the spin speed can be |
button, the water |
chosen. |
temperature can be |
|
selected. |
|
- Cold |
|
- 30˚C / 40˚C / 60˚C / 95˚C |
1. Spin selection
•Spin speed is available according to the program as follows.
-Cotton & Cotton Quick & Quick30
No Spin – 400 – 800 – 1000 – 1200
-Allergy Care & Baby Care & Synthetic
No Spin – 400 – 800 – 1000
-Hand Wash/Wool
No Spin – 400
-Duvet
No Spin – 400 – 800
2. No spin
•If “No Spin” is selected, the washer stops after draining water.
The required lamp will light up for identification.
•Water temperature can be selected as below according to the program.
-Cotton
Cold – 30°C – 40°C – 60°C – 95°C
-Synthetic & Cotton Quick
Cold – 30°C – 40°C – 60°C
-Hand Wash/Wool & Quick30
Cold – 30˚C – 40˚C
-Duvet
Cold – 30˚C
-Allergy Care
60°C
-Baby Care
40°C – 60°C – 95°
The required temperature lamp will light up for identification.
For the more detailed information, please refer to the page15.
20
H ow to use washer

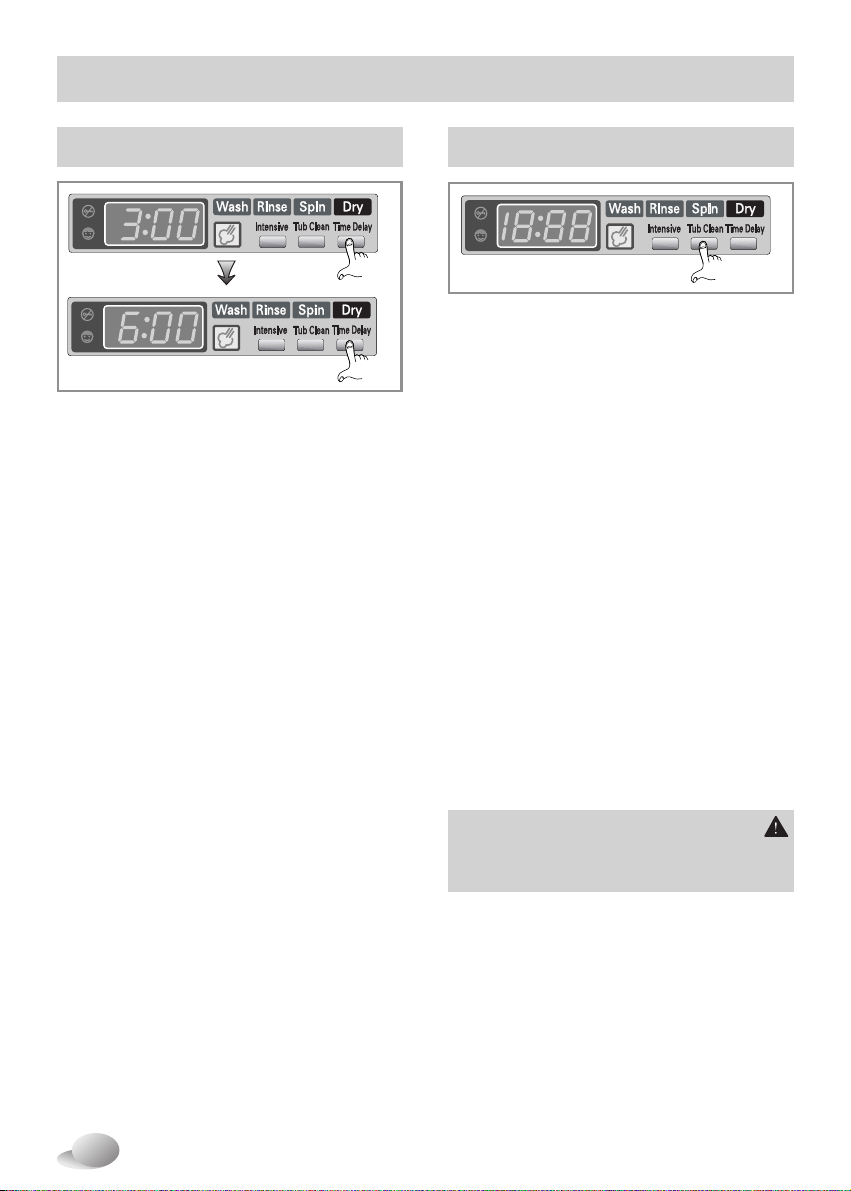

Tub Clean |
|
Time Delay |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tub Clean course can be set by pressing ‘Tub Clean’ button.
TUB CLEAN is special cycle to clean the inside of the washer. This cycle uses higher water level with higher spin speed. Perform this cycle regularly.
How to use the Tub Clean cycle:
1.Remove any clothing or items from the washer and close the door.
2.Open the dispenser drawer and add Anti limescale (Calgon) to the Main wash compartment.
NOTE: Do not add any detergent to the detergent compartments. Excessive suds may generate and leak from the washer.
3.Close the dispenser drawer slowly.
4.Power On and then press ‘Tub Clean’
5.Press the Start/Pause button to start.
6.After the cycle is complete, leave the door open to dry around the washer door opening, flexible gasket and door glass.
!CAUTION: If there is a small child, be
careful not to leave the door open for too long.
Preparing washing before starting “Time Delay”
-Turn on the water tap.
-Load laundry and close the door.
-Place the detergent and fabric softener in the drawer.
•How to set “Time Delay”
-Press Power( ) button.
-Turn the Program dial to select the program you require.
-Press Time Delay button and set the desired time.
-Press the Start/Pause( ) button.
•If Time Delay button is pressed, “3:00” is displayed. The maximum delayed time is 19:00 hours and the minimum time is 3:00 hours.
•Each pressing of the button advances time delay by one hour.
•To cancel the time delay, press the
Power( ) button.
•Time Delay is ‘expected time’ from the present to the completion of washing cycle or selected process (Wash, Rinse, Spin).
•According to the condition of water supply and temperature, the delayed time and the actual washing time may vary.
21
