OWNER’S MANUAL

ENGLISH

LCD MONITOR

Please read this manual carefully before operating your set and
retain it for future reference.

LCD MONITOR MODEL

E

2422PY

www.lg.com

Accessories

!!! Thank for selecting LGE products !!!

Please make sure the following items are included with your
monitor. If any items are missing, contact your dealer.

User's Guide/Cards

DVI-D Signal Cable

(This feature is not available in all

countries.)

Audio Cable

NOTE

This accessories may look different from those shown here.
User must use shielded signal interface cables (D-sub 15 pin cable, DVI-D cable) with ferrite
cores to maintain standard compliance for the product.

Power Cord

15-pin D-Sub Signal Cable

(To set it up, this signal cable may be

attached to this product before

shipping out.)

USB Cable

1

Connecting the Display

Before setting up the monitor, ensure that the power to the monitor,
the computer system, and other attached devices are turned off.

Connecting the stand base

1. Place the monitor with its front facing downward on a cushion or soft cloth.

2. Assemble the Stand Base into the Stand Body.

Be sure don't pull out the Stop Pin and make the Stand Base direction as shown.

Stand Body

Stand Base

Stop Pin

3. Once assembled take the monitor up carefully and face the front side.

WARNING

The tape and locking pin may only be removed from those monitors equipped with a
standing base when the base is pulled up. Otherwise, you may be injured by the protruding
sections of the stand.
Product Handling with Care: When you lift up or move the product, Do Not hold or touch the
front part of LCD panel. It will damage the panel. (Please hold the Stand Body or plastic cover of
the product.)

2

Connecting the Display

Removing the stand base

1. Place the monitor with its front facing downward on a cushion or soft cloth.

2. While pressing the latches, push the stand base in the direction of the arrow to separate

from the stand body.

IMPORTANT

This illustration depicts the general model of connection. Your monitor may differ from the items
shown in the picture.
Do not carry the product upside down holding only the stand base. The product may fall and get
damaged or injure your foot.

3

Connecting the Display

Positioning your display

After installation, adjust the angle as shown below.

1. Adjust the position of the panel in various ways for maximum comfort.

Tilt Range

Swivel Range : 355˚

Height Range : maximum 4.33 inches (110.0 mm)

4

110.0 mm

* Please be sure to

remove the Locking
pin to adjust the height.

Connecting the Display

When adjusting the angle of the screen, do not put your finger(s) in
between the head of the monitor and the stand body. You can hurt your
finger(s).

When adjusting the height of the screen, do not put your finger(s) in
between the head of the monitor and the stand base. You can hurt your
finger(s).

WARNING

You do not need to replace the Locking pin after it is removed, to adjust its height.

ERGONOMIC

t is recommended that in order to maintain an ergonomic and comfortable viewing position, the forward tilt

I
angle of the monitor should not exceed 5 degrees.

5

Connecting the Display

Using the Pivot function

-The pivot function allows you to rotate the screen 90 degrees clockwise.

1.

Lift the monitor to its highest height to utilize the Pivot function.

2.Landscape & Portrait : You can rotate the panel 90

Please be cautious and avoid contact between the monitor head and the
Stand Base when rotating the screen to access the Pivot function. If the
monitor head touches the Stand Base, then the Stand Base could crack.

Head section

Stand section

.

3

Be careful with the cables when rotating the screen.

o

clockwise.

6

Connecting the Display

Connecting with the PC

1. Before setting up the monitor, ensure that the power to the monitor, the computer

system, and other attached devices is turned off.

2.

Connect signal input cable and power cord in order, then tighten the screw
of the signal cable.

A

Connect DVI-D(Digital signal) Cable

B

Connect D-sub(Analog signal) Cable

C

Connect Audio Cable

D

Connect DisplayPort Cable (Separate purchase)

NOTE

This is a simplified representation of the rear view.
This rear view represents a general model; your display may differ from the view as shown.

1

2

When using a D-Sub signal input cable
connector for Macintosh

Mac adapter : For Apple Macintosh use, a

separate plug adapter is needed to change the
15 pin high density (3 row) D-sub VGA
connector on the supplied cable to a 15 pin 2
row connector.

Varies according to model.

Wall-outlet type

Connect the signal
input cable and tighten
it up by turning in the
direction of the arrow
as shown in the figure.

DVI-D (This feature is not available in all countries.)

Warning

Please pull the DVI cable first,then pull DisplayPort cable,
for protect your finger.

7

Connecting the Display

3. Put the power cord and cables into the cable holder.

Cable Holder

4. Press the power button on the front panel to turn the power on. When monitor power is

turned on, the 'Self Image Setting Function' is executed automatically.

(Only Analog Mode)

Power Button

NOTE

‘ Self Image Setting Function’? This function provides the user with optimal display

settings.When the user connects the monitor for the first time, this function automatically adjusts
the display to optimal settings for individual input signals.
‘AUTO’ Function? When you encounter problems such as blurry screen, blurred letters, screen
flicker or tilted screen while using the device or after changing screen resolution, press the
AUTO function button to improve resolution.

8

Connecting the Display

Connecting the USB(Universal Serial Bus) Cable

1. You can use the USB port at the back of the monitor to connect peripherals (USB

mouse, USB keyboard, etc.) to the monitor, not to the computer.

Two USB Downstream ports

Connect these ports to a mouse,
USB keyboard,memory stick with
current spec under 100mA.

One USB Upstream port

Connect this port to the downstream
port of a computer, laptop or USB
monitor (Your computer or USB
monitor must support USB and have
USB ports).

2.

The monitor’s USB terminal supports USB 2.0 and High Speed cables.

NOTE

This is a simplified representation of the rear view.

This rear view represents a general model; your display may differ from the view as shown.

9

Control Panel Functions

Front Panel Controls

MENU Button

SUPER ENERGY
SAVING Button

OSD LOCKED/UNLOCKED

This function allows you to lock the current control
settings, so that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds.
The message "OSD LOCKED" should appear.

You can unlock the OSD controls at any time by pushing
the MENU button for several seconds. The message
"OSD UNLOCKED" should appear.

Use this button to enter
menu.For more information, refer to page 17.

SUPER ENERGY SAVING

10

Control Panel Functions

AUTO Button

INPUT Button

(SOURCE Hot key)

EXIT Button

Power Button &
Power Indicator

AUTO IMAGE ADJUSTMENT

When adjusting your display settings, always press
the AUTO button before entering the On Screen
Display(OSD). (Only Analog Mode)

This will automatically adjust your display image to
the ideal settings for the current screen resolution
size (display mode).

The best display mode is

E2422PY : 1920 x 1080

When two input signals are connected, you can select the
input signal (D-SUB/DVI/DP) you want. When only one
signal is connected, it is automatically detected. The default
setting is D-Sub.

Exit the OSD(On Screen Display).

Use this button to turn the display on or off.

The power indicator stays white if the display is running
properly (On Mode). If the display is in Sleep Mode
(Energy Saving), the power indicator is blinking white.

11

On Screen Display (OSD) Control Adjustment

Screen Adjustment

Making adjustments to the image size, position and operating
parameters of the display is quick and easy with the On Screen
Display Control system.
A short example is given below to familiarize you with the use of the
controls. The following section is an outline of the available
adjustments and selections you can make using the OSD.

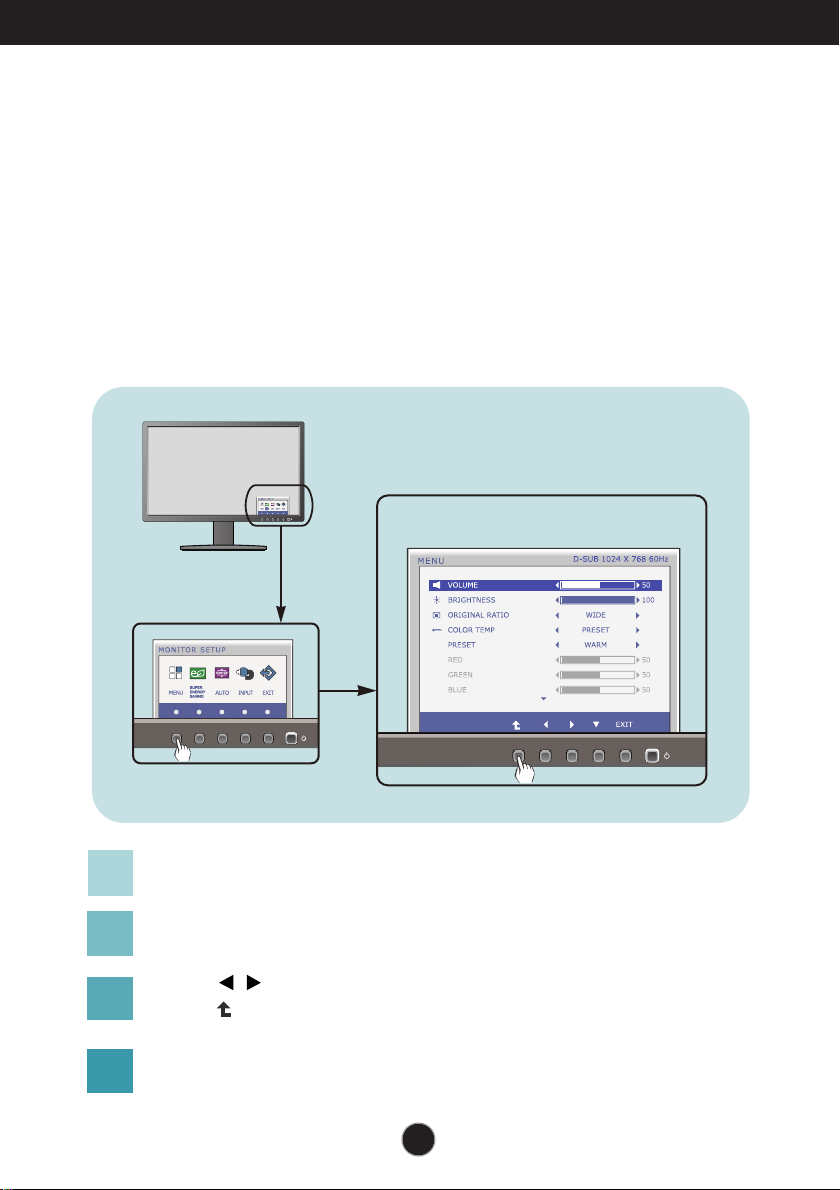

To make adjustments in the On Screen Display, follow these steps:

Press the discretionary Button, then the main menu of the OSD appears.

1

To access a control, use the corresponding Buttons.

2

Use the / Buttons to adjust the image to the desired level.

3

Use the Button to select other sub-menu items.

Press the EXIT Button to exit from the OSD.

4

12

On Screen Display(OSD) Selection and Adjustment

The following table indicates all the On Screen Display control, adjustment,
and setting menus.

: D-SUB(Analog signal) input

DSUB

: DVI-D(Digital signal) input

DVI-D

: DP(DisplayPort signal) input

DP

Main menu Sub-menu

MENU

VOLUME

BRIGHTNESS

ORIGINAL RATIO

COLOR TEMP
(USER / PRESET)

CONTRAST

BLACK LEVEL

LANGUAGE

FACTORY RESET

SUPER
ENERGY

ON

SAVING

OFF

Supported input

DSUB

To adjust the volume

DVI-D

To adjust the brightness of the

DP

screen

To adjust the image size

To customize the color of the
screen

To adjust the contrast of the
screen

DP

To set offset level

DSUB

To customize the screen status
for a user's operating

DVI-D

environment

DP

Turn on the SUPER ENERGY

DSUB

SAVING function.

DVI-D

DP

Turn off the SUPER ENERGY
SAVING function.

Description

RESET

Initialize the SUPER ENERGY
SAVING and set to "OFF" mode.

NOTE

The order of icons may differ depending on the model (13~19).

13

On Screen Display(OSD) Selection and Adjustment

You were introduced to the procedure of selecting and adjusting an item
using the OSD system. Listed below are the icons, icon names, and icon
descriptions of the all items shown on the Menu.

Press the MENU Button, then the main menu of the OSD appears.

Menu Name

Icons

Sub­menus

Button
Tip

Exit
Adjust (Decrease/Increase)

Select another sub-menu
Restart to select sub-menu

NOTE

OSD (On Screen Display) menu languages on the monitor may differ from the manual.

14

On Screen Display(OSD) Selection and Adjustment

Main menu Sub menu Description

To adjust the volume of headphone/Speaker.

To adjust the brightness of the screen.

Exit : Exit

, , : Move

: Select another sub-menu

WIDE

ORIGINAL

PRESET

USER

15

Switch to full screen mode according to
input image signal.

Change the input image signal ratio to
original.

* This function works only if input
resolution is lower than monitor ratio
(16:9).

Select the screen color.

• WARM: Set the screen to warm color
temperature .

• MEDIUM: Set the screen to medium

color temperature.

• COOL: Set the screen to cool color

temperature.

RED

Set your own red color levels.

GREEN

Set your own green color levels.

BLUE

Set your own blue color levels.

On Screen Display(OSD) Selection and Adjustment

Main menu Description

To adjust the contrast of the screen.

(only for DP input)

You can set the offset level. If you select
'HIGH', the screen will be bright and if you
select ‘LOW’, the screen will be dark.

* Offset? As the criteria for video signal, it is the
darkest screen the monitor can show.

Exit : Exit

, , : Move

: Select another sub-menu

To choose the language in which the
control names are displayed.

Restore all factory default settings except

"LANGUAGE."

Press the , buttons to reset
immediately.

16

On Screen Display(OSD) Selection and Adjustment

You were introduced to the procedure of selecting and adjusting an item
using the OSD system. Listed below are the icons, icon names, and icon
descriptions of the all items shown on the Menu.

Press the SUPER ENERGY SAVING Button, then the main menu of the OSD appears.

Menu Name

Sub-menus

Icons

Button
Tip

NOTE

OSD (On Screen Display) menu languages on the monitor may differ from the manual.

Exit
Move
Restart to select sub-menu

17

On Screen Display(OSD) Selection and Adjustment

Main menu Sub menu Description

ON

OFF

RESET

Turn on the SUPER ENERGY
SAVING fuction.

When current setting value is
ON,the SUPER SAVING color is
green.

Turn off the SUPER ENERGY
SAVING function.Now the monitor
is LED SAVING function.

When current setting value is
OFF,the SUPER SAVING color is
gray.

Clear the TOTAL POWER
REDUCTION and TOTAL CO2
REDUCTION values.

Exit : Exit

, : Move

: Select another sub-menu

OK : Select
TOTAL POWER REDUCTION : How much power is saved during using the monitor.
TOTAL CO2 REDUCTION : Change the TOTAL POWER REDUCTION to CO2.

18

On Screen Display(OSD) Selection and Adjustment

NOTE

SAVING DATA(W/h):

24 inch

SUPER SAVING
LED SAVING

Saving Data depends on the Panel. So,those values should be different from

each panel and panel vendor.

LG accumulate those values using integrated function with 10 minutes

broadcast video signal.

LED Saving means that how much power can be saved using WLED Panel

instead of CCFL panel.

SUPER Saving means that how much power can be more saved using

SUPER ENERGY SAVING function.

5

17

19

Troubleshooting

Check the following before calling for service.

No image appears

No image appears

● Is the power cord of the

display connected?

● Is the power indicator

light on?

● Is the power indicator

flickering?

● Do you see an "OUT OF

RANGE" message on
the screen?

● Do you see a "CHECK

SIGNAL CABLE"
message on the
screen?

•

Check and see if the power cord is connected
properly to the power outlet.

•

Press the Power button.

•

If the display is in power saving mode, try moving
the mouse or pressing any key on the keyboard to
bring up the screen.

• Try to turn on the PC

•

This message appears when the signal from the
PC (video card) is out of horizontal or vertical
frequency range of the display. See the
'Specifications' section of this manual and
configure your display again.

•

This message appears when the signal cable
between your PC and your display is not
connected. Check the signal cable and try again.

.

Do you see a "OSD LOCKED" message on the screen?

●

Do you see “OSD

LOCKED” when you
push MENU button?

• You can secure the current control settings,
so that they cannot be inadvertently changed.
You can unlock the OSD controls at any time
by pushing the MENU button for several
seconds: the message
“OSD UNLOCKED” will appear.

20

Troubleshooting

Display image is incorrect

● Display Position is

incorrect.

● On the screen

background, vertical
bars or stripes are
visible.

● Any horizontal noise

appearing in any
image or characters
are not clearly
portrayed.

•

Press the AUTO button to automatically adjust
your display image to the ideal setting.

•

Press the AUTO button to automatically adjust
your display image to the ideal setting.

•

Press the AUTO button to automatically adjust
your display image to the ideal setting.

•

Check Control Panel --> Display --> Settings
and adjust the display to the recommended
resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits
(true color).

IMPORTANT

Check Control Panel --> Display --> Settings and see if the frequency or the
resolution were changed. If yes, readjust the video card to the recommend
resolution.
If the recommended resolution (optimal resolution) is not selected, letters may be
blurred and the screen may be dimmed, truncated or biased. Make sure to select

the recommend resolution.
The setting method can differ by computer and O/S (Operation System),
and resolution mentioned above may not be supported by the video card
performance. In this case, please ask to the computer or the video card
manufacturer.

21

Troubleshooting

Display image is incorrect

● The screen color is

mono or abnormal.

● The screen blinks.

•

Check if the signal cable is properly connected
and use a screwdriver to fasten if necessary.

•

Make sure the video card is properly inserted in
the slot.

•

Set the color setting higher than 24 bits (true color)
at Control Panel - Settings.

•

Check if the screen is set to interlace mode and if
yes, change it to the recommend resolution.

Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?

●

Have you installed the

display driver?

•

Be sure to install the display driver from the display
driver CD (or diskette) that comes with your
display. Or, you can also download the driver from
our web site: http://www.lg.com.

Make sure to check if the video card supports

•
Plug&Play function.

22

Specifications E2422PY

60.9

Display

cm (24inch) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Visible diagonal size : 60.9 cm

0.276 x 0.276 mm (Pixel pitch)

Sync Input

Video Input

Resolution

Plug&Play

USB

Power
Consumption

Dimensions

& Weight

Range

Horizontal Freq. 30 kHz to 83 kHz (Automatic)

Vertical Freq. 56 Hz to 75 Hz (Automatic)
Input Form Separate Sync.

Digital

Signal Input 15 pin D-Sub Connector

DVI-D Connector (Digital)

Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital

Max VESA 1920 x 1080 @60 Hz
Recommend VESA 1920x 1080 @60 Hz

DDC 2B(Digital),DDC2AB(Anlaog)

USB2.0

W(Typ.)

On Mode
Sleep Mode ≤ 0.3 W

Off Mode ≤ 0.3 W

With Stand

Width 56.91 cm ( 22.40 inch)
Height 43.26 cm ( 17.03 inch)

54.26 cm ( 21.36 inch)

Depth 27.11 cm ( 10.67 inch)
Weight(excl. packing) 4.8 kg (10.56 lb)

Tilt -5˚
Swivel 355˚
Height 110 mm / 4.33 inch

: 22

to 15

(Min.)
(Max.)

˚

Without Stand

Width 56.91 cm ( 22.40 inch)
Height 34.19 cm ( 13.46 inch)

Depth 6.30 cm ( 2.48 inch)

Power Input

Environment
al Conditions

Stand Base

Power cord

NOTE

Information in this document is subject to change without notice.

AC 100 - 240 V~ 50 / 60 Hz 1.2 A

Operating Conditions

Temperature 10 ˚C to 35 ˚C
Humidity 10 % to 80 % non-Condensing

Storage Conditions

Temperature -20 ˚C to 60 ˚C
Humidity 5 % to 90 % non-Condensing

Attached ( ), Detached ( O )

Wall-outlet type

23

Specifications

Preset Modes (Resolution)

E2422PY

Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)

1
2
3
4
5
6
7
8

9
10
11

*12

Indicator

MODE

On Mode
Sleep Mode
Off Mode

720 x 400
640 x 480
640 x 480
800 x 600

800 x 600
1024 x 768
1024 x 768
1152 x 864

1280 x 1024
1280 x 1024
1680 x 1050
1920 x 1080

White Blinking

LED Color

White

Off

31.468

31.469

37.500

37.879

46.875

48.363

60.023

67.500

63.981

79.976

65.290

67.500

70
60
75
60
75
60
75
75
60
75
60
60

*Recommend Mode

24

Installing the Wall mount plate

This monitor satisfies the specifications of the Wall mount plate or
the interchange device.

.

1

After moving the product to face
downward, make sure to place it on a
soft cloth or a cushion to avoid surface
damage.

2.

Separate the head and the stand with
the use of a screwdriver.

25

Installing the Wall mount plate

3.

Install the Wall mount plate.

Wall mount plate(Separate purchase)

This is stand-type or wall mount type and is
connectable with Wall mount plate.
Please refer to the installation guide for more
details, which is provided when Wall mount plate
is purchased.

Wall Mount pad

<Screw Mounting Interface Dimension>

Hole spacing : 100 mm x 100 mm.

Kensington Security Slot

Connected to a locking
cable that can be
purchased separately at
most computer stores.

NOTE

VESA compatible only with respect to screw mounting interface dimensions and mounting screw
specifications
Please use VESA standard as below.
* 784.8 mm and under (30.9 inch)

- Wall Mount Pad Thickness : 2.6 mm

- Screw : 4.0 mm x Pitch 0.7 mm x Length 10 mm

* 787.4 mm and above (31.0 inch)

- Please use VESA standard wall mount pad and screws.

26

Make sure to read the Safet y Precautions
before using the product.
Keep the OW NER ’S MANUA L(CD) in an
accessible place for furture reference.
The model and serial number of the SET is
located on the back or one side of the SET.
Record it below should you ever need service.

MODEL

SERIAL

EN ERG Y STA R is a se t of p owe r-s avi n g
guidelines issued by the U.S.Environmental
Protection Agency(EPA).

As an ENERGY STAR Partner LGE U. S. A.,Inc.
has deter mined that th is produc t meets the
ENERGY STAR guidelines for energy efficiency.
