LG E1910SW, E1910TW, E2210SW, E2210TW User Manual

OWNER’S MANUAL

Model name : E1910xW E1910xMW
E2210xW E2210xMW

ENGLISH

LCD MONITOR

Please read this manual carefully before operating your set and
retain it for future reference.

LCD MONITOR MODEL

E1910T
E2210T
E1910S
E2210S

www.lg.com

1

This unit has been engineered and manufactured to ensure your personal safety,
however improper use may result in potential electrical shock or fire hazards. In
order to allow the proper operation of all safeguards incorporated in this display,
observe the following basic rules for its installation, use, and servicing.

On Safety

Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.

The power supply cord is used as the main disconnection device. Ensure that the
socket-outlet is easily accessible after installation.

Operate the display only from a power source indicated in the specifications of this
manual or listed on the display. If you are not sure what type of power supply you
have in your home, consult with your dealer.

Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your
service technician for replacement.

As long as this unit is connected to the AC wall outlet, it is not disconnected from
the AC power source even if the unit is turned off.

Do not Open the Display:

There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the display is not operating properly.

To Avoid Personal Injury :

Do not place the display on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
Do not drop an object on or apply impact to the product. Do not throw any toys
or objects on the product screen.
It can cause injury to human, problem to product and damage the display.

To Prevent Fire or Hazards:

Always turn the display OFF if you leave the room for more than a short period
of time. Never leave the display ON when leaving the house.
Keep children from dropping or pushing objects into the display's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this display.
When the display is to be left unattended for an extended period of time, unplug
it from the wall outlet.
In the presence of thunder and lightning, never touch the power cord and signal
cable because it can be very dangerous. It can cause electric shock.

Important Precautions

2

Important Precautions

On Installation

Do not allow anything to rest upon or roll over the power cord, and do not place the
display where the power cord is subject to damage.

Do not use this display near water such as near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool.

Displays are provided with ventilation openings in the cabinet to allow the release
of heat generated during operation. If these openings are blocked, built-up heat
can cause failures which may result in a fire hazard. Therefore, NEVER:

Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
Place the display in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the display near or over a radiator or heat source.

Do not rub or strike the Active Matrix LCD with anything hard as this may scratch,
mar, or damage the Active Matrix LCD permanently.

Do not press the LCD screen with your finger for a long time as this may cause
some afterimages.

Some dot defects may appear as Red, Green or Blue spots on the screen.
However, this will have no impact or effect on the display performance.

If possible, use the recommended resolution to obtain the best image quality for
your LCD display. If used under any mode except the recommended resolution,
some scaled or processed images may appear on the screen. However, this is
characteristic of the fixed-resolution LCD panel.

Leaving a fixed image on the screen for a long time may cause damage to the
screen and cause image burn-in. Make sure to use a screen saver on the product.
Burn-in and related problems are not covered by the warranty on this product.

Do not shock or scratch the front and sides of the screen with metallic objects.
Otherwise, it may cause damage to the screen.

Make sure the panel faces forward and hold it with both hands to move. If you
drop the product, the damaged product can cause electric shock or fire. Contact
an authorized the service center for repair.

Avoid high temperatures and humidity.

Important Precautions

3

On Cleaning

Unplug the display before cleaning the face of the display screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display

screen because over-spraying may cause electrical shock.

When cleaning the product, unplug the power cord and scrub gently with a soft

cloth to prevent scratching. Do not clean with a wet cloth or spray water or other
liquids directly onto the product. An electric shock may occur. (Do not use
chemicals such as benzene, paint thinners or alcohol)

Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame;

wipe in one direction only. Too much moisture may cause staining.

On Repacking

Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.

On Disposal (Only , Hg lamp used LCD Monitor)

The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of

your local authority.

Accessories

!!! Thank for selecting LGE products !!!

Please make sure the following items are included with your
monitor. If any items are missing, contact your dealer.

User's Guide/Cards

DVI-D Signal Cable

(This feature is not available in

all countries.)

(Only E1910T/E2210T)

NOTE

This accessories may look different from those shown here.
User must use shielded signal interface cables (D-sub 15 pin cable, DVI-D cable) with ferrite
cores to maintain standard compliance for the product.

Power Cord

15-pin D-Sub Signal Cable

(To set it up, this signal cable may be

attached to this product before

shipping out.)

4

Connecting the Display

Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.

Connecting the stand

1. Place the monitor with its front facing downward on a soft cloth.

2. Assemble the Stand Body into the

product in the correct direction as shown in
the picture. Make sure you push it until you

hear it “click”.

Hinge Body

Stand Body

3. Assemble the Stand Base(Front,

Rear) into the Stand Body in the
correct direction.

Stand Body

4. Tie down the base lock to perpendicularity direction.

.

5. Once assembled take the monitor up carefully and face the front side.

Stand Base

Important

This illustration depicts the general model of connection. Your monitor may differ from
the items shown in the picture.
Do not carry the product upside down holding only the stand base. The product may
fall and get damaged or injure your foot.

5

Connecting the Display

Disassembling the stand

1. Put a cushion or soft cloth on aflat

surface.

2. Place the monitor face Down on the

cushion or soft cloth.

3. Change your lock on the product as it follows and turn it in the arrow direction.

..

If you can't release the stand base even the locking knob is at a release
position, Please push the indicated knob down and retry it.

6

Connecting the Display

4.

Pull out the Stand to remove.

5.

Pushing the PUSH button, Take the stand body from hinge body.

Warning:

You can hurt your finger.

7

noitisoPdaBnoitisoPdooG

Connecting the Display

Before setting up the monitor, ensure that the power to the monitor,
the computer system, and other attached devices is turned off.

Positioning your display

-After installation, adjust the angle as shown below.

1. Adjust the position of the panel in various ways for maximum comfort.

Tilt Range : -5˚~15˚

Do not touch or press the screen when
adjusting the angle of the monitor.

When adjusting the angle of the screen, do
not put your finger(s) in between the head of
the monitor and the stand body. You can
hurt your finger(s).

ERGONOMIC

It is recommended that in order to maintain an ergonomic and comfortable viewing position,
the forward tilt angle of the monitor should not exceed 5 degrees.

8

Connecting the Display

Connecting with the PC

1.

Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.

2.

Connect signal input cable and power cord in order, then tighten the screw
of the signal cable.

A

Connect DVI-D(Digital signal) Cable

B

Connect D-sub(Analog signal) Cable

NOTE

This is a simplified representation of the rear view.

This rear view represents a general model; your display may differ from the view as shown.

Varies according to model.

Wall-outlet type

1

2

When using a D-Sub signal input cable connector
for Macintosh

Mac adapter : For Apple Macintosh use, a

separate plug adapter is needed to change the
15 pin high density (3 row) D-sub VGA
connector on the supplied cable to a 15 pin 2
row connector.

E1910T/E2210T

Connect the signal
input cable and tighten
it up by turning in the
direction of the arrow
as shown in the figure.

B

DVI-D (This feature is not available in all countries.)

A

PC

PC

3. Press the power button on the front panel to turn the power on. When monitor power is

turned on, the 'Self Image Setting Function' is executed automatically.

(Only Analog Mode)

Power Button

NOTE

‘ Self Image Setting Function’? This function provides the user with optimal display

settings.When the user connects the monitor for the first time, this function automatically adjusts
the display to optimal settings for individual input signals.
‘AUTO’ Function? When you encounter problems such as blurry screen, blurred letters, screen
flicker or tilted screen while using the device or after changing screen resolution, press the
AUTO function button to improve resolution.

9

Connecting the Display E1910S/E2210S

Connecting with the PC

1. Before setting up the monitor, ensure that the power to the monitor, the computer

system, and other attached devices is turned off.

2.

Connect signal input cable and power cord in order, then tighten the screw
of the signal cable.

A

Connect D-sub(Analog signal) Cable

NOTE

This is a simplified representation of the rear view.
This rear view represents a general model; your display may differ from the view as shown.

Varies according to model.

Wall-outlet type

1

2

When using a D-Sub signal input cable connector for
Macintosh

Mac adapter : For Apple Macintosh use, a

separate plug adapter is needed to change the
15 pin high density (3 row) D-sub VGA
connector on the supplied cable to a 15 pin 2
row connector.

Connect the signal
input cable and tighten
it up by turning in the
direction of the arrow
as shown in the figure.

A

PC

3. Press the power button on the front panel to turn the power on. When monitor power is

turned on, the 'Self Image Setting Function' is executed automatically.

Power Button

NOTE

‘ Self Image Setting Function’? This function provides the user with optimal display

settings.When the user connects the monitor for the first time, this function automatically adjusts
the display to optimal settings for individual input signals.
‘AUTO’ Function? When you encounter problems such as blurry screen, blurred letters, screen
flicker or tilted screen while using the device or after changing screen resolution, press the
AUTO function button to improve resolution.

10

Control Panel Functions

Front Panel Controls

E1910T/E2210T

E1910S/E2210S

MENU Button

OSD LOCKED/UNLOCKED

This function allows you to lock the current control
settings, so that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds.
The message "OSD LOCKED" should appear.

You can unlock the OSD controls at any time by pushing
the MENU button for several seconds. The message
"OSD UNLOCKED" should appear.

11

Control Panel Functions

MODE Button

AUTO Button

INPUT Button

(SOURCE Hot key)

Use this button to enter F-ENGINE, ORIGINAL
RATIO(Only E2210T/E2210S), PHOTO EFFECT

menus.
For more information, refer to page 19.

AUTO IMAGE ADJUSTMENT

When adjusting your display settings, always press
the AUTO button before entering the On Screen
Display(OSD). (Only Analog Mode)

This will automatically adjust your display image to
the ideal settings for the current screen resolution
size (display mode).

The best display mode is

E1910T/E1910S : 1280 x 1024
E2210T/E2210S : 1680 x 1050

When two input signals are connected, you can select the
input signal (D-SUB/DVI) you want. When only one signal
is connected, it is automatically detected. The default
setting is D-Sub.

(Only E1910T/E2210T )

EXIT Button

Power Button &
Power Indicator

Exit the OSD(On Screen Display).

Use this button to turn the display on or off.

The power indicator stays white if the display is running
properly (On Mode). If the display is in Sleep Mode
(Energy Saving), the power indicator is blinking white.

12

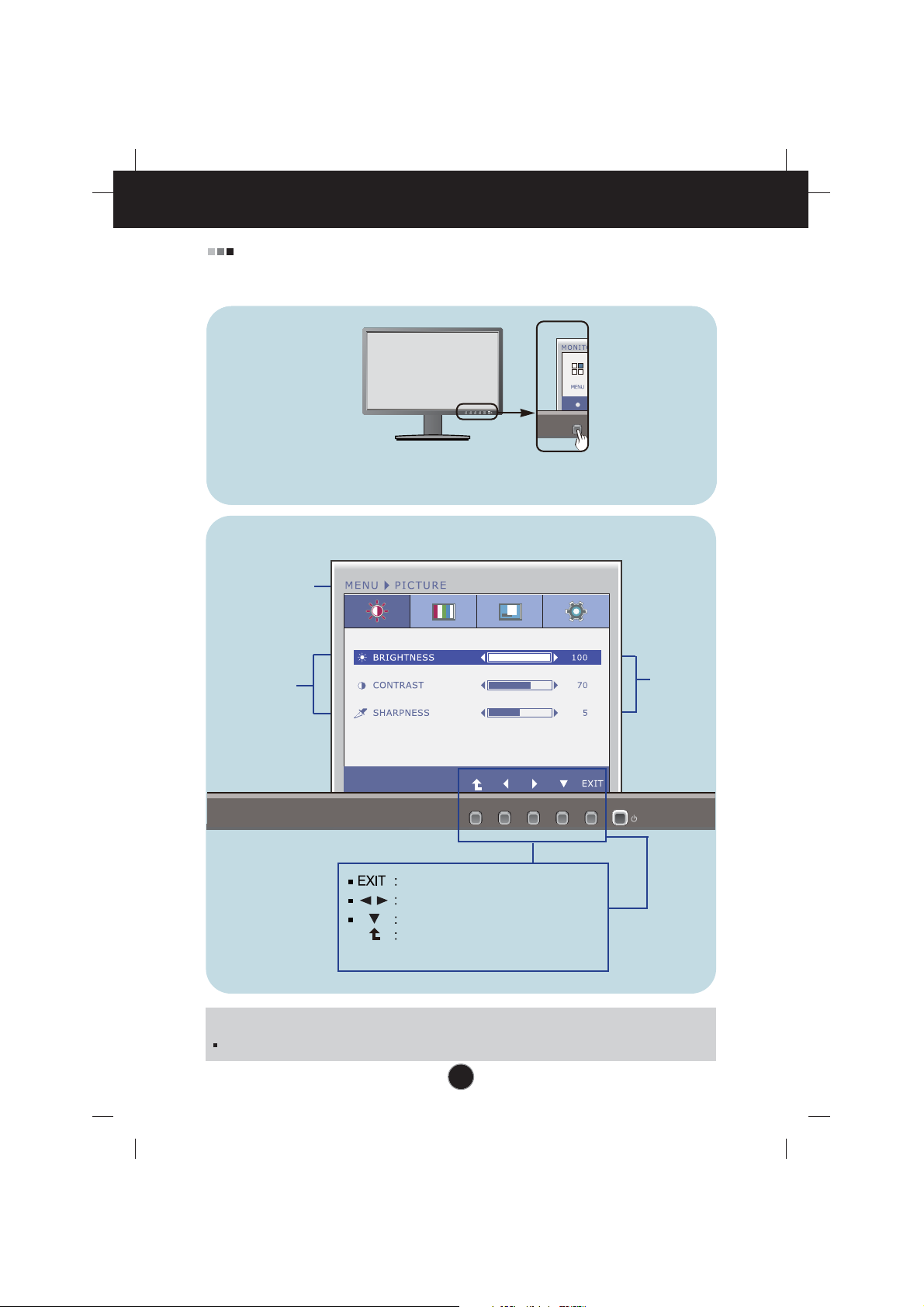

On Screen Display (OSD) Control Adjustment

Screen Adjustment

Making adjustments to the image size, position and operating
parameters of the display is quick and easy with the On Screen
Display Control system.
A short example is given below to familiarize you with the use of the
controls. The following section is an outline of the available
adjustments and selections you can make using the OSD.

To make adjustments in the On Screen Display, follow these steps:

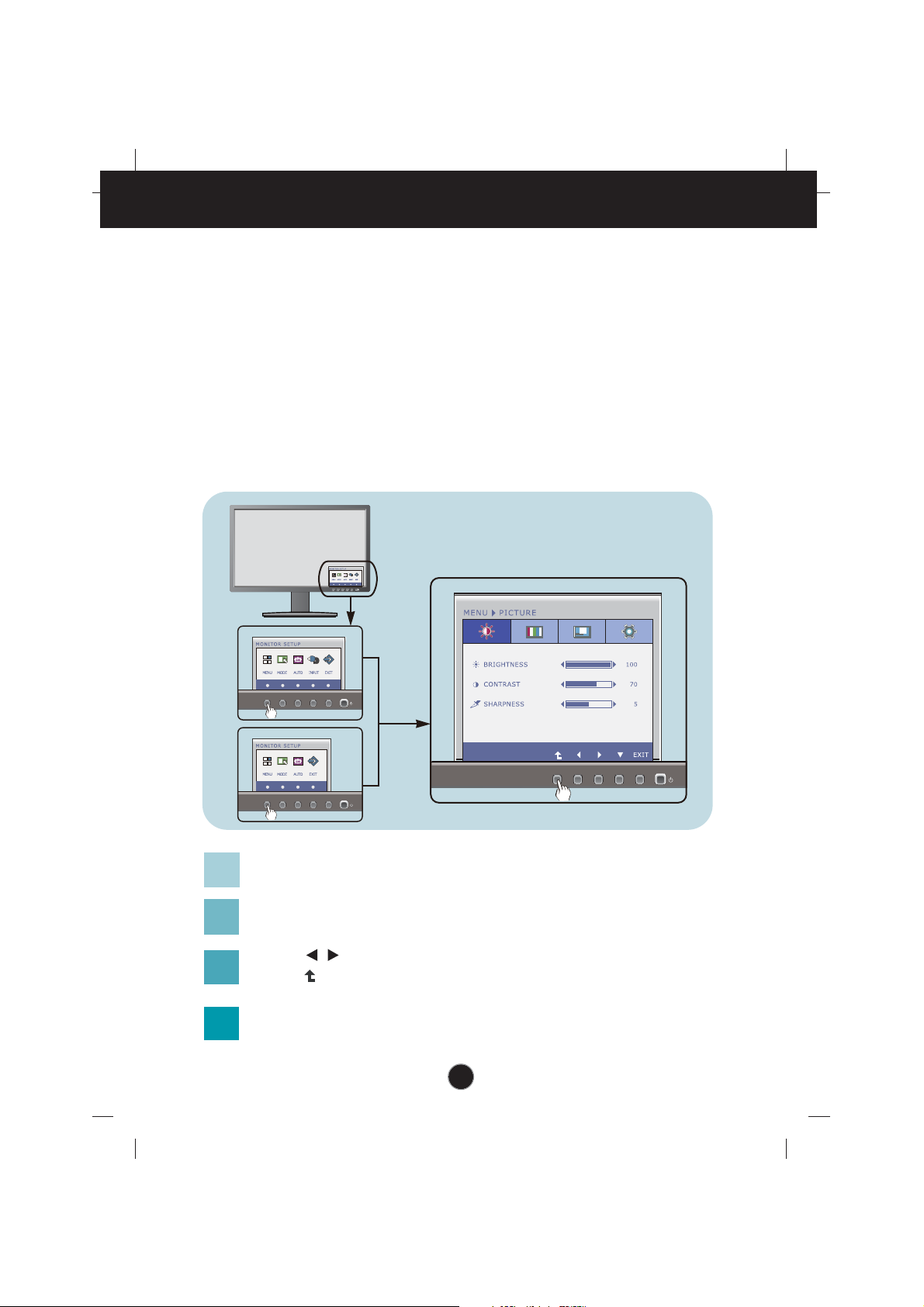

Press the discretionary Button, then the main menu of the OSD appears.

1

To access a control, use the corresponding Buttons.

2

Use the / Buttons to adjust the image to the desired level.

3

Use the Button to select other sub-menu items.

Press the EXIT Button to exit from the OSD.

4

13

On Screen Display(OSD) Selection and Adjustment

The following table indicates all the On Screen Display control, adjustment,
and setting menus.

: D-SUB(Analog signal) input

DSUB

: DVI-D(Digital signal) input

DVI-D

Main menu Sub-menu


BRIGHTNESS

CONTRAST

SHARPNESS

COLOR

COLOR TEMP

(PRESET / USER)

GAMMA

DISPLAY

HORIZONTAL

VERTICAL

CLOCK

PHASE

OTHERS

LANGUAGE
POWER INDICATOR

WHITE BALANCE

FACTORY RESET

F-ENGINE

NORMAL
MOVIE
INTERNET

ORIGINAL
RATIO

(Only E2210T/
E2210S)

EFFECT

WIDE
ORIGINAL

NORMAL
GAUSSIAN BLUR
SEPIA
MONOCHROME

Supported input

DSUB

DVI-D

DSUB

DVI-D

DSUB

To adjust the brightness, contrast
and sharpness of the screen

To customize the color of the
screen

To adjust the position of the
screen

DSUB

To improve the clarity and
stability of the screen

DSUB

DVI-D

To customize the screen status
for a user's operating
environment

DSUB

DSUB

DVI-D

DSUB

DVI-D

DSUB

DVI-D

DSUB

DVI-D

To select or customize desired
image settings

To adjust the image size

To adjust screen color mode

Description

NOTE

The order of icons may differ depending on the model (15~23).

14

On Screen Display(OSD) Selection and Adjustment

You were introduced to the procedure of selecting and adjusting an item
using the OSD system. Listed below are the icons, icon names, and icon
descriptions of the all items shown on the Menu.

Press the MENU Button, then the main menu of the OSD appears.

Menu Name

Icons

menus

Button

Sub-

Exit
Adjust (Decrease/Increase)
Select another sub-menu

Restart to select sub-menu

NOTE

OSD (On Screen Display) menu languages on the monitor may differ from the manual.

Tip

15

On Screen Display(OSD) Selection and Adjustment

Main menu Sub menu Description

Exit : Exit

: Decrease
: Increase
: Select another sub-menu
: Restart to select sub-menu

WARM

Exit : Exit

: Decrease
: Increase
: Select another sub-menu
: Restart to select sub-menu

BRIGHTNESS

CONTRAST

SHARPNESS

COLOR TEMP

PRESET

USER

To adjust the brightness of the screen.

To adjust the contrast of the screen.

To adjust the clearness of the screen.

Select the screen color.

ŖU4)$5GVVJGUETGGPEQNQTVQHKVVJG

U4)$UVCPFCTFEQNQT

specification.

ŖWARM: Set the screen to warm color
temperature.

ŖMEDIUM: Set the screen to medium
color temperature.

ŖCOOL: Set the screen to cool color
temperature.

RED

Set your own red color levels.

GREEN

Set your own green color levels.

BLUE

Set your own blue color levels.

GAMMA

Set your own gamma value. : 0 / 1 / 2
On the monitor, high gamma values
display whitish images and low
gamma values display blackish
images.

16

On Screen Display(OSD) Selection and Adjustment

Main menu Sub menu Description

E1910T/E2210T

HORIZONTAL

To move image left and right.

D-SUB

E1910S/E2210S

Exit : Exit

: Decrease
: Increase
: Select another sub-menu
: Restart to select sub-menu

VERTICAL

CLOCK

PHASE

To move image up and down.

To minimize any vertical bars or
stripes visible on the screen
background.
The horizontal screen size will also
change.

To adjust the focus of the display.
This item allows you to remove any
horizontal noise and clear or sharpen
the image of characters.

17

On Screen Display(OSD) Selection and Adjustment

Main menu Sub menu Description

Exit : Exit

: Decrease
: Increase
: Select another sub-menu

: Restart to select sub-menu

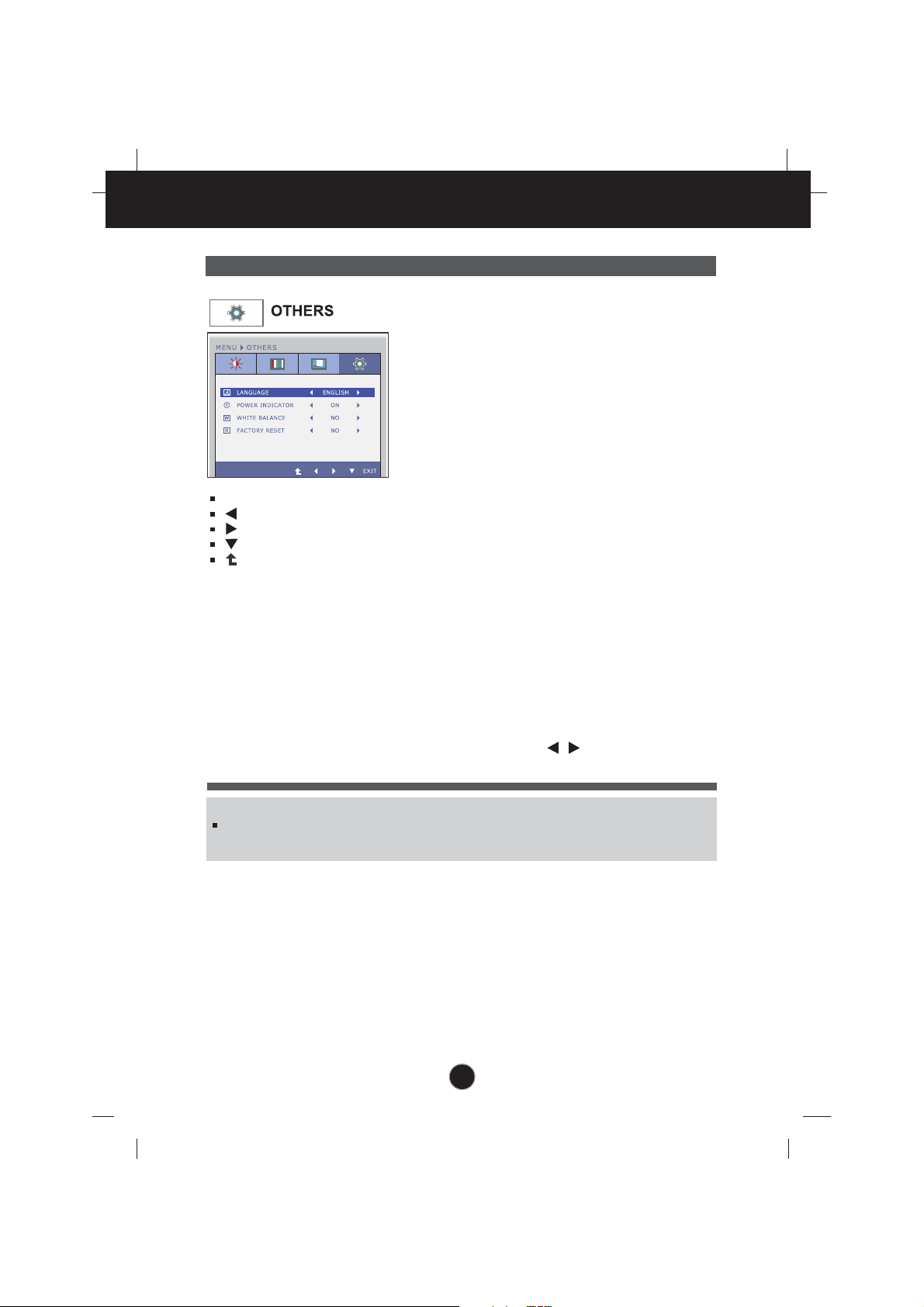

LANGUAGE

POWER
INDICATOR

WHITE
BALANCE

FACTORY
RESET

To choose the language in which the
control names are displayed.

Use this function to set the power
indicator on the front side of the monitor
to ON or OFF.
If you set OFF, it will go off.
If you set ON at any time, the power
indicator will automatically be turned on.

If the output of the video card is
different the required specifications,
the color level may deteriorate due
to video signal distortion. Using this
function, the signal level is adjusted
to fit into the standard output level of
the video card in order to provide the
optimal image.
Activate this function when white
and black colors are present in the
screen.

Restore all factory default settings except

"LANGUAGE."

Press the , buttons to reset
immediately.

NOTE

If this does not improve the screen image, restore the factory default settings. If necessary, execute the
WHITE BALANCE function again. This function will be enabled only when the input signal is an analog
signal.

18

On Screen Display(OSD) Selection and Adjustment

You were introduced to the procedure of selecting and adjusting an item
using the OSD system. Listed below are the icons, icon names, and icon
descriptions of the all items shown on the Menu.

Press the MODE Button, then the main menu of the OSD appears.

Menu Name

E1910T/E1910S E2210T/E2210S

Icons

MODE

f-

ENGINE

NORMAL MOVIE INTERNET

Sub-

EXIT

menus

Icons

MODE

f-

ENGINE

NORMAL MOVIE INTERNET

Sub-

menus

EXIT

Button

Exit
Adjust (Decrease/Increase)

Restart to select sub-menu

NOTE

OSD (On Screen Display) menu languages on the monitor may differ from the manual.

Tip

19

On Screen Display(OSD) Selection and Adjustment

Main menu Sub menu Description

-

When F-ENGINE is not NORMAL, CONTRAST can not be selected.

E1910T/E1910S

MODE

f-

ENGINE

NORMAL MOVIE INTERNET

E2210T/E2210S

MODE

f-

ENGINE

NORMAL MOVIE INTERNET

E1910T/E1910S

MODE

f-

ENGINE

MOVIE

NORMAL

E2210T/E2210S

MODE

f-

ENGINE

MOVIE

NORMAL

E1910T/E1910S

MODE

f-

ENGINE

MOVIE

NORMAL

E2210T/E2210S

MODE

f-

ENGINE

INTERNET

INTERNET

INTERNET

NORMAL

Select this when you want to use the product
in the most general using environment.

EXIT

EXIT

MOVIE

EXIT

EXIT

INTERNET

EXIT

Select this when you are watching a video or
movie.

Select this when you are working on the
document (Word etc.)

INTERNET

MOVIE

NORMAL

EXIT

Exit : Exit

, : Move

: Select another sub-menu

20

On Screen Display(OSD) Selection and Adjustment

(Only E2210T/E2210S)

Main menu Sub menu Description

MODE

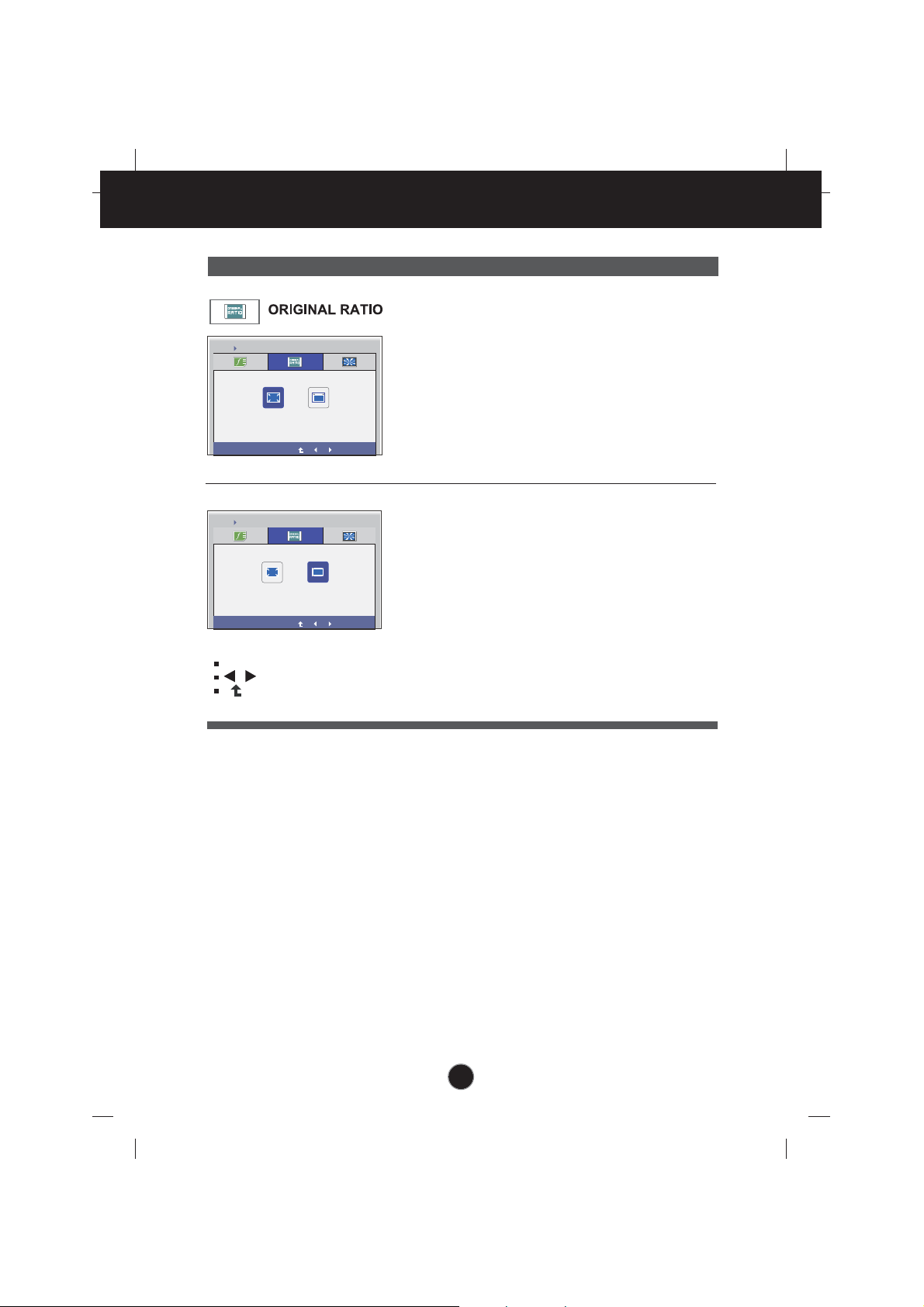

ORIGINAL RATIO

FULL

WIDE

ORIGINAL

MODE

ORIGINAL RATIO

FULL

ORIGINAL

WIDE

Exit : Exit

, : Move

: Select another sub-menu

EXIT

EXIT

WIDE

ORIGINAL

Switch to full screen mode according to
input image signal.

Change the input image signal ratio to
original.

* This function works only if input
resolution is lower than monitor ratio
(16:10).

21

On Screen Display(OSD) Selection and Adjustment

Main menu Sub menu Description

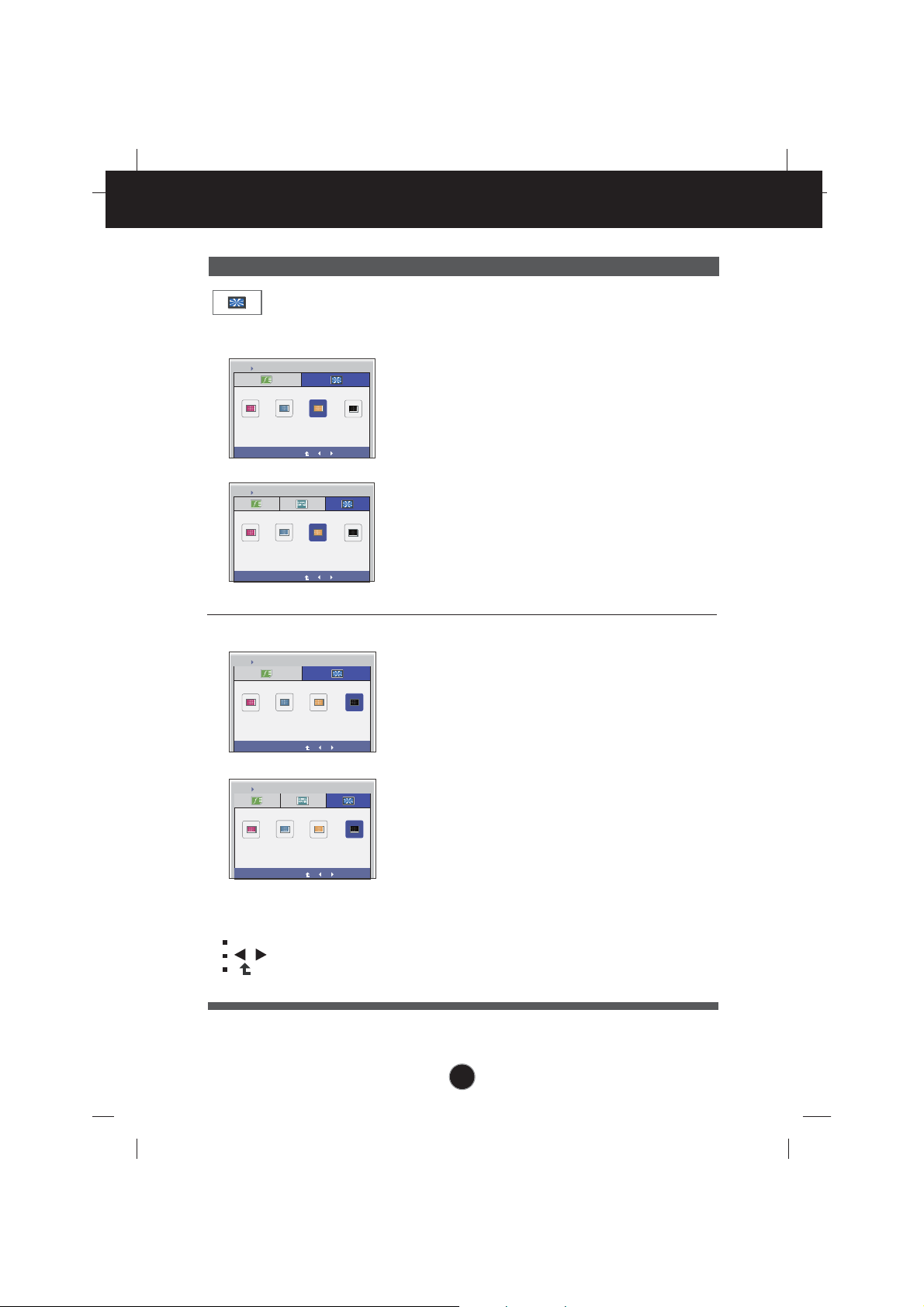

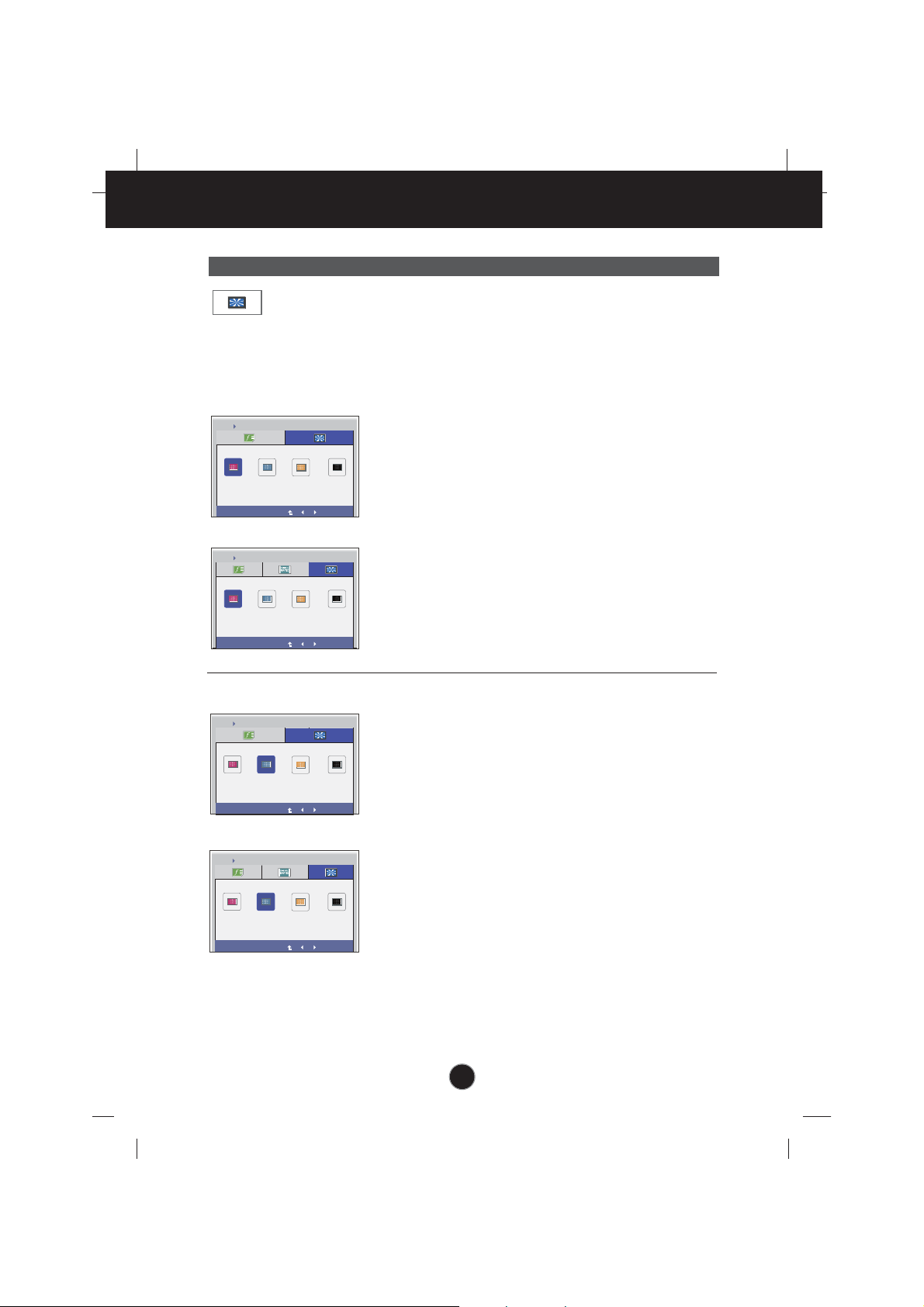

PHOTO EFFECT

When PHOTO EFFECT is not NORMAL, CONTRAST can not be selected and COLOR is grey.
When COLOR is selected down, PHOTO EFFECT is back to NORMAL and CONTRAST can be
selected now.
PHOTO EFFECT and F-ENGINE should not be unnormal at the same time.

E1910T/E1910S

MODE

PHOTO EFFECT

NORMAL

GAUSSIAN

BLUR

E2210T/E2210S

MODE

PHOTO EFFECT

NORMAL

GAUSSIAN

BLUR

MONOCHROME

SEPIA

EXIT

MONOCHROME

SEPIA

EXIT

NORMAL

The Photo Effect function is disabled.

E1910T/E1910S

MODE

PHOTO EFFECT

NORMAL

GAUSSIAN

BLUR

E2210T/E2210S

MODE

PHOTO EFFECT

NORMAL

GAUSSIAN

BLUR

MONOCHROME

SEPIA

EXIT

MONOCHROME

SEPIA

EXIT

EXIT

EXIT

GAUSSIAN
BLUR

This menu changes the screen to be more
colorful and smoother.

22

On Screen Display(OSD) Selection and Adjustment

Main menu Sub menu Description

PHOTO EFFECT

E1910T/E1910S

MODE

PHOTO EFFECT

GAUSSIAN

NORMAL

BLUR

E2210T/E2210S

MODE

PHOTO EFFECT

GAUSSIAN

NORMAL

BLUR

E1910T/E1910S

MODE

PHOTO EFFECT

GAUSSIAN

NORMAL

BLUR

E2210T/E2210S

MODE

PHOTO EFFECT

GAUSSIAN

NORMAL

BLUR

SEPIA

SEPIA

SEPIA

SEPIA

MONOCHROME

MONOCHROME

MONOCHROME

MONOCHROME

EXIT

EXIT

EXIT

SEPIA

MONOCH

-ROME

This menu changes the screen to be
Sepia tone (brown color).

This menu changed the screen to be
Gray tone(black-and-white Picture) .

Exit : Exit

, : Move

: Select another sub-menu

EXIT

23

Troubleshooting

Check the following before calling for service.

No image appears

No image appears

Is the power cord of the

display connected?

Is the power indicator

light on?

Is the power indicator

flickering?

Do you see an "OUT OF

RANGE" message on
the screen?

Do you see a "CHECK

SIGNAL CABLE"
message on the
screen?

Ŗ

Check and see if the power cord is connected
properly to the power outlet.

Ŗ

Press the Power button.

Ŗ

If the display is in power saving mode, try moving
the mouse or pressing any key on the keyboard to
bring up the screen.

Ŗ Try to turn on the PC

Ŗ

This message appears when the signal from the
PC (video card) is out of horizontal or vertical
frequency range of the display. See the
'Specifications' section of this manual and
configure your display again.

Ŗ

This message appears when the signal cable
between your PC and your display is not
connected. Check the signal cable and try again.

.

Do you see a "OSD LOCKED" message on the screen?

Do you see “OSD

LOCKED” when you
push MENU button?

Ŗ You can secure the current control settings,

so that they cannot be inadvertently changed.
You can unlock the OSD controls at any time
by pushing the MENU button for several
seconds: the message
“OSD UNLOCKED” will appear.

24

Troubleshooting

Display image is incorrect

Display Position is

incorrect.

On the screen

background, vertical
bars or stripes are
visible.

Any horizontal noise

appearing in any
image or characters
are not clearly
portrayed.

Ŗ

Press the AUTO button to automatically adjust

your display image to the ideal setting.
If the results are unsatisfactory, adjust the image
position using the H position and V position icon
in the on screen display.

Ŗ

Press the AUTO button to automatically adjust

your display image to the ideal setting.
If the results are unsatisfactory, decrease the
vertical bars or stripes using the CLOCK icon in
the on screen display.

Ŗ

Press the AUTO button to automatically adjust

your display image to the ideal setting.
If the results are unsatisfactory, decrease the
horizontal bars using the PHASE icon in the on
screen display.

Ŗ

Check Control Panel --> Display --> Settings

and adjust the display to the recommended

resolution or adjust the display image to the ideal

setting. Set the color setting higher than 24 bits

(true color).

IMPORTANT

Check Control Panel --> Display --> Settings and see if the frequency or the
resolution were changed. If yes, readjust the video card to the recommend
resolution.
If the recommended resolution (optimal resolution) is not selected, letters may be
blurred and the screen may be dimmed, truncated or biased. Make sure to select

the recommend resolution.
The setting method can differ by computer and O/S (Operation System),
and resolution mentioned above may not be supported by the video card
performance. In this case, please ask to the computer or the video card
manufacturer.

25

Troubleshooting

Display image is incorrect

The screen color is

mono or abnormal.

The screen blinks.

Ŗ

Check if the signal cable is properly connected
and use a screwdriver to fasten if necessary.

Ŗ

Make sure the video card is properly inserted in
the slot.

Ŗ

Set the color setting higher than 24 bits (true color)
at Control Panel - Settings.

Ŗ

Check if the screen is set to interlace mode and if
yes, change it to the recommend resolution.

Do you see an "Unrecognized monitor, Plug&Play (VESA
DDC) monitor found" message?

Have you installed the

display driver?

Ŗ

Be sure to install the display driver from the display
driver CD (or diskette) that comes with your
display. Or, you can also download the driver from
our web site: http://www.lg.com.

Ŗ

Make sure to check if the video card supports
Plug&Play function.

26

Specifications E1910T

Display

Sync Input

Video Input

Resolution

Plug&Play

Power
Consumption

Dimensions

& Weight

19 inches (48.2 cm) Flat Panel Active matrix-TFT LCD
Anti-Glare coating

48.2

Visible diagonal size :

0.294 mm x 0.294 mm (Pixel pitch)

Horizontal Freq. 30 - 83 kHz (Automatic)

Vertical Freq. 56 - 75 Hz (Automatic)
Input Form Separate Sync.

Signal Input 15 pin D-Sub Connector

Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital

Max VESA 1280 x 1024 @75 Hz
Recommend VESA 1280 x 1024 @60 Hz

DDC 2B(Digital),DDC2AB(Anlaog)

On Mode
Sleep Mode İ 0.2 W

Off Mode İ 0.1 W

With Stand

Width 40.89 cm / 16.10 inches
Height 42.95cm / 16.91 inches
Depth 25.00cm / 9.84 inches

cm

Digital

DVI-D Connector (Digital)

25 W(Typ.)

:

Without Stand

Width 40.89 cm / 16.10 inches
Height 33.81 cm / 13.31 inches
Depth 5.82 cm / 2.29 inches

Weight(excl. packing) 2.84 kg (6.26 lbs)

Range

Power Input

Environment
al Conditions

Stand Base

Power cord

NOTE

Information in this document is subject to change without notice.

6KNVŇ`Ň

#%8`*\#

Operating Conditions

Temperature Ň%VQŇ%
Humidity 10 % to 80 % non-Condensing

Storage Conditions

Temperature Ň%VQŇ%
Humidity 5 % to 90 % non-Condensing

Attached ( ), Detached ( O )

Wall-outlet type

27

Specifications E1910S

Display

Sync Input

Video Input

Resolution

Plug&Play

Power
Consumption

Dimensions

& Weight

19 inches (48.2 cm) Flat Panel Active matrix-TFT LCD
Anti-Glare coating

48.2

:

cm

25 W(Typ.)

Without Stand

Width 40.89 cm / 16.10 inches
Height 33.81 cm / 13.31 inches
Depth 5.82 cm / 2.29 inches

Visible diagonal size :

0.294 x 0.294 mm (Pixel pitch)

Horizontal Freq. 30 - 83 kHz (Automatic)
Vertical Freq. 56 - 75 Hz (Automatic)
Input Form Separate Sync.

Signal Input 15 pin D-Sub Connector
Input Form RGB Analog (0.7 Vp-p/ 75 ohm)

Max VESA 1280 x 1024 @75 Hz
Recommend VESA 1280 x 1024 @60 Hz

DDC 2AB

On Mode
Sleep Mode İ 0.2 W

Off Mode İ 0.1 W

With Stand

Width 40.89 cm / 16.10 inches
Height 42.95 cm / 16.91 inches
Depth 25.00 cm / 9.84 inches

Weight(excl. packing) 2.84 kg (6.26 lbs)

Range

Power Input

Environment
al Conditions

Stand Base

Power cord

NOTE

Information in this document is subject to change without notice.

6KNVŇ`Ň

#%8`*\#

Operating Conditions

Temperature Ň%VQŇ%
Humidity 10 % to 80 % non-Condensing

Storage Conditions

Temperature Ň%VQŇ%
Humidity 5 % to 90 % non-Condensing

Attached ( ), Detached ( O )

Wall-outlet type

28

Specifications E2210T

Display

Sync Input

Video Input

Resolution

Plug&Play

Power
Consumption

Dimensions

& Weight

22 inches (55.86 cm) Flat Panel Active matrix-TFT LCD
Anti-Glare coating

55.86

Visible diagonal size :

0.282 mm x 0.282 mm (Pixel pitch)

Horizontal Freq. 30 - 83 kHz (Automatic)

Vertical Freq. 56 - 75 Hz (Automatic)
Input Form Separate Sync.

Signal Input 15 pin D-Sub Connector

Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital

Max VESA 1680 x 1050 @60 Hz
Recommend VESA 1680 x 1050 @60 Hz

DDC 2B(Digital),DDC2AB(Anlaog)

On Mode
Sleep Mode İ 0.2 W

Off Mode İ 0.1 W

With Stand

Width 50.64 cm / 19.94 inches
Height 42.49 cm / 16.73 inches
Depth 20.99 cm / 8.26 inches

cm

Digital

DVI-D Connector (Digital)

28 W(Typ.)

:

Without Stand

Width 50.64 cm / 19.94 inches
Height 33.32 cm / 13.12 inches
Depth 6.04 cm / 2.38 inches

Weight(excl. packing) 3.57 kg (7.87 lbs)

Range

Power Input

Environment
al Conditions

Stand Base

Power cord

NOTE

Information in this document is subject to change without notice.

6KNVŇ`Ň

#%8`*\#

Operating Conditions

Temperature Ň%VQŇ%
Humidity 10 % to 80 % non-Condensing

Storage Conditions

Temperature Ň%VQŇ%
Humidity 5 % to 90 % non-Condensing

Attached ( ), Detached ( O )

Wall-outlet type

29

Specifications E2210S

Display

Sync Input

Video Input

Resolution

Plug&Play

Power
Consumption

Dimensions

& Weight

22 inches (55.86 cm) Flat Panel Active matrix-TFT LCD
Anti-Glare coating

55.86

:

cm

28 W(Typ.)

Without Stand

Width 50.64 cm / 19.94 inches
Height 33.32 cm / 13.12 inches
Depth 6.04 cm / 2.38 inches

Visible diagonal size :

0.282x 0.282 mm (Pixel pitch)

Horizontal Freq. 30 - 83 kHz (Automatic)

Vertical Freq. 56 - 75 Hz (Automatic)
Input Form Separate Sync.

Signal Input 15 pin D-Sub Connector
Input Form RGB Analog (0.7 Vp-p/ 75 ohm)

Max VESA 1680 x 1050 @60 Hz
Recommend VESA 1680 x 1050 @60 Hz

DDC 2AB

On Mode
Sleep Mode İ 0.2 W

Off Mode İ 0.1 W

With Stand

Width 50.64 cm / 19.94 inches
Height 42.49 cm / 16.73 inches
Depth 20.99 cm / 8.26 inches

Weight(excl. packing) 3.57 kg (7.87 lbs)

Range

Power Input

Environment
al Conditions

Stand Base

Power cord

NOTE

Information in this document is subject to change without notice.

6KNVŇ`Ň

#%8`*\#

Operating Conditions

Temperature Ň%VQŇ%
Humidity 10 % to 80 % non-Condensing

Storage Conditions

Temperature Ň%VQŇ%
Humidity 5 % to 90 % non-Condensing

Attached ( ), Detached ( O )

Wall-outlet type

30

Specifications

Preset Modes (Resolution)

E1910T/E1910S

Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)

1

720 x 400

2

640 x 480

3

640 x 480

4

800 x 600

5

800 x 600

6

1024 x 768

7

1024 x 768

8

1152 x 864

*9

1280 x 1024

10

1280 x 1024

E2210T/E2210S

Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)

1

720 x 400

2

640 x 480

3

640 x 480

4

800 x 600

5

800 x 600

6

1024 x 768

7

1024 x 768

8

1152 x 864

9

1280 x 1024

10

*11

1280 x 1024
1680 x 1050

31.468

31.469

37.500

37.879

46.875

48.363

60.123

67.500

63.981

79.976

31.468

31.469

37.500

37.879

46.875

48.363

60.123

67.500

63.981

79.976

65.290

70
60
75
60
75
60
75
75
60
75

*Recommend Mode

70
60
75
60
75
60
75
75
60
75
60

Indicator

MODE

On Mode
Sleep Mode
Off Mode

*Recommend Mode

LED Color

White

White Blinking

Off

31

Installing the Wall mount plate

This monitor satisfies the specifications of the Wall mount plate or
the interchange device.

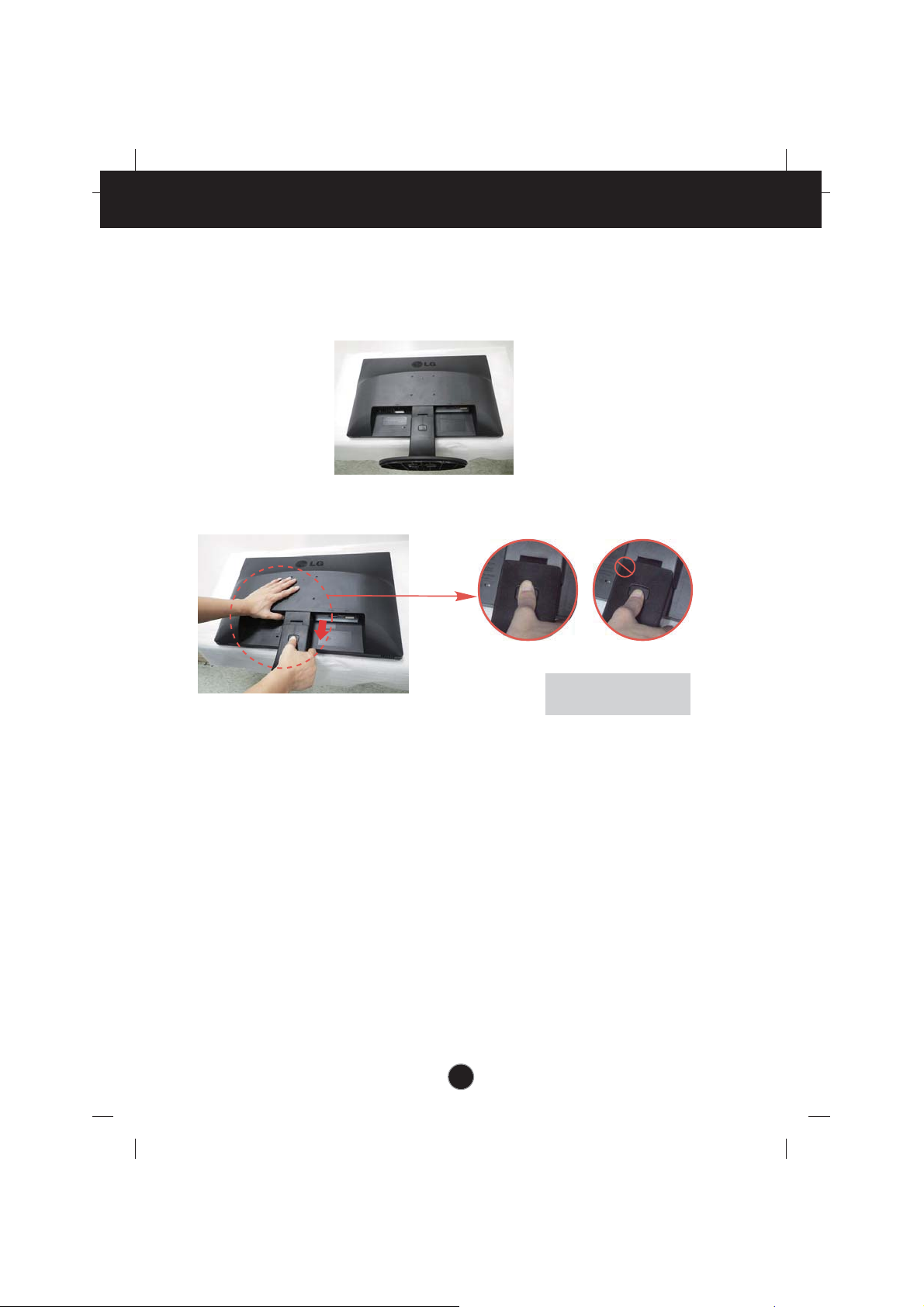

1. Place the monitor with its front facing downward on a soft cloth.

2. Separate the stand by pushing the PUSH button.

Good Position Bad Position

32

Warning:

You can hurt your finger.

Installing the Wall mount plate

3.

Install the Wall mount plate.

Wall mount plate(Separate purchase)

This is stand-type or wall mount type and is
connectable with Wall mount plate.
Please refer to the installation guide for more
details, which is provided when Wall mount plate
is purchased.

<Screw Mounting Interface Dimension>

Hole spacing : 75 mm x 75 mm.

NOTE

VESA compatible only with respect to screw mounting interface dimensions and mounting screw

specifications

Please use VESA standard as below.

* 784.8 mm and under (30.9 inch)

- Wall Mount Pad Thickness : 2.6 mm

- Screw : 4.0 mm x Pitch 0.7 mm x Length 10 mm

* 787.4 mm and above (31.0 inch)

- Please use VESA standard wall mount pad and screws.

Kensington Security Slot

Connected to a locking cable that
can be purchased separately at
most computer stores.

33
