LG (CA-109) 701B CS778G 177V Schematic

COLOR MONIT OR

SER VICE MANUAL

CAUTION

BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

MENU SELECT

MODEL: 177V

CHASSIS NO. : CA-109

F ACTORY MODEL: CS778G

1. PICTURE TUBE

Size : 17 inch
DefIection Angle : 90°
Neck Diameter : 29.1 mm
Dot Pitch : 0.27 mm
Face Treatment : W-ARASC (Anti-Reflection and

Anti-Static Coating),

Anti-static coating

Low Radiation : TCO 99

2. SIGNAL

2-1. Horizontal & Vertical Sync

1) Input Voltage Level: Low=0~1.2V, High=2.5~5.5V

2) Sync Polarity : Positive or Negative

2-2. Video Input Signal

1) Voltage Level : 0 ~ 0.7 Vp-p
a) Color 0, 0 : 0 Vp-p
b) Color 7, 0 : 0.467 Vp-p
c) Color 15, 0 : 0.7 Vp-p

2) Input Impedance : 75 Ω

3) Video Color : R, G, B Analog

4) Signal Format : Refer to the Timing Chart

2-3. Signal Connector

3 row 15-pin Connector (Attached)

2-4. Scanning Frequency

Horizontal : 30 ~ 72 kHz
Vertical : 50 ~ 160 Hz

3. POWER SUPPLY

3-1. Power Range

AC 100~240V (Free Voltage), 50/60Hz, 2.0A Max.

3-2. Power Consumption

4. DISPLAY AREA

4-1. Active Video Area :

• Max Image Size - 326.7 x 245.5 mm (12.86" x 9.67")

• Preset Image Size - 310 x 230 mm (12.20" x 9.06")
4-2. Display Color : Full Colors
4-3. Display Resolution : 1280 x 1024 / 60Hz

(Non-Interlace)

4-4. Video Bandwidth : 110 MHz

5. ENVIRONMENT

5-1. Operating Temperature: 15°C ~ 30°C (59°F ~ 86°F)

(Ambient)

5-2. Relative Humidity : 8%~ 80%

(Non-condensing)

5-3. Altitude : 5,000 m

6. DIMENSIONS (with TILT/SWIVEL)

Width : 400.0 mm (15.74 inch)
Depth : 420.0 mm (16.53 inch)
Height : 395.0 mm (15.55 inch)

7. WEIGHT (with TILT/SWIVEL)

Net Weight : 14.4 kg (31.75 lbs.)
Gross Weight : 17.0 kg (37.48 lbs.)

CONTENTS

- 2 -

SPECIFICATIONS ................................................... 2

SAFETY PRECAUTIONS ........................................ 3

TIMING CHART ....................................................... 4

OPERATING INSTRUCTIONS ................................ 5

WIRING DIAGRAM ................................................. 6

DISASSEMBLY ....................................................... 7

BLOCK DIAGRAM ................................................... 8

DESCRIPTION OF BLOCK DIAGRAM.....................9

ADJUSTMENT ....................................................... 11

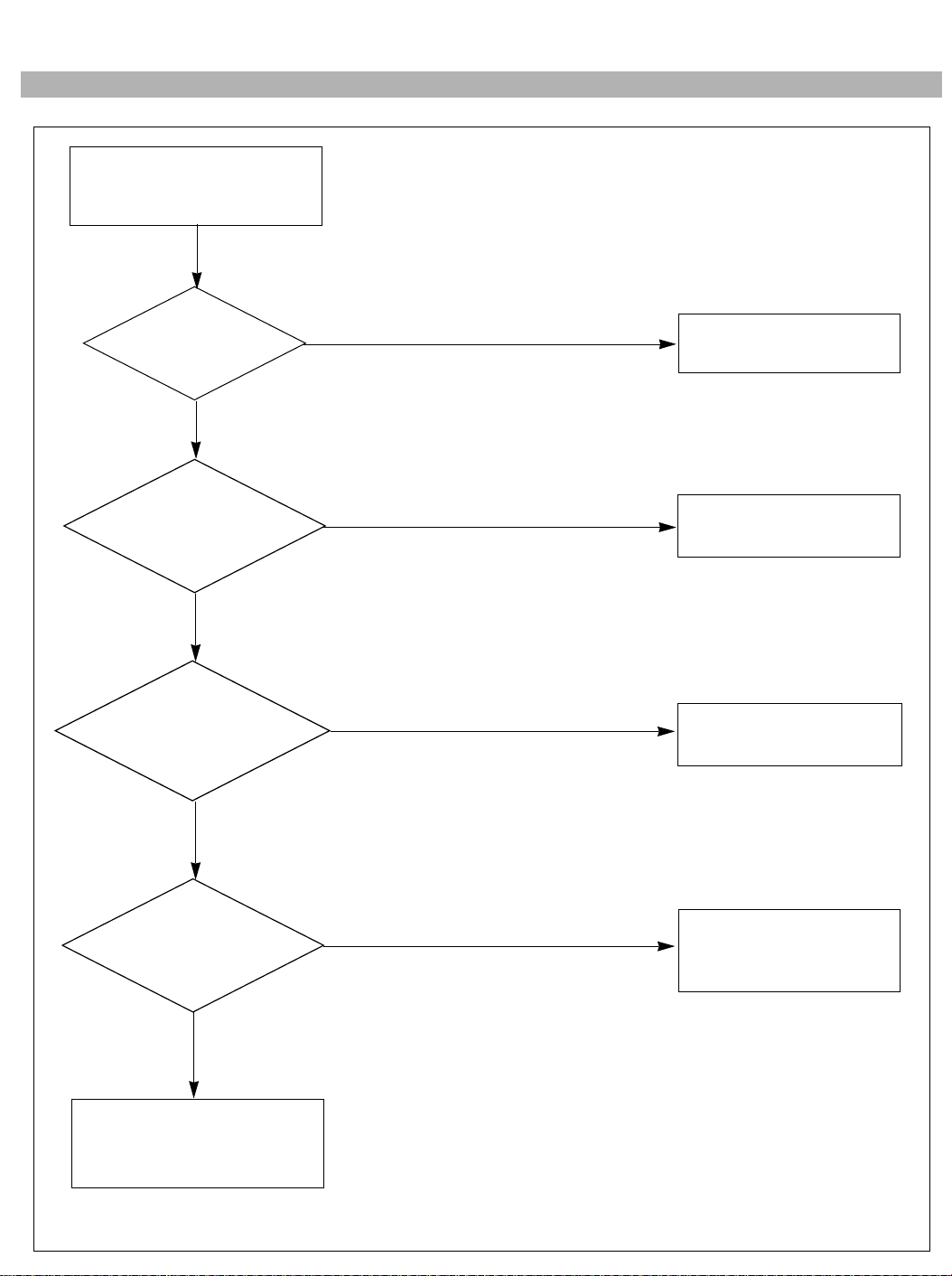

TROUBLESHOOTING GUIDE .............................. 13

EXPLODED VIEW...................................................23

REPLACEMENT PARTS LIST ............................... 25

PIN CONFIGURATION........................................... 30

SCHEMATIC DIAGRAM......................................... 32

PRINTED CIRCUIT BOARD................................... 34

SPECIFICATIONS

MODE

MAX

NORMAL (ON)

STAND-BY

SUSPEND

OFF

POWER CONSUMPTION

85 W

74 W
less than 8 W
less than 8 W
less than 5 W

LED COLOR

GREEN
GREEN

AMBER

AMBER

SAFETY-RELATED COMPONENT WARNING!

There are special components used in this color monitor
which are important for safety. These parts are marked

on the schematic diagram and the replacement

parts list. It is essential that these critical parts should be

replaced with the manufacturer's specified parts to
prevent X-radiation, shock, fire, or other hazards. Do not
modify the original design without obtaining written
permission from manufacturer or you will void the original
parts and labor guarantee.

CAUTION:

No modification of any circuit should be
attempted.
Service work should be performed only after
you are thoroughly familiar with all of the
following safety checks and servicing
guidelines.

SAFETY CHECK

Care should be taken while servicing this color monitor
because of the high voltage used in the deflection circuits.
These voltages are exposed in such areas as the
associated flyback and yoke circuits.

FIRE & SHOCK HAZARD

An isolation transformer must be inserted between the

color monitor and AC power line before servicing the
chassis.

• In servicing, attention must be paid to the original lead
dress specially in the high voltage circuit. If a short
circuit is found, replace all parts which have been
overheated as a result of the short circuit.

• All the protective devices must be reinstalled per the
original design.

• Soldering must be inspected for the cold solder joints,
frayed leads, damaged insulation, solder splashes, or
the sharp points. Be sure to remove all foreign
materials.

IMPLOSION PROTECTION

All used display tubes are equipped with an integral
implosion protection system, but care should be taken to
avoid damage and scratching during installation. Use only
same type display tubes.

X-RADIATION

The only potential source of X-radiation is the picture tube.
However, when the high voltage circuitry is operating
properly there is no possibility of an X-radiation problem.
The basic precaution which must be exercised is keep the
high voltage at the factory recommended level; the normal
high voltage is about 25.5kV. The following steps describe
how to measure the high voltage and how to prevent X­radiation.

Note : It is important to use an accurate high voltage

meter calibrated periodically.

• To measure the high voltage, use a high impedance
high voltage meter, connect (–) to chassis and (+) to
the CDT anode cap.

• Set the brightness control to maximum point at full
white pattern.

• Measure the high voltage. The high voltage meter
should be indicated at the factory recommended level.

• If the meter indication exceeds the maximum level,
immediate service is required to prevent the possibility
of premature component failure.

• To prevent X-radiation possibility, it is essential to use
the specified picture tube.

CAUTION:

Please use only a plastic screwdriver to protect yourself
from shock hazard during service operation.

SAFETY PRECAUTIONS

- 3 -

TIMING CHART

- 4 -

VIDEO

SYNC

C

E

D

F

AB

MODE

Resolution

Recall

H
O
R

I

Z
O
N

T
A

L

V

E

R

T

I
C
A
L

kHz

µs
µs
µs
µs
µs
µs

Hz
ms
ms
ms
ms
ms
ms

MODE 2

—

31.469

31.778

25.422

6.356

3.813

1.907

0.636

—

59.9

16.683

15.253

1.430

0.064

1.049

0.318

640

x

480

60Hz

Yes

MODE 1

—

31.472

31.774

25.419

6.355

3.813

1.906

0.635
+

70.1

14.267

12.710

1.557

0.064

1.080

0.413

720

x

400

70Hz

Yes

MODE 3

—

37.50

26.667

20.317

6.349

2.032

3.810

0.508

—

75.0

13.333

12.800

0.533

0.080

0.427

0.027

640

x

480

75Hz

Yes

MODE 4

—

43.269

23.111

17.778

5.333

1.556

2.222

1.556

—

85.0

11.764

11.093

0.670

0.069

0.578

0.023

640

x

480

85Hz

Yes

MODE 5

+

46.875

21.333

16.162

5.172

1.616

3.232

0.323
+

75.0

13.333

12.800

0.533

0.064

0.448

0.021

800

x

600

75Hz

Yes

MODE 6

+

53.674

18.631

14.222

4.409

1.138

2.702

0.569
+

85.061

11.756

11.179

0.578

0.056

0.503

0.019

800

x

600

85Hz

Yes

MODE 7

+

60.023

16.660

13.003

3.657

1.219

2.235

0.203
+

75.0

13.328

12.795

0.533

0.050

0.466

0.017

1024

x

768

75Hz

Yes

MODE 8

+

68.677

14.561

10.836

3.725

1.016

2.201

0.508
+

84.997

11.765

11.183

0.582

0.044

0.524

0.015

1024

x

768

85Hz

Yes

MODE 9

+

63.981

15.630

11.852

3.777

1.037

2.296

0.444
+

60.02

16.661

16.005

0.657

0.047

0.594

0.016

1280

x

1024

60Hz

Yes

MODE 10

—

50.6

19.752

15.802

3.950

1.580

1.975

0.395

—

100.1

9.995

9.481

0.514

0.059

0.435

0.020

640

x

480

100Hz

Yes

MODE 11

+

63.0

15.876

11.848

4.028

1.185

2.370

0.474
+

99.5

10.05

9.526

0.524

0.048

0.460

0.016

800

x

600

100Hz

Yes

MARK

E
A
B
D

F
C

E
A
B
D
F
C

Sync Polarity

Frequency

Total Period

Video Active Time

Blanking Time

Sync Duration

Back Porch

Front Porch

Sync Polarity

Frequency

Total Period

Video Active Time

Blanking Time

Sync Duration

Back Porch

Front Porch

FACTORY PRESET MODE

<< Dot Clock (MHz), Horizontal Frequency (kHz), Vertical Frequency (Hz), Horizontal etc... (µs), Vertical etc... (ms) >>

- 5 -

OPERATING INSTRUCTIONS

MENU SELECT

FRONT VIEW REAR VIEW

AC Power Socket

Signal Connector

ID Label

Power ON/OFF Button

See Front Control Panel

Front Control Panel

1. Power ON/OFF Button

Use

this button to turn the monitor ON or OFF.

2. Power Indicator

This indicator lights up green when the monitor operates
normally; in DPMS (Energy Saving) mode, - stand-by,
suspend, or power off mode - its color changes to amber,
and if abnormal or damaging circuit turns out amber blink.

3. Select Button

Use this button to enter a selection in the on screen
display.

4. Button

Use these buttons to choose or adjust items in the on
screen display.

5. MENU Button

Use this button to enter or exit the on screen display.

MENU

SELECT

4

5

1

2

3

WIRING DIAGRAM

- 6 -

P501

P201

P405

P301

P302

G2

P702

P701

T1

P402

P902

S

+

S

Signal

Cable

AC

Socket

FBT

- 7 -

DISASSEMBLY

Tip Spec.

A(Width) : 5.0~15.0mm
B(Depth) : 0.6~0.9mm
C(Height) : 12.0mm

1. TILT/SWIVEL & BACK COVER REMOVAL

1) Set the monitor face downward.

2) Pull the latch (a), carefully remove the Tilt/Swivel by pulling it upward.

3) Pressing the latch (b), Back cover by pushing it upward.

4) Release the latch (c).

5) Slide the Back Cover away from the Front Cabinet of the monitor.

2. TOTAL CHASSIS ASSEMBLY REMOVAL

1) Set the monitor face downward.

2) Pressing the latch (a), Main Chassis
by pushing it upward.

(a)

(a’)

CDT

Please be careful, not to cut pattern.

Back Cover

(c)

Cabinet

(a)

C

Tip

B

A

(b)

1

3

2

3

2

OSD
ON/OFF

SELECT

POWER

POWER INPUT

100~240VAC

(50/60Hz)

Line
Filter

Degaussing
Circuit

< OSD Control >

SMPS

TRANS

(T901)

SMPS
CONTROL
(IC901)

DPM

CONTROL

CIRCUIT

Voltage

Regulating

Circuit

80V
50V

15V

6.3V

TILT
Control
Circuit

6.3V

15V

E2PROM
(IC402)

H / V POSITION

BRIGHTNESS
CONTRAST

H / V SIZE
SPCC
TRAPEZOID
PIN BALANCE
PARALLELOGRAM
ROTATION
RECALL
DEGAUSS
COLOR CURVE
MOIRE
LANGUAGE
RESET
VIDEO LEVEL
OSD TIME

5V

OSD IC
(IC301)

MTV038-15

H-Sync Sig
V-Sync Sig

I2C DATA(SDA)
I2C CLOCK(SCL)

VIDEO

LM1269

PRE-AMP
(IC302)

Signal
Cable

R
G
B

VIDEO

LM2467

LM2480

CUT OFF IC
(IC304)

MAIN AMP
(IC303)

5V

5V

H/V Sync Processor

( IC701 )

TDA4857

V-OUT

( IC601)

TDA4866

H-OUT

( Q706)

H-Linearity

Correction

DC/DC Converter

X-RAY

Protection

Circuit

FBT

( T701 )

Dynamic

Focus

Circuit

Auto
Beam
Limit

Vertical Blanking,

Brightness Control

- 160V

40V

400V

STEP UP

15V

D/D Feed Back

15V

MICOM
(IC401)

SCL / SDA

H/V Sync,

PWM Control

15V

5V

15V

80V

15V

50V

DY CDT

Heater ( 6.3V )

I

2

C

I

2

C

I2C

H/V

Sync

G
1

Screen(G2)

Dynamic Focus

Static Focus

H.V

R/G/B

Drive/Contrast

Cut-Off

H-DRV

B-DRV

B+

15V

TILT

COIL

DEGAUSSING

COIL

I2C

Vout 1
Vout 2

DESCRIPTION OF BLOCK DIAGRAM

- 9 -

1. Line Filter & Associated Circuit.

This is used for suppressing noise of power input line
flowing into the monitor and/or some noise generated in
this monitor flowing out through the power input line.
That is to say, this circuit prevents interference between
the monitor and other electric appliances.

2. Degauss Circuit & Coil.

The degauss circuit consists of the degaussing coil, the
PTC(Positive Temperature Coefficient) thermistor(TH901),
and the relay(RL901). This circuit eliminates abnormal
color of the screen automatically by degaussing the
shadow mask in the CRT during turning on the power
switch. When you need to degauss in using the monitor,
select DEGAUSS on the OSD menu.

3. SMPS(Switching Mode Power Supply).

This circuit is working of 90~264V AC(50/60Hz).
The operation procedure is as follows:

1) AC input voltage is rectified and smoothed by the bridge
diodes (D900) and the capacitor (C908).

2) The rectified voltage(DC) is applied to the primary coil
of the transformer(T901).

3) The control IC(IC901) generates switching pulse to turn
on and off the primary coil of the transformer (T901)
repeatedly.

4) Depending on turn ratio of the transformer, the
secondary voltages appear at the secondary coils of the
transformer(T901).

5) These secondary voltages are rectified by each
diode(D941, D942, D951, D961, D962, D971) and operate
other circuit. (horizontal and vertical deflection, video
amplifier, ...etc.)

4. Display Power Management Circuit.

This circuit control power consumption of the monitor by
detecting H and V sync signal. There are stand-by and
suspend mode. When no horizontal or vertical sync signal
input, the circuit consists of Q941 and Q951 becomes stand­by or suspend mode. It’s power consumption is below 8W.

5. X-ray Protection.

If the high voltage of the FBT reaches up to 29kV (abnormal
state), IC401(MICOM) pin 35 Sensing from FBT directly.
Then MICOM control IC701 (Deflection controller) to stop
Horizontal drive pulse and stop Horizontal Deflection.

6. Micom(Microprocessor) Circuit.

The operating procedure of Micom(Microprocessor) and
its associated circuit is as follows:

1) H and V sync signal is supplied from the signal cable.

2) The Micom(IC401) distinguishes polarity and
frequency of H and V sync.

3) The Micom sets operating mode and offers the
controlled data. (H-size, H-position, V-size, ... etc.)

4) The controlled data of each mode is stored in itself.

5) User can adjust screen condition by each OSD
function. The data of the adjusted condition is stored
in EEPROM(IC402).

7. Horizontal and Vertical Synchronous Processor.

This circuit generates the horizontal drive pulse and the
vertical drive pulse by taking sync-signal from the Signal­Cable. This circuit consists of the TDA4857(IC701) and
the associated circuit.

8. D/D(DC to DC) Converter.

This circuit supplies DC voltage to the horizontal deflection
output circuit by increasing DC 50V which is the
secondary voltage of the SMPS in accordance with the
input horizontal sync signal.

9. Side-Pincushion & Trapezoid Correction Cirucit.

This circuit improves the side-pincushion and the
trapezoid distortion of the screen by mixing parabola and
saw-tooth wave to output of the horizontal deflection D/D
converter which is used for the supply voltage(B + ) of the
deflection circuit.

10. Horizontal Deflection Output Circuit.

This circuit makes the horizontal deflection by supplying
the saw-tooth current to the horizontal deflection yoke.

11. High Voltage Output & FBT(Flyback Transformer).

The high voltage output circuit is used for generating pulse
wave to the primary coil of the FBT(Flyback Transformer) .
A boosted voltage(about 26KV) appears at the secondary
of the FBT and it is supplied to the anode of the CDT. And
there are another output voltages such as the dynamic
focus and the screen voltage(G2).

12. H-Linearity Correction Circuit.

This circuit corrects the horizontal linearity for each
horizontal sync frequency.

13. Vertical Output Circuit.

This circuit takes the vertical ramp wave from the
TDA4857(IC701) and performs the vertical deflection by
supplying the saw-tooth current from the TDA4866(IC601)
to the vertical deflection yoke.

14. Dynamic Focus Output Circuit.

This circuit takes the horizontal and the vertical parabola
waves from the TDA4857(IC701) and amplifies it to
maintain constant focus on center and corners in the
screen.

- 10 -

15. H& V Blanking and Brightness Control.

Blanking circuit eliminates retrace line by supplying
negative pulse to the G1 of the CRT. And Brightness
circuit is used for control of the screen brightness by
changing DC level of the G1.

16. Image Rotation (Tilt) Circuit.

This circuit corrects the tilt of the screen by supplying the
image rotation signal to the tilt coil which is attached near
the deflection yoke of the CRT.

17. Moire Rdduction Circuit

This circuit reduce interference between the periodical
display pattern and the CDT’s mask.
The positions of every other one dot video signal
beams(red, green, and blue beam) are shifted finely, thus
reducing interference.

18. OSD Circuit

This circuit is used for performing the OSD(On-Screen­Display) function.
When a user selects the OSD Select/Adjustment control,
the adjustment status displays on the screen.

19. Video Pre-Amp Circuit.

This circuit amplifies the analog video signal from 0-0.7V
to 0-4V. It is operated by taking the clamp, R, G, B drive
and contrast signal from the Micom(IC401).

20. Video Output Amp Circuit.

This circuit amplifies the video signal which comes from
the video pre-amp circuit and amplified it to applied the
CRT cathode.

- 11 -

ADJUSTMENT

GENERAL INFORMATION

All adjustment are thoroughly checked and corrected
when the monitor leaves the factory, but sometimes
several adjustments may be required.
Adjustment should be following procedure and after
warming up for a minimum of 30 minutes.

• Alignment appliances and tools.

- IBM compatible PC.

- Programmable Signal Generator.
(eg. VG-819 made by Astrodesign Co.)

- EPROM or EEPROM with saved each mode data.

- Alignment Adaptor and Software.

- Digital Voltmeter.

- White Balance Meter.

- Luminance Meter.

- High-voltage Meter.

AUTOMATIC AND MANUAL DEGAUSSING

The degaussing coil is mounted around the CDT so that
automatic degaussing when turn on the monitor. But a
monitor is moved or faced in a different direction, become
poor color purity cause of CDT magnetized, then press
DEGAUSSING on the OSD menu.

ADJUSTMENT PROCEDURE & METHOD

-Install the cable for adjustment such as Figure 1and run

the alignment program on the DOS for IBM compatible PC.

-Set external Brightness and Contrast volume to max position.

1. Adjustment for High-Voltage.

1) Display cross hatch pattern at Mode 8.

2) Adjust CDT Anode voltage to 25.5kV ± 0.3kV with

alignment program for high voltage.

2. Adjustment for Factory Mode (Preset Mode).

1) Display cross hatch pattern at Mode 1.

2) Run alignment program for CS778G on the IBM
compatible PC.

3) EEPROM → ALL CLEAR → Y(Yes) command.

<Caution> Do not run this procedure unless the
EEPROM is changed. All data in EEPROM (mode
data and color data) will be erased.

4) COMMAND → PRESET START → Y(Yes)
command.

5) DIST. ADJ. → CTRL PWM → TILT command.
Adjust TILT as arrow keys to be the best condition.

6) DIST. ADJ.→ BALANCE command.

7) Adjust balance of Pin-Balance and Parallelogram
correction as arrow keys to be the best condition.

8) DIST. ADJ. → FOS. ADJ command.

9) Adjust H-POSITION as arrow keys to center of the
screen.

10) Adjust H-SIZE as arrow keys to 310 ± 2mm.

11) Adjust V-POSITION as arrow keys to center of the
screen.

12) Adjust V-SIZE as arrow keys to 230 ± 2mm.

13) Adjust SPCC(Side Pincushion) and TRAPEZOID as
arrow keys to be the best condition.

14) Save of the Mode.

15) Display from Mode 2 to Mode 11 and repeat above
from number 8) to 14).

16) COMMAND → PRESET EXIT → Y (Yes) command.

3. Adjustment for White Balance and Luminance.

1) Set the White Balance Meter.

2) Press the DEGAUSSING on the OSD menu for
demagnetization of the CDT.

3) Display color 0,0 pattern at Mode 8.

4) COLOR ADJ. → LUMINANCE command of the
alignment program.

5) Set Brightness and Contrast to max position.

6) COLOR ADJ. → BIAS ADJ. command of the
alignment program.

7) Set the data as belows.
R- BIAS : Min → 0
G- BIAS : Min → 0
B- BIAS : Data → 127(7F)
Sub-Brightness : Data → Max177(B1)
and adjust raster luminance to 0.4 ± 0.05FL with
FBT screen Volume. Here check whether blue color
or not if it’s not blue color, the monitor must be
repaired.

8) Adjust R-BIAS and G-BIAS command to x=0.283 ±

0.005 and y=0.298 ± 0.005 on the White Balance
Meter with PC arrow keys.

9) Adjust Sub-Brightness command to 0.4 ± 0.1FL of
the raster luminance.

10) Display color 15,0 box pattern(70x70mm) at Mode 8.

11)DRIVE ADJ → No 1. command.

12)Set Sub-contrast to 127(7F) and B-DRIVE to 90(5A)
position at DRIVE of the alignment program.

13) Adjust R-DRIVE and G-DRIVE command to white
balance x=0.283 ± 0.003 and y=0.298 ± 0.003 on
the White Balance Meter with PC arrow keys.

14)Adjust SUB-CONTRAST command to 50±2FL of the
color 15,0 box pattern (70x70mm) luminance at
Mode 8.

- 12 -

15)Save in COLOR 1.

16)Display color 15,0 full white patten at Mode 8.

17)COLOR ADJ. → LUMINANCE → ABL command.

18) Adjust ABL to 32 ± 1FL of the luminance.

19) Exit from the program.

4. Input EDID Data.

1) Display color 15,0 cross hatch pattern at Mode 8.

2) EDID → EDID INFO command.

3) Check EDID data information, if incorrect, you should
modify EDID data and saved.

4 EEPROM → WRITE EDID command and confirm

“EDID Write OK!!” message of monitor.

5) Exit from the alignment program.

6) Power switch OFF/ON for EDID data save.

5. Adjustment for Focus.

1) Display “mE” character in full screen at Mode 8.

(1024x768/85Hz)

2) Adjust two Focus control on the FBT that focus

should be the best condition.

6. Special PRESET Mode Adjustment Method with
OSD control.

Service man can adjust preset modes data easily by
OSD control key (select/Adjustment) on the monitor
without any jig or program.

★Be careful to remember the data before adjustment

because it can’t be recalled.

◆ Following is Adjustment Item.

1) H/V size & H/V position

2) SHAPE (except Tilt)

3) Luminance box pattern (70x70mm)
→ SCO (Sub-Contrast)

4) Luminance Back-Raster
→ SBR(Sub-Brightness)

5) Luminance Full-White
→ ABL (Auto Beam Limit)

◆ Adjustment Procedure.

1) Power on the monitor.

2) First pushing the “Down” key and then with keeping
the condition push the “power” key. A screen of
monitor blinks one time.

3) Check change of symbol (☆→ 󱀕) that displays on
left below in the OSD window.

4) Select adjustment item 1) and 2) adjust using select/
adjustment key for preset mode save.

5) Select “DEGAUSS” in the special menu for luminance
adjustment item 3), 4) and 5).

* Before the luminance adjustment, set the max

position for extermal BRIGHTNESS & CONTRAST
and white color balance must be color 9300K.

6) Select SCO, SBR and ABL, adjust at mode 8.
Following are adjustment procedures using set/
adjustment key.

① SBR(Sub-Brightness): Back-Raster → 0.4FL
②

SCO(Sub-Contrast):Window luminance → 50FL (Box pattern)

③ ABL(Auto Beam Limit): Full White → 32FL

7) After adjustment, set power switch off → on and the
symbol (󱀕) of OSD window disappear.

NO POWER

(POWER INDICATOR OFF)

TROUBLESHOOTING GUIDE

1. NO POWER

CHECK

FUSE OK?

YES

CHECK

C908 VOLTAGE?

(AC120V: 160VDC,

AC220V: 304VDC)

YES

CHECK

IC901 PIN 5

WAVEFORM

(SQUARE WAVE

COMES OUT?)

YES

NO

NO

NO

TROUBLE IN FUSE
(F901)

TROUBLE IN
D900

TROUBLE IN
IC901

CHECK

D941, D942, D951, D961,

D962, D971
VOLTAGE?

YES

TROUBLE IN

Q903, Q952,

Q951, Q942, Q941

NO

TROUBLE IN
D941, D942, D951,
D961, D962, D971

NO CHARACTER

2. NO CHARACTER

CHECK

IC302

PIN 9(5V) ?

YES

CHECK

IC302 PIN 5, 6, 7?

YES

CHECK

IC302 PIN 20, 19, 18 ?

YES

CHECK

IC303 PIN 4 (80V)

PIN 8 (12V) ?

NO

NO

NO

NO

TROUBLE IN
P302 5V LINE

TROUBLE IN
PC SIGNAL,
P301 SIGNAL CABLE

TROUBLE IN
IC302

TROUBLE IN
P302 PIN 15(80V),

PIN 14(15V)

YES

CHECK

IC303

PIN 1, 2, 3 ?

YES

CHECK

R, G, B CATHODE

VOLTAGE?

YES

TROUBLE IN
CRT SOCKET

NO

NO

TROUBLE IN IC303

TROUBLE IN
R341~R343,
R331~R333, L311~L313,
D307~D312

NO VIDEO

(POWER INDICATOR ON)

3. NO RASTER

CHECK

POWER INDICATOR

GREEN or AMBER?

GREEN

CHECK

D712 ANODE

(-157V)?

YES

CHECK

G1VOLTAGE?

(-55V~-150V)

AMBER

NO

NO

DPM MODE
(NO H and/or V SYNC)

TROUBLE IN
D712

TROUBLE IN
Q799

YES

CHECK

CDT HEAT

VOLTAGE? (6.3V)

YES

TROUBLE IN

CDT

NO

TROUBLE IN
D941, Q942, Q941

NO H-DEFLECTION

0V

T

(ONE VERTICAL LINE)

4. NO HORIZONTAL DEFLECTION

CHECK

Q706?

YES

CHECK

B+ VOLTAGE

(50V)?

YES

CHECK

T701(FBT) PIN 2

(31KHZ 60V,

69KHZ 140V) ?

YES

NO

NO

NO

TROUBLE IN
Q706

TROUBLE IN
50V LINE

TROUBLE IN
Q719, Q720, D710

CHECK

Q701 COLLECTOR

WAVEFORM?

NO

TROUBLE IN
Q701

YES

TROUBLE IN
T701, P701

UNBALANCED OF H-LIN.

5. TROUBLE IN H-LINEARITY

CHECK

IC401

PIN 5, 6, 7 ?

YES

CHECK

Q711~Q716?

YES

CHECK

L703?

NO

NO

NO

TROUBLE IN
IC401 (MICOM)

TROUBLE IN
Q711 ~ Q716

TROUBLE IN
L703

YES

TROUBLE IN
C722, C723, C726, C729

HORIZONTAL

FREQUENCY(fH)

30kHz ≤ Hf < 35kHz
35kHz ≤ Hf < 39kHz
39kHz ≤ Hf < 44kHz
44kHz ≤ Hf <

48zkHz
48kHz ≤ Hf < 52kHz
52kHz ≤ Hf < 58kHz
58kHz ≤ Hf < 62kHz
62kHz ≤ Hf < 66kHz

Cs SIGNAL TABLE

Cs0

0
0
0
0
0
0
0
0
0

Cs1

0
0
1
1
1
1
1
1
1

Cs2

0
1
0
0
0
1
1
1
1

Cs3

0
0
0
1
1
0
0
1
1

NO V-DEFLECTION

3V

(ONE HORIZONTAL LINE)

6. NO VERTICAL DEFLECTION

CHECK

IC601 PIN 3

(15V)?

YES

CHECK

IC601 PIN 7

(40V)?

YES

CHECK

IC701 PIN 12, 13?

NO

NO

NO

TROUBLE IN
R603 15V LINE

TROUBLE IN
HIGH-VOLTAGE OUT
CIRCUIT(FBT),
D721, R606

TROUBLE IN
IC701

YES

TROUBLE IN
IC601, V-CIRCUIT

7. TROUBLE IN OSD

Pin 5

5V

Pin 10

5V

H+V

5V

H+V

NO OSD

CHECK

IC301 B

DC 5V

(5V)

+

?

YES

CHECK

IC301 PIN 5, 10

WAVEFORM?

YES

CHECK

IC301 PIN 12

WAVEFORM ?

(ENTER BUTTON MUST BE PRESSED.)

NO

NO

NO

TROUBLE IN
5V LINE

TROUBLE IN
IC601 PIN8 (V-FBP),
IC701 PIN1 (H-FBP)

TROUBLE IN
IC302, IC301

YES

CHECK

IC301 PIN 13, 14, 15 ?

YES

TROUBLE IN
OSD PERIPHERAL
CIRCUIT

NO

TROUBLE IN
IC301, IC302

8. TROUBLE IN DPM

5V

24MHz

OFF MODE FAILURE

CHECK

IC401 (MICOM)

PIN 30, 31 (H/V INPUT)

SIGNAL?

YES

H/V SYNC

CHECK

IC401 PIN 13

WAVEFORM?

YES

CHECK

IC401 (MICOM)

PIN 2, 3 ?

(NO OFF MODE.)

NO

INPUT H/V SYNC SIGNAL

NO

NO (DPMF: 0V)

CHECK PC,
(PC IS NOT GOING INTO
DPM OFF MODE)

TROUBLE IN
X401

TROUBLE IN
IC401 (MICOM)

SEE DPM TABLE

YES

CHECK

OFF

NO

Item

DPMF

H
L
L
L

DPM TABLE

DPMS

TROUBLE IN
Q941, Q942, Q951, Q952,

LED
H
H
H

L

GREEN
AMBER
AMBER
AMBER

B+LINE

(6.3V,15V) ?

YES

Mode

TROUBLE IN PC

NORMAL

STAND-BY

SUSPEND

9. NO DEGAUSSING

NO DEGAUSSING

CHECK

IC401 PIN 19

(0V)?

CHECK

Q953 COLLECTOR

VOLTAGE?

DC 15V

CHECK

P902 ?

YES

YES

(DEGAUSS ON THE OSD MENU MUST BE PRESSED.)

NO

NO

NO

TROUBLE IN
IC401 (MICOM)

TROUBLE IN
Q953

TROUBLE IN
P902

YES

CHECK
RL901?

YES

TROUBLE IN
TH901,
DEGAUSSING COIL

NO

TROUBLE IN
RL901

NO TILT (NO ROTATION)

10. NO TILT (NO ROTATION)

CHECK

IC401 PIN21

WAVE FORM ?

YES

CHECK

15V LINE

AND 6.3V LINE ?

YES

CHECK

Q503 COLLECTOR

VOLTAGE

(15V) ?

NO

NO

NO

TROUBLE IN

MICOM)

IC401 (

TROUBLE IN
15V LINE, 6.3V LINE

TROUBLE IN
Q501~Q503

YES

TROUBLE IN
P501, TILT COIL, D512

EXPLODED VIEW

- 23 -

8

B

A

2

1

4

3

12

12

13

6

7

5

11

13

10

9

a

b

c

MENU

SELECT

EXPLODED VIEW PARTS LIST

Ref. No.

1
2
3
4
5
6
7
8

9
10
11
12
13

A
B

a

b

c

Description

CABINET ASSEMBLY, CS778G FUJITSU SIMENS 067 PC+ABS ID31 LOCAL
CDT(CIRC), M41LFQ903X 72NLLD LG-PHILIPS Displays 70KHZ 29.1 m
BACK COVER ASSEMBLY, CS778G C035 FSC PC+ABS ID31 LOCAL
TILT SWIVEL ASSEMBLY, CS778G T053/B046 60HR 14966 WA LOCAL
SCREW ASS’Y, PHP+5*20(FZMY)+GW18 NEW TYPE
COIL, DEGAUSSING, 1090MM 16.5OHM 0.4MM 110T 17" WITH EARTH
FBT (FLY BACK TRANSFORMER), 1054A,CB777G LG-PHILIPS 17"
SOCKET(CIRC), POWER, SA-4S HUA JIE AC UNIVERSAL 3PIN BLACK
CABLE, D-SUB, UL 2990-9C(7.5) AT 1560MM GLAY CB777G DM
PWB(PCB) ASSEMBLY, SUB, CB777G CONTROL TOTAL BRAND CA-109
METAL, SHIELD BOTTOM(A-CKD)
HOLDER, PCB FIX , PC+ABS
BRACKET, CB777F SUPPORTER CDT
MAIN TOTAL ASSEMBLY, CS778G KCFSEA BRAND SKYWAY
PWB(PCB) ASSEMBLY, MAIN, CS778G KCFSEA BRAND CA-109 TOTAL
SCREW, DRAWING, D3.5 L10.0 MSWR/FZMY+SW3.5+RW3.5
SCREW ASSEMBLY, TAPTITE P TYPE D3.0 L10.0 MSWR/FZMY SW3+RW10
SCREW ASSY, MP+3*10(FZMY) + SW3+RW3

Part No.

3091TKC073L

2423GC5E93A

3809TKC035Q

3043TKK074E

339-002H

6140TC3004A

6174T11003E
6620TKB002B
6850TA9004A
6871TST284B
4950TKS169B

4930TKK031C

4810TKK171A

3313T17254K

6871TMT288H

332-112F

4001TKK004E

339-008C

- 24 -

REPLACEMENT PARTS LIST

CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS,

READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL.

* NOTE : S SAFETY Mark

AL ALTERNATIVE PARTS

DATE: 2002. 02. 18.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

CAPACITORS

C201 0CN1040K949 0.1M 50V Z F TA52
C201 0CN1040K949 0.1M 50V Z F TA52
C301 181-288N MKT 100V 103JTR PHS86103
C302 0CE107CF638 100UF SHL,SD 16V M FM5 TP 5
C303 0CK1040K945 0.1UF 50V Z F TR
C304 0CK1030K945 0.01UF 50V Z F TR
C305 0CE107CF638 100UF SHL,SD 16V M FM5 TP 5
C306 181-288N MKT 100V 103JTR PHS86103
C307 0CK3910K515 390P 50V K B TS
C308 0CN1040K949 0.1M 50V Z F TA52
C309 0CK1040K945 0.1UF 50V Z F TR
C310 181-288B MKT 100V 104JTR PHS26104
C311 0CK1040K945 0.1UF 50V Z F TR
C312 0CN1040K949 0.1M 50V Z F TA52
C313 0CK1040K945 0.1UF 50V Z F TR
C314 0CC4700W405 47PF 500V J SL TP
C315 0CE476CF638 47UF SHL,SD 16V M FM5 TP 5
C316 0CK1020W515 1000P 500V K B TS
C317 0CN1040K949 0.1M 50V Z F TA52
C318 0CK1040K945 0.1UF 50V Z F TR
C319 0CN1040K949 0.1M 50V Z F TA52
C320 0CK1040K945 0.1UF 50V Z F TR
C321 0CE475CK638 4.7UF SHL,SD 50V M FM5 TP 5
C322 0CN6810K519 680P 50V K B TA52
C323 0CE476CF638 47UF SHL,SD 16V M FM5 TP 5
C324 0CK1040K945 0.1UF 50V Z F TR
C325 181-288B MKT 100V 104JTR PHS26104
C326 0CE106CN638 10UF SHL,SD 100V M FM5 TP 5
C327 181-288B MKT 100V 104JTR PHS26104
C328 0CE106CN638 10UF SHL,SD 100V M FM5 TP 5
C329 181-288B MKT 100V 104JTR PHS26104
C330 181-288B MKT 100V 104JTR PHS26104
C331 181-288G MKT 100V 334JTR PHS26334
C332 181-288G MKT 100V 334JTR PHS26334
C333 181-288G MKT 100V 334JTR PHS26334
C334 181-288B MKT 100V 104JTR PHS26104
C335 181-288B MKT 100V 104JTR PHS26104
C336 181-288E MKT 100V 474JTR PHS 26474
C339 0CK4710W515 470P 500V K B TS
C340 0CK1040K945 0.1UF 50V Z F TR
C341 0CK22202510 2200P 2KV K B S
C342 0CE106CK638 10UF SHL,SD 50V M FM5 TP 5
C346 0CK10202515 1000PF D 2KV 10% TR B(Y5P)
C354 0CC0400K115 4P 50V D NP0 TS
C355 0CC0400K115 4P 50V D NP0 TS
C356 0CC0400K115 4P 50V D NP0 TS
C358 0CK8210K515 820P 50V K B TS
C372 0CK1040K945 0.1UF 50V Z F TR
C401 0CN1040K949 0.1M 50V Z F TA52
C402 0CE476CF638 47UF SHL,SD 16V M FM5 TP 5
C403 0CK1040K945 0.1UF 50V Z F TR
C404 0CC1800K415 18P 50V J NPO TP
C405 0CC1800K415 18P 50V J NPO TP

DATE: 2002. 02. 18.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C406 0CK1010K515 100PF 50V K B TR
C407 0CK1010K515 100PF 50V K B TR
C408 0CK1040K945 0.1UF 50V Z F TR
C409 0CC5600K415 56P 50V J NP0 TP
C410 0CK1010K515 100PF 50V K B TR
C411 0CK1040K945 0.1UF 50V Z F TR
C412 0CK1040K945 0.1UF 50V Z F TR
C413 0CK1040K945 0.1UF 50V Z F TR
C501 0CE106CF638 10UF SHL,SD 16V M FM5 TP 5
C599 0CE225CK638 2.2UF SHL,SD 50V M FM5 TP 5
C601 0CE477EH618 470UF KMG 25V M FL TP 5
C602 181-288B MKT 100V 104JTR PHS26104
C603 0CE476CK638 47UF SHL,SD 50V M FM5 TP 5
C604 181-288T MKT 100V 223KTR PHS85223
C605 0CK1020W515 1000P 500V K B TS
C701 0CQ5621N419 5600P 100V J POLY NI TP
C702 0CZZTFT001M ECQB1H103JM3 103J 50V TP5.0
C703 0CZZTFT001Z ECQB1H104JM3 104J 50V TP5.0
C704 0CQ8221N519 0.0082U 100V K POLY NI TP
C705 0CE476CF638 47UF SHL,SD 16V M FM5 TP 5
C706 0CZZTFT001Z ECQB1H104JM3 104J 50V TP5.0
C707 0CZZTFT002B ECQV1H154JZ3 154J 50V TP5.0
C708 0CE227CH638 220UF SHL,SD 25V M FM5 TP 5
C709 181-288P MKT 100V 153JTR PHS86153
C711 0CQ5621N419 5600P 100V J POLY NI TP
C713 0CQ1031N419 0.01U 100V J POLY NI TP
C716 0CK2710K515 270P 50V K B TS
C717 0CE105CN638 1UF SHL,SD 100V M FM5 TP 5
C718 181-288D MKT 100V 473JTR PHS26473
C719 0CZZTAB001A SM-BP(P)/BP 10UF 50V 13*25
C720 0CK22101515 220P 1KV K B TP5
C721 181-477L 682J 19.5*12.0*7.0*7.5 250V
C722 181-303R 304J 31.0*21.0*13.0*20.0 25
C723 181-305C 154J 19.0*14.0*8.0*10.0 250
C724 0CN1040K949 0.1M 50V Z F TA52
C726 181-482J 394J 18.0*19.0*12.0*7.5 250
C727 0CN1040K949 0.1M 50V Z F TA52
C728 0CQ5621N419 5600P 100V J POLY NI TP
C729 181-305L 684J 26.0*19.0*12.5*15.0 25
C730 0CN1040K949 0.1M 50V Z F TA52
C731 0CBZTBU004H 5600PF D 2.5KV H M/PP NI FM
C732 0CQ1031N419 0.01U 100V J POLY NI TP
C733 0CBZTBU003H 362J 20.0*12.0*7.0*10.0 800
C737 0CK10102515 100PF 2KV K B TR
C739 0CE226CK638 22UF SHL,SD 50V M FM5 TP 5
C740 0CE227EL630 220UF KMG 63V M FM5 BULK
C741 0CZZTFT002B ECQV1H154JZ3 154J 50V TP5.0
C742 0CZZTFT001R ECQB1H223JM3 223J 50V TP5.0
C743 0CK3310W515 330P 500V K B TS
C744 0CE107CP630 100UF SHL 160V M FM5 BULK
C745 0CK5610W515 560P 500V K B TS
C746 0CK33101515 330P 1KV K B TS
C747 0CK3320W515 3300P 500V K B TS
C748 0CZZTFT002B ECQV1H154JZ3 154J 50V TP5.0

DATE: 2002. 02. 18.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

DATE: 2002. 02. 18.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C749 0CE2256R638 2.2000UF SMS 250V M FM5 TP5
C750 0CK1040K945 0.1UF 50V Z F TR
C751 181-288N MKT 100V 103JTR PHS86103
C752 0CQ4721N419 0.0047U 100V J POLY NI TP5
C754 0CC4700W405 47PF 500V J SL TP
C755 0CK1040K945 0.1UF 50V Z F TR
C767 0CK10301510 0.01M 1KV K B S
C771 0CK10301510 0.01M 1KV K B S
C773 0CE107CH638 100UF SHL,SD 25V M FM5 TP 5
C774 181-288B MKT 100V 104JTR PHS26104
C775 0CK2210K515 220P 50V K B TS
C781 0CK1030K945 0.01UF 50V Z F TR
C801 0CK1040K945 0.1UF 50V Z F TR
C802 0CE106CK638 10UF SHL,SD 50V M FM5 TP 5
C805 0CE106CK638 10UF SHL,SD 50V M FM5 TP 5
C810 0CE106CK638 10UF SHL,SD 50V M FM5 TP 5
C901 0CBZTBU002B BULK PCX2 335 474K
C902 0CBZTBU002A BULK PCX2 335 224K
C903 0CKZTTA003A SC E 222M 10.0FF7 250V TP7.
C904 0CKZTTA003A SC E 222M 10.0FF7 250V TP7.
C905 0CE476EK638 47UF KMG 50V M FM5 TP 5
C906 0CK1520K515 1500P 50V K B TS
C908 181-124R 220UF SMG(25.4*40) 400V M V
C909 181-304T 273J 19.5*14.0*8.5*10.0 400
C910 0CK33101515 330P 1KV K B TS
C911 0CQ1021N419 1000P 100V J POLY NI TP
C912 0CKZTTA003D SC SAMWHA 250V 1000F M TAPI
C913 0CKZTTA003D SC SAMWHA 250V 1000F M TAPI
C941 0CE108EF630 1000UF KMG 16V M FM5 BULK
C942 0CE107CF638 100UF SHL,SD 16V M FM5 TP 5
C943 0CK3310W515 330P 500V K B TS
C944 0CKZTBU003C SC E 472M 14.0BW7 250V BK7.
C945 0CKZTBU003C SC E 472M 14.0BW7 250V BK7.
C951 0CE228CH630 2200U SHL 25V M FM5
C952 0CE227CH638 220UF SHL,SD 25V M FM5 TP 5
C953 0CE107CF638 100UF SHL,SD 16V M FM5 TP 5
C954 0CE108ED618 1000UF KMG 10V M FL TP 5
C971 0CE476EN618 47UF KMG 100V M FL TP 5
C999 0CE227EL630 220UF KMG 63V M FM5 BULK

DIODEs

D201 0DL305029BA LTL-305DJ-0C2 TP LITEON GRE
D201 0DL305029BA LTL-305DJ-0C2 TP LITEON GRE
D301 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D302 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D303 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D304 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D305 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D306 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D307 0DS124409AA 1SS244 TP ROHM KOREA
D308 0DS124409AA 1SS244 TP ROHM KOREA
D309 0DS124409AA 1SS244 TP ROHM KOREA
D310 0DS124409AA 1SS244 TP ROHM KOREA
D311 0DS124409AA 1SS244 TP ROHM KOREA
D312 0DS124409AA 1SS244 TP ROHM KOREA
D313 0DS124409AA 1SS244 TP ROHM KOREA
D314 0DS124409AA 1SS244 TP ROHM KOREA
D315 0DS124409AA 1SS244 TP ROHM KOREA
D316 6210TCE003J BAS2550T BO SUNG 2550MM AXI
D317 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D401 0DS141489AB 1N4148 TP GRANDE DO-34 500M

D402 971-0054 TIN 50MM TAPING
D512 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D701 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D702 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D704 0DR150051AA DMV1500M/F5 ST SGS-THOMSON
D705 0DR100009CA RGP10G TP GULF SEMICONDUCTO
D706 0DR359150AA BY359F-1500 BK PHILIPS SO
D709 0DR400409AB UF4004 TP G.I DO204AL 400V
D710 0DR320400AA S3L20U-4004P15 BK SHINDENGE
D711 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D712 0DR100009CA RGP10G TP GULF SEMICONDUCTO
D714 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D715 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D716 0DR140059DA 1N4005TB52 TP LITEON DO41 6
D717 0DR140059DA 1N4005TB52 TP LITEON DO41 6
D718 0DR140059DA 1N4005TB52 TP LITEON DO41 6
D719 0DR100009DA RGP10J TP GULF SEMICONDUCTO
D721 0DR100009CA RGP10G TP GULF SEMICONDUCTO
D723 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D724 0DR140059DA 1N4005TB52 TP LITEON DO41 6
D725 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D730 971-0054 TIN 50MM TAPING
D735 0DR140059DA 1N4005TB52 TP LITEON DO41 6
D741 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D767 0DR100009DA RGP10J TP GULF SEMICONDUCTO
D768 971-0054 TIN 50MM TAPING
D801 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D802 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D900 0DD360000DA D3SBA60 BK SHINDENGEN 600V
D902 0DR153979AA 1N5397GP TP G.I DO201AD 600
D903 0DR100009CA RGP10G TP GULF SEMICONDUCTO
D905 0DD400709CB UF4007 TP G.I DO204AL 1000
D906 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D908 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D941 0DD150009CB RGP15D TP G.I DO204AC 200V
D942 0DRGS00089A SB1H100 GENERAL SEMICONDUCT
D951 0DRGS00110A UF5403L-5700 GENERAL SEMICO
D952 0DS141489AB 1N4148 TP GRANDE DO-34 500M
D961 0DRGS00090A 31GF6L-5701 GENERAL SEMICON
D962 0DRGS00090A 31GF6L-5701 GENERAL SEMICON
D971 0DR100009DA RGP10J TP GULF SEMICONDUCTO
ZD201 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 50
ZD201 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 50
ZD202 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 50
ZD202 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 50
ZD203 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 50
ZD203 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 50
ZD301 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 50
ZD302 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 50
ZD401 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 50
ZD404 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 50
ZD405 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 50
ZD406 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 50
ZD407 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 50
ZD410 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 50
ZD411 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 50
ZD701 0DZ110009CF GDZJ11B TP GRANDE DO34 0.5W
ZD702 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 50
ZD705 0DZ510009BE GDZ5.1B TP GRANDE DO34 500M
ZD901 0DZ510009BE GDZ5.1B TP GRANDE DO34 500M
ZD902 0DZ510009BE GDZ5.1B TP GRANDE DO34 500M

DATE: 2002. 02. 18.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

ICs

IC301 0IPRPMJ008A MTV038N-15EG MYSON 16P DIP
IC302 0IPRPNS003A LM1269NA NATIONAL SEMICONDU
IC303 0IPRPNS004A LM2467TA NATIONAL SEMICONDU
IC401 0IZZTSZ169A SS 42PIN ST G-CHASSIS 6KEY
IC402 0ISG240860A M24C08-BN6 8DIP BK 8K SERIA
IC403 0IKE704200H KIA7042AP TO-92 TP 4.2 VOL
IC601 0IPH486600C TDA4866J 9P ST VERTICAL OUT
IC701 0IPRPPH008A TDA4857PS(V2) PHILIPS SDIP3
IC901 0IPMGSK004A STR-G8644D(LF1140) SANKEN 5

COILs & COREs

L301 0LA0680K119 0.68UH K 2.3*3.4 TP
L302 0LA0680K119 0.68UH K 2.3*3.4 TP
L303 0LA0680K119 0.68UH K 2.3*3.4 TP
L304 0LA1000K119 100UH K 2.3*3.4 TP
L311 0LA0680K119 0.68UH K 2.3*3.4 TP
L312 0LA0680K119 0.68UH K 2.3*3.4 TP
L313 0LA0680K119 0.68UH K 2.3*3.4 TP
L702 6140TBZ025C DR14*20 150UH 0.12*25MM 51T
L703 6140TYZ010E LX31 GET DR14*15-C5.2,18.5T
L705 6140TBZ026C DR15*18-C9.8 100UH 0.1*30MM
L901 6200TLS004B SQE2424 15MH 0.55MM 70T CB7
FB201 6210TCE003J BAS2550T BO SUNG 2550MM AXI
FB201 6210TCE003J BAS2550T BO SUNG 2550MM AXI
FB301 6210TCE003F BRD3580B BO SUNG 3580MM RAD
FB302 6210TCE003J BAS2550T BO SUNG 2550MM AXI
FB303 6210TCE003J BAS2550T BO SUNG 2550MM AXI
FB304 971-0054 TIN 50MM TAPING
FB305 6210TCE003J BAS2550T BO SUNG 2550MM AXI
FB308 6210TCE003G BRS3550B BO SUNG 3550MM RAD
FB309 971-0054 TIN 50MM TAPING
FB310 6210TCE003A BRD3510B BO SUNG 3510MM RAD
FB311 6210TCZ001J BAS3550T0(125-022J) BO SUNG
FB312 6210TCZ001J BAS3550T0(125-022J) BO SUNG
FB313 6210TCZ001J BAS3550T0(125-022J) BO SUNG
FB401 6210TCE003J BAS2550T BO SUNG 2550MM AXI
FB402 6210TCE003J BAS2550T BO SUNG 2550MM AXI
FB403 6210TCE003J BAS2550T BO SUNG 2550MM AXI
FB701 6210TCE003L BAS3580T BO SUNG 3580MM AXI
FB703 6210TCE003B BRS3580B BO SUNG 3580MM RAD
FB705 6210TCE003L BAS3580T BO SUNG 3580MM AXI
FB901 6210TCE003P BRS2550B BO SUNG 2550MM RAD
FB904 6210TCE003K BAS3550T BO SUNG 3550MM AXI
FB913 6210TCE003P BRS2550B BO SUNG 2550MM RAD
FB921 6210TCE003A BRD3510B BO SUNG 3510MM RAD
FB922 6210TCE003H BAS3510T BO SUNG 3510MM AXI
FB951 6210TCE003J BAS2550T BO SUNG 2550MM AXI

TRANSISTOR

Q501 0TR320209AA KTC3202-Y(KTC1959) TP KEC T
Q502 0TR127009AA KTA1270-Y(KTA562TM) TP KEC
Q503 0TR319809AA KTC3198-Y(KTC1815) TP KEC T
Q701 0TR200009AB KTC200-Y TP KEC TO92 NPN
Q706 0TR580301AA FAIRCHILD KSC5803(TBTU) ST
Q707 0TR127009AA KTA1270-Y(KTA562TM) TP KEC
Q708 0TR127009AA KTA1270-Y(KTA562TM) TP KEC
Q709 0TR141300AB KTD1413 BK KEC TO220I S NPN
Q710 0TR440009CA KSP44 TP SAMSUNG
Q711 0TF630000CA IRFS630A BK SAMSUNG 200V 6.

DATE: 2002. 02. 18.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

Q712 0TF630000CA IRFS630A BK SAMSUNG 200V 6.
Q713 0TF630000CA IRFS630A BK SAMSUNG 200V 6.
Q714 0TR319809AA KTC3198-Y(KTC1815) TP KEC T
Q715 0TR319809AA KTC3198-Y(KTC1815) TP KEC T
Q716 0TR319809AA KTC3198-Y(KTC1815) TP KEC T
Q720 0TR390409CA 2N3904 TP SAMSUNG TO92 NPN
Q722 0TR319809AB KTC3198-GR(KTC1815) TP KEC
Q723 0TR126609AA KTA1266-Y(KTA1015) TP KEC T
Q799 0TR920009AB KSP92 TP SAMSUNG TO92 HIGH
Q903 0TRFC10003A FAIRCHILD KSD882Y-S ST TO12
Q941 0TR319809AA KTC3198-Y(KTC1815) TP KEC T
Q942 0TR928009AB KSA928A-Y TP SAMSUNG TO92L
Q951 0TR319809AA KTC3198-Y(KTC1815) TP KEC T
Q952 0TR928009AB KSA928A-Y TP SAMSUNG TO92L
Q953 0TR319809AA KTC3198-Y(KTC1815) TP KEC T

RESISTORs

R201 0RD1001Q609 1K 1/4W(3 5% TA52
R201 0RD1001Q609 1K 1/4W(3 5% TA52
R202 0RD0912Q609 91 OHM 1/4 W (3.4) 5% TA52
R202 0RD0912Q609 91 OHM 1/4 W (3.4) 5% TA52
R203 0RD2200Q609 220 1/4W(3 5% TA52
R203 0RD2200Q609 220 1/4W(3 5% TA52
R204 0RD4300Q609 430 OHM 1/4 W(3.4) 5.00% TA
R204 0RD4300Q609 430 OHM 1/4 W(3.4) 5.00% TA
R205 0RD1001Q609 1K 1/4W(3 5% TA52
R205 0RD1001Q609 1K 1/4W(3 5% TA52
R206 0RD0912Q609 91 OHM 1/4 W (3.4) 5% TA52
R206 0RD0912Q609 91 OHM 1/4 W (3.4) 5% TA52
R207 0RD4300Q609 430 OHM 1/4 W(3.4) 5.00% TA
R207 0RD4300Q609 430 OHM 1/4 W(3.4) 5.00% TA
R208 0RD2200Q609 220 1/4W(3 5% TA52
R208 0RD2200Q609 220 1/4W(3 5% TA52
R209 0RD9100Q609 910 1/4W(3 5% TA52
R209 0RD9100Q609 910 1/4W(3 5% TA52
R210 0RD2200Q609 220 1/4W(3 5% TA52
R210 0RD2200Q609 220 1/4W(3 5% TA52
R211 0RD2200Q609 220 1/4W(3 5% TA52
R211 0RD2200Q609 220 1/4W(3 5% TA52
R301 0RD0752Q609 75 1/4W(3 5% TA52
R302 0RD0752Q609 75 1/4W(3 5% TA52
R303 0RD0752Q609 75 1/4W(3 5% TA52
R304 0RD3301Q609 3.30K 1/4W(3 5% TA52
R305 0RD5601Q609 5.60K 1/4W(3 5% TA52
R306 0RD5601Q609 5.60K 1/4W(3 5% TA52
R307 0RD1004Q609 1M OHM 1/4 W (3.4) 5% TA52
R310 0RD1000Q609 100 1/4W(3 5% TA52
R312 0RD1001Q609 1K 1/4W(3 5% TA52
R314 0RD1000Q609 100 1/4W(3 5% TA52
R315 0RD1000Q609 100 1/4W(3 5% TA52
R316 0RD1000Q609 100 1/4W(3 5% TA52
R317 0RD1000Q609 100 1/4W(3 5% TA52
R318 0RD1000Q609 100 1/4W(3 5% TA52
R319 0RD4701Q609 4.70K 1/4W(3 5% TA52
R320 0RD2001Q609 2K 1/4W(3 5% TA52
R321 0RD2200Q609 220 1/4W(3 5% TA52
R322 0RD2200Q609 220 1/4W(3 5% TA52
R323 0RD2200Q609 220 1/4W(3 5% TA52
R324 0RD2200Q609 220 1/4W(3 5% TA52
R327 0RD1001Q609 1K 1/4W(3 5% TA52
R328 0RD1001Q609 1K 1/4W(3 5% TA52

DATE: 2002. 02. 18.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

DATE: 2002. 02. 18.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R329 0RD1001Q609 1K 1/4W(3 5% TA52
R330 0RD1000Q609 100 1/4W(3 5% TA52
R331 0RD1600Q609 160 1/4W(3 5% TA52
R332 0RD1600Q609 160 1/4W(3 5% TA52
R333 0RD1600Q609 160 1/4W(3 5% TA52
R334 0RD3303Q609 330K 1/4W(3 5% TA52
R335 0RD3303Q609 330K 1/4W(3 5% TA52
R336 0RD3303Q609 330K 1/4W(3 5% TA52
R337 0RD1000Q609 100 1/4W(3 5% TA52
R340 0RN1002F409 10K 1/6W 1 TA52
R341 0RD0332A609 33 OHM 1/2 W (7.0) 5% TA52
R342 0RD0332A609 33 OHM 1/2 W (7.0) 5% TA52
R343 0RD0332A609 33 OHM 1/2 W (7.0) 5% TA52
R344 0RD0332Q609 33 1/4W(3 5% TA52
R345 0RD0332Q609 33 1/4W(3 5% TA52
R346 0RD0332Q609 33 1/4W(3 5% TA52
R347 0RD1200Q609 120 1/4W(3 5% TA52
R388 0RD1000Q609 100 1/4W(3 5% TA52
R389 0RD1000Q609 100 1/4W(3 5% TA52
R390 0RD1000Q609 100 1/4W(3 5% TA52
R401 0RD1000Q609 100 1/4W(3 5% TA52
R402 0RD1002Q609 10K 1/4W(3 5% TA52
R403 0RD2200Q609 220 1/4W(3 5% TA52
R404 0RD1000Q609 100 1/4W(3 5% TA52
R405 0RD1000Q609 100 1/4W(3 5% TA52
R406 0RD2001Q609 2K 1/4W(3 5% TA52
R407 0RD2001Q609 2K 1/4W(3 5% TA52
R408 0RD3302Q609 33K 1/4W(3 5% TA52
R409 0RD1300Q609 130 1/4W(3 5% TA52
R410 0RD1300Q609 130 1/4W(3 5% TA52
R412 0RD2001Q609 2K 1/4W(3 5% TA52
R413 0RD1001Q609 1K 1/4W(3 5% TA52
R414 0RD1001Q609 1K 1/4W(3 5% TA52
R415 0RD1001Q609 1K 1/4W(3 5% TA52
R416 0RD1801Q609 1.80K 1/4W(3 5% TA52
R417 0RD1001Q609 1K 1/4W(3 5% TA52
R418 0RD3901Q609 3.90K 1/4W(3 5% TA52
R419 0RD1002Q609 10K 1/4W(3 5% TA52
R420 0RD5101Q609 5.10K 1/4W(3 5% TA52
R421 0RD1002Q609 10K 1/4W(3 5% TA52
R422 0RD1001Q609 1K 1/4W(3 5% TA52
R423 0RD5600Q609 560 1/4W(3 5% TA52
R430 0RD1000Q609 100 1/4W(3 5% TA52
R431 0RD1000Q609 100 1/4W(3 5% TA52
R432 0RD1000Q609 100 1/4W(3 5% TA52
R433 0RD2001Q609 2K 1/4W(3 5% TA52
R434 0RD2001Q609 2K 1/4W(3 5% TA52
R445 0RD1002Q609 10K 1/4W(3 5% TA52
R501 0RD0102A609 10 OHM 1/2 W (7.0) 5% TA52
R508 0RD4702Q609 47K 1/4W(3 5% TA52
R515 0RD1502Q609 15K 1/4W(3 5% TA52
R597 0RD3902Q609 39K 1/4W(3 5% TA52
R598 0RD6801Q609 6.80K 1/4W(3 5% TA52
R599 0RD0202Q609 20 1/4W(3 5% TA52
R601 0RD1001Q609 1K 1/4W(3 5% TA52
R602 0RD1001Q609 1K 1/4W(3 5% TA52
R603 0RN0390H609 0.39 1/2W 5 TA52
R604 0RD0101A609 1 OHM 1/2 W (7.0) 5% TA52
R605 0RD0102A609 10 OHM 1/2 W (7.0) 5% TA52
R606 0RD1000A609 100 OHM 1/2 W (7.0) 5% TA52
R607 0RN5101F409 5.10K 1/6W 1% TA52
R608 0RD3300A609 330 OHM 1/2 W (7.0) 5% TA52

R610 0RD1101Q609 1.1K OHM 1/4 W (3.4) 5% TA5
R612 0RN5101F409 5.10K 1/6W 1% TA52
R613 0RD1801Q609 1.80K 1/4W(3 5% TA52
R700 0RX0221K607 2.2 OHM 2 W 5% TA62
R701 0RD1500A609 150 OHM 1/2 W (7.0) 5% TA52
R702 0RD5601Q609 5.60K 1/4W(3 5% TA52
R704 0RD3601Q609 3.60K 1/4W(3 5% TA52
R705 0RD1602Q609 16K 1/4W(3 5% TA52
R706 0RN2701F409 2.70K 1/6W 1% TA52
R707 0RN3301F409 3.30K 1/6W 1% TA52
R708 0RN1001F409 1K 1/6W 1% TA52
R709 0RD2202Q609 22K 1/4W(3 5% TA52
R710 0RD1000Q609 100 1/4W(3 5% TA52
R711 0RD1000Q609 100 1/4W(3 5% TA52
R712 0RD1001Q609 1K 1/4W(3 5% TA52
R713 0RD1000Q609 100 1/4W(3 5% TA52
R714 0RN1501F409 1.5K 1/6W 1 TA52
R714-1 0RN3001F409 3K 1/6W 1% TA52
R714-2 0RN6200F409 620 1/6W 1% TA52
R715 0RD2702Q509 27K OHM 1/4 W(3.4) 2% TA52
R716 0RD7502Q609 75K 1/4W(3 5% TA52
R717 0RD5601Q609 5.60K 1/4W(3 5% TA52
R718 971-0054 TIN 50MM TAPING
R719 0RD4701Q609 4.70K 1/4W(3 5% TA52
R720 0RC1205Q609 12M OHM 1/4 W(3.4) 5% TA52
R721 0RD1001Q609 1K 1/4W(3 5% TA52
R723 0RD1001Q609 1K 1/4W(3 5% TA52
R724 0RD1001Q609 1K 1/4W(3 5% TA52
R725 0RD1001Q609 1K 1/4W(3 5% TA52
R726 0RD5102A609 51K OHM 1/2 W (7.0) 5% TA52
R727 0RD1001Q609 1K 1/4W(3 5% TA52
R728 0RX0272K665 27 OHM 2 W 5% SF
R729 0RD3000A609 300 OHM 1/2 W (7.0) 5% TA52
R730 0RB0150K665 0.15 OHM 2 W 5% SF
R731 0RD1002Q609 10K 1/4W(3 5% TA52
R732 0RD6802Q509 68K OHM 1/4 W (3.4) 2% TA52
R733 0RD1002Q609 10K 1/4W(3 5% TA52
R734 0RD0222A609 22 OHM 1/2 W (7.0) 5% TA52
R735 0RD1001Q609 1K 1/4W(3 5% TA52
R736 0RX1501J609 1.5KOHM 1 W 5% TA52
R737 0RN0560H609 0.56 1/2W 5 TA52
R738 0RN0560H609 0.56 1/2W 5 TA52
R740 0RD0271A609 2.7 OHM 1/2 W (7.0) 5% TA52
R741 0RD1000Q609 100 1/4W(3 5% TA52
R742 0RD4702Q609 47K 1/4W(3 5% TA52
R743 0RD2701Q509 2.7K OHM 1/4 W(3.4) 2% TA52
R744 0RD1001A609 1K OHM 1/2 W (7.0) 5% TA52
R745 0RD4702Q609 47K 1/4W(3 5% TA52
R746 0RD2201Q609 2.20K 1/4W(3 5% TA52
R747 0RD3001Q609 3K 1/4W(3 5% TA52
R748 0RD4702Q609 47K 1/4W(3 5% TA52
R749 0RD2201Q609 2.20K 1/4W(3 5% TA52
R750 0RD3001Q609 3K 1/4W(3 5% TA52
R752 0RD2201Q609 2.20K 1/4W(3 5% TA52
R753 0RD3001Q609 3K 1/4W(3 5% TA52
R754 0RX4300K607 430 OHM 2 W 5% TA62
R755 0RD0471Q609 4.70 1/4W(3 5% TA52
R756 0RD2202A609 22K OHM 1/2 W (7.0) 5% TA52
R757 0RD0222A609 22 OHM 1/2 W (7.0) 5% TA52
R758 0RN1303F409 130K 1/6W 1% TA52
R759 0RD1302Q509 13K OHM 1/4 W (3.4) 2% TA52
R760 0RD5103Q609 510K 1/4W(3 5% TA52

DATE: 2002. 02. 18.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

DATE: 2002. 02. 18.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R761 0RD3001Q609 3K 1/4W(3 5% TA52
R762 0RD3001Q609 3K 1/4W(3 5% TA52
R763 0RD3001Q609 3K 1/4W(3 5% TA52
R764 0RD6801Q609 6.80K 1/4W(3 5% TA52
R766 0RD6200Q609 620 1/4W(3 5% TA52
R768 0RD6803A609 680K OHM 1/2 W (7.0) 5% TA5
R771 0RD3301Q609 3.30K 1/4W(3 5% TA52
R772 0RD2702Q509 27K OHM 1/4 W(3.4) 2% TA52
R773 0RD3302A609 33K OHM 1/2 W (7.0) 5% TA52
R775 0RD4701Q609 4.70K 1/4W(3 5% TA52
R779 0RD4701Q609 4.70K 1/4W(3 5% TA52
R782 0RD3301A609 3.3K OHM 1/2 W(7.0) 5.00% T
R784 0RD1000Q609 100 1/4W(3 5% TA52
R789 0RD6800Q609 680 1/4W(3 5% TA52
R793 0RD4702Q609 47K 1/4W(3 5% TA52
R797 0RD1501Q609 1.50K 1/4W(3 5% TA52
R798 0RD2001Q609 2K 1/4W(3 5% TA52
R799 0RD1502Q609 15K 1/4W(3 5% TA52
R801 0RD2002Q609 20K 1/4W(3 5% TA52
R802 0RD3302Q609 33K 1/4W(3 5% TA52
R803 0RD2001Q609 2K 1/4W(3 5% TA52
R805 0RD2001Q609 2K 1/4W(3 5% TA52
R806 0RD4702Q609 47K 1/4W(3 5% TA52
R808 0RD6802Q609 68K 1/4W(3 5% TA52
R809 0RMZTWD001G RWR SMART 1OHM 5 W 5% PD TY
R813 0RD4302A609 43K OHM 1/2 W(7.0) 5.00% TA
R814 0RD1002Q609 10K 1/4W(3 5% TA52
R816 0RN3601F409 3.6K 1/6W 1 TA52
R818 0RN2202F409 22K 1/6W 1% TA52
R819 0RD4702Q609 47K 1/4W(3 5% TA52
R831 0RD1002Q609 10K 1/4W(3 5% TA52
R901 0RD4703A609 470K OHM 1/2 W (7.0) 5% TA5
R903 0RD5600A609 560 OHM 1/2 W (7.0) 5% TA52
R904 0RX1503K607 150K OHM 2 W 5% TA62
R905 0RD2201Q609 2.20K 1/4W(3 5% TA52
R906 0RD6200Q609 620 1/4W(3 5% TA52
R908 0RN0220H609 0.22 1/2W 5% TA52
R910 0RX4702J609 47K OHM 1 W 5% TA52
R925 0RB0120K607 0.12 OHM 2 W 5% TA62
R926 0RD5602Q609 56K OHM 1/4 W(3.4) 5.00% TA
R941 0RN0220H609 0.22 1/2W 5% TA52
R944 0RD4700A609 470 OHM 1/2 W (7.0) 5% TA52
R945 0RD4701Q609 4.70K 1/4W(3 5% TA52
R951 0RN0910H609 0.91 1/2W 5 TA52
R952 0RD4702A609 47K OHM 1/2 W (7.0) 5% TA52
R953 0RX4700J609 470 OHM 1 W 5% TA52
R954 0RD4701Q609 4.70K 1/4W(3 5% TA52
R955 0RD4701Q609 4.70K 1/4W(3 5% TA52
R956 0RD4702Q609 47K 1/4W(3 5% TA52
R957 0RD0472A609 47 OHM 1/2 W (7.0) 5% TA52
R960 0RD2200A609 220 OHM 1/2 W (7.0) 5% TA52
R967 971-0054 TIN 50MM TAPING

SC301 6620TBD004A GZS10-2-101 DUOLING(SANLING
SC901 6620TKB002B SA-4S HUA JIE AC UNIVERSAL
SG301 6918TRT005A SSG-102-A0,1KV SMART RADIAL
SG302 6918TRT005A SSG-102-A0,1KV SMART RADIAL
SG303 6918TRT005A SSG-102-A0,1KV SMART RADIAL
SG304 6918TRT005A SSG-102-A0,1KV SMART RADIAL
SG305 6918TRT005A SSG-102-A0,1KV SMART RADIAL
SG701 6918TRT005A SSG-102-A0,1KV SMART RADIAL
SW201 140-058D SKHV10911A LGEC NON 12 20 H
SW201 140-058D SKHV10911A LGEC NON 12 20 H
SW202 140-058D SKHV10911A LGEC NON 12 20 H
SW202 140-058D SKHV10911A LGEC NON 12 20 H
SW203 140-058D SKHV10911A LGEC NON 12 20 H
SW203 140-058D SKHV10911A LGEC NON 12 20 H
SW204 140-058D SKHV10911A LGEC NON 12 20 H
SW204 140-058D SKHV10911A LGEC NON 12 20 H
SW205 140-058D SKHV10911A LGEC NON 12 20 H
SW205 140-058D SKHV10911A LGEC NON 12 20 H
SW206 140-058D SKHV10911A LGEC NON 12 20 H
SW206 140-058D SKHV10911A LGEC NON 12 20 H
SW207 140-058D SKHV10911A LGEC NON 12 20 H
SW207 140-058D SKHV10911A LGEC NON 12 20 H
T701 6174T11003E “1054A,CB777G LG-PHILIPS 17”””
T702 6170TCZ006A EE2218 2.3 MH D/FOCUS(CB775
T703 6170TCZ001D EI2218 4.0MH H-DRIVE,EB770G
T901 6170TMZ132A EER3541 150UH V-16PIN EB770
TH901 163-053D J502P62C090Q290 JAHWA +/-2
TH902 6322TA080BA SCK-084 THINKING 8 ohm 15%
X401 6202TTB003B HC-49/U HARMONY RADIAL 12MH

OTHERs

F1 430-858C AFC-520 BAE EUN TA
F2 430-858C AFC-520 BAE EUN TA
F901 0FZZTTH001D TIME LAG HBC 3.15A/250V,215
J27 0RD0471Q609 4.70 1/4W(3 5% TA52
J59 0RD1000Q609 100 1/4W(3 5% TA52
J99 0RD3302Q609 33K 1/4W(3 5% TA52
RL901 6920TBB005A ALA2PF12 MATSUSHITA 250V 5A

PIN CONFIGURATION

- 30 -

TDA4866J Current Driven Vertical Deflection Booster

SYMBOL

INA
INB
V

P

OUTB
GND
OUTA
V

FB

GUARD
FEEDB

PIN

1
2
3
4
5
6
7
8
9

TDA4866J

Pin Configuration

1

9

Vin

4

1

2

5

3

START

O.V.P

LATCH

DRIVE

Vth1

Vth2

O.S.C

ERROR AMP

GND

O.C.P/F.B

S

D

+

+

+

REG.

STR-G8644D

Block Diagram

M24C08 Serial I2C BUS EEPROM

SYMBOL

E0-E2
SDA
SCL

WC
Vcc
Vss

DESCRIPTION

Chip Enable Input
Serial Data Address Input/Output
Serial Clock

Write Control
Supply Voltage
Ground

1

PSDIP8 (BN)

0.25mm Frame

8

1

1

SO8 (MN)
150mil Width

TSSOP8 (DW)
169mil Width

8

8

Logic Dirgram

1

INA

2

INB

3

Vp

4OUTB
5GND

TDA4866J

6

OUTA

7

V

FB

8

GUARD

9

FEEDB

- 31 -

TDA4857 Autosync Deflection Controller

TDA4857

1
2
3
4

5
6
7
8

9
10
11
12
13
14
15
16

23
22

25
24

21
20
19
18
17

32
31
30
29
28
27
26

VREF
VAGC

SGND
VCAP

VSMOD
i.c
SDA
SCL
HUNLOCK

FOCUS
HSMOD
HPLL2
HCAP
HREF
HBUF
HPLL1

EWDRV

VOUT2

XSEL

VCC

VOUT1

VSYNC

HSYNC

CLBL

PGND

HFLB

XRAY

BOP

BSENS

BIN

BDRV

HDRV

SYMBOL

HFLB
XRAY
BOP
BSENS
BIN
BDRV
PGND
HDRV
XSEL
Vcc
EWDRV
VOUT2
VOUT1
VSYNC
HSYNC
CLBL

DESCRIPTION

Horizontal Flyback Input
X-ray Protection Input
B+ Control OTA Output
B+ Control Comparator Input
B+ Control OTA Input
B+ Control Driver Output
Power Ground
Horizontal Driver Output
Select Input for X-ray reset
Supply Voltage
EW Waveform Output
Vertical Output 2 (Ascending Sawtooth)
Vertical Output 1 (Descending Sawtooth)
Vertical Synchronization Input
Horizontal / Composite Synchronization Input
Video Clamping Pulse / V-Blanking Output

PIN

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

SYMBOL

HUNLOCK
SCL
SDA
i.c
VSMOD
VAGC
VREF
VCAP
SGND
HPLL1
HBUF
HREF
HCAP
HPLL 2
HSMOD
FOCUS

DESCRIPTION

H-Synchronization Unlock/Protection/V-Blanking Output
I2C-Bus Clock Input
I

2

C-Bus Data Input
Internally connected; nite 1
Input for EHT Compensation (Via V-Size)
External Capacitor for V-Amplitude Control
External Resistor for Vertical Oscillator
External Capacitor for Vertical Oscillator
Signal Ground
External Filter for PLL1
Buffered F/V Voltage Output
Reference Current for Horizontal Oscillator
External Capacitor for Horizontal Oscillator
External Filter for PLL2 / Soft Start
Input for EHT Compensation (Via H-Size)
Output for Vertical Focus

PIN

17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

Pin Configuration

1

32

TDA4857

IIC-SDA
IIC-SCL
DDC-SDA

DDC-SCL

3. MAIN BOARD (Component Side)

4. MAIN BOARD (Solder Side)
