OPERATION

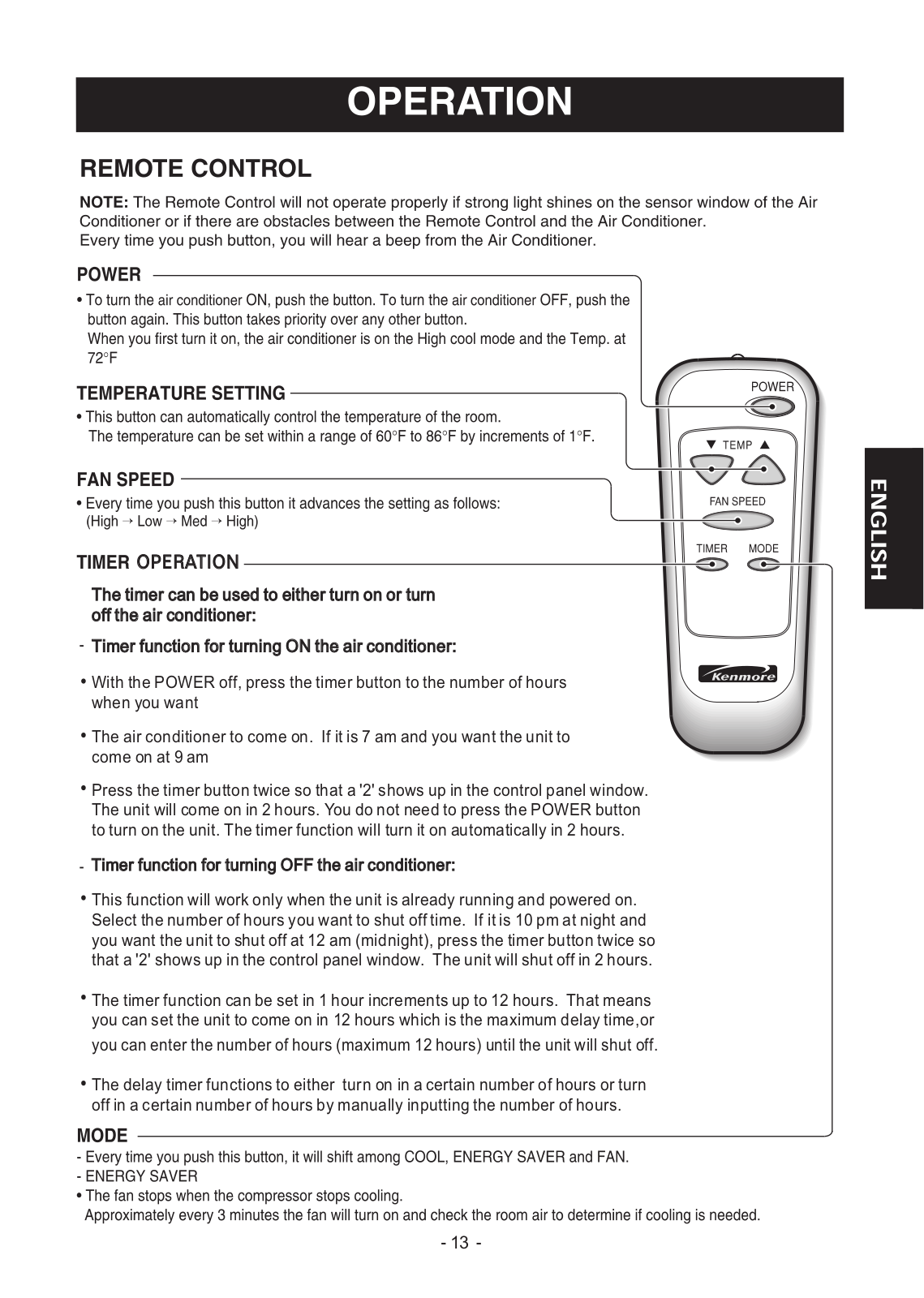

The timer can be used to either turn on or turn

off the air conditioner:

Timer function for turning ON the air conditioner:

With the POWER off, press the timer button to the number of hours when you want

The air conditioner to come on. If it is 7 am and you want the unit to come on at 9 am

Press the timer button twice so that a '2' shows up in the control panel window. The unit will come on in 2 hours. You do not need to press the POWER button to turn on the unit. The timer function will turn it on automatically in 2 hours.

Timer function for turning OFF the air conditioner:

This function will work only when the unit is already running and powered on. Select the number of hours you want to shut off time. If it is 10 pm at night and you want the unit to shut off at 12 am (midnight), press the timer button twice so that a '2' shows up in the control panel window. The unit will shut off in 2 hours.

The timer function can be set in 1 hour increments up to 12 hours. That means you can set the unit to come on in 12 hours which is the maximum delay time,or you can enter the number of hours (maximum 12 hours) until the unit will shut off.

The delay timer functions to either turn on in a certain number of hours or turn off in a certain number of hours by manually inputting the number of hours.
