OWNER’S MANUAL

MONITOR SIGNAGE

Please read this manual carefully before operating the your set and retain it for future reference.

MONITOR SIGNAGE MODELS

65VS10

www.lg.com

Page 2

TABLE OF CONTENTS

ENGLISH

CONTENTS

ENG

3 LICENSES

4 ASSEMBLING AND

4 Unpacking

5 Optional Accessories

6 Parts and buttons

7 Connecting the Speakers

7 Portrait Layout

8 Installing on a wall

9 REMOTE CONTROL

11 USING THE MONITOR SET

11 Connecting to a PC

11 - Using the input list

12 - RGB connection

12 - HDM/DVI connection

13 - HDMI connection

PREPARING

34 - Deactivating the DivX feature

35 MAKING CONNECTIONS

36 Connecting to a HD receiver, DVD, Cam-

corder, Camera, Gaming Device or VCR

player

36 - HDMI connection

36 - HDMI/DVI connection

37 - Component connection

37 - AV(CVBS) connection

38 Connecting to the LAN

38 - LAN connection

39 Daisy Chain Monitors

39 - RGB Mode

39 - AV(CVBS) Mode

40 TROUBLESHOOTING

43 SPECIFICATIONS

14 CUSTOMIZING SETTINGS

14 Accessing main menus

15 - PICTURE settings

20 - AUDIO settings

21 - TIME settings

22 - OPTION settings

24 - TILE settings

26 ENTERTAINMENT

26 Using integrated media features

26 - Connecting USB storage devices

27 - Browsing files

29 - Viewing Photos

30 - Listening to Music

31 - Viewing Movies

34 - DivX registration code

46 IR CODES

47 CONTROLLING THE

MULTIPLE PRODUCT

47 Connecting the cable

47 RS-232C Configurations

47 Communication Parameter

48 Command reference list

50 Transmission / Receiving protocol

Page 3

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. DivX Certified® to play DivX® video, including premium content.

DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274

ENGLISH

Page 4

ASSEMBLING AND PREPARING

ENGLISH

ASSEMBLING AND PREPARING

ENG

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

POWER

INPUT

ENERGY

MONITOR

OFF

SAVING



. , !ABCDEF



GHIJKLMNO





PQRSTUV

WXYZ

1/a/A

CLEAR



- * #

MARK

ARC

P A

BRIGHT

PSM

NESS

MUTE

AUTO

S.MENU

EXIT

BACK

TILE

OFF

Remote control and Batteries

Power Cord

CD (Owner's Manual) / Card

D-Sub Signal Cable

CAUTION

Do not use any pirated items to ensure the safety and product life span.

Any damages or injuries by using pirated items are not covered by the warranty.

NOTE

The accessories supplied with your product may vary depending on the model.

Product specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

Page 5

ASSEMBLING AND PREPARING

Optional Accessories

Without prior notice, optional accessories are subject to change to improve the performance of the product, and new accessories may be added. The illustrations in this manual may differ from the actual product and accessories.

Speaker

Screws/Cable

Speaker kit

Cable holder/

Cable Tie

ENGLISH

ENG

NOTE

Cable holder/Cable tie may not be available in some areas or for some models.

Optional accessories are not included for all models.

Page 6

ASSEMBLING AND PREPARING

RS-232C

(CONTROL)

OUT

HDMI / DVI RGB IN

RGB OUT

AUDIO

(RGB/DVI)

LAN

COMPONENT IN

VIDEO AUDIO

AV IN / OUT

VIDEO

OUT

AUDIO

USB

ENGLISH

Parts and buttons

ENG

Screen Marks

Power Indicator

Lighting On: Turned on

Lighting Off: Turned off

Screen Buttons

Connection panel ( See p.36 to p.38 )

Screen Marks Description

INPUT Changes the input source.

MENU Accesses the main menus, or saves your input and exits the menus.

▼▲ Adjust the up and down.

◄ ► Adjusts the volume level.

AUTO/SET Auto setup when using RGB input. It is also the Set or enter button to make changes in

/ I

IR Receiver This is where the unit receives signals from the remote control.

Power Indicator This Indicator lights up green when the display operates normally(on mode). If the

NOTE

You can set the Power indicator to on or off by selecting OPTION in the main menu.

the on-screen menus.

Turns the power on or off.

display is in sleep (Energy Saving) mode, this indicator color changes to amber.

Page 7

ASSEMBLING AND PREPARING

Connecting the Speakers

- Only on some models.

Mount the speaker by using a screw as shown

in the following. Then connect the speaker cable.

After installing your speakers, use holders and

cable ties to organize the speaker cables. (This feature is not available in all model.)

Portrait Layout

- Only on some models.

When installing in a Portrait Layout, rotate the monitor clockwise 90 degrees (when facing the screen).

ENGLISH

ENG

Page 8

ASSEMBLING AND PREPARING

ENGLISH

Installing on a wall

ENG

Install the monitor at least 10 cm away from the wall and leave about 10 cm of space at each side of the monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail store. Please refer to the manual to install and set up a tilting wall mounting bracket.

If you want to mount the monitor on the wall (optional), attach the wall mounting bracket to the rear of the monitor. Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall. Use the wall mount plate and screws that comply with the VESA standard as specified below.

10 cm

785mm(31 inch) or greater

* Fastening screw: Diameter 6.0 mm x Pitch 1.0

mm x Length 10 mm

(32 inch is Diameter 4.0 mm x Pitch 0.7 mm x

Length 10 mm)

10 cm

CAUTION

Disconnect the power cord first, and then

move or install the Monitor set. Otherwise electric shock may occur. If you install the Monitor set on a ceiling or

slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel. Do not over tighten the screws as this may

cause damage to the Monitor set and void your warranty. Use the screws and wall mounts that

meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

The wall mount kit includes an installation

manual and necessary parts. The wall mount bracket is optional. You can

obtain additional accessories from your local dealer. The length of screws may differ depending

on the wall mount. Be sure to use the proper length. For more information, refer to the

instructions supplied with the wall mount.

Page 9

REMOTE CONTROL

P A G E

INPUT

ENERGY

SAVING

MARK

ARC

OFF



. , !



ABCDEF



GHI



JKL



MNO



PQRS



TUV



1/a/A



- * #

WXYZ

CLEAR

S.MENU

MONITOR

PSM

AUTO

MUTE

BRIGHT

NESS

POWER

INPU

MARK

. ,

DEF

JKL6MNO

PQRS

OFF

MONITOR

MUTE

POWER

REMOTE CONTROL

The descriptions in this manual are based on the buttons of the remote control. Please read this manual carefully and use the Monitor set correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

CAUTION

Do not mix old and new batteries, as this

may damage the remote control. Make sure to point the remote control to the

remote control sensor on the Monitor set.

POWER

MONITOR

. , !2ABC3DEF

!2AB

GHI5JKL6MNO

PQRS8TUV

1/a/A

BACK

INPUT

ENERGY

ENER

OFF

SAVING

AVIN

WXYZ

WXY

CLEAR

LEAR

- * #

MARK

ARC

P A

BRIGHT

BRIGH

PSM

NESS

MUTE

AUTO

S.MENU

EXIT TILE

OFF

ENGLISH

ENG

/ I (POWER)

Turns the Monitor set on or off.

Monitor On / Off

Turn off the monitor and then

turn it back on.

1/a/A Button

This button selection is not

Selects the Aspect Ratio

Selects the Picture Status

Mutes all sounds.

applicable.

ARC

Mode.

PSM

Mode.

MUTE

ENERGY SAVING

Adjusts the brightness of the screen to reduce energy consumption.

INPUT

Selects the input mode.

Number and Alphabet buttons

Enters numbers. The alphabet selection is not applicable.

Clear

This button selection is not applicable.

Brightness Key

Adjust the brightness by pressing the Up and Down buttons on the remote control. In USB mode, the OSD menu has the Page function to move to the next file list.

Page 10

P A G E

INPUT

ENERGY

SAVING

MARK

ARC

OFF



. , !



ABCDEF



GHI



JKL



MNO



PQRS



TUV



1/a/A



- * #

WXYZ

CLEAR

S.MENU

MONITOR

PSM

AUTO

MUTE

BRIGHT

NESS

BACK

TILE

OFF

EXIT

POWER

OFF

ENGLISH

ENG

USING THE MONITOR SET

POWER

MONITOR

. , !2ABC3DEF

GHI5JKL6MNO

PQRS8TUV

1/a/A

MEN

BACK

INPUT

ENERGY

OFF

SAVING

WXYZ

CLEAR

- * #

MARK

ARC

P A

BRIGHT

PSM

NESS

MUTE

AUTO

AUT

S.MENU

.MEN

EXI

EXIT TILE

TIL

OFF

MENU (See p.14)

Accesses the main menus

or saves your input and exit

Navigation buttons

Scrolls through menus or

Selects menus or options and

confirms your input.

Allows the user to move back

one step in an interactive

application, EPG or other user

interaction function.

When the number of input ID

is equal to the number of ID

monitor which you want in the

Mode, you can control the

multi display condition.

menus.

options.

BACK

ID ON/OFF

AUTO

Automatically adjusts picture position and minimizes image instability.(RGB input only)

S.MENU (SuperSign Menu Key)

This button selection is not applicable.

EXIT

Clears all on-screen displays and returns to Monitor set viewing from any menu.

TILE

Selects the TILE Mode.

USB Menu control buttons

Controls media playback.

Page 11

USING THE MONITOR SET

Connecting to a PC

Your Monitor set supports the Plug & Play* feature.

* Plug & Play: The function when a PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

NOTE

It is recommended to use the Monitor set

with an HDMI connection for the best image quality. If you turn the Monitor set on when cold, the

screen may flicker. This is normal. Some red, green, or blue spots may appear

on the screen. This is normal.

Using the input list

Selecting an input source

Press INPUT to access the input source list.

Press the Navigation buttons to scroll to one of

ENGLISH

ENG

- The connected device displays on each input source.

the input sources and press OK.

Input source Description

AV(CVBS) A VCR or other external devices

RGB Computer input.

Component Older devices that do not have

HDMI.

HDMI/DVI Preferred connection type.

Supports high resolution inputs.

CAUTION

Connect the signal

input cable and tighten it by turning the screws clockwise.

Do not press the screen with your finger for

a long time as this may result in temporary distortion on the screen. Avoid displaying a fixed image on the

screen for a long period of time to prevent image burn. Use a screensaver if possible.

Page 12

USING THE MONITOR SET

HDMI/DVI

ENGLISH

ENG

RGB connection

Transmits the analog video signal from your PC to the Monitor set. Connect the PC and the Monitor set with the D-sub 15 pin cable as shown the following illustrations. Select RGB input source.

PC/MAC

Macintosh Adapter (not included)

(not included)

HDM/DVI connection

Transmits the digital video signal from your PC to the Monitor set. Connect the PC and the Monitor set with the HDMI/DVI cable as shown the following illustrations. Select HDMI/DVI input source.

PC PC

(not included)

Back of the product.

NOTE

Apple computers may

require an adapter to connect to this monitor. Call or visit their web site for more information.

Back of the product.

NOTE

When using computer input with HDMI, you

must set the label of that HDMI input to PC. Use a shielded signal interface cable, such

as D-sub 15 pin signal cable and DVI to HDMI cable, with a ferrite core to maintain standard compliance for the product.

Page 13

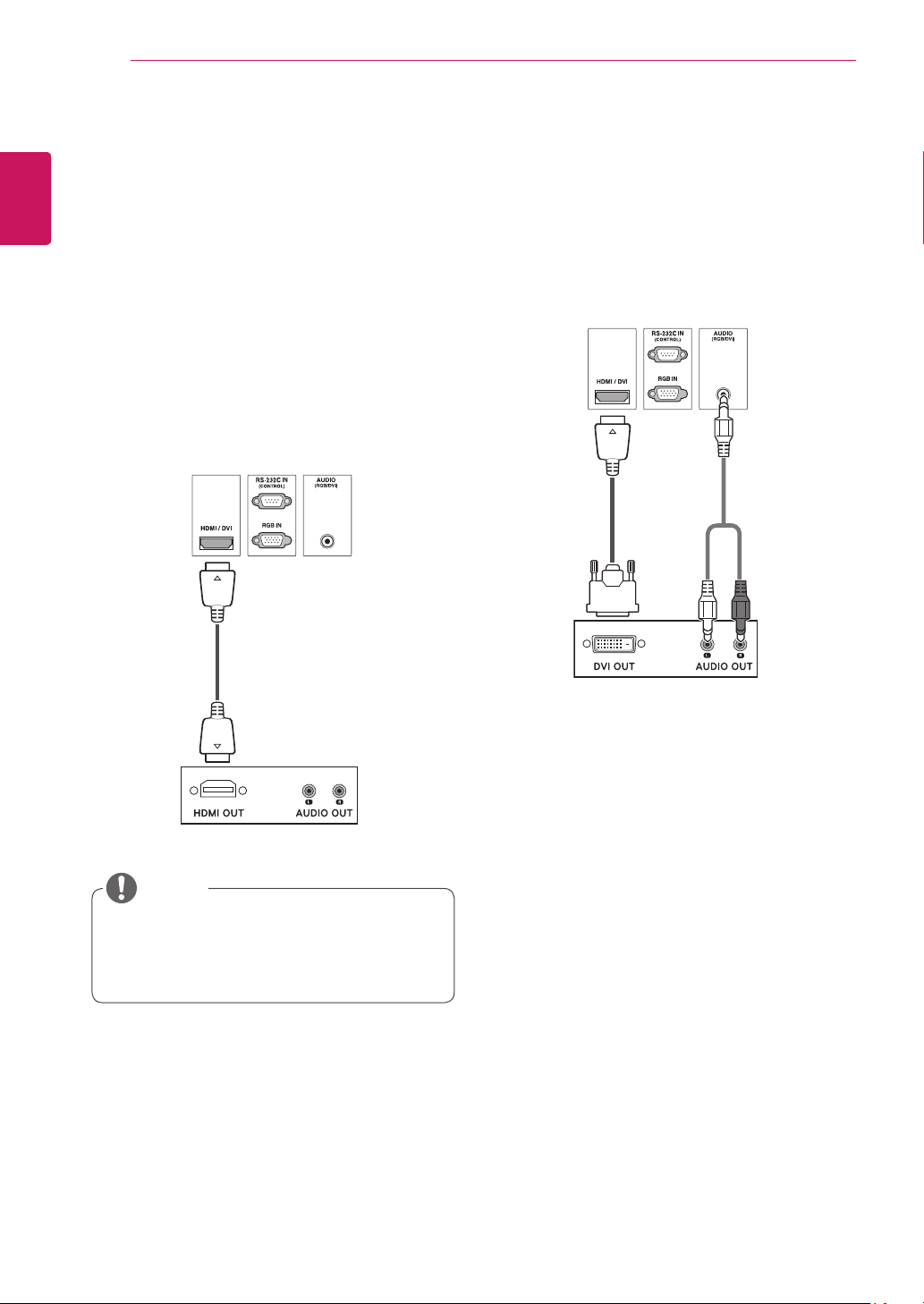

HDMI connection

Transmits the digital video and audio signals from your PC to the Monitor set. Connect the PC and the Monitor set with the HDMI cable as shown in the following illustrations. Select HDMI/DVI input source.

(not included)

USING THE MONITOR SET

ENGLISH

ENG

HDMI/DVI

Back of the product.

NOTE

Use a High Speed HDMI™ Cable.

Please check the PC environment if you

cannot hear the sound in HDMI mode. Some PCs require you to manually change the default audio output to HDMI. If you want to use HDMI-PC mode, you must

set the input label to PC mode.

Page 14

CUSTOMIZING SETTINGS

MARK

ARC

ENGLISH

CUSTOMIZING SETTINGS

ENG

Accessing main menus

Press MENU to access the main menus.

Press the Navigation buttons to scroll to one of the following menus and

press OK.

Press the Navigation buttons to scroll to the setting or option you want

and press OK.

When you are finished, press EXIT.

When you return to the previous menu, press BACK.

PICTURE (See p.15)

Adjusts the image size, quality, or effect.

AUDIO (See p.20)

Adjusts the sound quality, effect, or volume level.

P A

BRIGHT

PSM

NESS

MUTE

AUTO

S.MENU

EXIT

BACK

TILE

OFF

TIME (See p.21)

Sets the time, date, or Timer feature.

USB (See p.26)

Using integrated media features.

OPTION (See p.22)

Customizes the general settings.


OPTION

AUDIO TIME

TILE

USB

TILE (See p.24)

Adjusts the tile options.

Page 15

CUSTOMIZING SETTINGS

PICTURE settings

Press MENU to access the main menus.

Press the Navigation buttons to scroll to PICTURE and

press OK.

Press the Navigation buttons to scroll to the setting or

option you want and press OK.

- To return to the previous level, press BACK.

When you are finished, press EXIT.

When you return to the previous menu, press

BACK.


Aspect Ratio : 16:9

Energy Saving : Off

Picture Mode : Standard

 •Backlight 70

 •Contrast 90

 •Brightness 50

 •Sharpness 70

 •Color 60

 •Tint 0

 •AdvancedControl

 •PictureReset

Screen

The available picture settings are described in the following:

Setting Description

Aspect Ratio Changes the image size to view images at its optimal size (See p.18 to p.19).

Energy Saving Sets to automatically adjust the screen brightness corresponding to the surroundings.

Level

Off 100% light

Level 1 80% light

Level 2 60% light

Level 3 40% light

NOTE

Move

ENGLISH

ENG

If the 'Picture Mode' is set to 'Cinema', the 'Energy saving' mode is disabled.

Picture Mode Selects one of the preset image or customizes options in each mode for the best Monitor set screen

performance. You are also able to customize advanced options of each mode. The available preset picture modes vary depending on the Monitor set .

Mode

Vivid Adjusts the video image for the retail environment by enhancing the contrast,

brightness, Color, and sharpness.

Standard Adjusts the image for the normal environment.

Cinema Optimizes the video image for a cinematic look to enjoy movies as if you are in a

movie theater.

Sport Optimizes the video image for high and dynamic actions by emphasizing primary

Colors such as white, grass, or sky blue.

Game Optimizes the video image for a fast gaming screen such as PCs or games.

Expert1/2 Adjusts the detailed video image settings for video experts as well as general

viewers. Refer to the Basic image options. (See p.16).

Page 16

CUSTOMIZING SETTINGS

ENGLISH

ENG

SCREEN

(In RGB Mode Only)

Customizes the PC display options in RGB mode.

Option

Resolution Selects a proper resolution. See “Customizing PC display options”.

Auto Configure Sets to adjust the screen position, clock, and phase automatically.

Position/Size/ Phase

Reset Restores the options to the default setting.

The displayed image may be unstable for a few seconds while the configuration is in progress.

Adjusts the options when the picture is not clear, especially when characters are shaky, after the auto configuration.

Basic image options

Setting Description

Backlight Adjusts the brightness of the screen by controlling the LCD backlight. If you decrease the

Contrast Increases or decreases the gradient of the video signal. You may use Contrast when the

Brightness Adjusts the base level of the signal in the picture. You may use Brightness when the dark

Sharpness Adjusts the level of crispness in the edges between the light and dark areas of the picture.

Color Adjusts intensity of all colors.

Tint Adjusts the balance between red and green levels.

Color Temperature Set to warm to enhance hotter Colors such as red, or set to cool to make picture bluish.

Advanced Control Customizes the advanced options. Refer to the Advanced image options. (See p.17).

Reset Restores the options to the default setting.

brightness level, the screen becomes darker and the power consumption will be reduced without any video signal loss.

bright part of the picture is saturated.

part of the picture is saturated.

The lower the level, the softer the image.

NOTE

If the 'Picture Mode' setting in the Picture menu is set to Vivid, Standard, Cinema, Sport or Game

the subsequent menus will be automatically set. You cannot adjust color and tint in the RGB-PC / HDMI-PC mode.

When the Expert 1,2 is selected, you can select Backlight, Contrast, Brightness, H Sharpness, V

Sharpness, Color or Tint .

Page 17

CUSTOMIZING SETTINGS

Advanced image options

Setting Description

Colour Temperature

Dynamic Contrast

Dynamic Color Adjusts screen Colors so that they look livelier, richer and clearer. This feature enhances

Noise Reduction

Gamma Set your own gamma value. On the monitor, high gamma values display whitish images and low

Black Level » Low: The picture of the screen gets darker.

Film Mode You can watch a cinema-like video by eliminating judder effect.

White Balance This is the function to adjust the overall Color of the image to the feeling you want.

Color Management System

Option

Cool Sets the screen color to a bluish tone.

Medium Sets the screen to the standard color.

Warm Sets the screen color to a reddish tone.

Adjusts the contrast to keep it at the best level according to the brightness of the screen. The picture is improved by making bright parts brighter and dark parts darker. (This function can be used only under AV(CVBS) and Component.)

hue, saturation and luminance so that red, blue, green and white look more vivid. (This function can be used only under AV(CVBS) and Component.)

Reduces screen noise without compromising video quality. (This function can be used only under AV(CVBS) and Component.)

gamma values display high contrast images.

» High: The picture of the screen gets brighter. Set black level of the screen to proper level.

(Function works in the following mode - AV(CVBS), Component, HDMI-DTV)

Use this function when you watch movies.

(Function works in the following mode - Expert 1, Expert 2 Picture mode)

As the tool used by the experts to make adjustments by using the test patterns, this does not affect other Colors but can be used to selectively adjust the 6 Color areas (Red/Green/Blue/ Cyan/ Magenta/Yellow). Color difference may not be distinctive even when you make the adjustments for the general video. Adjusts Red/Green/Blue/Yellow/Cyan/Magenta. » Red/Green/Blue/Yellow/Cyan/Magenta Color: The adjustment range is -30 to +30. » Red/Green/Blue/Yellow/Cyan/Magenta Tint: The adjustment range is -30 to +30. (Function works in the following mode - Expert 1, Expert 2 Picture mode)

ENGLISH

ENG

Page 18

CUSTOMIZING SETTINGS

ENGLISH

ENG

Resize the image to view the image at its optimal size by pressing ARC button.

- 16:9 : The following selection will allow you

Aspect Ratio

CAUTION

If a fixed image displays on the screen for a

long period of time, it will be imprinted and become a permanent disfigurement on the screen. This is “image burn” or “burn-in” and not covered by the warranty. If the aspect ratio is set to 4:3 for a long

period of time, image burn may occur on the letterboxed area of the screen.

to adjust the picture horizontally, in linear proportion, to fill the entire screen(useful for viewing 4:3 formatted DVDs).

- Original : The aspect ratio is not adjusted from

the original. It is set by the program being watched.

Original

- 4:3 : The following selection will allow you to

view a picture with an original 4:3 aspect ratio, gray bars will appear on both the left and right of the screen.

- 1:1 : The aspect ratio is not adjusted from the

original. (Only HDMI/DVI PC, RGB PC)

- Just Scan : Following Selection will lead to you view the picture of best quality without loss of original picture in high resolution image. Note: If there is noise in original Picture, You can see the noise at the edge.

Just Scan

- 14:9 : You can view a picture format of 14:9 or a general Monitor set program in the 14:9 mode. The 14:9 screen is viewed in the same way as in 4:3, but is magnified to the left and right.

Page 19

CUSTOMIZING SETTINGS

- Zoom : The following selection will allow you to view the picture without any alteration, while filling the entire screen. However, the top and bottom of the picture will be cropped.

- Cinema Zoom 1 : Choose Cinema Zoom when you want to enlarge the picture in correct proportion. Note: When enlarging or reducing the picture, the image may become distorted.

MODE

ARC

16:9 o o o o o

Just Scan x o o x x

Original o x x x x

4:3 o o o o o

1:1 x x x o o

14:9 o o o x x

Zoom o o o x x

Cinema Zoom 1 o o o x x

Full Wide o x x x x

AV Component HDMI/DVI RGB

DTV PC PC

ENGLISH

ENG

- Full Wide : When Monitor set receives the wide screen signal,it will lead you to adjust the picture horizontally or vertically, in a linear proportion,to fill the entire screen fully.

Full Wide

Page 20

CUSTOMIZING SETTINGS

AUDIO settings

ENGLISH

ENG

The available audio options are described in the following:

Move

Press MENU to access the main menus.

Press the Navigation buttons to scroll to AUDIO and press

OK.

Press the Navigation buttons to scroll to the setting or

option you want and press OK.

- To return to the previous level, press BACK.

AUDIO

Auto Volume : Off

Clear Voice II : Off

 •Level 3

Balance 0

Sound Mode : Standard

 •Treble 50

 •Bass 50

   •Reset

Speaker : On

When you are finished, press EXIT.

When you return to the previous menu, press BACK.

Setting Description

Auto Volume To adjust uneven sound volumes across all channels or signals automatically to the most

Clear Voice ll By differentiating the human sound range from others,it helps users listen to human voices better.

Balance Adjusts balance between the left and right speakers according to your room environment.

Sound Mode Selects one of the preset sound modes or customize each option in each mode.

Speaker ON: Enables sound to the monitor speaker. (* The monitor speaker is sold separately.)

appropriate level. To use this feature, select On.

Mode

Standard Select when you want standard-quality sound.

Music Select when you listen to music.

Cinema Select when you watch movies.

Sport Select when you watch sports events.

Game Select when you watch sports events.

OFF: Disables sound to the monitor speaker. Use this option when using an external sound device.

Page 21

CUSTOMIZING SETTINGS

TIME settings

Press MENU to access the main menus.

Press the Navigation buttons to scroll to TIME and press

OK.

Press the Navigation buttons to scroll to the setting or option

you want and press OK.

TIME

Clock

Clock  :−−:−−−−−−   

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Off : On

Power On Delay : Off

Automatic Standby : On(4hours)

Move

- To return to the previous level, press BACK.

When you are finished, press EXIT.

When you return to the previous menu, press BACK.

The available time settings are described in the following:

Setting Description

Clock Sets the time feature.

On/Off Time Sets the time to turn on or off the Monitor set.

Sleep Timer Sets the length of time until the Monitor set to turns off. When you turn the Monitor set off and turn

Auto off If Auto off is active and there is no input signal, the set switches to off mode automatically after 10

Power on delay When connecting multiple monitors and turning the power on, the monitors are turned on individually

it on again, the Sleep Timer will be set to off.

minutes.

to prevent overload.

ENGLISH

ENG

NOTE

Once the on or off time is set, these functions operate daily at the preset time.

The scheduled power-off function works properly only when the device time is set correctly.

When the scheduled power-on and power-off times are the same, the power-off time has priority over the power-on time

if the set is turned on, and vice versa if the set is turned off.

Page 22

CUSTOMIZING SETTINGS

OPTION settings

ENGLISH

ENG

The available option settings are described in the following:

OPTION

Language : English

Press MENU to access the main menus.

Press the Navigation buttons to scroll to OPTION and press

OK.

Press the Navigation buttons to scroll to the setting or option

you want and press OK.

- To return to the previous level, press BACK.

When you are finished, press EXIT.

Language : English

Input Label

Key Lock : Off

Set ID : Off

ISM Method : Normal

DPM Select : On

Power Indicator : ON

Interface Select : RS232C

Network Setup

Information

Factory Reset

When you return to the previous menu, press BACK.

Setting Description

Language To choose the language in which the control names are displayed.

Input Label Selects a label for an input source to identify a device connected to each input source.

NOTE

If you want to use HDMI-PC mode, you must set the input label to PC mode.

Move

Key Lock Use the buttons to select On or Off. The monitor can be set up so that it can only be used with the

Set ID You can assign a unique Set ID NO (name assignment) to each product when several products

ISM Method A frozen or still picture from a PC/Video game displayed on the screen for prolonged periods

DPM Select A user can choose to turn the power saving mode on / off.

Power Indicator Use this function to set the power indicator on the front side of the product to On or Off.

remote control. This feature can prevent unauthorized viewing. In order to lock the OSD screen adjustment, set the Key Lock tab to the 'On' position. In order to unlock it, do the following : Push the MENU button on the remote control and set Key Lock to the 'Off' position.

are connected for display. Specify the number (1 to 99) using the button and exit. Use the assigned Set ID to individually control each product using the Product Control Program.

could result in a ghost image remaining even when you change the image. Avoid allowing a fixed image to remain on the screen for a long period of time.

Setting

Normal Leave on normal if you don't foresee image burn in being a problem.

Orbiter May help prevent ghost images. However, it is best not to allow any fixed

image to remain on the screen. To avoid a permanent image on the screen, the screen will move every 2 minutes.

Inversion This fu nction inve rts the p anel color of th e screen. The pan el colo r is

automatically inverted every 30 minutes.

White wash White wash fills the screen with solid white. This helps removes permanent

images burned into the screen. A permanent image may be impossible to clear entirely with white wash.

Page 23

CUSTOMIZING SETTINGS

Setting Description

Interface Select Sets up network connections.

Option

RS-232C Enables communication via Serial.

Network LAN - Enables communication via Ethernet.

Network Setup Option

DHCP Allocates and sets up IP automatically.

Manual Sets up IP address, Gateway, Subnet Mask, Primary DNS and Secondary

DNS. The setup process is complete when you select Execute, and "IP Setup Completed" is displayed at the bottom of the screen. While "Wait for IP Setup" is displayed, you cannot use the local keys and remote control. "Wait for IP Setup" is displayed for up to 40 seconds. * If Network select is set to RS232C.DHCP and Manual are disabled.

Information You can find informations about Serial No, F/W version, IP Address and MAC Address.

Factory Reset Select this option to return to the default factory settings.

ENGLISH

ENG

Page 24

CUSTOMIZING SETTINGS

TILE settings

ENGLISH

ENG

The available lock settings are described in the following:

TILE

Tile Mode : 2x2

Press MENU to access the main menus.

Press the Navigation buttons to scroll to TILE and press

OK.

Press the Navigation buttons to scroll to the setting or

option you want and press OK.

Tile Mode : Off

Tile ID : 0

Natural Mode : Off

H Size : 0

V Size : 0

H Position : 0

V Position : 0

Reset

- To return to the previous level, press BACK.

When you are finished, press EXIT.

When you return to the previous menu, press BACK.

Setting Description

Tile Mode To use this function

Tile ID Select the location of the Tile by setting an ID.

Natural The image is omitted by the distance between the screens to be naturally shown.

H-Size Adjust the horizontal size of the screen taking into account the size of the bezel.

V-Size Adjust the vertical size of the screen taking into account the size of the bezel.

H-Position Moving the screen position horizontally.

V-Position Moving the screen position vertically.

Reset Function to initialize and release Tile.

- Must be displayed with various other products.

- Must be in a function that can be connected to RGB Cable by distributor and RS-232C. Tile mode and choose Tile alignment and set the ID of the current product to set location. * Only after pressing the SET button the adjustments made to the settings will be saved.

- Tile mode : column x row ( c = 1, 2, 3, 4, 5 r = 1, 2, 3, 4, 5)

- 5 x 5 available.

- Configuration of an integration screen is also available as well as configuration of One by one Display.

All Tile setting are released when selecting Tile recall and the screen returns to Full screen.

Move

Page 25

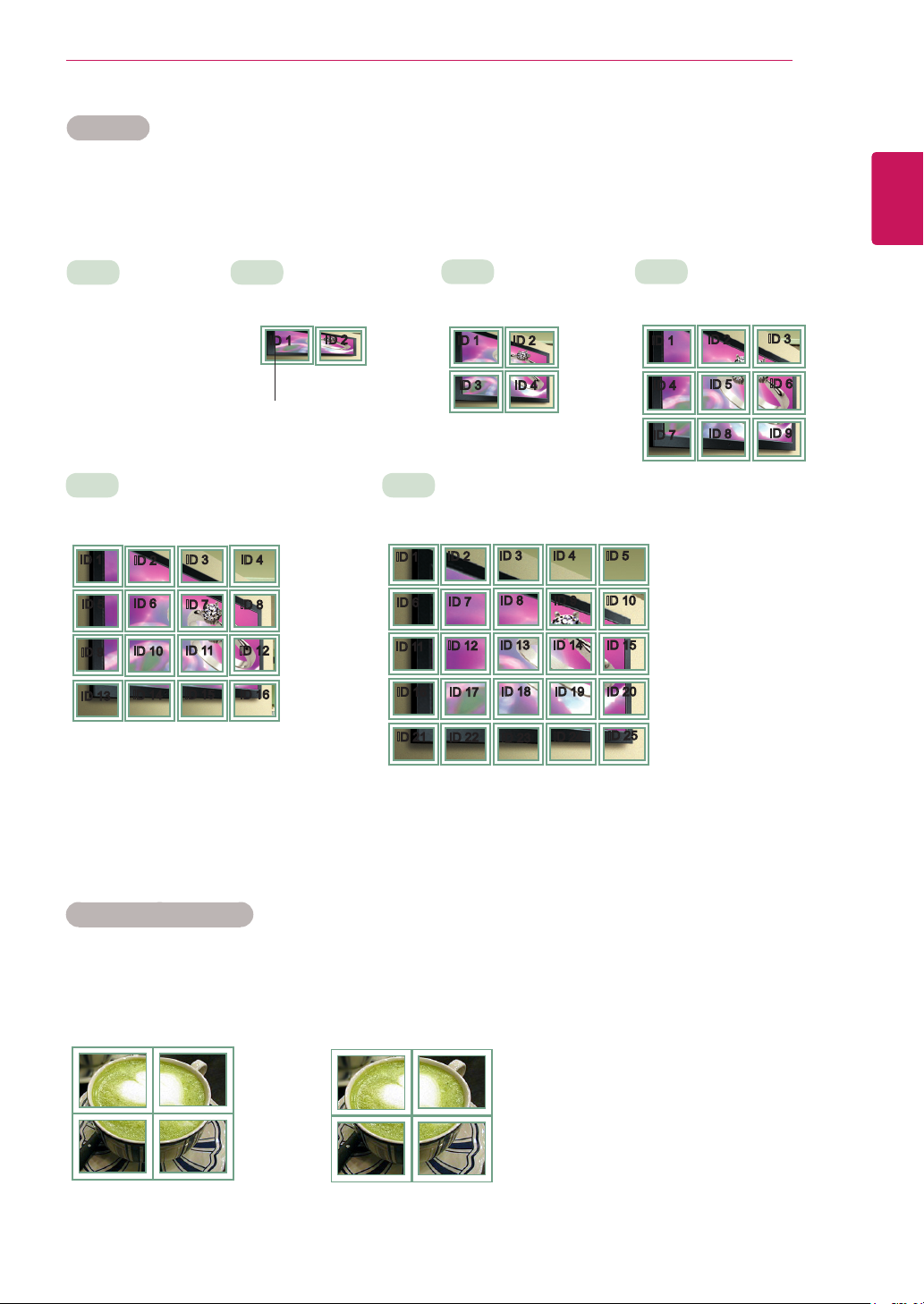

Tile Mode

This monitor can be tiled with additional monitors to create a large tiled display.

CUSTOMIZING SETTINGS

ENGLISH

ENG

• Off:

When the Tile Mode

option is disabled

• 4X4:

When using 16 monitors

ID 1

ID 5

ID 9

ID 13

ID 2

ID 6

ID 10

ID 14

ID 3

ID 7

ID 11

ID 15

• 2X1:

When using 2 monitors

ID 1

ID 2

Tile ID

ID 4

ID 8

ID 12

ID 16

• 2X2:

When using 4 monitors

ID 1

ID 3

ID 2

ID 4

• 5X5:

When using 25 monitors

ID 3

ID 2

ID 1

ID 8

ID 7

ID 6

ID 13

ID 12

ID 11

ID 17

ID 22

ID 18

ID 23

ID 16

ID 21

ID 4 ID 5

ID 9 ID 10

ID 14 ID 15

ID 19

ID 20

ID 24

ID 25

• 3X3:

When using 9 monitors

ID 1

ID 4

ID 7

ID 2

ID 5

ID 8

ID 3

ID 6

ID 9

Tile Mode - Natural mode

When active, the part of the image that would normally be displayed in the gap between the monitors is omitted.

Before After

Page 26

ENTERTAINMENT

ENGLISH

ENTERTAINMENT

ENG

Using integrated media features

Connecting USB storage devices

Connect USB storage devices such as a USB flash memory, external hard drive, or MP3 player to the Monitor set and use multimedia features (“Browsing files” See p.27). Connect a USB flash memory or USB memory card reader to the Monitor set as shown on the

following illustration. The USB screen appears.

To disconnect a USB storage device, make sure to end the connection properly to prevent damages to the Monitor set or files.

CAUTION

Do not turn the Monitor set off or remove a

USB storage device while the USB storage device is connected to the Monitor set, as

this could result in loss of files or damage to the USB storage device. Back up your files saved on a USB storage

device frequently, as you may lose or damage the files and this may be not covered by the warranty.

Precautions when using the USB device

Only a USB storage device is recognizable.

If the USB storage device is connected

through a USB hub, the device is not recognizable. A USB storage device using an automatic

recognition program may not be recognized. A USB storage device which uses its own

driver may not be recognized. The recognition speed of a USB storage

device may depend on each device. Please do not turn off the Set or unplug

the USB device when the connected USB storage device is working. When such device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged. Please do not connect the USB storage

device which was artificially maneuvered on the PC. The device may cause the product to malfunction or fail to be played. Never forget to use only a USB storage device which has normal music files or image files. Please use only a USB storage device which

was formatted as a FAT16, FAT32, NTFS file system provided with the Windows operating system. In case of a storage device formatted as a different utility program which is not supported by Windows, it may not be recognized. Data in a USB storage device cannot be deleted in the NTFS file system. Please connect power to a USB storage

device which requires an external power supply. If not, the device may not be recognized. Please connect a USB storage device with

cable is offered by USB maker. If connected with cable is not offered by USB maker or an excessively long cable, the device may not be recognized. Some USB storage devices may not be

supported or operated smoothly. Maximum of 999 files and folders can be

recognized. Data in a USB storage device cannot be

aligned. Up to 128 English characters can be

Page 27

ENTERTAINMENT

recognized as a file name. Please back up the important file because a

data of USB device may be damaged. Data management is consumer's responsibility and in consequence the manufactures does not cover the product bearing data damage. If the USB is connected in Standby Mode,

specific hard disk will automatically be loaded when the Set is turned on. The recommended capacity is 1TB or less

for a USB external hard disk and 32GB or less for USB memory. Any device with more than the recommended

capacity may not work properly. If a USB external hard disk with a “Power

Saving” function does not work, turn the hard disk off and on again to make it work properly. Names and subtitles of some language files

may not display properly.(Korean, Chinese, Japanese) When using Korean or Chinese subtitles

or file names, it is recommended to set the language to the corresponding one.

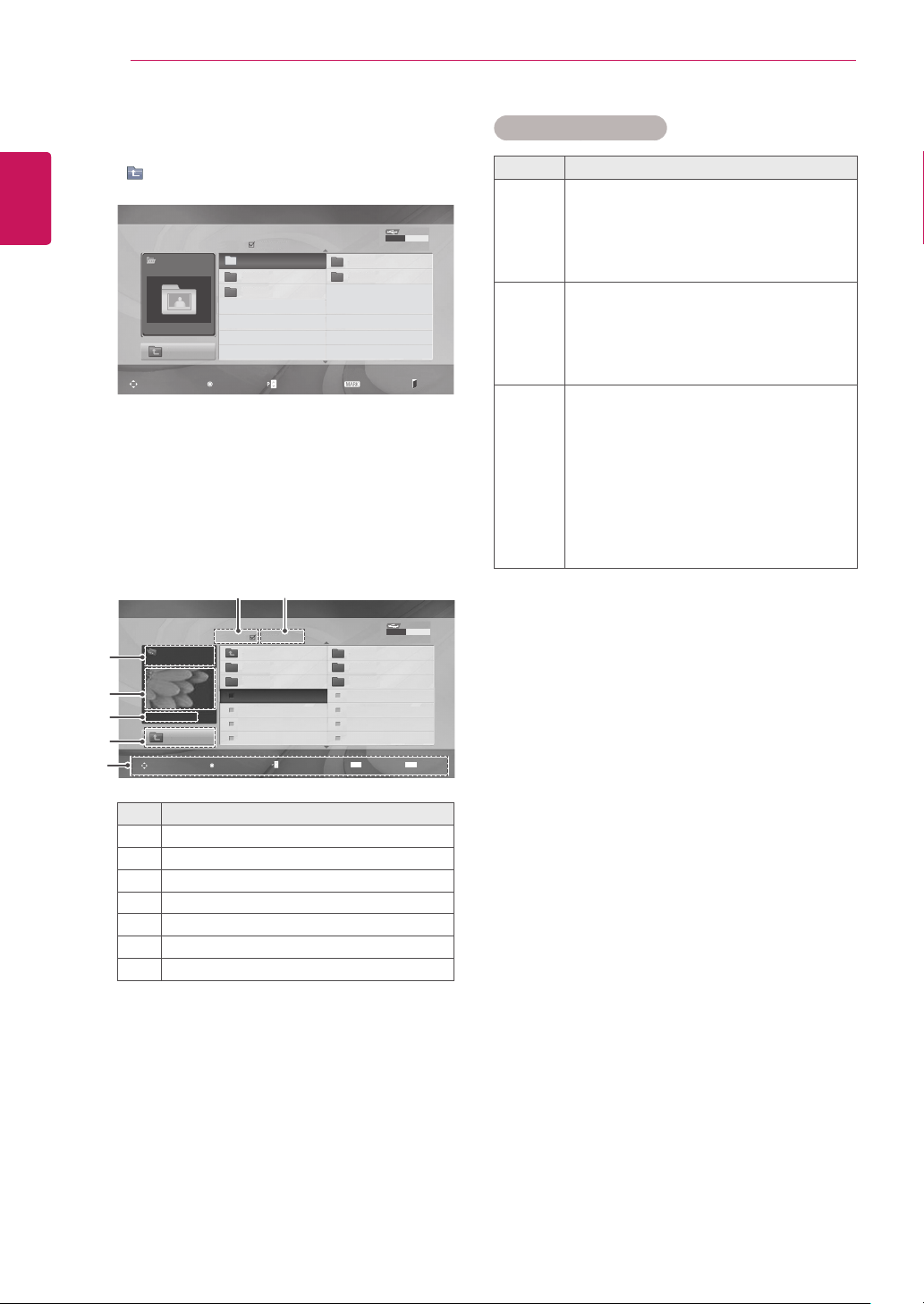

Browsing files

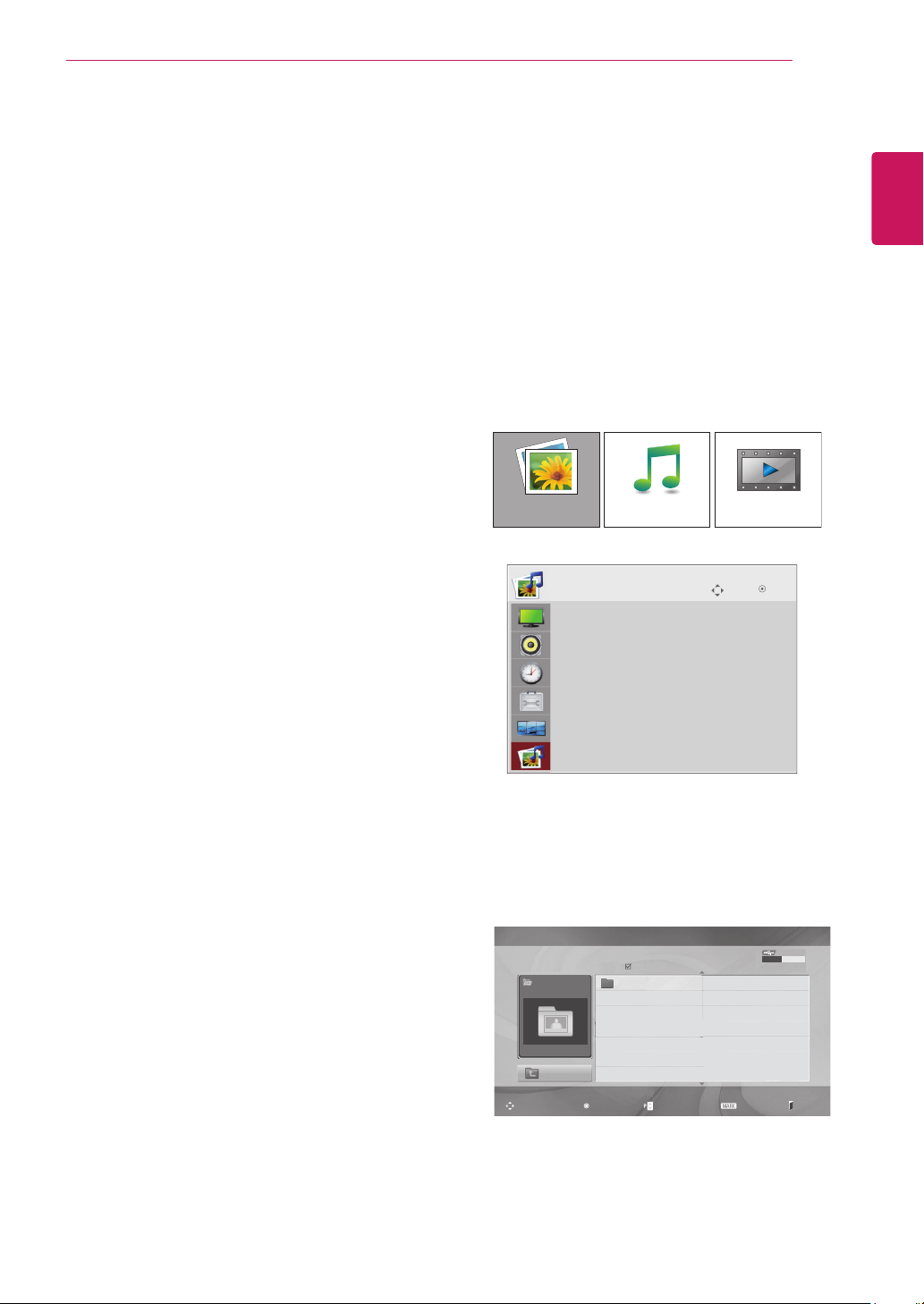

Access the Photo, Music or Movie lists and browse files.

Connect a USB storage device.

Press MENU to access the main menus.

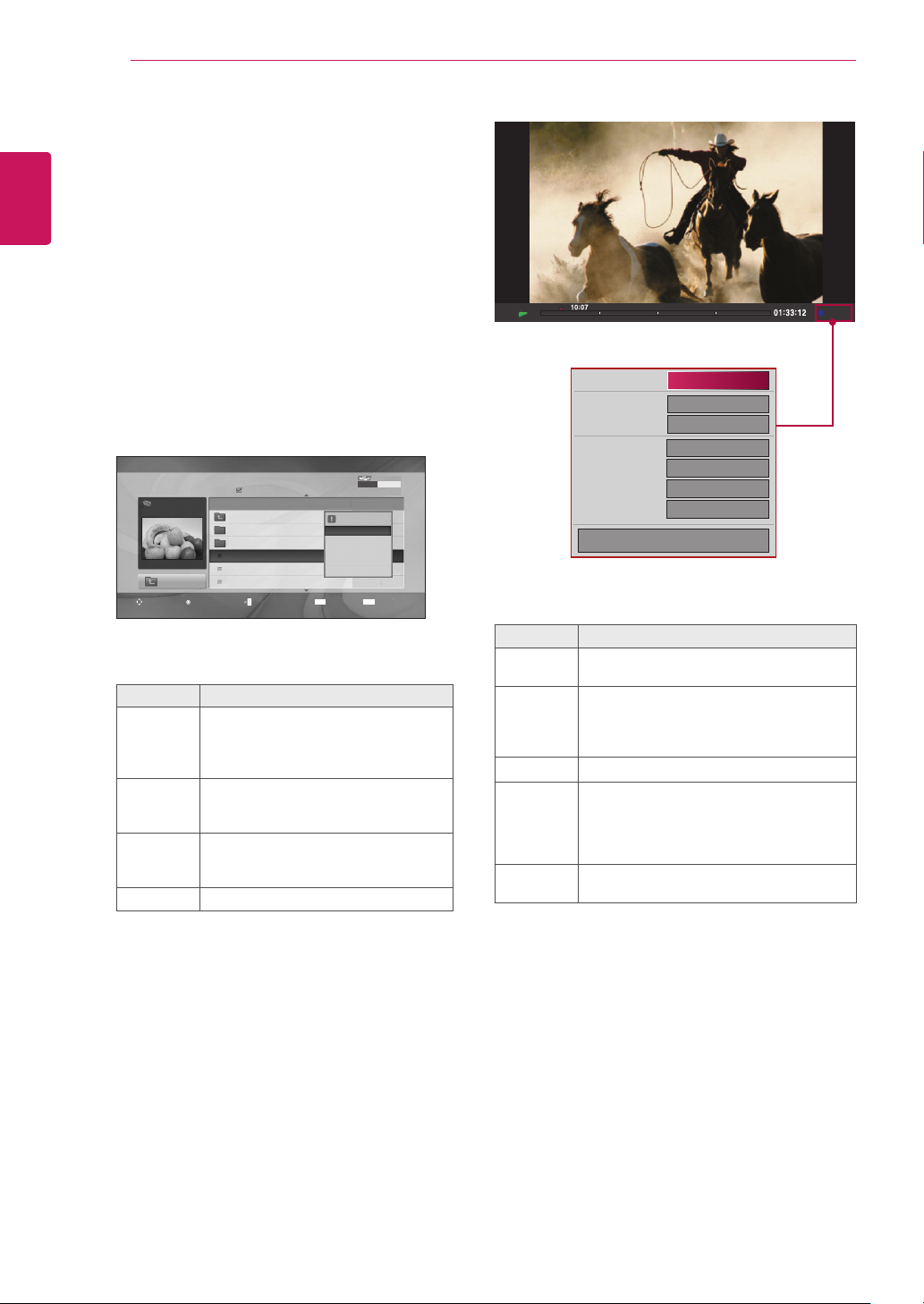

Press the Navigation buttons to scroll to USB

and press OK.

Press the Navigation buttons to scroll to

PHOTO LIST, MUSIC LIST or MOVIE LIST

and press OK.

PHOTO LIST MOVIE LISTMUSIC LIST

USB

Photo List

Music List

Movie List

DivX Reg.Code

Deactivation

Move

ENGLISH

ENG

Select Drive1 to access the connected USB

storage device

Photo List

USB

Drive 1

0 folder(s), 0 file(s)

Up Folder

Navigation

Page 1/1 No Marked

Drive 1

Popup Menu

Page Change

Free Space 150 MB

Mark

USB Device

Exit

Page 28

ENTERTAINMENT

ENGLISH

ENG

4 5 6 7

Select a folder you want.

- To return to the previous level, select Up Folder.

USB Device

Photo List

USB

Drive 1

0 folder(s), 0 file(s)

Up Folder

Navigation

Page 1/1 No Marked

KY101

KY103

KY105

Popup Menu

Page Change

KY102

KY104

Mark

Free Space 150 MB

Exit

Press the Navigation buttons to browse files.

The highlighted file will display in the preview window.

1 2

Photo List

Drive 1

JMJ001

1366x768, 125KB

Up Folder

Navigation

Page 2/3 No Marked

Up Folder

KY101 02/12/2010

KY102 02/12/2010

JMJ001 02/12/2010

JMJ002 02/12/2010

JMJ003 02/12/2010

JMJ004 02/12/2010

Option

Page Change

KY103 02/12/2010

KY104 02/12/2010

KY105 02/12/2010

JMJ005 02/12/2010

JMJ006 02/12/2010

JMJ007 02/12/2010

JMJ008 02/12/2010

USB Device

Free Space 150 MB

Mark

EXIT

Exit

MARK

Supported file format

Type Supported file format

Photo yJPG

yAvailable size

Baseline: 64 pixel (W) x 64 pixel (H) 15360 pixel (W) x 8640 pixel (H) Progressive: 64 pixel (W) x 64 pixel (H) 1024 pixel (W) x 768 pixel (H)

Music yMP3

yBit rate range 32 Kbps to 320 Kbps ySampling rate (Sampling Frequency)

MPEG1 layer 3: 32 kHz, 44.1 kHz, 48 kHz

* A copy-protected file will not play.

Video yMPEG1, MPEG2, MPEG4(Doesn't

support Microsoft MPEG 4-V2, V3), DivX 3.xx, DivX 4.xx, DivX 5.xx, DivX

VOD(DRM), XviD, DivX 6.xx(Playback) yAudio format: Mpeg, Mp3, PCM ySampling frequency: within 32k to 48khz yBit rate of audio format: within 32k to

320kbps ySupported subtitle format: *.smi, *.srt,

*.sub (MicroDVD, SubViewer 2.0), *.ass,

*.ssa, *.txt (DVD Subtitle System)

No. Description

Current page number/total number of pages

The number of selected files

File and Folder name

Preview window

File size, information.

Return to the previous level

Available buttons on the remote control

Page 29

ENTERTAINMENT

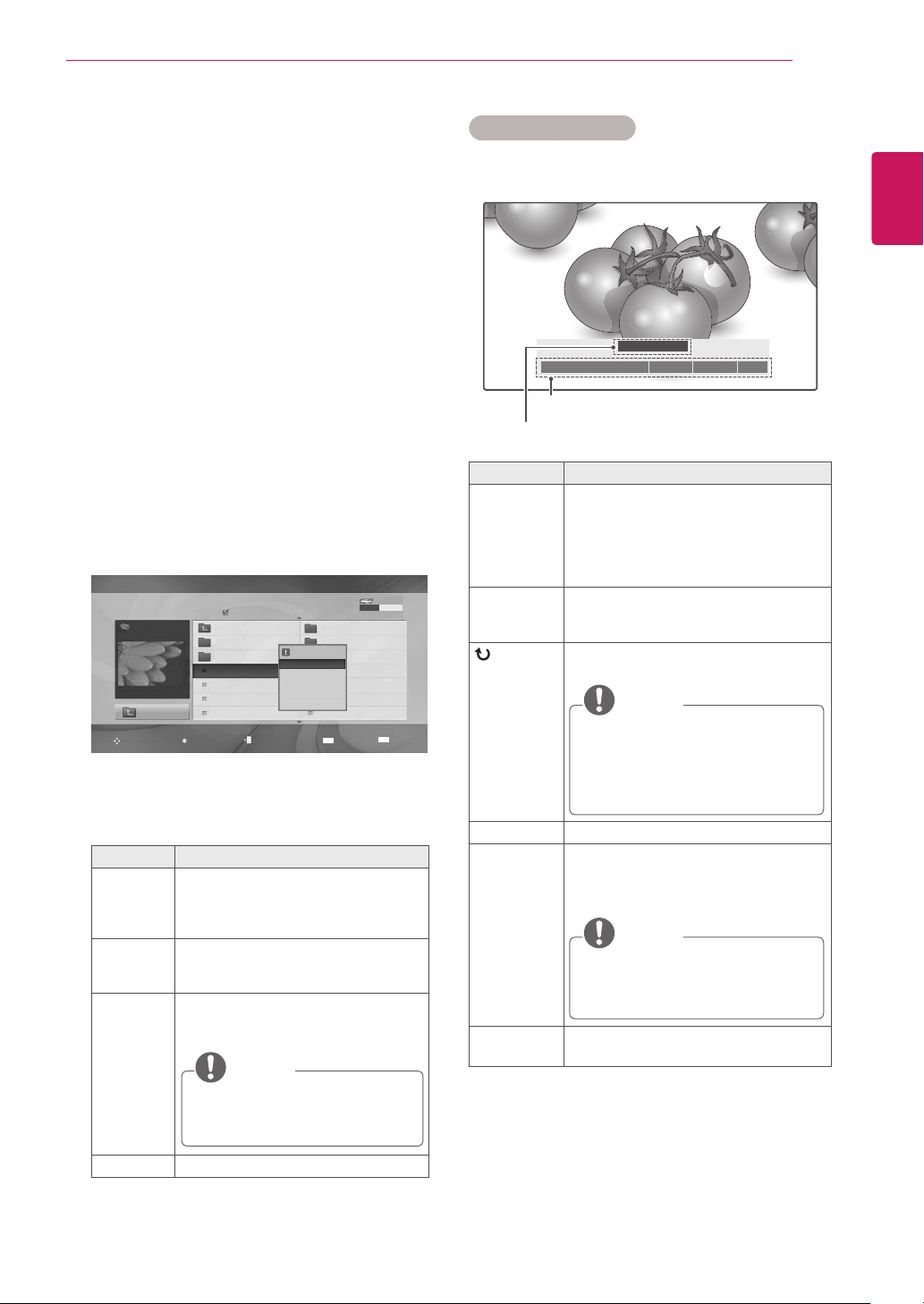

Viewing Photos

View image files saved in a USB storage device. The displays on the screen may differ from the model.

Press the Navigation buttons to scroll to USB

and press OK.

Press the Navigation buttons to scroll to Photo

List and press OK.

Press the Navigation buttons to select Drive1

to access the connected USB storage device.

Press the Navigation buttons to scroll to a

folder you want and press OK.

Press the Navigation buttons to scroll to a file

you want and press OK.

A pop-up window will appears.

USB Device

Free Space 150 MB

Mark

EXIT

Exit

MARK

Up Folder

Page 2/3 No Marked

Up Folder

KY101 02/12/2010

KY102 02/12/2010

JMJ001 02/12/2010

JMJ002 02/12/2010

JMJ003 02/12/2010

JMJ004 02/12/2010

Option

Page Change

1366x768, 125KB

View

Mark All

Delete

KY103 02/12/2010

KY104 02/12/2010

KY105 02/12/2010

JMJ005 02/12/2010

JMJ006 02/12/2010

JMJ007 02/12/2010

JMJ008 02/12/2010

Photo List

Drive 1

JMJ001

1366x768, 125KB

Navigation

View photos by using the following menus.

Menu Description

View Displays the selected photo in a full-

screen view.

yDrive: Views photos saved in a

USB storage drive.

Mark All or Unmark

Selects all files or clears all of your selections

All

Delete Deletes a file saved in a USB storage

device.

NOTE

You cannot delete the files saved in a shared folder of a PC.

Using photo options

Use the following options while viewing photos.

◄ 1/17►

Slideshow◘ BGM◘ Delete Option Hide

꘤

Options

Number of selected photos

Option Description

Slideshow Starts or stops a slideshow with selected

photos. If there are no selected photos, all photos saved in the current folder display during a slideshow. To set a slideshow speed, select Option.

BGM Turns the background music on or off.

To set the background music folder, select Option.

(Rotate)

Rotates photos clockwise (90°, 180°, 270°, 360°).

NOTE

The supported photo size is limited. You cannot rotate a photo if the resolution of the rotated width is larger than the supported resolution size.

Delete Deletes a photo.

Option ySlide Speed: Selects a slideshow

speed (Fast, Medium, Slow).

yMusic Album: Selects a music folder

for the background music.

NOTE

You cannot change the music folder while the background music is playing.

Hide Hides the option window.

To display the options, press OK.

ENGLISH

ENG

Close Closes the pop-up menu.

Page 30

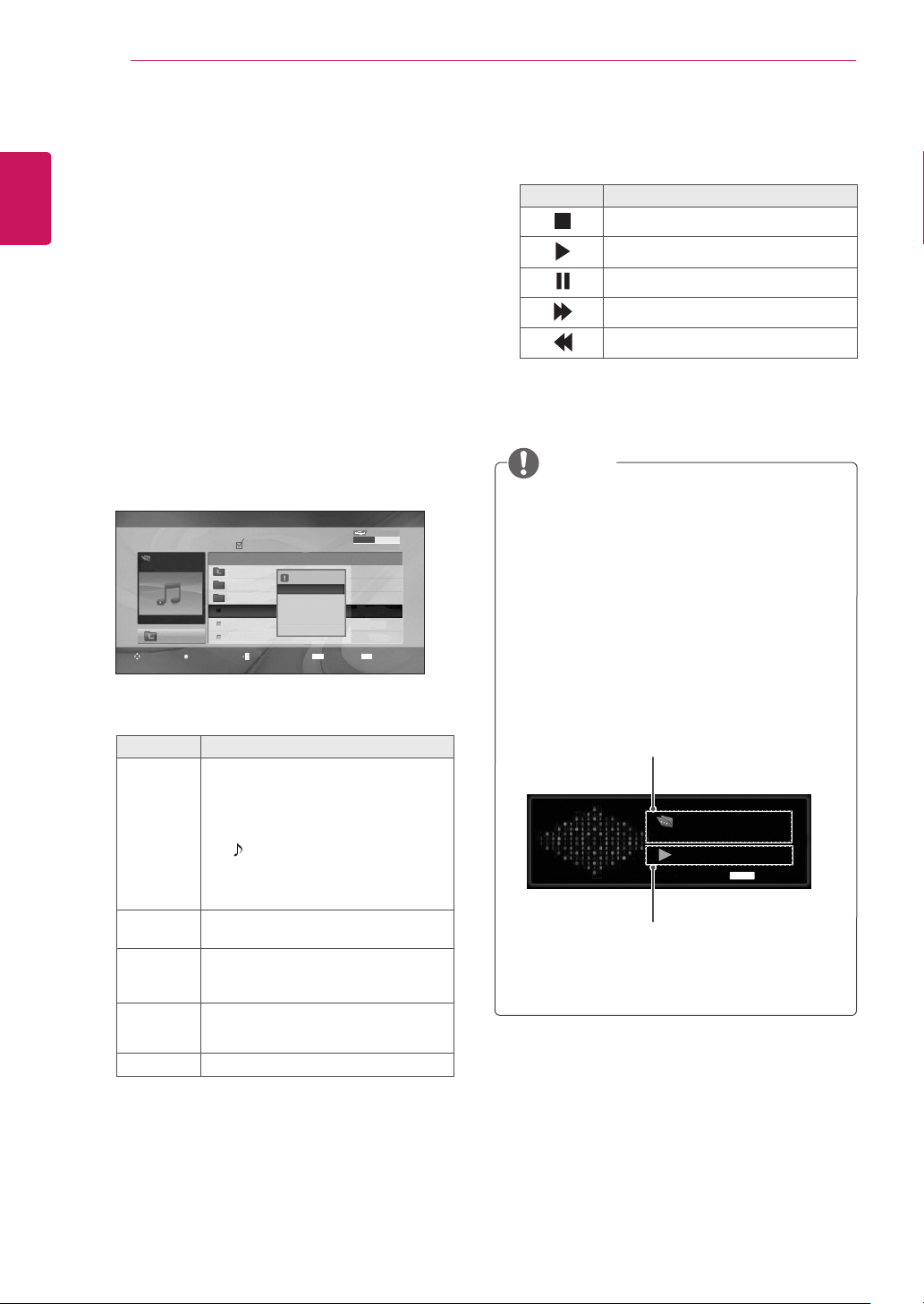

Listening to Music

ENGLISH

ENG

ENTERTAINMENT

Press the Navigation buttons to scroll to USB

and press OK.

Press the Navigation buttons to scroll to Music

List and press OK.

Select Drive1 to access the connected USB

storage device.

Press the Navigation buttons to scroll to a

folder you want and press OK.

Press the Navigation buttons to scroll to a file

you want and press OK.

A pop-up window will appears.

Mark

USB Device

Free Space 150 MB

Up Folder

03:33

04:45

01:30

02:37

01:58

EXIT

Exit

Music List

Music

S003

00:00/01:34

Up Folder

Navigation

Option

Page 2/3

Up Folder

S001

S002

S003

S004

S005

No Marked

Page Change

Title Duration

4395KB 1Kbps

Play

Play with Photo Mark All Delete Close

MARK

Control playback by using the following

buttons.

Button Description

Stops playback

Plays a music file

Pauses or resumes playback

Skips to the next file

Skips to the previous file

NOTE

A damaged or corrupted file will not play and

the duration of the file display as 00:00. A copy-protected file will not play.

If the Monitor set is not in use for some time

during playback, the information box as a screensaver will appear to prevent image burn. To return to the Music list screen, press OK,

■ (stop) or BACK.

Play music by using the following menus.

Menu Description

Play, Stop Play, or Play Marked

Plays music, stops playback, or plays the selected music file. If you play music without selecting music files, all of the music files saved in the current folder will play. The icon will appear in front of the duration on the currently playing file.

yDrive: Listen to music files saved in

a USB storage drive.

Play with

Displays photos during playback.


Mark All

or Unmark

Selects all files or clears all of your selections

All

Delete Deletes a file saved in a USB storage

device.

Close Closes the pop-up menu.

Folder name/file name

Music

S003

0:27 / 3:67

Q.MENU

Option

Time elapsed /Duration

Page 31

Viewing Movies

Play video files on the Monitor set. Your Monitor set displays all of the video files saved in a USB storage device.

Movie (*.dat / *.mpg / *.mpeg / *.vob/ *.m4v /

*.avi / *.divx) supporting file. Video format: MPEG1, MPEG2,

MPEG4(Doesn’t support Microsoft MPEG 4-V2, V3), DivX 3.xx, DivX 4.xx, DivX 5.xx, DivX VOD(DRM), XviD, DivX 6.xx(Playback) Audio format: Mpeg, Mp3, PCM

Bit rate: within 32 kbps to 320 kbps (MP3)

Subtitle format: *.smi / *.srt / *.sub (Micro

DVD, SubViewer 2.0) / *.ass / *.ssa / *.txt (DVD Subtitle System). Some user-created subtitles may not work

properly. Some special characters are not supported in

subtitles. HTML tags are not supported in subtitles.

Subtitles in languages other than the

supported languages are not available. Time information in an external subtitle file

should be arranged in ascending order to be played. The screen may suffer temporary interruptions

(image stoppage, faster playback, etc.) when the audio language is changed. A damaged movie file may not be played

correctly, or some player functions may not be usable. Movie files produced with some encoders may

not be played correctly. If the video and audio structure of recorded

file is not interleaved, either video or audio is outputted. HD videos with a maximum of 1920 x 1080

@ 25/30P or 1280 x 720 @ 50/60P are supported, depending on the frame. Videos with resolutions higher than 1920 x

1080 @ 25/30P or 1280 x 720 @ 50/60P may not work properly depending on the frame. Movie files other than the specified types and

formats may not work properly.

Max bit rate of playable movie file is 20

Mbps.

We do not guarantee smooth playback of

profiles encoded level 4.1 or higher in H.264 / AVC. DTS Audio codec is not supported.

ENTERTAINMENT

A movie file more than 30GB in file size is not

supported for playback. A DivX movie file and its subtitle file must be

located in the same folder. A video file name and its subtitle file name

must be identical for it to be displayed. Playing a video via a USB connection that

doesn’t support high speed may not work properly. Files encoded with GMC (Global Motion

Compensation) may not be played. When you are watching the movie by Movie

List function, you can adjust an image by Energy Saving key on the remote control. User setup for each image mode does not operate.

Video Decoder

mpg, mpeg, vob, dat: MPEG1, MPEG2

avi, divx, m4v: MPEG4 SP, MPEG4 ASP,

Divx 3.xx, Dvix 4.xx, Dvix 5.xx, Dvix 6.xx (Playback), XviD

Audio Codec

mpg, mpeg, vob, dat, avi, divx, m4v: AC3,

MPEG, MP3, PCM

Max Resolution

720 x 576 @ 25p

720 x 480 @ 30p

ENGLISH

ENG

Page 32

ENGLISH

ENG

ENTERTAINMENT

Press the Navigation buttons to scroll to USB

and press OK.

Press the Navigation buttons to scroll to Movie

List and press OK.

Select Drive1 to access the connected USB

storage device.

Press the Navigation buttons to scroll to a

folder you want and press OK.

Press the Navigation buttons to scroll to a file

you want and press OK.

A pop-up window will appears.

1366x768, 125KB

Play

Mark All

Delete

Mark

USB Device

Free Space 150 MB

01:34:15

01:35:30

01:30:20

EXIT

Exit

Movie List

M002

640x480, 720KB

Navigation

Play video by using the following menus.

Movie

Up Folder

Option

Page 2/3

No Marked

Up Folder

Favorite Music

M001

M002

M001

Page Change

Title Duration

MARK

Menu Description

Play or Play Marked

Plays a movie or plays the selected movie.

yDrive: Views videos saved in a USB

storage drive.

Mark All

or Unmark

Selects all files or clears all of your selections.

All

Delete or Delete marked

Deletes a file formatted on the FAT32 file system and saved in a USB storage device.

Close Closes the pop-up menu.

Picture Size

Subtitle Language

Audio Language

Subtitle File

● Language

● Sync

● Position

◀ Full Screen ▶

1/6

Off

Latin 1

+0.5

When you select the Set Video Play.

Menu Description

Picture Size

Subtitle Language or Audio Language

Language Selects your desired Language.

Sync Adjusts the time synchronisation of the

Position Changes the position of the subtitle either

Selects your desired picture format during movie play

Changes the Language Group of the subtitle/audio during movie play.

subtitle from -10 secs to +10 secs by steps of 0.5 secs during movie play.

up or down during movie play.

Option

Page 33

ENTERTAINMENT

Press the Navigation button to show the

Picture Size, Audio Language or Subtitle Language.

Press the Navigation button to make

appropriate adjustments.

Subtitle Language

Latin1 English, Spanish, French, German,

Italian, Swedish, Finnish, Dutch, Portuguese, Danish, Romanian, Norwegian, Albanian, Gaelic, Welsh, Irish, Catalan, Valencian

Latin2 Bosnian, Polish, Croatian, Czech,

Slovak, Slovenian, Serbian, Hungarian

Latin4 Estonian, Latvian, Lithuanian

Cyrillic Bulgarian, Macedonian, Russian,

Ukrainian, Kazakh

Greek Greek

Hebrew Hebrew

Chinese Chinese

Korean Korean

Support Language

NOTE

Only the files saved in ASCII CODE is

supported for the external subtitles of the movie. Only 500 alphabets and 500 numbers are

supported for each line of the subtitle. Only 10,000 of sync blocks can be

supported within the subtitle file.

When you select the Set Video.

Press the Navigation button to make

appropriate adjustments. See p.9

When you select the Set Audio,

Press the Navigation button to show the

Sound Mode, Auto Volume, Clear Voice II, Balance.

Press the Navigation button to make

appropriate adjustments.

Using the remote control.

Button Description

ꕚ ꕙ

Pause (ꕘ) During playback, press the Pause (ꕘ)

■ During playback, stops the screen.

(ꕖ)

Play

When playing, repeatedly, press the REW(ꔊꔊ) button to speed up ꔊꔊ(x2)

ꔊꔊꔊꔊ

repeatedly, press the FF(ꔋꔋ) button to speed up ꔋꔋ(x2)

ꔋꔋꔋꔋꔋ

button.

Press the Play normal playback.

ꔊꔊꔊꔊꔊ

(x8)

(x16)

yPressing these buttons repeatedly

increases the fast forward/reverse speed.

yStill screen is displayed. yIf no buttons are pressed on the

remote control for 10 minutes after pausing, the Monitor set returns to the playback state.

yPress the Pause (ꕘ) button and

then use the FF (ꔋꔋ) button for slow motion.

ꔊꔊꔊ

ꔊꔊꔊꔊꔊꔊ

(x16)

ꔋꔋꔋ

ꔋꔋꔋꔋꔋꔋ

(x32).

(ꕖ)

button to return to

(x4)

(x32) .

ꔋꔋꔋꔋ

ENGLISH

ENG

(x8)

Page 34

ENTERTAINMENT

DivX registration code

ENGLISH

ENG

Check and register the DivX registration code of your Monitor set so that you can rent or purchase the latest movies at rented or purchased DivX file, the file’s registration code should be same with your Monitor set’s DivX registration code.

www.divx.com/vod

. To play a

Press MENU to access the USB menus.

Press the Navigation button to scroll to DivX

Reg. Code and press OK.

View the registration code of your Monitor set.

DivX(R) Video On Demand

Your registration Code is: xxxxxxxxxx

To learn more visit www.divx.com/vod.

NOTE

While you are checking the registration code,

some buttons may not work. If you use the DivX registration code of

another device, you cannot play the rented or purchased DivX file. Make sure to use the DivX registration code assigned to your Monitor set. The video or audio files that are not

converted by the standard DivX codec may be corrupted or not be played. The DivX VOD code allows you to activate

up to 6 devices under one account.

Deactivating the DivX feature

Deactivate all of the devices through the web server and block devices from activating. Delete the existing authentication information to receive a new DivX user authentication for the Monitor set. Once this function is executed, a DivX user authentication is required again to see DivX DRM files.

Press MENU to access the USB menus.

Press the Navigation button to scroll to

Deactivation and press OK.

Select Yes to confirm.

DivX(R) Video On Demand

Do you want to deactivate your device?

Yes No

Select Close.

DivX(R) Video On Demand This device is deactivated.

Your deactivation code is: xxxxxxxx

To learn more visit www.divx.com/vod.

When you are finished, press EXIT.

When you return to the previous menu, press

BACK.

Page 35

MAKING CONNECTIONS

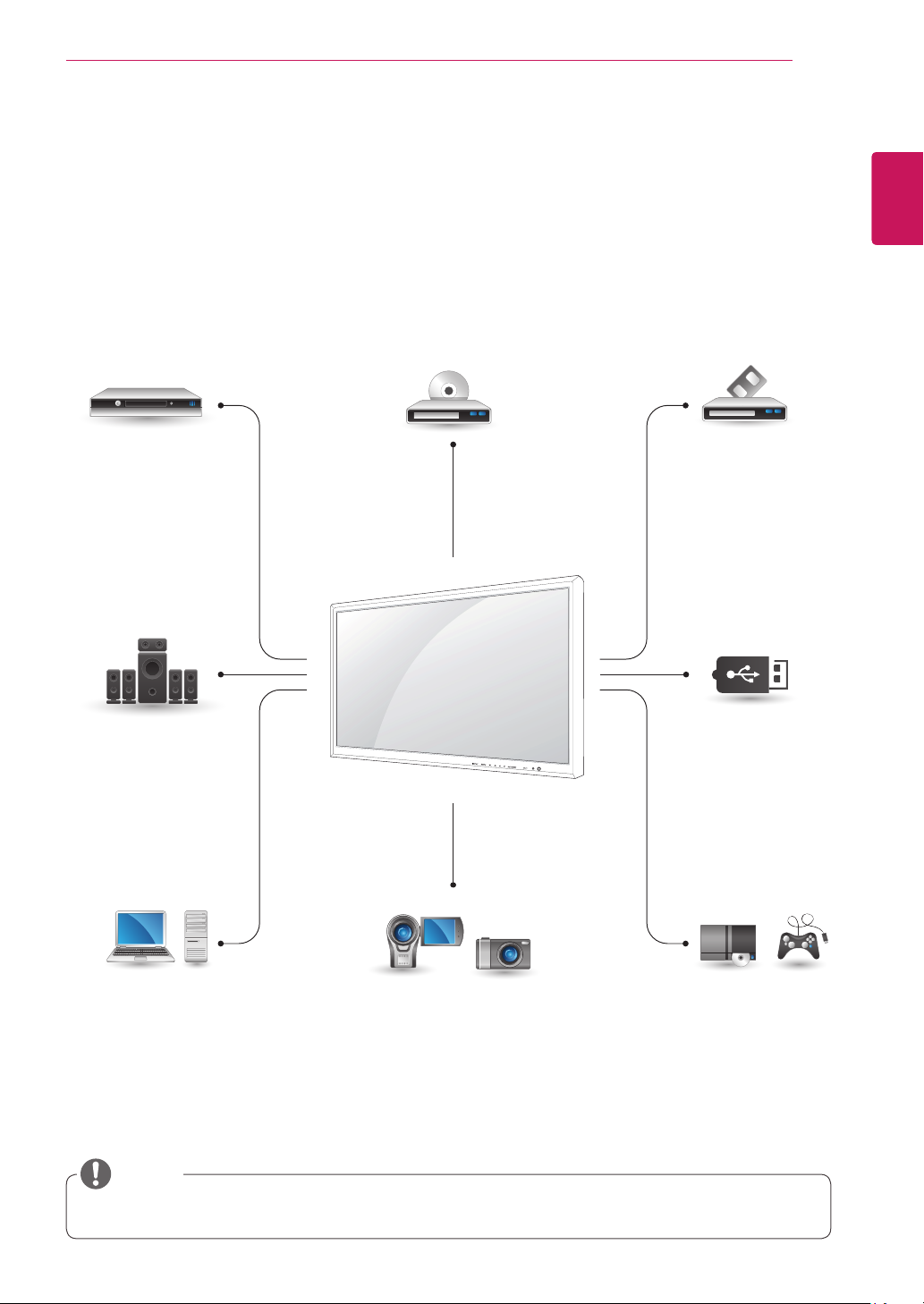

Connect various external devices to the ports on the Monitor set’s back panel.

Find an external device you want to connect to your Monitor set shown on the following illustration.

Check the connection type of the external device.

Go to the appropriate illustration and check the connection details.

HD Receiver DVD VCR

HDMI - See p.36 DVI - See p.36 AV(CVBS) - See p.37 Component - See p.37

Speaker

HDMI - See p.36 DVI - See p.36 AV(CVBS) - See p.37 Component - See p.37

AV(CVBS)

- See p.37 Component

- See p.37

USB

ENGLISH

ENG

Memory storage – See p.26

HDMI - See p.13 DVI - See p.12 RGB - See p.12 LAN - See p.38

Camcorder/Camera

HDMI - See p.36 DVI - See p.36 AV(CVBS) - See p.37 Component - See p.37

Gaming device

HDMI - See p.36 AV(CVBS)

- See p.37 Component

- See p.37

NOTE

If you connect a gaming device to the Monitor set, use the cable supplied with the gaming device.

Page 36

MAKING CONNECTIONS

ENGLISH

ENG

DVD, Camcorder, Camera, Gaming Device or VCR player

Connect a HD receiver, DVD, or VCR player to the Monitor set and select an appropriate input mode.

HDMI connection

Transmits the digital video and audio signals from an external device to the Monitor set. Connect the external device and the Monitor set with the HDMI cable as shown on the following illustration.

Connecting to a HD receiver,

HDMI Signal Cable (not included)

HDMI/DVI connection

Transmits the digital video signal from an external device to the Monitor set. Connect the external device and the Monitor set with the HDMI/DVI cable as shown in the following illustration. To transmit an audio signal, connect an optional audio cable.

HDMI-DVI

Signal Cable

(not included)

RCA-PC Audio Cable (not included)

NOTE

Use a High Speed HDMI™ Cable.

High Speed HDMI™ Cables are tested to

carry an HD signal up to 1080p and higher.

Page 37

MAKING CONNECTIONS

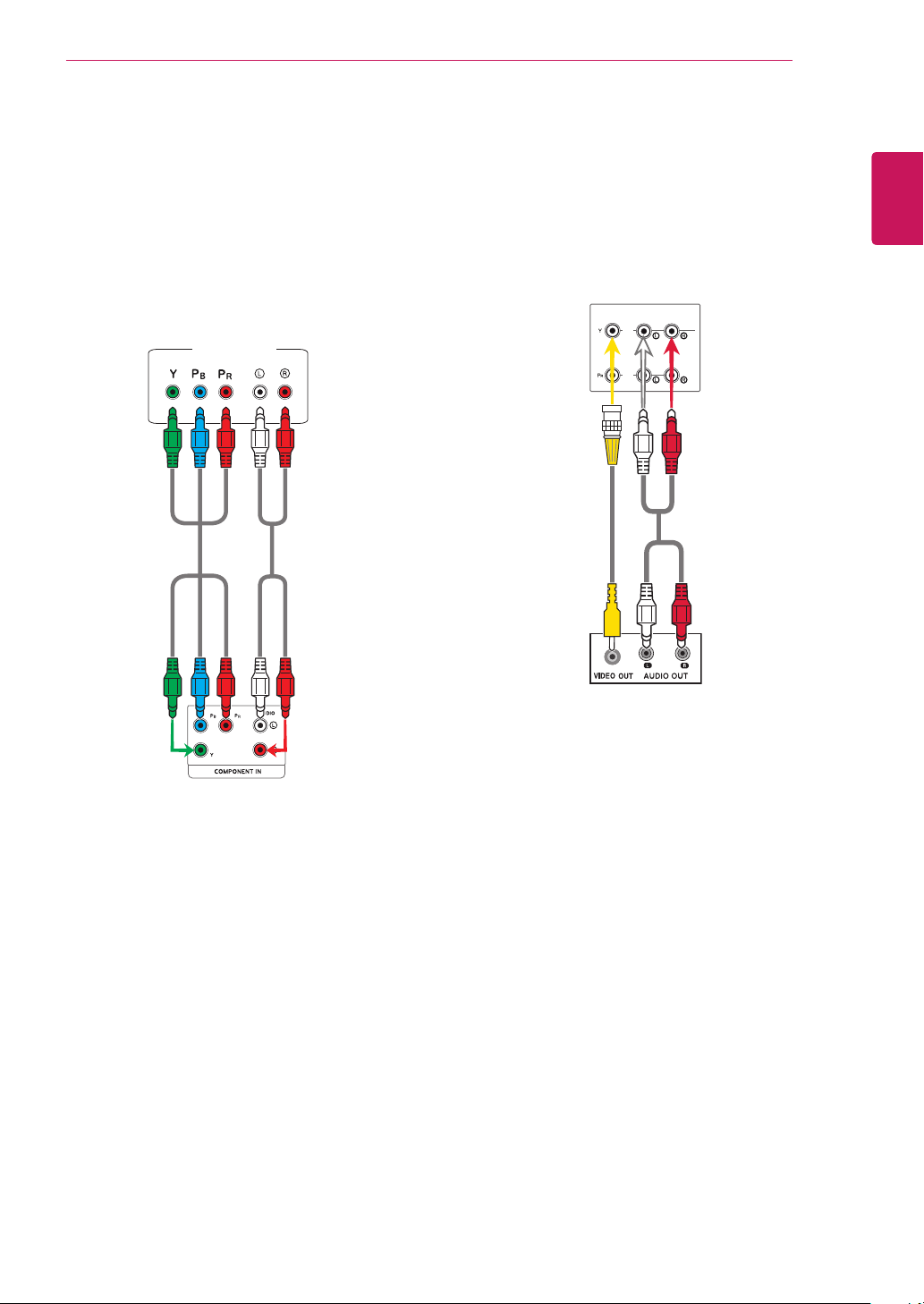

Component connection

Transmits the analog video and audio signals from an external device to the Monitor set. Connect the external device and the Monitor set with the component cable as shown on the following illustration. To display images by using progressive scan, make sure to use the component cable.

AV(CVBS) connection

Transmits the analog video and audio signals from an external device to the Monitor set. Connect the external device and the Monitor set with the BNC cable as shown on the following illustration.

AV IN / OUT

AUDIO

VIDEO

OUT

BNC Cable

(not included)

RCA-PC Audio Cable (not included)

ENGLISH

ENG

Page 38

MAKING CONNECTIONS

Network

ENGLISH

Connecting to the LAN

ENG

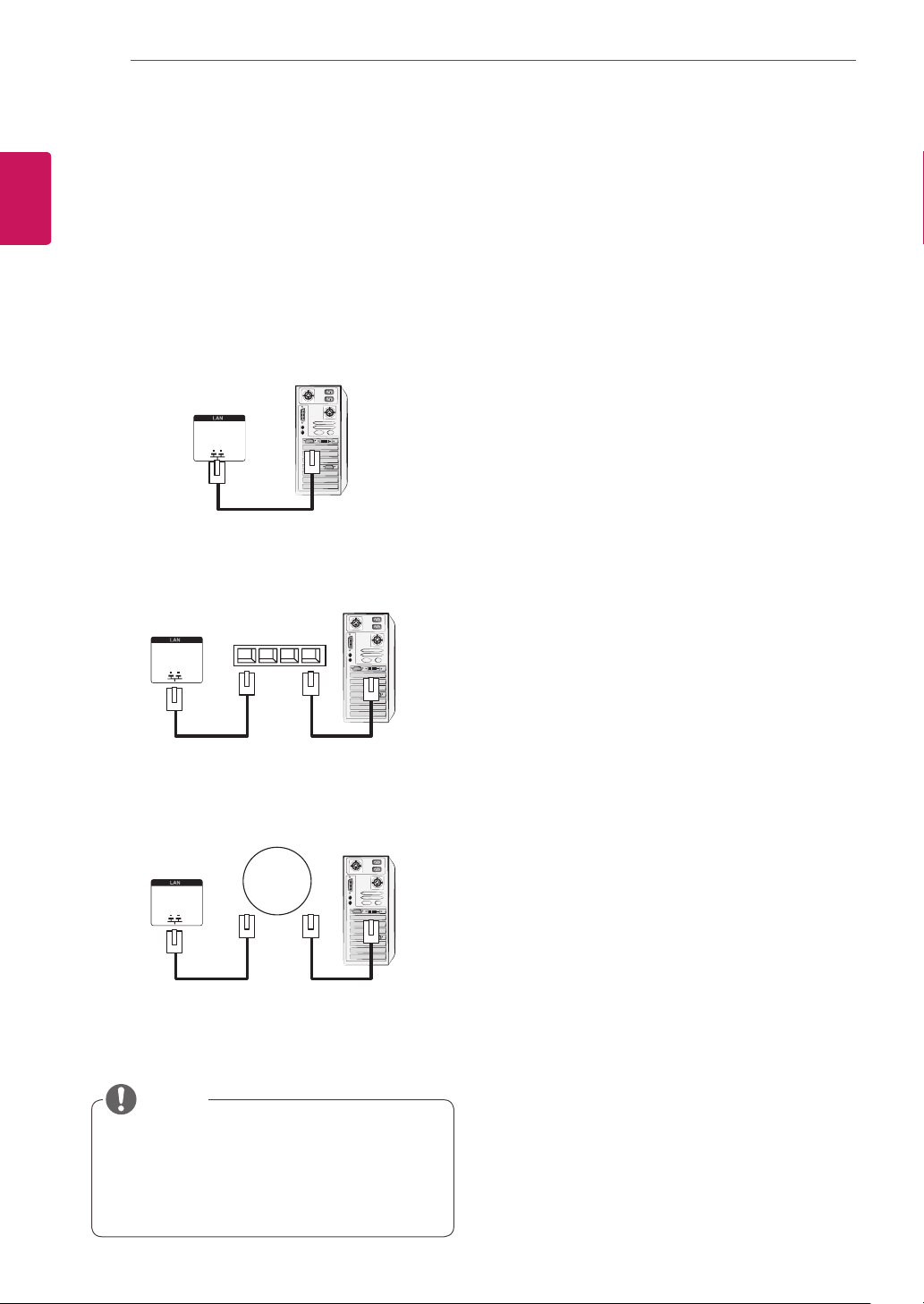

LAN connection

Connect the LAN cable and install the eZ-Net Manager program on the CD-ROM. For more information about the program, please refer to eZ-Net Guide in the enclosed CD-ROM.

Connect PC to Monitor directly.

LAN

Monitor Set

Using a router(Switch)

LAN

Switch

Monitor Set

Using the Internet.

LAN

Monitor Set

NOTE

Using LAN establishes communication

between your PC and the monitor and enables to use the OSD menus on the PC as well as on the monitor.

Page 39

MAKING CONNECTIONS

AV IN / OUT

VIDEO

OUT

AUDIO

AV IN / OUT

VIDEO

OUT

AUDIO

AV IN / OUT

VIDEO

OUT

AUDIO

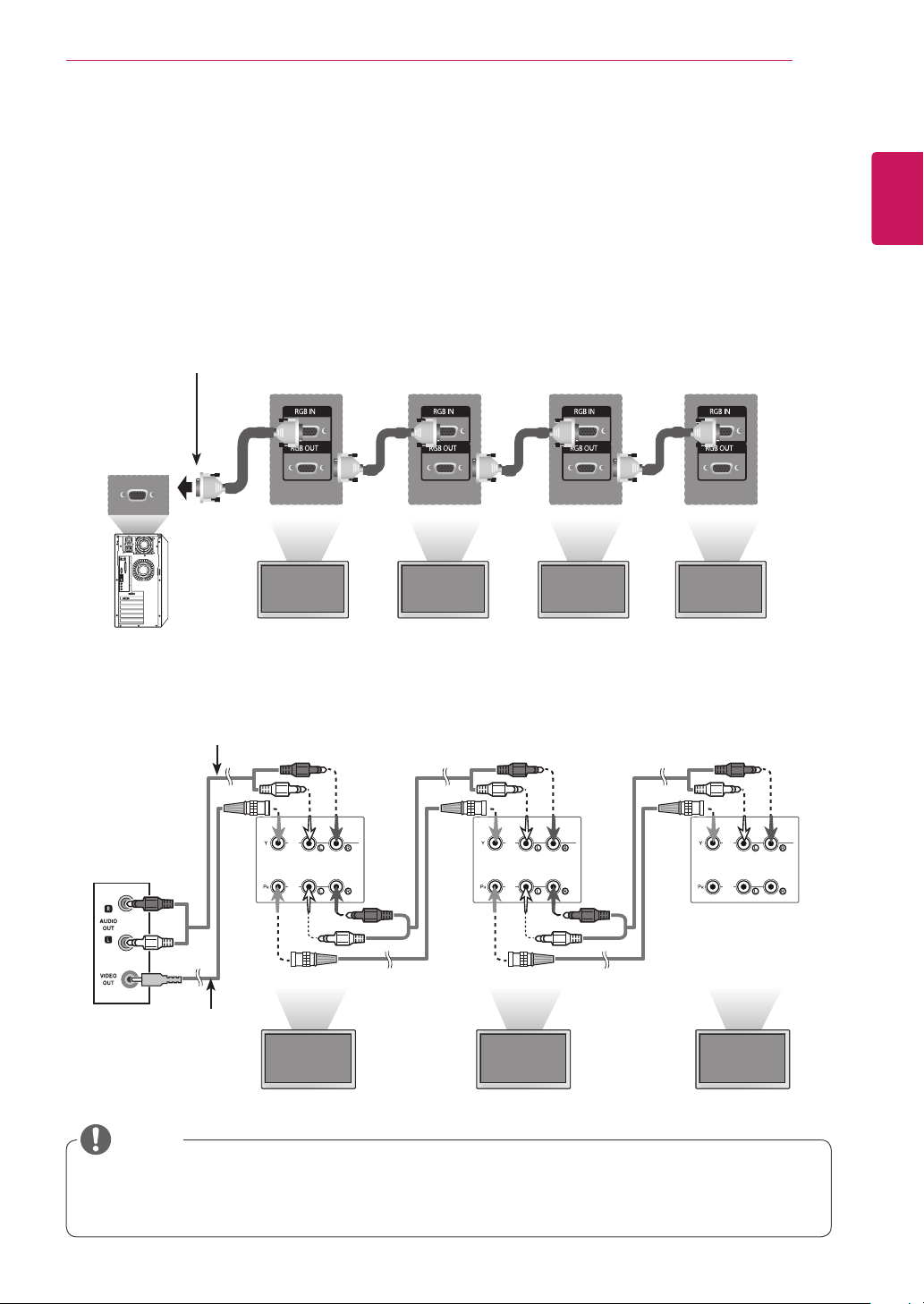

Daisy Chain Monitors

Use this function to share the RGB video signal with other monitors without having to use a separate signal splitter box.

• To use different products connected to each other Connect one end of the signal input cable (15-pin

D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect the other end to the RGB IN connector of other products

RGB Mode

15-pin D-Sub Signal Cable

(Max 3m)

Product 1

Product 2

Product 3

Product 4

ENGLISH

ENG

AV(CVBS) Mode

Audio Cable

(Not included)

BNC Cable

(Not included)

Product 1

NOTE

When multi-connecting in/out cascade format, no loss cables are recommended.

We recommend that you should use cable distributor.

Product 2

Product 3

Page 40

TROUBLESHOOTING

ENGLISH

TROUBLESHOOTING

ENG

No image is displayed

Problem Resolution

Is the product power cord connected?

Is the power indicator light on? ySee if the power switch is turned on.

Power is on, power indicator is blue but the screen appears extremely dark.

The power indicator amber? y If the product is in power saving mode, move the mouse or press any

Does the 'Out of range' message appear?

Does the 'Check signal cable' message appear?

y See if the power cord is properly connected to the outlet.

yMay need service.

y Adjust brightness and contrast again. y Backlight may need repair.

key.

yTurn both devices off and then back on.

y The signal from the PC (video card) is out of the vertical or horizontal

frequency range of the product. Adjust the frequency range by

referring to the Specifications in this manual. * Maximum resolution RGB : 1920 x 1080 @ 60 Hz HDMI/DVI : 1920 x 1080 @ 60 Hz

y The signal cable between PC and product is not connected. Check

the signal cable.

y Press the 'INPUT' menu in the remote Control to check the input

signal.

'Unknown Product' message appears when the product is connected.

Problem Resolution

Did you install the driver? y Install the product driver, which is provided with the product, or

download it from the web site. (http://www.lg.com)

y See if the plug&play function is supported by referring to the video

card user manual.

Page 41

TROUBLESHOOTING

'Key Lock On' message appears.

Problem Resolution

The 'Key Lock On' message appears when pressing the Menu button.

The screen image looks abnormal.

Problem Resolution

Is the screen position wrong? yD-Sub analog signal - Press the "AUTO" button in the remote control

Do thin lines appear on the background screen?

Horizontal noise appears or the characters look blurred.

The screen is displayed abnormally.

yThe control locking function prevents unintentional OSD setting

change due to careless usage. To unlock the controls, simultaneously

press the Menu button and ► button for several seconds. (You

cannot set this function using the remote control buttons. You can set this function in the product only.)

to automatically select the optimal screen status that fits into the current mode. If adjustment is not satisfactory, use the Position OSD menu.

ySee if the video card resolution and frequency are supported by the

product. If the frequency is out of range, set to the recommended resolution in the Control Panel "Display" Setting menu.

y D-Sub analog signal - Press the "AUTO" button in the remote control

to automatically select an optimal screen status that fits into the current mode. If adjustment is not satisfactory, use the Clock OSD menu.

yD-Sub analog signal - Press the "AUTO" button in the remote control

to automatically select an optimal screen status that fits into the current mode. If adjustment is not satisfactory, use the Phase OSD menu.

y The proper input signal is not connected to the signal port. Connect

the signal cable that matches with the source input signal.

ENGLISH

ENG

After-image appears on the product.

Problem Resolution

After-image appears when the product is turned off.

yIf you use a fixed image for a long time, the pixels may be damaged

quickly. Use the screen-saver function.

Page 42

ENGLISH

ENG

TROUBLESHOOTING

The audio function does not work.

Problem Resolution

No sound? ySee if the audio cable is connected properly.

yAdjust the volume. y See if the sound is set properly.

Sound is too dull. ySelect the appropriate equalize sound.

Sound is too low. y Adjust the volume.

Screen color is abnormal.

Problem Resolution

Screen has poor color resolution (16 colors).

y Set the number of colors to more than 24 bits (true color) Select

Control Panel - Display - Settings - Color Table menu in Windows.

Screen color is unstable or mono-colored.

Do black spots appear on the screen?

The operation does not work normally.

Problem Resolution

The power suddenly turned off. yIs the sleep timer set?

yCheck the connection status of the signal cable. Or, re-insert the PC

video card.

y Several pixels (red, green, white or black color) may appear on the

screen, which can be attributable to the unique characteristics of the

LCD panel. It is not a malfunction of the LCD.

y Check the power control settings. Power interrupted. y"CAUTION! FAN STOP!"

If the power is turned off after this message appears, it means that the fan is out of order.In this case, contact your local service center.

Page 43

SPECIFICATIONS

LCD Panel Screen Type 1638.3 mm Wide (64.5 inch) TFT (Thin Film Transistor)

LCD (Liquid Crystal Display) Panel. Visible diagonal size : 1638.3 mm

Pixel Pitch 0.744 mm (H) x 0.744 mm (V)

Video Signal Max. Resolution RGB : 1920 X 1080 @60Hz

HDMI/DVI : 1920 X 1080 @60Hz

- It may not be supported depending on the OS or video card type.

Recommended Resolution RGB : 1920 X 1080 @60Hz

HDMI/DVI : 1920 X 1080 @60Hz

- It may not be supported depending on the OS or video card type.

Horizontal Frequency

Vertical Frequency RGB : 56 Hz to 75 Hz

Synchronization Type Separate Sync, Composite Sync, Digital

Input Connector 15-pin D-Sub type, HDMI (digital), Composite Video,

Power Rated Voltage AC 100-240 V~ 50/60 Hz 4.6 A

Power Consumption On Mode : 480 W Typ.

Environmental conditions

Operating Temperature Operating Humidity

Storage Temperature Storage Humidity

RGB : 30 kHz to 83 kHz HDMI/DVI : 30 kHz to 83 kHz

HDMI/DVI : 56 Hz to 60 Hz

RS-232C, LAN

Sleep Mode : ≤ 1 W (RGB) / 2 W (HDMI/DVI) Off Mode : ≤ 0.5 W

0 °C to 40 °C 10 % to 80 %

-20 °C to 60 °C 5 % to 95 %

ENGLISH

ENG

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

Page 44

ENGLISH

ENG

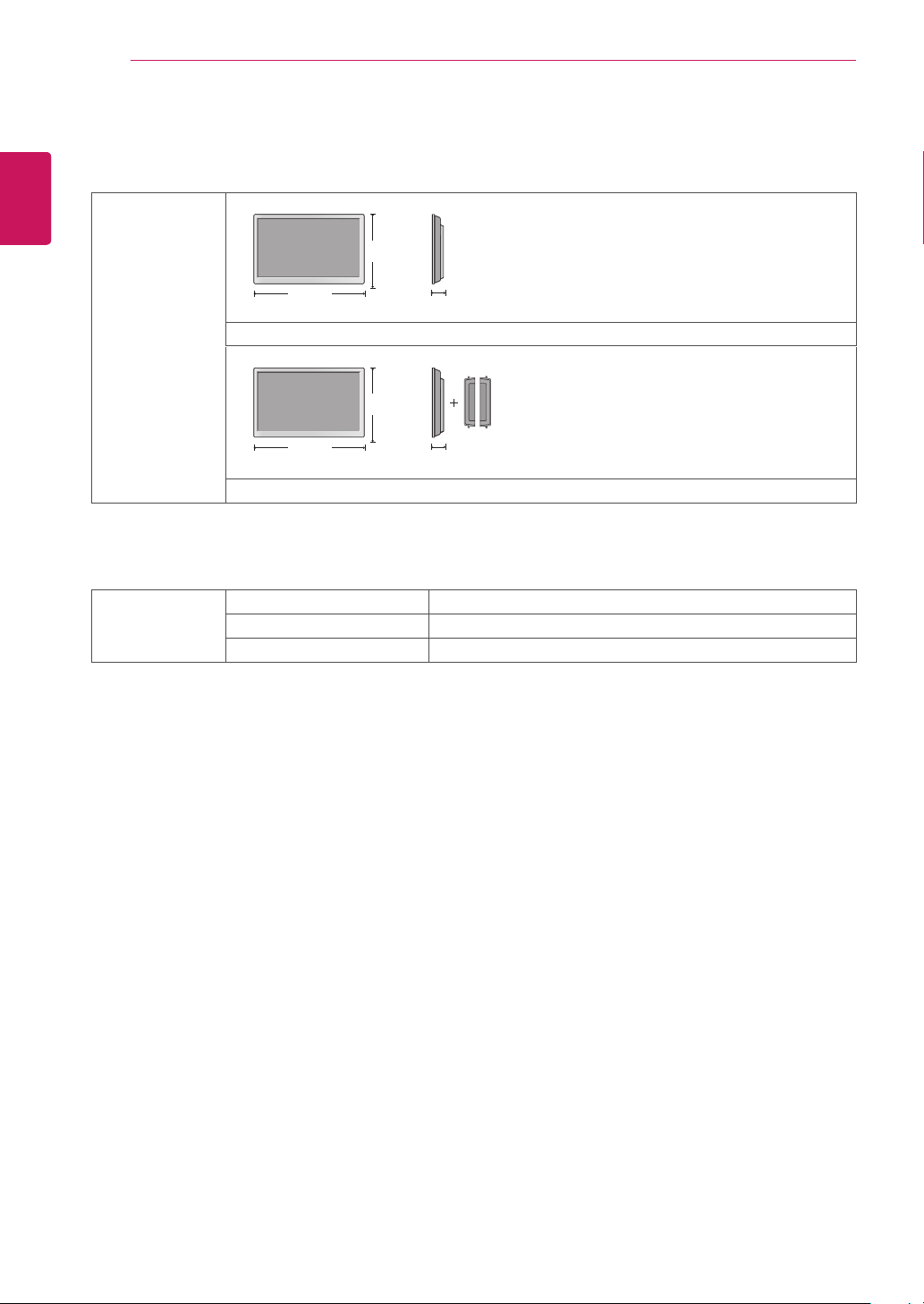

SPECIFICATIONS

/ Dimensions

(Width x Height x Depth) / Weight

1535.4 mm x 136.7 mm x 907.6 mm / 51.1 kg

1535.4 mm x 136.7 mm x 907.6 mm / 51.85 kg

* Applicable only for models that support the speakers

Audio RMS Audio Output 10 W + 10 W (R + L)

Input Sensitivity 0.7 Vrms

Speaker Impedance 8 Ω

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

Page 45

SPECIFICATIONS

RGB (PC) supported mode

Resolution

640 x 350

720 x 400

640 x 480

800 x 600

832 x 624

1024 x 768

1280 x 720

1280 x 768

1360 x 768

1366 x 768

1280 x 1024

1680 x 1050

1920 x 1080

Horizontal Frequency(kHz)

31.469 70.8

31.468 70.8

31.469 59.94

37.5 75

37.879 60.317

46.875 75

49.725 74.55

48.363 60

60.123 75.029

44.772 59.855

47.7 60

47.72 59.799

47.7 60

63.981 60.02

79.98 75.02

65.290 59.954

67.5 60

Vertical Frequency(Hz)

DTV Mode

Resolution Component

480i o x

576i o x

480p o o

576p o o

720p o o

1080i o o

1080p o o

Power Indicator

Mode Product

On Mode Green

Sleep Mode Amber

Off Mode -

HDMI/DVI (DTV)

ENGLISH

ENG

HDMI/DVI(PC) supported mode

Resolution

640 x 480

800 x 600

1024 x 768

1280 x 720

1360 x 768

1366 x 768

1280 x 1024

1680 x 1050

1920 x 1080

Horizontal Frequency(kHz)

31.469 59.94

37.879 60.317

48.363 60

44.772 59.855

47.72 59.799

47.7 60

63.981 60.02

65.290 59.954

67.5 60

Vertical Frequency(Hz)

NOTE

DTV/PC selection on RGB and HDMI/DVI

inputs is available for PC resolutions : 640 x 480 / 60 Hz, 1280 x 720 / 60 Hz, 1920 x 1080 / 60 Hz and DTV resolutions : 480p, 720p, 1080p.

NOTE

Vertical frequency: To enable the user to

watch the product display, screen image should be changed tens of times every second like a fluorescent lamp. The vertical frequency or refresh rate is the times of image display per second. The unit is Hz. Horizontal frequency: The horizontal interval

is the time to display one horizontal line. When 1 is divided by the horizontal interval, the number of horizontal lines displayed every second can be tabulated as the horizontal frequency. The unit is kHz.

Page 46

IR CODES

ENGLISH

IR CODES

ENG

This feature is not available for all models.

Code (Hexa) Function Note

95 Energy Saving (ꕊ) R/C BUTTON

0B INPUT R/C BUTTON

C4 Monitor On R/C BUTTON

C5 Monitor Off R/C BUTTON

79 ARC (MARK) R/C BUTTON

43 MENU R/C BUTTON

40 Up (ꕌ) R/C BUTTON

41 Down (ꕍ) R/C BUTTON

07 Left (<) R/C BUTTON

06 Right (>) R/C BUTTON

44 OK(ꔉ) R/C BUTTON

28 BACK(ꕉ) R/C BUTTON

5B EXIT R/C BUTTON

4D PSM R/C BUTTON

09 MUTE R/C BUTTON

E0 Bright ꕌ (Page UP) R/C BUTTON

E1 Bright ꕍ (Page Down) R/C BUTTON

10 to 19 Number Key 0 to 9 R/C BUTTON

72 Red Key R/C BUTTON

71 Green Key R/C BUTTON

63 Yellow Key R/C BUTTON

61 Blue Key R/C BUTTON

7B TILE R/C BUTTON

5A AV(CVBS) R/C BUTTON

BF Component R/C BUTTON

D5 RGB PC R/C BUTTON

C6 HDMI/DVI R/C BUTTON

76 ARC (4:3) R/C BUTTON

77 ARC (16:9) R/C BUTTON

AF ARC (ZOOM) R/C BUTTON

99 Auto Config. R/C BUTTON

(POWER)

( + )

( - )

ꕗ

ꕖ

ꕘ

ꕚ

ꕙ

R/C BUTTON (POWER ON/OFF)

R/C BUTTON

Page 47

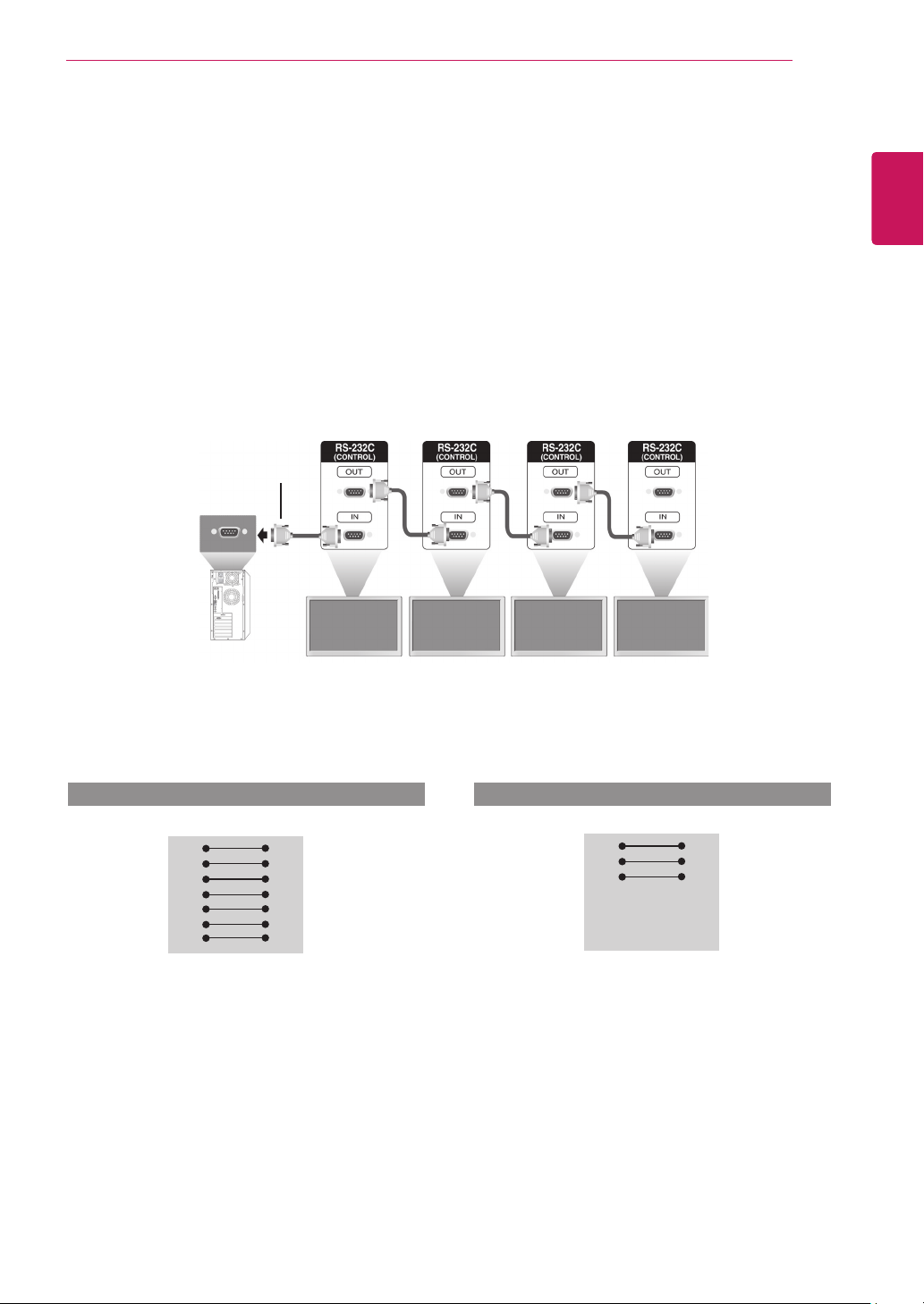

EXTERNAL CONTROL DEVICE SETUP

CONTROLLING THE MULTIPLE PRODUCT

Use this method to connect several products to a single PC. You can control several products at a

time by connecting them to a single PC. In the Option menu, Set ID must be between 1 and 225 without being duplicated.

Connecting the cable

Connect the RS-232C cable as shown in the picture.

The RS-232C protocol is used for communication between the PC and product. You can turn the

product on/off, select an input source or adjust the OSD menu from your PC.

RS-232C Cable

(not included)

Monitor Set 1 Monitor Set 2 Monitor Set 3 Monitor Set 4

ENGLISH

ENG

RS-232C Configurations

7-Wire Configurations (Standard RS-232C cable)

PC Set PC Set

RXD

TXD

GND

5 4

DTR

DSR

RTS

CTS

D-Sub 9 D-Sub 9

(Female) (Female)

TXD

RXD

GND

DSR

DTR

CTS

RTS

Communication Parameter

Baud Rate : 9600 buad Rate (UART)

Data Length : 8 bit

Parity Bit : None

Stop Bit : 1bit

Flow Control : None

Communication Code : ASCII code

Use a crossed (reverse) cable

3-Wire Configurations (Not Standard)

RXD

2 3

TXD

GND

DTR

DSR

RTS

CTS

D-Sub 9 D-Sub 9

(Female) (Female)

TXD

RXD

GND

DSR

DTR

CTS

RTS

Page 48

EXTERNAL CONTROL DEVICE SETUP

ENGLISH

Command reference list

ENG

COMMAND DATA

1 2 1 2 3

01. Power k a 00H to 01H

02. Input Select k b 02H to 09H

03. Aspect Ratio k c 01H to 1FH

04. Screen Mute k d 00H to 01H

05. Volume Mute k e 00H to 01H

06. Volume Control k f 00H to 64H

07. Contrast k g 00H to 64H

08. Brightness k h 00H to 64H

09. Color k i 00H to 64H

10. Tint k j 00H to 64H

11. Sharpness k k 00H to 64H

12. OSD Select k l 00H to 01H

13. Remote Lock/ key Lock k m 00H to 01H

14. Balance k t 00H to 64H

15. Color Temperature k u 00H to 02H

16. Abnomal state k z FFH

17. ISM mode j p 01H to 08H

18. Auto configuration j u 01H

19. Key m c Key Code

20. Tile Mode d d 00H to 55H

21. Tile H Position d e 00H to 14H

22. Tile V Position d f 00H to 14H

23. Tile H Size d g 00H to 64H

24. Tile V Size d h 00H to 64H

25. Tile ID Set d i 00H to 19H

26. Natural Mode (In Tile mode) d j 00H to 01H

27. Picture mode (PSM) d x 00H to 06H

28. Sound mode d y 00H to 05H

29. Fan Fault check d w FFH

30. Elapsed time return d l FFH

31. Temperature value d n FFH

32. Lamp fault check d p FFH

33. Auto Volume d u 00H to 01H

34. Speaker d v 00H to 01H

35. Time f a 00H to 06H 00H to 17H 00H to 3BH

36. On Timer (On/Off Timer) Time f d F1H to F4H

E0H to E4H

01H to 80H

37. Off Timer (On/Off Timer) Time f e F1H to F4H

E0H to E4H

01H to 80H

38. Scheduling input select f u F1H to F4H 02H to 09H

00H to 17H 00H to 3BH

Page 49

EXTERNAL CONTROL DEVICE SETUP

COMMAND DATA

1 2 1 2 3

39. Sleep Time f f 00H to 08H

40. Auto Sleep f g 00H to 01H

41. Power On Delay f h 00H to 64H

42. Language f i 00H to 09H

43. DPM Select f j 00H to 01H

44. Reset f k 00H to 02H

45. Power Saving f l 00H to 03H

46. Power Indicator f o 00H to 01H

47. Serial no. f y FFH

48. S / W Version f z FFH

49. Input Select x b 20H to A0H

Note : During USB operations such as Dvix or EMF, all commands except Power(ka) and Key(mc) are

not executed and treated as NG.

ENGLISH

ENG

Page 50

EXTERNAL CONTROL DEVICE SETUP

ENGLISH

Transmission / Receiving protocol

ENG

[Command1][Command2][ ][Set ID][ ][Data][Cr]

* [Command 1]: First command. (k, j, m, d, f, x) * [Command 2]: Second command.(a to u) * [Set ID]: Set up the Set ID number of product. range : 01H to 63H. by setting '0', server can control all products. * In case of operating with more than 2 sets using set ID as '0' at the same time, it should not be checked the ack message. Because all sets will send the ack message, so it's impossible the check the whole ack messages. * [DATA]: To transmit command data. Transmit 'FF' data to read status of command. * [Cr]: Carriage Return (ASCII code '0 x 0 D') * [ ]: ASCII code Space (0 x 20)

[Command2][ ][Set ID][ ][OK][Data][x]

Transmission

OK Acknowledgement

* The Product transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

* If there is error, it returns NG

Page 51

EXTERNAL CONTROL DEVICE SETUP

01. Power (Command: k a)

To control Power On/Off of the set.

Transmission

[k][a][ ][Set ID][ ][Data][Cr]

Data 00 : Power Off Data 01 : Power On

Acknowledgement

[a][ ][Set ID][ ][OK][Data][x]

To show the status of Power On/Off.

Transmission

[k][a][ ][Set ID][ ][FF][Cr]

Acknowledgement

[a][ ][Set ID][ ][OK][Data][x]

Data 00 : Power Off Data 01 : Power On

02. Input Select (Command: k b) (Main Picture Input)

To select input source for the Set. You can also select an input source using the INPUT button on the remote control.

Transmission

[k][b][ ][Set ID][ ][Data][Cr]

Data 02 : AV(CVBS) 04 : Component 07 : RGB (PC) 08 : HDMI (DTV) 09 : HDMI (PC)

Acknowledgement

[b][ ][Set ID][ ][OK][Data][x]

Data 02 : AV(CVBS) 04 : Component 07 : RGB (PC) 08 : HDMI (DTV) 09 : HDMI (PC)

04. Screen Mute (Command: k d)

To select screen mute on / off.

Transmission

[k][d][ ][Set ID][ ][Data][Cr]

Data 00 : Screen mute off (Picture on) 01 : Screen mute on (Picture off)

Acknowledgement

[d][ ][Set ID][ ][OK][Data][x]

05. Volume Mute (Command: k e)

To control On/Off of the Volume Mute.

Transmission

[k][e][ ][Set ID][ ][Data][Cr]

Data 00 : Volume Mute On (Volume Off) 01 : Volume Mute Off (Volume On)

Acknowledgement

[e][ ][Set ID][ ][OK][Data][x]

Data 00 : Volume Mute On (Volume Off) 01 : Volume Mute Off (Volume On)

ENGLISH

ENG

03. Aspect Ratio (Command: k c)

To adjust the screen format. You can also adjust the screen format using the ARC (Aspect Ratio Control) button on remote control or in the Screen menu.

Transmission

[k][c][ ][Set ID][ ][Data][Cr]

Data 01 : Normal Screen (4 : 3) 02 : Wide Scran (16 : 9) 04 : Zoom (AV(CVBS)) 06 : Original (AV(CVBS)) 07 : 14 : 9 (AV(CVBS)) 09 : Just Scan (HD DTV) * When the RGB, HDMI / DVI PC mode(1:1) 10 to 1F : Cinema Zoom 1 to 16 B : Full Wide

Acknowledgement

[c][ ][Set ID][ ][OK][Data][x]

06. Volume Control (Command: k f)

To adjust Volume.

Transmission

[k][f][ ][Set ID][ ][Data][Cr]

Data Min : 00H to Max : 64H (Hexadecimal code)

Acknowledgement

[f][ ][Set ID][ ][OK][Data][x]

Data Min : 00H to Max : 64H * Real data mapping

0 : STEP 0 : A : STEP 10 : F : STEP 15 10 : STEP 16 : 64 : STEP 100

Page 52

EXTERNAL CONTROL DEVICE SETUP

07. Contrast (Command: k g)

ENGLISH

ENG

08. Brightness (Command: k h)

To adjust screen contrast. You can also adjust the contrast in the Picture menu.

Transmission

[k][g][ ][Set ID][ ][Data][Cr]

Data Min : 00H to Max : 64H

Acknowledgement

[g][ ][Set ID][ ][OK][Data][x]

Data Min : 00H to Max : 64H * Refer to 'Real data mapping ’. See p.51

To adjust screen brightness. You can also adjust the brightness in the Picture menu.

Transmission

[k][h][ ][Set ID][ ][Data][Cr]

Data Min : 00H to Max : 64H (Hexadecimal code) * Refer to 'Real data mapping ’. See p.51

Acknowledgement

[h][ ][Set ID][ ][OK][Data][x]

* Refer to 'Real data mapping ’. See p.51

10. Tint (Command: k j)

To adjust the screen tint. You can also adjust the tint in the Picture menu.

Transmission

[k][j][ ][Set ID][ ][Data][Cr]

Data Min : 00H to Max : 64H (Hexadecimal code) 00H : Step R50 64H : Step G50

Acknowledgement

[j][ ][Set ID][ ][OK][Data][x]

Data Min : 00H to Max : 64H * Tint Real data mapping 0 : Step 0 to Red : 64 : Step 100 to Green

11. Sharpness (Command: k k) (Video input only)

To adjust the screen Sharpness. You can also adjust the sharpness in the Picture menu.

Transmission

[k][k][ ][Set ID][ ][Data][Cr]

Data Min : 00H to Max : 64H (Hexadecimal code) * Refer to 'Real data mapping ’. See p.51

Acknowledgement

[k][ ][Set ID][ ][OK][Data][x]

Data Min : 00H to Max : 64H

09. Color (Command: k i) (Video Timing only)

To adjust the screen color. You can also adjust the color in the Picture menu.

Transmission

[k][i][ ][Set ID][ ][Data][Cr]

Data Min : 00H to Max : 64H (Hexadecimal code) * Refer to 'Real data mapping ’. See p.51

Acknowledgement

[i][ ][Set ID][ ][OK][Data][x]

Data Min : 00H to Max : 64H

12. OSD Select (Command: k l)

To control OSD on/off to the set.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Data 00: OSD Off Data 01: OSD On

Acknowledgement

[l][ ][Set ID][ ][OK][Data][x]

Data 00: OSD Off Data 01: OSD On

Page 53

EXTERNAL CONTROL DEVICE SETUP

13. Remote Lock /Key Lock (Command: k m)

To control Remote Lock on/off to the set. This function, when controlling RS-232C, locks the remote control and the local keys.

Transmission

[k][m][ ][Set ID][ ][Data][Cr]

Data 00: Off Data 01: On

Acknowledgement

[m][ ][Set ID][ ][OK][Data][x]

Data 00: Off Data 01: On

14. Balance (Command: k t)

To adjust the sound balance.

Transmission

[k][t][ ][Set ID][ ][Data][Cr]

Data Min : 00H to Max : 64H (Hexadecimal code)

00H : Step L50 64H : Step R50

Acknowledgement

[t][ ][Set ID][ ][OK][Data][x]

Data Min : 00H to Max : 64H (Hexadecimal code)

16. Abnormal state (Command: k z)

Used to Read the power off status when Stand-by mode.

Transmission

[k][z][ ][Set ID][ ][Data][Cr]

Data FF : Read

Acknowledgement

[z][ ][Set ID][ ][OK][Data][x]

Data 00 : Normal (Power on and signal exist) 01 : No signal (Power on) 02 : Turn the monitor off by remote control 03 : Turn the monitor off by sleep time function 04 : Turn the monitor off by RS-232C function 08 : Turn the monitor off by off time function 09 : Turn the monitor off by auto off function

17. ISM mode (Command: j p)

Used to select the afterimage preventing function.

Transmission

[j][p][ ][Set ID][ ][Data][Cr]

Data 01 : Inversion 02 : Orbiter 04 : White Wash 08 : Normal

Acknowledgement

[p][ ][Set ID][ ][OK][Data][x]

ENGLISH

ENG

00H : Step 0 to L50 64H : Step 100 to R50 * Balance : L50 to R50

15. Color Temperature (Command: k u)

To adjust the screen color temperature.

Transmission

[k][u][ ][Set ID][ ][Data][Cr]

Data 00 : Medium 01 : Cool 02 : Warm

Acknowledgement

[u][ ][Set ID][ ][OK][Data][x]

Data 00 : Medium 01 : Cool 02 : Warm

18. Auto Configure (Command: j u)

To adjust picture position and minimize image shaking. Automatically. NB : Only applies to RGB(PC) mode.

Transmission

[j][u][ ][Set ID][ ][Data][Cr]

Data 01 : To set

Acknowledgement

[u][ ][Set ID][ ][OK][Data][x]

Page 54

EXTERNAL CONTROL DEVICE SETUP

19. Key (Command: m c)

ENGLISH

ENG

20. Tile Mode (Command: d d)

To send IR remote key code.

Transmission

[m][c][ ][Set ID][ ][Data][Cr]

Data Key code : Refer to ‘IR CODES’. See p.46

Acknowledgement

[c][ ][Set ID][ ][OK][Data][x]

Change a Tile Mode.

Transmission

[d][d][ ][Set ID][ ][Data][Cr]

Data Description

00 or 11 Tile mode is off. 12 1 x 2 mode (column x row) 13 1 x 3 mode 14 1 x 4 mode

...

55 1 x 2 mode

* The data can not be set to 0X or X0 except 00.

...

22. Tile V Position (Command: d f)

To set the Vertical position.

Transmission

[d][f][ ][Set ID][ ][Data][Cr]

Data Min : 00H to Max : 14H

00H : Step -10(Down) 14H : Step 10(Up)

Acknowledgement

[f][ ][Set ID][ ][OK/NG][Data][x]

23. Tile H Size (Command: d g)

To set the Horizontal size.

Transmission

[d][g][ ][Set ID][ ][Data][x]

Data Min : 00H to Max : 64H * Refer to 'Real data mapping ’. See p.51

Acknowledgement

[g][ ][Set ID][ ][OK/NG][Data][x]

Acknowledgement

[d][ ][Set ID][ ][OK/NG][Data][x]

21. Tile H Position (Command: d e)

To set the Horizontal position.

Transmission

[d][e][ ][Set ID][ ][Data][Cr]

Data Min : 00H to Max : 14H

00H : Step -10(Left) 14H : Step 10(Right)

Acknowledgement

[e][ ][Set ID][ ][OK/NG][Data][x]

24. Tile V Size (Command: d h)

To set the Vertical size.

Transmission

[d][h][ ][Set ID][ ][Data][x]

Data Min : 00H to Max : 64H * Refer to 'Real data mapping ’. See p.51

Acknowledgement

[h][ ][Set ID][ ][OK/NG][Data][x]

Page 55

EXTERNAL CONTROL DEVICE SETUP

25. Tile ID Set (Command: d i)

To assign the Tile ID for Tiling function.

Transmission

[d][i][ ][Set ID][ ][Data][x]

Data Min : 00H to Max : 19H (Hexadecimal code)

Acknowledgement

[i][ ][Set ID][ ][OK/NG][Data][x]

26. Natural Mode (Command: d j)

To assign the Tile Natural mode for Tiling function.

Transmission

[d][j][ ][Set ID][ ][Data][x]

Data 00 : Natural Off 01 : Natural On ff : Read Status

Acknowledgement

[j][ ][Set ID][ ][OK/NG][Data][x]

28. Sound Mode (Command: d y)

To adjust the Sound mode.

Transmission

[d][y][ ][Set ID][ ][Data][x]

Data Structure

Data(Hex) Mode

01 Standard 02 Music 03 Cinema 04 Sport 05 Game

Acknowledgement

[y][ ][Set ID][ ][OK/NG][Data][x]

29. Fan Fault check (Command: d w)

To check the Fan fault of the Set.

Transmission

[d][w][ ][Set ID][ ][Data][x]

* The data is always FF (in Hex). Data ff : Read Status

Acknowledgement

[w][ ][Set ID][ ][OK/NG][Data][x]

* Data is the status value of the Fan fault. Data 00 : Fan fault 01 : Fan Ok 02 : N/A (Not Avaliable)

ENGLISH

ENG

27. Picture Mode (Command: d x)

To adjust the picture mode.

Transmission

[d][x][ ][Set ID][ ][Data][x]

Data Structure

Data(Hex) Mode

00 Vivid 01 Standard 02 Cinema 03 Sport 04 Game 05 Export 1 06 Export 2

Acknowledgement

[x][ ][Set ID][ ][OK/NG][Data][x]

30. Elapsed time return (Command: d l)

To read the elapsed time.

Transmission

[d][l][ ][Set ID][ ][Data][x]

* The data is always FF(in Hex).

Acknowledgement

[l][ ][Set ID][ ][OK/NG][Data][x]

* The data is always FF(in Hex). (Hexadecimal code)

Page 56

EXTERNAL CONTROL DEVICE SETUP

31. Temperature value (Command: d n)

ENGLISH

ENG

32. Lamp fault Check (Command: d p)

To read the inside temperature value.

Transmission

[d][n][ ][Set ID][ ][Data][x]

* The data is always FF(in Hex).

Acknowledgement

[n][ ][Set ID][ ][OK/NG][Data][x]

* The data is 1 byte long in Hexadecimal.

To check lamp fault.

Transmission

[d][p][ ][Set ID][ ][Data][x]

* The data is always FF(in Hex).

Acknowledgement

[p][ ][Set ID][ ][OK/NG][Data][x]

* The data is 1 byte long in Hexadecimal. Data 00 : Lamp Fault 01 : Lamp Ok 02 : N/A (DPM/Power Off)

34. Speaker (Command: d v)

Turn the speaker on or off.

Transmission

[d][v][ ][Set ID][ ][Data][x]

Data 00: Off Data 01: On

Acknowledgement

[v][ ][Set ID][ ][OK/NG][Data][x

35. Time (Command: f a)

Set the current time.

Transmission

[f][a][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]

[Data1] 00 : Monday 01 : Tuesday 02 : Wednesday 03 : Thursday 04 : Friday 05 : Saturday 06 : Sunday

[Data2] 0H to 17H (Hours)

33. Auto volume (Command: d u)

Automatically adjust the volume level.

Transmission

[d][u][ ][Set ID][ ][Data][x]

Data 00: Off Data 01: On

Acknowledgement

[u][ ][Set ID][ ][OK/NG][Data][x]

[Data3] 00H to 3BH (Minutes)

Acknowledgement

[a][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

*When reading data, FFH is inputted for [Data1], [Data2] and [Data3]. In other cases, all are treated as NG.

Page 57

EXTERNAL CONTROL DEVICE SETUP

36. On Timer (On/Off Timer) Time (Command: f d)

Set On Timer.

Transmission

[f][d][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]

[Data1]

1. f1h to f4h(read one index) f1: read 1st index of On Time List f2: read 2nd index of On Time List f3: read 3rd index of On Time List f4: read 4th index of On Time List

2. e1h~e4h(delete one index), e0h(delete all indexes) e0: delete all indexes of On Time List e1: delete 1st index of On Time List e2: delete 2nd index of On Time List e3: delete 3rd index of On Time List e4: delete 4th index of On Time List

3. 01h to 80h (write) (Day of Week) bit0 (01h) : Monday bit1 (02h) : Tuesday bit2 (04h) : Wednesday bit3 (08h) : Thursday bit4 (10h) : Friday bit5 (20h) : Saturday bit6 (40h) : Sunday bit7 (80h) : Everyday (1fh) : Monday to Friday (3fh) : Monday to Saturday (60h) : Saturday to Sunday

[Data 2] 00h to 17h (Hours)

[Data 3] 00h to 3bh (Minutes) *When you read/delete the current on time list, all of [Data2][Data3] are have to be FFH. (ex1: fd 01 f1 ff ff - when you read 1st index of On Time List ex2: fd 01 e1 ff ff - when you delete 1st index of On Time List ex3: fd 01 3f 02 03 - when you write one On Time Data, "Monday to Saturday, 02:03"

Acknowledgement

[d][ ][Set ID][ ][OK][Data1][Data2][Data3][x]

37. Off Timer (On/Off Timer) Time (Command: f e)

Set Off Timer.

Transmission

[f][e][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]

[Data 1]

1. f1h to f4h(read one index) f1: read 1st index of Off Time List, f2: read 2nd index of Off Time List f3: read 3rd index of Off Time List f4: read 4th index of Off Time List

2. e1h to e4h(delete one index), e0h(delete all indexes) e0: delete all indexes of Off Time List e1: delete 1st index of Off Time List e2: delete 2nd index of Off Time List e3: delete 3rd index of Off Time List e4: delete 4th index of Off Time List

[Data 2] 00h to 17h (Hours)

[Data 3] 00h to 3bh (Minutes) *When you read/delete the current on time list, all of [Data2][Data3] are have to be FFH. (ex1: fd 01 f1 ff ff - when you read 1st index of Off Time List ex2: fd 01 e1 ff ff - when you delete 1st index of Off Time List ex3: fd 01 3f 02 03 - when you write one Off Time Data, "Monday to Saturday, 02:03")

Acknowledgement

[e][ ][Set ID][ ][OK][Data1][Data2][Data3][x]

ENGLISH

ENG

Page 58

EXTERNAL CONTROL DEVICE SETUP

38. Scheduling Input select (Command: f u) (Main

ENGLISH

ENG

Picture Input)

To select input source for Set depending on day.

Transmission

[f][u][ ][Set ID][ ][Data1][ ][Data2][Cr]

[Data 1]

1. f1h to f4h(write/read one index) f1: read 1st index of Scheduling Input f2: read 2nd index of Scheduling Input f3: read 3rd index of Scheduling Input f4: read 4th index of Scheduling Input

[Data 2] Input

Data(Hex) Input

02 AV(CVBS) 04 Component 07 RGB - PC 08 HDMI/DVI - HD - DVD 09 HDMI/DVI - PC

*When you read/delete the current Scheduling Input, [Data2] needs to be FFH. (ex1: fu 01 f1 ff - when you read 1st index of Scheduling Input. ex2: fu 01 f3 02 - when you write one Scheduling Input Data in to 3rd index, "AV(CVBS)")

Acknowledgement

[u][ ][Set ID][ ][OK][Data1][Data2][x]

40. Auto Sleep (Command: f g)

Set Auto Sleep.

Transmission

[f][g][ ][Set ID][ ][Data][Cr]

Data 00 : Off 01 : On

Acknowledgement

[g][ ][Set ID][ ][OK/NG][Data][x]

41. Power On Delay (Command: f h)

Set the schedule delay when the power is turned on (Unit: second).

Transmission

[f][h][ ][Set ID][ ][Data][Cr]

Data : 00H to 64H (Data value) * Refer to 'Real data mapping ’. See p.51

Acknowledgement

[h][ ][Set ID][ ][OK/NG][Data][x]

39. Sleep Time (Command: f f)

Set Sleep Time.

Transmission

[f][f][ ][Set ID][ ][Data][Cr]

Data 00 : Off 01 : 10 02 : 20 03 : 30 04 : 60 05 : 90 06 : 120 07 : 180 08 : 240

Acknowledgement

[f][ ][Set ID][ ][OK/NG][Data][x]

42. Language (Command: f i)

Set the OSD language.

Transmission

[f][i][ ][Set ID][ ][Data][Cr]

Data 00 : English 01 : French 02 : German 03 : Spanish 04 : Italian 05 : Portuguese 06 : Chinese 07 : Japanese 08 : Korean 09 : Russian

Acknowledgement

[i][ ][Set ID][ ][OK/NG][Data][x]

Page 59

EXTERNAL CONTROL DEVICE SETUP

43. DPM Select (Command: f j)

Set the DPM (Display Power Management) function.

Transmission

[f][j][ ][Set ID][ ][Data][Cr]

Data 00 : Off 01 : On

Acknowledgement

[j][ ][Set ID][ ][OK/NG][Data][x]

44. Reset (Command: f k)

Set the DPM (Display Power Management) function.

Transmission

[f][k][ ][Set ID][ ][Data][Cr]

Data 00 : Picture Reset 01 : Screen Reset 02 : Factory Reset

Acknowledgement

[k][ ][Set ID][ ][OK/NG][Data][x]

46. Power Indicator (Command: f o)

To set the LED for Power Indicator

Transmission

[f][o][ ][Set ID][ ][Data][Cr]

Data 00 : Off 01 : On

Acknowledgement

[o][ ][Set ID][ ][OK/NG][Data][x]

47. Serial no.Check (Command: f y)

Check the Serial no.

Transmission

[f][y][ ][Set ID][ ][Data][Cr]

Data FF (to read the serial numbers)

Acknowledgement

[y][ ][Set ID][ ][OK/NG][Data1] to [Data13][x]

* The data format is ASCII Code.

ENGLISH

ENG

45. Power saving (Command: f l)

To set the Power saving mode.

Transmission

[f][l][ ][Set ID][ ][Data][Cr]

Data 00 : Off 01 : static level 1 02 : static level 2 03 : static level 3

Acknowledgement

[l][ ][Set ID][ ][OK/NG][Data][x]

48. S/W Version (Command: f z)

Check the software version.

Transmission

[f][z][ ][Set ID][ ][Data][Cr]

Data FFH : Read

Acknowledgement

[z][ ][Set ID][ ][OK/NG][Data][x]

Page 60

49. Input Select (Command: x b)

ENGLISH

ENG

EXTERNAL CONTROL DEVICE SETUP

To select input source for the Set.

Transmission

[x][b][ ][Set ID][ ][Data][Cr]

Data 20H : AV(CVBS) 40H : Component 60H : RGB(PC) 90H : HDMI/DVI(DTV) A0H : HDMI/DVI(PC)

Acknowledgement

[b][ ][Set ID][ ][OK/NG][Data][x]

Data 20H : AV(CVBS) 40H : Component 60H : RGB(PC) 90H : HDMI/DVI(DTV) A0H : HDMI/DVI(PC)

Page 61

Make sure to read the Safety Precautions before using the product. Keep the Owner's Manual(CD) in an accessible place for future reference. The model and serial number of the SET is located on the back and one side of the SET. Record it below should you ever need service.

MODEL

SERIAL

Temporary noise is normal when powering ON or OFF this device.

LG 65VS10 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

LICENSES

ASSEMBLING AND PREPARING

Unpacking

Optional Accessories

Parts and buttons

Connecting the Speakers

Portrait Layout

Installing on a wall

REMOTE CONTROL

USING THE MONITOR SET

Connecting to a PC

Using the input list

RGB connection

HDM/DVI connection

HDMI connection

CUSTOMIZING SETTINGS

Accessing main menus

PICTURE settings

AUDIO settings

TIME settings

OPTION settings

TILE settings

ENTERTAINMENT

Using integrated media features

Connecting USB storage devices

Browsing files

Viewing Photos

Listening to Music

Viewing Movies

DivX registration code

Deactivating the DivX feature

MAKING CONNECTIONS

HDMI connection

HDMI/DVI connection

Component connection

AV(CVBS) connection

Connecting to the LAN

LAN connection

Daisy Chain Monitors

RGB Mode

AV(CVBS) Mode

TROUBLESHOOTING

SPECIFICATIONS

IR CODES

CONTROLLING THE MULTIPLE PRODUCT

Connecting the cable

RS-232C Configurations

Communication Parameter

Command reference list

Transmission / Receiving protocol
