LG 65UX970H Schematic

Download

Page 1

Internal Use Only

LED TV

SERVICE MANUAL

CHASSIS : LA5BP

MODEL : 65UX970H 65UX970H-UA

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

P/NO : MFL69497603 (1602-REV00)

Page 2

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ........................................................................ 3

SERVICING PRECAUTIONS ................................................................... 4

SPECIFICATION ...................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 15

TROUBLE SHOOTING GUIDE ............................................................... 27

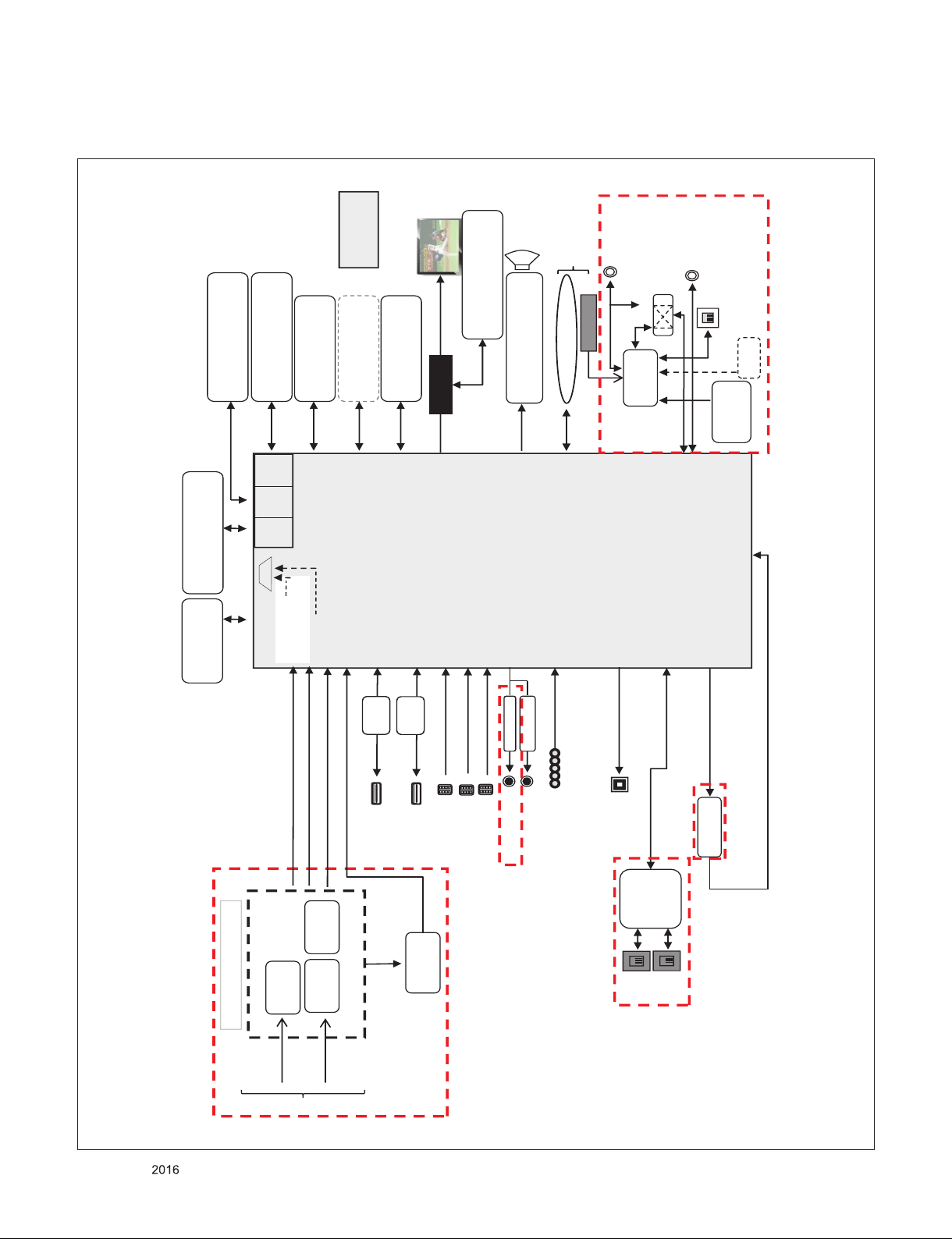

BLOCK DIAGRAM .................................................................................. 35

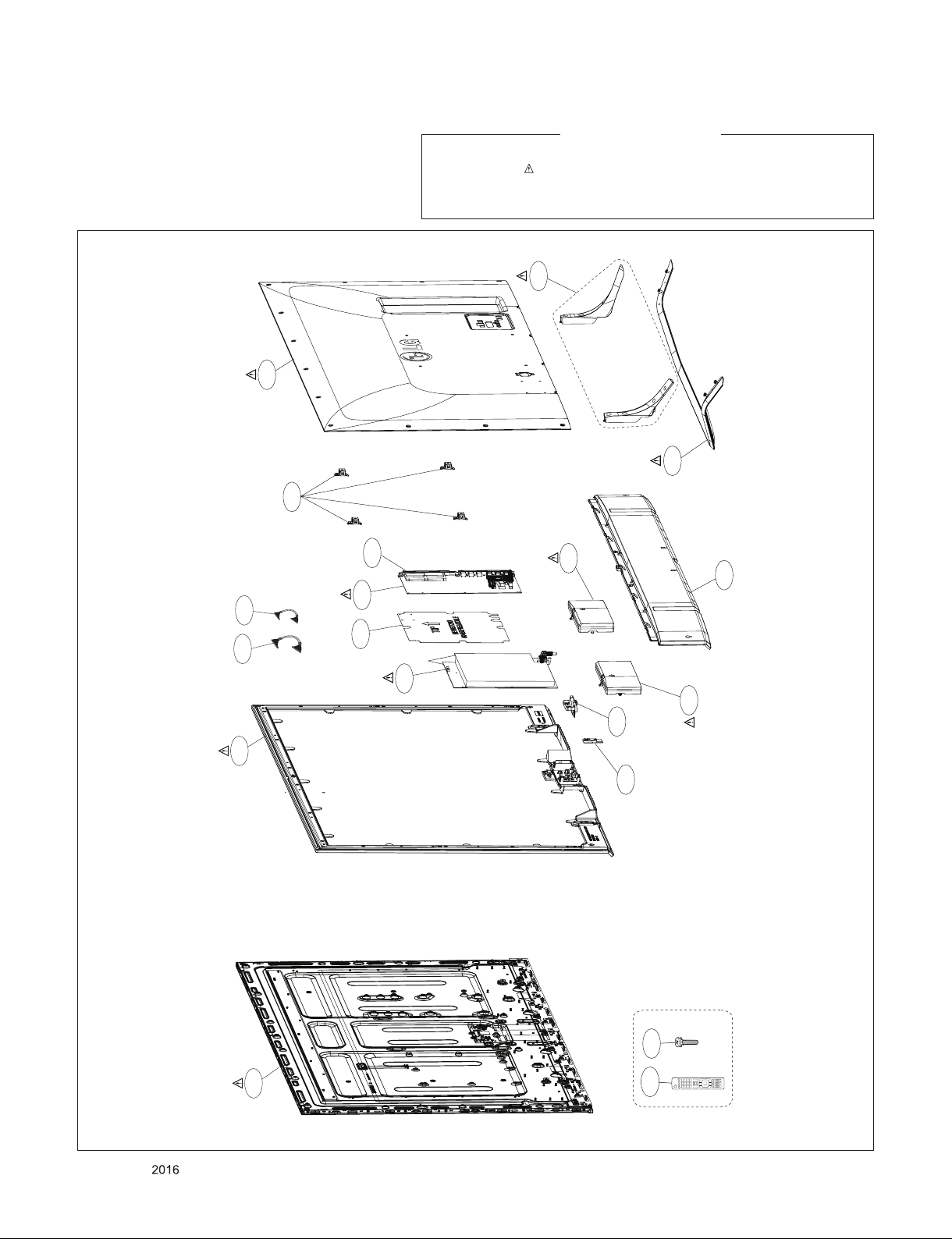

EXPLODED VIEW .................................................................................. 40

Only for training and service purposes

- 2 -

Page 3

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

Page 4

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

Page 5

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

Only for training and service purposes

- 5 -

Page 6

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

1. Application range

This spec sheet is applied to the LED TV used LA5BP chassis

2. Test condition

Each part is tested as below without special notice.

(1) Temperature : 25 ºC ± 5 ºC(77 ºF± 9 ºF), CST : 40 ºC ± 5 ºC (2) Relative Humidity: 65 % ± 10 % (3) Power Voltage

Standard input voltage (100~240V@ 50/60Hz) * Standard Voltage of each products is marked by models.

(4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

(5) The receiver must be operated for about 20 minutes prior

to the adjustment.

3. Test method

(1) Performance: LGE TV test method followed (2) Demanded other specification

- Safety : UL, CSA, CE, IEC specification

- EMC : FCC, ICES, CE, IEC specification

- Wireless : Wireless HD Specification (Option)

4. General Specification

4.1. Model Specification

No Item Specication Remark

1 Market North America

2 Broadcasting system ATSC / NTSC-M, 64 & 256 QAM

3 Available Channel VHF : 02~13

UHF : 14~69

DTV : 02-69

CATV : 01~135

CADTV : 01~135

4 Receiving system Digital : ATSC, 64 & 256 QAM

Analog : NTSC-M

5 Video Input NTSC-M Rear RCA & Gender

6 Component Input Y/Cb/Cr, Y/ Pb/Pr Rear RCA & Gender

7 HDMI Input HDMI 3 DTV format, Support HDCP2.2/ PC

(HDMI version 1.4)

HDMI 2 DTV format, Support HDCP2.2/ PC

(HDMI version 1.4/2.0)

HDMI 1 DTV format, Support HDCP2.2/ PC

(HDMI version 1.4/2.0)

8 Audio Input Component / AV Audio L/R Input ; Rear

9 SPDIF out(1EA) Optical Audio out Rear (1EA),

10 USB Input(3EA) EMF, DivX HD, For SVC (download) Side JPEG, MP3, DivX HD

Side,

Side, Support ARC only HDMI2

Side,

Component and av use same jack ; Rear

Support USB3.0 only USB1

Only for training and service purposes

- 6 -

Page 7

4.2. Module Specification

No Item Specication Remark

1 Display Screen Device 79” wide color display module LC790EQF-FHM1 (2D,T240)

65” wide color display module LC650EQF-PHF1 (3D,T240)

55” wide color display module LC550EQE-PHF1 (3D,T120)

49” wide color display module LC490EQE-XHF1 (3D,T120)

2 Aspect Ratio 16:9

3 LCD Module 79” QWUXGA TFT LCD LC790EQF-FHM1 (2D,T240)

65” QWUXGA TFT LCD LC650EQF-PHF1 (3D,T240)

55” QWUXGA TFT LCD LC550EQE-PHF1 (3D,T120)

49” QWUXGA TFT LCD LC490EQE-XHF1 (3D,T120)

4 Operating Environment TFT Temp. : 0 ~ 40 deg

Humidity : 0 ~ 85%

ALEF Temp. : 0 ~ 50 deg

Humidity : 20 ~ 90%

5 Storage Environment TFT Temp. : -20 ~ 60 deg

Humidity : 10 ~ 90%

ALEF Temp. : -20 ~ 60 deg

Humidity : 10 ~ 90%

6 Input Voltage AC100 ~ 240V, 50/60Hz

7 1.Power Consumption(Max)

= LCD(Module) + Backlight(LED)

8 LCD Size Maker Inch (H)mm × (V)mm × (D)mm Unit: mm

T240 79” 172.3(Typ) W LC790EQF-FHM1

65” 129 W LC650EQF-FHF1

T120 55” 102 W LC550EQE-PHF1

49” 62.1 W LC490EQE-XHF1

9 Module Pixel Pitch LGD 79” 0.453 ×0.453 LC790EQF-FHM1

65” 0.372 ×0.372 LC650EQF-FHF1

55” 0.315×0.315 LC550EQE-PHF1

49” 0.27963×0.27963 NC490EGE-SADR1

Display Colors 1.06 B (10-bit)

Surface Treatment Hard coating (2H), Anti-glare

Only for training and service purposes

- 7 -

Page 8

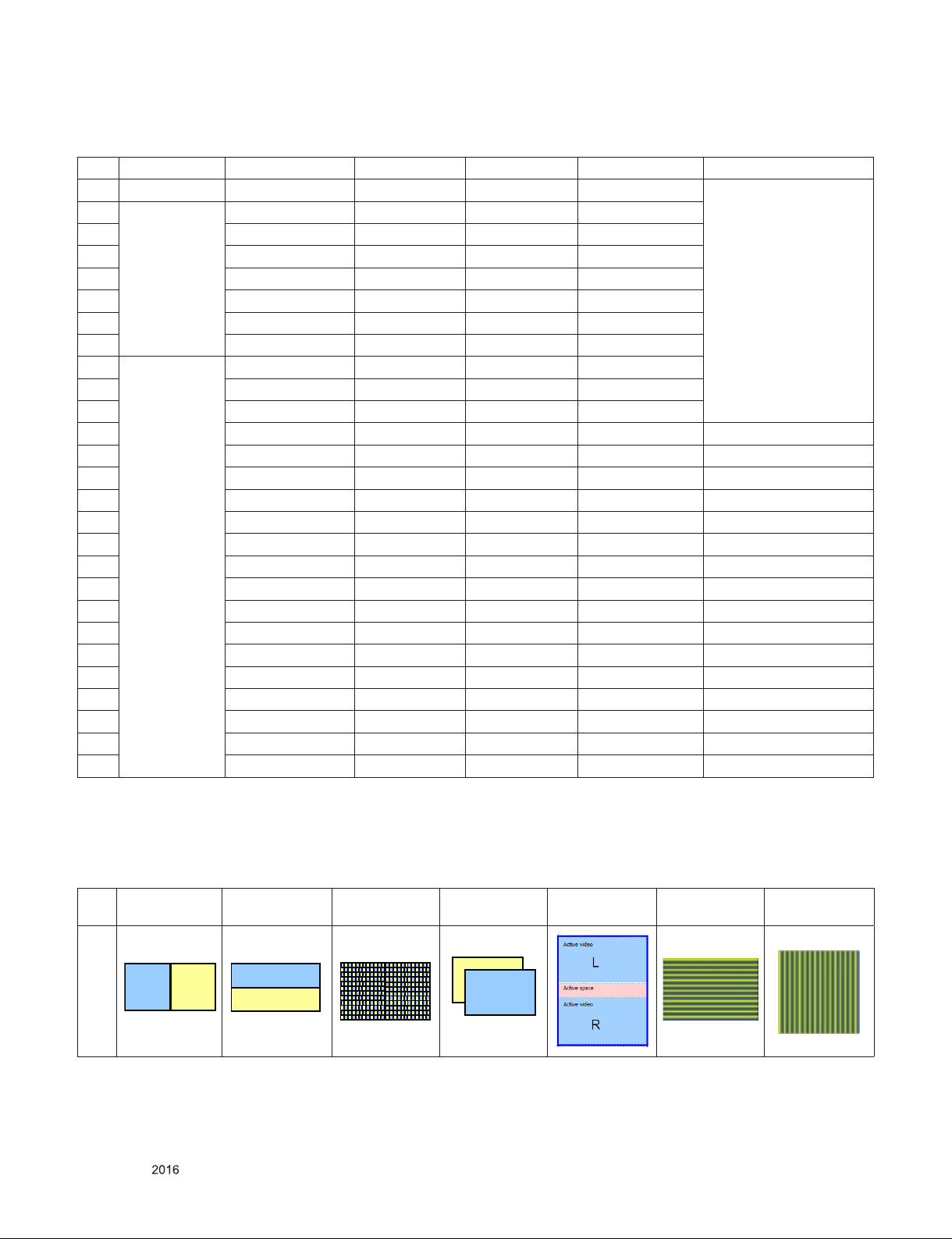

5. External input format

5.1. 2D Mode

5.1.1. Component input(Y, CB/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

1 720*480 15.73 60 13.513 SDTV ,DVD 480I

2 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

3 720*480 31.50 60 27.02 SDTV 480P

4 720*480 31.47 59.94 27.0 SDTV 480P

5 1280*720 45.00 60.00 74.25 HDTV 720P

6 1280*720 44.96 59.94 74.17 HDTV 720P

7 1920*1080 33.75 60.00 74.25 HDTV 1080I

8 1920*1080 33.72 59.94 74.176 HDTV 1080I

9 1920*1080 67.50 60 148.50 HDTV 1080P

10 1920*1080 67.432 59.94 148.35 HDTV 1080P

5.1.2. HDMI Input (PC/DTV)

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed

HDMI-PC DDC

1 640*350 31.46 70.09 25.17 EGA Х

2 720*400 31.46 70.08 28.32 DOS O

3 640*480 31.46 59.94 25.17 VESA(VGA) O

4 800*600 37.87 60.31 40.00 VESA(SVGA) O

5 1024*768 48.36 60.00 65.00 VESA(XGA) O

6 1152*864 54.34 60.05 80.00 VESA O

7 1280*1024 63.98 60.02 108.00 VESA (SXGA) O

8 1360*768 47.71 60.01 85.50 VESA (WXGA) O

9 1920*1080 67.50 60.00 148.5

10 3840*2160 67.50 30.00 297.00 O

11 3840*2160 56.25 25.00 297.00 O

12 3840*2160 54.00 24.00 297.00 O

13 4096*2160 53.95 23.97 297 O

14 4096*2160 54.00 24.00 297 O

- 8 -

Only for training and service purposes

WUXGA(Reduced Blanking)

Page 9

HDMI-DTV

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

1 640 * 480 31.46 59.94 25.125 SDTV 480P

2 640 * 480 31.50 60.00 25.125 SDTV 480P

3 720 * 480 31.47 5.94 27.027 SDTV 480P

4 720 * 480 31.50 60.00 27.00 SDTV 480P

5 1280*720 45.00 60.00 74.25 HDTV 720P

6 1280*720 44.96 59.94 74.176 HDTV 720P

7 1920*1080 33.75 60.00 74.25 HDTV 1080I

8 1920*1080 33.72 59.94 74.176 HDTV 1080I

9 1920*1080 67.50 60.00 148.50 HDTV 1080P

10 1920*1080 67.43 59.94 148.35 HDTV 1080P

11 1920*1080 27.00 24.00 74.25 HDTV 1080P

12 1920*1080 26.97 23.97 74.176 HDTV 1080P

13 1920*1080 33.75 30.00 74.25 HDTV 1080P

14 1920*1080 33.71 29.97 74.176 HDTV 1080P

15 3840*2160 67.5 30.00 297.00 UDTV 2160P

16 3840*2160 61.43 29.97 296.70 UDTV 2160P

17 3840*2160 56.25 25.00 297.00 UDTV 2160P

18 3840*2160 54.00 24.00 297.00 UDTV 2160P

19 3840*2160 53.95 23.98 296.70 UDTV 2160P

20 3840*2160 135.00 59.94 594 UDTV 2160P(HDMI 2,3 only)

21 3840*2160 135.00 60.00 594 UDTV 2160P(HDMI 2,3 only)

22 4096*2160 53.95 23.98 296.703 UDTV 2160P

23 4096*2160 54.00 24.00 297 UDTV 2160P

24 4096*2160 56.25 25.00 297 UDTV 2160P

25 4096*2160 61.43 29.97 296.703 UDTV 2160P

26 4096*2160 67.50 30.00 297 UDTV 2160P

27 4096*2160 135.00 59.94 594 UDTV 2160P(HDMI 2,3 only)

28 4096*2160 135.00 60.00 594 UDTV 2160P(HDMI 2,3only)

Only for training and service purposes

- 9 -

Page 10

5.2. 3D Mode

5.2.1. HDMI Input 1.4b (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

(MHz)

1 640*480 31.46 / 31.5 59.94/ 60 25.17/25.2 1 Top-and-Bottom

62.93 / 63 59.94/ 60 50.35/50.4 1 Frame packing

31.46 / 31.5 59.94/ 60 50.35/50.4 1 Side-by-side(Full) (SDTV 480P)

2 720*480 31.46 / 31.5 59.94 / 60 27.00/27.03 2,3 Top-and-Bottom

62.93 / 63 59.94 / 60 54/54.06 2,3 Frame packing

31.46 / 31.5 59.94 / 60 54/54.06 2,3 Side-by-side(Full) (SDTV 480P)

3 1280*720 44.96 / 45 59.94 / 60 74.18/74.25 4 Top-and-Bottom

89.91 / 90 59.94 / 60 148.35/148.5 4 Frame packing

44.96 / 45 59.94 / 60 148.35/148.5 4 Side-by-side(Full) (HDTV 720P)

4 1920*1080 33.72 / 33.75 59.94 / 60 74.18/74.25 5 Top-and-Bottom

67.43 / 67.5 59.94 / 60 148.35/148.5 5 Frame packing

33.72 / 33.75 59.94 / 60 148.35/148.5 5 Side-by-side(Full) (HDTV 1080I)

26.97 / 27 23.97 / 24 74.18/74.25 32 Top-and-Bottom

43.94 / 54 23.97 / 24 148.35/148.5 32 Frame packing

26.97 / 27 23.97 / 24 148.35/148.5 32 Side-by-side(Full) (HDTV 1080P)

28.125 25 74.25 33 Top-and-Bottom

56.25 25 148.5 33 Frame packing

28.125 25 148.5 33 Side-by-side(Full) (HDTV 1080P)

33.716 / 33.75 29.976 / 30.00 74.18/74.25 34 Top-and-Bottom

67.432 / 67.5 29.976 / 30.00 148.35/148.5 34 Frame packing

33.716 / 33.75 29.976 / 30.00 148.35/148.5 34 Side-by-side(Full) (HDTV 1080P)

67.43 / 67.5 59.94 / 60 148.35/148.50 16 Top-and-Bottom

VIC 3D input proposed

mode

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Field alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Proposed

Secondary(SDTV 480P) Secondary(SDTV 480P)

Secondary(SDTV 480P) (SDTV 480P)

Secondary(SDTV 480P) Secondary(SDTV 480P)

Secondary(SDTV 480P) (SDTV 480P)

Primary(HDTV 720P) Primary(HDTV 720P)

Primary(HDTV 720P) (HDTV 720P)

Secondary(HDTV 1080I) Primary(HDTV 1080I)

Primary(HDTV 1080I) (HDTV 1080I)

Primary(HDTV 1080P) Primary(HDTV 1080P)

Primary(HDTV 1080P) (HDTV 1080P)

Secondary(HDTV 1080P) Secondary(HDTV 1080P)

Secondary(HDTV 1080P) (HDTV 1080P)

Primary(HDTV 1080P) Secondary(HDTV 1080P)

Primary(HDTV 1080P) (HDTV 1080P)

Primary(HDTV 1080P) Secondary(HDTV 1080P)

Only for training and service purposes

- 10 -

Page 11

5.2.2. HDMI 1.4/2.0(3D Supported mode manaually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

(MHz)

1 720*480 31.5 60 27.03 SDTV 480P 2D to 3D, Side by Side(Half),

2 1280*720 45.00 60.00 74.25 HDTV 720P

3 1920*1080 33.75 60.00 74.25 HDTV 1080I 2D to 3D, Side by Side(Half),

4 1920*1080 27.00 24.00 74.25 HDTV 1080P 2D to 3D, Side by Side(Half),

5 1920*1080 28.12 25 74.25 HDTV 1080P

6 1920*1080 33.75 30.00 74.25 HDTV 1080P

7 1920*1080 67.50 60.00 148.5 HDTV 1080P 2D to 3D, Side by Side(Half),

8 3840*2160 53.95 23.976 296.703 HDTV 2160P

9 3840*2160 54 24.00 297.00 HDTV 2160P

10 3840*2160 56.25 25.00 297.00 HDTV 2160P

11 3840*2160 61.43 29.970 296.703 HDTV 2160P

12 3840*2160 67.5 30.00 297.00 HDTV 2160P

13 4096*2160 53.95 23.976 296.703 HDTV 2160P

14 4096*2160 54 24.00 297.00 HDTV 2160P

15 4096*2160 56.25 25.00 297.00 HDTV 2160P

16 4096*2160 61.43 29.970 296.703 HDTV 2160P

17 4096*2160 67.5 30.00 297.00 HDTV 2160P

18 3840*2160 135 60 594 HDTV 2160P 2D to 3D, Top & Bottom(half),

19 4096*2160 135 60 594 HDTV 2160P 2D to 3D, Top & Bottom(half),

Proposed 3D input proposed mode

Top & Bottom, Checker Board, Frame Sequential, Row Interleaving, Column Interleaving

Top & Bottom

Top & Bottom, Checker Board, Row Interleaving, Column Interleaving

Top & Bottom, Checker Board, Single Frame Sequential, Row Interleaving, Column Interleaving

Side by Side(half), Only HDMI1, HDMI2 port

5.2.3. HDMI-PC Input (3D) (3D Supported Mode Manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

1 1024*768 48.36 60 65 HDTV 768P 2D to 3D,

2 1360*768 47.71 60 85.5 HDTV 768P 2D to 3D,

3 1920*1080 67.500 60 148.50 HDTV 1080P 2D to 3D,

4 3840*2160

4096*2160

5 Others - - - 640*350

54 24.00 296.703 HDTV 2160P 2D to 3D,

56.25 25.00 297

67.5 30.00 296.703

(MHz)

Proposed 3D input proposed mode

Side by Side(half), Top & Bottom

Side by Side(half), Top & Bottom, Checker Board, Single Frame Sequential, Row Interleaving, Column Interleaving

Top & Bottom(half), Side by Side(half),

720*400 640*480 800*600

1152*864

2D to 3D, Side by Side(half), Top & Bottom

- 11 -

Only for training and service purposes

Page 12

5.2.4. RF Input(3D supported mode manually)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1280*720 37.500 50 74.25 HDTV 720P 2D to 3D, Side by Side, Top & Bottom

2 1920*1080 28.125 50 74.25 HDTV 1080I 2D to 3D, Side by Side, Top & Bottom

5.2.5. RF Input (3D supported mode automatically)

No. Signal 3D input proposed mode

1 Frame Compatible Side by Side(Half), Top & Bottom

5.2.6. USB, DLNA (Movie) Input (3D supported mode manually)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 Under 704x480 - - - 2D to 3D

2 Over 704x480

interlaced

3 Over 704x480

progressive

4 Over 704x480

progressive

5 Over 2160P - 24/25/30/60 - 2D to 3D, Side by Side(Half),

- - - 2D to 3D, Side by Side(Half), Top & Bottom

- 60 - 2D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Row Interleaving, Column Interleaving

- others - 2D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Row Interleaving, Column Interleaving

Top & Bottom, USB Only

5.2.7. USB, DLNA (Photo) Input (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 USB(Photo) - - - 2D to 3D, Side by Side(Half), Top & Bottom

5.2.8. USB, DNLA Input (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 1080P 33.75 30 - Side by Side(Half), Top & Bottom, Checker Board,

2 2160p 67.5 30 297 MPO(Photo), JPS(Photo)

MPO(Photo)

Only for training and service purposes

- 12 -

Page 13

5.2.9. Component Input(3D supported mode manually)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1 1280*720 45.00 60.00 74.25 HDTV 720P 2D to 3D,

2 1280*720 44.96 59.94 74.25 HDTV 720P

3 1920*1080 33.75 60.00 74.25 HDTV 1080I

4 1920*1080 33.72 59.94 74.25 HDTV 1080I

5 1920*1080 27.00 24.00 74.25 HDTV 1080P

6 1920*1080 28.12 25 74.25 HDTV 1080P

7 1920*1080 33.71 29.97 74.25 HDTV 1080P

8 1920*1080 33.75 30.00 74.25 HDTV 1080P

9 1920*1080 26.97 23.97 74.25 HDTV 1080P

10 1920*1080 67.5 60.00 148.5 HDTV 1080P

11 1920*1080 67.43 50 148.5 HDTV 1080P

Side by Side(Half), Top & Bottom

5.2.10. Miracast, Widi (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 Others - 2D to 3D

Only for training and service purposes

- 13 -

Page 14

5.2.11. Dual play

No. Input Resolution H-freq(kHz) V-freq.(Hz) Proposed Remark

1 AV 720*480 15.73 60 480I Side by Side(Half)

2 Component 720*480 15.73 60 480I

3 720*480 31.50 60 480p

4 1280*720 45 60 720p

5 1920*1080 33.73 60 1080i

6 1920*1080 67.50 60 1080p

7 1920*1080 27 24 1080p

8 1920*1080 33.75 30 1080p

9 HDMI 1280*720 45 60 720p

10 1920*1080 33.73 60 1080i

11 1920*1080 67.50 60 1080p

12 1920*1080 27 24 1080p

13 1920*1080 33.75 30 1080p

14 3840X2160 53.95 23.97 2160P

15 3840X2160 54 24 2160P

16 3840X2160 56.25 25 2160P

17 3840X2160 61.43 29.97 2160P

18 3840X2160 67.5 30 2160P

19 3840X2160 134.86 59.94 2160P

20 3840X2160 135 60 2160P

21 4096X2160 53.95 23.97 2160P

22 4096X2160 54 24 2160P

23 4096X2160 56.25 25 2160P

24 4096X2160 61.43 29.97 2160P

25 4096X2160 67.5 30 2160P

26 4096X2160 134.86 59.94 2160P

27 4096X2160 135 60 2160P

**Remark: 3D Input mode

No. Side by Side Top & Bottom Checkerboard Single Frame

Sequential

- 14 -

Only for training and service purposes

Frame Packing Line

Interleaving

Column

Interleaving

Page 15

ADJUSTMENT INSTRUCTION

1. Application Range

This spec. sheet applies to LA5BP Chassis applied LED TV all models manufactured in TV factory

2. Specification.

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25 ±5ºC of temperature and 65±10% of relative humidity if

there is no specific designation (4) The input voltage of the receiver must keep 100~240V,

50/60Hz (5) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15ºC

▪ In case of keeping module is in the circumstance of 0°C, it

should be placed in the circumstance of above 15°C for 2 hours

▪ In case of keeping module is in the circumstance of below

-20°C, it should be placed in the circumstance of above 15°C for 3 hours

(Caution) When still image is displayed for a period of 20

minutes or longer (especially where W/B scale is strong. Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some afterimage in the black level area.

3. Adjustment items

3.1. Main PCB check process

▪ MAC Address Download ▪ ADC adjustment : 480i Comp1, 1920*1080 Comp1 ▪ EDID/DDC download

Above adjustment items can be also performed in Final Assembly if needed. Both Board-level and Final assembly adjustment items can be check using In-Start Menu 1.ADJUST CHECK.

3.2. Final assembly adjustment

▪ White Balance adjustment ▪ RS-232C functionality check ▪ PING Test ▪ Factory Option setting per destination ▪ Ship-out mode setting (In-Stop)

4. Automatic Adjustment

4.1. ADC Adjustment

ADC adjustment is needed to find the optimum black level and gain in Analog-to-Digital device and to compensate RGB deviation.

4.1.1. Equipment & Condition

(1) USB to RS-232C Jig (2) MSPG-925 Series Pattern Generator(MSPG-925FA,

pattern -65)

- Resolution : 480i Comp1 1080P Comp1

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level : 0.7±0.1 Vp-p

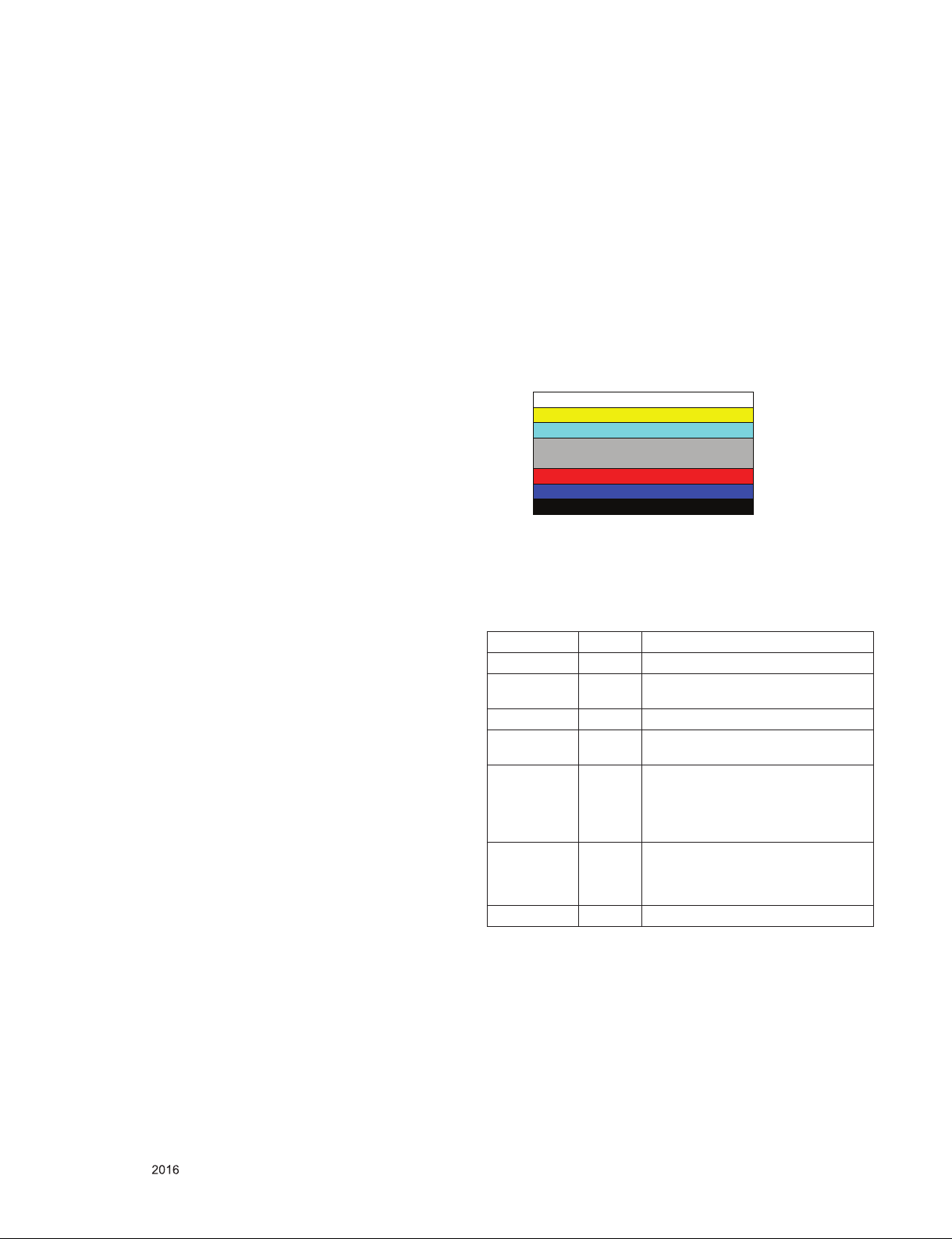

- Image

4.1.2. Adjustment method

▪ Using USB, adjust items listed in 3.1 in the other shown in

“4.1.3.3”

4.1.3. Adj. protocol

Protocol Command Set ACK

Enter adj. mode aa 00 00 a 00 OK00x

Source change xb 00 04

xb 00 06

Begin adj. ad 00 10

Return adj. result

Read adj. data (main)

ad 00 20

(sub ) ad 00 21

Conrm adj. ad 00 99 NG 03 00x (Fail)

End adj. ad 00 90 a 00 OK90x

(Ref.) ADC Adj. RS232C Protocol_Ver1.0

b 00 OK04x (Adjust 480i, 1080p Comp1 ) b 00 OK06x (Adjust 1920*1080 RGB)

OKx (Case of Success) NGx (Case of Fail)

(main) 000000000000000000000000007c007b006dx

(Sub) 000000070000000000000000007c00830077x

NG 03 01x (Fail) NG 03 02x (Fail) OK 03 03x (Success)

3.3. Etc.

▪ Ship-out mode ▪ Service Option Default ▪ USB Download(S/W Update, Option, Service only) ▪ ISP Download (Option)

Only for training and service purposes

- 15 -

Adj. order

▪ aa 00 00 [Enter ADC adj. mode] ▪ xb 00 04 [Change input source to Component1(480i&1080p)] ▪ ad 00 10 [Adjust 480i&1080p Comp1] ▪ xb 00 06 [Change input source to RGB(1024*768)] ▪ ad 00 10 [Adjust 1920*1080 RGB] ▪ aa 00 90 End adj.

Page 16

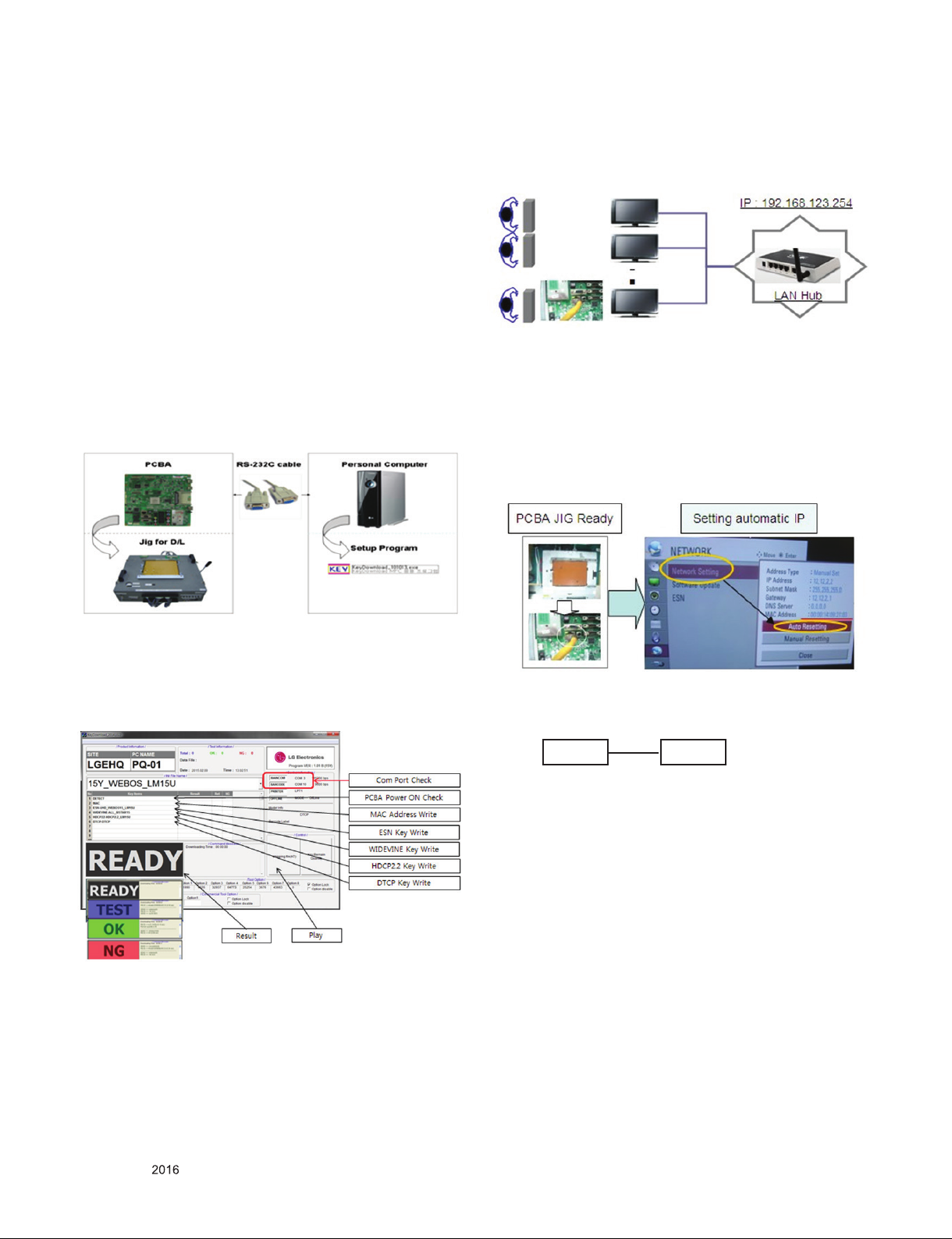

4.2. MAC address, ESN, Widevine, HDCP2.0 key D/L

4.2.1. Equipment & Condition

(1) Play file: keydownload.exe

4.2.2. Communication Port connection

(1) Key Write: Com 1,2,3,4 and 115200 (Baudrate) (2) Barcode: Com 1,2,3,4 and 9600 (Baudrate)

4.2.3. Download process

(1) Select the download items. (2) Mode check: Online Only (3) Check the test process : DETECT -> MAC -> Widevine (4) Play: START (5) Check of result: Ready, Test, OK or NG

4.2.4. Communication Port connection

(1) Connect: PCBA Jig -> RS-232C Port == PC -> RS-232C

Port

4.3. LAN Inspection

4.3.1. Equipment & Condition

▪ Each other connection to LAN Port of IP Hub and Jig

4.3.2. LAN inspection solution

▪ LAN Port connection with PCB ▪ Network setting at MENU Mode of TV ▪ Setting automatic IP ▪ Setting state confirmation

- If automatic setting is finished, you confirm IP and MAC Address.

4.2.5. Download

(Caution) You need to Access USB certification to key download (1) Models ( MAC + Widevine + ESN + HDCP2.0 +

DTCP(US,Canada)) : North America model

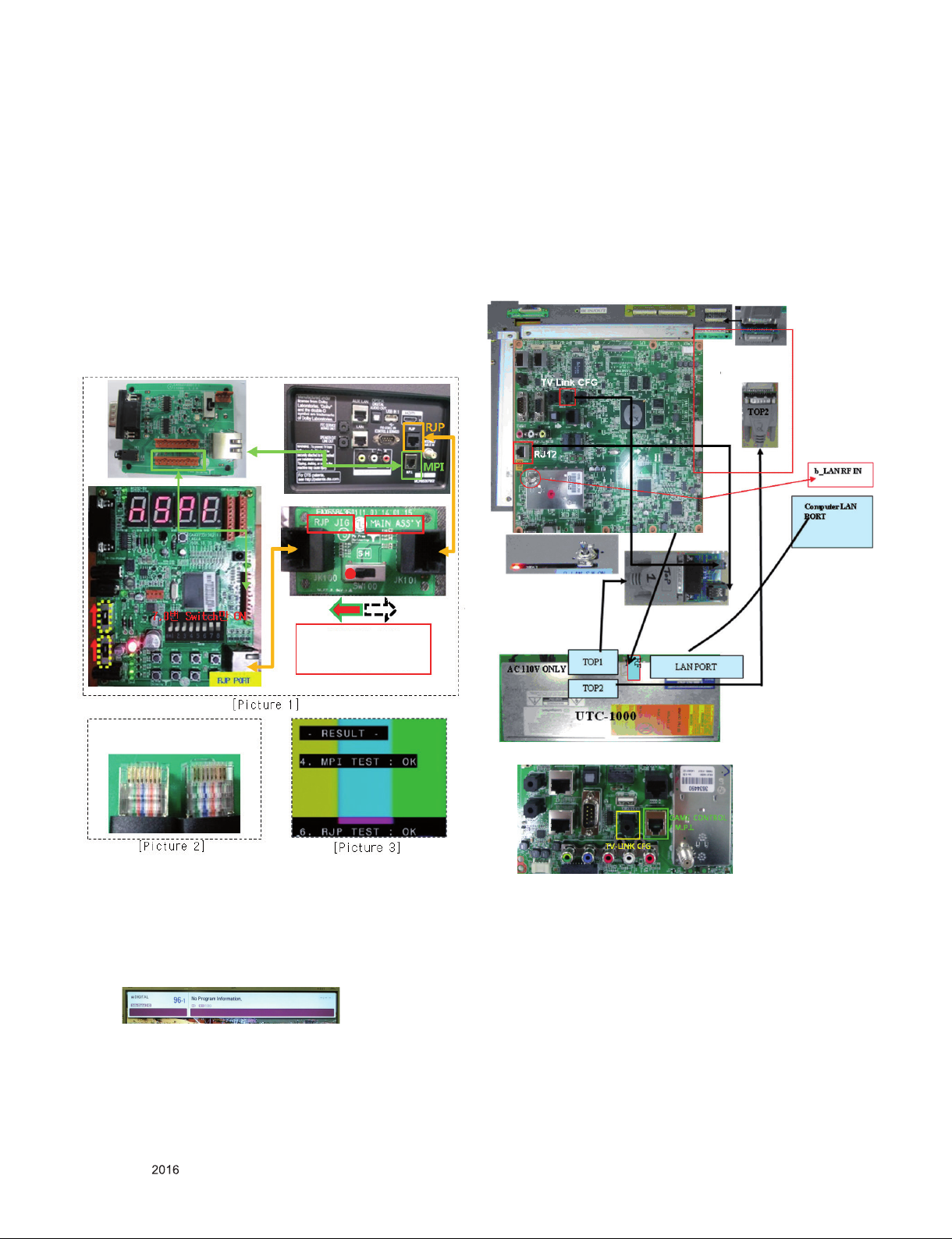

4.3.3. LAN PORT INSPECTION (PING TEST)

Connect SET → LAN port == PC → LAN Port

SET PC

(1) Play the LAN Port Test PROGRAM. (2) Input IP set up for an inspection to Test Program.

* IP Number : 12.12.2.2.

Only for training and service purposes

- 16 -

Page 17

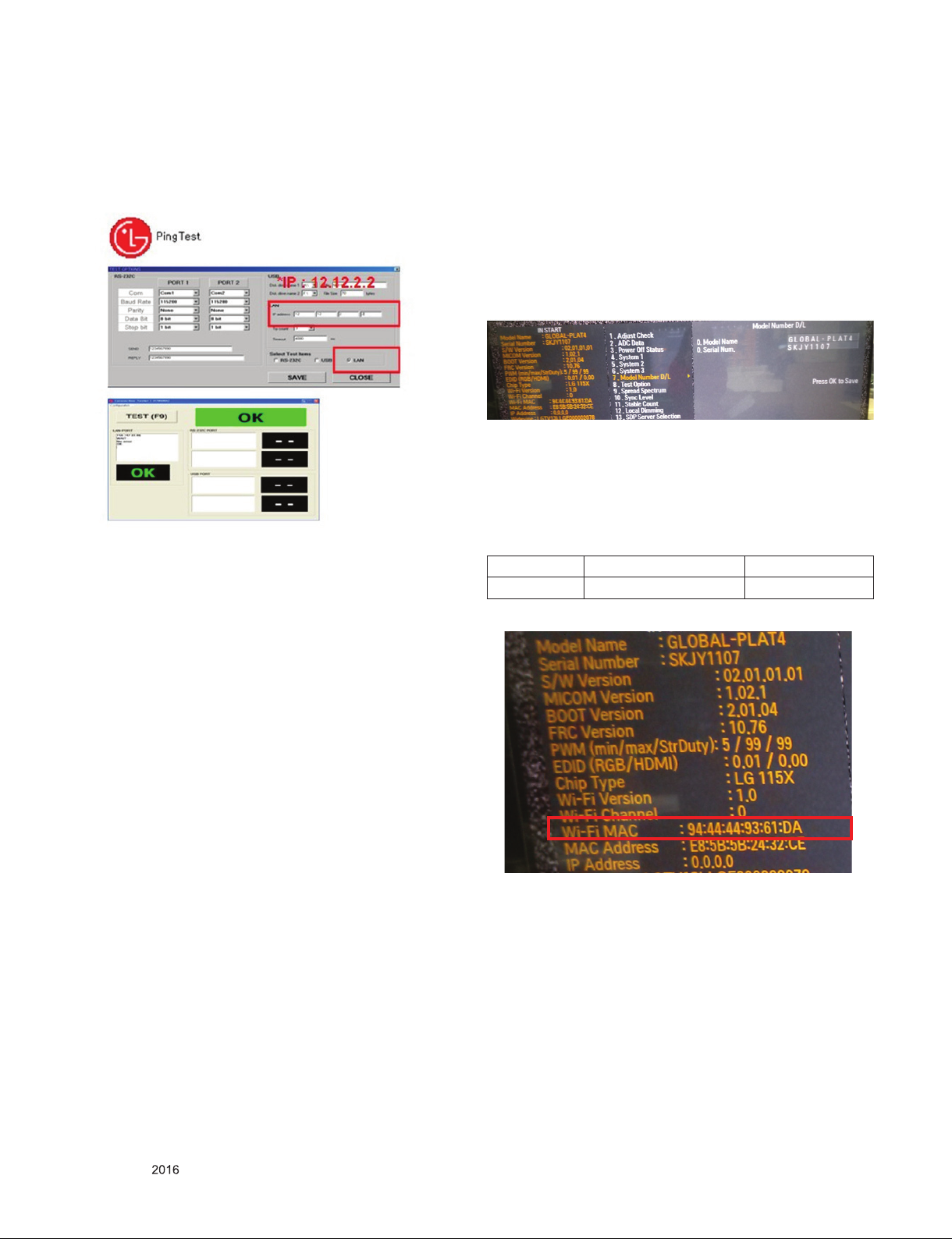

4.3.4. LAN PORT inspection (PING TEST)

(1) Play the LAN Port Test Program. (2) connect each other LAN Port Jack. (3) Play Test (F9) button and confirm OK Message. (4) remove LAN CABLE

4.4. Model name & Serial number Download

4.4.1. Model name & Serial number D/L

▪ Press “Power on” key of service remocon.(Baud rate :

115200 bps)

▪ Connect RS-232C Signal to USB Cable to USB. ▪ Write Serial number by use USB port. ▪ Must check the serial number at Instart menu.

* Manual Download (Model Name and Serial Number)

If the TV set is downloaded By OTA or Service man, Sometimes model name or serial number is initialized. ( not always) It is impossible to download by bar code scan, so It need Manual download.

a. Press the ‘INSTART’ key of ADJ remote controller. b. Go to the menu ‘7. Model Number D/L’ like below photo. c. Input the Factory model name or Serial number like

below photo.

d. Check the model name INSTART menu -> Factory name

displayed

e. Check the Diagnostics (DTV country only) -> Buyer

model displayed

4.5. WIFI MAC ADDRESS CHECK

4.5.1. Using RS232 Command

Command Set ACK

Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G]

■ Check the menu on in-start

■ Method & Notice

A. Serial number D/L is using of scan equipment. B. Setting of scan equipment operated by Manufacturing

Technology Group.

C. Serial number D/L must be conformed when it is produced

in production line, because serial number D/L is mandatory by D-book 4.0

Only for training and service purposes

- 17 -

Page 18

5. Manual Adjustment

DVI-D to HDMI or HDMI to HDMI

5.1. ADC adjustment is not needed because of OTP (Auto ADC adjustment)

5.2. EDID

(The Extended Display Identification Data) / DDC (Display Data Channel) download

5.2.1. Overview

It is a VESA regulation. A PC or a MNT will display an optimal resolution through information sharing without any necessity of user input. It is a realization of “Plug and Play”.

5.2.2. Equipment

▪ Since embedded EDID data is used, EDID download JIG,

HDMI cable and D-sub cable are not need.

▪ Adjust remocon

5.2.3. Download method

(1) Press Adj. key on the Adjust remocon, then select “12.EDID

D/L”.

By pressing Enter key, enter EDID D/L menu

(2) Select [Start] button by pressing Enter key, HDMI1 / HDMI2

/ HDMI3 / HDMI4 are Writing and display OK or NG.

For HDMI EDID

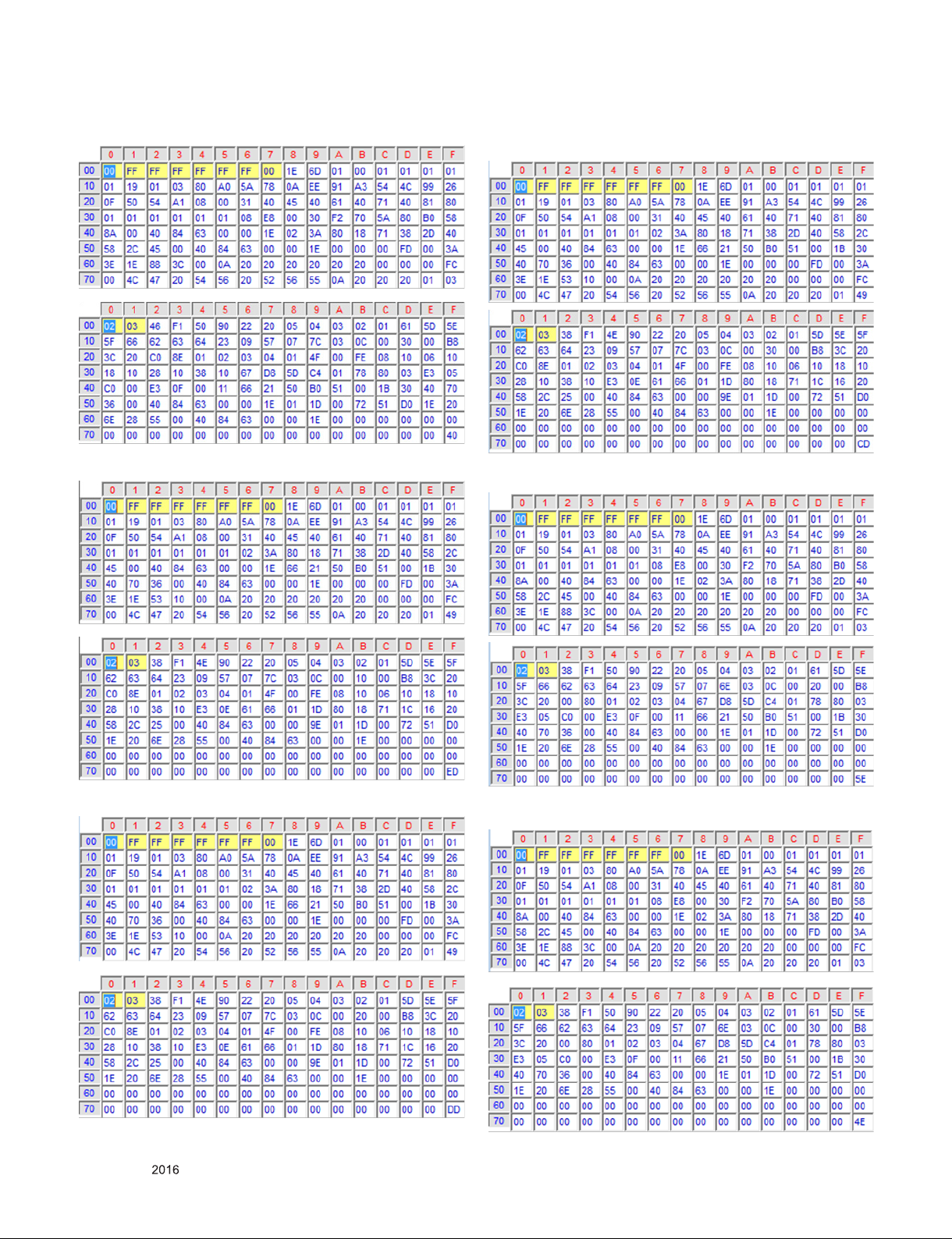

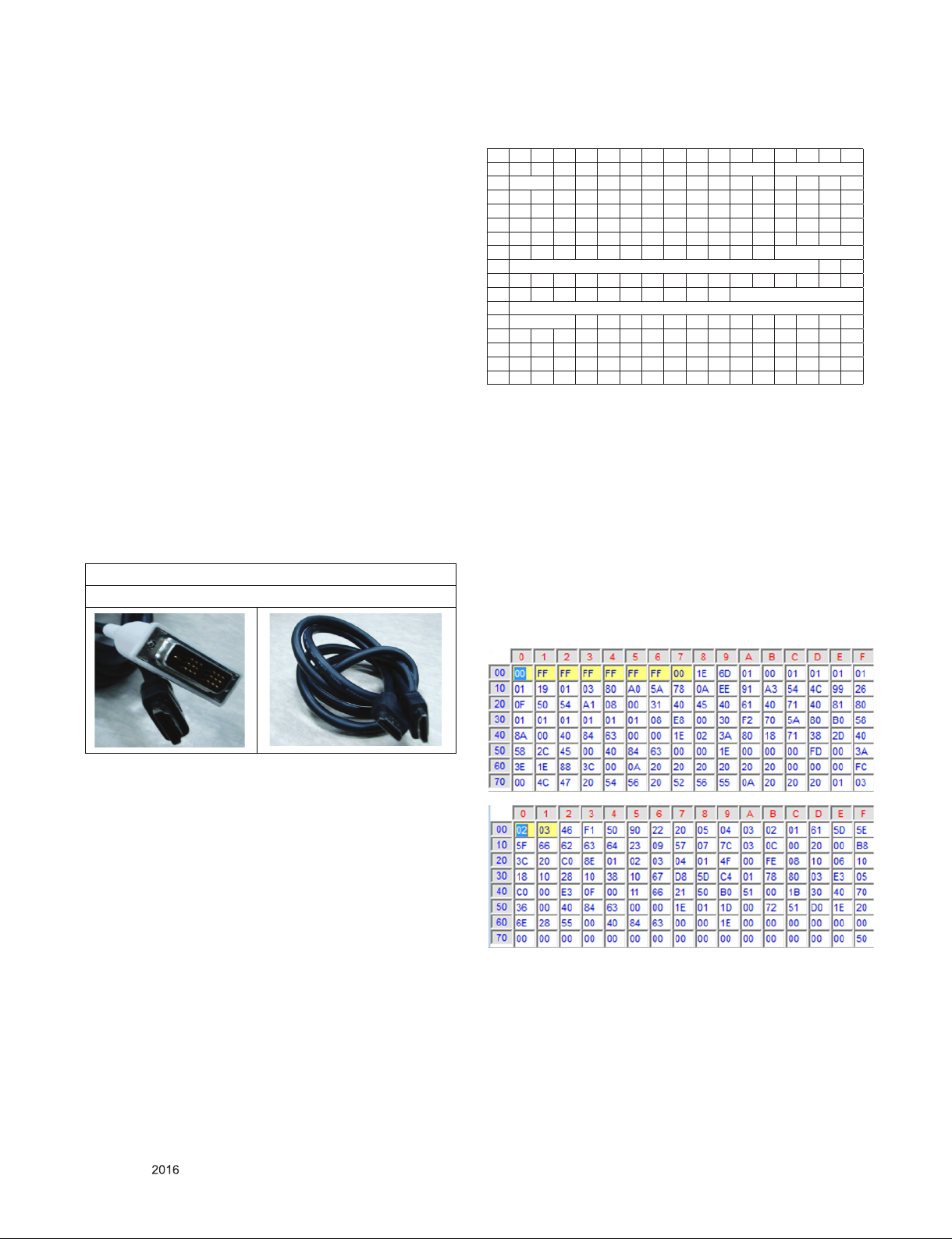

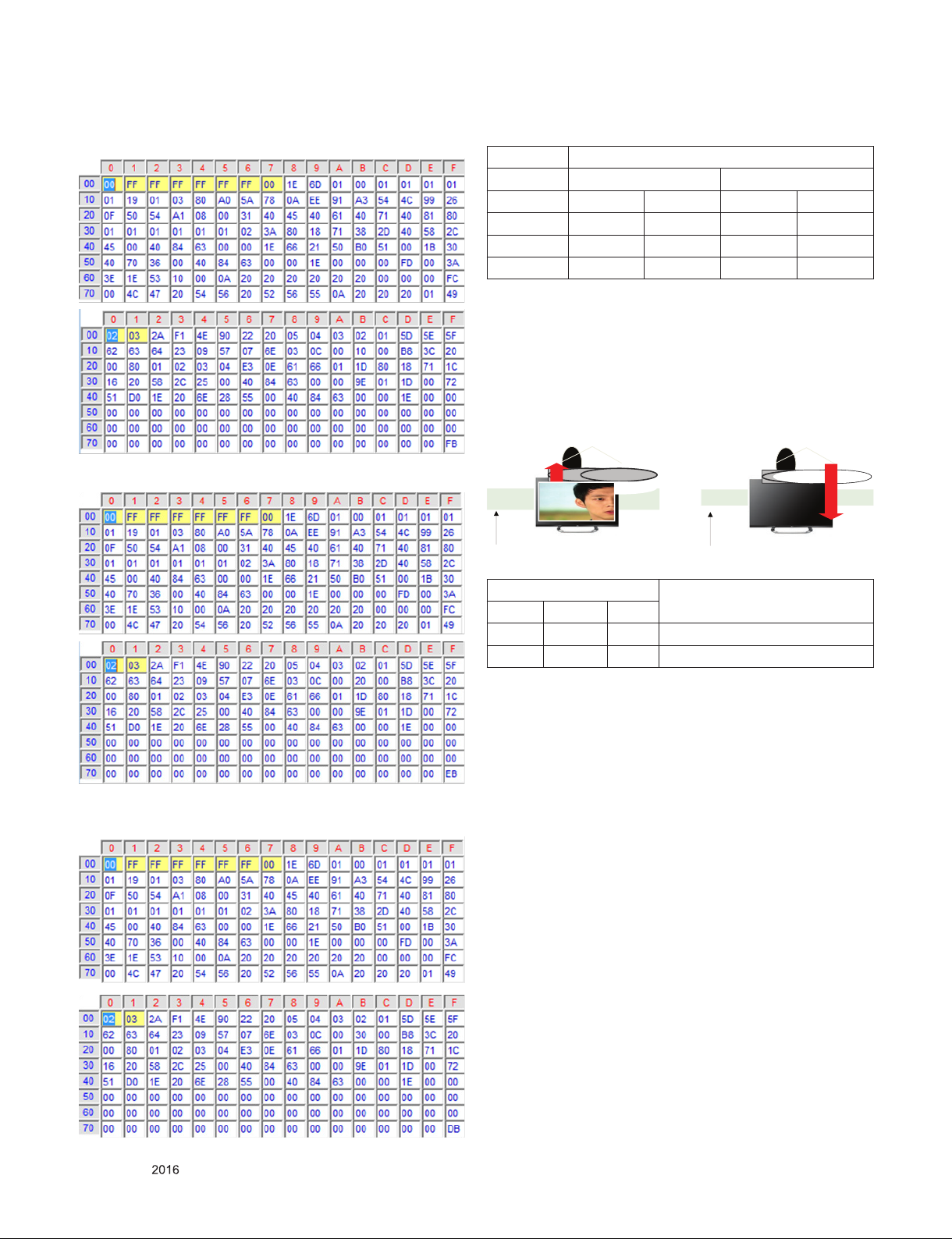

5.2.4. EDID DATA

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D a b

10 c 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 8 00 31 40 45 40 61 40 71 40 81 80

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30

50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 d

70 d 01 e1

0 02 03 3A F1 4E 10 9F 04 13 05 14 03 02 12 20 21

10 22 15 01 29 3D 06 C0 15 07 50 f

20 f

30 f 10 28 10 E3 05 03 01 02 3A 80 18 71 38

40 2D 40 58 2C 45 00 40 84 63 00 00 1E 01 1D 80 18

50 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D

60 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E

70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e2

▪ Reference

- HDMI1 ~ HDMI3

- In the data of EDID, bellows may be different by Input mode

ⓐ Product ID ⓑ Serial No: Controlled on production line. ⓒ Month, Year: Controlled on production line:

ex) Monthly : ‘01’ -> ‘01’ Year : ‘2016’ -> ‘1A'

ⓓ Model Name(Hex): LGTV ⓔ Checksum(LG TV): Changeable by total EDID data. ⓕ Vendor Specific(HDMI)

5.2.4.1. EDID <49/55/65UX970H-UA Only> # PCM HDMI2 (C/S: 03,50)_6G_UHD Deep Color ON

Only for training and service purposes

- 18 -

Page 19

# PCM HDMI3 (C/S: 03,40)_6G_UHD Deep Color ON

# PCM HDMI3 (C/S: 49,CD)_3G_UHD Deep Color OFF <79UX970H-UA Only>

# PCM HDMI1 (C/S: 49,ED)_3G_UHD Deep Color OFF

# PCM HDMI2 (C/S: 49,DD)_3G_UHD Deep Color OFF

# PCM HDMI2 (C/S: 03,5E)_6G_2D ONLY_UHD Deep Color

# PCM HDMI3 (C/S: 03,4E)_6G_2D ONLY_UHD Deep Color

Only for training and service purposes

- 19 -

Page 20

# PCM HDMI1 (C/S: 49,FB)_3G_2D ONLY_UHD Deep Color

OFF

# PCM HDMI2 (C/S: 49,EB)_3G_2D ONLY_UHD Deep Color

OFF

# Checksum(HDMI 1/2/3)

Input PCM

3D 2D

3D 3G 6G 49/FB

HDMI1 49/ED 49/EB 03/5E

HDMI2 49/DD 03/50 49/DB 03/4E

HDMI3 49/CD 03/40 9F 5B

5.3. Camera Function Inspection

(1) Objective : To check how it connects between Camera and

PCBA normally, and their Function

(2) Test Method : This Inspection is available only Power-Only

Status.

1) Push Camera Up.

2) Camera’s Preview picture apeears on TV Set.

3) Push Camera Down.

Previewer

(3) RS-232C Command

RS-232C COMMAND Explanation

CMD DATA ID

ai 00 23 Camera Function Start.

ai 00 24 Camera Function End.

InspectorG

# PCM HDMI3 (C/S: 49,DB)_3G_2D ONLY_UHD Deep Color

OFF

5.4. White Balance Adjustment

5.4.1. Overview

5.4.1.1. W/B adj. Objective & How-it-works (1) Objective: To reduce each Panel’s W/B deviation (2) How-it-works: When R/G/B gain in the OSD is at 192, it

means the panel is at its Full Dynamic Range. In order to prevent saturation of Full Dynamic range and data, one of R/G/B is fixed at 192, and the other two is lowered to find the desired value.

(3) Adj. condition: normal temperature

- Surrounding Temperature: 25 °C ± 5 °C

- Warm-up time: About 5 Min

- Surrounding Humidity: 20% ~ 80%

5.4.2. Equipment

(1) Color Analyzer: CA-210 (LED Module : CH 14) (2) Adj. Computer (During auto adj., RS-232C protocol is

needed) (3) Adjust Remocon (4) Video Signal Generator MSPG-925F 720p/216-

Gray(Model:217, Pattern:78)

→ Only when internal pattern is not available

※ Color Analyzer Matrix should be calibrated using CS-1000

Only for training and service purposes

- 20 -

Page 21

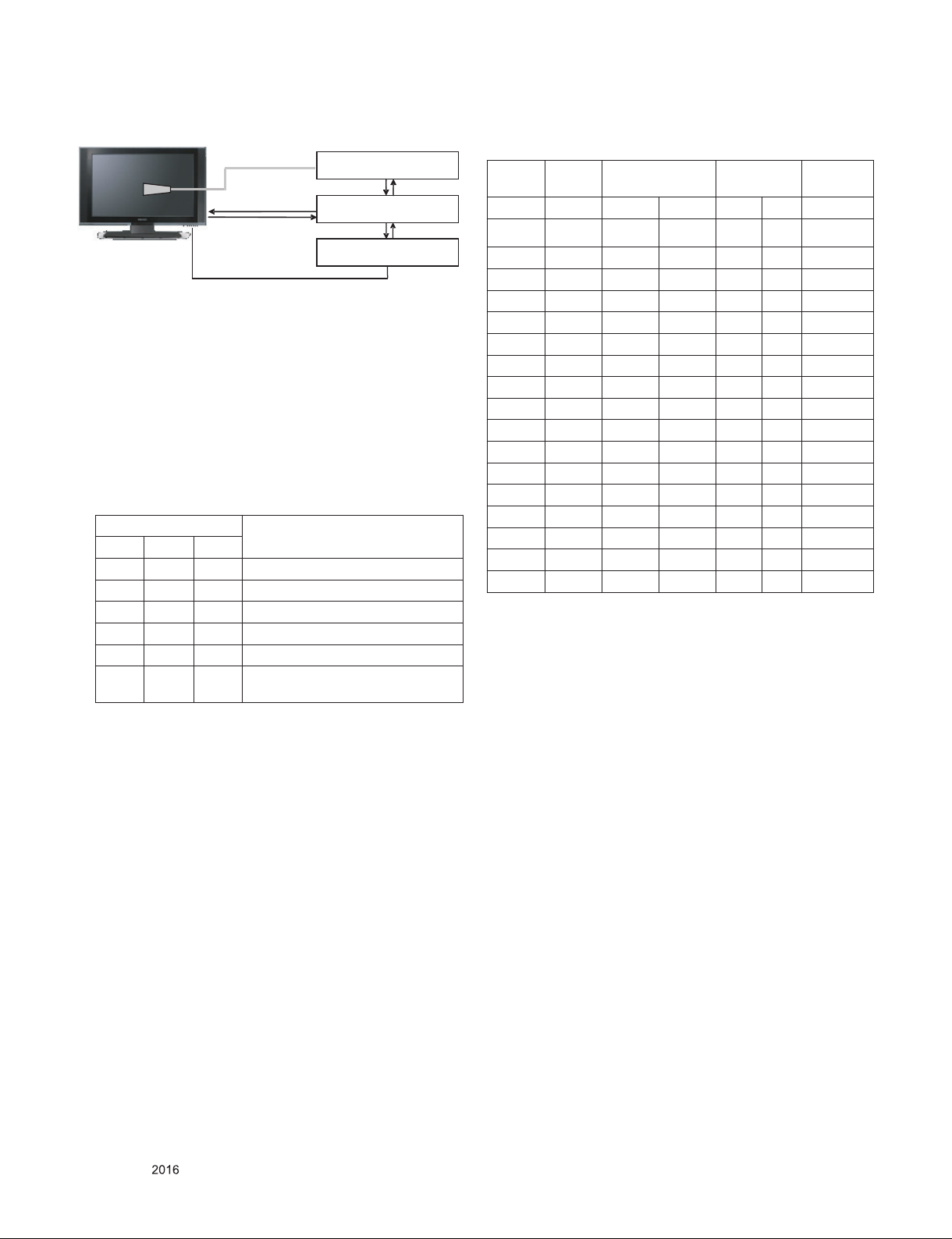

5.4.3. Equipment connection MAP

* If TV internal pattern is used, not needed

Color Analyzer

Probe

RS-232C

Pattern Generator

Signal Source

RS-232C

Computer

RS-232C

5.4.4. Adj. Command (Protocol)

START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS A STOP

- LEN: Number of Data Byte to be sent

- CMD : Command

- VAL : FOS Data value

- CS : Checksum of sent data

- A : Acknowledge

(Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]

(1) RS-232C Command used during auto-adj.

RS-232C COMMAND

CMD D ATA ID

wb 00 00 Begin White Balance adj.

wb 00 10 Gain adj.(internal white pattern)

wb 00 1f Gain adj. completed

wb 00 20 Offset adj.(internal white pattern)

wb 00 2f Offset adj. completed

wb 00 ff End White Balance adj.

(internal pattern disappears )

Ex) wb 00 00 -> Begin white balance auto-adj.

wb 00 10 -> Gain adj. ja 00 ff -> Adj. data jb 00 c0 ... ... wb 00 1f -> Gain adj. complete * (wb 00 20(start), wb 00 2f(endc)) -> Off-set adj. wb 00 ff -> End white balance auto adj.

Explanation

(2) Adjustment Map Applied Model : ALL MODELS

Adj. item

Cool R Gain j g 00 C0 TBD

G Gain j h 00 C0 TBD

B Gain j i 00 C0 TBD

R Cut TBD

G Cut TBD

B Cut TBD

Medium R Gain j a 00 C0 TBD

G Gain j b 00 C0 TBD

B Gain j c 00 C0 TBD

R Cut TBD

G Cut TBD

B Cut TBD

Warm R Gain j d 00 C0 TBD

G Gain j e 00 C0 TBD

B Gain j f 00 C0 TBD

R Cut TBD

G Cut TBD

Command (lower caseASCII)

CMD1 CMD2 MIN MAX

Data Range (Hex.)

Default (Decimal)

5.4.5. Adjustment method

5.4.5.1. Auto WB calibration (1) Set TV in adj. mode using POWER ONNY key (2) Zero calibrate probe then place it on the center of the

Display (3) Connect Cable (RS-232C to USB) (4) Select mode in adj. Program and begin adj. (5) When adj. is complete (OK Sign), check adj. status pre

mode(Warm, Medium, Cool) (6) Remove probe and RS-232C to USB cable to complete adj.

▪ W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need

Only for training and service purposes

- 21 -

Page 22

5.4.5.2. Manual adj. method (1) Set TV in Adj. mode using POWER ON (2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface..

(3) Press ADJ key -> EZ adjust using adj. R/C -> 7. White-

Balance then press the cursor to the right (KEY►).

(When KEY(►) is pressed 216 Gray internal pattern will be

displayed)

(4) One of R Gain / G Gain / B Gain should be fixed at 192,

and the rest will be lowered to meet the desired value.

(5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of

color temperature.

** R-fix adjustment Adjust modes (Cool), Fix the R gain to 210 (default data) and change the others (G/B Gain ).

- Adjust the R gain more than 210 ( If G gain or B gain is less

than 0 , R gain can adjust more than 210 ) and change the others ( G/B Gain ).

- Adjust two modes (Medium / Warm), Fix the one of R/G/B

gain to 192 (default data) and decrease the others.

▪ If internal pattern is not available, use RF input. In EZ Adj.

menu 7.White Balance, you can select one of 2 Test-pattern: ON, OFF. Default is inner(ON). By selecting OFF, you can adjust using RF signal in 216 Gray pattern.

▪ Adj. condition and cautionary items

(1) Lighting condition in surrounding area Surrounding lighting should be lower 10 lux. Try to isolate

adj. area into dark surrounding.

(2) Probe location

- LCD : Color Analyzer (CA-210) probe should be within 10cm and perpendicular of the module surface (80°~ 100°)

(3) Aging time

- After Aging Start, Keep the Power ON status during 5

Minutes.

- In case of LCD, Back-light on should be checked using no

signal or Full-white pattern.

5.4.6. Reference (White Balance Adj. coordinate and color temperature)

▪ Luminance: 206 Gray ▪ Standard color coordinate and temperature using CS-1000

(over 26 inch)

Mode

Cool 0.271 0.270 13,000K 0.0000

Medium 0.283 0.289 9,300K 0.0000

Warm 0.313 0.329 6,500K 0.0000

▪ Standard color coordinate and temperature using CA-210

(CH 14)

Mode

Cool 0.271±0.002 0.270±0.002 13000K 0.0000

Medium 0.286±0.002 0.289±0.002 9300K 0.0000

Warm 0.313±0.002 0.329±0.002 6500K 0.0000

Coordinate

X Y

Coordinate

X Y

Temp △uv

5.4.7. EDGE & IOL LED White balance table

▪ Edge & ALEF LED module change color coordinate because

of aging time

▪ apply under the color coordinate table, for compensated

aging time

▪ Luminance: 204 Gray, 80IRE

** Except Gumi winter season(Jan~Feb) and except for winter

season (Mar ~ Dec) & Global are same as the table below

▪ Standard color coordinate and temperature using

CA-210(CH-14) – by aging time

Aging time

(Min)

1 0-2 282 289 297 308 324 348

2 3-5 281 287 296 306 323 346

3 6-9 279 284 294 303 321 343

4 10-19 277 280 292 299 319 339

5 20-35 275 277 290 296 317 336

6 36-49 274 274 289 293 316 333

7 50-79 273 272 288 291 315 331

8 80-119 272 271 287 290 314 330

9 Over 120 271 270 286 289 313 329

Cool Medium Warm

X Y X Y X Y

271 270 286 289 313 329

* Use only AUO, INX, Sharp, CSOT, BOE (Cool temp Spec is 13000K)

cool med warm

x y x y x y

spec 271 270 286 289 313 329

target 278 280 293 299 320 339

5.5. Local Dimming Function Check

(Step 1) Turn on TV (Step 2) At the Local Dimming mode, module Edge Backlight

moving right to left Back light of IOP module moving (Step 3) confirm the Local Dimming mode (Step 4) Press “exit” Key

GLUHFWLRQ

Only for training and service purposes

- 22 -

Page 23

5.6. Magic Motion Remocon test

- Equipment : RF Remocon for test, IR-KEY-Code Remocon for test

- You must confirm the battery power of RF-Remocon before

test

(recommend that change the battery per every lot)

- Sequence (test)

a) if you select the ‘start key(OK)’ on the controller, you can

pairing with the TV SET.

b) You can check the cursor on the TV Screen, when select

the ‘OK Key’ on the controller

c) You must remove the pairing with the TV Set by select

‘Mute + OK Key’ on the controller

5.7. 3D pattern test

(Pattern Generator MSHG-600, MSPG-6100 [SUPPORT HDMI1.4])

* HDMI mode NO. 872 , pattern No.83

5.8. HDMI ARC Function Inspection

5.8.1. Test equipment

- Optic Receiver Speaker

- MSHG-600 (SW: 1220 ↑)

- HDMI Cable (for 1.4 version)

5.8.2. Test method

(1) Insert the HDMI Cable to the HDMI ARC port from the

master equipment (HDMI2)

(2) Check the sound from the TV Set

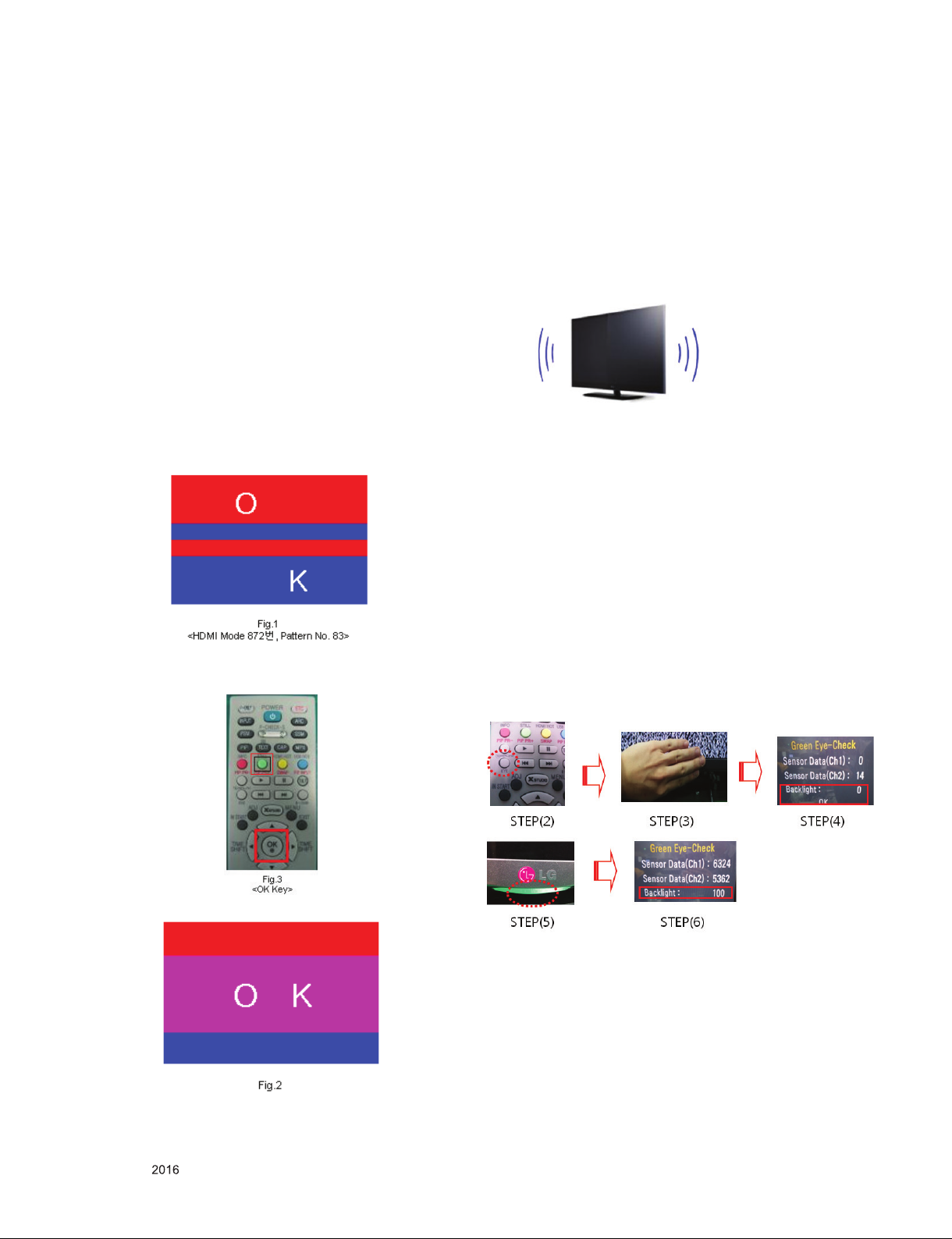

(1) Please input 3D test pattern like below (HDMI mode NO.

872 , pattern No.83)

(2) When 3D OSD appear automatically , then select green

button.

(3) Check the Sound from the Speaker or using AV & Optic

TEST program (It’s connected to MSHG-600)

5.9. EYE-Q Green Function Inspection

(Step 1) Turn on the TV. (Step 2) Press 'EYE button' on the adjustment remote-

controller.

(Step 3) Cover 'Eye Q sensor' on the front of set with your

hands, hold it for 6 seconds.

(Step 4) Check "the Sensor Data" on the screen, make certain

that Data is below 10. If Data isn’t below 10 in 6 seconds, Eye Q sensor would be bad. You should change Eye Q sensor.

(Step 5) Uncover your hands from Eye Q sensor, hold it for 6

seconds.

(Step 6) Check "Back Light(xxx)" on the screen, check data

increase . You should change Eye Q sensor

(3) Don’t wear a 3D Glasses, Check the picture like below

Only for training and service purposes

- 23 -

Page 24

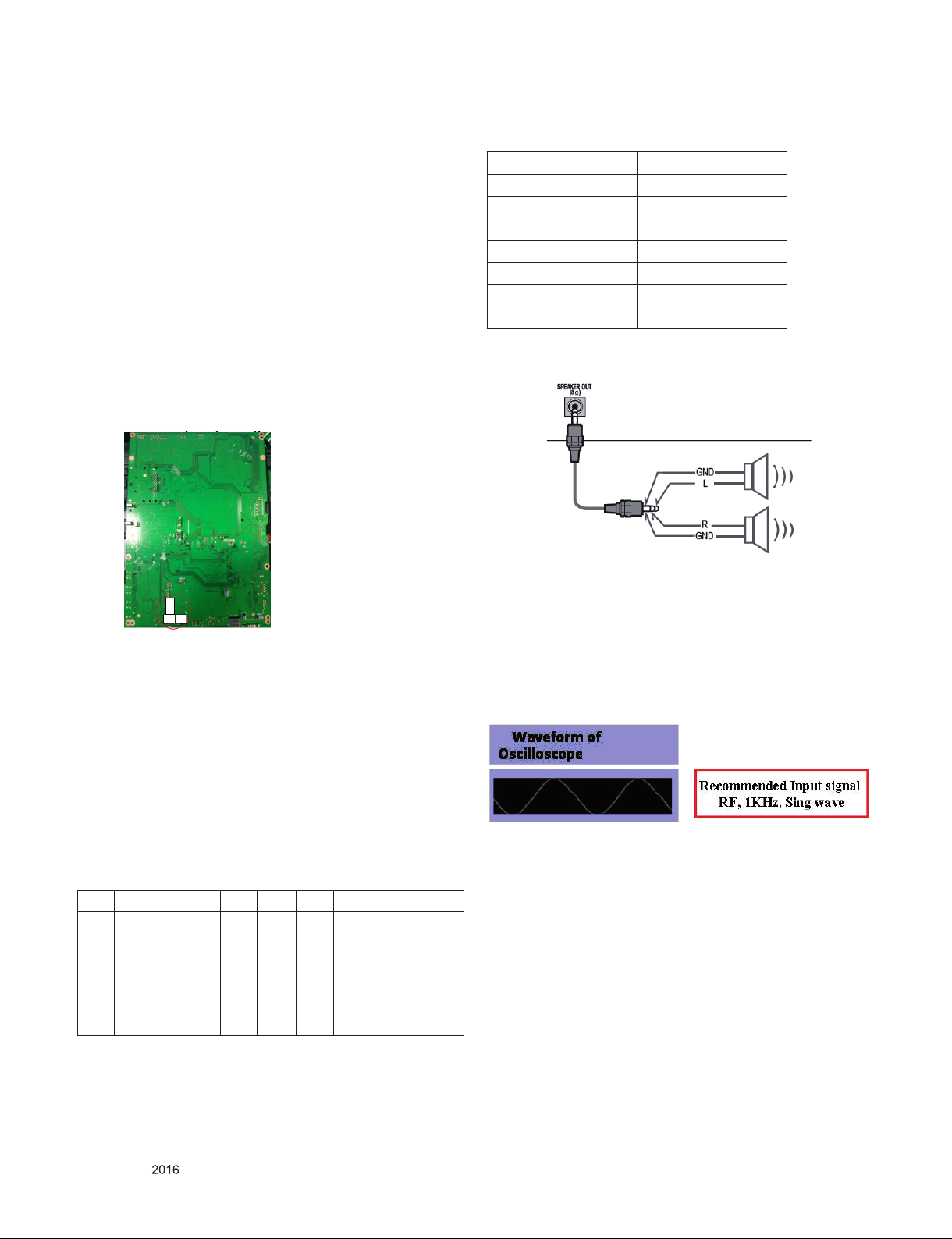

6. GND and Internal Pressure check

6.1. Method

(1) GND & Internal Pressure auto-check preparation

- Check that Power Cord is fully inserted to the SET. (If loose, re-insert)

(2) Perform GND & Internal Pressure auto-check

- Unit fully inserted Power cord, Antenna cable and A/V arrive to the auto-check process.

- Connect D-terminal to AV JACK TESTER

- Auto CONTROLLER(GWS103-4) ON

- Perform GND TEST

- If NG, Buzzer will sound to inform the operator.

- If OK, changeover to I/P check automatically.

(Remove CORD, A/V form AV JACK BOX)

- Perform I/P test

- If NG, Buzzer will sound to inform the operator.

- If OK, Good lamp will lit up and the stopper will allow the pallet to move on to next process.

8. Check Commercial features

Model UX970H-UA

inch 49/55/65/79

IR Out X

DC Power Out (12V) X

Ext SPK Out O

RJP (RJ-45 interface) O

Pro:Idiom O

b-LAN O

8.1. External SPK Out

Tuner GND is separated.

6.2. Checkpoint

(1) Test voltage

- GND: 1.5KV/min at 100mA

- SIGNAL: 3KV/min at 100mA

(2) TEST time: 1 second (3) TEST POINT

- GND Test = POWER CORD GND and SIGNAL CABLE

GND.

- Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL.

(4) LEAKAGE CURRENT: At 0.5mArms

7. AUDIO output check

No Item Min Typ Max Unit Remark

1 Audio practical

max Output, L/R (Distortion=10% max Output)

Speaker

(6Ω Impedance)

* Measurement condition: (1) RF input: Mono, 1KHz sine wave signal, 100% Modulation (2) CVBS, Component: 1KHz sine wave signal (0.4Vrms) (3) RGB PC: 1KHz sine wave signal 0.7Vrms

10.0

12.0

8.10

10.8WVrms

10 12 W EQ On

EQ Off AVL Off Clear Voice Off

AVL On Clear Voice On

8.1.1. Equipment & Condition

▪ Jig (Speaker out JIG) or Oscilloscope ▪ Power only mode

8.1.2. Check the speaker out

(1) Connect the External Speaker : check the sound Connect oscilloscope, you can see this waveform

Only for training and service purposes

- 24 -

Page 25

8.2. RJP/MPI Check

8.2.1. Initial setting

(1) Select Power switch ( up ) as the picture (2) Set the Switch No.5 to ON (up) as the picture Others should be set to OFF (down)

8.2.2. Checking Guide

(1) Press the P-ONLY key of R/C (2) Press the Exit key of R/C (3) Connect with the TV through RJP cable (wait for the JIG

on) (4) RJP Pin check is carried out automatically (5) The result is shown as below (6) If RJP Pin check finished or you check other function, must

remove the RJP cable from TV

8.4. b-LAN Main board Check

8.4.1. Overview

It is LNET RF modem & FTG card

8.4.2. Equipment

(1) b-LAN Checker: UTC-1000 (with Cable accessory) (2) Computer(for test result monitoring) (3) Connection JIG

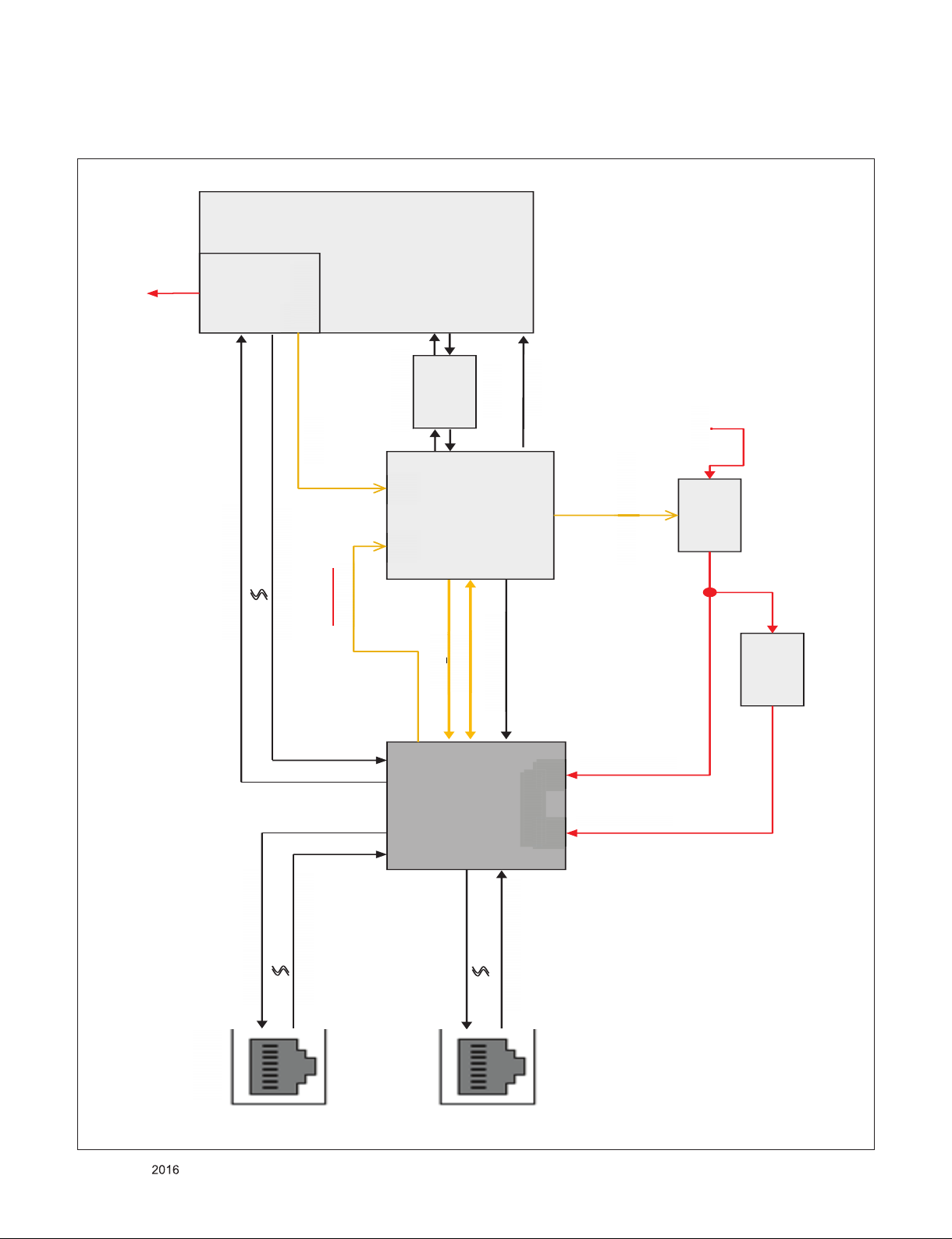

8.4.3. Equipment connection map & b-LAN Check

S/W switch direction: RJP <--> MAIN ASSY make sure that the insertion direction is right.

When checking the RJP(<-->) be sure to use a direct cable.

8.3. Pro:Idiom Check

(1) Connect the RF Cable (2) Turn to the Pro:Idiom channel (No. 96-1) (3) Check the video & sound

** Only displayed at “POWER ONLY” mode

Only for training and service purposes

- 25 -

Page 26

8.4.4. Check

8.4.4.1. Setting Procedure (1) Setting JIG

1) Connect UTC-1000 Equipment to JIG device as a like left picture

- Connection Line: UTC-1000 TOP1 <--> Game port(RJ21)

-> TV-LINK CFG (Phone Jack) UTC-1000 TOP2 -> JIG 11pin Connection UTC-1000 RF1 <--> b-LAN RF IN UTC-1000 LAN <--> PC LAN Port

8.4.4.2. Working procedure (1) Connection

UTC-1000 LAN <--> PC LAN Port UTC-1000 TOP1 <--> Game port(RJ21)

-> TV-LINK CFG (Phone Jack)

UTC-1000 RF1 <--> b-LAN RF IN (2) Power on JIG : Switch on front of the JIG (3) Test Start UTC-1000 TOP2 <--> JIG 11pin Connection (4) Checking b-LAN MAC Address Check whether it is same their address numbers or not

between b-LAN Label and on the pc address numbers.

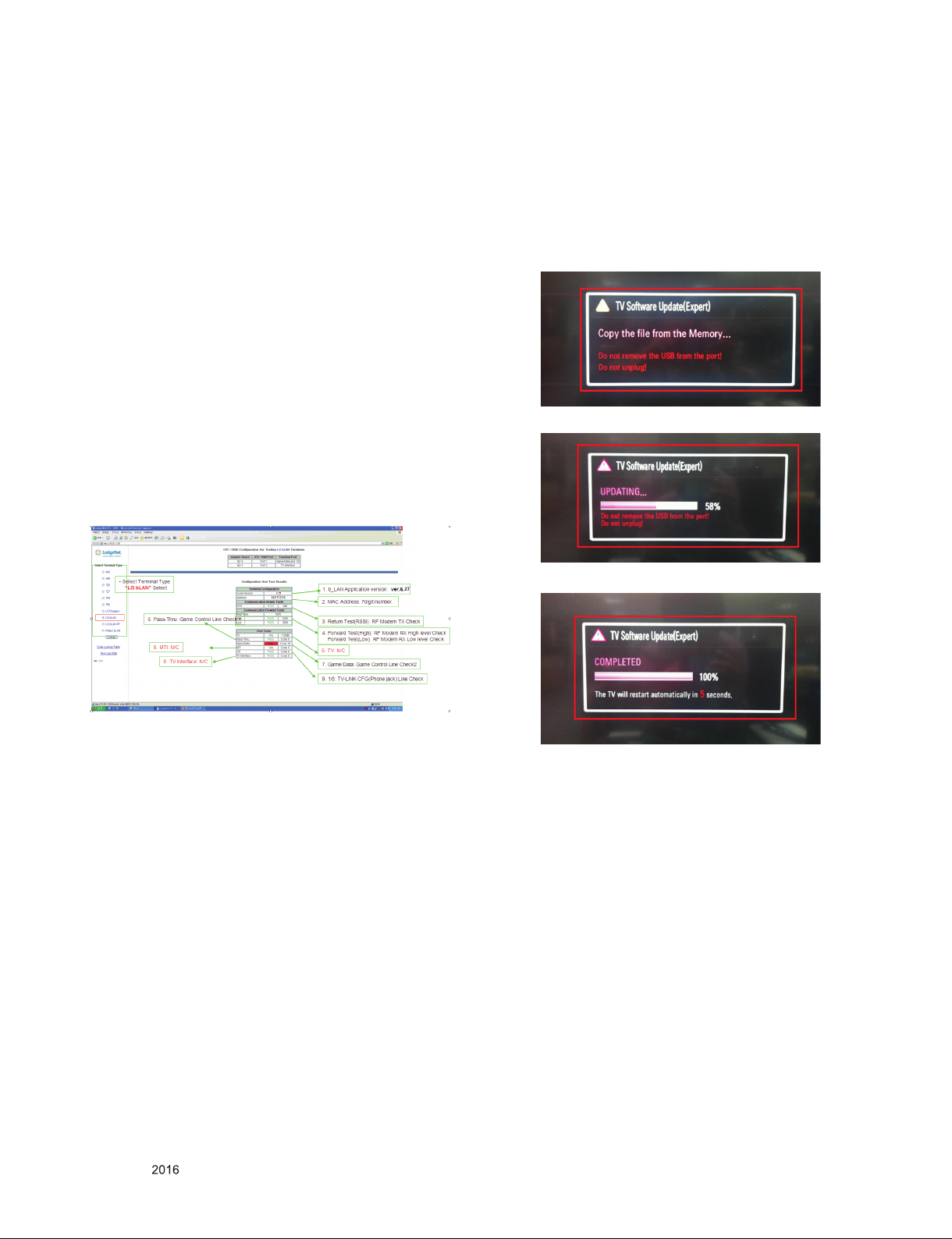

9. USB S/W Download (optional, Service only)

(1) Put the USB Stick to the USB socket (2) Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is lower than that of TV set, it didn’t work. Otherwise USB data is automatically detected.

(3) Show the message “Copying files from memory”

(4) Updating is staring

(5) Updating Completed, The TV will restart automatically

* Checking JIG contents (1) Check whether displaying all “Pass” or not at the number

3.4.6.7.9 contents of UTC-1000 on the PC (2) Check “Version 6.27” of the 1. b-LAN Application version (3) Check whether it is same their address numbers or not

between b-LAN Label and

(4) MAC Address on the pc.

8.5. Ship-out mode check (In-stop)

▪ after final inspection, press In-Stop key of the Adj. R/C and

check that the unit goes to Stand-by mode.

Only for training and service purposes

- 26 -

(6) If your TV is turned on, check your updated version and

Tool option.

* If downloading version is more high than your TV have, TV

can lost all channel data. In this case, you have to channel recover. If all channel data is cleared, you didn’t have a DTV/ ATV test on production line.

* After downloading, TOOL OPTION setting is needed again. (1) Push "IN-START" key in service remote controller. (2) Select "Tool Option 1" and Push “OK” button. (3) Punch in the number. (Each model has their number.)

Page 27

TROUBLE SHOOTING GUIDE

Check P2300/1 Voltage Level

(3.5V, L2301)

(12V, L2302)

(24V, L2307/8)

Check power connector and

RL_ON signal OK ?

(P2300/1, Pin 1)

Replace Power board

N Y

Check IC3001

RESET and UPDATE pin

Check switch SW3000, SW3001

Check X3000 Clock

32.768KHz

Check X3000 application circuit

or Replace X3000

Check IC3001 IIC

communication state

Check IIC line or replace

IC3001

Check IR input state of IC3001

57pin

Check IR board

Re-download PTC Micom

1. Power-Up Boot Fail Trouble Shooting guide

Only for training and service purposes

- 27 -

Page 28

2. No OSD Trouble Shooting guide

Check LVDS Cable

Check LCD Module

Control board

Replace Cable

Check P2300/1 Voltage Level

(3.5V, L2301)

(12V, L2302)

(24V, L2307/8)

Check power connector and

RL_ON(pin1) signal OK ?

Replace Power board

N Y

Check IC2309 output

Voltage(12V)

Pin 8

Check IC2309 application circuit

or replace IC2309

Check TU6700 Pin5(Video output)

Can you see the norm al signal?

Check tuner 5V power L6701

YES

Could you measure voltage of TU6700 & IIC lines?

Are they all norm al?

Check Mstar LVDS output

You should check power line

& IIC lines.

YES

You should replace TUNER.

Check IC2305

YES

Check tuner 3.3V power L6700 Replace L6700

Replace IC2305

Replace L6701

YES

Check tuner 1.8V power L6707

Replace L6707 or IC6700

Check RF cable & signal

YES

Replace Main IC(IC101) or

main board

3. Analog RF Video Trouble Shooting guide

Only for training and service purposes

- 28 -

Page 29

4. Digital RF Trouble Shooting guide

Check RF Cable

Check IIC Signal

TU6700 #4, 12Pin

Check IIC line and level shifter

circuit

Check tuner 5V power L6701

Check L6701

Check X101

and application circuit

Check IF Signal

TU6700 #6, 8, 16 Pin

Check tuner application circuit or

replace tuner.

Replace X101

Replace IC101

Replace IC2305

Replace L6701

Only for training and service purposes

- 29 -

Page 30

Check JK4600

Can you see the normal waveform?

JK4600 may have problem.

Replace this Jack.

Check the input of Main IC(IC101). Measure waveform at C629, C617

because it’s more easy to check.

Can you see the normal waveform?

This board has big problem

because Main chip (LM15U) have some troubles.

After checking thoroughly all path once again,

You should decide to replace LM15U or not.

Check input signal is supported format

Check AC cable for dam age or open conductor

5. AV/Component Trouble Shooting guide

Only for training and service purposes

- 30 -

Page 31

Check JK3300/JK3301/JK3302

Can you see the normal waveform?

JK3300/JK3301/JK3302 may have problem.

Replace this Jack.

This board has big problem because Main chip (LM15U) have some troubles.

After checking thoroughly all path once again, You should decide to replace LM15U or not.

Check input signal format.

Is it supported?

Check AC cable for dam age

For damage or open conductor

6. HDMI Video Trouble Shooting guide

Check RF Cable & Signal

Check Audio AMP output

L5802,L5803,L5804,L5805

Check TU6700 Pin2 (SIF Output)

Can you see the normal signal?

Could you measure voltage of

TU6700& IIC lines?

Are they all normal?

You should check power line & IIC

lines.

You should replace TUNER.

Check IC5800

Replace IC5800

Replace L5802,L5803,L5804,L5805

After checking audio signal line,

you should decide to replace item or not.

7. Analog RF Audio Trouble Shooting guide

Only for training and service purposes

- 31 -

Page 32

8. AV/Component Audio (in) Trouble shooting guide

Check input signal format.

Is it supported?

Check JK4600

Can you see the normal

waveform?

Replace JK4600

Check AC cable for damage

For damage or open conductor

Check the input of LM15U(IC101).

Measure waveform at C629, C617 because it’s more easy to check.

Can you see the normal waveform?

Check Audio AMP output

L5802,L5803,L5804,L5805

Replace L5802,L5803,L5804,L5805

This board has big problem because Main chip (LM15U) have some troubles.

After checking thoroughly all path once again, You should decide to replace LM15U or not.

Only for training and service purposes

- 32 -

Page 33

9. HDMI Audio (in) Trouble shooting guide

Check input signal format.

Is it supported?

Check JK3300/JK3301/JK3302

Can you see the normal

waveform?

Replace JK3300/JK3301/JK3302

Check AC cable for damage

For damage or open conductor

Check Audio AMP output

L5802,L5803,L5804,L5805

Replace L5802,L5803,L5804,L5805

This board has big problem because Main chip (LM15U) have some troubles.

After checking thoroughly all path once again, You should decide to replace LM15U or not.

Only for training and service purposes

- 33 -

Page 34

10. Audio out Trouble shooting guide

Check the output of Main IC(IC101). Measure waveform at IC5800(Pin7, 8, 10, 11, 14). because it’s more easy to check. Can you see the normal signal?

YES

This board has big problem because Main chip (LM15U) have some troubles. After checking thoroughly all path once again, You should decide to replace LM15U or not.

Check Audio AMP output L5802,L5803,L5804,L5805 Can you see the normal waveform?

YES

After checking the Power & I2C & Reset of this chip, you should decide to replace this or not.

Check the speaker output wafer P5800. Can you see the normal waveform?

YES

After checking audio signal line, you should decide to replace item or not.

Check the connector & Speaker

Only for training and service purposes

- 34 -

Page 35

Block Diagram

MAIN Audio AMP

(NTP7515)

Mstar

LM15U

T/C Demod

USB1 (3.0)

OPTIC

DDR3 1866 X 32

(512MB X 2EA)

HDMI1

Analog Demod

EEPROM(NVRAM)

(256Kb)

HDMI

51P/41P

eMMC

(4GB)

DDR3 1866 X 32

(256MB X 2EA)

X_TAL

24MHz

I2S Out

I2C 4

Vx1

USB

P_TS

I2C 1

AV/COMP

OCP

CVBS/YPbPr

SPDIF OUT

ETHERNET

I2C 3

SUB

ASSY

WIFI/BT Combo

USB_WIFI

HDMI2(ARC)

SPI FLASH(BOOT)

(32Mbit)

Chip Config

4b’1010

DDR3 1866 X 32

(512MB X 2EA)

HDMI3

USB2(2.0)

URSA11

DDR3 1866 X 32

(1Gb X 2EA)

X_TAL

32.768KHz

MICOM

UART S/W

RJP

Interface

GPIO

RS232

IR/Key/Eye

Line Out

Ext. SPK L/R

Ext. SPK AMP

Ethernet

HUB IC

AUX

LAN

Pro:idiom

TPO

PARALLEL OUT

PARALLEL IN

OCP

MICOM

EEPROM X 1

(16Kb)

Service Only

MICOM Upgrade

IF (+/-)

Air/

Cable

TUNER

(NTSC)

b-LAN

TV-LINK

CFG

MPI

P_TS

TMMB-H701F

DEMOD

(LGDT3305)

CVBS

Data_TS

UART

TUNER

(Data)

1. LM15U + URSA11 Block diagram

Only for training and service purposes

- 35 -

Page 36

2. LM15U : Magic Packet + Wake-up Frame

ETNHUB_EPHY_TXOP3 / N3

ETNHUB_EPHY_RXIP3 / N3

UTP

ETNHUB_EPHY_TXOP1 / N1

ETNHUB_EPHY_RXIP1 / N1

LAN2

LAN1

ETNHUB_EPHY_TXOP2 / N2

ETNHUB_EPHY_RXIP2 / N2

UTP

(AUX LAN)

EPHY_MDC

EPHY_MDIO

/ETHERNET_RESET

Ethernet HUB

RTL8305N

PTC

MICOM

LM15U

Main SoC

Built-in

PHY

PTC_WOL

Power Switch

AP2191

Regulator

MP20045

ETNHUB_1.8V

ETNHUB_PWR_ON/OFF

ETNHUB_3.3V

AVDD_3P3

+3.5V_ST

ETNHUB_INT

Magic Packet

Wake-up Frame

UART

SOC_TX/RX_PTC

PTC_TX/RX

Warm_mode

Only for training and service purposes

- 36 -

Page 37

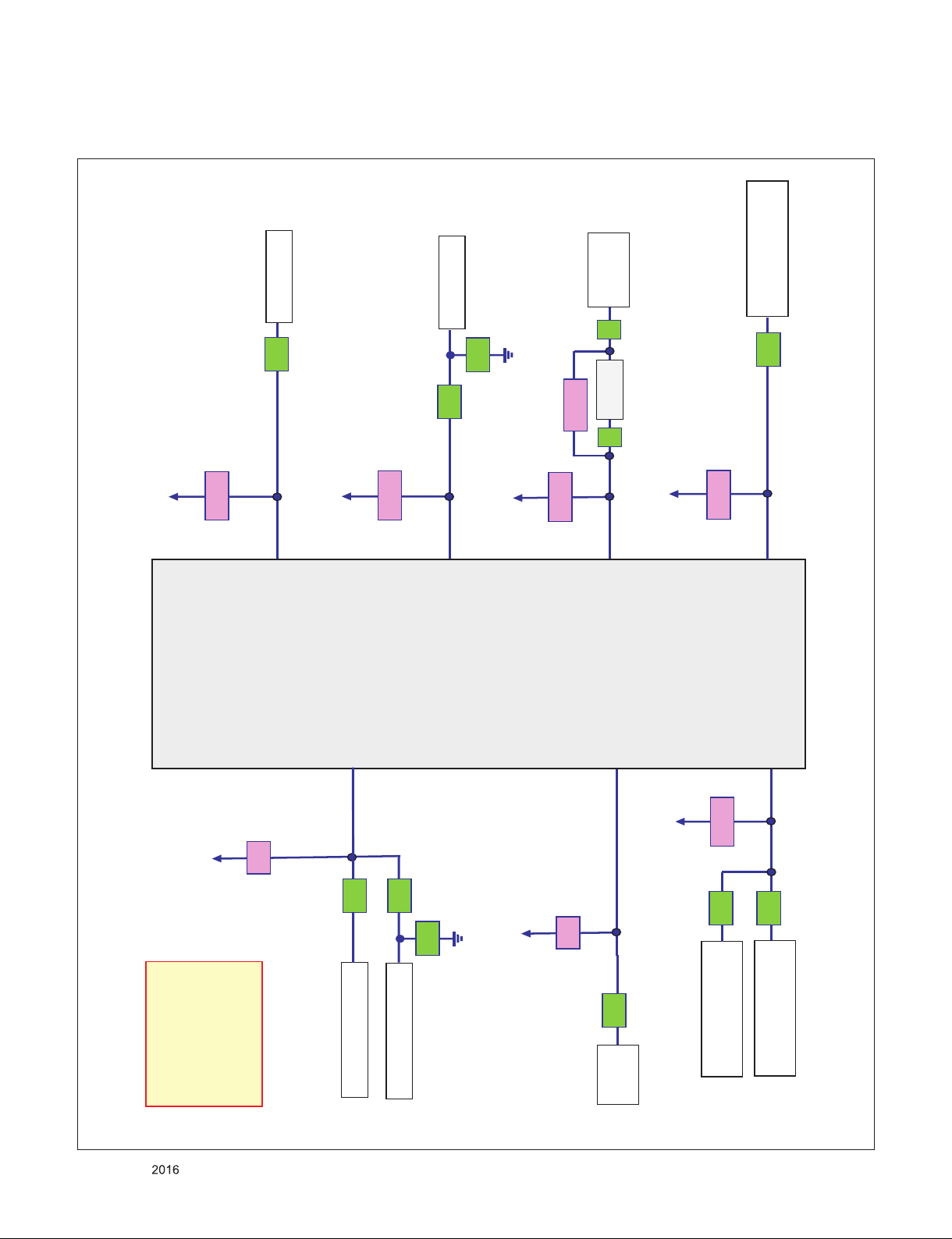

3. LM15U IC Block Diagram

+3.3V_NORMAL

1.8KΩ

IC5800

NTP7515(Main AMP)

1.8KΩ

I2C_SDA4

I2C_SCL4

100Ω

I2C_SCL2(HW)

I2C_SDA2 (HW)

I2C_SDA6

I2C_SCL6

I2C_SDA1(HW)

I2C_SCL1(HW)

I2C_SDA5(HW)

I2C_SCL5(HW)

b-LAN

1.8KΩ

33Ω

MSTAR

LM15U

IC102

NVRAM

+3.3V_NOMAL

+3.3V_TU

100Ω

+3.3V_NORMAL

P7100

LCD Panel

0Ω

1.8KΩ

I2C_SDA7 (HW)

I2C_SCL7 (HW)

+3.3V_NORMAL

1.8KΩ

IC2500

URSA9

33Ω

IC5900

NTP7515(Woofer AMP)

100Ω

Switch

0Ω

33Ω(opt)

27pF

I2C_SDA3(HW)

I2C_SCL3(HW)

1.8K

+3.5V_NORMAL

1.8K

+3.5V_NORMAL

33Ω

I2C 1 : NVRAM

I2C 2 : Eye_sensor

I2C 3 : Pro:idiom & Demod

I2C 4 : Audio & Woofer

I2C 5 : b-LAN

I2C 6 : LCD Module

I2C 7 : URSA9

Demod

Pro:idiom

100Ω

33Ω

27pF

Only for training and service purposes

- 37 -

Page 38

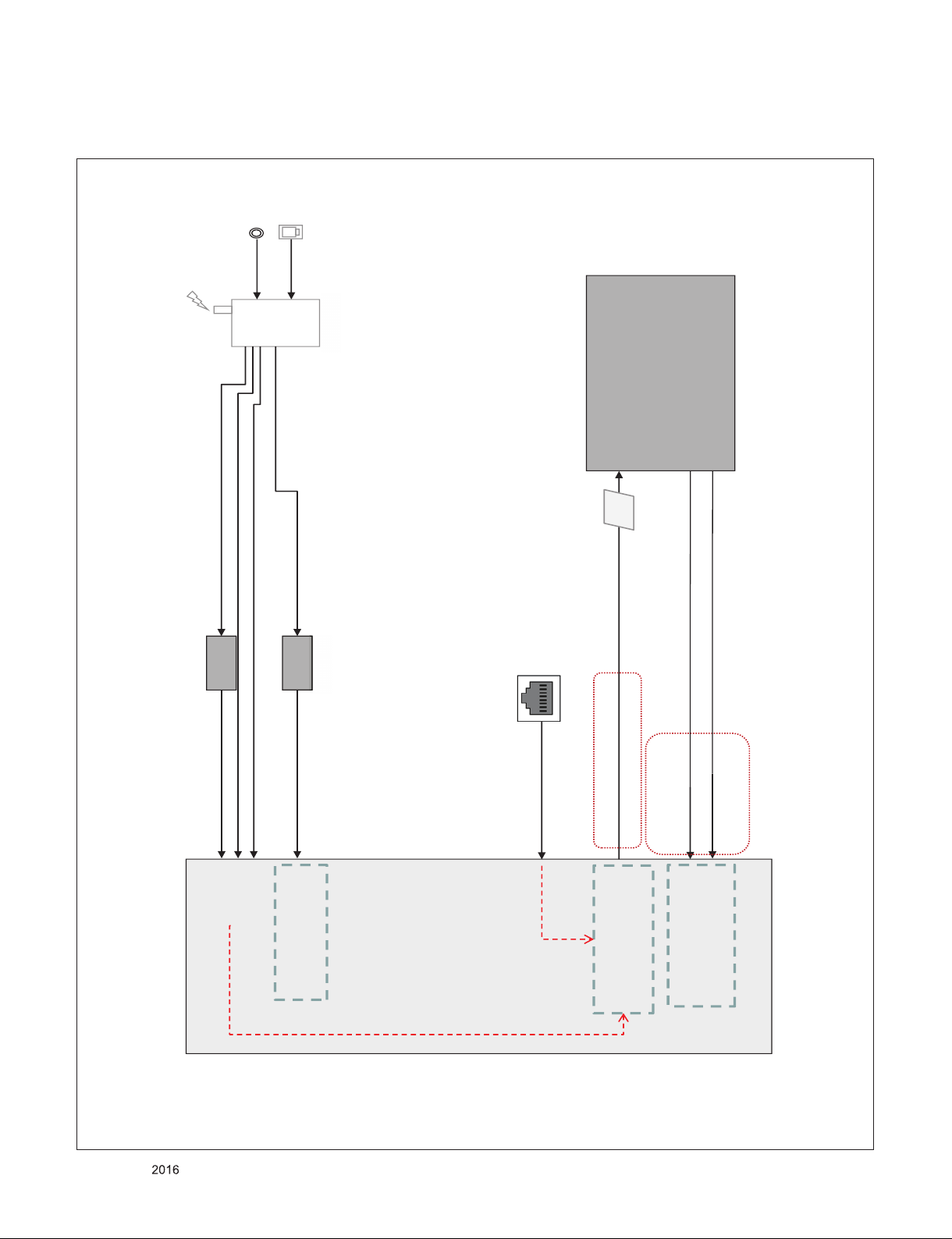

4. LM15U Front End / Pro:Idiom TP path

LM15U

MSD95Cxx

Pro:Idiom(DRM)

LGDT1001

[VIFP/VIFN]

[SIFP/SIFN]

[CVBS0]

MAIN_P/NDIF

IF Filter

IF_N/P

[TS1CLK/TS1VALID/TS1SYNC]

[TS1DATA_[0-7]]

TPO_CLK / SYNC / VAL/DATA[0-7]

TMMB-H701F

RF/IP Parallel Out

[TS0CLK/TS0VALID/TS0SYNC]

[TS0DATA_[0]]

33쐔

TPI_CLK / SYNC / VAL/ ERR

TPI_DATA[0-7]

Pro:Idiom_CLK / SYNC / VAL/ ERR

Pro:Idiom_DATA[0-7]

Parallel Out

Parallel In

IP Streaming

[TS3CLK/TS3VALID/TS3SYNC]

[TS3DATA_[0-7]]

RF/IP : Parallel In

b-LAN

DEMOD

LGDT-3305

SUB_P/NDIF

Data_TS

Game Control /

MPI

TV-LINK CFG

Only for training and service purposes

- 38 -

Page 39

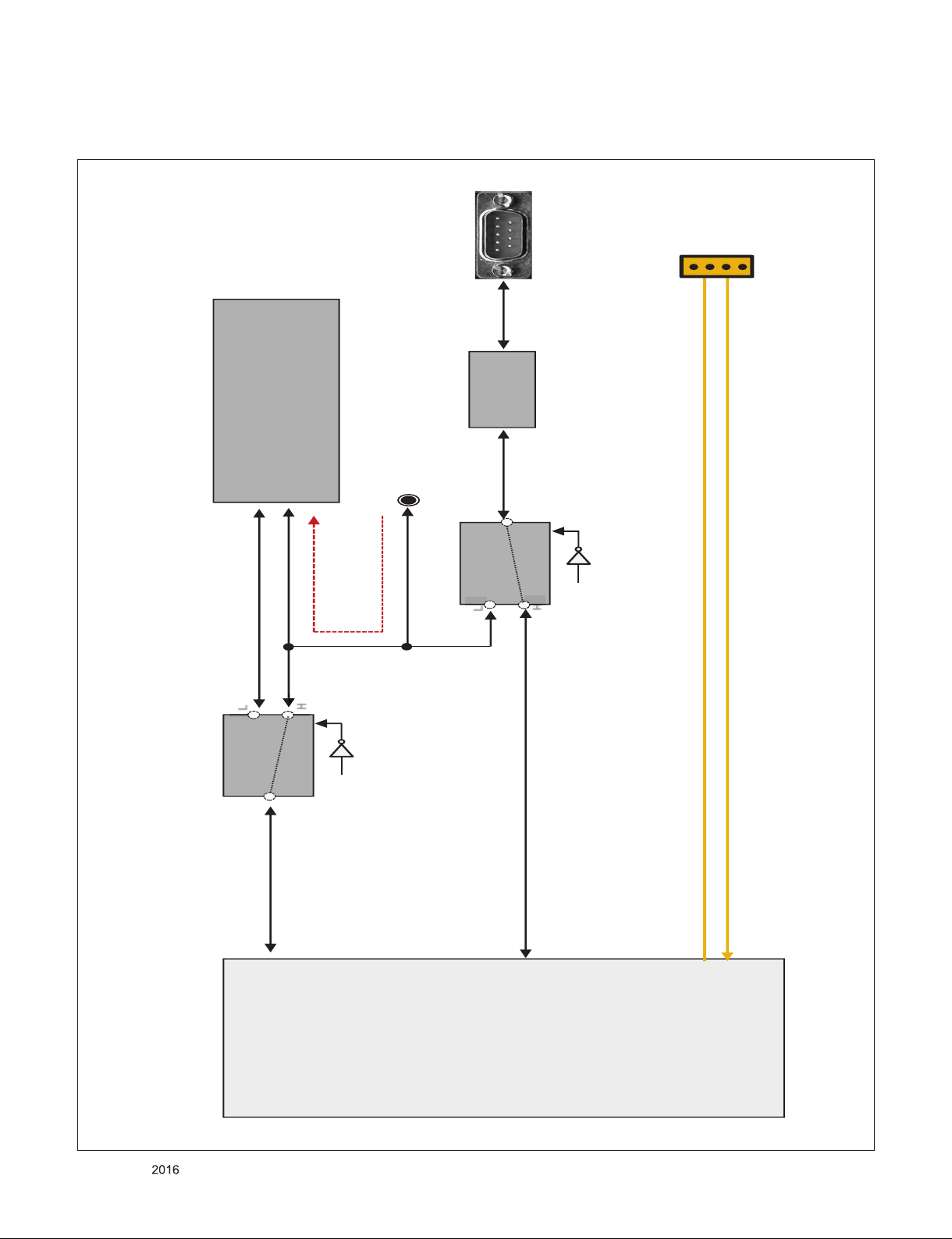

5. LM15U / PTC UART

IC101

LM15U

IC3800

MAX3232

RX/TX

IC3802

MC14053BDR2G

MUX / DEMUX

UART_SWA

RS232_RX

RS232_TX

SOC_RX_RS232 / SOC_TX_RS232

JK8701

Phone Jack

Debug

UART3_RX/ UART3_TX

IC3801

MC14053BDR2G

MUX / DEMUX

UART_SWB

SOC_RX_PTC/ SOC_TX_PTC

PTC_RX_5V/ PTC_TX

[UART0_RXD]

[UART0_TXD]

[RX : GPIO22]

[TX : GPIO23]

PTC D/L : RST 1 + UPDATE 3

MICOM

[P3.5 / P3.4] [P1.2 / P1.1]

PTC

MICOM

TX5

RX5

DDTS_TX / RX

4P Wafer

Only for training and service purposes

- 39 -

Page 40

400

800

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts s hould be replaced wit h the same c omponents as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

910

900

LV2

LV1

300

540

820

521

120

410

530

121

500

570

200

Only for training and service purposes

- 40 -

A10

Stand screw

Page 41
