LG 60LA620V, 47LA690V, 47LA741V, 47LA644V, 42LA620V User guide

...

Checked

Yena.park Jan/15/2013

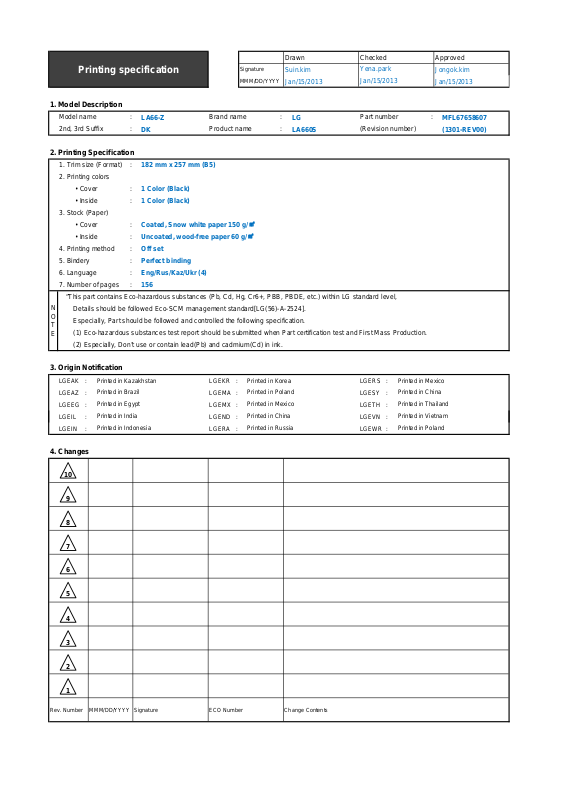

Printing specification

Signature MMM/DD/YYYY

Drawn Approved

Suin.kim Jongok.kim Jan/15/2013 Jan/15/2013

1. Model Description

:Model name

LA66-Z LG MFL67658607

:2nd, 3rd Suffix

DK LA660S (1301-REV00)

:Brand name :Product name

(Revision number)

2. Printing Specification

182 mm x 257 mm (B5)

:1. Trim size (Format)

2. Printing colors

1 Color (Black)

: • Cover

1 Color (Black)

: • Inside

3. Stock (Paper)

Coated, Snow white paper 150 g/㎡

: • Cover : • Inside

Uncoated, wood-free paper 60 g/㎡

:4. Printing method

Off set Perfect binding

:5. Bindery

Eng/Rus/Kaz/Ukr (4)

:6. Language

156

:7. Number of pages

“This part contains Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level,

Details should be followed Eco-SCM management standard[LG(56)-A-2524].

Especially, Part should be followed and controlled the following specification.

(1) Eco-hazardous substances test report should be submitted when Part certification test and First Mass Production.

(2) Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink.

:Part number

3. Origin Notification

Printed in Kazakhstan

:LGEAK :LGEKR :LGERS

Printed in Brazil

:LGEAZ :LGEMA :LGESY :LGEEG :LGEMX :LGETH

Printed in India

:LGEIL :LGEND :LGEVN

Printed in Indonesia

:LGEIN :LGERA :LGEWR

4. Changes

Printed in Korea Printed in Poland Printed in MexicoPrinted in Egypt Printed in China Printed in Vietnam Printed in Russia

Printed in Mexico Printed in China Printed in Thailand

Printed in Poland

Rev. Number MMM/DD/YYYY

Signature Change ContentsECO Number

Pagination sheet

Front (Eng) P/No. A-2 … … … A-6

Front (Eng)

2… …… …… 30

Front (Rus)

2… …… …… 30

Front (Kaz)

2… …… …… 30

:Part number MFL67658607

(1301-REV00)(Revision number)

:Total pages 156 pages

Front (Ukr)

2… …… …… 30

Back

Cover

B-1 … … B-27 Blank Blank (Eng)

OWNER’S MANUAL

LED TV

* LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

LA62** LA64** LA66** LA69** LA74**

P/NO : MFL67658607(1301-REV00) Printed in Korea

LN57**

www.lg.com

TABLE OF CONTENTS

A-2

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand A-6 Tidying cables

LANGUAGE LIST

English

 Русский

Қазақша Українська

B-1 MAKING CONNECTIONS

B-1 Antenna connection B-2 Satellite dish connection B-2 HDMI connection

B-4 - ARC (Audio Return Channel) B-4 DVI to HDMI connection B-5 Component connection B-6 Composite connection B-7 MHL connection B-9 Audio connection

B-9 - Digital optical audio connection B-10 USB connection B-11 CI module connection B-12 Headphone connection B-13 Euro Scart connection

COMMON

LANGUAGE

B-18 SPECIFICATIONS

COMMON

Setting up the TV

Image shown may differ from your TV.

Attaching the stand

LA62**, LA64**, LA66**, LN57**-ZE/ZK

SETTING UP THE TV

A-3

4 EA

M4 x 14

Stand Body

Stand Base

(Only LA62**, LN57**-ZE/ZK)

Front

(Only LA62**, LN57**-ZE/ZK)

(Only LA64**, LA66**)

M4 x 14

4 EA

(Only LA64**, LA66**)

M4 x 14

4 EA

SETTING UP THE TV

A-4

LA69**, LA74**

Stand Base

M4 x 20

4EA

LN57**-ZA

Stand Base

Stand Body

3EA

P5 x 25

SETTING UP THE TV

CAUTION

yWhen attaching the stand to the TV

set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

yMake sure that the screws are inserted

correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

NOTE

yRemove the stand before installing the TV

on a wall mount by performing the stand attachment in reverse.

A-5

M4 x 14

4EA

SETTING UP THE TV

⨲㘶ᖂ2

㏪ⱞ⋾#Ɐᴏ

A-6

Tidying cables

1 Gather and bind the cables with the Cable

Holder and the Cable Management.

2 FixtheCableManagementrmlytotheTV.

(Only LA62**, LA64**, LA66**, LN57**-ZE/ZK)

Cable Holder

Cable Management

(Only LA69**, LA74**)

Cable Holder

(Only LN57**-ZA)

1 Gather and bind the cables with the Cable

Holder.

Cable Holder

CAUTION

yDo not move the TV by holding the cable

holders, as the cable holders may break, and injuries and damage to the TV may occur.

Cable Management

OWNER’S MANUAL

LED TV

* LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

www.lg.com

TABLE OF CONTENTS

ENGLISH

ENG

TABLE OF CONTENTS

3 LICENSES

3 OPEN SOURCE SOFTWARE NOTICE

4 SAFETY INSTRUCTIONS

10 - Viewing 3D Imaging (Only 3D models)

12 INSTALLATION PROCEDURE

12 ASSEMBLING AND PREPARING

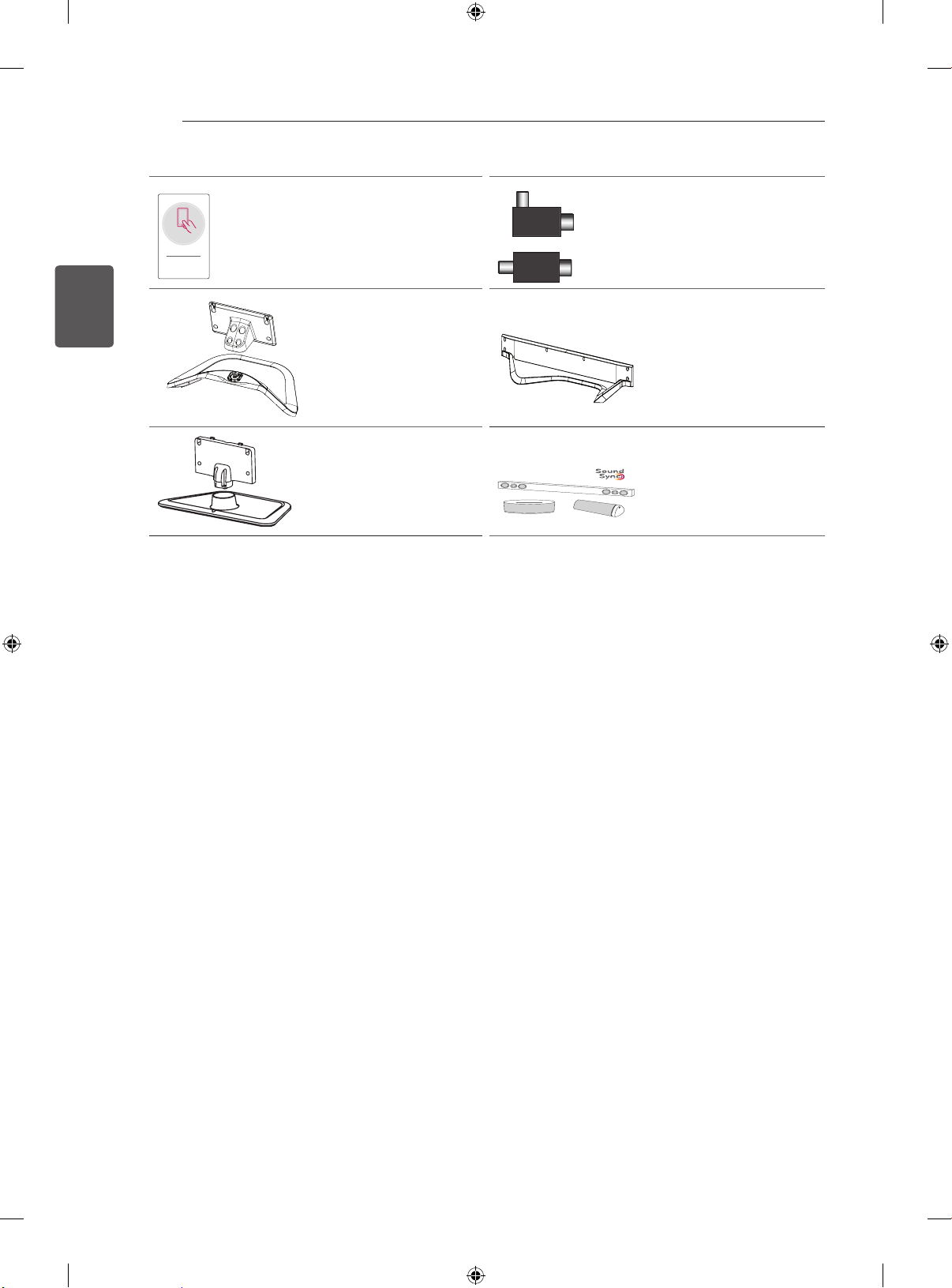

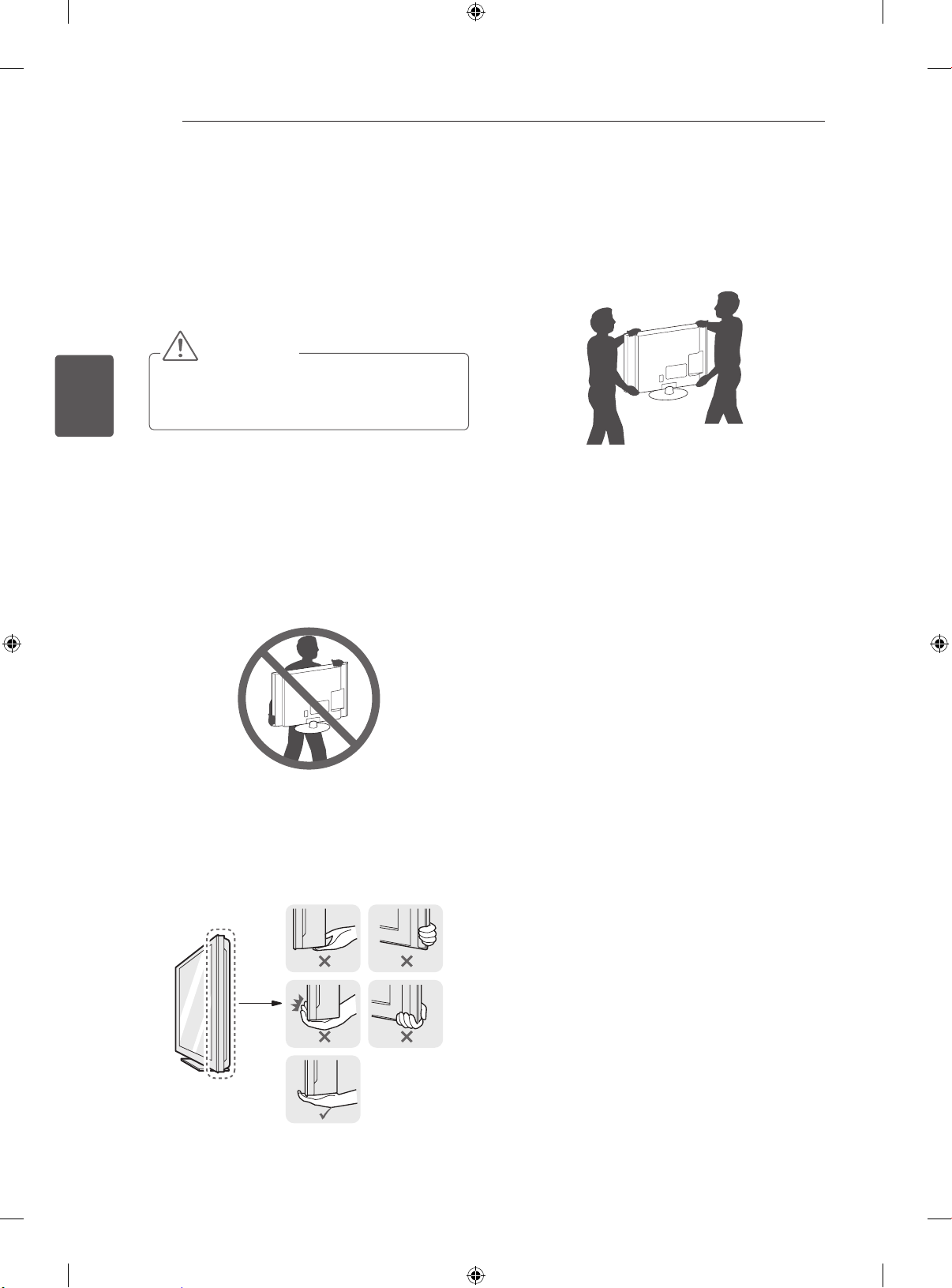

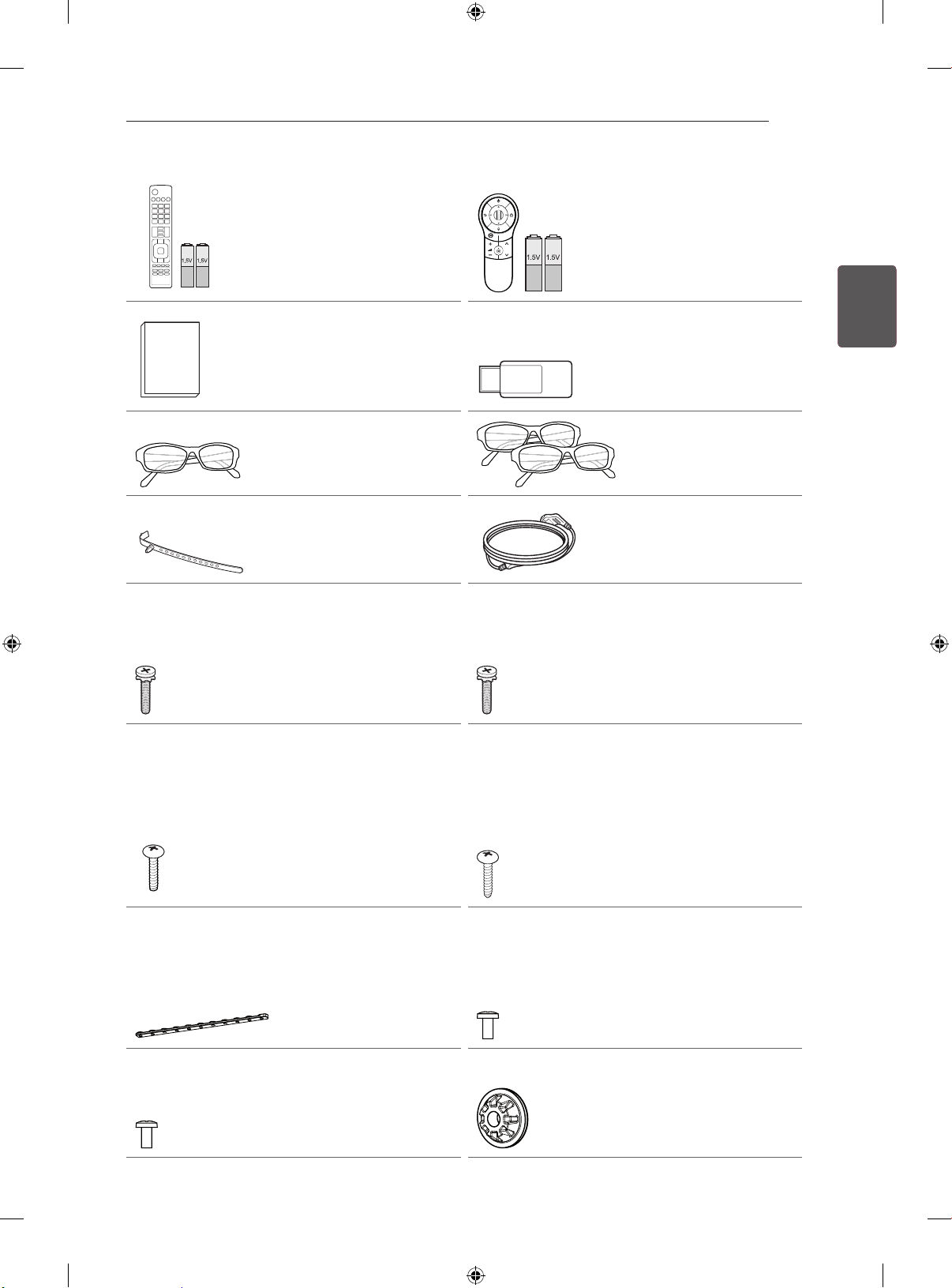

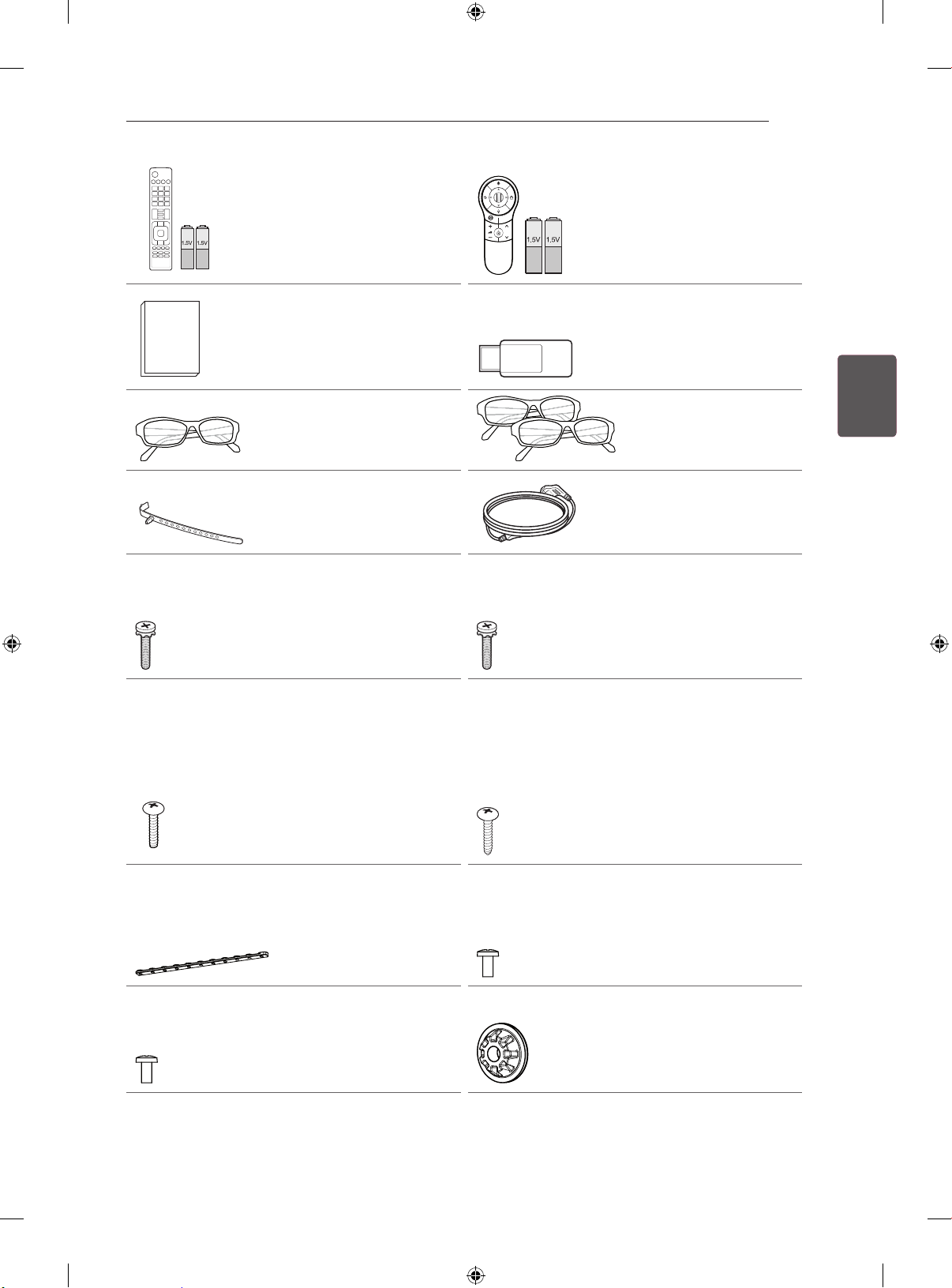

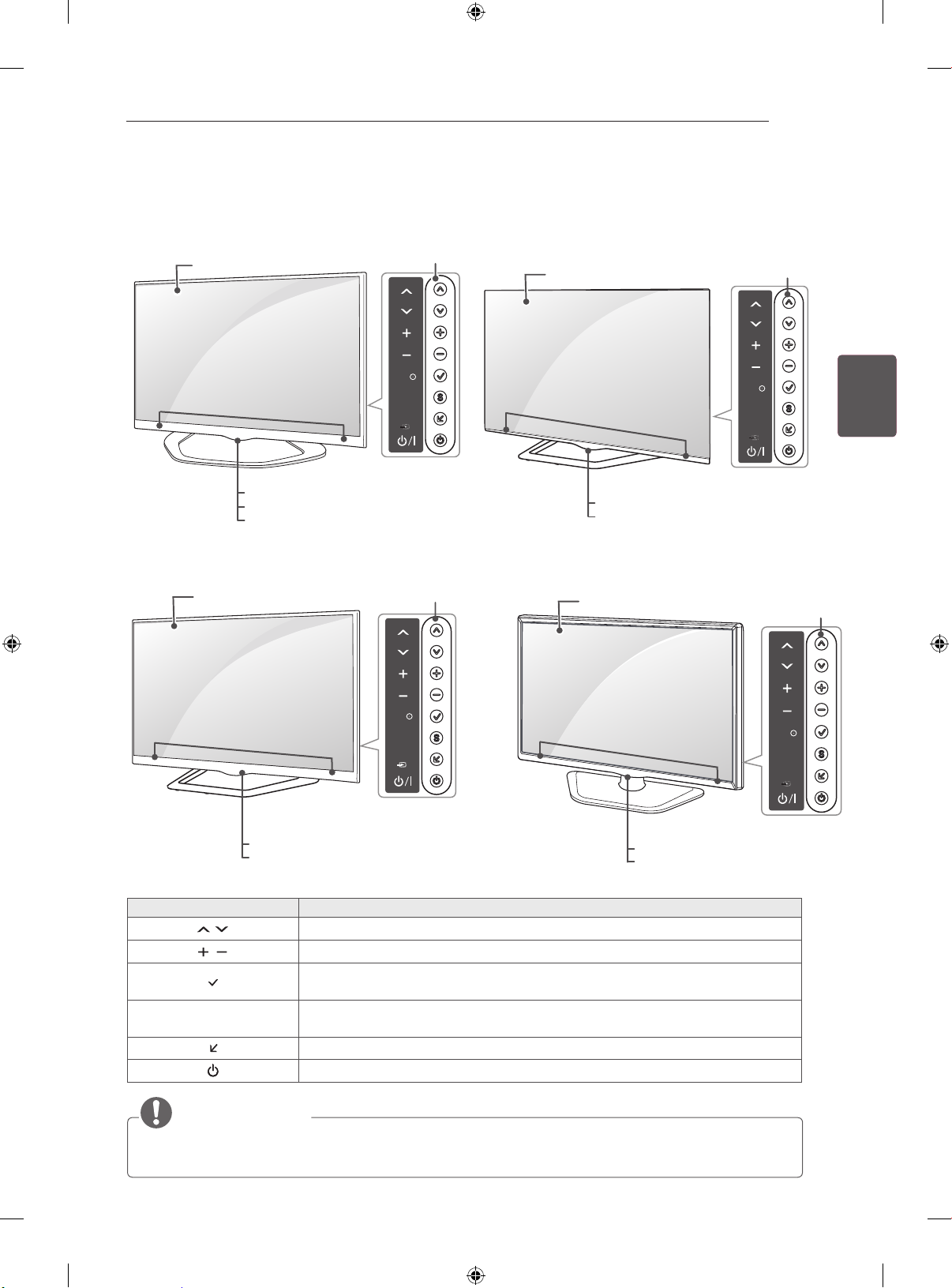

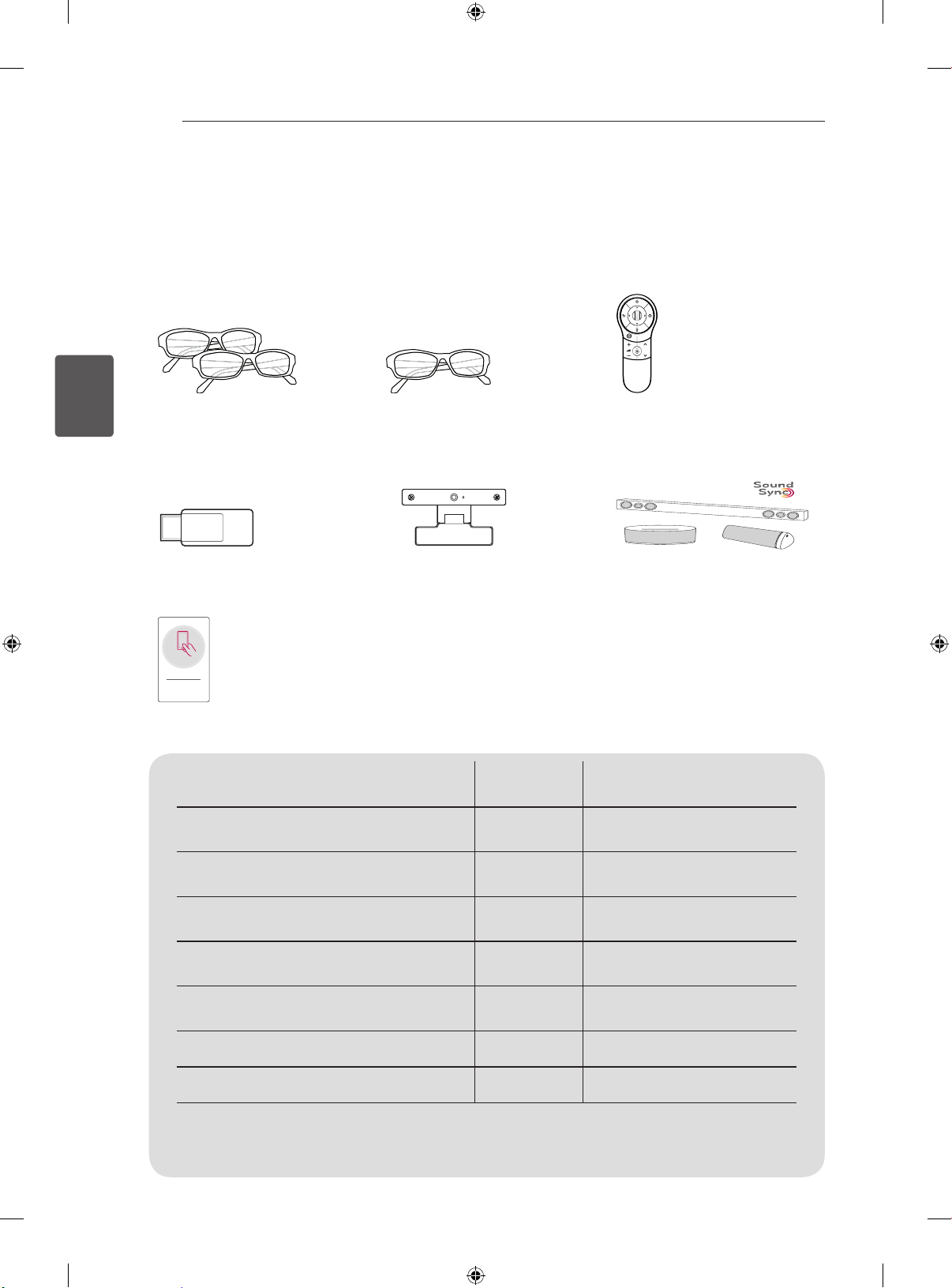

12 Unpacking 16 Separate purchase 17 Parts and buttons 18 Lifting and moving the TV 19 Mounting on a table 21 Mounting on a wall

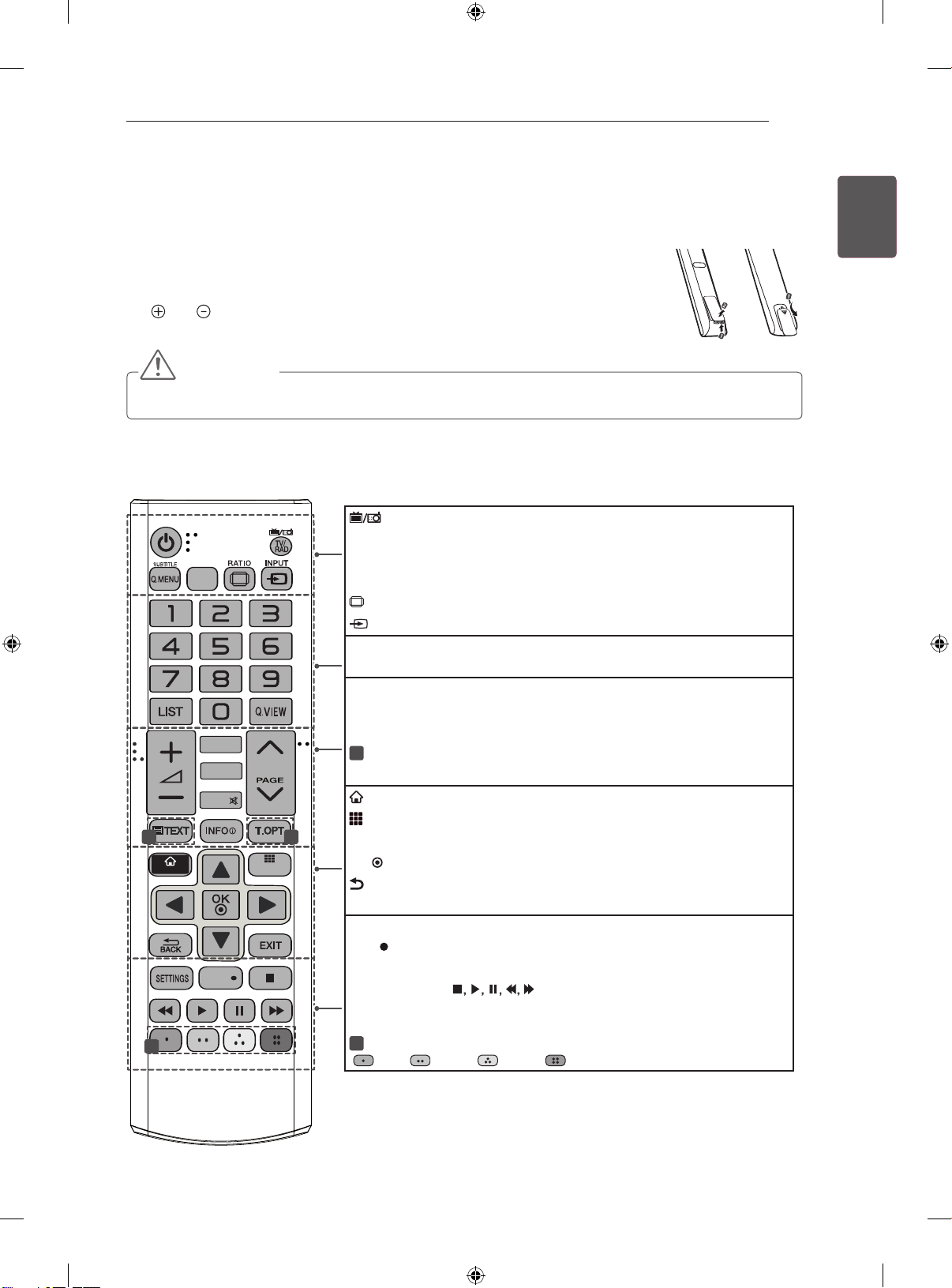

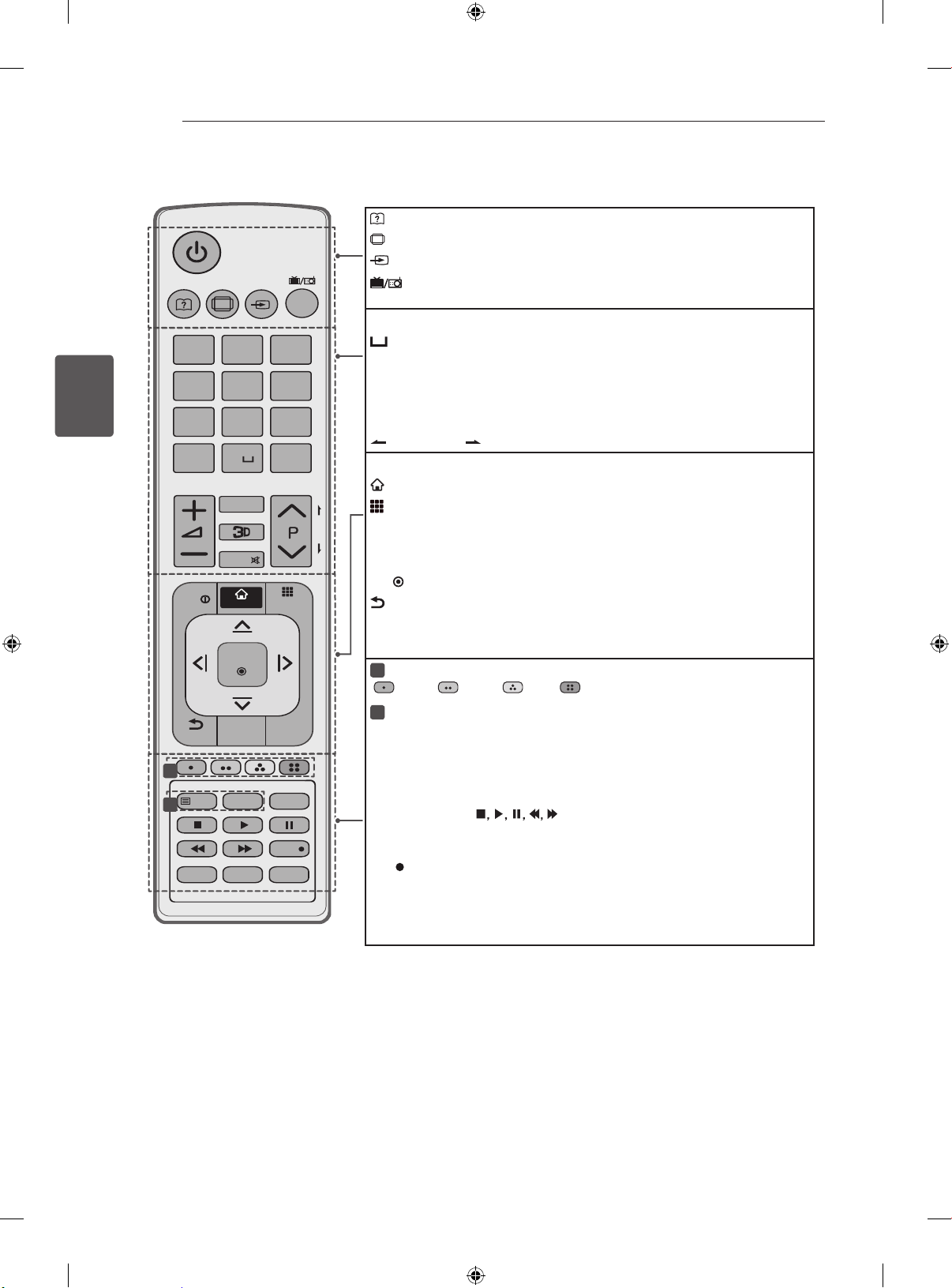

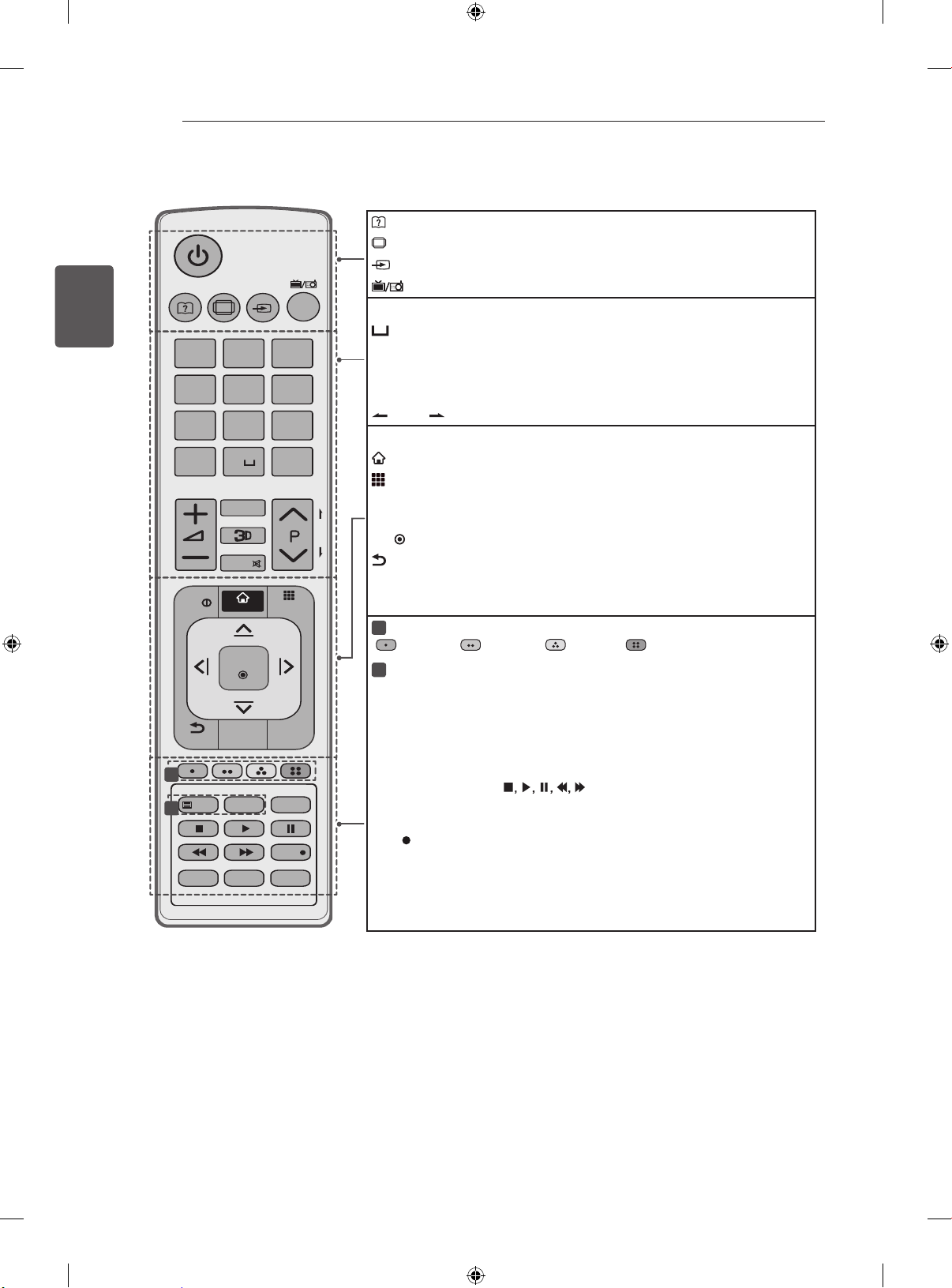

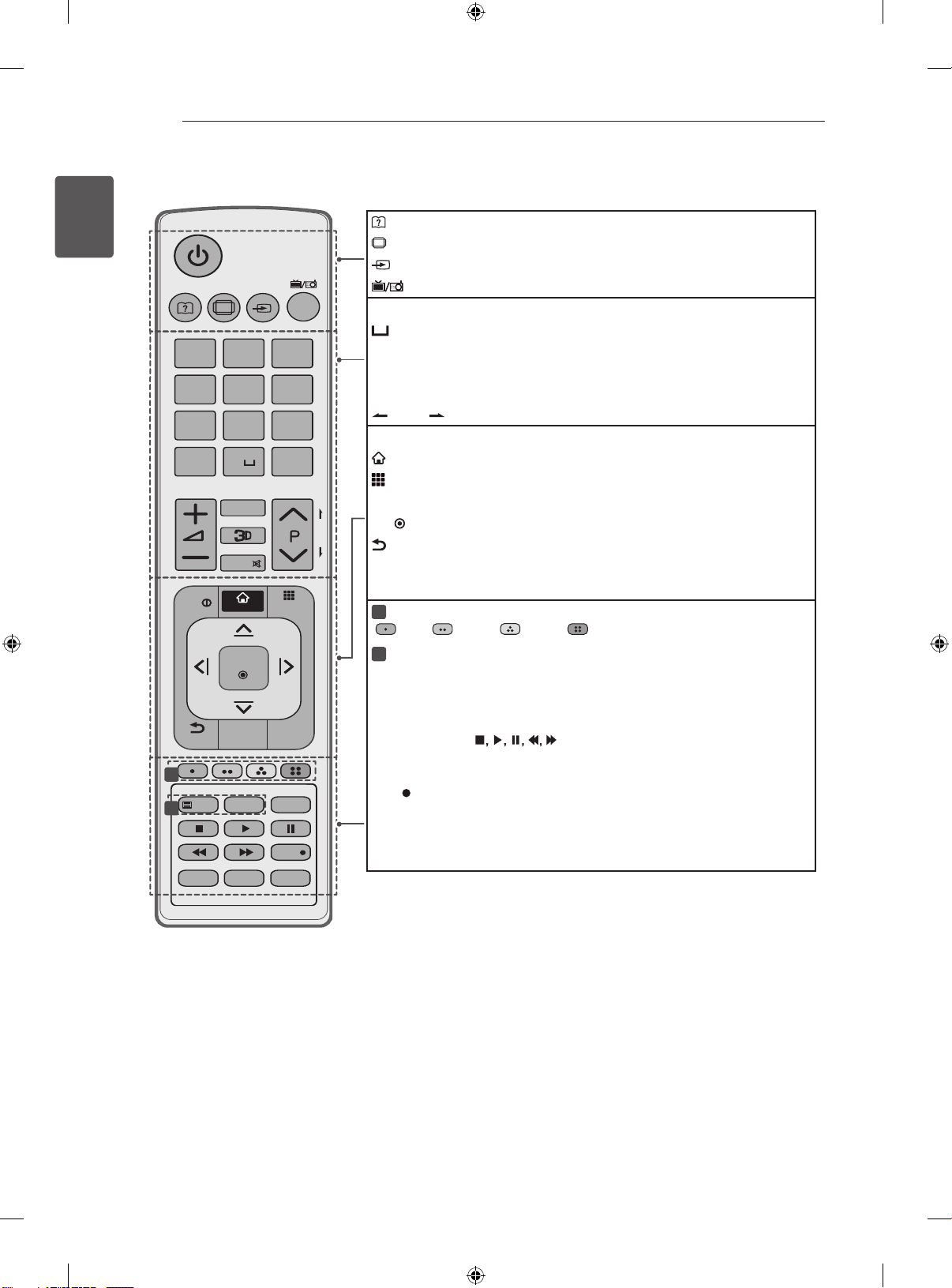

23 REMOTE CONTROL

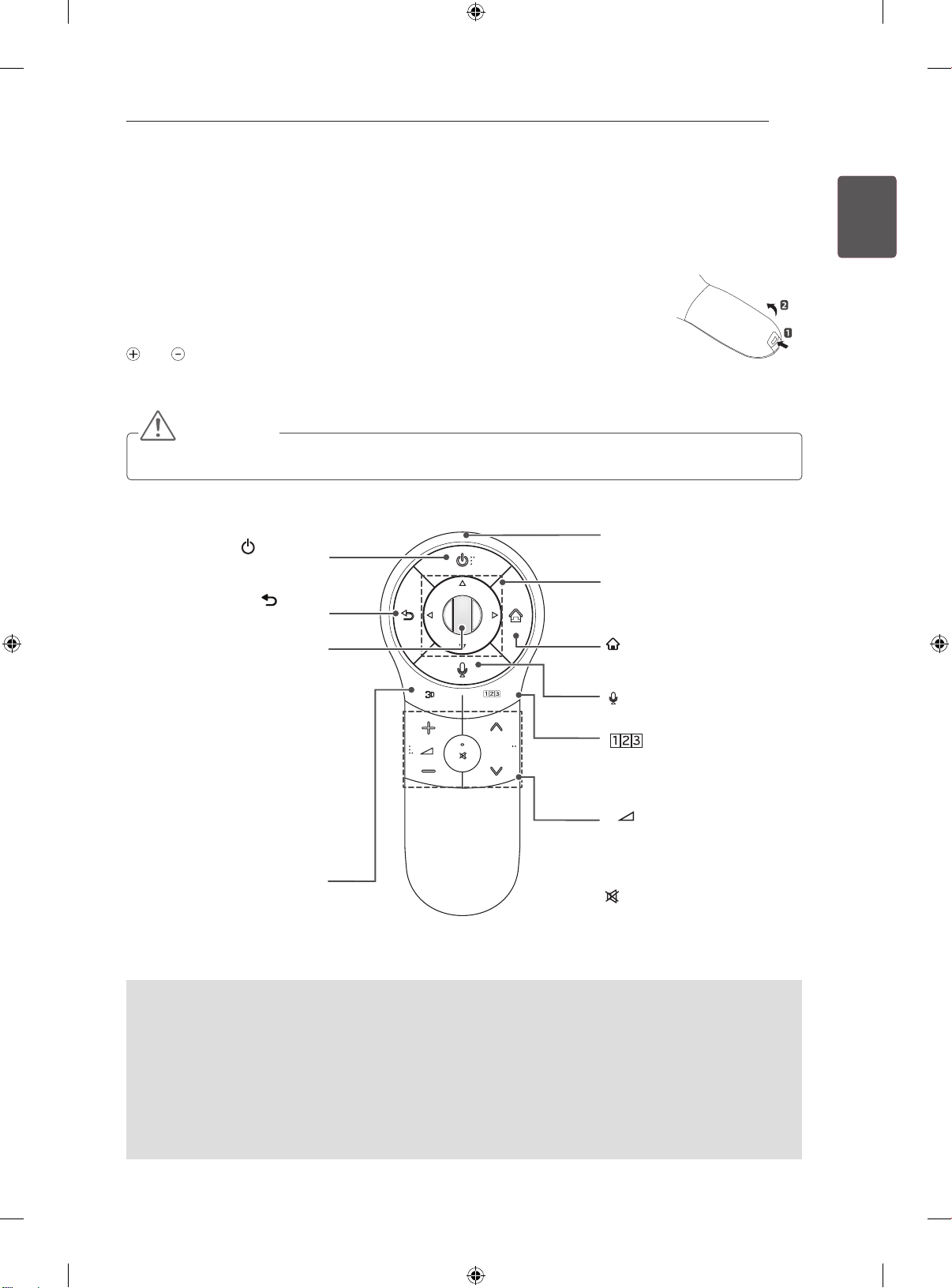

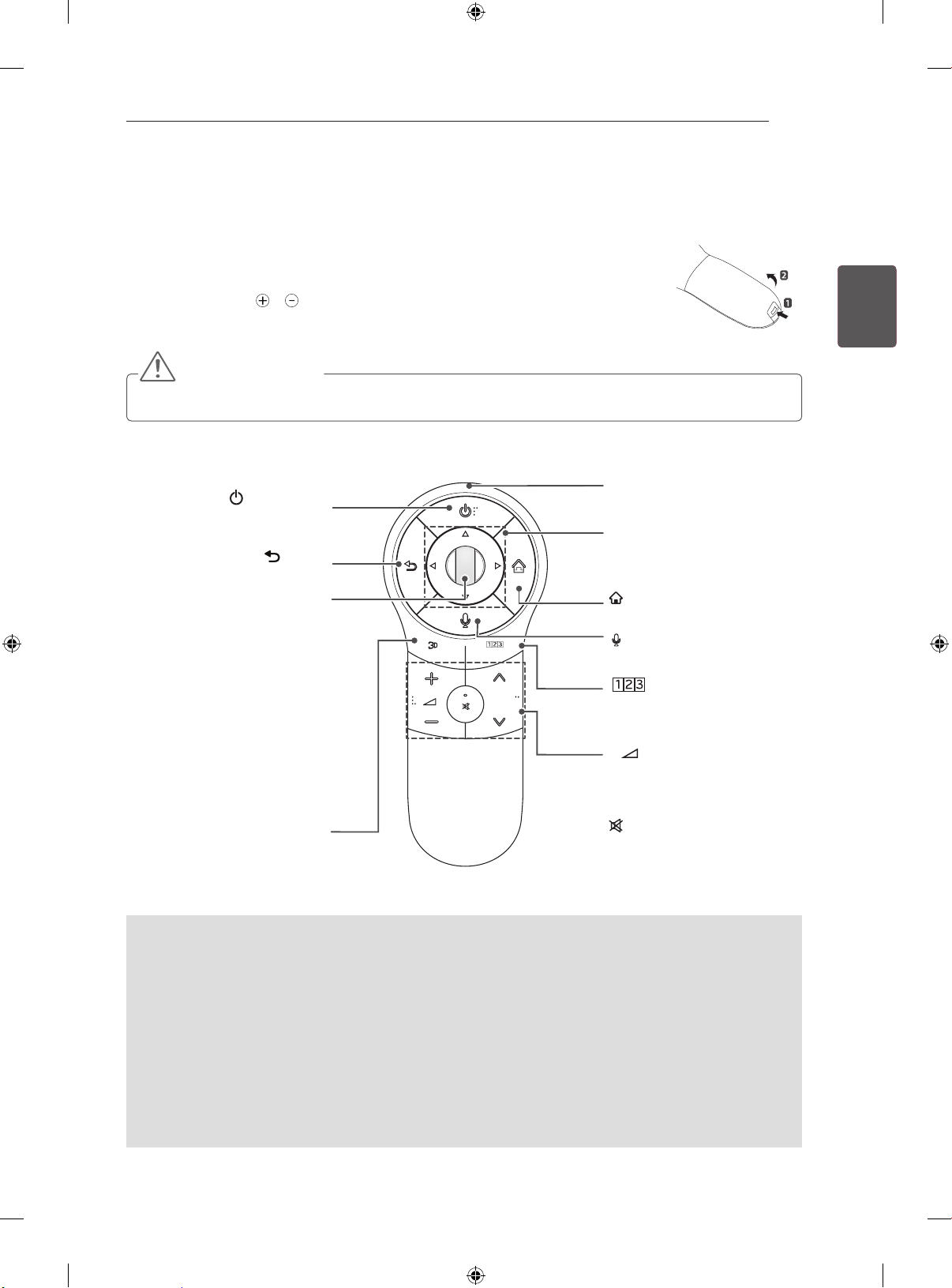

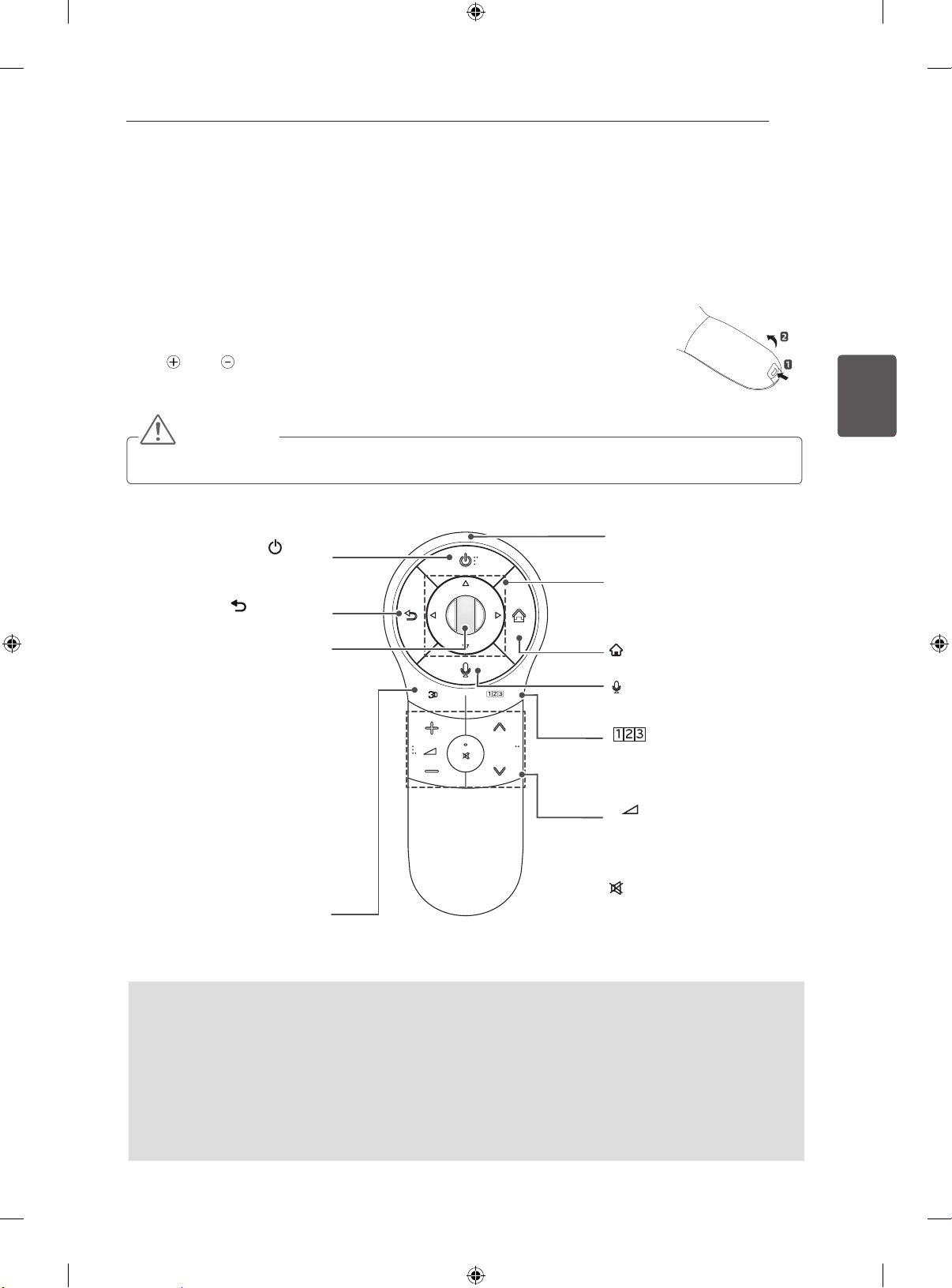

25 MAGIC REMOTE CONTROL

FUNCTIONS

26 Registering Magic Remote Control 26 How to use Magic Remote Control

26 Precautions to Take when Using the Magic

Remote Control

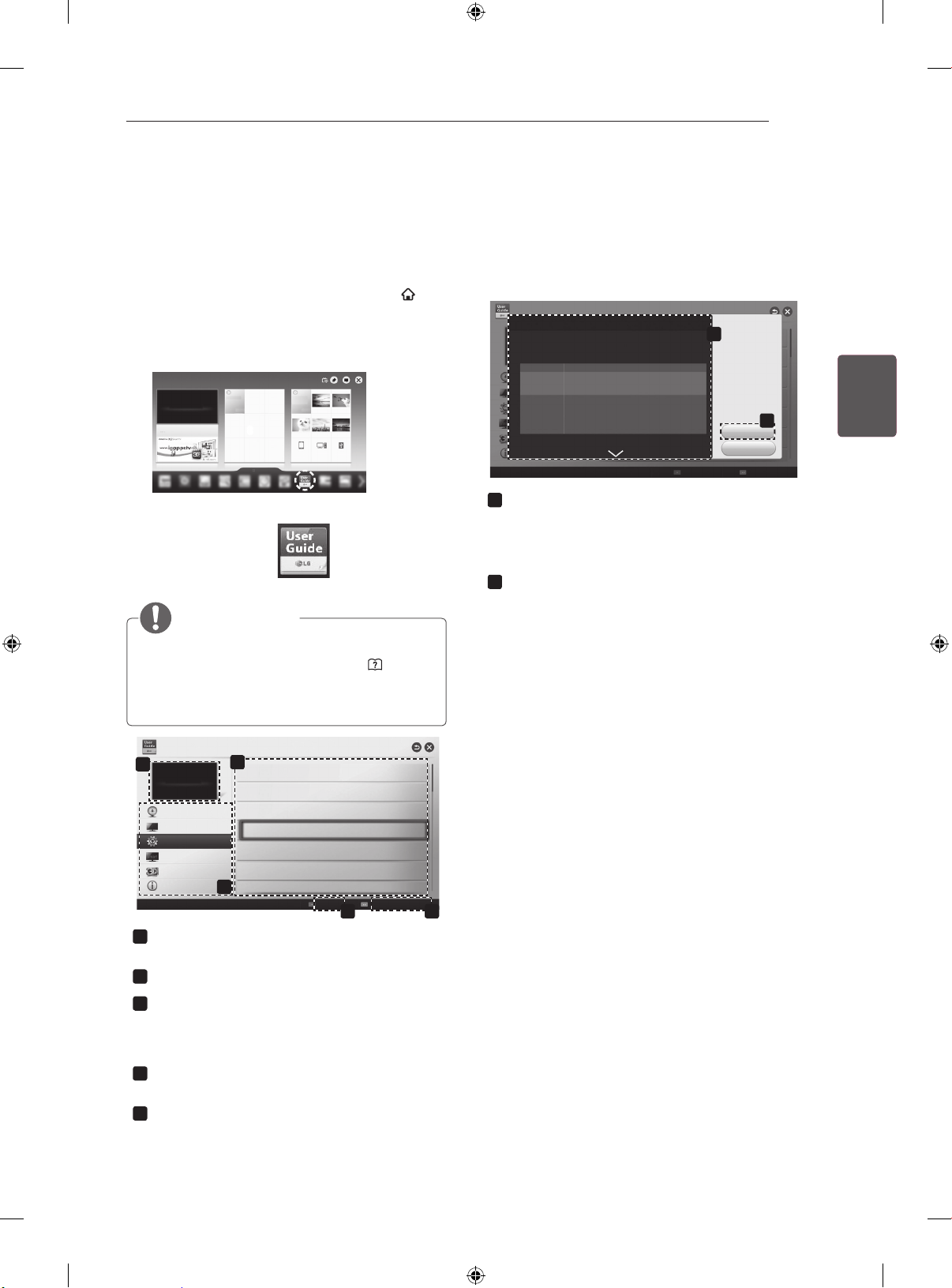

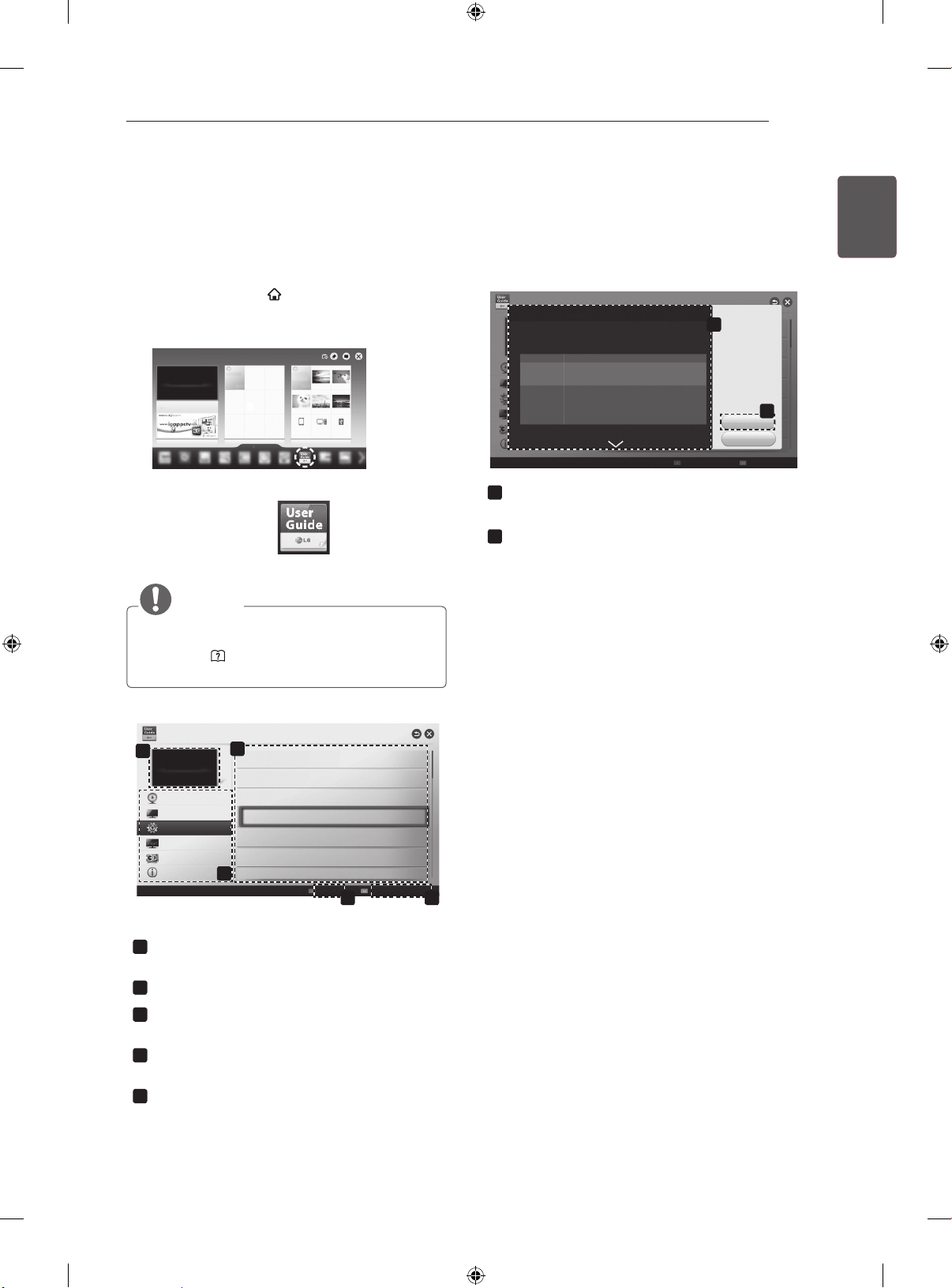

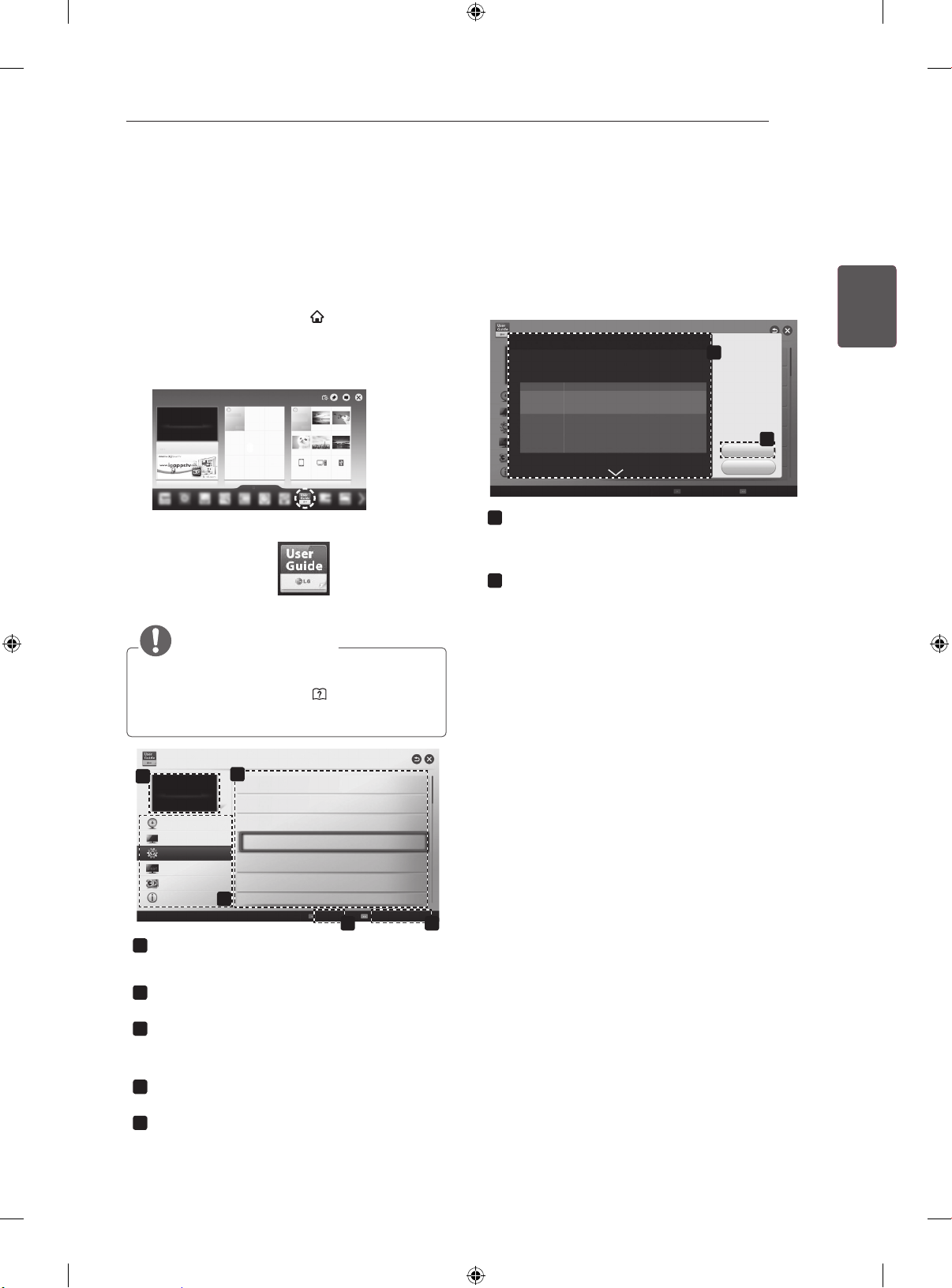

27 USING THE USER GUIDE

28 MAINTENANCE

28 Cleaning your TV

28 - Screen, frame, cabinet and stand 28 - Power cord

28 TROUBLESHOOTING

29 EXTERNAL CONTROL DEVICE

SETUP

29 SPECIFICATIONS

WARNING

yIf you ignore the warning message, you may

be seriously injured or there is a possibility of accident or death.

CAUTION

yIf you ignore the caution message, you may

be slightly injured or the product may be damaged.

NOTE

yThe note helps you understand and use

the product safely. Please read the note carefully before using the product.

LICENSES / OPEN SOURCE SOFTWARE NOTICE

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an ofcial DivX Certied® device that plays

DivX video. Visit divx.com for more information and software tools to convert your

les into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be registered

in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod. divx.com for more information on how to complete your registration.

ENGENGLISH

“DivX Certied® to play DivX® video up to HD 1080p, including premium content.”

“DivX®, DivX Certied® and associated logos are trademarks of Rovi Corporation or

its subsidiaries and are used under license.”

“Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274”

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com . In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.

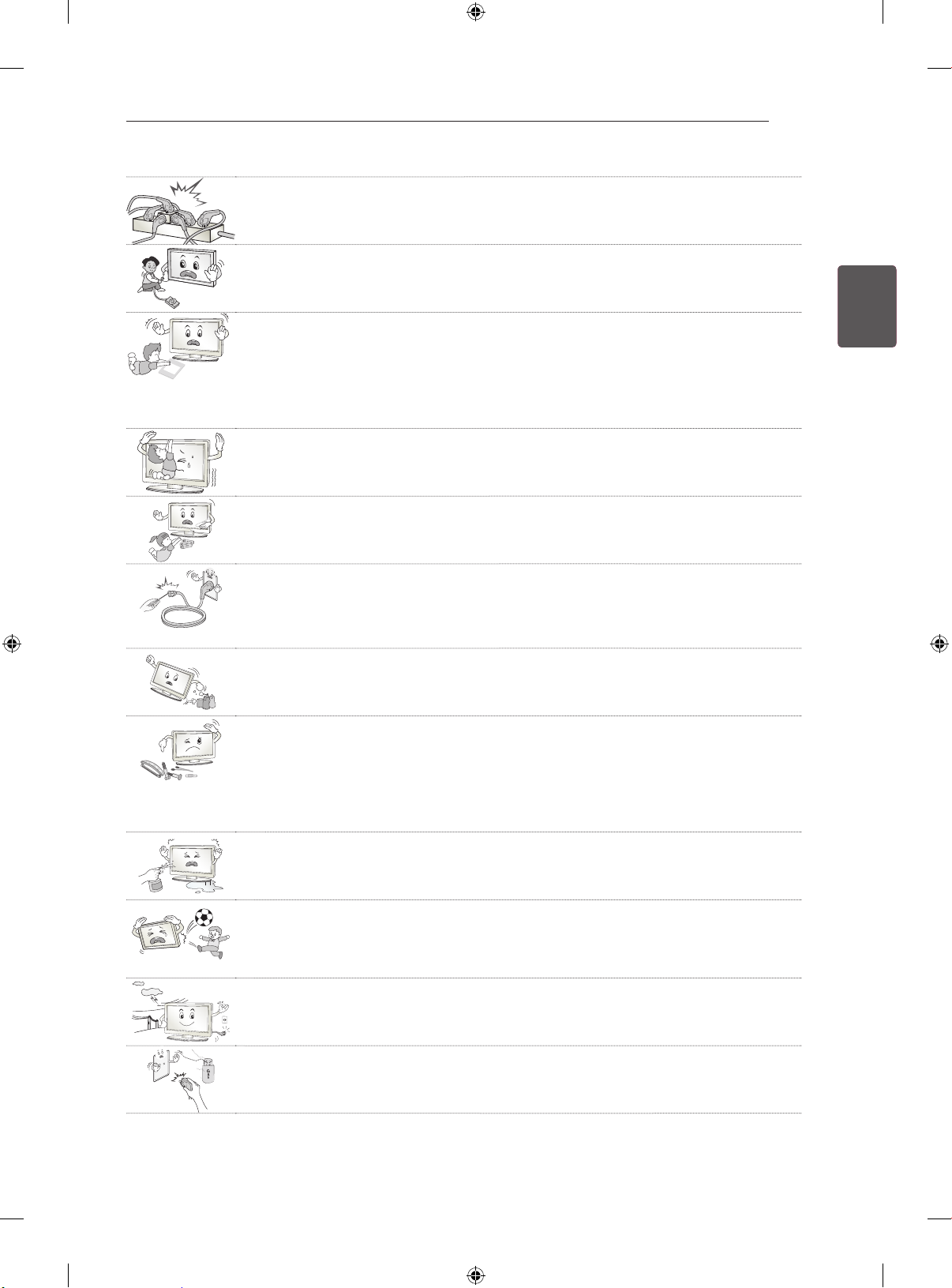

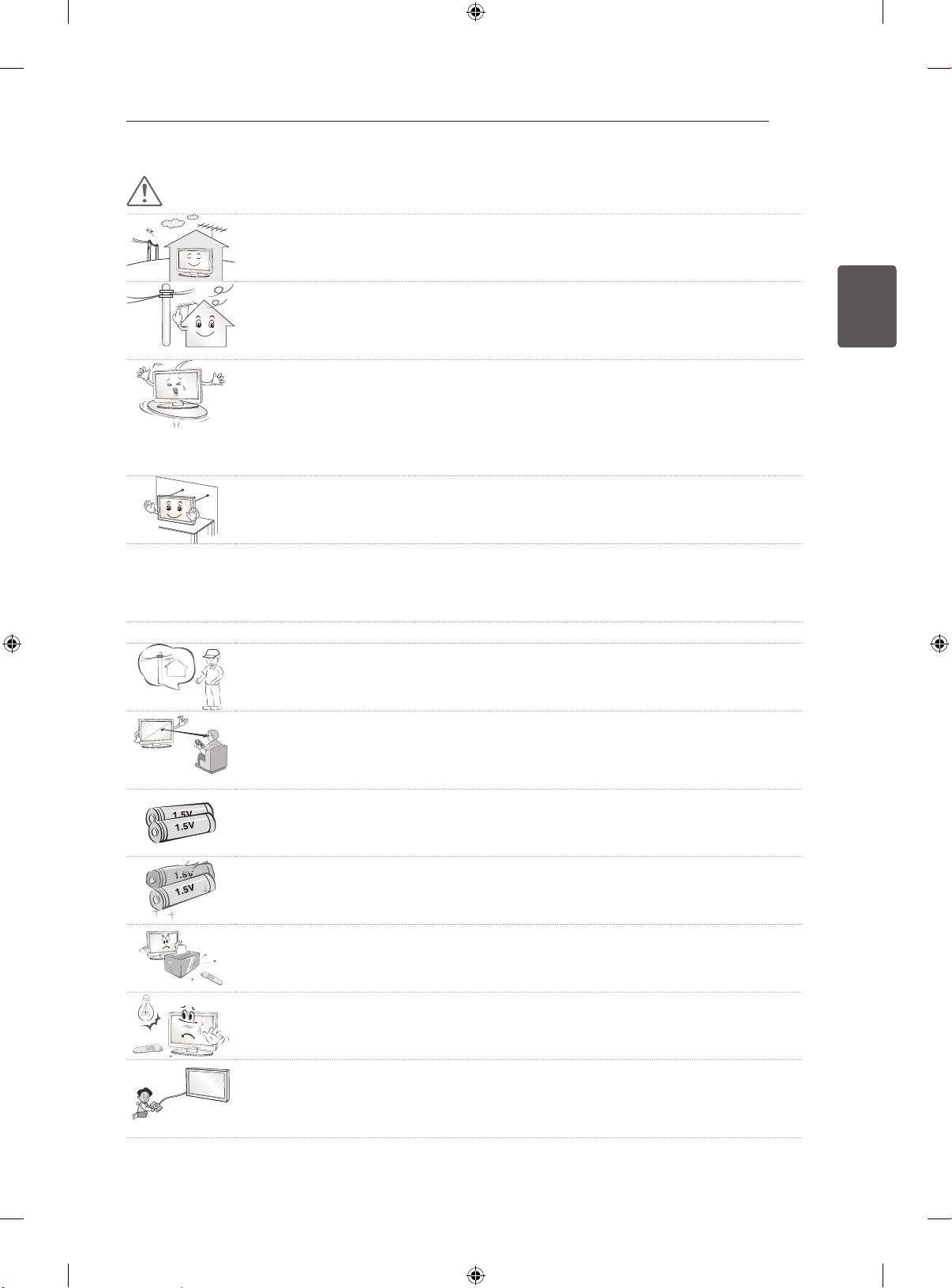

SAFETY INSTRUCTIONS

ENGLISH

ENG

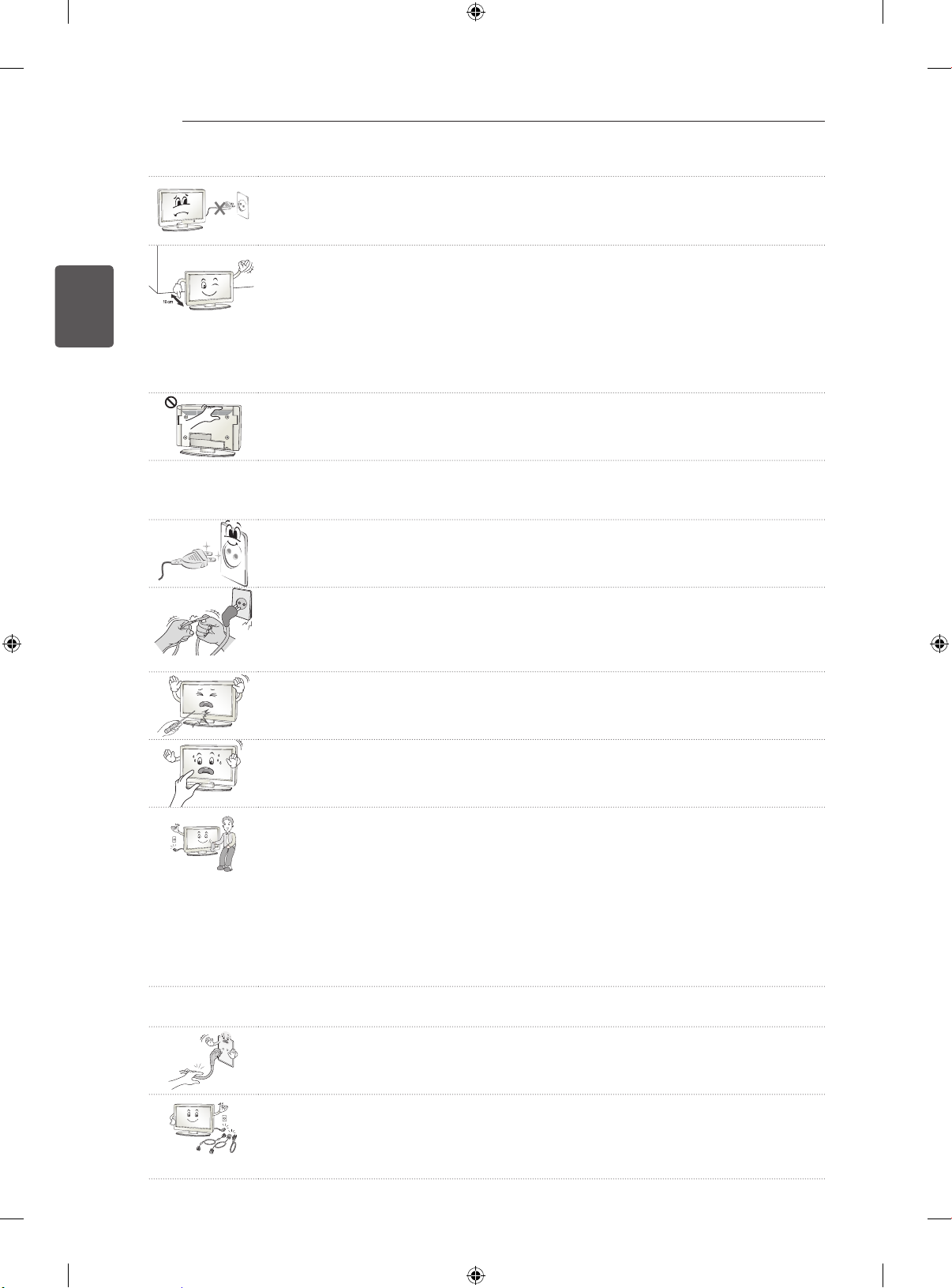

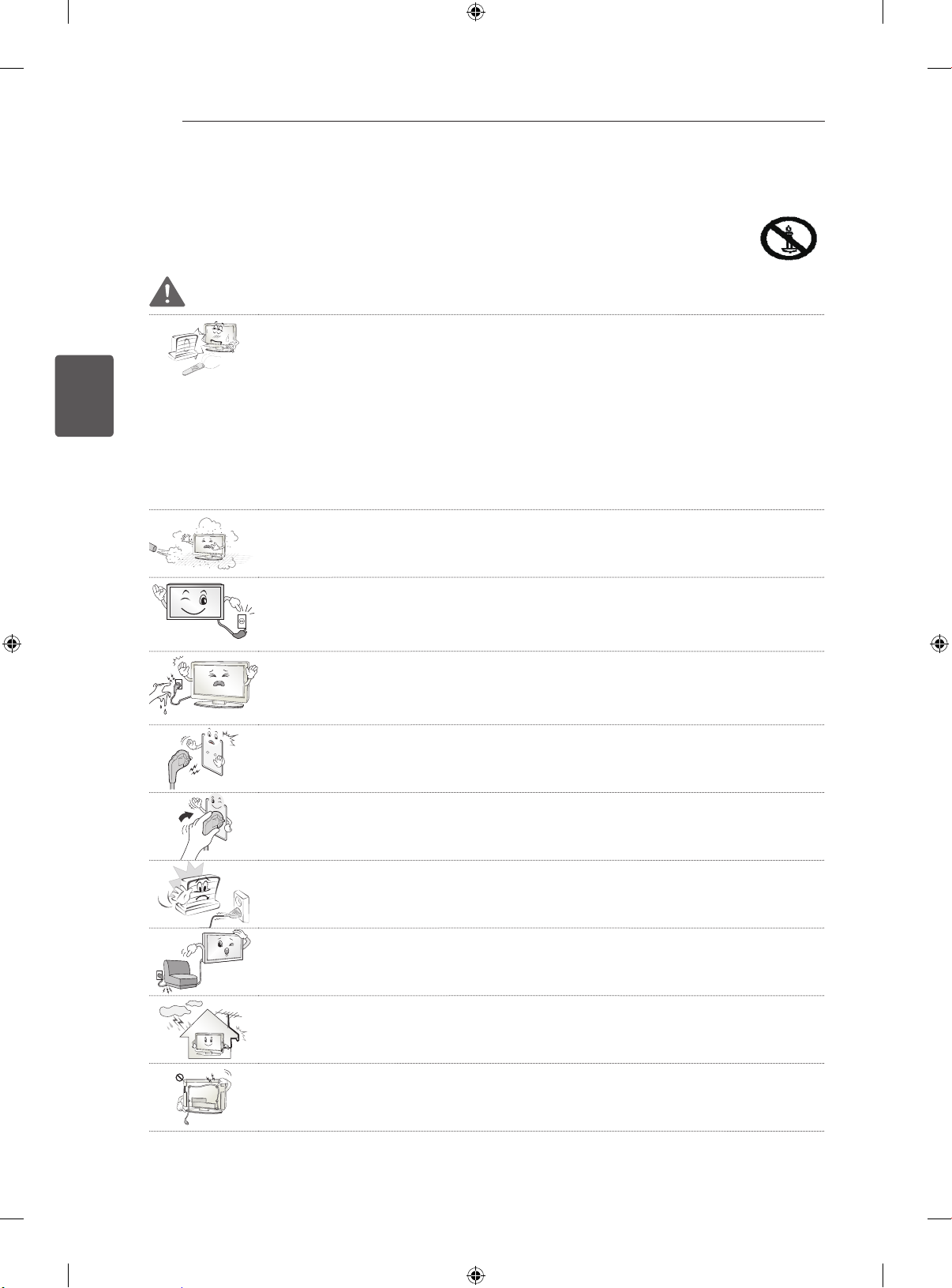

SAFETY INSTRUCTIONS

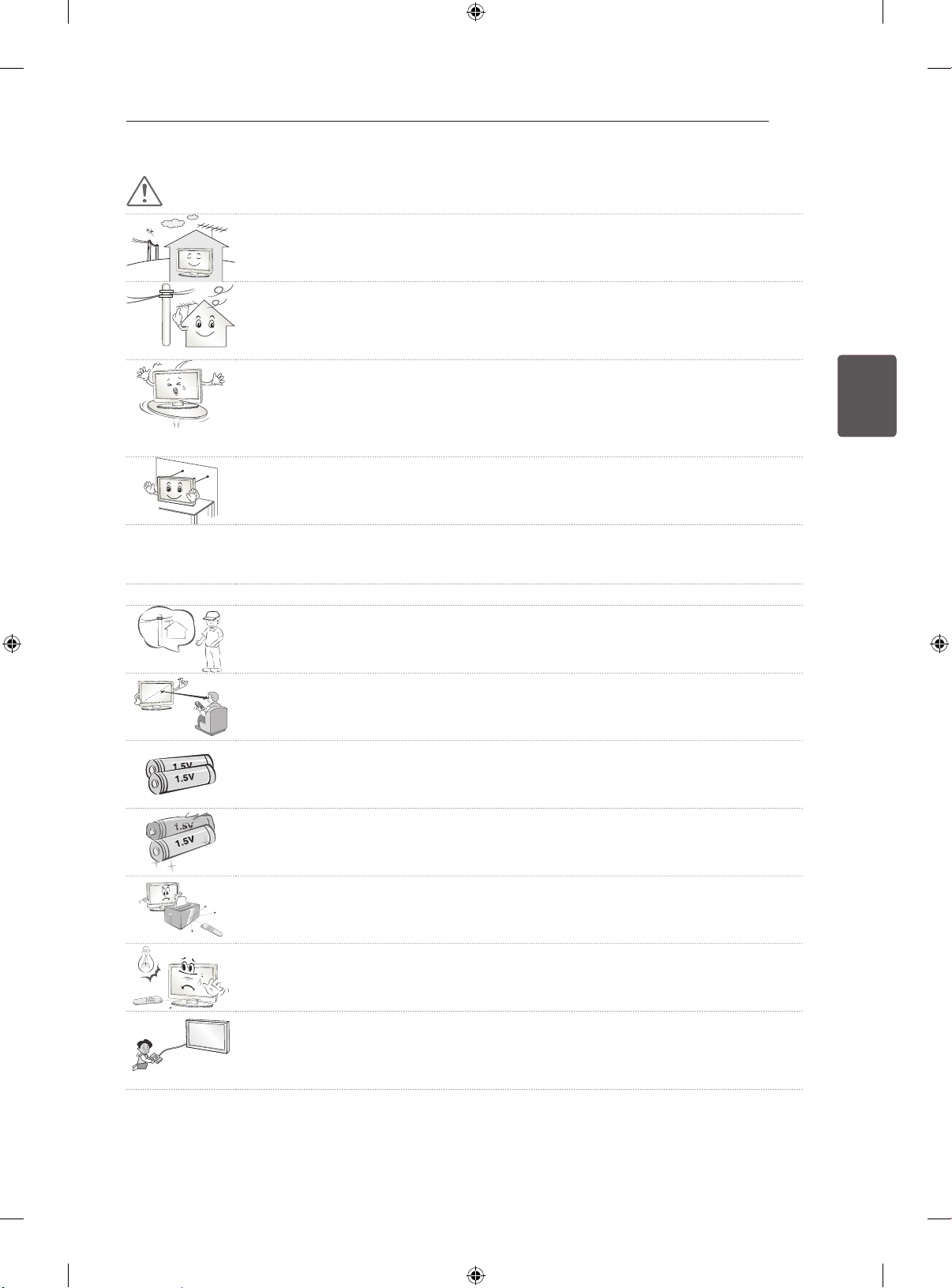

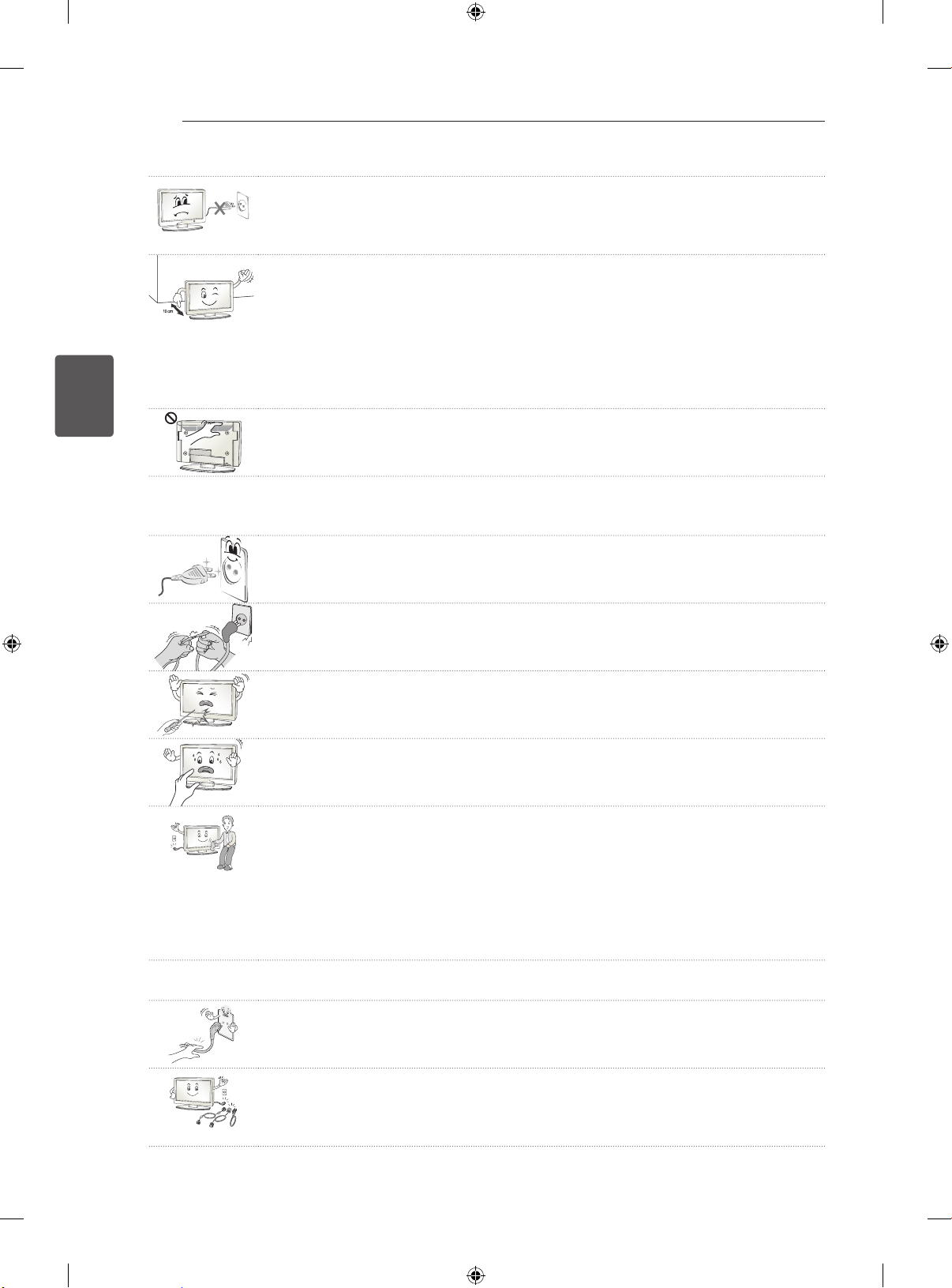

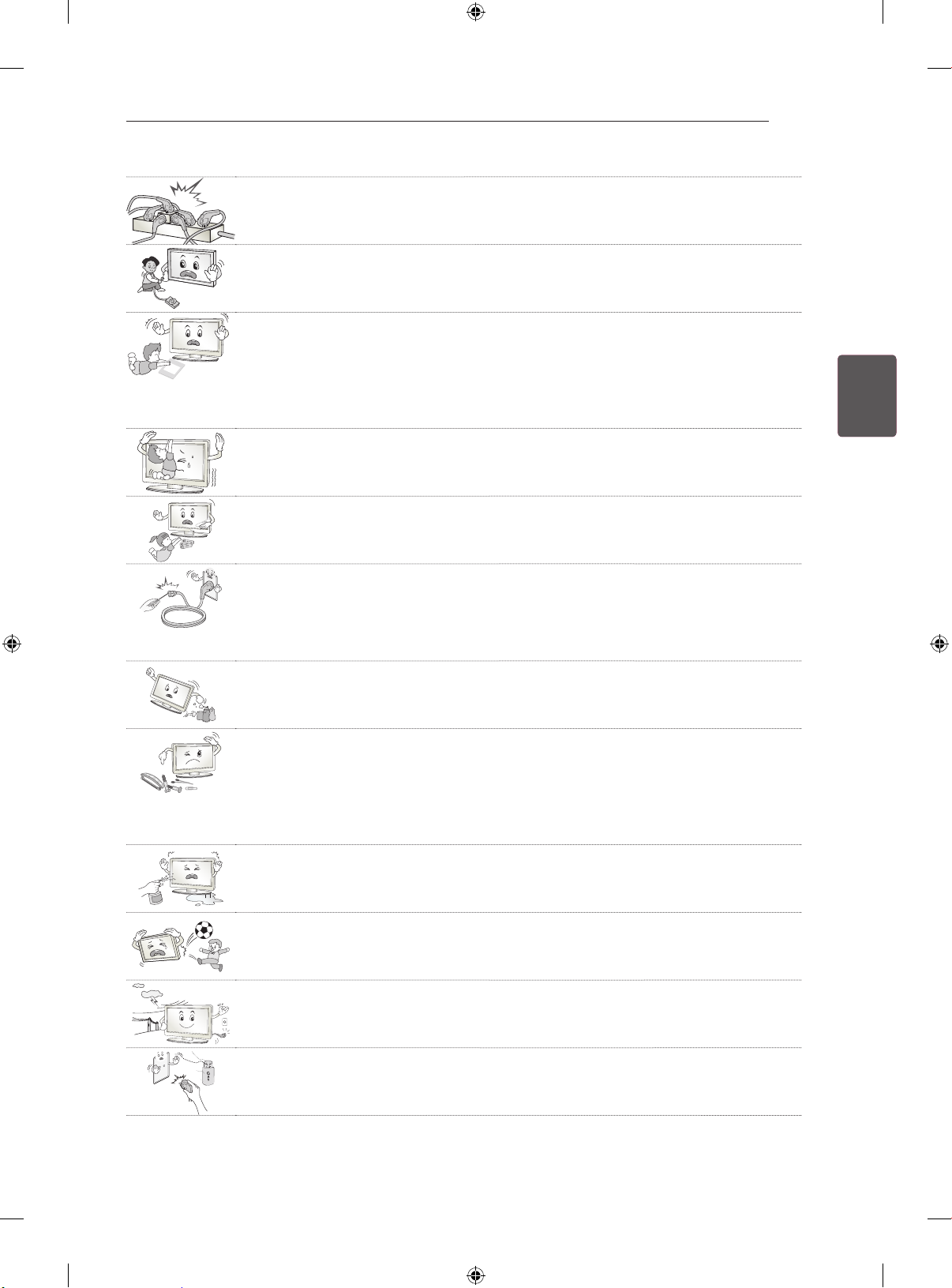

Please read these safety precautions carefully before using the product.

WARNING

Do not place the TV and remote control in the following environments:

- A location exposed to direct sunlight

- An area with high humidity such as a bathroom

- Near any heat source such as stoves and other devices that produce heat

- Near kitchen counters or humidifiers where they can easily be exposed to steam or oil

- An area exposed to rain or wind

- Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust.

This may cause a fire hazard.

Mains plug is the disconnecting device. The plug must remain readily operable.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or

covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

Make sure to connect the power cable to the grounded current. (Except for devices

which are not grounded.) You may be electrocuted or injured.

Insert the power cable completely into wall socket.

If the power cable is not inserted completely into wall socket, a fire could break out.

Ensure the power cord does not come into contact with hot objects such as a

heater. This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables.

Otherwise, this may result in fire or electric shock.

Bend antenna cable between inside and outside building to prevent rain from

flowing in. This may cause water damaged inside the Product and could give an electric shock.

When mounting a TV on the wall, make sure not to install TV by hanging power

and signal cables on the back of the TV. It may cause fire, electric shock.

Desiccant

SAFETY INSTRUCTIONS

Do not plug too many electrical devices into a single multiple electrical outlet.

Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices.

Otherwise, this may result in injury or damage to the product.

Keep the packing anti-moisture material or vinyl packing out of the reach of

children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV.

Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to protect a child from eating them.

Please seek Doctor- Medical Attention immediately if child consumes batteries.

Do not insert any metal objects/conductors (like a metal chopstick/cutlery/

screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)

Do not put or store inflammable substances near the product.

There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.

ENGENGLISH

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the

product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inflammable substance (thinner

or benzene). Fire or electric shock accident can occur.

Do not allow any impact, shock or any objects to fall into the unit, and do not drop

anything onto the screen. You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm.

You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows and

ventilate. It may cause a fire or a burn by a spark.

SAFETY INSTRUCTIONS

ENGLISH

ENG

Do not disassemble, repair or modify the product at your own discretion.

Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.

If any of the following occur, unplug the product immediately and contact your local

service centre.

- The product has been impacted by shock

- The product has been damaged

- Foreign objects have entered the product

- The product produced smoke or a strange smell

This may result in fire or electric shock.

If you don’t intend to use the product for a long time, unplug the power cable from

the product. Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.

Apparatus shall not be exposed to dripping or splashing and no objects filled with

liquids, such as vases, shall be placed on the apparatus.

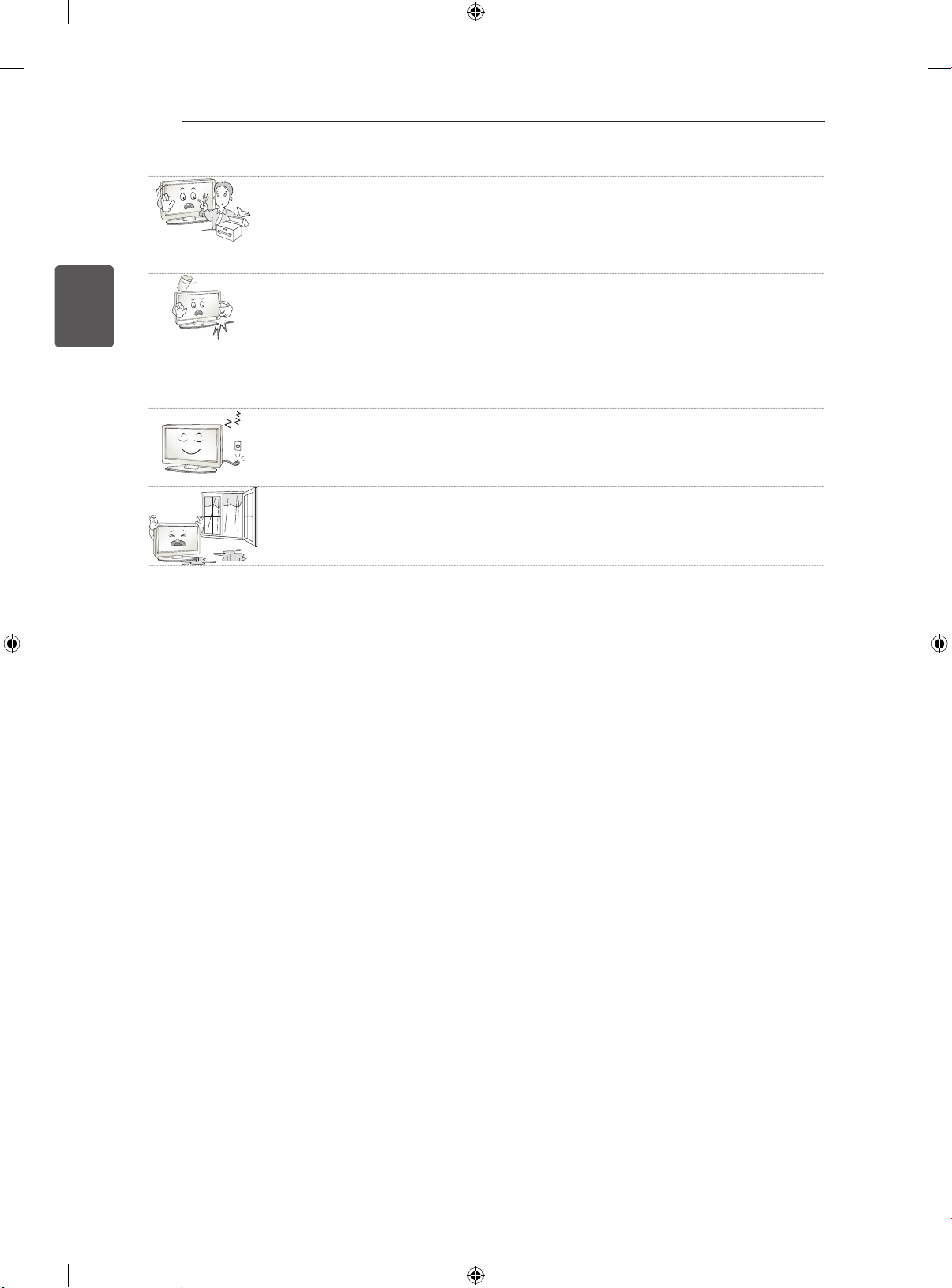

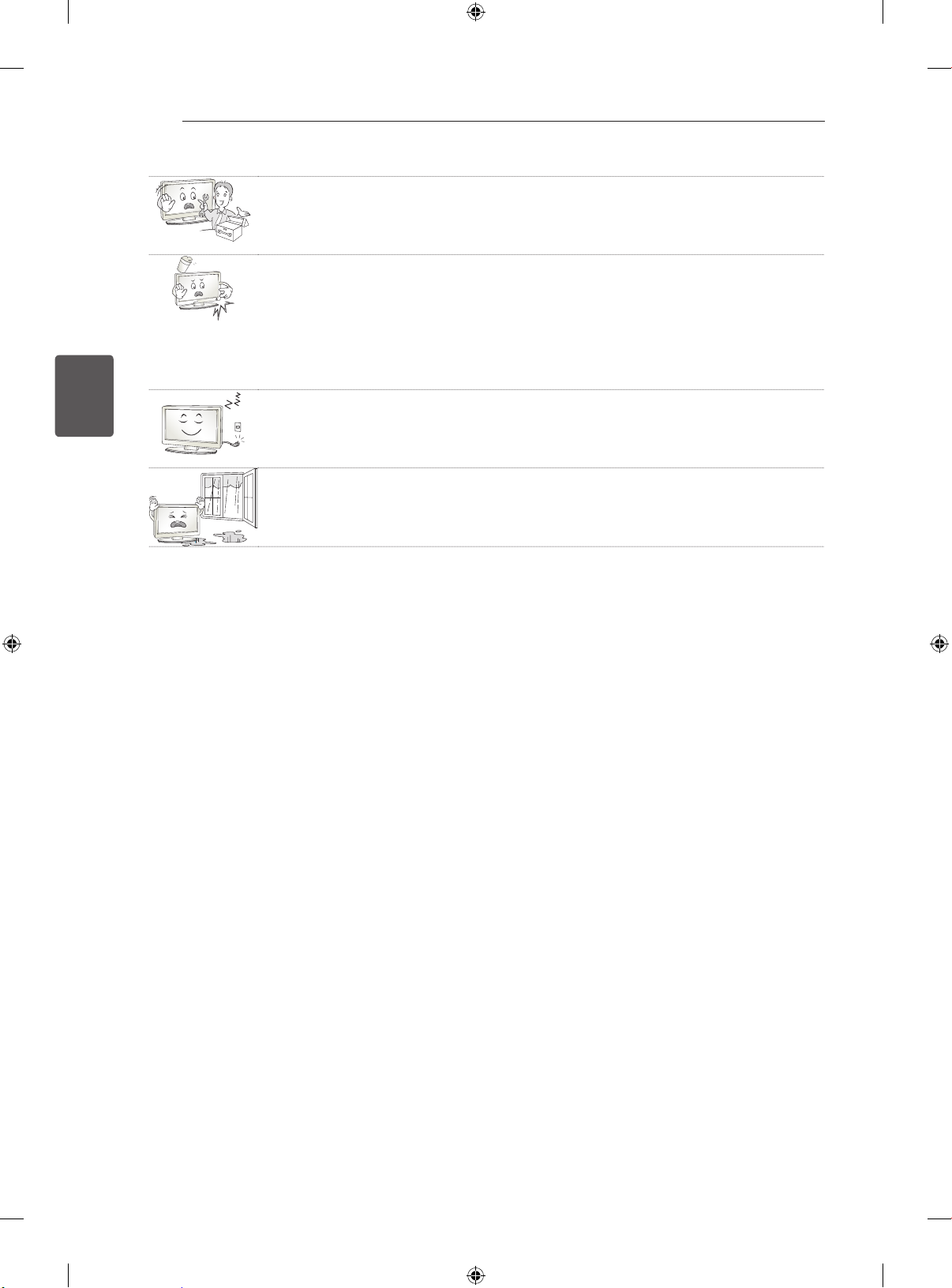

SAFETY INSTRUCTIONS

CAUTION

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to

keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

Do not install the product on places such as unstable shelves or inclined surfaces.

Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

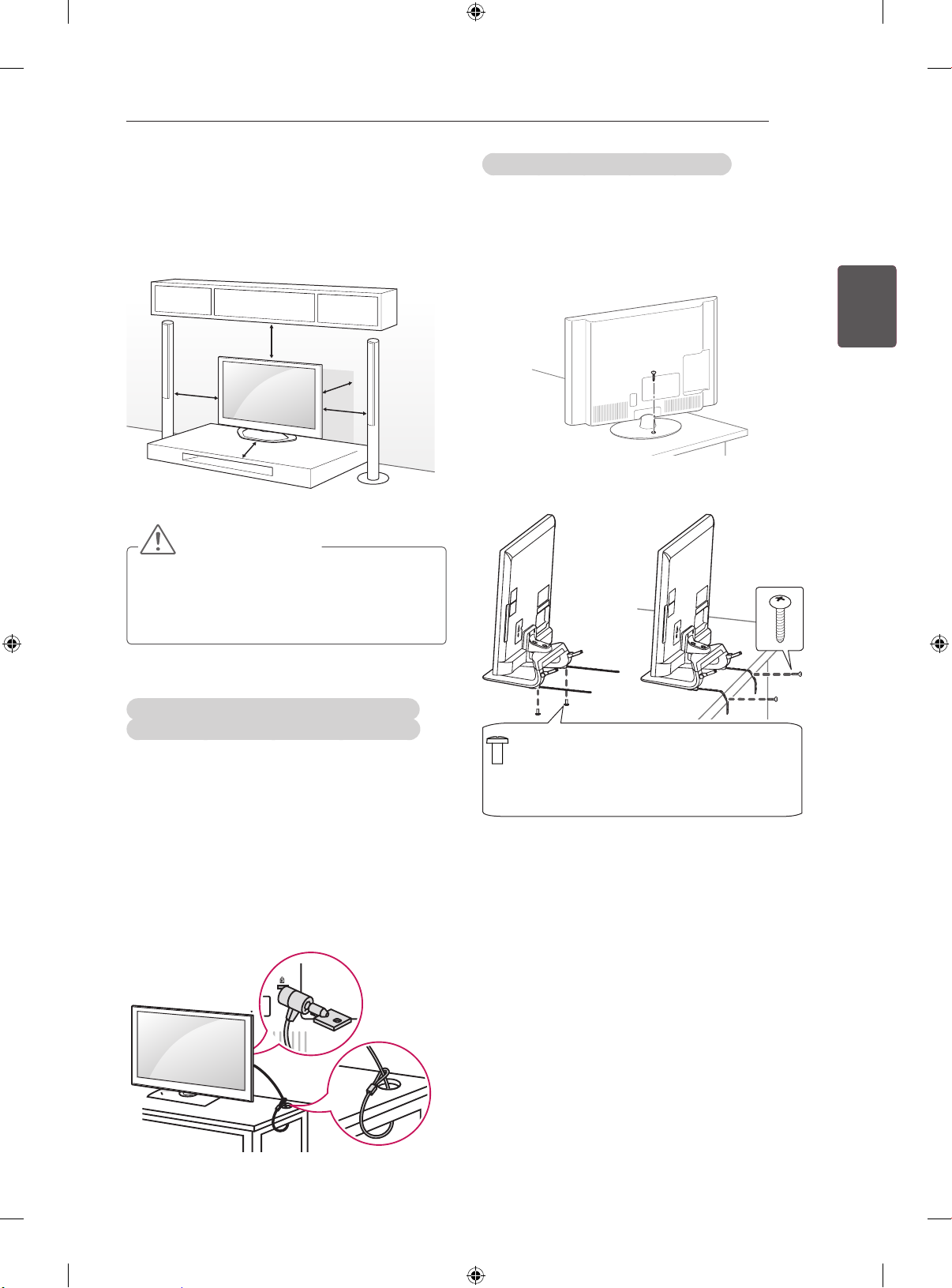

If you install the TV on a stand, you need to take actions to prevent the product

from overturning. Otherwise, the product may fall over, which may cause injury.

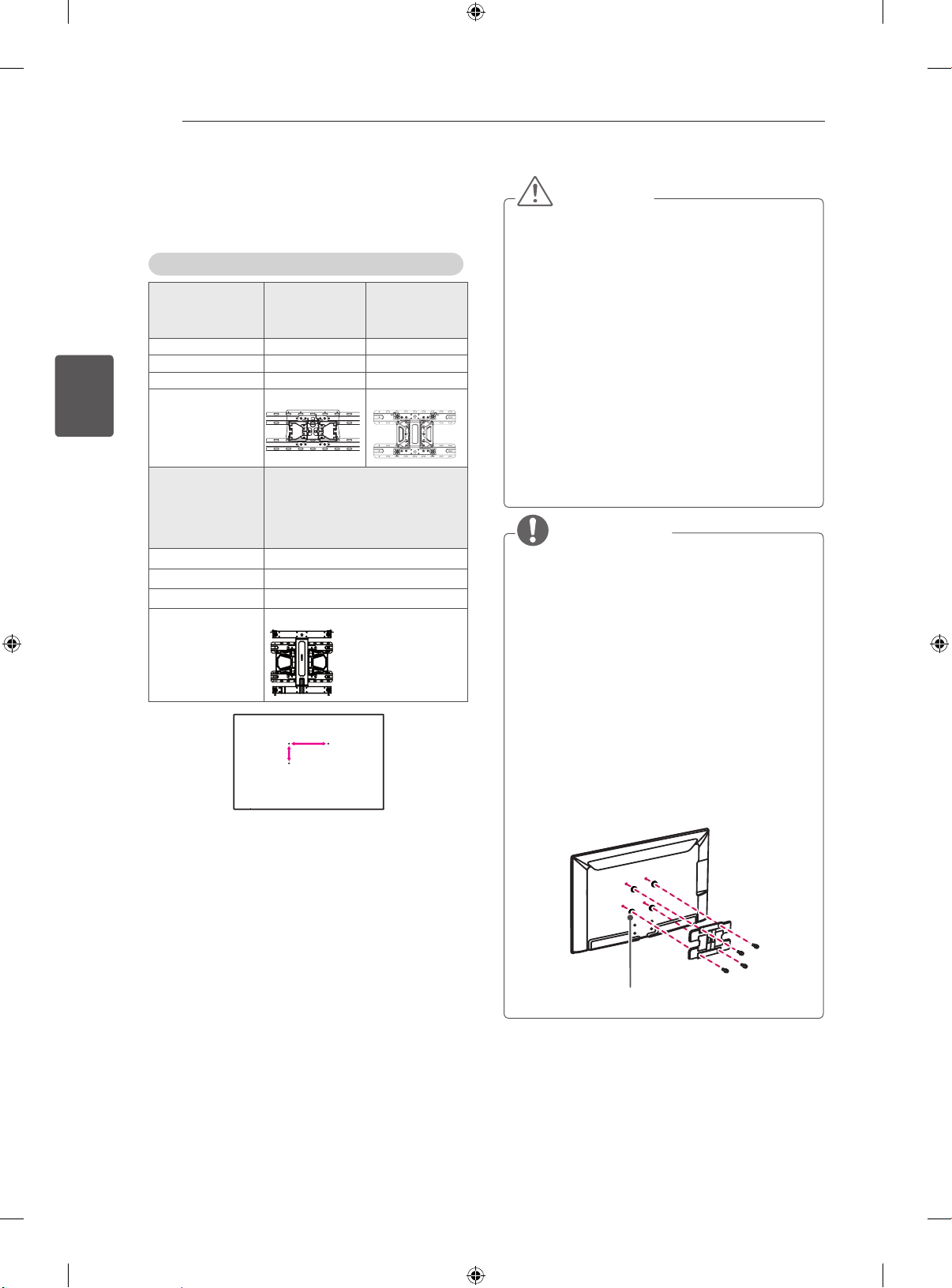

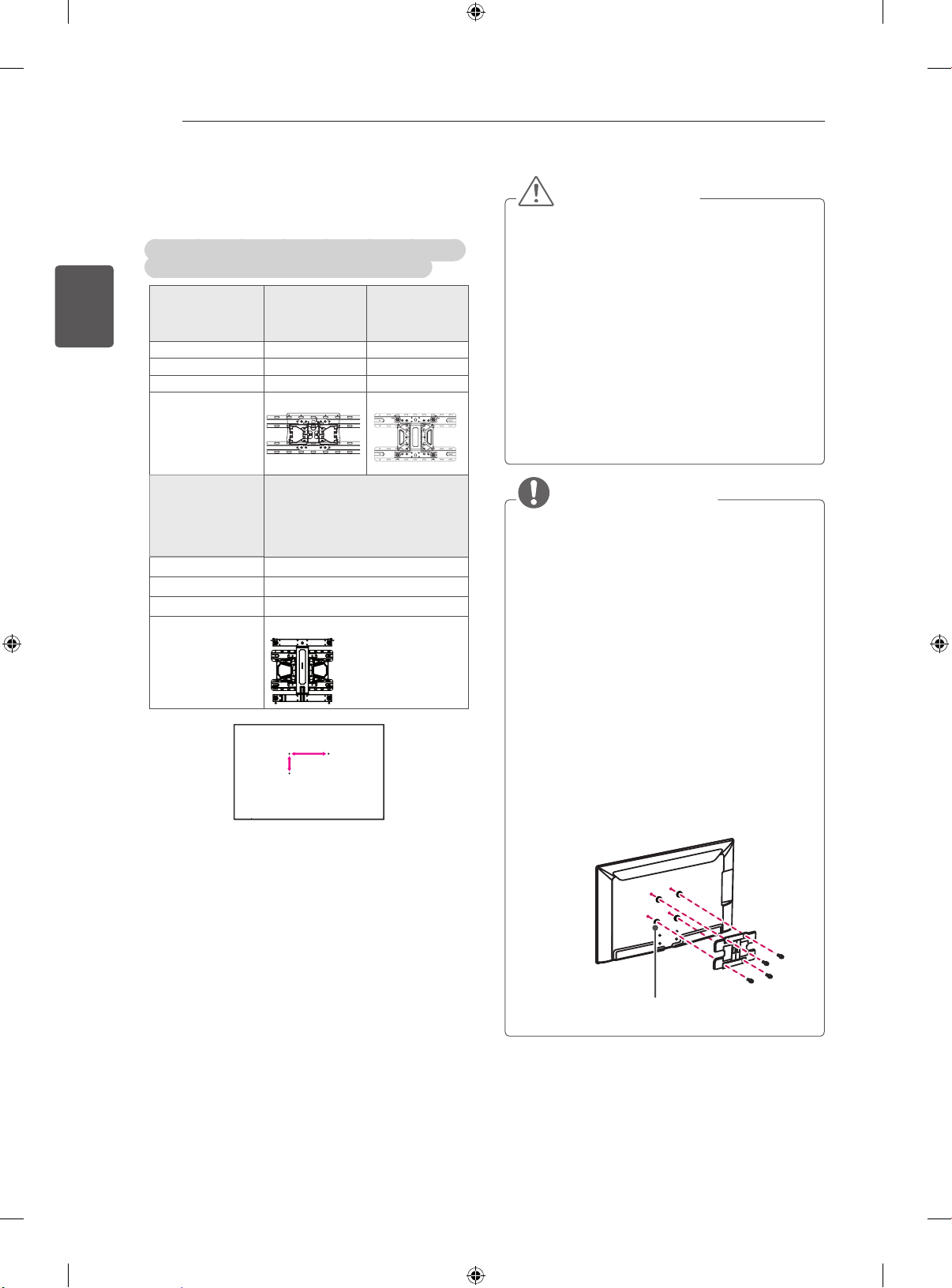

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional

parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult with a qualified service technician. If not

installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

ENGENGLISH

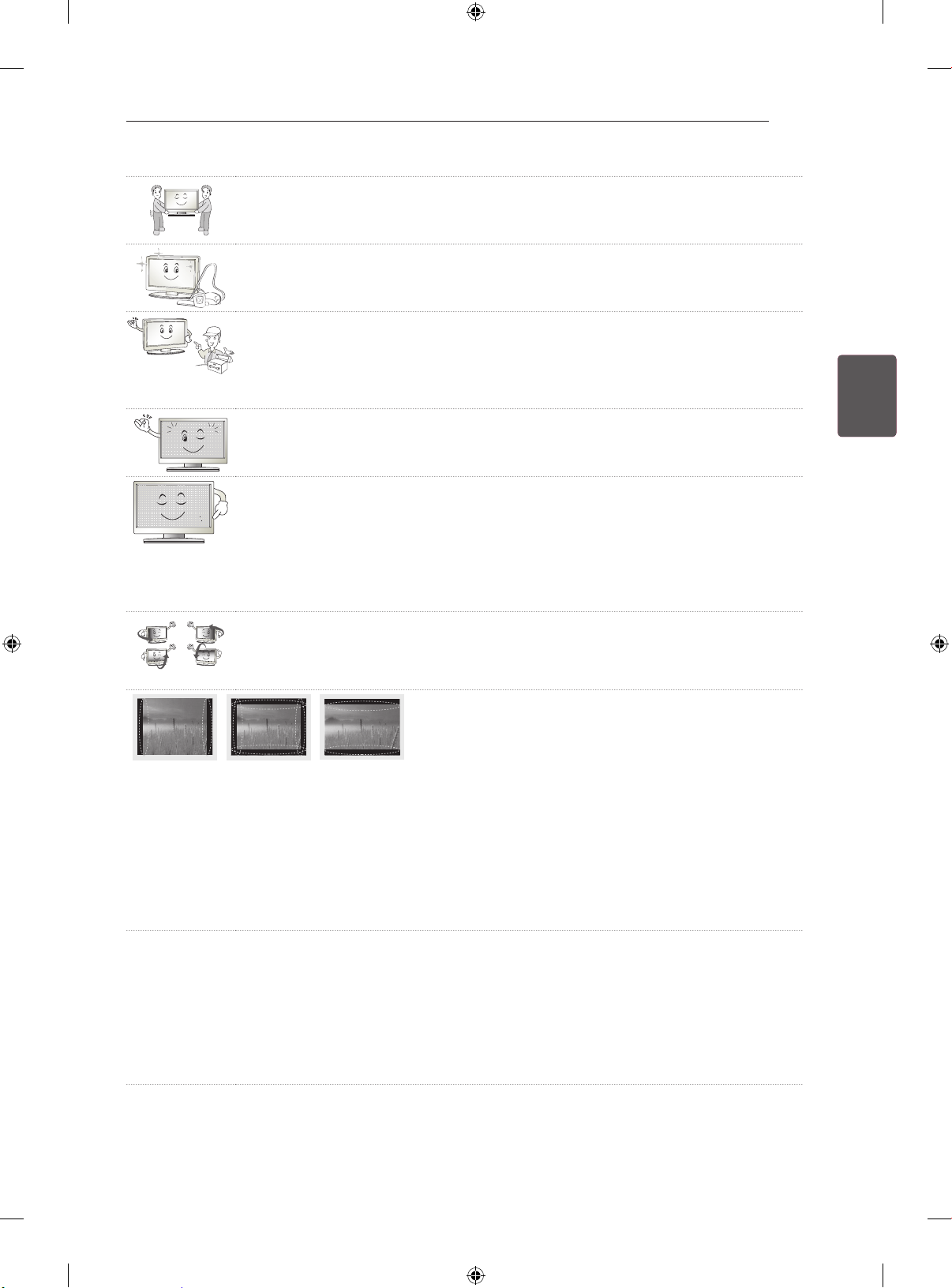

We recommend that you maintain a distance of at least 2 to 7 times the diagonal

screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery.

This could cause damage to the remote control.

Do not mix new batteries with old batteries.

This may cause the batteries to overheat and leak.

Make sure there are no objects between the remote control and its sensor.

Signal from the remote control may be disturbed by sun light or other strong light.

In this case, darken the room.

When connecting external devices such as video game consoles, make sure the

connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

SAFETY INSTRUCTIONS

ENGLISH

ENG

Do not turn the product On/Off by plugging-in or unplugging the power plug to the

wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

Please follow the installation instructions below to prevent the product from

overheating.

- The distance between the product and the wall should be more than 10 cm.

- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).

- Do not install the product on a carpet or cushion.

- Make sure the air vent is not blocked by a tablecloth or curtain.

Otherwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for long

periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or

deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Prevent dust collecting on the power plug pins or outlet.

This may cause a fire hazard.

Protect the power cord from physical or mechanical abuse, such as being twisted,

kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not press strongly upon the panel with a hand or sharp object such as nail,

pencil or pen, or make a scratch on it.

Avoid touching the screen or holding your finger(s) against it for long periods of

time. Doing so may produce some temporary distortion effects on the screen.

When cleaning the product and its components, unplug the power first and wipe it

with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power

source even if you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don’t pull at the cord to unplug the power cord from the power board, as this could be hazardous.

When moving the product, make sure you turn the power off first. Then, unplug the

power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

SAFETY INSTRUCTIONS

When moving or unpacking the product, work in pairs because the product is

heavy. Otherwise, this may result in injury.

Contact the service centre once a year to clean the internal parts of the product.

Accumulated dust can cause mechanical failure.

Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small “flicker” when it is turned

on. This is normal, there is nothing wrong with product.

The panel is a high technology display product with resolution of two million to six

million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.

You may find different brightness and color of the panel depending on your viewing

position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

ENGENGLISH

Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video

game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking. Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma). Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel. This phenomenon also occurs in third-party products and is not subject to exchange or refund.

Generated Sound

“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not affect the performance and reliability of the product.

SAFETY INSTRUCTIONS

ENGLISH

ENG

Viewing 3D Imaging (Only 3D models)

WARNING

Viewing Environment

yViewing Time

- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness

ySome users may experience a seizure or other abnormal symptoms when they are exposed to a

ashing light or particular pattern from 3D contents.

yDo not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy,

cardiac disorder, or blood pressure disease, etc.

y3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double

images or discomfort in viewing may be experienced.

yIf you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble

sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.

yIf your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D

contents.

Symptoms which require discontinuation or refraining from watching 3D contents

yDo not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking. yWhen these symptoms are experienced, stop using/watching 3D contents and get enough rest until the

symptom subsides.

- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

SAFETY INSTRUCTIONS

CAUTION

Viewing Environment

y Viewing Distance

- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV.

Viewing Age

yInfants/Children

- Usage/ Viewing 3D contents for children under the age of 5 are prohibited.

- Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D contents.

- Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than that of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.

yTeenagers

- Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contens for a long time when they are tired.

yElderly

- The elderly may perceive less 3D effect compared to the young. Do not sit closer to the TV than the recommended distance.

ENGENGLISH

Cautions when using the 3D glasses

y Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly. y Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles. y Using modied 3D glasses may cause eye strain or image distortion. y Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation. y The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping

the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.

ENGLISH

ENG

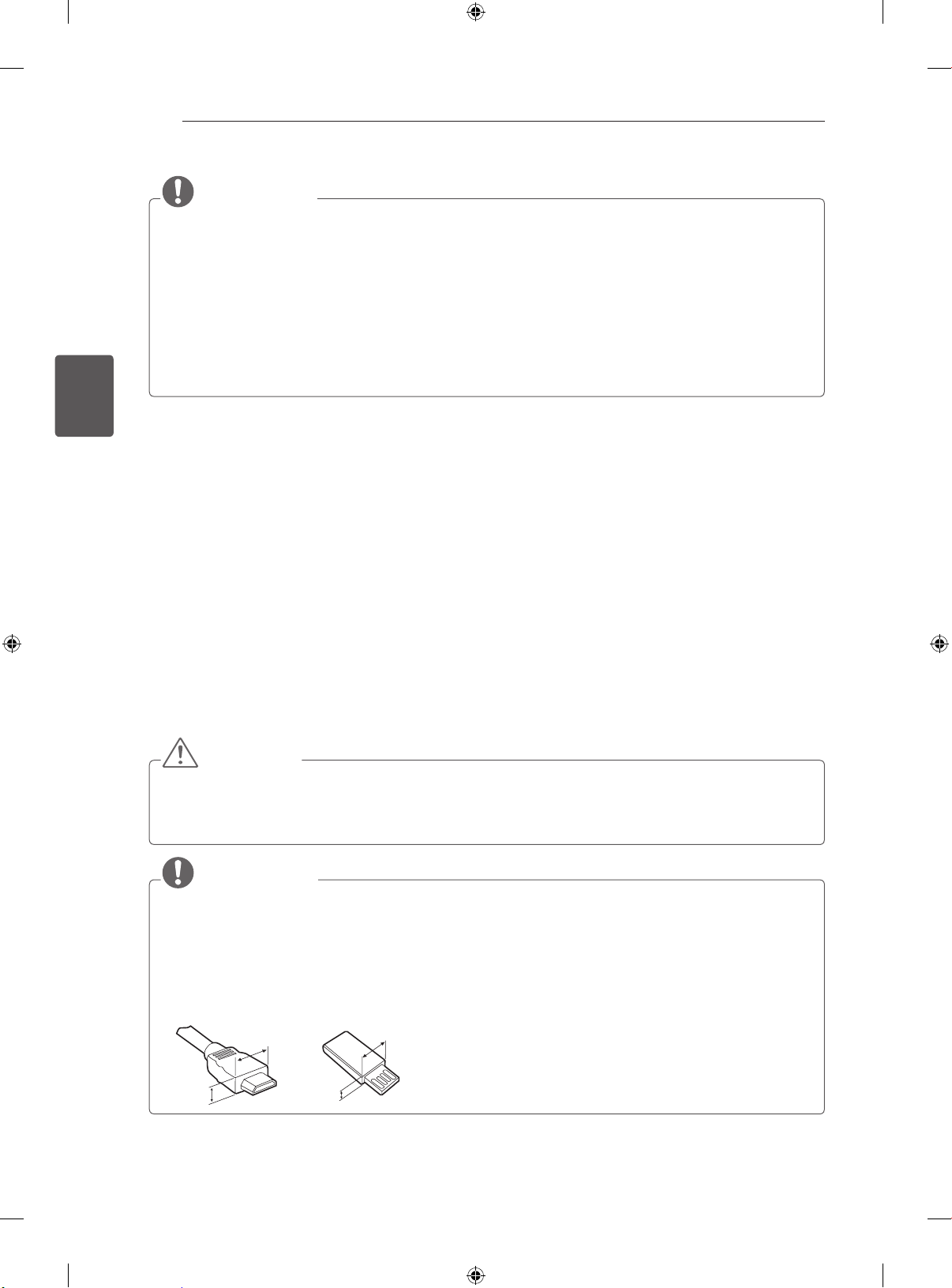

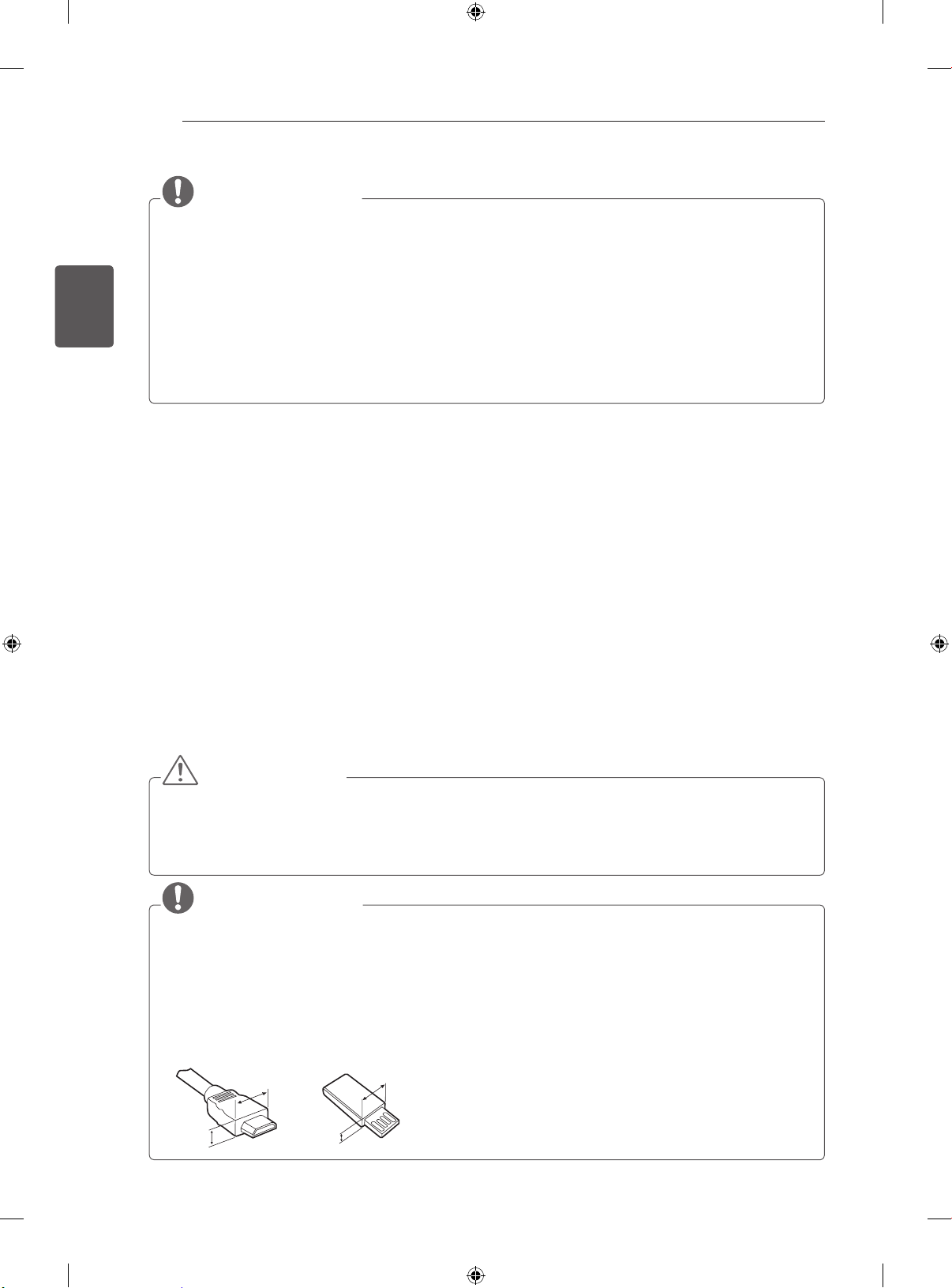

INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING

NOTE

yImage shown may differ from your TV. yYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual. yThe available menus and options may differ from the input source or product model that you are

using. yNew features may be added to this TV in the future. yThe TV can be placed in standby mode in order to reduce the power consumption. And the TV should

be turned off if it will not be watched for some time, as this will reduce energy consumption. yThe energy consumed during use can be significantly reduced if the level of brightness of the picture

is reduced, and this will reduce the overall running cost.

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included. 2 Attach the stand to the TV set. 3 Connect an external device to the TV set. 4 Make sure the network connection is available.

You can use the TV network functions only when the network connection is made.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

CAUTION

yDo not use any unapproved items to ensure the safety and product life span. yAny damag or injuries caused by using unapproved items are not covered by the warranty. ySome models have a thin film attached on to the screen and this must not be removed.

NOTE

yThe items supplied with your product may vary depending on the model. yProduct specifications or contents of this manual may be changed without prior notice due to upgrade

of product functions. yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick

and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory

stick does not fit into your TV’s USB port.

10 mm

18 mm

ASSEMBLING AND PREPARING

123

AV MODE

INPUT

ENERGY

SAVING

1 2 3

4 5 6

7 809

FLASHBK

LIST

MARK

FAV

P A G

CHVOL

MUTE

INFO

Q.MENU

ENTER

EXIT

BACK

L/R SELECT

FREEZE

RATIO

Remote control and batteries (AAA)

(Only LA62**, LA64**, LN57**) (See p. 23, 24)

Magic Remote Control, Batteries (AA)

(Only LA66**, LA69**, LA74**) (See p. 25)

ENGENGLISH

Wi-Fi Dongle

Owner’s manual

(Depending on model)

Cinema 3D Glasses

The number of 3D glasses may differ depending on the model or country.

Dual play glasses

(Depending on model)

Cable Holder

(Depending on model) (See p. A-6)

Power Cord

(Depending on model)

Stand Screws

M4 x 14 (8 EA: Only LN57**-ZE/ZK, LA62**, LA64**, LA66**) (4 EA: Only LN57**-ZA) (See p. A-3,A-5)

Stand Screws

M4 x 20 (4 EA: Only LA69**, LA74**) (See p. A-4)

Stand Screws

3 EA, P5 x 25 (Only LN57**-ZA) (See p.A-5)

Desk-mount Cable

2 EA (Only 32/39/42/47/50LN57**-ZE/ ZK, 32/39/42/47/50LA62**, 32/42/47/50LA64**, 32/42/47/50LA66**) (See p. 19)

Bracket Screw

2 EA, M4 x 8 (Only 32/39/42LN57**ZE/ZK, 32/39/42LA62**, 32/42LA64**,32/42LA66**) (See p. 19)

Desk-mount Screw

(1 EA : Only 32/39/42/47/50/60LN57**ZA) (2 EA :Only 32/39/42/47/50LN57**-ZE/ ZK, 32/39/42/47/50LA62**, 32/42/47/50LA64**, 32/42/47/50LA66**) (See p. 19)

Bracket Screw

2 EA, P4 x 8 (Only 47/50LN57**ZE/ZK,47/50LA62**, 47/50LA64**,47/50LA66**) (See p. 19)

Wall mount inner spacers

4 EA (Only LA64**)

(See p. 22)

ENGLISH

ENG

ASSEMBLING AND PREPARING

Tag On

(Depending on model)

Stand Body / Stand Base

(Only LN57**-ZE/ZK, LA62**, LA64** , LA66**) (See p.A-3)

Stand Body / Stand Base

(Only LN57**-ZA) (See p.A-5)

Isolator

(Depending on model) (See p. 15)

Stand Base

(Only LA69**, LA74** ) (See p.A-4)

LG Audio device

(Depending on model)

ASSEMBLING AND PREPARING

NOTE

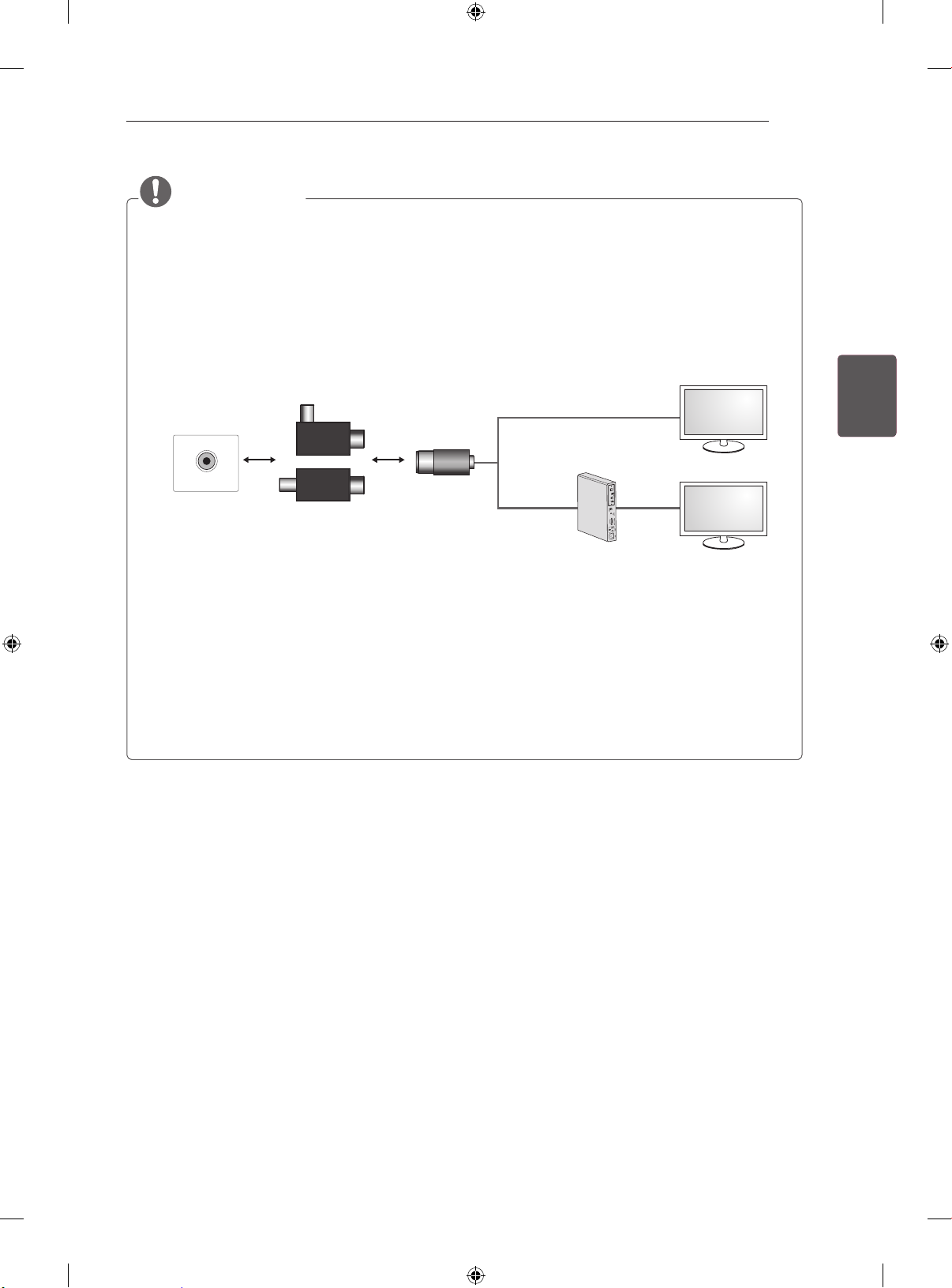

Antenna Isolator Installation Guide

- Use this to install TV in a place where there is a voltage difference between TV Set and GND of antenna signal.

If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact might be heated and excessive heat might cause an accident.

- You can improve the safety when watching TV by efficiently removing power voltage from TV antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall, mount it on the TV. Avoid disconnecting the antenna Isolator after installation.

- Before starting, be sure that the TV antenna is connected.

Wall

ANTENNA/ CABLE IN

Cable / Antenna

Isolator

Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.

“Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system

using coaxial cable, may in some circumstances create a re hazard. Connection to a cable distribution

system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)”

1. Connect to TV.

2. Connect to Set-Top box.

ENGENGLISH

When applying the RF Isolator, a slight loss of signal sensitivity can occur.

ASSEMBLING AND PREPARING

123

ENGLISH

ENG

Separate purchase

(Depending on model)

Separate purchase items can be changed or modied for quality improvement without any notication. Contact your dealer to buy these items. These devices only work with certain models.

AG-F2**DP, AG-F3

Dual play glasses

AN-WF100

Wi-Fi Dongle

AG-F2

**,

AG-F3

**,

Cinema 3D Glasses

AN-VC***

AG-F4**

AN-MR400

Magic Remote

LG Audio device

Video call camera

Tag On

Tag on

Compatibility

AG-F2**DP, AG-F3**DP

Dual play glasses

AG-F2**, AG-F3

Cinema 3D Glasses

AN-MR400

Magic Remote

AN-WF100

Wi-Fi Dongle

AN-VC***

Video call camera

LG Audio device

Tag On

**,

AG-F4

LN57**

LA62**, LA64**,

LA66**, LA69**, LA74**

•

(Depending on model)

•

• •

The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies.

ASSEMBLING AND PREPARING

SETTINGS

INPUT

SETTINGS

INPUT

SETTINGS

INPUT

Parts and buttons

A type : LA62**, LA64**, LA66**,

LN57**-ZE/ZK

Screen

Speakers

Remote control sensor LG Logo Light (Only LA64**, LA66**) Power Indicator (Only LA62**)

C type : 60LA74**

Screen

Buttons

SETTINGS

INPUT

Buttons

B type : LA69**, 42/47/55LA74**

Screen

Remote control sensor LG Logo Light

D type : LN57**-ZA

Screen

ENGENGLISH

Buttons

Speakers

Buttons

Speakers

NOTE

yYou can set the

Speakers

Remote control sensor LG Logo Light

Button Description

Scrolls through the saved programmes.

Adjusts the volume level.

Selects the highlighted menu option or confirms an input.

Accesses the main menu, or saves your input and exits the menus.

Changes the input source.

Turns the power on or off.

LG Logo Light

to on or off by selecting OPTION in the main menus.

Remote control sensor Power Indicator

ASSEMBLING AND PREPARING

ENGLISH

ENG

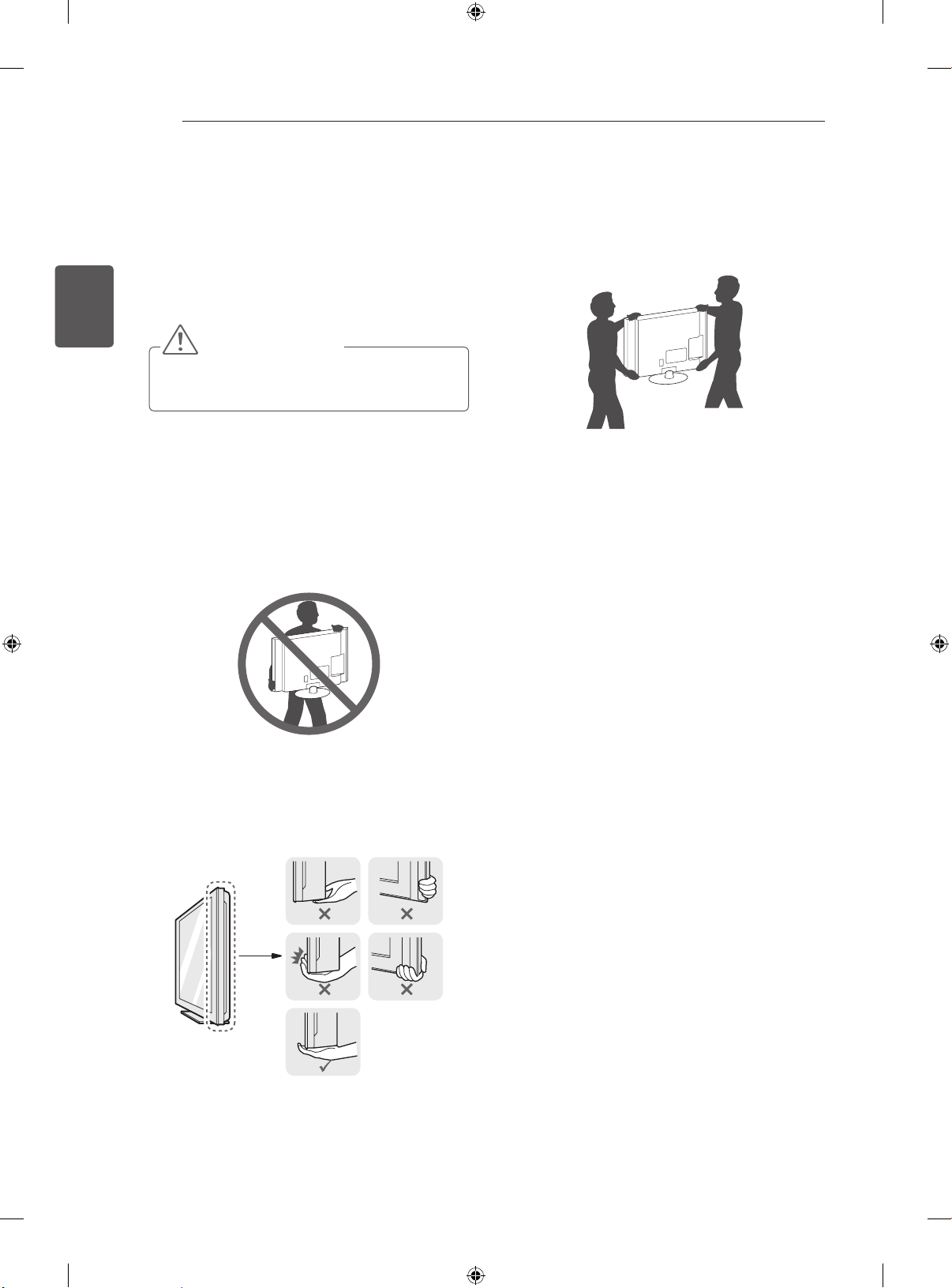

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

yAvoid touching the screen at all times, as

this may result in damage to the screen.

yIt is recommended to move the TV in the box

or packing material that the TV originally came in.

yBefore moving or lifting the TV, disconnect the

power cord and all cables.

yWhen holding the TV, the screen should face

away from you to avoid damage.

yWhen transporting a large TV, there should be

at least 2 people.

yWhen transporting the TV by hand, hold the TV

as shown in the following illustration.

yWhen transporting the TV, do not expose the

TV to jolts or excessive vibration.

yWhen transporting the TV, keep the TV upright,

never turn the TV on its side or tilt towards the left or right.

yHold the top and bottom of the TV frame rmly.

Make sure not to hold the transparent part, speaker, or speaker grill area.

ASSEMBLING AND PREPARING

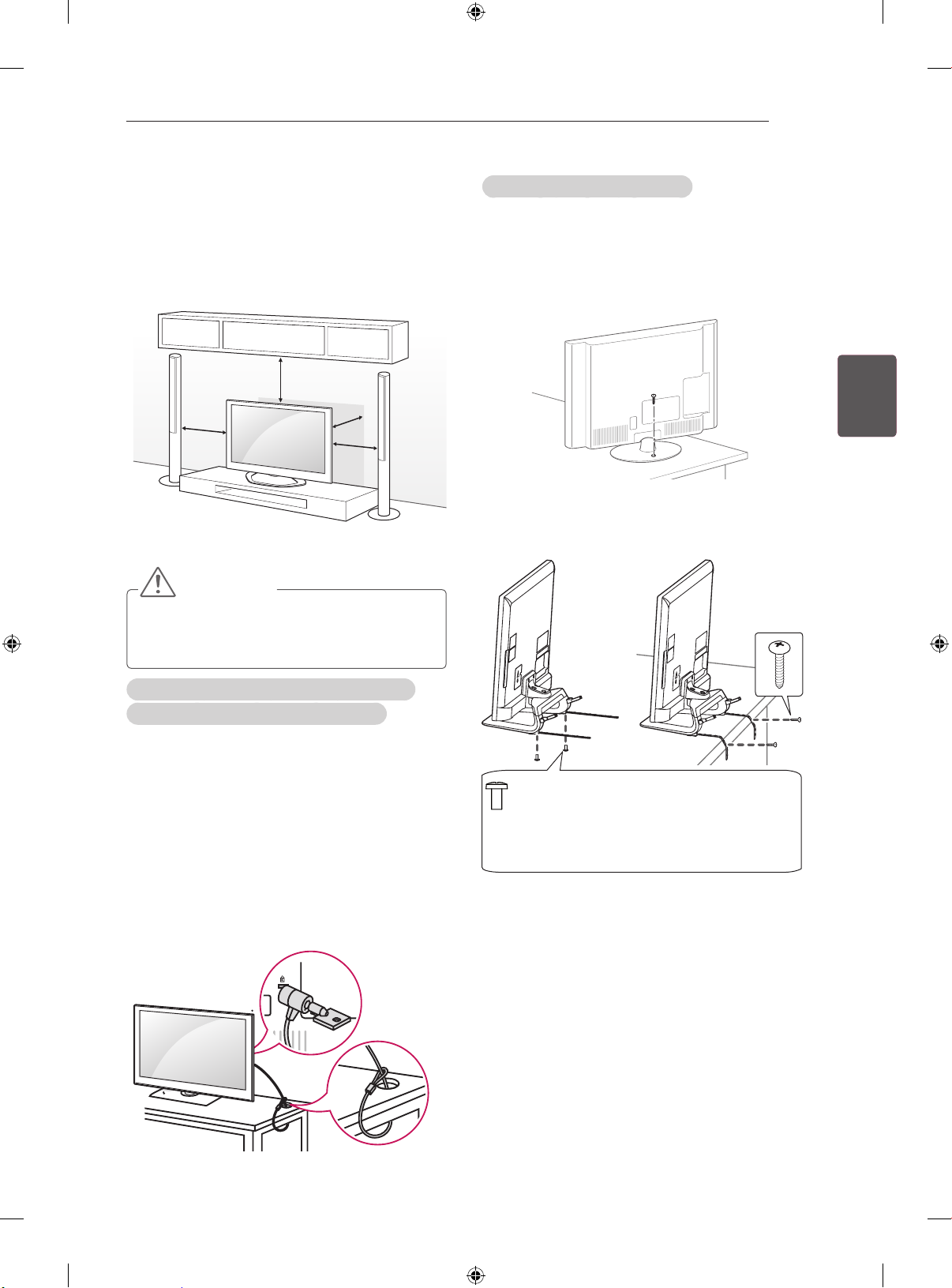

Mounting on a table

1 Lift and tilt the TV into its upright position on a

table.

- Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm

2 Connect the power cord to a wall outlet.

CAUTION

yDo not place the TV near or on sources

of heat, as this may result in fire or other damage.

10 cm

Securing the TV to a table

Fix the TV to a table to prevent from tilting forward, damage, and potential injury. To secure the TV to a table, insert and tighten the supplied screw on the rear of the stand. (Only 32/39/42/47/50/60LN57**-ZA)

(Only 32/39/42/47/50LN57**-ZE/ZK, 32/39/42/47/50LA62**, 32/42/47/50LA64**, 32/42/47/50LA66**)



ENGENGLISH

Using the Kensington security system (This feature is

not available for all models.)

Image shown may differ from your TV.

The Kensi ngton se curity s ystem connector is located at the rear of the TV. For more information of installati on and u sin g, refer to th e m anu al provided with the Kensington security system or visit

http://www.kensington.com.

Connect the Kensington security system cable between the TV and a table.

2 EA, P4 x 8 (Only 47/50LN57**-ZE/ZK, 47/50LA62**,47/50L A64**,47/50LA66**) 2 EA, M4 x 8 (Only 32/39/42LN57**-ZE/ZK, 32/39/42LA62**, 32/42LA64**, 32/42LA66**)

ASSEMBLING AND PREPARING

ENGLISH

ENG

NOTE

(Only 32/39/42/47/50LN57**-ZE/ZK, 32/39/42/47/50LA62**, 32/42/47/50LA64**, 32/42/47/50LA66**) How to fix the TV to a table

1. Connect the Desk-mount Cables to the Stand Base using the Bracket Screws.

2. Fix the Desk-mount Cables to a table using the Desk-mount Screws.

3. Once the TV is fixed, move the table close to the wall. Children may go in, causing injuries.

WARNING

yTo prevent TV from falling over, the TV

should be securely attached to the floor/ wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.

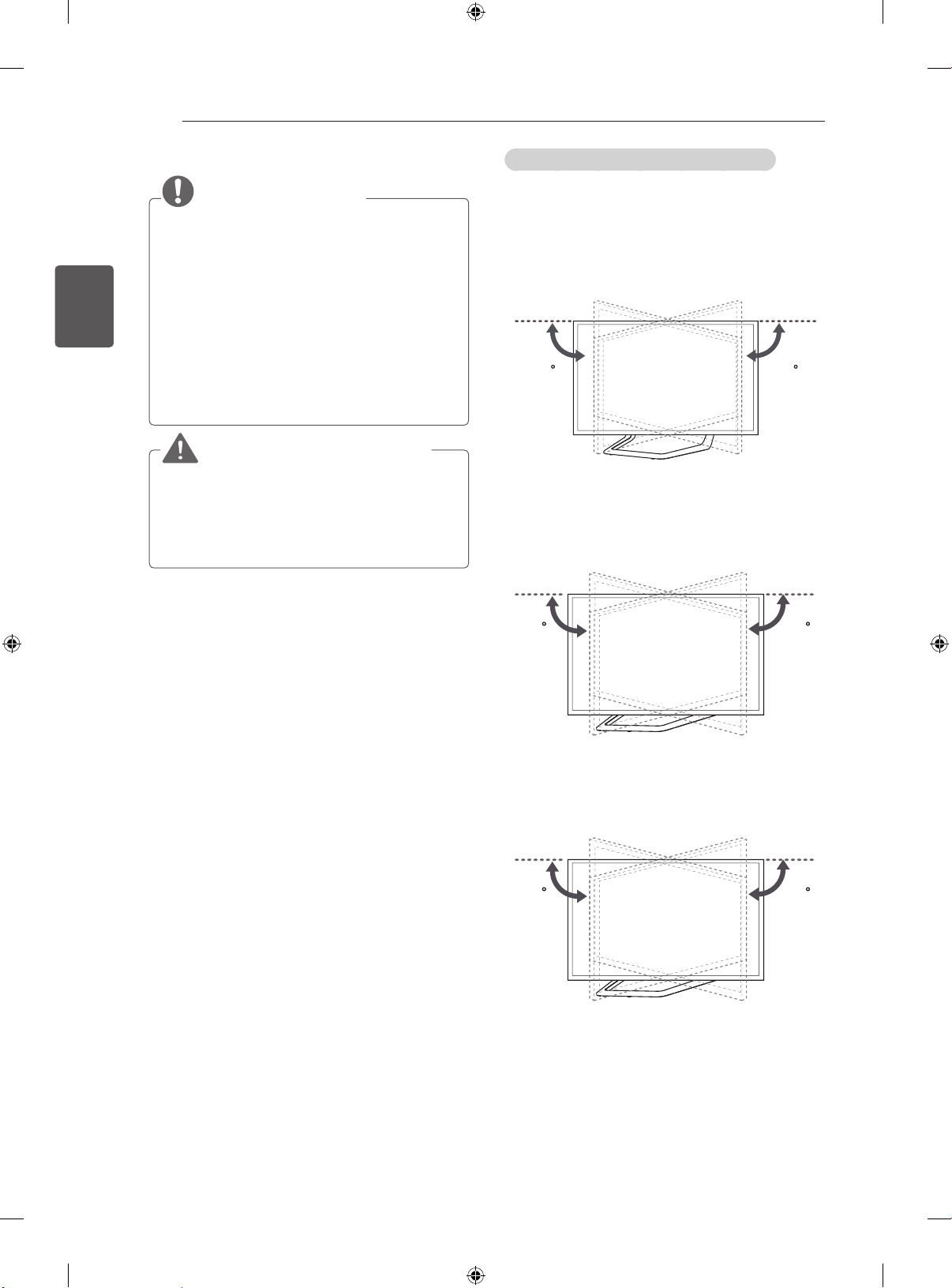

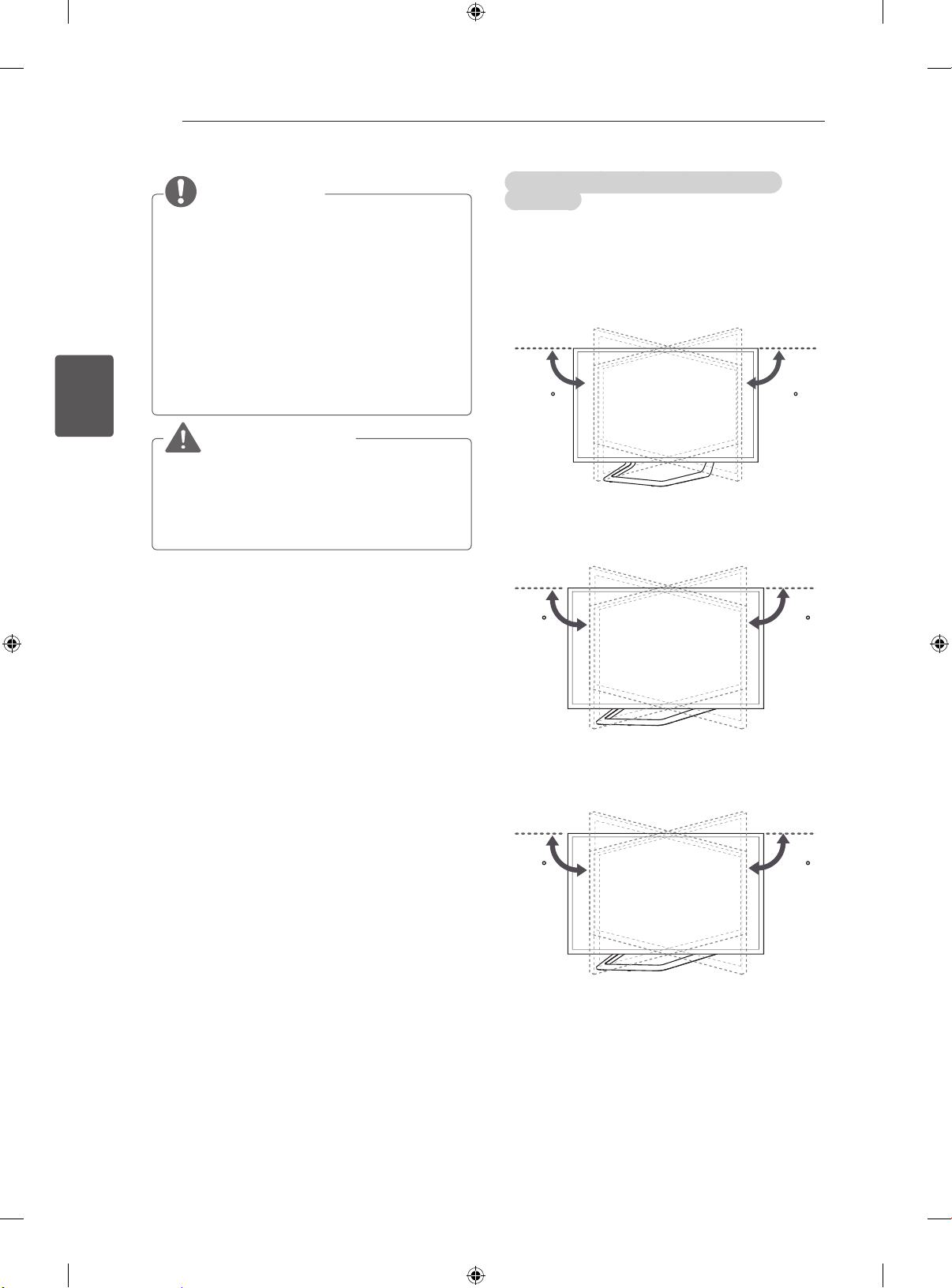

Adjusting the angle of the TV to suit view

(This feature is not available for all models.) Swivel 15 degrees to the left or right and adjust the angle of the TV to suit your view. (Only LA62**, LA64**, LA66**)

1515

Swivel 10 degrees to the left or right and adjust the angle of the TV to suit your view. (Only 42/47LA69**, 42/47LA74**)

1010

Swivel 8 degrees to the left or right and adjust the angle of the TV to suit your view. (Only 55LA69**, 55/60LA74**)

ASSEMBLING AND PREPARING

CAUTION

When adjusting the angle adof the product,

watch out for your fingers.

Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.

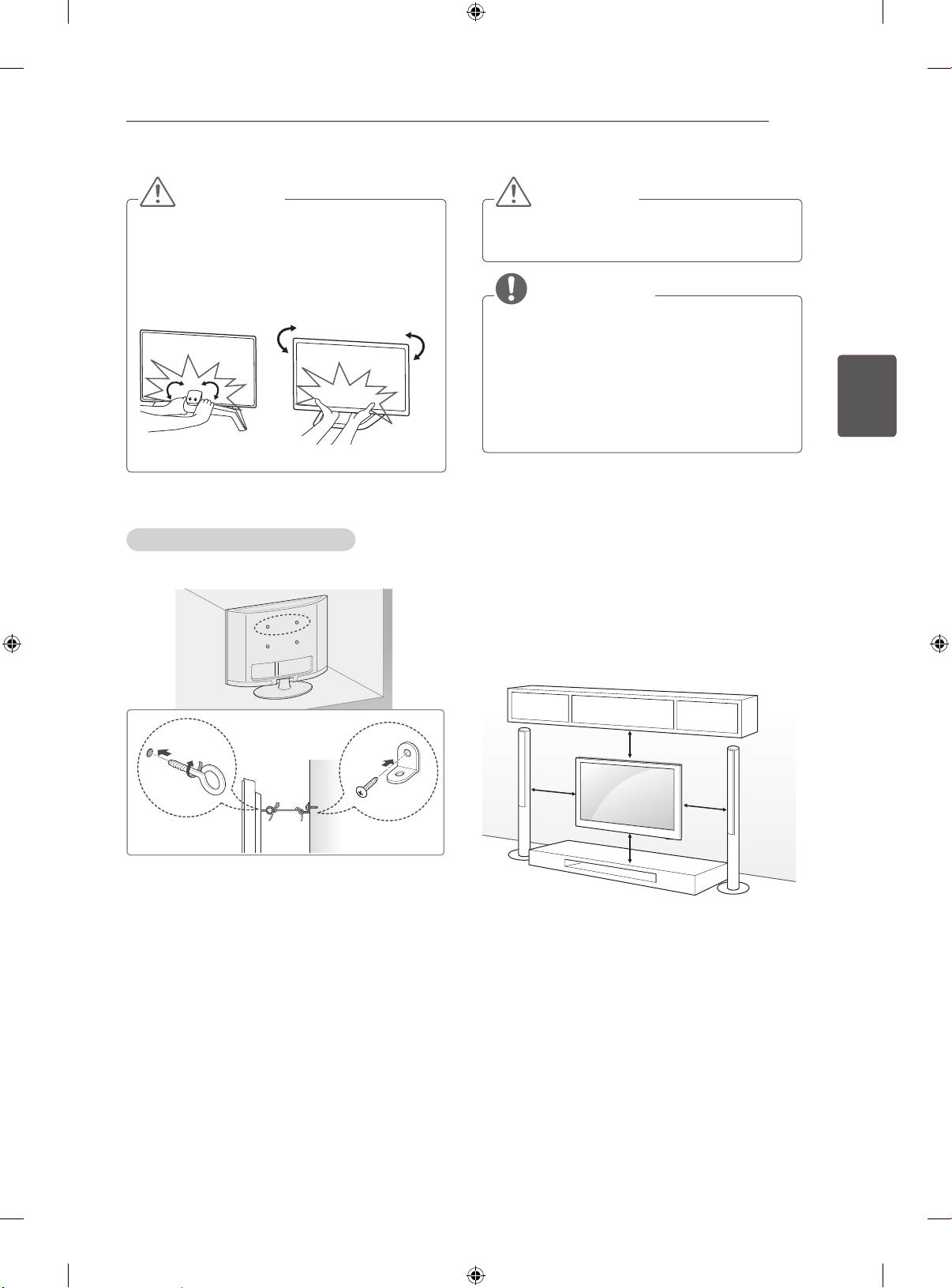

Securing the TV to a wall

(This feature is not available for all models.)

CAUTION

Make sure that children do not climb on or

hang on the TV.

NOTE

Use a platform or cabinet that is strong and

large enough to support the TV securely. Brackets, bolts and ropes are not provided.

You can obtain additional accessories from your local dealer.

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the

oor. When you attach the TV to other building materials, please contact qualied personnel.

LG recommends that wall mounting be performed

by a qualied professional installer.

ENGENGLISH

1 Insert and tighten the eye-bolts, or TV brackets

and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts position, remove the bolts first.

2 Mount the wall brackets with the bolts to the

wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly

with a sturdy rope. Make sure to keep the rope horizontal with the

at surface.

10 cm

ASSEMBLING AND PREPARING

ENGLISH

ENG

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall Mounting Bracket)

Model 32LA62**

VESA (A x B) 200 x 100 200 x 200 Standard screw M4 M6 Number of screws 4 4 Wall mount

bracket

Model 47/50/55/60LA62**

VESA (A x B) Standard screw M6

Number of screws 4 Wall mount

bracket

32LN57**

LSW130B LSW230B

42/47/50/55/60LA64** 42/47/50/55LA66** 42/47/55LA69** 42/47/55/60LA74** 47/50/55/60LN57**

400 x 400

LSW430B

39/42LA62** 32LA64** 32LA66** 39/42LN57**

CAUTION

yDisconnect the power first, and then move

or install the TV. Otherwise electric shock may occur.

yIf you install the TV on a ceiling or slanted

wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.

yDo not over tighten the screws as this may

cause damage to the TV and void your warranty.

yUse the screws and wall mounts that meet

the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

yUse the screws that are listed on the VESA

standard screw specifications.

yThe wall mount kit includes an installation

manual and necessary parts.

yThe wall mount bracket is not provided. You

can obtain additional accessories from your local dealer.

yThe length of screws may differ depending

on the wall mount. Make sure to use the proper length.

yFor more information, refer to the manual

supplied with the wall mount.

yWhen attaching a third-party wall mounting

bracket to the TV, insert the wall mount inner spacers into the TV wall mount holes to move your TV in vertical angle. Please make sure not to use the spacers for LG wall mounting bracket. (Only LA64**)

Wall Mount Inner Spacer

+ 128 hidden pages
