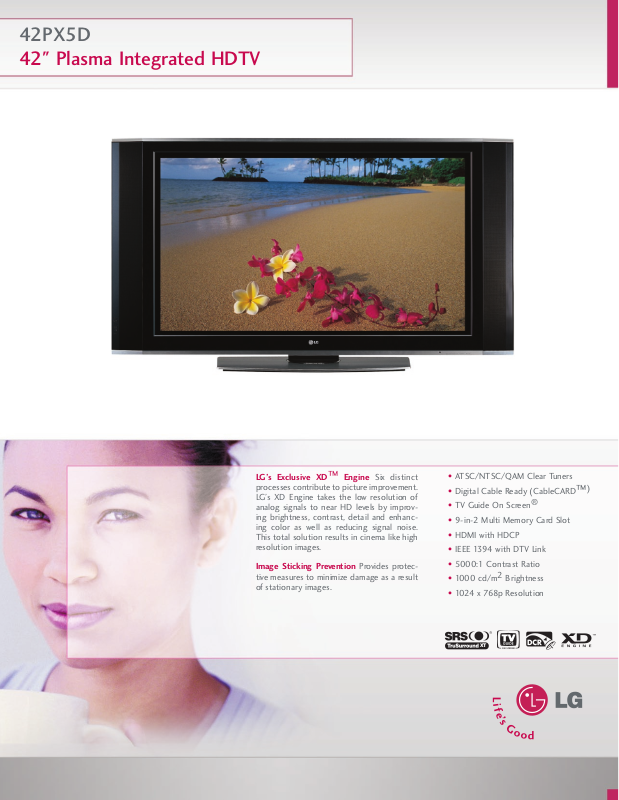

42PX5D
XT
42" Plasma Integrated HDTV
™
LG’s Exclusive XD
processes contribute to picture improvement
LG’s XD Engine takes the low resolution of
analog signals to near HD levels by improv
ing brightness, contrast, detail and enhanc
ing color as well as reducing signal noise.
This total solution results in cinema like high
resolution images.
Image Sticking Prevention Provides protec-
tive measures to minimize damage as a result
of stationary images.
Engine
Six distinct
• ATSC/NTSC/QAM Clear Tuners
.
-
-
• Digital Cable Ready (CableCARD
• TV Guide On Screen
• 9-in-2 Multi Memory Card Slot
• HDMI with HDCP
• IEEE 1394 with DTV Link
• 5000:1 Contrast Ratio
• 1000 cd/m
• 1024 x 768p Resolution
2
®
Brightness
™)
42PX5D
PC AUDIO
INPUT
RS-232c INPUT
DIGITAL AUDIO
(OPTICAL)
OUTPUT
COMPONENT 2
INPUT
DV
I INPUT
IEEE 1394
CABLE CARD
HDMI 2
HDMI 1/DVI
AUDIO
(R)(L)
AUDI
O
(R)(L)
A/V
OUTPUT
A/V
INPUT
AUDIO
(R)(L)PrPbY
AUDI
O
(R)(L)PrPbY
COMPONENT 1
(480i, 4
80p, 720p, 1080i)
COMPONENT
2
(480i, 4
80p, 720p, 1080i)
CABLE IN
+75 |
ANT IN
+75 |
AC INPUT
S-VIDEO
REMOTE IN
RGB IN
(PC/DTV INPUT)
9-in-2 MEMORY CARD
(R) - AUDIO - (L)
VIDEO
S-VIDEO
G-LINK
42" Plasma Integrated HDTV
Video
Native Display Resolution 1024 x 768p
Contrast Ratio 5000:1
Brightness 1000 cd/m
Lifetime 60,000 hours
Viewing Angle 160
3D Y/C Comb Filter
Color Temperature Adjustment 3 Modes
Aspect Ratio Adjustment 7 Modes
3:2 Pull-down Cinema Correction 480i
EZ Video/Picture Selection Mode 6 Modes
High Contrast Screen w/Non-glare Coating Glass Filter
XD Engine
Enhanced Noise Reduction
Black Stretcher
Colors 1.07 Billion
DTV Signal Strength
APM (Adaptive Picture Mode)
Audio
Audio Output Power 15W x 2
Surround System Type SRS TruSurround XT
Bass/Treble/Balance
EZ SoundRite (Volume Leveler)
EZ Sound/Sound Selection Mode 5 Modes
Speaker System Details 2 Way 4 Speaker
BBE •
3D EchoSound System
Mono/Stereo/SAP
Cabinet/Accessories
Cabinet Style Table Top
Cabinet Color Black
Table Stand Included
Speakers Included (Not Detachable)
Front Lighted Display (LED) Index
Core Features
Tuner(s) ATSC/NTSC/QAM
Digital Cable Ready (DCR)
2
Memory Card Reader (9 in 2)
- 1st slot: CF Type I/II
º
- 2nd slot: MS, MS PRO, SD, MMC, SMC, XD
•
Special Features
Custom Channel Labels •
Custom Input Labels
PIP •
POP •
•
Split Screen
•
PIP Exchange/Move
•
Dual Tuner PIP/POP/Split Screen
Discrete IR Codes
•
Favorite Channel Selection/Surf
•
Tri-lingual Menus English, Spanish, French
On/Off Timer
Sleep Timer
Auto Off (When no video is present)
Flashback (Previous Channel)
•
Parental Control With V-Chip
•
Image Sticking Prevention
EZ Menus (High Performance Interface)
EZ Scan (Auto Programming)
Intelligent Fan Control
•
Program Guide Gemstar
•
IEEE 1394 Software Capability Full AVC
Decoder Formats MPEG 2
Closed Caption
Child Lock
Screen Adjust
•
AV Input Navigation
•
Audio/Video Inputs/Outputs
TV Rear
•
- RF Inputs 2
- S-Video In
Composite Video & Audio L/R In 1
Composite Video & Audio L/R Out 1
-
- Component DVD/DTV
(480i, 480p, 720p, 1080i) & Audio L/R In 2
- RGB In (PC/DTV Input) 1
•
- PC Sound (1/8" mini stereo) 1
- HDMI with HDCP 2
- Digital Audio (Optical ) Out 1
•
- Digital Audio (Optical) In
•
- RS-232c (Software Upgrade Interface & Control) 1
•
- Remote Control In (IR) 1
•
- Digital Cable Card Slot 1
•
- Gemstar
Out (G-Link) 1
- IEEE 1394/DTCP 2
•
•
•
•
•
•
•
•
•
Side
TV Left
- S-Video In 1
- Composite Video & Audio L/R In 1
Side
TV Right
- EPF Slot
Dimensions
Cabinet Dimensions without Stand
- Width x Height x Depth 49.3” x 25.7” x 4.0”
- Weight Out of Package 99.8 lbs.
Cabinet Dim
- Width x Height x Depth 49.3” x 27.8” x 11.6”
•
- Weight Out of Package 116.1 lbs.
•
Dimensions with Packaging
•
- Width x Height x Depth
•
- Weight In Package 127.8 lbs.
ensions with Stand
52.8” x 30.3” x 15.0”
Power Consumption 450W
UPC 719192168558
y 2 year parts/labor
Warrant
Remote Control
Standard IR •
Wired Option
Universal
Backlit •
1
2
2
•
•
TV Rear
LG Electronics U.S.A., Inc.
1000 Sylvan Avenue
Englewood Cliffs, NJ 07632
www.LGusa.com
Design and specifications subject to change without notice. 03/23/05
© 2005 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. LG Design and Life’s Good are trademarks of LG Electronics, Inc. All other trademarks are the property of their respective owners.
TV Right SideTV Left Side
