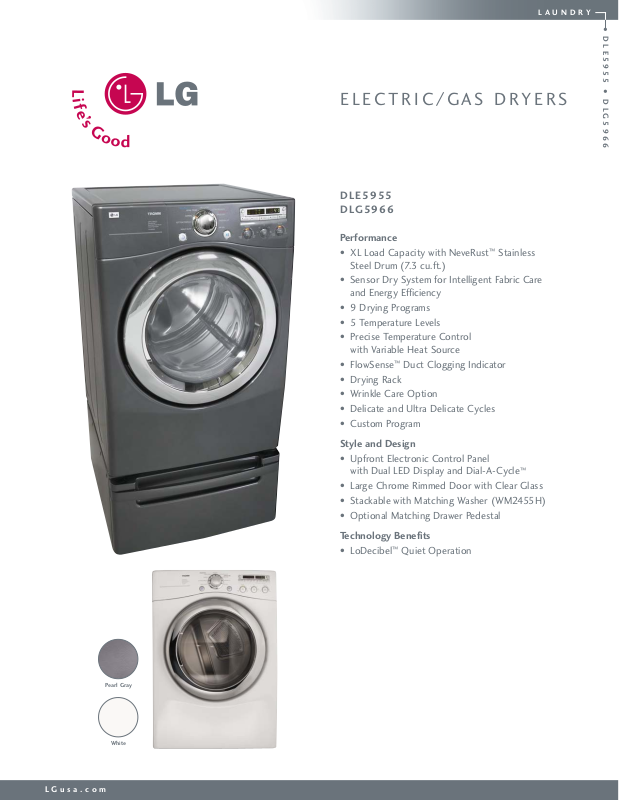

LG 5966, DLE5955 User Manual
ELECTRIC/GAS DRYERS
DLE5955
DLG5966
Performance
• XL Load Capacity with NeveRust
™
Stainless
Steel Drum (7.3 cu.ft.)
• Sensor Dry System for Intelligent Fabric Care
and Energy Efficiency
• 9 Drying Programs
• 5 Temperature Levels
• Precise Temperature Control
with Variable Heat Source
• FlowSense
™
Duct Clogging Indicator
• Drying Rack
• Wrinkle Care Option
• Delicate and Ultra Delicate Cycles
• Custom Program
Style and Design
• Upfront Electronic Control Panel
with Dual LED Display and Dial-A-Cycle
™
• Large Chrome Rimmed Door with Clear Glass
• Stackable with Matching Washer (WM2455H)
• Optional Matching Drawer Pedestal
Technology Benefits
• LoDecibel
™
Quiet Operation
DLE5955 DLG5966
LGusa.com
LAUNDRY
White
Pearl Gray
Printed in January 2008 SS-5009-R1
DLE5955
DLG5966
TYPE
Front Loader
Design Look Front Control
Intelligent Electronic Controls with Dual LED Display
Dial-A-Cycle
™
Capacity 7.3 cu.ft. (DOE)
Dry Linen Capacity >10.1kg
DRYING PROGRAMS
9 Programs Sensor Dry: Normal, Cotton/Towels,
Delicates, Wrinkle Care,
Heavy Duty, Ultra Delicate
Manual Dry: Speed Dry,
Air Dry, Freshen Up
7 Options Custom Program, Damp Dry Beep,
Wrinkle Care, Rack Dry,
Anti Bacterial, Child Lock, Beep On/Off
5 Temperature Levels High, Medium High,
Medium, Low, Ultra Low
5 Drying Levels Very Dry, More Dry, Normal Dry,
Less Dry, Damp Dry
Dry Times 60 min., 50 min., 40 min., 30 min.,
20 min., More Time, Less Time
FABRIC CARE FEATURES
Sensor Dry
Precise Temperature Control with Variable Heater
CONVENIENCE FEATURES
End of Cycle Beeper Variable
Venting Option Electric: 4 Way Venting
Gas: 3 Way Venting
FlowSense™Duct Clogging Indicator
Drum Light
Reversible Door
Remaining Time Display/Status Indicator(s)
Leveling Legs 4 Adjustable Legs
Drying Rack
LoDecibel™Quiet Operation 58 dB
MATERIALS AND FINISHES
NeveRust™Stainless Steel Drum
Top Plate Painted
Cabinet Painted Steel
Control Panel Plastic
Transparent Door Glass
Door Rim Chrome
Available Colors White (W), Pearl Gray (G)
POWER SOURCE
Ratings UL Listed
Electrical Requirements
Gas: 120V, 15 Amps
Electric: 120/240V, 30 Amps
Type Gas (DLG5966)/Electric (DLE5955)
OPTIONS
Pedestal WDP3W, WDP3G (Drawer with Handle)
Pedestal (WxHxD) 27" x 13 3/5" x 28 2/5"
Stacking Kit WSTK1, GSTK1
DIMENSIONS
Product (WxHxD) 27" x 39" x 28 1/3"
(50 1/2"D with door open)
Carton (WxHxD) 29 1/2" x 43 5/16" x 31 5/16"
Product Weight / Shipping Weight 126 lbs / 144 lbs
WARRANTY
1 year (parts and labor)
UPC CODES
DLE5955W 048231 009157
DLG5966W 048231 009164
WDP3W 048231 008556
WSTK1 048231 008327
DLE5955G 048231 009188
DLG5966G 048231 009195
WDP3G 048231 009201
GSTK1 048231 009218
Design and specifications are subject to change without notice.
©2008 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ
All Rights Reserved. LG Design and Life's Good are trademarks of LG Electronics Inc.
All other trademarks are property of their respective owners.
ELECTRIC/GAS DRYERS
LG ELECTRONICS INC.
1000 Sylvan Ave., Englewood Cliffs, NJ 07632
800.243.0000 LGusa.com
Intelligent Electronic Controls
with Dual LED Display and Dial-A-Cycle
™
Intuitive controls allow you to 'set it and go'. You can also
save your favorite dry cycle by pressing Custom Program.
You'll have optimized drying performance with the push
of a button.
FlowSense™Duct Clogging Indicator
Detects lint build-up and decreased airflow in the duct
system and signals that the duct should be cleaned.
Stackable or Side by Side?
Your Choice. Less space? Try stacking the washer and dryer.
More space? Place them side by side or under a counter.
Don’t want to bend down so far to load or unload clothing?
Add our tall drawer pedestals. They're also a great place to
store laundry products.
