LG 55UF680T, 49UF680T, 65UF680T, 43UF680T User Manual

Download

LED TV

UF68** UF83**

www.lg.com

X 4

(M4 X L14)

P/No: MFL69020002 (1505-REV00)

Printed in Korea

English

4 5 6

2 3

UF68**

UF83**

UF68**

OPTICAL

DIGITAL

AUDIO OUT

VIDEO

AUDIO

VIDEO

MONO

( )

AUDIO

SVC ONLY

UF83**

AUDIO OUT

H/P OUT

L R

OPTICAL

DIGITAL

AUDIO OUT

VIDEO

( )

MONO

L R

AUDIO

VIDEO

AUDIO

*MFL69020002*

x B x C (mm)

x E x F (mm)

(kg)

- (

43UF680T-TA 43UF680Y-TA

971 x 628 x 180 1104 x 701 x 237 1240 x 778 x 237 1460 x 902 x 263 1122 x 709 x 237 1298 x 815 x 263

971 x 570 x 56.4 1104 x 645 x 56.7 1240 x 722 x 56.7 1460 x 846 x 58.5 1122 x 664 x 53.3 1298 x 770 x 54.2

10.8 14.3 18.1 27.4 16.2 22.8

) (kg)

10.5 14.0 17.8 27.0 15.9 22.4

49UF680T-TA 49UF680Y-TA

55UF680T-TA 55UF680Y-TA

65UF680T-TA 65UF680Y-TA

50UF830T-TA 50UF830Y-TA

58UF830T-TA 58UF830Y-TA

OWNER’S MANUAL

Safety and Reference

LED TV* * Disclaimer LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

*MFL68702232*

www.lg.com

P/NO : MFL68702232 (1510-REV02)

Printed in Korea

India region only. (Below sentence is not applicable for above 1920 X 1080 resolution TV models.)

ATTENTION:

This product is qualified for the BEE Star rating in the ‘Home’ Mode. The Objectives of Star Labeling Program is designed to promote energy efficient products and practices. When the television is initially set up, it is designed to meet the BEE Star Labeling requirements while maintaining optimum picture quality.

• Changes to certain functionalities of this television (TV Guide, Picture/sound etc) may change the power consumption.

• Depending upon such changed setting (eg., Retail mode), the power consumption may vary which possibly could exceed the stated

energy consumption.

To reset the television to Star rating qualified settings, select ‘Home’ mode from the initial set-up procedure in ‘factory settings’ under the ‘Set-up’ menu.

ENGLISH

Safety instructions

Please read these safety precautions carefully before using the product.

WARNING

Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

Do not place the TV and/or remote control in the following environments:

• A location exposed to direct sunlight

• An area with high humidity such as a bathroom

• Near any heat source such as stoves and other devices that

produce heat

• Near kitchen counters or humidiers where they can easily be exposed to steam or oil

• An area exposed to rain or wind

• Near containers of water such as vases

Otherwise, this may result in re, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust. This may cause a re hazard.

Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

Insert power cable plug completely into wall socket otherwise if not secured completely into socket, re ignition may break out.

Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a re or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in re or electric shock.

Bend antenna cable between inside and outside building to prevent rain from owing in. This may cause water damaged inside the Product and could give an electric shock.

When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock / re hazard.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust o. You may be electrocuted due to excess moisture.

ENGLISH

Desiccant

Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in re due to over-heating.

Do not put or store inammable substances near the product. There is a danger of combustion/explosion or re due to careless handling of the inammable substances.

Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.

Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries.

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inammable objects such as paper and matches. Children must pay particular attention. Electrical shock, re or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inammable substance (thinner or benzene). Fire or electric shock accident can occur.

Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.

Do not insert any metal objects/conductors (like a metal chopstick/ cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)

Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a re or a burn by a spark.

ENGLISH

Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.

Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in re, electric shock, malfunction or product deformation.

If any of the following occur, unplug the product immediately and contact your local service centre.

• The product has been impacted by shock

• The product has been damaged

• Foreign objects have entered the product

• The product produced smoke or a strange smell

This may result in re or electric shock.

Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause re hazard and insulation deterioration can cause electric leakage/shock/re.

Apparatus shall not be exposed to dripping or splashing and no objects lled with liquids, such as vases, shall be placed on the apparatus.

Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.

Never Disassemble the AC adapter or power cord. This may result in re or electric shock.

Be careful in handling the adapter to prevent any external shocks to it. An external shock may cause damage to the adapter.

CAUTION

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

If water enters or comes into contact with TV, AC adapter or power cord please disconnect the power cord and contact service centre immediately. Otherwise ,this may result in electric shock or re.

Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or ip over, which may cause injury or damage to the product.

If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

ENGLISH

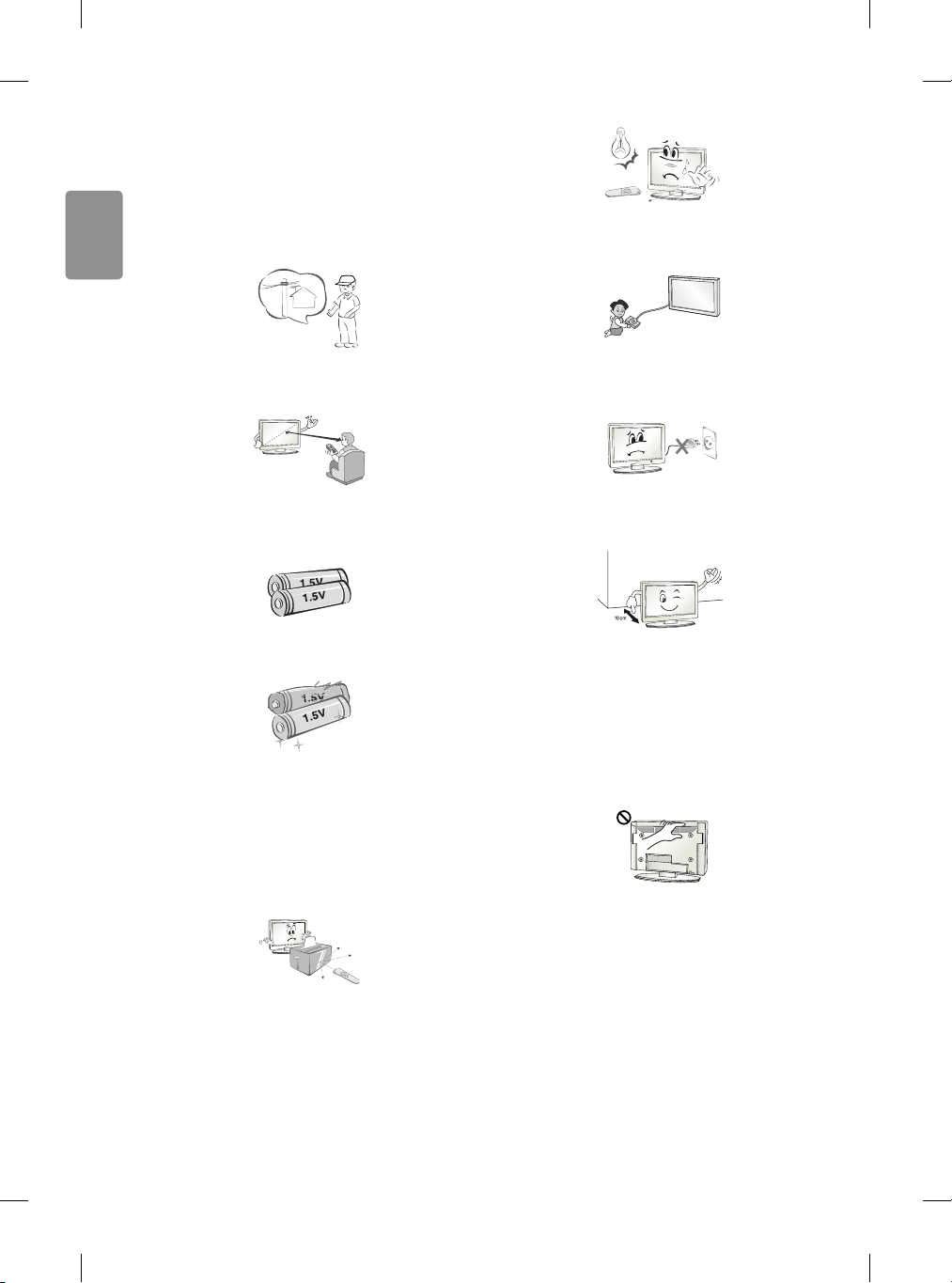

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), x it carefully so as not to drop.

Only use the attachments / accessories specied by the manufacturer.

When installing the antenna, consult with a qualied service technician. If not installed by a qualied technician, this may create a re hazard or an electric shock hazard.

We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

Only use the specied type of battery. This could cause damage to the remote control.

Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, uorescent lighting. If this occurs turn o lighting or darken viewing area.

When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

Do not turn the product On/O by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

Please follow the installation instructions below to prevent the product from overheating.

• The distance between the product and the wall should be more than 10cm.

• Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).

• Do not install the product on a carpet or cushion.

• Make sure the air vent is not blocked by a tablecloth or curtain.

Otherwise, this may result in re.

Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight , open replace and electric heaters .

Do not place non-rechargeable batteries in charging device.

Make sure there are no objects between the remote control and its sensor.

Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not aect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

ENGLISH

Prevent dust collecting on the power plug pins or outlet. This may cause a re hazard.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may causedamage to screen.

Avoid touching the screen or holding your nger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.

When unplugging the cable, grab the plug and unplug it, by pulling at the plug.

Don’t pull at the cord to unplug the power cord from the power board, as this could be hazardous.

When moving the product, make sure you turn the power o rst. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a re hazard or cause electric shock.

When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.

Contact the service centre once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure.

When cleaning the product and its components, unplug the power rst and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in re, electric shock or product damage (deformation, corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn o this unit by SWITCH.

Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small “icker” when it is turned on. This is normal, there is nothing wrong with product.

ENGLISH

The panel is a high technology display product with resolution of two million to eight million pixels. You may see tiny black dots and/ or brightly coloured dots (red, blue or green) at a size of 1ppm on the panel. This does not indicate a malfunction and does not aect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.

You may nd dierent brightness and color of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

Displaying a still image for a prolonged period of time may cause image sticking. Avoid displaying a xed image on the TV screen for a long period of time.

Generated Sound

“Cracking” noise: A cracking noise that occurs when watching or turning o the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not aect the performance and reliability of the product.

Do not use high voltage electrical goods near the TV(e.g. electric mosquito-swatter). This may result in product malfunction.

Viewing 3D imaging (Only 3D models)

WARNING

Viewing environment

• Viewing Time

-- When watching 3D contents, take 5 - 15 minute breaks every

hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness

• Some users may experience a seizure or other abnormal symptoms when they are exposed to a ashing light or particular pattern from 3D contents.

• Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc.

• 3D Contents are not recommended to those who suer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced.

• If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.

• If your eyesight varies between your right and left eye, correct your eyesight prior to watching 3D contents.

Symptoms which require discontinuation or refraining from watching 3D contents

• Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.

• When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom subsides.

-- Consult your doctor when the symptoms persist. Symptoms

may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

ENGLISH

CAUTION

Viewing environment

• Viewing Distance

-- Maintain a distance of at least twice the screen diagonal

length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV.

Viewing age

• Infants/Children

-- Usage/ Viewing 3D contents for children under the age of 5

are prohibited.

-- Children under the age of 10 may overreact and become

overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it.) Special monitoring and extra attention is required for children watching 3D contents.

-- Children have greater binocular disparity of 3D presentations

than adults because the distance between the eyes is shorter than that of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.

• Teenagers

-- Teenagers under the age of 19 may react with sensitivity

due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contents for a long time when they are tired.

• Elderly

-- The elderly may perceive less 3D effect compared to the

young. Do not sit closer to the TV than the recommended distance.

Cautions when using the 3D glasses

• Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.

• Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.

• Using modied 3D glasses may cause eye strain or image distortion.

• Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.

• The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.

Preparing

NOTE

• If the TV is turned on for the rst time after it was shipped from the factory, initialization of the TV may take a few minutes.

• Image shown may dier from your TV.

• Your TV’s OSD (On Screen Display) may dier slightly from that

shown in this manual.

• The available menus and options may dier from the input source or product model that you are using.

• New features may be added to this TV in the future.

• The TV can be placed in standby mode in order to reduce the power

consumption. And the TV should be turned o if it will not be watched for some time, as this will reduce energy consumption.

• The energy consumed during use can be signicantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

• The items supplied with your product may vary depending on the model.

• Product specications or contents of this manual may be changed without prior notice due to upgrade of product functions.

• For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not t into your TV’s USB port.

• Use a certied cable with the HDMI logo attached.

• If you do not use a certied HDMI cable, the screen may not display

or a connection error may occur. (Recommended HDMI Cable Types)

- High-Speed HDMI®/TM Cable (3m or less)

- High-Speed HDMI®/TM Cable with Ethernet (3m or less)

CAUTION

• Do not use any unapproved items to ensure the safety and product life span.

• Any damage or injuries caused by using unapproved items are not covered by the manufacturer’s warranty.

• Some models have a thin lm attached on to the screen and this must not be removed.

• Do not remove the panel with your ngers or any tools. Doing so may damage the product. (Only UF84**)

*A < 10 mm

18 mm

ENGLISH

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or at surface to protect the screen from scratches.

• Make sure that the screws are fastened completely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

Separate purchase

Separate purchase items can be changed or modied for quality improvement without any notication. Contact your dealer to buy these items. These devices only work with certain models. The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies.

(Depending on model)

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

• It is recommended to move the TV in the box or packing material that the TV originally came in.

• Before moving or lifting the TV, disconnect the power cord and all cables.

• When holding the TV, the screen should face away from you to avoid damage.

• Hold the top and bottom of the TV frame rmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

AG-F***

Cinema 3D Glasses

AG-F***DP

Dual Play Glasses

AN-MR600

Magic Remote

LG Audio Device

AN-VC550

Smart Camera

Maintenance

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

• Make sure to turn the power o and disconnect the power cord and all other cables rst.

• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

• Avoid touching the screen at all times, as this may result in damage to the screen.

• Do not push, rub, or hit the screen surface with your ngernail or a sharp object, as this may result in scratches and image distortions.

• Do not use any chemicals as this may damage the product.

• Do not spray liquid onto the surface. If water enters the TV, it may

result in re, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

• When transporting a large TV, there should be at least 2 people.

• When transporting the TV by hand, hold the TV as shown in the

following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.

• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.

• Do not apply excessive pressure to cause exing /bending of frame chassis as it may damage screen.

• When handling the TV, be careful not to damage the protruding joystick button.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.

• Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the TV may occur.

ENGLISH

Using the joystick button

Mounting on a table

You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right.

NOTE

• UF640* series does not have a Joystick button but has only a power On/O button.

Joystick Button

Basic functions

Power On

Power O

Volume Control

Programmes Control

When the TV is turned o, place your nger on the joystick button and press it once and release it.

When the TV is turned on, place your nger on the joystick button and press it once for a few seconds and release it. All running apps will close, and any recording in progress will stop.

If you place your nger over the joystick button and move it left or right, you can adjust the volume level you want.

If you place your nger over the joystick button and move it up or down, you can scrolls through the saved programmes you want.

(Image shown may dier from your TV.)

1 Lift and tilt the TV into its upright position on a table.

• Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm

2 Connect the power cord to a wall outlet.

CAUTION

• Do not place the TV near or on sources of heat, as this may result in re or other damage.

WARNING

• If a television is not positioned in a suciently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

» Using cabinets or stands recommended by the manufacturer

of the television.

» Only using furniture that can safely support the television. » Ensuring the television is not overhanging the edge of the

supporting furniture.

» Not placing the television on tall furniture (for example, cup-

boards or bookcases) without anchoring both the furniture and the television to a suitable support.

» Not standing the televisions on cloth or other materials

placed between the television and supporting furniture.

» Educating children about the dangers of climbing on furni-

ture to reach the television or its controls.

10 cm

Adjusting the menu

When the TV is turned on, press the joystick button one time. You can adjust the Menu items moving the joystick button up, down, left or right.

Turns the power o.

Clears on-screen displays and returns to TV viewing.

Changes the input source.

Accesses the quick settings.

NOTE

• When your nger over the joystick button and push it to the up, down, left or right, be careful not to press the joystick button. If you press the joystick button rst, you may not be able to adjust the volume level and saved programmes.

Using the kensington security system

(This feature is not available for all models.)

• Image shown may dier from your TV. The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www. kensington.com. Connect the Kensington security system cable between the TV and a table.

ENGLISH

Securing the TV to a wall

(This feature is not available for all models.)

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back

of the TV.

• If there are bolts inserted at the eye-bolts position, remove the bolts rst.

2 Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.

Make sure to keep the rope horizontal with the at surface.

CAUTION

• Make sure that children do not climb on or hang on the TV.

NOTE

• Use a platform or cabinet that is strong and large enough to support the TV securely.

• Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the oor. When you attach the TV to other building materials, please contact qualied personnel. LG recommends that wall mounting be performed by a qualied professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. It is advised to connect all the cables before installing xed wall mounts.

10 cm

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

10 cm

Separate purchase(Wall mounting bracket)

Model

VESA (mm) (A x B) 200 x 200 300 x 300

Standard screw M6 M6

Number of screws 4 4

Wall mount bracket

Model

VESA (mm) (A x B) 300 x 300 600 x 400

Standard screw M6 M8

Number of screws 4 4 Wall mount

bracket

CAUTION

• Disconnect the power rst, and then move or install the TV. Otherwise electric shock may occur.

• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualied personnel.

• Do not over tighten the screws as this may cause damage to the TV and void your warranty.

• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the manufacturer’s warranty.

NOTE

• Use the screws that are listed on the VESA standard screw specications.

• The wall mount kit includes an installation manual and necessary parts.

• The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.

• The length of screws may dier depending on the wall mount. Make sure to use the proper length.

• For more information, refer to the manual supplied with the wall mount.

40/43UF77** 43UF68** 43UF64**

LSW240B MSW240 58UF83** 60/65UF77** 65UF68** 65UF64**

LSW350B LSW640B

49/55UF84** 50UF83** 49/55UF77** 49/55UF68** 49/55UF64**

LSW350B MSW240

70/79UF77** 70UF73**

ENGLISH

• When installing the wall mounting bracket, use the adhesive label or protective cover provided. The adhesive label or protective cover will protect the opening from accumulating dust and dirt. (Only when the label or cover is provided)

Provided Item

Adhesive Label

Provided Item

Protective cover

• When attaching a wall mounting bracket to the TV, insert the wall mount spacers into the TV wall mount holes to adjust the vertical angle of the TV. (Only when the item of the following form is provided)

Provided Item

Connections (notications)

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

• The external device connection may dier from the model.

• Connect external devices to the TV regardless of the order of the

TV port.

• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.

• Refer to the external equipment’s manual for operating instructions.

• If you connect a gaming device to the TV, use the cable supplied with the gaming device.

• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.

• In PC mode, some resolution settings may not work properly depending on the graphics card.

• If ULTRA HD content is played on your PC, video or audio may become disrupted intermittently depending on your PC’s performance. (Depending on model)

Wall Mount Spacer

• Depending on the shape of the stand, use a at tool to remove the stand cover as illustrated below. (e.g., a at screwdriver) (Only when the item of the following form is provided)

Flat tool

Antenna connection

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

• Use a signal splitter to use more than 2 TVs.

• If the image quality is poor, install a signal amplier properly to

improve the image quality.

• If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.

• An antenna cable and converter are not supplied.

• Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus,

HE-AAC

• For a location that is not supported with ULTRA HD broadcasting, this TV cannot receive ULTRA HD broadcasts directly. This TV cannot receive ULTRA HD (3840 x 2160 pixels) broadcasts directly because the related standards have not been conrmed. (Depending on model)

Satellite dish connection

(Only satellite models)

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω).

ENGLISH

FAV

PAGE

SUBTITLE

RATIO

GUIDE

Q.VIEW

INPUT Q.MENU

CI module connection

(Depending on model)

View the encrypted (pay) services in digital TV mode.

• Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.

• If the TV does not display any video and audio when CI+ CAM is connected, please contact to the Terrestrial/Cable/Satellite Service Operator.

USB connection

(Depending on model)

Some USB Hubs may not work. If a USB device connected using a USB Hub is not detected, connect it to the USB port on the TV directly.

Other connections

Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Some separate cable is not provided.

• Pic ture HDMI ULTRA HD Deep Colour :

- On : Support 4K @ 50/60 Hz (4:4:4, 4:2:2, 4:2:0)

- Off : Support 4K @ 50/60 Hz (4:2:0)

If the device connected to Input Port also supports ULTRA HD Deep Colour, your picture may be clearer. However, if the device doesn’t support it, it may not work properly. In that case, connect the device to a different HDMI port or change the TV’s HDMI ULTRA HD Deep Colour setting to Off. (This feature is available on certain models which are supported ULTRA HD Deep Colour only.)

NOTE

• Supported HDMI Audio format : Dolby Digital (32 kHz, 44.1 kHz, 48 kHz), DTS (44.1 kHz, 48 kHz), PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz) (Depending on model)

CAUTION

• Do not mix old and new batteries, as this may damage the remote control.

• In Analogue TV and some countries, some remote control buttons may not work.

• The remote control will not be included for all sales market.

Make sure to point the remote control toward the remote control sensor on the TV.

(POWER) Turns the TV on or o.

Selec ts Radio, TV and DTV programme.

Changes the input source.

Accesses the quick settings.

Resizes an image.

Recalls your preferred subtitle in digital mode.

Remote control

(Depending on model)

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

Number buttons Enters numbers.

Shows programme guide.

Returns to the previously viewed programme.

Adjusts the volume level.

Accesses your favourite programme list.

Views the information of the current programme and screen.

Mutes all sounds.

Scrolls through the saved programmes.

Moves to the previous or next screen.

ENGLISH

FAV

PAGE

SUBTITLE

RATIO

GUIDE

Q.VIEW

INPUT Q.MENU

LIVE

RECENT

MY APPS

Magic remote functions

mno

wxyz

def

abc

. @

ghi

tuv

pqrs

jkl

LIST

INFO

EXIT

Shows the previous history.

(HOME) Accesses the Home menu.

Shows the list of Apps.

TELETEXT buttons( , ) These buttons are used for

teletext. Navigation buttons (up/down/left/right) Scrolls through menus or options.

Selects menus or options and conrms your input.

Returns to the previous level.

Clears on-screen displays and returns to TV viewing.

By Pressing AD button, audio descriptions function will be

enabled. (Depending on model)

Shows the list of Programmes, Search and Recorded.

Control buttons ( ) Controls the Premium

contents, Time Machine or SmartShare menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time Machine).

Coloured buttons These access special functions in some menus. ( : Red, : Green, : Yellow, : Blue)

(Depending on model)

When the message “Magic remote battery is low. Change the battery.” is displayed, replace the battery.

To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching the and ends to the label inside the compartment, and close the battery cover. Be sure to point the magic remote toward the remote control sensor on the TV. To remove the batteries, perform the installation actions in reverse.

CAUTION

• Do not mix old and new batteries, as this may damage the remote control.

• In Analogue TV and some countries, some remote control buttons may not work.

(POWER) Turns the TV on or o.

(INPUT) Changes the input source. * Pressing and holding the button displays all the lists of external inputs. Number buttons Enters numbers.

Accesses the saved programme list. Views the information of the current programmes and screen.

Adjusts the volume level.

P Scrolls through the saved programmes.

(MUTE) Mutes all sounds.

* By pressing and holding the button, audio descriptions

function will be enabled. (Depending on model)

(HOME) Accesses the Home menu. (BACK) Returns to the previous level. Clears on-screen displays and returns to TV viewing.

ENGLISH

mno

wxyz

def

abc

. @

ghi

tuv

pqrs

jkl

GUIDE

LIST

INFO

EXIT

TEXT

T.OPT

SUBT.

Registering magic remote

How to register the magic remote

To use the Magic Remote, rst pair it with your TV. 1 Put batteries into the Magic Remote and turn the TV on. 2 Point the Magic Remote at your TV and press the Wheel (OK) on

the remote control.

* If the TV fails to register the Magic Remote, try again after turning the

TV o and back on.

How to deregister the magic remote

Press the (BACK) and (HOME) buttons at the same time, for ve seconds, to unpair the Magic Remote with your TV. * Pressing and holding the button will let you cancel and re-

How to use magic remote

Wheel (OK) Press the center of the Wheel button to select a

menu. You can change programmes by using the wheel button.

Navigation buttons (up/down/left/right)

Press the up, down, left or right button to scroll the menu.

If you press buttons while the pointer is in use, the pointer will disappear from the screen and Magic Remote will operate like a general remote control.

To display the pointer on the screen again, shake Magic Remote to the left and right.

Shows programmes guide.

(Screen Remote) Displays the Screen Remote.

*Accesses the Universal Control Menu. (Depending on model)

• Shake the Magic Remote slightly to the right and left or press

(HOME), (INPUT), buttons to make the pointer appear on the screen. (In some TV models, the pointer will appear when you turn the Wheel (OK) button.)

• If the pointer has not been used for a certain period of time or Magic Remote is placed on a at surface, then the pointer will disappear.

• If the pointer is not responding smoothly, you can reset the pointer

by moving it to the edge of the screen.

Used for viewing 3D video. (Depending on model)

(Voice recognition)

(Depending on model) Network connection is required to use the voice recognition function.

1. Press the voice recognition button.

2. Speak when the voice display window appears on the TV screen.

• Use the Magic Remote no further than 10 cm from your face.

• The voice recognition may fail when you speak too fast or too

slowly.

• The recognition rate may vary depending on the user’s characteristics (voice, pronunciation, intonation, and speed) and the environment (noise and TV volume).

(Q. Settings) Accesses the Quick Settings.

* Pressing and holding the button displays the Advanced menu.

Coloured buttons These access special functions in some menus. ( : Red, : Green, : Yellow, : Blue)

TELETEXT buttons( , ) These buttons are used for

teletext.

Recalls your preferred subtitle in digital mode.

• The Magic Remote depletes batteries faster than a normal remote due to the additional features.

Precautions to take when using the magic remote

• Use the remote control within the specied range (within 10 m).

You may experience communication failures when using the device outside the coverage area or if there are obstacles within the coverage area.

• You may experience communication failures depending on the

accessories. Devices such as a microwave oven and wireless LAN operate in the same frequency band (2.4 GHz) as the Magic Remote. This may cause communication failures.

• The Magic Remote may not work properly if a wireless router (AP)

is within 1 meter of the TV. Your wireless router should be more than 1 m away from the TV.

• Do not disassemble or heat the battery.

• Do not drop the battery. Avoid extreme shocks to the battery.

• Inserting the battery in the wrong way may result in explosion.

ENGLISH

Licenses

Supported licenses may dier by model. For more information about licenses, visit www.lg.com.

Open source software notice information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource. lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. This oer is valid for three (3) years from the date on which you purchased the product.

(Australia region only)

External control device setup

To obtain the external control device setup information, please visit

www.lg.com.

Troubleshooting

Cannot control the TV with the remote control.

• Check the remote control sensor on the product and try again.

• Check if there is any obstacle between the product and the remote

control.

• Check if the batteries are still working and properly installed ( to , to ).

No image display and no sound is produced.

• Check if the product is turned on.

• Check if the power cord is connected to a wall outlet.

• Check if there is a problem in the wall outlet by connecting other

products.

The TV turns o suddenly.

• Check the power control settings. The power supply may be interrupted.

• Check if the Automatic Standby(Depending on model) / Sleep Timer / Timer Power Off is activated in the TIMERS settings.

• If there is no signal while the TV is on, the TV will turn o automatically after 15 minutes of inactivity.

When connecting to the PC (HDMI), ‘No signal’ or ‘Invalid Format’ is displayed.

• Turn the TV o/on using the remote control.

• Reconnect the HDMI cable.

• Restart the PC with the TV on.

FreeviewPlus provides access to content and services from the Freeview networks. The FreeviewPlus service provides a 7 + day EPG, all available Catch Up TV, recommendations and the ability to set reminders and favourites. FreeviewPlus is available by pressing the green button on the remote. *FreeviewPlus uses HbbTV technology which combines broadcast and broadband. It requires an internet connection. Normal data usage charges and conditions apply.

ENGLISH

0197

Specications

Wireless module

• Because band channel used by the country could be dierent, the user can not change or adjust the operating frequency and this product is set for the regional frequency table.

• This device should be installed and operated with minimum distance 20 cm between the device and your body. And this phrase is for the general statement for consideration of user environment.

(Only UF64**, UF68**, UF73**, UF77**, UF83**, UF84**)

Television

system

Programme

coverage

Maximum

number of

storable

programmes

External antenna

impedance

Digital TV

(Depending on Country)

DVB-T/T2

DVB-T/T2/C/S/S2

VHF, UHF

C-Band2, Ku-Band

DVB-T/T2 & Analogue TV : 1,500

DVB-S/S2 : 6,000

Analogue TV

(Depending on Country)

PAL B/B, PAL B/G, PAL

D/K, PAL-I

SECAM B/G, SECAM D/K

NTSC-M

VHF, UHF, CATV

75 Ω

Wireless module (LGSBW41) Specification

Wireless LAN Bluetooth

Standard IEEE 802.11a/b/g/n Standard Bluetooth Version 4.0

2400 to 2483.5 MHz

Frequency

5150 to 5250 MHz

Range

5725 to 5850 MHz (for Non EU)

802.11a: 13 dBm

Output

802.11b: 15 dBm

Power

802.11g: 14 dBm

(Max.)

802.11n - 2.4 GHz: 16 dBm

802.11n - 5 GHz: 16 dBm

CI Module Size1 (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm

Operating

Temperature

Environment

condition

1 Only Satellite models.

Operating

Humidity

Storage

Temperature

Storage Humidity Less than 85 %

Frequency

Range

Output Power (Max.)

2400 to 2483.5 MHz

10 dBm or Lower

0 °C to 40 °C

Less than 80 %

-20 °C to 60 °C

1 Only DVB-T2 support models. Despite DVB-T2 Model, DVB-T/T2 does

not apply in Philippines.

2 Only DVB-T2/C/S2 support models.

ENGLISH

Environmental information

(India region only)

Disposal of your old appliance (as per e-waste Rules)

1. When this crossed out wheeled bin symbol is depicted on the product and its operator’s manual, it means the product is covered by the e-waste Management and Handling Rules, 2011 and are meant to be recycled, dismantled, refurbished or disposed off.

2. Dos

a. The product is required to be handed over only to the authorized recycler for disposal. b. Keep the product in isolated area, after it becomes non-functional/un-repairable so as to prevent its accidental breakage.

Don’t a. The product should not be opened by the user himself/herself, but only by authorized service personnel. b. The product is not meant for re-sale to any unauthorized agencies/scrap dealer/kabariwalah. c. The product is not meant for mixing into household waste stream. d. Do not keep any replaced spare part(s) from the product in exposed area.

3. Any disposal through unauthorized agencies/person will attract action under Environment (Protection) Act 1986.

4. Hazards of improper handling or accidental breakage: a. All picture tubes are hazardous due to concentration of lead, cadmium and zinc in it. The various chemicals and heavy metals contained in picture tubes cause cancer, birth defects, hormone disruption, and damage body organs when they leak into the environment. All of this can, and does, leach into the soil, ground water, air and our own bodies. To prevent possible injury in case of breakage, wear heavy protective clothing, including gloves & safety goggles. b. If batteries are disposed incorrectly, it can greatly harm the environment. The chemical by-products are hazardous. The metals and chemicals found in batteries can mix into soil which may be hazardous to humans, plants and animals. If thrown in fire, they can cause blast and release toxic gases which may be harmful for health.

5. To locate a nearest collection centre or call for pick-up (limited area only) for disposal of this appliance, please contact Toll Free No. 1800-180-9999 for details. All collection centre and pick up facilities are done by third parties whith LG Electronics India Pvt. Ltd. merely as a facilitator. For more detailed information, please visit : http://www.lge.com/in

Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

(Only DTV)

OWNER’S MANUAL

EXTERNAL CONTROL DEVICE SETUP

Please read this manual carefully before operating the set and retain it for future reference.

www.lg.com

ENG

ENGLISH

KEY CODES

• This feature is not available for all models.

Code

(Hexa)

00 CH +, PR + R/C Button 53 List R/C Button

01 CH -, PR - R/C Button 5B Exit R/C Button

02 Volume + R/C Button 60 PIP(AD) R/C Button

03 Volume - R/C Button 61 Blue R/C Button

06 > (Arrow Key / Right Key) R/C Button 63 Yellow R/C Button

07 < (Arrow Key / Left Key) R/C Button 71 Green R/C Button

08 Power R/C Button 72 Red R/C Button

09 Mute R/C Button 79 Ratio / Aspect Ratio R/C Button

0B Input R/C Button 91 AD (Audio Description) R/C Button

0E SLEEP R/C Button 7A User Guide R/C Button

Function Note

Code

(Hexa)

Function Note

0F TV, TV/RAD R/C Button 7C Smart / Home R/C Button

10 - 19 * Number Key 0 - 9 R/C Button 7E SIMPLINK R/C Button

1A Q.View / Flashback R/C Button 8E ►►(Forward) R/C Button

1E FAV (Favorite Channel) R/C Button 8F ◄◄(Rewind) R/C Button

20 Text (Teletext) R/C Button AA Info R/C Button

21 T. Opt (Teletext Option) R/C Button AB Program Guide R/C Button

28 Return (BACK) R/C Button B0 ►(Play) R/C Button

30 AV (Audio / Video) Mode R/C Button B1 ꕗ (Stop / File List) R/C Button

39 Caption/Subtitle R/C Button BA

40 Λ

42 My Apps R/C Button DC 3D R/C Button

43 Menu / Settings R/C Button 99 AutoConfig R/C Button

44 OK / Enter R/C Button 9F App / * R/C Button

45 Q.Menu R/C Button 9B TV/PC R/C Button

4C List, - (ATSC Only) R/C Button

(Arrow Key / Cursor Up)

V (Arrow Key / Cursor

Down)

R/C Button BB Soccer R/C Button

R/C Button BD ꔄ (REC) R/C Button

ꕘ (Freeze / Slow Play /

Pause)

R/C Button

* Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel.

(For South Korea, Japan, North America, Latin America except Colombia models)

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

(PC

USB IN

(TV)

(PC

(PC)

EXTERNAL CONTROL DEVICE SETUP

• Image shown may differ from your TV.

Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally.

Note: The type of control port on the TV can be different between model series.

* Please be advised that not all models support this type of connectivity.

* Cable is not provided.

USB to Serial converter with USB Cable

USB Type

)

• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter

which is not made nor provided by LG.

• It can be purchased from computer stores that carry accessories for IT support professionals.

USB IN

(TV)

RS-232C With RS232C Cable

DE9 (D-Sub 9pin) Type

• You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C cable required

for the connection between the PC and the TV, which is specified in the manual.

RS-232C IN

(CONTROL & SERVICE)

)

The connection interface may differ from your TV.

(TV)

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

USB IN

(TV)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(PC

USB IN

(TV)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(PC)

(PC

SERVICE ONLY

Phone jack Type

• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and

the TV, which is specified in the manual.

* For other models, connect to the USB port.

* The connection interface may differ from your TV.

(TV)

- or

)

SERVICE ONLY

)

RS-232C IN

(CONTROL & SERVICE)

Customer Computer RS-232C configurations

3-Wire Configurations(Not standard)

RS-232C

(Serial port)

RXD 2 2 TXD

TXD 3 1 RXD

GND 5 3 GND

RXD 3 2 TXD

TXD 2 1 RXD

GND 5 3 GND

PC TV

D-Sub 9 Phone

Set ID

For Set ID number, see "Real Data Mapping" on p.6

1. Press SETTINGS to access the main menus.

2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.

3. Press the Navigation buttons to scroll to SET ID and press OK.

4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.

5. When you are finished, press EXIT.

* (Depending on model)

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

Communication Parameters

• Baud rate : 9600 bps (UART)

• Data length : 8 bits

• Parity : None

• Stop bit : 1 bit

• Communication code : ASCII code

• Use a crossed (reverse) cable.

Command reference list

(Depending on model)

COMMAND1 COMMAND2

01. Power* k a 00 to 01 15. Balance k t 00 to 64

02. Aspect Ratio

03. Screen Mute

04. Volume Mute

05. Volume Control

06. Contrast k g 00 to 64

07. Brightness

08. Color/ Colour

09. Tint k j 00 to 64

10. Sharpness

11. OSD Select

12. Remote Control Lock Mode

13. Treble k r 00 to 64

k c (p.7)

k d (p.7)

k e 00 to 01 18. Equalizer j v (p.8)

k f 00 to 64

k h 00 to 64

k i 00 to 64 22. Key m c Key Codes

k k 00 to 32

k l 00 to 01

k m 00 to 01

DATA

(Hexadecimal)

16. Color (Colour) Temperature

17. ISM Method (Only Plasma TV)

19. Energy Saving

20. Tune Command

21. Channel (Programme) Add/Del(Skip)

23. Control Backlight, Control Panel Light

24. Input select (Main)

25. 3D (Only 3D models)

26. Extended 3D (Only 3D models)

27. Auto Configure

COMMAND1 COMMAND2

x u 00 to 64

j p (p.8)

j q 00 to 05

m a (p.9)

m b 00 to 01

m g 00 to 64

x b (p.11)

x t (p.11)

x v (p.11)

j u (p.12)

(Hexadecimal)

DATA

14. Bass k s 00 to 64

* Note: During playing or recording media, all commands except Power (ka) and Key (mc) are not

executed and treated as NG. With RS232C cable, TV can communicate "ka command" in power-on or power-off status. but with USB-to-Serial converter cable, the command works only if TV is on.

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

Transmission / Receiving Protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

[Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu.

Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set can be controlled.

* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on

transmission/receiving protocol. [DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command. [Cr] : Carriage Return - ASCII code ‘0x0D’ [ ] : Space – ASCII code ‘0x20’

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,

if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from

non-viable functions or communication errors.

Data 00: Illegal Code

Real data mapping (Hexadecimal b Decimal)

* When you enter the [data] in hexadecimal, refer to following conversion table.

* Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.

00 : Step 0 32 : Step 50 (Set ID 50) FE : Step 254 01 : Step 1 (Set ID 1) 33 : Step 51 (Set ID 51) FF : Step 255

... ... ...

0A : Step 10 (Set ID 10) 63 : Step 99 (Set ID 99) 01 00 : Step 256

... ... ...

0F : Step 15 (Set ID 15) C7 : Step 199 27 0E : Step 9998 10 : Step 16 (Set ID 16) C8 : Step 200 27 0F : Step 9999

... ... ...

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

* Commands may work differently depending on model and signal.

01. Power (Command: k a)

► To control Power *On or Off of the set.

Transmission[k][a][ ][Set ID][ ][Data][Cr]

Data 00 : Power Off 01 : *Power On

Ack [a][ ][Set ID][ ][OK/NG][Data][x]

► To Show TV is Power On or *Off

Transmission [k][a][ ][Set ID][ ][FF][Cr]

Ack [a][ ][Set ID][ ][OK][Data][x]

* Similarly, if other functions transmit ‘FF’ data

based on this format, Acknowledgement feedback presents status about each function.

02. Aspect Ratio (Command: k c) (Main Picture Size)

► To adjust the screen format. (Main picture format)

You can also adjust the screen format using the Aspect Ratio in the Q.MENU. or PICTURE menu.

Transmission [k][c][ ][Set ID][ ][Data][Cr]

Data 01 : Normal screen

(4:3)

02 : Wide screen

(16:9) 04 : Zoom 05 : Zoom 2 (Latin America

except Colombia Only)

06 : Set by Program/

Original

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

07 : 14:9 (Europe, Colombia, Mid-East, Asia except South Korea and Japan) 09 : * Just Scan 0B : Full Wide (Europe, Colombia, MidEast, Asia except South Korea and Japan) 10 to 1F : Cinema Zoom 1

to 16

* Using the PC input, you select either 16:9 or 4:3

screen aspect ratio.

* In DTV/HDMI/Component mode (high-definition),

Just Scan is available.

* Full wide mode may work differently based on

model and is supported for DTV fully, and ATV, AV partially.

Ack [d][ ][Set ID][ ][OK/NG][Data][x]

* In case of video mute on only, TV will display On

Screen Display(OSD). But, in case of Screen mute on, TV will not display OSD.

04. Volume Mute (Command: k e)

► To control volume mute on/off.

You can also adjust mute using the MUTE button on remote control.

Transmission [k][e][ ][Set ID][ ][Data][Cr]

Data 00 : Volume mute on (Volume off) 01 : Volume mute off (Volume on)

Ack [e][ ][Set ID][ ][OK/NG][Data][x]

05. Volume Control (Command: k f)

► To adjust volume.

You can also adjust volume with the volume buttons on remote control.

Transmission [k][f][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [f][ ][Set ID][ ][OK/NG][Data][x]

06. Contrast (Command: k g)

► To adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission [k][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

07. Brightness (Command: k h)

► To adjust screen brightness.

You can also adjust brightness in the PICTURE menu.

Transmission [k][h][ ][Set ID][ ][Data][Cr]

03. Screen Mute (Command: k d)

► To select screen mute on/off.

Transmission [k][d][ ][Set ID][ ][Data][Cr]

Data 00 : Screen mute off (Picture on)

Video mute off 01 : Screen mute on (Picture off) 10 : Video mute on

Data Min : 00 to Max : 64

Ack [h][ ][Set ID][ ][OK/NG][Data][x]

08. Color/Colour (Command: k i)

► To adjust the screen Color(Colour).

You can also adjust colour in the PICTURE menu.

Transmission [k][i][ ][Set ID][ ][Data][Cr]

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

Data Min : 00 to Max : 64

Ack [i][ ][Set ID][ ][OK/NG][Data][x]

09. Tint (Command: k j)

► To adjust the screen tint.

You can also adjust tint in the PICTURE menu.

Transmission [k][j][ ][Set ID][ ][Data][Cr]

Data Red : 00 to Green : 64

Ack [j][ ][Set ID][ ][OK/NG][Data][x]

* (Depending on model)

14. Bass (Command: k s)

► To adjust Bass.

You can also adjust in the AUDIO menu.

Transmission [k][s][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [s][ ][Set ID][ ][OK/NG][Data][x]

* (Depending on model)

10. Sharpness (Command: k k)

► To adjust the screen sharpness.

You can also adjust sharpness in the PICTURE menu.

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 32

Ack [k][ ][Set ID][ ][OK/NG][Data][x]

11. OSD Select (Command: k l)

► To select OSD (On Screen Display) on/off when

controlling remotely.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 00 : OSD off 01 : OSD on

Ack [l][ ][Set ID][ ][OK/NG][Data][x]

12. Remote control lock mode (Command: k m)

► To lock the front panel controls on the monitor and

remote control.

Transmission [k][m][ ][Set ID][ ][Data][Cr]

Data 00 : Lock off 01 : Lock on

Ack [m][ ][Set ID][ ][OK/NG][Data][x]

15. Balance (Command: k t)

► To adjust balance.

You can also adjust balance in the AUDIO menu.

Transmission [k][t][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [t][ ][Set ID][ ][OK/NG][Data][x]

16. Color(Colour) Temperature (Command: x u)

► To adjust colour temperature. You can also adjust

Color(Colour) Temperature in the PICTURE menu.

Transmission [x][u][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [u][ ][Set ID][ ][OK/NG][Data][x]

17. ISM Method (Command: j p) (Only Plasma TV)

► To control the ISM method. You can also adjust

ISM Method in OPTION menu.

Transmission [j][p][ ][Set ID][ ][Data][Cr]

Data Min : 02: Orbiter

08: Normal 20: Color(Colour) Wash

Ack [p][ ][Set ID][ ][OK/NG][Data][x]

* If you are not using the remote control, use this

mode. When main power is off & on (plug-off and plug-in, after 20 - 30 seconds), external control lock is released.

* In the standby mode (DC off by off timer or ‘ka’,

‘mc’ command), and if key lock is on, TV will not turn on by power on key of IR & Local Key.

13. Treble (Command: k r)

► To adjust treble.

You can also adjust in the AUDIO menu.

Transmission [k][r][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [r][ ][Set ID][ ][OK/NG][Data][x]

18. Equalizer (Command : j v)

► Adjust EQ of the set.

Transmission [j][v][ ][Set ID][ ][Data][Cr]

MSB

0 0 0 0 0 0 0 0

Frequency Data

7 6 5

0 0 0

0 0 1

0 1 0

0 1 1

Frequency

1st Band

2nd Band

3rd Band

4th Band

4 3 2 1 0 Step

0 0 0 0 0

0 0 0 0 1

... ... ... ... ...

1 0 0 1 1

LSB

0(decimal)

1(decimal)

...

19(decimal)

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

1 0 0

Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]

* It depends on model, and can adjust when sound mode is EQ adjustable value.

5th Band

1 0 1 0 0

20(decimal)

19. Energy Saving (Command: j q)

► To reduce the power consumption of the TV. You

can also adjust Energy Saving in PICTURE menu.

Transmission [j][q][ ][Set ID][ ][Data][Cr]

Data 00 : Off 01 : Minimum 02 : Medium 03 : Maximum 04 : Auto (For LCD TV / LED TV) /

Intelligent sensor (For PDP TV)

05 : Screen off

* (Depending on model)

Ack [q][ ][Set ID][ ][OK/NG][Data][x]

20. Tune Command (Command: m a)

* This command may work differently depending on

model and signal.

• For Europe, Mid-East, Colombia, Asia except

South Korea and Japan Model

► Select channel to following physical number.

Transmission [m][a][ ][Set ID][ ][Data 00][ ]

[Data 01][ ][Data 02][Cr]

* Analog Antenna/Cable

[Data 00][Data 01] Channel Data Data 00 : High byte channel data Data 01 : Low byte channel data

- 00 00 ~ 00 C7 (Decimal : 0 ~ 199)

Data 02 : Input Source (Analog)

- 00 : Antenna TV (ATV)

- 80 : Cable TV (CATV)

* Digital Antenna/Cable/Satellite

[Data 00][Data 01]: Channel Data Data 00 : High Channel data Data 01 : Low Channel data

- 00 00 ~ 27 0F (Decimal: 0 ~ 9999)

Data 02 : Input Source (Digital)

- 10 : Antenna TV (DTV)

- 20 : Antenna Radio (Radio)

- 40 : Satellite TV (SDTV)

- 50 : Satellite Radio (S-Radio)

- 90 : Cable TV (CADTV)

- a0 : Cable Radio (CA-Radio)

* Tune Command Examples:

1. Tune to the Analog antenna (PAL) Channel 10.

Set ID = All = 00 Data 00 & 01 = Channel Data is 10 = 00 0a Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00

2. Tune to the digital antenna (DVB-T) Channel 01. Set ID = All = 00 Data 00 & 01 = Channel Data is 1 = 00 01 Data 02 = Digital Antenna TV = 10 Result = ma 00 00 01 10

3. Tune to the satellite (DVB-S) Channel 1000. Set ID = All = 00 Data 00 & 01 = Channel Data is 1000 = 03 E8 Data 02 = Digital Satellite TV = 40 Result = ma 00 03 E8 40

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][x][a][ ][Set ID][ ][NG][Data 00][x]

• For South Korea, North/Latin America except

Colombia Model

► To tune channel to following physical/major/minor

number.

Transmission [m][a][ ][0][ ][Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

Digital channels have a Physical, Major, and Minor channel number. The Physical number is the actual digital channel number, the Major is the number that the channel should be mapped to, and the Minor is the sub-channel. Since the ATSC tuner automatically maps the channel from the Major / Minor number, the Physical number is not required when sending a command in Digital.

* Analog Antenna/Cable

Data 00 : Physical Channel Number

- Antenna (ATV) : 02~45 (Decimal: 2 ~ 69)

- Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)

[Data 01 ~ 04]: Major/Minor Channel Number Data 01 & 02: xx (Don't care) Data 03 & 04: xx (Don't care) Data 05: Input Source (Analog)

- 00 : Antenna TV (ATV)

- 01 : Cable TV (CATV)

* Digital Antenna/Cable

Data 00 : xx (Don't care)

[Data 01][Data 02]: Major Channel Number Data 01 : High byte Channel Data Data 02 : Low byte Channel Data

- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)

[Data 03][Data 04]: Minor Channel Number Data 03 : High byte Channel Data Data 04 : Low byte Channel Data

Data 05 : Input Source (Digital)

- 02 : Antenna TV (DTV) – Use Physical Channel

Number

- 06 : Cable TV (CADTV) – Use Physical Channel

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

Number

- 22 : Antenna TV (DTV) – Don’t Use Physical Channel Number

- 26 : Cable TV (CADTV) - Don’t Use Physical Channel Number

- 46 : Cable TV (CADTV) – Use Major Channel Number Only (One Part Channel)

Two bytes are available for each major and minor channel data, but usually the low byte is used alone (high byte is 0).

* Tune Command Examples:

1. Tune to the Analog cable (NTSC) channel 35.

Set ID = All = 00 Data 00 = Channel Data is 35 = 23 Data 01 & 02 = No Major = 00 00 Data 03 & 04 = No Minor = 00 00 Data 05 = Analog Cable TV = 01 Total = ma 00 23 00 00 00 00 01

2. Tune to the digital antenna (ATSC) channel 30-3.

Set ID = All = 00 Data 00 = Don’t know Physical = 00 Data 01 & 02 = Major is 30 = 00 1E Data 03 & 04 = Minor is 3 = 00 03 Data 05 = Digital Antenna TV = 22 Total = ma 00 00 00 1E 00 03 22

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][Data 03][Data 04][Data 05]

[x][a][ ][Set ID][ ][NG][Data 00][x]

• For Japan Model

► To tune channel to following physical/major/minor

number.

Transmission [m][a][ ][0][ ][Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

* Digital Antenna/Satellite Data 00: xx (Don't care)

[Data 01][Data 02]: Major Channel Number Data 01: High byte Channel Data Data 02: Low byte Channel Data

- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)

[Data 03][Data 04]: Minor/Branch Channel Number

(Don’t care in Satellite) Data 03: High byte Channel Data Data 04: Low byte Channel Data

Data 05 : Input Source (Digital/Satellite for Japan)

- 02 : Antenna TV (DTV)

- 07 : BS (Broadcasting Satellite)

- 08 : CS1 (Communication Satellite 1)

- 09 : CS2 (Communication Satellite 2)

* Tune Command Examples: 1

Tune to the digital antenna (ISDB-T) channel 17-1 Set ID = All = 00 Data 00 = Don’t know Physical = 00 Data 01 & 02 = Major is 17 = 00 11 Data 03 & 04 = Minor/Branch is 1 = 00 01

Data 05 = Digital Antenna TV = 02 Total = ma 00 00 00 11 00 01 02

2. Tune to the BS (ISDB-BS) channel 30. Set ID = All = 00 Data 00 = Don’t know Physical = 00 Data 01 & 02 = Major is 30 = 00 1E Data 03 & 04 = Don’t Care = 00 00 Data 05 = Digital BS TV = 07 Total = ma 00 00 00 1E 00 00 07

* This feature is varied based on the model.

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][Data 03][Data 04][Data 05]

[x][a][ ][Set ID][ ][NG][Data 00][x]

21. Channel(Programme) Add/Del(Skip)

(Command: m b)

► To skip current channel(programme) for next time.

Transmission [m][b][ ][Set ID][ ][Data][Cr]

Data 00 : Del(ATSC,ISDB)/Skip(DVB) 01 : Add

Ack [b][ ][Set ID][ ][OK/NG][Data][x]

* Set the saved channel status to del(ATSC, ISDB)/

skip(DVB) or add.

22. Key (Command: m c)

► To send IR remote key code.

Transmission [m][c][ ][Set ID][ ][Data][Cr]

Data Key code - p.2.

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

23. Control Backlight (Command: m g)

• For LCD TV / LED TV

► To control the backlight.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

Control Panel Light (Command: m g)

• For Plasma TV

► To control the panel light.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

24. Input select (Command: x b) (Main Picture Input)

► To select input source for main picture.

Transmission [x][b][ ][Set ID][ ][Data][Cr]

Data 00 : DTV 02 : Satellite DTV

ISDB-BS (Japan) 03 : ISDB-CS1 (Japan) 04 : ISDB-CS2 (Japan) 11 : CATV

20 : AV or AV1 21 : AV2

40 : Component1 60 : RGB

90 : HDMI1 92 : HDMI3

Ack [b][ ][Set ID][ ][OK/NG][Data][x]

* This function depends on model and signal.

01 : CADTV 10 : ATV

41 : Component2

91 : HDMI2 93 : HDMI4

25. 3D(Command: x t) (only 3D models)

(Depending on model)

► To change 3D mode for TV.

Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01]

[ ][Data 02][ ][Data 03][Cr]

* (Depending on model)

Data Structure [Data 00] 00 : 3D On

01 : 3D Off 02 : 3D to 2D 03 : 2D to 3D

[Data 01] 00 : Top and Bottom

01 : Side by Side 02 : Check Board 03 : Frame Sequential 04 : Column interleaving 05 : Row interleaving

[Data 02] 00 : Right to Left

01 : Left to Right

[Data 03] 3D Effect(3D Depth): Min : 00 - Max : 14

(*transmit by Hexadecimal code)

* [Data 02], [Data 03] functions depend on model

and signal.

* If [Data 00] is 00 (3D On), [Data 03] has no

meaning.

* If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data

01], [Data 02] and [Data 03] have no meaning.

* If [Data 00] is 03 (2D to 3D), [Data 01] and

[Data 02] have no meaning.

* If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data

03] works when 3D Mode (Genre) is manual only.

* All 3D pattern options ([Data 01]) may not be

available according to broadcasting/video signal.

[Data 00] [Data 01] [Data 02] [Data 03]

00 O O O

01 X X X

02 X X X

03 X O O

X : don’t care

Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]

[Data03][x]

[t][ ][Set ID][ ][NG][Data00][x]

26. Extended 3D(Command: x v) (only 3D models) (Depending on model)

► To change 3D option for TV.

Transmission [x][v][ ][Set ID][ ][Data 00][ ]

[Data 01][Cr]

[Data 00] 3D option

00 : 3D Picture Correction 01 : 3D Depth (3D Mode is Manual Only) 02 : 3D Viewpoint 06 : 3D Color Correction 07 : 3D Sound Zooming 08 : Normal Image View 09 : 3D Mode (Genre)

[Data 01] It has own range for each 3D option

determined by [Data 00].

1) When [Data 00] is 00

00 : Right to Left 01 : Left to Right

2) When [Data 00] is 01, 02

Data Min: 0 - Max: 14 (*transmit by Hexadecimal

code) Data value range(0 - 20) converts Viewpoint range (-10 - +10) automatically (Depending on model) * This option works when 3D Mode (Genre) is manual

only.

3) When [Data 00] is 06, 07

00 : Off

01 : On

4) When [Data 00] is 08

00 : Revert to 3D video from 3D-to-2D

converted 2D video

01 : Change 3D video to 2D video, except

2D-to-3D video

* If conversion condition doesn’t meet, command is

treated as NG.

5) When [Data 00] is 09

00 : Standard 02 : Cinema 04 : Manual

Ack [v][ ][Set ID][ ][OK][Data00][Data01][x]

[v][ ][Set ID][ ][NG][Data00][x]

01 : Sport 03 : Extreme 05 : Auto

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

27. Auto Configure (Command: j u) (Depending on model)

► To adjust picture position and minimize image

shaking automatically. It works only in RGB (PC) mode.

Transmission [j][u][ ][Set ID][ ][Data][Cr]

Data 01 : Run Auto Configure

Ack [u][ ][Set ID][ ][OK/NG][Data][x]
