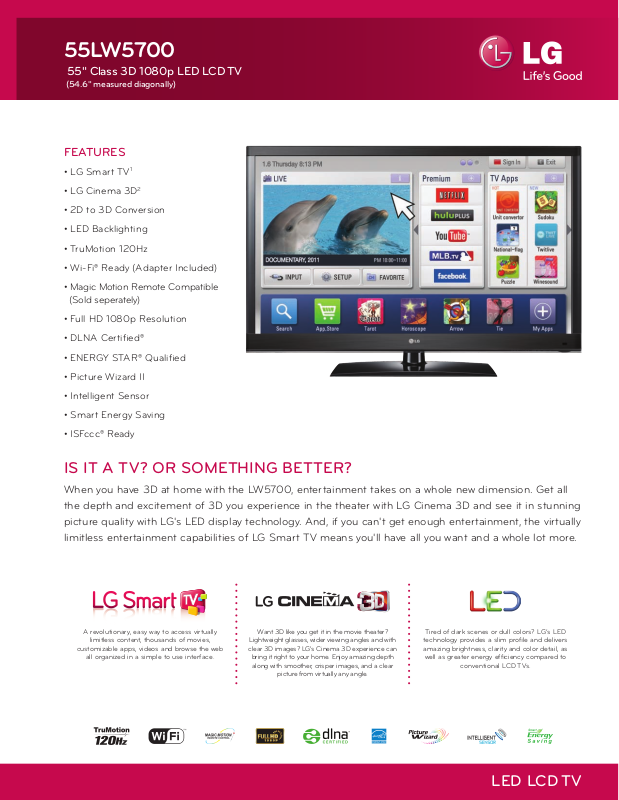

Page 1
55LW5700
55" Class 3D 1080p LED LCD TV
(54.6" measured diagonally)
FEATURES
• LG Smart TV
• LG Cinema 3D
• 2D to 3D Conversion
• LED Backlighting
• TruMotion 120Hz
• Wi-Fi® Ready (Adapter Included)
• Magic Motion Remote Compatible
(Sold seperately)
• Full HD 1080p Resolution
• DLNA Certied®
1
2
• ENERGY STAR® Qualied
• Picture Wizard II
• Intelligent Sensor
• Smart Energy Saving
• ISFccc® Ready
IS IT A TV? OR SOMETHING BETTER?
When you have 3D at home with the LW5700, entertainment takes on a whole new dimension. Get all
the depth and excitement of 3D you experience in the theater with LG Cinema 3D and see it in stunning
picture quality with LG's LED display technology. And, if you can't get enough entertainment, the virtually
limitless entertainment capabilities of LG Smart TV means you'll have all you want and a whole lot more.
A revolutionary, easy way to access virtually
limitless content, thousands of movies,
customizable apps, videos and browse the web
all organized in a simple to use interface.
Want 3D like you get it in the movie theater?
Lightweight glasses, wider viewing angles and with
clear 3D images? LG's Cinema 3D experience can
bring it right to your home. Enjoy amazing depth
along with smoother, crisper images, and a clear
picture from virtually any angle.
Tired of dark scenes or dull colors? LG’s LED
technology provides a slim profile and delivers
amazing brightness, clarity and color detail, as
well as greater energy efficiency compared to
conventional LCD TVs.
LED LCD TV
Page 2
55LW5700
55” Class 3D 1080p LED LCD TV
PANEL SPECIFICATIONS
Screen Size 55" Class (54.6" measured diagonally)
Resolution 1920 x 1080p
TruMotion (Frame Rate) 120Hz
Contrast Ratio (DCR) 7,000,000:1
BROADCASTING SYSTEM
Analog NTSC
Digital ATSC/NTSC/Clear QAM (1 Tuner)
VIDEO
XD Engine •
Aspect Ratio Correction 5 Modes (16:9/Just Scan/Original/4:3/Cinema Zoom)
Color Temperature Control 3 Modes (Warm/Medium/Cool)
Picture Mode 7 Modes (Intelligent Sensor/Vivid/Standard/Cinema/
Just Sc an
0% Over Scan
24p Real Cinema (24p 5:5/2:2
Pull Down)
Expert Mode/ISFccc Ready •
xvYCC •
AV Mode (Picture & Sound) • (Cinema/Game/Sport)
Picture Wizard II
(Easy Self Calibration)
Game/isf Expert 1/isf Expert 2)
HDMI 1080p/1080i/720p
Component 1080p/1080i/720p
RF 1080i/720p
• (HDMI 1080 24p)
•
AUDIO
Mon o/Ster eo/Du al (M TS/SAP ) •
Audio Ou tpu t (Wat ts - THD 10%)
Speaker System 1 Way 2 Spea kers
Dolby Digital Decoder •
Surround System Infin ite 3D Su rroun d
Bass/Treble/Balance •
Auto Volume Leveler •
Sound Mode 5 Modes (Standard/Music/Cinema/Game/Sports)
Clear Voi ce II •
10W + 10W
3D SPECIFICATIONS
3D LG Cinema 3D (FPR)
2D to 3D Con vert ing D epth
Control Level
3D Dept h Cont rol •
3D to 2D •
3D Effe ct, 20 Levels
CONNECTIVITY
LG Smart T V
LG App Store
Web Brow ser •
Wi-Fi® Re ady • (Adapter I ncluded)
DLNA Cer ti fied® • (Movi e/Photo/M usic)
Windows 7 Certified •
SIMPLI NK (HDM I CEC) •
Wirel ess HD Rea dy (2D Onl y) •
•
•
SPECIAL FEATURES
Magic Motion Remote Compatible • (Sold separately)
Smart Energy Saving •
Intelligent Sensor •
1080p So urce In put HDMI 60p/30 p/24p
AV Input Navigation •
Input Labeling •
Child Lock •
Component 60p/30 p/24p
RGB 60p (W XGA)
SPECIAL FEATURES (Continued)
Closed Caption •
CONVENIENCE FEATURES
Language English/Spanish/French/Korean
Auto Tuning/Programming •
Channel Add/Delete •
Favorite Channel Programming •
Auto/Manual Clock •
On/Off Timer •
Sleep Timer •
Auto Off/Auto Sleep •
AV INPUTS/OUTPUTS
RF In (Antenna/Cable) 1 (Rear)
AV In 2 (Rear)
Component Video In (Y, Pb, Pr) + Audio
HDMI™/HDCP Input 4 (Side)
USB 2.0 2 (Side)
Digital Audio Out (Optical) 1 (Rear)
RGB In (D-Sub 15 Pin) - PC 1 (Rear)
PC Audio Input 1 (Rear)
LAN 1 (Rear)
RS-232C (Control/Service) 1 (Rear)
Headphone Out 1 (Rear)
Wireless Control 1 (Rear)
2 (Rear)
CABINET/ACCESSORIES
Swivel 20º/20º
VESA Compatible • (400mm x 400mm)
LG Cinema 3D Glasses 4 Pair
Remote Control Standard (Backlit)
POWER
ENERGY STAR® Qualified •
Voltage. Hz 100V ~ 220V, 50/60Hz
Consumption (Max.) 175W
Consumption (Average) 161W
Standby Mode <0.1W
DIMENSIONS/WEIGHT
TV without Stand (WxHxD) 50.6" x 30.8" x 1.2"
TV with Stand (WxHxD) 50.6" x 33.4" x 13.4"
Shipping Dimensions (WxHxD) 62.2" x 33.8" x 6.8"
TV without Stand Weight 48.7 lbs
TV with Stand Weight 57.8 lbs
Shipping Weight 71.0 lbs
WARRANTY/UPC
Limited Warranty 1 Year Parts & Labor
UPC 719192580190
1
2 Internet co nnec tion & sub scri ption s requir ed and sold se para tely. The Ma gic Mot ion Remot e does not
come equ ippe d with al l LG Smart TV en abled TVs and a separ ate purc hase may be requi red. The Hu lu
Plus ser vic e is projec ted to be ava ilab le via a rmw are upd ate in June 2011 . The LG web browser does no t
suppo rt Fla sh 10 or HTML 5, th erefore, access to ce rtain web con tent may be lim ited or un avail able.
2
For a small perce ntag e of the popu latio n, the vie wing of st ereos copic 3D vi deo tec hnol ogy may ca use
disco mfor t such as head aches , dizzin ess or naus ea. If you expe rien ce any sym ptoms , disco ntinu e using
the 3D fun ctio nali ty and co ntac t your health care provid er. 4 Pairs of 3D glass es are incl uded .
LG Electronics U.S.A., Inc.
1000 Sylvan Avenue Englewood Cliffs, NJ 07632
Customer Service and Technical Support: (800) 243-0000
LG.com
Design, features and sp ecif ications are subjec t to change without notice.
Non-metric weights and measurements are approximate.
© 2011 LG Electronics USA, Inc. All rig hts reserved. “LG Life’s Good” is a
registered trademark of LG Corp. All other product and brand names are
trademarks or registered trademarks of their respective companies. 03/17/11
