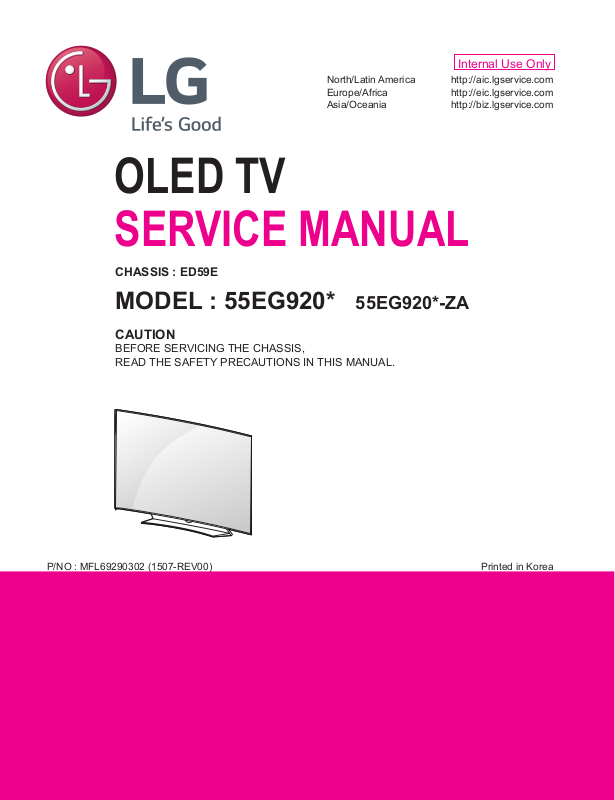

LG 55EG920, 55EG920-ZA Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

OLED TV

SERVICE MANUAL

CHASSIS : ED59E

MODEL : 55EG920* 55EG920*-ZA

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL69290302 (1507-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ........................................................................ 3

SERVICING PRECAUTIONS .................................................................... 4

SPECIFICATION ....................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 15

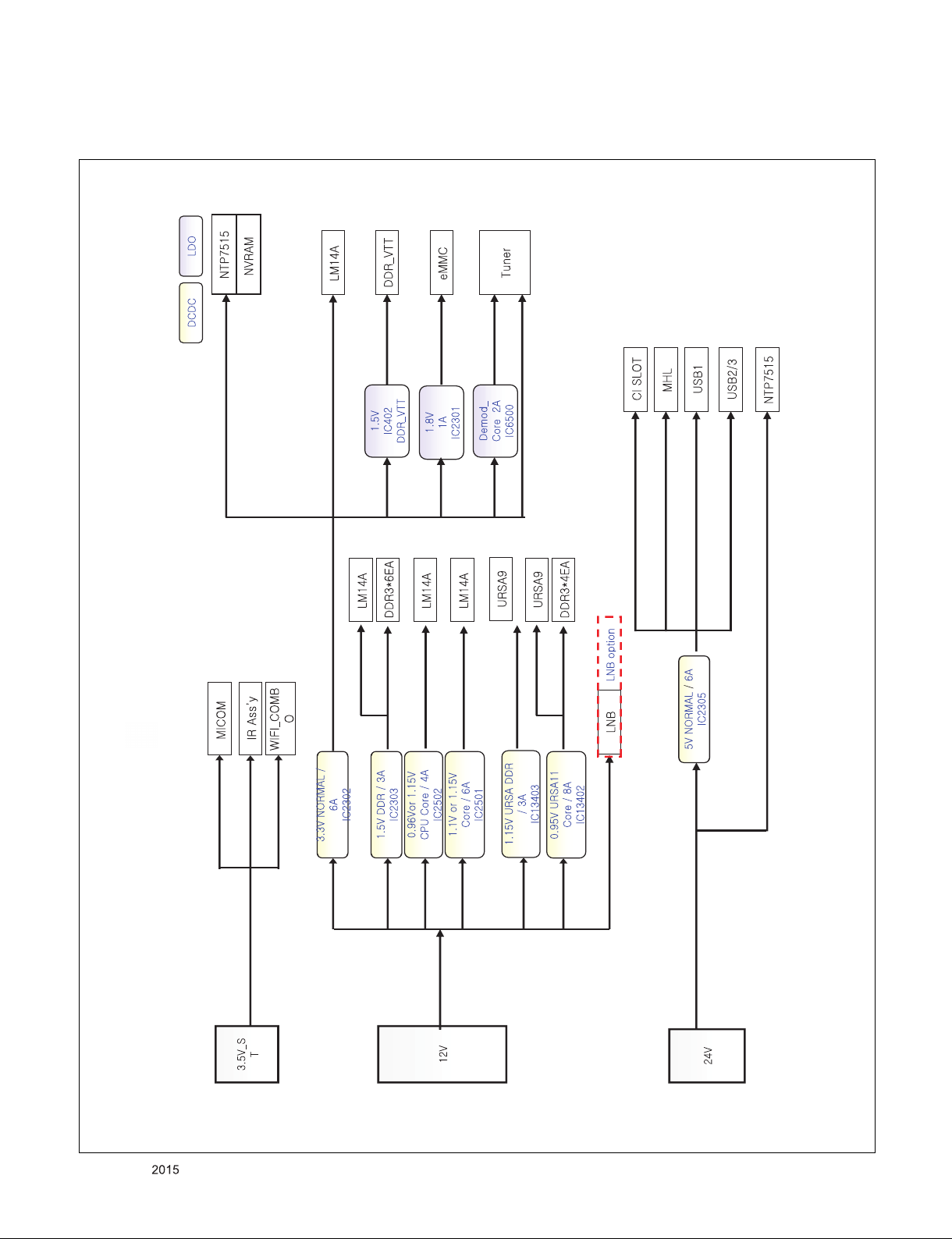

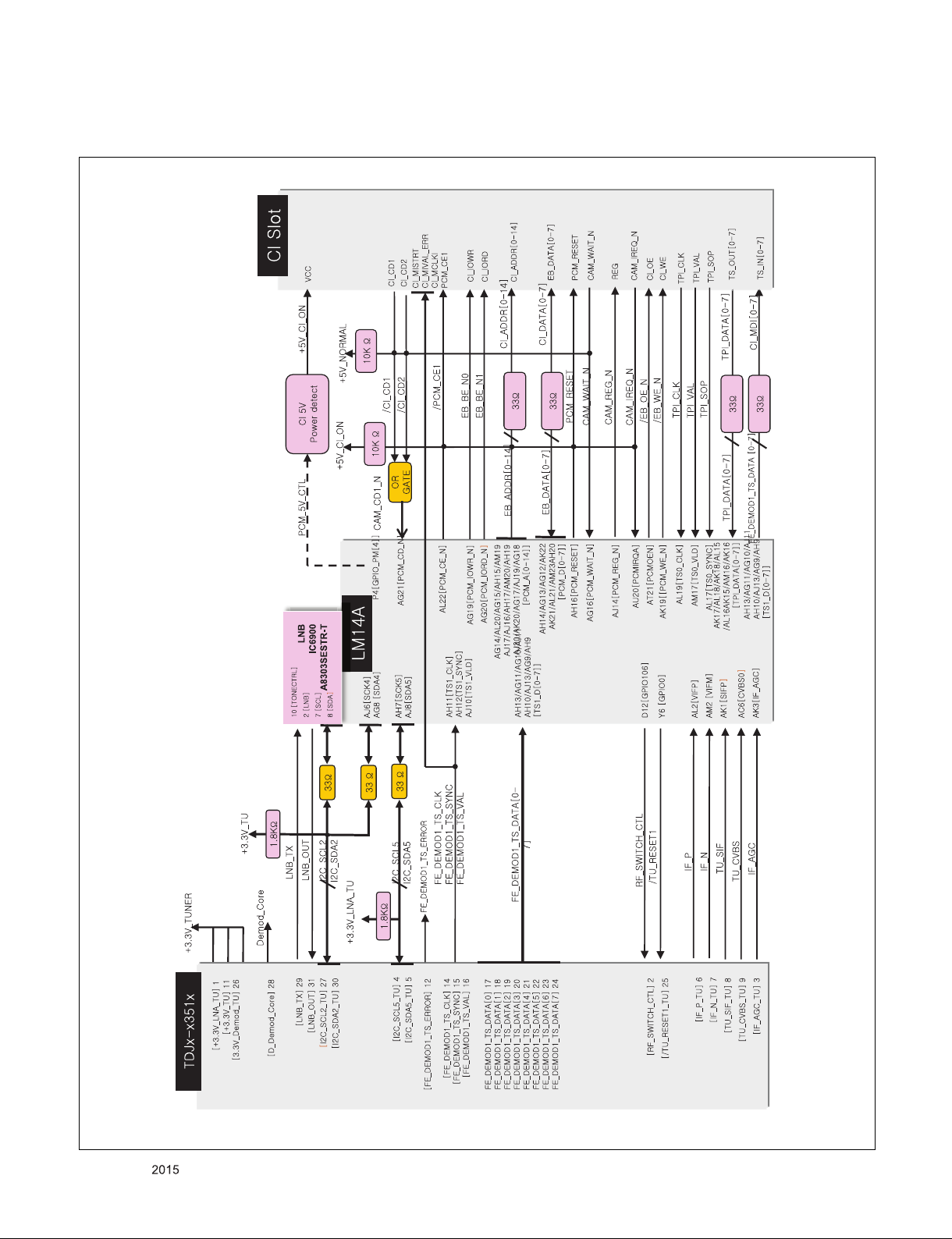

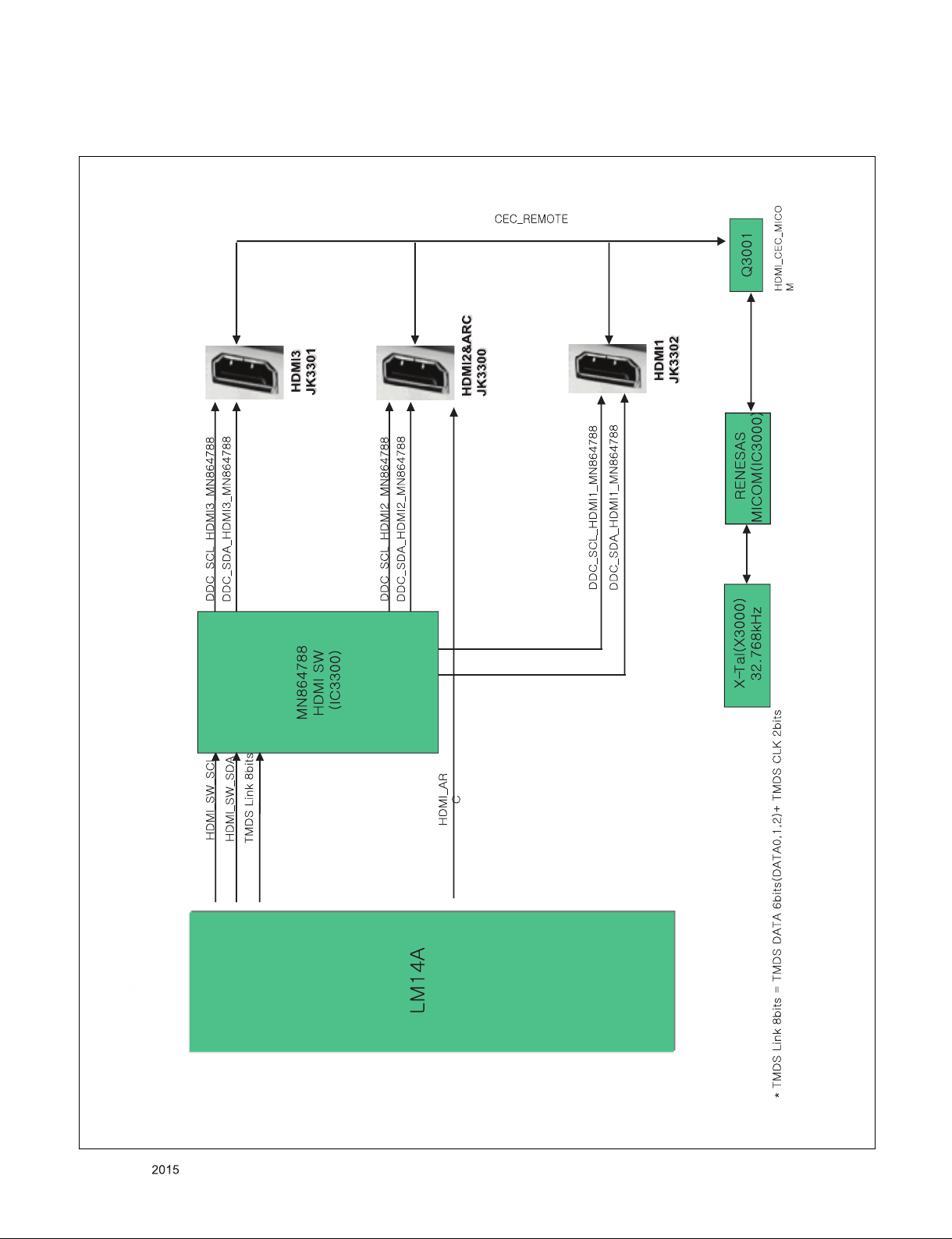

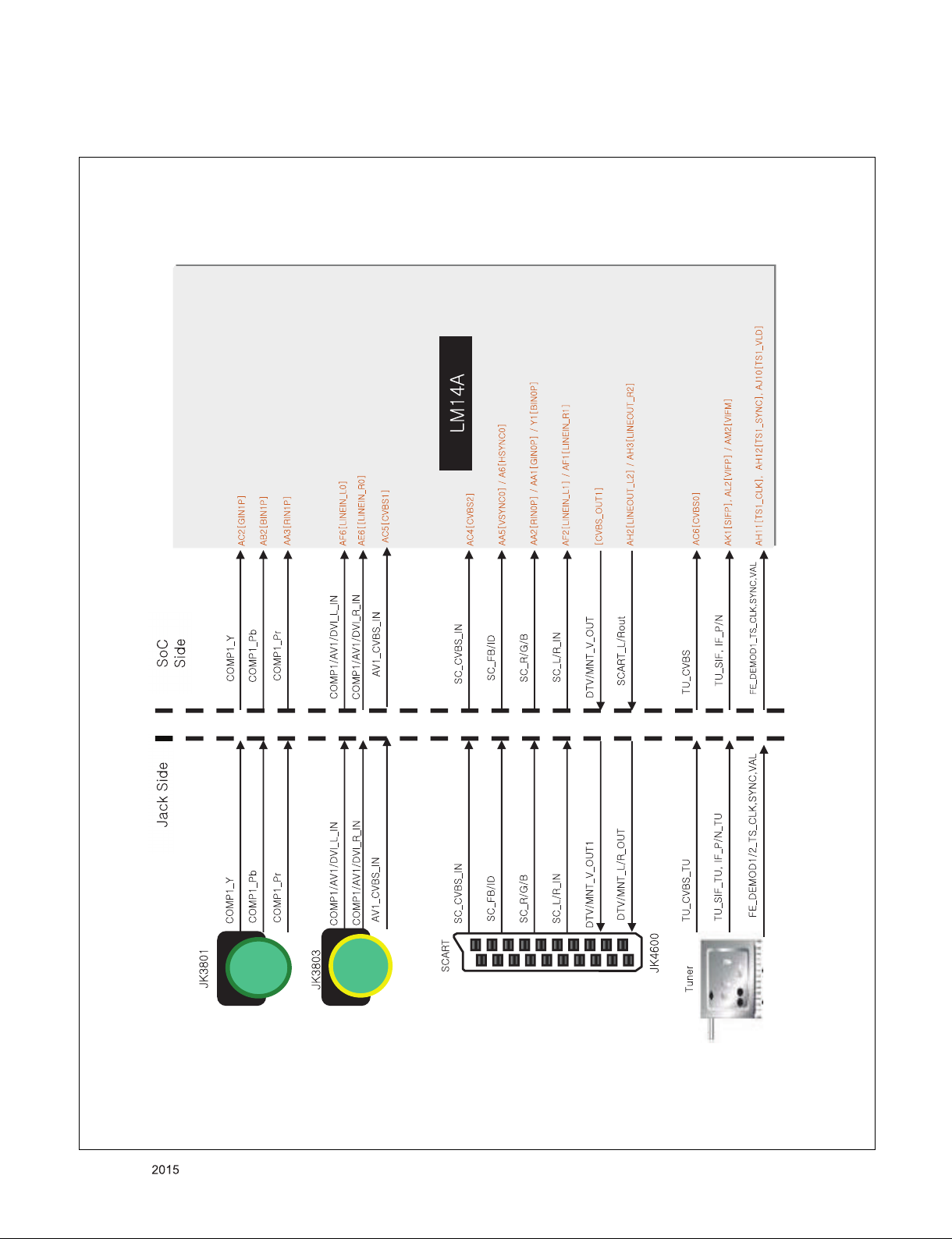

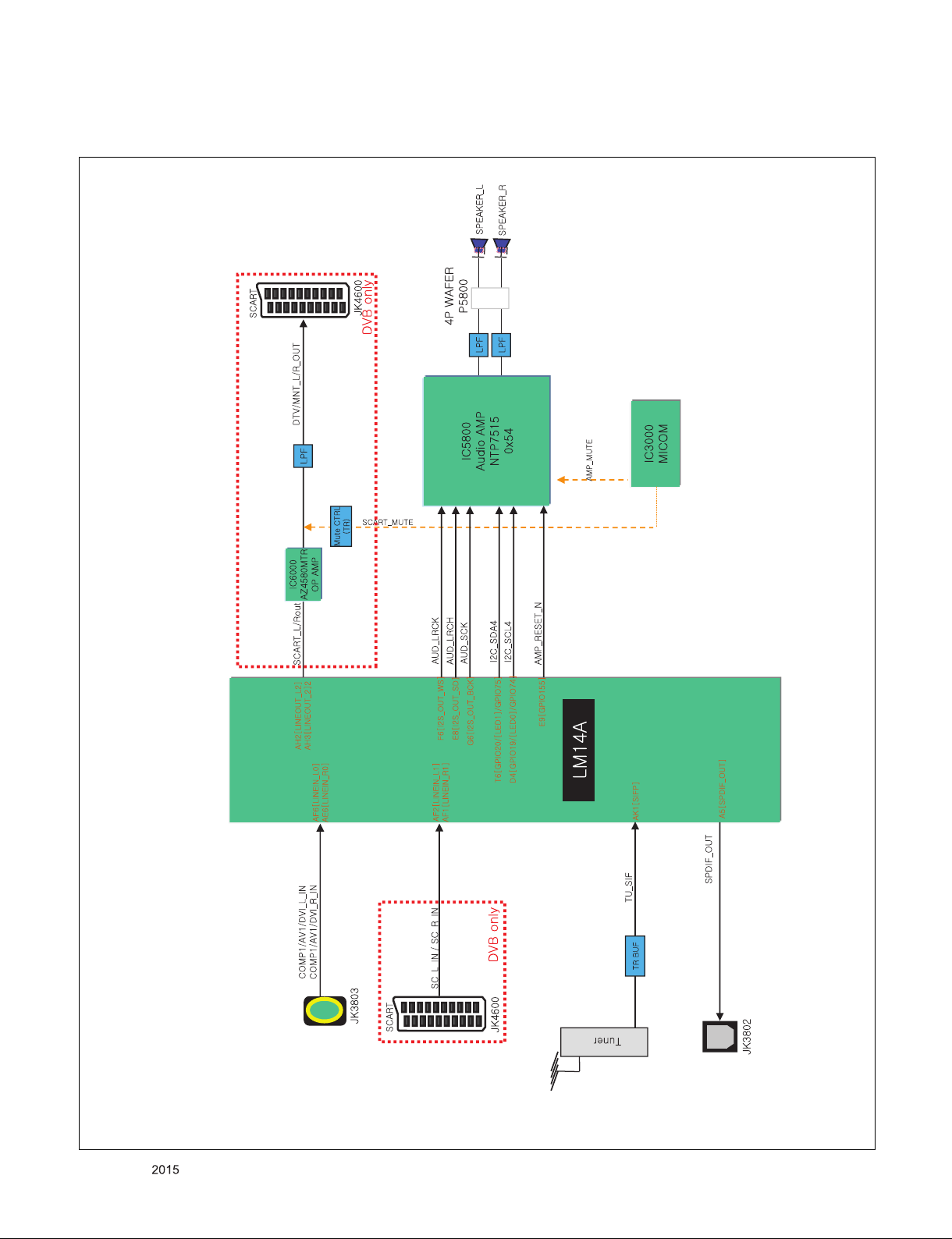

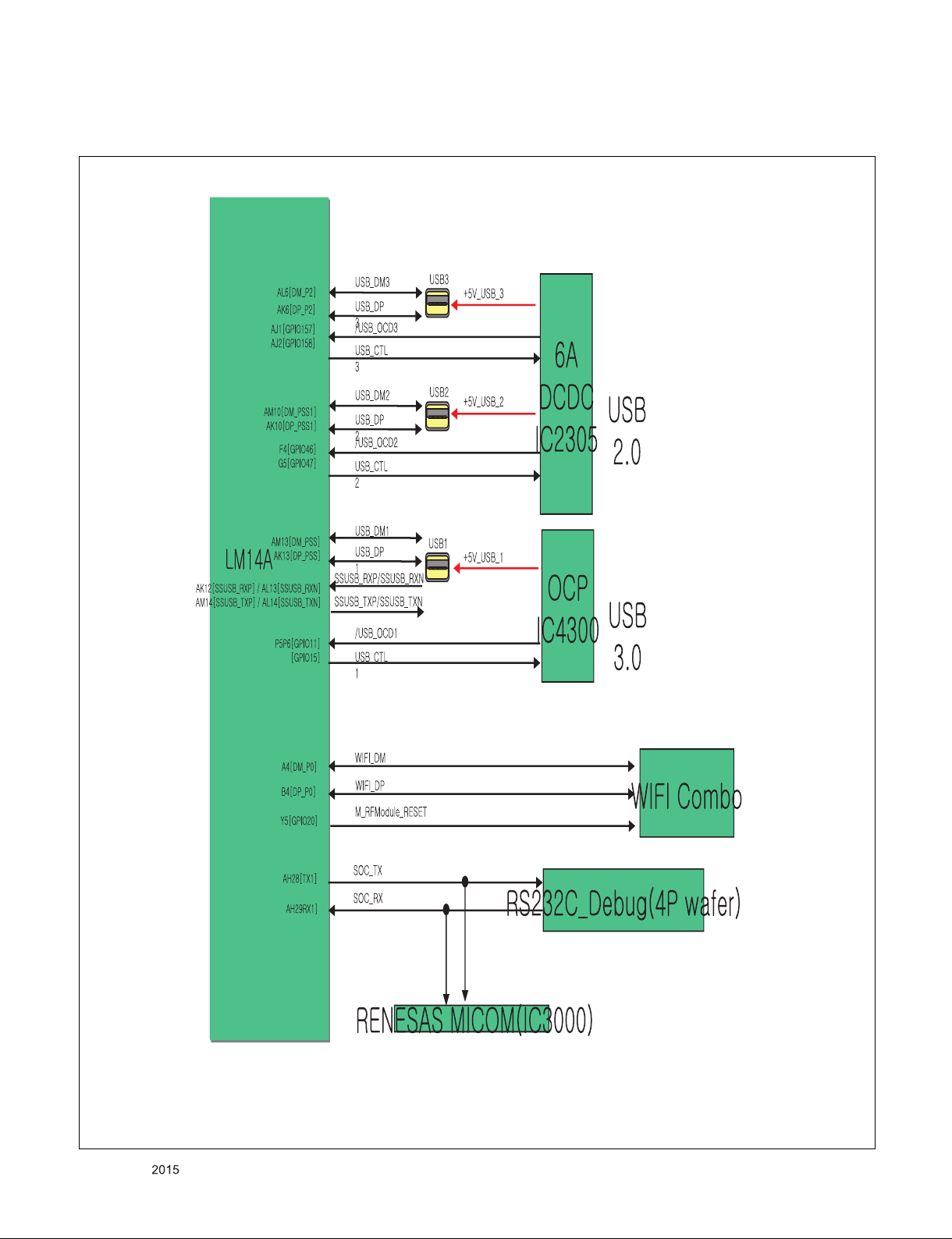

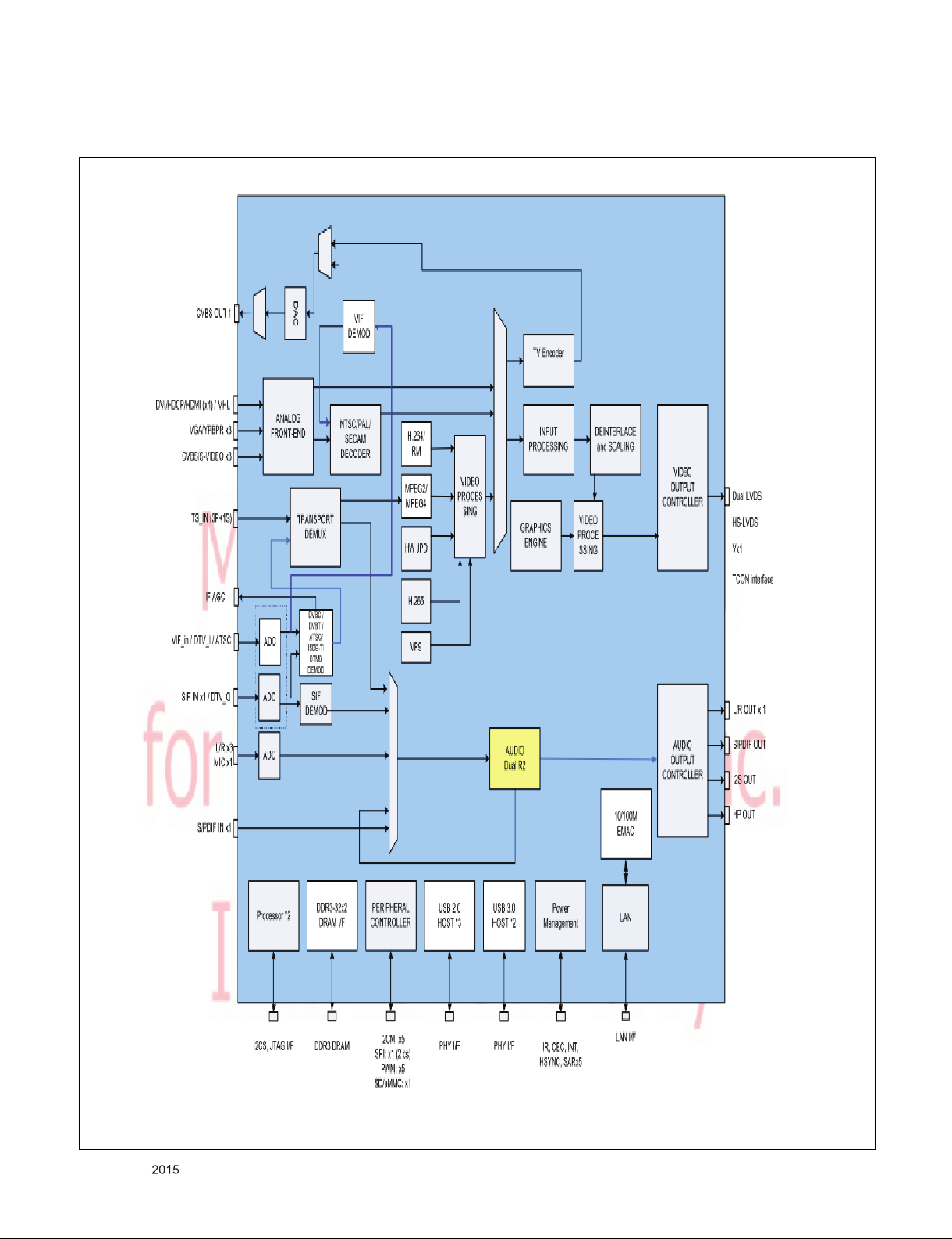

BLOCK DIAGRAM .................................................................................. 28

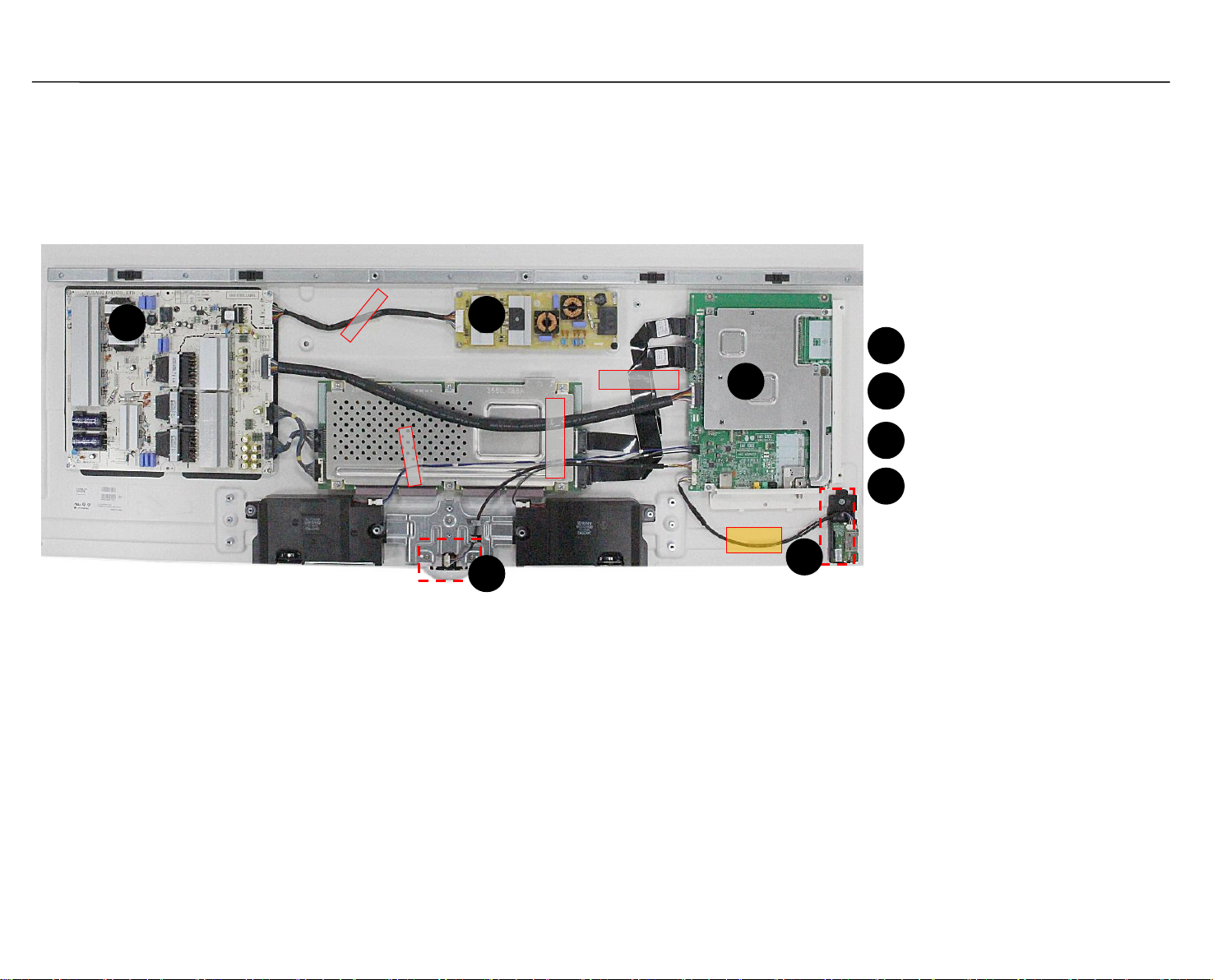

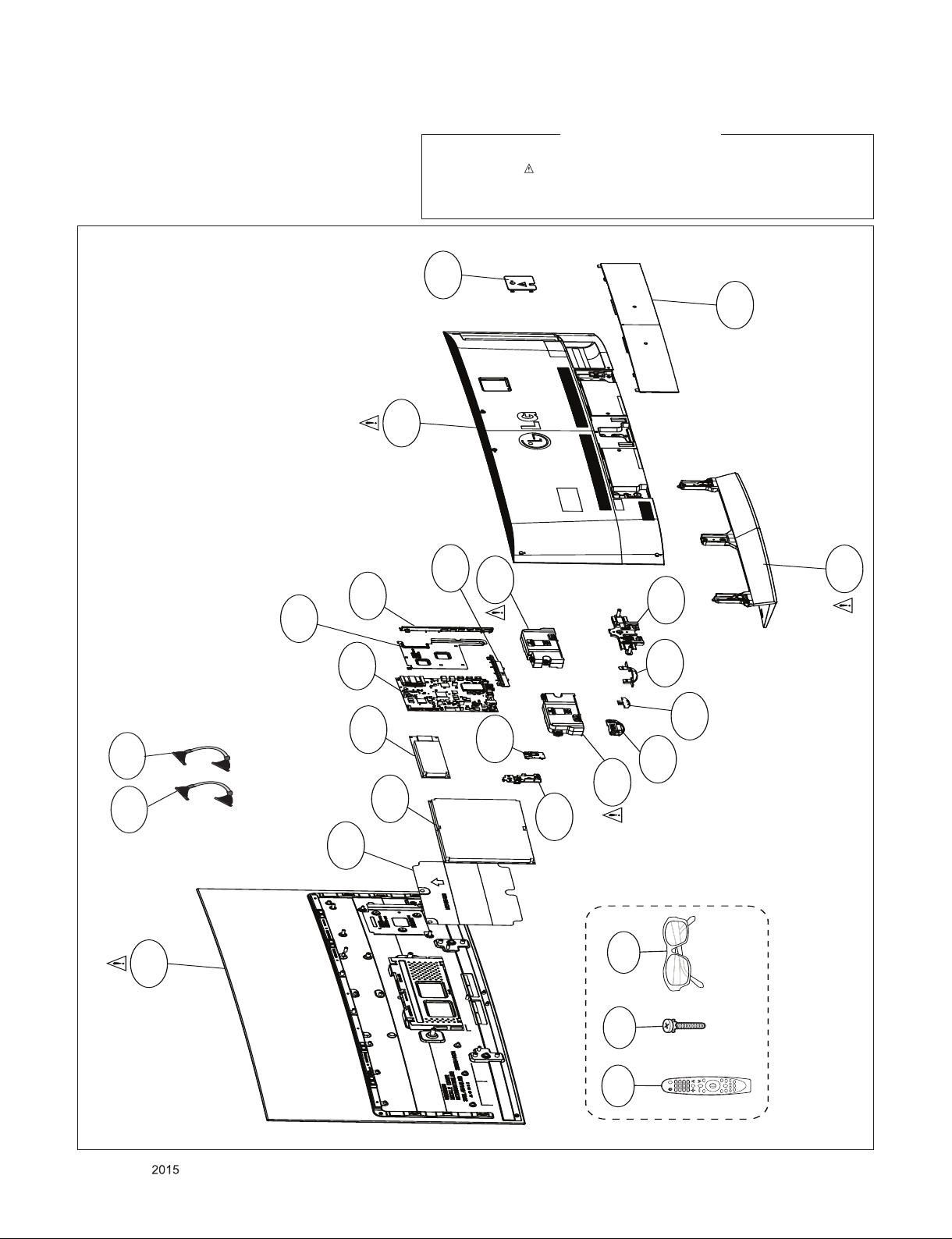

EXPLODED VIEW .................................................................................. 38

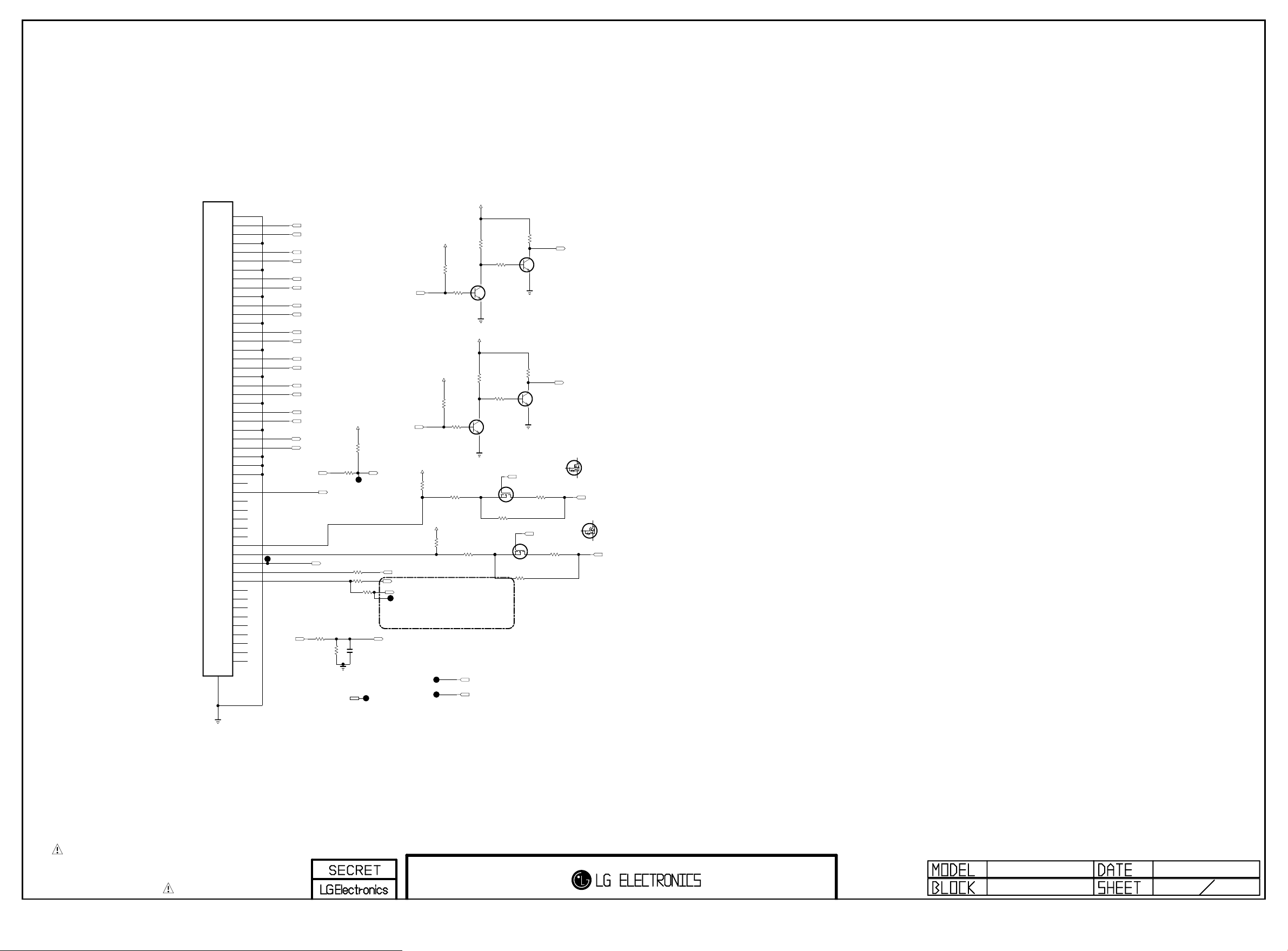

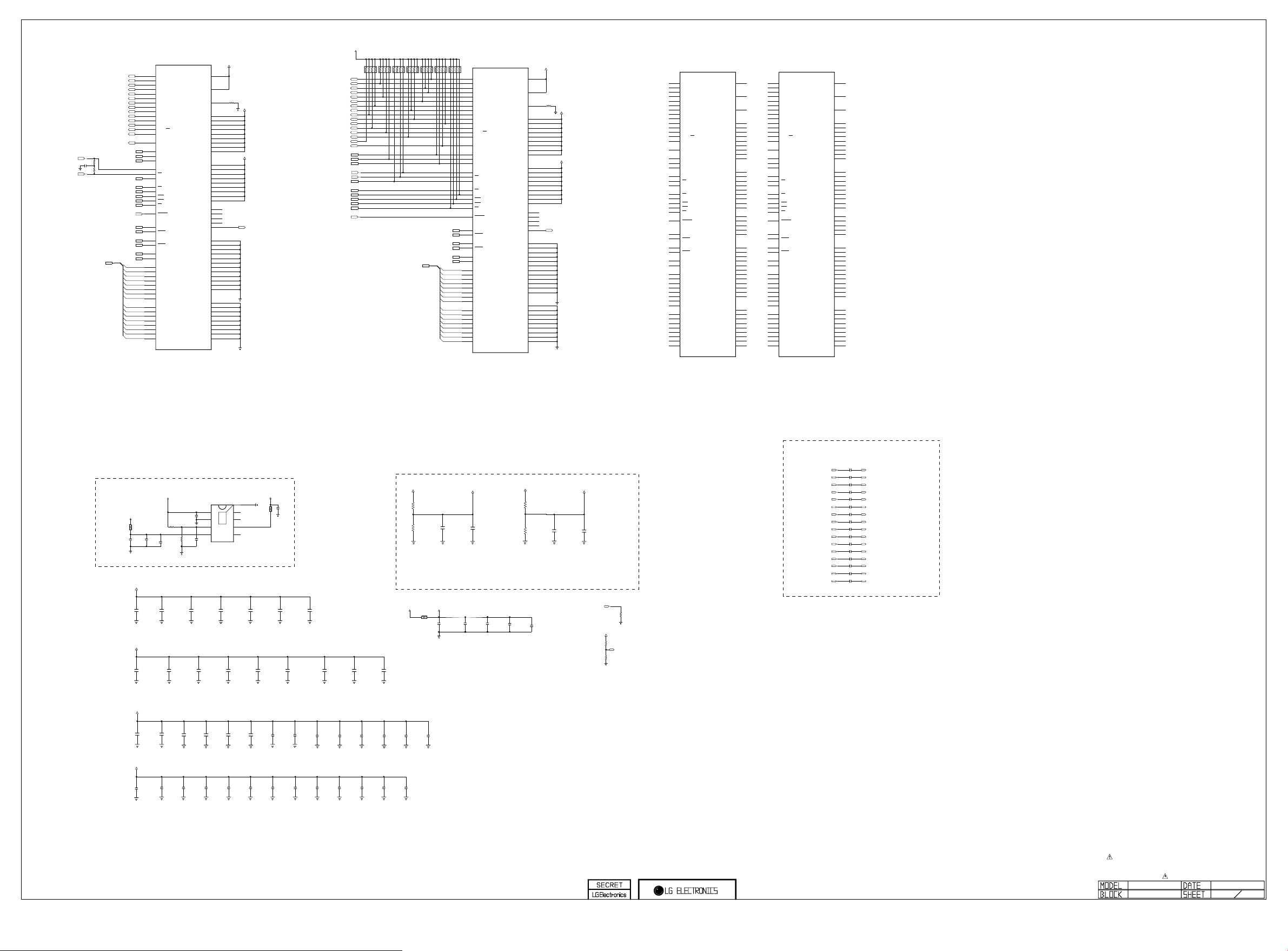

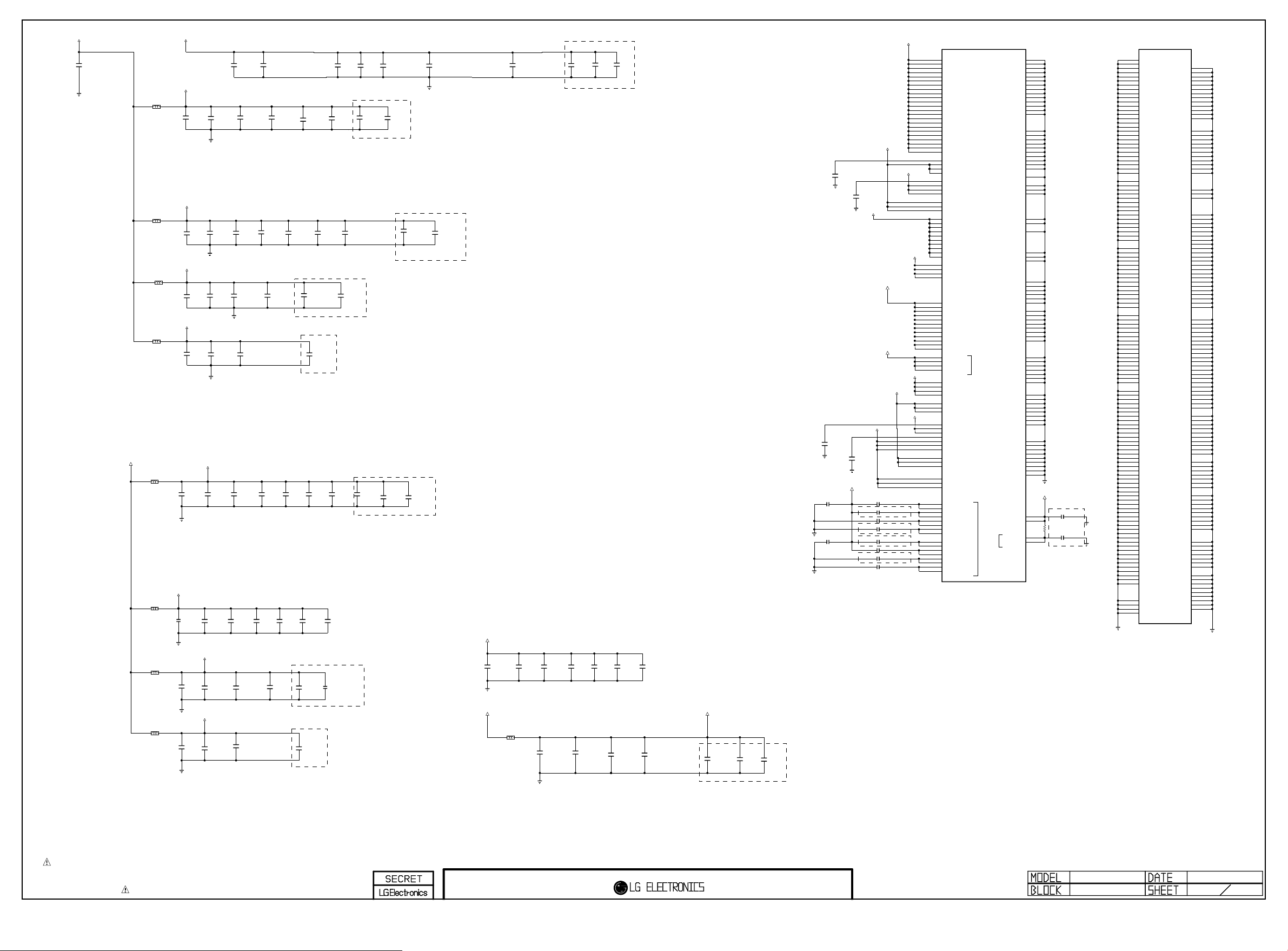

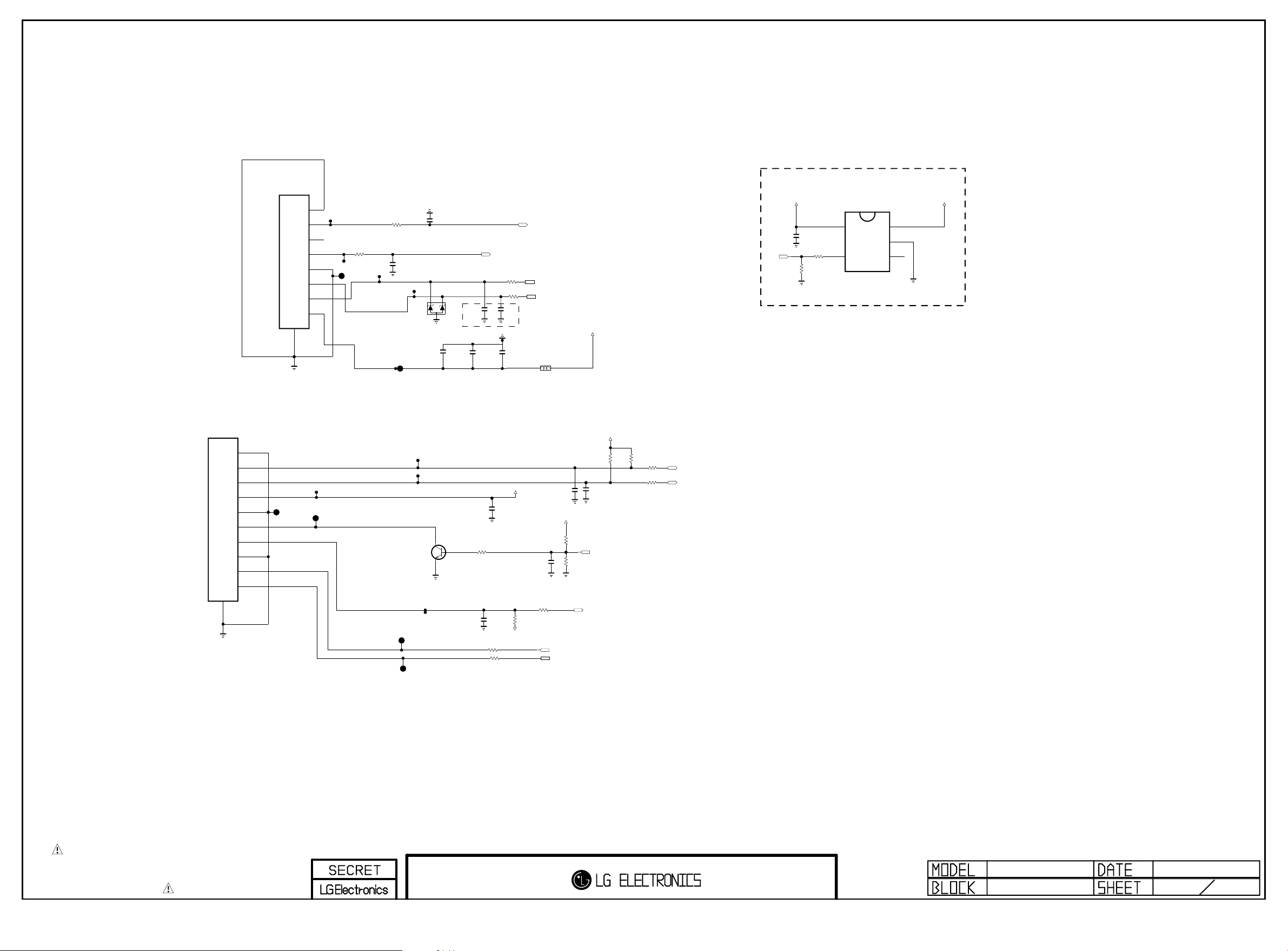

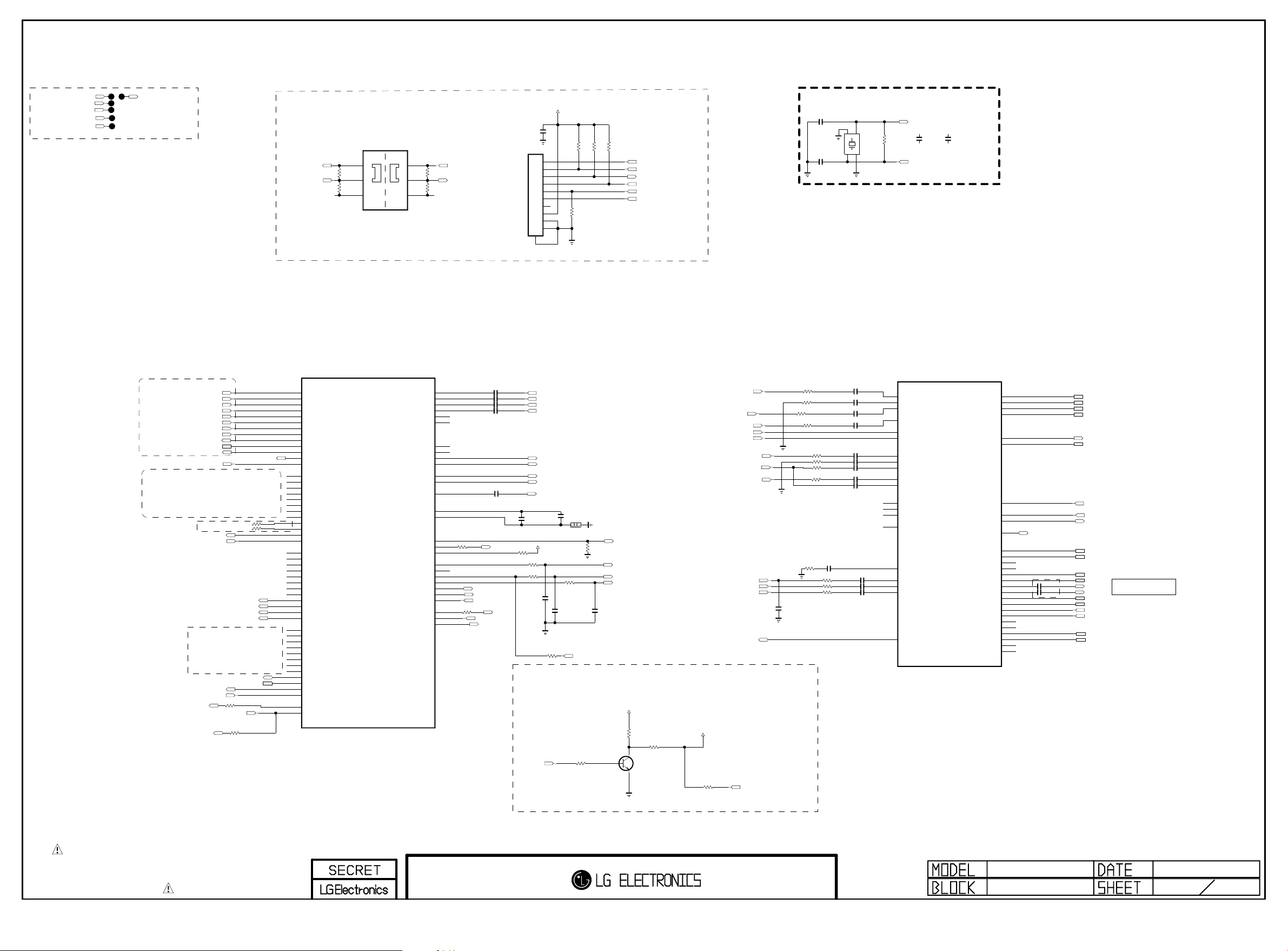

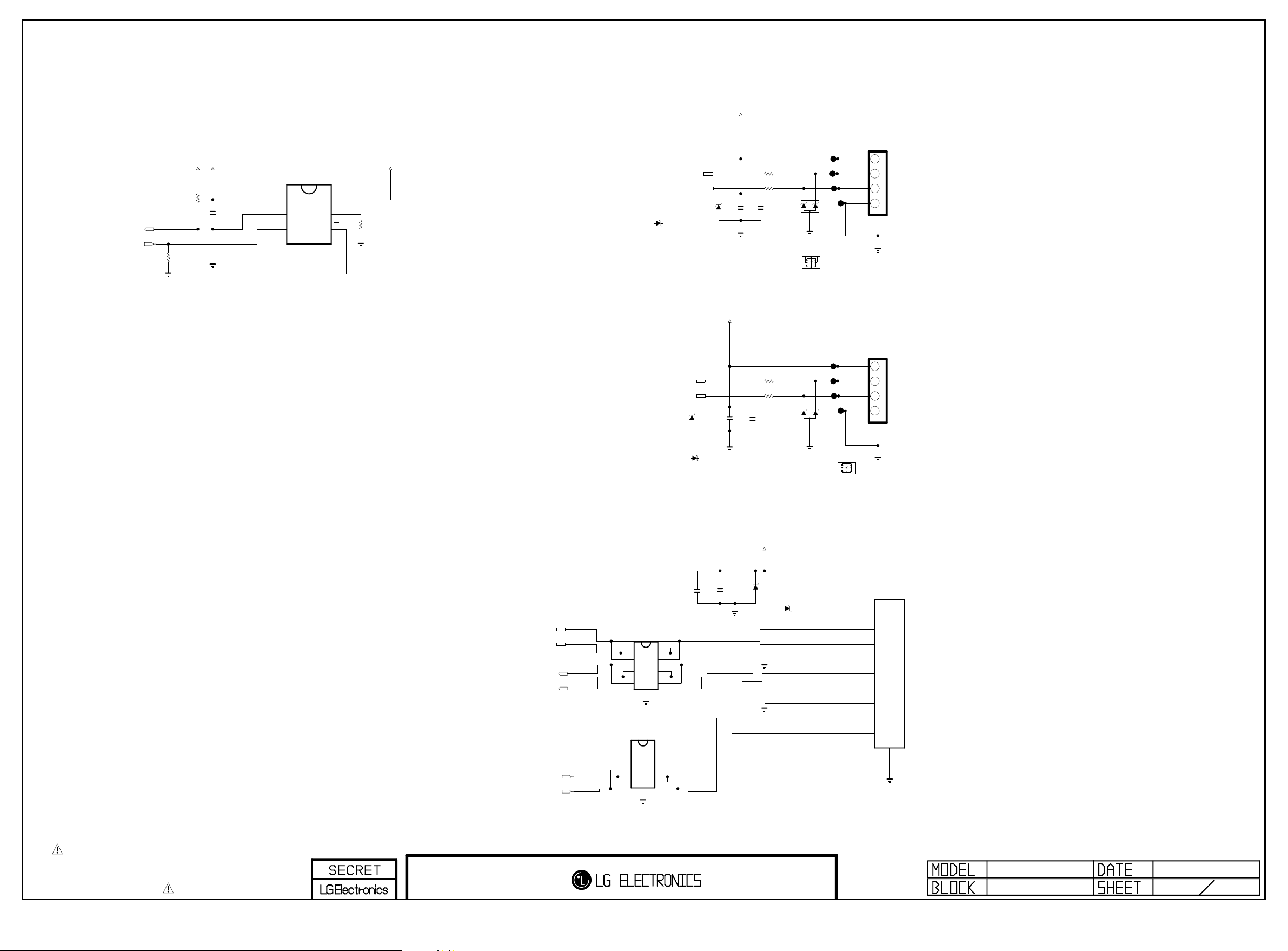

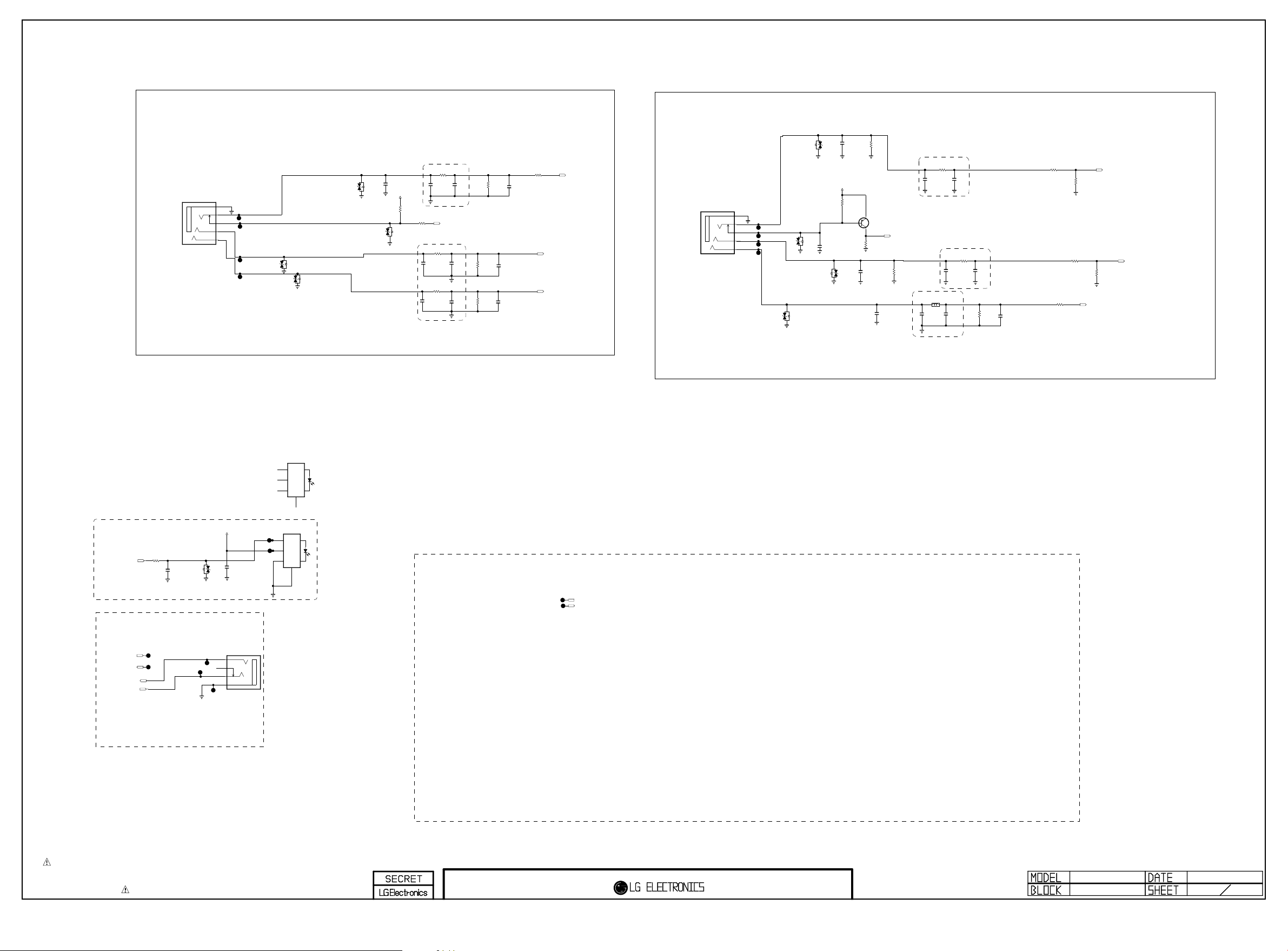

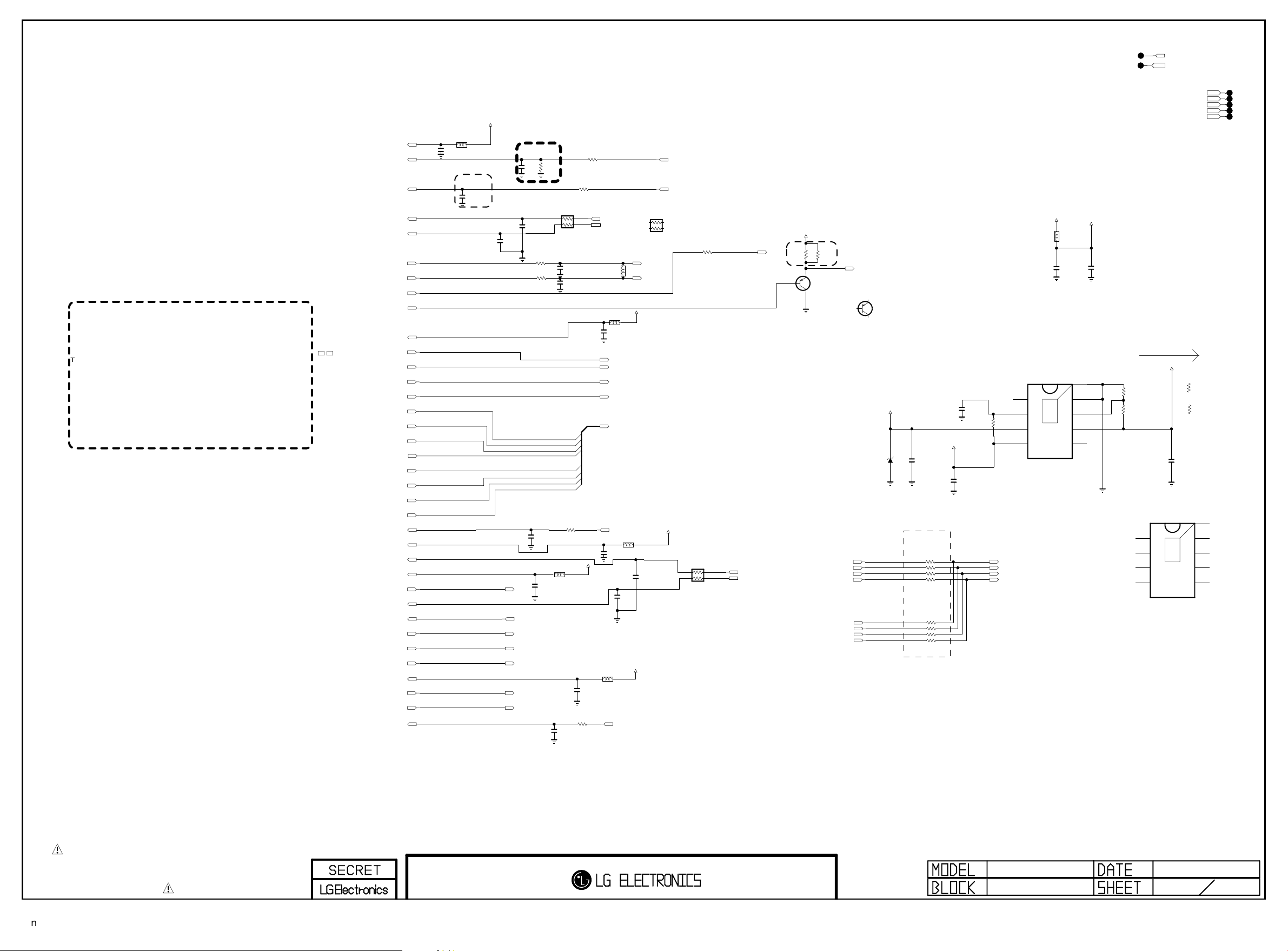

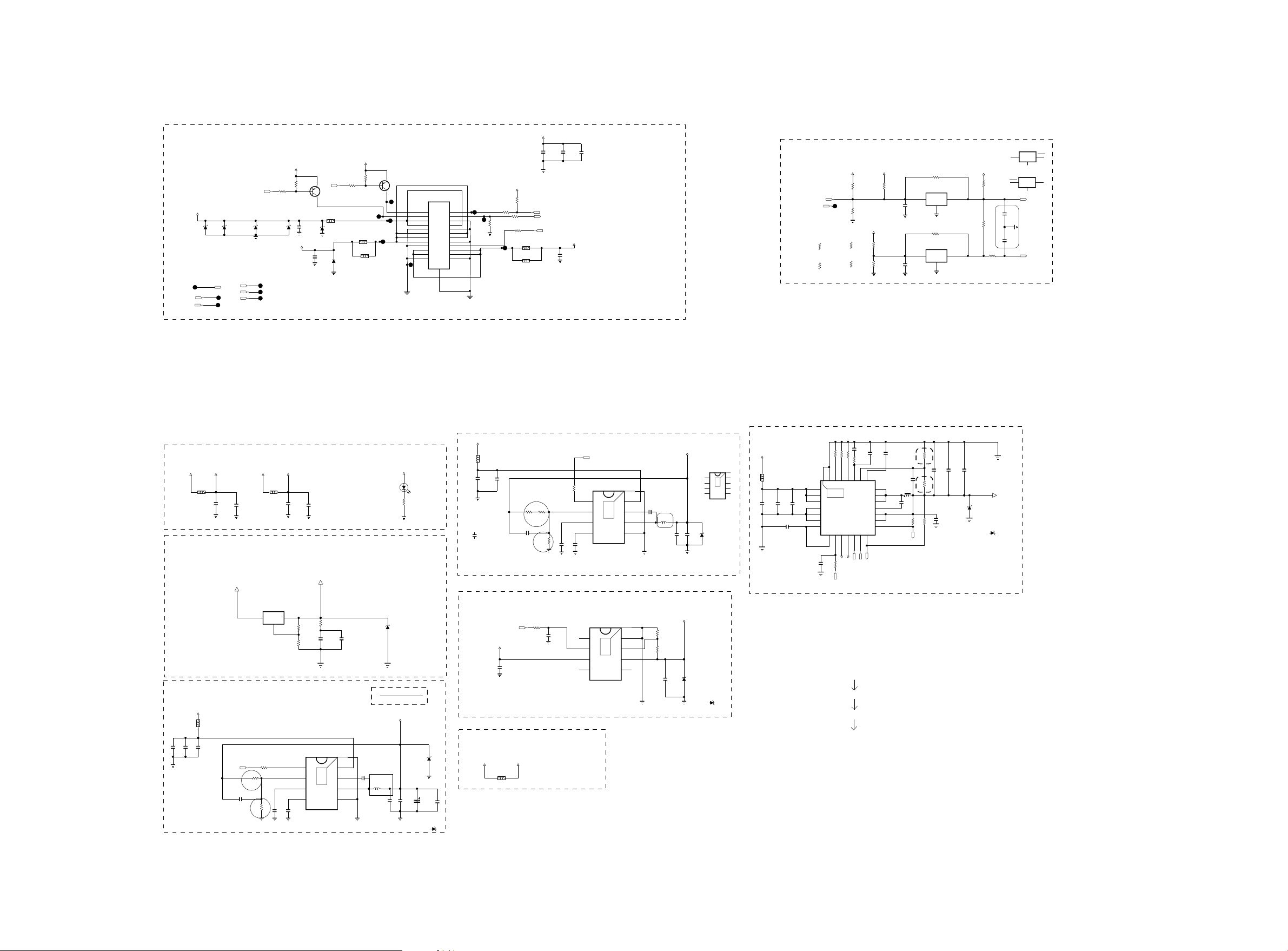

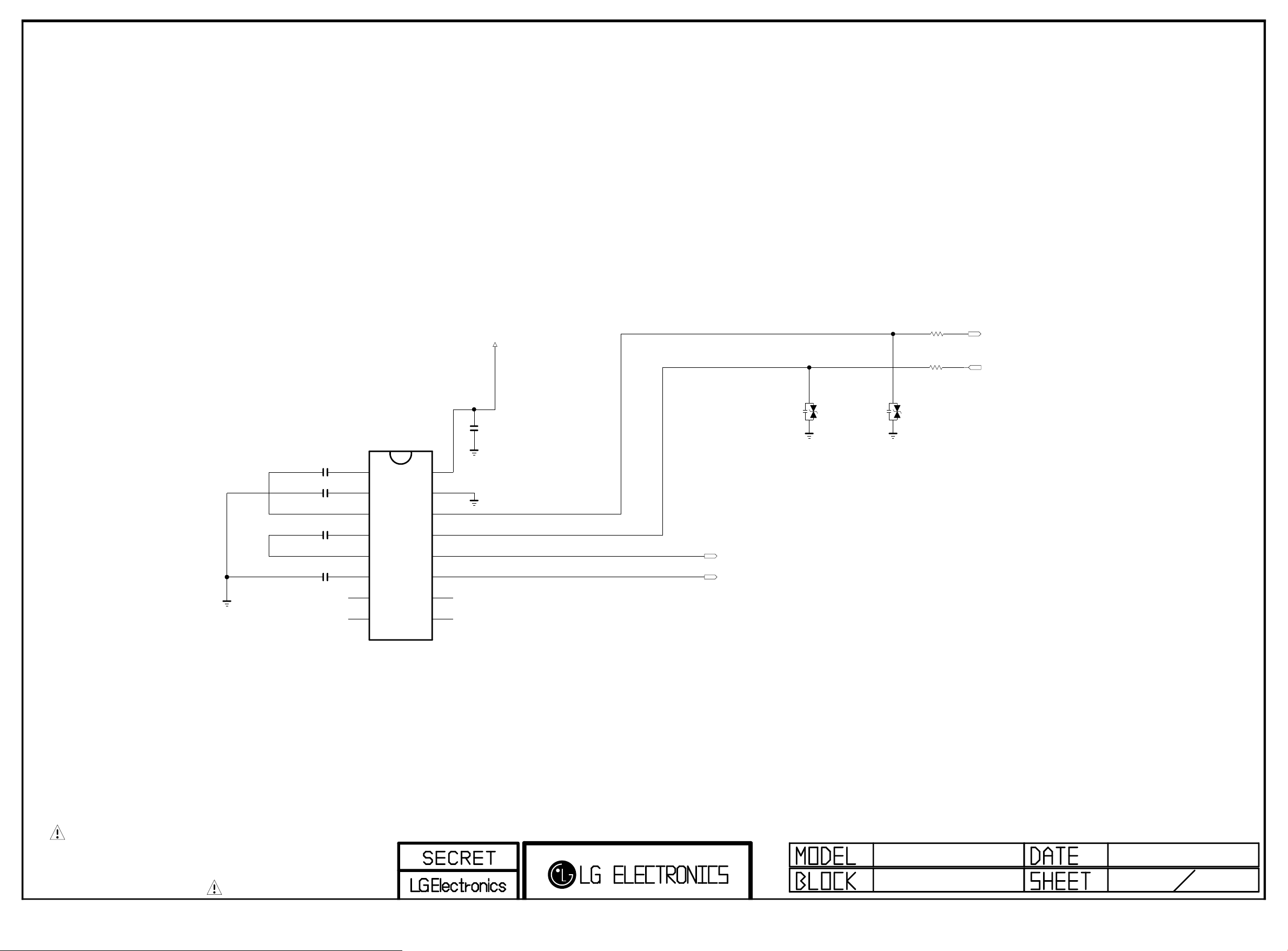

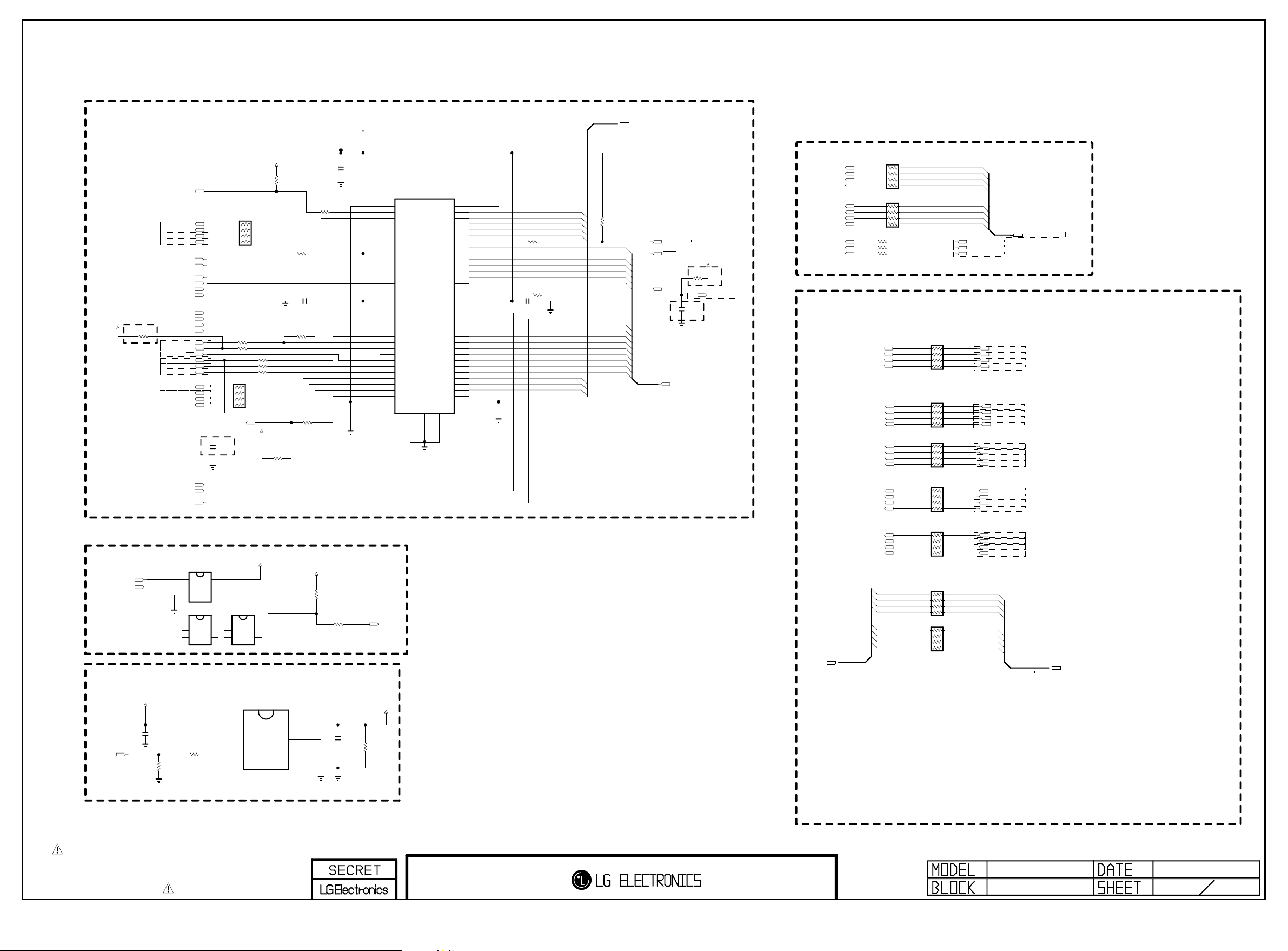

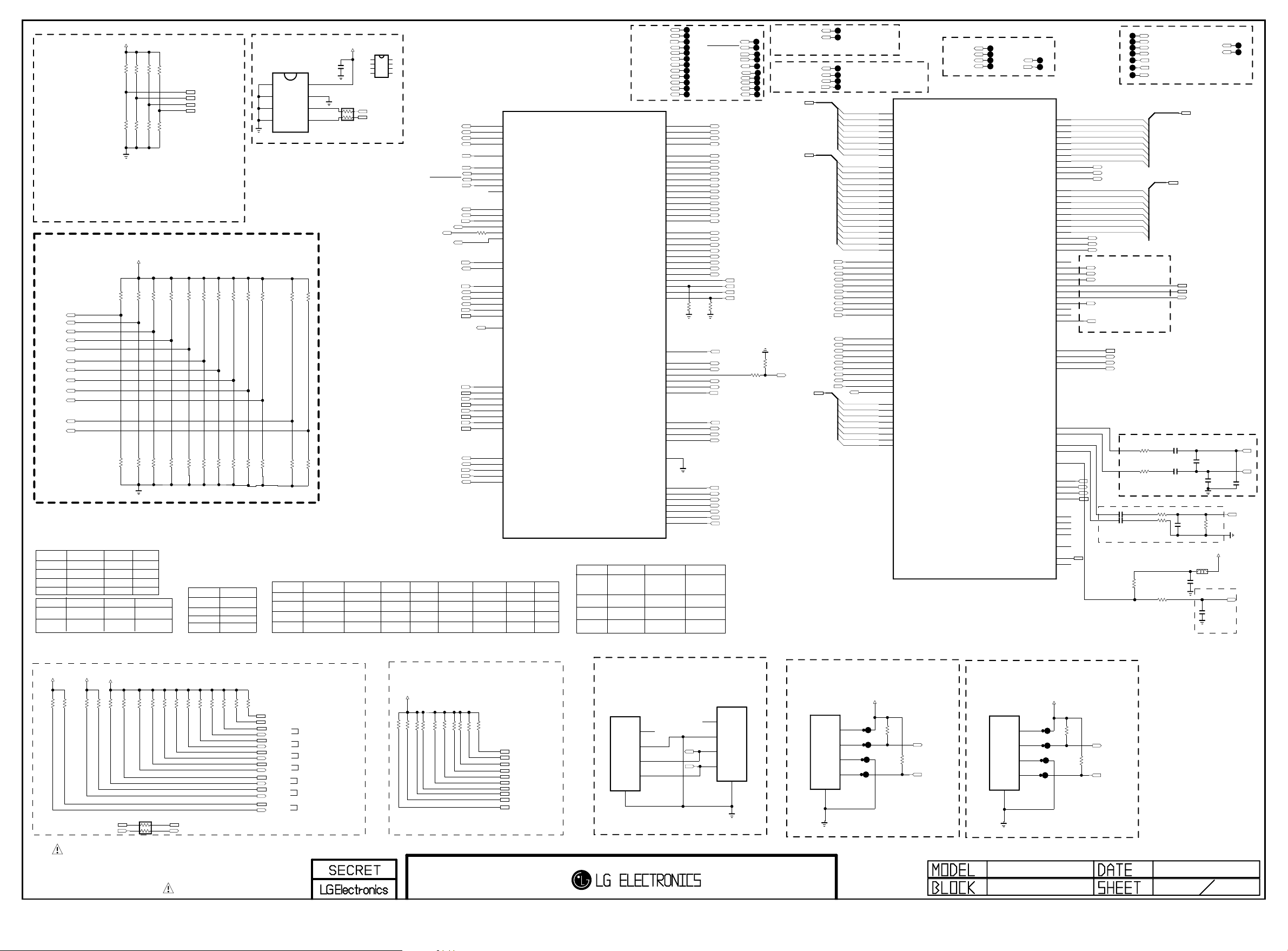

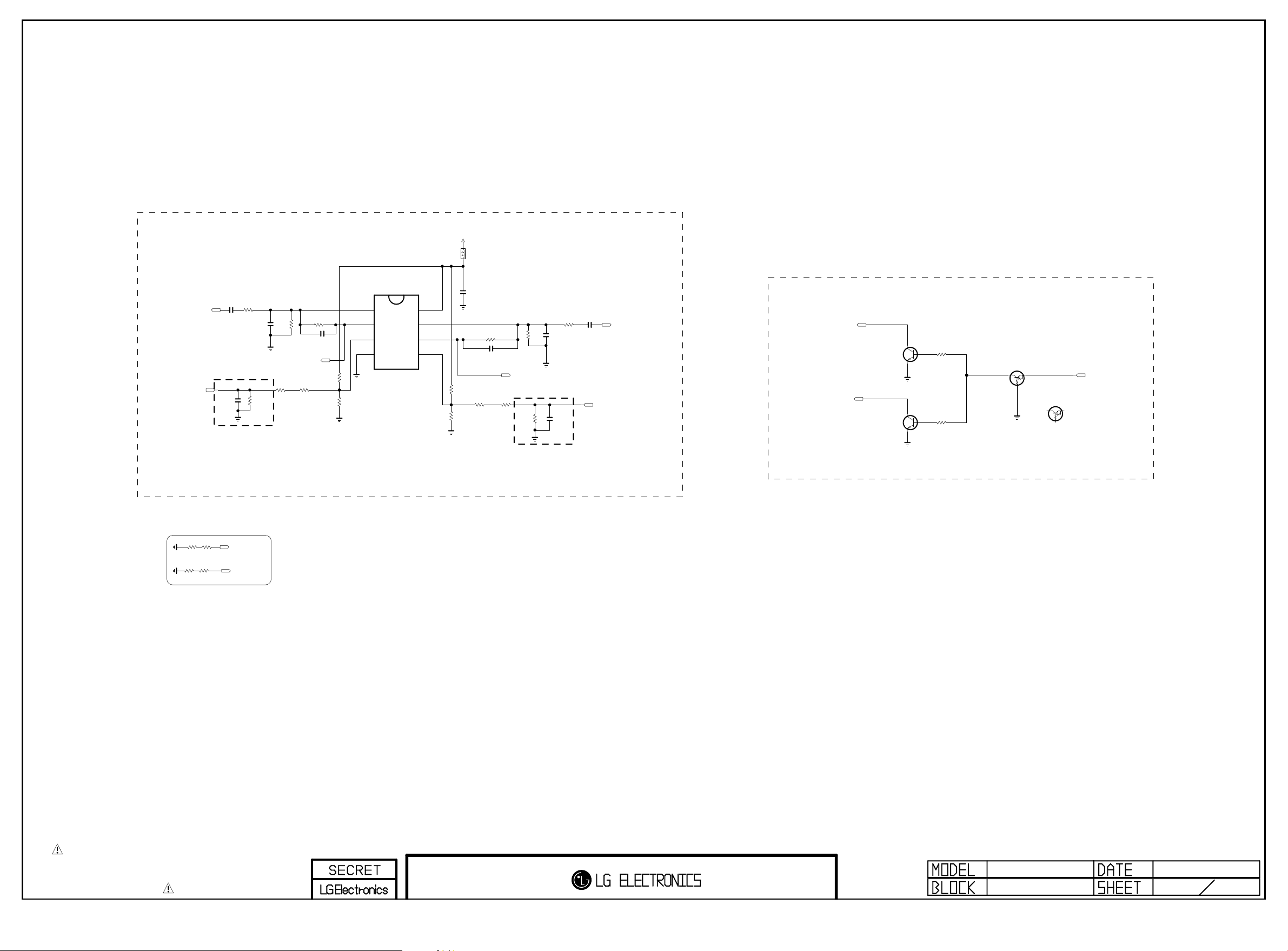

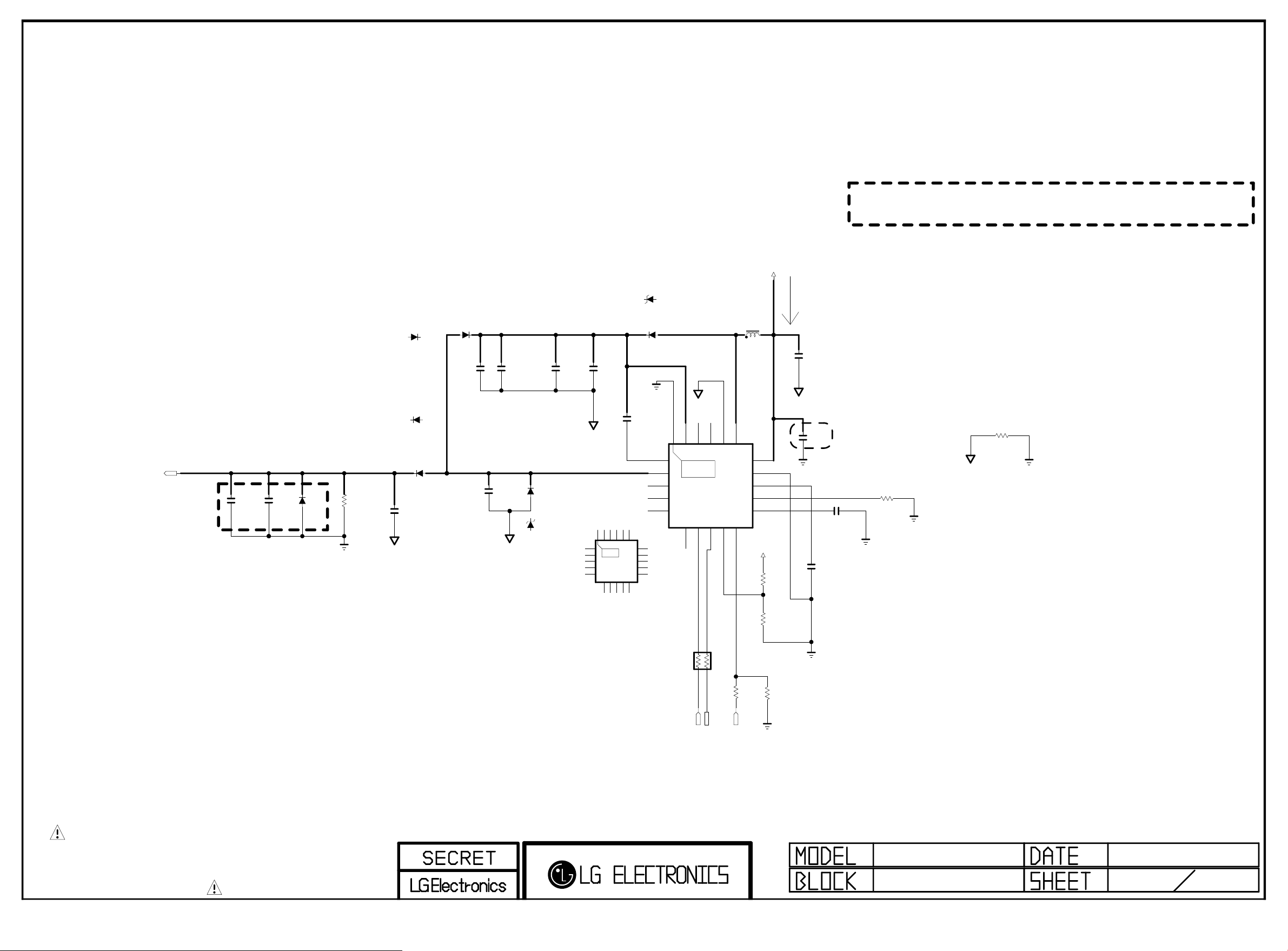

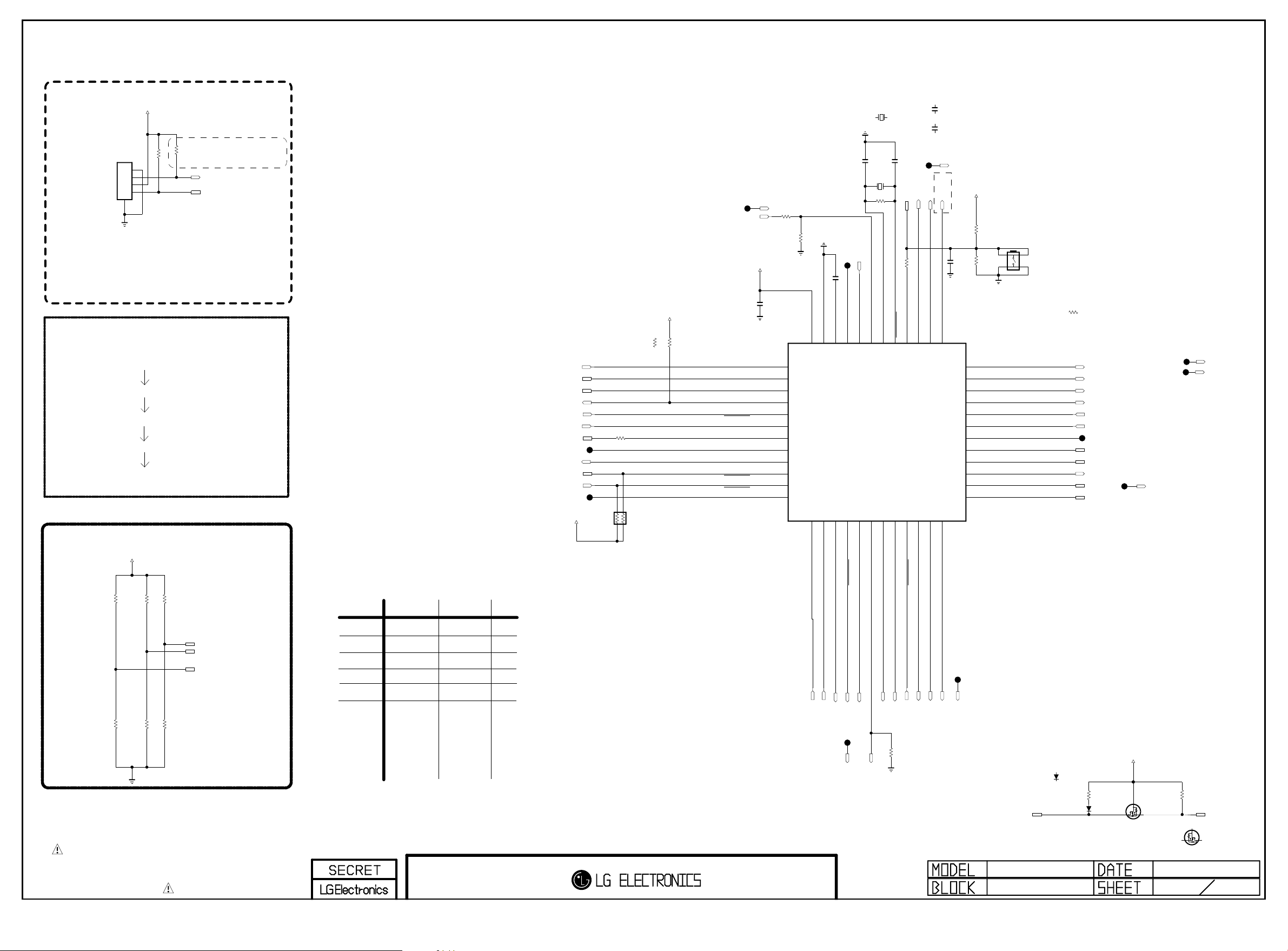

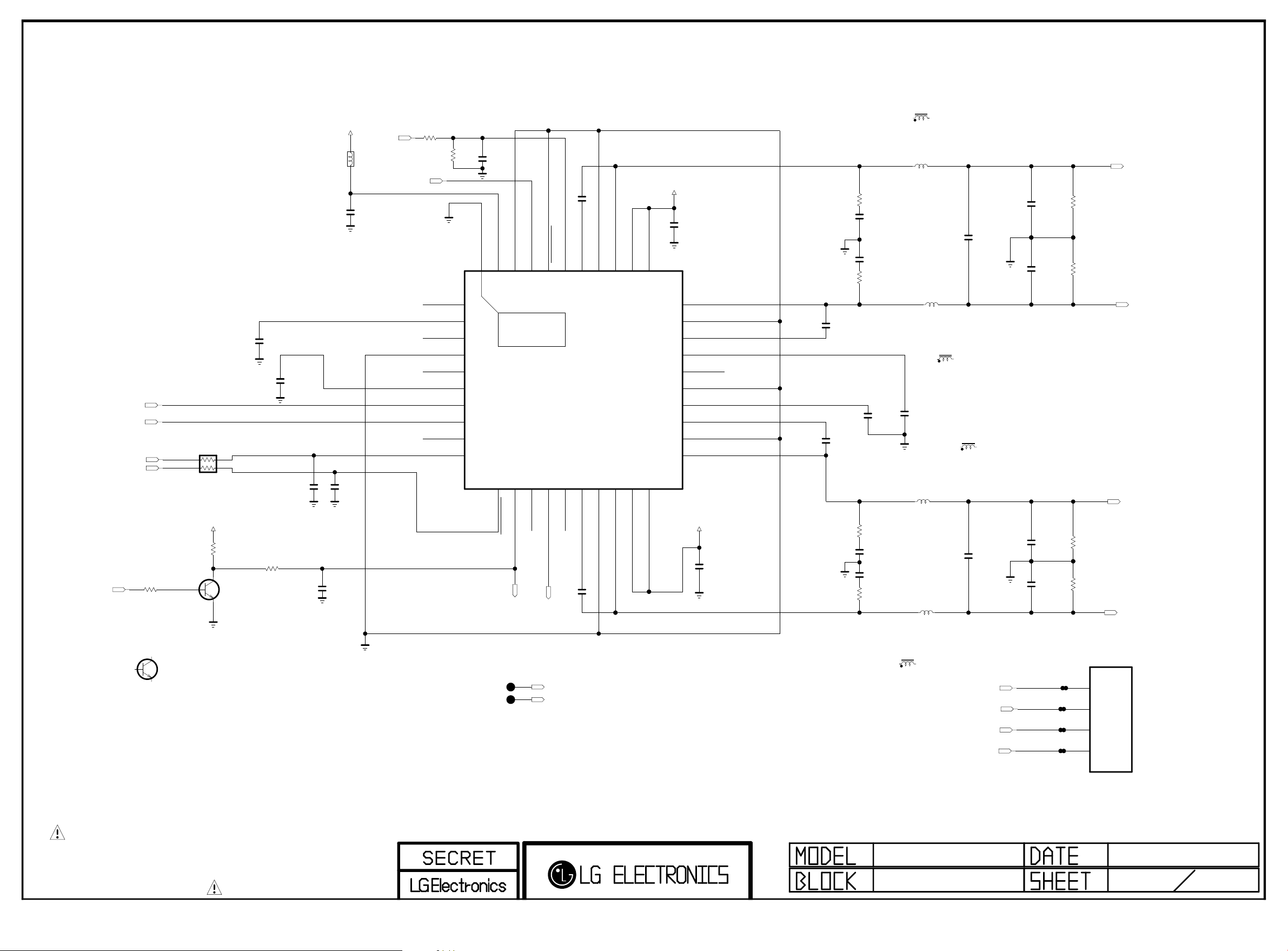

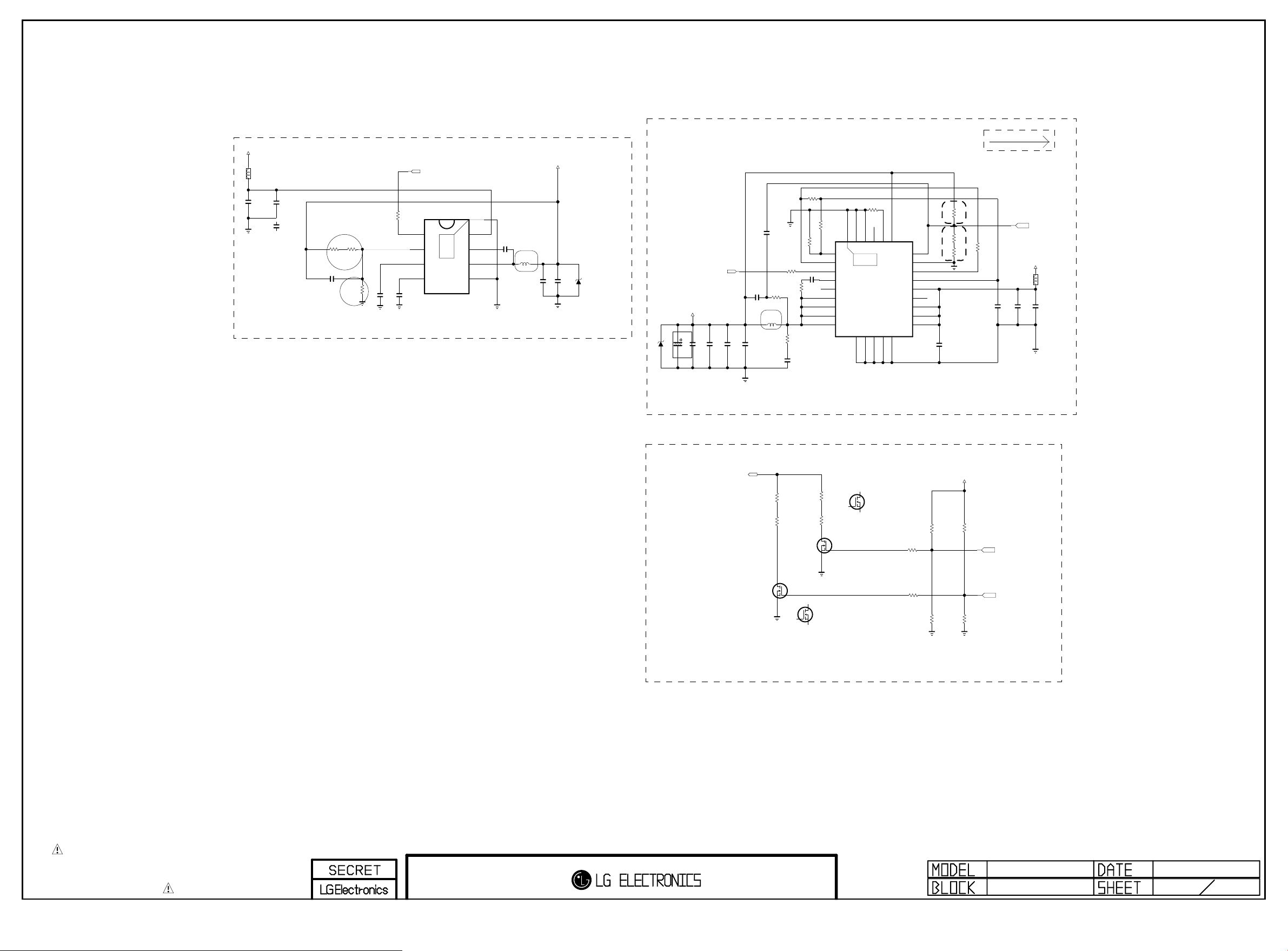

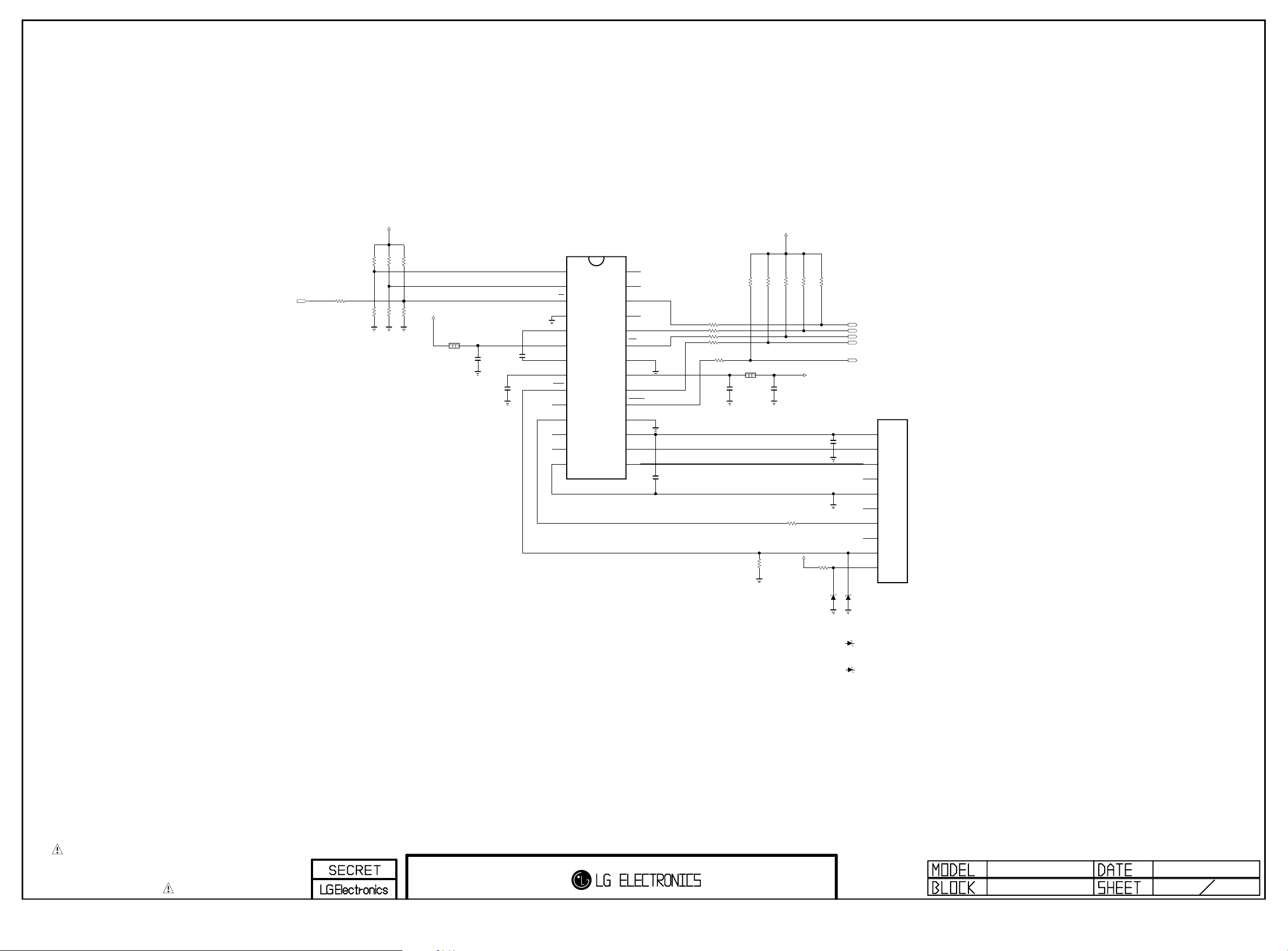

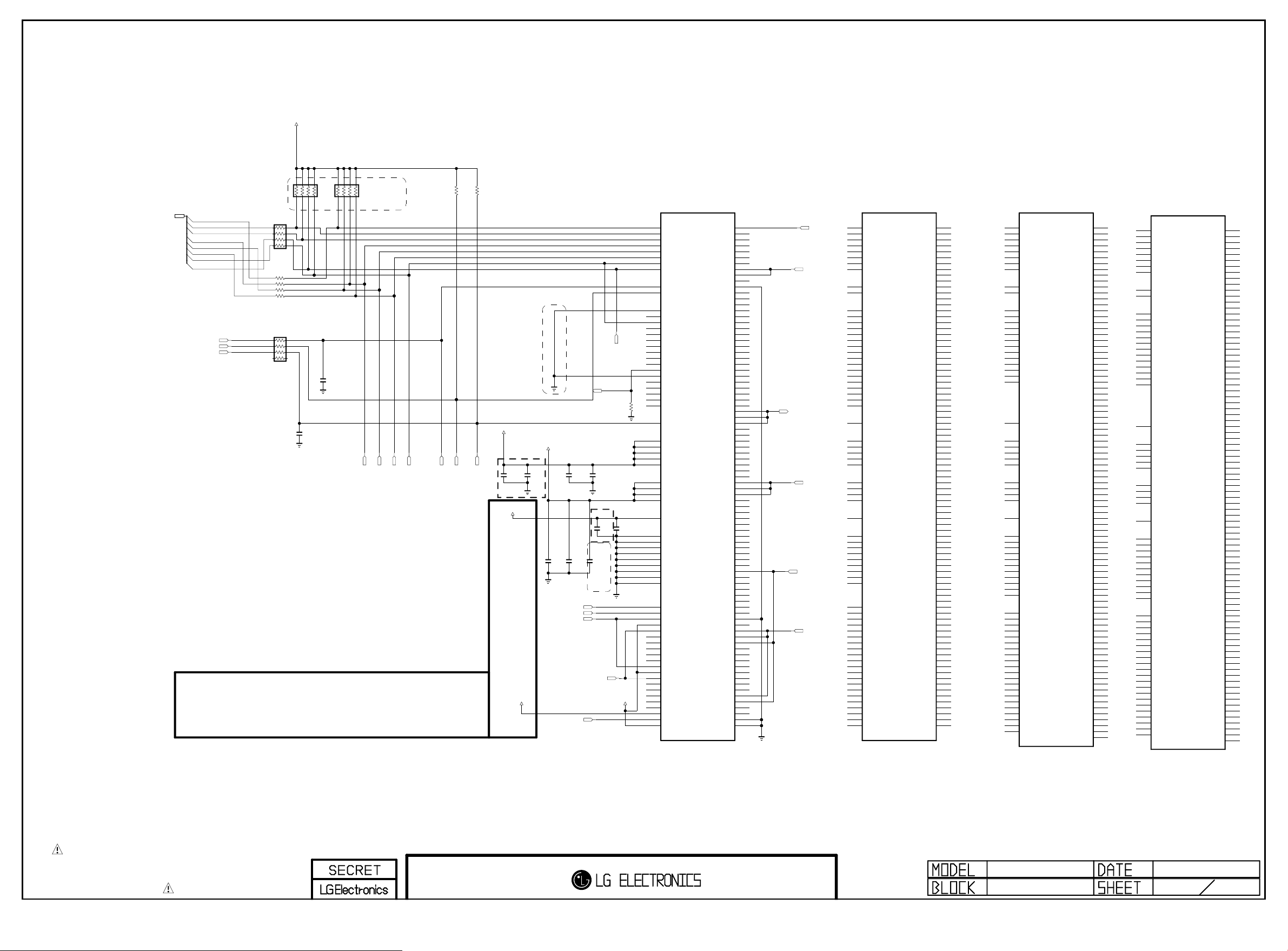

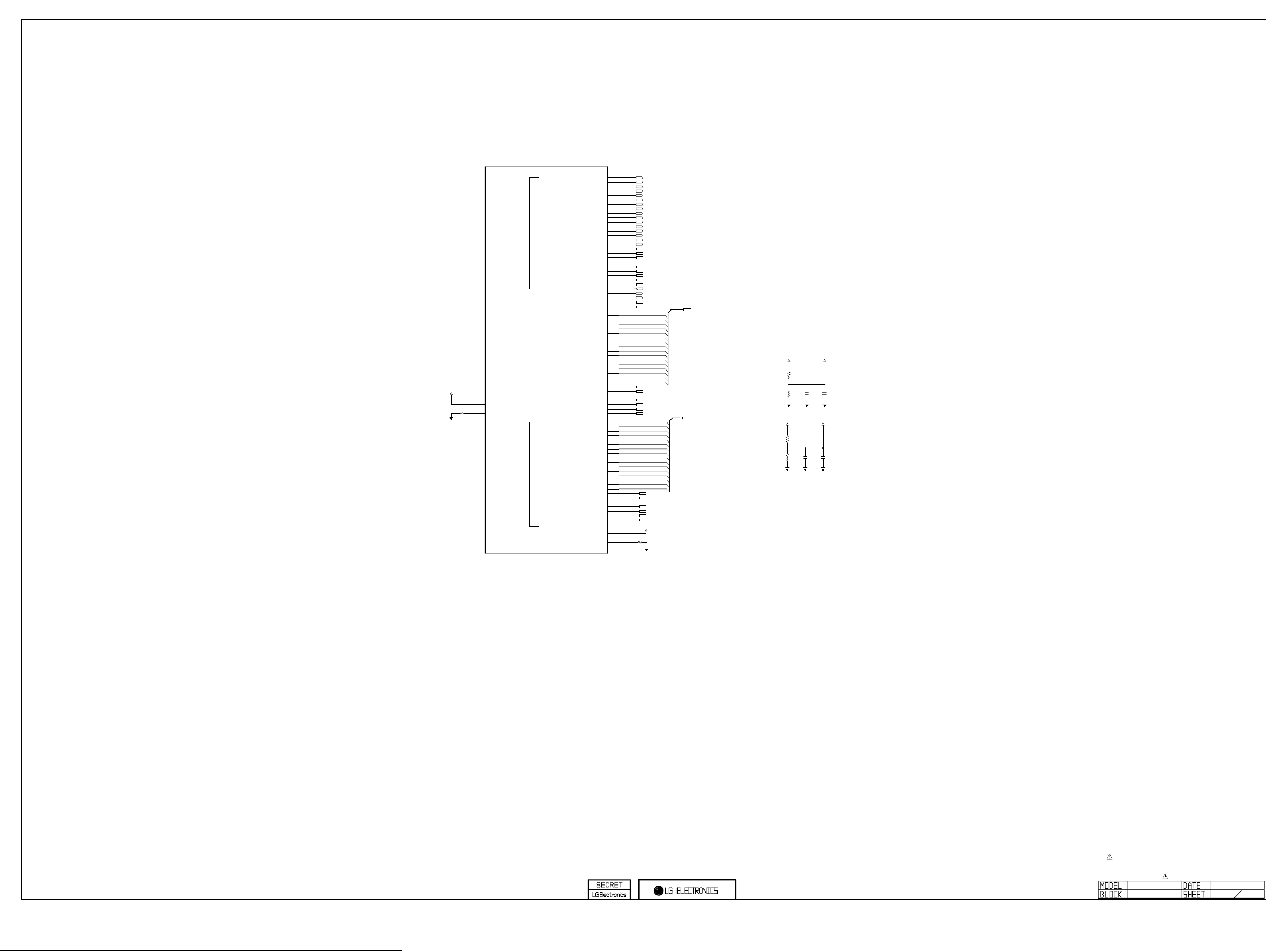

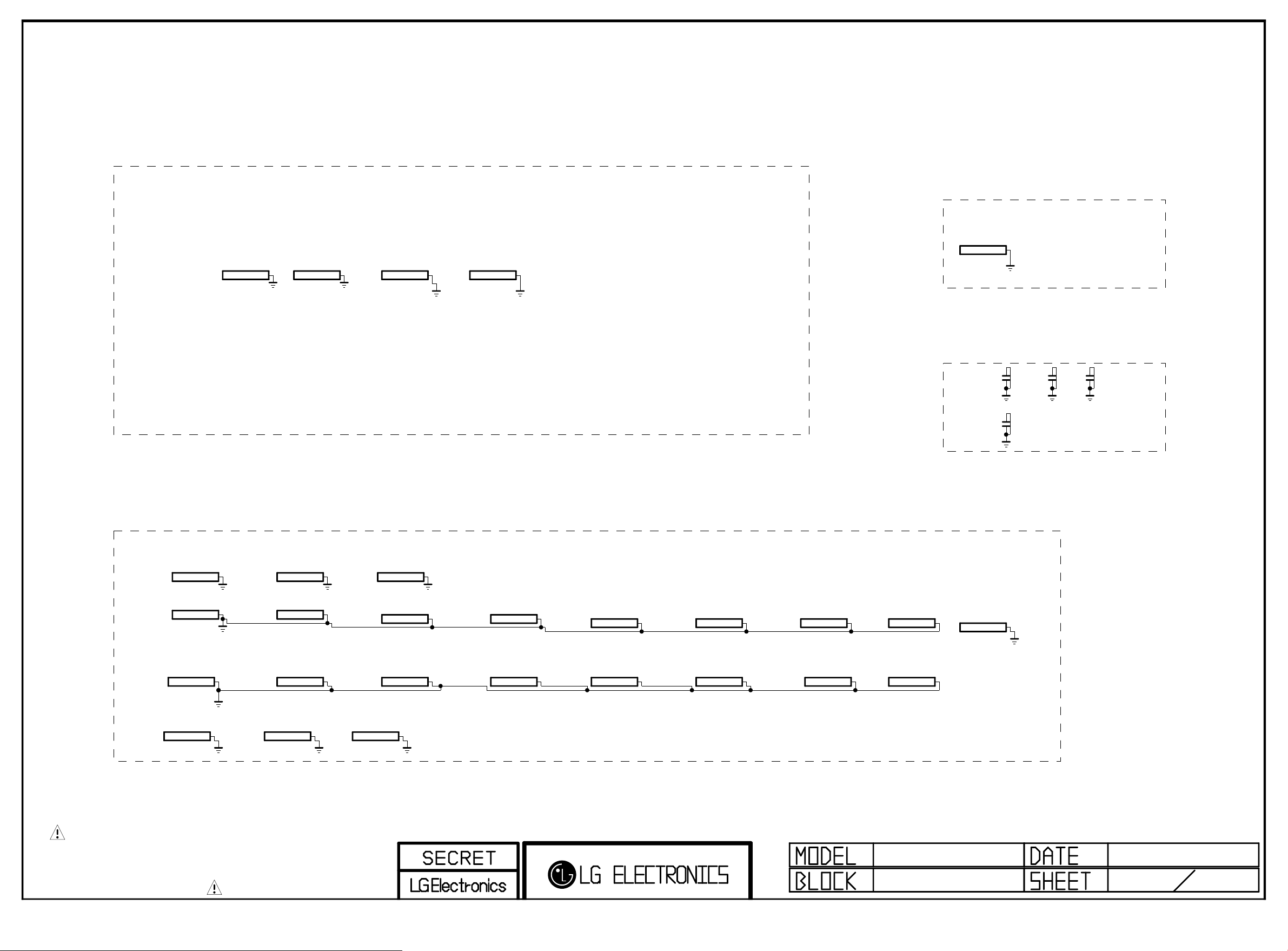

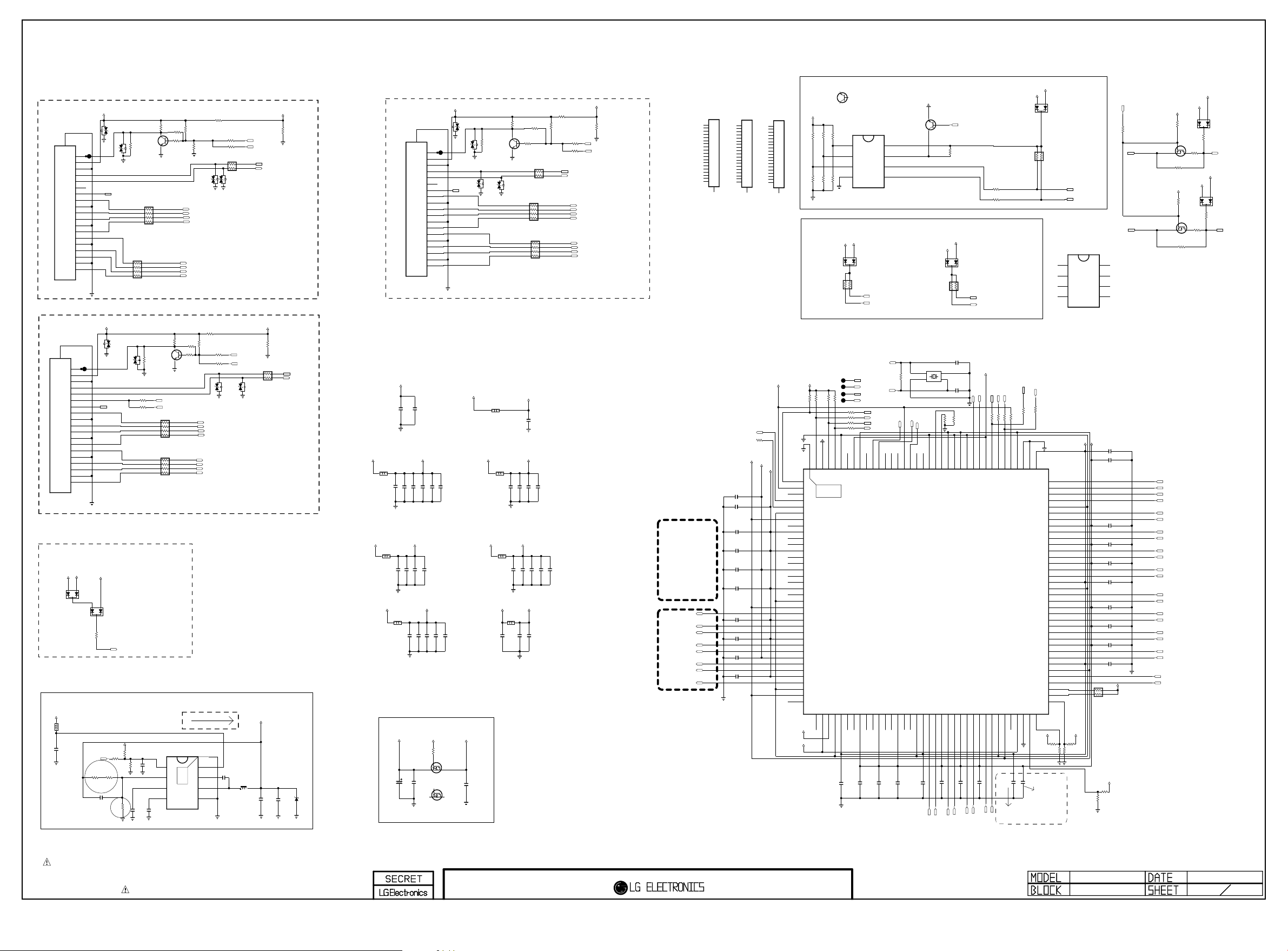

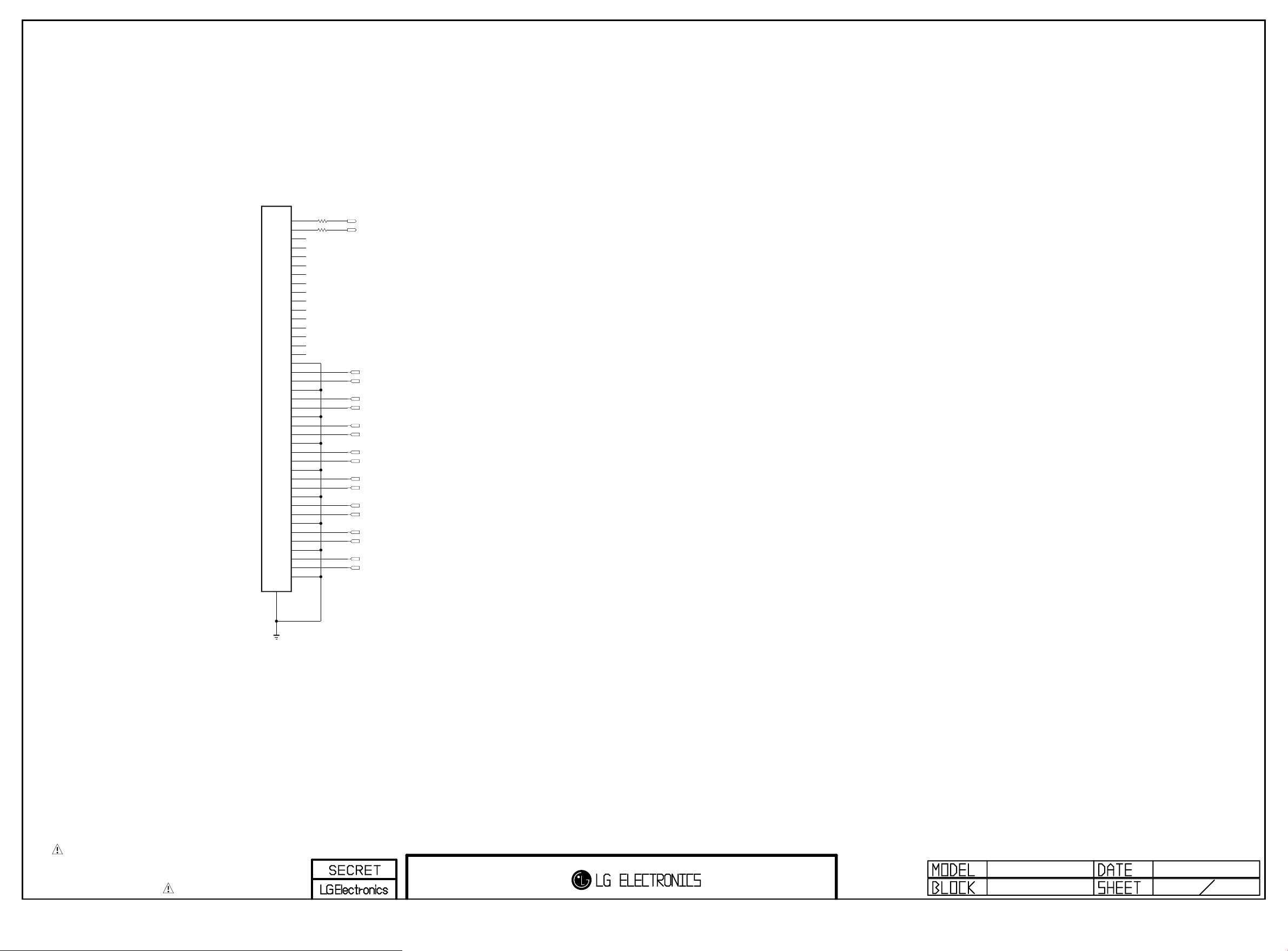

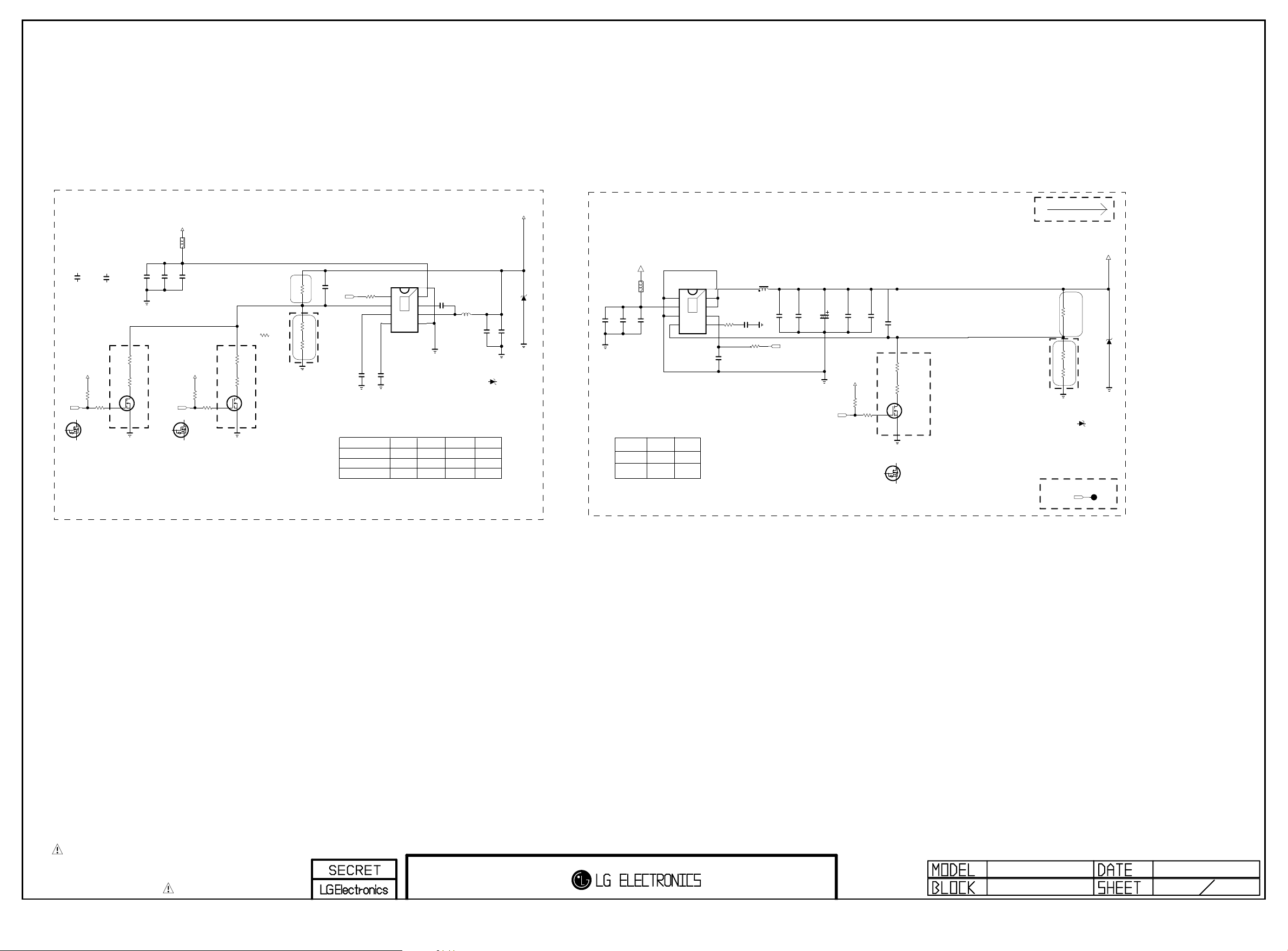

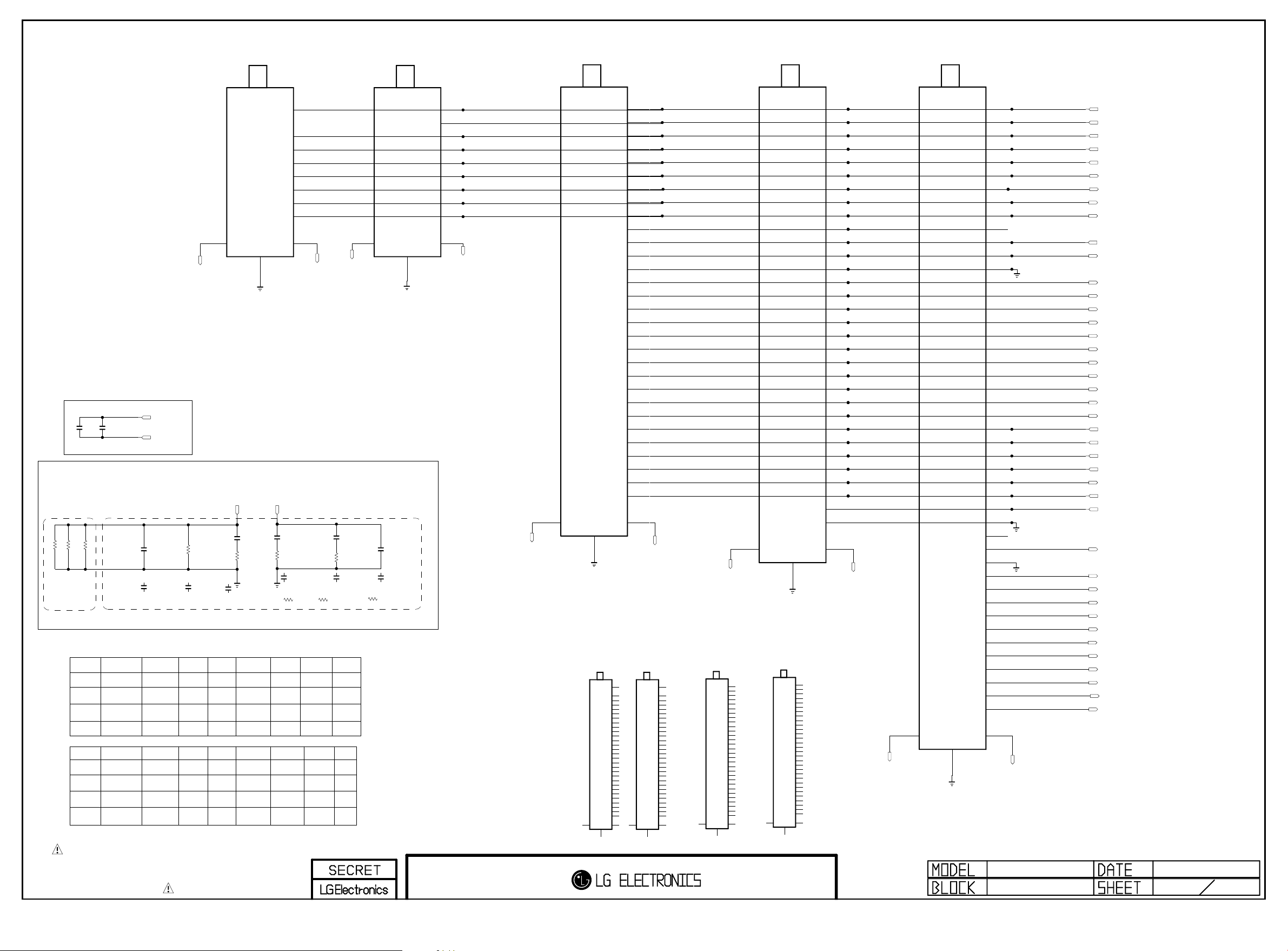

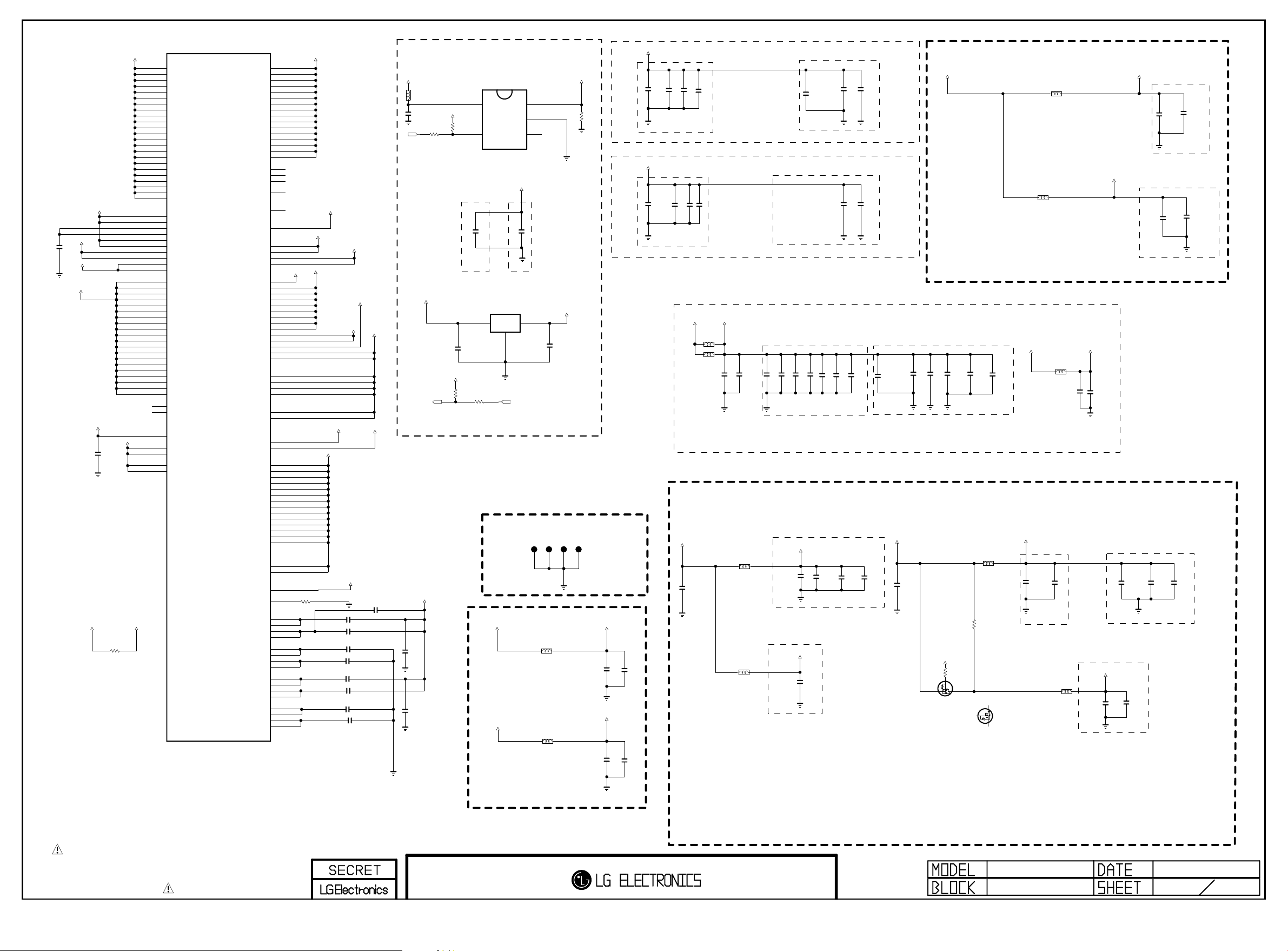

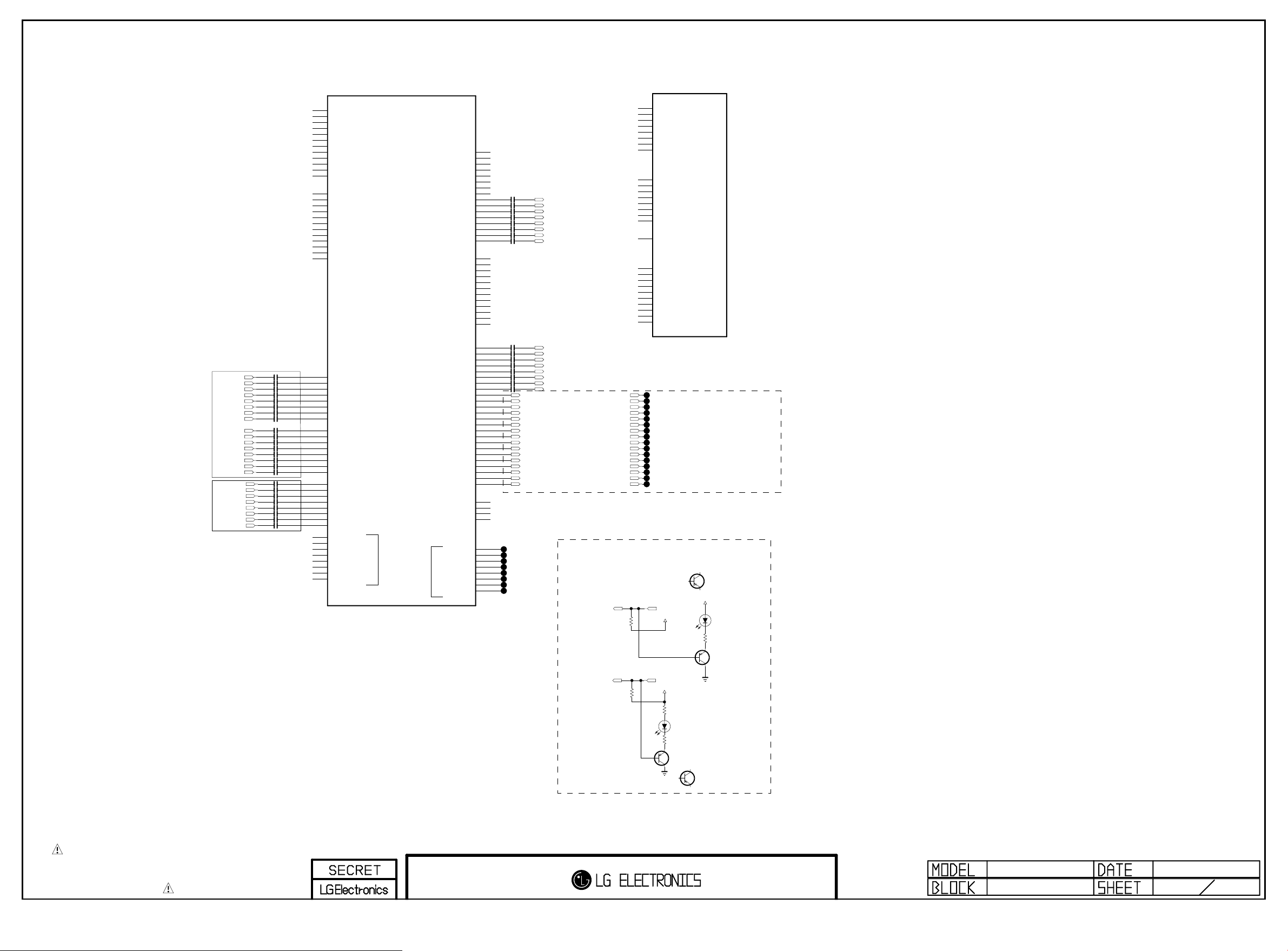

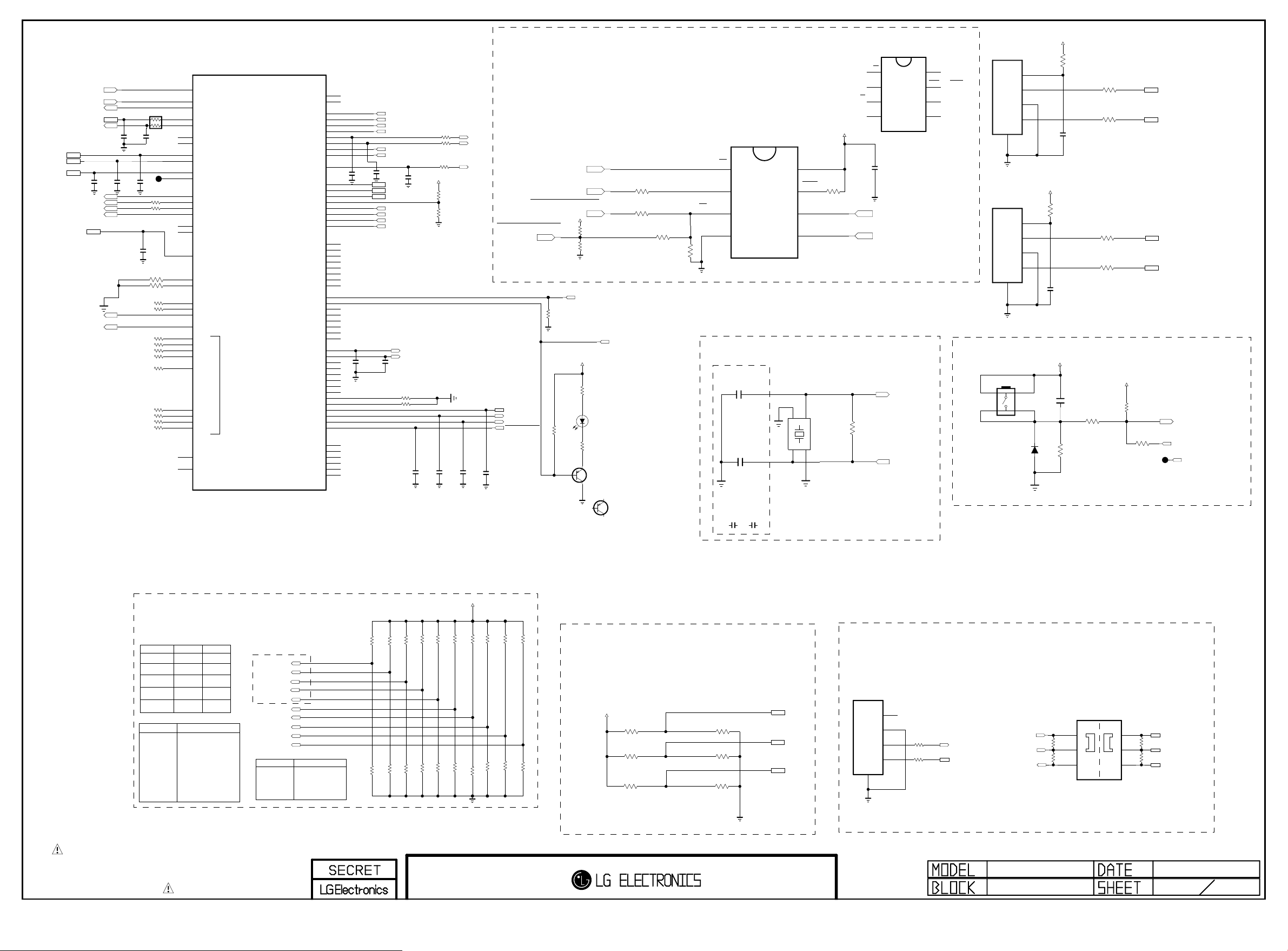

SCHEMATIC CIRCUIT DIAGRAM ........................................... APPENDIX

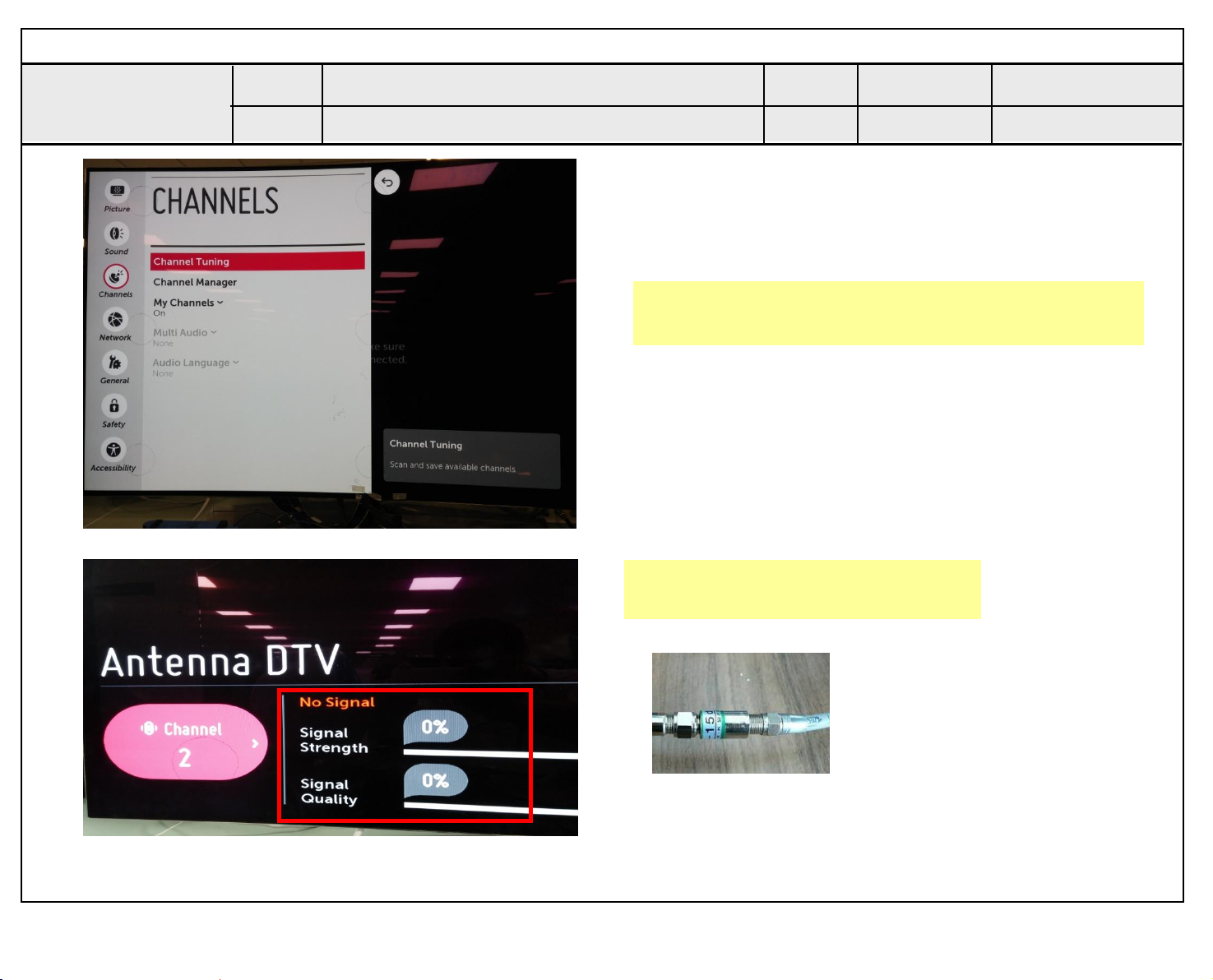

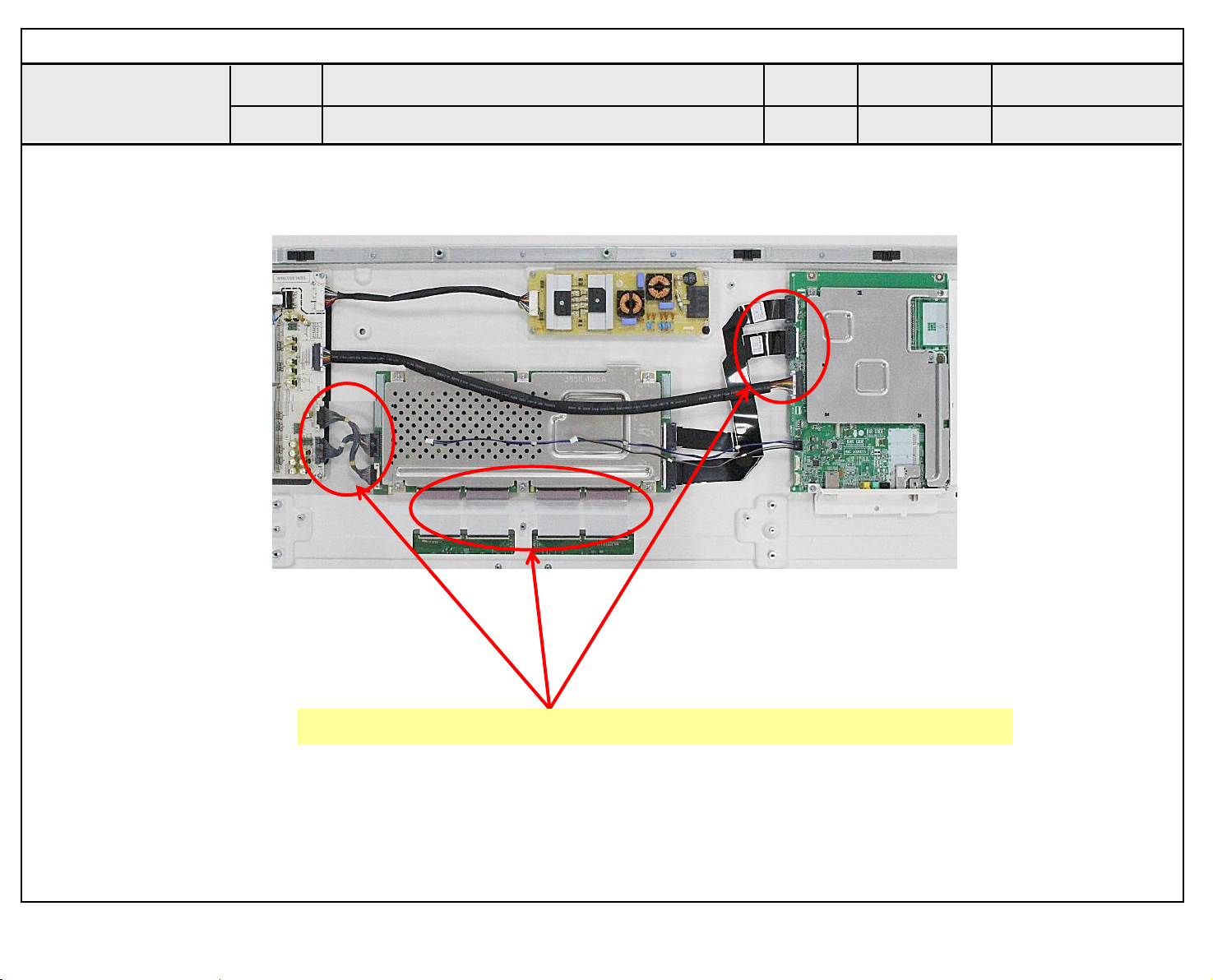

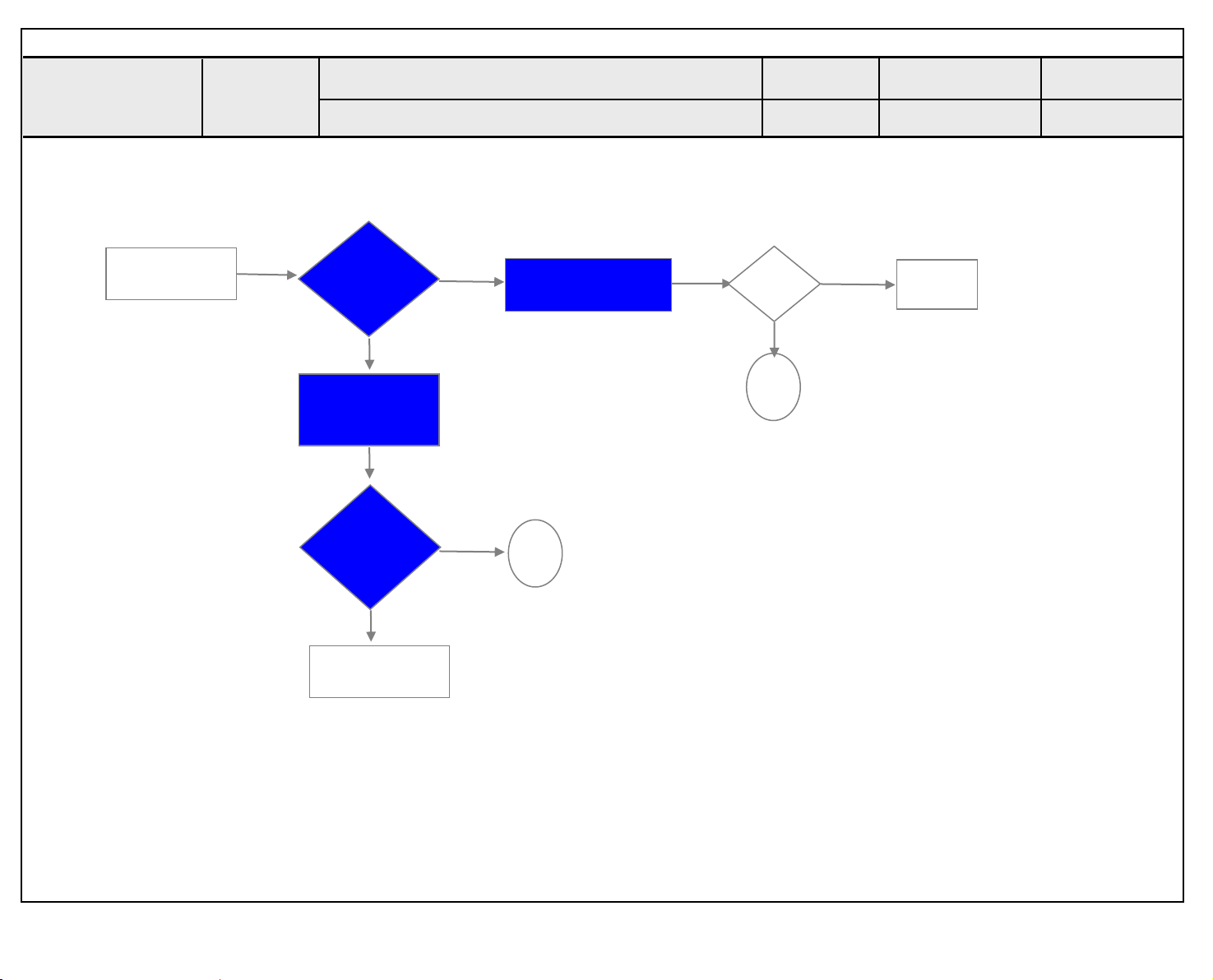

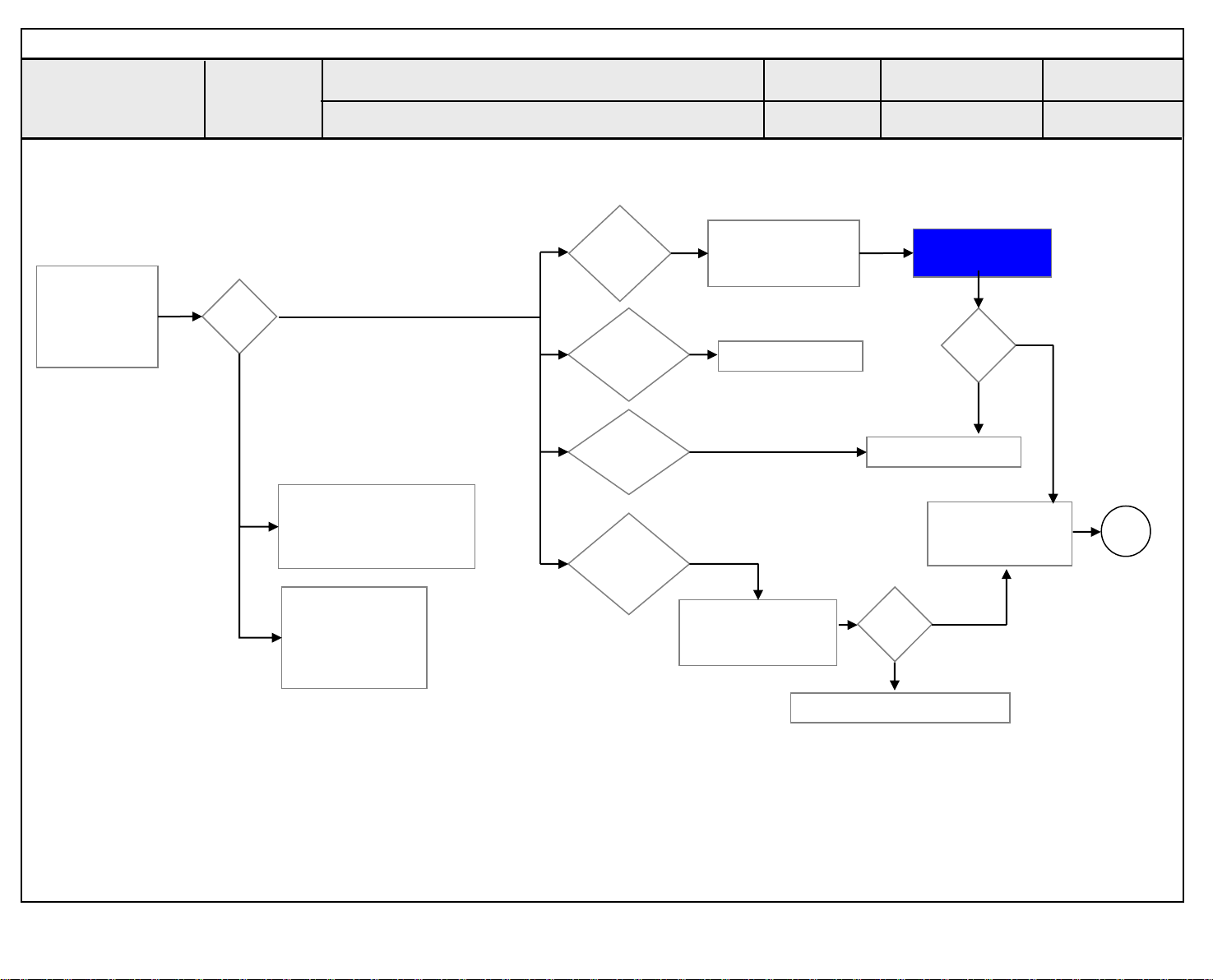

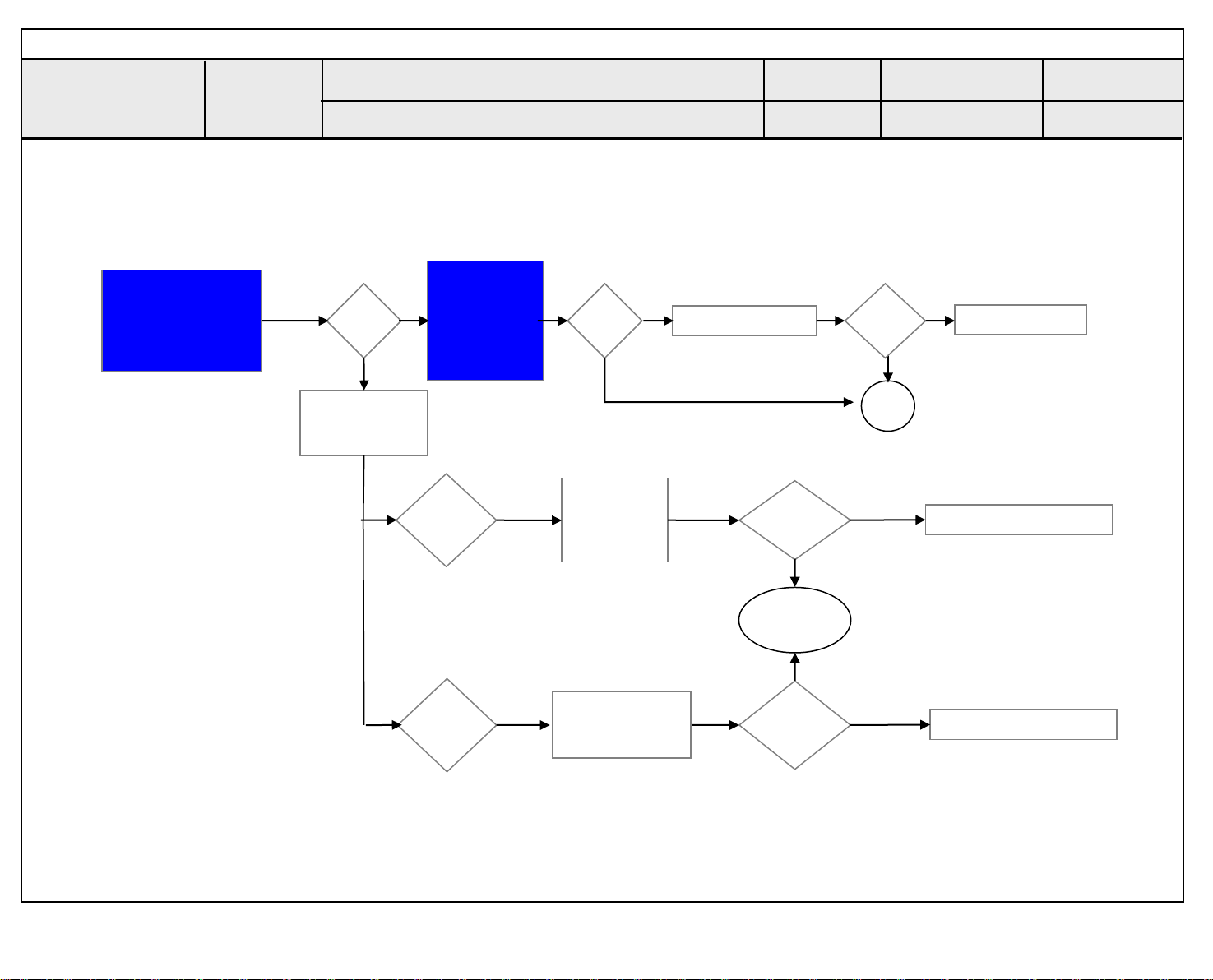

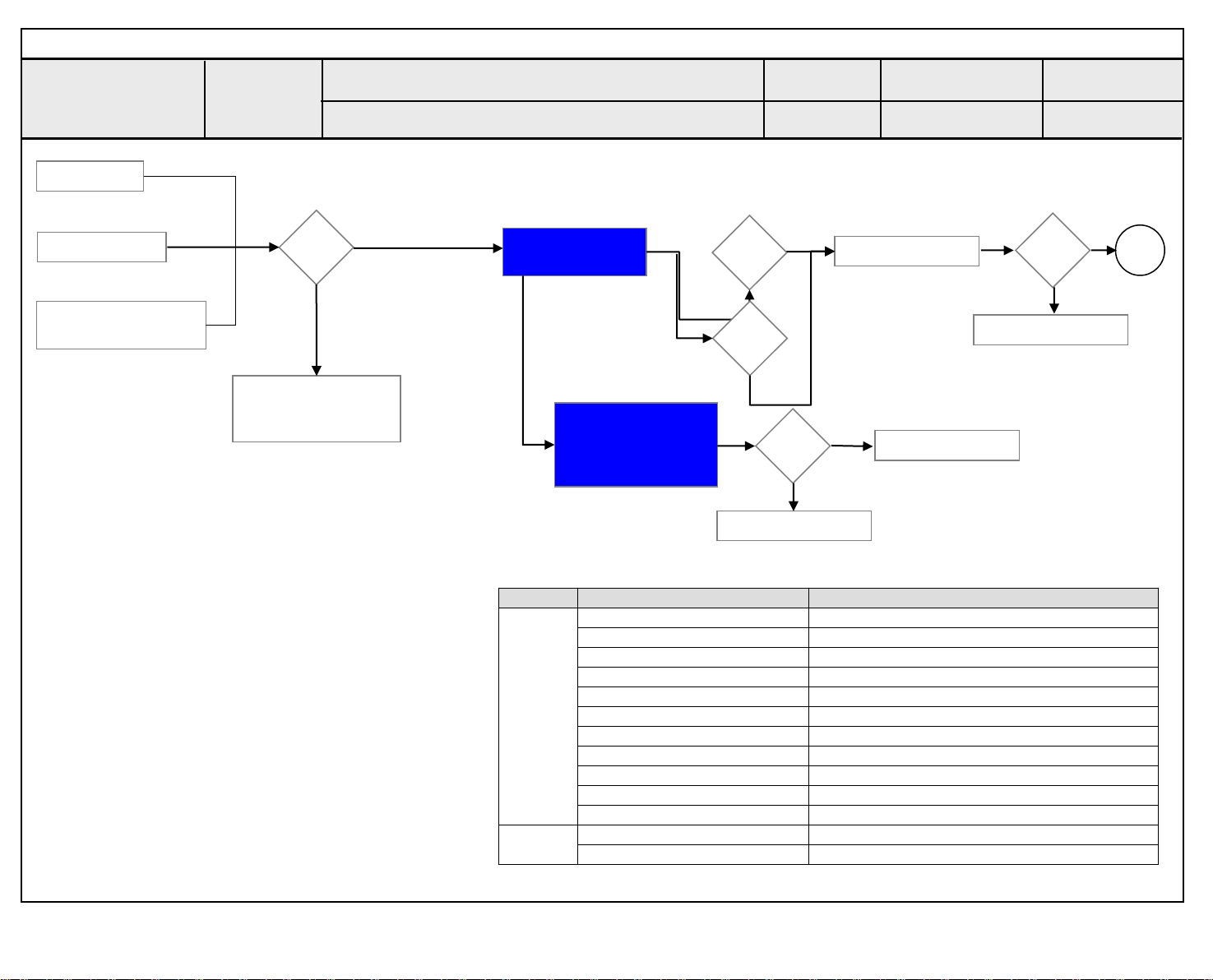

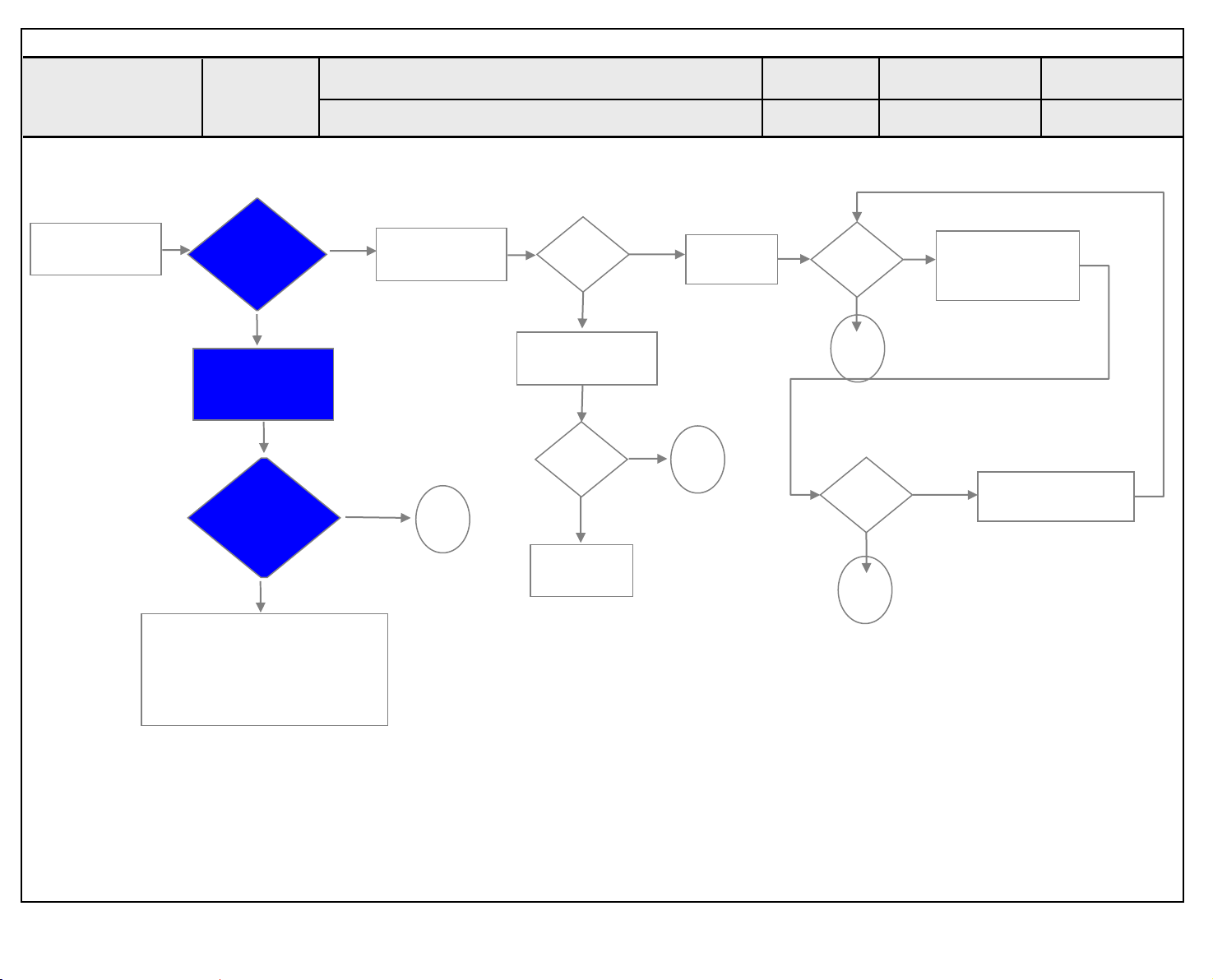

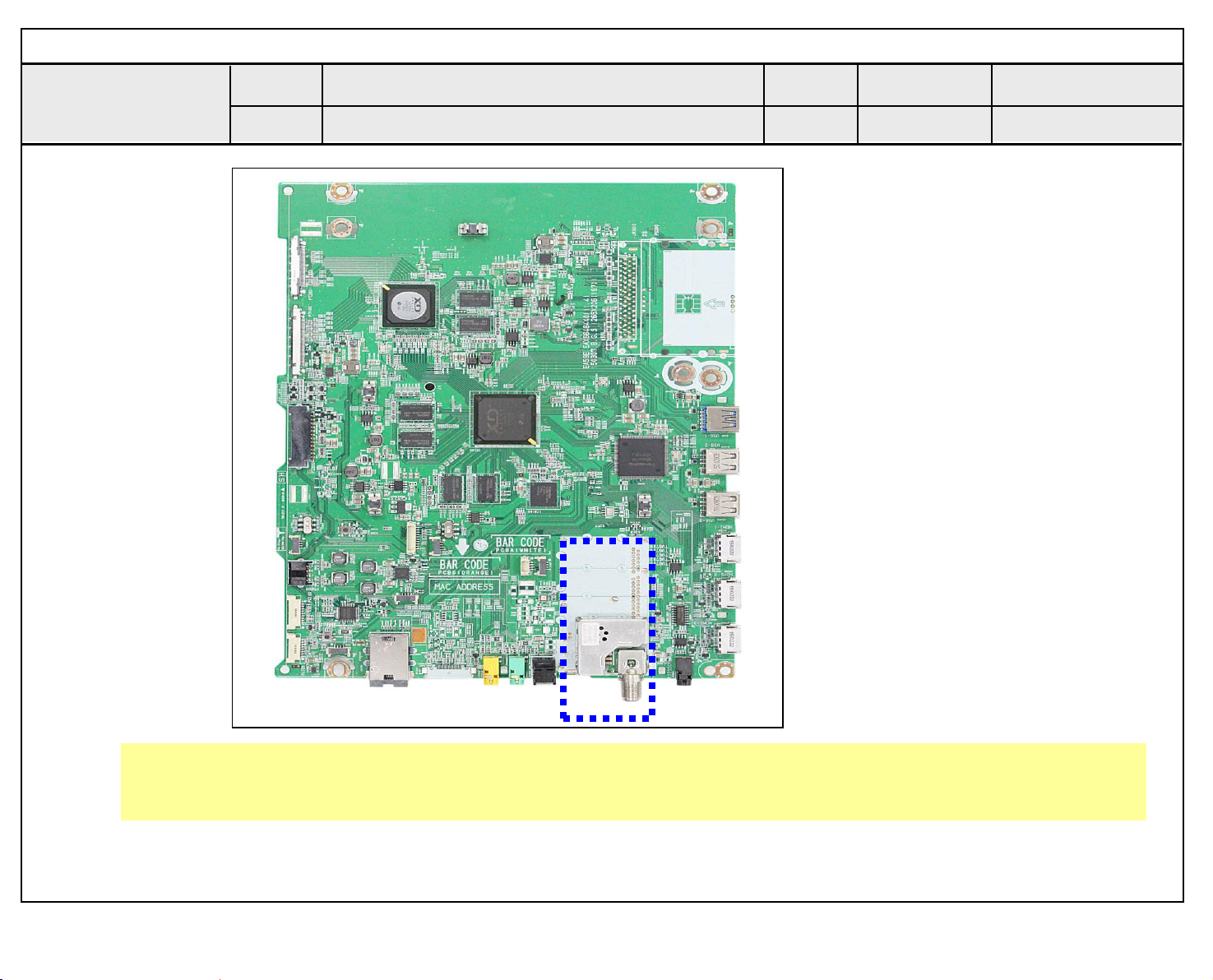

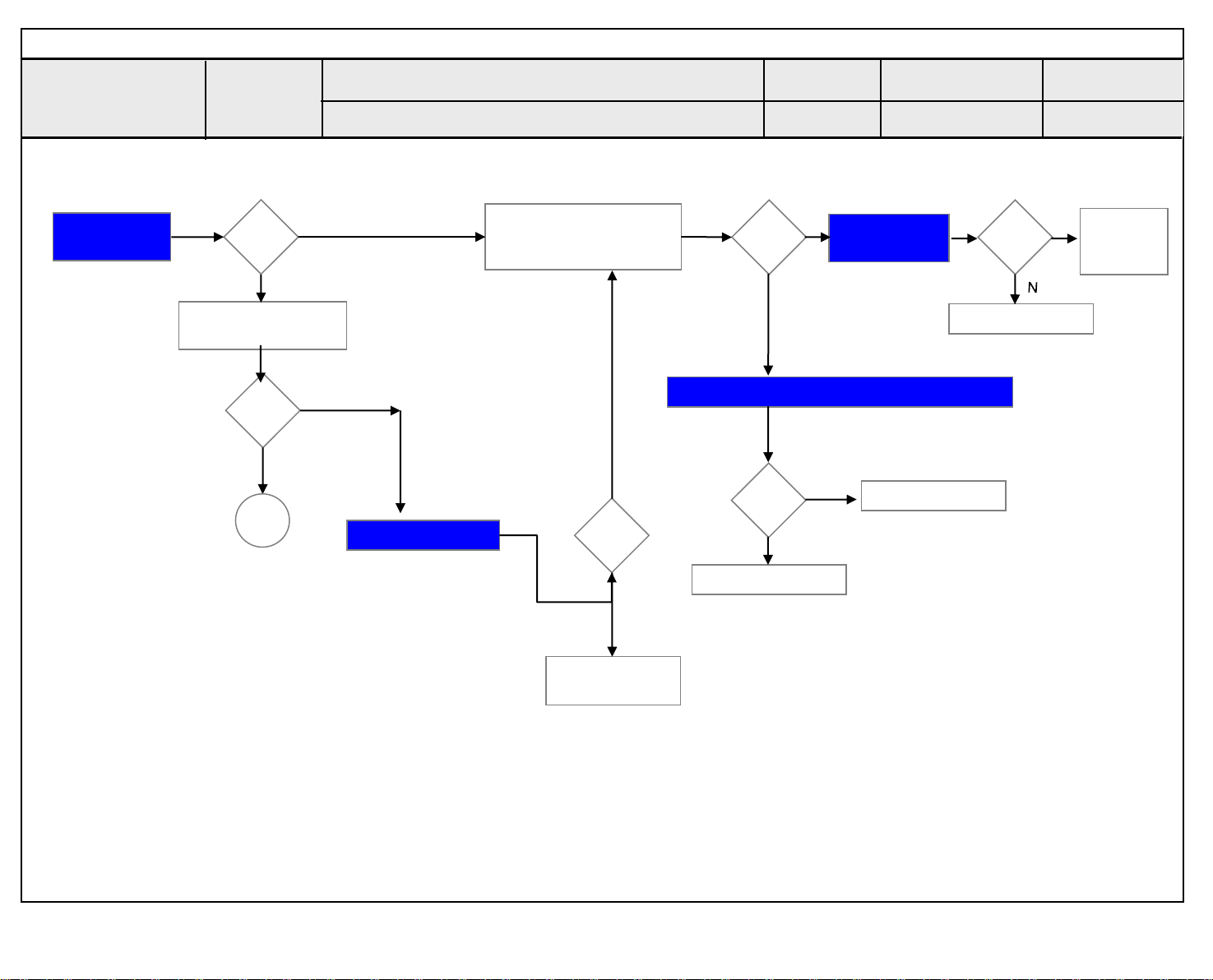

TROUBLE SHOOTING GUIDE ................................................ APPENDIX

Only for training and service purposes

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug

or other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication

of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some sol-

der removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand

against the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

Only for training and service purposes

- 5 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This specification is applied to the OLED TV with ED59E chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage : Standard input voltage (AC 100-240 V~, 50/60 Hz) * Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

5) The receiver must be operated for about 20 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC : CE, IEC specification

- Wireless : Wireless HD Specification (Option)

4. Model General Specification

No. Item Specication Remarks

DTV & Analog (Total 37 countries) DTV (MPEG2/4, DVB-T) : 26 countrie

Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria, France, Spain, , Belgium, Luxemburg, Greece, Czech, Turkey, Morocco, Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania, Bosnia, Slovakia, Belarus

DTV (MPEG2/4, DVB-T2) :11 countries

UK(Ireland), Sweden, Denmark, Finland, Norway, Ukraine, Kazakhstan, Russia, Italy, Croatia, Serbia

1 Market EU/CIS(PAL Market-37Countries)

DTV (MPEG2/4, DVB-C) : 37 countries

Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria, France, Spain, Italy, Belgium, Russia, Luxemburg, Greece, Czech, Croatia, Turkey, Morocco, Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania, Bosnia, Serbia, Slovakia, Belarus, UK, Sweden, Denmark, Finland, Norway, Ukraine, Kazakhstan

DTV (MPEG2/4,DVB-S) : 37 countries

Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria, France, Spain,Belgium, Luxemburg, Greece, Czech, Turkey, Morocco, Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania, Bosnia, Slovakia, Belarus, UK(Ireland), Sweden, Denmark, Finland, Norway, Ukraine, Kazakhstan,Russia, Italy, Croatia, Serbia

Supported satellite : 35 satellites ABS1 75.0E, AMOS 4.0W, ASIASAT3S 105.5E, ASTRA 19.2E, ASTRA

23.5E, ASTRA 28.2E, ASTRA 4.8E, ATLANTIC BIRD2 8.0W, ATLANTIC BIRD3 5.0W, BADR 26.0E, DIRECTV-1R 56.0E, EUROBIRD 9A

9.0E, EUROBIRD3 33.0E, EUTELSAT 36 A/B 36.0E, EUTELSAT W2A

10.0E, EUTELSAT W3A 7.0E, EUTELSAT7WA 7.3WEUTELSAT 16.0E, EXPRESS AM1 40.0E, EXPRESS AM3 140.0E, EXPRESS AM33 96.5E, HELLASSAT 39.0E, HISPASAT 1CDE 30.0WHOTBIRD 13.0E, INTELSAT10&7 68.5E, INTELSAT15 85.2E, INTELSAT1R 50.0W, INTELSAT903 33.5W, INTELSAT904 60.0E, NILESAT 7.0W, NSS12 57.0E, THOR 0.8W, TURKSAT 42.0E, YAMAL201 90.0E, OTHER

Only for training and service purposes

- 6 -

No. Item Specication Remarks

2 Broadcasting system

3 Program coverage

4 Receiving system

5 Input Voltage AC 100 ~ 240V 50/60Hz

1) PAL/SECAM B/G/I/D/K, SECAM L/L’

2)DVB-T/T2, C, S/S2

1 ) Digital TV

- VHF, UHF

- C-Band,Ku-Band

2) Analogue TV

- VHF : E2 to E12

- UHF : E21 to E69

- CATV : S1 to S20

- HYPER : S21 to S47

Analog : Upper Heterodyne Digital : COFDM, QAM

► DVB-T

- Guard Interval(Bitrate_Mbit/s) 1/4, 1/8, 1/16, 1/32

- Modulation : Code Rate QPSK : 1/2, 2/3, 3/4, 5/6, 7/8 16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8 64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8

► DVB-T2

- Guard Interval(Bitrate_Mbit/s) 1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,

- Modulation : Code Rate QPSK : 1/2, 2/5, 2/3, 3/4, 5/6 16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6 64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6 256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6

► DVB-T2

- Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s

- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM

► DVB-S/S2

- symbolrate DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s DVB-S (QPSK) : 2 ~ 45Msymbol/s

- viterbi DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8 DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

Only for training and service purposes

- 7 -

5. External Input Support Format

5.1. Component (Y, CPB, PR)

No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock Proposed

1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I

2 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

3. 720*480 31.50 60 27.027 SDTV 480P

4 720*480 31.47 59.94 27.0 SDTV 480P

5 1280*720 45.00 60.00 74.25 HDTV 720P

6 1280*720 44.96 59.94 74.176 HDTV 720P

7 1920*1080 33.75 60.00 74.25 HDTV 1080I

8 1920*1080 33.72 59.94 74.176 HDTV 1080I

9 1920*1080 67.500 60 148.50 HDTV 1080P

10 1920*1080 67.432 59.94 148.352 HDTV 1080P

11 1920*1080 27.000 24.000 74.25 HDTV 1080P

12 1920*1080 26.97 23.976 74.176 HDTV 1080P

13 1920*1080 33.75 30.000 74.25 HDTV 1080P

14 1920*1080 33.71 29.97 74.176 HDTV 1080P

5.2. HDMI Input

(1) DTV mode

No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Proposed

1 640*480 31.46 59.94 25.13 SDTV 480P

2 640*480 31.50 60.00 25.13 SDTV 480P

3 720*480 15.73 59.94 13.50 SDTV, DVD 480I(525I)

Spec. out but display4 720*480 15.75 60.00 13.51 SDTV, DVD 480I(525I)

5 720*576 15.62 50.00 13.50 SDTV, DVD 576I(625I) 50Hz

6 720*480 31.47 59.94 27.00 SDTV 480P

7 720*480 31.50 60.00 27.03 SDTV 480P

8 720*576 31.25 50.00 27.00 SDTV 576P

9 1280*720 44.96 59.94 74.18 HDTV 720P

10 1280*720 45.00 60.00 74.25 HDTV 720P

11 1280*720 37.50 50.00 74.25 HDTV 720P

12 1920*1080 28.12 50.00 74.25 HDTV 1080I

13 1920*1080 33.72 59.94 74.18 HDTV 1080I

14 1920*1080 33.75 60.00 74.25 HDTV 1080I

15 1920*1080 26.97 23.97 63.30 HDTV 1080P

16 1920*1080 27.00 24.00 63.36 HDTV 1080P

17 1920*1080 33.71 29.97 79.12 HDTV 1080P

18 1920*1080 33.75 30.00 79.20 HDTV 1080P

19 1920*1080 56.25 50.00 148.50 HDTV 1080P

20 1920*1080 67.43 59.94 148.35 HDTV 1080P

21 1920*1080 67.50 60.00 148.50 HDTV 1080P

Only for training and service purposes

- 8 -

22 3840*2160 53.95 23.98 297.00 UDTV 2160P UHD only

23 3840*2160 54.00 24.00 297.00 UDTV 2160P UHD only

24 3840*2160 56.25 25.00 297.00 UDTV 2160P UHD only

25 3840*2160 61.43 29.97 297.00 UDTV 2160P UHD only

26 3840*2160 67.50 30.00 297.00 UDTV 2160P UHD only

27 3840*2160 112.50 50.00 594.00 UDTV 2160P(DVB) UHDonly(Port1)

28 3840*2160 135.00 59.94 593.41 UDTV 2160P UHDonly(Port1)

29 3840*2160 135.00 60.00 594.00 UDTV 2160P UHDonly(Port1)

30 4096*2160 53.95 23.98 297.00 UDTV 2160P UHD only

31 4096*2160 54.00 24.00 297.00 UDTV 2160P UHD only

32 4096*2160 56.25 25.00 297.00 UDTV 2160P UHD only

33 4096*2160 61.43 29.97 297.00 UDTV 2160P UHD only

34 4096*2160 67.50 30.00 297.00 UDTV 2160P UHD only

35 4096*2160 112.50 50.00 594.00 UDTV 2160P(DVB) UHDonly(Port1)

36 4096*2160 135.00 59.94 593.41 UDTV 2160P UHDonly(Port1)

37 4096*2160 135.00 60.00 594.00 UDTV 2160P UHDonly(Port1)

(2) HDMI Input (PC)

No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Proposed

1 640*350 31.46 70.09 25.17 EGA

2 720*400 31.46 70.08 28.32 DOS

3 640*480 31.46 59.94 25.17 VESA(VGA)

4 800*600 37.87 60.31 40.00 VESA(SVGA)

5 1024*768 48.36 60.00 65.00 VESA(XGA)

6 1152*864 54.34 60.05 80.00 VESA

7 1280*1024 63.98 60.02 109.00 VESA(SXGA) FHD only

8 1360*768 47.71 60.01 85.00 VESA(WXGA)

9 1920*1080 67.50 60.00 158.40 WUXGA(CEA 861D) FHD only

10 3840*2160 67.50 30.00 297.00 UDTV 2160P UHD only

11 3840*2160 56.25 25.00 297.00 UDTV 2160P UHD only

12 3840*2160 54.00 24.00 297.00 UDTV 2160P UHD only

13 4096*2160 53.95 23.97 296.703 UDTV 2160P UHD only

14 4096*2160 54.00 24.00 297.00 UDTV 2160P UHD only

Only for training and service purposes

- 9 -

5.3. 3D Mode - DTV/HDMI/USB

(1) RF Input

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1280*720 37.50 50 74.25 HDTV 720P 2D to 3D, Side by Side, Top & Bottom

2 1920*1080 28.13 50 74.25 HDTV 1080I 2D to 3D, Side by Side, Top & Bottom

(2) HDMI Input

1) HDMI Input (3D supported mode automatically)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) VIC

31.46 /

31.50

1 640*480

2 720*480

3 720*576 15.62 50.00 27.00 21

4 720*576

5 1280*720

31.46 /

31.50

62.93 /

63.00

31.46 /

31.50

31.46 /

31.50

62.93 /63.00 59.94 / 60.00 54.00/54.06 2,3

31.25 50.00 27.00 17,18

62.50 50.00 54.00 17,18

37.50 50.00 74.25 19

37.50 50.00 148.50 19 Side-by-side(Full) (HDTV 720P)

44.96 /

45.00

44.96 /

45.00

75.00 50.00 148.50 19

89.91/90.00 59.94 / 60.00 148.35/148.50 4

59.94/ 60.00 25.13/25.20 1

59.94/ 60.00 50.35/50.40 1 Side-by-side(Full) (SDTV 480P)

59.94/ 60.00 50.35/50.40 1

59.94 / 60.00 27.00/27.03 2,3

59.94 / 60.00 27.00/27.03 2,3 Side-by-side(Full) (SDTV 480P)

59.94 / 60.00 74.17/74.25 4

59.94 / 60.00 148.35/148.50 4 Side-by-side(Full) (HDTV 720P)

3D input proposed mode

Top-and-Bottom Side-by-side(half)

Frame packing Line alternative

Top-and-Bottom Side-by-side(half)

Frame packing Line alternative

Top-and-Bottom Side-by-side(half) Side-by-side(Full) Frame packing Field alternative

Top-and-Bottom Side-by-side(half) Side-by-side(Full)

Frame packing Line alternative

Top-and-Bottom Side-by-side(half)

Frame packing Line alternative

Proposed

Secondary(SDTV 480P) Secondary(SDTV 480P)

Secondary(SDTV 480P) (SDTV 480P)

Secondary(SDTV 480P) Secondary(SDTV 480P)

Secondary(SDTV 480P) (SDTV 480P)

(SDTV 576I) Secondary(SDTV 576I) (SDTV 576I) Secondary(SDTV 576I) Secondary(SDTV 576I)

Secondary(SDTV 576P) Secondary(SDTV 576P) (SDTV 576P)

Secondary(SDTV 576P) (SDTV 576P)

Primary(HDTV 720P) Primary(HDTV 720P)

Primary(HDTV 720P) (HDTV 720P)

Only for training and service purposes

- 10 -

6 1920*1080

7 1920*1080

28.12 50.00 74.25 20

28.12 50.00 148.50 20 Side-by-side(Full) (HDTV 1080I)

33.72 /

33.75

33.72 /

33.75

56.25 50.00 148.50 20

67.43/67.50 59.94 / 60.00 148.35/148.50 5

26.97 /

27.00

26.97 /

27.00

28.12 25.00 74.25 33

28.12 25.00 148.50 33 Side-by-side(Full) (HDTV 1080P)

33.71 /

33.75

33.71 /

33.75

43.94/54.00 23.97 / 24.00 148.35/148.50 32

56.25 25.00 148.50 33

59.94 / 60.00 74.17/74.25 5

59.94 / 60.00 148.35/148.50 5 Side-by-side(Full) (HDTV 1080I)

23.97 / 24.00 74.17 / 74.25 32

23.97 / 24.00 148.35 / 148.50 32 Side-by-side(Full) (HDTV 1080P)

29.97 / 30.00 74.18/74.25 34

29.97 / 30.00 148.35/148.50 34 Side-by-side(Full) (HDTV 1080P)

Top-and-Bottom Side-by-side(half)

Frame packing Field alternative

Top-and-Bottom Side-by-side(half)

Frame packing Line alternative

Secondary(HDTV 1080I) Primary(HDTV 1080I)

Primary(HDTV 1080I) (HDTV 1080I)

Primary(HDTV 1080P) Primary(HDTV 1080P)

Secondary(HDTV 1080P) Secondary(HDTV 1080P)

Primary(HDTV 1080P) Secondary(HDTV 1080P)

Primary(HDTV 1080P) (HDTV 1080P)

Secondary(HDTV 1080P) (HDTV 1080P)

67.43 / 67.5 29.97 / 30.00 148.35/148.50 34

56.25 50.00 148.50 31

67.43 /

67.50

59.94 / 60.00 148.35/148.50 16

Frame packing Line alternative

Top-and-Bottom Side-by-side(half)

Primary(HDTV 1080P) (HDTV 1080P)

Primary(HDTV 1080P) Secondary(HDTV 1080P)

(3) DTV( 3D) (3D supported mode automatically)

No. Signal H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 Frame compatible - - - -

Side by Side(half) Top & Bottom

(4) DTV/ATV(CVBS/SCART) Input( 3D) (3D supported mode manually)

No. Signal H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 HD/SD - - - - 2D to 3D

2 SD - - - -

Side by Side(half) Top & Bottom

Only for training and service purposes

- 11 -

(5) Component Input ( 3D) (3D supported mode manually)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1280*720 37.50 50.00 74.25 HDTV 720P

2 1280*720 45.00 60.00 74.25 HDTV 720P

3 1280*720 44.96 59.94 74.18 HDTV 720P

4 1920*1080 33.75 60.00 74.25 HDTV 1080I

5 1920*1080 33.72 59.94 74.18 HDTV 1080I

6 1920*1080 28.12 50.00 74.25 HDTV 1080I

7 1920*1080 67.50 60.00 148.50 HDTV 1080P

8 1920*1080 67.43 59.94 148.35 HDTV 1080P

9 1920*1080 27.00 24.00 74.25 HDTV 1080P

10 1920*1080 28.12 25.00 74.25 HDTV 1080P

11 1920*1080 56.25 50.00 74.25 HDTV 1080P

12 1920*1080 26.97 23.97 74.18 HDTV 1080P

13 1920*1080 33.75 30.00 74.25 HDTV 1080P

14 1920*1080 33.71 29.97 74.18 HDTV 1080P

2D to 3D, Side by Side(half), Top & Bottom

(6) HDMI-PC Input (3D) (3D supported mode manually)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1024*768 48.36 60.00 65.00 HDTV 768P 2D to 3D,

2 1360*768 47.71 60.00 HDTV 768P

3 1920*1080 67.50 60.00 148.50 HDTV 1080P

3840*2160

4

(Ultea HD model only)

4096*2160

5

(Ultea HD model only)

6 Others - - -

54.00 24.00 296.70

56.25 25.00 297.00

67.50 30.00 296.70

54 24.00 297.00 HDTV 2160P

HDTV 2160P

640*350 720*400 640*480 800*600 1152*864

- 12 -

Only for training and service purposes

Side by Side(half), Top & Bottom

2D to 3D, Side by Side(half), Top & Bottom, Checker Board, Frame Sequential, Row Interleaving, Column Interleaving

2D to 3D, Top & Bottom(half) Side by Side(half)

2D to 3D, Side by Side(half), Top & Bottom

(7) HDMI-DTV (3D supported mode manually)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 720*480 31.50 60.00 27.03 SDTV 480P

2 720*576 31.25 50.00 27.00 SDTV 576P

3 37.50 50.00 74.25 HDTV 720P

4 1920*1080

5 1920*1080

33.75 60.00 74.25 HDTV 1080I

28.12 50.00 74.25 HDTV 1080I

27.00 24.00 74.25 HDTV 1080P

28.12 25.00 74.25 HDTV 1080P

33.75 30.00 74.25 HDTV 1080P

67.50 60.00 148.50 HDTV 1080P 2D to 3D, Side by Side(Half), Top &

56.25 50.00 148.50 HDTV 1080P

53.95 23.97 297.00

54.00 24.00 296.70

56.25 25.00 297.00

61.43 29.97 297.00

67.50 30.00 296.70

HDTV 2160P

2D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Frame Sequential, Row Interleaving, Column Interleaving

2D to 3D, Side by Side(Half), Top & Bottom

2D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Row Interleaving, Column Interleaving

Bottom, Checker Board, Single Frame Sequential, Row Interleaving, Column Interleaving

2D to 3D, Top & Bottom(half), Side by Side(half)

3840*2160 4096*2160

6

(Ultra HD model only)

112.50

135.00

50.00(HDMI1, HDMI2 Only)

60.00(HDMI1, HDMI2 Only)

594.00

HDTV 2160P

2D to 3D, Side by Side(half) Top & Bottom

(8) USB – Movie (3D) (3D supported mode manually)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 Under 704x480 - - - 2D to 3D

Over 704x480

2

Under 1080P interlaced

Over 704x480

3

Under 1080P progressive

4 - others -

Over 2160P

5

(Ultra HD model only)

- - - 2D to 3D, Side by Side(Half), Top & Bottom

2D to 3D, Side by Side(Half), Top & Bottom,

- 50 / 60 -

- 24/25/30/50/60 - 2D to 3D, Side by Side(Half), Top & Bottom

Checker Board, Row Interleaving, Column Interleaving, Column Interleaving ,Frame Sequential

2D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Row Interleaving, Column Interleaving

Only for training and service purposes

- 13 -

(9) USB, DLNA -Photo (3D) (3D supported mode manually)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 USB(photo) - - - 2D to 3D, Side by Side(Half), Top & Bottom

(10) Miracast Intel WIDI (3D supported mode manually)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 1024X768p - 30 / 60 -

2D to 3D, Side by Side(Half), Top & Bottom2 1280x720p - 30.00 / 60.00 -

3 1920X1080p 30.00 / 60.00

4 Others - 2D to 3D

(11) USB, DLNA (3D) (3D supported mode automatically)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 1080p 33.75 30.00 74.25

2 2160p 67.50 30.00 297.00

■ Remark: 3D Input mode

Side by Side(Half), Top & Bottom, Checker Board, MPO(Photo), JPS(Photo)

Side by Side Top & Bottom Checkerboard

Single Frame

Sequential

Frame Packing

Row Inter-

leaving

Column Inter-

leaving

2D to 3D

Only for training and service purposes

- 14 -

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied to ED59E Chassis applied OLED TV all models manufactured in TV factory.

2. Designation

(1) Because this is not a hot chassis, it is not necessary to

use an isolation transformer. However, the use of isolation

transformer will help protect test instrument. (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25 °C ± 5 °C of temperature and 65 % ± 10 % of relative

humidity if there is no specific designation. (4) The input voltage of the receiver must keep AC 100-240

V~, 50/60 Hz. (5) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15 °C.

In case of keeping module is in the circumstance of 0 °C, it should be placed in the circumstance of above 15 °C for 2 hours.

In case of keeping module is in the circumstance of below

-20 °C, it should be placed in the circumstance of above 15 °C for 3 hours.

[Caution] When still image is displayed for a period of 20 minutes or longer (Especially where W/B scale is strong. Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some afterimage in the black level area.

4. Automatic Adjustment

4.1. MAC address D/L , CI+ key D/L , Widevine key D/L, ESN D/L, HDCP14/20 D/L

- Connect: USB port

4.2. Communication Prot connection

- Com 1,2,3,4 and 115200(Baudrate) Mode check: Online Only

- check the test process DETECT -> MAC -> ESN -> Widevine -> CI -> HDCP14 -> HDCP20

-.Play : Press Enter key

-.Result: Ready, Test, OK or NG

-.Printer Out (MAC Address Label)

4.3. LAN Inspection

4.3.1. Equipment & Condition

- Each other connection to LAN Port of IP Hub and Jig

3. Adjustment items

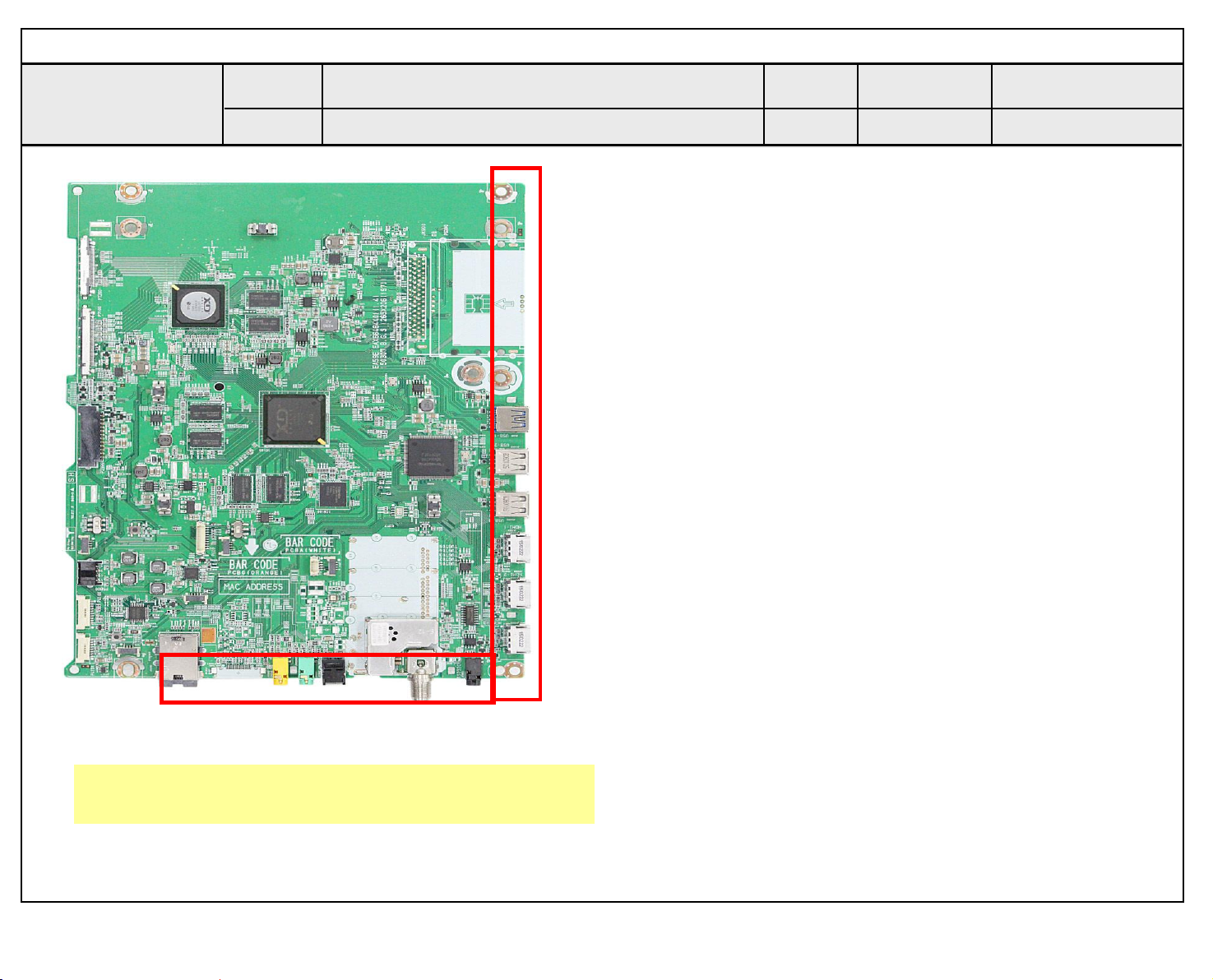

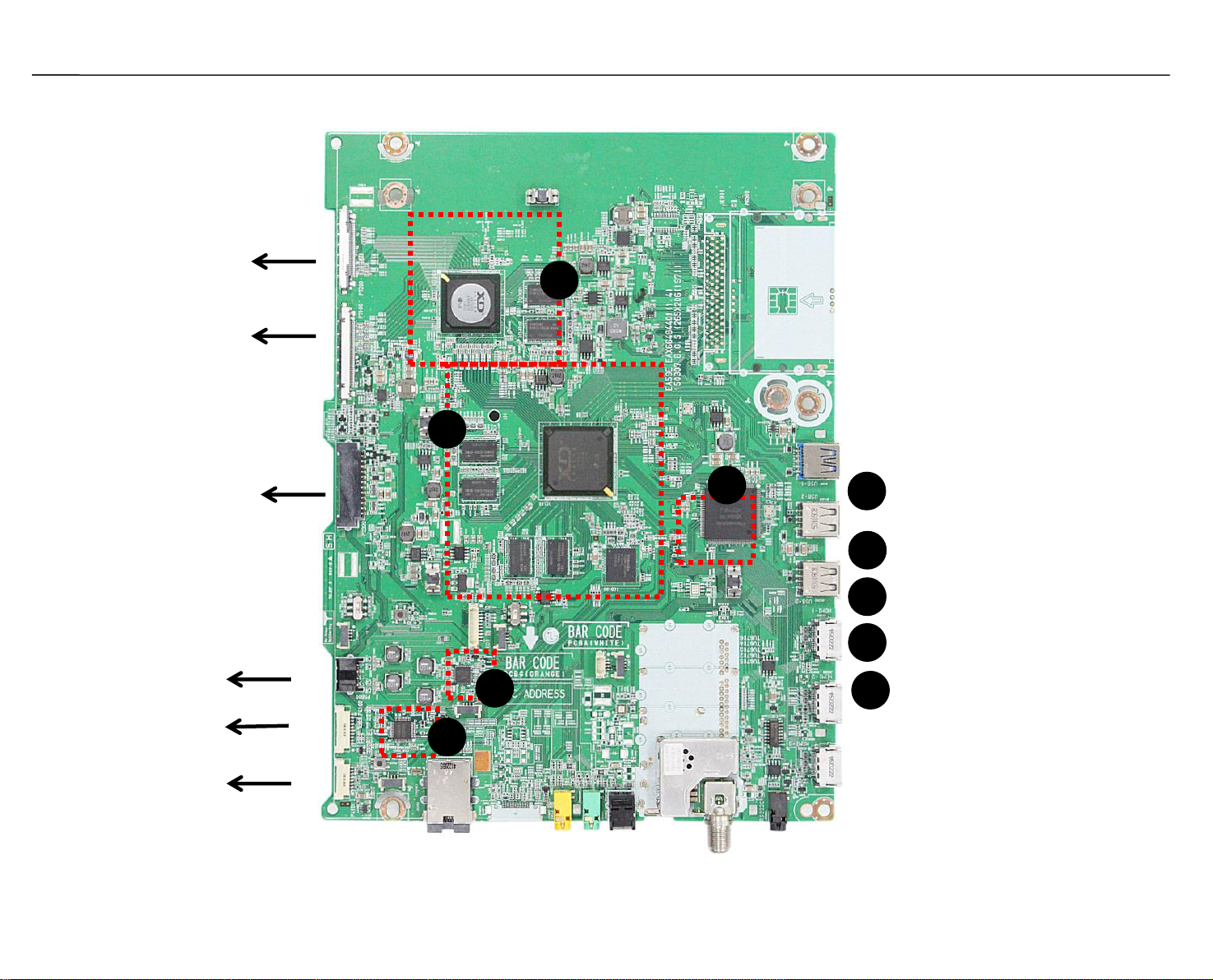

3.1. Main PCB check process

- MAC Address Download

- ADC adjustment : 480i Comp1, 1920*1080 Comp1

- EDID/DDC download Above adjustment items can be also performed in Final Assembly if needed. Both Board-level and Final assembly adjustment items can be check using In-Star Menu 1. ADJUST CHECK.

3.2. Final assembly adjustment

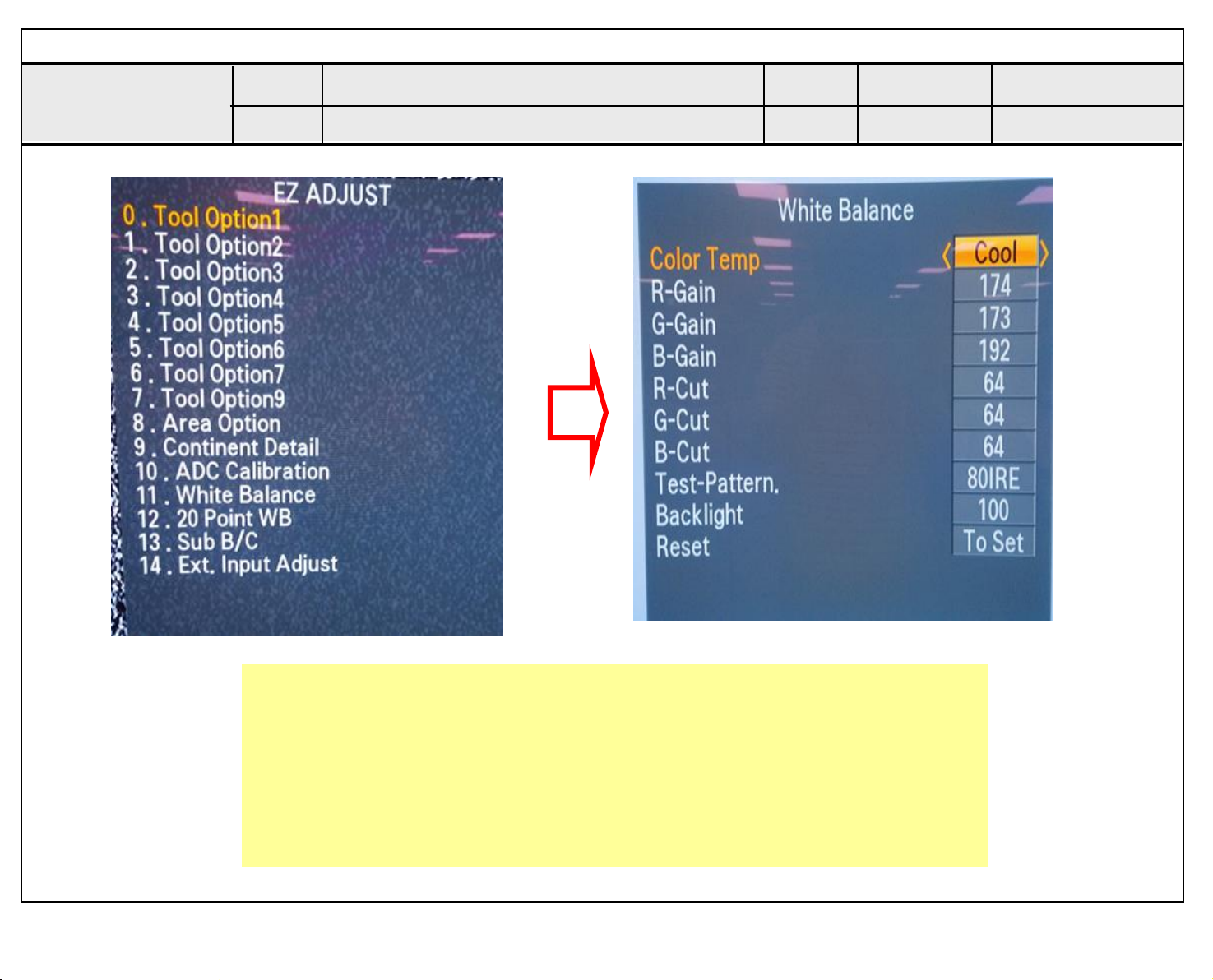

- White Balance adjustment

- RS-232C functionality check

- PING Test

- Factory Option setting per destination

- Ship-out mode setting (In-Stop)

3.3. Etc

- Ship-out mode

- Service Option Default

- USB Download(S/W Update, Option, Service only)

- ISP Download(Option)

4.3.2. LAN inspection solution

- LAN Port connection with PCB

- Network setting at MENU Mode of TV

- setting automatic IP

- Setting state confirmation If automatic setting is finished, you confirm IP and MAC Address.

Only for training and service purposes

- 15 -

4.3.3. WIDEVINE Key Inspection

- Confirm Key input Data at the “IN START” MENU Mode

4.4. LAN PORT INSPECTION(PING TEST)

4.4.1. Equipment setting

(1) Play the LAN Port Test PROGRAM. (2) Input IP set up for an inspection to Test Program.

*IP Number : 12.12.2.2

SET PC

4.5. Model name & Serial number Download

4.5.1 Model name & Serial number D/L

- Press “P-ONLY” key of service remocon.

(Baud rate : 115200 bps)

- Connect RS-232C Signal to USB Cable to USB.

- Write Serial number by use USB port.

- Must check the serial number at Instart menu.

4.5.2 Method & notice

(1) Serial number D/L is using of scan equipment. (2) Setting of scan equipment operated by Manufacturing

Technology Group.

(3) Serial number D/L must be conformed when it is produced

in production line, because serial number D/L is mandatory by D-book 4.0

Manual Download (Model Name and Serial Number) If the TV set is downloaded By OTA or Service man, Sometimes model name or serial number is initialized. (Not always) There is impossible to download by bar code scan, so It need Manual download.

(1) Press the ‘instart’ key of ADJ remote controller. (2) Go to the menu ‘7.Model Number D/L’ like below photo.

4.4.2. LAN PORT inspection (PING TEST)

(1) Play the LAN Port Test Program. (2) connect each other LAN Port Jack. (3) Play Test (F9) button and confirm OK Message. (4) remove LAN CABLE

(3) Input the Factory model name or Serial number like photo. (4) Check the model name Instart menu

→Factory name displayed

(5) Check the Diagnostics (DTV country only)

→Buyer model displayed

4.6. CI+ Key checking method(check the Section 4.2) (Only EU Model)

Check whether the key was downloaded or not at ‘In Start’ menu. (Refer to below).

Check the Download to CI+ Key value in LGset.

4.6.1. check the method of CI+ Key value

a. check the method on Instart menu b. check the method of RS232C Command

1) into the main ass’y mode (RS232 : aa 00 00)

CMD 1 CMD 2 Data 0

A 0 0

2) check the key download for transmitted command (RS232 : ci 00 10)

CMD 1 CMD 2 Data 0

C I 1 0

Only for training and service purposes

- 16 -

3) result value

- normally status for download : OKx

- abnormally status for download : NGx

4.6.2. check the method of CI+ Key value (RS232)

(1) into the main ass’y mode (RS232 : aa 00 00)

CMD 1 CMD 2 Data 0

A A 0 0

(2) check the mothed of CI+ key by command (RS232 : ci 00 20)

CMD 1 CMD 2 Data 0

C I 2 0

(3) result value i 01 OK 1d1852d21c1ed5dcx

CI+ Key Value

4.7. WIFI MAC ADRESS CHECK

4.7.1. Using RS232 Command

Command Set ACK

Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G]

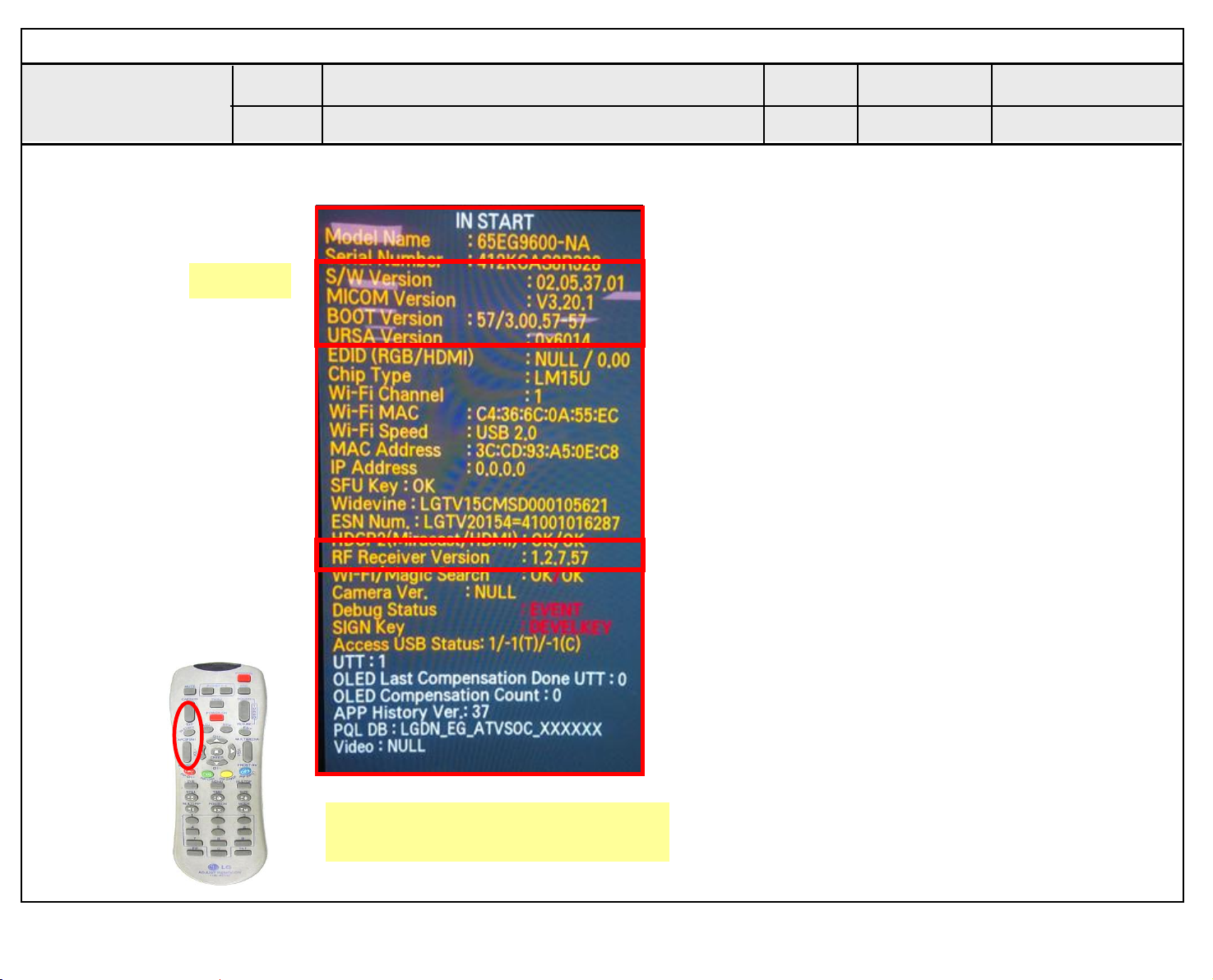

4.7.2. check the menu on in-start

5. Manual Adjustment

5.1. ADC adjustment is not needed because of OTP(Auto ADC adjustment)

5.2. EDID (The Extended Display Identification Data) / DDC (Display Data Channel) download

5.2.1. Overview

It is a VESA regulation. A PC or a MNT will display an optimal resolution through information sharing without any necessity

of user input. It is a realization of “Plug and Play”.

5.2.2. Equipment

▪ Since embedded EDID data is used, EDID download JIG,

HDMI cable and D-sub cable are not need.

▪ Adjust remocon.

5.2.3. Download method

(1) Press Adj. key on the Adj. R/C, then select “12.EDID D/L”.

By pressing Enter key, enter EDID D/L menu.

For HDMI EDID

DVI-D to HDMI or HDMI to HDMI

(2) Select [Start] button by pressing Enter key, HDMI1 /

HDMI2 / HDMI3 / HDMI4 are Writing and display OK or NG.

5.2.4. Download method

▪Reference

- HDMI1 ~ HDMI3

- In the data of EDID, bellows may be different by Input mode.

0 1 2 3 4 5 6 7 8 9 A B C D E F

0x00 00 FF FF FF FF FF FF 00 1E 6D

ⓒ

0x01 0x02 0F 50 54 A1 8 00 31 40 45 40 61 40 71 40 81 80 0x03 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 0x04 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 0x05 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 0x06 3E 1E 53 10 00 0A 20 20 20 20 20 20 0x07 0x00 02 03 3A F1 4E 10 9F 04 13 05 14 03 02 12 20 21 0x01 22 15 01 29 3D 06 C0 15 07 50 0x02 0x03 0x04 2D 40 58 2C 45 00 40 84 63 00 00 1E 01 1D 80 18 0x05 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D 0x06 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 0x07 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26

ⓓ

ⓕ

10 28 10 E3 05 03 01 02 3A 80 18 71 38

ⓕ

ⓐ Product ID ⓑ Serial No: Controlled on production line. ⓒ Month, Year: Controlled on production line:

ex) Monthly : ‘01’ → ‘01’, Year : ‘2015’ → ‘19’

ⓓ Model Name(Hex): LGTV ⓔ Checksum(LG TV): Changeable by total EDID data. ⓕ Vendor Specific(HDMI)

ⓐ ⓑ

ⓓ

01

ⓕ

ⓔ1

ⓔ2

Only for training and service purposes

- 17 -

(1) DTS

# HDMI 1(C/S : A0 C8) – HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 A0

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 1(C/S : E6 1E) – HDMI UHD Deep Off Case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 2(C/S : E6 0E) – HDMI UHD Deep Off Case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 2(C/S : A0 B8) – HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 A0

# HDMI 3(C/S : A0 A8) – HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 A0

EDID Block 1, Bytes 128-255 [80H-FFH]

Only for training and service purposes

- 18 -

# HDMI 3(C/S : E6 FE) – HDMI UHD Deep Off Case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6

# HDMI 1(C/S : E6 27) – HDMI UHD Deep Off Case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6

EDID Block 1, Bytes 128-255 [80H-FFH]

Checksum(HDMI 1/2/3)

Input

HDMI Deep Color

On

FFh (Checksum)

HDMI Deep Color Off

FFh (Checksum)

HDMI1 A0 C8 E6 1E

HDMI2 A0 B8 E6 0E

HDMI3 A0 A8 E6 FE

(2) AC3

# HDMI 1(C/S : A0 D1) – HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 A0

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 2(C/S : A0 C1) – HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 A0

EDID Block 1, Bytes 128-255 [80H-FFH]

Only for training and service purposes

# HDMI 2(C/S : E6 17) – HDMI UHD Deep off Case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6

- 19 -

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 3(C/S : A0 B1) – HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 A0

EDID Block 1, Bytes 128-255 [80H-FFH]

Checksum(HDMI 1/2/3)

Input

HDMI Deep Color

On

FFh (Checksum)

HDMI Deep Color Off

FFh (Checksum)

HDMI1 A0 D1 E6 27

HDMI2 A0 C1 E6 17

HDMI3 A0 B1 E6 07

(3) PCM

# HDMI 1(C/S : A0 43– HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 A0

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 3(C/S : E6 07) – HDMI UHD Deep off Case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 1(C/S : E6 99) – HDMI UHD Deep off case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6

EDID Block 1, Bytes 128-255 [80H-FFH]

Only for training and service purposes

- 20 -

# HDMI 2(C/S : A0 33– HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 A0

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 2(C/S : E6 89) – HDMI UHD Deep off case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 3(C/S : E6 79) – HDMI UHD Deep off case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6

EDID Block 1, Bytes 128-255 [80H-FFH]

Checksum(HDMI 1/2/3)

Input

HDMI Deep Color

On

FFh (Checksum)

HDMI Deep Color Off

FFh (Checksum)

HDMI1 A0 43 E6 99

HDMI2 A0 33 E6 89

HDMI3 A0 23 E6 79

# HDMI 3(C/S : A0 23– HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 A0

Only for training and service purposes

- 21 -

6. Green Eye Inspection Guide



(1) Turn on the TV set. (2) Press “EYE” button on the Adjustment remote controller.

(3) Block the Intelligent Sensor module on the front C/A about

6 seconds. When the “Sensor Data” is lower than 20, you can see the “OK” message.

→ If it doesn’t show “OK” message, the Sensor Module is

defected one. You have to replace that with a good one.



7.1.3. Adj. Command (Protocol)

(1) Command Format

CMD ID DATA CR RF

- CMD: Command

- ID : Command

- Data : Command Ex) [Send: va 00 00\r\n]

▪RS-232C Command used during auto-adj.

RS-232C COMMAND Explanation

CMD ID DATA

`va 00 00 V-com pattern

`vb 00 00 ~ FE V-com adj.

(internal Flicker pattern)

`wb 00 FF V-com adj. completed

7.1.4. Adj. method

7.1.4.1. Auto Adj. method

1) Set TV in POWER-ONLY mode using POWER ONLY key

2) Zero calibrate probe then place it on the center of the Display

3) Connect Cable (RS-232C to USB)

4) Select Model in “V-com adj. Program” and begin “V-com adj.”

5) When V-com adj. is complete (OK)

6) Remove probe and RS-232C to USB cable to complete adj.

(4) After check the “OK” message come out, take out your

hand from the Sensor module.

→ Check “Sensor Data” value change from “0” to “100” or

not. If it doesn’t change the value, the sensor is also defected one. You have to replace it.

7. Equipment

7.1.1. Equipment

(1) Color Analyzer: CA-310 (LED Module : CH 14) or

CM-H505

(2) Adj. Computer (During auto adj., RS-232C protocol is

needed) (3) Adjustment Remote control (4) Signal : internal flicker Pattern in SET

* Color Analyzer Matrix should be calibrated using CS-100.

7.1.2. Equipment connection MAP

wG

୔pGGGGG

{}GGmGG

GG

|ziGGyzTYZYjG

zGzSGG

mGh¡G

yzTYZYjG

jG

▪ V-com Adj. must begin as start command “va 00 00” , and

finish as end command “wb 00 ff”

▪ V-com adjust data

V-com Data

hex dec

Max 85 133

Default 68 104

Min 4 9 73

8. White Balance Adjustment

8.1. White Balance Adjustment

8.1.1. Overview

(1) W/B adj. Objective & How-it-works

1) Objective: To reduce each Panel's W/B deviation

2) How-it-works : When R/G/B gain in the OSD is at 192, it means the panel is at its Full Dynamic Range. In order to prevent saturation of Full Dynamic range and data, one of R/G/B is fixed at 192, and the other two is lowered to find the desired value.

3) Adjustment condition : normal temperature

① Surrounding Temperature : 25 °C ± 5 °C ② Warm-up time: About 5 Min ③ Surrounding Humidity : 20 % ~ 80 %

Only for training and service purposes

- 22 -

8.1.2. Equipment

(1)Analyzer: CA-210 (LED Module : CH 14) (2) Adj. Computer(During auto adj., RS-232C protocol is

needed) (3) Adjustment Remote control (4) Video Signal Generator MSPG-925F 720p/216-Gray

(Model:204, Pattern:49)

→ Only when internal pattern is not available

* Color Analyzer Matrix should be calibrated using CS-100.

8.1.3. Equipment connection MAP

Color Analyzer

Probe

RS- 232C

Pattern Generator

Signal Source

* If TV internal pattern is used, not needed

RS-232C

Computer

RS-232C

8.1.4. Adj. Command (Protocol)

(1) Command Format

START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS A STOP

- LEN: Number of Data Byte to be sent

- CMD: Command

- VAL: FOS Data value

- CS: Checksum of sent data

- A: Acknowledge Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]

▪RS-232C Command used during auto-adj.

RS-232C COMMAND Explanation

CMD ID DATA

wb 00 00 Begin White Balance adj.

wb 00 10 Gain adj.(internal white pattern)

wb 00 1f Gain adj. completed

wb 00 20 Offset adj.(internal white pattern)

wb 00 2f Offset adj. completed

wb 00 ff End White Balance adj.

(internal pattern disappears )

(5) When adj. is complete (OK Sing), check adj. status pre

mode (Warm, Medium, Cool)

(6) Remove probe and RS-232C to USB cable to complete

adj.

▪ W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need

8.1.5.2 Manual adj. method (1) Set TV in Adj. mode using POWER ON (2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface..

(3) Press ADJ key à EZ adjust using adj. R/C à 7. White-

Balance then press the cursor to the right (KEY ).

(When KEY( ) is pressed 216 Gray internal pattern will be

displayed. )

(4) One of R Gain / G Gain / B Gain should be fixed at 192,

and the rest will be lowered to meet the desired value.

(5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of

color temperature.

** G-fix adjustment

- Adjust modes (Cool), Fix the G gain to 172 (default data) and change the others (G/B Gain ).

- Adjust two modes(Medium / Warm), Fix the one of R/G/B gain to 192 (default data) and decrease the others.

▪ If internal pattern is not available, use RF input. In EZ Adj.

menu 7.White Balance, you can select one of 2 Testpattern: ON, OFF. Default is inner(ON). By selecting OFF, you can adjust using RF signal in 216 Gray pattern.

▪ Adj. condition and cautionary items

1) Lighting condition in surrounding area

Surrounding lighting should be lower 10 lux. Try to

isolate adj. area into dark surrounding.

2) Probe location

- PDP: Color Analyzer (CA-100, CA-100+, CA210) probe should be firmly attached to the Module

- LCD: Color Analyzer (CA-210) probe should be within

10cm and perpendicular of the module surface (80°~ 100°)

3) Aging time

- After Aging Start, Keep the Power ON status during 5 Minutes.

- In case of LCD, Back-light on should be checked using no signal or Full-white pattern.

Ex) wb 00 00 -> Begin white balance auto-adj. wb 00 10 -> Gain adj. ja 00 ff -> Adj. data jb 00 c0

wb 00 1f -> Gain adj. complete *(wb 00 20(start), wb 00 2f(endc)) -> Off-set adj. wb 00 ff ->End white balance auto adj.

8.1.5. Adjustment method

8.1.5.1. Auto adj. method (1) Set TV in adj. mode using POWER ON key (2) Zero calibrate probe then place it on the center of the

Display (3) Connect Cable (RS-232C to USB) (4) Select mode in adj. Program and begin adj.

Only for training and service purposes

8.1.6. Reference (White Balance Adj. coordinate and color temperature)

▪ Luminance: 206 Gray ▪ Standard color coordinate and temperature using CS-1000

(over 26 inch)

Mode

Cool 0.271 0.270 13000K 0.0000

Medium 0.286 0.289 9300K 0.0000

Warm 0.313 0.329 6500K 0.0000

- 23 -

Coordinate

x y

Temp ∆uv

▪ Standard color coordinate and temperature using

CA-210(CH 14)

Mode

Cool 0.271±0.002 0.270±0.002 13000K 0.0000

Medium 0.286±0.002 0.289±0.002 9300K 0.0000

Warm 0.313±0.002 0.329±0.002 6500K 0.0000

Coordinate

x y

Temp ∆uv

8.1.7. EDGE & IOL LED White balance table

▪ Edge&ALEF LED module change color coordinate because

of aging time

▪ apply under the color coordinate table, for compensated

aging time.

▪ (Normal line) Edge & ALEF LED White balance table.

Model : (normal line)LGD

Aging

time

(Min)

1 0-2 282 289 297 308 324 348 2 3-5 281 287 296 306 323 346 3 6-9 279 284 294 303 321 343 4 10-19 277 280 292 299 319 339 5 20-35 275 277 290 296 317 336 6 36-49 274 274 289 293 316 333 7 50-79 273 272 288 291 315 331 8 80-119 272 271 287 290 314 330 9 Over 120 271 270 286 289 313 329

Cool Medium Warm

x y x y x y

271 270 286 289 313 329

8.3. Magic Motion Remote control test

- Equipment : RF Remote control for test, IR-KEY-Code Remote control for test

- You must confirm the battery power of RF-Remote control

before test(recommend that change the battery per every lot)

- Sequence (test)

1) If you select the ‘start key(OK)’ on the Adjustment remote

control, you can pairing with the TV SET.

2) You can check the cursor on the TV Screen, when select

the "OK" key on the Adjustment remote control.

3) You must remove the pairing with the TV Set by select

‘Mute + OK Key’ on the Adjustment remote control.

8.4. 3D function test

(Pattern Generator MSHG-600, MSPG-6100[Support HDMI1.4]) * HDMI mode NO. 872 , pattern No.83 (1) Please input 3D test pattern like below.

(2) When 3D OSD appear automatically, then select green key.

(*) AUO, INX, Sharp, CSOT, BOE model (Cool : 13000K

Spec.) : DV

Cool Medium Warm

webOS

Target 278 280 293 299 320 339

x y x y x y

271 270 286 289 313 329

8.2. Local Dimming Function Check

(1) Turn on TV. (2) At the Local Dimming mode, module Edge Backlight

moving right to left Back light of IOP module moving. (3) Confirm the Local Dimming mode. (4) Press “exit” Key.

[40/43/49/55/60/65UF77 : 6Block] [70UF77 : 12Block]

[55/65UG87 : 16Block]

(3) Don't wear a 3D Glasses, Check the picture like below.

8.5. Option selection per country

8.5.1. Overview

- Option selection is only done for models in AJ/JA/IL

8.5.2.Method

(1) Press ADJ key on the Adj. R/C, then select Country Group

Menu

(2) Depending on destination, select Country Group Code or

Country Group then on the lower Country option, select US, CA, MX. Selection is done using +, - or KEY

Only for training and service purposes

- 24 -

8.6. HDMI ARC Function Inspection

8.6.1. Test equipment

- Optic Receiver Speaker

- MSHG-600 (SW: 1220 ↑)

- HDMI Cable (for 1.4 version)

8.6.2. Test method

(1) Insert the HDMI Cable to the HDMI ARC port from the

master equipment (HDMI 2)

(2) Check the sound from the TV Set (3) Check the Sound from the Speaker or using AV & Optic

TEST program (It’s connected to MSHG-600)

9. GND and Internal Pressure check

9.1. Method

(1) GND & Internal Pressure auto-check preparation

- Check that Power Cord is fully inserted to the SET. (If loose, re-insert)

(2) Perform GND & Internal Pressure auto-check

- Unit fully inserted Power cord, Antenna cable and A/V arrive to the auto-check process.

- Connect D-terminal to AV JACK TESTER

- Auto CONTROLLER(GWS103-4) ON

- Perform GND TEST

- If NG, Buzzer will sound to inform the operator.

- If OK, changeover to I/P check automatically. (Remove CORD, A/V form AV JACK BOX.)

- Perform I/P test

- If NG, Buzzer will sound to inform the operator.

- If OK, Good lamp will lit up and the stopper will allow the pallet to move on to next process.

9.2. Checkpoint

▪ TEST voltage

- GND: 1.5 KV / min at 100 mA

- SIGNAL: 3 KV / min at 100 mA

▪ TEST time: 1 second ▪ TEST POINT

- GND TEST = POWER CORD GND & SIGNAL CABLE METAL GND

- Internal Pressure TEST = POWER CORD GND & LIVE & NEUTRAL

▪ LEAKAGE CURRENT: At 0.5 mArms

10. Audio

No Item Min Ty p Max Unit Remark

Audio practical max Output, L/R

1

(Distortion=10% max Output)

Speaker

2

(8 Ω Impedance)

Measurement condition: (1) RF input: Mono, 1 KHz sine wave signal, 100 % Modulation (2) CVBS, Component: 1 KHz sine wave signal 0.5 Vrms

10 12 W

8.10 10.8 Vrms

10 12 W

EQ Off

AVL Off

Clear Voice Off

EQ On

AVL On

Clear Voice On

11. Preset CH information

Area System Band CH Frequency

MA (WR)

11.1. Etc

PAL B V/UHF E5 C 05 175.25

PAL G V/UHF E51 C 51 711.25

PAL I V/UHF I41 C 41 631.25

SECAM D V/UHF R5 C 05 93.25

PAL B V/UHF E4 C 04 62.25

PAL G V/UHF E31 C 31 551.25

PAL I V/UHF I21 C 21 471.25

PAL I V/UHF I69 C 69 855.25

PAL G V/UHF E48 C 48 687.25

SECAM L V/UHF L4 C 08 200.00

SECAM L V/UHF L45 C 45 663.25

PAL G V/UHF E25 C 25 503.25

SECAM D V/UHF R7 C 07 183.25

SECAM D V/UHF R7 C 07 189.25

Power Status

Main B/D Ship-

ping Condition

Chassis Module Assembly ON N/A

Front Module Assembly N/A OFF

Factory incoming ON OFF

Final Assembly ON ON

Ship-Out OFF ON

AC Swithch

condtion

Only for training and service purposes

- 25 -

11.2. SET Factoring Condition

Quick Programmes

Picture Mode ECO

Sound Mode Standard

Aspect Ratio 16:9

Sleep Timer Off

Account Management Sign In

Picture Smart Picture Mode Off

Picture Mode ECO

Picture Adjust

Sound Smart Sound Mode Off

Sound Mode Standard

Sound Effects Clear Voice II Off

Reset

Volume Mode

Sound Out TV Speaker

DTV Audio Setting Auto

AV Sync. Adjust Off

Sound Optimizer Normal

Sound Test

Backlight 100

Contrast 100

Brightness 50

Sharpness 25

Colour 60

Tint R5

Colour Temperature C20

Advanced Control

Picture Option

Reset

Auto Volume Off

Volume Increase Rate Medium

Dynamic Control Low

Dynamic Colour Medium

Preferred Colour Skin-2/Grass3/

Colour Gamut Wide

Super Resolution

Gamma Medium

Noise Reduction Auto

MPEG Noise Reduction

Black Level Auto

Real Cinema Off

Motion Eye Care High

LED Local Dimming

TruMotion Clear

Virtual Surround Plus Off

3D Sound Zooming Off

Equalizer Off

Balance L0/R0

Sky0

Medium

Low

High

Network TV Name LG Smart TV

Wired Connection(Ethernet)

Wi-F- Connection

Wi-Fi Direct

LG Connect

General Language Menu Language

Audio Language

Voice Recognition Language

Keyboard Languages

Location Broadcast Country Setting

Zip Code Setting

Service Country Setting Auto

LG Services Country

Time & Date Set Automatically

Time

Date

Time zone

Timer Sleep Timer Off

Timer Power On Off

Timer Power Off Off

Voice & Gesture Commands

Launch Account Management

Home/Store Mode HOME MODE

Eco Mode Auto Power Off 4 Hours

SIMPLINK

Data Based Services Collection of Watching Info On

Reset to Initial Settings

ABOUT THIS TV

Safety Off

TV Rating Locks None

Programme Locks

Application Locks

Input Locks

Reset PIN Code

Accessibility Pointer Options Tracking Speed Normal

Subtitle Off

Teletext Audio Description Off

Voice Tutorial

Gesture Motion Rec-

HDD Eco Mode On

Live Plus Off

Customized Ads Off

Cookies Off

Size

Audio Description Volume 10

Hard of Hearing Off

ognition

Animation Guide

Tutorial

On

Only for training and service purposes

- 26 -

12.

USB S/W Download(Service only)

(1) Put the USB Stick to the USB socket (2) Automatically detecting update file in USB Stick.

- If your downloaded program version in USB Stick is Lower, it didn’t work.

But your downloaded version is Higher, USB data is

automatically detecting

(Download Version High & Power only mode, Set is automatically Download)

(3) Show the message “Copying files from memory”.

(4) Updating is starting.

(5) Updating completed, the TV will restart automatically

(6) If your TV is turned on, check your updated version and

Tool option. (explain the Tool option, next stage)

* If downloading version is more new than your TV have,

TV can lost all channel data. In this case, you have to channel recover. if all channel data is cleared, you didn’t have a DTV/ATV test on production line.

* After downloading, have to adjust Tool Option again.

(1) Push "IN-START" key in service remote control. (2) Select "Tool Option 1" and push "OK" key. (3) Punch in the number. (Each model has their number)

Only for training and service purposes

- 27 -

BLOCK DIAGRAM

1. LM14A + URSA11 Circuit Block Diagram

Only for training and service purposes

- 28 -

BLOCK DIAGRAM

2. LM14A + URSA11 I2C Block Diagram

Only for training and service purposes

- 29 -

3. URSA11 Block Diagram

BLOCK DIAGRAM

Only for training and service purposes

- 30 -
