LG 52 Schematic

LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LD88F

MODEL : 52LG7000 52LG7000-ZA

website:http://biz.LGservice.com

Internal Use Only

LGE Internal Use Only

- 2 -

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ..................................................................................3

SPECIFICATION........................................................................................6

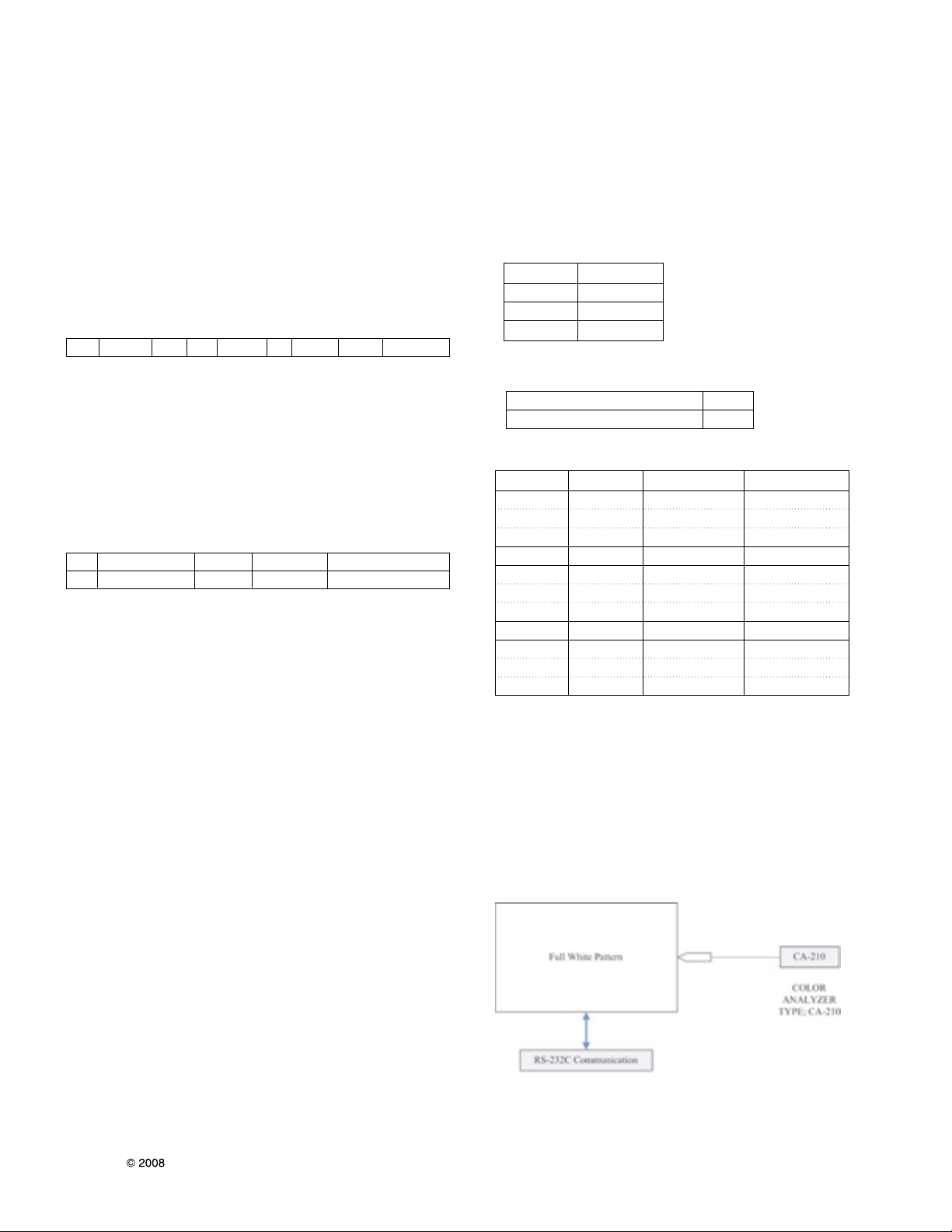

ADJUSTMENT INSTRUCTION ...............................................................10

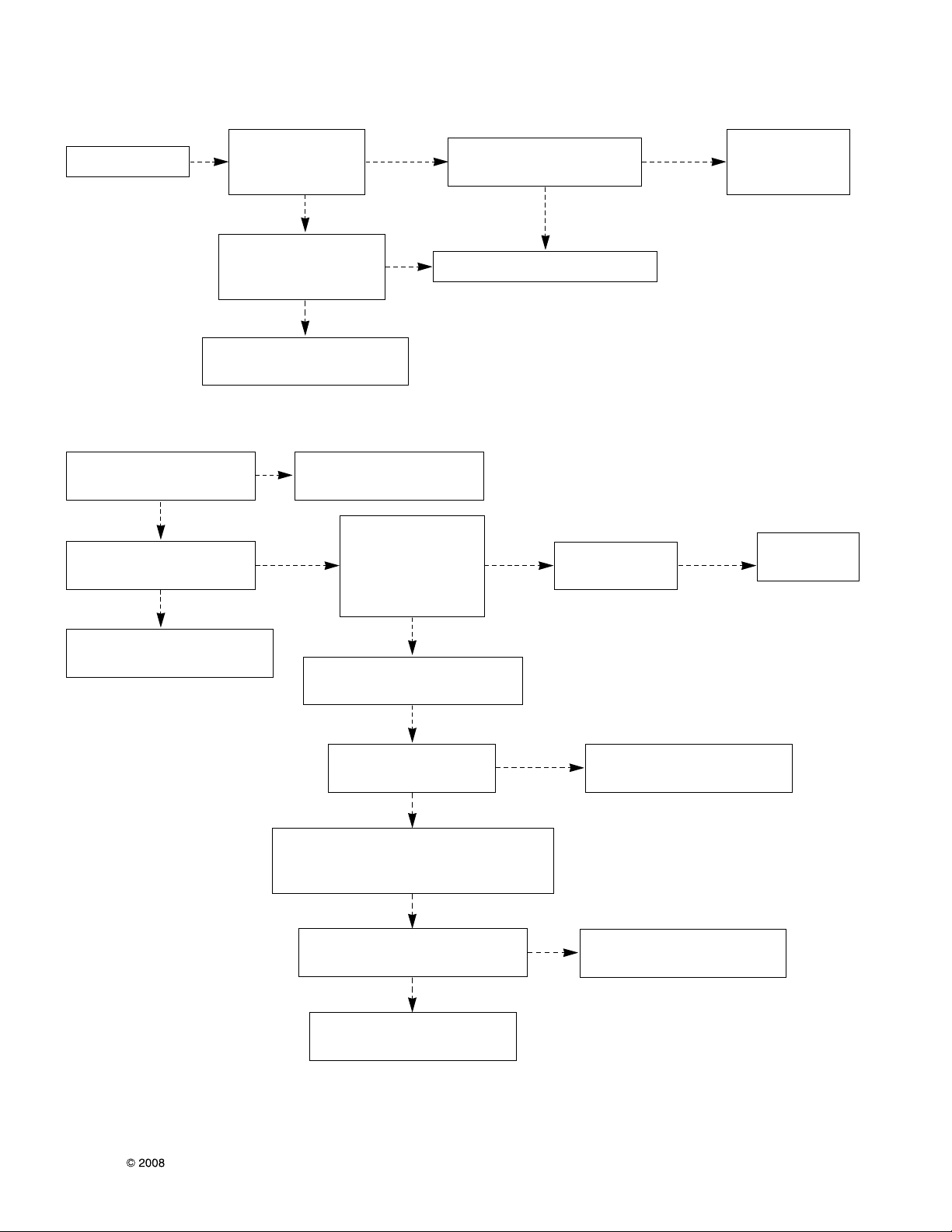

TROUBLE SHOOTING ...........................................................................14

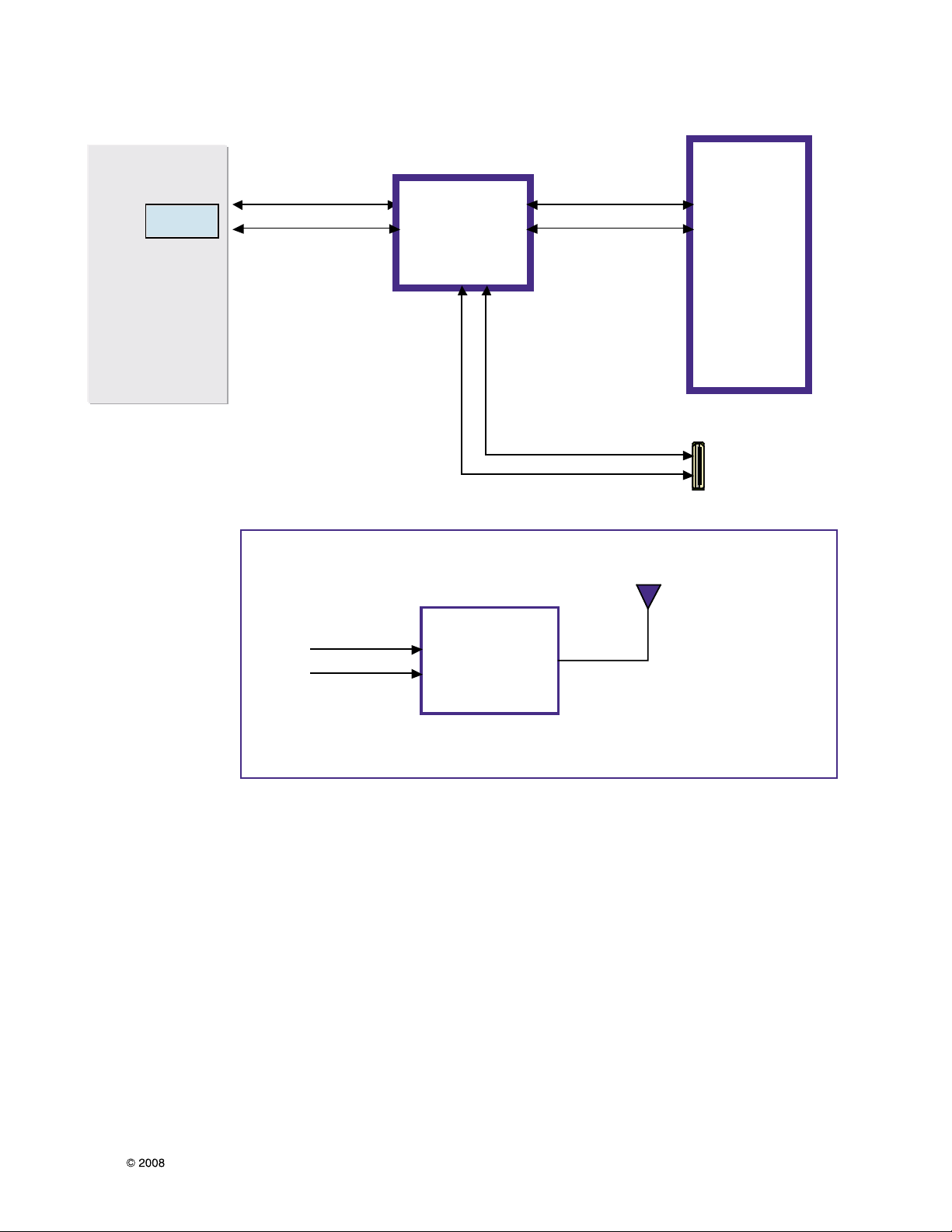

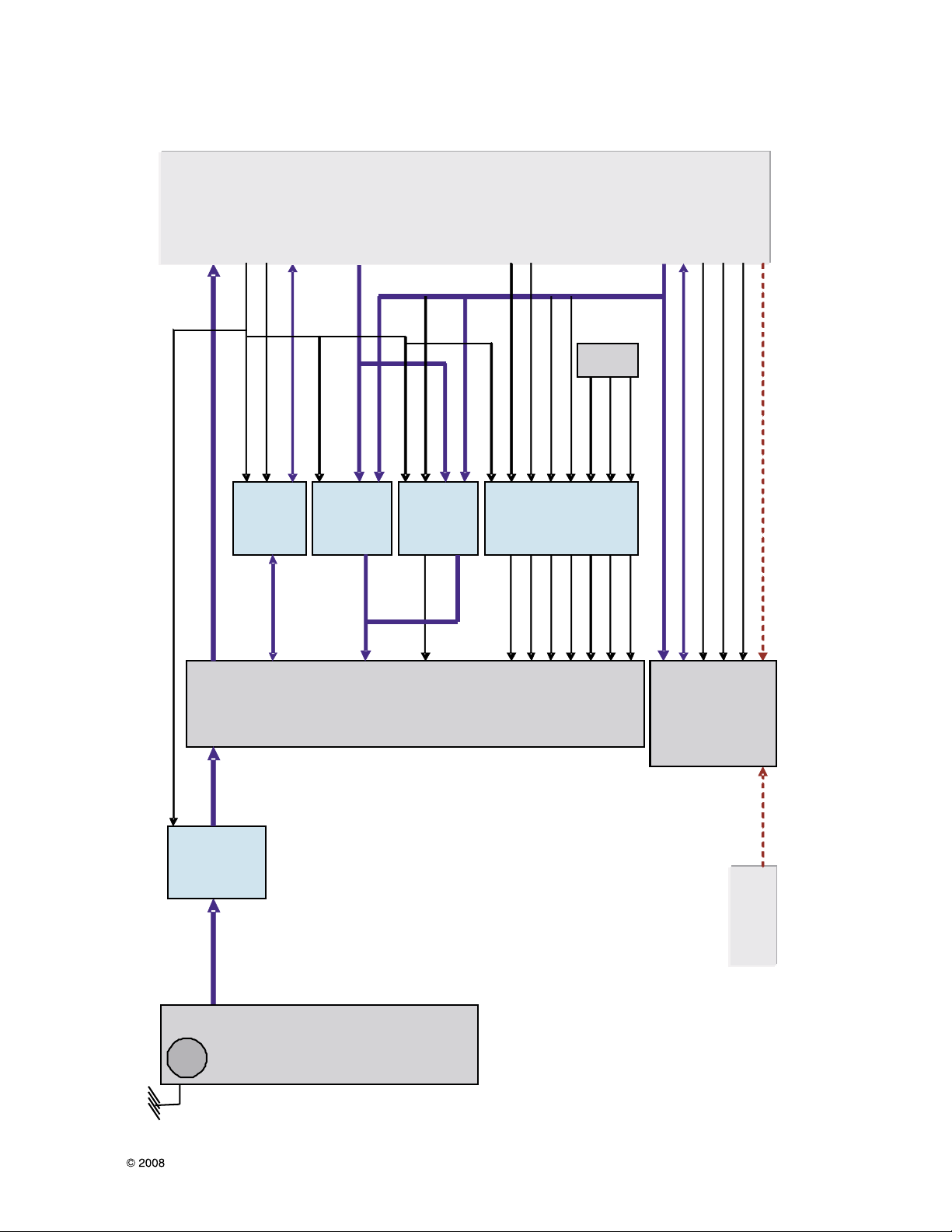

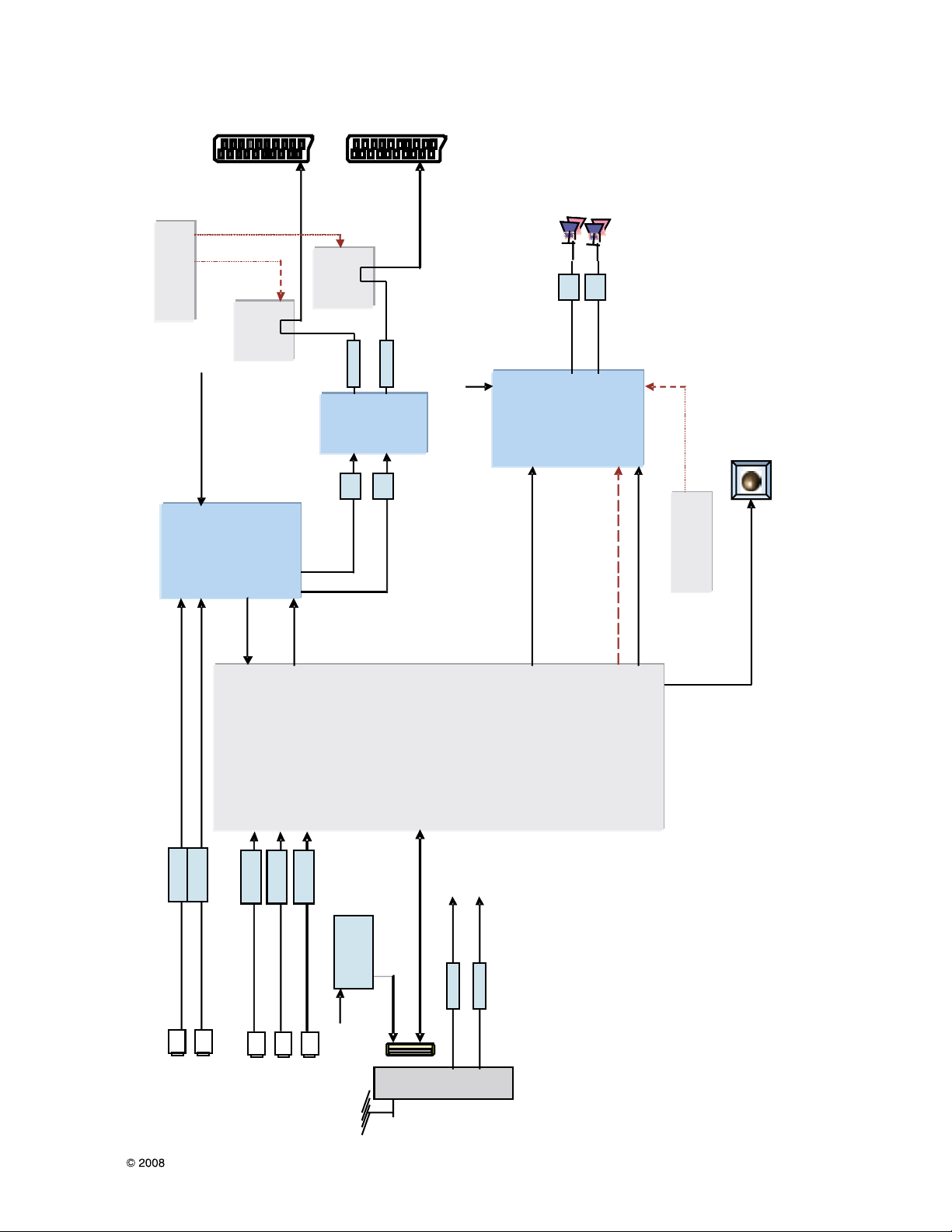

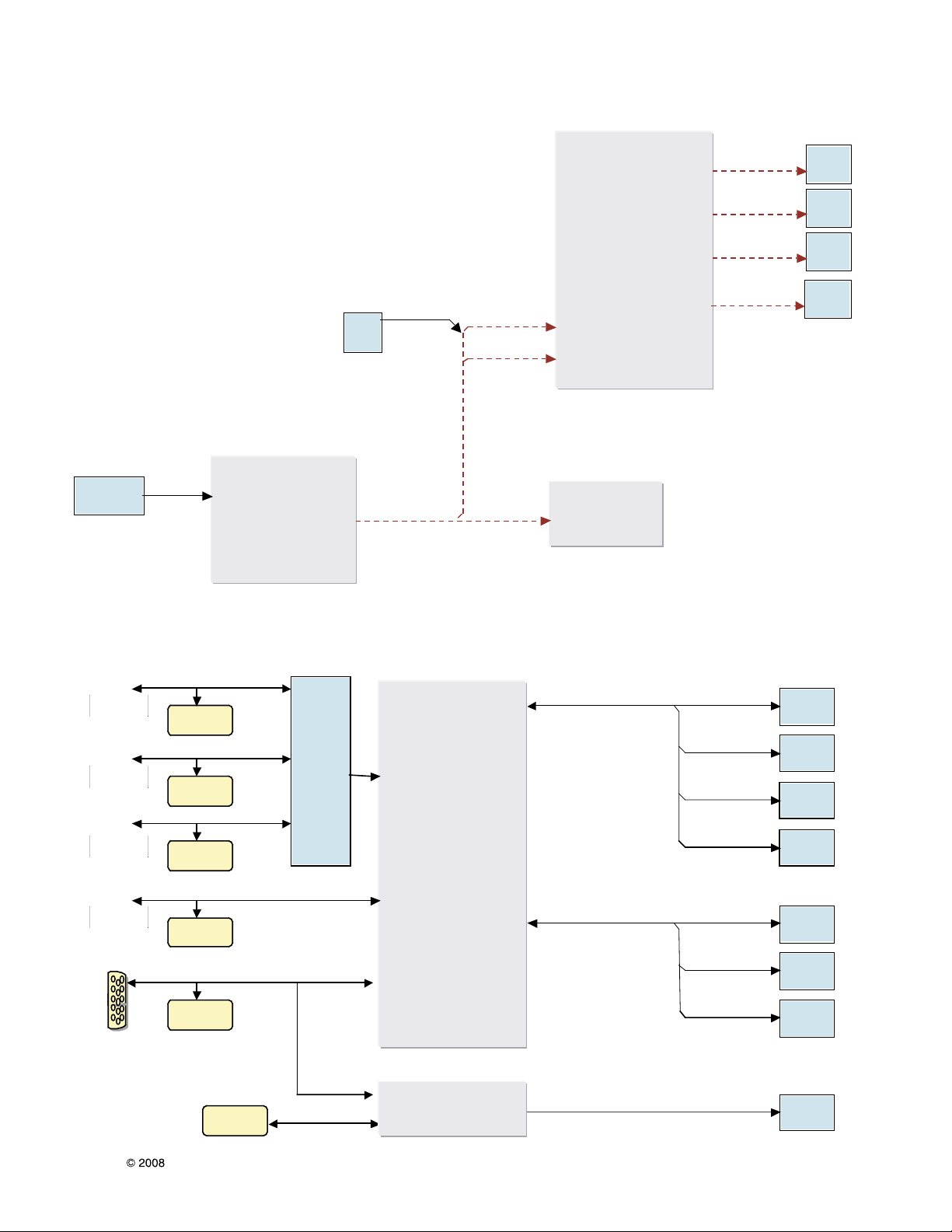

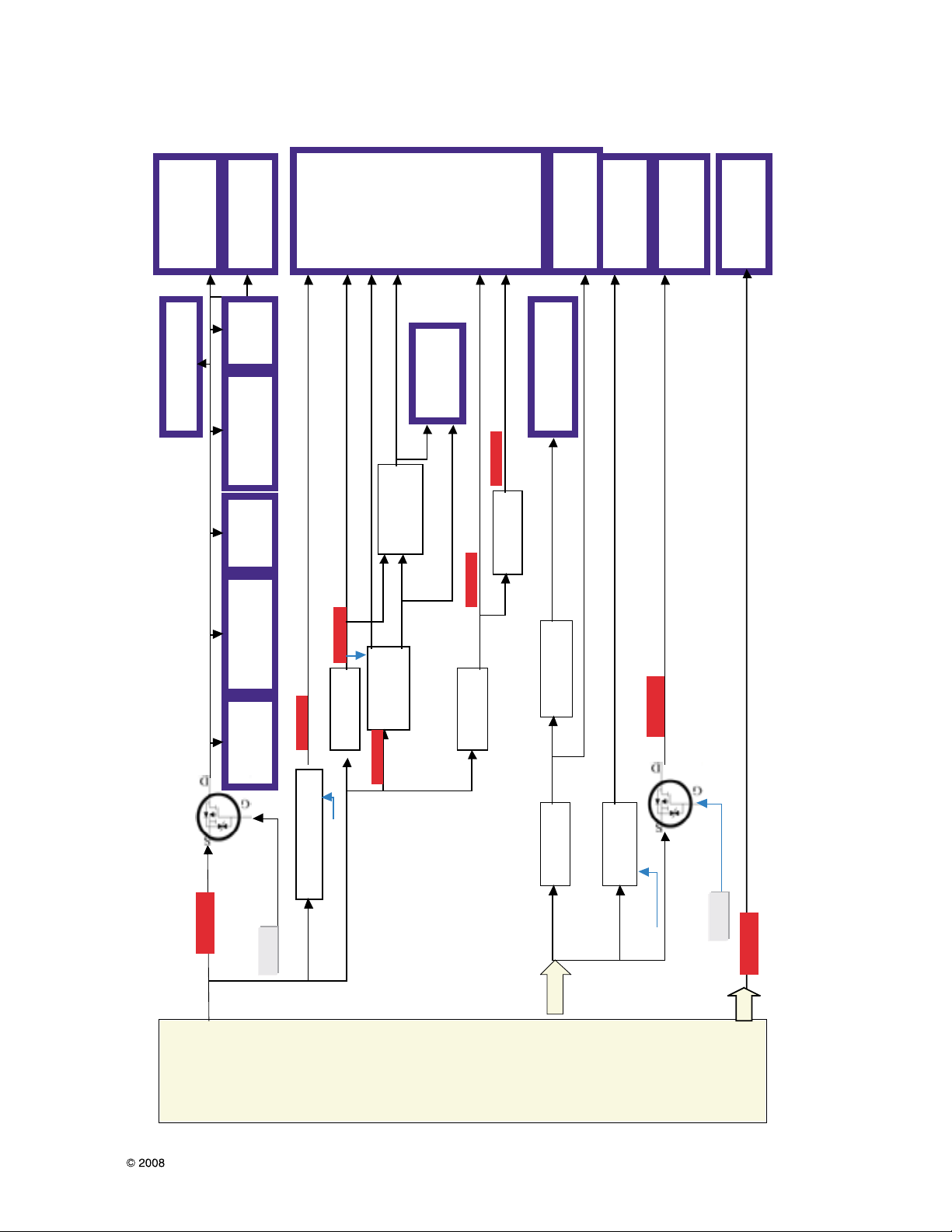

BLOCK DIAGRAM...................................................................................23

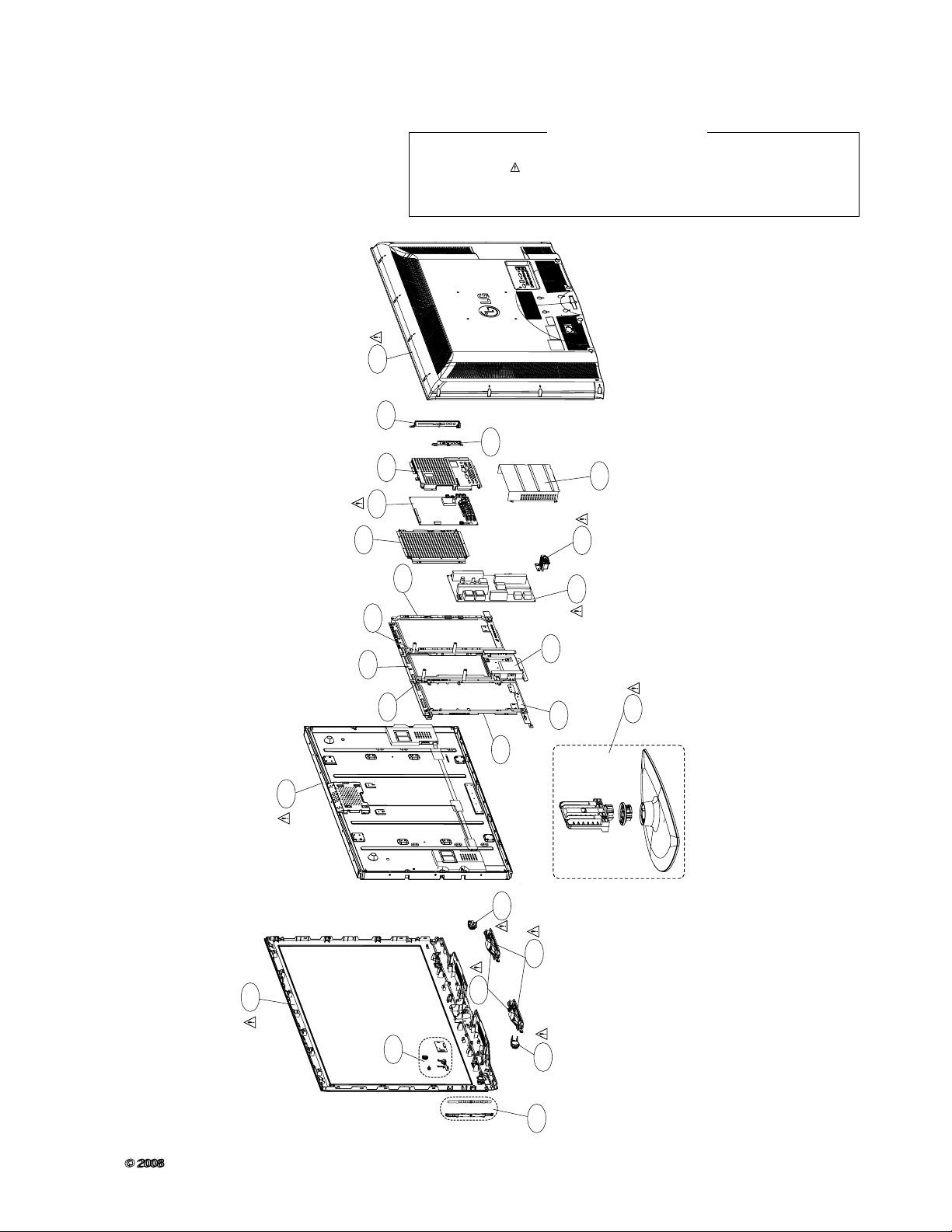

EXPLODED VIEW .................................................................................. 33

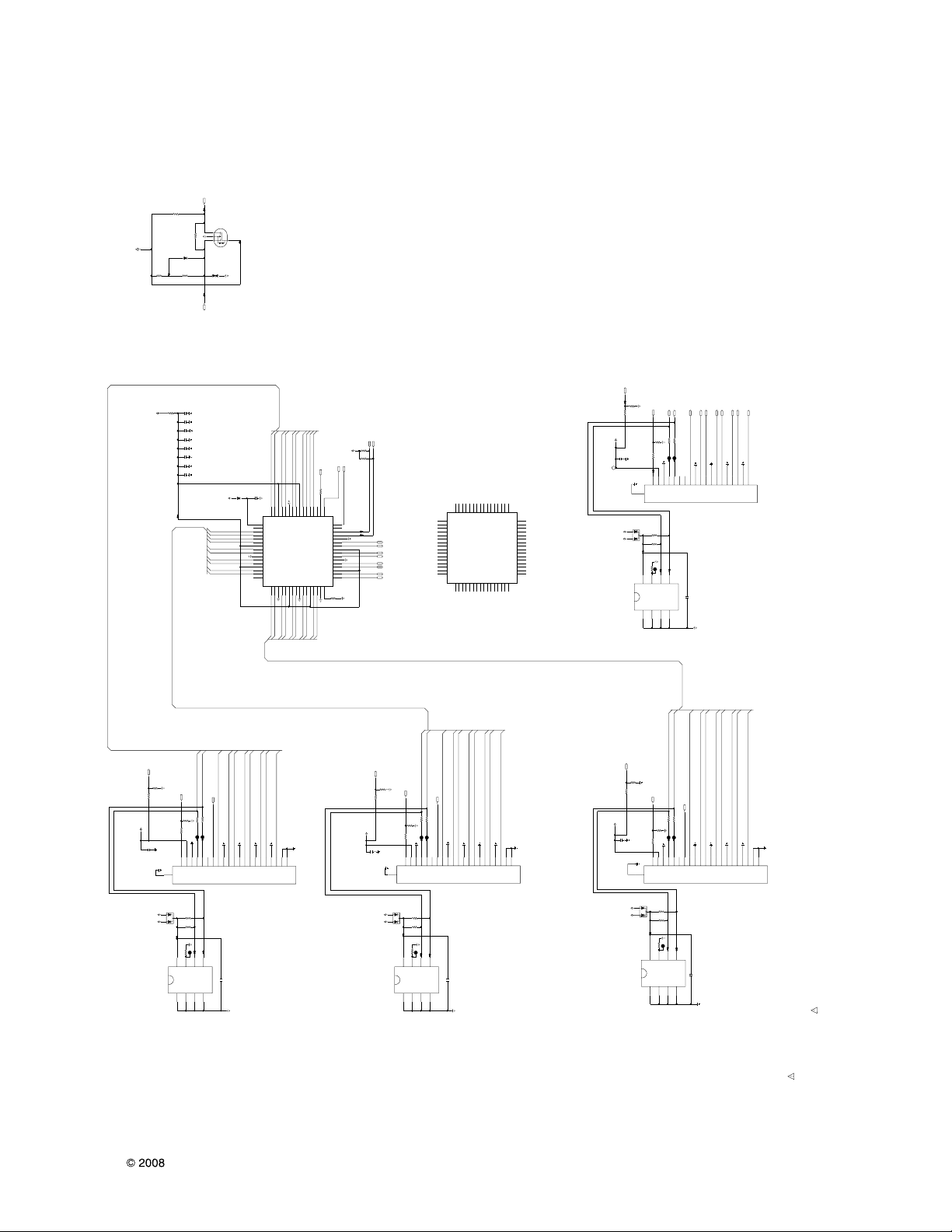

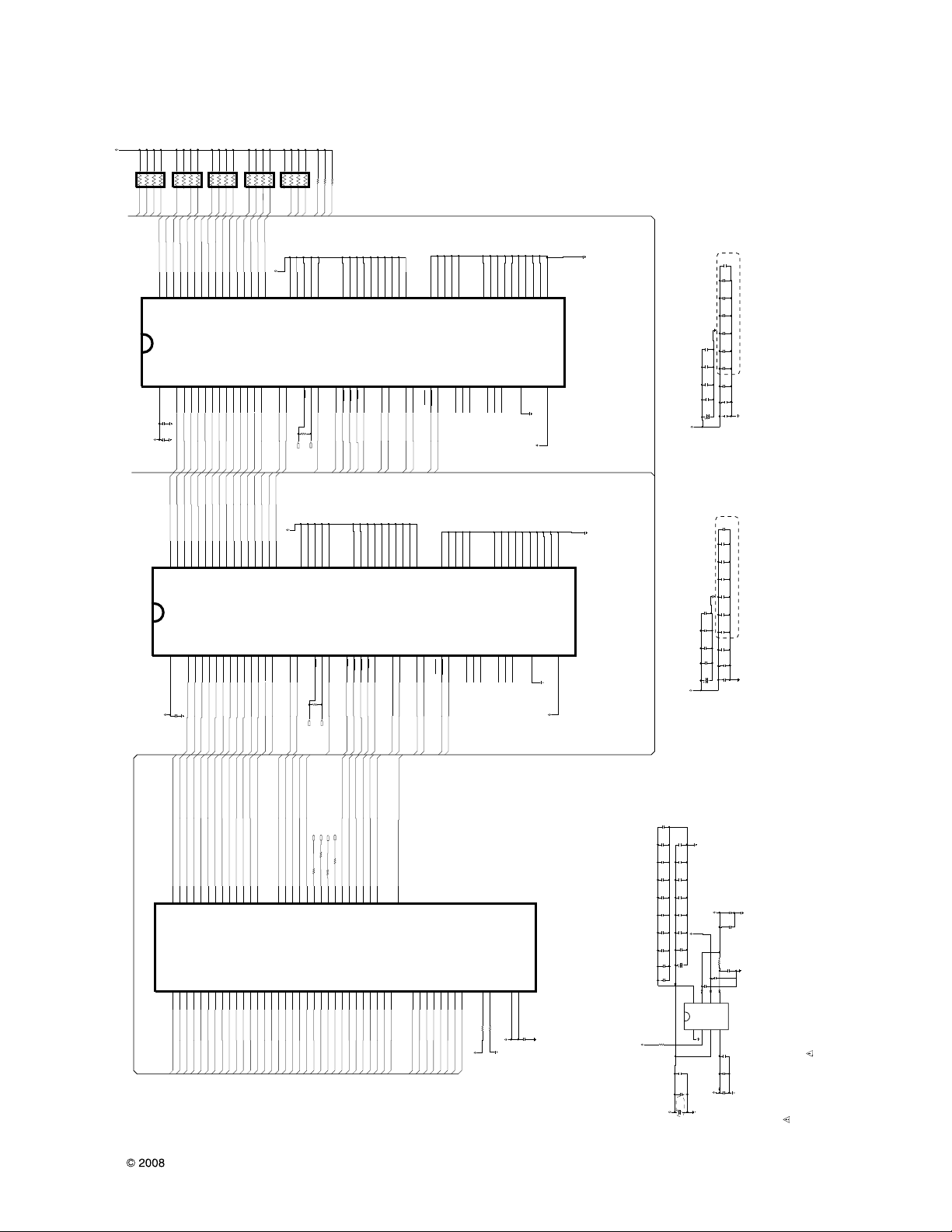

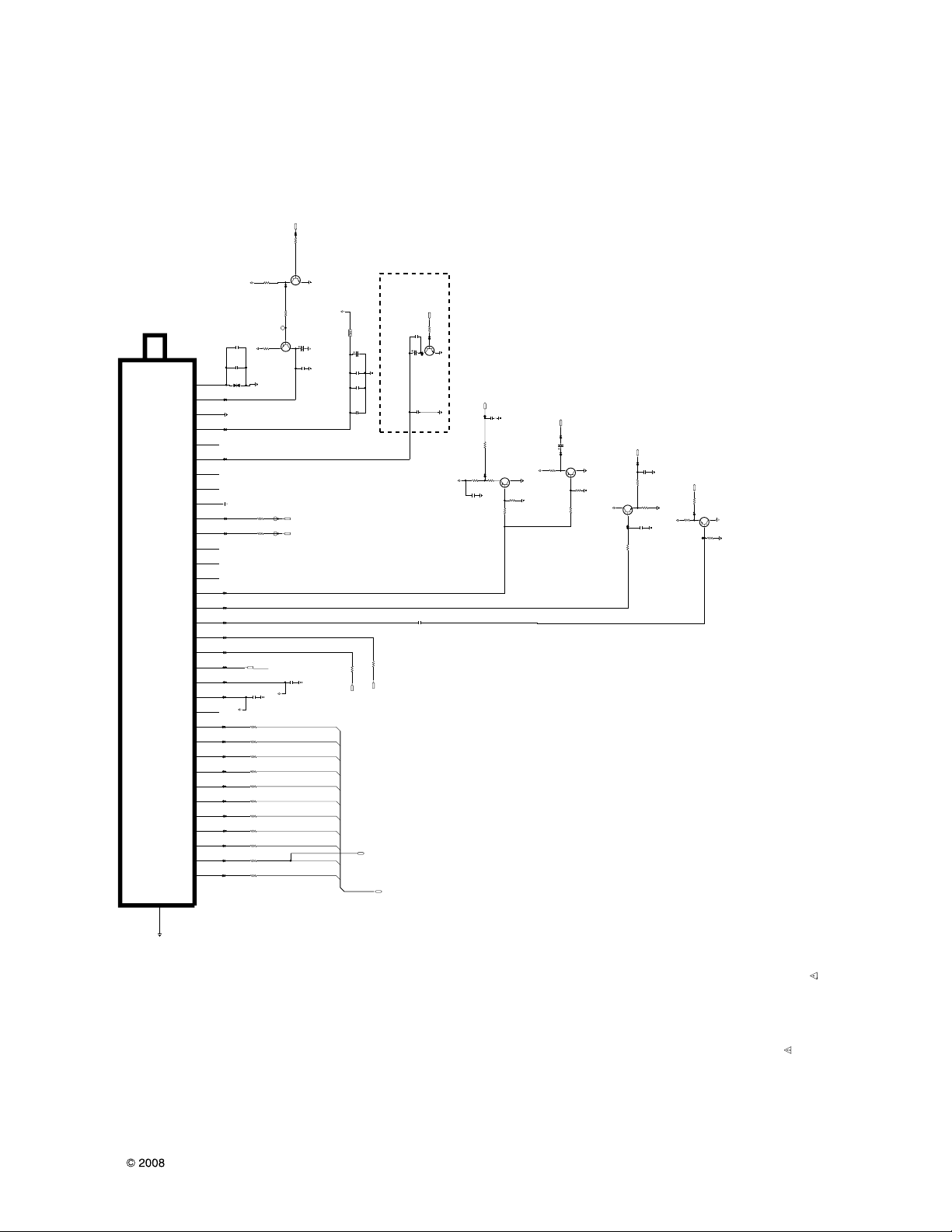

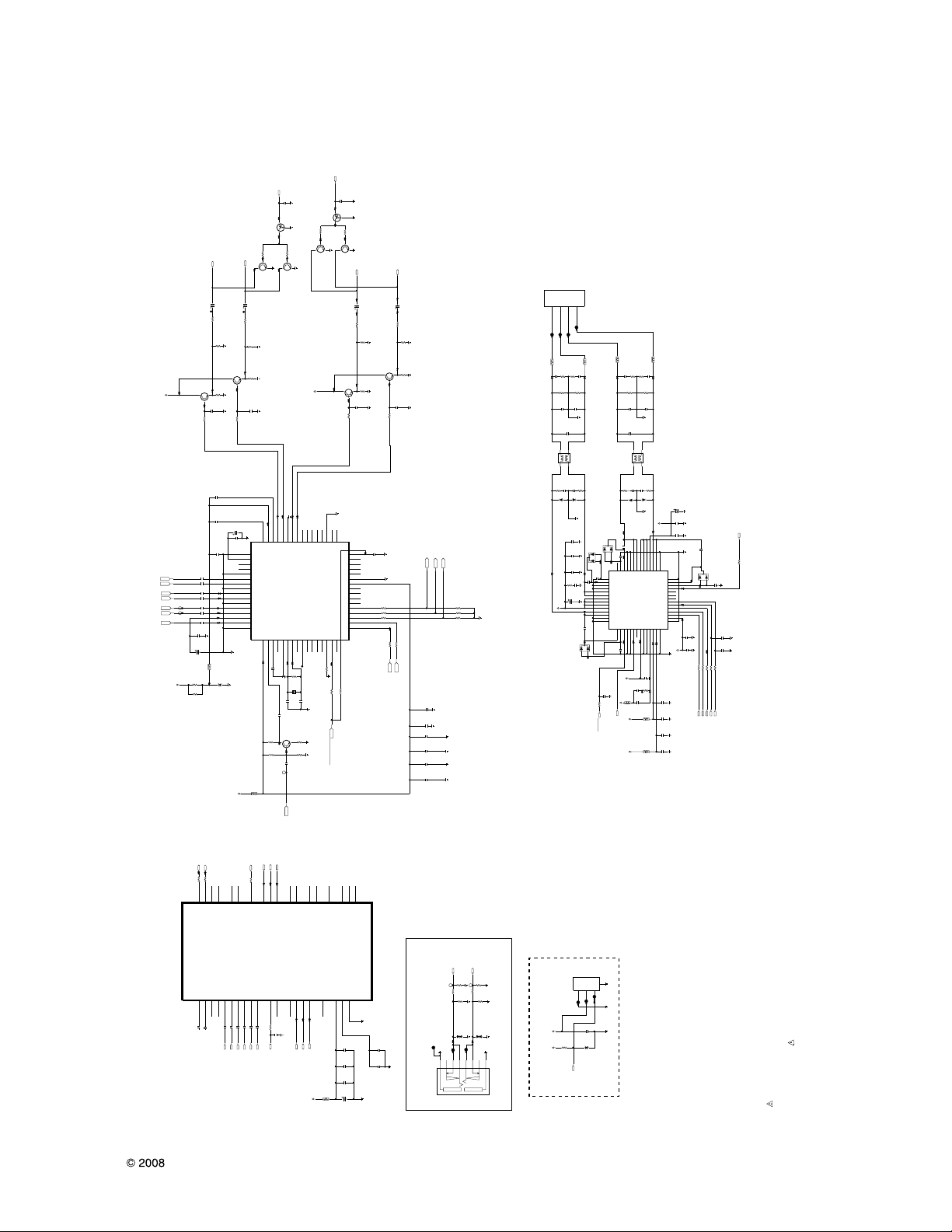

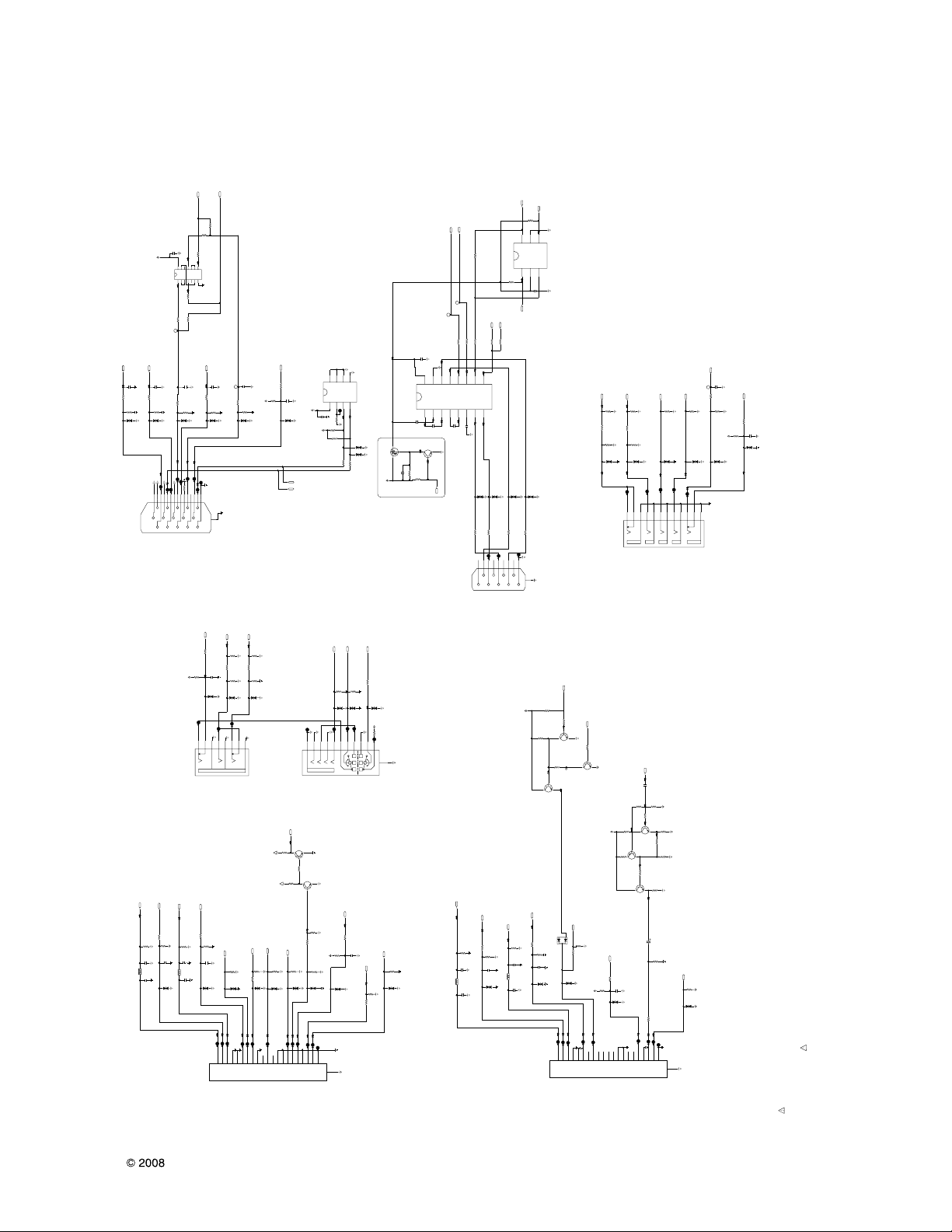

SVC. SHEET ...............................................................................................

LGE Internal Use Only

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

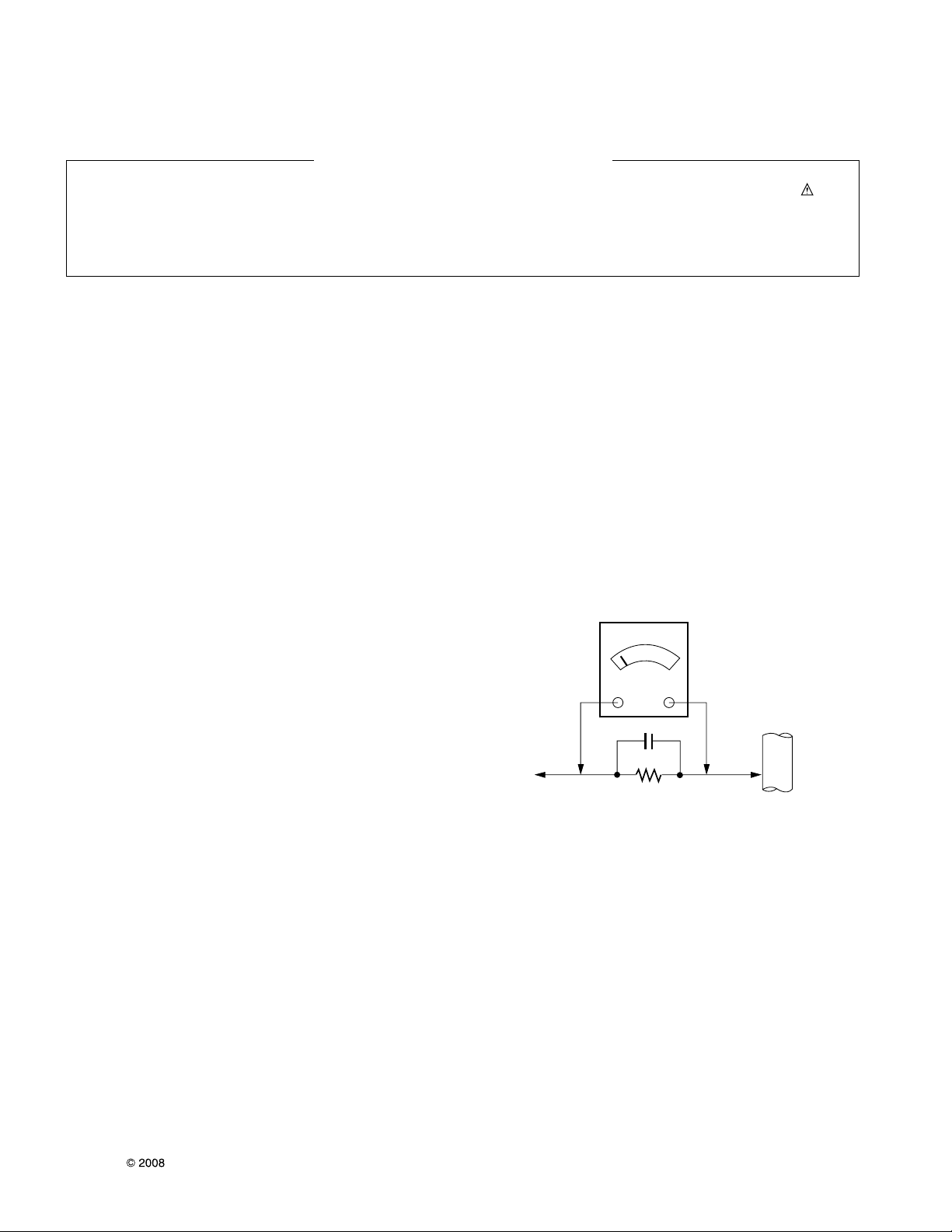

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument’s exposed METALLIC PARTS

Good Earth Ground such as WATER PIPE, CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

LGE Internal Use Only

- 4 -

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500

°F to 600°F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature.

(500

°F to 600°F)

b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500

°F to 600°F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

LGE Internal Use Only

- 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

LGE Internal Use Only

- 6 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This specification is applied to LD88F chassis.

2. Requirement for Test

Each part is tested as below without special appointment. (1) Temperature : 25 ± 5°C(77 ± 9°F), CST : 40 ± 5°C

(2) Humidity : 65% ± 10% (3) Power : Standard input voltage (100-240V~, 50/60Hz)

* Standard Voltage of each products is marked by models.

(4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

(5) The receiver must be operated for about 20 minutes prior

to the adjustment.

3. Test method

(1) Performance : LGE TV test method followed (2) Demanded other specification

Safety : CE, IEC Specification EMC : CE, IEC

3 General Specification(LCD Module)

No Item Specification Remark

1 Display Screen Device 52 inch Color TFT-LCD Module(SHARP) LCD 2 Aspect Ratio 16:9

3 PDP Module

Pixel Format : 1920 horiz. by 1080 vert. Pixels RGB stripe arrangement

4 Operating Environment

17) Temp. : 0 ~ 40 deg

18) Humidity : 20 ~ 80%

LGE Spec

5 Storage Environment

19) Temp. : -20 ~ 60 deg

20) Humidity : 10 ~ 90 %

6 Input Voltage AC100 ~ 240V, 50/60Hz Maker LG

LGE Internal Use Only

- 7 -

4. Model Specification

No. Item Specification Remark

1 Market Austria, Belgium, Bulgaria, Croatia, Czech, Denmark, Finland, 25 Country -> 27 country

France, Germany, Greece, Hungary, Italy, Luxembourg, UK Morocco, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia,Slovenia, Spain, Sweden, Switzerland, Turkey,

2 Broadcasting system 1) PAL/SECAM BG EU (PAL Market)

2) PAL/SECAM DK

3) PAL I/II

4) SECAM L/L’

5) DVB T

3 Receiving system Analog : Upper Heterodyne

Digital : COFDM

4 Scart Jack (2EA) PAL, SECAM Scart 1 Jack is Full scart and support

RF-OUT(Analog) Scart 2 jack is Half scart and support

MNT-OUT. 5 Video Input (1EA) PAL, SECAM, NTSC Side AV 6 S-Video Input (1EA) PAL, SECAM, NTSC Side AV 7 Component Input (1EA) Y/Cb/Cr, Y/ Pb/Pr 8 RGB Input RGB-PC Analog (D-Sub 15Pin) 9 HDMI Input (4EA) HDMI-PC HDMI1/DVI, HDMI2, HDMI3, HDMI4

HDMI-DTV All HDMI inputs support V1.3 of HDMI 10 Audio Input (3 EA) RGB/DVI Audio, Component, AV L/R Input 11 SPDIF Out(1 EA) SPDIF Out 12 USB For SVC, S/W Download, X-Studio Side(X-Studio Only Series) 13 Bluetooth Bluetooth Phone(JPEG), Headset 32/37/42/47/52LG7000 models

LGE Internal Use Only

- 8 -

5. Component Video Input (Y, PB, PR)

6. RGB input (Analog PC)

No

1

2

3

4 5

6

7

8 9

10

11 12 13141920*1080

1920*1080

Resolution H-freq(kHz) V-freq.(kHz)

Pixel

clock(MHz)

Proposed

720*480 15.73 59.94 13.500 SDTV, DVD 480I(525I)

720*480 15.75 60.00 13.514 SDTV, DVD 480I(525I)

720*576 15.625 50.00 13.500

SDTV, DVD 576I(625I) 50Hz

720*480 31.47 59.94 27.000 SDTV 480P

720*480 31.50 60.00 27.027 SDTV 480P

720*576 31.25 50.00 27.000 SDTV 576P 50Hz

1280*720 44.96 59.94 74.176 HDTV 720P

1280*720 45.00 60.00 74.250 HDTV 720P 1280*720 37.50 50.00 74.25 HDTV 720P 50Hz 1920*1080 33.72 59.94 74.176 HDTV 1080I

1920*1080 33.75 60.00 74.250 HDTV 1080I 1920*1080 28.125 50.00

50 60

74.250 HDTV 1080I 50Hz,

56.25

HDTV 1080P

67.5

HDTV 1080P

No Resolution H-freq(kHz) V-freq.(Hz)

Pixel

clock(MHz)

Proposed Remark

1. 720*400 31.468 70.08 28.32

2. 640*480 31.469 59.94 25.17 VESA

3. 800*600 37.879 60.31 40.00 VESA

4. 1024*768 48.363 60.00 65.00 VESA(XGA)

5. 1280*768 47.78 59.87 80.125 VESA(WXGA)

6.

1360*768 47.72 59.80 84.625

VESA(WXGA)

7.

1280*1024 63.98 60.02 108.

SXGA FULL HD only

8.

1400*1050 65.317 59.979 121.75

SXGA FULL HD only

9.

1920*1080 66.587 59.934 138.5

WUXGA

LGE Internal Use Only

- 9 -

7. HDMI DTV

8. HDMI PC

No Resolution H-freq(kHz) V-freq.(kHz)

Pixel

clock(MHz)

Proposed

1 640*480 31.649 59.94 25.175 SDTV 480p 60Hz 2 640*480 31.469 60 25.20 SDTV 480p 60Hz

3 720*480 31.47 59.94 27.00

SDTV 480p 60Hz

4 720*480 31.50 60 27.027 SDTV 480p 60Hz 5 720*576 31.25 50.00 27.00 SDTV 576p 50Hz

6 1280*720 37.50 50.00 74.176 HDTV 720p 50Hz 7 1280*720 44.96 59.94 74.176 HDTV 720p 60Hz 8 1280*720 45.00 60 74.250 HDTV 720p 60Hz 9 1920*1080 28.125 50.00 74.250 HDTV 1080i 50Hz

10 1920*1080 33.72 59.94 74.176 HDTV 1080i 60Hz

11 1920*1080 33.75 60 74.250 HDTV 1080i 60Hz 12 1920*1080 27.00 24.00 74.25 HDTV 1080p 24Hz 13 1920*1080 33.750 30 74.25 HDTV 1080p 30Hz

14 1920*1080 56.25 50.00 148.50 HDTV 1080p 50Hz

15 1920*1080 67.433 59.94 148.352 HDTV 1080p 60Hz 16 1920*1080 67.50 60 148.50 HDTV 1080p 60Hz

No Resolution H-freq(kHz) V-freq.(Hz)

Pixel

clock(MHz)

Proposed Remark

1. 720*400 31.468 70.08 28.32

2. 640*480 31.469 59.94 25.17 VESA

3. 800*600 37.879 60.31 40.00 VESA

4. 1024*768 48.363 60.00 65.00 VESA(XGA)

5. 1280*768 47.78 59.87 80.125 VESA(WXGA)

6

1360*768 47.72 59.80 84.625

VESA(WXGA)

7

1280*1024 63.98 60.02 108.

SXGA FULL HD only

8

1400*1050 65.317 59.979 121.75

SXGA FULL HD only

9.

1920*1080 66.587 59.934 138.5

WUXGA

LGE Internal Use Only

- 10 -

ADJUSTMENT INSTRUCTION

1. Application Range

This spec. sheet is applied to all of the LD88F chassis manufactured at LG TV Plant all over the world.

2. Specification.

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument. (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25±5°C of temperature and 65±10% of relative humidity if

there is no specific designation. (4) The input voltage of the receiver must keep 100-240V,

50/60Hz. (5) The receiver must be operated for about 15 minutes prior

to the adjustment.

- After RGB Full White in HEAT-RUN Mode, the receiver must be operated prior to the adjustment.

- Enter into HEAT-RUN MODE

1) Press the “POWER ON” KEY on Adjustment R/C.

2) Press the “ADJ KEY” on Adjustment R/C.

3) Select “3. Test Pattern” by using

D/E(CH +/-) and

press ENTER(

A)

4) Select “White” by using

F/G(VOL +/-) and press

ENTER(

A)

* Set is activated HEAT run without signal generator in this

mode.

* Single color pattern ( RED / BLUE / GREEN ) of HEAT

RUN MODE uses to check panel.

* Caution : If you turn on a still pattern more than 20

minutes (Especially digital pattern, cross hatch pattern), an after image may be occur in the black level part of the screen.

3. PCB assembly adjustment method

Caution: Using ‘power on’ button of the Adjustment R/C ,

power on TV.

* ADC Calibration Protocol (RS232)

* EDID data and Model option download (RS232)

** Note 1 & Note 2

- Baud rate : 115200 bps

- RS232 Host : PC

- echo : none

3.1. ADC adjustment

* Adjustment can be done using only internal ADC, so input

signal is not necessary.

* Required equipment : Adjustment R/C.

1) Press ADJ key on adjustment R/C.

2) Select “1. ADC calibration” by using

D/E(CH +/-) and press

ENTER(

A)

3) Select “Start” by using

F/G(VOL +/-) and press ENTER(A)

4) ADC adjustment is executed automatically.

3.2 PCMCIA CARD Checking Method

You must adjust DTV 29 Channel and insert PCMCIA CARD to socket.

1) If PCMCIA CARD works normally, normal signals display on screen. But it works abnormally, “No CA module” words display on screen.

* Caution: Set up “RF mode” before launching products.

Item CMD1CMD2 Data0 Enter Adjust ‘Mode In’ A D 0 0 When transfer the ‘Mode In’, Adjust Mode Carry the command. ADC adjust ADC Adjust A D 1 0 Automatically adjustment

(The use of a internal pattern) Adjust ‘Mode Out’ AD90 Adjustment A D 9 9 To check ADC Adjustment Confirmation on Assembly line.

RF input AV / Component / RGB input NO SIGNAL or White noise NO SIGNAL

NO Item CMD1 CMD2 Data0 Enter Download A E 0 0 When transfer the ‘Mode download ‘Mode In’ In’, Carry the command. MODE Edid data and Download A E *Note1*Note2 Automatically download Model option (The use of a internal Data) download

Adjust ‘Mode Out’ AE90 Adjustment A E 9 9 To check download Confirmation on assembly line

Model Option Note 1 Note 2 32LG7000-ZA 5 6 37LG7000-ZA 5 7 42LG7000-ZA 5 8 47LG7000-ZA 5 9 52LG7000-ZA 5 A

4. EDID (The Extended Display Identification DATA)

* When company internal production(total assembly), EDID

data must scan in DDC line.

4.1. EDID Download

Before downloading EDID Data, check the RGB/HDMI cable is disconnected.

1) Press ADJ key on Adjustment R/C.

2) Select “5.EDID D/L” by using

D/E(CH +/-) and press

ENTER(

A)

3) Select “Start” by using

F/G(VOL +/-) and press ENTER(A)

4) EDID DownLoad is executed if word “NG” is changed to “OK” about all HDMI ports.

4.2. EDID Data

(1) HDMI1

ⓐ Product ID

ⓑ Serial No: Controlled on production line. ⓒ Month, Year: Controlled on production line

: ex) Monthly : ‘09’ -> ‘09’

Year: ‘2006’ -> ‘10’

ⓓ Model Name(Hex):

ⓔ Checksum: Changeable by total EDID data. ⓕ Port No.

10:HDMI1, 20:HDMI2, 30:HDMI3, 40:HDMI4

(2) RGB

ⓐ Product ID

ⓑ Serial No: Controlled on production line. ⓒ Month, Year: Controlled on production line

: ex) Monthly : ‘09’ -> ‘09’

Year: ‘2006’ -> ‘10’

ⓓ Model Name(Hex):

ⓔ Checksum: Changeable by total EDID data

- 11 -

LGE Internal Use Only

0x00 0x01 0x02 0x030x04 0x05 0x06 0x070x08 0x09 0x0A 0x0B 0x0C 0x0D 0x0E0x0F 0x00 00 FF FF FF FF FF FF 00 1E 6D ⓐⓑ 0x10 ⓒ 01 03 80 46 27 78 EA D9 B0 A3 57 49 9C 25 0x20 11 49 4B A1 08 00 31 40 45 40 61 40 81 80 90 40 0x30 D1 C0 01 01 01 01 1A 36 80 A0 70 38 1F 40 30 20 0x40 35 00 E8 26 32 00 00 1A 1B 21 50 A0 51 00 1E 30 0x50 48 88 35 00 BC 86 21 00 00 1C 00 00 00 FD 00 39 0x60 4B 1F 54 12 00 0A 20 20 20 20 20 20 0x70 ⓓ 01 ⓔ 0x80 02 03 23 F1 4E 81 02 03 15 12 13 04 14 05 20 21 0x90 22 1F 10 23 09 57 07 83 01 00 00 67 03 0C 00 ⓕ 0xA0 00 B8 2D 01 1D 00 80 51 D0 1C 20 40 80 35 00 BC 0xB0 88 21 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 0xC0 00 13 8E 21 00 00 18 02 3A 80 18 71 38 2D 40 58 0xD0 2C 45 00 06 44 21 00 00 1E 01 1D 80 18 71 1C 16 0xE0 20 58 2C 25 00 C4 8E 21 00 00 9E 4E 1F 00 80 51 0xF0 00 1E 30 40 80 37 00 BC 88 21 00 00 18 00 00 ⓔ

MODEL NAME PRODUCT ID HEX EDID Table 32LG7000 30302 765E 5E76 37LG7000 30264 7638 3876 42LG7000 40360 9DA8 A89D 47LG7000 40362 9DAA AA9D 52LG7000 50202 C41A 1AC4

MODEL NAME MODEL NAME(HEX) 32LG7000 00 00 00 FC 00 33 32 4C 47 37 30 30 30 0A 20 20 20 20 37LG7000 00 00 00 FC 00 33 37 4C 47 37 30 30 30 0A 20 20 20 20 42LG7000 00 00 00 FC 00 34 32 4C 47 37 30 30 30 0A 20 20 20 20 47LG7000 00 00 00 FC 00 34 37 4C 47 37 30 30 30 0A 20 20 20 20 52LG7000 00 00 00 FC 00 35 32 4C 47 37 30 30 30 0A 20 20 20 20

0x00 0x01 0x02 0x030x04 0x05 0x06 0x070x08 0x09 0x0A 0x0B 0x0C 0x0D 0x0E0x0F 0x00 00 FF FF FF FF FF FF 00 1E 6D ⓐⓑ 0x01 01 03 01 46 27 78 EA D9 B0 A3 57 49 9C 25 0x02 11 49 4B A1 08 00 31 40 45 40 61 40 D1 C0 90 40 0x03 81 80 01 01 01 01 1A 36 80 A0 70 38 1F 40 30 20 0x04 35 00 E8 26 32 00 00 1A 1B 21 50 A0 51 00 1E 30 0x05 48 88 35 00 BC 86 21 00 00 1C 00 00 00 FD 00 39 0x06 4B 1F 54 12 00 0A 20 20 20 20 20 20 0x07 ⓓ 00 ⓔ

MODEL NAME PRODUCT ID HEX EDID Table 32LG7000 30301 765D 5D76 37LG7000 30263 7637 3776 42LG7000 40359 9DA7 A79D 47LG7000 40361 9DA9 A99D 52LG7000 50201 C419 19C4

MODEL NAME MODEL NAME(HEX) 32LG7000 00 00 FC 00 33 32 4C 47 37 30 30 30 2D 0A 20 20 20 20 37LG7000 00 00 FC 00 33 37 4C 47 37 30 30 30 2D 0A 20 20 20 20 42LG7000 00 00 FC 00 34 32 4C 47 37 30 30 30 2D 0A 20 20 20 20 47LG7000 00 00 FC 00 34 37 4C 47 37 30 30 30 2D 0A 20 20 20 20 52LG7000 00 00 00 FC 00 35 32 4C 47 37 30 30 30 0A 20 20 20 20

LGE Internal Use Only

- 12 -

5. Model option download(Manual method)

(1) Press ‘Adj’ key of Adjust Remocon ( p/n : 105-201M). (2) Select ‘Model Option’ by using

D/E (CH+/-) key, and press

‘VOL+’ of ‘Enter’.

(3) Enter the Model number or Select ‘Model Name’ by using

D/E (CH+/-) key.

32LG7000-ZA -> 7700000 (4) And then, Press ‘Enter’ or ‘Vol+’ (5) The set is turned off and Turned On automatically.

6. Serial number D/L

6.1 Signal TABLE

CMD : A0h LENGTH : 85~94h (1~16 bytes) ADH : EEPROM Sub Address high (00~1F) ADL : EEPROM Sub Address low (00~FF) Data : Write data CS : CMD + LENGTH + ADH + ADL + Data_1 + … +

Data_n

Delay : 20ms

6.2 Command Set

* Description

FOS Default write : <7mode data> write

Vtotal, V_Frequency, Sync_Polarity, Htotal, Hstart, Vstart,

0, Phase

Data write : Model Name and Serial Number write in

EEPROM,.

6.3 method & notice

A. Serial number D/L is using of scan equipment. B. Setting of scan equipment operated by Manufacturing

Technology Group.

C. Serial number D/L must be conformed when it is produced

in production line, because serial number D/L is mandatory by D-book 4.0

7. Adjustment of White Balance

7.1. Test Equipment

- Color Analyzer (CS-1000, CA-100+(CH.9), CA-210(CH.9) )

- Please adjust CA-100+ / CA-210 by CS-1000 before measuring

-> You should use Channel 9 which is Matrix compensated

(White, Red, Green, Blue revised) by CS-1000 and adjust in accordance with White balance adjustment coordinate.

* Color temperature standards according to CSM and Module

* Change target luminance and range of the Auto adjustment

W/B equipment.

* White balance adjustment coordinate and color temperature

- PC (for communication through RS-232C) -> UART Baud rate : 115200 bps

- Luminance Y AV : upper 150 cd/m2(TYP : 350 cd/m2)

-> Applying to Cool, Medium, Warm mode

7.2. Connecting picture of the measuring instrument (On Automatic control )

Inside PATTERN is used when W/B is controlled. Connect to auto controller or push Adjustment R/C IN-START -> Enter the mode of White-Balance, the pattern will come out.

CSM LCD

Cool 11000K

Medium 9300K

Warm 6500K

Target luminance 65

Gamma 20

CMD LENGTH ADH ADL DATA_1 ... Data_n CS DELAY

No. Adjust mode CMD(hex) LENGTH(hex) Description

1 EEPROM WRITE A0h 84h+n n-bytes Write (n = 1~16)

Cool CS-1000 CA-100+(CH.9) CA-210(CH.9)

X 0.276 0.276±0.002 0.276±0.002 Y 0.283 0.283±0.002 0.283±0.002

∆uv 0.000 0.000 0.000

Medium CS-1000 CA-100+(CH.9) CA-210(CH 9)

X 0.285 0.285±0.002 0.285±0.002 Y 0.293 0.293±0.002 0.293±0.002

∆uv 0.000 0.000 0.000

Warm CS-1000 CA-100+(CH.9) CA-210(CH 9)

X 0.313 0.313±0.002 0.313±0.002 Y 0.329 0.329±0.002 0.329±0.002

∆uv 0.000 0.000 0.000

<Fig. 1> connecting picture (On Automatic Control)

LGE Internal Use Only

7.3. Auto White Balance

1) Adjust in the place where the influx of light like floodlight around is blocked. (illumination is less than 10ux).

2) Adhere closely the Color Analyzer (CA210) to the module less than 10cm distance, keep it with the surface of the Module and Color Analyzer’s Prove vertically.(80~100°).

(3) Aging time

- After aging start, keep the power on (no suspension of power supply) and heat-run over 15 minutes.

- Using ‘no signal’ or ‘full white pattern’ or the others, check the back light on.

- Auto adjustment Map(RS-232C)

7.4. Manual white Balance

(1) Press the ADJ KEY on Adjustment R/C.

Select “3. Test Pattern” by using

D/E(CH +/-) and press

ENTER(

A)

Select “White” by using

F/G(VOL +/-) and press

ENTER(

A) and heat run over 15 minutes.

(2) Zero Calibrate CA-100+ / CA-210, and when controlling,

stick the sensor to the center of LCD module surface. (3) Press the ADJ KEY on Adjustment R/C (4) Select “2. White Balance” and press

G(VOL +)

Set test-pattern on and display inside pattern.

(5) Control is carried out on three color temperatures, COOL,

MEDIUM, WARM.

(Control is carried out three times)

< Temperature: COOL >

- R-Cut / G-Cut / B-Cut is set to 64.

- Gain of Fixed color should be kept on 192, and adjust other two lower than 192.

- Each gain is limited to 192.

< Temperature: MEDIUM >

- R-Cut / G-Cut / B-Cut is set to 64.

- Gain of Fixed color should be kept on 192, and adjust other two lower than 192.

- Each gain is limited to 192.

< Temperature: WARM >

- R-Cut / G-Cut / B-Cut is set to 64.

- Gain of Fixed color should be kept on 192, and adjust other two lower than 192.

- Each gain is limited to 192.

* One of R Gain / G Gain / B Gain should be kept on

192, and adjust other two lower than 192. (When R/G/B GAIN are all 192, it is the FULL DYNAMIC Range of Module)

- 13 -

RS-232C COMMAND MIN CENTER Max

[CMD ID DATA] (DEFAULT)

Cool Medium Warm Cool Medium Warm R Gain jg Ja jd 00 192 192 192 255 G Gain jh Jb je 00 192 192 192 255 B Gain ji Jc jf 00 192 192 192 255 R Cut 64 64 64 128 G Cut 64 64 64 128 B Cut 64 64 64 128

LGE Internal Use Only

- 14 -

TROUBLE SHOOTING

1. Power Board

1-1. The whole flow chart which it follows in voltage output state

Does not screen

whole comes out?

Yes

No

Yes

Start check

1. Check the Power off condition.

Is it identical with

power off condition?

Is the interface

signal operated?

Yes

2. Check the interface signal condition.

Yes

3. Check the St_by 5V signal circuit.

Yes

4. Check the AC detect signal circuit.

Yes

No

5. Check the VSC RL_ON /PWR_ON/OFF signal.

No

Does not

low voltage output

comes out?

Yes

Does not the

St-by 5V(P-5V) signal

comes out?

Does not the

AC Detect signal

comes out?

No

Does not the

RL_ON/PWR_ON/OFF

comes out?

No

Yes

7. Check the VSC INV_CTL signal?

Yes

8. Check the INV 24V voltage output circuit.

Manufacture enterprise meaning of a passage.

Yes

6. Check the VSC low Voltage output.

Does not

inverter signal output

comes out?

Yes

Does not the

VSC signal INV_CTL

comes out?

Does not the

INV 24V voltage output

comes out?

No

Does not the

VSC Low voltage output

comes out?

LGE Internal Use Only

- 15 -

1-2. In case of No Power

(1) Symptom

1) It does not charge at module.

2) Front LED does not work.

(2) Check the followings

A power cord is plugged in with TV set?

Plug the power cord in.

Is AC-INLET Cable(Red+Blue) connected with th PSU?

Connect the AC-INLET Cable.

Yes

No

Are the fuses OK on the PSU? (check open or short status with Multi-meter)

Replace the fuse.

Yes

No

Is the PSU connected with Main Board though a 24pin cable?

Connect a 24p cable to PSU to Main(P1000)pin.

Yes

Measure output voltages(16V, 12V, 5V) on the PSU.

-> [Main P1000] pin1,2:16V; pin(5,6):12V; pin(9~12):5V; If the measured values are not a proper value, replace PSU.

Yes

No

LGE Internal Use Only

- 16 -

NG : always RED

No problem

Check LED A’ssy color.

Check remote control

Power key off.

Replace LED A’ssy.

Check P500 VDD voltage (pin1~4) 12V

No problem

Check LVDS data signal(pin11~22, pin27~38)

No problem

Replace T-con board of LCD Module.

No problem

Replace IC100. Replace regulator.

No problem

Lamp On status

Lamp off

Check inverter lamp

On/Of status.

Check LVDS Cable. Replace the LVDS Cable.

NG

Check Q501, L502,500, PANEL_Vcc_EN signal.

NG

Recheck PSU(+5V, +12V, +16V)

-> If not OK then replace PSU

Replace PSU

Check the PWM signal

(P1000, pin 22, 21)

Replace the Main B/D.

NG

Re App S/W download.

If not OK then replace IC100.

Check IC502 power block

L1200(1.0V), L1213(1.8V)

IC1204(3.3V), IC1205(3.3V)

IC1206(1.2V)

No problem

Check LED A’ssy. Replace PSU B/D or Main B/D.

Is the inverter OK? (INV_CTL signal : P1000 :pin20)

Re MICOM S/W download

-> If not OK then replace IC802

No problem

No

problem

NG

2. Main Board & Sub FRC B/D 2-1. In case of No Raster

LGE Internal Use Only

- 17 -

Check Tuner

1. VDD Check -> TU300 pin22:1.8V pin21: 3.3V pin4:5V

2. IIC check -> pin10,11

Check ATV signal

1. Video signal

-> TU Main Signal : R336

-> Tuner V-out:C318

Replace TU300.

Check Front END IC100

1. Check C518

Check DTV signal

1. TP signal -> Pin 24~34

2. IIC check -> pin 18,19

Replace TU300.

NG : DTV

Check ATV sound signal

1. Sound signal

-> SIF : R317

-> SECAM-L sound:R326

NG : DTV

Check sound processor

1. IC603 pin50 for SIF(RF sound)

2. IC603 pin47 for SECAM-L sound

Check App S/W. If App S/W OK then replace IC603.

Check Digital AMP

1. VDD 16V:IC600 pin49~52, 32~35 VDD 1.8V:IC600 pin2, 13, 16

2. Mute check:IC600 pin25

No problem

NG

No problem

Check App S/W If App S/W OK then replace IC600.

NG

NG : DTV

NG

Replace Main B/D.

NG

Check App S/W. If App S/W OK then replace IC100.

2-2. In case of abnormal display or sound when RF mode

Replace TU300.

NG

Check App S/W. If App S/W OK then replace Main B/D.

LGE Internal Use Only

- 18 -

Check video signal

1. Red : JK100 pin15 and C508

2. Green : JK100 pin11 and C511

3. Blue : JK100 pin7 and C514

4. CVBS : JK100 pin20 and C1909

Check AV1 Jack

1. SCART1 LINK check

->R148 or JK100 pin17

Check Video, Audio

Check Audio signal

1. R : JK100 pin2 and C679

2. L : JK100 pin6 and C692

Audio NG

Check App S/W. If App S/W OK then replace IC603.

No problem

Check the input source of Equipment.

NG

Check App S/W. If App S/W OK then replace IC600.

Check App S/W. If App S/W OK then replace Main B/D.

NG

Check Digital AMP

1. VDD 16V : IC600 pin49~52, 32~35 VDD 1.8V : IC600 pin12,13,16

2. Mute check : IC600 pin25

No problem

Video NG

Replace IC100.

No problem

2-3. In case of abnormal display or sound when side AV1(SCART1) mode

Check video signal

1. CVBS : JK101 pin20 and C519

Check AV2 Jack

1. SCART1 LINK check

->R149 or JK101 pin17

Check Video, Audio

Check Audio signal

1. R : JK101 pin2 and C690

2. L : JK101 pin6 and C627

Audio NG

Check App S/W. If App S/W OK then replace IC603.

No problem

Check the input source of Equipment.

NG

Check App S/W. If App S/W OK then replace IC600.

Check App S/W. If App S/W OK then replace Main B/D.

NG

Check Digital AMP

1. VDD 16V : IC600 pin49~52, 32~35 VDD 1.8V : IC600 pin12,13,16

2. Mute check : IC600 pin25

No problem

Video NG

Check App S/W. If App S/W OK then Replace IC100.

No problem

2-4. In case of abnormal display or sound when side AV2(SCART2) mode

LGE Internal Use Only

- 19 -

Check EDID EEPROM

1. IC102 VDD Check

-> pin8 : 5V

2. DDC IIC line check

-> IC102 pin 6, 5

Check RGB Jack

1. RGB LINK check

->R189 or P101 pin10

Check Video, Audio

Check sink signal

1. H-sync : P101 pin13

2. V-sync : P101 pin14

No problem : case 1

No problem: case 2

Check App S/W If App S/W OK then replace IC102.

NG

Check App S/W. If App S/W OK then replace IC100.

Check Video & sink signal

1. Red : P101 pin1 and C501

2. Green : P101 pin2 and C502

3. Blue : P101 pin3 and C503

NG

Check App S/W. If App S/W OK then replace IC100.

NG

Check 74HC14D IC103

1. H-sync : pin4

2. V-sync : pin8

3. If problem with IC103 then replace IC103

No problem or No sound

Check EDID

1. Read EDID data

EDID download and recheck

No problem

2-5. In case of abnormal display or sound when VGA Input mode

Check video signal

1. Y : JK102 pin3A and C509

2. Pb : JK102 pin5B and C512

3. Pr : JK102 pin5C and C515

Check Component Jack.

1. COMP LINK check

->R167 or JK102 pinA4

Check Video, Audio

Check Audio signal

1. R : JK102 pin3E and C614

2. L : JK102 pin5D and C613

Audio NG

Check App S/W. If App S/W OK then replace IC100.

No problem

Check the input source of Equipment.

NG

Video NG

Check App S/W. If App S/W OK then Replace IC100.

No problem

2-6. In case of abnormal display or sound when Component Input mode

LGE Internal Use Only

- 20 -

Check video signal

1. CVBS : JK103 pin2 and C517

Check AV3 Jack.

1. AV3 LINK check

->R187 or JK103 pin3

Check Video, Audio

Check Audio signal

1. R : JK103 pin7 and C616

2. L : JK102 pin8 and C615

Audio NG

Check App S/W. If App S/W OK then replace IC100.

No problem

Check the input source of Equipment.

NG

Video NG

Check App S/W. If App S/W OK then replace IC100.

No problem

2-7. In case of abnormal display or sound when side AV3 mode

Check EDID.

1. Read EDID data.

Check EDID EEPROM

1. IC201~4 VDD Check

-> pin8:5V

2. DDC IIC lin check

-> IC201~4 pin6,5

Check HDMI HPD Output

1. HDMI JK201, 202, 203 Pin19

Check TMDS signal.

1. JK201~3, JK204 pin1~12

Check App S/W. If App S/W OK then replace IC100.

No problem

Check App S/W. If App S/W OK then replace IC201~4.

NG

Check HDMI 5V_DET input

1. HDMI JK201, 202, 203 Pin20

Check HDMI source. If OK then replace HDMI JACK.

No problem

Check App S/W. If App S/W OK then replace IC100.

No problem

No problem or No sound

Check TMDS 351 IC(IC200).

1. VDD check -> pin6,12,19,25,40,46,55,61:3.3V

2. HDMI SEL check -> pin33,32

No problem : case HDMI1~3

Check TMDS351 TMDS signal check.

1. Pin17~27

No problem

Check App S/W. If App S/W OK then replace IC100.

No problem

NG

No problem

case HDMI4

Video NG

Check App S/W. If App S/W OK then replace IC200.

NG

EDID download and re-check

All data:FF

2-8. In case of abnormal display or sound when HDMI1,2,3,4 mode

LGE Internal Use Only

- 21 -

2-9. In case of No sound

(1) Symptom

1) LED is green.

2) Screen display but sound is not output.

(2) Check the followings

All input(mode) is no sound?

Is the speaker on it menu?

1. Menu > Audio > TV Speaker ON/OFF.

Is the speaker Cable normal?

1. Isn’t damage in the Speaker Cable?

2. Is the Speaker cable connect well form Main B/D to Speaker.

Only HDMI is No sound?

Download the EDID data.

No

Yes

IC601(Audio AMP) operates Normal?

1. Check 16V input Voltage. (IC600 pin49~52)

2. Check 1.8V input Voltage. (IC600 pin12, 13, 16)

3. Check the IIC communication. (SDA/SCL : R619, R620)

4. Check the Audio Signal is Normal. (SPK_L/R : L603, L604)

Yes

Replace Main B/D.

Yes

Set on speaker in menu. (TV Speaker OFF -> ON)

No

Change or Reconnect the Speaker Cable.

No

Replace Audio AMP IC(IC600).

No

Yes

Only RF is no sound?

Check the Tuner IN/OUT SIF : R317, SECAM-L : R326

Yes

No

Only AV/component/PC input is no sound?

Replace Main B/D.

Check the Input Sound IN/OUT AV1 (R : JK100 pin2 and C679

L : JK100 pin6 and C692)

AV2 (R : JK101 pin2 and C690

L : JK101 pin2 and C690)

AV3 (R : JK103 pin7 and C616

L : JK103 pin8 and C615) PC (PC_LIN : 635, PC_LIN : R634) Component

(R: JK102 pin3E and C614

L : JK102 pin5D and C613)

No

Yes

2-10. In case of no connection blue tooth device

(1) Symptom

1) TV set display is fine.

2) TV set don’t search blue Tooth device.

(2) Check the followings

- 22 -

LGE Internal Use Only

Check the blue tooth device power.

Recharge device and power on

The blue tooth device is headset?

Check connection blue tooth cable on TV set.

Yes

No

No problem

Is it Pairing Mode? (Blue tooth headset device)

Check P903(main board) 5pin(5V).

Replace IC904 of Main B/D Or Replace Main B/D

Yes

Setting headset to ‘Pairing Mode’ and retry

Check P903(main board) 2,3pin signal USB interface

Replace Blue Tooth board.

No

No signal

LGE Internal Use Only

- 23 -

BLOCK DIAGRAM

1. Main

< 1 / 1 1>

COMPONENT

RGB

HDMI1,

HDMI2,

HDMI3

Rear

SCART1(AV1)

Side AV3 Composite, S-Video

TS[ 0 :7]

CVBS, L/R

SCART2(AV2)

DDR2 S D RA M

(64MByte)

HYNIX

IC700

NAND Flash

HYNIX

IC404

LVDS TMDS ODD[ 10 bit ]

60Hz Module

SPDIF

USB

SPDIF _OU T

Digital amp

(NTP3000A)

IC600

RS-232C

TMDS351PAG

IC200

YPbP rL/R

RGB, C VB S

CVBS

DTV/ MNT OUT

I2S

24LC512

512Kbit

IC901

HDMI4

Sid e

RGB,PC L/ R

Tun er

(TDFV- G135D1)

TU300

TMDS[ 0 :7]

120Hz module

74L VC541A(PW )

Buf f er IC400

CI Slot

(P400)

74LVC 245A

Bi- Bu f fer

IC402

DATA[ 0 : 7]

74L C X244MTC

Buffer

IC403,405,406

Add r es s [ 0: 1 4 ]

,CTRL signals

TMDS[ 0 :7]

CVBS

Tuner V out

NLASB3157

IC500

LVDS TMDS EVN[ 10 b i t]

LVDS TMDS ODD[ 10 bit ]

Host Address [ 1:16]

Host Data[ 0: 15]

LPF

DDR2 Data[ 0: 15]

DDR2 SDRAM

(64MByte)

HYNIX

IC701

DDR2 Data[ 16: 31]

DDR2 Address[0:12]

I2C

MICOM

WT61P8

IC802

I2C

MAX3232CDR

IC104

RX

TX

NLASB 3157

IC101

TX

AT24C16AN

16K

IC801

FLI106 2 0H

IC100

MSP4 458 G

IC603

SIF,SCART1, 2 L/ R, AM Audi o Switching LR

I2S

TV out, DTV out LR

IC904

UPD720114

USB Hub

Bluetooth

FRC

IC502

LGE Internal Use Only

- 24 -

MT8280FG

IC502

Do ug las

IC10 0

LVDS input ( 10bit)

Odd / eve n

LVDS output( 10bit)

First / seco nd channel

LVDS output(10 bit)

Third / fo urth channel

MT8280_INT0

MT8280_PWN

MT8280_PRST

UART

I2S

SDA/SCL 2

Mast e r

DDR2

400Mhz *2

IC1100,IC1101

RS-232 J a ck

For debugging

P12 02

Ser i a l

Flash

IC1201

Serial flash WP

Data In/out

Clk in

Data BUS

Control Bus

Address bus

TX

RX

27Mhz

UART0

slave

UART1

4pin wafer

For download

P1203

2. FRC

LGE Internal Use Only

- 25 -

FLI10620H

Bluetooth Module

IC904 UPD720114 USB Hub

USBUP_DP

USBUP_DM

BLUE_DP

BLUE_DM

USB20_1_DP

USB20_1_DM

Bluetooth Module

MIPS

IC101 LBMS-2C66B4

BLUE_DP

BLUE_DM

M101

Audio : PCM Picture : JPEG

3. Bluetooth

LGE Internal Use Only

- 26 -

Level

generator

0V, 6V,11V

12V->3.3V Level shifter

REC8 Ctrl1

REC8 Ctrl2

DTV/MNT_VOUT

Scart2 ID

Recording Ctrl

Scart1 FB

Scart1 CVBS

TUNER_VOUT

NLASB3157

Video S/W

TR BUF

Scart1 R,G,B

12V->3.3V Level shifter

Scart1 ID

Rear R

Rear L

Scart1 L/R

TV OUT L/R

Level Adj

LM324 [6dB]

23:GND

22:GND

21:safety GND

20:CVBS in

19:CVBS out (TV out)

18:RGB Control GND

17:video GND

16:SCART FB

15:Red

14:data GND

13:red GND

12:data1

11:Green

10:data 2

9:green GND

8:SCART ID

7:Blue

6:audio L in

5:blue GND

4:audio GND

3:audio L out (TV)

2:audio R in

1:Audio R out (TV)

SCART 1

23:GND

22:GND

21:safety GND

20:CVBS in

19:CVBS out

(DTV out)

18:

17:video GND

16:

15:C in

14:data GND

13:GND

12:data1

11:CVBS in

10:data 2

9:GND

8:function select

7:CVBS in

6:audio L in

5:GND

4:audio GND

3:audio L out (DTV)

2:audio R in

1:Audio R out (DTV)

SCART 2

[LBADC_IN4]

[A2P],[B2P],[C2P]

[A4P]

[C4P]

[SCART_FB]

[AUD_IN_L1,R1]

TR Adj

[15]VIDEO

[AUD_OUT2_L,R]

TR BUF

TR Net

[GPIOA4]

MUTE_LINE

TR Adj

[SV3P]

TU_MAIN

LPF

Level Adj

Scart1 Link

VXO_DE

Scart2 CVBS

[SV4P]

[VXI_D15]

[VXI_D16]

Scart2 ID

[LBADC_IN5]

[VDAC_GY_YC_P]

[VOUT2]

TR AMP [6dB]

[VXO_D13]

DTV/MNT switch Ctrl

Level Adj

Scart2 Link

VXO_VS

Scart2 L/R

Level Adj

[AUD_IN_L2,R2]

LM324 [6dB]

[AUD_OUT1_L,R]

TR BUF

TR Net

[GPIOA5]

MUTE_LINE_DTV

DTV/MNT L/R

LPF

Level Adj

[SV2P]

[AUD_IN_R4]

[AUD_IN_L4]

Rear CVBS Link

[VXO_D1]

FLI10620H

MICOM

TUNER

Rear CVBS

4. SCART 1, 2, AV3

LGE Internal Use Only

- 27 -

COMP_Y

COMP_PB

COMP_PR

VGA_R

VGA_B

VGA_G

HSYNC

VSYNC

EDID

EEPROM

AT24C02BN

D_SUB_I2C

COMP_L

COMP_R

PC L,R

[A3P]

[B3P]

[C3P]

[VXO_D0]

[AUD_IN_L3]

[AVS]

[ AHS_ACS]

[R_GRA]

Level Adj

[AUD_IN_R3]

COMP Link

[G_GRA]

[B_GRA]

74HC14D

Schmitt triggering

Usage : BUF

[VXO_HS]

RGB Li nk

[AUD_IN_L5,R5]

HDMI 2 TMDS[ 8b i t]

DDC HDMI2 I2C

EDID

AT24C0 2 B N

HDMI 3 TMDS[ 8b i t]

DD C H DMI 3 I 2C

EDID

AT24C0 2 B N

HDMI SW TMDS

HDMI I2C [ SW]

[GPIOA0]

[GPIOA1]

HDMI Select 1

HDMI Select 2

CEC_REMOTE

[ GPIOB1]

[2WIRE_S2]

[2WIRE_S0]

[ DSD A 1 ,DSCL1]

HDMI BUF TMDS

DDC HDMI4 I2C

EDID

AT24C0 2 BN

[2WIRE_S1]

[ARX]

[BRX]

[ VXO_D20]

[ VXO_D21]

HDMI2 5V DET

HDMI3 5V DET

HDMI4 5V DET

[VXO_CLK]

HP DET S/W4

[ VXI_D23]

HP DET S/W3

HP DET S/W2

[ HDMI_A_HPD]

[ HDMI_B_HPD]

[ VXO_D22]

FET Bi-BUF

NLAS B 3157

IC502

2 RX

CHAPLIN RX

UCOM RX

3 TX

UCOM TX

CHAPLIN TX

6 RX

4TX

G-probe

FLI10620H

MICOM

BU16027

IC200

MAX3232CDR

IC104

HP DET S/W1

HDMI1 5V DET

HDMI 1 TMDS[ 8b i t]

DDC HDMI2 I2C

EDID

AT24C02BN

[ VXO_D19]

5. Component, RGB, HDMI, RS232

LGE Internal Use Only

- 28 -

CI_TS[ 0: 7]

Tuner

(TDFV-G13 5D1 )

TU300

74LVC54 1 A( PW)

Buffer

IC400

PCMCIA

Card

74LVC245A

Bi-Buffer

IC402

HOST DATA[ 0:7]

FE_TS[ 0:7]

HOST Addr es s [ 1:2 4]

HOST DATA[ 0: 15 ]

FLASH WP Ctr l

[ OOB_CTX]

RESET

[ GPIOE7]

HOST Write Enable

[POD_WE_HOST_WR]

HOST Out En a b l e

[ P OD_OE _ HOST_RD]

HOST Chip Enable

[ HOST_BOOD_CS_N]

CI DATA[ 0: 7] [ POD_DIR_N]

CI DATA Dir Select

CI Detect

[ POD_DETEC T_N ]

CI Detect

TS_IN[0: 7]

74LCX244MTC

Buffer

IC403

HOST Address[ 0: 3]

POD Address[ 0:3]

CI Address[ 0:7]

74LCX244MTC

Buffer

IC406

HOST Address[ 10: 1 3]

POD Address[8;9;14]

HOST Address[ 4]

74LCX244MTC

Buffer

IC405

REG

CI Detect

CI Address[ 8:14]

CI Detect

[ P OD_OE _ HOST_RD]

HOST Out En a b l eCI Out Enab le

HOST Write EnableCI Write Enab le

HOST Address[ 6]CI IORD

HOST Address[ 5]CI IOWR

FE_TS _DATA_VALCI_MIVAL

FE_TS_DATA_SYNCI_MISTRT

FE_TS _DATA_CLKCI_MICLK

Tuner

(TDFV-G 135D1)

TU300

NAND Flash

FLI10620H

MICOM

6. Tuner, CI

LGE Internal Use Only

- 29 -

Mute

CTRL

[TR]

SPDIF_OUT

DTV/MNT L/ROUT

TV_L/ ROUT

MUTE_LINE

NTP300 0

Digit al AMP

LM324

OP AMP

[6dB]

Mute

CTRL

[TR]

SW_RESET

LPF

Level Adj

LPF

Comp L/ R

SIDE L/ R

PC L/ R

[AUD_IN_L/R 3] Ch. 3

[AUD_IN_L/R 4] Ch. 4

[AUD_IN_L/R 5] Ch. 5

[AUDO_SPDIR_OUT]

Tun er

(TDFV-G135D1)

TU301

AM AUDIO

TR BUF

MUTE_LINE_DTV

TR BUF

SCART 1

SCART 2

TV LR OUT

DTV LR OUT

16V

[FAULT]

AUDIO_MUTE

[ VXO_D5 ] [RESET]

I2C 3.3V

TPY : 10W+10W

TPS2042BDRG4

Pow er Di s t ri b u t e r

IC901

5V

USB DP/ DM

5V

600mA

FLI10620H

MICOM

MSP4458G

[ A U D_O U T1 L / R]

Level Adj

Sca rt 1 L/ R

Level Adj

Sca rt 2 L/ R

AM Audio , SIF

SW L/R

I2S

SIF

TR BUF

7. Audio Path(MSP4458, NTP3000A)

LGE Internal Use Only

- 30 -

8. Reset

KIA7029AF

Power On Reset

IC901

MICOM Reset

[NRST]

HY27US08121B

NAND Flash

IC404

RESET

EJTAG RESET

[EJ_RST_N]

SYS RESET

[RESET_N]

Tic S/W

NTP3000

SW_RESET

[VXO_D5]

PCMCIA

CI_RST

[POD_RESET]

TUNER

FE_RESET

[VXI_D14]

FLI10620H

MICOM

MT8280

FRC_RESET

[DFSYNC_E13]

9. I2C Control

SDA2_3.3V,SCL2_3.3V

EYEQ 0xE8 RGB 0x94

MICOM

0x50

NTP3000A

0x54

MSP4458

0x80

[Master I2C 1]

TUNER Analog

R : 0x87

W : 0x86

24LC512 W : 0xA6

R : 0xA7

SDA1_5V, SCL1_5V

[Master I2C 0]

[Slave I2C 0]

[Slave I2C 1]

[Slave I2C 2]

EDID

AT24C02BN

EDID

AT24C02BN

EDID

AT24C02BN

EDID

AT24C02BN

BU16027KV

IC200

FLI10620H

EDID

AT24C16AN

[DSDA1,DSCL1]

MICOM

TUNER

Digital

0x1C

MT8280

0x0C

EDID

AT24C02BN

LGE Internal Use Only

- 31 -

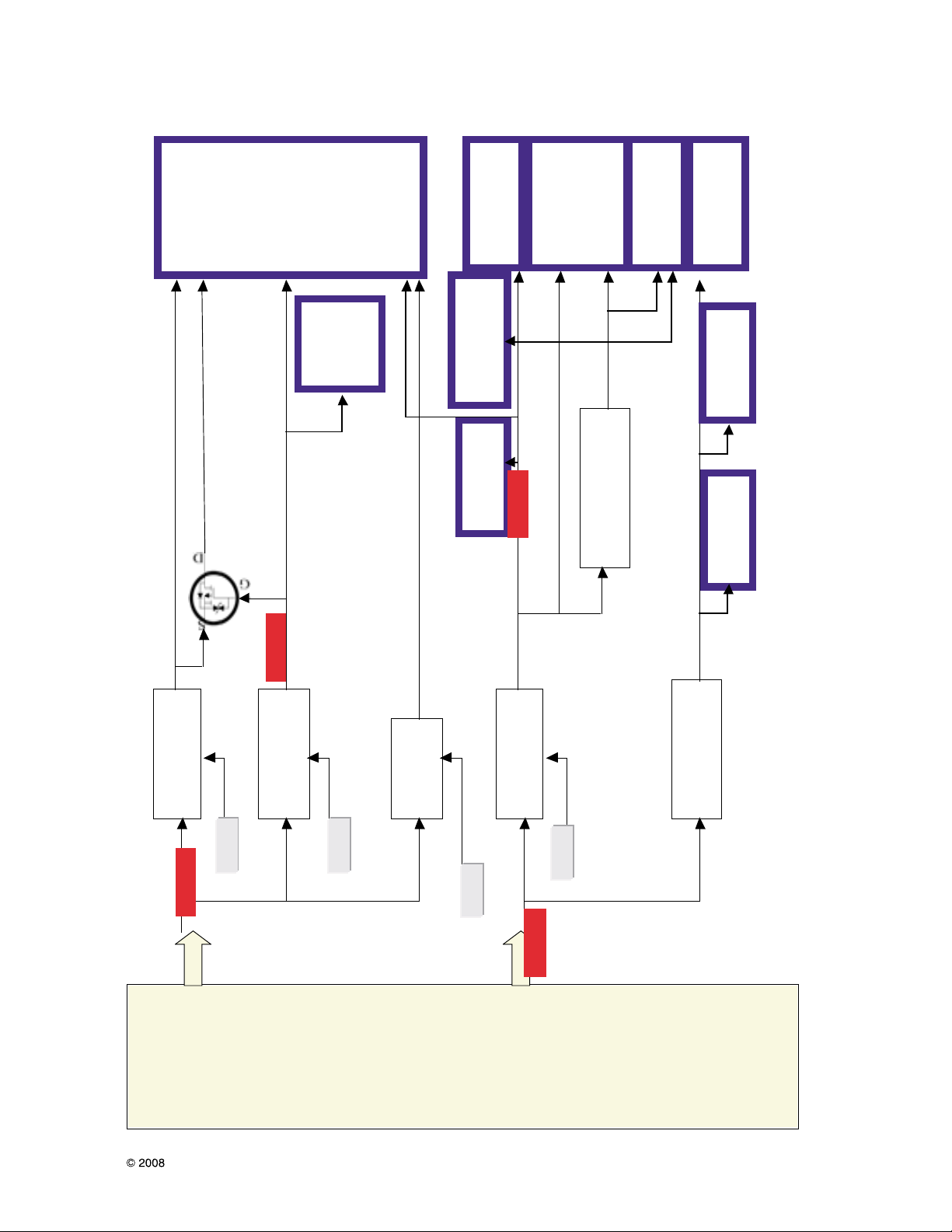

10-1. Power tree

P_+5V

IC1004

BA33BC 1A

3.3V_EN

+3.3V-TUNER

+3.3V-CI

IC1006

AZ1117H-1.8TRE

+1.8V

IC1007

BA33BC

+3.3V_STBY

MICOM

IC1001

BA33BC 1A

3.3V_EN

+3.3V-DOUGLAS

IC1002

BA18DD0WHFP

Rohm

+1.8V_DOUGLAS_DDR

1.8V_DOUGLAS_EN

IC1000

BD9130 / 2A

+1.2V_DOUGLAS

1.2V_DOUGLAS_EN

MICOM

+3.3V_OTP

IC100

Douglas

IC700

IC701

DDR2

IC802

Micom

IC801

EEPROM

IC904

USB Hub

TUNER

IC600

NTP3000A

IC104

MAX3232

IC200

TMDS351

CI Block

For audio block

160mA

1250mA

480mA

300mA

LGE Internal Use Only

- 32 -

10-2. Power tree

P_+12V

P_+16V

IC1003

KA7809

IC1008

KIA78R05F

+5V-TUNER

+9V_MSP

IC1005

KIA78R05F

CI_EN

+5V-CI

VCC_MODULE

PANEL_VCC_EN

MICOM

+5V

RL_ON/PWR_ON/OFFMICOM

P_+5V

SPDIF

IC603

MSP4458G

IC903

MIC2019

USB_power

IC901

NVRAM

IC501

Analog s/w

For DTV/MNT out

IC1202

BD9130(DC-DC)

IC502

MT8280

IC600

NTP3000A

IC603

MSP4458G

TU300

TUNER

Ci slot

Module

IC200

TMDS351

IC201~4

HDMI

EEPROM

P903

Bluetooth module

120mA

1600mA

1180mA

550mA

MT8280_CORE_1.0V

IC1204

AZ1117-3.3

MT8280_DVDD33

6.7mA

IC1203

BD9130

DDR2

BD35331

VTT regulator

IC1204

AZ1117-3.3

IC1206

AVDD12

MT8280_DDRV

MT8280_AV33

859mA

AVDD12

282mA

16mA

MT8280_DDRV

VREF_DDR

LGE Internal Use Only

- 33 -

EXPLODED VIEW

510

121

120

122

300

500

200

803

800

804

805

806

801

802

530

900

550

840

820

540

830

520

521

400

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

3.3K

R127

+3.3V_CI

470

R144

3.9K

R166

V_SYNC_PC

3.3uH

L100

1000pF

C106

READY

REC_8_CTRL1

ATMEL

AT24C02BN-10SU-1.8

0IMMRAL014D

EEPROM

IC102

3A22A14

GND1A0

5

SDA

6

SCL

7WP8

VCC

D119

330

R146

D126

H_SYNC_PC

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

10K

R101

1000pF

C111

READY

COMP_Y

27K

R152

1K

R143

751%R109

1000pF

C101

30V

D123

4.7K

R176

GND

220K

R1092

COMP_LIN

D100

READY

0

READY

R1089

P_+5V

47

R133

10K

R1099

30V

D129

75

1%

R171

1K

R115

1K

R148

0.1uF

16V

C118

75

R174

+3.3V_CI

2SC3052

Q105

E

B

C

D110

READY

2SC3052

Q107

E

B

C

1/10W

4.7K

R191

10K R188

SCART1_G

2SC3052

Q104

E

B

C

12pF C129

1000pF

C109

READY

D135

P_+12V

2SC3052

Q106

E

B

C

1000pF

C102

1K

R149

SIDE_RIN

12K

R1098

D111

READY

SCART1_R

30V

D113

0.1uF

C135

COMP_LINK

330

R147

751%R106

75

1%

R100

75

R163

TUNER_VOUT

10K

R1090

SCART1_ID

2SC3052

Q103

EBC

6.8K R169

D109

READY

1K

R194

30V D112

75

R168

751%R108

D131

220K

R116

TV_ROUT

SCART1_VIN

RGB_LINK

D108

READY

1K

R193

100

R1082

27K

R153

SIDE_CVBS_LINK

0

READY

R196

1K

R134

75

R104

TV_LOUT

10K R1085

DTV/MNT_LOUT

75

1%

R102

SCART1_RIN

+3.3V_CI

D103

READY

10K R145

1K

R189

751%R105

D127

75

1%

R172

30V

D107

READY

470K

R110

1K

R137

SCART2_LIN

VGA_B

30V

D104

READY

D134

0.1uF

16V

C124

0.1uF

16V

C115

220K R125

SCART1_LINK

18K

R132

470K

R119

5pF

C105

D128

D118

COMP_RIN

75

1%

R173

SCART1_B

100

R1081

D124

+3.3V_CI

5pF

C110

SCART2_RIN

30V D106

READY

SCART1_FB

220uF

16V

C104

REC_8_CTRL2

10uF

16V

C119

47K

R122

470K

R117

SCART2_LINK

D121

75

R111

5pF

C112

10K R142

+3.3V_CI

30V D105

READY

D125

DTV/MNT_VOUT

0.1uF

16V

C132

SCART2_ID

D120

18K

R107

100

R1094

220K

R118

+5V

1000pF

C108

READY

5pF

C107

100

R199

1K

R182

+3.3V_CI

330

R112

30V

D102

READY

2SC3052

Q100

E

B

C

1000pF

C100

2SC3052

Q101

EBC

470K

R124

COMP_Pb

D122

1000pF

C103

1K

R183

4.7K

R175

3.3uH

L103

+3.3V_CI

6.8K R170

82

R151

PHILIPS

74HC14D

0IPH741400E

INVERTER

IC103

32A21Y42Y11A63Y53A7

GND

84Y9

4A105Y115A126Y136A14VCC

3.9K

R165

220K

R114

30V D101

READY

12pF C130

VGA_R

D132

220K

R162

330

R120

VGA_G

3.3uH

L101

0

R198

P_+12V

0.1uF

C134

1K

R150

SCART1_LIN

0.1uF

C133

D133

DTV/MNT_ROUT

220K

R1093

0

R1096

SIDE_LIN

220K

R161

3.3uH

L102

SCART2_VIN

COMP_Pr

3.9K

R1088

3.9K

R1091

47K

R103

470K

R113

0

R159

READY

6.8K R1083

6.8K R1084

UCOM_TX

0

R190

READY

0.1uF

16V

C131

READY

D114

UART_SEL

READY

D117

DEBUG_RX

READY

D116

DEBUG_TX

ON SEMICONDUCTOR

NLASB3157DFT2G

EAN38256201

ANALOG SWITCH

IC101

3B02

GND

4

A

1

B1

6

SELECT

5

VCC

10K R187

UCOM_RX

READY

D115

TEXAS

MAX3232CDR

EAN41348201

IC104

3

C1-

2V+4

C2+1C1+

6V-5

C2-

7

DOUT2

8

RIN2

9

ROUT210DIN211DIN112ROUT113RIN114DOUT115GND16VCC

10K R164

1K

R167

10K R1095

1K

R1087

100

R154

100

R158

100

R156

100

R155

0.1uF

C123

0.1uF

C121

0.1uF

C122

0.1uF

C120

100

R177

100

R178

100

R179

100

R180

100

R181

KCN-DS-1-0089

P101

12345

678

9

10

1112131415

16

10K R197

KCN-DS-1-0088

P100

12345

678

9

10

0

R1080

P_+5V

D_SUB_SCL

D_SUB_SDA

1K

R128

1K

R123

1K

R126

1K

R131

22

R18422R185

22

R186

4.7pF

READY

C126

4.7pF

READY

C127

4.7pF

READY

C128

0

R1079

4.7pF

C136

READY

PPJ218-01

JK103

5C

[RD]CONTACT2C[RD]U_CAN4C[RD]O_SPRING2B[WH]U_CAN3B[WH]C_LUG2A[YL]U_CAN5A[YL]CONTACT4A[YL]O_SPRING

Gprobe_MT8280Debug_RX

Gprobe_MT8280Debug_TX

KDS184

D137

A2CA1

2SA1530A-T112-1R

Q102

EBC

D138

SIDE_S_SW

75

1%

R157

0

R130

4.7K R129

D140

75

1%

R195

D139

SIDE_CIN

SIDE_YIN/SIDE_VIN

+3.3V_CI

PSJ018-01

JK105

1 GND_TER

2 C_LUG_S1

3 C_LUG_L1

6 NC1

7 COM1

8 NO1

9 NC2

10 COM2

11 NO2

12

SHIELD

4 C_LUG_S2

5 C_LUG_L2

PPJ209-03

JK102

4A [GN]CONTACT

2A

[GN]1P_CAN

3A

[GN]O_SPRING

2B [BL]1P_CAN

5B

[BL]C_LUG_L

2C [RD]1P_CAN1

5C

[RD]C_LUG_L

2D [WH]1P_CAN

5D

[WH]C_LUG_L

2E [RD]1P_CAN2

4E

[RD]CONTACT

3E [RD]O_SPRING

JP1

JP2

JP3

JP4

JP5

JP6

JP7

JP8

JP9

JP10

JP11

JP12

JP13

JP14

JP15

JP16

JP17

JP18

JP19

JP20

JP21

JP22

JP23

JP24

JP25

JP26

JP27

JP28

JP29

JP30

JP31

JP32

JP33

JP34

JP35

JP36

JP37

JP38

JP39

JP40

JP41

PSC003-03

JK100

1

AUDIO_R_OUT2AUDIO_R_IN3AUDIO_L_OUT4AUDIO_GND5B_GND6AUDIO_L_IN7B_OUT8ID9G_GND10D2B_IN11G_OUT12D2B_OUT13RED_GND14RGB_GND15R_OUT16RGB_IO17SYNC_GND118SYNC_GND219SYNC_OUT20SYNC_IN21COM_GND

22

SHIELD

PSC003-03

JK101

1

AUDIO_R_OUT2AUDIO_R_IN3AUDIO_L_OUT4AUDIO_GND5B_GND6AUDIO_L_IN7B_OUT8ID9G_GND10D2B_IN11G_OUT12D2B_OUT13RED_GND14RGB_GND15R_OUT16RGB_IO17SYNC_GND118SYNC_GND219SYNC_OUT20SYNC_IN21COM_GND

22

SHIELD

JP63

JP64

JP81

JP82

ROHM

RTR030P02

Q108

S

D

G

+3.3V_STBY

1uFC137

47KR9001

2SC3052

Q109

EBC

0.1uF

C125

DEEP_STAND_BY

4.7KR1135

DS_HS

DS_VS

D_SUB_SCL

D_SUB_SDA

Full SCART 1

Half SCART 2

Rear AV3

5.19V / 10.91V_1Kohm(LOAD)

[SCART PIN8]

4.89V / 9.09V_120ohm(LOAD)

Y

R

Pr

Pb

L

COMPONENT

9.G_GND

3.BLU

7.GNC

4.NC

5.DDC_GND

11.RGB Input

12.SDA

13.HSYNC

2.GRN

1.RED

11.GND

14.VSYNC

15.SCL

8.B_GND

6.SYNC_GND

10.R_GND

PCB No : EAX43060102(1)

Model : LG70

ATN + FRC one Board

470uF E-Cap CST improvement

1 : Data carrier detect

2 : RX

3 : TX

4 : DTR(Data terminal ready

5 : GND

6 : DSR(Data set ready)

7 : RTS(Request to send)

8 : CTS(Clear to send)

9 : RI(Ring indicator)

RS-232C Input

[DTV Vout 6dB TR AMP]

[PC SYNC]

For Deep stand By

Active Low When Deep stand by mode

Default High

SCHEMA TIC DIAGRAM

LGE Internal Use Only

0.1uF

50V

C201

HP_DET_S/W_3

0.1uF

50V

C200

5V_HDMI_1

HP_DET_S/W_1

5V_HDMI_3

0.1uF

50V

C215

5V_HDMI_4

DDC_SDA_4

DDC_SCL_4

CEC_REMOTE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

5V_HDMI_1

0

READY

R216

0

R215

READY

+5V

0IMMRAL014D

EEPROM

ATMEL

AT24C02BN-10SU-1.8

IC203

3A22A14

GND

1

A0

5

SDA6SCL7WP8VCC

33K

R222

CEC_0

+5V

CEC_REMOTE

HDMI3_5V_DET

0.1uF

C216

33K

R211

0.1uF

C212

BSS83

Q200

S

BD

G

KDS184

D202

A2

C

A1

10K R212

+3.3V_STBY

0.1uF

C213

KDS184

D203

A2

C

A1

10K R210

READY

D200

+5V

0IMMRAL014D

EEPROM

ATMEL

AT24C02BN-10SU-1.8

IC201

3A22A14

GND

1

A0

5

SDA6SCL7WP8VCC

HDMI1_5V_DET

KDS184

D204

A2

C

A1

0IMMRAL014D

EEPROM

ATMEL

AT24C02BN-10SU-1.8

IC202

3A22A14

GND

1

A0

5

SDA6SCL7WP8VCC

5V_HDMI_3

33K

R213

33K

R220

10K

R219

HDMI2_5V_DET

HDMI4_5V_DET

0.1uF

50V

C202

5V_HDMI_2

CEC_REMOTE

HP_DET_S/W_2

0IMMRAL014D

EEPROM

ATMEL

AT24C02BN-10SU-1.8

IC204

3A22A14

GND

1

A0

5

SDA6SCL7WP8VCC

+5V

0.1uF

C214

KDS184

D205

A2

C

A1

5V_HDMI_2

TXCLK_BUF-

TXCLK_BUF+

TX0_BUF-

TX0_BUF+

TX1_BUF-

TX1_BUF+

TX2_BUF-

TX2_BUF+

10K R221

HP_DET_S/W_4

5V_HDMI_4

0.1uF

C203

+3.3V_CI

4.7K

R229

TX2_SW-

HDMI_SEL2

4.7K

R230

TX1_SW-

SCL_HDMI_SW

TX0_SW-

SDA_HDMI_SW

HDMI_SW_EQ

+5V

+3.3V_CI

TXCLK_SW+

0.1uF

C204

TX1_SW+

TXCLK_SW-

TX0_SW+

HDMI_SEL1

TX2_SW+

0

R223

0.1uF

C205

0.1uF

C206

0.1uF

C207

0.1uF

C208

0.1uF

C209

0.1uF

C210

0.1uF

C211

1/10W 0

R231

1K

R236

22R207

22R208

22R205

22R204

22

R20222R201

22

R238

22R237

56K

R214

47K

R218

18K

R239

18K

R244

18K

R240

18K

R245

18K

R241

18K

R246

18K

R242

18K

R247

1K

R200

1K

R203

1K

R206

MMBD301LT1G

30V

D201

0

R250

0

R251

0

R249

0

R248

TEXAS INSTRUMENTS

TMDS351PAG

EAN41347201

DVI/HDMI SWITCH

IC200

HDMI S/W_TI

1

SDA3

2

SCL3

3

GND_1

4

B31

5

A31

6

VCC_1

7

B32

8

A32

9

GND_2

10

B33

11

A33

12

VCC_2

13

B34

14

A34

15

GND_3

16

VSADJ

17

Y4

18

Z4

19

VCC_3

20

Y3

21

Z3

22

GND_4

23

Y2

24

Z2

25

VCC_4

26

Y1

27

Z1

28

GND_5

29

SCL_SINK

30

SDA_SINK

31

HPD_SINK

32

S1

33S234EQ35

HPD136SDA137SCL138B1139A1140VCC_541B1242A1243GND_644B1345A1346VCC_647B1448A14

49

VDD

50

HPD2

51

SDA2

52

SCL2

53

B21

54

A21

55

VCC_7

56

B22

57

A22

58

GND_7

59

B23

60

A23

61

VCC_8

62

B24

63

A24

64

HPD3

QJ41193-FEE2-7F

JK203

1

D2+2D2_GND3D2-4D1+5D1_GND6D1-7D0+8D0_GND9D0-10CK+11CK_GND12CK-13CE_REMOTE14NC15DDC_CLK16DDC_DATA17GND185V19HP_DET

20

GND21GND

22

GND

QJ41193-FEE2-7F

JK202

1

D2+2D2_GND3D2-4D1+5D1_GND6D1-7D0+8D0_GND9D0-10CK+11CK_GND12CK-13CE_REMOTE14NC15DDC_CLK16DDC_DATA17GND185V19HP_DET

20

GND21GND

22

GND

QJ41193-FEE2-7F

JK201

1

D2+2D2_GND3D2-4D1+5D1_GND6D1-7D0+8D0_GND9D0-10CK+11CK_GND12CK-13CE_REMOTE14NC15DDC_CLK16DDC_DATA17GND185V19HP_DET

20

GND21GND

22

GND

4.7K R209

47K R6015

READY

47K R6016

READY

47K R6017

READY

47K R6018

READY

JP69

JP70

JP71

JP72

JP73

JP74

JP75

JP76

JP77

JP78

JP79

JP80

KJA-ET-0-0032

JK204

14NC13

CEC

5DATA1_SHIELD

20

JACK_GND

12

CLK-

11

CLK_SHIELD

2DATA2_SHIELD

19

HPD

18

+5V_POWER

10

CLK+

4

DATA1+1DATA2+

17

DDC/CEC_GND

9 DATA0-

8DATA0_SHIELD

3DATA2-

16

SDA

7DATA0+

6DATA1-

15

SCL

BU16027KV

IC200-*1

HDMI S/W_rohm

1

SDA3

2

SCL3

3

GND_1

4

B31

5

A31

6

VCC_1

7

B32

8

A32

9

GND_2

10

B33

11

A33

12

VCC_2

13

B34

14

A34

15

GND_3

16

VSADJ

17

Y4

18

Z4

19

VCC_3

20

Y3

21

Z3

22

GND_4

23

Y2

24

Z2

25

VCC_4

26

Y1

27

Z1

28

GND_5

29

SCL_SILK

30

SDA_SILK

31

HPD_SILK

32

S1

33S234

RESERVE135HPD136SDA137SCL138B1139A1140VCC_541B1242A1243GND_644B1345A1346VCC_647B1448A14

49

RESERVE2

50

HPD2

51

SDA2

52

SCL2

53

B21

54

A21

55

VCC_7

56

B22

57

A22

58

GND_7

59

B23

60

A23

61

VCC_8

62

B24

63

A24

64

HPD3

MMBD301LT1G

30V

D206

CK-_HDMI3

CK+_HDMI3

D0-_HDMI3

D0+_HDMI3

D1-_HDMI3

D1+_HDMI3

D2-_HDMI3

D2+_HDMI3

CK-_HDMI1

CK+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D1+_HDMI1

D2-_HDMI1

D2+_HDMI1

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

D1-_HDMI2

DDC_SDA_3

D1-_HDMI2

D1+_HDMI3

D0+_HDMI2

DDC_SDA_2

CK+_HDMI3

D0+_HDMI1

D0-_HDMI2

D2+_HDMI3

D1-_HDMI1

D1-_HDMI3

CK-_HDMI3

D2+_HDMI1

CK+_HDMI2

DDC_SCL_2

CK-_HDMI1

D1+_HDMI1

D0+_HDMI3 D0-_HDMI1

CK-_HDMI2

CK+_HDMI1

DDC_SDA_1

D2+_HDMI2

D0-_HDMI3

DDC_SCL_1

D1+_HDMI2

D2-_HDMI1

D2-_HDMI2

D2-_HDMI3

DDC_SCL_3

DDC_SCL_1

DDC_SDA_1

DDC_SCL_2

DDC_SDA_2

DDC_SCL_3

DDC_SDA_3

HDMI 2

HDMI 1

HDMI SW

SIDE HDMI 4

HDMI 3

LGE Internal Use Only

270pF

C316

READY

FE_RESET

+3.3V_TUNER

+1.8V

SCL1_5V

SIF

TU_MAIN

TUNER_VOUT

AM_AUDIO

AGC_SPEED_CTL

BOOSTER

FE_TS_DATA_VAL

SCL2_3.3V

GND

0.01uF

C313

10K

R335

10

R332

2.2K

R333

10K

R334

2SC3052

Q301

EBC

2SC3052

Q305

E

B

C

2SC3052

Q306

E

B

C

SDA2_3.3V

+5V_TUNER

SDA1_5V

0.1uF

16V

C305

0.1uF

16V

C304

100pF

50V

C302

4700pF

C309

4700pF

C311

0.01uF

C310

47 R313

47 R314

1K

R320

0

R318

4.7K

R315

1K

R326

0.1uF

16V

C303

0.1uF

16V

C307

100pF

50V

C306

1K

R328

READY

1K

R323

READY

0

R327

0

R322

FE_TS_DATA[0-7],FE_TS_DATA_CLK,FE_TS_DATA_VAL,FE_TS_DATA_SYN

100

R330

MLB-201209-0120P-N2

L300

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

220uF

16V

C318

100

R311

100

R312

82

R317

470

R316

0.1uF

16V

C312

270

1%

R324

330

1%

R325

TDFV-G135D1

EBL42367001

TU300

TUNER

1

ANT[5V] 2

BB[CTR] 3

GND_1 4

+B[5V] 5

NC_1 6

RF_AGC 7

TP[VT] 8

NC_2 9

GND_2 10

SDA_T 11

SCL_T 12

AIF_1 13

AIF_2 14

NC_3 15

VIDEO 16

AUDIO 17

SIF 18

SDA 19

SCL 20

RST 21

3.3V 22

1.8V 23

ERR 24

MCL 25

D7 26

D6 27

D5 28

D4 29

D3 30

D2 31

D1

35

SHIELD

32 D0

33 VAL

34 SYNC

0

R336

2SA1530A-T112-1R

Q300

2SA1530A-T112-1R

Q304

EBC

2SA1530A-T112-1R

Q302

E

B

C

2SA1530A-T112-1R

Q303

E

B

C

33

R303

33

R309

33

R305

33

R304

33

R306

33R300

33

R302

33

R307

33

R301

33

R310

33

R308

+5V_TUNER

4.7uF

10V

C320

0.1uF

C319

30V

ZD300

+5V_TUNER

47K

R337

READY

4.7uF

10V

C321

100uF

16V

C315

47uF

16V

C322

220uF

16V

C301

FE_TS_DATA_CLK

FE_TS_DATA_SYN

FE_TS_DATA_VAL

FE_TS_DATA[0]

FE_TS_DATA[1]

FE_TS_DATA[2]

FE_TS_DATA[3]

FE_TS_DATA[4]

FE_TS_DATA[5]

FE_TS_DATA[6]

FE_TS_DATA[7]

(USE ONLY FOR SECAM)

OPTION: RF AGC

Tuner PLL : 0xC2

Analog Tuner : 0x86

Digital Tuner : 0x1C

LGE Internal Use Only

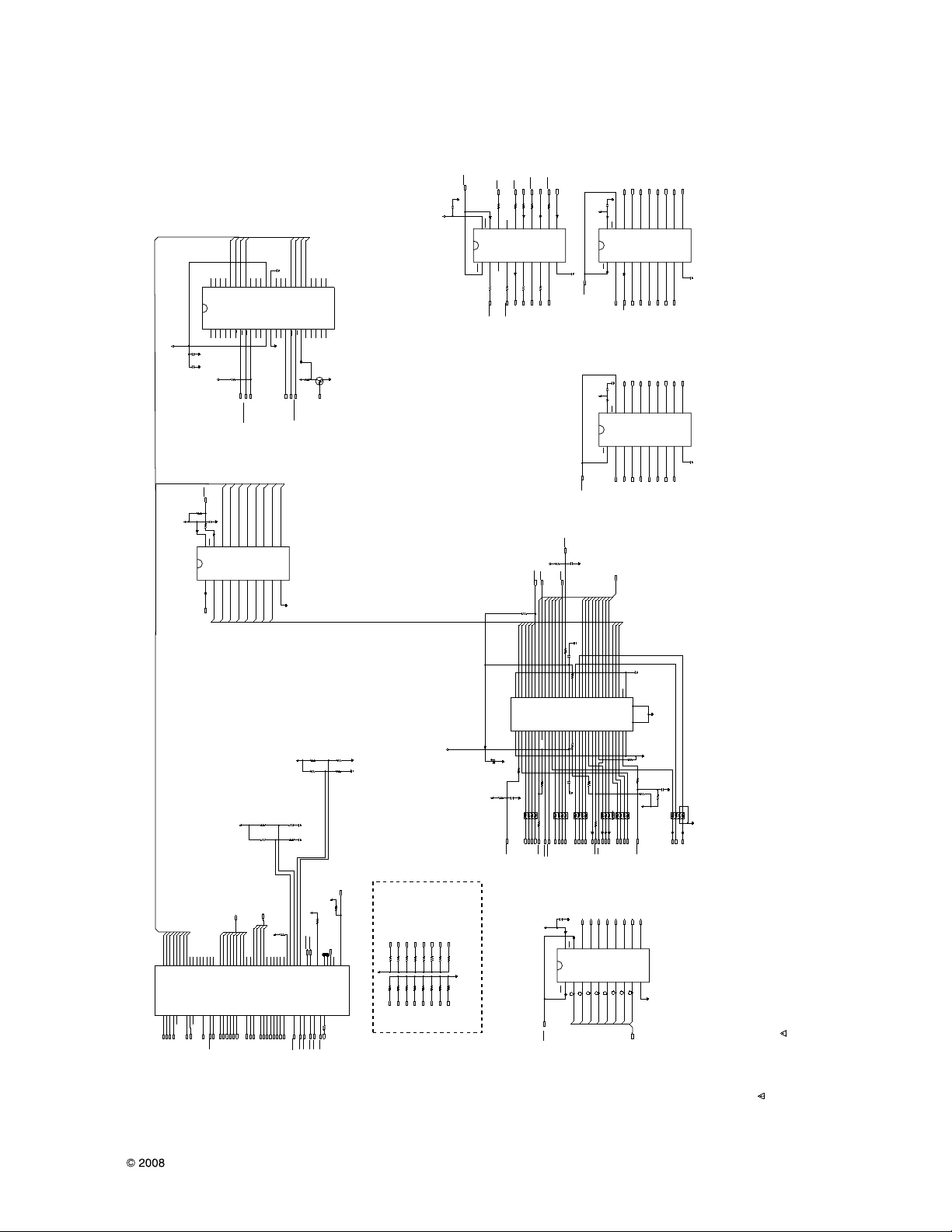

33

AR403

123

4

567

8

33

AR405

123

4

567

8

OPT

R439

33

AR404

123

4

567

8

PHILIPS

74LVC541A(PW)

0ISTLPH003B

BUFFER

IC400

3A12A04A21

OE1

6A45A37A58A69A710

GND

11Y712Y613Y514Y415Y316Y217Y118Y019

OE220VCC

33

AR401

123

4

567

8

33

AR402

1

234

567

8

PHILIPS

74LVC245A

0ISTLPH048A

Bidirec(High:A->B)

IC402

3A12A04A21

DIR

6A45A37A58A69A710

GND

11B712B613B514B415B316B217B118B019

OE20VCC

33

1/16W

AR406

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

FE_TS_DATA[0-7]

+3.3V_CI

CI_DET

OPT

R437

10K

R432

OPTR435

100

R440

0.1uF

C409

47

R44847R44947R45047R451

47

R45347R45547R456

CI_MDO[4]

CI_MDO[5]

CI_MDO[6]

CI_MDO[7]

CI_MDO[0]

CI_MDO[1]

CI_MDO[2]

CI_MDO[3]

CI_MISTRT

CI_MIVAL

CI_MCLKI

CI_MOVAL

CI_MOSTRT

CI_CD1

10K R428

CI_CD2

10K

R429

CI_RST

CI_WAIT

REG

+3.3V_CI

CI_DETCI_DAT_DIR

HOST_A[10-13]

POD_A[4]

POD_A[5]

POD_A[6]

POD_A[7]

POD_A[8]

POD_A[9]

CI_CE1

CI_OE

CI_IORD

CI_IOWR

CI_WE

CI_IRQ

CI_OE

CI_WE

CI_IORD

CI_IOWR

HOST_OE

HOST_WE

0.1uFC414

+3.3V_CI

CI_DET

HOST_A[0]

HOST_A[1]

HOST_A[2]

HOST_A[3]

HOST_A[4]

HOST_A[5]

HOST_A[6]

HOST_A[7]

HOST_A[0]

HOST_A[1]

HOST_A[2]

HOST_A[3]

HOST_A[4]

HOST_A[5]

HOST_A[6]

HOST_A[7]

CI_ADDR[0-14] HOST_A[0]

HOST_A[1]

HOST_A[2]

HOST_A[3]

CI_ADDR[0]

CI_ADDR[1]

CI_ADDR[2]

CI_ADDR[3]

+3.3V_CI

0.1uF

16V

C410

CI_DET

+3.3V_CI

0.1uF

16V

C413

POD_A[8]

POD_A[9]

HOST_A[10]

HOST_A[11] HOST_A[13]

HOST_A[12]POD_A[4]

POD_A[5]

POD_A[6]

POD_A[7]

CI_ADDR[7]

CI_ADDR[6]

CI_ADDR[5]

CI_ADDR[4]

CI_ADDR[8]

CI_ADDR[9]

CI_ADDR[10]

CI_ADDR[11]CI_ADDR[12]

CI_ADDR[13]

CI_ADDR[14]

REG

HOST_A[6]

HOST_A[5]

CI_IRQ

CI_CE1

CI_CD1

CI_CD2

CI_MDO[7]

CI_MDO[6]

CI_MDO[5]

CI_MDO[4]

CI_MDO[3]

CI_MDO[2]

CI_MDO[1]

CI_MDO[0]

POD_A[14]

CI_DET

CI_DAT_DIR

FE_TS_DATA_VAL

FE_TS_DATA_SYN

FE_TS_DATA_CLK

CI_MIVAL

CI_MISTRT

CI_MCLKI

CI_MOVAL

CI_MOSTRT

FE_TS_DATA_VAL

FE_TS_DATA_CLK

FE_TS_DATA_SYN

FE_TS_DATA[0]

10K R430

CI_MCLKO

HOST_WE

HOST_OE

HOST_CS0_N

HOST_READY

CI_WAIT

CI_CE2

0.1uF

16V

C402

HOST_A[4]

0

R454

CI_MDI[4]

CI_MDI[2]

CI_MDI[3]

CI_MDI[5]

CI_MDI[1]

CI_MDI[7]

CI_MDI[0]

CI_MDI[6]

CI_MDI[4]

CI_MDI[0]

CI_MDI[5]

CI_MDI[2]

CI_MDI[3]

CI_MDI[1]

CI_MDI[7]

CI_MDI[6]

GND

+3.3V_CI

HOST_CS0_N

HOST_WE

FLASH_WP

HOST_A[2]

HOST_A[1]

HOST_OE

FLASH_WP

10K R441

0.1uF

16V

C408

GND

+5V_CI

0

R420

10K

R431

READY

10K

R404

10K

R411

READY

10K

R405

READY

10K

R412

READY

10K

R406

10K

R413

10K

R407

10K

R414

READY

10K

R408

READY

10K

R415

READY

10K

R416

10K

R403

HOST_READY

100

R433

47

R421

100

R434

+5V

FAIRCHILD

74LCX244MTC

0IMCRFA013A

IC406

3O42I04I11

OE1

6I25O57O68I39O710

GND

11I712O313I614O215I516O117I418O019

OE220VCC

FAIRCHILD

74LCX244MTC

0IMCRFA013A

IC405

3O42I04I11

OE1

6I25O57O68I39O710

GND

11I712O313I614O215I516O117I418O019

OE220VCC

FAIRCHILD

74LCX244MTC

0IMCRFA013A

IC403

3O42I04I11

OE1

6I25O57O68I39O710

GND

11I712O313I614O215I516O117I418O019

OE220VCC

HYNIX

HY27US08121B-TPCB

EAN38563401

NAND FLASH MEMORY

IC404

26

NC_1727NC_1828NC_1929I/O030I/O131I/O232I/O333NC_2034NC_2135NC_2236VSS_237VCC_238PRE39NC_2340NC_2441I/O442I/O543I/O644I/O745NC_2546NC_2647NC_2748NC_28

17

ALE

3

NC_36NC_6

16

CLE

15

NC_10

14

NC_9

13

VSS_1

12

VCC_1

11

NC_810NC_7

9

CE8RE

7

R/B

4

NC_45NC_5

25

NC_16

24

NC_1523NC_14

2

NC_2

22

NC_1321NC_12

1

NC_1

20

NC_11

19

WP

18

WE

+3.3V_CI

KRC103S

Q401

EBC

0.1uF

C412

22

R400

10K

R417

10K

R418

10K

R444

33

R443

0.1uF

16V

C400

0.1uF

16V

C401

0.1uF

C403

0.1uF

C407

10K R442

47

R452

10KR445

10K

R446

0.1uF

C411

HOST_A[0-7]

+3.3V_CI

4.7K R469

+3.3V_CI

FLI10620H-AA

IC100

CDI0_VALID

AH6

CDI0_CLK

AH7

CDI0_SYNC

AJ6

CDI0_D0

AJ7

CDI0_ERROR

AJ5

OOB_CTXW1OOB_CRXW2OOB_DRXW3POD_VS2_MCLKOW6POD_DETECT_N

AD4

POD_DIR_N

AD5

POD_A4_CTX

AE3

POD_A5_ITX

AF3

POD_A6_ETX

AF2

POD_A7_QTX

AG2

POD_A8_CRX

AF1

POD_A9_DRX

AG1

POD_A14_MCLKOW5POD_BVD2_MOVALY5POD_BVD1_MOSTRTY4POD_D15_MDO7

AB1

POD_D14_MDO6

AA1

POD_D13_MDO5Y1POD_D12_MDO4

AB2

POD_D11_MDO3

AA2

POD_D10_MDO2Y2POD_D9_MDO1

AA3

POD_D8_MDO0Y3POD_WAIT_NV3POD_CD_1V5POD_CD_2V4POD_CE_1

AE4

POD_CE_2W4POD_READY_IRQ_NV2POD_RESET

V1

POD_HOST_D0

AG7

POD_HOST_D1

AJ8

POD_HOST_D2

AG8

POD_HOST_D3

AE7

POD_HOST_D4

AH9

POD_HOST_D5

AF9

POD_HOST_D6

AJ10

POD_HOST_D7

AG10

HOST_D8

AF7

HOST_D9

AH8

HOST_D10

AE8

HOST_D11

AJ9

HOST_D12

AG9

HOST_D13

AE9

HOST_D14

AH10

HOST_D15

AF10

POD_HOST_A0

AJ15

POD_HOST_A1

AH15

POD_HOST_A2

AG15

POD_HOST_A3

AE14

PODREG_HOST_A4

AF14

POD_IOWR_HOST_A5

AG14

POD_IORD_HOST_A6

AH14

HOST_A7

AJ14

HOST_A8

AE13

HOST_A9

AF12

POD_HOST_A10

AG12

POD_HOST_A11

AH12

POD_HOST_A12

AJ12

POD_HOST_A13

AE11

HOST_A14

AF11

HOST_A15

AG11

HOST_A16

AH11

HOST_A17

AE10

HOST_A18

AF13

HOST_A19

AG13

HOST_A20

AE12

HOST_A21

AD13

HOST_A22

AH13

HOST_A23

AJ11

HOST_A24

AD9

POD_WE_HOST_WR

AJ13

POD_OE_HOST_RD

AF8

HOST_ACK

AG3

HOST_DEV_CS2_N

AE5

HOST_DEV_CS1_N

AF4

HOST_DEV_CS0_N

AJ4

HOST_BOOT_CS_N

AG6

HOST_READY

AH5

10067972-050LF

EAG41860101

P400

G1G2

572152

16

10

47

41536

59

23

45

541849

43

13

7

38

2

2556205115

9

46

40435

582253

17

11

48

42

12

6

37

1

245519

50

44

14

8393

2660

2761

2862

2963

306431323334

656667

68

10K

R401

READY

10K

R402

READY

10K

R409

10K

R410

4.7K R467

H/W Ver 1or3

4.7K R468

H/W Ver 0or2

4.7K R462

READY

4.7K R461

4.7K R463

4.7K R466

H/W Ver 0or1

4.7K R464

READY

4.7K R465

H/W Ver 2or3

100uF

16V

C404

BLUETOOTH_ON/OFF

HOST_D[0-7]

HOST_D[0]

HOST_D[1]

HOST_D[2]

HOST_D[3]

HOST_D[4]

HOST_D[5]

HOST_D[6]

HOST_D[7]

HOST_A[0]

HOST_A[1]

HOST_A[2]

HOST_A[3]

HOST_A[7]

HOST_A[4]

HOST_A[5]

HOST_A[6]

HOST_D[7]

HOST_D[6]

HOST_D[5]

HOST_D[4]

HOST_D[3]

HOST_D[2]

HOST_D[1]

HOST_D[0]

CI_DATA[0-7]

HOST_D[0-7]

HOST_D[0]

HOST_D[7]

HOST_D[5]

HOST_D[6]

HOST_D[4]

HOST_D[2]

HOST_D[3]

HOST_D[1]

CI_DATA[0]

CI_DATA[1]

CI_DATA[2]

CI_DATA[3]

CI_DATA[4]

CI_DATA[5]

CI_DATA[6]

CI_DATA[7]

CI_DATA[3]

CI_DATA[4]

CI_DATA[5]

CI_DATA[6]

CI_DATA[7]

CI_ADDR[10]

CI_ADDR[11]

CI_ADDR[9]

CI_ADDR[8]

CI_ADDR[13]

CI_ADDR[14]

CI_ADDR[12]

CI_ADDR[7]

CI_ADDR[6]

CI_ADDR[5]

CI_ADDR[4]

CI_ADDR[3]

CI_ADDR[2]

CI_ADDR[1]

CI_ADDR[0]

CI_DATA[0]

CI_DATA[1]

CI_DATA[2]

FE_TS_DATA[7]

FE_TS_DATA[6]

FE_TS_DATA[4]

FE_TS_DATA[3]

FE_TS_DATA[2]

FE_TS_DATA[1]

FE_TS_DATA[0]

FE_TS_DATA[5]

HOST_A[13]

HOST_A[11]

HOST_A[10]

HOST_A[12]

HOST_D[0-7]

Boot Strap Setting (NAND FLASH

Boot, 16bit, Internal OSC)

NAND FLASH

H/W OPT AD13 AH13

WXGA(not use) 0 0

XGA(Not use) 0 1

FHD (32inch) 1 0

FRC(37,42,47) 1 1

H/W Ver. AJ11 AD9

init 0 0

1st 0 1

2nd 1 0

3rd 1 1

LCD,PDP Selection

High : LCD

Low : PDP

NOT FRC

FRC

FHD

HD

LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

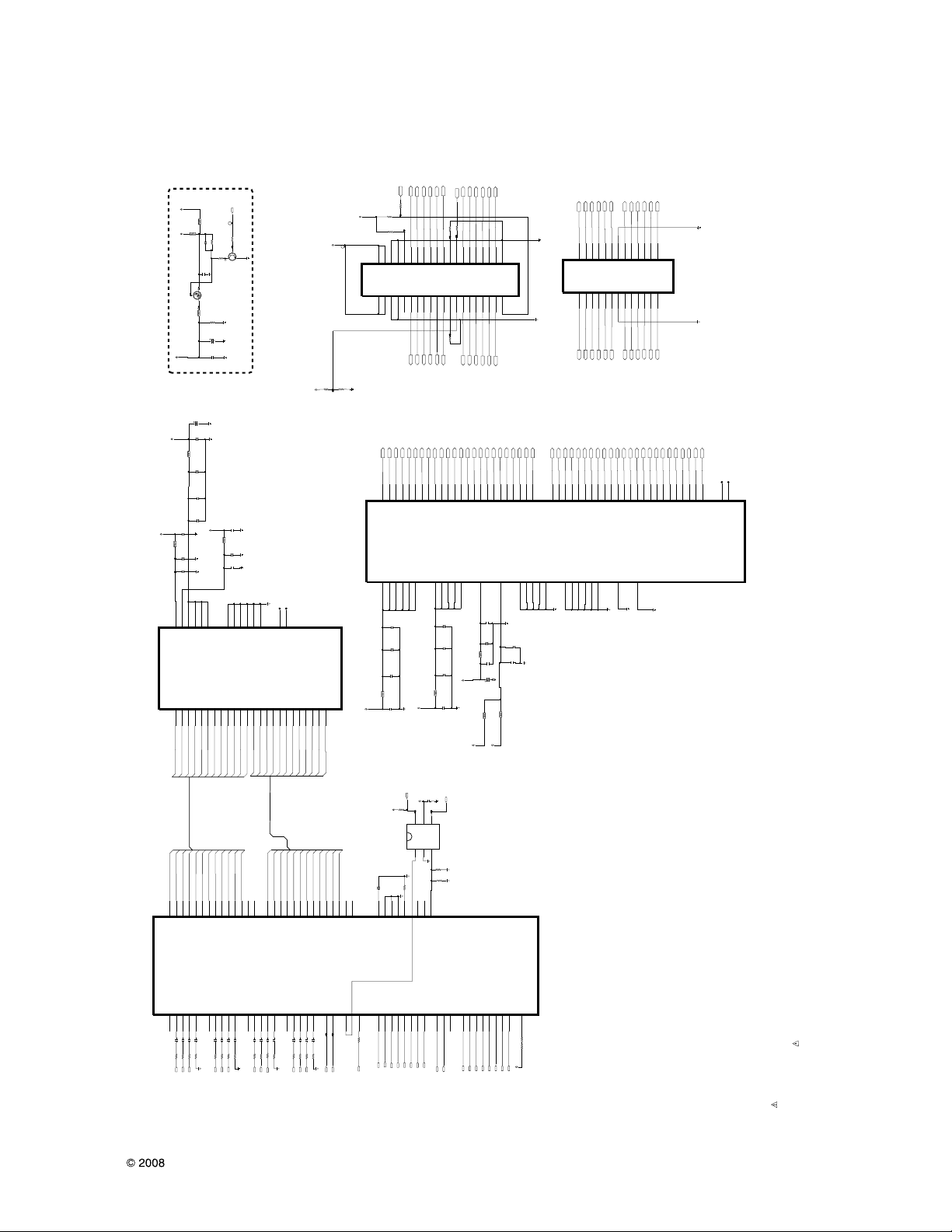

BIT_SEL

2SC3052

Q500

E

B

C

0.1uF 50V

C552

PANEL_VCC_EN

47K

R531

1K

R532

100uF

16V

C553

0.1uF 50V

C554

P_+12V

READY

MLB-201209-0120P-N2

L509

MLB-201209-0120P-N2

L510

MLB-201209-0120P-N2

L511

+5V

RTR030P02

Q501

S

D

G

47K

R533

22R515

0.1uFC500

+5V

SCART1_G

SCART2_VIN

TX1_BUF+

22R502

+5V

75

1%

R524

VGA_R

TX0_BUF-

22R517

22R504

0.1uFC508 249

1%

R518

TX2_BUF-

TX0_SW+

TX1_BUF-

SCART1_R

H_SYNC_PC

TX0_BUF+

FLI10620H-AA

EAN42012201

IC100

A1PC2A2PE2A3P

G2

B_GRA

J2

AND2B1PB1B2PD1B3P

G1

G_GRA

J1

BNF2C1PC1C2PE1C3PH1R_GRAK1CNH2SV1PD3SV2PF3SV3PH3SV4PJ3SVNK2AHS_ACSJ6AVSH6VOUT2J4SCART_FBG6ARXCM

A10

ARXCP

B10

ARX0MA9ARX0PB9ARX1MA8ARX1PB8ARX2MA7ARX2PB7HDMI_A_HPD

B11

HDMI_B_HPD

C11

HDMI_CEC

A11

BRXCMA6BRXCPB6BRX0MA5BRX0PB5BRX1MA4BRX1PB4BRX2MA3BRX2PB3REXT

D9

LVTX_ODD_CH0N_DISP23

AH29

LVTX_ODD_CH0P_DISP22

AJ29

LVTX_ODD_CH1N_DISP21

AH28

LVTX_ODD_CH1P_DISP20

AJ28

LVTX_ODD_CH2N_DISP19

AH27

LVTX_ODD_CH2P_DISP18

AJ27

LVTX_ODD_CLKN_DISP17

AH26

LVTX_ODD_CLKP_DISP16

AJ26

LVTX_ODD_CH3N_DISP15

AH25

LVTX_ODD_CH3P_DISP14

AJ25

LVTX_ODD_CH4N_DISP3

AH24

LVTX_ODD_CH4P_DISP2

AJ24

LVTX_ODD_CH5N_DISPCLK

AG29

LVTX_ODD_CH5P_DISPDE

AG28

LVTX_EVN_CH0N_DISP13

AH23

LVTX_EVN_CH0P_DISP12

AJ23

LVTX_EVN_CH1N_DISP11

AF23

LVTX_EVN_CH1P_DISP10

AG23

LVTX_EVN_CH2N_DISP9

AH22

LVTX_EVN_CH2P_DISP8

AJ22

LVTX_EVN_CLKN_DISP7

AF22

LVTX_EVN_CLKP_DISP6

AG22

LVTX_EVN_CH3N_DISP5

AH21

LVTX_EVN_CH3P_DISP4

AJ21

LVTX_EVN_CH4N_DISP1

AF21

LVTX_EVN_CH4P_DISP0

AG21

LVTX_EVN_CH5N_DISPVS

AG25

LVTX_EVN_CH5P_DISPHS

AG24

VDAC_COMP

AG5

VDAC_BU_N

AH1

VDAC_RV_N

AH2

VDAC_GY_YC_N

AH3

VDAC_RSET

AH4

VDAC_BU_P_1

AJ1

VDAC_BU_P_2

AJ2

VDAC_GY_YC_P

AJ3

ON SEMICONDUCTOR

NLASB3157DFT2G

EAN38256201

ANALOG SWITCH

IC501

3B02

GND

4

A

1

B1

6

SELECT5VCC

TX1_SW+

SIDE_YIN/SIDE_VIN

1

R516

HP_DET_S/W_1

0.1uFC502

DTV/MNT_VOUT

0.1uFC501

SCART1_B

TXCLK_BUF-

VGA_G

TX2_SW+

TXCLK_SW+

0.1uFC518

0.1uF

16V

C520

TX2_BUF+

DTV/MNT_SWITCH

TX0_SW-

0.1uFC510

0.1uFC509

75

1%

R523

22R500

22R508

TX2_SW-

HP_DET_S/W_3

COMP_Pr

SCART1_FB

561%R514

+3.3V_HDMI_DOUGLAS

1.8K1%R522

0.1uFC504

0.1uFC506

TU_MAIN

TX1_SW-

V_SYNC_PC

22R506

VGA_B

COMP_Pb

0.1uFC505

10K

R525

COMP_Y

TXCLK_SW-

TXCLK_BUF+

0.1uFC503

0.1uFC511

0.1uFC515

0.1uFC514

0.1uFC512

0.1uFC513

0.1uFC507

561%R503

561%R510

56 1%R507

22R512

75R501

75R505

75R509

75R511

75R513

10uF

C521

0 R526

MT8280_AV33

1uF

16V

C522

0.1uF

16V

C523

120-ohm

L500

0.01uF

50V

C524

10uF

16V

C527

10uF

16V

C532

0.1uF

16V

C533

120-ohm

L502

0.1uF

16V

C534

MT8280_AV33

0.1uF

16V

C535

MT8280_AV33

0.1uF

16V

C536

120-ohm

L503

10uF

16V

C537

SMW200-40C

P500

19

14

9

4

18

13

8

3

17

12

7

2

16

11

6

1

20

15

10

5

21 22

23 24

25 26

27 28

29 30

31 32

33 34

35 36

37 38

39 40

SMW200-26C

P501

19

14

9

4

18

13

8

3

17

12

7

2

16

11

6

1

20

15

10

5

21 22

23 24

25 26

PANNEL_VCC

0

R527

4.7K

READY

R528

AE0-

AOCK-

AE4-

AE1-

AE3-

AE4+

AO2-

AE3+

AECK+

AE0+

AE2+

AE2-

AO4-

AO0-

AE1+

AECK-

AO3-

AO1-

EO1-

EO0+

EO3+

BE0-

EOCK-

BE0+

BE3+

BE1+

EO2+

EO4+

BECK+

BE2-

BE4-

EO1+

EO4-

BECK-

EO2-

BE4+

BE3-

BE1-

EOCK+

EO3-

BE2+

EO0-

AE4-

AE1-

AE0-

AE3-

AECK-

AE2-

AO1+

AO4+

AO2+

AOCK+

AO3+

AO0+

AECK+

AE4+

AE0+

AE1+

AE2+

AE3+

AO4-

AO0-

AOCK-

AO1-

AO2-

AO3-

AO0+

AO1+

AO4+

AOCK+

AO3+

AO2+

EO4-

EO2-

EO1-

EOCK-

EO3-

EO0-

EO4+

EO1+

EO0+

EOCK+

EO3+

EO2+

BE2-

BE4-

BECK-

BE3-

BE1-

BE0-

BECK+

BE4+

BE0+

BE3+

BE2+

BE1+

MT8280_AV33

4.7K

SHARP MODULE

R529

4.7K

SHARP MODULE

R530

10uF

16V

C538

0.01uF

50V

C539

120-ohm

L504

1uF

16V

C540

0.1uF

16V

C541

MT8280_AV33

120-ohm

L505

0.1uF

16V

C543

0.01uF

50V

C544

1uF

16V

C545

10uF

16V

C546

0.1uF

16V

C547

10uF

16V

C548

0.1uF

16V

C549

120-ohm

L506

0.1uF

16V

C550

1uF

16V

C551

120-ohm

L507

120-ohm

READY

L508

MT8280_CORE_1.0V

AVDD12

MT8280_AV33

0

R534

READY

0

R535

READY

LOCAL_DIM

0

R888

READY

MT8280FG

IC502

RO0N

AA8

RO0P

AB8

RO1N

AA9

RO1P

AB9

RO2N

AA10

RO2P

AB10

RO3N

AA12

RO3P

AB12

RO4N

AA13

RO4P

AB13

ROCLKN

AA11

ROCLKP

AB11

RE0N

AA14

RE0P

AB14

RE1N

AA15

RE1P

AB15

RE2N

AA16

RE2P

AB16

RE3N

AA18

RE3P

AB18

RE4N

AA19

RE4P

AB19

RECLKN

AA17

RECLKP

AB17

AVDD33_CLKGENPLL

Y8

AVDD33_VIPLL

Y11

AVDD33_LVDSRXO_1

Y9

AVDD33_LVDSRXO_2

Y10

AVDD33_LVDSRXE_1

Y14

AVDD33_LVDSRXE_2

Y15

AVSS33_CLKGENPLL

W8

AVSS33_VIPLL

W11

AVSS33_LVDSRXO_1

W9

AVSS33_LVDSRXO_2

W10

AVSS33_LVDSRXE_1

Y12

AVSS33_LVDSRXE_2

Y13

CLKGEN_CKN

AA7

CLKGEN_CKP

AB7

MT8280FG

IC502

AVDD33_LVDS_TXA_1

C9

AVDD33_LVDS_TXA_2

C10

AVDD33_LVDS_TXA_3

C11

AVDD33_LVDS_TXA_4

C12

AVDD33_LVDS_TXA_5

C13

AVDD33_LVDS_TXA_6

C14

AVDD33_LVDS_TXB_1

D20

AVDD33_LVDS_TXB_2

E20

AVDD33_LVDS_TXB_3

F20

AVDD33_LVDS_TXB_4

G20

AVDD33_LVDS_TXB_5

H20

AVDD33_VPLL

A22

AVDD12

D19

AVSS33_LVDS_TXA_1

C15

AVSS33_LVDS_TXA_2

C16

AVSS33_LVDS_TXA_3

C17

AVSS33_LVDS_TXA_4

C18

AVSS33_LVDS_TXA_5

C19

AVSS33_LVDS_TXB_1

J20

AVSS33_LVDS_TXB_2

K20

AVSS33_LVDS_TXB_3

L20

AVSS33_LVDS_TXB_4

M20

AVSS33_LVDS_TXB_5

N20

AVSS33_LVDS_TXB_6

P20

AVSS33_VPLL

B22

AVSS12

C20

AE0N

B15

AE0P

A15

AE1N

B16

AE1P

A16

AE2N

B17

AE2P

A17

AE3N

B19

AE3P

A19

AE4N

B20

AE4P

A20

AECKN

B18

AECKP

A18

AO0N

B9

AO0P

A9

AO1N

B10

AO1P

A10

AO2N

B11

AO2P

A11

AO3N

B13

AO3P

A13

AO4N

B14

AO4P

A14

AOCKN

B12

AOCKP

A12

BE0N

J21

BE0P

J22

BE1N

K21

BE1P

K22

BE2N

L21

BE2P

L22

BE3M

N21

BE3P

N22

BE4N

P21

BE4P

P22

BECKN

M21

BECKP

M22

BO0N

C21

BO0P

C22

BO1N

D21

BO1P

D22

BO2N

E21

BO2P

E22

BO3N

G21

BO3P

G22

BO4N

H21

BO4P

H22

BOCKN

F21

BOCKP

F22

TN2

B21

TP2

A21

100uF

16V

C526

100uF

16V

C542

1/10W

47K

R536

LVTX_EVNCLK+

LVTX_EVN1+

LVTX_EVNCLK-

LVTX_EVN3+

LVTX_EVN2+

LVTX_EVN2-

LVTX_EVN0+

LVTX_EVN1-

LVTX_EVN0-

LVTX_EVN3-

LVTX_EVN4+

LVTX_EVN4-

LVTX_EVN0-

LVTX_EVN0+

LVTX_EVN1-

LVTX_EVN1+

LVTX_EVN2-

LVTX_EVN2+

LVTX_EVN3-

LVTX_EVN3+

LVTX_EVN4-

LVTX_EVN4+

LVTX_EVNCLK-

LVTX_EVNCLK+

LVTX_ODD0-

LVTX_ODD0+

LVTX_ODD1-

LVTX_ODD1+

LVTX_ODD2-

LVTX_ODD2+

LVTX_ODD3-

LVTX_ODD3+

LVTX_ODD4-

LVTX_ODD4+

LVTX_ODDCLK-

LVTX_ODDCLK+

LVTX_ODD0-

LVTX_ODD0+

LVTX_ODD1-

LVTX_ODD1+

LVTX_ODD2-

LVTX_ODD2+

LVTX_ODDCLK-

LVTX_ODDCLK+

LVTX_ODD3-

LVTX_ODD3+

LVTX_ODD4-

LVTX_ODD4+

PANEL POWER FOR LCD

LGE Internal Use Only

MS_WCLK_AMP

MS_DAT_AMP

MS_BCLK_AMP

220

R611

SPDIF_OUTPC_AUDIO_L

PC_AUDIO_R

COMP_LIN

COMP_RIN

SIDE_LIN

SIDE_RIN

10uF

16V

C606

0.47uFC613

0.47uFC614

0.47uFC615

0.47uFC616

0.47uFC617

0.47uFC618

1K

R666

6800pF

C665

4.7K

R670

470K

R680

AUDIO_MASTER_CLK

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

PEJ024-01

JK601

6B

T_TERMINAL28SHIELD_PLATE7BB_TERMINAL25T_SPRING4R_SPRING7AB_TERMINAL16AT_TERMINAL13E_SPRING

CDS3C30GTH

READY

D601

PC_AUDIO_L

PC_AUDIO_R

CDS3C30GTH

READY

D600

SW_ROUT

SW_LOUT

4.7K

R672

470K

R681

1K

R668

6800pF

C666

4.7K

R671

4.7K

R669

470K

R676

1K

R664

6800pF

C664

1K

R662

470K

R677

6800pF

C663

TV_LOUT

TV_ROUT

0.1uF

C669

2KR685

2K

R683

0.1uF

C668

2K

R682

2KR684

0

R610

1K

R604

+5V

0.1uF

C608

READY

ZD600

+5V

0.1uF

16V

C605

0.1uF

16V

C607

2SC3052

Q600

EBC

2SC3052

Q601

EBC

2SC3052

Q607

2SC3052

Q606

2SC3052

Q604

2SC3052

Q605

2SC3052

Q602

EBC

2SC3052

Q603

EBC

RT1P141C-T112

Q609

1

2

3

RT1P141C-T112

Q608

1

2

3

0.1uF

50V

C645

5.6

R643

3.3

R660

1000pF

C625

0.1uF

C638

22000pF

C636

DA-8580

EAP38319001

L604

2S

1S 1F

2F

0.1uF

C656

3.3

R659

0.1uF

C655

0.1uF

C623

4.7K

R655

4.7K

R653

100R620

+3.3V_CI

0.1uF

C657

1uF

C628

5.6

R645

P_+16V

22000pF

C642

+1.8V

0.1uF

50V

C644

0.1uF

C658

0.1uF

C626

3.3K

R618

100

R617

5.6

R644

0.1uF

C629

22000pF

C639

P_+16V

+1.8V

0.01uF

C659

4.7K

R656

0.47uF

C653

3.3

R657

1uF

C641

3.3

R658

22000pFC630

4.7K

R654

DA-8580

EAP38319001

L603

2S

1S 1F

2F

1000pF

C624

0.47uF

C654

+1.8V

0.01uF

C661

0.1uF

C620

5.6

R646

1uF

C637

0.1uF

C640

+1.8V

0.01uF

C662

0.01uF

C660

100pF

C682

+3.3V_CI

SPDIF_OUT

MUTE_LINE

DTV/MNT_LOUT

DTV/MNT_ROUT

MUTE_LINE_DTV

SW_RESET

AUDIO_MASTER_CLK

MS_DAT_AMP

MS_WCLK_AMP

MS_BCLK_AMP

SDA2_3.3V

SCL2_3.3V

AUDIO_MUTE

Fiber Optic

JST1223-001

JK600

1

GND

2

VCC

3

VINPUT

4

FIX_POLE

MLB-201209-0120P-N2

L600

120-ohm

L602

120-ohm

L601

1uF

C635

47uF

16V

C601

10uF

6.3V

C621

10uF

6.3V

C619

330uF

25V

C631

+9V_MSP

SMAW250-04

P600

123

4

0

R609

100R619

0

R636

47pF

C671

22

R605

10uF

16V

C673

33pF

C674

READY

33pF

C675

READY

10uF

16V

C603

0.1uF

C643

3.3

R631

0.01uF

C634

330uF

25V

C646

100R614

SIF

SW_ROUT

0.47uFC690

0.01uF C694

SCART1_LIN

100pFC688

100R615

0

READY

R621

SCART2_RIN

MS_WCLK

0.01uFC693

RLZ8.2B-TE11

ZD602

0.01uF

C687

4.7uF

10V

C609

0.1uF

C676

100

R629

MS_DAT

SDA1_5V

0.47uFC627

10uF

16V

C691

0.47uFC604

+9V_MSP

SCL1_5V

0.47uFC681

MICRONAS

MSP4458G-C4

0IPRP00670A

IC603

1

I2C_CL

2

I2C_DA

3

I2S_CL

4

I2S_WS

5

I2S_DA_OUT

6

I2S_DA_IN1

7

I2S_DA_OUT4

8

I2S_WS4

9

I2S_CL4

10

DVSUP

11

DVSS

12

I2S_DA_IN2/3

13

NC1

14

I2S_CL3

15

I2S_WS3

16

RESETQ

17

DACA_R

18

DACA_L

19

VREF2

20

DACM_R

21

DACM_L

22

NC223NC324NC4

25

SC2_OUT_R

26

SC2_OUT_L

27

VREF1

28

SC1_OUT_R

29

SC1_OUT_L

30

CAPL_A

31

AHVSUP

32

CAPL_M

33

AHVSS

34

AGNDC

35

SC4_IN_L

36

SC4_IN_R

37

ASG1

38

SC3_IN_L

39

SC3_IN_R

40

ASG2

41

SC2_IN_L

42

SC2_IN_R

43

ASG3

44

SC1_IN_L

45

SC1_IN_R

46

VREFTOP

47

MONO_IN

48

AVSS

49

AVSUP

50

ANA_IN1+

51

ANA_IN?

52

ANA_IN2+

53

TESTEN

54

XTAL_IN

55

XTAL_OUT

56TP57

AUD_CL_OUT

58

NC559NC6

60

D_CTR_I/O_161D_CTR_I/O_0

62

ADR_SEL

63

STANDBYQ

64

NC7

0.47uFC679

SCART1_RIN

0.47uFC689

750R624

56pF

C622

750R602

470pF C611

10uF

16V

C685

56pF

C610

100R603

AM_AUDIO

3.3uF

50V

C680

MS_BCLK

+5V

220R622

SW_RESET

220R623

SW_LOUT

750R616

220R625

0.47uFC692

SCART2_LIN

2.2K

R691

2.2K

R692

2.2K

R693

2.2K

R694

10uF

25V C695

10uF

25V C696

10uF

25V C697

10uF

25V C698

MS_BCLK

MS_WCLK

MS_DAT

220R695

220

R697

220R696

3.3uF

C648

0.01uF

C647

470

R648

62K

R649

1.5K

R650

24K

R647

2SC3875S

Q611

0.01uF

C632

4.7uF

10V

C678

2pF

50V

C683

2pF

50V

C677

0

R651

120-ohm

L609

3.9K

R634

3.9K

R635

6.8K R606

6.8K R607

0.47uFC667

0.47uFC670

220K

R627

220K

R628

NEOFIDELITY

NTP3000A

EAN41584001

AUDIO AMPLIFIER

IC600

1

BST1A

2

VDR1A

3

/RESET

4AD5

VSS_IO

6

CLK_I

7

CLK_O

8

VDD_IO

9

DGNDPLL10AGNDPLL

11

LFM

12

AVDDPLL13DVDDPLL

14

NC_1

15

DVSS

16

DVDD

17

SDATA

18

WCK

19

BCK

20

SDA

21

SCL

22

PWM_3B/PWM_HP2

23

PWM_3A/PWM_HP1

24

PROTECT

25

FAULT

26

VDR2B

27

BST2B

28

PGND2B_1

29

PGND2B_230OUT2B_131OUT2B_232PVDD2B_133PVDD2B_234PVDD2A_135PVDD2A_236OUT2A_137OUT2A_238PGND2A_139PGND2A_240BST2A41VDR2A42NC_2

43

VDR1B

44

BST1B

45

PGND1B_1

46

PGND1B_2

47

OUT1B_1

48

OUT1B_2

49

PVDD1B_1

50

PVDD1B_2

51

PVDD1A_1

52

PVDD1A_2

53

OUT1A_1

54

OUT1A_2

55

PGND1A_1

56

PGND1A_2

18.432MHz

X601

500-ohm

L610

FLI10620H-AA

IC100

AUD_IN_L1M3AUD_IN_R1M4AUD_IN_L2M1AUD_IN_R2M2AUD_IN_L3N5AUD_IN_R3M5AUD_IN_L4N3AUD_IN_R4N4AUD_IN_L5N1AUD_IN_R5N2AUD_MCLK0

AC1

AUD_MCLK1

AB5

SIF_RTN

L6

AUDIN_I2S_BCLK

AC2

AUDIN_I2S_WCLK

AB3

AUDIN_I2S_DAT

AA4

AUDIN_SPDIF_IN

AA5

AUD_VREFPL3AUD_VCML5AUD_VREFN

L4

AUD_OUT1_L

R1

AUD_OUT1_R

R2

AUD_OUT2_L

T3

AUD_OUT2_R

T4

AUD_OUT_HP_L

T1

AUD_OUT_HP_R

T2

AUDO_SPDIF_OUT

AD1

AUDO_I2SA_BCLK

AB4

AUDO_I2SA_WCLK

AC5

AUDO_I2SA_DAT0

AC4

AUDO_I2SB_DAT1

AD2

AUDO_I2SB_DAT2

AE2

AUDO_I2SB_BCLK

AC3

AUDO_I2SB_WCLK

AD3

AUDO_MUTE

AE1

LS_OUT_L

R3

LS_OUT_R

R4

LS_OUT_SW

R5

390pF

C652

390pF

C650

390pF

C649

390pF

C651

0.1uF C686

1/10W 43

R613 1/10W

43 R612

0.1uF

16V

C602

120-ohm

L1316

JP65

JP66

JP67

JP68

JP91

JP92

JP93

JP94

JP95

JP96

120-ohm

L606

120-ohm

L607

120-ohm

L608

120-ohm

L605

1N4148W

100V

D608

1N4148W

100V

D607

1N4148W

100V

D606

1N4148W

100V

D609

KDS184

READY

D604

A2

C

A1

KDS184

READY

D603

A2CA1

KDS184

READY

D602

A2CA1

KDS184

READY

D605

A2CA1

TV_LOUT_SC1

TV_ROUT_SC1

DTV/MNT_ROUT_SC2

DTV/MNT_LOUT_SC2

MS_BCLK

MS_WCLK

MS_DAT

SPDIF OPTIC JACK

OPTION

MNT/DTV OUT

SCART2

Buffer

PC Sound

TV_L/ROUT

SCART1

Buffer

MUTE Ctrl

SPK_L+

PWM AMP

SPK_L-

SPK_R+

SPK_R-

IIC ID : 0x80

IIC ID:

0x54

LGE Internal Use Only

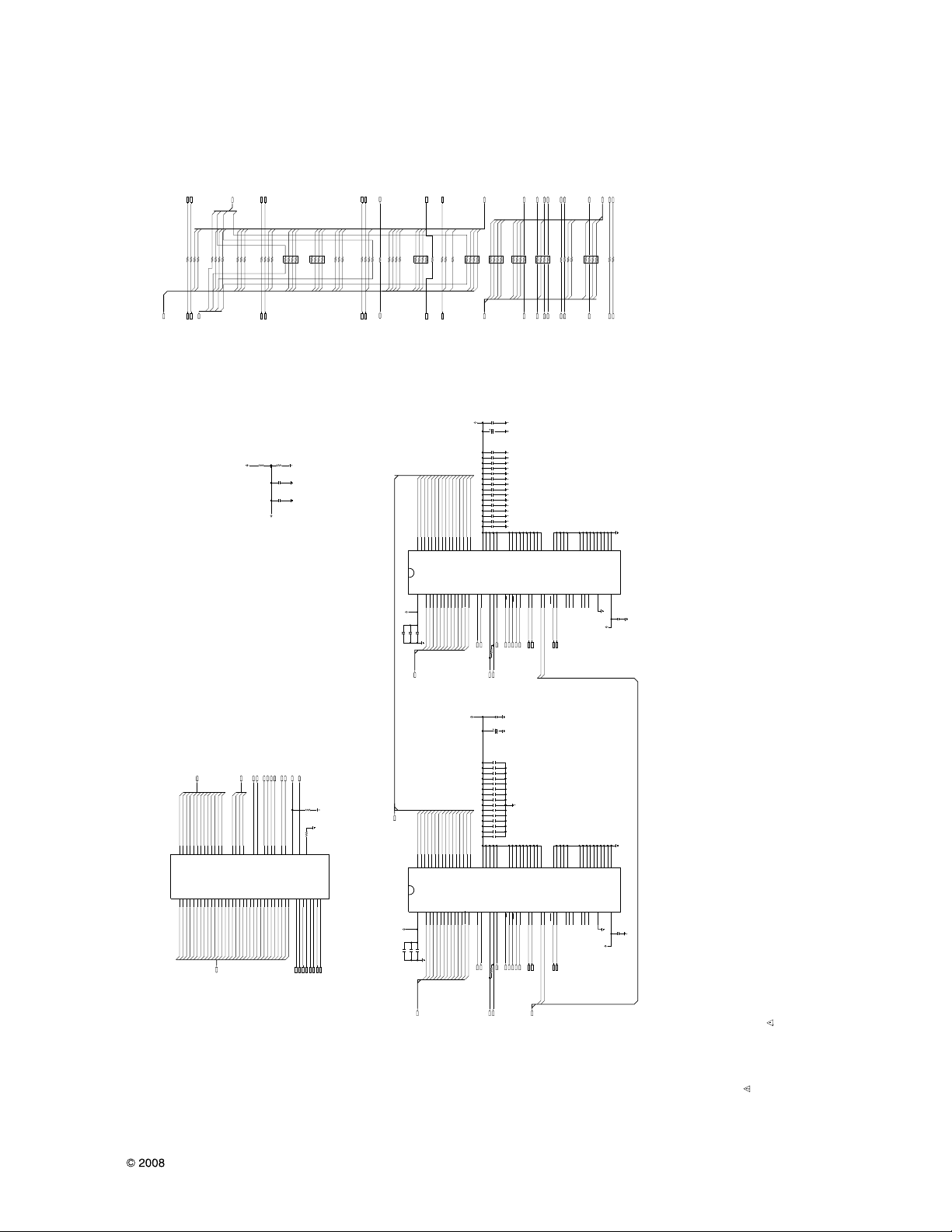

CPL_DDR2_CAS_N

CPL_DDR2_CK_N

CPL_DDR2_DQS1_N

CPL_DDR2_A[0-12]

DDR2_RAS_N

CPL_DDR2_DQS3_P

CPL_DDR2_DQS0_N

DDR2_CKE

CPL_DDR2_DQS2_N

DDR2_WE_N

CPL_DDR2_DQS0_P

DDR2_A[0-12]

DDR2_DQS3_N

DDR2_DQS2_N

DDR2_A[0-12]

DDR2_VREF

CPL_DDR2_DQS3_N

1uF

C743

CPL_DDR2_BA1

DDR2_DQS1_N

DDR2_DQS2_P

DDR2_CAS_N

CPL_DDR2_BA0

CPL_DDR2_CK

DDR2_ODT_T

DDR2_DQS0_P

CPL_DDR2_DQS2_P

CPL_DDR2_DQS1_P

CPL_DDR2_CS_N

CPL_DDR2_DM[0-3]

DDR2_DQS1_P

DDR2_CS_N

DDR2_DQS3_P

DDR2_ODT

DDR2_DQS0_N

DDR2_BA1

CPL_DDR2_WE_N

CPL_DDR2_CKE

CPL_DDR2_RAS_N

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+1.8V_DOUGLAS_DDR

DDR2_VREF

CPL_DDR2_D[0-31]

DDR2_D[0-31]

CPL_DDR2_D[0-31]

DDR2_D[0-31]

CPL_DDR2_DQS1_N

CPL_DDR2_DQS0_N

CPL_DDR2_DQS2_P

CPL_DDR2_DQS3_N

CPL_DDR2_DQS0_P

CPL_DDR2_DQS1_P

CPL_DDR2_DQS3_P

CPL_DDR2_DQS2_N

CPL_DDR2_A[0-12]

DDR2_DQS2_N

DDR2_DQS2_P

CPL_DDR2_DM[0-3]

DDR2_DM[0-3]

DDR2_A[0-12]

CPL_DDR2_CS_N

CPL_DDR2_RAS_N

CPL_DDR2_CAS_N

CPL_DDR2_CK

CPL_DDR2_CK_N

CPL_DDR2_CKE

CPL_DDR2_BA0

CPL_DDR2_WE_N

CPL_DDR2_BA1

DDR2_CK_N

DDR2_CK

DDR2_CAS_N

DDR2_CS_N

DDR2_RAS_N

DDR2_CKE

DDR2_BA0

DDR2_WE_N

DDR2_BA1

DDR2_DQS3_P

DDR2_DQS3_N

DDR2_DQS0_P

DDR2_DQS0_N

DDR2_DQS1_P

DDR2_DQS1_N

DDR2_CK_N

DDR2_BA0

DDR2_CK

DDR2_CAS_N

DDR2_BA0

DDR2_WE_N

DDR2_RAS_N

DDR2_CK_N

DDR2_BA1

DDR2_CK

DDR2_ODT_T

DDR2_CKE

DDR2_CS_N

DDR2_DM[0-3]

1/16W10AR701

1/16W10AR703

1/16W10AR707

1/16W10AR704

1/16W10AR700

1/16W10AR705

1/16W10AR706

1/16W10AR702

10

R71410R71510R71610R717

10

R71810R71910R720

10

R721

10 R722

10 R723

10 R724

10

R729

10

R73010R731

10

R73210R73310R73410R735

10

R73710R73810R73910R740

10

R749

10R750

10

R72510R72610R72710R728

10

R74210R74310R744

10K

R702

10

R741

680

1%

R704

680

1%

R705

0.1uF

C714

0.1uF

C740

0.1uF

C709

0.1uF

C711

0.1uF

C706

0.1uF

C715

0.1uF

C730

0.1uF

C718

0.1uF

C732

0.1uF

C707

0.1uF

C710

0.1uF

C712

0.1uF

C728

0.1uF

C729

0.1uF

C713

0.1uF

C716

0.1uF

C741

0.1uF

C727

200

R703

200

R700

0.1uF

50V

C726

0.1uF

C705

0.1uF

C704

DDR2_ODTDDR2_ODT_T

10

R736

0.1uF

50V

C725

0.1uF

C701

0.1uFC721

0.1uFC722

0.1uF

C700

10uF

C723

10uFC702

10R745

10

R746

10

R74710R748

0.1uF

C703

0.1uF

C717

0.1uF

C724

0.1uF

C733

0.1uF

C734

0.1uF

C735

0.1uF

C736

0.1uF

C737

0.1uF

C738

0.1uF

C739

294

R701

1%

0.1uF

C708

0.1uF

C731

1uF

C720

330uF

4V

C719

330uF

4V

C742

FLI10620H-AA

IC100

DDR_D0

F24

DDR_D1

M24

DDR_D2

J25

DDR_D3

K26

DDR_D4

M26

DDR_D5

E25

DDR_D6

L25

DDR_D7

F26

DDR_D8

E29

DDR_D9

L29

DDR_D10

H28

DDR_D11

J29

DDR_D12

L27

DDR_D13

E27

DDR_D14

K28

DDR_D15

F28

DDR_D16

Y24

DDR_D17

AF28

DDR_D18

AC25

DDR_D19

AD26

DDR_D20

AF26

DDR_D21

W25

DDR_D22

AE25

DDR_D23

Y26

DDR_D24

W29

DDR_D25

AE29

DDR_D26

AB28

DDR_D27

AC29

DDR_D28

AE27

DDR_D29

W27

DDR_D30

AD28

DDR_D31

Y28

DDR_DQS0

H25

DDR_DQS0_N

H26

DDR_DQS1

G28

DDR_DQS1_N

G29

DDR_DQS2

AB25

DDR_DQS2_N

AB26

DDR_DQS3

AA28

DDR_DQS3_N

AA29

DDR_A0

P27

DDR_A1

U29

DDR_A2

R26

DDR_A3

U26

DDR_A4

P25

DDR_A5

T28

DDR_A6

R27

DDR_A7

V28

DDR_A8

R29

DDR_A9

T29

DDR_A10

V25

DDR_A11

R28

DDR_A12

V26

DDR_DM0

K24

DDR_DM1

J27

DDR_DM2

AD24

DDR_DM3

AC27

DDR_BA0

U28

DDR_BA1

T27

DDR_CAS_N

P24

DDR_RAS_N

N26

DDR_CS_N

N25

DDR_WE_N

T25

DDR_CK

P29

DDR_CK_N

N29

DDR_CKE

U27

DDR_ODT

M27

DDR_CAL

U24

HYB18TC512160B2F-3S

QIMONDA

EAN33624402

DDR2 SDRAM

IC701

J2

VREF

J8

CK

H2

VSSQ2

B7

UDQS

N8A4P8

A8

L1

NC4

L2

BA0

R8

NC3

K7

RAS

F8

VSSQ3

F3

LDM

P3A9M3A1N3

A5

K8

CK

R3

NC5

L3

BA1

J7

VSSDL

L7

CAS

F2

VSSQ4

B3

UDM

M2

A10/AP

K2

CKE

R7

NC6

M7A2N7A6M8

A0

J1

VDDL

K3

WE

E8

LDQS

P7

A11

K9

ODT

A2

NC1

N2A3P2

A7

H8

VSSQ1

F7

LDQS

A8

UDQS

R2

A12

L8

CS

E2

NC2

E7

VSSQ5D8VSSQ6D2VSSQ7A7VSSQ8B8VSSQ9B2VSSQ10P9VSS1N1VSS2J3VSS3E3VSS4A3VSS5G9VDDQ1G7VDDQ2G3VDDQ3G1VDDQ4E9VDDQ5C9VDDQ6C7VDDQ7C3VDDQ8C1VDDQ9A9VDDQ10R1VDD1M9VDD2J9VDD3E1VDD4A1VDD5B9DQ15B1DQ14D9DQ13D1DQ12D3DQ11D7DQ10C2DQ9C8DQ8F9DQ7F1DQ6H9DQ5H1DQ4H3DQ3H7DQ2G2DQ1G8DQ0

HYB18TC512160B2F-3S

QIMONDA

EAN33624402

DDR2 SDRAM

IC700

J2

VREF

J8

CK

H2

VSSQ2

B7

UDQS

N8A4P8

A8

L1

NC4

L2

BA0

R8

NC3

K7

RAS

F8

VSSQ3

F3

LDM

P3A9M3A1N3

A5

K8

CK

R3

NC5

L3

BA1

J7

VSSDL

L7

CAS

F2

VSSQ4

B3

UDM

M2

A10/AP

K2

CKE

R7

NC6

M7A2N7A6M8

A0

J1

VDDL

K3

WE

E8

LDQS

P7

A11

K9

ODT

A2

NC1

N2A3P2

A7

H8

VSSQ1

F7

LDQS

A8

UDQS

R2

A12

L8

CS

E2

NC2

E7

VSSQ5D8VSSQ6D2VSSQ7A7VSSQ8B8VSSQ9B2VSSQ10P9VSS1N1VSS2J3VSS3E3VSS4A3VSS5G9VDDQ1G7VDDQ2G3VDDQ3G1VDDQ4E9VDDQ5C9VDDQ6C7VDDQ7C3VDDQ8C1VDDQ9A9VDDQ10R1VDD1M9VDD2J9VDD3E1VDD4A1VDD5B9DQ15B1DQ14D9DQ13D1DQ12D3DQ11D7DQ10C2DQ9C8DQ8F9DQ7F1DQ6H9DQ5H1DQ4H3DQ3H7DQ2G2DQ1G8DQ0

DDR2_A[9]

CPL_DDR2_DM[2]

DDR2_A[10]

DDR2_A[6]

DDR2_A[4]

DDR2_A[10]

DDR2_A[3]

DDR2_A[8]

DDR2_A[2]

DDR2_A[9]

DDR2_A[12] DDR2_A[12]

CPL_DDR2_DM[0]

DDR2_A[5]

DDR2_A[6]

DDR2_A[2]

DDR2_A[0]

DDR2_A[7]

CPL_DDR2_DM[3]

DDR2_A[5]

DDR2_A[1]

DDR2_A[4]

DDR2_A[8]

CPL_DDR2_DM[1]

DDR2_A[3]

DDR2_A[0]

DDR2_A[7]

DDR2_A[1]

DDR2_A[11] DDR2_A[11]

CPL_DDR2_D[30]

CPL_DDR2_D[25]

CPL_DDR2_D[28]

CPL_DDR2_D[29]

CPL_DDR2_D[24]

CPL_DDR2_D[31]

DDR2_D[30]

DDR2_D[25]

DDR2_D[28]

DDR2_D[29]

DDR2_D[24]

DDR2_D[31]

CPL_DDR2_D[13]

CPL_DDR2_D[8]

CPL_DDR2_D[15]

CPL_DDR2_DM[3]

CPL_DDR2_DM[1]

CPL_DDR2_D[14]

CPL_DDR2_D[9]

CPL_DDR2_D[12]

CPL_DDR2_A[10]

CPL_DDR2_A[3]

CPL_DDR2_A[7]

CPL_DDR2_A[12]

CPL_DDR2_A[2]

CPL_DDR2_A[9]

CPL_DDR2_A[5]

CPL_DDR2_A[1]

CPL_DDR2_A[0]

CPL_DDR2_A[4]

CPL_DDR2_A[8]

CPL_DDR2_A[11]

CPL_DDR2_A[6]

DDR2_DM[3]

DDR2_DM[1]

DDR2_A[6]

DDR2_A[11]

DDR2_A[8]

DDR2_A[4]

DDR2_A[0]

DDR2_A[1]

DDR2_A[5]

DDR2_A[9]

DDR2_A[2]

DDR2_A[12]

DDR2_A[7]

DDR2_A[3]

DDR2_A[10]

DDR2_D[14]

DDR2_D[9]

DDR2_D[12]

DDR2_D[15]

DDR2_D[8]

DDR2_D[13]

DDR2_DM[2]

DDR2_DM[3]

CPL_DDR2_D[0]

CPL_DDR2_D[1]

CPL_DDR2_D[2]

CPL_DDR2_D[3]

CPL_DDR2_D[4]

CPL_DDR2_D[5]

CPL_DDR2_D[6]

CPL_DDR2_D[7]

CPL_DDR2_D[8]

CPL_DDR2_D[9]

CPL_DDR2_D[10]

CPL_DDR2_D[11]

CPL_DDR2_D[12]

CPL_DDR2_D[13]

CPL_DDR2_D[14]

CPL_DDR2_D[15]

CPL_DDR2_D[16]

CPL_DDR2_D[17]

CPL_DDR2_D[18]

CPL_DDR2_D[19]

CPL_DDR2_D[20]

CPL_DDR2_D[21]

CPL_DDR2_D[22]

CPL_DDR2_D[23]

CPL_DDR2_D[24]

CPL_DDR2_D[25]

CPL_DDR2_D[26]

CPL_DDR2_D[27]

CPL_DDR2_D[28]

CPL_DDR2_D[29]

CPL_DDR2_D[30]

CPL_DDR2_D[31]

DDR2_D[15]

DDR2_D[14]

DDR2_D[13]

DDR2_D[12]

DDR2_D[11]

DDR2_D[10]

DDR2_D[9]

DDR2_D[8]

DDR2_D[7]

DDR2_D[6]

DDR2_D[5]

DDR2_D[4]

DDR2_D[3]

DDR2_D[2]

DDR2_D[1]

DDR2_D[0] DDR2_D[16]

DDR2_D[17]

DDR2_D[18]

DDR2_D[19]

DDR2_D[20]

DDR2_D[21]

DDR2_D[22]

DDR2_D[23]

DDR2_D[24]

DDR2_D[25]

DDR2_D[26]

DDR2_D[27]

DDR2_D[28]

DDR2_D[29]

DDR2_D[30]

DDR2_D[31]

DDR2_DM[1]

DDR2_DM[0]

CPL_DDR2_D[18]

CPL_DDR2_D[19]

CPL_DDR2_DM[2]

CPL_DDR2_D[22]

CPL_DDR2_D[17]

CPL_DDR2_D[20]

CPL_DDR2_D[21]

CPL_DDR2_D[16]

CPL_DDR2_D[23]

CPL_DDR2_D[5]

CPL_DDR2_D[0]

CPL_DDR2_D[7]

CPL_DDR2_DM[0]

CPL_DDR2_D[2]

CPL_DDR2_D[3]

CPL_DDR2_D[6]

CPL_DDR2_D[1]

CPL_DDR2_D[4]

CPL_DDR2_A[0]

CPL_DDR2_A[1]

CPL_DDR2_A[2]

CPL_DDR2_A[3]

CPL_DDR2_A[4]

CPL_DDR2_A[5]

CPL_DDR2_A[6]

CPL_DDR2_A[7]

CPL_DDR2_A[8]

CPL_DDR2_A[9]

CPL_DDR2_A[10]

CPL_DDR2_A[11]

CPL_DDR2_A[12]

DDR2_D[18]

DDR2_D[19]

DDR2_DM[2]

DDR2_D[22]

DDR2_D[17]

DDR2_D[20]

DDR2_D[21]

DDR2_D[16]

DDR2_D[23]

DDR2_D[5]

DDR2_D[0]

DDR2_D[7]

DDR2_D[2]

DDR2_DM[0]

DDR2_D[3]

DDR2_D[6]

DDR2_D[1]

DDR2_D[4]

CPL_DDR2_D[26]

CPL_DDR2_D[27] DDR2_D[27]

DDR2_D[26]

DDR2_D[10]CPL_DDR2_D[10]

CPL_DDR2_D[11] DDR2_D[11]

LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

HDMI3_5V_DET

HDMI2_5V_DET

HDMI1_5V_DET

SW_RESET

19.66080Hz

X800

+3.3V_DOUGLAS

FE_RESET

REC_8_CTRL1

REC_8_CTRL2

HP_DET_S/W_2

HP_DET_S/W_4

DTV/MNT_SWITCH

HDMI4_5V_DET

HDMI_SW_EQ

KEY2

KEY1

P_+5V

IR

100

R814

+3.3V_STBY

22

R810

22 R838

1.26V_DOUGLAS_EN

+3.3V_STBY

4.7K R802

KEY2

+3.3V_STBY

RESET

UART_SEL

0.1uF

16V

C815

4.7K

R837

IR

100 R832

0.1uF

16V

C810

CEC_0

+3.3V_STBY

47K R817

AC_DET

22 R828

15K R815

100

R845

KEY1

22

R811

PANEL_ERROR_DET

0.1uF

16V

C814

3.3K R824

READY

4.7K

R808

PANEL_VCC_EN

UCOM_TX

4.7K R846

READY

INV_CTL

AUDIO_MUTE

+3.3V_STBY

100 R834

D_SUB_SCL

D_SUB_SDA

P_+5V

4.7K

R836

KEC

KIA7029AF

0IKE702900G

DETECTOR

IC800

READY

2

G

3

O

1

I

ATMEL

AT24C16AN-10SI-2.7

0IMCRAL006A

MEMORIES

IC801

ATMEL

3A22A14

GND

1

A0

5

SDA6SCL7WP8VCC

UCOM_RXSCL2_3.3V

22 R835

SDA2_3.3V

100

R842

100

R843

MUTE_LINE

MUTE_LINE_DTV

SCART1_LINK

SCART2_LINK

RGB_LINK

COMP_LINK

SIDE_CVBS_LINK

UCOM_SCL_3.3V

UCOM_SDA_3.3V

+3.3V_DOUGLAS

1.8V_DOUGLAS_EN

RL_ON/PWR_ONOFF

3.3V_EN

10uF

6.3V

C813

AGC_SPEED_CTL

BOOSTER

0.1uF

C808

HDMI_SEL1

HDMI_SEL2

12505WR-15A00

P800

angle type

123456789

10111213141615

68K

R822

READY

100 R831

100 R833

100 R825

UCOM_SCL_3.3V

UCOM_SDA_3.3V

WELTREND

WT61P8-RN440WT

EAN41349801

MICROCONTROLLER

IC802

1

VDD33V

2

GND

3

OSCO

4

OSCI

5

GPIOB6/SSDA

6

GPIOB5/SSCL

7

GPIOB4/P058GPIOB3/P04

9

GPIOB2/IR

10

GPIOB1/IRQ3/CEC

11

GPIOB0/IRQ2

12

GPIOC7/P17/IRQ1

13

GPIOC6/P16/IRQ0

14

GPIOC5/P15/TXD1

15

GPIOC4/P14/RXD1

16

GPIOC3/AD3

17

GPIOC2/AD2

18

GPIOC1/AD1

19

GPIOC0/AD0

20

DSDA1

21

DSCL1

22

GPIOA5/DSDA2

23

GPIOA4/DSCL2

24

GPIOA3/PWM7/P03

25

GPIOA2/PWM6/P02

26

GPIOA1/PWM5/P01

27

GPIOA0/PWM4/P00

28

GPIOD7/RXD2

29

GPIOD6/TXD2

30

GPIOD5/P13/AD7

31

GPIOD4/P12/AD6

32

GPIOD3/P11/AD5

33

GPIOD2/P10/AD4

34

GPIOD1/HIN2

35

GPIOD0/HIN1

36

GPIOE7/VIN1

37

GPIOE6/VIN2

38

GPIOE5/P07

39

GPIOE4/LPWM/P06

40

GPIOE3/PWM3

41

GPIOE2/PWM2

42

GPIOE1/PWM1

43

NRST

44

GPIOE0/PWM0

22

R804

22

R803

47K

R816

0.1uF

C809

0.1uF 16V

C801

4.7uF

6.3V

READY

C805

5pF

READY

C802

5pF

READY

C803

0

R880

0

R881

24MHz

X801

FLI10620H-AA

EAN42012201

IC100

VXI_CLK

A18

VXI_DE

C18

VXI_VS

B18

VXI_HS

D18

VXI_D0

E19

VXI_D1

A17

VXI_D2

B17

VXI_D3

C17

VXI_D4

D17

VXI_D5

F17

VXI_D6

A16

VXI_D7

B16

VXI_D8

C16

VXI_D9

D16

VXI_D10

D19

VXI_D11

E16

VXI_D12

A15

VXI_D13

B15

VXI_D14

C15

VXI_D15

D15

VXI_D16

E15

VXI_D17

A14

VXI_D18

B14

VXI_D19

C14

VXI_D20

D14

VXI_D21

E14

VXI_D22

E17

VXI_D23

E18

TESTMODE0

C27

TESTMODE1

C26

VXO_CLK

AD19

VXO_DE

AE19

VXO_VS

AG18

VXO_HS

AF18

VXO_D0

AF15

VXO_D1

AH16

VXO_D2

AJ16

VXO_D3

AE15

VXO_D4

AE16

VXO_D5

AF16

VXO_D6

AG16

VXO_D7

AH17

VXO_D8

AJ17

VXO_D9

AE17

VXO_D10

AF17

VXO_D11

AG17

VXO_D12

AH18

VXO_D13

AJ18

VXO_D14

AD15

VXO_D15

AE18

REF_CLK

A22

XTAL_IN

A23

CLKOUT

E12

OBUFC_CLK

F21

NC_1F7NC_2F8NC_3F9NC_4

F10

NC_5

F11

SIF_IN

K6

+3.3V_STBY

18pF

50V

C811

18pF

50V

C812

120-ohm

L800

120-ohm

L803

120-ohm

L802

120-ohm

L801

4.7uF

6.3V

C800

0.1uF

16V

C833

0.1uF

16V

C834

BIT_SEL

PWM_BUZZ

2.2K R851

2.2K R850

680pF

C804

0

R882

4.7K R805

4.7K R806

SIDE_S_SW

0 R847

10K R883

READY

10K R884

READY

10K R885

READY

10K R886

READY

+3.3V_DOUGLAS

5.6V

D1003

5.6V

D1004

D1005

CAT24C16WI-GT3

EAN42611301

CATALYST

IC801-*2

3

NC_32NC_2

4

VSS

1

NC_1

5

SDA6SCL7WP8VCC

24LC16BT-I/SN

0IMMR00022A

MICROCHIP

IC801-*1

3A22A14

VSS

1

A0

5

SDA6SCL7WP8VCC

JP42

JP43

JP44

JP45

JP46

JP47

JP48

JP50

JP51

22uF

16V

C9022

READY

6.8K R820

180K

R821

READY

2SC3052

Q801

2SC3052

Q800

33K

R807

P_+5V

10K R800

33K

R801

P_+5V

120-ohm

L804

10K R809

DEEP_STAND_BY

1K R829

MT8280_PWN

MT8280_PRST

UART_COMM_ON

0

R871

DEBUG_SEL

MT8280_FLASH_WP

0

R874

READY

MT8280_JTDO

0

R872

0

R873

0

R875

LOCAL_DIM

2.7K R864

1.2K R863

FRC_PRST

18pF

50V

C835

30pF C806

30pF C807

5.6V

D1006

5.6V

D1007

12505WS-15A00

P800-*1

Straight Type

123456789

10111213141615

30V

D1001

30V

D1002

HIGH:Writable

GPIO TBD

IR/KEY/EYE Q2/LED

IIC ID : 0x50

EyeQ2 Sensor IIC ID : 0xE8

RGB Sensor IIC ID : 0x94(TBD)

Port D2 ==> High : PDP / Low : LCD

Port D3 ==> High : AUS / Low : EU

GPIOD2(ADC4) : Product Option

. 0V : LG60 Model (R864 : Ready / R863 : 0

O

. 1V : LG70 Model (R864 : 2.7kOhm / R863 : 1.2ko

. 2V : Reverse (R864 : 1.3kOhm / R863 : 2kO

. 3.3V : PDP Model (R864 : 4.7kOhm / R863 : Rea

LGE Internal Use Only

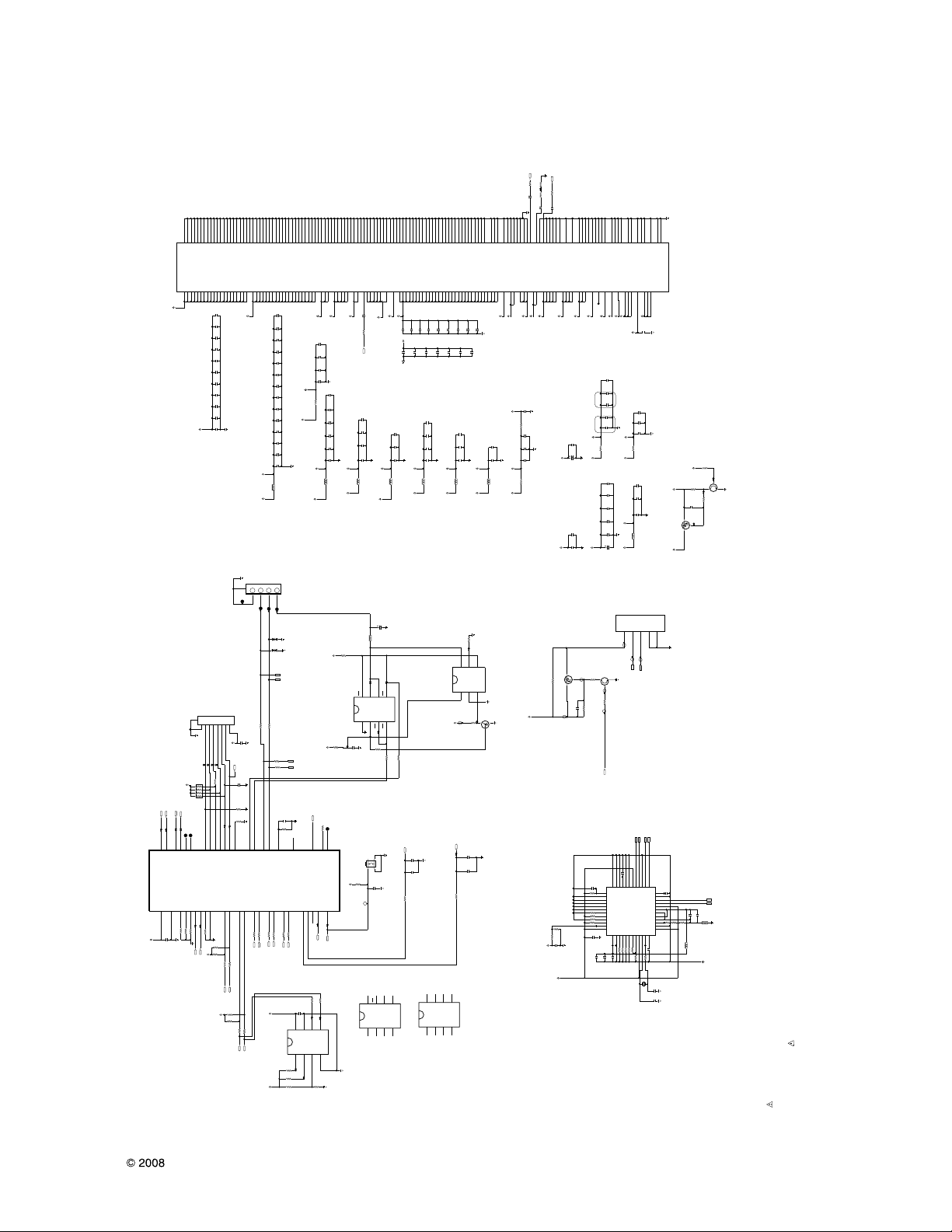

0.1uF

16V

C905

4.7K R927

1K R928

22

R932

33pF

50V

C906

RESET

SDA2_3.3V

SCL2_3.3V

SDA_HDMI_SW

SCL_HDMI_SW

DDC_SDA_4

DDC_SCL_4

100

R905

100

R904

100

R903

100

R902

100

R901

100

R900

RESET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SCART1_ID

SCART2_ID

+5V

120-ohm

L900

D902

D903

+3.3V_OTP

0.1uF READY

C909

+3.3V_DAC_DOUGLAS

+3.3V_ADC_DOUGLAS

+3.3V_DOUGLAS

+3.3V_DAC_DOUGLAS

+1.2V_AUD_DOUGLAS

1K

R957

+1.2V_DOUGLAS_D

+3.3V_OTP

+3.3V_DOUGLAS

2N3904S

Q901

E

B

C

+3.3V_DOUGLAS

+1.2V_DOUGLAS_D

+3.3V_HDMI_DOUGLAS

+3.3V_DOUGLAS

+1.2V_DDRPLL

+1.2V_DOUGLAS_D

DDR2_VREF

+3.3V_ADC_DOUGLAS

390

R954

47K

R955

+3.3V_LVTX_PLL_DOUGLAS

+1.2V_HDMI_DOUGLAS

+3.3V_IO_DOUGLAS

+3.3V_HDMI_DOUGLAS

+3.3V_AUD_DOUGLAS

+3.3V_DOUGLAS

+1.2V_DDRPLL

+1.2V_AUD_DOUGLAS

+3.3V_LVTX_DOUGLAS

+3.3V_DOUGLAS

+3.3V_LVTX_DOUGLAS

+1.8V_DOUGLAS_DDR

+3.3V_AUD_DOUGLAS

+1.2V_HDMI_DOUGLAS

+3.3V_IO_DOUGLAS

+3.3V_DOUGLAS

+3.3V_LVTX_PLL_DOUGLAS

+1.2V_DOUGLAS_D

CI_EN

+5V +5V

SDA1_5V

SCL1_5V

+1.2V_ADC_DOUGLAS

+5V

D_SUB_SCL

D_SUB_SDA

+1.8V_DOUGLAS_DDR

+3.3V_DOUGLAS

+1.2V_DOUGLAS_D

+3.3V_DOUGLAS

+3.3V_CI

0

R951

0

R956

+1.8V_DOUGLAS_DDR

0.1uF

16V

C922

0.1uF

16V

C914

0.1uF

16V

C952

0.1uF

16V

C941

0.1uF

16V

C953

0.1uF

16V

C917

0.1uF

16V

C972

0.1uF

16V

C987

0.1uF

16V

C921

0.1uF

16V

C984

0.1uF

16V

C957

0.1uF

16V

C1903

0.1uF

16V

C968

0.1uF

16V

C991

0.1uF

16V

C998

0.1uF

16V

C938

0.1uF

16V

C979

0.1uF

16V

C973

0.1uF

16V

C950

0.1uF

16V

C948

0.1uF

16V

C956

0.1uF

16V

C982

0.1uF

16V

C974

0.1uF

16V

C970

0.1uF

16V

C943

0.1uF

16V

C996

0.1uF

16V

C940

0.1uF

16V

C945

0.1uF

16V

C1904

0.1uF

C975

0.1uF

16V

C960

0.1uF

16V

C951

0.1uF

16V

C990

0.1uF

16V

C946

0.1uF

16V

C947

0.1uF

16V

C976

0.1uF

16V

C961

0.1uF

16V

C966

0.1uF

16V

C939

0.1uF

16V

C949

0.1uF

C967

0.1uF

C934

0.1uF

16V

C958

0.1uF

16V

C983

0.1uF

16V

C942

0.1uF

16V

C986

0.1uF

16V

C995

0.1uF

16V

C963

0.1uF

16V

C936

0.1uF

16V

C971

0.1uF

16V

C918

0.1uF

C954

0.1uF

16V

C985

0.1uF

16V

C977

0.1uF

C944

0.1uF

C920

0.1uF

16V

C932

0.1uF

16V

C935

0.1uF

16V

C999

0.1uF

16V

C919

0.1uF

16V

C962

0.1uF

16V

C965

0.1uF

16V

C969

0.1uF

16V

C959

0.1uF

16V

C931

0.1uF

C981

0.1uF

16V

C978

0.1uF

C916

0.1uF

16V

C937

0.1uF

16V

C994

+3.3V_DOUGLAS

0.1uF

16V

C993

0.1uF

16V

C1900

+3.3V_DOUGLAS_VAA

+3.3V_DOUGLAS_VDDI

+3.3V_DOUGLAS

0.1uF

16V

C992

+3.3V_DOUGLAS_VAA

+3.3V_DOUGLAS_VDDI

0

R959

+3.3V_DOUGLAS

+3.3V_STBY

DEBUG_RX

DEBUG_TX

GPROBE_RX

120-ohm

L907

MLB-201209-0120P-N2

L903

120-ohm

L904

120-ohm

L906

120-ohm

L901

MLB-201209-0120P-N2

L908

120-ohm

L905

120-ohm

L902

MICROCHIP TECHNOLOGY

24LC512

0IMMRMP008A

MEMORIES

IC901

MICROCHIP

3A22A14

VSS

1

A0

5

SDA6SCL7WP8VCC

10uF

6.3V

C988

10uF

6.3V

C997

10uF

6.3V

C989

10uF

6.3V

C925

10uF

6.3V

C933

10uF

6.3V

C926

10uF

6.3V

C927

10uF

6.3V

C930

10uF

6.3V

C928

10uF

C912

10uF

6.3V

C913

10uF

6.3V

C929

10uF

6.3V

C923

+3.3V_OTP

1K

R913

1K

R912

10uF

6.3V

C901

READY

VBR_B

10uF

6.3V

C902

VBR_A

10uF

16V

C1901

0.1uF

C1906

33uF

10V

C980

0

R958

0.1uF

16V

C900

10uF

6.3V

C1902

READY

0.1uF

16V

C964

0.1uF

16V

C907

+3.3V_STBY

0R967

READY

6.2K

1%

R929

1K

R9141KR915

6.8K

R918

4.7K AR900

47K

R938

READY

47K

R940

47K

R941

4.7K

R939

22

R94922R950

4.7K R944

4.7K R945

4.7K

R947

0 R936

0

R948

10K R937

0.1uF

C908

0.1uF

16V

C910

12505WS-08A00

P902

READY

1234567

8

9

TEXAS INSTRUMENT

TPS2042BDRG4

0ITI204200C

ANALOG SWITCH

IC902

READY

3

EN1

2IN4

EN2

1

GND

5

OC26OUT27OUT18OC1

3.3K

R946

USB DOWN STREAM

KJA-UB-4-0004 P901

1234

5

10uF

6.3V

C924

FLI10620H-AA

IC100

CVDD12_1

L11

CVDD12_2

L12

CVDD12_3

L17

CVDD12_4

L18

CVDD12_5

L19

CVDD12_6

M11

CVDD12_7

M12

CVDD12_8

M17

CVDD12_9

M18

CVDD12_10

M19

CVDD12_11

V11

CVDD12_12

V12

CVDD12_13

V13

CVDD12_14

V18

CVDD12_15

V19

CVDD12_16

W11

CVDD12_17

W12

CVDD12_18

W13

CVDD12_19

W18

CVDD12_20

W19

IOVDD33_1

F12

IOVDD33_2

F13

IOVDD33_3

F14

IOVDD33_4

F15

IOVDD33_5

F16

IOVDD33_6

F18

IOVDD33_7

F19

IOVDD33_8

AD8

IOVDD33_9

AD10

IOVDD33_10

AD11

IOVDD33_11

AD12

IOVDD33_12

AD14

IOVDD33_13

AD16

IOVDD33_14

AD17

IOVDD33_15

AD18

IOVDD33_16U6IOVDD33_17V6IOVDD33_18Y6IOVDD33_19

AA6

IOVDD33_20

AB6

ADC_VDD12_1A1ADC_VDD12_2B2ADC_VDD12_3C3ADC_VDDA33_1E4ADC_VDDA33_2F4ADC_VDDA33_3G4ADC_VDDA33_4H4ADC_VDDA33_5K4AUD_AVDD12_1P6AUD_AVDD12_2

R6

C4P

L1

AUD_AVDD33_2T6AUD_AVDD33_3T5AUD_AVDD33_4U5AUD_AVDD33_5U4AUD_AVDD33_6U3AUD_HP_AVDD33U2DDRPLL_AVDD12

D22

DDR_VDD_1

D25

DDR_VDD_2

D27

DDR_VDD_3

D29

DDR_VDD_4

F25

DDR_VDD_5

F27

DDR_VDD_6

F29

DDR_VDD_7

H24

DDR_VDD_8

H27

DDR_VDD_9

H29

DDR_VDD_10

K25

DDR_VDD_11

K27

DDR_VDD_12

K29

DDR_VDD_13

M25

DDR_VDD_14

M29

DDR_VDD_15

N24

DDR_VDD_16

P28

DDR_VDD_17

R25

DDR_VDD_18

U25

DDR_VDD_19

V27

DDR_VDD_20

Y25

DDR_VDD_21

Y27

DDR_VDD_22

Y29

DDR_VDD_23

AB24

DDR_VDD_24

AB27

DDR_VDD_25

AB29

DDR_VDD_26

AD25

DDR_VDD_27

AD27

DDR_VDD_28

AD29

DDR_VDD_29

AF25

DDR_VDD_30

AF27

DDR_VDD_31

AF29

DDRPLL_AVDD33

E22

DDR_VDDI_1

F23

DDR_VDDI_2

AD23

DDR_VRF_0

G25

DDR_VRF_1

R24

DDR_VRF_2

AA25

DLL_VAA0

M28

DLL_VAA1

V24

HDMI_VDDA33_1C4HDMI_VDDA33_2D5HDMI_VDDA33_3D6HDMI_VDDA33_4E6HDMI_VDDA33_5E7HDMI_VDD12_1

D10

HDMI_VDD12_2E8HDMI_VDD12_3E9HDMI_VDD12_4

E10

LVTX_VDD33_1

AE21

LVTX_VDD33_2

AE22

LVTX_VDD33_3

AF24

LVTX_PLL_VDD33

AG26

OTP_VDD33

A26

RPLL_AVDD33

B23

RPLL_AVDD12

C23

USB_AVDD12

AE20

USB_AVDD33_1

AF20

USB_AVDD33_2

AG19

USB_AVDD33_3

AH19

VDAC_VDD12

AD6

VDAC_AVDD33_1

AE6

VDAC_AVDD33_2

AF5

VDAC_AVDD33_3

AF6

CVSS_1

D26

CVSS_2

D28

CVSS_3

E24

CVSS_4

E26

CVSS_5

E28

CVSS_6

G24

CVSS_7

G26

CVSS_8

G27

CVSS_9

J24

CVSS_10

J26

CVSS_11

J28

CVSS_12

L13

CVSS_13

L14

CVSS_14

L15

CVSS_15

L16

CVSS_16

L24

CVSS_17

L26

CVSS_18

L28

CVSS_19

M13

CVSS_20

M14

CVSS_21

M15

CVSS_22

M16

CVSS_23

N11

CVSS_24

N12

CVSS_25

N13

CVSS_26

N14

CVSS_27

N15

CVSS_28

N16

CVSS_29

N17

CVSS_30

N18

CVSS_31

N19

CVSS_32

N27

CVSS_33

N28

CVSS_34

P11

CVSS_35

P12

CVSS_36

P13

CVSS_37

P14

CVSS_38

P15

CVSS_39

P16

CVSS_40

P17

CVSS_41

P18

CVSS_42

P19

CVSS_43

P26

CVSS_44

R11

CVSS_45

R12

CVSS_46

R13

CVSS_47

R14

CVSS_48

R15

CVSS_49

R16

CVSS_50

R17

CVSS_51

R18

CVSS_52

R19

CVSS_53

T11

CVSS_54

T12

CVSS_55

T13

CVSS_56

T14

CVSS_57

T15

CVSS_58

T16

CVSS_59

T17

CVSS_60

T18

CVSS_61

T19

CVSS_62

T24

CVSS_63

T26

CVSS_64

U11

CVSS_65

U12

CVSS_66

U13

CVSS_67

U14

CVSS_68

U15

CVSS_69

U16

CVSS_70

U17

CVSS_71

U18

CVSS_72

U19

CVSS_73

V14

CVSS_74

V15

CVSS_75

V16

CVSS_76

V17

CVSS_77

V29

CVSS_78

W14

CVSS_79

W15

CVSS_80

W16

CVSS_81

W17

CVSS_82

W24

CVSS_83

W26

CVSS_84

W28

CVSS_85

AA24

CVSS_86

AA26

CVSS_87

AA27

CVSS_88

AC24

CVSS_89

AC26

CVSS_90

AC28

CVSS_91

AE24

CVSS_92

AE26

CVSS_93

AE28

ADC_GND12_1D4ADC_GND12_2E5ADC_GND12_3

F6

ADC_GNDA_1F5ADC_GNDA_2E3ADC_GNDA_3F1ADC_GNDA_4G5ADC_GNDA_5G3ADC_GNDA_6H5ADC_GNDA_7J5ADC_GNDA_8

K5

A4P

K3

AUD_AVSS12_1M6AUD_AVSS12_2

N6

B4P

L2

AUD_AVSS33_2P1AUD_AVSS33_3P2AUD_AVSS33_4P3AUD_AVSS33_5P4AUD_AVSS33_6

P5

AUD_HP_AVSS33

U1

DDRPLL_AGND

E21

HDMI_GNDA_1A2HDMI_GNDA_2C5HDMI_GNDA_3C6HDMI_GNDA_4C7HDMI_GNDA_5C8HDMI_GNDA_6C9HDMI_GNDA_7

C10

HDMI_GNDA_8D7HDMI_GNDA_9

D8

LVTX_VSS_1

AD21

LVTX_VSS_2

AD22

LVTX_VSS_3

AE23

LVTX_VSS_4

AG27

RPLL_AGND_1

B22

RPLL_AGND_2

C22

USB_GND_1

AD20

USB_GND_2

AJ19

USB_GND_3

AF19

VDAC_VSS12

AC6

VDAC_AVSS33_1

AD7

VDAC_AVSS33_2

AG4

FLI10620H-AA

IC100

LBADC_33

D24

LBADC_GND

E23

LBADC_IN1

C25

LBADC_IN2

C24

LBADC_IN3

B25

LBADC_IN4

B24

LBADC_IN5

A25

LBADC_IN6

A24

LBADC_RETURN

F22

2WIRE_M1_SDA

D21

2WIRE_M1_SCL

D20

2WIRE_M0_SCL

E20

2WIRE_M0_SDA

F20

2WIRE_S0_SDA

B12

2WIRE_S0_SCL

A12

2WIRE_S1_SDA

D12

2WIRE_S1_SCL

C12

2WIRE_S2_SDA

E11

2WIRE_S2_SCL

D11

PWM3

A13

PWM2

B13

PWM1

C13

PWM0

D13

RESET_N

D23

UART0_RXD

A19

UART0_TXD

B19

UART1_RXD

A20

UART1_TXD

B20

UART1_RTS

C20

UART1_CTS

C19

TRST

B26

TDI

B27

TDO

A27

TMS

A28

TCK

B28

EJ_RST_N

A29

EJ_DINT

B29

USB_FLAG

C29

USB_PWREN

C28

USBPHY_PADP

AJ20

USBPHY_PADM

AH20

USBPHY_VRES

AG20

IRDATA

C21

DFSYNC

E13

PPWR

A21

PBIAS

B21

22R980

SCART1_FB

0.1uFC9001

SCART1_VIN

0.1uFC9000

0

R935

3.3K R942

3.3K

R943

RTR030P02 Q900

S

D

G

0.1uF

C9004

0

R917

2491%R982

KRC103S

Q902

EBC

10K

R983

+3.3V_OTP

0.1uF

C1907

100

R909

100

R908

10

R977

510

R978

SIDE_CIN

USB20_1_DM

USB20_1_DP

0.1uF

16V

C955

0 R6039

0 R6040

M24512-WMW6

EAN43349001

STM512K

IC901-*1

3E22E14

VSS

1

E0

5

SDA6SCL

7

WC8VCC

AT24C512BW-SH-T

EAN43352801

ATMEL512K

IC901-*2

3A22A14

GND

1

A0

5

SDA6SCL7WP8VCC

75R981

75

R979

JP83

JP84

JP85

JP86

0

R6038

READY

0

R6037

READY

MIC2009YM6-TR

IC903

3

ENABLE

2

GND

4

FAULT/

1

VIN

6

VOUT5ILIMIT

GPROBE_TX

47

R90647R907

330uF

16V

C915

0.1uFC9014

0R1901

1uF

C9012

0R997

0R998

10uF

6.3V

C9011

+3.3V_CI

0.1uF

C9009

+5V

0R989

0R990

1uF

C9007

USBUP-DP USBUP-DM

2.4K R991

15K R992

33R993

0R994

15

R984

0R9000

4.7uF

C9006

15 R999

0.1uF

C9016

0.1uF

C9010

MLB-201209-0120P-N2

L910

0R996

MLB-201209-0120P-N2

L909

0R995

0

R987

4.7uF

C9017

10K

R986

4.7uF

C9013

10K R985

0.1uF C9015

UPD720114GA-9EU-A

IC904

1

VDD25OUT

2

VSSREG

3

LED44LED35LED26LED1

7

GREEN

8

AMBER

9

VDD33_1

10X111X212

VDD25_1

13

BUS_B

14

TEST

15

RREF

16

AVSS[R]

17

AVDD_1

18

AVSS

19

AVDD_2

20

VDD33_2

21

DMU

22

DPU

23

VSS_1

24

VDD25_2

25

DM126DP127VSS_228DM229DP230VDD33_331DM332DP333VDD25_334DM435DP436VSS_3

37

SYSRSTB

38

PPB4

39

CSB4

40

PPB3

41

CSB3

42

VSS_4

43

PPB2

44

CSB2

45

PPB1

46

CSB1

47

VBUSM

48

VDD33REG

FRC_PRST

BLUE-DP

BLUE-DM

USB20_1_DM

USB20_1_DP

USBUP-DM

USBUP-DP

100uF

16V

C911

0.1uF

16V

C904

READY

22uF

16V

C903

+1.2V_DOUGLAS_D

0

R952

4.7K

R962

47K

R961

+5V

0

READY

R963

JP88

1uF

C9102

JP89

2SC3052

Q903

EBC

SMAW200-05

P903

12345

RTR030P02

Q904

S

D

G

JP87

BLUE-DM

47K

R960

BLUE-DP

BLUETOOTH_ON/OFF

JTP-1127WEM

SW900

12

43

30MHz

X900

10pF

C9005

33pF

C9008

USB20-OC1

USB20-PWE1

USB20_1_DP

Nearby pin AD23Nearby pin F23

0xA6

LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

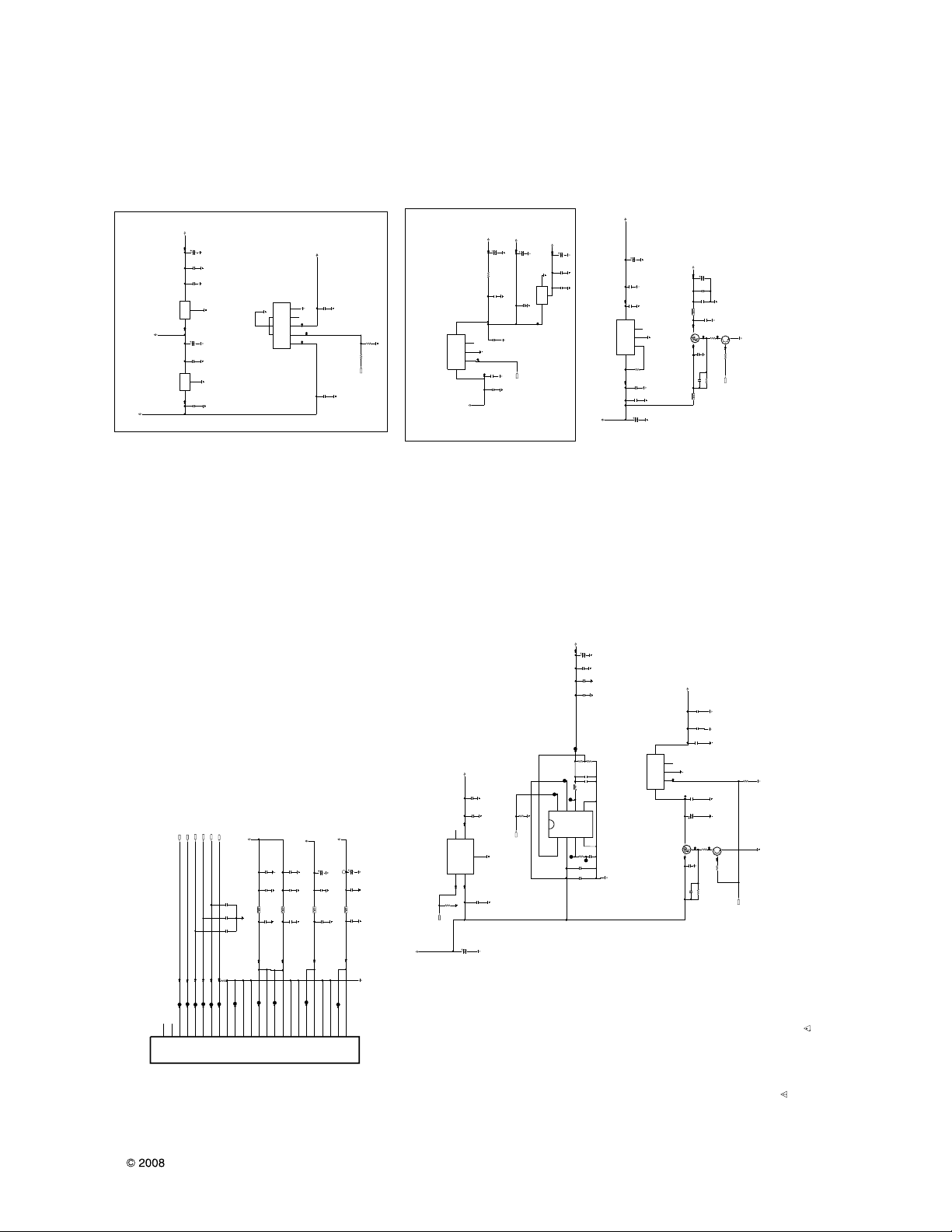

+1.8V_DOUGLAS_DDR

INV_CTL

+5V_CI

0.1uF

16V

C1042

+3.3V_STBY

PANEL_ERROR_DET

+1.8V

0.1uF

16V

C1046

KIA78R05F

IC1005

1

VIN

2

VC

3

VOUT

4

NC

5

GND1

6

GND2

P_+16V

1.26V_DOUGLAS_EN

0.1uF

50V

C1028

+3.3V_TUNER

0.1uF 16V

C1034

KIA7805AF

IC1008

2

C

3

O

1 I

220uF

16V

C1001

0.1uF

16V

C1049

120-ohm

L1003

0.1uF

16V

C1041

120-ohm

L1000

120-ohm

L1005

+3.3V_CI

0.1uF

16V

C1045

P_+5V

VBR_B

120-ohm

L1004

100

R1014

+1.2V_DOUGLAS_D

P_+12V

0.1uF

16V

C1044

+5V_TUNER

4.7K

R1017

P_+5V

+3.3V_DOUGLAS

3.3V_EN

0.1uF

16V

C1033

0.1uF

16V

C1011

P_+12V

CI_EN

AC_DET

1.8V_DOUGLAS_EN

0.1uF

16V

C1037

RL_ON/PWR_ONOFF

3.3V_EN

0.1uF

16V

C1009

0.1uF

16V

C1036

0.1uF

16V

C1000

0.1uF

C1023

0.1uF

16V

C1016

10uF

6.3V

C1018

10uF

6.3V

C1048

READY

10uF

6.3V

C1012

10uF

6.3V

C1017

10uF

6.3V

C1019

0.1uF

16V

C1029

0.1uF

16V

C1031

10uF

6.3V

C1039

0.1uF

16V

C1032

4.7uF

10V

C1053

READY

VBR_A

0.1uF

50V

C1038

1uFC1035

2SC3052

Q1000

EBC

1K

R1015

47KR1013

47K

R1018

+5V

+9V_MSP

RL_ON/PWR_ONOFF

120-ohm

L1009

0.1uF

16V

C1043

4.7uF

10V

C1047

100uF

16V

C1052

AZ1117H-1.8TRE1(EH13A)

IC1006

2

OUTPUT

3

INPUT

1

ADJ/GND

4.7uF

10V

C1002

0.1uF

16V

C1004

0.1uF

16V

C1022

0.1uF

16V

C1021

0.1uF

50V

C1020

4.7uF

10V

C1027

120-ohm

L1006

0.1uF

16V

C1015

0.1uF

16V

C1010

SMAW200-24C

EAG42050901

P1000

123456789

101112131415161718192021222324

KA7809ERTM

IC1003

2

G

3

O

1 I

4.7uF

C1908

4.7uF

C1909

0

R1019

ROHM

RTR030P02

Q1001

S

D

G

ROHM

BA18DD0WHFP

EAN42830901

IC1002

1

CTL

2

VCC

3

GND

4

VOUT5NC

3.9K R1026

470uF

16V

C1024

JP52

JP53

JP54

JP55

JP56

JP57

JP58

JP59

JP60

JP61

JP62

22uF

16V

C9019

22uF

16V

C9020

0.1uF

16V

C9021

READY

0

R1005

220uF

16V

C1030

47KR1020

2SC3052

Q1003

EBC

47K

R1021

1uFC1059

ROHM

RTR030P02

Q1002

S

D

G

1K

R1022

0.1uF

50V

C1058

3.9K R1027

T1670

T1675

T1674

10uF

16V

C1060

T1672

10uF

16V

C1064

10uF

16V

C1062

10uF

16V

C1061

T1671

15K1%

R1024

T1676

12K

R1023

560pF

50V

C1063

8.2K 1%

R1025

10K R1000

10uF

6.3V

C1065

22uF

16V

C1066

P_+5V

47K

R1040

47uF

25V

C1025

100uF

16V

C1026

100uF

16V

C1007

2.2uH

L1002

BA33BC0WFP-E2

EAN38066301

IC1001

1

2

3

4

5

BA33BC0WFP-E2

IC1007

1

2

3

4

5

BA33BC0WFP-E2

IC1004

1

2

3

4

5

100uF

16V

C1051

100uF

16V

C1054

100uF

16V

C1050

100uF

16V

C1055

100uF

16V

C1040

47uF

25V

C1067

BD9130EFJ-E2

IC1000

3

ITH

2

VCC

4

GND

1

ADJ

5

PGND6SW7PVCC8EN

Standby Voltage

Over current protection can be operated

5.0V For only C.I.

12V Line

Locate close to the TUNER

1.8V Regulator for TUNER

Standby Voltage to No Standby working 5V source

For reduce standy by current

LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

0.1uF

C1101

0.01uF

C1102

0.1uF

C1103

0.1uF

C1107

0.1uF

C1108

0.1uF

C1110

VREF_DDR

0.1uF

C1111

0.1uF

C1113

0.1uF

C1114

0.1uF

C1115

0.1uF

C1116

0.1uF

C1117

0.1uF

C1118

0.1uF

C1119

VTT_DDR

0.1uF

C1120

0.1uF

C1121

0.1uF

C1122

MT8280_DVDD33

M8280_DDRV

10uF

16V

C1124

4.7uF

10V

C1125

4.7uF

10V

C1126

4.7uF

10V

C1128

M8280_DDRV

10uF

16V

C1131

4.7uF

10V

C1137

M8280_DDRV

33

R1115

33

R1116

VTT_DDR

VREF_DDR

RCLK0-

RCLK0

RCLK1-

RCLK1

RCLK0-

RCLK0

RCLK1-

RCLK1

100 R1109

100 R1131

M8280_DDRV

0.1uF

C1100

0.1uF

C1144

0.1uF

C1133

0.1uF

C1141

0.1uF

C1140

0.1uF

C1132

0.1uF

C1139

0.1uF

C1138

0.1uF

C1130

0.1uF

C1129

0.1uF

C1135

0.1uF

50V

C1143

0.1uF

C1142

0.1uF

C1134

0.1uF

C1146

0.1uF

C1145

0.1uF

C1147

M8280_DDRV

0.1uF

C1148

0.1uF

C1149

0.1uF

C1150

0.1uF

C1151

0.1uF

C1152

0.1uF

C1153

10uF

16V

C1154

0.1uF

C1156

0.1uF

50V

C1157

0.1uF

C1159

4.7uF

10V

C1160

0

R1100

0

R1107

0

R1104

0

R1101

0.1uF

C1104

0.01uF

C1105

1/16W56AR1103

1/16W56AR1104

1/16W56AR1101

1/16W56AR1105

1/16W56AR1100

56

R1111

56

R1110

56

R1112

0.1uF

C1161

MT8280FG

IC502

DQ0C7DQ1B4DQ2D5DQ3A5DQ4B6DQ5C5DQ6C4DQ7D6DQ8G3DQ9E3DQ10D2DQ11E4DQ12D3DQ13E1DQ14F4DQ15H4DQ16U3DQ17U1DQ18U4DQ19T2DQ20T1DQ21T4DQ22V3DQ23V2DQ24Y4DQ25

AA3

DQ26

AB5

DQ27Y3DQ28W4DQ29

AA5

DQ30W5DQ31

AB4

DQS0_A3DQS0B3DQS1_C2DQS1C1DQS2_W1DQS2W2DQS3_

AA2

DQS3

AB2

REXTUPA6REXTDNB7RVREF_1P4RVREF_2

P5

RA0K3RA1L1RA2L2RA3M2RA4L3RA5P3RA6

K2

RA7M3RA8J2RA9

N4

RA10L4RA11J1RA12

R3

RCS_

J4

RAS_H1CAS_

H3

RWE_

P1

CKE

R2

RCLK0_

F1

RCLK0

F2

RCLK1_

AA6

RCLK1

AB6

DQM0A2DQM1B1DQM2Y1DQM3

AB1

BA0N2BA1

N1

RODT

G2

100uF

16V

C1158

100uF

16V

C1136

10uF

C1112

2.2uF

10V

C1162

220

R1108

1uF

C1106

10uF

C1163

68uF10V

C1123

330uF

4V

C1127

READY

MT8280_DVDD33

10K

R1113

0.1uF

C1164

HYB18TC256160BF-2.5

IC1100

J2

VREF

J8

CK

H2

VSSQ_2

B7

UDQS

N8A4P8

A8

L1

NC_4

L2

BA0

R8

NC_3

K7

RAS

F8

VSSQ_3

F3

LDM

P3

A9

M3A1N3

A5

K8

CK

R3

NC_5

L3

BA1

J7

VSSDL

L7

CAS

F2

VSSQ_4

B3

UDM

M2

A10/AP

K2

CKE

R7

NC_6

M7A2N7

A6

M8

A0

J1

VDDL

K3

WE

E8

LDQS

P7

A11

K9

ODT

A2

NC_1

N2A3P2

A7

H8

VSSQ_1

F7

LDQS

A8

UDQS

R2

A12

L8

CS

E2

NC_2

E7

VSSQ_5D8VSSQ_6D2VSSQ_7A7VSSQ_8B8VSSQ_9B2VSSQ_10

P9

VSS_1N1VSS_2J3VSS_3E3VSS_4A3VSS_5

G9

VDDQ_1G7VDDQ_2G3VDDQ_3G1VDDQ_4E9VDDQ_5C9VDDQ_6C7VDDQ_7C3VDDQ_8C1VDDQ_9A9VDDQ_10

R1

VDD_1M9VDD_2J9VDD_3E1VDD_4A1VDD_5

B9

DQ15B1DQ14D9DQ13D1DQ12D3DQ11D7DQ10C2DQ9C8DQ8F9DQ7F1DQ6H9DQ5H1DQ4H3DQ3H7DQ2G2DQ1G8DQ0

HYB18TC256160BF-2.5

IC1101

J2

VREF

J8

CK

H2

VSSQ_2

B7

UDQS

N8A4P8

A8

L1

NC_4

L2

BA0

R8

NC_3

K7

RAS

F8

VSSQ_3

F3

LDM

P3

A9

M3A1N3

A5

K8

CK

R3

NC_5

L3

BA1

J7

VSSDL

L7

CAS

F2

VSSQ_4

B3

UDM

M2

A10/AP

K2

CKE

R7

NC_6

M7A2N7

A6

M8

A0

J1

VDDL

K3

WE

E8

LDQS

P7

A11

K9

ODT

A2

NC_1

N2A3P2

A7

H8

VSSQ_1

F7

LDQS

A8

UDQS

R2

A12

L8

CS

E2

NC_2

E7

VSSQ_5D8VSSQ_6D2VSSQ_7A7VSSQ_8B8VSSQ_9B2VSSQ_10

P9

VSS_1N1VSS_2J3VSS_3E3VSS_4A3VSS_5

G9

VDDQ_1G7VDDQ_2G3VDDQ_3G1VDDQ_4E9VDDQ_5C9VDDQ_6C7VDDQ_7C3VDDQ_8C1VDDQ_9A9VDDQ_10

R1

VDD_1M9VDD_2J9VDD_3E1VDD_4A1VDD_5

B9

DQ15B1DQ14D9DQ13D1DQ12D3DQ11D7DQ10C2DQ9C8DQ8F9DQ7F1DQ6H9DQ5H1DQ4H3DQ3H7DQ2G2DQ1G8DQ0

BD35331F-E2

IC1102

3

VTTS

2EN4

VREF

1

GND

5

VDDQ6VCC7VTT_IN8VTT

RDQ[3]

RDQ[4]

RDQ[5]

RDQ[6]

RDQ[7]

RDQ[8]

RDQ[9]

RDQ[10]

RDQ[11]

RDQ[12]

RDQ[13]

RDQ[14]

RDQ[15]

RDQ[16]

RDQ[17]

RDQ[18]

RDQ[19]

RDQ[20]

RDQ[0]

RDQ[1]

RDQ[2]

RDQ[21]

RDQ[22]

RDQ[23]

RDQ[24]

RDQ[25]

RDQ[26]

RDQ[27]

RDQ[28]

RDQ[29]

RDQ[30]

RDQ[31]

RDQS0-

RDQS0

RDQS1-

RDQS1

RDQS2-

RDQS2

RDQS3-

RDQS3

RA[0]

RA[1]

RA[2]

RA[3]

RA[4]

RA[5]

RA[6]

RA[7]

RA[8]

RA[9]

RA[10]

RA[11]

RA[12]

RA[0]

RA[1]

RA[2]

RA[3]

RA[4]

RA[5]

RA[6]

RA[7]

RA[8]

RA[9]

RA[10]

RA[11]

RA[12]

RA[0]

RA[1]

RA[2]

RA[3]

RA[4]

RA[5]

RA[6]

RA[7]

RA[8]

RA[9]

RA[10]

RA[11]

RA[12]

RA[0]

RA[2]

RA[3]

RA[4]

RA[5]

RA[6]

RA[7]

RA[8]

RA[9]

RA[10]

RA[11]

RA[12]

RDQ[0]

RDQ[1]

RDQ[2]

RDQ[3]

RDQ[4]

RDQ[5]

RDQ[6]

RDQ[7]

RDQ[8]

RDQ[9]

RDQ[10]

RDQ[11]

RDQ[12]

RDQ[13]

RDQ[14]

RDQ[15]

RDQ[16]

RDQ[17]

RDQ[18]

RDQ[19]

RDQ[20]

RDQ[21]

RDQ[22]

RDQ[23]

RDQ[24]

RDQ[25]

RDQ[26]

RDQ[27]

RDQ[28]

RDQ[29]

RDQ[30]

RDQ[31]

RDQS0

RDQS1

RDQS0-

RDQS1-

RDQS2

RDQS3

RDQS2-

RDQS3-

RDQM[0]

RDQM[1]

RDQM[2]

RDQM[3]

RDQM[0]

RDQM[1]

RDQM[2]

RDQM[3]

RBA[0]

RBA[1]

RBA[0]

RBA[1]

RBA[0]

RBA[1]

RBA[0]

RBA[1]

RCS-

RRAS-

RCAS-

RWE-

RCKE

RODT

RCKE

RODT

RCS-

RRAS-

RCAS-

RWE-

RODT

RCS-

RRAS-

RCAS-

RWE-

RCKE

RCS-

RRAS-

RCAS-

RA[1]

RWE-

RODT

RCKE

Bottom Side DDR2

LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

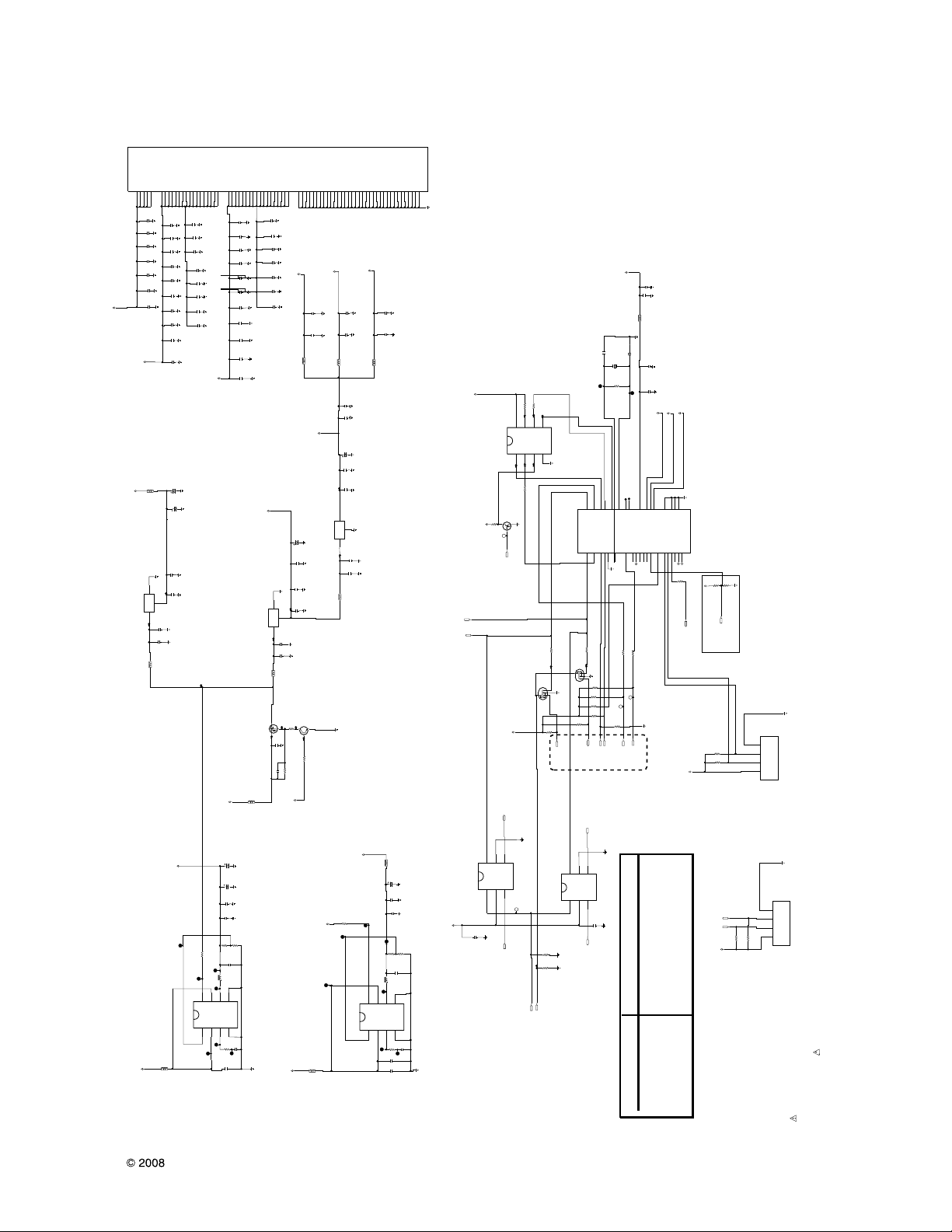

TP1207

TP1208

TP1209

TP1210

TP1211

10K

R1204

MBW3216-501TF

L1202

TP1212

TP1213

15K1%R1205

1/10W

4.7K

1%

R1206

2.2uH

L1200

22uF

C1201

22uF

C1210

10K

R1200

680pF

50V

C1200

MT8280_CORE_1.0V

M8280_DDRV

0.1uF

16V

C1211

MT8280_DVDD33

0.1uF

16V

C1213

0.1uF 16V

C1214

AZ1117H-3.3

$0.0495

IC1204

2

OUTPUT

3

INPUT

1

ADJ/GND

MT8280_AV33

0.1uF 16V

C1215

AZ1117H-3.3

$0.0495

IC1205

2

OUTPUT

3

INPUT

1

ADJ/GND

22uF

16V

C1216

10uF

16V

C1218

10uF

16V

C1219

0.1uF

16V

C1221

AVDD12_SYSPLL

10uF

16V

C1222

0.1uF 16V

C1223

AZ1117H-1.2TRE1

$0.055

IC1206

1

ADJ/GND

2

OUT

3

IN

120-ohm

L1203

120-ohm

L1204

120-ohm

L1205

120-ohm

L1206

0.1uF

16V

C1226

4.7uF

10V

C1227

0.1uF

16V

C1230

1uF

16V

C1232

4.7K R1207

22uF

16V

C1234

4.7uF

10V

C1235

MT8280_DVDD33

0.1uF

16V

C1237

0.1uF

16V

C1238

0.1uF

16V

C1239

0.1uF

16V

C1240

0.1uF

16V

C1241

1uF

16V

C1242

4.7uF

10V

C1243

120-ohm

L1207

120-ohm

L1208

M8280_DDRV

0.1uF

16V

C1244

0.1uF

16V

C1245

0.1uF

16V

C1246

0.1uF

16V

C1247

0.1uF

16V

C1248

0.1uF

16V

C1249

0.1uF

16V

C1250

0.1uF

16V

C1251

0.1uF

16V

C1252

0.1uF

16V

C1253

0.1uF

16V

C1254

0.1uF

16V

C1255

1uF

16V

C1256

1uF

16V

C1257

4.7uF

10V

C1258

1uF

16V

C1259

1uF

16V

C1260

0.1uF

16V

C1261

0.1uF

16V

C1262

0.1uF

16V

C1263

0.1uF

16V

C1264

0.1uF

16V

C1265

0.1uF

16V

C1266

0.1uF

16V

C1267

0.1uF

16V

C1268

0.1uF

16V

C1269

0.01uF

50V

C1202

0.01uF

50V

C1203

0.01uF

50V

C1270

0.01uF

50V

C1271

0.01uF

50V

C1272

0.01uF

50V

C1273

0.01uF

50V

C1274

0.01uF

50V

C1275

1uF

16V

C1276

4.7uF

10V

C1277

MT8280_CORE_1.0V

120-ohm

L1209

10uF

16V

C1278

1uF

16V

C1279

120-ohm

L1210

120-ohm

L1211

0.1uF

16V

C1280

4.7uF

10V

C1281

0.1uF

16V

C1282

4.7uF

10V

C1283

0.1uF

16V

C1284

4.7uF

10V

C1285

AVDD12_DMPLL

AVDD12_MJCPLL

AVDD12_DMPLL

AVDD12_MJCPLL

AVDD12_SYSPLL

MT8280_AV33

120-ohm

L1212

0.1uF 16V

C1286

10uF

16V

C1287

1uF

16V

C1288

10uF

16V

C1289

TP1225

27.00000MHz

X1200

820K

READY

R1211

MX25L4005AM2C-12G

IC1201

3

WP#

2SO4

GND

1

CS#

5SI6

SCLK7HOLD#8VCC

MT8280_DVDD33

0

R1212

10K

R1213

MT8280_FLASH_WP

10K

R1214

KRC103S

Q1200

EBC

MT8280_DVDD33

10K

R1215

READY

10K

R1216

MT8280_DVDD33

0 R1217

SDA2_3.3V

SCL2_3.3V

0 R1218

0

R1219

0 R1220

READY

0 R1221

READY

BSS83

Q1202

READY

S

B

D

G

BSS83

Q1201

READY

S B D

G

UART_COMM_ON

DEBUG_SEL

TP1227

NLASB3157DFT2G

IC1208

3B02

GND

4

A

1

B1

6

SELECT

5

VCC

NLASB3157DFT2G

IC1207

3B02

GND

4

A

1

B1

6

SELECT

5

VCC

GPROBE_TX

GPROBE_RX

Gprobe_MT8280Debug_TX

Gprobe_MT8280Debug_RX

MT8280_DVDD33

4.7K

R1223

4.7K

R1224

GPROBE_TX

GPROBE_RX

MT8280_JTDO

MT8280_PWN

MT8280_PRST

MT8280_DVDD33

4.7K

R1227

4.7K

R1228

READY

4.7K

R1229

READY

4.7K

R1230

AVDD12

MT8280_DVDD33

P_+5V

0 R1235

READY

MT8280DWON_RX

MT8280DWON_TX

MT8280DWON_RX

MT8280DWON_TX

MT8280_DVDD33

4.7K

R1236

4.7K

R1237

4.7K

R1226

4.7K

R1225

0.1uF

C1292

0.1uF

C1293

MT8280_DVDD33

4.7K

R1231

4.7K

R1234

12K

1%

R1239

10uF

16V

C1295

330pF

50V

C1294

15K

1%

R1238

18K

R1240

10uF

16V

C1212

2.2uH

L1213

35362-0410

P1203

READY

1

2

3

4

35362-0410

P1202

READY

1

2

3

4

120-ohm

L1214

1uFC1204

47K

R1241

47KR1202

0.1uF

50V

C1205

ROHM

RTR030P02

Q1203

S

D

G

2SC3052

Q1204

EBC

P_+5V

MT8280FG

IC502

RXD

AB21

SFDIB8PRST_

W18

PWN_

Y18

EFUSE

W15

NS_XTALI

V21

SDA

AB20

JTMS

Y22

JTRST

W21

JRTCK

AA22

JTCK

Y21

JTDI

W20

JTDO

AA21

INTO_

V17

GPIO0Y6GPIO1Y7GPIO2

Y16

GPIO3

W16

GPIO4

W17

GPIO5

V16

TXD

AA20

SCL

Y19

SFCS

A7

SFCK

D8

SFDO

A8

NS_XTALO

V22

TN0

U21

TP0

U22

AVDD33_XTAL

V20

AVDD12_SYSPLL

T20

AVDD12_MJCPLL

T22

AVDD12_DMPLL

T21

AVSS33_XTAL

U20

AVSS_PLL_1

R20

AVSS_PLL_2

R21

AVSS_PLL_3

R22

MT8280FG

IC502

DVDD33_1C8DVDD33_2D9DVDD33_3W7DVDD33_4

W19

DVDD33_5

Y20

DVDD18_1A1DVDD18_2B2DVDD18_3C6DVDD18_4D7DVDD18_5F3DVDD18_6G1DVDD18_7G4DVDD18_8H2DVDD18_9M1DVDD18_10M4DVDD18_11N3DVDD18_12U2DVDD18_13V1DVDD18_14V4DVDD18_15W3DVDD18_16

AA4

DVDD18_17

AB3

DVDD10_1

J10

DVDD10_2

J13

DVDD10_3

J14

DVDD10_4K9DVDD10_5

K11

DVDD10_6

K12

DVDD10_7

K14

DVDD10_8

L10

DVDD10_9

L13

DVDD10_10

M10

DVDD10_11

M13

DVDD10_12N9DVDD10_13

N11

DVDD10_14

N12

DVDD10_15

N14

DVDD10_16

P10

DVDD10_17

P13

DVDD10_18

P14

DVSS_1A4DVSS_2B5DVSS_3C3DVSS_4D1DVSS_5D4DVSS_6E2DVSS_7J3DVSS_8J9DVSS_9

J11

DVSS_10

J12

DVSS_11K1DVSS_12K4DVSS_13

K10

DVSS_14

K13

DVSS_15L9DVSS_16

L11

DVSS_17

L12

DVSS_18

L14

DVSS_19M9DVSS_20

M11

DVSS_21

M12

DVSS_22

M14

DVSS_23

N10

DVSS_24

N13

DVSS_25P2DVSS_26P9DVSS_27

P11

DVSS_28

P12

DVSS_29R1DVSS_30R4DVSS_31T3DVSS_32W6DVSS_33Y2DVSS_34Y5DVSS_35

AA1

100uF

16V

C1236

100uF

16V

C1231

100uF

16V

C1228

100uF

16V

C1229

10K

R1201

+5V

PANEL_VCC_EN

P_+5V

22uF

16V

C1217

22uF

16V

C1220

BD9130EFJ-E2

IC1202

3

ITH

2

VCC

4

GND

1

ADJ

5

PGND6SW7PVCC8EN

BD9130EFJ-E2

IC1203

3

ITH

2

VCC

4

GND

1

ADJ

5

PGND6SW7PVCC8EN

10K

R1242

20pF

C1291

20pF

C1290

470uF

16V

C1224

470uF

16V

C1225

470uF

16V

C1233

857mA

281.685mA

6.789mA

16mA

551mA

IO POWER

DDR POWER

CORE POWER

HIGH : FLASH MODE

LOW : DRAM /DownLoad MODE

Selete low = B0

Selete high = B1

Commuication Mode

GProbe Debug Mode

Mt8280 Debug Mode

Douglas and MT8280FG

DEBUG_SEL

UART_COMM_ON

Debug port no connection

High

Low

From Douglas

Low

MT8280_UART1

For Debugging

For DownLoad

MT8280_UART0

temp:105

LGE Internal Use Only

Jul., 2008

Printed in KoreaP/NO : MFL48937304
