LG 50PM970S Quick Guide

User Guide

This is a User Guide installed on the TV.

The contents of this guide are subject to change without prior notice for quality improvement.

To view programme information

Wheel(OK) Info.

Displays information on current programme and / or current time, etc.

Image shown may differ from your TV.

Current time

		Sat, 1 Jan 12:02
	Prev./Next	Pr. Change	Schedule
14:00	16:30

Programme name or external	Detail information on programme
device name	(for digital broadcast)

To set favourite programmes

HOME Settings SETUP Programme Edit

1Move to the desired programme and press Wheel(OK) button. Programme is selected.

2Press Set as Favourite.

3Select the desired Favourite Pr. Group.

4Select OK. Favourite is set.

To use Favourite

HOME Pr. List

Programme list will appear. Selects the desired preset favourite programme from Favourite List A to D.

HOME Programme Guide

[In Digital Mode Only]

Obtains information about programmes and airing times. Obtains programme information and schedules viewing / recording.

[Image shown may differ from your TV.]

Programme Guide

ALL

Today 10 Aug. 2011 7:00

1/2 page

Press Wheel(OK) button after moving to a programme of your choice to view or view / record.

-24H	+24H	Select schedule
		by date

		After viewing the schedule list, makes
Schedule List	FAV Favourite Pr. Group	revisions or deletions.

Makes schedule reservation by selecting date / time / programme. Makes repeat schedule reservation.

Automatically Setting Up Programme

HOME Settings SETUP Auto Tuning

Automatically tunes the programmes.

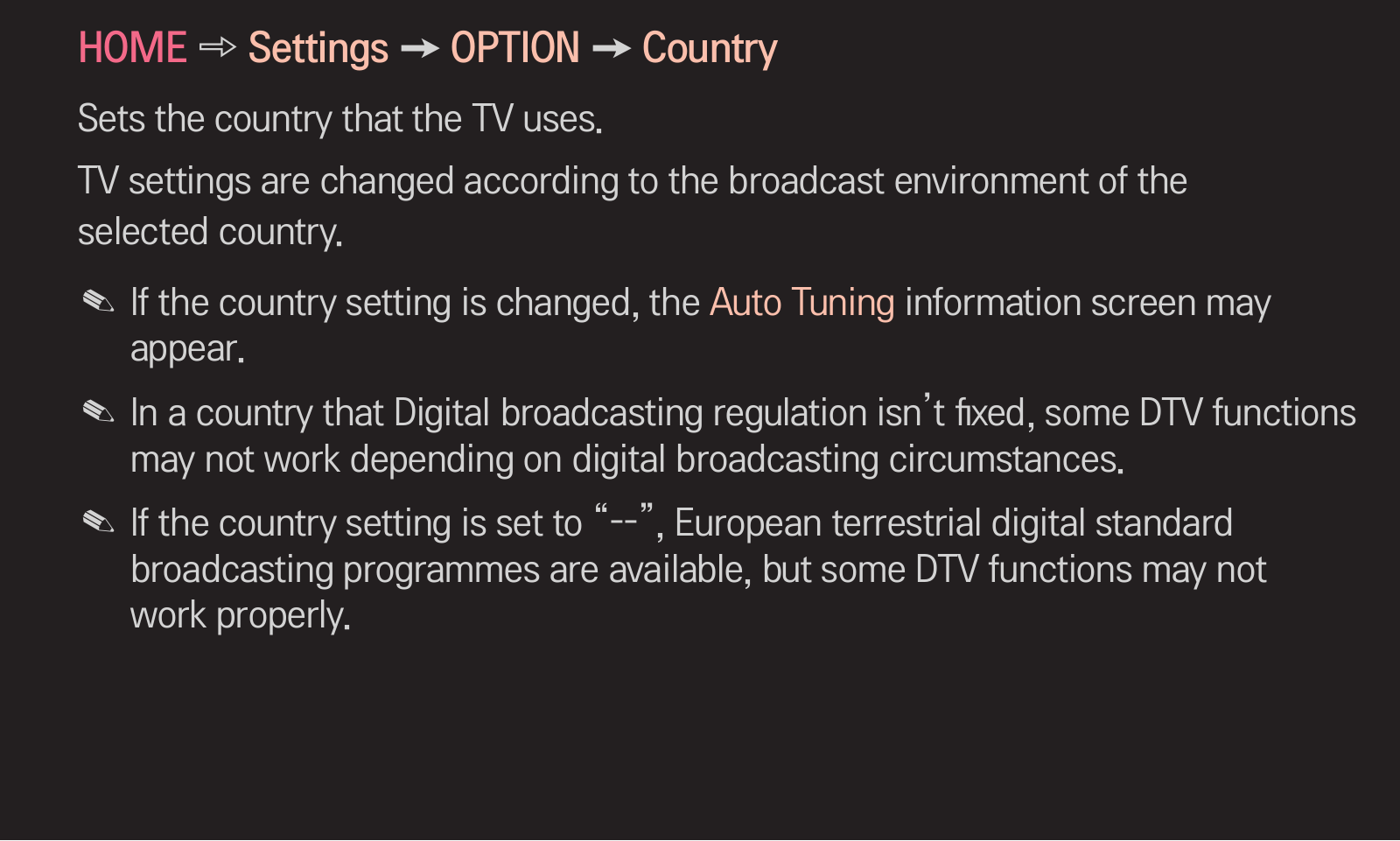

1 Select Country where the TV is used. Programme settings change depending on the country you choose.

2 Initiate Auto Tuning.

3 Select Input Source of your choice.

4 Set Auto Tuning following screen instructions.

If Input Source is not connected properly, programme registration may not work.

Auto Tuning only finds programmes that are currently broadcasting.

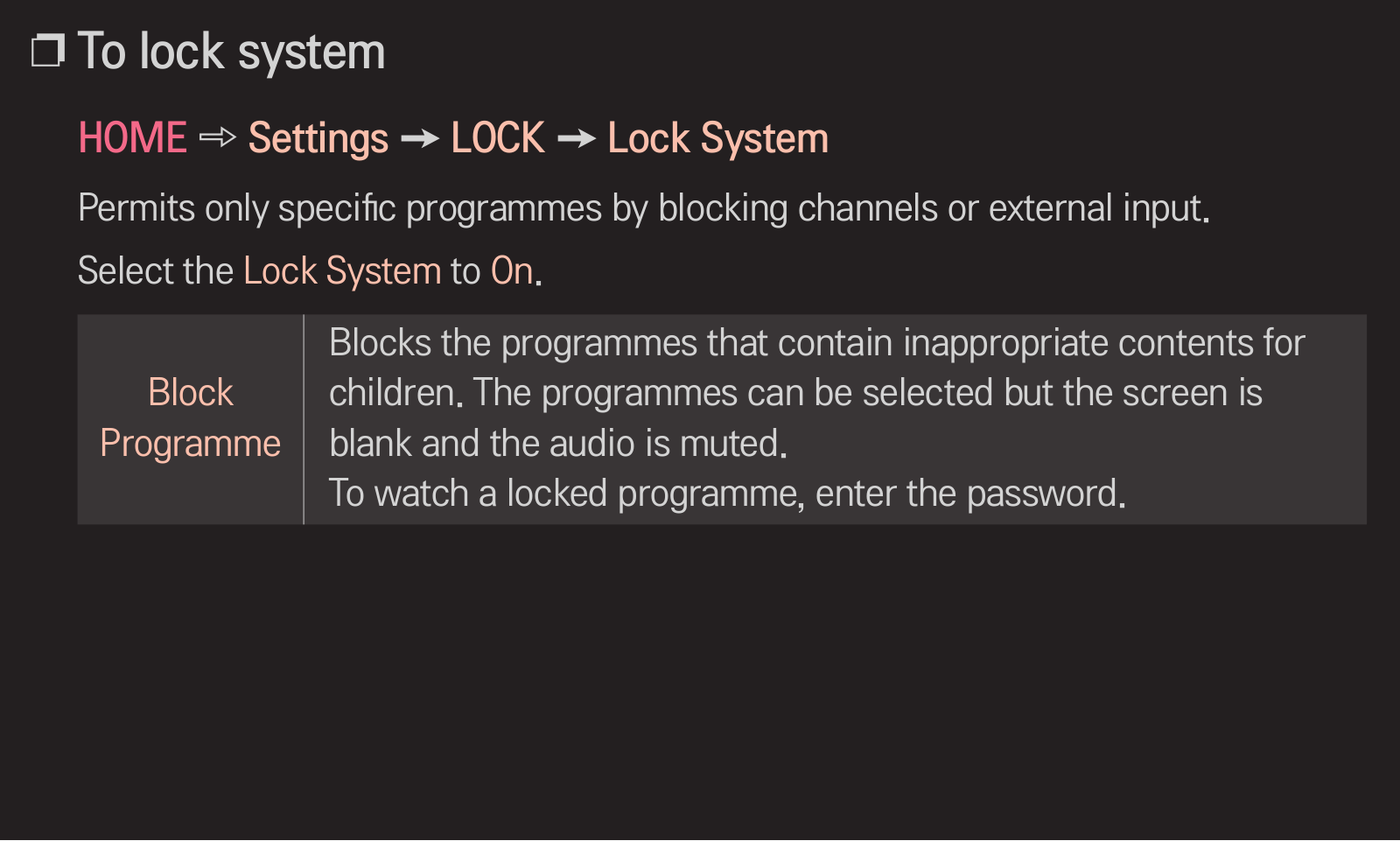

If Lock System is turned on, a pop-up window will appear asking for password.

Cable DTV Setting option

When searching for programmes using FULL setting it can take a long time.

The following values are needed in order to search all available programmes quickly and correctly. The commonly used values are provided as “default”.

Frequency

Symbol rate

Modulation

Network ID

Start Frequency

End Frequency

Enter a user-defined frequency.

Speed at which a device such as modem sends symbols to a programme.

Loading of audio or video signals onto carrier. Unique identifier allocated for each user. Enter a user-defined start frequency range. Enter a user-defined end frequency range.

Satellite Setting Option

Satellite

LNB Frequency

Transponder

22KHz Tone

Select your desired Satellite.

Select one value from 9750/10600, 9750/10750, 9750, 10600,10750, 5150. If you select 9750/10600,

9750/10750(MHz), 22KHz Tone is disabled. If you cannot find the LNB frequency value from the list, select User and manually enter the frequency.

Select the transponder you want to tune.

When using 22KHz Tone switch, select A or B. If you use 22KHz Tone, Unicable and Motor Type are disabled.

LNB Power

DiSEqC

Unicable Settings

Motor Type

To enable the power supply for the LNB, select On. If you select Off, Motor Type is disabled.

WhenusingDiSEqC,selectoneoptionfromA~D/ToneA~B. If you use DiSEqC, Unicable and Motor Type are disabled.

Select On to use Unicable and set the Unicable in the Unicable Setting menu. When Unicable is enabled, 22KHz Tone, DiSEqC, Motor Type are disabled.

Select Motor Type to use Motor and set the Motor in the Motor Setting menu. When Motor is enabled, 22KHz Tone, DiSEqC, Unicable are disabled.

If you set satellite to others, you must add a transponder using Manual Tuning.

When selecting 22KHz Tone and DiSEqc, you must connect them in the same position as displayed on the OSD.

If you delete a Satellite, all programmes stored in the Satellite are deleted.

Motor Setting Option

• DiSEqC 1.2 : Control motor to change satellite dish position.

Drive Direction		Select the direction in which you want to move the motor.
		Two modes are available : Step and Continuous.
		• Step : The motor moves based on the value you enter
Drive Mode		(from 1 to 128).
		• Continuous : The motor moves continuously until you
		press the Stop.
Test TP		Select the test TP you want to tune.

	Setthemotormovementtoeastorwesttohavethemotor
	move only within the direction set.
Set Limit	• On : You can limit the movement to the current
	direction by selecting the West/East.
	• Off : You can cancel the limit you set.
Go To Zero	You can move the motor to Zero.
Store	You can save the motor’s current direction.

• USALS : Set your current location(Longitude/Latitude).

Cable DTV Setting

HOME Settings SETUP Cable DTV Setting

[In Cable, Cable & Satellite mode only]

Service Operator

Channel Auto

Update

Set Service Operator.

When changing Service Operator, the existing saved programmes are deleted and Auto Tuning runs.

•On : You can update information for all the programmes that can be updated, including the programme currently being watched.

•Off : You can only update information for the programme currently being watched.

The range that a user can select from the Service Operator menu differs depending on number of Service Operator supported by each country.

IfnumberofsupportedServiceOperatorforeachcountryis1,corresponding function becomes inactive.

You can not select the Cable DTV Setting when the service operator is set to “Ziggo”.

Satellite Setting

HOME Settings SETUP Satellite Setting

[In Satellite, Antenna & Satellite, Cable & Satellite mode only] You can add/delete/set the satellite you want.

Tivu Programme List Update

HOME Settings SETUP Tivu Programme List Update

[Only Italy]

[In Satellite, Antenna & Satellite, Cable & Satellite mode only]

It updates the changed Programme List information by based on country broadcasting circumstance and satellite.

It updates the Programme List when the TV turn off all the time. After updates, the Programme List may be changed. If not want, select Off.

Programme List Update

SETTINGS SETUP Programme List Update

[In Satellite, Antenna & Satellite, Cable & Satellite mode only]

It updates the changed Programme List information by based on country broadcasting circumstance and satellite.

It updates the Programme List when the TV turn off all the time. After updates, the Programme List may be changed. If not want, select Off.

For Austria, Germany, Poland and Russia, this function is supported when Service Operator is not set to None.

Regional Programme

HOME Settings SETUP Regional Programme

[Only Austria]

Set region broadcasting and watch region broadcasting at a specific time.To set Service Operator of Satellite, ORS must be selected.

To use Manual Tuning

HOME Settings SETUP Manual Tuning

Adjusts programmes manually and saves the results.

For digital broadcasting, signal strength and signal quality can be checked.

To edit programmes

HOME Settings SETUP Programme Edit

Edits the saved programmes.

Set as favourite programme, block/unblock programme, skip programme etc. of the selected programme.

Wheel(OK) (Screen Remote Control) (or press the TEXT button.)

[depending on the country]

Teletext is a free service provided by the TV station that offers text-based information about TV programmes, news and weather.

The teletext decoder of this TV can support the SIMPLE, TOP and FASTEXT systems.

Colour button		To select the preceding or following page.
Number button		Enters the page number to move to.
		To select the preceding or following page.

Special Teletext Function

Wheel(OK) (Screen Remote Control) (or press the T. OPT button.)

Select the Text Option menu.

Index

Time

Hold

Select each index page.

When viewing a TV programme, select this menu to display the time at the top right hand corner of the screen.

Stops the automatic page change which will occur if a teletext page consists of 2 or more sub pages.

Reveal

Update

Language

Select this menu to display concealed information, such as solutions to riddles or puzzles.

Displays the TV picture on the screen while waiting for a new teletext page.

[In Digital Mode Only] Sets Teletext language.

Wheel(OK) (Screen Remote Control) (or press the TEXT button.)

[In UK/Ireland only]

The TV gives you access to digital teletext which gives much better text, graphics etc. than older analogue teletext. This digital teletext can access special digital teletext services and specific services which broadcast digital teletext.

Teletext within digital service

1Press the numeric or button to select a certain service which broadcasts digital teletext.

2Follow the indications on digital teletext and move onto the next step by pressing Wheel(OK), TEXT, Navigation, Red, Green, Yellow, Blue or NUMBER buttons etc..

3Press the number or button to use a different digital teletext service.

Teletext in digital service

1Press the numeric or button to select a certain service which broadcasts digital teletext.

2Press the TEXT or colour button to switch on teletext.

3Follow the indications on digital teletext and move onto the next step by pressing Wheel(OK), Navigation, Red, Green, Yellow, Blue or NUMBER buttons etc..

4Press the TEXT or colour button to switch off digital teletext and return to TV viewing.

To Set MHP Auto Start

HOME Settings OPTION MHP Auto start

[Depending on model] [In Italy only]

This function Auto Starts the MHP function, Italian data broadcast. Use in programme with MHP signal. Data broadcast function may not be smooth due to situation from the broadcasting station.

What is HbbTV?

[Depending on model] [Depending on Country]

The HbbTV or Hybrid Broadcast Broadband TV replaces existing analogue teletext services with a new-generation, web-based interactive broadcasting service. Similar to digital text and EPG, HbbTV can be used to provide a variety of services in addition to standard broadcast content.

The functionality and quality of the HbbTV service may vary depending on your broadcast service provider.

This function may not be available in some countries.

In France, the HbbTV service is available via terrestrial broadcasting. In Germany, it is available via terrestrial, cable and satellite broadcasting.

For more information about HbbTV, visit www.hbbtv.org.

To use HbbTV

HOME Settings OPTION HbbTV

Sets HbbTV to On. Enjoy a variety of content on the HbbTV service.

The service may be limited when the device is not connected to the internet.

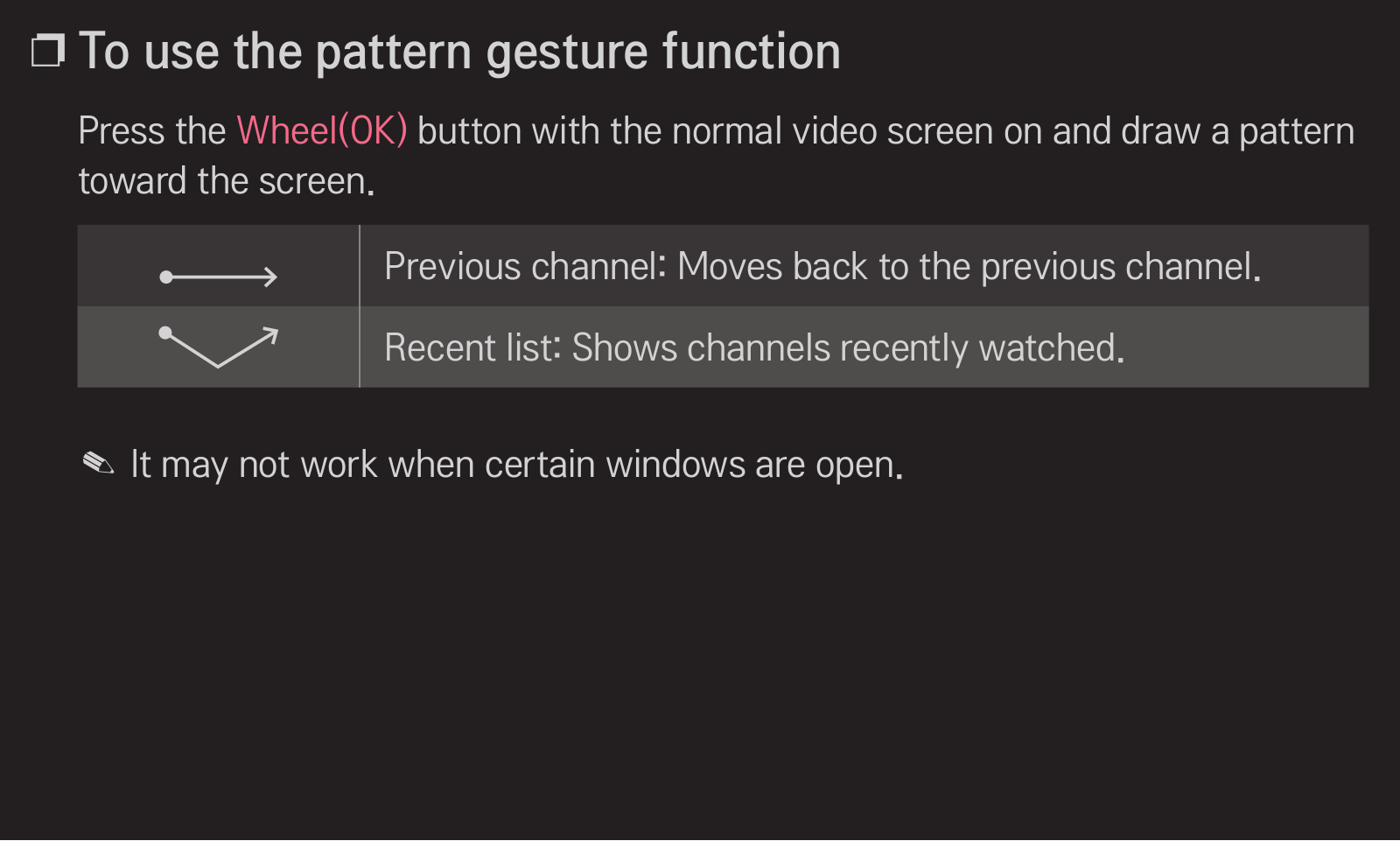

If HbbTV is set to On, the pattern gesture function of the Magic Remote Control does not work.

If HbbTV is set to On, the PenTouch function does not work. (Only PenTouch TV.)

HOME Settings OPTION Data Service

[Depending on country]

This function allows users to choose between MHEG (Digital Teletext) and Teletext if both exist at the same time.

If only one of them exists, either MHEG or Teletext is enabled regardless of which option you selected.

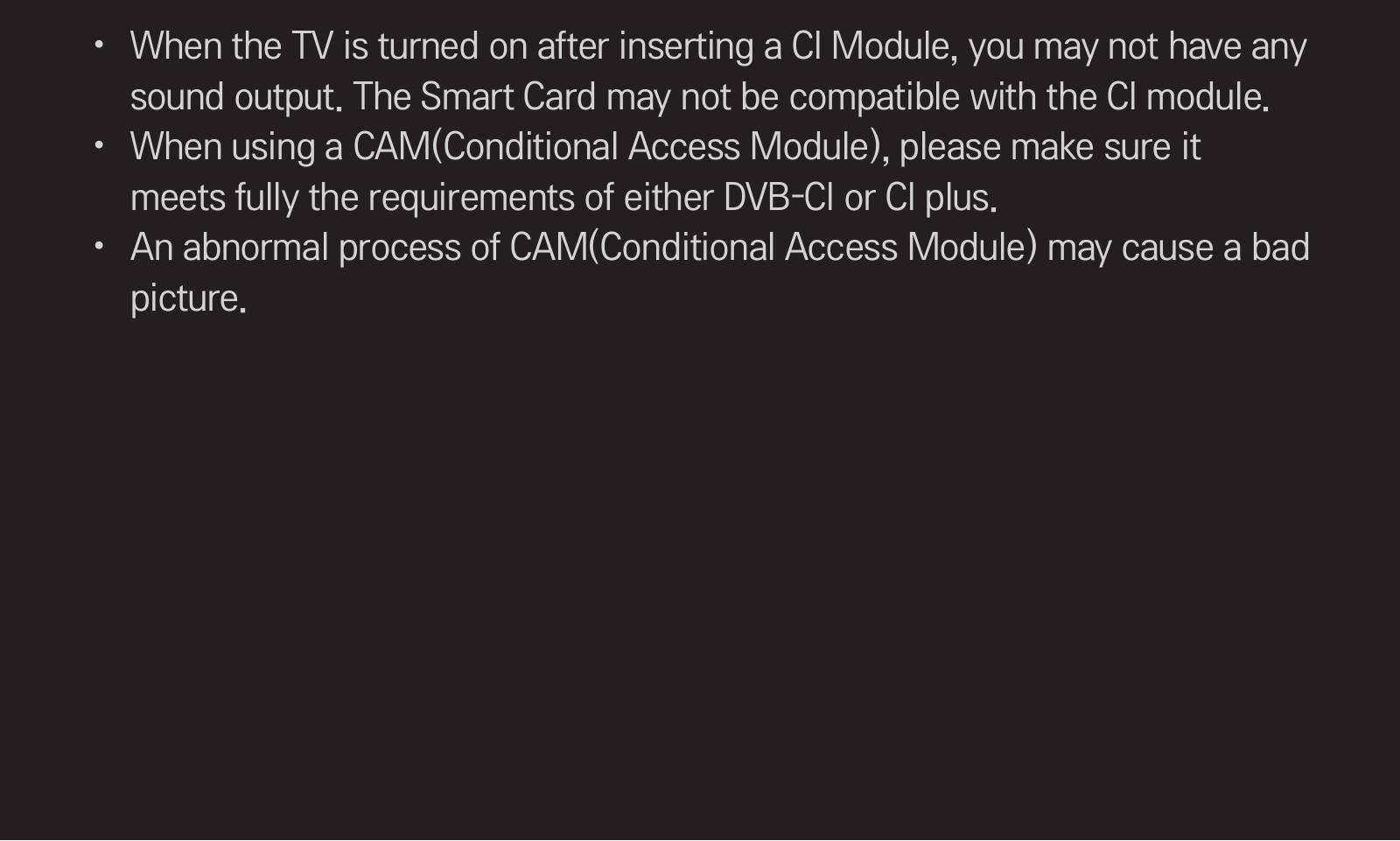

HOME Settings SETUP CI Information

•This function enables you to watch some encrypted services (pay services).

•If you remove the CI Module, you cannot watch pay services.

•CI (Common Interface) functions may not be possible depending upon the country broadcasting circumstances.

•When the module is inserted into the CI slot, you can access the module menu.

•To purchase a module and smart card, contact your dealer.
