LG 50PH6700 Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

PLASMA TV

SERVICE MANUAL

CHASSIS : PA32A

MODEL : 60PH6700 60PH6700-TD

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL67685002 (1302-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ........................................................................ 3

SPECIFICATION ....................................................................................... 4

ADJUSTMENT INSTRUCTION ................................................................ 6

BLOCK DIAGRAM .................................................................................. 11

EXPLODED VIEW .................................................................................. 12

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

Only for training and service purposes

- 2 -

AC Volt-meter

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental sh orts of the cir cui try that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 M When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Ω and 5.2 MΩ.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Good Earth Ground such as WATER PIPE,

To Instrument's exposed METALLIC PARTS

CONDUIT etc.

Only for training and service purposes

- 3 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

1. Application range

This spec sheet is applied all of the PDP TV with PA32A chassis.

2. Requirement for Test

Each part is tested as below without special appointment. (1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C (2) Relative Humidity: 65 % ± 10 % (3) Power Voltage

: Standard input voltage (AC 100-240 V~, 50/60 Hz) * Standard Voltage of each products is marked by models.

(4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with

BOM.

(5) The receiver must be operated for about 5 minutes prior to the adjustment.

3. Test method

(1) Performance: LGE TV test method followed (2) Demanded other specification

- Safety : CE, IEC specification

- EMC : CE, IEC

4. Module General Specification

- 60" 3D FHD

No Item Specication Remark

1 Display Screen Device 152 cm (60 inch) wide Color Display Module PDP

2 Aspect Ratio 16:9

3 PDP Module PDP60R5####,

RGB Closed (Well) Type, Glass Filter (43%) Pixel Format: 1920 horiz. By 1080 ver.

4 Operating Environment 5) Temp. : 0 ~ 40 deg

6) Humidity : 20 ~ 80%

5 Storage Environment 7) Temp. : -20 ~ 60 deg

8) Humidity : 10 ~ 90 %

6 Input Voltage AC220 ~ 240V, 50/60Hz Maker LG

.

LGE SPEC

Only for training and service purposes

- 4 -

5. Model General Specification

No Item Specication Remark

1 Market Australia, New Zealand, Indonesia, Malaysia,

Singapore, Vietnam, South Africa, Iran, Kenya, Israel

2 Broadcasting system 1) PAL BG

2) PAL DK

3) PAL I / II

4) DVB T

3 Receiving system Analog : Upper Heterodyne

Digital : COFDM

4 AV (1EA- Comp Hybrid) PAL

5 Component Input (1EA) Y/Cb/Cr, Y/ Pb/Pr

6 HDMI Input (3EA) HDMI-PC

HDMI-DTV HDMI-MHL

7 Audio Input (1EA) Component + AV(Hybrid) L/R Input

8 SPDIF Out (1 EA) SPDIF Out

9 USB(3EA-FHD / 2 EA-HD ) For SVC, S/W Download, X-Studio, DivX-HD

10 Ethernet LAN(1EA)

EU (PAL Market)

► DVB-T (T2 Need Update)

- Guard Interval(Bitrate_Mbit/s) 1/4, 1/8, 1/16, 1/32

- Modulation : Code Rate QPSK : 1/2, 2/3, 3/4, 5/6, 7/8 16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8 64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8

HDMI1(ARC), HDMI2(DVI) , Side HDMI3(MHL)

Only for training and service purposes

- 5 -

ADJUSTMENT INSTRUCTION

1. Application Range

This spec. sheet applies to PA32A chassis applied PDP TV all models manufactured in TV factory.

2. Specification

(1) Because this is not a hot chassis, it is not necessary to

use an isolation transformer. However, the use of isolation

transformer will help protect test instrument. (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25 °C ± 5 °C of temperature and 65±10% of relative

humidity if there is no specific designation. (4) The input voltage of the receiver must keep 100~240V,

50/60Hz. (5) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15 °C

- In case of keeping module is in the circumstance of 0°C, it

should be placed in the circumstance of above 15°C for 2 hours

- In case of keeping module is in the circumstance of below

-20 °C, it should be placed in the circumstance of above 15 °C for 3 hours,.

3.2. DFT Process

* Depend on situation, Step can be changed.

■ After RGB Full White in HEAT-RUN Mode, the receiver must

be operated prior to the adjustment.

■ Enter into HEAT-RUN MODE

1) Press the POWER ON KEY on R/C for adjustment.

2) OSD display and screen display PATTERN MODE.

● Set is activated HEAT run without signal generator in this

mode.

● Single color pattern ( WHITE ) of HEAT RUN MODE uses to

check panel.

● Caution : If you turn on a still screen more than 20 minutes

(Especially digital pattern, cross hatch pattern), an after image may be occur in the black level part of the screen.

3. PCB Assembly adjustment

* Caution : Using ‘power on’ button of the control R/C power on

TV

3.1. Download MAC Address, CI+ Key and widevine, ESN Key

* The CI+ Key download is need for only PD32A/B/C Models. * Connect TV SET and PC which download keys Writing

program by RS232C-Cable

(1) Start Program and Click ‘start’ Button to connect TV and

PC.

(2) When download succeed, you can see “OK” on the

screen.

* Each Chassis has it’s own MAC Address. Please be careful

of download.

* Condition spec

Mode Volume Power Off

RF 0 DC On

3.3. Tool OPTION (MANUAL)

(1) Insert Access USB Memory Stick (2) Press ADJ key on R/C to insert Tool OPTION (3) On the “ Tool Option ”, Insert Tool Option by a number key

(4) Press the ENTER(■) (5) Press ENTER(■) again.

(6) Select “OK to Download” by using ◄/►(VOL +/-) and

press ►(VOL +)

* PA32A

Model Name PH6700

Tool

option 1

Tool

option 2

Tool option 3 162

Tool option 4 61757

Tool option 5 6294

Tool option 6 1609

Tool option 7 13451

42 N/A

50 32806

60 32808

42 HD N/A

50 HD N/A

50 FHD 45158

60 FHD 45158

Only for training and service purposes

- 6 -

3.4. EDID (The Extended Display Identification Data)

■ HDMI [C/S: 9771] : For FHD Models

4. SET assembly adjustment method

* Caution: Each PCB assembly must be checked by check

JIG set. (Because power PCB Assembly damages to PDP Module, especially be careful)

Physical Address

■ HDMI [C/S: 3EA9] : For HD Models

4.1. POWER PCB Assembly Voltage adjustment

(Va, Vs voltage adjustment)

Test equipment : D.M.M 1EA

Connection Diagram for Measuring : refer to g.4

Adjustment method

4.1.1. Va adjustment

(1) Connect + terminal of D. M.M. to Va pin of P811, connect

-terminal to GND pin of P811.

(2) After turning VR502,voltage of D.M.M adjustment as same

as Va voltage which on label of panel right/top (deviation; ±0.5V)

4.1.2. Vs adjustment

(1) Connect + terminal of D. M..M. to Vs pin of P811, connect

-terminal to GND pin of P811.

(2) After turning VR901, voltage of D.M.M adjustment as

same as Vs voltage which on label of panel right/top ( deviation ; ±0.5V)

4.2. Adjustment of White Balance

- Required Equipment

● Remote controller for adjustment

● Color Analyzer ( CS-1000, CA-210 or same product

: CH 10 (PDP) * Please adjust CA-210 by CS-1000 before measuring

● A uto W /B adjus tment in st rum en t(o nl y f or A ut o

adjustment)

● 9 Pin D-Sub Jack(RS232C) is connected to the AUTO

W/B EQUIPMENT

Physical Address

* CheckSum & Physical Address Table.

- Each HDMI Input has their own physical address(on Address:9E). So, each HDMI Input has different C/S value.

■ HDMI INPUT Physical Address Table

Address HDMI1 HDMI2 HDMI3

A1 10 20 30

■ HDMI INPUT C/S Table.

- FHD

HDMI1 HDMI2 HDMI3

CheckSum 9771 9761 9751

Only for training and service purposes

Before Adjust of White Balance, Please press POWER ONLY key

- Adjust Process will start by execute RS232C Command.

● Color temperature standards according to CSM and Module

CSM PLASMA

Cool 11000K

Medium 9300K

Warm 6500K

● CS-1000/CA-100+/CA-210(CH 10) White balance adjustment coordinates and color temperature.

CSM Color Coordination Temp ± Color

x y

COOL 0.276 0.283 11000K 0.002

MEDIUM 0.285 0.293 9300K 0.002

WARM 0.313 0.329 6500K 0.002

- 7 -

Coordination

● Change target luminance and range of the Auto adjustment

W/B equipment

- 42T4H/50T5

Target luminance 50

Range ±20

- 50/60R5

Target luminance 50

Range ±23

* Manual W/B process (using adjusts Remote control)

- Please Adjust in AV 1 MODE, Turn off Energy Saving Mode.

1) Enter ‘PICTURE RESET’ on Picture Mode, and then turn off Fresh Contrast and Fresh colour in Advanced Control

2) After enter Service Mode by pushing “ADJ” key,

3) Enter White Pattern off of service mode, and change off

-> on.

4) Enter “W/B ADJUST” by pushing “►” key at “3. W/B

ADJUST”.

* Gain Max Value is 192. So, Never make any Gain Value

over 192 and please x one Value on 192, between R, G

and B.

Min Typ Max

R-GAIN 0 192 192

G-GAIN 0 192 192

B-GAIN 0 192 192

* Auto-control interface and directions

(1) Adjust in the place where the inux of light like oodlight

around is blocked. (Illumination is less than 10ux).

(2) Measure and adjust after sticking the Color Analyzer (CA-

100+, CA210) to the side of the module.

(3) Aging time

- After aging start, keep the Power on (no suspension of

power supply) and heat-run over 5 minutes

* Auto adjustment Map (RS232C)

No Index CMD1 CMD2 Set ID Data

1 Start w b 0 00

2 Gain Start w b 0 10

3 Gain End w b 0 1F

4 Offset Start w b 0 20

5 Offset End w b 0 2F

6 End w b 0 FF

7 Medium R j a 0 00~FF

8 Medium G j b 0 00~FF

9 Medium B j c 0 00~FF

10 Warm R j d 0 00~FF

11 Warm G j e 0 00~FF

12 Warm B j f 0 00~FF

13 Cool R j g 0 00~FF

14 Cool G j h 0 00~FF

15 Cool B j i 0 00~FF

16 Cool R,G,B j j 0 00~FF

17 Medium j k 0 00~FF

18 Warm j l 0 00~FF

4.3. Serial number download & Model name D/L.

(1) Press "Power on" button of a service R/C.(Baud rate :

115200 bps)

(2) Connect RS232-C Signal Cable and start ‘Option Check

Program Ver3.8’ (3) Scan serial Number and press ‘F5’ button. (4) Check ‘OK’ on program 1) program. (5) Press ‘In start’ button on SVC R/C, check Serial Number

and Model Name.

4.4. Check Tool Option and write Country Group & Area Code(Option) D/L

- Refer to Table 3.3 insert tool option.

Only for training and service purposes

- 8 -

4.5. PING TEST

* In this case Network setting is on Manual Setting.

Connect : SET->LAN Port == PC->LAN Port

4.5.1. Equipment Setting

(1) Play the LAN Port Test PROGRAM. (2) Input IP set up for an inspection to Test

* IP Number : 12.12.2.2

4.5.2. LAN PORT inspection (PING TEST)

* In this case Network setting is on Manual Setting. (1) Play the LAN Port Test Program. (2) connect each other LAN Port Jack. (3) Play Test (F9) button and confirm OK Message. (4) remove LAN CABLE

4.7. Wi-Fi Test((Except for PH47*)

Step 1) Turn on TV Step 2) Select ‘Network Connection’ option in Network Menu.

Step 3) Select ‘Start Connection’ Button in ‘Network

Connection’.

Step 4) If the system finds any AP like blow PIC, it is working

well.

4.6. Magic Motion Remote Controller test

(1) Equipment: RF R/C for test, (2) You must confirm the battery power of RF-R/C before test (Recommend that change the battery per every lot) (3) Sequence (test)

1) if you select the ‘start key(Wheel Key)’ on the controller, you can pairing with the TV SET.

2) You can check the cursor on the TV Screen, when select the ‘Wheel Key’ on the controller

3) You must remove the pairing with the TV Set by select ‘Mute Key’ on the controller.

4.8. 3D function test

- Required Equipment

● Pattern Generator : MSHG-600, MSPG-6100 [SUPPORT HDMI1.4])

MODE : HDMI mode NO. 872 Pattern No.83

(1) Please input 3D test pattern like below (HDMI mode NO.

872 , pattern No.83)

HDMI Mode No.872, Pattern No.83

(2) When 3D OSD appear automatically, then press OK button

on ADJ Remote Controller. (3) Check the picture. The picture must be same as below. (Don’t have to wear 3D glasses.)

Only for training and service purposes

- 9 -

4.9. LNB voltage and 22KHz tone check (only for *PH**0 V, S, U, R)

(1) Test method

1) Press "Power on" button of a service R/C.(Baud rate : 115200 bps)

2) Connect cable between satellite ANT and test JIG.

3) Connect RS232-C Signal Cable.

4) Write LNB ON control command through RS-232-C.

5) check LED light ‘ON’ at 18V menu.

6) check LED light ‘ON’ at 22KHz tone menu.

7) Write LNB OFF control command through RS-232-C.

8) check LED light ‘OFF’ at 18V menu.

9) check LED light ‘OFF’ at 22KHz tone menu.

(2) RS-232 command for test LNB

Command Set ACK

LNB On [A][I][ ][Set ID][ ][30][Cr] [O][K][x] or NG : [N][G][x]

LNB Off [A][I][ ][Set ID][ ][40][Cr] [O][K][x] or NG : [N][G][x]

(3) Test result

- After send LNB On command, ‘18V LED’ and ‘22KHz

tone LED’ should be ON.

- After send LNB OFF command, ‘18V LED’ and ‘22KHz

tone LED’ should be OFF.

G

4;Y 46Y

k}iTzYGG

6. SW Download Guide.

* Before put a *.epk to USB Stick make ‘LG_DTV’ folder in

USB. Then, put *.epk file to ‘LG_DTV’ folder and Turn on TV

(1) Put the USB Stick to the USB socket (2) Automatically detecting update file in USB Stick

* If your downloaded program version in USB Stick is Low,

it didn’t work.

But your downloaded version is High, USB data is

automatically detecting. (3) Show the message “Copying files from memory” (4) Updating is staring. (5) Updating Completed, The TV will restart automatically.

After turn on TV, Please press ‘IN-STOP’ button on ADJ

Remote-control.

* IF you don’t have ADJ R/C, enter ‘Factory Reset’ in

OPTION MENU.

(6) When TV turns on, check the Updated version on Product/

Service Info. MENU.

* After downloading, have to adjust TOOL OPTION again.

tGi

{

55NK}#

rqh RQ

W

55NK}

55NK} Wrqh#Rii

Wrqh#Rii

ck}iGGGqpnGGe

{

<Remark> After the measurement conditions witnessed in

the last state.

5. Set Information (Serial No & Model name)

5.1. Check the serial number & Model Name

(1) Push the menu button and press red button on R/C to

enter ‘Customer Support’menu.

(2) Move to ‘signal test’ menu. And check Serial No & Model

Name Select the STATION -> Diagnostics -> To set

Only for training and service purposes

- 10 -

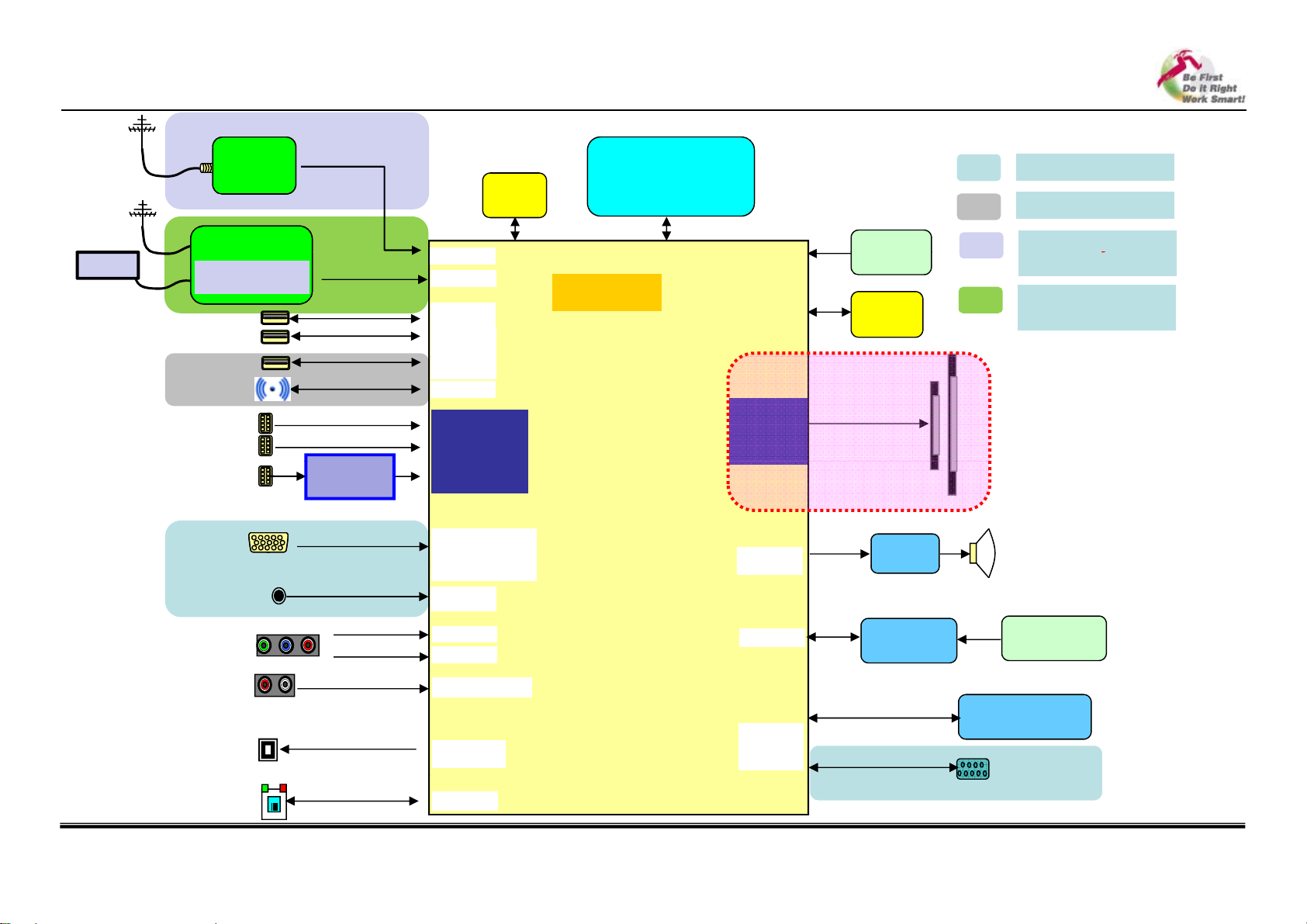

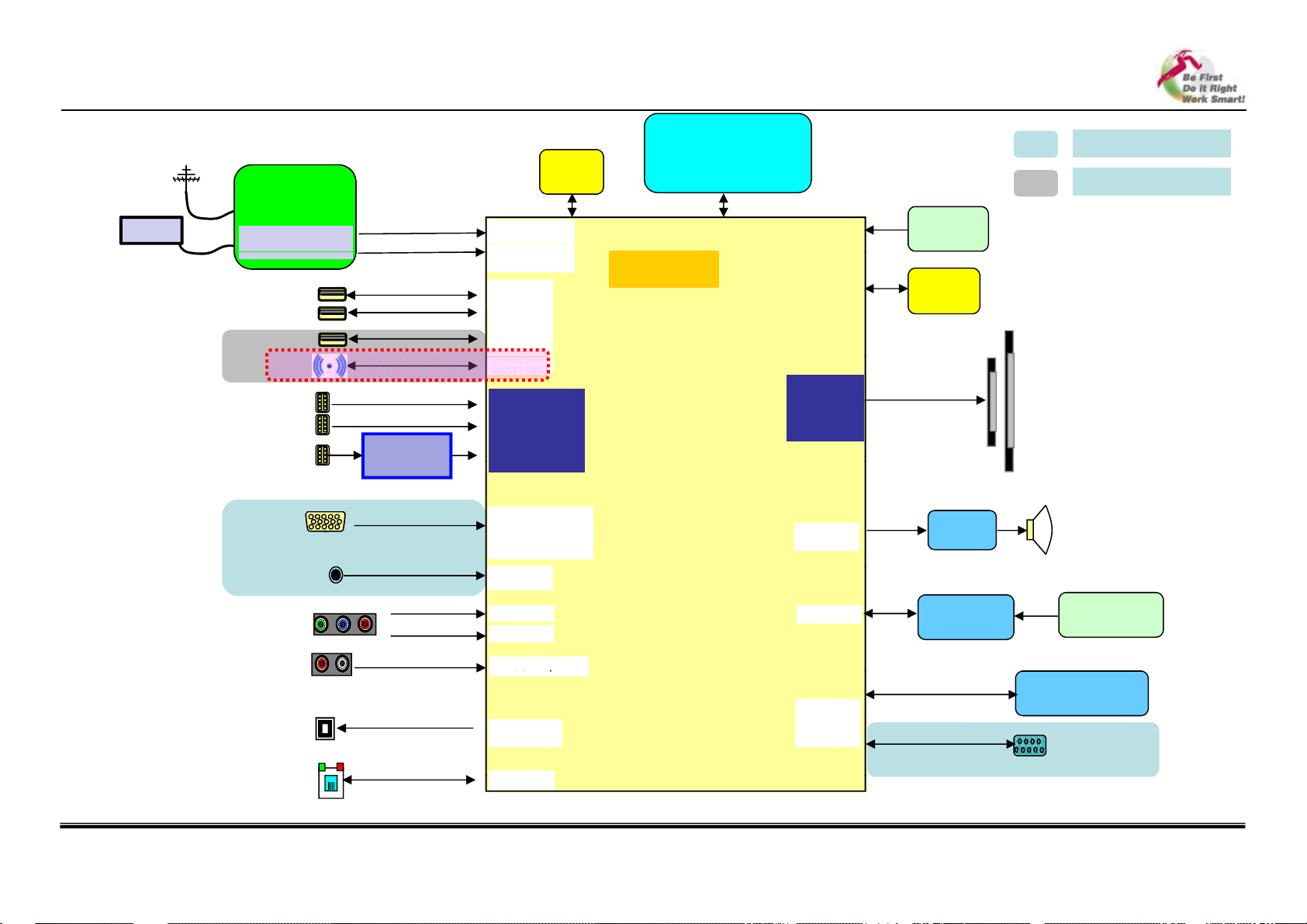

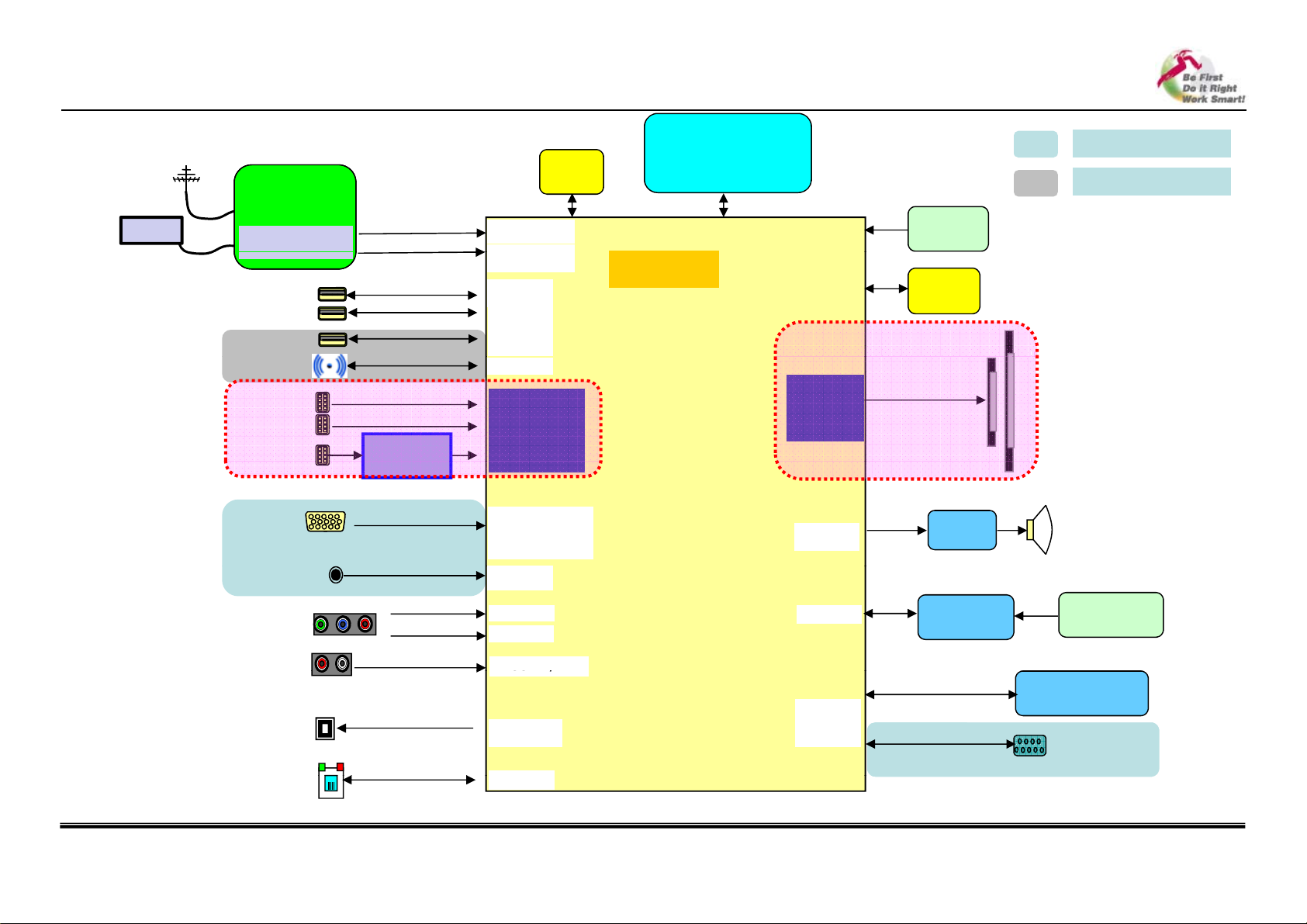

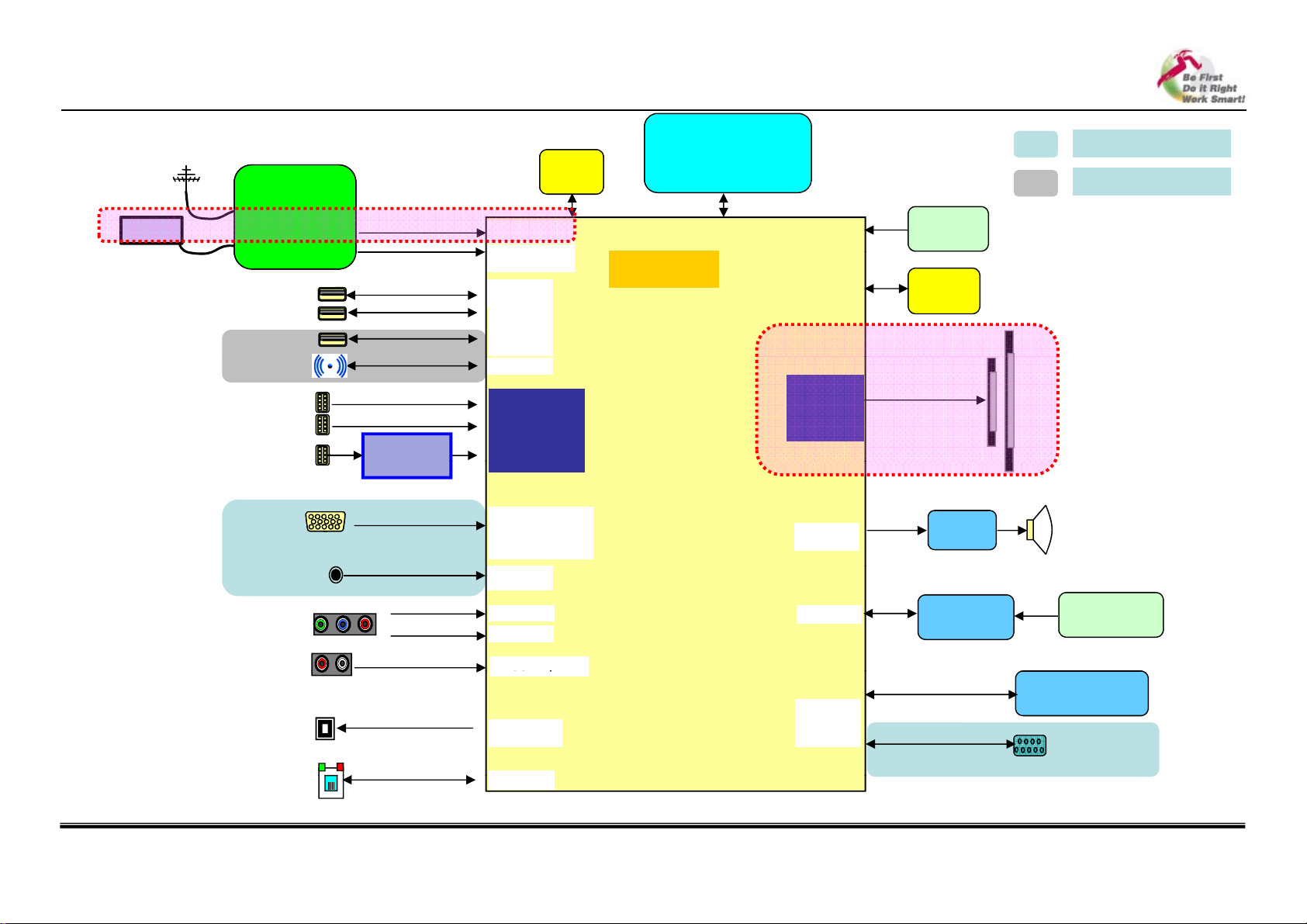

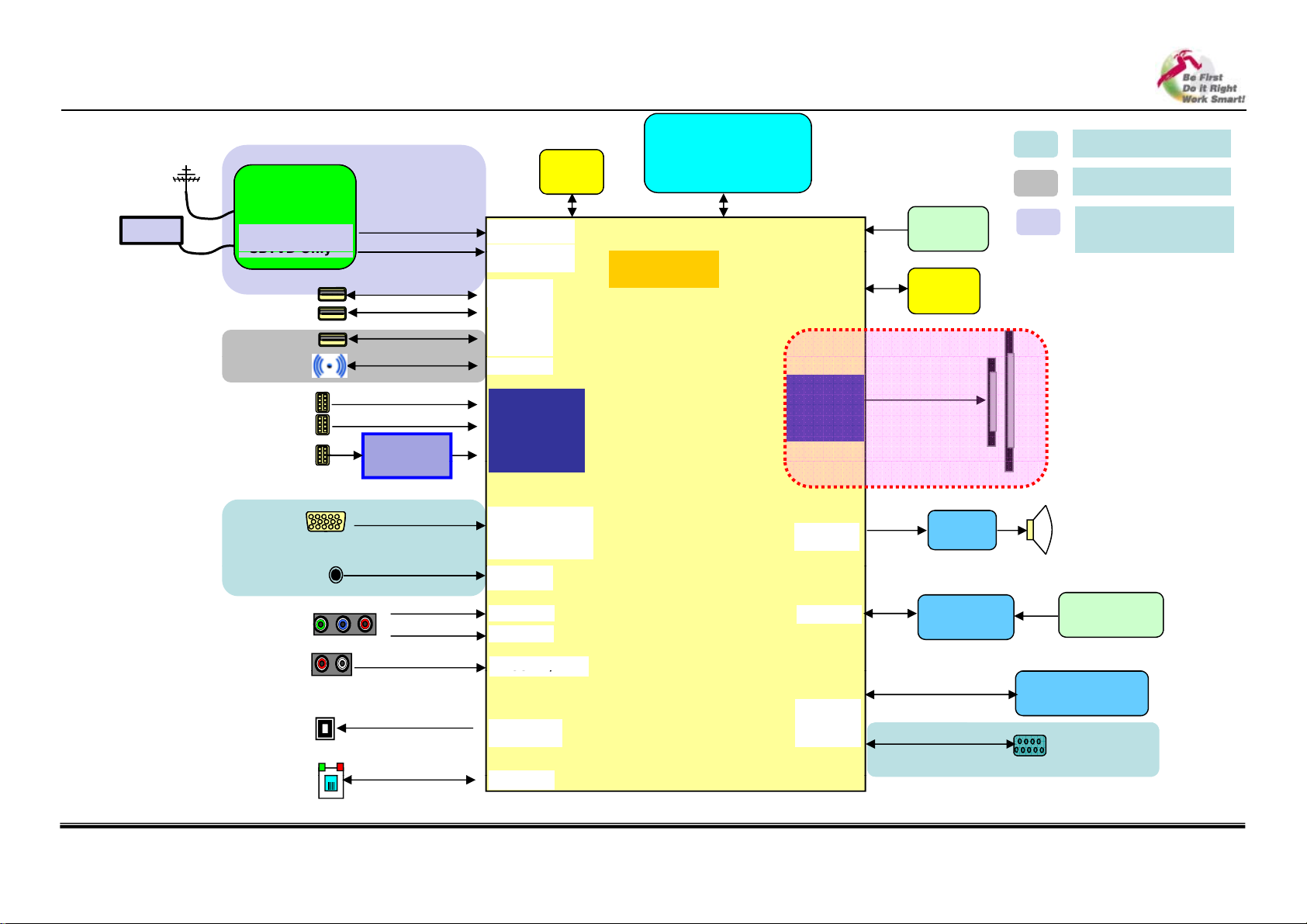

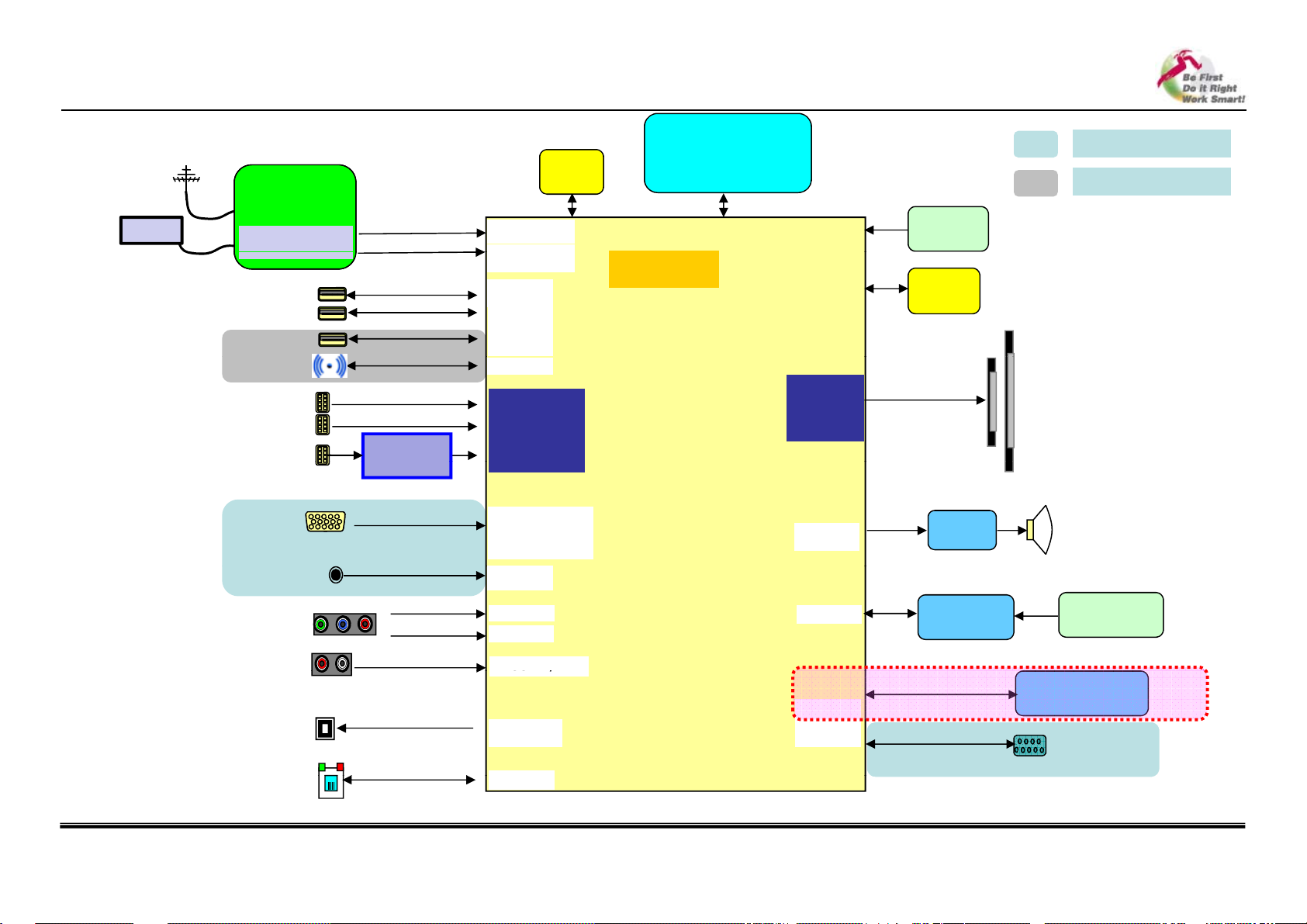

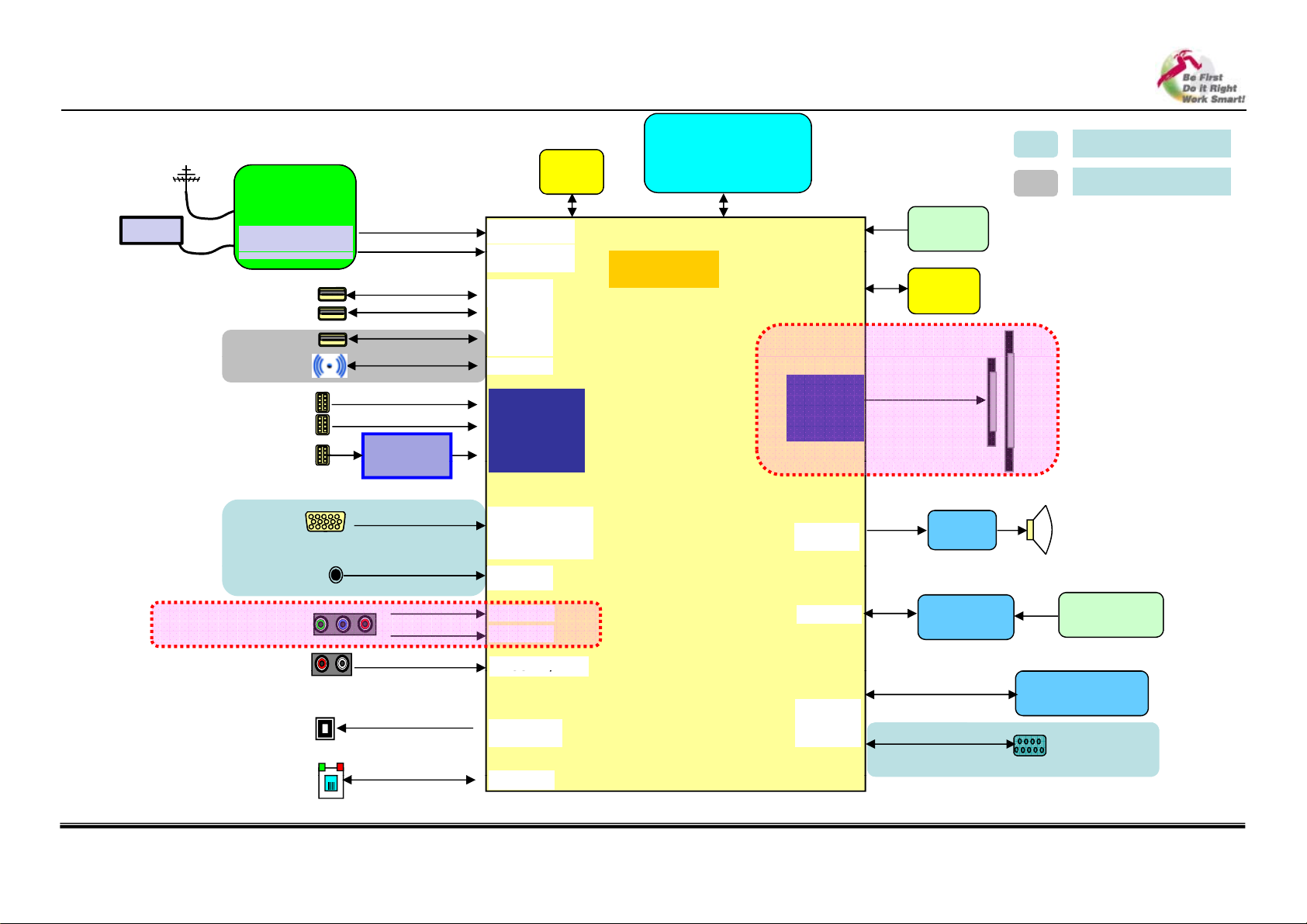

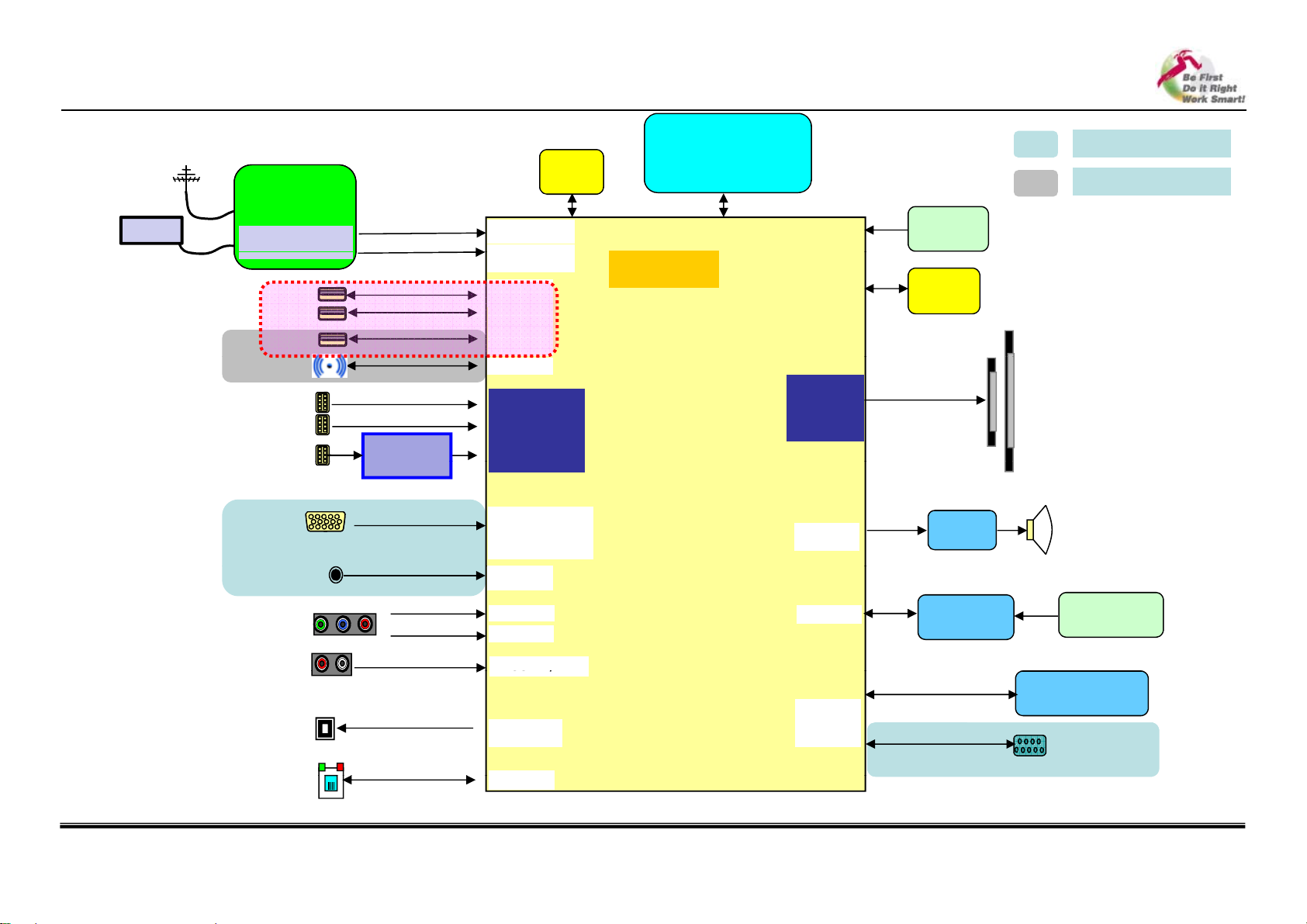

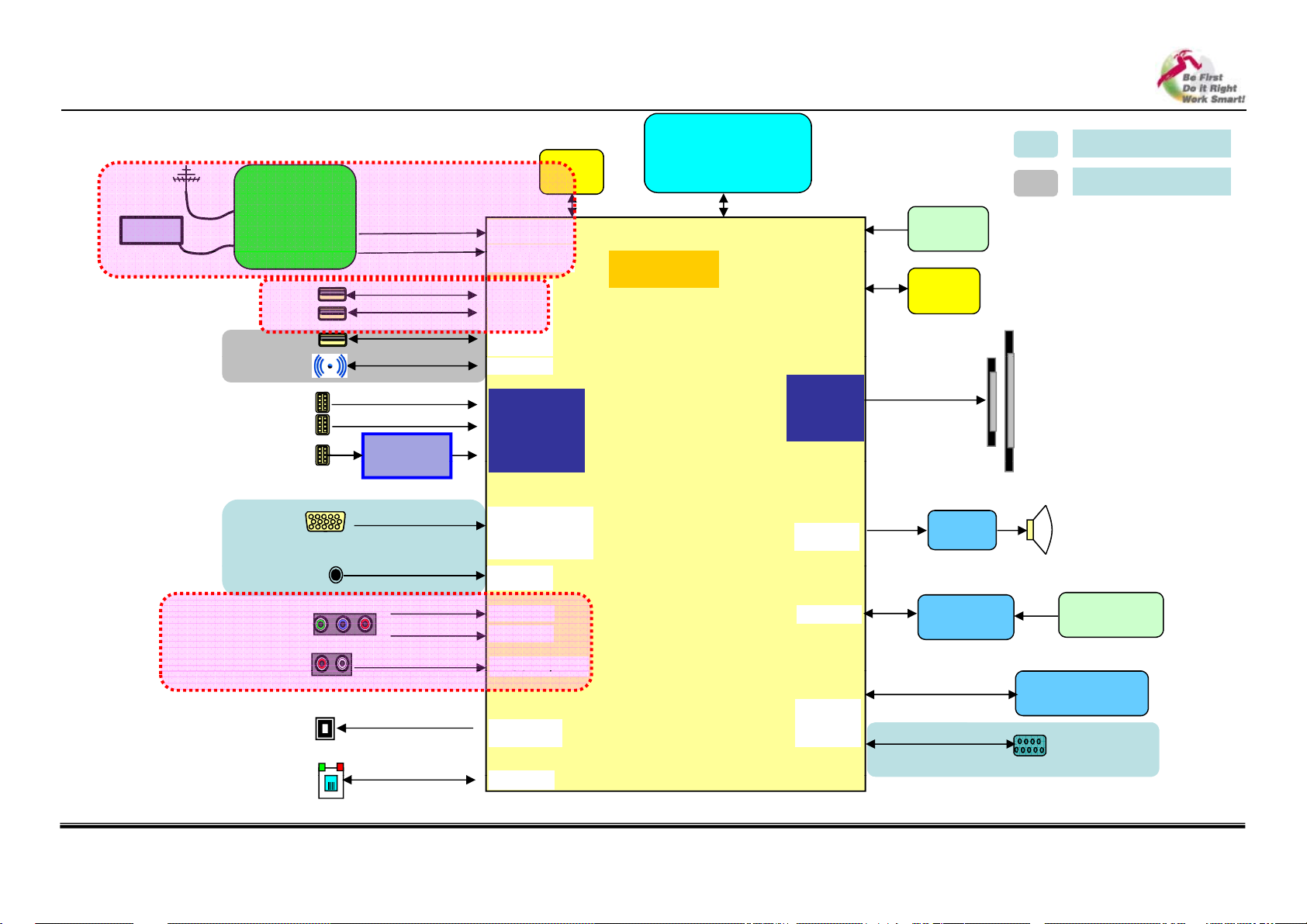

BLOCK DIAGRAM

Only for training and service purposes

- 11 -

300

EXPLODED VIEW

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

303

304

IMPORTANT SAFETY NOTICE

560

570

601

LV1

305

301

200

302

207

202

203

204

208

205

240

206

201

530

120

520

580

A22

A13

BACK SMART

A2

A10

CH

/Q.MENU

VOL

400

Only for training and service purposes

- 12 -

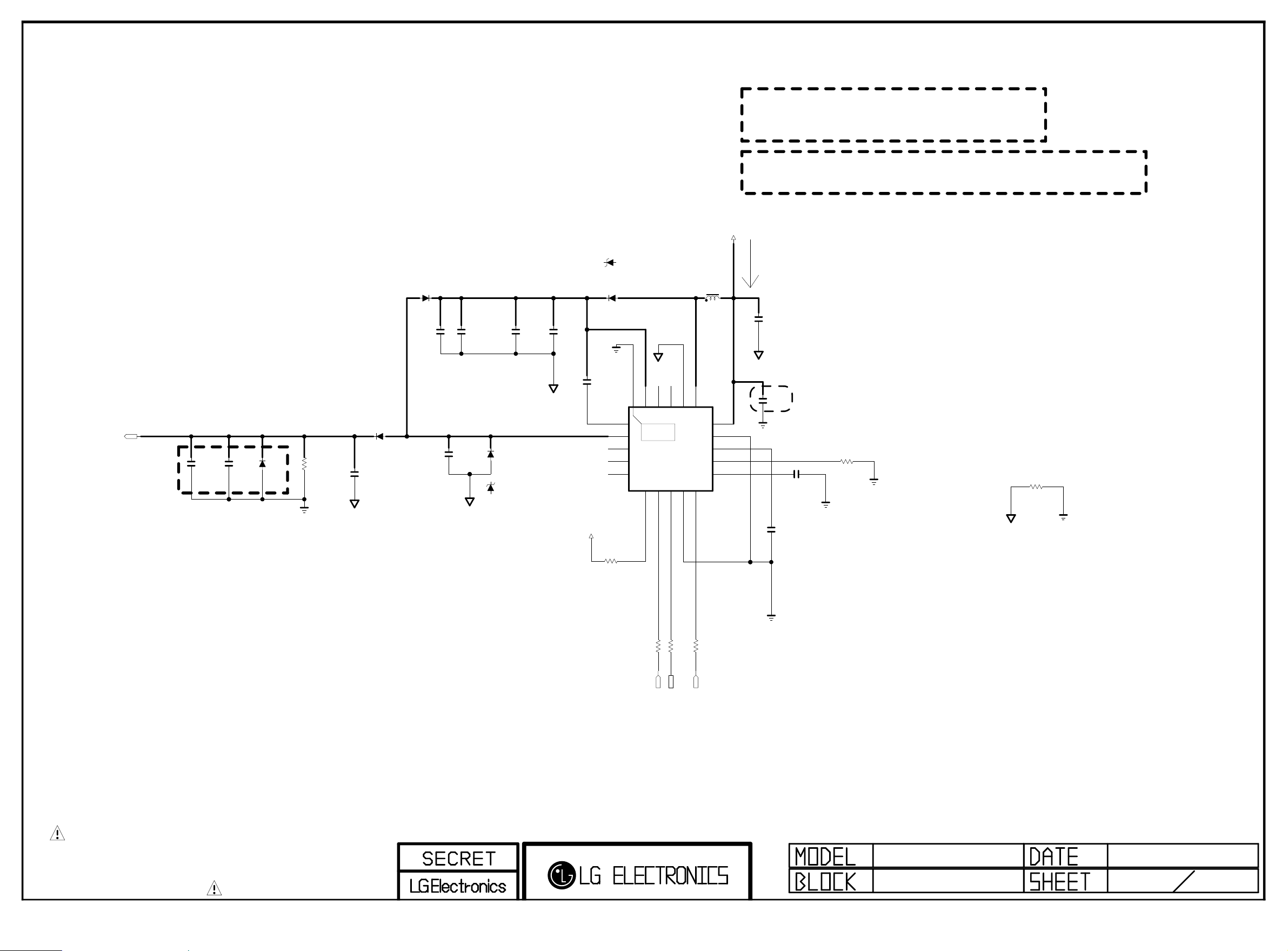

900

910

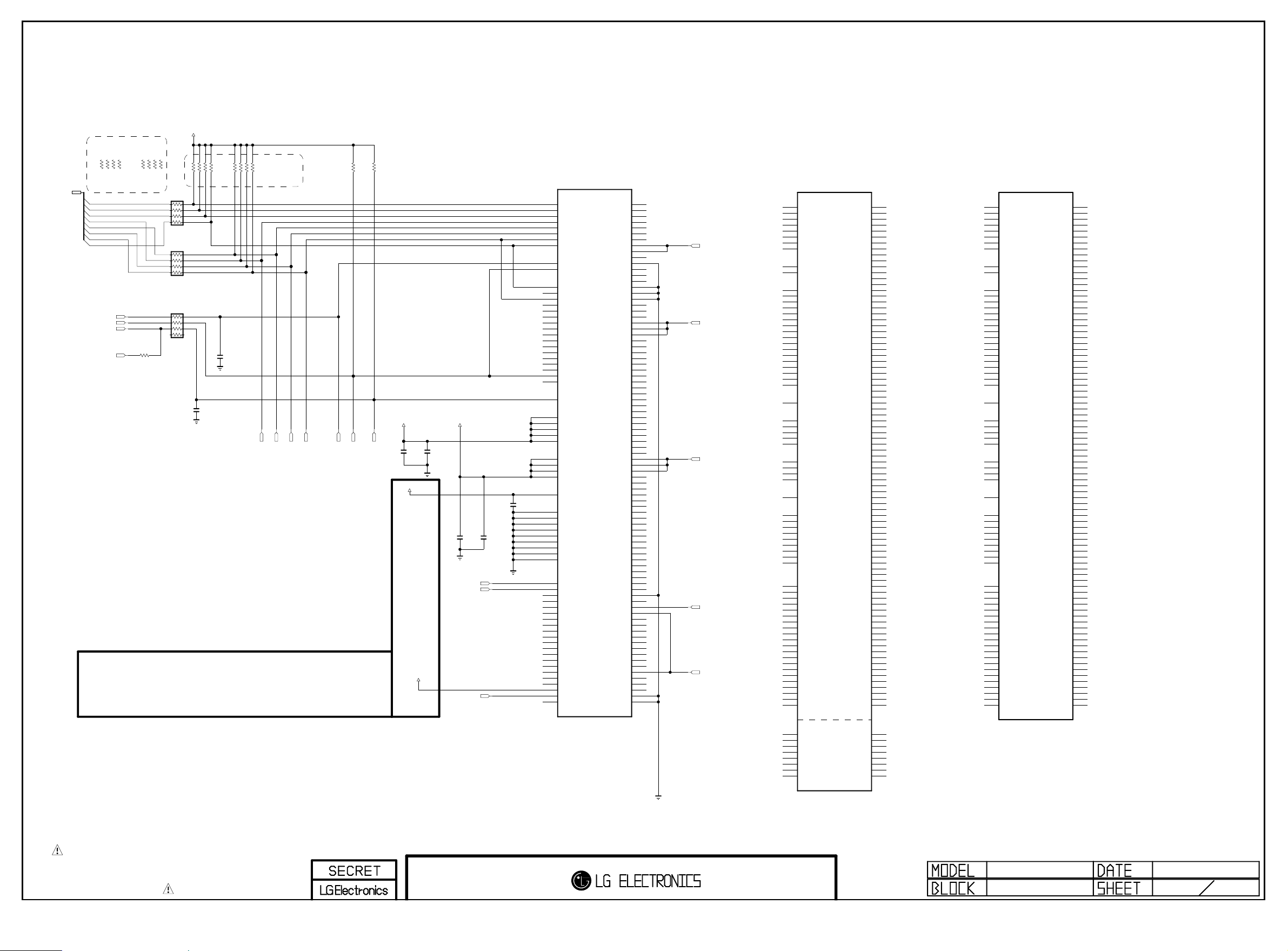

PDP ATSC/DVB:EAX64874001

LCD DVB:EAX6479700* , LCD ATSC:EAX6487210*

X-TAL

Crystal Matching Test result : 3pF

IC100-*1

M24256-BRMN6TP

E0

+3.3V_MULTI

R101

4.7K

R100

4.7K OPT

R102

4.7K

IC100

AT24C256C-SSHL-T(Cu)

OPT

A0

1

A1

2

A2

3

GND

4

NVRAM

VCC

8

WP

7

SCL

6

SDA

5

+3.3V_MULTI

Write Protection

- Low : Normal Operation

- High : Write Protection

R135 33

R134 33

1

E1

2

E2

3

VSS

4

NVRAM_ST

VCC

8

WC

7

SCL

6

SDA

5

JIG_GND

I2C_SCL5

I2C_SDA5

NVRAM_ATMEL

HDCP EEPROM

OPT

IC101

M24C16-R

NC_1

NC_2

NC_3

VSS

VCC

8

1

WC

2

7

SCL

3

6

SDA

4

5

I2C

R121

1.2K

OSDA1 OSCL2 OSDA2 OSCL0

+3.3V_MULTI

R105

4.7K

COLOMBIA_TUNER

R103

4.7K

NO_COLOMBIA_TUNER

R120 33 R115 33

R116 33 R117 33 R118 33 R119 33 R110 33 R111 33 R112 33 R113 33 R114 33 R109 33

R106

4.7K

OPT

R104

4.7K

FHD

HD

STB_SCL STB_SDA

OPCTRL_11_SCL OPCTRL_10_SDA

OSCL1

OSDA0 OPCTRL_1_SCL OPCTRL_0_SDA

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+3.3V_MULTI

OPT C100

0.1uF

R132

1.2K

R133

1.2K

16V

OPT R125 4.7K

OPT R126 22

OPT R127 22

R124

1.2K

Model Option

R130

4.7K

OPT

R128

4.7K

R131

MTK_DDR_1.25GB

R129

MTK_DDR_1.5GB

R108

R107

4.7K

R123

4.7K

Country_AJJA

R122

4.7K

Non_Country_AJJA

4.7K

R138

2.7K

I2C_SCL1

I2C_SDA1

R141

2.7K

OPT

R137

4.7K

R136

4.7K

R142

2.7K

T2

R140

R139

NO_T2

4.7K

+3.3V_MULTI

R147

2.7K

S

OPT

R145

4.7K

R143

4.7K

NO_S

I2C_1 : AMP,HDCP KEY I2C_2 : PDP_MODULE I2C_3 : MICOM I2C_4 : S/Demod,T2/Demod,LNB,MHL I2C_5 : NVRAM I2C_6 : TUNER_MOPLL(T/C,ATV)

R150

R151

R1522KR153

1.2K

OPT

R149

4.7K

R148

4.7K

2K

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3 /S2_RESET

MODEL_OPT_5

MODEL_OPT_6 MODEL_OPT_7

MODEL_OPT_8

MODEL_OPT_9

MODEL_OPT_10

R146

R144

1.2K

4.7K

+3.3V_MULTI

R155 1K

R154 1K

OPT

MODEL_OPT_4

OPT

I2C_SCL1

I2C_SDA1 I2C_SCL2

I2C_SDA2 I2C_SCL3 I2C_SDA3 I2C_SCL4 I2C_SDA4 I2C_SCL5 I2C_SDA5

I2C_SCL6 I2C_SDA6

R157 1K

R156 1K

OPT

R162 1K

R160

OPT

1K

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_7

MODEL_OPT_8

MODEL_OPT_9

MODEL_OPT_10

MODEL_OPT_5

MODEL_OPT_9

JP_GND_1

JP_GND_2

JP_GND_3

JP_GND_4

STRAPPING LED_PWM0 LED_PWM1 OPCTRL3 OPCTRL7

ICE mode + 27M + serial boot 1 0 0 0

ICE mode + 27M + ROM to Nand boot 1 0 0 1

ICE mode + 27M + ROM to 60bit ECC Nand boot 1 0 1 0

ICE mode + 27M + ROM to eMMC boot from 1 0 1 1 EMMC pins (share pins w/s NAND)

R163 1K

R161 1K

Country_TW

Country_AJJA

ICE mode + 27M + ROM to eMMC 1 1 0 0 Boot from SDIO pins

LED_PWM0 LED_PWM1 OPCTRL3 OPCTRL7

FRC FRC_120Hz NO_FRC_60Hz

Reserved

Module_V13 Module_V12

DDR_1.25GB

DDR

CP BOX

Enable

T2 Tuner

S Tuner

DDR

EPI

DDR_1.25G

High

Low

Support

DDR_0.78G

Support

3D_SYNC_RF

HIGH

TW

FHD HD

AJJA

Not Support

NON_DDR_0.78G

Not Support

DDR_1.5G

DDR_0.768G

Low

LOW

Non_TW

Non_AJJA

DDR_1.5GB

Disable

High

R194 0

Place the P901

MODEL_OPT_5

SOC -> CI SLOT

MT5369_MCLKI

MT5369_MIVAL_ERR

MT5369_MISTRT

SOC -> CI SLOT

MT5369_TS_OUT[0-7]

CI_DATA[0-7]

GPIO45(EMMC_RST) is dedicated to reset EMMC for improving A1’s leakage current

/USB_OCD2 /USB_OCD1

/USB_OCD3

EMMC_RST

USB_CTL1

#SIL_RESET

SC_ID

Close to eMMC Flash (IC8100)

EMMC_CLK

CI_ADDR[0-14]

CI SLOT -> SOC

CI_DATA[0] CI_DATA[1] CI_DATA[2] CI_DATA[3] CI_DATA[4] CI_DATA[5] CI_DATA[6] CI_DATA[7]

NO_EU

R169 R170

R167

R168

10K

MT5369_TS_OUT[0] MT5369_TS_OUT[1] MT5369_TS_OUT[2] MT5369_TS_OUT[3] MT5369_TS_OUT[4] MT5369_TS_OUT[5] MT5369_TS_OUT[6] MT5369_TS_OUT[7]

MT5369_TS_IN[0] MT5369_TS_IN[1] MT5369_TS_IN[2] MT5369_TS_IN[3]

MT5369_TS_IN[4] MT5369_TS_IN[5] MT5369_TS_IN[6] MT5369_TS_IN[7]

10K 10K

10K

MODEL_OPT_4

CI_ADDR[0-14]

CTS RTS

MODEL_OPT_0

M_REMOTE_RST

/TU_RESET /S2_RESET

CI_ADDR[0] CI_ADDR[1] CI_ADDR[2] CI_ADDR[3] CI_ADDR[4] CI_ADDR[5] CI_ADDR[6] CI_ADDR[7] CI_ADDR[8] CI_ADDR[9] CI_ADDR[10] CI_ADDR[11] CI_ADDR[12] CI_ADDR[13] CI_ADDR[14]

LCD:EPI_LOCK6

OTP_WRITE MODEL_OPT_3 MODEL_OPT_7 MODEL_OPT_5 MODEL_OPT_6

LCD:OPC_EN

+3.3V_MULTI

AR100

10K

R171

AVDD_33SB

VDD3V3

LGE2122[A2_M13]

B30

GPIO0

A31

GPIO1

B31

GPIO2

A32

GPIO3

C30

GPIO4

A33

GPIO5

B32

GPIO6

C31

GPIO7

E30

GPIO8

F29

GPIO9

F27

GPIO10

F28

GPIO11

C32

GPIO12

F30

GPIO13

F32

GPIO14

D30

GPIO15

D32

GPIO16

F31

GPIO17

F33

GPIO18

E31

GPIO19

E32

GPIO20

D31

GPIO21

D33

GPIO22

E29

GPIO23

C33

GPIO24

B33

GPIO25

A30

GPIO26

E28

GPIO27

C29

GPIO28

J28

GPIO29

H29

GPIO30

J26

GPIO31

G30

GPIO32

G27

GPIO33

E27

GPIO34

D29

GPIO35

D28

GPIO36

H28

GPIO37

J27

GPIO38

G29

GPIO39

G31

GPIO40

G28

GPIO41

B28

GPIO42

K28

GPIO43

E25

GPIO44

D21

GPIO45

G23

GPIO46

C28

GPIO47

F24

GPIO48

AB8

GPIO49

AA7

GPIO50

AD6

GPIO51

AC8

GPIO52

AC7

GPIO53

AB6

GPIO54

AC6

GPIO55

AJ23

ADIN0_SRV

AH23

ADIN1_SRV

AE28

ADIN2_SRV

AD28

ADIN3_SRV

AF22

ADIN4_SRV

AK21

ADIN5_SRV

AG24

ADIN6_SRV

AM18

ADIN7_SRV

10K

OSDA0 OSCL0

OSDA1 OSCL1

MT5369_XTAL_IN

MT5369_XTAL_OUT

C111

0.1uF

C110

0.1uF

C109

0.1uF

C107

4.7uF 10V

IC105

MT5369_XTAL_IN

C112

4.7uF 10V

DEMOD_RST

DEMOD_TSCLK DEMOD_TSDATA0 DEMOD_TSDATA1 DEMOD_TSDATA2 DEMOD_TSDATA3 DEMOD_TSDATA4 DEMOD_TSDATA5 DEMOD_TSDATA6 DEMOD_TSDATA7

DEMOD_TSSYNC

DEMOD_TSVAL

CI_INT

CI_TSCLK

CI_TSDATA0

CI_TSSYNC

CI_TSVAL

PVR_TSCLK PVR_TSVAL

PVR_TSSYNC PVR_TSDATA0 PVR_TSDATA1

SPI_CLK1

SPI_CLK

SPI_DATA

SPI_CLE

OPWM2 OPWM1 OPWM0

SD_D0 SD_D1 SD_D2

SD_D3 SD_CMD SD_CLK

LED_PWM1 LED_PWM0

OPCTRL11 OPCTRL10

OPCTRL9 OPCTRL8 OPCTRL7 OPCTRL6 OPCTRL5 OPCTRL4 OPCTRL3 OPCTRL2 OPCTRL1 OPCTRL0

C114

2pF

LGE2122[A2_M13]

AK10

JTCK

AK11

JTDI

AL9

JTDO

AJ11

JTMS

AJ12

JTRST

AH11

OSDA0

AH10

OSCL0

AF11

OSDA1

AG11

OSCL1

AN29

XTALI

AM29

XTALO

AN30

AVDD33_XTAL_STB

AL29

AVSS33_XTAL_STB

AN17

AVDD33_VGA_STB

AL17

AVSS33_AVSS33_VGA_STB

AL26

AVDD33_PLL

AC21

AVSS33_PLLGP

H21

AVSS33_CPUPLL

AM17

AVDD10_LDO

AN16

AVDD10_ELDO

P30 N32 R27 T26 T27 P26 R28 U27 U26 R26 R29 P27

L25 N33 K26 N30 N31

M31 M27 L27 M29 M30

L30 L33 L32 K27

AL8

TP121

AM8

TP122

AM9

3D_SYNC_RF

D27 C27 D26 C26 A28 E24

AF15 AG15

AL16 AM16 AE17 AG19 AH17 AE19 AH19 AK16 AG17 AJ17 AF19 AJ19

X100

27MHz

X-TAL_1

GND_1

4

1

2

3

IC105

Wake On Lan

PCM_RST FE_TS_CLK

FE_TS_SYNC FE_TS_VAL

/CI_CD2 /CI_CD1 /PCM_IORD /PCM_IOWR

SMARTCARD_FOR JAPAN

LED_PWM1 LED_PWM0

5V Tolerance

COMP1_DET SC_DET

OPCTRL7 DSUB_DET

AV1_CVBS_DETUSB_CTL3

MID_MAIN_1

GND_2

X-TAL_2

C115

U0TX U0RX

U1TX U1RX

POWE

POOE POCE1 POCE0

PDD7

PDD6

PDD5

PDD4

PDD3

PDD2

PDD1

PDD0

PARB PACLE PAALE

EMMC_CLK

OPWRSB

ORESET

OIRI

FSRC_WR

STB_SCL STB_SDA

POR_BND

FE_TS_DATA[0] FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3] FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7]

/PCM_REG

/PCM_CE1

MT5369_TS_SYNC

/PCM_WE /PCM_OE

MT5369_TS_VAL

MT5369_TS_CLK /PCM_IRQA /PCM_WAIT

OPCTRL_11_SCL OPCTRL_10_SDA

AMP_RESET_SOC OPCTRL3

RF_SWITCH_CTL OPCTRL_1_SCL

OPCTRL_0_SDA

2pF

MT5369_XTAL_OUT

AH15 AH14

AH13 AG13

D24 B25 D25 A25 C22 B22 A22 C23 A23 B23 D23 C24 C25 A26 B26 C21

AL15

AK20

AF17

R180 4.7K

C20

AL14 AK15

R193 4.7K

AE14

FE_TS_DATA[0-7]

EXTERNAL DEMOD

-> SOC

CI SLOT -> SOC

LCD : CI_A_VS1 CI SLOT -> SOC

AMP_RESET_SOC

FE_LNA_Ctrl1 FE_LNA_Ctrl2

EMMC_DATA[7] EMMC_DATA[6] EMMC_DATA[5] EMMC_DATA[4] EMMC_DATA[3] EMMC_DATA[2]

STB_SCL STB_SDA

RS232_TXD RS232_RXD

M_REMOTE_TX

M_REMOTE_RX

EMMC_CMD

EMMC_DATA[1]

EMMC_DATA[0] EMMC_CLK

1N4148W

D100

100V

R182

33

R198

10K

R186

22

AVDD_33SB

R196 240

EMMC_DATA[2-7]

R188

4.7K OPT

R187

4.7K OPT

+3.3V_MULTI

R189 10K

OPT

C117

0.1uF 16V

Q100

PMV48XP

D

G

2011.12.13

8

WOL_ON

TP153

SOC_RESET

JTP-1127WEM

DEBUG

+3.3V_MULTI

S

AMP_RESET_N

SW100

1 2

10K

R199

OTP_WRITE

43

+1.2V_MTK_AVDD

HDMI_CEC

DDC_SCL_3 DDC_SCL_2 DDC_SCL_MHL

DDC_SDA_3 DDC_SDA_2 DDC_SDA_MHL

HDMI_HPD_MHL

C303

0.1uF

VDD3V3_HDMI

VDD3V3

5V_HDMI_3

5V_HDMI_2

5VBUS

HPD3 HPD2

C302

0.1uF

C306

0.1uF

USB_DP3 USB_DM3

USB_DP2 USB_DM2

WIFI_DP WIFI_DM

USB_DP1 USB_DM1

IC105

LGE2122[A2_M13]

V26

HDMI_CEC

AC27

HDMI_0_SCL

AB27

HDMI_1_SCL

AA26

HDMI_2_SCL

W27

HDMI_3_SCL

AC26

HDMI_0_SDA

AB26

HDMI_1_SDA

Y26

HDMI_2_SDA

W26

HDMI_3_SDA

AE29

HDMI_0_PWR5V

R305 R306 R307

C304

Y27

1K 1K 1K

C307

0.1uF

AA28

V28

AD29 AA27 AA29

V29

AA33 AA32

P33 P32

AH33

AE27

T25 W25

AD27

H32 H33

J32 J31

K32 K31

AN10 AM10

K33 AN8

M25

AE11

HDMI_1_PWR5V HDMI_2_PWR5V HDMI_3_PWR5V

HDMI_0_HPD HDMI_1_HPD HDMI_2_HPD HDMI_3_HPD

AVDD12_HDMI_0_RX AVDD12_HDMI_1_RX AVDD12_HDMI_2_RX AVDD12_HDMI_3_RX

AVDD33_HDMI

AVSS33_HDMI_RX_1 AVSS33_HDMI_RX_2 AVSS33_HDMI_RX_3 AVSS33_HDMI_RX_4

LGE2122[A2_M13]

USB_DP_P0 USB_DM_P0

USB_DP_P1 USB_DM_P1

USB_DP_P2 USB_DM_P2

USB_DP_P3 USB_DM_P3

AVDD33_USB_P0P1P2 AVDD33_USB_P3

AVSS33_USB_P1 AVSS33_USB_P3

IC105

HDMI_0_RX_0

HDMI_0_RX_0B

HDMI_0_RX_1

HDMI_0_RX_1B

HDMI_0_RX_2

HDMI_0_RX_2B

HDMI_0_RX_C

HDMI_0_RX_CB

HDMI_1_RX_0

HDMI_1_RX_0B

HDMI_1_RX_1

HDMI_1_RX_1B

HDMI_1_RX_2

HDMI_1_RX_2B

HDMI_1_RX_C

HDMI_1_RX_CB

HDMI_2_RX_0

HDMI_2_RX_0B

HDMI_2_RX_1

HDMI_2_RX_1B

HDMI_2_RX_2

HDMI_2_RX_2B

HDMI_2_RX_C

HDMI_2_RX_CB

HDMI_3_RX_0

HDMI_3_RX_0B

HDMI_3_RX_1

HDMI_3_RX_1B

HDMI_3_RX_2

HDMI_3_RX_2B

HDMI_3_RX_C

HDMI_3_RX_CB

Wake On Lan

AVDD33_ETH

AVSS33_ELDO

AVSS33_LD

AVSS33_COM

TXVP_0 TXVN_0

RXVP_1 RXVN_1

PHYLED1 PHYLED0

AG30 AG31 AF30 AF31 AE32 AE33 AG32 AG33

AD30 AD31 AC32 AC33 AC30 AC31 AE30 AE31

Y30 Y31 W32 W33 W30 W31 AA30 AA31

U30 U31 T32 T33 T30 T31 V30 V31

AL13 AM13

AL12 AM12

AF13 AJ13

AN12

REXT

R31524K

AN14 AE13

AC16 AC15

AVDD_33SB

D0+_HDMI3 D0-_HDMI3 D1+_HDMI3 D1-_HDMI3 D2+_HDMI3 D2-_HDMI3 CK+_HDMI3 CK-_HDMI3

D0+_HDMI2 D0-_HDMI2 D1+_HDMI2 D1-_HDMI2 D2+_HDMI2 D2-_HDMI2 CK+_HDMI2 CK-_HDMI2

D0+_HDMI1_MHL D0-_HDMI1_MHL D1+_HDMI1_MHL D1-_HDMI1_MHL D2+_HDMI1_MHL D2-_HDMI1_MHL CK+_HDMI1_MHL CK-_HDMI1_MHL

EPHY_TDP EPHY_TDN

EPHY_RDP EPHY_RDN

MODEL_OPT_1

C328 1uF 125C

REAR_HDMI1

SIDE_HDMI2

SIDE_HDMI3

TUNER_SIF

NO_T2_BR

IF_P

Close to Tuner

IF_N

NO_T2_BR

IF_AGC

1/16W

R331

R346

1K

1%

1K

1%

R332 10K

NO_T2_BR

C341

0.047uF NO_T2_BR

VDD3V3

R3801K1/16W

Close to Tuner

1%

For PCB Pattern

COMP1/AV1_R_IN COMP1/AV1_L_IN

Close to AVDD33_ADAC & AVDD33_AADC

L304

C365

C305

10uF

1uF

10V

NO_T2_BR

C312

33pF

C336

1uF

10V

NO_T2_BR

C337 1uF

10V

NO_T2_BR

For PCB Pattern

Close to MT5369

C310

33pF

NO_T2_BR

SC_R_IN SC_L_IN PC_R_IN

C362

0.1uF

R334 51

NO_T2_BR

R335 51

NO_T2_BR

SC_CVBS_IN

COMP1_Y/AV1_CVBS

AVDD3V3_AADC

NO_T2_BR

R342 10K C355

0.047uF NO_T2_BR

TU_CVBS

MODEL_OPT_8 MODEL_OPT_9

MODEL_OPT_10

MODEL_OPT_2

PCM_5V_CTL

USB_CTL2

+1.2V_MTK_AVDD

C350

VDD3V3

10uF

C347

0.1uF

R343

24K 1%

AVDD3V3_AADC

T2_BR_CO

C352 0.01uF

R339

2.2K OPT

VDD3V3

+1.2V_MTK_AVDD

C364

0.1uF

C353

0.1uF

Close to MT5369

R308 100EUC308 0.047uF

C360 0.047uF

R341 100 R340 100

C359 0.047uF

T2_BR_CO

VDD3V3

1uF

Near the SOC

C361

OSCL2 OSDA2

C351

0.1uF

TP300

EU

C358

0.1uF

C363

1uF 10V

LGE2122[A2_M13]

AA8

TCON0

AA9

TCON1

W6

TCON2

U6

TCON3

U7

TCON4

V8

TCON5

V6

TCON6

AB7

TCON7

W9

TCON8

U8

TCON9

U9

TCON10

V9

TCON11

V7

TCON12

AN1

AVDD12_LVDS_1

AN2

AVDD12_LVDS_2

AN3

AVDD12_LVDS_3

AN4

AVDD33_LVDS

AM4

AVSS12_LVDS_1

AM3

AVSS12_LVDS_2

AF5

AVSS12_LVDS_3

AE5

AVSS33_LVDS_1

AC5

AVSS33_LVDS_2

V5

AVSS33_LVDS_3

T1

REXT_VPLL

LGE2122[A2_M13]

AL32

AIN1_R_AADC

AN32

AIN1_L_AADC

AM33

AIN2_R_AADC

AM31

AIN2_L_AADC

AM32

AIN3_R_AADC

AK33

AIN3_L_AADC

AL33

AIN4_R_AADC

AN33

AIN4_L_AADC

AJ32

AVDD33_AADC

AC24

AVSS33_AADC

AN31

VMID_AADC

AH25

MPXP

LGE2122[A2_M13]

AM27

ADCINP_DEMOD

AN27

ADCINN_DEMOD

AN26

AVDD33_DEMOD

AN28

AVDD12_DEMOD

AL28

AVSS33_DEMOD

AL27

AVSS12_DEMOD

L26

IF_AGC

M28

RF_AGC

AJ27

LOUTN

AK27

LOUTP

N27

OSCL2

N26

OSDA2

AK26

CVBS3P

AM25

CVBS2P

AH26

CVBS1P

AK25

CVBS0P

AJ26

CVBS_COM

AM26

AVDD33_CVBS

AB20

AVSS33_CVBS_1

AB22

AVSS33_CVBS_2

IC105

BE0P BE0N BE1P BE1N BE2P

BE2N BECKP BECKN

BE3P

BE3N

BE4P

BE4N

BO0P

BO0N

BO1P

BO1N

BO2P

BO2N BOCKP BOCKN

BO3P

BO3N

BO4P

BO4N

AE0P

AE0N

AE1P

AE1N

AE2P

AE2N AECKP AECKN

AE3P

AE3N

AE4P

AE4N

AO0P

AO0N

AO1P

AO1N

AO2P

AO2N AOCKP AOCKN

AO3P

AO3N

AO4P

AO4N

AR0_ADAC AL0_ADAC

AR1_ADAC AL1_ADAC

AR2_ADAC AL2_ADAC

AVDD33_ADAC AVSS33_ADAC

ALIN

ASPDIF0 ASPDIF1

AOBCK

AOLRCK

AOMCLK AOSDATA4 AOSDATA3 AOSDATA2 AOSDATA1 AOSDATA0

HSYNC VSYNC

VGA_SDA VGA_SCL

VDACX_OUT

VDACY_OUT

AVDD33_VIDEO

AVDD12_RGB

AVSS33_VDAC_BG

AVSS12_RGB

AVSS33_VDAC

+3.3V_MULTI

ROM_DL_UART_RX

Y1

RXD0+

Y2

RXD0-

W3

RXD1+

W4

RXD1-

V3

RXD2+

V4

RXD2-

V1

RXDCK+

V2

RXDCK-

U3

RXD3+

U4

RXD3-

T3

RXD4+

T4

RXD4-

AD1

RXC0+

AD2

RXC0-

AC3

RXC1+

AC4

RXC1-

AB3

RXC2+

AB4

RXC2-

AB1

RXCCK+

AB2

RXCCK-

AA3

RXC3+

AA4

RXC3-

Y3

RXC4+

Y4

RXC4-

AH1

RXB0+

AH2

RXB0-

AG3

RXB1+

AG4

RXB1-

AF3

RXB2+

AF4

RXB2-

AF1

RXBCK+

AF2

RXBCK-

AE3

RXB3+

AE4

RXB3-

AD3

RXB4+

AD4

RXB4-

AM1

RXA0+

AM2

RXA0-

AL3

RXA1+

AL4

RXA1-

AK3

RXA2+

AK4

RXA2-

AK1

RXACK+

AK2

RXACK-

AJ3

RXA3+

AJ4

RXA3-

AH3

RXA4+

AH4

RXA4-

AK30 AJ29

AJ31 AK29

AJ30 AH28

AJ33 AC23

AG9 AG10 V27 AK9 AJ9 AF10 AH9 AK8 AJ8 AH8 AJ10

RP GP

BP COM SOG

COM1 PB1P PR1P

Y1P

SOY1 COM0 PB0P PR0P

Y0P

SOY0

Don’t use as GPIO

AK18 AL18

RGB

AL20 AM20

RGB

AL19

RGB

AN20

RGB

AK19

RGB AG22 AH22

EU

AL21 AK22

EU EU

AL22

EU

AM21 AN21 AM23 AL23 AL24 AN23 AK23

AH24

TP200

AJ24

VDD3V3

AN25

AN18

AC19 AK17 AE20

AVDD3V3_AADC

C2050.01uF C2070.01uF C2090.01uF C2460.01uF C2101500pF

C3770.01uF C3780.01uF C3790.01uF

C3710.01uF C3720.01uF C3730.01uF C3740.01uF C3751500pF

+1.2V_MTK_AVDD

C382

0.1uF

EU

R38215K R38315K

EU

R208100

RGB RGB

R210100

RGB

R212100 R238100

RGB

R391100EUC3760.01uF R392100

EU EU

R393100 R394100

EU EU

R3950 R361100 R362100 R363100 R364100

C320 330pF 50V

C387 22pF

OPT

DSUB_HSYNC DSUB_VSYNC DSUB_R DSUB_G DSUB_B

C321 330pF 50V

EU

C389 22pF OPT

JACK SIDE PLACE

SC_G SC_R SC_B SC_FB

COMP1_Pb COMP1_Pr COMP1_Y/AV1_CVBS

SC_CVBS_OUT

EU

C393 22pF OPT

RGB

R589 0

5%

SC_ROUTPC_L_IN SC_LOUT

SPDIF_OUT ARC AUD_SCK AUD_LRCK AUD_MASTER_CLK AUD_LRCH

C396 33pF OPT

NO_RGB

R590 22

ROM_DL_UART_TX ROM_DL_UART_RX

R591

22

NO_RGB

RGB_DDC_SDA RGB_DDC_SCL

For PCB Pattern

LVDS_LED

LTST-C150KGKT

D300

LVDS_LED

MMBT3904(NXP)

+3.3V_MULTI

LVDS_LED

Q300

R374

C

E

4.7K

R375

LVDS_LED

ROM_DW_DA ROM_DW_CK

LVDS_LED

MMBD6100

B

47K

D301

LVDS_LED

R376

R373

4.7K

2K

RGB R377

4.7K

R372

A2CA1

+3.3V_MULTI

LVDS_LED

RGB R378

4.7K

ROM_DL_UART_TX

I2C_SDA2

DISP_EN

I2C_SCL2

R560

4.7K

NO_RGB

RXD4+ RXD4RXD3+ RXD3-

RXDCK+ RXDCK-

RXD2+ RXD2RXD1+ RXD1RXD0+ RXD0-

RXC4+ RXC4RXC3+ RXC3-

RXCCK+ RXCCK-

RXC2+ RXC2RXC1+ RXC1RXC0+ RXC0-

RXB4+ RXB4RXB3+ RXB3-

RXBCK+ RXBCK-

RXB2+ RXB2RXB1+ RXB1RXB0+ RXB0-

RXA4+ RXA4RXA3+ RXA3-

RXACK+ RXACK-

RXA2+ RXA2RXA1+ RXA1RXA0+ RXA0-

R384 R385 R386 22

R387

27K

LVDS

P300

104060-8017

4.7K

R561

NO_RGB

22 100

FHD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

81

RXB4+ RXB4RXB3+ RXB3-

RXBCK+ RXBCK-

RXB2+ RXB2RXB1+ RXB1RXB0+ RXB0-

RXA4+ RXA4RXA3+ RXA3-

RXACK+ RXACK-

RXA2+ RXA2RXA1+ RXA1RXA0+ RXA0-

TF05-51S

P301

HD

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MID_MAIN_2

2011.12.19

9

VDD3V3

+3.3V_MULTI

BLM18PG121SN1D

C503 10uF

VDD3V3

L501

L502

BLM18PG121SN1D

C505 10uF

C504

0.1uF

60mA

C507

0.1uF

C506

0.1uF

C508

2.2uF

AVDD_33SB

DECAP FOR SOC (HIDDEN - UCC)

+1.5V_DDR

C509

0.1uF

+1.2V_MTK_CORE

C555

OPT

0.1uF

+1.2V_MTK_CORE

C514 10uF

+1.5V_DDR

C526

0.1uF

+1.2V_MTK_CORE

C511

0.1uF

5600mA

C517

C522

10uF

C537

C530

0.1uF

L504

BLM18PG121SN1D

C518 10uF

C523

0.1uF

+1.2V_MTK_CORE

+1.2V_MTK_AVDD

OPT

C513 10uF

C520

0.1uF

OPT

C532

0.1uF

+3.3V_MULTI

3.3V_EMMC

L505

BLM18PG121SN1D

DECAP FOR SOC Rework (BOTTOM)

+1.2V_MTK_CORE

C533

0.1uF

C539

0.1uF

C534

0.1uF

C541

0.1uF 16V

OPT

+1.5V_DDR

OPT

C531

0.1uF 16V

VDD3V3

OPT

C536

0.1uF

VDD3V3

+1.2V_MTK_CORE

LGE2122[A2_M13]

L11

VCCK_1

N12

VCCK_2

P12

VCCK_3

AG5

VCCK_4

AH5

VCCK_5

AJ5

VCCK_6

AK5

VCCK_7

AL5

VCCK_8

AM5

VCCK_9

AN5

VCCK_10

AK6

VCCK_11

AL6

VCCK_12

AM6

VCCK_13

AN6

VCCK_14

M11

VCCK_15

N11

VCCK_16

P11

VCCK_17

R11

VCCK_18

M12

VCCK_19

R12

VCCK_20

L13

VCCK_21

L14

VCCK_22

L15

VCCK_23

L17

VCCK_24

L18

VCCK_25

L19

VCCK_26

T11

VCCK_27

U11

VCCK_28

V11

VCCK_29

W11

VCCK_30

Y11

VCCK_31

AA11

VCCK_32

AB11

VCCK_33

AC11

VCCK_34

R23

VCCK_35

L12

VCCK_36

W12

VCCK_37

V23

VCCK_38

Y12

VCCK_39

AF6

VCCK_40

AG6

VCCK_41

AH6

VCCK_42

AJ6

VCCK_43

AE7

VCCK_44

AF7

VCCK_45

AG7

VCCK_46

AD8

VCCK_47

AE8

VCCK_48

AF8

VCCK_49

AE9

VCCK_50

AC10

VCCK_51

AD10

VCCK_52

AD11

VCCK_53

AE10

VCCK_54

AF9

VCCK_55

AG8

VCCK_56

AH7

VCCK_57

AJ7

VCCK_58

AK7

VCCK_59

AL7

VCCK_60

AM7

VCCK_61

AN7

VCCK_62

L16

VCCK_63

V12

VCCK_64

U12

VCCK_65

T12

VCCK_66

AD13

VCCK_67

AD17

VCCK_68

AD14

VCCK_69

AB12

VCCK_70

AA12

VCCK_71

AC12

VCCK_72

T9

VCC3IO_C

Y10

VCC3IO_B_1

AA10

VCC3IO_B_2

D22

VCC3IO_A_1

E22

VCC3IO_A_2

AC18

DVSS_1

AB21

DVSS_2

AB14

DVSS_3

N13

DVSS_4

P13

DVSS_5

R13

DVSS_6

T13

DVSS_7

U13

DVSS_8

V13

DVSS_9

W13

DVSS_10

Y13

DVSS_11

P18

DVSS_12

N14

DVSS_13

P14

DVSS_14

R14

DVSS_15

T14

DVSS_16

U14

DVSS_17

V14

DVSS_18

W14

DVSS_19

Y14

DVSS_20

R18

DVSS_21

N15

DVSS_22

P15

DVSS_23

IC105

DVSS_24 DVSS_25 DVSS_26 DVSS_27 DVSS_28 DVSS_29 DVSS_30 DVSS_31 DVSS_32 DVSS_33 DVSS_34 DVSS_35 DVSS_36 DVSS_37 DVSS_38 DVSS_39 DVSS_40 DVSS_41 DVSS_42 DVSS_43 DVSS_44 DVSS_45 DVSS_46 DVSS_47 DVSS_48 DVSS_49 DVSS_50 DVSS_51 DVSS_52 DVSS_53 DVSS_54 DVSS_55 DVSS_56 DVSS_57 DVSS_58 DVSS_59 DVSS_60 DVSS_61 DVSS_62 DVSS_63 DVSS_64 DVSS_65 DVSS_66 DVSS_67 DVSS_68 DVSS_69 DVSS_70 DVSS_71 DVSS_72 DVSS_73 DVSS_74 DVSS_75 DVSS_76 DVSS_77 DVSS_78 DVSS_79 DVSS_80 DVSS_81 DVSS_82 DVSS_83 DVSS_84 DVSS_85 DVSS_86 DVSS_87 DVSS_88 DVSS_89 DVSS_90 DVSS_91 DVSS_92 DVSS_93 DVSS_94 DVSS_95 DVSS_96 DVSS_97 DVSS_98

DVSS_99 DVSS_100 DVSS_101 DVSS_102 DVSS_103 DVSS_104 DVSS_105 DVSS_106 DVSS_107 DVSS_108 DVSS_109 DVSS_110 DVSS_111 DVSS_112 DVSS_113 DVSS_114 DVSS_115 DVSS_116 DVSS_117 DVSS_118 DVSS_119 DVSS_120 DVSS_121 DVSS_122 DVSS_123 DVSS_124 DVSS_125 DVSS_126 DVSS_127

R15 T15 U15 V15 W15 Y15 AA15 AB15 T18 R16 T16 U16 V16 W16 Y16 AA16 AB16 R17 T17 U17 V17 Y17 N16 V18 Y18 P16 V19 Y19 W17 AA17 AB17 N19 AC14 C13 K24 K25 L24 M17 M18 M19 P17 P19 N18 U20 V20 W20 Y20 AA20 R19 T19 M20 N20 U21 V21 W21 Y21 AA21 P20 R20 T20 U22 V22 W22 Y22 AA22 N21 P21 R21 T21 M22 N22 P22 R22 T22 M21 AC17 AA19 M13 M14 M15 AA13 AB13 AA14 AB19 D6 W19 U19 N17 L3 AB18 AA18 W18 U18 D16 AC13 M16 AC20 AC22 AD20 Y23 AA23 AB23 V24 W23

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MID_MAIN_3

2011.12.09

10

CH : A , (512MB x16) x2

A_RVREF1

A_RVREF4

+1.5V_DDR

DDR_512MB_SS

IC701

K4B4G1646B-HCK0

R710

A_RVREF4

A_RVREF1

+1.5V_DDR

A10/AP

A12/BC

RESET

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

ARA[10]

L7

ARA[11]

R7

A11

ARA[12]

N7

ARA[13]

T3

A13

ARA[14]

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

VREFCA

H1

VREFDQ

1% 240

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

C713

R706

0.1uF 1K 1%

R707

C714

1K 1%

0.1uF

C715

R708

0.1uF 1K 1%

R709

C716

1K 1%

0.1uF

ARA[0] ARA[1] ARA[2] ARA[3] ARA[4] ARA[5] ARA[6] ARA[7] ARA[8] ARA[9]

ARBA0 ARBA1 ARBA2

ARCKE

/ARCS ARODT /ARRAS /ARCAS /ARWE

ARREST

ARDQS0 /ARDQS0

ARDQS1 /ARDQS1

ARDQM0 ARDQM1

ARDQ[0] ARDQ[1] ARDQ[2] ARDQ[3] ARDQ[4] ARDQ[5] ARDQ[6] ARDQ[7]

ARDQ[8]

ARDQ[9] ARDQ[10] ARDQ[11] ARDQ[12] ARDQ[13] ARDQ[14] ARDQ[15]

ARA[0-14]

ARCLK0

R712 100 5%

/ARCLK0

ARDQ[0-7]

ARDQ[8-15]

ARCLK1

/ARCLK1

ARDQ[16-23]

ARDQ[24-31]

ARA[0-14]

R714 100 5%

DDR_512MB_SS

K4B4G1646B-HCK0

ARA[0]

N3

ARA[1]

P7

ARA[2]

P3

ARA[3]

N2

ARA[4]

P8

ARA[5]

P2

ARA[6]

R8

ARA[7]

R2

ARA[8]

T8

ARA[9]

R3

ARA[10]

L7

ARA[11]

R7

ARA[12]

N7

ARA[13]

T3

ARA[14]

T7 M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

ARDQ[16] ARDQ[17] ARDQ[18] ARDQ[19] ARDQ[20] ARDQ[21] ARDQ[22] ARDQ[23]

ARDQ[24] ARDQ[25] ARDQ[26] ARDQ[27] ARDQ[28] ARDQ[29] ARDQ[30] ARDQ[31]

ARBA0 ARBA1 ARBA2

ARCKE

/ARCSX

ARODT /ARRAS /ARCAS

/ARWE

ARREST

ARDQS2

/ARDQS2

ARDQS3

/ARDQS3

ARDQM2 ARDQM3

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC A13 A14 A15

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

IC703

VREFCA

VREFDQ

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9

A_RVREF2

M8

A_RVREF3

H1

1%

240

R716

L8

ZQ

+1.5V_DDR

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

DDR_512MB_HYNIX

H5TQ4G63AFR-PBC

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3 T7 M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

IC701-*1

M8

VREFCA

A0 A1 A2

H1

VREFDQ

A3 A4 A5

L8

ZQ

A6 A7 A8

B2

A9

VDD_1

D9

A10/AP

VDD_2

G7

A11

VDD_3

K2

A12/BC

VDD_4

K8

VDD_5

A13

N1

A14

VDD_6

N9

VDD_7

A15

R1

VDD_8

R9

VDD_9

BA0 BA1 BA2

A1

VDDQ_1

A8

VDDQ_2

CK

C1

VDDQ_3

CK

C9

VDDQ_4

CKE

D2

VDDQ_5

E9

VDDQ_6

CS

F1

VDDQ_7

ODT

H2

VDDQ_8

RAS

H9

VDDQ_9

CAS WE

J1

NC_1

J9

NC_2

RESET

L1

NC_3

L9

NC_4 DQSL DQSL

A9

VSS_1

DQSU

B3

VSS_2

DQSU

E1

VSS_3

G8

VSS_4

DML

J2

VSS_5

DMU

J8

VSS_6

M1

VSS_7

DQL0

M9

VSS_8

DQL1

P1

VSS_9

DQL2

P9

VSS_10

DQL3

T1

VSS_11

DQL4

T9

VSS_12

DQL5 DQL6 DQL7

B1

VSSQ_1

B9

VSSQ_2

DQU0

D1

VSSQ_3

DQU1

D8

VSSQ_4

DQU2

E2

VSSQ_5

DQU3

E8

VSSQ_6

DQU4

F9

VSSQ_7

DQU5

G1

VSSQ_8

DQU6

G9

VSSQ_9

DQU7

DDR_512MB_HYNIX

IC703-*1

H5TQ4G63AFR-PBC

M8

N3

VREFCA

A0

P7

A1

P3

A2

N2

H1

A3

VREFDQ

P8

A4

P2

A5

R8

L8

A6

ZQ

R2

A7

T8

A8

R3

B2

A9

VDD_1

L7

D9

A10/AP

VDD_2

R7

G7

A11

VDD_3

N7

K2

A12/BC

VDD_4

T3

K8

A13

VDD_5

T7

N1

A14

VDD_6

N9

M7

VDD_7

A15

R1

VDD_8

R9

M2

VDD_9

BA0

N8

BA1

M3

BA2

A1

VDDQ_1

A8

J7

VDDQ_2

CK

C1

K7

VDDQ_3

CK

C9

K9

VDDQ_4

CKE

D2

VDDQ_5

E9

L2

VDDQ_6

CS

F1

K1

VDDQ_7

ODT

H2

J3

VDDQ_8

RAS

H9

K3

VDDQ_9

CAS

L3

WE

J1

NC_1

J9

T2

NC_2

RESET

L1

NC_3

L9

NC_4

F3

DQSL

G3

DQSL

A9

C7

VSS_1

DQSU

B3

B7

VSS_2

DQSU

E1

VSS_3

G8

E7

VSS_4

DML

J2

D3

VSS_5

DMU

J8

VSS_6

M1

E3

VSS_7

DQL0

M9

F7

VSS_8

DQL1

P1

F2

VSS_9

DQL2

P9

F8

VSS_10

DQL3

T1

H3

VSS_11

DQL4

T9

H8

VSS_12

DQL5

G2

DQL6

H7

DQL7

B1

VSSQ_1

B9

D7

VSSQ_2

DQU0

D1

C3

VSSQ_3

DQU1

D8

C8

VSSQ_4

DQU2

E2

C2

VSSQ_5

DQU3

E8

A7

VSSQ_6

DQU4

F9

A2

VSSQ_7

DQU5

G1

B8

VSSQ_8

DQU6

G9

A3

VSSQ_9

DQU7

DDR_512MB_ELPIDA

EDJ4216BBBG-GN-F

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC701-*2

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

EDJ4216BBBG-GN-F

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC A13

NC_5

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

A14

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

IC703-*2

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

A14

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

A_RVREF2

A_RVREF3

+1.5V_DDR

R720 1K 1%

R721 1K 1%

R718 1K 1%

R719 1K 1%

+1.5V_DDR

C733

0.1uF

C734

0.1uF

C735

0.1uF

C736

0.1uF

RVREF_A

+1.5V_DDR

C746

R730

0.1uF 1K 1%

R731 1K

C747

1%

0.1uF

RVREF_A

ARA[0-14]

ARCKE

ARCLK1

/ARCLK1

ARCLK0

/ARCLK0

ARODT /ARRAS /ARCAS

/ARCS

/ARWE

ARREST

ARBA0

ARBA1

ARBA2

/ARCSX

+1.5V_DDR

TP700 TP701

ARA[14] ARA[13] ARA[12] ARA[11] ARA[10] ARA[9] ARA[8] ARA[7] ARA[6] ARA[5] ARA[4] ARA[3] ARA[2] ARA[1] ARA[0]

LGE2122[A2_M13]

R1

DDRV_1

R2

DDRV_2

R3

DDRV_3

R4

DDRV_4

R5

DDRV_5

K3

DDRV_6

R6

DDRV_7

L8

DDRV_8

M8

DDRV_9

D17

DDRV_10

A19

DDRV_11

J22

MEMTP

K22

MEMTN

D18

RVREF_A

G8

ARCKE

B5

ARCLK1

A5

ARCLK1

B14

ARCLK0

A14

ARCLK0

F13

ARODT

E13

ARRAS

G13

ARCAS

G15

ARCS

H18

ARWE

G16

ARRESET

D15

ARBA0

F9

ARBA1

G18

ARBA2

F15

ARCSX

D11

ARA14

F16

ARA13

D8

ARA12

E11

ARA11

G9

ARA10

E16

ARA9

F11

ARA8

G17

ARA

F10

ARA6

E17

ARA5

E10

ARA4

E15

ARA3

F17

ARA2

G10

ARA1

F18

ARA0

IC105

ARDQM0 ARDQS0 ARDQS0

ARDQ0 ARDQ1 ARDQ2 ARDQ3 ARDQ4 ARDQ5 ARDQ6 ARDQ7

ARDQM1 ARDQS1 ARDQS1

ARDQ8

ARDQ9 ARDQ10 ARDQ11 ARDQ12 ARDQ13 ARDQ14 ARDQ15

ARDQM2 ARDQS2 ARDQS2 ARDQ16 ARDQ17 ARDQ18 ARDQ19 ARDQ20 ARDQ21 ARDQ22 ARDQ23

ARDQM3 ARDQS3 ARDQS3 ARDQ24 ARDQ25 ARDQ26 ARDQ27 ARDQ28 ARDQ29 ARDQ30 ARDQ31

AVDD33_MEMPLL AVSS33_MEMPLL

D12

ARDQM0

D14

ARDQS0

C14

/ARDQS0

ARDQM2 ARDQS2 /ARDQS2

ARDQM3 ARDQS3 /ARDQS3

ARDQM1 ARDQS1 /ARDQS1

ARDQ[0] ARDQ[1] ARDQ[2] ARDQ[3] ARDQ[4] ARDQ[5] ARDQ[6] ARDQ[7]

ARDQ[8]

ARDQ[9] ARDQ[10] ARDQ[11] ARDQ[12] ARDQ[13] ARDQ[14] ARDQ[15]

ARDQ[16]

ARDQ[17]

ARDQ[18]

ARDQ[19]

ARDQ[20]

ARDQ[21]

ARDQ[22]

ARDQ[23]

ARDQ[24]

ARDQ[25]

ARDQ[26]

ARDQ[27]

ARDQ[28]

ARDQ[29]

ARDQ[30]

ARDQ[31]

B17 D10 C17 C10 C18 B9 E18 D9

C15 A13 B13 B11 B16 A11 A17 C12 A16 C11 C16

A3 D5 C5 E7 B2 C8 B1 A9 C1 C9 C3

C6 A4 B4 A1 B7 C4 C7 B3 A7 A2 D7

A20 H9

0.1uF

ARDQ[0-7]

ARDQ[8-15]

ARDQ[16-23]

ARDQ[24-31]

VDD3V3

C700

B_RVREF5

B_RVREF6

+1.5V_DDR

CH : B , 256MB x16

DDR_512MB_SS

B_RVREF5

B_RVREF6

R711

+1.5V_DDR

1% 240

C709

R702

0.1uF 1K 1%

R703 1K

C710

1%

0.1uF

C711

R704

0.1uF 1K 1%

R705

C712

1K 1%

0.1uF

IC702

K4B4G1646B-HCK0

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

A10/AP

A12/BC

RESET

DDR_256MB_SS

BRA[0-14]

BRA[0]

N3

A0

BRA[1]

P7

A1

BRA[2]

P3

A2

BRA[3]

N2

A3

BRA[4]

P8

A4

BRA[5]

P2

A5

BRA[6]

R8

A6

BRA[7]

R2

A7

BRA[8]

T8

A8

BRA[9]

R3

A9

BRA[10]

L7

BRA[11]

R7

A11

BRA[12]

N7

BRA[13]

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

BRDQ[0]

DQL0

F7

BRDQ[1]

DQL1

F2

BRDQ[2]

DQL2

F8

BRDQ[3]

DQL3

H3

BRDQ[4]

DQL4

H8

BRDQ[5]

DQL5

G2

BRDQ[6]

DQL6

H7

BRDQ[7]

DQL7

BRDQ[8]

D7

DQU0

BRDQ[9]

C3

DQU1

BRDQ[10]

C8

DQU2

BRDQ[11]

C2

DQU3

BRDQ[12]

A7

DQU4

BRDQ[13]

A2

DQU5

BRDQ[14]

B8

DQU6

BRDQ[15]

A3

DQU7

BRBA0 BRBA1 BRBA2

BRCKE

/BRCS BRODT /BRRAS /BRCAS /BRWE

BRREST

BRDQS0 /BRDQS0

BRDQS1 /BRDQS1

BRDQM0 BRDQM1

BRA[14] BRA[15]

R713 100 5%

BRDQ[0-7]

BRDQ[8-15]

BRCLK0

/BRCLK0

DDR_256MB_HYNIX

IC702-*1

K4B2G1646E-BCK0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

H5TQ2G63DFR-PBC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC702-*2

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

DDR_256MB_ELPIDA

IC702-*3

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

EDJ2116DEBG-GN-F

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

+1.5V_DDR

RVREF_C

C741

R726

0.1uF 1K 1%

R727

C742

1K 1%

0.1uF

BRA[0-15]

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

A14

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

RVREF_C

BRCLK0

/BRCLK0

BRCKE

BRODT /BRRAS /BRCAS

/BRCS

BRBA0

BRBA1

BRBA2

/BRWE BRA[15] BRA[14] BRA[13] BRA[12] BRA[11] BRA[10] BRA[9] BRA[8] BRA[7] BRA[6] BRA[5] BRA[4] BRA[3] BRA[2] BRA[1] BRA[0]

+1.5V_DDR

LGE2122[A2_M13]

C2

RVREF_C

J2

BRCLK0

J1

BRCLK0

L6

BRCKE

E3

BRODT

L4

BRRAS

D3

BRCAS

D4

BRCS

J4

BRBA0

M6

BRBA1

E4

BRBA2

K4

BRWE

J3

BRA15

P4

BRA14

G5

BRA13

P6

BRA12

P5

BRA11

L5

BRA10

F4

BRA9

P3

BRA8

H4

BRA7

P2

BRA6

K6

BRA5

M5

BRA4

K5

BRA3

G6

BRA2

N5

BRA1

E5

BRA0

B19

DDRV_12

C19

DDRV_13

D19

DDRV_14

E19

DDRV_15

F19

DDRV_16

G19

DDRV_17

F5

DDRV_18

H5

DDRV_19

N8

DDRV_20

P8

DDRV_21

D13

DDRV_22

E8

DDRV_23

G11

DDRV_24

D20

DDRV_25

E20

DDRV_26

F20

DDRV_27

G20

DDRV_28

R7

DDRV_29

R8

DDRV_30

T5

DDRV_31

T6

DDRV_32

T7

DDRV_33

T8

DDRV_34

IC105

BRDQM0 BRDQS0 BRDQS0

BRDQM1 BRDQS1 BRDQS1

BRDQ10 BRDQ11 BRDQ12 BRDQ13 BRDQ14 BRDQ15

BRRESET

BRDQ0 BRDQ1 BRDQ2 BRDQ3 BRDQ4 BRDQ5 BRDQ6 BRDQ7

BRDQ8 BRDQ9

L1

BRDQM0

H2

BRDQS0

H1

/BRDQS0

BRDQM1 BRDQS1 /BRDQS1

BRDQ[0] BRDQ[1] BRDQ[2] BRDQ[3] BRDQ[4] BRDQ[5] BRDQ[6] BRDQ[7]

BRDQ[8]

BRDQ[9] BRDQ[10] BRDQ[11] BRDQ[12] BRDQ[13] BRDQ[14] BRDQ[15]

E2 N3 E1 N1 D1 P1 D2 N2

H3 K1 K2 N4 F2 M3 F1 L2 F3 M4 G3

BRDQ[0-7]

BRDQ[8-15]

+1.5V_DDR

C718

0.1uF

C717

0.1uF

C720

0.1uF

C719

0.1uF

C722

0.1uF

C721

0.1uF

C724

0.1uF

C723

0.1uF

C726

0.1uF

C725

0.1uF

C728

0.1uF

C727

0.1uF

C707

C705

10uF

1uF

10V

C708

C706

10uF

1uF

10V

+1.5V_DDR

C701

C757

0.1uF

C703

10uF

1uF

10V

C704

C702

10uF

1uF

10V

C750

0.1uF

G4

BRREST

+1.5V_DDR

C745

0.1uF

C751

0.1uF

C754

0.1uF

C753

0.1uF

C755

0.1uF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

DDR ONE SIDE 12

2011.12.09

DVB-CI SLOT

/CI_CD1

MT5369_TS_IN[4] MT5369_TS_IN[5] MT5369_TS_IN[6] MT5369_TS_IN[7]

CI_IORD CI_IOWR

CI_MDI_SYNC

CI_MDI[0] CI_MDI[1] CI_MDI[2] CI_MDI[3]

CI_MDI[4] CI_MDI[5] CI_MDI[6] CI_MDI[7]

PCM_RST

/PCM_WAIT

MT5369_TS_CLK MT5369_TS_VAL

MT5369_TS_SYNC

MT5369_TS_IN[0] MT5369_TS_IN[1] MT5369_TS_IN[2] MT5369_TS_IN[3]

/CI_CD2

P_+5V

REG

+3.3V_MULTI

R1402 10K

AR1404 33

AR1405 33

AR1406 33

R1401 10K

R1406 100

R1404 33

R1405 33

R1407 100

+5V_CI_ON

R1409 10K

C1401 10uF 10V

C1402

0.1uF 16V

JK1401

10067972-050LF

35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59

65 66 67 68

2

69

CI POWER ENABLE CONTROL

P_+5V +5V_CI_ON

+3.3V_MULTI

CI_DATA[3]

R1410 33

R1411 100

CI_DATA[4] CI_DATA[5] CI_DATA[6] CI_DATA[7]

CI_ADDR[7] CI_ADDR[6] CI_ADDR[5] CI_ADDR[4] CI_ADDR[3] CI_ADDR[2] CI_ADDR[1] CI_ADDR[0]

CI_DATA[0] CI_DATA[1] CI_DATA[2]

CI_ADDR[10]

CI_ADDR[11] CI_ADDR[9] CI_ADDR[8] CI_ADDR[13] CI_ADDR[14]

CI_ADDR[12]

CI_DATA[0-7]

/PCM_CE1

CI_OE

CI_WE /PCM_IRQA

CI_MDI_VAL CI_MDI_CLK

CI_ADDR[8-14]

CI_ADDR[0-7]

CI_DATA[0-7]

PCM_5V_CTL

+3.3V_MULTI

3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 2660 2761 2862 2963 3064 31 32 33 34

1

G1G2

R1414

4.7K OPT

IN

EN

IC1400

AP2151WG-7

5

4

OUT

1

EU

GND

2

FLG

3

C1403

4.7uF 10V

R1400 10K

C1400 10uF 10V

C1404 10uF 10V

DVB-CI TS INPUT

CI_MDI[7] CI_MDI[6] CI_MDI[5] CI_MDI[4]

CI_MDI[3] CI_MDI[2] CI_MDI[1] CI_MDI[0]

CI_MDI_CLK CI_MDI_VAL

CI_MDI_SYNC

AR1401 47

AR1402 47

AR1403 47

REG

MT5369_TS_OUT[7] MT5369_TS_OUT[6] MT5369_TS_OUT[5] MT5369_TS_OUT[4]

MT5369_TS_OUT[3] MT5369_TS_OUT[2] MT5369_TS_OUT[1] MT5369_TS_OUT[0]

MT5369_MCLKI MT5369_MIVAL_ERR MT5369_MISTRT /PCM_REG

MT5369_TS_OUT[0-7]

CI_OE

CI_WE CI_IORD CI_IOWR

AR1407 33

/PCM_OE /PCM_WE /PCM_IORD /PCM_IOWR

PCM_RST

/PCM_CE1

/PCM_WAIT

/PCM_IRQA

+5V_CI_ON

R1408 10K OPT

R1403 10K

R1412 10K OPT

R1413 10K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

PCMCI Slot

RL_ON

C1102

0.1uF 16V

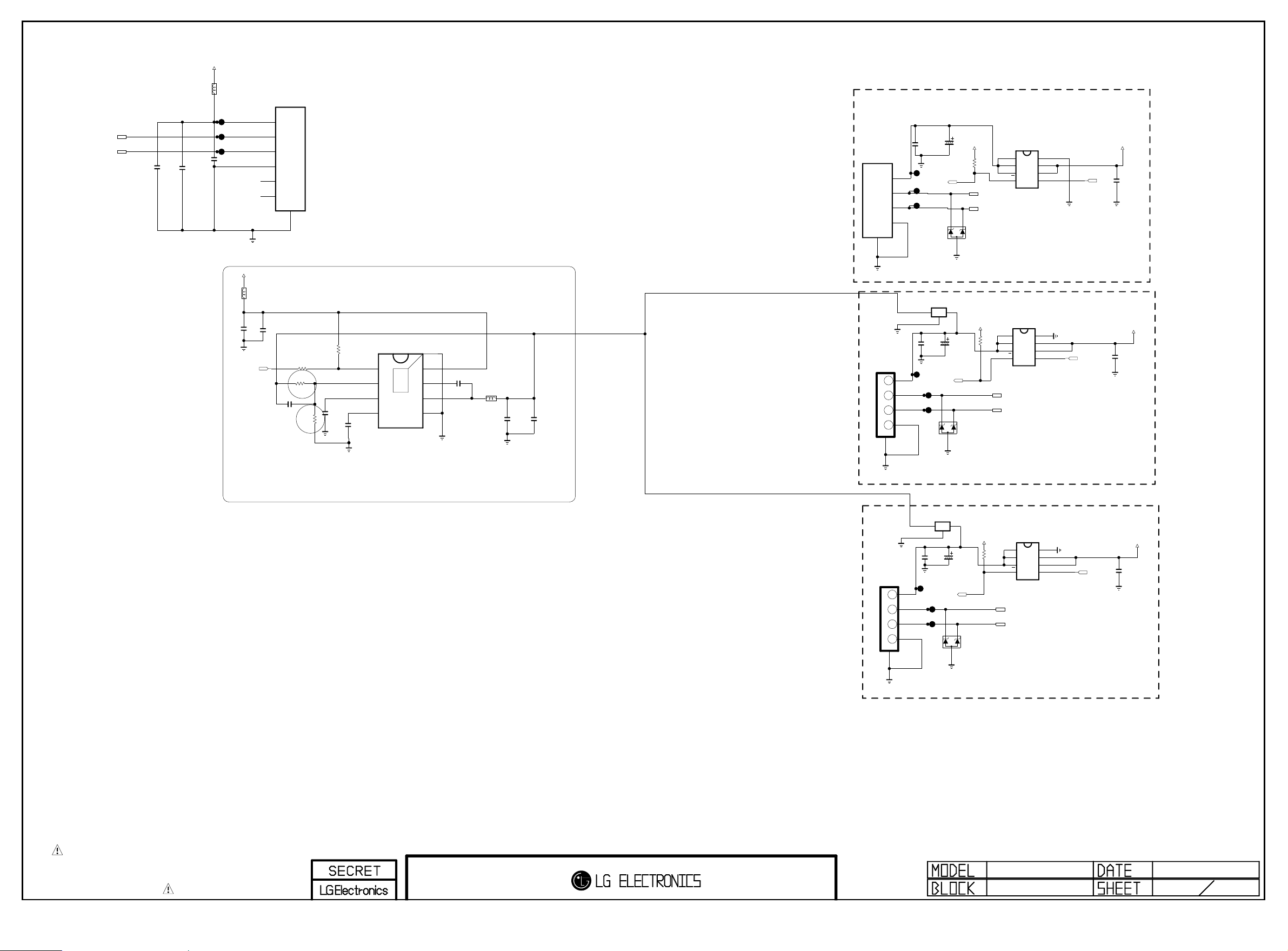

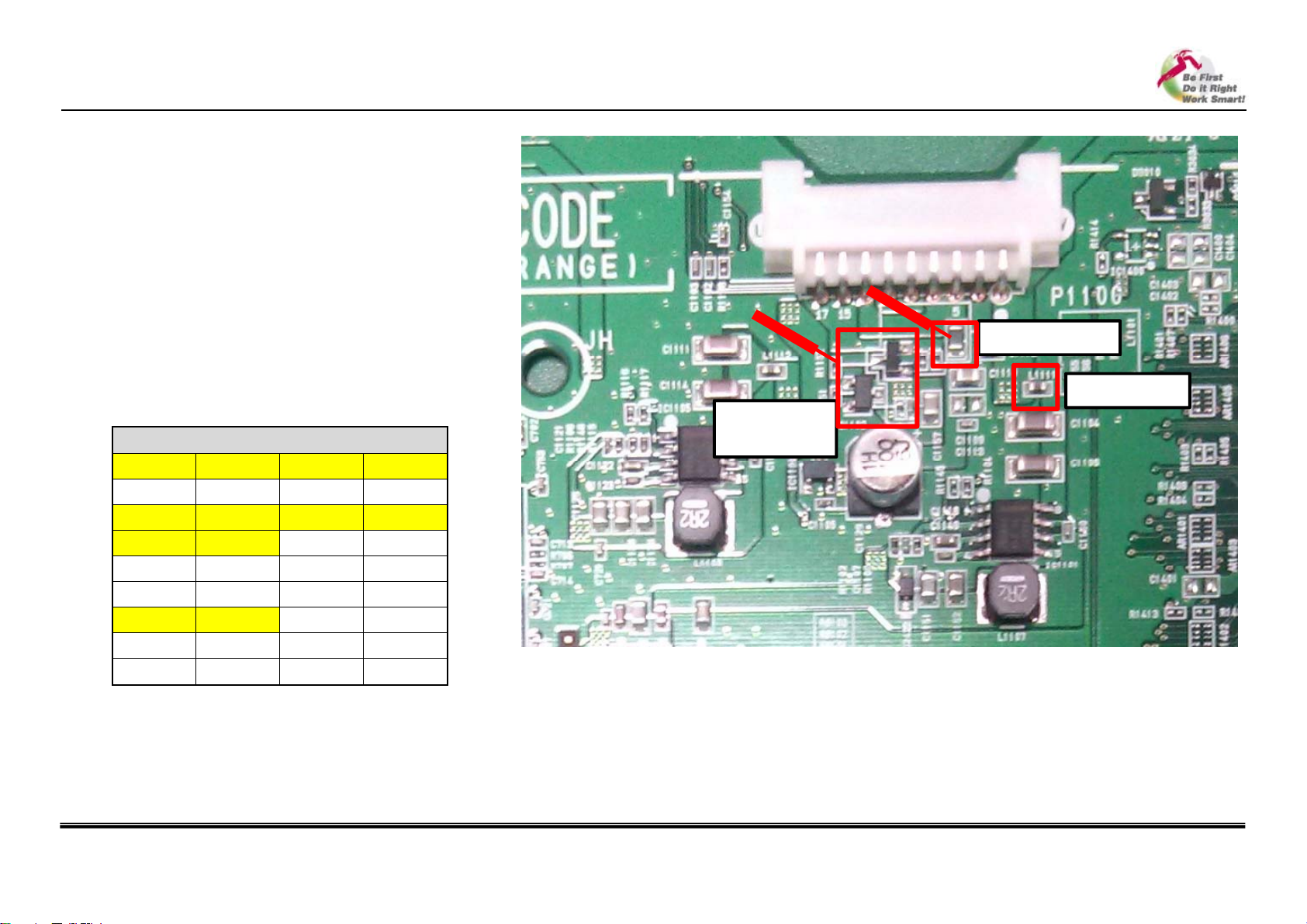

13 PSU PIN MAP

P1100

SMAW200-H18S1

17V GND

5.2V

5.2V GND GND

5.2V

RL_ON

M_ON

1 3 5 7 9 11 13 15 17

2 4 6

8 10 12 14 16 18

17V GND

5.2V VS_DET GND VS_ON 17V_DET AC_DET AUTO_GND

P_+17V

VS_DET

17V_DET

AC_DET

C1112

0.1uF 50V

UBW2012-121F

R1198 2K

L1101

C1154

0.1uF 16V

C1110 10uF 10V

VS_ON

C1113

0.1uF 16V

C1109 10uF 10V

OPT

C1129

100uF

16V

+5V_ST

+1.2V_CORE_MT5369

+5V_ST

L1102

UBW2012-121F

Placed on SMD-TOP

C1108

C1100

10uF

10V

PGND

VIN

AGND

FB

IC1102

BD86106EFJ

1

2

3

4

6A

R1120

10K

OPT

THERMAL

[EP]

SW_2

8

SW_1

9

7

EN

6

COMP

5

R1108

+1.2V_MTK_CORE

L1104

2uH

C1130

C1128

10uF

6.3V

C1127

1200pF

50V

11K 1%

R1118

10K

C1115

16V

0.1uF

OPT

POWER_ON1

C1132 10uF

6.3V

C1133 10uF

6.3V R1121

R1122

6.2K

3.3K

1%

R1

R2

MOD_ON

C1103

0.1uF 16V

+3.3V_Stand_By

+5V_ST

IC1100

AP2121N-3.3TRE1

VOUT

2

3

1

GND

C1101

0.1uF 16V

VIN

C1105 1uF 10V

+3.3V_ST

19

5V_STBY --> MULTI 5V

RL_ON

+5V_ST

R1149 10K

R1150 10K

B

R1151 10K

R1152 2K

C

Q1101 MMBT3904(NXP)

E

Q1102 AO3407A

S

G

Switching freq: 555K

Vout=Vref*(1+R1/R2)|Vref=0.8

HDMI LEAKAGE Workaround in MTK A2(A0) (Default= with HDMI_LEAKAGE)

P_+5V

D

C1157

C1156

C1155

0.1uF 16V OPT

0.1uF 16V

10uF 10V

+3.3V_MULTI

P_+5V

OPT

R1147 0

S

R1148 10K

G

Q1100

AO3438

D

C1153

0.1uF 16V

VDD3V3_HDMI

P_+17V

C1151 22uF

6.3V

+3.3V_MULTI

C1152 22uF

6.3V

5V

ZD2422

L1111

BLM18PG121SN1D

C1104 10uF 25V

POWER_ON2

C1106 10uF 25V

IC1101

C1149 3300pF 50V

TPS54327DDAR

EN

VFB

VREG5

SS

1

2

3

4

R1104

R1145 0

R1

1%

R1102

C1107

33K

22pF 50V

R1103

R2

10K

OPT

C1118 1uF 10V

10K

1%

THERMAL

3A

[EP]GND

VIN

8

9

7

6

5

VBST

SW

GND

0.1uF C1150

16V

L1107

NR5040T2R2N

2.2uH

Vout=0.765*(1+R1/R2)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

P_+17V

L1112

BLM18PG121SN1D

C1111 10uF 25V

POWER_ON3

+1.5V_DDR

C1141

0.1uF

OPT

50V

-->3.12V

S

C1140

0.01uF 50V

17V->12V

IC1106

TPS54231D

BOOT

1

VIN

2

S

EN

3

SS

4

2A

$0.115

L1106

22.0uH

EAP61606601

S

D1100

40V

SMAB34

PH

8

7

6

5

GND

COMP

VSENSE

S

C1144 470pF 50V

S

R1135 51K

*NOTE 13

C1114 10uF 25V

R1117

10K

R1116 0

OPT

1%

R1

R1106

C1121

18K

22pF 50V

C1122 1uF

R1115

10V

51K

R1146

27K

R2

1%

C1123 3300pF 50V

TPS54327DDAR

EN

VFB

VREG5

SS

1

2

3

4

IC1105

THERMAL

3A

[EP]GND

VIN

8

9

7

6

5

VBST

SW

GND

0.1uF C1124

16V

L1103

NR5040T2R2N

2.2uH

C1125 22uF

6.3V

C1126 22uF

6.3V

C1138 22uF

6.3V

$0.122

Vout=0.765*(1+R1/R2)

P_+17V

S

L1113

BLM18PG121SN1D

S

C1131 10uF 25V

S

C1135

0.01uF 50V

POWER_ON4

S

R1127

16K

R1128

3.6K S

R1107 0

S

C1145 10uF 16V

Max 1.3A

S

C1146

10uF 16V

S

C1147 15pF 50V

+12V_LNB

S

R1139

6.8K 1%

R1140

1.6K

1%

R1138

120K

R1

1%

S

R2

S

Vout=0.8*(1+R1/R2)

MID_POWER

2011.11.25

24

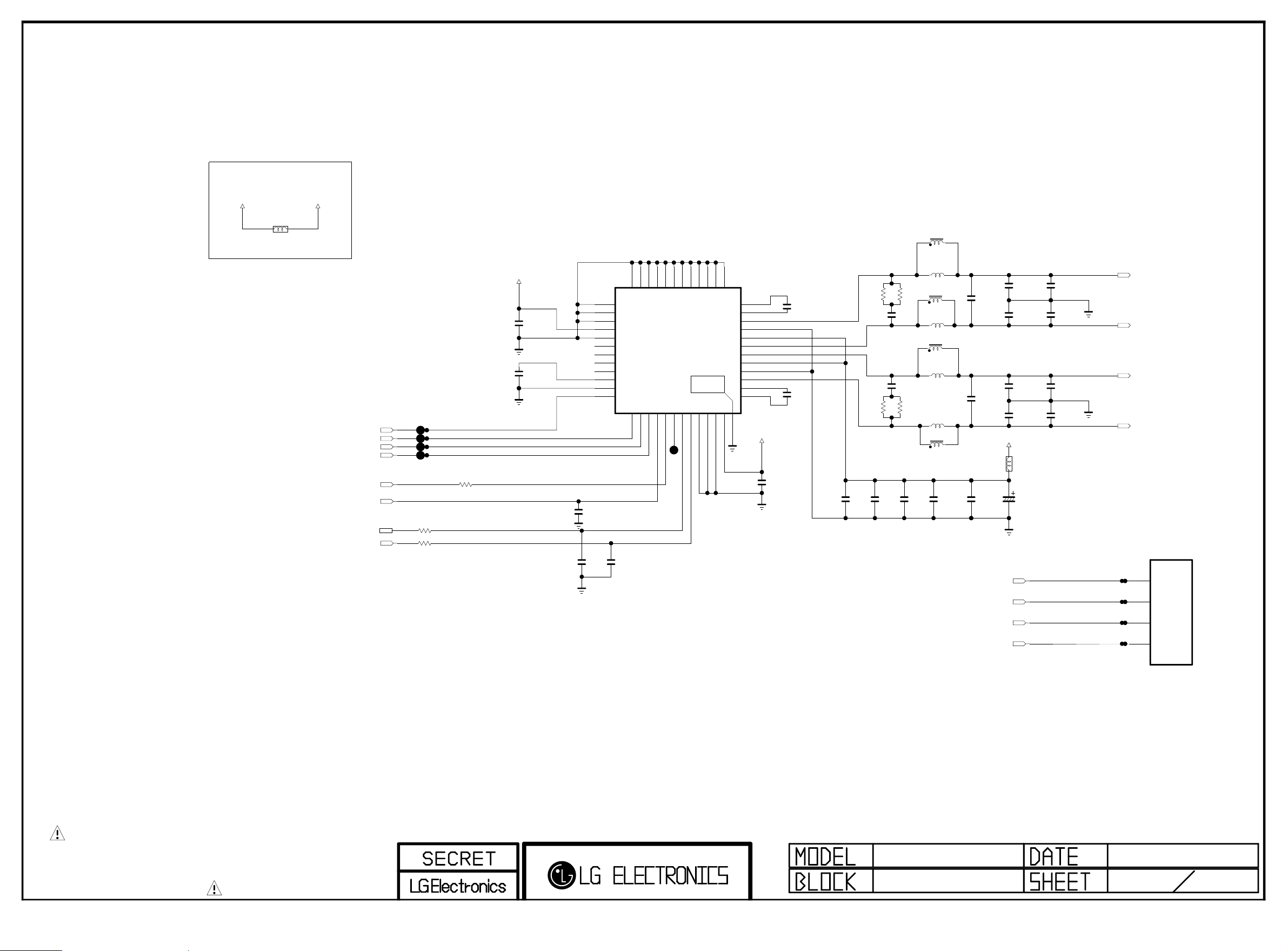

Renesas MICOM

for Debugging

Don’t remove R3002, not making float P40

+3.3V_ST

R3001

10K

DEBUG

R3002

Debug

RESET

1K

OLD_MICOM_AU_WIRE

PCB TOP

P3000

12507WS-04L

DEBUG

1

2

3

4

5

I2C_SCL3 I2C_SDA3

LED_R

IR

HDMI_CEC

DISP_EN

HDMI_WAUP:HDMI_INIT

MHL_DET

+3.3V_MULTI

R3015 10K

OPT

R3016 10K

OPT

R3017 22 R3018 22

R3020 22

OPT R3037 0

+3.3V_ST

R3022

4.7K

R3038

OPT

10K

+3.3V_ST

C3001 1uF 10V

R3027 33K

C3002

0.1uF 16V

C3003 12pF 50V

X3000

32.768KHz

P122/X2/EXCLK

P121/X1

REGC47VSS48VDD

44

45

46

1 2 3 4

IC3001

5 6

R5F100GEAFB

7 8 9 10 11 12

13

14

15

16

17

P17/TI02/TO02

P51/INTP2/SO11

P16/TI01/TO01/INTP5

P50/INTP1/SI11/SDA11

15K

P15/PCLBUZ1/SCK20/SCL20

P123/XT1

P137/INTP0

42

43

18

19

P13/TXD2/SO20

P14/RXD2/SI20/SDA20

R3024

+3.3V_ST

LOGO_LIGHT

P120/ANI19

P41/TI07/TO07

37

38

39

36 35 34 33 32 31 30 29 28 27 26 25

22

23

24

R3030 10K

C3005

0.1uF 16V

0

R3025

OPT

R3026

33K

P140/PCLBUZ0/INTP6 P00/TI00/TXD1 P01/TO00/RXD1 P130 P20/ANI0/AVREFP P21/ANI1/AVREFM P22/ANI2 P23/ANI3 P24/ANI4 P25/ANI5 P26/ANI6 P27/ANI7

C3004 12pF 50V

P40/TOOL0

RESET41P124/XT2/EXCLKS

40

20

21

P146

P147/ANI18

P10/SCK00/SCL00

P12/SO00/TXD0/TOOLTXD

P11/SI00/RXD0/TOOLRXD/SDA00

R3036

33K OPT

RESET

Debug

+3.3V_MULTI

VS_DET

R3035 0

R3031 10K

R3032

10K

OPT

RL_ON SC_MUTE

VS_ON AMP_MUTE KEY2 KEY1

17V_DET MODEL1_OPT_0 MODEL1_OPT_1 MODEL1_OPT_2 PEN_STBY_CTRL

NEW_MICOM_CU_WIRE

P120/ANI1938P41/TI07/TO0739P40/TOOL040RESET41P124/XT2/EXCLKS

P123/XT143P137/INTP044P122/X2/EXCLK45P121/X146REGC47VSS48VDD

37 1 2

P62

3

P63

4 5 6 7 8 9 10 11 12

IC3001-*1

R5F100GEAFB#30

13

14

15

16

17

18

P17/TI02/TO02

P51/INTP2/SO11

P16/TI01/TO01/INTP5

P14/RXD2/SI20/SDA20

P50/INTP1/SI11/SDA11

P15/PCLBUZ1/SCK20/SCL20

42

36 35 34 33 32 31 30 29 28 27 26 25

19

20

21

22

23

24

P146

P147/ANI18

P13/TXD2/SO20

P10/SCK00/SCL00

P12/SO00/TXD0/TOOLTXD

P11/SI00/RXD0/TOOLRXD/SDA00

P140/PCLBUZ0/INTP6 P00/TI00/TXD1 P01/TO00/RXD1 P130 P20/ANI0/AVREFP P21/ANI1/AVREFM P22/ANI2 P23/ANI3 P24/ANI4 P25/ANI5 P26/ANI6 P27/ANI7

P60/SCLA0 P61/SDAA0

P31/TI03/TO03/INTP4

P75/KR5/INTP9/SCK01/SCL01

P74/KR4/INTP8/SI01/SDA01

P73/KR3/SO01

P72/KR2/SO21 P71/KR1/SI21/SDA21 P70/KR0/SCK21/SCL21

P30/INTP3/RTC1HZ/SCK11/SCL11

One More Check!

MICOM MODEL OPTION

**ALL TOOL : LED_RED

PIN NAME

MODEL1_OPT_0

MODEL1_OPT_2

MODEL1_OPT_3

PIN NO. HIGH

8 ATSC

PZ55

30 PZ9531PZ55/PZ75

-

LOW

DVB

PZ75/PZ9511MODEL1_OPT_1

+3.3V_ST

OPT

R3005 10K

R3007 10K

R3009

OPT

R3008 10K

R3006 10K

-

OPT R3028

100K

AC_DET

MOD_ON

MICOM_TX

POWER_ON4

SOC_RESET

B

POWER_ON3

C

RGB Q3000 MMBT3904(NXP)

E

EDID_WP

MICOM_RX

POWER_ON1

POWER_ON2

10K

OPT

R3011 10K

MODEL1_OPT_0 MODEL1_OPT_1 MODEL1_OPT_2

PEN_STBY_CTRL

OPT

R3012 10K

R3010 10K

* HDMI CEC

BAT54_SUZHO

D3010 30V

D

+3.3V_ST

R3033 27K

SI1012CR-T1-GE3

HDMI_CEC_FET_VISHAY

G

S

Q3010-*1 RUE003N02 HDMI_CEC_FET_ROHM

R3034 120K

G

Q3010

S

D

HDMI_CECCEC_REMOTE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MICOM

2012.02.22

30

SIDE_HDMI3(MHL)

BODY_SHIELD

20

19

18

17

16

15

14

13

12

11 10

9

8

7

6

5

4

3

2

1

JK3301

EAG62611201

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

ZD3302 20V

RCLAMP0544T.TCT HDMI_ESD_DIODE

ZD3309 20V

ZD3310 20V

ZD3301 20V

OPT

1 8 2 7 3 6 4 5

ZD3307

ZD3308 RCLAMP0544T.TCT

HDMI_ESD_DIODE

1 8 2 7 3 6 4 5

R3302

R3303

9

C

Q3303

E

R332022

R332122

1 8 2 7 3 6 4 5

9

1 8 2 7 3 6 4 5

9

5V_HDMI_3

10K

R3323

R3322

10K

B

DDC_SDA_3

DDC_SCL_3

HDMI_ARC

CEC_REMOTE

CK-_HDMI3

CK+_HDMI3

D0-_HDMI3

D0+_HDMI3

HDMI_ESD_DIODE

D1-_HDMI3

D1+_HDMI3

D2-_HDMI3

D2+_HDMI3

HPD3

REAR_HDMI1(ARC)

5V_HDMI_3

SHIELD

20

19

18

17

16

15

14

13

12

11

CK+

10

D0-

9

D0_GND

8

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

JK3303

EAG59023301

HDMI_SCREW_TYPE

ZD3315 20V

ZD3316

R3319

1K

ZD3306 20V

ZD3305 20V

OPT

20V

OPT

ZD3317

ZD3318

MMBT3904(NXP)

RCLAMP0544T.TCT

HDMI_ESD_DIODE

R3370 10K

P_+17V

R3384

R3371 10K

Q3304

MMBT3904(NXP)

C3320

0.047uF 25V

R3385

10K

B

+3.3V_ST

C

E

R3386 47K

R3372 10K

R3373 820 1%

D

Q7103 PMBFJ177

G

S

D

G

2N7002K

Q3307

R3380 0

OPT

S

SIL_HPD/CBUS

5V_MHL

R3345

B

E

MMBT3906(NXP)

Q3305

C

MHL_DET

R3344

10K

B

HDMI_DET_1

C

Q3301

MMBT3904(NXP)

E

OPT

BLM18PG121SN1D

22

DDC_SDA_MHL

22

DDC_SCL_MHL_JACK

CEC_REMOTE

CK-_HDMI1

CK+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D1+_HDMI1

D2-_HDMI1

D2+_HDMI1

L3300

5VBUS

R3378 270K1%

R3379 30K

Side_HDMI2 (PC)

5V_HDMI_2

BODY_SHIELD

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

JK3302

EAG62611201

ZD3311

R33081K

ZD3312 20V

ZD3303 20V

ZD3304 20V

ZD3313

ZD3314

20V OPT

OPT

MMBT3904(NXP)

OPT

R331222

R331322

OPT

C

Q3302

E

1 8 2 7 3 6 4 5

9

1 8 2 7 3 6 4 5

9

5V_HDMI_2

10K

R3318

R3317

10K

B

DDC_SDA_2

DDC_SCL_2

CEC_REMOTE

RCLAMP0544T.TCT

HDMI_ESD_DIODE

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

RCLAMP0544T.TCT HDMI_ESD_DIODE

HPD2

DDC_SCL_MHL_JACK

5V_MHL

MHL_DET

EDID Pull-up

R3315

47K

VSS

R3376

22K

P_+5V

A0

A1

A2

D3310

MMBD6100

22K

R3375

C

Q3310

B

MMBT3904(NXP)

E

5V_HDMI_3

A2CA1

D3302

MMBD6100

R3316 47K

IC3301

R1EX24002ASAS0A

1

2

OPT

3

4

R3330

8

7

6

5

47K

VCC

WP

SCL

SDA

P_+5V

PMV48XP

DDC_SDA_3

DDC_SCL_3

Q3309

S

+5V_ST

G

R3311 47K

A2CA1

D

BAT54_SUZHO

R3374

30V

BAT54_SUZHO D3311

D3312

30V

P_+5V

R3314 47K

EDID_WP

DDC_SCL_2

DDC_SDA_2

10K

R3306

1.8K

5V_HDMI_2

P_+5V

A2CA1

D3301

MMBD6100

DDC_SCL_MHL

D3313 BAT54_SUZHO 30V

R3307

1.8K

DDC_SDA_MHL

DDC_SCL_MHL

HDMI_ARC

#SIL_RESET

P_+5V

R3365

1.2K OPT

R3366 100K

OPT

10V

3.3V_MHL

R3328

C33191uF

R3329

10K

C3312

0.1uF 16V

4.7K

R3367 82

MHL_DET

DDC_SDA_MHL

DDC_SCL_MHL

SIL_HPD/CBUS

5V_MHL

C3313

0.1uF 16V

R3368 180

1.2V_MHL

ARC

RSVDL1

VDD12_1

RSVDL2

RESET

PWR5V_DET

INT DSDA DSCL

CBUS/HPD

VDD5_IN

3.3V_MHL

VDD33_2

[EP]GND

40

1 2 3 4 5 6 7 8 9 10

11

RSVDNC

D2+_HDMI1

D2-_HDMI1

R3333 5.1

R3369 5.1

R3331 5.1

RX1+

RX2-

RX2+

37

38

39

THERMAL

41

IC3303

SIL1292CNUC

12

13

14

PS_CTRL

HDMI_DET

VREG33_OUT

HDMI_DET_1

D0+_HDMI1

D1+_HDMI1

D0-_HDMI1

D1-_HDMI1

R3336 5.1

R3334 5.1

R3338 5.1

R3337 5.1

RXC+

RX0-

RX0+

RX1-

33

34

35

36

15

16

17

CSDA18CSCL

GPIO0

GPIO1/CI2CA

R3335 10K

I2C_SDA5

CK+_HDMI1

CK-_HDMI1

R3339 5.1

RXC-

32

19

CEC_A

I2C_SCL5

3.3V_MHL

VDD33_1

31

30 29 28 27 26 25 24 23 22 21

20

1.2V_MHL

VDD12_2

OPT

R3341

4.7K R3342

4.7K

AVDD12 TXCTXC+ TX0TX0+ TX1TX1+ TX2TX2+ HPD_IN

3.3V_MHL

OPT

1.2V_MHL

CK-_HDMI1_MHL

CK+_HDMI1_MHL D0-_HDMI1_MHL

D0+_HDMI1_MHL D1-_HDMI1_MHL

D1+_HDMI1_MHL

D2-_HDMI1_MHL

D2+_HDMI1_MHL

5V_MHL

+3.3V_MULTI

R3346

10K

R3347

4.7K OPT

L3301

BLM18PG121SN1D

HDMI_HPD_MHL

3.3V_MHL

C3302

0.1uF 16V

C3305

0.1uF 16V

C3304

10uF 10V

P_+5V

SCREW Type: EAG59023301

5V_MHL

L3302

BLM18PG121SN1D

C3309

0.1uF 16V

3.3V_MHL

C3301 10uF 10V

R3324 100K

OPT

AZ1117H-1.2TRE1

5VBUS

MBR230LSFT1G

3.3V_MHL

D3314

30V

R3305 10K

IC3300

ADJ/GND

OUTIN

R3304

1

C3303 10uF 10V

BD82020FVJ

OUT_3

8

OUT_2

7

OUT_1

6

OC

5

1.2V_MHL

IC3302

HDMI_NON_SCREW_TYPE

OPT

C3307

100uF

16V

C3306

0.1uF

16V

GND

1

IN_1

2

IN_2

3

EN

4

+5V_ST

JK3303-*1 YKF45-7058V

DATA2+

DATA2_SHIELD

DATA2-

DATA1+

DATA1_SHIELD

DATA1-

DATA0+

DATA0_SHIELD

DATA0-

CLK+

CLK_SHIELD

CLK-

DDC/CEC_GND

+5V_POWER

Close to SIL1292

C3308

0.1uF 16V

C3311

0.1uF 16V

CEC

NC

SCL

SDA

HPD

R3326 10K

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

SHIELD

C3310

0.1uF 16V

MHL_DET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

HDMI 4

2011.10.29

33
