OWNER’S MANUAL
LCD TV
Please read this manual carefully before operating the
set and retain it for future reference.
CS56**
www.lg.com
ENGLISH
ENG
LICENSES
2
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an ofcial DivX Certied® device that plays DivX
video. Visit divx.com for more information and software tools to convert your les into
DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be registered in
order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.
com for more information on how to complete your registration.
“DivX Certied® to play DivX® video up to HD 1080p, including premium content.”
“DivX®, DivX Certied® and associated logos are trademarks of Rovi Corporation or
its subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274”
LICENSES
3
ENGENGLISH
TABLE OF CONTENTS
4
ENGLISH
ENG
TABLE OF CONTENTS
2 LICENSES
6 INSTALLATION PROCEDURE
6 ASSEMBLING AND PREPAR-
ING
6 Unpacking
8 Parts and buttons
10 Lifting and moving the TV
11 Setting up the TV
11 - Attaching the stand
11 - Not using the Desk Type stand
12 - Mounting on a table
14 - Mounting on a wall
15 - Tidying cables
16 REMOTE CONTROL
17 WATCHING TV
17 Connecting an antenna
17 Turning the TV on for the first time
18 Watching TV
18 Managing programmes
18 - Automatically setting up programme
20 - Cable DTV Setting (In Cable mode
only)
21 - Manually setting up programme (In
digital mode)
22 - Manually setting up programme (In
analogue mode)
23 - Editing your programme list
25 - CI [Common interface] Information
25 - Selecting the programme list
26 EPG (Electronic Programme Guide) (In
digital mode)
27 - Switch on/off EPG
27 - Select a programme
27 - NOW/NEXT Guide Mode
27 - 8 Day Guide Mode
27 - Date Change Mode
28 - Extended Description Box
28 - Remind Setting Mode
28 - Schedule List Mode
28 Using additional options

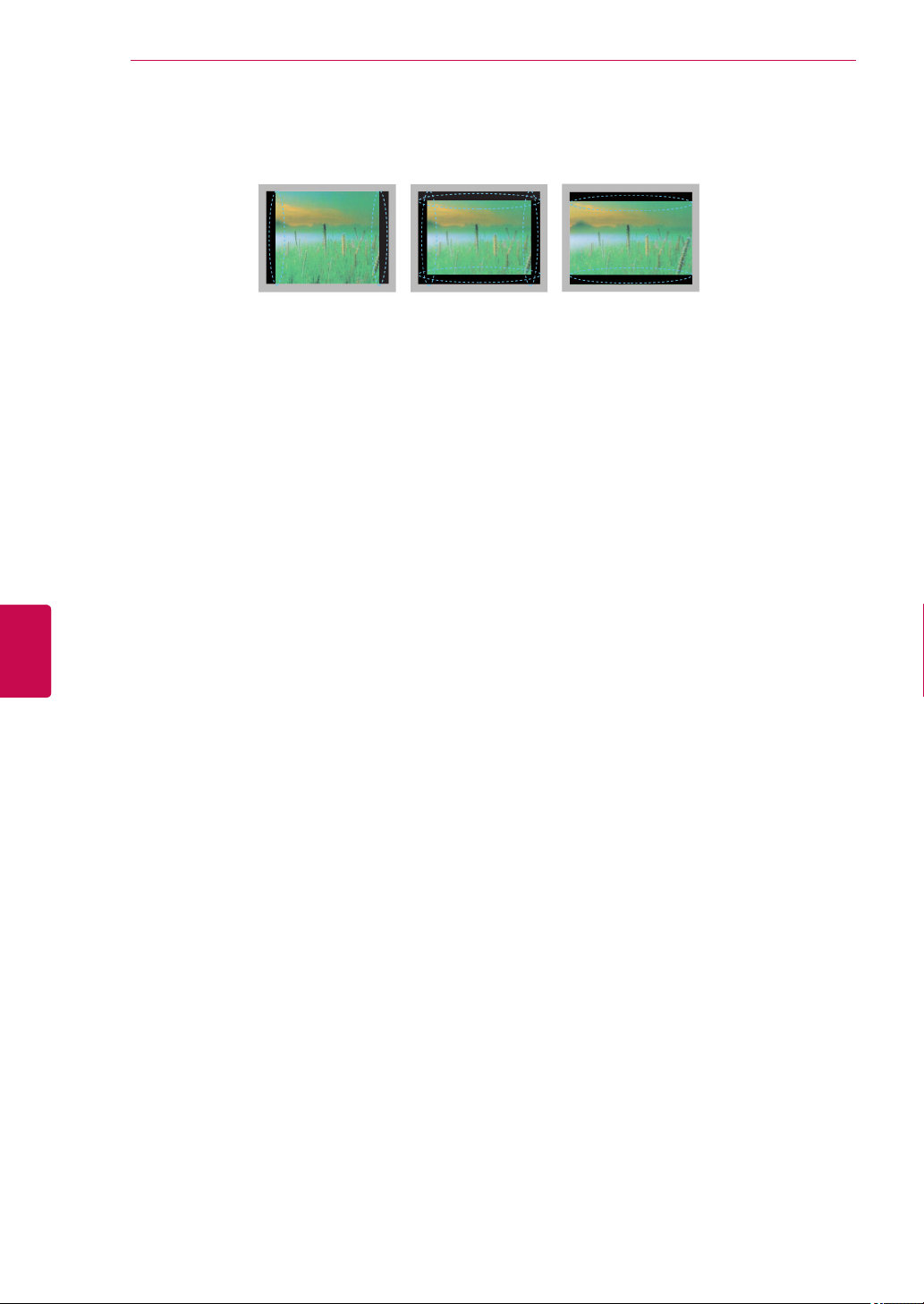

28 - Adjusting aspect ratio
30 - Using the input list
31 - Locking the buttons on the TV (Child
Lock)
32 Using the quick menu
33 Using the Customer Support
33 - Testing Software Update
34 - Testing the Picture / Sound
34 - Using Signal Test
34 - Using the product or service information
35 ENTERTAINMENT
35 - Connecting USB storage devices

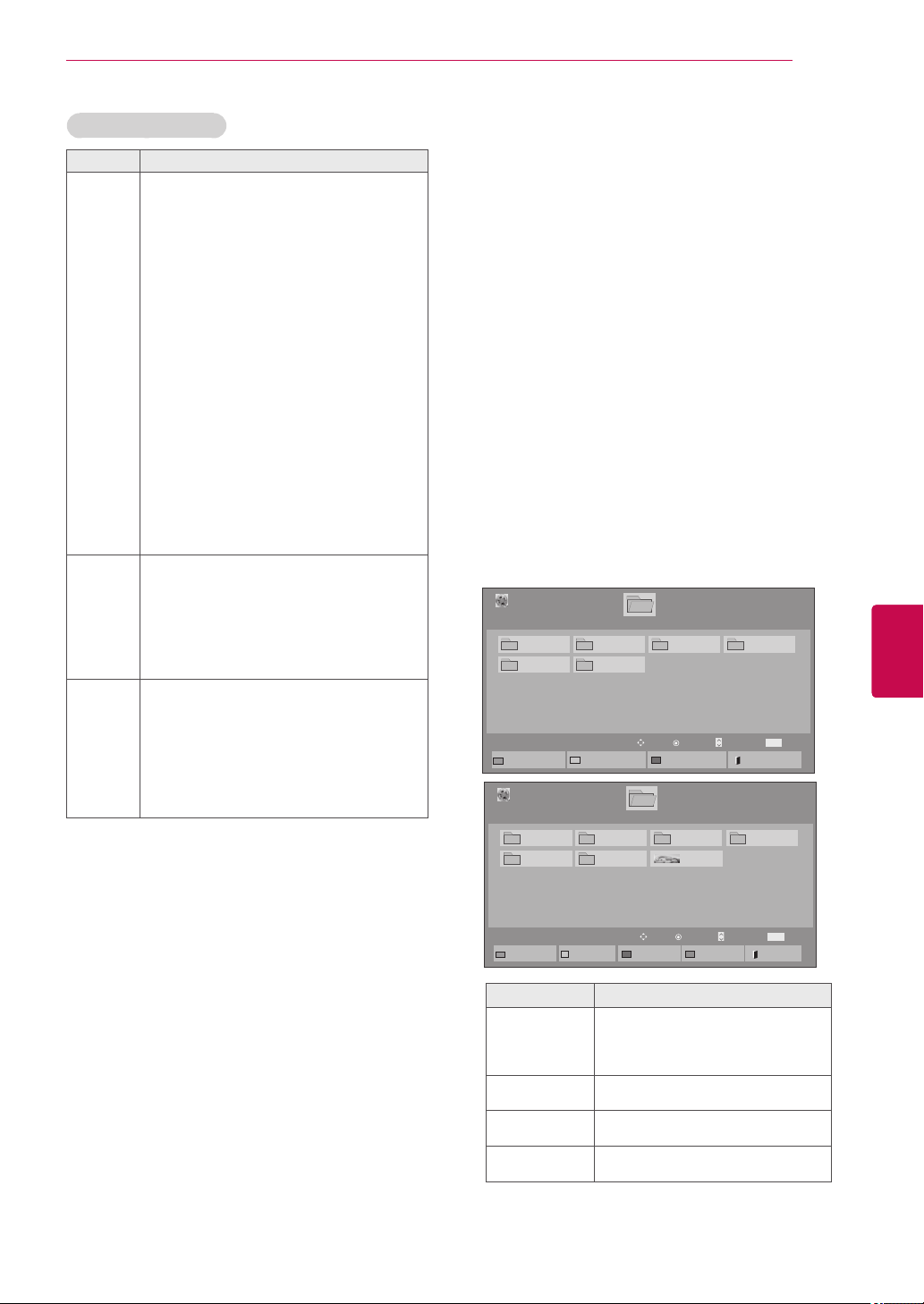

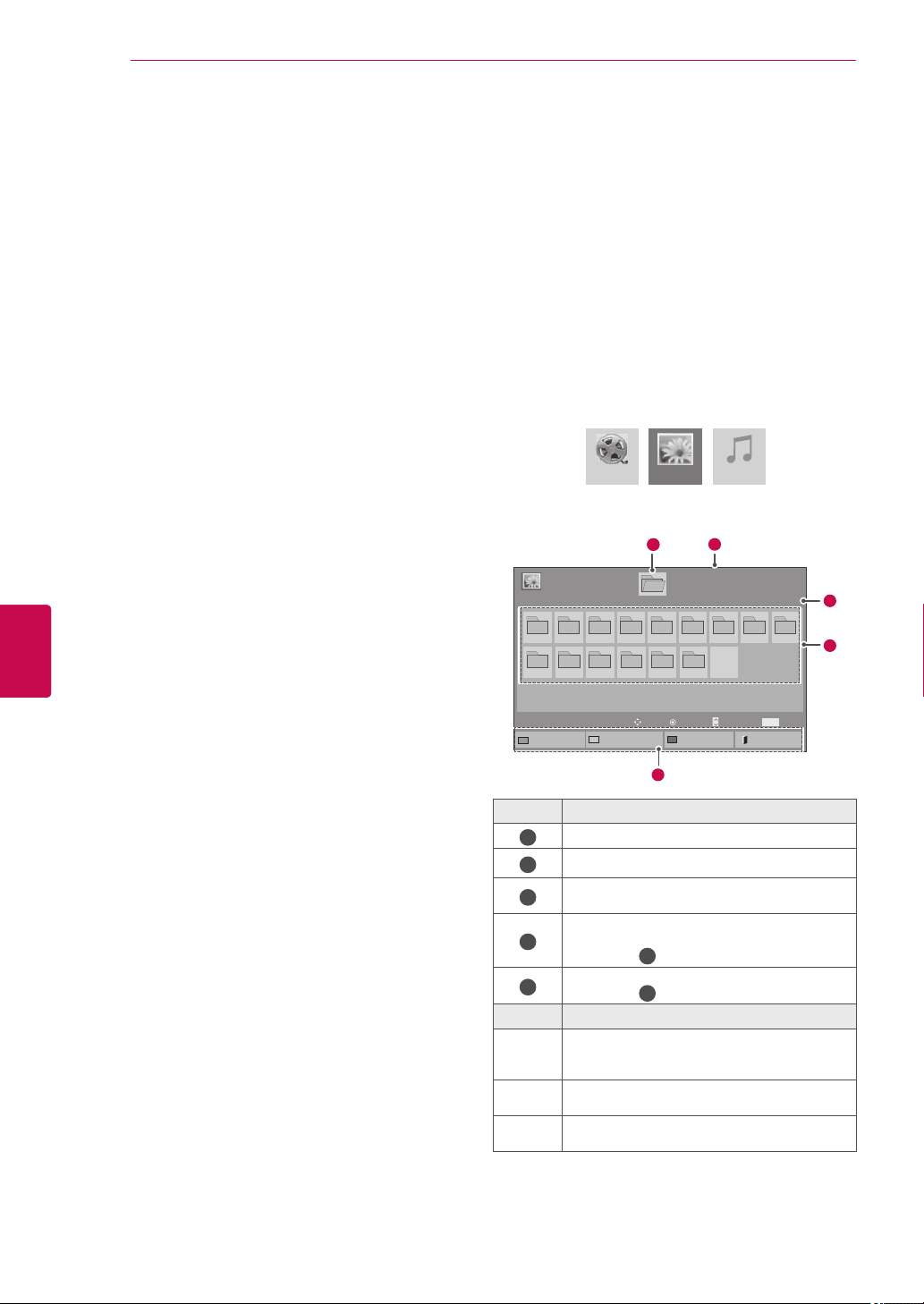

36 - Browsing files
37 - Viewing movies

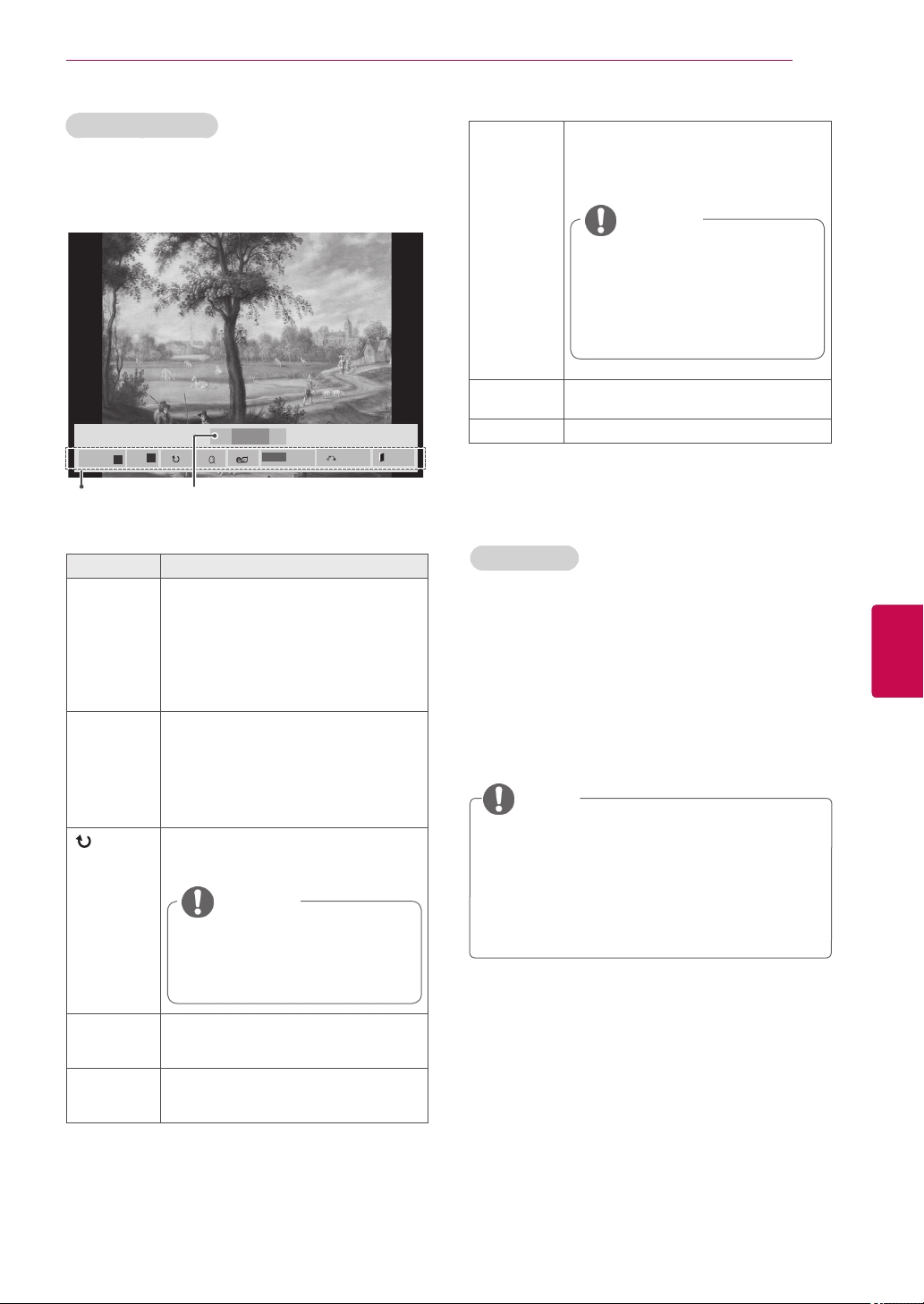

40 - Viewing photos
42 - Listening to music
44 - DivX® VOD Guide
45 CUSTOMIZING TV SETTINGS
45 Accessing main menus
46 Customizing settings

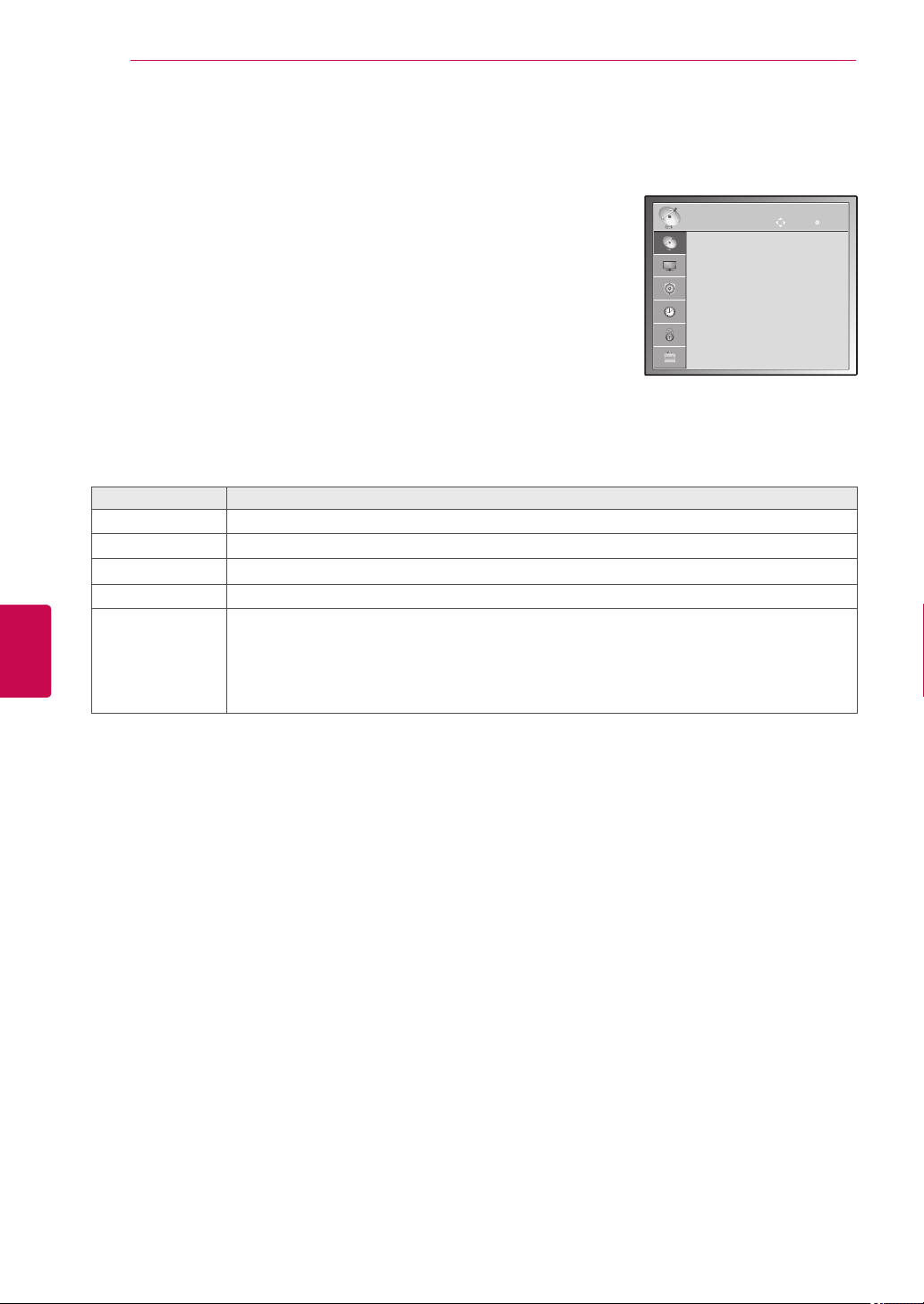

46 - SETUP settings

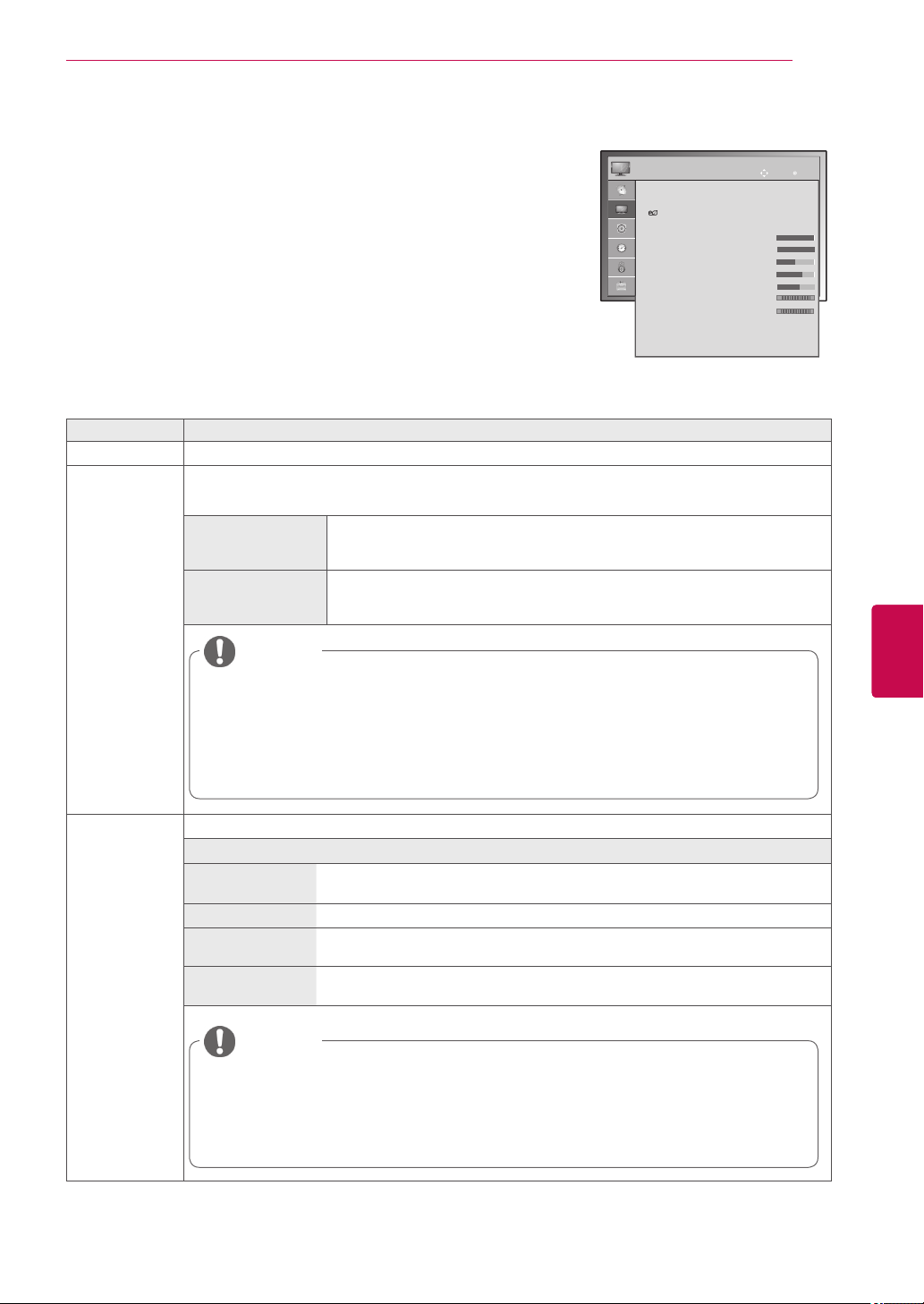

47 - PICTURE settings
52 - AUDIO settings
55 - TIME settings
56 - LOCK settings
57 - OPTION settings
60 MAKING CONNECTIONS
TABLE OF CONTENTS
5
61 Connection overview
62 Connecting to a HD receiver, DVD, or
VCR player
62 - HDMI connection
62 - DVI to HDMI connection
62 - Component connection

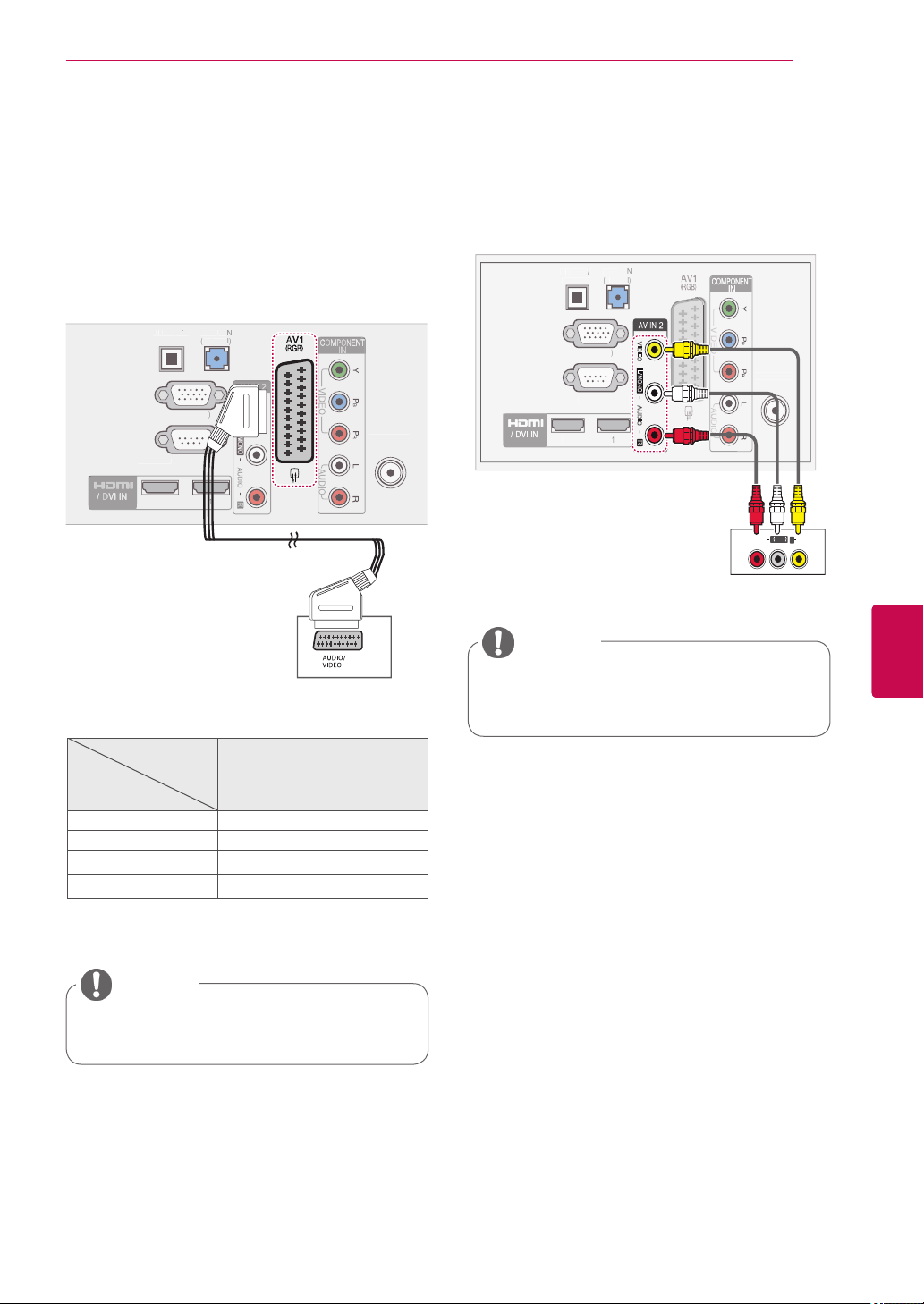

63 - Euro Scart connection
63 - Composite connection

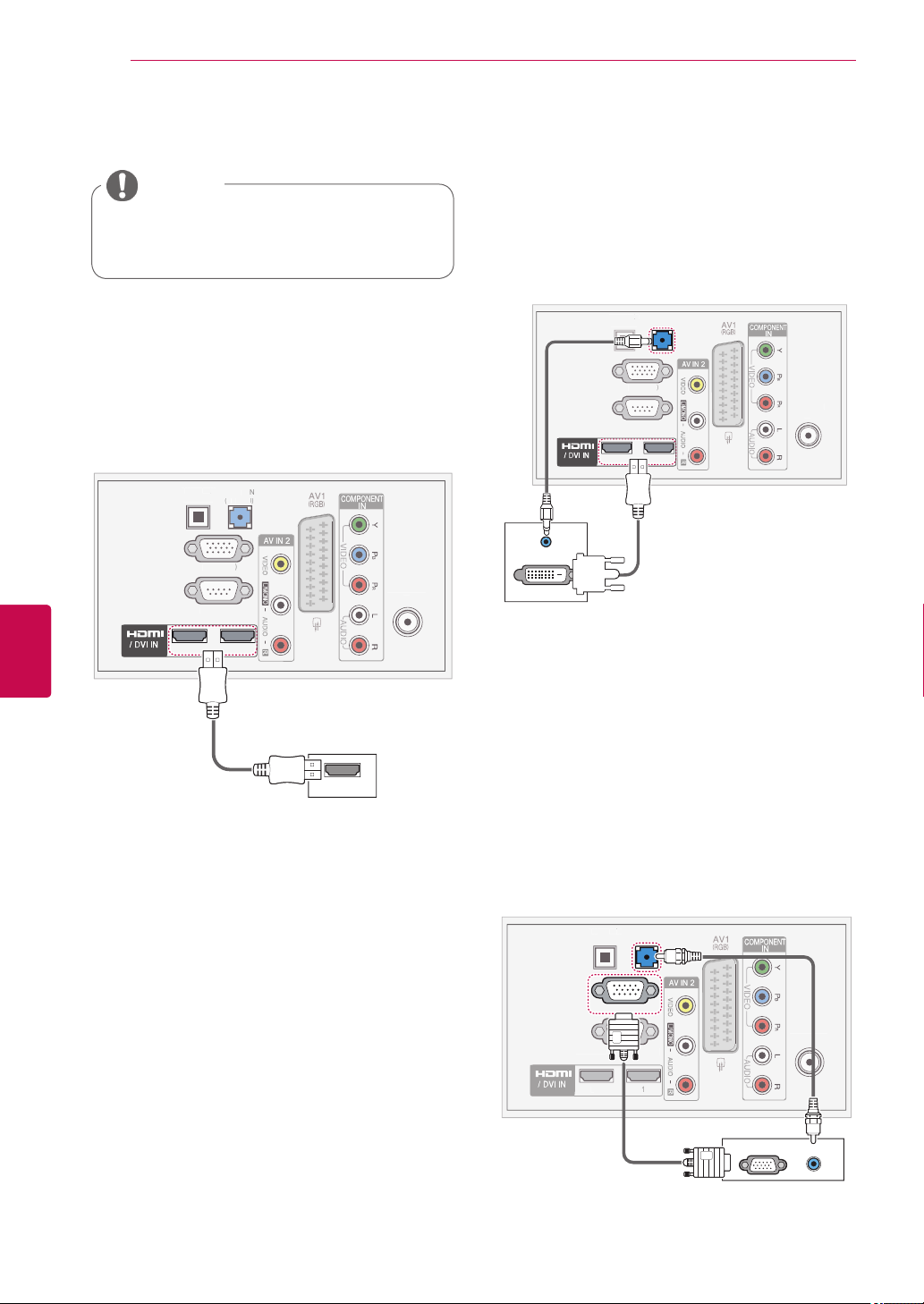

64 Connecting to a PC
64 - HDMI connection
64 - DVI to HDMI connection
64 - RGB Connection
65 Connecting to an audio system
65 - Digital optical audio connection

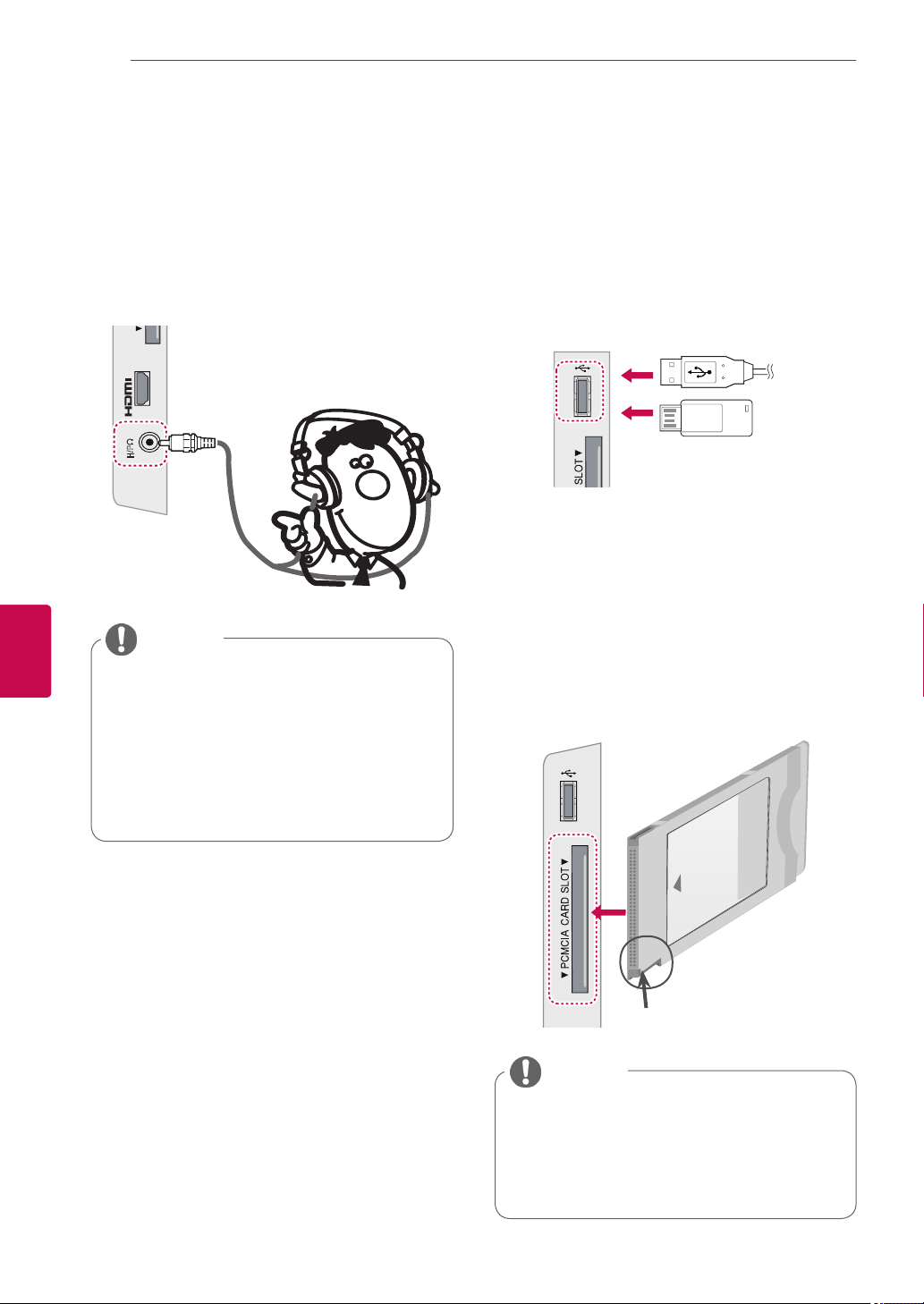

66 - Headphone connection
66 Connecting to a USB
66 Connecting to a CI Module

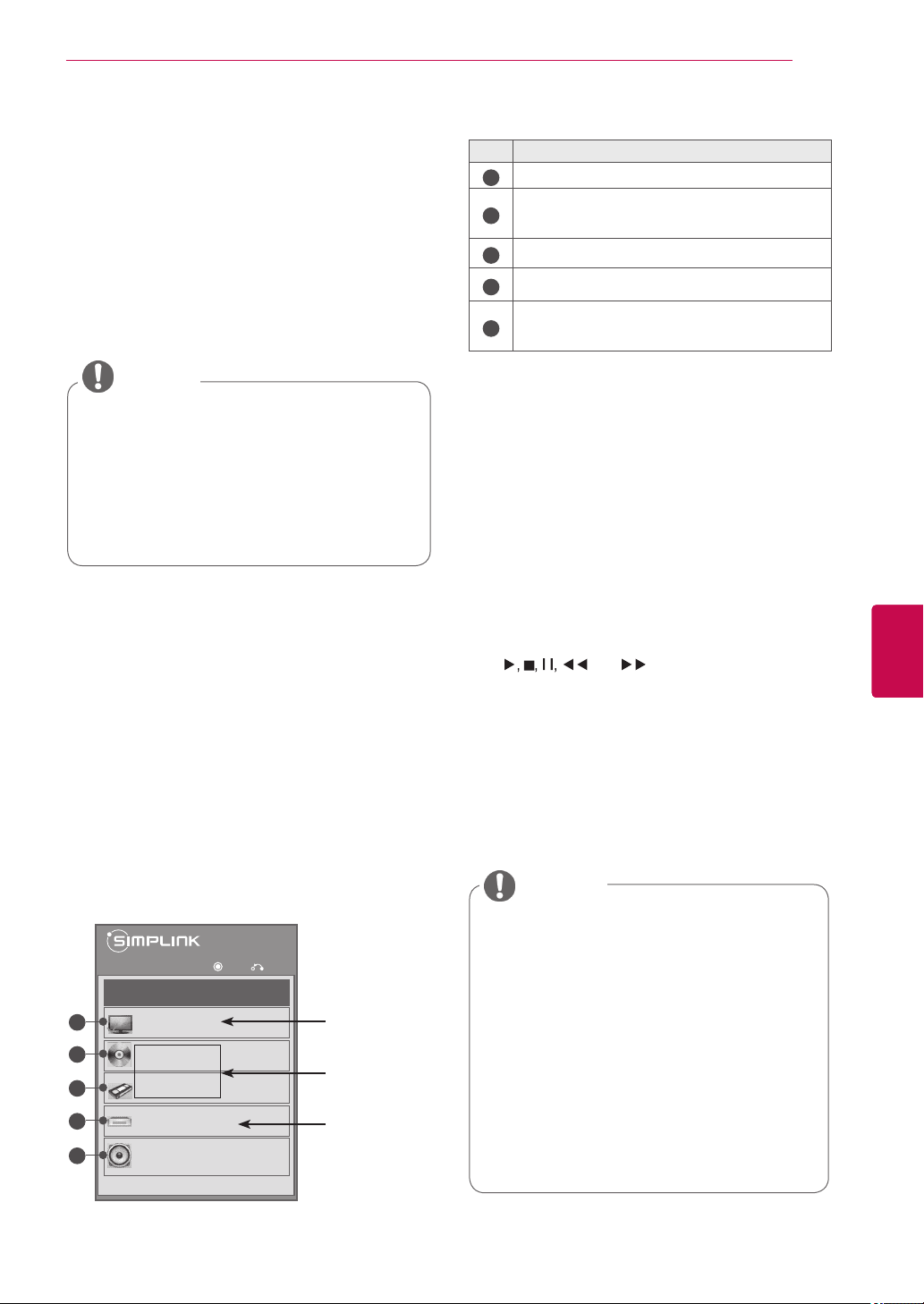

67 SIMPLINK connection
67 - Activating the SIMPLINK feature
68 TELETEXT
68 Switch On/Off
68 Simple Text
68 - Page selection
68 Top Text
68 - Block / Group / Page Selection
68 - Direct Page Selection
69 Fastext
69 - Page selection
69 Special Teletext Function
71 - Power cord
72 Preventing “Image burn” or “Burn-in” on
your TV screen
73 TROUBLESHOOTING
75 SPECIFICATIONS
79 IR CODES
80 EXTERNAL CONTROL DEVICE
SETUP
80 RS-232C Setup
80 Type of connector;
D-Sub 9-Pin Male
80 RS-232C Configurations
81 Communication Parameters
81 Command reference list
82 Transmission / Receiving Protocol
87 OPEN SOURCE LICENSE
87 Open source software notice
ENGENGLISH
70 DIGITAL TELETEXT
70 Teletext within digital service
70 Teletext in digital service
71 MAINTENANCE
71 Cleaning your TV
71 - Screen and frame
71 - Cabinet and stand
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
<
<
6
NOTE
Image shown may differ from your TV.
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
The available menus and options may differ from the input source or product model that you are
using.
New features may be added to this TV in the future.
The TV can be placed in standby mode in order to reduce the power consumption. And the TV
should be turned off if it will not be watched for some time, as this will reduce energy consumption.
The energy consumed during use can be significantly reduced if the level of brightness of the picture
is reduced, and this will reduce the overall running cost.
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
ENGLISH
ENG
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual prod-
uct and item.
CAUTION
Do not use any unapproved items to ensure the safety and product life span.
Any damages or injuries by using unapproved items are not covered by the warranty.
NOTE
The items supplied with your product may vary depending on the model.
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick
and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory
stick does not fit into your TV’s USB port.
B
A
B
*A
10 mm
=
*B
18 mm
A
=
ASSEMBLING AND PREPARING
Remote control and batteries (AAA)
(See p.16) Owner’s manual
Polishing cloth
(Depending on model)
Use this to remove dust
from the cabinet.
Screw for xing
(Only 32/42CS56**)
(See p.12) Power Cord
Protection cover
(See p.11)
Screw for assembly
8EA, M4 x 20
(See p.11)
7
Stand Body / Stand Base
(See p.11)
ENGENGLISH
ASSEMBLING AND PREPARING
8
Parts and buttons
NOTE
The TV can be placed in standby mode in order to reduce the power consumption. And the TV
should be turned off if it will not be watched for some time, as this will reduce energy consumption.
The energy consumed during use can be significantly reduced if the level of brightness of the
picture is reduced, and this will reduce the overall running cost.
CAUTION
Do not step on the glass stand or subject it to any impact. It may break, causing possible injury
from fragments of glass, or the TV may fall.
Do not drag the TV. The floor or the product may be damaged.
Some models have a thin film attached on to the screen and this must not be removed.
ENGLISH
ENG
ASSEMBLING AND PREPARING
9
Screen
1
USB IN
2
IN 3
3
4
H/P
Remote control and
intelligent1 sensors
Power Indicator
(Can be adjusted using
Speakers
the Power Indicator in
the OPTION menu.)
No. Description
1
USB input
2
PCMCIA Card Slot
3
HDMI IN
Headphone
4
Socket
OPTICAL DIGITAL
AUDIO OUT
RS-232C IN
2 1
AUDIO IN
(RGB/DVI)
RGB IN (PC)
(CONTROL & SERVICE)
VIDEO
L/MONO
AUDIO
R
ANTENNA
IN
Touch buttons
Connection panel
(See p.60)
Touch Button Description
Scrolls through the saved programmes.
Adjusts the volume level.
OK ꔉ Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menu, or saves your input and exits the menus.
INPUT Changes the input source.
/ I
Turns the power on or off.
2
ENGENGLISH
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
ENGLISH
ENG
ASSEMBLING AND PREPARING
10
Lifting and moving the TV
When moving or lifting the TV, read the following
advice to prevent the TV from being scratched or
damaged and for safe transportation regardless of
its type and size.
CAUTION
Avoid touching the screen at all times, as
this may result in damage on the screen
or some of the pixels used to create
images.
It is recommended to move the TV in the box
or packing material that the TV originally came
in.
Before moving or lifting the TV, disconnect the
Power cord and all cables.
When holding the TV, the screen should face
away from you to prevent the screen from
scratches.
When transporting a large TV, there should be
at least 2 people.
When transporting the TV by hand, hold the
TV as shown in the following illustration.
When transporting the TV, do not expose the
TV to jolts or excessive vibration.
When transporting the TV, keep the TV
upright, never turn the TV on its side or tilt
towards the left or right.
Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part,
speaker, or speaker grill area.
ASSEMBLING AND PREPARING
11
Setting up the TV
Put your TV on a pedestal stand and mount the
TV on a table or wall.
Attaching the stand
If you are not mounting the TV to a wall, use the
following instructions to attach the stand.
1
Stand Body
Stand Base
2
4EA
M4 x 20
CAUTION
When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
CAUTION
Tighten the screws firmly to prevent the TV
from tilting forward. Do not over tighten.
Not using the Desk Type stand
Push the supplied Protection cover into the
1
opening at the bottom of the TV until clicking
sound.
ENGENGLISH
3
M4 x 20
Protection cover
4EA
ASSEMBLING AND PREPARING
12
ENGLISH
ENG
Mounting on a table
Image shown may differ from your TV.
Lift and tilt the TV into its upright position on a
1
table.
- Leave a 10 cm (minimum) space from the
wall for proper ventilation.
10 cm
10 cm
Connect the Power cord to a wall outlet.
2
CAUTION
Do not place the TV near or on sources
of heat, as this may result in fire or other
damage.
10 cm
10 cm
Securing the TV to a table
(Only 32/42CS56**)
Fix the TV to a table to prevent from tilting forward,
damage, and potential injury.
Mount the TV on a table, and then insert and
tighten the supplied screw on the rear of the stand.
WARNING
To prevent the TV from falling over, the TV
should be securely attached to the floor/
wall per installation instructions. Tipping,
shaking, or rocking the TV may cause
injury.
Adjusting the angle of the TV to suit view
Swivel 20 degrees to the left or right and adjust
the angle of the TV to suit your view.
2020
CAUTION
When adjusting the angle of the product,
watch out for your fingers.
»Personal injury may occur if hands or
fingers are pinched. If the product is tilted
too much, it may fall, causing damage or
injury.
ASSEMBLING AND PREPARING
13
Securing the TV to a wall
(This feature is not available for all models.)
1 Insert and tighten the eye-bolts, or TV brackets
and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
at surface.
Using the Kensington security system
(Depending on model)
The Kensington security system connector is
located at the rear of the TV. For more information
of installation and using, refer to the manual
provided with the Kensington security system or
visit
http://www.kensington.com.
Connect the Kensington security system cable
between the TV and a table.
ENGENGLISH
CAUTION
Make sure that children do not climb on or
hang on the TV.
NOTE
Use a platform or cabinet that is strong and
large enough to support the TV securely.
Brackets, bolts and ropes are not provided.
You can obtain additional accessories from
your local dealer.
ASSEMBLING AND PREPARING
14
ENGLISH
ENG
Mounting on a wall
Attach a wall mount bracket at the rear of the TV
carefully and install the wall mount bracket on a
solid wall perpendicular to the floor. When you
attach the TV to other building materials, please
contact qualified personnel.
LG recommends that wall mounting be performed
by a qualified professional installer.
10 cm
10 cm
10 cm
10 cm
Make sure to use screws and wall mount
bracket that meet the VESA standard. Standard
dimensions for the wall mount kits are described in
the following table.
Separate purchase(Wall Mounting Bracket)
CAUTION
Disconnect the power first, and then move
or install the TV. Otherwise electric shock
may occur.
If you install the TV on a ceiling or slanted
wall, it may fall and result in injury. Use
an authorized LG wall mount bracket
and contact the local dealer or qualified
personnel.
Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
Use the screws and wall mount bracket that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
NOTE
Use the screws that are listed on the
VESA standard screw specifications.
The wall mount kit includes an installation
manual and necessary parts.
The length of screws may differ
depending on the wall mount. Make sure
to use the proper length.
For more information, refer to the manual
supplied with the wall mount bracket.
Model 32CS56** 42/47CS56**
VESA (A x B) 200 x 100 200 x 200
Standard screw M4 M6
Number of screws 4 4
Wall mount
bracket
LSW100B LSW200BX
A
B
Tidying cables
Gather and bind the cables with the Cable
1
management clip.
Fix the Cable management clip firmly to the TV.
2
Cable management clip
NOTE
Do not move the TV by holding the
Cable management clip, as the Cable
management clip may break, and injuries
and damage to the TV may occur.
ASSEMBLING AND PREPARING
15
ENGENGLISH
REMOTE CONTROL
LIST
Q.VIEW
TV/RAD
ENERGY
SAVING
RATIO
SETTINGS
GUIDE
Q.MENU
INFO
FAV
MUTE
P
A
G
E
LIST
Q.VIEW
TV/RAD
ENERGY
SAVING
RATIO
SETTINGS
GUIDE
Q.MENU
INFO
FAV
MUTE
P
A
G
E
P
AD
P
EXIT
EXIT
16
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching
and ends to the label inside the compartment, and close the battery cover. Be
sure to point the remote control to the remote control sensor on the TV.
To remove the batteries, perform the installation actions in reverse.
CAUTION
Do not mix old and new batteries, as this may damage the remote control.
ENGLISH
ENG
1
Adjusts the brightness of the screen to reduce energy
consumption.
POWER
Turns the TV on or off.
Selects Radio, TV and DTV programme.
Shows programme guide.
INFO
Number buttons
Views the information of the current programme and
screen.
Resizes an image.
Changes the input source.
Enters numbers.
Accesses the saved programme list.
Returns to the previously viewed programme.
Accesses the main menus.
Navigation buttons
Accesses the Quick menus.
Scrolls through menus or options.
(up/down/left/right)
+ -
P + -
AD
MUTE
PAGE
Coloured buttons
2
1
Control buttons
(
, , , , )
2
TELETEXT BUT-
Moves to the previous or next screen.
Returns to the previous level.
Clears all on-screen displays and return to TV viewing.
Adjusts the volume level.
Scrolls through the saved programmes.
Accesses your favourite programme list.
Switches the Audio Description on or off.
Mutes all sounds.
Moves to the previous or next screen.
These access special functions in some menus.
( : Red, : Green, : Yellow, : Blue)
Recalls your preferred subtitle in digital mode.
Controls the MY MEDIA menus, or the SIMPLINK compatible devices (USB,SIMPLINK).
These buttons are used for teletext.
TONS
WATCHING TV
17
WATCHING TV
Connecting an antenna
Connect an antenna to watch TV while referring to
the following.
To prevent damage do not connect to the mains
outlet until all connections are made between the
devices.
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
Wall Antenna
Socket
NOTE
For optimum picture quality, adjust
antenna direction.
In poor signal areas, to achieve better
picture quality it may be necessary to
install a signal amplifier to the antenna.
If the image quality is poor with an
antenna connected, aim the antenna to
the correct direction.
An antenna cable and converter are not
supplied.
Turning the TV on for the first time
When you turn the TV on for the first time, the
Initial setting screen appears. Select a language
and customize the basic settings.
Connect the Power cord to a power outlet.
1
In Standby mode, press (POWER) to turn the TV
2
on.
The Initial setting screen appears if you turn
the TV on for the first time.
NOTE
You can also access Factory Reset by
accessing OPTION in the main menus.
Follow the on-screen instructions to customize
3
your TV settings according to your preferences.
Language
Mode Setting
Country
Time Zone
Set Password
Auto Tuning
Selects a language to display.
Selects Home Use for the
home environment.
Selects a country to display.
Selects the time zone and
daylight saving.
(When Russia is selected for
Country)
Set the password.
(When France is selected for
Country)
Scans and saves
available programmes
automatically.
ENGENGLISH
WATCHING TV
18
ENGLISH
ENG
NOTE
For those countries without confirmed
DTV broadcasting standards, some DTV
features might not work, depending on
the DTV broadcasting environment.
When France is selected for Country,
password is not ‘0’, ‘0’, ‘0’, ‘0’ but ‘1’, ‘2’,
‘3’, ‘4’.
4 When the basic settings are complete,
press OK.
NOTE
If you do not complete the Initial setting, it
will appear whenever the TV turns on.
Disconnect the Power cord from the
power outlet when you do not use the TV
for a long period of time.
5 To turn the TV off, press
(POWER)
.
Managing programmes
Automatically setting up programme
Selecting Antenna,
Use this to automatically find and store all available programmes.
When you start auto programming, all previously
stored service information will be deleted.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to
Auto Tuning and press OK.
4 Press the Navigation buttons to scroll to
Antenna and press OK.
5 Select Start to start automatic tuning.
The TV scans and saves available programmes automatically.
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Watching TV
In Standby mode, press
1
TV on.
Press INPUT and select Antenna.
2
To turn the TV off, press
3
The TV switches to Standby mode.
(POWER)
(POWER)
to turn the
.
NOTE
If the TV scans a blocked programme, you
will be prompted to enter your password to
keep the programme scanned.
You can store up to 1,000 programmes. The
number of programmes that you can store
differs depending on the broadcasting signal
environment.
Automatic Numbering: Decide whether
to use the programme numbers as sent by
broadcasting stations for tuning.
When select Italy in the Country menu, if the
pop up is displayed when the conflicted programme after Auto Tuning, select a broadcaster for conflicting programme number to
solve.
In the following country, DVB cable can be
used : Germany, Netherlands, Sweden,
Switzerland, Denmark, Austria, Finland,
Norway, Slovenia, Hungary, Ukraine, Ireland,
Poland, Romania, Spain, Bulgaria, Russia,
Lithuania, Estonia, Latvia, Czech. (The
supported country can be added.)
WATCHING TV
19
Selecting Cable,
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to
Auto Tuning and press OK.
4 Press the Navigation buttons to scroll to
Cable and press OK.
5 Press the Navigation buttons to scroll to
Comhem or Other Operators and press OK.
6 Press the Navigation buttons to scroll to
Quick or Full and press OK.
7 Press the Navigation buttons or Number but-
tons to scroll make appropriate adjustments
(Except for Full mode) and press OK.
8 Select Start to start automatic tuning.
The TV scans and saves available programmes automatically.
9 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
When you want to select Service Operator
aside from the above 3 cases, you can do
so by selecting Setup->Cable DTV Set-
ting-> Service Operator.
Acquired certification SO :
Sweden(Comhem, Canal Digital),
Denmark(YouSee, Canal Digital, Stofa),
Norway(Canal Digital), Netherlands(Ziggo,
UPC Digitaal), Ukraine(Volia-Cable),
Germany(KDG), Switzerland(CableCom,
UPC), Austria(UPC Digital), Hungary(UPC
Digital), Ireland(UPC Digital), Poland(UPC
Digital), Romania(UPC Digital),
Russia(OnLime)(The acquired certification
SO can be added.)
If there are not any Service Operator that
you want, select Other Operators.
If you select “Other Operators”, or the
selected country supports “Other Operators” only, it may take some time to search
all the channels, or it may not search some
of the channels.
If some of the channels do not appear, fol-
low the steps below:
1. SETUP -> Auto Tuning -> Cable -> Setting
2. Switch Home Tuning from "Off" to "On"
3. Input additional values such as the frequency,
symbol rate, modulation, and network ID. (You
can ask your cable service provider for the above
information.)
ENGENGLISH
NOTE
If the TV scans a blocked programme, you
will be prompted to enter your password to
keep the programme scanned.
When you select the Cable, the Cable
Service Operator selection screen can differ
or not exist by the Cable situation of the applicable country.
The popup window to select Service Opera-
tor is only shown initially for the 3 cases
when you accessing the Initial Setting
menu, when you change from Antenna to
Cable or when you access the menu after
changing the Country.
WATCHING TV
20
ENGLISH
ENG
The following values are needed in order to
search all available programmes quickly and
correctly.
The commonly used values are provided as
"default".
However, for correct settings, please inquire of
the cable service provider.
When running Auto Tuning in DVB cable mode,
selecting Full will search through all frequencies
to find available channels.
In the case when the programme is not searched
by selecting the Default, perform the searching
by selecting the Full.
However, in the case when the programme is
searched by selecting the Full, the Auto Tuning
time can be taken too much.
If some channels are not detected when Full is
selected, select the In detail checkbox and then
try tuning again.
•
Frequency : Enter a user-defined frequency.
• Symbol rate : Enter a user-defined symbol
rate (Symbol rate: Speed at which a device
such as modem sends symbols to a channel).
• Modulation : Enter a user-defined modula-
tion. (Modulation: Loading of audio or video
signals onto carrier).
• Network ID : Unique identifier allocated for
each user.
• Start Frequency : Enter a user-defined start
frequency range.
• End Frequency : Enter a user-defined end
frequency range.
Cable DTV Setting (In Cable mode only)
The range that a user can select from the Service
Operator menu differs depending on number of
Service Operator supported by each country, and
if number of supported Service Operator for each
country is 1, corresponding function becomes nonactivation.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to Cable
DTV Setting and press OK.
4 Press the Navigation buttons to scroll to Serv-
ice Operator or Channel Auto update and
press OK.
5 Select your desired Source.
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
If you select Cable, you can see Cable
DTV Setting menu.
When Channel Auto Update is On, you
can update information for all the programmes that can be updated, including
the programme currently being watched.
When Channel Auto Update is Off,
you can only update information for the
programme currently being watched.
You can not select the Cable DTV Set-
ting when the service operator is set to
"Ziggo".
WATCHING TV
21
Manually setting up programme (In digital mode)
Manual Tuning lets you manually add a programme to your programme list.
Selecting Antenna,
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to
Manual Tuning and press OK.
4 Press the Navigation buttons to scroll to DTV
and press OK.
5 Scroll through the programme types, and then
add or delete programmes.
6 When you are finished, press EXIT.
When you return to the previous menu, press BACK.
NOTE
If the TV scans a blocked programme, you
will be prompted to enter your password to
keep the programme scanned.
You can select SBAND when the country is
set to "Norway, Latvia."
Selecting Cable,
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to
Manual Tuning and press OK.
4 Press the Navigation buttons to scroll to Cable
DTV and press OK.
5 Make appropriate adjustments.
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
NOTE
If the TV scans a blocked programme, you will be
prompted to enter your password to keep the programme scanned.
Symbol rate : Enter a user-defined symbol rate (Sym-
bol rate: Speed at which a device such as modem
sends symbols to a channel).
Modulation : Enter a user-defined modulation. (Modu-
lation: Loading of audio or video signals onto carrier).
You can not select the Cable DTV when the service
operator is set to "Ziggo" or "Other Operators" of
Netherlands.
ENGENGLISH
WATCHING TV
22
ENGLISH
ENG
Manually setting up programme (In analogue mode)
Manual Tuning lets you manually tune and arrange
the stations in whatever order you desire.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to
Manual Tuning and press OK.
4 Press the Navigation buttons to scroll to
TV or Cable TV and press OK.
5 Scroll through the programme types, and then
add or delete programmes.
6 Press the Navigation buttons to scroll to
TV System.
7 Press the Navigation buttons to scroll to
V/UHF or Cable.
8 Press the Navigation buttons or Number but-
tons to scroll to the desired channel number.
9 Press the Navigation buttons to scroll to
commence searching.
10 Press the Navigation buttons to scroll to
Store and press OK.
11 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Assigning a station name
You can assign a station name with five characters
to each programme number.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to
Manual Tuning and press OK.
4 Press the Navigation buttons to scroll to
TV or Cable TV.
5 Press the Navigation buttons to scroll to
Name and press OK.
6 Press the Navigation buttons to scroll Select
the position and make your choice of the second character, and so on. You can use an the
alphabet A to Z, the number 0 to 9, +/ -, and
blank and press OK.
7 Press the Navigation buttons to scroll to
Close and press OK.
8 Press the Navigation buttons to scroll to
Store and press OK
9 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
NOTE
If the TV scans a blocked programme, you
will be prompted to enter your password to
keep the programme scanned.
L : SECAM L/L’ (France)
BG : PAL B/G, SECAM B/G (Europe / East
Europe / Asia / New Zealand / M.East /
Africa)
I : PAL I (U.K. / Ireland / Hong Kong / South
Africa)
DK : PAL D/K, SECAM D/K (East Europe /
China / Africa / CIS)
To store another channel, repeat steps 5 to 10.
WATCHING TV
23
Editing your programme list
When a programme number is skipped, it means
that you will be unable to select it using P+,
ton during TV viewing.
If you wish to select the skipped programme,
directly enter the programme number with the
NUMBER buttons or select it in the Programme
edit menu.
This function enables you to skip the stored programmes.
You can change the programme number using
“Move”function, if “Automatic Numbering” is unchecked when you start Auto Tuning.
Press SETTINGS to access the main menus.
1
Press the Navigation buttons to scroll to
2
SETUP and press OK.
Press the Navigation buttons to scroll to
3
Programme Edit and press OK.
Press the Navigation buttons to select a
4
programme to be stored or skipped.
When you are finished, press EXIT.
5
When you return to the previous menu, press
BACK.
-
but-
In DTV/RADIO mode
Skipping a programme number
1 Press the Navigation buttons to scroll to select
a programme number to be skipped.
2 Press Blue button to turn the programme
number.
3 Press Blue button to release.
NOTE
When programmes are to be skipped, the
skipped programme shows in blue and these
programmes will not be selected by the P +
or - buttons during TV viewing.
If you wish to select a skipped programme,
directly enter the programme number with
the NUMBER buttons or select it in the programme edit or EPG.
ENGENGLISH
Locking a programme number
1 Press the Navigation buttons to scroll to select
a programme number to be locked.
2 Press
3 Press
Yellow button
number.
Yellow button
to
turn the programme
to release.
NOTE
It can be registered as Lock programme
even when Lock System is turned Off.
WATCHING TV
24
ENGLISH
ENG
In TV mode
Deleting a programme
1 Press the Navigation buttons to scroll to select
a programme number to be deleted.
2 Press Red button to turn the programme
number.
NOTE
The selected programme is deleted, all the
following programmes are shifted up one.
Moving a programme
1 Press the Navigation buttons to scroll to select
a programme number to be moved.
2 Press the Green button to turn the programme
number and press the Navigation buttons.
3 Press Green button to release.
Auto Sort
1 Press the Navigation buttons to start Auto Sort
and press OK.
NOTE
After activating Auto Sort once, you can no
longer edit programmes.
Locking a programme number
1 Press the Navigation buttons to scroll to select
a programme number to be locked.
2 Press
3 Press
number.
NOTE
Yellow button
Yellow button
to
turn the programme
to release.
Skipping a programme number
1 Press the Navigation buttons to scroll to select
a programme number to be skipped.
2 Press Blue button to turn the programme
number.
3 Press Blue button to release.
NOTE
When programmes are to be skipped, the
skipped programme shows in blue and these
programmes will not be selected by the P +
- buttons during TV viewing.
If you wish to select a skipped programme,
directly enter the programme number with
the NUMBER buttons or select it in the programme edit.
It can be registered as Lock programme
even when Lock System is turned Off.
Selecting favourite programme
1 Press the Navigation buttons to scroll to select
your desired programme.
2
Press the FAV to add corresponding
programme to Favourite list of current Favourite
group.
3
Press FAV
Selecting favourite programme group
to release.
1 Press the Navigation buttons to scroll to select
your desired programme.
2
Press the Q.MENU to
where Favourite group can be changed.
display a pop-up window
3 Press the Navigation buttons to scroll to select
a Favourite group and press OK.
WATCHING TV
25
CI [Common interface] Information
This feature is not available in all countries.
This function enables you to watch some encrypted services (pay services). If you remove the CI
Module, you cannot watch pay services.
When the module is inserted into the CI slot, you
can access the module menu.
To purchase a module and smart card, contact
your dealer. Do not repeatedly insert or remove a
CI module from the TV. This may cause a malfunction. When the TV is turned on after inserting a CI
Module, you may not have any sound output.
This may be incompatible with the CI module and
smart card.
CI (Common Interface) functions may not be possible depending upon the country broadcasting
circumstances.
When using a CAM(Conditional Access Module),
please make sure it meets fully the requirements
of either DVB-CI or CI plus.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
SETUP and press OK.
3 Press the Navigation buttons to scroll to CI
Information and press OK.
4 Select the desired item: Module information,
smart card information, language, or software
download etc and press OK.
Selecting the programme list
You can check which programmes are stored in
the memory by displaying the programme list.
Displaying programme LIST
1 Press LIST to access the Programme List.
2 Press Blue button to turn the programme edit.
NOTE
You may find some blue programmes. These
have been set up to be skipped by auto programming or in the programme edit mode.
Some programmes with the channel number
shown in the programme LIST indicate there
is no station name assigned.
Selecting a programme in the programme list
1 Press Navigation buttons to select pro-
gramme.
2 Press OK to switch to the chosen programme
number.
NOTE
Press TV/RAD. (The mode will be switched
between TV, DTV, and Radio from the
programme you are currently watching.)
ENGENGLISH
5 When you are finished, press EXIT.
NOTE
This OSD is only for illustration and the menu
options and screen format will vary according
to the Digital pay services provider.
It is possible for you to change CI (Common
Interface) menu screen and service by
consulting your dealer.
WATCHING TV
26
ENGLISH
ENG
Paging through a programme list
1 Press the P + - buttons to turn the pages.
2 Press LIST to return normal TV viewing.
Displaying the favourite programme list
1 Press FAV to access the Favourite Programme
List.
2 When you are finished, press EXIT.
Button Description
Blue button
Yellow
button
OK Selects a programme to view
<
or
>
Turn the programme edit.
Current channel is registered/
cancelled as preferred channel on
currently selected Group.
Favourite group is changed.
EPG (Electronic Programme Guide) (In digital mode)
This system has an Electronic Programme Guide
(EPG) to help your navigation through all the possible viewing options.
The EPG supplies information such as programme
listings, start and end times for all available services.
In addition, detailed information about the programme is often available in the EPG (the availability
and amount of these programme details will vary,
depending on the particular broadcaster).
This function can be used only when the EPG
information
You must set the Clock in the Time menu, before
using EPG function.
The EPG displays the programme details for 8
days.
Good Morning
21:00 00:00 Show/Game Show
Sarah Bradley, Steve Gray and Brendon Pongia present the
latest in fashion, the arts, entertainment, lifestyle and cooking,
with regular and special guests.
Sarah Bradley, Steve Gray and Brendon Pongia present the
latest in fashion, the arts, entertainment, lifestyle and cooking,
with regular and special guests.
is broadcast by broadcasting companies.
►
►
DTV 1 TV ONE
▼
Pr. Change
16:9
► Next
720p
...
Watch
HE-AAC
Up
Down
Press INFO to show current programme
information.
Displayed with a TV or DTV Programme.
Displayed with a Radio Programme.
Displayed with a MHEG Programme.
HE-AAC
576i/p, 720p, 1080i/p : Resolution of broadcasting programme
Displayed with a HE-AAC Programme.
C
Aspect ratio of broadcasting programme.
Aspect ratio of broadcasting programme.
Displayed with a Teletext Programme.
Displayed with a Subtitle Programme.
Displayed with a Scramble Programme.
Displayed with a Dolby Digital Programme.
Displayed with a Dolby Digital PLUS
Programme.
Broadcasted programme with the icon may
not be displayed in Monitor Out depending on
the information of the programme.
WATCHING TV
27
> Shows next programme information.
ꕍ or ꕌ Shows other programme information.
Do you want to set a reminder for the
?
selected programme?
Bob The Builder Special
DTV 1 ABC TV Sydney
28 Sep. 2008 21:00~00:00
Yes No
OK A pop-up window for remind settings appear.
< > Select Timer Remind setting mode.
Switch on/off EPG
1 Press GUIDE to switch on or off EPG.
Select a programme
1 Press Navigation buttons or P + - to select
desired programme.
Programme Guide
That ’70s show
DTV 1 YLE TV1 25 Nov. 2008 09:45~10:15
ALL
FAV
Mode
1 YLE TV1
2 YLE TV2
4 TV..
5 YLE FST
6 CNN
Favourite
That ’70s show
Your World Today
Legenen om Den....
Naturtimmen
Lyssna
INFO
NOW
i Information
▲
▼
25 Nov. 2008 10:05
Keno
World Business
Fantomen
Kritiskt
ABC
Manual Timer Schedule List
NEXT
TV/RAD
NOW/NEXT Guide Mode
You can view a programme being broadcasted and
one scheduled to follow.
Button Description
Red button Change EPG mode.
Yellow button Enter Manual Timer mode.
Blue button Enter Schedule List mode.
When ‘Now’ is selected, it is moved to
OK
< > Select NOW or NEXT Programme.
P + - Page Up/Down.
GUIDE
EXIT
TV/RAD Select DTV or RADIO Programme.
INFO Detail information on or off.
selected programme and EPG disappears
When ‘Next’ is selected, a reservation
pop-up window appears.
Select the Broadcast Programme.
Switch off EPG.BACK
8 Day Guide Mode
Button Description
Red button Change EPG mode.
Green button Enter Date setting mode.
Yellow button Enter Manual Timer mode.
Blue button Enter Schedule List mode.
When ‘Currently broadcasting programme is selected, it is moved to se-
OK
lected programme and EPG disappears
When ‘Future broadcasting programme
is selected, a reservation pop-up window
appears.
< > Select Programme.
Select the Broadcast Programme.
P + - Page Up/Down.
RADIOWatch/Schedule
GUIDE
Switch off EPG.BACK
EXIT
TV/RAD Select DTV or RADIO Programme.
INFO Detail information on or off.
ENGENGLISH
Date Change Mode
Button Description
Green button
ꕍ
BACK
OK Change to the selected date.
< > Select a date.
GUIDE
EXIT
Switch off Date setting mode.
Switch off EPG.
WATCHING TV
28
ENGLISH
ENG
Extended Description Box
Button Description
INFO The detail information on or off.
Text Up/Down.
< >
GUIDE
EXIT
Select Timer Record/Remind setting
mode.
Switch off EPG.
Remind Setting Mode
Button Description
BACK Switch off Manual Timer mode.
OK Appear Repeat Option popup.
Navigation
button
Yellow button Change to Guide mode.
Blue button Change to Schedule List mode.
Select the date to schedule.
Schedule List Mode
If you’ve created a schedule list, a scheduled programme
is displayed at the scheduled time even when you are
watching a different programme at the time.
Button Description
Yellow button Change to Manual Timer mode.
Blue button
GUIDE
OK
P + - Page Up/Down.
BACK Switch off Schedule List.
Change to Guide mode.
Select your desired Option (Modify/
Delete/Delete All).
Select programme.
Using additional options
Adjusting aspect ratio
Resize an image to view at its optimal size by
pressing RATIO while you are watching TV.
NOTE
You can also change the image size by
pressing Q. MENU or accessing Aspect
Ratio in the Picture menus.
For Zoom Setting, select 14:9, Zoom and
Cinema Zoom in Ratio Menu. After completing Zoom Setting, the display goes
back to Q.Menu.
You can only select 4:3, 16:9 (Wide),
14:9, Zoom/Cinema Zoom in Component mode.
You can only select 4:3, Original, 16:9
(Wide), 14:9, Zoom/Cinema Zoom in
HDMI mode.
You can only select 4:3, 16:9 (Wide) in
RGB-PC, HDMI-PC mode only.
In DTV/HDMI/Component (over 720p)
mode, Just Scan is available.
In Analogue/DTV/AV/Scart mode, Full
Wide is available.
WATCHING TV
29
- 16:9: Resizes images to fit the screen width.
- Just Scan: Displays video images in the origi-
nal size without removing parts at the edge of
the image.
Just Scan
Full Wide: When TV receives the wide
-
screen signal, it will let you adjust the picture
horizontally or vertically, in a linear proportion,to
fill the entire screen fully.
4:3 and 14:9 video is supported in full screen
without any video distortion through DTV input.
Full Wide
- 4:3: Resizes images to the previous standard
4:3.
ENGENGLISH
NOTE
If you select Just Scan, you may see
image noises at the edge of the original
signal.
Original: When your TV receives a wide
-
screen signal it will automatically change to the
picture format broadcasted.
Original
14:9 : You can view a picture format of 14:9
-
or a general TV programme in the 14:9 mode.
The 14:9 screen is viewed in the same way as
in 4:3, but is moved to the up and down.
WATCHING TV
30
ENGLISH
ENG
- Zoom: Enlarges an image to fit the screen
width. The top and bottom of the image may
not appear.
NOTE
If you access, Aspect Ratio in the quick
menus,
- Press the Navigation buttons to stretch
an image vertically.
- Press the Navigation buttons to move
the zoom focus up or down.
- Cinema Zoom 1: Enlarges an image in the
cinemascope ratio, 2.35:1.
To change the ratio of the cinema zoom,
press the Navigation buttons and its range is
from 1 to 16.
To move the zoom focus up or down, press
the Navigation buttons.
NOTE
If you enlarge or reduce an image, the
image may be distorted.
Using the input list
Selecting an input source
Press INPUT to access the input sources.
1
- The connected device displays on each input
source.
NOTE
You can also access the input source list
by selecting INPUT in the main menus.
Press Navigation buttons to scroll to one of the
2
input sources and press OK.
Image shown may differ from your TV.

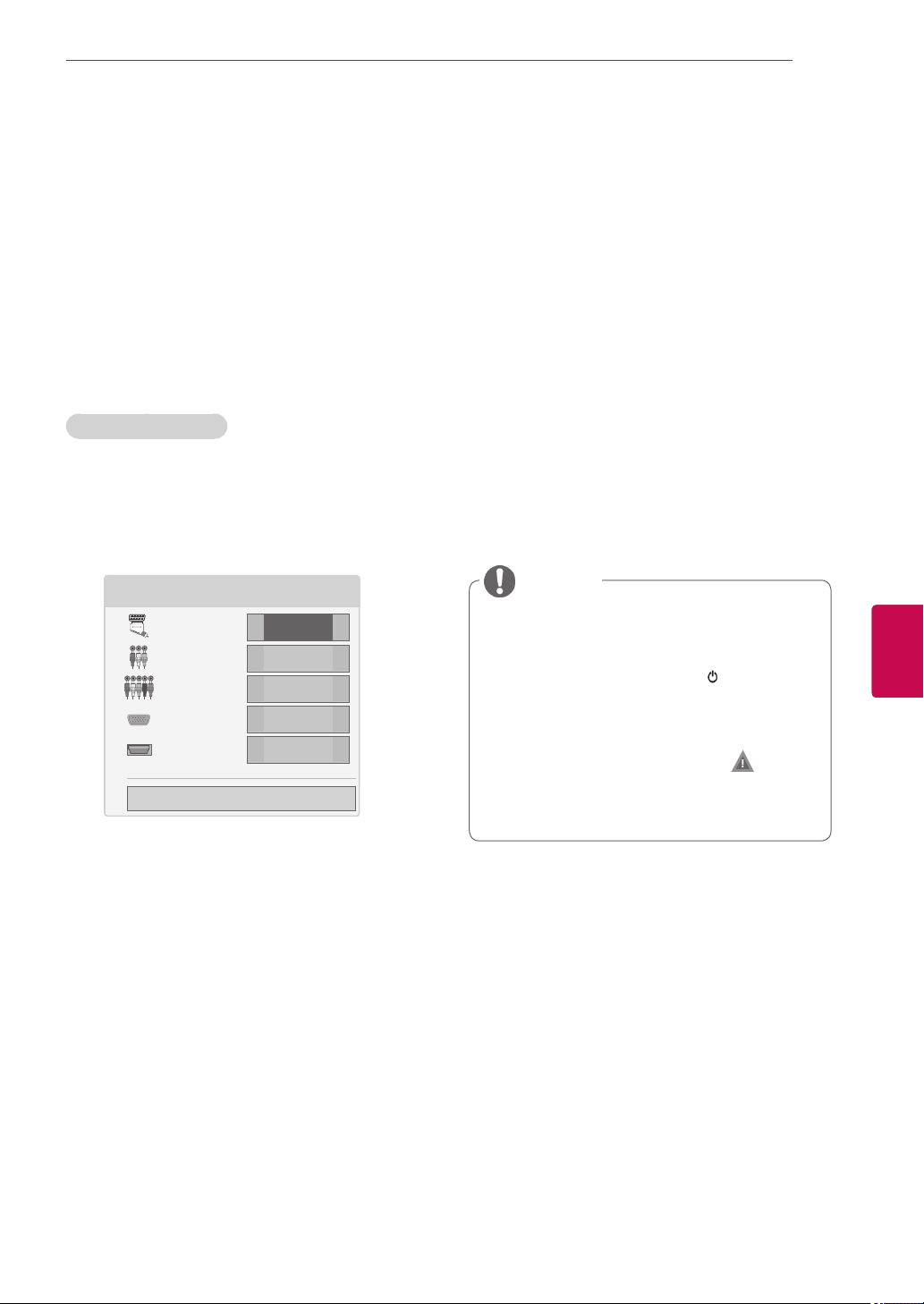

Input List
Antenna USB
Input source Description
Antenna or
Cable
USB Select it when using USB depends
AV Select it when watching the VCR or
Component Select it when using the DVD or
RGB Select it when using PC depends on
HDMI Select it when using DVD, PC or
AV1 Component
AV2
HDMI2HDMI1
HDMI3
SIMPLINK
Select it when watching the DTV/RADIO/
TV.
on connector.
external equipment.
the Digital set-top box depends on
connector.
connector.
Digital set-top box depend on connector.
Input Label
Move
OK
RGB
Exit
Loading...
