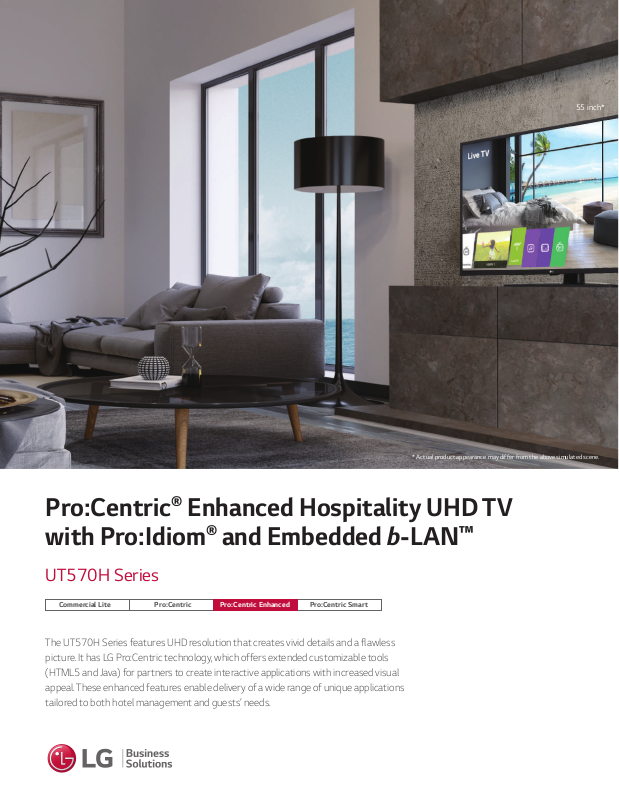

Page 1
55 inch*
* Actual product appearance may differ from the above simulated scene.
Pro:Centric® Enhanced Hospitality UHD TV
with Pro:Idiom® and Embedded b-LAN™
UT570H Series
Pro:Centric SmartCommercial Lite Pro:Centric Pro:Centric Enhanced
The UT570H Series features UHD resolution that creates vivid details and a flawless
picture. It has LG Pro:Centric technology, which offers extended customizable tools
(HTML5 and Java) for partners to create interactive applications with increased visual
appeal. These enhanced features enable delivery of a wide range of unique applications
tailored to both hotel management and guests’ needs.
Page 2
Pro:Centric Enhanced Hospitality UHD TV with Pro:Idiom
and
Embedded b-LAN
UT570H SERIES
KEY FEATURES
Dozens of Languages Basic & Easy-to-Use Templates
This series supports 39 languages (including Hebrew, Arabic
and Farsi) and language alignment, making guests from around
the world feel more at home and comfortable.
Customizable Template & Page
Choose alternative looks for billboards based on your
preferences, and edit multiple sections with up to 40 pages of
billboards by yourself with this web-based tool.
Pro:Centric Application (PCA) provides basic, easy-to-use
templates that can be selected based on customer preference.
Multi-Channel Spooling
Operation of up to eight hotel channels (22 sub-channels)
offers programming exibility, customized content and
additional services.
Page 3
and
Embedded b-LAN
UT570H SERIES
KEY FEATURES
Pro:Idiom ProCentric Direct
DRM (digital rights management) technology unlocks access to
premium content to help assure rapid and broad deployment of
HDTV and other high-value digital content.
Decryption
4K Upscaler
Enjoy Full HD content with 4K UHD quality. The 4K upscaler
automatically upgrades Full HD content to UHD through a
simple six-step process.
Pro:Centric Direct is a hotel content management system that
provides simple editing tools and various solutions such as
one-click service and IP network–based remote management.
Hoteliers can easily edit the user interface, provide customized
service and manage all the property’s TVs efciently.
SI
IP or RF*
* Two-way
with Pro:Centric Direct
* Actual UI may differ from what is shown here
When PCS400R and PCD 2.0 are in use, the PCD feature works even in RF infrastructure.
ServerEditing Content
communication not
available with RF
4K Resolution
UHD delivers a resolution four times higher than that of Full
HD, which creates a more realistic and immersive television
viewing experience. The stunning 8.3 million pixels create
awless images with incredibly vivid detail.
Page 4
Pro:Centric Enhanced Hospitality UHD TV with Pro:Idiom
UT570H SERIES
KEY FEATURES
and
Embedded b-LAN
EZ-Manager
EZ-Manager provides a convenient installation function to
automatically choose settings for the Pro:Centric TV without
any extra conguration.
Instant On
The Instant On feature allows the Pro:Centric app to remain
loaded giving guests quick access to content when they turn
on the TV.
Commercial Swivel Stand USB Data Cloning
The UT570H Series* commercial grade stand swivels to allow
guests to view the TV from virtually any angle and can easily be
fastened to a tabletop for security purposes.
20°
*Includes 43", 49" and 55" only.
20°
Create a media playlist of your choosing (video, music, and/
or images), save it to a USB memory device, and then simply
connect the USB memory device to the TV to stream your
playlist sequentially.
Page 5
Pro:Centric Enhanced Hospitality UHD TV with Pro:Idiom
UT570H SERIES
DIMENSIONS
and
Embedded b-LAN
43"
49"
38.3" / 973 mm
43.7" / 1,110 mm
3.3" / 85 mm
3.0" / 76 mm
22.5" / 572 mm
24.6" / 626 mm
3.3" / 83 mm
3.2" / 81 mm
2.8" / 72 mm
25.6" / 650 mm
27.8" / 705 mm
3.5" / 88 mm
200 mm
200 mm
12.0" / 303 mm
300 mm
300 mm
303 mm
55"
65"
49.0" / 1,244 mm
57.6" / 1,463 mm
3.4" / 87 mm
28.6" / 726 mm
30.7" / 780 mm
3.2" / 81 mm
11.9" / 303 mm
3.5" / 88 mm
33.5" / 850 mm
36.0" / 914 mm
5.7" /
144 mm
13.4" / 340 mm
300 mm
300 mm
300 mm
300 mm
Page 6
Pro:Centric Enhanced Hospitality UHD TV with Pro:Idiom
UT570H SERIES
SPECIFICATIONS
Diagonal Size
Resolution
Backlight Unit Type
DISPLAY
AUDIO
HOSPITALITY
SMART
FEATURES
OTHER
FEATURES
Brightness (Nits)
TruMotion / Refresh Rate
Life Span (Hours)
HDR 10 Pro
HDR HLG
Speaker (Sound Output)
Speaker System
LG Sound Sync
Data Streaming (IP & RF)
HCAP (GEM / FLASH / HTML)
IP Return Path
Multicast / Unicast (Pro:Centric Data Only)
Pro:Centric Direct (Version)
Pro:Centric Application (Version)
Pro:Centric Server
Pro:Idiom DRM
Smart Home (Launcher Bar) Yes Yes Yes Yes
Clock and Alarm
EZ-Manager Yes Yes Yes Yes
USB Cloning Yes Yes Yes Yes
Update Time Yes Ye s Yes Ye s
SNMP Yes Yes Yes Yes
SI Compatible (TVLink Interactive) Yes (MPI, RS-232C) Yes (MPI, RS-232C) Yes (MPI, RS-232C) Yes (MPI, RS-232C)
HTNG-CEC Yes (1.4) Yes (1.4) Yes (1.4) Yes (1.4)
Simplink (HDMI-CEC) Yes (1.4) Yes (1.4) Yes (1.4) Yes (1.4)
IR Out Yes (MPI, RS-232C) Yes (MPI, RS-232C) Yes (MPI, RS-232C) Yes (MPI, RS-232C)
Multi-code IR Yes Yes Yes Yes
Hotel Mode / PDM / Installer Menu Installer Menu Installer Menu Installer Menu Installer Menu
Welcome Screen (Boot Logo) Yes Yes Yes Yes
One Channel Map LCM LCM LCM LCM
External Speaker Out (Stereo) Yes Yes Yes Yes
Instant On Yes Yes Yes Yes
RJP (Remote Jack Pack) Compatibility Yes (LG, HDMI CEC) Yes (LG, HDMI CEC) Yes (LG, HDMI CEC) Yes (LG, HDMI CEC)
Auto Off / Sleep Timer Yes / Yes Yes / Yes Yes / Yes Yes / Yes
Smart Energy Saving Yes Yes Yes Yes
Motion Eye Care Yes Yes Yes Yes
TV Reception ATSC / QAM / VSB / Analog NTSC ATSC / QAM / VSB / Analog NTSC ATSC / QAM / VSB / Analog NTSC ATSC / QAM / VSB / Analog NTSC
b-LAN Embedded Yes Yes Yes Yes
and
Embedded b-LAN
65UT570H0UB 55UT570H0UA 49UT570H0UA 43UT570H0UA
65" 55" 49" 43"
3,840 X 2,160 (UHD) 3,840 X 2,160 (UHD) 3,840 X 2,160 (UHD) 3,840 X 2,160 (UHD)
Trident Trident Direct Trident
500 400 400 400
T120 T120 T120 T120
30,000 30,000 30,000 30,000
Yes Yes Yes Yes
Yes Yes Yes Yes
10 W + 10 W 10 W + 10 W 10 W + 10 W 10 W + 10 W
2.0 ch 2.0 ch 2.0 ch 2.0 ch
Yes Yes Yes Yes
Yes Yes Yes Yes
GEM / HTML5 GEM / HTML5
Yes Yes Yes Yes
Yes Yes Yes Yes
Yes (2.5) Yes (2.5) Yes (2.5) Yes (2.5)
Yes (PCA 3.8) Yes (PCA 3.8)
PCS400R PCS400R PCS400R PCS400R
SW Type / Mobile / Lite SW Type / Mobile / Lite SW Type / Mobile / Lite SW Type / Mobile / Lite
Yes Yes Yes Yes
GEM / HTML5 GEM / HTML5
Yes (PCA 3.8) Yes (PCA 3.8)
Page 7
UT570H SERIES
SPECIFICATIONS
HDMI In 3 (2.0) 3 (2.0) 3 (2.0) 3 (2.0)
USB 1 (2.0) 1 (2.0) 1 (2.0) 1 (2.0)
RF In Yes Yes Yes Yes
A / V Adapter Included (3.5 mm) 1 1 1 1
INTERFACES
MECHANICALS
POWER
ACCESSORIES
WARRANTY &
OTHER
Digital Audio Out Optical Optical Optical Optical
LAN (RJ45) 1 (Pro:Centric) 1 (Pro:Centric) 1 (Pro:Centric) 1 (Pro:Centric)
LG RJP Interface Yes Yes Yes Yes
Speaker Out - Line Out (3.5 mm Stereo Jack) Yes Yes Yes Yes
TV Link Conguration (3.5 mm Stereo Jack) Yes (Congure b-LAN) Yes (Congure b-LAN) Yes (Congure b-LAN) Yes (Congure b-LAN)
MPI Port (RJ12) Ye s Yes Ye s Yes
Front Color Titan Titan Titan Titan
VESA Compatible 300 x 300 300 x 300 300 x 300 200 x 200
Kensington Lock No Yes Ye s Yes
Credenza / Security Screw Hole No Ye s Yes Yes
Lock Down Plate No Ye s Yes Yes
Weight without Stand 47.2 lbs / 21.4 kg 30.9 lbs / 14.0 kg 24.5 lbs / 11.1 kg 17.6 lbs / 8.0 kg
Weight with Stand 49.4 lbs / 22.4 kg 37.9 lbs / 17.2 kg 31.5 lbs / 14.3 kg 17.6 lbs / 8.0 kg
Weight in Shipping 65.7 lbs / 29.8 kg 50.5 lbs / 22.9 kg 37.9 lbs / 17.2 kg 17.6 lbs / 8.0 kg
Dimensions without Stand
(Depth to Back VESA Location)
Dimensions without Stand
(Depth to Back of Speaker)
Dimensions with Stand
Dimensions in Shipping
Power Supply (Voltage, Hz) 120 V, 50 / 60 Hz 120 V, 50 / 60 Hz 120 V, 50 / 60 Hz 120 V, 50 / 60 Hz
Power Consumption (Max) 200 W 160 W 120 W 120 W
Standby Power Consumption Less than 0.3 W Less than 0.3 W Less than 0.3 W Less than 0.3 W
Remote Type S-Con S-Con S-Con S-Con
Chromecast Dongle Anti-theft Cover Yes (Option) Yes (Option) Yes (Option) Yes (Option)
Power Cable Yes (1.8 m, RA Type) Yes (1.8 m, Angle Type) Yes (1.8 m, Angle Type) Yes (1.8 m, Angle Type)
Standards UL UL UL UL
EMC Certication FCC FCC FCC FCC
Warranty Two-Year Limited Warranty Two-Year Limited Warranty Two-Year Limited Warranty Two-Year Limited Warranty
UPC 7 19192 63083 3 7 19192 63084 0 7 1919263085 7 7 19192 63119 9
and
Embedded b-LAN
65UT570H0UB 55UT570H0UA 49UT570H0UA 43UT570H0UA
57.6" x 33.5" x 3.5" /
1,463 x 850 x 88 mm
57.6" x 33.5" x 3.5" /
1,463 x 850 x 88 mm
57.6" x 36.0" x 13.4" /
1,463 x 914 x 340 mm
63.0" x 42.1" x 8.1" /
1,600 x 1,070 x 207 mm
49.0" x 28.6" x 3.4" /
1,244 x 726 x 87 mm
49.0" x 28.6" x 3.4" /
1,244 x 726 x 87 mm
49.0" x 30.7" x 11.9" /
1,244 x 780 x 303 mm
55.5" x 33.9" x 8.1" /
1,410 x 860 x 207 mm
43.7" x 25.6" x 2.8" /
1,110 x 650 x 72 mm
43.7" x 25.6" x 3.2" /
1,110 x 650 x 81 mm
43.7" x 27.8" x 11.9" /
1,110 x 705 x 303 mm
51.0" x 30.3" x 6.7" /
1,296 x 770 x 171 mm
38.3" x 22.5" x 3.0" /
973 x 572 x 76 mm
38.3" x 22.5" x 3.3" /
973 x 572 x 85 mm
38.3" x 24.6" x 11.9" /
973 x 626 x 303 mm
45.2" x 26.0" x 7.5" /
1,147 x 660 x 190 mm
Page 8
CONNECTIVITY
65" / 55" / 49" / 43"
* Dimensions and jack panels (read / side) may differ from the above image.
Please contact your LG sales representative to verify before ordering.
www.lg.com/us/business/commercial-display
www.twitter.com/LGCommDisplays
www.facebook.com/LGcommercialdisplays
www.linkedin.com/company/lg-commercial-displays-usa
www.youtube.com/lgcommercialdisplayusa
800-228-1236 | Hospitality Sales
LG may make changes to specifications and product descriptions without notice.
