LG 43UF67**-Z Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS : LD58H

MODEL : 43UF67** 43UF67**-Z*

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL68682110 (1505-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ........................................................................ 3

SERVICING PRECAUTIONS ................................................................... 4

SPECIFICATION ...................................................................................... 6

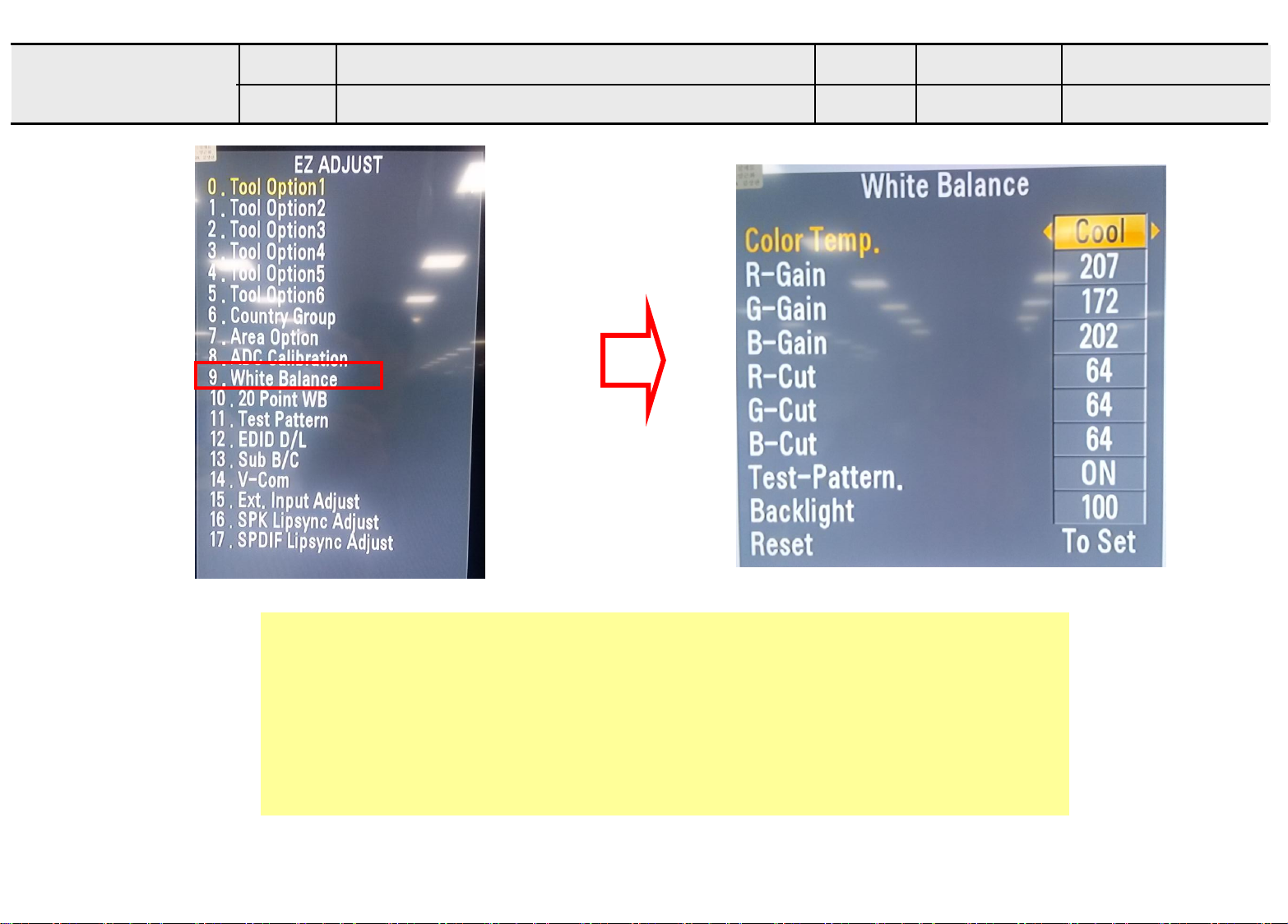

ADJUSTMENT INSTRUCTION ............................................................. 10

BLOCK DIAGRAM ................................................................................. 18

EXPLODED VIEW .................................................................................. 19

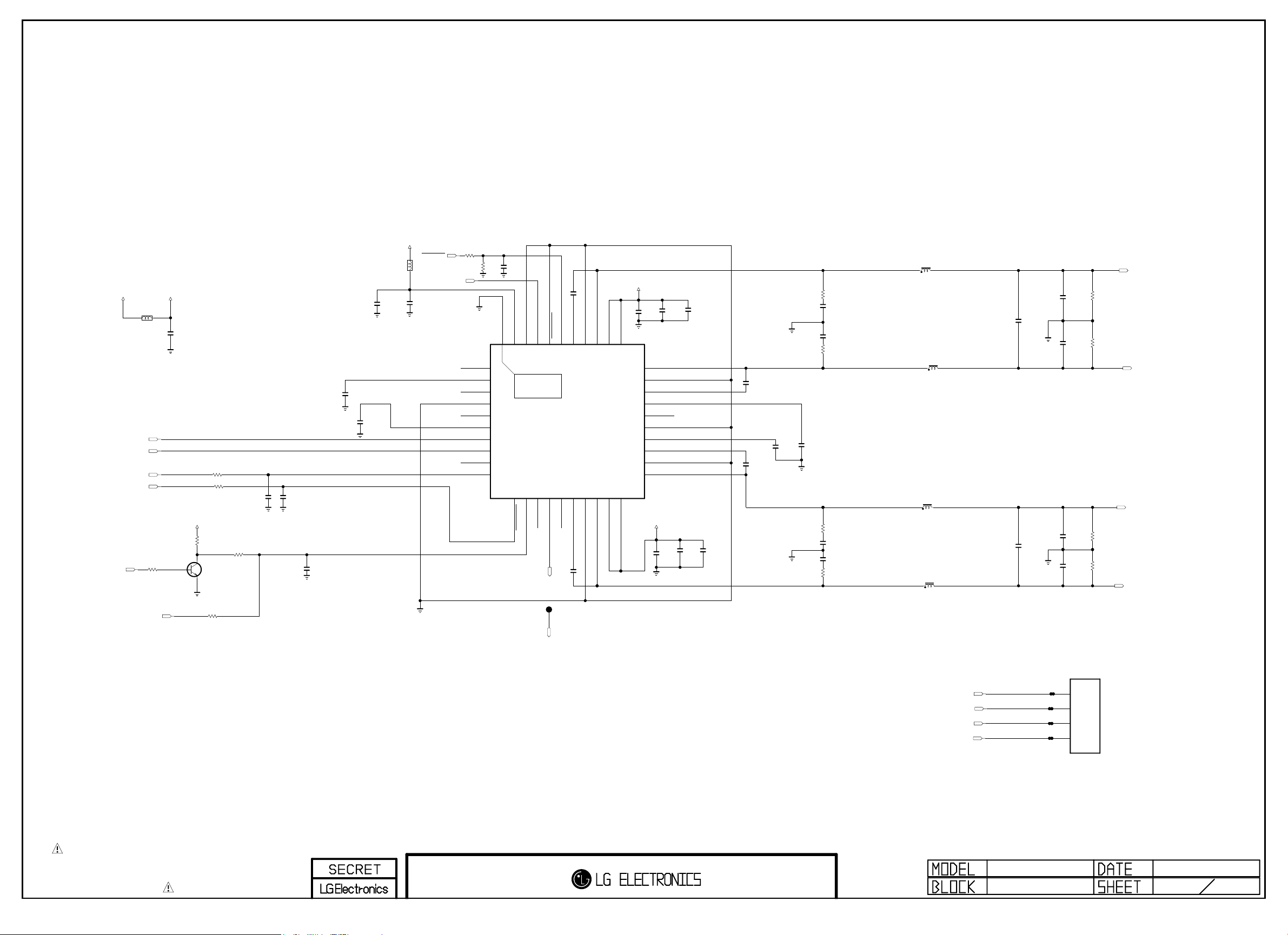

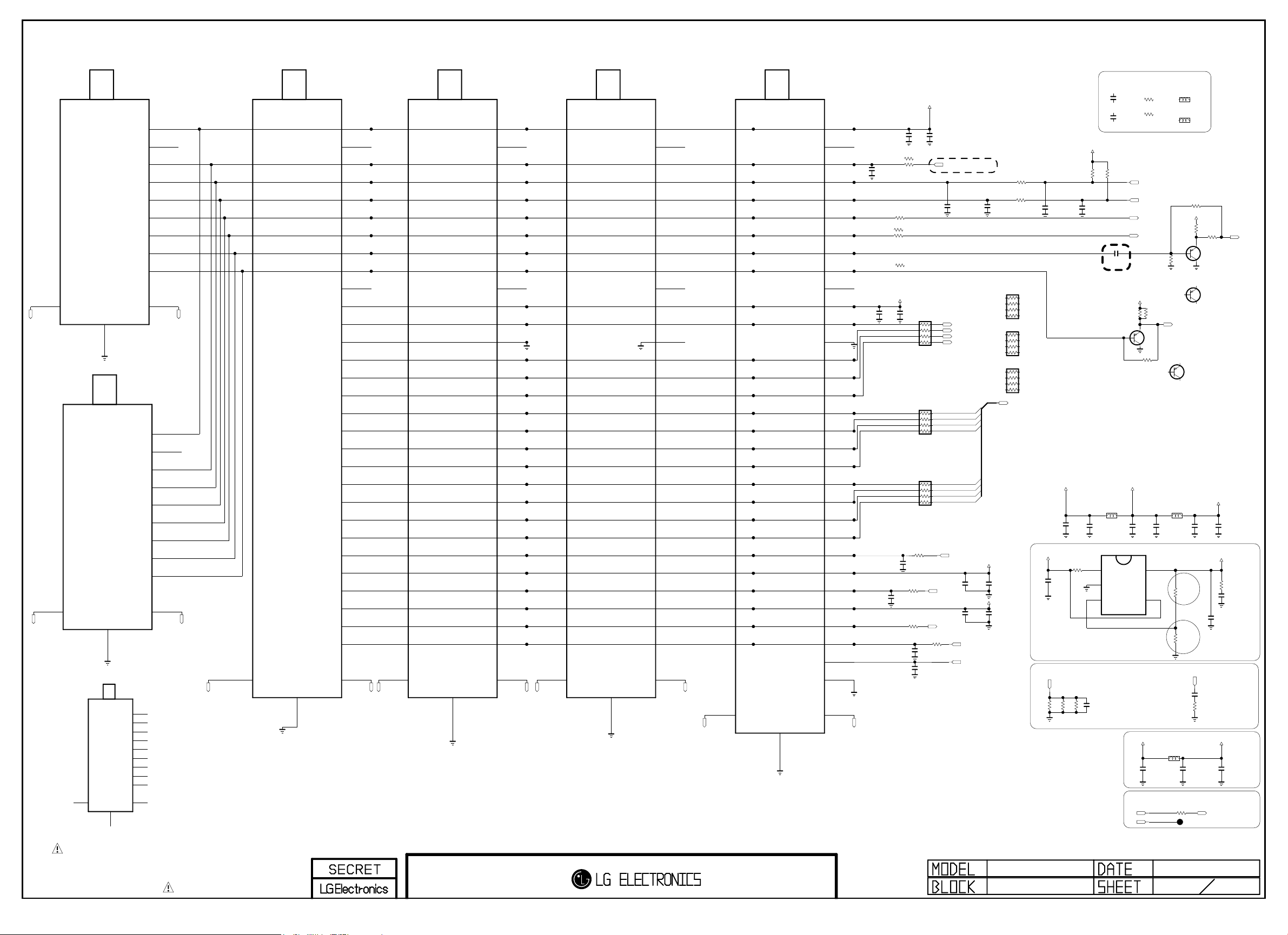

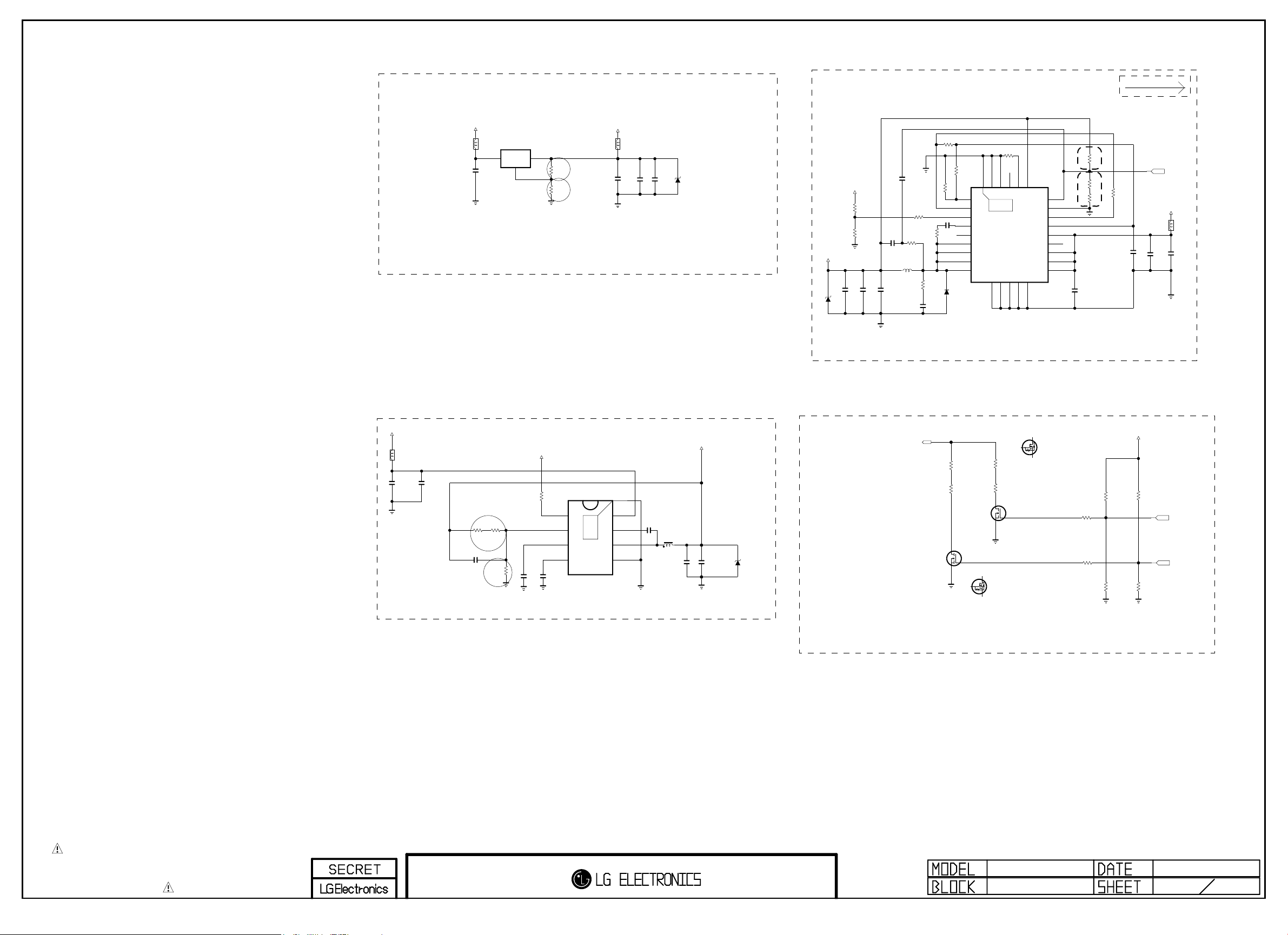

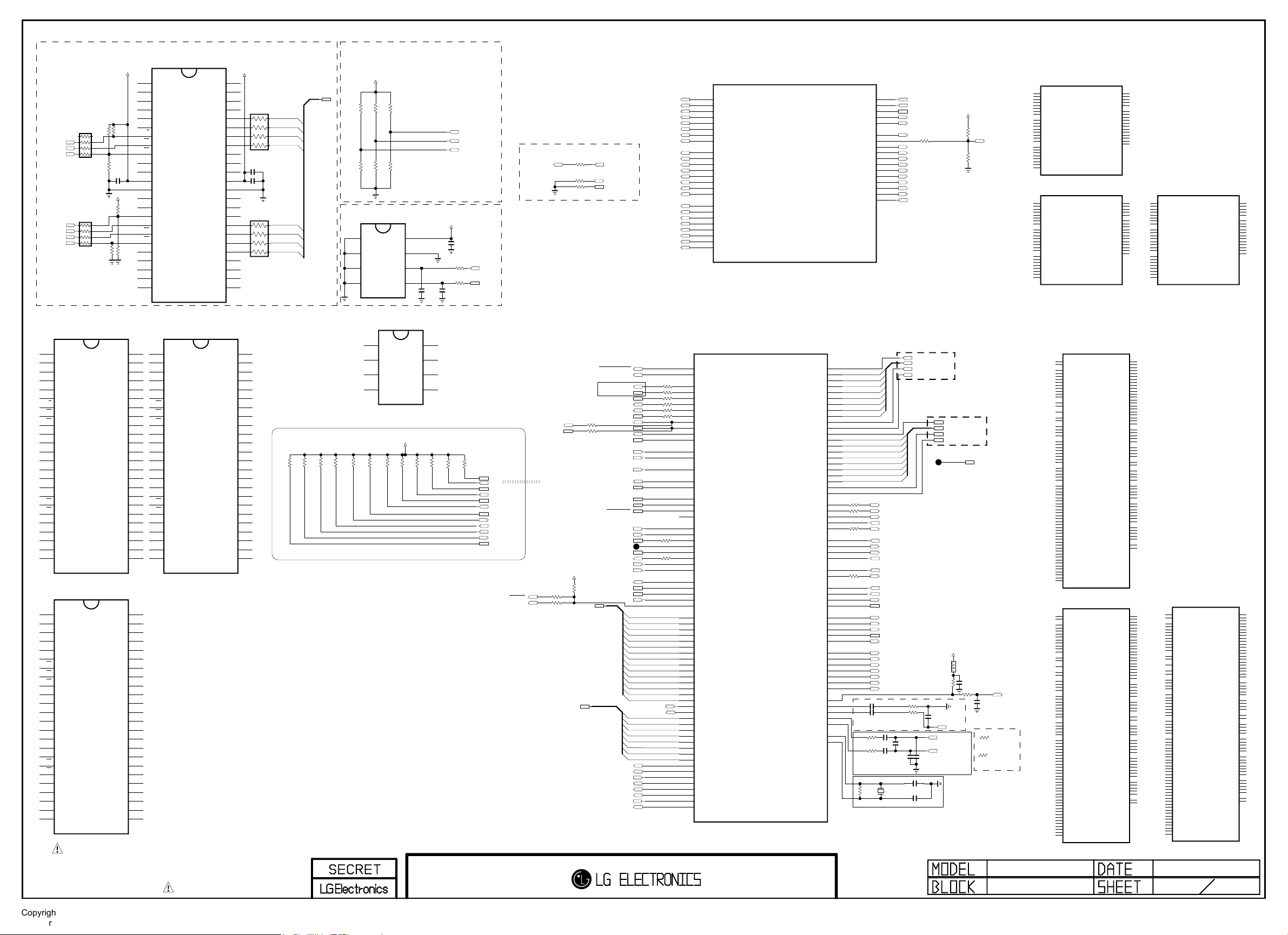

SCHEMATIC CIRCUIT DIAGRAM ........................................... APPENDIX

TROUBLE SHOOTING GUIDE ................................................ APPENDIX

Only for training and service purposes

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

Always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug

or other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication

of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some sol-

der removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand

against the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. Carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

Only for training and service purposes

- 5 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This specification is applied to the LED TV used LD58H chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage : Standard input voltage (AC 100-240 V~, 50/60 Hz) * Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC : CE, IEC specification

4. Model General Specification

No. Item Specication Remarks

1 Market EU(PAL Market-37Countries) DTV & Analog (Total 37 countries)

DTV (MPEG2/4, DVB-T) :37 countries UK/Italy/Germany/France/Spain/Sweden/Finland/Netherlands/ Belgium/Luxemburg/ Greece/Denmark/Czech/Austria /Hungary/Swiss/Croatia/TurkeyNorway/Slovenia/Poland/Ukraine/ Portugal/Ireland/Morocco/Latvia/Estonia/Lithania/Rumania/ Bulgaria/Russia/SlovakiaBosnia/Serbia/Albania/Kazakhstan/ Belarus

DTV (MPEG2/4, DVB-T2): 8 countries

UK/Denmark/Sweden/Finland/Norway/Ireland/Ukraine/Kazakhstan

DTV (MPEG2/4, DVB-C): 37 countries

UK/Italy/Germany/France/Spain/Sweden/Finland/Netherlands/ Belgium/Luxemburg/ Greece/Denmark/Czech/Austria /Hungary/Swiss/Croatia/TurkeyNorway/Slovenia/Poland /Ukraine/ Portugal/Ireland/Morocco/Latvia/Estonia/Lithania/Rumania/ Bulgaria/Russia/SlovakiaBosnia/Serbia/Albania/Kazakhstan/ Belarus

DTV (MPEG2/4,DVB-S): 29 countries

Italy/Germany/France/Spain/Netherlands/ Belgium/Luxemburg/ Greece/Czech/Austria /Hungary/Swiss/Croatia/Turkey/Slovenia/Poland/Portugal/ Morocco/Latvia/Estonia/Lithania/Rumania/ Bulgaria/Russia/Slovakia/Bosnia/Serbia/Albania/Belarus

Supported satellite : 22 satellites

HISPASAT 1C/1D, ATLANTIC BIRD 2, NILESAT 101/102, ATLANTIC BIRD 3, AMOS 2/3, THOR 5/6, IRIUS 4, EUTELSAT-W3A, EUROBIRD 9A, EUTELSAT-W2A, HOTBIRD 6/8/9, EUTELSAT-SESAT, ASTRA 1L/H/M/KR, ASTRA 3A/3B, BADR 4/6, ASTRA 2D, EUROBIRD 3, EUTELSAT-W7, HELLASSAT 2, EXPRESS AM1, TURKSAT 2A/3A, INTERSAT10

Only for training and service purposes

- 6 -

No. Item Specication Remarks

Analogue TV

1) PAL-B/G/D/K/I

2) SECAM-B/G/D/K/I, SECAM L/L’

Analogue TV :

(RF) VHF: E2 to E12, UHF : E21 to E69 (CATV) S1 to S20, HYPER: S21 to S47

Digital TV

2 Broadcasting system

3 Receiving system

4 Scart Jack (1EA) PAL, SECAM Scart 1 Jack is Full scart and support RF-OUT(analog).

Component & AV

5

Common port (1EA)

6 HDMI Input (2EA) HDMI1/2 Support HDCP2.2 , 6Gbps

7 Audio Input (1EA) Component & AV Component & AV’s audio input is used by common port.

8 SDPIF out (1EA) SPDIF out

9 Earphone out (1EA)

10 USB (1EA) EMF, DivX HD, For SVC (download) JPEG, MP3, DivX HD

11 DVB

12 Ethernet (1EA) Wired, DMP only Only UK T2 Model : for MHEG

1) DVB-T

2) DVB-C

Satellite Digital TV

1) DVB-T/T2

2) DVB-C

3) DVB-S/S2

Analog : Upper Heterodyne Digital : COFDM, QAM

Video Input RCA(PAL, SECAM, NTSC) 4 System : PAL, SECAM, NTSC, PAL60

Component Input(Y/Cb/Cr, Y/Pb/Pr)

Antenna, AV1, AV2, Component, HDMI1, HDMI2, USB

DVB-T

DVB-C

DVB-S CI + : Germany(Astra HD+ )

Digital TV :VHF, UHF

Satellite TV :

VHF, UHF, C-Band, Ku-Band

► DVB-T

- Guard Interval(Bitrate_Mbit/s) : 1/4, 1/8, 1/16, 1/32

- Modulation : Code Rate QPSK : 1/2, 2/3, 3/4, 5/6, 7/8 16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8 64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8

► DVB-T2

- Guard Interval(Bitrate_Mbit/s) : 1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256

- Modulation : Code Rate QPSK : 1/2, 2/5, 2/3, 3/4, 5/6 16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6 64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6 256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6

► DVB-C

- Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s

- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM

► DVB-S

- symbolrate DVB-S2 (8PSK / QPSK) : 2 ~ 45 Msymbol/s DVB-S (QPSK) : 2 ~ 45Msymbol/s

- viterbi DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8 DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

UF67 Series

CI : UK, Finland, Denmark, Norway, Sweden, Russia, Spain,

Ireland, Luxemburg, Belgium, Netherland

CI+ : France(Canal+), Italy(DGTVi)

CI : Switzerland, Austria, Slovenia, Hungary, Bulgaria CI+ : Switzerland(UPC,Cablecom), Netherland(Ziggo),

Germany(KDG,CWB), Finland(labwise)

Only for training and service purposes

- 7 -

5. Video resolutions (2D)

5.1. Component Input (Y, CB/PB, CR/PR)

No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Proposed

720*576 15.625 50.00 13.5 SDTV ,DVD 576I

1

720*480 15.73 60.00 13.5135 SDTV ,DVD 480I

2

3 720*480 15.73 59.94 13.50 SDTV ,DVD 480I

4 720*576 31.25 50.00 27.00 SDTV 576P

5 720*480 31.50 60.00 27.027 SDTV 480P

6 720*480 31.47 59.94 27.00 SDTV 480P

7 1280*720 37.50 50.00 74.25 HDTV 720P

8 1280*720 45.00 60.00 74.25 HDTV 720P

9 1280*720 44.96 59.94 74.176 HDTV 720P

10 1920*1080 28.125 50.00 74.25 HDTV 1080I

11 1920*1080 33.75 60.00 74.25 HDTV 1080I

12 1920*1080 33.72 59.94 74.176 HDTV 1080I

13 1920*1080 56.25 50.00 148.50 HDTV 1080P

14 1920*1080 67.50 60.00 148.50 HDTV 1080P

15 1920*1080 67.432 59.94 148.352 HDTV 1080P

16 1920*1080 27.00 24.00 74.25 HDTV 1080P

17 1920*1080 26.97 23.94 74.176 HDTV 1080P

18 1920*1080 33.75 30.00 74.25 HDTV 1080P

19 1920*1080 33.71 29.97 74.176 HDTV 1080P

Only for training and service purposes

- 8 -

5.2. HDMI Input(PC/DTV)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

PC(DVI) DDC

1 640*350 31.46 70.09 25.17 EGA X 2 720*400 31.46 70.08 28.32 DOS O 3 640*480 31.46 59.94 25.17 VESA(VGA) O 4 800*600 37.87 60.31 40.00 VESA(SVGA) O 5 1024*768 48.36 60.00 65.00 VESA(XGA) O 6 1152*864 54.34 60.05 80.00 VESA O 7 1360*768 47.71 60.01 85.50 VESA (WXGA) O 8 1280*1024 63.98 60.02 108.0 VESA (SXGA) O FHD Only

9 1920*1080 67.50 60.00 148.5 HDTV 1080P O FHD Only 10 3840*2160 54 24.00 297.00 UDTV 2160P O UHD Only 11 3840*2160 56.25 25.00 297.00 UDTV 2160P O UHD Only 12 3840*2160 67.5 30.00 297.00 UDTV 2160P O UHD Only 13 4096*2160 53.95 23.97 296.703 UDTV 2160P O UHD Only 14 4096*2160 54 24 297 UDTV 2160P O UHD Only

DTV

1 640*480 31.46 59.94 25.125 SDTV 480P

2 640*480 31.5 60.00 25.125 SDTV 480P

3 720*480 15.73 59.94 13.500 SDTV 480I

4 720*480 15.75 60.00 13.514 SDTV 480I

5 720*576 15.62 50.00 13.500 SDTV 576I(DVB)

6 720*480 31.47 59.94 27 SDTV 480P

7 720*480 31.5 60.00 27.027 SDTV 480P

8 720*576 31.25 50.00 27 HDTV 576P(DVB)

9 1280*720 44.96 59.94 74.176 HDTV 720P

10 1280*720 45 60.00 74.25 HDTV 720P

11 1280*720 37.5 50.00 74.25 HDTV 720P(DVB) 12 1920*1080 28.12 50.00 74.25 HDTV 1080I(DVB) 13 1920*1080 33.72 59.94 74.176 HDTV 1080I 14 1920*1080 33.75 60.00 74.25 HDTV 1080I 15 1920*1080 26.97 23.97 63.296 HDTV 1080P 16 1920*1080 27.00 24.00 63.36 HDTV 1080P 17 1920*1080 33.71 29.97 79.120 HDTV 1080P 18 1920*1080 33.75 30.00 79.20 HDTV 1080P 19 1920*1080 56.25 50.00 148.5 HDTV 1080P (DVB) 20 1920*1080 67.43 59.94 148.350 HDTV 1080P 21 1920*1080 67.5 60.00 148.50 HDTV 1080P 22 3840*2160 53.95 23.98 296.703 UDTV 2160P UHD only 23 3840*2160 54 24.00 297.00 UDTV 2160P UHD only 24 3840*2160 56.25 25.00 297.00 UDTV 2160P UHD only 25 3840*2160 61.43 29.97 296.703 UDTV 2160P UHD only 26 3840*2160 67.5 30.00 297.00 UDTV 2160P UHD only 27 3840*2160 112.5 50.00 594 UDTV 2160P(DVB) UHD only 28 3840*2160 135 59.94 593.407 UDTV 2160P UHD only 29 3840*2160 135 60.00 594 UDTV 2160P UHD only 30 4096*2160 53.95 23.98 296.703 UDTV 2160P UHD only 31 4096*2160 54 24.00 297 UDTV 2160P UHD only 32 4096*2160 56.25 25.00 297 UDTV 2160P UHD only 33 4096*2160 61.43 29.97 296.703 UDTV 2160P UHD only 34 4096*2160 67.5 30.00 297 UDTV 2160P UHD only 35 4096*2160 112.5 50.00 594 UDTV 2160P(DVB) UHD only 36 4096*2160 135 59.94 593.407 UDTV 2160P UHD only 37 4096*2160 135 60.00 594 UDTV 2160P UHD only

Spec. out but display

Only for training and service purposes

- 9 -

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied to all of the LED TV with LD58H chassis.

2. Designation

(1) The adjustment is according to the order which is

designated and which must be followed, according to the

plan which can be changed only on agreeing. (2) Power adjustment : Free Voltage. (3) Magnetic Field Condition: Nil. (4) Input signal Unit: Product Specification Standard. (5) Reserve after operation : Above 5 Minutes (Heat Run) Temperature : at 25 °C ± 5 °C Relative humidity : 65 ± 10 % Input voltage : 220 V, 60 Hz (6) Adjustment equipments: Color Analyzer(CA-210 or CA-110),

DDC Adjustment Jig, Service remote control. (7) Push the "IN STOP" key - For memory initialization.

Case1 : Software version up

1. After downloading S/W by USB , TV set will reboot automatically.

2. Push “In-stop” key.

3. Push “Power on” key.

4. Function inspection

5. After function inspection, Push “In-stop” key.

Case2 : Function check at the assembly line

1. When TV set is entering on the assembly line, Push

“In-stop” key at rst.

2. Push “Power on” key for turning it on.

→ If you push “Power on” key, TV set will recover

channel information by itself.

3. After function inspection, Push “In-stop” key.

3. Main PCB check process

▪ APC - After Manual-Insert, executing APC

* Boot file Download

(1) Execute ISP program "Mstar ISP Utility" and then click

"Config" tab.

(2) Set as below, and then click "Auto Detect" and check "OK"

message. If "Error" is displayed, check connection between computer, jig, and set.

(3) Click "Read" tab, and then load download file(XXXX.bin)

by clicking "Read".

(1)

filexxx.bin

(4) Click "Connect" tab. If "Can't" is displayed, check connection

between computer, jig, and set.

(2)

(3)

Please Check the Speed : To use speed between from 200KHz to 400KHz

(5) Click "Auto" tab and set as below. (6) Click "Run". (7) After downloading, check "OK" message.

(4)

filexxx.bin

(5)

(7)...........OK

(6)

* USB DOWNLOAD

(1) Put the USB Stick to the USB socket. (2) Automatically detecting update file in USB Stick.

- If your downloaded program version in USB Stick is Low, it didn't work. But your downloaded version is High, USB data is automatically detecting.

(3) Show the message "Copying files from memory". (4) Updating is starting.

(5) Updating Completed, The TV will restart automatically in 5

seconds.

(6) If your TV is turned on, check your updated version and

Tool option. (explain the Tool option, next stage)

* If downloading version is more new than your TV have, TV

can lost all channel data. In this case, you have to channel recover. if all channel data is cleared, you didn’t have a DTV/ ATV test on production line.

Only for training and service purposes

- 10 -

* After downloading, have to adjust Tool Option again.

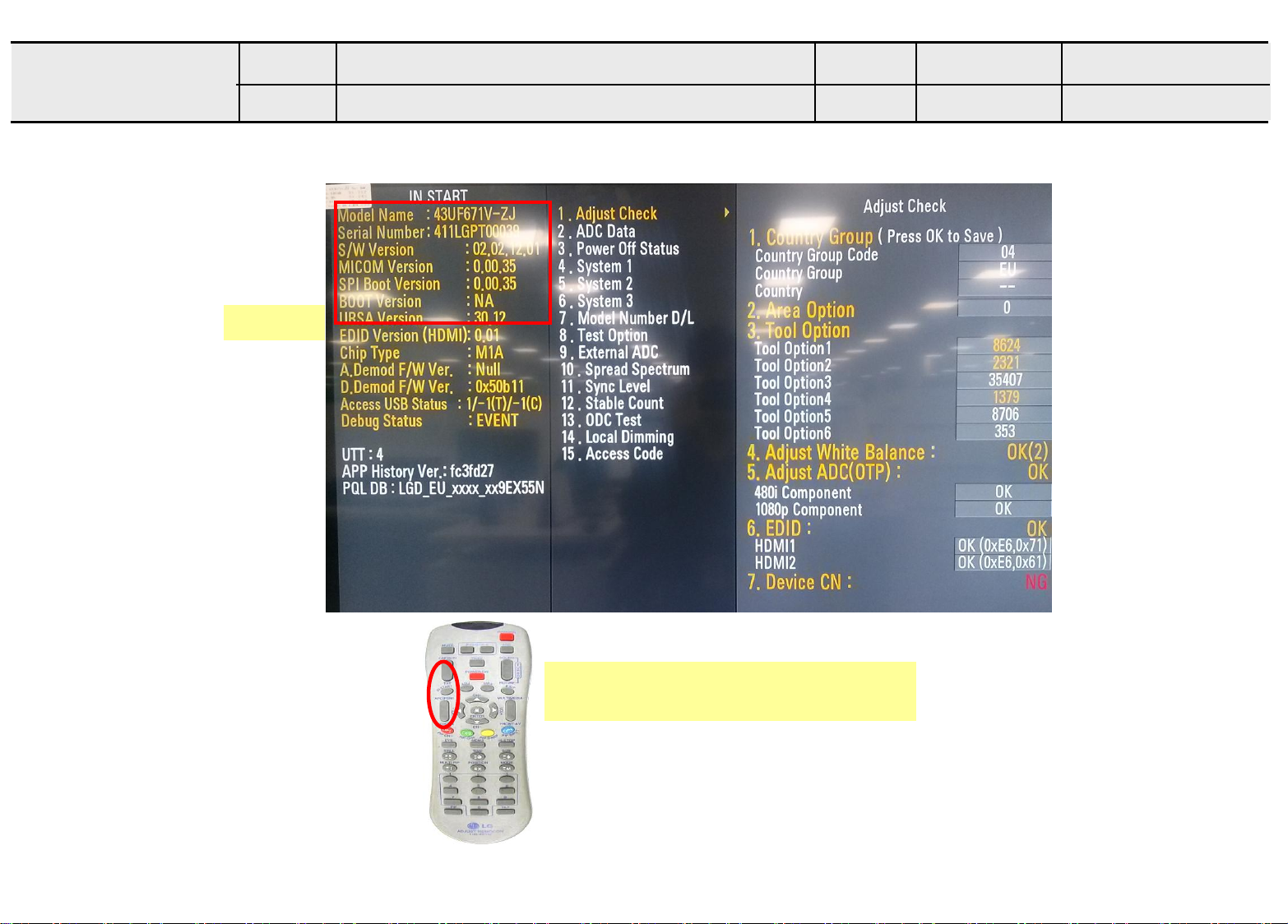

(1) Push "IN-START" key in service remote control. (2) Select "Tool Option 1" and push "OK" key. (3) Punch in the number. (Each model has their number) (4) Completed selecting Tool option.

3.1. ADC Process(Optional)

* If ADC processes as OTP, There is no need to proceed

internal ADC.

- Enter Service Mode by pushing "ADJ" key,

- Enter Internal ADC mode by pushing "►" key at "8. ADC

Calibration".

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Tool Option6

6. Country Group

7. Area Option

8.ADC Calibration ►

9. White Balance

10. 10 Point WB

11. Test Pattern

12 EDID D/L

13. Sub B/C

14. Ext. Input Adjust

ADC Calibration

ADC Comp 480i

ADC Comp 1080p

ADC Type ◄ ►

Start Reset

OTP

OK

<Caution> Using "P-ONLY" key of the Adjustment remote

control, power on TV.

* ADC Calibration Protocol (RS232)

NO Item CMD 1 CMD 2 Data 0

Enter Adjust MODE

ADC adjust

Adjust ‘Mode In’

ADC Adjust

A A 0 0

A D 1 0

When transfer the ‘Mode In’, Carry the command.

Automatically adjustment (The use of a internal pattern)

Adjust Sequence

▪ aa 00 00 [Enter Adjust Mode] ▪ xb 00 40 [Component Input] ▪ ad 00 10 [Adjust 480i & 1080p Comp] ▪ aa 00 90 End Adjust mode

* Required equipment : Adjustment remote control.

3.2. EDID Download

▪ After enter Service Mode by pushing "ADJ" key. ▪ Enter EDID D/L menu. ▪ Enter "START" by pushing "OK" key.

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Tool Option6

6. Country Group

7. Area Option

8. ADC Calibration

9. White Balance

10. 10 Point WB

11. Test Pattern

12. EDID D/L ►

13. Sub B/C

14. Ext. Input Adjust

<Caution> Never connect HDMI cable when EDID downloaded.

EDID D/L

HDMI1 NG

HDMI2 NG

Start Reset

3.3. EDID data

(1) UHD HDMI1 EDID data (2D, AC3, 6G)

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D a b 01 c 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 02 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 03 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 04 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 05 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 06 3E 1E 88 3C 00 0A 20 20 20 20 20 20 d 07 d 01 e 08 02 03 44 F1 58 10 9F 04 13 05 14 03 02 12 20 21 09 22 15 01 60 61 5D 5E 5F 65 66 62 63 64 26 15 07 0A 50 09 57 07 f 0B f 67 D8 5D C4 01 78 80 03 E3 05 C0 00 E4 0C 0F 00 C0 18 66 21 50 B0 51 00 1B 30 40 70 36 00 0D 40 84 63 00 00 1E 01 1D 00 72 51 D0 1E 20 6E 28 0E 55 00 40 84 63 00 00 1E 00 00 00 00 00 00 00 00 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e

(2) UHD HDMI2 EDID data (2D, AC3, 3G)

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D a b 01 c 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 02 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 03 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 04 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 05 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 06 3E 1E 53 10 00 0A 20 20 20 20 20 20 d 07 d 01 e 08 02 03 39 F1 54 10 9F 04 13 05 14 03 02 12 20 21 09 22 15 01 5D 5E 5F 62 63 64 26 15 07 50 09 57 07 0A f E3 0B 05 C0 00 E5 0E 60 61 65 66 01 1D 80 18 71 1C 16 0C 20 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 72 51 0D D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 00 00 00 0E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e

(3) UHD HDMI1 EDID data(2D, DTS, 6G)

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D a b 01 c 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 02 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 03 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 04 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 05 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 06 3E 1E 88 3C 00 0A 20 20 20 20 20 20 d 07 d 01 e 08 02 03 47 F1 58 10 9F 04 13 05 14 03 02 12 20 21 09 22 15 01 60 61 5D 5E 5F 65 66 62 63 64 29 3D 06 0A C0 15 07 50 09 57 07 f 0B f 67 D8 5D C4 01 78 80 03 E3 05 0C C0 00 E4 0F 00 C0 18 66 21 50 B0 51 00 1B 30 40 0D 70 36 00 40 84 63 00 00 1E 01 1D 00 72 51 D0 1E 0E 20 6E 28 55 00 40 84 63 00 00 1E 00 00 00 00 00 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e

Only for training and service purposes

- 11 -

(4) UHD HDMI2 EDID data(2D, DTS, 3G)

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D a b 01 c 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 02 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 03 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 04 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 05 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 06 3E 1E 53 10 00 0A 20 20 20 20 20 20 d 07 d 01 e 08 02 03 3C F1 54 10 9F 04 13 05 14 03 02 12 20 21 09 22 15 01 5D 5E 5F 62 63 64 29 3D 06 C0 15 07 50 0A 09 57 07 f 0B f E3 05 C0 00 E5 0E 60 61 65 66 01 1D 80 18 0C 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D 0D 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 0E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e

(5) UHD HDMI1 EDID data(2D, PCM, 6G)

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D a b 01 c 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 02 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 03 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 04 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 05 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 06 3E 1E 88 3C 00 0A 20 20 20 20 20 20 d 07 d 01 e 08 02 03 41 F1 58 10 9F 04 13 05 14 03 02 12 20 21 09 22 15 01 60 61 5D 5E 5F 65 66 62 63 64 23 09 57 0A 07 f 0B 67 D8 5D C4 01 78 80 03 E3 05 C0 00 E4 0F 00 C0 0C 18 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 63 0D 00 00 1E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 40 0E 84 63 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e

(6) UHD HDMI2 EDID data(2D, PCM, 3G)

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D a b 01 c 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 02 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 03 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 04 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 05 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 06 3E 1E 53 10 00 0A 20 20 20 20 20 20 d 07 d 01 e 08 02 03 36 F1 54 10 9F 04 13 05 14 03 02 12 20 21 09 22 15 01 5D 5E 5F 62 63 64 23 09 57 07 f 0A f E3 05 C0 00 0B E5 0E 60 61 65 66 01 1D 80 18 71 1C 16 20 58 2C 0C 25 00 40 84 63 00 00 9E 01 1D 00 72 51 D0 1E 20 0D 6E 28 55 00 40 84 63 00 00 1E 00 00 00 00 00 00 0E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e

■ Detail EDID Options are below

a. Product ID

MODEL NAME HEX EDID Table DDC Function

UHD Model 0001 01 00 Analog/Digital

b. Serial No: Controlled on production line. c. Month, Year:

ex) Week : '01' -> '01'

Year : '2015' -> '19' fix

d. Model Name(Hex):

cf) TV set’s model name in EDID data is below.

Model name MODEL NAME(HEX)

LG TV 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 (LG TV)

e. Checksum: Changeable by total EDID data.

1) AC3 If HDMI UHD Deep Colour is “On” in Picture Menu, HDMI has 6G checksum.

EDID C/S data

UHD

HDMI Block 0 A0 (HDMI1, 6G) Block 1 D0 (HDMI1, 6G) Block 0 E6 (HDMI1, 3G) → Default

Check sum

(Hex)

Block 1 7A (HDMI1, 3G) → Default Block 0 A0 (HDMI2, 6G) Block 1 C0 (HDMI2, 6G) Block 0 E6(HDMI12 3G) → Default Block 1 6A(HDMI12 3G) → Default

2) DTS If HDMI UHD Deep Colour is “On” in Picture Menu, HDMI has 6G checksum.

EDID C/S data

UHD

HDMI Block 0 A0 (HDMI1, 6G) Block 1 C7 (HDMI1, 6G) Block 0 E6 (HDMI1, 3G) → Default

Check sum

(Hex)

Block 1 71 (HDMI1, 3G) → Default Block 0 A0(HDMI2, 6G) Block 1 B7 (HDMI2, 6G) Block 0 E6 (HDMI2, 3G) → Default Block 1 61 (HDMI2, 3G) → Default

3) PCM If HDMI UHD Deep Colour is “On” in Picture Menu, HDMI has 6G checksum.

EDID C/S data

UHD

HDMI Block 0 A0 (HDMI1, 6G) Block 1 42 (HDMI2, 6G) Block 0 E6 (HDMI1, 3G) → Default

Check sum

(Hex)

Block 1 EC (HDMI2, 3G) → Default Block 0 A0 (HDMI1, 6G) Block 1 32 (HDMI2, 6G) Block 0 E6 (HDMI1, 3G) → Default Block 1 DC (HDMI2, 3G) → Default

e. Vendor Specific

INPUT Model name(HEX)

HDMI1 6E 03 0C 00 10 00 B8 3C 20 00 80 01 02 03 04

HDMI2 6E 03 0C 00 10 00 B8 3C 20 00 80 01 02 03 04

Only for training and service purposes

- 12 -

3.4. Function Check

- Check display and sound

■ Check Input and Signal items.

1) TV

2) AV (SCART / CVBS)

3) COMPONENT (480i)

4) HDMI * Display and Sound check is executed by Remote control.

<Caution> Not to push the INSTOP key after completion if the function inspection.

4. Total Assembly line process

4.1. White Balance adjustment

▪ W/B Equipment condition

CA210 : LED → CH14, Test signal: Inner pattern(80IRE)

▪ Above 5 minutes H/run in the inner pattern. (“power on” key

of adjust remote control)

▪ If it is executed W/B adjustment in 2~3 minutes H/run, it is

adjusted by Target data.

Mode Temp Coordinate spec Target

Cool 13,000 K

Medium 9,300 K

Warm 6,500 K

X = 0.271 (± 0.002) Y = 0.270 (± 0.002)

X = 0.286 (± 0.002) Y = 0.289 (± 0.002)

X = 0.313 (± 0.002) Y = 0.329 (± 0.002)

▪ Normal line(LGD/CMI, March ~ December for Gumi, Global)

NetCast5

Aging time

(Min)

1 0-2 282 289 297 308 324 348 2 3-5 281 287 296 306 323 346 3 6-9 279 284 294 303 321 343 4 10-19 277 280 292 299 319 339 5 20-35 275 277 290 296 317 336 6 36-49 274 274 289 293 316 333 7 50-79 273 272 288 291 315 331 8 80-119 272 271 287 290 314 330 9 Over 120 271 270 286 289 313 329

Cool Medium Warm

x y x y x y

271 270 286 289 313 329

▪ Normal line(LGD/CMI, January ~ February for Gumi, Apply

not Cinema Screen)

NetCast5

Aging time

(Min)

1 0-2 286 295 301 314 328 354 2 3-5 284 290 299 309 326 349 3 6-9 282 287 297 306 324 346 4 10-19 279 283 294 302 321 342 5 20-35 276 278 291 297 318 337 6 36-49 274 275 289 294 316 334 7 50-79 273 272 288 291 315 331 8 80-119 272 271 287 290 314 330 9 Over 120 271 270 286 289 313 329

Cool Medium Warm

x y x y x y

271 270 286 289 313 329

▪ Aging chamber(LGD/CMI)

NetCase5

Aging time

(Min)

1 0-5 280 285 294 308 319 340 2 6-10 276 280 290 303 315 335 3 11-20 272 275 286 298 311 330 4 21-30 269 272 283 295 308 327 5 31-40 267 268 281 291 306 323 6 41-50 266 265 280 288 305 320 7 51-80 265 263 279 286 304 318 8 81-119 264 261 278 284 303 316 9 Over 120 264 260 278 283 303 315

Cool Medium Warm

X y x y x y

271 270 285 293 313 329

X = 0.278 Y = 0.280

X = 0.293 Y = 0.299

X = 0.320 Y = 0.339

Only for training and service purposes

- 13 -

▪ Use only AUO/Sharp/CSOT(Cool temp Spec is 13000 K)

Cool Medium Warm

X y x y x y

spec 271 270 286 289 313 329

target 278 280 293 299 320 339

▪ W/B information

Model information W/B information

Model Module Panel Backlight Type Using W/B table

All All All Direct LED O

* Connecting picture of the measuring instrument

(On Automatic control) Inside PATTERN is used when W/B is controlled. Connect to

auto controller or push Adjustment R/C P-ONLY → Enter the

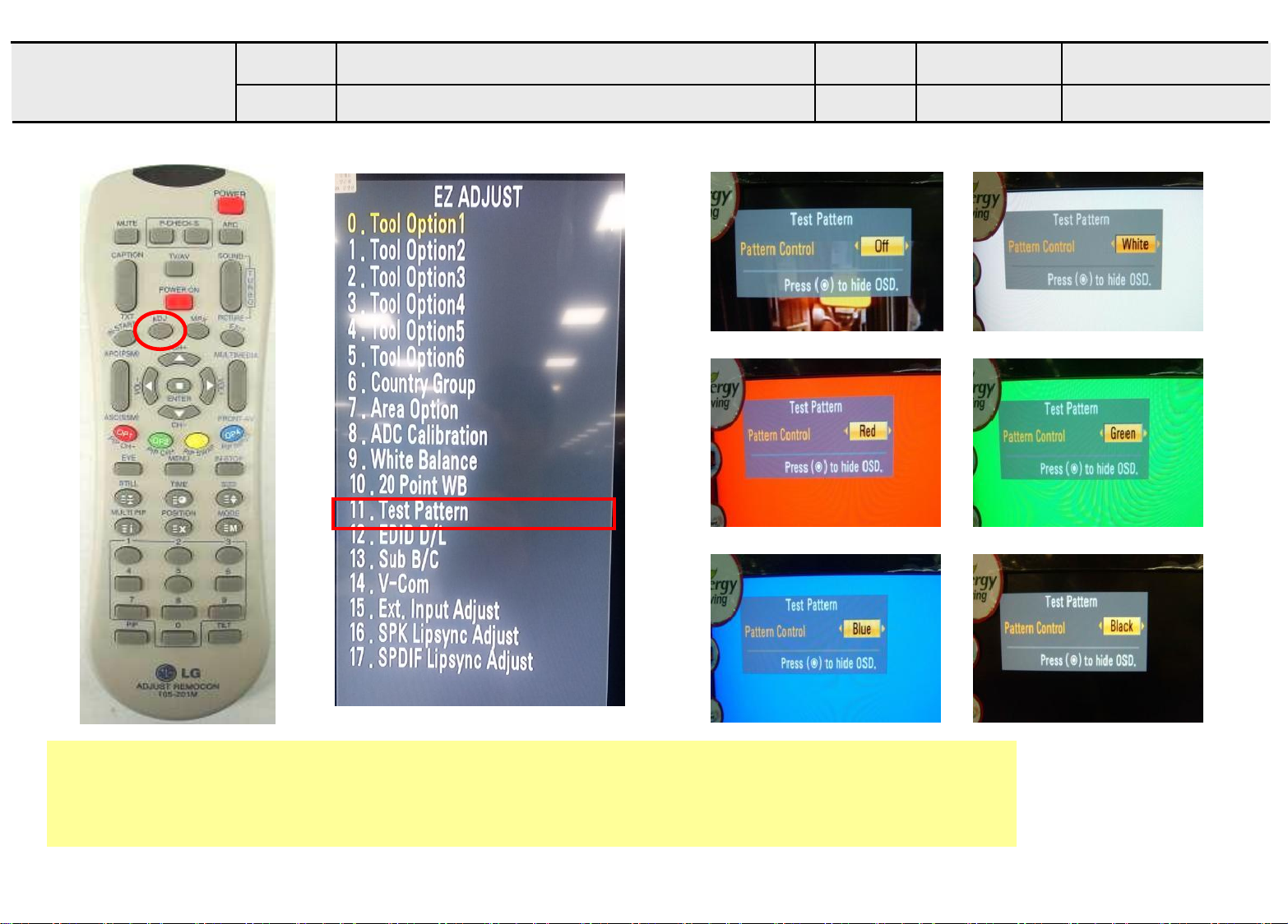

mode of White-Balance, the pattern will come out.

Full White Pattern

RS-232C Communication

CA-210

COLOR ANALYZER TYPE : CA-210

* Manual W/B process using adjust Remote control.

▪ After enter Service Mode by pushing "ADJ" key, ▪ Enter White Balance by pushing "►" key at "9. White

Balance".

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Tool Option6

6. Country Group

7. Area Option

8. ADC Calibration

9. White Balance

10. 10 Point WB

11. Test Pattern

12 EDID D/L

13. Sub B/C

14. Ext. Input Adjust

* CASE Cool Mode

First adjust the coordinate far away from the target value(x, y).B.

1) x, y > target

2) x, y < target

3) x > target, y < target

4) x < target, y > target

- Every 4 case have to fit y value by adjusting B Gain and then fit x value by adjusting R-Gain.

- In this case, increasing/decreasing of B Gain and R Gain can be adjusted.

Whit Balance

Color Temp. ◄ ►

R-Gain

G-Gain

B-Gain

R-Cut

G-Cut

B-Cut

Test-Pattern

Backlight

Reset To Set

Cool

172

192

64

ON

100

* Auto-control interface and directions

(1) Adjust in the place where the influx of light like floodlight

around is blocked. (illumination is less than 10 lux).

(2) Adhere closely the Color analyzer(CA210) to the module

less than 10 cm distance, keep it with the surface of the Module and Color analyzer's prove vertically(90° ± 2.5°).

(3) Aging time

- After aging start, keep the power on (no suspension of power supply) and heat-run over 5 minutes.

- Using 'no signal' or 'POWER ONLY' or the others, check the back light on.

▪ Auto adjustment Map(using RS-232C to USB cable)

RS-232C COMMAND

[CMD ID DATA]

Wb 00 00 White Balance Start Wb 00 ff White Balance End

RS-232C COMMAND

[CMD ID DATA]

MIN

Cool Mid Warm Cool Mid Warm

R Gain jg Ja jd 00 172 192 192 254

G Gain jh Jb je 00 172 192 192 192

B Gain ji Jc jf 00 192 192 172 254

R Cut 64 64 64 128

G Cut 64 64 64 128

B Cut 64 64 64 128

Color Temperature : COOL, Medium, Warm. One of R Gain/G Gain/ B Gain should be kept on 0xC0, and adjust other two lower than C0.(When R/G/B Gain are all C0, it is the FULL Dynamic Range of Module)

CENTER

(DEFAULT)

MAX

How to adjust

1) In case G gain more than 172 Adjust R Gain and B Gain less than 192

2) If the G gain value be adjusted down to 172 One of the R/B Gain is 254

3) If G Gain is 172 , More than one of R/B Gain is to be between 192~254

* CASE Medium / Warm

First adjust the coordinate far away from the target value(x, y).

1) x, y > target

i) Decrease the R, G.

2) x, y < target

i) First decrease the B gain, ii) Decrease the one of the others.

3) x > target, y < target

i) First decrease B, so make y a little more than the target. ii) Adjust x value by decreasing the R

4) x < target, y > target

i) First decrease B, so make x a little more than the target. ii) Adjust x value by decreasing the G

* After you finished all adjustments, Press "In-start" key and

compare Tool option and Area option value with its BOM, if it is correctly same then unplug the AC cable. If it is not same, then correct it same with BOM and unplug AC cable. For correct it to the model's module from factory Jig model.

* Push the "IN STOP" key after completing the function

inspection. And Mechanical Power Switch must be set “ON”.

Only for training and service purposes

- 14 -

4.2. IR emitter inspection

(1) Start 3D pattern inspection. (2) If IR emitter signal is correctly received to IR receiver, the

lamp of IR tester turns on.

4.3. Outgoing condition Configuration

■ When pressing IN-STOP key by SVC remocon, Red LED

are blinked alternatively. And then automatically turn off.

(Must not AC power OFF during blinking)

6. GND and HI-POT Test

6.1. HI-POT auto-check preparation

- Check the POWER cable and SIGNAL cable insertion condition

6.2. HI-POT auto-check

(1) Pallet moves in the station. (POWER CORD / AV CORD is

tightly inserted) (2) Connect the AV JACK Tester. (3) Controller (GWS103-4) on. (4) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next process automatically.

6.3. Checkpoint

(1) Test voltage

- Touchable Metal : 3 KV / min at 100 mA

- SIGNAL : 3 KV / min at 100 mA

(2) TEST time: 1 second. (case : mass production ) (3) TEST POINT

- Touchable Metal => LIVE & NEUTRAL : Touchable Metal.

- SIGNAL => LIVE & NEUTRAL : SIGNAL.

7. Model name & Serial number D/L

▪ Press "Power on" key of service remote control.

(Baud rate : 115200 bps)

▪ Connect RS232 Signal Cable to USB Jack. ▪ Write Serial number ▪ Must check the serial number at the Diagnostics of SET UP

menu(Refer to below).

5. Local Dimming Function Check

Step1) Turn on TV. Step2) Press “P-only” key, enter to power only mode and

escape the “P-only” Mode by pressing “Exit” key Step3) Press “Tilt” key, entrance to Local Dimming mode. Step4) At the Local Dimming mode, module Edge Backlight

moving left to right Back light of module moving Step5) confirm the Local Dimming mode Step6) Press “Exit” key

7.1. Signal Table

CMD LENGTH ADH ADL DATA_1 . . . Data_n CS DELAY

CMD : A0h LENGTH : 85~94h (1~16 bytes) ADH : EEPROM Sub Address high (00~1F) ADL : EEPROM Sub Address low (00~FF) Data : Write data CS : CMD + LENGTH + ADH + ADL + Data_1 +...+ Data_n Delay : 20ms

7.2. Command Set

Adjust mode CMD(hex) LENGTH(hex) Description

EEPROM WRITE A0h 84h+n n-bytes Write (n = 1~16)

* Description

FOS Default write : <7mode data> write Vtotal, V_Frequency, Sync_Polarity, Htotal, Hstart, Vstart, 0, Phase Data write : Model Name and Serial Number write in EEPROM,.

Only for training and service purposes

- 15 -

7.3. Method & notice

(1) Serial number D/L is using of scan equipment. (2) Setting of scan equipment operated by Manufacturing

Technology Group.

(3) Serial number D/L must be conformed when it is produced in

production line, because serial number D/L is mandatory by D-book 4.0.

8. MAC Address & CI+ key download

8.1. MAC Address

8.1.1. Equipment & Condition

▪ Play file : Serial.exe ▪ MAC Address edit ▪ Input Start / End MAC address

* Manual Download(Model Name and Serial Number)

If the TV set is downloaded by OTA or Service man, sometimes model name or serial number is initialized.(Not always) There is impossible to download by bar code scan, so It need Manual download.

1) Press the "Instart" key of Adjustment remote control.

2) Go to the menu "6.Model Number D/L" like below photo.

3) Input the Factory model name or Serial number like photo.

4) Check the model name Instart menu. → Factory name displayed. (ex 47LB560V-ZA)

5) Check the Diagnostics.(DTV country only) → Buyer model

displayed.(ex

47LB560V-ZA

)

8.1.2. Download method

(1) Communication Prot connection

Connection: PCBA(USB Port) → USB to Serial Adapter(UC-

232A) → RS-232C cable → PC(RS-232C port)

* Caution: LJ21* chassis support only UC-232A driver. (only

use this one.)

(2) MAC Address & CI+ Key Download

▪ Set CI+ Key path Directory at Start Mac & CI+ Download

Programme

▪ Com 1,2,3,4 and 115200(Baudrate)

GP4_LOW

Only for training and service purposes

- 16 -

▪ Port connection button click(1) ▪ Push the (2) MAC Address write. ▪ At success Download, check the OK (3) ▪ Start CI+ Key Download, Push the (4) ▪ Check the OK or NG

8.2. LAN Inspection

8.2.1. Equipment & Condition

▪ Each other connection to LAN Port of IP Hub and Jig

8.2.2. LAN inspection solution

▪ LAN Port connection with PCB ▪ Network setting at MENU Mode of TV ▪ Setting automatic IP ▪ Setting state confirmation

-> If automatic setting is finished, you confirm IP and MAC

Address.

8.3. LAN PORT INSPECTION(PING TEST)

Connect SET -> LAN port == PC -> LAN Port

SET PC

8.3.1. Equipment setting

(1) Play the LAN Port Test PROGRAM. (2) Input IP set up for an inspection to Test Program.

*IP Number : 12.12.2.2

8.3.2. LAN PORT inspection (PING TEST)

(1) Play the LAN Port Test Program. (2) Connect each other LAN Port Jack. (3) Play Test (F9) button and confirm OK Message. (4) Remove LAN cable.

Only for training and service purposes

- 17 -

DDR3

256MB

BLOCK DIAGRAM

Nand Flash

(1Gb)

MAIN Audio

SPI Flash

(1MB)

SPI

Boot

M1A

System eeprom

(256Kb)

I2C

AMP(2ch)

I2S Out

I2C

SUB

IR / Key

IR/KEY

ASSY

DDR3

Vx1

LVDS

(60Hz)

URSA11

1Gb

embedded

1Gb

DDR3

120Hz only

1Gb

X-tal

24MHz

P_TS

CI Slot

Analog Demod

P_TS

T/C Demod

P_TS

IF (+/-)

P_TS

TUNER

CVBS

DEMOD

(S2)

TUNER

(T2/C/A)

S

LNB

USB

OCP

USB1(2.0)

I

HDMI

Rx

1.5A

E

D

(V)

CVBS/YPbPr

Audio Out

H/P

CVBS/RGB

SPDIF OUT

OPTIC

SCART

AV/COMP

HDMI

HDMI1.4

E

A

R

(H)

HDMI

MUX

Tx

HDMI1(HDMI2.0)

HDMI2(HDMI2.0)

Air/

Cable

Only for training and service purposes

DVB-S

E

A

R

(H)

- 18 -

400

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

911

910

521

120

900

540

901

LV1

121

530

820

500

800

401

902

200

Only for training and service purposes

- 19 -

A10

A2

Stand screw

L14 POWER BLOCK (POWER DETECT 2)

LGE Internal Use Only

+24V

OPT

R457

8.2K 1%

C415

0.1uF 16V C425

OPT

C413

0.1uF 16V

Ready - Dual Power Det

* Notice

- Applying all inch models for LCD L14

- Dual Power Det is used for detecting two kinds of voltage

R427

R428

5.1K

R430

2.7K

R431

1.2K

OPT

27K

1%

OPT

+12V

1%

+24V

1%

+3.5V_POWER_DET

OPT

R432

0

5%

+3.5V_POWER_DET

OPT

R458

0

5%

R435 100K

RESET_IC_DIODES(MULTI)

IC401

APX803E29

3

1

GND

OPT

R436

100K

OPT

IC402

APX803E29

3

1

GND

RESET

2

RESET

2

VCC

+3.5V_ST

R454

100 5%

POWER_DET_RESET

OPT

R437

100 5%

Detect Valtage

Power Detect +3.5V

Power Detect +12V

Power Detect +24V

OPT

Power_DET

R438

4.7K

C422

0.1uF

POWER_DET

Use Circuit Designator

Now is

O R430, R431, R454

RESET_IC_KEC(MULTI)

IC401-*1

KIC7529M2

VCC

3

Power Detect activity

R432, R454-*1, R438

R457, R454

+12V

OUT

2

1

GND

MLB-201209-0120P-N2

L408

PANEL_CTL

OPT

Upper 79"

L412

R417

10K

+3.3V_Normal

+1.5V_DDR

+3.3V_NORMAL

L409

BLM18PG121SN1D

C426 10uF

10V

Vout=1.25*(1+R2/R1)+Iadj*R2

+1.5V_DDR

IC404

AZ1117EH-ADJTRG1

OUTIN

ADJ/GND

1.3A

R449 1K 1/16W 1%

R450 200 1/16W 1%

R1

R2

L411

CB2012PK501T

R453

0

C431 10uF

10V

ZD403

2.5V POWER_ON/OFF_1

PANEL_POWER

0.1uF 25V

C427 10uF

16V

C

B

E

C428

2.2uF 10V

C

Q404 2N3904S

NPN_KEC(MULTI)

E

C438 10uF

16V

Q403-*1 MMBT3904(NXP)

NPN_NXP(MULTI)

R442 10K

+3.5V_ST

R443

10K

R445

R446

1.8K

B

R444 10K

10K

C

Q403 2N3904S

NPN_KEC(MULTI)

E

R447 22K

R448

2.2K

B

PANEL_FET_AOS(MULTI)

Q405

AO4447A

S_1

1

S_2

2

S_3

3

G

4

PANEL_FET_ROHM(MULTI)

Q405-*1

RRH140P03TB

1S_1

2S_2

3S_3

4G

3.3V_FET_AOS(MULTI) Q406-*1

AO3435

D

S

G

3.3V_FET_TOSHIBA(MULTI)

Q406

SSM3J332R

D

S

C429

G

0.1uF 16V

C

Q404-*1

B

MMBT3904(NXP)

NPN_NXP(MULTI)

E

D_4

8

D_3

7

D_2

6

D_1

5

D_48

7 D_3

6 D_2

5 D_1

L410

BLM18PG121SN1D

C430 22uF 10V

R451 2K OPT

ZD402

+3.3V_NORMAL

TYP 6000mA

R452

2K

OPT

5V

C439 10uF 16V

PANEL_VCC

C440 10uF 16V

+1.10V_VDDC

ZD401

2.5V

+3.5V_ST

OPT

C424

0.1uF 16V

C437

0.1uF 16V

C421 22uF 10V

C436 10uF

10V

OPT

C420 22uF 10V

L406

CB2012PK501T

C414 10uF

10V

C423

50V

270pF

R43 9

R44 0

IC403

TPS5432DDAR

C417

0.1uF 16V

BOOT

1

VIN

2

PH

3

GND

4

C435

0.1uF 16V

L407

3.6uH

20K

R1

1%

R2

47K

1%

3A

9

THERMAL

8

7

6

5

[EP]GND

SS

EN

COMP

VSENSE

C418

0.01uF

R433

2.7K

C419

0.039uF 50V

1%

C434

390pF

50V

+3.3V_NORMAL

R429

10K

C416

0.33uF 16V

Vout=0.808*(1+R1/R2)

+12V

L404

BLM18PG121SN1D

C403 10uF 16V

USB1_OCD

USB1_CTL

C404

0.1uF

+5V_Normal

R408

R409

120K

R1

1%

C405

100pF

50V

R2

+3.3V_NORMAL

R405

4.7K

R403

10K

+3.3V_NORMAL

6.8K 1%

R410 22K 1%

+5V_NORMAL

C406

0.1uF 16V

R415

C409 1uF 10V

+5V_NORMAL

IC405

C410 2200pF 50V

EN

FB

VREG

SS

VIN

GND

EN

BD9D321EFJ

1

2

3

4

3A

BD2242G

1

2

3

10K

IC406

9

THERMAL

[EP]

VIN

8

7

6

5

6

5

4

BOOT

SW

GND

VOUT

ILIM

OC

16V

0.1uF C411

LPH6050T-3R6N-R

+5V_USB

1%

14K

R41 8

L405

3.6uH

1458mA

C412

22uF

C443

22uF

10V

RL_ON

ZD404-*1

TVS_KEC(MULTI)

ZD400-*1

TVS_KEC(MULTI)

B

+3.5V_ST

OPT

R400

10K

R401

10K

+3.5V_ST

C

Q400-*1 MMBT3904(NXP)

NPN_NXP(MULTI)

E

R402

10K

C407 10uF

10V

2012

+12V

+24V

B

CB2012PK501T

+3.5V_ST

R406 10K

R404

4.7K

C

Q400 2N3904S

NPN_KEC(MULTI)

E

OPT

R456

0

+3.5V_POWER_DET

L400

C400

1uF 10V

1005

OPT

C433

4.7uF 16V

3216

C442

4.7uF 50V

3216

Q401-*1

PNP_NXP(MULTI)

MMBT3906(NXP)

3

1

2

Q401

PNP_KEC(MULTI)

2N3906S-RTK

3

1

2

R455

0

CB2012PK501T

ZD400

5V

TVS_SEMTECH(MULTI)

MLB-201209-0120P-N2

C402

0.1uF 16V

MLB-201209-0120P-N2

C401

0.1uF 50V

OPT

R412

33K

ZD404

5V

TVS_SEMTECH(MULTI)

L401

L403

L402

R424

3.9K

PWM_DIM

URSA_L/D_CK

URSA_L/D_DI

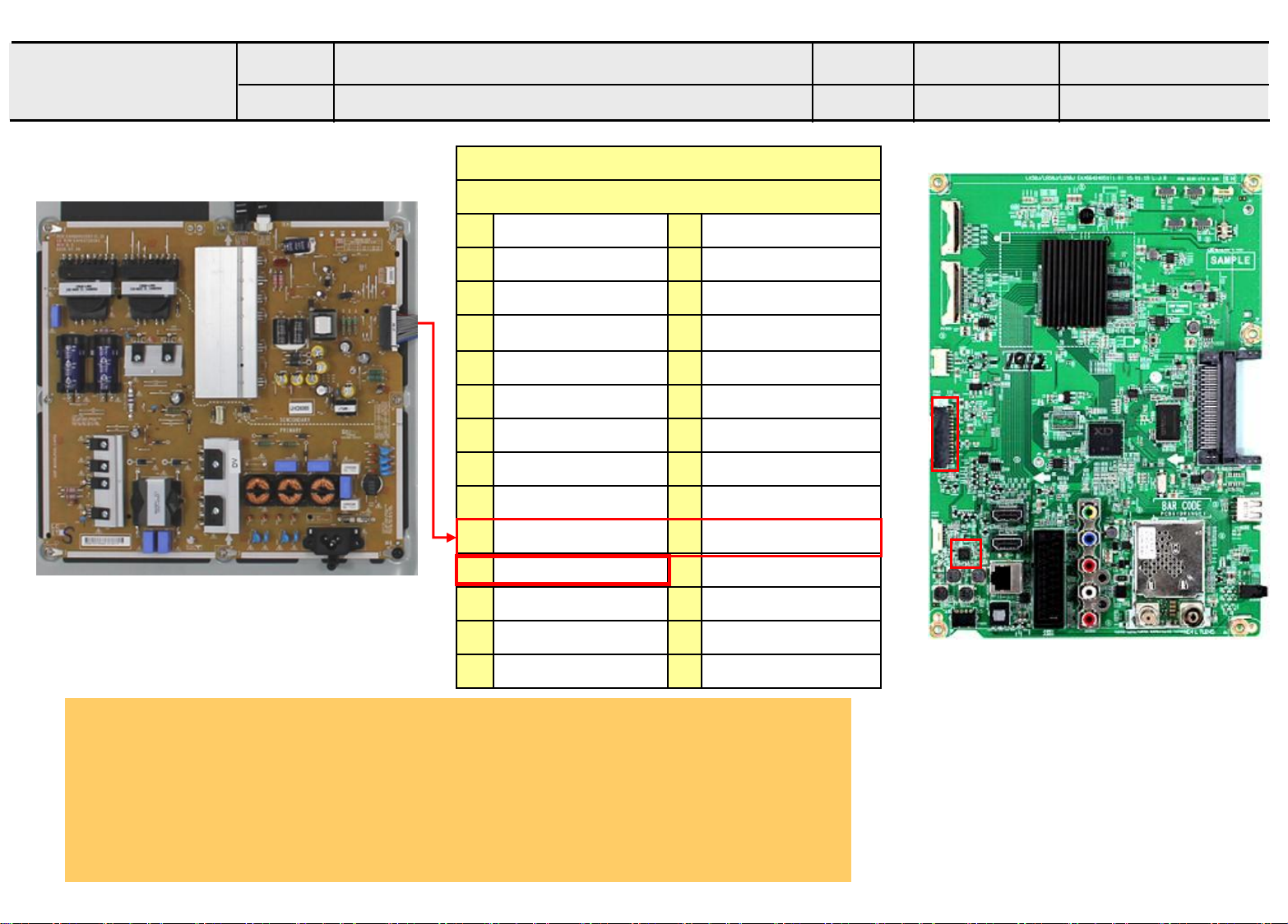

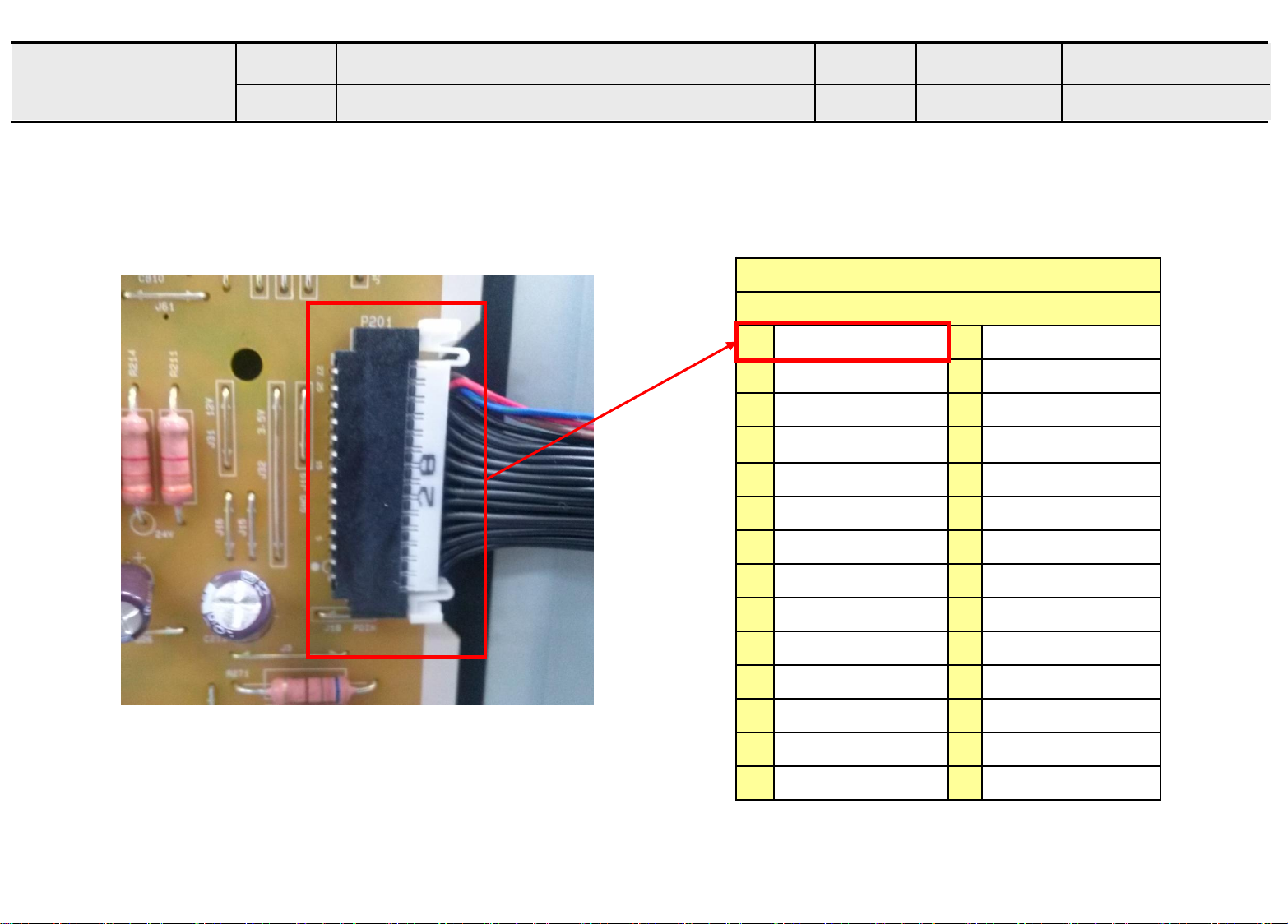

POWER_28P R407

R411 33

POWER_28P

C408 18pF

OPT

POWER_28P

PWR ON

PDIM1

3.5V

3.5V GND 12V 12V 12V GND 24V 24V GND

33

C432 18pF

OPT

SCLK

PWR ON

PDIM1

3.5V

SIN

P402

GND 12V 12V 12V GND 24V 24V GND

1 3 5 7 9 11 13 15 17 19 21 23 25 27

29

POWER_24P

1 3 5 7 9 11 13 15 17 19 21 23

25

P401

DRV ON

2

PDIM2

4

GND

6

3.5V

8

GND

10

12V

12

12V

14

GND

16

24V

18

24V

20

GND

22

NC

24

GND

26

V_SYNC

28

.

DRV ON

2

PDIM2

4

GND

6

3.5V

8

GND

10

12V

12

12V

14

GND

16

24V

18

24V

20

GND

22

NC

24

POWER_28P C441 18pF OPT

R41333

URSA_L/D_VSYNC

+3.3V_NORMAL

R420

1K

R419 100

C

E

R423

100

R470 0

B

Q402 2N3904S

OPT R467 1K

R425 10K

+3.5V_ST

R426

10K

NPN_KEC(MULTI)

C

B

E

Q402-*1

MMBT3904(NXP)

NPN_NXP(MULTI)

INV_CTL

PWM1

FROM LIPS or POWER B/D

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Power_PD2

2014.04.24M1A_URSA9_UD 04

USB 3216 CAP(SIDE)

LGE Internal Use Only

+5V_USB

JK700

1234

USB DOW N ST REAM

3AU 04S- 305- ZC-( LG)

5

OPT C701

5pF 50V

OPT C702

5pF 50V

ZD700 SD05 5V OPT

C700 10uF 10V

R700

2.2

R701

2.2

OPT D700 RCLAMP0502BA

C703 10uF 10V

OPT

SIDE_USB1_DM

SIDE_USB1_DP

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

USB_S1

2014.04.24

07

SPDIF

LGE Internal Use Only

SPDIF OPTIC JACK

5.15 Mstar Circuit Application

SPDIF_OUT

+3.3V_NORMAL

C1001

1uF

OPT

10V

ESD Ready

C1002 18pF 50V

SPDIF_OPTIC

VINPUT

SPDIF_OPTIC JST1223-001

GND

VCC

JK1001

1

2

3

Fib er O ptic

4

FIX_POLE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SPDIF

2014.04.24M1A_URSA9_UD

10

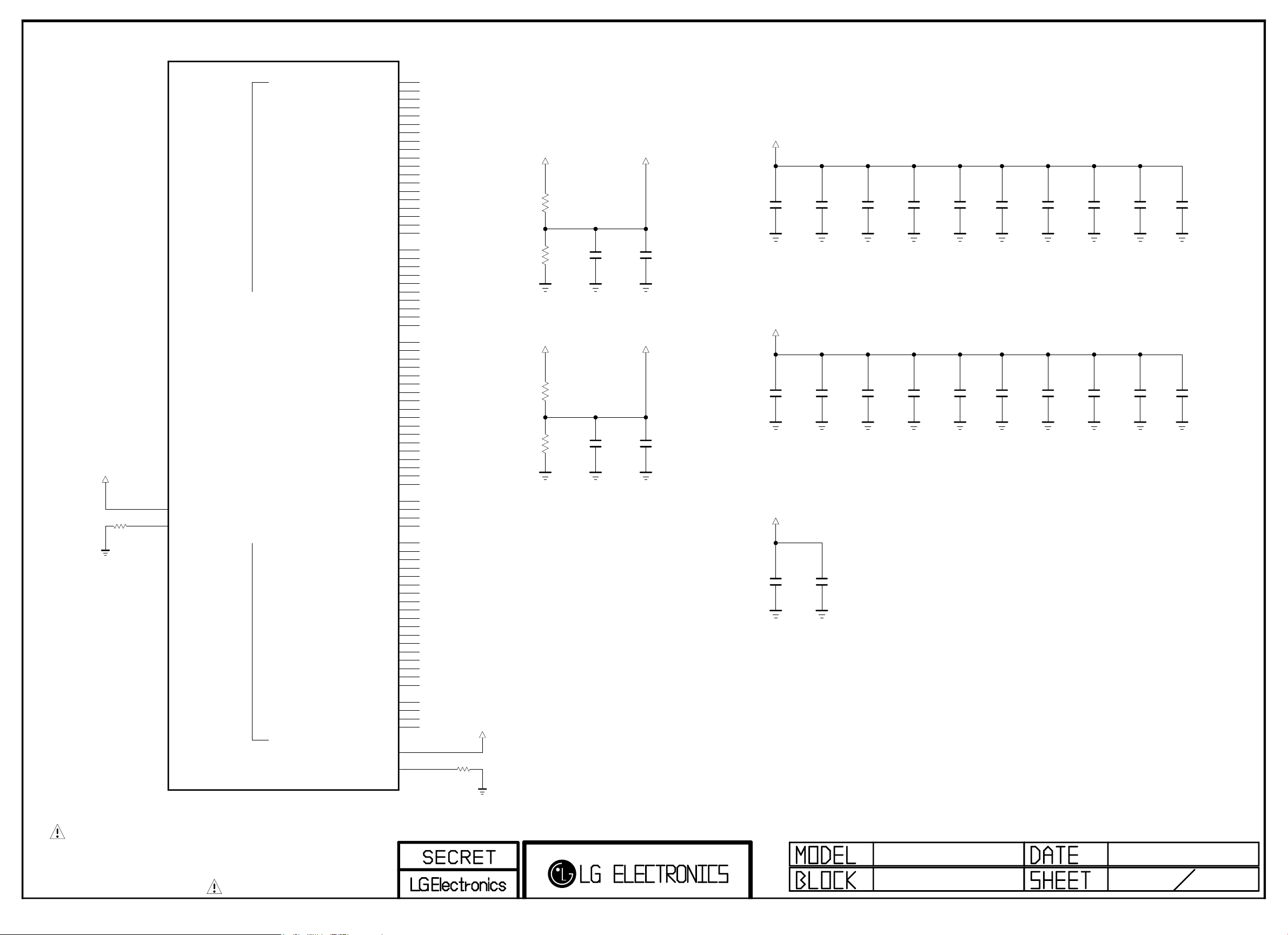

+1.5V_DDR

LGE Internal Use Only

DDR_EXT

R12011K1%

R1202 1K1%

DDR_EXT

C1201 0.1uF

DDR_EXT

C1202 1000pF

A-MVREFDQ

+1.5V_DDR

DDR_EXT

R1204 1K 1%

R1205 1K 1%

DDR_EXT

C1213 0.1uF

1000pF

DDR_EXT

C1214

A-MVREFCA

Option : Ripple Check !!!

+1.5V_DDR

C1221

+1.5V_DDR

1uF

C1222

C1223

0.1uF

C1224

OPT

CLose to DDR3

DDR_1600_1G_SS

IC1201-*1

K4B1G1646G-BCK0

EAN61836301

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

CLose to Saturn7M IC

DDR_1600_1G_HYNIX

IC1201

H5TQ1G63EFR-PBC

EAN61829003

M8

VREFCA

M8

H1

L8

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

DDR_1600_2G_HYNIX_NEW

IC1201-*3

H5TQ2G63FFR-PBC

EAN61829204

N3

VREFCA

A0

P7

A1

P3

A2

N2

A3

VREFDQ

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

ZQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

M8

H1

L8

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

DDR_1600_2G_HYNIX_OLD

IC1201-*2

H5TQ2G63DFR-PBC

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

EAN61829203

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC A13

NC_5

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

VREFCA

VREFDQ

ZQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

DDR_1600_2G_SS

IC1201-*4

K4B2G1646Q-BCK0

EAN61848803

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

A-MVREFDQ

DDR_EXT

C1203

10uF C1204 0.1uF C1205 0.1uF C1206 0.1uF C1207 0.1uF C1208 0.1uF C1209 0.1uF C1210 0.1uF C1211 0.1uF C1212 0.1uF

A-MA14

R1203

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT

+1.5V_DDR

10V

H1

VREFDQ

L8

240 1%

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

A10/AP

A12/BC

NC_7

NC_5

RESET

DQSL DQSL

DQSU DQSU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7 R7

A11

N7 T3

M7

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

F3 G3

C7 B7

E7

DML

D3

DMU

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

A-MA0A-MVREFCA A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8 A-MA9 A-MA10 A-MA11 A-MA12 A-MA13

A-MBA0 A-MBA1 A-MBA2

A-MCKE

A/B_DDR3_CS

A-MODT A-MRASB A-MCASB A-MWEB

A-MRESETB

A-MDQSL A-MDQSLB

A-MDQSU A-MDQSUB

A-MDML A-MDMU

A-MDQL0 A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7

A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

R1207

DDR_EXT

R1208

DDR_EXT

R1206 10K

DDR_EXT

56 1%

C1215

0.01uF 50V

56 1%

A-MCKB

+1.5V_DDR

A-MCK

A-MDQSLB

A-MDQSUB

A-MDQSL

A-MDQSU

A-MA0 A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8

A-MA9 A-MA10 A-MA11 A-MA12 A-MA13 A-MA14

A-MBA0 A-MBA1 A-MBA2

A-MCK A-MCKB A-MCKE

A-MODT

A-MRASB A-MCASB

A-MWEB

A-MRESETB

A/B_DDR3_CS

A-MDML A-MDMU

A-MDQL0

A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7 A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

R1209

240

1%

M1A_256M_UO4

LGE2134(256M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

IC101

M1A_128M_UO4

LGE2133(128M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

IC101-*1

M1A_256M_UO7_AVS+

IC101-*2

LGE2136(256M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

M1A_128M_UO7_AVS+

IC101-*3

LGE2135(128M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA_UD

1_DDR

2014.04.24 12

Serial Flash for SPI boot

LGE Internal Use Only

/FLASH_WP

OPT

R1300 10K

+3.5V_ST

/SPI_CS

SPI_SDO

+3.5V_ST

OPT

R1301

4.7K

SPI_FLASH_MACRONIX

IC1300

MX25L8006EM2I-12G

CS#

1

SO/SIO1

2

WP#

3

GND

4

SPI_FLASH_WINBOND

IC1300-*1

W25Q80BVSSIG

CS

1

DO[IO1]

2

%WP[IO2]

3

GND

4

8

7

6

5

8

7

6

5

VCC

HOLD#

SCLK

SI/SIO0

VCC

HOLD[IO3]

CLK

DI[IO0]

+3.5V_ST

C1300

0.1uF

R1303

0

R1302

33

SPI_SCK

SPI_SDI

SPI_FLAHS_WINBOND_NEW

IC1300-*2

W25Q80DVSSIG

CS

1

DO[IO1]

2

WP[IO2]

3

GND

4

8

7

6

5

SPI_FHASH_MACRONIX_NEW

VCC

HOLD[IO3]

SO/SIO1

CLK

WP#/SIO2

DI[IO0]

IC1300-*3

MX25L8035EM2I-10G

CS#

1

2

3

GND

4

8

7

6

5

VCC

NC/SIO3

SCLK

SI/SIO0

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

S_FLASH

2014.04.24

13

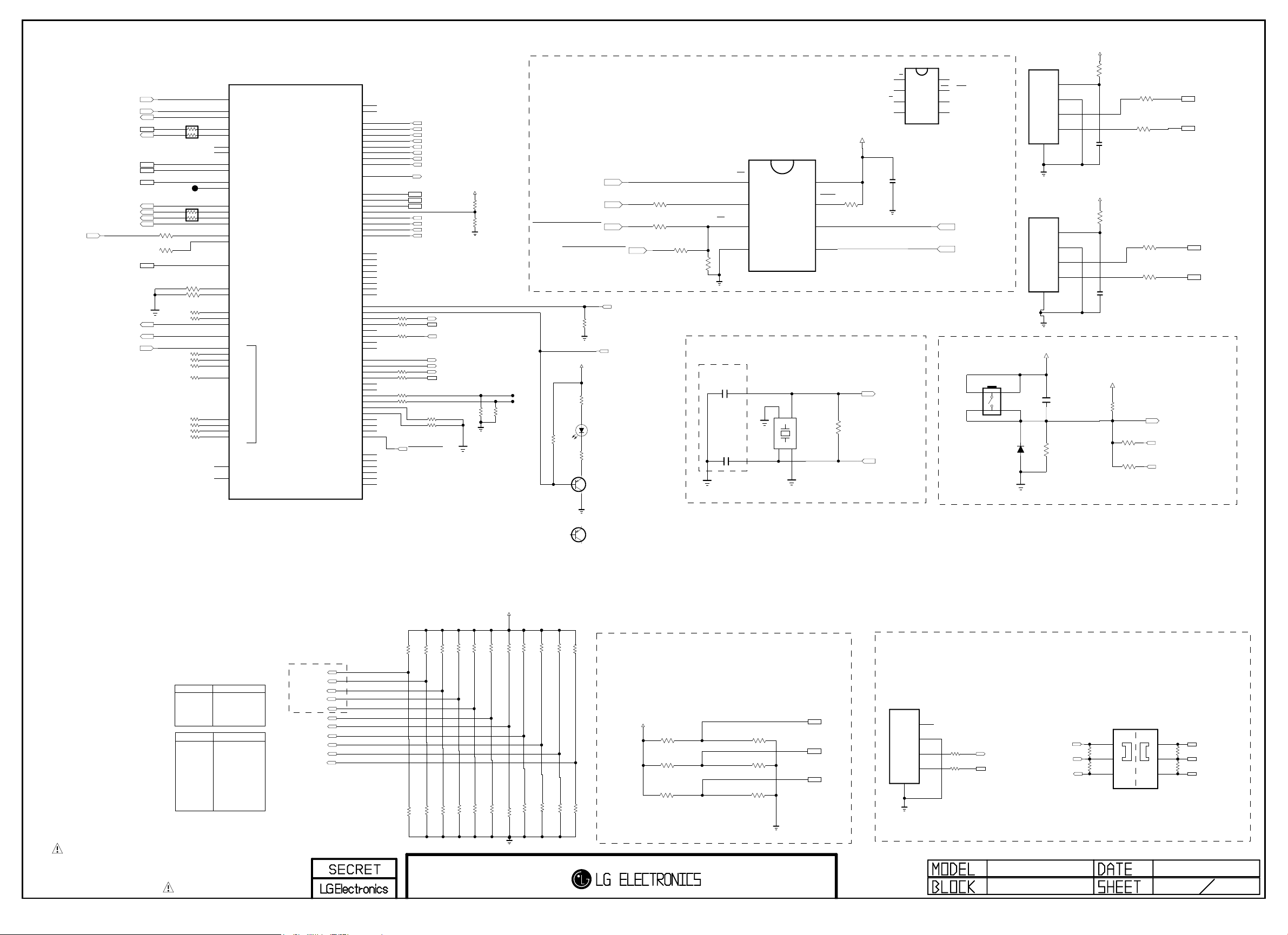

CI Region

LGE Internal Use Only

CI SLOT

+5V_CI_ON

CI_DATA[0-7]

* Option name of this page : CI_SLOT

(because of Hong Kong)

CI TS INPUT

+5V_NORMAL

CLOSE TO MSTAR

R1900 10K

/CI_CD1

CI_TS_DATA[4] CI_TS_DATA[5] CI_TS_DATA[6] CI_TS_DATA[7]

CI_IORD CI_IOWR

CI_MDI[0] CI_MDI[1] CI_MDI[2] CI_MDI[3]

CI_MDI[4] CI_MDI[5] CI_MDI[6] CI_MDI[7]

PCM_RST

/PCM_WAIT

CI_TS_CLK CI_TS_VAL

CI_TS_SYNC

CI_TS_DATA[0] CI_TS_DATA[1] CI_TS_DATA[2] CI_TS_DATA[3]

CLOSE TO MSTAR

CI_MISTRT

CI_MIVAL_ERR

CI_MCLKI

+5V_NORMAL

R1908

10K

AR1900

33

R1910 10K

GND

R1909

10K

R1911

R1903

47

R1904

REG

R1905 100

R1906 R1907 33

/CI_CD2

C1900 2pF 50V

47

33

AR1901 33

+5V_NORMAL

C1901

0.1uF

R1912

C1903

10uF

10V

CI_SLOT

P1900

R1914

100

10K

100

GND

10125901-115LF

35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59

65 66 67 68

GND

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 2660 2761 2862 2963 3064 31 32 33 34

G1G2

69

R1917

47

R1918

100

C1904

0.1uF GND

GND

CI_DATA[3] CI_DATA[4] CI_DATA[5] CI_DATA[6] CI_DATA[7]

CI_DATA[0] CI_DATA[1] CI_DATA[2]

CI_DATA[0-7]

R1919

CI_ADDR[10]

CI_DATA[0-7]

CI_ADDR[11]

CI_ADDR[9]

CI_ADDR[8] CI_ADDR[13] CI_ADDR[14]

CI_ADDR[12]

CI_ADDR[7]

CI_ADDR[6]

CI_ADDR[5]

CI_ADDR[4]

CI_ADDR[3]

CI_ADDR[2]

CI_ADDR[1]

CI_ADDR[0]

10K

/PCM_CE

CI_OE

+5V_NORMAL

R1920 10K

CI_WE

GND

CI_ADDR[0-14]

/PCM_IRQA

C1905

0.1uF 16V

CLOSE TO MSTAR

CI HOST I/F

CI_ADDR[7] CI_ADDR[6] CI_ADDR[5] CI_ADDR[4]

CI_MDI[7] CI_MDI[6] CI_MDI[5] CI_MDI[4]

CI_MDI[3] CI_MDI[2] CI_MDI[1] CI_MDI[0]

CI_MISTRT

CI_MIVAL_ERR

CI_MCLKI

CI_DET

AR1902 100

AR1903 33

AR1904 33

R1921 33 R1922 33 R1923 100

PCM_A[0]

PCM_A[1]

PCM_A[2]

PCM_A[3]

FE_TS_DATA[7] FE_TS_DATA[6] FE_TS_DATA[5] FE_TS_DATA[4]

FE_TS_DATA[3] FE_TS_DATA[2] FE_TS_DATA[1] FE_TS_DATA[0]

CI_BUFFER_TOSHIBA(MULTI)

1OE

1A1

2Y4

1A2

2Y3

1A3

2Y2

1A4

2Y1

GND

FE_TS_SYNC FE_TS_VAL_ERR

FE_TS_CLK

IC1902

74LCX244FT

1

2

3

4

5

6

7

8

9

10

FE_TS_DATA[0-7]

20

19

18

17

16

15

14

13

12

11

FE_TS_DATA[0-7]

+3.3V_NORMAL

C1906

0.1uF

VCC

16V

2OE

1Y1

2A4

1Y2

2A3

1Y3

2A2

1Y4

2A1

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

AR1910 100

CI_ADDR[0] CI_ADDR[1] CI_ADDR[2] CI_ADDR[3]

CI DETECT

/CI_CD2

/CI_CD1

OR_GATE_CI_NXP(MULTI)

IC1900

74LVC1G32GW

1B 5 VCC

3GND2A4 Y

TOSHIBA ELECTRONICS KOREA CORPORATION

OR_GATE_CI_TOSHIBA(MULTI)

IC1900-*1

IN_B

1

IN_A

2

GND

3

+3.3V_NORMAL

VCC

5

OUT_Y

4

CI POWER ENABLE CONTROL

IN

EN

IC1901

AP2151WG-7

5

4

PCM_5V_CTL

+5V_NORMAL

R1901 10K

R1902 100

1

2

3

OUT

GND

FLG

+3.3V_NORMAL

R1913

10K

C1902 1uF 10V

R1924 0

R1915 47

BLM18PG121SN1D

L1900

R1916 100K

CI_DET

/PCM_CD

+5V_CI_ON

CI_DATA[0-7]

CI_ADDR[8]

CI_ADDR[9] CI_ADDR[10] CI_ADDR[11]

CI_ADDR[12] CI_ADDR[13] CI_ADDR[14]

CI_OE

CI_WE CI_IORD CI_IOWR

CI_DATA[0] CI_DATA[1] CI_DATA[2] CI_DATA[3]

CI_DATA[4] CI_DATA[5] CI_DATA[6] CI_DATA[7]

REG

AR1905 33

AR1906 33

AR1908 33

AR1909 33

AR1907 33

PCM_D[0] PCM_D[1] PCM_D[2] PCM_D[3]

PCM_D[4] PCM_D[5] PCM_D[6] PCM_D[7]

PCM_A[8] PCM_A[9]

/PCM_OE /PCM_WE /PCM_IORD /PCM_IOWR

PCM_A[10] PCM_A[11]

PCM_A[12] PCM_A[13] PCM_A[14] /PCM_REG

PCM_D[0-7]

CI_BUFFER_NXP(MULTI)

IC1902-*1

74LVC244APW

1OE

1

1A0

2

2Y0

3

1A1

4

2Y1

5

1A2

6

2Y2

7

1A3

8

2Y3

9

GND

10

VCC

20

2OE

19

1Y0

18

2A0

17

1Y1

16

2A1

15

1Y2

14

2A2

13

1Y3

12

2A3

11

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

PCMCI

2014.04.24 19

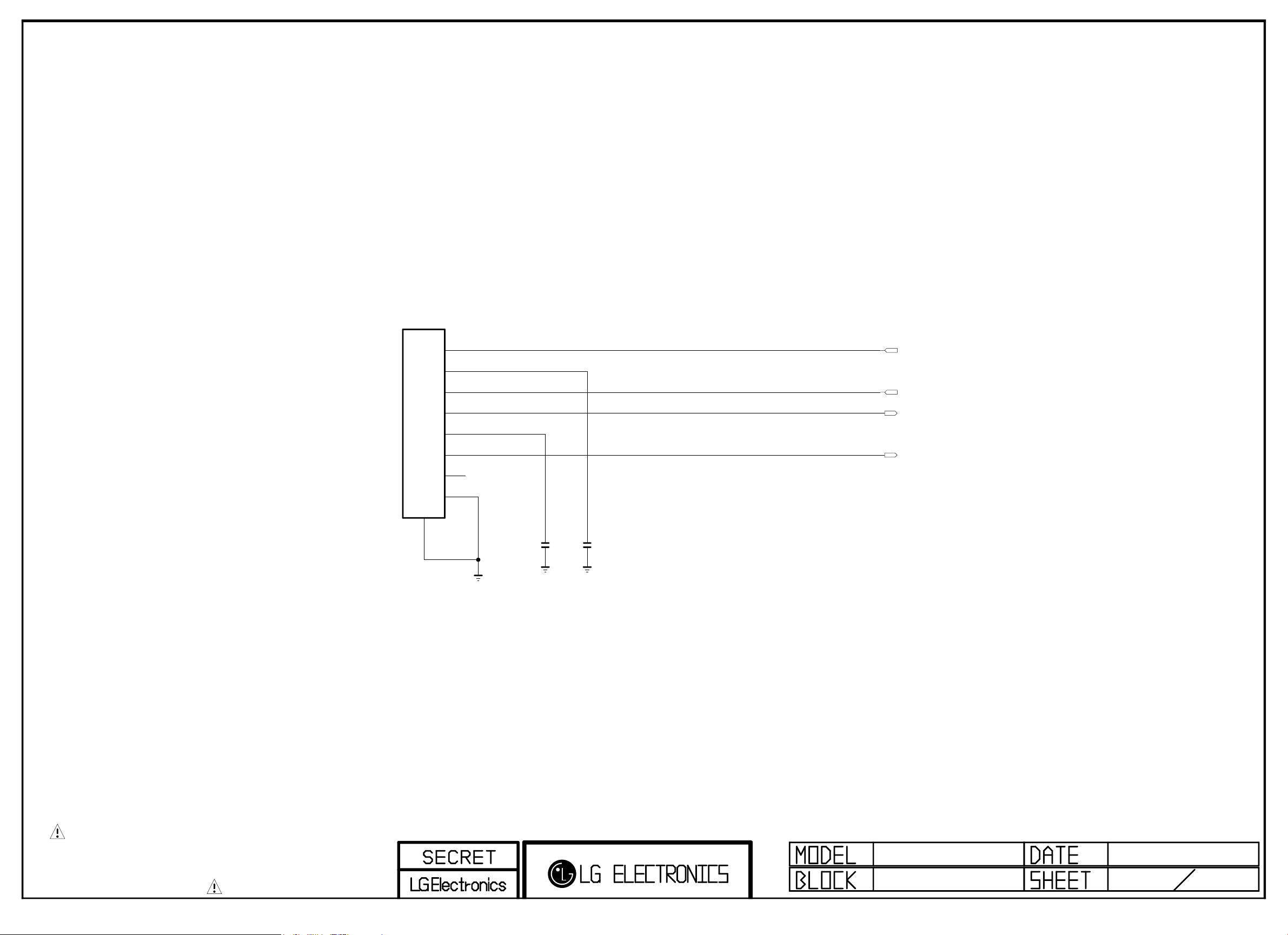

ETHERNET

LGE Internal Use Only

* H/W option : ETHERNET

JK2100

RJ45VT-01SN002

1

2

ETHERNET

3

4

5

6

7

8

9

1

2

3

4

5

6

7

8

ETHERNET

C2105

0.01uF 50V

ETHERNET

C2104

0.01uF 50V

EPHY_TP

EPHY_TN

EPHY_RP

EPHY_RN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

LAN

2014.04.24 21

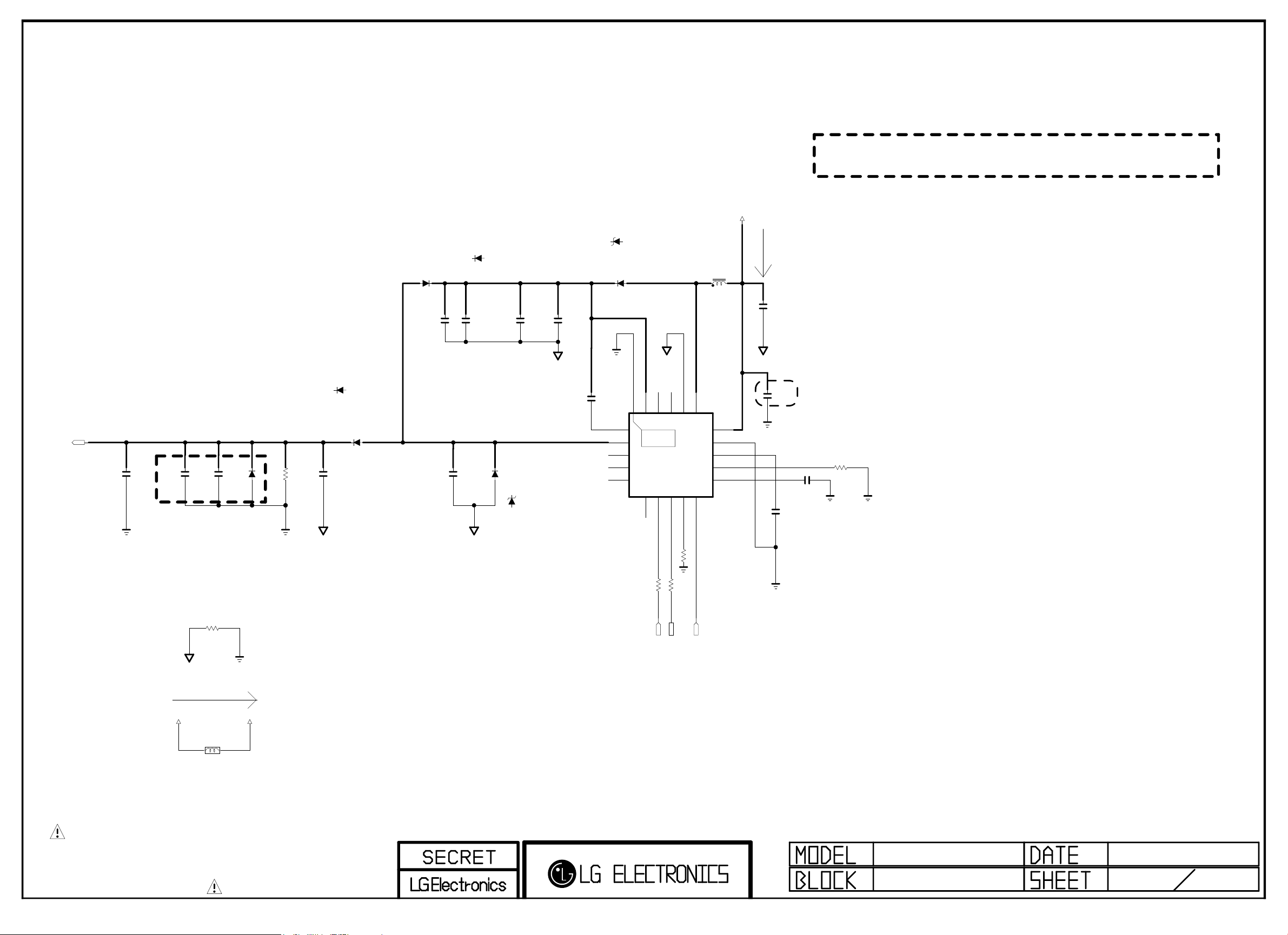

DVB-S2 LNB Part Allegro

LGE Internal Use Only

(Option:LNB)

2A

LNB_DIODE_ONSEMI(MULTI)

LNB_DIODE_SUZHOU(MILTI)

D2703-*1

SS2040LL-LG

D2703

30V

LNB

C2703

0.01uF 50V

40V

LNB C2704

10uF 25V

LNB C2705

10uF 25V

LNB_DIODE_SUZHOU(MULTI)

D2705-*1

40V

D2705

LNB_DIODE_KEC(MULTI)

40V

SMAB34

LNB

C2706 10uF 25V

3A

+12V_LNB

LNB

L2702

LPH6050T-150M-R

15uH

3.5A

Max 1.3A

LNB C2708 10uF 25V

Input trace widths should be sized to conduct at least 3A Ouput trace widths should be sized to conduct at least 2A

LNB_OUT

LNB

C2714 18pF

close to TUNER

LNB C2701 18pF

LNB C2702 33pF

Close to Tuner Surge protectioin

Caution!! need isolated GND

A_GND

R2701

0

LNB

D2701

LNB_DIODE_SUZHOU(MILTI)

D2702-*1

SS2040LL-LG

40V

LNB_DIODE_ONSEMI(MULTI)

LNB R2702

2.2K 1W

A_GND

D2702

MBR230LSFT1G

30V

LNB

C2713

0.22uF 25V

close to Boost pin(#1)

LNB C2712

0.1uF 50V

A_GND

LNB_DIODE_KEC(MULTI) D2704

SMAB34

40V

LNB_DIODE_SUZHOU(MULTI)

D2704-*1

40V

A_GND

LNB

C2707

0.1uF

A_GND

NC_3

BOOST

[EP]GND

19

20

VCP

1

THERMAL

LNB

2

NC_1

TDI

TDO

21

3

LNB

IC2701

4

A8303SESTR-T(4M)

5

7

6

SCL9ADD

IRQ

LNB

R2704

33

DEMOD_SCL

GNDLX

NC_2

18

8

SDA

R2706 0

LNB

R2705

33

DEMOD_SDA

16LX17

15

14

13

12

11

10

TONECTRL

LNB_TX

VIN

GND

VREG

ISET

TCAP

A_GND

close to VIN pin(#15)

LNB C2709

0.1uF 50V

LNB

C2710

0.1uF

LNB

C2711

0.22uF

LNB

R2703

36K

1/16W 1%

Max 1.3A

+12V

BLM18PG121SN1D

L2701

+12V_LNB

LNB

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

LNB 27

2014.04.24

SCART_COMPONENT

LGE Internal Use Only

COMPONENT

JK2802

PPJ245N2-01

COMP_ZENER_ROHM(MULTI)

[RD2]E-LUG

6E

[RD2]O-SPRING

5E

[RD2]CONTACT

4E

[WH]O-SPRING

5D

[RD1]CONTACT

4C

[RD1]O-SPRING

5C

[RD1]E-LUG-S

7C

[BL]O-SPRING

5B

[GN/YL]CONTACT

4A

[GN/YL]O-SPRING

5A

[GN/YL]E-LUG

6A

ZD2806-*1

ZD2807-*1

ZD2804-*1

ZD2805-*1

ZD2802-*1

ZD2803-*1

VA2804

5.6V

ESD_COMP

VA2803

5.6V

ESD_COMP

COMP_ZENER_KEC(MULTI)

VA2800

5.6V

ESD_COMP

COMP_ZENER_KEC(MULTI)

ZD2802

ZD2803

R2803

470K

R2802 470K

330pF C2802

330pF C2803

R2804

1608

ZD2806

ZD2807

ZD2804

ZD2805

75

OPT

R2811 10K

R2810 10K

R2859 75

3216

R2816

12K

R2815

12K

VA2802

OPT

VA2801

OPT

5.5V

COMP2_R_IN

COMP2_L_IN

R28 01

75

R28 00

75

+3.3V_NORMAL

R2817

10K

VA2816

5.6V

ESD_COMP

+3.3V_NORMAL

R2812

10K

C2800

0.1uF

COMP2_Y+/AV_CVBS_IN

SCART AMP

+12V

EU

C2808

VCC

OUT2

IN2-

IN2+

0.1uF 50V

EU

R2841

EU

R2840

5.6K

EU

C2810

33pF

EU

R2842

220K

33K

EU

R2839

10K

CLOSE TO MSTAR

SCART_MUTE_NPN_NXP(MULTI)

Q2803-*1

MMBT3904(NXP)

R2843

470K

OPT

EU C2811 330pF

EU

R2844

2.2K

EU

C2812

10uF

16V

SCART1_Rout

DTV/MNT_R_OUT

IC2801

AZ4580MTR-E1

OUT1

1

IN1-

2

IN1+

3

VEE

4

8

EU

7

6

5

R2818

1K

COMP2_Pr+

COMP2_Pb+

COMP2_DET

DTV/MNT_L_OUT

SCART1_Lout

C2804 10uF 16V

EU

330pF C2806

EU

R2831

2.2K

OPT R2832 470K

EU

220K

R2833

EU

EU R2834 33K

C2807 33pF

EU

R2835

5.6K

EU R2836 10K

EU

CLOSE TO MSTAR

R2814

1K

OPT

16V

AV_CVBS_DET

SCART_MUTE_NPN_NXP(MULTI)

Q2802-*1

MMBT3904(NXP)

FULL SCART

EU

JK2801

PSC008-01

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

AV_DET

COM_GND

SYNC_IN

SYNC_OUT

SYNC_GND2

SYNC_GND1

RGB_IO

R_OUT

RGB_GND

R_GND

D2B_OUT

G_OUT

D2B_IN

G_GND

ID

B_OUT

AUDIO_L_IN

B_GND

AUDIO_GND

AUDIO_L_OUT

AUDIO_R_IN

AUDIO_R_OUT

VA2815

5.6V OPT

VA2807

5.5V

ESD_SCART

VA2808 20V ESD_SCART

ESD_SCART VA2810

20V

VA2811 20V ESD_SCART

VA2812 20V ESD_SCART

VA2813

5.6V

ESD_SCART/AV2_AMOTECH(MULTI)

AV2_L_IN_A

VA2809

5.6V

ESD_SCART/AV2_AMOTECH(MULTI)

AV2_R_IN_A

VA2806

5.6V OPT

VA2814

R2807 75

R2808 75

R2805 75

R2806 470K

SCART/AV2

R2809 470K

SCART/AV2

EU C2813 1000pF 50V

ZD2800-*1 AV2_CVBS_ZENER_ROHM(MULTI)

ZD2801-*1

AV2_CVBS_ZENER_ROHM(MULTI)

C2818 1000pF 50V OPT

C2817 1000pF 50V OPT

VA2814-*1

5.6V

ESD_SCART_AMOTECH(MULTI)

+3.3V_NORMAL

R2819

10K

R2820 1K

EU

R2850 1K

AV2

ESD_SCART_INNOCHIPS(MULTI)

VA2813-*1 ESD_SCART/AV2_INNOCHIPS(MULTI)

VA2809-*1 ESD_SCART/AV2_INNOCHIPS(MULTI)

SC1/COMP1_DET

AV2_CVBS_DET

ZD2800

AV2_CVBS_ZENER_KEC(MULTI)

ZD2801

AV2_CVBS_ZENER_KEC(MULTI)

EU R2821 75

SCART/AV2 R2857

R2860

75

1608

OPT

1%

OPT

C2815 68pF 50V

SC1_R+/COMP1_Pr+

SC1_G+/COMP1_Y+

SC1_B+/COMP1_Pb+

3216

EU

R2861

10

OPT

C2816 68pF 50V

AV2 C2801 47pF 50V

R2822 75

EU

SC1/AV2_CVBS_IN

EU

R2824

15K

VA2817 20V ESD_SCART

SCART/AV2

R2826 10K

SCART/AV2

R2825 10K

DTV/MNT_VOUT

EU

R2827

22

EU

R2828

3.9K

R2829 12K

SCART/AV2

R2830 12K

SCART/AV2

R2846 0

AV2

R2849 0

AV2

SC1_FB

SC1_ID

SC1/COMP1_L_IN

AV2_L_IN

SC1/COMP1_R_IN

AV2_R_IN

DTV/MNT_L_OUT

[SCART AUDIO MUTE]

DTV/MNT_L_OUT

SCART_MUTE_NPN_KEC(MULTI)

DTV/MNT_R_OUT

SCART_MUTE_NPN_KEC(MULTI)

AV2

JK2803

PPJ231-02

Q2802 2N3904S

Q2803 2N3904S

4

5

7

8

6

SCART_MUTE

R2837

2K

SCART_MUTE

R2838

2K

R2847 100

AV2

R2848 0 EU

AV2

VA2820

5.6V OPT

SCART_MUTE

C2809

0.1uF

AV2_R_IN_A

AV2_L_IN_A

AV2_CVBS_DET

SC1/AV2_CVBS_IN

SCART_MUTE

R2845

10K

+3.5V_ST

SCART1_MUTE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

VA2805

5.6V OPT

EU C2814 1000pF 50V

DTV/MNT_R_OUT

M1A_URSA9_UD

SCART_ COMPONENT

2014.04.24 28

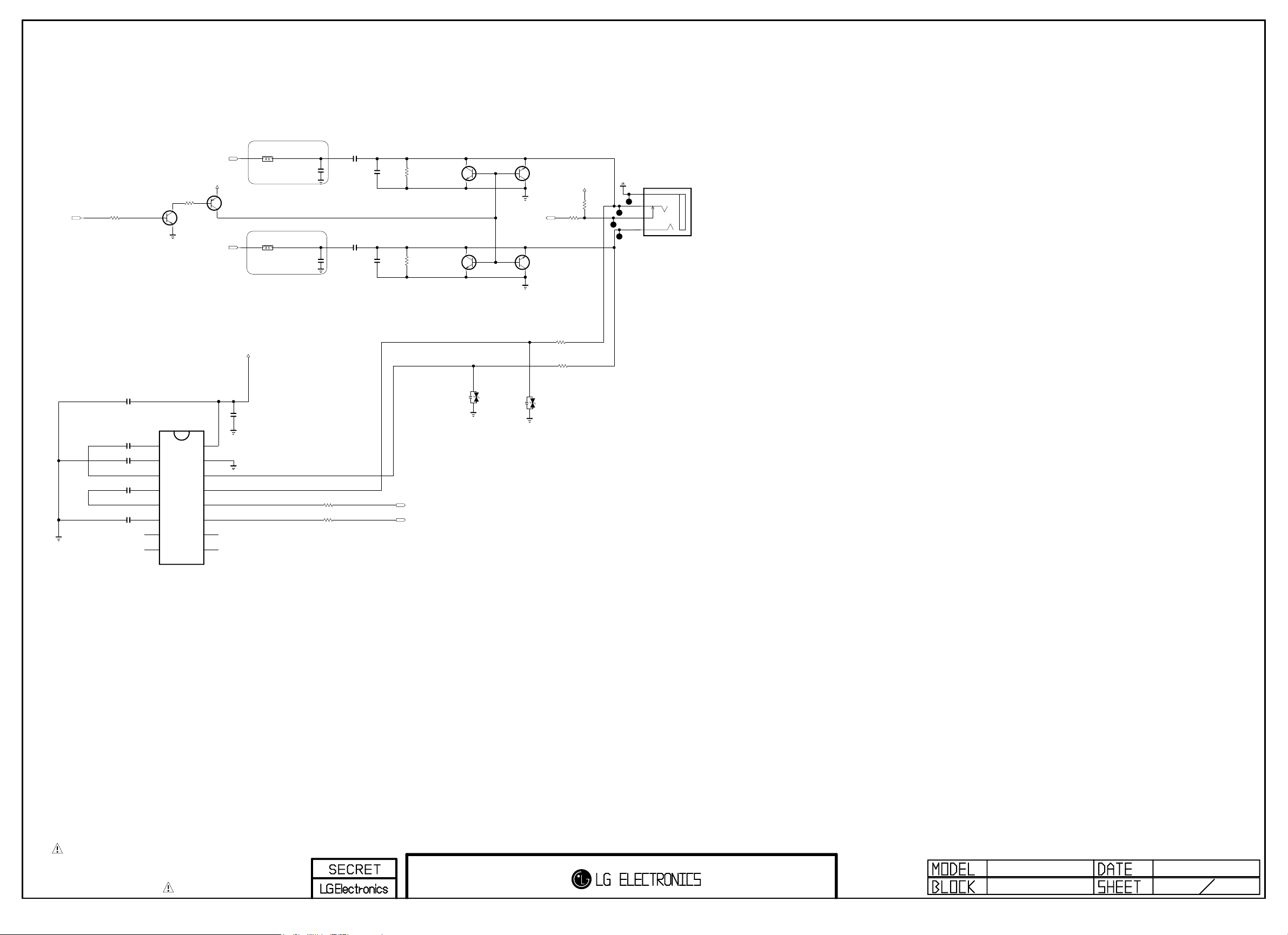

Headphone

LGE Internal Use Only

RS-232C Control INTERFACE

SIDE_HP_MUTE

OPT R3000 1K

RS232C_PHONE

MMBT3904(NXP)

C3006

0.33uF

RS232C_PHONE

C3008

0.1uF

C3009

0.1uF

C3010

0.1uF

C3011

0.1uF DOUT2

RIN2

Q3000

C1+

V+

C1-

C2+

C2-

V-

B

OPT

1

2

3

4

5

6

7

8

OPT

R3001

C

3.3K

E

RS232C_PHONE

IC3001

MAX3232CDR

EAN41348201

Close to the Main IC

HEAD_PHONE

L3000

HP_LOUT

+3.5V_ST

B

HP_ROUT

E

OPT Q3001

MMBT3906(NXP)

C

5.6uH

HEAD_PHONE

L3001

5.6uH

Close to the Main IC

+3.5V_ST

RS232C_PHONE

C3007

0.1uF

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

HEAD_PHONE

C3004

4.7uF 10V

C3005

4.7uF 10V

RS232C_PHONE

HEAD_PHONE

C3000

OPT

C3002

10uF

1000pF

16V

50V

HEAD_PHONE

C3001

OPT

10uF

C3003

16V

1000pF 50V

R3008

0

R3009

0

HEAD_PHONE

R3002 1K

HEAD_PHONE R3003 1K

PM_RXD

PM_TXD

Q3002 MMBT3904(NXP)

OPT

Q3003 MMBT3904(NXP)

OPT

C

E

C

E

B

OPT ZD3001 ADUC 20S 02 010L 20V

B

E

Q3004 MMBT3904(NXP)

OPT

C

HP_DET

E

Q3005 MMBT3904(NXP)

OPT

C

RS232C_PHONE

OPT ZD3002 ADUC 20S 02 010L 20V

+3.3V_NORMAL

HEAD_PHONE

R3004

HEAD_PHONE

R3006 100

R3007 100

R3005 10K

1K

PHONE_JACK

JK3000

PEJ038-3B6

5GND

4L

3DETECT

1R

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

2014.04.24

HEAD_PHONE_EU 30

RS-232C 4PIN & MSTAR DEBUG 4PIN

LGE Internal Use Only

RS-232C 4PIN

PM_TXD

PM_RXD

MSTAR DEBUG 4PIN

12507WS-04L

P4001

+3.5V_ST

R4001 100

R4000 100

JP_GND2

1

2

3

4

5

RGB_DDC_SCL

RGB_DDC_SDA

JP_GND1

VCC

PM_RXD

GND

RM_TXD

JP_GND3

P4000

12507WS-04L

1

2

3

4

GND

JP_GND4

5

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

RS232C_MSTAR_DEBUG_4P

2014.04.24 40

TP for EU

LGE Internal Use Only

SPDIF_OUT

AV2_CVBS_DET

HDMI_ARC

HP_ROUT HP_LOUT

SIDE_HP_MUTE /CI_CD2

HP_DET

CI_DET

/CI_CD1

EPHY_RP EPHY_TN EPHY_TP EPHY_RN

URSA_RESET

DEMOD_RESET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

TP_EU 41

2014.04.24

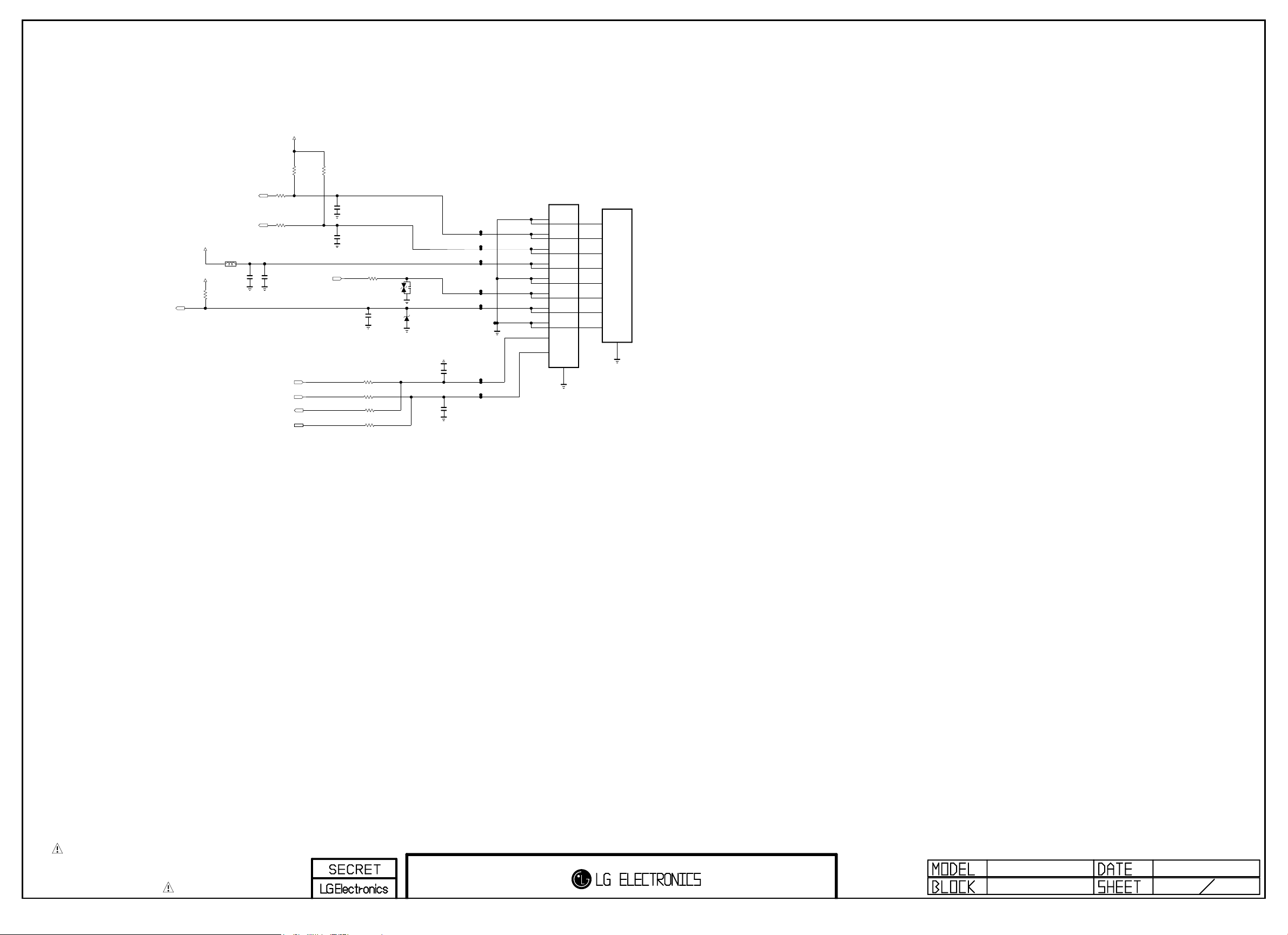

IR/LED + Digital Eye + Control

LGE Internal Use Only

+3.5V_ST

R4604

R4603

R4601 100

KEY1

R4602 100

KEY2

+3.5V_ST

L4600

BLM18PG121SN1D

+3.5V_ST

R4600

3.3K

IR

C4600

0.1uF

C4601 1000pF

16V

50V

DDC2_DL_SCL

DDC2_DL_SDA

IR_SCL

IR_SDA

10K

1%

P4600

12507WR-10L

1

2

3

4

5

6

7

8

9

10

11

LED_R/BUZZ

C4602

0.1uF 16V

C4603

0.1uF 16V

R4606

1.8K

C4604 100pF

50V

R4608 100

OPT

R4609 100

OPT

R4605 100

EYE_SENSOR

R4607 100

EYE_SENSOR

VA4600

OPT

ZD4601

OPT

5V

EYE_SENSOR C4605 18pF 50V

EYE_SENSOR C4606 18pF 50V

OPT

P4601

12507WR-08L

1

2

3

4

5

6

7

8

9

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

IR_EYE_SENSOR

2014.04.24 46

/F_RB

LGE Internal Use Only

/PF_OE

/PF_CE0

/PF_CE1

PF_ALE /PF_WE /PF_WP

+3.3V_NORMAL

AR103

R107

22

1K

R108 1K

OPT

+3.3V_NORMAL

AR104

22

R102

3.3K

R109

3.9K

C101

0.1uF

R105 1K OPT

R106 1K

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

1

2

3

4

5

6

R/B

7

RE

8

CE

9

10

11

12

13

14

15

CLE

16

ALE

17

WE

18

WP

19

20

21

22

23

24

IC102

H27U1G8F2CTR-BC

NAND_1G_HYNIX(MULTI)

EAN35669103

NAND FLASH MEMORY

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

C103

VSS_2

0.1uF

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

+3.3V_NORMAL

22

AR101

C102 10uF

10V

AR102

PCM_A[0-7]

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

PCM_A[3]

PCM_A[2]

PCM_A[1]

PCM_A[0]

22

<CHIP Config> (SPI_SDI, PM_LED, PWM_PM)

LG-NonOS SB51_ExtSPI 3’b000 51boot from SPI LG-OS HEMCU_ExtSPI 3’b001 MIPS boot from SPI

+3.5V_ST

OPT

R165 2.7K

R117 4.7K

R115 4.7K

OPT

R121 2.7K

R116 4.7K

R118 4.7K

NVRAM_ATMEL(MULTI)

IC104

AT24C256C-SSHL-T

A0

1

A1

2

A2

A0’h

3

GND

4

VCC

8

WP

7

SCL

6

SDA

5

EAN61133501

NAND_2G_HYNIX(MULTI)

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

NAND_2G_TOSHIBA(MULTI)

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

RY/BY

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

EAN60708703

IC102-*1

H27U2G8F2DTR-BD

EAN60991001

IC102-*3

TC58NVG1S3ETA00

NAND_1G_TOSHIBA(MULTI)

EAN61508002

IC102-*2

TC58NVG0S3HTA00

NC_29

NC_1

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O8

44

I/O7

43

I/O6

42

I/O5

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O4

32

I/O3

31

I/O2

30

I/O1

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

NC_2

NC_3

NC_4

NC_5

NC_6

RY/BY

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

1

2

3

4

5

6

7

RE

8

CE

9

10

11

12

13

14

15

CLE

16

ALE

17

WE

18

WP

19

20

21

22

23

24

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O8

44

I/O7

43

I/O6

42

I/O5

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O4

32

I/O3

31

I/O2

30

I/O1

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

R1011KR104

1K

R110 1K

R119 1K

R1201KR125

BR24G256FJ-3

A0

A1

A2

GND

EAN62389502

R140 1K

1K

NVRAM_RHOM(MULTI)

IC104-*1

1

2

3

4

+3.3V_NORMAL

R144

R141

2.2K

1K

8

7

6

5

R145

2.2K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+3.3V_NORMAL

C104 8pF OPT

VCC

WP

SCL

SDA

R146

3.3K

LED_R/BUZZ

PM_LED

SPI_SDI

C105

0.1uF

R111 22

R112

C106 8pF

OPT

R147

3.3K

EEPROM

22

I2C

I2C_SCL

I2C_SDA

URSA_SDA URSA_SCL

I2C_SDA I2C_SCL AMP_SDA AMP_SCL

DDC1_DL_SDA

DDC1_DL_SCL

DDC2_DL_SCL DDC2_DL_SDA IR_SCL IR_SDA



CI_DET

/PCM_CD

PWM_DIM

DEMOD_SCL DEMOD_SDA



+3.3V_NORMAL

R197 0 R178 22

R157 100

R156 10K R103 10K

R180

10K

PCM_A[0-14]

PCM_D[0-7]

DIMMING

OPT

T2_OR_CHINA

R113 22 R114 22

T2_OR_CHINA

PWM2

DDC1_DL_SCL

DDC1_DL_SDA

FRC_FLASH_WP

5V_DET_HDMI_2

I2C_SCL

I2C_SDA URSA_SDA URSA_SCL

DDC2_DL_SCL DDC2_DL_SDA

AMP_SCL AMP_SDA

TU_SCL TU_SDA

AV_CVBS_DET

AV2_CVBS_DET

COMP2_DET

DEMOD_RESET

MODEL_OPT_0

MODEL_OPT_1 MODEL_OPT_2

AMP_RESET

HP_DET

SC1/COMP1_DET

IR_SDA

MODEL_OPT_4

IR_SCL /CI_CD1 /CI_CD2

USB1_CTL MODEL_OPT_5 MODEL_OPT_6

USB1_OCD

/PCM_IORD /PCM_IOWR /PCM_IRQA

/PCM_OE

/PCM_REG

PCM_RST

/PCM_WAIT

/PCM_WE

PCM_A[0] PCM_A[1] PCM_A[2] PCM_A[3] PCM_A[4] PCM_A[5] PCM_A[6] PCM_A[7] PCM_A[8] PCM_A[9] PCM_A[10] PCM_A[11] PCM_A[12] PCM_A[13] PCM_A[14]

PCM_D[0] PCM_D[1] PCM_D[2] PCM_D[3] PCM_D[4] PCM_D[5]

PCM_D[6] PCM_D[7]

R184 22 R183

R128 0 R129 0 R130 0 R131 0

R126 0

R127 0

/PCM_CD /PCM_CE

RXA4+ RXA4RXA3+

RXA3RXACK+ RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+ RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

U19

LVA4P/TTL_B[0]/HCONV/GPIO170

T20

LVA4M/TTL_B[1]/E_O/GPIO171

T21

LVA3P/TTL_B[2]/FB/GPIO172

T19

LVA3M/TTL_B[3]/OPT_P/GPIO173

R21

LVACKP/TTL_B[4]/MCLK/GPIO174

R20

LVACKM/TTL_B[5]/GCLK/GPIO175

R19

LVA2P/TTL_B[6]/GST/GPIO176

P20

LVA2M/TTL_B[7]/POL/GPIO177

P19

LVA1P/TTL_G[0]/EPI0+/GPIO178

N20

LVA1M/TTL_G[1]/EPI0-/GPIO179

N21

LVA0P/TTL_G[2]/EPI1+/GPIO180

N19

LVA0M/TTL_G[3]/EPI1-/GPIO181

M21

LVB4P/TTL_G[4]/EPI2+/GPIO182

M20

LVB4M/TTL_G[5]/EPI2-/GPIO183

M19

LVB3P/TTL_G[6]/EPI3+/GPIO184

L20

LVB3M/TTL_G[7]/EPI3-/GPIO185

L19

LVBCKP/TTL_R[0]/EPI4+/GPIO186

K20

LVBCKM/TTL_R[1]/EPI4-/GPIO187

K21

LVB2P/TTL_R[2]/EPI5+/GPIO188

K19

LVB2M/TTL_R[3]/EPI5-/GPIO189

J21

LVB1P/TTL_R[4]/EPI6+/GPIO190

J20

LVB1M/TTL_R[5]/EPI6-/GPIO191

J19

LVB0P/TTL_R[6]/EPI7+/GPIO192

H20

LVB0M/TTL_R[7]/EPI7-/GPIO193

Y1

GPIO78

W4

GPIO79

K17

I2C_SCKM3/I2C_DDCR_CK/GPIO77

J15

22

I2C_SDAM3/I2C_DDCR_DA/GPIO76

U8

SDAM2/GPIO55

T7

SCKM2/GPIO56

U7

SCKM0/GPIO58

V7

SDAM0/GPIO59

F6

I2S_IN_BCK/GPIO159

G6

I2S_IN_SD/GPIO160

AA4

I2C_SCKM1/GPIO80

Y4

I2C_SDAM1/GPIO81

J6

ET_TXD[0]/GPIO62

K6

EXT_TX_CLK/GPIO64

G7

I2S_IN_WS/GPIO158

J4

ET_COL/GPIO60

J5

ET_TXD[1]/GPIO61

H19

LCK/GPIO194

G20

LDE/GPIO195

G19

LHSYNC/GPIO196

G21

LVSYNC/GPIO197

J17

UART2_RX/GPIO69

J16

UART2_TX/GPIO70

E8

UART3_TX/GPIO52

D7

UART3_RX/GPIO53

U6

GPIO46[CTS]

V6

GPIO47[RTS]

K15

UART1_TX/GPIO48

L16

UART1_RX/GPIO49

H5

ET_TX_EN/GPIO63

K5

ET_RXD[0]/GPIO65

K4

ET_MDC/GPIO66

H6

ET_MDIO/GPIO67

L5

ET_RXD[1]/GPIO68

U17

PCMADR[0]/NF_AD[0]/GPIO130

R18

PCMADR[1]/NF_AD[1]/GPIO129

V17

PCMADR[2]/NF_AD[2]/GPIO127

R16

PCMADR[3]/NF_AD[3]/GPIO126

U16

PCMADR[4]/NF_AD[4]/GPIO104

T17

PCMADR[5]/NF_AD[5]/GPIO106

W18

PCMADR[6]/NF_AD[6]/GPIO107

U20

PCMADR[7]/NF_AD[7]/GPIO108

Y19

PCMADR[8]/GPIO113

AA19

PCMADR[9]/GPIO115

AA20

PCMADR[10]/GPIO119

W21

PCMADR[11]/GPIO117

V20

PCMADR[12]/GPIO109

Y17

PCMADR[13]/GPIO112

V18

PCMADR[14]/GPIO111

V19

PCMCD_N/GPIO135

W19

PCMCE_N/GPIO120

U18

PCMDATA[0]/GPIO131

V16

PCMDATA[1]/GPIO132

W17

PCMDATA[2]/GPIO133

Y20

PCMDATA[3]/GPIO125

R15

PCMDATA[4]/GPIO124

AA18

PCMDATA[5]/GPIO123

T15

PCMDATA[6]/GPIO122

Y21

PCMDATA[7]/GPIO121

W20

PCMIORD_N/GPIO116

V21

PCMIOWR_N/GPIO114

Y18

PCMIRQA_N/GPIO110

T16

PCMOE_N/GPIO118

R17

PCMREG_N/GPIO128

T18

PCM_RESET/GPIO134

W16

PCMWAIT_N/GPIO105

U15

PCMWE_N/GPIO198

LGE2134(256M)

M1A_256M_UO4

IC101

LGE2134(256M)

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

M1A_256M_UO4

IC101

GPIO_PM[13]/GPIO20 GPIO_PM[14]/GPIO21

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11 GPIO_PM[7]/GPIO14 GPIO_PM[8]/GPIO15

PM_UART_TX/GPIO_PM[1]/GPIO8

PM_UART_RX/GPIO_PM[5]/GPIO12

TS0CLK/GPIO92 TS0DATA[0]/GPIO82 TS0DATA[1]/GPIO83 TS0DATA[2]/GPIO84 TS0DATA[3]/GPIO85 TS0DATA[4]/GPIO86 TS0DATA[5]/GPIO87 TS0DATA[6]/GPIO88 TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103 TS1DATA[0]/GPIO93 TS1DATA[1]/GPIO94 TS1DATA[2]/GPIO95 TS1DATA[3]/GPIO96 TS1DATA[4]/GPIO97 TS1DATA[5]/GPIO98 TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

RP TN TP RN

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

HWRESET

IRIN/GPIO5 DDCA_CK/UART0_RX DDCA_DA/UART0_TX

PWM0/GPIO71 PWM1/GPIO72 PWM2/GPIO73 PWM3/GPIO74 PWM4/GPIO75

NF_ALE/GPIO146 NF_CEZ/GPIO142 NF_CLE/GPIO141 NF_RBZ/GPIO147 NF_REZ/GPIO144 NF_WEZ/GPIO145 NF_WPZ/GPIO199

IF_AGC

SIFM SIFP

IM IP

XIN

XOUT

SAR0/GPIO35 SAR1/GPIO36 SAR2/GPIO37 SAR3/GPIO38 SAR4/GPIO39

PM_LED/GPIO4

GPIO_PM[0]/GPIO7

PWM_PM/GPIO200

V10

CI_TS_DATA[0]

T14

CI_TS_DATA[1]

T13

CI_TS_DATA[2]

U13

CI_TS_DATA[3]

V15

CI_TS_DATA[4]

U12

CI_TS_DATA[5]

V13

CI_TS_DATA[6]

U14

CI_TS_DATA[7]

T11 T12 V12 Y14 Y16 AA15 Y13 AA16 W12 AA13 W14 W13 Y15 W15

B3

R189 33

A3

R188 33 A4 C3 A2

R190 33

B1 C2 C1 B2

D2 D1

R192 100

SPDIF_OPTIC D8 E5 G4 G5

J18 K18 K16 L18 L17

T8 T9 U9 U11 V9 U10 T10

W2

C115 0.1uF

W1

C116 0.1uF

W3 V2

ANALOG SIF

V1

Close to MSTAR

AA2

R194 0

Y2

TUNER_IF_0_ohm

R195 0

TUNER_IF_0_ohm

Close to MSTAR

R187

D5 F8 E7 E6 D6

W10 Y10 P3 Y3 Y5 W11 D3 AA3 W5 D4 L15 Y11

FE_TS_DATA[0] FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3] FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7]

/SPI_CS SPI_SCK SIDE_HP_MUTE SPI_SDI SPI_SDO

EPHY_RP EPHY_TN EPHY_TP EPHY_RN

5V_DET_HDMI_1 SPDIF_OUT

SOC_RESET

IR RGB_DDC_SCL RGB_DDC_SDA

DDC1_DL_SCL

PWM1

PWM2

DDC1_DL_SDA

PCM_5V_CTL

PF_ALE

/PF_CE0 /PF_CE1

/F_RB

/PF_OE

/PF_WE

/PF_WP

TU_SIF

IF

C117

0.1uF

IF

C118

0.1uF NON_ATSC

1M

KEY1 KEY2 PM_MODEL_OPT_0 PANEL_CTL SCART1_MUTE

URSA_RESET_SoC R122 22

PM_LED POWER_DET AMP_MUTE INV_CTL POWER_ON/OFF_1 RL_ON /FLASH_WP LED_R/BUZZ PM_TXD PM_RXD

from CI SLOT

CI_TS_CLK CI_TS_DATA[0-7] CI_TS_SYNC CI_TS_VAL

Internal demod out

TU_SIF

R198 47 R199 47

TU_SIF

OPT C121

100pF

C122 33pF

C113

X101

18pF

24MHz

C114 18pF

C124 33pF NON_ATSC

FE_TS_CLK FE_TS_DATA[0-7]

FE_TS_SYNC FE_TS_VAL_ERR

FE_TS_DATA[0]

+3.3V_NORMAL

IF_AGC

R193

10K

C123 1000pF TU_SIF

TU_SIF

IF_N_MSTAR

DTV_IF

IF_P_MSTAR

+3.3V_NORMAL

R123

10K

OPT

R124 10K

FE_TS_DATA[0]

IF_AGC

L101 BLM18PG121SN1D

IF_AGC C119

0.1uF

IF_AGC

R196 0

C120

0.047uF 25V IF_AGC

R194-*1

TUNER_IF_100_ohm

100 R195-*1

TUNER_IF_100_ohm 100

For KR/US models

M1A_128M_UO4

IC101-*1

TCON_I2C_EN

IF_AGC_MAIN

U19

LVA4P/TTL_B[0]/HCONV/GPIO170

T20

LVA4M/TTL_B[1]/E_O/GPIO171

T21

LVA3P/TTL_B[2]/FB/GPIO172

T19

LVA3M/TTL_B[3]/OPT_P/GPIO173

R21

LVACKP/TTL_B[4]/MCLK/GPIO174

R20

LVACKM/TTL_B[5]/GCLK/GPIO175

R19

LVA2P/TTL_B[6]/GST/GPIO176

P20

LVA2M/TTL_B[7]/POL/GPIO177

P19

LVA1P/TTL_G[0]/EPI0+/GPIO178

N20

LVA1M/TTL_G[1]/EPI0-/GPIO179

N21

LVA0P/TTL_G[2]/EPI1+/GPIO180

N19

LVA0M/TTL_G[3]/EPI1-/GPIO181

M21

LVB4P/TTL_G[4]/EPI2+/GPIO182

M20

LVB4M/TTL_G[5]/EPI2-/GPIO183

M19

LVB3P/TTL_G[6]/EPI3+/GPIO184

L20

LVB3M/TTL_G[7]/EPI3-/GPIO185

L19

LVBCKP/TTL_R[0]/EPI4+/GPIO186

K20

LVBCKM/TTL_R[1]/EPI4-/GPIO187

K21

LVB2P/TTL_R[2]/EPI5+/GPIO188

K19

LVB2M/TTL_R[3]/EPI5-/GPIO189

J21

LVB1P/TTL_R[4]/EPI6+/GPIO190

J20

LVB1M/TTL_R[5]/EPI6-/GPIO191

J19

LVB0P/TTL_R[6]/EPI7+/GPIO192

H20

LVB0M/TTL_R[7]/EPI7-/GPIO193

U19

LVA4P/TTL_B[0]/HCONV/GPIO170

T20

LVA4M/TTL_B[1]/E_O/GPIO171

T21

LVA3P/TTL_B[2]/FB/GPIO172

T19

LVA3M/TTL_B[3]/OPT_P/GPIO173

R21

LVACKP/TTL_B[4]/MCLK/GPIO174

R20

LVACKM/TTL_B[5]/GCLK/GPIO175

R19

LVA2P/TTL_B[6]/GST/GPIO176

P20

LVA2M/TTL_B[7]/POL/GPIO177

P19

LVA1P/TTL_G[0]/EPI0+/GPIO178

N20

LVA1M/TTL_G[1]/EPI0-/GPIO179

N21

LVA0P/TTL_G[2]/EPI1+/GPIO180

N19

LVA0M/TTL_G[3]/EPI1-/GPIO181

M21

LVB4P/TTL_G[4]/EPI2+/GPIO182

M20

LVB4M/TTL_G[5]/EPI2-/GPIO183

M19

LVB3P/TTL_G[6]/EPI3+/GPIO184

L20

LVB3M/TTL_G[7]/EPI3-/GPIO185

L19

LVBCKP/TTL_R[0]/EPI4+/GPIO186

K20

LVBCKM/TTL_R[1]/EPI4-/GPIO187

K21

LVB2P/TTL_R[2]/EPI5+/GPIO188

K19

LVB2M/TTL_R[3]/EPI5-/GPIO189

J21

LVB1P/TTL_R[4]/EPI6+/GPIO190

J20

LVB1M/TTL_R[5]/EPI6-/GPIO191

J19

LVB0P/TTL_R[6]/EPI7+/GPIO192

H20

LVB0M/TTL_R[7]/EPI7-/GPIO193

K17 J15

AA4

H19 G20 G19 G21

J17 J16

K15 L16

U17 R18 V17 R16 U16 T17 W18 U20

Y19 AA19 AA20

W21

V20

Y17

V18

V19

W19

U18

V16

W17

Y20

R15 AA18

T15

Y21

W20

V21

Y18

T16

R17

T18

W16

U15

K17

J15

AA4

H19

G20

G19

G21

J17

J16

K15

L16

U17

R18

V17

R16

U16

T17

W18

U20

Y19 AA19 AA20

W21

V20

Y17

V18

V19

W19

U18

V16

W17

Y20

R15 AA18

T15

Y21

W20

V21

Y18

T16

R17

T18

W16

U15

LGE2133(128M)

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

M1A_256M_UO7_AVS+

IC101-*2

LGE2136(256M)

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

M1A_128M_UO4 LGE2133(128M)

Y1

GPIO78

W4

GPIO79

I2C_SCKM3/I2C_DDCR_CK/GPIO77 I2C_SDAM3/I2C_DDCR_DA/GPIO76

U8

SDAM2/GPIO55

T7

SCKM2/GPIO56

U7

SCKM0/GPIO58

V7

SDAM0/GPIO59

F6

I2S_IN_BCK/GPIO159

G6

I2S_IN_SD/GPIO160 I2C_SCKM1/GPIO80

Y4

I2C_SDAM1/GPIO81

J6

ET_TXD[0]/GPIO62

K6

EXT_TX_CLK/GPIO64

G7

I2S_IN_WS/GPIO158

J4

ET_COL/GPIO60

J5

ET_TXD[1]/GPIO61

LCK/GPIO194 LDE/GPIO195 LHSYNC/GPIO196 LVSYNC/GPIO197

UART2_RX/GPIO69 UART2_TX/GPIO70

E8

UART3_TX/GPIO52

D7

UART3_RX/GPIO53

U6

GPIO46[CTS]

V6

GPIO47[RTS] UART1_TX/GPIO48 UART1_RX/GPIO49

H5

ET_TX_EN/GPIO63

K5

ET_RXD[0]/GPIO65

K4

ET_MDC/GPIO66

H6

ET_MDIO/GPIO67

L5

ET_RXD[1]/GPIO68

PCMADR[0]/NF_AD[0]/GPIO130 PCMADR[1]/NF_AD[1]/GPIO129 PCMADR[2]/NF_AD[2]/GPIO127 PCMADR[3]/NF_AD[3]/GPIO126 PCMADR[4]/NF_AD[4]/GPIO104 PCMADR[5]/NF_AD[5]/GPIO106 PCMADR[6]/NF_AD[6]/GPIO107 PCMADR[7]/NF_AD[7]/GPIO108 PCMADR[8]/GPIO113 PCMADR[9]/GPIO115 PCMADR[10]/GPIO119 PCMADR[11]/GPIO117 PCMADR[12]/GPIO109 PCMADR[13]/GPIO112 PCMADR[14]/GPIO111 PCMCD_N/GPIO135 PCMCE_N/GPIO120 PCMDATA[0]/GPIO131 PCMDATA[1]/GPIO132 PCMDATA[2]/GPIO133 PCMDATA[3]/GPIO125 PCMDATA[4]/GPIO124 PCMDATA[5]/GPIO123 PCMDATA[6]/GPIO122 PCMDATA[7]/GPIO121 PCMIORD_N/GPIO116 PCMIOWR_N/GPIO114 PCMIRQA_N/GPIO110 PCMOE_N/GPIO118 PCMREG_N/GPIO128 PCM_RESET/GPIO134 PCMWAIT_N/GPIO105 PCMWE_N/GPIO198

M1A_256M_UO7_AVS+

LGE2136(256M)

Y1

GPIO78

W4

GPIO79

I2C_SCKM3/I2C_DDCR_CK/GPIO77 I2C_SDAM3/I2C_DDCR_DA/GPIO76

U8

SDAM2/GPIO55

T7

SCKM2/GPIO56

U7

SCKM0/GPIO58

V7

SDAM0/GPIO59

F6

I2S_IN_BCK/GPIO159

G6

I2S_IN_SD/GPIO160 I2C_SCKM1/GPIO80

Y4

I2C_SDAM1/GPIO81

J6

ET_TXD[0]/GPIO62

K6

EXT_TX_CLK/GPIO64

G7

I2S_IN_WS/GPIO158

J4

ET_COL/GPIO60

J5

ET_TXD[1]/GPIO61

LCK/GPIO194 LDE/GPIO195 LHSYNC/GPIO196 LVSYNC/GPIO197

UART2_RX/GPIO69 UART2_TX/GPIO70

E8

UART3_TX/GPIO52

D7

UART3_RX/GPIO53

U6

GPIO46[CTS]

V6

GPIO47[RTS] UART1_TX/GPIO48 UART1_RX/GPIO49

H5

ET_TX_EN/GPIO63

K5

ET_RXD[0]/GPIO65

K4

ET_MDC/GPIO66

H6

ET_MDIO/GPIO67

L5

ET_RXD[1]/GPIO68

PCMADR[0]/NF_AD[0]/GPIO130 PCMADR[1]/NF_AD[1]/GPIO129 PCMADR[2]/NF_AD[2]/GPIO127 PCMADR[3]/NF_AD[3]/GPIO126 PCMADR[4]/NF_AD[4]/GPIO104 PCMADR[5]/NF_AD[5]/GPIO106 PCMADR[6]/NF_AD[6]/GPIO107 PCMADR[7]/NF_AD[7]/GPIO108 PCMADR[8]/GPIO113 PCMADR[9]/GPIO115 PCMADR[10]/GPIO119 PCMADR[11]/GPIO117 PCMADR[12]/GPIO109 PCMADR[13]/GPIO112 PCMADR[14]/GPIO111 PCMCD_N/GPIO135 PCMCE_N/GPIO120 PCMDATA[0]/GPIO131 PCMDATA[1]/GPIO132 PCMDATA[2]/GPIO133 PCMDATA[3]/GPIO125 PCMDATA[4]/GPIO124 PCMDATA[5]/GPIO123 PCMDATA[6]/GPIO122 PCMDATA[7]/GPIO121 PCMIORD_N/GPIO116 PCMIOWR_N/GPIO114 PCMIRQA_N/GPIO110 PCMOE_N/GPIO118 PCMREG_N/GPIO128 PCM_RESET/GPIO134 PCMWAIT_N/GPIO105 PCMWE_N/GPIO198

PM_UART_TX/GPIO_PM[1]/GPIO8

PM_UART_RX/GPIO_PM[5]/GPIO12

PM_UART_TX/GPIO_PM[1]/GPIO8

PM_UART_RX/GPIO_PM[5]/GPIO12

IC101-*1

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

IC101-*2

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

SAR0/GPIO35 SAR1/GPIO36 SAR2/GPIO37 SAR3/GPIO38 SAR4/GPIO39

GPIO_PM[13]/GPIO20 GPIO_PM[14]/GPIO21

PM_LED/GPIO4

GPIO_PM[0]/GPIO7

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11 GPIO_PM[7]/GPIO14 GPIO_PM[8]/GPIO15

PWM_PM/GPIO200

SAR0/GPIO35 SAR1/GPIO36 SAR2/GPIO37 SAR3/GPIO38 SAR4/GPIO39

GPIO_PM[13]/GPIO20 GPIO_PM[14]/GPIO21

PM_LED/GPIO4

GPIO_PM[0]/GPIO7

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11 GPIO_PM[7]/GPIO14 GPIO_PM[8]/GPIO15

PWM_PM/GPIO200

TS0CLK/GPIO92 TS0DATA[0]/GPIO82 TS0DATA[1]/GPIO83 TS0DATA[2]/GPIO84 TS0DATA[3]/GPIO85 TS0DATA[4]/GPIO86 TS0DATA[5]/GPIO87 TS0DATA[6]/GPIO88 TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103 TS1DATA[0]/GPIO93 TS1DATA[1]/GPIO94 TS1DATA[2]/GPIO95 TS1DATA[3]/GPIO96 TS1DATA[4]/GPIO97 TS1DATA[5]/GPIO98 TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

DDCA_CK/UART0_RX DDCA_DA/UART0_TX

NF_ALE/GPIO146

NF_CEZ/GPIO142

NF_CLE/GPIO141

NF_RBZ/GPIO147

NF_REZ/GPIO144

NF_WEZ/GPIO145

NF_WPZ/GPIO199

TS0CLK/GPIO92 TS0DATA[0]/GPIO82 TS0DATA[1]/GPIO83 TS0DATA[2]/GPIO84 TS0DATA[3]/GPIO85 TS0DATA[4]/GPIO86 TS0DATA[5]/GPIO87 TS0DATA[6]/GPIO88 TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103 TS1DATA[0]/GPIO93 TS1DATA[1]/GPIO94 TS1DATA[2]/GPIO95 TS1DATA[3]/GPIO96 TS1DATA[4]/GPIO97 TS1DATA[5]/GPIO98 TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

DDCA_CK/UART0_RX DDCA_DA/UART0_TX

NF_ALE/GPIO146

NF_CEZ/GPIO142

NF_CLE/GPIO141

NF_RBZ/GPIO147

NF_REZ/GPIO144

NF_WEZ/GPIO145

NF_WPZ/GPIO199

HWRESET

IRIN/GPIO5

PWM0/GPIO71 PWM1/GPIO72 PWM2/GPIO73 PWM3/GPIO74 PWM4/GPIO75

HWRESET

IRIN/GPIO5

PWM0/GPIO71 PWM1/GPIO72 PWM2/GPIO73 PWM3/GPIO74 PWM4/GPIO75

D5 F8 E7 E6 D6

W10 Y10 P3 Y3 Y5 W11 D3 AA3 W5 D4 L15 Y11

D5 F8 E7 E6 D6

W10 Y10 P3 Y3 Y5 W11 D3 AA3 W5 D4 L15 Y11

V10 T14 T13 U13 V15 U12 V13 U14 T11 T12 V12 Y14 Y16 AA15 Y13 AA16 W12 AA13 W14 W13 Y15 W15

B3 A3 A4 C3 A2

B1

RP

C2

TN

C1

TP

B2

RN

D2 D1

D8 E5 G4 G5

J18 K18 K16 L18 L17

T8 T9 U9 U11 V9 U10 T10

W2

IF_AGC

W1

SIFM

W3

SIFP

V2

IM

V1

IP

AA2

XIN

Y2

XOUT

V10 T14 T13 U13 V15 U12 V13 U14 T11 T12 V12 Y14 Y16 AA15 Y13 AA16 W12 AA13 W14 W13 Y15 W15

B3 A3 A4 C3 A2

B1

RP

C2

TN

C1

TP

B2

RN

D2 D1

D8 E5 G4 G5

J18 K18 K16 L18 L17

T8 T9 U9 U11 V9 U10 T10

W2

IF_AGC

W1

SIFM

W3

SIFP

V2

IM

V1

IP

AA2

XIN

Y2

XOUT

M1A_URSA9_UD

MAIN1_EU 51

M1A_128M_UO7_AVS+

LGE2135(128M)

U19

LVA4P/TTL_B[0]/HCONV/GPIO170

T20

LVA4M/TTL_B[1]/E_O/GPIO171

T21

LVA3P/TTL_B[2]/FB/GPIO172

T19

LVA3M/TTL_B[3]/OPT_P/GPIO173

R21

LVACKP/TTL_B[4]/MCLK/GPIO174

R20

LVACKM/TTL_B[5]/GCLK/GPIO175

R19

LVA2P/TTL_B[6]/GST/GPIO176

P20

LVA2M/TTL_B[7]/POL/GPIO177

P19

LVA1P/TTL_G[0]/EPI0+/GPIO178

N20

LVA1M/TTL_G[1]/EPI0-/GPIO179

N21

LVA0P/TTL_G[2]/EPI1+/GPIO180

N19

LVA0M/TTL_G[3]/EPI1-/GPIO181

M21

LVB4P/TTL_G[4]/EPI2+/GPIO182

M20

LVB4M/TTL_G[5]/EPI2-/GPIO183

M19

LVB3P/TTL_G[6]/EPI3+/GPIO184

L20

LVB3M/TTL_G[7]/EPI3-/GPIO185

L19

LVBCKP/TTL_R[0]/EPI4+/GPIO186

K20

LVBCKM/TTL_R[1]/EPI4-/GPIO187

K21

LVB2P/TTL_R[2]/EPI5+/GPIO188

K19

LVB2M/TTL_R[3]/EPI5-/GPIO189

J21

LVB1P/TTL_R[4]/EPI6+/GPIO190

J20

LVB1M/TTL_R[5]/EPI6-/GPIO191

J19

LVB0P/TTL_R[6]/EPI7+/GPIO192

H20

LVB0M/TTL_R[7]/EPI7-/GPIO193

Y1

GPIO78

W4

GPIO79

K17

I2C_SCKM3/I2C_DDCR_CK/GPIO77

J15

I2C_SDAM3/I2C_DDCR_DA/GPIO76

U8

SDAM2/GPIO55

T7

SCKM2/GPIO56

U7

SCKM0/GPIO58

V7

SDAM0/GPIO59

F6

I2S_IN_BCK/GPIO159

G6

I2S_IN_SD/GPIO160

AA4

I2C_SCKM1/GPIO80

Y4

I2C_SDAM1/GPIO81

J6

ET_TXD[0]/GPIO62

K6

EXT_TX_CLK/GPIO64

G7

I2S_IN_WS/GPIO158

J4

ET_COL/GPIO60

J5

ET_TXD[1]/GPIO61

H19

LCK/GPIO194

G20

LDE/GPIO195

G19

LHSYNC/GPIO196

G21

LVSYNC/GPIO197

J17

UART2_RX/GPIO69

J16

UART2_TX/GPIO70

E8

UART3_TX/GPIO52

D7

UART3_RX/GPIO53

U6

GPIO46[CTS]

V6

GPIO47[RTS]

K15

UART1_TX/GPIO48

L16

UART1_RX/GPIO49

H5

ET_TX_EN/GPIO63

K5

ET_RXD[0]/GPIO65

K4

ET_MDC/GPIO66

H6

ET_MDIO/GPIO67

L5

ET_RXD[1]/GPIO68

U17

PCMADR[0]/NF_AD[0]/GPIO130

R18

PCMADR[1]/NF_AD[1]/GPIO129

V17

PCMADR[2]/NF_AD[2]/GPIO127

R16

PCMADR[3]/NF_AD[3]/GPIO126

U16

PCMADR[4]/NF_AD[4]/GPIO104

T17

PCMADR[5]/NF_AD[5]/GPIO106

W18

PCMADR[6]/NF_AD[6]/GPIO107

U20

PCMADR[7]/NF_AD[7]/GPIO108

Y19

PCMADR[8]/GPIO113

AA19

PCMADR[9]/GPIO115

AA20

PCMADR[10]/GPIO119

W21

PCMADR[11]/GPIO117

V20

PCMADR[12]/GPIO109

Y17

PCMADR[13]/GPIO112

V18

PCMADR[14]/GPIO111

V19

PCMCD_N/GPIO135

W19

PCMCE_N/GPIO120

U18

PCMDATA[0]/GPIO131

V16

PCMDATA[1]/GPIO132

W17

PCMDATA[2]/GPIO133

Y20

PCMDATA[3]/GPIO125

R15

PCMDATA[4]/GPIO124

AA18

PCMDATA[5]/GPIO123

T15

PCMDATA[6]/GPIO122

Y21

PCMDATA[7]/GPIO121

W20

PCMIORD_N/GPIO116

V21

PCMIOWR_N/GPIO114

Y18

PCMIRQA_N/GPIO110

T16

PCMOE_N/GPIO118

R17

PCMREG_N/GPIO128

T18

PCM_RESET/GPIO134

W16

PCMWAIT_N/GPIO105

U15

PCMWE_N/GPIO198

2014.04.24

IC101-*3

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

PM_UART_TX/GPIO_PM[1]/GPIO8

PM_UART_RX/GPIO_PM[5]/GPIO12

M1A_128M_UO7_AVS+

IC101-*3

LGE2135(128M)

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

SAR0/GPIO35 SAR1/GPIO36 SAR2/GPIO37 SAR3/GPIO38 SAR4/GPIO39

GPIO_PM[13]/GPIO20 GPIO_PM[14]/GPIO21

PM_LED/GPIO4

GPIO_PM[0]/GPIO7

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11 GPIO_PM[7]/GPIO14 GPIO_PM[8]/GPIO15

PWM_PM/GPIO200

TS0CLK/GPIO92 TS0DATA[0]/GPIO82 TS0DATA[1]/GPIO83 TS0DATA[2]/GPIO84 TS0DATA[3]/GPIO85 TS0DATA[4]/GPIO86 TS0DATA[5]/GPIO87 TS0DATA[6]/GPIO88 TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103 TS1DATA[0]/GPIO93 TS1DATA[1]/GPIO94 TS1DATA[2]/GPIO95 TS1DATA[3]/GPIO96 TS1DATA[4]/GPIO97 TS1DATA[5]/GPIO98 TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

HWRESET

IRIN/GPIO5 DDCA_CK/UART0_RX DDCA_DA/UART0_TX

PWM0/GPIO71 PWM1/GPIO72 PWM2/GPIO73 PWM3/GPIO74 PWM4/GPIO75

NF_ALE/GPIO146 NF_CEZ/GPIO142 NF_CLE/GPIO141 NF_RBZ/GPIO147 NF_REZ/GPIO144 NF_WEZ/GPIO145 NF_WPZ/GPIO199

D5 F8 E7 E6 D6

W10 Y10 P3 Y3 Y5 W11 D3 AA3 W5 D4 L15 Y11

V10 T14 T13 U13 V15 U12 V13 U14 T11 T12 V12 Y14 Y16 AA15 Y13 AA16 W12 AA13 W14 W13 Y15 W15

B3 A3 A4 C3 A2

B1

RP

C2

TN

C1

TP

B2

RN

D2 D1

D8 E5 G4 G5

J18 K18 K16 L18 L17

T8 T9 U9 U11 V9 U10 T10

W2

IF_AGC

W1

SIFM

W3

SIFP

V2

IM

V1

IP

AA2

XIN

Y2

XOUT

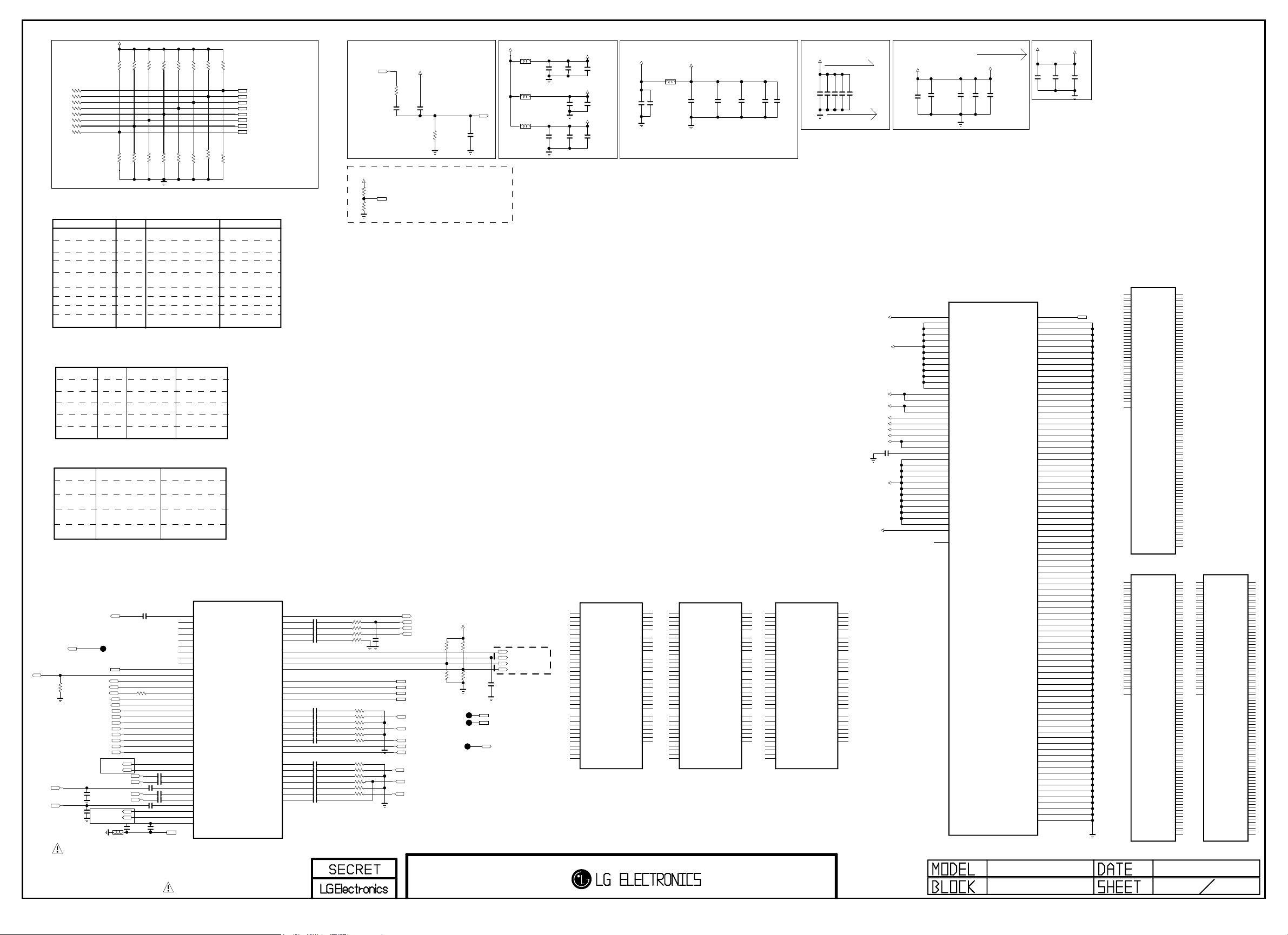

MODEL OPTION

LGE Internal Use Only

+3.3V_NORMAL

SOC_RESET

1K

POWER_DET_RESET

OPT

4.7uF

R266 470

C202

10V

R201

OPT

R202

OPT

R203

OPT OPT

R204 100

OPT

R225 100

OPT

R228 100

OPT

R230 100

OPT

R229 100

URSA11

DDR_EXT:256

DDR_EXT:128

MO_S/W_EU/AJ

R222 1K

R221 1K

R206 1K

R208 1K

MO_M120(UHD120)

R291 1K 100 100 100

R290

MO_S/W_AJ

R211 1K

R226 1K

MO_DVB_T2/C/S2

OPT

MODEL_OPT_0 MODEL_OPT_1 MODEL_OPT_2

AUD_LRCH MODEL_OPT_4 MODEL_OPT_5 MODEL_OPT_6 AUD_LRCK

1K

URSA9

MO_S/W_NON_AJ

MO_DVB_T/C

R294 1K

R293

DDR_EXT:128 or NON

MODEL OPTION

PIN NAME

PM_model_opt_0 MODEL_OPT_0 MODEL_OPT_1 MODEL_OPT_2 MODEL_OPT_3

(AUD_LRCH) MODEL_OPT_4

MODEL_OPT_5 MODEL_OPT_6

MODEL_OPT_7 (AUD_LRCK)

Memory OPTION

Memory Auto

INT+EXT

PIN NO.

E7 J5

H19

G20

G19

U6 K5 MO_S/W_EU/AJ

K4 L5

MODEL_OPT_4

Det

0 0128M Only

256M Only

128M+128M 1

128M+256M

256M+256M

1

0

1

MO_S/W_TW/CN

DDR_EXT:256 or NON

R224 1K

R223 1K

LOW UHD MO_FHD MO_S/W_NON_AJ MO_DVB_T/C

MO_M120_NON(UDH60)

DDR_EXT:256 or NON

MO_S/W_TW/CN

DDR_EXT:128 or NON

URSA9

0

R212 1K

R207 1K

R209 1K

MO_M120_NON(UHD60)

MODEL_OPT_6

0

1

10

R227 1K

HIGH

Non_UHD

MO_HD MO_S/W_AJ

MO_DVB_T2/C/S2

MO_M120(UHD120)

DDR_EXT : 128

DDR_EXT : 256 URSA11

+3.5V_ST

R177 10K OPT

R176 10K

PM_MODEL_OPT_0

Country Option

C2162.2uF

C2192.2uF

C220

4.7uF

MODEL_OPT_5

AA9

AA7

AA6

C2142.2uF

EU

C2032.2uF

AV2

C2172.2uF

EU

C2062.2uF

AV2

AUVRM

0

1

0

1

LGE2134(256M)

M4

ARC0

W7

RXC0N

Y8

RXC0P

W8

RXC1N

Y9

RXC1P RXC2N

W9

RXC2P RXCCKN

Y7

RXCCKP

N2

CEC/GPIO6

E3

DDCDA_CK/GPIO27

E2

DDCDA_DA/GPIO28

W6

DDCDC_CK/GPIO31 DDCDC_DA/GPIO32

L4

HOTPLUGA/GPIO23

Y6

HOTPLUGC/GPIO25

F1

RXA0N

G3

RXA0P

G1

RXA1N

G2

RXA1P

H3

RXA2N

H2

RXA2P

F3

RXACKN

F2

RXACKP

U4

EAR_OUTL

T4

EAR_OUTR

P2

AUL1

R2

AUL2

T1

AUL3

R3

AUR1

R1

AUR2

T3

AUR3

U2

AUOUTL0

V3

AUOUTR0

T2

AUVAG

M1A_256M_UO4

IC101

CVBSOUT1

I2S_OUT_BCK/GPIO165 I2S_OUT_MCK/GPIO163

I2S_OUT_SD/GPIO166 I2S_OUT_WS/GPIO164

USB0_DM USB1_DM USB0_DP USB1_DP

CVBS0 CVBS1 CVBS2

VCOM

BIN0M BIN0P GIN0M GIN0P RIN0M

RIN0P HSYNC0 VSYNC0

BIN1M

BIN1P

GIN1M

GIN1P

RIN1M

RIN1P SOGIN1

T6 V5 U5 T5 V4

E4 F4 F7 F5

C4 Y12 B4 AA12

J2 J3 K3 J1 K2 K1 M6 L6

L2 L3 M1 M2 N1 N3 M3

TU_CVBS

C2360.047uF C2370.047uF

SCART/AV2 C2380.047uF C2390.047uF

C221 0.047uF C222 0.047uF C223 0.047uF C224 0.047uF C225 0.047uF C226 0.047uF

C227 0.047uF C229 0.047uF C230 0.047uF C231 0.047uF C232 0.047uFC211 C233 0.047uF C234 1000pF

OPT

R24433

R232 68

EU

R233 33

EU

R234 68

EU

R235 33

EU

R236 68

EU

R237 33

EU

R238 68 R239 33 R240 68 R241 33 R242 68 R243 33

R24533

EU EU EU EU EU EU

TU_CVBS

R24633 R24768

SCART/AV2

C242 1000pF 50V

Close to MSTAR

OPT

MODEL_OPT_1

H/P OUT

HP_LOUT HP_ROUT

SC1/COMP1_L_IN

AV2_L_IN

SC1/COMP1_R_IN

AV2_R_IN

AUDIO OUT

L214

BLM18PG121SN1D

0

1

C212 1uF

R295 0

C213 1uF

OPT

TW

EU

CN

AJ

HDMI_ARC

Used net when HDMI Switch used

MN864778_RESET

R205

10K

OPT

ATV_1000P

CEC_REMOTE_S7

MN864778_RESET

URSA_RESET_READY

L_DIM_EN HDMI_HPD_1 HDMI_HPD_2

1000pF

50V

C215

1000pF

50V

DDC_DL_EN

COMP2_L_IN

COMP2_R_IN

HDMI_RX0HDMI_RX0+ HDMI_RX1HDMI_RX1+ HDMI_RX2HDMI_RX2+ HDMI_CLKHDMI_CLK+

SCART1_Lout SCART1_Rout

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+3.5V_ST

C200

4.7uF 10V

R200 470K

PM MODEL OPTION

PM_MODEL_OPT_0

- HIGH : Non_UHD

- LOW :: UHD PM_MODEL_OPT_1

- Not Use (Ready)

DTV/MNT_VOUT

TU_CVBS SC1/AV2_CVBS_IN COMP2_Y+/AV_CVBS_IN

WIFI_DM SIDE_USB1_DM WIFI_DP SIDE_USB1_DP

SC1_B+/COMP1_Pb+

SC1_G+/COMP1_Y+

SC1_R+/COMP1_Pr+ SC1_ID SC1_FB

COMP2_Pb+

COMP2_Y+/AV_CVBS_IN

COMP2_Pr+

SOC_RESET

C201

0.1uF

+3.3V_NORMAL

R210

R213

10K

OPT

R218

R216

10K

OPT

Used net when WIFI used

WIFI_DM WIFI_DP

Used net when TI Amp used

+3.5V_ST

L206 BLM18PG121SN1D

L207 BLM18PG121SN1D

L208 BLM18PG121SN1D

I2S_I/F

AUD_SCK AUD_MASTER_CLK AUD_LRCH AUD_LRCK

C208 15pF 50V OPT

AUD_MASTER_CLK

STby 3.5V

C286

C289

0.1uF

10uF

C288 10uF

C240

C287

0.1uF

10uF

M4

ARC0

W7

RXC0N

Y8

RXC0P

W8

RXC1N

Y9

RXC1P

AA9

RXC2N

W9

RXC2P

AA7

RXCCKN

Y7

RXCCKP

N2

CEC/GPIO6

E3

DDCDA_CK/GPIO27

E2

DDCDA_DA/GPIO28

W6

DDCDC_CK/GPIO31

AA6

DDCDC_DA/GPIO32

L4

HOTPLUGA/GPIO23

Y6

HOTPLUGC/GPIO25

F1

RXA0N

G3

RXA0P

G1

RXA1N

G2

RXA1P

H3

RXA2N

H2

RXA2P

F3

RXACKN

F2

RXACKP

U4

EAR_OUTL

T4

EAR_OUTR

P2

AUL1

R2

AUL2

T1

AUL3

R3

AUR1

R1

AUR2

T3

AUR3

U2

AUOUTL0

V3

AUOUTR0

T2

AUVAG

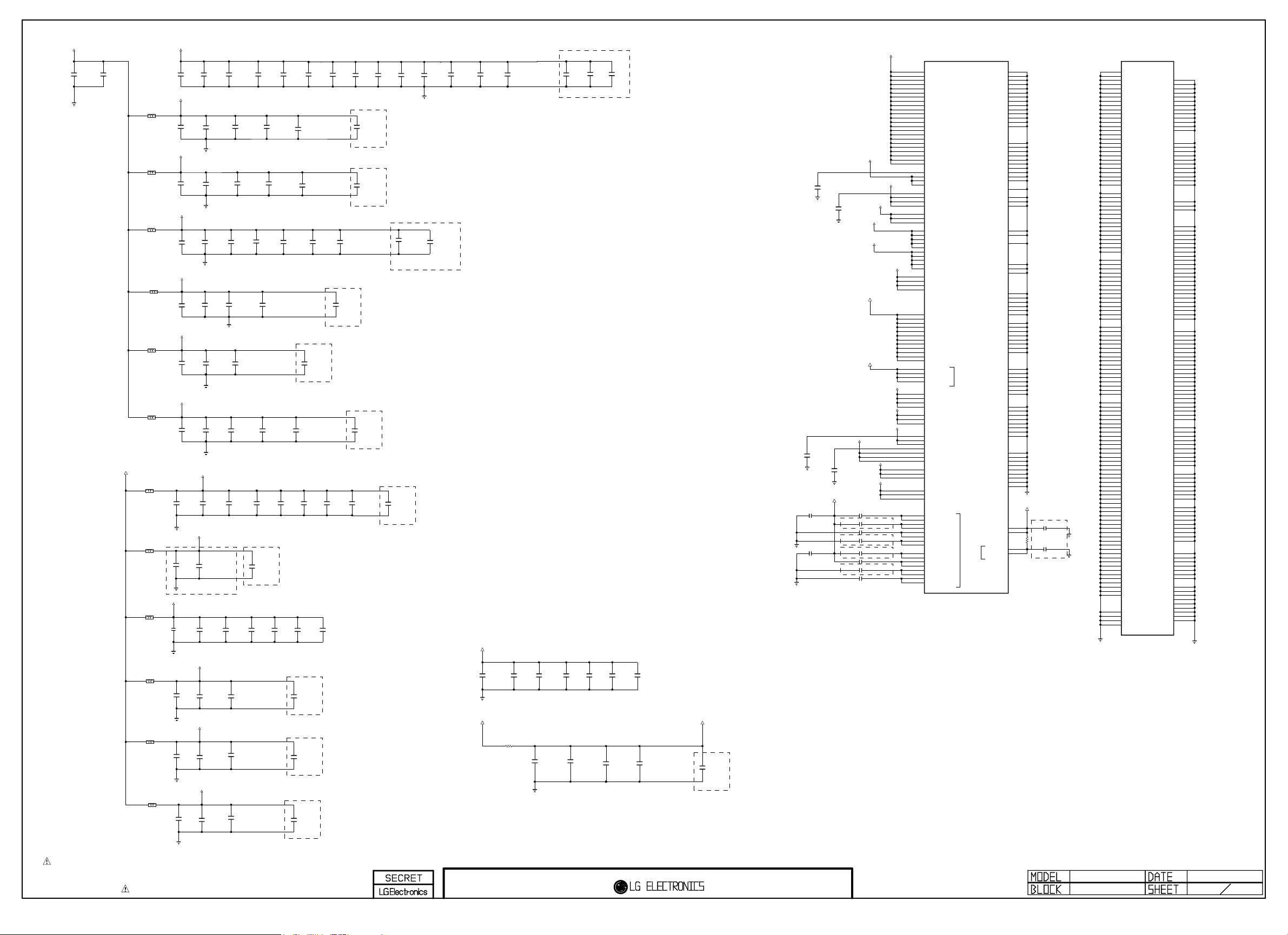

Normal Power 3.3V DDR3 1.5V

AVDD_NODIE

C252

0.1uF

AVDD_DMPLL

C205

0.1uF

AVDD_AU33

C241

0.1uF

M1A_128M_UO4

IC101-*1

LGE2133(128M)

I2S_OUT_BCK/GPIO165 I2S_OUT_MCK/GPIO163

I2S_OUT_SD/GPIO166 I2S_OUT_WS/GPIO164

+3.3V_NORMAL

0.1uF

C255

T6

CVBSOUT1

V5

CVBS0

U5

CVBS1

T5

CVBS2

V4

VCOM

E4 F4 F7 F5

C4

USB0_DM

Y12

USB1_DM

B4

USB0_DP

AA12

USB1_DP

J2

BIN0M

J3

BIN0P

K3

GIN0M

J1

GIN0P

K2

RIN0M

K1

RIN0P

M6

HSYNC0

L6

VSYNC0

L2

BIN1M

L3

BIN1P

M1

GIN1M

M2

GIN1P

N1

RIN1M

N3

RIN1P

M3

SOGIN1

L204

BLM18PG121SN1D

C259 0.1uF

M4 W7 Y8 W8 Y9

AA9

W9

AA7

Y7 N2 E3 E2 W6

AA6

L4 Y6 F1 G3 G1 G2 H3 H2 F3 F2

U4 T4 P2 R2 T1 R3 R1 T3 U2 V3 T2

VDD33

10uF 10V

C284

M1A_256M_UO7_AVS+

IC101-*2

LGE2136(256M)

ARC0 RXC0N RXC0P RXC1N RXC1P RXC2N RXC2P

I2S_OUT_BCK/GPIO165

RXCCKN

I2S_OUT_MCK/GPIO163

RXCCKP

I2S_OUT_SD/GPIO166

CEC/GPIO6

I2S_OUT_WS/GPIO164 DDCDA_CK/GPIO27 DDCDA_DA/GPIO28 DDCDC_CK/GPIO31 DDCDC_DA/GPIO32 HOTPLUGA/GPIO23 HOTPLUGC/GPIO25 RXA0N RXA0P RXA1N RXA1P RXA2N RXA2P RXACKN RXACKP

EAR_OUTL EAR_OUTR AUL1 AUL2 AUL3 AUR1 AUR2 AUR3 AUOUTL0 AUOUTR0 AUVAG

C204

10uF 10V

CVBSOUT1

CVBS0 CVBS1 CVBS2

USB0_DM USB1_DM USB0_DP USB1_DP

BIN0M BIN0P GIN0M GIN0P RIN0M

RIN0P HSYNC0 VSYNC0

BIN1M

BIN1P

GIN1M

GIN1P

RIN1M

RIN1P SOGIN1

C209 0.1uF

C235 0.1uF

C245 0.1uF

M1A_128M_UO7_AVS+

M4

T6 V5 U5 T5 V4

VCOM

E4 F4 F7 F5

C4 Y12 B4 AA12

J2 J3 K3 J1 K2 K1 M6 L6

L2 L3 M1 M2 N1 N3 M3

W7 Y8 W8 Y9

AA9

W9

AA7

Y7 N2 E3 E2 W6

AA6

L4 Y6 F1 G3 G1 G2 H3 H2 F3 F2

U4 T4 P2 R2 T1 R3 R1 T3 U2 V3 T2

ARC0 RXC0N RXC0P RXC1N RXC1P RXC2N RXC2P RXCCKN RXCCKP CEC/GPIO6 DDCDA_CK/GPIO27 DDCDA_DA/GPIO28 DDCDC_CK/GPIO31 DDCDC_DA/GPIO32 HOTPLUGA/GPIO23 HOTPLUGC/GPIO25 RXA0N RXA0P RXA1N RXA1P RXA2N RXA2P RXACKN RXACKP

EAR_OUTL EAR_OUTR AUL1 AUL2 AUL3 AUR1 AUR2 AUR3 AUOUTL0 AUOUTR0 AUVAG

+1.5V_DDR

IC101-*3

LGE2135(128M)

I2S_OUT_BCK/GPIO165 I2S_OUT_MCK/GPIO163

I2S_OUT_SD/GPIO166 I2S_OUT_WS/GPIO164

AVDD_DDR0:55mA

10uF

10V

C207 0.1uF

C248 0.1uF

C278

C266 0.1uF

AVDD_DDR1:55mA

T6

CVBSOUT1

V5

CVBS0

U5

CVBS1

T5

CVBS2

V4

VCOM

E4 F4 F7 F5

C4

USB0_DM

Y12

USB1_DM

B4

USB0_DP

AA12

USB1_DP

J2

BIN0M

J3

BIN0P

K3

GIN0M

J1

GIN0P

K2

RIN0M

K1

RIN0P

M6

HSYNC0

L6

VSYNC0

L2

BIN1M

L3

BIN1P

M1

GIN1M

M2

GIN1P

N1

RIN1M

N3

RIN1P

M3

SOGIN1

C254 1uF

AVDD_NODIE

AVDD_DMPLL

+1.10V_VDDC

AVDD_AU33

+1.5V_DDR

VDD33

VDDC 1.05V

+1.10V_VDDC

C275

C228

10uF 10V

C2601uF

C277 1uF

R4

AVDD_AU33

L11

AVDD_DDR0_CLK

L13

AVDD_DDR1_CLK

M11

AVDD_DDR0_CMD

K13

AVDD_DDR1_CMD

C5

AVDD_DDR0_D_1

K12

AVDD_DDR0_D_2

L12

AVDD_DDR0_D_3

C6

AVDD_DDR1_D_1

K14

AVDD_DDR1_D_2

L14

AVDD_DDR1_D_3

B5

AVDD_DRAM_1

B6

AVDD_DRAM_2

R8

AVDD_DVI_USB_MPLL_1

R9

AVDD_DVI_USB_MPLL_2

L7

AVDD_MOD_1

L8

AVDD_MOD_2

P8

AVDD_NODIE

K9

AVDD_PLL

R5

AVDD3P3_DMPLL

P11

AVDDL_MOD

C7

DVDD_DDR_1

M13

DVDD_DDR_2

R6

DVDD_NODIE

A7

DVDD_RX_1_1

M12

DVDD_RX_1_2

B7

DVDD_RX_2_1

M14

DVDD_RX_2_2

N11

VDDC_1

N12

VDDC_2

N13

VDDC_3

N14

VDDC_4

N15

VDDC_5

P12

VDDC_6

P13

VDDC_7

P14

VDDC_8

L9

VDDP

AA10

AVDD5V_MHL

VDDC : 2026mA

+1.10V_VDDC

C280 1uF

C283 0.1uF

M1A_256M_UO4

IC101

LGE2134(256M)

M1A_URSA9_UD

MAIN2_NON_EU

AUVRM GND_1 GND_2 GND_3 GND_4 GND_5 GND_6 GND_7 GND_8

GND_9 GND_10 GND_11 GND_12 GND_13 GND_14 GND_15 GND_16 GND_17 GND_18 GND_19 GND_20 GND_21 GND_22 GND_23 GND_24 GND_25 GND_26 GND_27 GND_28 GND_29 GND_30 GND_31 GND_32 GND_33 GND_34 GND_35 GND_36 GND_37 GND_38 GND_39 GND_40 GND_41 GND_42 GND_43 GND_44 GND_45 GND_46 GND_47 GND_48 GND_49 GND_50 GND_51 GND_52 GND_53 GND_54 GND_55 GND_56 GND_57 GND_58 GND_59 GND_60 GND_61 GND_62 GND_63 GND_64 GND_65 GND_66 GND_67 GND_68 GND_69 GND_70 GND_71 GND_72 GND_73 GND_74 GND_75 GND_76 GND_77 GND_78 GND_79 GND_80 GND_81 GND_82 GND_83 GND_84

GND_EFUSE

+1.10V_VDDC

C296 10uF 10V

U3 A6 A13 A15 A18 B12 B14 B16 B17 B19 B20 C9 C10 C21 D9 E20 F9 F11 F13 F15 F17 F19 F21 G8 G9 G10 G11 G12 G13 G14 G15 G16 G17 G18 H7 H8 H9 H10 H11 H12 H13 H14 H15 H16 H17 H18 J7 J8 J9 J10 J11 J12 J13 J14 K8 K10 K11 L10 M5 M7 M8 M9 M10 N4 N5 N6 N7 N8 N9 N10 P4 P5 P6 P7 P9 P10 P15 P16 P17 P18 R10 R11 R12 R13 R14 K7

+1.10V_VDDC

C210

C279

0.1uF

AUVRM

R4

AVDD_AU33

L11

AVDD_DDR0_CLK

L13

AVDD_DDR1_CLK

M11

AVDD_DDR0_CMD

K13

AVDD_DDR1_CMD

C5

AVDD_DDR0_D_1

K12

AVDD_DDR0_D_2

L12

AVDD_DDR0_D_3

C6

AVDD_DDR1_D_1

K14

AVDD_DDR1_D_2

L14

AVDD_DDR1_D_3

B5

AVDD_DRAM_1

B6

AVDD_DRAM_2

R8

AVDD_DVI_USB_MPLL_1

R9

AVDD_DVI_USB_MPLL_2

L7

AVDD_MOD_1

L8

AVDD_MOD_2

P8

AVDD_NODIE

K9

AVDD_PLL

R5

AVDD3P3_DMPLL

P11

AVDDL_MOD

C7

DVDD_DDR_1

M13

DVDD_DDR_2

R6

DVDD_NODIE

A7

DVDD_RX_1_1

M12

DVDD_RX_1_2

B7

DVDD_RX_2_1

M14

DVDD_RX_2_2

N11

VDDC_1

N12

VDDC_2

N13

VDDC_3

N14

VDDC_4

N15

VDDC_5

P12

VDDC_6

P13

VDDC_7

P14

VDDC_8

L9

VDDP

AA10

AVDD5V_MHL

M1A_256M_UO7_AVS+

R4

AVDD_AU33

L11

AVDD_DDR0_CLK

L13

AVDD_DDR1_CLK

M11

AVDD_DDR0_CMD

K13

AVDD_DDR1_CMD

C5

AVDD_DDR0_D_1

K12

AVDD_DDR0_D_2

L12

AVDD_DDR0_D_3

C6

AVDD_DDR1_D_1

K14

AVDD_DDR1_D_2

L14

AVDD_DDR1_D_3

B5

AVDD_DRAM_1

B6

AVDD_DRAM_2

R8

AVDD_DVI_USB_MPLL_1

R9

AVDD_DVI_USB_MPLL_2

L7

AVDD_MOD_1

L8

AVDD_MOD_2

P8

AVDD_NODIE

K9

AVDD_PLL

R5

AVDD3P3_DMPLL

P11

AVDDL_MOD

C7

DVDD_DDR_1

M13

DVDD_DDR_2

R6

DVDD_NODIE

A7

DVDD_RX_1_1

M12

DVDD_RX_1_2

B7

DVDD_RX_2_1

M14

DVDD_RX_2_2

N11

VDDC_1

N12

VDDC_2

N13

VDDC_3

N14

VDDC_4

N15

VDDC_5

P12

VDDC_6

P13

VDDC_7

P14

VDDC_8

L9

VDDP

AA10

AVDD5V_MHL

M1A_128M_UO4

IC101-*1

LGE2133(128M)

IC101-*2

LGE2136(256M)

U3

AUVRM

A6

GND_1

A13

GND_2

A15

GND_3

A18

GND_4

B12

GND_5

B14

GND_6

B16

GND_7

B17

GND_8

B19

GND_9

B20

GND_10

C9

GND_11

C10

GND_12

C21

GND_13

D9

GND_14

E20

GND_15

F9

GND_16

F11

GND_17

F13

GND_18

F15

GND_19

F17

GND_20

F19

GND_21

F21

GND_22

G8

GND_23

G9

GND_24

G10

GND_25

G11

GND_26

G12

GND_27

G13

GND_28

G14

GND_29

G15

GND_30

G16

GND_31

G17

GND_32

G18

GND_33

H7

GND_34

H8

GND_35

H9

GND_36

H10

GND_37

H11

GND_38

H12

GND_39

H13

GND_40

H14

GND_41

H15

GND_42

H16

GND_43

H17

GND_44

H18

GND_45

J7

GND_46

J8

GND_47

J9

GND_48

J10

GND_49

J11

GND_50

J12

GND_51

J13

GND_52

J14

GND_53

K8

GND_54

K10

GND_55

K11

GND_56

L10

GND_57

M5

GND_58

M7

GND_59

M8

GND_60

M9

GND_61

M10

GND_62

N4

GND_63

N5

GND_64

N6

GND_65

N7

GND_66

N8

GND_67

N9

GND_68

N10

GND_69

P4

GND_70

P5

GND_71

P6

GND_72

P7

GND_73

P9

GND_74

P10

GND_75

P15

GND_76

P16

GND_77

P17

GND_78

P18

GND_79

R10

GND_80

R11

GND_81

R12

GND_82

R13

GND_83

R14

GND_84

K7

GND_EFUSE

R4

U3

AUVRM

L11

A6

GND_1

L13

A13

GND_2

M11

A15

GND_3

K13

A18

GND_4

C5

B12

GND_5

K12

B14

GND_6

L12

B16

GND_7

C6

B17

GND_8

K14

B19

GND_9

L14

B20

GND_EFUSE

GND_10 GND_11 GND_12 GND_13 GND_14 GND_15 GND_16 GND_17 GND_18 GND_19 GND_20 GND_21 GND_22 GND_23 GND_24 GND_25 GND_26 GND_27 GND_28 GND_29 GND_30 GND_31 GND_32 GND_33 GND_34 GND_35 GND_36 GND_37 GND_38 GND_39 GND_40 GND_41 GND_42 GND_43 GND_44 GND_45 GND_46 GND_47 GND_48 GND_49 GND_50 GND_51 GND_52 GND_53 GND_54 GND_55 GND_56 GND_57 GND_58 GND_59 GND_60 GND_61 GND_62 GND_63 GND_64 GND_65 GND_66 GND_67 GND_68 GND_69 GND_70 GND_71 GND_72 GND_73 GND_74 GND_75 GND_76 GND_77 GND_78 GND_79 GND_80 GND_81 GND_82 GND_83 GND_84

B5

C9

B6

C10

R8

C21

R9

D9

L7

E20

L8

F9

P8

F11

K9

F13

R5

F15

P11

F17

C7

F19

M13

F21

R6

G8

A7

G9

M12

G10

B7

G11

M14

G12

N11

G13

N12

G14

N13

G15

N14

G16

N15

G17

P12

G18

P13

H7

P14

H8

L9

H9 H10

AA10

H11 H12 H13 H14 H15 H16 H17 H18 J7 J8 J9 J10 J11 J12 J13 J14 K8 K10 K11 L10 M5 M7 M8 M9 M10 N4 N5 N6 N7 N8 N9 N10 P4 P5 P6 P7 P9 P10 P15 P16 P17 P18 R10 R11 R12 R13 R14 K7

2014.04.24

52

M1A_128M_UO7_AVS+

IC101-*3

LGE2135(128M)

AVDD_AU33 AVDD_DDR0_CLK AVDD_DDR1_CLK AVDD_DDR0_CMD AVDD_DDR1_CMD AVDD_DDR0_D_1 AVDD_DDR0_D_2 AVDD_DDR0_D_3 AVDD_DDR1_D_1 AVDD_DDR1_D_2 AVDD_DDR1_D_3 AVDD_DRAM_1 AVDD_DRAM_2 AVDD_DVI_USB_MPLL_1 AVDD_DVI_USB_MPLL_2 AVDD_MOD_1 AVDD_MOD_2 AVDD_NODIE AVDD_PLL AVDD3P3_DMPLL AVDDL_MOD DVDD_DDR_1 DVDD_DDR_2 DVDD_NODIE DVDD_RX_1_1 DVDD_RX_1_2 DVDD_RX_2_1 DVDD_RX_2_2 VDDC_1 VDDC_2 VDDC_3 VDDC_4 VDDC_5 VDDC_6 VDDC_7 VDDC_8 VDDP

AVDD5V_MHL

GND_EFUSE

U3

AUVRM

A6

GND_1

A13

GND_2

A15

GND_3

A18

GND_4

B12

GND_5

B14

GND_6

B16

GND_7

B17

GND_8

B19

GND_9

B20

GND_10

C9

GND_11

C10

GND_12

C21

GND_13

D9

GND_14

E20

GND_15

F9

GND_16

F11

GND_17

F13

GND_18

F15

GND_19

F17

GND_20

F19

GND_21

F21

GND_22

G8

GND_23

G9

GND_24

G10

GND_25

G11

GND_26

G12

GND_27

G13

GND_28

G14

GND_29

G15

GND_30

G16

GND_31

G17

GND_32

G18

GND_33

H7

GND_34

H8

GND_35

H9

GND_36

H10

GND_37

H11

GND_38

H12

GND_39

H13

GND_40

H14

GND_41

H15

GND_42

H16

GND_43

H17

GND_44

H18

GND_45

J7

GND_46

J8

GND_47

J9

GND_48

J10

GND_49

J11

GND_50

J12

GND_51

J13

GND_52

J14

GND_53

K8

GND_54

K10

GND_55

K11

GND_56

L10

GND_57

M5

GND_58

M7

GND_59

M8

GND_60

M9

GND_61

M10

GND_62

N4

GND_63

N5

GND_64

N6

GND_65

N7

GND_66

N8

GND_67

N9

GND_68

N10

GND_69

P4

GND_70

P5

GND_71

P6

GND_72

P7

GND_73

P9

GND_74

P10

GND_75

P15

GND_76

P16

GND_77

P17

GND_78

P18

GND_79

R10

GND_80

R11

GND_81

R12

GND_82

R13

GND_83

R14

GND_84

K7

Main AMP

LGE Internal Use Only

AMP_MUTE

+24V

AUD_LRCH

AUD_LRCK

L5600

UBW2012-121F

AMP_SDA

AMP_SCL

R5600

10K

OPT

POWER_DET

+24V_AMP

C5601

0.1uF 50V

+3.3V_NORMAL

B

R5604 100

R5605 100

R5601

10K

C

Q5600

MMBT3904(NXP)

OPT

E

OPT R5602

0

R5603

100

C5607 33pF 50V

C5608 33pF 50V

C5602

1000pF

+3.3V_NORMAL

AMP_RESET

L5601

BLM18PG121SN1D

C5604

10uF 10V

C5605

1uF

10V

50V

C5606 1uF 10V

C5603

0.1uF 16V

R5606 100

1/16W

AUD_SCK

NC_1

VDD_PLL

NC_2

GND NC_3 DVDD

SDATA

WCK NC_4

SDA

R5615

4.7K

[EP]GND

1 2 3 4 5 6 7 8 9 10

C5629 1000pF 50V

GND_IO

VDD_IO

40

THERMAL

11

SCL

FAULT

AD

CLK_I

37

38

39

41

IC5600

NTP7515

12

13

14

MONITOR_0

MONITOR_1

22000pF

I2S_AMP

50V

C5609

22000pF

PGND1A

BST1A

RESET

34

35

36

0x54

15

16

17

BST2B

PGND2B

MONITOR_2

C5612

50V

PVDD1A

OUT1A

32

33

18

19

OUT2B

PVDD2B20PVDD2A

+24V_AMP

PVDD1B

31

30 29 28 27 26 25 24 23 22 21

C5610 10uF 35V

OUT1B PGND1B BST1B VDR1 NC_5 AGND VDR2 BST2A PGND2A OUT2A

+24V_AMP

C5613 10uF 35V

C5611

0.1uF 50V

C5614

0.1uF 50V

C5630

4.7uF 50V

3216

C5631

4.7uF 50V

3216

C5617 22000pF

50V

C5620 22000pF 50V

C56 18 1uF 10V

C5619 1uF 10V

R5607

3.3 1/10W

C5615 390pF

50V

C5616 390pF

50V

R5608

3.3 1/10W

R5611

3.3

1/10W

C5624 390pF 50V

C5625 390pF 50V

R5612

3.3

1/10W

L5602

10uH

SP-7850_10

L5603

10uH

SP-7850_10

L5604

10uH

SP-7850_10

L5605

10uH

SP-7850_10

C5621

0.47uF 50V

C5626

0.47uF

50V

C5622

0.1uF 50V

C5623

0.1uF 50V

C5627

0.1uF 50V

C5628

0.1uF

50V

R5609

4.7K

R5610

4.7K

R5613

4.7K

R5614

4.7K

SPK_L+

SPEAKER_L

SPK_L-

SPK_R+

SPEAKER_R

SPK_R-

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

I2S_AMP

SPK_L+

SPK_L-

SPK_R+

SPK_R-

M1A_URSA9_UD

AUDIO[NTP]

WAFER-ANGLE

4

3

2

1

P5600

2014.04.24

56

L14 TUNER_EU T/C_T2/C/S2_CHINA

LGE Internal Use Only

TUNER_CSA_H/NIM

A1

TU_GND_A

A1

TU_GND_A

47

SHIELD

TUNER_T/C

47

SHIELD

TUNER_NTSC

A1

47

SHIELD

TU3702 TDJK-T301F

+3.3V

1

NC

2

DIF_AGC

3

SCL_RF

4

SDA_RF

5

DIF[P]

6

DIF[N]

7

SIF

8

CVBS

9

B1

TU_GND_B

TU3700

TDJH-G301D

+3.3V

1

NC_1

2

IF_AGC

3

SCL_RF

4

SDA_RF

5

IF[P]

6

IF[N]

7

SIF

8

CVBS

9

B1

TU_GND_B

TU3700-*1 TDJH-H301F

+3.3V

1

NC_1

2

DIF_AGC

3

SCL_RF

4

SDA_RF

5

DIF[P]

6

DIF[N]

7

SIF

8

CVBS

9

B1

TU_GND_A

TUNER_CSA_T2

A1

TU3704 TDJM-K301F

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

B1

47

SHIELD

+3.3V

NC_1

NC_2

SCL_RF

SDA_RF

NC_3

NC_4

SIF

CVBS

NC_5

+3.3V_RF

ERROR

GND_1

MCLK

SYNC

VAILD

D0

D1

D2

D3

D4

D5

D6

D7

RESET_DEMOD

+3.3V_DEMOD

SCL_DEMOD

+1.2V_DEMOD

NC_6

SDA_DEMOD

B1

TU_GND_A

TU_GND_B

A1

TUNER_AJ/JA_T2

A1

47

SHIELD

TU3705 TDJM-G305D

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_6

29

SDA_DEMOD

30

TU_GND_B

TU_GND_A

A1

B1

TUNER_CHINA

A1

47

TU3703 TDJM-C401D

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_6

29

SDA_DEMOD

30

B1

SHIELD

TU_GND_B

A1

TU_GND_A

TUNER_T2/C/S2

A1

47

SHIELD

TU3701 TDJM-G301D

+3.3V

1

NC_1

2

AIF_AGC

3

SCL_RF

4

SDA_RF

5

AIF[P]

6

AIF[N]

7

SIF

8

CVBS

9

NC_2

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VALID

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_3

29

SDA_DEMOD

30

LNB

31

GND

32

B1

TU_NON_ATSC_NON_CHINA

T2_OR_CHINA

TU_GND_B

C3703

0.1uF 16V

IF_AGC

C3718 100pF 50V

T2_OR_CHINA

C3716

0.1uF 16V

+3.3V_LNA

C3708 100pF 50V

IF_AGC_CSA R3714-*1 100

R3714 0

IF_AGC_NON_CSA

R3709

10

TU_ATSC

R3709-*1

0

R3710

10

TU_ATSC

R3710-*1

0

+3.3V_TU

T2_OR_CHINA

C3722

0.1uF 16V

T2_OR_CHINA

R3719

10

T2_OR_CHINA

R3711 C3702 20pF 50V

T2_OR_CHINA

T2

R3707

0

T2_OR_CHINA

C3714

0.1uF

16V

should be guarded by ground

IF_AGC_MAIN

C3705 20pF TU_NON_ATSC

AR3700 0 1/16W

AR3701 0 1/16W

AR3702 0 1/16W

22

C3704 20pF 50V

C3709

0.1uF 50V

T2_OR_CHINA

T2

FE_TS_DATA[0] FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3]

T2

FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7]

T2

DEMOD_SCL

LNB_TX

T2_OR_CHINA R3712

22

FE_TS_ERR FE_TS_CLK FE_TS_SYNC FE_TS_VAL

DEMOD_RESET

+3.3V_DEMOD

T2_OR_CHINA

C3721 100pF 50V

+1.2V_DEMOD

C3713 100pF 50V

T2_OR_CHINA

DEMOD_SDA

LNB_OUT

TU_I2C_NON_FILTER

R3738

TU_I2C_NON_FILTER

R3739 C3707 20pF

TU_NON_ATSC

CHINA

AR3700-*1 47

CHINA

AR3701-*1 47

CHINA

AR3702-*1 47

T2_OR_CHINA

C3723

0.1uF 16V

C3729

0.1uF 16V

T2_OR_CHINA

33

FE_TS_DATA[0-7]

+3.3V_TU

TU_KR/US/EU/AJ

C3710 20pF

TU_NON_ATSC

+3.3V_LNA

C3725 1uF 10V

T2_OR_CHINA

TU_GND_A

0

R3708

R3713

TU_KR/US/EU/AJ

+3.3V_TU

TU_NON_ATSC

R3716

1K

C3711 20pF

TU_NON_ATSC

close to TUNER

C3739 22uF 10V

T2_OR_CHINA

R3723

3.3K

ADJ/NC

0

R3715

TU_KR/US/EU/AJ

TU_I2C Multi option

TU_ATSC

L3701

UBW2012-121F

C3706

0.1uF 16V

EN

1

GND

2

3

TU_SIF

AP7361-Y-13

C3705-*1 18pF

C3707-*1 18pF

TU_NON_ATSC

R3717

1K

C3726

0.1uF 16V

+3.3V_TU

TU_CVBS

R3732 220

B

+3.3V_TU

IC3701

T2_OR_CHINA

TU_ATSC

R3716-*1

1.8K

TU_ATSC

R3717-*1

1.8K

TU_SCL

TU_SDA

IF_P_MSTAR

IF_N_MSTAR

TU_CVBS

E

TU_CVBS_TR_KEC(MULTI)

C

OPT

R3731 0

C3730 22uF 10V

5

4

Vo=0.8*(1+R1/R2)

GND seperation for CHINA tuner

C3712 1000pF 630V

CHINA

+3.3V_TU

ERROR & VALID PIN

FE_TS_VAL

FE_TS_ERR

R3724

4.7K

TU_SIF

R3735 220

Q3701 2N3906S-RTK

B

UBW2012-121F

C3731

0.1uF 16V

OUT

IN

T2_OR_CHINA

BLM18PG121SN1D

T2_OR_CHINA

C3724

0.1uF 16V

TU_I2C_FILTER

R3738-*1

MLG1005SR27JT

TU_I2C_FILTER

R3739-*1

MLG1005SR27JT

OPT

R3726 0

+3.3V_TU

TU_SIF

R3725

470

B

TU_CVBS

E

TU_CVBS_TR_NXP(MULTI) Q3701-*1

MMBT3906(NXP)

C

+3.3V_NORMAL

L3704

T2_OR_CHINA R3733 12K 1%

R1

T2_OR_CHINA

C3732

0.1uF

T2_OR_CHINA R3734 22K 1%

R2

TU_GND_B

R3740

0

+3.3V_DEMOD

L3702

T2_OR_CHINA

C3734 10uF 10V

T2_OR_CHINA

R3736

0

TU_SIF

R3728 82

E

Q3700

2N3906S-RTK

TU_SIF_TR_KEC(MULTI)

C

E

Q3700-*1 MMBT3906(NXP)

TU_SIF_TR_NXP(MULTI)

C

C3738

C3733

0.1uF

22uF

16V

10V

+1.2V_DEMOD

T2_OR_CHINA R3737 1

T2_OR_CHINA

C3737

10uF

10V

16V

TU_GND_B

C3701 1000pF 630V

T2_OR_CHINA

C3727

0.1uF

16V

FE_TS_VAL_ERR

GPIO must be added.

TU_SIF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

TUNER_EU 67

2014.04.24

+1.5V URSA DDR

LGE Internal Use Only

MAX 4.7A

URSA11 Core

+12V

L13401

BLM18PG121SN1D

C13412 10uF 16V

BLM18PG121SN1D

C13413

0.1uF

+3.3V_U_NORMAL

L13405

C13410

10uF

10V

IC13403

AZ1117EH-ADJTRG1

OUTIN

ADJ/GND

1.3A

+3.3V URSA

+3.3V_NORMAL

R13415

R13412

R13413

68K

C13414

100pF

50V

6.8K

1%

R2

R13414 22K 1%

C13415

1/1 6W

1uF 10V

R1

R13416 1K 1/16W 1%

R13417 220 1/16W 1%

R1

R2

+1.5V_U_DDR

L13406

CB2012PK501T

C13420

10uF

10V

C13421

22uF

10V OPT

C13422

22uF 10V

OPT

D13402

2.5V

+3.3V_U_NORMAL

R13425

10K

R13426

OPT

VDDC

2.5V

ZD13400

10K

C13400

22uF

C13401

22uF

C13402

0.1uF 16V

C13411 22uF

C13403 1000pF 50V

R13400 2K

1/16W 5%

L13403

1.0uH

R134010

R13402

3.3

R13403

1/10W

C13404 470pF 50V

5%

1%

1/1 6W

16V

0.1uF

C13405

4.7

R13404 10K

1%

27K

30V

1/1 6W

R13 405

PGOOD

VBST

NC_1

SW_1

SW_2

SW_3

SW_4

D13400

OPT

91K

R13 406

RF

1

2

EN

3

4

5

6

7

8

9

R13407 39K

1/16W 5%

[EP]

THERMAL

29

IC13402

TPS53513RVER

8A

10

PGND_111PGND_212PGND_313PGND_414PGND_5

R1

R13408

10K

1/16W

1%

VID_CTRL

TRIP26NC_327GND128GND2

24VO25

R2

R13409

FB

23

22

21

20

19

18

17

16

15

GND

MODE

VREG

VDD

NC_2

VIN_3

VIN_2

VIN_1

R13411

C13406 2200pF 50V

12K

4.7K

1%

20K

R13410

1%

C13407 1uF 10V

L13402

C13408 10uF 16V

+12V

C13409 10uF 16V

Vout=0.6*(1+R1/R2)

+3.3V_U_NORMAL

IC13401

C13416 2200pF 50V

EN

FB

VREG

SS

BD9D321EFJ

1

2

3

4

3A

10K

9

THERMAL

[EP]

VIN

8

7

6

5

BOOT

SW

GND

16V

0.1uF C13417

L13404

2.2uH

VLS5045EXT-2R2N

C13418

22uF

10V

C13419

22uF 10V

D13401

5V

VID_CTRL

R13593

100K

1/16W

1%

URSA11_VID

1%

20K

R13588

1/16W

URSA11_VID

D

Q13007 2N7002KA

URSA11_VID_FET_KEC(MULTI)

G

S

G

R13591

100K

1/16W

20K

R13587

1/16W

D

S

D

Q13007-*1 2N7002K URSA11_VID_FET_DIODES(MULTI)

S

VID_CTRL

D

Q13006-*1

G

2N7002K

URSA11_VID_FET_DIODES(MULTI) S

URSA11_VID

1%

URSA11_VID Q13006 2N7002KA URSA11_VID_FET_KEC(MULTI)

G

R13589 0

URSA11_VID

R13590 0

URSA11_VID

R1:10K/R2:16.7K, V=0.95V(VID0=L,VID1=L) R1:10K/R2:16.7K//120K, V=1.008V(VID0=H,VID1=L) R1:10K/R2:16.7K//120K, V=1.008V(VID0=L,VID1=H)

R1:10K/R2:16.7K//120K//120K, V=1.05V(VID0=H,VID1=H)

R13594

10K

+3.3V_U_NORMAL

OPT

R13418

10K

R13595

10K

OPT

R13419 10K

URSA11_VID

VID0

VID1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

URSA_DCDC

2014.04.24

134

5V_DET_HDMI_2

LGE Internal Use Only

URSA_RESET

XIN_URSA

XO_URSA

SDA2_+3.3V_URSA

SCL2_+3.3V_URSA

URSA_UART2_TX URSA_UART2_RX

URSA_UART1_TX

SPI_CZ SPI_CK SPI_DI SPI_DO

VID1 VID0

URSA_BIT3

AR1351

AR1352

R13517 0

R13503 0

OPT

URSA_UART1_RX

R13518 0

R13519

R13504 33

OPT

R13505 33

OPT

R13509 33

OPT

R13510 33

OPT

R13511 33

OPT

R13512 33

OPT

R13513 33

OPT

R13514 33

OPT

R13515 33

OPT

R13516 33

OPT

1

2

3

4

1

2

3

4

C1354 1uF 10V

OPT

R13572 470K OPT

+3.3V_U_NORMAL

R13576

URSA11_PQ_DEBUG

10K

0.1uF 16V

URSA11_PQ_DEBUG

+3.3V_U_NORMAL

R13573 10K

URSA11_SYS_DEBUG

C1355

0.1uF 16V

URSA11_SYS_DEBUG

URSA Reset

+3.3V_U_NORMAL

R13577 10K

R13578

R13506

R13582

33

URSA11_PQ_DEBUG

R13579

33

URSA11_PQ_DEBUG

R13580

33

URSA11_SYS_DEBUG

R13581

33

URSA11_SYS_DEBUG

URSA_RESET

URSA_RESET_SoC

0

URSA_RESET_READY

0

OPT

URSA_UART2_RX

URSA_UART2_TX

URSA_UART1_RX

URSA_UART1_TX

URSA11_PQ_DEBUG

IC1351-*1

IC119

LGE5352(URSA11)

AD26

PAD_RESET

AH4

PAD_XOUT

AH3

PAD_XIN

AE9

PAD_I2C_S_SDA

AD9

33

0

PAD_I2C_S_SCL

AD10

PAD_I2C_M_SDA

AE10

PAD_I2C_M_SCL/[VSYNC_LIKE_SP1]

E8

PAD_GPIO00/[UART2_TX]

F7

PAD_GPIO01/[UART2_RX]

E7

PAD_GPIO02/[UART1_TX]

F6

PAD_GPIO03/[CHIP_VDET]

AD27

PAD_SPI_CZ

AC27

PAD_SPI_CK

AC28

PAD_SPI_DI

AC26

PAD_SPI_DO

AE25

PAD_INTERUPT_R21

AD25

PAD_INTERUPT_R20

D7

PAD_IRE/[UART1_RX]

AC25

PAD_TESTPIN

AC9

GND_EFUSE

AC19

GPIO[09]

AD19

GPIO[08]

AC18

GPIO[07]

AE19

GPIO[06]

AD7

GPIO[64]

AE7

GPIO[65]

AC7

GPIO[66]

AD8

GPIO[67]

AC8

GPIO[63]

M4

GPIO[70]

M5

GPIO[72]

N4

GPIO[73]

N5

GPIO[71]

AE6

NC_1

AD6

NC_2

PAD_I2C_HSC_SDA/[VSYNC_LIKE_SPI2] PAD_I2C_HSC_SCL/[VSYNC_LIKE_SPI3]

PAD_SPI1_CK/GPIO58 PAD_SPI1_DI/GPIO59 PAD_SPI2_CK/GPIO56 PAD_SPI2_DI/GPIO57 PAD_SPI3_CK/GPIO54 PAD_SPI3_DI/GPIO55 PAD_SPI4_CK/GPIO52 PAD_SPI4_DI/GPIO53

PAD_VSYNC_LIKE/GPIO40

PAD_DIM00/GPIO32 PAD_DIM01/GPIO33 PAD_DIM02/GPIO34 PAD_DIM03/GPIO35 PAD_DIM04/GPIO36 PAD_DIM05/GPIO37 PAD_DIM06/GPIO38 PAD_DIM07/GPIO39

PAD_TCON0/STV2

PAD_TCON1/OE

PAD_TCON2/YV1C

PAD_TCON3/CPV

PAD_TCON4/STV1

PAD_TCON5/SFT PAD_TCON6/TPV PAD_TCON7/POL

PAD_TCON8/[VX1T_HTPDN]

PAD_TCON9/[VX1T_LOCKN] PAD_TCON10/[HDMI_R_DDC_CLK3] PAD_TCON11/[HDMI_R_DDC_DAT3]

PAD_TCON12/[HDMI_R_HP3]

PAD_TCON13/[HDMI_R_CEC3]

GPIO (RESERVED FOR U11)

U11 ONLY, NC FOR U11P

PAD_TCON14/[HDMI_T_CEC] PAD_TCON15/[HDMI_T_HPD]

PAD_GPIO12/[VX1_RX_HTPD_O] PAD_GPIO13/[VX1_RX_HTPD_V]

PAD_GPIO15/[VX1_RX_LOCK_O] PAD_GPIO16/[VX1_RX_LOCK_V]

PAD_GPIO04 PAD_GPIO05

PAD_GPIO10 PAD_GPIO11

PAD_GPIO14

PAD_GPIO17

GPIO[74] GPIO[75] GPIO[76] GPIO[69]

NC_3 NC_4 NC_5 NC_6 NC_7 NC_8

AD11 AC10

AC23 AD24 AD23 AC22 AE24 AE22 AD22 AC21

AC24

AE13 AD13 AC13 AE15 AC14 AD14 AD15 AC15

E4 D5 E6 E5 F5 F4 D6 D4

AC4 AD4 AA4 AB5 AB4 AA5 AD5 AE5

AD21 AD20 AC6 AC5 AB7 AB6 AE21 AC20 AE12 AD12 AD18 AC11 AC12 AE18

B1 AG1 AH2 AH27 B28 AG28

R13520 0

R13521 0

R13501

R13522 0

R13523 0

R13524 33

R13525 33

URSA_OPT_0 Div_BIT0 Div_BIT1 URSA_OPT_4 URSA_L/D_CK URSA_L/D_DI URSA_OPT_5 URSA_OPT_6

URSA_L/D_VSYNC

DIM0 DIM1 DIM2

URSA_OPT_1

URSA_BIT0 URSA_BIT1 URSA_BIT2

DDC_SCL_HDMI1

0

Data_Format_1 Data_Format_0 DDC_SCL_HDMI2

URSA_RX_Vx1_HTPDn

R13542 10K

R13543 10K

URSA_RX_Vx1_HTPDn

FLASH_WP_URSA

+3.3V_U_NORMAL

DDC_SDA_HDMI1

5V_DET_HDMI_1

DDC_SDA_HDMI2

R13585

100K

OPT R13540 10K

R13541 10K

R13586

100K

SPI Flash

SPI_CZ

SPI_DO

FLASH_WP_URSA

FRC_FLASH_WP

R13557 10K

URSA_TX_HTPD_pulldown

+3.3V_U_NORMAL

22

R13555

R13552 10K

OPT

R13556

220

E

Q1351

2N3906S-RTK

PNP_KEC(MULTI)

B

C

+3.3V_U_NORMAL

IC1351

MX25L3235E

CS

1

URSA_FLASH_MX(MULTI)

R13559

R13558

33

1K

SO/SIO1

WP/SIO2

2

3

OPT

R13562

HTPDAn

LOCKAn

LD1 351

SML -512 UW

1K

R13564

10K

OPT

GND

4

Clock for URSA11

C1351

8pF

50V

GND_1

2

C1352

8pF

50V

3

X-TAL_2

X-TAL_1

1

24MHz

4

GND_2

VCC

8

HOLD/SIO3

7

SCLK

6

SI/SIO0

5

X1351

R13568

1M

R1356910K

CS

DO[IO1]

WP[IO2]

GND

URSA_FLASH_WINDBOND(MULTI)

C1353

0.1uF 16V

XIN_URSA

XO_URSA

W25Q32FVSSIG

1

2

3

4

VCC

8

HOLD_OR_RESET[IO3]

7

CLK

6

DI[IO0]

5

SPI_CK

SPI_DI

SW1351

1 2

D1351

1N4148W

100V

OPT

P1352

12507WS-04L

URSA11_SYS_DEBUG

P1353

12507WS-04L

+3.3V_U_NORMAL

43

5 C1356

5

URSA Option

0/0 0/1 1/0 1/1

0/0/0 0/0/1 0/1/0 0/1/1 1/0/0

1/0/1

1/1/1

Module Division

Non Division

2 Division 4 Division 8 Division

Tx Lane

4K@120 (4DDR)

4k@60 (2DDR)

5k@120 (4DDR)

OLED 4K (4DDR)

FHD@120 (4DDR)

FHD@60 (2DDR)

FHD@60 (4DDR)1/1/0

4K@60Hz (4DDR)

BIT [1/0]

BIT [2/1/0]

* URSA_BIT3 : READY

URSA_OPT_6

URSA_OPT_5

URSA_OPT_4

Div_BIT0

Div_BIT1

URSA_OPT_0

URSA_OPT_1

URSA_BIT0

URSA_BIT1

URSA_BIT2

URSA_BIT3

Division Type

Rx Interface

E

Q1351-*1 MMBT3906(NXP)

PNP_NXP(MULTI)

B

C

+3.3V_U_NORMAL

LGD_Module

R13544 10K

URSA_RX_LVDS

URSA_RX_Vx1

OS_Module

R13545 10K

OPT

10K

R13547

10K

R13546

OPT

R13548 10K

URSA_BIT0_1

URSA_BIT1_1

URSA_BIT0_0

URSA_BIT1_0

R13549 10K

R13550 10K

R13551 10K

OPT

R13553 10K

R13502 10K

URSA_BIT2_1

OPT

URSA_BIT2_0

R13554 10K

R13507 10K

Chip Config

Debug/ISP ADDR Slave (Debug Port:0XB4,ISP:0X98) CHIP_CONF:{DIM2,DIM1,DIM0} CHIP_CONF=3’d7:111:boot from SPI Flash

+3.3V_U_NORMAL

OPT

10K

R13563

10K

R13561

10K

R13560

R13567

OPT

R13566

OPT

R13565

10K

DIM0

DIM1

DIM2

Debugging for URSA

I2C_S Port

P1351

12507WS-04L

URSA_DEBUG

5

WAFER-STRAIGHT

1

2

3

4

R13 571

URSA_DEBUG

R13 570

URSA_DEBUG

3

SCL2_+3.3V_DB

33

SDA2_+3.3V_DB

URSA_SCL

SCL2_+3.3V_URSA

SCL2_+3.3V_DB

R13574 0 URSA_MP

R13575 0

OPT

SW1352

JS2235S

1

2

URSA_DEBUG

3

6

5

4

R13583 0 URSA_MP

R13584 0

OPT

URSA_SDA

SDA2_+3.3V_URSA

SDA2_+3.3V_DB

10K

OPT

Release

R13530

R13526 10K

Debug

R1353110K

R1352710K

R1353210K

10K

R13533

Div_BIT1_1

Div_BIT0_1

R13534 10K

10K

Div_BIT1_0

R13535

Div_BIT0_0

R1353610K

10K

R13537

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

URSA11P

U_UART_GPITO

2014.

132

VDDC

LGE Internal Use Only

C136001 10uF 10V

C136002 10uF 10V

L1366 BLM18PG121SN1D

L1367 BLM18PG121SN1D

L1368 BLM18PG121SN1D

L1372 BLM18PG121SN1D

L1369 BLM18PG121SN1D

VDDC

AVDDL_MOD

AVDDL_DRV

DVDD_DDR

AVDDL_RX

AVDDL_HDMITX

C136099 10uF 10V

C136036 10uF 10V

OPT

C136033 10uF 10V OPT

C136012

0.1uF 16V

C136013

0.1uF 16V

C136014

0.1uF 16V

C136100 10uF 10V

C136010

0.1uF 16V

C136011

0.1uF 16V

C136025

0.1uF 16V

C136026

0.1uF 16V

C136027 10uF 10V

C136009 10uF 10V

C136023

0.1uF 16V

C136024

0.1uF 16V

C136034 10uF 10V

C136030 10uF 10V

C136104

0.1uF 16V

OPT

C136022 10uF 10V

C136043 10uF 10V

C136105

0.1uF 16V

OPT

C136056

0.1uF 16V

C136047

0.1uF 16V

C136032 10uF 10V

C136050

0.1uF 16V

Close to Chip side

AVDDL_DVI

L1370 BLM18PG121SN1D

C136015

+3.3V_U_NORMAL

L1361

BLM18PG121SN1D

L1362

BLM18PG121SN1D

L1363

BLM18PG121SN1D

L1364

BLM18PG121SN1D

L1365

BLM18PG121SN1D

AVDD_MOD

C136028

0.1uF

10uF

16V

10V

VDDP

C136031

C136021

C136005 10uF 10V

AVDD_PLL

C136004 10uF 10V

10uF 10V

C136016

0.1uF 16V

10uF 10V

Close to Chip side

C136029

C136017

C136003 10uF 10V

AVDD_DVI

C136006 10uF 10V

AVDD_HDMITX

C136007 10uF 10V

10uF 10V

C136018

0.1uF 16V

C136019

0.1uF 16V

10uF 10V

C136035

0.1uF 16V

C136101

0.1uF 16V

OPT

C136102

0.1uF 16V

OPT

C136044 1uF 10V

C136113

0.1uF 16V

C136041

0.1uF 16V

C136045

0.1uF 16V

C136106

0.1uF

16V

C136052

0.1uF 16V

Close to Chip side

4th Layer

C136048

0.1uF 16V

C136037

0.1uF 16V

OPT

Close to Chip side

C136038

0.1uF 16V

Close to Chip side

L1371

BLM18PG121SN1D

AVDD_ALLRX

C136008 10uF 10V

C136020

0.1uF 16V

C136103

0.1uF 16V

OPT

C136039

0.1uF 16V

Close to Chip side

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

C136042

C136049

0.1uF 16V

C136055

0.1uF 16V

C136063

0.1uF 16V

C136046

0.1uF 16V

1uF 10V

Close to Chip side

C136057

0.1uF 16V

C136064

0.1uF 16V

Close to Chip side

C136108

C136107

0.1uF

1uF

16V

10V

OPT

C136051

0.1uF 16V OPT

Close to Chip side

C136040

0.1uF 16V OPT

4th Layer

C136053

0.1uF 16V

Close to Chip side

C136058

C136062

0.1uF 16V

C136060

0.1uF 16V

4th Layer

C136067

0.1uF 16V

C136054

0.1uF 16V

C136066

0.1uF 16V

C136068

0.1uF 16V

C136061

0.1uF 16V

4th Layer

C136059

C136065

1uF

0.1uF

10V

16V

OPT

Close to Chip side

4th Layer

C136114

0.1uF 16V

4th Layer

Close to Chip side

C136109

0.1uF 16V

4th Layer

C136110 1uF 10V

+1.5V_U_DDR

C136072 10uF 10V

+1.5V_U_DDR

L1373

0

C136111 10uF 10V

C136073 10uF 10V

C136070

C136069

1uF

0.1uF 10V

16V

Close to Chip side

C136075

C136076

0.1uF

16V

C136077

0.1uF 16V

C136078

0.1uF 16V

10uF 10V

C136074 10uF 10V

C136071 10uF 10V

C136080

0.1uF 16V

C136079

0.1uF 16V

4th Layer

C136081

0.1uF 16V

C136112

0.1uF 16V

OPT

AVDD_15_MOD

C136082

0.1uF 16V

4th Layer

Close to Chip side

C136083

0.1uF 16V

C136084 0.1uF 16V

C136085 0.1uF 16V

C136086

0.1uF 16V

4th Layer

AVDDL_DVI

C136088

0.1uF 16V

AVDD_DVI

AVDD_PLL

C136087

0.1uF 16V

AVDD_ALLRX

+1.5V_U_DDR

C136089 0.47uF 6.3V

C136090 0.22uF 16V

C136091 0.47uF 6.3V

C136092 0.22uF 16V

C136093 0.22uF 16V

C136094 0.47uF 6.3V

C136095 0.22uF 16V

C136096 0.47uF 6.3V

AVDDL_RX

AVDDL_MOD

AVDDL_DRV

+1.5V_U_DDR

AVDD_15_MOD

AVDD_HDMITX

VDDC

AVDDL_HDMITX

DVDD_DDR

AVDD_MOD

VDDP

OPT

LGE5352(URSA11)

N7

VDDC_1

N8

VDDC_2

P7

VDDC_3

P8

VDDC_4

P9

VDDC_5

R5

VDDC_6

R6

VDDC_7

R7

VDDC_8

R8

VDDC_9

R9

VDDC_10

T5

VDDC_11

T6

VDDC_12

T7

VDDC_13

T8

VDDC_14

T9

VDDC_15

T10

VDDC_16

U4

VDDC_17

U5

VDDC_18

U6

VDDC_19

U7

VDDC_20

U8

VDDC_21

U9

VDDC_22

U10

VDDC_23

M3

AVDDL_HDMIRX_1

W6

AVDDL_HDMIRX_2

W7

AVDDL_HDMIRX_3

W8

AVDDL_HDMIRX_4

AB3

AVDDL_HDMITX_4

Y7

AVDDL_HDMITX_1

Y8

AVDDL_HDMITX_2

Y9

AVDDL_HDMITX_3

W9

AVDDL_LVDSRX/AVDDL_VBY1RX_1

W10

AVDDL_LVDSRX/AVDDL_VBY1RX_2

Y10

AVDDL_LVDSRX/AVDDL_VBY1RX_3

J8

AVDDL_MOD_1

J9

AVDDL_MOD_2

J10

AVDDL_MOD_3

K8

AVDDL_MOD_4

K9

AVDDL_MOD_5

K10

AVDDL_PREDRV_1

L8

AVDDL_PREDRV_2

L9

AVDDL_PREDRV_3

L10

AVDDL_PREDRV_4

M10

AVDDL_PREDRV_5

T16

DVDD_DDR_1

U16

DVDD_DDR_3

U17

DVDD_DDR_4

T17

DVDD_DDR_2

P15

AVDD_DDR0_1

P16

AVDD_DDR0_2

P17

AVDD_DDR0_3

R15

AVDD_DDR0_4

R16

AVDD_DDR0_5

R17

AVDD_DDR0_6

P19

AVDD_DDR1_1

P20

AVDD_DDR1_2

R19

AVDD_DDR1_3

R20

AVDD_DDR1_4

T19

AVDD_DDR1_5

T20

AVDD_DDR1_6

J12

AVDD_15_MOD_1

K12

AVDD_15_MOD_2

L12

AVDD_15_MOD_3

M12

AVDD_15_MOD_4

Y14

AVDD_MOD_1

Y15

AVDD_MOD_2

AA14

AVDD_MOD_3

AA15

AVDD_MOD_4

W20

VDDP_1

Y20

VDDP_2

AA20

VDDP_3

AC3

AVDD_HDMITX_1

Y13

AVDD_HDMITX_2

AA13

AVDD_HDMITX_3

P3

AVDD_HDMIRX_1

W12

AVDD_HDMIRX_2

Y12

AVDD_HDMIRX_3

AA12

AVDD_HDMIRX_4

AA19

AVDD_XTAL

W19

AVDD_PLL_1

Y19

AVDD_PLL_2

Y16

AVDD_LVDSRX/AVDD_VBY1RX_1

AA16

AVDD_LVDSRX/AVDD_VBY1RX_2

AA17

AVDD_LVDSRX/AVDD_VBY1RX_3

A18

AVDD_DDR_VBP_A_1

B18

AVDD_DDR_VBP_A_2

R13

AVDD_DDR_VBP_A_3

R14

AVDD_DDR_VBP_A_4

A16

AVDD_DDR_VBN_A_1

B16

AVDD_DDR_VBN_A_2

P13

AVDD_DDR_VBN_A_3

P14

AVDD_DDR_VBN_A_4

U18

AVDD_DDR_VBP_B_1

U19

AVDD_DDR_VBP_B_2

Y27

AVDD_DDR_VBP_B_3

Y28

AVDD_DDR_VBP_B_4

V18

AVDD_DDR_VBN_B_1

V19

AVDD_DDR_VBN_B_2

AB27

AVDD_DDR_VBN_B_3

AB28

AVDD_DDR_VBN_B_4

IC119

NC FOR U11P

U11 ONLY

U11 MIU POWER ONLY

U11P MIU

POWER ONLY

GND_1 GND_2 GND_3 GND_4 GND_5 GND_6 GND_7 GND_8

GND_9 GND_10 GND_11 GND_12 GND_13 GND_14

GND_15 GND_16 GND_17 GND_18 GND_19 GND_20 GND_21 GND_22 GND_23 GND_24

GND_25

GND_26 GND_27 GND_28

GND_29 GND_30

GND_31

GND_32 GND_33 GND_34

GND_35 GND_36 GND_37 GND_38 GND_39 GND_40

GND_41 GND_42 GND_43 GND_44 GND_45 GND_46 GND_47 GND_48

GND_49 GND_50 GND_51 GND_52 GND_53 GND_54 GND_55

GND_56 GND_57 GND_58 GND_59 GND_60 GND_61 GND_62 GND_63

GND_64 GND_65 GND_66 GND_67 GND_68 GND_69 GND_70 GND_71 GND_72

DRAM_VDD_A_1 DRAM_VDD_A_2

DRAM_VDD_B_1 DRAM_VDD_B_2

H1 K1 A2 B2 G2 J2 L2 N2 P2 W2 Y2 AB2 AC2 AG2

D3 E3 F3 T3 U3 V3 Y3 AE3 AF3 AG3

C4

P4 R4 T4

V4 W4

AG4

P5 V5 W5

B6 K6 M6 N6 P6 V6

A7 G7 H7 J7 K7 L7 M7 V7

B8 G8 H8 M8 V8 AA8 AB8

A9 G9 H9 M9 N9 V9 AA9 AB9

B10 G10 H10 N10 P10 R10 V10 AA10 AB10

+1.5V_U_DDR

C136097 0.1uF 16V

A20 B20

R136001

OPT

0

C136098 0.1uF 16V

A26 B26

Close to Chip

IC119

LGE5352(URSA11)

C11

GND_73

G11

GND_74

H11

GND_75

J11

GND_76

K11

GND_77

L11

GND_78

M11

GND_79

N11

GND_80

P11

GND_81

R11

GND_82

T11

GND_83

U11

GND_84

V11

GND_85

W11

GND_86

Y11

GND_87

AA11

GND_88

AB11

GND_89

C12

GND_90

G12

GND_91

H12

GND_92

N12

GND_93

P12

GND_94

R12

GND_95

T12

GND_96

U12

GND_97

V12

GND_98

AB12

GND_99

C13

GND_100

D13

GND_101

E13

GND_102

F13

GND_103

G13

GND_104

H13

GND_105

J13

GND_106

K13

GND_107

L13

GND_108

M13

GND_109

N13

GND_110

T13

GND_111

U13

GND_112

V13

GND_113

W13

GND_114

AB13

GND_115

D14

GND_116

E14

GND_117

F14

GND_118

G14

GND_119

H14

GND_120

J14

GND_121

K14

GND_122

L14

GND_123

M14

GND_124

N14

GND_125

T14

GND_126

U14

GND_127

V14

GND_128

W14

GND_129

AB14

GND_130

B15

GND_131

D15

GND_132

E15

GND_133

F15

GND_134

G15

GND_135

H15

GND_136

J15

GND_137

K15

GND_138

L15

GND_139

M15

GND_140

N15

GND_141

T15

GND_142

U15

GND_143

V15

GND_144

W15

GND_145

AB15

GND_146

AF15

GND_147

C16

GND_148

D16

GND_149

E16

GND_150

F16

GND_151

G16

GND_152

H16

GND_153

J16

GND_154

K16

GND_155

L16

GND_156

M16

GND_157

N16

GND_158

V16

GND_159

W16

GND_160

AB16

GND_161

AC16

GND_162

AD16

GND_163

AE16

GND_164

B17

GND_165

C17

GND_166

D17

GND_167

E17

GND_168

F17

GND_169

G17

GND_170

H17

GND_171

J17

GND_172

K17

GND_173

L17

GND_174

M17

GND_175

N17

GND_176

V17

GND_177

W17

GND_178

Y17

GND_179

AB17

GND_180

AC17

GND_181

AD17

GND_182

AG17

GND_183

OPT

C18

GND_184

D18

GND_185

E18

GND_186

F18

GND_187

G18

GND_188

H18

GND_189

J18

GND_190

K18

GND_191

L18

GND_192

M18

GND_193

N18

GND_194

W18

GND_195

Y18

GND_196

AA18

GND_197

AB18

GND_198

U_Power

GND_199 GND_200 GND_201 GND_202 GND_203 GND_204 GND_205 GND_206 GND_207 GND_208 GND_209 GND_210 GND_211

GND_212 GND_213 GND_214 GND_215 GND_216 GND_217 GND_218 GND_219 GND_220 GND_221 GND_222

GND_223 GND_224 GND_225

GND_226 GND_227 GND_228 GND_229 GND_230 GND_231 GND_232 GND_233 GND_234 GND_235 GND_236 GND_237 GND_238 GND_239 GND_240 GND_241 GND_242 GND_243 GND_244 GND_245 GND_246 GND_247 GND_248

GND_249 GND_250 GND_251 GND_252 GND_253 GND_254 GND_255 GND_256 GND_257 GND_258 GND_259 GND_260 GND_261 GND_262 GND_263 GND_264 GND_265 GND_266 GND_267 GND_268 GND_269 GND_270

GND_271 GND_272 GND_273 GND_274 GND_275 GND_276 GND_277 GND_278 GND_279 GND_280

GND_281 GND_282 GND_283 GND_284 GND_285 GND_286 GND_287

GND_288 GND_289 GND_290 GND_291 GND_292 GND_293 GND_294 GND_295 GND_296

GND_297 GND_298 GND_299 GND_300 GND_301 GND_302 GND_303

GND_304 GND_305 GND_306 GND_307 GND_308 GND_309 GND_310 GND_311 GND_312

C19 D19 E19 F19 G19 H19 J19 K19 L19 M19 N19 AB19 AH19

C20 D20 E20 F20 G20 H20 J20 K20 L20 M20 N20

U20 V20 AB20

A21 B21 C21 D21 E21 F21 G21 H21 J21 K21 L21 M21 N21 P21 R21 T21 U21 V21 W21 Y21 AA21 AB21 AG21

A22 B22 C22 D22 E22 F22 G22 H22 J22 K22 L22 M22 N22 P22 R22 T22 U22 V22 W22 Y22 AA22 AB22

A23 B23 C23 D23 E23 F23 Y23 AA23 AB23 AH23

A24 B24 C24 D24 Y24 AA24 AB24

C25 J25 M25 R25 V25 Y25 AA25 AB25 AG25

C26 E26 W26 Y26 AA26 AB26 AE26

A27 B27 C27 AA27 AG27 J28 M28 R28 V28

133

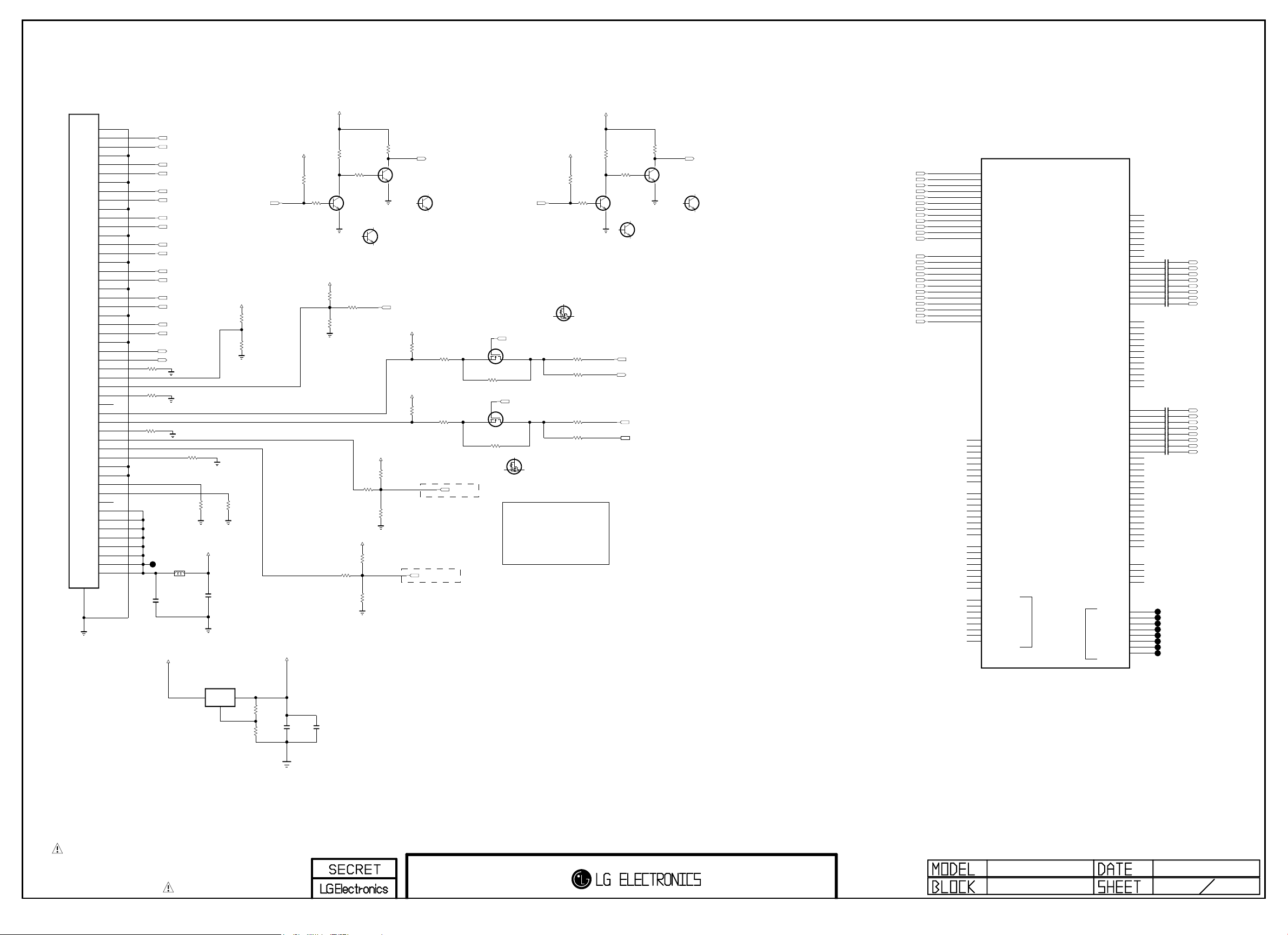

[51P Vx1

LGE Internal Use Only

output wafer]

P13000

SP14-11592-01-51Pin

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

.

+3.3V_U_NORMAL

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

R13011 0

Non_INX_Module

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

R13033 10K

R13006 10K

TXDAP7_L

TXDAN7_L

TXDAP6_L

TXDAN6_L

TXDAP5_L

TXDAN5_L

TXDAP4_L

TXDAN4_L

TXDAP3_L

TXDAN3_L

TXDAP2_L

TXDAN2_L

TXDAP1_L

TXDAN1_L

TXDAP0_L

TXDAN0_L

LOCKn_IN

HTPDn_IN

OPT

L13000

MLB-201209-0120P-N2

C13032 10uF 16V

+3.3V_U_NORMAL

*Pin31(BIT_SEL) HIGH or NC : 10Bit LOW : 8Bit

R13005 0

LGD_120Hz

R13009 0

PANEL_VCC

C13033 10uF 16V

B

C

Q13031-*1

B

MMBT3904(NXP) NPN_NXP(MULTI)

E

+3.3V_U_NORMAL

R13044 10K OPT

R13045 10K

R13040 10K

OPT

R13041 10K

LGD_120Hz

R13039 10K

C

Q13032 2N3904S

E

L_DIM_EN

LGD_120Hz

LOCKAn HTPDAn

NPN_KEC(MULTI)

C

Q13032-*1

B

MMBT3904(NXP) NPN_NXP(MULTI)

E

L/D_EN(Pin30)

- T-Con L/D Function HIGH : Enable LOW or NC : Disable *LGD_120Hz: T240 module (UB98/95,D9)

+3.3V_U_NORMAL

R13018

4.7K OPT

R13013 0

+3.3V_U_NORMAL

R13019

4.7K OPT

R13012 0

Data_Format_0

Q13004

2N7002KA

TCON_I2C_FET_KEC(MULTI)

Q13005

2N7002KA

TCON_I2C_FET_KEC(MULTI)

Data_Format_1

+1.8V

R13031 10K

LOCKn_IN HTPDn_IN

R13003 10K OPT

R13004 10K

LGD/BOE_Module

*Pin35(PCID) High:PCID enable Low or NC : PCID diable

R13010 0

R13032 100

B

+3.3V_U_NORMAL

R13035 10K

C

Q13031 2N3904S

NPN_KEC(MULTI)

E

R13034 10K OPT

R13037 0

LGD_Module

R13007

10K

LGD_Module

+3.3V_U_NORMAL

R13015 0

LGD_120Hz

R13038

10K

R13016 0

LGD_120Hz

+1.8V

TCON_I2C_FET_DIODES(MULTI)

TCON_I2C_EN

G

D

S

R13055

OPT

33

TCON_I2C_EN

G

D

S

R13059

OPT

33

G

S

D

Q13005-*1

2N7002K

TCON_I2C_FET_DIODES(MULTI)

Data Input Format[1:0]

*Mode 3 (4 Division)

- Data Format 0(Pin37) = Low Data Format 1(Pin36) = High

*Mode 2 (2 Division)

- Data Format 0(Pin37) = High Data Format 1(Pin36) = Low

+1.8V

G

S

Q13004-*1

2N7002K

R13061 0

R1503 0

TCON_I2C

R13062 0

R1506 0

TCON_I2C

R13043 10K

R13046 100

D

OPT

+3.3V_U_NORMAL

R13047 10K

C

Q13033

B

2N3904S

NPN_KEC(MULTI)

E

R13048

B

10K

C

Q13033-*1 MMBT3904(NXP)

NPN_NXP(MULTI)

E

URSA_SCL

IR_SCL

URSA_SDA

IR_SDA

B

R13049 10K

C

Q13034 2N3904S

NPN_KEC(MULTI)

E

B

C

Q13034-*1 MMBT3904(NXP)

NPN_NXP(MULTI)

E

RXB0RXB0+ RXB1RXB1+ RXB2-

RXB2+ RXBCKRXBCK+

RXB3-

RXB3+

RXB4-

RXB4+

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACKRXACK+

RXA3-

RXA3+

RXA4-

RXA4+

AH5

PAD_RA0N

AG5

PAD_RA0P

AF5

PAD_RA1N

AG6

PAD_RA1P

AF6

PAD_RA2N

AG7

PAD_RA2P

AH7

PAD_RACKN

AF7

PAD_RACKP

AH8

PAD_RA3N

AG8

PAD_RA3P

AF8

PAD_RA4N

AG9

PAD_RA4P

AF9

PAD_RB0N

AG10

PAD_RB0P

AH10

PAD_RB1N

AF10

PAD_RB1P

AH11

PAD_RB2N

AG11

PAD_RB2P

AF11

PAD_RBCKN

AG12

PAD_RBCKP

AF12

PAD_RB3N

AG13

PAD_RB3P

AH13

PAD_RB4N

AF13

PAD_RB4P

AH14

PADA_VBY1_RXM[0]

AG14

PADA_VBY1_RXP[0]

AF14

PADA_VBY1_RXM[1]

AG15

PADA_VBY1_RXP[1]

AG16

PADA_VBY1_RXM[2]

AH16

PADA_VBY1_RXP[2]

AF16

PADA_VBY1_RXM[3]

AH17

PADA_VBY1_RXP[3]

AF17

PADA_VBY1_RXM[4]

AG18

PADA_VBY1_RXP[4]

AF18

PADA_VBY1_RXM[5]

AG19

PADA_VBY1_RXP[5]

AF19

PADA_VBY1_RXM[6]

AH20

PADA_VBY1_RXP[6]

AG20

PADA_VBY1_RXM[7]

AF20

PADA_VBY1_RXP[7]

AF21

PADA_VBY1_RXM[8]

AG22

PADA_VBY1_RXP[8]

AH22

PADA_VBY1_RXM[9]

AF22

PADA_VBY1_RXP[9]

AG23

PADA_VBY1_RXM[10]

AF23

PADA_VBY1_RXP[10]

AG24

PADA_VBY1_RXM[11]

AF24

PADA_VBY1_RXP[11]

AH25

PADA_VBY1_RXM[12]

AF25

PADA_VBY1_RXP[12]

AG26

PADA_VBY1_RXM[13]

AF26

PADA_VBY1_RXP[13]

AF27

PADA_VBY1_RXM[14]

AF28

PADA_VBY1_RXP[14]

AE27

PADA_VBY1_RXM[15]

AE28

PADA_VBY1_RXP[15]

IC119

LGE5352(URSA11)

U11 ONLY, NC FOR U11P

PAD_A0P/VBY0PAD_A0M/VBY0+ PAD_A1P/VBY1PAD_A1M/VBY1+ PAD_A2P/VBY2-

PAD_A2M/VBY2+ PAD_ACKP/VBY3PAD_ACKM/VBY3+

PAD_A3P/VBY4-

PAD_A3M/VBY4+

PAD_A4P/VBY5-

PAD_A4M/VBY5+

PAD_B0P/VBY6-

PAD_B0M/VBY6+

PAD_B1P/VBY7-

PAD_B1M/VBY7+

PAD_MOD_GPIO0

PAD_MOD_GPIO1

PAD_B2P

PAD_B2M PAD_BCKP PAD_BCKM

PAD_B3P

PAD_B3M

PAD_B4P

PAD_B4M

PAD_C0P

PAD_C0M

PAD_E0P/VBY8PAD_E0M/VBY8+ PAD_E1P/VBY9-

PAD_E1M/VBY9+ PAD_E2P/VBY10PAD_E2M/VBY10+

PAD_ECKP/VBY11PAD_ECKM/VBY11+

PAD_E3P/VBY12PAD_E3M/VBY12+ PAD_E4P/VBY13PAD_E4M/VBY13+ PAD_F0P/VBY14PAD_F0M/VBY14+ PAD_F1P/VBY15PAD_F1M/VBY15+

PAD_MOD_GPIO8/VBY16PAD_MOD_GPIO9/VBY16+

PAD_F2P/VBY17PAD_F2M/VBY17+

PAD_FCKP/VBY18PAD_FCKM/VBY18+

PAD_F3P/VBY19PAD_F3M/VBY19+

PAD_F4P PAD_F4M PAD_G0P PAD_G0M

RESERVED FOR U11P TEST

PAD_E0P/[TEST] PAD_E0M/[TEST]

PAD_E1P PAD_E1M

PAD_E2P/[TEST]

PAD_E2M

PAD_ECKP/[TEST]

PAD_ECKM

L1 L3 K2 K3 J3 H2 H3 G1 G3 F2 E2 E1 D1 D2 C2 C3

K5 K4 L5 L6 J6 H6 J5 J4 G5 G4 H5 G6

B3 A3 A4 B4 B5 C5 A6 C6 B7 C7 C8 B9 C9 A10 C10 B11 B12 A12 A13 B13 B14 C14 A15 C15

E9 D9 F8 F9

F10 E11 E10 D10 E12 D12 F11 F12

C130080.1uF C130090.1uF C130100.1uF C130110.1uF C130120.1uF C130130.1uF C130140.1uF C130150.1uF

C130160.1uF C130170.1uF C130180.1uF C130190.1uF C130200.1uF C130210.1uF C130220.1uF C130230.1uF

TXDAN0_L TXDAP0_L TXDAN1_L TXDAP1_L TXDAN2_L TXDAP2_L TXDAN3_L TXDAP3_L

TXDAN4_L TXDAP4_L TXDAN5_L TXDAP5_L TXDAN6_L TXDAP6_L TXDAN7_L TXDAP7_L

IC13000

AZ1117EH-ADJTRG1

ADJ/GND

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

OUTIN

75

R13036

33

R13042

C13034 10uF 10V

C13035 10uF 10V

2014.04.24 130

LGE5352(URSA11)

LGE Internal Use Only

IC119

A-MVREFDQ_U

1%

PAD_IO[78]/B-A0/[CD-A0] PAD_IO[89]/B-A1/[CD-A1] PAD_IO[80]/B-A2/[CD-A2] PAD_IO[75]/B-A3/[CD-A3] PAD_IO[86]/B-A4/[CD-A4] PAD_IO[74]/B-A5/[CD-A5] PAD_IO[96]/B-A6/[CD-A6] PAD_IO[87]/B-A7/[CD-A7] PAD_IO[92]/B-A8/[CD-A8]

PAD_IO[73]/B-A9/[CD-A9] PAD_IO[90]/B-A10/[CD-A10] PAD_IO[83]/B-A11/[CD-A11] PAD_IO[84]/B-A12/[CD-A12] PAD_IO[77]/B-A13/[CD-A13] PAD_IO[82]/B-A14/[CD-A14] PAD_IO[88]/B-A15/[CD-A15] PAD_IO[85]/B-BA0/[CD-BA0] PAD_IO[93]/B-BA1/[CD-BA1] PAD_IO[81]/B-BA2/[CD-BA2]

PAD_IO[97]/B-RASZ/[CD-RASZ] PAD_IO[94]/B-CASZ/[CD-CASZ]

PAD_IO[79]/B-WEZ/[CD-WEZ] PAD_IO[95]/B-ODT/[CD-ODT] PAD_IO[91]/B-CKE/[CD-CKE] PAD_IO[76]/B-RST/[CD-RST]

PAD_IO[101]/B-MCLK/[CD-MCLK]

PAD_IO[100]/B-MCLKZ/[CD-MCLKZ]

PAD_IO[99]/B-CSB1/[C-CSB1] PAD_IO[98]/B-CSB2/[D-CSB2]

PAD_IO[121]/B-DQ[0]/[C-DQL0] PAD_IO[103]/B-DQ[1]/[C-DQL1] PAD_IO[120]/B-DQ[2]/[C-DQL2] PAD_IO[104]/B-DQ[3]/[C-DQL3] PAD_IO[123]/B-DQ[4]/[C-DQL4] PAD_IO[102]/B-DQ[5]/[C-DQL5] PAD_IO[122]/B-DQ[6]/[C-DQL6] PAD_IO[105]/B-DQ[7]/[C-DQL7] PAD_IO[110]/B-DQ[8]/[C-DQU0]

PAD_IO[117]/B-DQ[9]/[C-DQU1] PAD_IO[107]/B-DQ[10]/[C-DQU2] PAD_IO[119]/B-DQ[11]/[C-DQU3] PAD_IO[111]/B-DQ[12]/[C-DQU4] PAD_IO[118]/B-DQ[13]/[C-DQU5] PAD_IO[109]/B-DQ[14]/[C-DQU6] PAD_IO[116]/B-DQ[15]/[C-DQU7]

PAD_IO[106]/B-DQM[0]/[C-DML]

PAD_IO[108]/B-DQM[1]/[C-DMU]

B19

A19

DRAM_VREF_A

DRAM_ZQ_A

R1381240

PAD_IO[115]/B-DQS[0]/[C-DQSL]

PAD_IO[114]/B-DQSB[0]/[C-DQSLB]

PAD_IO[113]/B-DQS[1]/[C-DQSU]

PAD_IO[112]/B-DQSB[1]/[C-DQSUB]

MIU1 (U11 ONLY)

PAD_IO[143]/B-DQ[16]/[D-DQL0] PAD_IO[126]/B-DQ[17]/[D-DQL1] PAD_IO[142]/B-DQ[18]/[D-DQL2] PAD_IO[127]/B-DQ[19]/[D-DQL3] PAD_IO[144]/B-DQ[20]/[D-DQL4] PAD_IO[125]/B-DQ[21]/[D-DQL5] PAD_IO[145]/B-DQ[22]/[D-DQL6] PAD_IO[124]/B-DQ[23]/[D-DQL7] PAD_IO[129]/B-DQ[24]/[D-DQU0] PAD_IO[141]/B-DQ[25]/[D-DQU1]

PAD_IO[139]_/B-DQ[26]/[D-DQU2]

PAD_IO[138]/B-DQ[27]/[D-DQU3]

NPAD_IO[130]/B-DQ[28]/[D-DQU4]

PAD_IO[133]/B-DQ[29]/[D-DQU5] PAD_IO[132]/B-DQ[30]/[D-DQU6] PAD_IO[140]/B-DQ[31]/[D-DQU7]

PAD_IO[128]/B-DQM[2]/[D-DML]

PAD_IO[131]/B-DQM[3]/[D-DMU]

PAD_IO[137]/B-DQS[2]/[D-DQSL]

PAD_IO[136]/B-DQSB[2]/[D-DQSLB]

PAD_IO[135]/B-DQS[3]/[D-DQSU]

PAD_IO[134]/B-DQSB[3]/[D-DQSUB]

E24 G27 F25 G23 G26 F24 G28 E27 F28 D26 H26 F26 H25 D27 F27 J24 H24 H27 G24

K24 K23 H23 J23 J27 D28 K28 J26 D25 C28

N27 L26 N26 L27 P26 K27 P27 K26 L23 P25 L24 P23 M24 R24 L25 P24 M27 N24

N28 M26 N23 M23

V27 T27 V26 T28 W27 R27 W28 R26 U24 W23 R23 W25 T24 W24 T23 V23 T26 U23

U26 U27 V24 U25

B-MVREFDQ_U

+1.5V_U_DDR

R1383 1K 1%

R1384 1K 1%

+1.5V_U_DDR

R1385 1K 1%

OPT

R1386 1K 1%

OPT

A-MVREFDQ_U

C13801

0.1uF

B-MVREFDQ_U

C13802

0.1uF OPT

C13803

1000pF

C13804 1000pF OPT

+1.5V_U_DDR

OPT C13805

0.1uF

OPT

C13808

0.1uF

OPT C13811

0.1uF

OPT C13813

0.1uF

OPT C13815

0.1uF

Close to DDR POWER PIN

+1.5V_U_DDR

OPT C13806

0.1uF

OPT

C13809

0.1uF

OPT C13812

0.1uF

OPT C13814

0.1uF

OPT C13816

0.1uF

Close to DDR POWER PIN

+1.5V_U_DDR

OPT C13807

0.1uF

OPT

C13810

0.1uF

Close to DDR POWER PIN

OPT C13817

0.1uF

OPT C13818

0.1uF

OPT C13819

0.1uF

OPT C13820

0.1uF

OPT C13821

0.1uF

OPT C13822

0.1uF

OPT

C13823

0.1uF

OPT C13824

0.1uF

OPT C13825

0.1uF

OPT C13826

0.1uF

DRAM_VREF_B

DRAM_ZQ_B

B25

A25

R1382 240

1%

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

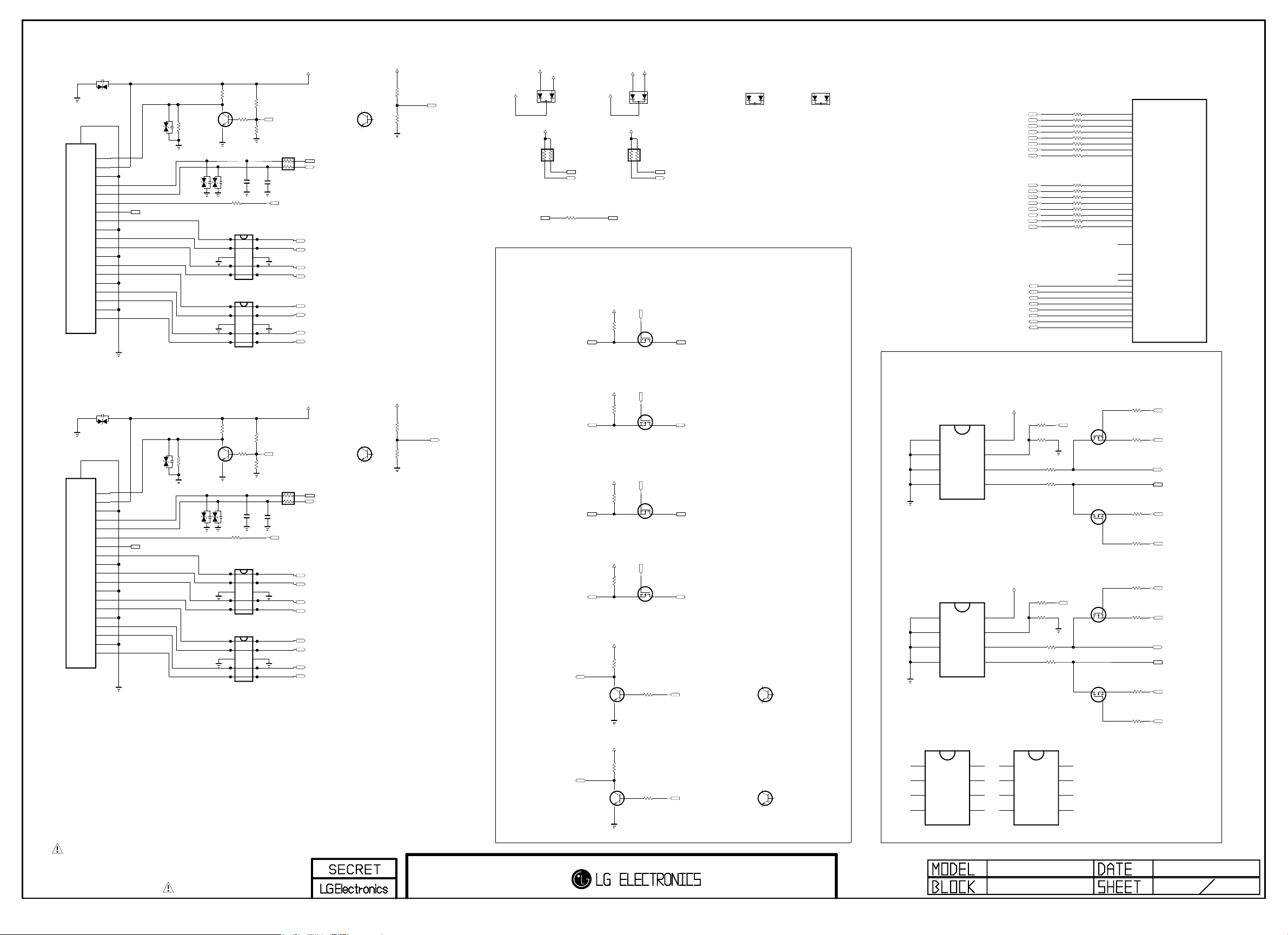

SHIELD

LGE Internal Use Only

SHIELD

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

YKF45-7058V

JK1391

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

YKF45-7058V

JK1392

D1397

OPT

HPD

+5V_POWER

DDC/CEC_GND

SDA

SCL

NC

CEC

CLK-

CLK_SHIELD

CLK+

DATA0-

DATA0_SHIELD

DATA0+

DATA1-

DATA1_SHIELD

DATA1+

DATA2-

DATA2_SHIELD

DATA2+

D1398

OPT

HPD

+5V_POWER

DDC/CEC_GND

SDA

SCL

NC

CEC

CLK-

CLK_SHIELD

CLK+

DATA0-

DATA0_SHIELD

DATA0+

DATA1-

DATA1_SHIELD

DATA1+

DATA2-

DATA2_SHIELD

DATA2+

D1399

OPT

CEC_REMOTE

D1400

OPT

CEC_REMOTE

R1391 100K

D1401

R1392 100K

D1402

OPT

Q1391

2N3904S

Q1392

2N3904S

R1393

1K

C

R1395 1K

B

E

NPN_KEC(MULTI)

D1403 OPT

R1397 0

OPT

D1391 IP4294CZ10-TBR

1 2 3

OPT

4 5

D1392 IP4294CZ10-TBR

1 2 3

OPT

4 5

R1394

1K

C

R1396 1K

B

E

NPN_KEC(MULTI)

D1404 OPT

R1398

0

OPT

D1393 IP4294CZ10-TBR

1 2 3

OPT

4 5

D1394 IP4294CZ10-TBR

1 2 3

OPT

4 5

C1391

0.1uF

OPT

C1392

0.1uF

OPT

5V_HDMI_1

R1399

4.7K

HDMI_HPD_1

R1400

4.7K OPT

AR1391 33 1/16W

C1393

0.1uF OPT

HDMI_ARC

10 9 8 7 6

MMBT3904(NXP)

NPN_NXP(MULTI)

DDC_SDA_HDMI1_JACK

DDC_SCL_HDMI1_JACK

HDMI1_CLK-

HDMI1_CLK+

HDMI1_RX0-

HDMI1_RX0+

HDMI1_RX1-

HDMI1_RX1+

HDMI1_RX2-

HDMI1_RX2+

Q1391-*1

C

E

5V_HDMI_1

R1403

1.8K

B

R1404

3.3K

5V_DET_HDMI_1

+5V_NORMAL

5V_HDMI_1

+5V_DDC_1 +5V_DDC_2

CEC_REMOTE

A2CA1

KDS184

D1395

DDC_DIODE_KEC(MULTI)

+5V_DDC_1 +5V_DDC_2

AR1393

3.3K

1/16W

R1407 100

5V_HDMI_2

+5V_NORMAL

A1

C

DDC_DIODE_KEC(MULTI)

AR1394

3.3K

DDC_SDA_HDMI1 DDC_SCL_HDMI1 DDC_SCL_HDMI2

1/16W

CEC_REMOTE_S7

During EDID downloading disconnect Jack DDC

R1438 47K

DDC1_EN

G

S

Q1399

2N7002KA

+5V_DDC_1

DDC_SDA_HDMI1_JACK

A2

KDS184 D1396

DDC_SDA_HDMI2

D

DDC_SDA_HDMI1

A2CA1 MMBD6100

DDC_DIODE_SUZHOU(MULTI)

D1395-*1

A1

A2

MMBD6100 D1396-*1

C

DDC_DIODE_SUZHOU(MULTI)

HDMI2_CLK+ HDMI2_CLKHDMI2_RX0+ HDMI2_RX0HDMI2_RX1+ HDMI2_RX1HDMI2_RX2+ HDMI2_RX2-

HDMI1_CLK+ HDMI1_CLKHDMI1_RX0+ HDMI1_RX0HDMI1_RX1+ HDMI1_RX1HDMI1_RX2+ HDMI1_RX2-

HDMI_RX2-

HDMI_RX2+ HDMI_RX1HDMI_RX1+ HDMI_RX0HDMI_RX0+ HDMI_CLKHDMI_CLK+

R1416 R1417 R1418 R1419 R1420 R1421 R1422 R1423

R1424 R1425 R1426 R1427 R1428 R1429 R1446 R1447

IC119

LGE5352(URSA11)

N3

PAD_RXCP_P0

2.2

M2

PAD_RXCN_P0

P1

PAD_RX0P_P0

N1

PAD_RX0N_P0

R2

PAD_RX1P_P0

R3

PAD_RX1N_P0

T1

PAD_RX2P_P0

T2

PAD_RX2N_P0

U2

PAD_RXCP_P1

U1

PAD_RXCN_P1

W3

PAD_RX0P_P1

V2

PAD_RX0N_P1

Y1

PAD_RX1P_P1

W1

PAD_RX1N_P1

AA2

PAD_RX2P_P1

AA3

PAD_RX2N_P1

AA6

NC_9

AF4

PAD_HDMI_SCL_P0/[TX]

AE4

PAD_HDMI_SDA_P0/[TX]

AC1

PAD_TXCP_P0

AB1

PAD_TXCN_P0

AD2

PAD_TX0P_P0

AD3

PAD_TX0N_P0

AE1

PAD_TX1P_P0

AE2

PAD_TX1N_P0

AF2

PAD_TX2P_P0

AF1

PAD_TX2N_P0

During EDID downloading

R1439 47K

R1440 47K

R1441 47K

R1442 1K

C

B

E

NPN_KEC(MULTI)

R1443 1K

C

B

E

NPN_KEC(MULTI)

DDC1_EN

G

S

Q1400

2N7002KA

DDC2_EN

G

S

Q1401

2N7002KA

DDC2_EN

G

S

Q1402

2N7002KA

R1444 10K

R1445 10K

DDC_SCL_HDMI1

D

DDC_SDA_HDMI2

D

DDC_SCL_HDMI2

D

C

DDC_DL_EN

Q1397-*1

MMBT3904(NXP)

NPN_NXP(MULTI)

Q1398-*1

MMBT3904(NXP)

NPN_NXP(MULTI)

B

E

C

B

E

Q1397

2N3904S

Q1398

2N3904S

+5V_DDC_1

+5V_DDC_2

+5V_DDC_1

+5V_DDC_2

5V_HDMI_2

R1401

4.7K

HDMI_HPD_2

R1402

4.7K OPT

AR1392 33 1/16W

C1394

0.1uF OPT

HDMI_ARC

10 9 8 7 6

MMBT3904(NXP)

NPN_NXP(MULTI)

DDC_SDA_HDMI2_JACK

DDC_SCL_HDMI2_JACK

HDMI2_CLK-

HDMI2_CLK+

HDMI2_RX0-

HDMI2_RX0+

HDMI2_RX1-

HDMI2_RX1+

HDMI2_RX2-

HDMI2_RX2+

Q1392-*1

C

E

5V_HDMI_2

R1405

1.8K

B

R1406

3.3K

5V_DET_HDMI_2

DDC_SCL_HDMI1_JACK

DDC_SDA_HDMI2_JACK

DDC_SCL_HDMI2_JACK

DDC1_EN

DDC2_EN

connect DDC to M1A

EEPROM_EDID_Atmel(MULTI)

IC1391

AT24C02C-SSHM-T

A0

1

A1

2

A2

3

GND

4

EEPROM_EDID_Atmel(MULTI)

IC1392

AT24C02C-SSHM-T

A0

1

A1

2

A2

3

GND

4

EEPROM_EDID_Rohm(MULTI)

IC1391-*1

BR24G02FJ-3GTE2

A0

1

A1

2

A2

3

GND

4

8

7

6

5

8

7

6

5

8

7

6

5

VCC

WP

SCL

SDA

+5V_DDC_1

VCC

WP

SCL

SDA

+5V_DDC_2

VCC

WP

SCL

SDA

EEPROM_EDID_Rohm(MULTI)

IC1392-*1

BR24G02FJ-3GTE2

A0

1

A1

2

A2

3

GND

4

R1409

10K

R14140DDC2_EN

R1415

10K

R1430 0

DDC1_ENR1408

0

OPT

R1410

22

R1411 22

OPT

R1412 22

R1413 22

VCC

8

WP

7

SCL

6

SDA

5

D

Q1393

2N7002KA

Q1394

D

Q1395

2N7002KA

Q1396

D

G

R1431 0

S

R1432 0

G

R1433 0

R1434 0

G

R1435 0

S

R1436 0

G

R1437 0

DDC_DL_EN

DDC1_DL_SCL

DDC_SCL_HDMI1

DDC_SDA_HDMI1

DDC1_DL_SDA

DDC_DL_EN

DDC2_DL_SCL

DDC_SCL_HDMI2

DDC_SDA_HDMI2

DDC2_DL_SDA

DDC_DL_EN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

2014.04.24

T-con power

LGE Internal Use Only

10.5TSMD bottom Gasket

SMD_GASKET

GASKET_8.0X6.0X10.5H

M13000

MDS62110225

SMD_GASKET

GASKET_8.0X6.0X10.5H

M13006

MDS62110225

SMD_GASKET

GASKET_8.0X6.0X10.5H

M13001

MDS62110225

SMD_GASKET

GASKET_8.0X6.0X10.5H

M13007

MDS62110225

SMD_GASKET

GASKET_8.0X6.0X10.5H

M13002

MDS62110225

SMD_GASKET

GASKET_8.0X6.0X10.5H

M13008

MDS62110225

SMD_GASKET

GASKET_8.0X6.0X10.5H

M13003

MDS62110225

SMD_GASKET

GASKET_8.0X6.0X10.5H

M13009

MDS62110225

SMD_GASKET

GASKET_8.0X6.0X10.5H

M13004

MDS62110225

SMD_GASKET

GASKET_8.0X6.0X10.5H

M13010

MDS62110225

SMD_GASKET

GASKET_8.0X6.0X10.5H

M13005

MDS62110225

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

T-CON POWER

2014.04.24

141

Trouble Shooting Guide

LGE Internal Use Only

No. Error symptom (High category) Error symptom (Mid category) Page Remarks

1

A. Video error

No video/Normal audio 1

2 No video/No audio 2

3 Tuning fail, Picture broken/ Freezing 3, 4

4 Color error 5

5

Vertical/Horizontal bar, residual image, light spot, external device color error

6

B. Power error

No power 7

7

Off when on, off while viewing, power auto on/off

8

C. Audio error

No audio/Normal video 9

9 Wrecked audio/discontinuation/noise 10

10

D. Function error

Remote control & Local switch checking 11

11 External device recognition error 12

12 E. Noise Circuit noise, mechanical noise 13

13 F. Exterior error Exterior defect 14

* First of all, Check whether there is SVC Bulletin in GCSC System for these model.

Contents of Standard Repair Process

LGE Internal Use Only

Y

N

Move to No video/No

audio

No video Normal audio

Check Back Light

On with naked eye

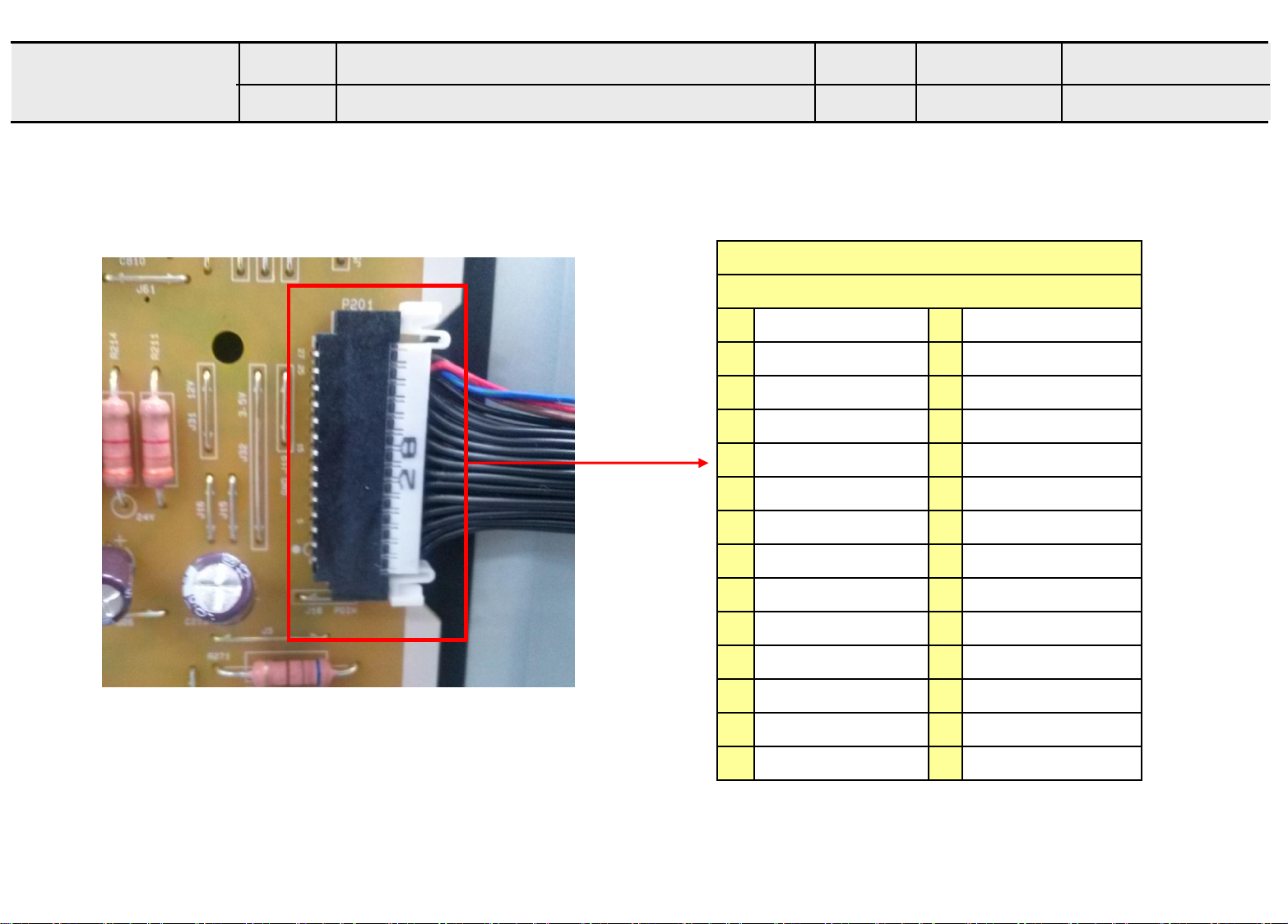

Check Power Board

3.5V, 12V, 24V etc.

Replace T-con

Board or module

Repair Power Board or parts

Check Power Board LED B+ voltage (LED B+ voltage depends on the Power BD spec)

Replace Inverter

or module

Repair Power Board or parts

End

Always check & record S/W Version and White Balance value before replacing the Main Board

Replace Main Board Re-enter White Balance value

※Precaution

Established date

Standard Repair Process

Revised date

1/14

Error symptom

A. Video error

No video/ Normal audio

☞A4

☞A1

☞A2

☞A6 & A3

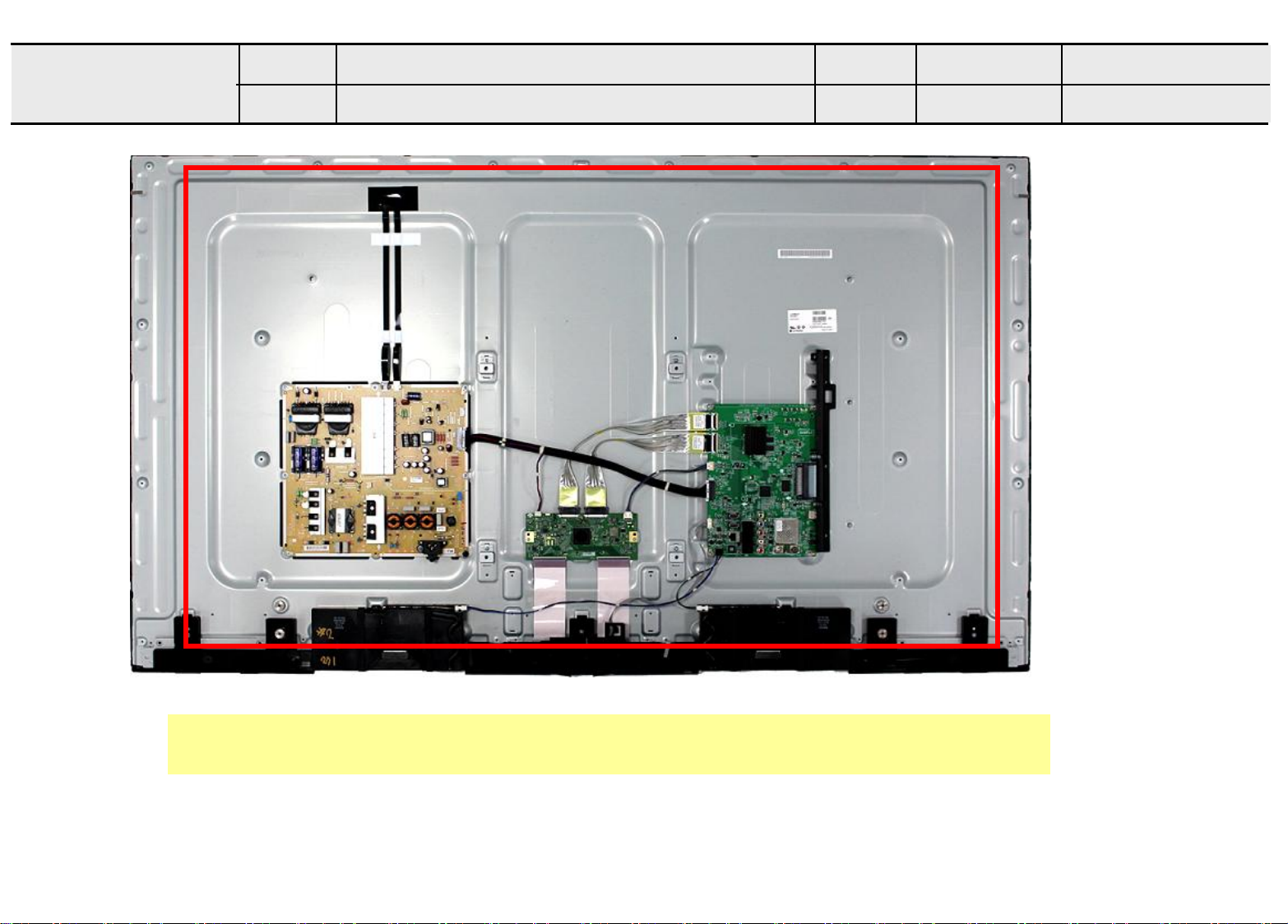

First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D↔ Power B/D, LVDS Cable, Speaker Cable, IR B/D Cable,,,)

Normal

Audio

On

Y

N

Normal

Voltage

Normal

Voltage

Y

N

Y

N

LGE Internal Use Only

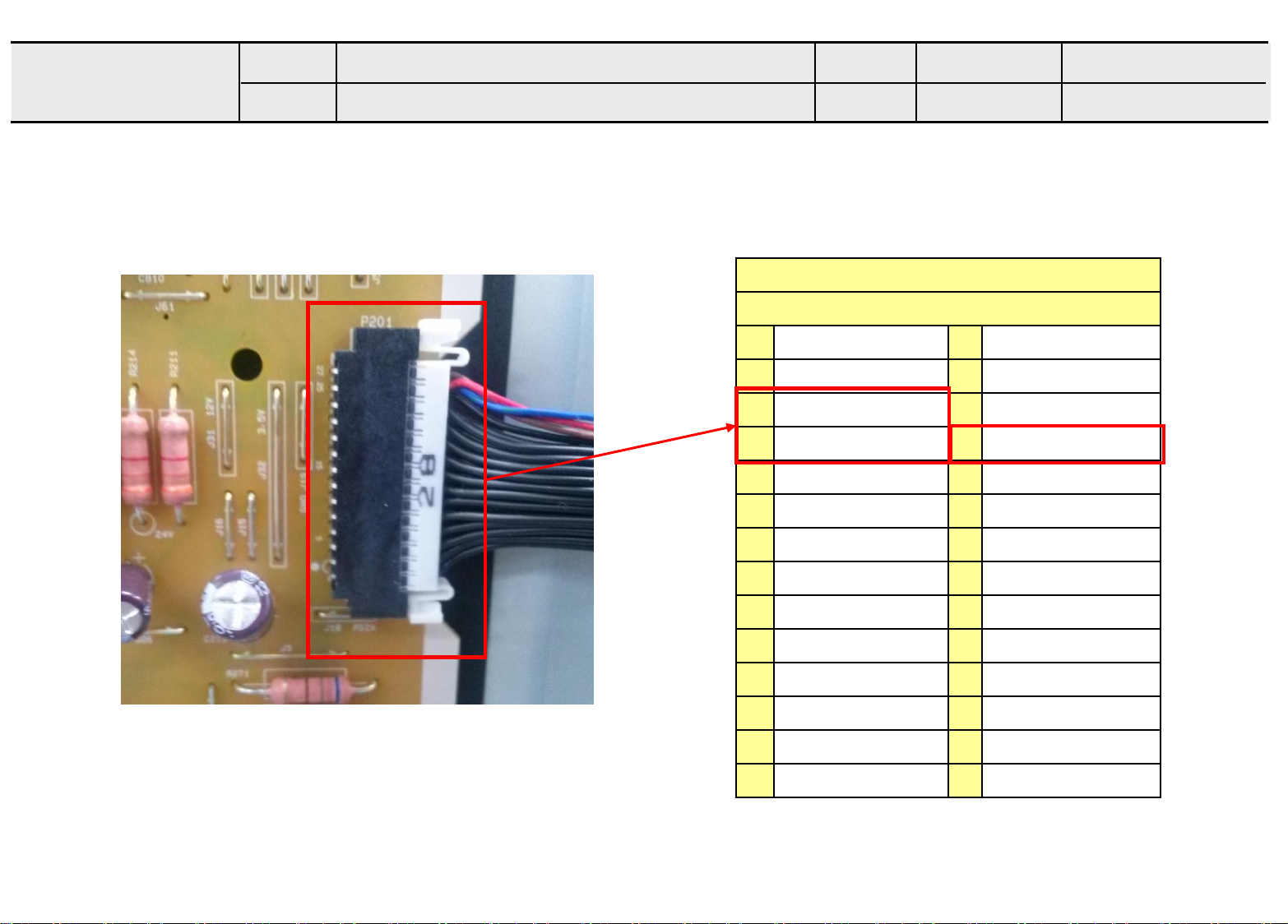

Check various voltages of Power Board ( 3.5V,12V, 24V)

No Video/ No audio

Check and replace MAIN B/D

Replace Power Board and repair parts

Standard Repair Process

A. Video error

No video/ No audio

☞A4

Established date

Revised date

2/14

Error symptom

End

Normal

Voltage

Y

N

LGE Internal Use Only

A. Video error

Picture broken/ Freezing

Y

N

☞ A5

N

Check RF Signal level

Check RF Cable Connection

1. Reconnection

2. Install Booster

Check S/W Version

S/W Upgrade

Check whether other equipments have problem or not. (By connecting RF Cable at other equipment) → DVD Player ,Set-Top-Box, Different maker TV etc`

Replace Main B/D

Check Tuner soldering

Y

N

Y

. By using Digital signal level meter

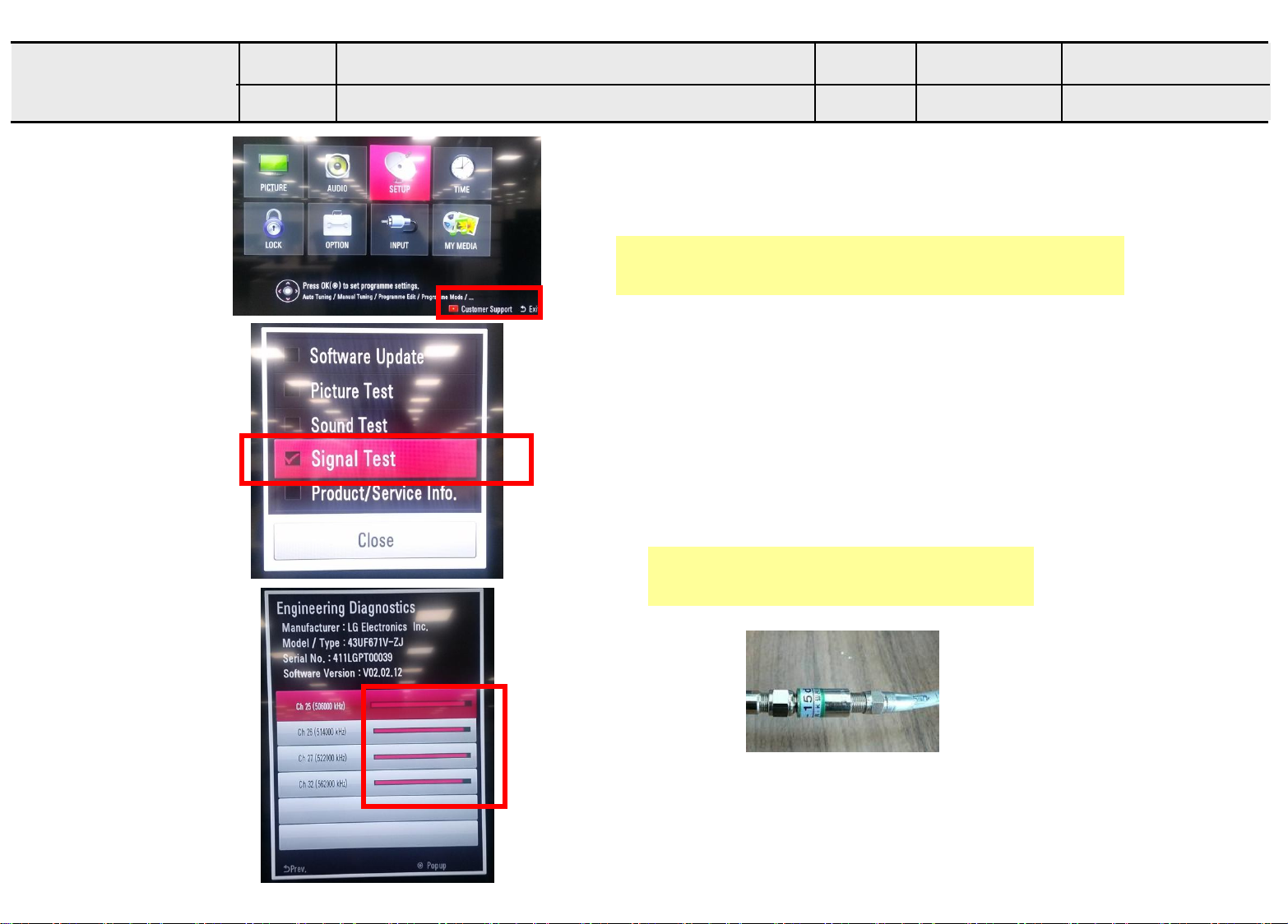

. By using Diagnostics menu on OSD ( Menu→ Setup→ Cutomer Support → Signal Test )

- Signal strength (Normal : over 50%)

- Signal Quality (Normal: over 50%)

Y

Contact with signal distributor or broadcaster (Cable or Air)

N

Y

N

☞ A6

Standard Repair Process

Established

date

Revised date

3/14

Error symptom

End

Normal

Signal

Normal


Normal


Normal Picture

SVC

Bulletin

End

Normal


LGE Internal Use Only

A. Video error

Tuning fail, Picture broken/ Freezing

Y

N

☞ A5

Check RF Signal level

Check S/W Version

S/W Upgrade

Y

N

Y

Check RF signal cable (DVB satellite signal or not) Check whether other equipments have problem or not. (By connecting RF Cable at other equipment) → Set-Top-Box, Different maker TV etc

Y

Change satellite setting (match with installed ANT)

N

Y

N

☞ A6

Standard Repair Process

Established

date

Revised date

4/14

Error symptom

Check satellite setting.

- Check LNB frequency.

- Check satellite

- Check Satellite connection (DiSEqC, motor, etc…)

Contact with signal

distributor

or broadcaster (Cable or Air)

N

Check Tuner soldering

Replace Main B/D

Normal


End

Normal


Normal

Setting

SVC

Bulletin

Normal

Signal

End

LGE Internal Use Only

Color

error

Y

N

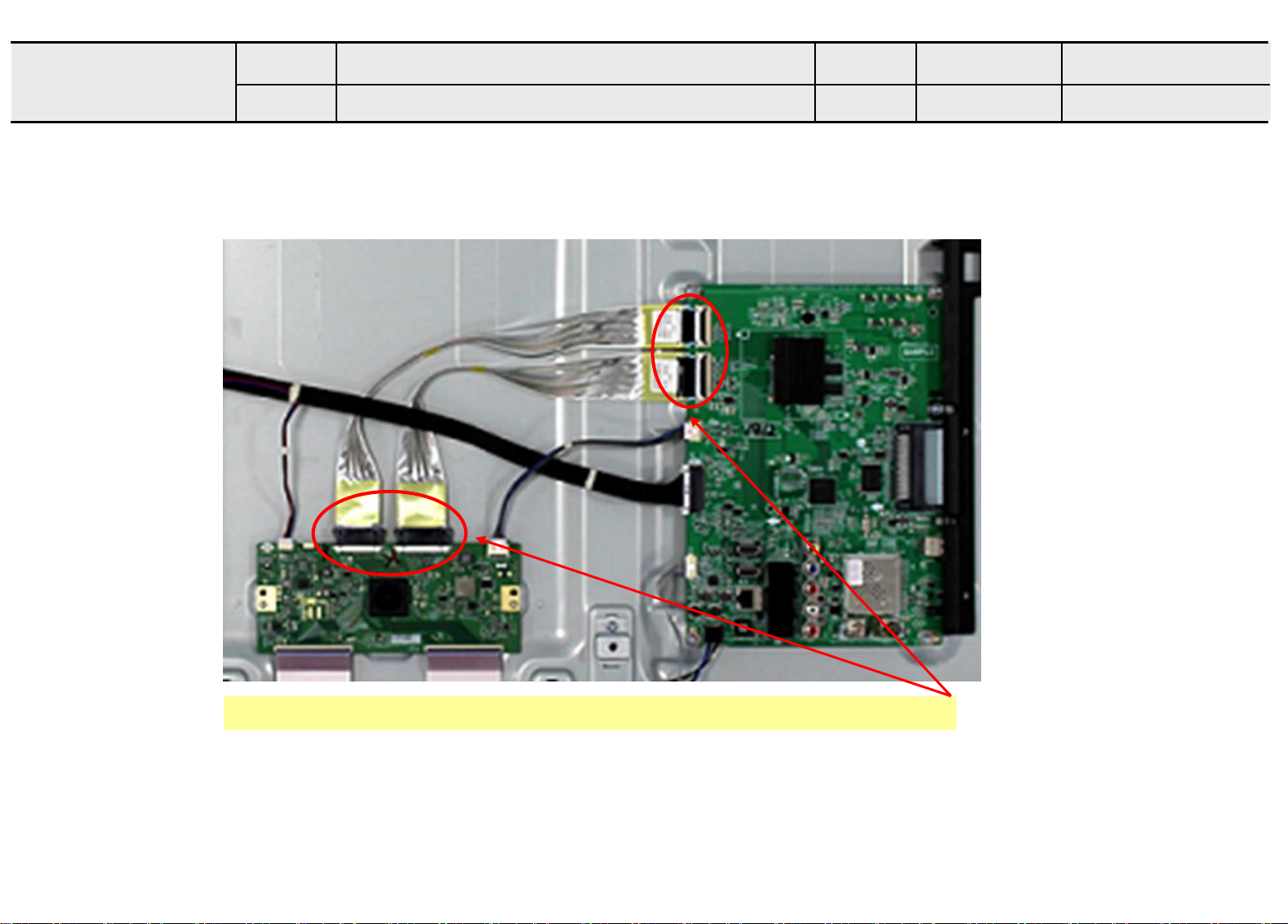

※ Check and replace Link Cable(LVDS) and contact condition

Y

N

Replace Main B/D

Check error color input mode

Check color by input

-External Input

-COMPONENT

-RGB

-HDMI/DVI

Y

Check external device and cable

Y

Check external device and cable

Replace Main B/D

N

A. Video error

Color error

☞A7

N

Y

Replace module

Request

repair for external

device/cable

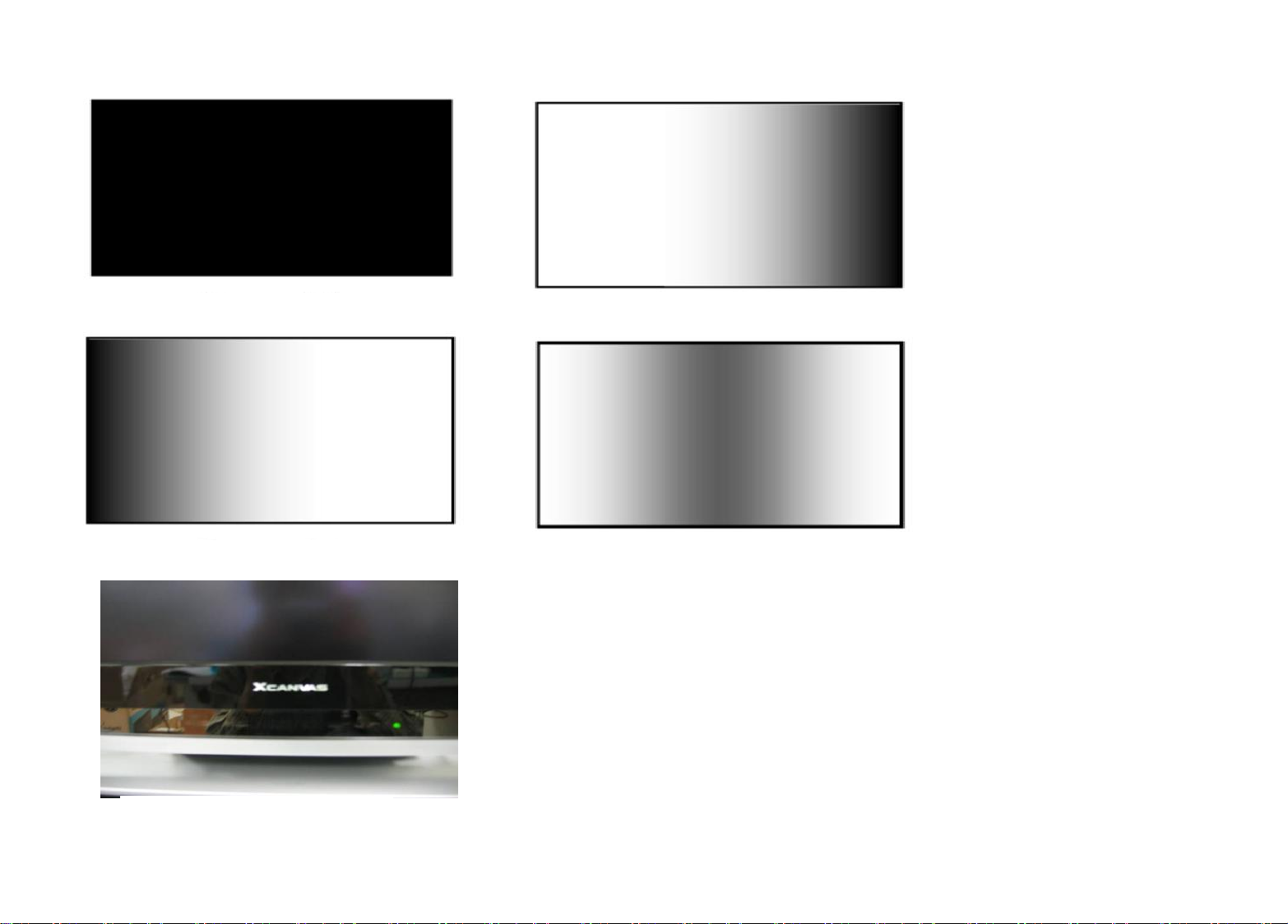

Check Test pattern

☞A10

☞ A8/ A9

Standard Repair Process

Established

date

Revised date

5/14

Error symptom

End

Color

error

Color

error

External

device/Cable

Normal

External

device/Cable

Normal

External Input/Co mponent

error

HDMI

error

LGE Internal Use Only

N

Y

Check external device connection condition

Y

N

Check and replace Link Cable

Y

Replace module

Check color condition by input

-External Input

-Component/AV

-HDMI

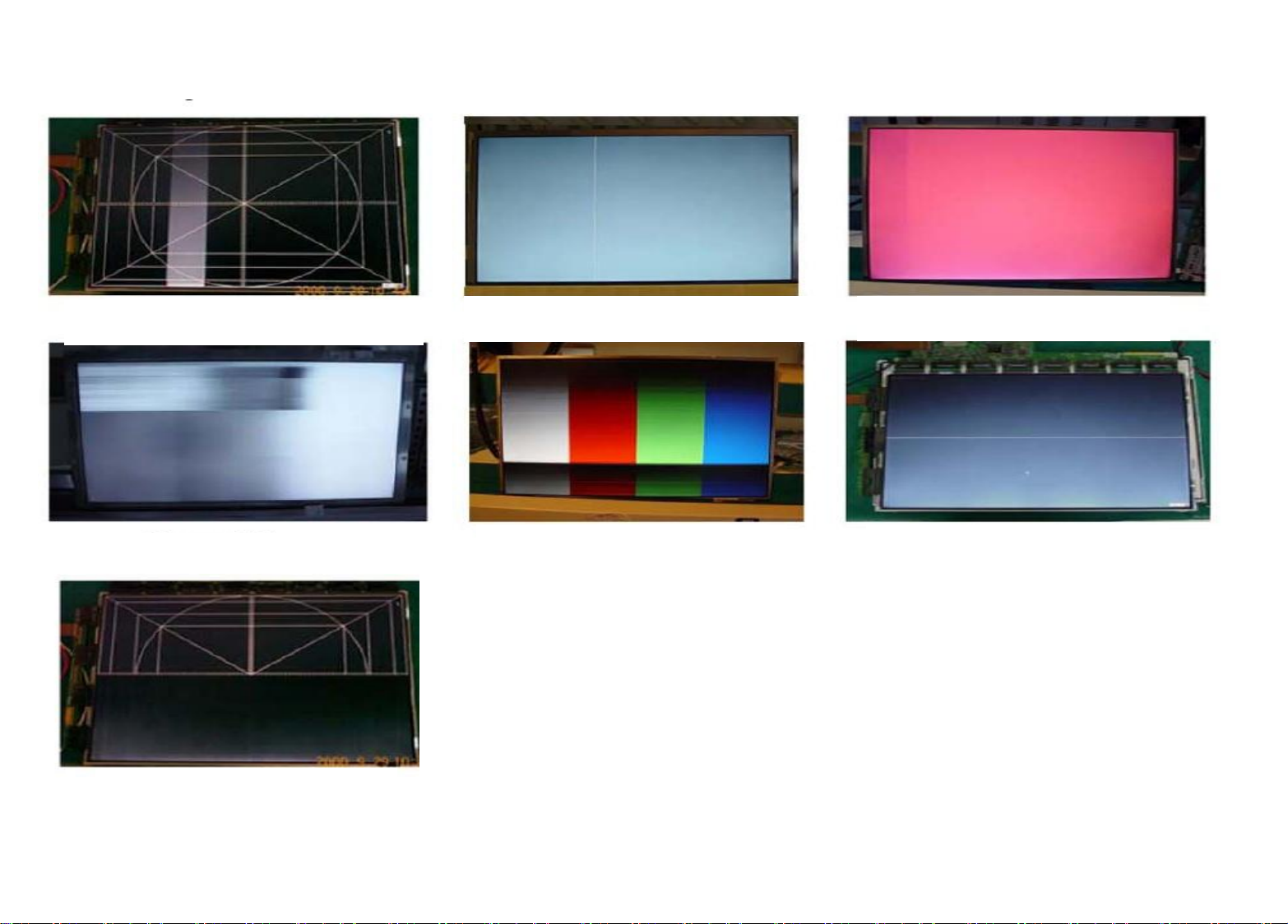

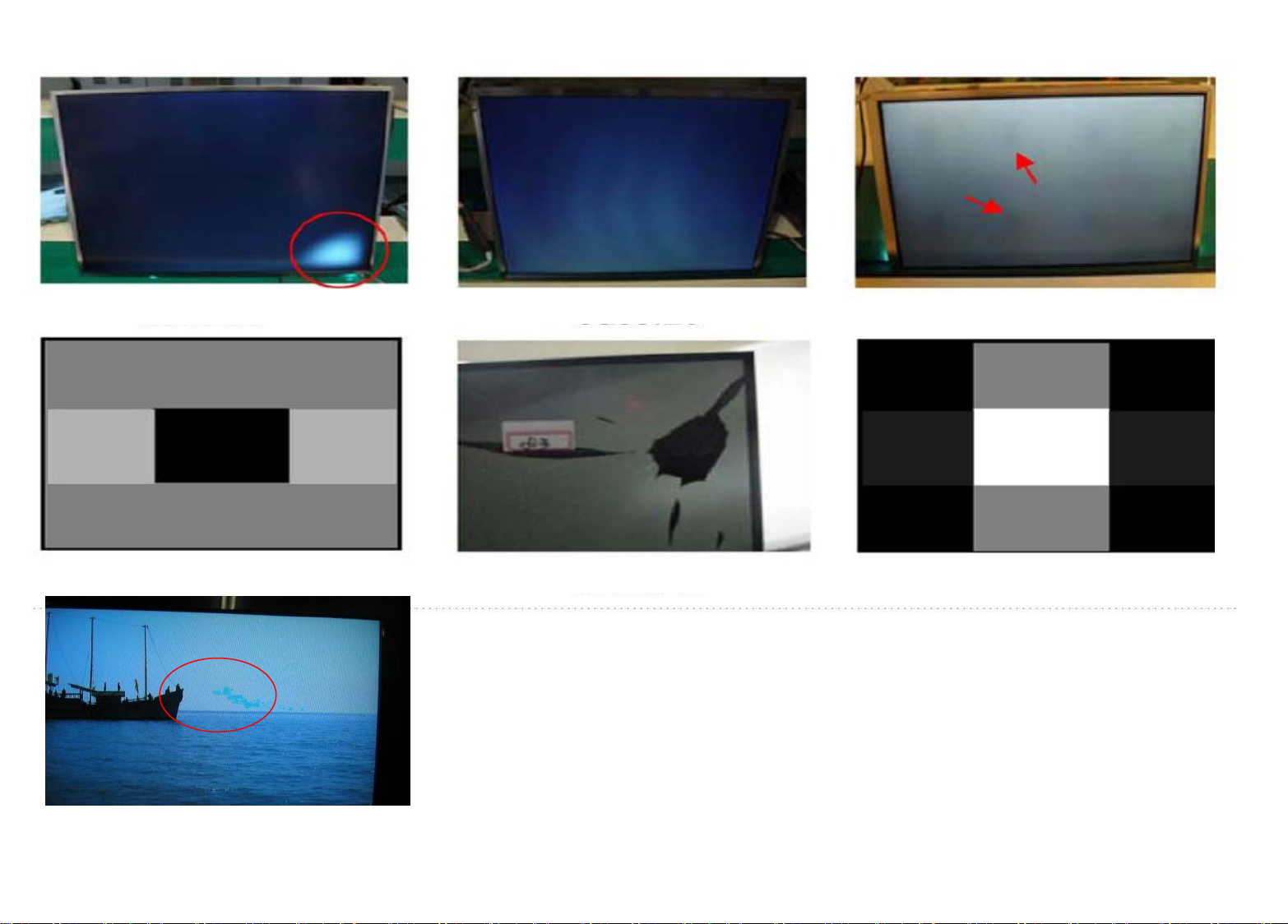

Vertical/Horizontal bar, residual image, light spot

Request repair

for external

device

A. Video error

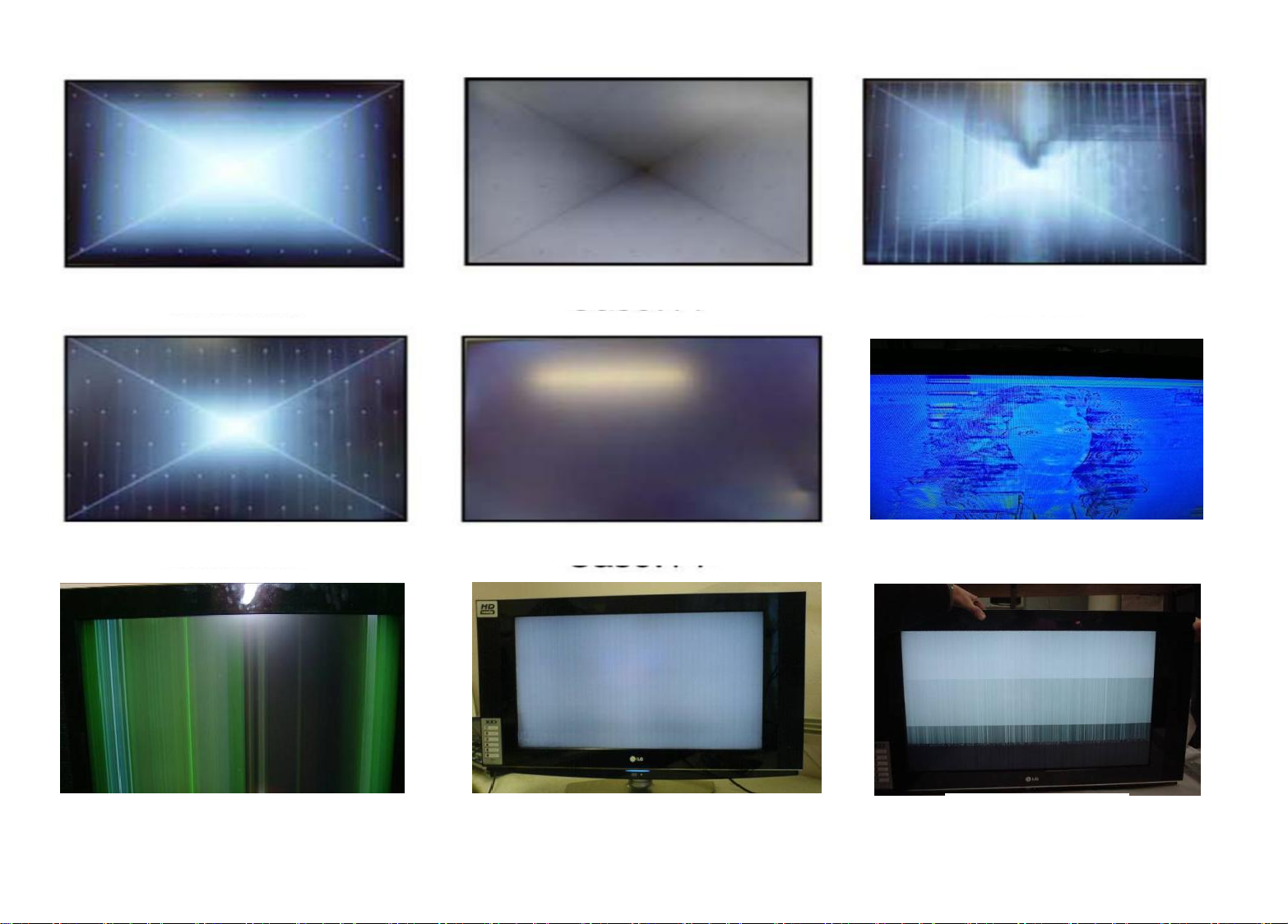

Vertical / Horizontal bar, residual image,

light spot, external device color error

☞A10

External device screen error-Color error

Connect other external device and cable (Check normal operation of External Input, Component and HDMI by connecting

Jig, pattern Generator,

Set-top Box etc.

N Y Replace

Main B/D

Check screen condition by input

-External Input

-Component

-RGB

-HDMI/DVI

Request repair for

external device

Connect other external device and cable (Check normal operation of External Input, Component, HDMI by connecting Jig, pattern Generator ,Set-top Box etc.

Replace Main B/D

N

Y

Check S/W Version

Y

N

S/W Upgrade

Y

N

Y

N

Replace Main B/D

Replace Module

Established

date

Revised date

6/14

Error symptom

Standard Repair Process

☞A7

☞ A8/ A9

Check Test pattern

N

End

Screen normal

Screen

normal

Screen normal

Screen

normal

Screen normal

End

Check

Version

Normal Screen

External

Input error

Compo

nent

error

HDMI

error

LGE Internal Use Only

OK

Normal

B. Power error

No power

Y

N

DC Power on by pressing Power Key

On Remote control

Y

N

Check Power On ‘”High”

Check Power cord was inserted properly

Check Power LED

Replace Power

B/D

Measure voltage of each output of Power B/D

N

Y

Replace Main B/D

Y

Replace Main B/D

N

Y

Check ST-BY 3.5V

Replace Power B/D

N

Replace Power B/D

Y

☞A11

☞A12

☞A13

☞A4

Standard Repair Process

Established

date

Revised date

7/14

Error symptom

Stand-By : Red

※

End

Power

LED On

Normal

Voltage

Normal

Voltage

Normal Operati

on

LGE Internal Use Only

Normal

Voltage

B. Power error

Off when on, off while viewing, power auto on/off

N

Y

Check Power Off Mode

Fix A/C cord & Outlet and check each 3 phase out

Check A/C cord

Check for all 3- phase power out

Check outlet

Replace Main B/D

(If Power Off mode

is not displayed) Check Power B/D voltage

Y

N

Replace Main B/D

Replace Power B/D

N

Y

※ Caution Check and fix exterior of Power B/D Part

☞A14

☞A13

Established

date

Revised date

8/14

Error symptom

Standard Repair Process

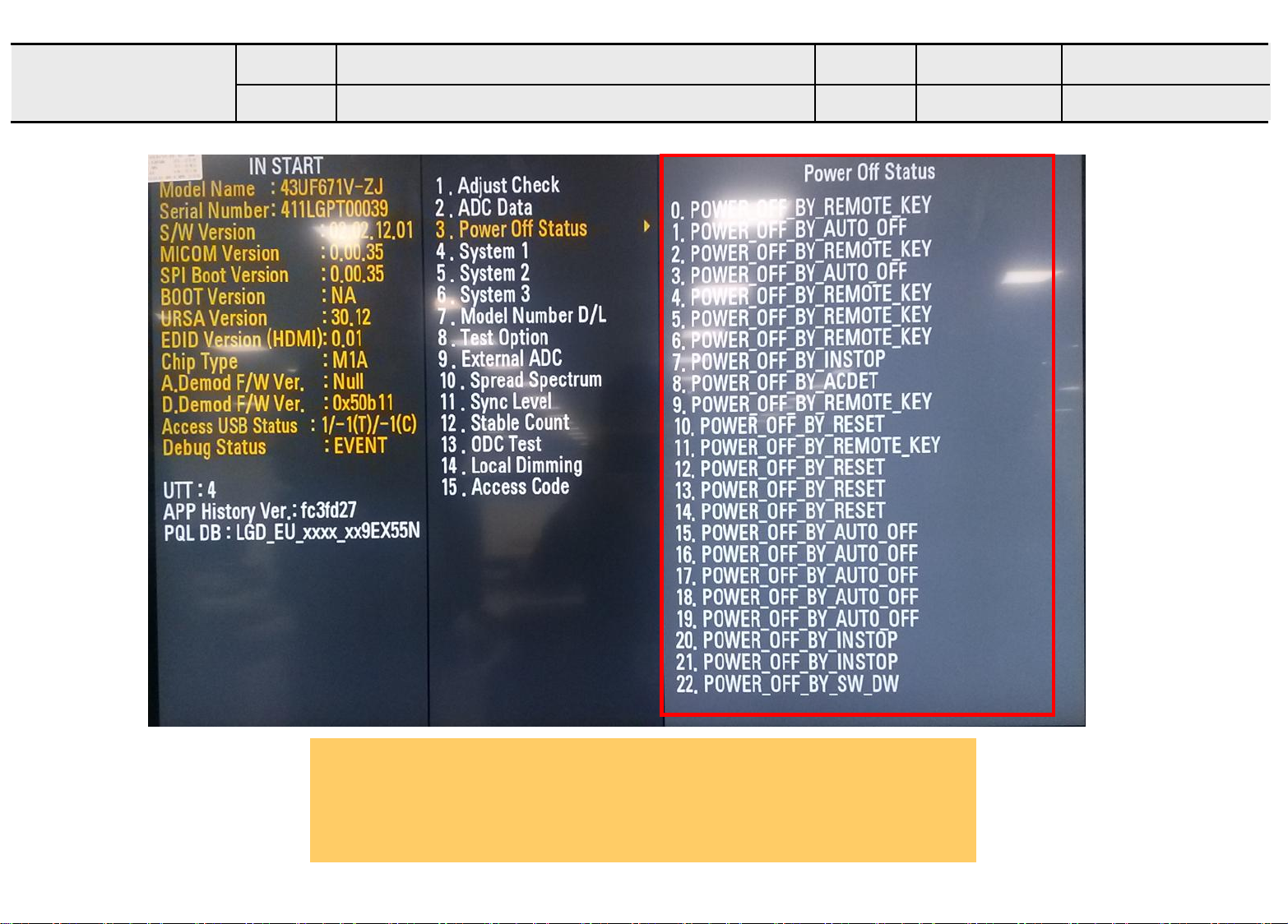

Status Power off List Explanation

Normal

"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL "POWEROFF_OFFTIMER"

Power off by OFF TIMER "POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER "POWEROFF_INSTOP" Power off by INSTOP KEY "POWEROFF_AUTOOFF" Power off by AUTO OFF "POWEROFF_ONTIMER" Power off by ON TIMER "POWEROFF_RS232C" Power off by RS232C "POWEROFF_RESREC" Power off by Reservated Record "POWEROFF_RECEND" Power off by End of Recording "POWEROFF_SWDOWN" Power off by S/W Download "POWEROFF_UNKNOWN" Power off by unknown status except listed case

Abnormal

"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble "POWEROFF_CPUABNORMAL" Power off by CPU Abnormal

* Please refer to the all cases which can be displayed on power off mode.

Error

CPU

Abnorm

al

Abnorm

al1

Normal

End

LGE Internal Use Only

No audio Screen normal

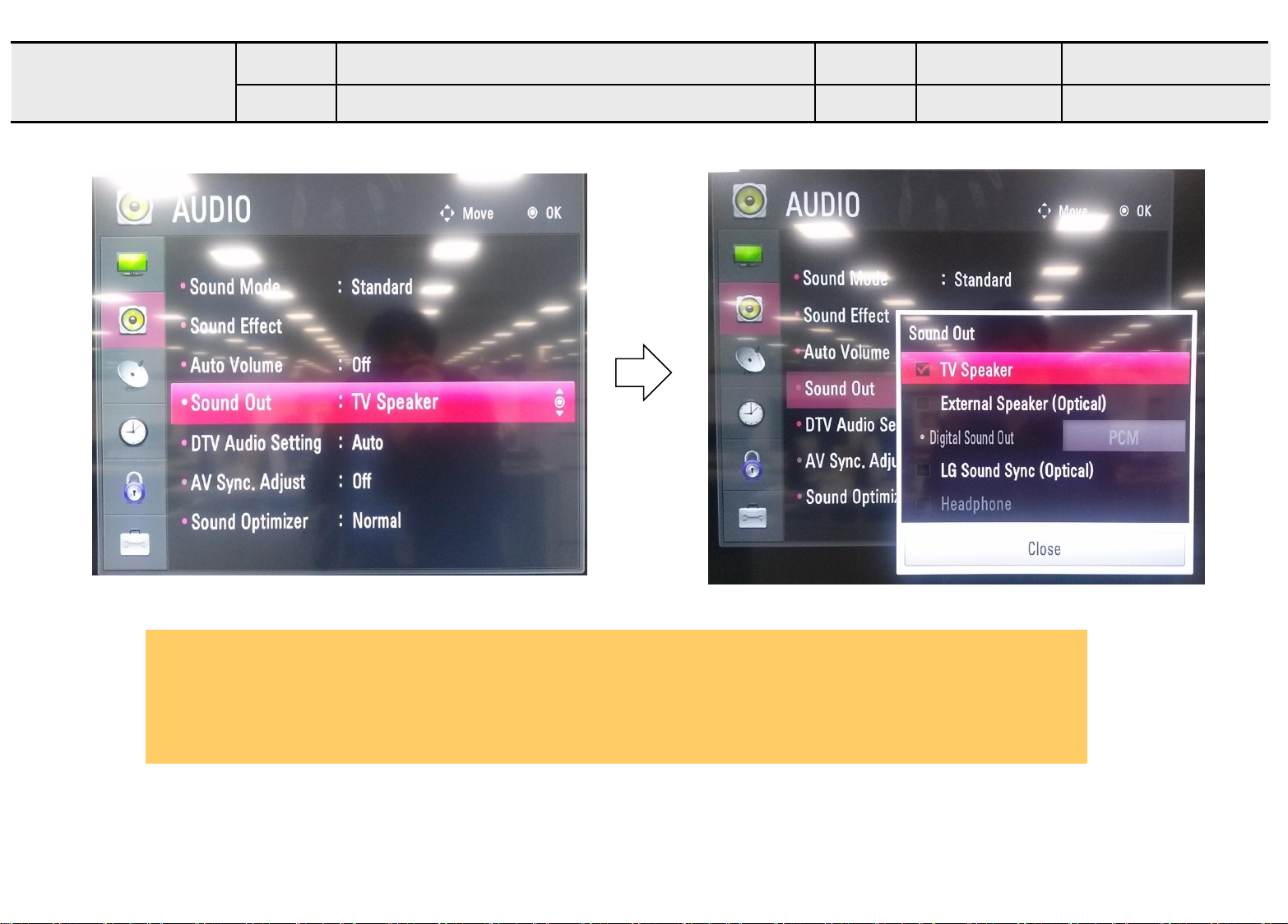

Check user menu  Speaker off

N

Y

Cancel OFF

Check audio B+ 24V of Power Board

Y

N

Replace Power Board and repair parts

Check Speaker disconnection

N

Y

Replace Speaker

Replace MAIN Board

C. Audio error

No audio/ Normal video

☞A15 ☞A16

Established

date

Revised date

9/14

Error symptom

Standard Repair Process

End

Normal

Voltage

Off

Disconn

ection

LGE Internal Use Only

→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio

C. Audio error

Wrecked audio/ discontinuation/noise

Check and replace speaker and connector

Connect and check other external device

Y

Check and fix external device

Replace Power B/D

N

Y

Check input signal

-RF

-External Input signal

(When RF signal is not received) Request repair to external cable/ANT provider

Y

Check audio B+ Voltage (24V)

(In case of External Input signal error) Check and fix external device

Replace Main B/D

N

Established

date

Revised date

10/14

Error symptom

Standard Repair Process

☞A16

End

Signal

Normal

Normal Voltage

Normal

Audio

Wrecked Audio/ Discontinuation/ Noise for all audio

Wrecked Audio/ Discontinuation/ Noise only for D-TV

Wrecked Audio/ Discontinuation/

Noise only for Analog

Wrecked Audio/ Discontinuation/ Noise only for External Input

N

Replace Main B/D

LGE Internal Use Only

D. Function error

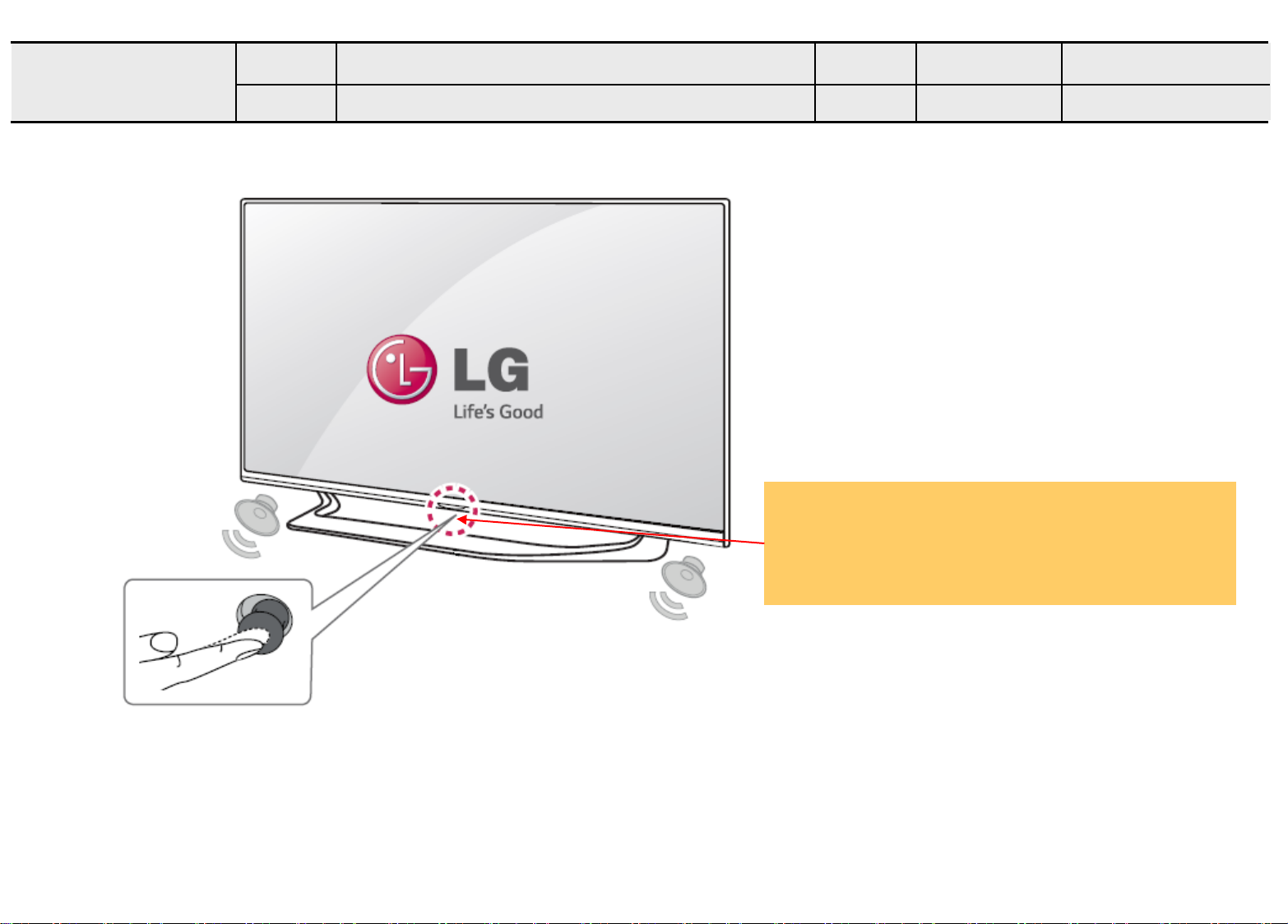

Remote control & Local switch checking

Y

N

1. Remote control(R/C) operating error

Check R/C itself

Operation

Y

Replace R/C

If R/C operate, Explain the customer cause is interference from light in room.

Check R/C Operating

When turn off light

in room

Check & Replace

Baterry of R/C

Check & Repair Cable connection Connector solder

Check B+ 3.5V On Main B/D

☞A17

N

Check 3.5v on Power B/D Replace Power B/D or Replace Main B/D (Power B/D don’t have problem)

☞A4

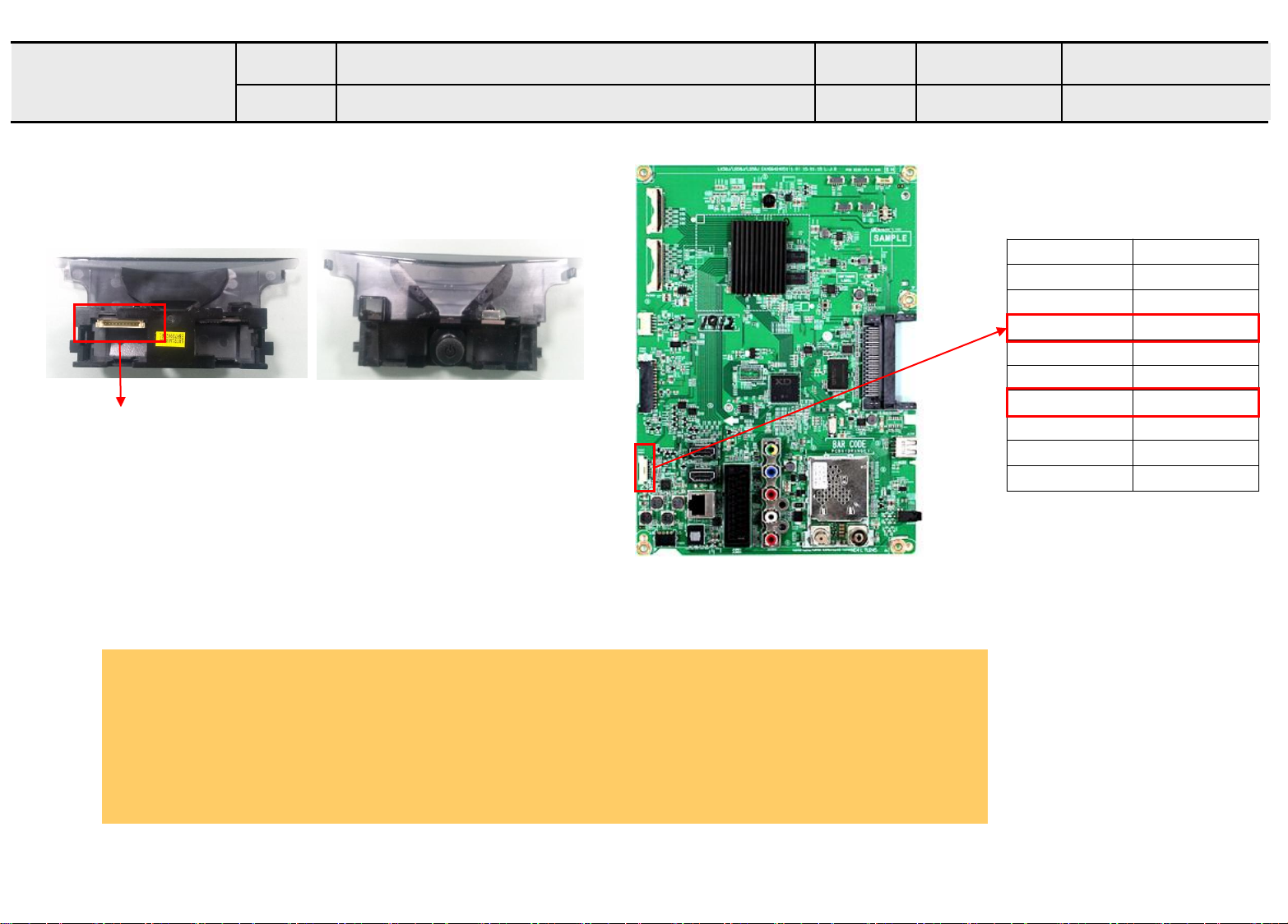

Check IR Output signal

N

Y

Repair/Replace

IR B/D

N

☞A17

Replace Main B/D

Y

☞A17

Standard Repair Process

Established

date

Revised date

11/14

Error symptom

End

Normal

Operating

Normal Voltage

Normal

Signal

Normal

Operating

Normal

Operating

End

Y

LGE Internal Use Only

Check technical

information

- Fix information

- S/W Version

N

Y

Check input signal

Y

N

Check and fix external device/cable

Replace Main B/D

Fix in

accordance

with technical

information

D. Function error

External device recognition error

Established

date

Revised date

12/14

Error symptom

Standard Repair Process

Signal

Input

Technical

information

External Input

and Component

Recognition error

HDMI, Optical

Recognition

error

LGE Internal Use Only

Check location of noise

Identify nose type

Replace LPB(with LED driver)

Replace LED driver

Check location of noise

OR

※ When the nose is severe, replace the module (For models with fix information, upgrade the S/W or provide the description)

※ If there is a “Tak Tak” noise from the cabinet, refer to the KMS fix information and then proceed as shown in the solution manual (For models without any fix information, provide the description)

OR

※ Mechanical noise is a natural phenomenon, and apply the 1st level description. When the customer does not agree, apply the process by stage. ※ Describe the basis of the description in “Part related to nose” in the Owner’s Manual.

E. Noise

Circuit noise, mechanical noise

Established

date

Revised date

13/14

Error symptom

Standard Repair Process

Circuit

noise

Mechanical

noise

LGE Internal Use Only

Replace module

Zoom part with exterior damage

Replace cabinet

Replace remote control

Replace stand

F. Exterior defect

Exterior defect

Established

date

Revised date

14/14

Error symptom

Standard Repair Process

Module

damage

Cabinet

damage

Remote

control

damage

Stand

damage

LGE Internal Use Only

Contents of Standard Repair Process Detail Technical Manual

No. Error symptom Content Page Remarks

1

A. Video error_ No video/Normal audio

Check LCD back light with naked eye A1

2 LED driver B+ measuring method A2

3 Check White Balance value A3

4 Power Board voltage measuring method A4

5

A. Video error_ No video/Video lag/stop

TUNER input signal strength checking method A5

6 TV Version checking method A6

7

A. Video error_Color error

Connection diagram A7

8

Check Link Cable (LVDS) reconnection condition

A8 A9

9

10 Adjustment Test pattern - ADJ Key A10

11

A. Video error_Vertical/Horizontal bar, residual image, light spot

Connection diagram A8

12

Check Link Cable (LVDS) reconnection condition

A8 A9

13 Adjustment Test pattern - ADJ Key A10

14

<Appendix> Defected Type caused by T-Con/

Inverter/ Module

Exchange T-Con Board (1) A-1/5

15 Exchange T-Con Board (2) A-2/5

16 Exchange LED driver Board (PSU) A-3/5

55” : driver board Other : PSU

17 Exchange Module itself (1) A-4/5

18 Exchange Module itself (2) A-5/5

Continue to the next page

LGE Internal Use Only

Contents of Standard Repair Process Detail Technical Manual

No. Error symptom Content Page Remarks

19

B. Power error_No power

Check front display LED A11

20 Check power input Voltage & ST-BY 3.5V A12

21 Checking method when power is ON A13

22 POWER BOARD voltage measuring method A4

23

B. Power error_Off when on, off while viewing

POWER OFF MODE checking method A14

24

C. Audio error_No audio/Normal video

Checking method in menu when there is no audio

A15

25

Voltage and speaker checking method when there is no audio

A16

26

C. Audio error_Wrecked audio/discontinuation

Voltage and speaker checking method in case of audio error

A16

27

D. Function error_ No response in remote control, key error

Remote control operation checking method A17

Continued from previous page

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

Check Back Light On with naked eye

A. Video error_No video/Normal audio

A1

Established date

Revised date

Error

symptom

Content

After turning on the power and disassembling the case, check with the naked eye, whether

you can see light from module holes.

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

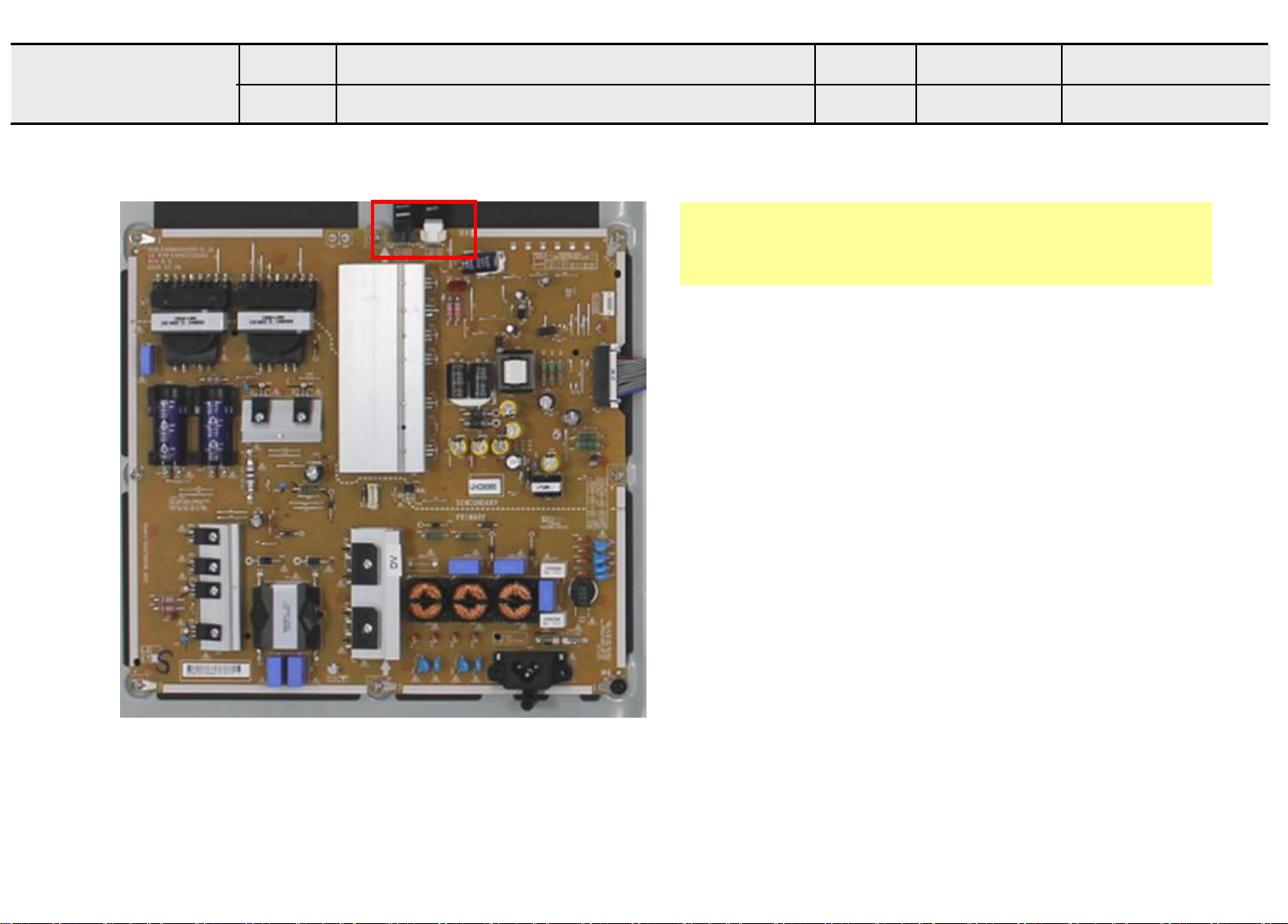

LED driver B+ measuring method

A. Video error_No video/Normal audio

A2

Established date

Revised date

Error

symptom

Content

Check the Voltage between LED+ / LED The voltage spec is in Power B/D Spec sheet Refer the Power B/D Spec sheet

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

Check White Balance value

A. Video error_No video/Normal audio

A3

Established date

Revised date

Error

symptom

Content

Entry method

1. Press the ADJ button on the remote control for adjustment.

2. Enter into White Balance of item 7.

3. After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm), reenter the value after replacing the MAIN BOARD.

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

Power Board voltage measuring method

A. Video error_No video/ Audio

A4

Established date

Revised date

Error

symptom

Content

28 Pin (Power Board ↔ Main Board)

SMAW200-H28S5K

1

PWR_ON

2

DRV ON

3

P-DIM

4

P-DIM2

5

3.5V

6

GND

7

3.5V

8

3.5V

9

GND

10

GND

11 12V 12

12V

13 12V 14

12V

15 12V 16

GND

17 GND 18

24V

19 24V 20

24V

21 24V 22

GND

23 GND 24

N.C

25 SCLK 26

GND

27 SIN 28

VSYNC

Check DC 3.5V, 12V, 24V

LGE Internal Use Only

MENU => Press red key Remote control=>signal test => Select channel

When the signal is strong, use the attenuator (-10dB, -15dB, -20dB etc.)

Standard Repair Process Detail Technical Manual

TUNER input signal strength checking method

A. Video error_Video error, video lag/stop

A5

Established date

Revised date

Error

symptom

Content

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

TV Version checking method

A. Video error_Video error, video lag/stop

1. Checking method for remote control for adjustment

Press the IN-START with the remote control for adjustment

Version

A6

Established date

Revised date

Error

symptom

Content

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

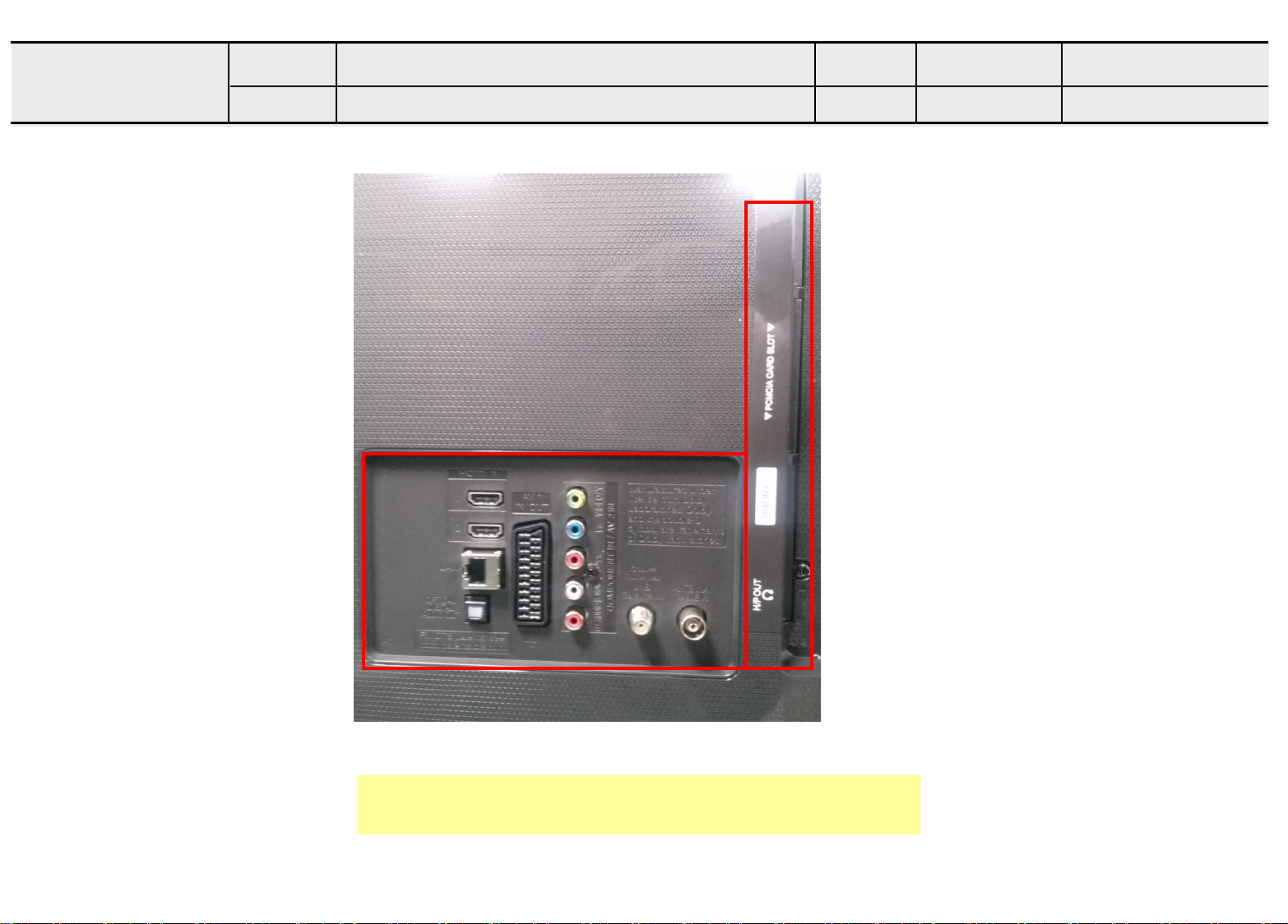

Connection diagram (1)

A. Video error _Vertical/Horizontal bar, residual

image, light spot

As the part connecting to the external input, check the screen condition by signal

A7

Established date

Revised date

Error

symptom

Content

LGE Internal Use Only

Check the contact condition of the Link Cable, especially dust or mis insertion

Standard Repair Process Detail Technical Manual

Check and replace Link Cable(LVDS) and contact condition

A. Video error_Color error

A8/A9

Established date

Revised date

Error

symptom

Content

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

Adjustment Test pattern - ADJ Key

A. Video error_Color error

You can view 6 types of patterns using the ADJ Key

Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)

4.Video error (Classification of MODULE or Main-B/D!)

A10

Established date

Revised date

Error

symptom

Content

LGE Internal Use Only

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section Solder defect, Short/Crack

Appendix : Exchange T-Con Board (1)

LGE Internal Use Only

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section

Solder defect, Short/Crack

Fuse Open, Abnormal power section

Noise

GRADATION

Abnormal Display

Appendix : Exchange T-Con Board (2)

LGE Internal Use Only

Appendix : Exchange PSU(LED driver)

No Light

Dim Light

No picture/Sound Ok

LGE Internal Use Only

Appendix : Exchange the Module (1)

Panel Mura, Light leakage

Press damage

Crosstalk

Press damage

Panel Mura, Light leakage

Press damage

Un-repairable Cases In this case please exchange the module.

LGE Internal Use Only

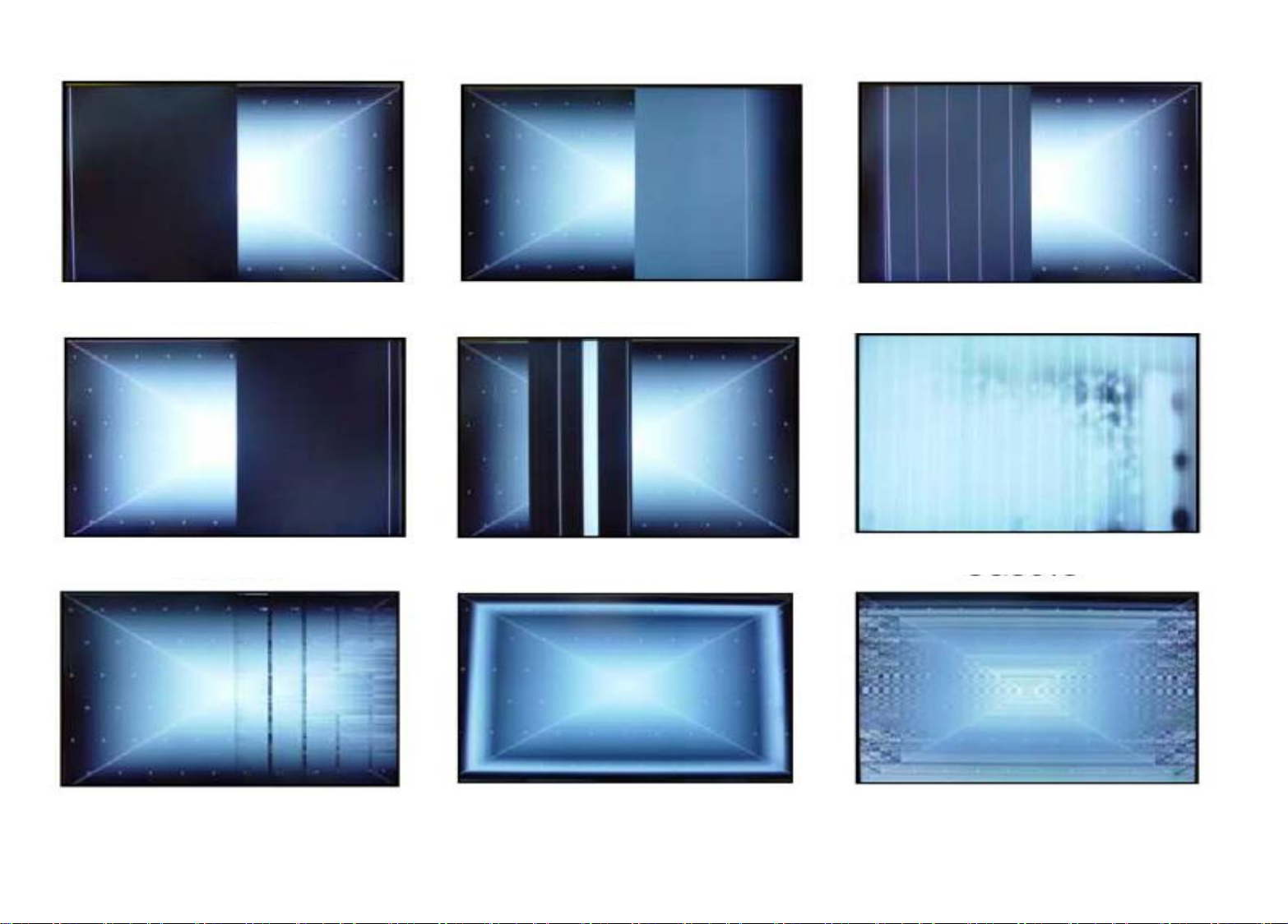

Vertical Block

Source TAB IC Defect

Horizontal Block Gate TAB IC Defect

Gate TAB IC Defect

Vertical Line Source TAB IC Defect

Vertical Block

Source TAB IC Defect

Horizontal Block Gate TAB IC Defect

Horizontal line Gate TAB IC Defect

Gate TAB IC Defect

Horizontal Block Gate TAB IC Defect

Appendix : Exchange the Module (2)

Un-repairable Cases In this case please exchange the module.

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

Check front display LED

B. Power error _No power

A11

Established date

Revised date

Error

symptom

Content

ST-BY condition: Red

Front LED control : Menu  Option  Standby Light  On/Off

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

Check power input voltage and ST-BY 3.5V

B. Power error _No power

A12

Established date

Revised date

Error

symptom

Content

28 Pin (Power Board ↔ Main Board)

SMAW200-H28S5K

1

PWR_ON

2

DRV ON

3

P-DIM

4

P-DIM2

5

3.5V

6

GND

7

3.5V

8

3.5V

9

GND

10

GND

11 12V 12

12V

13 12V 14

12V

15 12V 16

GND

17 GND 18

24V

19 24V 20

24V

21 24V 22

GND

23 GND 24

N.C

25 SCLK 26

GND

27 SIN 28

VSYNC

Check the Main Power Voltage (5,7,8 Pin) STBY status : 3.5V

LGE Internal Use Only

Standard Repair Process Detail Technical Manual

Checking method when power is ON

B. Power error _No power

A13

Established date

Revised date

Error

symptom

Content

28 Pin (Power Board ↔ Main Board)

SMAW200-H28S5K

1

PWR_ON

2

DRV ON

3

P-DIM

4

P-DIM2

5

3.5V

6

GND

7

3.5V

8

3.5V

9

GND

10

GND

11 12V 12

12V

13 12V 14

12V

15 12V 16

GND

17 GND 18

24V

19 24V 20

24V

21 24V 22

GND

23 GND 24

N.C

25 SCLK 26

GND

27 SIN 28

VSYNC

Check “power on(Pin 1)” pin is high(about 3.3V)

LGE Internal Use Only

Checking order

1. Press the IN-START button of the remote control for adjustment

2. Check the entry into adjustment item 3.

Standard Repair Process Detail Technical Manual

POWER OFF MODE checking method

B. Power error _Off when on, off whiling viewing

A14

Established date

Revised date

Error

symptom

Content

LGE Internal Use Only

Checking order

1. Press the MENU button on the remote control

2. Select the AUDIO function of the Menu

3. Select TV Speaker Check

Standard Repair Process Detail Technical Manual

Checking method in menu when there is no audio

C. Audio error_No audio/Normal video

A15

Established date

Revised date

Error

symptom

Content

LGE Internal Use Only

28 Pin (Power Board ↔ Main Board)

SMAW200-H28S5K

1

PWR_ON

2

DRV ON

3

P-DIM

4

P-DIM2

5

3.5V

6

GND

7

3.5V

8

3.5V

9

GND

10

GND

11 12V 12

12V

13 12V 14

12V

15 12V 16

GND

17 GND 18

24V

19 24V 20

24V

21 24V 22

GND

23 GND 24

N.C

25 SCLK 26

GND

27 SIN 28

VSYNC

< Main Ass’y>

Checking order

1. Check the contact condition of or 24V connector of Main Board

2. Measure the 24V input voltage supplied from Power Board

(If there is no input voltage, remove and check the connector)

3. Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik sound when you touch the GND and output terminal, the speaker is normal.

Standard Repair Process Detail Technical Manual

Voltage and speaker checking method when there is no audio

C. Audio error_No audio/Normal video

A16

Established date

Revised date

Error

symptom

Content

①

③

②

LGE Internal Use Only

1

GND

2

KEY1

3

KEY2

4

3.5V_ST 5

GND

6

LED_R/BUZZ

7

IR

8

GND

9

SCL

10

SDA

Checking order

1, 2. Check IR cable condition between IR & Main board.

3. Check the st-by 3.3V on the terminal 4.

4. When checking the Pre-Amp when the power is in ON condition, it is normal when the Analog Tester needle moves slowly, and defective when it does not move at all.

Standard Repair Process Detail Technical Manual

Remote control operation checking method

D. Function error_ No response in remote control,

key error

A17

Established date

Revised date

Error

symptom

Content

①

②

③

④

P4600

< Sub Ass’y>

< Main Ass’y>

LGE Internal Use Only
