LG 43LF6350, 43LF6350-SB Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS : LJ51H

MODEL : 43LF6350 43LF6350-SB

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL68760908 (1412-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 15

BLOCK DIAGRAM ................................................................................. 22

EXPLODED VIEW .................................................................................. 33

SCHEMATIC CIRCUIT DIAGRAM ............................................APPENDIX

TROUBLESHOOTING ...............................................................APPENDIX

Only for training and service purposes

- 2 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precautions.
Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power
source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo­sion hazard.

2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its
assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.

7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged eas­ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam­age caused by static by static electricity.

1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter­natively, obtain and wear a commercially available discharging
wrist strap device, which should be removed to prevent poten­tial shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo­sure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electri­cally shorted together by conductive foam, aluminum foil or
comparable conductive material).

7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replace­ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity suf­cient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire­bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo­nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir­cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.

2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and
solder it.

3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor
Removal/Replacement

1. Remove the defective transistor by clipping its leads as close
as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.

Power Output, Transistor Device
Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit
board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as pos­sible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit
board.

3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.

3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec­tions).

1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con­nected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

Fuse and Conventional Resistor
Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.

2. Securely crimp the leads of replacement component around
notch at stake top.

Only for training and service purposes

- 5 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This spec sheet is applied to the LED TV used LJ51H chassis

2. Test condition

Each part is tested as below without special notice.

1) Temperature : 25 ºC ± 5 ºC(77±9ºF), CST : 40 ºC±5 ºC

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage
Standard input voltage (100~240V@ 50/60Hz)
* Standard Voltage of each products is marked by models.
* Taiwan : 110V 60Hz

4) Specification and performance of each parts are followed

each drawing and specification by part number in
accordance with BOM.

5) The receiver must be operated for about 20 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC: CE, IEC

Only for training and service purposes

- 6 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4. General Specification

No Item Specication Remark

1. Display Screen Device 40” wide Color Display Module Resolution: 1920*1080

42” wide Color Display Module Resolution: 1920*1080

43” wide Color Display Module Resolution: 1920*1080

47” wide Color Display Module Resolution: 1920*1080

49” wide Color Display Module Resolution: 1920*1080

50” wide Color Display Module Resolution: 1920*1080

55” wide Color Display Module Resolution: 1920*1080

60” wide Color Display Module Resolution: 1920*1080

65” wide Color Display Module Resolution: 1920*1080

70” wide Color Display Module Resolution: 1920*1080

2. Aspect Ratio 16:9 All

3. LCD Module 40" TFT WUXGA LCD

42" TFT WUXGA LCD

43" TFT WUXGA LCD

47" TFT WUXGA LCD

49” TFT WUXGA LCD

50” TFT WUXGA LCD

55” TFT WUXGA LCD

60” TFT WUXGA LCD

65” TFT WUXGA LCD

70” TFT WUXGA LCD

4. Operating Environment TFT Temp. : 0 ~ 40 deg

5. Storage Environment TFT Temp. : -20 ~ 60 deg

6. Input Voltage AC100 ~ 240V, 50/60Hz

7. Power Consumption(Max)
= LCD(Module) +
Backlight(LED)

FHD
60Hz
Edge

Humidity : 0 ~ 85%

Humidity : 10 ~ 90%

40” 54.66 W HC400DUN-VCKN2[40LF6350-SB]

43’’ 47.6 W LC430EUE-FHM2 [43LF6350-SB]

49’’ 51.13 W LC490EUE-FHM2 [49LF6350-SB]

55’’ 62.0 W LC550EUE-FHM2 [55LF6350-SB]

70’’ 189.5 W HC700CUF-VHHD3[70LF7200-SA]

LGE SPEC

Only for training and service purposes

- 7 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

No Item Specication Remark

8. LCD Module Size Maker Inch (H)mm × (V)mm × (D)mm

LGD 43’’ 973..0x565.8x14.0 LC430EUE-FHM2 [43LF6350-SB]

49’’ 1105.6×640.4x 14.0 LC490EUE-FHM2 [49LF6350-SB]

55’’ 1241.79×717.19×14.0 LC550EUE-FHM2 [55LF6350-SB]

Sharp 70’’ 1574.06× 912.19× 30 HC700CUF-VHHD3[70LF7200-SA]

Pixel Pitch Maker Inch mm x mm

LGD 43’’

49’’

55’’

INX 40” 911 x 520.9x 26.3 HC400DUN-VCKN2[40LF6350-SB]

Sharp 70’’ 0.802× 0.802 HC700CUF-VHHD3[70LF7200-SA]

Back Light LGD

1.06 B
(10-bit)

16.7 M
(8-bit)

SHARP 70 Direct HC700CUF-VHHD3[70LF7200-SA]

40’’ EdgeLED HC400DUN-VCKN2[40LF6350-SB]

43’’ LC430EUE-FHM2 [43LF6350-SB]

49’’ LC490EUE-FHM2 [49LF6350-SB]

55’’ LC550EUE-FHM2 [55LF6350-SB]

5. External Input Support Format

5.1. Component (Y, PB, PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I

2. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

3. 720*480 31.50 60 27.027 SDTV 480P

4. 720*480 31.47 59.94 27.00 SDTV 480P

5. 720*576 15.625 50* 13.5 SDTV 576I

6. 720*576 31.25 50* 13.5 SDTV 576P

7. 1280*720 37.5 50* 74.25 HDTV 720P

8. 1280*720 45.00 60.00 74.25 HDTV 720P

9. 1280*720 44.96 59.94 74.176 HDTV 720P

10. 1929*1080 28.125 50* 74.25 HDTV 1080I

11. 1920*1080 33.75 60.00 74.25 HDTV 1080I

12. 1920*1080 33.72 59.94 74.176 HDTV 1080I

13. 1920*1080 56.25 50* 148.5 HDTV 1080P

14. 1920*1080 67.50 60 148.50 HDTV 1080P

15. 1920*1080 67.432 59.94 148.352 HDTV 1080P

16. 1920*1080 27.00 24.00 74.25 HDTV 1080P

17. 1920*1080 26.97 23.976 74.176 HDTV 1080P

18. 1920*1080 33.75 30.00 74.25 HDTV 1080P

19. 1920*1080 33.71 29.97 74.176 HDTV 1080P

Only for training and service purposes

- 8 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.2. HDMI : EDID DATA : Refer to adjust specification

5.2.1. DTV mode

No Resolution H-freq(kHz) V-freq.(Hz)

1 640*480 31.47 59.94 27 SDTV 480P

2 640*480 31.5 60.00 27.027 SDTV 480P

3 720*576 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz

4 720*480 31.47 59.94 27 SDTV 480P

5 720*480 31.5 60.00 27.027 SDTV 480P

6 720*576 31.25 50.00 27 SDTV 576P

7 1280*720 44.96 59.94 74.176 HDTV 720P

8 1280*720 45 60.00 74.25 HDTV 720P

9 1280*720 37.5 50.00 74.25 HDTV 720P

10 1920*1080 28.125 50.00 74.25 HDTV 1080I

11 1920*1080 33.72 59.94 74.176 HDTV 1080I

12 1920*1080 33.75 60.00 74.25 HDTV 1080I

13 1920*1080 26.97 23.976 63.296 HDTV 1080P

14 1920*1080 27.00 24.000 63.36 HDTV 1080P

15 1920*1080 33.71 29.97 79.120 HDTV 1080P

16 1920*1080 33.75 30.00 79.20 HDTV 1080P

17 1920*1080 56.25 50.00 148.5 HDTV 1080P

18 1920*1080 67.432 59.94 148.350 HDTV 1080P

19 1920*1080 67.5 60.00 148.5 HDTV 1080P

Pixel

clock(MHz)

Proposed Remark

5.2.2. PC mode

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed Remarks

1 640*350 31.468 70.09 25.17 EGA

2 720*400 31.469 70.08 28.32 DOS

3 640*480 31.469 59.94 25.17 VESA(VGA)

4 800*600 37.879 60.31 40 VESA(SVGA)

5 1024*768 48.363 60.00 65 VESA(XGA)

6 1152*864 54.348 60.053 80.002 VESA(VGA)

7 1360*768 47.712 60.015 84.75 VESA(WXGA)

8 1280*1024 63.981 60.020 108.00 SXGA Only FHD Model

9 1920*1080 67.5 60 158.40 WUXGA

(Reduced Blanking)

(Support to HDMI-PC)

Only FHD Model

Only for training and service purposes

- 9 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6. 3D Mode

6.1. RF Input (3D supported mode manually)

No Resolution Proposed 3D input proposed mode

1 HD 1080I

720P

2 SD 576P

576I

6.2. RF Input (3D supported mode automatically)

No Signal 3D input proposed mode

1 Frame Compatible Side by Side(Half), Top & Bottom

6.3. HDMI Input 1.3(3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1 1280*720 45.00 60.00 74.25 HDTV 720P 2D to 3D

2 1280*720 37.500 50 74.25 HDTV 720P 2D to 3D

3 1920*1080 33.75 60.00 74.25 HDTV 1080I 2D to 3D

4 1920*1080 28.125 50.00 74.25 HDTV 1080I 2D to 3D

5 1920*1080 27.00 24.00 74.25 HDTV 1080P 2D to 3D

6 1920*1080 28.12 25 74.25 HDTV 1080P 2D to 3D

7 1920*1080 33.75 30.00 74.25 HDTV 1080P 2D to 3D

8 1920*1080 56.25 50 148.5 HDTV 1080P 2D to 3D

9 1920*1080 67.50 60.00 148.5 HDTV 1080P 2D to 3D

2D to 3D
Side by Side(Half)
Top & Bottom

2D to 3D

Side by Side(half),
Top & Bottom,
Single Frame Sequential

Side by Side(half),
Top & Bottom,
Single Frame Sequential

Side by Side(half),
Top & Bottom

Side by Side(half),
Top & Bottom

Side by Side(half),
Top & Bottom,
Checkerboard

Side by Side(half),
Top & Bottom,
Checkerboard

Side by Side(half),
Top & Bottom,
Checkerboard

Side by Side(half),
Top & Bottom,
Checkerboard,
Single Frame Sequential,
Row Interleaving,
Column Interleaving

Side by Side(half),
Top & Bottom,
Checkerboard,
Single Frame Sequential,
Row Interleaving,
Column Interleaving

Only for training and service purposes

- 10 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6.4. HDMI Input 1.4b (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

1 640*480 31.469 / 31.5 59.94/ 60 25.175/25.2 1 Top-and-Bottom

2 62.938 / 63 59.94/ 60 50.35/50.4 1 Frame packing

3 31.469 / 31.5 59.94/ 60 50.35/50.4 1 Side-by-side(Full) (SDTV 480P)

4 720*480 31.469 / 31.5 59.94 / 60 27.00/27.03 2,3 Top-and-Bottom

5 62.938 / 63 59.94 / 60 54/54.06 2,3 Frame packing

6 31.469 / 31.5 59.94 / 60 54/54.06 2,3 Side-by-side(Full) (SDTV 480P)

7 720*576

(576p)

8 62.5 50 54 17,18 Frame packing

9 31.25 50 54 17,18 Side-by-side(Full) (SDTV 576P)

10 720 (1440)*576

(576i)

11 31.25 50 54 21 Frame packing

12 15.625 50 54 21 Side-by-side(Full) (SDTV 576I)

13 1280*720 37.5 50 74.25 19 Top-and-Bottom

14 75 50 148.5 19 Frame packing

15 37.5 50 148.5 19 Side-by-side(Full) (HDTV 720P)

16 44.96 / 45 59.94 / 60 74.18/74.25 4 Top-and-Bottom

17 89.91 / 90 59.94 / 60 148.35/148.5 4 Frame packing

18 44.96 / 45 59.94 / 60 148.35/148.5 4 Side-by-side(Full) (HDTV 720P)

31.25 50 27 17,18 Top-and-Bottom

15.625 50 27 21 Top-and-Bottom

(MHz)

VIC 3D input proposed

mode

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Field alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Proposed

Secondary(SDTV 480P)
Secondary(SDTV 480P)

Secondary(SDTV 480P)
(SDTV 480P)

Secondary(SDTV 480P)
Secondary(SDTV 480P)

Secondary(SDTV 480P)
(SDTV 480P)

Secondary(SDTV 576P)
Secondary(SDTV 576P)

Secondary(SDTV 576P)
(SDTV 576P)

Secondary(SDTV 576I)
Secondary(SDTV 576I)

Secondary(SDTV 576I)
(SDTV 576I)

Primary(HDTV 720P)
Primary(HDTV 720P)

Primary(HDTV 720P)
(HDTV 720P)

Primary(HDTV 720P)
Primary(HDTV 720P)

Primary(HDTV 720P)
(HDTV 720P)

Only for training and service purposes

- 11 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

1920*1080 33.72 / 33.75 59.94 / 60 74.18/74.25 5 Top-and-Bottom

67.432 / 67.5 59.94 / 60 148.35/148.5 5 Frame packing

33.72 / 33.75 59.94 / 60 148.35/148.5 5 Side-by-side(Full) (HDTV 1080I)

28.125 50.00 74.25 20 Top-and-Bottom

56.25 50.00 148.5 20 Frame packing

28.125 50.00 148.5 20 Side-by-side(Full) (HDTV 1080I)

26.97 / 27 23.97 / 24 74.18/74.25 32 Top-and-Bottom

43.94 / 54 23.97 / 24 148.35/148.5 32 Frame packing

26.97 / 27 23.97 / 24 148.35/148.5 32 Side-by-side(Full) (HDTV 1080P)

28.12 25 74.25 33 Top-and-Bottom

56.24 25 148.5 33 Frame packing

28.12 25 148.5 33 Side-by-side(Full) (HDTV 1080P)

33.716 / 33.75 29.976 / 30.00 74.18/74.25 34 Top-and-Bottom

67.432 / 67.5 29.976 / 30.00 148.35/148.5 34 Frame packing

33.716 / 33.75 29.976 / 30.00 148.35/148.5 34 Side-by-side(Full) (HDTV 1080P)

56.25 50 148.5 31 Top-and-Bottom

67.43 / 67.5 59.94 / 60 148.35/148.50 16 Top-and-Bottom

(MHz)

VIC 3D input proposed

mode

Side-by-side(half)

Field alternative

Side-by-side(half)

Field alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Side-by-side(half)

Proposed

Secondary(HDTV 1080I)
Primary(HDTV 1080I)

Primary(HDTV 1080I)
(HDTV 1080I)

Secondary(HDTV 1080I)
Primary(HDTV 1080I)

Primary(HDTV 1080I)
(HDTV 1080I)

Primary(HDTV 1080P)
(HDTV 1080P)

Secondary(HDTV 1080P)
(HDTV 1080P)

Secondary(HDTV 1080P)
Secondary(HDTV 1080P)

Secondary(HDTV 1080P)
(HDTV 1080P)

Primary(HDTV 1080P)
Secondary(HDTV 1080P)

Primary(HDTV 1080P)
(HDTV 1080P)

Primary(HDTV 1080P)
Secondary(HDTV 1080P)

Primary(HDTV 1080P)
Secondary(HDTV 1080P)

6.5. HDMI-PC 3D Input (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed

1 1024*768 48.36 60 65 2D to 3D,

Side by Side(half)
Top & Bottom

2 1360*768 47.71 60 85.5 2D to 3D,

Side by Side(half)
Top & Bottom

3 1920*1080 67.500 60 148.50 2D to 3D,

Side by Side(half)
Top & Bottom,
Checker Board,
Single Frame Sequential
Row Interleaving,
Column Interleaving

4 Others - - - 2D to 3D 640*350

- 12 -

Only for training and service purposes

HDTV 768P

HDTV 768P

HDTV 1080P

720*400
640*480
800*600
1152*864

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6.6. Component 3D Input (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed

1 1280*720 37.5 50 74.25 2D to 3D,

Side by Side(half),
Top & Bottom

2 1280*720 45.00 60.00 74.25 2D to 3D,

Side by Side(half),
Top & Bottom

3 1280*720 44.96 59.94 74.176 2D to 3D,

Side by Side(half)
Top & Bottom

4 1920*1080 33.75 60.00 74.25 2D to 3D,

Side by Side(half)
Top & Bottom

5 1920*1080 33.72 59.94 74.176 2D to 3D,

Side by Side(half)
Top & Bottom

6 1920*1080 28.12 50 74.25 2D to 3D,

Side by Side(half)
Top & Bottom

7 1920*1080 67.500 60 148.50 2D to 3D,

Side by Side(half)
Top & Bottom

8 1920*1080 67.432 59.94 148.352 2D to 3D,

Side by Side(half)
Top & Bottom

9 1920*1080 27.000 24.000 74.25 2D to 3D,

Side by Side(half)
Top & Bottom

10 1920*1080 28.12 25 74.25 2D to 3D,

Side by Side(half)
Top & Bottom

11 1920*1080 56.25 50 74.25 2D to 3D,

Side by Side(half)
Top & Bottom

12 1920*1080 26.97 23.976 74.176 2D to 3D,

Side by Side(half)
Top & Bottom

13 1920*1080 33.75 30.000 74.25 2D to 3D,

Side by Side(half)
Top & Bottom

14 1920*1080 33.71 29.97 74.176 2D to 3D,

Side by Side(half)
Top & Bottom

HDTV 720P

HDTV 720P

HDTV 720P

HDTV 1080I

HDTV 1080I

HDTV 1080I

HDTV 1080P

HDTV 1080P

HDTV 1080P

HDTV 1080P

HDTV 1080P

HDTV 1080P

HDTV 1080P

HDTV 1080P

Only for training and service purposes

- 13 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6.7. USB Input (3D) (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed

1 1920*1080 33.75 30 74.25 2D to 3D

Side by Side(Half)*,
Top & Bottom*,
Checkerboard*
Row Interleaving,
Column Interleaving
(Photo : side by Side(half),
Top & Bottom)

HDTV 1080P

6.8. DLNA Input (3D)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed

1 1920*1080 33.75 30 74.25 2D to 3D

Side by Side(Half)*,
Top & Bottom*,
Checkerboard*
Row Interleaving,
Column Interleaving
(Photo : side by Side(half), Top
& Bottom)

HDTV 1080P

Only for training and service purposes

- 14 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied all of the LT51H LED TV
models, which produced in manufacture department or similar
LG TV factory

2. Notice

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation
transformer will help protect test instrument.

(2) Adjustment must be done in the correct order. But it is

flexible when its factory local problem occurs.

(3) The adjustment must be performed in the circumstance of

25 ±5ºC of temperature and 65±10% of relative humidity if
there is no specific designation.

(4) The input voltage of the receiver must keep 100~220V,

50/60Hz.

(5) Before adjustment, execute Heat-Run for 5 minutes.

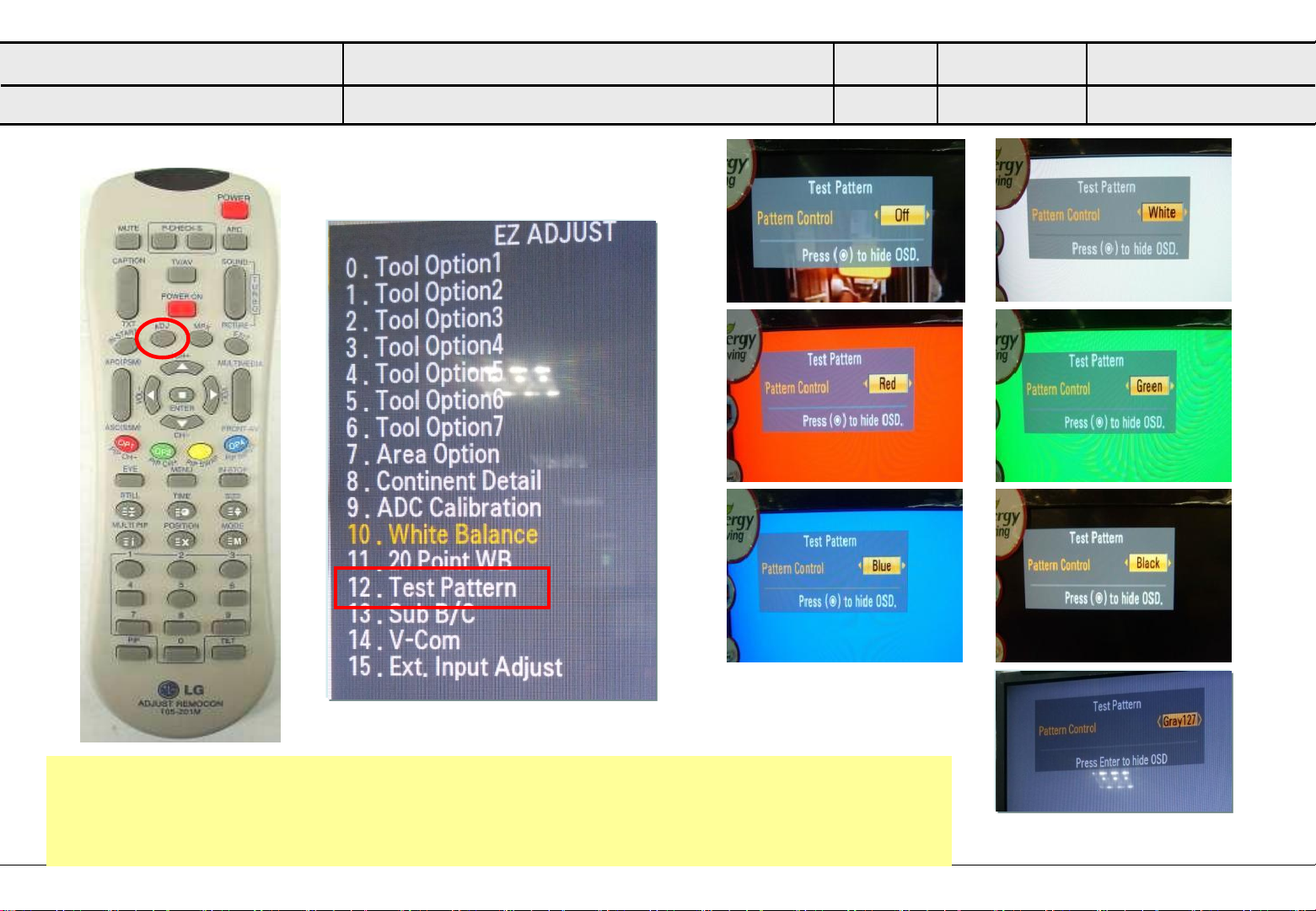

▪ After Receive 100% Full white pattern (06CH) then process

Heat-run

(or “8. Test pattern” condition of Ez-Adjust status)

▪ How to make set white pattern

1) Press Power ON button of Service Remocon

2) Press ADJ button of Service remocon. Select “8. Test
pattern” and, after select “White” using navigation button,
and then you can see 100% Full White pattern.

* In this status you can maintain Heat-Run useless any pattern

generator

* Notice : if you maintain one picture over 20 minutes

(Especially sharp distinction black with white pattern

-13Ch, or Cross hatch pattern – 09Ch) then it can
appear image stick near black level.

4. PCB Assembly Adjustment

4.1. MAC Address, ESN Key and Widevine
Key download

4.1.1. Equipment & Condition

1) Play file: keydownload.exe

4.1.2. Communication Port connection

1) Key Write: Com 1,2,3,4 and 115200 (Baudrate)

2) Barcode: Com 1,2,3,4 and 9600 (Baudrate)

4.1.3. Download process

1) Select the download items.

2) Mode check: Online Only

3) Check the test process

- DETECT -> MAC_WRITE -> ESN_WRITE -> WIDEVINE_
WRITE

4) Play : START

5) Check of result: Ready, Test, OK or NG

4.1.4. Communication Port connection

1) Connect: PCBA Jig -> RS-232C Port == PC -> RS-232C

Port

3. Adjustment items

3.1. PCB Assembly Adjustment

▪ MAC Address / ESN / Widevine / HDCP1.4 / HDCP 2.0

Download

▪ EDID (The Extended Display Identification Data)/DDC

(Display Data Channel) download
* If it is necessary, it can adjustment at Manufacture Line
You can see set adjustment status at “1. ADJUST CHECK”

of the “In-start menu”

3.2. Set Assembly Adjustment

▪ Color Temperature (White Balance) Adjustment
▪ Using RS-232C
▪ PING Test
▪ Selection Factory output option

Only for training and service purposes

4.1.5. Download

1) 15Y LCD TV+MAC+Widevine+ESN Key+ HDCP1.4 and
HDCP2.0

4.1.6. Inspection

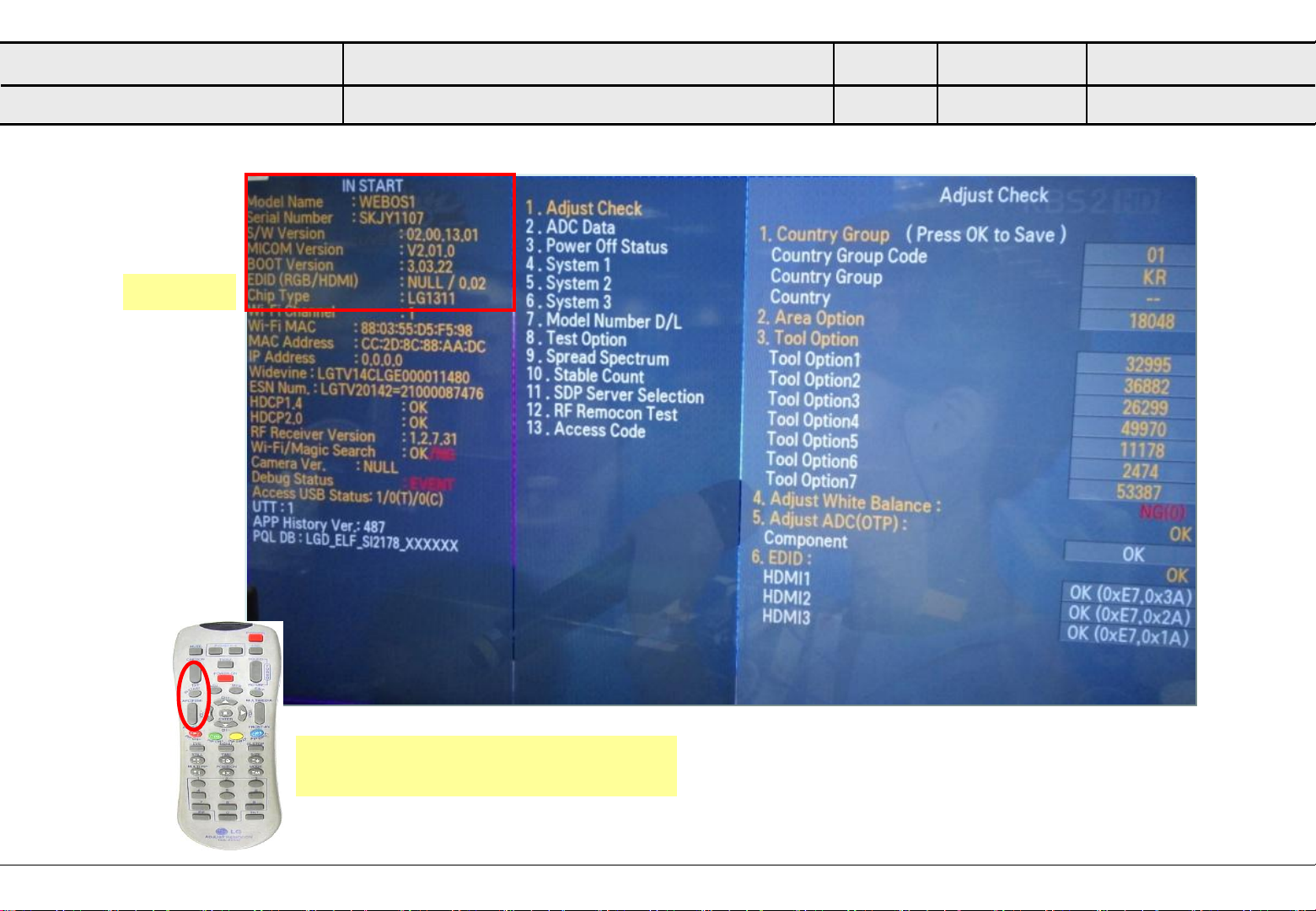

- In INSTART menu, check these keys.

- 15 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.2. LAN PORT INSPECTION(PING TEST)

4.2.1. Equipment setting

1) Play the LAN Port Test PROGRAM.

2) Input IP set up for an inspection to Test
Program.

*IP Number : 12.12.2.2.

4.2.2. LAN PORT inspection (PING TEST)

1) Play the LAN Port Test Program.

2) connect each other LAN Port Jack.

3) Play Test (F9) button and confirm OK Message.

4) remove LAN CABLE

4.3. ADC Adjust => No need at Assembly
line because of OPT type

* OTP mode
Automatic ADC Calibration. (Internal ADC Calibration) On the
manufacture line, OTP is used
for ADC Calibration automatically.

* External mode
Manual ADC Calibration. When OTP mode is failed, ADC
calibration should be “OK” by
using External mode.

- If you want re-adjust for ADC.

■ Enter Service Mode by pushing “ADJ” key,

■ Enter Internal ADC mode by pushing “►” key at “9. ADC

Calibration”

■

Adjustment protocol

Order Command Set response

(1) Inter the Adjustment mode aa 00 00 a 00 OK00x

(2) Change the Source xb 00 40 b 00 OK40x (Adjust 480i Comp1 )

(3) Start Adjustment ad 00 10

(4) Return the Response OKx ( Success condition )

(5) Read Adjustment data ( main)

ad 00 20
( main )
ad 00 30

(6) Conrm Adjustment ad 00 99 NG 03 00x (Failed condition)

(7) End of Adjustment ad 00 90 d 00 OK90x

(Adjust 1080p Comp1)

NGx ( Failed condition )

(main : component1 480i)
000000000000000000000000007c007b­006dx
(main : component1 1080p)
000000070000000000000000007c0083
0077x

NG 03 01x (Failed condition)
NG 03 02x (Failed condition)
OK 03 03x (Success condition)

Only for training and service purposes

- 16 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5. Factory Adjustment

5.1. EDID (The Extended Display Identification
Data)/DDC (Display Data Channel) Download

● Summary

▪ It is established in VESA, for communication between PC

and Monitor without order from user for building user
condition. It helps to make easily use realize “Plug and Play”
function. For EDID data write, we use DDC2B protocol.

● Auto Download (No need Writing EDID data in Assembly line)

▪ After Set Tool Option, then TV turn off and on finish auto

download

* EDID data for FHD, 2D, DTS-HD, 8Bit (40/43/49/55LF63

Series) (Model name = LG TV ) .

- HDMI - 1 EDID table ( 0x40, 0x38 )

* EDID data for FHD, 3D, DTS-HD, 8Bit (42/47/55

LF65/67/70/72 Seriese) (Model name = LG TV )

- HDMI - 1 EDID table ( 0xE6, 0xE5 )

-. LVDS supports 8bit ( Total Block 0xA6 :80, 0xA7 : 1E)

1) HDMI 1 Check sum : 0xE6, 0xE5 (Total Block 0xA4 :10)

2) HDMI 2 Check sum : 0xE6, 0xD5 (Total Block 0xA4 :20)

3) HDMI 3 Check sum : 0xE6, 0xC5 (Total Block 0xA4 :30)

* EDID data for FHD, 3D, DTS-HD, 10Bit (60/65/70

LF65/67/70/72 Seriese) (Model name = LG TV )

- HDMI - 1 EDID table ( 0xE6, 0x9E )

-. LVDS supports 8bit ( Total Block 0xA6 :80, 0xA7 : 1E)

1) HDMI 1 Check sum : 0x40, 0x38 (Total Block 0xA4 :10)

2) HDMI 2 Check sum : 0x40, 0x28 (Total Block 0xA4 :20)

3) HDMI 3 Check sum : 0x40, 0x18 (Total Block 0xA4 :30)

* EDID data for FHD, 2D, DTS-HD, 10Bit (60/65LF63 Series )

(Model name = LG TV )

- HDMI - 1 EDID table ( 0x40, 0xF1 )

-.LVDS supports 10bit (support Deep color) , ( Total Block
0xA6 :B8, 0xA7 : 2D)

1) HDMI 1 Check sum : 0x40, 0xF1 (Total Block 0xA4 :10)

2) HDMI 2 Check sum : 0x40, 0xE1 (Total Block 0xA4 :20)

3) HDMI 3 Check sum : 0x40, 0xD1 (Total Block 0xA4 :30)

-. LVDS supports 10bit (support Deep color) , ( Total Block
0xA6 :B8, 0xA7 : 2D)

1) HDMI 1 Check sum : 0xE6, 0x9E (Total Block 0xA4 :10)

2) HDMI 2 Check sum : 0xE6, 0x8E (Total Block 0xA4 :20)

3) HDMI 3 Check sum : 0xE6, 0x7E (Total Block 0xA4 :30)

Only for training and service purposes

- 17 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.2. Adjustment Color Temperature
(White balance)

● W/B Equipment condition

CA210 : CH 14, Test signal : Inner pattern (80IRE) – LED

Module

CH18 , Test signal : Inner pattern (80IRE) – ALEF

Module

● Above 5 minutes H/run in the inner pattern. (“power on” key of

adjust remote control)

※ The spec of color temperature and coordinate.

X=0.271

Cool (C50) 13,000k K

All

Medium (0) 9,300k K

Warm (W50) 6,500k K

(1) RS-232C Command used during auto-adj.

RS-232C COMMAND

CMD DATA ID

Wb 00 00 Begin White Balance adj.

Wb 00 ff

End White Balance adj. (internal pattern
disappears )

5.2.1. Adjustment method

5.2.2. Auto WB calibration

(1) Set TV in ADJ mode using P-ONLY key (or POWER ON

key)

(2) Place optical probe on the center of the display

- It need to check probe condition of zero calibration before
adjustment.

(3) Connect RS-232C Cable
(4) Select mode in ADJ Program and begin a adjustment.
(5) When WB adjustment is completed with OK message,

check adjustment status of pre-set mode (Cool, Medium,
Warm)

(6) Remove probe and RS-232C cable.

▪ W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need

(±0.002)
Y=0.270
(±0.002)

X=0.286
(±0.002)
Y=0.289
(±0.002)

X=0.313
(±0.002)
Y=0.329
(±0.002)

Explanation

<Test signal>

- Inner pattern
for W/B adjust

- External white

pattern

5.2.3. Manual adjustment

5.2.3.1 Manual adj. method
(1) Set TV in Adj. mode using POWER ON
(2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface..

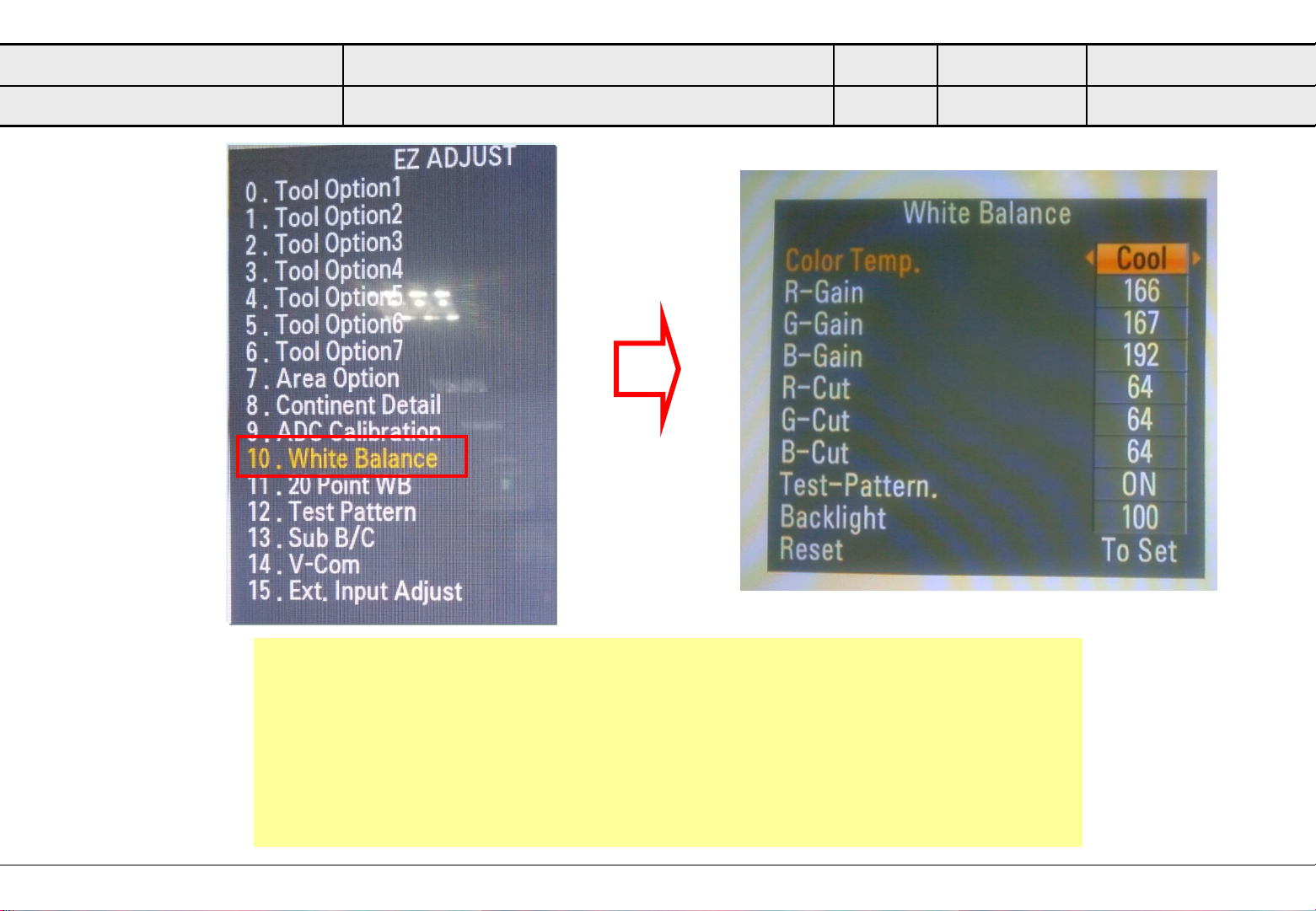

(3) Press ADJ key à EZ adjust using adj. R/C -> 11. White-

Balance then press the cursor to the right (KEY►). When
KEY(►) is pressed 206 Gray internal pattern will be

displayed.

(4) Adjust Cool modes

- Fix the one of R/G/B gain to 192 (default data) and

decrease the others.

( If G gain is adjusted over 172 and R and B gain less than

192 , Adjust is O.K.)

- If G gain is less than 172,
Increase G gain by up to 172, and then increase R gain and
G gain same amount of increasing G gain.

- If R gain or B gain is over 255,
Readjust G gain less than 172, Conform to R gain is 255 or

B gain is 255

(5) Adjust two modes (Medium / Warm) Fix the one of R/G/B

gain to 192 (default data) and decrease the others.

(6) Adj. is completed, Exit adjust mode using “EXIT” key on

Remote controller

5.2.4. Reference (White Balance Adj. coordinate and

color temperature)

(1) Luminance: 204 Gray, 80IRE
(2) Standard color coordinate and temperature using CS-1000

(over 26 inch)

5.2.5. Reference (White Balance Adj. coordinate and

color temperature)

(1) Luminance: 204 Gray
(2) Standard color coordinate and temperature using CS-1000

(over 26 inch)

Mode

Cool 0.271 0.270 13,000K 0.0000

Medium 0.286 0.289 9,300K 0.0000

Warm 0.313 0.329 6,500K 0.0000

▪ Standard color coordinate and temperature using CA-210

(CH 14) – by aging time

Mode

Cool 0.271±0.002 0.270±0.002 13000K 0.0000

Medium 0.286±0.002 0.289±0.002 9300K -3

Warm 0.313±0.002 0.329±0.002 6500K 0.0000

Coordinate

X Y

Coordinate

X Y

Temp △uv

Temp △uv

Only for training and service purposes

- 18 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.3. Magic Motion remote controller Check
(Only LF65/LF70/LF72)

5.3.1 Test equipment

- RF-remote controller for check, IR-KEY-CODE remote
controller.

- Check AA battery before test. A recommendation is that a
tester change battery every lots.

5.3.2. Test

(1) Make pairing with TV set by pressing “Mute (START) key”

on RCU.

(2) Check a cursor on screen by pressing ‘ENTER” or “OK”

key of RCU

(3) Stop paring with TV set by pressing “VOL+ (STOP) key.

5.4. 3D pattern test

5.4.1. Test equipment

(1) Pattern Generator MSHG-600 or MSPG-6100 (HDMI 1.4

support)

(2) Pattern: HDMI mode (model No. 872, pattern No. 83)

5.4.2. Test method

(1) Input 3D test signal as Fig.1.

5.5. HDMI ARC Function Inspection

5.5.1. Test equipment

- Optic Receiver Speaker

- MSHG-600 (SW: 1220 ↑)

- HDMI Cable (for 1.4 version)

5.5.2. Test method

(1) Insert the HDMI Cable to the HDMI ARC port from the

master equipment (HDMI1)

(2) Check the sound from the TV Set

(3) Check the Sound from the Speaker or using AV & Optic

TEST program (It’s connected to MSHG-600)

(2) Press ‘OK” key as a 3D input OSD is shown.
(3) Check pattern as Fig2 without 3D glasses. (3D mode

without 3D glasses)

<OK in 3D mode without 3D glasses>

<NG in 3D mode without 3D glasses>

Fig.2

Fig.3

* Remark: Inspect in Power Only Mode and check SW version

in a master equipment

Only for training and service purposes

- 19 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5.6. Local Dimming Function Check

Green Eye-Check

Sensor Data : 492
BackLight : 100

OK

Step 1) Turn on TV
Step 2) Press “TILT” key on the Adj. R/C
Step 3) At the Local Dimming mode, module Edge Backlight

moving left to right. Back light of IOP module moving
Step 4) confirm the Local Dimming mode.
Step 5) Press “exit” key.

5.7. Intelligent Sensor Inspection

Step 1) Turn on the TV set.
Step 2) Press “EYE” button on the Adjustment remote

controller.

Step 3) Block the Intelligent Sensor module on the front C/A

about 6 seconds. When the “Sensor Data” is lower

than 20, you can see the “OK” message
=> If it doesn’t show “OK” message, the Sensor Module is

defected one. You have to replace that with a good one.

6. GND and HI-POT Testing

6.1. GND & HI-POT auto-check preparation
Check the connection between set and
power cord

(1) Check the POWER CABLE and SIGNAL CABE insertion

condition

6.2. GND & HI-POT auto-check

(1) Pallet moves in the station. (POWER CORD / AV CORD is

tightly inserted)
(2) Connect the AV JACK Tester
(3) Controller (GWS103-4) on.
(4) GND Test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, execute next process (Hi-pot test).
(Remove A/V CORD from A/V JACK BOX)
(5) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next process

automatically

6.3. Check Point

(1) Test voltage
3 Poles : GND: 1.5KV/min at 100mA / SIGNAL: 3KV/min at

100mA
(2) TEST time: 1 second
(3) TEST POINT
3 Poles : GND Test = POWER CORD GND and SIGNAL

CABLE GND.
Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL.
(4) LEAKAGE CURRENT: At 0.5mArms

Step 4) After check the “OK” message come out, take out your

hand from the Sensor module

=> Check “Sensor Data” value change from “0” to “300” or

not. If it doesn’t change the value, the sensor is also
defected one. You have to replace it.

※ Caution : Don’t push The INSTOP KEY after completing the

function inspection

Only for training and service purposes

- 20 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

7. Default Service option

7.1. ADC-Set

▪ R-Gain adjustment Value (default 128)
▪ G-Gain adjustment Value (default 128)
▪ B-Gain adjustment Value (default 128)
▪ R-Offset adjustment Value (default 128)
▪ G-Offset adjustment Value (default 128)
▪ B-Offset adjustment Value (default 128)

7.2. White balance. Value

CENTER (DEFAULT)

C50 0 W50

R Gain 192 192 192

G Gain 192 192 192

B Gain 192 192 192

R Cut 64 64 64

G Cut 64 64 64

B Cut 64 64 64

8. USB DOWNLOAD (*.epk file download)

(1) Put the USB Stick to the USB socket
(2) Press Menu key, and move General
*before 10.2 Step. Set USB Expert Mode : Enabled
IN START > System 3 > USB Expert Mode

(3) Press “number key 7” Press 7 times.

Only for training and service purposes

- 21 -

(4) Select download file (epk file)

(5) After download is finished, remove the USB stick. ( it will be

auto-reboot )

(6) Press “IN-START” key of ADJ remote control, check the

S/W version

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

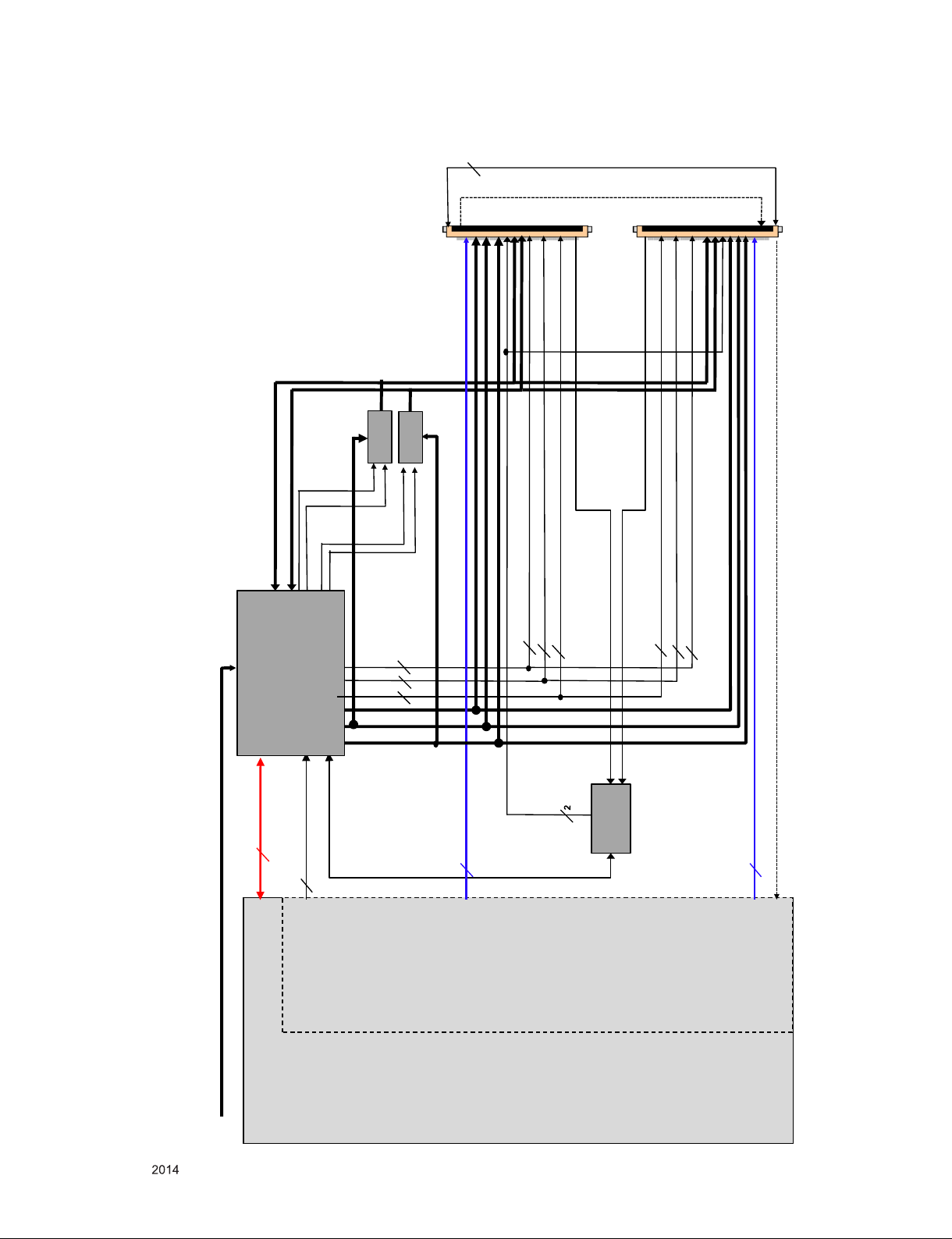

BLOCK DIAGRAM

Audio AMP

(NTP7515)

IC101

M14+

Digital Dem od

IF (+/-)

USB1

OPT IC

LAN

DDR3 1600 X 16

(512MB X 2EA)

HDMI1

HDMI2

HDMI3

Analog Demod

SYSTEM EEPR OM

(256Kb)

HDMI

MUX

USB2

USB3

41P

51P

eMMC

(4GB)

Sub Micom

(RENESAS

R5F1000G)

DDR3 1600 X 16

(256MB X 2EA)

P_TS

50P

50P

X_TAL

24MHz

A B

X_TAL

32.768KHz

I2S O ut

I2C 1

EPI

I2C 2

LVDS

USB

I2C 5

H/P (Line Out)

AV/COMP

D-Demod : I2C 4

OCP

1.5A

OCP

1.5A

(ARC)

REA

R

SID

E

SID

E

REA

R

(H)

AMP

TI

CVBS/YPbPr

SPDIF OUT

ETHERNET

I2C 3

LOCAL DIMMING

BLUTOOTH

IR / KEY/EYE

PM

IC

WIFI

SUB

ASSY

I2C 2

IR

KEY

USB_WIFI-BT

(IR Bla Ready)

Tuner : I2C 6

LAN

PHY

OCP

1A

(MHL)

X_TAL

25MHz

I2C

CVBS/SIF

Tuner

LNB

1. M14+ Block Diagram

Only for training and service purposes

- 22 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

33Ω

+3.3V_NORMAL

3.3K Ω

TUNER

3.3K Ω

+3.3V_NORMAL

I 2C_SDA3

I2 C_SCL3

I 2C_SDA2

I2 C_SCL2

IC6900

LNB

33Ω

22Ω

33Ω

+3.3V_NORMAL

3.3K Ω

IC7700

PMIC

I 2C_SDA1

I2 C_SCL1

+3.3V_NORMAL

3.3K Ω

IC5600

NTP7515(AMP)

I 2C_SDA0

I2 C_SCL0

100 Ω

IC103

NVRAM

3.3K Ω

+3.3V_NORMAL

I 2C_SDA4

I2 C_SCL4

33Ω

I 2C_SDA5

I2 C_SCL5

TUNER (Demod)

3.3K Ω

+3.3V_NORMAL

33Ω

IC101

M14+

IR / KEY/ EYE

100Ω

+3.5V_ST

3.3K Ω

IC3000

Renesas MICOM

EYE_I2C_SDA

EYE_I2C_SCL

2. M14+ I2C Block Diagram

Only for training and service purposes

- 23 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

3. Power Block Diagram

Only for training and service purposes

- 24 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

IC101

M14+

Tuner

AJ5 [GPIO22]

AG23[SCL5]

AH24 [SDA5]

[SLC] 4

[SDA] 5

[+3.3V_TUNER] 1, 11

[+.1.2V_TUNER] 28

S_SIF 9

S_CVBS 8

[S_Error] 12

[S_SYNC] 14

[S_VALID] 15

[S_MCLK] 16

[S_Data] 17

AH33 [TP_DVB_ERR]

AH32 [TP_DVB_SYNC]

AH31 [TP_DVB_VAL]

AH30 [TP_DVB_CLK]

[S_RESET] 25

AG17 [GPIO6]

[+3.3V_S_DEMOD] 26

[S_SCL] 27

[S_SDA] 30

AP6 [SCL3]

AR6 [SD A3]

AK29[DMD_ADC_SIF]

AL27[CVBS_IN1]

IC2_SCL6

IC2_SDA6

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_CLK

/TU_RESET1

I2C_SCL4

I2C_SDA4

+3.3V_TU

3.3K Ω

+1.2_D_Demod

+3.3V_TU

+3.3V_D_Demod

TUNER_SIF

TU_CVBS

33Ω

1.5K Ω

+3.3V_TU

22 Ω

4. Tuner Block Diagram (TDJM-B301F/K301F Tuner)

Only for training and service purposes

- 25 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

IC101

M14+

Tuner

AG23[SCL5]

AH24 [SDA5]

[SLC] 4

[SDA] 5

[+3.3V_TUNER] 1

AP6 [SCL3]

AR6 [SD A3]

IC2_SCL6

IC2_SDA6

+3.3V_TU

33Ω

1.5K Ω

+3.3V_TU

S_SIF 9

S_CVBS 8

AK29[DMD_ADC_SIF]

AL27[CVBS_IN1]

TUNER_SIF

TU_CVBS

[M_DIF_P] 6

[M_DIF_N] 7

AK28 [DMD_ADC_INP]

AL28 [DMD_ADC_INN]

AM29[IFAGC]

IF_P

IF_N

IF_AGC

M_DIF_IFAGC 3

5. Tuner Block Diagram (TDJK-T301F Tuner)

Only for training and service purposes

- 26 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

IC101

M14+

[CVBS_IN3/Y2_IN/SOY2_IN]

Tuner

Jack Side

SoC Side

JK3802

SCART

JK4600

COMP1_Y/AV1_CVBS

COMP1_Pb

COMP1_Pr

COMP1/AV1/DVI_L_IN

COMP1/AV1/DVI_R_IN

AV1_CVBS_IN_SOC

COMP2_Y_IN_SOC

COMP2_Y_IN_S0C _S0Y

COMP2_Pb__IN _SOC

[PB2_IN]

[PR2_IN]

[AUDA_L_CH3_IN]

COMP2_PR_IN _SOC

AUAD_L_CH3_IN

[AUDA_R_CH3_IN]

AUAD_R_CH3_IN

SC_CVBS_IN

SC_ID/FB

SC_R/G/B

SC_CVBS_IN _SOY

SC_L/R_IN

TU_CVBS

TUNER_SIF/IF_P/N

[CVBS_IN2]

SC_CVBS_IN _SOC

SC_ID_SOC

SC_FB_SOC

[SC1_SID, SC1_FB]

[PB1_IN/Y1_IN/SOY1_IN/PR1_IN]

[AUDA_L_CH2_IN/AUDA_R_CH2_IN]

COMP1_PB_IN _SOC

COMP1_Y_IN_SOC

COMP1_Y_IN_SOC _SOY

COMP1_PR_IN _SOC

AUAD_L_CH2_IN

AUAD_R_CH2_IN

[CVBS_IN1]

[DMD_ADC_INP/DMD_ADC_INN]

TU_CVBS_SOC

TUNER_SIF

ADC_I_INP

ADC_I_INN

[AAD _AD C -SIF]

6. Video/Audio In Block Diagram

Only for training and service purposes

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

- 27 -

SPDIF_OUT

IC5600

Audio AMP

LPF

AUAD_L_CH3_IN

AUAD_R_CH3_IN

[IEC9580UT]

Tuner

SCART

DTV/MNT_L/R_OUT

[AUDA_SCART_OUTL]

[AUDA_SCART_OUTR]

SC_L/R_IN

SCART_L/Rout

AUD_LRCH

HP_L/ROUT_MAIN

HEAD PHONE

LPF

4P WAFER

[AUDA_OUTL]

[AUDA-OUTR]

IC101

M14+

TUNER_SIF

[DAC_SCK]

[DAC_LRCH]

AUD_LRCK

AUD_SCK

[DAC_LRCK]

[SDA0]

[SCL0]

I2C_SDA1

I2C_SCL1

IC3000

MICOM

AMP_MUTE

[AUDA_L_CH2_IN]

[AUDA_R_CH2_IN]

[AUDA_L_CH3_IN]

[AUDA_R_CH3_IN]

JK3802

DVB only

DVB only

AUD_MASTER_CLK

[AUDCLK_OUT]

JK4600

[GPIO21]

AMP_RESET_N

IC6100

TPA6138A2PWR

HP AMP

JK3401

JK3403

LPF

SPEAKER_L

SPEAKER_R

IC6000

AZ4580MT R

OP AMP

Mute CTRL

(TR)

SCART

JK4600

SIDE_HP_MUTE

LPF

HP_L/ROUT_AMP

[AAD _ADC -SIF]

7. Audio Out Block Diagram

Only for training and service purposes

- 28 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

HDMI1

HDMI2

HDMI3

with MHL

CEC_REMOTE

RENESAS

MICOM

HDMI_CEC

IC101

M14+

Q3001

DDC_SCL_1

DDC_SCL_2

DDC_SDA_2

TMDS Link 8bits

SPDIF_OUT_ARC

DDC_SDA_1

X-tal

32.768kHz

TMDS Link 8bits

TMDS Link 8bits

WOL_CTL

DDC_SCL_4

DDC_SDA_4

5V_HDMI_4

OCP

5V_NORMAL

MHL_DET

TMDS Link or MHL Link

HDMI_HPD

HDMI_HPD

HDMI_HPD

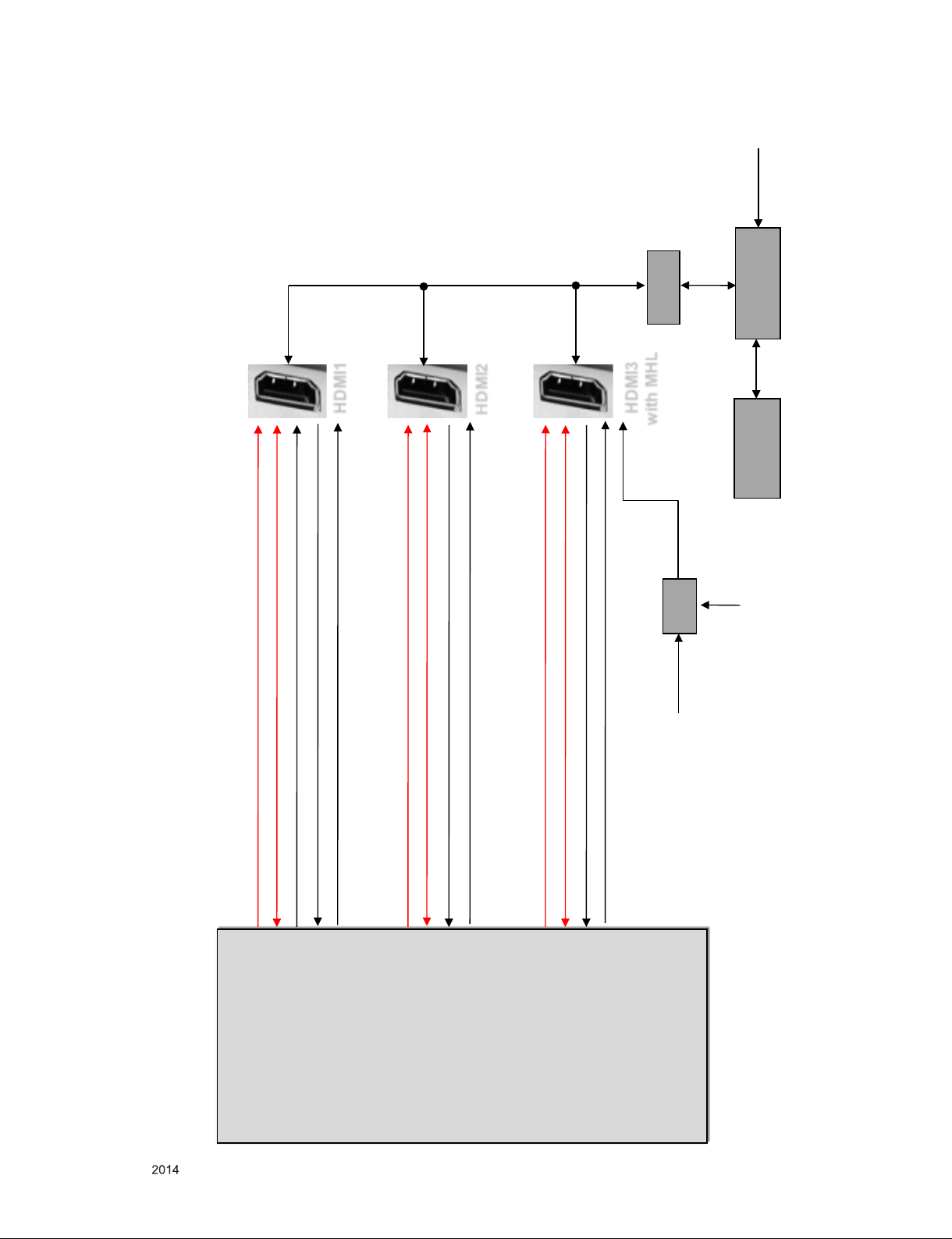

8. HDMI

Only for training and service purposes

- 29 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

EPI Tx

Block

IC101

M14+

50Pin X 2

PANEL_VCC (+12V)

EPI CH5/6/7/8+/-

EPI CH1/2/3/4+/-

GMA1/G MA3/GAM9/GMA10/GMA16/GMA18

VDD

VCC1.8

EO/GST/GCLK/MCLK

EPI_LOCK8EPI_LOCK8

TR/

Diode

TR/

Diode

SWP

CTRLP

SWN

CTRLN

VGH

VGL

6

6

8

6

8

I2C

4

4

4

VGH_ODD /EVEN,VST ,GIP_RST

4

6

6

CLK1~CLK6

6

6

GMA4/G MA5/GAM7/GMA12/GMA14/GMA15

2CH

OP A MP

PVCOM

LEFT

RIGHT

VCOM 1/2 - Top/Bottom

H_VDD

VCOMRFB

VCOMLFB

VGH_ODD /EVEN,VST ,GIP_RST

CLK1~CLK6

GMA4/G MA5/GAM7/GMA12/GMA14/GMA15

PMIC+L/S

TPS65175

EPI_LOCK4

9. Panel Interface Block Diagram(EPI)

Only for training and service purposes

- 30 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

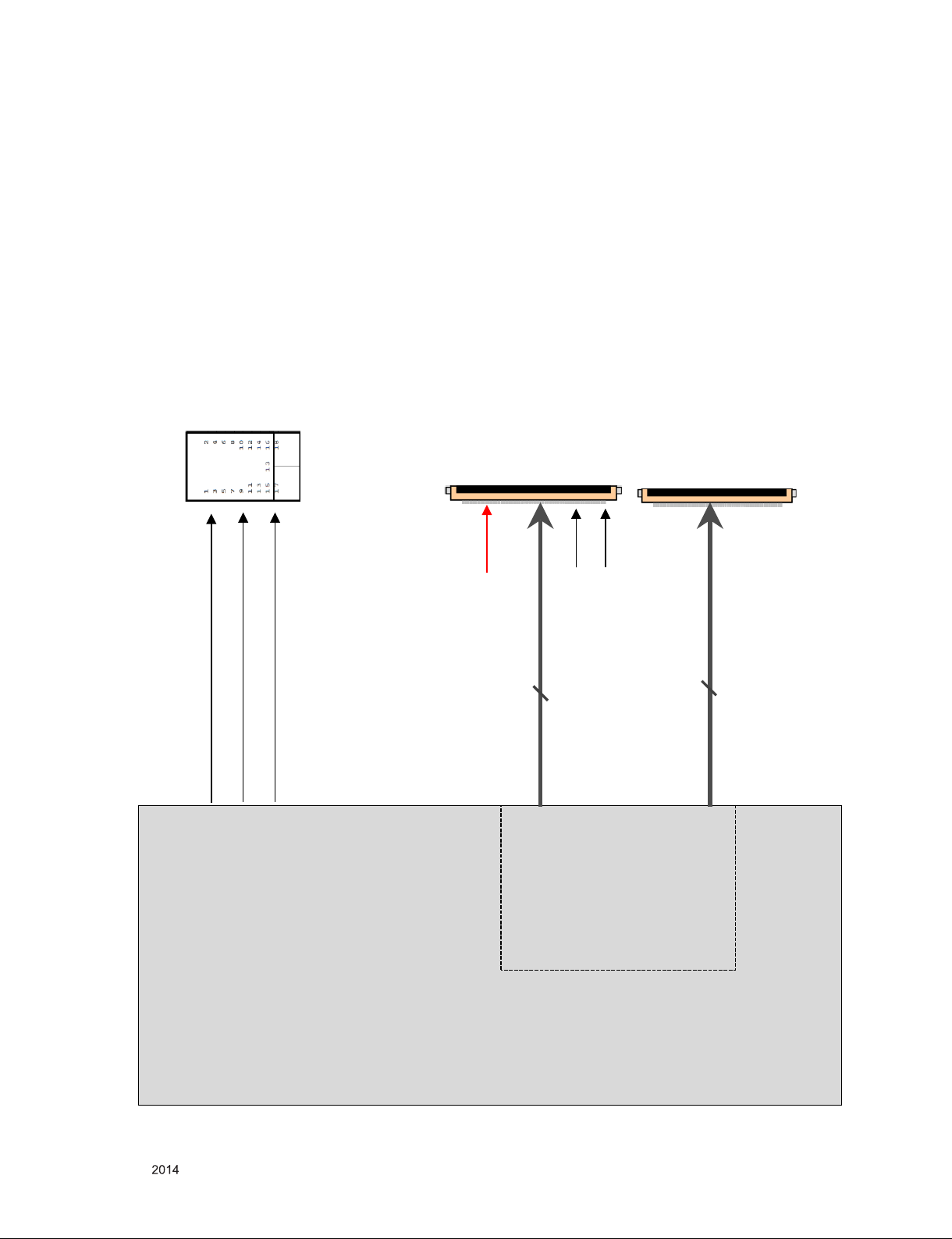

LVDS Tx

Block

LVDS_SEL

BIT_SEL_LOW

51Pin

LVDS

Output

PANEL_VCC

(+12V)

41Pin

LVDS

Output

10-bit (R)

Dual-link LVDS Output

24

10-bit (R)

24

Dual-link LVDS Output

• LVDS_SEL : “H”=J EIDA, “L” o r NC=VESA (LGD)

• BIT _SEL : “H” or NC = 10-bit, “L” = 8-bit

L/DIM0_VS

L/DIM0_SCLK

L/DIM0_MOSI

[L_VSOUT_LD/TRST0_N]

[DIM0_MOSI/TDO0]

[DIM0_SCLK/TMS0]

IC101

M14+

P2301

POWER_WAFER_18PIN

10. Panel Interface Block Diagram(LVDS)

Only for training and service purposes

- 31 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

IC101

M14+

USB1

USB3_DP

USB3_DM

[USB3_DP0]

[USB3_DM0]

USB2

USB_DP2

USB_DM2

[HUB_PORT _OVER0]

OCP

OCP

+5V_USB_1

+5V_USB_2

/USB_OCD1

USB_CTL1

USB_CTL2

/USB_OCD2

WIFI-BT_DM

WIFI-BT_DP

EYY_SCL

EYE_SDA

[USB2_0_DP0]

[USB2_0_DM0]

USB_DP3

+5V_USB_3

USB_CTL3

/USB_OCD3

USB3

USB_DM3

[HUB_VBUS_CTRL0]

IC 4500

IC 4306

[USB3_DP1]

[USB3_DM1]

[EB_CS3]

[EB_CS2]

[USB2_1_DP0]

[USB2_1_DM0]

[EB_CS1]

[EB_CS0]

WIFI-BT

IR-KEY

-EYE

Micom

LED

IR

KEY1

KEY2

11. USB 2.0 / WIFI-BT / IR-KEY-EYE

Only for training and service purposes

- 32 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

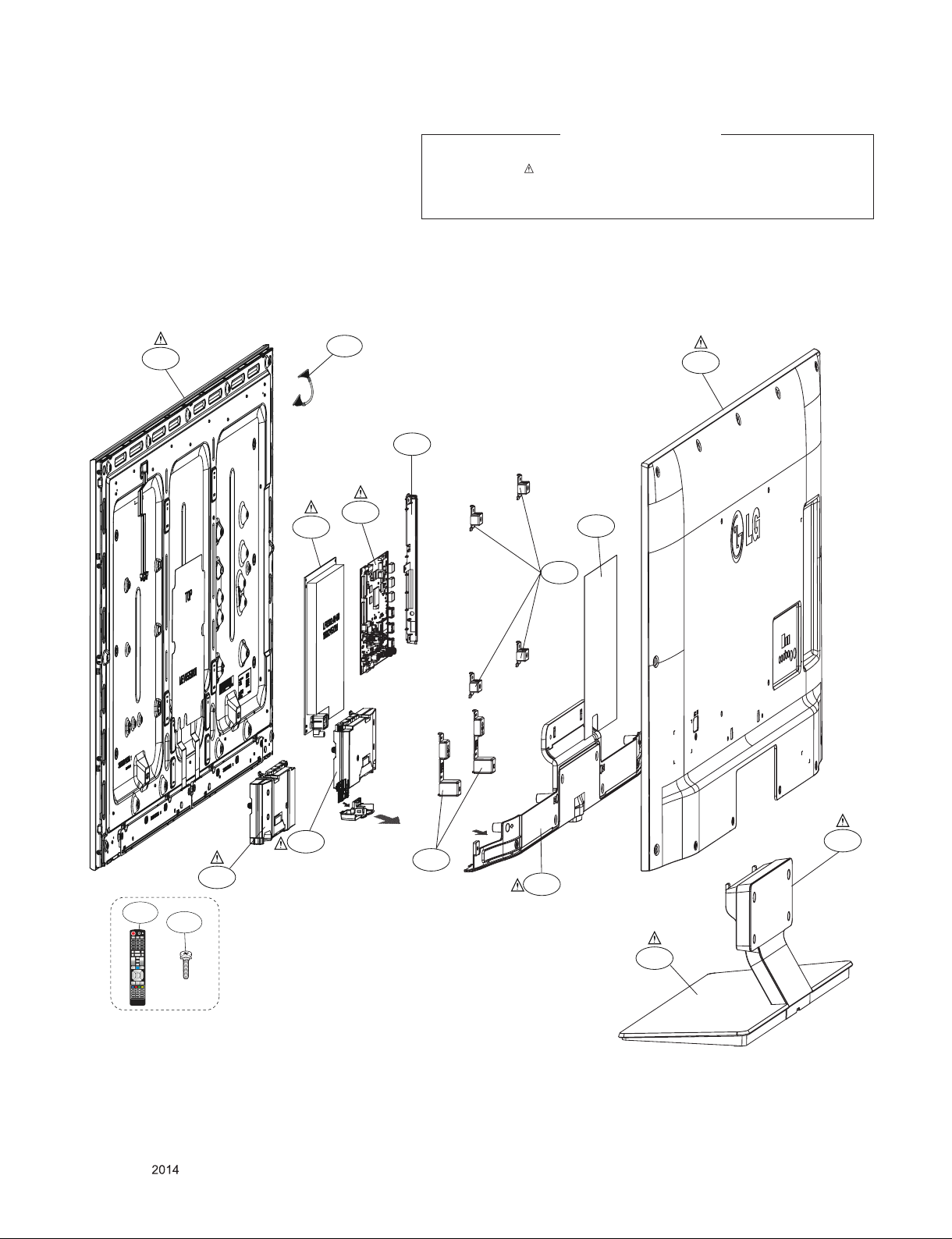

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

200

530

LV1

400

521

540

800

410

121

A2

A10

Set + Stand

Only for training and service purposes

120

420

- 33 -

910

401

900

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

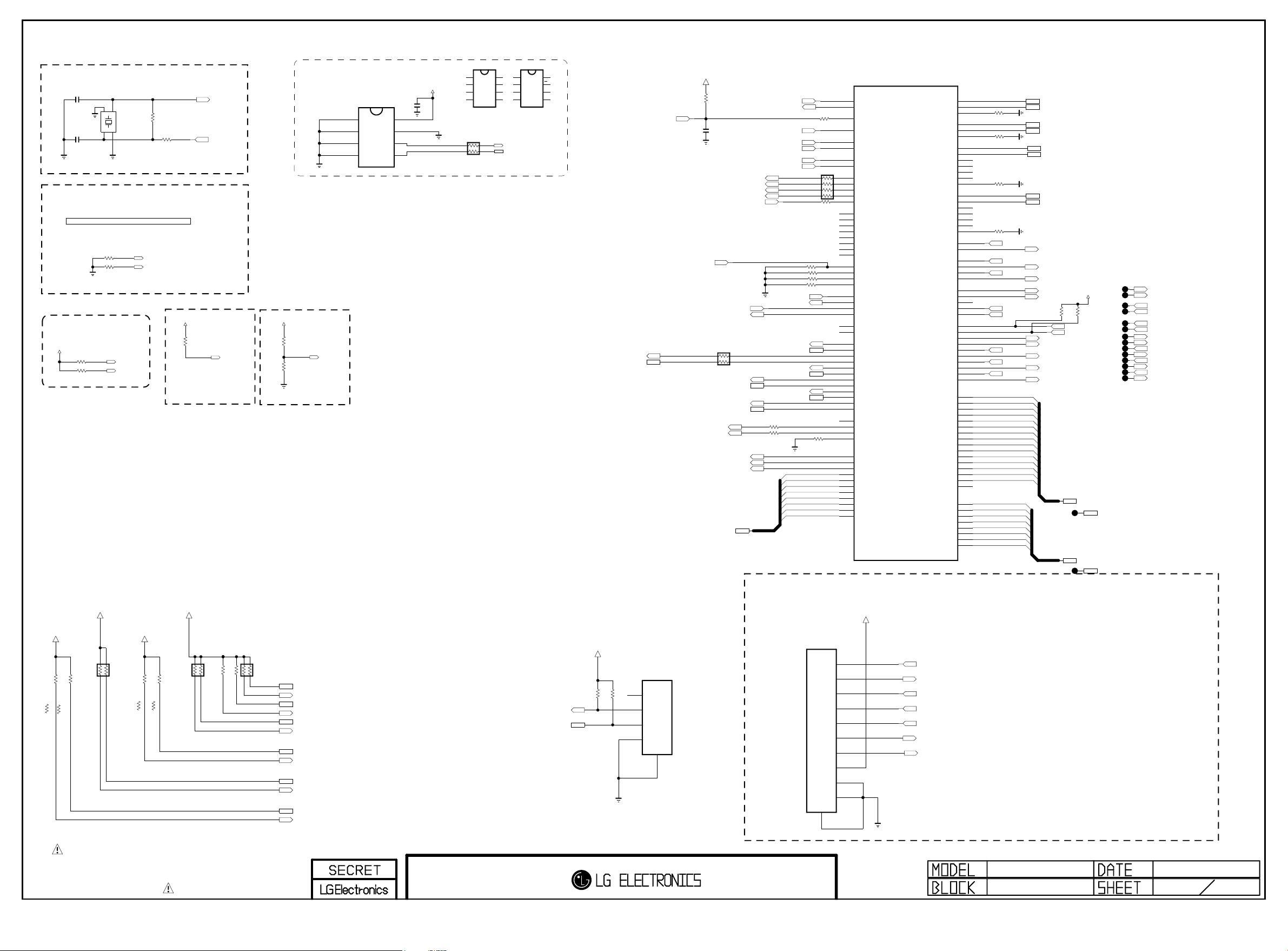

System Configuration

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Clock for M14+

MAIN Clock(24Mhz)

10pF

C101

10pF

C102

System Clock for Analog block(24Mhz)

PLL SET[1:0] : internal pull up
"00" : CPU(1200Mhz),M0 / M1 DDR(792,792 Mhz)
"01" : CPU(1056Mhz),M0 / M1 DDR(672,672 Mhz)
"10" : CPU(1056Mhz),M0 / M1 DDR(792,792 Mhz)
"11" : CPU( 960Mhz),M0 / M1 DDR(792,792 Mhz)

Extenal test only

R103 3.3K

R104 3.3K

OP MODE[1:0]
"00" : Normal Mode
"01/10/11" : Internal Test mode

+3.3V_NORMAL

OPT

R101 3.3K

R102 3.3K

OPT

Extenal test only

+3.3V_NORMAL

+3.3V_NORMAL

R148

3.3K

R146

3.3K

KR/JP_PIP_NOT

KR/JP_PIP_NOT

1.5K

1.5K

R146-*1

R148-*1

KR/JP_PIP

KR/JP_PIP

X-T AL_12GND _1

1

X10 1

24M Hz

4

3

GND _2

X-T AL_2

OPT

OPT

PLLSET1

PLLSET0

OPM1

OPM0

+3.3V_NORMAL

3.3K

AR104

R155

1.2K

KR/JP_PIP_NOT

3.3K

R155-*1

KR/JP_PIP

KR/JP_PIP

1M

R118

R180
560

+3.3V_NORMAL

INSTANT boot MODE
"1 : Instant boot
"0 : normal

3.3K

R121

(internal pull down)

OPT

INSTANT_MODE0

+3.3V_NORMAL

R156

1.2K

KR/JP_PIP_NOT

3.3K

R156-*1

XTAL_IN

XTAL_OUT

INSTANT_BOOT

I2C PULL UP

3.3K

R159

3.3K

R160

3.3K

AR103

+3.3V_NORMAL

BOOT MODE
"0 : EMMC
"1 : TEST MODE

3.3K

R127

OPT



BOOT_MODE

3.3K

R128

BOOT_MODE0

I2C

I2C_1 : AMP
I2C_2 : T-CON,L/DIMING
I2C_3 : MICOM
I2C_4 : S/Demod,T2/Demod, LNB
I2C_5 : NVRAM
I2C_6 : TUNER_MOPLL(T/C,ATV)

3.3K

AR102

I2C_SDA1
I2C_SCL1
I2C_SDA_MICOM_SOC
I2C_SCL_MICOM_SOC
I2C_SDA2
I2C_SCL2

I2C_SDA4
I2C_SCL4

I2C_SDA5
I2C_SCL5

I2C_SDA6
I2C_SCL6

NVRAM

IC103

AT24C256C-SSHL-T

A0

1

A1

2

A2

3

GND

4

NVRAM_ATMEL

PAGE 1

+5V_NORMAL

R11034

10K

NON_CI

CAM_CD1_N
CAM_CD2_N

TP104
TP105

TP106
TP107

NON_CI

TP108
TP109

TP110
TP111
TP112
TP113
TP114
TP115
TP116
TP117

EB_ADDR[0-14]

EB_ADDR[0-14]

EB_WE_N
EB_OE_N

EB_BE_N1
EB_BE_N0

CAM_CD1_N
CAM_CD2_N

/PCM_CE1
/PCM_CE2
CAM_IREQ_N
PCM_RESET
CAM_INPACK_N
PCM_5V_CTL
CAM_WAIT_N
CAM_REG_N

8

7

6

5

VCC

WP

SCL

SDA

VSS

NVRAM_ST

I2C_SCL5
I2C_SDA5

IC103-*1

M24256-BRMN6TP

E0

1

E1

2

E2

3

4

VCC

8

WC

7

SCL

6

SDA

5

SOC_RESET

I2C_SCL_MICOM_SOC
I2C_SDA_MICOM_SOC

+3.3V_NORMAL

FORCED_JTAG_0

PWM_DIM2

PWM_DIM

R163
10K

OPT

C104

0.1uF
16V

L/DIM0_VS

L/DIM0_SCLK

L/DIM0_MOSI

M_REMOTE_RX
M_REMOTE_TX

1/16W

33

AR100

I2C_SCL4
I2C_SDA4

I2C_SCL6
I2C_SDA6

EMMC_CLK
EMMC_CMD
EMMC_RST

TCK0
TDI0

XTAL_IN

XTAL_OUT

BOOT_MODE

PLLSET0
PLLSET1

I2C_SCL1
I2C_SDA1

I2C_SCL2
I2C_SDA2

I2C_SCL5
I2C_SDA5

R107
R108

OPM0
OPM1

R182 10K

R183 10K
R184 10K

R185 10K

SOC_RX

SOC_TX

33
33

EMMC_DATA[7]
EMMC_DATA[6]
EMMC_DATA[5]
EMMC_DATA[4]
EMMC_DATA[3]
EMMC_DATA[2]
EMMC_DATA[1]
EMMC_DATA[0]

R169

33

AR101

33

R178 33

OPT

R179
10K

1/16W
5%

AG21

AJ18

AG30
AG28
AG29
AH29
AJ27
AH27
AG26
AH26

AJ12
AJ13
AH12
AG12

AH23
AG22

AH11
AG11

AG10

AH22
AJ22
AH10
AJ10
AG23
AH24

B23
A23

AB8
AC8

AD8
AE8

Y7
Y6
W7
W6
W5

AH7
AJ7

AG8
AH8

AH9
AG9

AJ9

AC6
AC7
AD7
AB7

G32
G33
G31
D31
F33
F32
E32
F31
D33
D32
E31

EMMC_DATA[0-7]

IC101

LG1311-C1

XIN_MAIN
XO_MAIN

PORES_N

BOOT_MODE

PLLSET0
PLLSET1

OPM0
OPM1

L_VSOUT_LD/TRST0_N
DIM0_SCLK/TMS0
DIM1_SCLK/TCK0
DIM1_MOSI/TDI0
DIM0_MOSI/TDO0

SPI_CS0
SPI_SCLK0
SPI_DO0
SPI_DI0/TRST1_N
SPI_CS1/TMS1
SPI_SCLK1/TCK1
SPI_DO1/TDO1
SPI_DI1/TDI1

EXT_INTR0
EXT_INTR1
EXT_INTR2
EXT_INTR3

UART0_RXD
UART0_TXD
UART1_RXD
UART1_TXD

UART1_RTS_N
UART1_CTS_N

SCL0
SDA0
SCL1
SDA1
SCL2
SDA2
SCL3
SDA3
SCL4
SDA4
SCL5
SDA5

PWM0
PWM1
PWM2
PWM_IN

EMMC_CLK
EMMC_CMD
EMMC_RESETN
EMMC_DATA7
EMMC_DATA6
EMMC_DATA5
EMMC_DATA4
EMMC_DATA3
EMMC_DATA2
EMMC_DATA1
EMMC_DATA0

USB2_0_DP0
USB2_0_DM0

USB2_0_TXRTUNE

USB2_1_DP0
USB2_1_DM0

USB2_1_TXRTUNE

USB3_DP0

USB3_DM0
USB3_TXP0
USB3_TXM0
USB3_RXP0
USB3_RXM0

USB3_RESREF0

USB3_DP1

USB3_DM1
USB3_TXP1
USB3_TXM1
USB3_RXP1
USB3_RXM1

USB3_RESREF1

HUB_PORT_OVER0
HUB_VBUS_CTRL0

EB_CS3
EB_CS2
EB_CS1
EB_CS0

EB_WE_N
EB_OE_N

EB_WAIT
EB_BE_N1
EB_BE_N0

CAM_CD1_N
CAM_CD2_N
CAM_CE1_N
CAM_CE2_N

CAM_IREQ_N

CAM_RESET

CAM_INPACK_N

CAM_VCCEN_N

CAM_WAIT_N

CAM_REG_N

EB_ADDR0
EB_ADDR1
EB_ADDR2
EB_ADDR3
EB_ADDR4
EB_ADDR5
EB_ADDR6
EB_ADDR7
EB_ADDR8
EB_ADDR9

EB_ADDR10
EB_ADDR11
EB_ADDR12
EB_ADDR13
EB_ADDR14
EB_ADDR15

EB_DATA0
EB_DATA1
EB_DATA2
EB_DATA3
EB_DATA4
EB_DATA5
EB_DATA6
EB_DATA7

AN9
AM9
AN8

H32
J31
H33

N31
N32
P33
P32
M32
M33
P31

K33
K32
L32
L31
K31
J32
M31

W28
W29

H28
J30
J28
J29

G30
F30
H29
G29
G28

P28
P27
U28
R29
V27
T28
T29
R28
U27
N29

K30
E30
M30
N28
M28
M29
L29
K29
K28
L28
D30
F29
C32
C33
C31
B33

B32
A32
B31
A31
A30
B30
C30
C29

R1712001%

R1722001%

R1732001%

R1742001%

/USB_OCD1

/USB_OCD2
/USB_OCD3

EB_BE_N1
EB_BE_N0

CAM_IREQ_N
CAM_INPACK_N
CAM_WAIT_N

EB_ADDR[0]
EB_ADDR[1]
EB_ADDR[2]
EB_ADDR[3]
EB_ADDR[4]
EB_ADDR[5]
EB_ADDR[6]
EB_ADDR[7]
EB_ADDR[8]

EB_ADDR[9]
EB_ADDR[10]
EB_ADDR[11]
EB_ADDR[12]
EB_ADDR[13]
EB_ADDR[14]

EB_DATA[0]

EB_DATA[1]

EB_DATA[2]

EB_DATA[3]

EB_DATA[4]

EB_DATA[5]

EB_DATA[6]

EB_DATA[7]

WIFI_DP
WIFI_DM

USB_DP3
USB_DM3

USB_DP1
USB_DM1

USB_DP2
USB_DM2

USB_CTL1

USB_CTL2
USB_CTL3
EB_WE_N

EB_OE_N

R11033

10K

/PCM_CE1
/PCM_CE2

PCM_RESET
PCM_5V_CTL
CAM_REG_N

TP102

IC103-*2

BR24G256FJ-3

A0

1

A1

+3.3V_NORMAL

C107

0.1uF
16V

VCC

8

WP

7

SCL

6

SDA

5

2

A2

3

GND

4

NVRAM_ROHM

Write Protection

- Low : Normal Operation

- High : Write Protection
AR105

33

EB_DATA[0-7]

TP103

EB_DATA[0-7]

Jtag-0 I/F

LOCAL DIMMING I2C CONTROL

+3.3V_NORMAL

P102

R106

OPT

3.3K

12507WS-04L

1

2

3

4

LED_SCL
LED_SDA

R105

OPT

3.3K

12505WS-10A00

OPT

5

P103

JTAG_CPU

1

2

3

4

5

6

7

8

9

10

11

+3.3V_NORMAL

L/DIM0_VS

(TRST0_N)

TDI0

L/DIM0_MOSI

L/DIM0_SCLK

TCK0

SOC_RESET

FORCED_JTAG_0

(TDO0)

(TMS0)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M14-Peripheral

MID_LG1311

M14 Symbol A

2013.04.04
1

31

PAGE 2

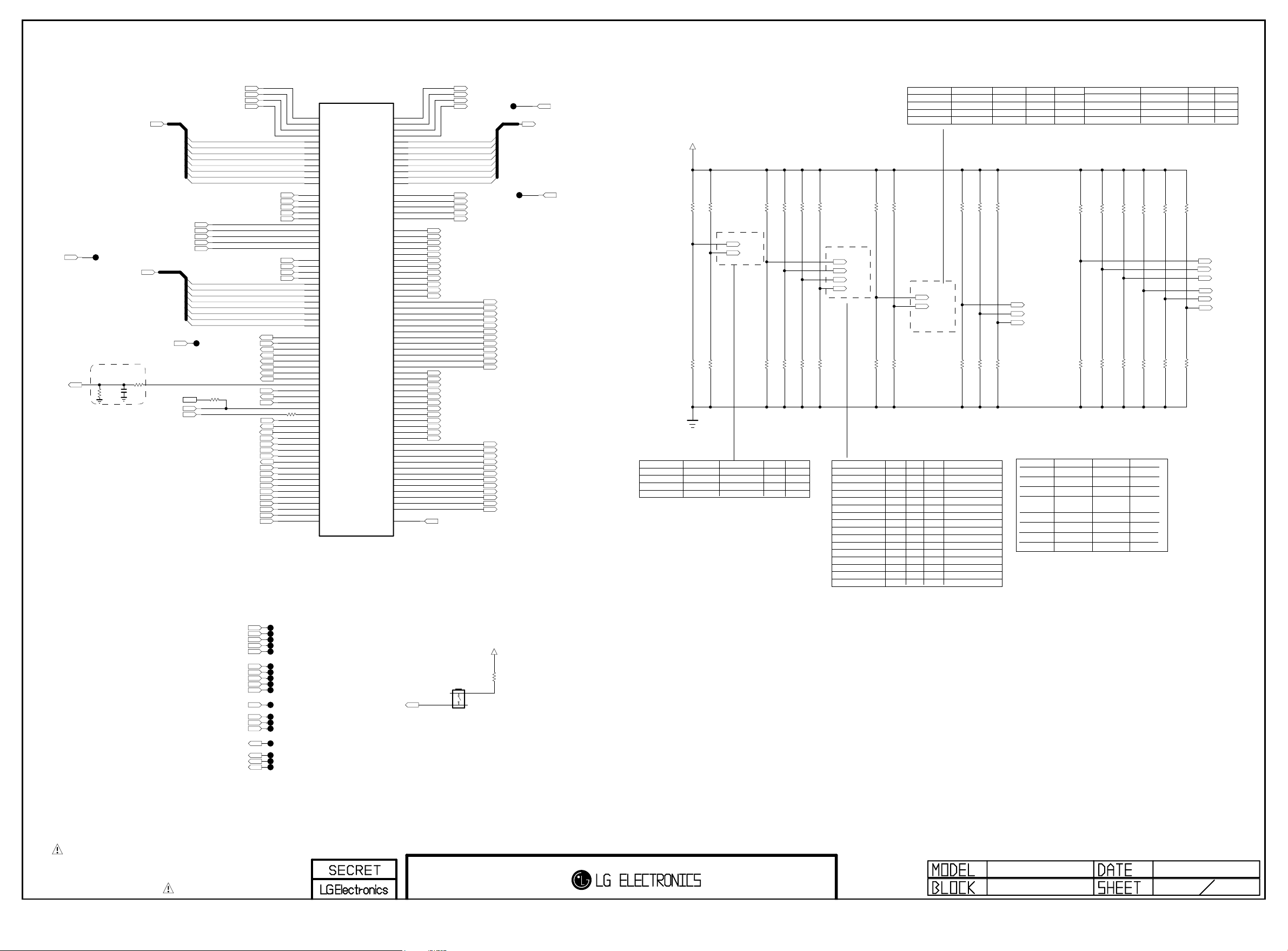

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

FE_DEMOD1_TS_DATA[0-7]

TPI_ERR

AMP_RESET_N

FE_DEMOD3_TS_CLK

FE_DEMOD3_TS_SYNC

FE_DEMOD3_TS_VAL

FE_DEMOD3_TS_DATA

TPI_DATA[0-7]

Near AMP

C200

1000pF

50V

R231

4.7K

SC_DET

R226

100

1/16W

5%

LED_SDA

INSTANT_BOOT

LED_SCL

FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_DATA[7]
FE_DEMOD1_TS_DATA[6]
FE_DEMOD1_TS_DATA[5]
FE_DEMOD1_TS_DATA[4]
FE_DEMOD1_TS_DATA[3]
FE_DEMOD1_TS_DATA[2]
FE_DEMOD1_TS_DATA[1]
FE_DEMOD1_TS_DATA[0]

FE_DEMOD2_TS_CLK

FE_DEMOD2_TS_SYNC

FE_DEMOD2_TS_VAL

FE_DEMOD2_TS_ERROR

FE_DEMOD2_TS_DATA

TPI_DATA[0]
TPI_DATA[1]
TPI_DATA[2]
TPI_DATA[3]
TPI_DATA[4]
TPI_DATA[5]
TPI_DATA[6]
TPI_DATA[7]

MODEL_OPT_11

TP225

/RST_PHY

2D/3D_CTL

RF_SWITCH_CTL

/TU_RESET1
/TU_RESET2

BT_RESET

R224

OPT

33

MODEL_OPT_14

MODEL_OPT_15

MODEL_OPT_12

MODEL_OPT_16

COMP1_DET
AV1_CVBS_DET
MODEL_OPT_13

MODEL_OPT_8
MODEL_OPT_9

MODEL_OPT_10 EPI_LOCK8/6

SC_DET

HP_DET
OPC_EN

DEBUG

BIT0

BIT1
BIT2
BIT3
BIT4
BIT5
BIT6
BIT7

TPI_CLK
TPI_SOP
TPI_VAL
TPI_ERR

R225

OPT

MODEL_OPT_14

33

MODEL_OPT_15

MODEL_OPT_16

AH30
AH32
AH31
AH33
AM33
AL32
AL33
AK32
AK33
AK31
AJ30
AJ31

AL31
AN32
AM32
AN31
AM31
AH28
AJ28
AK30
AJ29
AG27

A28
B28
B29
C28
A27
B27
C27
B26
C26
B25
A25
C25

AG13
AJ19
AG14
AG15
AJ15
AH19
AH18
AG19

AH5
AJ5
AJ6
AH6
AG6
AG5
AF7

AG7
AG24
AH16

V29
AJ21
AH21

V28
AG16
AJ24
AH17
AG17
AH13
AH15
AG18
AH14
AJ16
AH20

IC101

LG1311-C1

TP_DVB_CLK
TP_DVB_SOP
TP_DVB_VAL
TP_DVB_ERR
TP_DVB_DATA7
TP_DVB_DATA6
TP_DVB_DATA5
TP_DVB_DATA4
TP_DVB_DATA3
TP_DVB_DATA2
TP_DVB_DATA1
TP_DVB_DATA0

STPI0_CLK
STPI0_SOP
STPI0_VAL
STPI0_ERR
STPI0_DATA
STPI1_CLK
STPI1_SOP
STPI1_VAL
STPI1_ERR
STPI1_DATA

TPI_CLK
TPI_SOP
TPI_VAL
TPI_ERR
TPI_DATA0
TPI_DATA1
TPI_DATA2
TPI_DATA3
TPI_DATA4
TPI_DATA5
TPI_DATA6
TPI_DATA7

GPIO31
GPIO30
GPIO29
GPIO28
GPIO27
GPIO26
GPIO25
GPIO24
GPIO23
GPIO22
GPIO21
GPIO20
GPIO19
GPIO18
GPIO17
GPIO16
GPIO15
GPIO14
GPIO13
GPIO12
GPIO11
GPIO10
GPIO9
GPIO8
GPIO7
GPIO6
GPIO5
GPIO4
GPIO3
GPIO2
GPIO1
GPIO0

TPIO_CLK
TPIO_SOP
TPIO_VAL

TPIO_ERR
TPIO_DATA0
TPIO_DATA1
TPIO_DATA2
TPIO_DATA3
TPIO_DATA4
TPIO_DATA5
TPIO_DATA6
TPIO_DATA7

EPI_SOE
EPI_MCLK
EPI_GCLK

EPI_EO

EPI_VST

TX_0N
TX_0P
TX_1N
TX_1P
TX_2N
TX_2P
TX_3N
TX_3P
TX_4N
TX_4P
TX_5N
TX_5P
TX_6N
TX_6P
TX_7N
TX_7P
TX_8N
TX_8P
TX_9N

TX_9P
TX_10N
TX_10P
TX_11N
TX_11P
TX_12N
TX_12P
TX_13N
TX_13P
TX_14N
TX_14P
TX_15N
TX_15P
TX_16N
TX_16P
TX_17N
TX_17P
TX_18N
TX_18P
TX_19N
TX_19P
TX_20N
TX_20P
TX_21N
TX_21P
TX_22N
TX_22P
TX_23N
TX_23P

TX_LOCKN

TPO_CLK
TPO_SOP
TPO_VAL

D28
E29
E28
F28
D27
E27
F27
E26
F26
E25
D25
F25

AA5
AB5
AA7
AA6
AB6

AK8
AL8
AK7
AL7
AM6
AN6
AK6
AL6
AK5
AL5
AN4
AN3
AM2
AM1
AM4
AM3
AL4
AL3
AK2
AK1
AK4
AK3
AJ4
AJ3
AH2
AH1
AH4
AH3
AG4
AG3
AF2
AF1
AF4
AF3
AE4
AE3
AD2
AD1
AD4
AD3
AC4
AC3
AB2
AB1
AB4
AB3
AA4
AA3

AM8

TPO_ERR

TPO_DATA[0]
TPO_DATA[1]
TPO_DATA[2]
TPO_DATA[3]
TPO_DATA[4]
TPO_DATA[5]
TPO_DATA[6]
TPO_DATA[7]

EPI_SOE
MCLK_SOC
GCLK_SOC
EO_SOC
GST_SOC

TXB4N/TX0N
TXB4P/TX0P
TXB3N/TX1NFE_DEMOD3_TS_ERROR
TXB3P/TX1P
TXBCLKN/TX2N
TXBCLKP/TX2P
TXB2N/TX3N
TXB2P/TX3P
TXB1N/TX4N
TXB1P/TX4P
TXB0N/TX5N
TXB0P/TX5P

TXD4N/TX12N
TXD4P/TX12P
TXD3N/TX13N
TXD3P/TX13P
TXDCLKN/TX14N
TXDCLKP/TX14P
TXD2N/TX15N
TXD2P/TX15P
TXD1N/TX16N
TXD1P/TX16P
TXD0N/TX17N
TXD0P/TX17P

TXA4N/TX6N
TXA4P/TX6P
TXA3N/TX7N
TXA3P/TX7P
TXACLKN/TX8N
TXACLKP/TX8P
TXA2N/TX9N
TXA2P/TX9P
TXA1N/TX10N
TXA1P/TX10P
TXA0N/TX11N
TXA0P/TX11P

TXC4N/TX18N
TXC4P/TX18P
TXC3N/TX19N
TXC3P/TX19P
TXCCLKN/TX20N
TXCCLKP/TX20P
TXC2N/TX21N
TXC2P/TX21P
TXC1N/TX22N
TXC1P/TX22P
TXC0N/TX23N
TXC0P/TX23P

TPO_ERR

TPO_DATA[0-7]

EPI_SOE

+3.3V_NORMAL

BIT0_1

R201 10K

BIT0_0

R202 10K

BIT [0/1]

0 / 0
0 / 1
1 / 0
1 / 1

TAIWAN/COLOM

CHINA/HONGKONG

ASIA/AFRICA

EU/CIS

BIT1_1

R203 10K

BIT1_0

R204 10K

BIT0
BIT1

ATSC

N/AMERICA

KOREA

, S/AMERICA/PH

Sri Lanka

Model Option

BIT4_1

BIT3_1

BIT2_1

R205 10K

BIT2_0

R206 10K

JAPAN

BIT3_0

JP

BIT5_1

R209 10K

BIT4_0

R210 10K

R211 10K

BIT5_0

R212 10K

R207 10K

R208 10K

BIT2
BIT3
BIT4
BIT5

BACK-END OPTIONAREA OPTION

BIT[2/3/4/5]DVB
0 / 0 / 0 / 0
0 / 0 / 0 / 1
0 / 0 / 1 / 0
0 / 0 / 1 / 1
0 / 1 / 0 / 0
0 / 1 / 0 / 1
0 / 1 / 1 / 0
0 / 1 / 1 / 1
1 / 0 / 0 / 0
1 / 0 / 0 / 1
1 / 0 / 1 / 0
1 / 0 / 1 / 1
1 / 1 / 0 / 0
1 / 1 / 0 / 1
1 / 1 / 1 / 0
1 / 1 / 1 / 1

BIT6_1

R213 10K

BIT6_0

R214 10K

BIT7_1

R215 10K

BIT [6/7]

0 / 0
0 / 1
1 / 0
1 / 1

EU/CIS

T/C

T2/C/S2/ATV_EXT

T2/C

T2/C/S2/ATV_SOC

DDR3_DDP

R219 10K

R217 10K

DDR3_1.5GB

BIT6
BIT7

BIT7_0

R216 10K

TYPE

EPI FHD, 120Hz, V14 (8 lane)
EPI FHD, 120Hz, v14_32inch (6 lane)
EPI FHD, 120Hz, V13 (6 lane)
EPI FHD, 120Hz, V12 (6 lane)

EPI FHD, 60Hz, V14_32 inch (6lane)

LVDS FHD, 120Hz
LVDS FHD, 60Hz

LVDS HD, 60Hz

LVDS FHD, 60Hz, CP BOX
LVDS HD, 60Hz SMALL SMART

Vby1 FHD, 120Hz
LVDS FHD, 120Hz OLED

FRC

FHD

R218 10K

DDR3_NON_DDP

PANEL TYPE

OLED

DDR3_2GB

R220 10K

AJJA

T/C
T2/C/ATV_EXT
T2/C/ATV_SOC

T2/C/S2

DDR_3G

R221 10K

R222 10K

NON_DDR_3G

TAIWAN/COL

T/C

T2/C PIP

T2/C

MODEL_OPT_8
MODEL_OPT_9
MODEL_OPT_10

MODEL_OPT_8

MODEL_OPT_9

MODEL_OPT_10

MODEL_OPT_11

MODEL_OPT_12

MODEL_OPT_13

MODEL_OPT_15

CHINA/HONG

Default Default

NON_EXTERNAL_EDID

EXTERNAL_EDID

DDR3

DDR3

Support
EXTERNAL EDID
FOR HDMI2.0

SS_DDR

ODT

ReservedMODEL_OPT_14

Reserved

KOREA

ATSC NIM+T2

Half NIM+T2(ATV_EXT)

Half NIM(ATV_INT)

ATSC PIP

SS_DDR

R229 10K

R227 10K

R230 10K

R228 10K

NON_SS_DDR

LOW

NON_DDP

2GB

EXTERNAL

NON_SS_DDR SS_DDR

ODT_46_ohm

OPT

R233 10K

ODT_55_ohm

R234 10K

ODT_46_ohm

1.5GB

DDR3 3GNON_DDR3 3GFOR UD

NON_EXTERNAL

ODT_55_ohm

NORTH AMERICA
Default(ATV_EXT)
Default(ATV_EXT)

ATV_INTERNAL

OPT

R237 10K

R238 10K

R236 10K R235 10K

HIGH

DDP

OPT

OPT

R239 10K

R240 10K

BRAZIL

ISDB PIP

JAPAN

ISDB

MODEL_OPT_11
MODEL_OPT_12
MODEL_OPT_13

MODEL_OPT_14
MODEL_OPT_15

MODEL_OPT_16

FE_DEMOD2_TS_CLK

FE_DEMOD2_TS_SYNC

FE_DEMOD2_TS_VAL

FE_DEMOD2_TS_ERROR

FE_DEMOD2_TS_DATA

FE_DEMOD3_TS_CLK

FE_DEMOD3_TS_SYNC

FE_DEMOD3_TS_VAL

FE_DEMOD3_TS_ERROR

FE_DEMOD3_TS_DATA

TPI_DATA[0-7]

TPI_CLK
TPI_SOP
TPI_VAL

TPO_DATA[0-7]

TPO_CLK
TPO_SOP
TPO_VAL

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR

M14-Display In/Out

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

TP202
TP203
TP204
TP205
TP206

TP207
TP208
TP209
TP210
TP211

TP212

TP213
TP214
TP215

TP221

TP218
TP219
TP220

DEBUG

+3.3V_NORMAL

SW201

JTP-1127WEM

12

4 3

DEBUG

For ISP

R223

3.3K

MID_LG1311

M14+ Symbol B

2014.05.28
2

31

PLACE AT JACK SIDE

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

IC101

LG1311-C1

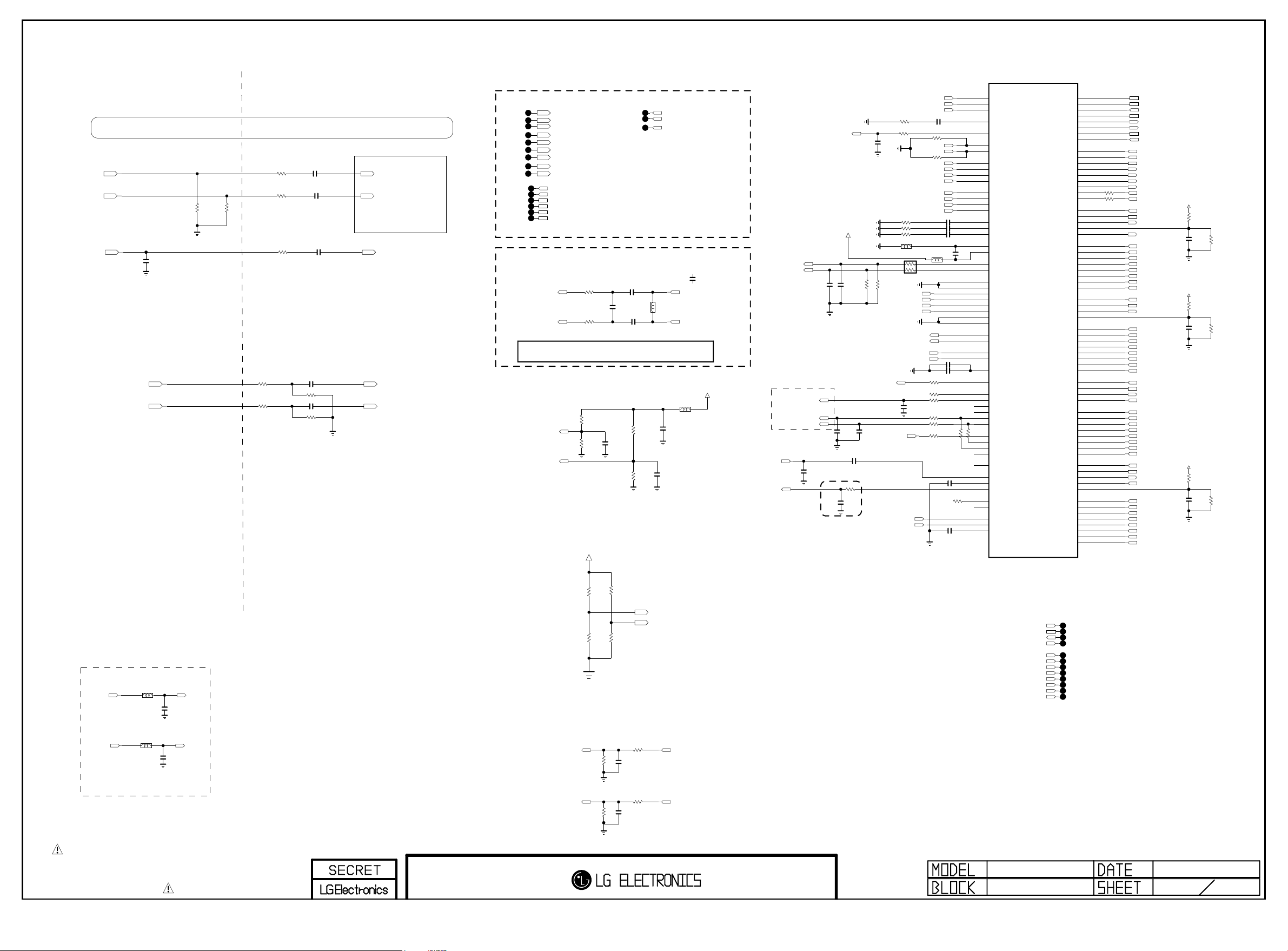

PAGE 3

Place JACK Side

AV1_CVBS/COMP1_Y Circuit was moved to 34Page

COMP1_Pb

COMP1_Pr

TU_CVBS

COMP1/AV1/DVI_L_IN

COMP1/AV1/DVI_R_IN

C303
150pF
50V

OPT

1005

75

1%

R318

1005

75
1%

R326

Place SOC Side

33

R333

R335 33

TU_ALL_2178B

R329 100

AUDIO IN

R309 27K

R310 27K

C316 4.7uF

1%

C317 4.7uF

1%

C322 0.047uF

C324 0.047uF

C318 0.047uF

R322 10K

1%

R323 10K

1%

TU_ALL_2178B

COMP2_PB_IN_SOC

COMP2_PR_IN_SOC

TU_CVBS_SOC

AUAD_L_CH3_IN

AUAD_R_CH3_IN

COMP

TP308
TP310

TP311

TP312
TP313
TP314
TP315

TP316
TP317

TP302
TP303
TP304
TP305
TP306
TP307

SC_CVBS_IN_SOC
SC_FB_SOC

SC_ID_SOC
COMP1_PB_IN_SOC

COMP1_Y_IN_SOC
COMP1_Y_IN_SOC_SOY
COMP1_PR_IN_SOC

AUAD_L_CH2_IN
AUAD_R_CH2_IN

SMARTCARD_DATA/SD_EMMC_CLK
SMARTCARD_VCC/SD_EMMC_CMD
SMARTCARD_DET/SD_EMMC_DATA[3]
SMARTCARD_RST/SD_EMMC_DATA[2]
SMARTCARD_PWR_SEL/SD_EMMC_DATA[1]
SMARTCARD_CLK/SD_EMMC_DATA[0]

TP318
TP319

TP320

Placed as close as possible to LG1311

Tuner IF Filter

C331
22pF

TU_ALL_IntDemod

C332

0.01uF

C333

0.01uF
TU_ALL_IntDemod

TU_ALL_IntDemod

ADC_I_INN

To ADC

ADC_I_INP

C331 option

- TU_IntDemod_IF_22p -> US/KR/BR/TW/CO 2tuner All

- TU_IntDemod_IF_15p -> EU/AJ/US/KR/BR/TW/CO 1tuner All

R344

R345

TU_ALL_IntDemod

51

TU_IntDemod_IF_22p

51

Placed as close as possible to IC101

R37 4

51K

AUAD_L_REF

1%

R37 8

47K
1%

C313

4.7uF
10V

AUAD_R_REF

DDR3 VENDOR OPTION

+3.3V_NORMAL

R38 0

51K

1%

R38 1

47K
1%

SCART_LOUT_SOC

SCART_ROUT_SOC

DTV/MNT_V_OUT_SOC

TU_IntDemod_IF_15p

C331-*1
15pF
50V

IF_N

L303

OPT

IF_P

AVDD25

L307

120-ohm

C354
10uF

10V

C353

4.7uF
10V

SCART_LOUT_SOC
SCART_ROUT_SOC

TU_SIF_TU

IF_AGC

AUD_LRCH

AUD_SCK

AUD_LRCK

MAIN I2S_I/F

OPT

DTV/MNT_V_OUT_SOC

AVDD25

EU

C334

0.01uF
50V

C335
22pF
OPT

TU_ALL_2178B

C312 0.1uF

C309
1000pF
50V

Close to IC101

OPT

EU
C336

0.01uF

EU

50V

R351 22K

SPDIF_OUT

C337
33pF

OPT

TU_ALL_IntDemod

R350

470

C338

0.47uF

6.3V

R356

R353 0

C339
100pF
50V

COMP1_Y_IN_SOC_SOY

COMP2_Y_IN_SOC_SOY

R357 68
R358 68
R359 68

BLM15BD121SN1

EU

AUAD_L_CH2_IN
AUAD_R_CH2_IN

R352 22K

AUAD_L_CH3_IN
AUAD_R_CH3_IN

I2S_AMP

ADC_I_INP
ADC_I_INN

TU_CVBS_SOC

SC_CVBS_IN_SOC

AV1_CVBS_IN_SOC

C343 0.047uF

68

EU

OPT
SC_ID_SOC
SC_FB_SOC

OPT

COMP1_Y_IN_SOC
COMP1_PB_IN_SOC
COMP1_PR_IN_SOC

COMP2_Y_IN_SOC
COMP2_PB_IN_SOC
COMP2_PR_IN_SOC

L304

BLM15BD121SN1

AR301
0
EU

AUDA_OUTL
AUDA_OUTR

AUAD_R_REF
AUAD_L_REF

R360 33

R365 100

R366 100
C342
22pF
OPT

R368 100
R369

GOOGLE

R367 0

R11031
10K

R11032
10K

0.047uF

C344
C345 0.047uF
C346 0.047uF

C349

L305

0.1uF

16V

10uF 10VC347

C348 2.2uF

10V

OPT

100

GOOGLE

R371 0

C351 0.1uF

R386
0

OPT

C352 0.1uF

GOOGLE

R370 0

AL27
AK26
AM27

AL26

AN27

AL25
AM25

AN23
AL22
AK21
AK22

AL24
AK23
AL23
AK24

AL21
AM23
AN25

AM21
AN21

AK16
AL16

AL19
AK19
AN19
AM19
AN17
AM17
AL17
AK17

AK20
AL20

AK18
AL18

AN15

AM15

AN11
AK11
AK10
AL10
AL11
AM11

AK29
AL29
AM29

AK27
AL30

AK28
AL28
AN29

AD5
AE5
AE7
AE6

AD6

CVBS_IN1
CVBS_IN2
CVBS_IN3

CVBS_VCM

BUF_OUT1

SC1_SID
SC1_FB

SOY1_IN
Y1_IN
PB1_IN
PR1_IN

SOY2_IN
Y2_IN
PB2_IN
PR2_IN

ADC1_COM
ADC2_COM
ADC3_COM

AVSS25_COMP_REF
AVDD25_COMP_REF

AUDA_SCART_OUTL
AUDA_SCART_OUTR

AUAD_L_CH1_IN
AUAD_R_CH1_IN
AUAD_L_CH2_IN
AUAD_R_CH2_IN
AUAD_L_CH3_IN
AUAD_R_CH3_IN
AUAD_L_CH4_IN
AUAD_R_CH4_IN

AUDA_OUTL
AUDA_OUTR

AUAD_L_REF
AUAD_R_REF

AUD_VBG_EXT

IEC958OUT

AUDCLK_OUT
DAC_LRCH
DAC_SLRCH
DAC_CLFCH
DAC_SCK
DAC_LRCK

PCMI3LRCH
PCMI3LRCK
PCMI3SCK
AUDCLK_IN

FRC_LRSYNC

AAD_ADC_SIF
AAD_ADC_SIFM
IFAGC

DMD_DAC_OUT
DMD_SIF_OUT

DMD_ADC_INP
DMD_ADC_INN
DMD_ADC_INCOM

SD_CLK

SD_CMD
SD_CD_N
SD_WP_N

SD_DATA3
SD_DATA2
SD_DATA1
SD_DATA0

RMII_REF_CLK

RMII_CRS_DV

RMII_MDIO

RMII_MDC
RMII_TXEN
RMII_TXD1
RMII_TXD0
RMII_RXD1
RMII_RXD0

HDMI_1_SCL
HDMI_1_SDA
HDMI_1_HPD

HDMI_1_5V_DET

HDMI_1_ARC

HDMI_1_RX_0

HDMI_1_RX_0B

HDMI_1_RX_1

HDMI_1_RX_1B

HDMI_1_RX_2

HDMI_1_RX_2B

HDMI_1_RX_C

HDMI_1_RX_CB

HDMI_2_SCL
HDMI_2_SDA
HDMI_2_HPD

HDMI_2_5V_DET

HDMI_2_RX_0

HDMI_2_RX_0B

HDMI_2_RX_1

HDMI_2_RX_1B

HDMI_2_RX_2

HDMI_2_RX_2B

HDMI_2_RX_C

HDMI_2_RX_CB

HDMI_3_SCL
HDMI_3_SDA
HDMI_3_HPD

HDMI_3_5V_DET

HDMI_3_RX_0

HDMI_3_RX_0B

HDMI_3_RX_1

HDMI_3_RX_1B

HDMI_3_RX_2

HDMI_3_RX_2B

HDMI_3_RX_C

HDMI_3_RX_CB

HDMI_4_SCL

HDMI_4_SDA
HDMI_4_CBUS_HPD
HDMI_4_CD_SENSE

HDMI_4_5V_DET

HDMI_4_RX_0

HDMI_4_RX_0B

HDMI_4_RX_1

HDMI_4_RX_1B

HDMI_4_RX_2

HDMI_4_RX_2B

HDMI_4_RX_C

HDMI_4_RX_CB

E22
D22
F22
F24
D24
E24
F23
E23

AK14
AK12
AL12
AK13
AL13
AM13
AN13
AL14
AK15

AE27
AF28
AE29
AF27
AE28

AF33
AF32
AE31
AE30
AD31
AD30
AF31
AF30

AD28
AD29
AC27
AD27

AC31
AC30
AB33
AB32
AA31
AA30
AD32
AD33

AB28
AB27
AB29
AC28

Y32
Y33
W31
W30
V33
V32
Y31
Y30

Y27
AA28
Y28
AA29
AA27

T31
T30
T32
T33
R31
R30
U31
U30

SMARTCARD_CLK/SD_EMMC_DATA[0]
SMARTCARD_RST/SD_EMMC_DATA[2]
SMARTCARD_VCC/SD_EMMC_CMD
SMARTCARD_PWR_SEL/SD_EMMC_DATA[1]
DDR3_OPT1
DDR3_OPT2
SMARTCARD_DET/SD_EMMC_DATA[3]
SMARTCARD_DATA/SD_EMMC_CLK

EPHY_REFCLK
EPHY_CRS_DV
EPHY_MDIO
EPHY_MDC
EPHY_EN
EPHY_TXD1
EPHY_TXD0

R520733

EPHY_RXD1

R520633

EPHY_RXD0

DDC_SCL_1
DDC_SDA_1

HDMI_HPD_1

SPDIF_OUT_ARC

D0+_HDMI1
D0-_HDMI1
D1+_HDMI1
D1-_HDMI1
D2+_HDMI1
D2-_HDMI1
CK+_HDMI1
CK-_HDMI1

DDC_SCL_2
DDC_SDA_2

HDMI_HPD_2

D0+_HDMI2
D0-_HDMI2
D1+_HDMI2
D1-_HDMI2
D2+_HDMI2
D2-_HDMI2
CK+_HDMI2
CK-_HDMI2

DDC_SCL_3
DDC_SDA_3

HDMI_HPD_3
5V_HDMI_3_SOC

D0+_HDMI3
D0-_HDMI3
D1+_HDMI3
D1-_HDMI3
D2+_HDMI3
D2-_HDMI3
CK+_HDMI3
CK-_HDMI3

DDC_SCL_4
DDC_SDA_4

HDMI_HPD_4
MHL_DET

D0+_HDMI4
D0-_HDMI4
D1+_HDMI4
D1-_HDMI4
D2+_HDMI4
D2-_HDMI4
CK+_HDMI4
CK-_HDMI4

5V_HDMI_1

R372
10

C356
1uF
10V

5V_HDMI_2

R373
10

C357
1uF
10V

5V_HDMI_4

R375
10

C359
1uF
10V

R376

5.1K

R377

5.1K

R379

5.1K

HP_OUT
L308

BLM18PG121SN1D

HP_LOUT_AMP

BLM18PG121SN1D

HP_ROUT_AMP

HP_OUT

L309

HP_OUT
C365

0.22uF
10V

HP_OUT

C366

0.22uF
10V

HP_LOUT

HP_ROUT

Place at JACK SIDE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M14-AV In/Out

HP_LOUT_MAIN

HP_ROUT_MAIN

4.7K

4.7K

R384

R382

OPT

OPT

R383 4.7K

R385 4.7K

AUDIO OUT

R303

22K

R304

22K

R311 0

C305

0.01uF
50V

R312 0

C306

0.01uF
50V

DDR3_OPT1
DDR3_OPT2

AUDA_OUTL

AUDA_OUTR

DDC_SCL_3
DDC_SDA_3

HDMI_HPD_3

5V_HDMI_3_SOC

D0+_HDMI3
D0-_HDMI3
D1+_HDMI3
D1-_HDMI3
D2+_HDMI3
D2-_HDMI3
CK+_HDMI3
CK-_HDMI3

MID_LG1311

M14+ Symbol C

TP321
TP322
TP323
TP324

TP325
TP326
TP327
TP328
TP329
TP330
TP331
TP332

2014.05.28
3

31

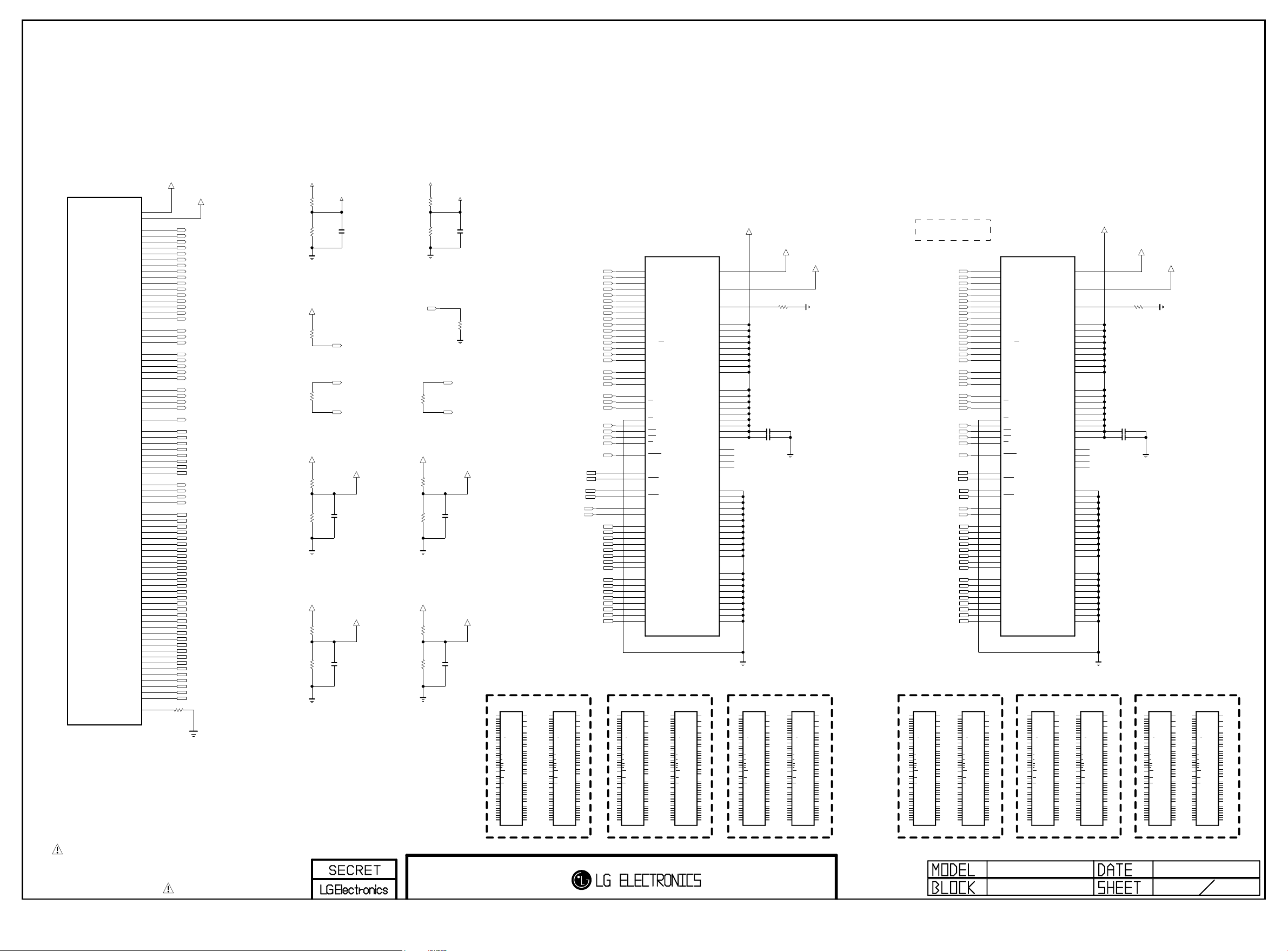

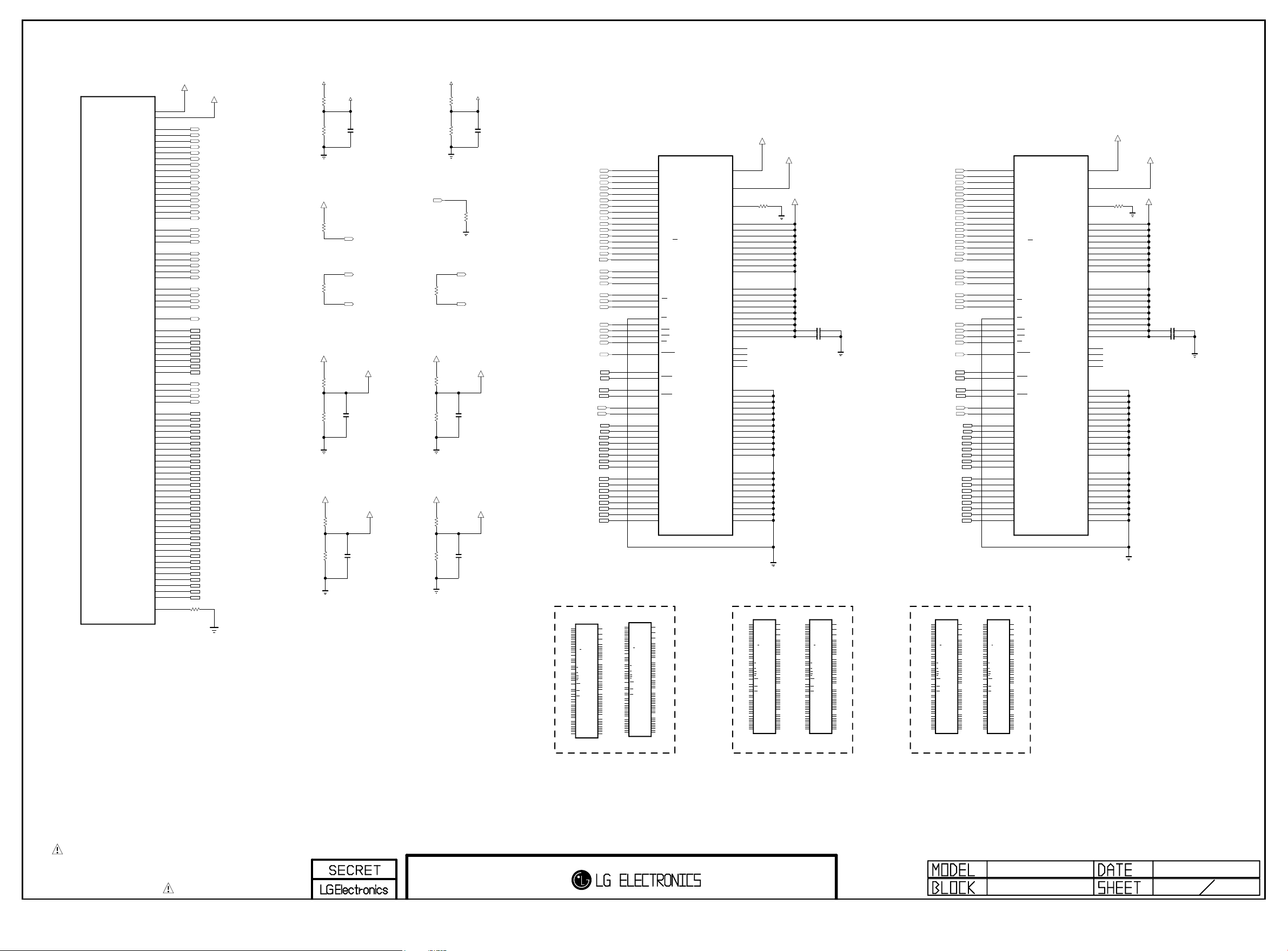

PAGE 4

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

IC101

LG1311-C1

M0_DDR_VREF1
M0_DDR_VREF2

M0_DDR_U_CLKP
M0_DDR_U_CLKN
M0_DDR_D_CLKP
M0_DDR_D_CLKN

M0_DDR_RASN
M0_DDR_CASN

M0_DDR_RESET_N

M0_DDR_DQS_P0
M0_DDR_DQS_N0
M0_DDR_DQS_P1
M0_DDR_DQS_N1
M0_DDR_DQS_P2
M0_DDR_DQS_N2
M0_DDR_DQS_P3
M0_DDR_DQS_N3

M0_DDR_DQ10
M0_DDR_DQ11
M0_DDR_DQ12
M0_DDR_DQ13
M0_DDR_DQ14
M0_DDR_DQ15
M0_DDR_DQ16
M0_DDR_DQ17
M0_DDR_DQ18
M0_DDR_DQ19
M0_DDR_DQ20
M0_DDR_DQ21
M0_DDR_DQ22
M0_DDR_DQ23
M0_DDR_DQ24
M0_DDR_DQ25
M0_DDR_DQ26
M0_DDR_DQ27
M0_DDR_DQ28
M0_DDR_DQ29
M0_DDR_DQ30
M0_DDR_DQ31

M0_DDR_ZQCAL

M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8

M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15

M0_DDR_BA0
M0_DDR_BA1
M0_DDR_BA2

M0_DDR_CKE

M0_DDR_ODT

M0_DDR_WEN

M0_DDR_DM0
M0_DDR_DM1
M0_DDR_DM2
M0_DDR_DM3

M0_DDR_DQ0
M0_DDR_DQ1
M0_DDR_DQ2
M0_DDR_DQ3
M0_DDR_DQ4
M0_DDR_DQ5
M0_DDR_DQ6
M0_DDR_DQ7
M0_DDR_DQ8
M0_DDR_DQ9

VREF_M0_0

A22
A3

E13
E11
E15
E17
D8
D16
D9
E16
E9
E14
D7
D10
D11
D14
E10
E12

D17
E8
D13

C8
B8
C17
B17
D12

E19
D19
D18
E18

D15

B18
C18
B16
A16
B9
C9
B7
A7

A15
A18
A6
A9

B20
B13
C21
C14
A21
A13
B21
C13
B14
B19
C15
C20
C16
A19
B15
C19
B11
C5
C12
B4
A12
A4
B12
C4
B5
B10
C6
C11
C7
A10
B6
C10

E7

VREF_M0_1

R401 240

M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8
M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14
M0_DDR_A15

M0_DDR_BA0
M0_DDR_BA1

M0_DDR_BA2

M0_U_CLK
M0_U_CLKN
M0_D_CLK

M0_DDR_CKE

M0_DDR_ODT
M0_DDR_RASN
M0_DDR_CASN
M0_DDR_WEN

M0_DDR_RESET_N

M0_DDR_DQS0
M0_DDR_DQS_N0
M0_DDR_DQS1
M0_DDR_DQS_N1
M0_DDR_DQS2
M0_DDR_DQS_N2
M0_DDR_DQS3
M0_DDR_DQS_N3

M0_DDR_DM0
M0_DDR_DM1
M0_DDR_DM2
M0_DDR_DM3

M0_DDR_DQ0
M0_DDR_DQ1

M0_DDR_DQ2
M0_DDR_DQ3
M0_DDR_DQ4

M0_DDR_DQ5

M0_DDR_DQ6
M0_DDR_DQ7
M0_DDR_DQ8
M0_DDR_DQ9

M0_DDR_DQ10
M0_DDR_DQ11
M0_DDR_DQ12
M0_DDR_DQ13
M0_DDR_DQ14

M0_DDR_DQ15

M0_DDR_DQ16

M0_DDR_DQ17

M0_DDR_DQ18

M0_DDR_DQ19
M0_DDR_DQ20
M0_DDR_DQ21

M0_DDR_DQ22

M0_DDR_DQ23
M0_DDR_DQ24

M0_DDR_DQ25
M0_DDR_DQ26
M0_DDR_DQ27

M0_DDR_DQ28
M0_DDR_DQ29

M0_DDR_DQ30

M0_DDR_DQ31

1%

+1.5V_DDR

R402

R403

+1.5V_DDR

OPT

+1.5V_DDR

R406

R407

+1.5V_DDR

R408

R409

VREF_M0_0

1K 1%

1K 1%

C401

R404
10K

100

R40 5

M0_DDR_VREFCA

1K 1%

1K 1%

M0_DDR_VREFDQ

1K 1%

0.1uF

1K 1%

C403

0.1uF

M0_DDR_RESET_N

M0_D_CLK

M0_D_CLKN

C402

0.1uF

M0_DDR_CKE

+1.5V_DDR

+1.5V_DDR

R411

R412

+1.5V_DDR

R413

R414

VREF_M0_1

R415

1K 1%

R416

1K 1%

R417
10K

M0_U_CLK

100

R41 0

M0_U_CLKN

M0_1_DDR_VREFCA

1K 1%

C406

0.1uF

1K 1%

M0_1_DDR_VREFDQ

1K 1%

0.1uF

1K 1%

C407

C408

0.1uF

M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8
M0_DDR_A9

M0_DDR_A10

M0_DDR_A11
M0_DDR_A12

M0_DDR_A13

M0_DDR_A14

M0_DDR_A15

M0_DDR_BA0

M0_DDR_BA1

M0_DDR_BA2

M0_D_CLK

M0_D_CLKN

M0_DDR_CKE

M0_DDR_ODT
M0_DDR_RASN
M0_DDR_CASN

M0_DDR_WEN

M0_DDR_RESET_N

M0_DDR_DQS0

M0_DDR_DQS_N0

M0_DDR_DQS1

M0_DDR_DQS_N1

M0_DDR_DM0
M0_DDR_DM1

M0_DDR_DQ0

M0_DDR_DQ1
M0_DDR_DQ2
M0_DDR_DQ3
M0_DDR_DQ4
M0_DDR_DQ5
M0_DDR_DQ6
M0_DDR_DQ7

M0_DDR_DQ8
M0_DDR_DQ9

M0_DDR_DQ10
M0_DDR_DQ11
M0_DDR_DQ12
M0_DDR_DQ13
M0_DDR_DQ14
M0_DDR_DQ15

IC401

H5TQ4G63AFR-PBC

DDR3

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
T7
M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

4Gbit

A0

(x16)

A1

DDR_512MB_HYNIX_1600_29n

A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13
A14
A15

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

ZQ

M0_DDR_VREFCA

M0_DDR_VREFDQ

M8

H1

R418

L8

240

1%

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

+1.5V_DDR

C413 1uF
C414 1uF

DDR3_512MB_MICRON_29nm_1600_14Y DDR3_512MB_HYNIX_25nm_1866_15Y

IC401-*1

MT41K256M16HA-125:E

DDR_512MB_MICRON

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQ0

F7

DQ1

F2

DQ2

F8

DQ3

H3

DQ4

H8

DQ5

G2

DQ6

H7

DQ7

D7

DQ8

C3

DQ9

C8

DQ10

C2

DQ11

A7

DQ12

A2

DQ13

B8

DQ14

A3

DQ15

IC401-*2

IC402-*1

MT41K256M16HA-125:E

DDR_512MB_MICRON

N3

M8

A0

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

A14

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

VREFCA

P7

A1

P3

A2

N2

H1

A3

VREFDQ

P8

A4

P2

A5

R8

L8

A6

ZQ

R2

A7

T8

A8

R3

B2

A9

VDD_1

L7

D9

A10/AP

VDD_2

R7

G7

A11

VDD_3

N7

K2

A12/BC

VDD_4

T3

K8

A13

VDD_5

N1

VDD_6

M7

N9

NC_5

VDD_7

R1

VDD_8

M2

R9

BA0

VDD_9

N8

BA1

M3

BA2

A1

VDDQ_1

J7

A8

CK

VDDQ_2

K7

C1

CK

VDDQ_3

K9

C9

CKE

VDDQ_4

D2

VDDQ_5

L2

E9

CS

VDDQ_6

K1

F1

ODT

VDDQ_7

J3

H2

RAS

VDDQ_8

K3

H9

CAS

VDDQ_9

L3

WE

J1

NC_1

T2

J9

RESET

NC_2

L1

NC_3

L9

NC_4

F3

T7

DQSL

A14

G3

DQSL

C7

A9

DQSU

VSS_1

B7

B3

DQSU

VSS_2

E1

VSS_3

E7

G8

DML

VSS_4

D3

J2

DMU

VSS_5

J8

VSS_6

E3

M1

DQ0

VSS_7

F7

M9

DQ1

VSS_8

F2

P1

DQ2

VSS_9

F8

P9

DQ3

VSS_10

H3

T1

DQ4

VSS_11

H8

T9

DQ5

VSS_12

G2

DQ6

H7

DQ7

B1

VSSQ_1

D7

B9

DQ8

VSSQ_2

C3

D1

DQ9

VSSQ_3

C8

D8

DQ10

VSSQ_4

C2

E2

DQ11

VSSQ_5

A7

E8

DQ12

VSSQ_6

A2

F9

DQ13

VSSQ_7

B8

G1

DQ14

VSSQ_8

A3

G9

DQ15

VSSQ_9

H5TQ4G63CFR_RDC

DDR_512MB_HYNIX_1866_25n

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

H5TQ4G63CFR_RDC

DDR_512MB_HYNIX_1866_25n

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC402-*2

VREFCA

VREFDQ

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

M0_1_DDR_VREFCA

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

M0_1_DDR_VREFDQ

+1.5V_DDR

R419

240

1%

C429
C430

1uF
1uF

M0_DDR_A0
M0_DDR_A1
M0_DDR_A2
M0_DDR_A3
M0_DDR_A4
M0_DDR_A5
M0_DDR_A6
M0_DDR_A7
M0_DDR_A8

M0_DDR_A9
M0_DDR_A10
M0_DDR_A11
M0_DDR_A12
M0_DDR_A13
M0_DDR_A14

M0_DDR_A15

M0_DDR_BA0M0_D_CLKN
M0_DDR_BA1
M0_DDR_BA2

M0_U_CLK

M0_U_CLKN
M0_DDR_CKE

M0_DDR_ODT

M0_DDR_RASN
M0_DDR_CASN

M0_DDR_WEN

M0_DDR_RESET_N

M0_DDR_DQS2

M0_DDR_DQS_N2

M0_DDR_DQS3

M0_DDR_DQS_N3

M0_DDR_DM2
M0_DDR_DM3

M0_DDR_DQ16
M0_DDR_DQ17
M0_DDR_DQ18
M0_DDR_DQ19
M0_DDR_DQ20
M0_DDR_DQ21
M0_DDR_DQ22
M0_DDR_DQ23

M0_DDR_DQ24
M0_DDR_DQ25
M0_DDR_DQ26
M0_DDR_DQ27
M0_DDR_DQ28
M0_DDR_DQ29
M0_DDR_DQ30
M0_DDR_DQ31

IC402

H5TQ4G63AFR-PBC

DDR3

N3

4Gbit

A0

P7

(x16)

A1

P3

DDR_512MB_HYNIX_1600_29n

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR3_512MB_SS_25nm_1600_15Y

IC401-*3

K4B4G1646D-BCK0

DDR_512MB_SS_1600_25n

N3

M8

H1

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

M8

A0

VREFCA

P7

A1

P3

A2

N2

H1

A3

VREFDQ

P8

A4

P2

A5

R8

L8

A6

ZQ

R2

A7

T8

A8

R3

B2

A9

VDD_1

L7

D9

A10/AP

VDD_2

R7

G7

A11

VDD_3

N7

K2

A12/BC

VDD_4

T3

K8

A13

VDD_5

N1

T7

VDD_6

A14

M7

N9

A15

VDD_7

R1

VDD_8

M2

R9

BA0

VDD_9

N8

BA1

M3

BA2

A1

VDDQ_1

J7

A8

CK

VDDQ_2

K7

C1

CK

VDDQ_3

K9

C9

CKE

VDDQ_4

D2

VDDQ_5

L2

E9

CS

VDDQ_6

K1

F1

ODT

VDDQ_7

J3

H2

RAS

VDDQ_8

K3

H9

CAS

VDDQ_9

L3

WE

J1

NC_1

T2

J9

RESET

NC_2

L1

NC_3

L9

NC_4

F3

DQSL

G3

DQSL

C7

A9

DQSU

VSS_1

B7

B3

DQSU

VSS_2

E1

VSS_3

E7

G8

DML

VSS_4

D3

J2

DMU

VSS_5

J8

VSS_6

E3

M1

DQL0

VSS_7

F7

M9

DQL1

VSS_8

F2

P1

DQL2

VSS_9

F8

P9

DQL3

VSS_10

H3

T1

DQL4

VSS_11

H8

T9

DQL5

VSS_12

G2

DQL6

H7

DQL7

B1

VSSQ_1

D7

B9

DQU0

VSSQ_2

C3

D1

DQU1

VSSQ_3

C8

D8

DQU2

VSSQ_4

C2

E2

DQU3

VSSQ_5

A7

E8

DQU4

VSSQ_6

A2

F9

DQU5

VSSQ_7

B8

G1

DQU6

VSSQ_8

A3

G9

DQU7

VSSQ_9

K4B4G1646D-BCK0

DDR_512MB_SS_1600_25n

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC402-*3

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MID_LG1311

M14+ DDR3-M0

2014.05.28
4

31

PAGE 5

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

IC101

LG1311-C1

M1_DDR_VREF1
M1_DDR_VREF2

M1_DDR_U_CLKP
M1_DDR_U_CLKN
M1_DDR_D_CLKP
M1_DDR_D_CLKN

M1_DDR_RASN
M1_DDR_CASN

M1_DDR_RESET_N

M1_DDR_DQS_P0
M1_DDR_DQS_N0
M1_DDR_DQS_P1
M1_DDR_DQS_N1
M1_DDR_DQS_P2
M1_DDR_DQS_N2
M1_DDR_DQS_P3
M1_DDR_DQS_N3

M1_DDR_DQ10
M1_DDR_DQ11
M1_DDR_DQ12
M1_DDR_DQ13
M1_DDR_DQ14
M1_DDR_DQ15
M1_DDR_DQ16
M1_DDR_DQ17
M1_DDR_DQ18
M1_DDR_DQ19
M1_DDR_DQ20
M1_DDR_DQ21
M1_DDR_DQ22
M1_DDR_DQ23
M1_DDR_DQ24
M1_DDR_DQ25
M1_DDR_DQ26
M1_DDR_DQ27
M1_DDR_DQ28
M1_DDR_DQ29
M1_DDR_DQ30
M1_DDR_DQ31

M1_DDR_ZQCAL

M1_DDR_A0
M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8

M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15

M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2

M1_DDR_CKE

M1_DDR_ODT

M1_DDR_WEN

M1_DDR_DM0
M1_DDR_DM1
M1_DDR_DM2
M1_DDR_DM3

M1_DDR_DQ0
M1_DDR_DQ1
M1_DDR_DQ2
M1_DDR_DQ3
M1_DDR_DQ4
M1_DDR_DQ5
M1_DDR_DQ6
M1_DDR_DQ7
M1_DDR_DQ8
M1_DDR_DQ9

VREF_M1_0

A2
Y1

M5
N5
K5
H5
T4
H4
R4
J5
T5
L5
U4
P4
P5
K4
R5
N4

G4
U5
L4

R3
R2
F3
F2
M4

F5
E4
F4
G5

J4

E2
E3
G2
G1
P2
P3
T2
T1

H1
E1
U1
P1

C2
K2
B3
J3
B1
K1
B2
K3
J2
D2
H3
C3
G3
D1
H2
D3
M2
V3
L3
W2
L1
W1
L2
W3
V2
N2
U3
M3
T3
N1
U2
N3

E5

R501

VREF_M1_1

M1_DDR_A0
M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8
M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15

M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2

M1_U_CLK
M1_U_CLKN
M1_D_CLK
M1_D_CLKN
M1_DDR_CKE

M1_DDR_ODT
M1_DDR_RASN
M1_DDR_CASN
M1_DDR_WEN

M1_DDR_RESET_N

M1_DDR_DQS_N0
M1_DDR_DQS1
M1_DDR_DQS_N1
M1_DDR_DQS2
M1_DDR_DQS_N2
M1_DDR_DQS3
M1_DDR_DQS_N3

M1_DDR_DM0

M1_DDR_DM2
M1_DDR_DM3

M1_DDR_DQ0
M1_DDR_DQ1
M1_DDR_DQ2
M1_DDR_DQ3
M1_DDR_DQ4
M1_DDR_DQ5
M1_DDR_DQ6
M1_DDR_DQ7
M1_DDR_DQ8
M1_DDR_DQ9
M1_DDR_DQ10
M1_DDR_DQ11
M1_DDR_DQ12
M1_DDR_DQ13
M1_DDR_DQ14
M1_DDR_DQ15
M1_DDR_DQ16
M1_DDR_DQ17
M1_DDR_DQ18
M1_DDR_DQ19
M1_DDR_DQ20
M1_DDR_DQ21
M1_DDR_DQ22
M1_DDR_DQ23
M1_DDR_DQ24
M1_DDR_DQ25
M1_DDR_DQ26
M1_DDR_DQ27
M1_DDR_DQ28
M1_DDR_DQ29
M1_DDR_DQ30
M1_DDR_DQ31

240
1%

+1.5V_DDR

R508

R509

+1.5V_DDR

OPT

+1.5V_DDR

R504

R505

+1.5V_DDR

R506

R507

VREF_M1_0

1K 1%

C501

1K 1%

R502
10K

100

R50 3

M1_DDR_VREFCA

1K 1%

C502

0.1uF

1K 1%

M1_DDR_VREFDQ

1K 1%

0.1uF

1K 1%

C503

0.1uF

M1_DDR_RESET_N

M1_D_CLK

M1_D_CLKN

+1.5V_DDR

M1_DDR_CKE

+1.5V_DDR

+1.5V_DDR

VREF_M1_1

R515

1K 1%

R516

1K 1%

100

R51 0

M1_1_DDR_VREFCA

R511

1K 1%

R512

1K 1%

M1_1_DDR_VREFDQ

R513

1K 1%

0.1uF

R514

1K 1%

C508

C506

M1_U_CLK

M1_U_CLKN

C507

0.1uF

R517
10K

0.1uF

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

ZQ

+1.5V_DDR

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

M1_1_DDR_VREFCA

R519

+1.5V_DDR

C540

C541 1uF

M1_1_DDR_VREFDQ

240

1uF

DDR3 1.5V bypass Cap

: Place these caps near Memory

M1_DDR_RASNM1_DDR_DQS0
M1_DDR_CASN

M1_DDR_RESET_N

M1_DDR_DQS0

M1_DDR_DQS_N0

M1_DDR_DQS1M1_DDR_DM1

M1_DDR_DQS_N1

M1_DDR_DM0

M1_DDR_DM1

M1_DDR_DQ10
M1_DDR_DQ11
M1_DDR_DQ12
M1_DDR_DQ13
M1_DDR_DQ14
M1_DDR_DQ15

M1_DDR_A0
M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8

M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15

M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2

M1_D_CLK

M1_D_CLKN
M1_DDR_CKE

M1_DDR_ODT

M1_DDR_WEN

M1_DDR_DQ0
M1_DDR_DQ1
M1_DDR_DQ2
M1_DDR_DQ3
M1_DDR_DQ4
M1_DDR_DQ5
M1_DDR_DQ6
M1_DDR_DQ7

M1_DDR_DQ8
M1_DDR_DQ9

IC501

H5TQ4G63AFR-PBC

N3

DDR3

A0

P7

4Gbit

A1

P3

DDR_512MB_HYNIX_1600_29n

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

ZQ

+1.5V_DDR

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

M1_DDR_VREFCA

R518

+1.5V_DDR

C524

C525 1uF

1uF

M1_DDR_VREFDQ

240

DDR3 1.5V bypass Cap

: Place these caps near Memory

1_2Gbit : T7(NC_6)

4Gbit : T7(A14)

M1_DDR_A0
M1_DDR_A1
M1_DDR_A2
M1_DDR_A3
M1_DDR_A4
M1_DDR_A5
M1_DDR_A6
M1_DDR_A7
M1_DDR_A8

M1_DDR_A9
M1_DDR_A10
M1_DDR_A11
M1_DDR_A12
M1_DDR_A13
M1_DDR_A14
M1_DDR_A15

M1_DDR_BA0
M1_DDR_BA1
M1_DDR_BA2

M1_U_CLK

M1_U_CLKN
M1_DDR_CKE

M1_DDR_ODT

M1_DDR_RASN
M1_DDR_CASN

M1_DDR_WEN

M1_DDR_RESET_N

M1_DDR_DQS2

M1_DDR_DQS_N2

M1_DDR_DQS3

M1_DDR_DQS_N3

M1_DDR_DM2
M1_DDR_DM3

M1_DDR_DQ16
M1_DDR_DQ17
M1_DDR_DQ18
M1_DDR_DQ19
M1_DDR_DQ20

M1_DDR_DQ21
M1_DDR_DQ22
M1_DDR_DQ23

M1_DDR_DQ24
M1_DDR_DQ25
M1_DDR_DQ26

M1_DDR_DQ27
M1_DDR_DQ28

M1_DDR_DQ29
M1_DDR_DQ30
M1_DDR_DQ31

IC502

H5TQ4G63AFR-PBC

N3

DDR3

A0

P7

4Gbit

A1

P3

DDR_512MB_HYNIX_1600_29n

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR3_512MB_SS_1600_25nm_15Y DDR3_512MB_HYNIX_1866_25nm_15Y DDR3_512MB_MICRON_1600_29nm_14Y DDR3_256MB_HYNIX_1600_29nm_14Y DDR3_256MB_MICRON_1600_29nm_14Y DDR3_256MB_SS_1600_35nm_15Y

K4B4G1646D-BCK0

DDR_512MB_SAMSUNG_1600_25n

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC501-*6

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

M8

A0

VREFCA

P7

A1

P3

A2

N2

H1

A3

VREFDQ

P8

A4

P2

A5

R8

L8

A6

ZQ

R2

A7

T8

A8

R3

B2

A9

VDD_1

L7

D9

A10/AP

VDD_2

R7

G7

A11

VDD_3

N7

K2

A12/BC

VDD_4

T3

K8

A13

VDD_5

N1

T7

VDD_6

A14

M7

N9

A15

VDD_7

R1

VDD_8

M2

R9

BA0

VDD_9

N8

BA1

M3

BA2

A1

VDDQ_1

J7

A8

CK

VDDQ_2

K7

C1

CK

VDDQ_3

K9

C9

CKE

VDDQ_4

D2

VDDQ_5

L2

E9

CS

VDDQ_6

K1

F1

ODT

VDDQ_7

J3

H2

RAS

VDDQ_8

K3

H9

CAS

VDDQ_9

L3

WE

J1

NC_1

T2

J9

RESET

NC_2

L1

NC_3

L9

NC_4

F3

DQSL

G3

DQSL

C7

A9

DQSU

VSS_1

B7

B3

DQSU

VSS_2

E1

VSS_3

E7

G8

DML

VSS_4

D3

J2

DMU

VSS_5

J8

VSS_6

E3

M1

DQL0

VSS_7

F7

M9

DQL1

VSS_8

F2

P1

DQL2

VSS_9

F8

P9

DQL3

VSS_10

H3

T1

DQL4

VSS_11

H8

T9

DQL5

VSS_12

G2

DQL6

H7

DQL7

B1

VSSQ_1

D7

B9

DQU0

VSSQ_2

C3

D1

DQU1

VSSQ_3

C8

D8

DQU2

VSSQ_4

C2

E2

DQU3

VSSQ_5

A7

E8

DQU4

VSSQ_6

A2

F9

DQU5

VSSQ_7

B8

G1

DQU6

VSSQ_8

A3

G9

DQU7

VSSQ_9

IC502-*6

K4B4G1646D-BCK0

DDR_512MB_SAMSUNG_1600_25n

N3

H5TQ4G63CFR_RDC

DDR_512MB_HYNIX_1866_25n

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC501-*4

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

M8

A0

VREFCA

P7

A1

P3

A2

N2

H1

A3

VREFDQ

P8

A4

P2

A5

R8

L8

A6

ZQ

R2

A7

T8

A8

R3

B2

A9

VDD_1

L7

D9

A10/AP

VDD_2

R7

G7

A11

VDD_3

N7

K2

A12/BC

VDD_4

T3

K8

A13

VDD_5

N1

T7

VDD_6

A14

M7

N9

NC_5

VDD_7

R1

VDD_8

M2

R9

BA0

VDD_9

N8

BA1

M3

BA2

A1

VDDQ_1

J7

A8

CK

VDDQ_2

K7

C1

CK

VDDQ_3

K9

C9

CKE

VDDQ_4

D2

VDDQ_5

L2

E9

CS

VDDQ_6

K1

F1

ODT

VDDQ_7

J3

H2

RAS

VDDQ_8

K3

H9

CAS

VDDQ_9

L3

WE

J1

NC_1

T2

J9

RESET

NC_2

L1

NC_3

L9

NC_4

F3

DQSL

G3

DQSL

C7

A9

DQSU

VSS_1

B7

B3

DQSU

VSS_2

E1

VSS_3

E7

G8

DML

VSS_4

D3

J2

DMU

VSS_5

J8

VSS_6

E3

M1

DQL0

VSS_7

F7

M9

DQL1

VSS_8

F2

P1

DQL2

VSS_9

F8

P9

DQL3

VSS_10

H3

T1

DQL4

VSS_11

H8

T9

DQL5

VSS_12

G2

DQL6

H7

DQL7

B1

VSSQ_1

D7

B9

DQU0

VSSQ_2

C3

D1

DQU1

VSSQ_3

C8

D8

DQU2

VSSQ_4

C2

E2

DQU3

VSSQ_5

A7

E8

DQU4

VSSQ_6

A2

F9

DQU5

VSSQ_7

B8

G1

DQU6

VSSQ_8

A3

G9

DQU7

VSSQ_9

IC502-*4

H5TQ4G63CFR_RDC

DDR_512MB_HYNIX_1866_25n

N3

IC501-*1

MT41K256M16HA-125:E

DDR_512MB_MICRON

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQ0

F7

DQ1

F2

DQ2

F8

DQ3

H3

DQ4

H8

DQ5

G2

DQ6

H7

DQ7

D7

DQ8

C3

DQ9

C8

DQ10

C2

DQ11

A7

DQ12

A2

DQ13

B8

DQ14

A3

DQ15

VREFCA

VREFDQ

ZQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4

A14

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

IC502-*1

MT41K256M16HA-125:E

DDR_512MB_MICRON

N3

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

M8

A0

VREFCA

P7

A1

P3

A2

N2

H1

A3

VREFDQ

P8

A4

P2

A5

R8

L8

A6

ZQ

R2

A7

T8

A8

R3

B2

A9

VDD_1

L7

D9

A10/AP

VDD_2

R7

G7

A11

VDD_3

N7

K2

A12/BC

VDD_4

T3

K8

A13

VDD_5

N1

VDD_6

M7

N9

NC_5

VDD_7

R1

VDD_8

M2

R9

BA0

VDD_9

N8

BA1

M3

BA2

A1

VDDQ_1

J7

A8

CK

VDDQ_2

K7

C1

CK

VDDQ_3

K9

C9

CKE

VDDQ_4

D2

VDDQ_5

L2

E9

CS

VDDQ_6

K1

F1

ODT

VDDQ_7

J3

H2

RAS

VDDQ_8

K3

H9

CAS

VDDQ_9

L3

WE

J1

NC_1

T2

J9

RESET

NC_2

L1

NC_3

L9

NC_4

F3

T7

DQSL

A14

G3

DQSL

C7

A9

DQSU

VSS_1

B7

B3

DQSU

VSS_2

E1

VSS_3

E7

G8

DML

VSS_4

D3

J2

DMU

VSS_5

J8

VSS_6

E3

M1

DQ0

VSS_7

F7

M9

DQ1

VSS_8

F2

P1

DQ2

VSS_9

F8

P9

DQ3

VSS_10

H3

T1

DQ4

VSS_11

H8

T9

DQ5

VSS_12

G2

DQ6

H7

DQ7

B1

VSSQ_1

D7

B9

DQ8

VSSQ_2

C3

D1

DQ9

VSSQ_3

C8

D8

DQ10

VSSQ_4

C2

E2

DQ11

VSSQ_5

A7

E8

DQ12

VSSQ_6

A2

F9

DQ13

VSSQ_7

B8

G1

DQ14

VSSQ_8

A3

G9

DQ15

VSSQ_9

IC501-*2

H5TQ2G63FFR-PBC

DDR_256MB_HYNIX_1600_29n

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC502-*2

H5TQ2G63FFR-PBC

DDR_256MB_HYNIX_1600_29n

N3

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

M8

A0

VREFCA

P7

A1

P3

A2

N2

H1

A3

VREFDQ

P8

A4

P2

A5

R8

L8

A6

ZQ

R2

A7

T8

A8

R3

B2

A9

VDD_1

L7

D9

A10/AP

VDD_2

R7

G7

A11

VDD_3

N7

K2

A12/BC

VDD_4

T3

K8

A13

VDD_5

N1

VDD_6

M7

N9

NC_5

VDD_7

R1

VDD_8

M2

R9

BA0

VDD_9

N8

BA1

M3

BA2

A1

VDDQ_1

J7

A8

CK

VDDQ_2

K7

C1

CK

VDDQ_3

K9

C9

CKE

VDDQ_4

D2

VDDQ_5

L2

E9

CS

VDDQ_6

K1

F1

ODT

VDDQ_7

J3

H2

RAS

VDDQ_8

K3

H9

CAS

VDDQ_9

L3

WE

J1

NC_1

T2

J9

RESET

NC_2

L1

NC_3

L9

NC_4

F3

T7

DQSL

NC_6

G3

DQSL

C7

A9

DQSU

VSS_1

B7

B3

DQSU

VSS_2

E1

VSS_3

E7

G8

DML

VSS_4

D3

J2

DMU

VSS_5

J8

VSS_6

E3

M1

DQL0

VSS_7

F7

M9

DQL1

VSS_8

F2

P1

DQL2

VSS_9

F8

P9

DQL3

VSS_10

H3

T1

DQL4

VSS_11

H8

T9

DQL5

VSS_12

G2

DQL6

H7

DQL7

B1

VSSQ_1

D7

B9

DQU0

VSSQ_2

C3

D1

DQU1

VSSQ_3

C8

D8

DQU2

VSSQ_4

C2

E2

DQU3

VSSQ_5

A7

E8

DQU4

VSSQ_6

A2

F9

DQU5

VSSQ_7

B8

G1

DQU6

VSSQ_8

A3

G9

DQU7

VSSQ_9

IC501-*3

MT41K128M16JT-125:K

DDR_256MB_MICRON

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQ0

F7

DQ1

F2

DQ2

F8

DQ3

H3

DQ4

H8

DQ5

G2

DQ6

H7

DQ7

D7

DQ8

C3

DQ9

C8

DQ10

C2

DQ11

A7

DQ12

A2

DQ13

B8

DQ14

A3

DQ15

IC502-*3

MT41K128M16JT-125:K

DDR_256MB_MICRON

N3

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

M8

A0

VREFCA

P7

A1

P3

A2

N2

H1

A3

VREFDQ

P8

A4

P2

A5

R8

L8

A6

ZQ

R2

A7

T8

A8

R3

B2

A9

VDD_1

L7

D9

A10/AP

VDD_2

R7

G7

A11

VDD_3

N7

K2

A12/BC

VDD_4

T3

K8

A13

VDD_5

N1

VDD_6

M7

N9

NC_5

VDD_7

R1

VDD_8

M2

R9

BA0

VDD_9

N8

BA1

M3

BA2

A1

VDDQ_1

J7

A8

CK

VDDQ_2

K7

C1

CK

VDDQ_3

K9

C9

CKE

VDDQ_4

D2

VDDQ_5

L2

E9

CS

VDDQ_6

K1

F1

ODT

VDDQ_7

J3

H2

RAS

VDDQ_8

K3

H9

CAS

VDDQ_9

L3

WE

J1

NC_1

T2

J9

RESET

NC_2

L1

NC_3

L9

NC_4

F3

T7

DQSL

NC_6

G3

DQSL

C7

A9

DQSU

VSS_1

B7

B3

DQSU

VSS_2

E1

VSS_3

E7

G8

DML

VSS_4

D3

J2

DMU

VSS_5

J8

VSS_6

E3

M1

DQ0

VSS_7

F7

M9

DQ1

VSS_8

F2

P1

DQ2

VSS_9

F8

P9

DQ3

VSS_10

H3

T1

DQ4

VSS_11

H8

T9

DQ5

VSS_12

G2

DQ6

H7

DQ7

B1

VSSQ_1

D7

B9

DQ8

VSSQ_2

C3

D1

DQ9

VSSQ_3

C8

D8

DQ10

VSSQ_4

C2

E2

DQ11

VSSQ_5

A7

E8

DQ12

VSSQ_6

A2

F9

DQ13

VSSQ_7

B8

G1

DQ14

VSSQ_8

A3

G9

DQ15

VSSQ_9

K4B2G1646Q-BCK0

DDR_256MB_SS_1600_35n

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC501-*5

IC502-*5

K4B2G1646Q-BCK0

DDR_256MB_SS_1600_35n

N3

M8

A0

VREFCA

P7

A1

P3

A2

N2

H1

A3

VREFDQ

P8

A4

P2

A5

R8

L8

A6

ZQ

R2

A7

T8

A8

R3

B2

A9

VDD_1

L7

D9

A10/AP

VDD_2

R7

G7

A11

VDD_3

N7

K2

A12/BC

VDD_4

T3

K8

A13

VDD_5

N1

VDD_6

M7

N9

NC_5

VDD_7

R1

VDD_8

M2

R9

BA0

VDD_9

N8

BA1

M3

BA2

A1

VDDQ_1

J7

A8

CK

VDDQ_2

K7

C1

CK

VDDQ_3

K9

C9

CKE

VDDQ_4

D2

VDDQ_5

L2

E9

CS

VDDQ_6

K1

F1

ODT

VDDQ_7

J3

H2

RAS

VDDQ_8

K3

H9

CAS

VDDQ_9

L3

WE

J1

NC_1

T2

J9

RESET

NC_2

L1

NC_3

L9

NC_4

F3

T7

DQSL

NC_6

G3

DQSL

C7

A9

DQSU

VSS_1

B7

B3

DQSU

VSS_2

E1

VSS_3

E7

G8

DML

VSS_4

D3

J2

DMU

VSS_5

J8

VSS_6

E3

M1

DQL0

VSS_7

F7

M9

DQL1

VSS_8

F2

P1

DQL2

VSS_9

F8

P9

DQL3

VSS_10

H3

T1

DQL4

VSS_11

H8

T9

DQL5

VSS_12

G2

DQL6

H7

DQL7

B1

VSSQ_1

D7

B9

DQU0

VSSQ_2

C3

D1

DQU1

VSSQ_3

C8

D8

DQU2

VSSQ_4

C2

E2

DQU3

VSSQ_5

A7

E8

DQU4

VSSQ_6

A2

F9

DQU5

VSSQ_7

B8

G1

DQU6

VSSQ_8

A3

G9

DQU7

VSSQ_9

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MID_LG1311

M14+ DDR3-M1

2014.05.28
5

31

PAGE 6

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

VDD3V3_HDMI

AVDD33

C637

0.1uF
16V

+1.5V_DDR

TP5207

+1.5V_DDR

TP5208

AVDD25_C4TX

AVDD25

AVDD25_AUD

GND JIG POINT

DVDD33

JP601

AA23
AC12
AC13
AC14
AC15
AC11

AF22

AA11
AC18
AC19
AC20
AC21
AC22
AC23

AC17
AB23

L18
L21
L22
L23
M23
T11
Y23

P23
R23
T23
U23
V23

F10
F11
F12
F13
F14
F15
F16
F17

V11
W11
Y11

G19
H19
H20

JP602

F9

G6
H6
J6
K6
L6
M6
N6
P6
R6

IC101

LG1311-C1

DVDD33_1
DVDD33_2
DVDD33_3
DVDD33_4
DVDD33_5
DVDD33_6
DVDD33_7
DVDD33_8
DVDD33_9
DVDD33_10
DVDD33_11
DVDD33_12
AVDD33_BT_USB
AVDD33_USB_1
AVDD33_USB_2
AVDD33_HDMI_1
AVDD33_HDMI_2
AVDD33_HDMI_3

AVDD33_CVBS

DVDD15_M0_1
DVDD15_M0_2
DVDD15_M0_3
DVDD15_M0_4
DVDD15_M0_5
DVDD15_M0_6
DVDD15_M0_7
DVDD15_M0_8
DVDD15_M0_9

DVDD15_M1_1
DVDD15_M1_2
DVDD15_M1_3
DVDD15_M1_4
DVDD15_M1_5
DVDD15_M1_6
DVDD15_M1_7
DVDD15_M1_8
DVDD15_M1_9

AVDD25_C4TX_1
AVDD25_C4TX_2
AVDD25_C4TX_3
AVDD25_C4TX_4
AVDD25_COMP_1
AVDD25_COMP_2
AVDD25_CVBS_1
AVDD25_CVBS_2
AVDD25_DMD
AVDD25_AAD
DVDD25_XTAL
AVDD25_DR3PLL
SP_VQPS

AVDD25_AUD
AVDD25_APLL

JP603

AVDD11_COMP_LLPLL

JP604

DVDD11_1
DVDD11_2
DVDD11_3
DVDD11_4
DVDD11_5
DVDD11_6
DVDD11_7
DVDD11_8

DVDD11_9
DVDD11_10
DVDD11_11
DVDD11_12
DVDD11_13
DVDD11_14
DVDD11_15
DVDD11_16
DVDD11_17
DVDD11_18
DVDD11_19
DVDD11_20
DVDD11_21
DVDD11_22
DVDD11_23
DVDD11_24
DVDD11_25
DVDD11_26
DVDD11_27
DVDD11_28
DVDD11_29
DVDD11_30
DVDD11_31
DVDD11_32
DVDD11_33
DVDD11_34
DVDD11_35
DVDD11_36
DVDD11_37
DVDD11_38
DVDD11_39

DVDD11_40
DVDD11_41
DVDD11_42
DVDD11_43
DVDD11_44
DVDD11_45
DVDD11_46
DVDD11_47
DVDD11_48
DVDD11_49
DVDD11_50
DVDD11_51

AVDD11_APLL

AVDD11_C4TX_1
AVDD11_C4TX_2
AVDD11_C4TX_3
AVDD11_C4TX_4

DVDD11_XTAL

DVDD11_DR3PLL

DVDD11_CVBSPLL

AVDD11_DMD_1
AVDD11_DMD_2

DVDD18_EMMC_1
DVDD18_EMMC_2

+1.1V_VDD

M20
M21
N13
N14
N15
N16
N17
N18
P20
P21
R13
R14
R15
R16
R17
R18
R19
R20
R21
T13
T20
T21
U14
U15
U16
U17
U18
U19
U20
U21
V13
V20
V21
W13
W14
W15
W16
W17
W18
W19
Y13
Y20
Y21
AA13
AA14
AA15
AA17
AA18
AA19
AA20
AA21
AB21
AB19
V12
W12
Y12
AA12

G18
H18

AF23
AF24
AF25

L26
M26

TP5209

+1.1V_VDD

AVDD11_DMD

TP5210

DVDD18_EMMC

+3.3V_Bypass Cap

+3.3V_NORMAL

L601

BLM18PG121SN1D

C601

4.7uF

+2.5V_Bypass Cap

+2.5V_NORMAL

L602

BLM18PG121SN1D

C602

4.7uF

+2.5V_NORMAL

AVDD25_AUD

L603

BLM18PG121SN1D

C603

4.7uF

DVDD33

10V

AVDD25

10V

10V

C604

4.7uF

C605

4.7uF

C606

4.7uF

+1.1V_Bypass Cap

+3.3V_NORMAL

C607

0.1uF
16V

10V

L606

BLM18PG121SN1D

C614

4.7uF

AVDD33

10V

C615

0.1uF
16V

AFE 3CH Power

+2.5V_NORMAL

C608

0.1uF

10V

16V

C609

0.1uF

10V

16V

AVDD25_C4TX

L604

BLM18PG121SN1D

C610

0.1uF
16V

C613

4.7uF

C616

0.1uF

10V

16V

+1.1V_VDD

C618

C617

4.7uF

4.7uF
10V

+1.1V_VDD

BLM18PG121SN1D

10V

L607

C619

4.7uF
10V

AVDD11_DMD

C622

4.7uF
10V

C620

4.7uF
10V

C625

0.1uF

C623

4.7uF

16V

C626

0.1uF

10V

16V

0.1uF

0.1uF
16V

16V

C628

C627

+1.5V_Bypass Cap

+1.5V_DDR

OPT

C631

+1.5V_DDR

C629
22uF
10V

OPT

C630
22uF
10V

0.1uF
16V

C632

0.1uF
16V

C633

0.1uF
16V

C634

0.1uF
16V

IC101

LG1311-C1

B22

GND_1

B24

GND_2

C22

GND_3

C23

GND_4

C24

GND_5

D4

GND_6

D5

GND_7

D6

GND_8

D20

GND_9

D21

GND_10

E6

GND_11

E20

GND_12

E21

GND_13

F6

GND_14

F7

GND_15

F8

GND_16

F18

GND_17

F19

GND_18

F20

GND_19

F21

GND_20

G7

GND_21

G8

GND_22

G9

GND_23

G10

GND_24

G11

GND_25

G12

GND_26

G13

GND_27

G14

GND_28

G15

GND_29

G16

GND_30

G17

GND_31

G20

GND_32

G21

GND_33

G22

GND_34

G23

GND_35

G24

GND_36

G25

GND_37

G26

GND_38

G27

GND_39

H7

GND_40

H8

GND_41

H9

GND_42

H10

GND_43

H11

GND_44

H12

GND_45

H13

GND_46

H14

GND_47

H15

GND_48

H16

GND_49

H17

GND_50

H21

GND_51

H22

GND_52

H23

GND_53

H24

GND_54

H25

GND_55

H26

GND_56

H27

GND_57

H31

GND_58

J7

GND_59

J8

GND_60

J26

GND_61

J27

GND_62

K7

GND_63

K8

GND_64

K26

GND_65

K27

GND_66

L7

GND_67

L8

GND_68

L11

GND_69

L12

GND_70

L13

GND_71

L14

GND_72

L15

GND_73

L16

GND_74

L17

GND_75

L19

GND_76

L20

GND_77

L27

GND_78

M7

GND_79

M8

GND_80

M11

GND_81

M12

GND_82

M13

GND_83

M14

GND_84

M15

GND_85

M16

GND_86

M17

GND_87

M18

GND_88

M19

GND_89

M22

GND_90

M27

GND_91

N7

GND_92

N8

GND_93

N11

GND_94

N12

GND_95

N19

GND_96

N20

GND_97

N21

GND_98

N22

GND_99

N23

GND_100

N26

GND_101

N27

GND_102

N30

GND_103

P7

GND_104

P8

GND_105

P11

GND_106

P12

GND_107

P13

GND_108

P14

GND_109

P15

GND_110

P16

GND_111

P17

GND_112

P18

GND_113

GND_114
GND_115
GND_116
GND_117
GND_118
GND_119
GND_120
GND_121
GND_122
GND_123
GND_124
GND_125
GND_126
GND_127
GND_128
GND_129
GND_130
GND_131
GND_132
GND_133
GND_134
GND_135
GND_136
GND_137
GND_138
GND_139
GND_140
GND_141
GND_142
GND_143
GND_144
GND_145
GND_146
GND_147
GND_148
GND_149
GND_150
GND_151
GND_152
GND_153
GND_154
GND_155
GND_156
GND_157
GND_158
GND_159
GND_160
GND_161
GND_162
GND_163
GND_164
GND_165
GND_166
GND_167
GND_168
GND_169
GND_170
GND_171
GND_172
GND_173
GND_174
GND_175
GND_176
GND_177
GND_178
GND_179
GND_180
GND_181
GND_182
GND_183
GND_184
GND_185
GND_186
GND_187
GND_188
GND_189
GND_190
GND_191
GND_192
GND_193
GND_194
GND_195
GND_196
GND_197
GND_198
GND_199
GND_200
GND_201
GND_202
GND_203
GND_204
GND_205
GND_206
GND_207
GND_208
GND_209
GND_210
GND_211
GND_212
GND_213
GND_214
GND_215
GND_216
GND_217
GND_218
GND_219
GND_220
GND_221
GND_222
GND_223
GND_224
GND_225
GND_226

P19
P22
P26
P30
R7
R8
R11
R12
R22
R26
R27
T6
T7
T8
T12
T14
T15
T16
T17
T18
T19
T22
T26
T27
U6
U7
U8
U11
U12
U13
U22
U26
V4
V5
V6
V7
V8
V14
V15
V16
V17
V18
V19
V22
V26
V30
V31
W4
W8
W20
W21
W22
W23
W26
W27
Y2
Y3
Y4
Y8
Y14
Y15
Y16
Y17
Y18
Y19
Y22
Y26
AA8
AA16
AA22
AA26
AB11
AB12
AB13
AB14
AB15
AB16
AB17
AB18
AB20
AB22
AB26
AB30
AB31
AC16
AC26
AD26
AE26
AF6
AF8
AF9
AF10
AF11
AF12
AF13
AF14
AF15
AF16
AF17
AF18
AF19
AF20
AF21
AF26
AG20
AG25
AG31
AH25
AJ25
AK9
AK25
AL9
AL15

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

11/05/31

MID_LG1311

VCC & GND

2014.05.28
6

31

+3.5V_ST

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

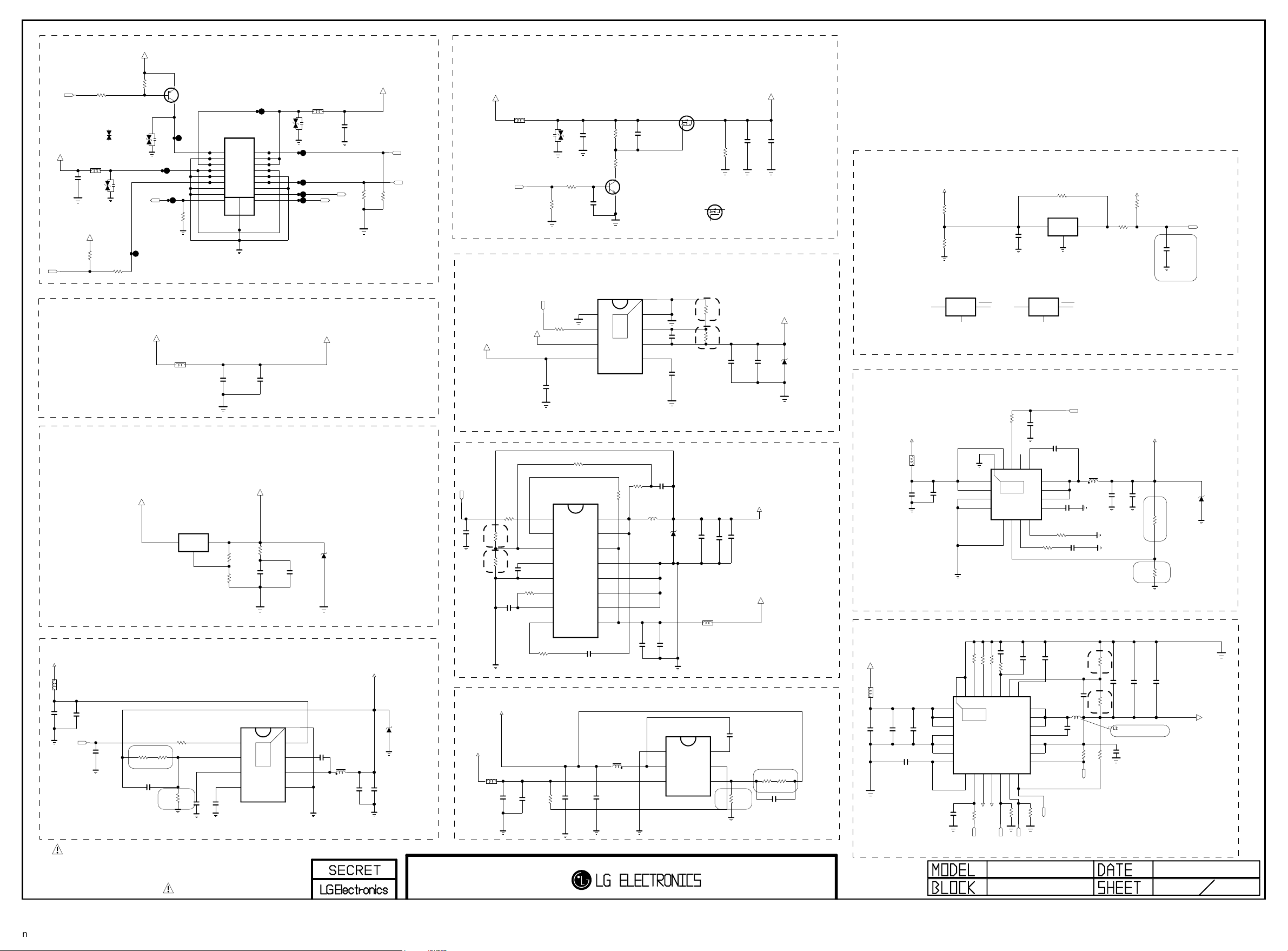

PANEL_POWER

PAGE 8

RL_ON

+13V_A

UBW2012-121F

C2306

0.1uF
50V

+3.3V_NORMAL

INV_CTL

R2300

10K

VA23001-*1

ICVS0505201FR

Multi_Innochips

L2304

ADUC 20S 02 010L

OPT

R2306
1K

R2307
100

R2301

10K

MMBT3906(NXP)

Default_Amotech

VA23001

5.6V

AMOTECH CO., LTD.

20V

L/DIM0_VS

ZD2303

Q2300

2

R2330

1K

1

L2303

3

POWER_WAFER_12PIN

P2300

SMAW200-H12S5K(BK)(LTR)

PWR ON

GND
D13V
A13V

GND

DRV-ON

GND

GND

VSYNC

OPT

SMAW200-H18S5

POWER_WAFER_18PIN

PDIM2

1

2

2

1

D13V

3

4

4

3

D13V

5

6

6

5

A13V

7

8

8

7

GND

10

9

9

10

PDIM1

11

12

12

11

GND

13

14

SCLK

15

16

13

SIN

17

18

P2301

.

UBW2012-121F

ADUC 20S 02 010L

20V

ZD2301

OPT

L/DIM0_MOSI

C2307

0.1uF
50V

L/DIM0_SCLK

+13V

R2354

4.7K
OPT

R2355

4.7K
OPT

PWM_DIM2

PWM_DIM

+3.3V - eMMC 4.41/4.51

+3.3V_NORMAL

L2302

BLM18PG121SN1D

C2305

0.1uF
16V

C2300
22uF
10V

3.3V_EMMC

+1.8V - eMMC 4.51

+3.3V_NORMAL

IC2306

AZ1117EH-ADJTRG1

OUTIN

ADJ/GND

+13V

L2300
BLM18PG121SN1D

C2302
10uF
25V

POWER_ON/OFF1

C2303

0.1uF
25V

OPT
C2360

0.1uF
16V

R2302

5.1K

1/16W
1%

C2304
100pF

+3.3V_NORMAL

R2304
10K

R23 03

R1

68K

1/1 6W

1%

50V

R2

R23 05

22K

1/1 6W

1%

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

DVDD18_EMMC

R2347
1

75

1%

1/16W

R2357

C2301
10uF

33

C2310
1uF
10V

1%

C2312
2200pF
50V

1/16W

VREG

R2358

BD9D320EFJ

EN

1

FB

2

3

SS

4

IC2300

THERMAL

3A

10V

[EP]FIN

VIN

8

BOOT

9

7

SW

6

GND

5

Vout=0.765*(1+R1/R2)

C2308
10uF
10V

0.1uF
C2313

OPT

16V

2.5V

D2302

NR8040T2R0N

L2301

2uH

C2314

22uF

10V

+3.3V_NORMAL

C2315
22uF
10V

5V

ZD2300

+13V

PANEL_CTL

+3.3V_NORMAL

+5V_NORMAL

POWER_ON/OFF2_3

OPT
C2366

0.1uF
16V

R2308

18K

1/16W

R2309

22K

1/16W

+3.5V_ST

+13V

L2305

BLM18PG121SN1D

Q2302 Change: Diodes --> NXP, 131118

Default_NXP

Q2302

C2333

0.1uF
50V

PMV48XP

S

G

D

L2313

UBW2012-121F

OPT

ADUC 20S 02 010L

R2314

10K

10K

R2361

VA23002

C2359

4.7uF
10V

OPT

C2331

0.1uF
50V

R2317

R2318

150K

B

36K

C

Q2301
MMBT3904(NXP)

E

+2.5V

IC2302

POWER_ON/OFF2_1

C2321
10uF
10V

R2315

10K

POK

BIAS

EN

IN

TJ2132GDP

1

2

3

4

2A

9

THERMAL

8

7

6

5

[EP]GND

GND

FB

OUT

SS

C2328

0.01uF
50V

C2332
2700pF
50V

1%

1%

Vout=0.6*(1+R2/R1)

R2316

R2310

1K

1%

1%

C2316

1uF

10V

100

1/16W
1%

IC2301

MP8762HGLE-Z

EN

1

FREQ

R2311
100K

1/16W
1%

AGND

R2313

4.7

1/16W
5%

2

FB

3

SS

4

5

PG

6

VCC

7

BST

8

R1

R2

C2318

0.033uF
50V

C2319

0.1uF
16V

16

15

14

13

12

11

10

9

SW_2

SW_1

IN_2

PGND_4

PGND_3

PGND_2

PGND_1

IN_1

1%

1/16W

R2320
560K

1/10W
5%

430K

R2319

LPBN8050T-1R0N

L2307

1.0uH

C2325
10uF
25V

C2327

+1.1V_CORE

330pF

50V

C2337
22uF

OPT

2.5V
10V

ZD2304

C2326
10uF
25V

Vout=0.611*(1+R1/R2)

+3.5V_ST

IC2305

TPS563200

GND

1

SW

2

3A

VIN

3

Vout=0.765*(1+R1/R2)

C2317
10uF
25V

C2320

0.1uF
25V

R2312

VLS5045EXT-2R2N

L2306

2.2uH

C2323

C2322
22uF
10V

10K

22uF

10V

Multi_AOS

Q2302-*1

AO3435
S

8.2 K

1/1 6W

26. 1K

1/1 6W

C2346

22uF
10V

L2312

6

5

4

R2346

3.3K

LVDS_DISCHARGE

D

G

R1

R23 21

R2

R23 22

VBST

EN

VFB

1/1 6W

1%

PANEL_VCC

C2363
10uF
25V

+2.5V_NORMAL

C2354

C2357

10uF

0.1uF
16V

10V

+1.1V_VDD

C2356
22uF
10V

+13V

0.1uF

16V

C2353

1%
1/1 6W

R2

24. 9K
R23 27

R23 23

10K

50V

C2347
10uF
25V

1%
1/1 6W

11K
R23 28

10pF

OPT

C2358

OPT

5V

ZD2305

R1

Power_DET

+13V

R2325
14K
1%

R2326

5.1K
1%

RESET IC_DIODES_APX803D29

IC2307-*1
APX803D29

VCC

3

2

1

GND

RESET_IC_DIODES_NEW_APX803E29

RESET

DDR MAIN 1.5V

10K

R2324

+3.5V_ST

L2308

C2339
10uF
10V

C2340

0.1uF
16V

PVIN_1

PVIN_2

PGND_1

PGND_2

[EP]FIN

1

THERMAL

2

17

IC2303

3

BD9A300MUV

4

3A

5

6

FB

AGND8MODE

3A

Vout=0.8*(1+R1/R2)

+5.0V normal & USB

C2334
2200pF

R23 4115 0K 1%

R23 40 1 6K 1%

RSET228AGND

27

IC2304

6A

9EN10

SW_OUT211SW_OUT1

+5V_USB_2

POWER_ON/OFF2_4

50V

R2342
10K

COMP25RLIM26RSET1

12

SW_EN213SW_EN1

4.7K

R2359

+5V_USB_3

USB_CTL2

MID_LG1311

+13V

L2310

120-ohm

C2309
10uF
25V
OPT

C2311
10uF
25V

R23 35 1 6K 1%

[EP]

VIN_1

1

THERMAL

VIN_2

2

VIN_3

C2329

0.1uF
50V

PGND_1

PGND_2

PGND_3

1uF

25V

C23 24

C2330

0.0068uF
50V

29

3

4

SN1302001(TPS65286RHDR)

5

6

V7V

7

8

MODE/SYNC

10K

R2339

RESET IC_ROHM

VDD

C2355

0.1uF
25V

IC2307-*2
APX803E29

VCC

3

1

OPT
C2361

0.1uF
16V

BOOT14PGD15EN16AVIN

13

SW_3

12

SW_2

11

SW_1

10

SS

9

7

ITH

R2329

8.2K

OPT
C2335
100pF
50V

22SS23FB24

LX_3

21

LX_2

20

LX_1

19

BST

18

SW_IN2

17

SW_IN1

16

NFAULT1

15

14

NFAULT2

4.7K

R2360

OPT

OPT

USB_CTL3

POWER

R2337
100K

IC2307

BD48K28G

3

2

GND

C2341

0.1uF

16V

R2331

330K1/16W 5%

1/16W1%

C2336

0.047uF
25V

/USB_OCD2

1

GND

RESET

C2342

0.01uF
50V

C2343

5%

C2344

82pF

50V

L2311

4.7uH

100K

VOUT

2

POWER_ON/OFF2_2

VLS5045EXT-2R2N

L2309

2.2uH

2700pF50V

R2

1%

R1

1%

C2338

0.047uF
25V

R2344

1/16W

R2353

/USB_OCD3

R2350
100

C2345

C2349

22uF

22uF

10V

10V

6.8K
R2345

1/16W

C2348
22uF
10V

51K

R2352

1/16W





L2311 Change, 131120

for Currnet UP

5%

100K

1/16W

C2350
1uF
10V

+3.5V_ST

R1

R2

Vout=0.6*(1+R1/R2)

5.1V:R1-51K, R2-6.8K

R2338
10K
OPT

C2365

0.1uF
16V

not to RESET at 8kV ESD

+1.5V_DDR

1%

16K

R23 32

1/1 6W

1%

18K

R23 33

1/1 6W

C2351

C2352

22uF

10uF

10V

10V

2014.05.28

POWER_DET

12V-->3.58V

ST_3.5V-->3.5V

2.5V

ZD2302

OPT

+5V_NORMAL

8

31

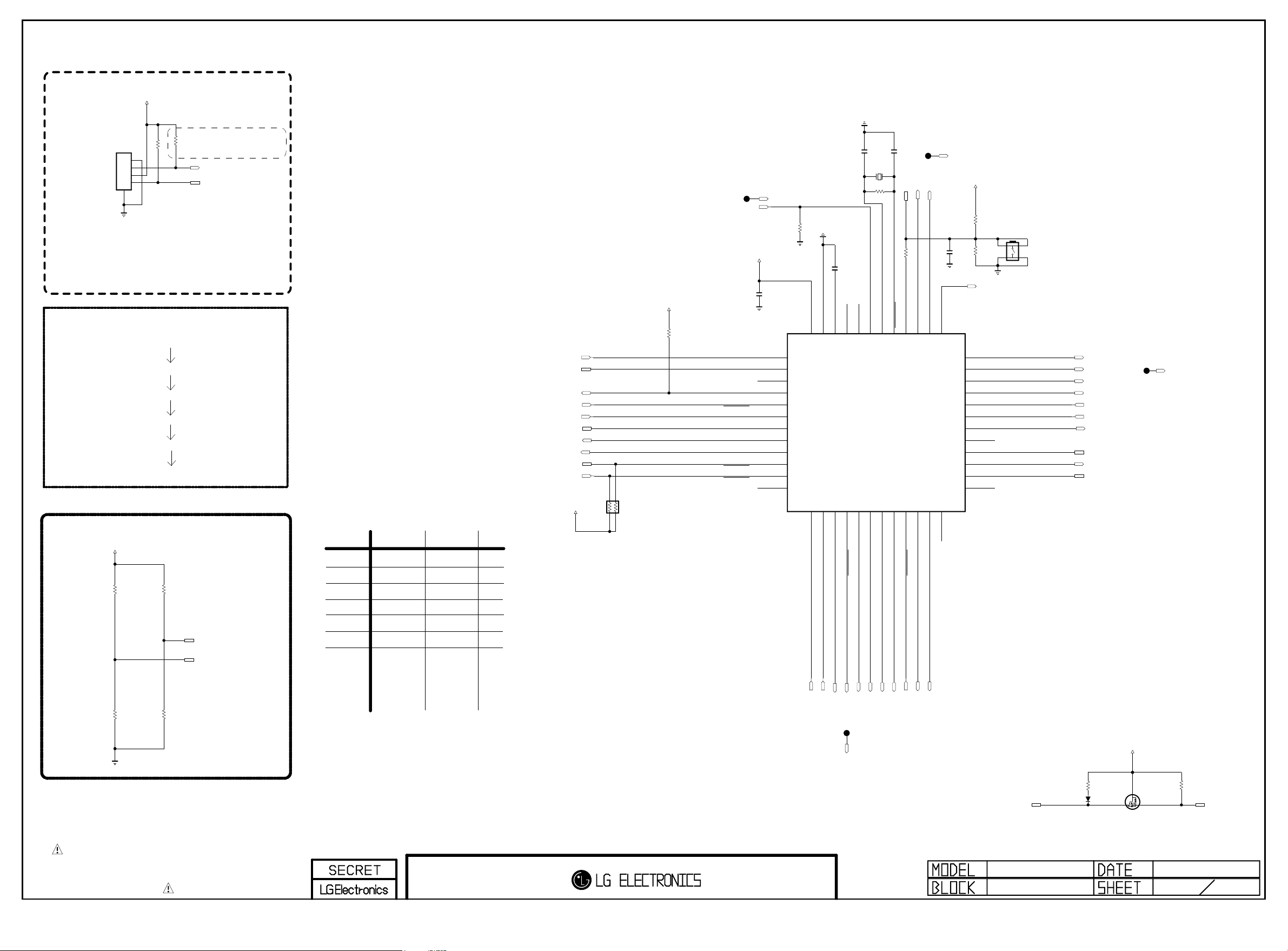

Renesas MICOM

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

For Debug

+3.5V_ST

PAGE 9

MICOM_DEBUG

P3000

12507WS-04L

5

1

2

3

4

Don’t remove R3016,
not making float P40

R3016 1K

R3014 10K

MICOM_DEBUG

M14 Power SEQUENCE

POWER_ON/OFF1

POWER_ON/OFF2_4

POWER_ON/OFF2_1

POWER_ON/OFF2_2

POWER_ON/OFF2_3

SOC_RESET

MICOM MODEL OPTION

+3.5V_ST

MICOM_EPI

R3006 10K

OPT

R3013 10K

MICOM_DEBUG

MICOM_RESET

MODEL1_OPT_0

MODEL1_OPT_1

MICOM MODEL OPTION

1

RESERVED

EPI

MODEL_OPT_0

MODEL_OPT_1

0

RESERVED

NON_EPI

I2C_SCL_MICOM_SOC

I2C_SDA_MICOM_SOC

PANEL_CTL

WOL/WIFI_POWER_ON

HDMI_CEC

POWER_ON/OFF2_2

POWER_ON/OFF2_3

EYE_SDA

EYE_SCL

IR

+3.5V_ST

AR3000

3.3K

+3.5V_ST

R3021

10K

P31/TI03/TO03/INTP4

P75/KR5/INTP9/SCK01/SCL01

P74/KR4/INTP8/SI01/SDA01

P71/KR1/SI21/SDA21

P70/KR0/SCK21/SCL21

P30/INTP3/RTC1HZ/SCK11/SCL11

1/16W

HDMI_WAUP:HDMI_INIT

+3.5V_ST

MHL_DET

C3000

0.1uF

MHL_DET

P60/SCLA0
P61/SDAA0

P62
P63

P73/KR3/SO01
P72/KR2/SO21

50V

10pF

C3002

32.768KHz

10K

GND

R3032

C3001 0.47uF

P137/INTP0

P122/X2/EXCLK

P121/X1

REGC

VSS

VDD

43

44

45

46

47

48

1
2
3
4
5
6

IC3000

R5F100GEAFB#30
7
8
9
10
11
12

13

14

15

16

17

18

P17/TI02/TO02

P51/INTP2/SO11

P16/TI01/TO01/INTP5

P50/INTP1/SI11/SDA11

P14/RXD2/SI20/SDA20

P15/PCLBUZ1/SCK20/SCL20

50V

12pF

C3003

X3000

R3028

4.7M

MICOM_RESET

OPT

R3029 33

P40/TOOL0

RESET

P124/XT2/EXCLKS

P123/XT1

40

41

42

19

20

21

LOGO_LIGHT

MICOM_DEBUG

LOGO_LIGHT

C3004

0.1uF
16V

P120/ANI19

P41/TI07/TO07

37

38

39

36
35
34
33
32
31
30
29
28
27
26
25

22

23

24

+3.5V_ST

10K

R3031

P140/PCLBUZ0/INTP6
P00/TI00/TXD1
P01/TO00/RXD1
P130
P20/ANI0/AVREFP
P21/ANI1/AVREFM
P22/ANI2
P23/ANI3
P24/ANI4
P25/ANI5
P26/ANI6
P27/ANI7

P146

P147/ANI18

P13/TXD2/SO20

P10/SCK00/SCL00

P12/SO00/TXD0/TOOLTXD

P11/SI00/RXD0/TOOLRXD/SDA00

R3030

MICOM_RESET_SW

OPT

270K

WIFI_EN

SW3000

JTP-1127WEM

4 3

12

RL_ON

SCART_MUTE

POWER_ON/OFF2_4

POWER_ON/OFF2_1

KEY2

KEY1

EPI_CTL

MODEL1_OPT_0

SIDE_HP_MUTE

MODEL1_OPT_1

SCART_MUTE

R3004 10K

MICOM_NON_EPI

R3012 10K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

POWER_DET

POWER_ON/OFF1

WOL/ETH_POWER_ON

LED_R

LED_R

WOL_CTL

INV_CTL

SOC_RESET

SOC_TX

SOC_RX

EDID_WP

AMP_MUTE

CEC_REMOTE

MID_LG1311

MICOM

D3000

BAT54_SUZHO

For CEC

R3033
27K

+3.5V_ST

G

D

S

Q3001
RUE003N02

R3034

120K

HDMI_CEC

2014.05.28
9

31

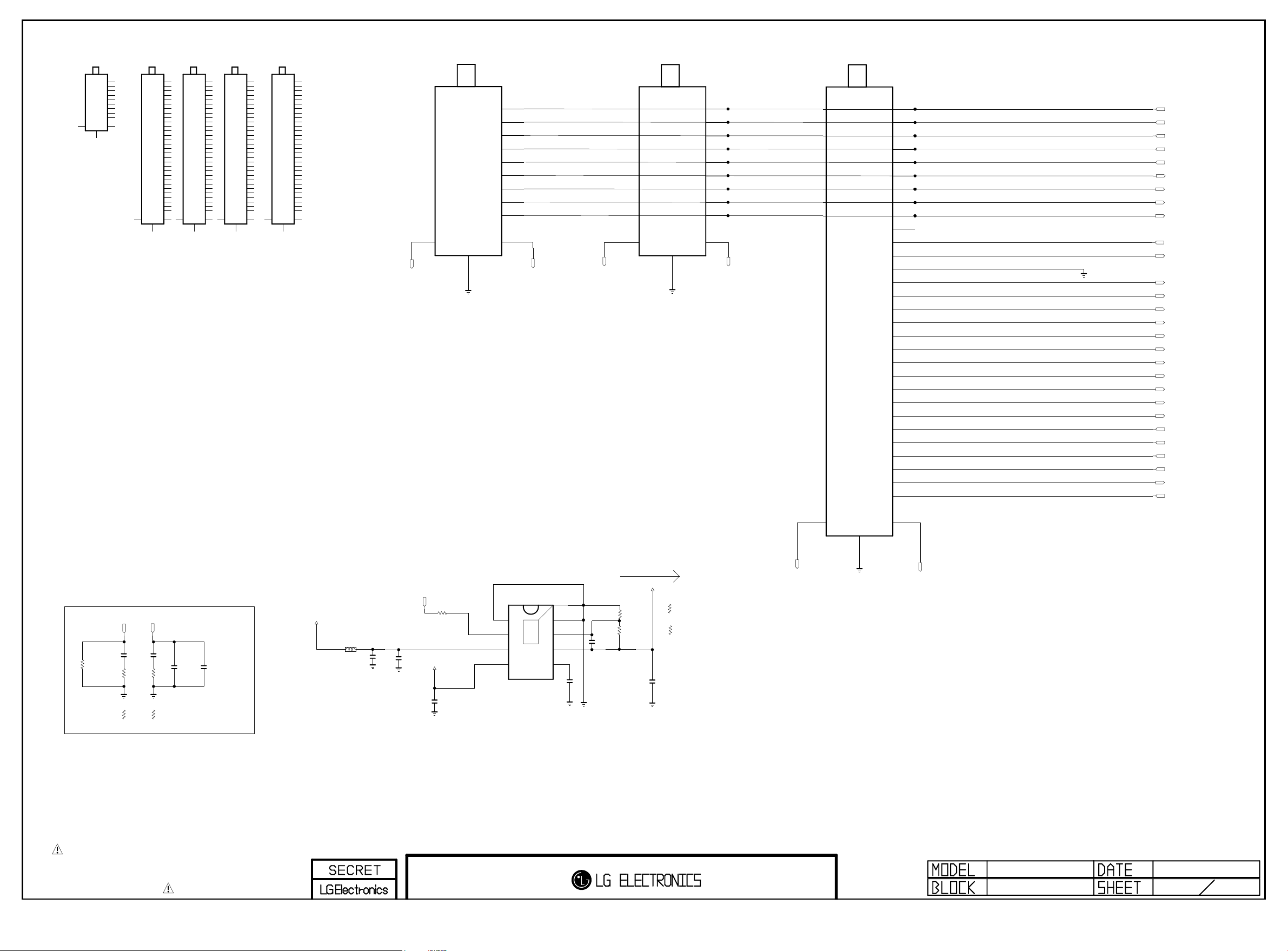

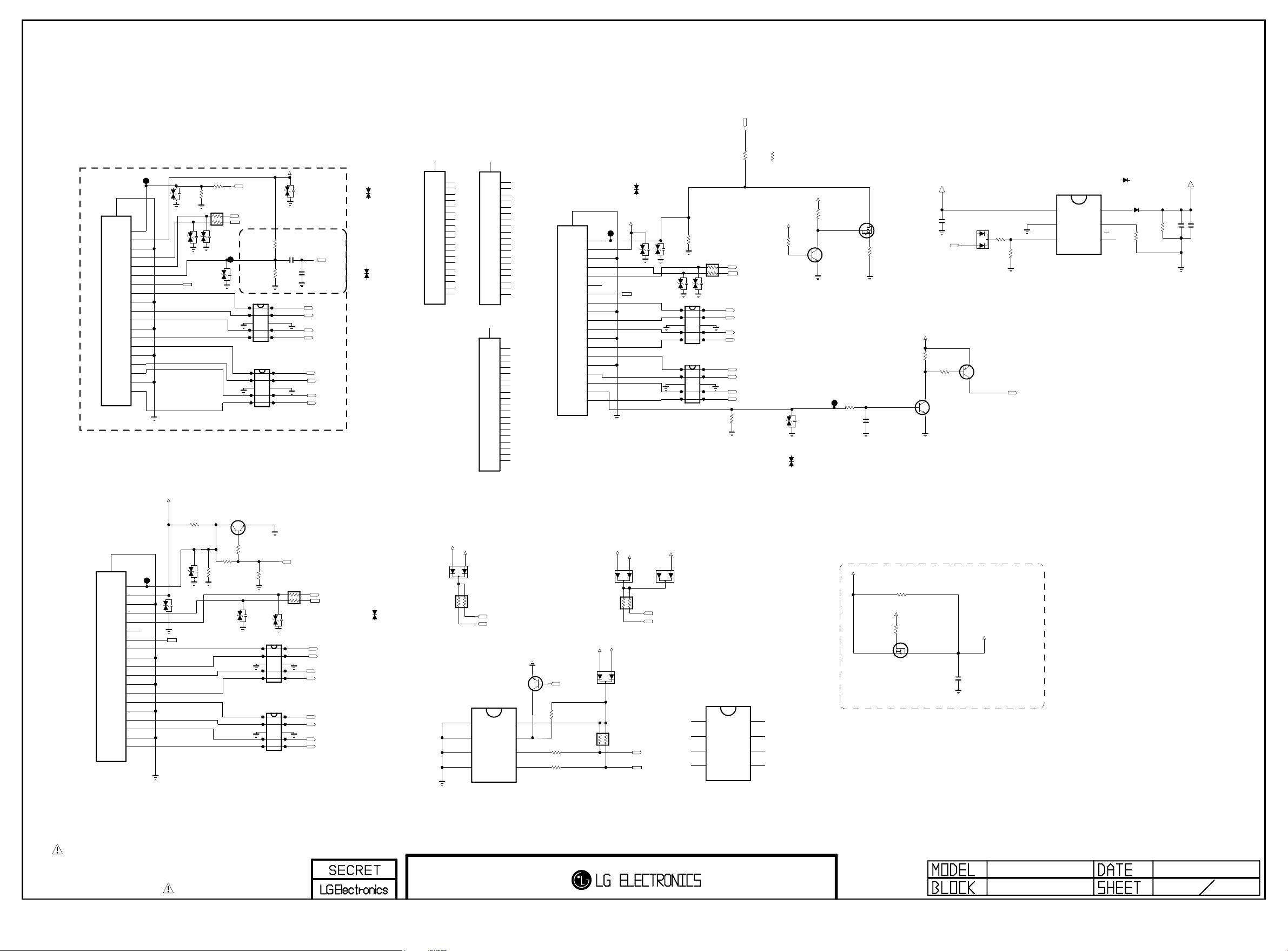

BODY_SHIELD

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

20

19

18

17

16

15

14

13

12

11
10

EAG63530101

JK3202

DAADR019A

HDMI_JACK_FOOSUNG

BODY_SHIELD

20

19

18

17

16

15

14

13

12

11
10

9

8

EAG63530101

7

6

5

4

3

2

1

JK3200

DAADR019A

HDMI_JACK_FOOSUNG

HP_DET

5V

GND

DDC_DATA

DDC_CLK

ARC

CE_REMOTE

CK-

CK_GND

CK+

D0-

9

D0_GND

8

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

VA3206

ESD_HDMI

5V_HDMI_2

VA3208

100K

ESD_HDMI

Default_Amotech

VA3213

CEC_REMOTE

HDMI_EXT_EDID

1K

R3268

VA3205

100K

ESD_HDMI

Default_Amotech
VA3209

CEC_REMOTE

33

R3250

R3265

AR3200
33
1/16W

ESD_HDMI

VA3207

HDMI_HPD_1

DDC_SCL_1

DDC_SDA_1

IP4294CZ10-TBR

1
2
3
4
5

ESD_HDMI_TMDS

IP4294CZ10-TBR

1
2
3
4
5

ESD_HDMI_TMDS

HDMI1 With ARC

Q3206

MMBT3904(NXP)

E

C

B

1K

R3251
33

HDMI_INT_EDID

R3266

R3269

VA3203
ESD_HDMI

ESD_HDMI_TMDS

R3248

1K

OPT

C3202

R3249

3.9K

OPT

D3210

10
9
8
7
6

D3211

10
9
8
7
6

HDMI_EXT_EDID

HDMI_EXT_EDID

HDMI_EXT_EDID
R3270

4.7K

D3212

IP4294CZ10-TBR

1

10

2

9
8

3

7

4

6

5

ESD_HDMI_TMDS

D3213

IP4294CZ10-TBR

1

10

2

9
8

3

7

4

6

5

HDMI2

5V_HDMI_1

Default_Amotech
VA3215

1uF

10V

HDMI_HPD_2

AR3201
33
1/16W

VA3204
ESD_HDMI

ARC

SPDIF_OUT_ARC

OPT

C3226

0.1uF
16V

CK-_HDMI1
CK+_HDMI1

D0-_HDMI1
D0+_HDMI1

D1-_HDMI1

D1+_HDMI1

D2-_HDMI1
D2+_HDMI1

DDC_SCL_2

DDC_SDA_2

CK-_HDMI2
CK+_HDMI2

D0-_HDMI2
D0+_HDMI2

D1-_HDMI2
D1+_HDMI2

D2-_HDMI2
D2+_HDMI2

Multi_Innochips
VA3215-*1

ICVS0505201FR

Multi_Innochips
VA3213-*1

ICVS0505201FR

Multi_Innochips
VA3209-*1

ICVS0505201FR

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

5501-56219

JK3202-*1

HDMI_JACK_CNPLUS

+5V_NORMAL

D3200

AR3204

5V_HDMI_1

A2CA1

47K

1/16W

A0

A1

A2

GND

HDMI_EXT_EDID_ATMEL

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

5501-56219
JK3203-*1

HDMI_JACK_CNPLUS

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

5501-56219

JK3200-*1

HDMI_JACK_CNPLUS

DDC_SDA_1
DDC_SCL_1

HDMI_EXT_EDID

MMBT3904(NXP)

IC3203

AT24C02C-SSHM-T

1

2

3

4

Q3203

8

7

6

5

VCC

WP

SCL

SDA

E

C

HDMI_EXT_EDID

HDMI_EXT_EDID

BODY_SHIELD

GND

20

EAG63530101

DAADR019A

JK3203

HDMI_JACK_FOOSUNG

5V_HDMI_2

EDID_WP

B

HDMI_EXT_EDID

R3271

4.7K

R3258
33

R3259
33

19

18

17

16

15

14

13

12

11
10

9

8

7

6

5

4

3

2

1

AR3206

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

+5V_NORMAL

D3203

47K

1/16W

AR3205

47K

1/16W

+5V_NORMAL

A1

A2

MMBD6100
D3216

C

ICVS0505201FR

5V_HDMI_4

Default_Amotech

CEC_REMOTE

5V_HDMI_4

A2CA1

Multi_Innochips
VA3216-*1

VA3216

ESD_HDMI

VA3210

ESD_HDMI

+3.5V_ST

D3205

DDC_SDA_4

DDC_SCL_4

DDC_SCL_2

DDC_SDA_2

100K

NON_MHL

R3267

AR3202
33

VA3212

1/16W

D3215

IP4294CZ10-TBR

1

10

2

9
8

3

7

4

6

5

ESD_HDMI_TMDS

D3214

IP4294CZ10-TBR

1

10

2

9
8

3

7

4

6

5

ESD_HDMI_TMDS

A2CA1

A0

A1

A2

GND

HDMI_EXT_EDID_ROHM

MHL

VA3211
ESD_HDMI

CK-_HDMI4
CK+_HDMI4

D0-_HDMI4
D0+_HDMI4

5%

1/16W

NON_MHL

IC3203-*1

BR24G02FJ-3GTE2

1

2

3

4

HDMI_HPD_4

R3261

0

DDC_SCL_4

DDC_SDA_4

D1-_HDMI4
D1+_HDMI4

D2-_HDMI4
D2+_HDMI4

0

R3277

8

7

6

5

VCC

WP

SCL

SDA

NON_MHL

R3261-*1

33

+3.3V_NORMAL

MHL

R32741K1/16W

ICVS0505201FR

+5V_NORMAL

R3275

10K

MHL

MHL

C

5%

B

Q3208
MMBT3904(NXP)

E

Default_Amotech

VA3217

5.6V

Multi_Innochips
VA3217-*1

PAGE 10

+5V_NORMAL

MHL_DET

+3.5V_ST

R3246

10K

C

E

OPT

C3201

0.1uF
MHL

A1

C

A2

MHL

D3201

B

MHL

E

MMBT3906(NXP)
Q3201

C

MHL
R3247
10K

HDMI3 With MHL

VDD3V3_HDMI

C3227

0.1uF
16V

MHL
R3201

10K

MHL

D

Q3207

G

SI1012CR-T1-GE3

S

MHL

1K

R3273

MHL

MHL
R3243

1K

1/16W

MHL
C3223

5%

0.047uF
25V

HDMI LEAKAGE Workaround in MTK A2(A0) (Default= with HDMI_LEAKAGE)

+3.3V_NORMAL

Q3200
MMBT3904(NXP)

R3255
0

1/16W
5%

PANEL_VCC

R3254

10K

G

S

NTR4501NT1G

Q3202

MHL

B

D

MHL
R3202
330K

MHL_DET

Multi_Suzhou

D3202-*1

MHL

IC3201

BD2242G

VIN

1

GND

2

EN

3

SS2040LL-LG

40V

Default_Onsemi

D3202
MBR230LSFT1G

VOUT

6

5

4

ILIM

OC

30V

R3276

14K

MHL

MHL

R3204

100K

MHL
C3203
10uF
10V

5V_HDMI_4

C3228
22uF
10V

OPT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MID_LG1311

HDMI

2013.03.22
32

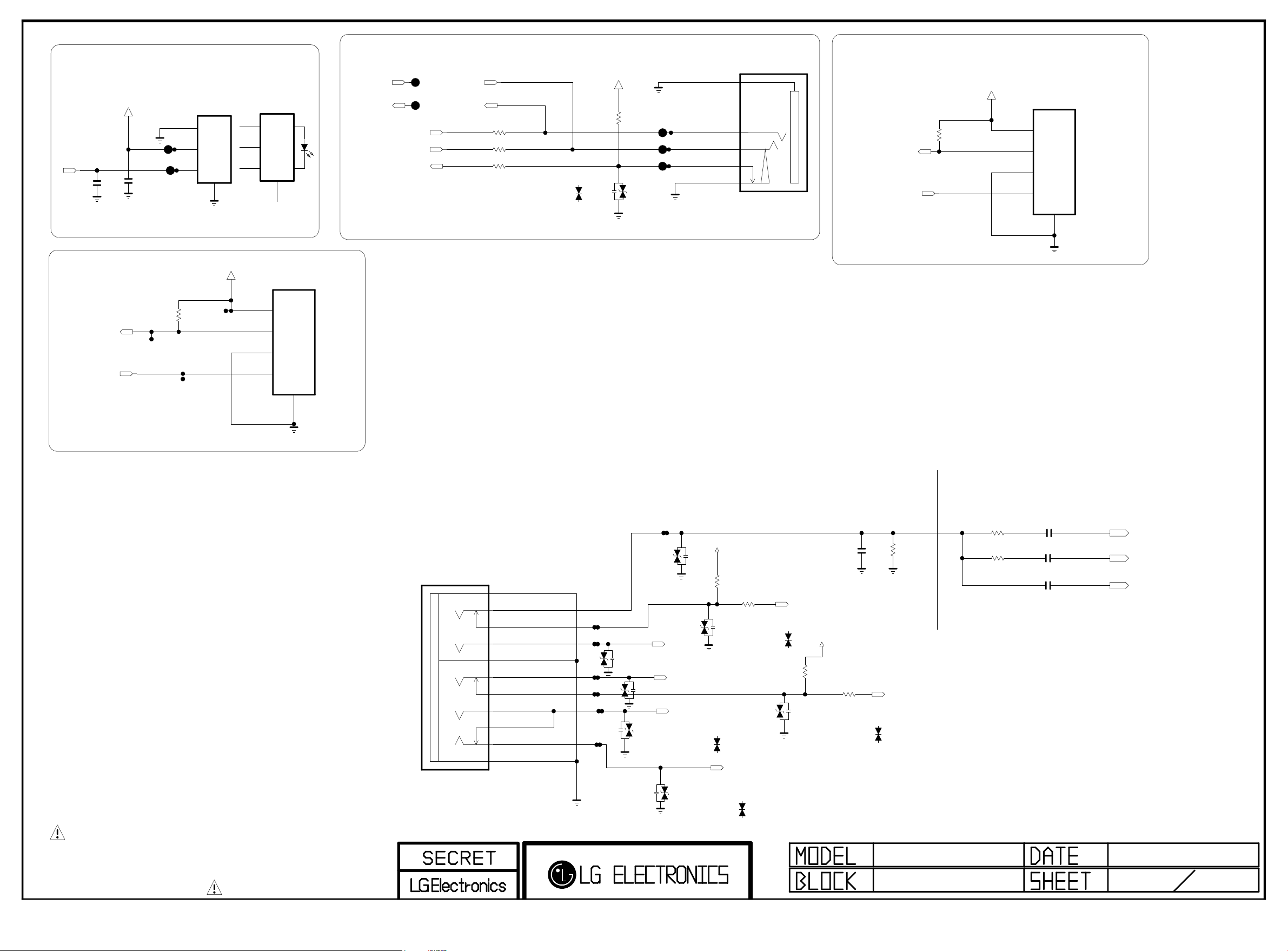

SPDIF OUT

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

+3.3V_NORMAL

SPDIF_OUT

C3402
47pF
50V

C3400

0.1uF
16V

Default_Solteam

JK3401

JST1223-001

GND

VCC

VINPUT

1

2

3

4

FIX_POLE

Multi_Foxconn

2F01TC1-CLM97-4F

GND

Fiber Optic

VCC

VIN

JK3401-*1

1

2

3

Fiber Op tic

4

SHIELD

DOUT1

HP_ROUT

HP_LOUT

HP_DET

TP3400

TP3401

RIN1RIN1

DOUT1

HP_OUT

HP_OUT

HP_OUT

HP OUT

R3825
150

R3826
150

R3409
100

VA3405-*1

ICVS0505201FR

+3.3V_NORMAL

Multi_Innochips

R3406

10K

HP_OUT

Default_Amotech

VA3405

5.6V

E_SPRING

R_SPRING

T_SPRING

B_TERMINAL2

T_TERMINAL2

JK3403

PEJ034-01

3

4

5

7B

6B

DDTS TEST ONLY

M_REMOTE_RX

M_REMOTE_TX

+3.5V_ST

OPT
R3827
10K

OPT

P3401

12507WS-04L

1

2

3

4

5

R3401
10K

SOC_RX

SOC_TX

UART for Debug

+3.5V_ST

P3400

12507WS-04L

1

2

3

4

5

AV/COMPONENT REAR

PPJ245N2-01

JK3802

[GN/YL]E-LUG

6A

5A

[GN/YL]O-SPRING

4A

[GN/YL]CONTACT

5B

[BL]O-SPRING

7C

[RD1]E-LUG-S

5C

[RD1]O-SPRING

4C

[RD1]CONTACT

5D

[WH]O-SPRING

4E

[RD2]CONTACT

5E

[RD2]O-SPRING

6E

[RD2]E-LUG

VA3804

5.5V

VA3805

5.5V

Default_Amotech

VA3801

5.6V

+3.3V_NORMAL

VA3806

5.5V

COMP1_Pb

COMP1_Pr

COMP1/AV1/DVI_L_IN

Multi_Innochips

VA3801-*1

ICVS0505201FR

Default_Amotech

VA3802

5.6V
Multi_Innochips

VA3802-*1

ICVS0505201FR

Place JACK Side

R3806
10K

R3801
1K

Default_Amotech

VA3803

5.6V

Multi_Innochips

VA3803-*1

ICVS0505201FR

COMP1/AV1/DVI_R_IN

AV1_CVBS_DET

+3.3V_NORMAL

Default_Amotech

VA3800

5.6V

R3810
10K

VA3800-*1

ICVS0505201FR

C310
150pF
OPT

R3802
1K

Multi_Innochips

3216
R314
75

COMP1_DET

Place SOC Side

R327 100

R334 33

C325 0.047uF

C323 0.047uF

C328 1000pF

AV1_CVBS_IN_SOC

COMP2_Y_IN_SOC

COMP2_Y_IN_SOC_SOY

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MID_LG1311

AV JACK

2014.05.28
11

31

BT_RESET

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

WOL/WIFI_POWER_ON

EYE_SDA
EYE_SCL

LED_R

PAGE 12

P4000

SMAW200-H18S5

GND

NC
WOL
SDA
SCL
GND

IR

1
3
5
7
9
11
13
15
17

19

R4001

100

2K

R4020

R4002

100 C4015

R4005

10K
5%

C4004

0.1uF

+3.5V_ST

C4007
100pF

50V

AR4001
100

IR

R4015

1.8K

OPT

C4009

0.1uF
16V

BT_RESET

LED_R

2
4
6

8
10
12
14
16
18

GND

+3.5V_WIFI

USB_DM
USB_DP
GND
GND
KEY1
KEY2
+3.5V_ST
GND

D4000

RCLAMP0502BA

L4000 Delete for voltage drop, 131120

OPT

WIFI_DMDP_5pF

C4005

0.1uF

Place Near Wafer
C4016
5pF
50V

C4008
1000pF
50V

OPT

WIFI_DMDP_5pF

+3.5V_ST

5pF
50V

C4006

22uF

R4018
10

R4019
10

OPT

10V

WIFI_DM

WIFI_DP

R4008

10K

C4001

C4002

0.1uF

0.1uF

+3.5V_ST

5%

OPT

R4009

10K

5%

+3.5V_WIFI

AR4002
100

KEY1
KEY2

WIFI POWER ENABLE CONTROL

+3.5V_ST

IN

WIFI_EN

C4017

0.1uF

R4021 33

R4022
10K

OPT

C4003

0.1uF
16V

5

EN

4

IC4001

AP2191WG-7

+3.5V_WIFI

OUT

1

GND

2

FLG

3

30K

OPT

R4023

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MID_LG1311

IR / KEY

2014.05.28
12

31

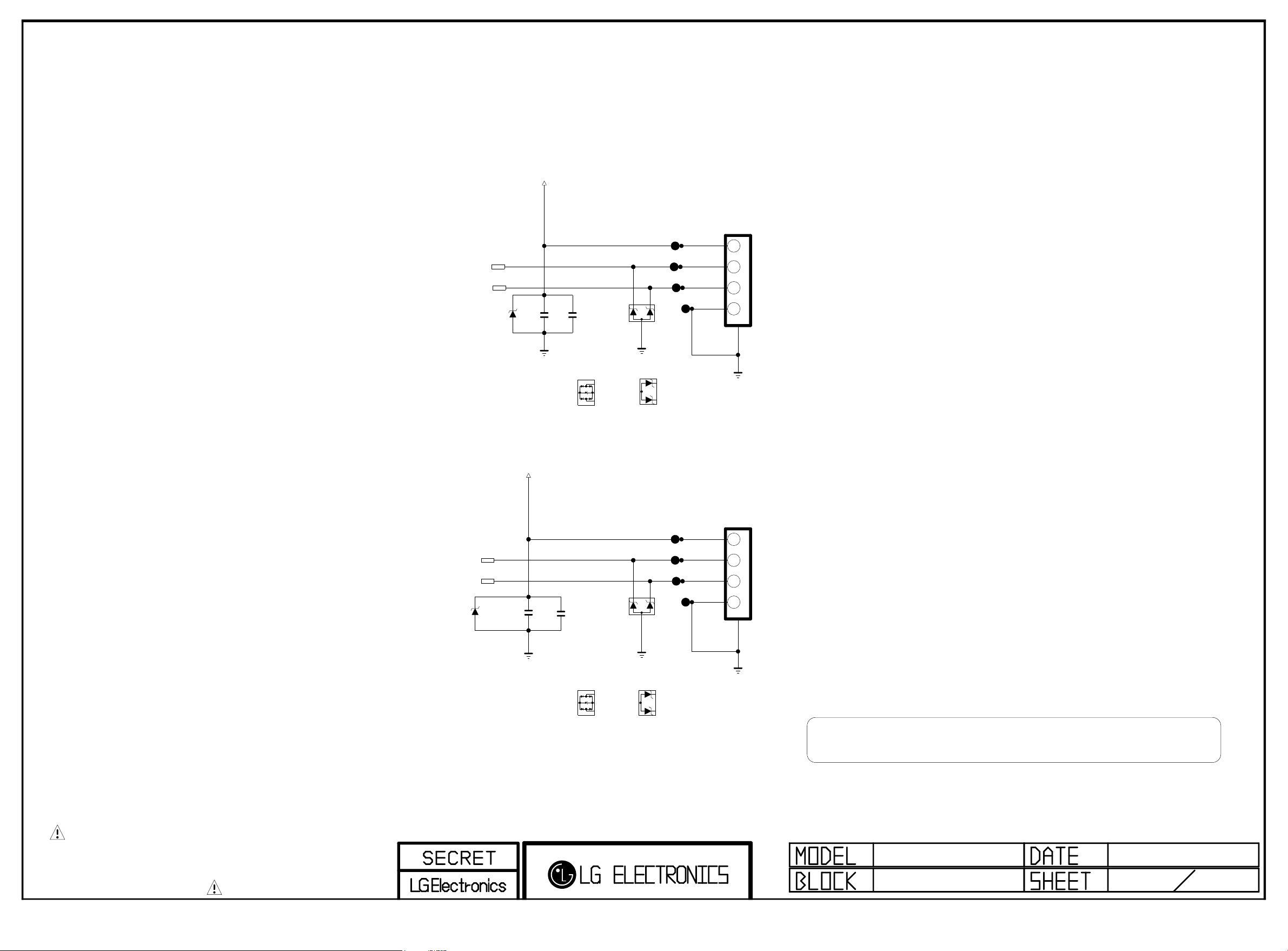

PAGE 13

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

USB_DM2

USB_DP2

+5V_USB_2

5V

D4301

USB_ESD_SD05

+5V_USB_3

C4322

10uF

10V

C4323

22uF

10V

Multi_Toshiba

D4302-*2
DF3D6.8MS

USB2

MAX 1.5A

3AU04S-3 05- ZC-(LG)

D4302

RCLAMP0582B

USB_ESD_0582B

USB_ESD_0502BA

D4302-*1
RCLAMP0502BA

USB3

JK4302

1234

USB DOWN ST REAM

5

USB_DM3

USB_DP3

5V

D4303

USB_ESD_SD05

C4310

10uF

10V

C4311

22uF

10V

Multi_Toshiba

D4300-*2
DF3D6.8MS

MAX 1.5A

D4300

RCLAMP0582B

USB_ESD_0582B

USB_ESD_0502BA

D4300-*1
RCLAMP0502BA

3AU04S-3 05- ZC-(LG)

JK4300

1234

USB DOWN STREAM

5

EAX6536390* : Use RClamp0582B, SD05
EAX6538400* : Use RClamp0502BA

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MID_LG1311

USB 2 & 3

2014.05.28
1

+5V_USB_1

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

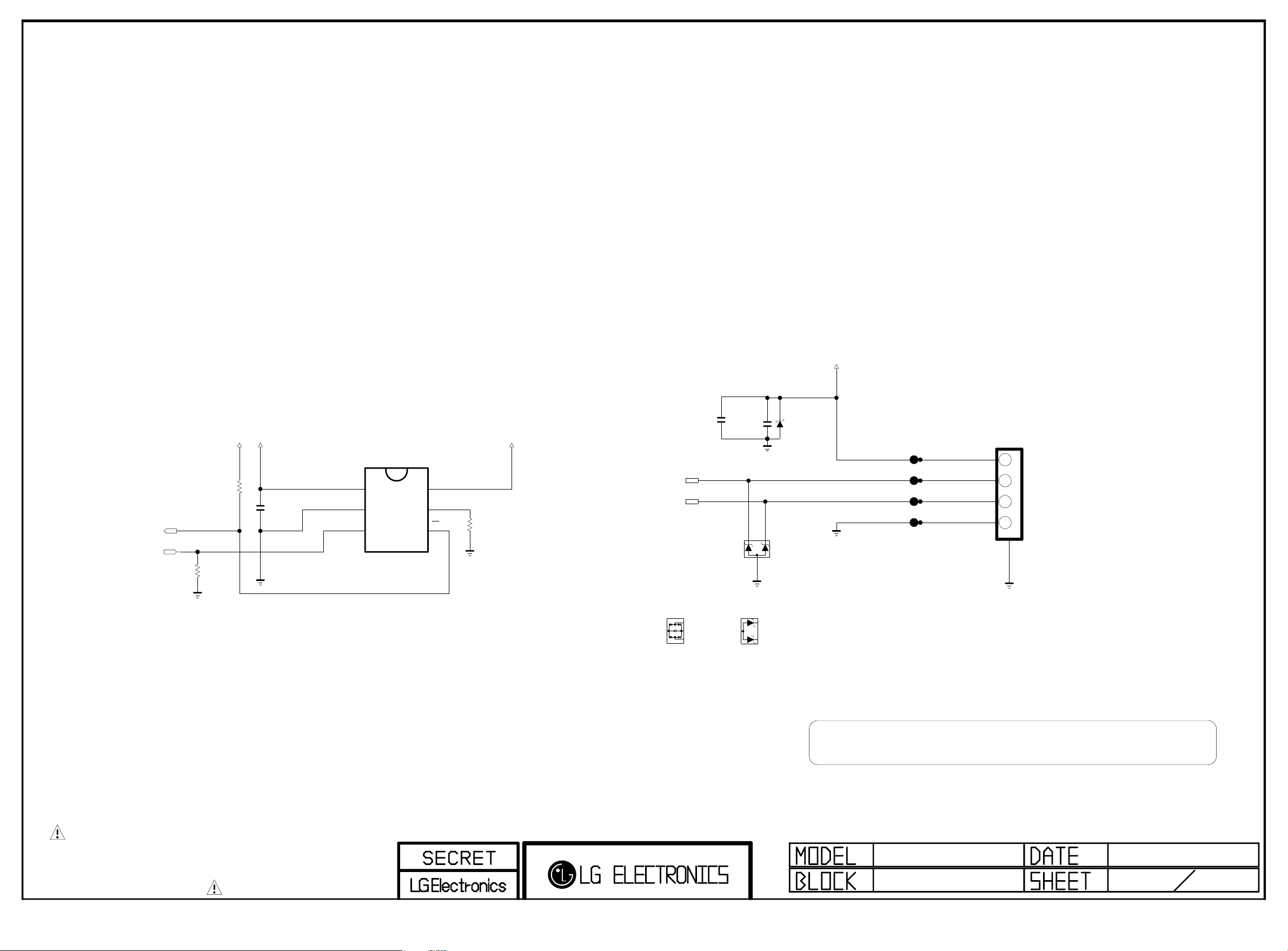

PAGE 14

value change

10K(2.63V) --> 4.7K(2.97V)

/USB_OCD1

USB_CTL1

R4500

10K

+3.3V_NORMAL

R4501

4.7K

+5V_NORMAL

0.1uF
16V

OCP USB1

VIN

1

GND

2

EN

3

IC4500

BD2242G

USB1 (2.0)

MAX 1.5A

OPT

C4501

C4502

10uF

22uF

10V

+5V_USB_1

VOUT

6

ILIM

5

1%

OC

4

14K

R4502

USB_DM1

USB_DP1C4500

Multi_Toshiba

D4500-*2
DF3D6.8MS

10V

D4500

RCLAMP0582B

USB_ESD_0582B

USB_ESD_0502BA

D4500-*1
RCLAMP0502BA

5V

D4501

USB_ESD_SD05

3AU04S-3 05- ZC-(LG)

JK4500

1234

USB DOWN ST REAM

5

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

EAX6536390* : Use RClamp0582B, SD05
EAX6538400* : Use RClamp0502BA

MID_LG1311
USB 1(DVR)

2014.05.28
1

Ethernet Block

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

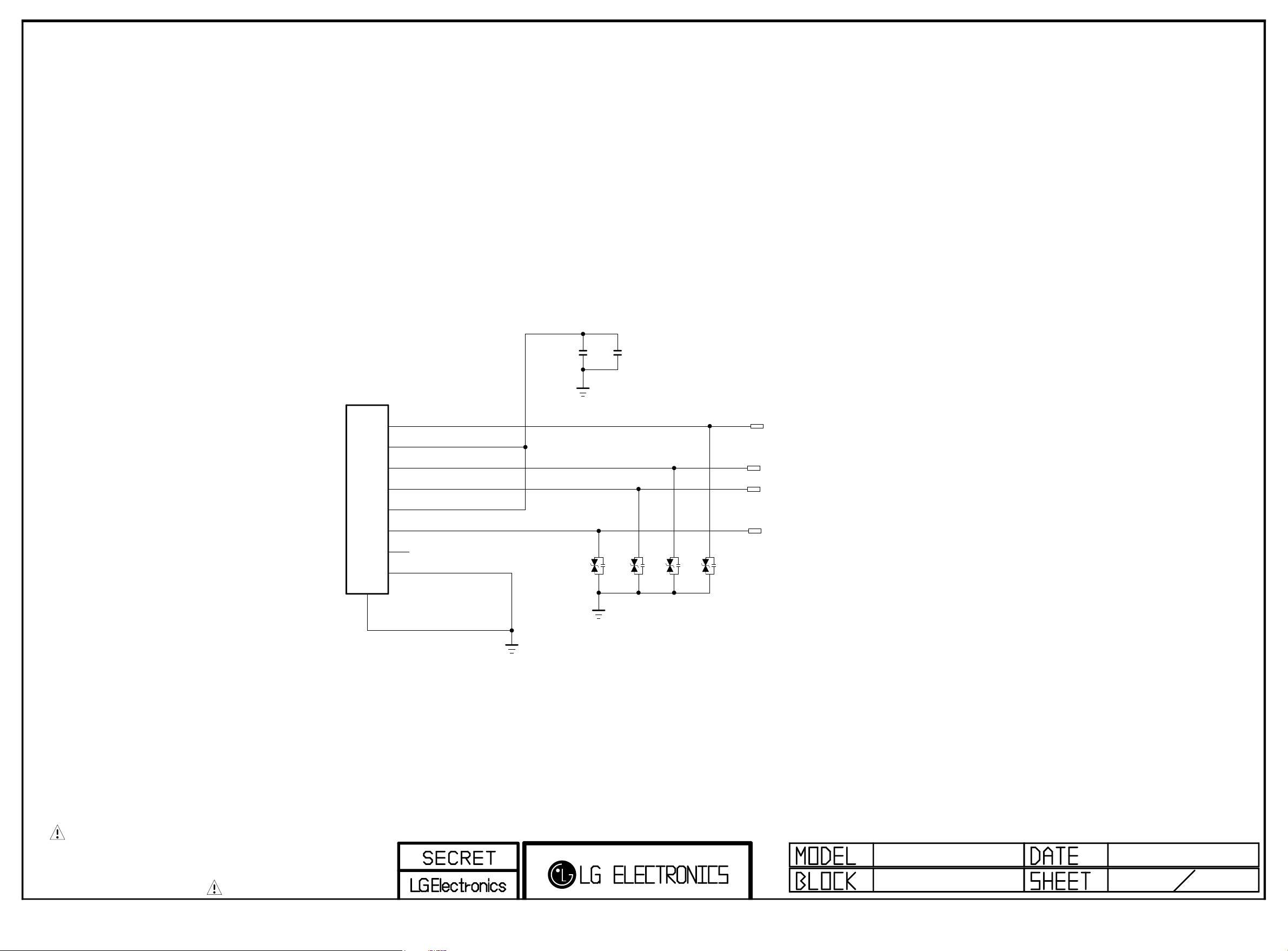

PAGE 16

JK5000

RJ45VT-01SN002

1

2

3

4

5

6

7

8

9

9

0.1uF

C5001

0.01uF
50V

D5001

5.5V

LAN_ESD

D5002

5.5V

LAN_ESD

D5003

5.5V

LAN_ESD

EPHY_TDP

EPHY_TDN

EPHY_RDP

EPHY_RDN

C5000

16V

1

2

3

4

5

6

7

8

D5000

5.5V

LAN_ESD

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

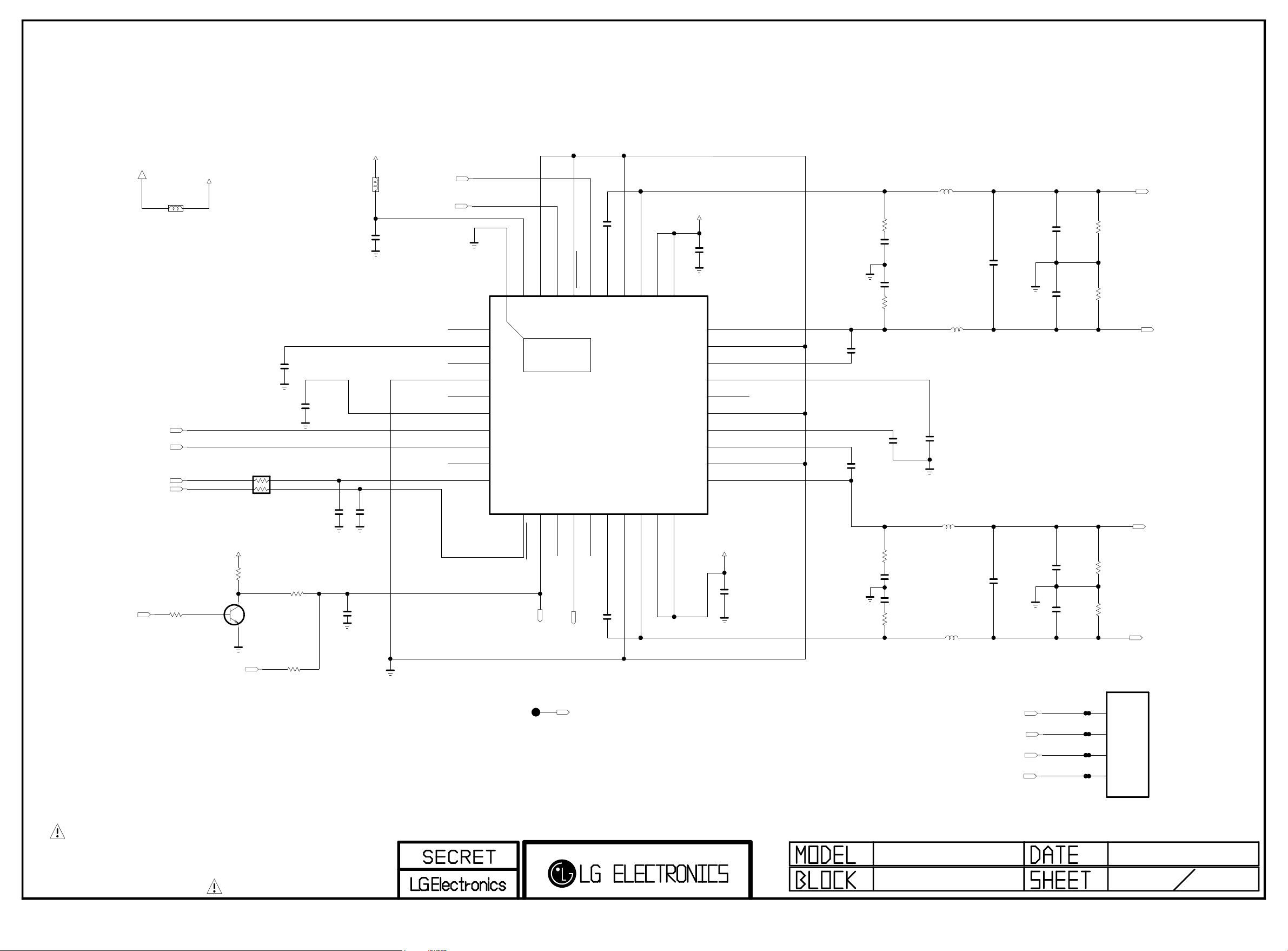

Ethernet Block

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

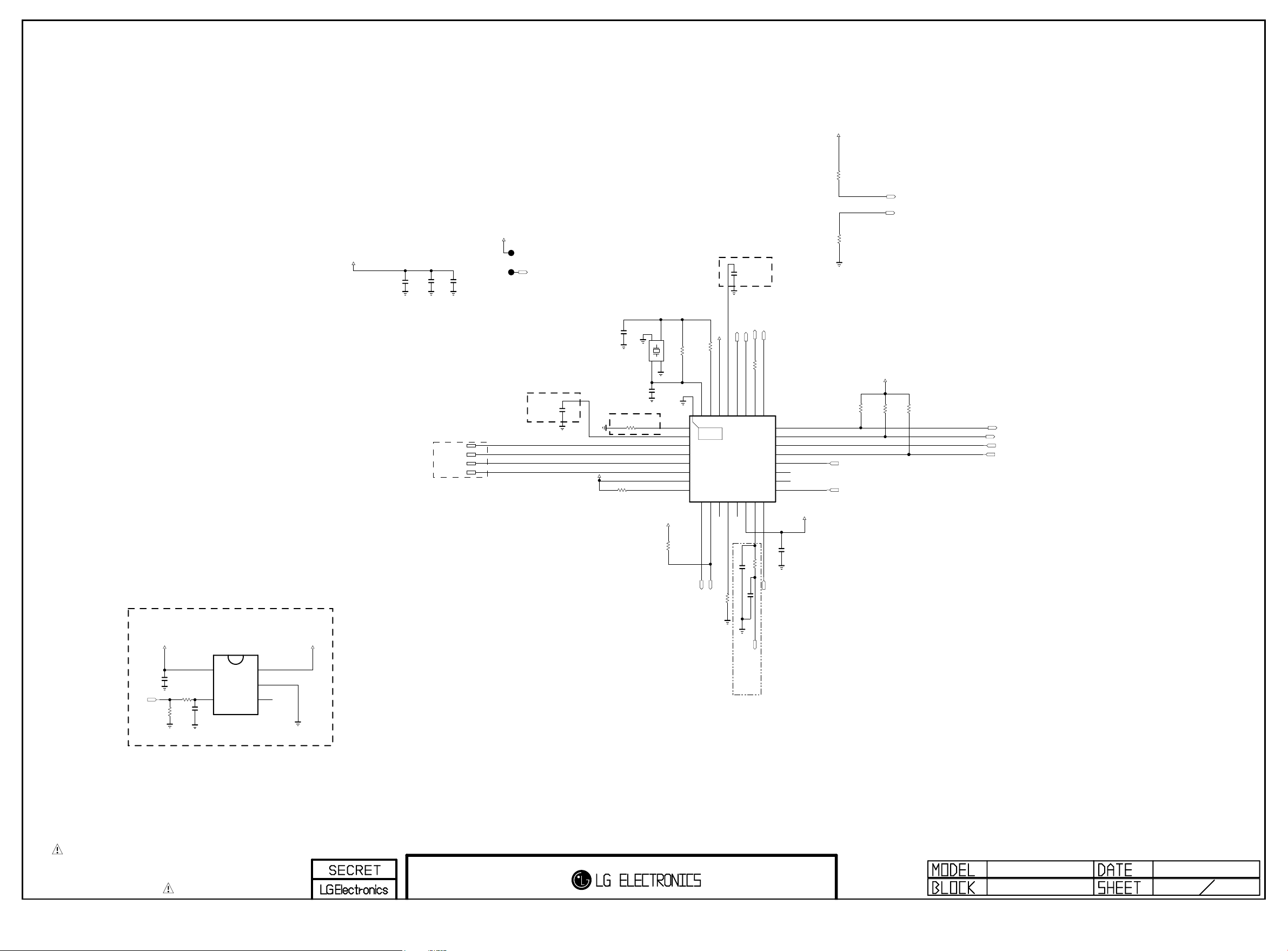

PAGE 17

+3.5V_WOL

3.3K

WOL POWER ENABLE CONTROL

+3.5V_WOL

LAN_JACK_POWER

C5203

C5201

C5200

4.7uF
10V

Place 0.1uF close to each power pins

0.1uF

0.1uF
16V

16V

EPHY_RDP

EPHY_RDN

EPHY_TDP

EPHY_TDN

ETHERNET INTERFACE

- CROSS CONNECTION
(PATTERN ISSUE)

ET_COL/SNI

Place this cap. near IC

C5205

Place this Res. near IC

0.1uF
16V

Route Single 50 Ohm, Differential 100 Ohm

+3.5V_WOL

R5203

3.3K

C5206
5pF
50V

R5204

2.49K 1%

1

IN/ OUT_ 12FLO AT_1

4

3

FLO AT_2

IN/ OUT_ 2

C5207
8pF
50V

AVDD10OUT

AVDD33_1

+3.5V_WOL

R5200

X52 00

RSET

MDI+[0]

MDI-[0]

MDI+[1]

MDI-[1]

RXDV

3.3K

R52021M

OPT

[EP]

CKXTAL2

1

THERMAL

2

3

4

5

6

7

8

RXD[0]10RXD[1]

Place this cap. near IC

C5208

0.1uF
16V

ET_RXER

+3.5V_WOL

R5218

0

DVDD10OUT

AVDD33_2

CKXTAL1

29

30

31

32

33

IC5200

RTL8201F-VB-CG

9

11

12

13

RXC

RXD[2]/INTB

RXD[3]/CLK_CTL

C5209

33pF

3.3K

R5208

EPHY_RXD0

EPHY_RXD1

EPHY_CRS_DV

ET_COL/SNI

CRS/CRS_DV

COL28RXER/FXEN

26

27

14

15

TXC

DVDD33

R5209

C5202

Place near IC

5pF

EPHY_ACTIVITY

R521033

LED1/PHYAD[1]

25

LED0/PHYAD[0]/PMEB

24

MDIO

23

MDC

22

PHYRSTB

21

TXEN

20

TXD[3]

19

TXD[2]

18

TXD[1]

17

16

TXD[0]

51

EPHY_TXD0

C5211

0.1uF
16V

+3.5V_WOL

R5215

3.3K

R5217

EPHY_EN

EPHY_TXD1

R5205

3.3K

+3.5V_WOL

R5212

1.5K

EPHY_ACTIVITY

ET_RXER

1/16W

1%

R5219

10K

1/16W

5%

WOL/ETH_POWER_ON

EPHY_MDIO

EPHY_MDC

/RST_PHY

(from SOC)

+3.5V_ST

WOL_CTL

C5204

0.1uF

R5223 33

R5222
10K

OPT

IN

EN

OPT
C52001

0.1uF
16V

AP2191WG-7

5

4

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

IC5201

+3.5V_WOL

OUT

1

GND

2

FLG

3

EPHY_REFCLK

BSD-NC4_H052-HD

2012-09-12

ETHERNET

AUDIO AMP(NTP7515)

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

+13V_A

AMP_MUTE

UBW2012-121F

AUD_LRCH

AUD_LRCK

I2C_SDA1
I2C_SCL1

AMP_MUTE_MICOM

L5600

R5600

10K

+13V_AMP

+3.3V_NORMAL

POWER_DET

R5601

AMP_MUTE_MICOM

C

B

MMBT3904(NXP)

AMP_MUTE_MICOM

E

AR5601
100
1/16W

10K

Q5600

AMP_MUTE_PWR_DET

BLM18PG121SN1D

C5601

1uF

10V

C5602
1uF
10V

C5622
33pF
50V

AMP_MUTE_MICOM

R5602

100

C5600

1000pF

R5690

100

+3.3V_NORMAL

L5601

C5603

0.1uF
16V

C5623
33pF
50V

AMP_MUTE_MICOM

50V

AMP_RESET_N

AUD_SCK

NC_1

VDD_PLL

NC_2

GND
NC_3
DVDD

SDATA

WCK
NC_4

SDA

VDD_IO

[EP]GND

40

1
2

THERMAL

3
4
5
6
7
8
9
10

11

SCL

AD

CLK_I

GND_IO

37

38

39

41

IC5600

NTP7515

12

13

14

FAULT

MONITOR_0

MONITOR_1

22000pF

I2S_AMP

WOOFER_MUTE

50V

C5604

22000pF

OUT1A

PGND1A

BST1A

RESET

34

35

36

0x54

15

16

17

BST2B

MONITOR_2

C5605

50V

OUT2B

PGND2B

PVDD1A

32

33

18

19

PVDD2B

+13V_AMP

C5606
10uF
25V

PVDD1B

31

30
29
28
27
26
25
24
23
22
21

20

+13V_AMP

PVDD2A

OUT1B
PGND1B
BST1B
VDR1
NC_5
AGND
VDR2
BST2A
PGND2A
OUT2A

C5607
10uF
25V

C5608
22000pF
50V

C5609
22000pF
50V

R5603

3.3
1/10W

C5611
390pF

50V

C5612
390pF

50V

R5604

3.3
1/10W

R5605

3.3

1/10W

C5613
390pF
50V

C5614
390pF
50V

R5606

3.3

1/10W

NRS6045T100MMGK

C5610
1uF
10V

L5604

10.0uH

L5605

10.0uH

NRS6045T100MMGK

C5615
1uF
10V

L5602

10.0uH

NRS6045T100MMGK

L5603

10.0uH

NRS6045T100MMGK

C5616

0.47uF
50V

C5617

0.47uF

50V

PAGE 18

SPK_L+

C5618

0.1uF
50V

C5619

0.1uF
50V

C5620

0.1uF
50V

C5621

0.1uF

50V

R5607

4.7K

R5608

4.7K

R5609

4.7K

R5610

4.7K

WAFER-ANGLE

SPEAKER_L

SPK_L-

SPK_R+

SPEAKER_R

SPK_R-

TP5601

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

WOOFER_MUTE

LG1311

AUDIO[NTP7515]

SPK_L+

SPK_L-

SPK_R+

SPK_R-

4

3

2

1

P5600

Black : Box_Type

2014.05.28

58

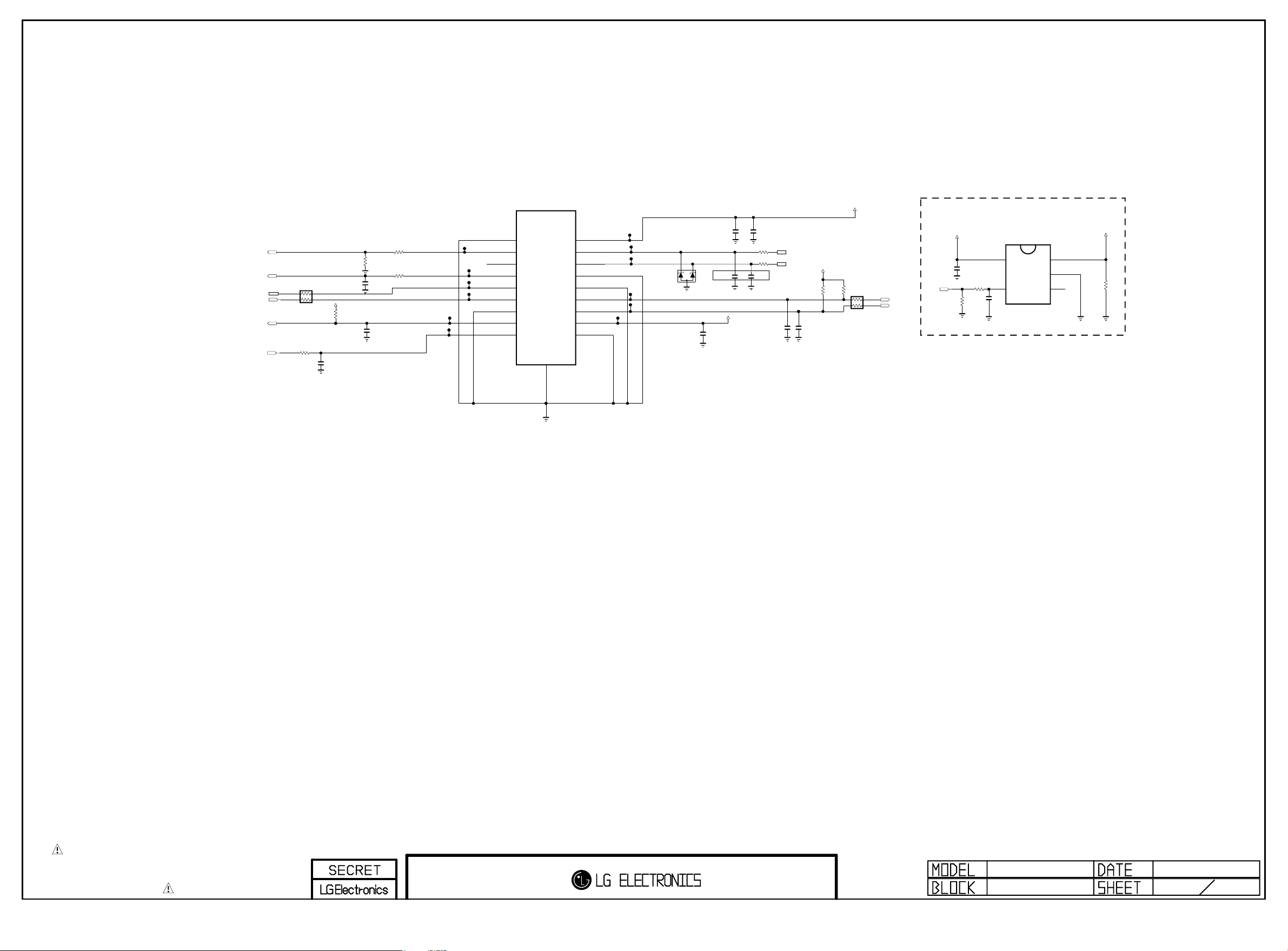

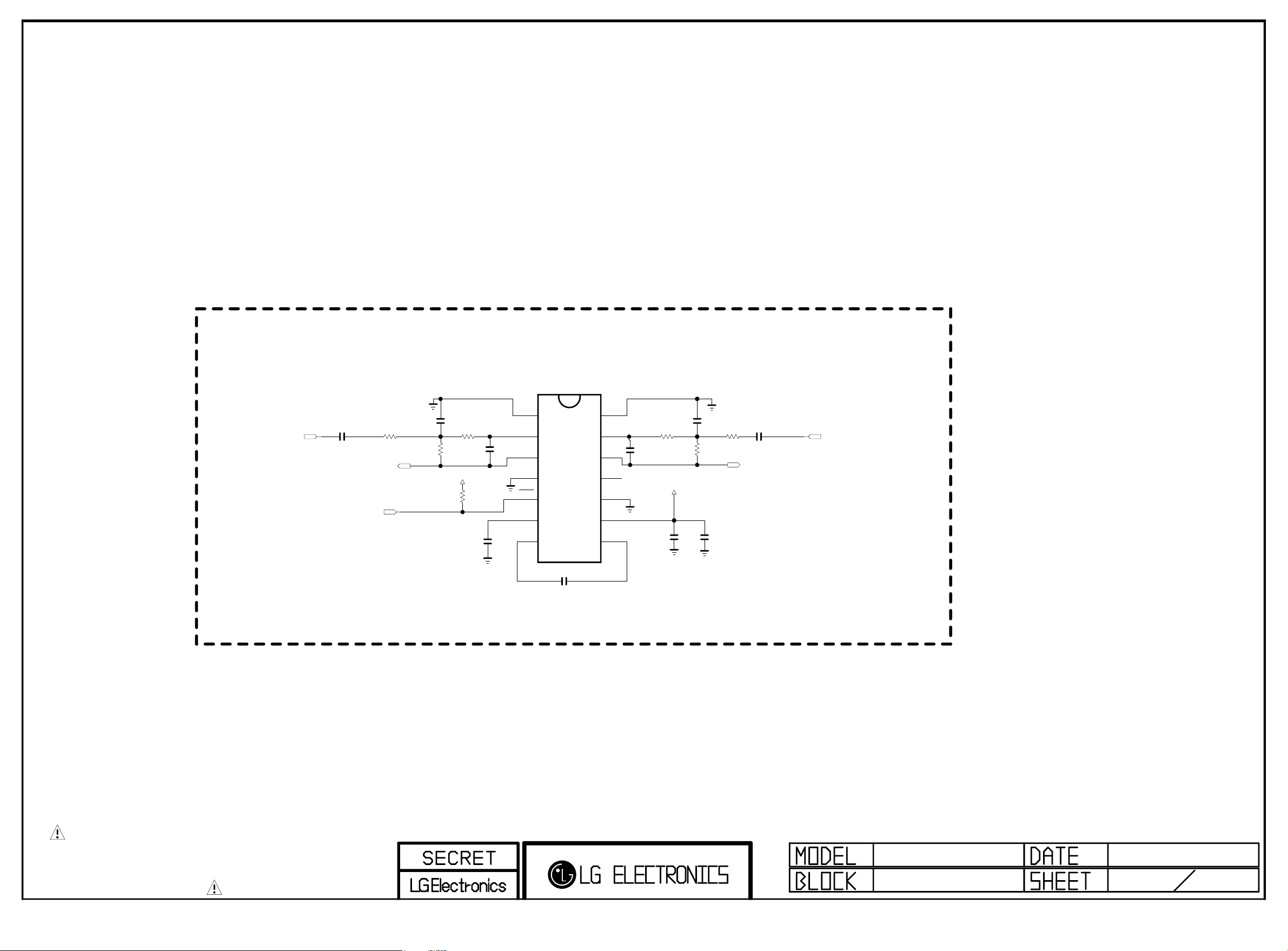

EARPHONE AMP

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

PAGE 20

IC6100

TPA6138A2

HP_OUT

R6100
10K

C6104

18pF

R6103

HP_OUT

+3.3V_NORMAL

1%

43K

4.7K

R6105

HP_OUT

HP_OUT

R6106
43K

1%

HP_OUT

HP_OUT

HP_OUT
C6100
1uF
10V

HP_ROUT_MAIN HP_LOUT_MAIN

HP_OUT

HP_ROUT_AMP

SIDE_HP_MUTE

C6108
10pF
50V

C6102
1uF
10V

+INR

-INR

OUTR

GND_1

MUTE

VSS

1

HP_OUT

2

3

4

5

6

CN

7

HP_OUT

C6103
1uF

10V

+INL

14

-INL

13

OUTL

12

UVP

11

GND_2

10

VDD

9

CP

8

HP_OUT

C6106
10pF
50V

HP_OUT

HP_OUT

R6104
43K

1%

HP_OUT

C6109
18pF

1%

R6102

43K

HP_OUT

+3.3V_NORMAL

HP_OUT
C6105
1uF

16V

10V

C6107

0.1uF

HP_OUT
R6101
10K

C6101
1uF
10V

HP_OUT

HP_LOUT_AMP

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

HEADPHONE AMP

2011.09.29

61

TU_H_AJ/EU

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

A1A1B1

47

SHIELD

TU6401-*1
TDJH-G301D

+3.3V

1

NC_1

2

IF_AGC

3

SCL_RF

4

SDA_RF

5

IF[P]

6

IF[N]

7

SIF

8

CVBS

9

B1

TU_H_KR/US

SHIELD

TU6402-*1
TDJM-B301F

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_6

29

SDA_DEMOD

30

B1B1A1

TU_M_CO

A1

47

SHIELD

TU6402-*2
TDJM-K301F

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_6

29

SDA_DEMOD

30

B1B1A1

TU_M_AJ

TU6402-*3
TDJM-G305D

A1

47

SHIELD

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

B1B1A1

1

2

3

4

5

6

7

8

9

+3.3V

NC_1

NC_2

SCL_RF

SDA_RF

NC_3

NC_4

SIF

CVBS

NC_5

+3.3V_RF

ERROR

GND_1

MCLK

SYNC

VAILD

D0

D1

D2

D3

D4

D5

D6

D7

RESET_DEMOD

+3.3V_DEMOD

SCL_DEMOD

+1.2V_DEMOD

NC_6

SDA_DEMOD

TU_CHINA

TU6402-*4
TDJM-C401D

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_6

29

SDA_DEMOD

30

A1

B1B1A1

47

SHIELD

A1

A1

TU6401
TDJH-H301F

+3.3V

1

NC_1

2

DIF_AGC

3

SCL_RF

4

SDA_RF

5

DIF[P]

6

DIF[N]

7

SIF

8

CVBS

9

B1

B1

TU_M_BR

A1

47

47

SHIELD

TU_GND_A

TU_GND_B

TU_GND_A

TU_K_TW

TU6403
TDJK-T301F

+3.3V

1

NC

2

DIF_AGC

3

SCL_RF

4

SDA_RF

5

DIF[P]

6

DIF[N]

7

SIF

8

CVBS

9

A1

A1

47

SHIELD

B1

B1

TU_GND_B

DEV_M_PIP

TU6402
TDJM-H301F

+3.3V

1

NC_1

2

DIF_AGC

3

SCL_RF

4

SDA_RF

5

DIF[P]

6

DIF[N]

7

SIF

8

CVBS

9

NC_2

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VALID

16

DATA

17

NC_3

18

NC_4

19

NC_5

20

NC_6

21

NC_7

22

NC_8

23

NC_9

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_10

29

SDA_DEMOD

30

+3.3V_LNA_TU

RF_SWITCH_CTL_TU

IF_AGC_TU

I2C_SCL6_TU

I2C_SDA6_TU

IF_P_TU

IF_N_TU

TU_SIF_TU

TU_CVBS_TU

+3.3V_TU

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0]

FE_DEMOD1_TS_DATA[1]

FE_DEMOD1_TS_DATA[2]

FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]

FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]

FE_DEMOD1_TS_DATA[7]

/TU_RESET1_TU

+3.3V_DEMOD_TU

I2C_SCL4_TU

D_Demod_Core

LNB_TX

I2C_SDA4_TU

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29
30

TU_H/M_BR/CO/TW/CN
C6401

1000pF

R6403

0

TU_H/M_KR/US/AJ

TU_GND_A

630V

R6401

22

TU_H/M_BR/CO/TW

R6401-*1

0

TU_CN

TU_GND_B

TU_H/M_KR/US/BR/TW/CO/CN

C6402
1000pF
630V

C6409
1000pF
630V

R6402

22

TU_H/M_AJ

TU_H/M_KR/US/BR/CO/TW

R6402-*1

0

TU_CN

C6410
1000pF
630V

TU_H/M_KR/US/AJ

+3.5V_ST

L6401

BLM18PG121SN1D

TU_M/W

TU_M/W

C6403

0.1uF

POWER_ON/OFF2_1

TU_M/W

10K

R6404

TU_M/W
C6404
10uF

+5V_NORMAL

10V

TU_M/W
C6405
1uF
10V

TU_M/W

IC6400

POK

BIAS

EN

IN

TJ2132GDP

1

2

3

4

2A

9

THERMAL

8

7

6

5

[EP]GND

GND

FB

OUT

SS

Vout=0.6*(1+R2/R1)

C6406
2700pF
50V

C6407

0.01uF
50V

A1

A1

B1

B1

47

SHIELD

D_Demod_Core

R6406-*1

TU_M/W

C6408
10uF
10V

10.5K

R6405-*1

9.1K

TU_M/W_1.1V

TU_M/W_1.1V

TU_M/W_1.2V

R1

10K

R64 06

R2

R64 05

10. 5K

TU_M/W_1.2V

TU_GND_A

TU_GND_B

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

TUNER

2012.03.08

65

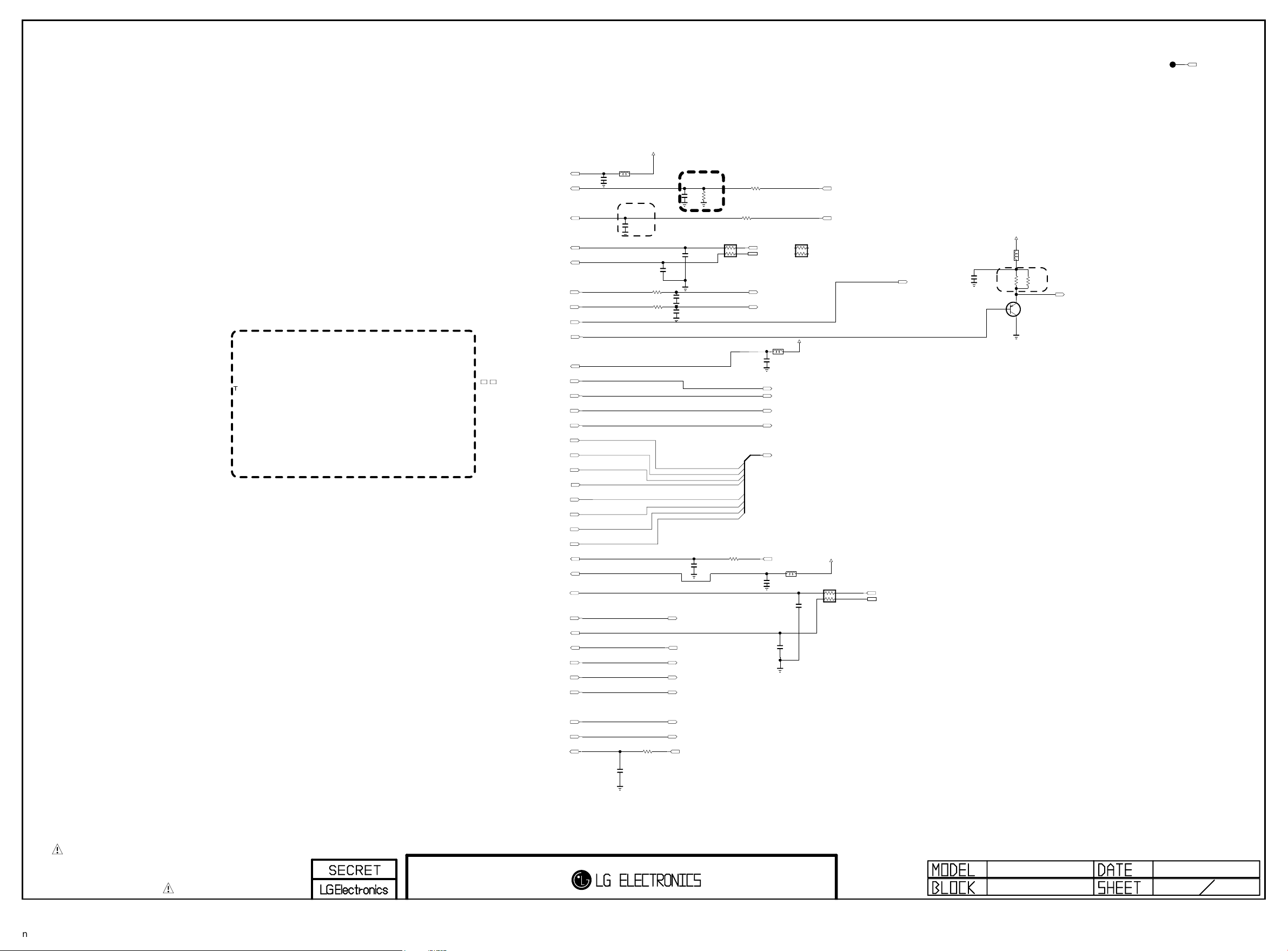

Global F/E Option Name

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

1. TU

2. Tuner Name = TDJ’H’,TDj’M’...

3. Country Name = KR,US,BR,EU ...

Example of Option name
TU_ALL_IntDemod = All Tuner type for Internal demod
TU_M/W = apply TDSM&TDSW Type Tuner

14’ Tuner Type for Global
TDJ’H’-G101D : Half NIM for EU,AJJA
TDJ’H’-H101F : Half NIM for US, KR
TDJ’K’-T101F : Half NIM for TW
TDJ’M’-C301D,F : FULL NIM for China
TDJ’M’-B101F : Brazil NIM with Isolater Type
TDJ’M’-K101F : colombia NIM
TDJ’M’-G101D,G105D,G151D : EU Combo&Full NIM
TDJ’M’-H101F,H151F : Korea PIP tuner
TDJ’W’-A151D : AJJA T2 PIP

1

2

3

4

5

6

7

8

9

10

11





12

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

34

36

37

38

39

40

45

close to Tuner

+3.3V_NORMAL

L6500

+3.3V_LNA_TU

RF_SWITCH_CTL_TU

IF_AGC_TU

I2C_SCL6_TU

I2C_SDA6_TU

IF_P_TU

IF_N_TU

TU_SIF_TU

TU_CVBS_TU

+3.3V_TU

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0]

FE_DEMOD1_TS_DATA[1]

FE_DEMOD1_TS_DATA[2]

FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]

FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]

FE_DEMOD1_TS_DATA[7]

/TU_RESET1_TU

+3.3V_DEMOD_TU

I2C_SCL4_TU

LNB_TX

I2C_SDA4_TU

LNB_OUT

FE_DEMOD2_TS_ERROR

FE_DEMOD2_TS_SYNC

FE_DEMOD2_TS_CLK

FE_DEMOD2_TS_VAL

FE_DEMOD2_TS_DATA

/TU_RESET2_TU /TU_RESET2

BLM18PG121SN1D

C6501

0.1uF

TU_ALL_IntDemod_H15

C6502

0.1uF

16V

TU_ALL_IntDemod

TU_ALL_IntDemod

TU_W
C6522

0.1uF
16V

close to Tuner

R6504
10

R6505
10

TU_W

R6518
100

1/16W
5%

close to TUNER

R6506

TU_ALL_IntDemod

AR6500
33
1/16W

TU_ALL

TU_M/W

R6501
100

OPT

R6507
1K

1K

I2C_SCL6

I2C_SDA6

IF_P

IF_N

TU_M_KR/EU // W_ALL

BLM18PG121SN1D

TU_M_KR/EU // W_ALL

/TU_RESET1

OPT

OPT

C6504

R6503

0.1uF

10K

C6505
47pF
50V
OPT

C6503
47pF
50V
OPT

C6519
33pF

should be guarded by ground,Match GND VIA

C6520
33pF

close to Tuner

FE_DEMOD1_TS_DATA[0]
FE_DEMOD1_TS_DATA[1]
FE_DEMOD1_TS_DATA[2]
FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]
FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]
FE_DEMOD1_TS_DATA[7]

TU_M/W

C6507

16V

0.1uF

LNB_TX

LNB_OUT

FE_DEMOD2_TS_ERROR

FE_DEMOD2_TS_SYNC

FE_DEMOD2_TS_CLK

FE_DEMOD2_TS_VAL

FE_DEMOD2_TS_DATA

AR6500-*1
200
1/16W

TU_W_BR/TW

L6501

C6510

0.1uF

BLM18PG121SN1D

C6511

0.1uF

+3.3V_NORMAL

FE_DEMOD1_TS_ERROR
FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0-7]

+3.3V_NORMAL

TU_M/W

L6503

TU_M/W

OPT
C6513

18pF
50V

OPT

C6512
18pF
50V

1. should be guarded by ground

2. No via on both of them

3. Signal Width >= 12mils
Signal to Signal Width = 12mils

RF_SWITCH_CTL

IF_AGC

TU_M/W
AR6501

33

I2C_SCL4
I2C_SDA4

Ground Width >= 24mils

TU_ALL_2178B

C6521

TU_SIF_TU

0.1uF
16V

+3.3V_NORMAL

TU_ALL_2178B

R6516
200

B

L6506

TU_ALL_2178B

TU_ALL_2178B

E

TU_ALL_2178B

Q6502

MMBT3906(NXP)

C

1608 perallel
because of derating

R6517

200

FE_DEMOD1_TS_ERROR

TU_CVBS

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

TUNER

2012.07.10

65

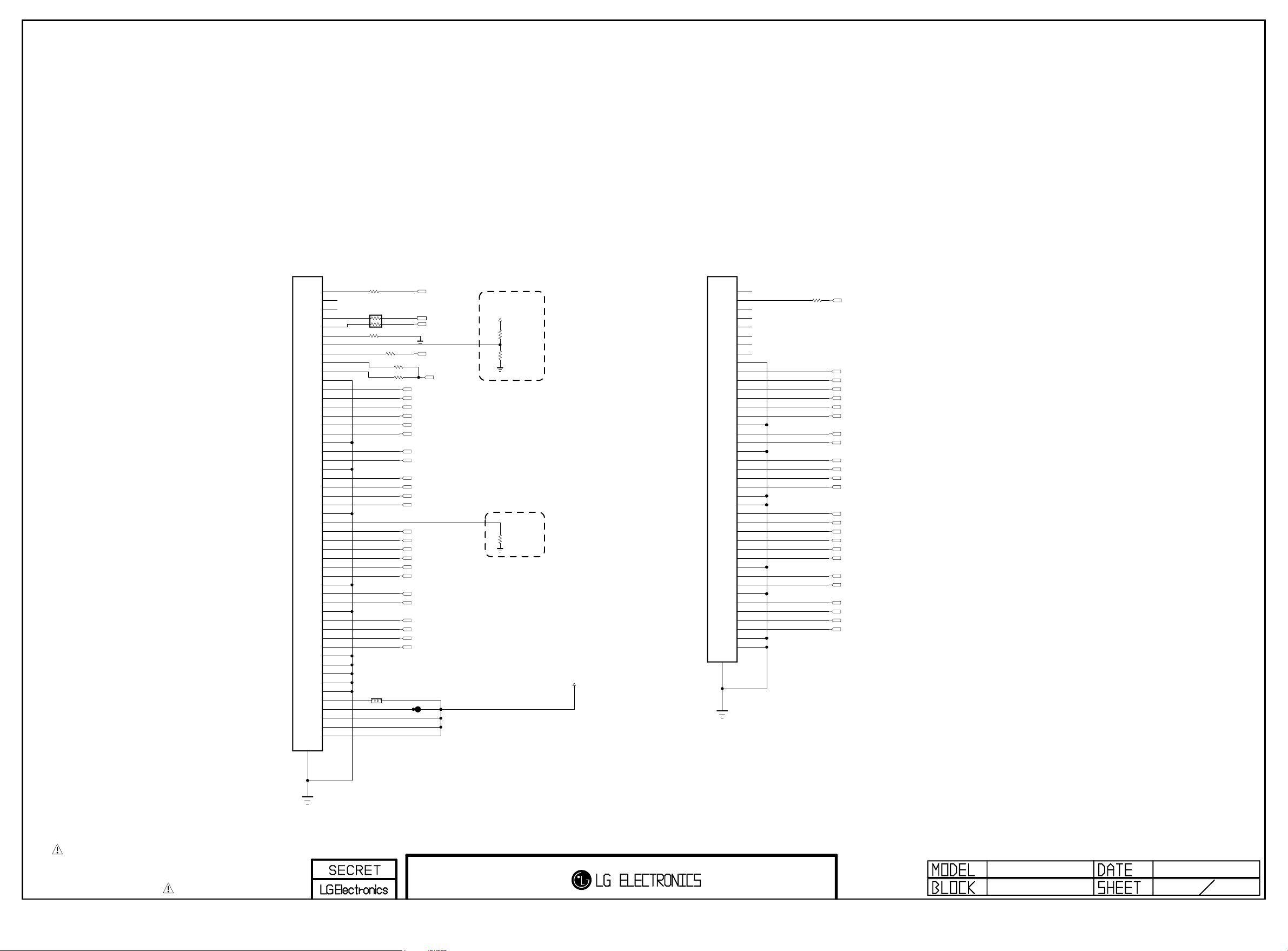

LVDS

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

PAGE 27

[51Pin LVDS OUTPUT Connector]

P7201

SP14-11592-01-51Pin

2D/3D_CTL

33

OPT

R7210

OPT

CP_BOX

AR7201

0

0

R7204

R7218 33

LGD_T-Con_Scanning

R7220

R7219

L7200

UBW2012-121F

AUO_SHARP

33

OPT

33

OPT

2D/3D_CTL

I2C_SDA1
I2C_SCL1

PWM_DIM

OPC_EN

TXA0N/TX11N
TXA0P/TX11P
TXA1N/TX10N
TXA1P/TX10P
TXA2N/TX9N
TXA2P/TX9P

TXACLKN/TX8N
TXACLKP/TX8P

TXA3N/TX7N
TXA3P/TX7P
TXA4N/TX6N
TXA4P/TX6P

TXB0N/TX5N
TXB0P/TX5P
TXB1N/TX4N
TXB1P/TX4P
TXB2N/TX3N
TXB2P/TX3P

TXBCLKN/TX2N
TXBCLKP/TX2P

TXB3N/TX1N
TXB3P/TX1P
TXB4N/TX0N
TXB4P/TX0P

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

LVDS_51PIN_FLIP_TYPE

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

LVDS_SEL

+3.3V_NORMAL

R7217

3.3K
LVDS_SEL_HIGH

R7215
10K

LVDS_SEL_LOW

H or FLOAT : 10-bit
L : 8-bit

BIT_SEL

R7214
10K

BIT_SEL_LOW

EPI_CH4

EPI_CH3

EPI_CH2
EPI_CH1

PANEL_VCC

[41Pin LVDS OUTPUT Connector]

P7202

SP14-11592-01-41Pin

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

LVDS_41PIN_FLIP_TYPE

31

32

33

34

35

36

37

38

39

40

41

42

R7221 33

OPT

2D/3D_CTL

TXC0N/TX23N
TXC0P/TX23P
TXC1N/TX22N
TXC1P/TX22P
TXC2N/TX21N
TXC2P/TX21P

TXCCLKN/TX20N
TXCCLKP/TX20P

TXC3N/TX19N
TXC3P/TX19P
TXC4N/TX18N
TXC4P/TX18P

TXD0N/TX17N
TXD0P/TX17P
TXD1N/TX16N
TXD1P/TX16P
TXD2N/TX15N
TXD2P/TX15P

TXDCLKN/TX14N
TXDCLKP/TX14P

TXD3N/TX13N
TXD3P/TX13P
TXD4N/TX12N
TXD4P/TX12P

EPI_CH8

EPI_CH7

EPI_CH6
EPI_CH5

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MID_LG1311

LVDS INTERFACE

BSD-NC4_H072-HD

2013.04.03

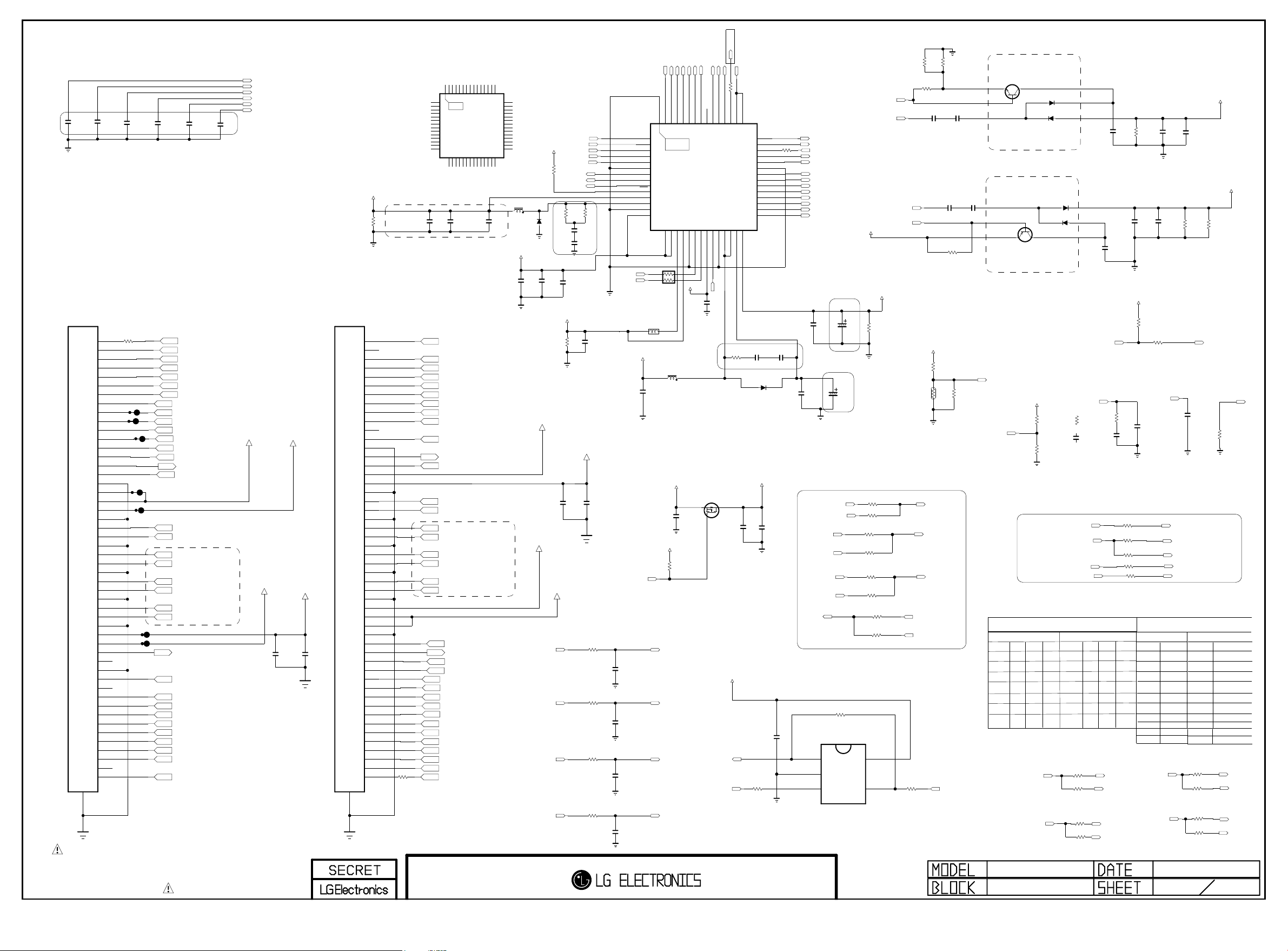

CLK6

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

CLK5
CLK4
CLK3
CLK2

C7707

C7704

560pF

560pF

50V

50V

Improve the Vertical dot noise

C7708
560pF
50V

C7709
560pF
50V

C7716
560pF
50V

C7721
560pF
50V

CLK1

R7700

1/16W

VCC18

2K

V14-LGD PANEL

EPI 8-Lane (LEFT)

P7702

FL11S050HA1

EPI_V12_V13

R7715

NC

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

51

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

0

CLK1

CLK2

CLK3

CLK4

CLK5

CLK6

VGH

VGH_ODD

VGH_EVEN

VSS

VST

NC(GIP_RST)

VCOM_L_BOT

VCOM_FB(Z_OUT)

VCOM_L_TOP

GND

VDD

VDD

H_VDD

GND

EPI4-

EPI4+

GND

EPI3-

EPI3+

GND

EPI2-

EPI2+

GND

EPI1-

EPI1+

GND

VCC18

VCC12

LOCK_I

LOCK_O

GND

GMA18

NC

GMA15

GMA14

GMA12

GMA10

GMA9

GMA7

GMA5

GMA4

NC

GMA1

Z_OUT
CLK1
CLK2
CLK3
CLK4
CLK5

CLK6
VGH
VGH_ODD
VGH_EVEN

VGL

VST
GIP_RST
VCOM_L_BOT

VCOM_L_FB

VCOM_TOP

TXB2N/TX3N
TXB2P/TX3P

6-Lane case

TXBCLKN/TX2N
TXBCLKP/TX2P

TXB3N/TX1N
TXB3P/TX1P

TXB4N/TX0N
TXB4P/TX0P

EPI_LOCK4/3

GMA18

GMA15
GMA14
GMA12
GMA10
GMA9
GMA7
GMA5
GMA4

GMA1

VDD

(+16V)

VCORE

0.01uF

C7700

50V

EPI 8-Lane (RIGHT)

P7703

FL11S050HA1

GMA1

1

NC

2

GMA4

3

GMA5

4

GMA7

5

GMA9

6

GMA10

7

GMA12

8

GMA14

9

GMA15

10

51

11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

NC

GMA18

GND

LOCK_O

LOCK_I

VCC12

VCC18

GND

EPI8-

EPI8+

GND

EPI7-

EPI7+

GND

EPI6-

EPI6+

GND

EPI5-

EPI5+

GND

H_VDD

VDD

VDD

GND

VCOM_R_TOP

VCOM_FB(Z_OUT)

VCOM_R_BOT

NC(GIP_RST)

VST

VSS

VGH_EVEN

VGH_ODD

VGH

CLK6

CLK5

CLK4

CLK3

CLK2

CLK1

NC

H_VDD

(+8V)

VCC18

C7701

0.1uF
16V

R7723

0

EPI_V12_V13

<T-CON POWER BLOCK>

SW5084B

PMIC_SIW

19

20

SCL21SDA

VGH44VGH_E/O45RESET46VST47EVEN48ODD49NC50CLK651CLK552CLK453CLK354CLK255CLK156RE

43

SWP

42

CTRLP

41

VCOMFB

40

VCOMDAC

39

VCOM

38

GGND

37

GMA_N6

36

GMA_N5

35

GMA_N4

34

GMA_P3

33

GMA_P2

32

GMA_P1

31

COMP

30

SS

29

22VL23

24

27

SWI28SWO

PGND25SW_126SW_2

TCOMP

L7702

22uH

C7712
1uF
10V

PANEL_VCC

D7700

SX34
40V

C7713
10uF
25V

R7701

1/16W

10K

VCC18

C7714
10uF
25V

R7729

2.7K

VCORE

H_VDD

(+8V)

VDD

(+16V)

EO_SOC

FROM SOC

GST_SOC

FROM SOC

MCLK_SOC

FROM SOC

GCLK_SOC

FROM SOC

[EP]

REVERSE

1

GCLK

THERMAL

2

57

MCLK

3

GST

4

E/O

5

GND

6

IC7703-*1

VGL

7

SWN

8

CTRLN

9

RST

10

OUT1

11

SWB1

12

AGND

13

PVINB1

14

15

16

17

AVIN

SWB318OUT3

PGND3

PVINB3

C7710

C7711

10uF

10uF

10V

10V

GMA1

GMA4
GMA5
GMA7
GMA9
GMA10
GMA12
GMA14
GMA15

GMA18

EPI_LOCK8/6_SOURCE
EPI_LOCK4/3

TXD2N/TX15N
TXD2P/TX15P

6-Lane case

TXDCLKN/TX14N
TXDCLKP/TX14P

TXD3N/TX13N
TXD3P/TX13P

TXD4N/TX12N
TXD4P/TX12P

VCOM_TOP
VCOM_R_FB
VCOM_R_BOT
GIP_RST

VST

VGL
VGH_EVEN
VGH_ODD
VGH
CLK6
CLK5
CLK4
CLK3
CLK2
CLK1

Z_OUT

REVERSE

GCLK
MCLK

VGL
SWN

CTRLN

For EMI

OPT

R7736

4.7

C7722
4700pF

OPT

50V
C7725
2200pF

OPT

50V

C7724
1uF

25V

H_VDD

VCC18

C7702

0.1uF
16V

R7703

R7704

R7705 47

R7706

GST

EO

R7737

4.7

OPT

C7715
10uF
16V

C7703

0.01uF
50V

1/16W

1/16W

1/16W

1/16W

47

47

47

I2C_SCL2
I2C_SDA2

EPI_CTL

C7717
15pF
50V

C7718
15pF
50V

C7719
15pF
50V

C7720
15pF
50V

REVERSE

GCLK
MCLK

GST
E/O
GND
VGL
SWN

CTRLN

RST

OUTB

SWB

AGND

PVINB

NR6020T6R8NC

PANEL_VCC

[EP]AGND

1
2
3
4
5
6
7
8
9
10
11
12
13
14

AR7700

1/16W

L7703

6.8uH

C7723
10uF
25V

+3.3V_NORMAL

EO

GST

MCLK

GCLK

RE

CLK1

THERMAL

57

15

16

17

SWH

AVIN

PVINH

33

L7704

22uH

+1.1V_VDD

R7741

1K

CLK2

CLK3

TPS65175B

18

19

OUTH

PGNDH

VL

C7742
1uF

10V

C7730
1uF
10V
OPT

CLK6

CLK5

CLK4

IC7703

20

SCL21SDA

For EMI

VCOM_BOT

22VL23

TCOMP

AO3438

Q7702

S

PVCOM

VGH_ODD

VGH_EVEN

24

PGND

TCOMP

G

VST

R7724

25SW26

D

VDD

V14_32INCH OPTION

EPI_V14(32)_V12_V13

GIP_RST

VGH

0

VGH44VGH_E/O

RESET46VST47EVEN48ODD49NC_250CLK651CLK552CLK453CLK354CLK255CKL156RE

43

45

42
41
40
39
38
37
36
35
34
33
32
31
30
29

27

SWI28SWO

NC_1

R7713

C7729
470pF

2.2

1/16W

50V

OPT

OPT

VCORE

C7732
1uF
10V

OPT

EPI_NON_32inch

EPI_NON_32inch

R7771

0

1/16W

SWP
CTRLP
VCOMFB
VCOM
VCOM_DAC
VGND
GMA6
GMA5
GMA4
GMA3
GMA2
GMA1
COMP
SS

D7701
SX34

40V

C7728

0.1uF
16V

C7760

1uF
25V

R7774

C7726
470pF

50V

OPT

1K

SWP
CTRLP

VCOM_FB2
VCOM_TOP
PVCOM

GMA15_18
GMA14
GMA12_10
GMA7_9
GMA5
GMA4_1
COMP
SS

C7737

0.1uF
50V

C7734

0.1uF
50V

VCOM_L_FB

VCOM_R_FB

VCOM_FB_PANEL

VCOM_TOP

VCOM_FB_PANEL

VCOM_BOT

VCOM_BOT

R7772
EPI_NON_32inch

RT9148GJ5

VDD

C7705
68uF
35V

C7706

68uF
35V

** 42/47/55INCH OPTION **

R7708

0

R7709

0

R7710

0

R7716

0

R7766

0

R7767

0

R7719

R7721

30K

5%

IC7702

1VOUT 5 VS+

EPI_NON_32inch

2VS-

3VIN+

4 VIN-

CTRLN

SWN

CTRLP

VDD

R7718

9.1K

EPI_NON_32inch

EPI_NON_32inch

EPI_NON_32inch

OPT

EPI_NON_32inch

OPT

EPI_NON_32inch

0

EPI_NON_32inch

0

R7759

0

1/16W

R7728 100K

1/16W 5%

SWP

TH7700

47k-ohm

VCOM_L_BOT

VCOM_R_BOT

EPI_NON_32inch

R7770

1K

R7760

0

1/16W

C7745

C7747

1uF 10V

1uF

C7746

1uF 25V

R7727 100K

1/16W 5%

VL

R7720
47K

120K
1%

VCOM_FB_PANEL

VCOM_FB1

VCOM_FB2

VCOM_FB1

10V

C7748

1uF 25V

R7722

INSTEAD OF AMCC0208

Q7700

MMBT3904(NXP)

EBC

MMBT3906(NXP)

TCOMP

REVERSE

< VCOM OPTION TABLE >

EXT.OP AMP NOT USE

IC7702

NC

C7760

NC

L7706

NC

R7770

0 ohm

R7772

0 ohm

R7708

0 ohm

R7709

0 ohm

R7710

NC

MID_LG1311

PAGE 29

D7703

1N4148W

100V

D7705

1N4148W

100V

INSTEAD OF AMCC0209

D7704

1N4148W

100V

D7706

1N4148W

EBC

Q7701

100V

EPI_LOCK8/6_SOURCE

VCC18

VCOMR_FB

R7748
1K

R7749
1K

OPT

VCOM_R_BOT

COMP

R7717-*1

68K

PMIC_SIW

C7736-*1
820pF
50V
PMIC_SIW

** 32INCH OPTION **

Z_OUT

VCOM_R_BOT

VCOM_BOT

V14 42~55INCH

EXT.OP AMP USE

IC7702

USE

R7725

0

R7726

0

EPI_V14

R7730

0

R7731

EPI_V14

USE

USE

1Kohm

0 ohm

30Kohm

0 ohm

0 ohm

0

R7710

R7716

R7766

R7767

R7719

R7721

GMA15

GMA18

GMA12

GMA10

R7716

R7766

R7767

R7719

R7721

R7771

GMA15_18

GMA12_10

0 ohm

C7760

0 ohm

L7706

NC

R7770

0 ohm

R7771

0 ohm

R7772

NC

R7708

R7709

EPI_V14(32)_V12_V13

EPI_V14(32)_V12_V13

T-Con 77

C7754

0.1uF
50V

C7727

0.1uF
16V

C7755
1uF
50V

VCC18

R7717
22K

C7736
1000pF
50V

R7707

0

R7702

0

R7711

0

R7712

0

R7714

0

EXT.OP AMP NOT USE

IC7702

0 ohm

NC

0 ohm

NC

0 ohm

0 ohm

R7714

R7739

1.5K
1/16W
5%

R7761
10K

R7755

33

C7740
68pF
50V
PMIC_SIW

EPI_32inch

EPI_32inch

EPI_32inch

OPT

OPT

C7760

L7706

R7770

R7771

R7772

R7702

R7707

R7711
R7712

GMA7_9

GMA4_1

C7756
1uF
10V

OPT

C7757
1uF
50V

SS

NC

NC

NC

NC

NC

NC

0 ohm

0 ohm

0 ohm

NC

NC

EPI_V14(32)_V12_V13

2013.04.03

C7733
10uF
10V

R7744

R7750

20K

20K

1/10W

1/10W

EPI_LOCK8/6

C7731

0.1uF
16V

VCOM_FB2

VCOM_L_FB

VCOM_R_FB

VCOM_FB1

VCOML_FB

VCOM_L_BOT

V14 32INCH

EXT.OP AMP USE

IC7702

C7760

L7706

R7770

R7771

R7772

R7702

R7707

R7711

R7712
R7714

R7733

0

R7732

0

EPI_V14

EPI_V14(32)_V12_V13

R7734

0

R7735

0

EPI_V14

29

VGL

USE

USE

USE

1kohm

0 ohm

30Kohm

0 ohm

0 ohm

0 ohm

0 ohm

0 ohm

VGH

R7751
30K
1/16W

RE

GMA7

GMA9

GMA4

GMA1

31

eMMC I/F

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

DVDD18_EMMC

EMMC_DATA[0-7]

EMMC_DATA[0]
EMMC_DATA[1]
EMMC_DATA[2]

EMMC_DATA[3]

EMMC_DATA[4]
EMMC_DATA[5]
EMMC_DATA[6]
EMMC_DATA[7]

EMMC_CLK
EMMC_CMD
EMMC_RST

Don’t Connect Power At VDDI

(Just Interal LDO Capacitor)

AR8100
22
1/16W

AR8101
22
1/16W

AR8102 22

OPT

3.3v power delete, 131120

10K

10K

1/16W

C8100

0.1uF
16V

1/16W

OPT

C8107
10pF
50V

AR8104

AR8103

DAT5

DAT6

DAT3

DAT4

10K

R8117

EMMC_CMD_BALL

EMMC_CLK_BALL

10K

R8116

EMMC_RESET_BALL

DVDD18_EMMC

EMMC_VDDI

C8105

0.1uF
16V

EMMC_VDDI

C8106

2.2uF
10V

3.3V_EMMC

PAGE 30

IC8100

THGBMBG5D1KBAIL

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A7

RFU_2

E5

RFU_4

E8

RFU_5

G3

RFU_9

G10

RFU_10

K6

RFU_13

K7

RFU_14

DAT7

K10

RFU_15

P7

RFU_16

P10

RFU_17

H5

DS

E9

VSF_1

E10

VSF_2

F10

VSF_3

K5

RSTN

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

C8104
1uF
10V

VCC_4

C2

VDDI

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A6

VSS_1

E7

VSS_2

G5

VSS_3

H10

VSS_4

J5

VSS_5

K8

VSS_6

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C5

NC_21

pattern 0.2mm

C8102

C8103

0.1uF

2.2uF

16V

10V

DAT3
DAT4
DAT7

DAT5

C7

NC_22

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

EMMC5.0_4G_TOSHIBA

NC_86

M13

NC_87

M14

NC_88

N1

NC_89

N3

NC_90

N6

NC_91

N7

NC_92

N8

NC_93

N9

NC_94

N10

NC_95

N11

NC_96

N12

NC_97

N13

NC_98

N14

NC_99

P1

NC_100

P2

NC_101

P8

NC_102

P9

NC_103

P11

NC_104

P12

NC_105

P13

NC_106

P14

NC_107

DAT5

DAT6

EMMC_RESET_BALL

EMMC_CLK_BALL

EMMC_CMD_BALL

EMMC5.0 for 15Y

IC8100-*1

THGBMBG6D1KBAIL

A3

C8

DAT0

NC_23

A4

C9

DAT1

NC_24

A5

C10

DAT2

NC_25

B2

C11

DAT3

NC_26

B3

C12

DAT4

NC_27

B4

C13

DAT5

NC_28

B5

C14

DAT6

NC_29

B6

D1

DAT7

NC_30

D2

NC_31

D3

NC_32

M6

D4

CLK

NC_33

M5

D12

CMD

NC_34

D13

NC_35

D14

NC_36

A6

E1

VSS_1

NC_37

A7

E2

RFU_2

NC_38

C5

E3

NC_21

NC_39

E5

E12

RFU_4

NC_40

E8

E13

RFU_5

NC_41

E9

E14

VSF_1

NC_42

E10

F1

VSF_2

NC_43

F10

F2

VSF_3

NC_44

G3

F3

RFU_9

NC_45

G10

F12

RFU_10

NC_46

H5

F13

DS

NC_47

J5

F14

VSS_5

NC_48

K6

G1

RFU_13

NC_49

K7

G2

RFU_14

NC_50

K10

G12

RFU_15

NC_51

P7

G13

RFU_16

NC_52

P10

G14

RFU_17

NC_53

H1

NC_54

H2

NC_55

K5

H3

RSTN

NC_56

H12

NC_57

H13

NC_58

C6

H14

VCCQ_1

NC_59

M4

J1

VCCQ_2

NC_60

N4

J2

VCCQ_3

NC_61

P3

J3

VCCQ_4

NC_62

P5

J12

VCCQ_5

NC_63

J13

NC_64

J14

NC_65

E6

K1

VCC_1

NC_66

F5

K2

VCC_2

NC_67

J10

K3

VCC_3

NC_68

K9

K12

VCC_4

NC_69

K13

NC_70

K14

NC_71

C2

L1

VDDI

NC_72

L2

NC_73

L3

NC_74

E7

L12

VSS_2

NC_75

G5

L13

VSS_3

NC_76

H10

L14

EMMC5.0_8G_TOSHIBA

VSS_4

NC_77

K8

M1

VSS_6

NC_78

C4

M2

VSSQ_1

NC_79

N2

M3

VSSQ_2

NC_80

N5

M7

VSSQ_3

NC_81

P4

M8

VSSQ_4

NC_82

P6

M9

VSSQ_5

NC_83

M10

NC_84

M11

NC_85

M12

NC_86

A1

M13

NC_1

NC_87

A2

M14

NC_2

NC_88

A8

N1

NC_3

NC_89

A9

N3

NC_4

NC_90

A10

N6

NC_5

NC_91

A11

N7

NC_6

NC_92

A12

N8

NC_7

NC_93

A13

N9

NC_8

NC_94

A14

N10

NC_9

NC_95

B1

N11

NC_10

NC_96

B7

N12

NC_11

NC_97

B8

N13

NC_12

NC_98

B9

N14

NC_13

NC_99

B10

P1

NC_14

NC_100

B11

P2

NC_15

NC_101

B12

P8

NC_16

NC_102

B13

P9

NC_17

NC_103

B14

P11

NC_18

NC_104

C1

P12

NC_19

NC_105

C3

P13

NC_20

NC_106

C7

P14

NC_22

NC_107

IC8100-*2

THGBMBG7D2KBAIL

A3

C7

DAT0

NC_22

A4

C8

DAT1

NC_23

A5

C9

DAT2

NC_24

B2

C10

DAT3

NC_25

B3

C11

DAT4

NC_26

B4

C12

DAT5

NC_27

B5

C13

DAT6

NC_28

B6

C14

DAT7

NC_29

D1

NC_30

D2

NC_31

M6

D3

CLK

NC_32

M5

D4

CMD

NC_33

D12

NC_34

D13

NC_35

A7

D14

RFU_2

NC_36

E5

E1

RFU_4

NC_37

E8

E2

RFU_5

NC_38

E3

NC_39

G3

E12

RFU_9

NC_40

G10

E13

RFU_10

NC_41

K6

E14

RFU_13

NC_42

K7

F1

RFU_14

NC_43

K10

F2

RFU_15

NC_44

P7

F3

RFU_16

NC_45

P10

F12

RFU_17

NC_46

F13

NC_47

H5

F14

DS

NC_48

G1

NC_49

E9

G2

VSF_1

NC_50

E10

G12

VSF_2

NC_51

F10

G13

VSF_3

NC_52

G14

NC_53

H1

NC_54

K5

H2

RSTN

NC_55

H3

NC_56

H12

NC_57

C6

H13

VCCQ_1

NC_58

M4

H14

VCCQ_2

NC_59

N4

J1

VCCQ_3

NC_60

P3

J2

VCCQ_4

NC_61

P5

J3

VCCQ_5

NC_62

J12

NC_63

J13

NC_64

E6

J14

VCC_1

NC_65

F5

K1

VCC_2

NC_66

J10

K2

VCC_3

NC_67

K9

K3

VCC_4

NC_68

K12

NC_69

K13

NC_70

C2

K14

VDDI

NC_71

L1

NC_72

L2

NC_73

C4

L3

VSSQ_1

NC_74

N2

L12

VSSQ_2

NC_75

N5

L13

VSSQ_3

NC_76

P4

L14

EMMC5.0_16G_TOSHIBA

VSSQ_4

NC_77

P6

M1

VSSQ_5

NC_78

A6

M2

VSS_1

NC_79

E7

M3

VSS_2

NC_80

G5

M7

VSS_3

NC_81

H10

M8

VSS_4

NC_82

J5

M9

VSS_5

NC_83

K8

M10

VSS_6

NC_84

M11

NC_85

M12

NC_86

A1

M13

NC_1

NC_87

A2

M14

NC_2

NC_88

A8

N1

NC_3

NC_89

A9

N3

NC_4

NC_90

A10

N6

NC_5

NC_91

A11

N7

NC_6

NC_92

A12

N8

NC_7

NC_93

A13

N9

NC_8

NC_94

A14

N10

NC_9

NC_95

B1

N11

NC_10

NC_96

B7

N12

NC_11

NC_97

B8

N13

NC_12

NC_98

B9

N14

NC_13

NC_99

B10

P1

NC_14

NC_100

B11

P2

NC_15

NC_101

B12

P8

NC_16

NC_102

B13

P9

NC_17

NC_103

B14

P11

NC_18

NC_104

C1

P12

NC_19

NC_105

C3

P13

NC_20

NC_106

C5

P14

NC_21

NC_107

A3
A4
A5
B2
B3
B4
B5
B6

M6
M5

A7
E5
E8

G3
G10
K6
K7
K10
P7
P10

H5

E9
E10
F10

K5

C6
M4
N4
P3
P5

E6
F5
J10
K9

C2

C4
N2
N5
P4
P6
A6
E7
G5
H10
J5
K8

A1
A2
A8
A9
A10
A11
A12
A13
A14
B1
B7
B8
B9
B10
B11
B12
B13
B14
C1
C3
C5

A3
A4
A5
B2
B3
B4
B5
B6

M6
M5

A7
E5
E8

G3
G10
K6
K7
K10
P7
P10

H5

E9
E10
F10

K5

C6
M4
N4
P3
P5

E6
F5
J10
K9

C2

C4
N2
N5
P4
P6
A6
E7
G5
H10
J5
K8

A1
A2
A8
A9
A10
A11
A12
A13
A14
B1
B7
B8
B9
B10
B11
B12
B13
B14
C1
C3
C5

H26M41103HPR

DAT0
DAT1
DAT2
DAT3
DAT4
DAT5
DAT6
DAT7

CLK
CMD

RFU_1
RFU_2
VSF_1

RFU_3
VSF_5
RFU_4
RFU_5
VSF_6
NC_102
VSF_7

DS

VSF_2
VSF_3
VSF_4

RSTN

VCCQ_1
VCCQ_2
VCCQ_3
VCCQ_4
VCCQ_5

VCC_1
VCC_2
VCC_3
VCC_4

VDDI

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6

NC_1
NC_2
NC_3
NC_4
NC_5
NC_6
NC_7
NC_8
NC_9
NC_10
NC_11
NC_12
NC_13
NC_14
NC_15
NC_16
NC_17
NC_18
NC_19
NC_20
NC_21

KLM4G1YEMD-B031

DAT0
DAT1
DAT2
DAT3
DAT4
DAT5
DAT6
DAT7

CLK
CMD

RFU_2
RFU_3
RFU_4

RFU_5
RFU_6
RFU_7
RFU_8
RFU_9
RFU_10
RFU_11

DATASTROBE

RFU_12
RFU_13
RFU_14

RSTN

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5

VDDF_1
VDDF_2
VDDF_3
VDDF_4

VDDI

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11

NC_1
NC_2
NC_3
NC_4
NC_5
NC_6
NC_7
NC_8
NC_9
NC_10
NC_11
NC_12
NC_13
NC_14
NC_15
NC_16
NC_17
NC_18
NC_19
NC_20
NC_21

IC8100-*3

NC_22
NC_23
NC_24
NC_25
NC_26
NC_27
NC_28
NC_29
NC_30
NC_31
NC_32
NC_33
NC_34
NC_35
NC_36
NC_37
NC_38
NC_39
NC_40
NC_41
NC_42
NC_43
NC_44
NC_45
NC_46
NC_47
NC_48
NC_49
NC_50
NC_51
NC_52
NC_53
NC_54
NC_55
NC_56
NC_57
NC_58
NC_59
NC_60
NC_61
NC_62
NC_63
NC_64
NC_65
NC_66
NC_67
NC_68
NC_69
NC_70
NC_71
NC_72
NC_73
NC_74
NC_75

EMMC5.0_8G_SKHYNIX

NC_76
NC_77
NC_78
NC_79
NC_80
NC_81
NC_82
NC_83
NC_84
NC_85
NC_86
NC_87
NC_88
NC_89
NC_90
NC_91
NC_92
NC_93
NC_94
NC_95
NC_96
NC_97
NC_98

NC_99
NC_100
NC_101
NC_103
NC_104
NC_105
NC_106
NC_107
NC_108

IC8100-*4

NC_22

NC_23

NC_24

NC_25

NC_26

NC_27

NC_28

NC_29

NC_30

NC_31

NC_32

NC_33

NC_34

NC_35

NC_36

NC_37

NC_38

NC_39

NC_40

NC_41

NC_42

NC_43

NC_44

NC_45

NC_46

NC_47

NC_48

NC_49

NC_50

NC_51

NC_52

NC_53

NC_54

NC_55

NC_56

NC_57

NC_58

NC_59

NC_60

NC_61

NC_62

NC_63

NC_64

NC_65

NC_66

NC_67

NC_68

NC_69

NC_70

NC_71

NC_72

NC_73

NC_74

NC_75

EMMC5.0_4G_SAMSUNG

NC_76

NC_77

NC_78

NC_79

NC_80

NC_81

NC_82

NC_83

NC_84

NC_85

NC_86

NC_87

NC_88

NC_89

NC_90

NC_91

NC_92

NC_93

NC_94

NC_95

NC_96

NC_97

NC_98

NC_99
NC_100
NC_101
NC_102
NC_103
NC_104
NC_105
NC_106
NC_107

C7
C8
C9
C10
C11
C12
C13
C14
D1
D2
D3
D4
D12
D13
D14
E1
E2
E3
E12
E13
E14
F1
F2
F3
F12
F13
F14
G1
G2
G12
G13
G14
H1
H2
H3
H12
H13
H14
J1
J2
J3
J12
J13
J14
K1
K2
K3
K12
K13
K14
L1
L2
L3
L12
L13
L14
M1
M2
M3
M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14

C7
C8
C9
C10
C11
C12
C13
C14
D1
D2
D3
D4
D12
D13
D14
E1
E2
E3
E12
E13
E14
F1
F2
F3
F12
F13
F14
G1
G2
G12
G13
G14
H1
H2
H3
H12
H13
H14
J1
J2
J3
J12
J13
J14
K1
K2
K3
K12
K13
K14
L1
L2
L3
L12
L13
L14
M1
M2
M3
M7
M8
M9
M10
M11
M12
M13
M14
N1
N3
N6
N7
N8
N9
N10
N11
N12
N13
N14
P1
P2
P8
P9
P11
P12
P13
P14

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

eMMC

11.09.29

81

RS-232C Control INTERFACE

Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

+3.5V_ST

RS232C

R6820
100

RS232C

R6821
100

PAGE 32

DOUT1

RIN1

RS232C

RS232C

RS232C

RS232C

C6808

0.1uF

C6809

0.1uF

C6810

0.1uF

C6811

0.1uF

C1+

C1-

C2+

C2-

DOUT2

RIN2

V+

V-

RS232C

IC6801

MAX3232CDR

1

2

3

4

5

6

7

8

EAN41348201

OPT
ZD6802

ADUC 20S 02 010L

RS232C

C6813

0.1uF

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

SOC_RX

SOC_TX

20V

OPT
ZD6803

ADUC 20S 02 010L
20V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

2015 LED TV

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Repair guide

< Applicable Model – Mid end >

- LJ51H
**LF7200-S* / **LF6500-S* / **LF6400-S* / **LF6350-S*

- LT51H

**LF720T-D* / **LF650T-D* / **LF640T-D* / **LF635T-D*

**LF6500-D* / **LF6350-D*

Contents of Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

No. Error symptom (High category) Error symptom (Mid category) Page Remarks

1
2 No video/No audio 2
3 Picture Problem, Picture broken/ Freezing 3
4 Color error 4

5

6

7

8
9 Wrecked audio/discontinuation/noise 9

10

A. Video error

B. Power error

C. Audio error

D. Function error

No video/Normal audio 1

Vertical/Horizontal bar, residual image, light
spot, external device color error

No power 6
Off when on, off while viewing, power auto

on/off
No audio/Normal video 8

Normal/Motion Remote Controller operating
error

5

7

10

11 External device recognition error 11
12 E. Noise Circuit noise, mechanical noise 12
13 F. Exterior error Exterior defect 13

First of all, Check whether there is SVC Bulletin in GCSC System for these model.

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Established

date

Revised date

Error

symptom

A. Video error

No video/ Normal audio

First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D↔Power B/D, LVDS/EPI Cable,Speaker Cable,IR/Wi-Fi combo cable↔Main B/D,,,)

☞A5

N

Y

Check Back Light
On with naked eye

Check Power Board DRV_ON output

☞A5

On

Normal
voltage

N

Repair Power

Board or parts

Y N Check Power Board

D13V

Replace Inverter

Y

or module

Normal

voltage

Repair Power Board
or parts

Y

N

End

No video
Normal audio

Normal

audio

Move to
No video/No audio

1/13

Replace T-con Board
or module

※Precaution

Always check & record S/W Version and White
Balance value before replacing the Main Board

☞A4

Replace Main Board

Re-enter White Balance value

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

No Video/No audio

A. Video error

No video/ No audio

☞A5

Check voltages of
Power Board
( D13V,A13V)

Normal

voltage?

N

Replace Power
Board and repair
parts

Y

Check and
replace
MAIN B/D

Established

date

Revised date

2/13

End

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

☞ A6

Check RF Signal level

Normal
Signal?

N

Check RF Cable

Connection

1. Reconnection

2. Install Booster

Normal

Picture?

Y

Y

N

A. Video error

Picture Problem, Picture broken/ Freezing

. By using Digital signal level meter
. By using Diagnostics menu on OSD

( Menu→ Quick→ Channels → Signal Test )

- Signal strength (Normal:over 50%)

- Signal Quality (Normal:over 50%)

Check whether other equipments have problem or not.

(By connecting RF Cable at other equipment)

ex) DVD Player ,Set-Top-Box, Different maker TV etc`

☞ A7

Normal
Picture?

N

Contact with signal distributor

or broadcaster (Cable or Air)

Y

Check

S/W Version

SVC

Bulletin?

Y

S/W Upgrade

Normal

Picture?

Established

date

Revised date

N

N

Check

Tuner soldering

Normal

Picture?

N

Replace

Main B/D

3/13

Y

Close

Close

Y

Close

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

☞A8

Check color by input

-External Input

-COMPONENT

-HDMI

☞A12

Check Test pattern

Color
error?

N

Check error color
input mode

A. Video error

※ Check and
replace Link

Y

Cable
(LVDS/EPI)
and contact
condition

External Input/

Component

error

Color error

Color

error?

N

Check
external
device and
cable

Y

Replace Main B/D

Established

date

Revised date

External device

/Cable

normal

N

Y

Color

error?

End

4/13

Y

Replace module

N

Replace Main B/D

HDMI

error

Check external

device and
cable

Request repair

for external

device/cable

N

External device

/Cable

normal

Y

Replace Main B/D

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

Vertical / Horizontal bar, residual image,

A. Video error

light spot, external device color error

Vertical/Horizontal bar, residual image, light spot

☞A8

Check color condition by input

-External Input

-Component

-HDMI

☞A12

Check Test pattern

Screen

normal?

N

Replace
module

Check external

Y

device
connection
condition

Normal?

Request repair

for external
device

External device screen error-Color error

Check screen

Check S/W Version

Check

version

Y

S/W Upgrade

Normal

screen?

Y

End

N

N

condition by input

-External Input

-Component

-HDMI

N

Check and

Y

replace Link
Cable

External

Input

error

Component

error

HDMI

Established

date

Revised date

Screen

normal?

End

N

Replace Main B/D

Y

Connect other external
device and cable

(Check normal operation of
External Input, Component

and HDMI by connecting Jig,

pattern Generator ,Set-top
Box etc.

Connect other external
device and cable
(Check normal operation of
External Input, Component
and HDMI by connecting Jig,
pattern Generator ,Set-top

Box etc.

Screen

normal?

Request repair for
external device

Screen

normal?

N

Y

Y

N

5/13

Replace
Module

N

Screen

normal?

Y

End

Replace
Main B/D

Replace
Main B/D

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

☞A17

Check
Power LED

. Stand-By: Red or No color

Check Power cord
was inserted properly

Power LED

On?

N

Normal?

Y

Close

Y

N

※

Check ST-BY Voltage
(D13V)

B. Power error

No power

DC Power on
by pressing Power Key
On Remote control

Normal

voltage?

Y

Y

Established

date

Revised date

☞A18

Y

N

Check Power
On “High”

Normal

operation?

☞A5

Measure voltage of each output of Power B/D

N

Y

Replace Main B/D

Normal

voltage?

OK?

Replace Main B/D

Y

6/13

Replace
Power
B/D

☞A18

Replace Power B/D

N

Replace Power
B/D

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

Check outlet

Check A/C cord

Check for all 3- phase
power out

Off when on, off while viewing, power auto on/off

Error?

Y

Fix A/C cord & Outlet
and check each 3
phase out

N

B. Power error

☞A22

Check Power Off
Mode

☞A5

(If Power Off mode is
not displayed)
Check Power B/D
voltage

※ Caution
Check and fix exterior
of Power B/D Part

Established

date

Revised date

CPU

Abnormal

Abnormal

1

Normal

voltage?

N

Replace Power B/D

Replace Main B/D

Y

Replace Main B/D

Normal?

Replace Power B/D

Y

N

7/13

End

* Please refer to the all cases which
can be displayed on power off mode.

Status Power off List Explanation

"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL
"POWEROFF_OFFTIMER" Power off by OFF TIMER
"POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER
"POWEROFF_INSTOP" Power off by INSTOP KEY

"POWEROFF_AUTOOFF" Power off by AUTO OFF

Normal

Abnormal

"POWEROFF_ONTIMER" Power off by ON TIMER
"POWEROFF_RS232C" Power off by RS232C
"POWEROFF_RESREC" Power off by Reservated Record
"POWEROFF_RECEND" Power off by End of Recording
"POWEROFF_SWDOWN" Power off by S/W Download
"POWEROFF_UNKNOWN" Power off by unknown status except listed case

"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble
"POWEROFF_CPUABNORMAL" Power off by CPU Abnormal

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

No audio
Screen normal

☞A24

Check user
menu >
Speaker off

C. Audio error

No audio/ Normal video

☞A25

N

Off

Y

Cancel OFF

Check A13V of Power
Board

Established

date

Revised date

Normal
voltage

Replace Power Board and repair parts

Y

N

8/13

Check Speaker
disconnection

Disconnection

N

Y

Connect Speaker to Main cable

Replace MAIN Board

End

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Check input
signal

-RF

-External Input

signal

Error

symptom

C. Audio error

Wrecked audio/ discontinuation/noise

Established

date

Revised date

→ Abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio

☞A25

Check A13V Voltage

Normal

voltage?

N

Replace Main B/D

N

Signal

normal?

N

Y

(When RF signal is not
received)

Request repair to external

cable/ANT provider

(In case of External
Input signal error)
Check and fix
external device

Wrecked audio/

Discontinuation/

Noise for

all audio

Wrecked audio/

Discontinuation/

Noise only

for D-TV

Wrecked audio/

Discontinuation/

Noise only

for Analog

Wrecked audio/

Discontinuation/

Noise only

for External Input

Check and replace
speaker and
connector

Replace Main B/D

Connect and check
other external device

Replace Power B/D

Normal
audio?

Y

9/13

Y

End

Check and fix external device

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

Normal/Motion Remote Controller operating error

D. Function error

1. Normal Remote control(R/C) operating error

☞A27

Check R/C itself

Operation

Check R/C Operating

When turn off light

in room

If R/C operate,
Explain the customer
cause is interference

from light in room.

Normal

operating?

N

Check & Replace

Baterry of R/C

Y

Check & Repair

Cable connection

Connector solder

Normal

operating?

N

Replace R/C

2. Motion Remote control operating error

☞A29

Check Motion R/C

itself Operation

Check R/C Operating

When turn off light

in room

If R/C operate,
Explain the customer
cause is interference

from light in room.

Normal

operating?

N

Check & Replace

Baterry of R/C

Y

Check & Repair
Cable connection
Connector solder

Normal

operating?

N

Replace R/C

Normal

operating?

Y

Close

Normal

operating?

Y

Close

Y

Y

☞A27

N

☞A29

N

Check 13V

On Main B/D

☞A5

(Power B/D don’t have problem)

Check

3.5V_WIFI

On Main B/D

☞A5

(Power B/D don’t have problem)

Established

date

Revised date

Normal

Voltage?

Check 13V on Power B/D

Replace Power B/D or

Replace Main B/D

Normal

Voltage?

Check 13V on Power B/D

Replace Power B/D or

Replace Main B/D

Y

N

Y

N

☞A27

Check IR

Output signal

☞A29

Check B/T

Version

10/13

Replace

Main B/D

Normal
Signal?

N

Repair/Replace

IR B/D

Replace

Main B/D

Version

Value OK?

N

Repair/Replace

Wi-Fi B/T combo B/D

Y

Y

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

Check
input
signal

Y

Signal
input?

N

Check and fix
external device/cable

D. Function error

External device recognition error

Check technical
information

- Fix information

- S/W Version

Technical

information?

accordance

with technical

information

Y

Fix in

External Input and

N

Component

Recognition error

Recognition error

Established

Revised date

HDMI/

Optical

date

11/13

Replace Main B/D

Replace Main B/D

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

Zoom part with
exterior damage

Module

damage

Cabinet

damage

Remote

controller

damage

F. Exterior defect

Exterior defect

Replace module

Replace cabinet

Replace remote controller

Established

date

Revised date

13/13

Stand

dent

Replace stand

Standard Repair Process

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error

symptom

Identify

noise type

E. Noise

Circuit noise, mechanical noise

Circuit

noise

Mechanical

noise

※ Mechanical noise is a natural
phenomenon, and apply the 1st level
description. When the customer does not
agree, apply the process by stage.

※ Describe the basis of the description in
“Part related to noise” in the Owners Manual.

Check location
of noise

Check location of
noise

OR

Replace PSU(with LED driver)

Replace LED driver

※ When the noise is severe, replace the module

OR

(For models with fix information, upgrade the S/W or
provide the description)

OR

※ If there is a “Tak Tak” noise from the cabinet,

refer to the KMS fix information and then proceed

as shown in the solution manual
(For models without any fix information, provide
the description)

Established

date

Revised date

12/13

Contents of Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

No. Error symptom Content Page Remarks

1
2 LED driver B+ 24V measuring method

A. Video error_ No video/Normal audio

3 Check White Balance value A4
4 Power Board voltage measuring method A5
6

A. Video error_ No video/Video lag/stop

7 TV Version checking method A7
9

10 Tuner Checking Part A9

A. Video error_Color error

11

12 Adjustment Test pattern - ADJ Key A12
13

14

15 Adjustment Test pattern - ADJ Key A12

A. Video error_Vertical/Horizontal bar,
residual image, light spot

Check LCD back light with naked eye A1

TUNER input signal strength checking method A6

TV connection diagram A8

Check Link Cable (LVDS/EPI) reconnection

condition

TV connection diagram A8
Check Link Cable (LVDS/EPI) reconnection

condition

16
17 Exchange T-Con Board (2) A-2/5

<Appendix>

18 Exchange LED driver Board (PSU) A-3/5

19 Exchange Module itself (1) A-4/5

20 Exchange Module itself (2) A-5/5

Defected Type caused by T-Con/ Inverter/
Module

Exchange T-Con Board (1) A-1/5

Continue to the next page

Contents of Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Continued from previous page

No. Error symptom Content Page Remarks

21
22 Check power input Voltage & ST-BY Voltage A18
23 Checking method when power is ON A18
24 POWER BOARD voltage measuring method A5
25

26

27

28

29

30

31

B. Power error_No power

B. Power error_Off when on, off while
viewing

B. Power error_Off when on, off while
viewing

C. Audio error_No audio/Normal video

C. Audio error_Wrecked

audio/discontinuation

D. Function error_ No response in remote
controller

Check front display LED A17

POWER OFF MODE checking method A22

POWER BOARD PIN voltage checking method A18
Checking method in menu when there is no

audio
Voltage and speaker checking method when

there is no audio

Voltage and speaker checking method in case of

audio error
Normal Remote controller operation checking

method
Motion Remote controller operation checking

method

A24

A25

A25

A27

A29

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

<ALL MODELS>

A. Video error_No video/Normal audio

Check White Balance value

Established

date

Revised

date

A4

Entry method

1. Press the ADJ button on the remote controller for adjustment.

2. Enter into White Balance of item 10.

3. After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm),
re-enter the value after replacing the MAIN BOARD.

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

A. Video error_No video/ Audio

Power Board voltage measuring method

Established

date

Revised

date

A5

*Power Board Shape is different of models.

Check the DC D13V, A13V

18 Pin (Power Board ↔ Main Board) - 공통

SMAW200-H12S5K

1 Power on 2 PDIM #2
3 GND 4 D13V
5 D13V 6 D13V
7 A13V 8 A13V
9 GND 10 GND

11 DRV_ON 12 PDIM #1

13 GND 14 GND
15 GND 16 L/DIM0_SCLK
17 L/DIM0_VS 18 L/DIM0_MOSI

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

<ALL MODELS>

A. Video error_Video error, video lag/stop

TUNER input signal strength checking method

Menu(QUICK SETTING)  Channels  Channel Tuning  Manual Tuning  Antenna DTV

Established

date

Revised

date

A6

When the signal is strong, use the
attenuator (-10dB, -15dB, -20dB etc.)

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

A. Video error_Video error, video lag/stop

LCD-TV Version checking method

Established

date

Revised

date

A7

<ALL MODELS>

Version

1. Checking method for remote controller for adjustment

Press the IN-START with the remote
controller for adjustment

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

<ALL MODELS>

A. Video error _Vertical/Horizontal bar, residual

image, light spot

TV connection diagram

Established

date

Revised

date

A8

As the part connecting to the external input, check the
screen condition by signal

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

<ALL MODELS>

A. Video error_Video error, video lag/stop

TUNER checking part

Established

date

Revised

date

A9

Checking method:

1. Check the signal strength or check whether the screen is normal when the external device is connected.

2. After measuring each voltage from power supply, finally replace the MAIN BOARD.

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

A. Video error_Color error

Adjustment Test pattern - ADJ Key

Established

date

Revised

date

A12

You can view 7 types of patterns using the ADJ Key
Checking item : 1. Defective pixel 2. Residual image 3. Module error (ADD-BAR,SCAN BAR..)

4.Video error (Classification of MODULE or Main-B/D!)

Appendix : Exchange T-Con Board (1)

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

A-1/5

Solder defect, CNT Broken

Solder defect, CNT Broken

Solder defect, CNT Broken

T-Con Defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section Solder defect, Short/Crack

Appendix : Exchange T-Con Board (2)

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

A-2/5

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section

Fuse Open, Abnormal power section

Solder defect, Short/Crack

Abnormal Display

GRADATION

Noise

GRADATION

Appendix : Exchange LED driver Board(PSU)

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

A-3/5

No Light

Dim Light

Dim Light

Dim Light

No picture/Sound Ok

Appendix : Exchange Module itself(1)

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

A-4/5

Panel Mura, Light leakage

Crosstalk

Panel Mura, Light leakage

Press damage

Press damage

Crosstalk

Un-repairable Cases
In this case please exchange the module.

Press damage

Appendix : Exchange Module itself(2)

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

A-5/5

Vertical Block

Source TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Gate TAB IC Defect

Vertical Line

Source TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Gate TAB IC Defect

Vertical Block

Source TAB IC Defect

Horizontal line

Gate TAB IC Defect

Gate TAB IC Defect

Un-repairable Cases
In this case please exchange the module.

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

B. Power error _No power

Check front display LED

Established

date

Revised

date

A17

ST-BY condition: On
Power ON condition: Off

※ Be careful : LF63 / LF64 / LF65 / LF72 Models have a Standby Light Control UI

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

When st-by, only D13V is normally on.
( Output : 9.5~ 9.9V)

B. Power error _No power

Check power input voltage and ST-BY Voltage

Established

date

Revised

date

A18

*Power Board Shape is different of models.

Check the DC D13V, A13V, Power on

18 Pin (Power Board ↔ Main Board) - 공통

SMAW200-H12S5K

1 Power on 2 PDIM #2
3 GND 4 D13V
5 D13V 6 D13V
7 A13V 8 A13V
9 GND 10 GND

11 DRV_ON 12 PDIM #1
13 GND 14 GND
15 GND 16 L/DIM0_SCLK

17 L/DIM0_VS 18 L/DIM0_MOSI

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

<ALL MODELS>

B. Power error _Off when on, off whiling viewing

POWER OFF MODE checking method

Established

date

Revised

date

A22

Entry method

1. Press the IN-START button of the remote controller for adjustment

2. Check the entry into adjustment item 3

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

<ALL MODELS>

C. Audio error_No audio/Normal video

Checking method in menu when there is no audio

Established

date

Revised

date

A24

Checking method

1. Press the MENU button on the remote controller

2. Select the Sound function of the Menu

3. Select Sound Out function of the Menu

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

<ALL MODELS>

C. Audio error_No audio/Normal video

Voltage and speaker checking method
when there is no audio

Established

date

Revised

date

A25

18 Pin (Power Board ↔ Main Board) - 공통

1 Power on 2 PDIM #2
3 GND 4 D13V

5 D13V 6 D13V

②

7 A13V 8 A13V

9 GND 10 GND
11 DRV_ON 12 PDIM #1
13 GND 14 GND
15 GND 16 L/DIM0_SCLK

17 L/DIM0_VS 18 L/DIM0_MOSI

Checking order when there is no audio

①

SMAW200-H12S5K

③

① Check the contact condition or A13V connector of Main Board

② Measure the A13V input voltage supplied from Power Board

(If there is no input voltage, remove the cable and check the connector)

③ Connect the tester RX1 to the speaker terminal and if you hear the “Chik Chik” sound when you touch the GND

and output terminal, the speaker is normal.

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

<ALL MODELS>

①

D. Function error_ No response in remote controller

Normal Remote controller operation checking method

②

Established

date

Revised

date

④

③

A27

P4000
1
2
3
4
5
6
7 WOL
8 GND
9 EYE_SDA

10 GND

11 EYE_SCL

12 KEY1

13 GND

14 KEY2

15 IR

16 3.5V_ST

17 LED_R

18 GND

GND

3.5V_WIFI

BT_RESET

USB_DM

NC

USB_DP

Checking order
1, 2. Check IR cable condition between IR & Main board.

3. Check the st-by 3.5V on the terminal 16.

4. When checking the Pre-Amp when the power is in ON condition, it is normal when the Analog

Tester needle moves slowly, and defective when it does not move at all.

Standard Repair Process Detail Technical Manual

Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

Error symptom

Content

<ALL MODELS>

①

Checking order
1, 2. Check IR cable condition between IR & Main board.

3. Check the 3.5V_WIFI on the terminal 2.

4. Check the B/T version value.

D. Function error_ No response in remote controller

Motion Remote controller operation checking method

②

Established

date

Revised

date

③

A29

P4000
1
2
3
4
5
6
7 WOL
8 GND
9 EYE_SDA

10 GND

11 EYE_SCL

12 KEY1

13 GND

14 KEY2

15 IR

16 3.5V_ST

17 LED_R

18 GND

GND

3.5V_WIFI

BT_RESET

USB_DM

NC

USB_DP

④
