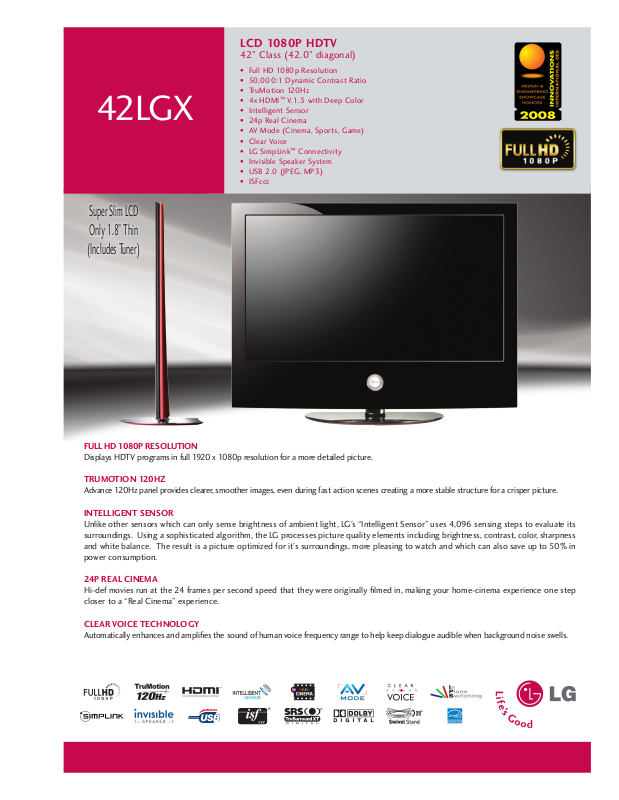

LG 42X User Manual
42LGX
Super Slim LCD
Only 1.8” Thin
(Includes Tuner)
LCD 1080p HDTV
42” Class (42.0” diagonal)
• Full HD 1080p Resolution
• 50,000:1 Dynamic Contrast Ratio
• TruMotion 120Hz
• 4x HDMI™ V.1.3 with Deep Color
• Intelligent Sensor
• 24p Real Cinema
• AV Mode (Cinema, Sports, Game)
• Clear Voice
• LG SimpLink™ Connectivity
• Invisible Speaker System
• USB 2.0 (JPEG, MP3)
• ISFccc
FuLL HD 1080p ResoLuTion
Displays HDTV programs in full 1920 x 1080p resolution for a more detailed picture.
TRuMoTion 120Hz
Advance 120Hz panel provides clearer, smoother images, even during fast action scenes creating a more stable structure for a crisper picture.
inTeLLigenT sensoR
Unlike other sensors which can only sense brightness of ambient light, LG’s “Intelligent Sensor” uses 4,096 sensing steps to evaluate its
surroundings. Using a sophisticated algorithm, the LG processes picture quality elements including brightness, contrast, color, sharpness
and white balance. The result is a picture optimized for it’s surroundings, more pleasing to watch and which can also save up to 50% in
power consumption.
24p ReaL CineMa
Hi-def movies run at the 24 frames per second speed that they were originally lmed in, making your home-cinema experience one step
closer to a “Real Cinema” experience.
CLeaR VoiCe TeCHnoLogy
Automatically enhances and amplies the sound of human voice frequency range to help keep dialogue audible when background noise swells.
42LGX
TeCHniCaL speCiFiCaTions
LCD paneL
Native Display Resolution 1920 x 1080p
Brightness (cd/m2) 500
Dynamic Contrast Ratio 50,000:1
Viewing Angle 178º x 178º
Response Time (Grey to Grey) 4ms
Wide Color Control •
TruMotion 120Hz •
Life Span (Typical) 60,000 hours
BRoaDCasTing sysTeM
Analog •
ATSC/NTSC/Clear QAM •
ViDeo
XD Engine™ •
Aspect Ratio 16:9
Aspect Ratio Correction 6 Modes
Just Scan (1:1 Pixel Matching)
- HDMI™ 1080p/1080i/720p
- Component 1080p/1080i/720p
- RF 1080i/720p
Enhanced Line Doubler •
Enhanced Noise Reduction (Video Noise Filter) • (3D & MPEG)
Color Temperature Control 4 Modes
Black Stretcher (Black Level Enhancer) •
24p Cinema (Film Mode) •
Picture Reset •
AV Mode (Picture & Sound) 3 Modes
Picture Selection Mode 8 Modes
ISFccc •
Intelligent Sensor Mode •
DTV Signal Strength Indicator •
auDio
Mono/Stereo/Dual (MTS/SAP) •
Audio Outout Power (Watts - THD 10%) 10W + 10W
Speaker System Details 2 Way 4 System (Invisible Speaker)
Dolby® Digital Decoder •
Surround System Type SRS TruSurround XT™
Bass/Treble/Balance Controls •
Auto Volume Leveler •
Sound Mode 4 Modes
Mute •
speCiaL FeaTuRes
Intelligent Sensor •
1080P Source Input
- HDMI 60p/30p/24p
- Component 60p/30p/24p
- RGB 60p
A/V Input Navigation •
Auto Navigation •
Input Labeling •
Quick View (Previous Channel) •
TruMotion 120Hz Demo On/Off •
Picture Still / Freeze •
Clear Voice (On/Off) •
Quick Setup Guide •
Parental Control w/V-Chip •
Key Lock •
Closed Caption •
LG SimpLink™ (HDMI CEC) •
Trilingual Menus English/French/Spanish
EZ Menus (High Performance Interface) •
Channel Add/Delete •
Favorite Channel •
Auto Clock •
Manual Clock •
On/Off Timer •
Sleep Timer •
Auto Off (When no video is present) •
siDe auDio/ViDeo inpuTs/ouTpuTs
L/R Audio/Composite Video In 1
HDMI/HDCP In 1
USB 2.0 (Music and Photos only) 1 (JPEG/MP3)
RF In (Antenna/Cable) 1
L/R Audio Out 1
LCD 1080p HDTV
42” Class (42.0” diagonal)
ReaR auDio/ViDeo inpuTs/ouTpuTs
HD Component Video In (Y,Pb,Pr) + L/R Audio 2
Digital Audio Out 2 (1 Coaxial/1 Optical)
HDMI/HDCP Input 3 (V.1.3 with Deep Color)
RGB In (D-Sub 15pin) - PC 1
PC Audio Input 1
RS-232c In (Control/Service) 1
Remote Control In (IR) 1
CaBineT/aCCessoRies
Cabinet Style Table Top
Cabinet Color Glossy Piano-black
Remote Control Type Universal
Stand Swivel (degrees) 20º / 20º
VESA® Compatible (W x H) 200mm x 200mm
poWeR
Consumption (Typical) n/a
Stand-by Consumption >1W
Energy Star Compliant •
speCiFiCaTions
Dimensions w/out stand (W x H x D) 40.9” x 29.4” x 1.8”
Weight w/out stand 39.7 lbs
Dimensions w/stand (W x H x D) 40.9” x 31.3” x 14.9”
Weight w/stand 47.2 lbs
Dimensions w/packaging (W x H x D) 51.7” x 32.4” x 9.5”
Weight in package 56.0 lbs
UPC 719192173880
Limited Warranty 1 Year Parts/Labor
DiMensions/ReMoTe/inpuTs/ouTpuTs
1.8”
14.9”
SIDE
29.4” 31.3”
7.9”
(200mm)
BACK
40.9”
20.5”
7.9”
(200mm)
LG Electronics U.S.A., Inc. • 1000 Sylvan Avenue Englewood Cliffs, NJ 07632
)
Customer Service and Technical Support: (800
© 2008 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
All other trademarks are the property of their respective owners. Design, features and specifications subject to change without notice. 03/31 /08
243-0000 • LGusa.com
