LG Electronics 47WT30MS, 42WT30MS, 55WT30MS User Manual

OWNER’S MANUAL

MONITOR SIGNAGE

Please read this manual carefully before operating the your set and retain it for future reference.

MONITOR SIGNAGE MODELS

42WT30MS 47WT30MS 55WT30MS

www.lg.com

TABLE OF CONTENTS

ENGLISH

TABLE OF CONTENTS

ENG

4 LICENSES

5 ASSEMBLING AND

5 Accessories

6 Optional Accessories

7 Parts and Buttons

8 Connecting the Speaker

9 Using the Mounting Cable Tie

10 Using the IR Receiver

10 Portrait Layout

11 Mounting on a Wall

13 REMOTE CONTROL

15 USING THE MONITOR

15 Connecting to a PC

15 - RGB Connection

16 - DVI Connection

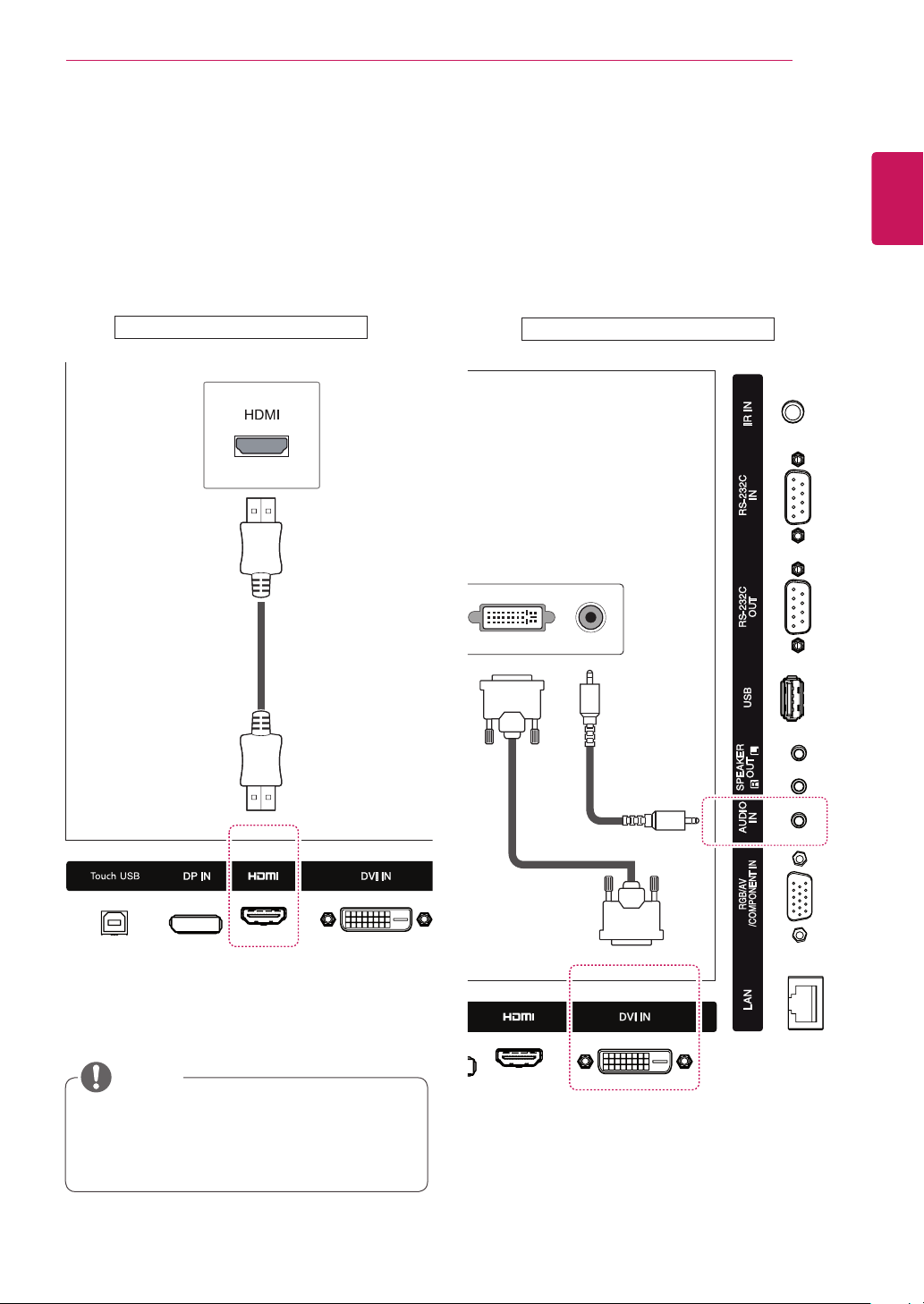

16 - HDMI Connection

17 - Display Port Connection

17 - IR Receiver Connection

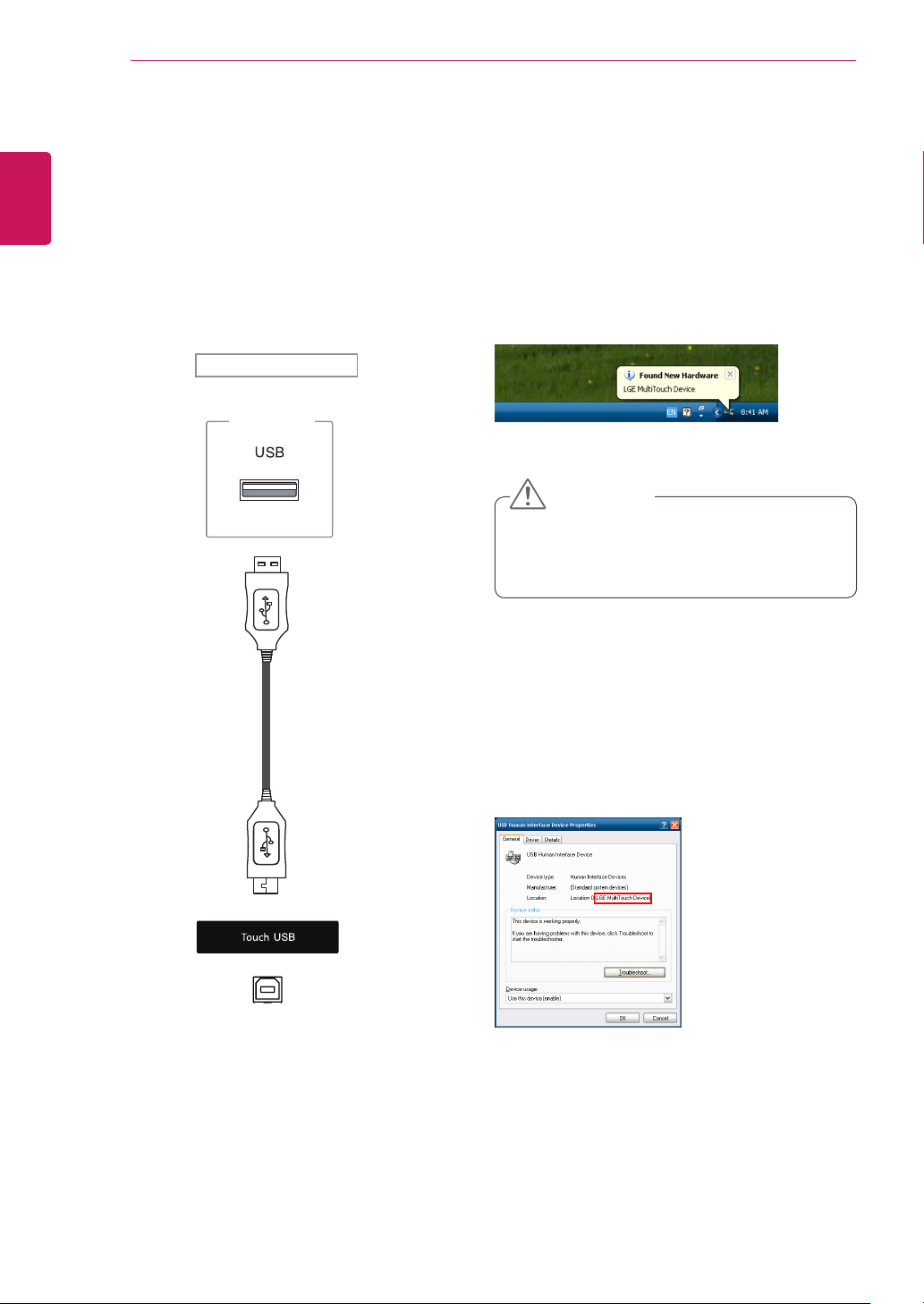

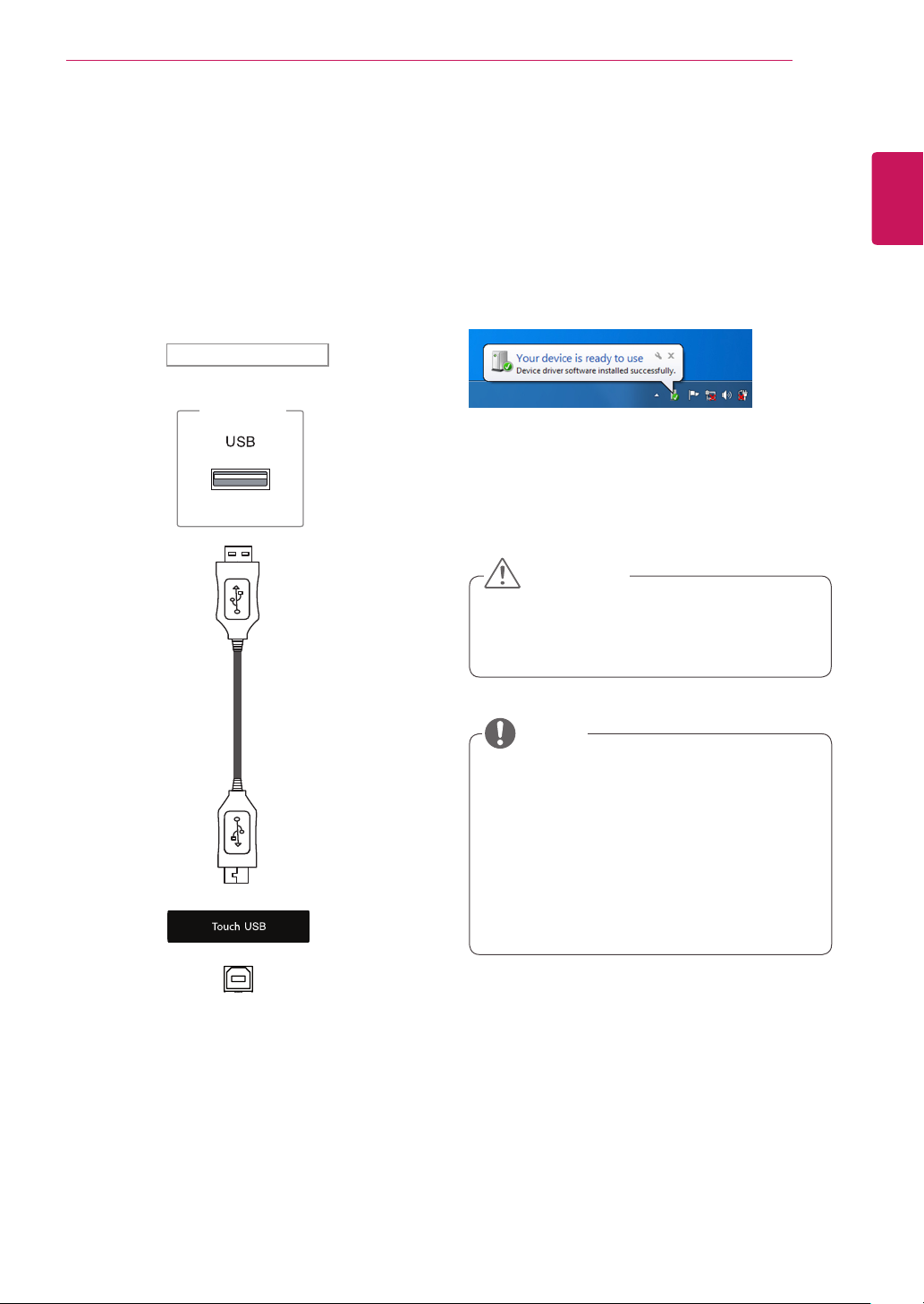

18 - Touch USB Cable Connection

19 Adjusting the Screen

19 - Selecting an Image Mode

19 - Customizing Image Options

20 - Customizing PC Display Options

20 Adjusting the Sound

20 - Selecting an Sound Mode

21 - Customizing Sound Options

21 Using Additional Options

21 - Using the Input List

22 - Adjusting Aspect Ratio

PREPARING

24 ENTERTAINMENT

24 - Using the Network

24 - Connecting to a Wired Network

25 - Network Status

26 - Using the My Media

26 - Connecting USB Storage Device

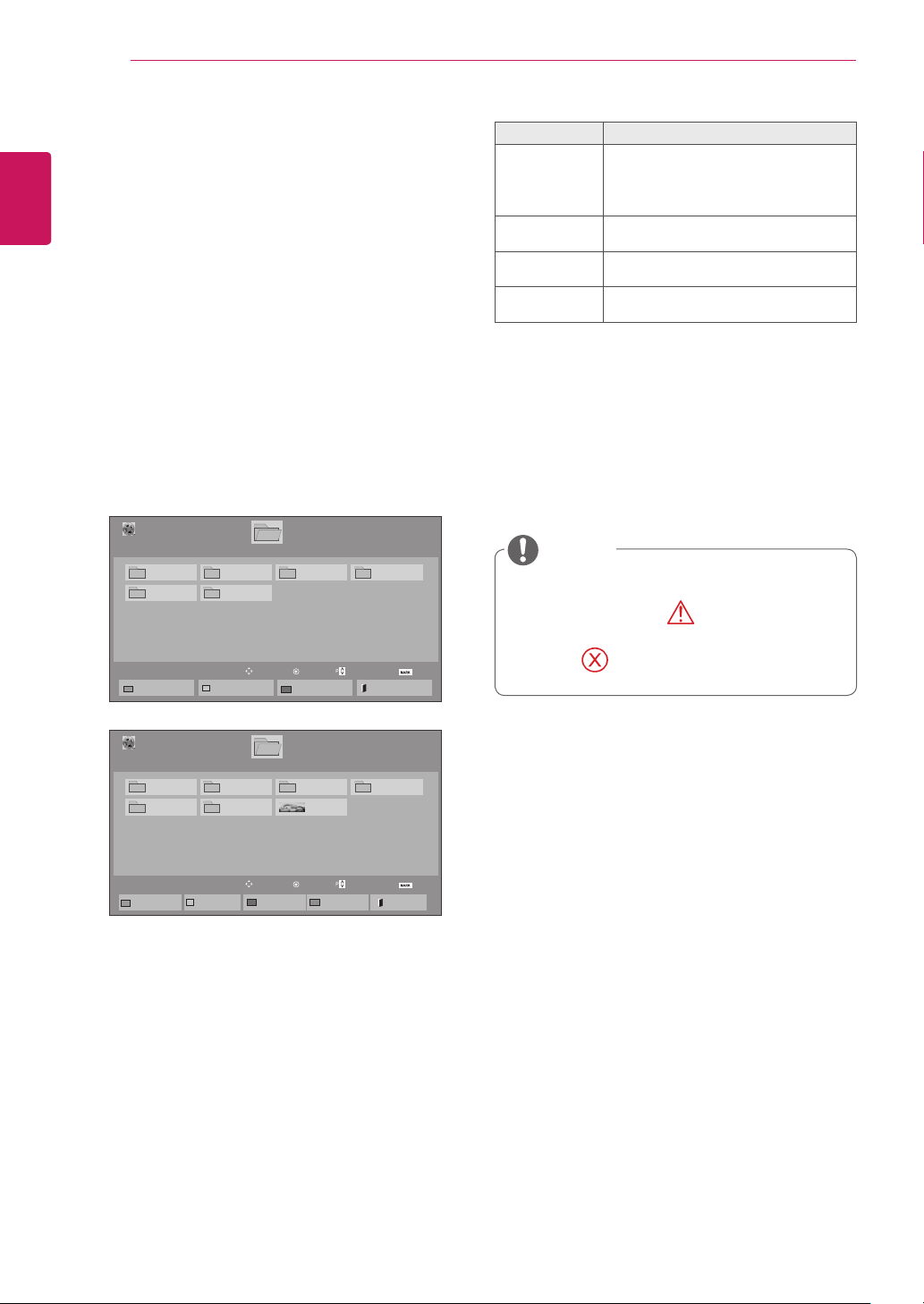

28 - Browsing Files

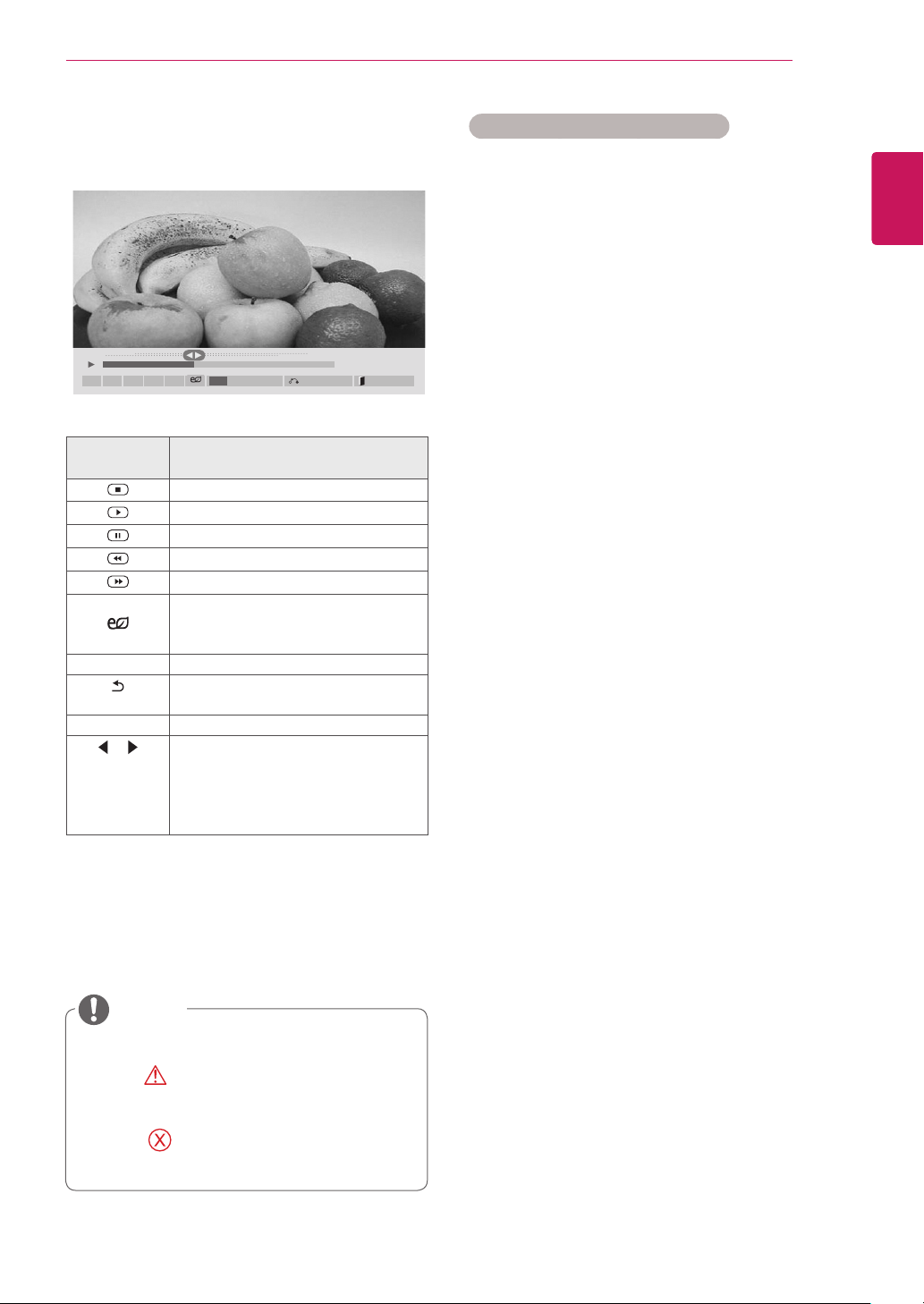

30 - Viewing movies

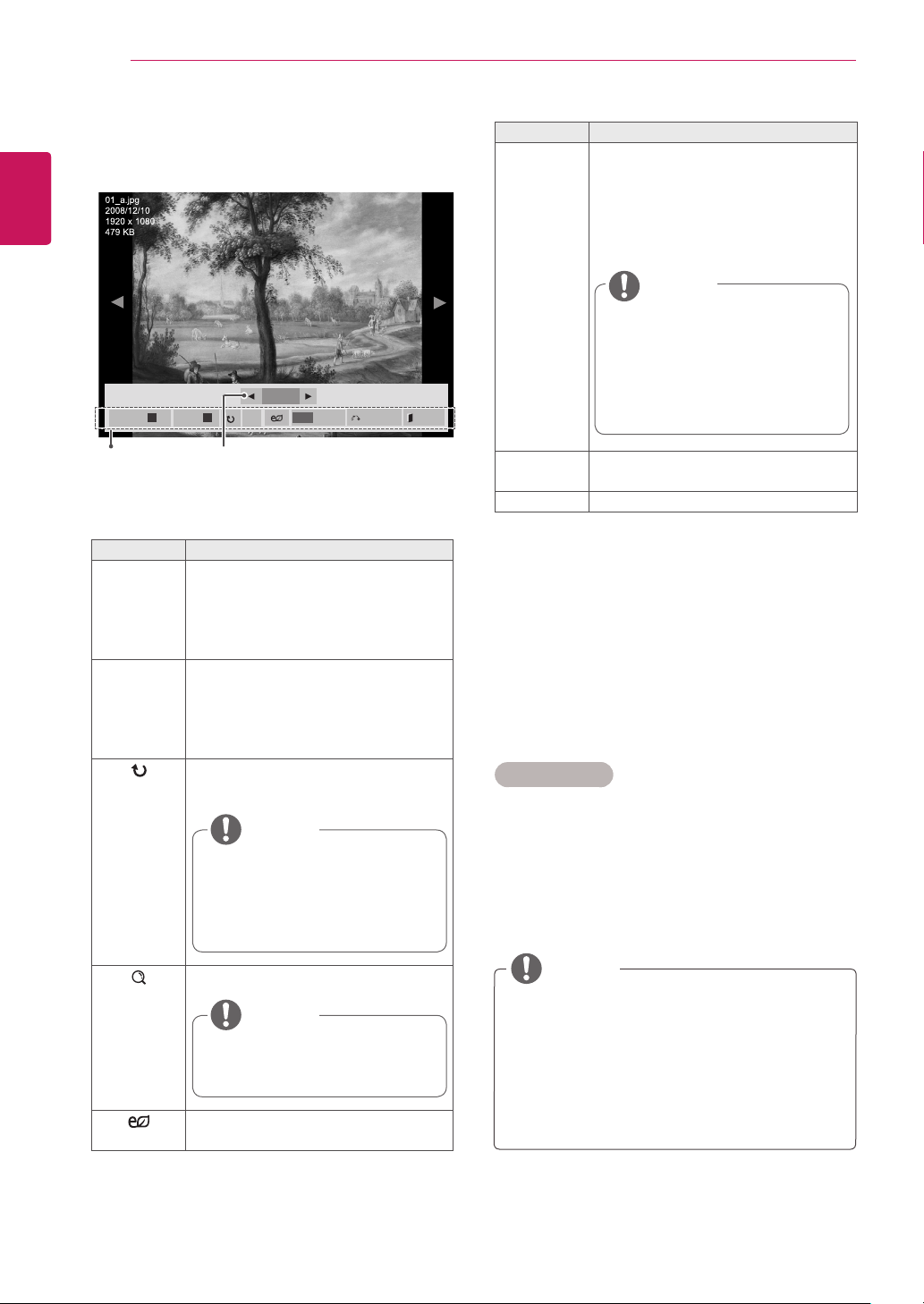

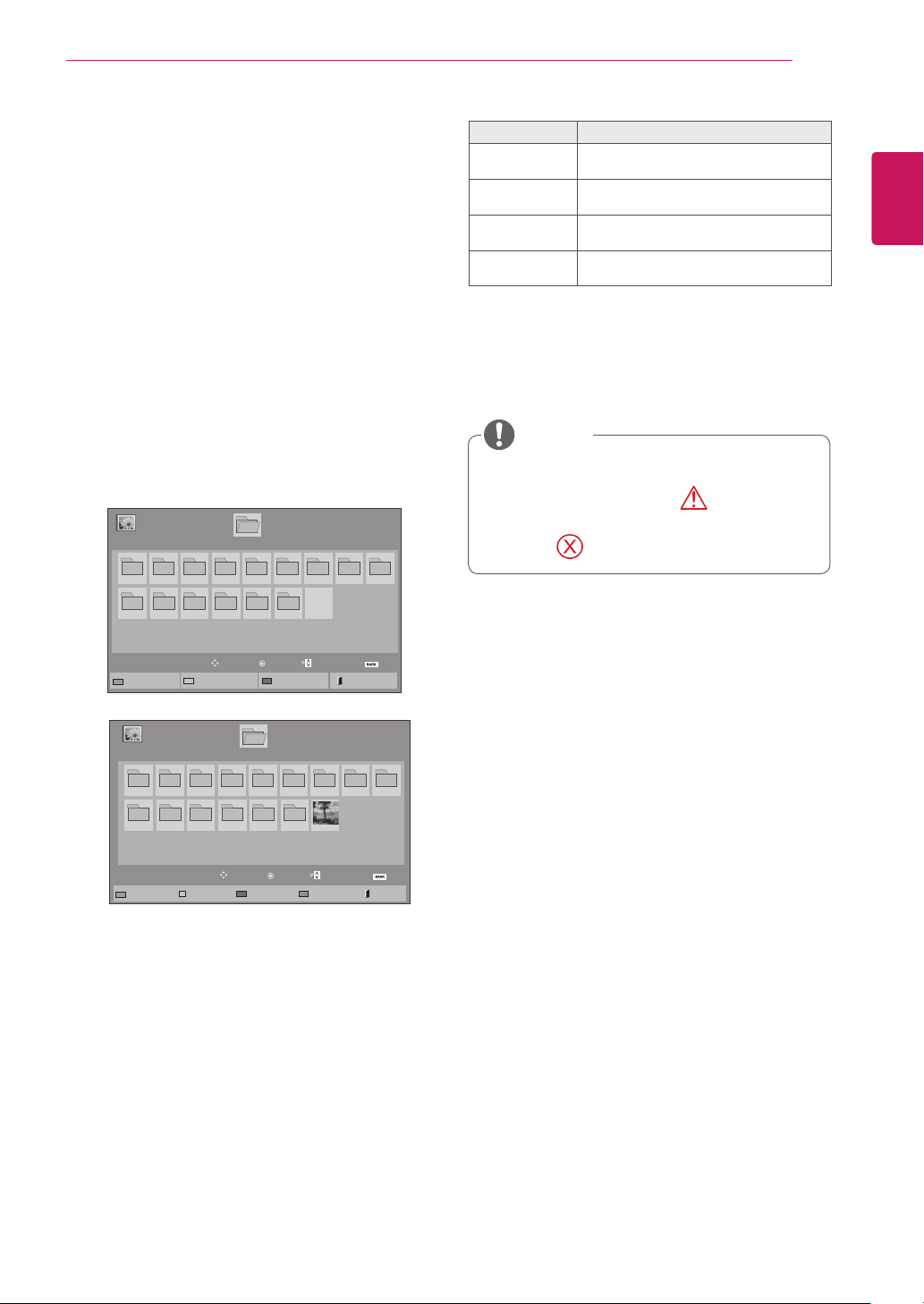

33 - Viewing photos

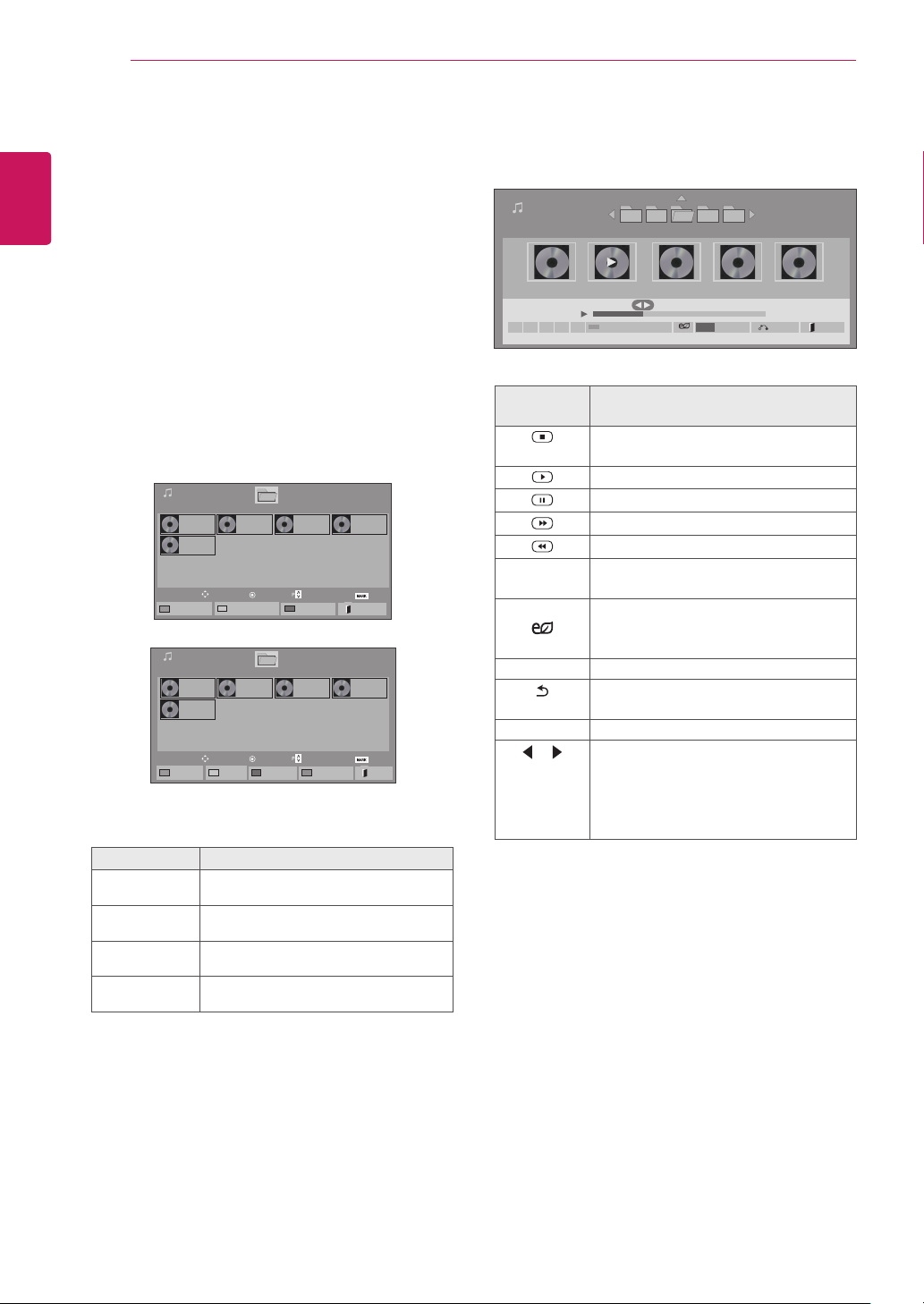

36 - Listening to music

38 - Viewing the Contents List

39 - DivX® VOD Guide

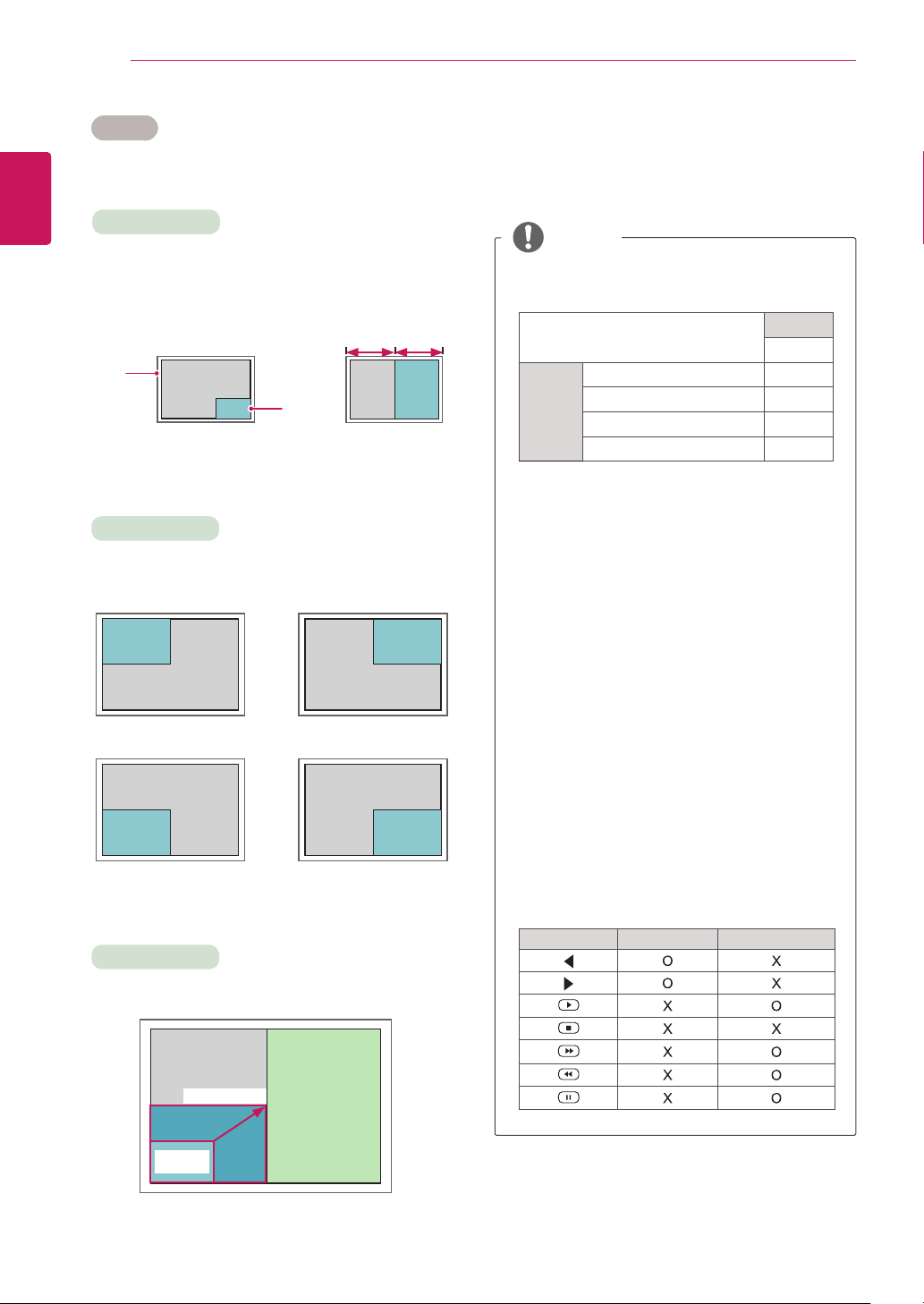

40 - Using PIP/PBP

41 CUSTOMIZING SETTINGS

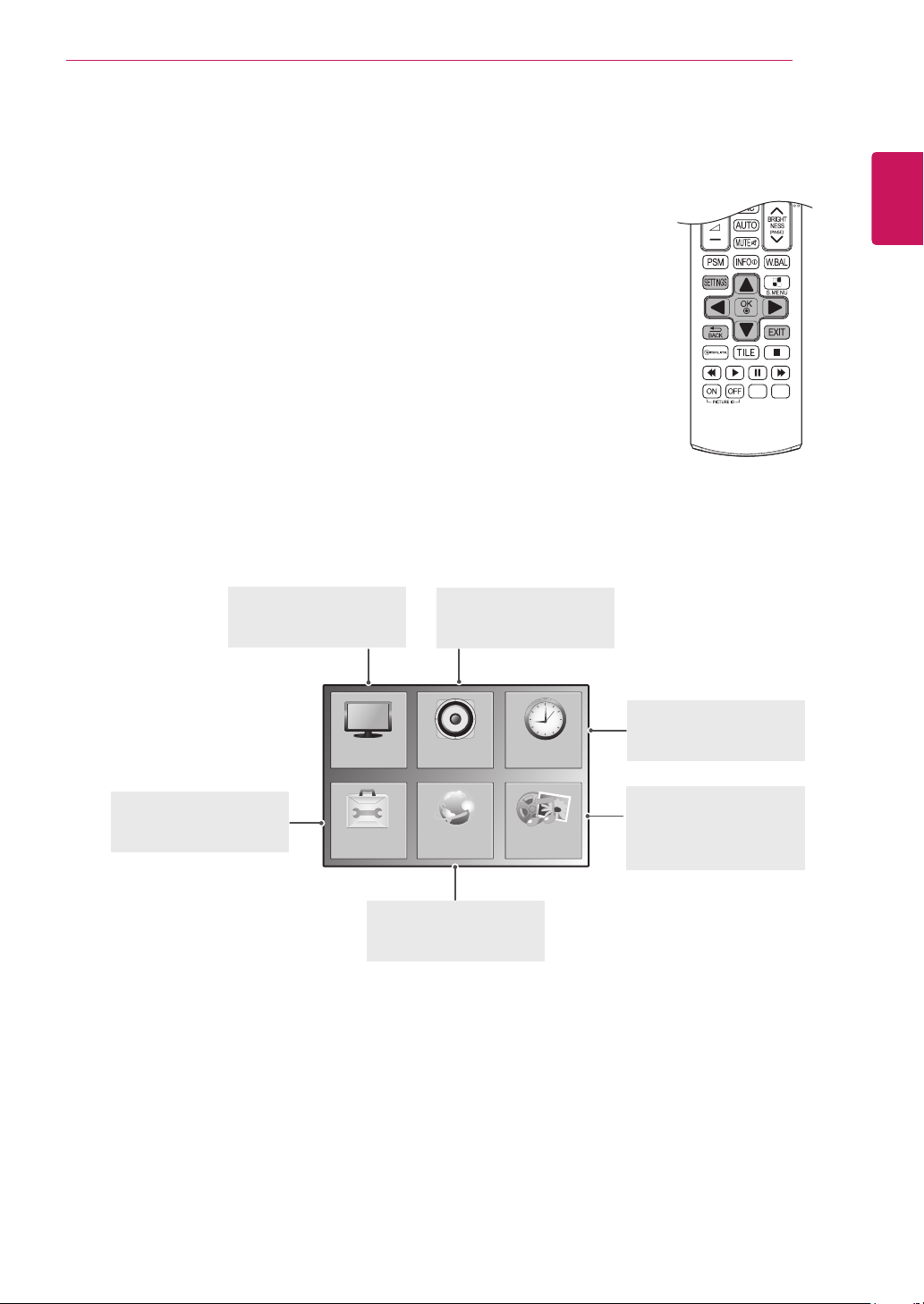

41 Accessing Main Menus

42 - PICTURE Settings

45 - AUDIO Settings

46 - TIME Settings

47 - OPTION Settings

51 - Picture ID Settings

52 - NETWORK Settings

53 MAKING CONNECTIONS

54 External Device Connection

54 - AV (CVBS) Connection

54 - COMPONENT Connection

55 - HDMI Connection

55 - DVI Connection

56 USB Connection

56 LAN Connection

57 USING THE TOUCH SCREEN

57 To Use the Touch Screen on Windows 7

57 Gestures and Settings on Windows 7

58 To Use the Touch Screen on Windows XP

59 Touch Response to Windows XP

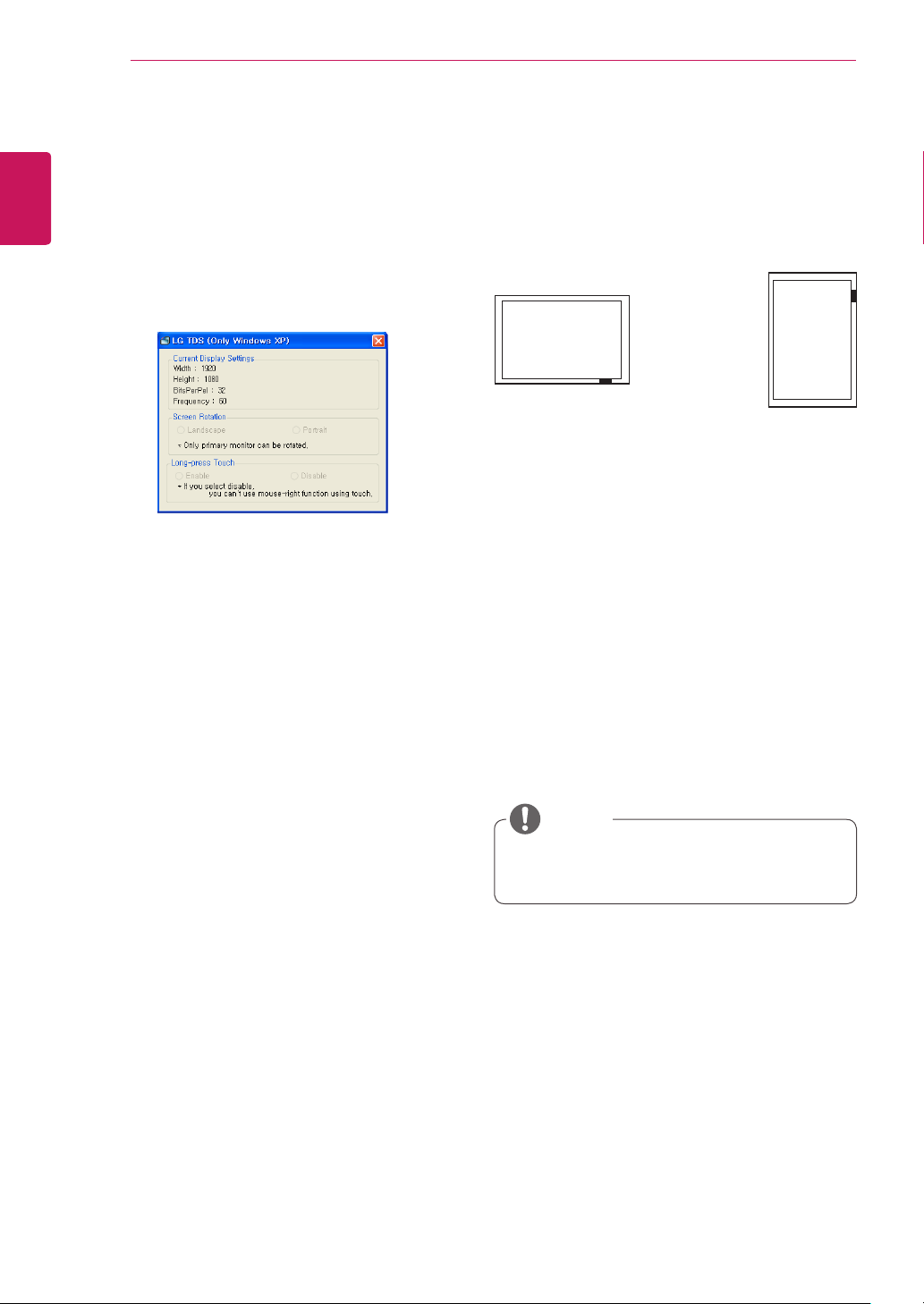

60 How to Use LG TDS

60 LG TDS Detailed Function Settings

61 Precautions When Using the Touch

Screen

62 TROUBLESHOOTING

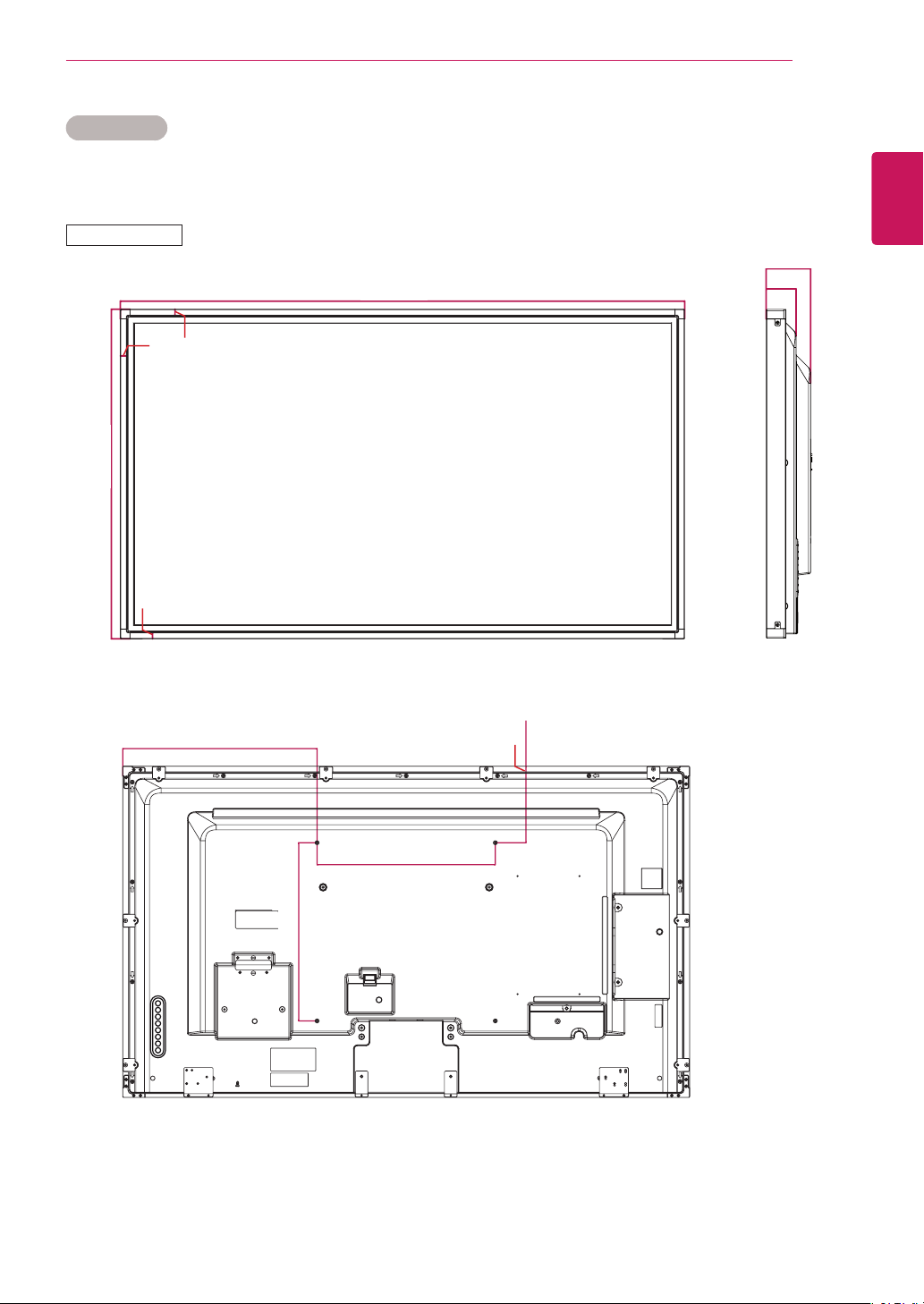

67 SPECIFICATIONS

TABLE OF CONTENTS

ENGLISH

ENG

77 IR CODES

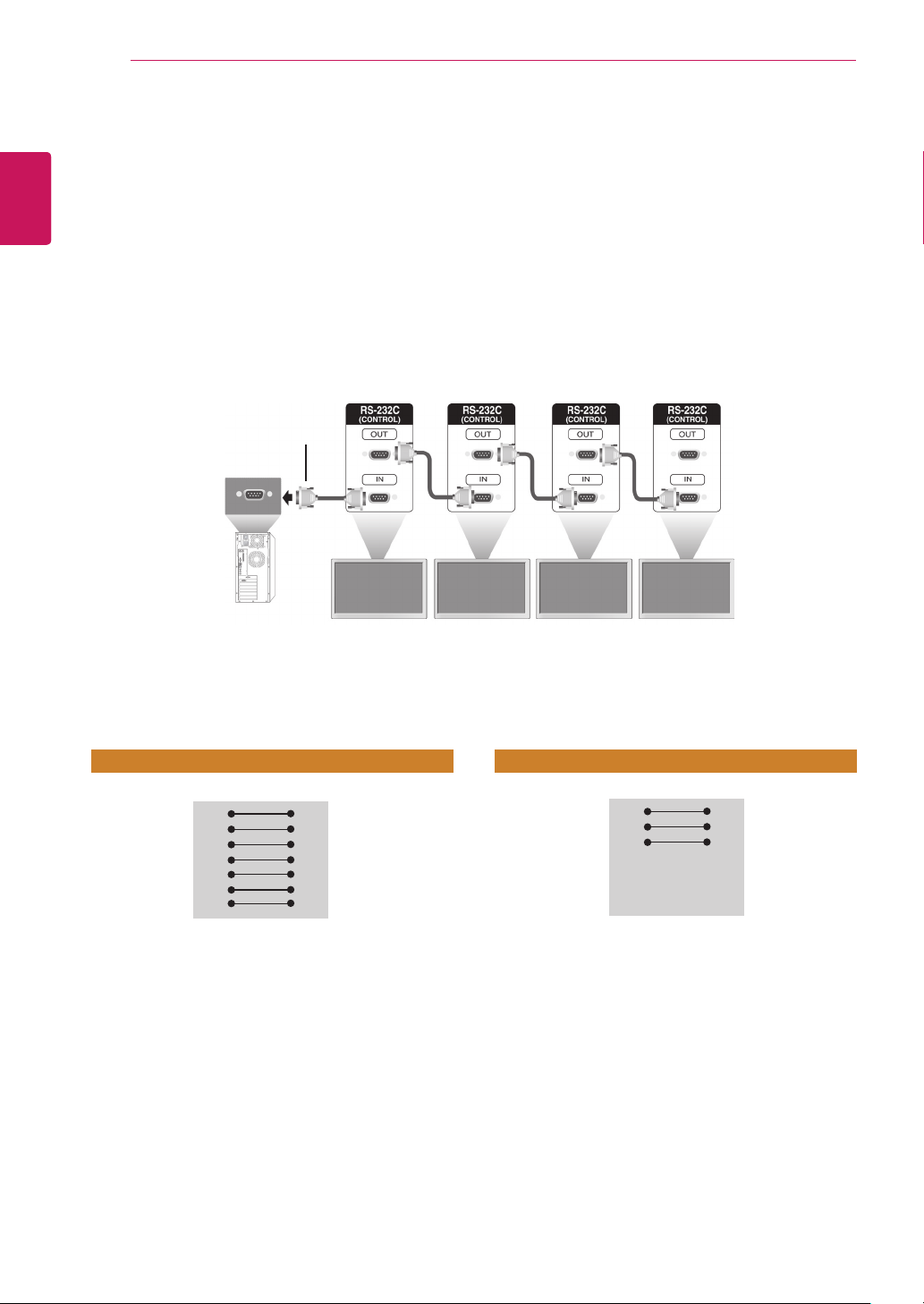

78 CONTROLLING THE MULTIPLE

PRODUCT

78 Connecting the Cable

78 RS-232C Configurations

78 Communication Parameter

79 Command Reference List

81 Transmission / Receiving Protocol

LICENSES

ENGLISH

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

ABOUT DIVX VIDEO: DivX is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. DivX Certified to play DivX video up to HD 1080p, including premium content. DivX , DivX Certified and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

NOTE

The warranty will not cover any damages caused by using the product in an excessively dusty

environment. Avoid using the product in a high temperature and high humidity area. Moving the monitor from a

environment like this to an air conditioned area may cause moisture formation inside the glass. This moisture will be dissipate over time, which may vary depending on the operating environment.

ASSEMBLING AND PREPARING

Accessories

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

Remote Control and

Batteries

Power Cord

IR Receiver Magnetic sheet

D-sub 15-pin Signal Cable

ENGLISH

ENG

CD (Owner's Manual,

SuperSign Program/ Manual)/

Cards

USB Cable

Mounting Cable Tie

CAUTION

Do not use any pirated items to ensure the safety and product life span.

Any damages or injuries by using pirated items are not covered by the warranty.

NOTE

The accessories supplied with your product may vary depending on the model.

Product specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

ASSEMBLING AND PREPARING

ENGLISH

Optional Accessories

ENG

Without prior notice, optional accessories are subject to change to improve the performance of the product, and new accessories may be added. The illustrations in this manual may differ from the actual product and accessories.

Speaker SP-2100

Cable holder/

Cable Tie

Speaker Kit

Screws

Diameter 4.0 mm x

Pitch 1.6 mm x Length

10 mm

NC1000/NC1100 NA1000/NA1100

Media Player

Screws CD(Owner's Manual)/

Cards

Media Player Kit

NOTE

Cable holder/cable tie may not be available in some areas or for some models.

Optional accessories are not included for all models.

ASSEMBLING AND PREPARING

Parts and Buttons

ENGLISH

ENG

No. Description

Moves the selection up and down.

Adjusts the volume level.

Displays the current signal and mode.

Press this button to adjust the screen automatically (available only in RGB mode)

Accesses the main menus, or saves your input and exits the menus.

Changes the input source.

Turns the power on or off.

Connection PanelButtons

ASSEMBLING AND PREPARING

ENGLISH

Connecting the Speaker

ENG

- Only on some models.

Connect the input signal cable to the monitor

before installing the speakers. Use a cable tie to organize the cables.

Remove the 6 screws before assembling the

speakers.

Mount the speaker by using a screw as shown

in the following. Make sure the power cable is disconnected.

Then connect the speaker cable. After installing

your speakers, use holders and cable ties to organize the speaker cables.

ASSEMBLING AND PREPARING

Using the Mounting Cable Tie

First, connect the input signal cable to be used.Insert the cable tie into the bottom hole on the back as shown in the figure to organize cables.

42WT30MS

55WT30MS

ENGLISH

ENG

47WT30MS

ASSEMBLING AND PREPARING

ENGLISH

Using the IR Receiver

ENG

This allows a remote control sensor to be placed in a custom location. The IR receiver is made with a magnet. Attach the magnetic sheet to the desired position on the product. It is recommended to attach it to the location illustrated in the figure below.

Portrait Layout

To install in portrait mode, rotate the set counterclockwise 90 degrees when looking from the front.

NOTE

Do not attach the IR receiver to the surface

of the monitor or within 50 cm of it in any direction.

ASSEMBLING AND PREPARING

Mounting on a Wall

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed installation instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

10 cm

CAUTION

Disconnect the power cord first, and then

move or install the monitor set. Otherwise electric shock may occur. If you install the monitor set on a ceiling or

slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and

contact the local dealer or qualified personnel. Do not over tighten the screws as this may

cause damage to the monitor set and void your warranty. Use the screws and wall mounts that meet

the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty. To prevent injury, this apparatus must be

securely attached to the wall in accordance with the instrallation instructions. (This only pertains to Australia and New Zealand.)

ENGLISH

ENG

If you intend to mount the monitor to a wall, attach a wall mounting interface (optional parts) to the back of the set. When you install the monitor using a wall mounting interface (optional parts), attach it carefully so it will not fall.

Please, use a wall mount and screws in

accordance with VESA Standards.

If you use screws longer than standard, the

monitor might be damaged internally.

If you use improper screws, the product might

be damaged and drop from mounted position. In this case, LG Electronics is not responsible for damage.

Please use VESA standard as below.

785mm (31 inch) or greater

* Fastening screw: Diameter 6.0 mm x Pitch 1.0

mm x Length 10 mm

NOTE

The wall mount kit includes an installation

manual and necessary parts. The wall mount bracket is optional. You can

obtain additional accessories from your local dealer. The length of screws may differ depending

on the wall mount. Be sure to use the proper length. For more information, refer to the instructions

supplied with the wall mount.

ASSEMBLING AND PREPARING

ENGLISH

ENG

(Depending on model)

Securing the product to a wall (optional)

Insert and tighten the eye-bolts, or product

brackets and bolts on the back of the product.

- If there are bolts inserted at the eye-bolts position, remove the bolts first.

WARNING

If a product is not positioned in a sufficiently

stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

»Using cabinets or stands recommended

by the manufacturer of the product.

»Only using furniture that can safely

support the product.

»Ensuring the product is not overhanging

the edge of the supporting furniture.

»Not placing the product on tall furniture

(for example, cupboards or bookcases) without anchoring both the furniture and the product to a suitable support.

»Not standing the product on cloth or other

materials placed between the product and supporting furniture.

»Educating children about the dangers of

climbing on furniture to reach the product or its controls.

Mount the wall brackets with the bolts to the

wall.

Match the location of the wall bracket and the eye-bolts on the rear of the product.

Connect the eye-bolts and wall brackets tightly

with a sturdy rope.

Make sure to keep the rope horizontal with the flat surface.

CAUTION

Make sure that children do not climb on or

hang on the product.

NOTE

Use a platform or cabinet that is strong and

large enough to support the product securely. Brackets, bolts and ropes are optional. You

can obtain additional accessories from your local dealer.

REMOTE CONTROL

The descriptions in this manual are based on the buttons of the remote control. Please read this manual carefully and use the monitor set correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

CAUTION

Do not mix old and new batteries, as this

may damage the remote control. Make sure to point the remote control to the

remote control sensor on the monitor set.

(POWER)

Turns the monitor set on or off.

MONITOR ON

Turn on the monitor.

MONITOR OFF

Turn off the monitor.

ENERGY SAVING( )

Adjusts the brightness of the screen to reduce energy consumption.

INPUT

Selects the input mode.

ENGLISH

ENG

1/a/A Button

Toggles between numerical

and alphabetical.

ARC

Selects the Aspect Ratio

Mode.

Volume Up / Down

Adjusts the volume level.

PSM

Selects the Picture Status

Mode.

MUTE

Mutes all sounds.

This button selection is not applicable.

Number and Alphabet buttons

Enters numerical or alphabetical characters depending on the setting.

CLEAR

Deletes the entered numerical or alphabetical character.

BRIGHTNESS Key

Adjust the brightness by pressing the Up and Down buttons on the remote control. In USB mode, the OSD menu has the Page function to move to the next file list.

ENGLISH

ENG

REMOTE CONTROL

INFO

Views the information of the

currently program and the

screen.

SETTINGS

Accesses the main menus

or saves your input and exit

menus.

Selects menus or options and

confirms your input.

BACK

Allows the user to move back

one step in user interaction

function.

This button selection is not

applicable.

ⓘ

AUTO

Automatically adjusts picture position and minimizes image instability.(RGB input only)

W.BAL Enters the White Balance menu.

S.MENU (SuperSign Menu Key)

This button selection is not applicable.

Navigation buttons

Scrolls through menus or options.

EXIT

Clears all on-screen displays and returns to monitor set viewing from any menu.

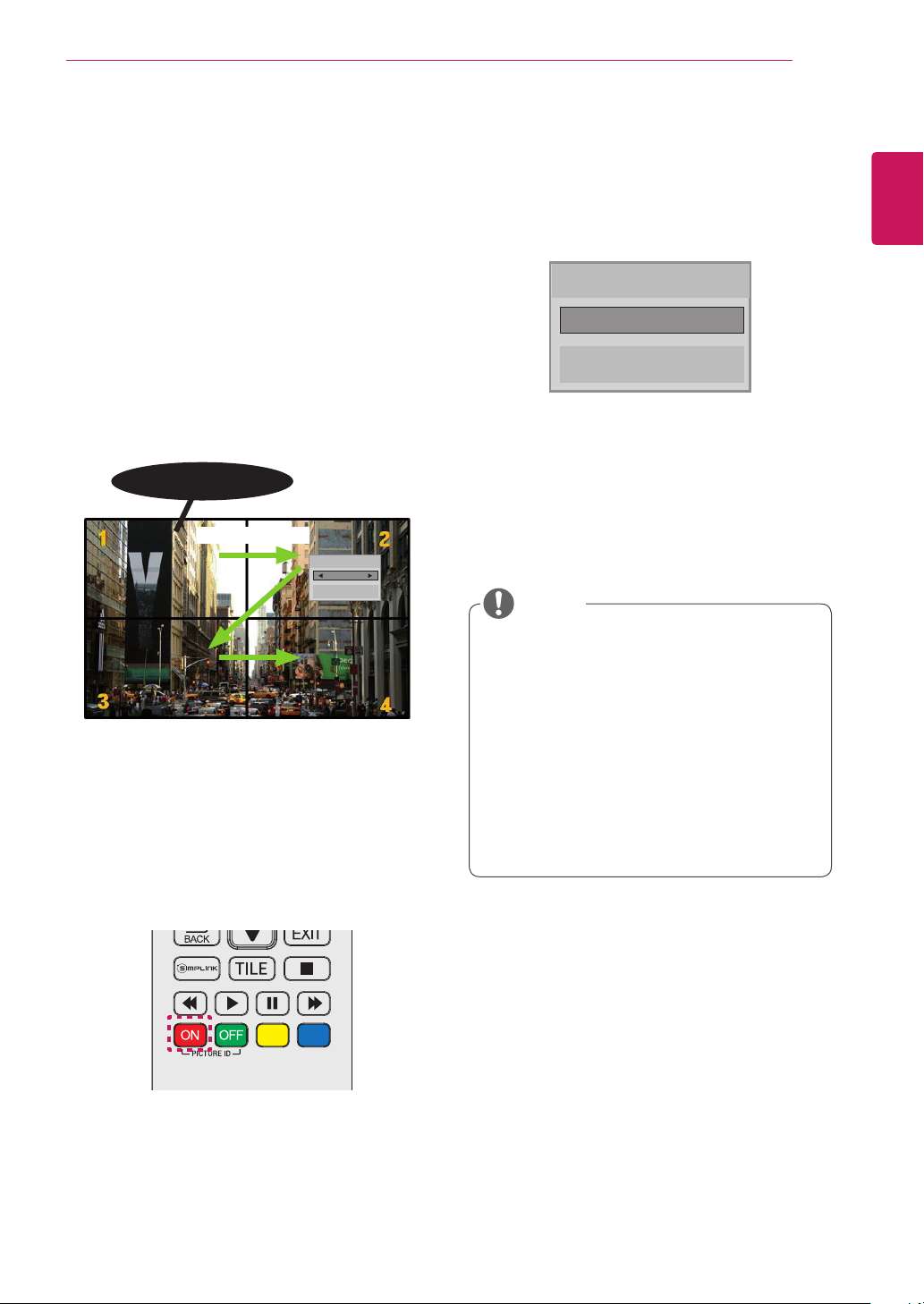

TILE

Selects the TILE Mode.

ID ON/OFF

When the number of Picture

ID is equal to Set ID you can

control the monitor which

you want in the multi display

condition.

USB Menu control buttons

Controls media playback.

USING THE MONITOR

Connecting to a PC

Your monitor supports the Plug & Play* feature.

* Plug & Play: A PC will have a built-in driver for the monitor; no extra software is needed.

NOTE

It is recommended you use an HDMI

connection for the best image quality. Use a shielded signal interface cable, such

as D-sub 15-pin signal cable and DVI/HDMI cable, with a ferrite core to maintain standard compliance for the product. If you turn the monitor set on when the set is

cold, the screen may flicker. This is normal. Some red, green, or blue spots may appear

on the screen. This is normal. If you use a cable longer than the D-sub 15-

pin signal cable provided, certain images may appear blurry.

ENGLISH

ENG

RGB Connection

Transmits an analog video signal from your PC to the monitor. Connect the PC and the monitor with the 15-pin signal cable as shown an following illustration. Select RGB input. To transmit an audio signal, connect an optional audio cable.

Back of the product.

Macintosh Adapter

(not included)

PC/MAC

(not

included)

CAUTION

Connect the signal

input cable and tighten it by turning the screws clockwise.

Do not press the screen with your finger for

a long time as this may result in temporary distortion on the screen. Avoid displaying a fixed image on the screen

for a long period of time to prevent image burn. Use a screensaver if possible.

NOTE

Use the standard

Macintosh adapter since an incompatible adapter is available in the market. (Different signaling system)

Apple computers may require an adapter to

connect to this monitor. Call or visit their web site for more information.

USING THE MONITOR

DVI Connection

ENGLISH

ENG

Transmits an digital video signal from your PC to the monitor. Connect the PC and the monitor with a DVI cable as shown the following illustration. Select DVI input. To transmit an audio signal, connect an optional audio cable.

Back of the product.

HDMI Connection

Transmits the digital video and audio signals from your PC to the monitor. Connect the PC and the monitor with an HDMI cable as shown in the following illustration. Select HDMI input.

Back of the product.

(not included)

NOTE

Use a High Speed HDMI™ Cable.

Please check the PC environment if you

cannot hear audio in HDMI mode. Some PCs require you to manually change the default audio output to HDMI. If you want to use HDMI-PC mode, you must

set the input label to PC mode. When HDMI PC is used, a compatiblity

problem might occur.

USING THE MONITOR

Display Port Connection

Transmits the digital video and audio signals from your PC to the monitor. Connect the PC and the monitor with a Display Port cable as shown in the following illustrations. Select Display Port input source.

Back of the product.

(not included)

IR Receiver Connection

Allows the use of a wired remote or IR receiver extension.

Back of the product.

ENGLISH

ENG

NOTE

Make sure the power cable is disconnected.

Installing the IR receiver on the front or upper

part of the product may cause interference with the TOUCH IR. Install the IR receiver on the back of the product.

Touch USB Cable Connection

ENGLISH

ENG

Plug a USB cable into the Touch USB port on the back of the monitor.

USING THE MONITOR

Back of the product.

USING THE MONITOR

Adjusting the Screen

Selecting an Image Mode

Display images in its optimized settings by selecting one of the preset image modes.

Press SETTINGS to access the main menus.

Press the navigation buttons to scroll to

PICTURE and press OK.

Press the navigation buttons to scroll to

Picture Mode and press OK.

Press the navigation buttons to scroll to an

image mode you want and press OK.

Mode Description

Vivid Adjusts the video image for the retail

environment by enhancing the contrast, brightness, color, and sharpness.

Standard Adjusts the image for the normal

environment.

Cinema Optimizes the video image for a cinematic

look to enjoy movies as if you are in a movie theater.

Sport Optimizes the video image for high and

dynamic actions by emphasizing primary Colors such as white, grass, or sky blue.

Game Optimizes the video image for a fast

gaming screen such as PCs or games.

When you are finished, press EXIT.

When you return to the previous menu, press

BACK.

Customizing Image Options

Customize basic and advanced options of each image mode for the best screen performance.

Press SETTINGS to access the main menus.

Press the navigation buttons to scroll to

PICTURE and press OK.

Press the navigation buttons to scroll to

Picture Mode and press OK.

Press the navigation buttons to scroll to an

image mode you want and press OK.

Select and adjust following options, and then

press OK.

Option Description

Backlight Adjusts the brightness of the screen

by controlling the LCD backlight. If you decrease the brightness level, the screen becomes darker and the power consumption will be reduced without any video signal loss.

Contrast Increases or decreases the gradient

of the video signal. You may use

contrast when the bright part of the

picture is saturated.

Brightness Adjusts the base level of the signal in

the picture. You may use Brightness when the dark part of the picture is saturated.

Sharpness Adjusts the level of crispness in the

edges between the light and dark areas of the picture. The lower the level, the softer the image.

Color Adjusts intensity of all colors.

Tint Adjusts the balance between red and

green levels.

Color Temp. Set to warm to enhance hotter colors

such as red, or set to cool to make picture bluish.

Advanced Control

Picture Reset Restores the options to the default

Customizes the advanced options. Refer to the advanced image options.

setting.

ENGLISH

ENG

When you are finished, press EXIT.

When you return to the previous menu, press

BACK.

USING THE MONITOR

Customizing PC Display Options

ENGLISH

ENG

Customize options of each image mode for the best image quality.

This function works in the following mode:

RGB [PC] mode.

Press SETTINGS to access the main menus.

Press the navigation buttons to scroll to

PICTURE and press OK.

Press the navigation buttons to scroll to Screen

and press OK.

Select and adjust following options, and then

press OK.

Option Description

Resolution Selects a proper resolution.

Auto Config.

Position/ Size/Phase

Reset Restores the options to the default

Sets to adjust the screen position, clock, and phase automatically. The displayed image may be unstable for a few seconds while the configuration is in progress.

Adjusts the options when the picture is not clear, especially when characters are shaky, after the auto configuration.

setting.

Adjusting the Sound

Selecting an Sound Mode

Play the sound in its optimized settings by selecting one of the preset sound modes.

Press SETTINGS to access the main menus.

Press the navigation buttons to scroll to AUDIO

and press OK.

Press the navigation buttons to scroll to Sound

Mode and press OK.

Press the navigation buttons to scroll to a

sound mode you want and press OK.

Mode Description

Standard Select when you want standard-quality

sound.

Music Select when you listen to music.

Cinema Select when you watch movies.

Sports Select when you watch sports events.

Game Select when you watch sports events.

When you are finished, press EXIT.

When you return to the previous menu, press BACK.

When you are finished, press EXIT.

When you return to the previous menu, press

BACK.

USING THE MONITOR

Customizing Sound Options

Customize options of each sound mode for the best sound quality.

Press SETTINGS to access the main menus.

Press the navigation buttons to scroll to AUDIO

and press OK.

Press the navigation buttons to scroll to Sound

Mode and press OK.

Press the navigation buttons to scroll to a

sound mode you want and press OK.

Select and adjust following options, and then

press OK.

Option Description

Infinite Sound

Treble Controls the dominant sounds in the

Bass Makes the output sound softer. If the

Reset Resets the sound mode to the default

LG's Infinity Sound option provides

5.1 channel stereo sound from two speakers.

output. When you turn up the treble, it will increase the output to the lower frequency range.

bass is increased, the frequency of the output also increases.

setting.

Using Additional Options

Using the Input List

Press INPUT to access the Input List.

Press the navigation buttons to scroll to one of

the input mode and press OK.

Input mode Description

AV Watch video from a VCR or other

external devices.

Component Watch the contents in a DVD or

other extemal devices, or through a digital set-top box

RGB View a PC display on the screen

HDMI Watch contents in a PC, DVD

of digital set-top box other high definition devices

DVI-D Watch contents in a PC, DVD

of digital set-top box other high definition devices

Display Port Watch contents in a PC, DVD

of digital set-top box other high definition devices

USB Plays the multimedia file saved in

the USB.

ENGLISH

ENG

When you are finished, press EXIT.

When you return to the previous menu, press

BACK.

Adjusting Aspect Ratio

ENGLISH

ENG

Resize the image to view the image at its optimal size by pressing ARC while you are watching monitor set.

USING THE MONITOR

CAUTION

If a fixed image displays on the screen for a long period of time, it will be imprinted and become

a permanent disfigurement on the screen. This is image burn or burn-in and not covered by the warranty. To prevent image sticking, do not play a still image for more than two hours.

If the aspect ratio is set to 4:3 for a long period of time, image burn may occur on the letterboxed area

of the screen. Recommended operation time for optimum performance and reliability is 12 hours or less per day.

When using the touch screen monitor, it is recommended to set the screen aspect ratio to Just Scan.

NOTE

You can also change the image size by accessing the main menus.

The Just Scan mode operates when a video signal has resolution of 720p or higher.

Aspect Ratio

16:9

Just Scan

1:1

4:3

Zoom

Cinema Zoom

MODE

AV Component RGB DVI HDMI Display Port

PC DTV PC DTV PC DTV PC

o o o o o o o o o

x o x o x o x o x

x x o x o x o x o

o o o o o o o o o

o o x o x o x o x

USING THE MONITOR

- 16:9 : This selection will allow you to adjust the

picture horizontally, in linear proportion, to fill the entire screen (useful for viewing 4:3 formatted DVDs).

- Just Scan : This Selection will allow you view

the picture of best quality without loss of original picture in high resolution image. Note: If there is noise in original Picture, You can see the noise at the edge.

- 4:3 : This selection will allow you to view a

picture with an original 4:3 aspect ratio, black bars will appear on both the left and right of the screen.

- Zoom : This selection will allow you to view the

picture without any alteration, while filling the entire screen. However, the top and bottom of the picture will be cropped.

ENGLISH

ENG

Just Scan

- 1:1 : The aspect ratio is not adjusted from the

original. (Only Display Port PC, HDMI PC, DVI PC, RGB PC)

- Cinema Zoom : Choose Cinema Zoom when

you want to enlarge the picture in correct proportion. Note: When enlarging or reducing the picture, the image may become distorted.

ENTERTAINMENT

ENGLISH

ENTERTAINMENT

ENG

Using the Network

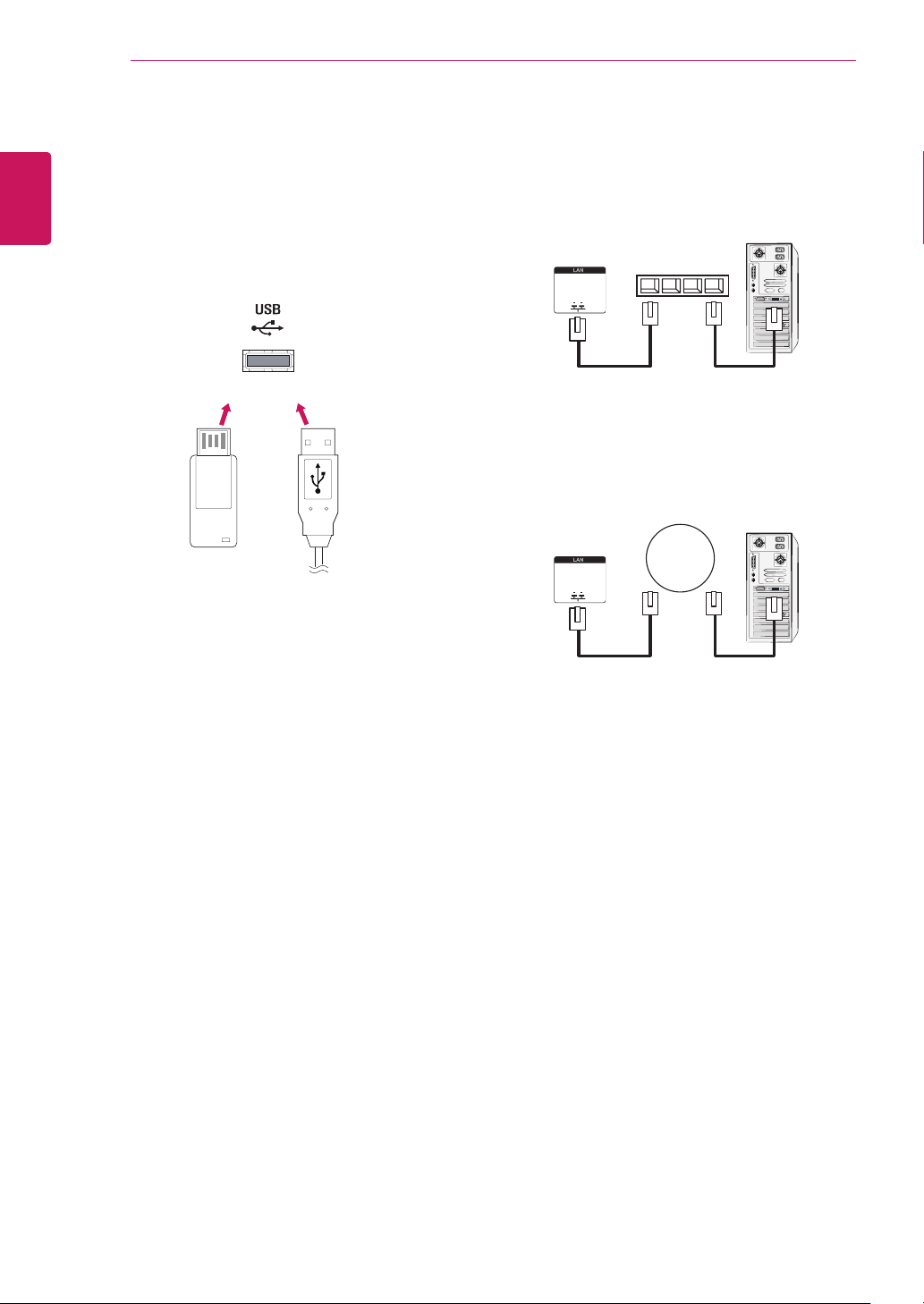

Connecting to a Wired Network

Connect the display to a local area network (LAN) via the LAN port as shown in the following illustration and set up the network settings. Only supports wired network connection. After making a physical connection, a small number of home networks may require the display network settings to be adjusted. For most home networks, the display will connect to automatically without any adjustments. For detail information, contact your internet provider or router manual.

Router

LAN

LAN WAN

To set up the network settings: (Even if your display has already connected automatically, running setup again will not harm anything),

1 Press SETTINGS to access the main menus.

2 Press the navigation buttons to scroll to

NETWORK and press OK.

3 Press the navigation buttons to select Network

Setting and press OK.

4 If you already set network setting, select

Resetting. The new connection settings resets

the current network settings.

5 Select IP Auto Setting or IP Manual Setting.

- If selecting IP Manual Setting, press the

navigation and Number buttons. IP addresses will need to be input manually.

- IP Auto Setting: Select this if there is a

DHCP server (Router) on the local area network (LAN) via wired connection, the display will automatically be allocated an IP address. If you’re using a broadband router or broadband modem that has a DHCP (Dynamic Host Configuration Protocol) server function. The IP address will automatically be determined.

Internet

Cable modem

ETHERNET

CAUTION

y Do not connect a modular phone cable to the

LAN port.

y Since there are various connection meth-

ods, please follow the specifications of your telecommunication carrier or internet service provider.

6 When you are finished, press EXIT.

CAUTION

y Network setting menu will not be avail-

able until the display connected to physical network.

y Since there are various connection meth-

ods, please follow the specifications of your telecommunication carrier or internet service provider.

ENTERTAINMENT

NOTE

y If you want to access the Internet directly on

your display, the Internet connection should be always on.

y If you cannot access the Internet, check

the network conditions from a PC on your network.

y When you use Network Setting, check the

LAN cable or check if DHCP in the router is turned on.

y If you do not complete the network settings,

the network may not work properly.

Tips for Network setting

y Use a standard LAN cable with this display.

Cat5 or better with a RJ45 connector.

y Many network connection problems during set

up can often be fixed by re-setting the router or modem. After connecting the display to the home network, quickly power off and/or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again.

y Depending on the internet service provider

(ISP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP.

y LG is not responsible for any malfunction of the

display and/or the internet connection feature due to communication errors/malfunctions associated with your internet connection, or other connected equipment.

y LG is not responsible for problems within your

internet connection.

y You may experience undesired results if the

network connection speed does not meet the requirements of the content being accessed.

y Some Internet connection operations may not

be possible due to certain restrictions set by the Internet service provider (ISP) supplying your Internet connection.

y Any fees charged by an ISP including, without

limitation, connection charges are your responsibility.

y A 10 Base-T or 100 Base-TX LAN port is

required when using a wired connection to this display. If your Internet service does not allow for such a connection, you will not be able to connect the display.

y A DSL modem is required to use DSL service

and a cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP, you may not be able to use the internet connection feature contained in this display or you may be limited to the number of devices you can connect at the same time. (If your ISP limits sub scription to one device, this display may not be allowed to connect when a PC is already connected.)

y The use of a router may not be allowed or its

usage may be limited depending on the policies and restrictions of your ISP. For details, contact your ISP directly.

Network Status

1 Press SETTINGS to access the main menus.

2 Press the navigation buttons to scroll to

NETWORK and press OK.

3 Press the navigation buttons to select Network

Status.

4 Press OK to check the network status.

5 When you are finished, press EXIT.

Option Description

Setting Return to the network setting menu.

Test

Close Return to the previous menu.

Test the current network status after setting the network.

ENGLISH

ENG

ENTERTAINMENT

ENGLISH

Using the My Media

ENG

Connecting USB Storage Device

Connect an external hard drive to the monitor to use multimedia features.

Tips for using USB storage devices

y Only a USB storage device is recognizable. y If the USB storage device is connected

through a USB hub, the device is not recognizable.

y A USB storage device using an automatic

recognition program may not be recognized.

y A USB storage device which uses its own

driver will not be recognized.

y The recognition speed of a USB storage

device may depend on each device.

y Please do not turn off the display or unplug

the USB device when the connected USB storage device is working. When such a device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged.

y Please do not connect the USB storage

device which was artificially maneuvered on the PC. The device may cause the product to malfunction. Only use a USB storage device which has normal music files, image files or movie files.

y Please use only a USB storage device which

was formatted as a FAT32 file system or NTFS file system by with the Windows operating system. In case of a storage device formatted with a different utility programme which is not supported by Windows, it may not be recognized.

y Please connect power to a USB storage de-

vice (over 0.5 A) which requires an external power supply. If not, the device may not be recognized.

y Please connect a USB storage device with

the cable included by the device maker.

y Some USB storage devices may not be sup-

ported or operate smoothly.

y File alignment method of USB storage devic-

es is similar to Window XP and the monitor can recognize up to 100 English characters.

y Be sure to back up important files since data

stored on a USB memory device may be damaged. We will not be responsible for any data loss.

y If the USB HDD does not have an external

power source, the USB device may not be detected. So be sure to connect the external power source.

- Please use a power adaptor for an external power source.

y If your USB memory device has multiple

partitions, or if you use a USB multi-card reader, you can use up to 4 partitions or USB memory devices.

y If a USB memory device is connected to a

USB multi-card reader, its volume data may not be detected.

y If the USB memory device does not work

properly, disconnect and reconnect it.

y How fast a USB memory device is detected

differs from device to device.

y If the USB is connected in Standby Mode,

that drive will automatically be loaded when the display is turned on.

y The recommended capacity is 1 TB or less

for a USB external hard disk and 32 GB or less for USB memory.

y Any device with more than the recommend-

ed capacity may not work properly.

y If a USB external hard disk with a Energy

Saving function does not work, turn the hard disk off and on again to make it work properly.

y USB storage devices below USB 2.0 are

supported as well. But they may not work properly with videos.

y A maximum of 999 folders or files can be

recognized under one folder.

y It is recommended you use a certified USB

storage device and cable. Otherwise, a USB storage device may not be detected or a playback error may occur.

y Only a USB memory device can be used

to play back the files distributed and stored by SuperSign Manager. A USB hard disk or multi-card reader will not work.

y Only an FAT 32 file formatted storage device

can play back the files distributed and stored by SuperSign manager.

y A USB 3.0 storage device may not work.

ENTERTAINMENT

ENGLISH

ENG

ENTERTAINMENT

ENGLISH

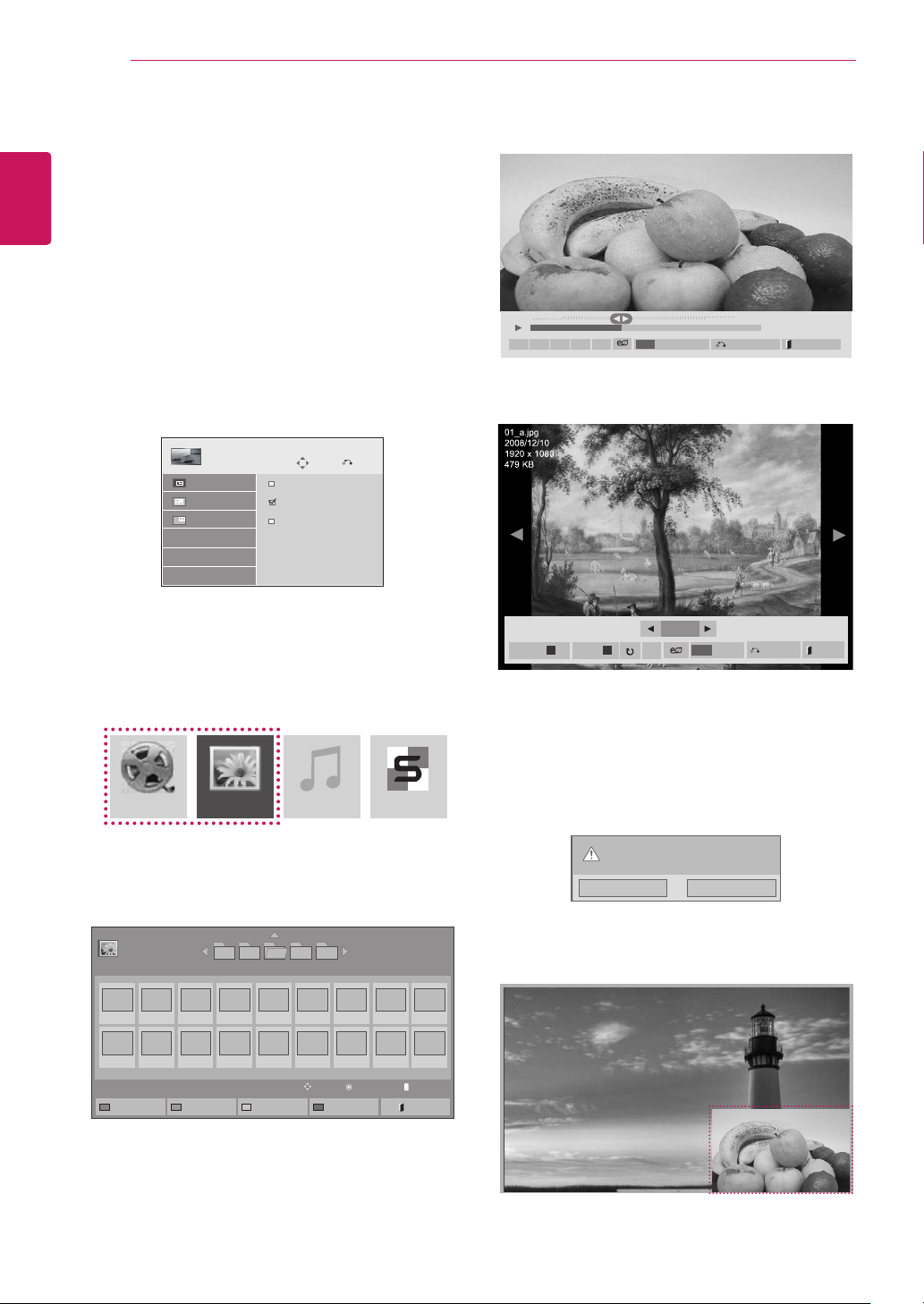

Browsing Files

ENG

Browse for a file saved on a USB storage.

Press SETTINGS to access the main menu.

Press the search button to scroll to MY MEDIA

and press OK.

Press the Search button to go to the Movie

List, Photo List, Music List, or Content List that you want, and press OK.

Movie List Photo List Music List

Contents List

Photo List

USB

001

002

009

010

Change device To Photo List

003

011

Drive1

004

012

Change Numbers

005

013

No. Description

Upper level folder

Current page/Total pages

Contents under the folder focused on

Current page/Total pages of contents under

the folder focused on

Remote button

Remote

button

Green button

Press the green button to toggle between

Photo List -> Music List, Music List ->

Description

Contents List, Contents List -> Movie List or Movie List -> Photo List.

Yellow button

Blue

A method to view in 5 large thumbnail or simple list.

Convert to Mark Mode.

button

Page 1/1

006

014

View

Move

Mark Mode Exit

3 4

007

015

PAGE Page Change

Page 1/1

008

016

ENTERTAINMENT

Supported file format

Type Supported file format

Movie DAT,MPG,MPEG,VOB,AVI,DIVX,MP4,MKV,TS,T

Photo JPEG

Music MP3

RP,TP,ASF,WMV,FLV)

Movie(*.mpg/*.mpeg/*dat/*.ts/*.trp/*.tp/*.vob/*.

mp4/*.mov/*.mkv/*.divx/*.avi/*.asf/*.wmv/*.flv/*. avi(motion-jpeg)/*.

mp4(motion-jpeg)/*.mkv(motion-jpeg))supporting file

Video format : DivX3.11, DivX4, DivX5.x, DivX6,

Xvid1.00, Xvid1.01, Xvid1.02, Xvid1.03, Xvid1.10 beta-1/beta-2,

Mpeg-1, Mpeg-2, Mpeg-4, H.264/AVC, VC1, JPEG, Sorenson H.263

Audio format : Dolby Digital, AAC, Mpeg, MP3,

LPCM, HE-AAC, ADPCM, WMA

Bit rate : within 32 kbps to 320 kbps(MP3)

External Subtitle format : *.smi/*.srt/*.sub

(MicroDVD,Subviewer1.0/2.0)/*.ass/*.ssa/*. txt(TMPlayer)/*.psb(PowerDivX)

Internal Subtitle format : only, XSUB (It is the

subtitle format used in DivX6 files)

Baseline : 64 x 64 to 15360 x 8640 Progressive : 64 x 64 to 1920 x 1440

y You can play JPEG files only. y Non-supported files are displayed in the form

of predefined icon.

File Extensions

jpeg jpg jpe

Bit rate 32 to 320

y Sampling rate MPEG1 Layer3 : 32 kHz, 44.1

kHz, 48 kHz

y Sampling rate MPEG2 Layer3 : 16 kHz, 22.05

kHz, 24 kHz

y Sampling rate MPEG2.5 Layer3 : 8 kHz,

11.025 kHz, 12 kHz

Item Profile

supported file format

photo size yMin: 64 x 64

ySOF0:

baseline

ySOF1:

Extend Sequential

ySOF2:

Progressive

yMax-Normal

Type:

y15360 (W) x

8640 (H)

yProgressive

Type:

y1920 (W) x

1440 (H)

Type Supported file format

Content

(when using SuperSign Manager)

File Extensions : *.cts/ *.cse

Movie

File Extensions: *.mpg/*.mpeg/*.dat/*.ts/*.

trp/*.tp/*.vob/*.mp4/*.mov/*.mkv/*.avi/*.asf/*. wmv/*.avi(motion JPEG)/*.mp4(motion JPEG)/*. mkv(motion JPEG)

Video format: MPEG1, MPEG2, MPEG4,H.264/ AVC, DivX 3.11, DivX 4.12, DivX 5.x, DivX 6, Xvid 1.00,Xvid 1.01, Xvid 1.02, Xvid 1.03,Xvid

1.10-beta1/2, JPEG, VC1(WVC1/WMV3)

Audio format: MP2,MP3,Dolby Digital, LPCM, AAC, HE-AAC,LPCM, ADPCM, WMA, MP3

File Extensions

Photo JPEG

JPG

PNG

BMP

Music MP3 Bit rate 32 kbps to 320

Item Profile

supported file format

Photo size yMin: 64 x 64

Sampling rate

ENGLISH

ENG

ySOF0:

baseline

ySOF1:

Extend Sequential

ySOF2:

Progressive

yMax Type:

1366 x 768

kbps 32 kHz, 44.1

kHz, 48 kHz (MPEG1 L3)

16 kHz, 22.05 kHz, 24 kHz (MPEG2 L3)

8kHz, 11.025 kHz, 12 kHz (MPEG2.5 L3)

+ 66 hidden pages
