LG 42PX7DCV, 42PX7DC-UA User Manual
PLASMA TV
OWNER’S MANUAL
Please read this manual carefully and completely before
operating your TV.
Retain this manual for future reference.
Record model number and serial number of the TV in the
spaces provided below.
See the label attached on the back cover and relate this
information to your dealer if you require service.
Model Number :
Serial Number :
MODEL:
42PX7DC
42PX7DCV
LG Electronics U.S.A., Inc.
2 Plasma TV
WARNING/CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING/CAUTION:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
FCC NOTICE
• A Class B digital device
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
• Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product.
COMPLIANCE:
The responsible party for this product’s compliance is:
LG Electronics U.S.A., Inc
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
1-800-243-0000
http://www.lgcommercial.com
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
/CAUTION
WARNING/CAUTION
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
W
W
arning/Caution
arning/Caution
Owner’s Manual 3
IMPORTANT SAFETY INSTRUCTIONS
Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet or
sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the apparatus. This information shall be given in a language acceptable to the country where the apparatus is intended to be used. The
important safety instructions shall be entitled “Important Safety Instructions”. The following safety instructions shall be included where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by adding
statements after the end of the following safety instruction list. At the manufacturer’s option, a picture or drawing that illustrates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction :
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli-
fiers)that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Safety Instructions
Safety Instructions
PORTABLE CART WARNING
4 Plasma TV
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has exposed to rain or moisture, does not operate normally, or has been dropped.
15. CAUTION concerning the Power Cord :
Most appliances recommend they be placed upon a dedicated circuit; that
is, a single outlet circuit which powers only that appliance and has no
additional outlets or branch circuits. Check the specification page of
this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or damaged or
cracked wire insulation are dangerous. Any of these conditions could
result in electric shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage or deterioration,
unplug it, discontinue use of the appliance, and have the cord replaced
with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being
twisted, kinked, pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and the point where the
cord exits the appliance.
16. Outdoor Use Marking :
WARNING - To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Appliance To Rain Or Moisture.
17. Wet Location Marking :
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall
be placed on the apparatus.
Safety Instructions
Safety Instructions
Owner’s Manual 5
After reading this manual, keep it handy for future reference.
Warning/Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3~4
Introduction
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Connection Options . . . . . . . . . . . . . . . . . . . . . .8
Remote Control Key Functions . . . . . . . . . . . 9~10
Installation
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Installation Instructions
Joining the TV assembly to the wall to protect the set
tumbling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Desktop Pedestal Installation . . . . . . . . . . . . . . . .12
External Equipment Connections
Antenna Connection . . . . . . . . . . . . . . . . . . . . .13
VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . .14
External A/V Source Setup . . . . . . . . . . . . . . . .14
DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HDSTB Setup . . . . . . . . . . . . . . . . . . . . . . . . .16

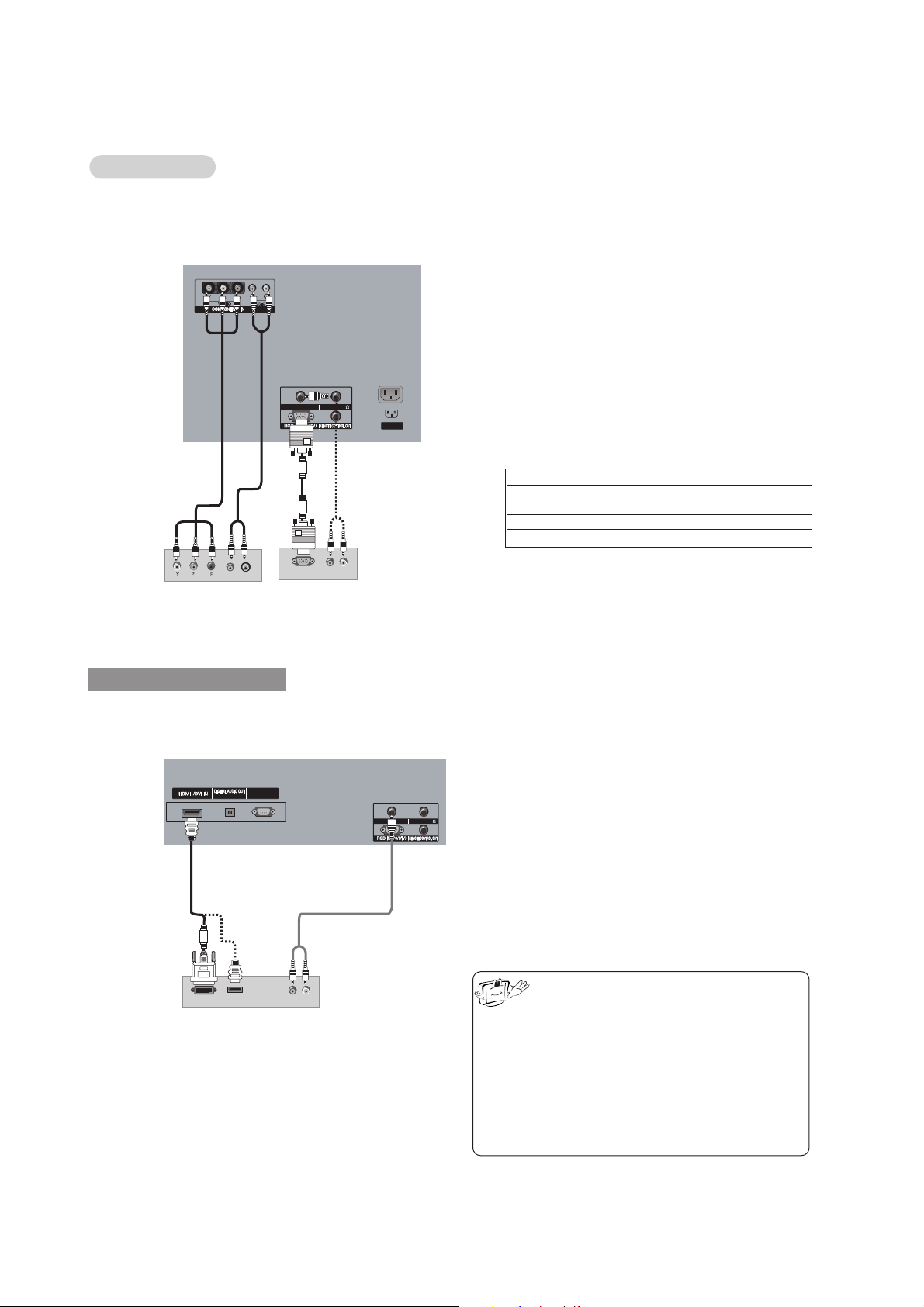

PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . .17~18

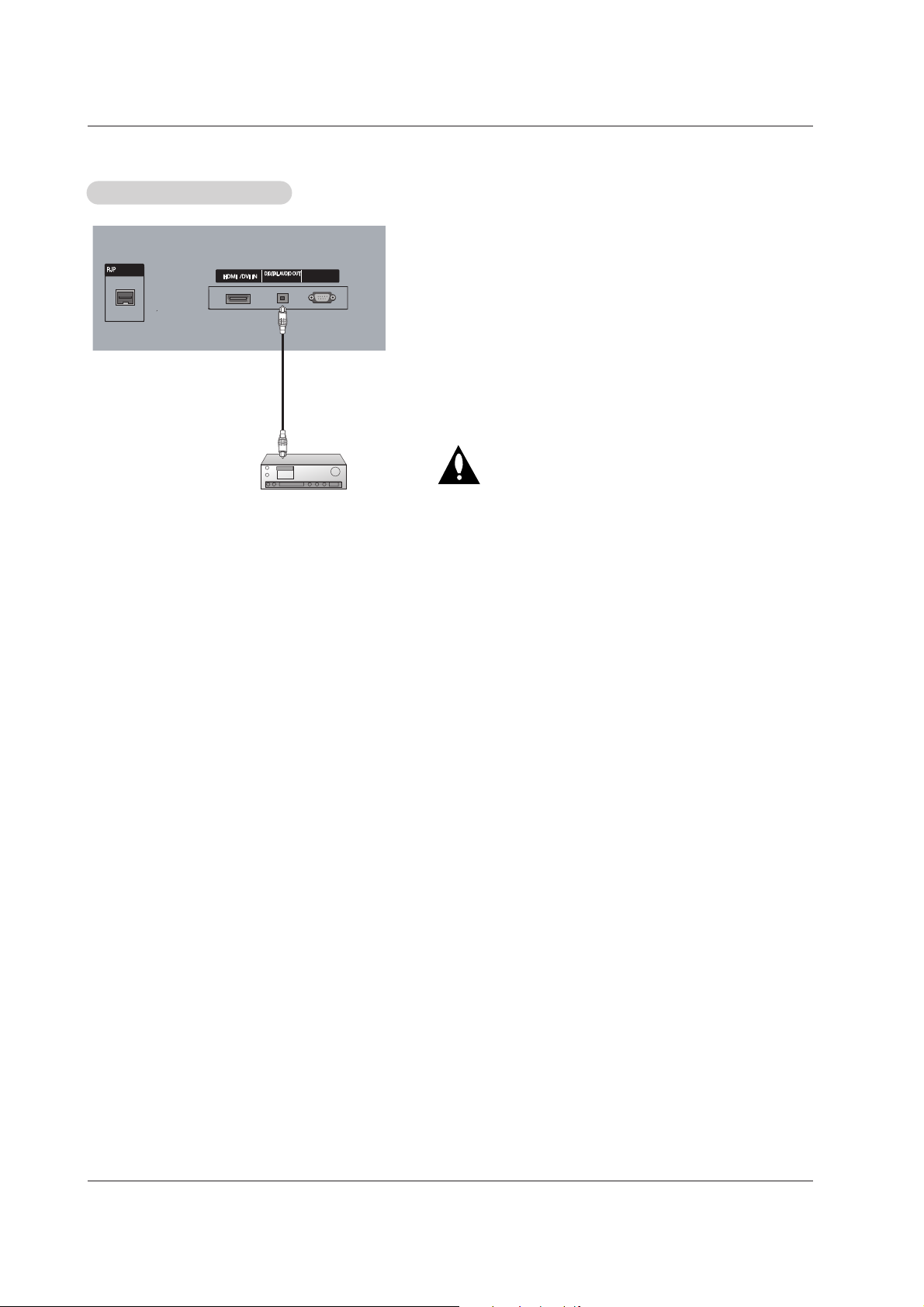

Digital Audio Output . . . . . . . . . . . . . . . . . . . . .19
Operation
Turning the TV On . . . . . . . . . . . . . . . . . . . . . . . .20
On-screen Menus Language Selection . . . . . . . . .20
Setup Menu Options

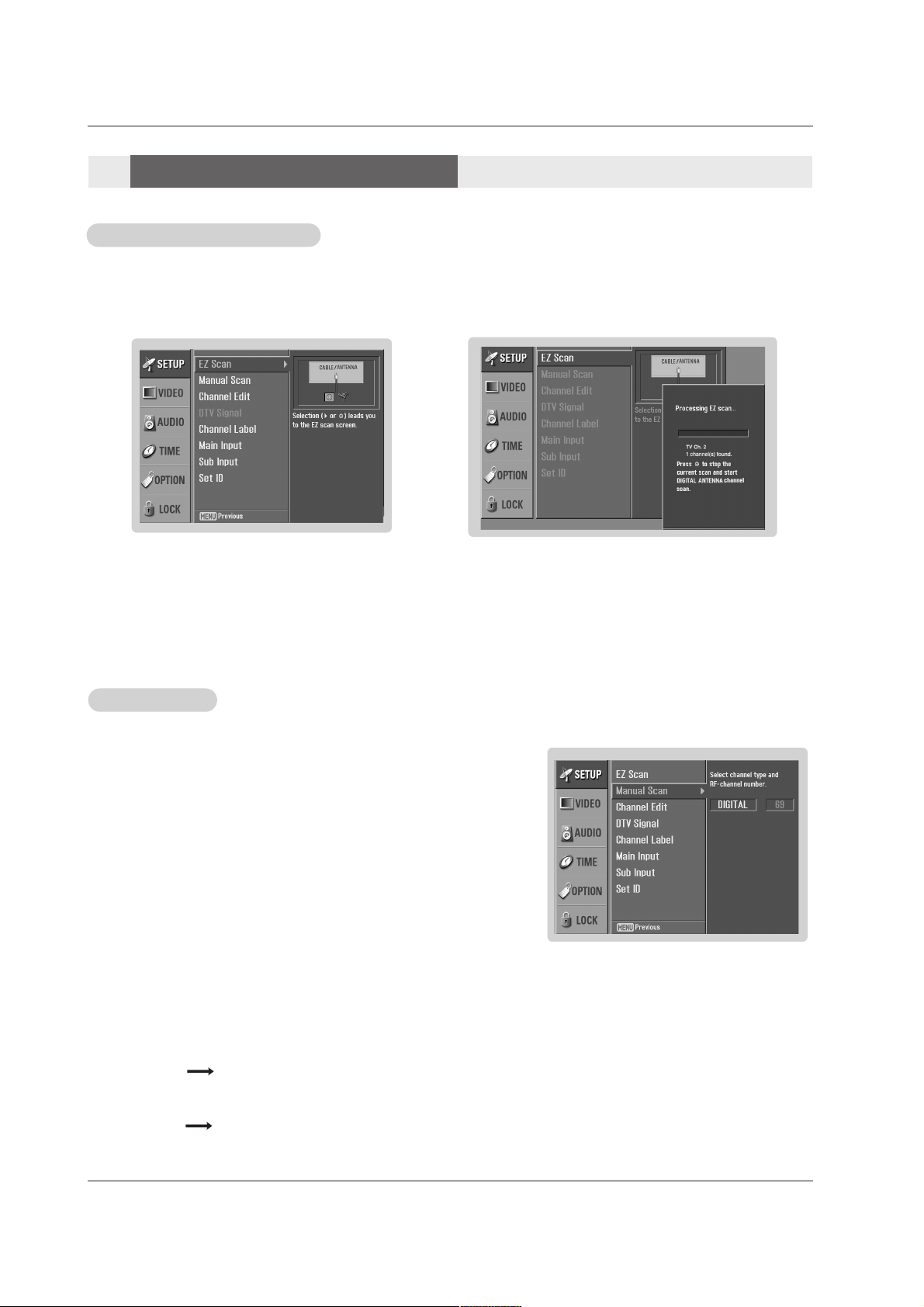

EZ Scan (Channel Search) . . . . . . . . . . . . . . . .21
Manual Scan . . . . . . . . . . . . . . . . . . . . . . . . . .21
Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . .22
DTV Signal Strength . . . . . . . . . . . . . . . . . . . . .22
Channel Label Setup . . . . . . . . . . . . . . . . . . . .23
Main Input . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

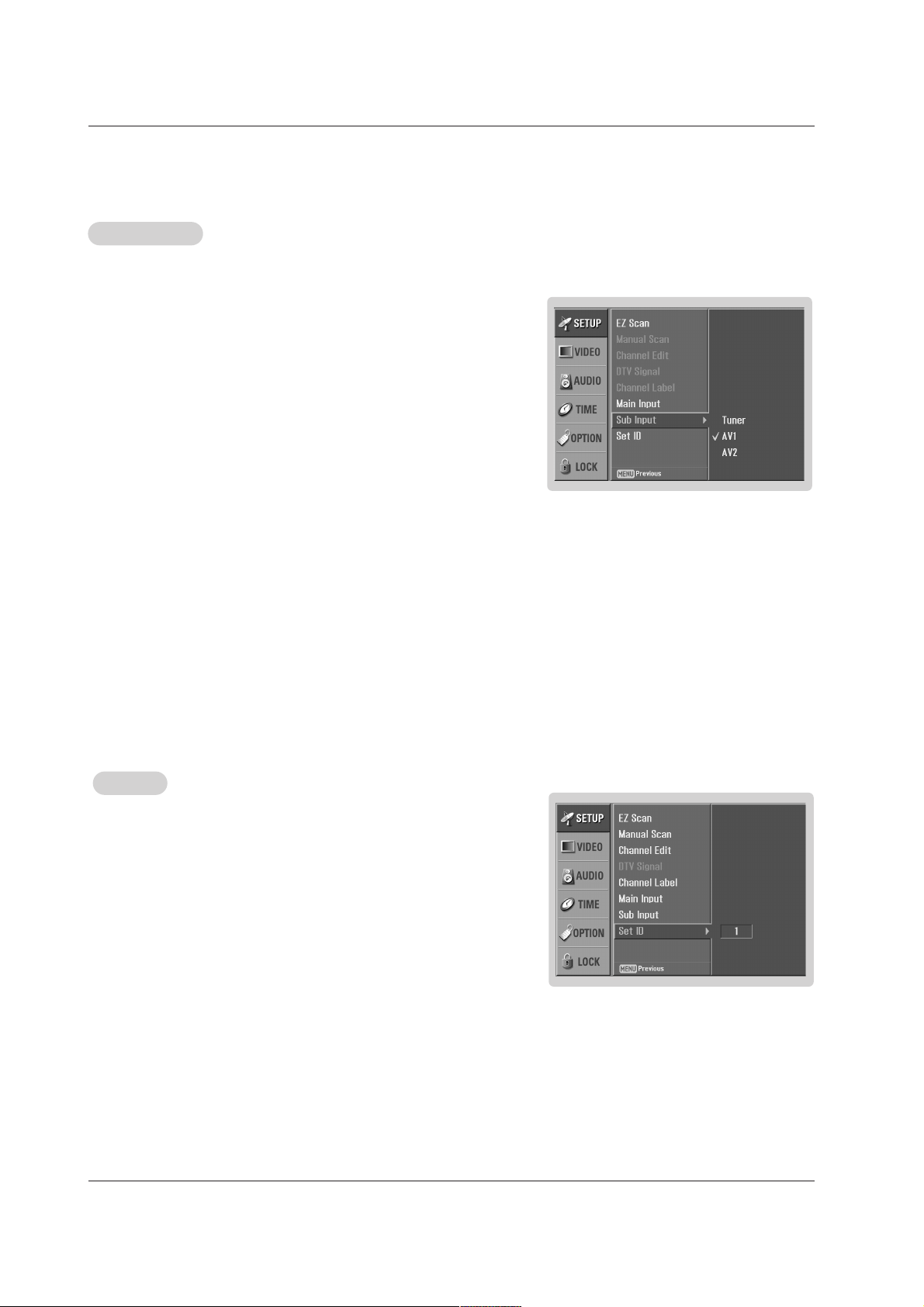

Sub Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Set ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Video Menu Options
EZ Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Manual Picture Control (Custom Option) . . . . . .25
Color Temperature Control . . . . . . . . . . . . . . . .25
Video Reset . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Audio Menu Options
Audio Language . . . . . . . . . . . . . . . . . . . . . . . .26
EZ SoundRite / EZ Sound . . . . . . . . . . . . . . . . .26
Manual Sound Control (Custom Option) . . . . . .26

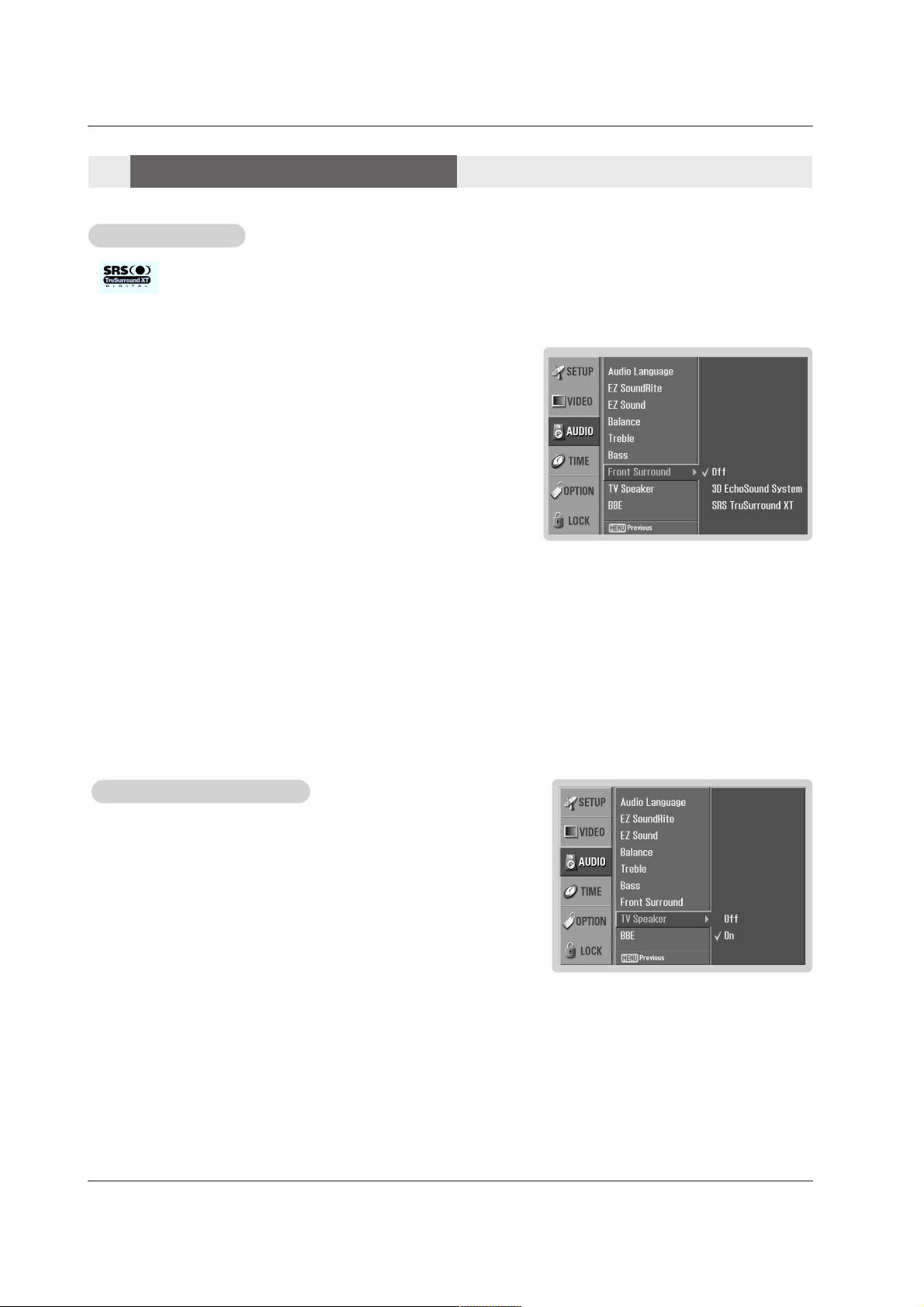

Front Surround . . . . . . . . . . . . . . . . . . . . . . . . .27
TV Speakers On/Off Setup . . . . . . . . . . . . . . . .27

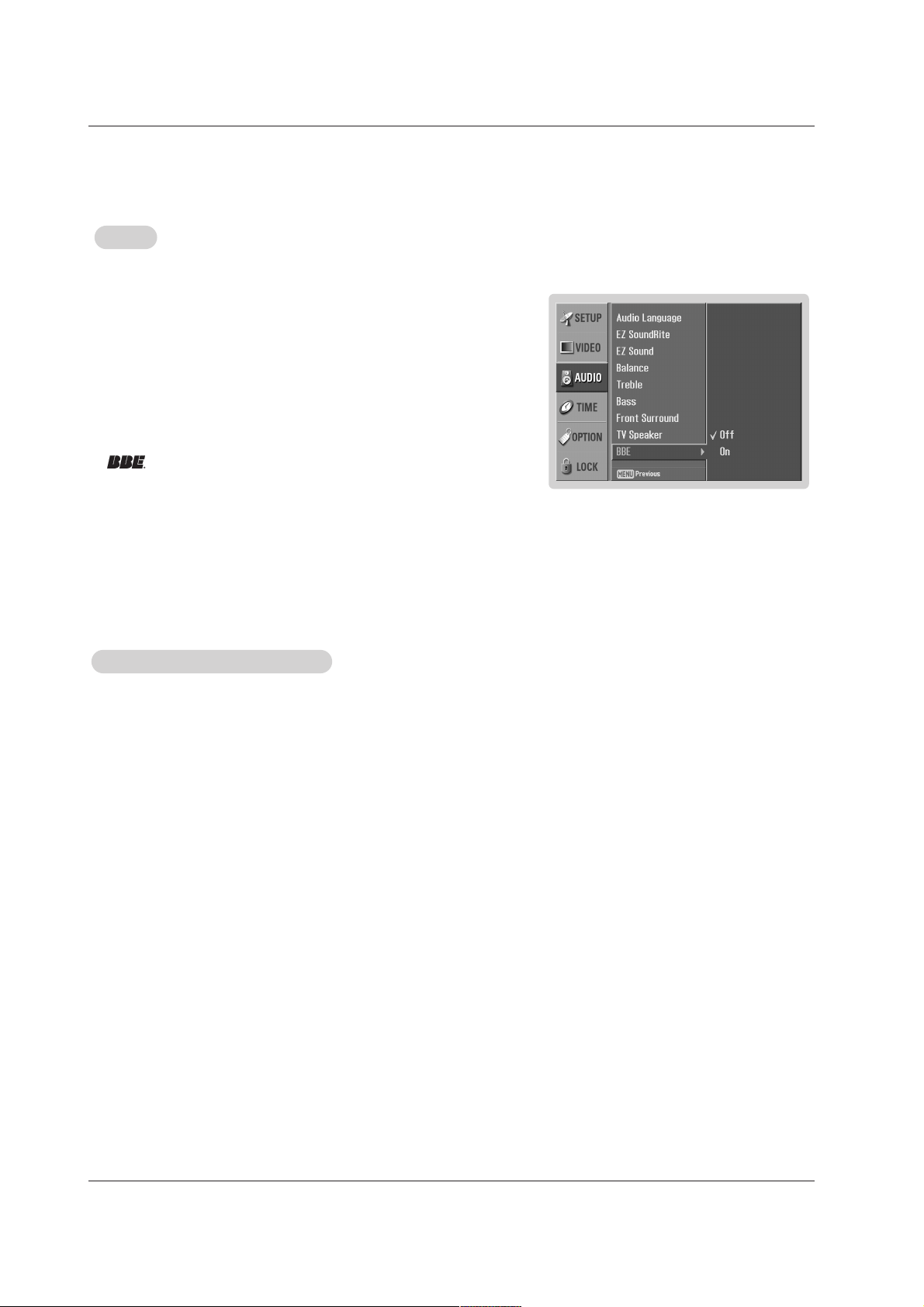

BBE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Stereo/SAP Broadcasts Setup . . . . . . . . . . . . . .28
Time Menu Options

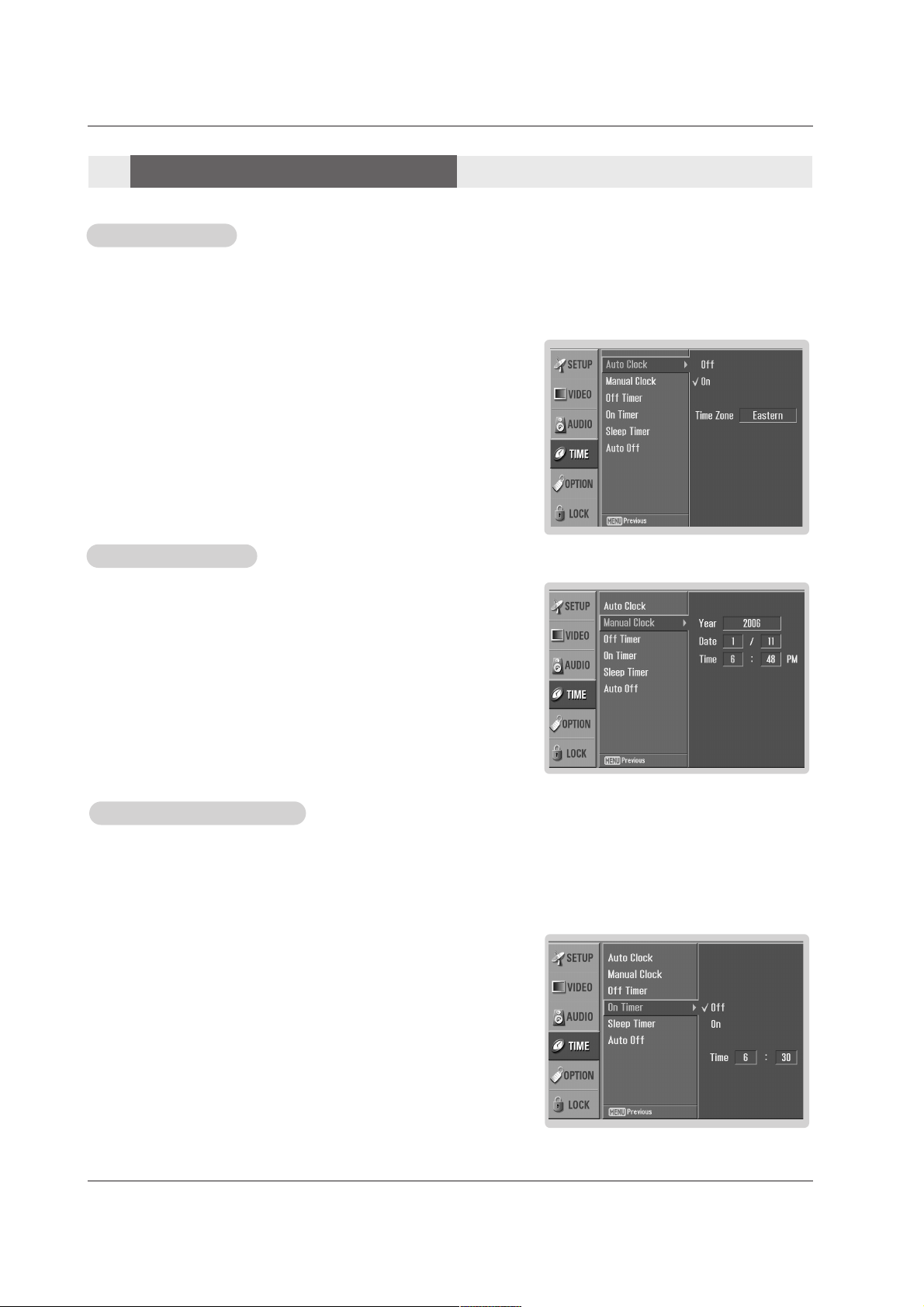

Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . .29
Manual Clock Setup . . . . . . . . . . . . . . . . . . . . .29
On/Off Timer Setup . . . . . . . . . . . . . . . . . . . . .29

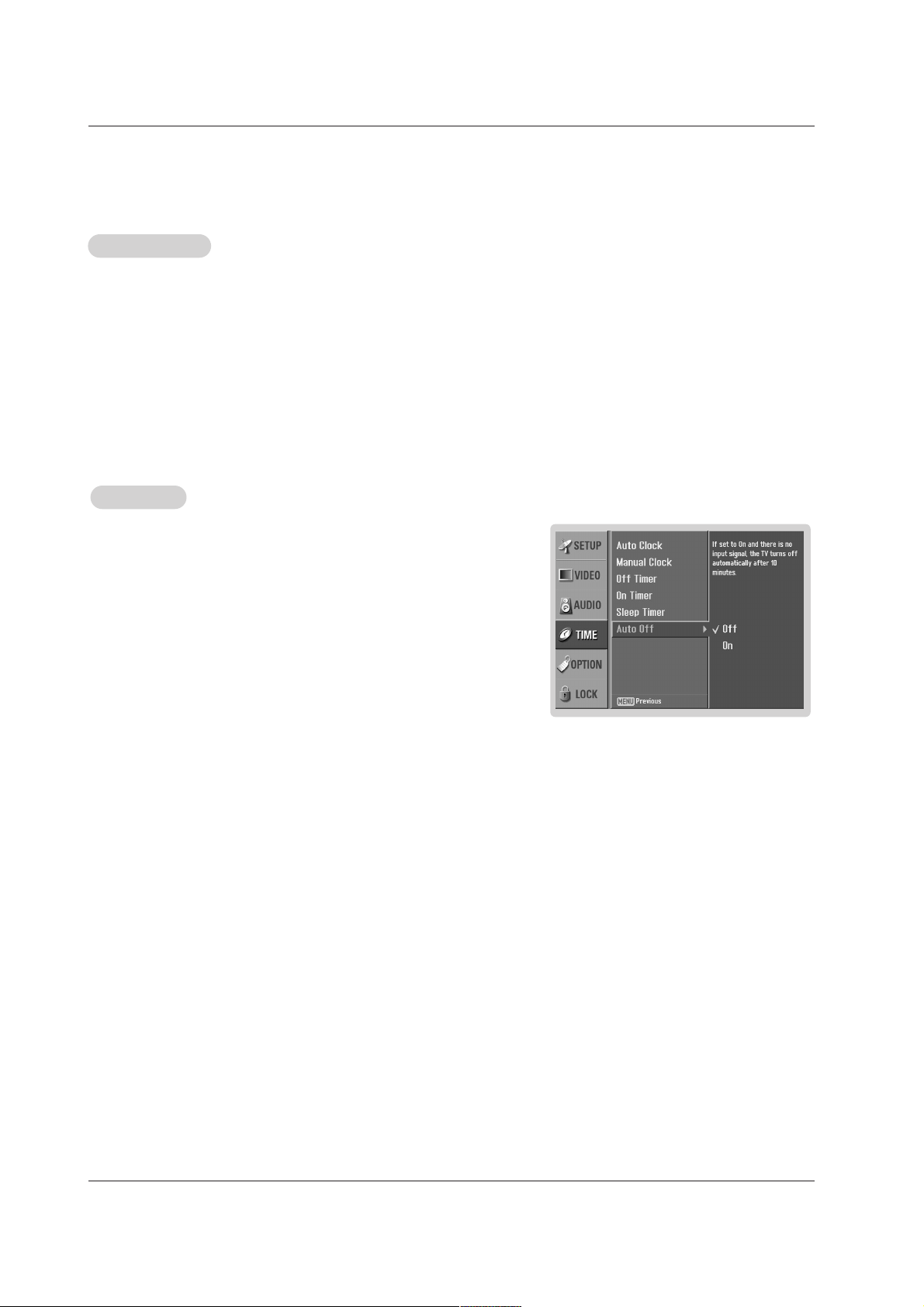

Sleep Timer / Auto Off . . . . . . . . . . . . . . . . . . . .30
Option Menu Features
Aspect Ratio Control . . . . . . . . . . . . . . . . . . . . .31

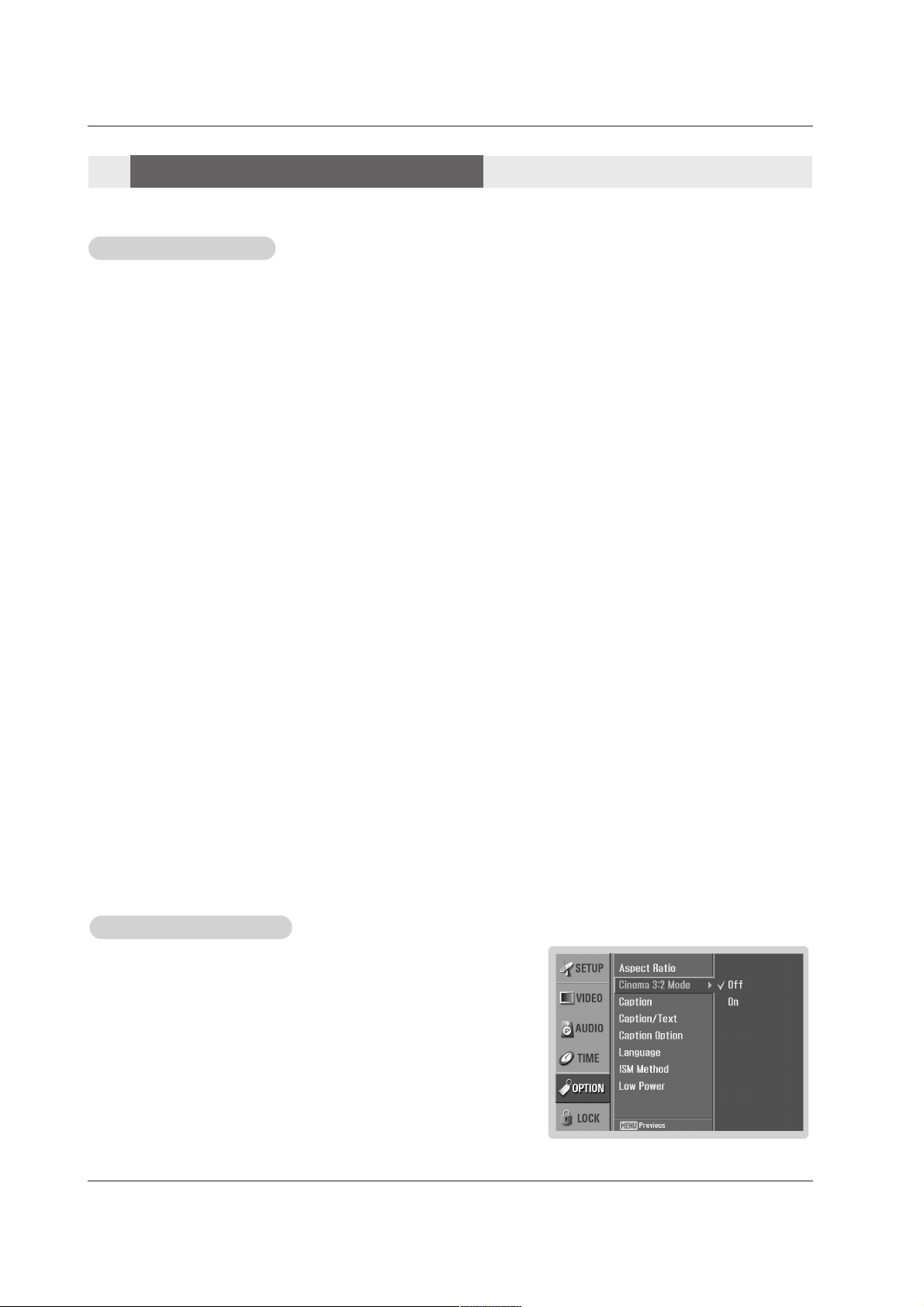

Cinema 3:2 Mode Setup . . . . . . . . . . . . . . . . . .31

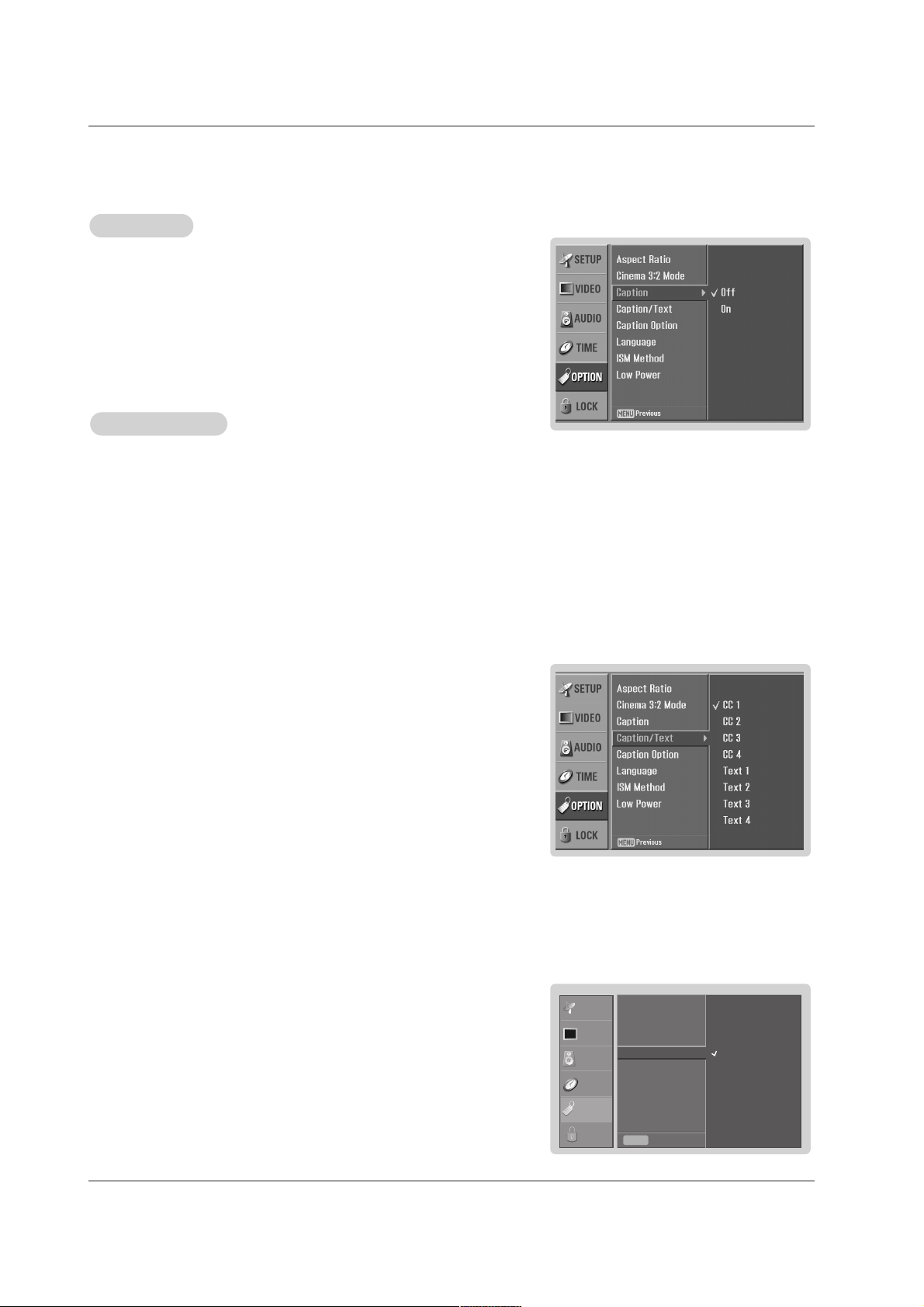

Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Caption / Text . . . . . . . . . . . . . . . . . . . . . . . . . .32
Caption Option . . . . . . . . . . . . . . . . . . . . . . . .33
ISM Method . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Low Power . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Lock Menu Options

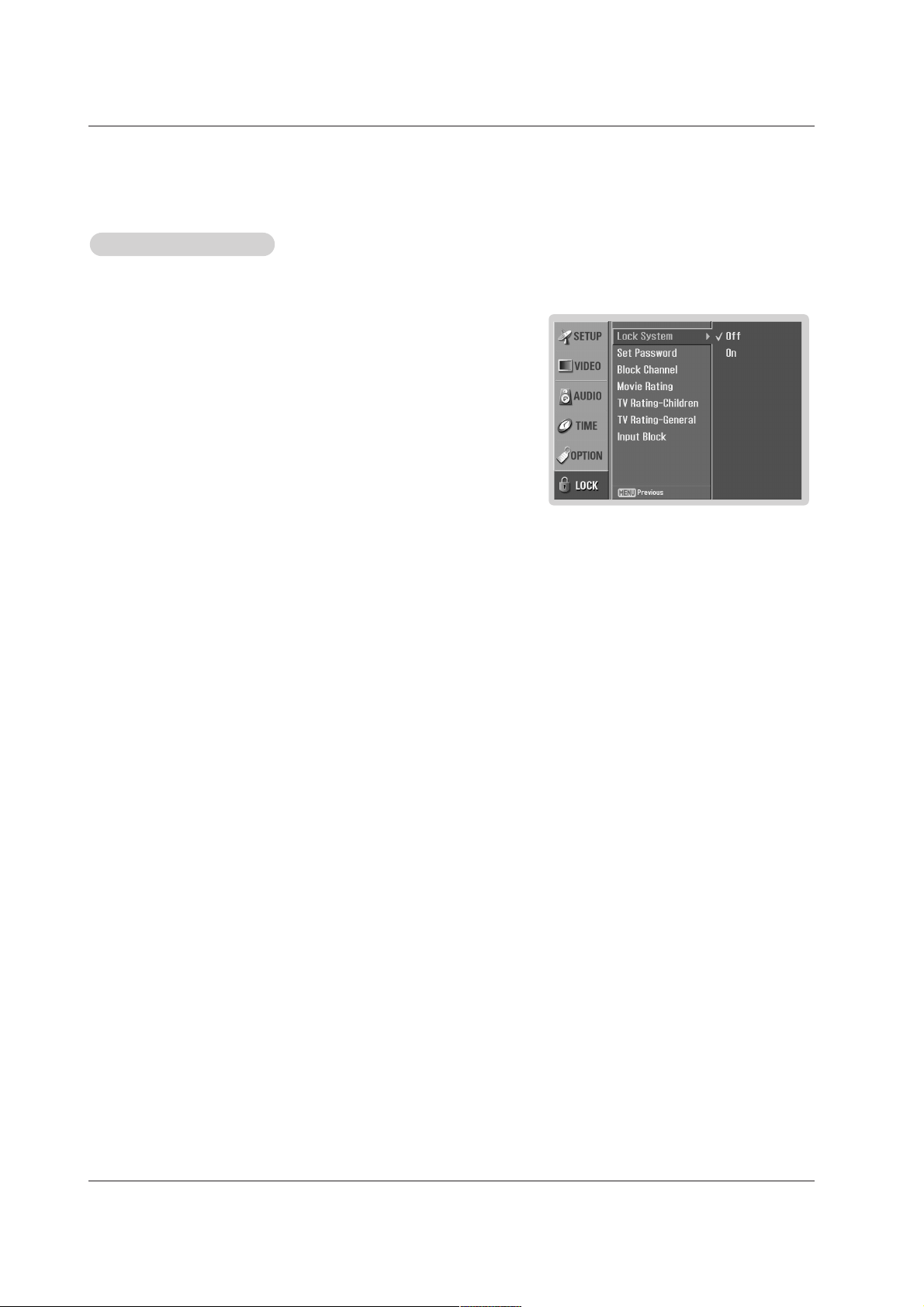

Parental Lock Setup . . . . . . . . . . . . . . . . . . . . .36

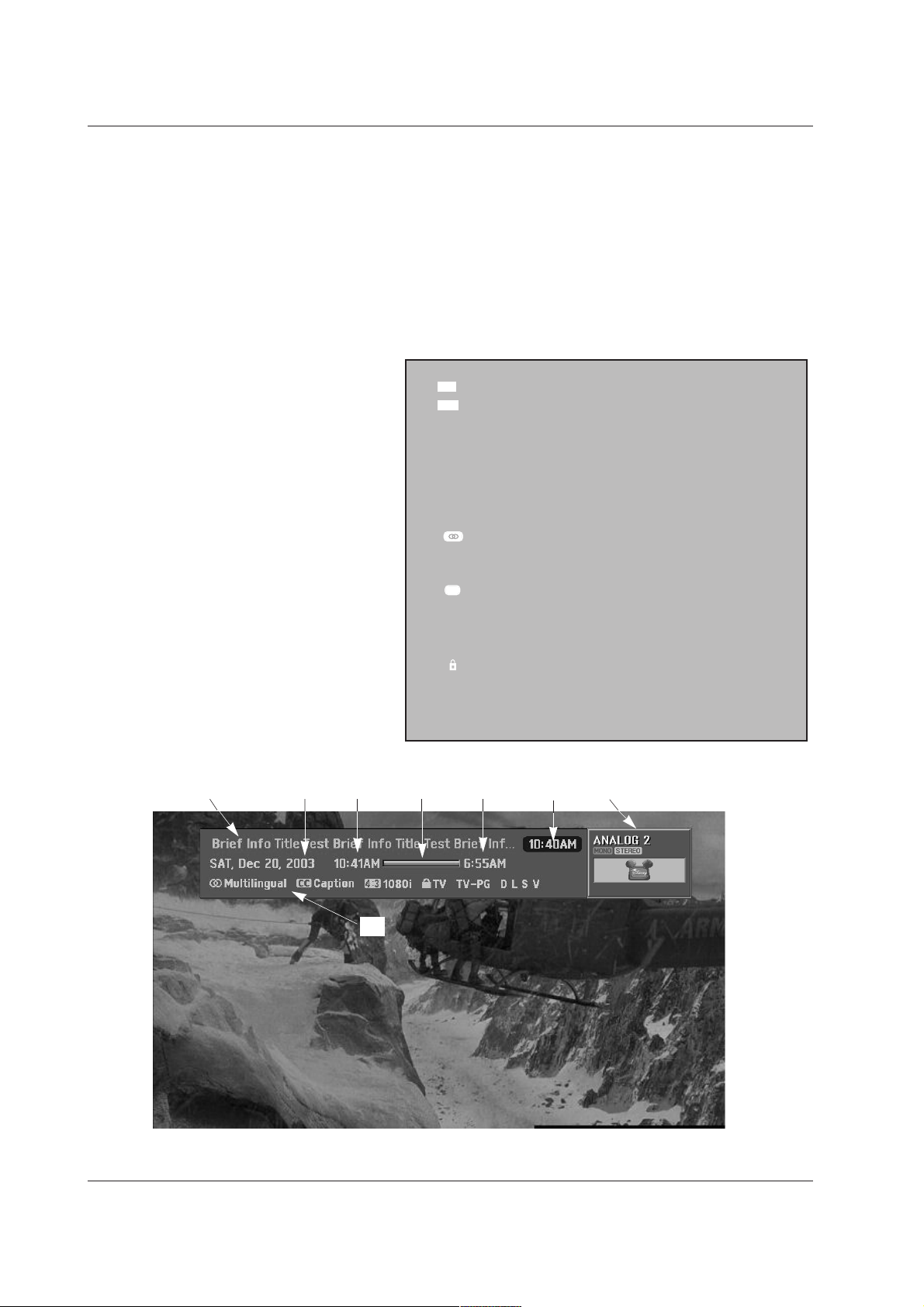

Brief Info. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Screen Setup for PC mode . . . . . . . . . . . . . . . . . .39
Key Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Programming the Remote . . . . . . . . . . . . . . . . . . . . . .41
Programming Codes . . . . . . . . . . . . . . . . . . . . . . .42~43
Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . . .44
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . .46
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47~48
Contents
Contents
6 Plasma TV
Introduction
Introduction
What is a Plasma Display Panel (PDP)?
A plasma display panel is the latest display technology and the best way to achieve flat panel displays with excellent image quality
and large screen sizes that are easily viewable. The PDP can be thought of as a descendant of the neon lamp and it can be also
be viewed as a series of fluorescent lamps.
How does it work?
PDP is an array of cells, known as pixels, which are comprised of 3 sub pixels, corresponding to the colors red, green, and blue.
Gas in a plasma state is used to react with phosphors in each sub-pixel to produce colored light (red, green, or blue). These phosphors are the same types used in Cathode Ray Tube (CRT) devices such as televisions and common computer monitors.
You get the rich, dynamic colors that you expect. Each sub-pixel is individually controlled by advanced electronics to produce over
16 million different colors. All of these mean that you get perfect images that are easily viewable in a display that is less than 5
inches thick.
160° - Wide angle range of vision
Your flat panel plasma screen offers an exceptionally broad viewing angle -- over 160 degrees. This means that the display is
clear and visible to viewers anywhere in the room who can see the screen.
Wide Screen
The screen of the Plasma Display is so wide that your viewing experience is as if you are in a theater.
Multimedia
Connect your plasma display to a PC and you can use it for conferencing, games, and Internet browsing.
Versatile
The light weight and thin size makes it easy to install your plasma display in a variety of locations where conventional TVs will not
fit.
The PDP Manufacturing Process: a few minute colored dots may be present on the PDP screen
The PDP (Plasma Display Panel), which is the display device of this product, is composed of 0.9 to 2.2 million cells. A few cell
defects will normally occur in the PDP manufacturing process. Several tiny, minute colored dots visible on the screen should be
acceptable. This also occurs in other PDP manufacturers' products. The tiny dots appearing does not mean that this PDP is defective. Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology minimizes these cell defects during the manufacture and operation of this product.
Operating Guide 7
- This is a simplified representation of front panel.
Here shown may be somewhat different from your TV.
Controls
Controls
Front Panel Controls
Front Panel Controls
CH
VOL
MENUINPUT
ENTER
INPUTINPUT
ENTERENTER
POWER Button
Remote Control Sensor
VOLUME (
FF,GG) Buttons
CHANNEL (EE, DD) Buttons
MENU Button
INPUT Button
ENTER Button
8 Plasma TV
AUDIO IN(RGB/DVI)AUDIO IN(RGB/DVI)
SPEAKER OUT(8 )SPEAKER OUT(8 )
SERVICE ONLYSERVICE ONLY
AC IN
2
ANTENNA
ANTENNA INANTENNA IN
M.P.I.M.P.I.
L/MONOMONO
R
AUDIO
VIDEO
INTERFACEINTERFACE
RESETRESETRESETRESET
UPDATEUPDATEUPDATEUPDATE
OPTICALOPTICAL
1 1
S-VIDEO IN
VIDEO IN
AUDIO IN
Connection Options
Connection Options
Back Connection Panel
Back Connection Panel
AC IN
AUDIO IN
(RGB/DVI)
RGB IN
(PC/DTV)
REMOTE CONTROL OUT
SPEAKER
OUT
RJP INTERFACE
HDMI1/DVI IN
DIGITAL AUDIO OUT
OPTICAL
SERVICE
ONLY
AV IN 1
COMPONENT IN
HDMI IN 2
ANTENNA IN
M.P.I.
RESET
UPDATE
Connect an IR cable for a DVD player or other IR controlled device.
Owner’s Manual 9
- When using the remote control, aim it at the remote control sensor on the TV.
1 2 3
4 5 6
7 8 9
0
TV
MODE
INFO
POWER
INPUT
EZ PIC
EZ SOUND
VCR
CABLE
DVD
HDSTB
MUTE
SWAPPIPCH- PIPCH+
PIP
RATIO
RECORD
STOP
PAUSE
REW
PLAY
FF
MENU EXIT
CC FREEZE
PIP INPUT
VOL
CH
FAV
SAP
TIMER
SIGNALADJUST
MULTIMEDIA
SKIP
FLASHBK
+
Remote Control Key Functions
Remote Control Key Functions
INDICATOR LIGHTS
Show active remote mode every time
any button is pressed.
MODE
Select the remote oper ting mode: TV,
VCR, Cable, DVD and Satellite.
INFO
Display information t the top of the screen.
(Refer to p.37)
INPUT
External input modes rotate in regular
sequence: Tuner, AV1, AV2, Component,
RGB1, RGB2, HDMI1/DVIand HDMI2
input sources.
(AV1, AV2, Component input sources
are linked automatically, only if these are
connected )
FAV
Scrolls the Favorite channels.
EZ PIC
Selects a factory preset picture mode
depending on the viewing environment.
MUTE
Switches the sound on or off.
(Refer to
p.38)
TIMER
Lets you select the amount of time
before your TV turns itself off automatically.
VOLUME UP/DOWN
Increases/decreases the sound level.
NUMBER KEYPAD
For direct channel selection and
programming functions.
RATIO
Changes the screen format or aspect
ratio.
PIP INPUT
Selects the input source for the sub
picture.
ENTER
When in the menu system and other
on-screen displays, selects highlighted
options.
MENU
Brings up the main menu to the
screen.
EXIT
Clears all on-screen displays and returns
to TV viewing from any menu.
SKIP
Playing CDs: Selects songs.
Playing DVDs: Selects movie chapters.
10 Plasma TV
1 2 3
4 5 6
7 8 9
0
TV
MODE
INFO
POWER
INPUT
EZ PIC
EZ SOUND
VCR
CABLE
DVD
HDSTB
MUTE
SWAPPIPCH- PIPCH+
PIP
RATIO
RECORD
STOP
PAUSE
REW
PLAY
FF
MENU EXIT
CC FREEZE
PIP INPUT
VOL
CH
FAV
SAP
TIMER
SIGNALADJUST
MULTIMEDIA
SKIP
FLASHBK
+
Remote Control Key Functions
Remote Control Key Functions
• Open the battery compartment cover on the back side and install the batteries
matching correct polarity (+ with +, - with -).
• Install two 1.5V AA batteries. Don’t mix old or used batteries with new ones.
Close cover.
Installing Batteries
Installing Batteries
back of
remote
MULTIMEDIA
Selects: RGB1-2,HDMI1/DVI, HDMI2 and
Component input sources.
CC
Selects a closed caption mode for dis-
playing captioning information if avail-
able on program.
POWER
Turns your TV or any other programmed
equipment on or off, depending on mode.
SIGNAL
Displays the digital signal strength.
ADJUST
Adjusts screen position, size, and
phase in PC mode.
EZ SOUND
Selects the sound appropriate for the program's character.
SAP
Selects MTS sound: Mono, Stereo, and
SAP in Analog mode. Change the audio
language in DTV mode.
CHANNEL UP/DOWN
Scrolls through available channels in
EZ Scan memory.
FLASHBK
Tunes to the last channel viewed.
PIPCH+
Changes to next higher PIP channel.
SWAP
Exchanges the main/sub images in
PIP/Twin picture mode.
PIPCH-
Changes to next lower PIP channel
PIP
Toggles between PIP and Twin picture
mode.
FREEZE
Freezes the currently-viewed picture.
Main picture is frozen in PIP/Twin picture
mode.
THUMBSTICK
Allows you to navigate the on-screen
menus and to adjust the system settings
and preferences, by moving to an option
with
F G
and selecting the highlighted
option with .
D
E
RECORD, PAUSE, REW, FFWD,
PLAY, STOP
Control the functions on your VCR.
Owner’s Manual 11
Owner’s Manual
1.5V
1.5
V
Batteries
Power Cord
1 2 3
4 5 6
7 8 9
0
TV
MODE
INFO
POWER
INPUT
EZ PIC
EZ SOUND
VCR
CABLE
DVD
HDSTB
MUTE
SWAPPIPCH- PIPCH+
PIP
RATIO
RECORD
STOP
PAUSE
REW
PLAY
FF
MENU EXIT
CC FREEZE
PIP INPUT
VOL
CH
FAV
SAP
TIMER
SIGNALADJUST
MULTIMEDIA
SKIP
FLASHBK
+
75Ω Round Cable
Ensure that the following accessories are included with your plasma display. If an accessory is missing, please contact the dealer
where you purchased the product.
Remote Control
- Secure the TV assembly by joining it to a wall by using the TV/Wall brackets.
- This TV’s stand is sold, separately .
- Here shown may be somewhat different from your TV.
Joining the TV assembly to the wall to protect the set tumbling
• If the set will be mounted on a desk top, insert
the 2 eye-bolts*, (not supplied with the product) and
tight en them securely in the upper holes as shown.
Install the wall brackets on the wall with 2 bolts*, (not
supplied with the product), as shown.
Match the height of the eye-bolts*, (not supplied with
the product) and the wall brackets.
Check to be sure the eye-bolts*, (not supplied with the
product) and the brackets are tightened securely.
• Secure the TV assembly to the wall with strong strings
or wire cables, (not supplied with the product), as
shown.
Installation
Installation
Installation Instructions
Installation Instructions
Accessories
Accessories
D-sub 15 pin Cable (RGB)
12 Plasma TV
GROUNDING
Ensure that you connect the earth ground wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connecting it to telephone wires, lightening rods, or gas pipes.
INPUT
ENTER
Power
Supply
Short-circuit
Breaker
INPUT
ENTER
Desktop Pedestal Installation
Desktop Pedestal Installation
INPUT
ENTER
INPUTINPUT
ENTERENTER
• The TV can be installed in various ways such as on a wall, or on a desktop etc.
• The TV is designed to be mounted horizontally.
Installation Instructions
Installation Instructions
For proper ventilation, allow a clearance of 4” on
each side and the top, 2.36” on the bottom, and
2” from the wall. Detailed installation instructions
are included in the optional Desktop Stand
Installation.
To Install on a Desktop
Pedestal mount minimum
allowableclearances for adequate ventilation.
INPUT
ENTER
4 inches
4 inches
2 inches
4 inches
INPUT
ENTER
2.36 inches
Owner’s Manual 13
External Equipment Connections
External Equipment Connections
- Antenna or Cable Service without a Cable Box Connections
- For optimum picture quality, adjust antenna direction if needed.
Antenna Connection
Antenna Connection
Analog and Digital TV signals provided on one antenna
NOTE: If you are not sure of the type of signal(s) you are receiving, let EZ Scan complete all the channel signal-type searches.
The TV will let you know when the analog, cable, and digital channel scans are complete.
Analog and DTV signals provided on two separate antennas
• In a poor signal area to improve picture quality, purchase
and install a signal amplifier.
• If the antenna needs to be split for two TV’s, install a “2Way Signal Splitter” in the connections.
• If the antenna is not installed properly, contact your dealer for assistance.
ANTENNA IN
M.P.I.
L/MONO
R
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
Wall Antenna
Socket
VHF Antenna
UHF Antenna
RF Coaxial Wire (75 ohm)
Copper Wire
Turn clockwise to tighten.
Copper Wire
Be careful not to bend the Copper
wire when
connecting the antenna.
ANTENNA IN
M.P.I.
L/MONO
R
Wall Antenna
Socket
RF Coaxial Wire (75 ohm)
Analog Antenna
Digital Antenna
Copper Wire
Copper Wire
Turn clockwise to tighten.
Wall Antenna
Socket
RF Coaxial Wire (75 ohm)
ANTENNA
ANTENNA INANTENNA IN
M.P.I.
L/MONO
R
ANTENNA IN
ANTENNA
Signal
Amplifier
2
ANTENNA IN
ANTENNA
M.P.I.
14 Plasma TV
How to connect
Connect the audio and video cables from the external equipment's output jacks to the TV input jacks, as shown in the
figure.
When connecting the TV to external equipment, match the
jack colors (Video = yellow, Audio Left = white, and Audio
Right = red).
How to use
1. Select the input source with using the INPUT button on the
remote control.
2. Operate the corresponding external equipment.
External
External
A/V Source Setup
A/V Source Setup
MONO
Camcorder
Video Game
Device
- To avoid picture noise (interference), leave an adequate distance between the VCR and TV
- Use the ISM Method (on the Option menu) feature to avoid having a fixed image remain on the screen for a long period of time.
If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen.
Connection Option 1
Set VCR output switch to channel 3 or 4 and
then tune the TV to the same channel number.
Connection Option 2
1. Connect the audio and video cables from the
VCR's output jacks to the TV input jacks, as
shown in the figure.
When connecting the TV to VCR, match the
jack colors (Video = yellow, Audio Left = white,
and Audio Right = red).
If you connect an S-VIDEO output from VCR to
the S-VIDEO input, the picture quality is
improved; compared to connecting a regular
VCR to the Video input.
2. Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner’s
manual.)
3. Select the input source with using the INPUT
button on the remote control. Note that this TV
finds the connected input sources automatically
for AV1, AV2 and Component . It is presumed
that RGB1-2 , HDMI1/DVI and HDMI2 sources
are connected.
Do not connect to both Video and
S-Video at the same time.
VCR Setup
VCR Setup
S-VIDEO
OUT
IN
(R) AUDIO (L)
VIDEO
34
OUTPUT
SWITCH
ANT OUT
ANT IN
2
ANTENNA
ANTENNA INANTENNA IN
M.P.I. M.P.I.
VCR Rear
1
2
or
R
AUDIO
L/MONO
VIDEO
AUDIO VIDEO
RL
Owner’s Manual 15
• Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports
on the TV
Y
P
B
PR
Video output ports
on DVD player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
How to connect
1. Connect the DVD video outputs (Y, PB, PR) to the COMPONENT (Y, P
B, PR) INPUT jacks on the TV and connect the
DVD audio outputs to the AUDIO INPUT jacks on the TV, as
shown in the figure.
2. If your DVD only has an S-Video output jack, connect this to
the S-VIDEO input on the TV and connect the DVD audio outputs to the AUDIO INPUT jacks on the TV, as shown in the
figure.
Note: If your DVD player does not have component AV out, use
S-Video.
How to use
1. Turn on the DVD player, insert a DVD.
2. Use the INPUT button on the remote control to select
Component . (If connected to S-VIDEO, select the AV1 or
AV2 external input source.)
3. Refer to the DVD player's manual for operating instructions.
DVD Setup
DVD Setup
(R) AUDIO (L)
S-VIDEO
B
R
(R) AUDIO (L)
DVD
or
HDMI-DVD OUTPUT
INTERFACEINTERFACE
SERVICE ONLY
OPTICALOPTICAL
1 1
When supporting HDMI
1. Connect the HDMI output of the DVD to the HDMI1/DVI
IN jack on the set.
2. Select HDMI1/DVI or HDMI2 input source with using the
INPUT button on the remote control.
3. Refer to the DVD player's manual for operating instructions.
• TV can receive the video and audio signal simultaneously with using a HDMI cable.
• If the DVD supports Auto HDMI function, the DVD
output resolution will be automatically set to
1280x720p.
• If the DVD does not support Auto HDMI, you need
to set the output resolution appropriately. To get the
best picture quality, adjust the output resolution of
the DVD to 1280x720p.
DVD
Loading...
