LG 42PX3RVA ZC Schematic

Download

Page 1

PLASMA TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : MF-056C

MODEL : 42PX3RVA

42PX3RVA-ZC

website:http://biz.LGservice.com

e-mail:http://www.LGEservice.com/techsup.html

VOL

MENUTV/AV OK

Page 2

- 2 -

CONTENTS

SAFETY PRECAUTIONS ...................................................................................3

DESCRIPTION OF CONTROLS .........................................................................4

SPECIFICATIONS ...............................................................................................9

ADJUSTMENT INSTRUCTIONS ......................................................................11

TROUBLE SHOOTING GUIDE..........................................................................15

BLOCK DIAGRAM.............................................................................................24

EXPLODED VIEW..............................................................................................26

EXPLODED VIEW PARTS LIST ........................................................................27

REPLACEMENT PARTS LIST...........................................................................28

SCHEMATIC DIAGRAM ........................................................................................

PRINTED CIRCUIT BOARD ..................................................................................

Page 3

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Replacement Parts List. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this monitor is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Due to high vacuum and large surface area of picture tube, extreme care should be used in handling the Picture Tube. Do not lift the Picture tube by it's Neck.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to 0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument's exposed METALLIC PARTS

Good Earth Ground such as WATER PIPE, CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

Page 4

Remote Control Key Functions

- When using the remote control aim it at the remote control sensor of the set.

- There's maybe a defect in consecutive operation of remote control in specified brightness according to this set feature.

POWERMUTE

TV/AV I/II

LIST

VOL

123

456

789

PSM SSM

VOL

ARC MENU

Q.VIEW TEXT SLEEP

TIME

MIX

HOLD

REVEAL

INDEX

MODE

MULTIMEDIA

SIZE

UPDATE

MULTIMEDIA

Selects the Component, RGB or

HDMI

modes.

switches the set on from standby.

POWER

switches the set on from standby or off to standby.

ARC

Changes the picture format.

Displays on screen menus one by one. Exits the current menu. Memorizes menu changes.

Q.VIEW

Returns to the previously viewed pro-

gramme.

Note : This function works only when

Favourite programme is set to Off.

Otherwise each press of this button

will select a stored favorite pro-

gramme.

SSM

To select the sound appropriate to your viewing programme character.

NUMBER buttons

SLEEP

Sets the sleep timer.

I/II Selects the language during dual language broadcast. Selects the sound output.

TEXT

These buttons are used for teletext. For further details, see the ‘Teletext’ section.

COLOURED BUTTONS

These buttons are used for teletext (only TELETEXT models) or programme edit.

LIST

Displays the programme table.

TV/AV

Selects the TV, AV, Component, RGB

HDMI

modes.

switches the set on from standby.

MUTE

Switches the sound on or off.

DD/ EE

(Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

FF/ GG

(Volume Up/Down)

adjusts the volume.

adjusts menu settings.

accepts your selection or displays the

current mode.

PSM

Adjusts the factory preset picture

according to the room.

- 4 -

DESCRIPTION OF CONTROLS

Page 5

- 5 -

Location and Function of Controls

VOL

MENUTV/AV OK

VOL

MENUTV/AV OK

5 6 7

1. Remote Control Sensor

2. Power Indicator

Illuminates red in standby mode, Illuminates green when the set is turned on.

3. Power Button

Switches the set on from standby or off to standby.

4. TV/AV Button

Selects the TV, AV, Component, RGB or HDMI modes. Switches the set on from standby.

5. MENU

Displays on screen menus one by one. Exits the current menu. Memorizes menu changes.

6. OK

Accepts your selection or displays the current mode.

7. DD / EE (Programme Up/Down)

Selects a programme or a menu item. Switches the set on from standby.

FF / GG (Volume Up/Down)

Adjusts the volume. Adjusts menu settings.

Page 6

- 6 -

Location and Function of Controls

S-VIDEO

VIDEOAUDIOR

L/MONO

AV5V5

AC INPUT

RS-232C INPUT

(CONTROL/SERVICE)

Antenna

REMOTE CONTROL

HDMI

AUDIO INPUT

RGB INPUT

(MONO)(MONO)

COMPONENTCOMPONENT

L R

AUDIOAUDIO

L R

AUDIOAUDIO

AV4V4

V VARIABLE ARIABLE AUDIO OUTAUDIO OUT

AV1

AV2

AV3

S-VIDEOS-VIDEO VIDEOVIDEO

L R

AUDIOAUDIO

1. HDMI(DVI VIDEO) / AUDIO INPUT / RGB INPUT

Connect the monitor output socket of the PERSONAL COMPUTER, DVD or STB to this socket.

Note: If you want to use RGB/DVI audio, we strongly recommend that you use the cable that has a core, or the EMI Filter core along with separate cable.

2. CONTROL LOCK / REMOTE CONTROL

3. RS-232C INPUT(CONTROL/SERVICE) PORT

Connect to the RS-232C port on a PC.

4. COMPONENT INPUT

Connect DVD video outputs to Y, P

B, PR of COMPONENT

INPUT and audio outputs to Audio sockets of AUDIO INPUT.

AUDIO/VIDEO IN SOCKETS (AV4)

Connect the audio/video out sockets of external equipment to these sockets.

S-VIDEO/AUDIO IN SOCKETS

Connect the S-VIDEO out socket of an VCR to the S-VIDEO socket. Connect the audio out sockets of the VCR to the audio sockets as in AV4 .

5. VARIABLE AUDIO OUTPUT

6. EURO SCART SOCKET

Connect the euro scart socket of the VCR to these sockets.

Note: If you want to use the EURO scart cable, you have to use the signal shielded Euro scart cable.

7. ANTENNA INPUT

8. POWER CORD SOCKET

This set operates on an AC power. The voltage is indicated on the Specifications page. Never attempt to operate the set on DC power.

9. AUDIO/VIDEO INPUT (AV5) S-VIDEO/AUDIO IN SOCKETS

42 3 6 75 8

- Shown is a simplified representation of the set.

- Here shown may be somewhat different from your set.

Page 7

- 7 -

Displayable Monitor Specification

RGB / HDMI mode

Resolution

640x350

720x400

640x480

848x480

800x600

Horizontal

Frequency(KHz)

Vertical

Frequency(Hz)

852x480

832x624

1024x768

1152x864

1152x870

1280x960

1280x1024

70.09

85.08

70.08

85.03

59.94

66.66

72.80

75.00

85.00

60.00

70.00

75.00

60.00

70.00

75.00

56.25

60.31

72.18

75.00

85.06

74.55

60.00

70.06

75.02

85.00

60.05

70.01

75.00

75.06

60.02

31.468

37.861

31.469

37.927

31.469

35.000

37.861

37.500

43.269

31.500

37.799

39.375

31.500

37.799

39.375

35.156

37.879

48.077

46.875

53.674

49.725

48.363

56.476

60.023

68.677

54.348

63.995

67.500

68.681

60.023

63.981

RGB / HDMI mode

50PX3R series

42PX3RV series

Resolution

640x350

720x400

640x480

848x480

800x600

Horizontal

Frequency(KHz)

Vertical

Frequency(Hz)

852x480

832x624

1024x768

1360x768

1366x768

1152x864

1152x870

1280x960

1280x768

1280x1024

70.09

85.08

70.08

85.03

59.94

66.66

72.80

75.00

85.00

60.00

70.00

75.00

60.00

70.00

75.00

56.25 (RGB)

60.31

72.18

75.00

85.06

74.55

60.00

70.06

75.02

85.00

60.00

75.02

85.00

60.00

75.02

85.00

60.05

70.01

75.00

85.00

75.06

60.00

75.00

85.00

60.02

31.468

37.861

31.469

37.927

31.469

35.000

37.861

37.500

43.269

31.500

37.799

39.375

31.500

37.799

39.375

35.156

37.879

48.077

46.875

53.674

49.725

48.363

56.476

60.023

68.677

47.700

59.625

68.500

47.700

59.625

69.500

54.348

63.995

67.500

77.487

68.681

47.693

60.091

68.504

60.023

63.981

Page 8

- 8 -

LG TV

Owner’s Manual

1.5V

Alkaline batteries

Power Cord

POWERMUTE

TV/AV I/II

LIST

VOL

123

456

789

PSM SSM

VOL

ARC MENU

Q.VIEW TEXT SLEEP

TIME

MIX

HOLD

REVEAL

INDEX

MODE

MULTIMEDIA

SIZE

UPDATE

Remote Control handset

- Optional extras can be changed or modified for quality improvement without any notification new optional extras can be added.

- Contract your dealer for buying these items.

Optional Extras

Accessories

Tilt wall mounting bracket

Video cables Audio cables

Ceiling mounting bracket

4 0

4 2

5 0

- Secure the set assembly by joinning it to a wall by using the Eye Bolts/Wall brackets.

Joinning the set assembly to the wall to protect the set tumbling

• After the set must be mounted on a desktop, install the Eye Bolts on the set as shown. Insert the 2 Eye Bolts and tighten securely, in the holes on the bracket. Install the wall brackets on the wall with 2 bolts, (not supplied with the product), as shown. Match the height of the Eye Bolts and the wall brackets. Check to be sure the brackets are tightened securely.

• Secure the set assembly to the wall with strong strings or wound wire cables,

(not supplied with the product), as shown.

2-Wall brackets

2-Eye Bolts

Page 9

SPECIFICATIONS

NOTE : Specifications and others are subject to change without notice for improvement

- 9 -

V Application Range

This spec is applied to the 42”PDP TV used MF-056C Chassis.

V Specification

Each part is tested as below without special appointment.

1) Temperature : 25±5°C (77±9°F), CST : 40±5

2) Relative Humidity: 65

±10%

3) Power Voltage: Standard Input voltage (100-240V~, 50/60Hz) * Standard Voltage of each product is marked by models.

4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with BOM.

The receiver must be operated for about 20 minutes prior to the adjustment

V Test Method

1) Performance : LGE TV test method followed.

2) Demanded other specification

Safety: CE, IEC specification EMC : CE, IEC

V General Specification

1. General Specification

Remark

Safety : IEC/EN60065, EMI : EN55013, EMS : EN55020

Model Name

42PX3RVA-ZC

Market

Remark

PDP

LGE SPEC

Maker : SONY/ Sanken

Specification

42 inch wide Color Display Module

16:9

PDP42V7xxxx

RGB Closed Type, Film Filter

1) Temp : 0~40 deg

2) Humidity : 0~85%

1) Temp : -20~60 deg

2) Humidity : 0~85%

100-240V~, 50/60Hz

Item

Display Screen Device

Aspect Ratio

PDP Module

Operating Environment

Storage Environment

Input Voltage

Page 10

2. Model Specification( 42PX3RVA-ZA)

- 10 -

Item

Market

Broadcasting system

Available channel

Receiving system

Scart Jack(3EA)

Video input(2EA)

S-Video Input(2EA)

Component Input(2EA)

RGB Input(1EA)

HDMI Input(1EA)

Audio Input(4EA)

Audio Output(1EA)

Wired Control

Specification

PAL B/G/I/D/K, SECAM L/L’

BRAND PAL SECAM

VHF/UHF C1~C69

CATV S1~S47

Upper Heterodyne

PAL, SECAM

PAL, SECAM, NTSC

Y/Cb/Cr, Y/Pb/Pr

RGB-PC

RGB-DTV

HDMI-PC

HDMI-DTV

PC Audio(1EA), Component, AV(2EA)

Variable Audio Out

Discrete IR

Remark

4 System : PAL, SECAM, NTSC,PAL60

L/R Input

L/R Output

Page 11

- 11 -

ADJUSTMENT INSTRUCTIONS

1. Application Object

These instructions apply to the MF-056C Chassis.

2. Specification

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument. (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25±5°C of temperature and 65±10% of relative humidity if

there is no specific designation. (4) The input voltage of the receiver must keep 100-220V,

50/60Hz. (5) The receiver must be operated for about 15 minutes prior

to the adjustment.

O After RGB Full white HEAT-RUN Mode, the receiver must

be operated prior to adjustment.

O Enter into HEAT-RUN MODE

1) Press the POWER ON KEY on R/C for adjustment.

2) OSD display and screen display 100% full WHITE PATTERN.

[ Set is activated HEAT-RUN without signal generator in

this mode.

[ Single color pattern(RED/BLUE/GREEN) of HEAT-RUN

mode uses to check PANEL.

Caution) If you turn on a still screen more than 20 minutes

(Especially digital pattern, cross hatch pattern), after image may be occur in the black level part of the screen.

3. Channel memory

3-1. Setting up the LGIDS

1) Install the LGIDS. (idsinst.exe)

2) After installation, restart your PC.

3) Extract [files.zip] to folder [c:\LGIDS\files].

4) Start LGIDS.

3-2. Channel memory Method

1) Select “PDP” and “Hurricane” on Model dialog. And check your connection in Communication dialog. (If your connection is ‘NG’, then set your PORT(COM1,2,3,...) correctly.)

2) Connect RS-232C cable and turn on the power. (If your connection has completed, you can see “Ready”.)

[ If your set is not an end products but only a board, you

have to make your board to Stand-by state (LED_R). And you have to Download in Stand_by power state.

3) Select proper CH_memory file(*.nvm) for each model at [NVRAM Download] $ [Write Batch] Next, select proper binary file(*.bin) including the CH information for each model at [NVRAM File].

4) Click the [Download] button. It means the completion of the CH memory download if all items show ‘OK’ and Status is changed by ‘PASS’ at the lower right corner of the window.

5) If you want to check whether the CH information is memorized correctly or not, click the [Verify] button. And then compare NVRAM File(*.bin) with the CH information downloaded.

(Fig. 1)

(Fig. 2)

(Fig. 3)

Page 12

- 12 -

4. POWER PCB Assy Voltage Adjustments

(Va, Vs Voltage Adjustments)

4-1. Test Equipment : D.M.M. 1EA

4-2. Adjustment Method

[P/No 3501V00220A(Sanken) B/D,

P/No 6709V00010A(LGIT) B/D]

(1) Va Adjustment

1) After receiving 100% Full White Pattern, HEAT RUN.

2) Connect + terminal of D.M.M to Va pin of P807, connect

- terminal to GND pin of P807.

3) After turning RV501, voltage of D.M.M adjustment as same as Va voltage which on label of panel right/top. (Deviation; ±0.5V)

(2) Vs Adjustment

1) Connect + terminal of D.M.M to Vs pin of P807, connect – terminal to GND pin of P807.

2) After turning RV401, voltage of D.M.M adjustment as same as Va voltage which on label of panel right/top. (Deviation; ±0.5V)

5. EDID (The Extended Display Identification Data)/ DDC (Display Data Channel) download

5-1. Required Test Equipment

1) Adjusting PC with S/W for writing EDID Data.(S/W : EDID TESTER Ver.2.5)

2) A Jig for EDID Download

3) Cable : Serial(9Pin or USB) to D-sub 15Pin cable, D-sub 15Pin cable, DVI to HDMI cable.

5-2. Setting of device

5.3. Preparation for Adjustment

1) As above Fig. 5, Connect the Set, EDID Download Jig, PC & Cable.

2) Turn on the PC & EDID Download Jig. And Execute the S/W : EDID TESTER Ver,2.5

3) Set up S/W option

Repeat Number : 5 Device Address : A0 PageByte : 8

4) Power on the Set

5.4. Sequence of Adjustment

(1) DDC data of Analog-RGB

1) Init the data

2) Load the EDID data.(Open File)

[Analog-RGB : TYPE_VGA.ANA] [Digital(HDMI) : TYPE_VGA.DVI]

3) Set the S/W as below.

4) Push the “Write Data & Verify”button. And confirm “Yes”.

5) If the writing is finished, you will see the “OK” message.

Each PCB assembly must be checked by check JIG set. (Because power PCB Assembly damages to PDP Module, especially be careful)

(Fig. 4) Connection diagram of power adjustment for measuring

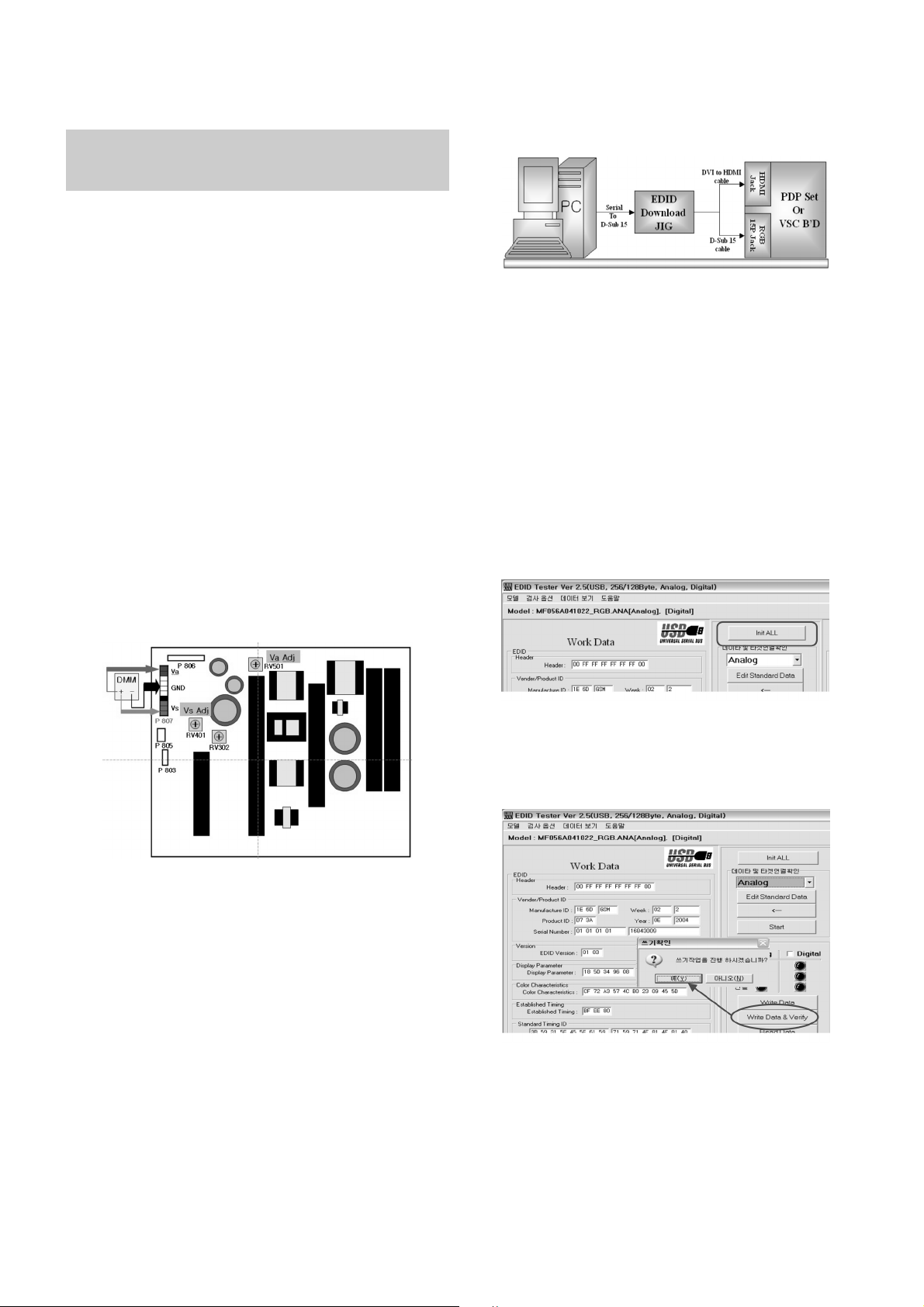

(Fig. 5) Connection Diagram of DDC download

Page 13

- 13 -

6. Auto AV(CVBS) Color Balance

6-1. Requirement

- This AV color balance adjustment should be per formed before White Balance Adjustment.

6-2. Required Equipme

1) Remote controller for agdjustment

2) AV Pattern Generator : 802F Pattern Generator, Master

(MSPG-925FA), etc (Which has PAL Composite Video format output with standard (1.0 Vpp) Vertical 100% Color Bar Pattern as Fig.6)

6-3 Method of Auto RGB Color Balance

1) Input the PAL Composite Video (Fig.6.100% Color Bar

Pattern) into video input. (RZ-42PX30 : AV4/AV5 Input 50Hz)

2) Set the PSM to Standard mode in Picture menu.

3) Press INSTART key on R/C for adjustment.

4) Press the

(Vol. +) key operat to set, then it becomes

automatically.

5) Auto-RGB OK means completed adjustment.

7. Adjustment of White Balance

7-1. Required Equipment

1) Remote controller for adjustment

2) Color Analyzer (CA-100 or same product)

3) Auto W/B adjustment instrument(only for auto adjustment)

4) AV Pattern Generator

7-2. Connecting diagram of equipment for

measuring (For Auto Adjustment)

W Auto adjustment Map(RS-232C)

7-3. Adjustment of White Balance

O Operate the zero-calibration of the CA-100, then stick

sensor to PDP module surface when you adjust.

O For manual adjustment, it is also possible by the following

sequence.

1) Select white pattern of heat-run mode by pressing power on key on remote control for adjustment then operate heat run more than 15 minutes.

2) As below Fig.7, Supply Window or Gray step pattern to Video input (RZ-42PX30 : AV4/AV5 INPUT 50Hz)

3) Press the TV/AV KEY on R/C for converting input mode.

4) Set the PSM to Standard mode in Picture menu.

5) Enter the White Balance adjustment mode by pressing the INSTART key twice(White Balance) on R/C

6) Stick sensor to center of the screen and select each items (Red/Green/Blue Gain and offset) using

D/E(CH +/-) key

on R/C.

7) Adjust High Light with R Gain/ B Gain and Low light with G Offset/ B Offset using

F/G(VOL +/-) key on R/C.

8) Adjust it until color coordination becomes as below. (G Gain:7A/ R Offset:7F/ G Offset:7E/ B offset:80 is Fixed) [MF-056C : RZ-42PX30] - VGA 42” Bright : High Light : 60 ± 20 Cd/m2 Color-Coordinate : High Light : X : 0.285 ± 0.003

Y : 0.290 ± 0.003

Color Temperature : 9,300°K ± 500°K

9) When adjustment is completed, Exit adjustment mode using EXIT key on R/C

(Fig. 7) Connection Diagram of Auto W/B Adjustment

MSPG-2100 / MSTG-5200

216 Level (85 IRE)

COLOR ANALYZER TYPE ; CA-100

CVBS signal input

RS-232C Serial Communication

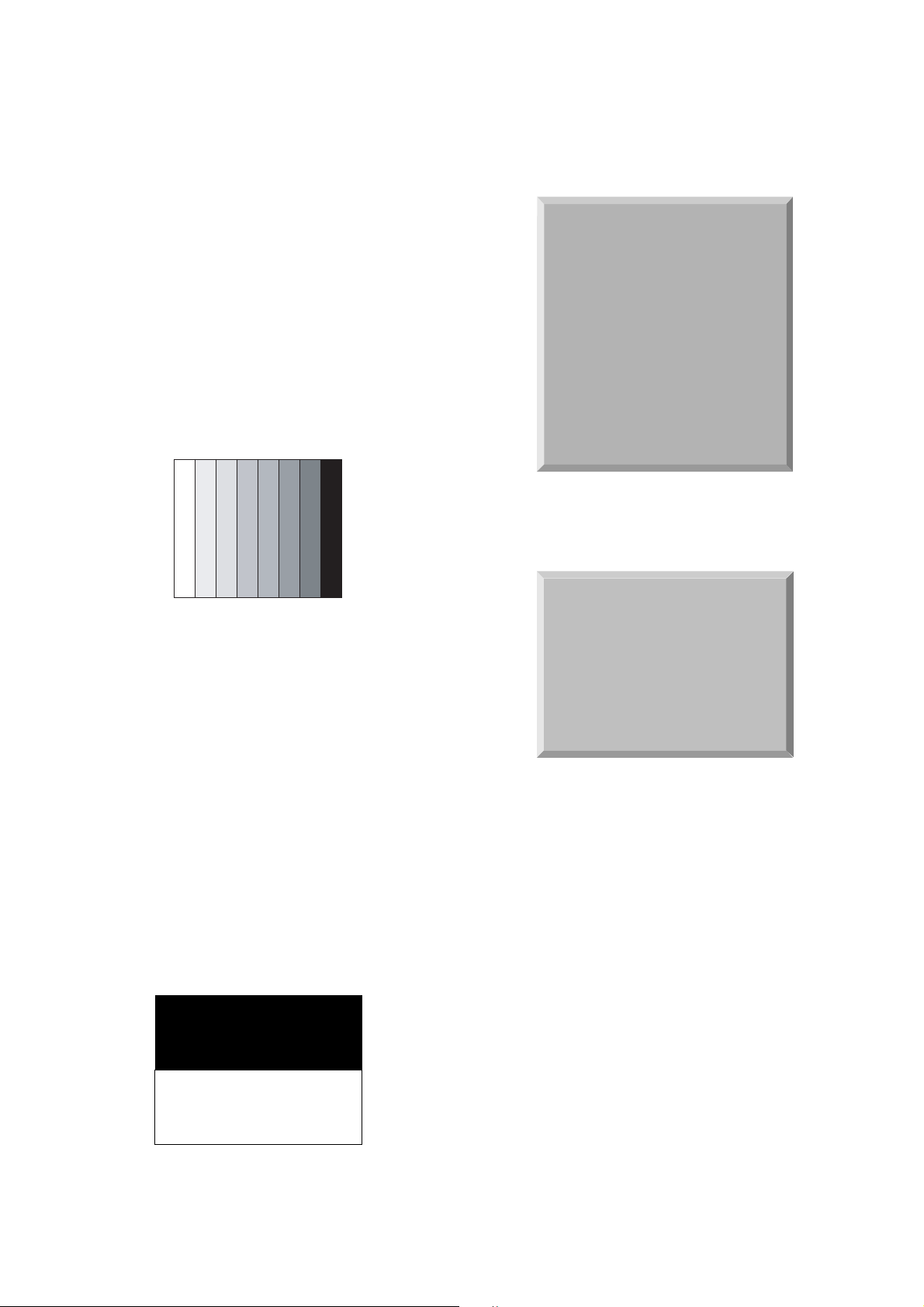

(Fig. 8) Position and Pattern for Manual Adjustment of White Balance

216 Level (85 IRE)

Type

Baud Rate

115200

Index

R Gain

G Gain

B Gain

R Offset

G Offset

B Offset

Data bit

Cmd1 Cmd2

Stop bit

Parity

NONE

MF-056C : RZ-42PX30

Protocol

Setting

Data Min Value

00(00)

Max Value

255(FF)

RS232

(Fig. 6) Auto AV(CVBS) Color Balance Test Pattern

Page 14

- 14 -

8. Auto Component Color Balance

8-1. Required Test Equipment

1) Remote controller for adjustment

2) 802F Pattern Generator (Which has 720p Ypbpr output & PC 1024x768 60Hz with Standard(0.7Vpp) Vertical 100% Color Bar Pattern as Fig.8)

8-2. Method of Auto Component Color Balance

1) Input the Component 720p 100% Color Bar signal into

Component1 or Component2.

2) Set the PSM to Standard mode in Picture menu.

3) Press INSTART key on R/C for adjustment.

4) Press the

G(Vol. +) key operate To set, then it becomes

automatically.

5) Auto-RGB OK means complete adjustment

9. Auto RGB Color Balance

9-1. Required Test Equipment

1) Remote controller for adjustment

2) 802F Pattern Generator, Master (MSPG-925FA), etc. (Which has XGA 60Hz PC Format output with standard (0.7Vpp) horizontal black and white pattern as Fig.10)

9-2. Method of Auto RGB Color Balance

1) Input the PC 1024x768 60Hz horizontal black and white

pattern into RGB.

2) Set the PSM to Standard mode in Picture menu.

3) Press ADJ key on R/C for adjustment.

4) Press the

G(Vol. +) key operate To set, then it becomes

automatically.

5) Auto-RGB OK means completed adjustment.

10. Default Value in Adjustment mode

10-1. Auto Color Balance(Component/RGB)

10-2. White Balance

Level : 0

Level : 255

(Fig. 10) Auto RGB Color Balance Test Pattern

(Fig. 11) Default Value on OSD

(Fig. 12) Default Value on OSD

Auto Color Balance(Hex)

Auto-RGB G To Set

Red Offset1 22 Green Offset1 24 Blue Offset1 23 Red Offset2 45 Green Offset2 43 Blue Offset2 37 Red Gain 14 Green Gain 31 Blue Gain 11 Reset G To Set

White Balance(Hex)

Red Gain 82

Red Offset 7A Green Gain 86 Green Offset 7F Blue Gain 7E Blue Offset 80 Reset G To Set

(Fig. 9) Auto Component Color Balance Test Pattern

Page 15

- 15 -

TROUBLE SHOOTING GUIDE

1. Power Board

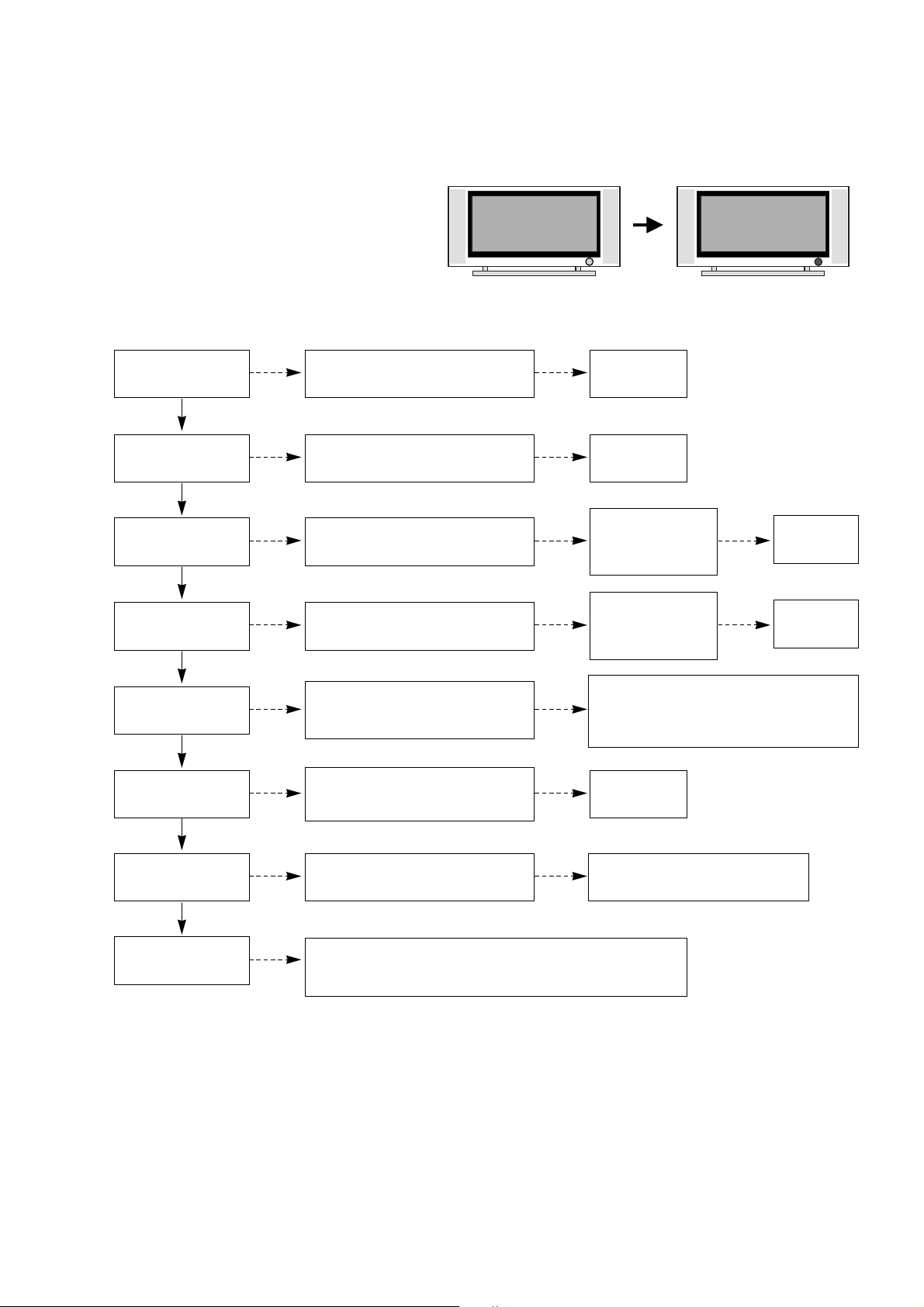

1-1. The whole flowchart which it follows in voltage output state

Start check

Manufacture enterprise

meaning of a passage

1. Check the Power Off condition.

Doesn't the

screen whole come

out?

It is identical

with Power Off

condition?

Yes

2. Check the Interface signal condition.

Is the Interface

signal operated?

Yes

3. Check the St-by 5V signal circuit.

Doesn't the

low pressure output

come out?

Doesn't the

St-by 5V signal

come out?

Yes

4. Check the 5V Monitor signal circuit.

Doesn't the

5V Monitor signal

come out?

Yes

7. Check the VSC Vs-ON signal

Doesn't the

high tension output

come out?

Doesn't the

VSC signal Vs-ON

come out?

Yes

High tension

output voltage Drop

it occurs?

When

remove the

Y B/D Module

Input Connector, output

voltage Drop

it occurs?

When remove

the Y, Z B/D Module

Input Connector, Power

Board high tension output

voltage Drop

it occurs?

Yes No No

9. Check the Power Board Output high

tension circuit

Yes

10. Check the Z B/D

Module output circuit

Yes

When

remove the

Z B/D Module

Input Connector, output

voltage Drop

it occurs?

11. Check the Y B/D

Module output circuit

Yes

8. Check the Vs, Va

voltage output circuit.

Doesn't the

Vs, Va voltage output

come out?

Yes

5. Check the VSC RL-ON signal.

Doesn't the

VSC signal RL-ON

come out?

Yes

6. Check the VSC low pressure output

Doesn't the

VSC low pressure

output come out?

Yes

Page 16

- 16 -

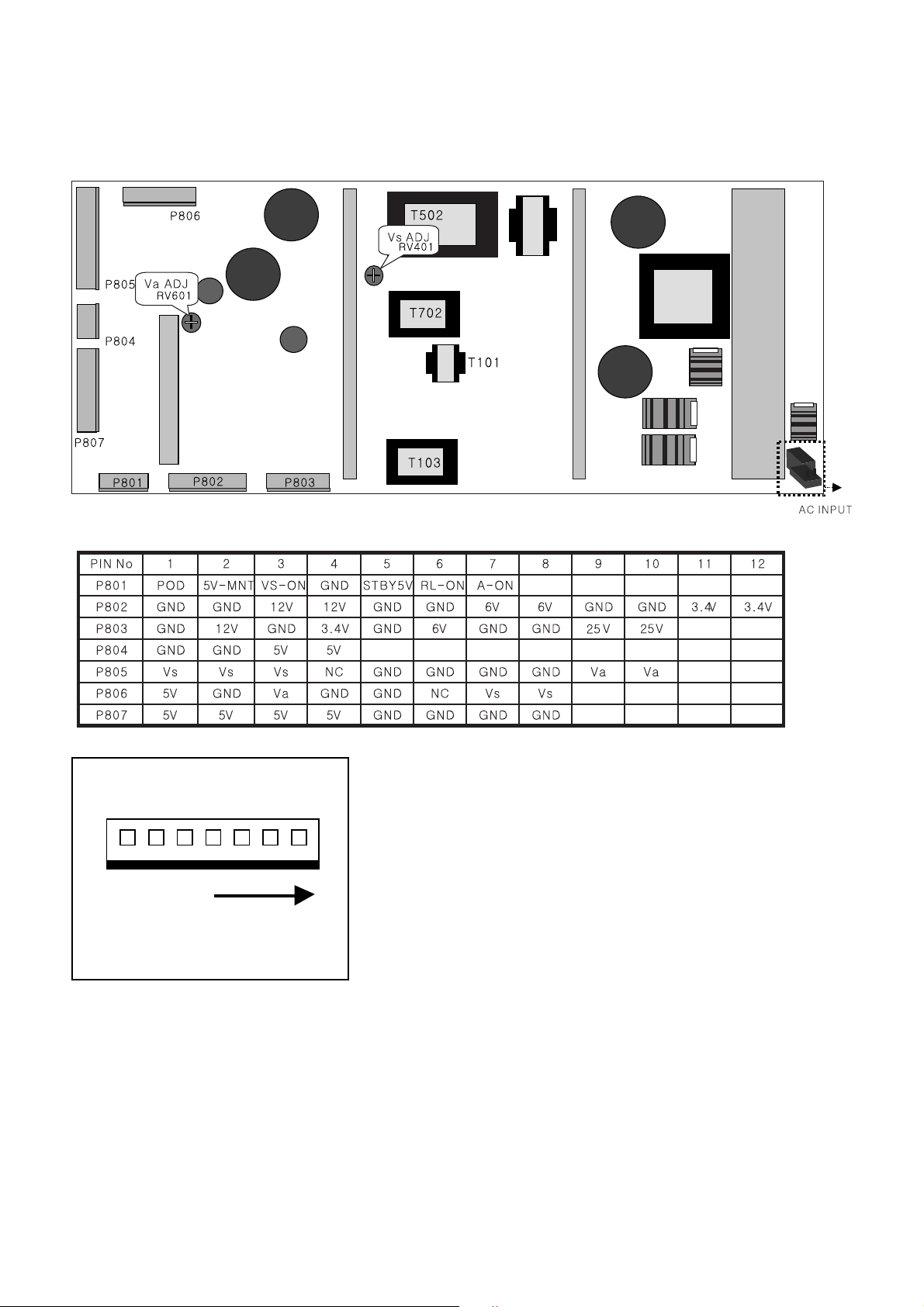

1-2. Sony Power Board Structure

1 2 3

T502: Vs Trans

T702: Va Trans

T101: St-by Trans

T103: Low Voltage Trans

Page 17

- 17 -

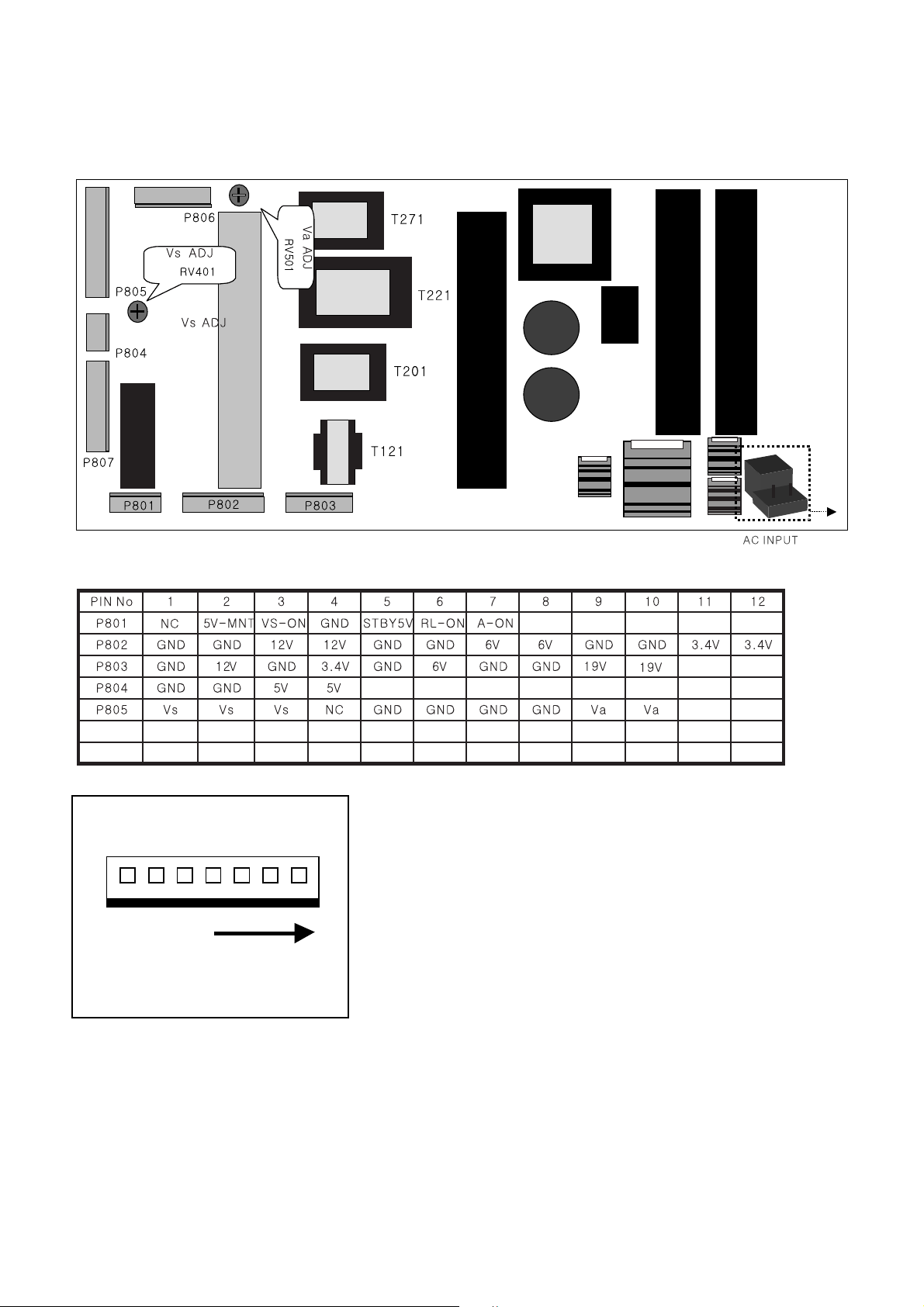

1-3. Sanken Power Board Structure

1 2 3

T221: Vs Trans

T271: Va Trans

T121: St-by Trans

T201: Low Voltage Trans

Page 18

- 18 -

2. No Power

(1) Symptom

Ø Does’t minute discharge at module. Ø Non does not come in into the front LED.

(2) Check follow

Is plug in power cord? Plug in power cord.

Yes

Is connect the Line Filter and Power

Board Cable?

Connect Cable.

Yes

Is normal the Fuse(F101) on Power

Board?

Replace Fuse.

Yes

Is connect the Power Board and 7P

of VSC Board Cable?

Connect Cable.

Yes

After remove the cable connect to

Power Board(except the CN101

connection cable), authorizes the

AC voltage marking on manual.

When ST-BY 5V does not operate,

replace Power Board.

Page 19

- 19 -

3. Protect Mode

(1) Symptom

Ø After once shining, it does not discharge minutely

from module

Ø The Rely falls(The sound is audible “click”) Ø It is converted with the color where the front LED

is red from green.

(2) Check follow

Is normal the Power

Board?

Replace Power

Board.

Is output the normality Low/High

voltage except Stand-by 5V?

Yes

Is normal the each

connector?

Replace

connector.

Replace

Y-Board.

After connecting well each connector,

the normality it operates?

Yes

Is normal the

Ctrl Board?

Replace

X-Board.

Is normal the output voltage after

remove P1, 2, 4, 9, 10 connector of

Ctrl-B/D?

Yes

Is normal the

Y- Board?

Is normal the output

voltage after remove

P5, P6 connector of

Y-B/D?

Is normal the Fuse(FS2) on Y-B/D?

(In case of open is replace)

Yes

Yes Yes

Replace

Z-Board.

Is normal the

Z- Board?

Is normal the output

voltage after remove

P1 connector of

Z-B/D?

Is normal the Fuse(FS1, FS2) on Z-

B/D? (In case of open is replace)

Yes

Is normal the

X- Board?

Is normal the output voltage after

remove P1, 2, 3, 4, 5 connector of

X-B/D?

After remove P1, P2, P3 output voltage normality: Replace Right X-B/D After remove P4, P5 output voltage normality: Replace Left X-B/D

Yes

Is normal the VSC Board?

Is normal the output voltage after

remove P1001, P1100?

After crisis COF of each board, check the normality operates. If in case normality operates, correspondence COF Fail is replace the module.

After remove P1001, 1100 normal operation: Replace VSC Board

Yes

Is normal the

COF of X, Y, Z?

Yes

Page 20

- 20 -

4. No Raster

(1) Symptom

Ø Does’t minute discharge at module. Ø It maintains the condition where the front LED is green.

(2) Check follow

Is normal the Power

Board?

Replace Power

Board.

Is output the normality Low/High

voltage except Stand-by 5V?

Yes

Is normal the each

connector?

Replace

connector.

Replace

Y-Board.

After connecting well each connector,

the normality it operates?

Yes

Is normal the

Ctrl Board?

Replace

X-Board.

Is normal the output voltage after

remove P1, 2, 4, 9, 10 connector of

Ctrl-B/D?

Yes

Is normal the

Y- Board?

Is normal the output

voltage after remove

P5, P6 connector of

Y-B/D?

Is normal the Fuse(FS2) on Y-B/D?

(In case of open is replace)

Yes

Yes Yes

Replace

Z-Board.

Is normal the

Z- Board?

Is normal the output

voltage after remove

P1 connector of

Z-B/D?

Is normal the Fuse(FS1, FS2) on Z-

B/D? (In case of open is replace)

Yes

Is normal the

X- Board?

Is normal the output voltage after

remove P1, 2, 3, 4, 5 connector of

X-B/D?

After remove P1, P2, P3 output voltage normality: Replace Right X-B/D After remove P4, P5 output voltage normality: Replace Left X-B/D

Yes

Is normal the VSC Board?

Is normal the output voltage after

remove P1001, P1100?

After crisis COF of each board, check the normality operates. If in case normality operates, correspondence COF Fail is replace the module.

After remove P1001, P1100 normal operation: Replace VSC Board

Yes

Is normal the

COF of X, Y, Z?

Yes

Page 21

- 21 -

5. In case of occur strange screen into specific mode

5-1. In case of does’t display the OSD

(1) Symptom

Ø LED is green Ø The minute discharge continuously becomes

accomplished from module

(2) Check follow

Is normal the LVDS

cable?

Is normal the VSC

Board?

Is the LVDS cable

connected well?

Cable inserts well.

Yes

Operates the

FIL8532 IC(IC800)?

Replace FIL8532

IC(IC800).

Is normal the Ctrl

Board of Module?

Replace Ctrl B/D.

Yes

Replace VSC B/D

Replace cable.

Yes

Page 22

- 22 -

5-2. In case of does’t display the screen into specific mode

(1) Symptom

Ø The screen does not become the display from specific input mode

(RF, AV, Component, RGB, DVI).

(2) Check follow

Ø Check the all input mode should become normality display

Ø Check the Video(Main)/Data(Sub), Video(Main)/Video(Sub) should become

normality display from the PIP mode or DW mode. (Re-Check it Swap)

(3) In case of becomes unusual display from RF mode

(4) In the case of becomes unusual display from RF, AV mode

(5) In the case of becomes unusual display from Component, RGB mode

(6) In the case of becomes unusual display from HDMI mode

Is normal the Tuner?

Is normal the

CXA2069Q?

Is the Tuner Cable

connected well?

Cable inserts well.

Yes

Is normal the

FIL8532?

Replace Tuner

Is normal the Input voltage, IIC

Communication and CVBS output?

Yes

Is normal the Input voltage, IIC

Communication and HV sync?

Replace IC

Is normal the Input voltage, IIC

Communication and HV sync?

Replace IC

Is normal the

CXA2069Q?

Yes

Is normal the

FIL8532?

Is normal the Input voltage, IIC

Communication and HV sync?

Replace IC

Is normal the Input voltage, IIC

Communication and HV sync?

Replace IC

Is normal the

FIL8532?

Is normal the Input voltage, IIC Communication and HV sync?

Replace IC

Is normal the

Sil9011?

Yes

Is normal the

FIL8532?

Is normal the Input voltage, IIC Communication and HV sync?

Replace IC

Is normal the Input voltage, IIC Communication and HV sync?

Replace IC

Page 23

- 23 -

6. In case of no sound

(1) Symptom

Ø LED is green Ø Screen display but sound is not output

(2) Check follow

Is normal the SPK

cable?

Is the SPK cable

connected well?

Cable inserts well.

Replace IC400

Replace IC401

Replace SPK cable

Yes

Is normal the RF/ AV/

Component/ RGB/

HDMI sound?

Operates the IC400? Operates the IC401?

Replace IC402

Operates the IC402?

Replace

VSC B/D

Yes Yes

Page 24

- 24 -

BLOCK DIAGRAM

Page 25

MEMO

- 25 -

Page 26

- 26 -

EXPLODED VIEW

300

301

304

302

202

206

203

204

201

205

580

410

530

121

601

600

120

501

401

400

303

207

200

520

430

590

Page 27

- 27 -

120 6401VD0032A SPEAKER ASSEMBLY, FULL RANGE(R) RZ-42PX30 FILM TYPE

121 6401VD0033A SPEAKER ASSEMBLY, FULL RANGE(L) RZ-42PX30 FILM TYPE

200 6348Q-E080W PDP, 42” 852*480 PDP42V70102.ADLGB

201 6871QCH053A PWB(PCB) ASSEMBLY,DISPLAY CTRL ASSY HAND INSERT 42V7 FPGA

202 6871QDH084A PWB(PCB) ASSEMBLY,DISPLAY YDRV ASSY HAND INSERT 42V7 YDRV TOP B/D

203 6871QDH085A PWB(PCB) ASSEMBLY,DISPLAY YDRV ASSY HAND INSERT 42V7 YDRV BTM B/D

204 6871QLH047A PWB(PCB) ASSEMBLY,DISPLAY XRLT ASSY HAND INSERT 42V7 XL B/D

205 6871QRH055A PWB(PCB) ASSEMBLY,DISPLAY XRRT ASSY HAND INSERT 42V7 XR B/D

206 6871QYH036A PWB(PCB) ASSEMBLY,DISPLAY YSUS ASSY HAND INSERT 42V7

207 6871QZH041A PWB(PCB) ASSEMBLY,DISPLAY ZSUS ASSY HAND INSERT 42V7 ZSUS HAND INSERT ASSY

300 3091V00816C CABINET ASSEMBLY, RZ-42PX30 STEREO MF056C FILM TYPE SKD

301 4980V01203B SUPPORTER, ASSY AL FILTER TOP RZ-42PX30 C/SKD

302 4980V01204B SUPPORTER, ASSY AL FILTER BOTTOM RZ-42PX30 C/SKD

303 4980V01205B SUPPORTER, ASSY AL FILTER RIGHT RZ-42PX30 C/SKD

304 4980V01206B SUPPORTER, ASSY AL FILTER LEFT RZ-42PX30 C/SKD

400 3809V00605B BACK COVER ASSEMBLY, 42PX17/30 CHASSIS CHANGE C/SKD

401 3301V00085A PLATE ASSEMBLY, ASSY 3300V00552A RZ-42PX30 PLATE TUNER COVER

410 4980V01071B SUPPORTER, ASSY AL VERTICAL RZ-42PX10 SKD

430 3501V00216E BOARD ASSEMBLY, ASSY AP-42DX30 MF056C C/SKD

501 3301V00083A PLATE ASSEMBLY, ASSY 3300V00550A 3301V00084A 42PX17/30 PLATE TUNER

520 6871VMMF61A PWB(PCB) ASSEMBLY,MAIN MF-056C H2, RZ-42PX30

530 6871VSMS36B PWB(PCB) ASSEMBLY,SUB CONT MF056C RZ-42PX30 SKD NO VINYL

580 6709V00010A POWER SUPPLY ASSEMBLY, PDP 42INCH MF056A 350W YPSU-J006A LG INNOTEK PSU ASSY

600 6871VSMS18B PWB(PCB) ASSEMBLY,SUB A/V MF056A RT/RZ-42PX40 SIDE A/V SUSAB

601 4811V00118A BRACKET ASSEMBLY, DECO RZ-42PX10 RF043B SIDE AV

EXPLODED VIEW PARTS LIST

No. Part No. Descriptions

Page 28

MIC39100 3P SOT223 R/TP LDO TYPE 2.5V BA033FP-E2 ROHM 3P-SOP,TO252-3 R/TP 3.3V KA7809R, FAIRCHILD 2P D-PAK, R/TP IC SC156515M-1.8TR SEMTECH 5P/TO-263-5 R/TP BA033FP-E2 ROHM 3P-SOP,TO252-3 R/TP 3.3V BA033FP-E2 ROHM 3P-SOP,TO252-3 R/TP 3.3V BA033FP-E2 ROHM 3P-SOP,TO252-3 R/TP 3.3V MIC39100 MICREL 3P SOT223 R/TP LDO TYPE SC156515M-1.8TR SEMTECH 5P/TO-263-5 KIA78R05F KEC 5PIN DPAK R/TP 1A,5V SC156515M-1.8TR SEMTECH 5P/TO-263-5 SII9011CLU(PB FREE) SILICON IMAGE 128P AT24C02N-10SI-2.7 ATMEL 8P SOIC R/TP MC34063ADR2G ON SEMI SO-8P R/TP CXA2069Q QFP64 BK I2C BUS AV S/W LA7217M MFP14 TP SYNC SEPARATOR ML-00BA MSP4410K MICRONAS 80P/PQFP NSP-2100A,LF NEOFIDELITY TQFP 64P TAS5122DCAR 56P/TSSOP R/TP 30W STEREO KA4558D 8SOP OP AMP 74HC14D 14SOP TP SHITTER TRIGGER AT24C02N-10SI-2.7 ATMEL 8P SOIC 74HC14D 14SOP TP SHITTER TRIGGER ICL3232CBNZ INTERSIL 16P/SOP R/TP FLI8532BC-LF GENESIS 416P/PBGA 24LC256-I/SM 8P,SOP TP 256K IIC SERIAL AT49BV160-70TI ATMEL 48P TSOP K4D261638F-LC50,LF TSOPII 66P K4D261638F-LC50,LF TSOPII 66P

BSS83 TP PHILIPS N-CHANNEL S/W TR BSS83 TP PHILIPS N-CHANNEL S/W TR BSS83 TP PHILIPS N-CHANNEL S/W TR BSS83 TP PHILIPS N-CHANNEL S/W TR BSS83 TP PHILIPS N-CHANNEL S/W TR BSS83 TP PHILIPS N-CHANNEL S/W TR CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC KRA102S R/TP KEC SOT23 CHIP TR CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC

REPLACEMENT PARTS LIST

LOCA. NO PART NO DESCRIPTION

Q202 Q203 Q204 Q205 Q206 Q207 Q300 Q303 Q304 Q305 Q400 Q401 Q402 Q403 Q404 Q405 Q406 Q407 Q408 Q409 Q410 Q411

D1005 D1006 D1007 D1008 D1009 D1010 D1012 D1013

D102 D103 D104 D105 D106

D108 D1100 D1105 D1109

D112

D113

D114 D1200 D1201

D300

D500

D501

D502

D504

D505

D506

0TR387500AA 0TR150400BA 0TR150400BA 0TR387500AA 0TR150400BA 0TR150400BA 0TR387500AA 0TR387500AA 0TR387500AA 0TR150400BA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR102008AA 0TR102008AA 0TR387500AA 0TR102008AA 0TR387500AA 0TR387500AA 0TR387500AA

0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA

0DD200009AF

0DD200009AF 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD184009AA

0DS113379BA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DR050008AA 0DR050008AA 0DR050008AA

CHIP 2SC3875S(ALY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC KRA102S R/TP KEC SOT23 CHIP TR KRA102S R/TP KEC SOT23 CHIP TR CHIP 2SC3875S(ALY) KEC KRA102S R/TP KEC SOT23 CHIP TR CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC

KDS226 TP KEC KDS226 TP KEC KDS226 TP KEC KDS226 TP KEC KDS226 TP KEC KDS226 TP KEC RU2M V(1) TP SANKEN RU2M V(1) TP SANKEN KDS226 TP KEC KDS226 TP KEC KDS226 TP KEC KDS226 TP KEC KDS226 TP KEC KDS226 TP KEC KDS226 TP KEC KDS226 TP KEC KDS226 TP KEC KDS226 TP KEC KDS226 TP KEC KDS226 TP KEC KDS184 TP KEC - 85V - 300MA 1SS133 T-72 TP ROHM KOREA DO34 90V KDS226 TP KEC KDS226 TP KEC KDS226 TP KEC KDS226 TP KEC SD05.TC R/TP SEMTECH SOD323 5V 5A 15A SD05.TC R/TP SEMTECH SOD323 5V 5A 15A SD05.TC R/TP SEMTECH SOD323 5V 5A 15A

LOCA. NO PART NO DESCRIPTION

IC1000 IC1001 IC1002 IC1003 IC1004 IC1005 IC1100 IC1101 IC1102 IC1103 IC1104 IC1200 IC1201

IC202 IC300 IC301 IC400 IC401 IC402 IC403 IC404 IC500 IC502 IC600 IC800 IC802 IC900 IC901 IC902

IC1202 IC1203

IC200 IC201 IC503 IC504

Q100 Q1000 Q1001 Q1002 Q1003 Q1004

Q101

Q102

Q103

Q104 Q1200

Q201

0IPRPML001A 0IMCRRH001A 0IMCRFA010A 0IPMG00027A 0IMCRRH001A 0IMCRRH001A 0IMCRRH001A 0IPRPML001A 0IPMG00027A 0IPMGKE030A 0IPMG00027A

0IPRPS5005A 0IMMRAL014B 0IPMGON013B

0ISO206900A 0ISA721700C

0IMCRMN028B

0ILNR00015A

0IMCRTI028C

0ISS455880A 0IPH741400E

0IMMRAL014B

0IPH741400E

0IPRP00009A

0IMCR02005A

0IMP242560A

0IMMRAL016D

0IMMR00002A 0IMMR00002A

0TR830009BA 0TR830009BA 0TR830009BA 0TR830009BA 0TR830009BA 0TR830009BA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR102008AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA

TRANSISTOR

- 28 -

DIODE

Page 29

- 29 -

LOCA. NO PART NO DESCRIPTION

ZD100 ZD101 ZD107 ZD300 ZD301 ZD400 ZD600

C1000 C1005 C1007 C1009 C1010 C1019 C1022

C103 C1030 C1043 C1046 C1047 C1050 C1051 C1064 C1065 C1066 C1067 C1068 C1069 C1071 C1073

C108 C1082 C1083 C1084 C1085 C1087 C1098 C1099 C1102 C1105 C1107 C1108 C1110 C1115 C1116 C1117 C1117 C1118 C1119 C1120 C1126

0DR050008AA 0DR050008AA 0DR050008AA 0DR050008AA 0DR050008AA

0DZRM00248A

0DR050008AA

0CE477SF6DC 0CE477SF6DC 0CE107SF6DC 0CE107SF6DC 0CE107SF6DC 0CE476SF6DC 0CE107SF6DC

0CE4763F618 0CE476SF6DC 0CE476SF6DC 0CE477SF6DC 0CE476SF6DC 0CE477SF6DC 0CE477SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE477SF6DC 0CE477SF6DC 0CE227SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE477SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE107SF6DC 0CE107SF6DC 0CE477SF6DC

0CE477DJ618 0CE477SF6DC 0CE227SF6DC 0CE227VF6DC 0CE477SF6DC

0CE477DJ618 0CE227VF6DC 0CE477SF6DC

SD05.TC R/TP SEMTECH SOD323 5V 5A 15A SD05.TC R/TP SEMTECH SOD323 5V 5A 15A SD05.TC R/TP SEMTECH SOD323 5V 5A 15A SD05.TC R/TP SEMTECH SOD323 5V 5A 15A SD05.TC R/TP SEMTECH SOD323 5V 5A 15A RLZ8.2B-TE11 ROHM R/TP LLDS(LL-34) SD05.TC R/TP SEMTECH SOD323 5V 5A 15A

470UF MVG 16V 20% R/TP(SMD) SMD 470UF MVG 16V 20% R/TP(SMD) SMD 100UF MVG 16V 20% SMD R/TP 100UF MVG 16V 20% SMD R/TP 100UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 100UF MVG 16V 20% SMD R/TP 47UF SRE 16V M FL TP5 47UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 470UF MVG 16V 20% R/TP(SMD) SMD 47UF MVG 16V 20% SMD R/TP 470UF MVG 16V 20% R/TP(SMD) SMD 470UF MVG 16V 20% R/TP(SMD) SMD 47UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 470UF MVG 16V 20% R/TP(SMD) SMD 470UF MVG 16V 20% R/TP(SMD) SMD 220UF MVG 16V 20% R/TP(SMD) SMD 47UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 470UF MVG 16V 20% R/TP(SMD) SMD 47UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 100UF MVG 16V 20% SMD R/TP 100UF MVG 16V 20% SMD R/TP 470UF MVG 16V 20% R/TP(SMD) SMD 470UF STD 35V 20% FL TP 5 470UF MVG 16V 20% R/TP(SMD) SMD 220UF MVG 16V 20% R/TP(SMD) SMD 220UF MV 16V 20% R/TP(SMD) SMD 470UF MVG 16V 20% R/TP(SMD) SMD 470UF STD 35V 20% FL TP 5 220UF MV 16V 20% R/TP(SMD) SMD 470UF MVG 16V 20% R/TP(SMD) SMD

LOCA. NO PART NO DESCRIPTION

C1135 C1136 C1137 C1138 C1148 C1154

C117 C118

C1185

C119

C1199

C120 C1200 C1201

C121 C1225 C1230 C1231 C1245 C1247

C129

C130

C131 C1311 C1312 C1314 C1315 C1316 C1317 C1318

C135 C1406 C1414 C1415 C1419 C1420 C1424 C1425 C1428 C1438 C1441 C1506

C204

C210

C211

C214

C215

C221

C238

C241

C300

0CE107SF6DC 0CE107SF6DC 0CE107SF6DC 0CE107SF6DC 0CE476SF6DC 0CE476SF6DC 0CE227SF6DC 0CE106SF6DC 0CE476SF6DC 0CE106SF6DC 0CE107SF6DC 0CE106SF6DC 0CE106SF6DC 0CE106SF6DC 0CE106SF6DC 0CE106SF6DC 0CK105DF64A 0CK105DF64A 0CE106SF6DC 0CE476SF6DC 0CE227SF6DC 0CE227SF6DC 0CE227VF6DC 0CE476SF6DC 0CE107SF6DC 0CE107SF6DC 0CE107SF6DC 0CE107SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC

0CE106SF6DC 0CE475SK6DC 0CE475SK6DC

0CE106SF6DC

0CK105DF64A

0CE106SF6DC 0CE106SH6DC 0CE106SH6DC 0CE106SH6DC 0CE106SH6DC

0CE476SF6DC

0CE477SF6DC 0CE475SK6DC

0CE477SF6DC

0CE106SF6DC 0CE475SK6DC

0CE477SF6DC

0CE107SF6DC

0CE476SK6D8

0CE107SF6DC

100UF MVG 16V 20% SMD R/TP 100UF MVG 16V 20% SMD R/TP 100UF MVG 16V 20% SMD R/TP 100UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 220UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 47UF MVG 16V 20% SMD R/TP 10UF MVG 16V 20% R/TP(SMD) SMD 100UF MVG 16V 20% SMD R/TP 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 1UF 2012 16V 20% R/TP F(Y5V) 1UF 2012 16V 20% R/TP F(Y5V) 10UF MVG 16V 20% R/TP(SMD) SMD 47UF MVG 16V 20% SMD R/TP 220UF MVG 16V 20% R/TP(SMD) SMD 220UF MVG 16V 20% R/TP(SMD) SMD 220UF MV 16V 20% R/TP(SMD) SMD 47UF MVG 16V 20% SMD R/TP 100UF MVG 16V 20% SMD R/TP 100UF MVG 16V 20% SMD R/TP 100UF MVG 16V 20% SMD R/TP 100UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 10UF MVG 16V 20% R/TP(SMD) SMD

4.7UF MVG 50V 20% SMD R/TP

4.7UF MVG 50V 20% SMD R/TP 10UF MVG 16V 20% R/TP(SMD) SMD 1UF 2012 16V 20% R/TP F(Y5V) 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 25V 20% SMD R/TP 10UF MVG 25V 20% SMD R/TP 10UF MVG 25V 20% SMD R/TP 10UF MVG 25V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 470UF MVG 16V 20% R/TP(SMD) SMD

4.7UF MVG 50V 20% SMD R/TP 470UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD

4.7UF MVG 50V 20% SMD R/TP 470UF MVG 16V 20% R/TP(SMD) SMD 100UF MVG 16V 20% SMD R/TP 47UF MVG,MC 50V 20% SMD TAPPING 100UF MVG 16V 20% SMD R/TP

CAPACITOR

For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows;

CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic

RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible

Page 30

- 30 -

LOCA. NO PART NO DESCRIPTION

C304 C305 C307 C310 C315 C318 C319 C321 C325 C328 C330 C338 C340 C342 C347 C402 C403 C413 C418 C422 C425 C437 C444 C451 C456 C457 C462 C463 C464 C465 C480 C481 C482 C483 C484 C495 C527 C610 C832 C833 C834 C835 C836 C837 C838 C839 C840 C851 C853 C884 C896 C901

0CE226SF6DC 0CE107SF6DC 0CE476SF6DC 0CK225DFK4A 0CK225DFK4A 0CK225DFK4A 0CK225DFK4A 0CK225DFK4A 0CK225DFK4A 0CK225DFK4A 0CK225DFK4A 0CK225DFK4A 0CE476SF6DC 0CE105SK6DC 0CE105SK6DC 0CE476SF6DC 0CE226SF6DC 0CE335VK6DC 0CE107SF6DC 0CE106SF6DC 0CE226SF6DC 0CE106SF6DC 0CE107SF6DC

0CK105DF64A

0CK105DF64A 0CE335VK6DC 0CE107SF6DC 0CE106SF6DC 0CE106SF6DC 0CE106SK6DC

0CE108DJ618 0CE475SK6DC 0CE475SK6DC

0CF4741L438 0CF4741L438

0CE108DJ618 0CE476SF6DC 0CE107SF6DC 0CE226SF6DC 0CE226SF6DC 0CE226SF6DC 0CE226SF6DC 0CE226SF6DC 0CE226SF6DC 0CE226SF6DC 0CE226SF6DC 0CE226SF6DC 0CE226SF6DC 0CE226SF6DC 0CE226SF6DC 0CE226SF6DC 0CE226SF6DC

22UF MVG 16V 20% SMD R/TP 100UF MVG 16V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP

2.2UF 2012 16V 20%,-20% F(Y5V) R/TP

2.2UF 2012 16V 20%,-20% F(Y5V) R/TP 47UF MVG 16V 20% SMD R/TP 1UF MVG 50V 20% SMD R/TP 1UF MVG 50V 20% SMD R/TP 47UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP

3.3UF MV 50V 20% R/TP(SMD) SMD 100UF MVG 16V 20% SMD R/TP 10UF MVG 16V 20% R/TP(SMD) SMD 22UF MVG 16V 20% SMD R/TP 10UF MVG 16V 20% R/TP(SMD) SMD 100UF MVG 16V 20% SMD R/TP 1UF 2012 16V 20% R/TP F(Y5V) 1UF 2012 16V 20% R/TP F(Y5V)

3.3UF MV 50V 20% R/TP(SMD) SMD 100UF MVG 16V 20% SMD R/TP 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 50V 20% SMD R/TP 1000UF STD 35V 20% FL TP 5

4.7UF MVG 50V 20% SMD R/TP

0.47UF D 63V 5% TP 5 M/PE NI

0.47UF D 63V 5% TP 5 M/PE NI 1000UF STD 35V 20% FL TP 5 47UF MVG 16V 20% SMD R/TP 100UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP

LOCA. NO PART NO DESCRIPTION

C904 C905 C930 C950

L1000 L1101 L1102 L1103 L1104

L404 L405 L406 L407

AR1200 AR1201 AR1202 AR1203 AR1204 AR1205

AR806 AR807 AR808 AR809 AR810 AR811 AR812 AR813 AR814 AR815 AR816 AR817

R230

D1003 D1103 LD101

SW101 SW102 SW103 SW104 SW105 SW106 SW107 SW108 SW800

0CE226SF6DC 0CE226SF6DC 0CE226SF6DC 0CE226SF6DC

6140VB0004B 6140VB0004B 6140VB0004B 6140VB0004B 6140VB0004B 6140VB0032A 6140VB0032A 6140VB0032A 6140VB0032A

0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001B 0RRZVTA001B 0RRZVTA001B 0RRZVTA001B 0RRZVTA001B 0RRZVTA001B 0RRZVTA001B 0RRZVTA001B 0RRZVTA001B 0RRZVTA001B 0RRZVTA001B 0RRZVTA001B

0RD0331H609

0DL233309AC 0DL233309AC 0DL200000CA

140-315A 140-315A 140-315A 140-315A 140-315A 140-315A 140-315A 140-315A

6600VR1004A

22UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP 22UF MVG 16V 20% SMD R/TP

26UH 1UEWPHY 22.5TURN YL-9N 0.4 26UH 1UEWPHY 22.5TURN YL-9N 0.4 26UH 1UEWPHY 22.5TURN YL-9N 0.4 26UH 1UEWPHY 22.5TURN YL-9N 0.4 26UH 1UEWPHY 22.5TURN YL-9N 0.4 DBF-1015A 15.5UH 10PIE DIGITAL AUDIO DBF-1015A 15.5UH 10PIE DIGITAL AUDIO DBF-1015A 15.5UH 10PIE DIGITAL AUDIO DBF-1015A 15.5UH 10PIE DIGITAL AUDIO

22 OHM 1 / 16 W 1608 5% R/TP 4P 22 OHM 1 / 16 W 1608 5% R/TP 4P 22 OHM 1 / 16 W 1608 5% R/TP 4P 22 OHM 1 / 16 W 1608 5% R/TP 4P 22 OHM 1 / 16 W 1608 5% R/TP 4P 22 OHM 1 / 16 W 1608 5% R/TP 4P MNR14-E0A-J-510 R OHM 51 OHM 5% MNR14-E0A-J-510 R OHM 51 OHM 5% MNR14-E0A-J-510 R OHM 51 OHM 5% MNR14-E0A-J-510 R OHM 51 OHM 5% MNR14-E0A-J-510 R OHM 51 OHM 5% MNR14-E0A-J-510 R OHM 51 OHM 5% MNR14-E0A-J-510 R OHM 51 OHM 5% MNR14-E0A-J-510 R OHM 51 OHM 5% MNR14-E0A-J-510 R OHM 51 OHM 5% MNR14-E0A-J-510 R OHM 51 OHM 5% MNR14-E0A-J-510 R OHM 51 OHM 5% MNR14-E0A-J-510 R OHM 51 OHM 5%

3.3 OHM 1/2 W 5.00% TA52

SAM2333 GREEN/RED GREEN:10MCD, RED:6MCD SAM2333 GREEN/RED GREEN:10MCD, RED:6MCD SAM5670(DL-2LRG) BK Y-GREEN -

TACT SKHV17910B LG C&D 12V TACT SKHV17910B LG C&D 12V TACT SKHV17910B LG C&D 12V TACT SKHV17910B LG C&D 12V TACT SKHV17910B LG C&D 12V TACT SKHV17910B LG C&D 12V TACT SKHV17910B LG C&D 12V TACT SKHV17910B LG C&D 12V SKHMPW 5P CHIP TACT J-ALPS

For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows;

CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic

RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible

RESISTOR

COIL

LED

SWITCH

Page 31

- 31 -

LOCA. NO PART NO DESCRIPTION

L100 L1004 L1005 L1006 L1007 L1009

L101 L1010

L1011 L1012 L1013 L1014 L1015 L1016 L1017 L1018 L1019 L1020 L1021 L1022 L1023 L1024 L1025

L110 L1105 L1106 L1107 L1108

L111 L1125 L1126 L1127 L1128 L1129 L1130

L114

L115

L119

L120 L1204 L1205 L1206 L1207 L1208 L1209

L121

L122

L123

L124

L125

6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013

6200J000013 6200JB8010L 6200JB8010L 6200JB8010L 6200JB8010L

6200J000013

6210VC0005A 6210VC0005A 6210VC0005A 6210VC0005A

MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-201209-1000L-N2 MAG LAYERS MLB-201209-1000L-N2 MAG LAYERS MLB-201209-1000L-N2 MAG LAYERS MLB-201209-1000L-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP

LOCA. NO PART NO DESCRIPTION

L126 L202 L203 L204 L300 L301 L302 L400 L401 L402 L403 L408 L408 L409 L409 L410 L500 L502 L503 L506 L604

X1200

X300 X400 X800

JK100 JK101 JK101 JK102 JK103 JK104

JK1200

JK400 JK502 JK600

A1 A2 A3

C2 JK500 JK601

PA101 TU201

6210VC0005A

6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200JB8010L 6200J000013 6200J000013 6200J000013 6200J000013 6200J000013 6200JB8010L 6200J000013 6200JB8010L 6200J000013 6200J000013 6200JB8010L 6200JB8010L 6200J000013 6200J000013

6212AB2845A

166-E02F

156-A02M

6212AB2844A

6612J00043C 6612J00043C

6613V00026A

6612J00043C 6612J10012A 6612J00038B

6612B00015B

6612J00037A 6612F00087A 6612F00087A

3828VA0541F 6710V00138M

6410VEH003C

6850VA0004J

6850J00005B 6630G70016A 6630G70017A

6712000002B 6700MF0010A

BK2125 HS 750 2X1.25X0.85MM R/TP MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-201209-1000L-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-201209-1000L-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-201209-1000L-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-201209-1000L-N2 MAG LAYERS MLB-201209-1000L-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS MLB-321611-0500P-N2 MAG LAYERS RESONATOR,CRYSTALABLS-27.000MHZ RESONATOR,CERAMICCSBLA500KECZF09-B0 RESONATOR,CRYSTALHC49U 18.432MHZ RESONATOR,CRYSTALABLS-19.6608MHZ

UPJ-R1-031 UGCOM S/T,SCART,SHIELD,SPRING UPJ-R1-031 UGCOM S/T,SCART,SHIELD,SPRING UJB-03-28A UGCOM UPJ-R1-031 UGCOM S/T,SCART,SHIELD,SPRING UJB-05-02C UGCOM COMPONENT UJB-03-25B UGCOM 6612J00038A+RED DC1R019WDH JAE 0.5MM,19PIN+2PIN,HDMI S/T UJB-02-12A UGCOM 2P RCA VERTICAL+SHIELD UEJ-CV-032 UGCOM EAR JACK 10MM UEJ-CV-032 UGCOM EAR JACK 10MM

MANUAL,OWNERS MF056C EU/42PX3RVA REMOTE CONTROLLER, RZ-42PX30 SPEC. POWER CORD, M2511A-001 VDE/SEMKO 2800MM

CABLE,COAXIAL UL1365#26 150MM UCA-EX-069 CABLE,DVI LVDS UL20276 AWG30 500MM CONNECTOR, A03-7071-094 SPG 15P 2.29MM RGB CONNECTOR, A02-0915-101 SPG 9P 2.54MM REMOTE CONTROLLER RECEIVER,KSM-603SM12E-1 TUNER, TAUM-W501P MINI 4 SYSTEM MAIN

FILTER & CRYSTAL

ACCESSORIES

MISCELLANEOUS

JACK

Page 32

Page 33

Page 34

Page 35

PRINTED CIRCUIT BOARD

MAIN (TOP) MAIN (BOTTOM )

SIDE A/V

CONTROL

Page 36

Mar., 2005

Printed in KoreaP/NO : 3828VD0209N
