LG 42PX3DLV, 42PX3DLV-UC, 42PX3DBV, 42PX3DBV-UC User Manual

PLASMA TV

OWNER’S MANUAL

Please read this manual carefully and completely before
operating your TV.
Retain this manual for future reference.
Record model number and serial number of the TV in the
spaces provided below.
See the label attached on the back cover and relate this
information to your dealer if you require service.

Model Number :
Serial Number :

MODELS:

42PX3DBV/42PX3DLV

42PX3DBV-UC/ 42PX3DLV-UC

LG Electronics U.S.A., Inc.

2 Plasma TV

Warning/Caution

WARNING/CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to

the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi­cient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the appli­ance.

WARNING/CAUTION:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

FCC NOTICE

• A Class B digital device

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

• Any changes or modifications not expressly approved by the party responsible for compli­ance could void the user’s authority to operate the equipment.

.

CAUTION:

Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized mod­ification could void the user’s authority to operate this product.

COMPLIANCE:

The responsible party for this product’s compliance is:
LG Electronics U.S.A., Inc
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
1-800-243-0000
http://www.lgusa.com

WARNING

RISK OF ELECTRIC SHOCK
DO NOT OPEN

/CAUTION

WARNING/CAUTION

TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.

W

W

arning/Caution

arning/Caution

Owner’s Manual 3

Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS

Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet or
sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the appara­tus. This information shall be given in a language acceptable to the country where the apparatus is intended to be used. The
important safety instructions shall be entitled “Important Safety Instructions”. The following safety instructions shall be includ­ed where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by adding
statements after the end of the following safety instruction list. At the manufacturer’s option, a picture or drawing that illus­trates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction :

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli-

fiers)that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the

third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Safety Instructions

Safety Instructions

PORTABLE CART WARNING

4 Plasma TV

Safety Instructions

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into

the apparatus, the apparatus has exposed to rain or moisture, does not operate normally, or has been dropped.

15. CAUTION concerning the Power Cord :

Most appliances recommend they be placed upon a dedicated circuit; that

is, a single outlet circuit which powers only that appliance and has no

additional outlets or branch circuits. Check the specification page of

this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged

wall outlets, extension cords, frayed power cords, or damaged or

cracked wire insulation are dangerous. Any of these conditions could

result in electric shock or fire. Periodically examine the cord of your

appliance, and if its appearance indicates damage or deterioration,

unplug it, discontinue use of the appliance, and have the cord replaced

with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being

twisted, kinked, pinched, closed in a door, or walked upon. Pay

particular attention to plugs, wall outlets, and the point where the

cord exits the appliance.

16. Outdoor Use Marking :

WARNING - To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Appliance To Rain Or Moisture.

17. Wet Location :

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall

be placed on the apparatus.

Safety Instructions

Safety Instructions

Owner’s Manual 5

Contents

After reading this manual, keep it handy for future reference.

Warning/Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3~4

Introduction

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Connection Options . . . . . . . . . . . . . . . . . . . . . .8

Remote Control Key Functions . . . . . . . . . . .9~10

Installation

Installation Instruction . . . . . . . . . . . . . . . . . . .11~12

External Equipment Connections . . . . . . . . . .13~17

Antenna Connection . . . . . . . . . . . . . . . . . . . . .13

VCR Setup / Cable TV Setup . . . . . . . . . . . . . .14

External A/V Source Setup . . . . . . . . . . . . . . . .15

DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

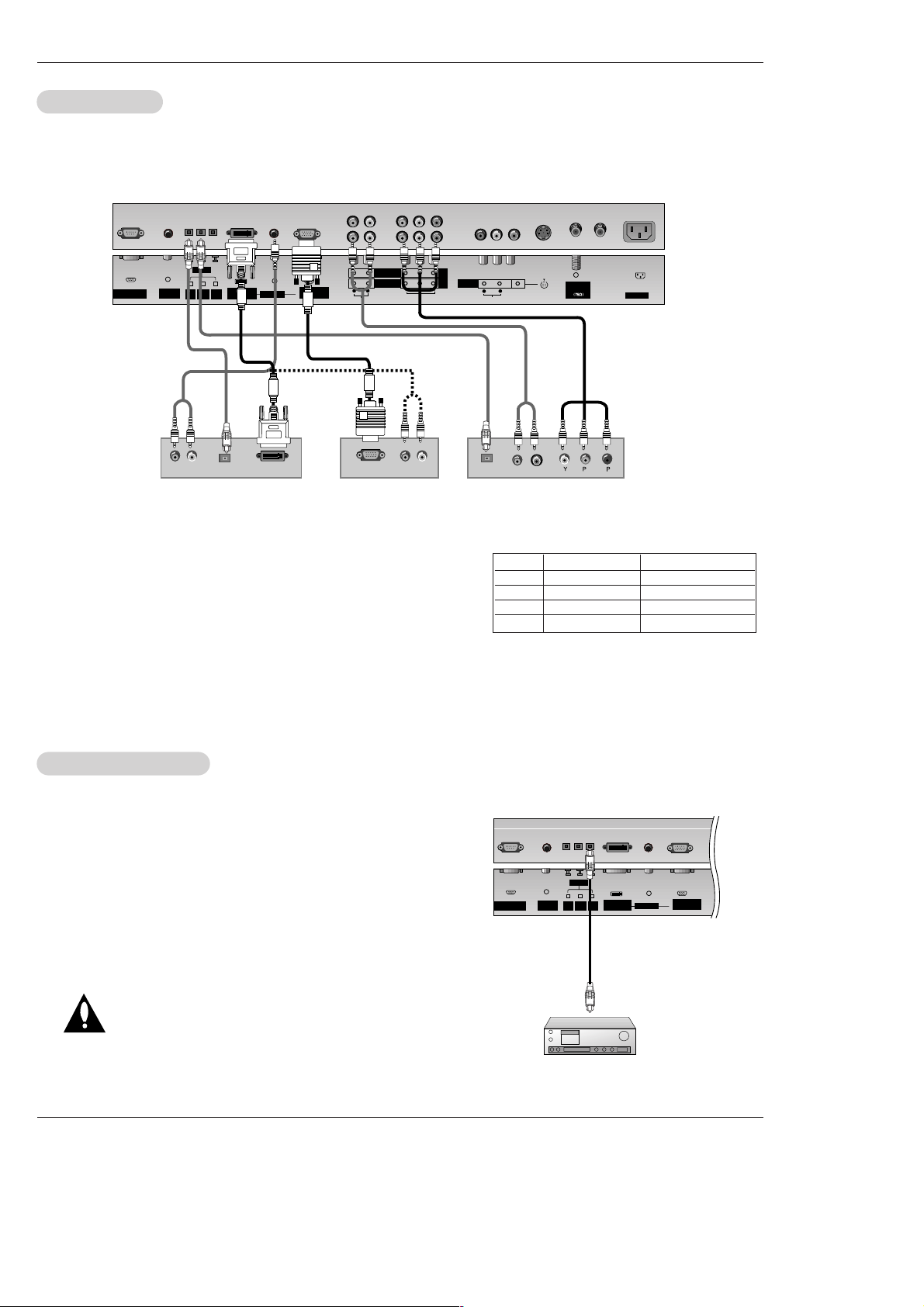

HDSTB Setup / Digital Audio Output . . . . . . . . .16

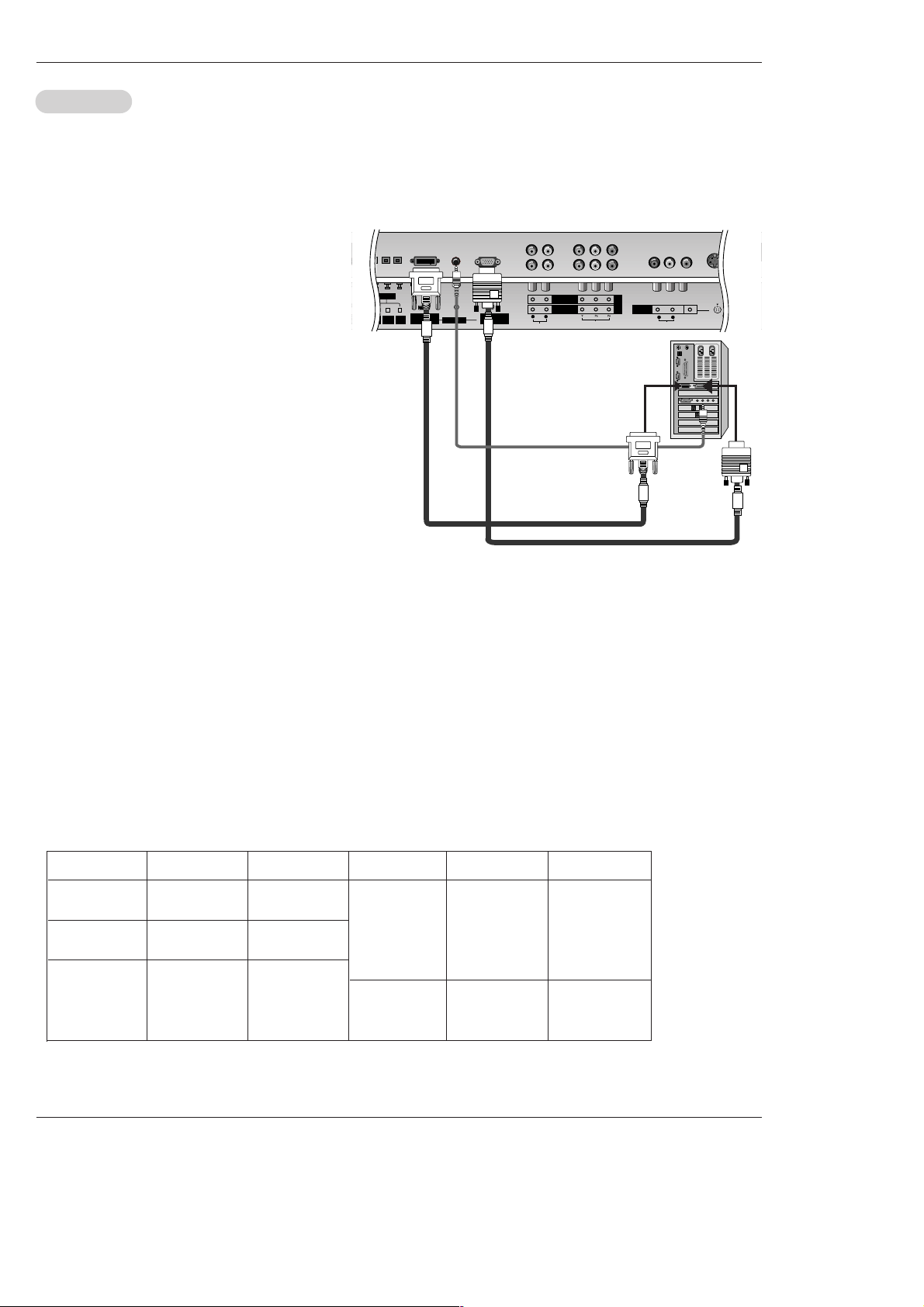

PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Operation

Screen Setup for PC mode . . . . . . . . . . . . . . . . . .18

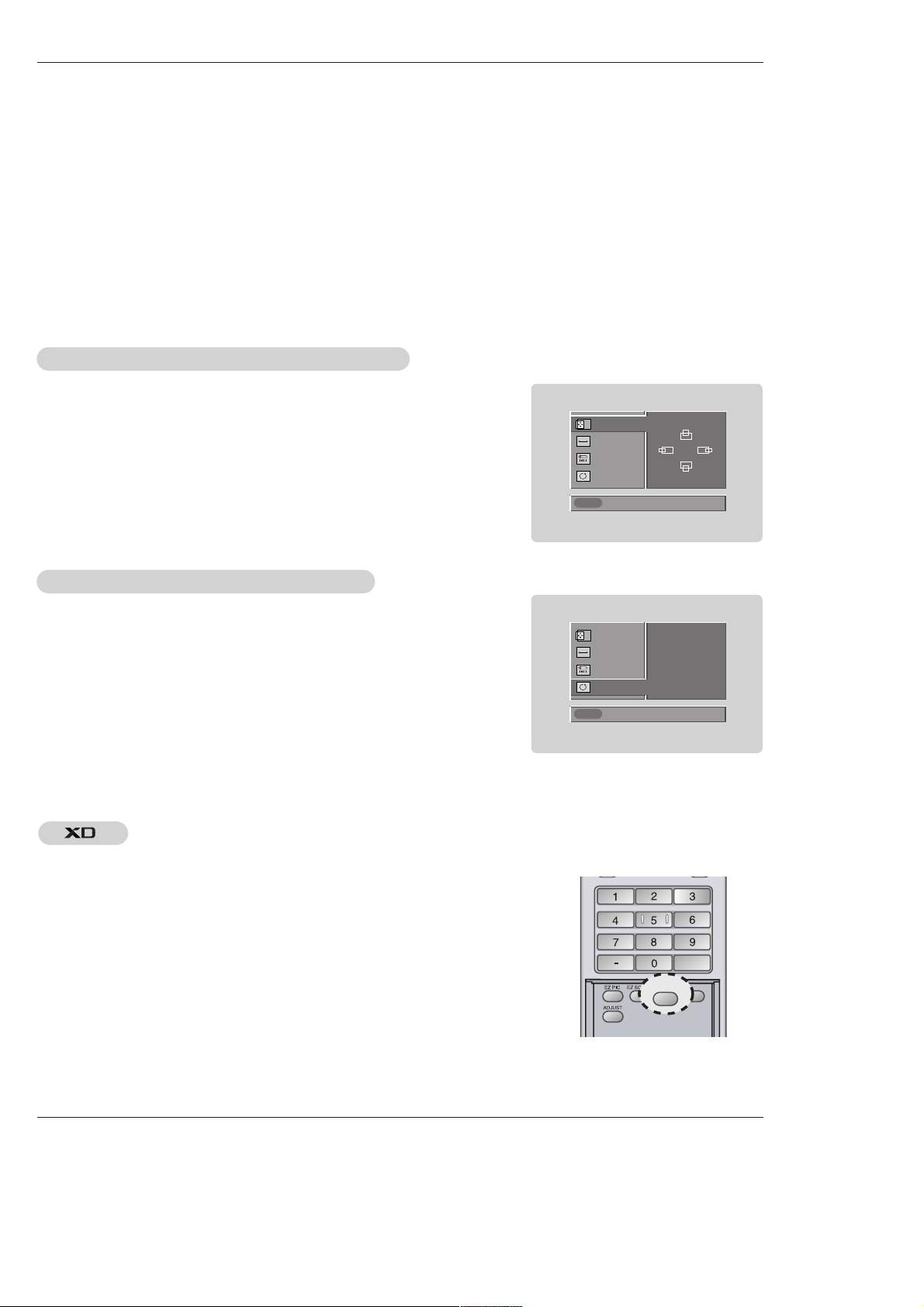

XD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

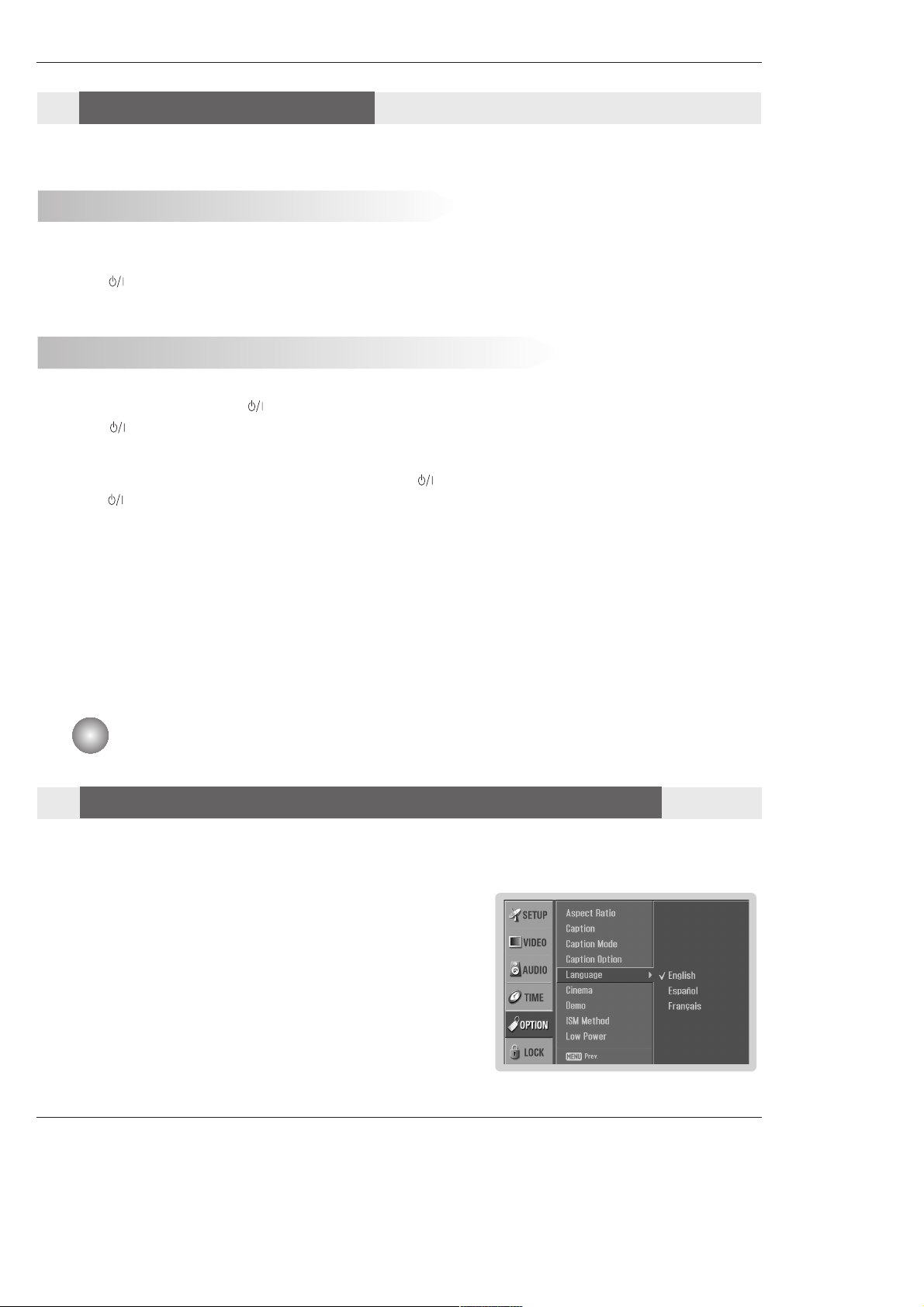

Turning the TV On . . . . . . . . . . . . . . . . . . . . . . . . . .19

On-screen Menus Language Selection . . . . . . . . .19

Setup Menu Options

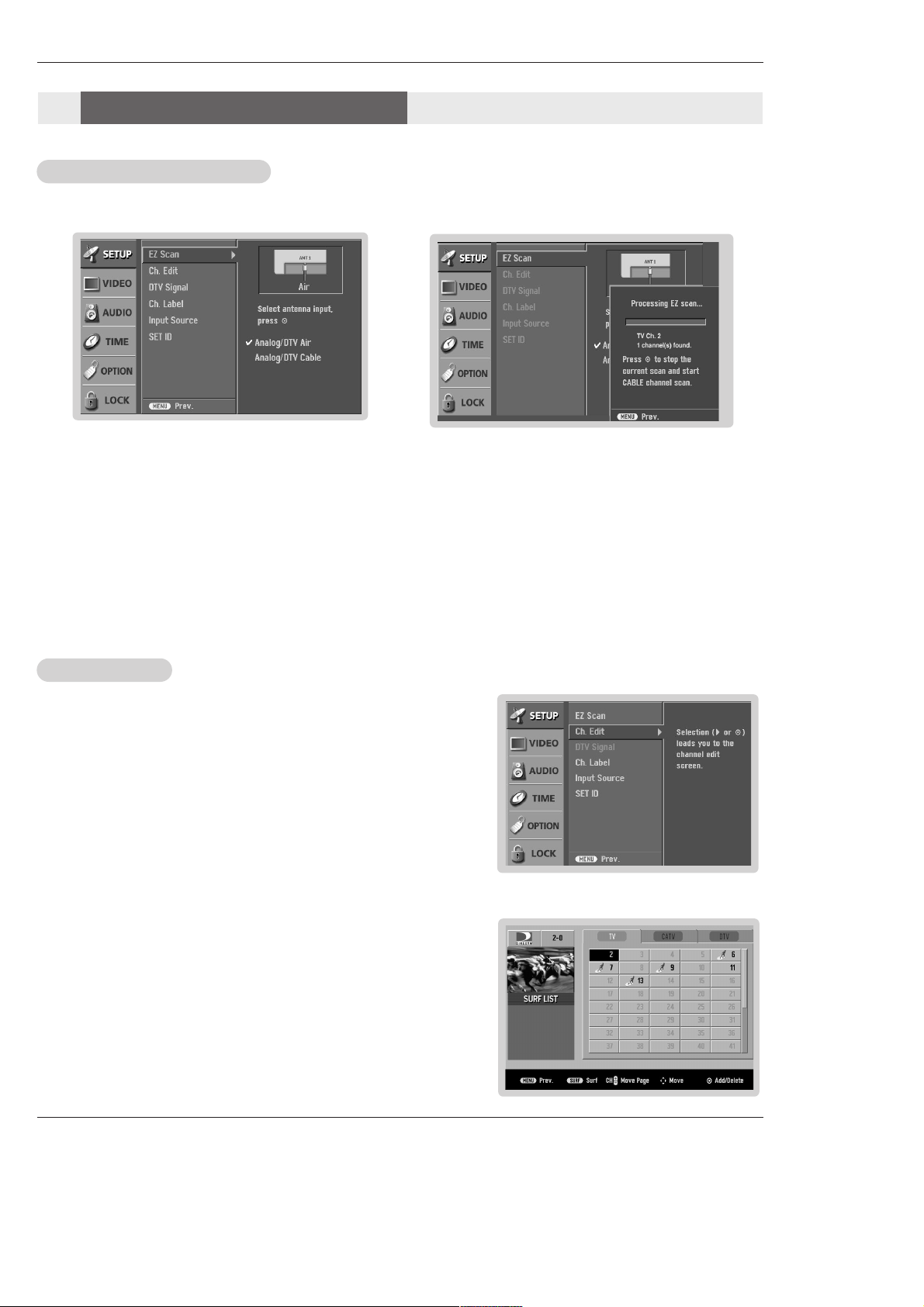

EZ Scan (Channel Search) . . . . . . . . . . . . . . . .20

Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . .20

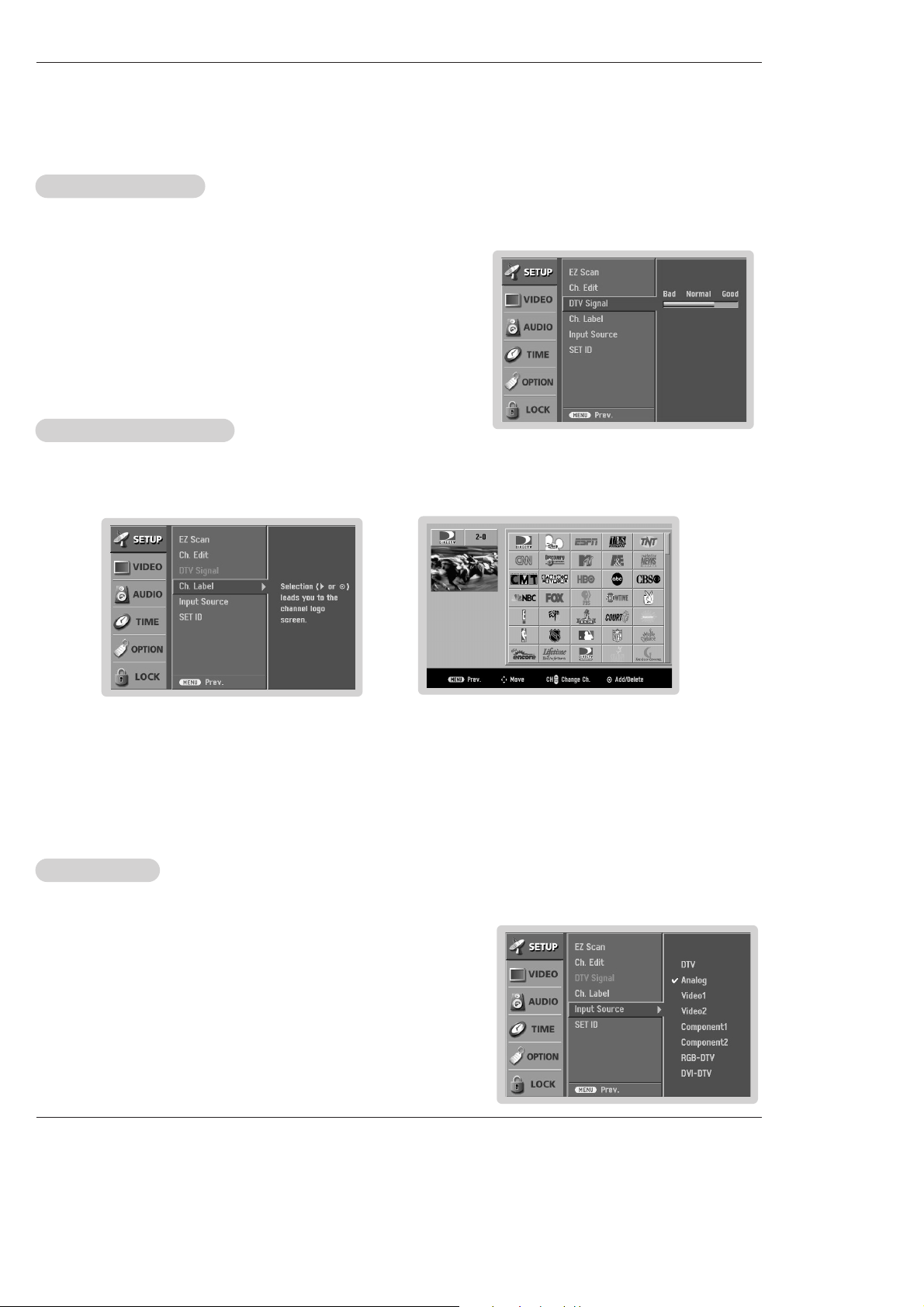

DTV Signal Strength . . . . . . . . . . . . . . . . . . . . .21

Channel Label Setup . . . . . . . . . . . . . . . . . . . .21

Main Picture Source Selection . . . . . . . . . . . . .21

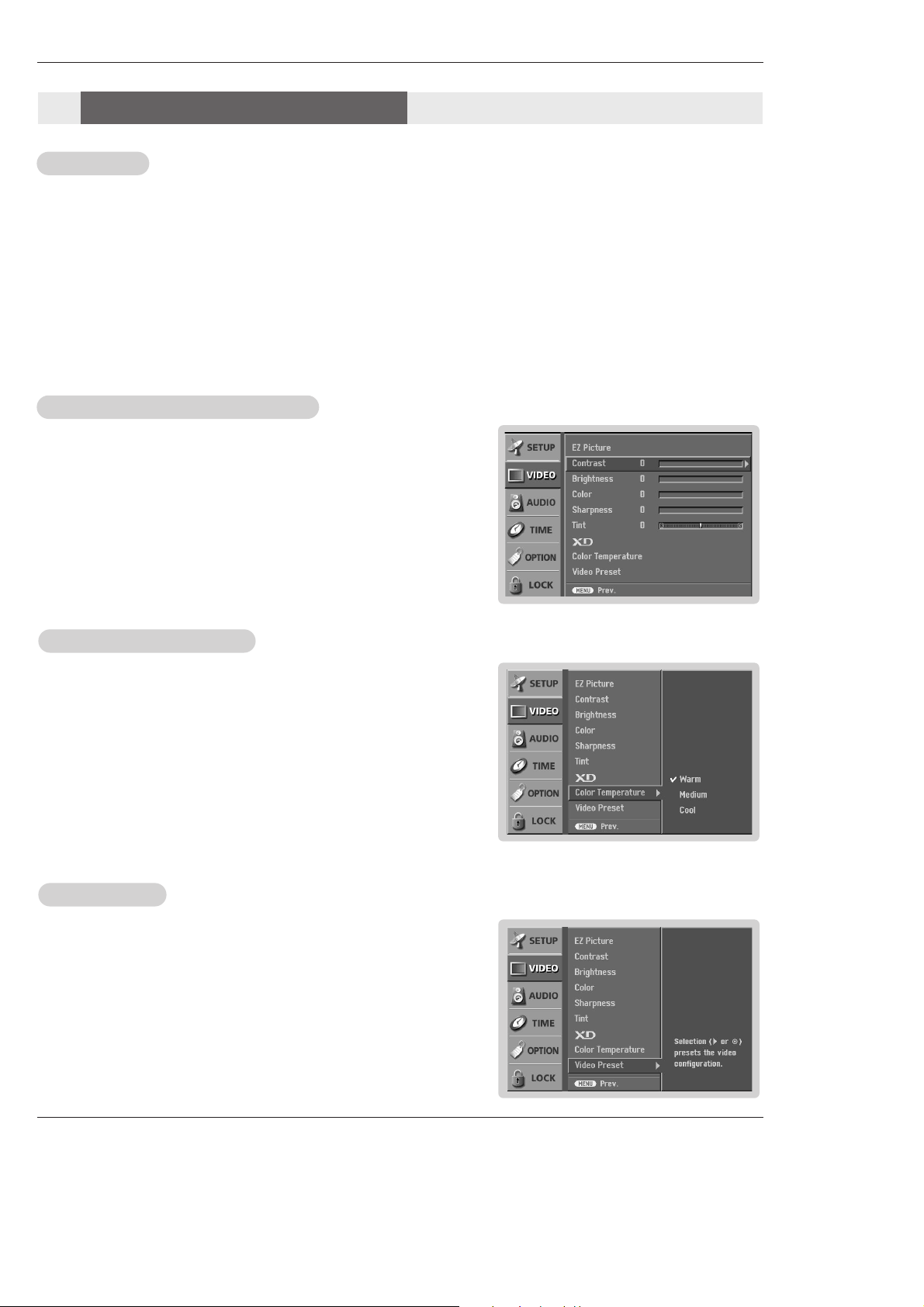

Video Menu Options

EZ Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Manual Picture Control (Off Option) . . . . . . . . .22

Color Temperature Control . . . . . . . . . . . . . . . .22

Video Preset . . . . . . . . . . . . . . . . . . . . . . . . . .22

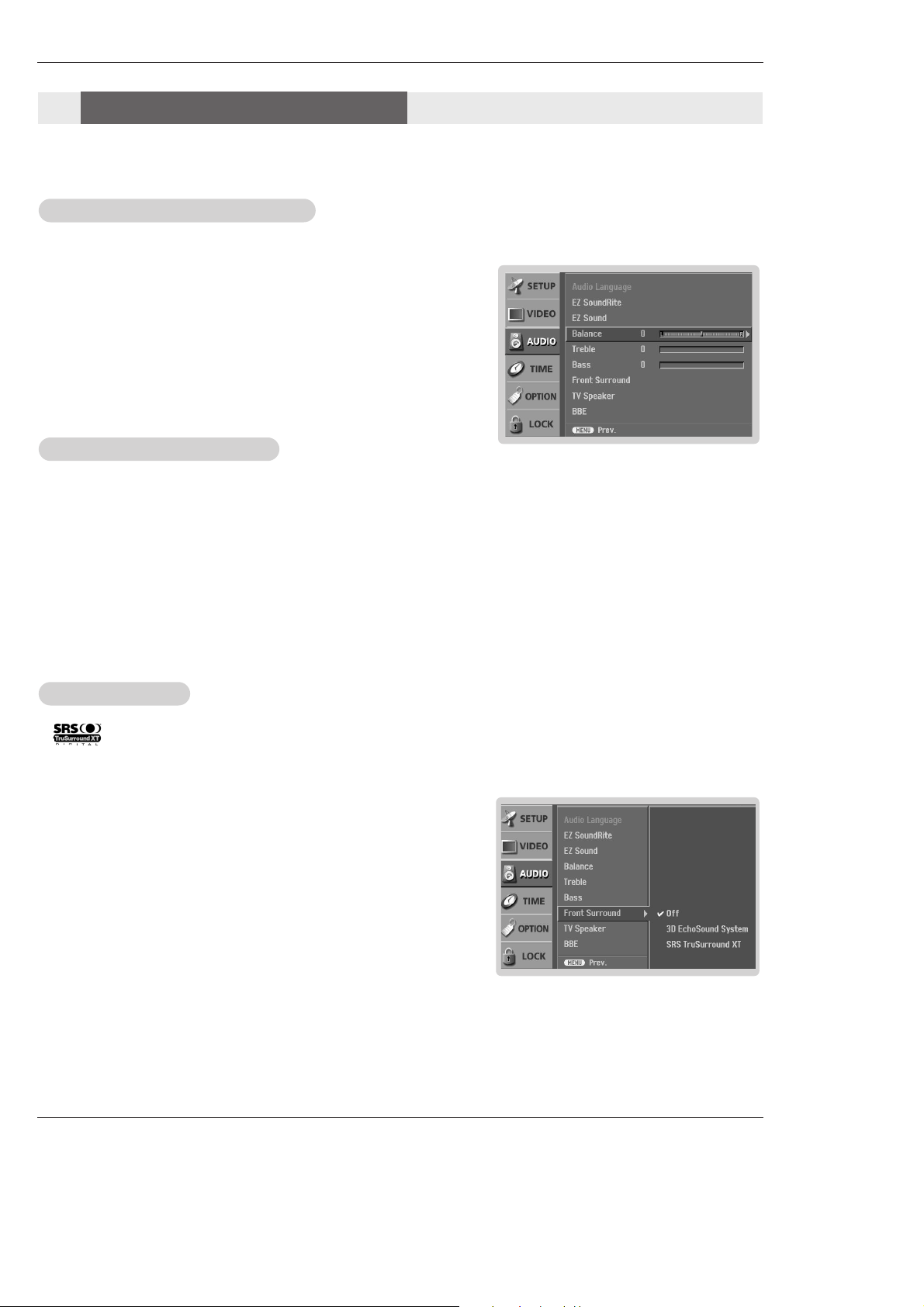

Audio Menu Options

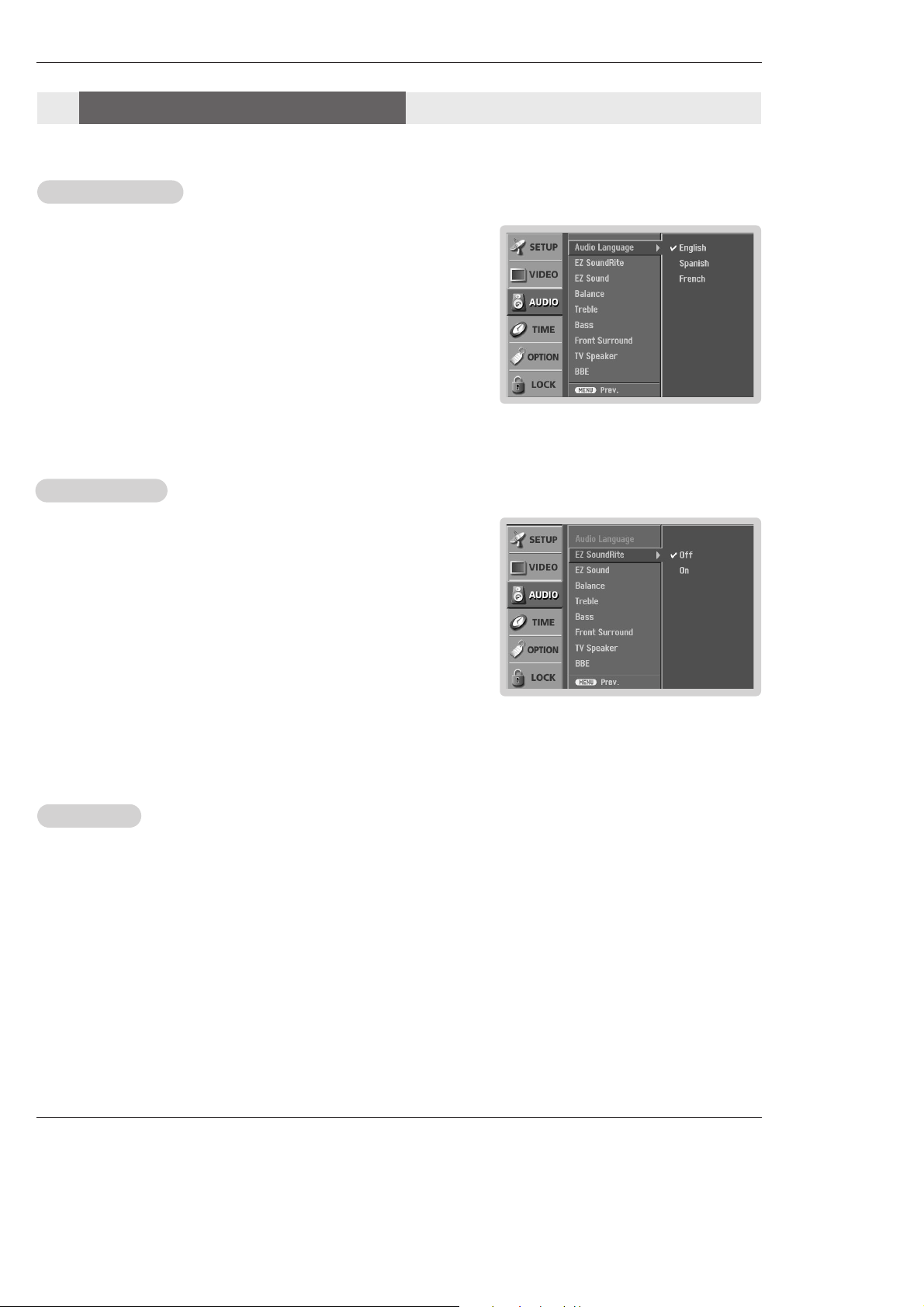

Audio Language . . . . . . . . . . . . . . . . . . . . . . . .23

EZ SoundRite / EZ Sound . . . . . . . . . . . . . . . . .23

Manual Sound Control (Off Option) . . . . . . . . . .24

Stereo/SAP Broadcasts Setup . . . . . . . . . . . . .24

Front Surround . . . . . . . . . . . . . . . . . . . . . . . . .24

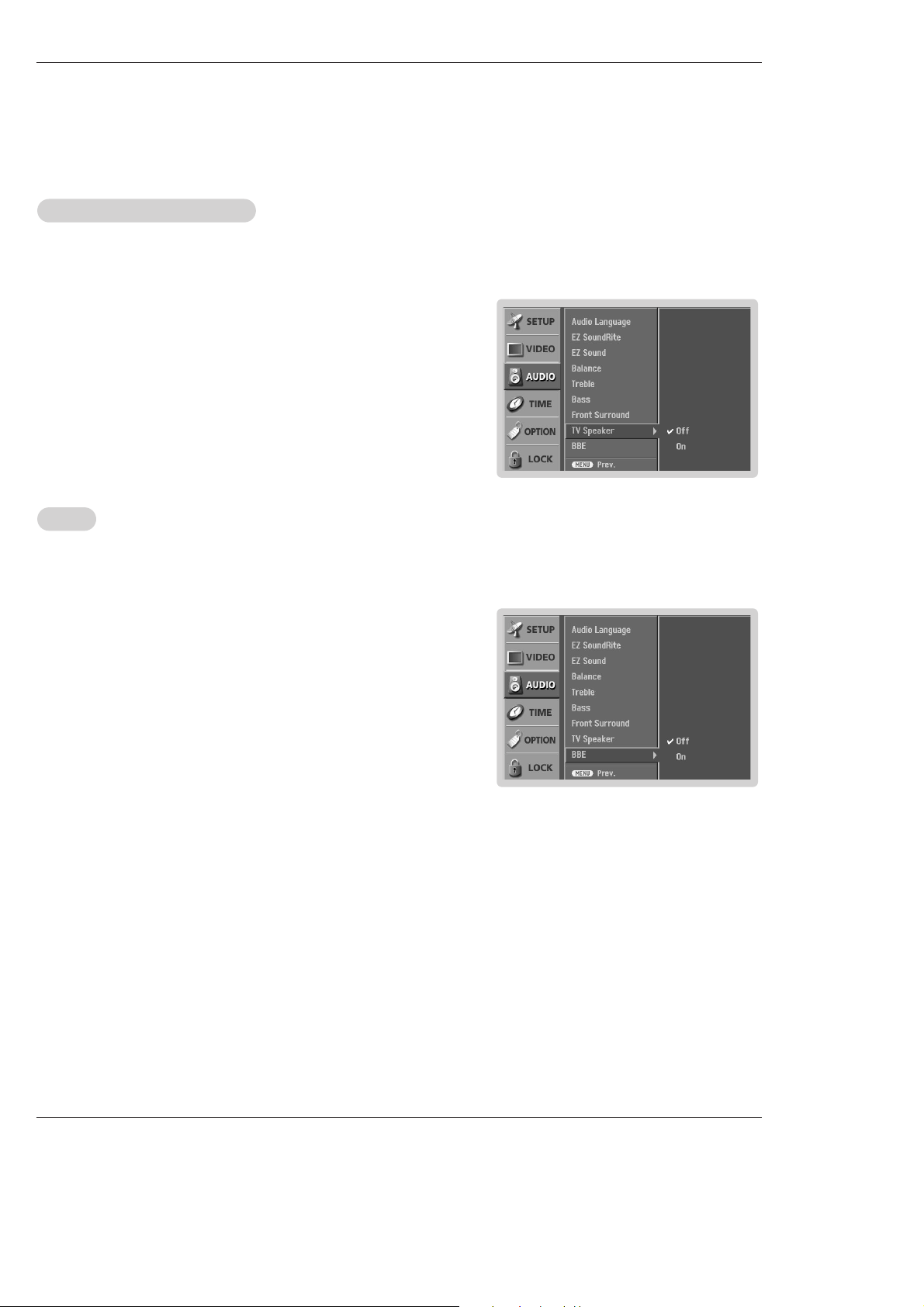

TV Speakers On/Off Setup . . . . . . . . . . . . . . . .25

BBE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

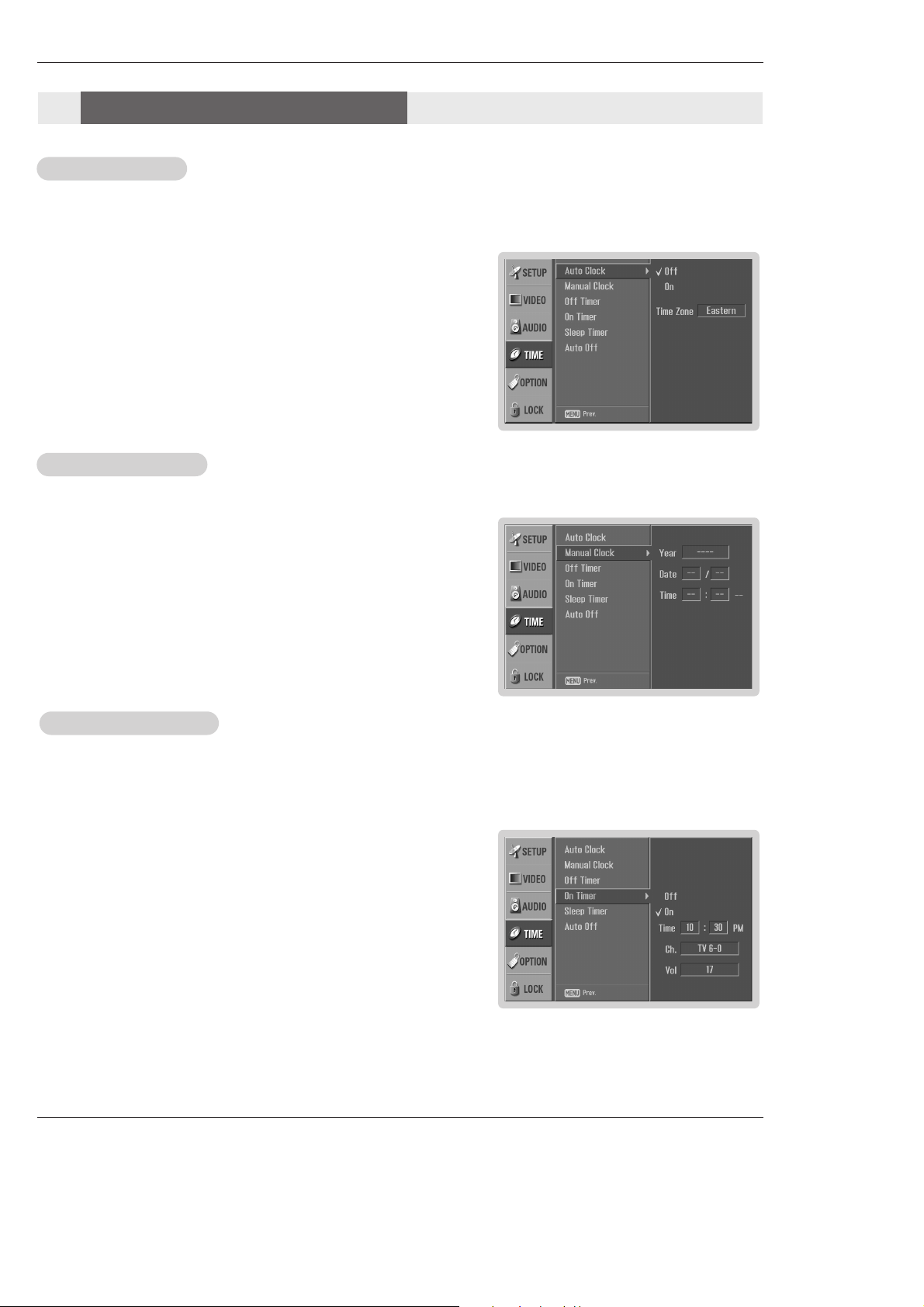

Time Menu Options

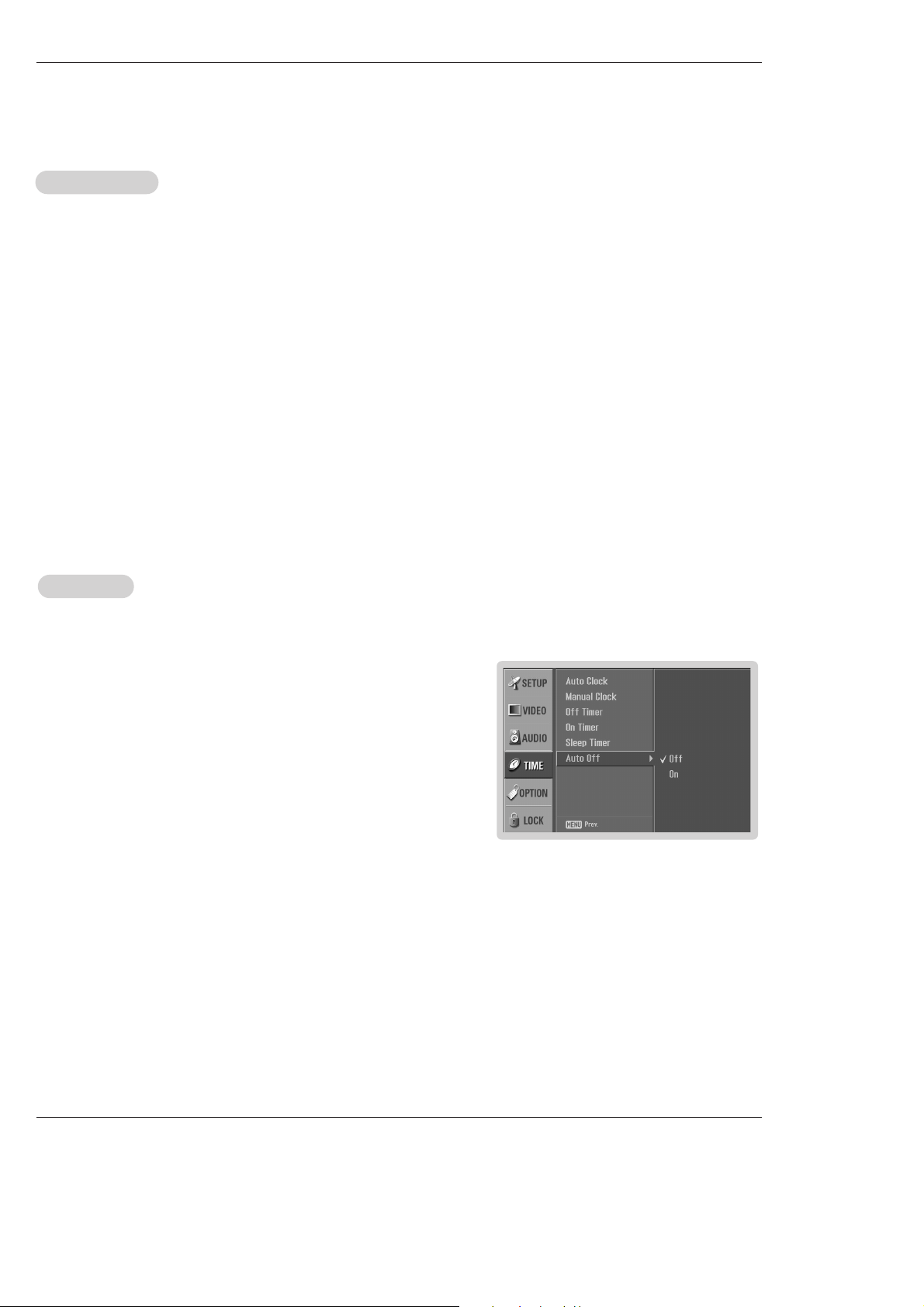

Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . .26

Manual Clock Setup . . . . . . . . . . . . . . . . . . . . .26

On/Off Timer Setup . . . . . . . . . . . . . . . . . . . . .26

Sleep Timer / Auto Off . . . . . . . . . . . . . . . . . . . .27

Option Menu Features

Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . .28

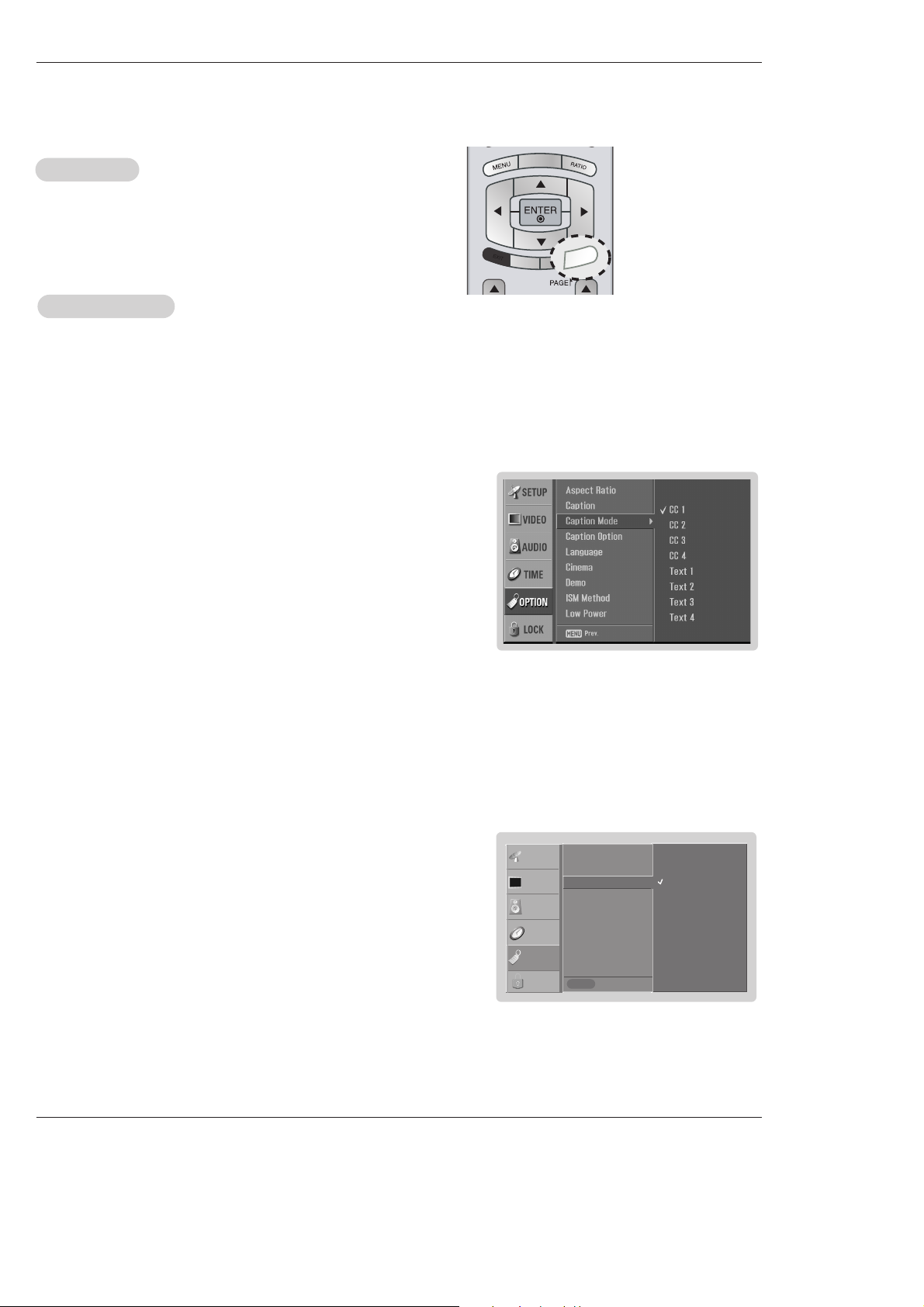

Caption / Caption Mode . . . . . . . . . . . . . . . . . .29

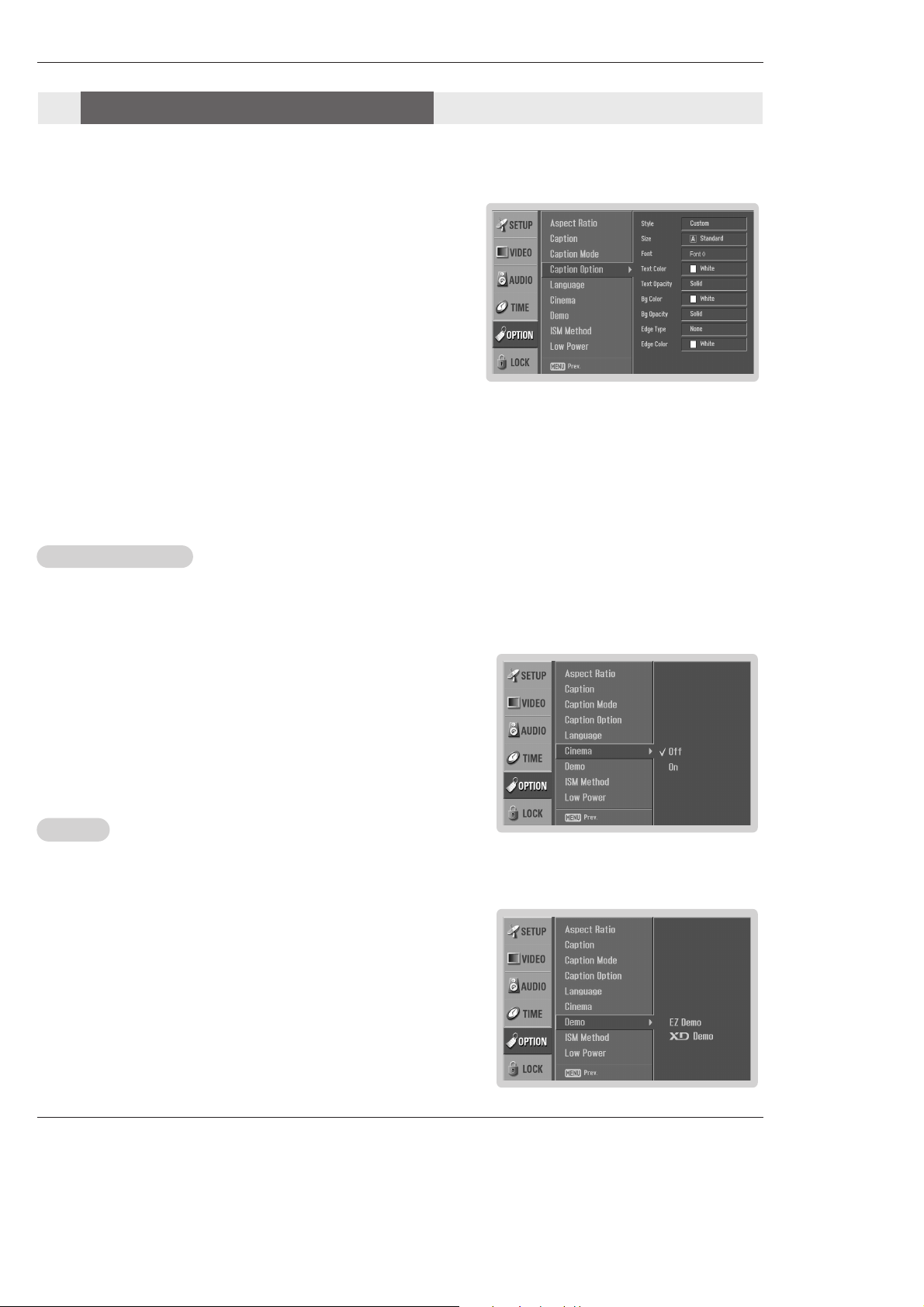

Caption Option . . . . . . . . . . . . . . . . . . . . . . . .30

Cinema Mode Setup . . . . . . . . . . . . . . . . . . . .30

Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

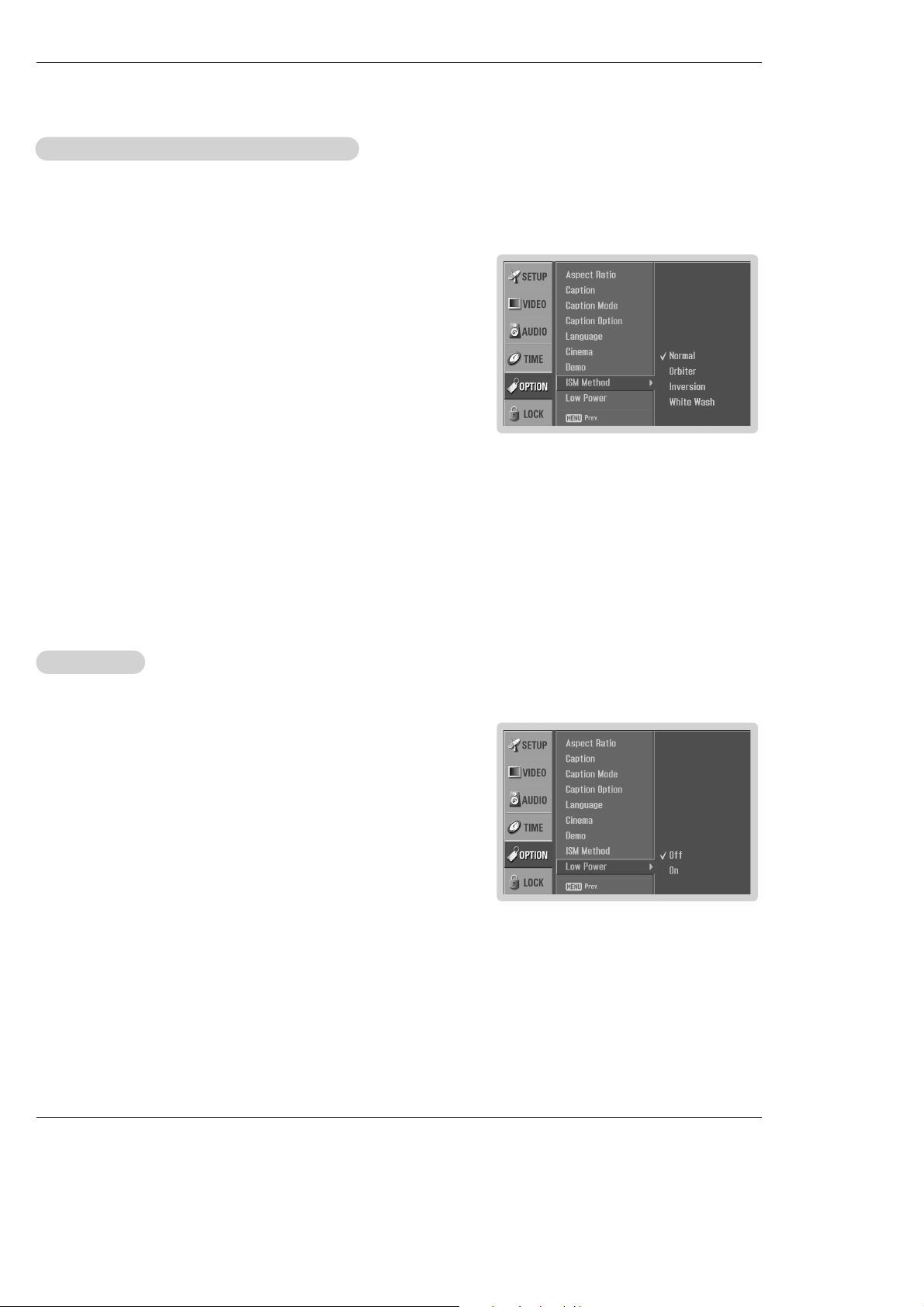

ISM Method . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Low power . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Lock Menu Options

Parental Lock Setup . . . . . . . . . . . . . . . . . . . . .33

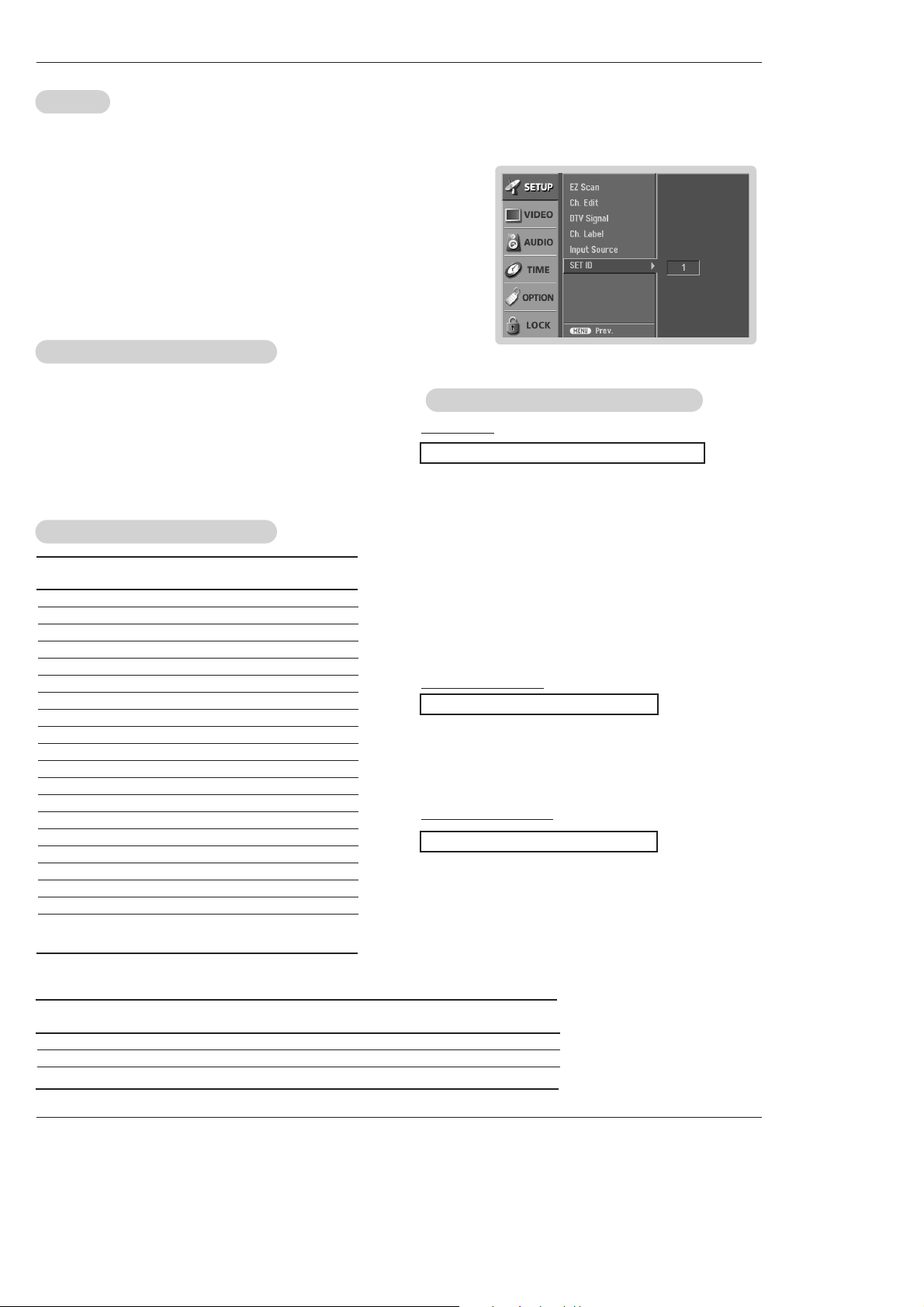

External Control Device Setup . . . . . . . . . . . . . . . .34~38

IR Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39~40

Programming the Remote . . . . . . . . . . . . . . . . . . . . . .41

Programming Codes . . . . . . . . . . . . . . . . . . . . . . .42~43

Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . . .44

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . .46

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47~48

Contents

Contents

Setup and Operation Checklist

Setup and Operation Checklist

Setup and Operation Checklist
(See pages 12~17 for available connection and operational setup options.)

1. Unpack TV and all accessories.

2. Connect all external video and audio equipment.
see pages 15 ~ 17.

3 Install batteries in remote control.

See page 9~10.

4. Turn TV on.
See page 19.

5. Turn video source equipment on.

6. Select viewing source for TV.
See page 21.

7. Fine-tune source image and sound to your personal prefer­ence or as required by source.
See pages 22 ~ 25.

8. Additional features set up
See Contents above.

6 Plasma TV

Introduction

Introduction

Introduction

What is a Plasma Display Panel (PDP)?

A plasma display panel is the latest display technology and the best way to achieve flat panel displays with excellent image quality
and large screen sizes that are easily viewable. The PDP can be thought of as a descendant of the neon lamp and it can be also
be viewed as a series of fluorescent lamps.

How does it work?

PDP is an array of cells, known as pixels, which are comprised of 3 sub pixels, corresponding to the colors red, green, and blue.
Gas in a plasma state is used to react with phosphors in each sub-pixel to produce colored light (red, green, or blue). These phos­phors are the same types used in Cathode Ray Tube (CRT) devices such as televisions and common computer monitors.

You get the rich, dynamic colors that you expect. Each sub-pixel is individually controlled by advanced electronics to produce over
16 million different colors. All of this means that you get perfect images that are easily viewable in a display that is less than 5
inches thick.

160° - Wide angle range of vision

Your flat panel plasma screen offers an exceptionally broad viewing angle -- over 160 degrees. This means that the display is
clear and visible to viewers anywhere in the room who can see the screen.

Wide Screen

The screen of the Plasma Display is so wide that your viewing experience is as if you are in a theater.

Multimedia

Connect your plasma display to a PC and you can use it for conferencing, games, and Internet browsing. The Picture-in-Picture
feature allows you to view your PC and video images simultaneously.

Versatile

The light weight and thin size makes it easy to install your plasma display in a variety of locations where conventional TVs will not
fit.

The PDP Manufacturing Process: a few minute colored dots may be present on the PDP screen

The PDP (Plasma Display Panel), which is the display device of this product is composed of 0.9 to 2.2 million cells. A few cell
defects will normally occur in the PDP manufacturing process. Several tiny, minute colored dots visible on the screen should be
acceptable. This also occurs in other PDP manufacturers' products. The tiny dots appearing does not mean that this PDP is defec­tive. Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology mini­mizes these cell defects during the manufacture and operation of this product.

Owner’s Manual 7

Introduction

- This is a simplified representation of front panel.
Image shown may be somewhat different from your TV.

Front Panel Controls

Front Panel Controls

MENU

VOL

CH

TV/VIDEO

ENTER

POWER Button

Remote Control Sensor

VOLUME (FF , GG ) Buttons

Power Standby Indicator

Illuminates red in standby mode, Illuminates

green when the TV is turned on.

CHANNEL (EE , DD ) Buttons

MENU Button

TV/VIDEO Button

ENTER Button

Controls

Controls

8 Plasma TV

Introduction

Back Connection Panel

Back Connection Panel

Antenna Inputs

Connect cable or antenna signals to the

TV, either directly or through your cable

box.

DVI Input/Audio Input/RGB
Input

Connect the monitor output con­nector from a PC to the appro­priate input port.

Digital Audio (DVI: Digital Visual

Interface/Component1) Input/

Digital Audio Output

Connect digital audio from various types

of equipment. Note: In standby mode,

these ports will not work.

Audio/Video Input 1

Connect audio/video out-

put from an external

device to these jacks.

DVD/DTV Input (Component
1-2)

Connect a component
video/audio device to these
jacks.

Remote Control
Port

Connect your wired
remote control here.

S-Video Input

Connect S-Video out from an
S-VIDEO device to the S­VIDEO input.

Power Cord Socket

This TV operates on an AC power. The voltage is indi-

cated on the Specifications page. Never attempt to oper-

ate the TV on DC power.

S-VIDEO Input

A connection available to provide better
picture quality than the video input.

VIDEO Input

Connects the video signal from a video
device.

AUDIO Input

Use to connect to hear stereo sound
from an external device.

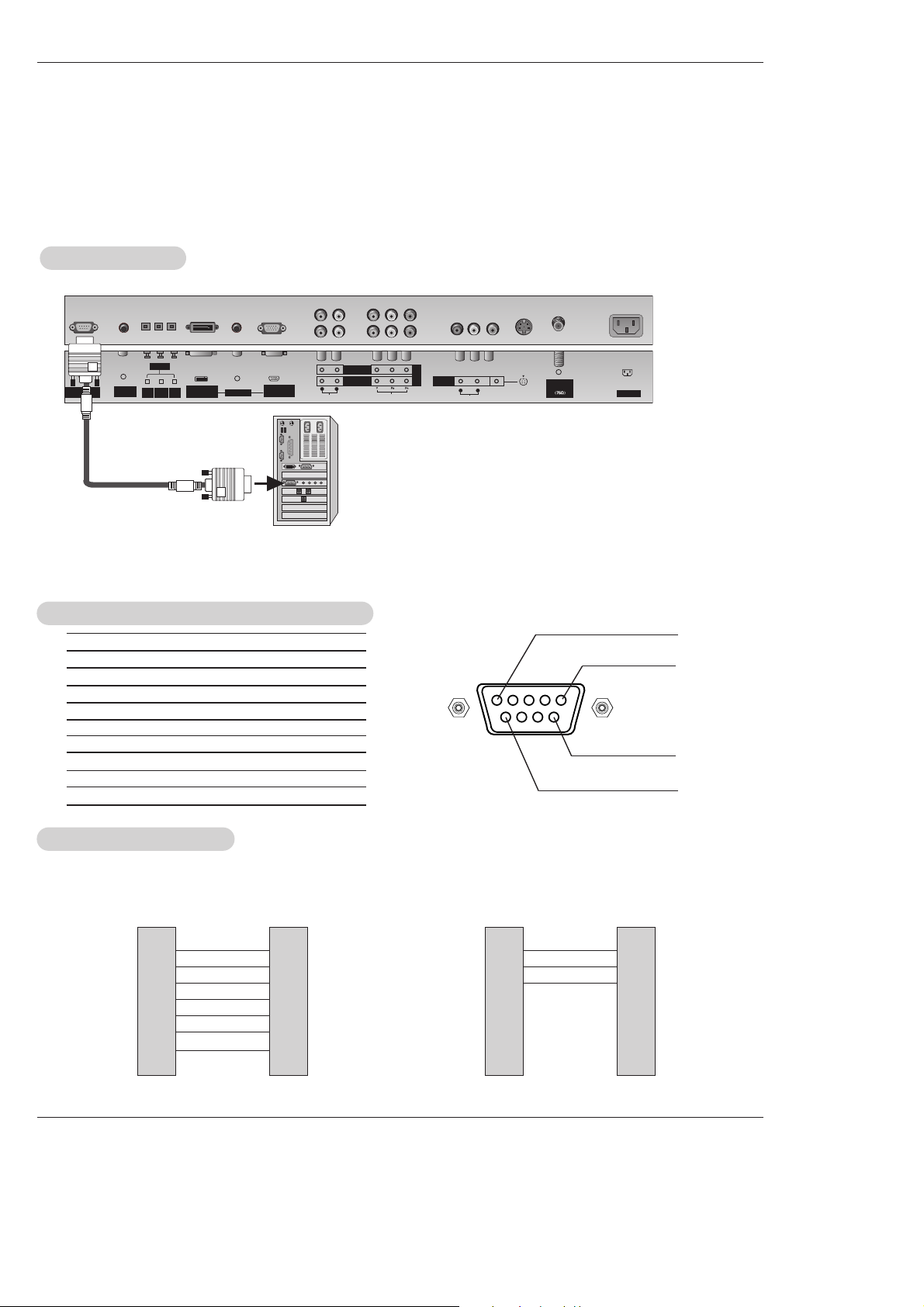

RS-232C INPUT
(CONTROL/SERVICE) PORT

Connect to the RS-232C port
on a PC.

Connection Options

Connection Options

A/V 2

S-VIDEO VIDEO

L / MONO

AUDIO

R

DIGITAL AUDIO

(OPTICAL)

REMOTE

DVI

RS-232C INPUT

(CONTROL/SERVICE)

CONTROL

INPUT

COMPONENT1

OUTPUT

INPUT

AUDIO INPUT

RGB INPUT

(PC/DTV INPUT)

DVI INPUT
(PC/DTV INPUT)

COMPONENT 2

COMPONENT 1

RL

AUDIO INPUT

VIDEO INPUT

DVD
/DTV
INPUT

INPUT 1

A/V

(MONO)

RL

AUDIO

VIDEO

S-VIDEO

Antenna
Analog/DTV

AC INPUT

Owner’s Manual 9

Installation

MODE

FLASHBK

FREEZE

TV/VIDEO

SA

P

E

X

IT

TIM

E

R

CC

XD

COMP/RGB/DVI

INFO

SURF

Installing Batteries

• Open the battery compartment cover on the back side and install the batteries
matching correct polarity (+ with +, - with -).

• Install two 1.5V AA batteries. Don’t mix old or used batteries with new ones. Close

cover.

COMP/RGB/DVI

Selects: Component 1-2, RGB-DTV (or

RGB-PC), DVI-DTV (or DVI-PC) input

sources.

MUTE

Switches the sound on or off.

MODE

Selects the remote operating mode: TV,

DVD, VCR, AUDIO, CABLE or STB. Select

a mode other than TV, for the remote to

operate an external device.

FLASHBK

Tunes to the recent channels.

EXIT

Clears all on-screen displays and returns to

TV viewing from any menu.

TIMER

Lets you select the amount of time before
your TV turns itself off automatically.

MENU

Brings up the main menu to the screen.

EZ PIC

Selects a factory preset picture mode

depending on the viewing environment.

FREEZE

Freezes the currently-viewed picture.
Main picture is frozen.

TV/VIDEO

External input modes rotate in regular
sequence: (CA)DTV, TV, Video 1-2,
Component 1-2, RGB-DTV(or RGB-PC),
DVI-DTV(or DVI-PC) input sources.
(Video1-2, Component 1-2 input sources
are linked automatically, only if these are
connected )

RATIO

Changes the aspect ratio.

SURF

Scrolls the Favorite channels.

SAP

Selects MTS sound: Mono, Stereo, and

SAP in Analog mode. Change the audio

language in DTV mode.

- When using the remote control, aim it at the remote control sensor on the TV.

Remote Control Key Functions

Remote Control Key Functions

10 Plasma TV

Installation

MODE

FLASHBK

FREEZE

TV/VIDEO

SA

P

E

X

IT

TIM

E

R

CC

XD

COMP/RGB/DVI

INFO

SURF

LIGHT

Illuminates the remote control

buttons of selected mode.

NUMBER buttons

VCR/DVD BUTTONS

• Control some video cassette recorders
or DVD players. ("RECORD" button is not
available for DVD players.)

POWER

Turns your TV or any other programmed

equipment on or off, depending on mode.

CC

Select a closed caption:

Off, CC1~4, Text1~4.

THUMBSTICK (Up/Down/Left/Right/ENTER)

Allows you to navigate the on-screen menus

and adjust the system settings to your pref-

erence.

CHANNEL UP/DOWN

Selects available channels found with EZ
scan.

PAGE UP/PAGE DOWN

Moves from one full set of screen infor­mation to the next one.

EZ SOUND

Selects the sound appropriate for the pro-

gram's character.

XD

Switches the XD function on or off.

VOLUME UP/DOWN

Increases/decreases the sound level.

INFO

When you watch the TV, information dis-

plays on top of the screen. Not available in

Component 1-2 and RGB mode.

ADJUST

Adjusts screen position, size, and phase in

PC mode.

Remote Control Key Functions

Remote Control Key Functions

Owner’s Manual 11

Installation

Installation

Installation

Owner’s Manual

1.5V

1.5V

Batteries

Power Cord

MODE

FLASHBK

S
A

P

COMP/RGB/DVI

TV/VIDEO

E
X

IT

INFO

TI

M

ER

C

C

Remote Control

75Ω Round Cable

Ensure that the following accessories are included with your plasma display. If an accessory is missing, please contact the dealer
where you purchased the product.

- Secure the TV assembly by joining it to a wall by using the TV/Wall brackets.

- Here shown may be somewhat different from your TV.

Joining the

Joining the

TV assembly to the wall to protect the set tumbling

TV assembly to the wall to protect the set tumbling

• If the set will be mounted on a desk top, insert the 2 eye-

bolts and tighten them securely in the upper holes as

shown.

Install the wall brackets on the wall with 2 bolts*, (not sup-

plied with the product), as shown.

Match the height of the eye-bolts and the wall brackets.

Check to be sure the eye-bolts and the brackets are tight-

ened securely.

• Secure the TV assembly to the wall with strong strings or

wire cables, (not supplied with the product), as shown.

2-Wall brackets

2-eye-bolts

D-sub 15 pin Cable(RGB)

Installation Instructions

Installation Instructions

12 Plasma TV

Installation

• The TV can be installed in various ways such as on a wall, or on a desktop etc.

• The TV is designed to be mounted horizontally.

GROUNDING

Ensure that you connect the earth ground wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connecting it to telephone wires, lightening rods, or gas pipes.

Power

Supply

Short-circuit

Breaker

Desktop Pedestal Installation

Desktop Pedestal Installation

For proper ventilation, allow a clearance
of 4” on each side and the top, 2.36” on
the bottom, and 2” from the wall.
Detailed installation instructions are
included in the optional Desktop Stand
Installation and Setup Guide available
from your dealer.

To Install on a Desktop

Pedestal mount minimum allowable clearances
for adequate ventilation.

Installation Instructions

Installation Instructions

4 inches

4 inches

4 inches

2.36 inches

2 inches

Owner’s Manual 13

Installation

- Antenna or Cable Service without a Cable Box Connections

- For optimum picture quality, adjust antenna direction if needed.

Antenna Connection

Antenna Connection

Analog and Digital TV signals provided on one antenna

NOTE: If you are not sure of the type of signal(s) you are receiving, let EZ Scan complete all the channel signal-type searches.

The TV will let you know when the analog, cable, and digital channel scans are complete.

Analog and DTV signals provided on two separate antennas

• In a poor signal area to improve picture quality, purchase
and install a signal amplifier.

• If the antenna needs to be split for two TV’s, install a “2­Way Signal Splitter” in the connections.

• If the antenna is not installed properly, contact your deal­er for assistance.

Multi-family Dwellings/Apartments
(Connect to wall antenna socket)

Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)

Outdoor
Antenna

Wall Antenna
Socket

VHF Antenna

UHF Antenna

RF Coaxial Wire (75 ohm)

Copper Wire

Turn clockwise to tighten.

Copper Wire

Be careful not to bend the Copper wire when
connecting the antenna.

T

Wall Antenna
Socket

RF Coaxial Wire (75 ohm)

Analog Antenna

Digital Antenna

Copper Wire

Copper Wire

Turn clockwise to tighten.

Wall Antenna
Socket

RF Coaxial Wire (75 ohm)

AC INPUT

Antenna
Analog/DTV

External Equipment Connections

External Equipment Connections

S-VIDEO

Antenna
Analog/DTV

AC INPUT

(MONO)

1

R L

VIDEO

AUDIO

Signal

Amplifier

S-VIDEO

Antenna
Analog/DTV

(MONO)

1

R L

VIDEO

AUDIO

AC INPUT

14 Plasma TV

Installation

NOTE: All cables shown are not included with the TV

- To avoid picture noise (interference), leave an adequate distance between the VCR and TV

- Use the ISM Method (on the Option menu) feature to avoid having a fixed image remain on the screen for a long period of time.
Typically a frozen still picture from a VCR. If the 4:3 picture format is used; the fixed images on the sides of the screen may
remain visible on the screen.

Connection Option 1

Set VCR output switch to 3 or 4 and then tune

TV to the same channel number.

Connection Option 2

1. Connect the audio and video cables from the

VCR's output jacks to the TV input jacks, as

shown in the figure.
When connecting the TV to a VCR, match the
jack colors (Video = yellow, Audio Left = white,
and Audio Right = red).
If you connect the S-VIDEO output from a VCR
to the S-VIDEO input, the picture quality is
improved; compared to connecting the Video
input.

2. Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner’s
manual.)

3. Select the input source by using the TV/VIDEO
button on the remote control. (If connected to
A/V INPUT 1, select Video 1 input source)

Do not connect to both Video and
S-Video at the same time.

VCR Setup

VCR Setup

AC INPUT

AUDIO INPUT

COMPONENT 2

COMPONENT 1

RL

AUDIO INPUT

DVI INPUT
(PC/DTV INPUT)

RGB INPUT

(PC/DTV INPUT)

VIDEO INPUT

A/V

INPUT 1

(MONO)

VIDEO

S-VIDEO

Antenna
Analog/DTV

S-VIDEO

OUT

IN

(R) AUDIO (L) VIDEO

34

OUTPUT
SWITCH

ANT OUT

ANT IN

AUDIO

R L

DVD
/DTV
INPUT

- After subscribing to a cable TV service from a local provider and installing a converter, you can watch cable TV programming.

The TV cannot display TV programming unless a TV tuner device or cable TV converter box is connected to the TV.

- For further information regarding cable TV service, contact your local cable TV service provider(s).

Connection Option 1

1. Select 3 or 4 with channel switch on the cable
box.

2. Tune the TV channel to the same selected
output channel on cable box.

3. Select channels at the cable box or with the
cable box remote control.

Connection Option 2

1. Connect the audio and video cables from the

Cable Box's output jacks to the TV input jacks,
as shown in the figure.
When connecting the TV to a Cable Box,
match the jack colors (Video = yellow, Audio
Left = white, and Audio Right = red).

2. Select the input source by using the
TV/VIDEO button on the remote control. (If
connected to A/V INPUT 1, select Video 1
input source)

3. Select your desired channel with the remote
control for cable box.

Cable

Cable

TV Setup

TV Setup

AC INPUT

AUDIO INPUT

COMPONENT 2

COMPONENT 1

RL

IO INPUT

RGB INPUT

(PC/DTV INPUT)

VIDEO INPUT

A/V

INPUT 1

(MONO)

VIDEO

S-VIDEO

Antenna
Analog/DTV

TV

VCR

RF Cable

(R) AUDIO (L) VIDEO

34

OUTPUT
SWITCH

DVD
/DTV
INPUT

AUDIO

R L

VCR

Cable Box

1

2

1

2

Owner’s Manual 15

Installation

• Component Input ports

To get better picture quality, connect a DVD player to the compo­nent input ports as shown below.

How to connect

Connect the audio and video cables from the external equip­ment's output jacks to the TV input jacks, as shown in the
figure.
When connecting the TV to external equipment, match the
jack colors (Video = yellow, Audio Left = white, and Audio
Right = red).

How to use

1. Select the input source by using the TV/VIDEO button on

the remote control. (If connected to A/V INPUT 1, select
Video 1 input source).

2. Operate the corresponding external equipment. Refer to
external equipment operating guide.

Component ports

on the TV

Y

PB

PR

Video output ports
on DVD player

Y
Y
Y
Y

Pb

B-Y

Cb
P

B

Pr

R-Y

Cr
PR

How to connect

1. Connect the DVD video outputs (Y, P

B, PR) to the COMPONENT (Y,

PB, PR

) INPUT jacks on the TV and connect the DVD audio outputs

to the AUDIO INPUT jacks on the TV, as shown in the figure.

2. If your DVD only has an S-Video output jack, connect this to the S­VIDEO input on the TV and connect the DVD audio outputs to the
AUDIO INPUT jacks on the TV, as shown in the figure.

NOTE: If your DVD player does not have component video output, use

S-Video.

How to use

1. Turn on the DVD player, insert a DVD.

2. Use the TV/VIDEO or COMP/RGB/DVI button on the remote control
to select Component 1 or Component 2. (If connected to S­VIDEO, select the Video 1 or Video 2 external input source.)

3. Refer to the DVD player's manual for operating instructions.

External

External

A/V Source Setup

A/V Source Setup

DVD Setup

DVD Setup

RL

AUDIO VIDEO

AC INPUT

AUDIO INPUT

COMPONENT 2

COMPONENT 1

RL

VIDEO INPUT

A/V

INPUT 1

(MONO)

VIDEO

Antenna
Analog/DTV

S-VIDEO

DVD
/DTV
INPUT

AUDIO

R L

REMOTE

CONTROL

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO INPUT

COMPONENT 2

COMPONENT 1

RL

DIGITAL AUDIO
(OPTICAL)

DVI
INPUT

COMPONENT1
INPUT

OUTPUT

VIDEO INPUT

A/V

INPUT 1

(MONO)

VIDEO

Antenna 1
Analog/DTV

Ante
D

B

R

(R) AUDIO (L)

DIGITAL AUDIO

OPTICAL

(R) AUDIO (L)

S-VIDEO

S-VIDEO

DVD
/DTV
INPUT

AUDIO

R L

DVD

or

Camcorder

Video Game Set

NOTES

• Digital Audio will not work for Component 2 input source.

• Digital Audio operation has priority if Digital Audio and AUDIO L/R

are connected at the same time.

or

16 Plasma TV

Installation

Send the TV’s audio to external audio equipment (stereo system) via
the Digital Audio Output Optical port.

How to connect

1. Connect one end of an optical cable to the TV Digital Audio Optical
Output port.

2. Connect the other end of the optical cable to the digital audio optical
input on the audio equipment.

See the external audio equipment instruction manual for operation.

Caution: Do not look into the optical output port.

Looking at the laser beam may damage
your vision.

Digital

Digital

Audio Output

Audio Output

- This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive Digital
signals from a digital set-top box or other digital external device, refer to the figure as shown below.

- This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for DTV (480p,720p,1080i) mode.

How to connect

Use the TV’s COMPONENT (Y, PB, PR) INPUT, RGB or DVI jack for
video connections, depending on your set-top box connector. Then,
make the corresponding audio connections.

How to use

1. Turn on the digital set-top box. (Refer to the owner’s manual for the
digital set-top box.)

2. Use TV/VIDEO or COMP/RGB/DVI on the remote control to select
Component 1, Component 2, RGB-DTV, or DVI-DTV source.

HDSTB Setup

HDSTB Setup

REMOTE

CONTROL

RS-232C INPUT

(CONTROL/SERVICE)

AC INPUT

AUDIO INPUT

COMPONENT 2

COMPONENT 1

RL

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT1

INPUT

OUTPUT

AUDIO INPUT

DVI INPUT
(PC/DTV INPUT)

RGB INPUT

(PC/DTV INPUT)

VIDEO INPUT

A/V

INPUT 1

(MONO)

VIDEO

Antenna
Analog/DTV

(R) AUDIO (L)

RGB-DTV OUTPUT

B

R

(R) AUDIO (L)

DIGITAL AUDIO

OPTICAL

(R) AUDIO (L)

DVI-DTV OUTPUT

DIGITAL AUDIO

OPTICAL

S-VIDEO

DVD
/DTV
INPUT

AUDIO

R

L

Digital Set-top Box

or

or

or

or

REMOTE

CONTROL

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO INPUT

COMPONEN

COMPONEN

RL

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT1

INPUT

OUTPUT

AUDIO INPUT

DVI INPUT
(PC/DTV INPUT)

RGB INPUT

(PC/DTV INPUT)

Signal
480i
480p
720p
1080i

Component 1/2

Yes
Yes
Yes
Yes

RGB-DTV,DVI-DTV

No
Yes
Yes
Yes

Owner’s Manual 17

Installation

How to connect

1. To get the best picture quality, adjust the PC
graphics card to 1024x768, 60Hz.

2. Use the TV’s RGB INPUT or DVI (Digital Visual
Interface) INPUT port for video connections,
depending on your PC connector.

• If the graphic card on the PC does not output

analog and digital RGB simultaneously, connect
only one of either RGB INPUT or DVI INPUT to
display the PC on the TV.

• If the graphic card on the PC does output analog

and digital RGB simultaneously, set the TV to
either RGB or DVI; (the other mode is set to Plug
and Play automatically by the TV.)

3. Then, make the corresponding audio connections.
If using a sound card, adjust the PC sound as
required.

How to use

1. Turn on the PC and the TV.

2. Turn on the display by pressing the POWER button on the TV's remote control.

3. Select RGB-PC or DVI-PC input source in main input option of SETUP menu. (Refer to P.21)

4. Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or bright­ness in PC mode. If noise is present, change the PC mode to another resolution, change the refresh rate to another
rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic
card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.

NOTES: • Depending on the graphics card, DOS mode may not work if you use a DVI-I cable.

• Avoid keeping a fixed image on the TV's screen for a long period of time. The fixed image may become per-

manently imprinted on the screen. Use the Orbiter screen saver when possible.

• The synchronization input form for Horizontal and Vertical frequencies is separate.

PC Setup

PC Setup

NTROL

AUDIO INPUT

COMPONENT 2

COMPONENT 1

RL

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT1

INPUT

OUTPUT

AUDIO INPUT

DVI INPUT
(PC/DTV INPUT)

RGB INPUT

(PC/DTV INPUT)

VIDEO INPUT

A/V

INPUT 1

(MONO)

VIDEO

Antenna 1
Analog/DTV

S-VIDEO

DVD
/DTV
INPUT

AUDIO

R L

- This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings. The TV sends config­uration information (EDID) to the PC using the Video Electronics Standard Association (VESA) Display Data Channel (DDC)
protocol.

- The TV perceives 640x480, 60Hz as DTV 480p based on the PC graphic card. card, change the screen scanning rate for the
graphic card accordingly.

Resolution

640x350

720x400

640x480

800x600

Horizontal

Frequency(KHz)

31.468

37.861

31.469

37.927

31.469

37.861

37.500

43.269

70.09

85.08

70.08

85.03

59.94

72.80

75.00

85.00

35.156

37.879

48.077

46.875

53.674

48.363

56.476

60.023

56.25

60.31

72.18

75.00

85.06

60.00

70.06

75.02

Vertical

Frequency(Hz)

Resolution

Horizontal

Frequency(KHz)

Vertical

Frequency(Hz)

1024x768

Monitor Display Specifications (RGB-PC / DVI-PC Mode)

18 Plasma TV

Operation

Operation

Operation

- Be sure to select the RGB-PC/RGB-DTV source before operation.
(For RGB-DTV input source, Position and Reset are available.)

- In DVI-PC and DVI-DTV input source, settings are not adjustable.

- You can manually adjust picture position and minimize image shaking for the PC input source.

1. Press the ADJUST button and then use

DD / EE

button to select POSITION,

CLOCK, or PHASE.

2. Press the ENTER button and then use

DD / EE

/ FF / GG buttons to make appropri-

ate adjustments.

• The PHASE adjustment range is -16 ~ +16.

• The CLOCK adjustment range is -30 ~ +30.

3. Press the ENTER button.

Adjustment for screen Position, Clock, and Phase

Adjustment for screen Position, Clock, and Phase

Screen Setup for PC mode

Screen Setup for PC mode

1. Press the ADJUST button and then use

DD / EE

button to select the RESET option.

2. Press the ENTER button and then use FF / GG button to select Ye s.

3. Press the ENTER button.

Initializing (Reset to original factory values)

Initializing (Reset to original factory values)

- To initialize the adjusted values

Close

POSITION GG

CLOCK

PHASE

RESET

Adjust

DD

FF

GG

EE

Close

POSITION

CLOCK

PHASE

RESET GG

Adjust

Initialize Settings

- XD is LG Electronics unique picture improving technology to display a real HD source

through an advanced digital signal processing algorithm.

1. Press the XD button.

2. To return to normal viewing, press the XD button again.

FLASHBK

FREEZE

XD

XD

Owner’s Manual 19

Operation

Turning on the TV just after installation

Turning on the TV (power cord is still connected)

1. Connect power cord correctly.

2. Press the button on the TV. At this moment, the TV is switched to standby mode. Press the

POWER button on the remote control and then the TV will switch on.

• Press the button on the TV to turn the TV on.

1. If the TV was turned off with the button on the TV

2. If the TV was turned off with the remote control and then the button on the TV

• Press the button on the TV and then press the POWER button on the remote control to turn the

TV on.

- The menus will be shown on the screen in the selected language. First select your language.

1. Press the MENU button and then use

DD/ EE

button to select the OPTION menu.

2. Press the GG button and then use

DD/ EE

button to select Language.

3. Press the GG button and then use

DD/ EE

button to select your desired language.

From this point on, the on-screen menus will be shown in the selected language.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

NOTE

• If you intend to be away on vacation, disconnect the power plug from the wall power outlet.

* In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just example to help

the TV operation.

TTurning the TV On

urning the TV On

TV Setup

TV Setup

On-screen Menus Language Selection

On-screen Menus Language Selection

20 Plasma TV

Operation

- Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the channel list.

- Run EZ Scan again after any Antenna/Cable connection changes.

1. Press the MENU button and then use

DD / EE

button to select the SETUP menu.

2. Press the GG button and then use

DD / EE

button to select EZ Scan.

3. Press the GG button and then use

DD / EE

button to select antenna input.

• Analog/DTV Air:
Watching the Over-the-air, cable, and digital over-the-air signals via antenna input port

• Analog/DTV Cable:
Watching the Over-the-air, cable, and digital cable signals via antenna input port

* Cable Service Band Note: Select Std=Standard, HRC=HRC Band, or IRC=IRC Band.

(For further band information, contact your cable service provider.)

4. Press the ENTER button to begin the channel search.

Allow EZ Scan to complete the channel search cycle for TV, CATV, and DTV/CADTV.

EZ Scan (Channel Search)

EZ Scan (Channel Search)

- Create two different types of channel lists in memory: “Custom list” and “Surf"
(Favorite) channel list” from the default channel list created from the EZ Scan
channel search.

- A custom list can be created by toggling each channel on or off with ENTER
button. Once a channel is highlighted, you will be able to see whether the
channel is currently added or deleted by referring to the small window at the
top-left corner of the screen. You can create your own Surf channel list with up
to 10 channels. It appears at the bottom-left corner of the screen. Use the
SURF button on the remote control when a channel is highlighted, to add or
delete the channel from the Surf channel list.

- You can create your SURF channel list from the channel list memorized from
EZ Scan.

- CATV is available for 1-135 channel.

1. Press the MENU button and then use

DD / EE

button to select the SETUP menu.

2. Press the

GG button and then use

DD / EE

button to select Ch. Edit.

3. Press the

GG button. You will now see a screen filled with channel numbers and

a preview picture.

4. Use

DD / EE

/ FF / GG button to select a channel and then use the ENTER button to

add or delete it. Press SURF to add the channel to the Surf List.

5. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Channel Edit

Channel Edit

Setup Menu Options

Setup Menu Options

Owner’s Manual 21

Operation

- Choose preset labels for your channels.

- If a channel label is provided on the signal from the broadcasting station, the TV displays a short name for a DTV chan­nel - even if you didn't preset a label for the channel.

1. Press the MENU button and then use

DD / EE

button to select the SETUP menu.

2. Press the GG button and then use

DD / EE

button to select Ch. Label.

3. Press the GG button. You will now see a screen filled with Labels and a preview screen.

4. Use the CH

DD / EE

button to select a channel to Label.

5. Use

DD / EE

/ FF / GG button to select the appropriate label for the channel, then press the ENTER button to set the Label

to the selected channel.

6. Press the EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Channel Label Setup

Channel Label Setup

- Reveals how strong your DTV signal is and whether you need to adjust your antenna or digital cable input. The higher
the signal strength, the less likely you are to experience picture degradation.

- Digital DTV Signals: May not be available in all areas, nor are broadcast on

all programs.

1. Press the MENU button and then use

DD / EE

button to select the SETUP menu.

2. Press the GG button and then use

DD / EE

button to select DTV Signal.

3. View the on-screen signal strength monitor to see the quality of the signal

being received.

4. Press the EXIT button to return to TV viewing or press MENU button to return

to the previous menu.

DTV Signal Strength

DTV Signal Strength

- Change the picture source so you can watch your TV, cable TV, VCR, DVD, or any other devices that are connected to your TV.

1. Press the MENU button and then use

DD / EE

button to select the SETUP menu.

2. Press the GG button and then use

DD / EE

button to select Input Source.

3. Press the GG button and then use

DD / EE

button to select the source: DTV, Analog,
Video1, Video2, Component1, Component2, RGB-DTV (or RGB-PC), DVI-DTV
(or DVI-PC).

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

Note:

• To toggle RGB-DTV and RGB-PC, select RGB-DTV(or RGB-PC) and press

GG

button.

Input Source

Input Source

22 Plasma TV

Operation

- Adjust the picture appearance to suit your preference and viewing situations.

1. Press the MENU button and then use

DD / EE

button to select the VIDEO menu.

2. Press the GG button and then use

DD / EE

button to select the desired picture option

(

Contrast, Brightness, Color, Sharpness, or Tint).

3. Press the

GG button and then use FF / GG button to make appropriate adjustments.

4. Press the EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

1. Press the EZ PIC button repeatedly to select the picture appearance setup option as shown below :

Off (your own settings), Day Light, Normal, Night Time, Movie, Video Game, and Sports.

• You can also use the VIDEO menu to adjust EZ Picture.

2. Press the EXIT button to save and return to TV viewing.

EZ Picture

EZ Picture

Manual Picture Control (

Manual Picture Control (Off

option)

option)

- Choose one of three automatic color adjustments. Select warm to enhance hot­ter colors such as red, or set to cool to see less intense colors with more
blue.

1. Press the MENU button and then use

DD / EE

button to select the VIDEO menu.

2. Press the GG button and then use

DD / EE

button to select Color Temperature .

3. Press the GG button and then use

DD / EE

button to select either Warm, Medium,

or

Cool.

4. Press the EXIT button to return to TV viewing or press MENU button to return to
the previous menu.

Color

Color TT

emperature Control

emperature Control

- Use to quickly reset all the Video menu options to their original factory preset

values.

1. Press the MENU button and then use

DD / EE

button to select the VIDEO menu.

2. Press the GG button and then use

DD / EE

button to select Video Preset .

3. Press the GG button to reset the Video menu options to original values.

VVideo Preset

ideo Preset

- EZ Picture adjusts the TV for the best picture appearance. Select the preset value in the EZ Picture menu based on the
program category.

- When adjusting Video menu options (contrast, brightness, color, sharpness, tint, and color temperature) manually, EZ
Picture automatically changes to

Off.

-

Day Light, Normal, Night Time, Movie, Video Game, and Sports settings are preset for optimum picture quality

at the factory and are not adjustable.

VVideo Menu Options

ideo Menu Options

Owner’s Manual 23

Operation

- Other languages may be available if a digital signal is provided by the broad­casting station.

1. Press the EZ SOUND button repeatedly to select the appropriate sound setup as shown below:

Off (your own settings), Normal, Stadium, Theater, and Music.

• You can also adjust EZ Sound in the AUDIO menu.

2. Press the EXIT button to save and return to TV viewing.

EZ Sound

EZ Sound

1.

Press the MENU button and then use

DD / EE

button to select the AUDIO menu.

2. Press the GG button and then use

DD / EE

button to select Audio Language.

3. Press the GG button and then use

DD / EE

button to select: English, Spanish, or

French.

4. Press the EXIT button to return to TV viewing or press MENU button to return

to the previous menu.

Audio Language

Audio Language

- EZ Sound lets you enjoy the best sound without any special adjustment because the TV sets the appropriate sound
options based on the program content.

- When adjusting sound options (treble, bass, and front surround) manually, EZ Sound automatically switches Off.

- Normal, Stadium, Theater, and Music are preset for good sound quality at the factory and are not adjustable.

- Scans for changes in sound level during commercials, then adjusts the sound
to match the specified audio level. SoundRite makes sure that the volume
level remains consistent whether you are watching a commercial or a regular
TV program.

1.

Press the MENU button and then use

DD / EE

button to select the AUDIO menu.

2. Press the GG button and then use

DD / EE

button to select EZ SoundRite.

3. Press the

GG button and then use

DD / EE

button to select On or Off.

4. Press the EXIT button to return to TV viewing or press MENU button to return

to the previous menu.

EZ SoundRite

EZ SoundRite

Audio Menu Options

Audio Menu Options

24 Plasma TV

Operation

1. Press the MENU button and then use

DD / EE

button to select the AUDIO menu.

2. Press the GG button and then use

DD / EE

button to select Front Surround.

3. Press the GG button and then use

DD / EE

button to select Off, 3D EchoSound

System

or SRS (Sound Retrieval System) TruSurround XT.

• SRS TruSurround XT
Takes advantage of any multi-channel format without needing to add extra
speakers or equipment. Dialog clarity, bass enrichment, and the addition of
stereo audio enhancement that produces an immersive sound experience from
standard stereo material.

• 3D EchoSound System
Creates a stunning simulated stereo effects from any mono sound and a real­istic three-dimensional sound with a very wide and deep sound stage into
stereo sound.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Front Surround

Front Surround

1. Use the SAP button to select your desired MTS mode in analog signal. Each time you press the SAP button, Mono,

Stereo, or SAP appear in turn.

• If other languages available on the digital signal, select them with the SAP button.

2. Press EXIT button to save and return to TV viewing.

Stereo/SAP

Stereo/SAP

Broadcasts Setup

Broadcasts Setup

- This TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accompanies the stereo program; if
the station transmits an additional sound signal as well as the original one.

- Stereo or SAP can be received only when the TV station transmits those signals even though you have selected Stereo or
SAP.

- Mono sound is automatically received if the broadcast is only in Mono; even though Stereo or SAP has been selected.

- Select Mono if you want to listen to the mono sound in remote fringe areas during stereo/SAP broadcasting.

- is a trademark of SRS Labs, Inc.

- TruSurround XT technology is incorporated under license from SRS Labs, Inc.

- Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

1. Press the MENU button and then use

DD / EE

button to select the AUDIO menu.

2. Press the GG button and then use

DD / EE

button to select the desired sound option

(

Balance, Treble, or Bass).

3. Press the GG button and then use FF / GG button to make appropriate adjustments.

4. Press the EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

Manual Sound Control (

Manual Sound Control (Off

option)

option)

- Adjust the sound to suit your taste and room situations.

Audio Menu Options

Audio Menu Options

Owner’s Manual 25

Operation

1. Press the MENU button and then use

DD / EE

button to select the AUDIO menu.

2. Press the GG button and then use

DD / EE

button to select TV Speaker.

3. Press the GG button and then use

DD / EE

button to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

TV Speakers On/Of

TV Speakers On/Of

f Setup

f Setup

- Turn TV speakers off if using external audio equipment. Feature turns the TV

Speakers option On or Off.

1

. Press the MENU button and then use

DD / EE

button to select the AUDIO menu.

2. Press the GG button and then use

DD / EE

button to select BBE.

3. Press the

GG button and then use

DD / EE

button to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

BBE

BBE

- BBE High Definition Sound restores clarity and presence for better speech

intelligibility and music realism.

26 Plasma TV

Operation

- Timer function operates only if current time has been set.

- Off-Timer function overrides On-Timer function if they are set both set to the same time.

- The TV must be in standby mode for the On-Timer to work.

- If you do not press any button within 2 hours after the TV turns on with the On Timer function, the TV will automatically revert to
standby mode.

On/Of

On/Off f TT

imer Setup

imer Setup

1. Press the MENU button and then use

DD / EE

button to select the TIME menu.

2. Press the

GG button and then use

DD / EE

button to select Off Timer or On Timer.

3. Press the GG button and then use

DD / EE

button to select On.

• To cancel

On/Off timer function, select Off.

4. Press the GG button and then use

DD / EE

button to set the hour.

5. Press the

GG button and then use

DD / EE

button to set the minutes.

6. For only

On timer function

Press the GG button and then use

DD / EE

button to select the channel at turn-on.

Press the

GG button and then use

DD / EE

button to set the sound level at turn-on.

7. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Auto Clock Setup

Auto Clock Setup

- The time is set automatically from a digital channel signal.

- The digital channel signal includes information for the current time provided by the broadcasting station.

- Set the clock manually, if the current time is set incorrectly by the auto clock function.

1. Press the MENU button and then use

DD / EE

button to select the TIME menu.

2. Press the GG button and then use

DD / EE

button to select Auto Clock.

3. Press the

GG button and then use

DD / EE

button to select On.

4. Press the GG button and then use

DD / EE

button to select your viewing area time

zone:

Eastern, Central, Mountain, Pacific, Alaska, or Hawaii.

5. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

Manual Clock Setup

Manual Clock Setup

- If current time setting is wrong, reset the clock manually.

1. Press the MENU button and then use

DD / EE

button to select the TIME menu.

2. Press the

GG button and then use

DD / EE

button to select Manual Clock.

3. Press the GG button and then use FF / GG button to select either the year, date, or

time option. Once selected, use the

DD / EE

button to set the year, date, and time

options.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

TTime Menu Options

ime Menu Options

Owner’s Manual 27

Operation

Auto Of

Auto Offf

- If set to on and there is no input signal, the TV turns off vertically after 10
minutes.

1. Press the MENU button and then use

DD / EE

button to select the TIME menu.

2. Press the GG button and then use

DD / EE

button to select Auto Off.

3. Press the GG button and then use

DD / EE

button to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

Sleep

Sleep TT

imer

imer

- The Sleep Timer turns the TV off at the preset time. Note that this setting is cleared when
the TV is turned off.

- You can also set up the Sleep Timer in the TIME menu.

1. Press the TIMER button repeatedly to select the number of minutes. First the Off option
appears on the screen, followed by the following sleep timer options: 10, 20, 30, 60, 90, 120,
180, and 240 minutes.

2. When the number of minutes you want is displayed on the screen, press the ENTER button.

The timer begins to count down from the number of minutes selected.

3. To check the remaining minutes before the TV turns off, press the TIMER button once.

4. To cancel the Sleep Timer, press the TIMER button repeatedly to select Off.

28 Plasma TV

Operation

Aspect Ratio Control

Aspect Ratio Control

- Lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV with a 16:9 ratio picture format.
When you receive an analog picture with a 4:3 aspect ratio on your 16:9 TV, you need to specify how the picture is to be dis­played.

- If you are viewing a picture with a 16:9 aspect ratio, you can’t use the Horizon aspect ratio option.

- Horizon aspect ratio is not available for Component 1-2 (720p/1080i)/RGB-DTV (720p/1080i)/DVI-DTV (720p/1080i)/DTV(720p/1080i)
input source.

- RGB-PC/DVI-PC input source use 4:3 or 16:9 aspect ratio.

- Note: If a fixed image is displayed on the screen for a long time, that fixed image may become imprinted on the screen and

remain visible.

•

Set By Program

Selects the proper picture proportion to match the source’s image. (4:3 → 4:3, 16:9 → 16:9)

• 4:3

Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio, with black bars appearing at both
the left and right sides.

• 16:9

Choose 16:9 when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.

• Horizon

Choose Horizon when you want to adjust the picture in a non-linear proportion, that is, more enlarged at both
sides, to create a spectacular view.

• Zoom 1

Choose Zoom 1 when you want to view the picture without any alteration. However, the top and bottom portions
of the picture will be cropped.

• Zoom 2

Choose Zoom 2 when you want the picture to be altered, both horizontally extended and vertically cropped. The
picture taking a halfway trade off between alteration and screen coverage.

• Cinema Zoom

Choose Cinema Zoom when you want to enlarge the picture in correct proportion. Note: When enlarging or
reducing the picture, the image may become distorted.
You can adjust the enlarge proportion of Cinema Zoom using

DD / EE

button. The adjustment range is 1~16.

1. Press the RATIO button repeatedly to select the desired picture format.

You can also adjust Aspect Ratio in the OPTION menu.

Option Menu Features

Option Menu Features

Owner’s Manual 29

Operation

Caption Mode

Caption Mode

Analog Broadcasting System Captions

- Select a caption mode for displaying captioning information if provided on a program.

- Analog caption displays information at any position on the screen usually the program's dialog.

- Text displays information, usually at the bottom position and is used for a data service, generally not program related.

- Caption/Text, if provided by the broadcaster, would be available for both digital and analog channels on the Antenna source.

- This TV is programmed to remember the caption/text mode it was last set to, when you turn the power off.

Digital Broadcasting System Captions

- Choose the language you want the DTV/CADTV Captions to appear in.

- Languages can be chosen for digital sources only if they are included on the program.

1. Press the MENU button and then use

DD / EE

button to select the OPTION

menu.

2. Press the GG button and then use

DD / EE

button to select Caption Mode.

3. Press the

GG button and then use

DD / EE

button to select caption: CC1, CC2,

CC3, CC4, Text1, Text2, Text3, or Text4.

• CAPTION
The term for the words that scroll across the bottom of the TV screen; usu­ally the audio portion of the program provided for the hearing impaired.

• TEXT
The term for the words that appear in a large black frame and almost cover
the entire screen; usually messages provided by the broadcaster.

4. Press the EXIT button to return to TV viewing or press MENU button to return

to the previous menu.

1. Press the MENU button and then use

DD / EE

button to select the OPTION menu.

2. Press the

GG button and then use

DD / EE

button to select Caption Mode.

3. Press the GG button and then use

DD / EE

button to select available caption lan-

guages:

English, Spanish, or French.

4. Press the EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

Caption

Caption

1. Use the CC button repeatedly to select Caption Off, or On.

• You can also use the OPTION menu to select Caption.

2. Press the EXIT button to save and return to TV viewing.

English

Spanish

French

Prev.

Aspect Ratio

Caption

Caption Mode GG

Caption Option

Language

Cinema

Demo

ISM Method

Low Power

MENU

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

SA

P

E

X

IT

TI

M

E

R

CC

INFO

CC

30 Plasma TV

Operation

- Customize the DTV/CADTV captions that appear on your screen.

1. Press the MENU button and then use

DD / EE

button to select the OPTION

menu.

2. Press the GG button and then use

DD / EE

button to select Caption Option.

3. Press the GG button and then use FF / GG button to select Custom.

4. Use

DD / EE

button to customize the Style, Font, etc., to your preference. A pre­view icon is provided at the bottom of the screen, use it to see the caption lan­guage.

• Size: Set the size the words will appear in.

• Font: Select a typeface for the words.

• Text Color: Choose a color for the text.

• Text Opacity: Specify the opacity for the text color.

• Bg (Background) Color: Select a background color.

• Bg (Background) Opacity: Select the opacity for the background color.

• Edge Type: Select an edge type.

• Edge Color: Select a color for the edges.

5. Press EXIT button to return to TV viewing or press MENU button to return

to the previous menu.

Cinema Mode Setup

- Most movies are 24 frames/sec, but TV signal is 30 frames/sec.
This option lets the TV do 3:2 pull-down operation for you to watch movies at

the best motion appearance.

1. Press the MENU button and then use

DD / EE

button to select the OPTION

menu.

2. Press the GG button and then use

DD / EE

button to select Cinema.

3. Press the

GG button and then use

DD / EE

button to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

- EZ Demo Use to scan the features and menu options available on your TV.

- XD Demo Use to see the difference between XD Demo On and XD Demo Off.

1. Press the MENU button and then use

DD / EE

button to select the OPTION menu.

2. Press the

GG button and then use

DD / EE

button to select Demo.

3. Press the GG button and then use

DD / EE

button to select EZ Demo or XD Demo.

4. Press the

GG button to start EZ Demo or XD Demo. Press EXIT button to stop EZ

Demo or XD Demo.

Demo

Demo

Note: This feature operates only in 480i mode.

Option Menu Features

Option Menu Features

Owner’s Manual 31

Operation

Low Power

Low Power

- Low power reduces the plasma display's power consumption.

1. Press the MENU button and then use

DD / EE

button to select the OPTION menu.

2. Press the GG button and then use

DD / EE

button to select Low Power.

3. Press the GG button and then use

DD / EE

button to select On or Off.

• If you select On, the screen darkens.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

- A frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in an ghost
image remaining; even when you change the image. Avoid allowing any fixed image to remain on the TV's screen
for a long period of time.

1. Press the MENU button and then use

DD / EE

button to select the OPTION menu.

2. Press the GG button and then use

DD / EE

button to select ISM Method.

3. Press the GG button and then use

DD / EE

button to select either Normal, Orbiter,

Inversion, or White Wash.

• Normal
If image sticking is never a problem, ISM is not necessary - set to Normal.
When image is stopped, screen light automatically get dark to prevent ghost

images, and image is appeared, screen light get bright,automatically.

• Orbiter
Orbiter may help prevent ghost images. However, it is best not to allow any
fixed image to remain on the screen. To avoid a permanent image on the
screen, the image will move once per minute: Right → Right → Downside →
Downside → Left → Left→Upside → Upside.

• Inversion
Inversion will automatically invert the plasma display panel color every 30 min­utes.

• White Wash
White Wash remove s permanent images from the screen. Note: An excessive
permanent image may be impossible to clear entirely with White Wash. To
return to normal viewing, press the any button.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

ISM (Image Sticking Minimization) Method

ISM (Image Sticking Minimization) Method

32 Plasma TV

Operation

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station.
The default setting is to allow all programs to be viewed. Viewing can be blocked by the type of program and by the categories
chosen to be blocked. It is also possible to block all program viewing for a time period. To use this function, the following must be
done :

1. Set ratings and categories to be blocked.

2. Specify a password

3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV
Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating
System (MPAA) only.

Ratings for Movies previously shown in theaters:

Movie Ratings :

• Blocking Off (Permits all programs)

• G (General audience)

• PG (Parental guidance suggested)

• PG-13 (Parents strongly cautioned)

• R (Restricted)

• NC-17 (No one 17 and under admitted)

• X (Adult only)

If you set PG-13 : G and PG movies will be available , PG-13, R, NC-17 and X will be blocked.

Ratings for Television programs including made-for-TV movies :

• TV-G (General audience)

• TV-PG (Parental guidance suggested)

• TV-14 (Parents strongly cautioned)

• TV-MA (Mature audience only)

• TV-Y (All children)

• TV-Y7 (Children 7 years older)

TV Rating Children:

• Age (applies to TV-Y, TV-Y7)

• Fantasy Violence (applies to TV-Y7)

TV Rating General:

• Age (applies to TV-G, TV-PG, TV-14, TV-MA)

• Dialogue - sexual dialogue (applies to TV-PG, TV-14)

• Language - adult language (applies to TV-PG, TV-14, TV-MA)

• Sex - sexual situations (applies to TV-PG, TV-14, TV-MA)

• Violence (applies to TV-PG, TV-14, TV-MA)

Aux. Block

• Video 1, 2 (On, Off)

• Component 1, 2 (On, Off)

• RGB, DVI (On, Off)

Lock Menu Options

Lock Menu Options

Owner’s Manual 33

Operation

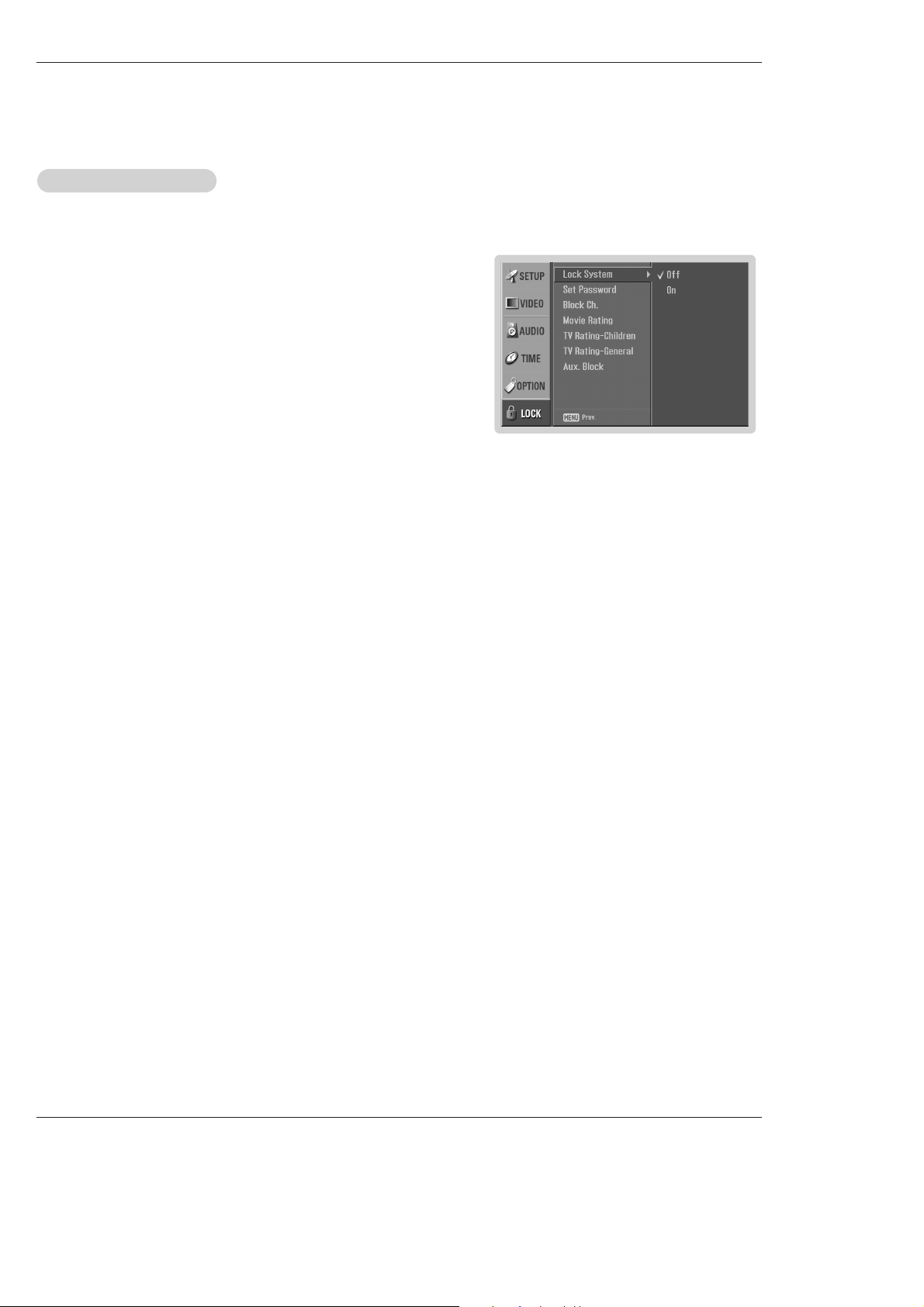

Parental Lock Setup

Parental Lock Setup

1. Press the MENU button and then use

DD / EE

button to select the LOCK menu.

Then, press the

GG button

• Enter the password as requested.

• The TV is set up with the initial password “7-7-7-7”.

2. Use the

DD / EE

button to choose from the following Lock Menu options. Once the

option is selected, change the settings to your preference.

• Lock System: Activates or disables the blocking scheme you set up previ-

ously.

• Set Password: Change the password by inputting a new password twice.

• Block Ch.: Blocks any channels that you do not want to watch or that you

• do not want your children to watch.

• Movie Rating (MPPA): Blocks movies according to the movie ratings limits

specified, so children cannot view certain movies. You can set the ratings
limit by blocking out all the movies with the ratings above a specified level.
Keep in mind that the movie ratings limit only applies to movies shown on
TV, not TV programs, such as soap operas.

• TV Rating-Children: Prevents children from watching certain children's TV

programs, according to the ratings limit set. The children rating does not
apply to other TV programs. Unless you block certain TV programs intend­ed for mature audiences in the TV Rating - sub menu, your children can
view those programs.

• TV Rating-General: Based on the ratings, blocks certain TV programs that

you and your family do not want to view.

• Aux. Block: Enables you to select a source to block from the external

source devices you have hooked up.

3. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

Note

• If you ever forget your password, key in ‘7’, ‘7’, ‘7’, ‘7’ on the remote control.

- Lets you set up blocking schemes to block specific channels, ratings, and external viewing sources.

- A password is required to gain access to this menu.

34 Plasma TV

External Control Device Setup

No. Pin Name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection

1

5

6

9

2
3
5
4
6
7
8

RXD

TXD

GND

DTR
DSR

RTS
CTS

TXD

RXD

GND

DSR

DTR
CTS
RTS

PC

7-Wire Configurations

(Standard RS-232C cable)

D-Sub 9

3
2
5
6
4
8
7

PDP

D-Sub 9

2
3
5
4
6
7
8

RXD
TXD
GND
DTR
DSR
RTS
CTS

TXD
RXD

GND

DTR

DSR

RTS
CTS

PC

3-Wire Configurations

(Not standard)

D-Sub 9

3
2
5
4
6
7
8

PDP

D-Sub 9

- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)
and control the TV’s functions externally.

- Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.

- RS-232C connection cables are not supplied with the TV.

TType of Connector; D-Sub 9-Pin Male

ype of Connector; D-Sub 9-Pin Male

RS-232C Configurations

RS-232C Configurations

External Control Device Setup

External Control Device Setup

RS-232C Setup

RS-232C Setup

PC

DIGITAL AUDIO

RS-232C INPUT

(CONTROL/SERVICE)

REMOTE

CONTROL

DVI

INPUT

(OPTICAL)

COMPONENT1
INPUT

OUTPUT

DVI INPUT
(PC/DTV INPUT)

AUDIO INPUT

RGB INPUT

(PC/DTV INPUT)

RL

AUDIO INPUT

COMPONENT 2

COMPONENT 1

VIDEO INPUT

DVD
/DTV
INPUT

INPUT 1

A/V

(MONO)

VIDEO

R L

S-VIDEO

Antenna
Analog/DTV

AC INPUT

Owner’s Manual 35

External Control Device Setup

Set ID

Set ID

Use this function to specify a monitor ID number.
Refer to ‘Real Data Mapping’. See page 36.

• Baud rate : 9600 bps (UART)

• Data length : 8 bits

• Parity : None

* Use a crossed (reverse) cable.

• Stop bit : 1 bit

• Communication code : ASCII code

Communication Parameters

Communication Parameters

1. Press the MENU button and then use

DD / EE

button to select the SETUP menu.

2. Press the GG button and then use

DD / EE

button to select SET ID.

3. Press the GG button and then use

DD / EE

button to adjust SET ID to choose the

desired monitor ID number. The adjustment range of SET ID is 1 ~ 99.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

Transmission

*

[Command 1]: First command to control the set. (j or k)

*

[Command 2]: Second command to control the set.

*

[Set ID]: You can adjust the set ID to choose desired monitor

ID number in Setup menu. Adjustment range is 1
~ 99. When selecting Set ID ‘0’, every connected
the TV is controlled. Set ID is indicated as decimal
(1~99) on menu and as Hexa decimal (0x0~0x63)
on transmission/receiving protocol.

*

[DATA]: To transmit command data.

Transmit ‘FF’ data to read status of command.

*

[Cr]: Carriage Return

ASCII code ‘0x0D’

*

[ ]: ASCII code ‘space (0x20)’

[Command1][Command2][ ][Set ID][ ][Data][Cr]

TTransmission / Receiving Protocol

ransmission / Receiving Protocol

OK Acknowledgement

* The TV transmits ACK (acknowledgement) based on this

format when receiving normal data. At this time, if the data
is data read mode, it indicates present status data. If the
data is data write mode, it returns the data of the PC com­puter.

[Command2][ ][Set ID][ ][OK][Data][x]

Error Acknowledgement

* The TV transmits ACK (acknowledgement) based on this

format when receiving abnormal data from non-viable
functions or communication errors.

[Command2][ ][Set ID][ ][NG][Data][x]

Data 1: Illegal Code

2: Not supported function
3: Wait more time

01. Power k a 0 ~ 1

02. Input Select k b 0 ~ 9

03. Aspect Ratio k c 1 ~ 1F

04. Screen Mute k d 0 ~ 1

05. Volume Mute k e 0 ~ 1

06. Volume Control k f 0 ~ 64

07. Contrast k g 0 ~ 64

08. Brightness k h 0 ~ 64

09. Color k i 0 ~ 64

10. Tint k j 0 ~ 64

11. Sharpness k k 0 ~ 64

12. OSD Select k l 0 ~ 1

13.

Key Lock Mode

k m 0 ~ 1

14. Treble k r 0 ~ 64

15. Bass k s 0 ~ 64

16. Balance k t 0 ~ 64

17. Color Temperature k u 0 ~ 2

18. ISM Method j p 0 ~ 8

19. Orbiter Time Setting j r 1 ~ 64

20. Orbiter Pixel Setting j s 0 ~A

COMMAND 1 COMMAND 2 DATA

(Hexadecimal)

21. Channel Tuning m a 01 ~ 87 00 00 ~ 87 00 ~ 3 00 ~ FF *

22. Channel Add/Del m b 00 ~ 01

23. Key m c

COM­MAND 2

COM­MAND 1

DATA 0

(Hexadecimal)

DATA 1

(Hexadecimal)

DATA 2

(Hexadecimal)

DATA 3

(Hexadecimal)

Command Reference List

Command Reference List

DATA 4

(Hexadecimal)

DATA 5

(Hexadecimal)

36 Plasma TV

External Control Device Setup

02. Input Select (Command:b) (Main Picture Input)

G To select input source for the TV.

T

ransmission

Data 0: DTV

1: Analog
2: Video 1
3: Video 2
4: Component 1

5: Component 2
6: RGB-DTV
7: RGB-PC
8: DVI-DTV
9: DVI-PC

Data 1: Normal screen (4:3)

2: Wide screen (16:9)
3: Horizon
4: Zoom 1
5: Zoom 2

6: Auto (Set by program)
10: Cinema Zoom (1)
1A: Cinema Zoom (11)

1F: Cinema Zoom (16)

[k][b][ ][Set ID][ ][Data][Cr]

Acknowledgement

[b][ ][Set ID][ ][OK][Data][x]

01. Power (Command:a)

G To control Power On/Off of the TV.

Transmission

Data 0 : Power Off 1 : Power On

[k][a][ ][Set ID][ ][Data][Cr]

Acknowledgement

[a][ ][Set ID][ ][OK][Data][x]

* In a like manner, if other functions transmit ‘FF’ data

based on this format, Acknowledgement data feedback
presents status about each function.

*

Real data mapping

0 : Step 0

A : Step 10 (SET ID 10)

F : Step 15 (SET ID 15)

10 : Step 16 (SET ID 16)

64 : Step 100

05. Volume Mute (Command:e)

G To control volume mute on/off.

You can also adjust mute using the MUTE button on
remote control.

T

ransmission

Data 0 : Volume mute off (Volume on)

1 : Volume mute on (Volume off)

[k][e][ ][Set ID][ ][Data][Cr]

Acknowledgement

[e][ ][Set ID][ ][OK][Data][x]

03. Aspect Ratio (Command:c) (Main picture format)

G To adjust the screen format.

You can also adjust the screen format using the RATIO
button on remote control or in the Option menu.

T

ransmission

[k][c][ ][Set ID][ ][Data][Cr]

Acknowledgement

[c][ ][Set ID][ ][OK][Data][x]

04. Screen Mute (Command:d)

G To select screen mute on/off.

Transmission

Data 0 : Screen mute off (Picture on)

1 : Screen mute on (Picture off)

[k][d][ ][Set ID][ ][Data][Cr]

Acknowledgement

[d][ ][Set ID][ ][OK][Data][x]

06. Volume Control (Command:f)

G To adjust volume.

You can also adjust volume with the volume buttons
on remote control.

T

ransmission

Data Min : 0 ~ Max : 64

• Refer to ‘Real data mapping’ as shown below.

[k][f][ ][Set ID][ ][Data][Cr]

Acknowledgement

[f][ ][Set ID][ ][OK][Data][x]

07. Contrast (Command:g)

G To adjust screen contrast.

You can also adjust contrast in the Video menu.

T

ransmission

Data Min : 0 ~ Max : 64

• Refer to ‘Real data mapping’ as shown below.

[k][g][ ][Set ID][ ][Data][Cr]

Acknowledgement

[g][ ][Set ID][ ][OK][Data][x]

08. Brightness (Command:h)

G To adjust screen brightness.

You can also adjust brightness in the Video menu.

Transmission

Data Min : 0 ~ Max : 64

• Refer to ‘Real data mapping’ as shown below.

[k][h][ ][Set ID][ ][Data][Cr]

Acknowledgement

[h][ ][Set ID][ ][OK][Data][x]

Owner’s Manual 37

External Control Device Setup

09. Color (Command:i)

G To adjust the screen color.

You can also adjust color in the Video menu.

Transmission

Data Min : 0 ~ Max : 64

• Refer to ‘Real data mapping’. See page 36.

[k][i][ ][Set ID][ ][Data][Cr]

Acknowledgement

[i][ ][Set ID][ ][OK][Data][x]

10. Tint (Command:j)

G To adjust the screen tint.

You can also adjust tint in the Video menu.

T

ransmission

Data Red : 0 ~ Green : 64

• Refer to ‘Real data mapping’. See page 36.

[k][j][ ][Set ID][ ][Data][Cr]

Acknowledgement

[j][ ][Set ID][ ][OK][Data][x]

13. Remote Control Lock Mode (Command:m)

G To lock the remote control and the front panel controls on

the set.

T

ransmission

[k][m][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: Lock off 1: Lock on

[m][ ][Set ID][ ][OK][Data][x]

G To adjust the screen sharpness.

You can also adjust sharpness in the Video menu.

Transmission

11. Sharpness (Command:k)

Data Min: 0 ~ Max: 64

• Refer to ‘Real data mapping’. See page 36.

[k][k][ ][Set ID][ ][Data][Cr]

Acknowledgement

[k][ ][Set ID][ ][OK][Data][x]

12. OSD Select (Command:l)

G To select OSD (On Screen Display) on/off.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: OSD off 1: OSD on

[l][ ][Set ID][ ][OK][Data][x]

14. Treble (Command:r)

G To adjust treble.

You can also adjust treble in the Audio menu.

T

ransmission

Data Min: 0 ~ Max: 64

• Refer to ‘Real data mapping’. See page 36.

[k][r][ ][Set ID][ ][Data][Cr]

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

16. Balance (Command:t)

G To adjust balance.

You can also adjust balance in the Audio menu.

T

ransmission

Data Min: 0 ~ Max: 64

• Refer to ‘Real data mapping’. See page 36.

[k][t][ ][Set ID][ ][Data][Cr]

Acknowledgement

[t][ ][Set ID][ ][OK][Data][x]

15. Bass (Command:s)

G To adjust bass.

You can also adjust bass in the Audio menu.

T

ransmission

Data Min: 0 ~ Max: 64

•

Refer to ‘Real data mapping’. See page 36.

[k][s][ ][Set ID][ ][Data][Cr]

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

38 Plasma TV

External Control Device Setup

17. Color Temperature (Command:u)

G To adjust color temperature.

You can also adjust color temperature in the Video
menu.

T

ransmission

Data 0: Medium 1: Cool 2: Warm

[k][u][ ][Set ID][ ][Data][Cr]

Acknowledgement

[u][ ][Set ID][ ][OK][Data][x]

19. Orbiter Time Setting (Command:r)

G To adjust orbiter operation time term.

Transmission

Data Min: 1 ~ Max: FE

• Refer to ‘Real data mapping’. See page 36.

[j][r][ ][Set ID][ ][Data][Cr]

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

20. Orbiter Pixel Setting (Command:s)

G To adjust pixel number in orbiter function.

T

ransmission

Data Min: 1 ~ Max: 9

[j][s][ ][Set ID][ ][Data][Cr]

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

21. Channel Tuning (Command: m a)

G To tune channel to following physical/major/minor number

Transmission

Data 0:

Physical channel number (Transmit by Hexadecimal code)

* NTSC air: 02 ~ 45

NTSC cable: 01, 0E ~ 7D
ATSC air: 01 ~ 45
ATSC cable: 01 ~ 87

Data 1, Data 2:

Major channel number

* Data 1: High byte

Data 2: Low byte

Data 3, Data 4:

Minor channel number

* Data 3: High byte

Data 4: Low byte

Data 5:

Attribute

* (0: NTSC Air, 1:NTSC Cable, 2: ATSC air,

3: ATSC cable_STD, 4: ATSC cable_HRC,

5: ATSC cable_IRC)

[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][ ][Data3]
[ ][Data4][ ][Data5][Cr]

[a][ ][Set ID][ ][OK][Data0][Data1][Data2][Data3][Data4][Data5][x]
[a][ ][Set ID][ ][NG][Data0][x]

Acknowledgement

22. Channel Add/Del (Command: m b)

G To add and delete the channels

Transmission

Data 0: Channel Delete

1: Channel Add

[m][b][ ][Set ID][ ][Data][Cr]

[b][ ][Set ID][ ][OK][Data][x]
[b][ ][Set ID][ ][NG][Data][x]

Acknowledgement

23. Key (Command: m c)

G To send IR remote key code

T

ransmission

Data Key code: Refer to page 40.

* It’s impossible to command the IR Code 0x08 and 0xC4

with RS-232C.

[m][c][ ][Set ID][ ][Data][Cr]

[c][ ][Set ID][ ][OK][Data][x]

Acknowledgement

18. ISM Method (Command:p)

G To avoid having a fixed image remain on screen.

T

ransmission

Data 1: Inversion

2: Orbiter

4: White Wash
8: Normal

[j][p][ ][Set ID][ ][Data][Cr]

Acknowledgement

[p][ ][Set ID][ ][OK][Data][x]

Owner’s Manual 39

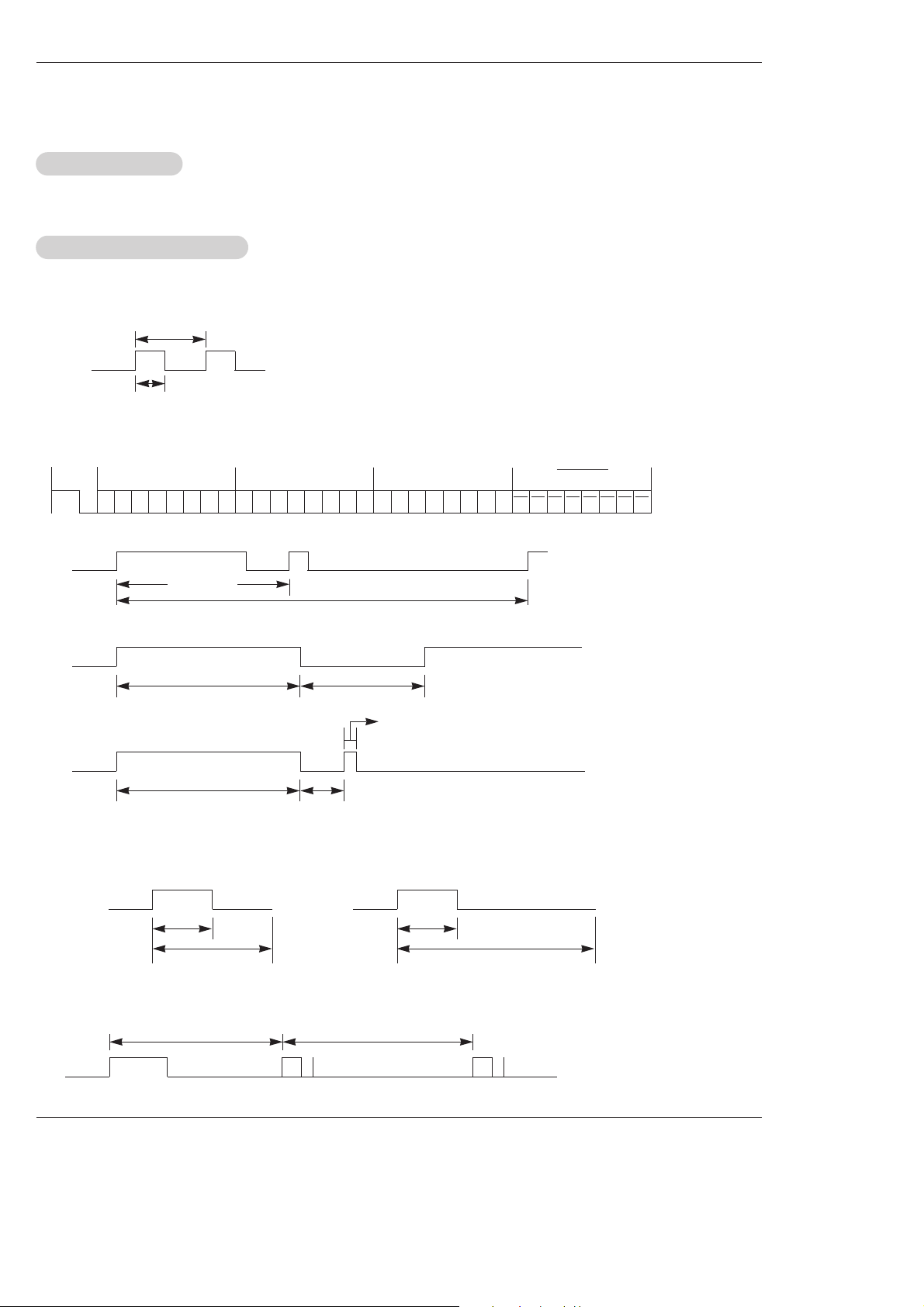

IR Codes

G Connect your wired remote control to the Remote Control port on the TV.

G Output waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

G Configuration of frame

G Repeat code

G Lead code

• 1st frame

Low
custom code

Lead

code

High
custom code

Data code

Data code

T

C

Tf

T1

C0

Carrier frequency

F

CAR = 1/TC = fOSC/12

Duty ratio = T1/TC = 1/3

• Repeat frame

C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

Repeat code

9 ms 4.5 ms

0.55 ms

9 ms

2.25 ms

G Bit description

G Frame interval : Tf

The waveform is transmitted as long as a key is depressed.

• Bit “0”

Tf Tf

Tf=108ms @455KHz

0.56 ms 0.56 ms

1.12 ms

• Bit “1”

2.24 ms

How to Connect

How to Connect

Remote Control IR Codes

Remote Control IR Codes

IR Codes

IR Codes

40 Plasma TV

IR Codes

0B
98
79
0E
10 ~ 19
4C
1A
09
02
03
00
01
1E
AA
39
40
41
07
06
44
43
52
4D
5B
65
0A
CB
92
D6
5A
D0
BF
D4
D5
D7
76
77
AF

R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
Discrete IR Code (TV Input Selection)
Discrete IR Code (Video1 Input Selection)
Discrete IR Code (Video2 Input Selection)
Discrete IR Code (Component1 Input Selection)
Discrete IR Code (Component2 Input Selection)
Discrete IR Code (RGB-PC Input Selection)
Discrete IR Code (RGB-DTV Input Selection)
Discrete IR Code (Only 4:3 Mode)
Discrete IR Code (Only 16:9 Mode)
Discrete IR Code (Only Zoom1 Mode)

Code (Hexa) Function Note

TV/VIDEO
COMP/RGB/DVI
RATIO
TIMER
Number Key 0~ 9

- (Dash)
FLASHBK
MUTE
VOL

DD

VOL

EE

CH

DD

CH

EE

SURF
INFO
CC

D

E

F

G

ENTER
MENU
EZ SOUND
EZ PIC
EXIT
FREEZE
SAP
ADJUST
XD
TV
VIDEO 1
VIDEO 2
COMPONENT 1
COMPONENT 2
RGB-PC
RGB-DTV
Ratio 4:3
Ratio 16:9
Ratio Zoom

Owner’s Manual 41

Programming the Remote

G The remote control is a multi-brand or universal remote control. It can be programmed to operate most remote-controllable

devices of other manufacturers.
Note that the remote control may not control all models of other brands.

Programming a code into a remote mode

Programming a code into a remote mode

Programming the Remote

Programming the Remote

1. Test your remote control.
To find out whether your remote control can operate the component without programming, turn on the component such as a VCR
and press the corresponding MODE button (VCR) on the remote control, while pointing at the component.

2. Turn on the component to be programmed, then press the corresponding MODE button on the remote control.

3. Press the MENU and MUTE buttons simultaneously, the remote control is ready to be programmed for the code.

4. Enter a code number using the number buttons on the remote. Programming code numbers for the corresponding component can
be found on the following pages. Again, if the code is correct, the device will turn off.

5. Press the MENU button to store the code.

6. Test the remote control functions to see if the component responds properly. If not, repeat from step 2.

42 Plasma TV

Programming Codes

Programming Codes

Programming Codes

VCRs

VCRs

CACATV

TV

AIWA 034
AKAI 016 043 046 124

125 146
AMPRO 072
ANAM 031 033 103
AUDIO DYNAMICS

012 023 039 043
BROKSONIC 035 037 129
CANON 028 031 033
CAPEHART 108
CRAIG 003 040 135
CURTIS MATHES 031 033 041
DAEWOO 005 007 010 064

06 5 1 08 11 0 111

112 116 11 7 119
DAYTRON 108
DBX 012 023 039 043
DYNATECH 034 053
ELECTROHOME 059
EMERSON 006 017 025 027

029 031 034 035

036 037 046 101

129 131 138 153
FISHER 003 008 009 010
FUNAI 034
GE 031 033 063 072

107 109 144 147
GO VIDEO 132 136
HARMAN KARDON

012 045
HITACHI 004 018 026 034

043 063 137 150
INSTANTREPLAY 031 033
JCL 031 033
JCPENNY 012 013 015 033

040 066 101
JENSEN 043
JVC 012 031 033 043

048 050 055 060

130 150 152

KENWOOD 014 034 039 043

047 048

LG (GOLDSTAR) 001 012 013 020

101 106 114 123
LLOYD 034
LXI 003 009 013 014

017 034 101 106
MAGIN 040
MAGNAVOX 031 033 034 041

067 068
MARANTZ 012 031 033 067

069
MARTA 101
MATSUI 027 030
MEI 031 033
MEMOREX 003 010 014 031

033 034 053 072

101 102 134 139
MGA 045 046 059
MINOLTA 013 020
MITSUBISHI 013 020 045 046

049 051 059 061

151
MTC 034 040
MULTITECH 024 034
NEC 012 023 039 043

048
NORDMENDE 043
OPTONICA 053 054
PANASONIC 066 070 074 083

133 140 145
PENTAX 013 020 031 033

063
PHILCO 031 034 067
PHILIPS 031 033 034 054

067 071 101
PILOT 101
PIONEER 013 021 048

PORTLAND 108
PULSAR 072
QUARTZ 011 014
QUASAR 033 066 075 145
RCA 013 020 033 034

040 041 062 063
107 109 140 144
145 147

REALISTIC 003 008 010 014

031 033 034 040

053 054 101
RICO 058
RUNCO 148
SALORA 014
SAMSUNG 032 040 102 104

105 107 109 112

113 115 120 122

125
SANSUI 022 043 048 135
SANYO 003 007 010 014

102 134
SCOTT 017 037 112 129

131
SEARS 003 008 009 010

013 014 017 020

031 042 073 081

101
SHARP 031 054 149
SHINTOM 024
SONY 003 009 031 052

056 057 058 076

077 078 149
SOUNDESIGN 034
STS 013
SYLVANIA 031 033 034 059

067
SYMPHONIC 034
TANDY 010 034

TATUNG 039 043
TEAC 034 039 043
TECHNICS 031 033 070
TEKNIKA 019 031 033 034

101
THOMAS 034
TMK 006
TOSHIBA 008 013 042 047

059 082 112 131
TOTEVISION 040 101
UNITECH 040

VECTOR RESEARCH

012
VICTOR 048
VIDEO CONCEPTS

012 034 046
VIDEOSONIC 040
WARDS 003 013 017 024

031 033 034 040

053 054 131
YAMAHA 012 034 039 043
ZENITH 034 048 056

058 072 080 101

Brand Codes Brand Codes Brand Codes Brand Codes

Brand Codes Brand Codes Brand Codes Brand Codes

ABC 003 004 039 042

046 052 053
AJIN 112
ANTRONIK 014
ARCHER 005 007 014 024
CABLE STAR 026
CENTURION 092
CENTURY 007
CITIZEN 007
COLOUR VOICE 065 090
COMBANO 080 081
COMTRONICS 019 030
DIAMOND 023
EAGLE 020 030 040
EASTERN 057 062 066
ELECTRICORD 032
GE 072
GEMINI 008 022 025 054
GI 052 074

GOLDEN CHANNEL

030
HAMLIN 049 050 055
HITACHI 052 055
HOSPITALITY 070 077
JERROLD 002 003 004 008

009 010 052 069

074
LG (GOLDSTAR) 001 106 101 005
M-NET 037
MACOM 033
MAGNAVOX 010 012 064 079
MEMOREX 100
MOVIE TIME 028 032
NSC 015 028 038 071

073
OAK 016 031 037 053
PANASONIC 044 047
PARAGON 100
PHILIPS 006 012 013 020

065 085 090

PIONEER 034 051 052 063

076

POST NEWS WEEK

016
PRUCER 059
PTS 011 048 071 072

073 074
PULSAR 100
RCA 047
REGAL 049 050
REGENCY 057
REMBRANT 025
SAMSUNG 102 107 030 068

SCIENTIFIC ATLANTA

003 011 041 042

043 045 046
SHERITECH 022
SIGNAL 030
SIGNATURE 052
SL MARX 030

SPRUCER 047 078
STARCOM 002 004 008 009
STARGATE 008 030
TADIRAN 030
TAEKWANG 110
TAIHAN 105
TANDY 017
TEXSCAN 029
TOCOM 039 040 056
TOSHIBA 100
UNIKA 007 014 024
UNITED CABLE 004 053
UNIVERSAL 005 007 014 024

026 027 032 035

VIEWSTAR 012 015 018 086

087 088 089

ZENITH 100 114 060 093

Owner’s Manual 43

Programming Codes

Audio

Audio

APEX DIGITAL 022
DENON 020 014
GE 005 006
HARMAN KARDON 027
JVC 012
LG 001 010 016 025

MAGNAVOX 013
MARANTZ 024
MITSUBISHI 002
NAD 023
ONKYO 008 017
PANASONIC 003 009

PHILIPS 013
PIONEER 004 026
PROCEED 021
PROSCAN 005 006
RCA 005 006
SAMSUNG 011 015

SONY 007
THOMPSON 005 006
TOSHIBA 019 008
YAMAHA 009 018
ZENITH 010 016 025

DVD

DVD

ALPHASTAR DSR

123
AMPLICA 050
BIRDVIEW 051 126 129
CHANNEL MASTER

013 014 015 018

036 055
CHAPARRAL 008 009 012 077
CITOH 054
CURTIS MATHES 050 145
DRAKE 005 006 007 010

011 052 112 116

141
DX ANTENNA 024 046 056 076
ECHOSTAR 038 040 057 058

093 094 095 096

097 098 099 100

122
ELECTRO HOME 089
EUROPLUS 114
FUJITSU 017 021 022 027

133 134

GENERAL INSTRUMENT

003 004 016 029
031 059 101

HITACHI 139 140

HOUSTON TRACKER

033 037 039 051

057 104
HUGHES 068
JANIEL 060 147
JERROLD 061
KATHREIN 108
LEGEND 057
LG 001
LUTRON 132
LUXOR 062 144
MACOM 010 059 063 064

065
MEMOREX 057
NEXTWAVE 028 124 125
NORSAT 069 070

PACE SKY SATELLITE 143

PANASONIC 060 142
PANSAT 121
PERSONAL CABLE 117
PHILIPS 071
PICO 105
PRESIDENT 019 102
PRIMESTAR 030 110 111
PROSAT 072
RCA 066 106
REALISTIC 043 074
SAMSUNG 123

SATELLITE SERVICE CO

028 035 047 057
085

SCIENTIFIC ATLANTA

032 138
SONY 103
STARCAST 041
SUPER GUIDE 020 124 125
TEECOM 023 026 075 087

088 090 107 130

137
TOSHIBA 002 127
UNIDEN 016 025 042 043

044 045 048 049

078 079 080 086

101 135 136
VIEWSTAR 115
WINEGARD 128 146
ZENITH 081 082 083 084

091 120

HDSTB

HDSTB

Brand Codes Brand Codes Brand Codes Brand Codes

Brand Codes Brand Codes Brand Codes Brand Codes

AIWA 014 028 070 096

125 129 139 229

230
AKAI 163
ANAM 003 014 017 023

059 106 189 216

217 235 236
BURMECTER 252
CARVER 086
CLARION 199
DAEWOO 027 053 060 084

102 148 198 221
DENON 015 075 130 143
FANTASIA 071
FINEARTS 022
FISHER 089 099
LG(GOLDSTAR) 001 021 024 029

087 107 108 110

190 191 192 210

211 212 239
HAITAI 034 035 188 222
HARMAN/KARDON 068
INKEL 037 058 062 069

078 079 095 121

122 149 150 151

152 153 154 155

157 158 159 160

189 207 222 224

225 226 227 243

247

JVC 004 013 141
KEC 185 186 187
KENWOOD 038 050 067 089

170 171 197 206

215 222
KOHEL 030
NAD 045 046
LOTTE 014 016 036 098

100 172 173 174

175 176 177 178

179 180 181 183

201 202 208 213

214 219 223 232

238 240
LXI 103
MAGNAVOX 111
MARANTZ 002 018 020 025

034 041 081 090

097 112
MCINTOSH 049
MCS 104
MEMOREX 107
NAD 046
ONKYO 013 040 041 047

048 056 057 132

133 140
OPTIMUS 158
PANASONIC 007 033 064 113

142 220 241 251
PENNEY 104

PHILIPS 026 112 143
PIONEER 039 042 043 063

065 091 093 094

115 123 127 250
QUASAR 113
RCA 080
RCX 092
REALISTIC 103 106
SAMSUNG 124 145 146 182

193 194 195 203

204 244 245 246
SANSUI 011 135 138 144
SANYO 019 083 234
SCOTT 106 186
SHARP 031 032 051 052

072 082 117 119

156 184 199 200

206 209
SHERWOOD 005 006 158
SONY 044 045 109 114

118 126 248 249
TAEKWANG 012 020 073 074

076 077 105 161

162 163 164 165

166 167 168 169

205 231 233 242

TEAC 010 085 106 136

185 187 237
TECHNICS 101 113 128 134

147 218
TOSHIBA 137
THE 061
VICTOR 088 131
WARDS 089
YAMAHA 054 055 066 092

199

Brand Codes Brand Codes Brand Codes Brand Codes

44 Plasma TV

Troubleshooting Checklist

No output from one of

the speakers

• Adjust Balance in the AUDIO menu. (Refer to p.24)

Unusual sound from

inside the TV

• A change in ambient humidity or temperature may result in an unusual noise
when the plasma display is turned on or off and does not indicate a fault with
the TV.

No picture &

No sound

• Check whether the TV is turned on.

• Is the power cord inserted into wall power outlet?

• Test the wall power outlet, plug another product’s power cord into the outlet
where the TV’s power cord was plugged in.

No or poor color

or poor picture

• Select Color in the Video menu and press the G button.
(Refer to p.22)

• Keep a sufficient distance between the TV and the VCR.

• Activate any function to restore the brightness of the picture.

(If still picture is on the screen for more than 5 minutes, the screen gets dark.)

The remote control

doesn’t work

• Check to see if there is any object between the TV and the remote control
causing obstruction.

• Are batteries installed with correct polarity (+ to +, - to -)?
(Refer to p.9)

• Correct remote operating mode set: TV, VCR etc.?

• Install new batteries. (Refer to p.9)

Picture OK &

No sound

• Press the VOLUME (DD) button.

• Sound muted? Press MUTE button.

Picture appears slowly

after switching on

• This is normal, the image is muted during the TV startup process. Please
contact your service center, if the picture has not appeared after five minutes.

Horizontal/vertical bars

or picture shaking

• Check for local interference such as an electrical appliance or power tool.

TTroubleshooting Checklist

roubleshooting Checklist

Owner’s Manual 45

Maintenance

1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and
a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the
screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.

If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug
the power cord to protect against possible damage from lightning or power surges.

- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your
new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Cleaning the Screen

Cleaning the Cabinet

Cleaning the Cabinet

Extended

Extended

Absence

Absence

Maintenance

Maintenance

46 Plasma TV

Specification

• The specifications shown above may be changed without prior notice for quality improvement.

Product Specifications

Product Specifications

MODELS

AC100-240V ~ 50/60Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 135, CADTV 1 ~ 135, DTV 2 ~ 69

75 Ω

32 ~ 104°F (0 ~ 40°C)

Less than 80%

47.6 / 1210

27.6 / 701

11.6 / 295

66.1 / 30

852 x 480 (Dot)

Width (inches / mm)

Height (inches / mm)

Depth (inches / mm)

Weight (pounds / kg)

Resolution

Power requirement

Television System

Program Coverage

External Antenna Impedance

Operating Temperature Range

Operating Humidity Range

42PX3DBV-UC / 42PX3DLV-UC

Your L G Plasma TV will be repaired or replaced in accordance with the terms of this w arranty, at LGE s option, if it

prov es to be defectiv e in material or workmanship under normal use, during the warranty period ( Warranty Period )

listed below, effectiv e from the date ( Date of Purchase ) of original consumer purchase of the product. This war-

ranty is good only to the original purchaser of the product and effectiv e only when used in the United States, includ-

ing Alaska, Haw aii, and U .S . Territories.

LG ELECTRONICS, INC.

PLASMA TV U.S. LIMITED WARRANTY

CONCERNING PIXEL FUNCTIONALITY: Your Plasma TV contains about one million individual pixels. Plasma TV

typically contain a small number of pix els that do not function normally. Your displa y has been inspected and is in

compliance with manufacturer s specifications, indicating that any pix el defects do not effect the oper ation or use

of y our displa y.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT

LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE

EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS

WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE

LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY

NATURE, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST OR CORRUPTED PROGRAMMING OR

DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do

not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied

w arrant y lasts, so the abo ve ex clusion or limitation may not apply to you. This warranty giv es you specific legal

rights and yo u m a y also have other rights that v ary from state to state.

WARRANTY PERIOD:

LABOR and PARTS: 2 YEARS from the Date of Purchase.

Your unit will be repaired or replaced with a new , substitute

model or factory reconditioned unit, at LGE s option. If

repaired, parts used in the repair may b e new or remanufac-

tured.

R eplacement Units and Repair P arts are w arranted for the

remaining portion of the original unit s w arr ant y period.

EFFECTIVE DATE OF WARRANTY: Your warranty period

begins on the date of sale to the original consumer/end user.

KEEP THE DEALER S DATED BILL OF SALE OR PROOF OF

DELIVERY as evidence of the purchase date. You will be

required to submit a legible copy of y our bill of sale or proof

of deliv ery when requesting warranty service.

HOW SERVICE IS HANDLED:

In-Home Service: Please retain dealer s

dated bill of sale or deliv ery tick et as evidence

of the Date of Purchase for proof of warranty,

and submit a copy of the bill of sale to the ser -

vice person at the time warranty service is pro -

vided.

Please call 1-800-243-0000 to locate your

nearest LGE Authorized Service Center.

Visit our website at:

http://www.lgservice.com

IMPORTANT: Please fill out and mail in y our Product Registr ation Card or go to www.lgservice.com to register y ou r

product online. This information will allow us to reach you promptly should we discover a safety or reliabilit y prob-

lem that could affect you.

a

TO CONTACT THE LGE CUSTOMER SERVICE CENTER BY MAIL:

LGE Customer Interactiv e Center

P.O. Box 240007

201 James Record Road

Huntsville, Alabama 35824

http://www.lgservice.com

FOR SERVICE:

Before you call for warranty service, check your operating guide — you may avoid a service call.

For w arr ant y service information, please contact the L GE Customer Interactiv e Center telephone number.

When calling for service, please have your product model number, serial number and the date of pur-

chase or the date of original installation available.

If a replacement unit is required, under some circumstances yo u m ay be asked to provide a reserve deposit to

the LGE Service Center against a credit card number as surety for advanced shipment. Your credit card will not

be charged if you return the defective unit within 10 working days.

If a replacement unit is received, please use the carton and packaging from that unit in returning the defective

unit to the L G

¤

Brand Service Center.

Parts and service in accordance with the L G E warrant y are L GE s responsibility and will be provided without

charge. Other service requirements will be at the owner s expense. If you ha ve problems in obtaining satisfactory

w arrant y service, write or call the L G E Customer Interactiv e Center. Service may be provided by independently

owned and operated service organizations.

To assure proper credit and avoid unnecessary charges, y ou must obtain an LG E Return Authorization before

returning an y product to the L GE Service Center. Contact the Customer Interactiv e Center for details.

CUSTOMER INTERACTIVE CENTER NUMBERS:

To obtain customer assistance, product

information or Dealer or Service locations

Call 1-800-243-0000

24 hours a day, 365 days per year

THIS LIMITED WARRANTY DOES NOT APPLY TO:

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

● damage caused in shipping or transit

● service required as a result of improper installation,

including incorrect or insufficient AC supply (please

consult the owner s manual for power supply

requirements)

● installation or repair of antenna systems, cable con -

verters, cable compan y supplied equipment, or

other components in a video system

● set-up or adjustment on consumer controls, or

damage caused by improper adjustments

● damage caused by other system components

● a n y panel that has been modified or incorporated

into any other product

● replacement of batteries on the remote control.

● damage (including cosmetic damage), failure, loss

or personal injury due to misuse, abuse, negli-

gence, improper maintenance or storage, or to acts

of nature or other causes beyond our control.

(Causes beyond our control include but are not lim -

ited to lightning strik e, power surges, power out-

ag e s and water damage.)

● image burn-in

● repair or replacement of w arranted parts b y other

than LGE authorized service centers.

● units purchased or serviced outside of the co ver age

area.

● product where the original factory serial numbers

have been removed, defaced or changed in any

way.

● product sold and labeled as as is, where is or sim-

ilar disclaimer.

P/NO : 3828VA0479J
