LG 42PC7RH Schematic [es, en]

PLASMA TV

MANUAL DE SERVICIO

ATENCIÓN

Antes de dar servicio al chasis, lea las PRECAUCIONES DE SEGURIDAD
en este manual.

CHASIS : PN-61A

MODELO : 42PC7RH

42PC7RH-MA

website:http://biz.LGservice.com

- 2 -

CONTENIDO

CONTENIDO ............................................................................................................................ 2

PRECAUCIONES DE SEGURIDAD .........................................................................................3

INSTRUCCIONES DE AJUSTE ...............................................................................................4

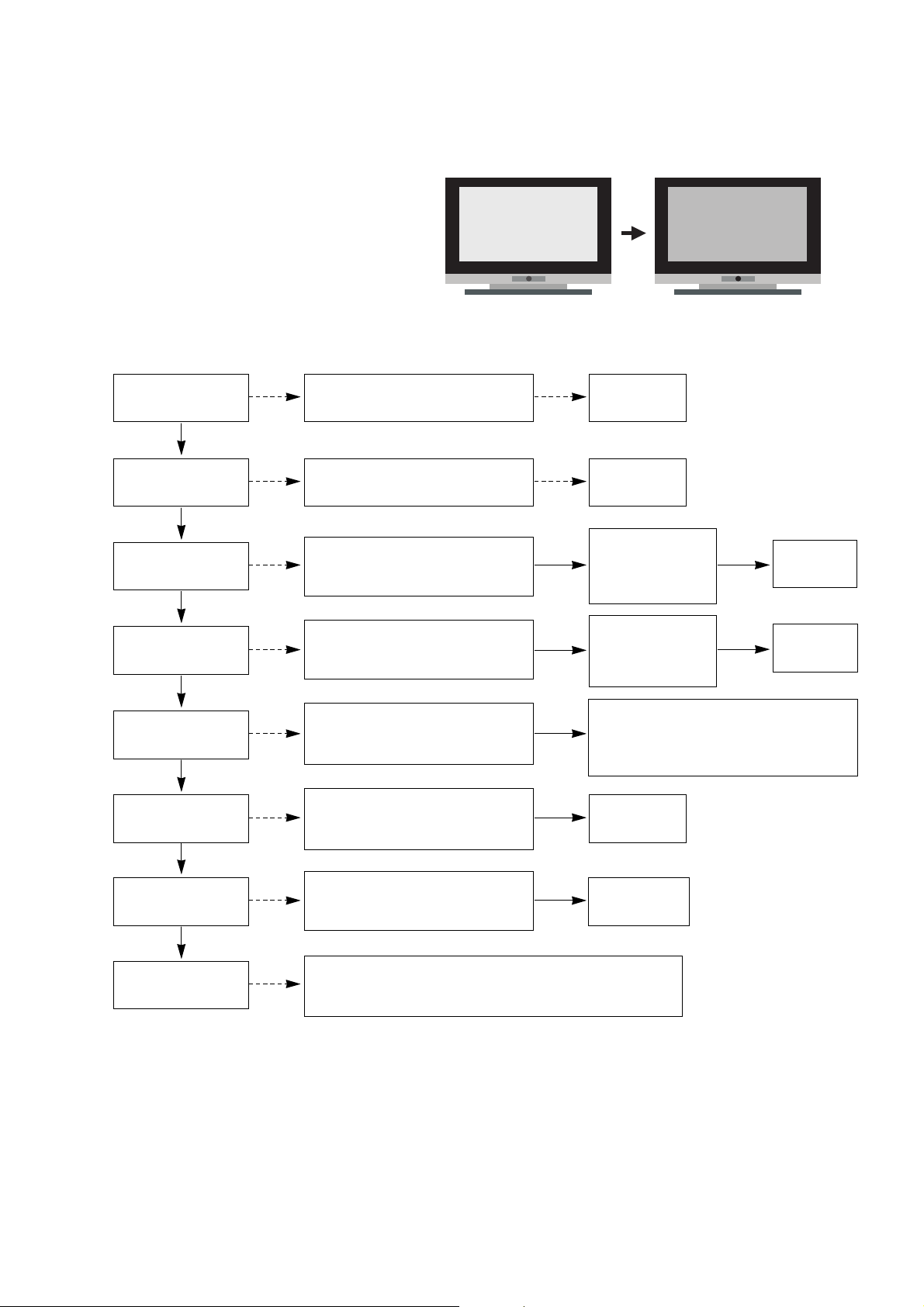

GUÍA PARA SOLUCIONES DE PROBLEMAS.......................................................................14

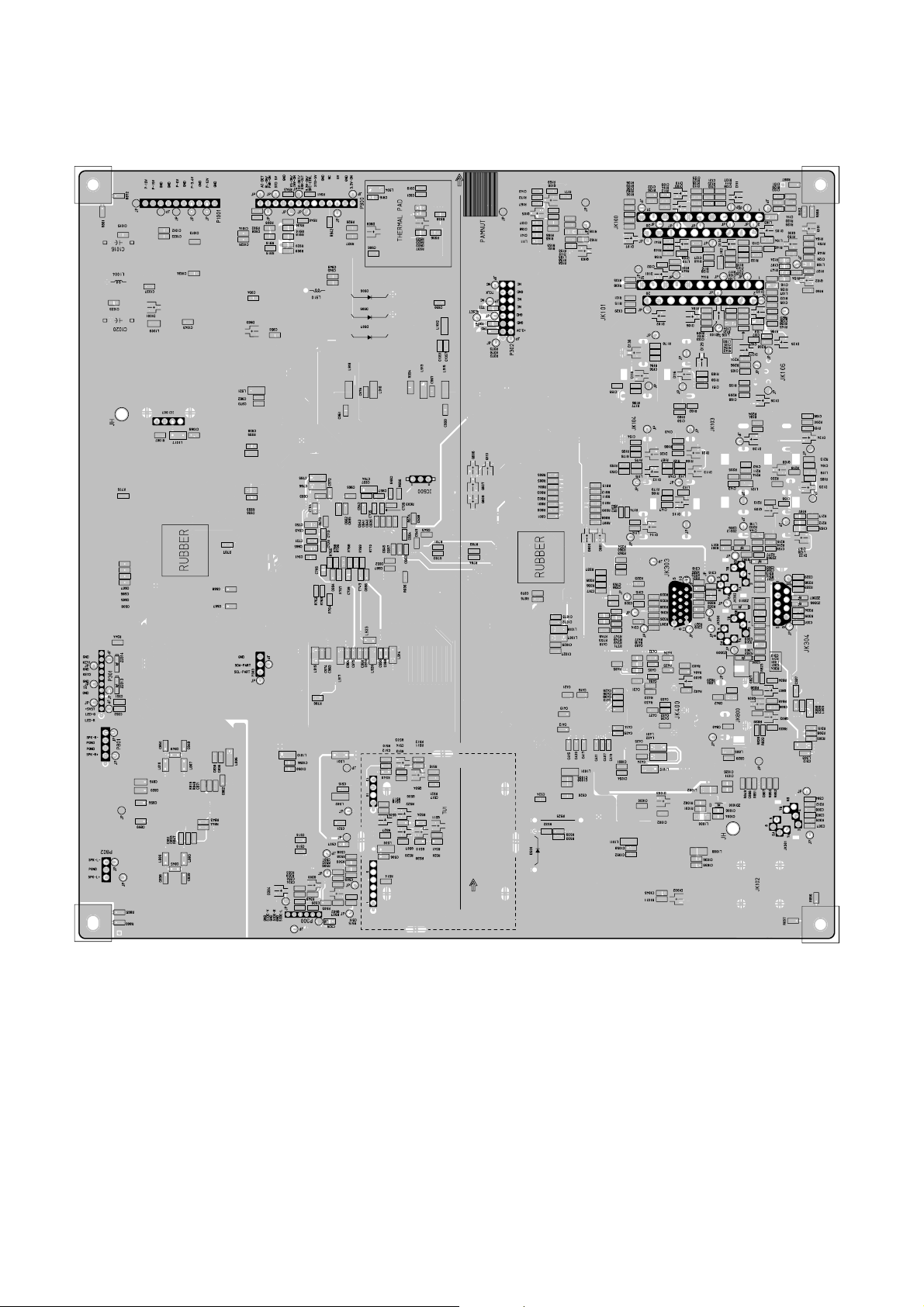

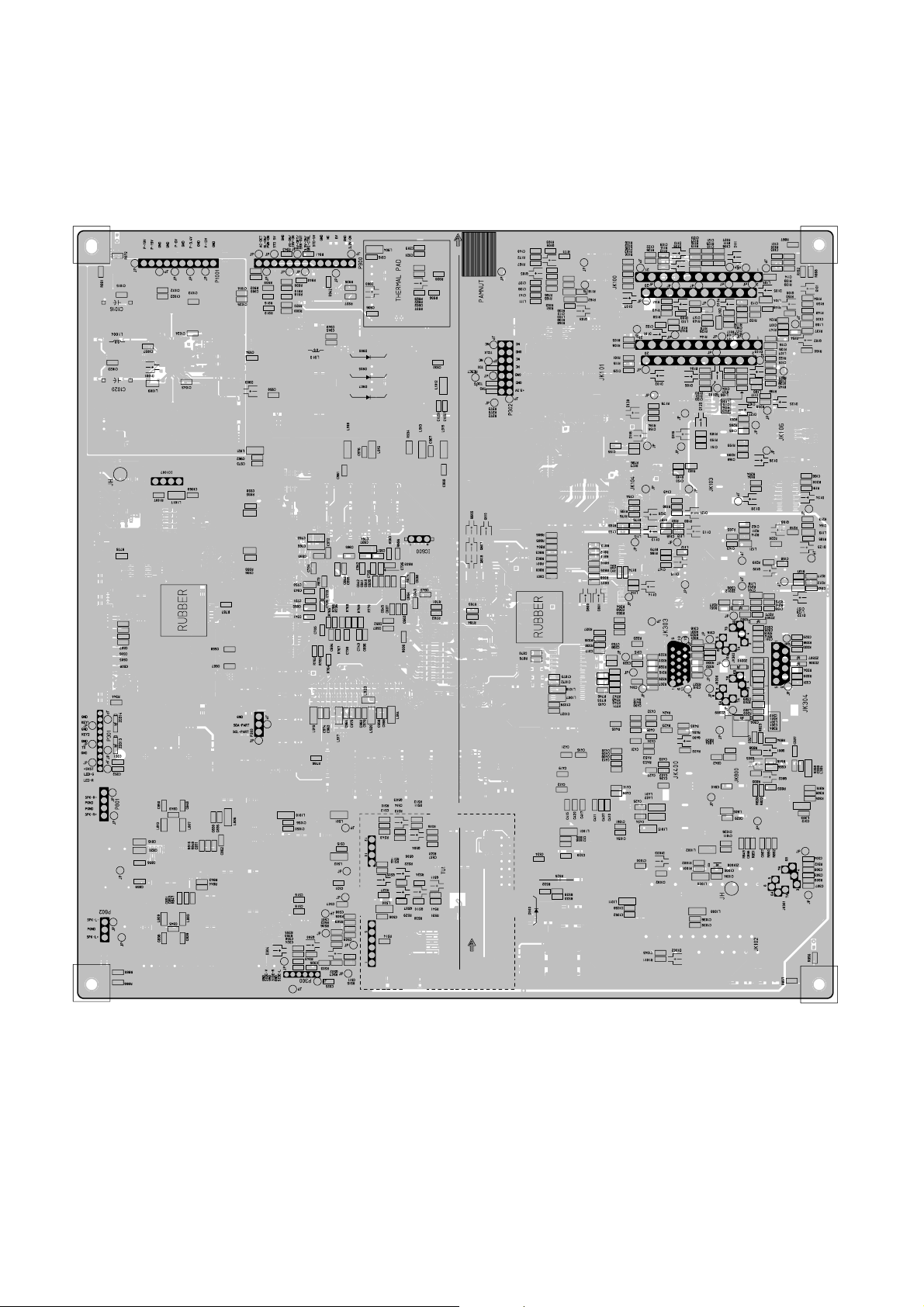

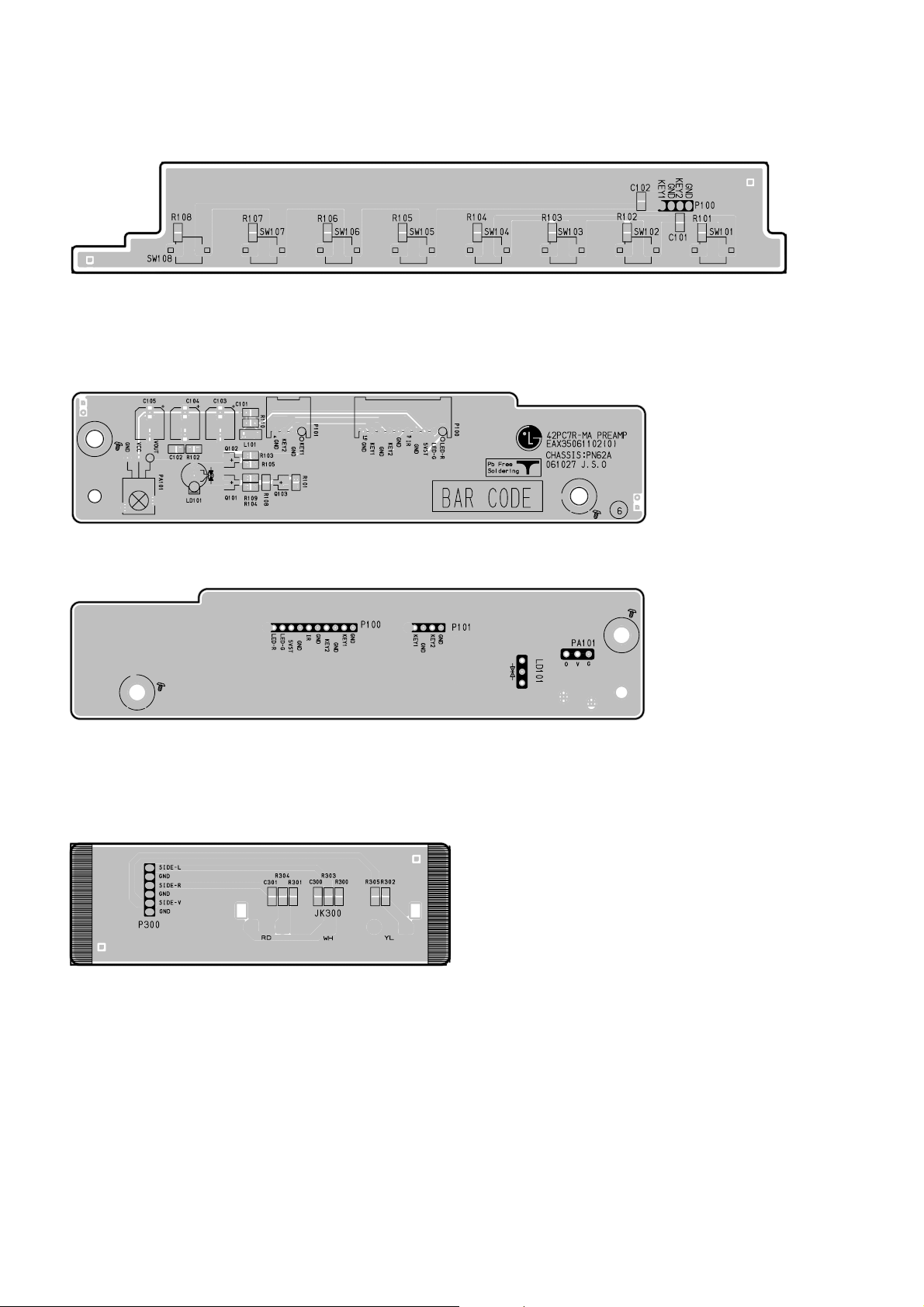

TABLERO DE CIRCUITO IMPRESO ......................................................................................21

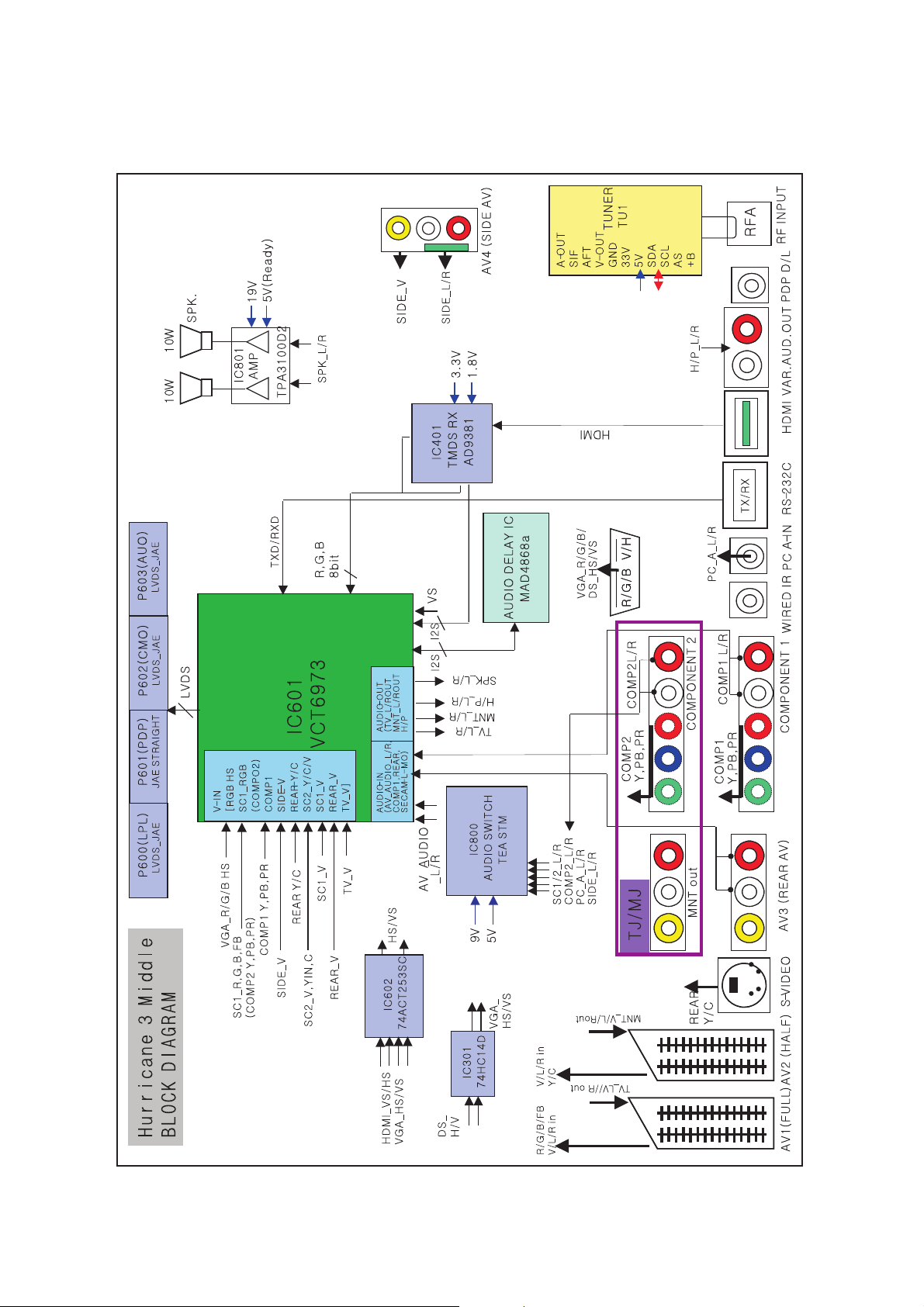

DIAGRAMA EN BLOQUE .......................................................................................................24

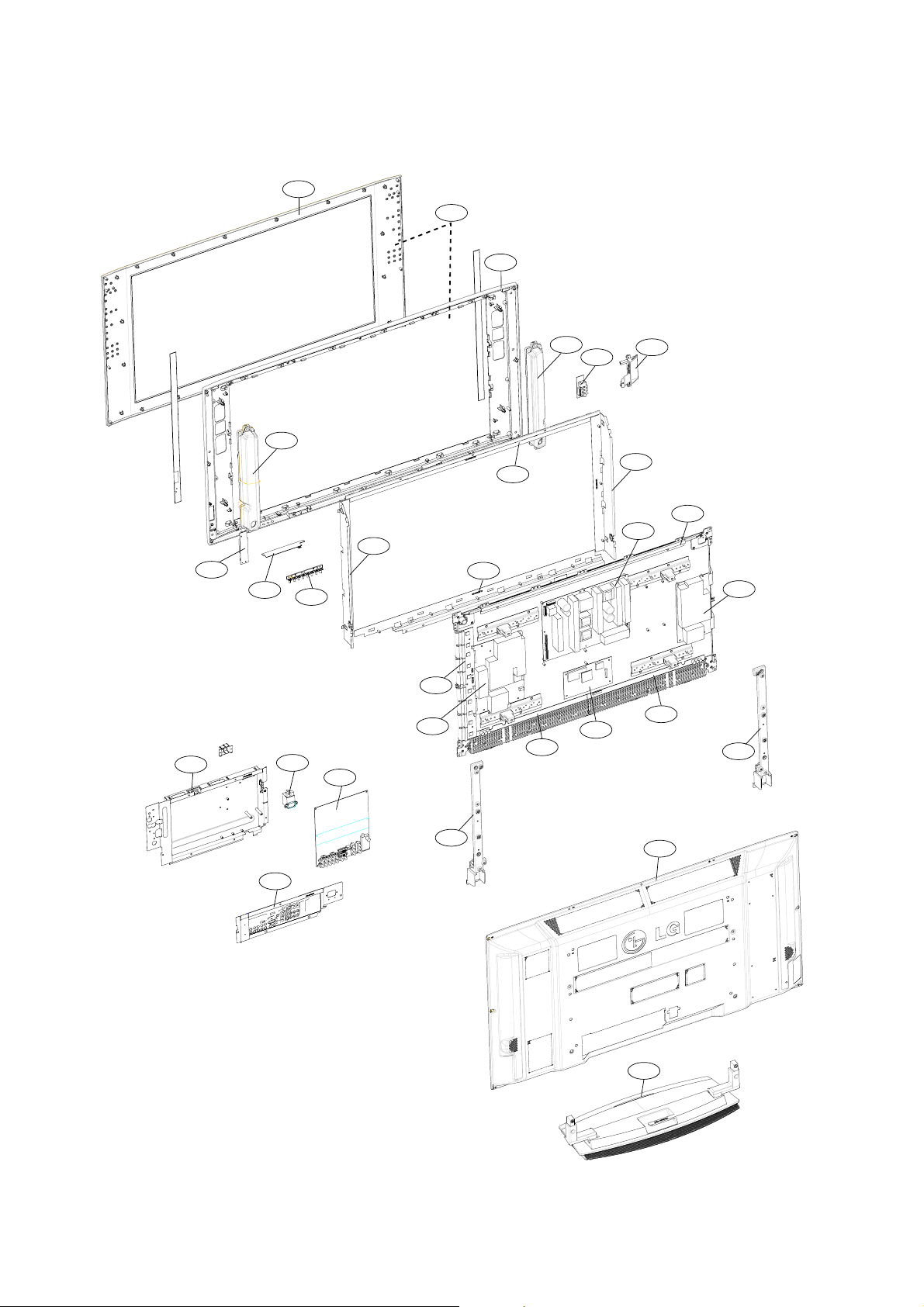

VISTA EN DESPIECE ............................................................................................................ 26

LISTA DE VISTA EN DESPIECE.............................................................................................27

LISTA DE PARTES DE REPUESTO .......................................................................................28

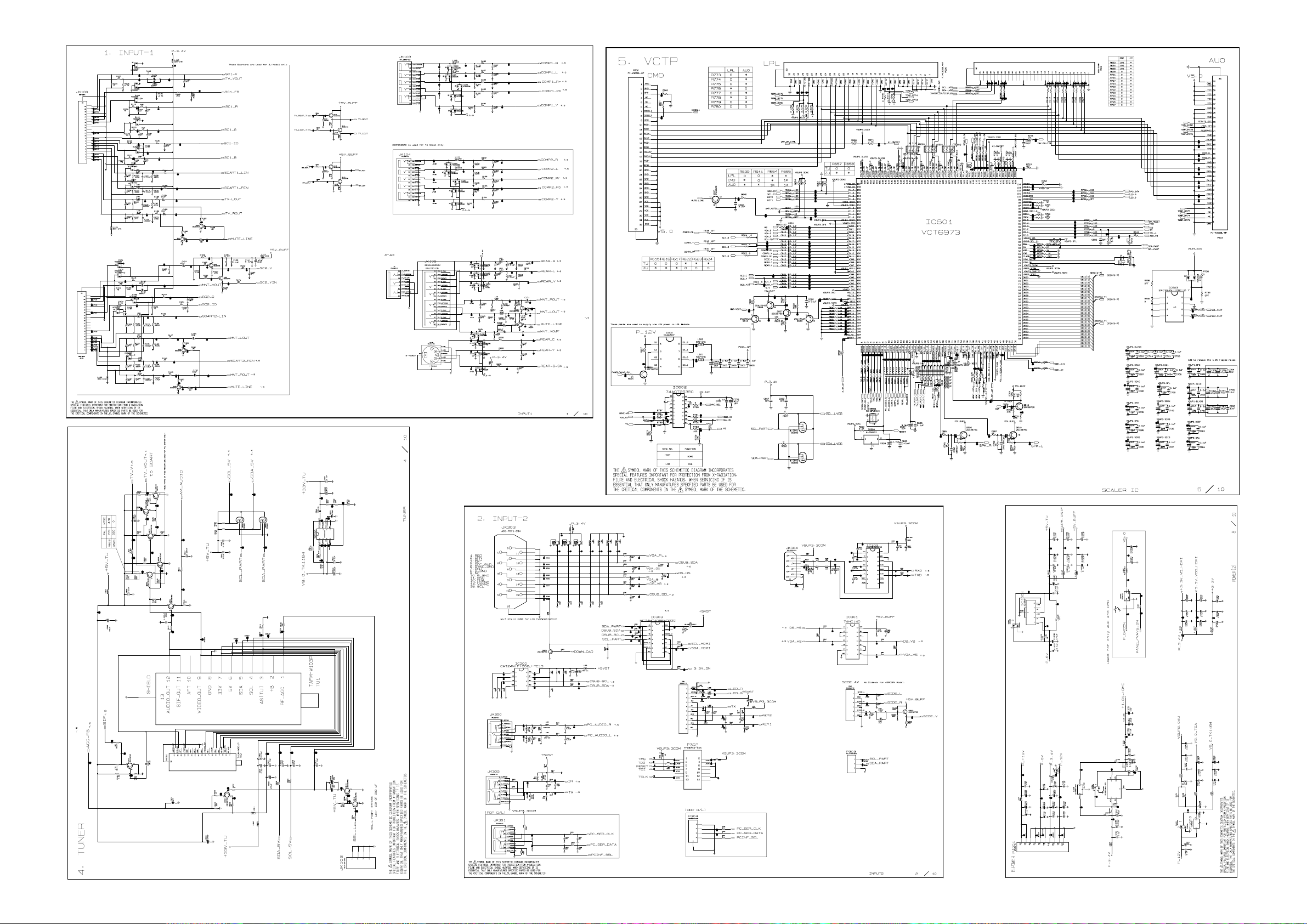

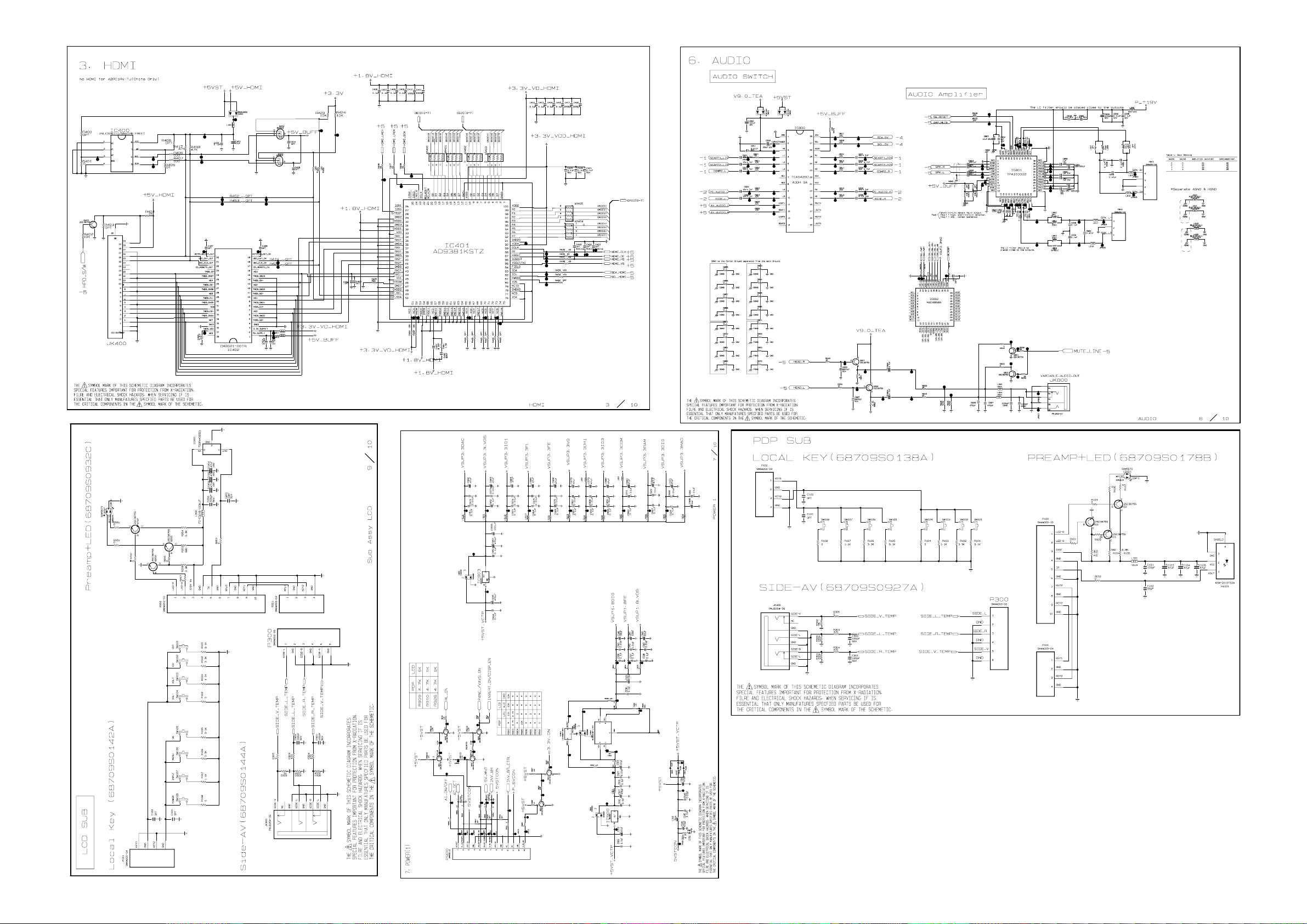

DIAGRAMA ESQUEMÁTICO......................................................................................................

- 3 -

PRECAUCIONES DE SEGURIDAD

ADVERTENCIA: Antes de dar servicio a este chasis, lea "PRECAUCIONES RESPECTO A RADIACION POR RAYOS X",

"INSTRUCCIONES DE SEGURIDAD" y "AVISO SOBRE SEGURIDAD DE PRODUCTOS"

Muchas de las partes, electricas y mecánicas en este chasis tienen caracteristicas relacionadas con la seguridad. Estas
caracteristicas frecuentemente pasan desapercibidas en las inspecciones visuales y la proteccion que proporcionan contra la
RADIACION DE RAYOS-X no siempre necesariamente se obtiene al mismo grado cuando se reemplazan piezas o componentes
diseñados para voltajes o vatajes mayores, etc. Las piezas que tienen estas caracteristicas de seguridad se identifican por la
marca impresa sobre el diagrama esquematico y la marca ★ impresa en la lista de partes. Antes de reemplazar alguno de
esos componente, lea cuidadosamente la lista de este manual. El uso de partes de reemplazo que no tengan las mismas
caracteristicas de seguridad, como se especifica en la lista de partes, puede crear Radiacion de Rayos-X.

1. Cuando el receptor está en operación, se producen voltajes
potencialmente tan altos como 25,000-29,000 voltios. Operar
el receptor fuera de su gabinete o con la tapa trasera
removida puede causar peligro de choque eléctrico.
(1)Nadie debe intentar dar servicio si no está debidamente

familiarizado con las precauciones que son necesarias
cuando se trabaja con un equipo de alto voltaje.

(2)Siempre descargue el ánodo del tubo de la imagen a tierra

para evitar el riesgo de choque eléctrico antes de remover
la tapa del ánodo.

(3)Descargue completamente el alto potencial del tubo de

imagen antes de manipularlo. El tubo de la imagen es de
alto vacío y, si se rompe, los fragmentos de vidrio salen
despedidos violentamente.

2. Si se quemara algún fusible de este receptor de televisión,
reemplácelo con otro especificado en la lista de partes.

3. Cuando reemplace tableros o plaquetas de circuitos,
cuidadosamente enrolle sus alambres alrededor de las
terminales antes de soldar.

4. Cuando reemplace un resistencia de vataje (resistor de
película de óxido metálico) en el Tablero o Plaqueta de
circuitos, mantenga la resistencia a un mínimo de 10mm de
distancia.

5. Mantenga los alambres lejos de componentes de alto voltaje
o de alta temperatura.

6. Este receptor de televisión debe conectarse a una fuente de
100 a 240 V AC.

7. Antes de devolver este aparato al cliente, haga una
verificación de fuga de corriente sobre las partes metálicas
del gabinete expuestas, tales como antenas, terminales,
cabezas de tornillos, tapas de metal, palancas de control etc.,
para estar seguro de que el equipo funciona sin peligro de
choque eléctrico. Enchufe el cordón directamente al
tomacorriente de la línea de AC 100-240V.

No utilice una línea aislada de transformador durante esta
verificación. Use un voltímetro de 1000 Ohmios por voltio
de sensibilidad o más, en la forma que se describe a
continuación.
Cuando la unidad está ya conectada a la AC, pulse el
conmutador primero poniéndolo en "ON" (encendiendo) y
luego en "OFF" (apagando), mida desde un punto de tierra
conocido, tal como una (cañería de metal, una manija
metálica, una tubería etc.) a todas las partes metálicas
expuestas del receptor de televisión (antenas, manijas de
metal, gabinetes de metal, cubiertas de metal, palancas de
control etc.,) especialmente cualquiera de las partes
metálicas expuestas que puedan ofrecer un camino hacia el
chasis. Ninguna medición de corriente eléctrica debe exceder
de 0.5 miliamperios. Repita la prueba cambiando la posición
del enchufe en el tomacorriente. Cualquier medición que no
esté dentro de los límites especificados aquí representan un
riesgo potencial de choque eléctrico que debe ser eliminado
antes de devolver el equipo al cliente.

INSTRUCCIONES DE SEGURIDAD

AVISO SOBRE SEGURIDAD DE PRODUCTOS

DEVICE
UNDER

TEST

TEST ALL

EXPOSED METAL

SURFACES

2-WIRE CORD

ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)

EARTH
GROUND

LEAKAGE
CURRENT
TESTER

(READING SHOULD

NOT BE ABOVE

0.5mA)

+-

Aparato
bajo
examen

Probador
de fuga de
corriente

La lectura no debe
exceder de 0.5mA

Pruebe todas
las superficies
metálicas

Tambien pruebe cón
los enchufes al reves
(utilizando adaptador
en caso necesario)

Tierra
suelo

- 4 -

INSTRUCCIONES DE AJUSTE

1. Rango de Aplicación

Estas especificaciones se aplican a todos los TV PDP de 42"
con chasis PN61A.

2. Especificaciones

(1) Debido a que éste no es un chasis caliente, no es

necesario usar un transformador aislado. Sin embargo, el
uso de un transformador aislado ayudará a proteger el

instrumento de prueba.
(2) El ajuste debe hacerse en el orden correcto.
(3) El ajuste debe efectuarse dada la circunstancia de 25±5°C

de temperatura y 65±10% de humedad relativa si no existe

otra designación especifica.
(4) El voltaje de entrada del receptor debe mantener

100~240V, 50/60Hz.
(5) El receptor debe ser operado por cerca de 15 minutos

antes del ajuste.

O Después de recibir el Blanco Completo RGB en el Modo

HEAT-RUN, el receptor debe ser operado antes del ajuste.

O Entre al MODO HEAT-RUN

(1) Presione la TECLA POWER ON en el C/R para ajuste.

(2) Se despliega el OSD y la pantalla despliega el 100%

del PATRÓN COMPLETO DE BLANCO.

[ La unidad es activada en HEAT-RUN sin generador de

señal en este modo.
[ Se usa el patrón de color único (ROJO /AZUL / VERDE) del

MODO HEAT RUN para verificar el panel.

(Precaución) Si enciende una pantalla fija por más de 20

minutos(Especialmente patrón digital, patrón o
cross hatch), puede presentarse una imagen
diferida en la parte del nivel negro de la pantalla.

3. Instalación del Programa de Descarga

(1) Extraer un archivo Zip

(2) Instalación del Controlador Visual I2C y LPT

(3) Verificación (Start>Programs>Micronas>Visual I2C o

LptDrv)

(4) Configuración del retardo LPT (File>Preference>LPT

preferences..)

Install the LPT Driver
Install the Visual I2C

(5) Intercambie el archivo bootloader.bat

4. Descarga del Programa S/W

4-1. Método 1 de Descarga(Montaje del PCB)

(1) Conecte el jig de descarga al conector sub-D.
(2) Ejecute el programa ‘Download.vi2c’ en la PC, luego una

ventana principal se abrirá.

(3) Haga doble clic en la casilla azul y confirme "Bootloader

Version" como 40.

(4) Haga clic en el botón “Erase Flash”.

- 5 -

G Seleccione el archivo “bootloader.bat”(install>VCTP_

download>bootloader)

G Presione “OK”

G Finalice el programa, después de guardar el archivo

“download_cs.vi2c" (si hace clic en , el mensaje aparece
automáticamente)

Haga doble clic en el área Roja

Haga doble clic en el área Roja

Haga

doble clic

(5) Haga doble clic en el programa de descarga inferior, luego

"edit window" se abrirá.

(6) Haga clic en el botón de opción en “edit window”, luego "file

choice window” se abrirá.

(7) Elija el archivo Hex en la carpeta y ejecute la descarga

haciendo clic en el botón “open”.

(8) Haga clic en el botón OK en “edit window”.

(9) Proceso de Descarga

(10) Si la descarga falla, por ejemplo “No acknowledge from

slave”. Ejecute la descarga nuevamente desde el punto (1).

4-2. Método 2 de Descarga(Montaje del Plato AV)

(1) Presione el S/W ‘ON” (conecte SCL a GND usando el

interruptor del Jig) y conecte el jig de descarga al conector
sub-D.

(2) Suministre energía (5V Stand-by) y espere 3 segundos.

- 6 -

(3) Presione el S/W OFF (Desconecte SCL del GND usando el

interruptor en el jig.

(4) `Ejecute el programa 'Download.vi2c’ en la PC, luego una

ventana principal se abrirá.

(5) Haga doble clic en la casilla azul y confirme “Bootloader

Version" como 40.

(6) Haga clic en el botón “Erase Flash” .

(7) Haga doble clic en el archivo de descarga inferior, luego "edit

window" se abrirá.

(8) Haga clic en el botón de opción en “edit window", luego la

"file choice window’ se abrirá.

(9) Elija el archivo Hex en la carpeta y ejecute la descarga

haciendo clic en botón “open”.

(10) Haga clic en el botón OK de “edit window”.

- 7 -

Haga doble clic

(11) Progreso de descarga

(12) Si falla la descarga, por ejemplo “No acknowledge from

slave”, ejecute la descarga nuevamente desde el punto (1).

4-3. Método 3 de Descarga (AJUSTE)

(1) Presione el botón “Tilt” en el C/R para ajuste, luego el

PDP cambiará a “slave mode”

(2) Conecte el Zig al TV usando un cable sub-D.

(3) `Ejecute el programa ‘Download_CS.vi2c’ en la PC, luego

una ventana principal se abrirá.

(4) Haga clic en el botón “GO”.

Si no presiona “go”, el archivo Hex no se descargará aunque
la descarga proceda normalmente a primera vista.

(5) Haga doble clic en la casilla azul y confirme “Bootloader

Version” Version" como 40.

(6) Haga clic en el botón “Erase Flash”.

- 8 -

(7) Haga doble clic en el archivo de descarga inferior, luego "edit

window" será abierta.

(8) Haga clic en el botón de opción en "edit window", luego "file

choice window" será abierta.

(9) Elija el archivo Hex en la carpeta y ejecute la descarga

haciendo clic en el botón “open”

(10) Haga clic en el botón OK en "edit window”.

(11) Progreso de descarga

(12) Si falla la descarga, por ejemplo “No acknowledge from

slave”, ejecute la descarga nuevamente desde el punto (1).

5. Descarga de la Memoria de Canal

(1) Conecte el jig de descarga al conector sub-D.
(2) `Ejecute el programa ‘Channal.vi2c’ en la PC, luego una

ventana principal será abierta.

(3) Presione el botón "change" y seleccione los datos de

memoria de canal.

(4) Presione el "Update NVM" del archivo.

- 9 -

6. Ajuste del Portador de Color

(Proceso de Inspección)

(1) Sintonice el canal 4 RF US

(2) Presione el botón “adj” en el C/R para ajuste.

7. Ajuste del Voltaje del Montaje de
la PCB de Alimentación

(Ajuste del Voltaje Va, Vs )

7-1. Equipo de Prueba: D.M.M 1C/U
7-2. Diagrama de Conexión para Medición

Refiérase a la Fig.1

7-3. Método de Ajuste

Método de Ajuste para la Placa de Alimentación
(P/No: 6709900019A)

(1) Ajuste Va

1) Después de recibir el 100% del Patrón Completo de
Blanco, HEAT RUN.

2) Conecte el terminal + del D.M.M. al pin Va del P812,
conecte el terminal - al pin GND del P812.

3) Después de girar RV501, el voltaje ajustado D.M.M
debe ser igual al voltaje Va el cual aparece en la
etiqueta del panel derecho/superior. (desviación ±0.5V)

(2) Ajuste Vs

1) Conecte el terminal + del D. M..M. al pin Vs del P812,
conecte el terminal - al pin GND del P812.

2) Después de girar RV 401, el voltaje ajustado D.M.M
debe ser igual al voltaje Vs el cual aparece en la
etiqueta del panel derecho/superior. (desviación ±0.5V)

8. Descarga de EDID(Datos
Extendidos de Identificación
de Pantalla)/DDC(Canal de Datos
de Pantalla)

8-1. Equipo de Prueba Requerido

(1) PC de ajuste con S/W para Datos de escritura EDID.(S/W:

EDID TESTER Ver.2.5)
(2) Un Jig para descarga de EDID.
(3) Cable: Serial (9 Pines o USB) al cable de 15 pines sub-D,

cable de 15 pines sub-D, cable DVI al HDMI.

8-2. Colocación de los Aparatos

- 10 -

Precaución: Cada montaje del PCB debe ser verificado por la
unidad de verificación del JIG. (Tenga especial cuidado de que
el montaje del PCB de alimentación no dañe el Módulo PDP)

(Fig. 1) Diagrama de Conexión del Ajuste de Alimentación para

Medición

(Fig. 2) Diagrama de Conexión de la Descarga DDC

8-3. Preparación para el Ajuste

(1) Como en la (Fig. 2) arriba, conecte la Unidad, Jig de de

Descarga EDID, PC y el Cable.

(2) Encienda la PC y el Jig de Descarga EDID. Ejecute el S/W

: EDID TESTER Ver.2.5

(3) Opción de configuración del S/W

Repita el Número : 5
Dirección del Aparato: A0
PageByte : 8

(4) Encienda la Unidad.

8-4. Secuencia del Ajuste

Datos DDC del RGB-Análogo

(1) Inicie los datos

(2) Cargue los datos EDID.(Abra el Archivo).

(3) Configure el S/W como se indica abajo.

(4) Presione el botón “Write Data & Verify”. Y confirme “Yes”.

(5) Si finaliza la escritura, verá el mensaje “ OK”.

- 11 -

Open FileOpen File

[Analog - RGB :
PP61A/C_RGB.ANA ]

[Digital - HDMI :
PP61A/C_HDMI.DVI ]

- 12 -

<EDID DATA Analog Set: 128bytes>

<DDID DATA Digital Set: 256bytes>

<Configuración Análoga de DATOS EDID: 128 bytes>

<Configuración Digital de DATOS EDID: 256 bytes>

- 13 -

9. Ajuste del Balance de Blanco

9-1. Equipo Requerido

(1) Control Remoto para Ajuste.
(2) Analizador de Color (CA-100 o producto similar)
(3) Instrumento de Ajuste Automático de W/B (sólo para

ajuste automático)

(4) Generador de Patrón AV

9-2. Diagrama de Conexión del Equipo

para Medición

(Para el ajuste automático)

9-3. Ajuste del Balance de Blanco

(Para Ajuste Manual)

O Opere la calibración cero del CA-100, luego pegue el

sensor a la superficie del módulo PDP cuando ajusta.

O El ajuste manual también es posible con la siguiente

secuencia:

(1) Seleccione el patrón blanco del modo heat-run presionando

el botón "Power" del control remoto para ajuste, luego opere

heat-run por más de 15 minutos.
(2) Como se muestra en la Fig. 4, suministre el patrón de

pantalla completo de 216 Niveles (85 IRE) a la entrada de

Video.
(3) Presione la Tecla TV/AV en el C/R para convertir el modo

de entrada.
(4) Fije el PSM al modo Estándar en el menú "Picture".
(5) Entre al modo de ajuste del Balance de Blanco presionando

dos veces la tecla "INSTART" (Balance de Blanco) en el

C/R.
(6) Pegue el sensor al centro de la pantalla y seleccione cada

ítem (Red/Green/Blue Gain y Offset) usando la tecla

D/E

(CH +/-) en el C/R.
(7) Ajuste solamente la Luz Alta con R Gain / B Gain usando

F/G (VOL +/-) en el C/R.

(8) Ajuste hasta que la coordinación del color sea como abajo:

Brillo: Luz Alta: 80 ± 20cd/m2

Coordinada de Color : Luz Alta: X : 0.283 ± 0.003

Y : 0.298 ± 0.003

Temperatura del Color: 9,300°K ± 500°K

(9) Cuando se completa el ajuste, salga del modo de ajuste

usando la tecla "EXIT" en el C/R.

MSPG-

MSTG-5200

216 Level (85 IRE)216 Level (85 IRE)

COLOR COLOR ANALANALYZERYZER
TYPE ; CA-100TYPE ; CA-100

CVBSCVBS
signalsignal
inputinput

RS-232C Serial Communication

925

Pattern Generator

/

(Fig. 3) Diagrama de Conexión del Ajuste Automático W/B

Mapa del Ajuste Automático (RS-232C)

MSPG-2100/
MSTG-5200

Tipo

Velocidad de Transmisión

115200

Índice

R Gain

G Gain

B Gain

R Offset

G Offset

B Offset

Bit de Datos

8

Cmd1 Cmd2

ja

jb

jc

jd

je

jf

Bit de Parada1Paridad

NINGUNA

PN61A

Config.

Protocolo

Datos Valor Min.

00(00)

00(00)

00(00)

00(00)

00(00)

00(00)

Valor Máx.

255(FF)

255(FF)

255(FF)

255(FF)

255(FF)

255(FF)

216 Level (85 IRE)216 Level (85 IRE)

(Fig. 4) Patrón para el Ajuste del Balance de Blanco

- 14 -

GUÍA PARA SOLUCIONES DE PROBLEMAS

1. No Hay Alimentación

(1) Síntoma

1) LED frontal no enciende.

2) La Unidad no descarga la minuta.

(2) Proceso de Verificación

Está conectado el cordón de

Alimentación?

Conecte el cordón

de alimentación

Si

No

Está conectado el cable del

filtro de línea al PSU?

Conecte el cable

Si

No

Está normal el Fusible ( F101)

en el PSU

Cambie el Fusible

Si

No

Están conectados el PSU y la

Tarjeta Principal con el cable

de 13 pines?

Conecte el cable

de 13 pines

Si

No

Después de retirar el cable
conecte al PSU (excepto el cable
de conexión EL11), autorice el
voltaje AC manualmente. Cuando
5V ST- BY no funcione,
reemplace el PSU.

- 15 -

2. No Enciende

(1) Síntoma

1) El LED frontal está Rojo, pero no cambia a Verde.
(No se puede encender la UNIDAD)

2) No funciona el encendido usando el C/R o tecla LOCAL.

(2) Proceso de Verificación

Está conectada la tarjeta IR, la
tecla Local y la tarjeta principal

con los cables de 10 y 4 pines?

Conecte los cables

Si

No

Está normal la tarjeta IR

y la tecla Local?

Cambie la IR y

la tecla Local

Si

No

Está normal la Tarjeta Principal?

(Verifique los voltajes de P900

en la tarjeta principal)

Cambie la tarjeta

Principal

No

Si

Saque el cordón de alimentación y espere
hasta que se descargue por completo.(Puede
ver el LED encendido en la tarjeta principal a
través del cobertor trasero. Si el LED está
apagado, la descarga ha terminado) Luego
enchufe el cordón de alimentación
nuevamente. Todavía existe el problema?

- 16 -

3. Modo de Protección

(1) Síntoma

1) Después de brillar una vez, no se descarga

la minuta del módulo.

2) Falla el Relay (El sonido "clic" es audible)

3) El LED frontal se torna de Verde a Rojo.

(2) Proceso de Verificación

Está normal la PSU?

Cambie el

PSU

Opera normalmente el

voltaje Bajo/Alto?

Si

No

No

Está normal el

cable?

Cambie el

cable

Cambie la

tarjeta-Y

Conecta bien el cable

a cada wafer?

Si

No

No

Está normal

la B/D Ctrl?

Cambie la
tarjeta Ctrl

Desconecte el cable( P4, 5, 6, 7, 10,

11) en la tarjeta Ctrl, están
normales Va/ Vs?

Si

No

Si

Está normal
la tarjeta-Y?

Desconecte el cable

( P1, P152) en la

tarjeta- Y, están

normales Va/ Vs?

Están normales los fusibles

(FS2, FS3)?

(Cambie el fusible dañado)

Si

No

Si Si

Cambie la

tarjeta-Z

Está normal
la tarjeta-Z?

Desconecte el cable

( P1, P2, P6) en la

tarjeta- Z, están

normales Va/ Vs?

Están normales los fusibles

(FS1, FS2)?

(Cambie el fusible dañado)

Si

No

Si

Está normal
la tarjeta-X?

Desconecte el cable ( P1,3, 4,105)

en la tarjeta- X, están normales

Va/ Vs?

Desconecte P1/ P3, Va/ Vs están normales:
Cambie la B/D- X Derecha
Desconecte P4/ P105, Va/ Vs están
normales: Cambie la B/D- X Izquierda

Si

No

Si

Está normal

la B/D Principal?

Desconecte el cable ( P301, P900,

P1001) en la B/D principal,

están normales los voltajes?

Después de la crisis COF de cada tarjeta, verifique que
operen normalmente. Si opera normalmente, se reemplaza el
correspondiente COF fallido del módulo.

Cambie la

tarjeta principal

Si

No

Están normales

las COF?

No

Si

Si

- 17 -

4. No Hay Raster

(1) Síntoma

1) El LED frontal está Verde

2) La Unidad no descarga la minuta.

(2) Proceso de Verificación

Está normal el PSU?

Cambie el

PSU

Opera normalmente el voltaje

Bajo/Alto?

Si

No

No

Están normales

los cables?

Cambie el

cable

Cambie la

tarjeta- Y

Conecta bien el cable

a cada wafer?

Si

No

No

Está normal

la B/ D Ctrl?

Cambie la
tarjeta Ctrl

Desconecte el cable( P4, 5, 6, 7,

10,11) en la tarjeta Ctrl, están

normales Va/ Vs?

Si

No

Si

Está normal
la tarjeta-Y?

Desconecte el cable

(P1, P152) en la
tarjeta- Y, están

normales Va /Vs?

Están normales los fusibles

( FS2, FS3)?

(Cambie el fusible dañado)

Si

No

Si Si

Cambie la

tarjeta- Z

Está normal
la tarjeta-Z?

Desconecte el cable

(P1, P2, P6) en la

tarjeta- Z, están

normales Va/ Vs?

Están normales los fusibles

( FS1, FS2)?

(Cambie el fusible dañado)

Si

No

Si

Está normal
la tarjeta-X?

Desconecte el cable ( P1,3, 4,105),en

la tarjeta-X, están normales Va/ Vs?

Desconecte P1/ P3, Va /Vs están normales:
Cambie la B/ D -X Derecha
Desconecte P4/ P105, Va/ Vs están
normales: Cambie la B/ D- X Izquierda

Si

No

Si

Está normal

la B/D Principal?

Desconecte el cable ( P301, P900,

P1001) en la B/ D Principal,

están normales los voltajes?

Después de la crisis COF de cada tarjeta, verifique que opere
normalmente. Si opera normalmente, se reemplaza
el correspondiente COF fallido del módulo.

Cambie la

tarjeta Principal

Si

No

Están normales

los COF?

No

Si

Si

- 18 -

5. No Hay Sonido

(1) Síntoma

1) El LED frontal está Verde

2) La Unidad despliega una pantalla, pero no hay sonido

(2) Proceso de Verificación

1) Bocinas

2) Tarjeta Principal

Están bien los cables

de las Bocinas?

Están los cables de las

Bocinas bien conectados?

Inserte el cable

correctamente

Si

No

Cambie el cable

No

Cambie la Bocina

No

Están las bocinas en

buenas condiciones?

Si

Está bien el sonido

en HDMI?

Está bien la

descarga EDID?

Descargue los datos

EDID una vez más

No

No

No

Está bien el sonido en RF,

AV, o Componente1?

Están bien los elementos

(C, R, L, o Diodo)

en el trayecto del Sonido?

Si están muertos o en corto

cambie estos elementos

No

No

Cambie el IC401

No

Está bien el IC401?

(AD9381)

Si

Si

Si

Si

Si

Está bien el sonido

en RGB Scart 1/2 (o

Componente2) o en

el Lado AV?

Están bien los elementos

(C, R, L, o Diodo) en el

trayecto del Sonido?

Si están muertos o en corto

cambie estos elementos

No

Cambie el IC800

No

Está bien el IC800?

(Intercambie el IC)

Cambie el IC601

No

Está bien el IC601?

(VCT- P)

Cambie el IC801

No

Está bien el IC801?

(Amplificador)

- 19 -

6. Desplegado Extraño de la Pantalla

(1) Síntoma

1) Desplegado extraño de la pantalla en modo específico

(2) Proceso de Verificación

1) Aparece ruido en el modo RF.

2) El Ruido aparece en el Lado de AV.

Está bien el

Sintonizador?

Está el cable

del Sintonizador

bien conectado?

No

No

Si

No

Están bien el voltaje
de Entrada, I

2

C, y la

salida CVBS?

Inserte el cable

correctamente

Cambie el

Sintonizador

Si

Están bien agregadas

las Juntas?

Agregue las Juntas

No

Esta el núcleo de ferrita

agregado al cable?

Agregue el núcleo de

ferrita

No

Si

Está el cable bien

acomodado?

Vuelva a acomodar el cable

(No pase el cable encima de la tarjeta X o Z)

No

Vuelva a montar la

UNIDAD

No

- 20 -

7. No Hay Imagen

(1) Síntoma

1) Algunos modos no se despliegan.

2) El LED frontal está verde.

3) La unidad permanece descargando la minuta

(2) Proceso de Verificación

1) No se despliega el modo - RF.

2) No se despliega el modo AV/Componente

3) No se despliega el modo RGB/HDMI.

Está conectado el

cable LVDS?

Inserte el cable

LVDS correctamente

No

Si

Está conectado el

cable del Sintonizador?

Inserte el cable del

Sintonizador correctamente

No

Están bien los elementos

(C, R, L, o Diodo) en el

trayecto?

Si están muertos o en

corto, cambie estos

elementos

No

Si Si

Está conectado el

cable LVDS?

Inserte el cable LVDS

correctamente

No

Si

Están bien los elementos

(C, R, L, o Diodo) en el

trayecto?

Si están muertos o en corto,

cambie estos elementos

No

Está bien el IC VCT- P?

Cambie el IC VCT- P

No

Si

Está bien el IC VCT- P?

Cambie el IC VCT- P

No

Están bien el voltaje de

entrada I

2

C y la salida

CVBS en el Sintonizador?

Cambie el Sintonizador

No

Si

Está conectado el

cable LVDS?

Inserte el cable LVDS

correctamente

No

Si

Están bien los elementos

(C, R, L, o Diodo) en el

trayecto?

Si están muertos o en corto,

cambie estos elementos

No

Verifique los datos

EDID

Descargue los datos

EDID

No

Si Si

Está bien el IC VCT- P?

Cambie el IC VCT- P

No

Está bien el AD9381?

(sólo _ HDMI)

Cambie el IC AD9381

No

Si

- 21 -

TABLERO DE CIRCUITO IMPRESO

MAIN(TOP)

- 22 -

MAIN(BOTTOM)

- 23 -

SIDE A/V

PRE-AMP(TOP)

PRE-AMP(BOTTOM)

CONTROL

- 24 -

DIAGRAMA EN BLOQUE

MEMO

- 25 -

- 26 -

VISTA EN DESPIECE

305

300

306

121

600

601

304

200

206

580

303

501

520

590

400

240

201

202

205

203

204

250

900

502

301

302

120

570

560

310

- 27 -

LISTA DE VISTA EN DESPIECE

120 6401900127C Speaker Assembly,PB SERIES SIDE RIGHT

121 6401900127D Speaker Assembly,PB SERIES SIDE LEFT

200 EAJ35221801 PDP,Module-XGA PDP42X30801.AKLTG XGA 42INCH 16/9 PDP DIVISION

EAJ35222001 PDP,Module-XGA PDP42X30801.ADLTB XGA 42INCH 1024X768 16/9 PDP DIVISION

201 6871QCH077D PCB Assembly,CTRL ASS’Y 42 for 256Ch CTRL (Resistor position change)

202 6871QDH117A PCB Assembly,YDRV ASS’Y 42HD 42X3

203 6871QLH067A PCB Assembly,X LEFT BOARD XRLT ASS’Y 42 X3 256CH. TCP PDP DIVISION

204 6871QRH077A PCB Assembly,X RIGHT BOARD XRRT ASS’Y 42 X3 256CH. TCP PDP DIVISION

205 EBR31872801 PCB Assembly,YSUS ASS’Y 42 X3A YSUS 4layer OSP apply PDP DIVISION

206 EBR31493401 PCB Assembly,ZSUS ASS’Y 42 X3A -Vzb DD remove(4Layer) PDP DIVISION

240 AJJ31097801 Supporter Assembly,42PB(C)7 SUPP.VERTICAL ASSY RIGHT

AJJ31097807 Supporter Assembly,42PC7RH-MA SUPP.VERTICAL ASSY RIGHT FOR LGERS SKD

250 AJJ31097802 Supporter Assembly,42PB(C)7 SUPP.VERTICAL ASSY LEFT

AJJ31097808 Supporter Assembly,42PC7RH-MA SUPP.VERTICAL ASSY LEFT FOR LGERS SKD

300 ABJ30990102 Cabinet Assembly,42PC7 PP62A 42 Cabinet Assy

ABJ30990104 Cabinet Assembly,42PC7R-MA PP62A 42 Cabinet Assy_CKD_LGEAZ

301 AJJ30990901 Supporter Assembly,42PB(C)7 ASSY SUPP.FILTER TOP

AJJ30990905 Supporter Assembly,42PC7RH-MA ASSY SUPP.FILTER TOP FOR LGERS SKD

302 AJJ30991401 Supporter Assembly,42PB(C)7 ASSY SUPP.FILTER BOT

AJJ30991405 Supporter Assembly,42PC7RH-MA ASSY SUPP.FILTER BOT FOR LGERS SKD

303 AJJ30991501 Supporter Assembly,42PB(C)7 ASSY SUPP.FILTER RIGHT

AJJ30991505 Supporter Assembly,42PC7RH-MA ASSY SUPP.FILTER RIGHT FOR LGERS SKD

304 AJJ30991601 Supporter Assembly,42PB(C)7 ASSY SUPP.FILTER LEFT

AJJ30991605 Supporter Assembly,42PC7RH-MA ASSY SUPP.FILTER LEFT FOR LGERS SKD

305 ADV30990301 Frame Assembly,42PB(C)7 PP62A 42 Frame Assy

306 MBH31369401 Cabinet,MOLD ABS 42PB(C)7 ABS CABINET

MBH31369402 Cabinet,MOLD ABS 42PC7R-MA ABS CABINET NON INDEX

310 5020900003A Button,MOLD ABS CONTROL PDP PC1 SERIES ABS, HF-380 8KEY NON

400 ACQ30991708 Cover Assembly,Rear 42PC7_ANALOG B/COVER ANALOG FOR COLOMBIA

ACQ30991707 Cover Assembly,Rear 42PC7RH-MA PN61A 42 ASSY B/COVER ANALOG FOR LGERS SKD

501 AGU31681104 Plate Assembly,PLATE TUNER BOT SMALL, 42PC7_H3-M

502 AGU31680906 Plate Assembly,PLATE TUNER COVER SMALL, 42PC7_H3-M

520 68719MMV95D PCB Assembly,Main PN61A 42PC7R-MA MJ - MA MAIN M.I

560 EBR35156502 PCB Assembly,Sub PN61A 42PC7R-MA ALALLHX Local Key

570 EBR36001201 PCB Assembly,Sub SUB T.T PN61A 42PC7R-MA ALALLHX Preamp + LED

EBR35156802 PCB Assembly,Sub PN61A 42PC7R-MA ALALLHX Preamp + LED

580 68719PT299A PCB Assembly,Power PA61A 42INCH PDP UNIFICATION PSU ALL -

6709900019A Power Supply Assembly,42INCH UNIFICATION PSU PDP LGIT PA61B 400W 42PB2D

590 EAM35012703 Filter,AC Line IF2-N06CEWL2 5.3mH 250VAC 6A 0.22uF 1000pF

600 EBR35156901 PCB Assembly,Sub PN61A 42PC7R MA/MJ SideAV for DMS

601 ABA31105002 Bracket Assembly,SIDE AV 42PC7_H3-M MF056A ASSY

ABA31105003 Bracket Assembly,SIDE AV 42PB(C)7 MF056A ASSY FOR CKD

900 AAN30992301 Base Assembly,STAND 42PB(C)7 PP62A ASSY BOARD

AAN30992302 Base Assembly,STAND 42PC7RH-MA PN61A ASSY STAND FOR LGERS SKD

No.

Part No.

Description

LISTA DE PARTES DE REPUESTO

LOCA. NO PART NO DESCRIPTION

Q103
Q108
Q109
Q110
Q111
Q112
Q113
Q121
Q151
Q152
Q201
Q202
Q223
Q251
Q253
Q262
Q271
Q281
Q300
Q301
Q400
Q401
Q402
Q501
Q502
Q503
Q504
Q505
Q508
Q509
Q512
Q513
Q601
Q602
Q603
Q604
Q605
Q605
Q606
Q607
Q608
Q611
Q613
Q701
Q702
Q801
Q801
Q802
Q851

0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR319809AA

0TFST10002A
0TR103009AD
0TFTH50001A
0TR150400BA
0TRSK10001A
0TR126609AA
0TR320000AB
0TFFC10028A
0TR103009AG
0TFFC10027A
0TR387500AA
0TR387500AA
0TR387500AA
0TR830009BA
0TR830009BA
0TRKE50004A
0TR387500AA
0TR150400BA
0TR387500AA
0TR150400BA
0TR830009BA
0TR830009BA
0TR387500AA
0TR387500AA
0TFFC10026A
0TFFC10026A
0TRRH80083A
0TRRH80082A
0TRKE50004A
0TR102009AM
0TR150400BA
0TR387500AA
0TR150400BA
0TR387500AA
0TR150400BA
0TRRH80052A
0TRRH80052A
0TR387500AA
0TR319809AA
0TR387500AA
0TR319809AA

2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V
KTC3198(KTC1815) NPN 5V 60V 5
FET,STP6NK90ZFP(FORMING)
KRC103M NPN 40V 0V 50V 100MA
FET,2SK2961 V
2SA1504S(ASY) PNP -5V -50V -5
2SA1568 PNP -6V -60V -60V 12A
KTA1266-Y(KTA1015) PNP -5V -5
KTC3200-BL(KTC2240) NPN 5V 12
FET,FQPF27P06
KRC103S NPN 40V 0V 50V 100MA
FET,FQPF13N06L
2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V
FET,BSS83
FET,BSS83
KTC3209 NPN 5V 50V 50V 2A 100
2SC3875S(ALY) NPN 5V 60V 50V
2SA1504S(ASY) PNP -5V -50V -5
2SC3875S(ALY) NPN 5V 60V 50V
2SA1504S(ASY) PNP -5V -50V -5
FET,BSS83
FET,BSS83
2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V
FET,FCA20N60S
FET,FCA20N60S
2SC5826TV2Q NPN 6V 60V 60V 3A
2SA2073TV2Q PNP -4V -60V -40V
KTC3209 NPN 5V 50V 50V 2A 100
KRA102S PNP -30V 0V -50V -0.1
2SA1504S(ASY) PNP -5V -50V -5
2SC3875S(ALY) NPN 5V 60V 50V
2SA1504S(ASY) PNP -5V -50V -5
2SC3875S(ALY) NPN 5V 60V 50V
2SA1504S(ASY) PNP -5V -50V -5
2SD2114K NPN 12V 25V 20V 500M
2SD2114K NPN 12V 25V 20V 500M
2SC3875S(ALY) NPN 5V 60V 50V
KTC3198(KTC1815) NPN 5V 60V 5
2SC3875S(ALY) NPN 5V 60V 50V
KTC3198(KTC1815) NPN 5V 60V 5

LOCA. NO PART NO DESCRIPTION

IC1001
IC1003
IC1008
IC300
IC302
IC303
IC400
IC401
IC600
IC601
IC602
IC603
IC800
IC801
IC802
IC900
IC902
IC903
PC201
PC204
PC501
PC502
PC601
PC701
PC712
PC901
PC951
U131
U132
U151
U201
U221
U261
U271
U281
U501
U601
U701
U701
U801
U851
U901
U951

Q101
Q102

0IPMGKE030A
0IMCRFA010A
0IPMGSG018D
0IMMRAL014D

0IPRP00009A

0ISTL00031A

0IMMRAL014D

0IPRP00701A

0IFA752700A

0IPRP00689B

0IFA742530B

0IMMRAL025A

0IPRP00665A
0IPRP00700A
0IPRP00743A

0IMCRRH001A

0IPMG00027A

0IMCRRH001A

0ILI817000G
0ILI817000G
0ILI817000G
0ILI817000G
0ILI817000G
0ILI817000G
0ILI817000G
0ILI817000G

0ILI817000G
0IKE431000B
0IKE431000B

0IPMGFA073A

0IKE431000B

0IPMG78442A

0IMCRKE014A

0IKE431000B
0IKE431000B

0IPMG78398A
0IPMG78441A

0IZZ9H9009A

0IMCR02273A
0IPMG78439A
0IPMG78440A

0IKE431000B
0IKE431000B

0TR387500AA
0TR387500AA

KIA78R05F 6TO12V 5V 8W DPAK
KA7809R 11.5TO24V 9V 150W D
LD1086DT18TR-LF 30V 1.8V ­AT24C02BN-10SU-1.8 2KBIT 25
ICL3232CBNZ 3VTO5.5V - SSOP
MC74HC4066ADR2G MC74HC4066A
AT24C02BN-10SU-1.8 2KBIT 25
AD9381KSTZ 3.15VTO3.47V,1.7
KA75270Z 2.55TO2.85V 0 200M
VCT6973G-FA-B3-000 1.71VTO1
74ACT253SC 4.5TO5.5V 0.004m
AT24C32AN-10SU-2.7 32KBIT 4
TEA6420D 8TO10.2V 8mA 0 SO
TPA3100D2PHPR 10TO26V . . 2
MAD4868A 3TO5.25V 0 0 PQFP
BA033FP-E2 4.3TO25V 3.3V 1W
SC156515M-1.8TR 2.2TO5.5V 1
BA033FP-E2 4.3TO25V 3.3V 1W
LTV-817M-VB 6V 35V 35V 50MA
LTV-817M-VB 6V 35V 35V 50MA
LTV-817M-VB 6V 35V 35V 50MA
LTV-817M-VB 6V 35V 35V 50MA
LTV-817M-VB 6V 35V 35V 50MA
LTV-817M-VB 6V 35V 35V 50MA
LTV-817M-VB 6V 35V 35V 50MA
LTV-817M-VB 6V 35V 35V 50MA
LTV-817M-VB 6V 35V 35V 50MA
KIA431 36V 36V 700MW TO92 T
KIA431 36V 36V 700MW TO92 T
KA7552A 10TO30V 16.5V 800MW
KIA431 36V 36V 700MW TO92 T
NJM2374AD 2.5TO40V 40V 875M
KIA278R12PI 13TO29V 12V 1.5
KIA431 36V 36V 700MW TO92 T
KIA431 36V 36V 700MW TO92 T
STR-W6251 8TO17.1V 15V 500M
ICE1PCS02 ICE1PCS02 -0.3TO2
0IMCR02273A 0IMCR02273A PHI
S3F9498 3TO5.5V 0 8MHZ 2BYT
MR4040 MR4040 11TO18V 0 10W
MR5060 16V 0 20W TO-220F ST
KIA431 36V 36V 700MW TO92 T
KIA431 36V 36V 700MW TO92 T

2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V

IC

TRANSISTOR

- 28 -

RUN DATE : 2007.2.6

- 29 -

LOCA. NO PART NO DESCRIPTION

Q901
Q902
Q903
Q904
Q905
Q906
Q907
Q908
Q951
Q952

D1001
D1003
D1004
D101
D116
D118
D120
D121
D121
D122
D123
D124
D124
D125
D125
D126
D127
D128
D129
D130
D151
D152
D154
D202
D221
D251
D252
D261
D262
D271
D300
D302
D303
D304
D400
D501
D502
D503
D504
D505

0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TFFC10020A

0DS226009AA
0DS226009AA

0DL233309AC
0DRSD00241A
0DS226009AA
0DS226009AA
0DS226009AA

0DS113379BA
0DS226009AA

0DS113379BA

0DS113379BA

0DS113379BA
0DS226009AA

0DRFJ00115A
0DS226009AA
0DS226009AA
0DS226009AA
0DS226009AA
0DRSE00038A
0DRSE00038A
0DRSA00119A

0DRFJ00135A
0DD140009AA
0DR306000AA
0DRSA00020A
0DRSA00251A

0DS113379BA
0DRSA00251A

0DS113379BA
0DR306000AA
0DS226009AA
0DS226009AA
0DS226009AA
0DS226009AA
0DD184009AA

0DRFJ00125A

0DRFJ00115A

0DRFJ00135A

0DRFJ00135A
0DRSA00119A

2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V
2SC3875S(ALY) NPN 5V 60V 50V
FET,FQPF16N25C

KDS226 1.2V 85V 300MA 2A 4NS
KDS226 1.2V 85V 300MA 2A 4NS
LED,Chip SAM2333
D15XB60-7000 600V 1.1V 10UA
KDS226 1.2V 85V 300MA 2A 4NS
KDS226 1.2V 85V 300MA 2A 4NS
KDS226 1.2V 85V 300MA 2A 4NS
1SS133 1.2V 90V 400MA 600MA
KDS226 1.2V 85V 300MA 2A 4NS
1SS133 1.2V 90V 400MA 600MA
1SS133 1.2V 90V 400MA 600MA
1SS133 1.2V 90V 400MA 600MA
KDS226 1.2V 85V 300MA 2A 4NS
ERA15-06 600V 1.1V 10A 40A ­KDS226 1.2V 85V 300MA 2A 4NS
KDS226 1.2V 85V 300MA 2A 4NS
KDS226 1.2V 85V 300MA 2A 4NS
KDS226 1.2V 85V 300MA 2A 4NS
SDC15 1.3V 14.3VTO16.4V 21.2
SDC15 1.3V 14.3VTO16.4V 21.2
SARS01 800V 1.2V 10UA 110A 1
ERA38-06 600V 2.5V 50UA 10A
EK14 550MV 40V 1.5A 0SEC 0F
SF30SC6 60V 630MV 10MA 250A
FMB-G24H 550MV 40V 10A 0SEC
FMX-G12S 200V 980MV 100UA 65
1SS133 1.2V 90V 400MA 600MA
FMX-G12S 200V 980MV 100UA 65
1SS133 1.2V 90V 400MA 600MA
SF30SC6 60V 630MV 10MA 250A
KDS226 1.2V 85V 300MA 2A 4NS
KDS226 1.2V 85V 300MA 2A 4NS
KDS226 1.2V 85V 300MA 2A 4NS
KDS226 1.2V 85V 300MA 2A 4NS
KDS184 KDS184 TP KEC - 85V ­ERA15-10 1KV 1.1V 10UA 40A ­ERA15-06 600V 1.1V 10A 40A ­ERA38-06 600V 2.5V 50UA 10A
ERA38-06 600V 2.5V 50UA 10A
SARS01 800V 1.2V 10UA 110A 1

LOCA. NO PART NO DESCRIPTION

D506
D507
D601
D602
D603
D604
D605
D606
D607
D611
D703
D704
D750
D800
D801
D801
D803
D804
D805
D807
D808
D851
D852
D853
D854
D855
D856
D900
D901
D902
D903
D905
D906
D907
D951
D952
D953
LD101
ZD1000
ZD121
ZD151
ZD252
ZD300
ZD301
ZD303
ZD304
ZD305
ZD308
ZD312
ZD313
ZD314
ZD501

0DRFJ00125A
0DRFC00288A

0DRNH00160A

EAH32935901

0DRFJ00115A
0DS113379BA
0DD400509BB
0DS113379BA
0DD400509BB

EAH32935901
0DS113379BA
0DS113379BA
0DL233309AC
0DD184009AA
0DD184009AA
0DD100009AY
0DD400709CC
0DS141489AB
0DD400709CC

0DRFJ00115A
0DRFC00288A
0DRFC00345A
0DD100009AY
0DRFC00288A
0DS141489AB
0DRFC00345A

0DRFJ00115A
0DS226009AA

0DRNH00151A

0DS226009AA
0DS226009AA
0DD200009AF
0DD200009AF
0DD200009AF
0DRSA00081A

0DRFJ00115A

0DRFJ00115A
0DLBE0128AA
0DZKE00048A
0DZ110009AD
0DZ200009AD
0DZ680009BB
0DR050008AA
0DR050008AA
0DR050008AA
0DR050008AA
0DR050008AA
0DR050008AA
0DR050008AA
0DR050008AA
0DR050008AA
0DZ110009AD

ERA15-10 1KV 1.1V 10UA 40A ­SS14 500MV 40V 1A - - 1.1W D
30PDA60 600V 1V 10UA 100A 10
FFPF10UP60S 600V 2.2V 1A 50A
ERA15-06 600V 1.1V 10A 40A ­1SS133 1.2V 90V 400MA 600MA
UF4005(52MM) 600V 1.7V 10UA
1SS133 1.2V 90V 400MA 600MA
UF4005(52MM) 600V 1.7V 10UA
FFPF10UP60S 600V 2.2V 1A 50A
1SS133 1.2V 90V 400MA 600MA
1SS133 1.2V 90V 400MA 600MA
LED,Chip SAM2333
KDS184 KDS184 TP KEC - 85V ­KDS184 KDS184 TP KEC - 85V ­RG1C 1KV 3.3V 20UA 10A 100NS
UF4007-1021 1KV 1.7V 10UA 30
1N4148 1V 100V 150MA 500MA 4
UF4007-1021 1KV 1.7V 10UA 30
ERA15-06 600V 1.1V 10A 40A ­SS14 500MV 40V 1A - - 1.1W D
1N5408 1KV 1.2V 5UA 200A 0SE
RG1C 1KV 3.3V 20UA 10A 100NS
SS14 500MV 40V 1A - - 1.1W D
1N4148 1V 100V 150MA 500MA 4
1N5408 1KV 1.2V 5UA 200A 0SE
ERA15-06 600V 1.1V 10A 40A ­KDS226 1.2V 85V 300MA 2A 4NS
FSF10A60 600V 1.8V 30UA 120A
KDS226 1.2V 85V 300MA 2A 4NS
KDS226 1.2V 85V 300MA 2A 4NS
RU2M 400V 1.2V 10UA 20A 400N
RU2M 400V 1.2V 10UA 20A 400N
RU2M 400V 1.2V 10UA 20A 400N
FMC-G28SL 800V 3V 200UA 60A
ERA15-06 600V 1.1V 10A 40A ­ERA15-06 600V 1.1V 10A 40A ­LED,DIP BL-BUBGE304
Zener,KDZ8.2V 8.2V 7.7TO8.7V 20OHM
Zener,MTZJ11B 11V 10.5TO11.05V 20O
Zener,MTZJ20B 20V 18.63TO19.59V 30
Zener,MTZJ6.8B 6.8V 6.49TO6.83V 20
SD05.TC - 6V 14.5V 24A 350W
SD05.TC - 6V 14.5V 24A 350W
SD05.TC - 6V 14.5V 24A 350W
SD05.TC - 6V 14.5V 24A 350W
SD05.TC - 6V 14.5V 24A 350W
SD05.TC - 6V 14.5V 24A 350W
SD05.TC - 6V 14.5V 24A 350W
SD05.TC - 6V 14.5V 24A 350W
SD05.TC - 6V 14.5V 24A 350W
Zener,MTZJ11B 11V 10.5TO11.05V 20O

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

DIODE

- 30 -

LOCA. NO PART NO DESCRIPTION

ZD502
ZD503
ZD601
ZD802
ZD852

C1000
C1001
C1002
C1003
C1004
C1005
C1006
C1007
C1008
C1009
C101
C101
C1010
C1011
C1012
C1013
C1014
C1015
C1016
C1017
C1018
C1019
C102
C1020
C1021
C1022
C1023
C1024
C1025
C1026
C1027
C1029
C103
C103
C1031
C1036
C1037
C1038
C1039
C104
C104
C1040
C1043
C1045
C1046

0DZ200009AF
0DZ200009AD
0DZ200009AD
0DZ150009AD
0DZ150009AD

0CK104CK56A

0CE107WF6DC

0CK104CK56A

0CE107WF6DC

0CK104CK56A
0CK104CK56A
0CK103CK56A

0CE107WF6DC

0CK103CK56A

0CE107WF6DC

0CH5101K416
0CZZVSB015A

0CE107WF6DC

0CK103CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A

0CE477EJ618

0CE477WF6DC
0CE227WF6DC
0CE477WF6DC

0CH5330K416

0CE477EJ618

0CE227WF6DC

0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK103CK56A
0CK104CK56A
0CK103CK56A
0CE476VF6DC
0CKZTBU004E

0CE107WF6DC

0CK104CK56A
0CK104CK56A

0CE477WF6DC

0CK103CK56A
0CE476VF6DC
0CKZTBU004E

0CE476WF6DC

0CK104CK56A
0CK104CK56A

0CE477WF6DC

Zener,MTZJ22B 22V 20.64TO21.71V 30
Zener,MTZJ20B 20V 18.63TO19.59V 30
Zener,MTZJ20B 20V 18.63TO19.59V 30
Zener,MTZJ15B 15V 13.89TO14.62V 25
Zener,MTZJ15B 15V 13.89TO14.62V 25

0603B104K500CT 100nF 10% 50V X7
MVK6.3TP16VC100M 100uF 20% 16V
0603B104K500CT 100nF 10% 50V X7
MVK6.3TP16VC100M 100uF 20% 16V
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B103K500CT 10nF 10% 50V X7R
MVK6.3TP16VC100M 100uF 20% 16V
0603B103K500CT 10nF 10% 50V X7R
MVK6.3TP16VC100M 100uF 20% 16V
C2012C0G1H101JT 100pF 5% 50V C0
PCX2 337 11105 1uF 10% 275V MPP
MVK6.3TP16VC100M 100uF 20% 16V
0603B103K500CT 10nF 10% 50V X7R
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
KMG5.0TP35VB470M 470uF 20% 35V
MVK10TP16VC470M 470uF 20% 16V 8
MVK8.0TP16VC220M 220uF 20% 16V
MVK10TP16VC470M 470uF 20% 16V 8
C2012C0G1H330JT 33pF 5% 50V C0G
KMG5.0TP35VB470M 470uF 20% 35V
MVK8.0TP16VC220M 220uF 20% 16V
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B103K500CT 10nF 10% 50V X7R
0603B104K500CT 100nF 10% 50V X7
0603B103K500CT 10nF 10% 50V X7R
VGV476M016S0ANE010 47uF 20% 16V
DE2E3KX102MA5A 1nF 20% 250V Y5U
MVK6.3TP16VC100M 100uF 20% 16V
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
MVK10TP16VC470M 470uF 20% 16V 8
0603B103K500CT 10nF 10% 50V X7R
VGV476M016S0ANE010 47uF 20% 16V
DE2E3KX102MA5A 1nF 20% 250V Y5U
MVK6.3TP16VC47M 47uF 20% 16V 80
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
MVK10TP16VC470M 470uF 20% 16V 8

LOCA. NO PART NO DESCRIPTION

C1047
C1048
C105
C105
C1050
C1051
C1052
C1054
C1056
C1057
C1058
C1059
C1061
C1063
C1064
C1065
C1066
C1068
C1070
C1072
C1073
C1074
C121
C122
C123
C124
C125
C126
C127
C128
C151
C152
C153
C154
C155
C156
C157
C159
C160
C160
C161
C161
C162
C163
C164
C170
C171
C172
C173
C174
C175
C201

0CE107WF6DC
0CE107WF6DC
0CE476VF6DC
0CBZTBU002B

0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK103CK56A
0CK103CK56A
0CK103CK56A
0CK104CK56A
0CK103CK56A

0CK103CK56A
0CE107WF6DC
0CE107WF6DC
0CE107WF6DC
0CE107WF6DC
0CE476WF6DC

0CK104CK56A

0CK103CK56A
0CE107WF6DC

0CK224DK56A

0CK224DK56A

0CK224DK56A

0CK334DK56A

0CK224DK56A

0CK473DK56A

0CK334DK56A

0CH2103K666

0CF1021Y45A

181-288X

0CE2262K638
0CH5331K416
0CK333DK56A
0CK222DK56A

181-288N
0CC102CK41A
0CE227SF6DC
0CE227WF6DC
0CE227SF6DC
0CE227WF6DC
0CC102CK41A

0CK103CK56A

0CK103CK56A
0CE106WH6DC
0CE106WH6DC

0CK682CK51A

0CK682CK51A

0CK682CK51A

0CK682CK51A

0CZZTAB003D

MVK6.3TP16VC100M 100uF 20% 16V
MVK6.3TP16VC100M 100uF 20% 16V
VGV476M016S0ANE010 47uF 20% 16V
PCX2 335 91645 0.47uF 20% 275V
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B103K500CT 10nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
0603B104K500CT 100nF 10% 50V X7
0603B103K500CT 10nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
MVK6.3TP16VC100M 100uF 20% 16V
MVK6.3TP16VC100M 100uF 20% 16V
MVK6.3TP16VC100M 100uF 20% 16V
MVK6.3TP16VC100M 100uF 20% 16V
MVK6.3TP16VC47M 47uF 20% 16V 80
0603B104K500CT 100nF 10% 50V X7
0603B103K500CT 10nF 10% 50V X7R
MVK6.3TP16VC100M 100uF 20% 16V
CS2012X7R224K500NR 220nF 10% 50
CS2012X7R224K500NR 220nF 10% 50
CS2012X7R224K500NR 220nF 10% 50
C2012X7R1H334KT000N 330nF 10% 5
CS2012X7R224K500NR 220nF 10% 50
C2012X7R1H473KT 47nF 10% 50V X7
C2012X7R1H334KT000N 330nF 10% 5

0.01UF 50V 20% X7R 2012 R/TP
PUX63Y102JCFS03 1nF 5% 630V PP
PCMT 365 76684 680nF 5% 63V MPE
WL1H226M05011PA 22uF 20% 50V 15
0805N331J500LT 330pF 5% 50V C0G
C2012X7R1H333KT 33nF 10% 50V X7
CS2012X7R222K500NR 2.2nF 10% 50
PCMT 365 86103 10nF 5% 100V MPE
C1608C0G1H102JT 1nF 5% 50V C0G
MVG6.3TP16VC220M 220uF 20% 16V
MVK8.0TP16VC220M 220uF 20% 16V
MVG6.3TP16VC220M 220uF 20% 16V
MVK8.0TP16VC220M 220uF 20% 16V
C1608C0G1H102JT 1nF 5% 50V C0G
0603B103K500CT 10nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
MVK5.0TP25VC10M 10uF 20% 25V 25
MVK5.0TP25VC10M 10uF 20% 25V 25
C1608Y5P1H682KT 6.8nF 10% 50V Y
C1608Y5P1H682KT 6.8nF 10% 50V Y
C1608Y5P1H682KT 6.8nF 10% 50V Y
C1608Y5P1H682KT 6.8nF 10% 50V Y
NXB10VB3300M 3300uF 20% 10V 2.7

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

CAPACITOR

- 31 -

LOCA. NO PART NO DESCRIPTION

C202
C203
C204
C205
C210
C221
C222
C223
C224
C227
C228
C251
C252
C253
C254
C255
C256
C261
C262
C263
C271
C272
C273
C274
C275
C276
C277
C281
C282
C283
C284
C285
C300
C301
C309
C310
C311
C312
C313
C316
C317
C332
C333
C334
C335
C336
C337
C338
C339
C340
C343
C345

0CZZTAB003D
0CZZTAB003D
0CK474DK56A

0CE1072D638

181-091R
0CH2103K666
0CH5221K416
0CE1072K638

0CK222DK56A
0CZZTAB003D

0CH5221K416

0CZZTAB003Q
0CK222DK56A

0CH1223K566
0CH1223K566

0CZZTAB003T

181-091R

0CZZTAB003R

0CE1072H638

181-091R

0CZZTAB003D
0CZZTAB003D

0CH3104K566
0CH3104K566

0CZZTAB003M

181-091R
0CH3104K566

0CZZTAB003D
0CZZTAB003D
0CZZTAB003D

0CH3104K566

0CZZTAB003P

0CH5101K416
0CH5101K416

0CK103CK56A
0CK103CK56A
0CC470CK41A
0CK104CK56A

0CE476WF6DC

0CC120CK41A
0CC120CK41A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A

0CK104CK56A
0CE107WF6DC
0CE476WF6DC
0CE226WF6DC

NXB10VB3300M 3300uF 20% 10V 2.7
NXB10VB3300M 3300uF 20% 10V 2.7
UMK212BJ474KG-T 470nF 10% 50V X
WL1A107M05011PA 100uF 20% 10V 1
LRYM7102KHA 1nF 10% 1000V Y5R -

0.01UF 50V 20% X7R 2012 R/TP
0805N221J500LT 220pF 5% 50V C0G
WL1H107M0811MPG 100uF 20% 50V 3
CS2012X7R222K500NR 2.2nF 10% 50
NXB10VB3300M 3300uF 20% 10V 2.7
0805N221J500LT 220pF 5% 50V C0G
WB1J687M16025BB 680uF 20% 63V 2
CS2012X7R222K500NR 2.2nF 10% 50
0805B223K500CT 22nF 10% 50V X7R
0805B223K500CT 22nF 10% 50V X7R
WB1H107M0811MPG 100uF 20% 50V 7
LRYM7102KHA 1nF 10% 1000V Y5R ­WB1H687M12025PL 680uF 20% 50V 2
WL1E107M6L011PA 100uF 20% 25V 2
LRYM7102KHA 1nF 10% 1000V Y5R ­NXB10VB3300M 3300uF 20% 10V 2.7
NXB10VB3300M 3300uF 20% 10V 2.7
0805B104K500CT 100nF 10% 50V X7
0805B104K500CT 100nF 10% 50V X7
0CZZTAB003M 1000uF 20% 10V 0A ­LRYM7102KHA 1nF 10% 1000V Y5R ­0805B104K500CT 100nF 10% 50V X7
NXB10VB3300M 3300uF 20% 10V 2.7
NXB10VB3300M 3300uF 20% 10V 2.7
NXB10VB3300M 3300uF 20% 10V 2.7
0805B104K500CT 100nF 10% 50V X7
WB1A337M6L011PA 330uF 20% 10V 7
C2012C0G1H101JT 100pF 5% 50V C0
C2012C0G1H101JT 100pF 5% 50V C0
0603B103K500CT 10nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
C1608C0G1H470JT 47pF 5% 50V C0G
0603B104K500CT 100nF 10% 50V X7
MVK6.3TP16VC47M 47uF 20% 16V 80
C1608C0G1H120JT 12pF 5% 50V C0G
C1608C0G1H120JT 12pF 5% 50V C0G
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
MVK6.3TP16VC100M 100uF 20% 16V
MVK6.3TP16VC47M 47uF 20% 16V 80
MVK5.0TP16VC22M 22uF 20% 16V 30

LOCA. NO PART NO DESCRIPTION

C347
C350
C351
C352
C400
C401
C406
C407
C408
C409
C410
C411
C412
C413
C414
C415
C416
C417
C419
C420
C421
C424
C425
C426
C429
C430
C500
C502
C502
C503
C504
C505
C506
C506
C507
C507
C508
C508
C509
C511
C512
C513
C514
C515
C516
C517
C518
C519
C520
C521
C522
C524

0CK104CF56A
0CK103CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A

0CE476WF6DC

0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK102CK56A
0CK102CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK102CK56A
0CK104CK56A
0CK102CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK822CK46A

0CK823CF56A
0CE477WF6DC
0CE477WF6DC

0CK473DK56A

0CH1102K566
0CZZ9ST027A
0CH3104K566
0CZZTAB003S
0CK103CK56A
0CK103CK56A

181-091R
0CC270CK41A
0CK105DH56A
0CC270CK41A

0CK103CK56A

0CC101CK41A

0CE477WF6DC

0CK273CK56A
0CK103CK56A
0CK104CK56A
0CK273CK56A
0CK104CK56A

0CE107WF6DC

0CK104CK56A

0CC271CK41A

0CE6862V610

0CK104CK56A

0603B104K160CT 100nF 10% 16V X7
0603B103K500CT 10nF 10% 50V X7R
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
MVK6.3TP16VC47M 47uF 20% 16V 80
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B102K500CT 1nF 10% 50V X7R
0603B102K500CT 1nF 10% 50V X7R
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B102K500CT 1nF 10% 50V X7R
0603B104K500CT 100nF 10% 50V X7
0603B102K500CT 1nF 10% 50V X7R
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B822J500CT 8.2nF 10% 50V X7
0603B823K160CT 82nF 10% 16V X7R
MVK10TP16VC470M 470uF 20% 16V 8
MVK10TP16VC470M 470uF 20% 16V 8
C2012X7R1H473KT 47nF 10% 50V X7
0805B102K500CT 1nF 10% 50V X7R
WL1H106M05011PA 10uF 20% 50V 12
0805B104K500CT 100nF 10% 50V X7
WB1J476M0811MPG 47uF 20% 63V 50
0603B103K500CT 10nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
LRYM7102KHA 1nF 10% 1000V Y5R ­C1608C0G1H270JT 27pF 5% 50V C0G
C2012X7R105KFT 1uF 10% 25V X7R
C1608C0G1H270JT 27pF 5% 50V C0G
0603B103K500CT 10nF 10% 50V X7R
C1608C0G1H101JT 100pF 5% 50V C0
MVK10TP16VC470M 470uF 20% 16V 8
0603B273K500CT 27nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
0603B104K500CT 100nF 10% 50V X7
0603B273K500CT 27nF 10% 50V X7R
0603B104K500CT 100nF 10% 50V X7
MVK6.3TP16VC100M 100uF 20% 16V
0603B104K500CT 100nF 10% 50V X7
C1608C0G1H271JT 270pF 5% 50V C0
KMF450VB68 68uF 20% 450V 625MA
0603B104K500CT 100nF 10% 50V X7

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

- 32 -

LOCA. NO PART NO DESCRIPTION

C525
C601
C602
C603
C604
C605
C606
C607
C608
C609
C609
C610
C610
C611
C611
C612
C613
C614
C615
C616
C617
C618
C619
C620
C621
C622
C623
C623
C624
C625
C626
C627
C628
C629
C630
C631
C632
C633
C634
C635
C636
C637
C638
C643
C645
C647
C648
C649
C650
C651
C652
C653

0CE107WF6DC

0CF1051V560
0CE277RV640
0CE277RV640
0CZZTAB003S

0CK474DK56A
0CK222DK56A
0CK224DK56A
0CK105DH56A
0CK104CK56A

0CH3104K566

0CK104CK56A

0CH1102K566

0CK104CK56A

0CH1102K566

0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK222DK56A
0CK104CK56A
0CK104CK56A
0CK103CK56A
0CK474CH94A
0CK474CH94A

0CE475WJ6DC

0CK474CH94A
0CK474CH94A
0CK474CH94A
0CK103CK56A
0CK474CH94A
0CK474CH94A
0CK474CH94A

0CE335WK6D8

0CK104CK56A
0CK332CK56A
0CK332CK56A
0CK332CK56A
0CK332CK56A
0CK104CK56A
0CK682CK51A
0CC560CK41A
0CC560CK41A
0CK682CK51A

MVK6.3TP16VC100M 100uF 20% 16V
MPPS450MMW-105KHP 1uF 10% 450V
HE2W277M30040HB 270uF 20% 450V
HE2W277M30040HB 270uF 20% 450V
WB1J476M0811MPG 47uF 20% 63V 50
UMK212BJ474KG-T 470nF 10% 50V X
CS2012X7R222K500NR 2.2nF 10% 50
CS2012X7R224K500NR 220nF 10% 50
C2012X7R105KFT 1uF 10% 25V X7R
0603B104K500CT 100nF 10% 50V X7
0805B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0805B102K500CT 1nF 10% 50V X7R
0603B104K500CT 100nF 10% 50V X7
0805B102K500CT 1nF 10% 50V X7R
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
CS2012X7R222K500NR 2.2nF 10% 50
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B103K500CT 10nF 10% 50V X7R
0603F474Z250CT 470nF -20TO+80%
0603F474Z250CT 470nF -20TO+80%
MVK4.0TP35VC4.7M 4.7uF 20% 35V
0603F474Z250CT 470nF -20TO+80%
0603F474Z250CT 470nF -20TO+80%
0603F474Z250CT 470nF -20TO+80%
0603B103K500CT 10nF 10% 50V X7R
0603F474Z250CT 470nF -20TO+80%
0603F474Z250CT 470nF -20TO+80%
0603F474Z250CT 470nF -20TO+80%
MVK4.0TP50VC3.3M 3.3uF 20% 50V
0603B104K500CT 100nF 10% 50V X7
C1608X7R1H332KT 3.3nF 10% 50V X
C1608X7R1H332KT 3.3nF 10% 50V X
C1608X7R1H332KT 3.3nF 10% 50V X
C1608X7R1H332KT 3.3nF 10% 50V X
0603B104K500CT 100nF 10% 50V X7
C1608Y5P1H682KT 6.8nF 10% 50V Y
C1608C0G1H560JT 56pF 5% 50V C0G
C1608C0G1H560JT 56pF 5% 50V C0G
C1608Y5P1H682KT 6.8nF 10% 50V Y

LOCA. NO PART NO DESCRIPTION

C654
C655
C657
C658
C659
C660
C661
C662
C663
C664
C665
C666
C673
C674
C676
C677
C682
C683
C684
C685
C686
C687
C688
C693
C694
C695
C696
C697
C701
C702
C703
C704
C704
C705
C705
C706
C707
C708
C713
C719
C719
C720
C721
C721
C722
C725
C726
C726
C727
C727
C728
C729

0CK103CK56A

0CC220CK41A
0CE226WF6DC
0CE226WF6DC
0CE226WF6DC
0CE226WF6DC

0CK104CK56A

0CK225DH94A

0CK104CK56A

0CK104CK56A

0CK225DH94A

0CK225DD66A

0CC220CK41A

0CC220CK41A
0CE226WF6DC
0CE226WF6DC
0CE226WF6DC
0CE226WF6DC
0CE226WF6DC
0CE226WF6DC
0CE226WF6DC

0CK104CK56A

0CK104CK56A

0CK104CK56A

0CK104CK56A

0CK104CK56A

0CK104CK56A

0CK104CK56A

0CH1102K566
0CH1102K566
0CH1102K566

0CK104CK56A

0CH1102K566

0CK104CK56A

0CH1102K566
0CH1102K566
0CH1102K566
0CH1102K566

0CK104CK56A
0CE226WF6DC

0CH3104K566

0CH3104K566
0CK104CK56A
0CK105DH56A

0CH3104K566

0CH3104K566
0CK104CK56A
0CK105DH56A

0CE226WF6DC

0CK105DH56A

0CH3104K566
0CK104CK56A

0603B103K500CT 10nF 10% 50V X7R
C1608C0G1H220JT 22pF 5% 50V C0G
MVK5.0TP16VC22M 22uF 20% 16V 30
MVK5.0TP16VC22M 22uF 20% 16V 30
MVK5.0TP16VC22M 22uF 20% 16V 30
MVK5.0TP16VC22M 22uF 20% 16V 30
0603B104K500CT 100nF 10% 50V X7
C2012Y5V225ZFT 2.2uF -20TO+80%
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
C2012Y5V225ZFT 2.2uF -20TO+80%
LMK212JB225MG-T 2.2uF 20% 10V X
C1608C0G1H220JT 22pF 5% 50V C0G
C1608C0G1H220JT 22pF 5% 50V C0G
MVK5.0TP16VC22M 22uF 20% 16V 30
MVK5.0TP16VC22M 22uF 20% 16V 30
MVK5.0TP16VC22M 22uF 20% 16V 30
MVK5.0TP16VC22M 22uF 20% 16V 30
MVK5.0TP16VC22M 22uF 20% 16V 30
MVK5.0TP16VC22M 22uF 20% 16V 30
MVK5.0TP16VC22M 22uF 20% 16V 30
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0805B102K500CT 1nF 10% 50V X7R
0805B102K500CT 1nF 10% 50V X7R
0805B102K500CT 1nF 10% 50V X7R
0603B104K500CT 100nF 10% 50V X7
0805B102K500CT 1nF 10% 50V X7R
0603B104K500CT 100nF 10% 50V X7
0805B102K500CT 1nF 10% 50V X7R
0805B102K500CT 1nF 10% 50V X7R
0805B102K500CT 1nF 10% 50V X7R
0805B102K500CT 1nF 10% 50V X7R
0603B104K500CT 100nF 10% 50V X7
MVK5.0TP16VC22M 22uF 20% 16V 30
0805B104K500CT 100nF 10% 50V X7
0805B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
C2012X7R105KFT 1uF 10% 25V X7R
0805B104K500CT 100nF 10% 50V X7
0805B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
C2012X7R105KFT 1uF 10% 25V X7R
MVK5.0TP16VC22M 22uF 20% 16V 30
C2012X7R105KFT 1uF 10% 25V X7R
0805B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

- 33 -

LOCA. NO PART NO DESCRIPTION

C729
C730
C733
C735
C739
C743
C744
C749
C750
C753
C756
C757
C758
C759
C760
C761
C762
C763
C764
C765
C766
C800
C801
C801
C802
C802
C803
C803
C804
C805
C806
C806
C807
C807
C816
C820
C821
C822
C823
C824
C825
C827
C828
C829
C830
C831
C832
C833
C834
C835
C836
C838

0CH3104K566
0CE1072D638

0CE226WF6DC

0CK104CK56A

0CK104CK56A
0CE226WF6DC
0CE226WF6DC

0CK104CK56A

0CK225DH94A

0CK104CK56A
0CE476WF6DC

0CE106WH6DC

0CE476WF6DC
0CE476WF6DC
0CE476WF6DC
0CE476WF6DC
0CE476WF6DC
0CE476WF6DC

0CK106EF56A
0CK106EF56A
0CK106EF56A

0CE107WF6DC

0CZZ9ST027A

0CK103CK56A
0CE226WF6DC

181-091Q
0CK105CF94A
0CH5121K416
0CK105CF94A

0CK472DK56A

0CK105CF94A

181-010K
0CK105CF94A
0CH5221K416

0CK225DH94A
0CK225DH94A

0CK475EF67A
0CK475EF67A
0CK475EF67A
0CK475EF67A
0CK475EF67A

0CC471CK41A

0CE107WK6DC

0CC471CK41A
0CK103CK56A

0CK475EF67A
0CK475EF67A
0CK475EF67A
0CK475EF67A
0CK475EF67A

0CK104CK56A
0CK104CK56A

0805B104K500CT 100nF 10% 50V X7
WL1A107M05011PA 100uF 20% 10V 1
MVK5.0TP16VC22M 22uF 20% 16V 30
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
MVK5.0TP16VC22M 22uF 20% 16V 30
MVK5.0TP16VC22M 22uF 20% 16V 30
0603B104K500CT 100nF 10% 50V X7
C2012Y5V225ZFT 2.2uF -20TO+80%
0603B104K500CT 100nF 10% 50V X7
MVK6.3TP16VC47M 47uF 20% 16V 80
MVK5.0TP25VC10M 10uF 20% 25V 25
MVK6.3TP16VC47M 47uF 20% 16V 80
MVK6.3TP16VC47M 47uF 20% 16V 80
MVK6.3TP16VC47M 47uF 20% 16V 80
MVK6.3TP16VC47M 47uF 20% 16V 80
MVK6.3TP16VC47M 47uF 20% 16V 80
MVK6.3TP16VC47M 47uF 20% 16V 80
C3216X7R1C106KT 10uF 10% 16V X7
C3216X7R1C106KT 10uF 10% 16V X7
C3216X7R1C106KT 10uF 10% 16V X7
MVK6.3TP16VC100M 100uF 20% 16V
WL1H106M05011PA 10uF 20% 50V 12
0603B103K500CT 10nF 10% 50V X7R
MVK5.0TP16VC22M 22uF 20% 16V 30
LRYM5471KHA 470pF 10% 1000V Y5R
0603F105Z160CT 1uF -20TO+80% 16
C2012C0G1H121JT 120pF 5% 50V C0
0603F105Z160CT 1uF -20TO+80% 16
C2012X7R1H472KT 4.7nF 10% 50V X
0603F105Z160CT 1uF -20TO+80% 16
PPN103J2JH 10nF 5% 630V PP -40T
0603F105Z160CT 1uF -20TO+80% 16
0805N221J500LT 220pF 5% 50V C0G
C2012Y5V225ZFT 2.2uF -20TO+80%
C2012Y5V225ZFT 2.2uF -20TO+80%
C3216X5R1C475MT 4.7uF 20% 16V X
C3216X5R1C475MT 4.7uF 20% 16V X
C3216X5R1C475MT 4.7uF 20% 16V X
C3216X5R1C475MT 4.7uF 20% 16V X
C3216X5R1C475MT 4.7uF 20% 16V X
C1608C0G1H471JT 470pF 5% 50V C0
MVK10TP50VC100M 100uF 20% 50V 3
C1608C0G1H471JT 470pF 5% 50V C0
0603B103K500CT 10nF 10% 50V X7R
C3216X5R1C475MT 4.7uF 20% 16V X
C3216X5R1C475MT 4.7uF 20% 16V X
C3216X5R1C475MT 4.7uF 20% 16V X
C3216X5R1C475MT 4.7uF 20% 16V X
C3216X5R1C475MT 4.7uF 20% 16V X
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7

LOCA. NO PART NO DESCRIPTION

C839
C840
C842
C845
C848
C849
C850
C851
C851
C852
C853
C854
C854
C855
C855
C856
C856
C857
C857
C858
C858
C859
C860
C861
C862
C863
C864
C865
C866
C867
C868
C869
C871
C901
C902
C904
C905
C906
C906
C908
C912
C915
C916
C917
C919
C921
C922
C926
C927
C928
C929
C930

0CK104CK56A
0CK102CK56A
0CK102CK56A
0CK474CH94A
0CK104CK56A
0CK474CH94A
0CK104CK56A
0CK105CF94A

181-091Y

0CH5471K416
0CK103CK56A
0CK224CF56A
0CK472DK56A

0CZZ9ST027A
0CK224CF56A
0CK105CF94A

181-038E

0CK105CF94A

0CH5101K416
0CK105CF94A

0CH5471K416
0CK105CF94A

0CE227WJ6DC
0CE227WJ6DC

0CK105CF94A

0CE106WH6DC

0CK224CF56A
0CK224CF56A
0CK682CK51A
0CK682CK51A

0CE475WJ6DC
0CE475WJ6DC

0CC270CK41A
0CZZTAB003U
0CK823DK56A
0CZZTAB003U
0CK105DH56A
0CK104CK56A

181-308J

0CK474CH94A

0CE476WF6DC

0CK474CH94A
0CK104CK56A

0CE477WF6DC

0CK104CK56A
0CK103CK56A

0CE476WF6DC

0CK104CK56A
0CK104CK56A
0CK103CK56A
0CK103CK56A
0CK104CK56A

0603B104K500CT 100nF 10% 50V X7
0603B102K500CT 1nF 10% 50V X7R
0603B102K500CT 1nF 10% 50V X7R
0603F474Z250CT 470nF -20TO+80%
0603B104K500CT 100nF 10% 50V X7
0603F474Z250CT 470nF -20TO+80%
0603B104K500CT 100nF 10% 50V X7
0603F105Z160CT 1uF -20TO+80% 16
LRYM28681KXA 680pF 10% 2000V Y5
C2012C0G1H471JT 470pF 5% 50V C0
0603B103K500CT 10nF 10% 50V X7R
0603B224K160CT 220nF 10% 16V X7
C2012X7R1H472KT 4.7nF 10% 50V X
WL1H106M05011PA 10uF 20% 50V 12
0603B224K160CT 220nF 10% 16V X7
0603F105Z160CT 1uF -20TO+80% 16
181-038E 0.047uF 5% 630V MPP -4
0603F105Z160CT 1uF -20TO+80% 16
C2012C0G1H101JT 100pF 5% 50V C0
0603F105Z160CT 1uF -20TO+80% 16
C2012C0G1H471JT 470pF 5% 50V C0
0603F105Z160CT 1uF -20TO+80% 16
MVK10TP35VC220M 220uF 20% 35V 3
MVK10TP35VC220M 220uF 20% 35V 3
0603F105Z160CT 1uF -20TO+80% 16
MVK5.0TP25VC10M 10uF 20% 25V 25
0603B224K160CT 220nF 10% 16V X7
0603B224K160CT 220nF 10% 16V X7
C1608Y5P1H682KT 6.8nF 10% 50V Y
C1608Y5P1H682KT 6.8nF 10% 50V Y
MVK4.0TP35VC4.7M 4.7uF 20% 35V
MVK4.0TP35VC4.7M 4.7uF 20% 35V
C1608C0G1H270JT 27pF 5% 50V C0G
PT2A477M1635MBB 470uF 20% 100V
0805B823K500CT 82nF 10% 50V X7R
PT2A477M1635MBB 470uF 20% 100V
C2012X7R105KFT 1uF 10% 25V X7R
0603B104K500CT 100nF 10% 50V X7
NPP630V472J10F 4.7nF 5% 630V PP
0603F474Z250CT 470nF -20TO+80%
MVK6.3TP16VC47M 47uF 20% 16V 80
0603F474Z250CT 470nF -20TO+80%
0603B104K500CT 100nF 10% 50V X7
MVK10TP16VC470M 470uF 20% 16V 8
0603B104K500CT 100nF 10% 50V X7
0603B103K500CT 10nF 10% 50V X7R
MVK6.3TP16VC47M 47uF 20% 16V 80
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B103K500CT 10nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
0603B104K500CT 100nF 10% 50V X7

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

- 34 -

LOCA. NO PART NO DESCRIPTION

C931
C932
C933
C934
C935
C936
C937
C938
C939
C941
C942
C943
C945
C946
C947
C948
C949
C950
C951
C951
C952
C953
C953
C954
C955
C956
C957
C957
C958
C958
C959
C960
C961
C962
C963
C964
C965
C967
C968
C969
C970
C972
C973
C974
C975
C976
C978
C979
C980
C981
C982
C983

0CE476WF6DC
0CE476WF6DC
0CE477WF6DC

0CK104CK56A

0CE477WF6DC

0CK104CK56A
0CK104CK56A
0CK104CK56A

0CE477WF6DC

0CK103CK56A
0CK103CK56A
0CK103CK56A

0CK104CK56A
0CE107WF6DC
0CE107WF6DC
0CE107WF6DC

0CK103CK56A

0CK104CK56A
0CE477WF6DC

0CE827RR640
0CE827RR640

0CE477WF6DC

0CK105DH56A

181-288C

0CE107WF6DC

0CH3104K566

0CK104CK56A

181-091R

0CK104CK56A

181-091R
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK104CK56A
0CK103CK56A
0CK103CK56A
0CK103CK56A
0CK103CK56A
0CK103CK56A
0CK103CK56A
0CK103CK56A
0CK103CK56A
0CK103CK56A

0CE476WF6DC
0CE476WF6DC
0CE476WF6DC
0CE476WF6DC
0CE476WF6DC
0CE476WF6DC

MVK6.3TP16VC47M 47uF 20% 16V 80
MVK6.3TP16VC47M 47uF 20% 16V 80
MVK10TP16VC470M 470uF 20% 16V 8
0603B104K500CT 100nF 10% 50V X7
MVK10TP16VC470M 470uF 20% 16V 8
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
MVK10TP16VC470M 470uF 20% 16V 8
0603B103K500CT 10nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
0603B104K500CT 100nF 10% 50V X7
MVK6.3TP16VC100M 100uF 20% 16V
MVK6.3TP16VC100M 100uF 20% 16V
MVK6.3TP16VC100M 100uF 20% 16V
0603B103K500CT 10nF 10% 50V X7R
0603B104K500CT 100nF 10% 50V X7
MVK10TP16VC470M 470uF 20% 16V 8
HE2E827M30040HB 820uF 20% 250V
HE2E827M30040HB 820uF 20% 250V
MVK10TP16VC470M 470uF 20% 16V 8
C2012X7R105KFT 1uF 10% 25V X7R
PCMT 365 26224 220nF 5% 100V MP
MVK6.3TP16VC100M 100uF 20% 16V
0805B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
LRYM7102KHA 1nF 10% 1000V Y5R ­0603B104K500CT 100nF 10% 50V X7
LRYM7102KHA 1nF 10% 1000V Y5R ­0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B104K500CT 100nF 10% 50V X7
0603B103K500CT 10nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
0603B103K500CT 10nF 10% 50V X7R
MVK6.3TP16VC47M 47uF 20% 16V 80
MVK6.3TP16VC47M 47uF 20% 16V 80
MVK6.3TP16VC47M 47uF 20% 16V 80
MVK6.3TP16VC47M 47uF 20% 16V 80
MVK6.3TP16VC47M 47uF 20% 16V 80
MVK6.3TP16VC47M 47uF 20% 16V 80

LOCA. NO PART NO DESCRIPTION

C984
C985
C986
C988
C989

L1004
L101
L118
L119
L120
L121
L201
L221
L271
L503
L601
L801
L802
L804
L805
L808
L809
L910
LF102
LF103
T112
T501
T801
T901

C1
C10
C2
C3
C4
C5
C6
C7
C8
C9
GP1
GP2
GP3
GP4
GP5
GP6
GP7
GP8
JK303

0CE476WF6DC
0CE476WF6DC
0CE476WF6DC

0CE106WH6DC

0CK103CK56A

6140VB0004B

0LC1032101A
0LCML00020G
0LCML00020G
0LCML00020G
0LCML00020G

61409B0013A

61409B0011A

61409B0013A
0LCML00020G

61409B0012A

6140VR0008A

6140VR0008A
0LCML00020C
0LCML00020C

6140VR0008A

6140VR0008A

6140VB0004B

61409B0014A
61409B0014A

61709MC013A

61709S0001A
61709MC014A
61709MC015A

6631900012E
EAD30301901

6631900027C

6631900099B

6631900108B

6631T20037L

6631T39004D

6631V39013N

68509A0004E

6850J00005C

366-167B
366-167B
366-167B
366-167B
366-167A
366-167A
366-167A
366-167A

6630G00003A

MVK6.3TP16VC47M 47uF 20% 16V 80
MVK6.3TP16VC47M 47uF 20% 16V 80
MVK6.3TP16VC47M 47uF 20% 16V 80
MVK5.0TP25VC10M 10uF 20% 25V 25
0603B103K500CT 10nF 10% 50V X7R

Coil,Choke LN-15A1(26UH) 26uH AC500V 5MA
Inductor,FI-C3216-103KJT 10UH 10% - 50
Inductor,MLI-201209-3R3K 3.3UH 10% 0V
Inductor,MLI-201209-3R3K 3.3UH 10% 0V
Inductor,MLI-201209-3R3K 3.3UH 10% 0V
Inductor,MLI-201209-3R3K 3.3UH 10% 0V
Coil,Choke A-PC10N 1.6uH AC250V 10A 10.1
Coil,Choke 2130KK0032A-F 50uH AC250V 10A
Coil,Choke A-PC10N 1.6uH AC250V 10A 10.1
Inductor,MLI-201209-3R3K 3.3UH 10% 0V
Coil,Horizontal EER4242 320uH
Inductor,SLF12575T-330M3R2 33UH 20% ­Inductor,SLF12575T-330M3R2 33UH 20% ­Inductor,MLI-201212-100K 10UH 10% - 15
Inductor,MLI-201212-100K 10UH 10% - 15
Inductor,SLF12575T-330M3R2 33UH 20% ­Inductor,SLF12575T-330M3R2 33UH 20% ­Coil,Choke LN-15A1(26UH) 26uH AC500V 5MA
Coil,Choke TC20N 100uH AC250V 10A 15X29M
Coil,Choke TC20N 100uH AC250V 10A 15X29M
Transformer,Switching EER3541 310uH
Transformer,Linear EE2525 250V 12V
Transformer,Switching EER3541 1.0mH
Transformer,Switching EER4242 390uH

Harness,Single 2.50MM 10P
Harness,Single 2.00MM 4P
Harness,Single 2.50MM 13P
Harness,Single 2.50MM 3P
Harness,Single 2.00MM 6P
Harness,Single 2.00MM 10P
Harness,Single 3.96MM 9P
Harness,Single 3.96MM 8P
Cable,Assembly RCA JACK RCA JACK
Cable,Assembly GT121 HOUSING
Connector,Wafer BW-501S 1P
Connector,Wafer BW-501S 1P
Connector,Wafer BW-501S 1P
Connector,Wafer BW-501S 1P
Connector,Wafer BW-501S 1P
Connector,Wafer BW-501S 1P
Connector,Wafer BW-501S 1P
Connector,Wafer BW-501S 1P
Connector,DSUB 15P 2.29MM

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

COIL & TRANSFORMER

CONNECTOR & WAFER

- 35 -

LOCA. NO PART NO DESCRIPTION

JK304
P100
P100
P1001
P101
P300
P300
P301
P303
P601
P800
P801
P802
P802
P803
P811
P812
P900
SC101

JK102
JK103
JK104
JK105
JK106
JK300
JK300
JK302
JK400
JK800

AR600
AR601
AR602
C644
C646
R1000
R1001
R1002
R1003
R1004
R1005
R1006
R1008
R101
R101
R101
R1010
R102
R102

6630G00001B
6602T20009C

6602T20009J

6602T25008J
6602T20009C
6602T20009E
6602T20008E

6602T20008J

366-932B
6602T12007D
6602T25008M
6602T25008C
6602T25008B

6602T25008J
6602T25008L

6630AQ9008G

6630V90224A
6602T25008M
6602V39002A

6612J10024A
6612J10031A

6612J10031A
6612J10006M
6612F00024C
6612F00099A

6612J10003X
6612F00099A
6612B00015B

6612J10043A

0RJ0000C687
0RJ0000C687
0RJ0000C687
0RJ0000D677
0RJ0000D677
0RJ1201D677
0RJ0752D677
0RJ0752D677
0RJ1002D677
0RJ1002D677
0RJ1002D677
0RJ2002D677
0RJ0000D677

0RC4703A609
0RH0000D622
0RH9101D622

0RJ0000D677

0RH0000D622
0RH3301D622

Connector,DSUB 9P 2.77MM
Connector,Wafer SMAW200-04P
Connector,Wafer SMAW200-10P
Connector,Wafer SMW250-10P
Connector,Wafer SMAW200-04P
Connector,Wafer SMAW200-06P
Connector,Wafer SMW200-06P
Connector,Wafer SMW200-10P
Connector,Wafer 3P 2.50MM
Connector,Wafer 1.25MM 2R
Connector,Wafer SMW250-13P
Connector,Wafer SMW250-04P
Connector,Wafer SMW250-03P
Connector,Wafer SMW250-10P
Connector,Wafer SMW250-12P
Connector,Wafer YW396-08V 8P
Connector,Wafer YW396-09V 9P
Connector,Wafer SMW250-13P
Connector,Wafer YW396-03AV 2P

Jack,Complex KCN-BT-0-0056 4P
Jack,RCA PPJ209-02 14.0MM
Jack,RCA PPJ209-02 14.0MM
Jack,RCA PPJ150-09 14.0MM
Jack,DIN PSJ014-01 SOCKET 4P
Jack,Phone PEJ024-01 1P 4P
Jack,RCA PMJ6054-39 14.0MM
Jack,Phone PEJ024-01 1P 4P
Jack,DIN DC1R019WDH SOCKET 21P
Jack,RCA PPJ200-07 15MM

RCA86TRJ0000 0OHM 5% 1/16W 4
RCA86TRJ0000 0OHM 5% 1/16W 4
RCA86TRJ0000 0OHM 5% 1/16W 4
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ122 1.2KOHM 5% 1/10W
MCR03EZPJ750 75OHM 5% 1/10W 1
MCR03EZPJ750 75OHM 5% 1/10W 1
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ203. 20KOHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
PRM92T1J470K 470KOHM 5% 1/2W
MCR10EZHJ000 0OHM 5% 1/8W 201
MCR10EZHJ912 9.1KOHM 5% 1/8W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ000 0OHM 5% 1/8W 201
MCR10EZHJ332 3.3KOHM 5% 1/8W

LOCA. NO PART NO DESCRIPTION

R103
R103
R104
R104
R105
R105
R106
R107
R108
R108
R109
R111
R112
R122
R123
R124
R125
R126
R127
R128
R129
R130
R131
R132
R133
R134
R135
R136
R137
R138
R139
R140
R141
R141
R141
R142
R143
R144
R145
R149
R151
R152
R153
R154
R155
R157
R158
R159
R160
R174
R175
R176

0RH0000D622
0RH1101D622
0RH5600D622
0RH0000D622
0RH6801D622
0RH9101D622
0RH3301D622
0RH1101D622
0RH3901D622
0RH0000D622
0RH0000D622
0RH1501D622
0RH1501D622
0RH4701D622
0RH3903D622
0RH4701D622
0RH2703D622
0RH1803D622
0RH2202D422
0RH2001D622
0RH1002D422
0RH2703D622
0RH4701D622
0RH4701D622
0RH4701D622
0RH4703D622
0RH2001D622
0RH3302D622
0RH3903D622
0RH1203D622
0RH5602D622

0RJ6802E472
0RJ4701D677
0RJ0752D677

0RJ1503E472
0RH3903D622
0RH4701D422
0RH2703D622
0RH3003D622

0RJ2000D677
0RX1003K665

0RB0100J609
0RH2202D622
0RH8201D622
0RH4700D622
0RH1002D622
0RD0221Q609
0RD0222Q609

0RX0472L665

0RJ2203D677

0RJ2203D677

0RJ0752D677

MCR10EZHJ000 0OHM 5% 1/8W 201
MCR10EZHJ112 1.1KOHM 5% 1/8W
MCR10EZHJ561 560OHM 5% 1/8W 2
MCR10EZHJ000 0OHM 5% 1/8W 201
MCR10EZHJ682 6.8KOHM 5% 1/8W
MCR10EZHJ912 9.1KOHM 5% 1/8W
MCR10EZHJ332 3.3KOHM 5% 1/8W
MCR10EZHJ112 1.1KOHM 5% 1/8W
MCR10EZHJ392 3.9KOHM 5% 1/8W
MCR10EZHJ000 0OHM 5% 1/8W 201
MCR10EZHJ000 0OHM 5% 1/8W 201
MCR10EZHJ152 1.5KOHM 5% 1/8W
MCR10EZHJ152 1.5KOHM 5% 1/8W
MCR10EZHJ472 4.7KOHM 5% 1/8W
MCR10EZHJ394 390KOHM 5% 1/8W
MCR10EZHJ472 4.7KOHM 5% 1/8W
MCR10EZHJ274 270KOHM 5% 1/8W
MCR10EZHJ184 180KOHM 5% 1/8W
MCR10EZHF223 22KOHM 1% 1/8W 2
MCR10EZHJ202 2KOHM 5% 1/8W 20
MCR10EZHF103 10KOHM 1% 1/8W 2
MCR10EZHJ274 270KOHM 5% 1/8W
MCR10EZHJ472 4.7KOHM 5% 1/8W
MCR10EZHJ472 4.7KOHM 5% 1/8W
MCR10EZHJ472 4.7KOHM 5% 1/8W
MCR10EZHJ474 470KOHM 5% 1/8W
MCR10EZHJ202 2KOHM 5% 1/8W 20
MCR10EZHJ333 33KOHM 5% 1/8W 2
MCR10EZHJ394 390KOHM 5% 1/8W
MCR10EZHJ124 120KOHM 5% 1/8W
MCR10EZHJ563 56KOHM 5% 1/8W 2
MCR10EZHF6802 68KOHM 1% 1/8W
MCR03EZPJ472 4.7KOHM 5% 1/10W
MCR03EZPJ750 75OHM 5% 1/10W 1
MCR10EZHF1503 150KOHM 1% 1/8W
MCR10EZHJ394 390KOHM 5% 1/8W
MCR10EZHF472 4.7KOHM 1% 1/8W
MCR10EZHJ274 270KOHM 5% 1/8W
MCR10EZHJ304 300KOHM 5% 1/8W
MCR03EZPJ201 200OHM 5% 1/10W
RSD02F4J100K 100KOHM 5% 2W 12
PRW01T10R10J 0.1OHM 5% 1W 9.0
MCR10EZHJ223 22KOHM 5% 1/8W 2
MCR10EZHJ822 8.2KOHM 5% 1/8W
MCR10EZHJ471 470OHM 5% 1/8W 2
MCR10EZHJ103 10KOHM 5% 1/8W 2
RDM94T1J2R20 2.2OHM 5% 1/4W 3
RDM94T1J22R0 22OHM 5% 1/4W 3.
RSD03T447R0J 47OHM 5% 3W 15X5
MCR03EZPJ224 220KOHM 5% 1/10W
MCR03EZPJ224 220KOHM 5% 1/10W
MCR03EZPJ750 75OHM 5% 1/10W 1

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

JACK

RESISTOR

- 36 -

LOCA. NO PART NO DESCRIPTION

R177
R178
R179
R180
R181
R182
R183
R184
R185
R186
R187
R188
R189
R190
R191
R192
R193
R194
R195
R196
R197
R198
R199
R200
R201
R201
R202
R204
R204
R205
R206
R206
R207
R208
R209
R210
R211
R212
R213
R213
R214
R215
R217
R218
R219
R220
R221
R222
R222
R223
R223
R224

0RJ0752D677
0RJ0752D677
0RJ2203D677
0RJ2203D677
0RJ0752D677
0RJ0752D677
0RJ0752D677
0RJ0752D677
0RJ2203D677
0RJ1001D677
0RJ1001D677
0RJ0000D677
0RJ0000D677
0RJ0000D677
0RJ0752D677
0RJ1001D677
0RJ1001D677
0RJ0000D677
0RJ0000D677
0RJ0000D677
0RJ2203D677
0RJ0752D677
0RJ0752D677
0RJ0000D677

0RJ1002D677
0RH1001D622
0RH2700D622

0RJ1002D677
0RH4701D622
0RH3301D422

0RJ1002D677

0RJ0222E421

0RH3301D422

0RJ0000D677

0RJ0000D677

0RJ4703D677

0RJ4703D677

0RJ2203D677

0RJ2203D677

0RX0222J618
0RJ0000D677
0RJ0000D677
0RJ1001D677
0RJ1001D677
0RJ2001D677
0RJ2001D677

0RH4702D622
0RH0000D622

0RJ1001D677

0RH1001D422

0RJ1001D677

0RJ6800E472

MCR03EZPJ750 75OHM 5% 1/10W 1
MCR03EZPJ750 75OHM 5% 1/10W 1
MCR03EZPJ224 220KOHM 5% 1/10W
MCR03EZPJ224 220KOHM 5% 1/10W
MCR03EZPJ750 75OHM 5% 1/10W 1
MCR03EZPJ750 75OHM 5% 1/10W 1
MCR03EZPJ750 75OHM 5% 1/10W 1
MCR03EZPJ750 75OHM 5% 1/10W 1
MCR03EZPJ224 220KOHM 5% 1/10W
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ750 75OHM 5% 1/10W 1
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ224 220KOHM 5% 1/10W
MCR03EZPJ750 75OHM 5% 1/10W 1
MCR03EZPJ750 75OHM 5% 1/10W 1
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ103 10KOHM 5% 1/10W
MCR10EZHJ102 1KOHM 5% 1/8W 20
MCR10EZHJ271 270OHM 5% 1/8W 2
MCR03EZPJ103 10KOHM 5% 1/10W
MCR10EZHJ472 4.7KOHM 5% 1/8W
MCR10EZHF332 3.3KOHM 1% 1/8W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR10EZHF22R0 22OHM 1% 1/8W 2
MCR10EZHF332 3.3KOHM 1% 1/8W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ474 470KOHM 5% 1/10W
MCR03EZPJ474 470KOHM 5% 1/10W
MCR03EZPJ224 220KOHM 5% 1/10W
MCR03EZPJ224 220KOHM 5% 1/10W
RSD01R022R0J 22OHM 5% 1W 9.0X
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ202 2KOHM 5% 1/10W 1
MCR03EZPJ202 2KOHM 5% 1/10W 1
MCR10EZHJ473 47KOHM 5% 1/8W 2
MCR10EZHJ000 0OHM 5% 1/8W 201
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR10EZHF102 1KOHM 1% 1/8W 20
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR10EZHF681 680OHM 1% 1/8W 2

LOCA. NO PART NO DESCRIPTION

R224
R225
R226
R226
R227
R227
R228
R228
R229
R229
R241
R251
R252
R252
R253
R254
R255
R256
R257
R258
R259
R260
R261
R262
R263
R271
R272
R273
R274
R275
R276
R277
R278
R281
R282
R283
R284
R285
R300
R300
R301
R301
R302
R302
R303
R303
R304
R304
R305
R306
R307
R308

0RJ1001D677
0RJ1001D677

0RH2201D422

0RJ4701D677

0RH1001D422

0RJ4701D677
0RJ4701D677
0RS0222K607

0RD0102Q609

0RJ4701D677

0RX0472J618
0RH1002D622
0RH1502D622
0RH1302D622
0RH5602D622
0RH2702D622
0RH1202D622
0RH4703D622
0RH1501D422
0RH1002D422

0RJ6801E472

0RS2201K607
0RH4701D422

0RX0102J618

0RS1001K607
0RH3900D622
0RH1001D622
0RH2701D622
0RH1001D622
0RH2201D422

0RJ3900E472
0RH2701D422

0RX0222J618
0RH1001D622
0RH2701D422

0RJ0102E472
0RH2701D422

0RD4701F609

0RJ0000D677
0RH2203D622

0RJ0000D677
0RH2203D622

0RJ0000D677
0RH0752D622
0RH4700D622

0RJ2203D677
0RH4700D622

0RJ2203D677
0RH0000D622

0RJ1001D677

0RJ0752D677

0RJ1002D677

MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR10EZHF222 2.2KOHM 1% 1/8W
MCR03EZPJ472 4.7KOHM 5% 1/10W
MCR10EZHF102 1KOHM 1% 1/8W 20
MCR03EZPJ472 4.7KOHM 5% 1/10W
MCR03EZPJ472 4.7KOHM 5% 1/10W
RSD02T3J22R0 22OHM 5% 2W 12.0
RDM94T1J10R0 10OHM 5% 1/4W 3.
MCR03EZPJ472 4.7KOHM 5% 1/10W
RSD01R047R0J 47OHM 5% 1W 9.0X
MCR10EZHJ103 10KOHM 5% 1/8W 2
MCR10EZHJ153 15KOHM 5% 1/8W 2
MCR10EZHJ133 13KOHM 5% 1/8W 2
MCR10EZHJ563 56KOHM 5% 1/8W 2
MCR10EZHJ273 27KOHM 5% 1/8W 2
MCR10EZHJ123 12KOHM 5% 1/8W 2
MCR10EZHJ474 470KOHM 5% 1/8W
MCR10EZHF152 1.5KOHM 1% 1/8W
MCR10EZHF103 10KOHM 1% 1/8W 2
RC98TRF6K80 6.8KOHM 1% 1/8W 2
RSD02T3J2K20 2.2KOHM 5% 2W 12
MCR10EZHF472 4.7KOHM 1% 1/8W
RSD01R010R0J 10OHM 5% 1W 9.0X
RSD02T3J1K00 1KOHM 5% 2W 12.0
MCR10EZHJ391 390OHM 5% 1/8W 2
MCR10EZHJ102 1KOHM 5% 1/8W 20
MCR10EZHJ272 2.7KOHM 5% 1/8W
MCR10EZHJ102 1KOHM 5% 1/8W 20
MCR10EZHF222 2.2KOHM 1% 1/8W
MCR10EZHF 3900 390OHM 1% 1/8W
MCR10EZHF272 2.7KOHM 1% 1/8W
RSD01R022R0J 22OHM 5% 1W 9.0X
MCR10EZHJ102 1KOHM 5% 1/8W 20
MCR10EZHF272 2.7KOHM 1% 1/8W
MCR10EZHF100 10OHM 1% 1/8W 20
MCR10EZHF272 2.7KOHM 1% 1/8W
RD-96T1J4K70 4.7KOHM 5% 1/6W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ224 220KOHM 5% 1/8W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ224 220KOHM 5% 1/8W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ750 75OHM 5% 1/8W 20
MCR10EZHJ471 470OHM 5% 1/8W 2
MCR03EZPJ224 220KOHM 5% 1/10W
MCR10EZHJ471 470OHM 5% 1/8W 2
MCR03EZPJ224 220KOHM 5% 1/10W
MCR10EZHJ000 0OHM 5% 1/8W 201
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ750 75OHM 5% 1/10W 1
MCR03EZPJ103 10KOHM 5% 1/10W

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

- 37 -

LOCA. NO PART NO DESCRIPTION

R310
R311
R313
R314
R315
R316
R317
R318
R319
R320
R321
R322
R323
R326
R327
R328
R329
R330
R331
R332
R333
R334
R335
R338
R339
R343
R344
R345
R346
R347
R348
R349
R350
R351
R352
R355
R358
R360
R361
R362
R367
R372
R373
R380
R381
R382
R383
R384
R386
R387
R388
R389

0RJ1001D677
0RJ1001D677
0RJ2001D677
0RJ0000D677
0RJ1002D677
0RJ0752D677
0RJ0000D677
0RJ1000D677
0RJ1000D677
0RJ0752D677
0RJ4701D677
0RJ4701D677
0RJ1002D677
0RJ0000D677
0RJ0000D677
0RJ0000D677
0RJ0000D677
0RJ1001D677
0RJ0000D677
0RJ1001D677
0RJ0000D677
0RJ0000D677
0RJ0000D677
0RJ1000D677
0RJ1000D677
0RJ2002D677
0RJ2002D677
0RJ1000D677
0RJ1000D677
0RJ3001D677
0RJ3001D677
0RJ2202D677
0RJ2202D677
0RJ0000D677
0RJ1000D677
0RJ4700D677
0RJ0000D677
0RJ0000D677
0RJ1000D677
0RJ1000D677
0RJ1000D677
0RJ1001D677
0RJ1001D677
0RJ0000D677
0RJ0000D677
0RJ0000D677
0RJ0000D677
0RJ4701D677
0RJ0000D677
0RJ0000D677
0RJ0000D677
0RJ4700D677

MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ202 2KOHM 5% 1/10W 1
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ750 75OHM 5% 1/10W 1
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ750 75OHM 5% 1/10W 1
MCR03EZPJ472 4.7KOHM 5% 1/10W
MCR03EZPJ472 4.7KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ203. 20KOHM 5% 1/10W
MCR03EZPJ203. 20KOHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ302 3KOHM 5% 1/10W 1
MCR03EZPJ302 3KOHM 5% 1/10W 1
MCR03EZPJ223 22KOHM 5% 1/10W
MCR03EZPJ223 22KOHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ471 470OHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ472 4.7KOHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ471 470OHM 5% 1/10W

LOCA. NO PART NO DESCRIPTION

R401
R402
R404
R405
R406
R407
R417
R418
R421
R422
R423
R424
R425
R426
R427
R428
R433
R434
R435
R436
R437
R438
R441
R442
R451
R501
R502
R502
R503
R503
R504
R505
R506
R507
R507
R508
R509
R510
R510
R511
R512
R513
R514
R515
R516
R517
R519
R520
R521
R534
R535
R536

0RJ0000D677

0RJ1002D677

0RJ1001D677

0RJ1001D677

0RJ1000D677

0RJ1000D677

0RJ4702D677

0RJ4702D677

0RJ1000D677

0RJ1000D677

0RJ1002D677

0RJ1002D677

0RJ4990D477

0RJ0222D677

0RJ0222D677

0RJ0222D677

0RJ1000D677

0RJ1000D677

0RJ0222D677

0RJ0222D677

0RJ0222D677

0RJ0222D677

0RJ1002D677

0RJ1002D677

0RJ1501D677

0RB0680J609

0RD1002F609

0RJ1002D677

0RD1002F609

0RJ0222D677

0RS4703J607
0RD0102A609

0RJ1001D677

0RJ0000D677

0RX0472K665

0RJ2200D677

0RJ2200D677

0RJ4701D677

0RF0102K607

0RJ4700D677

0RJ0822D677

0RJ0000D677

0RJ0000D677

0RJ1000D677

0RJ1001D677

0RJ3901D677

0RJ2200D677

0RJ2000D677

0RJ1001D677

0RJ1001D677

0RJ4702D677

0RJ1001D677

MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ473 47KOHM 5% 1/10W
MCR03EZPJ473 47KOHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPF4990 499OHM 1% 1/10W
MCR03EZPJ220 22OHM 5% 1/10W 1
MCR03EZPJ220 22OHM 5% 1/10W 1
MCR03EZPJ220 22OHM 5% 1/10W 1
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ220 22OHM 5% 1/10W 1
MCR03EZPJ220 22OHM 5% 1/10W 1
MCR03EZPJ220 22OHM 5% 1/10W 1
MCR03EZPJ220 22OHM 5% 1/10W 1
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ152 1.5KOHM 5% 1/10W
PRW01T1R680J 0.68OHM 5% 1W 9.
RD-96T1J10K0 10KOHM 5% 1/6W 3
MCR03EZPJ103 10KOHM 5% 1/10W
RD-96T1J10K0 10KOHM 5% 1/6W 3
MCR03EZPJ220 22OHM 5% 1/10W 1
RS-01T3J470K 470KOHM 5% 1W 12
RDM92T1J10R0 10OHM 5% 1/2W 6.
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ000 0OHM 5% 1/10W 16
RSD02F4J47R0 47OHM 5% 2W 12.0
MCR03EZPJ221 220OHM 5% 1/10W
MCR03EZPJ221 220OHM 5% 1/10W
MCR03EZPJ472 4.7KOHM 5% 1/10W
FNS02T3J10R0 10OHM 5% 2W 12.0
MCR03EZPJ471 470OHM 5% 1/10W
MCR03EZPJ820 82OHM 5% 1/10W 1
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ392 3.9KOHM 5% 1/10W
MCR03EZPJ221 220OHM 5% 1/10W
MCR03EZPJ201 200OHM 5% 1/10W
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ473 47KOHM 5% 1/10W
MCR03EZPJ102 1KOHM 5% 1/10W 1

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

- 38 -

LOCA. NO PART NO DESCRIPTION

R540
R601
R602
R603
R604
R605
R606
R607
R608
R609
R610
R611
R612
R613
R614
R615
R615
R616
R616
R617
R620
R621
R626
R627
R628
R628
R629
R629
R630
R630
R631
R631
R632
R632
R633
R633
R634
R634
R635
R636
R637
R638
R640
R645
R646
R647
R648
R649
R650
R651
R652
R653

0RJ7501D677
0RD0821A609
0RD0821A609
0RJ1000D677
0RD0102A609

0RD0102A609
0RM0150N660
0RM0150N660

0RJ8201E472
0RH1504D622
0RH1504D622
0RH1504D622
0RH2704D622

0RJ1203E472
0RH2200D622

0RJ0000D677

0RH3002D622

0RJ0000D677

0RH1002D422

0RJ0000D677
0RJ1000D677
0RJ0000D677

0RH1504D622

0RJ0000D677

0RD0152Q609

0RJ0000D677

0RD2202Q609

0RJ1500D677

0RD0152Q609

0RJ4700D677

0RD2202Q609

0RJ1500D677

0RC2503Q609

0RJ1802D677

0RC2503Q609

0RJ1000D677

0RC2503Q609

0RJ1000D677
0RJ1000D677
0RJ1000D677
0RJ1000D677
0RJ1001D677
0RJ1000D677
0RJ1000D677
0RJ0000D677
0RJ1002D677
0RJ1002D677
0RJ1002D677
0RJ1002D677
0RJ1002D677
0RJ1002D677
0RJ1000D677

MCR03EZPJ752 7.5KOHM 5% 1/10W
RDM92T1J8R20 8.2OHM 5% 1/2W 6
RDM92T1J8R20 8.2OHM 5% 1/2W 6
MCR03EZPJ101 100OHM 5% 1/10W
RDM92T1J10R0 10OHM 5% 1/2W 6.
RDM92T1J10R0 10OHM 5% 1/2W 6.
0RM0150N660 0.15OHM 5% 5W 15X
0RM0150N660 0.15OHM 5% 5W 15X
MCR10EZHF 8202 8.2KOHM 1% 1/8
MCR10EZHJ155 1.5MOHM 5% 1/8W
MCR10EZHJ155 1.5MOHM 5% 1/8W
MCR10EZHJ155 1.5MOHM 5% 1/8W
MCR10EZHJ275 2.7MOHM 5% 1/8W
MCR10EZHF 1203 120KOHM 1% 1/8
MCR10EZHJ221 220OHM 5% 1/8W 2
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ303 30KOHM 5% 1/8W 2
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHF103 10KOHM 1% 1/8W 2
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ155 1.5MOHM 5% 1/8W
MCR03EZPJ000 0OHM 5% 1/10W 16
RDM94T1J15R0 15OHM 5% 1/4W 3.
MCR03EZPJ000 0OHM 5% 1/10W 16
RDM94T1J22K0 22KOHM 5% 1/4W 3
MCR03EZPJ151 150OHM 5% 1/10W
RDM94T1J15R0 15OHM 5% 1/4W 3.
MCR03EZPJ471 470OHM 5% 1/10W
RDM94T1J22K0 22KOHM 5% 1/4W 3
MCR03EZPJ151 150OHM 5% 1/10W
0RC2503Q609 250KOHM 5% 1/4W 3
MCR03EZPJ183 18KOHM 5% 1/10W
0RC2503Q609 250KOHM 5% 1/4W 3
MCR03EZPJ101 100OHM 5% 1/10W
0RC2503Q609 250KOHM 5% 1/4W 3
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W

LOCA. NO PART NO DESCRIPTION

R654
R656
R657
R657
R658
R658
R660
R662
R663
R666
R667
R668
R670
R671
R672
R673
R675
R676
R677
R678
R679
R680
R681
R683
R684
R685
R686
R687
R689
R690
R691
R692
R693
R694
R695
R697
R698
R699
R700
R701
R701
R702
R702
R703
R703
R704
R704
R705
R705
R706
R707
R708

0RJ1000D677
0RJ1000D677
0RJ0000D677
0RJ0000D677
0RJ0000D677
0RJ0000D677
0RJ8201D677
0RJ1002D677
0RJ1002D677
0RJ4701D677
0RJ1000D677
0RJ1000D677
0RJ1000D677
0RJ4701D677
0RJ1000D677
0RJ6201D677
0RJ1000D677
0RJ1000D677
0RJ1000D677
0RJ1000D677
0RJ1000D677
0RJ1000D677
0RJ2001D677
0RJ1000D677
0RJ1000D677
0RJ1000D677
0RJ1000D677
0RJ1000D677
0RJ2200D677
0RJ1000D677
0RJ2200D677
0RJ1000D677
0RJ2200D677
0RJ1000D677
0RJ0222D677
0RJ2001D677
0RJ0000D677
0RJ1000D677
0RJ1000D677

0RJ0000D677
0RH4701D422
0RH2701D422

0RJ1000D677
0RH1002D422

0RJ1000D677

0RJ6202D677

0RN3901F409

0RJ2402D677
0RH1802D422
0RH2701D422
0RH5601D422

0RJ1501D677

MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ822 8.2KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ472 4.7KOHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ472 4.7KOHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ622 6.2KOHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ202 2KOHM 5% 1/10W 1
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ221 220OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ221 220OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ221 220OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ220 22OHM 5% 1/10W 1
MCR03EZPJ202 2KOHM 5% 1/10W 1
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHF472 4.7KOHM 1% 1/8W
MCR10EZHF272 2.7KOHM 1% 1/8W
MCR03EZPJ101 100OHM 5% 1/10W
MCR10EZHF103 10KOHM 1% 1/8W 2
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ623 62KOHM 5% 1/10W
RN-96T1F3K90 3.9KOHM 1% 1/6W
MCR03EZPJ243 24KOHM 5% 1/10W
MCR10EZHF183 18KOHM 1% 1/8W 2
MCR10EZHF272 2.7KOHM 1% 1/8W
MCR10EZHF562 5.6KOHM 1% 1/8W
MCR03EZPJ152 1.5KOHM 5% 1/10W

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

- 39 -

LOCA. NO PART NO DESCRIPTION

R708
R709
R710
R711
R711
R712
R712
R713
R713
R714
R714
R715
R715
R716
R716
R717
R717
R718
R719
R719
R720
R721
R721
R722
R722
R723
R724
R724
R725
R725
R726
R726
R727
R728
R728
R729
R729
R730
R730
R731
R732
R732
R733
R733
R734
R734
R735
R735
R736
R736
R737
R737

0RH1002D422

0RJ4700D677
0RH2701D422
0RH2701D422

0RJ0222D677
0RH2701D422

0RJ0222D677
0RH2701D422

0RJ0222D677
0RH2701D422

0RJ2200D677
0RH2701D422

0RJ2200D677

0RJ0000D677
0RH2701D422

0RJ0000D677
0RH2701D422

0RJ4701D677

0RJ0000D677
0RH1002D622

0RJ0000D677
0RH1002D622

0RJ4701D677

0RJ0000D677
0RH1002D422

0RJ0000D677

0RJ0000D677
0RH1001D622

0RJ0000D677
0RH4701D622

0RJ0000D677
0RH1001D622

0RJ0000D677
0RH4702D622

0RJ1000D677
0RH4702D622

0RJ1000D677
0RH4702D622

0RJ1000D677
0RH2201D622
0RH2201D622

0RJ1000D677
0RH2201D622

0RJ1000D677
0RH1002D622

0RJ1000D677

0RJ0000D677
0RH1001D622

0RJ1000D677
0RH1002D622

0RD1001F609

0RJ1000D677

MCR10EZHF103 10KOHM 1% 1/8W 2
MCR03EZPJ471 470OHM 5% 1/10W
MCR10EZHF272 2.7KOHM 1% 1/8W
MCR10EZHF272 2.7KOHM 1% 1/8W
MCR03EZPJ220 22OHM 5% 1/10W 1
MCR10EZHF272 2.7KOHM 1% 1/8W
MCR03EZPJ220 22OHM 5% 1/10W 1
MCR10EZHF272 2.7KOHM 1% 1/8W
MCR03EZPJ220 22OHM 5% 1/10W 1
MCR10EZHF272 2.7KOHM 1% 1/8W
MCR03EZPJ221 220OHM 5% 1/10W
MCR10EZHF272 2.7KOHM 1% 1/8W
MCR03EZPJ221 220OHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHF272 2.7KOHM 1% 1/8W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHF272 2.7KOHM 1% 1/8W
MCR03EZPJ472 4.7KOHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ103 10KOHM 5% 1/8W 2
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ103 10KOHM 5% 1/8W 2
MCR03EZPJ472 4.7KOHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHF103 10KOHM 1% 1/8W 2
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ102 1KOHM 5% 1/8W 20
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ472 4.7KOHM 5% 1/8W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ102 1KOHM 5% 1/8W 20
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ473 47KOHM 5% 1/8W 2
MCR03EZPJ101 100OHM 5% 1/10W
MCR10EZHJ473 47KOHM 5% 1/8W 2
MCR03EZPJ101 100OHM 5% 1/10W
MCR10EZHJ473 47KOHM 5% 1/8W 2
MCR03EZPJ101 100OHM 5% 1/10W
MCR10EZHJ222 2.2KOHM 5% 1/8W
MCR10EZHJ222 2.2KOHM 5% 1/8W
MCR03EZPJ101 100OHM 5% 1/10W
MCR10EZHJ222 2.2KOHM 5% 1/8W
MCR03EZPJ101 100OHM 5% 1/10W
MCR10EZHJ103 10KOHM 5% 1/8W 2
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ102 1KOHM 5% 1/8W 20
MCR03EZPJ101 100OHM 5% 1/10W
MCR10EZHJ103 10KOHM 5% 1/8W 2
RD-96T1J1K00 1KOHM 5% 1/6W 3.
MCR03EZPJ101 100OHM 5% 1/10W

LOCA. NO PART NO DESCRIPTION

R738
R738
R740
R741
R742
R742
R744
R745
R746
R747
R747
R748
R748
R749
R749
R750
R750
R751
R751
R751
R751
R752
R753
R754
R756
R757
R758
R759
R759
R760
R760
R761
R762
R762
R763
R763
R764
R765
R766
R767
R768
R769
R771
R772
R781
R782
R783
R784
R785
R800
R801
R801

0RJ0000D677
0RH1001D622
0RH1002D622

0RD1002F609

0RJ6201D677
0RH1001D622

0RJ1001D677
0RH4701D622
0RH4701D622

0RJ1000D677
0RH4701D622

0RJ1000D677
0RH4701D622

0RD6800F609

0RJ1000D677

0RJ0000D677
0RH1000D622
0RH0000D622
0RH1000D622
0RH1002D622

0RJ1000D677

0RJ1000D677

0RJ1000D677
0RH1001D422

0RJ1000D677

0RJ1000D677

0RJ1001D677
0RH0471D622

0RJ1001D677
0RH4701D622

0RJ1001D677

0RJ1001D677

0RJ1001D677
0RH1002D622

0RJ1001D677
0RH1002D622

0RJ1001D677

0RJ1001D677

0RJ1001D677

0RJ1001D677

0RJ1001D677

0RJ1001D677

0RJ2200D677

0RJ2200D677

0RJ3001D677

0RJ3001D677

0RJ0000D677

0RJ0000D677

0RJ0000D677

0RJ1000D477
0RD0102A609

0RJ1000D477

MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ102 1KOHM 5% 1/8W 20
MCR10EZHJ103 10KOHM 5% 1/8W 2
RD-96T1J10K0 10KOHM 5% 1/6W 3
MCR03EZPJ622 6.2KOHM 5% 1/10W
MCR10EZHJ102 1KOHM 5% 1/8W 20
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR10EZHJ472 4.7KOHM 5% 1/8W
MCR10EZHJ472 4.7KOHM 5% 1/8W
MCR03EZPJ101 100OHM 5% 1/10W
MCR10EZHJ472 4.7KOHM 5% 1/8W
MCR03EZPJ101 100OHM 5% 1/10W
MCR10EZHJ472 4.7KOHM 5% 1/8W
RD-96T1J680R 680OHM 5% 1/6W 3
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ101 100OHM 5% 1/8W 2
MCR10EZHJ000 0OHM 5% 1/8W 201
MCR10EZHJ101 100OHM 5% 1/8W 2
MCR10EZHJ103 10KOHM 5% 1/8W 2
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR10EZHF102 1KOHM 1% 1/8W 20
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR10EZHJ4R7 4.7OHM 5% 1/8W 2
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR10EZHJ472 4.7KOHM 5% 1/8W
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR10EZHJ103 10KOHM 5% 1/8W 2
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR10EZHJ103 10KOHM 5% 1/8W 2
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ221 220OHM 5% 1/10W
MCR03EZPJ221 220OHM 5% 1/10W
MCR03EZPJ302 3KOHM 5% 1/10W 1
MCR03EZPJ302 3KOHM 5% 1/10W 1
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPF101 100OHM 1% 1/10W
RDM92T1J10R0 10OHM 5% 1/2W 6.
MCR03EZPF101 100OHM 1% 1/10W

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

- 40 -

LOCA. NO PART NO DESCRIPTION

R802
R802
R803
R803
R804
R804
R805
R805
R806
R806
R807
R807
R808
R809
R809
R810
R810
R811
R812
R813
R814
R816
R822
R823
R828
R829
R833
R834
R838
R839
R843
R844
R847
R848
R849
R850
R851
R851
R852
R852
R853
R855
R855
R856
R856
R857
R857
R858
R859
R861
R861
R862

0RJ1000D477
0RH2202D622
0RM0200N660

0RJ1000D477

0RJ1000D477
0RH0000D622

0RJ1000D477
0RH1302D622

0RJ1000D477
0RH1602D622
0RZZ9TA003A

0RJ1000D477

0RJ1000D477

0RJ1000D477
0RH1002D622

0RD4301F609

0RJ1000D477

0RJ1000D477

0RJ1000D477

0RJ1000D477
0RH1002D622

0RJ1000D677

0RJ2001D677

0RJ2001D677

0RJ4703D677

0RJ4703D677

0RJ0000D677

0RJ0000D677

0RJ2001D677

0RJ2001D677

0RJ1002D677

0RJ1002D677

0RJ1003D677

0RJ1000D677

0RJ1001D677

0RJ1001D677
0RM0100N660

0RJ4701D677

0RJ4701D677
0RH1002D622

0RD3301F609

0RJ0000D677
0RH1202D622

0RJ0000D677
0RH2202D622
0RZZ9TA003B

0RJ0000D677

0RJ0000D677

0RD0102A609

0RD1002F609

0RJ0000D677

0RJ0000D677

MCR03EZPF101 100OHM 1% 1/10W
MCR10EZHJ223 22KOHM 5% 1/8W 2
MPR05V_JR200 0.2OHM 5% 5W 14X
MCR03EZPF101 100OHM 1% 1/10W
MCR03EZPF101 100OHM 1% 1/10W
MCR10EZHJ000 0OHM 5% 1/8W 201
MCR03EZPF101 100OHM 1% 1/10W
MCR10EZHJ133 13KOHM 5% 1/8W 2
MCR03EZPF101 100OHM 1% 1/10W
MCR10EZHJ163 16KOHM 5% 1/8W 2
0RZZ9TA003A 39KOHM 5% 3W 11X8
MCR03EZPF101 100OHM 1% 1/10W
MCR03EZPF101 100OHM 1% 1/10W
MCR03EZPF101 100OHM 1% 1/10W
MCR10EZHJ103 10KOHM 5% 1/8W 2
RD-96T1J4K30 4.3KOHM 5% 1/6W
MCR03EZPF101 100OHM 1% 1/10W
MCR03EZPF101 100OHM 1% 1/10W
MCR03EZPF101 100OHM 1% 1/10W
MCR03EZPF101 100OHM 1% 1/10W
MCR10EZHJ103 10KOHM 5% 1/8W 2
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ202 2KOHM 5% 1/10W 1
MCR03EZPJ202 2KOHM 5% 1/10W 1
MCR03EZPJ474 470KOHM 5% 1/10W
MCR03EZPJ474 470KOHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ202 2KOHM 5% 1/10W 1
MCR03EZPJ202 2KOHM 5% 1/10W 1
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ104 100KOHM 5% 1/10W
MCR03EZPJ101 100OHM 5% 1/10W
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR03EZPJ102 1KOHM 5% 1/10W 1
MPR05V-JR100 for PDP 0.1OHM 5
MCR03EZPJ472 4.7KOHM 5% 1/10W
MCR03EZPJ472 4.7KOHM 5% 1/10W
MCR10EZHJ103 10KOHM 5% 1/8W 2
RD-96T1J3K30 3.3KOHM 5% 1/6W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ123 12KOHM 5% 1/8W 2
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ223 22KOHM 5% 1/8W 2
0RZZ9TA003B 110KOHM 5% 3W 11X
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
RDM92T1J10R0 10OHM 5% 1/2W 6.
RD-96T1J10K0 10KOHM 5% 1/6W 3
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16

LOCA. NO PART NO DESCRIPTION

R862
R863
R863
R864
R865
R866
R867
R868
R869
R870
R871
R872
R873
R874
R875
R876
R901
R902
R902
R903
R903
R904
R905
R905
R906
R907
R908
R909
R909
R910
R910
R911
R912
R913
R916
R918
R919
R920
R921
R922
R923
R924
R925
R926
R927
R928
R929
R933
R934
R935
R937
R938

0RH2202D622

0RJ0000D677

0RH1002D622

0RJ0000D677
0RJ0000D677
0RJ0000D677
0RJ0000D677
0RJ0000D677
0RJ0000D677
0RJ0000D677
0RJ0000D677
0RJ0000D677
0RJ1002D677
0RJ0000D677
0RJ0000D677
0RJ0000D677

0RH8200D622

0RJ1001D677
0RH2700D622
0RH1802D422

0RJ4701D677
0RH2202D422

0RJ2001E472

0RJ2000D677

0RJ0000D677
0RH9101D622
0RH0102D622

0RJ4701D677
0RH2702D422

0RJ4701D677
0RH2702D422

0RX0101K618

0RJ1002D677

0RJ1002D677

0RJ1002D677

0RJ1002D677

0RJ1002D677

0RJ1002D677

0RJ1002D677

0RJ1102D677

0RJ2002D677

0RJ4701D677

0RJ0000D677

0RJ4701D677

0RJ1002D677

0RJ1002D677

0RJ1002D677
0RH0000D622
0RH0000D622
0RH0000D622

0RJ0000D677

0RJ0000D677

MCR10EZHJ223 22KOHM 5% 1/8W 2
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ103 10KOHM 5% 1/8W 2
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ821 820OHM 5% 1/8W 2
MCR03EZPJ102 1KOHM 5% 1/10W 1
MCR10EZHJ271 270OHM 5% 1/8W 2
MCR10EZHF183 18KOHM 1% 1/8W 2
MCR03EZPJ472 4.7KOHM 5% 1/10W
MCR10EZHF223 22KOHM 1% 1/8W 2
MCR10EZHF202 2KOHM 1% 1/8W 20
MCR03EZPJ201 200OHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ912 9.1KOHM 5% 1/8W
MCR10EZHJ100 10OHM 5% 1/8W 20
MCR03EZPJ472 4.7KOHM 5% 1/10W
MCR10EZHF273 27KOHM 1% 1/8W 2
MCR03EZPJ472 4.7KOHM 5% 1/10W
MCR10EZHF273 27KOHM 1% 1/8W 2
S M L02R0J1R00 1OHM 5% 2W 12.
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ113 11KOHM 5% 1/10W
MCR03EZPJ203. 20KOHM 5% 1/10W
MCR03EZPJ472 4.7KOHM 5% 1/10W
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ472 4.7KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR03EZPJ103 10KOHM 5% 1/10W
MCR10EZHJ000 0OHM 5% 1/8W 201
MCR10EZHJ000 0OHM 5% 1/8W 201
MCR10EZHJ000 0OHM 5% 1/8W 201
MCR03EZPJ000 0OHM 5% 1/10W 16
MCR03EZPJ000 0OHM 5% 1/10W 16

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

- 41 -

LOCA. NO PART NO DESCRIPTION

R941
R951
R952
R953
R954
R955
R956
R957
R958
R959
R960
R961
R962
R963
R964
R966
R967
R969
R970
R971
R972
R973
VR221
VR901
VR951

SW101
SW102
SW103
SW104
SW105
SW106
SW107
SW108

AR400
AR401
AR402
AR403
AR404
AR405
F1
F2
L1000
L1002
L1007
L1008
L1010
L1011
L1012

0RJ0000D677

0RH1001D622

0RD2700F609

0RJ2402E472
0RH3902D422
0RH3902D422
0RH3902D422
0RM0102N760
0RM0102N760
0RM0102N760
0RH1002D622
0RH3902D422
0RH3902D422

0RH3302L422
0RH3302L422

0RH3302L422
0RH2201D422
0RH1003D622
0RH4702D622
0RH0000D622
0RH5601D622
0RH1000D622

180-035J
180-035Q
180-035S

140-313B
140-313B
140-313B
140-313B
140-313B
140-313B
140-313B
140-313B

6210TCE002B

6210TCE002B

6210TCE002B

6210TCE002B

6210TCE002B

6210TCE002B

6210VH0004A

6210VH0004A
EAM30764101
EAM30764101
EAM30764101
EAM30764101
EAM30764101
EAM30764101
EAM30764101

MCR03EZPJ000 0OHM 5% 1/10W 16
MCR10EZHJ102 1KOHM 5% 1/8W 20
RD-96T1J270R 270OHM 5% 1/6W 3
MCR10EZHJ243 24KOHM 1% 1/8W 2
MCR10EZHF393 39KOHM 1% 1/8W 2
MCR10EZHF393 39KOHM 1% 1/8W 2
MCR10EZHF393 39KOHM 1% 1/8W 2
RWS05V_J10R0 10OHM 10% 5W 13X
RWS05V_J10R0 10OHM 10% 5W 13X
RWS05V_J10R0 10OHM 10% 5W 13X
MCR10EZHJ103 10KOHM 5% 1/8W 2
MCR10EZHF393 39KOHM 1% 1/8W 2
MCR10EZHF393 39KOHM 1% 1/8W 2
MCR10EZHF333 33KOHM 1% 1/8W 2
MCR10EZHF333 33KOHM 1% 1/8W 2
MCR10EZHF333 33KOHM 1% 1/8W 2
MCR10EZHF222 2.2KOHM 1% 1/8W
MCR10EZHJ104 100KOHM 5% 1/8W
MCR10EZHJ473 47KOHM 5% 1/8W 2
MCR10EZHJ000 0OHM 5% 1/8W 201
MCR10EZHJ562 5.6KOHM 5% 1/8W
MCR10EZHJ101 100OHM 5% 1/8W 2
EVNDJAA03B23 2KOHM 15% 1/10W
EVNDJAA03B24 20KOHM 15% 1/10W
EVNDJAA03B54 50KOHM 15% 1/10W

Switch,Tact KPT-1115AM 1C1P 12VDC
Switch,Tact KPT-1115AM 1C1P 12VDC
Switch,Tact KPT-1115AM 1C1P 12VDC
Switch,Tact KPT-1115AM 1C1P 12VDC
Switch,Tact KPT-1115AM 1C1P 12VDC
Switch,Tact KPT-1115AM 1C1P 12VDC
Switch,Tact KPT-1115AM 1C1P 12VDC
Switch,Tact KPT-1115AM 1C1P 12VDC

Filter,Bead HB-4M3216-121JT 120OHM
Filter,Bead HB-4M3216-121JT 120OHM
Filter,Bead HB-4M3216-121JT 120OHM
Filter,Bead HB-4M3216-121JT 120OHM
Filter,Bead HB-4M3216-121JT 120OHM
Filter,Bead HB-4M3216-121JT 120OHM
Filter,Ferrite Core 6210VH0004A
Filter,Ferrite Core 6210VH0004A
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.

LOCA. NO PART NO DESCRIPTION

L1015
L1016
L1018
L112
L113
L114
L115
L300
L301
L302
L303
L304
L305
L306
L307
L308
L309
L310
L400
L501
L502
L806
L813
L814
L815
L816
L817
L818
L819
L820
L904
L905
L906
L913
L914
L915
L916
L917
L918
L919
L920
L921
L922
L923
L924
LF101
X600

F101
IC01
PA101

EAM30764101
EAM30764101
EAM30764101

6200J00005F
6200J00005F
6200J00005F

6200J00005F
EAM30764201
EAM30764201
EAM30764101
EAM30764101
6210TCE001E
EAM30764101
6210TCE001P
6210TCE001P
6210TCE001P
6210TCE001P
6210TCE001P
EAM30764101
EAM30764101
EAM30764101
EAM30764101
EAM30764101
EAM30764101
6210TCE001P
6210TCE001P
6210TCE001P
6210TCE001P
EAM30764101
EAM30764101
EAM30764101
EAM30764101
EAM30764101
EAM30764101
EAM30764101
EAM30764101
EAM30764101
EAM30764101
EAM30764101
EAM30764101
EAM30764101
EAM30764101
6210TCE001P
6210TCE001P
EAM30764101

6200J000156
6202VDT002P

0FS8001B53B
SAA30072606

6712000010B

Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead HB-1M1608-102JT 1000OHM
Filter,Bead HB-1M1608-102JT 1000OHM
Filter,Bead HB-1M1608-102JT 1000OHM
Filter,Bead HB-1M1608-102JT 1000OHM
Filter,Bead BG2012B102TF 1000ohm 2.
Filter,Bead BG2012B102TF 1000ohm 2.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead HB-1M2012-800JT(H:1mm)
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead HB-1S2012-121JT(H:1mm)
Filter,Bead HB-1S2012-121JT(H:1mm)
Filter,Bead HB-1S2012-121JT(H:1mm)
Filter,Bead HB-1S2012-121JT(H:1mm)
Filter,Bead HB-1S2012-121JT(H:1mm)
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead HB-1S2012-121JT(H:1mm)
Filter,Bead HB-1S2012-121JT(H:1mm)
Filter,Bead HB-1S2012-121JT(H:1mm)
Filter,Bead HB-1S2012-121JT(H:1mm)
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Bead HB-1S2012-121JT(H:1mm)
Filter,Bead HB-1S2012-121JT(H:1mm)
Filter,Bead MBW3216-501TF 500ohm 3.
Filter,Line Noise LSA10126D 12.6MH
Crystal,HC-49/SM 20.25000MHZ 20

Fuse,Time Delay 215008 CERAMIC 250V
S/W,Firmware V3.14 3427
Receiver Module,KSM913TC1A

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

FILTER & CRYSTAL

SWITCH

MISCELLANEOUS

- 42 -

LOCA. NO PART NO DESCRIPTION

RL101
RL102
TH101
TH102
TU1
VA101
X701

A1
A2
A3
A7

6920000039A
6920000039A
6322A00005B
6322A00005B

6700NF0025C

6102000021A

166-E05D

38289U0577D

6710900010L

6410TUW008A

4972V00178A

Relay,ConTact DG5D1-O(M)
Relay,ConTact DG5D1-O(M)
Thermistor,NTC SCK15068MSY 8OHM 20%
Thermistor,NTC SCK15068MSY 8OHM 20%
Tuner,Analog TAFV-H303P
Varistor,S14K385E2 620V 10%
Resonator,Ceramic CSTLS8M00G53-A0 8MHZ 0.5%

Manual,USER
Remote Controller,WITHOUT EPF
Power Cord,LP-31 LS-13 1.87M - 125V
Supporter,COMPLEX NON METAL ASSY

LOCA. NO PART NO DESCRIPTION

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

ACCESSORIES

Feb., 2007

Printed in KoreaP/NO : 38289S0049F
