Page 1

OWNER’S MANUAL

MONITOR SIGNAGE

Please read this manual carefully before operating the your set and retain it for future reference.

MONITOR SIGNAGE MODELS

42LT55A 47LT55A

www.lg.com

Page 2

TABLE OF CONTENTS

ENGLISH

TABLE OF CONTENTS

ENG

4 LICENSES

5 ASSEMBLING AND

5 Accessories

6 Optional Accessories

7 Parts and Buttons

8 Using the Mounting Cable Tie

8 Connecting the Speakers

9 Using the IR Receiver

9 Portrait Layout

10 Connecting the Media Player

11 Mounting on a Wall

13 REMOTE CONTROL

15 USING THE MONITOR

15 Connecting to a PC

16 - RGB Connection

16 - DVI-D Connection

17 - HDMI Connection

17 - Display Port Connection

18 - IR Receiver Connection

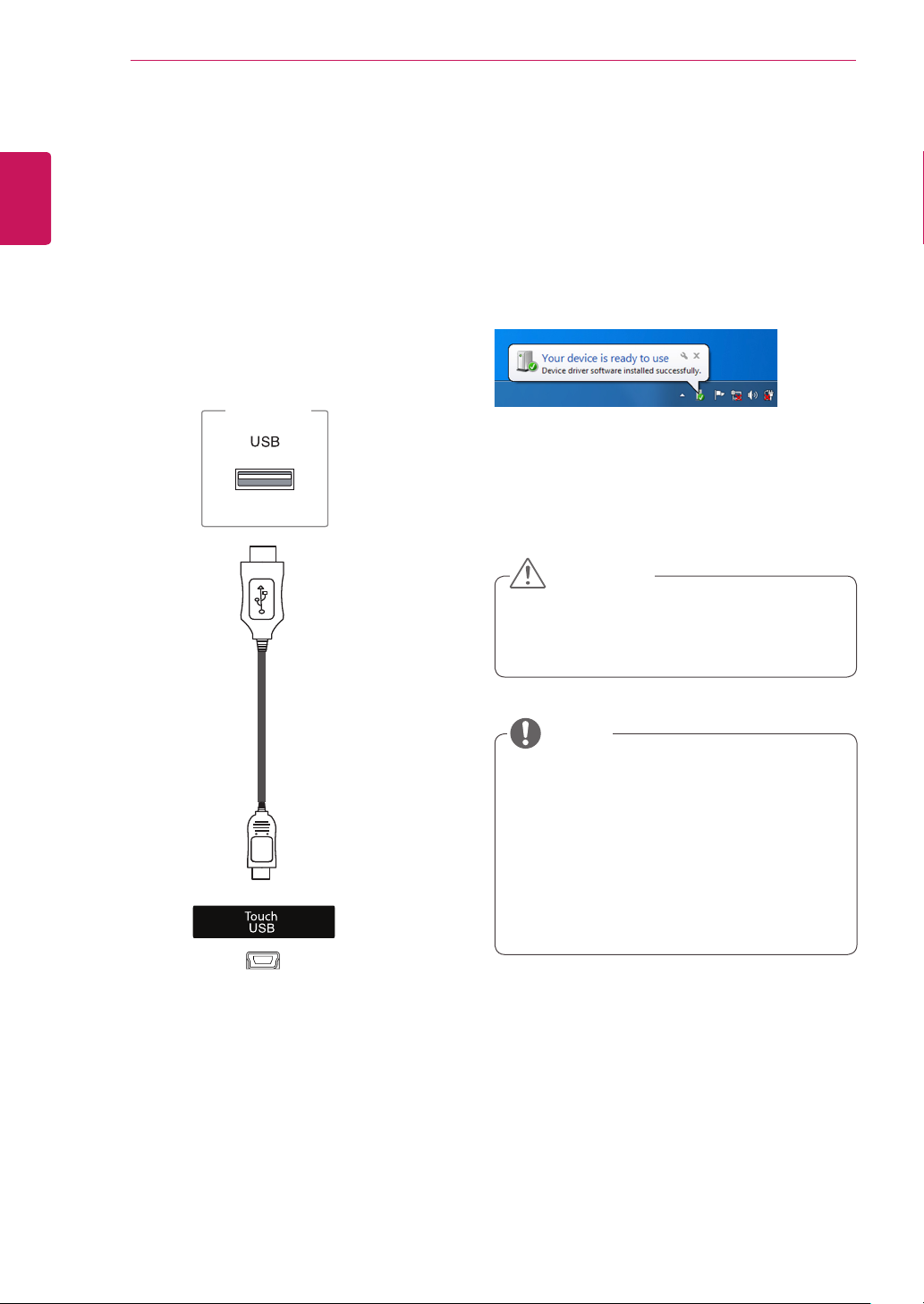

18 - Touch USB Cable Connection

19 Adjusting the Screen

19 - Selecting an Image Mode

19 - Customizing Image Options

20 - Customizing PC Display Options

20 Adjusting the Sound

20 - Selecting an Sound Mode

21 - Customizing Sound Options

21 Using Additional Options

21 - Using the Input List

22 - Adjusting Aspect Ratio

PREPARING

24 ENTERTAINMENT

24 Using the Network

24 - Connecting to a Wired Network

25 - Network Status

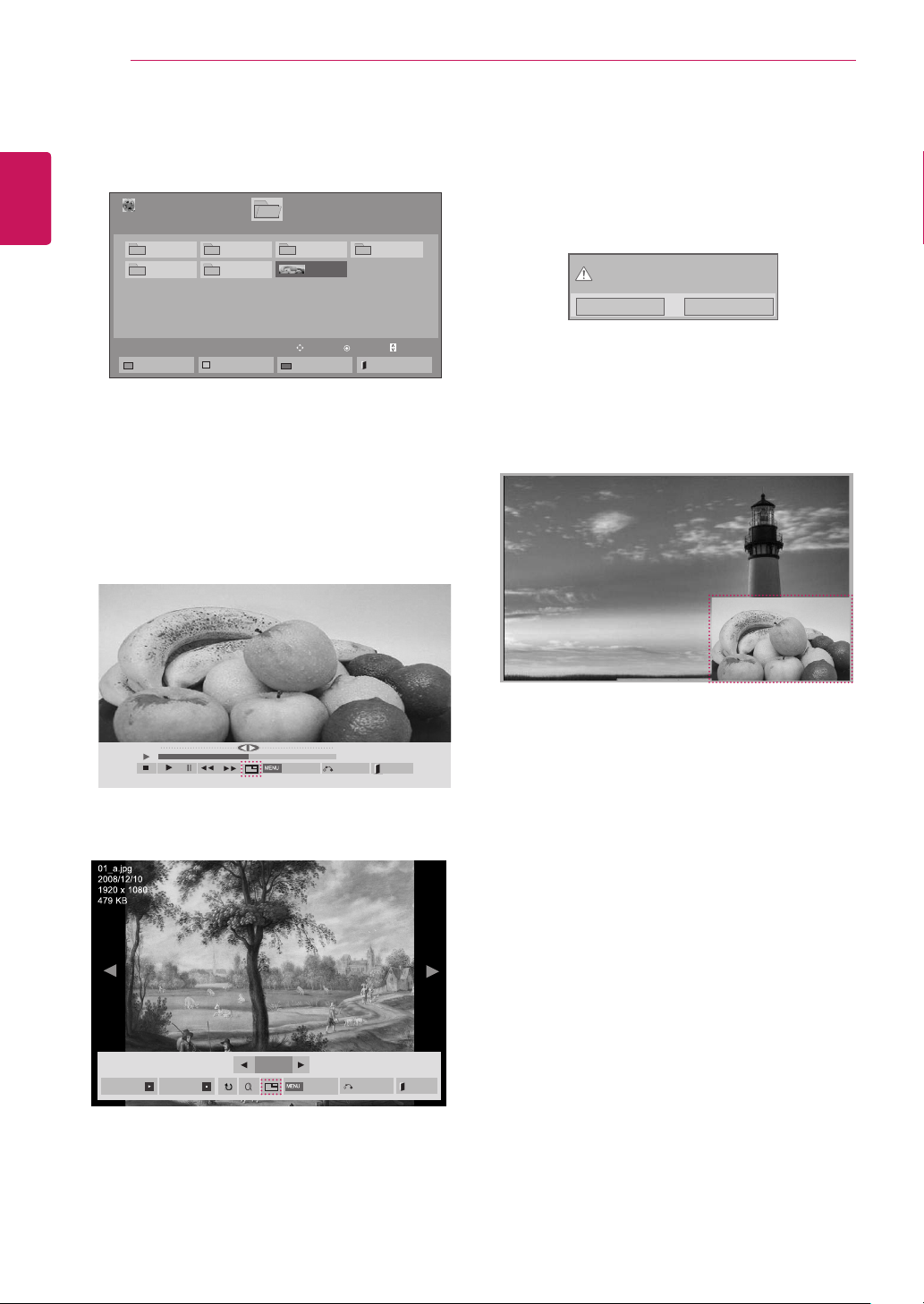

26 Using the My Media

26 - Connecting USB Storage Devices

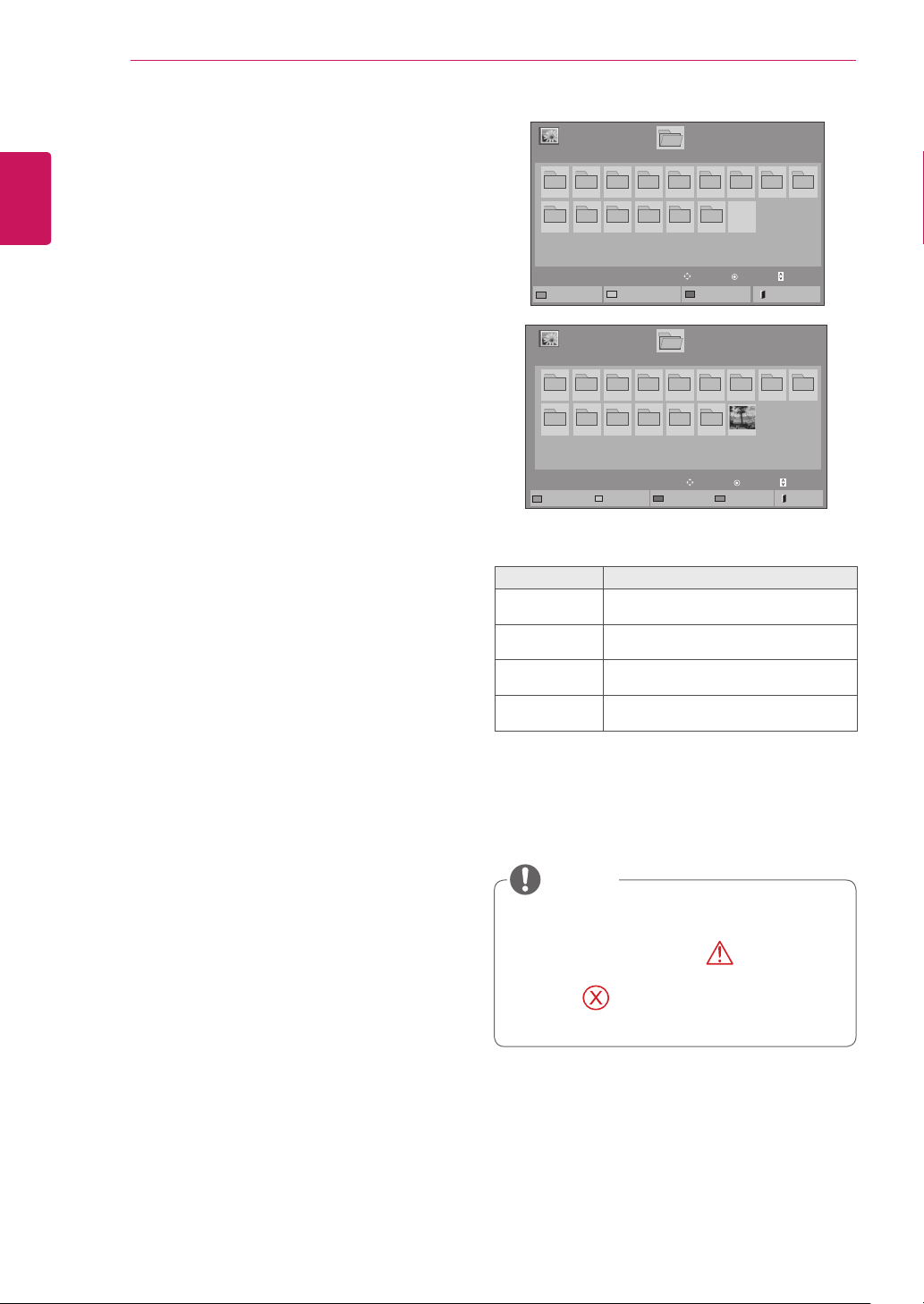

27 - Browsing Files

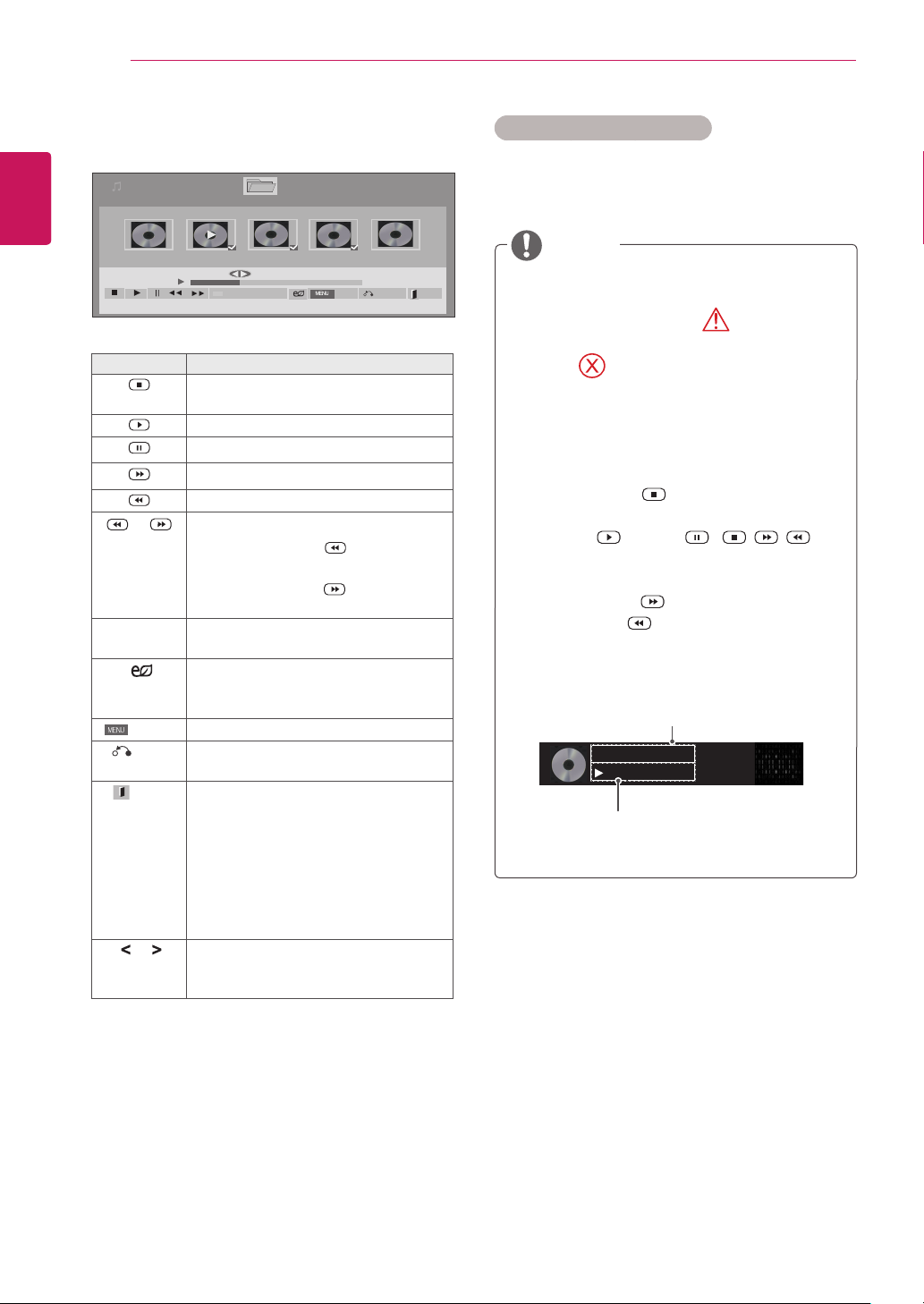

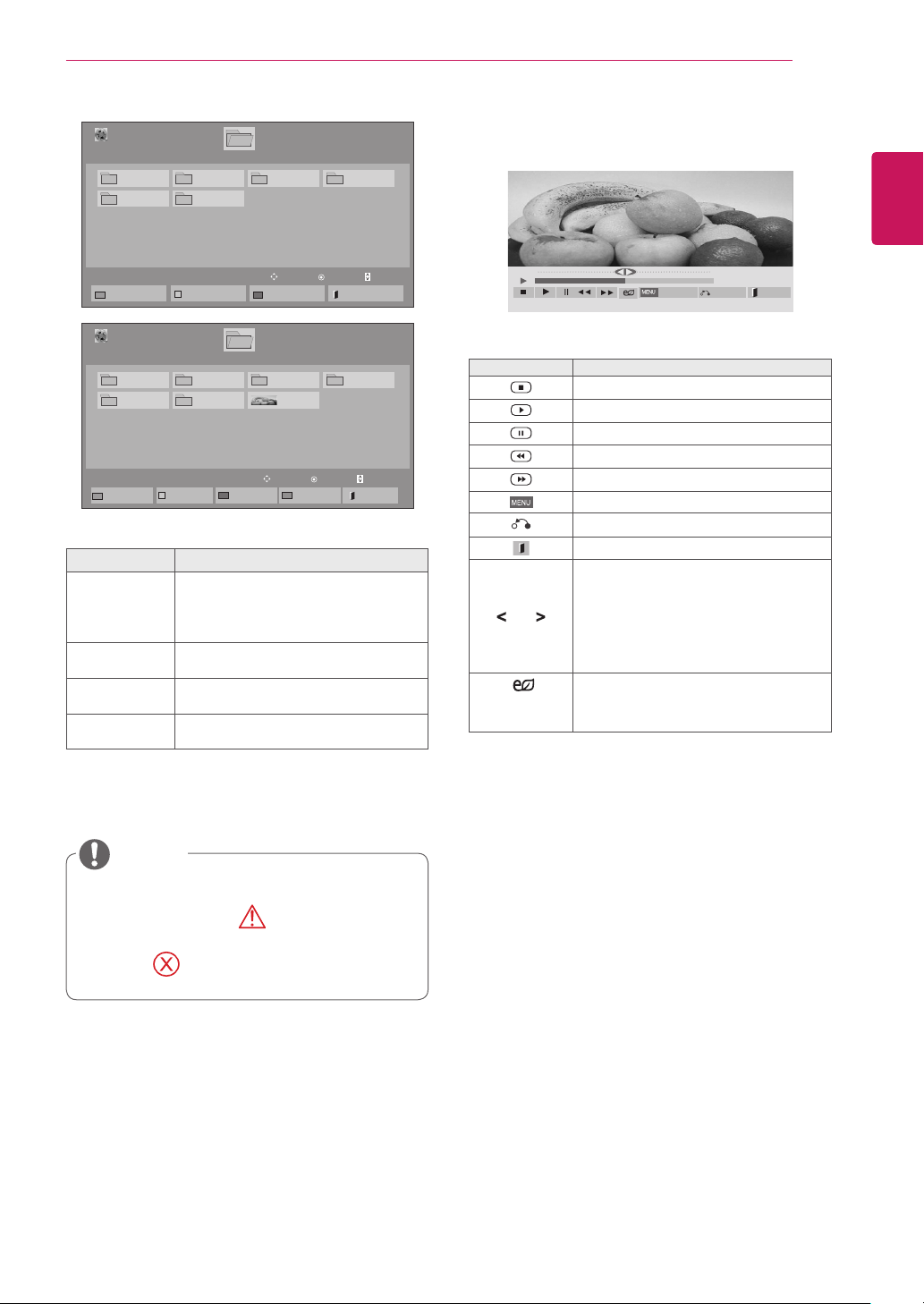

28 - Viewing Movies

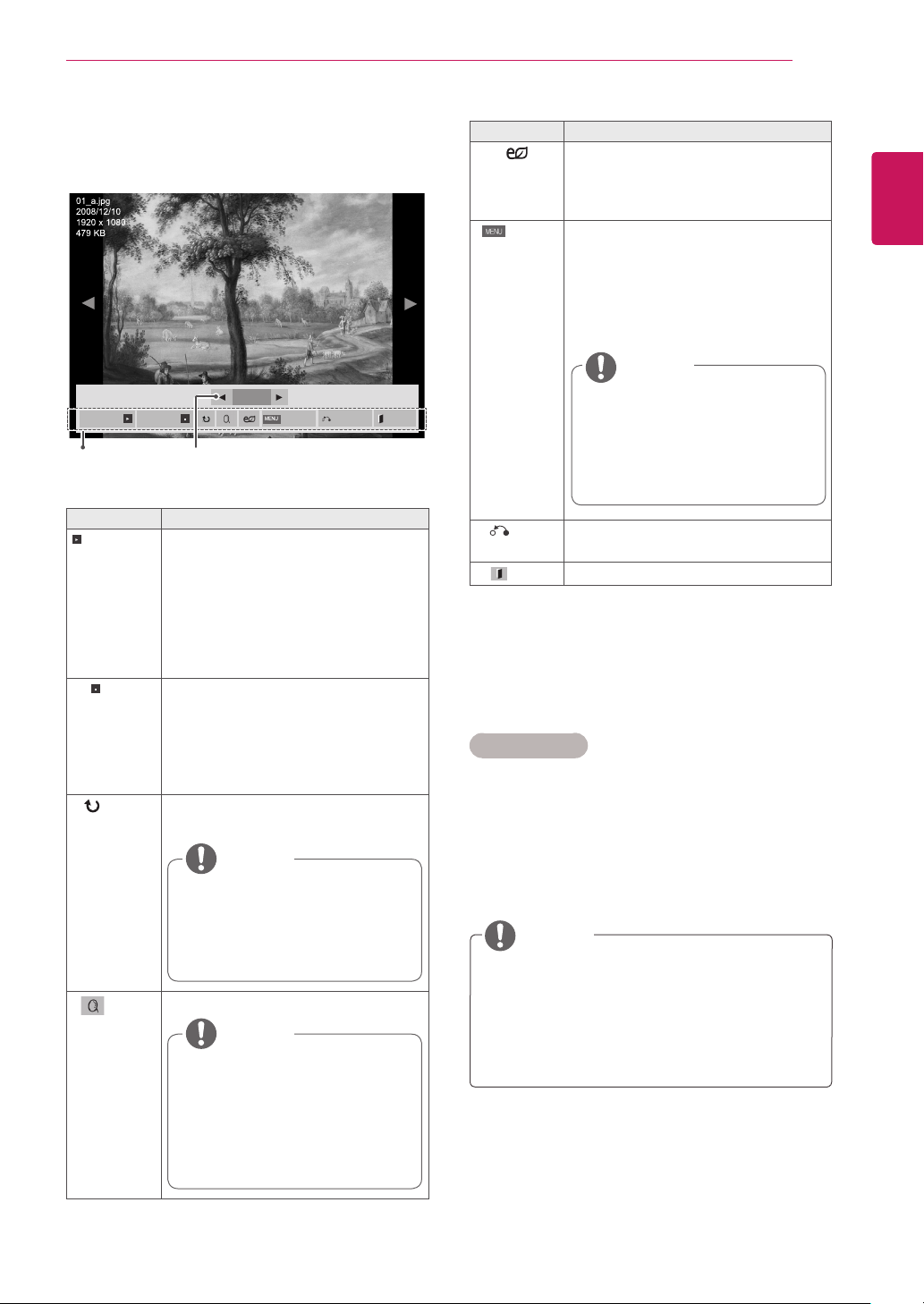

32 - Viewing Photos

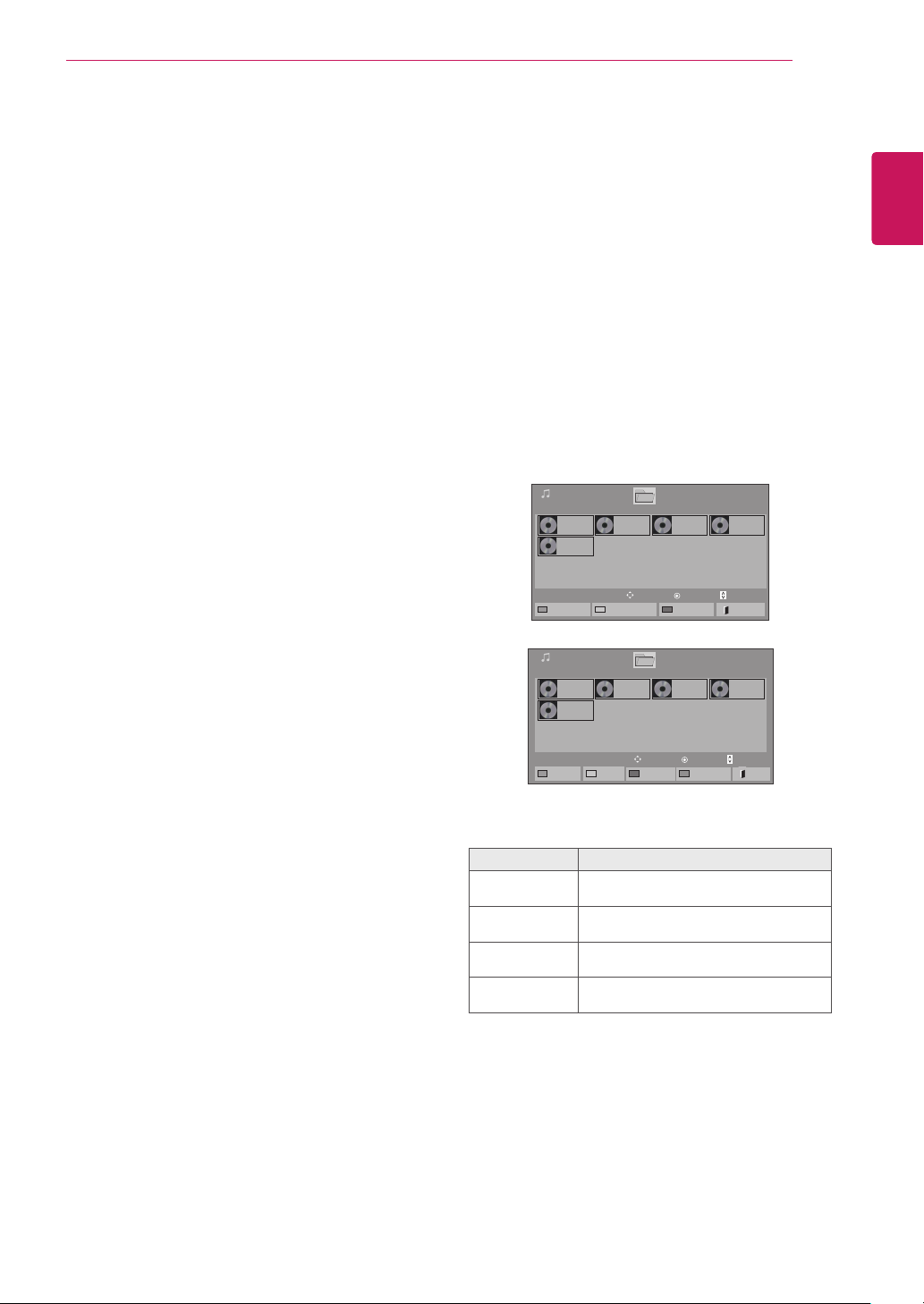

35 - Listening to Music

37 - Viewing the Contents List

38 - DivX® VOD Guide

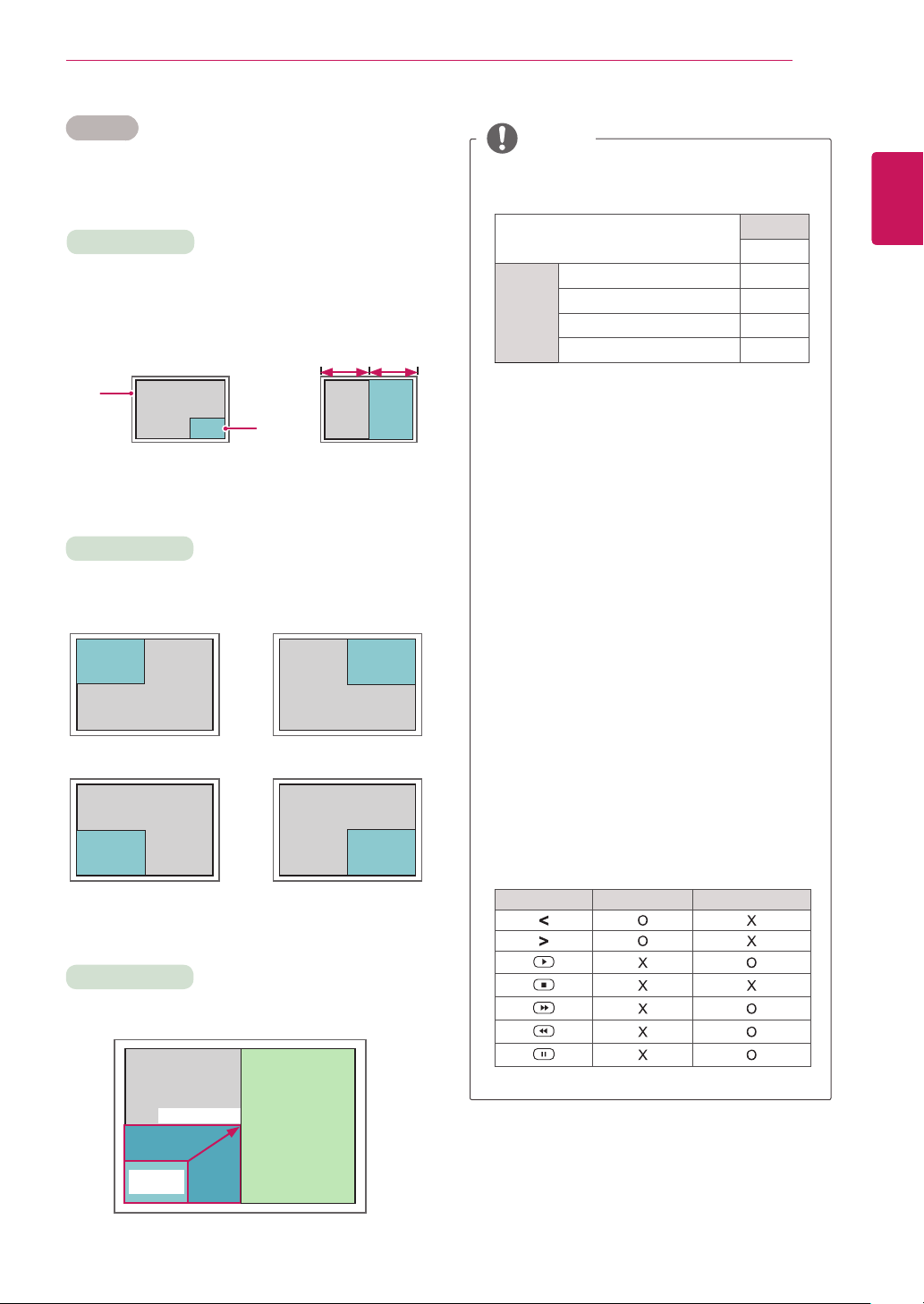

39 - Using PIP/PBP

41 CUSTOMIZING SETTINGS

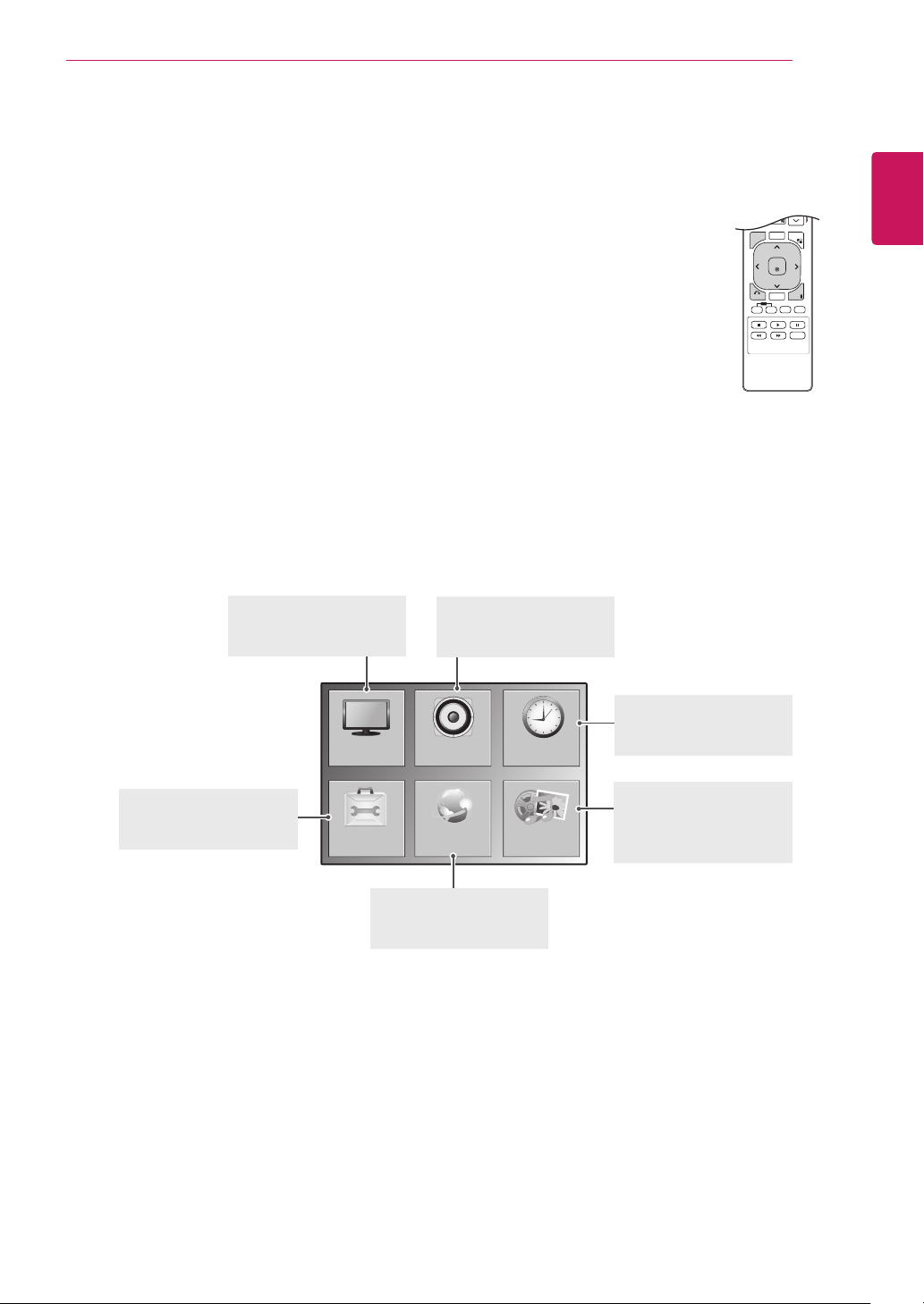

41 Accessing Main Menus

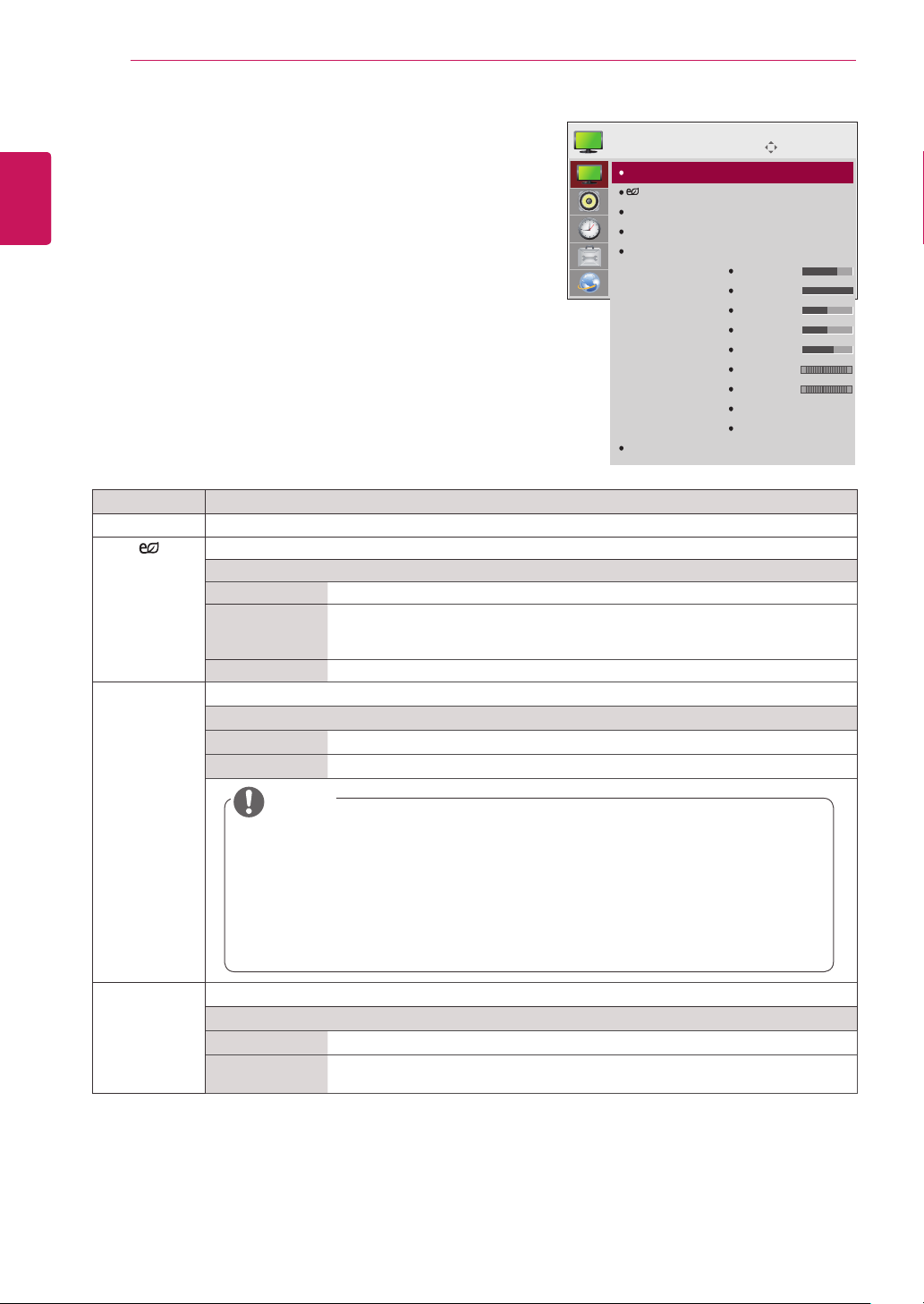

42 - PICTURE Settings

45 - AUDIO Settings

46 - TIME Settings

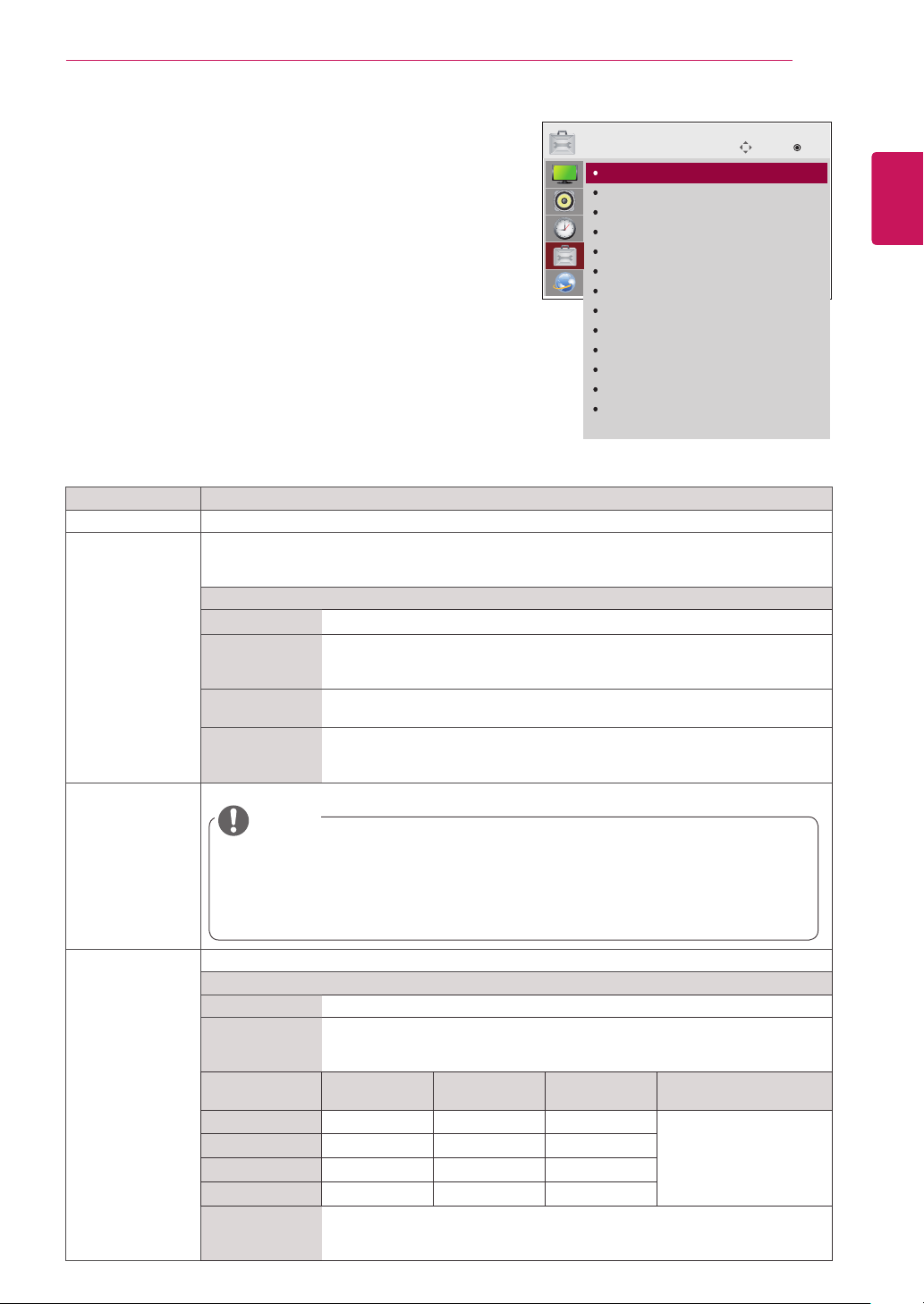

47 - OPTION Settings

52 - Picture ID Settings

53 - NETWORK Settings

54 MAKING CONNECTIONS

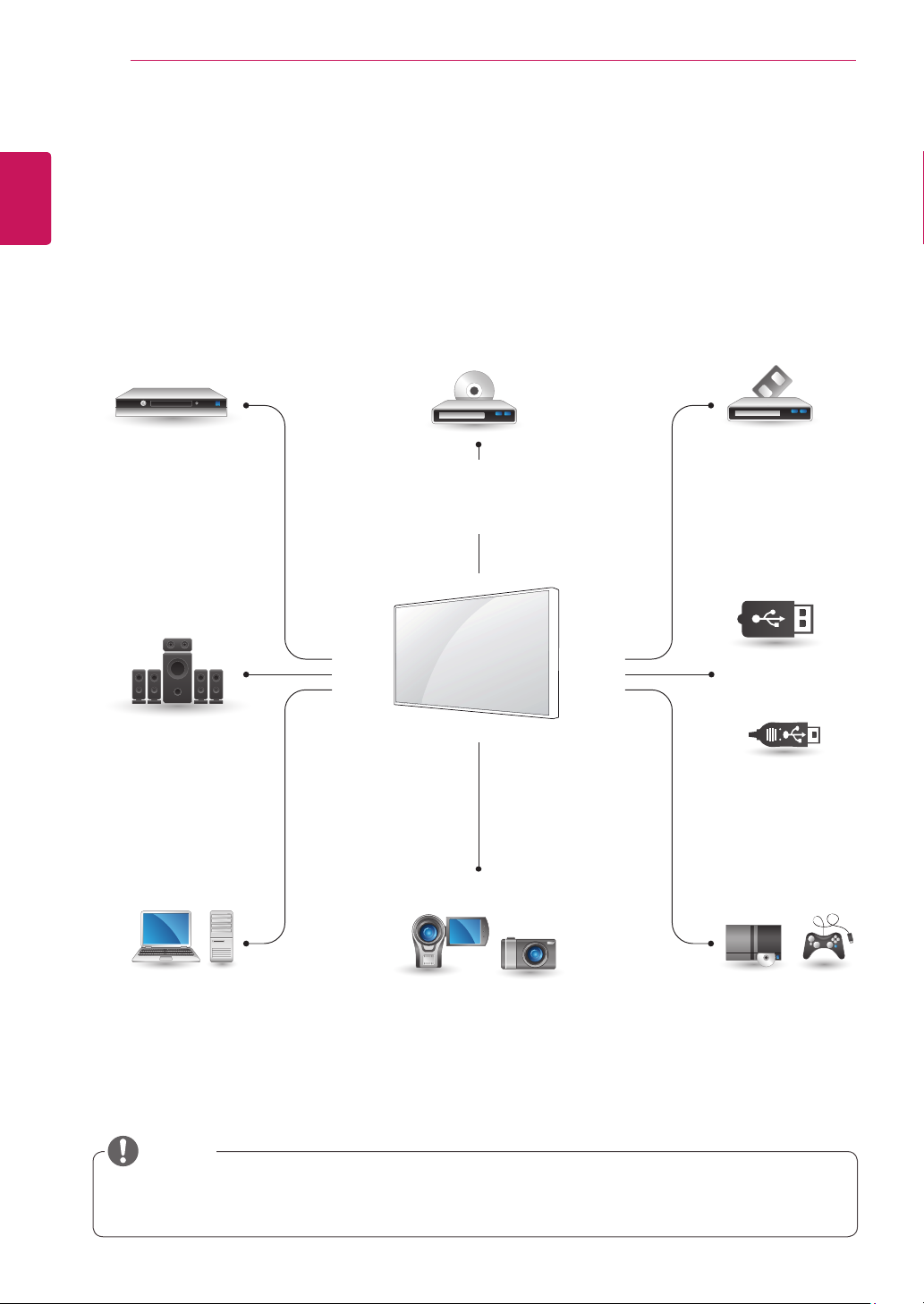

55 External Device Connection

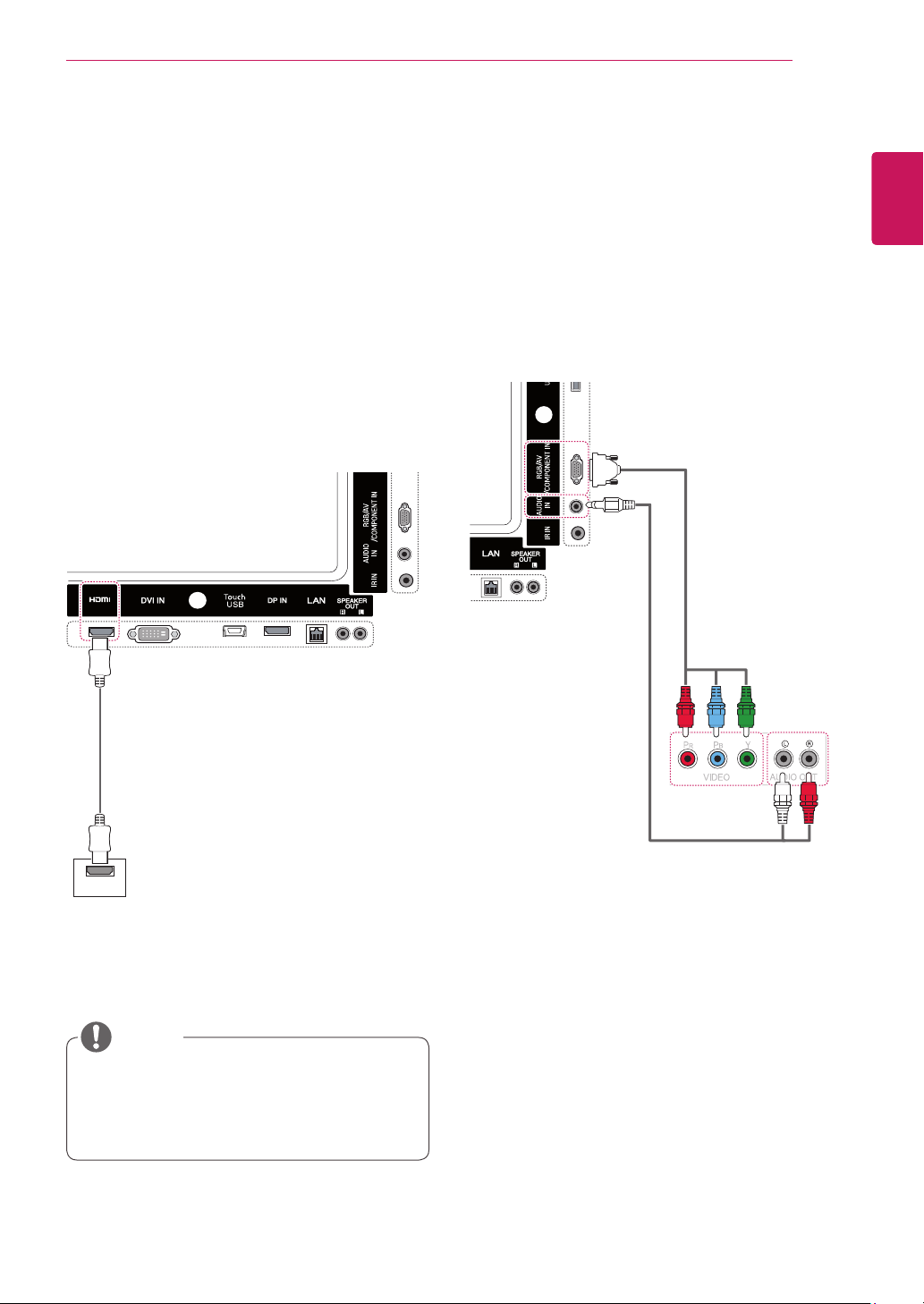

55 - HDMI Connection

55 - Component Connection

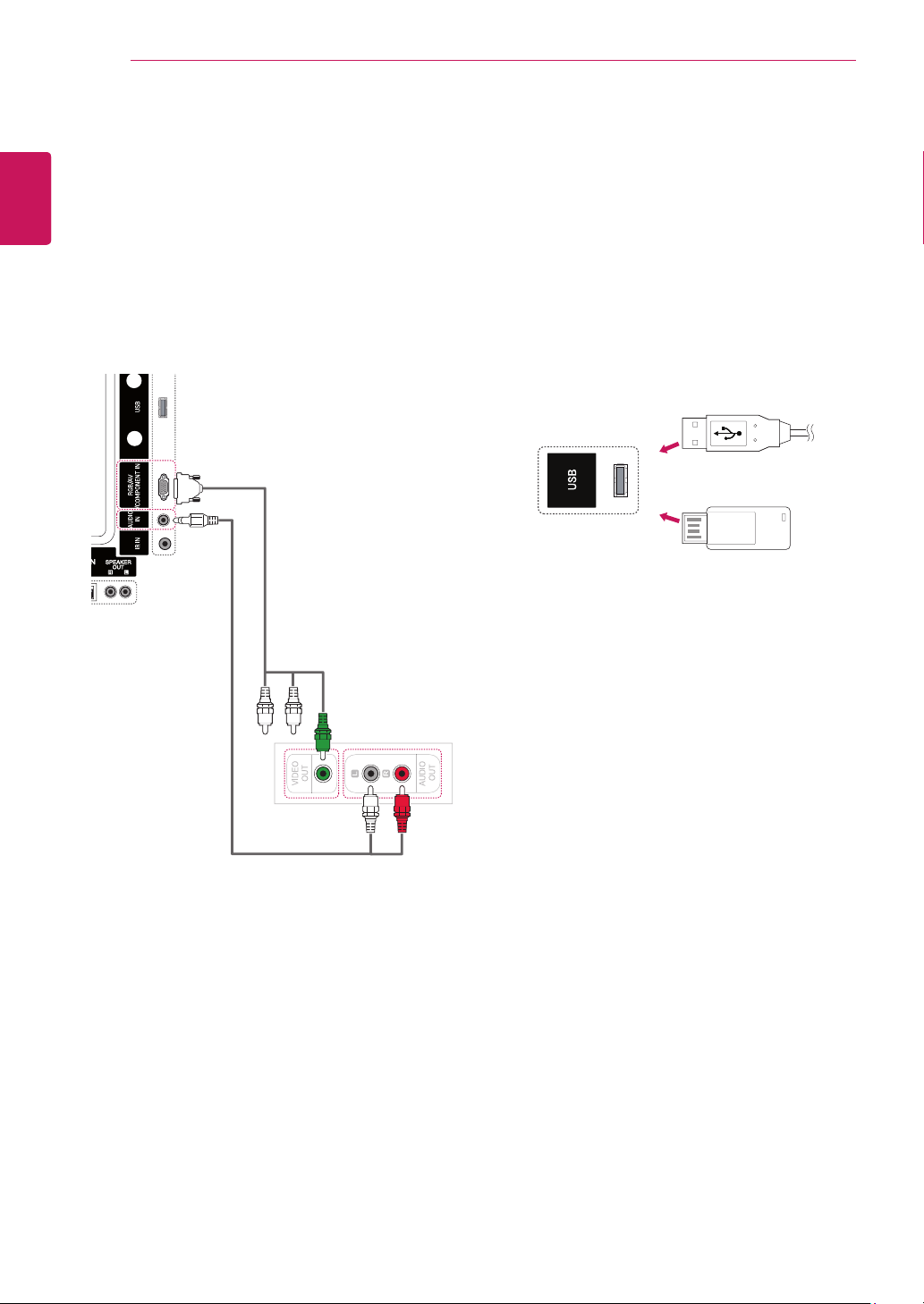

56 - AV Connection

56 Connecting to a USB

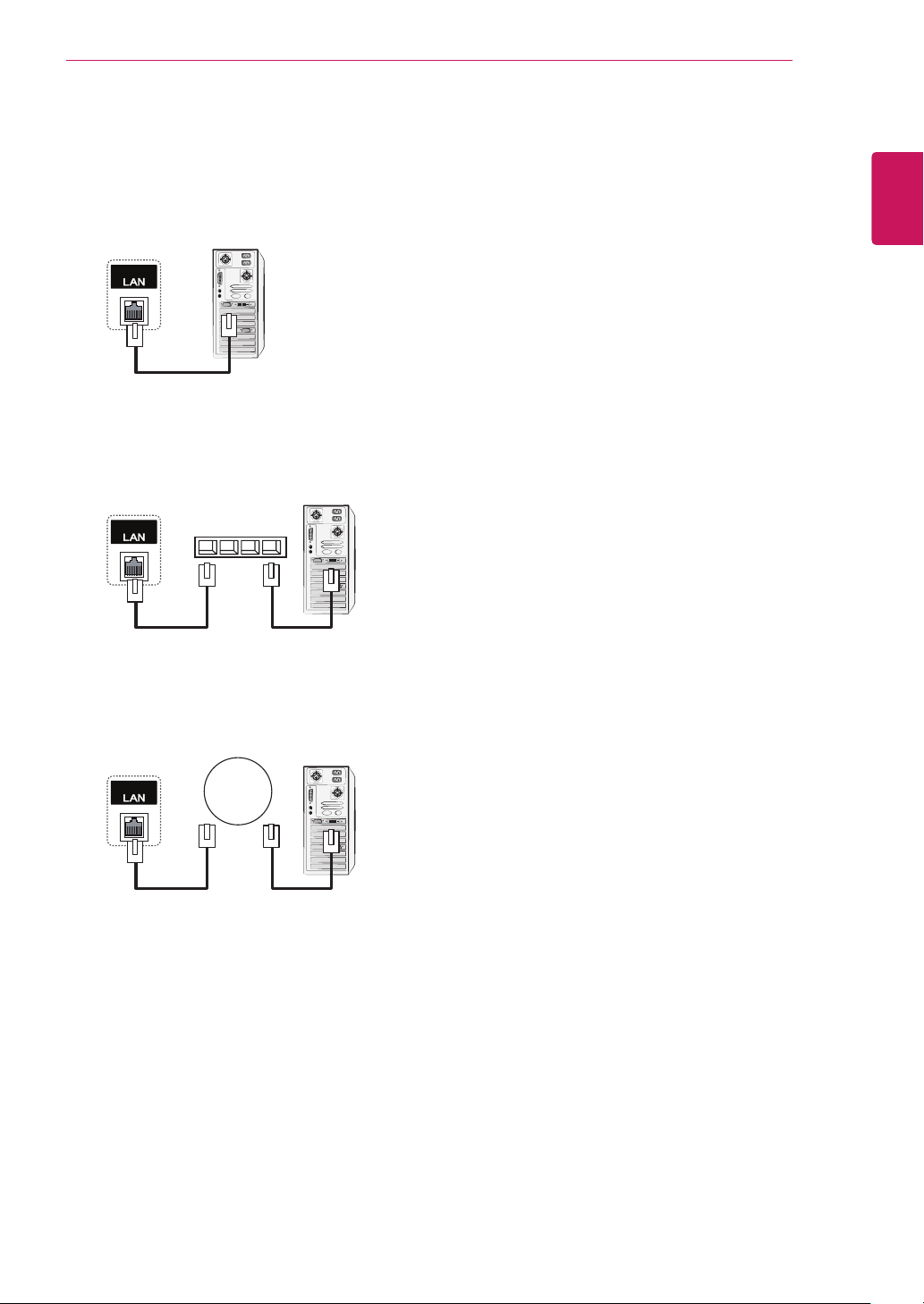

57 LAN Connection

58 USING THE TOUCH SCREEN

58 To Use the Touch Screen on Windows 7

58 Gestures and Settings on Windows 7

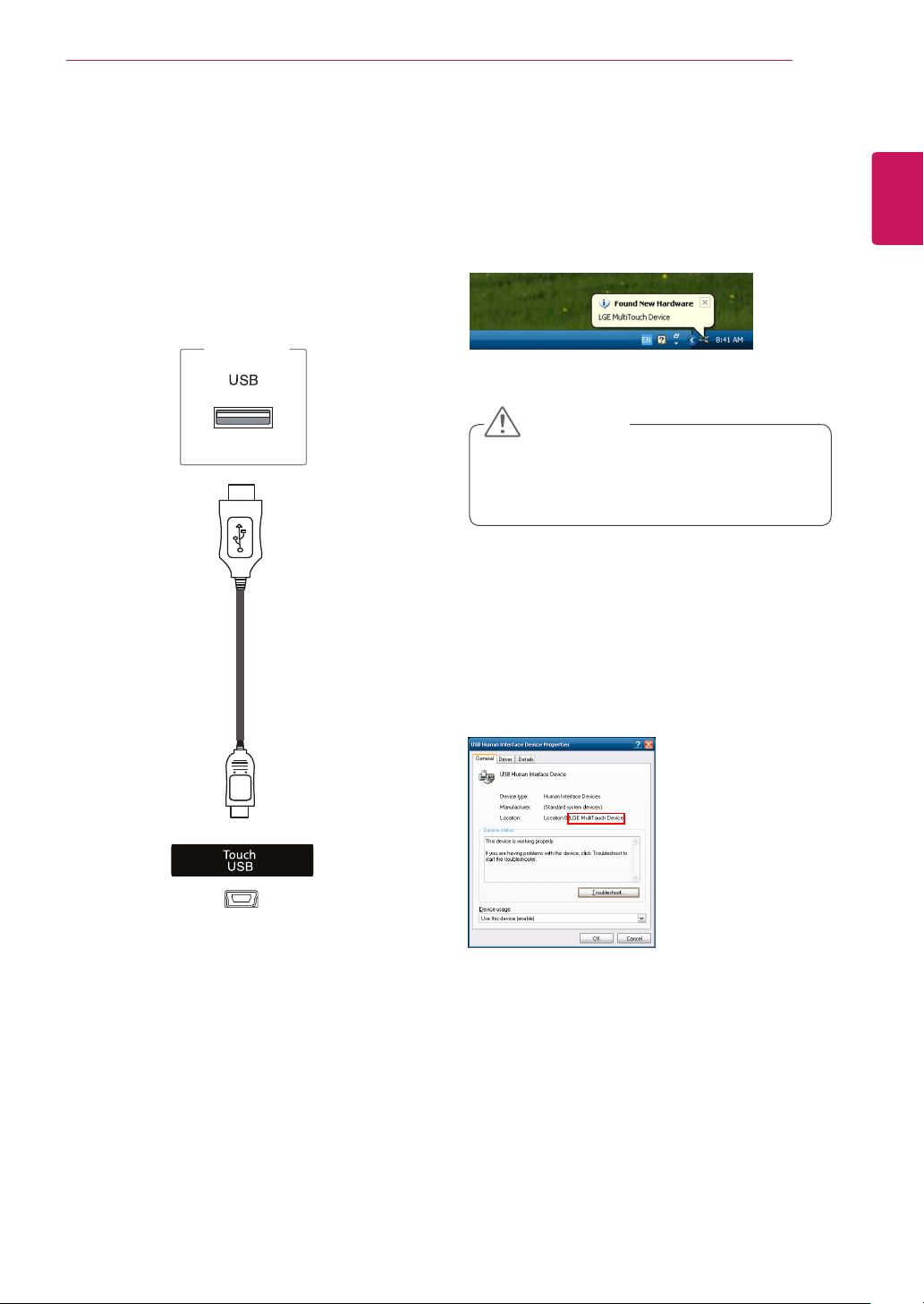

59 To Use the Touch Screen on Windows XP

Page 3

60 Touch Response to Windows XP

61 How to Use LG TDS

62 Precautions When Using the Touch

Screen

63 TROUBLESHOOTING

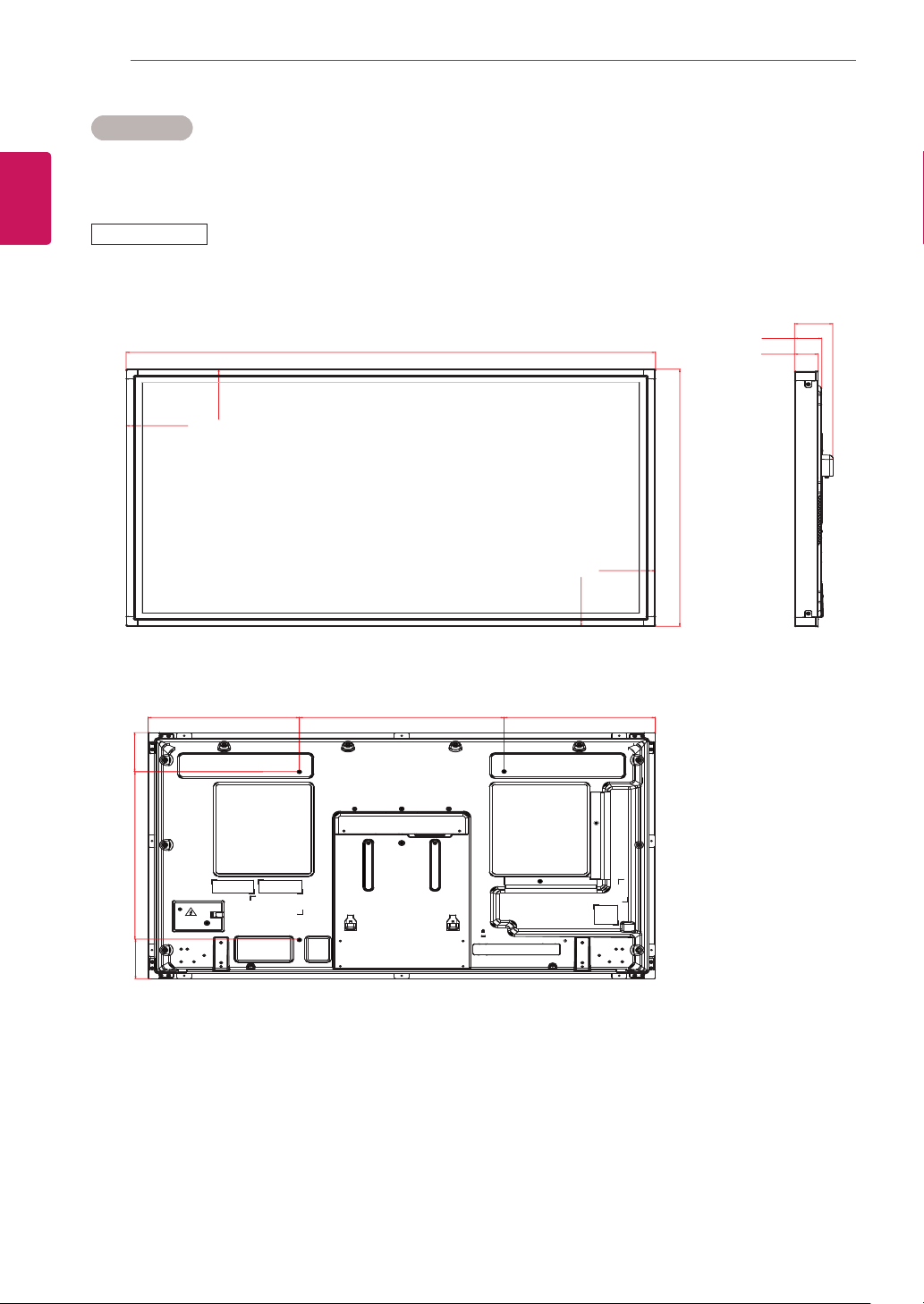

68 SPECIFICATIONS

75 IR CODES

76 CONTROLLING THE MULTIPLE

PRODUCT

TABLE OF CONTENTS

ENGLISH

ENG

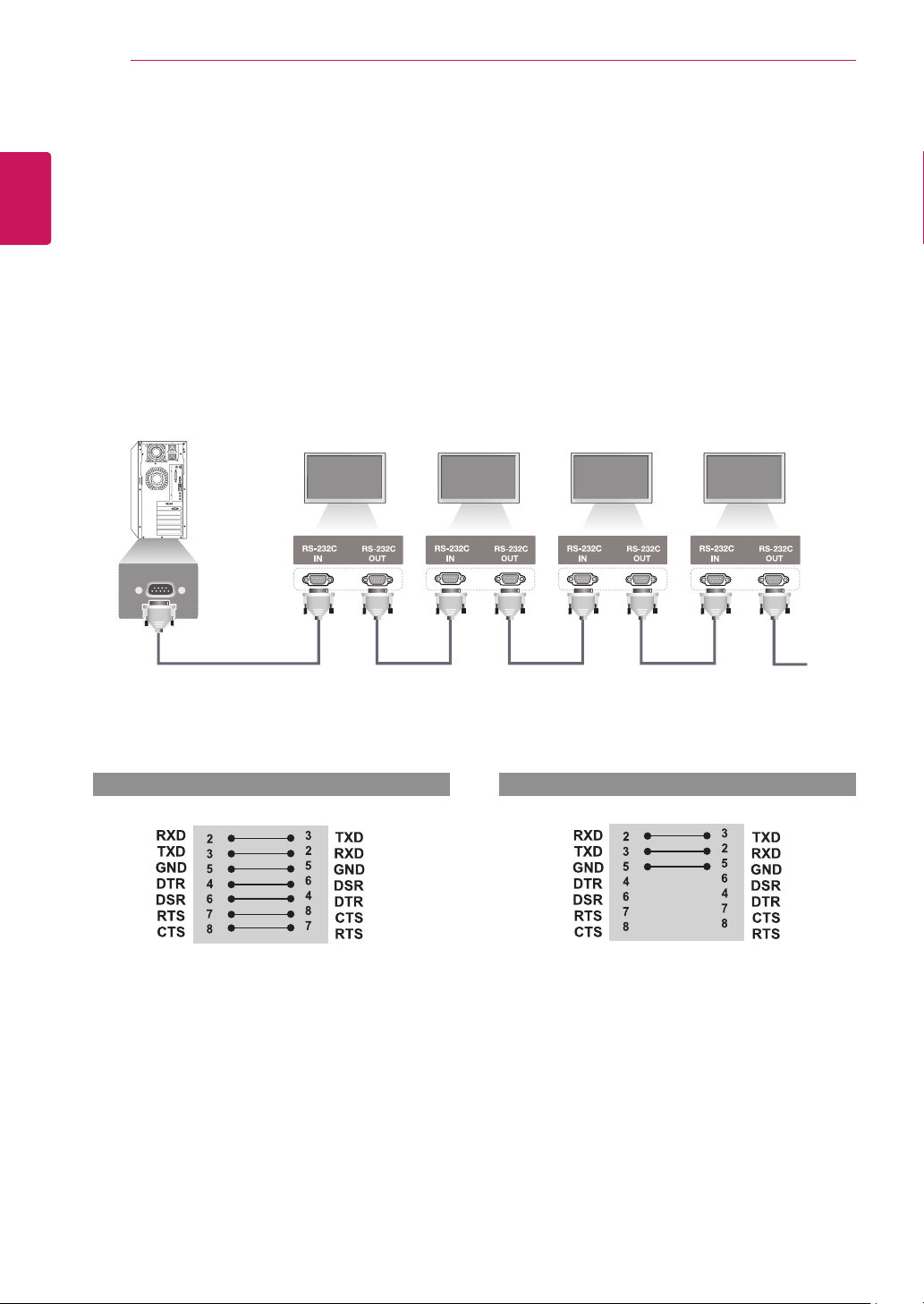

76 Connecting the Cable

76 RS-232C Configurations

76 Communication Parameter

77 Command Reference List

79 Transmission / Receiving Protocol

Page 4

LICENSES

ENGLISH

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that has passed rigorous testing to verify that it plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. “DivX Certified® to play DivX® video up to HD 1080p, including premium content.” “DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.” “Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274”

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

NOTE

The warranty will not cover any damages caused by using the product in an excessively dusty

environment. Avoid using the product in a high temperature and high humidity area. Moving the monitor from a

environment like this to an air conditioned area may cause moisture formation inside the glass. This moisture will be dissipate over time, which may vary depending on the operating environment.

Page 5

ASSEMBLING AND PREPARING

Accessories

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

POWER

INPUT

ENERGY

MONITOR

OFF

SAVING



. , !ABCDEF



GHIJKLMNO





PQRSTUV

WXYZ

1/a/A

CLEAR



- * #

MARK

ARC

P A

BRIGHT

PSM

NESS

MUTE

AUTO

S.MENU

EXIT

BACK

TILE

OFF

Remote control and Batteries

Power Cord IR Receiver

ENGLISH

ENG

CD (Owner's Manual,

SuperSign Program/Owner's

USB Cable

D-sub 15-pin signal cable

Mounting Cable Tie

Manual)/ Card

CAUTION

Do not use any unapproved or aftermarket parts or accessories to ensure the safety and product life

span. Any damages or injuries by using pirated items are not covered by the warranty.

NOTE

The accessories supplied with your product may vary depending on the model.

Product specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

Page 6

ASSEMBLING AND PREPARING

ENGLISH

Optional Accessories

ENG

Without prior notice, optional accessories are subject to change to improve the performance of the product, and new accessories may be added. The illustrations in this manual may differ from the actual product and accessories.

SP-2000 Speaker

Cable holder/

Cable Tie

Speaker kit

Screws

Diameter 4.0 mm x Pitch 0.7 mm x Length 8 mm (Included Spring Washer)

Media Player Screws

CD (Owner's Manual)/

Card

Media Player kit

NOTE

Cable holder/cable tie may not be available in some areas or for some models.

Optional accessories are available for some models. If necessary, please purchase them separately.

Page 7

ASSEMBLING AND PREPARING

Parts and Buttons

Buttons

ENGLISH

ENG

Connection panel

Buttons

INPUT Changes the input source.

MENU Accesses the main menus, or saves your input and exits the menus.

Adjust the up and down.

Adjusts the volume level.

AUTO/SET Displays the current signal and mode.

/ I

Press this button to adjust the screen automatically (available only in RGB mode)

Turns the power on or off.

Description

Page 8

ASSEMBLING AND PREPARING

ENGLISH

ENG

Tie

First, connect the input signal cable to be used. Insert the cable tie into the bottom hole on the back as shown in the figure to organize cables.

Using the Mounting Cable

Connecting the Speakers

- Only on some models.

Connect an input signal cable to use before

installing the speakers.

Mount the speaker by using a screw as shown

in the following. Then connect the speaker cable.

After installing your speakers, use holders and

cable ties to secure the speaker cables.

Page 9

ASSEMBLING AND PREPARING

Using the IR Receiver

This allows a remote control sensor to be placed in a custom location. It is recommended to attach it to the location illustrated in the figure below.

NOTE

Do not attach the IR receiver to the surface

of the monitor or within 50 cm of it in any direction.

Portrait Layout

To install in portrait mode, rotate the set counterclockwise 90 degrees when looking from the front.

ENGLISH

ENG

Page 10

ASSEMBLING AND PREPARING

ENGLISH

ENG

Player

Connecting the Media

Place a soft cloth on the table and put the product with the screen facing downward.

Push the Media Player into the compartment to mount it.

Attach the Media Player on the product using

the four screws provided.

NOTE

Use the screws provided with the product.

(Diameter 3.0 mm x Pitch 0.5 mm x Length

6.0 mm)

Page 11

ASSEMBLING AND PREPARING

Mounting on a Wall

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed installation instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

10 cm

CAUTION

Disconnect the power before installing or

moving the monitor. Otherwise electric shock may occur. If you install the monitor on a ceiling or

slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel. Do not over tighten the screws as this may

cause damage to the monitor and void your warranty. Use screws and wall mounts that meet the

VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty. To prevent injury, this apparatus must be

securely attached to the wall in accordance with the instrallation instructions. (This only pertains to Australia and New Zealand.)

ENGLISH

ENG

If you intend to mount the monitor to a wall, attach wall mounting interface (optional parts) to the back of the set. When you install the monitor using the wall mounting interface (optional parts), attach it carefully so it will not fall.

Please, Use the screw and wall mount interface

in accordance with VESA Standards.

If you use screw longer than standard, the

monitor might be damaged internally.

If you use the wrong screw, the product might

be damaged and drop from mounted position. In this case, LG Electronics is not responsible for it.

VESA compatible only with respect to screw

mounting interface dimensions and mounting screw specifications.

Please use VESA standard as below.

785mm or greater

* Fastening screw: Diameter 6.0 mm x Pitch 1.0 mm x Length 10 mm

NOTE

Use screws that are listed on the VESA

standard screw specifications. The wall mount kit includes an installation

manual and necessary parts. The wall mount bracket is optional. You can

obtain additional accessories from your local dealer. The length of screws may differ depending

on the wall mount. Be sure to use the proper length. For more information, refer to the instructions

supplied with the wall mount.

Page 12

ASSEMBLING AND PREPARING

ENGLISH

(Depending on model)

ENG

Securing the product to a wall (optional)

Insert and tighten the eye-bolts, or product

brackets and bolts on the back of the product.

- If there are bolts inserted at the eye-bolts position, remove the bolts first.

WARNING

If a product is not positioned in a sufficiently

stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

»Using cabinets or stands recommended

by the manufacturer of the product.

»Only using furniture that can safely

support the product.

»Ensuring the product is not overhanging

the edge of the supporting furniture.

»Not placing the product on tall furniture

(for example, cupboards or bookcases) without anchoring both the furniture and the product to a suitable support.

»Not standing the product on cloth or other

materials placed between the product and supporting furniture.

»Educating children about the dangers of

climbing on furniture to reach the product or its controls.

Mount the wall brackets with the bolts to the

wall.

Match the location of the wall bracket and the eye-bolts on the rear of the product.

Connect the eye-bolts and wall brackets tightly

with a sturdy rope.

Make sure to keep the rope horizontal with the flat surface.

CAUTION

Make sure that children do not climb on or

hang on the product.

NOTE

Use a platform or cabinet that is strong and

large enough to support the product securely. Brackets, bolts and ropes are optional. You

can obtain additional accessories from your local dealer. The illustration shows a general example of

installation and may look different from the actual product.

Page 13

REMOTE CONTROL

P A G E

INPUT

ENERGY

SAVING

MARK

ARC

OFF



. , !



ABCDEF



GHI



JKL



MNO



PQRS



TUV



1/a/A



- * #

WXYZ

CLEAR

S.MENU

MONITOR

PSM

AUTO

MUTE

BRIGHT

NESS

POWER

REMOTE CONTROL

The descriptions in this manual are based on the buttons of the remote control. Please read this manual carefully and use the Monitor correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

CAUTION

Do not mix old and new batteries, as this

may damage the remote control. Make sure to point the remote control at the

remote control sensor on the monitor.

ENGLISH

ENG

(POWER)

Turns the Monitor on or off.

MONITOR ON / OFF

Turn off the monitor and then

turn it back on.

1/a/A Button

Toggles between numerical

Selects the Aspect Ratio

Selects a specific file in the

Adjusts the volume level.

Selects the Picture Status

and alphabetical.

Volume Up / Down

Mutes all sounds.

ARC

Mode.

MARK

USB mode.

PSM

Mode.

MUTE

ENERGY SAVING

Adjusts the brightness of the screen to reduce energy consumption.

INPUT

Selects the input mode.

Number and Alphabet buttons

Enters numerical or alphabetical characters depending on the setting.

CLEAR

Deletes the entered numerical or alphabetical character.

BRIGHTNESS Key

Adjust the brightness by pressing the Up and Down buttons on the remote control. In USB mode, the OSD menu has the Page function to move to the next file list.

Page 14

ENGLISH

ENG

REMOTE CONTROL

MENU (See p.41)

Accesses the main menus

or saves your input and exit

menus.

Navigation buttons

Scrolls through menus or

options.

AUTO

Automatically adjusts picture position and minimizes image instability.(RGB input only)

Selects menus or options and

confirms your input.

BACK

Allows the user to move back

one step.

ID ON/OFF

When the number of Picture

ID is equal to Set ID you can

control the monitor which

you want in the multi display

condition.

S.MENU (SuperSign Menu Key)

Selects the SuperSign OSD Menu.(SuperSign input only)

EXIT

Clears all on-screen displays and returns to Monitor viewing from any menu.

TILE

Selects the TILE Mode.

USB Menu control buttons

Controls media playback.

Page 15

USING THE MONITOR

Connecting to a PC

Your Monitor supports the Plug & Play* feature.

* Plug & Play: This is the function that allows a PC to use the monitor without installing a driver.

NOTE

It is recommended to use the monitor with

the HDMI connection for the best image quality. Use a shielded signal interface cable, such

as D-sub 15 pin signal cable and DVI cable, with a ferrite core to maintain standard compliance for the product. If you turn the monitor on when the set

becomes cold, the screen may flicker. This is normal. Some red, green, or blue spots may appear

on the screen. This is normal.

CAUTION

Connect the

signal input cable and tighten it by turning the screws clockwise.

Do not press the screen with your finger for

a long time as this may result in temporary distortion on the screen. Avoid displaying a fixed image on the screen

for a long period of time to prevent image burn. Use a screensaver if possible. When you use wireless equipment near the

product, an image problem might occur.

ENGLISH

ENG

Page 16

USING THE MONITOR

DVI OUT

AUDIO OUT

RGB Connection

ENGLISH

ENG

Transmits the analog video signal from your PC to the Monitor. Connect the PC and the Monitor set with the 15-pin signal cable as shown the following illustrations. Select RGB input source on the monitor.

(not included)

DVI-D Connection

Transmits the digital video signal from your PC to the Monitor. Connect the PC and the Monitor set with the DVI cable as shown the following illustrations. Select DVI-D input source on the monitor.

Macintosh Adapter

(not included)

NOTE

Use the standard

Macintosh adapter since an incompatible adapter is available in the market. (Different signaling system)

Apple computers may require an adapter to

connect to this monitor. Call or visit their web site for more information.

(not included)

Page 17

USING THE MONITOR

DP OUT

HDMI Connection

Transmits the digital video and audio signals from your PC to the monitor. Connect the PC and the monitor with the HDMI cable as shown in the following illustrations. Select HDMI input source.

(not included)

Display Port Connection

Transmits the digital video and audio signals from your PC to the monitor. Connect the PC and the monitor with the display port cable as shown in the following illustrations. Select display port input source.

(not included)

ENGLISH

ENG

HDMI

NOTE

Use a High Speed HDMI™ Cable.

Please check the PC environment if you

cannot hear the sound in HDMI mode. Some PCs require you to manually change the default audio output to HDMI. If you want to use HDMI PC mode, you must

set PC/DTV to PC mode. When HDMI PC is used, a compatiblity

problem might occur.

Page 18

USING THE MONITOR

IR Receiver Connection

ENGLISH

ENG

Allows the use of a wired remote or IR receiver extension.

Touch USB Cable Connection

Plug a USB cable into the Touch USB port on the back of the monitor.

NOTE

Make sure the power cable is disconnected.

Page 19

USING THE MONITOR

Adjusting the Screen

Selecting an Image Mode

Display images in its optimized settings by selecting one of the preset image modes.

Press MENU to access the main menus.

Press the navigation buttons to scroll to

PICTURE and press OK.

Press the navigation buttons to scroll to

Picture Mode and press OK.

Press the navigation buttons to scroll to an

image mode you want and press OK.

Mode Description

Vivid Adjusts the video image for the retail

Standard Adjusts the image for a normal

Cinema Optimizes the video image for a cinematic

Sport Optimizes the video image for high and

Game Optimizes the video image for a fast

When you are finished, press EXIT.

When you return to the previous menu, press BACK.

environment by enhancing the contrast, brightness, color, and sharpness.

environment.

look to enjoy movies as if you are in a movie theater.

dynamic actions by emphasizing primary colors such as white, grass, or sky blue.

gaming screen such as PCs or games.

Customizing Image Options

Customize basic and advanced options of each image mode for the best screen performance.

Press MENU to access the main menus.

Press the navigation buttons to scroll to

PICTURE and press OK.

Press the navigation buttons to scroll to

Picture Mode and press OK.

Press the navigation buttons to scroll to an

image mode you want and press OK.

Select and adjust the following options, and

then press OK.

Option Description

Backlight Adjusts the brightness of the screen

Contrast Increases or decreases the gradient

Brightness Adjusts the base level of the signal in

Sharpness Adjusts the level of crispness in the

Color Adjusts intensity of all colors.

Tint Adjusts the balance between red and

Color Temp. Set to warm to enhance hotter colors

Advanced

Control

Picture Reset Restores the options to the default

by controlling the LCD backlight. If you decrease the brightness level, the screen becomes darker and the power consumption will be reduced without any video signal loss.

of the video signal. You may use

Contrast when the bright parts of the

picture are saturated.

the picture. You may use Brightness when the dark areas of the picture are saturated.

edges between the light and dark areas of the picture. The lower the level, the softer the image.

green levels.

such as red, or set to cool to make picture bluish.

Customizes the advanced options. Refer to the Advanced image options.

setting.

ENGLISH

ENG

When you are finished, press EXIT.

When you return to the previous menu, press BACK.

Page 20

USING THE MONITOR

Customizing PC Display Options

ENGLISH

ENG

Customize options of each image mode for the best image quality.

This function works in the following mode:

RGB[PC] mode.

Press MENU to access the main menus.

Press the navigation buttons to scroll to

PICTURE and press OK.

Press the navigation buttons to scroll to Screen

and press OK.

Select and adjust following options, and then

press OK.

Option Description

Resolution Selects a proper resolution. See

Auto

Config.

Position/

Size/Phase

Reset Restores the options to the default

Customizing PC display options.

Adjusts the screen position, clock, and phase automatically. The displayed image may be unstable for a few seconds while the configuration is in progress.

Adjusts the options when the picture is not clear, especially when characters are shaky. Run Auto Config. before adjusting these.

setting.

Adjusting the Sound

Selecting an Sound Mode

This monitor has 5 preset sound modes to compliment different types of video content.

Press MENU to access the main menus.

Press the navigation buttons to scroll to AUDIO

and press OK.

Press the navigation buttons to scroll to Sound

Mode and press OK.

Press the navigation buttons to scroll to a

sound mode you want and press OK.

Mode Description

Standard Select when you want standard-quality

Music Select when you listen to music.

Cinema Select when you watch movies.

Sport Select when you watch sport events.

Game Selects when you play games.

When you are finished, press EXIT.

When you return to the previous menu, press BACK.

sound.

When you are finished, press EXIT.

When you return to the previous menu, press BACK.

Page 21

USING THE MONITOR

Customizing Sound Options

You may customize options of each sound mode for the best sound quality.

Press MENU to access the main menus.

Press the navigation buttons to scroll to AUDIO

and press OK.

Press the navigation buttons to scroll to Sound

Mode and press OK.

Press the navigation buttons to scroll to a

sound mode you want and press OK.

Select and adjust following options, and then

press OK.

Option Description

Infinite Sound

Treble Increases the intensity of the low

Bass Makes the output sound softer.

Reset Resets the sound mode to the default

LG's Infinity Sound option provides

5.1 channel stereo sound from two speakers.

frequency part of the audio.

Increasing the bass extends the low frequency range of the output.

setting.

Using Additional Options

Using the Input List

Press INPUT to access the Input List.

Press the navigation buttons to scroll to one of

the input mode and press OK.

Input source Description

AV Watch video from a VCR or other

Component Watch content from a DVD or other

RGB View a PC display on the screen

HDMI Watch content from a PC, DVD

DVI-D Watch content from a PC, DVD

Display Port Watch content from a PC, DVD

SuperSign Views the Media Player display on

USB Plays the multimedia file saved in

external devices.

external devices, or through a digital set-top box

or Digital set-top box other high definition devices.

the screen.

the USB.

ENGLISH

ENG

When you are finished, press EXIT.

When you return to the previous menu, press BACK.

Page 22

Adjusting Aspect Ratio

ENGLISH

ENG

Resize the image to view the image at its optimal size by pressing ARC while you are watching monitor set.

USING THE MONITOR

CAUTION

If a fixed image displays on the screen for a long period of time, it will be imprinted and become

a permanent disfigurement on the screen. This is image burn or burn-in and not covered by the warranty. To prevent image sticking, do not play a still image for more than two hours.

If the aspect ratio is set to 4:3 for a long period of time, image burn may occur on the letterboxed area

of the screen. Recommended operation time for optimum performance and reliability is 12 hours or less per day.

When using the touch screen monitor, it is recommended to set the screen aspect ratio to Just Scan.

NOTE

You can also change the image size by accessing the main menus.

The Just Scan mode operates when a video signal has resolution of 720p or higher.

MODE

AV Component

ARC

16:9 o o o o o o o o o o

Just Scan x o x o x o x o x x

1:1 x x o x o x o x o o

4:3 o o o o o o o o o o

Zoom o o x o x o x o x x

Cinema Zoom o o x o x o x o x x

RGB

PC DTV PC DTV PC DTV PC PC

Display

Port

DVI-D HDMI SuperSign

Page 23

USING THE MONITOR

- 16:9: This selection will allow you to adjust the

picture horizontally, in linear proportion, to fill the entire screen(useful for viewing 4:3 formatted DVDs).

- Just Scan: This Selection will allow you view

the picture of best quality without loss of original picture in high resolution image. Note: If there is noise in original Picture, You can see the noise at the edge.

- 4:3: This selection will allow you to view a picture

with an original 4:3 aspect ratio, black bars will appear on both the left and right of the screen.

- Zoom: This selection will allow you to view the

picture without any alteration, while filling the entire screen. However, the top and bottom of the picture will be cropped.

ENGLISH

ENG

Just Scan

- 1:1: The aspect ratio is not adjusted from the

original. (Only Display Port PC, HDMI PC, DVI-D PC, RGB PC)

- Cinema Zoom: Choose Cinema Zoom when you

want to enlarge the picture in correct proportion. Note: When enlarging or reducing the picture, the image may become distorted.

Page 24

ENTERTAINMENT

ENGLISH

ENTERTAINMENT

ENG

Using the Network

Connecting to a Wired Network

Connect the display to a local area network (LAN) via the LAN port as shown in the following illustration and set up the network settings. Only supports wired network connection. After making a physical connection, a small number of home networks may require the display network settings to be adjusted. For most home networks, the display will connect to automatically without any adjustments. For detail information, contact your internet provider or router manual.

To set up the network seetings: (Even if your display has already connected automatically, running setup again will not harm anything),

1 Press MENU to access the main menus.

2 Press the navigation buttons to scroll to NET-

WORK and press OK.

3 Press the navigation buttons to select Network

Setting and press OK.

4 If you already set network setting, select

Resetting. The new connection settings resets

the current network settings.

5 Select IP Auto Setting or IP Manual Setting.

- If selecting IP Manual Setting, press the

Navigation and Number buttons. IP addresses will need to be input manually.

- IP Auto Setting: Select this if there is a

DHCP server (Router) on the local area network (LAN) via wired connection, the display will automatically be allocated an IP address. If you’re using a broadband router or broadband modem that has a DHCP (Dynamic Host Configuration Protocol) server function. The IP address will automatically be determined.

Internet

CAUTION

y Do not connect a modular phone cable to the

LAN port.

y Since there are various connection meth-

ods, please follow the specifications of your telecommunication carrier or internet service provider.

6 When you are finished, press EXIT.

CAUTION

y Network setting menu will not be available

until the display is connected to physical network.

y Since there are various connection meth-

ods, please follow the specifications of your telecommunication carrier or internet service provider.

Page 25

ENTERTAINMENT

NOTE

y If you want to access the Internet directly on

your display, the internet connection should always be on.

y If you cannot access the Internet, check

the network conditions from a PC on your network.

y When you use Network Setting, check the

LAN cable or check if DHCP in the router is turned on.

y If you do not complete the network settings,

the network may not work properly.

Tips for Network setting

y Use a standard LAN cable with this display. Cat5

or better with a RJ45 connector.

y Many network connection problems during set

up can often be fixed by re-setting the router or modem. After connecting the display to the home network, quickly power off and/or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again.

y Depending on the internet service provider

(ISP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP.

y LG is not responsible for any malfunction of the

display and/or the internet connection feature due to communication errors/malfunctions associated with your internet connection, or other connected equipment.

y LG is not responsible for problems within your

internet connection.

y You may experience undesired results if the

network connection speed does not meet the requirements of the content being accessed.

y Some internet connection operations may not

be possible due to certain restrictions set by the Internet service provider (ISP) supplying your Internet connection.

y Any fees charged by an ISP including, without

limitation, connection charges are your responsibility.

y A 10 Base-T or 100 Base-TX LAN port is

required when using a wired connection to this display. If your internet service does not allow for such a connection, you will not be able to connect the display.

y A DSL modem is required to use DSL service

and a cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP, you may not be able to use the internet connection feature contained in this display or you may be limited to the number of devices you can connect at the same time. (If your ISP limits sub-scription to one device, this display may not be allowed to connect when a PC is already connected.)

y The use of a Router may not be allowed or its

usage may be limited depending on the policies and restrictions of your ISP. For details, contact your ISP directly.

Network Status

1 Press MENU to access the main menus.

2 Press the navigation buttons to scroll to NET-

WORK and press OK.

3 Press the navigation buttons to select Network

Status.

4 Press OK to check the network status.

5 When you are finished, press EXIT.

Option Description

Setting Return to the network setting menu.

Test

Close Return to the previous menu.

Test the current network status after set-

ting the network.

ENGLISH

ENG

Page 26

ENTERTAINMENT

ENGLISH

Using the My Media

ENG

Connecting USB Storage Devices

You can connect USB storage devices such as a USB flash memory or external hard drive to the display and use multimedia features . Connect a USB flash memory or USB memory card reader to the display as shown on the following illustration. The My media screen appears.

CAUTION

y Do not turn the display off or remove a USB

storage device while the EMF(my media) Menu is activated, as this could result in loss of files or damage to the USB storage device.

y Back up your files saved on a USB storage

device frequently, as you may lose or damage the files and this may be not covered by the warranty.

Tips for using USB storage devices

y Only a USB storage device is recognizable. y If the USB storage device is connected

through a USB hub, the device is not recognizable.

y A USB storage device using an automatic

recognition programme may not be recognized.

y A USB storage device which uses its own

driver may not be recognized.

y The recognition speed of a USB storage

device may depend on each device.

y Please do not turn off the display or unplug

the USB device when the connected USB storage device is working. When such device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged.

y Please do not connect the USB storage

device which was artificially maneuvered on the PC. The device may cause the product to malfunction or fail to be played. Never forget to use only a USB storage device which has normal music files, image files or movie files.

y Please use only a USB storage device which

was formatted as a FAT32 file system or NTFS file system provided with the Windows operating system. In case of a storage device formatted as a different utility program which is not supported by Windows, it may not be recognized.

y Please connect power to a USB storage de-

vice (over 0.5 A) which requires an external power supply. If not, the device may not be recognized.

y Please connect a USB storage device with

the cable offered by the device maker.

y Some USB storage devices may not be sup-

ported or operated smoothly.

y File alignment method of USB storage

device is similar to Window XP and filename can recognize up to 100 English characters.

y Be sure to back up important files since data

stored in a USB memory device may be damaged. We will not be responsible for any data loss.

Page 27

ENTERTAINMENT

y If the USB HDD does not have an external

power source, the USB device may not be detected. Connect to an external power source.

- Use a power adaptor for an external power source. We do not guarantee a USB cable for an external power source.

y If your USB memory device has multiple

partitions, or if you use a USB multi-card reader, you can use up to 4 partitions or USB memory devices.

y If a USB memory device is connected to a

USB multi-card reader, its volume data may not be detected.

y If the USB memory device does not work

properly, disconnect and reconnect it.

y How fast a USB memory device is detected

differs from device to device.

y If the USB is connected in Standby Mode,

specific hard disk will automatically be loaded when the display is turned on.

y The recommended capacity is 1 TB or less

for a USB external hard disk and 32 GB or less for USB memory.

y Any device with more than the recommended

capacity may not work properly.

y If a USB external hard disk with a Energy

Saving function does not work, turn the hard disk off and on again to make it work properly.

y USB storage devices below USB 2.0 are

supported as well. But they may not work properly in the movie list.

y Maximum of 999 folders or files can be rec-

ognized under one folder.

y It is recommended to use a certified USB

storage device and cable. Otherwise, a USB

storage device may not be detected or a

playback error may occur.

y Only a USB memory stick can be used to

play back the files distributed and stored

by SuperSign Manager. A USB hard disk or

multi-card reader will not work.

y Only an FAT 32 file formatted storage device

can play back the files distributed and stored

by SuperSign manager.

y A USB 3.0 storage device may not work.

Browsing Files

Access the photo, music, or movie lists, and browse files.

Connect a USB storage device.

Press MENU to access the main menus.

Press the navigation buttons to scroll to My

Media and press OK.

Press the navigation buttons to choose from

Movie List, Photo List, Music List or Contents List and press OK.

Movie List

Photo List

USB External

001

010 011 012 013 014 015

To Music List

No. Description

Buttom Description

Green button

Yellow button

Blue

button

Photo List

002 003 004 005 006 007

Change Numbers

Drive1

Music List

Move

Mark Mode

Page 1/1

View

Contents List

008

Page

Exit

Page 1/1

009

Page Change

Moves to upper level folder

Current page/Total pages

Corresponding buttons on the remote control Current page/ total pages of contents under the folder focused on 1

Contents under the folder focused on 1

Press the green button to toggle between

Photo List -> Music List, Music List -> Contents List, Contents List -> Movie List or Movie List -> Photo List.

A method to view in 5 large thumbnail or simple list.

Convert to Mark Mode.

ENGLISH

ENG

Page 28

ENTERTAINMENT

ENGLISH

ENG

Supported File Formats

Type Supported file format

Movie DAT,MPG,MPEG,VOB,AVI,DIVX,MP4,MKV,TS,T

Photo JPEG

Music MP3

RP,TP,ASF,WMV,FLV)

Movie (*.mpg/*.mpeg/*dat/*.ts/*.trp/*.tp/*.vob/*.

mp4/*.mov/*.mkv/*.divx/*.avi/*.asf/*.wmv/*.flv/*. avi(motion-jpeg)/*.

mp4(motion-jpeg)/*.mkv(motion-jpeg))supporting file

Video format: DivX3.11, DivX4.12, DivX5.x,

DivX6, Xvid1.00, Xvid1.01, Xvid1.02, Xvid1.03, Xvid1.10 beta-1/beta-2,

Mpeg-1, Mpeg-2, Mpeg-4, H.264/AVC, VC1, JPEG, Sorenson H.263

Audio format: Dolby Digital, AAC, Mpeg, MP3,

LPCM, HE-AAC, ADPCM, WMA

Bit rate : within 32 kbps to 320 kbps(MP3)

External Subtitle format: *.smi/*.srt/*.sub(

MicroDVD,Subviewer1.0/2.0)/*.ass/*.ssa/*. txt(TMPlayer)/*.psb(PowerDivX)

Internal Subtitle format: only, XSUB (It is the

subtitle format used in DivX6 files)

Baseline : 64 x 64 to 15360 x 8640 Progressive : 64 x 64 to 1920 x 1440

y You can play JPEG files only. y Non-supported files are displayed in the form

of predefined icon.

File Extensions

jpeg jpg jpe

Bit rate 32 to 320

y Sampling rate MPEG1 Layer3: 32 kHz, 44.1

kHz, 48 kHz

y Sampling rate MPEG2 Layer3: 16 kHz, 22.05

kHz, 24 kHz

y Sampling rate MPEG2.5 Layer3: 8 kHz,

11.025 kHz, 12 kHz

Item Profile

supported file format

photo size yMin: 64 x 64

ySOF0:

baseline

ySOF1: Extend

Sequential

ySOF2:

Progressive

yMax-Normal

Type:

y15360 (W) x

8640 (H)

yProgressive

Type:

y1920 (W) x

1440 (H)

Type Supported file format

Content

(when using SuperSign Manager)

File Extensions: *.cts/ *.cse

Movie

File Extensions: *.mpg/*.mpeg/*.dat/*.ts/*.

trp/*.tp/*.vob/*.mp4/*.mov/*.mkv/*.avi/*.asf/*. wmv/*.avi(motion JPEG)/*.mp4(motion JPEG)/*. mkv(motion JPEG)

Video format: MPEG1, MPEG2, MPEG4,H.264/ AVC, DivX 3.11, DivX 4.12, DivX 5.x, DivX 6, Xvid 1.00,Xvid 1.01, Xvid 1.02, Xvid 1.03,Xwvid

1.10-beta1/2, JPEG, VC1(WVC1/WMV3)

Audio format: MP2,MP3,Dolby Digital, LPCM, AAC, HE-AAC,LPCM, ADPCM, WMA, MP3

File Extensions

Photo JPEG

JPG

PNG

BMP

Music MP3 Bit rate 32 kbps to 320

Item Profile

supported file format

Photo size yMin: 64 x 64

Sampling rate

ySOF0:

baseline

ySOF1: Extend

Sequential

ySOF2:

Progressive

yMax Type:

1366 x 768

kbps 32 kHz, 44.1

kHz, 48 kHz (MPEG1 L3)

16 kHz, 22.05 kHz, 24 kHz (MPEG2 L3)

8kHz, 11.025 kHz, 12 kHz (MPEG2.5 L3)

Viewing Movies

Play video files on display. Your display shows all of the video files saved in a USB storage device or shared folder on a PC.

1 Press the navigation buttons to scroll to

My Media and press OK.

2 Press the navigation buttons to scroll to

Movie List and press OK.

3 Press the navigation buttons to scroll to a

folder you want and press OK.

4 Press the navigation buttons to scroll to a file

you want and press OK.

Page 29

ENTERTAINMENT

003

Move

Mark Mode

003

051. Apple_ ......

02:30:25

Move

Page 1/1

Play

Exit Mark Mode

004

Page

Play

Page Change

Exit

004

Page

Page Change

Exit

Movie List

USB1 USB Drive

001 002

005 006

To Photo list

Movie List

Mark Mode

USB1 USB Drive

001 002

005 006

Play Marked

Mark All

Drive1

Change Numbers

Drive1

Unmark All

Menu Description

Play Marked Play the selected movie file.

Once a movie file finishes playing, the next selected one will be played automatically.

Mark All Mark all movie files on the screen.

Exit

Option

Button Description

Stops the playback

Plays a video

Pauses or resumes the playback

Scans backward in a file

Scans forward in a file

Show the Option menu.

Hide the menu on the full-sized screen.

Return to Movie List.

Skips to specific points in a file dur-

ing playback. The time of a specific

point will appear on the status bar. In

some files, this function may not work

properly. Adjusts the screen brightness to save

ENERGY

energy.

SAVING

Hide

ENGLISH

ENG

5 Play a movie.

NOTE

y Non-supported files are displayed the preview

image by icon only .

y Abnormal files are displayed in the form of

bitmap .

Page 30

ENTERTAINMENT

ENGLISH

ENG

Tips for using playing video files

y Some user-created subtitles may not work

properly.

y Some special characters are not supported

in subtitles.

y HTML tags are not supported in subtitles. y Subtitles in languages other than the sup-

ported languages are not available.

y The screen may suffer temporary interrup-

tions (image stoppage, faster playback, etc.) when the audio language is changed.

y A damaged movie file may not be played

correctly, or some player functions may not be usable.

y Movie files produced with some encoders

may not be played correctly.

y If the video and audio structure of recorded

file is not interleaved, either video or audio is outputted.

y HD videos with a maximum of 1920 x 1080

@ 25/30 P or 1280 x 720 @ 50/60 P are supported, depending on the frame.

y Videos with resolutions higher than 1920

X 1080 @ 25/30 P or 1280 x 720 @ 50/60 P may not work properly depending on the frame.

y Movie files other than the specified types and

formats may not work properly.

y Max bitrate of playable movie file is 20 Mbps.

(only, Motion JPEG : 10 Mbps)

y We do not guarantee smooth playback of

profiles encoded level 4.1 or higher in H.264/ AVC.

y DTS Audio codec is not supported. y A movie file more than 30 GB in file size is

not supported for playback.

y A DivX movie file and its subtitle file must be

located in the same folder.

y A video file name and its subtitle file name

must be identical for it to be displayed.

y Playing a video via a USB connection that

doesn’t support high speed may not work properly.

y Files encoded with GMC (Global Motion

Compensation) may not be played.

When you are watching the movie by Movie

List function, you can adjust an image by Energy Saving key on the remote control. User setup for each image mode does not operate.

Video options

1 Press MENU to access the Pop-Up menus.

2 Press the Navigation buttons to scroll to Set

Video Play., Set Video. or Set Audio. and press OK.

NOTE

y Option values changed in Movie List does

not affect Photo List and Music List.

y Option value changed in Photo List and Mu-

sic List are changed likewise in Photo List and Music List excluding Movie List.

y When replaying the video file after stopping,

you can play from where it stopped previously.

Page 31

ENTERTAINMENT

When you select the Set Video Play,,

1 Press the navigation buttons to scroll to show

the Picture Size, Audio Language, Subtitle Language or Repeat.

2 Press the navigation buttons to scroll to make

appropriate adjustments.

Menu Description Picture Size Selects your desired picture

format during movie play.

Audio Language

Subtitle Language

Language Activated for SMI subtitle and

Code Page Can select the font for subtitle.

Sync Adjusts the time synchronisation of

Position Changes the position of the

Size Selects your desired Subtitle size

Repeat Turn on/off repeat function of

Changes the Language Group of the audio during movie play. Files with a single audio track cannot be selected. Turn on/off the subtitle.

can select the language within the subtitle.

When set to default, same font as general menu will be used.

the subtitle from -10 secs to +10 secs by steps of 0.5 secs during movie play.

subtitle either up or down during movie play.

during movie play.

movie playback. When turned on, the file within the folder will be played back repeatedly. Even when the repeated playback is turned off, it can run the playback if the file name is similar to the previous file.

Code Page Support Language Latin1 English, Spanish, French,

German, Italian, Swedish, Finnish, Dutch, Portuguese, Danish, Romanian, Norwegian, Albanian, Gaelic, Welsh, Irish, Catalan,Valencian

Latin2 Bosnian, Polish, Croatian, Czech,

Slovak, Slovenian, Serbian, Hungarian

Latin4 Estonian, Latvian, Lithuanian Cyrillic Bulgarian, Macedonian, Russian,

Ukrainian, Kazakh

Greek Greek Korean Korean

NOTE

y Only 10,000 of sync blocks can be support-

ed within the subtitle file.

y When playing a video, you can adjust the

Picture Size by pressing the ARC button.

y Subtitles in your language are only sup-

ported when the OSD menu is also in this language.

y The code page options may be disabled de-

pending on the language of the subtitle files.

y Select the appropriate code page for the

subtitle files.

ENGLISH

ENG

Page 32

ENTERTAINMENT

When you select the Set Video,

ENGLISH

ENG

1 Press the navigation buttons to scroll to make

When you select the Set Audio,

1 Press the navigation buttons to scroll to show

2 Press the Navigation buttons to scroll to make

Viewing Photos

View image files saved in a USB storage device. The displays on the screen may differ from the model.

1 Press the navigation buttons to scroll to My

2 Press the navigation buttons to scroll to Photo

appropriate adjustments.

the Sound Mode, Clear Voice II, or Balance.

appropriate adjustments.

Media and press OK.

List and press OK.

Move

Mark Mode

Move

Page 1/1

View

Page 1/1

View

Exit Mark Mode

008

Page

008

Page

Page 1/1

009

Page Change

Exit

Page 1/1

009

Page Change

Exit

Photo List

USB1 USB Drive

001

002 003 004 005 006 007

010 011 012 013 014 015

To Music List

Photo List

Mark Mode

USB1 USB Drive

001

002 003 004 005 006 007

010 011 012 013 014 015

View Marked

Mark All

Drive1

Change Numbers

Drive1

Unmark All

Menu Description

View Marked Display the selected photo file.

Mark All Mark all photo files on the screen.

Unmark All Deselect all marked photo files.

Exit Mark Mode Exit the Mark Mode.

3 Press the navigation buttons to scroll to a

folder you want and press OK.

4 Press the navigation buttons to scroll to a file

you want and press OK.

5 View photos.

NOTE

y Non-supported files are displayed the pre-

view image by icon only .

y Abnormal files are displayed in the form of

bitmap .

Page 33

ENTERTAINMENT

6 When playing a video, you can set the

following:

2/13

Slideshow BGM

Option

Number of selected photosOptions

Option Description

Slideshow Starts or stops a slideshow with selected

photos.

If there are no selected photos, all pho-

tos saved in the current folder display

during a slideshow.

Select Option to set the speed and view

mode of the slideshow.

BGM Turns the background music on or off.

To set the background music folder,

select Option.

You can adjust Option by MENU button

on the remote control.

Rotate

Rotates photos clockwise (90°, 180°,

270°, 360°).

NOTE

y The supported photo size is

limited. You cannot rotate a photo if the resolution of the rotated width is larger than the supported resolution size.

Zoom

Enlarges the image to 200% or 400%.

NOTE

y Zoom to 200% or 400% only

work for image of 1372×772 pixel size or larger.

y For image of 960×540 pixel

size or larger, only zoom to 400% works properly.

Hide

Option Description

ENERGY

SAVING

Option

Adjusts the screen brightness to save energy.

y Slide Speed: Selects a slideshow

speed (Fast, Medium, Slow).

y TransitionEffect: Set the view mode

of the slideshow.

y BGM: Selects a music folder for the

background music.

ENGLISH

ENG

NOTE

Exit

Hide

EXIT

Photo options

y You cannot change the music

folder while the background music is playing.

y You can only select the MP3

folder saved on the device that currently displays the photo.

Hides the option window.

To display the options, press OK.

Return to Photo List.

1 Press MENU to show the Option menus.

2 Press the Navigation buttons to scroll to Set

Photo View, Set Video. or Set Audio. and press OK.

NOTE

y Option values changed in Movie List does

not affect Photo List and Music List.

y Option value changed in Photo List and Mu-

sic List are changed likewise in Photo List

and Music List excluding Movie List.

Page 34

When you select the Set Photo View,

ENGLISH

ENG

1 Press the Navigation buttons to scroll to select Slide Speed, Transition Effect, or BGM.

2 Press the Navigation buttons to scroll to make appropriate adjustments.

ENTERTAINMENT

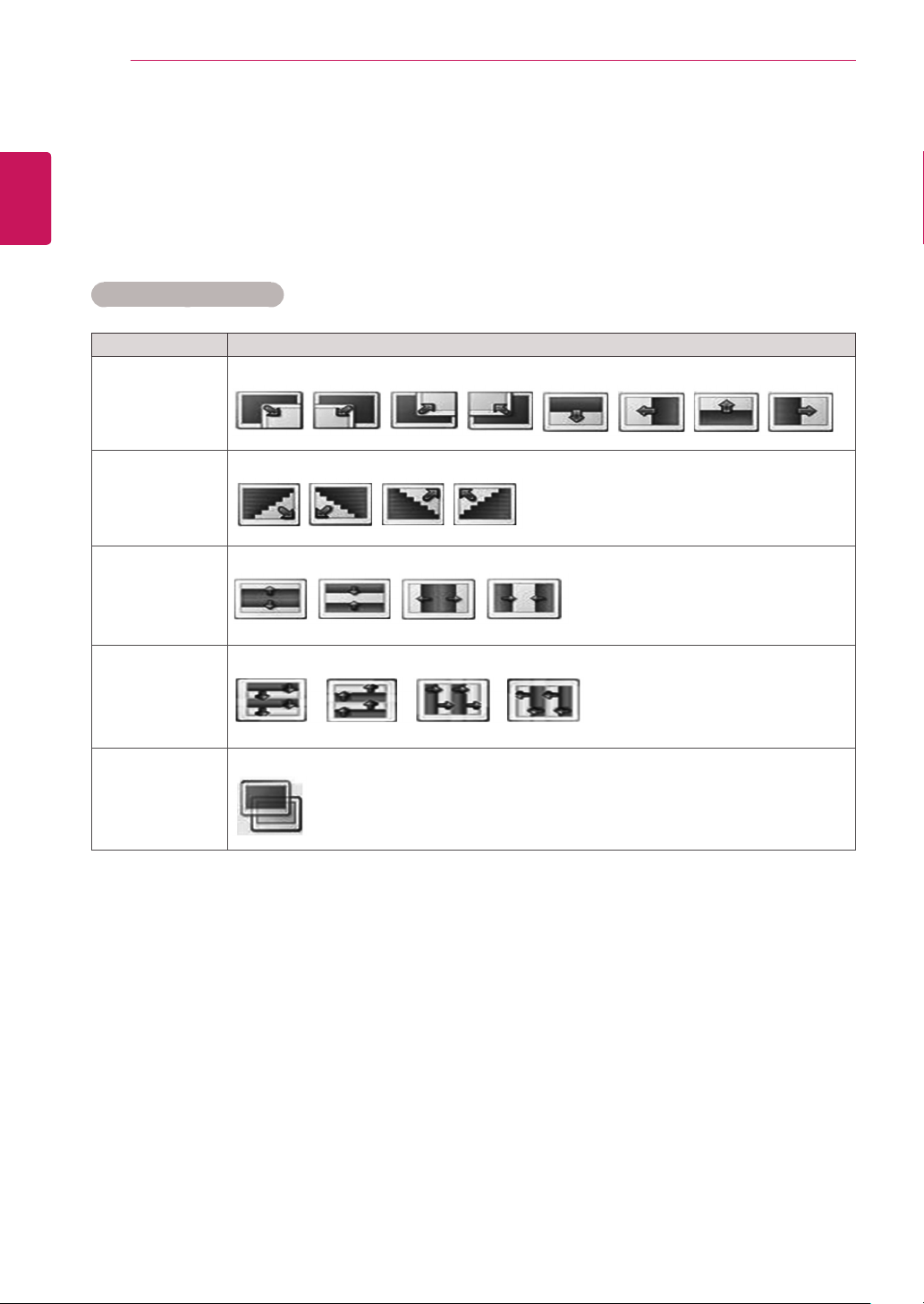

Transition Effect Option

Option Description

Sliding Pushes the current slide out of view as it plays to the next slide.

Stairs Pushes the current slide in a staircase shape as it plays to the next slide.

Door Open

/Close

Shutter Pushes the current slide like drawing or pulling down the blind as it plays to the next slide.

Fade In The current photo disappears and the next photo appears slowly.

Pushes the current slide like opening or closing the door as it plays to the next slide.

Page 35

ENTERTAINMENT

When you select the Set Video,

1 Press the navigation buttons to scroll to make

appropriate adjustments.

When you select the Set Audio,

1 Press the navigation buttons to scroll to show

the Sound Mode, Clear Voice II or Balance.

2 Press the navigation buttons to scroll to make

appropriate adjustments.

Listening to Music

1 Press the navigation buttons to scroll to

My Media and press OK.

2 Press the navigation buttons to scroll to Music

List and press OK.

3 Press the navigation buttons to scroll to a folder

you want and press OK.

4 Press the navigation buttons to scroll to a file

you want and press OK.

Move

Page 1/1

Page

Page 1/1

004. - B04.mp3

00:00

Page Change

Exit

Drive1

003. B03.mp3

00:00

Play

Mark Mode

Music List

USB1 USB Drive

001. - B01.mp3

00:00

005. - B05.mp3

00:00

To Movie List

002. -B02.mp3

00:00

Change Numbers

ENGLISH

ENG

Music List

Mark Mode

USB1 USB Drive

001. - B01.mp3

00:00

005. - B05.mp3

00:00

Play Marked

Mark All

002. -B02.mp3

00:00

Drive1

Move

Unmark All

003. B03.mp3

00:00

Page 1/1

Mark

Exit Mark Mode

Page

004. - B04.mp3

00:00

Page Change

Menu Description

Play Marked Display the selected music file.

Mark All Mark all music files on the screen.

Unmark All Deselect all marked music files.

Exit Mark Mode Exit the Mark Mode.

5 Play music.

Page 1/1

Exit

Page 36

ENTERTAINMENT

6 When listening to music, you can set the

ENGLISH

ENG

following:

Music List

3 file(s) Marked

004. - B04.mp3 00:00

005. - B05.mp3

005. - B05.mp3 00:00

Drive1 Page 1/1

006. - B06.mp3 00:00

Play with Photo

Button Description

Stops playing back the file and moves back to the Music List.

Plays a music file

Pauses or resumes playback

Skips to the next file

Skips to the previous file

or When playing,

When you press the button, the previous music file will be played.

When you press the button, the next

music file will be played. Green button

Start playing the selected music files and

then move to the Photo List.

Adjusts the screen brightness to save

ENERGY

energy.

SAVING

Option

Hide

Show the Option menu.

Hides the option window.

To display the options, press OK.

EXIT

When you press the EXIT button while

the Music player is displayed, only the

music will be stopped and the player will

not return to normal viewing.

When you press the EXIT button while

the music is stopped or while the music

player is hidden, the player will return to

normal viewing.

or When using the < or > button during

playback a cursor indicating the position

can be played.

Page 1/1

007. - B07.mp3 00:00

Option

008. - B08.mp3 00:00

02:30 / 03:25

Hide Exit

Tips for playing music files

Thi s uni t d o esn' t s u ppor t t h e I D3 Tag

embedded MP3 files.

NOTE

y Non-supported files are displayed the pre-

view image by icon only .

y Abnormal files are displayed in the form of

bitmap .

y A damaged or corrupted music file does not

play but displays 00:00 in playtime.

y A music download from a paid service with

y If you press OK, buttons, screen saver is

stopped.

y The PLAY( ), Pause( ), , , but-

tons on the remote control are also available in this mode.

y You can use the button to select the next

music and the button to select the previous music.

file name

002. B02.mp3 00:31 / 04:04

Time elapsed /Duration

Page 37

ENTERTAINMENT

Music options

1 Press MENU to access the Pop-Up menus.

2 Press the navigation buttons to scroll to Set Au-

dio Play. or Set Audio. and press OK.

NOTE

y Option values changed in Movie List does

not affect Photo List and Music List.

y Option value changed in Photo List and Mu-

sic List are changed likewise in Photo List

and Music List excluding Movie List.

When you select the Set Audio Play.,

1 Press the navigation buttons to scroll to select

the Repeat or Random.

2 Press the navigation buttons to scroll to make

appropriate adjustments.

Viewing the Contents List

Plays back the stored files using the Export option in SuperSign Manager.

1 Press the navigation buttons to scroll to My

Media and press OK.

2 Press the navigation buttons to scroll to Con-

tents List and press OK.

3 Press the navigation buttons to scroll to a

folder you want and press OK.

4 Press the navigation buttons to scroll to a file

you want and press OK.

Contents List

USB1 USB Drive

test1.cts 07/01/2011

test5.cts 07/01/2011

To Movie List

test2.cts 07/01/2011

Change Numbers

Page 1/1

Drive1

test3.cts 07/01/2011

Move

Page 1/1

test4.cts 07/01/2011

Page

Play

Page Change

Exit

ENGLISH

ENG

When you select the Set Audio,,

1 Press the navigation buttons to scroll to select

the Sound Mode, Clear Voice II or Balance.

2 Press the Navigation buttons to scroll to make

appropriate adjustments.

NOTE

y While playing media files from Contents List,

only the BACK, EXIT, or Volume button are available. Selecting the BACK or EXIT button stops playing media files and returns to the screen view mode.

y If there is the AutoPlay folder in the USB

device and its files are in supported formats, they can be played back automatically when the USB device is connected to the monitor.

Page 38

DivX® VOD Guide

ENGLISH

ENG

In order to play purchased or rented DivX® VOD contents, you should register your device with 10 digit DivX registration code from your device at

www.divx.com/vod.

1 Press MENU to access the main menus.

2 Press the navigation buttons to scroll to MY

3 Press the Blue button.

4 Press the navigation buttons to scroll to DivX

5 View the registration code of your display.

6 When you are finished, press EXIT.

ENTERTAINMENT

DivX® VOD Registration

MEDIA and press OK.

Reg. Code and press OK.

When you return to the previous menu, press

BACK.

NOTE

y While you are checking the registration code,

some buttons may not work.

y If you use the DivX registration code of

another device, you cannot play the rented or purchased DivX file. Make sure to use the DivX registration code assigned to your Product.

y The video or audio files that are not con-

verted by the standard DivX codec may be corrupted or not be played.

y The DivX VOD code allows you to activate

up to 6 devices under one account.

You must register your device

to play DivX protected videos.

Registration code : **********

Page 39

ENTERTAINMENT

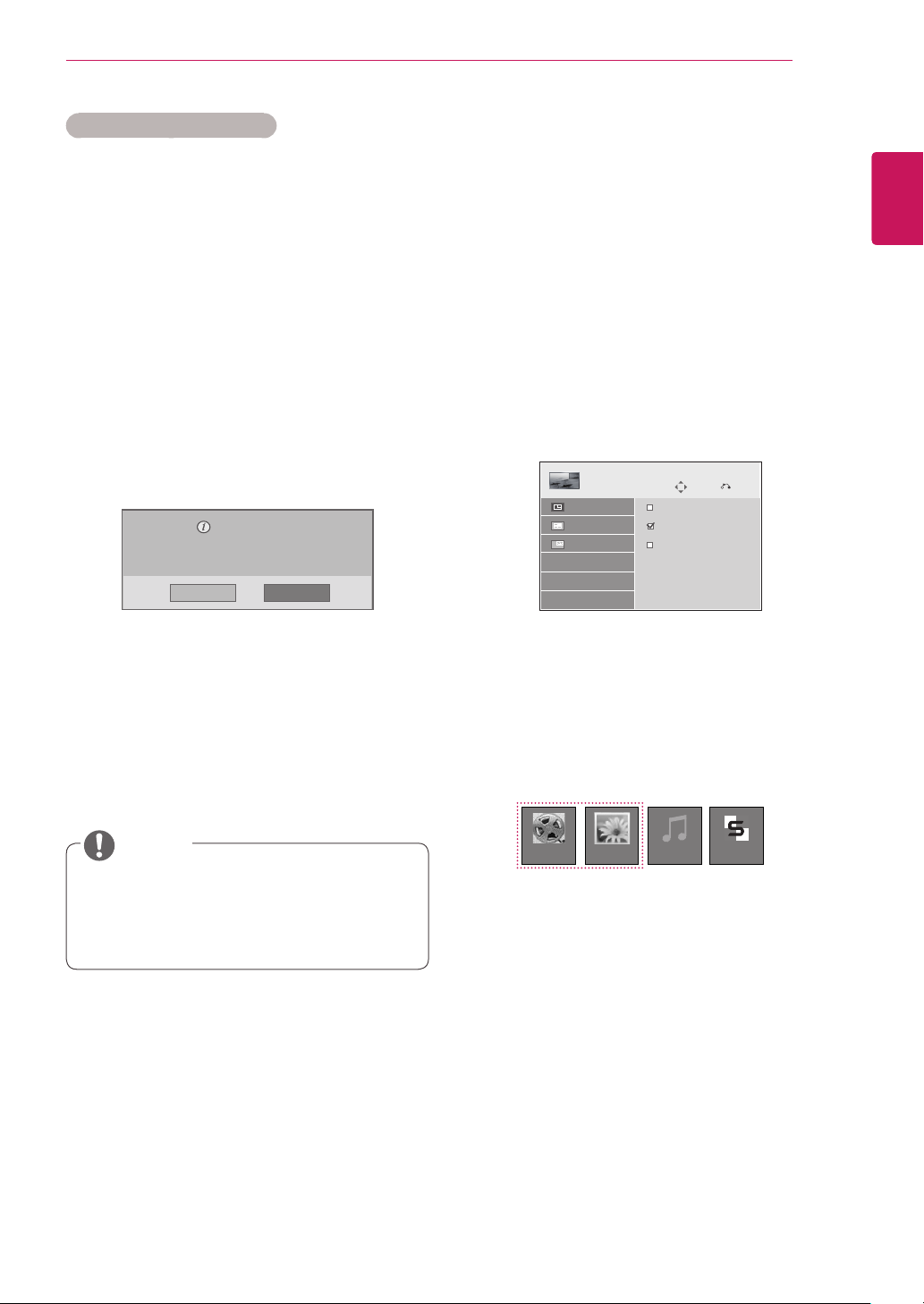

DivX® VOD Deregistration

You should deregister your device with 8 digit DivX deregistration code from your device at www.divx. com/vod.

1 Press MENU to access the main menus.

2 Press the navigation buttons to scroll to MY ME-

DIA and press OK.

3 Press the Blue button.

4 Press the navigation buttons to scroll to Deacti-

vation and press OK.

5 Press the navigation buttons to select Yes to

confirm.

Deregistration code :

********

Deregister at http://vod.divx.com

Continue with registration?

Yes No

Using PIP/PBP

Videos or pictures stored on the USB device can be displayed on a single monitor by dividing them into the main and subscreens.

1 Press MENU to access the main menus.

2 Press the navigation buttons to scroll to OP-

TION and press OK.

3 Press PIP/PBP to select PIP or PBP and then

press OK.

PIP/PBP

Mode

Position

Size

Off

PIP

PBP

Move

Prev.

ENGLISH

ENG

6 When you are finished, press EXIT.

When you return to the previous menu, press

BACK.

NOTE

Once the deregistration is executed, you

must register your device again to see DivX® VOD contents.

4 Select Movie List or Photo List from My

Media. (With PIP/PBP selected, the Music List and Contents List are deactivated.)

Movie List Music ListPhoto List

Contents List

Page 40

ENTERTAINMENT

5 Select a file you want and then press OK.

ENGLISH

ENG

6 Select the PIP or PBP icon from the play list.

Movie List

USB1 USB Drive

001 002

005 006

To Photo list

Change Numbers

Drive1

003

051. Apple_ ... 02:30:25

Move

Mark Mode

Page 1/1

7 For sound select either Main or Sub. You must

to select the output sound before running the PIP or PBP function.

Page 1/1

004

Select the sound path.

Main Sub

Play

Page ChangePage

Exit

8 The sub screen is displayed on the main screen.

MOVIE LIST

Slideshow BGM

PHOTO LIST

2/13

Option

01:02:30 / 02:30:25

Hide

Exit

Page 41

CUSTOMIZING SETTINGS

MARK

ARC

CUSTOMIZING SETTINGS

Accessing Main Menus

Press MENU to access the main menus.

Press the navigation buttons to scroll to one of the following menus and

press OK.

Press the navigation buttons to scroll to the setting or option you want

and press OK.

When you are finished, press EXIT.

When you return to the previous menu, press BACK.

PICTURE (See p.42)

Adjusts the image size, quality, or effect.

AUDIO (See p.45)

Adjusts the sound quality, effect, or volume level.

ENGLISH

ENG

P A

BRIGHT

PSM

NESS

MUTE

AUTO

S.MENU

EXIT

BACK

TILE

OFF

TIME (See p.46)

Sets the time, date, or Timer feature.

MY MEDIA (See p.26)

Display and play movie, photo and music content stored on your USB.

OPTION (See p.47)

Customizes the general settings.


OPTION

AUDIO TIME

NETWORK

MY MEDIA

NETWORK (See p.53)

Sets up the network setting.

Page 42

CUSTOMIZING SETTINGS

ENGLISH

PICTURE Settings

ENG

The available picture settings are described in the following:

Press MENU to access the main menus.

Press the navigation buttons to scroll to PICTURE and

press OK.

Press the navigation buttons to scroll to the setting or

option you want and press OK.

- To return to the previous level, press BACK.

When you are finished, press EXIT.

When you return to the previous menu, press

BACK.

Setting Description

Aspect Ratio Changes the image formatting.

Adjusts the screen brightness corresponding to the surroundings.

Energy Saving

Easy Brightness Control

Level

Off Disables Energy Saving function

Minimum/

Selects the brightness level of the backlight.

Medium/ Maximum

Screen off The screen turns off in 3 seconds.

Adjusts the backlight according to the schedule you set.

Mode

Off Disables Easy Brightness Control.

On Enables Easy Brightness Control.


Aspect Ratio

Energy Saving

Easy Brightness Control

Smart Energy Saving

Picture Mode

Screen

Move

: 16:9

: Off

: Standard

Backlight

Contrast

Brightness

Sharpness

Color

Tint

Color Temp.

Advanced Control

Picture Reset

100

R G

W C

Smart Energy Saving

NOTE

Easy Brightness Control is disabled if the current time is not set.

If Energy Saving is set to Maximum, Easy Brightness Control is disabled.

You can set up to six schedules and they will be sorted in time ascending order.

If more than six schedules are added, the latest schedule will be automatically deleted.

You can delete a schedule by pressing the OK button.

Duplicate schedules are not added, but the backlight value changes.

It may not be supported depending on the model.

Adjusts the backlight and contrast depending on the screen brightness.

Level

Off Disables the Smart Energy Saving function.

On Enables the Smart Energy Saving function to save power consumption as much

as the value set in the smart energy saving rate.

Page 43

CUSTOMIZING SETTINGS

Setting Description

Picture Mode Selects one of the preset image or customizes options in each mode for the best Monitor screen

SCREEN (In RGB Mode Only)

performance. You are also able to customize advanced options of each mode. The available preset picture modes vary depending on the monitor .

Mode

Vivid Adjusts the video image for the retail environment by enhancing the contrast,

Standard Adjusts the image for a normal environment.

Cinema Optimizes the video image for a cinematic look to enjoy movies as if you are in a

Sport Optimizes the video image for high and dynamic actions by emphasizing primary

Game Optimizes the video image for fast moving video such as PCs or games.

Customizes the PC display options in RGB mode.

Option

Resolution Selects a proper resolution. See "Customizing PC display options."

Auto Config. Adjusts the screen position, clock, and phase automatically.

Position/Size/ Phase

Reset Restores all options to the default setting.

brightness, color, and sharpness.

movie theater.

colors such as white, grass, or sky blue.

The displayed image may be unstable for a few seconds while the configuration is in progress.

Adjusts the options when the picture is not clear, especially when characters are shaky. Run Auto Config. before adjusting these.

ENGLISH

ENG

Picture Mode options

Setting Description

Backlight Adjusts the brightness of the screen by controlling the LCD backlight. If you decrease the

Contrast Increases or decreases the gradient of the video signal. You may use Contrast when the

Brightness Adjusts the base level of the signal in the picture. You may use Brightness when the dark part

Sharpness Adjusts the level of crispness in the edges between the light and dark areas of the picture.

Color Adjusts intensity of all colors.

Tint Adjusts the balance between red and green levels.

Color Temp. Set to warm to enhance hotter Colors such as red, or set to cool to make picture bluish.

Advanced Control Customizes the advanced options. Refer to the Advanced image options.

Picture Reset Restores the options to the default setting.

brightness level, the screen becomes darker and the power consumption will be reduced without any video signal loss.

bright part of the picture is saturated.

of the picture is saturated.

The lower the level, the softer the image.

NOTE

If the Picture Mode setting in the Picture menu is set to Vivid, Standard, Cinema, Sport, or Game

the subsequent menus will be automatically set. You cannot adjust color and sharpness in the RGB/DVI-PC/HDMI-PC/Display Port-PC mode.

When using the Smart Energy Saving function, the screen may look saturated in the white area of a

still image. If Energy Saving is set to Minimum, Medium, or Maximum, the Smart Energy Saving function is

disabled.

Page 44

ENGLISH

ENG

CUSTOMIZING SETTINGS

Advanced Control

Setting Description

Dynamic Contrast (Off/High/Medium/Low)

Dynamic Color (Off/High/Low)

Clear White (Off/High/Low)

Skin Color (-5 to 5)

Noise Reduction (Off/High/Medium/Low)

Digital Noise Reduction (Off/High/Medium/Low)

Gamma (High/Medium/Low)

Black Level (High/Low)

Adjusts the contrast to keep it at the best level according to the brightness of the screen. The picture is improved by making bright parts brighter and dark parts darker.

(Function works in the following mode - AV, Component, HDMI-DTV, DVI-DTV, Display PortDTV)

Adjusts screen Colors so that they look livelier, richer and clearer. This feature enhances hue, saturation and luminance so that red, blue, green and white look more vivid.

(Function works in the following mode - AV, Component, HDMI-DTV, DVI-DTV, Display PortDTV)

Make the white area of screen brighter and more white.

It detects the skin area of video and adjusts it to express a natural skin color.

Reduces screen noise without compromising video quality.

(Function works in the following mode - AV, Component, HDMI-DTV, DVI-DTV, Display PortDTV)

This option reduces the noise produced while creating digital video signals.

Set your own gamma value. On the monitor, high gamma values display whitish images and low gamma values display high contrast images.

Low: The picture of the screen gets darker.

High: The picture of the screen gets brighter. Set black level of the screen to proper level.

(Function works in the following mode - AV, Component, HDMI-DTV, DVI-DTV, Display PortDTV)

Page 45

CUSTOMIZING SETTINGS

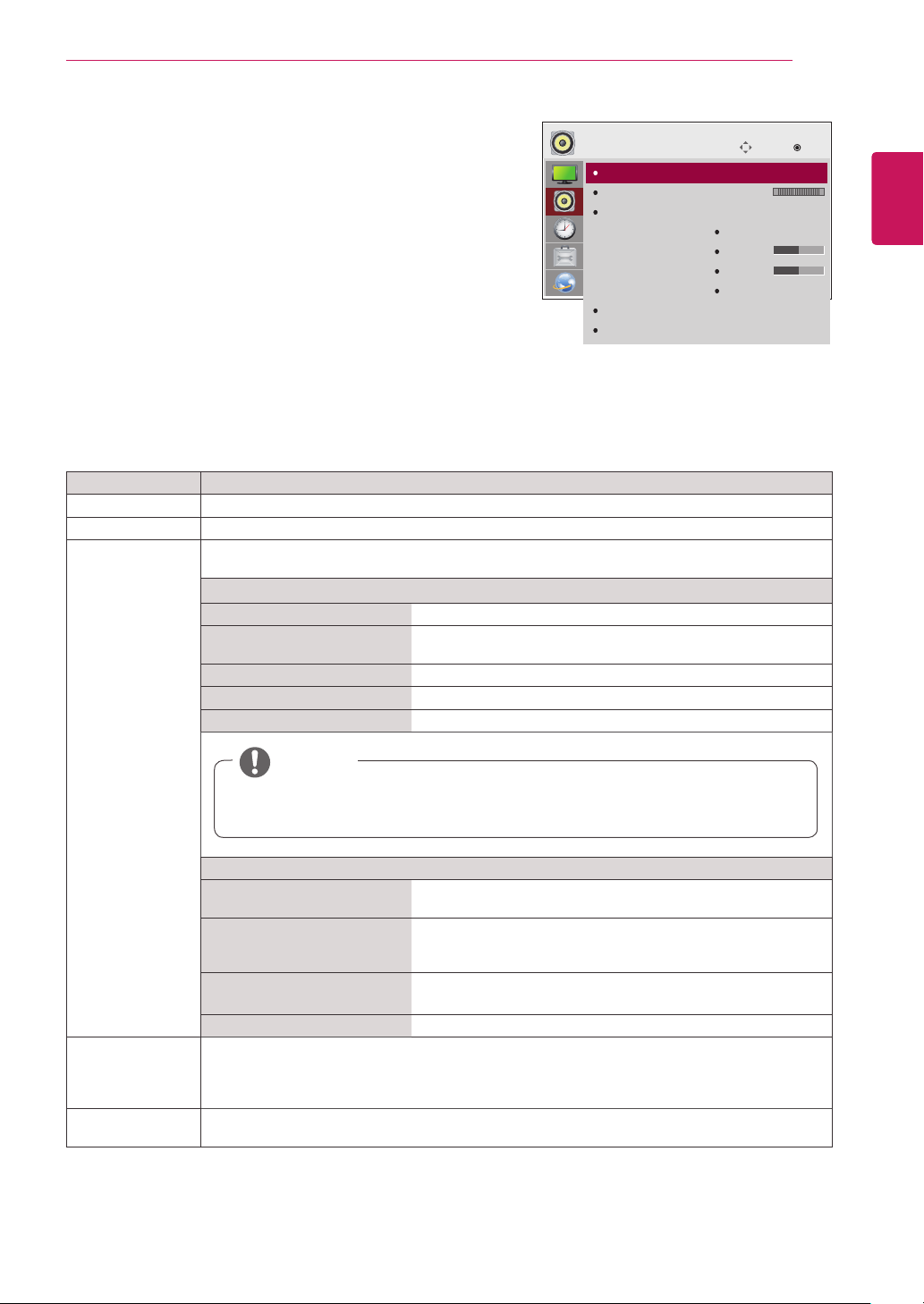

AUDIO Settings

Press MENU to access the main menus.

Press the navigation buttons to scroll to AUDIO and press

OK.

Press the navigation buttons to scroll to the setting or

option you want and press OK.

- To return to the previous level, press BACK.

When you are finished, press EXIT.

AUDIO

Clear Voice II

Balance

Sound Mode

Digital Audio Input

Speaker

Move

: Off

: Standard

Infinite Sound : Off

Treble

Bass

Reset

: Audio In

: On

L R

When you return to the previous menu, press BACK.

The available audio options are described in the following:

Setting Description

Clear Voice ll By differentiating the human sound range from others, it helps users to hear human voices better.

Balance Adjusts balance between the left and right speakers according to your room environment.

Sound Mode The best sound tone quality will be selected automatically depending on the video type that you're

currently watching.

Mode

Standard The most commanding and natural audio.

Music Select this option to enjoy the original sound when listening to

the music.

Cinema Select this option to enjoy sublime sound.

Sport Select this option to watch sports broadcasting.

Game To enjoy dynamic sound when playing a game.

ENGLISH

ENG

NOTE

If sound quality or volume is not at the level you want, it is recommended to use a separate

home theater system or amplifier to cope with different user environments.

Option

Infinite Sound Infinity Sound option provides 5.1 channel stereo sound from two

Treble Controls the dominant sounds in the output. When you turn up

Bass Makes the output sound softer. When you turn up the bass, it will

Reset Resets the sound mode to the default setting.

Digital Audio Input

HDMI/Display Port: Outputs the sound of digital signal from HDMI/ Display Port through the

monitor speaker. Audio In: Outputs the sound through the monitor speaker by connecting HDMI/ Display Port to the Audio In port.

Speaker ON: Enables sound to the monitor speaker. (* The monitor speaker is sold separately.)

OFF: Disables sound to the monitor speaker. Use this option when using an external sound device.

speakers.

the treble, it will increase the output to the higher frequency range.

increase the output to the lower Frequency range.

Page 46

CUSTOMIZING SETTINGS

TIME Settings

ENGLISH

ENG

The available time settings are described in the following:

Press MENU to access the main menus.

Press the navigation buttons to scroll to TIME and press OK.

Press the navigation buttons to scroll to the setting or option

you want and press OK.

- To return to the previous level, press BACK.

TIME

Clock

Off Time

On Time

Sleep Timer

Power On Delay

Auto Off

Automatic Standby

Move OK

: Off

: 15 min.

: Off

When you are finished, press EXIT.

When you return to the previous menu, press BACK.

Setting Description

Clock Sets the time feature.

Off/On Time Sets the time to turn on or off the monitor.

Sleep Timer Sets the length of time until the Monitor to turns off. When you turn the monitor off and turn

Power on delay When connecting multiple monitors and turning the power on, the monitors are turned on

Auto off If Auto off is active and there is no input signal, the set switches to off mode automatically after 15

Automatic Standby

it on again, the Sleep Timer will be set to off.

individually to prevent overload.

minutes.

If you do not use the monitor for more than 4 hours, it will be in standby mode automatically.

NOTE

Off Time/On Time can be saved for up to seven schedules; the monitor is turned on or off at the preset

time in the schedule list. If multiple preset times are stored in the schedule list, this function works at the nearest time from the current time. Once the on or off time is set, these functions operate daily at the preset time.

The scheduled power-off function works properly only when the device time is set correctly.

When the scheduled power-on and power-off times are the same, the power-off time has priority over the

power-on time if the set is turned on, and vice versa if the set is turned off.

Page 47

CUSTOMIZING SETTINGS

OPTION Settings

Press MENU to access the main menus.

Press the navigation buttons to scroll to OPTION and press

OK.

Press the navigation buttons to scroll to the setting or option

you want and press OK.

- To return to the previous level, press BACK.

When you are finished, press EXIT.

When you return to the previous menu, press BACK.

OPTION

Language

ISM Method

DPM Select

Fail Over

Factory Reset

Set ID

Tile Mode

PIP/PBP

Key Lock

Interface Select

PC Power Control

USB Content Recovery

Product/Service Info.

Move

: Normal

: 5sec

: Off

: 1

: Off

: RS232C

: Not connected

: Off

The available option settings are described in the following:

Setting Description

Language To choose the language in which the control names are displayed.

ISM Method A frozen or still picture from a PC/Video game displayed on the screen for prolonged periods

could result in a burn-in image remaining even when you change the image. Avoid allowing a fixed image to remain on the screen for a long period of time.

Setting

Normal Leave on normal if you don't foresee image burn in being a problem.

Orbiter May help prevent burn-in images. However, it is best not to allow any fixed

image to remain on the screen. To avoid a permanent image on the screen, the screen will move every 2 minutes.

Inversion Thi s function inv erts the panel color of the screen. The pane l color is

automatically inverted every 30 minutes.

White Wash White wash fills the screen with solid white. This helps removes permanent

images burned into the screen. A permanent image may be impossible to clear entirely with white wash.

DPM Select A user can choose to turn the power saving mode on / off.

NOTE

ENGLISH

ENG

You can set Energy Saving to Off or set the length of time before entering Energy Saving

mode to 5 sec./10 sec./15 sec./1 min./3 min./5 min./10 min. It makes a little difference according to your environment.

It may not be supported depending on the model.

Fail Over If there is no input signal, it automatically switches to another input with signal.

mode

Off Stops auto switch of the input source.

Auto Attempts to find another input source having video signal according to the

defined input order if no video signal comes from the current input source. (Refer to the sequence of the table below.)

Current

Input Source

RGB HDMI DVI DP

DVI HDMI DP RGB

HDMI DVI DP RGB

Attempt 1 Attempt 2 Attempt 3 Attempt 4

If there is no available

video signal to switch to,

then the current input

DP HDMI DVI RGB

Manual The input source changes according to the specified order.

If there is no video signal from the specified input source, then the current input source remains.

source remains.

Page 48

ENGLISH

ENG

CUSTOMIZING SETTINGS

Setting Description

Factory Reset Select this option to return to the default factory settings.

Set ID You can assign a unique Set ID NO (name assignment) to each product when several products

are connected for display. Specify the number (1 to 255) using the button and exit. Use the assigned Set ID to individually control each product using the Product Control Program.

Tile Mode Tile Mode To use this function

- Must be displayed with various other products.

- Must be in a function that can be connected to RGB/DVI Cable and distributor. Tile mode and choose Tile alignment and set the ID of the current product to set location. * Only after pressing the SET button the adjustments made to the settings will be saved.

- Tile mode : column x row ( c = 1 to 15 r = 1 to 15)

- 15 x 15 available.

- Configuration of an integration screen is also available as well as configuration of one by one Display.

Auto Config. Adjusts the screen position automatically.

The displayed image may be unstable for a few seconds while the configuration is in progress.

PC Position Moving the screen position horizontally and vertically.

PC Size Adjust the horizontal and vertical size of the screen taking into account the size

of the bezel.

Natural The image is omitted by the distance between the screens to be naturally

shown.

Reset Function to initialize and release a tile.

All Tile setting are released when selecting tile recall and the screen returns to full screen.

NOTE

If Tile Mode is enabled, Smart Energy Saving will be disabled to provide the same picture

quality as other displays. The touch screen feature is limited while using Tile Mode.

Page 49

CUSTOMIZING SETTINGS

Setting Description

PIP/PBP Videos or photos stored on the USB device can be displayed on a single monitor by dividing them

into the main and subscreens.

Option

Mode Sets the type of secondary screen.

*OFF: Disables the secondary screen. *PIP (Picture In Picture): Displays the secondary screen in the main screen. *PBP (Picture By Picture): Displays the secondary screen next to the main screen.

Position Adjusts the position of the subscreen (top left, bottom left, top right, bottom

right) The default value is inthe bottom right.

Size Adjusts the size of the subscreen (Size 0-10). The default size of the PIP (Size:

0) is 480x270; the maximum size (Size: 10) is 960x540.

NOTE

The Position and Size options are enabled only in PIP mode.

Key Lock Turns the local key function on or off. If Key Lock is enabled, the local key does not work.

Interface Select Sets communication with Media Player and the connected PC.

Option

RS232C Communicates with the connected PC in serial mode.

SuperSign Communicates with Media Player.

PC Power Control Controls the power of the monitor with Media Player turned on.

ENGLISH

ENG

USB Content Recovery

Product/Service Info.

Mode

Not connected This mode is displayed when the Media Player is not connected.

Off You can turn on or off the whole system.

On You can turn on or off the monitor while the Media Player is turned on.

Always On When you turn on the monitor while the Media Player is turned off, the Media

Player is turned on.

Replays the content in a USB when the power is back on if it is turned off during playing a content. (This function operates the same when a USB is disconnected and connected again.)

Displays the model name, software version, serial number, IP address, MAC address, and home page.

Page 50

CUSTOMIZING SETTINGS

ENGLISH

ENG

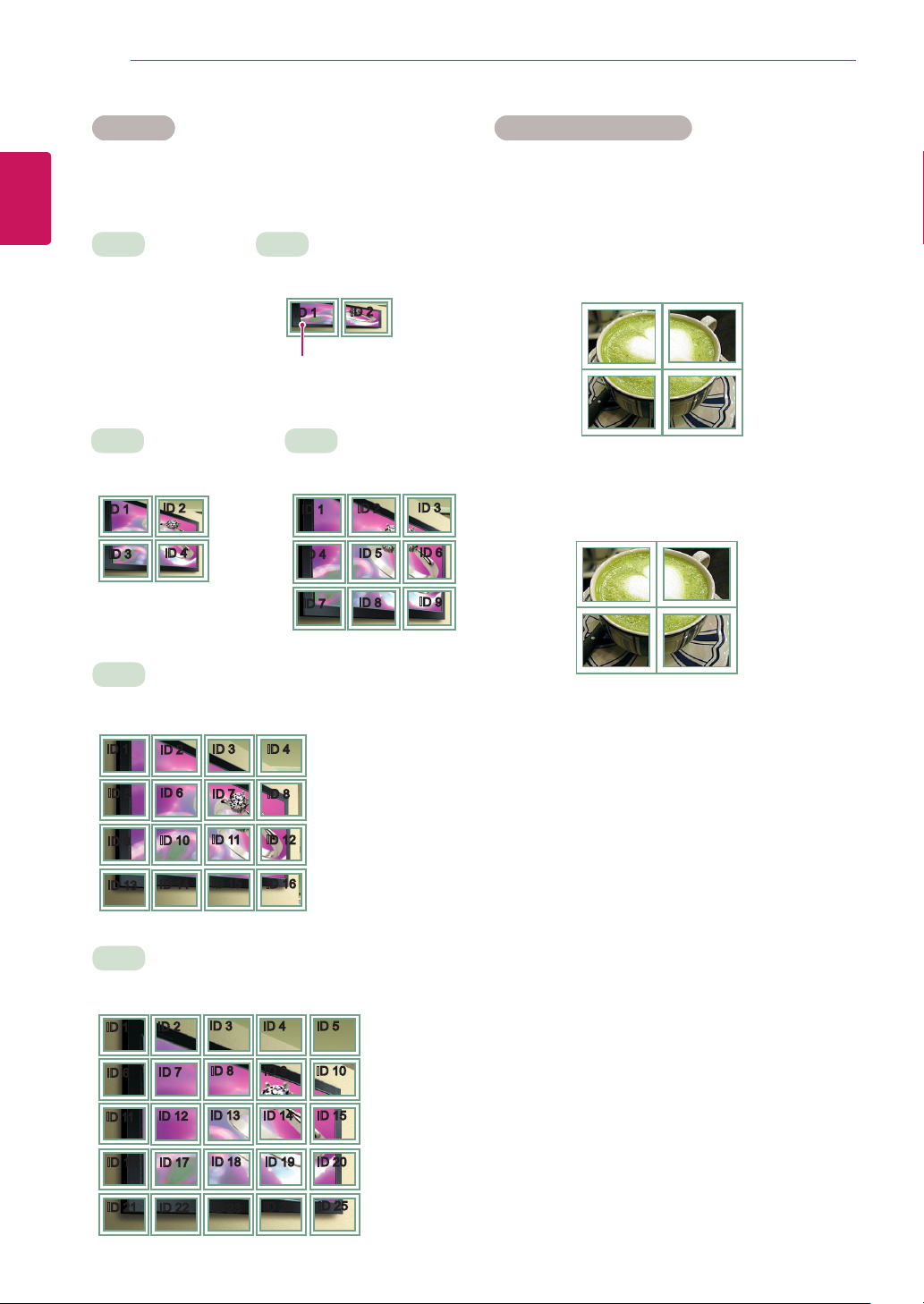

This monitor can be tiled with additional monitors to create a large tiled display.

Tile Mode

Off

When the Tile Mode

option is disabled

2X2

When using 4 monitors

ID 1

ID 3

ID 2

ID 4

1X2

When using 2 monitors

ID 1

ID 2

Tile ID

3X3

When using 9 monitors

ID 4

ID 2

ID 5

ID 8

ID 1

ID 7

Tile Mode - Natural mode

When active, the part of the image that would normally be displayed in the gap between the monitors is omitted.

Before

ID 3

After

ID 6

ID 9

4X4

When using 16 monitors

ID 1

ID 5

ID 9

ID 13

ID 10

ID 14

ID 2

ID 6

ID 3

ID 7

ID 11

ID 15

5X5

When using 25 monitors

ID 3

ID 2

ID 1

ID 8

ID 7

ID 6

ID 13

ID 12

ID 11

ID 17

ID 18

ID 16

ID 4

ID 8

ID 12

ID 16

ID 4 ID 5

ID 9 ID 10

ID 14 ID 15

ID 19

ID 20

ID 21

ID 22

ID 23

ID 24

ID 25

Page 51

CUSTOMIZING SETTINGS

PIP/PBP

Displays videos or photos stored in the USB device on a single monitor by dividing it into the main and sub screens.

Mode

*PIP (Picture In Picture): Displays the subscreen in the main screen. *PBP (Picture By Picture): Displays the subscreen next to the main screen.

Main

screen

Sub screen

PIP PBP

Position

Adjusts the position of the subscreen (top left, bottom left, top right, bottom right)

top left top right

bottom left bottom right

NOTE

The subscreen is only supported when using the

USB device.

Sub

USB

AV X

Main

You can change only the size and position in PIP

mode. With PBP selected, the Aspect Ratio option in the

PICTURE menu is disabled (Fixed as 16:9). While running the PIP/PBP function, the Tile Mode

function does not work. You must select the output sound before running

the PIP or PBP functions. (Select either Main or Sub.) If you fail to select Main or Sub from the sound

selection box, and if the OSD disappears after either a period of time or when the Exit or Back key is pressed, the PIP/PBP subscreen is not activated. You cannot change the sound while running the

PIP or PBP functions. If you want to change the sound, please restart PIP/PBP. The picture quality of the subscreen is set

according to the values selected in the main menu, not the USB device. Even when the power is turned off or on, if the

USB device is connected, the PIP/PBP mode plays again from where it left off. If you play videos you selected in PIP/PBP mode,

the videos will play back repeately in succession. The buttons below work in PIP mode.

Component O

RGB O

HDMI/ DVI-D/ DP O

Button Photo Movie

ENGLISH

ENG

Size

Adjusts the size of the subscreen (Size 0-10).

PBP

960x1080

10 : 960x540

PIP

0 :

480x270

< 1920x1080 >

Page 52

AUDIO

(RGB/DVI)

REMOTE

CONTROL IN

RS-232C OUT

RS-232C IN

RS-232C OUT

RS-232C IN

RS-232C OUT

RS-232C IN

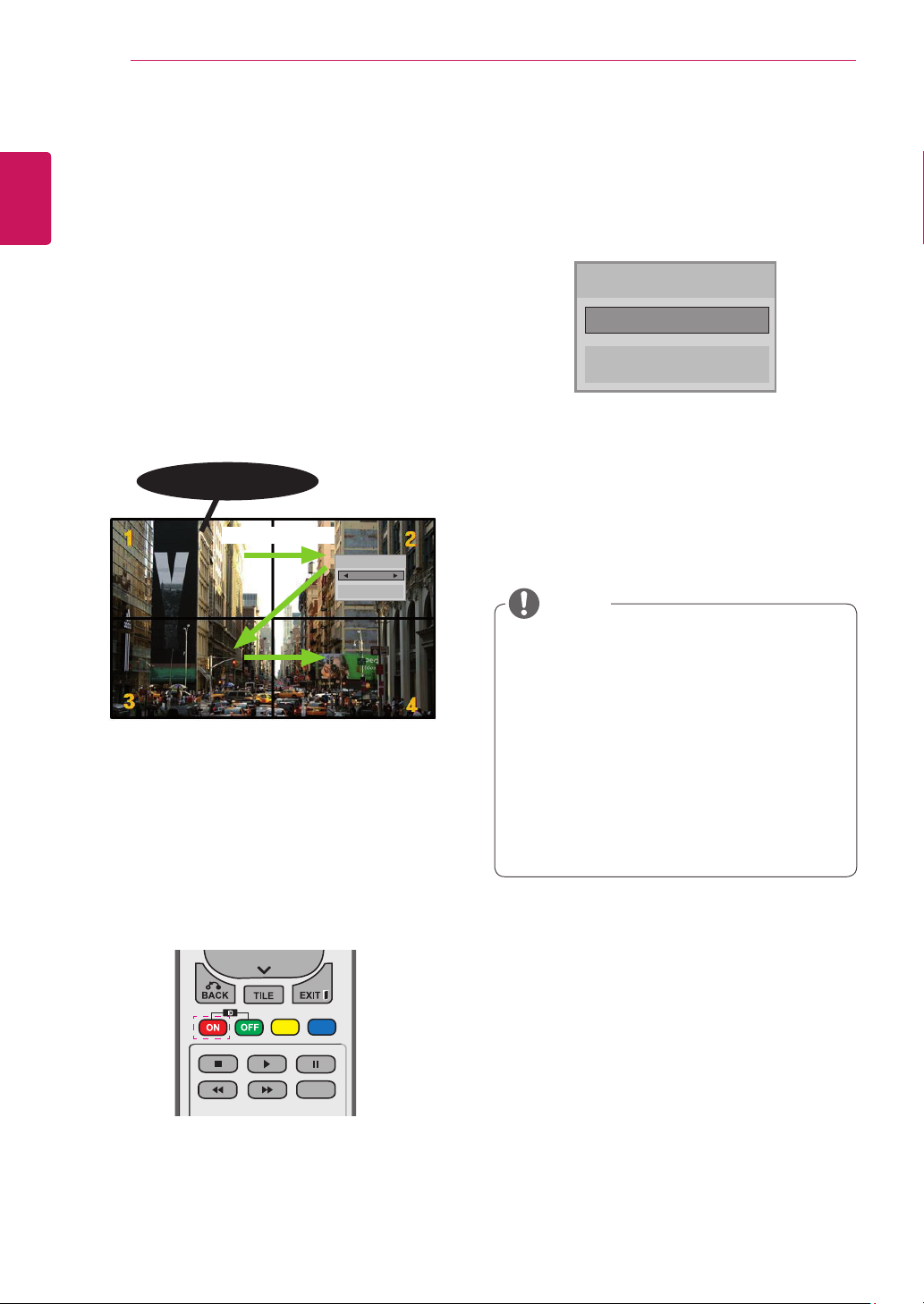

Picture ID Settings

ENGLISH

ENG

Picture ID is used to change the settings of a

specic display using a single IR receiver for

multi-vision. Communication is possible between a monitor with an IR receiver and other monitors

using RS232C cables. Each monitor is identied

by a Set ID. If you assign the Picture ID using the remote control, only displays with the same Picture ID and Set ID can be controlled remotely.

1 Assign the Set ID to the installed monitors as

CUSTOMIZING SETTINGS

shown below:

IR Receiver

RS232C cable

Picture ID

Off

3 If you press the left/right buttons or the red ON

button for PICTURE ID repeatedly, the Picture

ID toggles between OFF and 1 to 4. Assign the Set ID as you like.

Picture ID

◄ Off ►

A set with a different Set ID than the Picture

ID cannot be controlled by IR signals. Please refer to the Installation Manual for

more information on the assigning Total Set ID.

NOTE

2X2 Multi-Vision (Total Set ID: 4)

Set IDs are assigned as shown in the picture.

2 Press the ON (Red) button on the remote con-

trol to assign the PICTURE ID.

If Picture ID is set to 2, the upper right

monitor, that has a Set ID of 2, can be controlled by IR signals. If you press the green OFF button for

PICTURE ID, the Picture IDs for all monitors are turned off. If you then press any button on the remote control, all monitors can be controlled by IR signals regardless of Set ID. The Picture ID function may not work while

MY MEDIA is operating.

Page 53

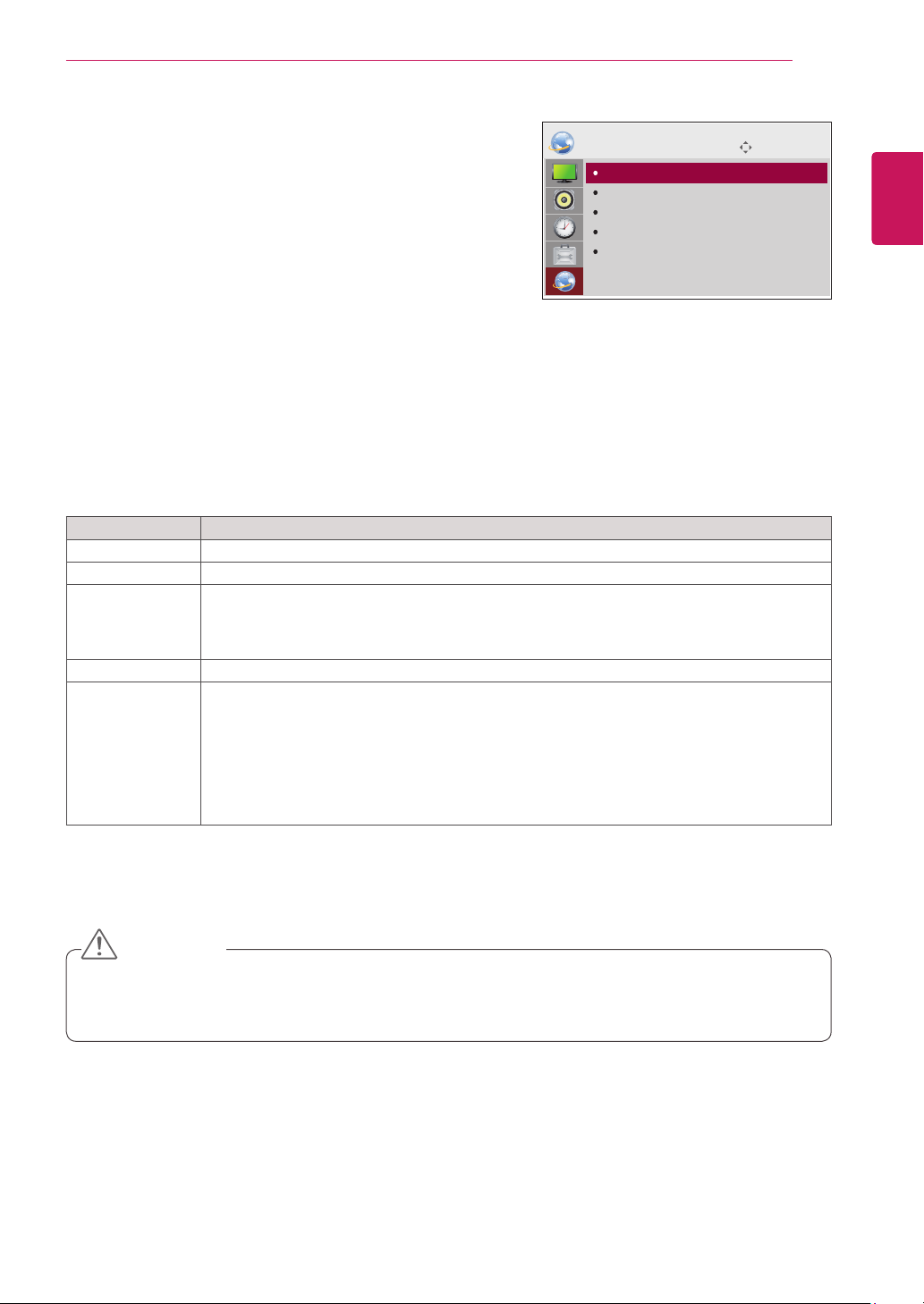

CUSTOMIZING SETTINGS

NETWORK Settings

Press MENU to access the main menus.

Press the navigation buttons to scroll to NETWORK and

press OK.

Press the navigation buttons to scroll to the setting or option

NETWORK

Player Name Setting

Network Setting

Network Status

Server IP Setting

Server IP Status

you want and press OK.

- To return to the previous level, press BACK.

When you are finished, press EXIT.

When you return to the previous menu, press BACK.

The available option settings are described in the following:

Setting Description

Player Name Sets the player name used in SuperSign Manager.(Up to 20 characters)

Network Setting Configure the network settings.

Network Status

Server IP Setting Sets the IP address of the computer (server) on which SuperSign Manager is installed.

Server IP Status Displays the connection status with the server.

Display the network status.

- Internet is connected: Extermally connected

- Home network is connected: Only internally connected

- Not connected: When there is no network connection

- Not connected: When there is no network connection with SuperSign server

- Waiting for approval: When network connection with SuperSign server has been made, but access to server has not been approved by the server

- Rejected: When network connection with SuperSign server has been made, but access to server has been rejected by the server

- Internet is connected: When network connection with SuperSign server has been made and access to server has also been approved by the server

Move

: None

: Not connected

ENGLISH

ENG

CAUTION

When setting the Player Name, input delay may occur if you press the buttons on the remote control

continuously.

Page 54

MAKING CONNECTIONS

ENGLISH

ENG

MAKING CONNECTIONS

Connect various external devices to the ports on the monitor set’s back panel.

Find an external device you want to connect to your monitor set shown on the following illustration.

Check the connection type of the external device.

Go to the appropriate illustration and check the connection details.

HD Receiver DVD VCR

AV COMPONENT HDMI DVI-D

Speaker

AV COMPONENT HDMI DVI-D

USB

Touch USB

RGB HDMI DVI-D Display Port LAN

Camcorder/Camera

AV COMPONENT HDMI DVI-D

Gaming device

AV COMPONENT HDMI

NOTE

If you connect a gaming device to the monitor set, use the cable supplied with the gaming device.

It is recommended you to use the optional speaker provided.

Page 55

MAKING CONNECTIONS

HDMI

External Device Connection

Connect a HD receiver, DVD, or VCR player to the monitor and select an appropriate input mode.

HDMI Connection

Transmits the digital video and audio signals from an external device to the monitor. Connect the external device and the monitor with the HDMI cable as shown on the following illustration.

Component Connection

Transmits the analog video and audio signals from an external device to the monitor. Connect the external device and the monitor with the 15pin signal to RCA cable as shown on the following illustration. To display images by using progressive scan, make sure to use the component cable.

(not included)

ENGLISH

ENG

(not included)

NOTE

Use a High Speed HDMI™ Cable.

High Speed HDMI™ Cables are tested to

carry an HD signal up to 1080p and higher.

(not included)

Page 56

MAKING CONNECTIONS

AV Connection

ENGLISH

ENG

Transmits the analog video and audio signals from an external device to the monitor. Connect the external device and the monitor with the 15 pin signal to RCA cable as shown on the following illustration.

Connecting to a USB

Connect a USB storage device such as s USB flash memory, external hard drive, MP3 player or a USB memory card reader to the monitor and access the USB menu to use various multimedia files.

(not included)

Page 57

MAKING CONNECTIONS

Network

LAN Connection

Connect PC to monitor directly.

LAN

Monitor

Using a router (Switch)

LAN

Monitor

Switch

ENGLISH

ENG

Using the Internet.

LAN

Monitor

Page 58

USING THE TOUCH SCREEN

ENGLISH

USING THE TOUCH SCREEN

To Use the Touch Screen on Windows 7

Plug a USB cable into the Touch USB port on the back of the monitor.

Then, connect the USB cable to your PC so that it automatically recognizes the touch screen monitor.

Go to Control Panel > System and Security > System. You will see the number of touch-points supported under Pen and Touch.

CAUTION

Once your PC recognizes the monitor, you

will be able to use the touch screen.

NOTE

The monitor can respond to 10 Touch Points

when connected to a Windows 7 computer. When using the touch screen monitor, it is

recommended to set the screen aspect ratio to Just Scan. For more information about gestures and

settings on Windows 7, refer to Windows Help.

Gestures and Settings on Windows 7

For information about gestures and settings on Windows 7, refer to the Windows Help.

Page 59

To Use the Touch Screen on Windows XP

USING THE TOUCH SCREEN

ENGLISH

Plug a USB cable into the Touch USB port on the back of the monitor.

Then, connect the USB cable to your PC so that it automatically recognizes the touch screen monitor.

CAUTION

Once your PC recognizes the monitor, you

will be able to use the touch screen.

You can see the details of the current touch screen on the Device Manager window. Go to Control Panel > System > Hardware > Device Manager > Human Interface Devices.

You can see LGE MultiTouch Device on the USB Human Interface Device Properties window.

Page 60

USING THE TOUCH SCREEN

ENGLISH

Windows XP

Touch: Mouse click (action) Long-press: Mouse right click (context menu) * The touch screen monitor is optimized for Windows 7.

Touch Response to

NOTE

The monitor can respond to one Touch Point

when connected to a Windows XP computer. When using the touch screen monitor, it is

recommended to set the screen aspect ratio to Just Scan. The touch function only works for the screen

that is set as the primary monitor. Go to Control Panel > Display > Settings > Use this device as the primary monitor.

Page 61

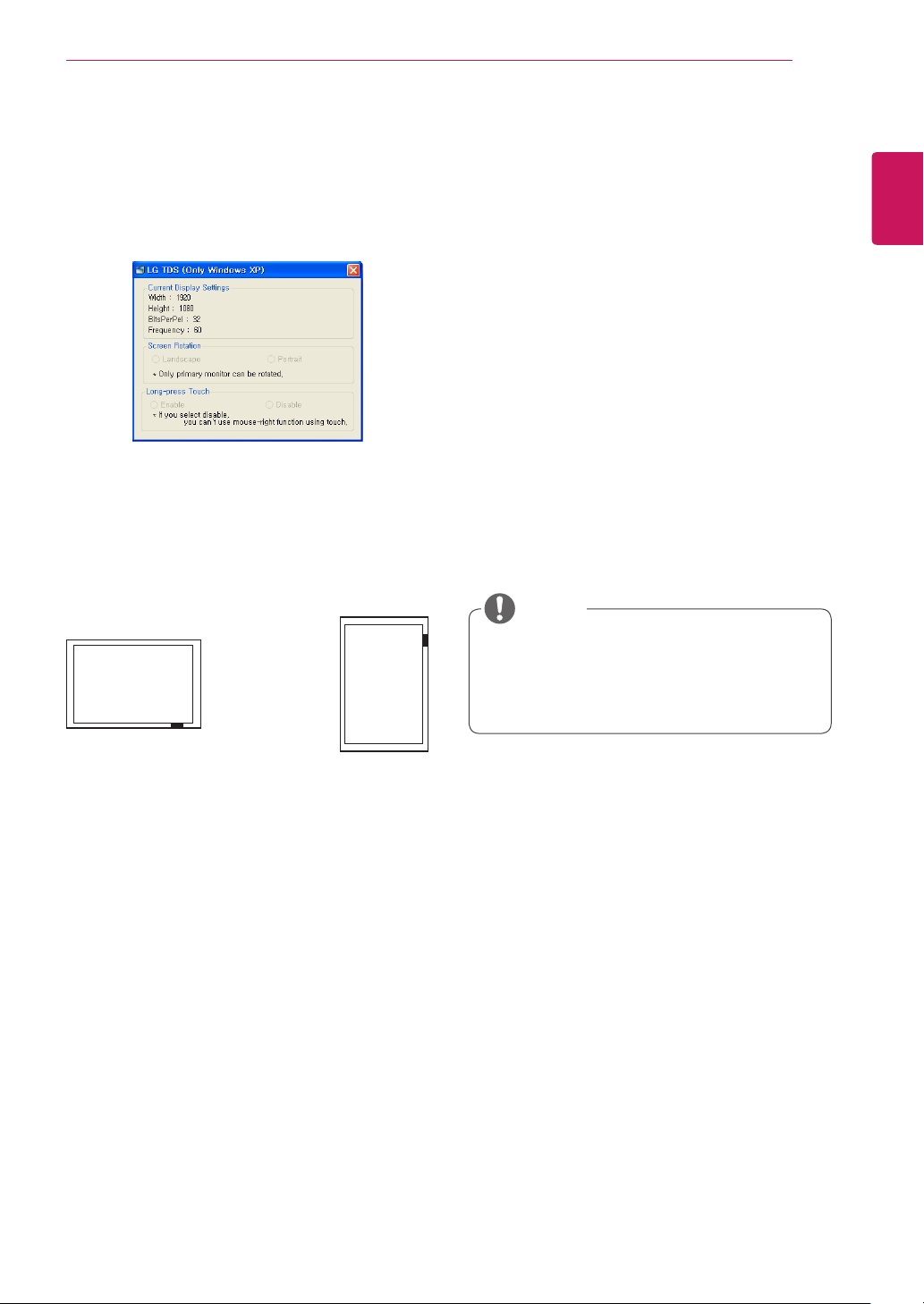

How to Use LG TDS

LG TDS is required to enable portrait mode and the long-touch on Windows XP.

y Current Display Settings

Displays the current screen information.

USING THE TOUCH SCREEN

.y Long-press Touch Whether to enable the mouse's right click

function (context menu), when you touch and hold the screen.

- Enable: Enables the mouse's right click function

(context menu) when a long-touch is applied.

- Disable: Disables the mouse's right click

function (context menu)

ENGLISH

y Screen Rotation

Touch screen rotation settings

Landscape

* Portrait mode supports only a 90˚

counterclockwise screen rotation.

- Landscape: No rotation

- Portrait: 90˚ rotation counterclockwise

Portrait

NOTE

LG TDS is only supported in Windows XP.

You must install .NET Framework 3.5 on

Windows XP before installing this program.

Page 62

USING THE TOUCH SCREEN

ENGLISH

Precautions When Using the Touch Screen

CAUTION

The monitor is optimized for indoor use.

The touch screen monitor is optimized for Windows 7.

Do not remove the USB cable when using the touch screen monitor.

Use LG TDS (Touch Display Settings) provided with the monitor to set touch coordinates when

rotating the monitor connected to a Windows XP computer. The LG TDS provided with the monitor only supports the following graphic cards: nVidia, AMD (ATI)

and Intel. If touch does not respond, remove the USB cable and connect it back in ten seconds.

Touch responds when the monitor is powered on.

Up to 10 touch-points are supported when the monitor is connected to a Windows 7 computer; one

when connected to a Windows XP computer. Set the monitor as the primary monitor in Windows XP.

Touch accuracy is optimized by using full screen mode.

Your action may not work properly on the edge area of the touch screen.

If the 10 touch-points are not detected, restart your PC. (Windows 7)

The touch operation (e.g. touches count, gesture, etc.) may vary depending on the content.

The spot that you try to touch and the one which is actually touched on the screen may differ

depending on the angle you view the monitor screen.

Page 63

TROUBLESHOOTING

No image is displayed

Problem Resolution

Is the product power cord connected?

Does the 'Out of range' message appear?

Does the 'Check signal cable' message appear?

'Unknown Product' message appears when the product is connected.

Problem Resolution

Did you install the driver? y See if the plug&play function is supported by referring to the video

y See if the power cord is properly connected to the outlet.

y The signal from the PC (video card) is out of the vertical or horizontal

frequency range of the product. Adjust the frequency range by

referring to the Specifications in this manual. * Maximum resolution RGB, HDMI, DVI-D, Display Port : 1920 x 1080 @ 60 Hz

y The signal cable between PC and product is not connected. Check

the signal cable.

y Press the 'INPUT' menu in the remote control to check the input

signal.

card user manual.

ENGLISH

ENG

Page 64

ENGLISH

ENG

TROUBLESHOOTING

'Key Lock On' message appears.

Problem Resolution

The 'Key Lock On' message appears when pressing the Menu button.

The screen image looks abnormal.

Problem Resolution

Is the screen position wrong? yD-Sub analog signal - Press the "AUTO" button in the remote control

Do thin lines appear on the background screen?

Horizontal noise appears or the characters look blurred.

The screen is displayed abnormally.

The Lock function prevents the OSD settings from being changed inadvertently. To release the lock, go to Menu and Option and disable the Key Lock option.

to automatically select the optimal screen status that fits into the current mode. If adjustment is not satisfactory, select [PICTURE] [Screen] - [Position] in OSD menu.

ySee if the video card resolution and frequency are supported by the

product. If the frequency is out of range, set to the recommended resolution in the Control Panel "Display" Setting menu.

yD-Sub analog signal - Press the "AUTO" button in the remote control

to automatically select an optimal screen status that fits into the current mode. If adjustment is not satisfactory, select [PICTURE] [Screen] - [Size] in OSD menu.

yD-Sub analog signal - Press the "AUTO" button in the remote control

to automatically select an optimal screen status that fits into the current mode. If adjustment is not satisfactory, select [PICTURE] [Screen] - [Phase] in OSD menu.

y The proper input signal is not connected to the signal port. Connect

the signal cable that matches with the source input signal.

After-image appears on the product.

Problem Resolution

After-image appears on the product.

yIf you use a fixed image for a long time, the pixels may be damaged

quickly. Use the screen-saver function.

yWhen a dark image is displayed on the screen after an image with

high contrast (black and white or gray), this may cause image sticking. This is normal for LCD screen.

Page 65

TROUBLESHOOTING

The audio function does not work.

Problem Resolution

No sound? ySee if the audio cable is connected properly.

yAdjust the volume. y See if the sound is set properly.

Sound is too dull. y Adjust the Clear Voice ll, Treble and Bass appropriately.

Sound is too low. y Adjust the volume.

Screen color is abnormal.

Problem Resolution

Screen has poor color resolution (16 colors).

Screen color is unstable or mono-colored.

Do black spots appear on the screen?

The operation does not work normally.

y Set the number of colors to more than 24 bits (true color) Select

Control Panel - Display - Settings - Color Table menu in Windows.

yCheck the connection status of the signal cable. Or, re-insert the PC

video card.

y Several pixels (red, green, white or black color) may appear on the

screen, which can be attributable to the unique characteristics of the

LCD panel. It is not a malfunction of the LCD.

ENGLISH

ENG

Problem Resolution

The power suddenly turned off. yIs the sleep timer set?

y Check the power control settings. Power interrupted

Page 66

ENGLISH

ENG

TROUBLESHOOTING

I have a problem with touch response.

Problem Resolution

Touch does not respond. yCheck the USB cable connection.

- This may occur when the USB cable between PC and monitor is not connected. Check the USB cable and make it firmly connected.

* Check the connection on Windows 7 Control Panel > System and Security > System

- Check the number of touch-points supported under Pen and Touch. * Check the connection on Windows XP Go to Control Panel > System > Hardware > Device Manager > Human Interface Devices. You need to be able to see LGE MultiTouch Device on the USB Human Interface Device Properties window.

yCheck the PC power.

- This may occur when the PC is powered off. Make sure that your PC's power cord is firmly plugged into a power outlet.

yRestart your PC.

- Touch may not respond when the system is down due to the unstable network. Reconnect the LAN cable or restart your PC.

yCheck the signal cable connection.

- If your PC and monitor are not connected using a signal cable, touch does not respond. Check the signal cable connection.

yCheck the monitor power.

- Touch may not respond when the monitor is powered off.

yCheck if the screen is currently on.

The location of a touch does not correspond to the touch coordinates.

Touch coordinates appear to be rotated 90 degrees (Windows XP).

I cannot start LG TDS. yCheck whether the operating system is Windows XP.

yChange your tablet PC settings (Windows 7).

- This may occur when the touch screen is not calibrated properly.

Control Panel > Hardware and Sound > Tablet PC Settings > Display > Display options > Calibrate or Reset * For information about gestures and settings on Windows 7, refer to

the Windows Help.

yChange the display setting to Full Screen (Windows XP).

- On Windows XP, rotation of touch coordinates works only in full screen mode. * Refer to help of the graphic card installed on your PC.

yWhen using HDMI, set the Input Label to PC.

yChange the Screen Rotation setting with LG TDS.

- Run the LG TDS provided with the monitor and set to Landscape or Portrait.

- LG TDS is supported only in Windows XP. yPlease install .NET Framework 3.5.

- You can download it at Microsoft Download Center.

Page 67

TROUBLESHOOTING

Problem Resolution

A touch is applied to a monitor other than the one I intended.

I cannot use 10 touch points in Windows 7.

yChange your tablet PC settings (Windows 7).

- This may occur when the touch screen is not calibrated properly. Go to Control Panel > Hardware and Sound > Tablet PC Settings > Display > Display options > Calibrate or Reset

ySet the monitor as the default monitor (Windows XP).

- This may occur if the monitor is not set as the default monitor when you are using multiple monitors. Go to Control Panel > Display > Settings tab > Select the monitor > Use this device as the primary monitor (U) > Apply (A)

yMake sure that you use a content that supports up to 10 touch points.

- The content played (e.g. Flash Player, Paint, etc.) may not support 10 touch points.

y Remove the USB cable and connect it again in 10 seconds. yRun the content (e.g. Flash Player, Paint, etc.) again. yRestart your PC. y If the gap between two touch points is 15 mm or less, a touch error

may occur.

y On the edge of the touch screen, 10 touch points may be less reliable.

ENGLISH

ENG

Page 68

SPECIFICATIONS

ENGLISH

SPECIFICATIONS

ENG

42LT55A

LCD Panel Screen Type 1067.31 mm Wide TFT (Thin Film Transistor)

LCD (Liquid Crystal Display) Panel. Visible diagonal size: 1067.31 mm

Pixel Pitch 0.4845 mm (H) x 0.4845 mm (V)

Video Signal Max. Resolution RGB: 1920 X 1080 @ 60 Hz

HDMI,DVI-D, Display Port: 1920 X 1080 @ 60 Hz

- It may not be supported depending on the OS or video card type.

Recommended Resolution RGB: 1920 X 1080 @ 60 Hz

HDMI,DVI-D, Display Port: 1920 X 1080 @ 60 Hz

- It may not be supported depending on the OS or video card type.

Horizontal Frequency RGB: 30 kHz to 83 kHz

HDMI,DVI-D, Display Port: 30 kHz to 83 kHz

Vertical Frequency RGB : 50 Hz to 57 Hz

HDMI,DVI-D, Display Port: 56 Hz to 60 Hz

Synchronization Type Separate Sync, Composite Sync, Digital

Input Connector RGB, HDMI, DVI-D, Display Port, RS-232C, LAN, USB,

Audio, Touch USB

- Connect a 15-pin D-Sub cable to the RGB port to use an AV or a component input.

Power Rated Voltage AC 100-240 V~ 50/60 Hz 1.6 A

Power Consumption On Mode: 115 W Typ.

Sleep Mode: ≤ 0.7 W Off Mode: ≤ 0.5 W

Environmental conditions

Operating Temperature Operating Humidity

Storage Temperature Storage Humidity

0 °C to 40 °C 10 % to 80 %

-20 °C to 60 °C 5 % to 95 %

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

Page 69

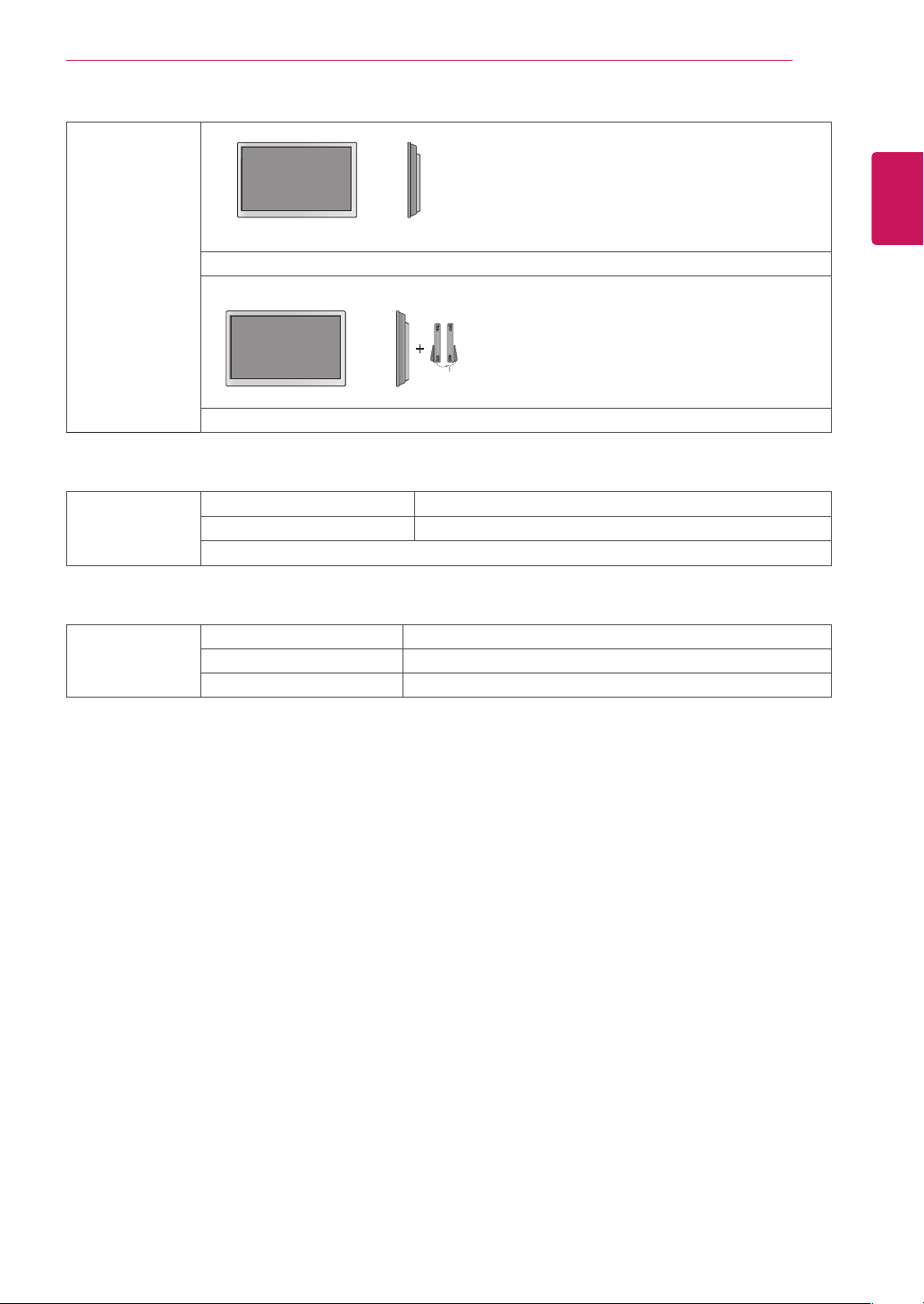

Dimensions (Width x Height x Depth) / Weight

* Touch Screen

OS (Operating System)

990.9 mm x 585.0 mm x 72.0 mm / 20.5 kg

990.9 mm x 585.0 mm x 99.8 mm / 21.3 kg

Windows XP

Windows 7 10 Points

Space between touches: at least 15 mm or more

1 Point

SPECIFICATIONS

ENGLISH

ENG

* Applicable only for models that support the speakers

Audio RMS Audio Output 10 W + 10 W (R + L)

Input Sensitivity 0.7 Vrms

Speaker Impedance 8 Ω

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

Page 70

ENGLISH

ENG

SPECIFICATIONS

47LT55A

LCD Panel Screen Type 1192.87 mm Wide TFT (Thin Film Transistor)

LCD (Liquid Crystal Display) Panel. Visible diagonal size: 1192.87 mm

Pixel Pitch 0.5415 mm (H) x 0.5415 mm (V)

Video Signal Max. Resolution RGB: 1920 X 1080 @ 60 Hz

HDMI,DVI-D, Display Port: 1920 X 1080 @ 60 Hz

- It may not be supported depending on the OS or video card type.

Recommended Resolution RGB: 1920 X 1080 @ 60 Hz

HDMI, DVI-D, Display Port: 1920 X 1080 @ 60 Hz

- It may not be supported depending on the OS or video card type.

Horizontal Frequency RGB: 30 kHz to 83 kHz

HDMI,DVI-D, Display Port: 30 kHz to 83 kHz

Vertical Frequency RGB: 50 Hz to 57 Hz

HDMI,DVI-D, Display Port: 56 Hz to 60 Hz

Synchronization Type Separate Sync, Composite Sync, Digital

Input Connector RGB, HDMI, DVI-D, Display Port, RS-232C, LAN, USB,

Audio, Touch USB

- Connect a 15-pin D-Sub cable to the RGB port to use an AV or a component input.

Power Power rating AC 100-240 V~ 50/60 Hz 1.8 A

Power Consumption On Mode: 120 W Typ.

Sleep Mode: ≤ 0.7 W Off Mode: ≤ 0.5 W

Environmental conditions

Operating Temperature Operating Humidity

Storage Temperature Storage Humidity

0 °C to 40 °C 10 % to 80 %

-20 °C to 60 °C 5 % to 95 %

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

Page 71

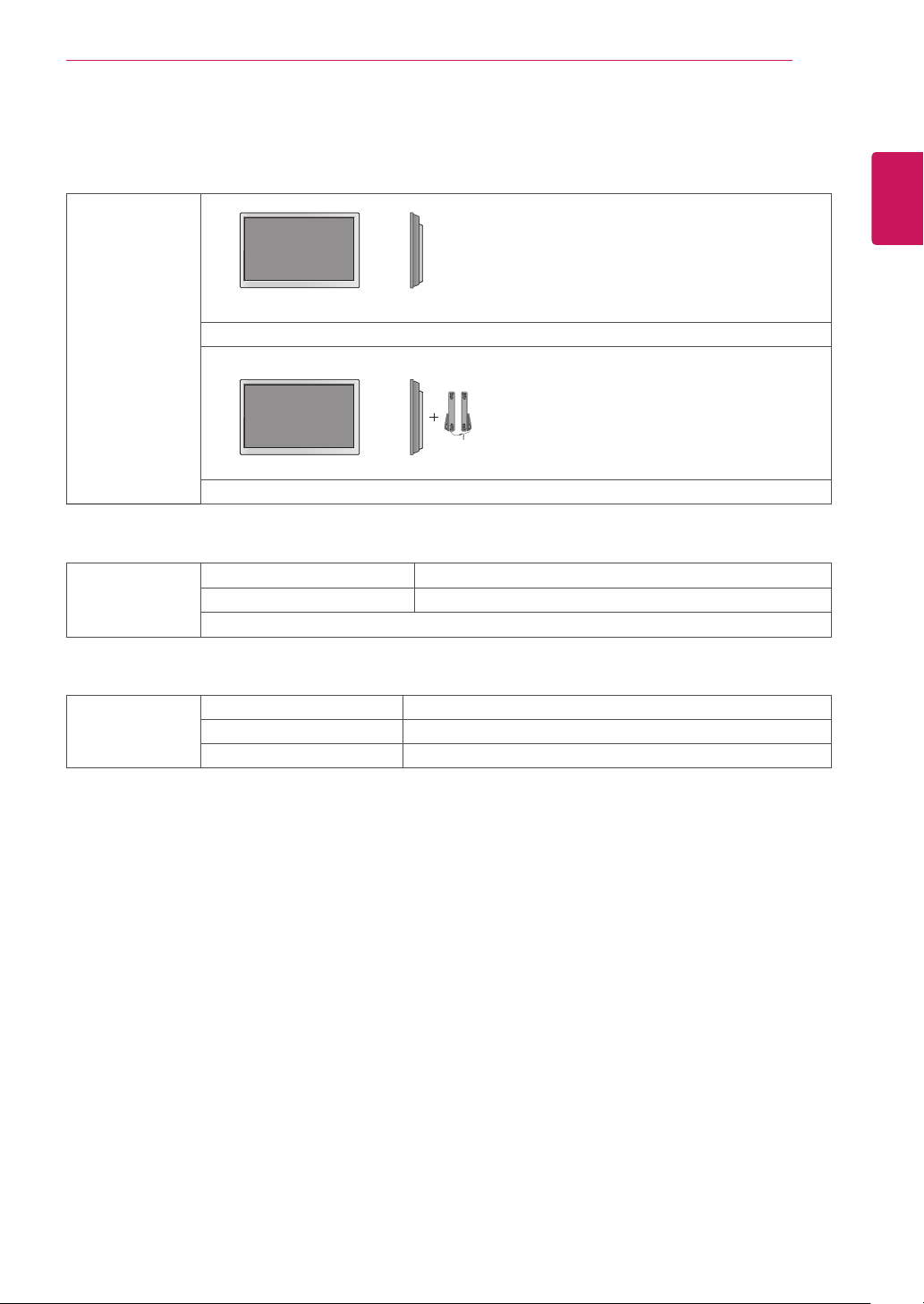

Dimensions (Width x Height x Depth) / Weight

* Touch Screen

OS (Operating System)

1102.7 mm x 647.8 mm x 71.2 mm / 23.8 kg

1102.7 mm x 647.8 mm x 99.2 mm / 24.6 kg

Windows XP

Windows 7 10 Points

Space between touches: at least 15 mm or more

1 Point

SPECIFICATIONS

ENGLISH

ENG

* Applicable only for models that support the speakers

Audio RMS Audio Output 10 W + 10 W (R + L)

Input Sensitivity 0.7 Vrms

Speaker Impedance 8 Ω

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

Page 72

ENGLISH

ENG

The illustrations in this manual may differ from the actual product and accessories. Please see the "Mounting on a wall" section for sizes of screws.

SPECIFICATIONS

Dimensions

42LT55A

(Unit: mm)

51.2

990.9

44.5

92.540092.5

17.7

295.5

400

585

17.7

295.5

[Wall Mount Screw]

4-M6, L12.5 (Max)

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

Page 73

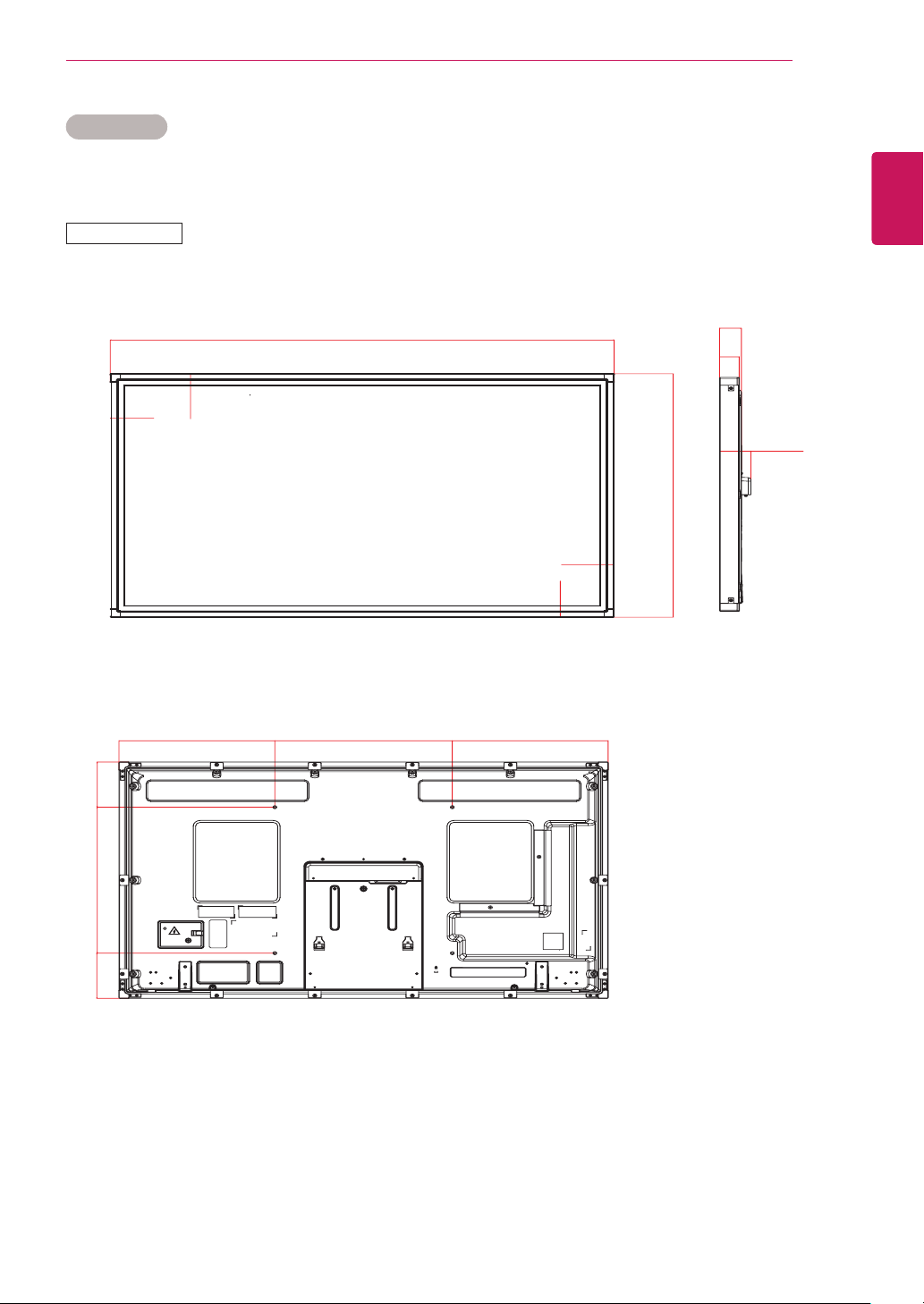

Dimensions

The illustrations in this manual may differ from the actual product and accessories. Please see the "Mounting on a wall" section for sizes of screws.

47LT55A

SPECIFICATIONS

(Unit: mm)

ENGLISH

ENG

123.9400

17.7

351.4

1102.7

400

49.6

44.5

71.2

647.8

17.7

351.4

123.9

[Wall Mount Screw]

4-M6, L10 (Max)

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

Page 74

SPECIFICATIONS

ENGLISH

ENG

RGB (PC) supported mode

Resolution

640 x 350

720 x 400

640 x 480

800 x 600

832 x 624

1024 x 768

1280 x 720

1366 x 768

1280 x 1024

1680 x 1050

1920 x 1080

Horizontal Frequency(kHz)

31.469 70.8

31.468 70.8

31.469 59.94

37.879 60.317

49.725 74.55

48.363 60

44.772 59.855

47.7 60

63.981 60.02

65.290 59.954

67.5 60

Vertical Frequency(Hz)

DTV Mode

Resolution Component

480i o x

576i o x

480p o o

576p o o

720p o o

1080i o o

1080p o o

HDMI/ Display Port (DTV)

HDMI/ DVI/ Display Port (PC)/ SuperSign

supported mode

Resolution

640 x 480

800 x 600

1024 x 768

1280 x 720

1366 x 768

1280 x 1024

1680 x 1050

1920 x 1080

Horizontal Frequency (kHz)

31.469 59.94

37.879 60.317

48.363 60

44.772 59.855

47.7 60

63.981 60.02

65.290 59.954

67.5 60

Vertical Frequency (Hz)

NOTE

PC resolutions available as the input label

option in RGB and HDMI/DVI/Display Port input mode: 640 x 480 / 60 Hz, 1280 x 720 / 60 Hz, 1920 x 1080 / 60 Hz and DTV resolutions: 480p, 720p, 1080p.

NOTE

Vertical frequency: To enable the user to

watch the product display, screen image should be changed tens of times every second like a fluorescent lamp. The vertical frequency or refresh rate is the times of image display per second. The unit is Hz. Horizontal frequency: The horizontal interval

is the time to display one vertical line. When 1 is divided by the horizontal interval, the number of horizontal lines displayed every second can be tabulated as the horizontal frequency. The unit is kHz.

Page 75

IR CODES

All models do not support the HDMI/USB function.

Some key codes are not supported, depending on the model.

Code (Hexa) Function Note

06 Right ► R/C BUTTON

07 Left ◄ R/C BUTTON

09 MUTE R/C BUTTON

28 BACK R/C BUTTON

32 1/a/A R/C BUTTON

40 Up ▲ R/C BUTTON

41 Down ▼ R/C BUTTON

43 MENU R/C BUTTON

44 OK R/C BUTTON

61 Blue Key R/C BUTTON

63 Yellow Key R/C BUTTON

71 Green Key (PICTURE ID OFF) R/C BUTTON

72 Red Key (PICTURE ID ON) R/C BUTTON

79 MARK ARC R/C BUTTON

95 ENERGY SAVING R/C BUTTON

99 AUTO R/C BUTTON

0B INPUT R/C BUTTON

10 to 19 Number Key 0 to 9 R/C BUTTON

2F CLEAR R/C BUTTON

3F S.MENU R/C BUTTON

4D PSM R/C BUTTON

5B EXIT R/C BUTTON

7B TILE (Tile Mode) R/C BUTTON

8E R/C BUTTON

8F R/C BUTTON

B0 R/C BUTTON

B1 R/C BUTTON

BA R/C BUTTON

C4 MONITOR ON R/C BUTTON

C5 MONITOR OFF R/C BUTTON

E0 BRIGHTNESS (Page UP) R/C BUTTON

E1 BRIGHTNESS (Page Down) R/C BUTTON

Volume

Power

R/C BUTTON

ENGLISH

ENG

Page 76

CONTROLLING THE MULTIPLE PRODUCT

ENGLISH

CONTROLLING THE MULTIPLE PRODUCT

ENG

Connecting the Cable

Connect the RS-232C cable as shown in the picture.

Use this method to connect several products to a single PC. You can control several products at a

time by connecting them to a single PC. In the Option menu, Set ID must be between 1 and 99 without being duplicated.

The RS-232C protocol is used for communication between the PC and product. You can turn the

product on/off, select an input source or adjust the OSD menu from your PC.

Monitor 1 Monitor 2 Monitor 3 Monitor 4

RS-232C Cable (not included)

RS-232C Configurations

7-Wire Configurations (Standard RS-232C cable)

PC Set

D-Sub 9 D-Sub 9

(Female) (Female)

Communication Parameter

Baud Rate: 9600 buad Rate (UART)

Data Length: 8 bit

Parity Bit: None

Stop Bit: 1bit

Flow Control : None

Communication Code : ASCII code

Use a crossed (reverse) cable

3-Wire Configurations (Not Standard)

PC Set

D-Sub 9 D-Sub 9

(Female) (Female)

Page 77

CONTROLLING THE MULTIPLE PRODUCT

Command Reference List

COMMAND

1 2

01. Power

02. Input Select x b Refer to ‘Input Select.’

03. Aspect Ratio k c Refer to ‘Aspect Ratio.’

04. Energy Saving

05. Picture mode d x Refer to ‘Picture mode.’

06. Contrast k g 00 to 64

07. Brightness k h 00 to 64

08. Sharpness k k 00 to 64

09. Color k i 00 to 64

10. Tint k j 00 to 64

11. Color Temperature x u 00 to 64

12. H Position

13. V Position f r 00 to 64

14. H Size

15. Auto configuration

16. Balance k t 00 to 64

17. Sound mode d y Refer to ‘Sound mode.’

18. Treble k r 00 to 64

19. Bass k s 00 to 64

20. Speaker d v 00 to 01

21. Volume Mute k e 00 to 01

22. Volume Control k f 00 to 64

23. Time 1(Years/ Months/ Days) f a Refer to ‘Time 1.’

24. Time 2(Hours/ Minutes/Seconds) f x Refer to ‘Time 2.’

25. Off Timer(Repeat mode/ Time) f e Refer to ‘Off Timer.’

26. On Timer(Repeat Mode/ Time) f d Refer to ‘On Timer.’

27. On Timer Input f u Refer to ‘On Timer Input.’

28. Sleep Time f f 00 to 08

29. Power On Delay f h 00 to 64

30. Automatic Standby m n 00 to 01

31. Auto Off f g 00 to 01

32. Language f i Refer to ‘Language.’

33. Power Indicator(Standby Light) f o 00 to 01

34. Power Indicator(Power Light)

35. ISM mode j p Refer to ‘ISM Method.’

36. Fail Over Select m i 00 to 02

37. Fail Over Input Select m j Refer to ‘Fail Over Input Select.’

38. Reset f K 00 to 02

k a

j q

f q

f s

j u

f p

00 to 01

Refer to ‘Energy Saving.’

00 to 64

00 to 01

DATA

(Hexadecimal)

ENGLISH

ENG

Page 78

ENGLISH

ENG

CONTROLLING THE MULTIPLE PRODUCT

COMMAND

1 2

39. Tile Mode

40. Tile Mode Check d z FF

41. Tile ID d i Refer to ‘Tile ID.’

42. Tile H Position

43. Tile V Position d f 00 to 32

44. Tile H Size d g 00 to 32

45. Tile V Size d h 00 to 32

46. Natural Mode (In Tile mode) d j 00 to 01

47. DPM Select f j 00 to 01

48. FAN Control d o 00 to 03

49. FAN Fault Check d w FF

50. Temperature Value d n FF

51. Remote Lock/ key Lock k m 00 to 01

52. Key m c Refer to ‘Key.’

53. OSD Select k l 00 to 01

54. Elapsed time return

55. Serial No. Check f y FF

56. S/W Version

57. White Balance Red Gain j m 00 to FE

58. White Balance Green Gain

59. White Balance Blue Gain

60. Backlight

61. PC Power Control

62. PC Power

63. Easy Brightness Control Mode

64. Easy Brightness Control Schedule

65. Status check

66. BLU Maintenance

67. Screen mute

d d

d e

d l

f z

s m

s s

s v

m t

k d

n 00 to FE

o 00 to FE

g 00 to 64

t 00 to 01

s 00 to 01

00 to 01

00 to 32

00 to 01

Refer to ‘Easy Brightness Control Schedule.’

Refer to ‘Status check.’

00 to 01

DATA

(Hexadecimal)

Note : During USB operations such as Dvix or EMF, all commands except Power (k a) and Key (m c)

are not executed and treated as NG. Some commands are not supported depending on the model.

The ‘f f’ command which shows the status of a certain command does not display the OSD as the

result in order to be compatible with SuperSign program.

Page 79

CONTROLLING THE MULTIPLE PRODUCT

Transmission / Receiving Protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

* [Command1]: First command to control the set. * [Command2]: Second command to control the set. * [Set ID]: Set ID with which you want to communicate. Enter [Set ID] = ‘00(0 x 00’ to communicate with all sets

regardless of their Set ID numbers. * [Data]: Information passed to the set. * [Data1]: Information passed to the set. * [Data2]: Information passed to the set. * [Data3]: Information passed to the set. * [Cr]: Carriage Return. ASCII code ‘0 x 0D’. * [ ]: ASCII code space ‘0 x 20’

Acknowledgement

[Command2][ ][Set ID][ ][OK/NG][Data][x]

ENGLISH

ENG

* When the product receives data normally, it sends an acknowledgement (ACK) in the format above. If data is

in read mode, it indicates the data that shows the current status. If data is in read mode, it simply indicates the data that is sent from the PC.

* If a command is sent with Set ID '00' (=0 x 00), the data is reflected to all monitor sets and they do send any

acknowledgement (ACK).

* If the data value 'FF' is sent in control mode via RS-232C, the current setting value of a function can be

checked (only for some functions).

* Some commands are not supported depending on the model.

Page 80

CONTROLLING THE MULTIPLE PRODUCT

01. Power (Command: k a)

ENGLISH

ENG

02. Input Select (Command: x b)

To control the Power On/Off the display.

Transmission

[k][a][ ][Set ID][ ][Data][Cr]

Data 00 : Off 01 : On

Acknowledgement

[a][ ][Set ID][ ][OK/NG][Data][x]

* Only when the monitor set is fully powered on, the Acknowledgement signal is returned properly. * There may be a certain time of delay between the Transmission and Acknowledgement signals.

To select the Input Source for display.

Transmission

[x][b][ ][Set ID][ ][Data][Cr]

Data 20: Input (AV) 40: Component 60: RGB 70: DVI-D(PC) 80: DVI-D(DTV) 90: HDMI(HDMI1)(DTV) A0: HDMI(HDMI1)(PC) C0: Display Port(DTV) D0: Display Port(PC) 91: HDMI2/SDI(DTV) A1: HDMI2/SDI(PC) B0: SuperSign

Acknowledgement

[b][ ][Set ID][ ][OK/NG][Data][x]

* Some input signals may not be supported depending on the model.

04. Energy Saving (Command: j q)

To set the Energy Saving function.

Transmission

[j][q][ ][Set ID][ ][Data][Cr]

Data 00: Off 01: Minimum 02: Medium

03. Maximum 04: Auto

05. Screen Off

Acknowledgement

[q][ ][Set ID][ ][OK/NG][Data][x]

** It may not be supported depending on the model.

05. Picture Mode (Command: d x)

To select the Picture Mode.

Transmission

[d][x][ ][Set ID][ ][Data][Cr]

Data 00: Vivid 01: Standard

02. Cinema

03. Sport 04: Game

Acknowledgement

[x][ ][Set ID][ ][OK/NG][Data][x]

03. Aspect Ratio (Command: k c)

To adjust the screen format.

Transmission

[k][c][ ][Set ID][ ][Data][Cr]

Data 01: 4:3 02: 16:9 04: Zoom (AV, Component, HDMI/ DVI-D/ Display Port DTV) 09: Just scan (720p or more) (Component, HDMI/ DVI-D/ Display Port DTV) * RGB, DVI-D, HDMI/Display Port PC mode (1:1) 10 to 1F: Cinema Zoom 1 to 16 (AV, Component, HDMI/ DVI-D/ Display Port DTV) * Available data types differ depending on the input signal. For more information, see the aspect ratio section of the owner's manual. * The aspect ratio may differ depending on the model's input configuration.

Acknowledgement

[c][ ][Set ID][ ][OK/NG][Data][x]

06. Contrast (Command: k g)

To adjust the screen contrast.

Transmission

[k][g][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Contrast 0 to 100

Acknowledgement

[g][ ][Set ID][ ][OK/NG][Data][x]

Page 81

CONTROLLING THE MULTIPLE PRODUCT

07. Brightness (Command: k h)

To adjust the screen brightness.

Transmission

[k][h][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Brightness 0 to 100

Acknowledgement

[h][ ][Set ID][ ][OK/NG][Data][x]

08. Sharpness (Command: k k)

To adjust the screen sharpness. * This function is available only in AV/Component input.

Transmission

[k][k][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Sharpness 0 to 100

Acknowledgement

[k][ ][Set ID][ ][OK/NG][Data][x]

10. Tint (Command: k j)

To adjust the screen tint. * This function is available only in AV/Component input.

Transmission

[k][j][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Tint R50 to G50

Acknowledgement

[j][ ][Set ID][ ][OK/NG][Data][x]

11. Color Temperature (Command: x u)

To adjust the screen Color Temperature.

Transmission

[x][u][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Warm 50 to Cool 50

Acknowledgement

[u][ ][Set ID][ ][OK/NG][Data][x]

ENGLISH

ENG

09. Color (Command: k i)

To adjust the screen color. * This function is available only in AV/Component input.

Transmission

[k][i][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Color 0 to 100

Acknowledgement

[i][ ][Set ID][ ][OK/NG][Data][x]

12. H Position (Command: f q)

To adjust the screen Horizontal Position. * This function is available only when the Tile Mode is set to Off. * The operational range varies depending on the RGB input resolution. (Only available for RGB-PC input.)

Transmission

[f][q][ ][Set ID][ ][Data][Cr]

Data 00 to 64: min. -50 (Left) to max. 50 (Right)

Acknowledgement

[q][ ][Set ID][ ][OK/NG][Data][x]

Page 82

CONTROLLING THE MULTIPLE PRODUCT

13. V Position (Command: f r)

ENGLISH

ENG

14. H Size (Command: f s)

To adjust the screen Vertical Position. * This function is available only when the Tile Mode is set to Off. * The operational range varies depending on the RGB input resolution. (Only available for RGB-PC input.)

Transmission

[f][r][ ][Set ID][ ][Data][Cr]

Data 00 to 64: min. -50 (Bottom) to max. 50 (Top)

Acknowledgement

[r][ ][Set ID][ ][OK/NG][Data][x]

To adjust the screen Horizontal Size. * This function is available only when the Tile Mode is set to Off. * The operational range varies depending on the RGB input resolution. (Only available for RGB-PC input.)

Transmission

[f][s][ ][Set ID][ ][Data][Cr]

Data 00 - 64: Min. -50 (Reduce) - Max. 50 (Expand)

Acknowledgement

[s][ ][Set ID][ ][OK/NG][Data][x]

16. Balance (Command: k t)

To adjust the sound balance.

Transmission

[k][t][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Left 50 to Right 50

Acknowledgement

[t][ ][Set ID][ ][OK/NG][Data][x]

17. Sound Mode (Command: d y)

To select the Sound Mode.

Transmission

[d][y][ ][Set ID][ ][Data][Cr]

Data 01: Standard 02: Music 03: Cinema 04: Sport

05. Game

Acknowledgement

[y][ ][Set ID][ ][OK/NG][Data][x]

15. Auto Configuration (Command: j u)

To adjust the picture position and minimize image shaking automatically. (Only available for RGB-PC input.)

Transmission

[j][u][ ][Set ID][ ][Data][Cr]

Data 01 : Set

Acknowledgement

[u][ ][Set ID][ ][OK/NG][Data][x]

18. Treble (Command: k r)

To adjust the Treble values.

Transmission

[k][r][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Treble 0 to 100

Acknowledgement

[r][ ][Set ID][ ][OK/NG][Data][x]

Page 83

CONTROLLING THE MULTIPLE PRODUCT

19. Bass (Command: k s)

To adjust the Bass values.

Transmission

[k][s][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Bass 0 to 100

Acknowledgement

[s][ ][Set ID][ ][OK/NG][Data][x]

20. Speaker (Command: d v)

To select the speaker on/off.

Transmission

[d][v][ ][Set ID][ ][Data][Cr]

Data 00: Off 01: On

Acknowledgement

[v][ ][Set ID][ ][OK/NG][Data][x]

22. Volume Control (Command: k f)

To set the playback volume.

Transmission

[k][f][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Volume 0 to 100

Acknowledgement

[f][ ][Set ID][ ][OK/NG][Data][x]

23. Time 1(Year/ Month/ Day) (Command: f a)

To set the Time 1(Year/ Month/ Day) values.

Transmission

[f][a][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]

Data 1 00 to 14: 2010 to 2030 Data 2 01 to 0C: January to December Data 3 01 to 1F: 1 to 31 * Enter “fa [Set ID] ff” for checking Time 1(Year/ Month/ Day) values.

Acknowledgement

[a][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

ENGLISH

ENG

21. Volume Mute (Command: k e)

To control the Volume Mute on/off.

Transmission

[k][e][ ][Set ID][ ][Data][Cr]

Data 00 : Mute (Volume Off) 01 : Current volume (Volume On)

Acknowledgement

[e][ ][Set ID][ ][OK/NG][Data][x]

24. Time 2(Hour/ Minute/ Second) (Command: f x)

To set the Time 2(Hour/ Minute/ Second) values.

Transmission

[f][x][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]

Data1 00 to 17: 00 to 23 hours Data2 00 to 3B: 00 to 59 minutes Data3 00 to 3B: 00 to 59 seconds * Enter “fx [Set ID] ff” for checking Time 2(Hour/ Minute/ Second) values. ** This command won’t work if Time 1(Year/ Month/ Day) has not been set in advance.

Acknowledgement

[x][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

Page 84

CONTROLLING THE MULTIPLE PRODUCT

25. Off Timer(Repeat Mode/ Time) (Command: f e)

ENGLISH

ENG

To set the Off Timer(Repeat Mode/ Time) function.

Transmission

[f][e][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]

Data1

1. F1 to F7 (Read data) F1: Read the 1st Off Time data F2: Read the 2nd Off Time data F3: Read the 3rd Off Time data F4: Read the 4th Off Time data F5: Read the 5th Off Time data F6: Read the 6th Off Time data F7: Read the 7th Off Time data

2. E1-E7 (Delete one index), E0 (Delete all indexes) E0: Delete all Off Time data E1: Delete the 1st Off Time data E2: Delete the 2nd Off Time data E3: Delete the 3rd Off Time data E4: Delete the 4th Off Time data E5: Delete the 5th Off Time data E6: Delete the 6th Off Time data E7: Delete the 7th Off Time data

3. 01 to 0C (Set the day of week for Off Time) 00: Off 01: Once

02. Daily 03: Monday to Friday 04: Monday to Saturday 05: Saturday to Sunday

06. Sunday

07. Monday

08. Tuesday

09. Wednesday 0A. Thursday 0B. Friday 0C. Saturday Data2 00 to 17: 00 to 23 Hours Data3 00 to 3B: 00 to 59 Minutes * To read or delete the Off Time list, set FFH for [Data2] and [Data3]. (Example 1: fe 01 f1 ff ff - Read the 1st Off Time data.) (Example 2: fe 01 e1 ff ff - Delete the 1st Off Time data.) (Example 3: fe 01 04 02 03 - Set the Off Time to "Monday to Saturday, 02:03".) * This function is supported only when 1 (Year/Month/ Day) and 2 (Hour/Minute/Second) are set.

Acknowledgement

[e][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

26. On Timer(Repeat Mode/ Time) (Command: f d)

To set the On Timer(Repeat mode/ Time) function.

Transmission

[f][d][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]

Data1

1. F1 to F7 (Read data) F1: Read the 1st On Time data F2: Read the 2nd On Time data F3: Read the 3rd On Time data F4: Read the 4th On Time data F5: Read the 5th On Time data F6: Read the 6th On Time data F7: Read the 7th On Time data

2. E1-E7 (Delete one index), E0 (Delete all indexes) E0: Delete all On Time data E1: Delete the 1st On Time data E2: Delete the 2nd On Time data E3: Delete the 3rd On Time data E4: Delete the 4th On Time data E5: Delete the 5th On Time data E6: Delete the 6th On Time data E7: Delete the 7th On Time data

3. 01 to 0C (Set the day of week for On Time) 00: Off 01: Once

02. Daily 03: Monday to Friday 04: Monday to Saturday 05: Saturday to Sunday

06. Sunday

07. Monday

08. Tuesday

09. Wednesday 0A. Thursday 0B. Friday 0C. Saturday Data2 00 to 17: 00 to 23 Hours Data3 00 to 3B: 00 to 59 Minutes * To read or delete the Off Time list, set FFH for [Data2] and [Data3]. (Example 1: fd 01 f1 ff ff - Read the 1st On Time data.) (Example 2: fd 01 e1 ff ff - Delete the 1st On Time data.) (Example 3: fd 01 04 02 03 - Set the On Time to "Monday to Saturday, 02:03".) * This function is supported only when 1 (Year/Month/ Day) and 2 (Hour/Minute/Second) are set.

Acknowledgement

[d][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

Page 85

CONTROLLING THE MULTIPLE PRODUCT

27. On Timer Input (Command: f u)

To select an external input for the current On Time setting and add a new schedule or change the existing schedule.

Transmission

[f][u][ ][Set ID][ ][Data1][Cr]

[f][u][ ][Set ID][ ][Data1][Data2][Cr]

Data (Add schedule) 20: Input (AV) 40: Component

60. RGB 70: DVI-D 90: HDMI (HDMI1) C0: Display Port 91: HDMI2/SDI B0:SuperSign Data1 (Change schedule)

1. F1 to F7 (Read data) F1: Select the 1st schedule input F2: Select the 2nd schedule input F3: Select the 3rd schedule input F4: Select the 4th schedule input F5: Select the 5th schedule input F6: Select the 6th schedule input F7: Select the 7th schedule input Data2 20: Input (AV) 40: Component 60: RGB 70: DVI-D 90: HDMI (HDMI1) C0: Display Port 91: HDMI2/SDI B0:SuperSign * To read the schedule input, enter FFH for [Data2]. If no schedule is available for [Data1] when attempting to read or change the schedule data, the text NG will be displayed and the operation fails. (Example 1: fu 01 60 - Move each schedule input down one row and save the 1st schedule input in RGB mode.) (Example 2: fu 01 f1 ff - Read the 1st schedule input.) (Example 3: fu 01 f3 20 - Change the 3rd data schedule input to the current On Time and AV input. If there is no third schedule, the text NG will be displayed and the operation fails.) * This function is supported only when 1 (Year/ Month/Day), 2 (Hour/Minute/Second), On Time (Repeat Mode/Time) are set. ** It may not be supported depending on the model.

Acknowledgement

[u][ ][Set ID][ ][OK/NG][Data][x]

[u][ ][Set ID][ ][OK/NG][Data1][Data2][x]

28. Sleep Time (Command: f f)

To set the Sleep Time.

Transmission

[f][f][ ][Set ID][ ][Data][Cr]

Data 00: Off (Sleep Timer off) 01: 10 min. 02: 20 min. 03: 30 min. 04: 60 min. 05: 90 min. 06: 120 min. 07: 180 min. 08: 240 min.

Acknowledgement

[f][ ][Set ID][ ][OK/NG][Data][x]

29. Power On Delay (Command: f h)

To set the schedule delay when the power is turned on. (Unit: Second)

Transmission

[f][h][ ][Set ID][ ][Data][Cr]

Data 00 to 64: min. 0 to max. 100 (sec.)

Acknowledgement

[h][ ][Set ID][ ][OK/NG][Data][x]

30. Automatic Standby (Command: m n)

To set the Automatic Standby function.

Transmission

[m][n][ ][Set ID][ ][Data][Cr]

Data 00: Off (No off after 4 hours) 01: 4 Hours (Off after 4 hours)

Acknowledgement

[n][ ][Set ID][ ][OK/NG][Data][x]

ENGLISH

ENG

Page 86

CONTROLLING THE MULTIPLE PRODUCT

31. Auto Off (Command: f g)

ENGLISH

ENG

32. Language (Command: f i)

To set the Auto Off function.

Transmission

[f][g][ ][Set ID][ ][Data][Cr]

Data 00: Off (No off after 15 minutes) 01: 15 min.(Off after 15 minutes)

Acknowledgement

[g][ ][Set ID][ ][OK/NG][Data][x]

To set the language for OSD.

Transmission

[f][i][ ][Set ID][ ][Data][Cr]

Data 00: Czech 01: Danish 02: German 03: English 04: Spanish (EU) 05: Greek 06: French 07: Italian 08: Dutch 09: Norwegian 0A: Portuguese 0B: Portuguese (BR) 0C: Russian 0D: Finnish 0E: Swedish 0F: Korean 10: Chinese (Mandarin) 11: Japanese 12: Yue Chinese (Cantonese)

Acknowledgement

[i][ ][Set ID][ ][OK/NG][Data][x]

34. Power Indicator (Power Light) (Command: f p)

To set the Power Indicator (Power Light) function.

Transmission

[f][p][ ][Set ID][ ][Data][Cr]

Data 00: Off 01: On ** It may not be supported depending on the model.

Acknowledgement

[p][ ][Set ID][ ][OK/NG][Data][x]

35. ISM mode (Command: j p)

To select ISM method for avoiding having a fixed image remain on screen.

Transmission

[j][p][ ][Set ID][ ][Data][Cr]

Data 01: Inversion 02: Orbiter 04: White Wash

08. Normal

Acknowledgement

[p][ ][Set ID][ ][OK/NG][Data][x]

33. Power Indicator (Standby Light) (Command: f o)

To set the Power Indicator (Standby Light) function.

Transmission

[f][o][ ][Set ID][ ][Data][Cr]

Data 00: Off 01: On ** It may not be supported depending on the model.

Acknowledgement

[o][ ][Set ID][ ][OK/NG][Data][x]

36. Fail Over Select (Command: m i)

To set the Fail Over function.

Transmission

[m][i][ ][Set ID][ ][Data][Cr]

Data 00: Off 01: Auto 02: Manual

Acknowledgement

[i][ ][Set ID][ ][OK/NG][Data][x]

Page 87

CONTROLLING THE MULTIPLE PRODUCT

37. Fail Over Input Select (Command: m j)

To select the input source for auto switch. * This command is only available when the fail over (auto) mode is set to Custom.

Transmission

[m][j][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr] [ ][Data4][ ][Data5][Cr]

Data 1 to 5 (Priority 1 to 5) 60: RGB 70: DVI-D 90: HDMI(HDMI1) C0: Display Port 91: HDMI2/SDI * The number of data items differs depending on the model.

Acknowledgement

[j][ ][SetID][ ][OK/NG][Data1][Data2][Data3][Data4] [ ][Data5][x]

38. Reset (Command: f k)

To execute the Picture, Screen, Audio and Factory reset function. (Screen Reset can only be performed in RGB input mode.)

Transmission

[f][k][ ][Set ID][ ][Data][Cr]

Data 00: Picture Reset 01: Screen Reset 02: Factory Reset 03: Audio Reset

Acknowledgement

[k][ ][Set ID][ ][OK/NG][Data][x]

39. Tile Mode (Command: d d)

To set a Tile Mode and Tile Column/ Row values.

Transmission

[d][d][ ][Set ID][ ][Data][Cr]

Data 00 to FF: 1st byte - Tile Row 2nd byte - Tile Column *00, 01, 10, 11 means Tile Mode Off ** It may not be supported depending on the model.

Acknowledgement

[d][ ][Set ID][ ][OK/NG][Data][x]

40. Tile Mode Check (Command: d z)

To check Tile Mode status.

Transmission

[d][z][ ][Set ID][ ][Data][Cr]

Data FF: Check Tile Mode status. ** It may not be supported depending on the model.

Acknowledgement

[z][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

Data1 00: Tile Mode Off 01: Tile Mode On Data2 00 to 0F: Tile Row Data3 00 to 0F: Tile Column

41. Tile ID (Command: d i)

To set Tile ID.

Transmission

[d][i][ ][Set ID][ ][Data][Cr]

Data 01 to E1: Tile ID 01 to 225** FF: Check Tile ID ** Data could not be set over (Tile Column) x (Tile Row). ** It may not be supported depending on the model.

Acknowledgement

[i][ ][Set ID][ ][OK/NG][Data][x]

*NG will be return if data is over (Tile Column) x (Tile Row), except 0xFF.

42. Tile H Position (Command: d e)

To adjust the Tile Horizontal position. * This function is available only when the Natural option of the Tile Mode is set to Off while the Tile Mode set to On.

Transmission

[d][e][ ][Set ID][ ][Data][Cr]

Data 00 to 32: -50 (Left) to 0 (Right) *Left/Right values depend on Tile H size. ** It may not be supported depending on the model.

Acknowledgement

[e][ ][Set ID][ ][OK/NG][Data][x]

ENGLISH

ENG

Page 88

CONTROLLING THE MULTIPLE PRODUCT

43. Tile V Position (Command: d f)

ENGLISH

ENG

44. Tile H Size (Command: d g)

To adjust the Tile Vertical position. * This function is available only when the Natural option of the Tile Mode is set to Off while the Tile Mode set to On.

Transmission

[d][f][ ][Set ID][ ][Data][Cr]

Data 0 to 32: 0 (Bottom) to 50 (Top) * Bottom/Top values depend on Tile Vertical size. ** It may not be supported depending on the model.

Acknowledgement

[f][ ][Set ID][ ][OK/NG][Data][x]

To adjust the Tile Horizontal Size. *Set Tile H Position to 0x32 before setting Tile H Size. * This function is available only when the Natural option of the Tile Mode is set to Off while the Tile Mode set to On.

Transmission

[d][g][ ][Set ID][ ][Data][Cr]

Data 00 to 32: 0 to 50 ** It may not be supported depending on the model.

Acknowledgement

[g][ ][Set ID][ ][OK/NG][Data][x]

46. Natural Mode (In Tile Mode) (Command : d j)

To display the image naturally, the part of the image that would normally be displayed in the gap between the monitors is omitted.

Transmission

[d][j][ ][Set ID][ ][Data][Cr]

Data 00: Off 01: On

Acknowledgement

[j][ ][Set ID][ ][OK/NG][Data][x]

47. DPM Select (Command: f j)

To set the DPM (Display Power Management) function.

Transmission

[f][j][ ][Set ID][ ][Data][Cr]

Data 00: Off 01: On * Data settings may vary depending on your model as below. Data 00: Off 01: 5 sec. 02: 10 sec. 03: 15 sec. 04: 1 min. 05: 3 min. 06: 5 min. 07: 10 min.

Acknowledgement

[j][ ][Set ID][ ][OK/NG][Data][x]

45. Tile V Size (Command: d h)

To adjust the Tile Vertical size. *Set Tile V Position to 0x00 before setting Tile V Size. * This function is available only when the Natural option of the Tile Mode is set to Off while the Tile Mode set to On.

Transmission

[d][h][ ][Set ID][ ][Data][Cr]

Data 00 to 32: 0 to 50 ** It may not be supported depending on the model.

Acknowledgement

[h][ ][Set ID][ ][OK/NG][Data][x]

48. FAN Control (Command : d o)

To set the Fan mode.

Transmission

[d][o][ ][Set ID][ ][Data][Cr]

Data 00: Auto 01: On 02: Manual 03: Off ** It may not be supported depending on the model.

Acknowledgement

[o][ ][Set ID][ ][OK/NG][Data][x]

Page 89

CONTROLLING THE MULTIPLE PRODUCT

49. FAN Fault Check (Command: d w)

To check the fan errors.

Transmission

[d][w][ ][Set ID][ ][Data][Cr]

Data FF: Read the status

Acknowledgement

[w][ ][Set ID][ ][OK/NG][Data][x]

Data 00: Fan fault 01: Fan OK 02: Model without a Fan

50. Temperature Value (Command: d n)

To check the inside temperature value.

Transmission

[d][n][ ][Set ID][ ][Data][Cr]

Data FF: Check the status

Acknowledgement

[n][ ][Set ID][ ][OK/NG][Data][x] [n][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

* Temperature is displayed in hexadecimal.

52. Key (Command: m c)

To send a key code of the IR remote control.

Transmission

[m][c][ ][Set ID][ ][Data][Cr]

Data IR_KEY_CODE

Acknowledgement

[c][ ][Set ID][ ][OK/NG][Data][x]

For a key code, see the IR Code. * Some key codes are not supported depending on the model.

53. OSD Select (Command: k l)

To select OSD(On Screen Display) on/off.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Data 00: Off 01: On

Acknowledgement

[l][ ][Set ID][ ][OK/NG][Data][x]

ENGLISH

ENG

51. Remote Controller Lock/ Key Lock (Command: k m)

When the remote control and front keys are locked in standby mode, the power cannot be turned on using the remote control or front power button.

Transmission

[k][m][ ][Set ID][ ][Data][Cr]

Data 00: Off (Lock Off) 01: On (Lock On) * Display will not be turned on by power on key of remote controller and front panel control keys, if key is locked on in standby mode.

Acknowledgement

[m][ ][Set ID][ ][OK/NG][Data][x]

** It may not be supported depending on the model.

54. Elapsed time return (Command: d l)

To check the panel used time.

Transmission

[d][l][ ][Set ID][ ][Data][Cr]

Data FF: Read the status

Acknowledgement

[l][ ][Set ID][ ][OK/NG][Data][x]

* Returned data means used hours in hexadecimal.

Page 90

CONTROLLING THE MULTIPLE PRODUCT

55. Serial No.Check (Command: f y)

ENGLISH

ENG

56. S/W Version (Command: f z)

To check the Serial Numbers.

Transmission

[f][y][ ][Set ID][ ][Data][Cr]

Data FF: Check the product Serial Number

Acknowledgement

[y][ ][Set ID][ ][OK/NG][Data][x]

* Data is ASCII code.

To check the Software Version.

Transmission

[f][z][ ][Set ID][ ][Data][Cr]

Data FF: Check the Software version

Acknowledgement

[z][ ][Set ID][ ][OK/NG][Data][x]

58. White Balance Green Gain (Command: j n)

To set the White Balance Green Gain.

Transmission

[j][n][ ][Set ID][ ][Data][Cr]

Data 00 to FE: Green Gain 0 to 254

Acknowledgement

[n][ ][Set ID][ ][OK/NG][Data][x]

59. White Balance Blue Gain (Command: j o)

To set the White Balance Blue Gain.

Transmission

[j][o][ ][Set ID][ ][Data][Cr]

Data 00 to FE: Blue Gain 0 to 254

Acknowledgement

[o][ ][Set ID][ ][OK/NG][Data][x]

57. White Balance Red Gain (Command: j m)

To set the White Balance Red Gain.

Transmission

[j][m][ ][Set ID][ ][Data][Cr]

Data 00 to FE: Red Gain 0 to 254

Acknowledgement

[m][ ][Set ID][ ][OK/NG][Data][x]

60. Backlight (Command: m g)

To adjust the screen backlight.

Transmission

[m][g][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Backlight 0 to 100

Acknowledgement

[g][][set ID][][OK/NG][Data][x]

** It may not be supported depending on the model.

Page 91

CONTROLLING THE MULTIPLE PRODUCT

61. PC Power Control (Command: d t)

To control the PC power if the PC and the monitor are synchronized.

Transmission [d][t][ ][Set ID][ ][Data][Cr]

Data 00: Synchronized (When the monitor is off, the PC is

also turned off.)

01: Not synchronized (The monitor is off but the PC

is on.) 02: Maintain the power-on state of the PC. (When you turn on the monitor while the Media Player is

turned off, the Media Player is turned on.) ** It may not be supported depending on the model.

Acknowledgement [t][ ][Set ID][ ][OK][Data][x]

62. PC Power (Command: d s)

Control the PC power.

Transmission [d][s][ ][Set ID][ ][Data][Cr]

Data 00: PC is turned off. 01: PC is turned on. ** It may not be supported depending on the model.

Acknowledgement [s][ ][Set ID][ ][OK][Data][x]

64. Easy Brightness Control Schedule (Command: s s)

Sets the Easy Brightness Control Schedule.

Transmission [s][s][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]

Data1

1. F1 - F6 (Data Reading Functions) F1: Reads the data of the 1st Easy Brightness Control F2: Reads the data of the 2nd Easy Brightness Control F3: Reads the data of the 3rd Easy Brightness Control F4: Reads the data of the 4th Easy Brightness Control F5: Reads the data of the 5th Easy Brightness Control F6: Reads the data of the 6th Easy Brightness Control

2. E1-E6 (Deletes One Index), E0 (Delete All Indexes) E0: Deletes all Easy Brightness Controls E1: Deletes the 1st Easy Brightness Control E2: Deletes the 2nd Easy Brightness Control E3: Deletes the 3rd Easy Brightness Control E4: Deletes the 4th Easy Brightness Control E5: Deletes the 5th Easy Brightness Control E6: Deletes the 6th Easy Brightness Control

3. 00-17: 00 - 23:00 Data2 00-3B: 00 - 59 minutes Data3 00-64: backlight 0 - 100 * To read or delete the configured Easy Brightness Control list, set [Data2][Data3] to FF. (ex1: ss 01 f1 ff ff - Reads the 1st index data from the Easy Brightness Control. ex2: ss 01 e1 ff ff - Deletes the 1st index data from the Easy Brightness Control. ex3: ss 01 07 1E 46 - Adds a schedule to the backlight 70 at 07:30.)

Acknowledgement

[s][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

** It may not be supported, depending on the model.

ENGLISH

ENG

63. Easy Brightness Control Mode (Command: s m)

Selects ON/OFF of Easy Brightness Control Mode.

Transmission [s][m][ ][Set ID][ ][Data][Cr]

Data 00: Easy Brightness Control OFF 01: Easy Brightness Control ON * It does not work if the current time is not set up. ** It may not be supported, depending on the model.

Acknowledgement

[m][ ][Set ID][ ][OK/NG][Data][x]

Page 92

CONTROLLING THE MULTIPLE PRODUCT

65. Status check (Command: s v)

ENGLISH

ENG

Check various statuses.

Transmission [s][v][ ][Set ID][ ][Data][ ][FF][Cr]

Data 05: Check the normal operation of No.1 and No.2 luminance sensors. 06: luminance sensor being used: 07: Check the normal operation of top, bottom,

or main temperature sensors.

Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][Data1][x]

When the Data is 05 Data1 00: All normal 01: BLU sensor 1 normal, BLU sensor 2 fail 02: BLU sensor 1 fail, BLU sensor 2 normal 03: All fail When the Data is 06 Data1 00: No.1 luminance sensor is being used 01: No.2 luminance sensor is being used

When the Data is 07 Data1 00: All temperature sensors fail 01: Top normal, Bottom fail, Main fail 02: Top fail, Bottom normal, Main fail 03: Top normal, Bottom normal, Main fail 04: Top fail, Bottom fail, Main normal 05: Top normal, Bottom fail, Main fail 06: Top fail, Bottom normal, Main fail 07: All temperature sensors normal

66. BLU Maintenance (Command: m t)

Select ON/OFF of BLU Maintenance.

Transmission [m][t][ ][Set ID][ ][Data][Cr]

Data 00: BLU Maintenance OFF 01: BLU Maintenance ON ** It may not be supported, depending on the model.

Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x]

67. Screen mute (Command: k d)

Turns the screen on or off.

Transmission [k][d][ ][Set ID][ ][Data][Cr]

Data 00: Turns the screen on. 01: Turns the screen off.

Acknowledgement

[d][ ][Set ID][ ][OK/NG][Data][x]

When the Data is 08

Acknowledgement

[v][ ][SetID][ ][OK/NG][Data][Data1][Data2][Data3][x]

Data1: Temperature of the top sensor area when the set is powered off. Data2: Temperature of the bottom sensor area when the set is powered off. Data3: Temperature of the main sensor area when the set is powered off.

When the Data is 09

Acknowledgement

[v][ ][SetID][ ][OK/NG][Data][Data1][Data2][x]

Data1 00-ff: Upper 2-byte of Fan Speed Data2 00-ff: Lower 2-byte of Fan Speed Fan Speed: Hex 0-20D0, Decimal 0-8400 ** It may not be supported, depending on the model.

Page 93

Make sure to read the Safety Precautions before using the product. Keep the Owner's Manual(CD) in an accessible place for future reference. The model and serial number of the SET is located on the back and one side of the SET. Record it below should you ever need service.

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http:// opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to [email protected]. This offer is valid for three (3) years from the date on which you purchased the product.

WARNING -This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

MODEL

SERIAL

Temporary noise is normal when powering ON or OFF this device.
