SETTING UP THE TV

Image shown may differ from your TV.

Attaching the stand

SETTING UP THE TV

A-3

47/55LM96

Stand body

Stand base

4 EA M4 x 20

Front

Top View

Stand rear cover

4 EA M4 x 20

CAUTION

y When attaching the stand to the TV set,

place the screen facing down on a cushioned table or flat surface to protect the screen

from scratches.

CAUTION

y Make sure that the screws are inserted

correctly and fastened securely. If they are

not fastened securely enough, the TV may

tilt forward after being installed.

y Do not use too much force and over tighten

the screws; otherwise screw may be

damaged and not tighten correctly.

NOTE

y Remove the stand before installing the TV on

a wall mount by performing the stand

attachment in reverse.

A-4

SETTING UP THE TV

84LM96

Stand base

Stand body

4 EA M4 x 20

Front

6 EA M5 x 16

Front

CAUTION

y When attaching the stand to the TV set,

place the screen facing down on a cushioned table or flat surface to protect the screen

from scratches.

CAUTION

y Make sure that the screws are inserted

correctly and fastened securely. If they are

not fastened securely enough, the TV may

tilt forward after being installed.

y Do not use too much force and over tighten

the screws; otherwise screw may be

damaged and not tighten correctly.

NOTE

y Remove the stand before installing the TV on

a wall mount by performing the stand

attachment in reverse.

SETTING UP THE TV

A-5

42/47/55LM86

Stand body

Stand base

4 EA M4 x 20

Front

Top View

Stand rear cover

CAUTION

y When attaching the stand to the TV set,

place the screen facing down on a cushioned table or flat surface to protect the screen

from scratches.

Wrapping bag

A-6

SETTING UP THE TV

4 EA M4 x 20

Protection pad

NOTE

y Remove the stand before installing the TV on

a wall mount by performing the stand

attachment in reverse.

CAUTION

y Make sure that the screws are inserted

correctly and fastened securely. If they are

not fastened securely enough, the TV may

tilt forward after being installed.

y Do not use too much force and over tighten

the screws; otherwise screw may be

damaged and not tighten correctly.

SETTING UP THE TV

A-7

72LM95

Stand body

Stand base

4 EA M5 x 35

Front

Top View

4 EA M4 x 20

CAUTION

y When attaching the stand to the TV set,

place the screen facing down on a cushioned table or flat surface to protect the screen

from scratches.

Stand rear cover

CAUTION

y Make sure that the screws are inserted

correctly and fastened securely. If they are

not fastened securely enough, the TV may

tilt forward after being installed.

y Do not use too much force and over tighten

the screws; otherwise screw may be

damaged and not tighten correctly.

NOTE

y Remove the stand before installing the TV on

a wall mount by performing the stand

attachment in reverse.

A-8

SETTING UP THE TV

Tidying cables

47/55LM96**, 42/47/55LM86

1 Gather the cables with the stand rear cover.

Stand rear cover

2 Install the cable holder as shown.

84LM96

1 Gather and bind the cables with the cable

management.

Cable management

2 Install the cable holder as shown.

Cable holder

3 Gather and bind the cables with the cable

holder.

3 Gather and bind the cables with the cable

Cable holder

holder.

CAUTION

y Do not move the TV by holding the cable holder, as the cable holders may break, and injuries and

damage to the TV may occur.

SETTING UP THE TV

A-9

72LM95

1 Install the cable holder as shown.

Cable holder

2 Gather and bind the cables with the cable

holder.

CAUTION

y Do not move the TV by holding the cable

holder, as the cable holders may break, and

injuries and damage to the TV may occur.

3 Pull the cable management on the stand rear

cover and organize cables. Then, put it back.

Cable management

OWNER’S MANUAL

LED LCD TV

Please read this manual carefully before operating your set and retain it for future reference.

www.lg.com

ENGLISH

ENG

TABLE OF CONTENTS

3 LICENSES

3 OPEN SOURCE SOFTWARE NOTICE

4 SAFETY INSTRUCTIONS

10 Viewing 3D Imaging

12 INSTALLATION PROCEDURE

12 ASSEMBLING AND PREPARING

12 Unpacking 15 Separate purchase 16 Parts and buttons 17 Lifting and moving the TV 18 Mounting on a table 19 Mounting on a wall

21 MAGIC REMOTE CONTROL FUNC-

TIONS

22 Registering magic remote control 22 How to use magic remote control 22 Precautions to take when using the magic

remote control

23 REMOTE CONTROL

24 USING THE USER GUIDE

25 MAINTENANCE

25 Cleaning Your TV 25 - Screen, frame, cabinet and stand 25 - Power cord

25 TROUBLESHOOTING

26 SPECIFICATIONS

WARNING

yIf you ignore the warning message, you

may be seriously injured or there is a possibility of accident or death.

CAUTION

yIf you ignore the caution message, you

may be slightly injured or the product may be damaged.

NOTE

yThe note helps you understand and use

the product safely. Please read the note carefully before using the product.

LICENSES / OPEN SOURCE SOFTWARE NOTICE

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

ENGLISH

ENG

“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”

“DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.”

“Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274”

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.

ENGLISH

ENG

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

WARNING

yDo not place the TV and/or remote control in the following environments:

» A location exposed to direct sunlight » An area with high humidity such as a bathroom » Near any heat source such as stoves and other devices that produce heat » Near kitchen counters or humidifiers where they can easily be exposed to steam or

oil » An area exposed to rain or wind » Near containers of water such as vases Otherwise, this may result in fire, electric shock, malfunction or product deformation.

yDo not place the product where it might be exposed to dust.

This may cause a fire hazard.

Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

yDo not touch the power plug with wet hands. Additionally, if the cord pin is wet or

covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

yMake sure to connect Mains cable to compliant AC mains socket with Grounded

earth pin. (Except for devices which are not grounded on earth.) otherwise possibility you may be electrocuted or injured.

yInsert power cable plug completely into wall socket otherwise if not secured

completely into socket, fire ignition may break out.

yEnsure the power cord does not come into contact with hot objects such as a

heater. This may cause a fire or an electric shock hazard.

yDo not place a heavy object, or the product itself, on power cables.

Otherwise, this may result in fire or electric shock.

yBend antenna cable between inside and outside building to prevent rain from

flowing in. This may cause water damaged inside the Product and could give an electric shock.

SAFETY INSTRUCTIONS

Desiccant

WARNING

ENGLISH

ENG

yWhen mounting TV onto wall make sure to neatly install and isolate cabling from

rear of TV as to not create possibility of electric shock /fire hazard.

yDo not plug too many electrical devices into a single multiple electrical outlet.

Otherwise, this may result in fire due to over-heating.

yDo not drop the product or let it fall over when connecting external devices.

Otherwise, this may result in injury or damage to the product.

yKeep the packing anti-moisture material or vinyl packing out of the reach of children.

Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

yDo not let your children climb or cling onto the TV.

Otherwise, the TV may fall over, which may cause serious injury.

yDispose of used batteries carefully to ensure that a small child does not consume

them. Please seek Doctor- Medical Attention immediately if child consumes batteries.

yDo not insert any metal objects/conductors (like a metal chopstick/cutlery/

screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)

yDo not put or store inflammable substances near the product.

There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.

yDo not drop metallic objects such as coins, hair pins, chopsticks or wire into the

product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

yDo not spray water on the product or scrub with an inflammable substance (thinner

or benzene). Fire or electric shock accident can occur.

yDo not allow any impact, shock or any objects to fall into the unit, and do not drop

anything onto the screen. You may be injured or the product can be damaged.

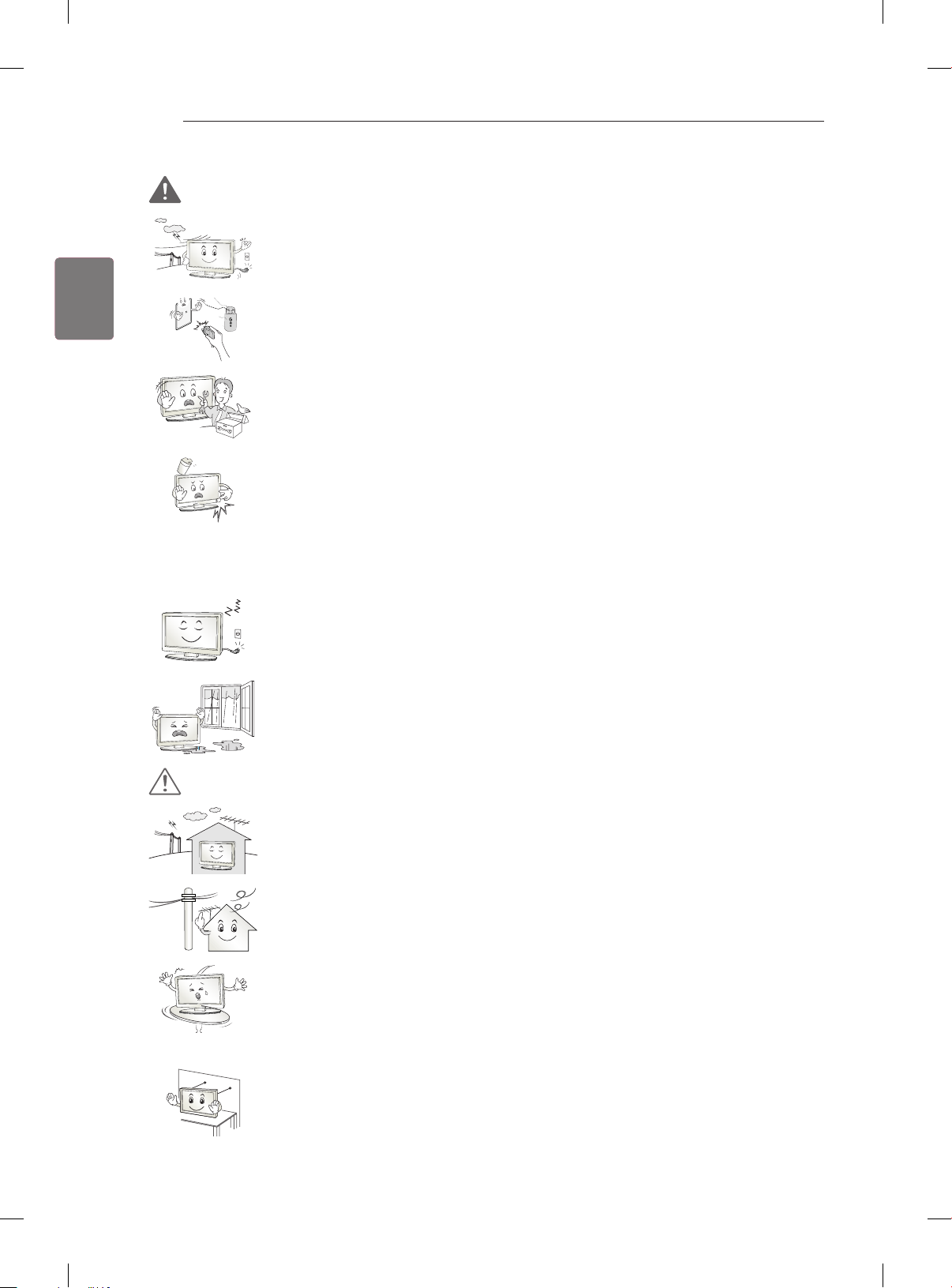

SAFETY INSTRUCTIONS

ENGLISH

ENG

WARNING

yNever touch this product or antenna during a thunder or lighting storm.

You may be electrocuted.

yNever touch the wall outlet when there is leakage of gas, open the windows and

ventilate. It may cause a fire or a burn by a spark.

yDo not disassemble, repair or modify the product at your own discretion.

Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.

yIf any of the following occur, unplug the product immediately and contact your local

service centre. » The product has been impacted by shock » The product has been damaged » Foreign objects have entered the product » The product produced smoke or a strange smell This may result in fire or electric shock.

yUnplug the TV from AC mains wall socket if you do not intend to use the TV for a

long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.

CAUTION

yApparatus shall not be exposed to dripping or splashing and no objects filled with

liquids, such as vases, shall be placed on the apparatus.

yInstall the product where no radio wave occurs.

yThere should be enough distance between an outside antenna and power lines to

keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

yDo not install the product on places such as unstable shelves or inclined surfaces.

Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

yIf you install the TV on a stand, you need to take actions to prevent the product from

overturning. Otherwise, the product may fall over, which may cause injury.

SAFETY INSTRUCTIONS

CAUTION

yIf you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts)

to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

yOnly use the attachments / accessories specified by the manufacturer.

yWhen installing the antenna, consult with a qualified service technician. If not

installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

yWe recommend that you maintain a distance of at least 2 to 7 times the diagonal

screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

yOnly use the specified type of battery.

This could cause damage to the remote control.

yDo not mix new batteries with old batteries.

This may cause the batteries to overheat and leak.

yBatteries should not be exposed to excessive heat. For example, keep away from direct sunlight,

open fireplace and electric heaters.

ENGLISH

ENG

y Do not place non-rechargeable batteries in charging device.

yMake sure there are no objects between the remote control and its sensor.

ySignal from remote control can be interrupted due to external/internal lighting eg

sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

yWhen connecting external devices such as video game consoles, make sure the

connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

yDo not turn the product On/Off by plugging-in or unplugging the power plug to the

wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

yPlease follow the installation instructions below to prevent the product from

overheating. » The distance between the product and the wall should be more than 10 cm. » Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a

cupboard). » Do not install the product on a carpet or cushion. » Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire.

SAFETY INSTRUCTIONS

ENGLISH

ENG

CAUTION

yTake care not to touch the ventilation openings when watching the TV for long

periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

yPeriodically examine the cord of your appliance, and if its appearance indicates damage or

deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

yPrevent dust collecting on the power plug pins or outlet.

This may cause a fire hazard.

yProtect the power cord from physical or mechanical abuse, such as being twisted,

kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

yDo not press strongly upon the panel with a hand or sharp object such as nail,

pencil or pen, or make a scratch on it, as it may cause damage to screen.

yAvoid touching the screen or holding your finger(s) against it for long periods of time.

Doing so may produce some temporary or permanent distortion/damage to screen.

yWhen cleaning the product and its components, unplug the power first and wipe it

with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).

yAs long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source

even if you turn off this unit by SWITCH.

yWhen unplugging the cable, grab the plug and unplug it, by pulling at the plug.

Don’t pull at the cord to unplug the power cord from the power board, as this could be hazardous.

yWhen moving the product, make sure you turn the power off first. Then, unplug the

power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

yWhen moving or unpacking the product, work in pairs because the product is heavy.

Otherwise, this may result in injury.

SAFETY INSTRUCTIONS

CAUTION

ENGLISH

ENG

yContact the service centre once a year to clean the internal parts of the product.

Accumulated dust can cause mechanical failure.

yRefer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

yIf the product feels cold to the touch, there may be a small “flicker” when it is turned

on. This is normal, there is nothing wrong with product.

yThe panel is a high technology display product with resolution of two million to six

million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.

yYou may find different brightness and colour of the panel depending on your viewing

position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

yDisplaying a still image (e.g., broadcasting channel

logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as

yIf an image remains still for a while,

the screen may become dim in order to minimize the power consumption. The screen gets brighter again when you operate the remote control or a different image appears. (Only 84LM96**)

yGenerated Sound

“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depend-ing on the product. This generated sound does not affect the performance and reliability of the product.

image sticking. The warranty does not cover the product for image sticking. Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma). Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel. This phenomenon also occurs in third-party products and is not subject to exchange or refund.

SAFETY INSTRUCTIONS

ENGLISH

ENG

Viewing 3D Imaging

WARNING

Viewing Environment

yViewing Time

When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness

ySome users may experience a seizure or other abnormal symptoms when they are exposed to a

flashing light or particular pattern from 3D contents.

yDo not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as

epilepsy, cardiac disorder, or blood pressure disease, etc.

y3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly.

Double images or discomfort in viewing may be experienced.

yIf you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have

trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.

yIf your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D

contents.

Symptoms which require discontinuation or refraining from watching 3D contents

yDo not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking. yWhen these symptoms are experienced, stop using/watching 3D contents and get enough rest until

the symptom subsides. » Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain,

dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

SAFETY INSTRUCTIONS

CAUTION

Viewing Environment

yViewing Distance

Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV.

Viewing Age

yInfants/Children

Usage/ Viewing 3D contents for children under the age of 6 are prohibited. Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D contents. Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.

yTeenagers

Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contens for a long time when they are tired.

yElderly

The elderly may perceive less 3D effect compared to the youth. Do not sit closer to the TV than the recommended distance.

ENGLISH

ENG

Cautions when using the 3D glasses

yMake sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly. yDo not use 3D glasses instead of your normal glasses, sunglasses or protective goggles. yUsing modified 3D glasses may cause eye strain or image distortion. yDo not keep your 3D glasses in extremely high or low temperatures. It will cause deformation. yThe 3D glasses are fragile and are easy to be scratched. Always use a soft, clean piece of cloth when

wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.

INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING

ENGLISH

ENG

NOTE

y Image shown may differ from your TV. y Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual. y The available menus and options may differ from the input source or product model that you are using. y New features may be added to this TV in the future. y The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be

turned off if it will not be watched for some time, as this will reduce energy consumption.

y The energy consumed during use can be significantly reduced if the level of brightness of the picture is

reduced, and this will reduce the overall running cost.

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included. 2 Attach the stand to the TV set. 3 Connect an external device to the TV set. 4 Make sure the network connection is available.

You can use the TV network functions only when the network connection is made.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

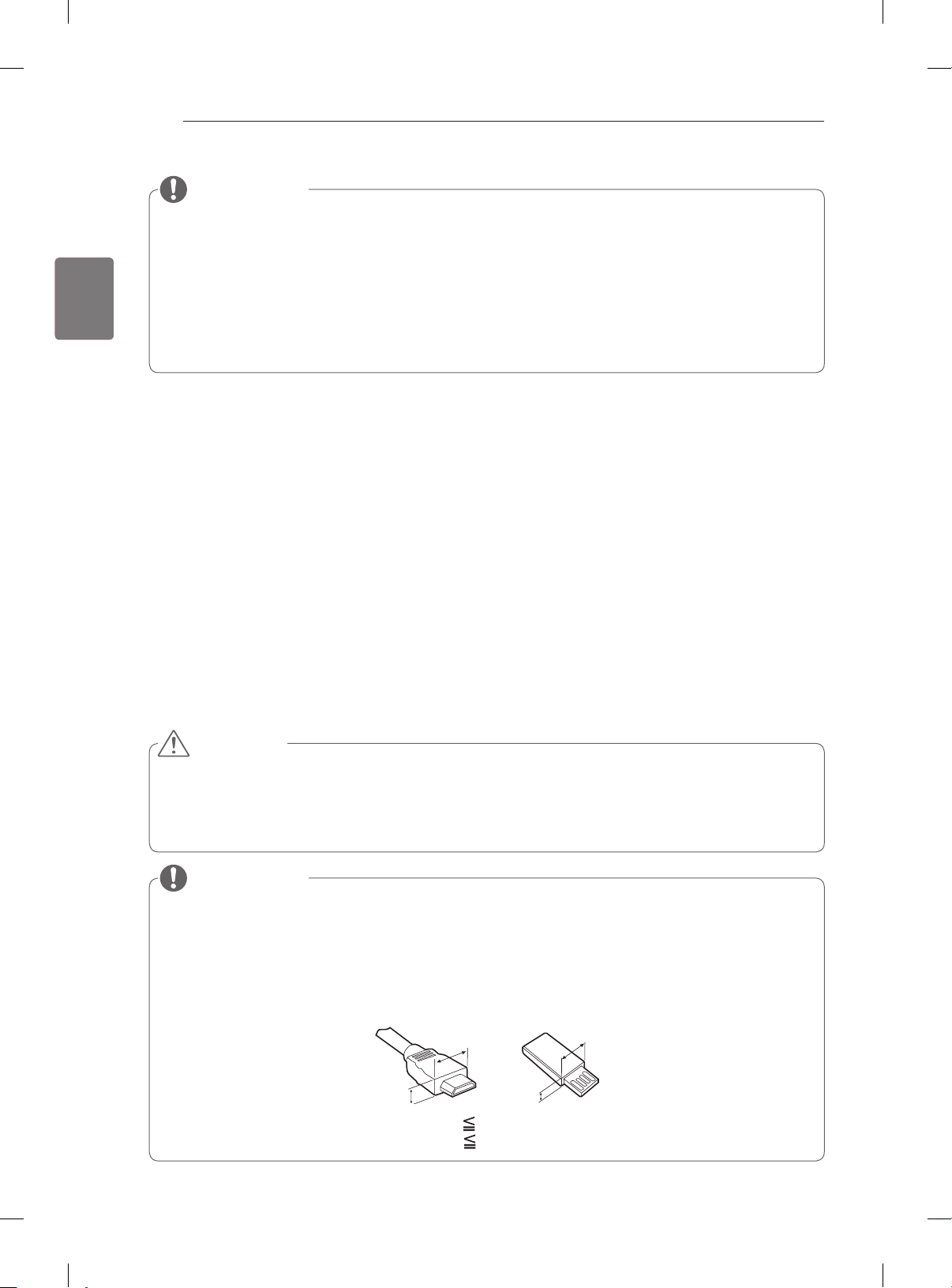

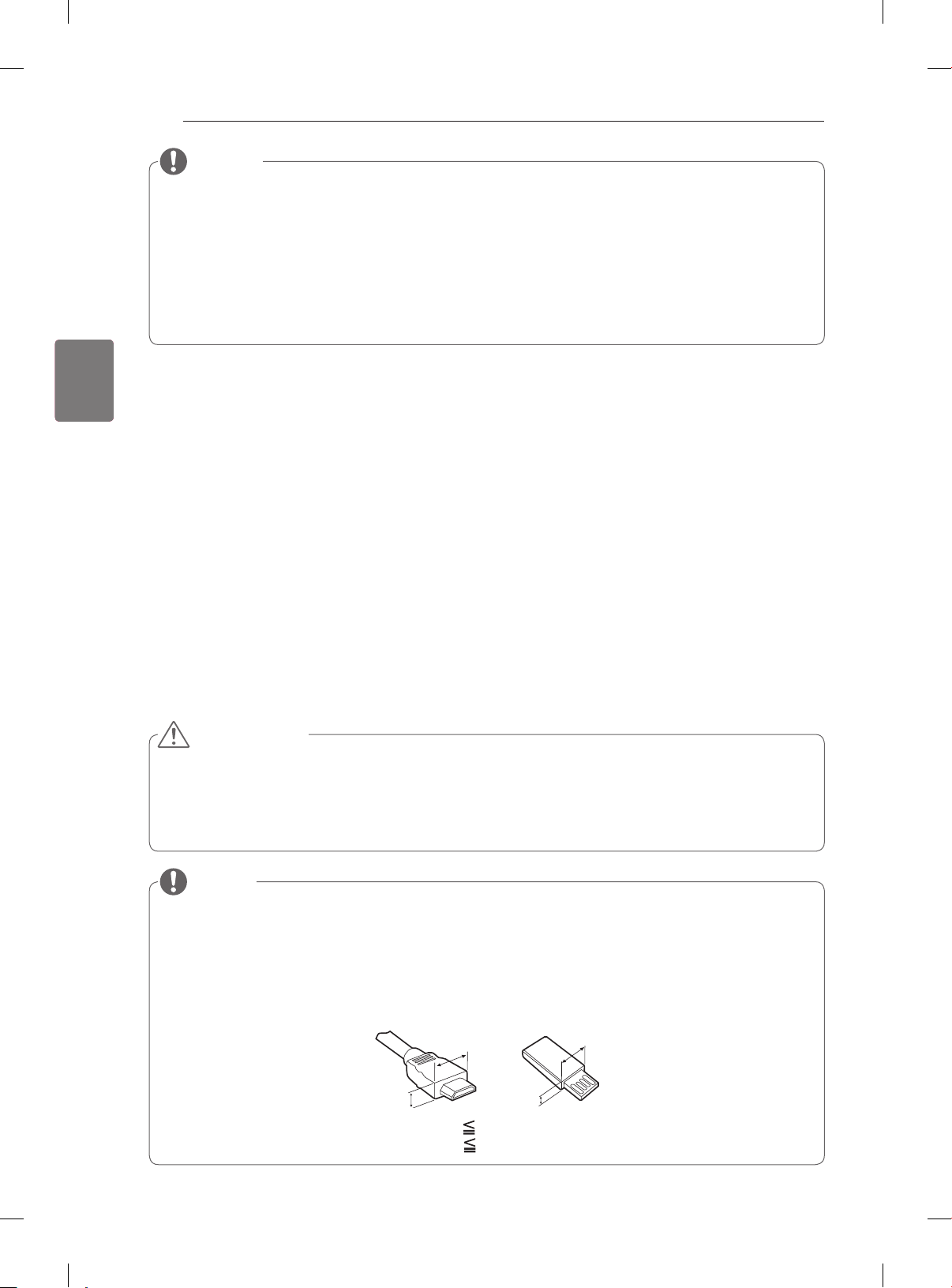

CAUTION

y Do not use any unapproved items to ensure the safety and product life span. y Any damages or injuries by using unapproved items are not covered by the warranty. y Some models have a thin film attached on to the screen and this must not be removed.

NOTE

y The items supplied with your product may vary depending on the model. y Product specifications or contents of this manual may be changed without prior notice due to upgrade of

product functions.

y For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and

18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port.

A 10 mm B 18 mm

ASSEMBLING AND PREPARING

ENGLISH

ENG

Owner’s manual Magic remote control,

batteries (AA)

(See p.21)

Composite video cable

(See p.B-21, B-23)

Cinema 3D glasses

The number of 3D glasses

Component video cable

(See p.B-21)

Dual play glasses

(Depending on model) may differ depending on the model or country.

Remote control, batteries (AAA)

(See p.23)

Scart gender cable

(See p.B-25)

Only 47/55LM96**, 42/47/55LM86

Stand rear cover

(See p.A-3, A-5)

Stand screws

8 EA, M4 x 20 (See p.A-3, A-5)

Stand body

(See p.A-3, A-5)

Cable holder

2 EA

(See p.A-8)

Stand base

(See p.A-3, A-5)

ASSEMBLING AND PREPARING

ENGLISH

ENG

Only 84LM96

Stand body

(See p.A-4)

Cable holder

(See p.A-8)

Only 72LM95

Stand base

(See p.A-4)

Stand screws

4 EA, M4 x 20 / 6 EA, M5 x 16 (See p.A-4)

Stand rear cover

(See p.A-7)

Stand screws

4 EA, M4 x 20 / 4 EA, M5 x 35 (See p.A-7)

Wireless LAN

Stand body

(See p.A-7)

Cable holder

2 EA (See p.A-9)

Stand base

(See p.A-7)

Power cord

ASSEMBLING AND PREPARING

Separate purchase

Separate purchase items can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items. These devices only work with certain models.

AN-MR300

Magic remote control

AN-WF100

Wireless LAN

AG-F

***

Cinema 3D glasses

AN-VC

***

Video call camera

AG-F

Dual play glasses

***

ENGLISH

ENG

Compatibility

AN-MR300

Magic remote control

AG-F

***

Cinema 3D glasses

AG-F

Dual play glasses

AN-WF100

Wireless LAN

AN-VC

Video call camera

The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies.

***

47/55/84LM96

• • •

72LM95

•

42/47/55LM86

ASSEMBLING AND PREPARING

ENGLISH

ENG

Parts and buttons

47/55LM96**, 42/47/55LM86

Screen

Speakers

Remote control and

intelligent sensors

Power Indicator

(Only 47/55LM96**)

84LM96**

Screen

SETTINGS

INPUT

Buttons

LG Logo Light

(Only 42/47/55LM86**)

72LM95

Screen

Speakers

SETTINGS

INPUT

Buttons

Remote control and

intelligent sensors

Power Indicator

SETTINGS

INPUT

Speakers

Remote control and

intelligent sensors

Button

Scrolls through the saved programmes.

Buttons

LG Logo Light

Description

Adjusts the volume level.

Selects the highlighted menu option or confirms an input. Accesses the main menu, or saves your input and exits the menus. Changes the input source. Turns the power on or off.

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.

NOTE

y You can set the power indicator light to on or off by selecting OPTION in the main menus.

(Depending on model)

ASSEMBLING AND PREPARING

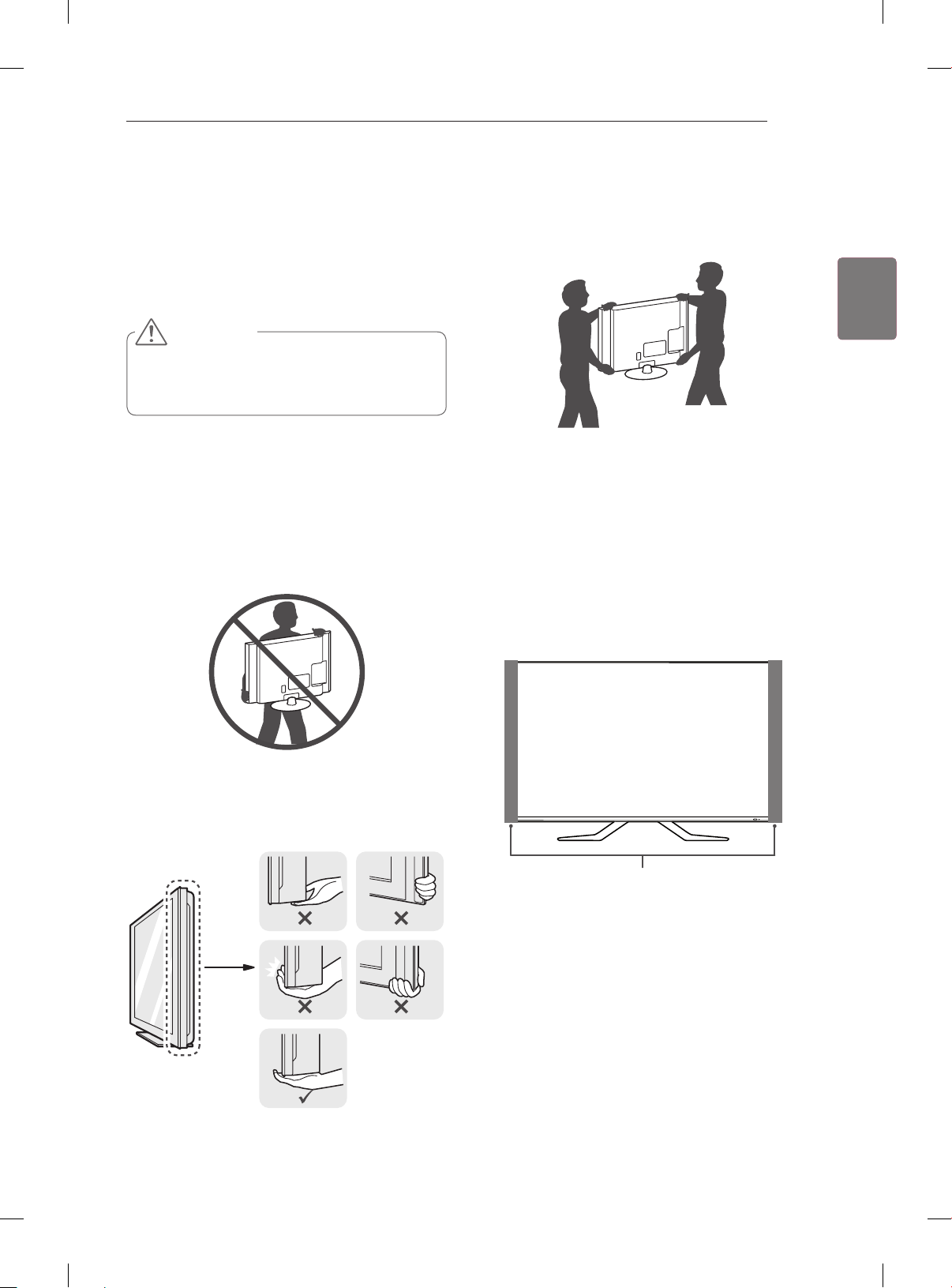

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

y Avoid touching the screen at all times, as this

may result in damage to the screen.

yIt is recommended to move the TV in the box

or packing material that the TV originally came in.

yBefore moving or lifting the TV, disconnect the

power cord and all cables.

yWhen holding the TV, the screen should face

away from you to avoid damage.

yWhen transporting a large TV, there should be

at least 2 people.

yWhen transporting the TV by hand, hold the

TV as shown in the following illustration.

yWhen transporting the TV, do not expose the

TV to jolts or excessive vibration.

yWhen transporting the TV, keep the TV

upright, never turn the TV on its side or tilt towards the left or right.

yDo not apply excessive pressure to cause

flexing /bending of frame chassis as it may damage screen.

yWhenever you handle TV, Protection pad

should be covered with side of TV. (Depending on model)

ENGLISH

ENG

yHold the top and bottom of the TV frame firmly.

Make sure not to hold the transparent part, speaker, or speaker grill area.

Protection pad

ASSEMBLING AND PREPARING

ENGLISH

ENG

Mounting on a table

Lift and tilt the TV into its upright position on a

table.

- Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm

Connect the power cord to a wall outlet.

CAUTION

y Use a dedicated power cord. Do not modify or

extend the power cord.

y Do not place the TV near or on sources of

heat, as this may result in fire or other damage.

10 cm

Adjusting the angle of the TV to suit view

47/55LM96**, 42/47/55LM86**, 72LM95

Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view.

20˚20˚

84LM96

Swivel 7 degrees to the left or right and adjust the angle of the TV to suit your view.

7˚

CAUTION

y When adjusting the angle of the product, watch

out for your fingers. Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.

Front Rear

ASSEMBLING AND PREPARING

Securing the TV to a wall

This feature is not available for all models.

1 Insert and tighten the eye-bolts, or TV brackets

and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts position, remove the bolts first.

2 Mount the wall brackets with the bolts to the

wall. Match the location of the wall bracket and the

eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly

with a sturdy rope. Make sure to keep the rope horizontal with the

flat surface.

CAUTION

y Make sure that children do not climb on or

hang on the TV.

NOTE

Mounting on a wall

Attach a wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer.

10 cm

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Wall mount bracket

Model 47/55LM96

42/47/55LM86

VESA (A x B) 400 x 400 600 x 400 Standard screw

Number of screws

Wall mount bracket

M6 M8

4 4

LSW400BX

84LM96 72LM95

LSW630B

** **

ENGLISH

ENG

y Use a platform or cabinet that is strong and

large enough to support the TV securely.

y Brackets, bolts and ropes are not provided.

You can obtain additional accessories from your local dealer.

LSW420BX

ASSEMBLING AND PREPARING

ENGLISH

ENG

CAUTION

y Disconnect the power first, and then move or

install the TV. Otherwise electric shock may occur.

y Use a dedicated power cord. Do not modify or

extend the power cord.

y If you install the TV on a ceiling or slanted

wall, it may fall and result in injury. Use an authorized LG wall mount bracket and contact the local dealer or qualified personnel.

y Do not over tighten the screws as this may

cause damage to the TV and void your warranty.

y Use the screws and wall mount bracket that

meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

y Use the screws that are listed on the VESA

standard screw specifications.

y The wall mount kit includes an installation

manual and necessary parts.

y The length of screws may differ depending

on the wall mount. Make sure to use the proper length.

y For more information, refer to the manual

supplied with the wall mount bracket.

y The wall mount bracket is not provided. You

can obtain additional accessories from your local dealer.

(Depending on model)

y In order to protect the TV screen(scratch,

fingerprint), put TV on flat table without removing wrapping bag.

y After removing the wrapping bag on the back

of the TV, install TV according to manual included in wall mounting bracket product.

y Remove protection pads after installing TV.

+ 491 hidden pages
